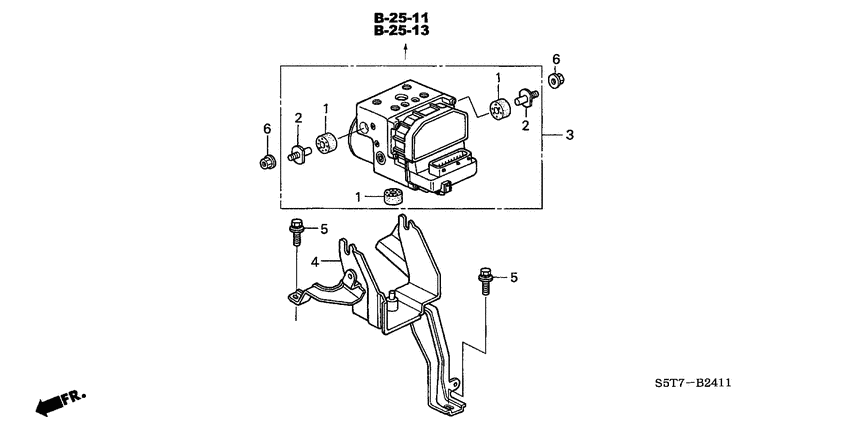

Abs modulator (2) 2 / 4

#	OEM	EP3	ES4
1	57101-S5A-A00	Damper	Damper
2	57102-S5A-A00	Bolt - ABS MOUNTING	Bolt - ABS MOUNTING

Air cleaner (TYPE R) 6 / 17

#	OEM	EP3	ES4
5	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
8	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
11	75353-671-000	Lock - SCREW	Lock - SCREW
13	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
14	90091-P36-000	Bolt-washer - 5X28	Bolt-washer - 5X28

Air conditioner (COOLING UNIT; LH) 6 / 15

#	OEM	EP3	ES4
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
15	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
20	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)

Air conditioner (HOSES/PIPES; LH; TYPE R) 8 / 20

#	OEM	EP3	ES4
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
8	80352-S5A-000	Bracket - LIQUID TANK	Bracket - LIQUID TANK
11	80387-SM4-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
13	80464-S5A-000	Grommet - AIR CONDITIONER PIPE	Grommet - AIR CONDITIONER PIPE
17	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
18	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
19	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
20	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Air flow tube (TYPE R) 2 / 16

#	OEM	EP3	ES4
10	17263-P0A-000	Rubber - AIR CLEANER STAY	Rubber - AIR CLEANER STAY
13	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)

Antenna/speaker 7 / 14

#	OEM	EP3	ES4
3	39122-S5A-000	Seal - SPEAKER HOLE	Seal - SPEAKER HOLE
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
15	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
16	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
17	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Battery (TYPE R) 6 / 13

#	OEM	EP3	ES4
2	31512-S5A-000	Plate - BATTERY SETTING	Plate - BATTERY SETTING
9	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
11	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
12	90182-SB6-000	Bolt-washer - 6X16	Bolt-washer - 6X16
13	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)

Brake lines (ABS; LH; 2) 6 / 34

#	OEM	EP3	ES4
13	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
14	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46391-S5A-Z01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
32	46462-SE0-000	Bolt - OIL	Bolt - OIL
34	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
35	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Brake master cylinder/ master power (LH; 2) 15 / 29

#	OEM	EP3	ES4
3	46070-SL0-G01	Plate - SYMBOL MARK	Plate - SYMBOL MARK
7	46135-S5A-J41	Guide assy - PISTON	Guide assy - PISTON
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
9	46185-SE0-003	Seal - ROD	Seal - ROD
10	46191-S2K-000	Packing - MASTER POWER	Packing - MASTER POWER
15	46512-S70-000	Pin - PEDAL	Pin - PEDAL
17	46662-S5A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
18	46665-S04-J01	Grommet	Grommet
19	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
20	46669-S5A-003	Diaphragm	Diaphragm
25	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
26	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
27	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
28	57515-S30-003	Pin - STOP	Pin - STOP
29	57562-SF1-003	Circlip	Circlip

Bumpers 10 / 29

#	OEM	EP3	ES4
13	71505-S5A-J00	Bracket - R. RR. BUMPER SIDE	Bracket - R. RR. BUMPER SIDE
17	71555-S5A-J00	Bracket - L. RR. BUMPER SIDE	Bracket - L. RR. BUMPER SIDE
23	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
24	90109-SS0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
27	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
31	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
32	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
36	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
37	91503-SZ3-003	Clip A	Clip A
38	91503-SZ5-003	Clip - BUMPER FACE	Clip - BUMPER FACE

Clutch case (TYPE R) 1 / 10

#	OEM	EP3	ES4
9	91206-PHR-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)

Clutch master cylinder (LH; 2) 24 / 35

#	OEM	EP3	ES4
1	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke	Yoke
4	46182-500-013	Circlip	Circlip
5	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
6	46912-S84-A00	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
8	46921-S5A-003	Plate - STOPPER	Plate - STOPPER
9	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER	Piston comp - CLUTCH MASTER CYLINDER
10	46928-S5A-A01	Seal - MASTER CYLINDER	Seal - MASTER CYLINDER
12	46931-S5A-003	Pin - SPRING	Pin - SPRING
13	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
14	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
15	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
16	46942-S5A-003	Pin - SNAP	Pin - SNAP
17	46943-S5A-003	Seal - RING	Seal - RING
18	46944-S5A-J01	Connector	Connector
19	46945-S5A-003	O-ring	O-ring
20	46946-S5A-003	Screw-washer - 4X12	Screw-washer - 4X12
21	46947-S5A-003	Rod - PUSH	Rod - PUSH
22	46948-S5A-003	Rod - PUSH	Rod - PUSH
23	46949-S5A-003	Seal - RING	Seal - RING
27	46965-S5A-013	Tank assy. - CLUTCH FLUID	Tank assy. - CLUTCH FLUID
31	46972-S6F-E01	Clamp - TUBE (D12)	Clamp - TUBE (D12)
34	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

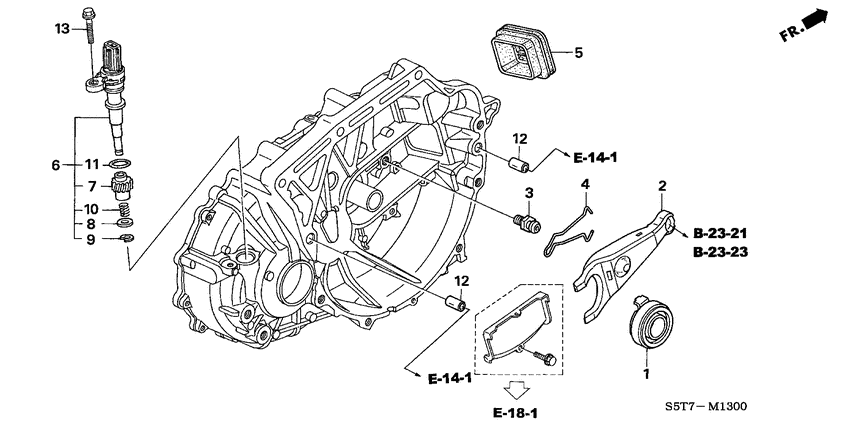

Clutch release (TYPE R) 5 / 11

#	OEM	EP3	ES4
7	78415-S5T-901	Gear	Gear
8	78416-S2R-003	Washer	Washer
9	78417-S2R-003	Ring - STOP (C-TYPE)	Ring - STOP (C-TYPE)
10	78418-S2R-003	Spring	Spring
11	78419-S2R-003	Seal - RING	Seal - RING

Combination switch 19 / 22

#	OEM	EP3	ES4
2	35100-S5A-E22	Lock assy - STEERING	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
6	35113-S0X-Y01	Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER)	Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER)
6	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
8	35130-S5A-J51	Switch comp - STEERING	Switch comp - STEERING
9	35251-S5A-Y03	Body comp - SWITCH	Body comp - SWITCH
10	35255-S5A-G02	Switch assy - LIGHTING & TURN SIGNAL	Switch assy - LIGHTING & TURN SIGNAL
12	35257-S5A-J01	Bracket	Bracket
13	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)	Switch assy - DOOR (MATSUSHITA)
14	39730-SEA-E01	Immobilizer unit	Immobilizer unit
15	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
16	72146-S5A-G01	Cover - BATTERY	Cover - BATTERY
18	72148-S10-003	Battery - CR2025	Battery - CR2025
18	72148-S84-A10	Battery - CR2025	Battery - CR2025
19	72149-S10-003	O-ring	O-ring
20	90132-S2H-G01	Screw - ET, 5X18	Screw - ET, 5X18
20	90132-S2H-G11	Screw - ET, 5.5X18	Screw - ET, 5.5X18

Console 1 / 4

#	OEM	EP3	ES4
13	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Control unit (CABIN; LH) 12 / 29

#	OEM	EP3	ES4
19	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
19	38300-S5T-004	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
20	38310-S6A-S02	Relay - CLEANER CONTROL	Relay - CLEANER CONTROL
23	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
23	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
23	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
23	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
25	39794-S5A-003	Relay assy - FUEL PUMP(5P) (MITSUBA)	Relay assy - FUEL PUMP(5P) (MITSUBA)
26	39794-S5A-901	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
29	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
30	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; TYPE R) 17 / 27

#	OEM	EP3	ES4
1	38100-S04-A01	Horn assy - LOW (MITSUBA)	Horn assy - LOW (MITSUBA)
5	38213-SM4-003	Fuse - BLOCK (50A)	Fuse - BLOCK (50A)
6	38214-SS1-003	Fuse - BLOCK (60A)	Fuse - BLOCK (60A)
7	38216-SM4-003	Fuse - BLOCK (80A)	Fuse - BLOCK (80A)
8	38231-S04-003	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
9	38231-S04-961	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
10	38235-S04-003	Puller - MINI FUSE (SUMITOMO)	Puller - MINI FUSE (SUMITOMO)
13	38252-S5A-003	Cover - LOWER	Cover - LOWER
17	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
18	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
18	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)
19	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
19	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
19	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
19	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
20	90129-SP0-000	Screw-washer - 5X12	Screw-washer - 5X12
21	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Cylinder block/oil pan (TYPE R) 5 / 27

#	OEM	EP3	ES4
10	37240-PT0-023	Switch - OIL PRESSURE(DENSO)	Switch - OIL PRESSURE(DENSO)
10	37240-PT0-014	Switch - OIL PRESSURE (TEC)	Switch - OIL PRESSURE (TEC)
11	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
16	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
17	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22

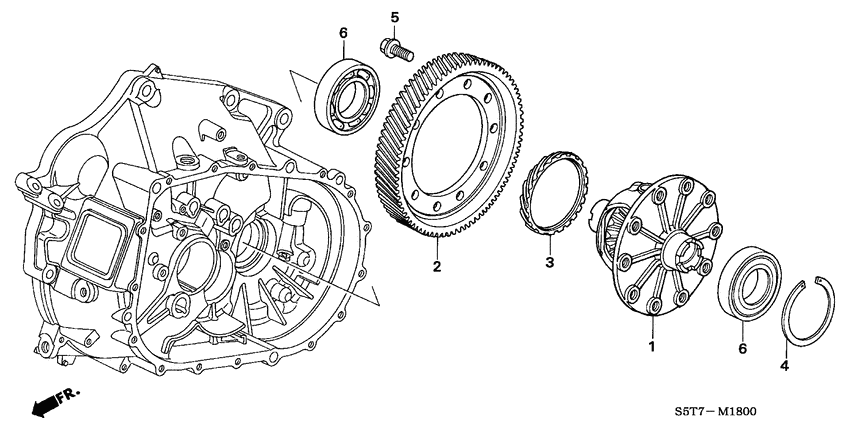

Differential (TYPE R) 17 / 22

#	OEM	EP3	ES4
4	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
4	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
4	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
4	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
4	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
4	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
4	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
4	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
4	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
4	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
4	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
4	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
4	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
4	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
4	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
4	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
4	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)

Door lining (LH) 2 / 4

#	OEM	EP3	ES4
18	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Emblems/caution labels 5 / 12

#	OEM	EP3	ES4
1	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
1	17669-SH3-P30	Label - FUEL FILLER CAUTION (PORTUGAL)	Label - FUEL FILLER CAUTION (PORTUGAL)
18	77875-S84-G80	Label - SRS CAUTION	Label - SRS CAUTION
20	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)	Label - SRS CAUTION (CHILD SEAT)
21	90301-ST0-003	push nut, 3mm	push nut, 3mm

Engine mounts (MT; TYPE R) 3 / 16

#	OEM	EP3	ES4
9	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
13	90167-S5A-010	Bolt - FLANGE, 12X88	Bolt - FLANGE, 12X88
16	90371-S5A-000	Nut - YOKE, 12MM	Nut - YOKE, 12MM

Engine wire harness (TYPE R; LH) 7 / 29

#	OEM	EP3	ES4
5	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
14	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
21	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
22	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
24	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
29	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Exhaust manifold (TYPE R) 1 / 10

#	OEM	EP3	ES4
8	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Exhaust pipe/silencer (TYPE R) 8 / 31

#	OEM	EP3	ES4
2	17520-S5A-931	Stay - FUEL TANK PROTECTOR	Stay - FUEL TANK PROTECTOR
6	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
11	18215-S5A-A11	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
15	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
16	18231-SR3-A22	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
17	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
30	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
31	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 3 / 6

#	OEM	EP3	ES4
10	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
11	90676-S5A-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
15	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)

Front brake (2) 6 / 23

#	OEM	EP3	ES4
4	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
5	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
11	45216-S5A-J01	Piston	Piston
12	45235-S0A-003	Pin a	Pin a
17	45262-S0A-003	Pin b	Pin b
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)

Front bulkhead 2 / 2

#	OEM	EP3	ES4
53	74232-S5A-000	Rod - BRAKE PEDAL SUPPORT	Rod - BRAKE PEDAL SUPPORT
55	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Front door locks 14 / 26

#	OEM	EP3	ES4
3	72113-SR4-004	Snap - BLACK	Snap - BLACK
7	72117-S04-003	Holder - ROD (YELLOW)	Holder - ROD (YELLOW)
9	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
16	72135-S5A-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
19	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
21	72123-SR0-003	Ring - OUTSIDE HANDLE	Ring - OUTSIDE HANDLE
22	72119-S04-003	Stopper a - OUTSIDE HANDLE	Stopper a - OUTSIDE HANDLE
24	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
30	72155-S5A-A01	Actuator assy - DOOR LOCK	Actuator assy - DOOR LOCK
41	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
43	72616-SM4-003	Snap - NATURAL	Snap - NATURAL
44	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
45	90141-S84-003	Screw - 3X10	Screw - 3X10
48	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front door panels 5 / 16

#	OEM	EP3	ES4
20	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
23	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Front door windows 2 / 16

#	OEM	EP3	ES4
13	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front driveshaft/half sha ft 2 / 32

#	OEM	EP3	ES4
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)

Front fenders 9 / 19

#	OEM	EP3	ES4
13	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
14	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
15	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
16	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
17	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
18	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
19	91503-SZ3-003	Clip A	Clip A
22	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING
24	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM

Front grille 1 / 2

#	OEM	EP3	ES4
3	91503-SZ3-003	Clip A	Clip A

Front seat (L.; TYPE R) 5 / 9

#	OEM	EP3	ES4
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
3	81138-S5A-G21	Clip - H	Clip - H
18	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
19	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front seat (R.; TYPE R) 6 / 13

#	OEM	EP3	ES4
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
9	81138-S5A-G21	Clip - H	Clip - H
18	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
19	90610-S10-003	Clip - GARNISH	Clip - GARNISH
21	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front seat components (L.) 5 / 6

#	OEM	EP3	ES4
2	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
3	81271-S5A-J01	Lever	Lever
4	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
7	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
8	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22

Front seat components (R.) 5 / 6

#	OEM	EP3	ES4
5	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
6	81271-S5A-J01	Lever	Lever
7	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
9	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
10	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22

Front shock absorber 4 / 15

#	OEM	EP3	ES4
14	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
15	90119-S6M-Z01	Bolt - FLANGE, 16X62	Bolt - FLANGE, 16X62
16	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)
17	90382-S6M-Z01	Nut - FLANGE, 16MM	Nut - FLANGE, 16MM

Front sub frame 3 / 9

#	OEM	EP3	ES4
13	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
15	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115
16	90801-S5A-000	BOLT, FLANGE, 8X25	BOLT, FLANGE, 8X25

Front windshield 3 / 13

#	OEM	EP3	ES4
6	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)	Label - SRS CAUTION (CHILD SEAT)
12	91568-SX0-003	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
13	91577-S84-A01	Fastener - WINDSHIELD	Fastener - WINDSHIELD

Front wiper (LH) 2 / 23

#	OEM	EP3	ES4
21	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
23	91611-S5A-000	Cap - FR. WIPER	Cap - FR. WIPER

Fuel pipe 17 / 40

#	OEM	EP3	ES4
8	17315-S5A-932	Filter - CANISTER	Filter - CANISTER
12	17701-S5A-930	Rubber - FUEL PIPE INSULATOR	Rubber - FUEL PIPE INSULATOR
13	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
15	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
24	17745-S5A-932	Tube b - CANISTER DRAIN	Tube b - CANISTER DRAIN
25	17758-S5A-931	Clip - FUEL PIPE	Clip - FUEL PIPE
26	17759-S5A-931	Clip b - FUEL PIPE	Clip b - FUEL PIPE
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
33	90671-S5A-003	Bolt - FR. FENDER	Bolt - FR. FENDER
34	91401-SDC-000	Clip - TUBE(B10)	Clip - TUBE(B10)
36	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
37	91592-S5A-931	Clip - FUEL PIPE	Clip - FUEL PIPE
38	91594-S5A-931	Clip - DRAIN TUBE (B)	Clip - DRAIN TUBE (B)
40	91595-S5A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
41	91596-S5A-931	Joint - DRAIN TUBE	Joint - DRAIN TUBE
42	91598-S5A-930	Rubber - FUEL PIPE INSULATOR	Rubber - FUEL PIPE INSULATOR
43	91599-S5A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE

Fuel tank 32 / 44

#	OEM	EP3	ES4
1	16010-S5A-932	Strainer set - FUEL	Strainer set - FUEL
3	16016-S5A-930	Wire comp - LEAD	Wire comp - LEAD
5	17041-S5A-930	O-ring	O-ring
6	17042-S5A-930	Housing - FUEL PUMP	Housing - FUEL PUMP
7	17043-S5A-941	Reservoir - DENSO	Reservoir - DENSO
8	17044-S5A-930	Cap - RESERVOIR	Cap - RESERVOIR
9	17045-S5A-931	Spring	Spring
10	17046-S5A-931	Linkage	Linkage
11	17047-S5A-930	O-ring	O-ring
12	17048-S5A-930	O-ring	O-ring
13	17049-S5A-930	Holder - FUEL PUMP	Holder - FUEL PUMP
14	17051-S5A-930	Collar	Collar
15	17052-S5A-930	Stopper a	Stopper a
16	17053-S5A-930	Stopper b	Stopper b
18	17516-S5A-930	Filter set - FUEL PUMP	Filter set - FUEL PUMP
19	17521-S5A-931	Band - FUEL TANK MOUNTING	Band - FUEL TANK MOUNTING
20	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
21	17525-S0X-A00	Bolt-washer - 10X25	Bolt-washer - 10X25
24	17651-S5A-930	Tube - FILLER NECK	Tube - FILLER NECK
25	17652-S6M-J01	Clip - FILLER TUBE	Clip - FILLER TUBE
26	17652-S6M-J51	Clip - FILLER TUBE	Clip - FILLER TUBE
27	17653-S5A-930	Tube - BREATHER	Tube - BREATHER
28	17660-S5A-E31	Pipe comp - FUEL FILLER	Pipe comp - FUEL FILLER
33	17670-S5A-E33	Cap comp. - FUEL FILLER (TOYODA)	Cap comp. - FUEL FILLER (TOYODA)
36	74660-S5A-000	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
37	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
40	91401-SDC-000	Clip - TUBE(B10)	Clip - TUBE(B10)
41	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
42	91413-S5A-003	Clamp - FUEL TUBE (D17)	Clamp - FUEL TUBE (D17)
43	91462-SDA-003	Clamp - FUEL TUBE (D18)	Clamp - FUEL TUBE (D18)
44	91594-S1A-E01	Clip - FUEL FILLER CAP	Clip - FUEL FILLER CAP
45	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet (FRONT) 8 / 13

#	OEM	EP3	ES4
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM	Cap - FLOOR HOLE, 24MM
2	74177-SD4-000	Cushion a - HOOD	Cushion a - HOOD
6	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
8	90672-S5A-003	Holder - ROD	Holder - ROD
12	91604-S5A-003	Grommet - HOOD STAY	Grommet - HOOD STAY
13	91608-S5A-003	Boot - FLOOR	Boot - FLOOR
14	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (REAR) 4 / 8

#	OEM	EP3	ES4
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90857-SD4-000	Cap - WELD HOLE	Cap - WELD HOLE
5	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
8	91631-S5A-000	Plug - AIR CONDITIONER HOLE (36X74)	Plug - AIR CONDITIONER HOLE (36X74)

Grommet (SIDE) 2 / 6

#	OEM	EP3	ES4
5	91618-S5A-000	Seal - HOLE, 30X90	Seal - HOLE, 30X90
6	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (UNDER) 1 / 1

#	OEM	EP3	ES4
2	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Harness band/bracket (LH) 23 / 41

#	OEM	EP3	ES4
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)	Grommet - WIRE HARNESS(BLACK)
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
23	38617-S5A-J01	Filter comp - NOISE	Filter comp - NOISE
25	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
26	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
30	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
32	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
34	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
37	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
39	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
40	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
41	91547-SH3-003	Clip - BAND(NATURAL)(160MM)	Clip - BAND(NATURAL)(160MM)
45	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
48	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)
49	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
50	91577-SM4-003	Holder - BRACKET(NATURAL)	Holder - BRACKET(NATURAL)
52	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
53	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)	Cushion - WIRE HARNESS (50X50)
54	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Headlight (1) 9 / 27

#	OEM	EP3	ES4
3	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
8	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
8	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
16	33130-S5A-G01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
19	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
21	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
22	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
24	33305-S5A-003	Socket comp - T10	Socket comp - T10
28	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Heater blower (LH) 2 / 13

#	OEM	EP3	ES4
16	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
17	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 7 / 25

#	OEM	EP3	ES4
1	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
3	53747-SA5-003	Clip - POWER STEERING HOSE	Clip - POWER STEERING HOSE
16	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE
33	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
34	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
38	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Hood (LH) 7 / 21

#	OEM	EP3	ES4
17	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
20	90602-SX0-003	Clip - COWL TOP	Clip - COWL TOP
21	90602-S2A-003	Clip - COWL TOP	Clip - COWL TOP
22	90603-S2A-003	Grommet - COWL TOP	Grommet - COWL TOP
23	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
25	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
26	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Ignition coil (TYPE R) 1 / 3

#	OEM	EP3	ES4
2	30522-PFB-007	SEAL, PLUG HOLE	SEAL, PLUG HOLE

Inner panels 1 / 1

#	OEM	EP3	ES4
40	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Install pipe/tubing (TYPE R) 2 / 7

#	OEM	EP3	ES4
4	36166-PAA-A01	Joint - PURGE	Joint - PURGE
7	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Instrument panel (LH) 9 / 17

#	OEM	EP3	ES4
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
21	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
22	90101-S6A-000	Bolt-washer - 8MM	Bolt-washer - 8MM
23	90106-S5H-000	Bolt-washer - 8X40	Bolt-washer - 8X40
24	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
25	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
26	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
27	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
28	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (LH; DRIVER SIDE) 4 / 8

#	OEM	EP3	ES4
16	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
19	90665-S04-003	Clip - SNAP FITTING	Clip - SNAP FITTING
20	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 8 / 24

#	OEM	EP3	ES4
7	66405-S04-010	Stay - GLOVE BOX HINGE	Stay - GLOVE BOX HINGE
9	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
36	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
37	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
39	90650-SE3-000	Clip - RADIO PANEL	Clip - RADIO PANEL
40	90665-S04-003	Clip - SNAP FITTING	Clip - SNAP FITTING
41	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
42	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (TYPE R) 2 / 17

#	OEM	EP3	ES4
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
15	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6

Interior light 6 / 9

#	OEM	EP3	ES4
3	34251-S5A-003	Lens	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W	BULB T10X318W
10	34401-S5A-003	Lens	Lens
11	34402-S5A-003	Lens	Lens
13	90131-S47-003	Screw - ET, 5X16	Screw - ET, 5X16

Knuckle 9 / 19

#	OEM	EP3	ES4
3	51225-S5A-003	Boot - LOWER BALL DUST	Boot - LOWER BALL DUST
6	51308-S5A-000	Holder - FR. STABILIZER	Holder - FR. STABILIZER
7	51320-S5A-003	RH FR. STABILIZER LINK	RH FR. STABILIZER LINK
8	51321-S5A-003	LH FR. STABILIZER LINK	LH FR. STABILIZER LINK
15	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
16	90118-S5A-000	Bolt - FLANGE, 14X91	Bolt - FLANGE, 14X91
17	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
18	90363-S47-000	Nut - LOWER ARM, 12MM	Nut - LOWER ARM, 12MM
19	90701-SX0-003	Clip - UPPER ARM	Clip - UPPER ARM

Meter components (NS; 1) 2 / 6

#	OEM	EP3	ES4
2	37115-SA0-601	Packing - NS	Packing - NS
7	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Mirror (3) 3 / 17

#	OEM	EP3	ES4
16	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)	Screw - TAPPING, 4X16 (TRUSS)
17	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH
18	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Molding/side sill garnish 6 / 32

#	OEM	EP3	ES4
26	90142-S04-000	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
29	90657-SA5-003	Clip - SIDE APRON MOLDING	Clip - SIDE APRON MOLDING
30	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
31	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
32	91501-S5A-003	Clip - DOOR MOLDING	Clip - DOOR MOLDING
33	91503-SZ3-003	Clip A	Clip A

Oil pump/oil strainer (TYPE R) 7 / 19

#	OEM	EP3	ES4
9	15400-PLC-004	Cartridge, OIL FILTER (TOYO ROKI)	Cartridge, OIL FILTER (TOYO ROKI)
9	15400-PLM-A01	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
9	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
9	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
9	15400-PLC-003	Cartridge - OIL FILTER (TENNEX)	Cartridge - OIL FILTER (TENNEX)
10	15400-PR3-014	OIL FILTER (TOYO ROKI)	OIL FILTER (TOYO ROKI)
11	15400-PR3-315	Cartridge set - OIL FILTER (TOYO ROKI)	Cartridge set - OIL FILTER (TOYO ROKI)

Outer panels 4 / 11

#	OEM	EP3	ES4
18	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
28	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
29	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
30	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

P.s. gear box (EPS; LH) 13 / 19

#	OEM	EP3	ES4
1	53010-S5S-000	Bush set - STEERING GEAR BOX MOUNTING	Bush set - STEERING GEAR BOX MOUNTING
7	53501-S5A-000	Grommet - STEERING	Grommet - STEERING
8	53521-S5A-003	Rod sub assy. - TIE (###)	Rod sub assy. - TIE (###)
9	53536-S5A-900	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
10	53541-S5A-000	Rod assy - TIE	Rod assy - TIE
11	53541-S5A-003	End comp - TIE ROD	End comp - TIE ROD
12	53546-S84-003	Boot - TIE ROD END (NOK)	Boot - TIE ROD END (NOK)
14	53685-S6M-000	Bush - STEERING GEAR BOX MOUNTING	Bush - STEERING GEAR BOX MOUNTING
15	53686-S5A-010	Collar - STEERING GEAR BOX MOUNTING (A)	Collar - STEERING GEAR BOX MOUNTING (A)
16	90108-S5A-000	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
17	90301-S5A-003	Nut - HEX.	Nut - HEX.
18	90450-S5A-020	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
21	90801-S5A-000	BOLT, FLANGE, 8X25	BOLT, FLANGE, 8X25

P.s. gear box components (EPS; LH) 16 / 19

#	OEM	EP3	ES4
1	53413-SZ3-000	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
2	53414-S5A-003	Screw - RACK GUIDE	Screw - RACK GUIDE
4	53418-S5A-003	Washer - DISK	Washer - DISK
5	53448-S5A-J01	Band b - BELLOWS	Band b - BELLOWS
6	53449-S5A-J01	Band a - BELLOWS	Band a - BELLOWS
7	53455-S5A-003	Ring b - STOPPER	Ring b - STOPPER
8	53457-S5A-003	Lock - SCREW	Lock - SCREW
9	53458-SM4-J60	Nut - RACK SCREW LOCK	Nut - RACK SCREW LOCK
10	53535-S5A-003	Washer - LOCK	Washer - LOCK
12	53603-S5A-J01	Boot set	Boot set
13	53604-S5A-003	Bracket	Bracket
14	53605-S5A-003	Slider	Slider
16	53662-S5A-003	O-ring - 11.5X1.5	O-ring - 11.5X1.5
17	90105-S0A-003	Bolt - FLANGE, 8X25	Bolt - FLANGE, 8X25
18	90455-S5A-003	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
19	91351-S5A-003	O-ring - MOTOR	O-ring - MOTOR

Parking brake 2 / 12

#	OEM	EP3	ES4
12	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE
15	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Pedal (LH) 17 / 22

#	OEM	EP3	ES4
2	17800-S6M-A03	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
3	17818-S5A-A01	Stopper - ACCELERATOR STROKE	Stopper - ACCELERATOR STROKE
5	17921-SA4-730	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE
12	35350-S5A-J03	Switch assy - STOP (TOYO)	Switch assy - STOP (TOYO)
19	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
20	46505-SA7-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
21	46530-S5A-003	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
22	46545-SA5-000	Cover, Pedal	Cover, Pedal
26	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
27	46907-S5A-A01	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
28	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN
29	46981-S2A-003	Bush a - CLUTCH ASSISTANT	Bush a - CLUTCH ASSISTANT
30	46982-S2A-003	Bush b - ASSISTANT	Bush b - ASSISTANT
31	46991-S5A-A01	Bracket comp. - FOOTREST	Bracket comp. - FOOTREST
32	46992-SV4-003	Clip - FOOTREST	Clip - FOOTREST
34	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
35	90301-S5A-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Pillar garnish (LH) 2 / 5

#	OEM	EP3	ES4
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
13	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Radiator (DENSO; TYPE R) 13 / 20

#	OEM	EP3	ES4
1	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
4	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
5	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
10	19031-PLC-003	Cover - MOTOR END	Cover - MOTOR END
11	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
12	19046-PAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
14	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
15	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
16	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
17	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
18	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
19	91307-PN4-000	O-ring - 17.5X1.4	O-ring - 17.5X1.4
19	91307-PN3-000	O-ring,17.8x1.4	O-ring,17.8x1.4

Radiator hose (TYPE R) 3 / 17

#	OEM	EP3	ES4
4	19105-PLC-000	Joint	Joint
6	19109-PH1-620	Cap - FILLER	Cap - FILLER
16	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Rear brake (DISK) 7 / 44

#	OEM	EP3	ES4
36	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
37	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
38	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
40	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
40	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
40	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
41	90305-S30-003	Nut - SPINDLE	Nut - SPINDLE

Rear lower arm 11 / 33

#	OEM	EP3	ES4
11	52352-S5A-A01	Protector - RR. LOWER ARM	Protector - RR. LOWER ARM
12	52364-S6M-004	BUSH, REAR LOWER ARM INNER	BUSH, REAR LOWER ARM INNER
20	52395-S5A-004	Bush - RR. UPPER ARM	Bush - RR. UPPER ARM
23	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
24	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
25	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)	Nut - LOCK FLANGE(CLINCH)
26	90396-S5A-000	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
27	90397-S5A-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
27	90186-SR3-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
28	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5
29	90399-S5A-000	Bolt - FLANGE, 12X73	Bolt - FLANGE, 12X73

Rear seat 7 / 16

#	OEM	EP3	ES4
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
14	82137-S5A-003	Clip - RR. SEAT CUSHION	Clip - RR. SEAT CUSHION
22	82291-S04-000	Cover - RR. CENTER PIVOT	Cover - RR. CENTER PIVOT
23	82292-S04-000	Collar - RR. CENTER SEAT PIVOT	Collar - RR. CENTER SEAT PIVOT
32	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
34	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)

Rear shock absorber 11 / 17

#	OEM	EP3	ES4
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
8	52622-S5A-004	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
10	52675-S7A-004	Base - RR. SHOCK ABSORBER MOUNTING	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING	Seal - SHOCK ABSORBER MOUNTING
12	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT	Plate - SHOCK ABSORBER MOUNT
13	52686-S5A-004	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
14	52687-S5A-014	Cover - RR. DUST	Cover - RR. DUST
18	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear under spoiler 1 / 7

#	OEM	EP3	ES4
2	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16

Seatbelts 3 / 5

#	OEM	EP3	ES4
19	90101-S84-A00	Screw - ET, 6X16	Screw - ET, 6X16
19	90133-SZ4-003	Screw - ET, 7X16	Screw - ET, 7X16
21	90135-S1F-003	Bolt - FLANGE, 7/16"	Bolt - FLANGE, 7/16"

Shift arm/shift lever (TYPE R) 3 / 22

#	OEM	EP3	ES4
1	21396-P20-000	Cap - BREATHER	Cap - BREATHER
19	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
20	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Shift fork/shift holder (TYPE R) 3 / 8

#	OEM	EP3	ES4
6	24455-PHR-000	Spring - BALL SETTING	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 6 / 12

#	OEM	EP3	ES4
5	54119-S30-003	Collar - FLOATING	Collar - FLOATING
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
10	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)	Washer a - SHIFT WIRE(1.6MM)
11	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)	Washer b - SHIFT WIRE (0.5MM)
12	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)	Washer a - SELECT WIRE (1.6MM)
13	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)	Washer b - SELECT WIRE (0.5MM)

Side lining 1 / 14

#	OEM	EP3	ES4
28	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Side skirts primer coated 1 / 3

#	OEM	EP3	ES4
9	91503-SZ3-003	Clip A	Clip A

Spool valve (TYPE R) 4 / 21

#	OEM	EP3	ES4
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)

Srs unit (LH) 1 / 5

#	OEM	EP3	ES4
6	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20

Starter motor (DENSO; TYP E R) 4 / 26

#	OEM	EP3	ES4
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
14	31213-P64-N01	Cover	Cover
21	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
23	31223-PA0-006	Nut - HEX.	Nut - HEX.

Steering column 4 / 5

#	OEM	EP3	ES4
2	53323-S5A-003	Joint comp. b - STEERING	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Switch (LH) 1 / 4

#	OEM	EP3	ES4
8	35910-S04-G01	Switch assy - INERTIA	Switch assy - INERTIA

Tailgate 3 / 25

#	OEM	EP3	ES4
3	35103-S04-003	Screw - RECESSED	Screw - RECESSED
33	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
37	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

Tailgate lining 3 / 5

#	OEM	EP3	ES4
10	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
14	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
15	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Taillight/license light 3 / 19

#	OEM	EP3	ES4
10	34102-S60-003	Housing comp	Housing comp
21	90650-S5A-003	Grommet - RR. COMBINATION LIGHT	Grommet - RR. COMBINATION LIGHT
22	91512-S50-003	Clip - LICENSE GARNISH	Clip - LICENSE GARNISH

Throttle body (TYPE R) 2 / 14

#	OEM	EP3	ES4
8	37830-PGK-A01	Sensor assy, MAP	Sensor assy, MAP
9	37835-PGK-A01	O-ring	O-ring

Tire/wheel disks 5 / 49

#	OEM	EP3	ES4
9	42767-S04-P00	Plate - SPARE TIRE CAUTION (T-TYPE)(PORTUGAL)	Plate - SPARE TIRE CAUTION (T-TYPE)(PORTUGAL)
9	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
10	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)	Plate - SPARE TIRE CAUTION (T-TYPE)
18	83850-SH3-000	Plate - ANCHOR BOLT	Plate - ANCHOR BOLT
19	83853-SX0-000	Bolt - ANCHOR	Bolt - ANCHOR

Transmission case (TYPE R) 43 / 67

#	OEM	EP3	ES4
7	23945-P21-000	Shim o - 72MM(1.02)	Shim o - 72MM(1.02)
7	23940-P21-000	Shim j - 72MM(0.87)	Shim j - 72MM(0.87)
7	23967-P21-000	Shim ak - 72MM(1.68)	Shim ak - 72MM(1.68)
7	23935-P21-000	Shim e - 72MM(0.72)	Shim e - 72MM(0.72)
7	23962-P21-000	Shim af - 72MM(1.53)	Shim af - 72MM(1.53)
7	23957-P21-000	Shim aa - 72MM(1.38)	Shim aa - 72MM(1.38)
7	23952-P21-000	Shim v - 72MM(1.23)	Shim v - 72MM(1.23)
7	23947-P21-000	Shim q - 72MM(1.08)	Shim q - 72MM(1.08)
7	23942-P21-000	Shim l - 72MM(0.93)	Shim l - 72MM(0.93)
7	23969-P21-000	Shim am - 72MM(1.74)	Shim am - 72MM(1.74)
7	23937-P21-000	Shim g - 72MM(0.78)	Shim g - 72MM(0.78)
7	23932-P21-000	Shim b - 72MM(0.63)	Shim b - 72MM(0.63)
7	23964-P21-000	Shim ah - 72MM(1.59)	Shim ah - 72MM(1.59)
7	23959-P21-000	Shim ac - 72MM(1.44)	Shim ac - 72MM(1.44)
7	23954-P21-000	Shim x - 72MM(1.29)	Shim x - 72MM(1.29)
7	23949-P21-000	Shim s - 72MM(1.14)	Shim s - 72MM(1.14)
7	23944-P21-000	Shim n - 72MM(0.99)	Shim n - 72MM(0.99)
7	23971-P21-000	Shim ao - 72MM(1.80)	Shim ao - 72MM(1.80)
7	23939-P21-000	Shim i - 72MM(0.84)	Shim i - 72MM(0.84)
7	23966-P21-000	Shim aj - 72MM(1.65)	Shim aj - 72MM(1.65)
7	23934-P21-000	Shim d - 72MM(0.69)	Shim d - 72MM(0.69)
7	23961-P21-000	Shim ae - 72MM(1.50)	Shim ae - 72MM(1.50)
7	23956-P21-000	Shim z - 72MM(1.35)	Shim z - 72MM(1.35)
7	23951-P21-000	Shim u - 72MM(1.20)	Shim u - 72MM(1.20)
7	23946-P21-000	Shim p - 72MM(1.05)	Shim p - 72MM(1.05)
7	23941-P21-000	Shim k - 72MM(0.90)	Shim k - 72MM(0.90)
7	23968-P21-000	Shim al - 72MM(1.71)	Shim al - 72MM(1.71)
7	23936-P21-000	Shim f - 72MM(0.75)	Shim f - 72MM(0.75)
7	23931-P21-000	Shim a - 72MM(0.60)	Shim a - 72MM(0.60)
7	23963-P21-000	Shim ag - 72MM(1.56)	Shim ag - 72MM(1.56)
7	23958-P21-000	Shim ab - 72MM(1.41)	Shim ab - 72MM(1.41)
7	23953-P21-000	Shim w - 72MM(1.26)	Shim w - 72MM(1.26)
7	23948-P21-000	Shim r - 72MM(1.11)	Shim r - 72MM(1.11)
7	23943-P21-000	Shim m - 72MM(0.96)	Shim m - 72MM(0.96)
7	23970-P21-000	Shim an - 72MM(1.77)	Shim an - 72MM(1.77)
7	23938-P21-000	Shim h - 72MM(0.81)	Shim h - 72MM(0.81)
7	23933-P21-000	Shim c - 72MM(0.66)	Shim c - 72MM(0.66)
7	23965-P21-000	Shim ai - 72MM(1.62)	Shim ai - 72MM(1.62)
7	23960-P21-000	Shim ad - 72MM(1.47)	Shim ad - 72MM(1.47)
7	23955-P21-000	Shim y - 72MM(1.32)	Shim y - 72MM(1.32)
7	23950-P21-000	Shim t - 72MM(1.17)	Shim t - 72MM(1.17)
9	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
11	90380-S10-000	Bolt - STUD, 12X83.8	Bolt - STUD, 12X83.8

Water pump/sensor (TYPE R) 1 / 26

#	OEM	EP3	ES4
16	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water valve (LH) 6 / 10

#	OEM	EP3	ES4
1	79710-S5D-A02	Valve assy, Water	Valve assy, Water
6	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
7	79746-SL4-003	Clamp - HEATER HOSE	Clamp - HEATER HOSE
10	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
10	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
11	91551-SZ3-003	Clamp - HEATER HOSE	Clamp - HEATER HOSE

Windshield washer (3) 3 / 28

#	OEM	EP3	ES4
24	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
26	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
27	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)	Cushion - WIRE HARNESS (50X50)

Windshield washer (4) 3 / 43

#	OEM	EP3	ES4
41	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
45	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
46	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)	Cushion - WIRE HARNESS (50X50)

Wire harness (LH) 4 / 23

#	OEM	EP3	ES4
21	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
22	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
23	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
24	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
