Abs modulator (1) 4

#	OEM	部品名
1	57101-S5A-A00	Damper
2	57102-S5A-A00	Bolt - ABS MOUNTING
3	57110-S5A-D60	Modulator assy
4	57115-S5A-A02	Bracket comp. - MODULATOR

Air cleaner 19

#	OEM	部品名
1	17153-PLC-000	Tube - BREATHER
2	17205-PLC-000	Case set - AIR CLEANER
3	17211-PLC-010	Cover comp. - AIR CLEANER
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
5	17213-P13-000	Rubber - AIR CLEANER CASE MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING
7	17220-PLC-000	Element - AIR CLEANER
8	17228-PLC-000	Rubber - THROTTLE JOINT
9	17247-PLC-000	Grommet - INTAKE
10	17315-PLC-000	Band - THROTTLE CABLE
11	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
12	37881-P2A-000	Grommet - TA SENSOR
13	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
14	90002-PLC-000	Bolt-washer - 5X35
15	90091-PLC-000	Bolt-washer - 5X40
16	90091-P36-000	Bolt-washer - 5X28
17	91405-PLC-000	Clamp - TUBE (D24)
18	91406-PLC-003	Clip - TUBE (D21.5)

Air conditioner (COMPRESSOR) 12

#	OEM	部品名
1	38801-PDF-E02	Valve sub assy. - SAFETY
2	38810-PLA-E01	Compressor comp. - SANDEN
3	38829-PDF-E02	Nut - 9MM
4	38900-PLA-E01	Clutch set - COMPRESSOR
5	38908-PLA-E01	Protector set - THERMAL
6	38912-PE1-702	Shim set
7	38913-PP4-E02	Ring - SNAP
8	38914-P07-004	Ring f - SNAP
9	38920-PLC-003	Belt - COMPRESSOR (BANDO)
10	38924-PLM-A01	Coil set - FIELD
11	90023-P2A-000	Bolt - FLANGE, 8X100
11	38930-PLC-000	Bracket - COMPRESSOR

Air conditioner (CONDENSER) 11

#	OEM	部品名
1	38611-PLC-J01	Fan comp - COOLING (KEIHIN)
2	38615-PLC-N01	Shroud comp. - AIR CONDITIONER (KEIHIN)
3	38616-PLC-J01	Motor - COOLING FAN (KEIHIN)
4	38619-PLC-J01	Protector - FAN MOTOR (KEIHIN)
5	80107-SS0-000	Mount - CONDENSER UPPER
6	80107-S5A-000	Bracket - R. CONDENSER UPPER
7	80108-S5A-000	Bracket - L. CONDENSER UPPER
8	80110-S5A-T01	Condenser comp.
9	80175-SE0-000	Mount - CONDENSER
11	90041-PAA-A01	Nut - TOOTHED, 5MM
12	90430-PAA-A01	Washer - PLAIN, 8MM

Air conditioner (COOLING UNIT) 17

#	OEM	部品名
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
1	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S01-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
1	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
2	53747-SA5-003	Clip - POWER STEERING HOSE
5	80215-S5D-G01	Evaporator comp.
6	80219-S5A-901	Seal - EXPANSION VALVE
7	80220-SDE-T01	VALVE ASSY., EXPANSION
8	80271-S5A-000	Hose - DRAIN
9	80460-S5A-000	Harness - AIR CONDITIONER WIRE
10	80560-S5A-941	Sensor assy - EVAPORATOR
11	80871-ST7-000	O-ring - 5/8"
12	80872-ST7-000	O-ring - 1/2"
13	90126-S5A-003	Bolt - SOCKET, 5X40
14	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
15	90153-SE0-003	Bolt - EARTH, 6X12

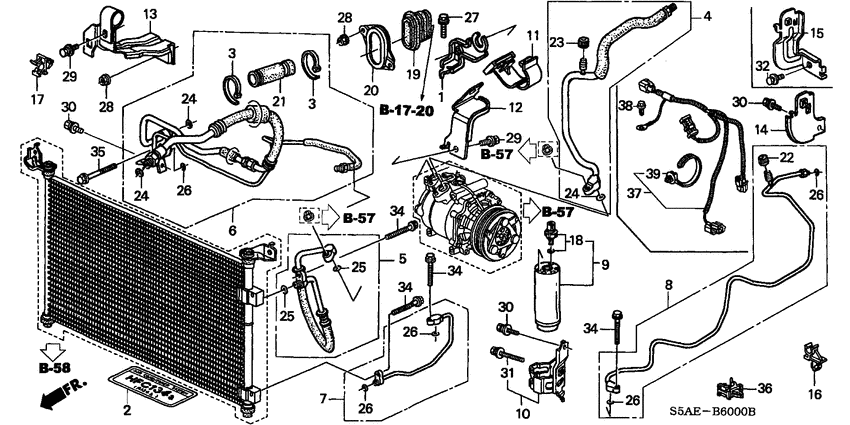

Air conditioner (HOSES/PIPES; LH) 32

#	OEM	部品名
1	53774-S5D-A01	Clamp - FEED HOSE
2	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
3	80285-S5A-A00	Holder
4	80311-S5A-A02	Pipe comp - SUCTION
5	80315-S5A-013	Hose comp. - DISCHARGE
6	80325-S5A-A02	Pipe assy. - AIR CONDITIONER
7	80331-S5A-003	Pipe - CONDENSER
8	80341-S5A-A21	Pipe comp - RECEIVER
9	80351-S0D-003	Receiver comp
10	80352-S5A-000	Bracket - LIQUID TANK
11	80360-S5A-A00	Clamp a - SUCTION HOSE
12	80361-S5A-A00	Stay - SUCTION HOSE
13	80362-S5A-A00	Clamp - AIR CONDITIONER PIPE
15	80363-S5A-G10	Stay - SUCTION PIPE
16	80381-S5A-A01	Clamp - RECEIVER PIPE
17	80387-SM4-A01	Clip - RECEIVER PIPE
18	80440-SW5-003	Switch - DUAL PRESSURE (HADSYS)
18	80440-SW5-A01	Switch - DUAL PRESSURE(KEIHIN)
19	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
20	80465-S5A-A00	Cover - AIR CONDITIONER PIPE
21	80466-S5A-A00	Rubber - AIR CONDITIONER HOSE
22	80865-SW5-003	Cap comp. - VALVE (H)
23	80866-SW5-003	Cap comp. - VALVE(L)
24	80871-ST7-000	O-ring - 5/8"
25	80872-ST7-000	O-ring - 1/2"
26	80873-ST7-000	O-ring - 8MM
27	90106-S5D-A00	Bolt - FEED HOSE CLAMP
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM
36	91548-S5A-003	Clip - RECEIVER PIPE
37	80460-S5A-000	Harness - AIR CONDITIONER WIRE
38	90153-SE0-003	Bolt - EARTH, 6X12
39	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)

Air conditioner (KIT) 1

#	OEM	部品名
2	80000-S5A-G23	General assy. - AIR CONDITIONER

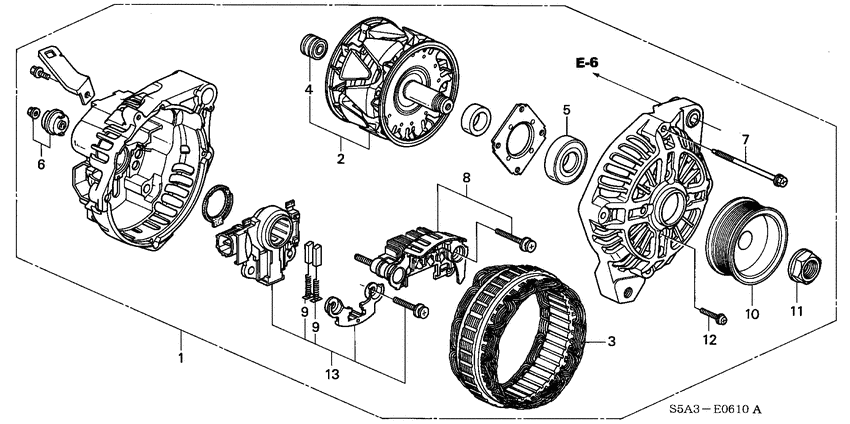

Alternator (MITSUBISHI) 14

#	OEM	部品名
1	31100-PLM-A02	Alternator assy - AHGA50) (MITSUBISHI
2	31101-PLC-004	Rotor assy.
3	31102-PLC-004	Stator
4	31111-P08-J02	Bearing - RR. GENERATOR
5	31114-PLC-004	Bearing - FR.
6	31123-PWA-004	Terminal set
7	31125-P08-J02	Bolt - FLANGE
8	31127-PLC-004	Rectifier assy.
9	31140-P64-902	Brush set
10	31141-PLM-A01	Pulley
10	31141-PLC-004	Pulley
11	31142-P08-J02	Nut
12	31146-PE0-004	Screw
13	31150-PLM-A01	Regulator set

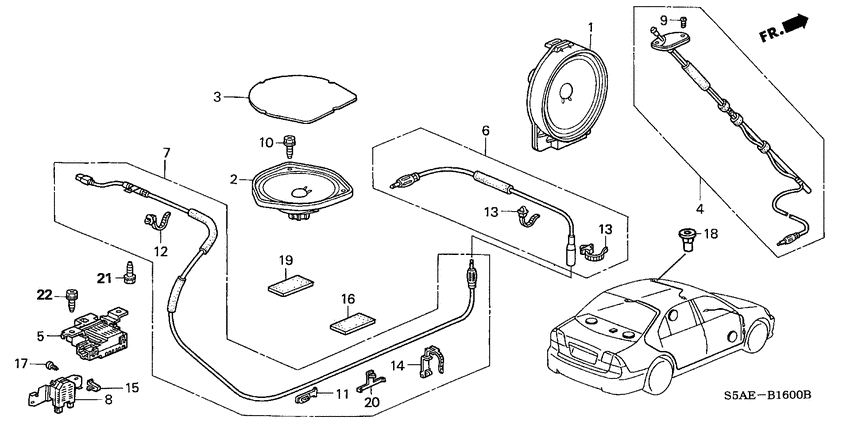

Antenna/speaker 15

#	OEM	部品名
1	39120-SAA-003	Speaker assy - 17CM SINGLE) (FOSTER
3	39122-S5A-000	Seal - SPEAKER HOLE
5	39155-S5A-E01	Coil assy - GLASS ANTENNA
6	39156-S5A-A10	Sub feeder
7	39160-S5A-A10	Feeder assy. - GLASS ANTENNA
8	39166-S5A-E01	Coil assy - GLASS ANTENNA
11	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
12	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
13	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
14	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
15	91647-S04-003	Grommet - SCREW, 4MM
16	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
20	91572-SP1-300	Clip - WIRE HARNESS (BLACK)
21	90133-SZ4-003	Screw - ET, 7X16
21	90131-S30-003	Screw-washer - ET, 6X16

Battery 14

#	OEM	部品名
1	31500-S5A-G01	Battery - 46B24R-MF) (PANASONIC
1	31500-S5A-G02	Battery - 46B24R-MF) (YUASA
2	31512-S5A-000	Plate - BATTERY SETTING
3	31513-SM4-000	Bolt - BATTERY SETTING(195MM)
4	31521-S5A-000	Box - BATTERY
5	31531-S5A-A00	Cover - BATTERY
6	31542-S04-E71	Plug - VENT(MF)(YUASA)
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	32418-PLA-300	Cover - BATTERY TERMINAL
8	32600-S5A-910	Cable assy, BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL
11	90153-SE0-003	Bolt - EARTH, 6X12
12	90182-SB6-000	Bolt-washer - 6X16

Brake lines (ABS; LH; 1) 25

#	OEM	部品名
1	01464-S5A-J02	Hose set - R. FR. BRAKE
2	01465-S5A-J02	Hose set - L. FR. BRAKE
3	01466-S5A-000	Hose set - RR. BRAKE
4	46330-S5A-E21	Pipe comp. c - BRAKE
5	46331-S5A-N10	Pipe comp. e - R. BRAKE
6	46340-S5A-E20	Pipe comp. d - BRAKE
7	46361-S5A-N10	Pipe comp. e - L. BRAKE
8	46374-S5A-A51	Pipe comp. u - BRAKE
9	46375-S5A-A51	Pipe comp. v - BRAKE
10	46376-S5A-G50	Pipe comp. w - BRAKE
11	46377-S5A-Q51	Pipe comp. x - BRAKE
12	46380-SH3-000	Grommet a - BRAKE PIPE
13	46391-SR3-003	Clip A - BRAKE PIPE
14	46391-S5A-J01	Clip - BRAKE PIPE
15	46391-S5A-Z01	Clip - BRAKE PIPE
16	46391-S5A-000	Clip - BRAKE PIPE
17	46393-S5A-N00	Clip - BRAKE PIPE
18	46435-S5B-900	Bracket a - R. RR. BRAKE HOSE
19	46436-S5B-900	Bracket a - L. RR. BRAKE HOSE
20	46437-S5B-000	Bracket - R. RR. BRAKE HOSE
21	46438-S5B-000	Bracket - L. RR. BRAKE HOSE
22	46462-SE0-000	Bolt - OIL
23	46472-568-000	Packing - OIL BOLT
24	90361-SV4-003	Nut - PAINT CUTTING, 6MM
25	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 22

#	OEM	部品名
1	01469-S5A-G00	Power set - MASTER (7"+8")
2	46070-SL0-G01	Plate - SYMBOL MARK
3	46100-S5D-A51	Cylinder assy. - MASTER
4	46120-S04-J71	Piston assy. - PRIMARY
5	46122-S5A-K01	Piston assy. - SECONDARY
6	46135-S5A-J41	Guide assy - PISTON
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
8	46185-SE0-003	Seal - ROD
9	46191-S2K-000	Packing - MASTER POWER
10	46402-S5A-G03	Tube assy - MASTER POWER
11	46409-S5A-A01	Clip - MASTER POWER TUBE
12	46512-S70-000	Pin - PEDAL
13	46661-S5D-A50	Reservoir set
14	46662-S5A-003	Cap comp. - RESERVE TANK
15	46665-S04-J01	Grommet
16	46666-S2K-003	Filter - BRAKE RESERVOIR
17	46669-S5A-003	Diaphragm
18	46911-S70-003	Pin, LOCK(8MM)
19	53729-671-003	Clamp d - 15.5MM
20	57173-SB0-801	O-ring - CONNECTOR
21	57515-S30-003	Pin - STOP
22	57562-SF1-003	Circlip

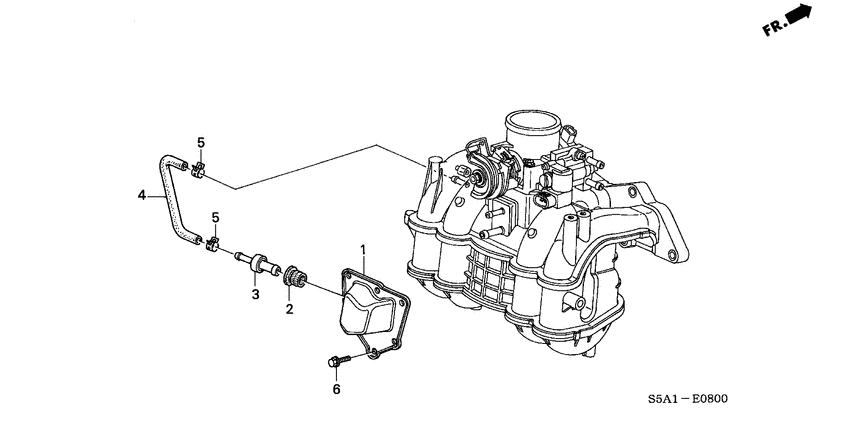

Breather cover 4

#	OEM	部品名
1	11850-PLA-000	Cover comp. - BREATHER
2	11855-P72-000	Grommet, PCV Valve
3	17130-PH1-003	Valve assy. - PCV
4	17131-PLC-000	Tube - PCV

Bumpers ('04-) 26

#	OEM	部品名
5	71140-S5A-010	Beam comp - R. FR. BUMPER UPPER
7	71145-S5A-G01	Base - FR. LICENSE PLATE
10	71190-S5A-010	Beam comp - L. FR. BUMPER UPPER
11	71193-S5A-003	Spacer - R. FR. BUMPER SIDE
12	71198-S5A-003	Spacer - L. FR. BUMPER SIDE
13	71503-S5A-000	Cap - RR. BUMPER
14	71505-S5A-J00	Bracket - R. RR. BUMPER SIDE
15	71516-S5A-G01	Garnish - L. RR. FOG OUTSIDE
16	71517-S5A-G01	Garnish - L. RR. FOG INSIDE
18	71555-S5A-J00	Bracket - L. RR. BUMPER SIDE
20	71591-S5A-000	Grommet & seal set
21	71592-S5D-000	Grommet & seal set
22	71593-S5A-000	Spacer - R. RR. BUMPER SIDE
23	71594-S5D-A00	Spacer - R. RR. BUMPER UPPER
24	71598-S5A-000	Spacer - L. RR. BUMPER SIDE
25	71599-S5D-A00	Spacer - L. RR. BUMPER UPPER
26	90103-SP0-000	Bolt - CORNER CLIP
27	90109-SS0-000	Screw - TAPPING, 5X20
28	90126-SR4-000	Screw-washer - 5X16
29	90149-SA0-000	Bolt - BUMPER
30	90301-SP0-003	Nut - PAINT CUTTING, 6MM
31	90303-SA5-003	Nut - FR. COMBINATION LIGHT
34	90682-SB0-003	Grommet - SCREW, 5MM
35	91503-SZ3-003	Clip A
37	91512-SX0-003	Clip - INNER FENDER CLIP
44	91503-SZ5-003	Clip - BUMPER FACE

Camshaft/timing belt 20

#	OEM	部品名
1	11811-PLC-000	TIMING BELT LOWER COVER
2	11812-PLC-000	LOWER TIMING BELT COVER GROMMET
3	11821-PLC-000	Cover - TIMING BELT UPPER
4	11831-PLC-000	LOWER COVER RUBBER SEAL
5	11832-P08-000	Rubber - R. BACK SEAL
6	11833-PLC-000	Rubber - L. BACK SEAL
7	11840-PLC-000	Cover comp. - TIMING BELT BACK
8	14111-PLA-G10	Camshaft
9	14210-PLC-003	Pulley comp - TIMING BELT DRIVEN
10	14400-PLA-004	Belt - TIMING (103RU22 B-333)
11	14516-PLC-000	Spring comp - TIMING BELT ADJUSTER
12	14517-PLC-013	Bolt a - TENSIONER
14	14520-PLC-335	Tensioner set - TIMING BELT
15	90007-PLC-000	Bolt a - TIMING BELT COVER
16	90007-679-000	Bolt a - TIMING BELT COVER
17	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING
18	90031-PT0-003	Bolt-washer - 8X22
18	90032-ZW5-003	Bolt-washer, 8x22
19	91213-PE1-722	Oil seal - 29X45X8 (NOK)
19	91213-P2F-A01	Oil seal - 29X45X8 (ARAI)

Clutch case 9

#	OEM	部品名
1	21000-PLW-B00	Case comp. - CLUTCH
2	21103-PLW-000	Plate c - OIL GUIDE
3	21120-PLW-000	Magnet - TRANSMISSION
4	24601-PLW-000	Stay - CHANGE WIRE
5	91002-PS0-003	Bearing - BALL, 26X58X15 (NTN)
6	91101-PHR-003	Bearing - NEEDLE, 34X59X20
7	91205-PL3-A02	Oil seal - 35X56X8(NOK)
7	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
8	91216-PL3-005	Oil seal - 26X42X7 (NOK)

Clutch master cylinder (LH) 36

#	OEM	部品名
1	17713-SE0-003	Clamp - FUEL PIPE
2	43352-567-000	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW
4	46151-S5A-A01	Yoke
5	46182-500-013	Circlip
6	46911-S70-003	Pin, LOCK(8MM)
7	46912-S84-A00	Pin - CLUTCH PEDAL
8	46920-S5A-G04	Cylinder assy. - CLUTCH MASTER
9	46921-S5A-003	Plate - STOPPER
10	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
11	46928-S5A-A01	Seal - MASTER CYLINDER
12	46930-S5A-013	Cylinder assy. - CLUTCH SLAVE
13	46931-S5A-003	Pin - SPRING
14	46932-S5A-003	Piston - SLAVE CYLINDER
15	46937-SS1-003	Boot - SLAVE CYLINDER
16	46941-S5A-A01	Connector - CLUTCH MASTER CYLINDER
17	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
18	46942-S5A-003	Pin - SNAP
19	46943-S5A-003	Seal - RING
20	46944-S5A-J01	Connector
21	46945-S5A-003	O-ring
22	46946-S5A-003	Screw-washer - 4X12
23	46947-S5A-003	Rod - PUSH
24	46948-S5A-003	Rod - PUSH
25	46949-S5A-003	Seal - RING
26	46960-S5A-A04	Pipe comp. A CLUTCH
27	46961-S5A-A01	Hose - CLUTCH
28	46965-S5A-013	Tank assy. - CLUTCH FLUID
29	46966-S5A-A01	Holder - TANK
30	46968-S5A-000	Bracket a - CLUTCH PIPE
31	46970-S5A-013	Pipe comp. b - CLUTCH
32	46971-S5A-A01	Tube - CLUTCH FLUID
33	46972-S6F-E01	Clamp - TUBE (D12)
34	46995-S5A-G01	Bracket a - CLUTCH PIPE
35	90651-538-000	Clip - BRAKE HOSE
36	91597-S50-013	Clip A - FUEL PIPE

Clutch release 12

#	OEM	部品名
1	22810-PLW-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
1	22810-PLW-005	Bearing, CLUTCH RELEASE (NSK)
2	22821-P20-010	Fork - CLUTCH RELEASE
3	22825-PX5-A00	Bolt - RELEASE FORK
4	22835-P7N-000	Spring - RELEASE FORK SETTING
5	22841-P20-000	Boot - RELEASE FORK
13	78410-S5A-902	Sensor assy - SPEED (NS)
14	78415-S5T-901	Gear
15	78416-S2R-003	Washer
16	78417-S2R-003	Ring - STOP (C-TYPE)
17	78418-S2R-003	Spring
18	78419-S2R-003	Seal - RING

Clutch/torque converter 7

#	OEM	部品名
1	21350-PLA-010	Cover - CLUTCH CASE
3	22100-P2Y-005	Flywheel comp.
4	22200-PLC-005	Disk comp - FRICTION
5	22300-P2Y-005	Disk comp - PRESSURE
8	90011-PM0-000	Bolt - 12MM
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
13	91006-634-008	Bearing - CLUTCH PILOT (NTN)

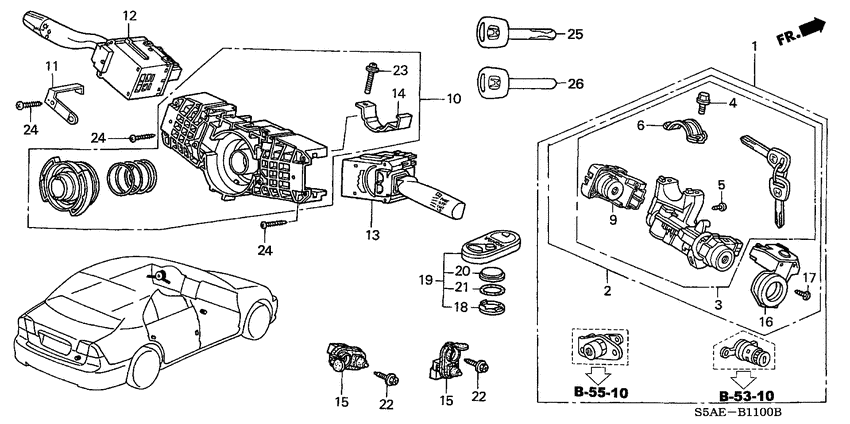

Combination switch (LH) 22

#	OEM	部品名
1	06350-S5A-E22	Cylinder set - KEY
2	35100-S5A-E22	Lock assy - STEERING
4	35102-SV4-003	Bolt - BREAK HEAD
5	35103-S04-003	Screw - RECESSED
6	35108-S30-003	Holder - COLUMN
9	35130-S5A-J51	Switch comp - STEERING
10	35251-S5A-Y03	Body comp - SWITCH
12	35255-S5A-G02	Switch assy - LIGHTING & TURN SIGNAL
13	35256-S5A-A02	Switch assy - WIPER
14	35257-S5A-J01	Bracket
15	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)
16	39730-SEA-E01	Immobilizer unit
17	72118-ST7-003	Screw - TAPPING, 3X5
18	72146-S5A-G01	Cover - BATTERY
19	72147-S6A-G01	Transmitter assy - KEYLESS
20	72148-S10-003	Battery - CR2025
20	72148-S84-A10	Battery - CR2025
21	72149-S10-003	O-ring
22	90132-S2H-G11	Screw - ET, 5.5X18
22	90132-S2H-G01	Screw - ET, 5X18
26	35113-S0X-Y01	Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER)
26	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)

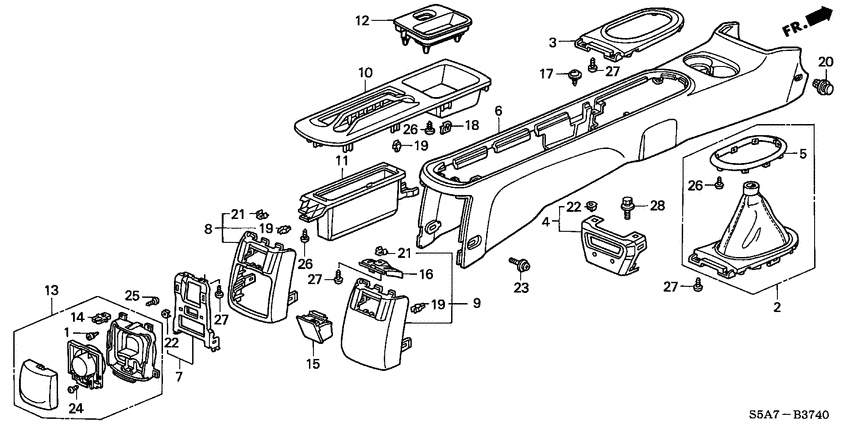

Console (1) 6

#	OEM	部品名
16	88324-SB3-950	Cover - RR. ASHTRAY
17	90137-SH3-000	Screw - TAPPING, 4X16
18	90665-S04-003	Clip - SNAP FITTING
19	90666-S84-A01	Clip - SNAP FITTING
21	91640-SM4-003	Grommet - SCREW, 4MM
22	91641-SM4-003	Grommet - SCREW, 4MM

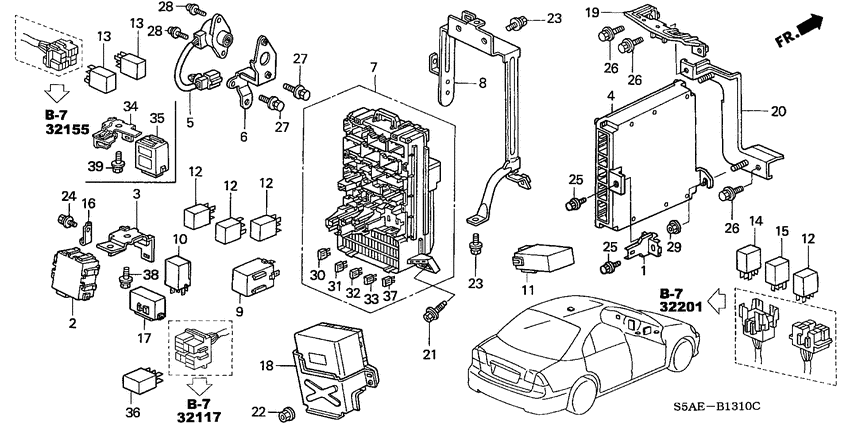

Control unit (CABIN; LH) 24

#	OEM	部品名
1	32752-PLM-A00	Stay m - ENGINE WIRE HARNESS
3	36701-S5A-A00	Bracket - AUTO CRUISE & SECURITY
4	37820-PLA-G04	Control module - ENGINE
7	38200-S5A-S23	Box assy - FUSE
7	38200-S5A-G41	Box assy - FUSE
8	38201-S5A-A10	Bracket - FUSE BOX
9	38300-S5T-004	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
9	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
10	38310-S6A-S02	Relay - CLEANER CONTROL
11	38385-S6A-G01	Receiver unit - KEYLESS ENTRY
12	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
12	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
13	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
14	39794-S5A-004	Relay assy - FUEL PUMP(5P) (DENSO)
14	39794-S5A-003	Relay assy - FUEL PUMP(5P) (MITSUBA)
15	39794-S5A-901	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
15	39794-S5A-902	Relay assy - ENGINE CONTROL MODULE(4P)(DENSO)
16	39796-ST3-E00	Bracket - KEY LIGHT TIMER
18	39980-S5A-G04	Eps unit
19	79101-S5D-A01	Bracket - HEATER
20	79820-S5A-A00	Bracket - ENGINE CONTROL MODULE
20	79820-S5D-A01	Bracket - ENGINE CONTROL MODULE
21	90137-SF1-000	Bolt-washer - 6X25
22	90361-SV4-003	Nut - PAINT CUTTING, 6MM

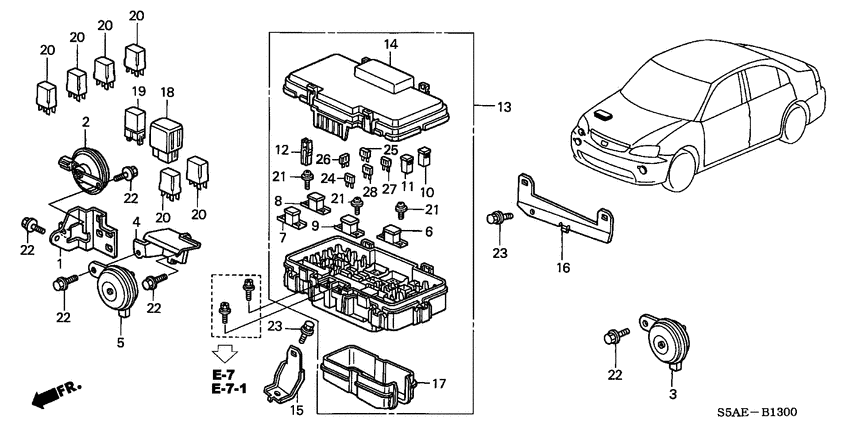

Control unit (ENGINE ROOM) 22

#	OEM	部品名
3	38100-S04-A01	Horn assy - LOW (MITSUBA)
4	38101-S5A-G01	Bracket - HORN
5	38150-S0A-003	Horn assy - HIGH (MITSUBA)
7	38213-SM4-003	Fuse - BLOCK (50A)
8	38214-SS1-003	Fuse - BLOCK (60A)
9	38216-SM4-003	Fuse - BLOCK (80A)
10	38231-S04-003	Fuse - BLOCK (30A)
11	38231-S04-961	Fuse - BLOCK (40A)
12	38235-S04-003	Puller - MINI FUSE (SUMITOMO)
13	38250-S5A-G13	Box assy - RELAY
14	38251-S5A-G12	Cover - UPPER
15	38251-S5A-000	Bracket a - RELAY BOX
16	38252-S5A-000	Bracket b - RELAY BOX
17	38252-S5A-003	Cover - LOWER
18	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
18	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
19	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
19	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
20	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
20	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
21	90129-SP0-000	Screw-washer - 5X12
22	90150-S84-003	Bolt - EARTH, 8X16

Countershaft 18

#	OEM	部品名
1	23221-PLW-B50	Countershaft
2	23421-PLW-B00	Gear - COUNTERSHAFT LOW
3	23431-PLW-B10	Gear - COUNTERSHAFT SECOND
4	23461-PLW-A00	Gear - COUNTERSHAFT FIFTH
5	23471-PLW-A00	Gear - COUNTERSHAFT THIRD
6	23481-PLW-A00	Gear - COUNTERSHAFT FOURTH
7	23521-PLW-316	Sleeve set - SYNCHRONIZER (1-2)
8	23912-PHR-000	Collar - DISTANCE, 34X40X27.5
9	23926-PB6-010	Washer - SPRING, 22MM
10	90202-PB6-010	Nut - FLANGE, 22MM
11	90603-PL3-000	Ring - SNAP, 52MM
12	91003-P21-003	Bearing - BALL, 25X52X14/15 (NTN)
13	91102-PLW-003	Bearing - NEEDLE, 25X52.2X15
14	91103-PHR-003	Bearing - NEEDLE, 38X43X22
15	91104-PHR-003	Bearing - NEEDLE, 40X45X22.5
16	91211-PHR-003	Damper - FRICTION (LOW)
17	91212-PHR-003	Damper - FRICTION (SECOND)
17	91212-PHR-013	Damper

Cylinder block/oil pan 21

#	OEM	部品名
1	11000-PLA-000	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM
3	11126-PK1-003	Bolt - SEALING, 22MM
4	11200-PLC-000	Pan comp - OIL
7	11251-P2A-014	Packing - OIL PAN (OTSUKA)
8	11300-PLC-020	Cover assy. - R. SIDE
9	11311-PLC-000	Cover - BREATHING PORT
10	30530-PLE-004	Sensor - KNOCK
11	32745-PLC-000	Stay e - ENGINE HARNESS
12	37240-PT0-023	Switch - OIL PRESSURE(DENSO)
12	37240-PT0-014	Switch - OIL PRESSURE (TEC)
13	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
14	90008-PM0-003	Bolt-washer - 10X112
16	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
18	90042-PR3-000	Bolt - STUD, 6X28
19	90401-PR4-000	Washer - SEALING, 28MM
20	90702-PE0-000	Dowel pin - 12X18
21	90703-PE0-000	Dowel pin - 18X22
22	91214-P2F-A01	Oil seal - 80X100X10 (ARAI)
22	91214-PH1-004	Oil seal - 80X100X10 (ARAI)
22	91214-PLE-003	Oil seal

Cylinder head (SOHC) 20

#	OEM	部品名
1	12100-PLC-000	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
3	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
4	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
4	12211-PZ1-004	Seal b - VALVE STEM(NOK)
5	12251-PLC-003	Gasket - CYLINDER HEAD (ISHINO GASKET)
5	12251-PLC-004	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)
6	12513-P72-003	Plug - CYLINDER HEAD
7	14631-P2A-000	Shaft - IN. ROCKER ARM
8	14633-P2A-000	Shaft - EX. ROCKER ARM
9	17233-PLC-000	Stay comp - RESONATOR
10	37840-RJH-006	TDC CYLINDER SENSOR ASSY
11	90004-PT0-000	Bolt - FLANGE, 6X50
12	90004-PT2-000	Bolt - FLANGE, 6X35
12	90003-PT2-000	Bolt - FLANGE, 6X35
13	90005-PM3-003	Bolt-washer - 10X140 (SAGA)
14	90007-P08-000	Bolt - FLANGE, 8X80
15	90026-PE0-000	Bolt - STUD, 8X37
15	90026-PT0-000	Bolt - STUD, 8X38

Cylinder head cover 17

#	OEM	部品名
1	12030-PLC-010	Packing set - HEAD COVER
2	12310-PLC-000	Cover comp. - CYLINDER HEAD
3	12315-PLC-000	Bolt - STUD
4	12316-PLC-000	Washer
5	12341-PLC-000	Packing - CYLINDER HEAD COVER
6	12342-P08-004	Seal
6	12342-RYE-004	Seal,spark plug t
6	12342-P2F-A01	Seal - SPARK PLUG TUBE (NOK)
6	12342-P2A-005	Seal - SPARK PLUG TUBE (KOYO)
7	15610-PLC-000	Cap assy. - OIL FILLER
8	15613-PLC-000	Packing - OIL FILLER
9	15650-PLC-004	Gauge comp. - OIL LEVEL
10	90011-PLC-000	Bolt comp. a - HEAD COVER
11	90012-PLC-000	Bolt comp. b - HEAD COVER
12	90013-PLC-000	Bolt a - HEAD COVER
13	90014-PLC-000	Bolt b - HEAD COVER
14	90442-PLC-000	Washer - HEAD COVER

Differential 21

#	OEM	部品名
1	41100-PLW-E00	Differential comp.
2	41233-PLW-B50	Gear - FINAL DRIVEN
3	41454-PL3-B00	Shim p - 80MM(1.45)
3	41449-PL3-B00	Shim j - 80MM(1.8)
3	41444-PL3-B00	Shim d - 80MM(1.3)
3	41456-PL3-B00	Shim r - 80MM(1.65)
3	41451-PL3-B00	Shim l - 80MM(1.15)
3	41446-PL3-B00	Shim f - 80MM(1.5)
3	41441-PL3-B00	Shim a - 80MM(1.0)
3	41453-PL3-B00	Shim n - 80MM(1.35)
3	41448-PL3-B00	Shim h - 80MM(1.7)
3	41443-PL3-B00	Shim c - 80MM(1.2)
3	41455-PL3-B00	Shim q - 80MM(1.55)
3	41450-PL3-B00	Shim k - 80MM(1.05)
3	41445-PL3-B00	Shim e - 80MM(1.4)
3	41457-PL3-B00	Shim s - 80MM(1.75)
3	41452-PL3-B00	Shim m - 80MM(1.25)
3	41447-PL3-B00	Shim g - 80MM(1.6)
3	41442-PL3-B00	Shim b - 80MM(1.1)
4	90015-634-010	Bolt - FLANGE, 10MM
5	91005-PS1-003	Bearing - SEALED BALL, 6208C (NTN)

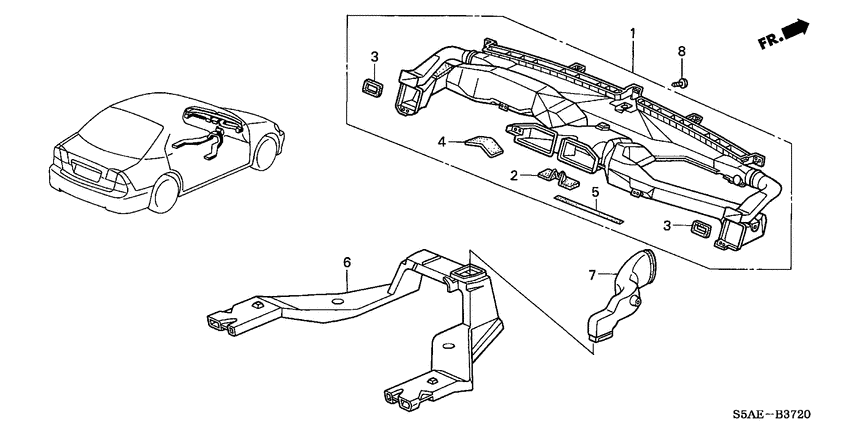

Duct (LH) 7

#	OEM	部品名
1	77400-S5A-A61	Duct assy - INSTRUMENT
2	77404-S5A-A01	Seal a
3	77407-S5A-A01	Seal b
4	77409-S5A-A01	Seal c
5	77411-S5A-A01	Fabric - NON WOVEN
6	83331-S5A-000	Duct - RR. HEATER
7	83332-S5A-A01	Duct - L. JOINT

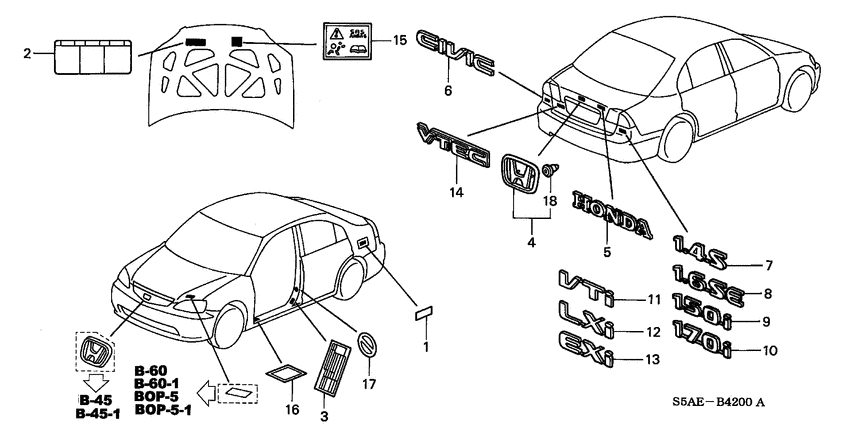

Emblems/caution labels 9

#	OEM	部品名
1	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
1	17669-SH3-P30	Label - FUEL FILLER CAUTION (PORTUGAL)
2	19043-PLA-G00	Label - COOLANT INFORMATION
3	42760-S5A-G10	Plate - TIRE PRESSURE CAUTION
4	75701-S5A-000	Emblem - RR. (H)
6	75722-S5A-000	Emblem - RR. (CIVIC)
15	77875-S84-G80	Label - SRS CAUTION
17	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
18	91512-SR3-004	Clip - TUBULAR

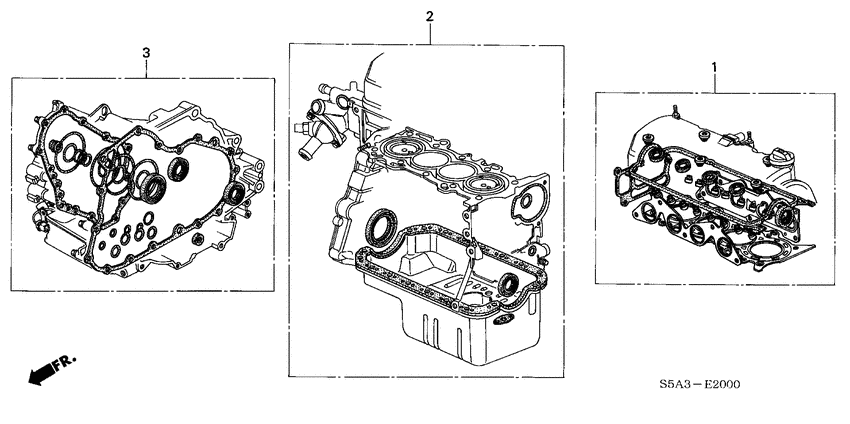

Engine assy./ transmission assy. 3

#	OEM	部品名
1	10002-PLA-E01	General assy. - CYLINDER BLOCK
2	10003-PLA-B00	General assy. - CYLINDER HEAD
3	20011-PLW-M50	Transmission assy - MT

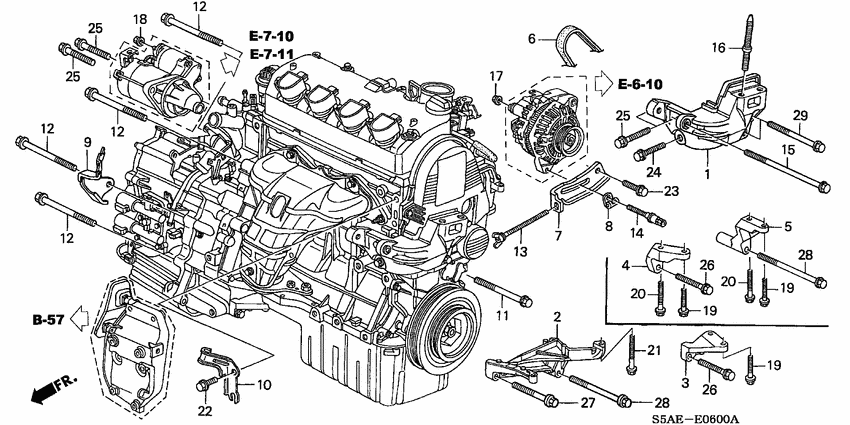

Engine mounting bracket 12

#	OEM	部品名
1	11910-PLC-010	Bracket - ENGINE MOUNTING
2	11950-PLC-000	Stiffener - ENGINE
6	31110-PLA-E01	Belt - ALTERNATOR (BANDO)
7	31113-PLC-000	Stay - ALTERNATOR
8	31118-PLC-000	Stay - ALTERNATOR ADJUSTER
10	32746-PLC-000	Clamp f - ENGINE HARNESS
11	90050-PG7-000	Bolt - FLANGE, 12X65
12	90051-PE0-000	Bolt - FLANGE, 12X70
13	90311-PLC-000	Bolt - ADJUSTER
14	90312-PLC-000	Bolt - ALTERNATOR
15	90313-PLC-010	Bolt - SPECIAL, 10X98
16	90380-S10-000	Bolt - STUD, 12X83.8

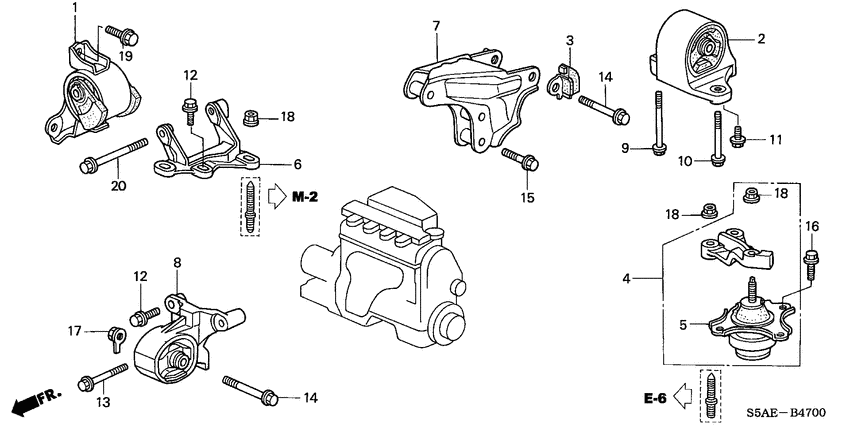

Engine mounts (MT) 17

#	OEM	部品名
1	50805-S5A-033	Rubber assy. - TRANSMISSION MOUNTING
2	50810-S5A-013	Rubber - ENGINE RR. MOUNTING
3	50815-S5A-000	Damper - RR. ENGINE MOUNTING BRACKET
4	50820-S5A-013	Rubber assy. - ENGINE SIDE MOUNTING (TOUKAI)
5	50827-S5A-003	Rubber comp - ENGINE SIDE MOUNTING (TOUKAI)
6	50825-S5A-000	Bracket - TRANSMISSION MOUNTING
7	50827-S5A-000	Bracket - ENGINE RR. MOUNTING
8	50840-S5A-010	Stopper, FR. ENGINE
9	90161-S5A-000	Bolt - FLANGE, 10X110
10	90162-S5A-000	Bolt - FLANGE, 10X80
11	90163-S5A-000	Bolt - FLANGE, 10X20
12	90164-S5A-000	Bolt - FLANGE, 12X40
13	90165-S5A-000	Bolt - FLANGE, 10X70
14	90167-S5A-010	Bolt - FLANGE, 12X88
15	90170-S5A-000	Bolt - FLANGE, 12X60
16	90177-S5A-000	Bolt - FLANGE, 10X20
17	90371-S5A-000	Nut - YOKE, 12MM

Engine wire harness (LH) 28

#	OEM	部品名
1	32110-PLA-G00	Harness - ENGINE WIRE
2	32116-PLM-A01	Holder - CORRUGATED TUBE (DARK BLUE) (15MM)

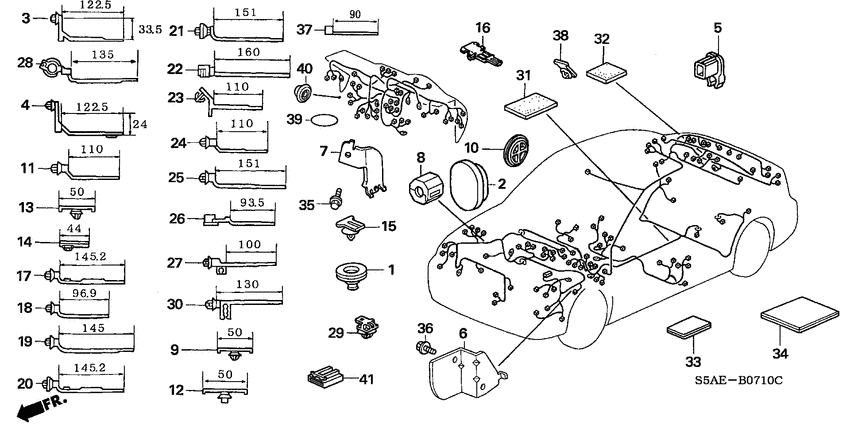

3	32117-PLC-000	Harness - SUB SENSOR WIRE
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
7	32120-PLC-000	Cover assy. - ENGINE WIRE HARNESS
8	32127-PLC-000	Holder comp. a - HARNESS
9	32128-PLC-000	Holder assy. b - ENGINE HARNESS
10	32129-PLC-000	Holder c - HARNESS
11	32131-PLC-000	Holder d - HARNESS
12	32132-PLC-000	Holder - UPPER HARNESS
13	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
14	32133-PLC-000	Holder - LOWER HARNESS
15	32610-S5A-000	Cable - SUB EARTH
16	32741-PLM-A00	Stay a - ENGINE WIRE HARNESS
17	32742-PLM-A00	Stay b - ENGINE WIRE HARNESS
18	32748-PLC-000	Stay h - ENGINE HARNESS
19	32750-PLC-003	Clamp k - ENGINE WIRE HARNESS
20	32755-PLC-000	Stay - OXYGEN SENSOR COUPLER
21	90114-SM4-900	Bolt - 6X15
22	90153-SE0-003	Bolt - EARTH, 6X12
23	90501-SS8-A01	Retainer
24	91501-P8A-A01	Stud
25	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
26	91507-PLC-003	Clip - WIRE HARNESS(DARK BLUE) (132.3MM)
27	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
28	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
29	91571-SP0-003	Clip - WIRE HARNESS (BLACK) (64MM)
30	91601-P8A-A01	Receptacle

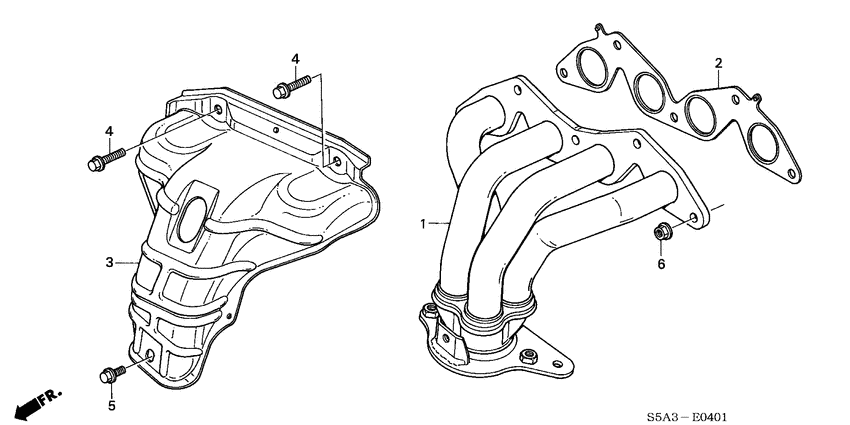

Exhaust manifold (1) 6

#	OEM	部品名
1	18100-PLA-G00	Manifold comp - EX.
2	18115-PLC-J02	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
2	18115-PLC-J01	Gasket - EX. MANIFOLD (ISHINO GASKET)
3	18120-PLD-000	Cover - EX. MANIFOLD
4	90003-PLC-000	Bolt - FLANGE, 8X22
5	90015-PAA-L20	Bolt - FLANGE, 8X12

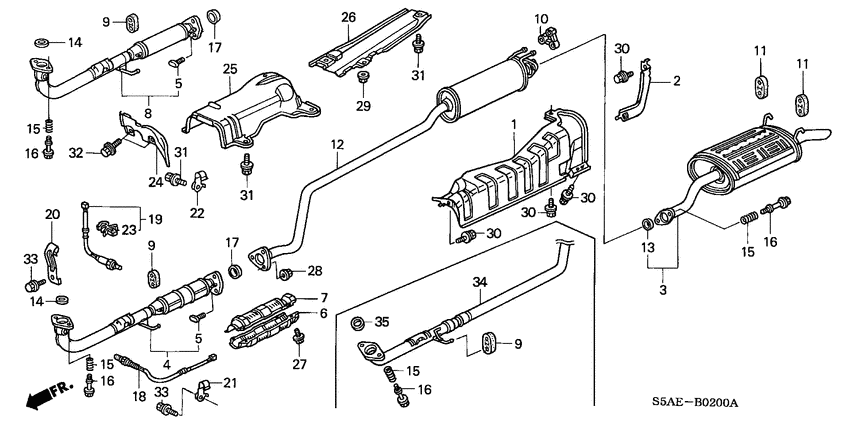

Exhaust pipe/silencer 29

#	OEM	部品名
1	17519-S5A-940	Protector - FUEL TANK
2	17520-S5A-931	Stay - FUEL TANK PROTECTOR
3	18030-S5A-J00	Silencer set - EX.
4	18160-PLA-G10	Converter comp.
5	18176-P08-003	Bolt - CONVERTER
6	18181-PLD-000	Cover - LOWER
7	18182-PLD-000	Cover - UPPER
9	18215-SX0-003	Rubber - EX. MOUNTING(70X55X30)
10	18215-S5A-A11	Rubber - EX. MOUNTING
11	18215-S5A-J01	Rubber - EX. MOUNTING
12	18220-S5A-J03	Pipe b - EX.
13	18229-S2K-003	Gasket - EX. FLEXIBLE
14	18229-S5A-J01	Gasket - EX. FLEXIBLE
15	18230-SV4-000	Spring - FLEXIBLE JOINT
16	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
17	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
18	36531-PLD-013	Sensor - OXYGEN
19	36532-PLD-013	Sensor - RR. OXYGEN
20	36533-PLD-000	Clamp - OXYGEN SENSOR
21	36534-PLD-000	Clamp - OXYGEN SENSOR
22	36535-PLD-000	Clamp - OXYGEN SENSOR
23	36538-PLD-003	Clip - WIRE HARNESS
24	74252-S5A-000	Plate - DASHBOARD LOWER BAFFLE
25	74601-S5A-000	Plate - FLOOR HEAT BAFFLE (A)
26	74605-S5A-000	Plate - FLOOR HEAT BAFFLE (B)
27	90023-PK1-000	Bolt - FLANGE, 6X10
27	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
28	90212-SA5-003	Nut - SELF-LOCK, 10MM
29	90301-SV7-000	Nut - PAINT CUTTING, 6MM

Floor mat 7

#	OEM	部品名
1	74251-S5A-A20	Insulator - DASHBOARD LOWER OUTER
2	74260-S5A-A20	Insulator - DASHBOARD
9	90667-ST8-003	Clip - SIDE LINING
11	90676-SB2-003	Clip - DASHBOARD INSULATOR
12	90676-S5A-003	Clip - DASHBOARD INSULATOR
13	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
14	91560-S04-003	Clip - SIDE GARNISH (NATURAL)

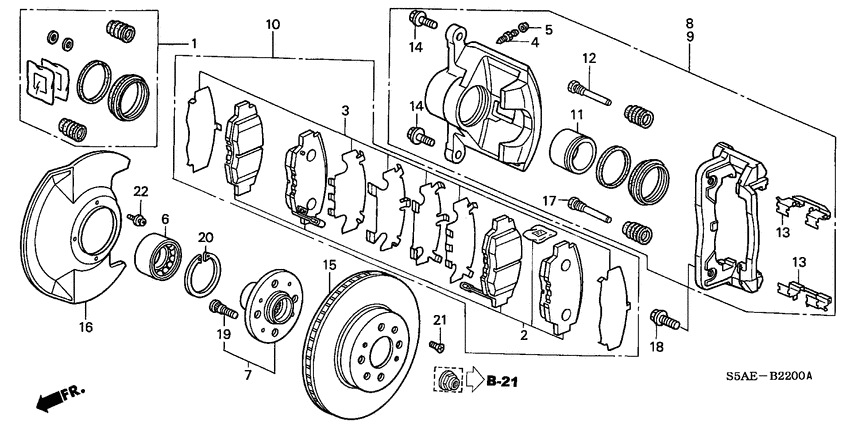

Front brake 24

#	OEM	部品名
1	01463-S04-V00	Caliper set - FR.
1	01463-S04-V01	SET, FR CALIPER
2	06450-S5A-E50	Pad set - FR. (WITHOUT SHIM) (###)
3	06455-S5A-J00	Shim set - FR.
4	43352-SM4-951	Screw - BLEEDER
5	43353-SD5-003	Cap - BLEEDER SCREW
6	44300-S5A-004	FR HUB Bearing assy (KOYO SEIKO)
6	44300-S5A-008	FR HUB Bearing assy (NTN)
7	44600-S5A-J00	Hub assy - FR. (14")
8	45018-S5A-J02	Caliper sub assy. - R. FR.
9	45019-S5A-J02	Caliper sub assy. - L. FR.
10	45022-S5A-E50	Pad set - FR.
11	45216-S5A-J01	Piston
12	45235-S0A-003	Pin a
13	45237-SR3-003	Retainer a
14	45240-SC2-003	Bolt - FLANGE, 8X22
15	45251-SK7-J00	Disk - FR. BRAKE
16	45255-SR3-V01	Guard - FR. BRAKE SPLASH
17	45262-S0A-003	Pin b
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
19	90113-SA0-006	Bolt - WHEEL (SAGA)
20	90681-SR3-A00	Circlip, SPECIAL INTERNAL, 79MM

Front bulkhead 3

#	OEM	部品名
42	74232-S5A-000	Rod - BRAKE PEDAL SUPPORT
43	90101-S6A-000	Bolt-washer - 8MM
44	90105-634-000	Bolt-washer (8x20)

Front door lining (LH) 5

#	OEM	部品名
3	72335-S5A-003	Weatherstrip - R. FR. DOOR INNER
4	72375-S5A-003	Weatherstrip - L. FR. DOOR INNER
17	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
18	90662-SB2-003	Grommet - SCREW, 5MM
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

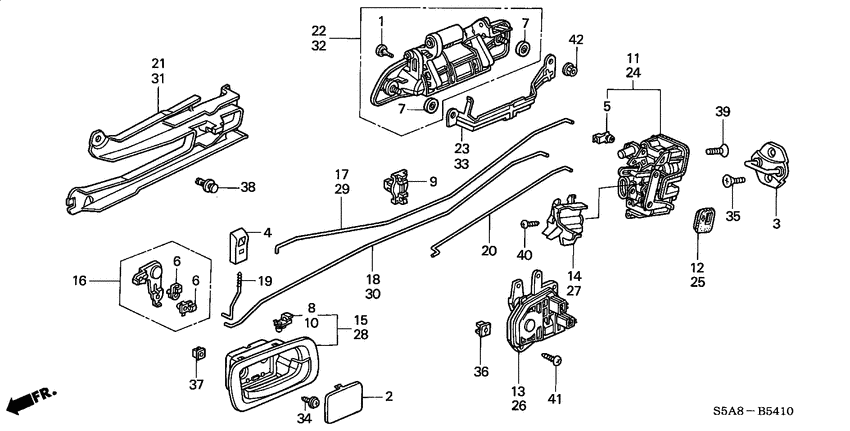

Front door locks 38

#	OEM	部品名
2	72110-S5A-A11	Lock assy - R. FR. DOOR POWER (###)
3	72112-SR4-004	Snap - BROWN
4	72113-SR4-004	Snap - BLACK
5	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
6	72116-S04-003	Holder - ROD(SKY BLUE)
7	72117-S04-003	Holder - ROD (YELLOW)
8	72117-S5A-A01	Protector - R. FR. DOOR LOCK
10	72119-S04-003	Stopper a - OUTSIDE HANDLE
13	72123-SR0-003	Ring - OUTSIDE HANDLE
14	72130-S5A-A00	Protector - R. FR. DOOR OUTER HANDLE
15	72131-S5A-003	Rod - R. FR. INSIDE HANDLE
16	72135-S5A-003	Striker assy - DOOR LOCK
18	72139-SR0-A01	Snap - VIOLET
19	72139-S5A-A00	Protector - R. FR. DOOR KNOB ROD
20	72140-S5A-013	Handle assy - R. FR. DOOR OUTSIDE
21	72141-SD4-004	Bush - R. JOINT
22	72141-S5A-003	Packing
24	72145-S5A-A11	Cylinder - R. DOOR
26	72185-S5A-A11	Cylinder - L. DOOR
27	72149-SR4-000	Snap - R.
29	72150-S5A-A11	Lock assy - L. FR. DOOR POWER (###)
29	72150-S5A-A21	Lock assy - L. FR. DOOR (SWITCH) (###)
30	72156-S5A-003	Switch assy - L. FR. DOOR LOCK
30	72155-S5A-A01	Actuator assy - DOOR LOCK
31	72157-S5A-A01	Protector - L. FR. DOOR LOCK
33	72170-S5A-A00	Protector - L. FR. DOOR OUTER HANDLE
34	72171-S5A-003	Rod - L. FR. INSIDE HANDLE
35	72175-SH3-003	Holder - DOOR LOCK ROD
36	72179-S5A-A00	Protector - L. FR. DOOR KNOB ROD
37	72180-S5A-013	Handle assy - L. FR. DOOR OUTSIDE
38	72181-SD4-004	Bush - L. JOINT
41	72189-SR4-000	Snap - L.
42	72616-SM4-003	Snap - NATURAL
43	90120-SM4-000	Screw - TAPPING
44	90120-SV4-000	Bolt - LOCK STRIKER
45	90141-S84-003	Screw - 3X10
46	90866-SA0-000	Grommet - SCREW, 4MM
47	91501-S04-003	Clip - INNER FENDER

Front door panels 20

#	OEM	部品名
5	67326-S5A-003	Tape - R. FR. DOOR UPPER OUTER
6	67366-S5A-003	Tape - L. FR. DOOR UPPER OUTER
11	72142-S10-000	Stopper - DOOR
12	72310-S5A-A01	Weatherstrip - R. FR. DOOR
13	72321-S5A-000	Seal - R. FR. DOOR HOLE
14	72325-S5A-003	F/DOOR W/STRIP RH - R. FR. DOOR
15	72340-S5A-J01	Checker comp. - R. FR. DOOR
16	72350-S5A-A01	Weatherstrip - L. FR. DOOR
17	72361-S5A-000	Seal - L. FR. DOOR HOLE
18	72365-S5A-003	Sub seal - L. FR. DOOR
19	72380-S5A-J01	Checker comp. - L. FR. DOOR
20	72435-S5A-003	Seal - FR. DOOR LOWER SILL
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
23	90141-S04-000	Bolt - FLANGE, 8X22
24	90651-S4N-003	Clip
25	91504-S5A-003	Clip - DOOR WEATHERSTRIP
26	91568-SR2-003	Clip - DOOR WEATHERSTRIP
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

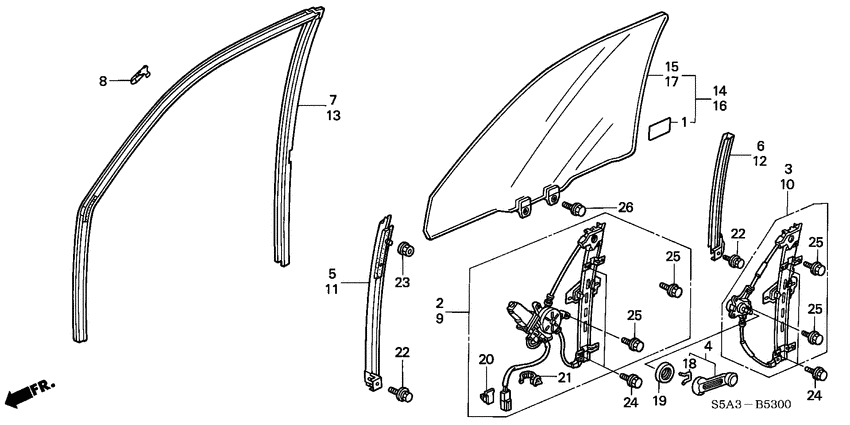

Front door windows 14

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72210-S5A-G04	Regulator assy - R. FR. DOOR POWER
5	72230-S5A-003	Sash - R. FR. DOOR FR. LOWER
6	72231-S5A-003	Sash - R. FR. DOOR CENTER LOWER
7	72235-S5A-E01	Runchannel - R. FR. DOOR
8	72237-S84-G01	Clip - FR. DOOR GLASS GUIDE
9	72250-S5A-G04	Regulator assy - L. FR. DOOR POWER
11	72270-S5A-003	Sash - L. FR. DOOR FR. LOWER
12	72271-S5A-003	Sash - L. FR. DOOR CENTER LOWER
13	72275-S5A-E01	Runchannel - L. FR. DOOR
14	73300-S5A-E22	Glass assy - R. FR. DOOR (GREEN)(ASAHI)
16	73350-S5A-E22	Glass assy - L. FR. DOOR (GREEN)(ASAHI)
20	91533-S04-003	Clip - COUPLER (NATURAL)
21	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front driveshaft 17

#	OEM	部品名
1	44014-S5A-951	Joint set - OUTBOARD
2	44017-S5A-000	Boot set - INBOARD
3	44018-SAB-N20	Boot set - OUTBOARD
4	44305-S5A-950	Driveshaft assy. - R.
5	44306-S5A-950	Driveshaft assy. - L.
6	44310-S5A-J00	Joint comp - INBOARD
7	44310-S5A-300	Joint comp - INBOARD
8	44319-S04-300	Set ring - 26X1.8
8	44319-SR1-003	Set ring - 26X1.8 (GKN)
9	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
10	44327-S04-N01	Band b - DRIVESHAFT (NIPPON HATSUJO)
11	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
12	44329-S04-N01	Band c - DRIVESHAFT (NIPPON HATSUJO)
13	44337-S04-300	Ring b - STOPPER
14	44338-S04-300	Circlip - 23MM
15	44351-S2G-003	Damper - DYNAMIC (TOUKAI)
17	90305-692-010	Nut

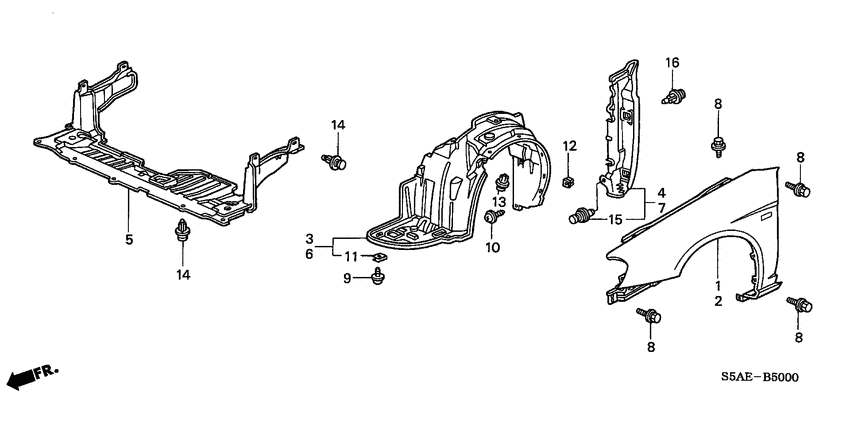

Front fenders 15

#	OEM	部品名
3	74101-S5A-J01	Fender - R. FR. INNER
4	74105-S5A-000	Fairing - R. FR. FENDER
5	74111-S5A-J00	Shield - FR. SPLASH
6	74151-S5A-J00	Fender - L. FR. INNER
7	74155-S5A-000	Fairing - L. FR. FENDER
8	90108-S0A-003	Bolt - FLANGE, 6X15
9	90114-SE0-000	Screw - TAPPING, 5X20
10	90126-SR4-000	Screw-washer - 5X16
11	90308-SB2-000	Nut - SUSPENSION, 5MM
11	90308-SB2-013	Nut - SUSPENSION, 5MM
12	90682-SB0-003	Grommet - SCREW, 5MM
13	91501-S04-003	Clip - INNER FENDER
14	91503-SZ3-003	Clip A
15	91533-SG0-000	Clip b - FAIRING
16	91545-SE0-003	Clip assy. - 8MM

Front grille ('04-) 4

#	OEM	部品名
1	71121-S5A-A00	Base - FR. GRILLE
3	75700-S6A-003	Emblem - FR. CENTER (H)
4	90301-ST0-003	push nut, 3mm
5	91503-SZ3-003	Clip A

Front seat (LH; DRIVER SIDE) 9

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
4	81138-S5A-G21	Clip - H
12	81223-S04-000	Clip - SHAFT, 8MM
15	81522-S5A-J21	Pad assy - L. FR. SEATBACK
16	81526-S5A-A01	Frame comp - L. FR. SEATBACK
19	81532-S5A-N13	Pad assy - L. FR. SEAT CUSHION
26	90134-SE3-003	Screw - TAPPING, 5X10
28	90610-SR3-003	Clip - GARNISH (KATO)

Front seat (LH; PASSENGER SIDE) 8

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	81122-S5A-J21	Pad assy - R. FR. SEATBACK
6	81126-S5A-N01	Frame comp - R. FR. SEATBACK
10	81132-S5A-N13	Pad assy - R. FR. SEAT CUSHION
12	81138-S5A-G21	Clip - H
23	90610-SR3-003	Clip - GARNISH (KATO)
24	90610-S10-003	Clip - GARNISH

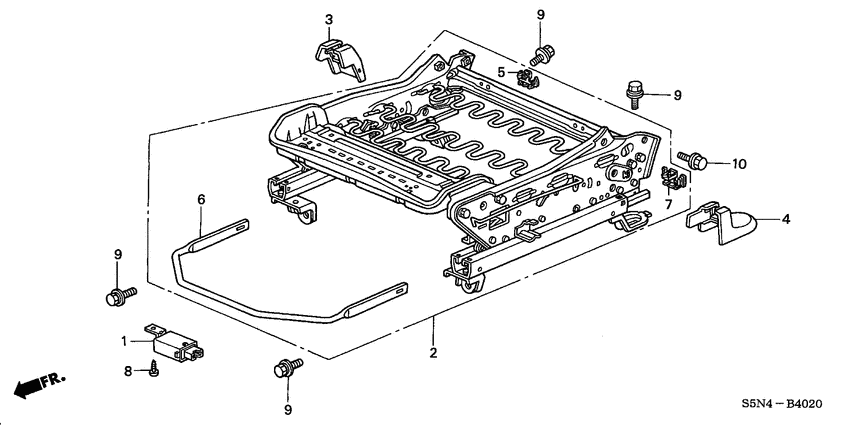

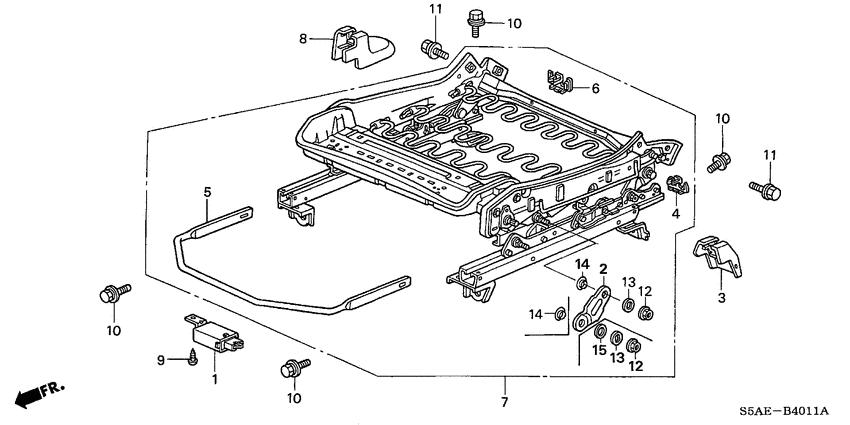

Front seat components (L.; MANUAL HEIGHT) 11

#	OEM	部品名
2	81139-S3N-003	Link - FR.
4	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
5	81271-S5A-J01	Lever
6	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
7	81536-S5A-J12	Frame comp - L. FR. SEAT CUSHION
10	90135-S5A-003	Bolt-washer - 10X27
11	90143-SR3-000	Bolt-washer - 10X22
12	90303-S3N-003	Nut - FLANGE
13	90501-S3N-003	Washer a
14	90502-S3N-013	Bush a
15	90503-S3N-003	Spacer

Front seat components (R.) 6

#	OEM	部品名
2	81136-S5A-J01	Frame comp - R. FR. SEAT CUSHION
5	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
6	81271-S5A-J01	Lever
7	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
9	90135-S5A-003	Bolt-washer - 10X27
10	90143-SR3-000	Bolt-washer - 10X22

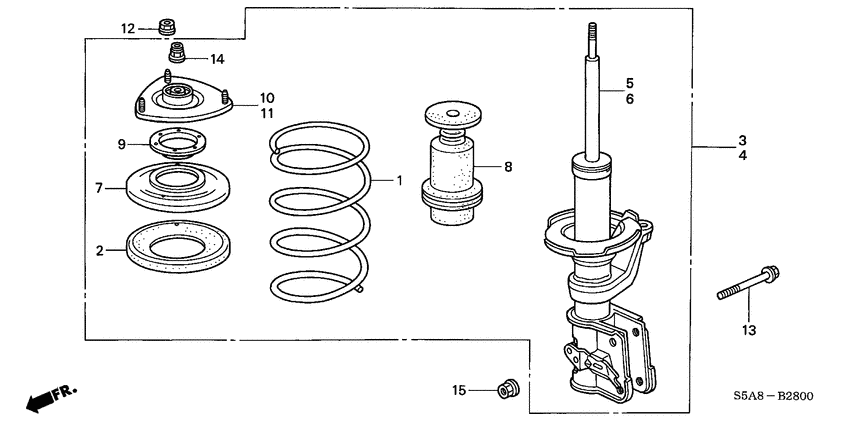

Front shock absorber 16

#	OEM	部品名
1	51401-S5A-A22	Spring - FR. (SHOWA)
2	51402-S5A-701	Rubber - FR. SPRING MOUNTING
3	51601-S5A-G02	Absorber assy - R. FR. SHOCK
4	51602-S5A-G02	Absorber assy - L. FR. SHOCK
5	51605-S5A-G08	Absorber unit - R. FR. SHOCK
6	51606-S5A-G08	Absorber unit - L. FR. SHOCK
7	51688-S5A-701	Seat - FR. SPRING UPPER
8	51722-S5A-801	Rubber - FR. BUMP STOPPER
9	51726-S5A-701	Bearing - FR. SHOCK ABSORBER MOUNT
10	51920-S5A-761	Mount comp - R. FR. SHOCK ABSORBER
11	51925-S5A-761	Mount comp - L. FR. SHOCK ABSORBER
12	90002-S10-000	Nut - FLANGE, 10MM
13	90119-S6M-Z01	Bolt - FLANGE, 16X62
13	90188-S6M-Z01	Bolt - FLANGE, 16X62 (SERVICE)
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
15	90382-S6M-Z01	Nut - FLANGE, 16MM

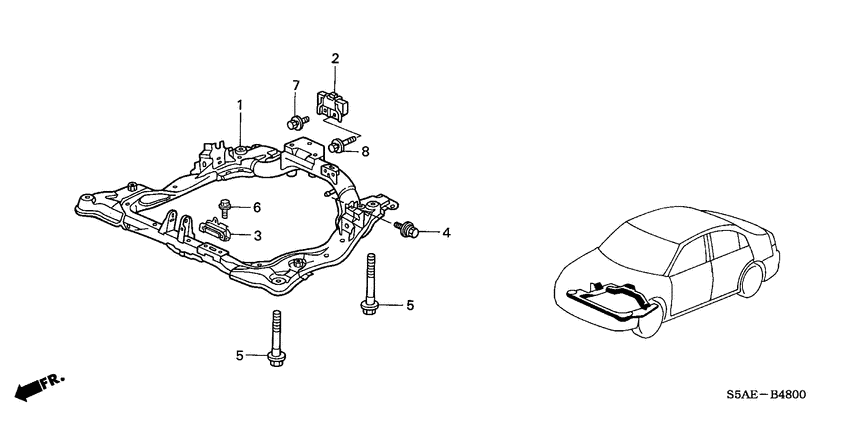

Front sub frame 5

#	OEM	部品名
1	50200-S5A-A04	Sub frame comp. - FR.
2	50205-S6A-E00	Damper - RR.
3	50206-S5A-A01	Damper - FR.
4	90174-S5A-003	Bolt-washer - 10X32
5	90175-S5A-000	Bolt - FLANGE, 14X115

Front windshield 15

#	OEM	部品名
1	04731-S5A-J00	Rubber set - FR. WINDSHIELD DAM
2	73111-S5A-A01	Glass - FR. WINDSHIELD (GREEN) (ASAHI)
3	73150-S5A-013	Molding - FR. WINDSHIELD
4	73152-S5A-003	Garnish assy - R. FR. WINDSHIELD SIDE
5	73162-S5A-003	Garnish assy - L. FR. WINDSHIELD SIDE
6	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
7	91519-S5A-003	Clip e - FR. SIDE GARNISH
8	91520-S5A-003	Clip f - FR. SIDE GARNISH
9	91521-S5A-003	Clip A - FR. SIDE GARNISH
10	91522-S5A-003	Clip b - FR. SIDE GARNISH
11	91523-S5A-003	Clip c - FR. SIDE GARNISH
12	91524-S5A-003	Clip d - R. FR. SIDE GARNISH
13	91534-S5A-003	Clip d - L. FR. SIDE GARNISH
14	91568-SX0-003	Fastener a - WINDSHIELD
15	91577-S84-A01	Fastener - WINDSHIELD

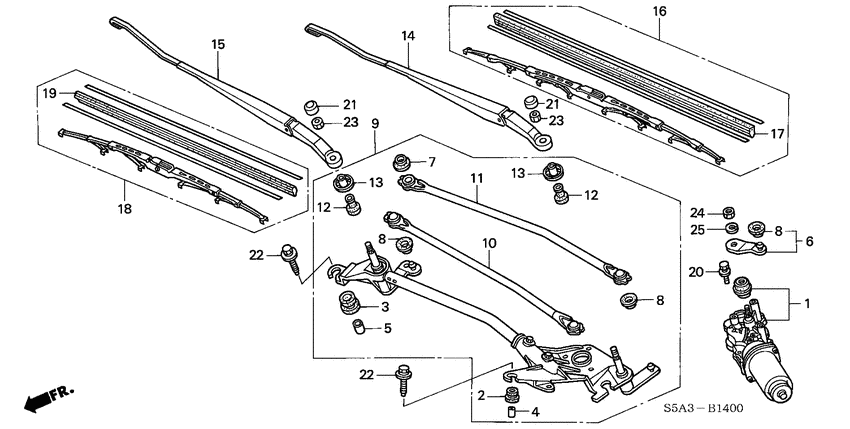

Front wiper (LH) 21

#	OEM	部品名
1	76505-S5A-G01	Motor comp - FR. WIPER
2	76516-SE0-003	Rubber - BRACKETLESS MOUNTING
3	76516-SR3-003	Rubber - MOUNTING
4	76517-SE0-003	Collar - BRACKETLESS
5	76517-SM4-003	Collar
6	76520-S5A-A01	Link assy. a
7	76524-SD4-003	Dust seal
8	76524-SE0-013	Dust seal
9	76530-S5A-G02	Link comp - FR. WIPER
10	76540-S5A-A01	Rod unit A
11	76550-S5A-A01	Rod unit b
12	76561-S5A-A01	Cap b - PIVOT
13	76561-S5A-003	Cap a - PIVOT
14	76600-S5A-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-S5A-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
16	76620-S5A-A02	Blade - WINDSHIELD WIPER (525MM)
17	76622-S5A-003	Rubber - BLADE (525MM)
18	76630-S5A-A02	Blade - WINDSHIELD WIPER (475MM)
19	76632-S5A-003	Rubber, BLADE (475MM)
21	91611-S5A-000	Cap - FR. WIPER
22	90126-SR3-000	Bolt-washer - 6X32

Fuel pipe 39

#	OEM	部品名
1	16040-S5A-A30	Feed set - FUEL
2	16722-PLC-003	Hose comp. - FUEL FEED
3	16725-PLC-003	Clamp a - FUEL HOSE (BLACK)
4	16726-PLC-003	Clamp b - FUEL HOSE
6	16727-PLR-A00	Stay - FUEL PIPE
7	16728-PLC-000	Stay - FUEL HOSE CLAMP
8	16729-PLC-003	Clamp c - FUEL HOSE
9	17300-S5A-932	Canister assy
10	17315-S5A-932	Filter - CANISTER
11	17358-S5A-G31	Bracket - CANISTER
12	17371-SM4-013	Valve - TWO WAY (TEC)
14	17701-S5A-930	Rubber - FUEL PIPE INSULATOR
15	17711-S0X-A31	Retainer - GREEN)(TOKAI
16	17711-S84-004	Retainer - WHITE)(SANOH
17	17717-S5A-931	Tube a - FUEL PURGE
18	17720-S5A-A30	Pipe - FUEL PURGE
19	17724-S5A-G30	Tube c - FUEL VENT
21	17726-S5A-931	Hose assy - PURGE
22	17741-S5A-931	Tube a - CANISTER DRAIN
23	17742-S5A-932	Tube - CANISTER DRAIN
24	17743-S5A-930	Tube - CANISTER FILTER
25	17745-S5A-932	Tube b - CANISTER DRAIN
26	17758-S5A-931	Clip - FUEL PIPE
27	17759-S5A-931	Clip b - FUEL PIPE
28	17762-S5A-930	Stay b - FUEL PIPE
29	17763-S5A-930	Stay c - FUEL PIPE
30	17764-S5A-930	Stay d - FUEL PIPE
31	17765-S5A-930	Stay e - FUEL PIPE
33	90361-SV4-003	Nut - PAINT CUTTING, 6MM
34	90671-S5A-003	Bolt - FR. FENDER
35	91401-SDC-000	Clip - TUBE(B10)
36	91405-SDA-000	Clamp - TUBE(D10.5)
37	91592-S5A-931	Clip - FUEL PIPE
38	91594-S5A-931	Clip - DRAIN TUBE (B)
39	91595-S5A-931	Clamp a - FUEL PIPE
40	91596-S5A-931	Joint - DRAIN TUBE
41	91597-S5A-931	Clip - DRAIN TUBE
42	91598-S5A-930	Rubber - FUEL PIPE INSULATOR
43	91599-S5A-931	Clamp b - FUEL PIPE

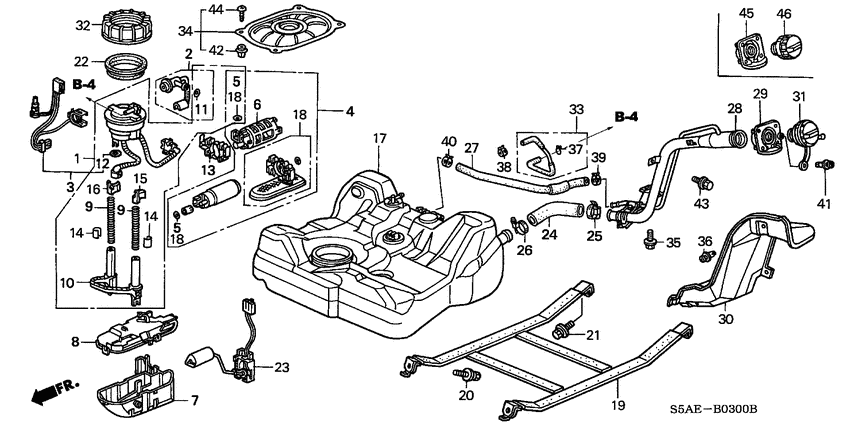

Fuel tank 42

#	OEM	部品名
1	16010-S5A-932	Strainer set - FUEL
2	16015-S5A-930	Regulator assy
3	16016-S5A-930	Wire comp - LEAD
4	17040-S5A-930	Fuel Pump set
5	17041-S5A-930	O-ring
6	17042-S5A-930	Housing - FUEL PUMP
7	17043-S5A-941	Reservoir - DENSO
8	17044-S5A-930	Cap - RESERVOIR
9	17045-S5A-931	Spring
10	17046-S5A-931	Linkage
11	17047-S5A-930	O-ring
12	17048-S5A-930	O-ring
13	17049-S5A-930	Holder - FUEL PUMP
14	17051-S5A-930	Collar
15	17052-S5A-930	Stopper a
16	17053-S5A-930	Stopper b
17	17500-S5A-932	Tank comp. - FUEL
18	17516-S5A-930	Filter set - FUEL PUMP
19	17521-S5A-931	Band - FUEL TANK MOUNTING
20	17525-SM4-000	Bolt-washer - 10X35
21	17525-S0X-A00	Bolt-washer - 10X25
22	17574-S3Y-003	Packing - FUEL PUMP MODULE
23	17630-S5B-931	Meter comp
24	17651-S5A-930	Tube - FILLER NECK
25	17652-S6M-J01	Clip - FILLER TUBE
26	17652-S6M-J51	Clip - FILLER TUBE
27	17653-S5A-930	Tube - BREATHER
28	17660-S5A-E31	Pipe comp - FUEL FILLER
29	17662-S1A-E01	Packing - FUEL FILLER
30	17668-S5A-940	COVER, FUEL FILLER PIPE
31	17670-S5A-E33	Cap comp. - FUEL FILLER (TOYODA)
32	17719-S3Y-003	Nut - FUEL PUMP MODULE LOCK
33	17722-S5A-G31	Tube b - FUEL VENT
34	74660-S5A-000	Cap assy. - FLOOR MAINTENANCE HOLE
35	90150-S04-003	Bolt - EARTH, 6X16
36	90657-SA5-003	Clip - SIDE APRON MOLDING
37	91401-SDC-000	Clip - TUBE(B10)
38	91404-SDC-000	Clamp - TUBE (D10)
39	91413-S5A-003	Clamp - FUEL TUBE (D17)
40	91462-SDA-003	Clamp - FUEL TUBE (D18)
41	91594-S1A-E01	Clip - FUEL FILLER CAP
42	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Gasket kit 2

#	OEM	部品名
1	06110-PLA-E01	Gasket kit - CYLINDER HEAD
2	06111-PLA-E11	Gasket kit - CYLINDER BLOCK

Grommet (FRONT) 14

#	OEM	部品名
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM
2	74144-SR3-000	Cushion - HOOD
3	74177-SD4-000	Cushion a - HOOD
4	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
5	75826-634-300	Seal - INSIDE PANEL, 15MM
6	82871-671-000	Grommet - DRAIN HOLE, 25MM
7	90615-SR3-000	Cap - WELD HOLE, 51X77
8	90615-S5A-003	Plug - HOLE, 27X56
9	90672-S5A-003	Holder - ROD
10	90682-SB0-003	Grommet - SCREW, 5MM
11	91604-S5A-003	Grommet - HOOD STAY
12	91608-S5A-003	Boot - FLOOR
13	91615-SH3-000	Cap - FLOOR HOLE, 49MM
14	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (REAR) 7

#	OEM	部品名
1	70495-692-000	Cushion - FUEL FILLER LID
2	82871-671-000	Grommet - DRAIN HOLE, 25MM
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
4	90857-SD4-000	Cap - WELD HOLE
5	91611-SS0-003	Plug - HOLE, 25MM
6	91616-S04-000	Block - FR. PILLAR INNER LOWER
7	91631-S5A-000	Plug - AIR CONDITIONER HOLE (36X74)

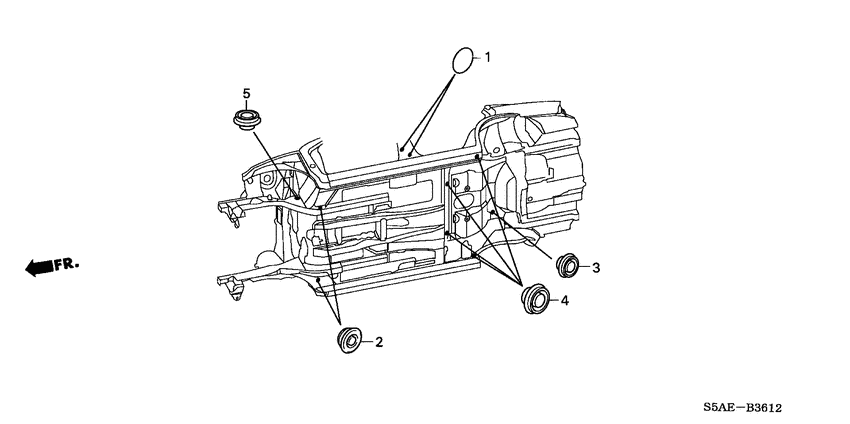

Grommet (SIDE) 5

#	OEM	部品名
1	91616-S5A-000	Block - FR. PILLAR INNER LOWER
2	91618-S5A-000	Seal - HOLE, 30X90
3	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
4	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)
9	91617-S5A-000	Block - RR. PILLAR INNER

Grommet (UNDER) 2

#	OEM	部品名
1	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
2	91606-SK7-003	Plug - BLIND, 25MM

Harness band/bracket (LH) 30

#	OEM	部品名
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)
3	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
4	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
5	32134-S04-000	Cap - WPC 4P
6	32203-S5A-000	Bracket - WIRE HARNESS
8	38617-S5A-J01	Filter comp - NOISE
9	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
11	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
13	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
14	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
15	91533-S04-003	Clip - COUPLER (NATURAL)
16	91540-SR3-003	Holder - COUPLER(YELLOW)
17	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
18	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
19	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
20	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
21	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
22	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
23	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
24	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
26	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
27	91556-SM4-003	Clip - BAND (BLACK) (100MM)
28	91558-SM4-003	Clip - TUBE(BLACK)(135MM)
29	91565-S0X-003	Clip - COUPLER (DARK GREEN)
30	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
31	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
32	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)
33	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
34	91902-S3N-003	Plaster - WIRE HARNESS (50X50)
41	91577-SM4-003	Holder - BRACKET(NATURAL)

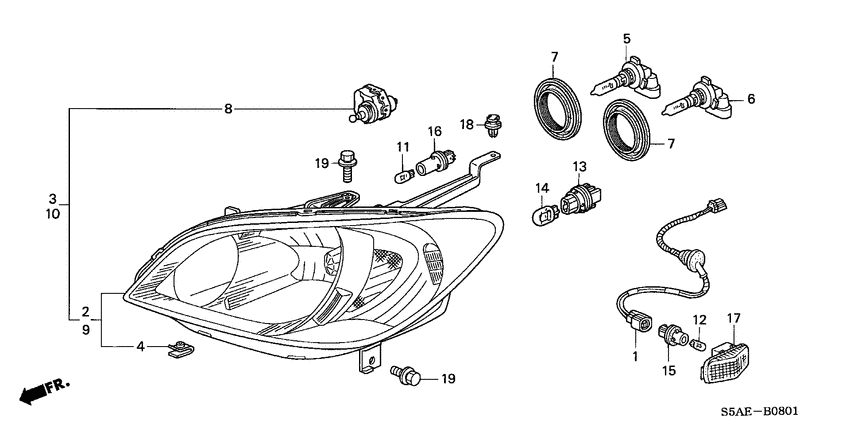

Headlight ('04-) 18

#	OEM	部品名
1	32118-S5A-900	Cord - SIDE TURN
3	33101-S5A-G51	Headlight unit - R.
4	33105-S5N-C01	Nut - SPECIAL
5	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
5	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6	33116-S84-A11	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)
6	33116-S84-A01	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)
7	33126-SDA-A01	Cover - RUBBER
8	33130-S5A-G01	Adjuster unit - HEADLIGHT
10	33151-S5A-G51	Headlight unit - L.
11	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)
13	33303-SAA-003	Socket comp - T20 S) (AMBER
14	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
15	33304-S5A-003	Socket comp - T10
16	33305-S5A-003	Socket comp - T10
17	34301-S5H-T02	Lamp unit
18	91512-SX0-003	Clip - INNER FENDER CLIP

Heater blower (LH) 25

#	OEM	部品名
1	79102-S5A-000	Bracket - UNDER COVER
2	79303-S5A-003	Lid - BLOWER
3	79305-S5D-A01	Blower sub assy.
4	79308-S5A-003	Seal - BLOWER OUTER (B)
5	79309-S5A-003	Seal - BLOWER OUTER (A)
6	79310-S5D-A01	Motor assy. - FAN
7	79330-S5A-941	Transistor - POWER
7	79330-S5A-942	Transistor - POWER
8	79350-S5A-A01	Motor assy. - FRESH & RECIRCULAR
8	79350-S5D-A01	Motor assy. - FRESH & RECIRCULAR
9	80291-S5A-J01	Plate assy. - BLOWER (A)
10	80291-S5A-003	Frame - FILTER (A)
11	80292-S5A-003	Element - FILTER
12	80296-S5A-J01	Plate assy. - BLOWER (B)
13	80296-S5A-003	Frame - FILTER (B)
14	80297-S5A-003	Seal - BLOWER PLATE
15	90121-SR3-003	Screw - TAPPING, 5X12
16	90121-S5A-003	Screw - TAPPING, 4X12
17	90127-SX0-003	Screw - TAPPING, 4X16
18	90132-SR3-003	Screw - TAPPING, 5X16
19	90133-SR3-003	Screw-washer - 4X16
20	90156-SH3-000	Bolt-washer - 6X24
21	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
22	90659-692-000	Clamp - CASE
26	79191-SZ3-A01	Nut - HOLDER

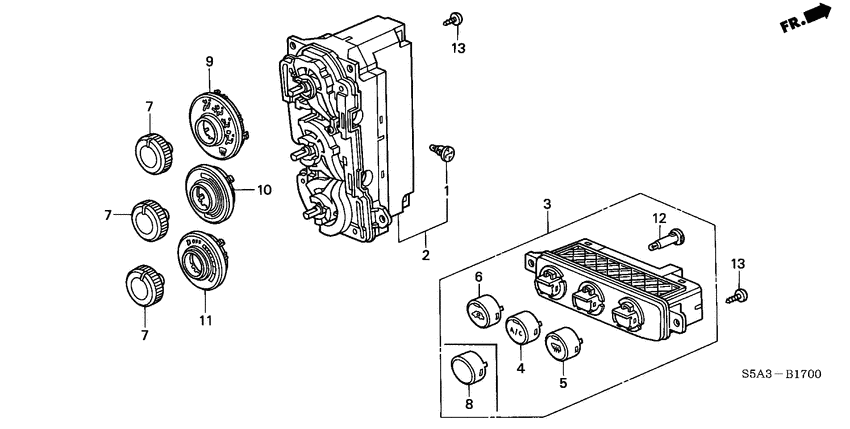

Heater control (LH) 3

#	OEM	部品名
1	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)
2	79500-S5D-A12	Control assy. - HEATER
12	79609-S5A-003	Bulb - NEO WEDGE (14V 100MA)

Heater unit (LH) 37

#	OEM	部品名
1	39248-692-003	Packing - HEATER
2	53747-SA5-003	Clip - POWER STEERING HOSE
4	79027-S5D-A01	Case - EXPANSION VALVE COVER
5	79028-S5D-A01	Cover - FLANGE
6	79029-S5D-A01	Cover - FOOT DUCT
7	79101-S5A-000	Bracket - UNDER COVER
8	79103-S5A-003	Seal - DRAIN
9	79104-S5D-A01	Seal a
10	79105-S5D-A01	Seal b
11	79106-S5D-A02	Heater sub assy.
11	79106-S5D-A52	Heater sub assy.
12	79107-S5D-A01	Seal c
13	79110-S5D-A02	Core sub assy. - HEATER
14	79140-S5D-A11	Motor assy. - MODE
15	79160-S5A-A01	Motor assy. - TEMPERATURE
15	79160-S5D-A01	Motor assy. - TEMPERATURE
16	79191-SZ3-A01	Nut - HOLDER
17	79544-S5D-A00	Cable - WATER VALVE CONTROL
18	79770-SE0-000	Grommet - WATER VALVE CABLE
19	80211-S5D-A51	Plate assy. - HEATER
20	80215-S5D-G01	Evaporator comp.
21	80219-S5A-901	Seal - EXPANSION VALVE
22	80220-SDE-T01	VALVE ASSY., EXPANSION
23	80271-S5A-000	Hose - DRAIN
25	80560-S5A-941	Sensor assy - EVAPORATOR
26	80650-S5A-A01	Sub harness - AIR CONDITIONER
26	80650-S5A-A11	Sub harness - AIR CONDITIONER
27	80871-ST7-000	O-ring - 5/8"
28	80872-ST7-000	O-ring - 1/2"
29	90121-SR3-003	Screw - TAPPING, 5X12
30	90121-S5A-003	Screw - TAPPING, 4X12
32	90126-S5A-003	Bolt - SOCKET, 5X40
33	90127-SX0-003	Screw - TAPPING, 4X16
34	90133-SR3-003	Screw-washer - 4X16
35	90156-SH3-000	Bolt-washer - 6X24
36	90659-692-000	Clamp - CASE
37	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)

Hood (LH) 27

#	OEM	部品名
4	74120-S5A-A21	Lock assy - HOOD
7	74134-SH3-003	Grommet - HOOD WIRE
9	74142-S5A-J00	Rubber - R. HOOD SEAL
10	74143-S5A-000	Rubber - RR. HOOD SEAL
11	74144-S5A-000	Sub seal - HOOD
12	74145-S5A-000	Stay - HOOD OPENER
13	74192-S5A-J00	Rubber - L. HOOD SEAL
14	74210-S5A-A00	Cowl top assy. - L. FR. SIDE
15	74212-S5A-A00	Cover - L. HOOD HINGE
16	74220-S5A-A00	Cowl top assy. - R. FR. SIDE
17	74222-S5A-A00	Cover - R. HOOD HINGE
18	74231-S5A-000	Valve - DRAIN
19	75120-S5A-013	Molding assy. - HOOD
20	75126-S5A-003	Bolt - SPECIAL
21	75307-SN7-000	Nut - SIDE PROTECTOR
22	90108-S0A-003	Bolt - FLANGE, 6X15
23	90157-S3N-003	Clip - HOOD MOLDING
24	90602-SX0-003	Clip - COWL TOP
25	90602-S2A-003	Clip - COWL TOP
26	90602-S5A-003	Clip - COWL TOP
27	90603-SX0-003	Grommet - COWL TOP
28	90603-S2A-003	Grommet - COWL TOP
29	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)
30	91501-SL4-003	Clip - FR. COWL
32	91502-S84-A11	Clip - SEAL RUBBER (BLACK)
33	91518-SM4-003	Clip - TRUNK MOLDING
34	91530-ST5-003	Clip A - DOOR WEATHERSTRIP

Ignition coil 4

#	OEM	部品名
1	30520-PGK-A01	Coil comp - PLUG HOLE
1	30520-PVJ-A01	Coil comp - PLUG HOLE
2	30522-PFB-007	SEAL, PLUG HOLE
3	90207-PG6-010	Nut - CAP, 6MM (BLACK)

Inner panels 2

#	OEM	部品名
36	90108-S0A-003	Bolt - FLANGE, 6X15
37	90195-S3Y-003	Bolt-washer - 6X16

Instrument panel (LH) 13

#	OEM	部品名
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
7	77169-S5A-000	Bracket comp. - FLOOR INSTRUMENT CENTER
13	77466-S5A-000	Seal - FR. INSTRUMENT
14	77550-S5A-A00	Frame comp - GLOVE BOX
15	77982-S04-N81	Holder - COUPLER (2P)
16	90101-S6A-000	Bolt-washer - 8MM
17	90106-S5H-000	Bolt-washer - 8X40
18	90109-S5A-000	Bolt - FLANGE, 8X40
19	90110-S84-A00	Bolt-washer - 8X20
20	90140-SH3-003	Bolt-washer - 5X18
21	90157-SA0-000	Bolt-washer - 8X25
22	90321-SP0-A80	Nut-washer - 6MM
23	90666-S84-A01	Clip - SNAP FITTING

Instrument panel garnish (LH; DRIVER SIDE) 10

#	OEM	部品名
1	38205-S5A-J01	Label - FUSE
1	38205-S5A-010	Label - FUSE
2	66418-SA5-000	Stopper - GLOVE BOX LID
3	66418-579-000	Stopper - GLOVE BOX LID
9	77631-S5A-A01	Bush - OUTLET
12	77637-S9A-003	Seal a - CLOSE
13	77638-S9A-003	Seal b - OPEN
15	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18	90302-SA4-003	Nut - SPRING, 4MM
19	90666-S84-A01	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 23

#	OEM	部品名
4	39610-S2K-003	Knob assy
5	39620-S2K-003	Socket assy
6	39630-S0X-003	Ring assy - TYPE INCLUDING BULB
7	66405-S04-010	Stay - GLOVE BOX HINGE
8	66417-SA0-000	Rubber - GLOVE BOX STOPPER
9	66418-SB2-000	Stopper - GLOVE BOX LID
10	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
15	77255-S5A-G00	Bracket comp. - CENTER PANEL
24	77508-SX0-000	Arm - GLOVE BOX STOPPER
25	77541-S5A-A00	Striker - GLOVE BOX
26	77631-S5A-A01	Bush - OUTLET
28	77637-S9A-003	Seal a - CLOSE
29	77638-S9A-003	Seal b - OPEN
32	77730-S5A-003	Holder comp - FR. ASHTRAY
33	88315-SA5-000	Spring - R.
34	88325-SA5-000	Spring - L.
35	90133-SM4-003	Bolt-washer - 5X16
36	90140-SH3-003	Bolt-washer - 5X18
37	90302-SA4-003	Nut - SPRING, 4MM
38	90650-SE3-000	Clip - RADIO PANEL
39	90666-S84-A01	Clip - SNAP FITTING
40	91640-SM4-003	Grommet - SCREW, 4MM
47	91641-SM4-003	Grommet - SCREW, 4MM

Intake manifold 21

#	OEM	部品名
1	16176-PLC-003	Packing - THROTTLE BODY (NOK)
2	16450-PLC-003	Injector assy - FUEL (KEIHIN)
3	16451-PLC-000	Clip - INJECTOR
4	16610-PLR-A01	Damper assy. - PULSATION
5	16625-PLC-000	Stiffener - INJECTOR BASE
6	16638-PH3-S00	Insulator - FUEL PIPE
7	17050-PLC-000	Base, FR. INJECTOR
8	17055-PLD-004	Gasket - FR. INJECTOR BASE (NIPPON LEAKLESS)
9	17100-PLC-000	Manifold comp - INTAKE
10	17105-PLC-003	Packing - INTAKE MANIFOLD (NOK)
11	17132-PLC-000	Stay comp - R. INTAKE MANIFOLD
12	17133-PLC-000	Stay comp - L. INTAKE MANIFOLD
13	17134-PLC-000	Plate - INTAKE MANIFOLD STAY
14	17201-PLC-000	Stay a - AIR CLEANER
15	17202-PLC-000	Stay b - AIR CLEANER
16	37830-PGK-A01	Sensor assy, MAP
17	37835-PGK-A01	O-ring
18	90201-PLC-003	Nut - SPECIAL, 8MM
20	90634-PLC-000	Cap - SEALING
21	91301-PLC-000	O-ring - 7.47X3.6
22	91302-PLC-000	O-ring - 7.85X3.53

Interior light 12

#	OEM	部品名
2	34251-SZ3-003	Lens
3	34251-S5A-003	Lens
5	34253-SZ3-003	Bulb - 12V 5W T10
6	34253-671-003	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W
7	34261-S5A-003	Lens comp
8	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI
8	34351-657-921	Bulb - 12V/5W) (STANLEY
9	34401-S5A-003	Lens
10	34402-S5A-003	Lens
12	90131-S30-003	Screw-washer - ET, 6X16
12	90131-S47-003	Screw - ET, 5X16

Knuckle 19

#	OEM	部品名
1	51210-S5A-J30	Knuckle comp - R. FR.
2	51215-S5A-J30	Knuckle comp - L. FR.
3	51225-S5A-003	Boot - LOWER BALL DUST
4	51300-S5A-801	Spring - FR. STABILIZER
5	51306-S5A-801	Bush - STABILIZER HOLDER
6	51308-S5A-000	Holder - FR. STABILIZER
7	51320-S5A-003	RH FR. STABILIZER LINK
8	51321-S5A-003	LH FR. STABILIZER LINK
9	51350-S5A-E50	Arm comp - R. FR. LOWER
10	51360-S5A-E50	Arm comp - L. FR. LOWER
11	51391-S5A-801	Bush - FR. COMPLIANCE (YAMASHITA)
12	51392-S5A-851	Bush - FR. LOWER ARM (YAMASHITA)
13	57450-S5A-023	Sensor assy - R. FR.
14	57455-S5A-023	Sensor assy - L. FR.
15	90002-S10-000	Nut - FLANGE, 10MM
16	90118-S5A-000	Bolt - FLANGE, 14X91
17	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
18	90363-S47-000	Nut - LOWER ARM, 12MM
19	90701-SX0-003	Clip - UPPER ARM

Mainshaft 16

#	OEM	部品名
1	23211-PLW-D00	Mainshaft
2	23261-PL3-000	Shaft - REVERSE GEAR
3	23440-PLW-A00	Gear comp - MAINSHAFT THIRD
4	23450-PLW-A00	Gear comp - MAINSHAFT FOURTH
5	23540-PLW-000	Gear - REVERSE IDLE
6	23581-PLW-A00	Gear - MAINSHAFT FIFTH
7	23623-PLW-305	Sleeve set - SYNCHRONIZER (3-4)
7	23623-PLW-315	Sleeve set
8	23626-PLW-305	Sleeve set - SYNCHRONIZER (5)
9	23647-PLW-000	Ring - TAPER CONE
10	23915-PHR-010	Collar - DISTANCE, 29X35X52
11	23916-PLW-000	Collar - DISTANCE, 26X35X12
12	23927-PL3-000	Washer - SPRING, 36MM
13	23928-PL3-000	Washer - 26MM
14	91004-PLW-B01	Bearing - ANGULAR BALL
15	91105-PHR-003	Bearing - NEEDLE, 35X39X24

Meter components (NS; 2) 5

#	OEM	部品名
1	37115-SA0-601	Packing - NS
2	78120-S5A-G12	Meter assy - SPEED & TACHO & FUEL & TEMPERATURE (NS)
3	78155-S5A-J21	Visor assy
4	78156-S5B-J51	Lens - METER
5	90302-SA4-003	Nut - SPRING, 4MM

Mirror (ELECTRIC REMOTE CONTROL) 19

#	OEM	部品名
1	76200-S5A-K11	Mirror assy - R. DOOR (R.C.)
1	76200-S5A-G41	Mirror assy - R. DOOR (HEATED)
2	76203-S5A-J11	Mirror sub assy. - R. (1400R)
2	76203-S5A-G21	Mirror sub assy. - R. (1400R)
3	76210-S5A-J11	Actuator comp. - R.
3	76210-S5A-G41	Actuator comp. - R. (HEATED)
5	76250-S5A-K11	Mirror assy - L. DOOR (R.C.)
5	76250-S5A-G41	Mirror assy - L. DOOR (HEATED)
6	76253-S5A-J11	Mirror sub assy. - L. (1400R)
6	76253-S5A-G21	Mirror sub assy. - L. (1400R)
7	76260-S5A-J11	Actuator comp. - L.
7	76260-S5A-G41	Actuator comp. - L. (HEATED)
9	76401-S5A-003	Stay - BASE
11	88147-SA5-003	Washer - TOOTHED (MATSUYAMA)
12	88148-SA5-003	Bolt - LOCK, 6X7 (MATSUYAMA)
13	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)
14	90144-S04-006	Screw - TAPPING PAN, 3X14
15	90145-S04-006	Screw - 3X16
16	90615-SK7-003	Clip - MIRROR GARNISH

Molding 17

#	OEM	部品名
1	72410-S5A-003	Molding assy. - R. FR. DOOR
1	72410-S5D-A12	Molding Assy., R. FR. Door
2	72420-S5A-003	Molding assy. - R. DRIP ROOF
4	72450-S5A-003	Molding assy. - L. FR. DOOR
4	72450-S5D-A12	Mldg assy,l fr do
5	72460-S5A-003	Molding assy. - L. DRIP ROOF
7	72910-S5A-003	Molding assy. - R. RR. DOOR
9	72950-S5A-003	Molding assy. - L. RR. DOOR
9	72950-S5D-A12	Mldg assy,l rr do
11	73821-S84-A01	Clip A
12	74306-S5A-J01	Molding assy. - R. ROOF
13	74316-S5A-J01	Molding assy. - L. ROOF
14	90142-S04-000	Screw - TAPPING, 4X10
15	91501-S5A-003	Clip - DOOR MOLDING
16	91502-S5A-003	Clip - DOOR MOLDING END
17	91503-S5A-003	Clip - RR. DOOR MOLDING END
18	91528-SR4-003	Clip - DRIP MOLDING

Oil pump/oil strainer 30

#	OEM	部品名
1	15100-PLC-003	Pump assy. - OIL (YAMADA)
1	15100-PLE-005	Pump assy. - OIL (AISIN)
2	15220-PLC-000	Strainer comp. - OIL
3	15221-PZ1-000	Packing - OIL STRAINER
4	15231-PM3-000	Valve - RELIEF
5	15231-P2J-005	Valve - OIL PUMP RELIEF (AISIN)
6	15232-PM3-000	Spring - RELIEF VALVE
7	15232-P2J-005	Spring - OIL PUMP RELIEF VALVE (AISIN)
8	15233-P2A-003	Bolt - SEALING, 14MM (YAMADA)
9	15233-P2J-005	Bolt - SEALING, 18MM (AISIN)
10	15302-PE0-300	Washer - SEALING, 14MM
11	15400-PLC-003	Cartridge - OIL FILTER (TENNEX)
11	15400-PLM-A01	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
11	15400-PLC-004	Cartridge, OIL FILTER (TOYO ROKI)
11	15400-PLM-A02	OIL FILTER (HONEYWELL)
11	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
11	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)
11	15400-PH1-F03	Cartridge - OIL FILTER (LABINAL-PURFLUX)
12	15400-PR3-014	OIL FILTER (TOYO ROKI)
13	15400-PR3-315	Cartridge set - OIL FILTER (TOYO ROKI)
14	37500-PLC-015	CRANK SENSOR ASSY
15	37509-PLC-015	Grommet - CRANK SENSOR
16	90015-PH1-013	Holder - OIL FILTER
17	90042-P2J-005	Bolt - STUD, 6X28 (AISIN)
17	90042-PR3-000	Bolt - STUD, 6X28
18	90701-P2J-005	Dowel pin - 8X11 (AISIN)
19	91212-PLC-004	Oil seal - 38X50X7 (ARAI)
19	91212-PLC-003	Oil seal - 38X50X7 (NOK)
20	91308-P2J-005	O-ring - 26.2X2.4 (AISIN)
20	91308-PK1-003	O-ring - 26.2X2.4 (NOK)

Outer panels 3

#	OEM	部品名
17	74494-S84-A01	Spring - FUEL LID OPEN
18	75450-S10-000	Outlet assy - RR. AIR
19	90147-634-003	Bolt - FENDER, 6X18

P.s. gear box (EPS; LH) 19

#	OEM	部品名
2	53435-S5A-A00	Stiffener a - STEERING GEAR BOX
3	53438-S5A-G50	Bracket - R. STEERING GEAR BOX
3	53438-S5A-A50	Bracket - R. STEERING GEAR BOX
4	53439-S5A-000	Stiffener b - STEERING GEAR BOX
5	53501-S5A-000	Grommet - STEERING
6	53521-S5A-003	Rod sub assy. - TIE (###)
7	53536-S5A-900	Washer - TIE ROD LOCK
8	53541-S5A-000	Rod assy - TIE
9	53541-S5A-003	End comp - TIE ROD
10	53546-S84-003	Boot - TIE ROD END (NOK)
11	53606-S5A-G52	Box assy - POWER STEERING GEAR
11	53606-S5A-P43	Box assy - POWER STEERING GEAR
13	53685-S6M-000	Bush - STEERING GEAR BOX MOUNTING
14	53686-S5A-010	Collar - STEERING GEAR BOX MOUNTING (A)
15	90108-S5A-000	Bolt - GEAR BOX MOUNTING
16	90301-S5A-003	Nut - HEX.
17	90450-S5A-020	Nut - FLANGE, 10MM
18	90801-S5A-000	BOLT, FLANGE, 8X25
21	53010-S5S-000	Bush set - STEERING GEAR BOX MOUNTING

P.s. gear box components (EPS; LH) 22

#	OEM	部品名
1	53413-SCC-003	Spring - RACK GUIDE PRESSURE
1	53413-SZ3-000	Spring - RACK GUIDE PRESSURE
2	53414-S5A-003	Screw - RACK GUIDE
3	53416-S5A-J02	Guide - STEERING RACK
4	53418-S5A-003	Washer - DISK
5	53448-S5A-J01	Band b - BELLOWS
6	53449-S5A-J01	Band a - BELLOWS
7	53455-S5A-003	Ring b - STOPPER
8	53457-S5A-003	Lock - SCREW
9	53458-SM4-J60	Nut - RACK SCREW LOCK
10	53535-S5A-003	Washer - LOCK
11	53602-S5A-G51	Motor comp
11	53602-S5A-G41	Motor comp
12	53603-S5A-J01	Boot set
13	53604-S5A-003	Bracket
14	53605-S5A-003	Slider
15	53611-S5A-G01	Housing comp - SLIDER
15	53611-S5A-G61	Housing comp - SLIDER
16	53662-S5A-003	O-ring - 11.5X1.5
17	90105-S0A-003	Bolt - FLANGE, 8X25
18	90455-S5A-003	Bolt - FLANGE, 12X40
19	91351-S5A-003	O-ring - MOTOR

Parking brake (1) 9

#	OEM	部品名
2	47342-SV4-003	Switch - HAND BRAKE
3	47360-SB2-000	Equalizer
4	47365-538-000	Pin - EQUALIZER
5	47510-S5A-043	Wire b - R. PARKING BRAKE
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING
7	47537-671-670	Spring - PARKING BRAKE ROD
8	47560-S5A-043	Wire b - L. PARKING BRAKE
9	47572-ST0-000	Base - WIRE GUIDE
10	90105-S5A-000	Bolt - FLANGE, 8MM

Pedal (LH) 25

#	OEM	部品名
1	17800-S6M-A03	Pedal assy - ACCELERATOR
2	17818-S5A-A01	Stopper - ACCELERATOR STROKE
3	17881-PLM-A00	Stay a - ACTUATOR WIRE
4	17882-PLM-A00	Stay b - ACTUATOR WIRE
5	17910-S5A-G03	Wire - THROTTLE
6	17921-SA4-730	Seal - THROTTLE CABLE
7	17930-S5A-A00	Clamp - THROTTLE WIRE
8	17932-S5A-A00	Clamp - THROTTLE WIRE
9	35350-S5A-J03	Switch assy - STOP (TOYO)
11	46505-SA5-000	Pad - PEDAL STOPPER
12	46505-SA7-000	Pad - PEDAL STOPPER
13	46530-S5A-003	Spring assy - PEDAL RETURN
14	46545-SA5-000	Cover, Pedal
16	46600-S5A-G01	Pedal assy - BRAKE
17	46900-S5A-G01	Pedal assy - CLUTCH
18	46905-SK7-000	Stopper - CLUTCH PEDAL
19	46907-S5A-A01	Spring - CLUTCH RETURN
20	46911-SD4-930	Bush - PEDAL PIN
21	46981-S2A-003	Bush a - CLUTCH ASSISTANT
22	46982-S2A-003	Bush b - ASSISTANT
23	46991-S5A-A01	Bracket comp. - FOOTREST
24	46992-SV4-003	Clip - FOOTREST
25	90207-PG6-010	Nut - CAP, 6MM (BLACK)
26	90301-SP0-003	Nut - PAINT CUTTING, 6MM
27	90301-S5A-000	Nut - PAINT CUTTING, 6MM

Pillar garnish 4

#	OEM	部品名
8	84122-S5A-000	Protector - R. CENTER PILLAR LOWER
13	84172-S5A-000	Protector - L. CENTER PILLAR LOWER
18	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
19	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Piston/crankshaft 46

#	OEM	部品名
1	13010-PLA-G00	Piston set - STD.
1	13020-PLA-G00	Piston set - OS 0.25
1	13030-PLA-G00	Piston set - OS 0.50
2	13011-PLD-004	Ring set - PISTON (STD.)
2	13021-PLD-004	Ring set - PISTON (OS 0.25)
2	13031-PLD-004	Ring set - PISTON (OS 0.50)
3	13112-PE0-000	Pin - PISTON
4	13204-PE1-003	Bolt
5	13205-634-010	Nut
6	13210-PLA-G00	Rod comp - CONNECTING
7	13214-PLA-G02	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
7	13215-PLA-G01	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13211-PLA-G01	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13213-PLA-G02	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13214-PLA-G01	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
7	13217-PLA-G02	Bearing g - CONNECTING ROD (RED) (TAIHO)
7	13216-PLA-G02	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13212-PLA-G02	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
7	13213-PLA-G01	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
7	13217-PLA-G01	Bearing g - CONNECTING ROD (RED) (DAIDO)
7	13215-PLA-G02	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
7	13211-PLA-G02	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13216-PLA-G01	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13212-PLA-G01	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
8	13310-PLA-G00	Crankshaft
9	13325-PLC-004	Bearing e - MAIN (YELLOW) (TAIHO)
9	13324-PLC-003	Bearing d - MAIN (GREEN) (DAIDO)
9	13327-PLC-003	Bearing g - MAIN (RED) (DAIDO)
9	13323-PLC-004	Bearing c - MAIN (BROWN) (TAIHO)
9	13322-PLC-003	Bearing b - MAIN (BLACK) (DAIDO)
9	13326-PLC-004	Bearing f - MAIN (PINK) (TAIHO)
9	13325-PLC-003	Bearing e - MAIN (YELLOW) (DAIDO)
9	13321-PLC-004	BEARING A - MAIN (BLUE) (TAIHO)
9	13324-PLC-004	Bearing d - MAIN (GREEN) (TAIHO)
9	13323-PLC-003	Bearing c - MAIN (BROWN) (DAIDO)
9	13327-PLC-004	Bearing g - MAIN (RED) (TAIHO)
9	13326-PLC-003	Bearing f - MAIN (PINK) (DAIDO)
9	13322-PLC-004	Bearing b - MAIN (BLACK) (TAIHO)
9	13321-PLC-003	BEARING A - MAIN (BLUE) (DAIDO)
10	13331-PLC-004	Washer - THRUST (TAIHO)
10	13331-PLC-003	Washer - THRUST (DAIDO)
11	13621-PLD-013	Pulley - TIMING BELT DRIVE
12	13622-PLC-000	Plate - TIMING BELT GUIDE
13	13810-PLC-003	Pulley comp - CRANKSHAFT
14	90017-PLC-003	Bolt-washer - 14X36
15	90704-634-000	Key - 4.5X11.0

Protector 5

#	OEM	部品名
1	75302-S5A-A01	Protector comp - R. FR. DOOR
2	75303-S5A-A01	Protector comp - R. RR. DOOR
3	75305-S0A-003	Clip - SIDE PROTECTOR
4	75322-S5A-A01	Protector comp - L. FR. DOOR
5	75323-S5A-A01	Protector comp - L. RR. DOOR

Radiator (DENSO) 15

#	OEM	部品名
1	19010-PLC-J01	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19015-PLC-003	Shroud comp - DENSO
5	19020-PLC-003	Fan - COOLING (DENSO)
6	19030-PLC-003	Motor - COOLING FAN (DENSO)
6	19030-PAA-A01	Motor - COOLING FAN (DENSO)
7	19031-PLC-003	Cover - MOTOR END
8	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)
9	19046-PAA-A00	Label - RADIATOR CAP
10	19047-PLC-003	Cover - RADIATOR CAP (DENSO)
11	90041-P5A-003	Screw-washer - 4X11
12	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
13	90043-PD2-003	Nut - HEX., 5MM (DENSO)
14	19046-PT5-P00	Seal - CAP (PORTUGAL)

Radiator hose/reserve tan k 14

#	OEM	部品名
1	17163-PH7-300	Collar - MANIFOLD COVER MOUNTING
2	19101-PLC-000	Tank - RESERVE
3	19103-PLC-000	Hose a - RESERVE TANK
4	19104-PLC-000	Hose comp. - RESERVE TANK
5	19105-PLC-000	Joint
6	19109-PH1-620	Cap - FILLER
7	19501-PLC-000	Hose - WATER UPPER
8	19502-PLD-000	Hose - WATER LOWER
9	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)
9	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
9	19511-P08-004	Clip - WATER HOSE (KATO HATSUJO)
15	74171-S5A-000	Bracket - RADIATOR MOUNT UPPER
16	74172-S5A-000	Cushion - RADIATOR MOUNTING LOWER
17	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER

Rear brake (DRUM) 39

#	OEM	部品名
1	01433-SR3-000	Cylinder set - RR. WHEEL
2	42200-S5A-008	Bearing assy - RR. HUB UNIT
3	42326-S5A-000	Cap - HUB UNIT
3	42326-SLA-000	Cap - HUB UNIT
4	42610-S5A-000	Drum - RR. BRAKE
5	43110-S5A-013	Plate comp - R. RR. BRAKE BACK
6	43120-S5A-013	Plate comp - L. RR. BRAKE BACK
8	43171-S04-003	Spring a - BRAKE SHOE RETURN
9	43172-S04-003	Spring b - BRAKE SHOE RETURN
10	43300-S7B-003	Cylinder assy. a - RR. WHEEL
11	43301-S7B-003	Cylinder assy. b - RR. WHEEL
12	43321-S04-003	Piston - WHEEL CYLINDER
13	43323-663-003	Spring - RR. WHEEL CYLINDER
14	43345-S04-003	Plug - ADJUSTER
15	43345-S5A-003	Plug - ADJUSTER
16	43352-568-003	SCREW, BLEEDER (NISSIN)
17	43353-SD5-003	Cap - BLEEDER SCREW
18	43361-SH5-003	Lever - R. PARKING BRAKE
19	43362-S5A-003	Rod a - R. CONNECTING
20	43363-S5A-003	Bolt - R. ADJUSTER
21	43364-S5A-003	Rod b - CONNECTING
22	43365-SA5-003	Pin - PARKING BRAKE LEVER
23	43366-SH5-003	Lever comp - R. ADJUSTER
24	43367-SH5-003	Spring - R. ADJUSTER
25	43371-SH5-003	Lever - L. PARKING BRAKE
26	43372-S5A-003	Rod a - L. CONNECTING
27	43373-S5A-003	Bolt - L. ADJUSTER
28	43375-SA0-003	U-clip
29	43376-SH5-003	Lever comp - L. ADJUSTER
30	43377-SH5-003	Spring - L. ADJUSTER
31	43379-SA5-003	Washer - WAVE
32	45172-S04-003	Spring - SHOE CLAMP
33	45175-SA0-013	Pin - TENSIONER
34	90001-SH3-000	Bolt - FLANGE, 10X13
35	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
35	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
35	90113-SA0-006	Bolt - WHEEL (SAGA)
36	90305-S30-003	Nut - SPINDLE
38	43053-S5A-E50	Shoe set - RR. BRAKE

Rear door lining 4

#	OEM	部品名
3	72835-S5A-003	Weatherstrip - RR. DOOR INNER
16	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
17	90662-SB2-003	Grommet - SCREW, 5MM
18	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Rear door locks 34

#	OEM	部品名
1	72119-S04-003	Stopper a - OUTSIDE HANDLE
3	72135-S5A-003	Striker assy - DOOR LOCK
5	72139-S0A-003	Snap - PINK
5	72139-SR0-A01	Snap - VIOLET
7	72141-S5A-003	Packing
8	72149-SR4-000	Snap - R.
9	72175-SH3-901	Holder - DOOR LOCK ROD
10	72189-SR4-000	Snap - L.
11	72610-S5A-A11	Lock assy - R. RR. DOOR (POWER)
12	72612-S84-A00	Cap - R. CHILD LOCK
13	72615-S5A-003	Actuator assy - R. RR. DOOR LOCK
14	72617-S84-A01	Protector - R. RR. DOOR LOCK
16	72630-S0A-003	Crank assy - LOCK ROD
17	72631-S5A-003	Rod - R. RR. INSIDE HANDLE
18	72632-S5A-003	Rod - R. RR. INSIDE LOCK
19	72633-S5A-003	Rod - RR. DOOR LOCK KNOB
20	72634-S5A-003	Rod - RR. DOOR ACTUATOR
21	72639-S5A-A00	Protector - R. RR. DOOR ROD
22	72640-S5A-003	Handle assy - R. RR. DOOR OUTSIDE
23	72645-S5A-A00	Protector - R. RR. DOOR OUTSIDE HANDLE
24	72650-S5A-A11	Lock assy - L. RR. DOOR (POWER)
25	72652-S84-A00	Cap - L. CHILD LOCK
26	72655-S5A-003	Actuator assy - L. RR. DOOR LOCK
27	72657-S84-A01	Protector - L. RR. DOOR LOCK
29	72671-S5A-003	Rod - L. RR. INSIDE HANDLE
30	72672-S5A-003	Rod - L. RR. INSIDE LOCK
31	72679-S5A-A00	Protector - L. RR. DOOR ROD
32	72680-S5A-003	Handle assy - L. RR. DOOR OUTSIDE
33	72685-S5A-A00	Protector - L. RR. DOOR OUTSIDE HANDLE
34	90120-SM4-000	Screw - TAPPING
35	90120-SV4-000	Bolt - LOCK STRIKER
36	90662-SB2-003	Grommet - SCREW, 5MM
37	90866-SA0-000	Grommet - SCREW, 4MM
38	91501-S04-003	Clip - INNER FENDER

Rear door panels 19

#	OEM	部品名
5	67826-S5A-003	Tape - R. RR. DOOR UPPER OUTER
6	67866-S5A-003	Tape - L. RR. DOOR UPPER OUTER
11	72810-S5A-003	Weatherstrip - R. RR. DOOR
12	72821-S5A-000	Seal - R. RR. DOOR HOLE
13	72825-S5A-003	Sub seal - R. RR. DOOR
14	72840-S5A-003	Checker comp. - R. RR. DOOR
15	72850-S5A-003	Weatherstrip - L. RR. DOOR
16	72861-S5A-000	Seal - L. RR. DOOR HOLE
17	72865-S5A-003	Sub seal - L. RR. DOOR
18	72880-S5A-003	Checker comp. - L. RR. DOOR
19	75891-SA7-000	Stopper - DOOR
20	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
20	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
21	90141-S04-000	Bolt - FLANGE, 8X22
22	90361-SR3-000	Nut - FLANGE, 8MM
23	90651-S4N-003	Clip
24	91530-S0A-003	Clip - SUB SEAL
25	91568-SR2-003	Clip - DOOR WEATHERSTRIP
25	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Rear door windows 14

#	OEM	部品名
2	72710-S5A-J03	Regulator assy - R. RR. DOOR POWER
4	72731-S5A-003	Sash - R. RR. DOOR CENTER
5	72735-S5A-003	Runchannel - R. RR. DOOR
6	72737-SR4-000	Collar a - RR. DOOR PANEL LOWER
7	72750-S5A-J03	Regulator assy - L. RR. DOOR POWER
9	72771-S5A-003	Sash - L. RR. DOOR CENTER
10	72775-S5A-003	Runchannel - L. RR. DOOR
11	73400-S5A-J21	Glass assy - R. RR. DOOR (GREEN) (ASAHI)
12	73405-S5A-J21	Glass - R. RR. DOOR QUARTER (GREEN) (ASAHI)
13	73441-S5A-003	Seal - R. RR. DOOR QUARTER
14	73450-S5A-J21	Glass assy - L. RR. DOOR (GREEN) (ASAHI)
15	73455-S5A-J21	Glass - L. RR. DOOR QUARTER (GREEN) (ASAHI)
16	73491-S5A-003	Seal - L. RR. DOOR QUARTER
19	91533-S04-003	Clip - COUPLER (NATURAL)

Rear lower arm 30

#	OEM	部品名
2	42534-S5A-000	Cover - R. RR.
3	52210-S5A-703	Knuckle comp - R. RR.
4	52215-S5A-703	Knuckle comp - L. RR.
5	52300-S5A-A02	Spring - RR. STABILIZER
6	52306-S5A-801	Bush - STABILIZER HOLDER
7	52308-S5A-000	Holder - R. RR. STABILIZER BUSH
8	52309-S5A-000	Holder - L. RR. STABILIZER BUSH
9	52320-S5A-013	RH. RR. STABILIZER Link comp
10	52321-S5A-013	LH RR. STABILIZER Link comp
11	52352-S5A-A01	Protector - RR. LOWER ARM
12	52364-S6M-004	BUSH, REAR LOWER ARM INNER
13	52365-S5A-802	Bush a - RR. LOWER ARM OUTER
14	52365-S6M-004	Bush - RR. LOWER ARM OUTER
15	52370-S5A-A50	Arm comp - R. RR. TRAILING
16	52371-S5A-A50	Arm comp - L. RR. TRAILING
17	52387-S5A-000	Bolt - TRAILING ARM ADJUST
18	52388-S5A-003	Plate - CAM
19	52390-S5A-A30	Arm comp - RR. UPPER
20	52395-S5A-004	Bush - RR. UPPER ARM
21	57470-S5A-952	Sensor assy - R. RR.
22	57475-S5A-951	Sensor assy - L. RR.
23	90002-S10-000	Nut - FLANGE, 10MM
24	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
25	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)
26	90396-S5A-000	Bolt - FLANGE, 12X75
27	90397-S5A-000	Bolt - FLANGE, 12X48
27	90186-SR3-000	Bolt - FLANGE, 12X48
28	90398-S5A-000	Bolt - FLANGE, 12X81.5
29	90399-S5A-000	Bolt - FLANGE, 12X73
30	90657-SA6-003	Clip - FR. INNER COWL

Rear seat (3) 21

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	82122-S5A-A21	Pad assy - R. RR. SEATBACK
6	82126-S5A-G01	Frame comp - R. RR. SEATBACK
8	82129-S5A-000	Collar - RR. SEAT PIVOT
10	82132-S5A-N01	Pad & frame comp. - RR. SEAT CUSHION
11	82137-S5A-003	Clip - RR. SEAT CUSHION
14	82156-S5A-G01	Frame - R. SEATBACK SIDE
15	82220-S04-003	Lock assy - R. RR. SEAT
19	82291-S04-000	Cover - RR. CENTER PIVOT
20	82292-S04-000	Collar - RR. CENTER SEAT PIVOT
21	82295-S04-000	Bracket comp. - CENTER SEAT PIVOT
23	82522-S5A-A21	Pad assy - L. RR. SEATBACK
24	82526-S5A-G01	Frame comp - L. RR. SEATBACK
26	82556-S5A-G01	Frame - L. SEATBACK SIDE
27	82620-S5A-E01	Lock assy - L. RR. SEAT
28	90128-SA7-000	Bolt-washer - 6X25
29	90139-SH3-003	Bolt-washer - 6X20
30	90140-SA5-000	Bolt - SPLASH GUARD
32	91513-SR3-003	Snap
33	91647-S04-003	Grommet - SCREW, 4MM

Rear shock absorber 19

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
3	52441-S5A-A73	Spring - RR. (SHOWA)
4	52610-S5A-A14	Absorber assy - R. RR. SHOCK
5	52611-S5A-N06	Absorber unit - RR. SHOCK
6	52620-S5A-A14	Absorber assy - L. RR. SHOCK
7	52622-S5A-004	Bush - RR. SHOCK ABSORBER LOWER
8	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING
9	52675-S5A-004	Base - RR. SHOCK ABSORBER MOUNTING
9	52675-S7A-004	Base - RR. SHOCK ABSORBER MOUNTING
10	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING
11	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING
13	52687-S5A-014	Cover - RR. DUST
14	52689-S5A-004	Cover - RR. BUMP STOP
15	52690-S5A-004	Plate - BUMP STOP
16	52722-S5A-004	Rubber - BUMP STOPPER
17	90181-S84-A00	Bolt - TRAILING ARM, 12X68
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/trunk garnish 7

#	OEM	部品名
1	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
2	33513-S50-003	Socket - T20W S2
3	34271-S5A-A01	Lamp unit
8	84521-S5A-000	LID, SPARE TIRE (TEMPORARY TIRE)
17	90610-SR3-003	Clip - GARNISH (KATO)
18	90666-S84-A01	Clip - SNAP FITTING
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Rear windshield 11

#	OEM	部品名
1	73211-S5A-G03	Glass set - RR. WINDSHIELD (GREEN)(ASAHI)
2	73223-S5A-900	Cover - TERMINAL
3	73224-S5A-900	Base - TERMINAL COVER
4	73251-S5A-003	Molding - RR. WINDSHIELD UPPER
5	73252-S5A-003	Molding - R. RR. WINDSHIELD SIDE
6	73253-S5A-003	Molding - RR. WINDSHIELD LOWER
7	73257-S5A-003	Molding - L. RR. WINDSHIELD SIDE
8	91563-SV4-003	Fastener a - RR. WINDSHIELD
9	91568-SV4-003	Fastener b - RR. WINDSHIELD
10	91568-SX0-003	Fastener a - WINDSHIELD
11	91569-SZ3-013	Fastener b - WINDSHIELD

Resonator chamber 18

#	OEM	部品名
1	17212-PLC-000	Rubber - AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
3	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING
5	17230-PLC-000	Chamber assy - RESONATOR
6	17231-PLC-010	Stay assy. a - AIR INTAKE
7	17232-PLC-000	Stay b - AIR INTAKE TUBE
8	17234-PLC-300	Cover comp. - RESONATOR STAY
9	17235-PLC-000	Stay a - AIR INTAKE PIPE
10	17243-PLC-000	Tube assy. b - AIR INTAKE
11	17244-PLC-000	Tube - AIR INTAKE CONNECTING
12	17255-PLC-000	Collar - AIR INTAKE
13	17256-PD6-000	Rubber - RESONATOR MOUNTING
14	17263-P0A-000	Rubber - AIR CLEANER STAY
16	75353-671-000	Lock - SCREW
17	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
18	90006-PN4-000	Bolt-washer - SPECIAL, 6X25
21	32744-PLM-A00	Stay d - ENGINE HARNESS

Roof lining 8

#	OEM	部品名
9	83241-S5A-000	Bracket - GRAB RAIL
15	90137-S30-003	Screw - ET, 6X18
15	90136-S30-003	Screw - ET, 5X18
16	90137-S0A-003	Screw - ET, 6X28
16	90136-S7A-003	Screw - ET, 5X20
17	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
18	91562-S5A-003	Clip - SUNROOF (A)(YELLOW)
21	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Roof slide components 11

#	OEM	部品名
1	70091-S84-A01	Shim
2	70142-S5A-J01	Bracket a - CABLE(R.)
3	70147-S5A-J01	Bracket a - CABLE (L.)
4	70240-S5A-J01	Channel comp. - DRAIN
5	70242-S5A-J01	Slider assy. - R. DRAIN CHANNEL
6	70247-S5A-J01	Slider assy. - L. DRAIN CHANNEL
7	70370-S5A-J31	Drive assy. - SUNROOF
8	70373-S84-A01	Stopper - SLIDE
9	70450-S5A-J01	Motor assy. - SUNROOF
10	70500-S5A-J31	Deflector comp.
11	70544-S1A-E01	Screw - TRUSS, 5X10

Seatbelts 6

#	OEM	部品名
6	81491-S5A-J01	Protector - R. FR. SEATBELT
10	81891-S5A-J01	Protector - L. FR. SEATBELT
13	82456-S5A-A00	Protector - RR. CENTER SEATBELT
17	90133-SZ4-003	Screw - ET, 7X16
17	90101-S84-A00	Screw - ET, 6X16
18	90135-S1F-003	Bolt - FLANGE, 7/16"

Shift arm/shift lever 16

#	OEM	部品名
1	21396-P20-000	Cap - BREATHER
2	21500-PLW-010	Cover comp. - SHIFT ARM
3	24430-PLW-000	Interlock comp.
4	24411-PLW-000	Arm - SHIFT
5	24460-PLW-010	Lever comp - SELECT
6	24464-PLW-000	Spring - SELECT
7	24466-PHR-000	Collar - SELECT SPRING
8	24467-PLW-000	Plate - SELECT SPRING
9	24470-PLW-010	Lever comp - SHIFT
10	24475-PWL-000	Cover - DUST
11	24479-PWL-000	Cover - SHIFT LEVER
12	90029-611-010	Bolt - HEX., 8X24
13	90412-679-000	Washer - CONICAL SPRING, 8MM
14	91209-PE9-005	Dust seal - 16X23X5(NOK)
14	91209-PE9-003	Dust seal - 16X23X5(ARAI)
15	91215-PHR-003	Oil seal - 18X30X7(NOK)

Shift fork/shift holder 9

#	OEM	部品名
1	24201-PLW-000	Fork comp - FIFTH SHIFT
2	24210-PLW-000	Fork comp - GEARSHIFT (3-4)
3	24220-PLW-000	Fork comp - GEARSHIFT (1-2)
4	24230-PLW-010	Holder comp - REVERSE SHIFT
5	24243-PLW-000	Piece - FIFTH & REVERSE SHIFT
6	24440-PLW-000	Cam comp - REVERSE LOCK
7	90028-PB6-010	Bolt - SPECIAL, 6X22.5
8	90029-611-010	Bolt - HEX., 8X24
9	90412-679-000	Washer - CONICAL SPRING, 8MM

Shift lever 12

#	OEM	部品名
1	54100-S5A-003	Lever sub assy. - CHANGE
3	54116-SV4-000	Pin - LINKAGE
4	54117-S30-003	Rubber - FLOATING
5	54118-SC2-000	Washer assy. - WIRE
6	54119-S30-003	Collar - FLOATING
7	54310-S5A-033	Wire comp - CHANGE
8	54357-SF1-003	Plate - CHANGE WIRE
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM
10	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
11	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
12	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
13	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Sliding roof 24

#	OEM	部品名
1	15707-634-000	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM
3	70050-S5D-A00	Tube - FR. DRAIN VINYL (SUNROOF)
5	70052-S30-000	Valve - FR. DRAIN (SUNROOF)
6	70060-S5A-J00	Tube - RR. DRAIN (SUNROOF)
7	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)
8	70081-S84-A01	Seal a - FRAME
9	70082-S5A-J01	Seal b - FRAME
10	70083-S5A-J21	Cushion - GUSSET ARCH
11	70084-S5A-J21	Collar - CUSHION MOUNT
12	70087-S5A-J01	Seal b - L. FRAME
13	70100-S5A-J31	Frame comp - SUNROOF
14	70115-S5A-J10	Gusset - R. ROOF ARCH
15	70116-S5A-J10	Gusset - L. ROOF ARCH
16	70200-S5A-J33	Glass assy - ROOF
17	70334-SP0-003	Stopper - GLASS STAY
20	70617-S5A-J01	Screw - TAPPING, 4X7 (PO)
21	70620-S5A-J01	Cover - R. GLASS STAY
22	70623-S84-A01	Cushion - STAY COVER
23	70625-S5A-J01	Cover - L. GLASS STAY
24	70630-S5A-J01	Protector - HEAD
25	91504-SE3-920	Clip - SLIDE ROOF DRAIN TUBE
26	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
27	91563-S5A-003	Clip b - SUNROOF

Srs unit (LH) 5

#	OEM	部品名
1	77900-S5A-G04	Reel assy - CABLE (FURUKAWA)
2	77930-S5A-N92	Sensor assy - R. FR. SIDE
3	77940-S5A-N92	Sensor assy - L. FR. SIDE
4	77960-S5A-G84	Srs unit - SIEMENS
6	90137-S84-A01	Bolt - TORX EARTH, 6X20

Starter motor (DENSO; 2) 19

#	OEM	部品名
1	30201-PH9-004	Ring - SNAP (DENSO)
2	30202-PZ1-003	Collar set - CLUTCH STOP
3	31200-PLC-T01	Motor assy. - STARTER (DDVDH) (DENSO)
4	31203-PN4-003	Lever - PINION DRIVE
5	31204-PLR-A01	Switch comp - MAGNETIC
6	31206-PH9-004	Armature comp.
7	31207-ZG4-611	Clutch comp. - OVERRUNNING
8	31210-PH9-004	Bearing b
9	31211-PH9-004	Brush
10	31212-PH9-004	Spring - BRUSH
11	31213-P64-N01	Cover
12	31214-PH9-004	Bolt - THROUGH
13	31218-P64-N01	Yoke comp.
14	31220-PH9-004	Nut - HEX., 8MM
15	31223-PA0-006	Nut - HEX.
16	31231-PH9-004	Holder - BRUSH
17	31233-PH9-004	Insulator - BRUSH HOLDER
18	31291-PLC-T01	Stay - COUPLER
20	91002-ZG4-801	BEARING A

Steering column 5

#	OEM	部品名
1	53200-S5A-G03	Column assy - STEERING
2	53323-S5A-003	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS) 9

#	OEM	部品名
4	78502-S5A-N61	Plate comp - HORN
8	78521-S5A-E61	Cover - HORN PLATE
9	78522-SZ3-A51	Spacer
10	78522-S3A-N81	Washer
11	78523-SZ3-A51	Spring - COIL
12	78523-SZ3-003	Spring - COIL
13	78524-S3Y-N81	Screw - SLIDE
14	90134-S04-A81	Bolt - HEX., 6X12
15	90161-SV4-003	Bolt - STEERING HANDLE

Switch (LH) 4

#	OEM	部品名
8	35850-S5A-G01	Bulb comp. - 14V 60MA
9	35850-S5A-003	Bulb comp. - 14V 60MA
12	35871-S3N-901	Bulb - NEO WEDGE (14V 60MA) (TOYO)
13	35910-S04-G01	Switch assy - INERTIA

Taillight/license light 28

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
3	33303-692-003	Packing - STANLEY
3	33303-958-003	Gasket
4	33304-SF4-003	Screw - TAPPING, 4X45
5	33501-S5B-003	Lamp unit - R. TAIL
6	33502-S5A-A01	Gasket - BASE
7	33513-S50-003	Socket - T20W S2
8	33513-S84-A01	Socket - T10
9	33514-S50-003	Socket - T20W S3
10	33515-S50-003	Socket - T20W W
11	33551-S5B-003	Lamp unit - L. TAIL
12	34101-S5A-A01	Lens comp
13	34102-S60-003	Housing comp
14	34103-S5A-A01	Gasket
15	34151-S5B-003	Lamp unit - R. LID
16	34156-S5B-003	Lamp unit - L. LID
18	34502-S5A-G01	Lens
19	34502-S5B-A01	Gasket - BASE
20	34551-S5A-G01	Lamp unit - L.
21	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY
22	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
23	74890-S5A-G01	Garnish assy - RR. LICENSE
24	74895-S5A-000	Bolt - SPECIAL, 5MM
25	75523-SS0-000	Packing - SEAL
26	90321-S06-000	Nut - HEX. CAP, 5MM
27	90650-S5A-003	Grommet - RR. COMBINATION LIGHT
28	91512-S50-003	Clip - LICENSE GARNISH

Throttle body 11

#	OEM	部品名
1	16022-PLC-003	Valve set - ROTARY AIR CONTROL
2	16400-PLC-J03	Throttle Body Assy - GY72A
2	16400-PLC-J01	Throttle Body Assy - GY72A
3	16411-PLC-000	Stay - THROTTLE WIRE
5	16412-PLC-000	Stay comp - PURGE CONTROL SOLENOID
6	16456-PLE-J01	Seal - ROTARY AIR CONTROL RING
7	36162-PLC-003	Valve - PURGE CONTROL SOLENOID
8	36166-PAA-A01	Joint - PURGE
9	36167-PLC-010	Tube a - PURGE
10	36168-PLC-000	Tube b - PURGE
11	36169-PLC-000	Tube c - PURGE

Tire/wheel disks 31

#	OEM	部品名
3	42700-S5D-E01	Disk - WHEEL (15X4T) (TOPY)
4	42700-S5D-A01	Disk - WHEEL (14X5 1/2JJ) (CHUO) (BLACK)
5	42751-SV4-907	Tire - T125/70D15 95M)(DUNLOP
5	42751-SV4-905	Tire - T125/70D15 95M) (BRIDGESTONE
5	42751-SV4-906	Tire - T125/70D15 95M) (DUNLOP
6	42751-S5A-G27	Tire - 185/70R14 88H) (DUNLOP
7	42753-SH3-003	Valve - RIM (US PACIFIC)
7	42753-SB8-661	Valve - RIM (SCHRADER)
8	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
8	42767-S04-P00	Plate - SPARE TIRE CAUTION (T-TYPE)(PORTUGAL)
9	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
12	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)
12	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)
12	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)
12	44729-SEA-004	Weight - BALANCE (35G) (TOHO)
12	44723-SEA-004	Weight - BALANCE (30G) (TOHO)
12	44728-SEA-004	Weight - BALANCE (25G) (TOHO)
12	44722-SEA-004	Weight - BALANCE (20G) (TOHO)
12	44727-SEA-004	Weight - BALANCE (15G) (TOHO)
12	44721-SEA-004	Weight - BALANCE (10G) (TOHO)
12	44726-SEA-004	Weight - BALANCE (5G) (TOHO)
12	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)
12	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)
12	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)
12	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)
15	44733-S5A-J20	Trim - WHEEL (14")
18	44736-SA0-981	Nut - WHEEL (FUSE RASHI)
19	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
21	83850-SH3-000	Plate - ANCHOR BOLT
22	83853-SX0-000	Bolt - ANCHOR
23	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)

Tools/jack 8

#	OEM	部品名
1	71969-SA7-890	Wrench - SUNROOF
2	89000-SR3-020	Tool set
3	89000-SR3-902	Tool set - SUNROOF
4	89101-SW5-003	Bag - TOOL
5	89211-S05-003	Wrench - WHEEL
6	89310-S5A-013	Jack assy - PANTOGRAPH
7	89311-S5A-003	Plate - JACK CAUTION
8	89320-S05-003	Bar - JACK

Transmission case 53

#	OEM	部品名
1	21104-PHR-000	Plate m - OIL GUIDE
2	21210-PLW-B00	Case - TRANSMISSION
3	21211-PLW-000	Plate - OIL GUTTER
4	21222-PLW-000	Stay - RESONATOR
5	23947-P21-000	Shim q - 72MM(1.08)
5	23942-P21-000	Shim l - 72MM(0.93)
5	23969-P21-000	Shim am - 72MM(1.74)
5	23937-P21-000	Shim g - 72MM(0.78)
5	23932-P21-000	Shim b - 72MM(0.63)
5	23964-P21-000	Shim ah - 72MM(1.59)
5	23959-P21-000	Shim ac - 72MM(1.44)
5	23954-P21-000	Shim x - 72MM(1.29)
5	23949-P21-000	Shim s - 72MM(1.14)
5	23944-P21-000	Shim n - 72MM(0.99)
5	23971-P21-000	Shim ao - 72MM(1.80)
5	23939-P21-000	Shim i - 72MM(0.84)
5	23934-P21-000	Shim d - 72MM(0.69)
5	23966-P21-000	Shim aj - 72MM(1.65)
5	23961-P21-000	Shim ae - 72MM(1.50)
5	23956-P21-000	Shim z - 72MM(1.35)
5	23951-P21-000	Shim u - 72MM(1.20)
5	23946-P21-000	Shim p - 72MM(1.05)
5	23941-P21-000	Shim k - 72MM(0.90)
5	23968-P21-000	Shim al - 72MM(1.71)
5	23936-P21-000	Shim f - 72MM(0.75)
5	23931-P21-000	Shim a - 72MM(0.60)
5	23963-P21-000	Shim ag - 72MM(1.56)
5	23958-P21-000	Shim ab - 72MM(1.41)
5	23953-P21-000	Shim w - 72MM(1.26)
5	23948-P21-000	Shim r - 72MM(1.11)
5	23943-P21-000	Shim m - 72MM(0.96)
5	23970-P21-000	Shim an - 72MM(1.77)
5	23938-P21-000	Shim h - 72MM(0.81)
5	23933-P21-000	Shim c - 72MM(0.66)
5	23965-P21-000	Shim ai - 72MM(1.62)
5	23960-P21-000	Shim ad - 72MM(1.47)
5	23955-P21-000	Shim y - 72MM(1.32)
5	23950-P21-000	Shim t - 72MM(1.17)
5	23945-P21-000	Shim o - 72MM(1.02)
5	23940-P21-000	Shim j - 72MM(0.87)
5	23935-P21-000	Shim e - 72MM(0.72)
5	23967-P21-000	Shim ak - 72MM(1.68)
5	23962-P21-000	Shim af - 72MM(1.53)
5	23957-P21-000	Shim aa - 72MM(1.38)
5	23952-P21-000	Shim v - 72MM(1.23)
6	24455-PHR-000	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
8	28700-PHR-003	Switch assy - BACK LIGHT (TOKAI)(GRAY)
9	90081-PB6-000	Bolt - PLUG, 14MM
10	90081-PX5-000	Screw - SEALING, 32MM
11	90380-S04-000	Bolt - STUD, 12X73
12	90401-P8A-A00	Washer - DRAIN, 18MM
13	91206-PHR-003	Oil seal - 35X58X8 (NOK)

Trunk lid 25

#	OEM	部品名
5	71704-SL3-000	Seal - GASKET
6	72134-SM4-003	Snap - R. (VIOLET)
7	73219-693-951	Seal - FUEL LID OPENER (GREEN)
8	74815-SK8-000	Grommet - KEY CYLINDER(BLACK)
9	74822-SW5-003	Cushion - TRUNK HINGE
10	74828-SX0-000	Stopper - TAILGATE
11	74829-S5A-000	Stopper - TRUNK LID LOWER
13	74851-S5A-013	Lock - TRUNK LID
14	74861-S5A-G01	Cylinder - TRUNK
16	74862-SE3-003	Striker - TRUNK
17	74863-S5A-003	Rod - TRUNK LOCK
18	74864-S30-003	Cover
19	74865-S5A-003	Weatherstrip - TRUNK LID
21	74867-SW5-003	Holder - ROD
22	74871-S5A-000	Spring - R. TRUNK OPENER
23	74872-S5A-000	Spring - L. TRUNK OPENER
24	74873-SM4-003	Clip - TRUNK OPENER SPRING
25	74880-S5A-A02	Cable - TRUNK & FUEL LID OPENER
29	90108-S0A-003	Bolt - FLANGE, 6X15
30	90109-SM4-000	Bolt - SPECIAL, 6X35
31	90306-S04-003	Nut - LICENSE PLATE (HEX.) (SATO RASHI)
32	90684-SD4-003	Clip - FUEL LID OPENER
33	91507-S5A-003	Clip - TRUNK OPENER CABLE
36	91558-SE3-003	Clip - HOOD WIRE
37	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Valve/rocker arm (SOHC) 17

#	OEM	部品名
1	14621-P2A-000	Arm comp. a - INTAKE ROCKER
2	14622-P2A-000	Arm comp. b - INTAKE ROCKER
3	14623-P2A-000	Arm comp. a - EX. ROCKER
4	14624-P2A-000	Arm comp. b - EX. ROCKER
5	14632-P2A-000	Collar a - INTAKE ROCKER
6	14645-P08-000	Spring - ROCKER ARM
7	14646-P2A-000	Spring - ROCKER ARM
8	14711-P2A-000	Valve - IN.
9	14721-P2A-000	Valve - EX.
10	14744-PM3-000	Screw - TAPPET ADJUSTING
11	14761-P2A-003	Spring - VALVE (SKY BLUE) (NIPPON HATSUJO)
11	14761-P2A-004	Spring - VALVE (SKY BLUE) (CHUO SPRING)
12	14765-P08-000	Retainer - VALVE SPRING
13	14775-P08-000	Seat - VALVE SPRING
14	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
15	15140-P2A-000	Orifice assy - OIL PATH
16	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose 2

#	OEM	部品名
1	19506-PLC-901	Hose - ROTARY AIR CONTROL VALVE IN.
2	19507-PLC-901	Hose - ROTARY AIR CONTROL VALVE OUTLET

Water pump/sensor 27

#	OEM	部品名
1	18011-PLM-A01	Valve set - EGR
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-PLM-A01	Pump comp - WATER
4	19222-P08-004	O-ring - WATER PUMP (YAMADA)
4	19222-PDF-E00	O-ring - WATER PUMP
5	19301-PLC-315	Thermostat assy - FUJI THOMSON
5	19301-REA-305	Thermostat assy - NIPPON THERMOSTAT
6	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
7	19311-PLC-000	Cover - THERMOSTAT
8	19410-PLC-000	Passage comp. - WATER
9	19411-PLC-004	Gasket - FR. WATER PASSAGE (NIPPON LEAKLESS)
9	19411-PLC-003	Gasket - FR. WATER PASSAGE (ISHINO GASKET)
10	19503-PLC-000	Hose - CONNECTING PIPE
11	19504-PLC-000	Pipe b - CONNECTING
12	19505-PLC-000	Pipe a - CONNECTING
13	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)
13	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
14	32747-PLC-000	Stay g - ENGINE HARNESS
15	32749-PLC-000	Stay j - ENGINE WIRE HARNESS
16	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
16	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
17	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)
18	90204-PH7-000	Nut - SPECIAL
19	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)
20	91307-PN4-000	O-ring - 17.5X1.4
20	91307-PN3-000	O-ring,17.8x1.4
21	91314-634-000	O-ring

Water valve (LH) 10

#	OEM	部品名
1	79710-S5D-A02	Valve assy, Water
2	79721-S5D-A00	Hose a - WATER IN.
3	79722-S5D-A00	Hose b - WATER IN.
4	79725-S5D-A00	Hose - WATER OUTLET
5	79731-S5A-000	Grommet - HEATER PIPE
6	79746-SL4-003	Clamp - HEATER HOSE
7	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	91551-SZ3-003	Clamp - HEATER HOSE

Windshield washer (2) 36

#	OEM	部品名
1	38514-692-731	Bush
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA
3	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
4	38581-671-631	Joint - TUBE
5	76812-S04-S03	Cap unit - MOUTH
6	76803-SE1-S03	Clip - WASHER HOSE
7	76806-SL0-G11	Motor - WASHER (HIGH) (MITSUBA)
7	76806-SL0-G01	Motor - WASHER (HIGH) (MITSUBA)
8	76806-S5A-S01	Pump - WASHER
9	76810-S5A-003	Nozzle assy. - WINDSHIELD WASHER (BLACK)
11	76830-SM4-003	Joint y - WASHER
12	76832-S5B-003	Tube - 730MM
13	76837-S5A-003	Tube - 1500MM
14	76839-S5B-003	Tube - 220MM
15	76840-S5A-S12	Tank set - WASHER
16	76845-S7A-S01	Bracket - MOTOR
22	80383-S5A-003	Clip A - RECEIVER PIPE
23	90118-SEA-S01	Bolt-washer - 6X20
24	90316-SM5-G03	Nut - HEX., 6MM
25	90652-SB2-023	Clip - TUBE, 7MM
26	91523-SM4-003	Clip - WASHER TUBE
29	38524-671-631	Hose d - WASHER
30	76803-SH2-S10	Clip - WASHER HOSE
31	76828-SH3-S03	Joint l
32	76880-S5A-S11	Nozzle assy. - R. HEADLIGHT WASHER
35	76883-S7A-S01	Screw
36	76885-S5A-S11	Nozzle assy. - L. HEADLIGHT WASHER
39	76891-SP0-G03	Hose
40	76892-SP0-G03	Hose
41	76892-SR2-S03	Hose b
42	76892-S9A-S01	Hose
43	76893-SE1-000	Hose c
44	76893-S5A-S11	Cushion
45	76895-S5A-S11	Hose
46	90132-SEA-003	Screw - PAN, 5X12
47	91561-S7A-003	Clip - HEADLIGHT WASHER HOSE

Windshield washer (3) 19

#	OEM	部品名
1	38516-SA5-671	Packing - T-TYPE) (MITSUBA
2	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
3	76802-SL4-013	Cap unit - MOUTH
4	76805-S5A-003	Hose
6	76806-SL0-G01	Motor - WASHER (HIGH) (MITSUBA)
6	76806-SL0-G11	Motor - WASHER (HIGH) (MITSUBA)
7	76808-SD5-003	Holder - MOTOR
8	76809-SE0-003	Grommet - WASHER TANK
9	76810-S5A-003	Nozzle assy. - WINDSHIELD WASHER (BLACK)
10	76812-S5A-003	Mouth - WASHER
11	76830-SM4-003	Joint y - WASHER
12	76832-S5B-003	Tube - 730MM
13	76837-S5A-003	Tube - 1500MM
14	76839-S5B-003	Tube - 220MM
15	76840-S5A-E02	Tank set - WASHER
16	80383-S5A-003	Clip A - RECEIVER PIPE
17	90652-SB2-023	Clip - TUBE, 7MM
18	91512-SX0-003	Clip - INNER FENDER CLIP
19	91523-SM4-003	Clip - WASHER TUBE

Wire harness (LH) 24

#	OEM	部品名
1	32103-S5A-G03	Sub cord - COMBINATION
2	32107-S5A-G04	Harness - FLOOR WIRE
3	32108-S5A-G02	Harness - RR. WIRE
4	32117-S5A-G14	Harness - INSTRUMENT WIRE
4	32117-S5A-G24	Harness - INSTRUMENT WIRE
5	32125-S5A-G02	Sub cord - EPS
6	32155-S5A-A61	Cord - INTERIOR & SUNROOF
6	32155-S5A-A11	Cord assy - INTERIOR
7	32200-S5A-G13	Harness - ENGINE ROOM WIRE
7	32200-S5A-G14	Harness - ENGINE ROOM WIRE
7	32200-S5A-G34	Harness - ENGINE ROOM WIRE
7	32200-S5A-G33	Harness - ENGINE ROOM WIRE
8	32201-S5A-G11	Sub cord - ENGINE CONTROL MODULE
9	32202-S5A-000	Cord - RR. DEFROSTER
11	32751-S5A-G22	Harness - DRIVER DOOR WIRE
12	32752-S5A-A01	Harness - PASSENGER DOOR WIRE
12	32752-S5A-G01	Harness - PASSENGER DOOR WIRE
13	32753-S5A-000	Harness - R. RR. DOOR WIRE
14	32754-S5A-000	Harness - L. RR. DOOR WIRE
16	35505-692-003	Bulb - 14V 1.4W
18	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
19	90149-SE0-003	Bolt - EARTH, 6X16
20	90153-SE0-003	Bolt - EARTH, 6X12
21	90137-S84-A01	Bolt - TORX EARTH, 6X20
