Abs modulator (2) 4

#	OEM	部品名
1	57101-S5A-A00	Damper
2	57102-S5A-A00	Bolt - ABS MOUNTING
3	57110-S5T-E50	Modulator assy
4	57115-S5T-E01	Bracket comp. - MODULATOR

Air cleaner (TYPE R) 17

#	OEM	部品名
1	11813-PN4-010	Grommet - TIMING BELT COVER HOLE
2	17201-PNA-000	Case set, AIR CLEANER
3	17202-PRA-010	Cover set - AIR CLEANER
4	17212-PNA-000	Rubber - AIR CLEANER MOUNTING
5	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
5	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
6	17213-PNA-000	Rubber a - AIR CLEANER SEAL
7	17214-PNA-000	Rubber b - AIR CLEANER SEAL
8	17216-PN3-000	Collar - AIR CLEANER MOUNTING
9	17220-PRA-Y01	Element comp - AIR CLEANER
9	17220-PNB-003	Element comp - AIR CLEANER
9	17220-PNB-505	ELEMENT COMP AIR
10	17263-PND-000	Stay c - AIR CLEANER
11	75353-671-000	Lock - SCREW
12	90001-PNA-003	Bolt - SPECIAL FLANGE, 6X163
13	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
14	90091-P36-000	Bolt-washer - 5X28

Air conditioner (COMPRESSOR; TYPE R) 15

#	OEM	部品名
1	38773-PJ7-003	Clip - WIRE HARNESS
2	38801-PCA-006	Valve sub assy. - SAFETY
3	38810-PRA-006	Compressor comp.
4	38900-PND-006	Clutch set - COMPRESSOR
5	38908-PRA-006	Protector set - THERMAL
6	38912-P06-006	Shim set
7	38913-P06-006	Circlip - EXTERNAL, 45MM
8	38914-P06-006	Circlip - EXTERNAL, 35MM
9	38920-PRA-013	Belt - COMPRESSOR (BANDO)
9	38920-PRA-004	Belt - COMPRESSOR (MITSUBOSHI)
10	38924-PRA-006	Coil set - SOLENOID
11	38930-PNC-000	Bracket - COMPRESSOR
11	38930-PNA-000	Bracket - COMPRESSOR
12	90023-PNA-000	Bolt - FLANGE, 8X80
13	90024-PNA-000	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER; TYPE R) 13

#	OEM	部品名
1	32175-PDA-E01	Clip - HARNESS
2	38611-PRA-005	Fan comp - COOLING
3	38615-PNF-E01	Shroud comp. - AIR CONDITIONER
4	38616-PRA-005	Motor - COOLING FAN
5	80107-S5T-000	Bracket - R. CONDENSER UPPER
6	80107-S87-A01	Rubber - CONDENSER UPPER
7	80108-S5T-000	Bracket - L. CONDENSER UPPER
8	80110-S5T-E01	Condenser comp.
9	80175-S87-A01	Rubber - CONDENSER MOUNTING
10	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
11	90041-PRA-005	Nut - FLANGE, 5MM
12	90430-PRA-005	Washer - PLAIN, 8MM
13	91508-PRA-003	Clamp - WIRE HARNESS

Air conditioner (COOLING UNIT; LH) 15

#	OEM	部品名
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
3	79511-S6D-G01	Knob - A/C
5	80211-S6D-G12	Evaporator assy.
6	80215-S6A-003	Plate
7	80216-S6A-003	Insulator - EXPANSION VALVE
8	80220-S6A-013	Valve - EXPANSION
10	80430-S6A-003	Thermostat - AIR CONDITIONER
13	80460-S5T-E00	Harness - AIR CONDITIONER WIRE
15	80871-ST7-000	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"
17	90125-S6A-003	Bolt - 5X35
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
20	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
21	91565-SD5-003	Clip - COUPLER(NATURAL)

Air conditioner (HOSES/PIPES; LH; TYPE R) 20

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-S5T-G01	Hose comp. - SUCTION
3	80315-S5T-E01	Hose comp. - DISCHARGE
4	80325-S5T-G11	Pipe assy. - AIR CONDITIONER
5	80331-S6D-G01	Pipe - CONDENSER
6	80341-S5T-E01	Pipe comp - RECEIVER
7	80351-S6D-E21	Receiver comp - ###
8	80352-S5A-000	Bracket - LIQUID TANK
9	80361-SP0-A00	Clamp - SUCTION PIPE
10	80371-SF4-000	Clamp - DISCHARGE HOSE
11	80387-SM4-A01	Clip - RECEIVER PIPE
12	80440-S6A-003	Switch - DUAL PRESSURE (CALSONIC)
13	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
14	80465-S7C-G01	Cover - AIR CONDITIONER PIPE
15	80865-S6D-003	Cap - VALVE (H)
16	80866-S6A-003	Cap - VALVE (L)
17	80871-ST7-000	O-ring - 5/8"
18	80872-ST7-000	O-ring - 1/2"
19	80873-ST7-000	O-ring - 8MM
20	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Air conditioner (KIT; LH) 1

#	OEM	部品名
1	80000-S5T-G12	General assy. - AIR CONDITIONER

Air conditioner (SENSOR) 2

#	OEM	部品名
3	80525-S30-941	Sensor assy - AMBIENT
6	91555-SL0-A01	Clip - COUPLER

Air flow tube (TYPE R) 16

#	OEM	部品名
1	15772-551-000	Clip - BREATHER TUBE
2	17153-PNC-010	Tube comp - BREATHER
3	17213-PD1-000	Rubber - AIR CLEANER CASE MOUNTING
4	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
5	17228-PRB-A01	Tube comp - AIR FLOW
6	17229-P8A-A00	Joint - AIR HOSE
7	17251-PRC-010	Tube a - AIR INTAKE
8	17252-PRA-G00	Tube comp - AIR INTAKE
9	17253-PRA-G00	Stay comp - AIR INTAKE
10	17263-P0A-000	Rubber - AIR CLEANER STAY
11	17314-PNA-013	Clamp - AIR FLOW
12	17315-PRB-003	Clamp - AIR FLOW
13	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
14	90005-P28-A00	Bolt-washer - SPECIAL, 6X28
15	90602-PWA-003	Clamp, Tube (D25)
16	91405-PNA-003	Clamp - BREATHER TUBE

Alternator (DENSO) 21

#	OEM	部品名
1	31100-PRA-003	Alternator assy - CJX67) (DENSO
2	31101-PRA-003	Rotor assy.
3	31105-PR7-A01	Holder assy. - BRUSH
4	31111-PT0-003	Bearing - RR. GENERATOR
5	31114-PT0-013	Bearing - FR. GENERATOR
6	31118-PT0-003	Bush - INSULATION
7	31119-PRB-003	Bush - INSULATION
8	31127-P8C-A01	Rectifier assy.
9	31135-P8C-A01	Cover - RR. END
10	31138-PD1-004	Cover - BEARING
11	31141-PRA-003	Pulley
12	31142-PD1-004	Nut - PULLEY LOCK
13	31145-PD1-004	Bolt - STUD, 6X68
14	31146-PT0-003	Screw
15	31147-PT0-003	Screw-washer
16	31147-P13-003	Screw
17	31148-PT0-003	Screw - WAVE WASHER
18	31148-P13-003	Screw - WAVE WASHER
19	31150-PEA-A01	Regulator assy
20	90231-PD1-014	Nut-washer - 5MM
21	90232-PT0-003	Nut - HEX., 6MM

Antenna/speaker 14

#	OEM	部品名
3	39122-S5A-000	Seal - SPEAKER HOLE
4	39151-S6A-E02	Element assy. - YOKOO
4	39151-S6A-E03	ELEMENT ASSY YOKOO
5	39152-S6A-E01	Base comp. - ANTENNA (YOKOO)
6	39153-S5T-J51	Nut - FLANGE (YOKOO)
7	39154-S6A-E01	Pad - YOKOO
8	39156-S6A-G00	Sub feeder
9	39160-S5S-000	Feeder assy. - ROOF ANTENNA
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
15	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
16	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
17	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Battery (TYPE R) 13

#	OEM	部品名
1	31500-S5T-G02	Battery - 46B24L<S>-MF) (YUASA
2	31512-S5A-000	Plate - BATTERY SETTING
3	31513-S5T-000	Bolt - BATTERY SETTING (210MM)
4	31521-S5T-000	Box - BATTERY
5	31531-S5A-000	Cover - BATTERY
6	31542-ST3-E01	Plug - VENT (MF) (YUASA)
7	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
8	32600-S5T-000	Cable assy - BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL
11	90153-SE0-003	Bolt - EARTH, 6X12
12	90182-SB6-000	Bolt-washer - 6X16
13	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)

Brake lines (ABS; LH; 2) 34

#	OEM	部品名
1	01464-S5T-E00	Hose set - R. FR. BRAKE
2	01465-S5T-E00	Hose set - L. FR. BRAKE
3	01466-S5A-J04	Hose set - R. RR. BRAKE
4	01468-S5A-J04	Hose set - L. RR. BRAKE
5	46330-S5T-E00	Pipe comp. c - BRAKE
6	46340-S5T-E00	Pipe comp. d - BRAKE
7	46374-S5T-G51	Pipe comp. u - BRAKE
8	46375-S5T-G51	Pipe comp. v - BRAKE
9	46376-S5T-E51	Pipe comp. w - BRAKE
10	46377-S5T-G51	Pipe comp. x - BRAKE
11	46378-S5T-G51	Pipe comp. y - BRAKE
12	46379-S5T-G51	Pipe comp. z - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE
14	46391-S5A-J01	Clip - BRAKE PIPE
15	46391-S5A-Z01	Clip - BRAKE PIPE
16	46391-S5T-E00	Clip - BRAKE PIPE
17	46391-S5T-G01	Clip - BRAKE PIPE
18	46392-SB2-014	Clip b - BRAKE PIPE
19	46392-S0X-A01	Clip - BRAKE PIPE
20	46392-S5T-G01	Clip - BRAKE PIPE
22	46393-S6D-010	Clip - BRAKE PIPE
23	46393-S6M-A11	Clip - PIPE
25	46396-S7A-003	Clip - BRAKE PIPE
26	46397-S5A-000	Clamp - R. BRAKE PIPE
27	46398-S5A-000	Clamp - L. BRAKE PIPE
28	46435-S5A-900	Bracket a - R. RR. BRAKE HOSE
29	46436-S5A-900	Bracket a - L. RR. BRAKE HOSE
30	46437-S5A-J00	Bracket - R. RR. BRAKE HOSE
31	46438-S5A-J00	Bracket - L. RR. BRAKE HOSE
32	46462-SE0-000	Bolt - OIL
33	46470-S5T-E01	Joint - FOUR WAY
34	46472-568-000	Packing - OIL BOLT
35	90361-SV4-003	Nut - PAINT CUTTING, 6MM
36	90651-SN7-003	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH; 2) 29

#	OEM	部品名
1	01469-S5T-G50	Power set - MASTER (7"+8")
2	46017-S6A-000	Hose set - RESERVE TANK
3	46070-SL0-G01	Plate - SYMBOL MARK
4	46100-S6D-G01	Cylinder assy. - MASTER
5	46120-S0A-013	Piston assy. - PRIMARY
6	46122-S5A-J51	Piston assy. - SECONDARY
7	46135-S5A-J41	Guide assy - PISTON
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
9	46185-SE0-003	Seal - ROD
10	46191-S2K-000	Packing - MASTER POWER
11	46355-S5T-G01	Pipe comp - MASTER POWER
12	46402-S5T-G01	Tube assy - MASTER POWER
13	46407-S84-A01	Clamp - TUBE
14	46409-S5T-G01	Tube b - MASTER POWER
15	46512-S70-000	Pin - PEDAL
16	46661-S6D-G00	Reservoir set
17	46662-S5A-003	Cap comp. - RESERVE TANK
18	46665-S04-J01	Grommet
19	46666-S2K-003	Filter - BRAKE RESERVOIR
20	46669-S5A-003	Diaphragm
21	46672-S6A-003	Hose - RESERVE TANK
22	46673-S6A-003	Hose - RESERVE TANK
23	46674-S6D-E60	Bracket comp. - RESERVE TANK
24	46680-S6A-J52	Union - RESERVOIR
25	46911-S70-003	Pin, LOCK(8MM)
26	53729-671-003	Clamp d - 15.5MM
27	57173-SB0-801	O-ring - CONNECTOR
28	57515-S30-003	Pin - STOP
29	57562-SF1-003	Circlip

Breather tube (TYPE R) 2

#	OEM	部品名
1	17130-PRA-E01	Valve assy. - PCV
2	17131-PRB-A00	Tube - PCV

Bumpers 29

#	OEM	部品名
3	71110-S5T-R00	Spoiler - FR. BUMPER AIR (TYPE R)
8	71190-S6A-000	Beam comp - L. FR. BUMPER UPPER
9	71193-S6A-000	Spacer - R. FR. BUMPER SIDE
10	71198-S6A-000	Spacer - L. FR. BUMPER SIDE
13	71505-S5A-J00	Bracket - R. RR. BUMPER SIDE
15	71514-S6M-Z00	Spacer comp - RR. BUMPER AIR SPOILER
17	71555-S5A-J00	Bracket - L. RR. BUMPER SIDE
18	71592-S6A-000	Clip assy. - BUMPER SPACER
19	71593-S5S-G00	Spacer - R. RR. BUMPER SIDE
20	71594-S5S-G00	Spacer - R. RR. BUMPER UPPER
21	71598-S5S-G00	Spacer - L. RR. BUMPER SIDE
22	71599-S5S-G00	Spacer - L. RR. BUMPER UPPER
23	90105-634-000	Bolt-washer (8x20)
24	90109-SS0-000	Screw - TAPPING, 5X20
25	90111-SM4-003	Bolt - BUMPER
26	90126-SA7-000	Screw-washer - 5X20
26	90114-SZ3-000	Screw-washer - 5X20
27	90126-SR4-000	Screw-washer - 5X16
28	90141-S5T-G01	Bolt - BUMPER SPOILER
29	90149-SA0-003	Bolt - BUMPER
30	90149-S5S-G00	Bolt - BUMPER
31	90150-S84-003	Bolt - EARTH, 8X16
32	90301-SP0-003	Nut - PAINT CUTTING, 6MM
33	90303-S5T-G00	Nut - GARNISH, 6MM
34	90305-SH3-000	Nut - AIR SPOILER CLIP
35	90345-S04-000	Nut - SUSPENSION, 5MM
36	90682-SB0-003	Grommet - SCREW, 5MM
37	91503-SZ3-003	Clip A
38	91503-SZ5-003	Clip - BUMPER FACE

Camshaft/cam chain 17

#	OEM	部品名
1	14110-PRB-A02	Camshaft comp. - IN.
2	14113-PNA-003	Plate - CAM PULSE
3	14114-PNA-003	Plate - TDC PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM
5	14120-PRB-A01	Camshaft comp. - EX.
6	14210-PRB-A00	Sprocket - CAM CHAIN DRIVEN (46T)
7	14310-RBC-003	Actuator assy, VTC(46T)
8	14401-PNA-004	CHAIN (170L) (BORG WARNER)
9	14510-PRB-A01	Tensioner Assy, Cam Chain
10	14511-PNA-003	Stopper - TOOL
11	14520-PNA-003	ARM, CAM CHAIN TENSIONER
12	14530-PNA-003	GUIDE, CAM CHAIN
13	14540-PRB-A01	GUIDE B, CAM CHAIN
14	90003-PNA-000	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3

Chain case 11

#	OEM	部品名
1	11410-PNC-000	Case assy. Chain
1	11410-RRA-A00	Case assy. - CHAIN
2	11412-PNA-000	Cover - CHAIN CASE
3	37500-PNB-003	Sensor assy - CRANK
4	90021-PNA-000	Bolt - SPECIAL, 6X31
5	91212-PNC-003	Oil seal - 43X58X7 (NOK)
5	91212-RNA-A01	Oil seal - 43X58X7(ARAI)
5	91212-PNC-004	Oil seal - 43X58X7 (ARAI)
5	91212-RTA-003	Oil seal - 43X58X7 (NOK)
6	91302-PNA-004	O-ring - CHAIN CASE
7	91333-PNA-003	O-ring - 15X1.9

Clutch (TYPE R) 8

#	OEM	部品名
1	21350-PRB-000	Cover - CLUTCH CASE
2	22100-PRC-003	Flywheel comp.
3	22103-PNA-003	Bush - 21X24X8
4	22200-PRC-003	Disk comp - FRICTION
4	22200-RBC-003	Disk comp - FRICTION
5	22300-PRB-003	Disk comp - PRESSURE
6	90011-PNA-B00	Bolt - 12MM
7	90034-PRC-000	Bolt - TWELVE POINT, 8MM

Clutch case (TYPE R) 10

#	OEM	部品名
1	21000-PNS-000	Case comp. - CLUTCH
2	21101-PPP-000	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION
5	21222-PPP-000	Hanger - TRANSMISSION
6	28700-PWL-003	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
7	91001-PPP-005	Bearing - BALL, 28X64X15
8	91003-PPP-004	Bearing - NEEDLE, 35X68X20
9	91206-PHR-003	Oil seal - 35X58X8 (NOK)
10	91216-PG1-005	Oil seal - 28X43X7 (NOK)

Clutch master cylinder (LH; 2) 35

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke
4	46182-500-013	Circlip
5	46911-S70-003	Pin, LOCK(8MM)
6	46912-S84-A00	Pin - CLUTCH PEDAL
7	46920-S7A-A02	Cylinder assy. - CLUTCH MASTER
8	46921-S5A-003	Plate - STOPPER
9	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
10	46928-S5A-A01	Seal - MASTER CYLINDER
11	46930-S7C-E02	Cylinder assy. - CLUTCH SLAVE
12	46931-S5A-003	Pin - SPRING
13	46932-S5A-003	Piston - SLAVE CYLINDER
14	46937-SS1-003	Boot - SLAVE CYLINDER
15	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
16	46942-S5A-003	Pin - SNAP
17	46943-S5A-003	Seal - RING
18	46944-S5A-J01	Connector
19	46945-S5A-003	O-ring
20	46946-S5A-003	Screw-washer - 4X12
21	46947-S5A-003	Rod - PUSH
22	46948-S5A-003	Rod - PUSH
23	46949-S5A-003	Seal - RING
24	46960-S5T-G03	Pipe comp. a - CLUTCH
25	46961-S7C-A01	Hose - CLUTCH
26	46962-SDA-A01	Rubber - PIPE
27	46965-S5A-013	Tank assy. - CLUTCH FLUID
28	46968-S7C-E01	Bracket b - CLUTCH PIPE
29	46970-S7C-E01	Pipe, B Clutch
30	46971-S5T-G01	Tube - CLUTCH FLUID
31	46972-S6F-E01	Clamp - TUBE (D12)
32	46995-S5T-G02	Bracket a - CLUTCH PIPE
33	46996-S7C-E00	Stay - CLUTCH PIPE CLIP
34	90651-538-000	Clip - BRAKE HOSE
35	90658-759-003	Clip - TUBE, 12MM

Clutch release (TYPE R) 11

#	OEM	部品名
1	22810-PPT-003	Bearing - CLUTCH RELEASE
2	22821-PPP-000	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK
6	78410-S5T-901	Sensor assy - SPEED (NS)
7	78415-S5T-901	Gear
8	78416-S2R-003	Washer
9	78417-S2R-003	Ring - STOP (C-TYPE)
10	78418-S2R-003	Spring
11	78419-S2R-003	Seal - RING

Combination switch 22

#	OEM	部品名
1	06350-S5S-R41	Cylinder set - KEY
2	35100-S5A-E22	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35113-S0X-Y01	Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER)
6	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
8	35130-S5A-J51	Switch comp - STEERING
9	35251-S5A-Y03	Body comp - SWITCH
10	35255-S5A-G02	Switch assy - LIGHTING & TURN SIGNAL
11	35256-S6A-G01	Switch assy
12	35257-S5A-J01	Bracket
13	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)
14	39730-SEA-E01	Immobilizer unit
15	72118-ST7-003	Screw - TAPPING, 3X5
16	72146-S5A-G01	Cover - BATTERY
17	72147-SAA-G02	Transmitter assy - KEYLESS
18	72148-S10-003	Battery - CR2025
18	72148-S84-A10	Battery - CR2025
19	72149-S10-003	O-ring
20	90132-S2H-G01	Screw - ET, 5X18
20	90132-S2H-G11	Screw - ET, 5.5X18

Console 4

#	OEM	部品名
8	77293-S5S-E01	Mat - CONSOLE BOX
9	77295-S5V-E01	Insulator - R. CONSOLE
10	77296-S5V-E01	Insulator - L. CONSOLE
13	90666-S84-A01	Clip - SNAP FITTING

Control unit (CABIN; LH) 29

#	OEM	部品名
2	32146-S5T-R00	Bracket comp. - RR. SENSOR HEADLIGHT ADJUSTER
3	33137-S5T-G01	Control unit - AUTO LEVELING ELECTRONIC
4	33143-S1A-G01	Nut - SPECIAL, 6MM
5	33146-S5T-G01	Sensor assy - HEADLIGHT ADJUSTER RR.
6	37820-PRA-E13	Control module - ENGINE
9	37827-PMA-G00	Bracket comp. - ELECTRONIC CONTROL UNIT (A)
11	37828-PMA-G00	Bracket comp. - ENGINE CONTROL MODULE (B)
14	38140-S3N-003	Control unit - RR. WIPER
15	38141-S6D-G10	Bracket - UNIT
16	38141-S5T-R00	Bracket - UNIT
17	38200-S6A-G21	Box assy - FUSE
18	38201-S5A-A01	Bracket - FUSE BOX
19	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
19	38300-S5P-A01	Relay assy - TURN SIGNAL & HAZARD (OMRON)
19	38300-S5T-004	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
20	38310-S6A-S02	Relay - CLEANER CONTROL
21	38385-S7A-G01	Receiver unit - KEYLESS ENTRY
23	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
23	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
23	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
23	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
23	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
25	39794-S5A-003	Relay assy - FUEL PUMP(5P) (MITSUBA)
26	39794-S5A-901	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
27	39880-S6A-E01	Security unit
28	39980-S5T-G05	Eps unit
29	90133-SM4-003	Bolt-washer - 5X16
30	90137-SF1-000	Bolt-washer - 6X25
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; TYPE R) 27

#	OEM	部品名
1	38100-S04-A01	Horn assy - LOW (MITSUBA)
2	38100-S1F-003	Horn assy - LOW (MITSUBA)
2	38100-SCP-W02	HORN ASSYLOW
3	38101-S1A-G00	Bracket - HORN
4	38150-ST7-G01	Horn assy - HIGH (MITSUBA)
5	38213-SM4-003	Fuse - BLOCK (50A)
6	38214-SS1-003	Fuse - BLOCK (60A)
7	38216-SM4-003	Fuse - BLOCK (80A)
8	38231-S04-003	Fuse - BLOCK (30A)
9	38231-S04-961	Fuse - BLOCK (40A)
10	38235-S04-003	Puller - MINI FUSE (SUMITOMO)
11	38250-S5T-G02	Box assy - RELAY
12	38251-S5T-000	Bracket a - RELAY BOX
13	38252-S5A-003	Cover - LOWER
14	38252-S5T-000	Bracket b - RELAY BOX
15	38253-S5T-000	Bracket - RELAY BOX SIDE
16	38254-S5T-G02	Cover - UPPER
17	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
18	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
18	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
19	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
19	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
19	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
19	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
19	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
20	90129-SP0-000	Screw-washer - 5X12
21	90150-S84-003	Bolt - EARTH, 8X16

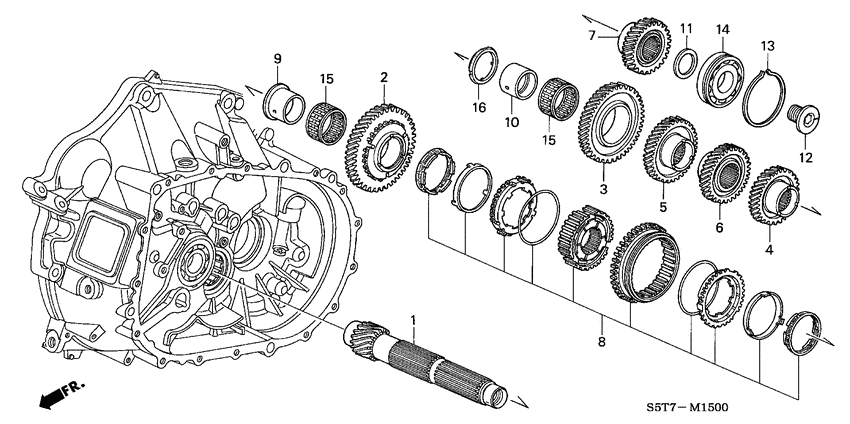

Countershaft (TYPE R) 44

#	OEM	部品名
1	23221-PNT-000	Countershaft
2	23421-PPP-000	Gear - COUNTERSHAFT LOW
3	23431-PNS-000	Gear, COUNTERSHAFT SECOND
4	23461-PNS-000	Gear - COUNTERSHAFT FIFTH
5	23471-PNS-000	Gear - COUNTERSHAFT THIRD
6	23481-PNS-000	Gear - COUNTERSHAFT FOURTH
7	23491-PNS-000	Gear - COUNTERSHAFT SIXTH
8	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)
9	23914-PPP-000	Collar - DISTANCE, 40X47X27.5
10	23917-PPP-000	Collar - DISTANCE, 40X47X28
11	23986-PPP-000	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)
11	23984-PPP-000	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)
12	90011-PPP-000	Bolt - SPECIAL, 20X25
13	90601-PPP-000	Ring - SNAP, 72MM
14	91004-PPP-004	Bearing - BALL, 30X72X17
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23
16	91212-PPP-004	Damper - FRICTION (SECOND)

Cylinder block/oil pan (TYPE R) 27

#	OEM	部品名
1	11000-PRB-A00	Block assy - CYLINDER
1	11000-PRB-B00	Block assy - CYLINDER
2	11106-PNA-300	Bolt - SEALING, 20MM
3	11106-PR4-013	Bolt - SEALING, 28MM
4	11107-PRB-A01	Joint comp - OIL COOLER
4	11107-PRB-A00	Joint comp - OIL COOLER
5	11200-PRB-000	Pan comp - OIL
6	11221-PNC-000	Plate - BAFFLE
7	15280-PRB-A00	Body comp - OIL JET
8	15290-PRA-000	Bolt comp - OIL JET
9	30530-PRB-A01	Sensor - KNOCK
10	37240-PT0-023	Switch - OIL PRESSURE(DENSO)
10	37240-PT0-014	Switch - OIL PRESSURE (TEC)
11	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
12	90004-PE2-005	Bolt - SEALING, 10MM
13	90006-PNA-003	Bolt-washer - 11X95
14	90009-PY3-000	DRAIN PLUG BOLT, 14MM
15	90401-PE2-003	Washer - SEALING, 10MM
16	90401-PR4-000	Washer - SEALING, 28MM
17	90703-PE0-000	Dowel pin - 18X22
18	90715-PC6-000	Dowel pin - 13X20
19	90715-PNA-000	Dowel pin - 13X14
20	91214-PNA-014	Oil seal - 80X98X10 (ARAI)
20	91214-RNB-A01	Oil seal (80x98x10)
20	91214-RTA-004	Oil seal - 80X98X10 (ARAI)
20	91214-PWA-003	Oil seal - 80X98X10 (NOK)
21	91311-PRB-A00	O-ring - 13.5X3.5

Cylinder head (TYPE R) 9

#	OEM	部品名
1	12100-PRB-A00	Head assy - CYLINDER
2	12204-PNA-305	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)
4	14631-PNA-000	Shaft - ROCKER
5	37510-PNB-003	Sensor assy - TDC
6	90011-PNA-003	Bolt A, Head Cover
7	90012-PNA-003	Bolt b - HEAD COVER
8	90083-PNA-000	Bolt - SEALING, 10MM
9	91333-PNA-003	O-ring - 15X1.9

Cylinder head cover (TYPE R) 18

#	OEM	部品名
1	12030-PNC-000	Packing set - HEAD COVER
2	12310-PRC-020	Cover comp. - CYLINDER HEAD
2	12310-PRC-030	Cover comp. - CYLINDER HEAD
3	12341-PNA-000	Packing - CYLINDER HEAD COVER
3	12341-RTA-000	Packing, CYLINDER HEAD COVER
4	12342-PCX-004	Seal - SPARK PLUG TUBE (NOK)
5	12500-PRC-020	Cover comp. - PLUG HOLE COIL
6	15610-P5G-000	Cap assy. - OIL FILLER
6	15610-RGA-000	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler
8	15650-PRC-004	Gauge, Oil Level
9	90013-PNC-010	Bolt a - PLUG HOLE COIL COVER
10	90014-PNC-020	Bolt b - PLUG HOLE COIL COVER
11	90015-PNC-000	Collar - PLUG HOLE COIL COVER
12	90207-RBC-000	Nut - CAP, 6MM
13	90213-PH3-000	Nut - CAP, 6MM
14	90441-PNA-010	Washer - HEAD COVER
15	90014-RBC-000	Bolt b - PLUG HOLE COIL COVER

Differential (TYPE R) 22

#	OEM	部品名
1	41100-PNP-003	Differential assy
2	41233-PPP-000	Gear - FINAL DRIVEN
3	41312-PE6-310	Gear - SPEEDOMETER DRIVE
4	41453-PL3-B00	Shim n - 80MM(1.35)
4	41448-PL3-B00	Shim h - 80MM(1.7)
4	41443-PL3-B00	Shim c - 80MM(1.2)
4	41455-PL3-B00	Shim q - 80MM(1.55)
4	41450-PL3-B00	Shim k - 80MM(1.05)
4	41445-PL3-B00	Shim e - 80MM(1.4)
4	41457-PL3-B00	Shim s - 80MM(1.75)
4	41452-PL3-B00	Shim m - 80MM(1.25)
4	41447-PL3-B00	Shim g - 80MM(1.6)
4	41442-PL3-B00	Shim b - 80MM(1.1)
4	41454-PL3-B00	Shim p - 80MM(1.45)
4	41449-PL3-B00	Shim j - 80MM(1.8)
4	41444-PL3-B00	Shim d - 80MM(1.3)
4	41456-PL3-B00	Shim r - 80MM(1.65)
4	41451-PL3-B00	Shim l - 80MM(1.15)
4	41446-PL3-B00	Shim f - 80MM(1.5)
4	41441-PL3-B00	Shim a - 80MM(1.0)
5	90017-PYZ-000	Bolt - SPECIAL, 11MM
6	91005-PPS-003	Bearing - BALL, 40X80X18(NTN)

Door lining (LH) 4

#	OEM	部品名
6	72335-S5S-E01	Weatherstrip - R. FR. DOOR INNER
7	72375-S5S-E01	Weatherstrip - L. FR. DOOR INNER
18	90662-SB2-003	Grommet - SCREW, 5MM
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Duct (LH) 1

#	OEM	部品名
1	77400-S6A-G01	Duct assy - INSTRUMENT

Emblems/caution labels 12

#	OEM	部品名
1	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
1	17669-SH3-P30	Label - FUEL FILLER CAUTION (PORTUGAL)
2	19043-PLA-E00	Label - COOLANT INFORMATION
3	42760-S5T-G90	Plate - TIRE PRESSURE CAUTION
4	75700-S5T-E11	Emblem - FR. (H)
7	75701-S5T-E01	Emblem - RR. (H)
8	75717-S5T-E01	Emblem, RR. (TYPE R)
9	75722-S5S-E00	Emblem, RR. (CIVIC)
13	75732-S5T-E11	Emblem - FR. (TYPE R)
18	77875-S84-G80	Label - SRS CAUTION
20	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
21	90301-ST0-003	push nut, 3mm

Engine assy./transmission assy. (TYPE R) 4

#	OEM	部品名
1	10002-PRA-E04	General assy. - CYLINDER BLOCK
1	10002-PRA-E10	General assy. - CYLINDER BLOCK
2	10003-PRA-E05	General assy. - CYLINDER HEAD
3	20011-PNP-Q33	Transmission assy - MT

Engine cover (TYPE R) 3

#	OEM	部品名
1	17121-PRB-A00	Cover assy. - ENGINE
2	17122-PNC-J00	Stay comp - ENGINE COVER
3	90102-PND-000	Bolt - SPECIAL FLANGE, 6X38

Engine mounting bracket (TYPE R) 16

#	OEM	部品名
1	11910-PNA-000	Bracket - ENGINE SIDE MOUNTING
2	31110-PRA-013	Belt - ALTERNATOR (BANDO)
3	31170-PND-013	Tensioner Assy - AUTO
4	31175-PRA-000	Bracket - IDLE PULLEY
5	31180-PNA-003	Pulley comp - IDLER
6	31185-PCX-003	Cover - BEARING
7	31185-PNA-003	Cover - BEARING
8	31190-PRA-000	Pulley comp - IDLE
9	90002-PNA-000	Bolt - SPECIAL, 10X28
10	90008-PNA-000	Bolt - 10X75
11	90025-PNA-000	Bolt - SPECIAL, 8X105
12	90027-PND-A00	Bolt - SPECIAL, 10X50
13	90031-PRA-000	Bolt - SPECIAL FLANGE, 10X25
14	90041-PNC-000	Bolt - STUD, 12X42
15	90043-PNA-010	Bolt - STUD, 12X91
16	90202-PNA-003	Nut - 10MM

Engine mounts (MT; TYPE R) 16

#	OEM	部品名
1	50805-S6M-J01	Rubber assy. - TRANSMISSION MOUNTING
2	50810-S7C-003	Rubber assy. - RR. ENGINE MOUNTING
3	50820-S6E-E02	Rubber assy. - ENGINE SIDE MOUNTING
4	50821-S6M-013	Rubber comp - ENGINE SIDE MOUNTING
5	50825-S7C-000	Bracket - TRANSMISSION MOUNTING
6	50827-S6M-J00	Bracket - RR. ENGINE MOUNTING
7	50840-S6M-J01	Stopper - FR. ENGINE
8	90161-S7C-000	Bolt - SPECIAL FLANGE, 10X77
9	90163-S5A-000	Bolt - FLANGE, 10X20
10	90164-SH3-010	Bolt - FLANGE, 12X90
11	90165-S7C-000	Bolt - FLANGE, 12X54
12	90166-S7C-000	Bolt - FLANGE, 12X84
13	90167-S5A-010	Bolt - FLANGE, 12X88
14	90168-S5A-000	Bolt - FLANGE, 12X35
15	90371-SR3-000	Nut - FLANGE, 12MM
16	90371-S5A-000	Nut - YOKE, 12MM

Engine wire harness (TYPE R; LH) 29

#	OEM	部品名
1	32110-PRA-G00	Harness - ENGINE WIRE
2	32111-PRA-E01	Sub cord - STARTER
3	32113-PLD-003	Collar - HARNESS GROMMET
4	32117-PND-003	Holder - CORRUGATED (DARK BLUE) (15MM)
5	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
6	32118-PLM-A01	Holder - CORRUGATED TUBE (DARK GREEN) (19MM)
7	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
8	32121-PNA-000	Holder - ENGINE WIRE HARNESS (A)
9	32122-PNA-000	Holder b - ENGINE HARNESS
10	32123-PND-000	Holder comp. c - ENGINE HARNESS
11	32124-PNA-010	Holder d - ENGINE HARNESS
12	32125-PRB-A00	Holder e - ENGINE HARNESS
13	32418-PNN-300	Cover - BATTERY TERMINAL
14	32601-SK7-900	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL
16	32743-PND-000	Stay c - ENGINE WIRE HARNESS
17	32745-PND-A00	Stay e - ENGINE WIRE HARNESS
18	32746-PRA-G00	Stay f - ENGINE WIRE HARNESS
19	32747-PRA-G00	Stay g - ENGINE WIRE HARNESS
20	90051-PNA-000	Bolt - SPECIAL, 6X28
21	90114-SM4-900	Bolt - 6X15
22	90301-SP0-003	Nut - PAINT CUTTING, 6MM
23	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
24	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
25	91531-S5B-003	Band - HARNESS (BLACK) (120MM)
26	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)
27	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)
28	91558-P8C-A01	Clip - HARNESS BAND (VIOLET) (150MM)
29	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Exhaust manifold (TYPE R) 10

#	OEM	部品名
1	11942-PRB-A00	Stay - EX. MANIFOLD
2	18100-PRB-A01	Manifold comp - EX.
3	18115-PRB-A01	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)
3	18115-PNB-003	Gasket - EX. MANIFOLD (ISHINO GASKET)
4	18120-PND-A00	Cover comp. - EX. MANIFOLD
5	90005-P0A-000	Bolt-washer - 10X22
6	90010-PE2-900	Bolt - SPECIAL, 10X22
7	90015-PT0-J00	Bolt-washer - 8X14
8	90212-SA5-003	Nut - SELF-LOCK, 10MM
9	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe/silencer (TYPE R) 31

#	OEM	部品名
1	17519-S5A-931	Protector, FUEL TANK
2	17520-S5A-931	Stay - FUEL TANK PROTECTOR
3	18030-S5T-R01	Silencer set - EX.
4	18160-PRA-G00	Converter comp.
5	18172-PRC-000	Band - CONVERTER
6	18176-P08-003	Bolt - CONVERTER
7	18181-PRC-000	Cover comp. LOWER
8	18182-PRC-000	Cover comp. UPPER
9	18215-SA0-000	Rubber - SILENCER MOUNTING (74X45X22)
10	18215-SR3-000	Rubber - EX. MOUNTING
11	18215-S5A-A11	Rubber - EX. MOUNTING
12	18220-S5T-R01	Pipe b - EX.
13	18229-S6D-T91	Gasket - EX. FLEXIBLE
14	18229-S6M-A51	Gasket - EX. FLEXIBLE
15	18230-SV4-000	Spring - FLEXIBLE JOINT
16	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
17	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
18	36531-PRA-G01	Sensor - FR. OXYGEN
19	36532-PRC-004	Sensor - RR. OXYGEN
20	36535-PNE-G00	Clamp - OXYGEN SENSOR
21	36536-PNE-G00	Stay - OXYGEN SENSOR
22	36538-P8A-A01	Clip - WIRE HARNESS
23	74250-S7C-000	Insulator - DASHBOARD LOWER
24	74257-S5T-G00	Plate - DASHBOARD LOWER BAFFLE
25	74601-S5T-A00	Plate - FLOOR HEAT BAFFLE (A)
26	74605-S5S-G00	Plate - FLOOR HEAT BAFFLE (B)
27	80275-S6M-000	Cover - DRAIN
28	90010-P1R-A00	Bolt - FLANGE, 6X14
29	90149-SA0-003	Bolt - BUMPER
30	90212-SA5-003	Nut - SELF-LOCK, 10MM
31	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Floor mat 6

#	OEM	部品名
2	74260-S6D-G00	Insulator - DASHBOARD
10	90676-SB2-003	Clip - DASHBOARD INSULATOR
11	90676-S5A-003	Clip - DASHBOARD INSULATOR
13	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)
14	91547-SM4-003	Cap - INSULATOR
15	91560-S04-003	Clip - SIDE GARNISH (NATURAL)

Fog light kit 3

#	OEM	部品名
8	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
11	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY
11	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO

Front brake (2) 23

#	OEM	部品名
1	01463-S2A-000	Caliper set
2	06450-S5T-E51	Pad set - FR. (WITHOUT SHIM) (###)
3	06455-S2A-000	Shim set - FR.
4	43352-SM4-951	Screw - BLEEDER
5	43353-SD5-003	Cap - BLEEDER SCREW
6	44300-S1A-E01	Bearing assy - FR. HUB
7	44600-S87-A00	Hub assy - FR.
8	45018-S5T-E00	Caliper sub assy. - R. FR.
9	45019-S5T-E00	Caliper sub assy. - L. FR.
10	45022-S5T-E51	Pad set - FR. (16CL-16VN,J632)
11	45216-SR3-V01	Piston - 54MM
11	45216-S5A-J01	Piston
12	45235-S0A-003	Pin a
13	45237-S2A-003	Retainer
14	45240-SA7-003	Bolt - FLANGE, 8X22
15	45251-S6M-A10	Disk - FR. BRAKE (16")
16	45255-S6M-000	Guard - FR. SPLASH
17	45262-S0A-003	Pin b
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
19	90113-SD4-902	Bolt - WHEEL (SAGA)
19	90113-SD4-901	Bolt - WHEEL (MEIRA)
19	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)
20	90681-SG0-000	Circlip - INTERNAL, 84MM

Front bulkhead 2

#	OEM	部品名
53	74232-S5A-000	Rod - BRAKE PEDAL SUPPORT
55	90105-634-000	Bolt-washer (8x20)

Front door locks 26

#	OEM	部品名
1	72110-S5S-G11	Lock assy - R. FR. DOOR POWER
3	72113-SR4-004	Snap - BLACK
4	72115-S5A-A01	Actuator assy - DOOR LOCK
7	72117-S04-003	Holder - ROD (YELLOW)
9	72118-ST7-003	Screw - TAPPING, 3X5
10	72119-S5S-E01	Patch - R. DOOR LOCK
13	72131-S5S-E01	Cable - INSIDE HANDLE
15	72134-S2X-003	Snap - R. (NATURAL)
16	72135-S5A-003	Striker assy - DOOR LOCK
19	72139-SR0-A01	Snap - VIOLET
21	72123-SR0-003	Ring - OUTSIDE HANDLE
22	72119-S04-003	Stopper a - OUTSIDE HANDLE
24	72141-SD4-004	Bush - R. JOINT
25	72143-S04-003	Packing
29	72150-S5S-G01	Lock assy - L. FR. DOOR POWER
30	72155-S5A-A01	Actuator assy - DOOR LOCK
33	72159-S5S-E01	Patch - L. DOOR LOCK
37	72174-S2X-003	Snap - L. (BLACK)
40	72182-S5S-E01	Switch assy - L. DOOR CYLINDER
41	72181-SD4-004	Bush - L. JOINT
42	72185-S5S-G51	Cylinder - L. DOOR (SW)
43	72616-SM4-003	Snap - NATURAL
44	90120-SV4-000	Bolt - LOCK STRIKER
45	90141-S84-003	Screw - 3X10
46	90623-SB5-000	Clip - HARNESS
48	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front door panels 16

#	OEM	部品名
5	67325-S5S-E00	Tape - R. FR. DOOR SASH UPPER
6	67365-S5S-E00	Tape - L. FR. DOOR SASH UPPER
11	72310-S5S-E01	Weatherstrip - R. FR. DOOR
12	72311-S5S-003	Clip A - DOOR WEATHERSTRIP
13	72312-S5S-003	Clip - DOOR WEATHERSTRIP
14	72321-S5S-G00	Seal - R. FR. DOOR HOLE
15	72336-S6A-E00	Tape - REFLECTOR
16	72340-S5S-E01	Checker comp. - R. FR. DOOR
17	72350-S5S-E01	Weatherstrip - L. FR. DOOR
18	72361-S5S-G00	Seal - L. FR. DOOR HOLE
19	72380-S5S-E01	Checker comp. - L. FR. DOOR
20	75891-SA7-000	Stopper - DOOR
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
23	90141-S04-000	Bolt - FLANGE, 8X22

Front door windows 16

#	OEM	部品名
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY
2	72210-S5S-G02	Regulator assy - R. FR. DOOR POWER
3	72230-S5S-E01	Sash - R. FR. DOOR FR. LOWER
4	72231-S5S-G01	Sash - R. FR. DOOR CENTER LOWER
5	72235-S5S-E01	Runchannel - R. FR. DOOR
5	72235-S5S-E02	Runchannel - R. FR. DOOR
6	72237-S5S-E01	Clip - DOOR GLASS GUIDE
7	72250-S5S-G11	Regulator assy - L. FR. DOOR POWER
8	72270-S5S-E01	Sash - L. FR. DOOR FR. LOWER
9	72271-S5S-G01	Sash - L. FR. DOOR CENTER LOWER
10	72275-S5S-E01	Runchannel - L. FR. DOOR
10	72275-S5S-E02	Runchannel - L. FR. DOOR
11	73300-S5S-G00	Glass assy - R. FR. DOOR (GREEN)(SAINT-GOBAIN)
12	73350-S5S-G00	Glass assy - L. FR. DOOR (GREEN)(SAINT-GOBAIN)
13	91533-S04-003	Clip - COUPLER (NATURAL)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front driveshaft/half sha ft 32

#	OEM	部品名
1	44014-S5T-E51	Joint set - OUTBOARD
2	44017-SCA-E01	Boot set - INBOARD
3	44018-SCA-E01	Boot set - OUTBOARD
4	44305-S5T-E50	Driveshaft assy. - R.
4	44305-S5T-E51	Driveshaft assy.
5	44306-S5T-E50	Driveshaft assy. - L.
5	44306-S5T-E51	Driveshaft assy.
6	44310-S9A-300	Joint comp - INBOARD
7	44310-S9A-900	Joint comp - INBOARD
7	44310-SDA-A61	JOINT COMPINBOAR
8	44327-SCA-E01	Band b - DRIVESHAFT (OETIKER LIMITED)
8	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)
9	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)
9	44329-SCA-E01	Band c - DRIVESHAFT (OETIKER LIMITED)
10	44319-SE0-000	Set ring - 28X2.0
10	44319-S84-300	Set ring - 28X2.0
11	44319-S0A-300	Set ring - 28X2.0
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-SB0-300	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM
16	44351-S5T-E51	Damper - DYNAMIC
18	44500-SCV-A00	Shaft assy - HALF(MT)
19	44502-S6M-N00	Support comp - HALF SHAFT
20	44517-S6M-A00	Cover comp. - HEAT
21	90102-SF1-000	Bolt - HEX., 10X1.25
22	90165-SE0-000	Bolt - FLANGE, 10X37
23	90165-S5B-003	Bolt - FLANGE, 8X24
24	90305-SD4-003	Nut - SPINDLE (24MM)
25	90681-SR3-000	Circlip - EXTERNAL, 33MM
26	91057-SR3-008	Bearing - HALF SHAFT(NTN)
27	91260-SDB-A01	Seal - HALF SHAFT OUTER(NOK)

Front fenders 19

#	OEM	部品名
3	74100-S5T-G01	Fender assy - R. FR. INNER
4	74105-S6D-E00	Fairing - R. FR. FENDER
5	74108-S6A-000	Tape - STIFFENER(225X110)
7	74111-S5S-G00	Shield - FR. SPLASH
9	74151-S6D-E10	Fender - L. FR. INNER
10	74155-S6D-E00	Fairing - L. FR. FENDER
11	74206-S6F-E00	Garnish - R. FR. FENDER
12	74207-S6F-E00	Garnish - L. FR. FENDER
13	90108-S0A-003	Bolt - FLANGE, 6X15
14	90114-SE0-000	Screw - TAPPING, 5X20
15	90126-SR4-000	Screw-washer - 5X16
16	90308-SB2-013	Nut - SUSPENSION, 5MM
17	90682-SB0-003	Grommet - SCREW, 5MM
18	91501-S04-003	Clip - INNER FENDER
19	91503-SZ3-003	Clip A
20	91512-SD2-003	Clip - HEADLIGHT GARNISH
22	91533-SG0-000	Clip b - FAIRING
24	91545-SE0-003	Clip assy. - 8MM
25	91609-S6D-E00	Protector - FR. FENDER

Front grille 2

#	OEM	部品名
2	71122-S6E-000	Cover - FR. GRILLE
3	91503-SZ3-003	Clip A

Front seat (L.; TYPE R) 9

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	81123-S5T-003	Tape - FR. BACK
3	81138-S5A-G21	Clip - H
9	81522-S5T-G41	Pad assy - L. FR. SEATBACK
10	81526-S5T-A01	Frame comp - L. FR. SEATBACK
12	81532-S5T-G41	Pad assy - L. FR. SEAT CUSHION
18	90610-SR3-003	Clip - GARNISH (KATO)
19	90610-S10-003	Clip - GARNISH

Front seat (R.; TYPE R) 13

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
4	81122-S5T-G41	Pad assy - R. FR. SEATBACK
5	81123-S5T-003	Tape - FR. BACK
6	81126-S5T-G51	Frame comp - R. FR. SEATBACK
8	81132-S5T-G41	Pad assy - R. FR. SEAT CUSHION
9	81138-S5A-G21	Clip - H
14	81237-S5T-G41	Cable assy
18	90610-SR3-003	Clip - GARNISH (KATO)
19	90610-S10-003	Clip - GARNISH
20	90656-PB1-003	Band - OIL HOSE
21	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
22	91559-SM4-003	Clip - POWER STEERING TUBE (135MM)

Front seat components (L.) 6

#	OEM	部品名
2	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
3	81271-S5A-J01	Lever
4	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
5	81536-S5T-G42	Frame comp - L. FR. SEAT CUSHION
7	90135-S5A-003	Bolt-washer - 10X27
8	90143-SR3-000	Bolt-washer - 10X22

Front seat components (R.) 6

#	OEM	部品名
2	81136-S5T-G51	Frame comp - R. FR. SEAT CUSHION
5	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
6	81271-S5A-J01	Lever
7	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
9	90135-S5A-003	Bolt-washer - 10X27
10	90143-SR3-000	Bolt-washer - 10X22

Front shock absorber 15

#	OEM	部品名
1	51401-S5T-Z02	Spring - FR. (SHOWA)
3	51402-S6M-Z02	Rubber - SPRING UPPER SEAT
4	51601-S5T-Z08	Absorber assy - R. FR. SHOCK
5	51602-S5T-Z08	Absorber assy - L. FR. SHOCK
6	51605-S5T-Z06	Absorber unit - R. FR. SHOCK
7	51606-S5T-Z06	Absorber unit - L. FR. SHOCK
8	51688-S6M-014	Seat - FR. SPRING UPPER
9	51722-S5T-Z01	Rubber - FR. BUMP STOPPER
11	51726-S5A-004	BEARING, FR. SHOCK ABSORBER MOUNT
12	51920-S7A-024	Mount comp - R. FR. SHOCK ABSORBER
13	51925-S7A-024	Mount comp - L. FR. SHOCK ABSORBER
14	90002-S10-000	Nut - FLANGE, 10MM
15	90119-S6M-Z01	Bolt - FLANGE, 16X62
16	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
17	90382-S6M-Z01	Nut - FLANGE, 16MM

Front skirt 7

#	OEM	部品名
2	90126-SA7-000	Screw-washer - 5X20
2	90114-SZ3-000	Screw-washer - 5X20
3	90345-S04-000	Nut - SUSPENSION, 5MM
4	90111-SM4-003	Bolt - BUMPER
5	90149-SA0-003	Bolt - BUMPER
6	90323-SE0-000	Nut - CLIP, 6MM
6	90305-SH3-000	Nut - AIR SPOILER CLIP

Front sub frame 9

#	OEM	部品名
1	50200-S6E-E00	Sub frame comp. - FR.
3	50205-S6E-E01	Damper - FR. SUB FRAME RR.
9	74230-S6M-000	Rod comp - SUB FRAME PERFORMANCE
10	74611-S5T-G00	Pipe - RR. TOWER BAR
11	74612-S5T-G01	Bracket - R. RR. TOWER BAR
12	74662-S5T-G01	Bracket - L. RR. TOWER BAR
13	90108-S0A-003	Bolt - FLANGE, 6X15
15	90175-S5A-000	Bolt - FLANGE, 14X115
16	90801-S5A-000	BOLT, FLANGE, 8X25

Front windshield 13

#	OEM	部品名
1	04731-S5S-E00	Rubber set - FR. WINDSHIELD DAM
2	73111-S5S-E10	Glass set - FR. WINDSHIELD (GREEN) (SPLINTEX)
3	73150-S5S-E01	Molding - FR. WINDSHIELD
4	73152-S5S-E01	Garnish Assy., R. FR. Windshield Side
5	73162-S5S-E01	Garnish Assy., L. FR. Windshield Side
6	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
7	91519-S6A-003	Clip A - BLACK
8	91520-S6A-003	Clip b - ORANGE
9	91521-S6A-003	Clip A - FR. WINDSHIELD SIDE GARNISH (GRAY)
10	91522-S6A-003	Clip b - FR. WINDSHIELD SIDE GARNISH (LIGHT BLUE)
11	91525-S6A-003	Clip d - FR. WINDSHIELD SIDE GARNISH
12	91568-SX0-003	Fastener a - WINDSHIELD
13	91577-S84-A01	Fastener - WINDSHIELD

Front wiper (LH) 23

#	OEM	部品名
1	76505-S6D-G01	Motor comp - FR. WIPER
2	76510-SN7-E05	Rubber - MOUNTING
3	76516-S6D-G01	Rubber - MOUNTING
4	76517-S6D-G01	Collar
5	76518-S6D-G01	Rubber - MOUNTING
6	76519-S6D-G01	Collar
7	76520-S6D-G01	Link assy
8	76524-SN7-E05	Dust seal
9	76525-S6D-G01	Screw - 6X14
10	76530-S6D-G01	Link comp - WIPER
11	76540-S6D-G01	Rod unit a
12	76550-S6D-G01	Rod unit b
13	76561-S6D-G01	Cap - LEAF
14	76600-S5S-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76601-S5S-G01	Cover - ARM
16	76610-S5S-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-S5S-G01	Blade - WINDSHIELD WIPER (600MM)
18	76622-S5S-G01	Rubber - BLADE (600MM)
19	76630-S5S-G01	Blade - WINDSHIELD WIPER (380MM)
20	76632-S5S-G01	Rubber - BLADE (380MM)
21	90126-SR3-000	Bolt-washer - 6X32
22	90317-SN7-E05	Nut - HEX., 8MM
23	91611-S5A-000	Cap - FR. WIPER

Fuel pipe 40

#	OEM	部品名
1	16040-S5T-E00	Pipe comp - FUEL FEED
3	16722-PRA-G01	Hose comp. - FUEL FEED
4	16723-PRA-G00	Bracket comp. - FUEL FEED HOSE
6	16726-PNA-003	Clamp b - FUEL HOSE (NATURAL)
7	17300-S6A-931	Canister assy
8	17315-S5A-932	Filter - CANISTER
9	17358-S6A-930	Bracket - CANISTER
10	17371-SR3-003	Valve - TWO WAY
11	17556-SL4-023	Clip - FUEL PIPE (BLACK)
12	17701-S5A-930	Rubber - FUEL PIPE INSULATOR
13	17711-S0X-A31	Retainer - GREEN)(TOKAI
14	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI
15	17711-S84-004	Retainer - WHITE)(SANOH
16	17717-S5T-930	Tube a - FUEL PURGE
17	17720-S5T-E01	Pipe - FUEL PURGE
18	17724-S6A-930	Tube c - FUEL VENT
19	17726-S5T-E00	Hose assy - PURGE
21	17741-S6A-930	Tube a - CANISTER DRAIN
22	17742-S6A-930	Tube - CANISTER DRAIN
23	17743-S6A-930	Tube - CANISTER FILTER
24	17745-S5A-932	Tube b - CANISTER DRAIN
25	17758-S5A-931	Clip - FUEL PIPE
26	17759-S5A-931	Clip b - FUEL PIPE
27	17761-S5T-E00	Stay a - FUEL PIPE
28	17762-S6D-G30	Stay b - FUEL PIPE
29	17763-S6D-G30	Stay c - FUEL PIPE
30	17764-S6D-G30	Stay d - FUEL PIPE
31	17765-S6D-G30	Stay e - FUEL PIPE
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM
33	90671-S5A-003	Bolt - FR. FENDER
34	91401-SDC-000	Clip - TUBE(B10)
35	91402-SDC-000	Clip - TUBE(B12)
36	91405-SDA-000	Clamp - TUBE(D10.5)
37	91592-S5A-931	Clip - FUEL PIPE
38	91594-S5A-931	Clip - DRAIN TUBE (B)
39	91595-SV4-003	Clip b - FUEL PIPE
40	91595-S5A-931	Clamp a - FUEL PIPE
41	91596-S5A-931	Joint - DRAIN TUBE
42	91598-S5A-930	Rubber - FUEL PIPE INSULATOR
43	91599-S5A-931	Clamp b - FUEL PIPE

Fuel tank 44

#	OEM	部品名
1	16010-S5A-932	Strainer set - FUEL
2	16015-S6M-930	Regulator assy
3	16016-S5A-930	Wire comp - LEAD
4	17040-S6M-930	Pump set - FUEL
5	17041-S5A-930	O-ring
6	17042-S5A-930	Housing - FUEL PUMP
7	17043-S5A-941	Reservoir - DENSO
8	17044-S5A-930	Cap - RESERVOIR
9	17045-S5A-931	Spring
10	17046-S5A-931	Linkage
11	17047-S5A-930	O-ring
12	17048-S5A-930	O-ring
13	17049-S5A-930	Holder - FUEL PUMP
14	17051-S5A-930	Collar
15	17052-S5A-930	Stopper a
16	17053-S5A-930	Stopper b
17	17500-S6D-E32	Tank comp. - FUEL
18	17516-S5A-930	Filter set - FUEL PUMP
19	17521-S5A-931	Band - FUEL TANK MOUNTING
20	17525-SM4-000	Bolt-washer - 10X35
21	17525-S0X-A00	Bolt-washer - 10X25
22	17574-S1A-E01	Packing - BASE
22	17574-S0X-A01	Packing - BASE
23	17630-S5A-931	Meter comp - FUEL
24	17651-S5A-930	Tube - FILLER NECK
25	17652-S6M-J01	Clip - FILLER TUBE
26	17652-S6M-J51	Clip - FILLER TUBE
27	17653-S5A-930	Tube - BREATHER
28	17660-S5A-E31	Pipe comp - FUEL FILLER
29	17662-SDA-A01	Packing - FUEL FILLER
30	17663-S6D-E00	Tube assy - FUEL FILLER PIPE DRAIN
31	17664-S6D-E01	Joint - DRAIN TUBE
33	17670-S5A-E33	Cap comp. - FUEL FILLER (TOYODA)
34	17719-S1A-E01	Nut - FUEL PUMP MODULE LOCK
35	17722-S6A-930	Tube b - FUEL VENT
36	74660-S5A-000	Cap assy. - FLOOR MAINTENANCE HOLE
37	90150-S04-003	Bolt - EARTH, 6X16
39	90684-693-013	Clip - FUEL HOSE
40	91401-SDC-000	Clip - TUBE(B10)
41	91404-SDC-000	Clamp - TUBE (D10)
42	91413-S5A-003	Clamp - FUEL TUBE (D17)
43	91462-SDA-003	Clamp - FUEL TUBE (D18)
44	91594-S1A-E01	Clip - FUEL FILLER CAP
45	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

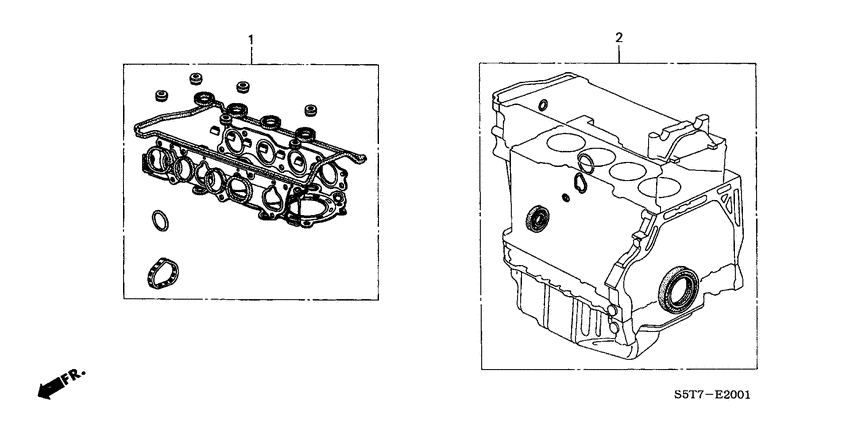

Gasket kit (TYPE R) 2

#	OEM	部品名
1	06110-PRA-E00	Gasket kit - CYLINDER HEAD
2	06114-PRB-A01	Gasket kit - CHAIN CASE

Grommet (FRONT) 13

#	OEM	部品名
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM
2	74177-SD4-000	Cushion a - HOOD
3	74827-SP0-000	Stopper - TRUNK LID
4	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM
5	90615-SM4-000	Cap - WELD HOLE, 46X72
6	90615-S5A-003	Plug - HOLE, 27X56
8	90672-S5A-003	Holder - ROD
10	91602-S10-000	Stopper a - HOOD
12	91604-S5A-003	Grommet - HOOD STAY
13	91608-S5A-003	Boot - FLOOR
14	91615-SH3-000	Cap - FLOOR HOLE, 49MM
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
16	91630-SD5-003	Plug - NUT, 8MM

Grommet (REAR) 8

#	OEM	部品名
1	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90857-SD4-000	Cap - WELD HOLE
4	91603-S04-003	Plug - HOLE, 20MM
5	91611-SS0-003	Plug - HOLE, 25MM
6	91615-S6E-E00	Block a - DASHBOARD UPPER
7	91627-S50-G01	Grommet - 7X7
8	91631-S5A-000	Plug - AIR CONDITIONER HOLE (36X74)

Grommet (SIDE) 6

#	OEM	部品名
1	91603-S04-003	Plug - HOLE, 20MM
2	91616-S5T-A00	Block - FR. PILLAR INNER LOWER
3	91616-S50-000	Block - FR. PILLAR INNER LOWER
4	91617-S5S-E00	Block - RR. PILLAR INNER
5	91618-S5A-000	Seal - HOLE, 30X90
6	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (UNDER) 1

#	OEM	部品名
2	91606-SK7-003	Plug - BLIND, 25MM

Harness band/bracket (LH) 41

#	OEM	部品名
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)
2	32112-S2K-003	Band - CABLE (90MM)
3	32112-S5A-900	Grommet - WIRE HARNESS
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
5	32131-SV4-003	Cap - COUPLER (CP 2P, 3P)
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
11	32134-S3A-003	Cap - COUPLER (2P) (MALE)
12	32146-SH3-003	Connector - DIODE(2P)
14	32203-S6D-G00	Bracket - WIRE HARNESS
15	32204-S5A-020	Bracket - ENGINE WIRE HARNESS (A)
22	38204-S6D-G00	Bracket - COUPLER
23	38617-S5A-J01	Filter comp - NOISE
25	90126-SR4-000	Screw-washer - 5X16
26	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
27	90677-692-003	Clip - WIRE HARNESS (HARNESS TAPING)
28	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
29	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
30	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
32	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
33	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
36	91540-S6A-003	Clip - HARNESS BAND(NATURAL) (150MM)
37	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
39	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
40	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
41	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
42	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
45	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
46	91555-SM4-003	Clip - COUPLER (RED)
47	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
48	91565-S0X-003	Clip - COUPLER (DARK GREEN)
49	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
50	91577-SM4-003	Holder - BRACKET(NATURAL)
51	91647-SJ6-003	Grommet - WIRE HARNESS (25X45)
52	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
53	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)
54	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Headlight (1) 27

#	OEM	部品名
2	33101-S5T-G62	Headlight unit - R.
2	33101-S5T-G71	Headlight unit - R.
3	33105-S5N-C01	Nut - SPECIAL
4	33107-S0A-J01	Screw - SPECIAL TAPPING, 4X12
5	33108-S0A-J01	Screw - SPECIAL TAPPING, 6X18
6	33109-S6A-J71	Gasket - SEAL
7	33112-S5A-J01	Holder - BULB
8	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
8	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
9	33116-SD4-961	Socket - BULB (OSRAM) (HALOGEN)
10	33116-SL0-003	Bulb - HEADLIGHT (HID) (D2S) (STANLEY)
11	33119-S2A-J01	Control unit
12	33126-S0A-003	Cover - RUBBER
13	33126-S6A-J61	Cover - RUBBER
14	33127-S6A-J71	Cover
15	33129-S2A-J01	Igniter - HID
16	33130-S5A-G01	Adjuster unit - HEADLIGHT
17	33145-SL0-A01	Gasket - SEAL
18	33151-S5T-G71	Headlight unit - L.
18	33151-S5T-G62	Headlight unit - L.
19	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
21	33303-SAA-003	Socket comp - T20 S) (AMBER
22	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
24	33305-S5A-003	Socket comp - T10
26	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)
27	90101-S5A-003	Tapping - SPECIAL, 5X18
28	90682-SB0-003	Grommet - SCREW, 5MM

Heater blower (LH) 13

#	OEM	部品名
1	79303-S6A-013	Lid - FILTER
2	79305-S6D-G01	Blower sub assy.
3	79307-S6D-G03	Motor sub assy. - BLOWER
4	79330-S30-003	Resistor - BLOWER
6	79350-S6D-G41	Motor assy. - FRESH & RECIRCULAR
7	79370-S2H-003	Hose - MOTOR COOLING
8	80291-SCA-E01	Plate assy. - BLOWER (A)
11	80296-SCA-E01	Plate assy. - BLOWER (B)
14	90122-S30-003	Screw - TAPPING, 5X12
15	90123-S30-003	Screw - TAPPING, 5X12
16	90156-SH3-000	Bolt-washer - 6X24
17	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
18	79310-S6D-G12	Motor assy. - FAN

Heater control (LH; 1) 10

#	OEM	部品名
5	79505-S6A-E01	Lamp assy. - HARNESS
6	79506-S6A-003	Clamp - CONTROL CABLE
9	79512-S6D-G01	Knob - REC
10	79513-S6D-G01	Knob - DEF
11	79515-S6D-G01	Lid - A/C
12	79541-S6D-G11	Cable - MODE CONTROL
13	79542-S6D-G11	Cable - TEMPERATURE CONTROL
14	79570-S6A-003	Switch assy - HEATER FAN
16	79672-SW5-941	Bulb - NEO WEDGE (14V 65MA)
16	35851-SB2-505	NEO WEDGE BULB

Heater unit (LH) 25

#	OEM	部品名
1	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
2	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
3	53747-SA5-003	Clip - POWER STEERING HOSE
4	79009-S6D-G01	Dummy - EXPANSION VALVE
5	79100-S5S-G02	Heater unit
6	79106-S5S-S11	Heater sub assy.
7	79107-S6D-G01	Duct sub assy. - CASE
8	79110-S6D-G02	Core comp - HEATER
10	79161-S6D-G41	Motor assy. - AIR MIX
13	79193-S6A-003	Bolt - FLANGE, 6X20
14	79194-S6A-003	Nut - 6MM
15	79544-S6D-G00	Cable, WATER VALVE CONTROL
16	79770-SE0-000	Grommet - WATER VALVE CABLE
17	80211-S5S-G21	Dummy - EVAPORATOR
22	80271-S6M-000	Hose - DRAIN
24	80431-S6D-G01	Dummy - THERMOSTAT
26	80650-S6D-G10	Sub harness - AIR CONDITIONER
29	90122-S30-003	Screw - TAPPING, 5X12
30	90123-S30-003	Screw - TAPPING, 5X12
31	90124-S30-003	Screw-washer - 5X12
33	90156-SH3-000	Bolt-washer - 6X24
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
38	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
42	79192-S6A-003	Packing - STUD BOLT

Hood (LH) 21

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
5	74120-S5T-G01	Lock assy - HOOD (SWITCH)
8	74141-S6A-E01	Insulator - HOOD
9	74144-S6A-000	Rubber - RR. HOOD SEAL
10	74145-S5T-G00	Stay - HOOD OPENER
11	74146-S6A-E01	Rubber - HOOD SEAL
12	74210-S5S-G01	Cowl top assy. - FR. DRIVER SIDE
13	74212-S5S-G00	Cover - HOOD HINGE DRIVER SIDE
14	74220-S5S-G01	Cowl top assy. - FR. PASSENGER SIDE
15	74222-S5S-G00	Cover - HOOD HINGE PASSENGER SIDE
16	74231-S6A-000	Valve - DRAIN
17	90108-S0A-003	Bolt - FLANGE, 6X15
18	90601-S30-003	Grommet - COWL TOP
19	90602-SJK-003	Clip - COWL TOP
20	90602-SX0-003	Clip - COWL TOP
21	90602-S2A-003	Clip - COWL TOP
22	90603-S2A-003	Grommet - COWL TOP
23	91501-SL4-003	Clip - FR. COWL
24	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
25	91518-SM4-003	Clip - TRUNK MOLDING
26	91565-S0X-003	Clip - COUPLER (DARK GREEN)

Ignition coil (TYPE R) 3

#	OEM	部品名
1	30520-PNA-007	Coil comp - PLUG HOLE
1	30520-RRA-007	IGNITION COIL
2	30522-PFB-007	SEAL, PLUG HOLE

Inner panels 1

#	OEM	部品名
40	90108-S0A-003	Bolt - FLANGE, 6X15

Install pipe/tubing (TYPE R) 7

#	OEM	部品名
1	16725-PNA-003	Clamp a - FUEL HOSE
2	17400-PRA-E00	Pipe - INSTALL
3	36165-PRB-A00	Tube - PURGE
4	36166-PAA-A01	Joint - PURGE
5	36167-PND-A00	Tube - PURGE JOINT
6	46408-S6M-J51	Tube a - MASTER POWER
7	53729-671-003	Clamp d - 15.5MM

Instrument panel (LH) 17

#	OEM	部品名
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
5	77104-S5S-E00	Insulator - R. INSTRUMENT PANEL LOWER
7	77107-S6E-G00	Insulator - R. INSTRUMENT
9	77108-S6E-G00	Insulator - L. INSTRUMENT
10	77109-S5S-E00	Insulator - L. INSTRUMENT PANEL LOWER
12	77150-S2X-003	Holder - INSTRUMENT UPPER
13	77170-S6A-J00	Bracket - INSTRUMENT CENTER
18	77466-S2G-000	Seal - FR. INSTRUMENT
19	77550-S6A-G00	Frame comp - GLOVE BOX
21	77982-S04-N81	Holder - COUPLER (2P)
22	90101-S6A-000	Bolt-washer - 8MM
23	90106-S5H-000	Bolt-washer - 8X40
24	90140-SH3-003	Bolt-washer - 5X18
25	90157-SA0-000	Bolt-washer - 8X25
26	90321-SP0-A80	Nut-washer - 6MM
27	91640-SM4-003	Grommet - SCREW, 4MM
28	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH; DRIVER SIDE) 8

#	OEM	部品名
1	38205-S6A-E10	Label - FUSE
5	77235-S6A-003	Holder assy.
11	77628-S6A-G00	Label - OUTLET OPEN
12	77629-S6A-G00	Label - OUTLET SHUT
16	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18	90302-SA4-003	Nut - SPRING, 4MM
19	90665-S04-003	Clip - SNAP FITTING
20	90666-S84-A01	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 24

#	OEM	部品名
1	34254-SV4-003	Lamp assy. - GLOVE BOX
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
4	39610-S6A-003	Knob assy
5	39620-S6A-003	Housing assy.
6	39625-S6A-003	Ring - MOUNTING
7	66405-S04-010	Stay - GLOVE BOX HINGE
8	66417-SB3-670	Rubber - GLOVE BOX STOPPER
9	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
16	77255-S6A-J00	Bracket comp. - CENTER PANEL
17	77255-S6D-E01	Cap - CENTER
24	77506-S6A-000	Stopper - GLOVE BOX LID
26	77541-S6A-G00	Striker comp. - GLOVE BOX
28	77628-S6A-G00	Label - OUTLET OPEN
29	77629-S6A-G00	Label - OUTLET SHUT
33	77730-S5S-E01	Holder comp - FR.
34	88315-S6A-003	Spring - FIRE PROTECTOR
35	90101-S03-000	Screw - TAPPING, 4X16
36	90133-SM4-003	Bolt-washer - 5X16
37	90140-SH3-003	Bolt-washer - 5X18
38	90144-SM4-003	Screw - 4X12
39	90650-SE3-000	Clip - RADIO PANEL
40	90665-S04-003	Clip - SNAP FITTING
41	90666-S84-A01	Clip - SNAP FITTING
42	91641-SM4-003	Grommet - SCREW, 4MM

Intake manifold (TYPE R) 17

#	OEM	部品名
1	16450-PRB-A01	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR
3	16620-PRB-A01	Pipe comp - FUEL
4	16638-PNA-000	Insulator - FUEL PIPE
5	16680-PRB-A01	Damper assy. - PULSATION
6	16681-PRB-A00	Cap - PULSATION DAMPER
7	16705-PD1-003	Gasket - SILENCER
8	17055-PNA-004	Gasket a - INJECTOR BASE
9	17100-PRB-A02	Manifold comp - INTAKE
10	17101-PRB-A00	Cover - INTAKE MANIFOLD
11	17102-PRB-A01	Gasket - INTAKE MANIFOLD COVER
12	17125-PRB-A00	Stay comp - INTAKE MANIFOLD
13	32742-PNA-000	Stay b - ENGINE WIRE HARNESS
14	32744-PRB-A00	Stay d - ENGINE HARNESS
15	91301-PLC-000	O-ring - 7.47X3.6
16	91302-PCA-000	O-ring - 6.95X1.7
17	91302-PNA-003	O-ring - 7.45X3.61(NOK)

Interior light 9

#	OEM	部品名
3	34251-S5A-003	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W
7	34261-S6D-E01	Lens comp
8	34262-S6D-E01	Cover
9	34295-S6D-E01	Bulb - 12V 5W
10	34401-S5A-003	Lens
11	34402-S5A-003	Lens
13	90131-S47-003	Screw - ET, 5X16

Knuckle 19

#	OEM	部品名
1	51210-S5T-Z00	R. FR. Knuckle comp
2	51215-S5T-Z00	L. FR. Knuckle comp
3	51225-S5A-003	Boot - LOWER BALL DUST
4	51300-S5T-Z01	Spring - FR. STABILIZER
5	51306-S6D-005	Bush - STABILIZER HOLDER
6	51308-S5A-000	Holder - FR. STABILIZER
7	51320-S5A-003	RH FR. STABILIZER LINK
8	51321-S5A-003	LH FR. STABILIZER LINK
9	51350-S5T-Z00	Arm comp - R. FR. LOWER
10	51360-S5T-Z00	Arm comp - L. FR. LOWER
11	51391-S5T-Z01	Bush - FR. COMPLIANCE
12	51392-S5A-004	Bush - FR. LOWER ARM (YAMASHITA)
13	57450-S5T-E01	Sensor assy - R. FR.
14	57455-S5T-E01	Sensor assy - L. FR.
15	90002-S10-000	Nut - FLANGE, 10MM
16	90118-S5A-000	Bolt - FLANGE, 14X91
17	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
18	90363-S47-000	Nut - LOWER ARM, 12MM
19	90701-SX0-003	Clip - UPPER ARM

Mainshaft (TYPE R) 19

#	OEM	部品名
1	23210-PNS-010	Mainshaft comp.
1	23210-PNS-020	MAINSHAFT COMP
2	23261-PPP-000	Shaft - REVERSE GEAR
3	23440-PNS-000	Gear comp - MAINSHAFT THIRD
4	23450-PNS-000	GEAR, MAINSHAFT FOURTH
5	23540-PPS-000	Gear comp - REVERSE IDLE
6	23580-PNS-010	Gear comp - MAINSHAFT FIFTH
7	23590-PNS-010	Gear comp - MAINSHAFT SIXTH
8	23623-PNS-305	Sleeve set - SYNCHRONIZER (3-4)
9	23626-PNS-315	Sleeve set - SYNCHRONIZER (5-6)
10	23915-PPP-000	Collar - DISTANCE, 32X39X52
11	23916-PNS-000	Collar - DISTANCE, 28X35X24
12	23927-PG2-A00	Washer - SPRING, 28MM
13	23928-PS1-000	Washer - 28MM
14	90401-PG1-000	Washer - DRAIN PLUG, 10MM
15	91002-PPP-003	Bearing - BALL, 28X72X18
15	91002-RAS-003	Bearing - BALL, 28X72X18
16	91102-PPP-016	Bearing - NEEDLE, 39X44X24
17	91103-PNS-003	Bearing - NEEDLE, 35X40X24

Meter components (NS; 1) 6

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37115-SA0-601	Packing - NS
5	78155-S6A-N01	Visor
6	78156-S6A-N01	Lens - METER
7	90302-SA4-003	Nut - SPRING, 4MM
10	78100-S5T-G03	Meter assy - COMBINATION

Mirror (3) 17

#	OEM	部品名
1	34300-SEA-003	Light assy - R. SIDE TURN
2	34350-SEA-003	Light assy - L. SIDE TURN
4	76203-S6D-H41	Mirror sub assy. - R. (R1400) (HEATED)
4	76203-SDH-H41	Mirror sub assy. - R. (R1400) (HEATED)
5	76203-S6D-E61	Actuator set - R. (HEATED)
6	76208-SEA-003	Sticker
8	76239-S6M-003	Screw - PAN, 5X10
10	76253-S6D-H41	Mirror sub assy. - L. (R1400) (HEATED)
10	76253-SDH-H41	Mirror sub assy. - L. (R1400) (HEATED)
11	76253-S6D-E61	Actuator set - L. (HEATED)
13	76400-SEA-004	Mirror assy - RR. VIEW (DAY/NIGHT)
14	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)
15	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)
16	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)
17	90615-SK7-003	Clip - MIRROR GARNISH
18	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
19	91565-SEA-003	Clamp - HARNESS

Molding/side sill garnish 32

#	OEM	部品名
3	71804-S5A-R00	Stay assy - SIDE SILL GARNISH
6	72410-S5S-E01	Molding assy. - R. FR. DOOR
7	72430-S5S-E01	Garnish - R. FR. DOOR SASH
8	72431-S2X-003	Clip - CENTER PILLAR GARNISH
9	72450-S5S-E01	Molding assy. - L. FR. DOOR
10	72470-S5S-E01	Garnish - L. FR. DOOR SASH
11	74306-S5S-E01	Molding assy. R. ROOF
12	74308-ST0-003	Bracket - ROOF MOLDING
13	74316-S5S-E01	Molding assy. L. ROOF
14	74475-S5T-G00	Strake - RR.
15	74551-S5T-R00	Fender - R. RR. INNER
15	74551-S5S-E00	Fender - R. RR. INNER
16	74552-S6D-E00	Stiffener - R. RR. INNER FENDER
17	74591-S5S-E00	Fender - L. RR. INNER
18	74592-S6D-E00	Stiffener - L. RR. INNER FENDER
21	76222-SP1-003	Clip - DOOR MIRROR COVER
22	90102-S6A-000	Bolt - SPECIAL, 6X9
23	90104-SR2-003	Bolt c - BUMPER
24	90109-SE0-003	Bolt b - BUMPER
25	90126-SA7-000	Screw-washer - 5X20
25	90114-SZ3-000	Screw-washer - 5X20
26	90142-S04-000	Screw - TAPPING, 4X10
27	90305-SM4-000	Nut - AIR SPOILER CLIP
28	90324-S6A-000	Nut - SUSPENSION, 5MM
29	90657-SA5-003	Clip - SIDE APRON MOLDING
30	90682-SB0-003	Grommet - SCREW, 5MM
31	91501-S04-003	Clip - INNER FENDER
32	91501-S5A-003	Clip - DOOR MOLDING
33	91503-SZ3-003	Clip A
34	91503-S2X-003	Clip - SIDE SILL COVER
35	91504-SP1-003	Clip - FR. FENDER LOWER
36	91513-S47-000	Clip - SIDE SILL GARNISH UPPER

Oil pump/oil strainer (TYPE R) 19

#	OEM	部品名
1	13441-PCX-004	Chain - 64L
2	13450-PNA-004	Tensioner comp - BALANCER SHAFT CHAIN
3	13460-PNC-004	Guide - OIL PUMP CHAIN
4	15100-PRB-A01	Pump assy. - OIL
5	15123-PCX-003	Dowel pin - 18X13
6	15231-PE0-000	Valve - RELIEF
7	15232-PG6-000	Spring - RELIEF VALVE
8	15233-PC6-000	Bolt - SEALING, 18MM
9	15400-PLC-004	Cartridge, OIL FILTER (TOYO ROKI)
9	15400-PLM-A01	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
9	15400-PLM-A02	OIL FILTER (HONEYWELL)
9	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
9	15400-PLC-003	Cartridge - OIL FILTER (TENNEX)
10	15400-PR3-014	OIL FILTER (TOYO ROKI)
11	15400-PR3-315	Cartridge set - OIL FILTER (TOYO ROKI)
12	15500-PRB-A01	Cooler - ENGINE OIL
13	15560-PCX-004	Bolt - OIL COOLER CENTER
14	90004-PNA-000	Bolt - CHAIN GUIDE
15	91316-PE7-730	O-ring - 62.4X3.1

Outer panels 11

#	OEM	部品名
18	73219-693-951	Seal - FUEL LID OPENER (GREEN)
19	74411-S5S-G00	Cable - FUEL LID OPENER
20	74421-SS1-010	Spring - FUEL LID OPENER
21	74422-ST5-000	Cushion - FUEL FILLER LID
22	74423-S1A-E01	Holder - FUEL CAP
25	75450-S2K-000	Outlet assy - RR. AIR
26	90103-SM4-010	Bolt - FLANGE, 6X18
27	90103-SS1-000	Bolt - FUEL FILLER LID
28	90684-SD4-003	Clip - FUEL LID OPENER
29	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
30	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

P.s. gear box (EPS; LH) 19

#	OEM	部品名
1	53010-S5S-000	Bush set - STEERING GEAR BOX MOUNTING
2	53434-S5D-A01	Bracket b - STEERING GEAR BOX
4	53438-S5A-G01	Bracket - R. STEERING GEAR BOX
7	53501-S5A-000	Grommet - STEERING
8	53521-S5A-003	Rod sub assy. - TIE (###)
9	53536-S5A-900	Washer - TIE ROD LOCK
10	53541-S5A-000	Rod assy - TIE
11	53541-S5A-003	End comp - TIE ROD
12	53546-S84-003	Boot - TIE ROD END (NOK)
13	53606-S5T-P34	Box assy - POWER STEERING GEAR
13	53606-S5T-G33	Box assy - POWER STEERING GEAR
14	53685-S6M-000	Bush - STEERING GEAR BOX MOUNTING
15	53686-S5A-010	Collar - STEERING GEAR BOX MOUNTING (A)
16	90108-S5A-000	Bolt - GEAR BOX MOUNTING
17	90301-S5A-003	Nut - HEX.
18	90450-S5A-020	Nut - FLANGE, 10MM
19	90505-S5A-000	Washer - PLAIN, 10MM
20	90506-S5A-010	Washer - PLAIN, 10MM
21	90801-S5A-000	BOLT, FLANGE, 8X25

P.s. gear box components (EPS; LH) 19

#	OEM	部品名
1	53413-SZ3-000	Spring - RACK GUIDE PRESSURE
2	53414-S5A-003	Screw - RACK GUIDE
3	53416-S5S-G01	Guide - STEERING RACK
4	53418-S5A-003	Washer - DISK
5	53448-S5A-J01	Band b - BELLOWS
6	53449-S5A-J01	Band a - BELLOWS
7	53455-S5A-003	Ring b - STOPPER
8	53457-S5A-003	Lock - SCREW
9	53458-SM4-J60	Nut - RACK SCREW LOCK
10	53535-S5A-003	Washer - LOCK
11	53602-S5T-G31	Motor set
12	53603-S5A-J01	Boot set
13	53604-S5A-003	Bracket
14	53605-S5A-003	Slider
15	53611-S5T-G32	Housing comp - SLIDER
16	53662-S5A-003	O-ring - 11.5X1.5
17	90105-S0A-003	Bolt - FLANGE, 8X25
18	90455-S5A-003	Bolt - FLANGE, 12X40
19	91351-S5A-003	O-ring - MOTOR

Parking brake 12

#	OEM	部品名
2	47342-S6A-E11	Switch - PARKING BRAKE
3	47360-S1A-E01	Equalizer
4	47365-SN7-003	Pin - EQUALIZER
6	47510-S5T-E13	Wire b - R. PARKING BRAKE
7	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING
8	47537-SN7-003	Spring - PARKING BRAKE ROD
10	47560-S5S-E14	Wire b - L. PARKING BRAKE
11	47571-S5S-E02	Stay - WIRE BASE GUIDE
12	47572-ST0-000	Base - WIRE GUIDE
13	47577-S5S-E00	Guard - BRAKE WIRE
14	90651-SN7-003	Clip - BRAKE HOSE
15	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Pedal (LH) 22

#	OEM	部品名
2	17800-S6M-A03	Pedal assy - ACCELERATOR
3	17818-S5A-A01	Stopper - ACCELERATOR STROKE
4	17910-S5T-G02	Wire - THROTTLE
5	17921-SA4-730	Seal - THROTTLE CABLE
7	17931-S5T-010	Clamp - THROTTLE WIRE
12	35350-S5A-J03	Switch assy - STOP (TOYO)
12	35350-S5A-J01	Switch assy - STOP (MATSUSHITA)
19	46505-SA5-000	Pad - PEDAL STOPPER
20	46505-SA7-000	Pad - PEDAL STOPPER
21	46530-S5A-003	Spring assy - PEDAL RETURN
22	46545-SA5-000	Cover, Pedal
24	46600-S5A-A01	Pedal assy - BRAKE
25	46900-S5T-G01	Pedal assy - CLUTCH
26	46905-SK7-000	Stopper - CLUTCH PEDAL
27	46907-S5A-A01	Spring - CLUTCH RETURN
28	46911-SD4-930	Bush - PEDAL PIN
29	46981-S2A-003	Bush a - CLUTCH ASSISTANT
30	46982-S2A-003	Bush b - ASSISTANT
31	46991-S5A-A01	Bracket comp. - FOOTREST
32	46992-SV4-003	Clip - FOOTREST
34	90301-SP0-003	Nut - PAINT CUTTING, 6MM
35	90301-S5A-000	Nut - PAINT CUTTING, 6MM

Pillar garnish (LH) 5

#	OEM	部品名
1	72315-S5S-E01	Seal - R. FR. DOOR OPENING
2	72355-S5S-E01	Seal - L. FR. DOOR OPENING
11	91560-S6A-003	Clip - DOOR LINING(ORANGE)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
13	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Piston/crankshaft (TYPE R) 42

#	OEM	部品名
1	13010-PRB-A00	Piston set a - STD.
1	13030-PRB-A01	Piston set - OS 0.25
1	13020-PRB-A01	Piston set b - STD.
1	13030-PRB-A00	Piston set - OS 0.25
1	13010-PRB-A01	Piston set a - STD.
1	13020-PRB-A00	Piston set b - STD.
2	13021-PRA-E02	Ring set - PISTON(OS 0.25) (RIKEN)
2	13011-PRA-E02	Ring set - PISTON(STD.)(RIKEN)
3	13111-PNA-010	Pin - PISTON
3	13111-PNA-000	Pin - PISTON
4	13115-PRB-A00	Clip - PISTON PIN
5	13204-PRB-A01	Bolt - CONNECTING ROD
6	13210-PRB-A00	Rod comp - CONNECTING
7	13213-PRB-A01	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
7	13215-PRB-A01	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13217-PRB-A01	Bearing g - CONNECTING ROD (RED) (DAIDO)
7	13212-PRB-A01	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13214-PRB-A01	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
7	13216-PRB-A01	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13211-PRB-A01	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
8	13310-PRB-A00	Crankshaft comp.
9	13322-PRB-A01	Bearing b - MAIN UPPER(BLACK) (DAIDO)
9	13324-PRB-A01	Bearing d - MAIN UPPER(GREEN) (DAIDO)
9	13326-PRB-A01	Bearing f - MAIN UPPER(PINK) (DAIDO)
9	13321-PRB-A01	BEARING A - MAIN UPPER(BLUE) (DAIDO)
9	13323-PRB-A01	Bearing c - MAIN UPPER(BROWN) (DAIDO)
9	13325-PRB-A01	Bearing e - MAIN UPPER(YELLOW) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)
11	13345-PRB-A01	Bearing e - MAIN LOWER(YELLOW) (DAIDO)
11	13342-PRB-A01	Bearing b - MAIN LOWER(BLACK) (DAIDO)
11	13344-PRB-A01	Bearing d - MAIN LOWER(GREEN) (DAIDO)
11	13346-PRB-A01	Bearing f - MAIN LOWER(PINK) (DAIDO)
11	13341-PRB-A01	BEARING A - MAIN LOWER(BLUE) (DAIDO)
11	13343-PRB-A01	Bearing c - MAIN LOWER(BROWN) (DAIDO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE
13	13622-PNA-003	Plate - CRANK PULSER
14	13810-PRB-A01	Pulley comp - CRANKSHAFT
14	13810-RRB-A01	Pulley comp - CRANKSHAFT
15	90017-PCX-003	Bolt-washer - 16X49
15	90017-PCX-013	Bolt-washer - 16X49
16	90703-PDE-E00	Dowel pin - 11X12
17	90704-PNA-000	Key - 4.5X21

Radiator (DENSO; TYPE R) 20

#	OEM	部品名
1	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING
2	17254-PRA-G00	Cover assy. - AIR INTAKE
3	19010-PNF-003	Radiator comp - DENSO
4	19011-PH1-621	Bolt - DRAIN (DENSO)
5	19012-671-300	Packing - DRAIN (DENSO)
6	19013-PCA-003	Seal - DENSO
7	19015-PNF-003	Shroud comp.
8	19020-PND-003	Fan - COOLING
9	19030-PNF-003	Motor - COOLING FAN
10	19031-PLC-003	Cover - MOTOR END
11	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)
12	19046-PAA-A00	Label - RADIATOR CAP
13	19046-PLC-P00	Label - RADIATOR CAP(PORTUGAL)
14	19047-PLC-003	Cover - RADIATOR CAP (DENSO)
15	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
16	90041-P5A-003	Screw-washer - 4X11
17	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
18	90043-PD2-003	Nut - HEX., 5MM (DENSO)
19	91307-PN4-000	O-ring - 17.5X1.4
19	91307-PN3-000	O-ring,17.8x1.4

Radiator hose (TYPE R) 17

#	OEM	部品名
1	19101-PRA-000	Tank - RESERVE
2	19103-PRA-000	Tube - RESERVE TANK
3	19104-PRA-000	Hose comp. - RESERVE TANK
4	19105-PLC-000	Joint
5	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)
6	19109-PH1-620	Cap - FILLER
7	19113-PRA-000	Stay - TUBE CLAMP
8	19117-PND-000	Grommet - RESERVE TANK
9	19501-PRA-000	Hose - WATER UPPER
10	19502-PRA-000	Hose - WATER LOWER
11	19511-P30-003	Clip, WATER HOSE (CHUO SPRING)
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
12	19515-PH4-600	Cap - SEALING, 7.3MM
13	19519-PRB-A01	Clamp - WATER HOSE
14	74171-S5T-G00	Bracket - RADIATOR MOUNT UPPER
15	74172-SS0-000	Cushion - RADIATOR MOUNTING LOWER
16	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER

Rear brake (DISK) 44

#	OEM	部品名
1	01473-SV4-000	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER
2	06430-S6D-E50	Pad set - RR. (WITHOUT SHIM) (###)
3	06435-S2A-000	Shim set - RR.
5	42200-S7A-008	Bearing assy - RR. HUB UNIT
6	42326-ST7-Z00	Cap - HUB UNIT
6	42326-SLJ-000	Cap, Hub unit
7	42510-S5T-E00	Disk - RR. BRAKE
9	43018-S6M-A01	Caliper sub assy. - R. RR.
10	43019-S6M-A01	Caliper sub assy. - L. RR.
11	43022-S6D-E50	Pad set - RR.
12	43215-SM4-951	Piston assy.
13	43223-SD2-932	BEARING A
14	43224-SD2-931	Spring b - ADJUSTING
15	43227-SG0-013	Spring - PAD
16	43228-SD2-933	Shaft a
17	43229-SD2-931	Rod
18	43233-S5A-J01	Piston comp - SLEEVE
18	43233-TR0-A01	Piston, sleeve
19	43235-S84-A51	Pin a
20	43236-S04-003	Spacer
21	43238-SF1-003	Ring - RETAINING
22	43241-S5A-003	Guide - SPRING
23	43243-SD2-931	Nut - PARKING
24	43244-SG0-003	Retainer
25	43245-S5A-J01	Lever - R.
26	43246-SD2-931	Spring - R. RETURN
27	43247-S5A-J01	Arm - R.
28	43248-SD2-933	Shaft b
29	43249-S04-003	Bolt - ADJUSTER
30	43253-S6D-E50	Guard - R. RR. SPLASH
31	43254-S6D-E50	Guard - L. RR. SPLASH
32	43262-S84-A51	Pin b
33	43265-S5A-J01	Lever - L.
34	43266-SD2-931	Spring - L. RETURN
35	43267-S5A-J01	Arm - L.
36	43352-SM4-951	Screw - BLEEDER
37	43353-SD5-003	Cap - BLEEDER SCREW
38	45240-SC2-003	Bolt - FLANGE, 8X22
39	90103-SN7-003	Bolt - FLANGE, 10X25
40	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
40	90113-SA0-006	Bolt - WHEEL (SAGA)
40	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
41	90305-S30-003	Nut - SPINDLE

Rear lower arm 33

#	OEM	部品名
2	52210-S5T-J00	Knuckle comp - R. RR. (ABS)
4	52215-S5T-J00	Knuckle comp., L. RR. (ABS)
5	52300-S5T-Z02	Spring - RR. STABILIZER
6	52306-S5T-Z01	Bush - STABILIZER HOLDER
7	52308-S6M-000	Holder - R. RR. STABILIZER BUSH
8	52309-S6M-000	Holder - L. RR. STABILIZER BUSH
9	52320-S5T-J01	Link comp - R. RR. STABILIZER
10	52321-S5T-J01	Link comp - L. RR. STABILIZER
11	52352-S5A-A01	Protector - RR. LOWER ARM
12	52364-S5A-004	BUSH, REAR LOWER ARM INNER
12	52364-S6M-004	BUSH, REAR LOWER ARM INNER
13	52365-S5A-024	Bush - RR. LOWER ARM OUTER
14	52366-S5A-024	Bush b - RR. LOWER ARM
15	52370-S5T-Z01	Arm comp - R. RR. TRAILING
15	52370-S5T-Z02	TRAILING ARM COMP
16	52371-S5T-Z01	Arm comp - L. RR. TRAILING
16	52371-S5T-Z02	Arm comp
17	52387-S7A-000	Bolt - TRAILING ARM ADJUST
18	52388-S7A-013	Plate - CAM
19	52390-S5A-981	Arm comp - RR. UPPER
19	52390-S5T-Z00	Arm comp - R. RR. UPPER
20	52395-S5A-004	Bush - RR. UPPER ARM
21	57470-S5S-E51	Sensor assy - R. RR.
21	57470-S5D-013	Sensor assy - R. RR.
22	57475-S6D-E01	Sensor assy - L. RR.
23	90002-S10-000	Nut - FLANGE, 10MM
24	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
25	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)
26	90396-S5A-000	Bolt - FLANGE, 12X75
27	90397-S5A-000	Bolt - FLANGE, 12X48
27	90186-SR3-000	Bolt - FLANGE, 12X48
28	90398-S5A-000	Bolt - FLANGE, 12X81.5
29	90399-S5A-000	Bolt - FLANGE, 12X73

Rear seat 16

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
7	82122-S5S-G01	Pad assy - R. RR. SEATBACK
8	82126-S5T-G41	Frame comp - R. RR. SEATBACK
11	82129-S6A-000	Collar - RR. SEAT PIVOT
13	82132-S5S-G01	Pad & frame comp. - RR. SEAT CUSHION
14	82137-S5A-003	Clip - RR. SEAT CUSHION
20	82225-S5S-003	Striker comp. - RR. SEAT
22	82291-S04-000	Cover - RR. CENTER PIVOT
23	82292-S04-000	Collar - RR. CENTER SEAT PIVOT
26	82295-S5S-003	Bracket assy - CENTER SEAT PIVOT
28	82522-S5S-G01	Pad assy - L. RR. SEATBACK
29	82526-S5S-G01	Frame comp - L. RR. SEATBACK
32	90128-SA7-000	Bolt-washer - 6X25
33	90139-S5S-000	Bolt - FLANGE, 8X30
34	90610-SR3-003	Clip - GARNISH (KATO)

Rear shock absorber 17

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51689-SH3-004	Plate - BUMP STOP (SHOWA)
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
4	52441-S5T-Z02	Spring - RR. (SHOWA)
5	52610-S5T-Z05	Absorber assy - R. RR. SHOCK
6	52611-S5T-Z05	Absorber unit - RR. SHOCK
7	52620-S5T-Z05	Absorber assy - L. RR. SHOCK
8	52622-S5A-004	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING
10	52675-S7A-004	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING
12	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT
13	52686-S5A-004	Rubber - RR. SPRING MOUNTING
14	52687-S5A-014	Cover - RR. DUST
17	52722-S5T-Z03	Rubber - RR. BUMP STOPPER
18	90181-S84-A00	Bolt - TRAILING ARM, 12X68
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear under spoiler 7

#	OEM	部品名
2	90126-SR4-000	Screw-washer - 5X16
3	90141-S5T-G01	Bolt - BUMPER SPOILER
4	90303-S5T-G00	Nut - GARNISH, 6MM
5	90305-SH3-000	Nut - AIR SPOILER CLIP
6	90345-S04-000	Nut - SUSPENSION, 5MM
7	90126-SA7-000	Screw-washer - 5X20
7	90114-SZ3-000	Screw-washer - 5X20

Rear windshield/ quarter glass 18

#	OEM	部品名
1	04733-S5S-E00	Rubber set - RR. WINDSHIELD DAM
1	04733-S5S-305	RUBBER SETRR WSH
2	73211-S5T-J00	Glass set - RR. WINDSHIELD (PRIVACY)(SPLINTEX)
2	73211-S5T-E00	Glass set - RR. WINDSHIELD (GREEN)(SPLINTEX)
3	73511-S5T-J00	Glass - R. QUARTER (PRIVACY) (SPLINTEX)
3	73511-S5S-E00	Glass - R. QUARTER (GREEN) (SPLINTEX)
4	73525-S5S-E00	Rubber - QUARTER WINDSHIELD DAM
5	73561-S5S-E00	Glass - L. QUARTER (GREEN) (SPLINTEX)
5	73561-S5T-J00	Glass - L. QUARTER (PRIVACY) (SPLINTEX)
6	73810-S5S-E01	Seal - R. FR. QUARTER GLASS
7	73850-S5S-E01	Seal - L. FR. QUARTER GLASS
8	76707-S6D-E00	Seal a
9	91501-S2R-003	Clip - QUARTER WINDSHIELD
10	91501-S70-003	Fastener b - WINDSHIELD
11	91502-S5S-E00	Clip b - QUARTER GLASS
12	91502-S70-003	Fastener b - RR. WINDSHIELD
13	91506-S47-003	Clip c - QUARTER WINDOW
14	91536-SS0-J01	Fastener a - WINDSHIELD

Rear wiper 11

#	OEM	部品名
1	76700-S5S-E01	Motor assy. - RR. WINDSHIELD WIPER
2	76701-S6D-E01	Rubber - MOUNTING
3	76702-S6D-E01	Collar
4	76706-S1C-E01	Washer a - SPECIAL
5	76708-S1C-E01	Washer b - SPECIAL
6	76709-S6D-E01	Nut - 16MM
7	76711-S1C-E01	Cap - PIVOT
8	76720-S6D-E01	Arm - RR. WIPER
9	76721-S6D-E01	Cap
10	76730-S6D-E01	Blade - RR. WIPER (300MM)
11	90001-S6D-E00	Nut - HEX., 8MM

Roof lining 2

#	OEM	部品名
12	90131-SH3-A12	Screw - PAN, 5X16
13	91562-S0X-A01	Clip - ROOF LINING (BLACK)

Seatbelts 5

#	OEM	部品名
6	81491-S5S-000	Protector - R. FR. SEATBELT
10	81891-S5S-000	Protector - L. FR. SEATBELT
19	90101-S84-A00	Screw - ET, 6X16
19	90133-SZ4-003	Screw - ET, 7X16
21	90135-S1F-003	Bolt - FLANGE, 7/16"

Shift arm/shift lever (TYPE R) 22

#	OEM	部品名
1	21396-P20-000	Cap - BREATHER
2	21399-PPP-000	Plate - BREATHER
3	21520-PNS-000	Cover comp. - SHIFT ARM
4	24411-PPP-010	Arm - SHIFT
5	24412-PNS-000	Arm - MAINSHAFT BRAKE SYSTEM
6	24413-PNS-000	Spring - MAINSHAFT BRAKE SYSTEM RETURN
7	24430-PNS-000	Interlock comp.
8	24433-PH8-000	Bolt - INTERLOCK
9	24460-PNS-000	Lever comp - SELECT
10	24464-PPP-000	Spring - FIRST-SECOND SELECT
11	24466-PPP-000	Spring - FIFTH-SIXTH SELECT
12	24467-PPP-000	Plate - SELECT STOPPER
13	24470-PPP-000	Lever comp - SHIFT
14	24479-PPP-000	Cover - SHIFT LEVER
15	24521-PNS-000	Cam a - SELECT LOCK
16	24522-PNS-000	Cam b - SELECT LOCK
17	24524-PNS-000	Spring - SELECT LOCK RETURN
18	28251-PNS-003	Solenoid comp.
19	90029-611-010	Bolt - HEX., 8X24
20	90412-679-000	Washer - CONICAL SPRING, 8MM
21	91207-PPP-003	Dust seal - 18X24X5
22	91208-PPP-003	Dust seal - 14X20X4

Shift fork/shift holder (TYPE R) 8

#	OEM	部品名
1	24201-PNS-010	Fork comp - GEARSHIFT (5-6)
2	24210-PNS-010	Fork comp - GEARSHIFT (3-4)
3	24220-PPP-010	Fork comp - GEARSHIFT (1-2)
4	24230-PPP-000	Holder comp - REVERSE SHIFT
5	24240-PNS-000	Piece comp. - REVERSE SHIFT
6	24455-PHR-000	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 12

#	OEM	部品名
1	54100-S5T-003	Lever sub assy. - CHANGE
3	54102-S6M-R00	Knob - CHANGE
4	54117-S6A-003	Rubber - FLOATING
5	54119-S30-003	Collar - FLOATING
6	54310-S5T-E02	Wire comp - CHANGE
7	54357-SN7-000	Plate - CHANGE WIRE
8	90310-ST7-Z00	Nut - CHANGE LEVER FLANGE
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM
10	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
11	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
12	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
13	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Side lining 14

#	OEM	部品名
1	74514-S5S-E00	Seal - R. QUARTER HOLE
2	74554-S5S-E00	Seal - L. QUARTER HOLE
7	83738-S5S-E01	Rivet
8	83739-S5S-E01	Buckle assy - SEATBELT
15	84433-S5S-E00	Strap comp
17	84521-S5T-E00	Lid comp - SPARE TIRE
18	84527-S5T-G00	Spacer - R. RR. TRUNK SIDE
21	90137-S1A-E01	Screw - ET, 6X18
21	90134-S30-003	Screw - EARTH, 5X18
22	90302-SN7-E00	Nut - SPRING, 4MM
25	90668-ST3-E01	Clip - SIDE LINING
26	90670-SG0-003	Grommet - SCREW, 4MM
28	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
29	91560-S9A-A01	Clip - DOOR LINING (LIGHT BLUE)

Side skirts primer coated 3

#	OEM	部品名
8	71804-S5A-R00	Stay assy - SIDE SILL GARNISH
9	91503-SZ3-003	Clip A
10	90104-SR2-003	Bolt c - BUMPER

Spool valve (TYPE R) 21

#	OEM	部品名
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)
3	12251-PRB-A01	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
4	15810-PRB-A01	Valve assy. - SPOOL
5	15815-RAA-A02	Filter assy, SPOOL VALVE
5	15815-RAA-A01	Filter assy - SPOOL VALVE
6	15816-PNA-003	Cover - VTEC SPOOL VALVE
6	15816-PNA-013	Cover - VTEC SPOOL VALVE
7	15830-PNC-003	Valve assy. - VTC OIL CONTROL
8	15832-PNA-003	O-ring
8	15832-PNA-023	ORING
9	15835-PNA-003	Bolt - VTC SOLENOID
10	15840-RAA-A00	Strainer assy - VTC
11	15845-RAA-A01	Filter assy - VTC
12	17261-PNA-000	Stay comp. a - AIR CLEANER
13	37250-PRB-A01	Switch assy - VALVE TIMING OIL PRESSURE
14	90005-PNA-003	Bolt-washer - 11X155
15	90026-PNA-003	Bolt - STUD, 10X39.5
16	91319-PAA-A01	O-ring - 13X1.5

Srs unit (LH) 5

#	OEM	部品名
1	77900-S6M-Q01	Reel assy - CABLE (SUMITOMO)
2	77930-S6A-N91	Sensor assy - R. FR. SIDE
3	77940-S6A-N91	Sensor assy - L. FR. SIDE
4	77960-S5S-G81	Srs unit - SIEMENS
6	90137-S84-A01	Bolt - TORX EARTH, 6X20

Starter motor (DENSO; TYP E R) 26

#	OEM	部品名
1	30201-PH9-004	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP
3	31200-PRB-A01	Motor assy. - STARTER (DSDH9) (DENSO)
4	31201-PNE-G01	Housing comp - DRIVE SIDE
5	31202-PRB-A01	Endframe comp. - COMMUTATOR
6	31202-PR4-003	Bolt - THROUGH (DENSO)
7	31203-P3F-003	Lever - PINION DRIVE
8	31204-PRB-A01	Switch assy - MAGNET
9	31205-PNE-G02	Yoke comp.
10	31206-P3F-A51	Armature comp.
11	31207-PNA-003	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM
13	31213-PNA-003	Shaft - DRIVE
14	31213-P64-N01	Cover
15	31214-P3F-003	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL
19	31218-P3F-003	Washer a
20	31219-P3F-003	Washer b
21	31220-PH9-004	Nut - HEX., 8MM
22	31220-P3F-003	Washer c
23	31223-PA0-006	Nut - HEX.
24	31231-P3F-003	Plate comp - BRUSH HOLDER
25	31291-PRB-A01	Stay assy - ENGINE HARNESS
26	31292-PLR-A01	Bolt-washer

Steering column 5

#	OEM	部品名
1	53200-S5S-G01	Column assy - STEERING
2	53323-S5A-003	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS; 2) 6

#	OEM	部品名
6	78519-S6M-N61	Holder - COUPLER (2P)
7	78523-S6M-N61	Plate - CONTACT
8	78524-S6M-N61	Screw-washer - 6X16
9	78540-S6M-N61	Bracket comp.
10	90134-S6A-A80	Bolt - HEX., 6X23
11	90163-S04-000	Nut - STEERING WHEEL

Switch (LH) 4

#	OEM	部品名
3	35510-S6A-J01	Switch assy - HAZARD
6	35850-S7A-G01	Bulb comp. - 14V 60MA
7	35850-S6A-J01	Bulb comp. - 14V 60MA
8	35910-S04-G01	Switch assy - INERTIA

Tailgate 25

#	OEM	部品名
1	34270-S30-A01	Lamp assy. - HIGH MOUNT STOP
2	34271-S5T-E00	Sub cord - SPOILER
3	35103-S04-003	Screw - RECESSED
8	71703-S5T-E01	Screw - TRUSS, 5X10
13	74440-S5S-E11	Weatherstrip - TAILGATE
14	74801-S5S-E02	Lock - TAILGATE
16	74810-S6A-003	Handle assy - TAILGATE
17	74813-S6D-E01	Striker assy - TAILGATE
19	74816-S2G-003	Band
20	74820-S5S-E01	Stay assy - R. TAILGATE OPEN
21	74829-S1C-E00	Stopper - TAILGATE
22	74830-S5S-E01	Cable - TAILGATE OPENER
24	74861-S6A-G51	Cylinder - TRUNK
25	74866-S6A-G01	Switch - TRUNK CYLINDER
26	74870-S5S-E01	Stay assy - L. TAILGATE OPEN
28	74896-S1C-E01	Actuator assy - TAILGATE
29	90101-S50-003	Screw-washer - 3X22
31	90102-S5T-E01	Bolt-washer - 6X10
33	90105-634-000	Bolt-washer (8x20)
34	90107-S2G-003	Bolt - TAILGATE LOCK
35	90108-S6D-E01	Stud - BALL
36	90111-SK3-E00	Stud-ball - TAILGATE
37	90120-SV4-000	Bolt - LOCK STRIKER
41	90661-SC7-003	Grommet - SCREW, 5MM
43	91580-SM4-003	Clip - COUPLER(ORANGE)

Tailgate lining 5

#	OEM	部品名
3	84432-SH3-000	Stopper - CENTER SHELF
5	84436-S1C-E00	Pin - SHELF STRAP
10	90662-SB2-003	Grommet - SCREW, 5MM
14	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
15	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Taillight/license light 19

#	OEM	部品名
1	33302-ST7-A01	Plug - SOCKET
2	33302-ST7-003	Socket comp.
3	33501-S5S-G31	Lamp unit - R. TAIL
4	33502-S5S-G01	Gasket - BASE
5	33506-SJ6-004	Bulb - 12V 18W) (KOITO
6	33511-S5P-A01	Socket comp. - T16
7	33514-S2A-003	Socket comp - PY21W
8	33551-S5S-G31	Lamp unit - L. TAIL
9	34101-S5T-003	Lens comp
10	34102-S60-003	Housing comp
11	34103-S60-003	Gasket
14	34901-SB0-671	Bulb - 12V 5W 3CP) (STANLEY
15	34903-ST3-E00	Bulb - 12V 21W) (AMBER
16	34908-ST3-E01	Bulb - 12V 21W
17	34911-ST3-E01	Bulb - 12V 21-5W
19	90303-S2G-003	Nut - 6MM
20	90501-SL9-003	Clip - LICENSE GARNISH
21	90650-S5A-003	Grommet - RR. COMBINATION LIGHT
22	91512-S50-003	Clip - LICENSE GARNISH

Throttle body (TYPE R) 14

#	OEM	部品名
1	16022-PRC-003	Valve set - ROTARY AIR CONTROL
1	16022-PRC-013	Valve set - ROTARY AIR CONTROL
2	16176-PRB-A01	Gasket - THROTTLE BODY
3	16400-PRB-Q05	Throttle Body Assy - GY48
3	16400-PRB-Q04	Throttle Body Assy - GY48
3	16400-PRB-Q01	Throttle Body Assy - GY48
4	16411-PRC-023	Stay - THROTTLE WIRE
4	16411-PRC-003	Stay - THROTTLE WIRE
5	16456-P8A-A01	Gasket - ROTARY AIR CONTROL VALVE
6	36162-PNC-005	Valve assy. - PURGE CONTROL SOLENOID
7	36221-PNC-005	O-ring
8	37830-PGK-A01	Sensor assy, MAP
9	37835-PGK-A01	O-ring
10	90001-PEL-003	Bolt - FLANGE, 6X12

Tire/wheel disks 49

#	OEM	部品名
1	42700-SZ3-E01	Disk - WHEEL (15X4T) (KANAI)
6	42751-S04-945	Tire - T135/70D15 99M) (BRIDGESTONE
7	42751-S5T-G93	Tire - 205/45R17 84W) (BRIDGESTONE
8	42753-SK3-000	Valve - RIM(A.R.G.)
8	42753-SG9-000	Valve - RIM(A.R.G.)
8	42753-SN8-E00	Valve - RIM
9	42767-S04-P00	Plate - SPARE TIRE CAUTION (T-TYPE)(PORTUGAL)
9	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
9	42767-SS0-G20	Plate - SPARE TIRE CAUTION (T-TYPE) (GERMANY)
10	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
13	44724-S5A-A20	Weight - BALANCE (40G)
13	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)
13	44724-TP6-A01	WEIGHT (20G)
13	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)
13	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)
13	44723-TP6-A01	WEIGHT (15G)
13	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)
13	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)
13	44721-S5A-A20	Weight - BALANCE (10G)
13	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)
13	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)
13	44721-TP6-A01	WEIGHT, BALANCE (5G)
13	44730-S5A-A20	Weight - BALANCE (45G)
13	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)
13	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)
13	44729-S5A-A20	Weight - BALANCE (35G)
13	44727-TP6-A01	WEIGHT (35G)
13	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)
13	44728-S5A-A20	Weight - BALANCE (25G)
13	44725-TP6-A01	WEIGHT (25G)
13	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)
13	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)
13	44722-S5A-A20	Weight - BALANCE (20G)
13	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)
13	44727-S5A-A20	Weight - BALANCE (15G)
13	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)
13	44723-S5A-A20	Weight - BALANCE (30G)
13	44726-TP6-A01	WEIGHT (30G)
13	44726-S5A-A20	Weight - BALANCE (5G)
13	44725-S5A-A20	Weight - BALANCE (50G)
13	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)
13	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)
13	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)
13	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)
13	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)
13	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)
18	83850-SH3-000	Plate - ANCHOR BOLT
19	83853-SX0-000	Bolt - ANCHOR
21	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 6

#	OEM	部品名
2	89000-S5S-E01	Tool set
6	89101-S6D-E01	Bag - TOOL
7	89211-SCA-E00	Wrench - WHEEL
8	89310-SDA-A01	Jack assy - PANTOGRAPH
9	89311-SDA-A01	Label - JACK CAUTION
10	89320-SCA-E00	Bar - JACK

Transmission case (TYPE R) 67

#	OEM	部品名
1	21104-PPP-000	Plate m - OIL GUIDE
2	21200-PPP-020	Case comp. - TRANSMISSION
3	21211-RAP-000	Plate - OIL GUTTER
4	21220-PPP-000	Hanger a - TRANSMISSION
5	21223-PNS-000	Hanger comp. b - TRANSMISSION
6	21224-PNS-000	Stay - HARNESS
7	23977-PPP-J00	Shim av - 72MM (1.98)
7	23945-P21-000	Shim o - 72MM(1.02)
7	23972-PPP-J00	Shim ap - 72MM (1.83)
7	23940-P21-000	Shim j - 72MM(0.87)
7	23967-P21-000	Shim ak - 72MM(1.68)
7	23935-P21-000	Shim e - 72MM(0.72)
7	23962-P21-000	Shim af - 72MM(1.53)
7	23957-P21-000	Shim aa - 72MM(1.38)
7	23984-PPP-J00	Shim bc - 72MM (2.19)
7	23952-P21-000	Shim v - 72MM(1.23)
7	23979-PPP-J00	Shim ax - 72MM (2.04)
7	23947-P21-000	Shim q - 72MM(1.08)
7	23974-PPP-J00	Shim ar - 72MM (1.89)
7	23942-P21-000	Shim l - 72MM(0.93)
7	23969-P21-000	Shim am - 72MM(1.74)
7	23937-P21-000	Shim g - 72MM(0.78)
7	23932-P21-000	Shim b - 72MM(0.63)
7	23964-P21-000	Shim ah - 72MM(1.59)
7	23959-P21-000	Shim ac - 72MM(1.44)
7	23986-PPP-J00	Shim be - 72MM (2.25)
7	23954-P21-000	Shim x - 72MM(1.29)
7	23981-PPP-J00	Shim az - 72MM (2.10)
7	23949-P21-000	Shim s - 72MM(1.14)
7	23976-PPP-J00	Shim at - 72MM (1.95)
7	23944-P21-000	Shim n - 72MM(0.99)
7	23971-P21-000	Shim ao - 72MM(1.80)
7	23939-P21-000	Shim i - 72MM(0.84)
7	23966-P21-000	Shim aj - 72MM(1.65)
7	23934-P21-000	Shim d - 72MM(0.69)
7	23961-P21-000	Shim ae - 72MM(1.50)
7	23956-P21-000	Shim z - 72MM(1.35)
7	23983-PPP-J00	Shim bb - 72MM (2.16)
7	23951-P21-000	Shim u - 72MM(1.20)
7	23978-PPP-J00	Shim aw - 72MM (2.01)
7	23946-P21-000	Shim p - 72MM(1.05)
7	23973-PPP-J00	Shim aq - 72MM (1.86)
7	23941-P21-000	Shim k - 72MM(0.90)
7	23968-P21-000	Shim al - 72MM(1.71)
7	23936-P21-000	Shim f - 72MM(0.75)
7	23931-P21-000	Shim a - 72MM(0.60)
7	23963-P21-000	Shim ag - 72MM(1.56)
7	23958-P21-000	Shim ab - 72MM(1.41)
7	23985-PPP-J00	Shim bd - 72MM (2.22)
7	23953-P21-000	Shim w - 72MM(1.26)
7	23980-PPP-J00	Shim ay - 72MM (2.07)
7	23948-P21-000	Shim r - 72MM(1.11)
7	23975-PPP-J00	Shim as - 72MM (1.92)
7	23943-P21-000	Shim m - 72MM(0.96)
7	23970-P21-000	Shim an - 72MM(1.77)
7	23938-P21-000	Shim h - 72MM(0.81)
7	23933-P21-000	Shim c - 72MM(0.66)
7	23965-P21-000	Shim ai - 72MM(1.62)
7	23960-P21-000	Shim ad - 72MM(1.47)
7	23955-P21-000	Shim y - 72MM(1.32)
7	23982-PPP-J00	Shim ba - 72MM (2.13)
7	23950-P21-000	Shim t - 72MM(1.17)
8	24601-PNS-000	Stay - CHANGE WIRE
9	90081-PB6-000	Bolt - PLUG, 14MM
10	90081-PPP-000	Bolt - SEALING, 32MM
11	90380-S10-000	Bolt - STUD, 12X83.8
12	91205-PL3-B01	Oil seal - 40X56X8(ARAI)

Valve/rocker arm (TYPE R) 14

#	OEM	部品名
1	14620-PNA-030	Arm assy. - ROCKER
1	14620-PNA-040	Arm assy. - ROCKER
2	14711-PRB-A01	Valve - IN.
3	14721-PRB-A00	Valve - EX.
4	14744-PT0-004	Screw - TAPPET ADJUSTING
4	14744-PCX-014	Screw - TAPPET ADJUSTING
5	14761-PRB-A02	Spring - IN. VALVE(LIGHT BLUE) (NIPPON HATSUJO)
6	14762-PRB-A02	Spring - EX. VALVE(BROWN) (NIPPON HATSUJO)
7	14765-PRB-A01	Retainer - VALVE SPRING
8	14775-PCX-000	Seat - VALVE SPRING
9	14781-PRB-A02	Cotter - VALVE (SERVICE)
10	14820-PNA-003	Motion comp - LOST
10	14820-PNA-013	MOTION,
11	90206-PT0-004	Nut - TAPPET ADJUSTING

Water hose (TYPE R) 5

#	OEM	部品名
1	19422-PRB-A00	Hose - OIL COOLER IN.
2	19423-PRB-A00	Hose - OIL COOLER OUTLET
3	19508-PRB-A00	Hose - THROTTLE BODY IN.
4	19509-PRB-A00	Hose - ROTARY AIR CONTROL VALVE OUTLET
5	19512-PK2-003	Clip - HOSE, 18.7MM

Water pump/sensor (TYPE R) 26

#	OEM	部品名
1	19200-PRB-A01	Water Pump
2	19222-PRB-A01	Packing - WATER PUMP
3	19301-PNA-003	Thermostat assy - NIPPON THERMOSTAT
4	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
5	19320-PNA-003	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)
6	19322-PCX-003	O-ring - 43.8X3.1
7	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
8	19352-PNA-000	Seal - WATER OUTLET
9	19350-PNE-G00	Outlet assy - WATER
10	19410-PRB-A00	Passage - WATER
11	19425-PRB-A00	Joint - OIL COOLER
12	19500-PRB-A00	Joint - TUBE
13	19504-PNA-000	Hose - BYPASS IN.
14	19506-PNA-013	Clamp - BYPASS HOSE
15	19510-PRC-J00	Pipe comp - HEATER
16	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
17	36282-PNA-G00	Tube - AIR ASSIST IN.
18	36283-PNA-G00	Tube - AIR ASSIST OUTLET
19	37870-PNA-003	Sensor assy - WATER TEMP (KEIHIN)
20	90001-PRB-A00	Bolt - STUD, 8X15
21	90022-PRB-A00	Bolt - SPECIAL, 10X105
22	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
23	90051-PNA-000	Bolt - SPECIAL, 6X28
24	91307-PNA-003	O-ring - 9.5X1.9
25	91311-PRB-A00	O-ring - 13.5X3.5
26	91315-PNA-003	O-ring - 19.3X3.8

Water valve (LH) 10

#	OEM	部品名
1	79710-S5D-A02	Valve assy, Water
3	79721-S5T-G00	Hose a - WATER IN.
4	79722-S6D-G00	Hose b - WATER IN.
5	79725-S5T-G00	Hose - WATER OUTLET
6	79731-S5A-000	Grommet - HEATER PIPE
7	79746-SL4-003	Clamp - HEATER HOSE
9	90661-SL5-003	Clip, WATER HOSE
10	91405-PK1-003	Clip, WATER HOSE, 24MM
10	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
11	91551-SZ3-003	Clamp - HEATER HOSE

Windshield washer (3) 28

#	OEM	部品名
1	76806-S6D-E01	Motor - FR. WASHER
2	76806-S6D-E11	Motor - RR. WASHER
3	76810-S5S-E01	Nozzle assy. - R. WINDSHIELD WASHER
3	76810-S2G-003	Nozzle assy. - R. WINDSHIELD WASHER
4	76812-S6D-E11	Cap assy. - MOUTH
5	76815-S5S-E01	Nozzle assy. - L. WINDSHIELD WASHER
6	76819-S5S-E01	Cushion
7	76820-S5S-E01	Cushion
8	76826-S6D-E11	Valve - ONE WAY (L TYPE)
9	76828-ST3-E01	Joint l - WASHER
10	76828-S1E-E01	Joint l - WASHER
11	76829-SN7-G05	Joint i - WASHER
12	76830-S6D-E01	Y-joint - ONE WAY VALVE
13	76832-S6D-E02	Tube - 4X7X550
14	76834-S6D-E01	Tube - 4X7X980
15	76835-S6D-E01	Tube - 4X7X440
16	76837-S6D-E01	Tube - 4X7X190
17	76838-S5T-E01	Tube - 4X7X4X4400
18	76840-S5T-E01	Tank set - WASHER
19	76842-S6D-E01	Bush - WASHER TANK
20	76851-S1C-E01	Grommet - WASHER TUBE
21	76851-S6D-E01	Grommet - WASHER TUBE
22	76852-S6D-E01	Grommet - WASHER TUBE (RR.)
23	76875-S6D-E01	Bellows - RR. WASHER
24	90652-SB2-023	Clip - TUBE, 7MM
25	91501-SJ6-003	Clip - WASHER TUBE
26	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
27	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Windshield washer (4) 43

#	OEM	部品名
1	76806-S6D-E01	Motor - FR. WASHER
2	76806-S6D-E11	Motor - RR. WASHER
3	76806-S6D-S01	Motor - HEADLIGHT WASHER
4	76810-S5S-E01	Nozzle assy. - R. WINDSHIELD WASHER
4	76810-S2G-003	Nozzle assy. - R. WINDSHIELD WASHER
5	76812-S6D-E11	Cap assy. - MOUTH
6	76815-S5S-E01	Nozzle assy. - L. WINDSHIELD WASHER
7	76819-S5S-E01	Cushion
8	76820-S5S-E01	Cushion
9	76826-S6D-E11	Valve - ONE WAY (L TYPE)
10	76828-ST3-E01	Joint l - WASHER
11	76828-S1E-E01	Joint l - WASHER
12	76828-S6D-S01	Joint l - HEADLIGHT WASHER HOSE
13	76828-S6F-E01	Joint l - WASHER
14	76829-SN7-G05	Joint i - WASHER
15	76829-ST3-E01	Joint - RR. WASHER TUBE
16	76830-S6D-E01	Y-joint - ONE WAY VALVE
17	76832-S6D-E02	Tube - 4X7X550
18	76834-S6D-E01	Tube - 4X7X980
19	76835-S6D-E01	Tube - 4X7X440
20	76837-S6D-E01	Tube - 4X7X190
21	76838-S5T-E01	Tube - 4X7X4X4400
22	76840-S6F-S02	Tank set - WASHER
23	76842-S6D-E01	Bush - WASHER TANK
24	76845-S6D-E01	Bracket - WASHER MOTOR
25	76851-S1C-E01	Grommet - WASHER TUBE
26	76851-S6D-E01	Grommet - WASHER TUBE
27	76852-S6D-E01	Grommet - WASHER TUBE (RR.)
28	76875-S6D-E01	Bellows - RR. WASHER
33	76891-S6D-S01	Joint t - HEADLIGHT WASHER HOSE
34	76892-S6D-S01	Clip - HEADLIGHT WASHER HOSE
35	76893-S6D-S01	Connector - HEADLIGHT WASHER HOSE
36	76894-S6D-S01	Hose a
37	76895-S6D-S11	Hose b
38	76896-S6D-S11	Hose c
39	76897-S6D-S11	Cushion
40	90001-S6D-S01	Screw - SPECIAL, 5X16
41	90652-SB2-023	Clip - TUBE, 7MM
42	91501-SJ6-003	Clip - WASHER TUBE
43	91561-SR3-003	Clip - HEADLIGHT WASHER HOSE
44	91561-S6D-S01	Clip - HEADLIGHT WASHER HOSE
45	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
46	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Wire harness (LH) 23

#	OEM	部品名
1	30510-SCC-013	Condenser comp.
2	32103-S6D-G01	Sub cord - COMBINATION
3	32106-S5T-R00	Sub harness - RR. SENSOR HEADLIGHT ADJUSTER
4	32107-S5T-G20	Harness - FLOOR WIRE
4	32107-S5T-G02	Harness - FLOOR WIRE
5	32109-S5T-G30	Cord - TAILGATE
10	32117-S5T-G03	Harness - INSTRUMENT WIRE
10	32117-S5T-G10	Harness - INSTRUMENT WIRE
11	32125-S6D-G00	Sub cord - EPS
12	32155-S5S-G10	Cord - INTERIOR & SUNROOF
13	32200-S5T-G02	Harness - ENGINE ROOM WIRE
13	32200-S5T-G11	Harness - ENGINE ROOM WIRE
13	32200-S5T-G01	Harness - ENGINE ROOM WIRE
13	32200-S5T-G10	Harness - ENGINE ROOM WIRE
14	32201-S5T-G00	Sub cord - ENGINE CONTROL MODULE
15	32610-S5T-E00	Cable - SUB EARTH
17	32751-S5S-G40	Harness - DRIVER DOOR WIRE
18	32752-S5S-G40	Harness - PASSENGER DOOR WIRE
19	34271-S5T-E00	Sub cord - SPOILER
21	35505-692-003	Bulb - 14V 1.4W
22	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
23	90149-SE0-003	Bolt - EARTH, 6X16
24	90153-SE0-003	Bolt - EARTH, 6X12
