検索 › 比較 › EH5 × EP3
EH5
Honda CIVIC — 2,623 中 186 共有
EP3
Honda CIVIC — 1,980 中 186 共有

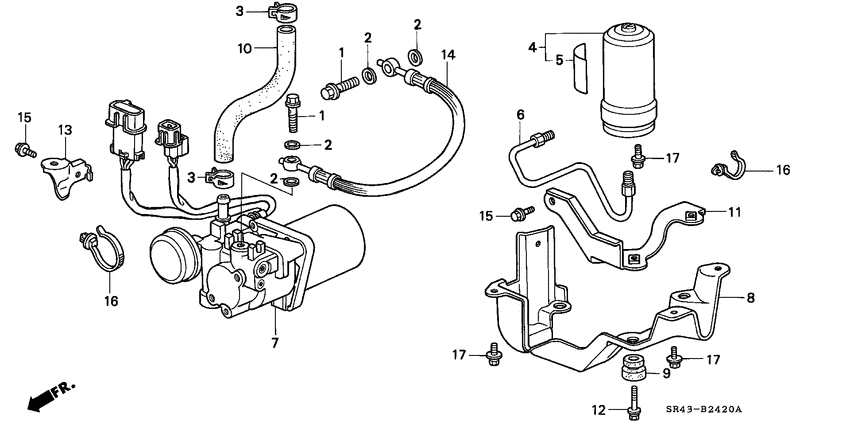

Abs accumulator 3 / 17
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 2 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 16 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Abs modulator 1 / 11
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 13 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Air cleaner 6 / 22
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 19 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 20 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 22 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
Alternator (ND) 4 / 22
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 11 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 13 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 14 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 19 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
Antenna/speaker 1 / 14
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 16 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Auto cruise 1 / 6
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 6 | 90005-P28-A00 | Bolt-washer - SPECIAL, 6X28 | Bolt-washer - SPECIAL, 6X28 |
Battery/battery cable 3 / 15
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 12 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 15 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |

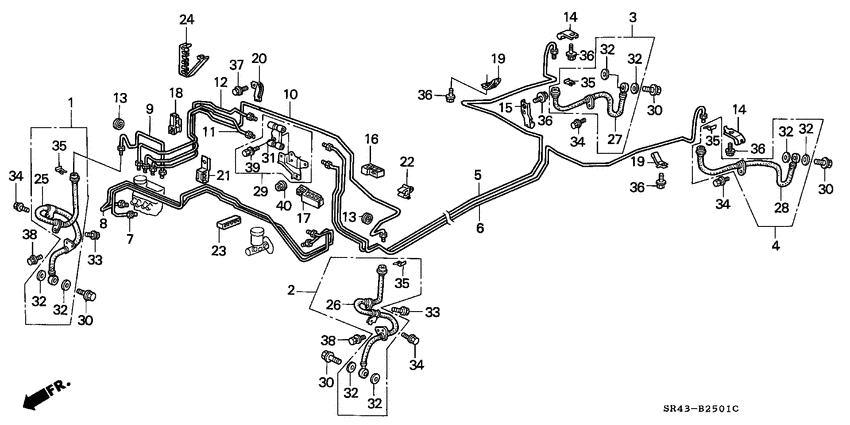

Brake lines (2) 5 / 38
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 30 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 32 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 35 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 40 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Bumpers 2 / 24
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 20 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 26 | 90305-SH3-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |

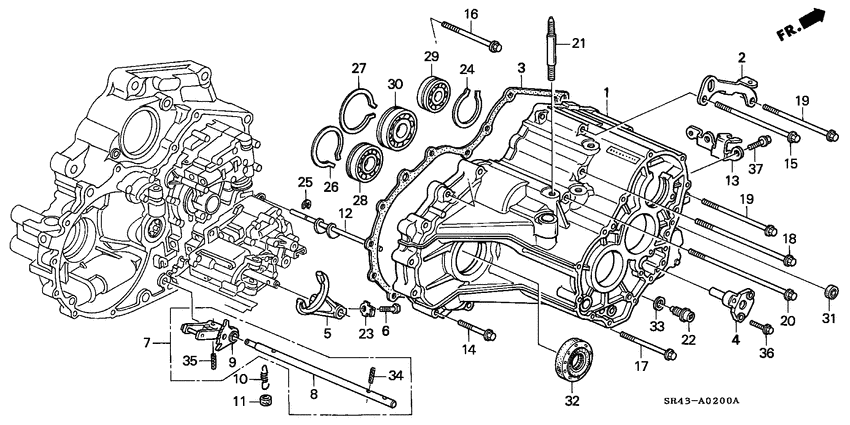

Clutch housing 17 / 32
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 7 | 41443-PL3-B00 | Shim c - 80MM(1.2) | Shim c - 80MM(1.2) |
| 7 | 41454-PL3-B00 | Shim p - 80MM(1.45) | Shim p - 80MM(1.45) |
| 7 | 41449-PL3-B00 | Shim j - 80MM(1.8) | Shim j - 80MM(1.8) |
| 7 | 41444-PL3-B00 | Shim d - 80MM(1.3) | Shim d - 80MM(1.3) |
| 7 | 41455-PL3-B00 | Shim q - 80MM(1.55) | Shim q - 80MM(1.55) |
| 7 | 41450-PL3-B00 | Shim k - 80MM(1.05) | Shim k - 80MM(1.05) |
| 7 | 41445-PL3-B00 | Shim e - 80MM(1.4) | Shim e - 80MM(1.4) |
| 7 | 41456-PL3-B00 | Shim r - 80MM(1.65) | Shim r - 80MM(1.65) |
| 7 | 41451-PL3-B00 | Shim l - 80MM(1.15) | Shim l - 80MM(1.15) |
| 7 | 41446-PL3-B00 | Shim f - 80MM(1.5) | Shim f - 80MM(1.5) |
| 7 | 41457-PL3-B00 | Shim s - 80MM(1.75) | Shim s - 80MM(1.75) |
| 7 | 41441-PL3-B00 | Shim a - 80MM(1.0) | Shim a - 80MM(1.0) |
| 7 | 41452-PL3-B00 | Shim m - 80MM(1.25) | Shim m - 80MM(1.25) |
| 7 | 41447-PL3-B00 | Shim g - 80MM(1.6) | Shim g - 80MM(1.6) |
| 7 | 41442-PL3-B00 | Shim b - 80MM(1.1) | Shim b - 80MM(1.1) |
| 7 | 41453-PL3-B00 | Shim n - 80MM(1.35) | Shim n - 80MM(1.35) |
| 7 | 41448-PL3-B00 | Shim h - 80MM(1.7) | Shim h - 80MM(1.7) |
Clutch master cylinder 3 / 25
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 25 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Combination switch 1 / 17
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
Compressor (HADSYS) 3 / 17
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 6 | 38912-P06-006 | Shim set | Shim set |
| 7 | 38913-P06-006 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 8 | 38914-P06-006 | Circlip - EXTERNAL, 35MM | Circlip - EXTERNAL, 35MM |
Condenser 1 / 23
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 16 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
Control unit (CABIN) 4 / 31
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 27 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 27 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 31 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 32 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Control unit (ENGINE ROOM) 6 / 23
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 12 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 13 | 38216-SM4-003 | Fuse - BLOCK (80A) | Fuse - BLOCK (80A) |
| 21 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 21 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 22 | 90129-SP0-000 | Screw-washer - 5X12 | Screw-washer - 5X12 |
Cylinder block/oil pan 4 / 31
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 28 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 30 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 31 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |

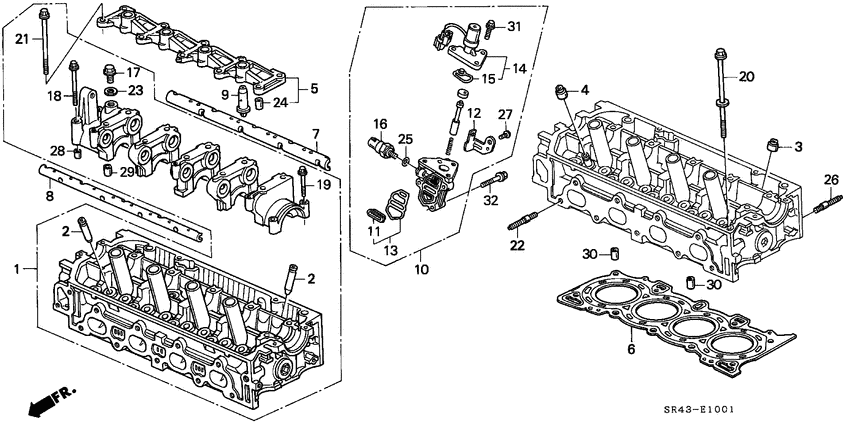

Cylinder head (2) 5 / 31
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 3 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 3 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 4 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 17 | 90004-PE2-005 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
Cylinder head cover 1 / 10
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 10 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
Driveshaft 2 / 27
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
Emblems 1 / 14
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 2 | 17669-SH3-P30 | Label - FUEL FILLER CAUTION (PORTUGAL) | Label - FUEL FILLER CAUTION (PORTUGAL) |
Engine hood 2 / 23
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 15 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
Engine mounts (1) 1 / 31
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 32 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
Engine mounts (2) 1 / 32
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 33 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
Engine wire harness/clamp 5 / 31
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 14 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 16 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 23 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 23 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 25 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |

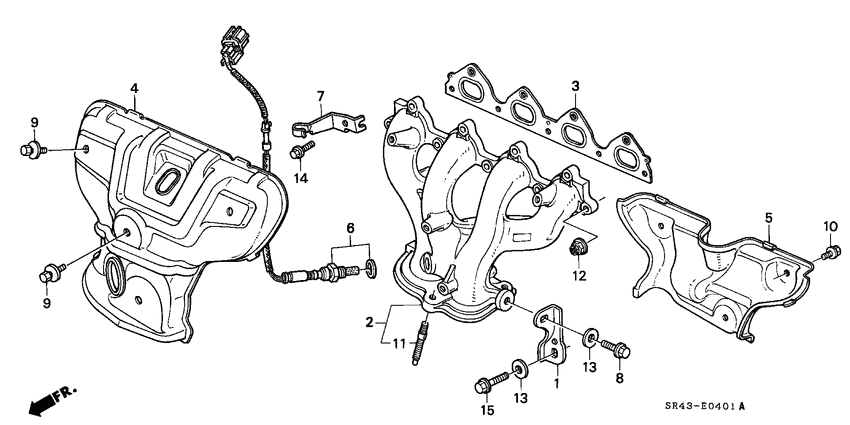

Exhaust manifold (2) 3 / 15
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 8 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 9 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 13 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
Exhaust system 4 / 33
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 24 | 18231-SR3-A22 | Bolt b - FLEXIBLE JOINT | Bolt b - FLEXIBLE JOINT |
| 27 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 37 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Front brake (3) 6 / 22
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 15 | 45240-SA7-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 19 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 20 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 20 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
Front bulkhead 1 / 2
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 36 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Front door lining 2 / 9
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 12 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 16 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door locks 6 / 30
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 5 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 8 | 72123-SR0-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 15 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 30 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 32 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 37 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Front door panels 3 / 16
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 22 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 24 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 26 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Front door windows 1 / 15
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 21 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Front fenders 3 / 11
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 10 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 10 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 13 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Front seat 2 / 8
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
Front shock absorber 2 / 26
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 13 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front wiper (2) 1 / 14
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 11 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
Fuel pipe (2) 3 / 37
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 3 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 33 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 34 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Fuel tank 4 / 38
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 2 | 17371-SR3-003 | Valve - TWO WAY | Valve - TWO WAY |
| 7 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 33 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 36 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Grommet 3 / 16
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 7 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 19 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
Headlight (2) 1 / 23
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 14 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
Headliner trim 2 / 8
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 4 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 28 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
Heater blower 2 / 13
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 13 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 14 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater control 5 / 22
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 20 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 21 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 22 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 25 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Heater unit 1 / 12
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 13 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Hoses/pipes 6 / 26
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 4 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 5 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 21 | 80387-SM4-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 22 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 25 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 26 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
Instrument garnish (2) 7 / 34
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 9 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 36 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 37 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 38 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 43 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 44 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel 4 / 18
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 29 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 31 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 32 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 35 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Interior light 3 / 7
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 7 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
Knuckle 1 / 19
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 17 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Master power 3 / 14
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 3 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 4 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 14 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Meter components 1 / 23
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
Mirror 1 / 7
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 32 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
Molding/protector 4 / 55
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 41 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 41 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 42 | 90308-SB2-013 | Nut - SUSPENSION, 5MM | Nut - SUSPENSION, 5MM |
| 44 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Oil pump/oil strainer 1 / 21
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 10 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
Outer panels 1 / 6
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 29 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
Parking brake 1 / 14
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 16 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Pedal 4 / 38
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 13 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 23 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 30 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 34 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
Power steering lines 1 / 27
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 8 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Radiator (ND) 5 / 16
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 10 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 13 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
Radiator hose 1 / 22
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 19 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |

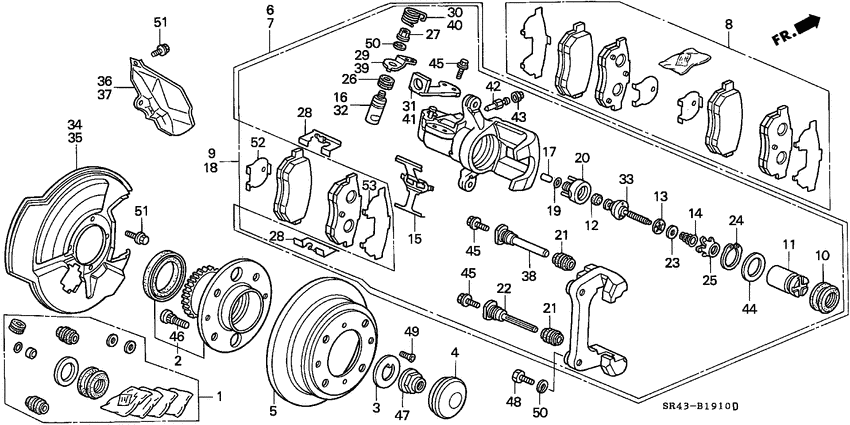

Rear brake (DISK) 15 / 46
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 13 | 43223-SD2-932 | BEARING A | BEARING A |
| 14 | 43224-SD2-931 | Spring b - ADJUSTING | Spring b - ADJUSTING |
| 16 | 43228-SD2-933 | Shaft a | Shaft a |
| 17 | 43229-SD2-931 | Rod | Rod |
| 23 | 43236-S04-003 | Spacer | Spacer |
| 27 | 43243-SD2-931 | Nut - PARKING | Nut - PARKING |
| 30 | 43246-SD2-931 | Spring - R. RETURN | Spring - R. RETURN |
| 32 | 43248-SD2-933 | Shaft b | Shaft b |
| 38 | 43262-S84-A51 | Pin b | Pin b |
| 40 | 43266-SD2-931 | Spring - L. RETURN | Spring - L. RETURN |
| 42 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 43 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 45 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 46 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 46 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
Rear door lining 3 / 10
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 9 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 10 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 12 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door locks 4 / 27
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 8 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 16 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 32 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 36 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Rear door panels 2 / 15
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 23 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 25 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Rear door windows 1 / 11
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 16 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Rear seat 3 / 10
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 19 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
Rear shock absorber 1 / 21
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Seatbelt 1 / 3
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 13 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Select lever 6 / 50
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 49 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 51 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 52 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 53 | 91558-ST5-003 | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
| 54 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Shift fork/fork shaft 1 / 10
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 10 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
Shift rod/shift holder 3 / 20
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 16 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 17 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 20 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
Speed sensor 1 / 4
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 3 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Srs unit (2) 1 / 11
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 12 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Steering column 2 / 13
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 16 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 17 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
Taillight 2 / 34
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 29 | 34901-SB0-671 | Bulb - 12V 5W 3CP) (STANLEY | Bulb - 12V 5W 3CP) (STANLEY |
| 38 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Transmission housing 2 / 81
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 4 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 7 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
Unit (2) 6 / 39
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 29 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 30 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 31 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 32 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 34 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 35 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Valve/rocker arm (2) 2 / 26
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 9 | 14744-PT0-004 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 16 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
Water hose (2) 1 / 7
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 4 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Water valve 3 / 9
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 7 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 9 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Windshield washer 1 / 16
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 11 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
Wire harness 7 / 42
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 7 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 8 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 9 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 19 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 24 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 26 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 30 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| # | OEM | EH5 | EP3 |
|---|---|---|---|
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 3 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 3 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 4 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 4 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 9 | 14744-PT0-004 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 10 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 10 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 3 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 2 | 17371-SR3-003 | Valve - TWO WAY | Valve - TWO WAY |
| 7 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 2 | 17669-SH3-P30 | Label - FUEL FILLER CAUTION (PORTUGAL) | Label - FUEL FILLER CAUTION (PORTUGAL) |
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 13 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 24 | 18231-SR3-A22 | Bolt b - FLEXIBLE JOINT | Bolt b - FLEXIBLE JOINT |
| 27 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 10 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 4 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 4 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 16 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 11 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 13 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 14 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 7 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 9 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 12 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 14 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 7 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
| 29 | 34901-SB0-671 | Bulb - 12V 5W 3CP) (STANLEY | Bulb - 12V 5W 3CP) (STANLEY |
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 14 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 16 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 12 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 13 | 38216-SM4-003 | Fuse - BLOCK (80A) | Fuse - BLOCK (80A) |
| 6 | 38912-P06-006 | Shim set | Shim set |
| 7 | 38913-P06-006 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 8 | 38914-P06-006 | Circlip - EXTERNAL, 35MM | Circlip - EXTERNAL, 35MM |
| 27 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 27 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 7 | 41441-PL3-B00 | Shim a - 80MM(1.0) | Shim a - 80MM(1.0) |
| 7 | 41442-PL3-B00 | Shim b - 80MM(1.1) | Shim b - 80MM(1.1) |
| 7 | 41443-PL3-B00 | Shim c - 80MM(1.2) | Shim c - 80MM(1.2) |
| 7 | 41444-PL3-B00 | Shim d - 80MM(1.3) | Shim d - 80MM(1.3) |
| 7 | 41445-PL3-B00 | Shim e - 80MM(1.4) | Shim e - 80MM(1.4) |
| 7 | 41446-PL3-B00 | Shim f - 80MM(1.5) | Shim f - 80MM(1.5) |
| 7 | 41447-PL3-B00 | Shim g - 80MM(1.6) | Shim g - 80MM(1.6) |
| 7 | 41448-PL3-B00 | Shim h - 80MM(1.7) | Shim h - 80MM(1.7) |
| 7 | 41449-PL3-B00 | Shim j - 80MM(1.8) | Shim j - 80MM(1.8) |
| 7 | 41450-PL3-B00 | Shim k - 80MM(1.05) | Shim k - 80MM(1.05) |
| 7 | 41451-PL3-B00 | Shim l - 80MM(1.15) | Shim l - 80MM(1.15) |
| 7 | 41452-PL3-B00 | Shim m - 80MM(1.25) | Shim m - 80MM(1.25) |
| 7 | 41453-PL3-B00 | Shim n - 80MM(1.35) | Shim n - 80MM(1.35) |
| 7 | 41454-PL3-B00 | Shim p - 80MM(1.45) | Shim p - 80MM(1.45) |
| 7 | 41455-PL3-B00 | Shim q - 80MM(1.55) | Shim q - 80MM(1.55) |
| 7 | 41456-PL3-B00 | Shim r - 80MM(1.65) | Shim r - 80MM(1.65) |
| 7 | 41457-PL3-B00 | Shim s - 80MM(1.75) | Shim s - 80MM(1.75) |
| 13 | 43223-SD2-932 | BEARING A | BEARING A |
| 14 | 43224-SD2-931 | Spring b - ADJUSTING | Spring b - ADJUSTING |
| 16 | 43228-SD2-933 | Shaft a | Shaft a |
| 17 | 43229-SD2-931 | Rod | Rod |
| 23 | 43236-S04-003 | Spacer | Spacer |
| 27 | 43243-SD2-931 | Nut - PARKING | Nut - PARKING |
| 30 | 43246-SD2-931 | Spring - R. RETURN | Spring - R. RETURN |
| 32 | 43248-SD2-933 | Shaft b | Shaft b |
| 38 | 43262-S84-A51 | Pin b | Pin b |
| 40 | 43266-SD2-931 | Spring - L. RETURN | Spring - L. RETURN |
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 15 | 45240-SA7-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 45 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 3 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 4 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 1 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 2 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 23 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 30 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 34 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 13 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 14 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 5 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 8 | 72123-SR0-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 15 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 1 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 30 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 19 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 15 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 19 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 24 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 5 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 21 | 80387-SM4-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 4 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 26 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 25 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 7 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 20 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 17 | 90004-PE2-005 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 6 | 90005-P28-A00 | Bolt-washer - SPECIAL, 6X28 | Bolt-washer - SPECIAL, 6X28 |
| 8 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 16 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 9 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 10 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 13 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 7 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 22 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
| 29 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 36 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 19 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 20 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 20 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 20 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 10 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 41 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 32 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 41 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 11 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 10 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 29 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 22 | 90129-SP0-000 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 28 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
| 36 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 15 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 13 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 26 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 16 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 37 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 19 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 33 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 38 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 26 | 90305-SH3-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |
| 17 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 42 | 90308-SB2-013 | Nut - SUSPENSION, 5MM | Nut - SUSPENSION, 5MM |
| 32 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 14 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 16 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 13 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 32 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 28 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 20 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 13 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 17 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 32 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 35 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 11 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 33 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 12 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 16 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 13 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 31 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 30 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 23 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 23 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 49 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 25 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 24 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 26 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 16 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 21 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 53 | 91558-ST5-003 | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
| 16 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 37 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 36 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 19 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 44 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 22 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 32 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
