検索 › 比較 › EG6 × EH1
EG6
Honda CIVIC — 2,339 中 1,189 共有
EH1
Honda CIVIC — 2,298 中 1,189 共有
Abs accumulator 19 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 2 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 3 | 53729-SP0-003 | Clamp - D15.5 | Clamp - D15.5 |
| 4 | 57070-SR3-013 | Accumulator | Accumulator |
| 5 | 57073-SR3-013 | Label - ACCUMULATOR CAUTION | Label - ACCUMULATOR CAUTION |
| 6 | 57090-SR3-010 | Pipe - ACCUMULATOR | Pipe - ACCUMULATOR |
| 7 | 57310-SR3-023 | Pump assy. - ABS | Pump assy. - ABS |
| 8 | 57336-SR3-003 | Plate - SUCTION | Plate - SUCTION |
| 9 | 57355-SR3-020 | Bracket - POWER UNIT | Bracket - POWER UNIT |
| 10 | 57358-SB0-800 | Mount a - PUMP BRACKET | Mount a - PUMP BRACKET |
| 11 | 57371-SR3-000 | Hose - PUMP | Hose - PUMP |
| 12 | 57375-SR3-010 | Bracket a - PUMP | Bracket a - PUMP |
| 13 | 57376-SF1-800 | Bolt-washer - 6X28 | Bolt-washer - 6X28 |
| 14 | 57376-SR3-000 | Bracket b - PUMP | Bracket b - PUMP |
| 15 | 57380-SR3-003 | Hose - PRESSURE | Hose - PRESSURE |
| 16 | 57390-SR3-013 | Switch assy - PRESSURE | Switch assy - PRESSURE |
| 17 | 90127-SB0-801 | Bolt - SENSOR LOCK, 6X12 | Bolt - SENSOR LOCK, 6X12 |
| 17 | 90118-958-003 | Bolt, flange, 6x12 | Bolt, flange, 6x12 |
| 18 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Abs modulator 21 / 22
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 46175-671-651 | Screw - SOCKET | Screw - SOCKET |
| 3 | 57115-SR3-020 | Bracket - MODULATOR | Bracket - MODULATOR |
| 4 | 57116-SR3-A01 | Bracket - MODULATOR UNIT | Bracket - MODULATOR UNIT |
| 5 | 57117-SP0-305 | Head set b - MODULATOR | Head set b - MODULATOR |
| 6 | 57118-SG0-801 | O-ring - HEAD | O-ring - HEAD |
| 7 | 57119-SR3-003 | Mark - RESERVE TANK (ABS) | Mark - RESERVE TANK (ABS) |
| 8 | 57120-SG0-805 | Piston comp - FR. | Piston comp - FR. |
| 9 | 57121-SG0-801 | Spring - FR. MODULATOR | Spring - FR. MODULATOR |
| 10 | 57140-SG0-805 | Piston comp - RR. | Piston comp - RR. |
| 11 | 57141-SF1-801 | Spring - RR. MODULATOR | Spring - RR. MODULATOR |
| 12 | 57174-SR3-800 | Bracket - COUPLER | Bracket - COUPLER |
| 13 | 57174-SR3-820 | Bracket - COUPLER | Bracket - COUPLER |
| 14 | 57191-SR3-013 | Tank comp. - RESERVE | Tank comp. - RESERVE |
| 15 | 57193-SP0-013 | Filter - TANK | Filter - TANK |
| 16 | 57196-SP0-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 17 | 57198-SP0-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 18 | 57204-SP0-003 | O-ring c - SOLENOID | O-ring c - SOLENOID |
| 19 | 57348-SB0-801 | Bleed - AIR | Bleed - AIR |
| 20 | 57349-SB0-801 | Cap - AIR BLEED | Cap - AIR BLEED |
| 21 | 90105-SG0-003 | Bolt-washer - 8X16 | Bolt-washer - 8X16 |
| 22 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Air cleaner (3) 16 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 3 | 17212-P07-000 | Rubber - AIR CLEANER MOUNTING | Rubber - AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 5 | 17220-P07-000 | Element assy. - AIR CLEANER | Element assy. - AIR CLEANER |
| 7 | 17230-P04-G00 | Chamber assy - RESONATOR | Chamber assy - RESONATOR |
| 8 | 17232-P04-G00 | Seal - RESONATOR RUBBER | Seal - RESONATOR RUBBER |
| 11 | 17243-PD1-000 | Spring - AIR INTAKE TUBE | Spring - AIR INTAKE TUBE |
| 14 | 17249-P07-000 | Rubber - AIR INTAKE SEAL | Rubber - AIR INTAKE SEAL |
| 17 | 17281-P28-G00 | Tube - SIDE BRANCH | Tube - SIDE BRANCH |
| 18 | 17284-PT2-003 | Clamp - TUBE, 44MM | Clamp - TUBE, 44MM |
| 20 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 21 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 22 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
| 22 | 90091-PE2-000 | Bolt-washer - 5X25 | Bolt-washer - 5X25 |
| 23 | 91405-PG7-003 | Clip - HOSE (D13) | Clip - HOSE (D13) |
Air cleaner (PGM-FI) 16 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 3 | 17212-P07-000 | Rubber - AIR CLEANER MOUNTING | Rubber - AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 5 | 17220-P07-000 | Element assy. - AIR CLEANER | Element assy. - AIR CLEANER |
| 8 | 17230-P04-G00 | Chamber assy - RESONATOR | Chamber assy - RESONATOR |
| 9 | 17232-P04-G00 | Seal - RESONATOR RUBBER | Seal - RESONATOR RUBBER |
| 12 | 17243-PD1-000 | Spring - AIR INTAKE TUBE | Spring - AIR INTAKE TUBE |
| 15 | 17249-P07-000 | Rubber - AIR INTAKE SEAL | Rubber - AIR INTAKE SEAL |
| 18 | 17281-P28-G00 | Tube - SIDE BRANCH | Tube - SIDE BRANCH |
| 19 | 17284-PT2-003 | Clamp - TUBE, 44MM | Clamp - TUBE, 44MM |
| 21 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 22 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 23 | 90091-PE2-000 | Bolt-washer - 5X25 | Bolt-washer - 5X25 |
| 23 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
| 24 | 91405-PG7-003 | Clip - HOSE (D13) | Clip - HOSE (D13) |

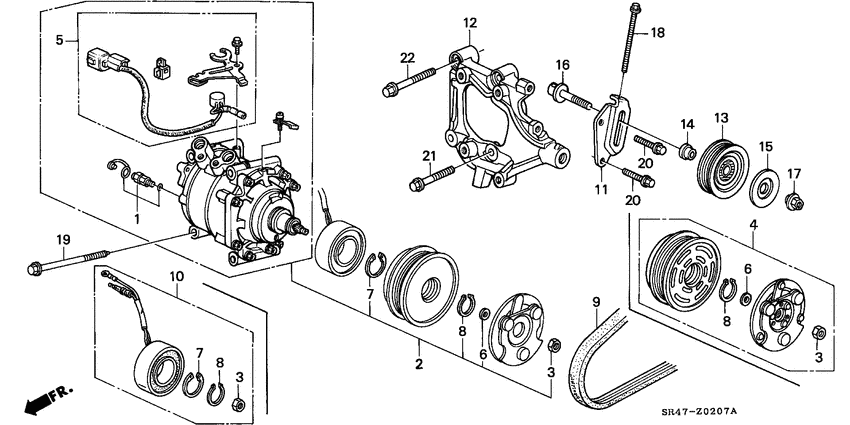

Air con (COMPRESSOR; HADSYS) 10 / 23
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 38801-P06-006 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 2 | 38810-P76-006 | Compressor comp. - HADSYS | Compressor comp. - HADSYS |
| 3 | 38829-P06-006 | Nut | Nut |
| 4 | 38900-P06-006 | Clutch set - COMPRESSOR | Clutch set - COMPRESSOR |
| 5 | 38908-P06-006 | Protector set - THERMAL | Protector set - THERMAL |
| 6 | 38912-P06-006 | Shim set | Shim set |
| 7 | 38913-P06-006 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 8 | 38914-P06-006 | Circlip - EXTERNAL, 35MM | Circlip - EXTERNAL, 35MM |
| 10 | 38924-P06-006 | Coil set - SOLENOID | Coil set - SOLENOID |
| 22 | 90023-P01-000 | Bolt - FLANGE, 8X105 | Bolt - FLANGE, 8X105 |
Air conditioner (CONDENSER) 22 / 22
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 80107-SR3-000 | Bracket - CONDENSER UPPER | Bracket - CONDENSER UPPER |
| 3 | 80110-SR3-023 | Condenser comp. - SAK | Condenser comp. - SAK |
| 4 | 80115-SR3-000 | Seal - UPPER CONDENSER | Seal - UPPER CONDENSER |
| 5 | 80116-SR3-000 | Seal - R. CONDENSER | Seal - R. CONDENSER |
| 6 | 80117-SR3-000 | Seal - L. CONDENSER | Seal - L. CONDENSER |
| 7 | 80151-SR3-013 | Motor - COOLING FAN | Motor - COOLING FAN |
| 8 | 80152-SR3-013 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 9 | 80161-SR3-000 | Shroud comp. - CONDENSER FAN | Shroud comp. - CONDENSER FAN |
| 10 | 80162-SR3-000 | Protector - FAN MOTOR | Protector - FAN MOTOR |
| 11 | 80174-SR3-000 | Mount - R. CONDENSER | Mount - R. CONDENSER |
| 12 | 80175-SR3-000 | Mount - L. CONDENSER | Mount - L. CONDENSER |
| 13 | 80176-SR3-000 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 14 | 80177-SR3-003 | Mount - CONDENSER LOWER | Mount - CONDENSER LOWER |
| 15 | 80373-SR3-000 | Bracket - DISCHARGE HOSE | Bracket - DISCHARGE HOSE |
| 16 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 16 | 80440-SK3-901 | Switch - DUAL PRESSURE (SAGINOMIYA) | Switch - DUAL PRESSURE (SAGINOMIYA) |
| 17 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 18 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 18 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 19 | 90078-PR3-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
| 20 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 21 | 90659-PG6-000 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
Air conditioner (COOLING UNIT; 3) 36 / 36
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 32147-SF1-003 | Connector - DIODE(3P) | Connector - DIODE(3P) |
| 2 | 32148-SF1-003 | Rubber - SEAL | Rubber - SEAL |
| 4 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 6 | 80201-SR3-A10 | Case - EVAPORATOR UPPER | Case - EVAPORATOR UPPER |
| 7 | 80202-SR3-A00 | Case - EVAPORATOR LOWER | Case - EVAPORATOR LOWER |
| 8 | 80205-SR3-A00 | Insulator - EVAPORATOR UPPER | Insulator - EVAPORATOR UPPER |
| 9 | 80206-SR3-A00 | Insulator - EVAPORATOR LOWER | Insulator - EVAPORATOR LOWER |
| 10 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 11 | 80215-ST7-A01 | Evaporator comp. - SAK | Evaporator comp. - SAK |
| 12 | 80220-ST7-A02 | Valve assy. - EXPANSION (10N) (FUJI KOKI) | Valve assy. - EXPANSION (10N) (FUJI KOKI) |
| 13 | 80223-ST7-A01 | O-ring - FUJI KOKI | O-ring - FUJI KOKI |
| 14 | 80225-SR3-000 | Clamp | Clamp |
| 15 | 80271-SR3-A00 | Hose - DRAIN | Hose - DRAIN |
| 16 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 17 | 80282-SM4-A00 | Grommet - THERMOSTAT | Grommet - THERMOSTAT |
| 18 | 80286-SR3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 19 | 80287-SR3-000 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 20 | 80288-SR3-000 | Seal - EVAPORATOR JOINT | Seal - EVAPORATOR JOINT |
| 21 | 80430-SR3-A02 | Thermostat - AIR CONDITIONER | Thermostat - AIR CONDITIONER |
| 22 | 80460-SR3-A02 | Harness - AIR CONDITIONER WIRE | Harness - AIR CONDITIONER WIRE |
| 23 | 80463-SR3-A00 | Bracket - AIR CONDITIONER WIRE HARNESS | Bracket - AIR CONDITIONER WIRE HARNESS |
| 24 | 80464-SR3-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 25 | 80491-SR3-000 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 26 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 27 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 28 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 29 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 30 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 31 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 32 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 33 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 34 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 35 | 91546-SR3-003 | Clamp - 16.5 | Clamp - 16.5 |
| 36 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 37 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 38 | 91619-SA5-000 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
Air conditioner (HOSES/PIPES; 1) 26 / 27
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 38608-SA5-000 | Rubber - MOUNTING | Rubber - MOUNTING |
| 2 | 38609-SA5-000 | Collar - DISTANCE | Collar - DISTANCE |
| 4 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 5 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 6 | 80311-SR3-A02 | Hose comp. - SUCTION (NICHIRIN) | Hose comp. - SUCTION (NICHIRIN) |
| 8 | 80321-SR3-A02 | Pipe a - SUCTION (SAK) | Pipe a - SUCTION (SAK) |
| 9 | 80322-SR3-A02 | Pipe b - SUCTION (SAK) | Pipe b - SUCTION (SAK) |
| 10 | 80331-SR3-013 | Pipe - CONDENSER (SAK) | Pipe - CONDENSER (SAK) |
| 11 | 80341-SR3-A02 | Pipe a - RECEIVER (SAK) | Pipe a - RECEIVER (SAK) |
| 12 | 80342-SR3-A02 | Pipe b - RECEIVER (SAK) | Pipe b - RECEIVER (SAK) |
| 13 | 80343-SR3-A02 | Pipe c - RECEIVER (SAK) | Pipe c - RECEIVER (SAK) |
| 14 | 80351-ST7-003 | Receiver comp | Receiver comp |
| 15 | 80352-SR3-000 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 16 | 80362-SR3-A00 | Clamp - SUCTION HOSE | Clamp - SUCTION HOSE |
| 17 | 80363-SR3-A00 | Stay - SUCTION HOSE | Stay - SUCTION HOSE |
| 18 | 80364-SR3-A00 | Stay - SUCTION PIPE | Stay - SUCTION PIPE |
| 19 | 80367-SR3-A00 | Clamp b - SUCTION PIPE | Clamp b - SUCTION PIPE |
| 20 | 80387-SM4-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 21 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 22 | 90126-SM4-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 23 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
| 24 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 25 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 26 | 91536-SR3-003 | Clip - SUCTION PIPE (BLACK) | Clip - SUCTION PIPE (BLACK) |
| 27 | 80865-ST0-003 | Cap h - VALVE (NICHIRIN) | Cap h - VALVE (NICHIRIN) |
| 28 | 80866-SL0-003 | Cap - VALVE(L) | Cap - VALVE(L) |
Air conditioner (HOSES/PIPES; LH) 25 / 27
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 38608-SA5-000 | Rubber - MOUNTING | Rubber - MOUNTING |
| 2 | 38609-SA5-000 | Collar - DISTANCE | Collar - DISTANCE |
| 4 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 5 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 8 | 80321-SR3-A02 | Pipe a - SUCTION (SAK) | Pipe a - SUCTION (SAK) |
| 9 | 80322-SR3-A02 | Pipe b - SUCTION (SAK) | Pipe b - SUCTION (SAK) |
| 10 | 80331-SR3-013 | Pipe - CONDENSER (SAK) | Pipe - CONDENSER (SAK) |
| 11 | 80341-SR3-A02 | Pipe a - RECEIVER (SAK) | Pipe a - RECEIVER (SAK) |
| 12 | 80342-SR3-A02 | Pipe b - RECEIVER (SAK) | Pipe b - RECEIVER (SAK) |
| 13 | 80343-SR3-A02 | Pipe c - RECEIVER (SAK) | Pipe c - RECEIVER (SAK) |
| 14 | 80351-ST7-003 | Receiver comp | Receiver comp |
| 15 | 80352-SR3-000 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 16 | 80362-SR3-A00 | Clamp - SUCTION HOSE | Clamp - SUCTION HOSE |
| 17 | 80363-SR3-A00 | Stay - SUCTION HOSE | Stay - SUCTION HOSE |
| 18 | 80364-SR3-A00 | Stay - SUCTION PIPE | Stay - SUCTION PIPE |
| 19 | 80367-SR3-A00 | Clamp b - SUCTION PIPE | Clamp b - SUCTION PIPE |
| 20 | 80387-SM4-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 21 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 22 | 90126-SM4-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 23 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
| 24 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 25 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 26 | 91536-SR3-003 | Clip - SUCTION PIPE (BLACK) | Clip - SUCTION PIPE (BLACK) |
| 27 | 80865-ST0-003 | Cap h - VALVE (NICHIRIN) | Cap h - VALVE (NICHIRIN) |
| 28 | 80866-SL0-003 | Cap - VALVE(L) | Cap - VALVE(L) |
Air conditioner (UNIT; LH; '94-) 37 / 37
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 32147-SF1-003 | Connector - DIODE(3P) | Connector - DIODE(3P) |
| 2 | 32148-SF1-003 | Rubber - SEAL | Rubber - SEAL |
| 3 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 5 | 80201-SR3-A10 | Case - EVAPORATOR UPPER | Case - EVAPORATOR UPPER |
| 6 | 80202-SR3-A00 | Case - EVAPORATOR LOWER | Case - EVAPORATOR LOWER |
| 7 | 80205-SR3-A00 | Insulator - EVAPORATOR UPPER | Insulator - EVAPORATOR UPPER |
| 8 | 80206-SR3-A00 | Insulator - EVAPORATOR LOWER | Insulator - EVAPORATOR LOWER |
| 9 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 10 | 80215-ST7-A01 | Evaporator comp. - SAK | Evaporator comp. - SAK |
| 11 | 80220-ST7-A02 | Valve assy. - EXPANSION (10N) (FUJI KOKI) | Valve assy. - EXPANSION (10N) (FUJI KOKI) |
| 12 | 80223-ST7-A01 | O-ring - FUJI KOKI | O-ring - FUJI KOKI |
| 13 | 80225-SR3-000 | Clamp | Clamp |
| 14 | 80271-SR3-A00 | Hose - DRAIN | Hose - DRAIN |
| 15 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 16 | 80282-SM4-A00 | Grommet - THERMOSTAT | Grommet - THERMOSTAT |
| 17 | 80286-SR3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 18 | 80287-SR3-000 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 19 | 80288-SR3-000 | Seal - EVAPORATOR JOINT | Seal - EVAPORATOR JOINT |
| 20 | 80411-SR3-013 | Knob - AIR CONDITIONER SWITCH | Knob - AIR CONDITIONER SWITCH |
| 21 | 80430-SR3-A02 | Thermostat - AIR CONDITIONER | Thermostat - AIR CONDITIONER |
| 22 | 80460-SR3-A02 | Harness - AIR CONDITIONER WIRE | Harness - AIR CONDITIONER WIRE |
| 23 | 80463-SR3-A00 | Bracket - AIR CONDITIONER WIRE HARNESS | Bracket - AIR CONDITIONER WIRE HARNESS |
| 24 | 80464-SR3-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 25 | 80491-SR3-000 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 26 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 27 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 28 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 29 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 30 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 31 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 32 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 33 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 34 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 35 | 91546-SR3-003 | Clamp - 16.5 | Clamp - 16.5 |
| 36 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 37 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 38 | 91619-SA5-000 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
Alternator (DENSO; 2) 4 / 27
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 14 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 16 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 17 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 24 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
Alternator (DENSO; DOHC VTEC) 4 / 27
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 14 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 16 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 17 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 24 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
Auto radio ('94-) 2 / 2
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 15 | 66849-SH3-G00 | Bracket - RADIO | Bracket - RADIO |
| 16 | 91551-SE0-003 | Bolt - FLANGE, 5X7 | Bolt - FLANGE, 5X7 |
Battery (1) 16 / 16
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 31500-SR3-G04 | Battery assy - 55B24L<S>-MF) (YUASA | Battery assy - 55B24L<S>-MF) (YUASA |
| 1 | 31500-SR3-G05 | Battery assy - 55B24L<S>-MF) (PANASONIC | Battery assy - 55B24L<S>-MF) (PANASONIC |
| 2 | 31512-SR3-000 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 3 | 31513-SR3-000 | Bolt - BATTERY SETTING | Bolt - BATTERY SETTING |
| 4 | 31521-SR3-000 | Box assy - BATTERY | Box assy - BATTERY |
| 6 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 6 | 31542-SA5-664 | Plug - VENT (MF) (YUASA) | Plug - VENT (MF) (YUASA) |
| 7 | 32115-P01-000 | Stay - ENGINE WIRE HARNESS CLAMP | Stay - ENGINE WIRE HARNESS CLAMP |
| 8 | 32410-SR3-A42 | Cable assy - STARTER | Cable assy - STARTER |
| 9 | 32414-SR3-000 | Clamp a - STARTER CABLE | Clamp a - STARTER CABLE |
| 10 | 32416-SR3-A00 | Clamp c - STARTER CABLE | Clamp c - STARTER CABLE |
| 11 | 32600-SR3-A01 | Cable assy - BATTERY EARTH | Cable assy - BATTERY EARTH |
| 12 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 14 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 15 | 90337-SJ4-003 | Nut - A.L.B. | Nut - A.L.B. |
Battery (LH) 17 / 17
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 31500-SR3-G05 | Battery assy - 55B24L<S>-MF) (PANASONIC | Battery assy - 55B24L<S>-MF) (PANASONIC |
| 1 | 31500-SR3-G04 | Battery assy - 55B24L<S>-MF) (YUASA | Battery assy - 55B24L<S>-MF) (YUASA |
| 2 | 31512-SR3-000 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 3 | 31513-SR3-000 | Bolt - BATTERY SETTING | Bolt - BATTERY SETTING |
| 4 | 31521-SR3-000 | Box assy - BATTERY | Box assy - BATTERY |
| 5 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 5 | 31542-SA5-664 | Plug - VENT (MF) (YUASA) | Plug - VENT (MF) (YUASA) |
| 6 | 32115-P01-000 | Stay - ENGINE WIRE HARNESS CLAMP | Stay - ENGINE WIRE HARNESS CLAMP |
| 7 | 32410-SR3-A42 | Cable assy - STARTER | Cable assy - STARTER |
| 8 | 32414-SR3-000 | Clamp a - STARTER CABLE | Clamp a - STARTER CABLE |
| 9 | 32416-SR3-A00 | Clamp c - STARTER CABLE | Clamp c - STARTER CABLE |
| 10 | 32600-SR3-A01 | Cable assy - BATTERY EARTH | Cable assy - BATTERY EARTH |
| 11 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 12 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 13 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 14 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 15 | 90337-SJ4-003 | Nut - A.L.B. | Nut - A.L.B. |
Body structure components (1) 1 / 1
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 37 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Body structure components (3) 3 / 5
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 28 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 29 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 32 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
Body structure components (FRONT BULKHEAD) 1 / 1
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 37 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Body structure components (OUTER PANEL) 3 / 5
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 27 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 28 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 31 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
Brake line (SRS; LH) 26 / 33
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 01464-SR3-N03 | Hose set - R. FR. BRAKE | Hose set - R. FR. BRAKE |
| 2 | 01465-SR3-N02 | Hose set - L. FR. BRAKE | Hose set - L. FR. BRAKE |
| 7 | 46374-SR3-A01 | Pipe comp. u - BRAKE | Pipe comp. u - BRAKE |
| 8 | 46375-SR3-A01 | Pipe comp. v - BRAKE | Pipe comp. v - BRAKE |
| 9 | 46376-SR3-A00 | Pipe comp. w - BRAKE | Pipe comp. w - BRAKE |
| 10 | 46377-SR3-A02 | Pipe comp. x - BRAKE | Pipe comp. x - BRAKE |
| 11 | 46378-SR3-A00 | Pipe comp. y - BRAKE | Pipe comp. y - BRAKE |
| 12 | 46379-SR3-A00 | Pipe comp. z - BRAKE | Pipe comp. z - BRAKE |
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 14 | 46391-SR3-J00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 16 | 46391-SR3-922 | Clip b - BRAKE PIPE | Clip b - BRAKE PIPE |
| 17 | 46391-SR3-931 | Clip d - BRAKE PIPE | Clip d - BRAKE PIPE |
| 18 | 46391-SR3-942 | Clip e - BRAKE PIPE | Clip e - BRAKE PIPE |
| 19 | 46392-SR3-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 20 | 46392-SR3-910 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 21 | 46392-SR3-931 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 22 | 46393-SM4-951 | Clip c | Clip c |
| 23 | 46394-SH3-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 24 | 46410-SR3-N05 | Hose - R. FR. BRAKE (NICHIRIN) | Hose - R. FR. BRAKE (NICHIRIN) |
| 25 | 46411-SR3-N05 | Hose - L. FR. BRAKE (NICHIRIN) | Hose - L. FR. BRAKE (NICHIRIN) |
| 28 | 46460-SR3-801 | Joint assy. - FOUR WAY | Joint assy. - FOUR WAY |
| 29 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 30 | 46470-SH9-802 | Joint - FOUR WAY | Joint - FOUR WAY |
| 31 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 34 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 39 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Brake lines (3) 25 / 30
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 01464-SR3-N03 | Hose set - R. FR. BRAKE | Hose set - R. FR. BRAKE |
| 2 | 01465-SR3-N02 | Hose set - L. FR. BRAKE | Hose set - L. FR. BRAKE |
| 7 | 46374-SR3-A01 | Pipe comp. u - BRAKE | Pipe comp. u - BRAKE |
| 8 | 46375-SR3-A01 | Pipe comp. v - BRAKE | Pipe comp. v - BRAKE |
| 9 | 46376-SR3-A00 | Pipe comp. w - BRAKE | Pipe comp. w - BRAKE |
| 10 | 46377-SR3-A02 | Pipe comp. x - BRAKE | Pipe comp. x - BRAKE |
| 11 | 46378-SR3-A00 | Pipe comp. y - BRAKE | Pipe comp. y - BRAKE |
| 12 | 46379-SR3-A00 | Pipe comp. z - BRAKE | Pipe comp. z - BRAKE |
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 14 | 46391-SR3-J00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 16 | 46391-SR3-922 | Clip b - BRAKE PIPE | Clip b - BRAKE PIPE |
| 17 | 46391-SR3-931 | Clip d - BRAKE PIPE | Clip d - BRAKE PIPE |
| 18 | 46391-SR3-942 | Clip e - BRAKE PIPE | Clip e - BRAKE PIPE |
| 19 | 46392-SR3-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 20 | 46392-SR3-910 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 21 | 46392-SR3-931 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 22 | 46393-SM4-951 | Clip c | Clip c |
| 23 | 46394-SH3-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 24 | 46395-SR3-A01 | Clip c - BRAKE PIPE | Clip c - BRAKE PIPE |
| 25 | 46460-SR3-801 | Joint assy. - FOUR WAY | Joint assy. - FOUR WAY |
| 26 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 27 | 46470-SH9-802 | Joint - FOUR WAY | Joint - FOUR WAY |
| 28 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 29 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 30 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake master cylinder/ master power (2) 27 / 28
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 46100-SR3-832 | Cylinder assy. - MASTER | Cylinder assy. - MASTER |
| 1 | 06464-SM4-000 | Power set - MASTER (7"+8") | Power set - MASTER (7"+8") |
| 2 | 46138-SM4-003 | Packing | Packing |
| 2 | 46070-SL0-G01 | Plate - SYMBOL MARK | Plate - SYMBOL MARK |
| 3 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 4 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 5 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 6 | 46400-SM4-003 | Power assy. - MASTER (7"+8") | Power assy. - MASTER (7"+8") |
| 7 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 9 | 46405-SR3-A20 | Tube b - MASTER POWER | Tube b - MASTER POWER |
| 10 | 46406-SR3-000 | Stay - MASTER POWER TUBE | Stay - MASTER POWER TUBE |
| 11 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 12 | 46660-SE3-013 | Tank - RESERVE | Tank - RESERVE |
| 13 | 46662-SK7-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 14 | 46665-ST5-003 | Band - RESERVE TANK | Band - RESERVE TANK |
| 15 | 46666-SE3-013 | Filter - MASTER CYLINDER | Filter - MASTER CYLINDER |
| 16 | 46669-SE3-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 17 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 18 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 19 | 57515-SM4-013 | Bolt comp - STOPPER | Bolt comp - STOPPER |
| 20 | 57520-SE0-013 | Piston assy. - PRIMARY | Piston assy. - PRIMARY |
| 20 | 57520-SE0-023 | Piston assy. - PRIMARY | Piston assy. - PRIMARY |
| 21 | 57540-SE0-013 | Piston assy. - SECONDARY | Piston assy. - SECONDARY |
| 21 | 57540-SE0-023 | Piston assy. - SECONDARY | Piston assy. - SECONDARY |
| 22 | 57560-SE0-003 | Guide assy - PISTON | Guide assy - PISTON |
| 23 | 57562-SF1-003 | Circlip | Circlip |
| 24 | 90139-ST7-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
Breather chamber 3 / 13
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 13 | 17130-P0A-003 | Valve assy. - PCV | Valve assy. - PCV |
| 13 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 21 | 91405-P05-A01 | Clamp - TUBE (D13.8) | Clamp - TUBE (D13.8) |
Bumper 10 / 17
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 4 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 5 | 71145-SR3-G00 | Base - FR. LICENSE PLATE | Base - FR. LICENSE PLATE |
| 5 | 71145-S10-G01 | Bracket - FR. LICENSE PLATE | Bracket - FR. LICENSE PLATE |
| 10 | 90101-SE0-010 | Bolt assy. b - BUMPER | Bolt assy. b - BUMPER |
| 12 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 14 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 15 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 16 | 90121-SA7-000 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 17 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 19 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
Bumpers (1) 7 / 13
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 10 | 90101-SE0-010 | Bolt assy. b - BUMPER | Bolt assy. b - BUMPER |
| 12 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 14 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 16 | 90121-SA7-000 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 17 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 19 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
Camshaft/timing belt (4) 1 / 25
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 17 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
Camshaft/timing belt (DOHC VTEC) 1 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 17 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
Clutch housing (2) 3 / 36
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 5 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 16 | 91216-PH8-003 | Oil seal - 28X41X7 (ARAI) | Oil seal - 28X41X7 (ARAI) |
| 16 | 91216-PH8-005 | Oil seal - 28X41X7 (NOK) | Oil seal - 28X41X7 (NOK) |
Clutch housing (DOHC VTEC) 3 / 36
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 5 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 16 | 91216-PH8-005 | Oil seal - 28X41X7 (NOK) | Oil seal - 28X41X7 (NOK) |
| 16 | 91216-PH8-003 | Oil seal - 28X41X7 (ARAI) | Oil seal - 28X41X7 (ARAI) |
Clutch master cylinder (1) 35 / 36
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 4 | 46164-632-000 | Float | Float |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 7 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 9 | 46920-SR3-A01 | Cylinder assy. - CLUTCH MASTER | Cylinder assy. - CLUTCH MASTER |
| 11 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 12 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 13 | 46930-SR3-013 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 14 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 15 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 16 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 17 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 18 | 46937-SR3-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 19 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 20 | 46939-SR3-A01 | Joint - CLUTCH PIPE | Joint - CLUTCH PIPE |
| 21 | 46950-SL4-003 | Rod assy - PUSH | Rod assy - PUSH |
| 22 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 23 | 46953-SD4-003 | Packing | Packing |
| 24 | 46960-SR3-A00 | Pipe comp - CLUTCH (A) | Pipe comp - CLUTCH (A) |
| 25 | 46961-SR2-G01 | Hose - CLUTCH (HIGH EXPANSION) | Hose - CLUTCH (HIGH EXPANSION) |
| 26 | 46966-SR3-A00 | Holder - TANK | Holder - TANK |
| 28 | 46971-SR3-A00 | Tube - CLUTCH FLUID | Tube - CLUTCH FLUID |
| 29 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 30 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 31 | 46975-SD4-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 32 | 46980-SR3-A00 | Pipe comp - CLUTCH | Pipe comp - CLUTCH |
| 33 | 46995-SR3-A00 | Bracket a - CLUTCH PIPE | Bracket a - CLUTCH PIPE |
| 34 | 46996-SR3-000 | Bracket b - CLUTCH PIPE | Bracket b - CLUTCH PIPE |
| 35 | 46997-SR3-J01 | Clip - CLUTCH PIPE | Clip - CLUTCH PIPE |
| 36 | 46998-SR3-A00 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 37 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 45 | 46918-ST7-000 | Clamp - TUBE (D10.5) | Clamp - TUBE (D10.5) |
Clutch master cylinder (LH) 35 / 36
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 4 | 46164-632-000 | Float | Float |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 7 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 9 | 46918-ST7-000 | Clamp - TUBE (D10.5) | Clamp - TUBE (D10.5) |
| 10 | 46920-SR3-A01 | Cylinder assy. - CLUTCH MASTER | Cylinder assy. - CLUTCH MASTER |
| 12 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 13 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 14 | 46930-SR3-013 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 15 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 16 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 17 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 18 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 19 | 46937-SR3-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 20 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 21 | 46939-SR3-A01 | Joint - CLUTCH PIPE | Joint - CLUTCH PIPE |
| 22 | 46950-SL4-003 | Rod assy - PUSH | Rod assy - PUSH |
| 23 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 24 | 46953-SD4-003 | Packing | Packing |
| 25 | 46960-SR3-A00 | Pipe comp - CLUTCH (A) | Pipe comp - CLUTCH (A) |
| 26 | 46961-SR2-G01 | Hose - CLUTCH (HIGH EXPANSION) | Hose - CLUTCH (HIGH EXPANSION) |
| 27 | 46966-SR3-A00 | Holder - TANK | Holder - TANK |
| 29 | 46971-SR3-A00 | Tube - CLUTCH FLUID | Tube - CLUTCH FLUID |
| 30 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 31 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 32 | 46975-SD4-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 33 | 46980-SR3-A00 | Pipe comp - CLUTCH | Pipe comp - CLUTCH |
| 34 | 46995-SR3-A00 | Bracket a - CLUTCH PIPE | Bracket a - CLUTCH PIPE |
| 35 | 46996-SR3-000 | Bracket b - CLUTCH PIPE | Bracket b - CLUTCH PIPE |
| 36 | 46997-SR3-J01 | Clip - CLUTCH PIPE | Clip - CLUTCH PIPE |
| 37 | 46998-SR3-A00 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 38 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Clutch release (2) 5 / 12
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 7 | 23811-P36-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 9 | 90003-P03-000 | Bolt-washer - 6X26 | Bolt-washer - 6X26 |
| 10 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 11 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 12 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
Clutch release (DOHC VTEC) 5 / 12
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 7 | 23811-P36-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 9 | 90003-P03-000 | Bolt-washer - 6X26 | Bolt-washer - 6X26 |
| 10 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 11 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 12 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
Clutch/torque converter 3 / 8
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 11 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 13 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
| 13 | 91006-634-004 | Bearing - CLUTCH PILOT (KOYO) | Bearing - CLUTCH PILOT (KOYO) |
Combination switch 15 / 22
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 04352-SR3-A00 | Shoe set - HORN (SERVICE) | Shoe set - HORN (SERVICE) |
| 3 | 35100-SR3-G02 | Lock assy - STEERING | Lock assy - STEERING |
| 4 | 35102-SG0-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 5 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 6 | 35113-SH3-G02 | Key - BLANK (MAIN) (MOLD=BLACK) | Key - BLANK (MAIN) (MOLD=BLACK) |
| 7 | 35130-SR3-A01 | Switch comp - STEERING | Switch comp - STEERING |
| 9 | 35251-SR3-003 | Body - SWITCH | Body - SWITCH |
| 10 | 35255-SR3-G02 | Switch assy - LIGHTING (B) | Switch assy - LIGHTING (B) |
| 13 | 35259-SR3-A02 | Shoe - HORN | Shoe - HORN |
| 14 | 35400-SL4-003 | Switch assy - DOOR | Switch assy - DOOR |
| 15 | 35401-SL4-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 16 | 35409-692-013 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 17 | 53271-SR3-000 | Cam - TURN SIGNAL SWITCH CANCEL | Cam - TURN SIGNAL SWITCH CANCEL |
| 18 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Console 4 / 7
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 13 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 14 | 90153-SB6-003 | Bolt - EARTH, 6X12(ZN) | Bolt - EARTH, 6X12(ZN) |
| 15 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 16 | 91647-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Control unit (CABIN; 1) 12 / 17
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 37821-P05-A00 | Cover - ELECTRONIC CONTROL UNIT HARNESS | Cover - ELECTRONIC CONTROL UNIT HARNESS |
| 7 | 38203-SR3-A00 | Bracket - L. FUSE BOX | Bracket - L. FUSE BOX |
| 8 | 38205-SR3-G02 | Label - FUSE | Label - FUSE |
| 11 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 12 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 12 | 38300-SE3-004 | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) |
| 13 | 38380-SR3-003 | Control unit - AUTO DOOR LOCK (MITSUBA) | Control unit - AUTO DOOR LOCK (MITSUBA) |
| 15 | 39400-SR3-003 | Relay assy - MAIN (RZ-0132) (MITSUBA) | Relay assy - MAIN (RZ-0132) (MITSUBA) |
| 15 | 39400-S10-003 | Relay assy - MAIN (MITSUBA) | Relay assy - MAIN (MITSUBA) |
| 18 | 39793-SR3-A01 | Relay assy - POWER (5P) (SUNROOF) | Relay assy - POWER (5P) (SUNROOF) |
| 19 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 23 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Control unit (CABIN; LH) 15 / 21
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 37821-P05-A00 | Cover - ELECTRONIC CONTROL UNIT HARNESS | Cover - ELECTRONIC CONTROL UNIT HARNESS |
| 3 | 38200-SR3-G12 | Box assy - JOINT | Box assy - JOINT |
| 4 | 38203-SR3-A00 | Bracket - L. FUSE BOX | Bracket - L. FUSE BOX |
| 5 | 38205-SR3-G02 | Label - FUSE | Label - FUSE |
| 8 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 9 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 9 | 38300-SE3-004 | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) |
| 11 | 38380-SR3-003 | Control unit - AUTO DOOR LOCK (MITSUBA) | Control unit - AUTO DOOR LOCK (MITSUBA) |
| 12 | 38600-SH3-G11 | Control unit - INTEGRATED (LIGHTING ALARM) | Control unit - INTEGRATED (LIGHTING ALARM) |
| 13 | 39400-SR3-003 | Relay assy - MAIN (RZ-0132) (MITSUBA) | Relay assy - MAIN (RZ-0132) (MITSUBA) |
| 13 | 39400-S10-003 | Relay assy - MAIN (MITSUBA) | Relay assy - MAIN (MITSUBA) |
| 16 | 39793-SR3-A01 | Relay assy - POWER (5P) (SUNROOF) | Relay assy - POWER (5P) (SUNROOF) |
| 17 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 20 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 21 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Control unit (ENGINE ROOM; 1) 18 / 18
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 3 | 32230-SR3-A01 | Harness - ABS FUSE BOX | Harness - ABS FUSE BOX |
| 5 | 38150-SR3-003 | Horn assy - HIGH (MITSUBA) | Horn assy - HIGH (MITSUBA) |
| 6 | 38211-SM4-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 7 | 38212-SM4-003 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 8 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 9 | 38216-SM4-003 | Fuse - BLOCK (80A) | Fuse - BLOCK (80A) |
| 10 | 38231-SR3-A00 | Bracket - ABS FUSE BOX | Bracket - ABS FUSE BOX |
| 11 | 38232-SR3-A00 | Stay - ABS COUPLER | Stay - ABS COUPLER |
| 12 | 38250-SR3-G01 | Box assy - MAIN FUSE | Box assy - MAIN FUSE |
| 13 | 38251-SR3-A01 | Cover - UPPER | Cover - UPPER |
| 14 | 38252-SR3-003 | Cover - LOWER | Cover - LOWER |
| 15 | 39792-SP0-004 | Relay assy - POWER (4P) (MITSUBA) (12V NO) | Relay assy - POWER (4P) (MITSUBA) (12V NO) |
| 16 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 16 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 18 | 90129-SP0-000 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 19 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 20 | 90153-SB2-003 | Screw-washer - 5X10 | Screw-washer - 5X10 |
Control unit (ENGINE ROOM; LH) 18 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 2 | 32230-SR3-A01 | Harness - ABS FUSE BOX | Harness - ABS FUSE BOX |
| 3 | 38150-SR3-003 | Horn assy - HIGH (MITSUBA) | Horn assy - HIGH (MITSUBA) |
| 4 | 38211-SM4-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 5 | 38212-SM4-003 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 6 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 7 | 38216-SM4-003 | Fuse - BLOCK (80A) | Fuse - BLOCK (80A) |
| 8 | 38231-SR3-A00 | Bracket - ABS FUSE BOX | Bracket - ABS FUSE BOX |
| 9 | 38232-SR3-A00 | Stay - ABS COUPLER | Stay - ABS COUPLER |
| 12 | 38250-SR3-G01 | Box assy - MAIN FUSE | Box assy - MAIN FUSE |
| 13 | 38251-SR3-A01 | Cover - UPPER | Cover - UPPER |
| 14 | 38252-SR3-003 | Cover - LOWER | Cover - LOWER |
| 15 | 39792-SP0-004 | Relay assy - POWER (4P) (MITSUBA) (12V NO) | Relay assy - POWER (4P) (MITSUBA) (12V NO) |
| 16 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 16 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 18 | 90129-SP0-000 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 19 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 20 | 90153-SB2-003 | Screw-washer - 5X10 | Screw-washer - 5X10 |
Countershaft (2) 2 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 10 | 23926-P21-000 | Washer - SPRING, 23MM | Washer - SPRING, 23MM |
| 11 | 90202-PH8-000 | Nut - HEX., 23MM | Nut - HEX., 23MM |
Countershaft (DOHC VTEC) 2 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 10 | 23926-P21-000 | Washer - SPRING, 23MM | Washer - SPRING, 23MM |
| 11 | 90202-PH8-000 | Nut - HEX., 23MM | Nut - HEX., 23MM |
Cylinder block/oil pan (2) 9 / 30
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 19 | 90008-PR3-000 | Bolt A, ENGINE MOUNT BRACKET (10X60) | Bolt A, ENGINE MOUNT BRACKET (10X60) |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 23 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 24 | 90084-657-000 | Bolt - SEALING, 16X9.5 | Bolt - SEALING, 16X9.5 |
| 25 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 26 | 90443-PA5-000 | Washer - SEALING, 16MM | Washer - SEALING, 16MM |
| 27 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 28 | 91214-PLE-003 | Oil seal | Oil seal |
Cylinder block/oil pan (DOHC VTEC) 7 / 28
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 19 | 90008-PR3-000 | Bolt A, ENGINE MOUNT BRACKET (10X60) | Bolt A, ENGINE MOUNT BRACKET (10X60) |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 23 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 25 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 27 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 28 | 91214-PLE-003 | Oil seal | Oil seal |
Cylinder head (4) 15 / 32
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 10 | 15815-PR3-000 | Filter, SPOOL VALVE | Filter, SPOOL VALVE |
| 10 | 15815-PR3-004 | Filter comp - SPOOL VALVE | Filter comp - SPOOL VALVE |
| 12 | 15825-P08-005 | Filter and Gasket, SPOOL VALVE | Filter and Gasket, SPOOL VALVE |
| 13 | 36171-P08-005 | Solenoid assy. | Solenoid assy. |
| 14 | 36172-P08-015 | Packing, SOLENOID BASE | Packing, SOLENOID BASE |
| 15 | 37250-PR3-003 | Switch assy - VALVE TIMING OIL PRESSURE | Switch assy - VALVE TIMING OIL PRESSURE |
| 18 | 90004-PE2-005 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 21 | 90026-PE0-000 | Bolt - STUD, 8X37 | Bolt - STUD, 8X37 |
| 21 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 25 | 91319-PR3-000 | O-ring - 13X1.5 | O-ring - 13X1.5 |
| 25 | 91319-PR3-003 | O-ring - 13X1.5 (ARAI) | O-ring - 13X1.5 (ARAI) |
Cylinder head (DOHC VTEC) 15 / 32
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 10 | 15815-PR3-000 | Filter, SPOOL VALVE | Filter, SPOOL VALVE |
| 10 | 15815-PR3-004 | Filter comp - SPOOL VALVE | Filter comp - SPOOL VALVE |
| 12 | 15825-P08-005 | Filter and Gasket, SPOOL VALVE | Filter and Gasket, SPOOL VALVE |
| 13 | 36171-P08-005 | Solenoid assy. | Solenoid assy. |
| 14 | 36172-P08-015 | Packing, SOLENOID BASE | Packing, SOLENOID BASE |
| 15 | 37250-PR3-003 | Switch assy - VALVE TIMING OIL PRESSURE | Switch assy - VALVE TIMING OIL PRESSURE |
| 18 | 90004-PE2-005 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 21 | 90026-PE0-000 | Bolt - STUD, 8X37 | Bolt - STUD, 8X37 |
| 21 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 26 | 91319-PR3-000 | O-ring - 13X1.5 | O-ring - 13X1.5 |
| 26 | 91319-PR3-003 | O-ring - 13X1.5 (ARAI) | O-ring - 13X1.5 (ARAI) |
Cylinder head cover (2) 2 / 14
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 10 | 15610-PC6-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 11 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
Cylinder head cover (VTEC) 2 / 14
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 10 | 15610-PC6-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 11 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
Distributor (TEC) 9 / 12
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 30102-P54-006 | Cap assy. | Cap assy. |
| 3 | 30103-P08-003 | Distributor Rotor Head Assembly | Distributor Rotor Head Assembly |
| 5 | 30107-P08-006 | Cover - LEAK | Cover - LEAK |
| 6 | 30110-PA1-732 | O-ring - 26.4X3.1 (TEC) | O-ring - 26.4X3.1 (TEC) |
| 9 | 30130-P06-006 | Igniter unit - E12-303) (HITACHI | Igniter unit - E12-303) (HITACHI |
| 10 | 30132-PT2-006 | Packing - CAP | Packing - CAP |
| 11 | 30135-P08-006 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 11 | 30135-P73-004 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 12 | 30510-PT2-006 | Ignition Coil | Ignition Coil |
Door lining 5 / 6
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 8 | 83508-SR3-000 | Bracket assy - PULL POCKET | Bracket assy - PULL POCKET |
| 16 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 17 | 90678-SK7-003 | Clip - SPEAKER | Clip - SPEAKER |
| 19 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 19 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Door locks 17 / 30
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 72123-SR0-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 8 | 72130-SR3-A01 | Protector - R. DOOR CYLINDER | Protector - R. DOOR CYLINDER |
| 10 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 11 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 14 | 72140-SR3-013 | Handle assy - R. FR. DOOR OUTSIDE | Handle assy - R. FR. DOOR OUTSIDE |
| 15 | 72145-SR3-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 16 | 72146-SR3-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 25 | 72170-SR3-A01 | Protector - L. DOOR CYLINDER | Protector - L. DOOR CYLINDER |
| 26 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 27 | 72180-SR3-013 | Handle assy - L. FR. OUTSIDE | Handle assy - L. FR. OUTSIDE |
| 28 | 75513-SB2-000 | Cushion - LOCK ROD (35MMX58MM) | Cushion - LOCK ROD (35MMX58MM) |
| 29 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 30 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 32 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 33 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 34 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 35 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Door panels 8 / 17
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 18 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 19 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 20 | 90001-SD2-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 21 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 22 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 23 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 24 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 25 | 91534-SR3-003 | Clip - DOOR SUB SEAL | Clip - DOOR SUB SEAL |
Door windows 6 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 8 | 72246-SR3-003 | Stopper - DOOR GLASS | Stopper - DOOR GLASS |
| 18 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 19 | 90115-SG0-003 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 20 | 90120-SE3-003 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 21 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 22 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Driveshaft/half shaft 21 / 31
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 44017-SR3-900 | Boot set - INBOARD | Boot set - INBOARD |
| 3 | 44017-SR3-901 | Boot set | Boot set |
| 6 | 44310-SL5-N00 | Joint comp - INBOARD | Joint comp - INBOARD |
| 7 | 44328-SB0-300 | Band - INBOARD BOOT | Band - INBOARD BOOT |
| 8 | 44329-SB0-300 | Band - DRIVESHAFT BOOT | Band - DRIVESHAFT BOOT |
| 8 | 44352-SA2-300 | Band - DAMPER WEIGHT | Band - DAMPER WEIGHT |
| 9 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44336-SB0-300 | Ring a - STOPPER | Ring a - STOPPER |
| 12 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 13 | 44347-SF1-003 | Ring - OUTBOARD | Ring - OUTBOARD |
| 19 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 20 | 90305-692-010 | Nut | Nut |
| 21 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 22 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 23 | 91260-SR3-003 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
| 23 | 91260-SR3-004 | Seal - HALF SHAFT OUTER (ARAI) | Seal - HALF SHAFT OUTER (ARAI) |
| 26 | 44018-SR3-C53 | Boot set - OUTBOARD | Boot set - OUTBOARD |
| 26 | 44018-SR3-C56 | Boot set | Boot set |
| 27 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 28 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
Emblem 6 / 8
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 17669-SM4-G31 | Label - FUEL FILLER CAUTION | Label - FUEL FILLER CAUTION |
| 2 | 19043-P01-E01 | Label - COOLANT CAUTION | Label - COOLANT CAUTION |
| 4 | 57079-SR3-E00 | Plate - ABS CAUTION | Plate - ABS CAUTION |
| 5 | 75700-SR3-000 | Emblem - CENTER (H) | Emblem - CENTER (H) |
| 21 | 87125-041-680 | Honda Motor Co., Made In Japan, Sticker | Honda Motor Co., Made In Japan, Sticker |
| 22 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Emblems 3 / 7
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 4 | 57079-SR3-E00 | Plate - ABS CAUTION | Plate - ABS CAUTION |
| 5 | 75700-SR3-000 | Emblem - CENTER (H) | Emblem - CENTER (H) |
| 17 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine mounts 21 / 31
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 50200-SR3-H50 | Beam - RR. (POWER STEERING) | Beam - RR. (POWER STEERING) |
| 2 | 50203-SR3-010 | Collar - RR. BEAM | Collar - RR. BEAM |
| 11 | 50810-SR3-030 | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) |
| 24 | 90131-ST7-000 | Bolt - L. FR. STOPPER | Bolt - L. FR. STOPPER |
| 25 | 90133-SR3-010 | Bolt - R. FR. STOPPER | Bolt - R. FR. STOPPER |
| 26 | 90161-SR3-000 | Bolt - FLANGE, 14X107 | Bolt - FLANGE, 14X107 |
| 28 | 90162-SR3-000 | Bolt - FLANGE, 14X60 | Bolt - FLANGE, 14X60 |
| 29 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 30 | 90166-SR3-000 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 31 | 90167-SR3-000 | Bolt - FLANGE, 14X120 | Bolt - FLANGE, 14X120 |
| 33 | 90176-SK7-013 | Bolt - FLANGE, 10X31 | Bolt - FLANGE, 10X31 |
| 34 | 90182-SR3-000 | Bolt - FLANGE, 12X112 | Bolt - FLANGE, 12X112 |
| 35 | 90183-SR3-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 38 | 90188-SR3-010 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 39 | 90190-SR3-000 | Bolt - FLANGE, 12X64 | Bolt - FLANGE, 12X64 |
| 41 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 42 | 90372-SR3-003 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 43 | 90380-SR3-000 | Bolt - STUD, 12X57.6 | Bolt - STUD, 12X57.6 |
| 44 | 90504-SR3-010 | Washer - FR. STOPPER | Washer - FR. STOPPER |
| 45 | 90505-SB2-000 | Washer - SIDE MOUNTING | Washer - SIDE MOUNTING |
| 46 | 90505-SR3-000 | Washer - RR. BRACKET, 14MM | Washer - RR. BRACKET, 14MM |
Engine mounts (MT) 21 / 33
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 50200-SR3-H50 | Beam - RR. (POWER STEERING) | Beam - RR. (POWER STEERING) |
| 3 | 50203-SR3-010 | Collar - RR. BEAM | Collar - RR. BEAM |
| 9 | 50810-SR3-030 | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) |
| 19 | 90131-ST7-000 | Bolt - L. FR. STOPPER | Bolt - L. FR. STOPPER |
| 20 | 90133-SR3-010 | Bolt - R. FR. STOPPER | Bolt - R. FR. STOPPER |
| 21 | 90161-SR3-000 | Bolt - FLANGE, 14X107 | Bolt - FLANGE, 14X107 |
| 23 | 90162-SR3-000 | Bolt - FLANGE, 14X60 | Bolt - FLANGE, 14X60 |
| 24 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 25 | 90166-SR3-000 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 26 | 90167-SR3-000 | Bolt - FLANGE, 14X120 | Bolt - FLANGE, 14X120 |
| 28 | 90176-SK7-013 | Bolt - FLANGE, 10X31 | Bolt - FLANGE, 10X31 |
| 29 | 90182-SR3-000 | Bolt - FLANGE, 12X112 | Bolt - FLANGE, 12X112 |
| 30 | 90183-SR3-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 32 | 90188-SR3-010 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 33 | 90190-SR3-000 | Bolt - FLANGE, 12X64 | Bolt - FLANGE, 12X64 |
| 35 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 36 | 90372-SR3-003 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 37 | 90380-SR3-000 | Bolt - STUD, 12X57.6 | Bolt - STUD, 12X57.6 |
| 38 | 90504-SR3-010 | Washer - FR. STOPPER | Washer - FR. STOPPER |
| 39 | 90505-SB2-000 | Washer - SIDE MOUNTING | Washer - SIDE MOUNTING |
| 41 | 90505-SR3-000 | Washer - RR. BRACKET, 14MM | Washer - RR. BRACKET, 14MM |
Engine wire harness/clamp (3) 27 / 37
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 7 | 32113-P01-000 | Stay comp - R. COUPLER | Stay comp - R. COUPLER |
| 8 | 32115-P01-000 | Stay - ENGINE WIRE HARNESS CLAMP | Stay - ENGINE WIRE HARNESS CLAMP |
| 9 | 32127-P05-A00 | Holder comp - HARNESS | Holder comp - HARNESS |
| 10 | 32741-P01-000 | Clamp a - ENGINE HARNESS (GREEN) | Clamp a - ENGINE HARNESS (GREEN) |
| 11 | 32744-P01-000 | Clamp d - ENGINE HARNESS (GREEN) | Clamp d - ENGINE HARNESS (GREEN) |
| 12 | 32744-P05-A01 | Clamp d - ENGINE HARNESS (BLACK) | Clamp d - ENGINE HARNESS (BLACK) |
| 13 | 32746-P05-A00 | Clamp f - ENGINE HARNESS (GRAY) | Clamp f - ENGINE HARNESS (GRAY) |
| 15 | 32752-P01-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 16 | 37240-PT0-013 | Switch - OIL PRESSURE (DENSO) | Switch - OIL PRESSURE (DENSO) |
| 16 | 37240-PT0-004 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 17 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 18 | 37760-P00-004 | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) |
| 18 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 19 | 37870-PJ7-003 | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) |
| 20 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 21 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 22 | 90051-PE0-000 | Bolt - FLANGE, 12X70 | Bolt - FLANGE, 12X70 |
| 23 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 26 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 27 | 91307-PJ7-003 | O-ring - 9.5X1.5 (MATSUSHITA) | O-ring - 9.5X1.5 (MATSUSHITA) |
| 27 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 28 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 28 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 29 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 30 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 31 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 32 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Engine wire harness/clamp (DOHC VTEC) 27 / 36
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 32113-P01-000 | Stay comp - R. COUPLER | Stay comp - R. COUPLER |
| 7 | 32115-P01-000 | Stay - ENGINE WIRE HARNESS CLAMP | Stay - ENGINE WIRE HARNESS CLAMP |
| 8 | 32127-P05-A00 | Holder comp - HARNESS | Holder comp - HARNESS |
| 9 | 32741-P01-000 | Clamp a - ENGINE HARNESS (GREEN) | Clamp a - ENGINE HARNESS (GREEN) |
| 10 | 32744-P01-000 | Clamp d - ENGINE HARNESS (GREEN) | Clamp d - ENGINE HARNESS (GREEN) |
| 11 | 32744-P05-A01 | Clamp d - ENGINE HARNESS (BLACK) | Clamp d - ENGINE HARNESS (BLACK) |
| 12 | 32746-P05-A00 | Clamp f - ENGINE HARNESS (GRAY) | Clamp f - ENGINE HARNESS (GRAY) |
| 14 | 32752-P01-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 15 | 37240-PT0-013 | Switch - OIL PRESSURE (DENSO) | Switch - OIL PRESSURE (DENSO) |
| 15 | 37240-PT0-004 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 16 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 17 | 37760-P00-004 | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) |
| 17 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 18 | 37870-PJ7-003 | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) |
| 19 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 20 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 21 | 90051-PE0-000 | Bolt - FLANGE, 12X70 | Bolt - FLANGE, 12X70 |
| 22 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 25 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 26 | 91307-PJ7-003 | O-ring - 9.5X1.5 (MATSUSHITA) | O-ring - 9.5X1.5 (MATSUSHITA) |
| 26 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 27 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 27 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 28 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 29 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 30 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 31 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Exhaust manifold (4) 7 / 13
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 8 | 90022-PE0-000 | Bolt - FLANGE, 8X10 | Bolt - FLANGE, 8X10 |
| 9 | 90065-PG6-000 | Bolt, STUD, 10X24 | Bolt, STUD, 10X24 |
| 10 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 10 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 11 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
Exhaust pipe 18 / 32
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 7 | 18181-P28-A00 | Cover | Cover |
| 8 | 18182-P28-A00 | Cover - UPPER | Cover - UPPER |
| 21 | 18215-SH3-J01 | Rubber - EX. MOUNTING (70X55X30) | Rubber - EX. MOUNTING (70X55X30) |
| 22 | 18215-SR3-000 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 23 | 18215-671-000 | Rubber - SILENCER MOUNTING (74X53X22) | Rubber - SILENCER MOUNTING (74X53X22) |
| 28 | 18229-SH3-X30 | Gasket - EX. FLEXIBLE (50.8MM-64MM) | Gasket - EX. FLEXIBLE (50.8MM-64MM) |
| 30 | 18230-SA0-930 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 31 | 18231-SR3-A22 | Bolt b - FLEXIBLE JOINT | Bolt b - FLEXIBLE JOINT |
| 32 | 18231-SR3-J01 | Bolt a - FLEXIBLE JOINT | Bolt a - FLEXIBLE JOINT |
| 35 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 40 | 90023-PK1-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 40 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 41 | 90110-679-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 44 | 90115-SL5-A00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 45 | 90115-SR3-A71 | Nut - PREVAILING TORQUE, 8MM | Nut - PREVAILING TORQUE, 8MM |
| 47 | 90117-SB2-000 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 48 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Floor mat 10 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 64436-692-000 | Clip - GUIDE | Clip - GUIDE |
| 2 | 83101-SR3-A11 | Insulator - DASHBOARD | Insulator - DASHBOARD |
| 4 | 83107-ST7-000 | Insulator - DASHBOARD WINDSHIELD LOWER | Insulator - DASHBOARD WINDSHIELD LOWER |
| 4 | 83103-SR3-C01 | Insulator - DASHBOARD UPPER | Insulator - DASHBOARD UPPER |
| 5 | 83108-ST7-000 | Insulator - DASHBOARD UPPER CENTER | Insulator - DASHBOARD UPPER CENTER |
| 12 | 90668-SH3-003 | Clip - SIDE LINING | Clip - SIDE LINING |
| 13 | 91532-SR3-003 | Clip - DASHBOARD INSULATOR (BLACK) | Clip - DASHBOARD INSULATOR (BLACK) |
| 14 | 91533-SR3-003 | Clip - INSULATOR (NATURAL) | Clip - INSULATOR (NATURAL) |
| 15 | 91535-SR3-003 | Clip - DASHBOARD INSULATOR LOCK (BLACK) | Clip - DASHBOARD INSULATOR LOCK (BLACK) |
| 17 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
Front brake (2) 24 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 01463-SR3-V00 | Caliper set - FR. | Caliper set - FR. |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 4 | 44300-SR3-A04 | Bearing assy - FR. HUB (KOYO SEIKO) | Bearing assy - FR. HUB (KOYO SEIKO) |
| 4 | 44300-SR3-A02 | Bearing assy - FR. HUB (NTN) | Bearing assy - FR. HUB (NTN) |
| 5 | 44600-SR3-A01 | Hub assy - FR. | Hub assy - FR. |
| 6 | 45018-SR3-V00 | Caliper sub assy. - R. FR. | Caliper sub assy. - R. FR. |
| 7 | 45019-SR3-V00 | Caliper sub assy. - L. FR. | Caliper sub assy. - L. FR. |
| 8 | 45022-SR3-V12 | Pad set - FR. | Pad set - FR. |
| 11 | 45216-SR3-V01 | Piston - 54MM | Piston - 54MM |
| 11 | 45216-S5A-J01 | Piston | Piston |
| 16 | 45235-SR3-003 | Pin a | Pin a |
| 17 | 45237-SR3-003 | Retainer a | Retainer a |
| 18 | 45238-SR3-003 | Retainer b | Retainer b |
| 19 | 45240-SA7-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 20 | 45251-SK7-J00 | Disk - FR. BRAKE | Disk - FR. BRAKE |
| 21 | 45255-SR3-V00 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 21 | 45255-SR3-V01 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 23 | 45262-SR3-003 | Pin b | Pin b |
| 24 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 25 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 25 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 25 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 26 | 90681-SR3-A00 | Circlip, SPECIAL INTERNAL, 79MM | Circlip, SPECIAL INTERNAL, 79MM |
Front brake (EXCEPT DX) 25 / 30
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 01463-SR3-V00 | Caliper set - FR. | Caliper set - FR. |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 4 | 44300-SR3-A02 | Bearing assy - FR. HUB (NTN) | Bearing assy - FR. HUB (NTN) |
| 4 | 44300-SR3-A04 | Bearing assy - FR. HUB (KOYO SEIKO) | Bearing assy - FR. HUB (KOYO SEIKO) |
| 5 | 44600-SR3-A01 | Hub assy - FR. | Hub assy - FR. |
| 6 | 45018-SR3-V00 | Caliper sub assy. - R. FR. | Caliper sub assy. - R. FR. |
| 7 | 45019-SR3-V00 | Caliper sub assy. - L. FR. | Caliper sub assy. - L. FR. |
| 8 | 45022-SR3-V11 | Pad set - FR. | Pad set - FR. |
| 8 | 45022-SR3-V12 | Pad set - FR. | Pad set - FR. |
| 11 | 45216-SR3-V01 | Piston - 54MM | Piston - 54MM |
| 11 | 45216-S5A-J01 | Piston | Piston |
| 16 | 45235-SR3-003 | Pin a | Pin a |
| 17 | 45237-SR3-003 | Retainer a | Retainer a |
| 18 | 45238-SR3-003 | Retainer b | Retainer b |
| 19 | 45240-SA7-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 20 | 45251-SK7-J00 | Disk - FR. BRAKE | Disk - FR. BRAKE |
| 21 | 45255-SR3-V00 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 21 | 45255-SR3-V01 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 23 | 45262-SR3-003 | Pin b | Pin b |
| 24 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 25 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 25 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 25 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 26 | 90681-SR3-A00 | Circlip, SPECIAL INTERNAL, 79MM | Circlip, SPECIAL INTERNAL, 79MM |
Front door lining 5 / 6
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 8 | 83508-SR3-000 | Bracket assy - PULL POCKET | Bracket assy - PULL POCKET |
| 16 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 17 | 90678-SK7-003 | Clip - SPEAKER | Clip - SPEAKER |
| 19 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 19 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front driveshaft/ half shaft 21 / 31
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 44017-SR3-900 | Boot set - INBOARD | Boot set - INBOARD |
| 3 | 44017-SR3-901 | Boot set | Boot set |
| 6 | 44310-SL5-N00 | Joint comp - INBOARD | Joint comp - INBOARD |
| 7 | 44328-SB0-300 | Band - INBOARD BOOT | Band - INBOARD BOOT |
| 8 | 44329-SB0-300 | Band - DRIVESHAFT BOOT | Band - DRIVESHAFT BOOT |
| 8 | 44352-SA2-300 | Band - DAMPER WEIGHT | Band - DAMPER WEIGHT |
| 9 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44336-SB0-300 | Ring a - STOPPER | Ring a - STOPPER |
| 12 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 13 | 44347-SF1-003 | Ring - OUTBOARD | Ring - OUTBOARD |
| 19 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 20 | 90305-692-010 | Nut | Nut |
| 21 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 22 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 23 | 91260-SR3-003 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
| 23 | 91260-SR3-004 | Seal - HALF SHAFT OUTER (ARAI) | Seal - HALF SHAFT OUTER (ARAI) |
| 26 | 44018-SR3-C53 | Boot set - OUTBOARD | Boot set - OUTBOARD |
| 26 | 44018-SR3-C56 | Boot set | Boot set |
| 27 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 28 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
Front fenders 8 / 8
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 7 | 74101-SR3-000 | RH FR. INNER Fender | RH FR. INNER Fender |
| 10 | 74111-SR3-A00 | Shield - FR. SPLASH | Shield - FR. SPLASH |
| 12 | 74151-SR3-000 | LH FR. INNER Fender | LH FR. INNER Fender |
| 14 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 15 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 16 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 17 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 18 | 91516-SK7-013 | Clip - UNDER COVER | Clip - UNDER COVER |
Front seat ('94-) 1 / 1
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 18 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
Front seat (2) 1 / 1
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 16 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
Front seat components (2) 3 / 14
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 12 | 90128-SR4-003 | Bolt-washer - 8X19 | Bolt-washer - 8X19 |
| 13 | 90135-SK7-A01 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
| 14 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Front seat components (LH; '94-) 3 / 15
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 15 | 90128-SR4-003 | Bolt-washer - 8X19 | Bolt-washer - 8X19 |
| 17 | 90135-SK7-A01 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
| 19 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Front shock absorber 14 / 21
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 51621-SB0-004 | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 6 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 7 | 51631-SB0-004 | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) |
| 7 | 51631-S7S-J01 | RUBBER DAMPER M | RUBBER DAMPER M |
| 7 | 51631-SB0-003 | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) |
| 8 | 51675-SH3-024 | Base - SHOCK ABSORBER MOUNTING (SHOWA) | Base - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SR3-003 | Rubber - SPRING MOUNTING (SHOWA) | Rubber - SPRING MOUNTING (SHOWA) |
| 12 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 12 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 14 | 52722-SE0-006 | Rubber - BUMP STOPPER (POLYURETHAN KASEI) | Rubber - BUMP STOPPER (POLYURETHAN KASEI) |
| 15 | 90304-SR3-014 | Nut - FLANGE, 10MM (OHASHI) | Nut - FLANGE, 10MM (OHASHI) |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front stabilizer/ front lower arm 23 / 27
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 51308-SR3-000 | Holder - R. FR. STABILIZER | Holder - R. FR. STABILIZER |
| 5 | 51350-SR3-020 | Arm assy. - R. FR. LOWER | Arm assy. - R. FR. LOWER |
| 6 | 51360-SR3-020 | Arm assy. - L. FR. LOWER | Arm assy. - L. FR. LOWER |
| 7 | 51392-SR3-024 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 8 | 51395-SR3-N03 | Bush comp - R. FR. COMPLIANCE (YAMASHITA) | Bush comp - R. FR. COMPLIANCE (YAMASHITA) |
| 9 | 51396-SR3-N03 | Bush comp - L. FR. COMPLIANCE (YAMASHITA) | Bush comp - L. FR. COMPLIANCE (YAMASHITA) |
| 10 | 51398-SR3-000 | Washer b - FR. RADIUS ARM (14MM) | Washer b - FR. RADIUS ARM (14MM) |
| 11 | 51399-SR3-010 | Washer a - FR. RADIUS ARM (18MM) | Washer a - FR. RADIUS ARM (18MM) |
| 12 | 51810-SH3-003 | Bush - SHOCK ABSORBER FORK (HOKUSHIN) | Bush - SHOCK ABSORBER FORK (HOKUSHIN) |
| 12 | 51810-SH3-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 12 | 51810-SK7-004 | Bush - SHOCK ABSORBER FORK | Bush - SHOCK ABSORBER FORK |
| 13 | 51811-SR3-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 14 | 51821-SR3-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 16 | 90112-SE0-000 | Bolt - FR. STABILIZER | Bolt - FR. STABILIZER |
| 17 | 90118-SR3-003 | Bolt - SELF-LOCK, 12X76 | Bolt - SELF-LOCK, 12X76 |
| 18 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 19 | 90162-SR3-000 | Bolt - FLANGE, 14X60 | Bolt - FLANGE, 14X60 |
| 20 | 90164-SR3-013 | Bolt - SELF-LOCK, 14X34 | Bolt - SELF-LOCK, 14X34 |
| 21 | 90168-SR3-000 | Bolt - FLANGE, 14X35 | Bolt - FLANGE, 14X35 |
| 22 | 90175-SH3-005 | Bolt - SHOCK ABSORBER FORK | Bolt - SHOCK ABSORBER FORK |
| 23 | 90213-SR3-013 | Nut - SELF-LOCK, 14MM | Nut - SELF-LOCK, 14MM |
| 24 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 25 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
Front windshield 7 / 23
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 73125-SR3-000 | Rubber a - FR. WINDSHIELD DAM | Rubber a - FR. WINDSHIELD DAM |
| 3 | 73126-SR3-000 | Rubber b - FR. WINDSHIELD DAM | Rubber b - FR. WINDSHIELD DAM |
| 4 | 73127-SR3-003 | Holder - FR. WINDSHIELD GLASS | Holder - FR. WINDSHIELD GLASS |
| 5 | 73151-SR3-013 | Molding - FR. WINDSHIELD UPPER | Molding - FR. WINDSHIELD UPPER |
| 15 | 91511-SR3-003 | Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE) | Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE) |
| 18 | 91520-SR3-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (RED) | Clip c - FR. WINDSHIELD SIDE MOLDING (RED) |
| 20 | 91534-ST0-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE) | Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE) |
Front windshield wiper (1) 25 / 25
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 38472-SB2-003 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 1 | 76632-S5H-T01 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 2 | 76505-SR3-A01 | Motor comp - FR. WIPER | Motor comp - FR. WIPER |
| 3 | 76515-SR3-003 | Seal a | Seal a |
| 4 | 76516-SE0-003 | Rubber - BRACKETLESS MOUNTING | Rubber - BRACKETLESS MOUNTING |
| 5 | 76516-SR3-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76517-SM4-003 | Collar | Collar |
| 8 | 76520-SR3-A01 | Link unit a | Link unit a |
| 9 | 76524-SD4-003 | Dust seal | Dust seal |
| 10 | 76524-SE0-013 | Dust seal | Dust seal |
| 11 | 76530-SR3-A01 | Link comp - FR. WIPER | Link comp - FR. WIPER |
| 12 | 76540-SR3-003 | Rod unit a | Rod unit a |
| 13 | 76550-SM4-003 | Rod unit b | Rod unit b |
| 14 | 76561-SD4-003 | Cap - PIVOT | Cap - PIVOT |
| 15 | 76600-SR3-G01 | Arm - WINDSHIELD WIPER (DRIVER SIDE) | Arm - WINDSHIELD WIPER (DRIVER SIDE) |
| 16 | 76610-SR3-G01 | Arm - WINDSHIELD WIPER (PASSENGER SIDE) | Arm - WINDSHIELD WIPER (PASSENGER SIDE) |
| 17 | 76620-SH2-A02 | Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE) | Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE) |
| 18 | 76622-SF4-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 18 | 76632-S6M-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 19 | 76630-SH3-G11 | Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE) | Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE) |
| 19 | 76630-SH3-305 | Blade,windshield | Blade,windshield |
| 20 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 21 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 22 | 91556-SR3-003 | Clip - COUPLER | Clip - COUPLER |
Front windshield wiper (LH) 25 / 25
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 38472-SB2-003 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 1 | 76632-S5H-T01 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 2 | 76505-SR3-A01 | Motor comp - FR. WIPER | Motor comp - FR. WIPER |
| 3 | 76515-SR3-003 | Seal a | Seal a |
| 4 | 76516-SE0-003 | Rubber - BRACKETLESS MOUNTING | Rubber - BRACKETLESS MOUNTING |
| 5 | 76516-SR3-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76517-SM4-003 | Collar | Collar |
| 8 | 76520-SR3-A01 | Link unit a | Link unit a |
| 9 | 76524-SD4-003 | Dust seal | Dust seal |
| 10 | 76524-SE0-013 | Dust seal | Dust seal |
| 11 | 76530-SR3-A01 | Link comp - FR. WIPER | Link comp - FR. WIPER |
| 12 | 76540-SR3-003 | Rod unit a | Rod unit a |
| 13 | 76550-SM4-003 | Rod unit b | Rod unit b |
| 14 | 76561-SD4-003 | Cap - PIVOT | Cap - PIVOT |
| 15 | 76600-SR3-G01 | Arm - WINDSHIELD WIPER (DRIVER SIDE) | Arm - WINDSHIELD WIPER (DRIVER SIDE) |
| 16 | 76610-SR3-G01 | Arm - WINDSHIELD WIPER (PASSENGER SIDE) | Arm - WINDSHIELD WIPER (PASSENGER SIDE) |
| 17 | 76620-SH2-A02 | Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE) | Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE) |
| 18 | 76622-SF4-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 18 | 76632-S6M-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 19 | 76630-SH3-G11 | Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE) | Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE) |
| 19 | 76630-SH3-305 | Blade,windshield | Blade,windshield |
| 20 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 21 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 22 | 91556-SR3-003 | Clip - COUPLER | Clip - COUPLER |
Fuel pipe (3) 24 / 42
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 16010-ST5-931 | Strainer set - FUEL (TOYO ROKI) | Strainer set - FUEL (TOYO ROKI) |
| 2 | 16680-PE7-661 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 2 | 16680-PCX-003 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 3 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 7 | 16918-ST7-A30 | Stay - FUEL STRAINER | Stay - FUEL STRAINER |
| 9 | 16919-ST5-930 | Band - FUEL STRAINER | Band - FUEL STRAINER |
| 14 | 17300-SR3-E31 | Canister assy - 29PCV | Canister assy - 29PCV |
| 16 | 17358-ST0-000 | Bracket - CANISTER | Bracket - CANISTER |
| 22 | 17742-ST0-003 | Pipe - CANISTER DRAIN JOINT | Pipe - CANISTER DRAIN JOINT |
| 23 | 17743-SR3-A00 | Tube - CANISTER DRAIN | Tube - CANISTER DRAIN |
| 24 | 17745-ST0-003 | Joint - CANISTER DRAIN | Joint - CANISTER DRAIN |
| 27 | 17761-SR3-010 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 29 | 17763-SR3-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 31 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 32 | 90008-PP4-E02 | Bolt - BANJO, 12MM | Bolt - BANJO, 12MM |
| 33 | 90009-PP4-E01 | Bolt - SEALING, 6MM | Bolt - SEALING, 6MM |
| 35 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 36 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 37 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 38 | 90430-PD6-003 | Washer - SEALING, 6MM | Washer - SEALING, 6MM |
| 39 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 41 | 91591-SR3-010 | Clip A - BRAKE | Clip A - BRAKE |
| 45 | 91595-SR3-003 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 47 | 91597-SH3-Y01 | Clamp - VENT TUBE (BLACK) | Clamp - VENT TUBE (BLACK) |
Fuel pipe (PGM-FI; '95) 31 / 52
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 16010-ST5-931 | Strainer set - FUEL (TOYO ROKI) | Strainer set - FUEL (TOYO ROKI) |
| 2 | 16680-PE7-661 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 2 | 16680-PCX-003 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 3 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 7 | 16918-ST7-A30 | Stay - FUEL STRAINER | Stay - FUEL STRAINER |
| 7 | 16918-SR3-A32 | Stay - FUEL STRAINER | Stay - FUEL STRAINER |
| 9 | 16919-ST5-930 | Band - FUEL STRAINER | Band - FUEL STRAINER |
| 10 | 16922-SH3-930 | Rubber - MOUNTING | Rubber - MOUNTING |
| 11 | 16922-SR3-931 | Rubber - MOUNTING | Rubber - MOUNTING |
| 12 | 16923-SP0-930 | Collar - DISTANCE | Collar - DISTANCE |
| 13 | 16923-SR3-930 | Collar - DISTANCE | Collar - DISTANCE |
| 14 | 17300-SR3-E31 | Canister assy - 29PCV | Canister assy - 29PCV |
| 16 | 17358-ST0-000 | Bracket - CANISTER | Bracket - CANISTER |
| 22 | 17742-ST0-003 | Pipe - CANISTER DRAIN JOINT | Pipe - CANISTER DRAIN JOINT |
| 23 | 17743-SR3-A00 | Tube - CANISTER DRAIN | Tube - CANISTER DRAIN |
| 24 | 17745-ST0-003 | Joint - CANISTER DRAIN | Joint - CANISTER DRAIN |
| 27 | 17761-SR3-010 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 29 | 17763-SR3-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 31 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 32 | 90008-PP4-E02 | Bolt - BANJO, 12MM | Bolt - BANJO, 12MM |
| 33 | 90009-PP4-E01 | Bolt - SEALING, 6MM | Bolt - SEALING, 6MM |
| 34 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 36 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 36 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 37 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 38 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 39 | 90430-PD6-003 | Washer - SEALING, 6MM | Washer - SEALING, 6MM |
| 40 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 42 | 91591-SR3-010 | Clip A - BRAKE | Clip A - BRAKE |
| 47 | 91595-SR3-003 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 49 | 91597-SH3-Y01 | Clamp - VENT TUBE (BLACK) | Clamp - VENT TUBE (BLACK) |
Fuel tank (2) 13 / 39
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 9 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 13 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 15 | 17656-SR3-003 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 17 | 17662-SR3-000 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 32 | 90020-PD6-000 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 34 | 90164-SD4-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 35 | 90347-SR3-000 | Nut - SPRING, 6MM | Nut - SPRING, 6MM |
| 36 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 37 | 90602-SA7-931 | Clamp - FUEL HOSE, 18.5MM | Clamp - FUEL HOSE, 18.5MM |
| 38 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 39 | 90657-SH3-013 | Clip - TWO WAY VALVE COVER | Clip - TWO WAY VALVE COVER |
| 40 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 41 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Fuel tank (PGM-FI) 11 / 36
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 8 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 12 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 14 | 17656-SR3-003 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 16 | 17662-SR3-000 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 17 | 17670-SM4-004 | Cap comp. - FUEL FILLER (TOYODA) | Cap comp. - FUEL FILLER (TOYODA) |
| 32 | 90347-SR3-000 | Nut - SPRING, 6MM | Nut - SPRING, 6MM |
| 34 | 90602-SA7-931 | Clamp - FUEL HOSE, 18.5MM | Clamp - FUEL HOSE, 18.5MM |
| 35 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 36 | 90657-SH3-013 | Clip - TWO WAY VALVE COVER | Clip - TWO WAY VALVE COVER |
| 37 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 38 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Grommet 15 / 17
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 2 | 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) |
| 4 | 83431-SA4-000 | Cushion - FR. TRUNK | Cushion - FR. TRUNK |
| 5 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 6 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 7 | 90851-SJ4-000 | Seal - DOOR HOLE, 20MM | Seal - DOOR HOLE, 20MM |
| 8 | 90852-671-003 | Plug - HOLE | Plug - HOLE |
| 9 | 90855-SA0-000 | Plug - VENTILATION HOLE, 20MM | Plug - VENTILATION HOLE, 20MM |
| 11 | 90860-SA5-003 | Plug - HOLE, 16MM | Plug - HOLE, 16MM |
| 13 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 15 | 91610-SB2-003 | Plug - HOLE, 16.7MM (BLACK) | Plug - HOLE, 16.7MM (BLACK) |
| 16 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 17 | 91616-SR3-000 | Seal - FR. INNER LOWER (110X110) (BLACK) | Seal - FR. INNER LOWER (110X110) (BLACK) |
| 18 | 91617-SB6-000 | Grommet - WASHER HOSE, 32MM | Grommet - WASHER HOSE, 32MM |
| 18 | 91631-SR3-000 | Plug - AIR CONDITIONER HOLE | Plug - AIR CONDITIONER HOLE |
Headlight 18 / 26
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 4 | 33102-SR3-G01 | Plate - R. | Plate - R. |
| 5 | 33104-SR3-G01 | Nut - SPECIAL (3) | Nut - SPECIAL (3) |
| 6 | 33109-SR3-A01 | Nut e - SPECIAL | Nut e - SPECIAL |
| 7 | 33115-SM3-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) |
| 7 | 33115-SV4-G01 | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
| 7 | 33115-SM4-003 | Bulb | Bulb |
| 8 | 33126-SH3-003 | Cover - RUBBER | Cover - RUBBER |
| 11 | 33152-SR3-G01 | Plate - L. | Plate - L. |
| 13 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 15 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 18 | 33800-SR3-G01 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 19 | 33801-SR3-G01 | Housing comp - R. | Housing comp - R. |
| 20 | 33802-SR3-G01 | Housing comp - L. | Housing comp - L. |
| 21 | 33850-SR3-G01 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 22 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 23 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 24 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 25 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Headlight (1) 23 / 27
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 32102-SM4-970 | Cap - HEADLIGHT ADJUSTER (NON HEADLIGHT ADJUSTER) | Cap - HEADLIGHT ADJUSTER (NON HEADLIGHT ADJUSTER) |
| 2 | 33100-SR3-B01 | Headlight assy - R. | Headlight assy - R. |
| 3 | 33101-SR3-B01 | Headlight unit - R. | Headlight unit - R. |
| 4 | 33102-SR3-G01 | Plate - R. | Plate - R. |
| 5 | 33104-SR3-G01 | Nut - SPECIAL (3) | Nut - SPECIAL (3) |
| 6 | 33109-SR3-A01 | Nut e - SPECIAL | Nut e - SPECIAL |
| 7 | 33115-SV4-G01 | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
| 7 | 33115-SM4-003 | Bulb | Bulb |
| 7 | 33115-SM3-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) |
| 8 | 33126-SH3-003 | Cover - RUBBER | Cover - RUBBER |
| 9 | 33150-SR3-B01 | Headlight assy - L. | Headlight assy - L. |
| 10 | 33151-SR3-B01 | Headlight unit - L. | Headlight unit - L. |
| 11 | 33152-SR3-G01 | Plate - L. | Plate - L. |
| 13 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 15 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 18 | 33800-SR3-G01 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 19 | 33801-SR3-G01 | Housing comp - R. | Housing comp - R. |
| 20 | 33802-SR3-G01 | Housing comp - L. | Housing comp - L. |
| 21 | 33850-SR3-G01 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 22 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 23 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 24 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 25 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Heater blower 14 / 14
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 3 | 79305-SR3-A01 | Blower sub assy. - DENSO | Blower sub assy. - DENSO |
| 4 | 79310-SR3-A01 | Motor assy. - BLOWER (DENSO) | Motor assy. - BLOWER (DENSO) |
| 5 | 79330-SR3-A01 | Resistor - BLOWER | Resistor - BLOWER |
| 6 | 79350-SR3-A01 | Motor assy. - FRESH & RECIRCULAR | Motor assy. - FRESH & RECIRCULAR |
| 8 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 8 | 79810-SR3-A01 | Duct - HEATER | Duct - HEATER |
| 9 | 90123-SR3-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 10 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 11 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 13 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 13 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 14 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater control 23 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 2 | 32157-SR3-A01 | Sub cord a - HEATER | Sub cord a - HEATER |
| 4 | 32257-SR3-000 | Sub cord b - HEATER | Sub cord b - HEATER |
| 5 | 79500-SR3-A02 | Control assy. - HEATER | Control assy. - HEATER |
| 6 | 79512-SR3-003 | Lever | Lever |
| 7 | 79514-SR3-003 | Slider | Slider |
| 8 | 79529-SR3-003 | Stopper - CONTROL LEVER | Stopper - CONTROL LEVER |
| 9 | 79542-SR3-A00 | Cable - TEMPERATURE CONTROL (TSK) | Cable - TEMPERATURE CONTROL (TSK) |
| 10 | 79550-SR3-013 | Garnish | Garnish |
| 11 | 79551-SR3-013 | Display - MODE CONTROL | Display - MODE CONTROL |
| 12 | 79570-SR3-003 | Switch assy - HEATER FAN | Switch assy - HEATER FAN |
| 13 | 79601-SR3-013 | Knob a | Knob a |
| 14 | 79602-SR3-013 | Knob b | Knob b |
| 15 | 79603-SR3-013 | Knob c | Knob c |
| 16 | 79604-SR3-013 | Knob d | Knob d |
| 17 | 79612-SR3-013 | Lid - AIR CONDITIONER SWITCH | Lid - AIR CONDITIONER SWITCH |
| 18 | 79629-SR3-003 | Bulb assy - BLUE) (14V 14W | Bulb assy - BLUE) (14V 14W |
| 19 | 80411-SR3-013 | Knob - AIR CONDITIONER SWITCH | Knob - AIR CONDITIONER SWITCH |
| 20 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 21 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 22 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 23 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| 23 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Heater unit 11 / 11
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 79100-SR3-G01 | Heater unit | Heater unit |
| 3 | 79110-SR3-A01 | Core comp - HEATER | Core comp - HEATER |
| 4 | 79140-SR3-A01 | Motor assy. - MODE | Motor assy. - MODE |
| 5 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 6 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 7 | 79544-SR3-A00 | Cable - WATER VALVE CONTROL | Cable - WATER VALVE CONTROL |
| 8 | 90122-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 9 | 90125-SR3-003 | Screw - TAPPING, 5X15 | Screw - TAPPING, 5X15 |
| 10 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 11 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
High tension cord/ spark plug 2 / 12
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 21 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
High tension cord/plug 2 / 12
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 20 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
Hood 23 / 26
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 6 | 74120-SR3-A01 | Lock assy - HOOD | Lock assy - HOOD |
| 7 | 74130-SR3-A00 | Wire assy. - HOOD | Wire assy. - HOOD |
| 8 | 74131-SH3-A01 | Cover - HOOD WIRE | Cover - HOOD WIRE |
| 9 | 74132-SR3-A00 | Lever assy. - HOOD WIRE | Lever assy. - HOOD WIRE |
| 10 | 74134-SH3-003 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 11 | 74141-SR3-000 | Hood Insulator | Hood Insulator |
| 12 | 74142-SR3-010 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 13 | 74143-SR3-000 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 14 | 74145-SR3-000 | Stay - HOOD OPENER | Stay - HOOD OPENER |
| 15 | 74149-SR3-000 | Cover - CONDENSER | Cover - CONDENSER |
| 16 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 19 | 74144-SR3-000 | Cushion - HOOD | Cushion - HOOD |
| 20 | 90127-SA0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 21 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 22 | 90672-SJ4-013 | Holder - ROD | Holder - ROD |
| 23 | 90700-SJ4-000 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 24 | 91508-SR3-000 | Clip - COWL TOP (BLACK) | Clip - COWL TOP (BLACK) |
| 24 | 91508-SX8-003 | Clip - COWL TOP | Clip - COWL TOP |
| 25 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 26 | 91515-SR3-000 | Clip - RR. HOOD | Clip - RR. HOOD |
| 27 | 91520-SM4-C01 | Clip - HOOD SEAL RUBBER | Clip - HOOD SEAL RUBBER |
| 29 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
Instrument panel (1) 13 / 20
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 75513-SR3-000 | Cushion - SIDE | Cushion - SIDE |
| 9 | 77140-SR3-C00 | Bracket comp. - INSTRUMENT DRIVER SIDE | Bracket comp. - INSTRUMENT DRIVER SIDE |
| 10 | 77145-SR3-C00 | Bracket comp. - INSTRUMENT PASSENGER SIDE | Bracket comp. - INSTRUMENT PASSENGER SIDE |
| 12 | 77212-SR3-003 | Blind - COLUMN | Blind - COLUMN |
| 18 | 77411-SR3-C01 | Duct - CENTER AIR CONDITIONER | Duct - CENTER AIR CONDITIONER |
| 19 | 77466-SR3-000 | Seal - FR. INSTRUMENT | Seal - FR. INSTRUMENT |
| 24 | 77623-SR3-000 | Bush - UPPER VENT KNOB | Bush - UPPER VENT KNOB |
| 30 | 90106-SD2-000 | Nut - SPRING | Nut - SPRING |
| 31 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 33 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 36 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 37 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 38 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Instrument panel (LH) 14 / 14
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 75513-SR3-000 | Cushion - SIDE | Cushion - SIDE |
| 9 | 77140-SR3-C00 | Bracket comp. - INSTRUMENT DRIVER SIDE | Bracket comp. - INSTRUMENT DRIVER SIDE |
| 10 | 77145-SR3-C00 | Bracket comp. - INSTRUMENT PASSENGER SIDE | Bracket comp. - INSTRUMENT PASSENGER SIDE |
| 12 | 77212-SR3-003 | Blind - COLUMN | Blind - COLUMN |
| 14 | 77230-SM4-G00 | Lid assy - AUDIO HOLE | Lid assy - AUDIO HOLE |
| 18 | 77411-SR3-C01 | Duct - CENTER AIR CONDITIONER | Duct - CENTER AIR CONDITIONER |
| 19 | 77466-SR3-000 | Seal - FR. INSTRUMENT | Seal - FR. INSTRUMENT |
| 24 | 77623-SR3-000 | Bush - UPPER VENT KNOB | Bush - UPPER VENT KNOB |
| 30 | 90106-SD2-000 | Nut - SPRING | Nut - SPRING |
| 31 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 33 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 35 | 90650-SE3-000 | Clip - RADIO PANEL | Clip - RADIO PANEL |
| 36 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 37 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (3) 20 / 31
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 8 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 9 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 10 | 77160-SR3-C02 | Frame comp - INSTRUMENT CENTER | Frame comp - INSTRUMENT CENTER |
| 19 | 77509-SR3-000 | Stopper - GLOVE BOX | Stopper - GLOVE BOX |
| 25 | 77542-SR3-000 | Striker - GLOVE BOX | Striker - GLOVE BOX |
| 29 | 77730-SR3-003 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 30 | 77755-SH3-010 | Spring - COIN POCKET | Spring - COIN POCKET |
| 34 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 35 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 36 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 37 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 38 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 39 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 40 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 42 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 43 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 53 | 39600-SW3-305 | Lighter unit - CIGARETTE | Lighter unit - CIGARETTE |
| 53 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 54 | 39628-S04-305 | Cord assy | Cord assy |
Instrument panel garnish (LH; 1) 23 / 23
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 7 | 66405-SD4-000 | Stay - GLOVE BOX HINGE | Stay - GLOVE BOX HINGE |
| 8 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 9 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 10 | 77160-SR3-C02 | Frame comp - INSTRUMENT CENTER | Frame comp - INSTRUMENT CENTER |
| 15 | 77509-SR3-000 | Stopper - GLOVE BOX | Stopper - GLOVE BOX |
| 17 | 77542-SR3-000 | Striker - GLOVE BOX | Striker - GLOVE BOX |
| 18 | 77551-SR3-C00 | Frame - GLOVE BOX | Frame - GLOVE BOX |
| 21 | 77730-SR3-003 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 22 | 77755-SH3-010 | Spring - COIN POCKET | Spring - COIN POCKET |
| 23 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 24 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 25 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 26 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 27 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 28 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 29 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 30 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 31 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 32 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 40 | 39600-SW3-305 | Lighter unit - CIGARETTE | Lighter unit - CIGARETTE |
| 40 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 41 | 39628-S04-305 | Cord assy | Cord assy |
Intake manifold (PGM-FI; 3) 12 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 06164-P06-A02 | Packing set - INJECTOR | Packing set - INJECTOR |
| 2 | 16472-PD6-000 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 5 | 16638-PH3-S00 | Insulator - FUEL PIPE | Insulator - FUEL PIPE |
| 6 | 16740-P05-A01 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 7 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 13 | 37880-P05-A00 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 15 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 15 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 15 | 16074-ZY3-000 | O-ring | O-ring |
| 16 | 91303-PK2-005 | O-ring (7.5X1.5) | O-ring (7.5X1.5) |
Intake manifold (PGM-FI; DOHC VTEC) 12 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 06164-P06-A02 | Packing set - INJECTOR | Packing set - INJECTOR |
| 2 | 16472-PD6-000 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 5 | 16638-PH3-S00 | Insulator - FUEL PIPE | Insulator - FUEL PIPE |
| 6 | 16740-P05-A01 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 7 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 13 | 37880-P05-A00 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 15 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 15 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 15 | 16074-ZY3-000 | O-ring | O-ring |
| 16 | 91303-PK2-005 | O-ring (7.5X1.5) | O-ring (7.5X1.5) |
Interior light 3 / 3
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 34252-692-003 | Lens - DAIICHI) (SUNROOF | Lens - DAIICHI) (SUNROOF |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
Knuckle 18 / 18
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 44348-SR3-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 2 | 51210-SR3-N10 | Knuckle comp - R. FR. (ABS) | Knuckle comp - R. FR. (ABS) |
| 3 | 51215-SR3-N10 | Knuckle comp - L. FR. (ABS) | Knuckle comp - L. FR. (ABS) |
| 4 | 51220-SR3-003 | Joint comp - LOWER BALL (MUSASHI) | Joint comp - LOWER BALL (MUSASHI) |
| 5 | 51225-SR3-003 | Boot - LOWER BALL DUST (MUSASHI) | Boot - LOWER BALL DUST (MUSASHI) |
| 6 | 51450-SR3-013 | Arm assy. - R. FR. UPPER | Arm assy. - R. FR. UPPER |
| 7 | 51455-SR3-004 | Bush - FR. UPPER ARM (SUMITOMO) | Bush - FR. UPPER ARM (SUMITOMO) |
| 7 | 51455-SR3-003 | Bush - FR. UPPER ARM (YAMASHITA) | Bush - FR. UPPER ARM (YAMASHITA) |
| 8 | 51460-SR3-013 | Arm assy. - L. FR. UPPER | Arm assy. - L. FR. UPPER |
| 9 | 51464-SK7-003 | Boot - UPPER BALL JOINT | Boot - UPPER BALL JOINT |
| 10 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 11 | 57450-SR3-801 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 12 | 57455-SR3-801 | Sensor assy - L. FR. | Sensor assy - L. FR. |
| 13 | 90185-SR3-013 | Bolt - FR. ARM UPPER (10X58) | Bolt - FR. ARM UPPER (10X58) |
| 14 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 15 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 16 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 17 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
Lower gate 7 / 30
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 4 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 5 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 28 | 75513-SB4-000 | Cushion - LOCK ROD (15MMX40MM) | Cushion - LOCK ROD (15MMX40MM) |
| 34 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 35 | 90691-SC5-003 | Clip A - OPENER CABLE | Clip A - OPENER CABLE |
| 36 | 90692-SK8-003 | Clip - TRUNK OPENER CABLE | Clip - TRUNK OPENER CABLE |
| 43 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Mirror 15 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 04762-SR3-J11 | Mirror sub assy. - R. REMOTE CONTROL | Mirror sub assy. - R. REMOTE CONTROL |
| 2 | 04764-SR3-J11 | Mirror sub assy. - L. REMOTE CONTROL | Mirror sub assy. - L. REMOTE CONTROL |
| 3 | 04769-SM4-J01 | Holder set - ACTUATOR | Holder set - ACTUATOR |
| 6 | 76201-SR3-003 | Housing - R. | Housing - R. |
| 11 | 76213-SR3-003 | Pin - STOPPER | Pin - STOPPER |
| 16 | 76251-SR3-003 | Housing - L. | Housing - L. |
| 23 | 76409-SL0-003 | Washer - TOOTHED | Washer - TOOTHED |
| 24 | 76410-SL4-003 | Bolt - LOCK | Bolt - LOCK |
| 25 | 76419-SL4-003 | Spring - HOLDER | Spring - HOLDER |
| 26 | 76420-SL4-003 | Plate - HOOK | Plate - HOOK |
| 27 | 76290-SR3-003 | Screw - TAPPING, 4X10 (TRUSS) (###) | Screw - TAPPING, 4X10 (TRUSS) (###) |
| 28 | 76291-SR3-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 29 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 32 | 04763-SR3-000 | Actuator set - R. DOOR MIRROR | Actuator set - R. DOOR MIRROR |
| 33 | 04766-SR3-000 | Actuator set - L. DOOR MIRROR | Actuator set - L. DOOR MIRROR |
Oil pump (DOHC VTEC) 6 / 21
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 9 | 15400-PH1-F03 | Cartridge - OIL FILTER (LABINAL-PURFLUX) | Cartridge - OIL FILTER (LABINAL-PURFLUX) |
| 10 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 10 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 10 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 11 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 14 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
Oil pump/oil strainer (2) 6 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 9 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 9 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 9 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 10 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 11 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 12 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
P.s. gear box (1) 27 / 28
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 53010-SR3-010 | End set - RACK | End set - RACK |
| 2 | 53411-SH3-950 | Tube - AIR TRANSFER | Tube - AIR TRANSFER |
| 3 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 3 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 4 | 53436-SH3-950 | Cushion b - POWER STEERING GEAR BOX | Cushion b - POWER STEERING GEAR BOX |
| 5 | 53438-SR3-950 | Bracket - POWER STEERING GEAR BOX | Bracket - POWER STEERING GEAR BOX |
| 6 | 53446-SK7-950 | Rubber - BAND (T) | Rubber - BAND (T) |
| 7 | 53447-SH3-950 | Band - TRANSFER TUBE | Band - TRANSFER TUBE |
| 8 | 53448-SH3-950 | Clip - TRANSFER TUBE | Clip - TRANSFER TUBE |
| 9 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 10 | 53449-SM4-000 | Band - BELLOWS | Band - BELLOWS |
| 11 | 53459-SR3-A51 | Stay - TRANSFER TUBE | Stay - TRANSFER TUBE |
| 12 | 53501-SR3-000 | Grommet a - STEERING | Grommet a - STEERING |
| 13 | 53502-SR3-A51 | Grommet b - STEERING | Grommet b - STEERING |
| 14 | 53534-SR3-A52 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 15 | 53534-SR3-N52 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 16 | 53536-SR3-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 17 | 53540-SR3-003 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 18 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 19 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 20 | 53560-SR3-003 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 22 | 53685-SH3-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 23 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 24 | 90108-SR3-951 | Bolt - GEAR BOX MOUNTING (10X65) | Bolt - GEAR BOX MOUNTING (10X65) |
| 25 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 26 | 90325-SM4-J00 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
P.s. gear box (LH) 27 / 28
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 53010-SR3-010 | End set - RACK | End set - RACK |
| 2 | 53411-SH3-950 | Tube - AIR TRANSFER | Tube - AIR TRANSFER |
| 3 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 3 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 4 | 53436-SH3-950 | Cushion b - POWER STEERING GEAR BOX | Cushion b - POWER STEERING GEAR BOX |
| 5 | 53438-SR3-950 | Bracket - POWER STEERING GEAR BOX | Bracket - POWER STEERING GEAR BOX |
| 6 | 53446-SK7-950 | Rubber - BAND (T) | Rubber - BAND (T) |
| 7 | 53447-SH3-950 | Band - TRANSFER TUBE | Band - TRANSFER TUBE |
| 8 | 53448-SH3-950 | Clip - TRANSFER TUBE | Clip - TRANSFER TUBE |
| 9 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 10 | 53449-SM4-000 | Band - BELLOWS | Band - BELLOWS |
| 11 | 53459-SR3-A51 | Stay - TRANSFER TUBE | Stay - TRANSFER TUBE |
| 12 | 53501-SR3-000 | Grommet a - STEERING | Grommet a - STEERING |
| 13 | 53502-SR3-A51 | Grommet b - STEERING | Grommet b - STEERING |
| 14 | 53534-SR3-A52 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 15 | 53534-SR3-N52 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 16 | 53536-SR3-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 17 | 53540-SR3-003 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 18 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 19 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 20 | 53560-SR3-003 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 22 | 53685-SH3-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 23 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 24 | 90108-SR3-951 | Bolt - GEAR BOX MOUNTING (10X65) | Bolt - GEAR BOX MOUNTING (10X65) |
| 25 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 26 | 90325-SM4-J00 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
P.s. gear box components (1) 48 / 51
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 06531-SR3-A51 | Seal kit a - POWER STEERING | Seal kit a - POWER STEERING |
| 2 | 06532-SR3-A50 | Seal kit b - POWER STEERING | Seal kit b - POWER STEERING |
| 3 | 53412-634-000 | O-ring - RACK GUIDE (YAMADA) | O-ring - RACK GUIDE (YAMADA) |
| 4 | 53413-SD4-951 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 5 | 53414-634-010 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 5 | 53414-634-020 | Screw | Screw |
| 6 | 53416-SR3-A01 | Guide - STEERING RACK | Guide - STEERING RACK |
| 7 | 53426-SE0-951 | Dust seal - STEERING PINION | Dust seal - STEERING PINION |
| 8 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 8 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-SM4-000 | Band - BELLOWS | Band - BELLOWS |
| 10 | 53458-SE0-003 | Nut - RACK SCREW LOCK | Nut - RACK SCREW LOCK |
| 10 | 53458-S01-A51 | Nut - LOCK | Nut - LOCK |
| 11 | 53536-SR3-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 12 | 53608-SR3-A51 | Housing sub assy. - STEERING GEAR BOX (###) | Housing sub assy. - STEERING GEAR BOX (###) |
| 13 | 53611-SR3-A51 | Cylinder comp | Cylinder comp |
| 14 | 53612-SH3-950 | Barrel - CYLINDER | Barrel - CYLINDER |
| 15 | 53613-SK7-950 | Retainer - PACKING | Retainer - PACKING |
| 16 | 53614-SH3-N51 | Cap - CYLINDER (SGN) | Cap - CYLINDER (SGN) |
| 17 | 53615-SD4-950 | Washer - RETAINER | Washer - RETAINER |
| 18 | 53617-SF1-950 | Port - ORIFICE | Port - ORIFICE |
| 20 | 53625-SR3-A50 | Cap - GEAR BOX HOUSING | Cap - GEAR BOX HOUSING |
| 22 | 53629-SB3-950 | Orifice - SENSOR | Orifice - SENSOR |
| 23 | 53630-SD4-950 | Spring - CYLINDER | Spring - CYLINDER |
| 24 | 53631-SD4-951 | Bush a - STEERING RACK | Bush a - STEERING RACK |
| 25 | 53632-SF1-950 | Bush b - STEERING RACK | Bush b - STEERING RACK |
| 26 | 53634-SF1-951 | Clip - BUSH STOPPER | Clip - BUSH STOPPER |
| 27 | 53640-SR3-G51 | Body comp - VALVE (###) | Body comp - VALVE (###) |
| 28 | 53643-SR3-A50 | Port comp. - VALVE | Port comp. - VALVE |
| 29 | 53645-SR3-A50 | Cap comp. - VALVE | Cap comp. - VALVE |
| 30 | 53646-SR3-A50 | Spool - FOUR WAY | Spool - FOUR WAY |
| 31 | 53651-SB4-950 | Spool comp. b - CUT-OFF (-0.005 / 0) | Spool comp. b - CUT-OFF (-0.005 / 0) |
| 32 | 53653-SR3-G51 | Spring - CUT-OFF | Spring - CUT-OFF |
| 33 | 53659-SR3-A50 | Orifice comp. - DAMPING | Orifice comp. - DAMPING |
| 34 | 53666-SA5-671 | Plunger - DIAMETER=8MM | Plunger - DIAMETER=8MM |
| 35 | 53667-SR3-A50 | Spring - RETURN | Spring - RETURN |
| 36 | 90103-SB4-950 | Bolt - POWER STEERING | Bolt - POWER STEERING |
| 37 | 90684-SD4-950 | Ring - SNAP, 31MM | Ring - SNAP, 31MM |
| 38 | 90693-SC5-003 | Circlip - INTERNAL, 32MM | Circlip - INTERNAL, 32MM |
| 39 | 90697-SA5-003 | Circlip - EXTERNAL, 31MM | Circlip - EXTERNAL, 31MM |
| 40 | 91052-SL5-A01 | Bearing - RADIAL BALL, 6906/31ZZ | Bearing - RADIAL BALL, 6906/31ZZ |
| 41 | 91053-SL5-A01 | Bearing - RADIAL BALL, 600 | Bearing - RADIAL BALL, 600 |
| 42 | 91103-429-000 | Dowel pin - 8X10 | Dowel pin - 8X10 |
| 43 | 91154-SA5-952 | Roller - 3.5X29.8 | Roller - 3.5X29.8 |
| 44 | 91352-SF4-951 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 44 | 91318-PT0-003 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 45 | 91360-SD4-951 | O-ring - 50X2.4 (NOK) | O-ring - 50X2.4 (NOK) |
| 45 | 91360-SD4-952 | O-ring - 50X2.4 (ARAI) | O-ring - 50X2.4 (ARAI) |
P.s. gear box components (LH) 48 / 51
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 06531-SR3-A51 | Seal kit a - POWER STEERING | Seal kit a - POWER STEERING |
| 2 | 06532-SR3-A50 | Seal kit b - POWER STEERING | Seal kit b - POWER STEERING |
| 3 | 53412-634-000 | O-ring - RACK GUIDE (YAMADA) | O-ring - RACK GUIDE (YAMADA) |
| 4 | 53413-SD4-951 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 5 | 53414-634-010 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 5 | 53414-634-020 | Screw | Screw |
| 6 | 53416-SR3-A01 | Guide - STEERING RACK | Guide - STEERING RACK |
| 7 | 53426-SE0-951 | Dust seal - STEERING PINION | Dust seal - STEERING PINION |
| 8 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 8 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-SM4-000 | Band - BELLOWS | Band - BELLOWS |
| 10 | 53458-SE0-003 | Nut - RACK SCREW LOCK | Nut - RACK SCREW LOCK |
| 10 | 53458-S01-A51 | Nut - LOCK | Nut - LOCK |
| 11 | 53536-SR3-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 12 | 53608-SR3-A51 | Housing sub assy. - STEERING GEAR BOX (###) | Housing sub assy. - STEERING GEAR BOX (###) |
| 13 | 53611-SR3-A51 | Cylinder comp | Cylinder comp |
| 14 | 53612-SH3-950 | Barrel - CYLINDER | Barrel - CYLINDER |
| 15 | 53613-SK7-950 | Retainer - PACKING | Retainer - PACKING |
| 16 | 53614-SH3-N51 | Cap - CYLINDER (SGN) | Cap - CYLINDER (SGN) |
| 17 | 53615-SD4-950 | Washer - RETAINER | Washer - RETAINER |
| 18 | 53617-SF1-950 | Port - ORIFICE | Port - ORIFICE |
| 20 | 53625-SR3-A50 | Cap - GEAR BOX HOUSING | Cap - GEAR BOX HOUSING |
| 22 | 53629-SB3-950 | Orifice - SENSOR | Orifice - SENSOR |
| 23 | 53630-SD4-950 | Spring - CYLINDER | Spring - CYLINDER |
| 24 | 53631-SD4-951 | Bush a - STEERING RACK | Bush a - STEERING RACK |
| 25 | 53632-SF1-950 | Bush b - STEERING RACK | Bush b - STEERING RACK |
| 26 | 53634-SF1-951 | Clip - BUSH STOPPER | Clip - BUSH STOPPER |
| 27 | 53640-SR3-G51 | Body comp - VALVE (###) | Body comp - VALVE (###) |
| 28 | 53643-SR3-A50 | Port comp. - VALVE | Port comp. - VALVE |
| 29 | 53645-SR3-A50 | Cap comp. - VALVE | Cap comp. - VALVE |
| 30 | 53646-SR3-A50 | Spool - FOUR WAY | Spool - FOUR WAY |
| 31 | 53651-SB4-950 | Spool comp. b - CUT-OFF (-0.005 / 0) | Spool comp. b - CUT-OFF (-0.005 / 0) |
| 32 | 53653-SR3-G51 | Spring - CUT-OFF | Spring - CUT-OFF |
| 33 | 53659-SR3-A50 | Orifice comp. - DAMPING | Orifice comp. - DAMPING |
| 34 | 53666-SA5-671 | Plunger - DIAMETER=8MM | Plunger - DIAMETER=8MM |
| 35 | 53667-SR3-A50 | Spring - RETURN | Spring - RETURN |
| 36 | 90103-SB4-950 | Bolt - POWER STEERING | Bolt - POWER STEERING |
| 37 | 90684-SD4-950 | Ring - SNAP, 31MM | Ring - SNAP, 31MM |
| 38 | 90693-SC5-003 | Circlip - INTERNAL, 32MM | Circlip - INTERNAL, 32MM |
| 39 | 90697-SA5-003 | Circlip - EXTERNAL, 31MM | Circlip - EXTERNAL, 31MM |
| 40 | 91052-SL5-A01 | Bearing - RADIAL BALL, 6906/31ZZ | Bearing - RADIAL BALL, 6906/31ZZ |
| 41 | 91053-SL5-A01 | Bearing - RADIAL BALL, 600 | Bearing - RADIAL BALL, 600 |
| 42 | 91103-429-000 | Dowel pin - 8X10 | Dowel pin - 8X10 |
| 43 | 91154-SA5-952 | Roller - 3.5X29.8 | Roller - 3.5X29.8 |
| 44 | 91352-SF4-951 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 44 | 91318-PT0-003 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 45 | 91360-SD4-951 | O-ring - 50X2.4 (NOK) | O-ring - 50X2.4 (NOK) |
| 45 | 91360-SD4-952 | O-ring - 50X2.4 (ARAI) | O-ring - 50X2.4 (ARAI) |
P.s. line (LH) 18 / 22
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SR3-A51 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53711-SR3-951 | Bracket assy - OIL TANK | Bracket assy - OIL TANK |
| 5 | 53720-SR3-A51 | Pipe comp - RETURN, 10MM | Pipe comp - RETURN, 10MM |
| 6 | 53724-SR3-A53 | Pipe comp - RETURN, 6MM | Pipe comp - RETURN, 6MM |
| 7 | 53728-SR3-A51 | Clip - RETURN PIPE | Clip - RETURN PIPE |
| 8 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 9 | 53730-SR3-A51 | Pipe comp - POWER STEERING COMBINATION RETURN | Pipe comp - POWER STEERING COMBINATION RETURN |
| 11 | 53732-SR3-A52 | Hose - POWER STEERING RETURN | Hose - POWER STEERING RETURN |
| 12 | 53733-SR3-A50 | Tube - POWER STEERING OIL TANK | Tube - POWER STEERING OIL TANK |
| 15 | 53735-SR3-960 | Hose - OIL COOLER RETURN | Hose - OIL COOLER RETURN |
| 16 | 53736-SR3-950 | Holder - POWER STEERING PIPE | Holder - POWER STEERING PIPE |
| 24 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 24 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 26 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 26 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 27 | 91405-PE0-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 27 | 91417-SZ3-003 | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) |
P.s. lines (1) 18 / 22
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SR3-A51 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53711-SR3-951 | Bracket assy - OIL TANK | Bracket assy - OIL TANK |
| 5 | 53720-SR3-A51 | Pipe comp - RETURN, 10MM | Pipe comp - RETURN, 10MM |
| 6 | 53724-SR3-A53 | Pipe comp - RETURN, 6MM | Pipe comp - RETURN, 6MM |
| 7 | 53728-SR3-A51 | Clip - RETURN PIPE | Clip - RETURN PIPE |
| 8 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 9 | 53730-SR3-A51 | Pipe comp - POWER STEERING COMBINATION RETURN | Pipe comp - POWER STEERING COMBINATION RETURN |
| 11 | 53732-SR3-A52 | Hose - POWER STEERING RETURN | Hose - POWER STEERING RETURN |
| 12 | 53733-SR3-A50 | Tube - POWER STEERING OIL TANK | Tube - POWER STEERING OIL TANK |
| 15 | 53735-SR3-960 | Hose - OIL COOLER RETURN | Hose - OIL COOLER RETURN |
| 16 | 53736-SR3-950 | Holder - POWER STEERING PIPE | Holder - POWER STEERING PIPE |
| 22 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 22 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 23 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 23 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 24 | 91405-PE0-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 24 | 91417-SZ3-003 | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) |
P.s. pump 13 / 19
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 56123-P30-000 | Joint comp - IN. (###) | Joint comp - IN. (###) |
| 3 | 56141-P02-000 | Shaft - POWER STEERING PUMP DRIVE | Shaft - POWER STEERING PUMP DRIVE |
| 4 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 9 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 10 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 11 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 12 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 13 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 14 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 15 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 16 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 17 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 18 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
P.s. pump bracket 3 / 5
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 4 | 56996-P01-000 | Bolt - POWER STEERING PUMP ADJUSTING WING | Bolt - POWER STEERING PUMP ADJUSTING WING |
| 10 | 90004-P30-000 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 11 | 90601-P01-003 | Clip - ADJUST BOLT | Clip - ADJUST BOLT |
Parking brake 9 / 13
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 47142-659-310 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 4 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 5 | 47342-SM4-000 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 6 | 47360-SB2-000 | Equalizer | Equalizer |
| 7 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 10 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 11 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 14 | 47572-SR3-010 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 16 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Pedal (1) 23 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 17800-SR3-000 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 4 | 17814-SR3-000 | Spring - ACCELERATOR RETURN | Spring - ACCELERATOR RETURN |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 8 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 11 | 17931-SR3-A10 | Clamp - THROTTLE WIRE | Clamp - THROTTLE WIRE |
| 13 | 35350-SE0-A03 | Switch assy - STOP (TEC) | Switch assy - STOP (TEC) |
| 14 | 46500-SR3-A10 | Pedal assy - BRAKE | Pedal assy - BRAKE |
| 16 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 17 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 18 | 46530-SR3-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 19 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 21 | 46545-SH3-000 | Cover - PEDAL | Cover - PEDAL |
| 22 | 46590-SR3-A11 | Bracket - PEDAL | Bracket - PEDAL |
| 23 | 46904-SM4-300 | Pad - ACCELERATOR STOPPER | Pad - ACCELERATOR STOPPER |
| 24 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 26 | 46907-SR3-000 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 27 | 46910-SR3-J00 | Pedal comp - CLUTCH | Pedal comp - CLUTCH |
| 28 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 29 | 46981-SR3-930 | Bush a - CLUTCH ASSISTANT | Bush a - CLUTCH ASSISTANT |
| 30 | 46982-SR3-930 | Bush b - CLUTCH ASSISTANT | Bush b - CLUTCH ASSISTANT |
| 31 | 46990-SR3-000 | Bracket - CLUTCH PEDAL | Bracket - CLUTCH PEDAL |
| 32 | 46991-SR3-010 | Bracket - FOOTREST | Bracket - FOOTREST |
Pedal (LH) 22 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 17800-SR3-000 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 4 | 17814-SR3-000 | Spring - ACCELERATOR RETURN | Spring - ACCELERATOR RETURN |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 8 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 11 | 17931-SR3-A10 | Clamp - THROTTLE WIRE | Clamp - THROTTLE WIRE |
| 13 | 35350-SE0-A03 | Switch assy - STOP (TEC) | Switch assy - STOP (TEC) |
| 15 | 46500-SR3-A10 | Pedal assy - BRAKE | Pedal assy - BRAKE |
| 17 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 18 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 19 | 46530-SR3-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 20 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 22 | 46545-SH3-000 | Cover - PEDAL | Cover - PEDAL |
| 23 | 46590-SR3-A11 | Bracket - PEDAL | Bracket - PEDAL |
| 24 | 46904-SM4-300 | Pad - ACCELERATOR STOPPER | Pad - ACCELERATOR STOPPER |
| 25 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 27 | 46907-SR3-000 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 28 | 46910-SR3-J00 | Pedal comp - CLUTCH | Pedal comp - CLUTCH |
| 29 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 30 | 46981-SR3-930 | Bush a - CLUTCH ASSISTANT | Bush a - CLUTCH ASSISTANT |
| 31 | 46982-SR3-930 | Bush b - CLUTCH ASSISTANT | Bush b - CLUTCH ASSISTANT |
| 32 | 46990-SR3-000 | Bracket - CLUTCH PEDAL | Bracket - CLUTCH PEDAL |
Pillar garnish 1 / 2
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
Piston/crankshaft 1 / 53
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 17 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
Radiator (DENSO) 14 / 15
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19014-PK1-003 | Clip - HARNESS | Clip - HARNESS |
| 5 | 19015-P08-013 | Shroud comp - DENSO | Shroud comp - DENSO |
| 7 | 19020-P08-003 | Fan, COOLING (DENSO) | Fan, COOLING (DENSO) |
| 8 | 19030-P08-013 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 9 | 19033-P08-003 | Stay - COUPLER (DENSO) | Stay - COUPLER (DENSO) |
| 10 | 19045-P08-013 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 10 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 11 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 12 | 90041-P08-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 13 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 13 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
Radiator hose 10 / 16
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 19101-P08-J00 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 3 | 19104-PZ3-010 | Tube a - RESERVE TANK (220MM) | Tube a - RESERVE TANK (220MM) |
| 4 | 19104-P08-000 | Tube - RESERVE TANK | Tube - RESERVE TANK |
| 5 | 19106-PA0-020 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 8 | 19115-P08-000 | Bracket - RESERVE TANK | Bracket - RESERVE TANK |
| 20 | 74172-SR3-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 21 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 22 | 74176-SR3-000 | Bracket - RADIATOR MOUNT UPPER | Bracket - RADIATOR MOUNT UPPER |
| 23 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Radio antenna/speaker 9 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 39112-SH3-000 | Bracket - FR. SPEAKER SEAL (12CM) | Bracket - FR. SPEAKER SEAL (12CM) |
| 4 | 39120-SM4-901 | Speaker assy - 120MM DUAL) (PIONEER | Speaker assy - 120MM DUAL) (PIONEER |
| 8 | 39150-SR3-G01 | Antenna assy - AUTO RADIO (MATSUSHITA) | Antenna assy - AUTO RADIO (MATSUSHITA) |
| 9 | 39154-SR3-G01 | Packing - ANTENNA BASE (MATSUSHITA) | Packing - ANTENNA BASE (MATSUSHITA) |
| 11 | 90105-SB6-003 | Screw - PAN, 4X12 | Screw - PAN, 4X12 |
| 13 | 90502-SA0-003 | Washer - WATER PROOF | Washer - WATER PROOF |
| 14 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 15 | 90683-SB3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 16 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
Rear brake (DISK) 6 / 47
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 42 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 43 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 46 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 46 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 46 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 47 | 90305-692-010 | Nut | Nut |
Rear seat (2) 1 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 17 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Rear seat (VTI) 1 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 17 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Rear shock absorber 13 / 18
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 2 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 3 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 9 | 52675-SH3-024 | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 10 | 52686-SR3-003 | Rubber - RR. SPRING MOUNTING (SHOWA) | Rubber - RR. SPRING MOUNTING (SHOWA) |
| 11 | 52687-SR3-003 | Cover - RR. DUST (SHOWA) | Cover - RR. DUST (SHOWA) |
| 12 | 52688-SR3-003 | End - RR. DUST COVER (SHOWA) | End - RR. DUST COVER (SHOWA) |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 14 | 52722-SR3-003 | Rubber - RR. BUMP STOPPER (SHOWA) | Rubber - RR. BUMP STOPPER (SHOWA) |
| 15 | 52725-SJ4-000 | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 17 | 90172-SK7-A01 | Bolt - SHOCK ABSORBER LOWER (10X84) | Bolt - SHOCK ABSORBER LOWER (10X84) |
| 18 | 90304-SR3-014 | Nut - FLANGE, 10MM (OHASHI) | Nut - FLANGE, 10MM (OHASHI) |
| 19 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Rear stabilizer/rear lower arm 15 / 38
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 14 | 52341-SR3-000 | Arm comp - RR. COMPENSATOR | Arm comp - RR. COMPENSATOR |
| 15 | 52343-SR3-004 | Bush - COMPENSATOR (YAMASHITA) | Bush - COMPENSATOR (YAMASHITA) |
| 15 | 52343-SK7-003 | Bush - COMPENSATOR (HOKUSHIN) | Bush - COMPENSATOR (HOKUSHIN) |
| 26 | 52390-SR3-000 | Arm comp | Arm comp |
| 27 | 52393-SR3-004 | Bush - UPPER ARM INNER (YAMASHITA) | Bush - UPPER ARM INNER (YAMASHITA) |
| 28 | 52395-SH3-004 | Bush - RR. UPPER ARM (YAMASHITA) | Bush - RR. UPPER ARM (YAMASHITA) |
| 29 | 52400-SR3-000 | Arm comp | Arm comp |
| 34 | 90117-SH3-004 | Bolt - UPPER ARM, 10X30 | Bolt - UPPER ARM, 10X30 |
| 35 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 36 | 90171-SR3-003 | Bolt - TORQUE COMPENSATOR, 10X59 | Bolt - TORQUE COMPENSATOR, 10X59 |
| 37 | 90172-SK7-003 | Bolt - UPPER ARM, 10X68 | Bolt - UPPER ARM, 10X68 |
| 37 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 38 | 90173-SR3-003 | Bolt - LOWER ARM, 10X80 | Bolt - LOWER ARM, 10X80 |
| 39 | 90174-SJ4-003 | Bolt - TRAILING ARM BUSH, 12X60 | Bolt - TRAILING ARM BUSH, 12X60 |
| 41 | 90551-SH3-000 | Washer - 24X10X2.3 | Washer - 24X10X2.3 |
Roof lining 6 / 7
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 17 | 83243-SK8-A40 | Cover - GRAB RAIL | Cover - GRAB RAIL |
| 18 | 83248-SG0-003 | Spacer - GRAB RAIL | Spacer - GRAB RAIL |
| 33 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
| 34 | 90195-SA0-000 | Screw-washer - 6X20 | Screw-washer - 6X20 |
| 35 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Roof lining (LH) 6 / 7
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 14 | 83243-SK8-A40 | Cover - GRAB RAIL | Cover - GRAB RAIL |
| 15 | 83248-SG0-003 | Spacer - GRAB RAIL | Spacer - GRAB RAIL |
| 25 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
| 26 | 90195-SA0-000 | Screw-washer - 6X20 | Screw-washer - 6X20 |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Seatbelt 2 / 5
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 11 | 82490-SR3-000 | Bag - PROTECTOR | Bag - PROTECTOR |
| 13 | 90688-SR3-003 | Clip - BAG PROTECTOR | Clip - BAG PROTECTOR |
Seatbelts 2 / 5
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 18 | 82490-SR3-000 | Bag - PROTECTOR | Bag - PROTECTOR |
| 22 | 90688-SR3-003 | Clip - BAG PROTECTOR | Clip - BAG PROTECTOR |
Shift fork (2) 1 / 6
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
Shift fork (DOHC VTEC; 1051163-) 1 / 6
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
Shift lever 1 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 23 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
Shift rod/shift holder (2) 3 / 20
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 11 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 12 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 15 | 90403-689-000 | Collar - LOCK | Collar - LOCK |
Shift rod/shift holder (DOHC VTEC) 3 / 20
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 11 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 12 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 15 | 90403-689-000 | Collar - LOCK | Collar - LOCK |
Side lining (2) 5 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 17 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 19 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 20 | 90668-SH3-003 | Clip - SIDE LINING | Clip - SIDE LINING |
| 22 | 90678-SK7-003 | Clip - SPEAKER | Clip - SPEAKER |
Side lining (VTI) 5 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 18 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 20 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 21 | 90668-SH3-003 | Clip - SIDE LINING | Clip - SIDE LINING |
| 23 | 90678-SK7-003 | Clip - SPEAKER | Clip - SPEAKER |
Side protector 16 / 35
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 9 | 74307-SR3-003 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
| 11 | 74430-SR3-A00 | Protector - RR. WHEEL ARCH | Protector - RR. WHEEL ARCH |
| 11 | 74430-SM4-A00 | Protector - RR. WHEEL ARCH | Protector - RR. WHEEL ARCH |
| 23 | 75328-SR3-003 | Clip - SIDE PROTECTOR | Clip - SIDE PROTECTOR |
| 25 | 75807-671-010 | Nut - SIDE PROTECTOR (BLACK) | Nut - SIDE PROTECTOR (BLACK) |
| 30 | 90119-SR3-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 30 | 90116-SE0-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 32 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 32 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 33 | 90308-SB2-013 | Nut - SUSPENSION, 5MM | Nut - SUSPENSION, 5MM |
| 34 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 37 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 38 | 90688-SB0-013 | Clip b | Clip b |
| 38 | 90668-SC5-003 | Clip A - AIRSCOOP GRILLE | Clip A - AIRSCOOP GRILLE |
| 40 | 91510-SR3-003 | Clip - DOOR MOLDING (NATURAL) | Clip - DOOR MOLDING (NATURAL) |
| 41 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
Side protectors 12 / 29
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 8 | 74307-SR3-003 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
| 10 | 74430-SR3-A00 | Protector - RR. WHEEL ARCH | Protector - RR. WHEEL ARCH |
| 10 | 74430-SM4-A00 | Protector - RR. WHEEL ARCH | Protector - RR. WHEEL ARCH |
| 21 | 75328-SR3-003 | Clip - SIDE PROTECTOR | Clip - SIDE PROTECTOR |
| 22 | 75807-671-010 | Nut - SIDE PROTECTOR (BLACK) | Nut - SIDE PROTECTOR (BLACK) |
| 25 | 90119-SR3-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 25 | 90116-SE0-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 28 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 30 | 90688-SB0-013 | Clip b | Clip b |
| 30 | 90668-SC5-003 | Clip A - AIRSCOOP GRILLE | Clip A - AIRSCOOP GRILLE |
| 32 | 91510-SR3-003 | Clip - DOOR MOLDING (NATURAL) | Clip - DOOR MOLDING (NATURAL) |
| 33 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
Sliding roof (1) 4 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 2 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 3 | 70052-SH3-000 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 5 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
Sliding roof (3) 1 / 29
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 33 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Sliding roof (FRAME) 4 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 2 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 3 | 70052-SH3-000 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 5 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
Sliding roof (MOTOR) 1 / 29
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 29 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Speed sensor 2 / 4
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 3 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Speedometer component 10 / 14
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 4 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 5 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 6 | 78108-SR3-G01 | Panel - PRINT | Panel - PRINT |
| 7 | 78110-SR3-J03 | Case assy. | Case assy. |
| 13 | 78155-SR3-G12 | Visor assy - METER | Visor assy - METER |
| 17 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 18 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 20 | 91547-SR3-003 | Clamp - WIRE HARNESS | Clamp - WIRE HARNESS |
Speedometer components 9 / 15
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 4 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 5 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 6 | 78108-SR3-G01 | Panel - PRINT | Panel - PRINT |
| 7 | 78110-SR3-J03 | Case assy. | Case assy. |
| 17 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 18 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 20 | 91547-SR3-003 | Clamp - WIRE HARNESS | Clamp - WIRE HARNESS |
Srs unit 1 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 10 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Starter motor (MITSUBA; 2) 9 / 15
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 31202-PR3-004 | Bolt - THROUGH (###) | Bolt - THROUGH (###) |
| 3 | 31204-PJ7-903 | Gear assy. - PINION (MITSUBA) | Gear assy. - PINION (MITSUBA) |
| 4 | 31206-PR3-004 | Yoke assy. | Yoke assy. |
| 5 | 31207-PR3-014 | Armature assy - ### | Armature assy - ### |
| 6 | 31208-PT0-005 | Plate comp - BRUSH HOLDER | Plate comp - BRUSH HOLDER |
| 8 | 31211-PC2-006 | Ring - SQUARE (MITSUBA) | Ring - SQUARE (MITSUBA) |
| 11 | 31217-PC2-006 | Screw-washer - 4X28 (MITSUBA) | Screw-washer - 4X28 (MITSUBA) |
| 12 | 31235-PT0-005 | Cover - TERMINAL (###) | Cover - TERMINAL (###) |
| 14 | 31252-PD2-006 | Rubber - BUSH (MITSUBA) | Rubber - BUSH (MITSUBA) |
Steering column 15 / 18
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 53200-SR3-020 | Column assy - STEERING (TILT) | Column assy - STEERING (TILT) |
| 2 | 53201-SL4-003 | Guide - ABSORBING PLATE | Guide - ABSORBING PLATE |
| 3 | 53202-SR3-J00 | Plate - ABSORBING | Plate - ABSORBING |
| 4 | 53216-SR3-000 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 5 | 53217-SR3-000 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 6 | 53320-SR3-A01 | Cover - STEERING JOINT | Cover - STEERING JOINT |
| 7 | 53323-SM4-013 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 8 | 53325-SH3-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 9 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 10 | 53363-SR3-A01 | Pivot comp - COLUMN | Pivot comp - COLUMN |
| 12 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 13 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 13 | 53371-SB3-000 | Spring - COLUMN HANGER | Spring - COLUMN HANGER |
| 14 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 15 | 90654-SR3-003 | Clip - STEERING JOINT COVER | Clip - STEERING JOINT COVER |
Steering wheel 1 / 11
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 16 | 90380-SB2-003 | Nut - SELF-LOCK (OHASHI) | Nut - SELF-LOCK (OHASHI) |
Steering wheel (3) 1 / 9
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 17 | 90380-SB2-003 | Nut - SELF-LOCK (OHASHI) | Nut - SELF-LOCK (OHASHI) |
Switch (1) 6 / 6
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 35145-SR3-901 | Frame - TWO KEY | Frame - TWO KEY |
| 2 | 35145-SR3-911 | Frame - THREE KEY | Frame - THREE KEY |
| 10 | 35510-SR3-003 | Switch assy - HAZARD | Switch assy - HAZARD |
| 12 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
| 13 | 39700-SR3-003 | Clock assy - DIGITAL (NS) | Clock assy - DIGITAL (NS) |
| 13 | 39700-SR3-004 | Clock assy - DIGITAL (JECO) | Clock assy - DIGITAL (JECO) |
Switch (LH) 6 / 7
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 35145-SR3-901 | Frame - TWO KEY | Frame - TWO KEY |
| 2 | 35145-SR3-911 | Frame - THREE KEY | Frame - THREE KEY |
| 10 | 35510-SR3-003 | Switch assy - HAZARD | Switch assy - HAZARD |
| 13 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
| 15 | 39700-SR3-004 | Clock assy - DIGITAL (JECO) | Clock assy - DIGITAL (JECO) |
| 15 | 39700-SR3-003 | Clock assy - DIGITAL (NS) | Clock assy - DIGITAL (NS) |
Tailgate 1 / 24
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 34 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
Taillight 6 / 30
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 25 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 26 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 27 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 28 | 90301-SE0-902 | Nut - SPECIAL, 5MM | Nut - SPECIAL, 5MM |
| 30 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Throttle body 15 / 21
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 16016-PM6-005 | Screw set | Screw set |
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 3 | 16075-P07-000 | O-ring | O-ring |
| 4 | 16076-P64-000 | O-ring | O-ring |
| 5 | 16077-P06-A00 | O-ring | O-ring |
| 6 | 16078-P06-A00 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 8 | 16081-P06-A00 | Bolt - FLANGE, 6X40 | Bolt - FLANGE, 6X40 |
| 10 | 16179-P06-A00 | Binder | Binder |
| 14 | 16500-P75-000 | Valve assy. - FAST IDLE (AF42C) | Valve assy. - FAST IDLE (AF42C) |
| 15 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 16 | 36151-P05-A00 | Stay - PURGE CONTROL TUBE | Stay - PURGE CONTROL TUBE |
| 17 | 36162-PT3-Q01 | Valve assy. - PURGE CUT SOLENOID | Valve assy. - PURGE CUT SOLENOID |
| 20 | 36454-PS4-003 | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
| 22 | 37830-P05-A01 | Sensor assy - MAP | Sensor assy - MAP |
Throttle body (DOHC VTEC; 1.6L SOHC VTEC) 15 / 21
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 16016-PM6-005 | Screw set | Screw set |
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 3 | 16075-P07-000 | O-ring | O-ring |
| 4 | 16076-P64-000 | O-ring | O-ring |
| 5 | 16077-P06-A00 | O-ring | O-ring |
| 6 | 16078-P06-A00 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 8 | 16081-P06-A00 | Bolt - FLANGE, 6X40 | Bolt - FLANGE, 6X40 |
| 10 | 16179-P06-A00 | Binder | Binder |
| 15 | 16500-P75-000 | Valve assy. - FAST IDLE (AF42C) | Valve assy. - FAST IDLE (AF42C) |
| 16 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 17 | 36151-P05-A00 | Stay - PURGE CONTROL TUBE | Stay - PURGE CONTROL TUBE |
| 18 | 36162-PT3-Q01 | Valve assy. - PURGE CUT SOLENOID | Valve assy. - PURGE CUT SOLENOID |
| 20 | 36454-PS4-003 | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
| 22 | 37830-P05-A01 | Sensor assy - MAP | Sensor assy - MAP |
Tire/wheel disk 22 / 39
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 42700-SR3-J51 | Disk - WHEEL (15X4T) | Disk - WHEEL (15X4T) |
| 5 | 42751-SR3-A52 | Tire - T135/70D15) (DUNLOP | Tire - T135/70D15) (DUNLOP |
| 5 | 42751-SF1-601 | Tire - T135/70D15) (BRIDGESTONE | Tire - T135/70D15) (BRIDGESTONE |
| 6 | 42753-SH3-003 | Valve - RIM (US PACIFIC) | Valve - RIM (US PACIFIC) |
| 6 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 8 | 42767-SH3-E00 | Plate - SPARE TIRE CAUTION (T-TYPE) | Plate - SPARE TIRE CAUTION (T-TYPE) |
| 9 | 42767-SR3-E10 | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
| 10 | 44728-SB2-003 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 10 | 44725-SB2-003 | Weight - BALANCE (50G) (YAMATE) | Weight - BALANCE (50G) (YAMATE) |
| 10 | 44729-SB2-003 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 10 | 44730-SB2-013 | Weight - BALANCE (45G) (YAMATE) | Weight - BALANCE (45G) (YAMATE) |
| 10 | 44726-SB2-003 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 10 | 44721-SB2-003 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 10 | 44722-SB2-003 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 10 | 44723-SB2-003 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 10 | 44727-SB2-003 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 10 | 44724-SB2-003 | Weight - BALANCE (40G) (YAMATE) | Weight - BALANCE (40G) (YAMATE) |
| 20 | 44736-SA0-981 | Nut - WHEEL (FUSE RASHI) | Nut - WHEEL (FUSE RASHI) |
| 21 | 44737-SA0-981 | Washer - WHEEL NUT (FUSE RASHI) | Washer - WHEEL NUT (FUSE RASHI) |
| 22 | 83850-SD2-000 | Plate - ANCHOR BOLT | Plate - ANCHOR BOLT |
| 23 | 83853-SA7-980 | Bolt - ANCHOR (79MM) | Bolt - ANCHOR (79MM) |
| 24 | 90304-SA0-981 | Nut comp. - WHEEL (FUSE RASHI) | Nut comp. - WHEEL (FUSE RASHI) |
Tools/jack 6 / 9
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 71969-SA7-890 | Wrench - SUNROOF | Wrench - SUNROOF |
| 3 | 89101-SH3-000 | Bag - TOOL | Bag - TOOL |
| 3 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 4 | 89211-SE3-003 | Wrench - WHEEL | Wrench - WHEEL |
| 9 | 89320-SE3-003 | Bar - JACK | Bar - JACK |
| 9 | 89320-S50-003 | Bar - JACK | Bar - JACK |
Transmission housing (2) 5 / 59
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 5 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 8 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 11 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 14 | 90401-PG1-000 | Washer - DRAIN PLUG, 10MM | Washer - DRAIN PLUG, 10MM |
| 16 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
Transmission housing (DOHC VTEC) 5 / 59
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 5 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 8 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 12 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 15 | 90401-PG1-000 | Washer - DRAIN PLUG, 10MM | Washer - DRAIN PLUG, 10MM |
| 17 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
Trunk box 3 / 11
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 22 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 23 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
Valve/rocker arm (4) 2 / 22
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 17 | 90206-590-000 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 17 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
Valve/rocker arm (DOHC VTEC) 2 / 22
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 17 | 90206-590-000 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 17 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
Water hose (4) 2 / 6
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 19508-P08-000 | Hose, BY-PASS OUTLET | Hose, BY-PASS OUTLET |
| 4 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Water hose (DOHC VTEC) 2 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 6 | 19508-P08-000 | Hose, BY-PASS OUTLET | Hose, BY-PASS OUTLET |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Water pump 7 / 16
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 5 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 5 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 5 | 19301-P08-305 | Thermostat assy - FUJI THOMSON | Thermostat assy - FUJI THOMSON |
| 6 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 14 | 19500-PE0-000 | Joint, Tube | Joint, Tube |
| 17 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
Water valve 6 / 10
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 2 | 79710-SR3-A01 | Valve assy. Water | Valve assy. Water |
| 4 | 79722-SR3-000 | Hose b, WATER IN. | Hose b, WATER IN. |
| 6 | 79731-SR3-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 7 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 10 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Windshield washer 12 / 25
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 2 | 38512-SB0-922 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 4 | 38513-SB0-961 | Cap - WASHER MOUTH(MITSUBA) | Cap - WASHER MOUTH(MITSUBA) |
| 4 | 76802-SS0-003 | Cap - MOUTH | Cap - MOUTH |
| 6 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 7 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 8 | 38562-SA0-003 | Joint l - WASHER TUBE(MITSUBA) | Joint l - WASHER TUBE(MITSUBA) |
| 13 | 76810-SR3-003 | Nozzle assy. - R. FR. WASHER | Nozzle assy. - R. FR. WASHER |
| 14 | 76815-SR3-003 | Nozzle assy. - L. FR. WASHER | Nozzle assy. - L. FR. WASHER |
| 21 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 22 | 91504-SR3-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 23 | 91506-SR3-003 | Clip - TUBE WASHER (NATURAL) | Clip - TUBE WASHER (NATURAL) |
Windshield washer/ headlight washer 10 / 44
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 2 | 38512-SB0-922 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 6 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 8 | 38562-SA0-003 | Joint l - WASHER TUBE(MITSUBA) | Joint l - WASHER TUBE(MITSUBA) |
| 17 | 76810-SR3-003 | Nozzle assy. - R. FR. WASHER | Nozzle assy. - R. FR. WASHER |
| 18 | 76815-SR3-003 | Nozzle assy. - L. FR. WASHER | Nozzle assy. - L. FR. WASHER |
| 22 | 76830-SM4-003 | Joint y - WASHER | Joint y - WASHER |
| 40 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 41 | 91504-SR3-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 42 | 91506-SR3-003 | Clip - TUBE WASHER (NATURAL) | Clip - TUBE WASHER (NATURAL) |
Wire harness (1) 25 / 40
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 32113-SR3-A00 | Stay - L. COUPLER | Stay - L. COUPLER |
| 4 | 32114-SR3-000 | Bracket - RADIO EARTH | Bracket - RADIO EARTH |
| 8 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 9 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 12 | 32200-SR3-B13 | Harness - ENGINE ROOM WIRE | Harness - ENGINE ROOM WIRE |
| 17 | 72327-SD5-000 | Seal b - FR. DOOR HOLE (30X50) | Seal b - FR. DOOR HOLE (30X50) |
| 19 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 20 | 90154-SD4-003 | Bolt - EARTH, 6X20 | Bolt - EARTH, 6X20 |
| 23 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 25 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 26 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 29 | 91550-SH5-003 | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) |
| 30 | 91550-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 31 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 32 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 33 | 91557-SR3-003 | Clip - WIRE HARNESS PROTECTOR (RED) | Clip - WIRE HARNESS PROTECTOR (RED) |
| 34 | 91560-SR3-003 | Band - HARNESS (NATURAL)(113MM) | Band - HARNESS (NATURAL)(113MM) |
| 37 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 38 | 91571-SR3-004 | Holder - COUPLER | Holder - COUPLER |
| 41 | 91626-SR3-003 | Ring - WIRE HARNESS | Ring - WIRE HARNESS |
| 42 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 43 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 44 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| 45 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Wire harness (LH) 24 / 41
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 3 | 32113-SR3-A00 | Stay - L. COUPLER | Stay - L. COUPLER |
| 4 | 32114-SR3-000 | Bracket - RADIO EARTH | Bracket - RADIO EARTH |
| 8 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 9 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 18 | 72327-SD5-000 | Seal b - FR. DOOR HOLE (30X50) | Seal b - FR. DOOR HOLE (30X50) |
| 20 | 90153-SB6-003 | Bolt - EARTH, 6X12(ZN) | Bolt - EARTH, 6X12(ZN) |
| 21 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 22 | 90154-SD4-003 | Bolt - EARTH, 6X20 | Bolt - EARTH, 6X20 |
| 25 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 27 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 28 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 31 | 91550-SH5-003 | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) |
| 32 | 91550-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 33 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 34 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 35 | 91557-SR3-003 | Clip - WIRE HARNESS PROTECTOR (RED) | Clip - WIRE HARNESS PROTECTOR (RED) |
| 39 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 40 | 91571-SR3-004 | Holder - COUPLER | Holder - COUPLER |
| 42 | 91626-SR3-003 | Ring - WIRE HARNESS | Ring - WIRE HARNESS |
| 43 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 44 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 45 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| 46 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| # | OEM | EG6 | EH1 |
|---|---|---|---|
| 1 | 01463-SR3-V00 | Caliper set - FR. | Caliper set - FR. |
| 1 | 01464-SR3-N03 | Hose set - R. FR. BRAKE | Hose set - R. FR. BRAKE |
| 2 | 01465-SR3-N02 | Hose set - L. FR. BRAKE | Hose set - L. FR. BRAKE |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 1 | 04352-SR3-A00 | Shoe set - HORN (SERVICE) | Shoe set - HORN (SERVICE) |
| 1 | 04762-SR3-J11 | Mirror sub assy. - R. REMOTE CONTROL | Mirror sub assy. - R. REMOTE CONTROL |
| 32 | 04763-SR3-000 | Actuator set - R. DOOR MIRROR | Actuator set - R. DOOR MIRROR |
| 2 | 04764-SR3-J11 | Mirror sub assy. - L. REMOTE CONTROL | Mirror sub assy. - L. REMOTE CONTROL |
| 33 | 04766-SR3-000 | Actuator set - L. DOOR MIRROR | Actuator set - L. DOOR MIRROR |
| 3 | 04769-SM4-J01 | Holder set - ACTUATOR | Holder set - ACTUATOR |
| 1 | 06164-P06-A02 | Packing set - INJECTOR | Packing set - INJECTOR |
| 1 | 06464-SM4-000 | Power set - MASTER (7"+8") | Power set - MASTER (7"+8") |
| 1 | 06531-SR3-A51 | Seal kit a - POWER STEERING | Seal kit a - POWER STEERING |
| 2 | 06532-SR3-A50 | Seal kit b - POWER STEERING | Seal kit b - POWER STEERING |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 9 | 15400-PH1-F03 | Cartridge - OIL FILTER (LABINAL-PURFLUX) | Cartridge - OIL FILTER (LABINAL-PURFLUX) |
| 10 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 10 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 11 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 10 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 10 | 15610-PC6-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 11 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 10 | 15815-PR3-000 | Filter, SPOOL VALVE | Filter, SPOOL VALVE |
| 10 | 15815-PR3-004 | Filter comp - SPOOL VALVE | Filter comp - SPOOL VALVE |
| 12 | 15825-P08-005 | Filter and Gasket, SPOOL VALVE | Filter and Gasket, SPOOL VALVE |
| 1 | 16010-ST5-931 | Strainer set - FUEL (TOYO ROKI) | Strainer set - FUEL (TOYO ROKI) |
| 1 | 16016-PM6-005 | Screw set | Screw set |
| 15 | 16074-ZY3-000 | O-ring | O-ring |
| 3 | 16075-P07-000 | O-ring | O-ring |
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 4 | 16076-P64-000 | O-ring | O-ring |
| 5 | 16077-P06-A00 | O-ring | O-ring |
| 6 | 16078-P06-A00 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 8 | 16081-P06-A00 | Bolt - FLANGE, 6X40 | Bolt - FLANGE, 6X40 |
| 10 | 16179-P06-A00 | Binder | Binder |
| 2 | 16472-PD6-000 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 14 | 16500-P75-000 | Valve assy. - FAST IDLE (AF42C) | Valve assy. - FAST IDLE (AF42C) |
| 5 | 16638-PH3-S00 | Insulator - FUEL PIPE | Insulator - FUEL PIPE |
| 2 | 16680-PCX-003 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 2 | 16680-PE7-661 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 3 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 6 | 16740-P05-A01 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 7 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 7 | 16918-SR3-A32 | Stay - FUEL STRAINER | Stay - FUEL STRAINER |
| 7 | 16918-ST7-A30 | Stay - FUEL STRAINER | Stay - FUEL STRAINER |
| 9 | 16919-ST5-930 | Band - FUEL STRAINER | Band - FUEL STRAINER |
| 10 | 16922-SH3-930 | Rubber - MOUNTING | Rubber - MOUNTING |
| 11 | 16922-SR3-931 | Rubber - MOUNTING | Rubber - MOUNTING |
| 12 | 16923-SP0-930 | Collar - DISTANCE | Collar - DISTANCE |
| 13 | 16923-SR3-930 | Collar - DISTANCE | Collar - DISTANCE |
| 13 | 17130-P0A-003 | Valve assy. - PCV | Valve assy. - PCV |
| 13 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 3 | 17212-P07-000 | Rubber - AIR CLEANER MOUNTING | Rubber - AIR CLEANER MOUNTING |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 5 | 17220-P07-000 | Element assy. - AIR CLEANER | Element assy. - AIR CLEANER |
| 7 | 17230-P04-G00 | Chamber assy - RESONATOR | Chamber assy - RESONATOR |
| 8 | 17232-P04-G00 | Seal - RESONATOR RUBBER | Seal - RESONATOR RUBBER |
| 11 | 17243-PD1-000 | Spring - AIR INTAKE TUBE | Spring - AIR INTAKE TUBE |
| 14 | 17249-P07-000 | Rubber - AIR INTAKE SEAL | Rubber - AIR INTAKE SEAL |
| 17 | 17281-P28-G00 | Tube - SIDE BRANCH | Tube - SIDE BRANCH |
| 18 | 17284-PT2-003 | Clamp - TUBE, 44MM | Clamp - TUBE, 44MM |
| 14 | 17300-SR3-E31 | Canister assy - 29PCV | Canister assy - 29PCV |
| 16 | 17358-ST0-000 | Bracket - CANISTER | Bracket - CANISTER |
| 9 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 13 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 15 | 17656-SR3-003 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 17 | 17662-SR3-000 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 1 | 17669-SM4-G31 | Label - FUEL FILLER CAUTION | Label - FUEL FILLER CAUTION |
| 17 | 17670-SM4-004 | Cap comp. - FUEL FILLER (TOYODA) | Cap comp. - FUEL FILLER (TOYODA) |
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 22 | 17742-ST0-003 | Pipe - CANISTER DRAIN JOINT | Pipe - CANISTER DRAIN JOINT |
| 23 | 17743-SR3-A00 | Tube - CANISTER DRAIN | Tube - CANISTER DRAIN |
| 24 | 17745-ST0-003 | Joint - CANISTER DRAIN | Joint - CANISTER DRAIN |
| 27 | 17761-SR3-010 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 29 | 17763-SR3-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 31 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 1 | 17800-SR3-000 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 4 | 17814-SR3-000 | Spring - ACCELERATOR RETURN | Spring - ACCELERATOR RETURN |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 8 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 11 | 17931-SR3-A10 | Clamp - THROTTLE WIRE | Clamp - THROTTLE WIRE |
| 6 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 7 | 18181-P28-A00 | Cover | Cover |
| 8 | 18182-P28-A00 | Cover - UPPER | Cover - UPPER |
| 23 | 18215-671-000 | Rubber - SILENCER MOUNTING (74X53X22) | Rubber - SILENCER MOUNTING (74X53X22) |
| 21 | 18215-SH3-J01 | Rubber - EX. MOUNTING (70X55X30) | Rubber - EX. MOUNTING (70X55X30) |
| 22 | 18215-SR3-000 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 28 | 18229-SH3-X30 | Gasket - EX. FLEXIBLE (50.8MM-64MM) | Gasket - EX. FLEXIBLE (50.8MM-64MM) |
| 30 | 18230-SA0-930 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 31 | 18231-SR3-A22 | Bolt b - FLEXIBLE JOINT | Bolt b - FLEXIBLE JOINT |
| 32 | 18231-SR3-J01 | Bolt a - FLEXIBLE JOINT | Bolt a - FLEXIBLE JOINT |
| 35 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 2 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19014-PK1-003 | Clip - HARNESS | Clip - HARNESS |
| 5 | 19015-P08-013 | Shroud comp - DENSO | Shroud comp - DENSO |
| 7 | 19020-P08-003 | Fan, COOLING (DENSO) | Fan, COOLING (DENSO) |
| 8 | 19030-P08-013 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 9 | 19033-P08-003 | Stay - COUPLER (DENSO) | Stay - COUPLER (DENSO) |
| 2 | 19043-P01-E01 | Label - COOLANT CAUTION | Label - COOLANT CAUTION |
| 10 | 19045-P08-013 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 10 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 11 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 1 | 19101-P08-J00 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 4 | 19104-P08-000 | Tube - RESERVE TANK | Tube - RESERVE TANK |
| 3 | 19104-PZ3-010 | Tube a - RESERVE TANK (220MM) | Tube a - RESERVE TANK (220MM) |
| 5 | 19106-PA0-020 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 8 | 19115-P08-000 | Bracket - RESERVE TANK | Bracket - RESERVE TANK |
| 5 | 19301-P08-305 | Thermostat assy - FUJI THOMSON | Thermostat assy - FUJI THOMSON |
| 5 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 5 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 6 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 14 | 19500-PE0-000 | Joint, Tube | Joint, Tube |
| 3 | 19508-P08-000 | Hose, BY-PASS OUTLET | Hose, BY-PASS OUTLET |
| 4 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 17 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 5 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 5 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 7 | 23811-P36-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 10 | 23926-P21-000 | Washer - SPRING, 23MM | Washer - SPRING, 23MM |
| 11 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 2 | 30102-P54-006 | Cap assy. | Cap assy. |
| 3 | 30103-P08-003 | Distributor Rotor Head Assembly | Distributor Rotor Head Assembly |
| 5 | 30107-P08-006 | Cover - LEAK | Cover - LEAK |
| 6 | 30110-PA1-732 | O-ring - 26.4X3.1 (TEC) | O-ring - 26.4X3.1 (TEC) |
| 9 | 30130-P06-006 | Igniter unit - E12-303) (HITACHI | Igniter unit - E12-303) (HITACHI |
| 10 | 30132-PT2-006 | Packing - CAP | Packing - CAP |
| 11 | 30135-P08-006 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 11 | 30135-P73-004 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 12 | 30510-PT2-006 | Ignition Coil | Ignition Coil |
| 14 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 16 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 17 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 2 | 31202-PR3-004 | Bolt - THROUGH (###) | Bolt - THROUGH (###) |
| 3 | 31204-PJ7-903 | Gear assy. - PINION (MITSUBA) | Gear assy. - PINION (MITSUBA) |
| 4 | 31206-PR3-004 | Yoke assy. | Yoke assy. |
| 5 | 31207-PR3-014 | Armature assy - ### | Armature assy - ### |
| 6 | 31208-PT0-005 | Plate comp - BRUSH HOLDER | Plate comp - BRUSH HOLDER |
| 8 | 31211-PC2-006 | Ring - SQUARE (MITSUBA) | Ring - SQUARE (MITSUBA) |
| 11 | 31217-PC2-006 | Screw-washer - 4X28 (MITSUBA) | Screw-washer - 4X28 (MITSUBA) |
| 12 | 31235-PT0-005 | Cover - TERMINAL (###) | Cover - TERMINAL (###) |
| 14 | 31252-PD2-006 | Rubber - BUSH (MITSUBA) | Rubber - BUSH (MITSUBA) |
| 1 | 31500-SR3-G04 | Battery assy - 55B24L<S>-MF) (YUASA | Battery assy - 55B24L<S>-MF) (YUASA |
| 1 | 31500-SR3-G05 | Battery assy - 55B24L<S>-MF) (PANASONIC | Battery assy - 55B24L<S>-MF) (PANASONIC |
| 2 | 31512-SR3-000 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 3 | 31513-SR3-000 | Bolt - BATTERY SETTING | Bolt - BATTERY SETTING |
| 4 | 31521-SR3-000 | Box assy - BATTERY | Box assy - BATTERY |
| 6 | 31542-SA5-664 | Plug - VENT (MF) (YUASA) | Plug - VENT (MF) (YUASA) |
| 6 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 1 | 32102-SM4-970 | Cap - HEADLIGHT ADJUSTER (NON HEADLIGHT ADJUSTER) | Cap - HEADLIGHT ADJUSTER (NON HEADLIGHT ADJUSTER) |
| 7 | 32113-P01-000 | Stay comp - R. COUPLER | Stay comp - R. COUPLER |
| 3 | 32113-SR3-A00 | Stay - L. COUPLER | Stay - L. COUPLER |
| 4 | 32114-SR3-000 | Bracket - RADIO EARTH | Bracket - RADIO EARTH |
| 7 | 32115-P01-000 | Stay - ENGINE WIRE HARNESS CLAMP | Stay - ENGINE WIRE HARNESS CLAMP |
| 9 | 32127-P05-A00 | Holder comp - HARNESS | Holder comp - HARNESS |
| 8 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 1 | 32147-SF1-003 | Connector - DIODE(3P) | Connector - DIODE(3P) |
| 2 | 32148-SF1-003 | Rubber - SEAL | Rubber - SEAL |
| 2 | 32157-SR3-A01 | Sub cord a - HEATER | Sub cord a - HEATER |
| 12 | 32200-SR3-B13 | Harness - ENGINE ROOM WIRE | Harness - ENGINE ROOM WIRE |
| 3 | 32230-SR3-A01 | Harness - ABS FUSE BOX | Harness - ABS FUSE BOX |
| 4 | 32257-SR3-000 | Sub cord b - HEATER | Sub cord b - HEATER |
| 8 | 32410-SR3-A42 | Cable assy - STARTER | Cable assy - STARTER |
| 9 | 32414-SR3-000 | Clamp a - STARTER CABLE | Clamp a - STARTER CABLE |
| 10 | 32416-SR3-A00 | Clamp c - STARTER CABLE | Clamp c - STARTER CABLE |
| 11 | 32600-SR3-A01 | Cable assy - BATTERY EARTH | Cable assy - BATTERY EARTH |
| 12 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 10 | 32741-P01-000 | Clamp a - ENGINE HARNESS (GREEN) | Clamp a - ENGINE HARNESS (GREEN) |
| 11 | 32744-P01-000 | Clamp d - ENGINE HARNESS (GREEN) | Clamp d - ENGINE HARNESS (GREEN) |
| 12 | 32744-P05-A01 | Clamp d - ENGINE HARNESS (BLACK) | Clamp d - ENGINE HARNESS (BLACK) |
| 13 | 32746-P05-A00 | Clamp f - ENGINE HARNESS (GRAY) | Clamp f - ENGINE HARNESS (GRAY) |
| 15 | 32752-P01-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 6 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 2 | 33100-SR3-B01 | Headlight assy - R. | Headlight assy - R. |
| 3 | 33101-SR3-B01 | Headlight unit - R. | Headlight unit - R. |
| 4 | 33102-SR3-G01 | Plate - R. | Plate - R. |
| 5 | 33104-SR3-G01 | Nut - SPECIAL (3) | Nut - SPECIAL (3) |
| 6 | 33109-SR3-A01 | Nut e - SPECIAL | Nut e - SPECIAL |
| 7 | 33115-SM3-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) |
| 7 | 33115-SM4-003 | Bulb | Bulb |
| 7 | 33115-SV4-G01 | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
| 8 | 33126-SH3-003 | Cover - RUBBER | Cover - RUBBER |
| 9 | 33150-SR3-B01 | Headlight assy - L. | Headlight assy - L. |
| 10 | 33151-SR3-B01 | Headlight unit - L. | Headlight unit - L. |
| 11 | 33152-SR3-G01 | Plate - L. | Plate - L. |
| 13 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 15 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 18 | 33800-SR3-G01 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 19 | 33801-SR3-G01 | Housing comp - R. | Housing comp - R. |
| 20 | 33802-SR3-G01 | Housing comp - L. | Housing comp - L. |
| 21 | 33850-SR3-G01 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 2 | 34252-692-003 | Lens - DAIICHI) (SUNROOF | Lens - DAIICHI) (SUNROOF |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 22 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 23 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 24 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 27 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 3 | 35100-SR3-G02 | Lock assy - STEERING | Lock assy - STEERING |
| 4 | 35102-SG0-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 5 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 6 | 35113-SH3-G02 | Key - BLANK (MAIN) (MOLD=BLACK) | Key - BLANK (MAIN) (MOLD=BLACK) |
| 7 | 35130-SR3-A01 | Switch comp - STEERING | Switch comp - STEERING |
| 1 | 35145-SR3-901 | Frame - TWO KEY | Frame - TWO KEY |
| 2 | 35145-SR3-911 | Frame - THREE KEY | Frame - THREE KEY |
| 9 | 35251-SR3-003 | Body - SWITCH | Body - SWITCH |
| 10 | 35255-SR3-G02 | Switch assy - LIGHTING (B) | Switch assy - LIGHTING (B) |
| 13 | 35259-SR3-A02 | Shoe - HORN | Shoe - HORN |
| 13 | 35350-SE0-A03 | Switch assy - STOP (TEC) | Switch assy - STOP (TEC) |
| 14 | 35400-SL4-003 | Switch assy - DOOR | Switch assy - DOOR |
| 15 | 35401-SL4-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 16 | 35409-692-013 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 10 | 35510-SR3-003 | Switch assy - HAZARD | Switch assy - HAZARD |
| 12 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
| 15 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 16 | 36151-P05-A00 | Stay - PURGE CONTROL TUBE | Stay - PURGE CONTROL TUBE |
| 17 | 36162-PT3-Q01 | Valve assy. - PURGE CUT SOLENOID | Valve assy. - PURGE CUT SOLENOID |
| 13 | 36171-P08-005 | Solenoid assy. | Solenoid assy. |
| 14 | 36172-P08-015 | Packing, SOLENOID BASE | Packing, SOLENOID BASE |
| 20 | 36454-PS4-003 | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
| 4 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 5 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 16 | 37240-PT0-004 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 16 | 37240-PT0-013 | Switch - OIL PRESSURE (DENSO) | Switch - OIL PRESSURE (DENSO) |
| 15 | 37250-PR3-003 | Switch assy - VALVE TIMING OIL PRESSURE | Switch assy - VALVE TIMING OIL PRESSURE |
| 17 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 18 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 18 | 37760-P00-004 | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) |
| 2 | 37821-P05-A00 | Cover - ELECTRONIC CONTROL UNIT HARNESS | Cover - ELECTRONIC CONTROL UNIT HARNESS |
| 22 | 37830-P05-A01 | Sensor assy - MAP | Sensor assy - MAP |
| 19 | 37870-PJ7-003 | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) |
| 13 | 37880-P05-A00 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 5 | 38150-SR3-003 | Horn assy - HIGH (MITSUBA) | Horn assy - HIGH (MITSUBA) |
| 3 | 38200-SR3-G12 | Box assy - JOINT | Box assy - JOINT |
| 7 | 38203-SR3-A00 | Bracket - L. FUSE BOX | Bracket - L. FUSE BOX |
| 8 | 38205-SR3-G02 | Label - FUSE | Label - FUSE |
| 6 | 38211-SM4-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 7 | 38212-SM4-003 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 8 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 9 | 38216-SM4-003 | Fuse - BLOCK (80A) | Fuse - BLOCK (80A) |
| 10 | 38231-SR3-A00 | Bracket - ABS FUSE BOX | Bracket - ABS FUSE BOX |
| 11 | 38232-SR3-A00 | Stay - ABS COUPLER | Stay - ABS COUPLER |
| 11 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 12 | 38250-SR3-G01 | Box assy - MAIN FUSE | Box assy - MAIN FUSE |
| 13 | 38251-SR3-A01 | Cover - UPPER | Cover - UPPER |
| 14 | 38252-SR3-003 | Cover - LOWER | Cover - LOWER |
| 12 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 12 | 38300-SE3-004 | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) |
| 13 | 38380-SR3-003 | Control unit - AUTO DOOR LOCK (MITSUBA) | Control unit - AUTO DOOR LOCK (MITSUBA) |
| 1 | 38472-SB2-003 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 1 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 2 | 38512-SB0-922 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 4 | 38513-SB0-961 | Cap - WASHER MOUTH(MITSUBA) | Cap - WASHER MOUTH(MITSUBA) |
| 6 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 7 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 8 | 38562-SA0-003 | Joint l - WASHER TUBE(MITSUBA) | Joint l - WASHER TUBE(MITSUBA) |
| 12 | 38600-SH3-G11 | Control unit - INTEGRATED (LIGHTING ALARM) | Control unit - INTEGRATED (LIGHTING ALARM) |
| 1 | 38608-SA5-000 | Rubber - MOUNTING | Rubber - MOUNTING |
| 2 | 38609-SA5-000 | Collar - DISTANCE | Collar - DISTANCE |
| 1 | 38801-P06-006 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 2 | 38810-P76-006 | Compressor comp. - HADSYS | Compressor comp. - HADSYS |
| 3 | 38829-P06-006 | Nut | Nut |
| 4 | 38900-P06-006 | Clutch set - COMPRESSOR | Clutch set - COMPRESSOR |
| 5 | 38908-P06-006 | Protector set - THERMAL | Protector set - THERMAL |
| 6 | 38912-P06-006 | Shim set | Shim set |
| 7 | 38913-P06-006 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 8 | 38914-P06-006 | Circlip - EXTERNAL, 35MM | Circlip - EXTERNAL, 35MM |
| 10 | 38924-P06-006 | Coil set - SOLENOID | Coil set - SOLENOID |
| 1 | 39112-SH3-000 | Bracket - FR. SPEAKER SEAL (12CM) | Bracket - FR. SPEAKER SEAL (12CM) |
| 4 | 39120-SM4-901 | Speaker assy - 120MM DUAL) (PIONEER | Speaker assy - 120MM DUAL) (PIONEER |
| 8 | 39150-SR3-G01 | Antenna assy - AUTO RADIO (MATSUSHITA) | Antenna assy - AUTO RADIO (MATSUSHITA) |
| 9 | 39154-SR3-G01 | Packing - ANTENNA BASE (MATSUSHITA) | Packing - ANTENNA BASE (MATSUSHITA) |
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 15 | 39400-S10-003 | Relay assy - MAIN (MITSUBA) | Relay assy - MAIN (MITSUBA) |
| 15 | 39400-SR3-003 | Relay assy - MAIN (RZ-0132) (MITSUBA) | Relay assy - MAIN (RZ-0132) (MITSUBA) |
| 53 | 39600-SW3-305 | Lighter unit - CIGARETTE | Lighter unit - CIGARETTE |
| 53 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 54 | 39628-S04-305 | Cord assy | Cord assy |
| 13 | 39700-SR3-003 | Clock assy - DIGITAL (NS) | Clock assy - DIGITAL (NS) |
| 13 | 39700-SR3-004 | Clock assy - DIGITAL (JECO) | Clock assy - DIGITAL (JECO) |
| 15 | 39792-SP0-004 | Relay assy - POWER (4P) (MITSUBA) (12V NO) | Relay assy - POWER (4P) (MITSUBA) (12V NO) |
| 18 | 39793-SR3-A01 | Relay assy - POWER (5P) (SUNROOF) | Relay assy - POWER (5P) (SUNROOF) |
| 19 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 16 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 4 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 3 | 42700-SR3-J51 | Disk - WHEEL (15X4T) | Disk - WHEEL (15X4T) |
| 5 | 42751-SF1-601 | Tire - T135/70D15) (BRIDGESTONE | Tire - T135/70D15) (BRIDGESTONE |
| 5 | 42751-SR3-A52 | Tire - T135/70D15) (DUNLOP | Tire - T135/70D15) (DUNLOP |
| 6 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 6 | 42753-SH3-003 | Valve - RIM (US PACIFIC) | Valve - RIM (US PACIFIC) |
| 8 | 42767-SH3-E00 | Plate - SPARE TIRE CAUTION (T-TYPE) | Plate - SPARE TIRE CAUTION (T-TYPE) |
| 9 | 42767-SR3-E10 | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 44017-SR3-900 | Boot set - INBOARD | Boot set - INBOARD |
| 3 | 44017-SR3-901 | Boot set | Boot set |
| 26 | 44018-SR3-C53 | Boot set - OUTBOARD | Boot set - OUTBOARD |
| 26 | 44018-SR3-C56 | Boot set | Boot set |
| 4 | 44300-SR3-A02 | Bearing assy - FR. HUB (NTN) | Bearing assy - FR. HUB (NTN) |
| 4 | 44300-SR3-A04 | Bearing assy - FR. HUB (KOYO SEIKO) | Bearing assy - FR. HUB (KOYO SEIKO) |
| 6 | 44310-SL5-N00 | Joint comp - INBOARD | Joint comp - INBOARD |
| 9 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 7 | 44328-SB0-300 | Band - INBOARD BOOT | Band - INBOARD BOOT |
| 8 | 44329-SB0-300 | Band - DRIVESHAFT BOOT | Band - DRIVESHAFT BOOT |
| 27 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44336-SB0-300 | Ring a - STOPPER | Ring a - STOPPER |
| 28 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 12 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 13 | 44347-SF1-003 | Ring - OUTBOARD | Ring - OUTBOARD |
| 1 | 44348-SR3-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 8 | 44352-SA2-300 | Band - DAMPER WEIGHT | Band - DAMPER WEIGHT |
| 5 | 44600-SR3-A01 | Hub assy - FR. | Hub assy - FR. |
| 10 | 44721-SB2-003 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 10 | 44722-SB2-003 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 10 | 44723-SB2-003 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 10 | 44724-SB2-003 | Weight - BALANCE (40G) (YAMATE) | Weight - BALANCE (40G) (YAMATE) |
| 10 | 44725-SB2-003 | Weight - BALANCE (50G) (YAMATE) | Weight - BALANCE (50G) (YAMATE) |
| 10 | 44726-SB2-003 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 10 | 44727-SB2-003 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 10 | 44728-SB2-003 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 10 | 44729-SB2-003 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 10 | 44730-SB2-013 | Weight - BALANCE (45G) (YAMATE) | Weight - BALANCE (45G) (YAMATE) |
| 20 | 44736-SA0-981 | Nut - WHEEL (FUSE RASHI) | Nut - WHEEL (FUSE RASHI) |
| 21 | 44737-SA0-981 | Washer - WHEEL NUT (FUSE RASHI) | Washer - WHEEL NUT (FUSE RASHI) |
| 6 | 45018-SR3-V00 | Caliper sub assy. - R. FR. | Caliper sub assy. - R. FR. |
| 7 | 45019-SR3-V00 | Caliper sub assy. - L. FR. | Caliper sub assy. - L. FR. |
| 8 | 45022-SR3-V11 | Pad set - FR. | Pad set - FR. |
| 8 | 45022-SR3-V12 | Pad set - FR. | Pad set - FR. |
| 11 | 45216-S5A-J01 | Piston | Piston |
| 11 | 45216-SR3-V01 | Piston - 54MM | Piston - 54MM |
| 16 | 45235-SR3-003 | Pin a | Pin a |
| 17 | 45237-SR3-003 | Retainer a | Retainer a |
| 18 | 45238-SR3-003 | Retainer b | Retainer b |
| 19 | 45240-SA7-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 20 | 45251-SK7-J00 | Disk - FR. BRAKE | Disk - FR. BRAKE |
| 21 | 45255-SR3-V00 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 21 | 45255-SR3-V01 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 23 | 45262-SR3-003 | Pin b | Pin b |
| 2 | 46070-SL0-G01 | Plate - SYMBOL MARK | Plate - SYMBOL MARK |
| 1 | 46100-SR3-832 | Cylinder assy. - MASTER | Cylinder assy. - MASTER |
| 2 | 46138-SM4-003 | Packing | Packing |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 3 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 4 | 46164-632-000 | Float | Float |
| 1 | 46175-671-651 | Screw - SOCKET | Screw - SOCKET |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 4 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 5 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 7 | 46374-SR3-A01 | Pipe comp. u - BRAKE | Pipe comp. u - BRAKE |
| 8 | 46375-SR3-A01 | Pipe comp. v - BRAKE | Pipe comp. v - BRAKE |
| 9 | 46376-SR3-A00 | Pipe comp. w - BRAKE | Pipe comp. w - BRAKE |
| 10 | 46377-SR3-A02 | Pipe comp. x - BRAKE | Pipe comp. x - BRAKE |
| 11 | 46378-SR3-A00 | Pipe comp. y - BRAKE | Pipe comp. y - BRAKE |
| 12 | 46379-SR3-A00 | Pipe comp. z - BRAKE | Pipe comp. z - BRAKE |
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 16 | 46391-SR3-922 | Clip b - BRAKE PIPE | Clip b - BRAKE PIPE |
| 17 | 46391-SR3-931 | Clip d - BRAKE PIPE | Clip d - BRAKE PIPE |
| 18 | 46391-SR3-942 | Clip e - BRAKE PIPE | Clip e - BRAKE PIPE |
| 14 | 46391-SR3-J00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 19 | 46392-SR3-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 20 | 46392-SR3-910 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 21 | 46392-SR3-931 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 22 | 46393-SM4-951 | Clip c | Clip c |
| 23 | 46394-SH3-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 24 | 46395-SR3-A01 | Clip c - BRAKE PIPE | Clip c - BRAKE PIPE |
| 6 | 46400-SM4-003 | Power assy. - MASTER (7"+8") | Power assy. - MASTER (7"+8") |
| 7 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 9 | 46405-SR3-A20 | Tube b - MASTER POWER | Tube b - MASTER POWER |
| 10 | 46406-SR3-000 | Stay - MASTER POWER TUBE | Stay - MASTER POWER TUBE |
| 24 | 46410-SR3-N05 | Hose - R. FR. BRAKE (NICHIRIN) | Hose - R. FR. BRAKE (NICHIRIN) |
| 25 | 46411-SR3-N05 | Hose - L. FR. BRAKE (NICHIRIN) | Hose - L. FR. BRAKE (NICHIRIN) |
| 28 | 46460-SR3-801 | Joint assy. - FOUR WAY | Joint assy. - FOUR WAY |
| 1 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 30 | 46470-SH9-802 | Joint - FOUR WAY | Joint - FOUR WAY |
| 2 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 14 | 46500-SR3-A10 | Pedal assy - BRAKE | Pedal assy - BRAKE |
| 16 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 17 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 11 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 18 | 46530-SR3-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 19 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 21 | 46545-SH3-000 | Cover - PEDAL | Cover - PEDAL |
| 22 | 46590-SR3-A11 | Bracket - PEDAL | Bracket - PEDAL |
| 12 | 46660-SE3-013 | Tank - RESERVE | Tank - RESERVE |
| 13 | 46662-SK7-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 14 | 46665-ST5-003 | Band - RESERVE TANK | Band - RESERVE TANK |
| 15 | 46666-SE3-013 | Filter - MASTER CYLINDER | Filter - MASTER CYLINDER |
| 16 | 46669-SE3-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 23 | 46904-SM4-300 | Pad - ACCELERATOR STOPPER | Pad - ACCELERATOR STOPPER |
| 24 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 26 | 46907-SR3-000 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 27 | 46910-SR3-J00 | Pedal comp - CLUTCH | Pedal comp - CLUTCH |
| 28 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 7 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 45 | 46918-ST7-000 | Clamp - TUBE (D10.5) | Clamp - TUBE (D10.5) |
| 9 | 46920-SR3-A01 | Cylinder assy. - CLUTCH MASTER | Cylinder assy. - CLUTCH MASTER |
| 11 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 12 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 13 | 46930-SR3-013 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 14 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 15 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 16 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 17 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 18 | 46937-SR3-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 19 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 20 | 46939-SR3-A01 | Joint - CLUTCH PIPE | Joint - CLUTCH PIPE |
| 21 | 46950-SL4-003 | Rod assy - PUSH | Rod assy - PUSH |
| 22 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 23 | 46953-SD4-003 | Packing | Packing |
| 24 | 46960-SR3-A00 | Pipe comp - CLUTCH (A) | Pipe comp - CLUTCH (A) |
| 25 | 46961-SR2-G01 | Hose - CLUTCH (HIGH EXPANSION) | Hose - CLUTCH (HIGH EXPANSION) |
| 26 | 46966-SR3-A00 | Holder - TANK | Holder - TANK |
| 28 | 46971-SR3-A00 | Tube - CLUTCH FLUID | Tube - CLUTCH FLUID |
| 29 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 30 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 31 | 46975-SD4-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 32 | 46980-SR3-A00 | Pipe comp - CLUTCH | Pipe comp - CLUTCH |
| 29 | 46981-SR3-930 | Bush a - CLUTCH ASSISTANT | Bush a - CLUTCH ASSISTANT |
| 30 | 46982-SR3-930 | Bush b - CLUTCH ASSISTANT | Bush b - CLUTCH ASSISTANT |
| 31 | 46990-SR3-000 | Bracket - CLUTCH PEDAL | Bracket - CLUTCH PEDAL |
| 32 | 46991-SR3-010 | Bracket - FOOTREST | Bracket - FOOTREST |
| 33 | 46995-SR3-A00 | Bracket a - CLUTCH PIPE | Bracket a - CLUTCH PIPE |
| 34 | 46996-SR3-000 | Bracket b - CLUTCH PIPE | Bracket b - CLUTCH PIPE |
| 35 | 46997-SR3-J01 | Clip - CLUTCH PIPE | Clip - CLUTCH PIPE |
| 36 | 46998-SR3-A00 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 3 | 47142-659-310 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 4 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 5 | 47342-SM4-000 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 6 | 47360-SB2-000 | Equalizer | Equalizer |
| 7 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 10 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 11 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 14 | 47572-SR3-010 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 1 | 50200-SR3-H50 | Beam - RR. (POWER STEERING) | Beam - RR. (POWER STEERING) |
| 2 | 50203-SR3-010 | Collar - RR. BEAM | Collar - RR. BEAM |
| 11 | 50810-SR3-030 | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) |
| 2 | 51210-SR3-N10 | Knuckle comp - R. FR. (ABS) | Knuckle comp - R. FR. (ABS) |
| 3 | 51215-SR3-N10 | Knuckle comp - L. FR. (ABS) | Knuckle comp - L. FR. (ABS) |
| 4 | 51220-SR3-003 | Joint comp - LOWER BALL (MUSASHI) | Joint comp - LOWER BALL (MUSASHI) |
| 5 | 51225-SR3-003 | Boot - LOWER BALL DUST (MUSASHI) | Boot - LOWER BALL DUST (MUSASHI) |
| 3 | 51308-SR3-000 | Holder - R. FR. STABILIZER | Holder - R. FR. STABILIZER |
| 5 | 51350-SR3-020 | Arm assy. - R. FR. LOWER | Arm assy. - R. FR. LOWER |
| 6 | 51360-SR3-020 | Arm assy. - L. FR. LOWER | Arm assy. - L. FR. LOWER |
| 7 | 51392-SR3-024 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 8 | 51395-SR3-N03 | Bush comp - R. FR. COMPLIANCE (YAMASHITA) | Bush comp - R. FR. COMPLIANCE (YAMASHITA) |
| 9 | 51396-SR3-N03 | Bush comp - L. FR. COMPLIANCE (YAMASHITA) | Bush comp - L. FR. COMPLIANCE (YAMASHITA) |
| 10 | 51398-SR3-000 | Washer b - FR. RADIUS ARM (14MM) | Washer b - FR. RADIUS ARM (14MM) |
| 11 | 51399-SR3-010 | Washer a - FR. RADIUS ARM (18MM) | Washer a - FR. RADIUS ARM (18MM) |
| 6 | 51450-SR3-013 | Arm assy. - R. FR. UPPER | Arm assy. - R. FR. UPPER |
| 7 | 51455-SR3-003 | Bush - FR. UPPER ARM (YAMASHITA) | Bush - FR. UPPER ARM (YAMASHITA) |
| 7 | 51455-SR3-004 | Bush - FR. UPPER ARM (SUMITOMO) | Bush - FR. UPPER ARM (SUMITOMO) |
| 8 | 51460-SR3-013 | Arm assy. - L. FR. UPPER | Arm assy. - L. FR. UPPER |
| 9 | 51464-SK7-003 | Boot - UPPER BALL JOINT | Boot - UPPER BALL JOINT |
| 6 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 6 | 51621-SB0-004 | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 51631-S7S-J01 | RUBBER DAMPER M | RUBBER DAMPER M |
| 7 | 51631-SB0-003 | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) |
| 7 | 51631-SB0-004 | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) |
| 8 | 51675-SH3-024 | Base - SHOCK ABSORBER MOUNTING (SHOWA) | Base - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SR3-003 | Rubber - SPRING MOUNTING (SHOWA) | Rubber - SPRING MOUNTING (SHOWA) |
| 12 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 12 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 12 | 51810-SH3-003 | Bush - SHOCK ABSORBER FORK (HOKUSHIN) | Bush - SHOCK ABSORBER FORK (HOKUSHIN) |
| 12 | 51810-SH3-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 12 | 51810-SK7-004 | Bush - SHOCK ABSORBER FORK | Bush - SHOCK ABSORBER FORK |
| 13 | 51811-SR3-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 14 | 51821-SR3-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 10 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 14 | 52341-SR3-000 | Arm comp - RR. COMPENSATOR | Arm comp - RR. COMPENSATOR |
| 15 | 52343-SK7-003 | Bush - COMPENSATOR (HOKUSHIN) | Bush - COMPENSATOR (HOKUSHIN) |
| 15 | 52343-SR3-004 | Bush - COMPENSATOR (YAMASHITA) | Bush - COMPENSATOR (YAMASHITA) |
| 26 | 52390-SR3-000 | Arm comp | Arm comp |
| 27 | 52393-SR3-004 | Bush - UPPER ARM INNER (YAMASHITA) | Bush - UPPER ARM INNER (YAMASHITA) |
| 28 | 52395-SH3-004 | Bush - RR. UPPER ARM (YAMASHITA) | Bush - RR. UPPER ARM (YAMASHITA) |
| 29 | 52400-SR3-000 | Arm comp | Arm comp |
| 9 | 52675-SH3-024 | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 10 | 52686-SR3-003 | Rubber - RR. SPRING MOUNTING (SHOWA) | Rubber - RR. SPRING MOUNTING (SHOWA) |
| 11 | 52687-SR3-003 | Cover - RR. DUST (SHOWA) | Cover - RR. DUST (SHOWA) |
| 12 | 52688-SR3-003 | End - RR. DUST COVER (SHOWA) | End - RR. DUST COVER (SHOWA) |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 14 | 52722-SE0-006 | Rubber - BUMP STOPPER (POLYURETHAN KASEI) | Rubber - BUMP STOPPER (POLYURETHAN KASEI) |
| 14 | 52722-SR3-003 | Rubber - RR. BUMP STOPPER (SHOWA) | Rubber - RR. BUMP STOPPER (SHOWA) |
| 15 | 52725-SJ4-000 | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 1 | 53010-SR3-010 | End set - RACK | End set - RACK |
| 1 | 53200-SR3-020 | Column assy - STEERING (TILT) | Column assy - STEERING (TILT) |
| 2 | 53201-SL4-003 | Guide - ABSORBING PLATE | Guide - ABSORBING PLATE |
| 3 | 53202-SR3-J00 | Plate - ABSORBING | Plate - ABSORBING |
| 4 | 53216-SR3-000 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 5 | 53217-SR3-000 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 17 | 53271-SR3-000 | Cam - TURN SIGNAL SWITCH CANCEL | Cam - TURN SIGNAL SWITCH CANCEL |
| 6 | 53320-SR3-A01 | Cover - STEERING JOINT | Cover - STEERING JOINT |
| 7 | 53323-SM4-013 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 8 | 53325-SH3-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 9 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 10 | 53363-SR3-A01 | Pivot comp - COLUMN | Pivot comp - COLUMN |
| 13 | 53371-SB3-000 | Spring - COLUMN HANGER | Spring - COLUMN HANGER |
| 2 | 53411-SH3-950 | Tube - AIR TRANSFER | Tube - AIR TRANSFER |
| 3 | 53412-634-000 | O-ring - RACK GUIDE (YAMADA) | O-ring - RACK GUIDE (YAMADA) |
| 4 | 53413-SD4-951 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 5 | 53414-634-010 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 5 | 53414-634-020 | Screw | Screw |
| 6 | 53416-SR3-A01 | Guide - STEERING RACK | Guide - STEERING RACK |
| 7 | 53426-SE0-951 | Dust seal - STEERING PINION | Dust seal - STEERING PINION |
| 3 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 3 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 4 | 53436-SH3-950 | Cushion b - POWER STEERING GEAR BOX | Cushion b - POWER STEERING GEAR BOX |
| 5 | 53438-SR3-950 | Bracket - POWER STEERING GEAR BOX | Bracket - POWER STEERING GEAR BOX |
| 6 | 53446-SK7-950 | Rubber - BAND (T) | Rubber - BAND (T) |
| 7 | 53447-SH3-950 | Band - TRANSFER TUBE | Band - TRANSFER TUBE |
| 8 | 53448-SH3-950 | Clip - TRANSFER TUBE | Clip - TRANSFER TUBE |
| 9 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 10 | 53449-SM4-000 | Band - BELLOWS | Band - BELLOWS |
| 10 | 53458-S01-A51 | Nut - LOCK | Nut - LOCK |
| 10 | 53458-SE0-003 | Nut - RACK SCREW LOCK | Nut - RACK SCREW LOCK |
| 11 | 53459-SR3-A51 | Stay - TRANSFER TUBE | Stay - TRANSFER TUBE |
| 12 | 53501-SR3-000 | Grommet a - STEERING | Grommet a - STEERING |
| 13 | 53502-SR3-A51 | Grommet b - STEERING | Grommet b - STEERING |
| 14 | 53534-SR3-A52 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 15 | 53534-SR3-N52 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 16 | 53536-SR3-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 17 | 53540-SR3-003 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 18 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 19 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 20 | 53560-SR3-003 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 12 | 53608-SR3-A51 | Housing sub assy. - STEERING GEAR BOX (###) | Housing sub assy. - STEERING GEAR BOX (###) |
| 13 | 53611-SR3-A51 | Cylinder comp | Cylinder comp |
| 14 | 53612-SH3-950 | Barrel - CYLINDER | Barrel - CYLINDER |
| 15 | 53613-SK7-950 | Retainer - PACKING | Retainer - PACKING |
| 16 | 53614-SH3-N51 | Cap - CYLINDER (SGN) | Cap - CYLINDER (SGN) |
| 17 | 53615-SD4-950 | Washer - RETAINER | Washer - RETAINER |
| 18 | 53617-SF1-950 | Port - ORIFICE | Port - ORIFICE |
| 20 | 53625-SR3-A50 | Cap - GEAR BOX HOUSING | Cap - GEAR BOX HOUSING |
| 22 | 53629-SB3-950 | Orifice - SENSOR | Orifice - SENSOR |
| 23 | 53630-SD4-950 | Spring - CYLINDER | Spring - CYLINDER |
| 24 | 53631-SD4-951 | Bush a - STEERING RACK | Bush a - STEERING RACK |
| 25 | 53632-SF1-950 | Bush b - STEERING RACK | Bush b - STEERING RACK |
| 26 | 53634-SF1-951 | Clip - BUSH STOPPER | Clip - BUSH STOPPER |
| 27 | 53640-SR3-G51 | Body comp - VALVE (###) | Body comp - VALVE (###) |
| 28 | 53643-SR3-A50 | Port comp. - VALVE | Port comp. - VALVE |
| 29 | 53645-SR3-A50 | Cap comp. - VALVE | Cap comp. - VALVE |
| 30 | 53646-SR3-A50 | Spool - FOUR WAY | Spool - FOUR WAY |
| 31 | 53651-SB4-950 | Spool comp. b - CUT-OFF (-0.005 / 0) | Spool comp. b - CUT-OFF (-0.005 / 0) |
| 32 | 53653-SR3-G51 | Spring - CUT-OFF | Spring - CUT-OFF |
| 33 | 53659-SR3-A50 | Orifice comp. - DAMPING | Orifice comp. - DAMPING |
| 34 | 53666-SA5-671 | Plunger - DIAMETER=8MM | Plunger - DIAMETER=8MM |
| 35 | 53667-SR3-A50 | Spring - RETURN | Spring - RETURN |
| 22 | 53685-SH3-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 23 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SR3-A51 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53711-SR3-951 | Bracket assy - OIL TANK | Bracket assy - OIL TANK |
| 5 | 53720-SR3-A51 | Pipe comp - RETURN, 10MM | Pipe comp - RETURN, 10MM |
| 6 | 53724-SR3-A53 | Pipe comp - RETURN, 6MM | Pipe comp - RETURN, 6MM |
| 7 | 53728-SR3-A51 | Clip - RETURN PIPE | Clip - RETURN PIPE |
| 17 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 3 | 53729-SP0-003 | Clamp - D15.5 | Clamp - D15.5 |
| 9 | 53730-SR3-A51 | Pipe comp - POWER STEERING COMBINATION RETURN | Pipe comp - POWER STEERING COMBINATION RETURN |
| 11 | 53732-SR3-A52 | Hose - POWER STEERING RETURN | Hose - POWER STEERING RETURN |
| 12 | 53733-SR3-A50 | Tube - POWER STEERING OIL TANK | Tube - POWER STEERING OIL TANK |
| 15 | 53735-SR3-960 | Hose - OIL COOLER RETURN | Hose - OIL COOLER RETURN |
| 16 | 53736-SR3-950 | Holder - POWER STEERING PIPE | Holder - POWER STEERING PIPE |
| 2 | 56123-P30-000 | Joint comp - IN. (###) | Joint comp - IN. (###) |
| 3 | 56141-P02-000 | Shaft - POWER STEERING PUMP DRIVE | Shaft - POWER STEERING PUMP DRIVE |
| 4 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 4 | 56996-P01-000 | Bolt - POWER STEERING PUMP ADJUSTING WING | Bolt - POWER STEERING PUMP ADJUSTING WING |
| 4 | 57070-SR3-013 | Accumulator | Accumulator |
| 5 | 57073-SR3-013 | Label - ACCUMULATOR CAUTION | Label - ACCUMULATOR CAUTION |
| 4 | 57079-SR3-E00 | Plate - ABS CAUTION | Plate - ABS CAUTION |
| 6 | 57090-SR3-010 | Pipe - ACCUMULATOR | Pipe - ACCUMULATOR |
| 3 | 57115-SR3-020 | Bracket - MODULATOR | Bracket - MODULATOR |
| 4 | 57116-SR3-A01 | Bracket - MODULATOR UNIT | Bracket - MODULATOR UNIT |
| 5 | 57117-SP0-305 | Head set b - MODULATOR | Head set b - MODULATOR |
| 6 | 57118-SG0-801 | O-ring - HEAD | O-ring - HEAD |
| 7 | 57119-SR3-003 | Mark - RESERVE TANK (ABS) | Mark - RESERVE TANK (ABS) |
| 8 | 57120-SG0-805 | Piston comp - FR. | Piston comp - FR. |
| 9 | 57121-SG0-801 | Spring - FR. MODULATOR | Spring - FR. MODULATOR |
| 10 | 57140-SG0-805 | Piston comp - RR. | Piston comp - RR. |
| 11 | 57141-SF1-801 | Spring - RR. MODULATOR | Spring - RR. MODULATOR |
| 18 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 12 | 57174-SR3-800 | Bracket - COUPLER | Bracket - COUPLER |
| 13 | 57174-SR3-820 | Bracket - COUPLER | Bracket - COUPLER |
| 14 | 57191-SR3-013 | Tank comp. - RESERVE | Tank comp. - RESERVE |
| 15 | 57193-SP0-013 | Filter - TANK | Filter - TANK |
| 16 | 57196-SP0-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 17 | 57198-SP0-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 18 | 57204-SP0-003 | O-ring c - SOLENOID | O-ring c - SOLENOID |
| 7 | 57310-SR3-023 | Pump assy. - ABS | Pump assy. - ABS |
| 8 | 57336-SR3-003 | Plate - SUCTION | Plate - SUCTION |
| 19 | 57348-SB0-801 | Bleed - AIR | Bleed - AIR |
| 20 | 57349-SB0-801 | Cap - AIR BLEED | Cap - AIR BLEED |
| 9 | 57355-SR3-020 | Bracket - POWER UNIT | Bracket - POWER UNIT |
| 10 | 57358-SB0-800 | Mount a - PUMP BRACKET | Mount a - PUMP BRACKET |
| 11 | 57371-SR3-000 | Hose - PUMP | Hose - PUMP |
| 12 | 57375-SR3-010 | Bracket a - PUMP | Bracket a - PUMP |
| 13 | 57376-SF1-800 | Bolt-washer - 6X28 | Bolt-washer - 6X28 |
| 14 | 57376-SR3-000 | Bracket b - PUMP | Bracket b - PUMP |
| 15 | 57380-SR3-003 | Hose - PRESSURE | Hose - PRESSURE |
| 16 | 57390-SR3-013 | Switch assy - PRESSURE | Switch assy - PRESSURE |
| 11 | 57450-SR3-801 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 12 | 57455-SR3-801 | Sensor assy - L. FR. | Sensor assy - L. FR. |
| 19 | 57515-SM4-013 | Bolt comp - STOPPER | Bolt comp - STOPPER |
| 20 | 57520-SE0-013 | Piston assy. - PRIMARY | Piston assy. - PRIMARY |
| 20 | 57520-SE0-023 | Piston assy. - PRIMARY | Piston assy. - PRIMARY |
| 21 | 57540-SE0-013 | Piston assy. - SECONDARY | Piston assy. - SECONDARY |
| 21 | 57540-SE0-023 | Piston assy. - SECONDARY | Piston assy. - SECONDARY |
| 22 | 57560-SE0-003 | Guide assy - PISTON | Guide assy - PISTON |
| 23 | 57562-SF1-003 | Circlip | Circlip |
| 1 | 64436-692-000 | Clip - GUIDE | Clip - GUIDE |
| 7 | 66405-SD4-000 | Stay - GLOVE BOX HINGE | Stay - GLOVE BOX HINGE |
| 8 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 8 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 15 | 66849-SH3-G00 | Bracket - RADIO | Bracket - RADIO |
| 3 | 70052-SH3-000 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 5 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
| 28 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 4 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 5 | 71145-S10-G01 | Bracket - FR. LICENSE PLATE | Bracket - FR. LICENSE PLATE |
| 5 | 71145-SR3-G00 | Base - FR. LICENSE PLATE | Base - FR. LICENSE PLATE |
| 1 | 71969-SA7-890 | Wrench - SUNROOF | Wrench - SUNROOF |
| 6 | 72123-SR0-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 8 | 72130-SR3-A01 | Protector - R. DOOR CYLINDER | Protector - R. DOOR CYLINDER |
| 10 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 11 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 14 | 72140-SR3-013 | Handle assy - R. FR. DOOR OUTSIDE | Handle assy - R. FR. DOOR OUTSIDE |
| 15 | 72145-SR3-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 16 | 72146-SR3-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 25 | 72170-SR3-A01 | Protector - L. DOOR CYLINDER | Protector - L. DOOR CYLINDER |
| 26 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 27 | 72180-SR3-013 | Handle assy - L. FR. OUTSIDE | Handle assy - L. FR. OUTSIDE |
| 1 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 8 | 72246-SR3-003 | Stopper - DOOR GLASS | Stopper - DOOR GLASS |
| 17 | 72327-SD5-000 | Seal b - FR. DOOR HOLE (30X50) | Seal b - FR. DOOR HOLE (30X50) |
| 4 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 2 | 73125-SR3-000 | Rubber a - FR. WINDSHIELD DAM | Rubber a - FR. WINDSHIELD DAM |
| 3 | 73126-SR3-000 | Rubber b - FR. WINDSHIELD DAM | Rubber b - FR. WINDSHIELD DAM |
| 4 | 73127-SR3-003 | Holder - FR. WINDSHIELD GLASS | Holder - FR. WINDSHIELD GLASS |
| 5 | 73151-SR3-013 | Molding - FR. WINDSHIELD UPPER | Molding - FR. WINDSHIELD UPPER |
| 5 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 7 | 74101-SR3-000 | RH FR. INNER Fender | RH FR. INNER Fender |
| 10 | 74111-SR3-A00 | Shield - FR. SPLASH | Shield - FR. SPLASH |
| 6 | 74120-SR3-A01 | Lock assy - HOOD | Lock assy - HOOD |
| 7 | 74130-SR3-A00 | Wire assy. - HOOD | Wire assy. - HOOD |
| 8 | 74131-SH3-A01 | Cover - HOOD WIRE | Cover - HOOD WIRE |
| 9 | 74132-SR3-A00 | Lever assy. - HOOD WIRE | Lever assy. - HOOD WIRE |
| 10 | 74134-SH3-003 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 11 | 74141-SR3-000 | Hood Insulator | Hood Insulator |
| 12 | 74142-SR3-010 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 13 | 74143-SR3-000 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 19 | 74144-SR3-000 | Cushion - HOOD | Cushion - HOOD |
| 14 | 74145-SR3-000 | Stay - HOOD OPENER | Stay - HOOD OPENER |
| 15 | 74149-SR3-000 | Cover - CONDENSER | Cover - CONDENSER |
| 12 | 74151-SR3-000 | LH FR. INNER Fender | LH FR. INNER Fender |
| 20 | 74172-SR3-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 21 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 22 | 74176-SR3-000 | Bracket - RADIATOR MOUNT UPPER | Bracket - RADIATOR MOUNT UPPER |
| 16 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 9 | 74307-SR3-003 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
| 29 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 11 | 74430-SM4-A00 | Protector - RR. WHEEL ARCH | Protector - RR. WHEEL ARCH |
| 11 | 74430-SR3-A00 | Protector - RR. WHEEL ARCH | Protector - RR. WHEEL ARCH |
| 23 | 75328-SR3-003 | Clip - SIDE PROTECTOR | Clip - SIDE PROTECTOR |
| 20 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 28 | 75513-SB2-000 | Cushion - LOCK ROD (35MMX58MM) | Cushion - LOCK ROD (35MMX58MM) |
| 28 | 75513-SB4-000 | Cushion - LOCK ROD (15MMX40MM) | Cushion - LOCK ROD (15MMX40MM) |
| 3 | 75513-SR3-000 | Cushion - SIDE | Cushion - SIDE |
| 5 | 75700-SR3-000 | Emblem - CENTER (H) | Emblem - CENTER (H) |
| 18 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 25 | 75807-671-010 | Nut - SIDE PROTECTOR (BLACK) | Nut - SIDE PROTECTOR (BLACK) |
| 2 | 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) |
| 19 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 6 | 76201-SR3-003 | Housing - R. | Housing - R. |
| 11 | 76213-SR3-003 | Pin - STOPPER | Pin - STOPPER |
| 16 | 76251-SR3-003 | Housing - L. | Housing - L. |
| 27 | 76290-SR3-003 | Screw - TAPPING, 4X10 (TRUSS) (###) | Screw - TAPPING, 4X10 (TRUSS) (###) |
| 28 | 76291-SR3-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 23 | 76409-SL0-003 | Washer - TOOTHED | Washer - TOOTHED |
| 24 | 76410-SL4-003 | Bolt - LOCK | Bolt - LOCK |
| 25 | 76419-SL4-003 | Spring - HOLDER | Spring - HOLDER |
| 26 | 76420-SL4-003 | Plate - HOOK | Plate - HOOK |
| 2 | 76505-SR3-A01 | Motor comp - FR. WIPER | Motor comp - FR. WIPER |
| 3 | 76515-SR3-003 | Seal a | Seal a |
| 4 | 76516-SE0-003 | Rubber - BRACKETLESS MOUNTING | Rubber - BRACKETLESS MOUNTING |
| 5 | 76516-SR3-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76517-SM4-003 | Collar | Collar |
| 8 | 76520-SR3-A01 | Link unit a | Link unit a |
| 9 | 76524-SD4-003 | Dust seal | Dust seal |
| 10 | 76524-SE0-013 | Dust seal | Dust seal |
| 11 | 76530-SR3-A01 | Link comp - FR. WIPER | Link comp - FR. WIPER |
| 12 | 76540-SR3-003 | Rod unit a | Rod unit a |
| 13 | 76550-SM4-003 | Rod unit b | Rod unit b |
| 14 | 76561-SD4-003 | Cap - PIVOT | Cap - PIVOT |
| 15 | 76600-SR3-G01 | Arm - WINDSHIELD WIPER (DRIVER SIDE) | Arm - WINDSHIELD WIPER (DRIVER SIDE) |
| 16 | 76610-SR3-G01 | Arm - WINDSHIELD WIPER (PASSENGER SIDE) | Arm - WINDSHIELD WIPER (PASSENGER SIDE) |
| 17 | 76620-SH2-A02 | Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE) | Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE) |
| 18 | 76622-SF4-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 19 | 76630-SH3-305 | Blade,windshield | Blade,windshield |
| 19 | 76630-SH3-G11 | Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE) | Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE) |
| 1 | 76632-S5H-T01 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 18 | 76632-S6M-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 4 | 76802-SS0-003 | Cap - MOUTH | Cap - MOUTH |
| 13 | 76810-SR3-003 | Nozzle assy. - R. FR. WASHER | Nozzle assy. - R. FR. WASHER |
| 14 | 76815-SR3-003 | Nozzle assy. - L. FR. WASHER | Nozzle assy. - L. FR. WASHER |
| 22 | 76830-SM4-003 | Joint y - WASHER | Joint y - WASHER |
| 9 | 77140-SR3-C00 | Bracket comp. - INSTRUMENT DRIVER SIDE | Bracket comp. - INSTRUMENT DRIVER SIDE |
| 10 | 77145-SR3-C00 | Bracket comp. - INSTRUMENT PASSENGER SIDE | Bracket comp. - INSTRUMENT PASSENGER SIDE |
| 10 | 77160-SR3-C02 | Frame comp - INSTRUMENT CENTER | Frame comp - INSTRUMENT CENTER |
| 12 | 77212-SR3-003 | Blind - COLUMN | Blind - COLUMN |
| 14 | 77230-SM4-G00 | Lid assy - AUDIO HOLE | Lid assy - AUDIO HOLE |
| 18 | 77411-SR3-C01 | Duct - CENTER AIR CONDITIONER | Duct - CENTER AIR CONDITIONER |
| 19 | 77466-SR3-000 | Seal - FR. INSTRUMENT | Seal - FR. INSTRUMENT |
| 19 | 77509-SR3-000 | Stopper - GLOVE BOX | Stopper - GLOVE BOX |
| 25 | 77542-SR3-000 | Striker - GLOVE BOX | Striker - GLOVE BOX |
| 18 | 77551-SR3-C00 | Frame - GLOVE BOX | Frame - GLOVE BOX |
| 24 | 77623-SR3-000 | Bush - UPPER VENT KNOB | Bush - UPPER VENT KNOB |
| 29 | 77730-SR3-003 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 30 | 77755-SH3-010 | Spring - COIN POCKET | Spring - COIN POCKET |
| 6 | 78108-SR3-G01 | Panel - PRINT | Panel - PRINT |
| 7 | 78110-SR3-J03 | Case assy. | Case assy. |
| 13 | 78155-SR3-G12 | Visor assy - METER | Visor assy - METER |
| 2 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 2 | 79100-SR3-G01 | Heater unit | Heater unit |
| 3 | 79110-SR3-A01 | Core comp - HEATER | Core comp - HEATER |
| 4 | 79140-SR3-A01 | Motor assy. - MODE | Motor assy. - MODE |
| 2 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 6 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 3 | 79305-SR3-A01 | Blower sub assy. - DENSO | Blower sub assy. - DENSO |
| 4 | 79310-SR3-A01 | Motor assy. - BLOWER (DENSO) | Motor assy. - BLOWER (DENSO) |
| 5 | 79330-SR3-A01 | Resistor - BLOWER | Resistor - BLOWER |
| 6 | 79350-SR3-A01 | Motor assy. - FRESH & RECIRCULAR | Motor assy. - FRESH & RECIRCULAR |
| 5 | 79500-SR3-A02 | Control assy. - HEATER | Control assy. - HEATER |
| 6 | 79512-SR3-003 | Lever | Lever |
| 7 | 79514-SR3-003 | Slider | Slider |
| 8 | 79529-SR3-003 | Stopper - CONTROL LEVER | Stopper - CONTROL LEVER |
| 9 | 79542-SR3-A00 | Cable - TEMPERATURE CONTROL (TSK) | Cable - TEMPERATURE CONTROL (TSK) |
| 7 | 79544-SR3-A00 | Cable - WATER VALVE CONTROL | Cable - WATER VALVE CONTROL |
| 10 | 79550-SR3-013 | Garnish | Garnish |
| 11 | 79551-SR3-013 | Display - MODE CONTROL | Display - MODE CONTROL |
| 12 | 79570-SR3-003 | Switch assy - HEATER FAN | Switch assy - HEATER FAN |
| 13 | 79601-SR3-013 | Knob a | Knob a |
| 14 | 79602-SR3-013 | Knob b | Knob b |
| 15 | 79603-SR3-013 | Knob c | Knob c |
| 16 | 79604-SR3-013 | Knob d | Knob d |
| 17 | 79612-SR3-013 | Lid - AIR CONDITIONER SWITCH | Lid - AIR CONDITIONER SWITCH |
| 18 | 79629-SR3-003 | Bulb assy - BLUE) (14V 14W | Bulb assy - BLUE) (14V 14W |
| 2 | 79710-SR3-A01 | Valve assy. Water | Valve assy. Water |
| 4 | 79722-SR3-000 | Hose b, WATER IN. | Hose b, WATER IN. |
| 6 | 79731-SR3-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 8 | 79810-SR3-A01 | Duct - HEATER | Duct - HEATER |
| 5 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 2 | 80107-SR3-000 | Bracket - CONDENSER UPPER | Bracket - CONDENSER UPPER |
| 3 | 80110-SR3-023 | Condenser comp. - SAK | Condenser comp. - SAK |
| 4 | 80115-SR3-000 | Seal - UPPER CONDENSER | Seal - UPPER CONDENSER |
| 5 | 80116-SR3-000 | Seal - R. CONDENSER | Seal - R. CONDENSER |
| 6 | 80117-SR3-000 | Seal - L. CONDENSER | Seal - L. CONDENSER |
| 7 | 80151-SR3-013 | Motor - COOLING FAN | Motor - COOLING FAN |
| 8 | 80152-SR3-013 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 9 | 80161-SR3-000 | Shroud comp. - CONDENSER FAN | Shroud comp. - CONDENSER FAN |
| 10 | 80162-SR3-000 | Protector - FAN MOTOR | Protector - FAN MOTOR |
| 11 | 80174-SR3-000 | Mount - R. CONDENSER | Mount - R. CONDENSER |
| 12 | 80175-SR3-000 | Mount - L. CONDENSER | Mount - L. CONDENSER |
| 13 | 80176-SR3-000 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 14 | 80177-SR3-003 | Mount - CONDENSER LOWER | Mount - CONDENSER LOWER |
| 6 | 80201-SR3-A10 | Case - EVAPORATOR UPPER | Case - EVAPORATOR UPPER |
| 7 | 80202-SR3-A00 | Case - EVAPORATOR LOWER | Case - EVAPORATOR LOWER |
| 8 | 80205-SR3-A00 | Insulator - EVAPORATOR UPPER | Insulator - EVAPORATOR UPPER |
| 9 | 80206-SR3-A00 | Insulator - EVAPORATOR LOWER | Insulator - EVAPORATOR LOWER |
| 10 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 11 | 80215-ST7-A01 | Evaporator comp. - SAK | Evaporator comp. - SAK |
| 12 | 80220-ST7-A02 | Valve assy. - EXPANSION (10N) (FUJI KOKI) | Valve assy. - EXPANSION (10N) (FUJI KOKI) |
| 13 | 80223-ST7-A01 | O-ring - FUJI KOKI | O-ring - FUJI KOKI |
| 14 | 80225-SR3-000 | Clamp | Clamp |
| 15 | 80271-SR3-A00 | Hose - DRAIN | Hose - DRAIN |
| 16 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 17 | 80282-SM4-A00 | Grommet - THERMOSTAT | Grommet - THERMOSTAT |
| 18 | 80286-SR3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 19 | 80287-SR3-000 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 20 | 80288-SR3-000 | Seal - EVAPORATOR JOINT | Seal - EVAPORATOR JOINT |
| 6 | 80311-SR3-A02 | Hose comp. - SUCTION (NICHIRIN) | Hose comp. - SUCTION (NICHIRIN) |
| 8 | 80321-SR3-A02 | Pipe a - SUCTION (SAK) | Pipe a - SUCTION (SAK) |
| 9 | 80322-SR3-A02 | Pipe b - SUCTION (SAK) | Pipe b - SUCTION (SAK) |
| 10 | 80331-SR3-013 | Pipe - CONDENSER (SAK) | Pipe - CONDENSER (SAK) |
| 11 | 80341-SR3-A02 | Pipe a - RECEIVER (SAK) | Pipe a - RECEIVER (SAK) |
| 12 | 80342-SR3-A02 | Pipe b - RECEIVER (SAK) | Pipe b - RECEIVER (SAK) |
| 13 | 80343-SR3-A02 | Pipe c - RECEIVER (SAK) | Pipe c - RECEIVER (SAK) |
| 14 | 80351-ST7-003 | Receiver comp | Receiver comp |
| 15 | 80352-SR3-000 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 16 | 80362-SR3-A00 | Clamp - SUCTION HOSE | Clamp - SUCTION HOSE |
| 17 | 80363-SR3-A00 | Stay - SUCTION HOSE | Stay - SUCTION HOSE |
| 18 | 80364-SR3-A00 | Stay - SUCTION PIPE | Stay - SUCTION PIPE |
| 19 | 80367-SR3-A00 | Clamp b - SUCTION PIPE | Clamp b - SUCTION PIPE |
| 15 | 80373-SR3-000 | Bracket - DISCHARGE HOSE | Bracket - DISCHARGE HOSE |
| 20 | 80387-SM4-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 20 | 80411-SR3-013 | Knob - AIR CONDITIONER SWITCH | Knob - AIR CONDITIONER SWITCH |
| 21 | 80430-SR3-A02 | Thermostat - AIR CONDITIONER | Thermostat - AIR CONDITIONER |
| 16 | 80440-SK3-901 | Switch - DUAL PRESSURE (SAGINOMIYA) | Switch - DUAL PRESSURE (SAGINOMIYA) |
| 16 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 22 | 80460-SR3-A02 | Harness - AIR CONDITIONER WIRE | Harness - AIR CONDITIONER WIRE |
| 23 | 80463-SR3-A00 | Bracket - AIR CONDITIONER WIRE HARNESS | Bracket - AIR CONDITIONER WIRE HARNESS |
| 24 | 80464-SR3-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 25 | 80491-SR3-000 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 26 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 27 | 80865-ST0-003 | Cap h - VALVE (NICHIRIN) | Cap h - VALVE (NICHIRIN) |
| 28 | 80866-SL0-003 | Cap - VALVE(L) | Cap - VALVE(L) |
| 4 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 27 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 28 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 11 | 82490-SR3-000 | Bag - PROTECTOR | Bag - PROTECTOR |
| 13 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 83101-SR3-A11 | Insulator - DASHBOARD | Insulator - DASHBOARD |
| 4 | 83103-SR3-C01 | Insulator - DASHBOARD UPPER | Insulator - DASHBOARD UPPER |
| 4 | 83107-ST7-000 | Insulator - DASHBOARD WINDSHIELD LOWER | Insulator - DASHBOARD WINDSHIELD LOWER |
| 5 | 83108-ST7-000 | Insulator - DASHBOARD UPPER CENTER | Insulator - DASHBOARD UPPER CENTER |
| 17 | 83243-SK8-A40 | Cover - GRAB RAIL | Cover - GRAB RAIL |
| 18 | 83248-SG0-003 | Spacer - GRAB RAIL | Spacer - GRAB RAIL |
| 4 | 83431-SA4-000 | Cushion - FR. TRUNK | Cushion - FR. TRUNK |
| 8 | 83508-SR3-000 | Bracket assy - PULL POCKET | Bracket assy - PULL POCKET |
| 22 | 83850-SD2-000 | Plate - ANCHOR BOLT | Plate - ANCHOR BOLT |
| 23 | 83853-SA7-980 | Bolt - ANCHOR (79MM) | Bolt - ANCHOR (79MM) |
| 5 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 21 | 87125-041-680 | Honda Motor Co., Made In Japan, Sticker | Honda Motor Co., Made In Japan, Sticker |
| 3 | 89101-SH3-000 | Bag - TOOL | Bag - TOOL |
| 3 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 4 | 89211-SE3-003 | Wrench - WHEEL | Wrench - WHEEL |
| 9 | 89320-S50-003 | Bar - JACK | Bar - JACK |
| 9 | 89320-SE3-003 | Bar - JACK | Bar - JACK |
| 21 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 20 | 90001-SD2-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 21 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 9 | 90003-P03-000 | Bolt-washer - 6X26 | Bolt-washer - 6X26 |
| 10 | 90004-P30-000 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 18 | 90004-PE2-005 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 17 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 32 | 90008-PP4-E02 | Bolt - BANJO, 12MM | Bolt - BANJO, 12MM |
| 19 | 90008-PR3-000 | Bolt A, ENGINE MOUNT BRACKET (10X60) | Bolt A, ENGINE MOUNT BRACKET (10X60) |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 33 | 90009-PP4-E01 | Bolt - SEALING, 6MM | Bolt - SEALING, 6MM |
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 18 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 17 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 11 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 32 | 90020-PD6-000 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 8 | 90022-PE0-000 | Bolt - FLANGE, 8X10 | Bolt - FLANGE, 8X10 |
| 22 | 90023-P01-000 | Bolt - FLANGE, 8X105 | Bolt - FLANGE, 8X105 |
| 40 | 90023-PK1-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 40 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 21 | 90026-PE0-000 | Bolt - STUD, 8X37 | Bolt - STUD, 8X37 |
| 21 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 6 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 11 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 12 | 90041-P08-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 18 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 13 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 13 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 23 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 14 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 21 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 22 | 90051-PE0-000 | Bolt - FLANGE, 12X70 | Bolt - FLANGE, 12X70 |
| 23 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 9 | 90065-PG6-000 | Bolt, STUD, 10X24 | Bolt, STUD, 10X24 |
| 19 | 90078-PR3-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
| 11 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 24 | 90084-657-000 | Bolt - SEALING, 16X9.5 | Bolt - SEALING, 16X9.5 |
| 22 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
| 22 | 90091-PE2-000 | Bolt-washer - 5X25 | Bolt-washer - 5X25 |
| 10 | 90101-SE0-010 | Bolt assy. b - BUMPER | Bolt assy. b - BUMPER |
| 19 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 36 | 90103-SB4-950 | Bolt - POWER STEERING | Bolt - POWER STEERING |
| 37 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 11 | 90105-SB6-003 | Screw - PAN, 4X12 | Screw - PAN, 4X12 |
| 21 | 90105-SG0-003 | Bolt-washer - 8X16 | Bolt-washer - 8X16 |
| 30 | 90106-SD2-000 | Nut - SPRING | Nut - SPRING |
| 24 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 24 | 90108-SR3-951 | Bolt - GEAR BOX MOUNTING (10X65) | Bolt - GEAR BOX MOUNTING (10X65) |
| 12 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 41 | 90110-679-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 16 | 90112-SE0-000 | Bolt - FR. STABILIZER | Bolt - FR. STABILIZER |
| 14 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 25 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 25 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 25 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 23 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 15 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 32 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 19 | 90115-SG0-003 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 44 | 90115-SL5-A00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 45 | 90115-SR3-A71 | Nut - PREVAILING TORQUE, 8MM | Nut - PREVAILING TORQUE, 8MM |
| 30 | 90116-SE0-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 47 | 90117-SB2-000 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 34 | 90117-SH3-004 | Bolt - UPPER ARM, 10X30 | Bolt - UPPER ARM, 10X30 |
| 17 | 90118-958-003 | Bolt, flange, 6x12 | Bolt, flange, 6x12 |
| 17 | 90118-SR3-003 | Bolt - SELF-LOCK, 12X76 | Bolt - SELF-LOCK, 12X76 |
| 30 | 90119-SR3-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 18 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 20 | 90120-SE3-003 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 32 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 29 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 16 | 90121-SA7-000 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 8 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 8 | 90122-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 9 | 90123-SR3-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 9 | 90125-SR3-003 | Screw - TAPPING, 5X15 | Screw - TAPPING, 5X15 |
| 32 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 22 | 90126-SM4-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 20 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 14 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 20 | 90127-SA0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 17 | 90127-SB0-801 | Bolt - SENSOR LOCK, 6X12 | Bolt - SENSOR LOCK, 6X12 |
| 31 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 12 | 90128-SR4-003 | Bolt-washer - 8X19 | Bolt-washer - 8X19 |
| 18 | 90129-SP0-000 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 17 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 13 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 17 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 33 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
| 24 | 90131-ST7-000 | Bolt - L. FR. STOPPER | Bolt - L. FR. STOPPER |
| 18 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 10 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 11 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 25 | 90133-SR3-010 | Bolt - R. FR. STOPPER | Bolt - R. FR. STOPPER |
| 18 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 12 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 13 | 90135-SK7-A01 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
| 13 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 24 | 90139-ST7-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 35 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 25 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 15 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 32 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
| 20 | 90153-SB2-003 | Screw-washer - 5X10 | Screw-washer - 5X10 |
| 14 | 90153-SB6-003 | Bolt - EARTH, 6X12(ZN) | Bolt - EARTH, 6X12(ZN) |
| 30 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 20 | 90154-SD4-003 | Bolt - EARTH, 6X20 | Bolt - EARTH, 6X20 |
| 31 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 14 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 32 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 21 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 26 | 90161-SR3-000 | Bolt - FLANGE, 14X107 | Bolt - FLANGE, 14X107 |
| 28 | 90162-SR3-000 | Bolt - FLANGE, 14X60 | Bolt - FLANGE, 14X60 |
| 34 | 90164-SD4-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 20 | 90164-SR3-013 | Bolt - SELF-LOCK, 14X34 | Bolt - SELF-LOCK, 14X34 |
| 29 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 30 | 90166-SR3-000 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 31 | 90167-SR3-000 | Bolt - FLANGE, 14X120 | Bolt - FLANGE, 14X120 |
| 21 | 90168-SR3-000 | Bolt - FLANGE, 14X35 | Bolt - FLANGE, 14X35 |
| 36 | 90171-SR3-003 | Bolt - TORQUE COMPENSATOR, 10X59 | Bolt - TORQUE COMPENSATOR, 10X59 |
| 37 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 37 | 90172-SK7-003 | Bolt - UPPER ARM, 10X68 | Bolt - UPPER ARM, 10X68 |
| 17 | 90172-SK7-A01 | Bolt - SHOCK ABSORBER LOWER (10X84) | Bolt - SHOCK ABSORBER LOWER (10X84) |
| 38 | 90173-SR3-003 | Bolt - LOWER ARM, 10X80 | Bolt - LOWER ARM, 10X80 |
| 39 | 90174-SJ4-003 | Bolt - TRAILING ARM BUSH, 12X60 | Bolt - TRAILING ARM BUSH, 12X60 |
| 22 | 90175-SH3-005 | Bolt - SHOCK ABSORBER FORK | Bolt - SHOCK ABSORBER FORK |
| 33 | 90176-SK7-013 | Bolt - FLANGE, 10X31 | Bolt - FLANGE, 10X31 |
| 34 | 90182-SR3-000 | Bolt - FLANGE, 12X112 | Bolt - FLANGE, 12X112 |
| 35 | 90183-SR3-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 13 | 90185-SR3-013 | Bolt - FR. ARM UPPER (10X58) | Bolt - FR. ARM UPPER (10X58) |
| 38 | 90188-SR3-010 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 39 | 90190-SR3-000 | Bolt - FLANGE, 12X64 | Bolt - FLANGE, 12X64 |
| 34 | 90195-SA0-000 | Screw-washer - 6X20 | Screw-washer - 6X20 |
| 21 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 11 | 90202-PH8-000 | Nut - HEX., 23MM | Nut - HEX., 23MM |
| 17 | 90206-590-000 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 17 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 10 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 10 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 48 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 23 | 90213-SR3-013 | Nut - SELF-LOCK, 14MM | Nut - SELF-LOCK, 14MM |
| 24 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 34 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 24 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 28 | 90301-SE0-902 | Nut - SPECIAL, 5MM | Nut - SPECIAL, 5MM |
| 35 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 33 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 24 | 90304-SA0-981 | Nut comp. - WHEEL (FUSE RASHI) | Nut comp. - WHEEL (FUSE RASHI) |
| 15 | 90304-SR3-014 | Nut - FLANGE, 10MM (OHASHI) | Nut - FLANGE, 10MM (OHASHI) |
| 20 | 90305-692-010 | Nut | Nut |
| 38 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 15 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 33 | 90308-SB2-013 | Nut - SUSPENSION, 5MM | Nut - SUSPENSION, 5MM |
| 23 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
| 18 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 25 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 16 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 33 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 26 | 90325-SM4-J00 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
| 34 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 15 | 90337-SJ4-003 | Nut - A.L.B. | Nut - A.L.B. |
| 35 | 90347-SR3-000 | Nut - SPRING, 6MM | Nut - SPRING, 6MM |
| 13 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 22 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 25 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 17 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 41 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 42 | 90372-SR3-003 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 16 | 90380-SB2-003 | Nut - SELF-LOCK (OHASHI) | Nut - SELF-LOCK (OHASHI) |
| 43 | 90380-SR3-000 | Bolt - STUD, 12X57.6 | Bolt - STUD, 12X57.6 |
| 14 | 90401-PG1-000 | Washer - DRAIN PLUG, 10MM | Washer - DRAIN PLUG, 10MM |
| 25 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 15 | 90403-689-000 | Collar - LOCK | Collar - LOCK |
| 20 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 37 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 38 | 90430-PD6-003 | Washer - SEALING, 6MM | Washer - SEALING, 6MM |
| 26 | 90443-PA5-000 | Washer - SEALING, 16MM | Washer - SEALING, 16MM |
| 11 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 13 | 90502-SA0-003 | Washer - WATER PROOF | Washer - WATER PROOF |
| 44 | 90504-SR3-010 | Washer - FR. STOPPER | Washer - FR. STOPPER |
| 45 | 90505-SB2-000 | Washer - SIDE MOUNTING | Washer - SIDE MOUNTING |
| 46 | 90505-SR3-000 | Washer - RR. BRACKET, 14MM | Washer - RR. BRACKET, 14MM |
| 14 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 19 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
| 41 | 90551-SH3-000 | Washer - 24X10X2.3 | Washer - 24X10X2.3 |
| 11 | 90601-P01-003 | Clip - ADJUST BOLT | Clip - ADJUST BOLT |
| 37 | 90602-SA7-931 | Clamp - FUEL HOSE, 18.5MM | Clamp - FUEL HOSE, 18.5MM |
| 6 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 29 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 6 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 24 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 24 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 10 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 35 | 90650-SE3-000 | Clip - RADIO PANEL | Clip - RADIO PANEL |
| 34 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 21 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 15 | 90654-SR3-003 | Clip - STEERING JOINT COVER | Clip - STEERING JOINT COVER |
| 38 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 39 | 90657-SH3-013 | Clip - TWO WAY VALVE COVER | Clip - TWO WAY VALVE COVER |
| 34 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 21 | 90659-PG6-000 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 16 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 39 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 15 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 38 | 90668-SC5-003 | Clip A - AIRSCOOP GRILLE | Clip A - AIRSCOOP GRILLE |
| 12 | 90668-SH3-003 | Clip - SIDE LINING | Clip - SIDE LINING |
| 23 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 22 | 90672-SJ4-013 | Holder - ROD | Holder - ROD |
| 17 | 90678-SK7-003 | Clip - SPEAKER | Clip - SPEAKER |
| 21 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 26 | 90681-SR3-A00 | Circlip, SPECIAL INTERNAL, 79MM | Circlip, SPECIAL INTERNAL, 79MM |
| 16 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 15 | 90683-SB3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 37 | 90684-SD4-950 | Ring - SNAP, 31MM | Ring - SNAP, 31MM |
| 22 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 38 | 90688-SB0-013 | Clip b | Clip b |
| 13 | 90688-SR3-003 | Clip - BAG PROTECTOR | Clip - BAG PROTECTOR |
| 35 | 90691-SC5-003 | Clip A - OPENER CABLE | Clip A - OPENER CABLE |
| 36 | 90692-SK8-003 | Clip - TRUNK OPENER CABLE | Clip - TRUNK OPENER CABLE |
| 38 | 90693-SC5-003 | Circlip - INTERNAL, 32MM | Circlip - INTERNAL, 32MM |
| 39 | 90697-SA5-003 | Circlip - EXTERNAL, 31MM | Circlip - EXTERNAL, 31MM |
| 23 | 90700-SJ4-000 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 17 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
| 27 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 23 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 7 | 90851-SJ4-000 | Seal - DOOR HOLE, 20MM | Seal - DOOR HOLE, 20MM |
| 8 | 90852-671-003 | Plug - HOLE | Plug - HOLE |
| 9 | 90855-SA0-000 | Plug - VENTILATION HOLE, 20MM | Plug - VENTILATION HOLE, 20MM |
| 11 | 90860-SA5-003 | Plug - HOLE, 16MM | Plug - HOLE, 16MM |
| 13 | 91006-634-004 | Bearing - CLUTCH PILOT (KOYO) | Bearing - CLUTCH PILOT (KOYO) |
| 13 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
| 9 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 40 | 91052-SL5-A01 | Bearing - RADIAL BALL, 6906/31ZZ | Bearing - RADIAL BALL, 6906/31ZZ |
| 41 | 91053-SL5-A01 | Bearing - RADIAL BALL, 600 | Bearing - RADIAL BALL, 600 |
| 22 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 42 | 91103-429-000 | Dowel pin - 8X10 | Dowel pin - 8X10 |
| 10 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 11 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 43 | 91154-SA5-952 | Roller - 3.5X29.8 | Roller - 3.5X29.8 |
| 28 | 91214-PLE-003 | Oil seal | Oil seal |
| 16 | 91216-PH8-003 | Oil seal - 28X41X7 (ARAI) | Oil seal - 28X41X7 (ARAI) |
| 16 | 91216-PH8-005 | Oil seal - 28X41X7 (NOK) | Oil seal - 28X41X7 (NOK) |
| 12 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 23 | 91260-SR3-003 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
| 23 | 91260-SR3-004 | Seal - HALF SHAFT OUTER (ARAI) | Seal - HALF SHAFT OUTER (ARAI) |
| 15 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 15 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 16 | 91303-PK2-005 | O-ring (7.5X1.5) | O-ring (7.5X1.5) |
| 11 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 27 | 91307-PJ7-003 | O-ring - 9.5X1.5 (MATSUSHITA) | O-ring - 9.5X1.5 (MATSUSHITA) |
| 27 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 28 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 28 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 12 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
| 13 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 44 | 91318-PT0-003 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 25 | 91319-PR3-000 | O-ring - 13X1.5 | O-ring - 13X1.5 |
| 25 | 91319-PR3-003 | O-ring - 13X1.5 (ARAI) | O-ring - 13X1.5 (ARAI) |
| 14 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 15 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 16 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 17 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 18 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
| 44 | 91352-SF4-951 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 45 | 91360-SD4-951 | O-ring - 50X2.4 (NOK) | O-ring - 50X2.4 (NOK) |
| 45 | 91360-SD4-952 | O-ring - 50X2.4 (ARAI) | O-ring - 50X2.4 (ARAI) |
| 26 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 26 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 21 | 91405-P05-A01 | Clamp - TUBE (D13.8) | Clamp - TUBE (D13.8) |
| 27 | 91405-PE0-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 23 | 91405-PG7-003 | Clip - HOSE (D13) | Clip - HOSE (D13) |
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 39 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 27 | 91417-SZ3-003 | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) |
| 22 | 91504-SR3-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 29 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 23 | 91506-SR3-003 | Clip - TUBE WASHER (NATURAL) | Clip - TUBE WASHER (NATURAL) |
| 30 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 24 | 91508-SR3-000 | Clip - COWL TOP (BLACK) | Clip - COWL TOP (BLACK) |
| 24 | 91508-SX8-003 | Clip - COWL TOP | Clip - COWL TOP |
| 40 | 91510-SR3-003 | Clip - DOOR MOLDING (NATURAL) | Clip - DOOR MOLDING (NATURAL) |
| 15 | 91511-SR3-003 | Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE) | Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE) |
| 17 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 22 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 41 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 26 | 91515-SR3-000 | Clip - RR. HOOD | Clip - RR. HOOD |
| 18 | 91516-SK7-013 | Clip - UNDER COVER | Clip - UNDER COVER |
| 27 | 91520-SM4-C01 | Clip - HOOD SEAL RUBBER | Clip - HOOD SEAL RUBBER |
| 18 | 91520-SR3-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (RED) | Clip c - FR. WINDSHIELD SIDE MOLDING (RED) |
| 24 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 13 | 91532-SR3-003 | Clip - DASHBOARD INSULATOR (BLACK) | Clip - DASHBOARD INSULATOR (BLACK) |
| 14 | 91533-SR3-003 | Clip - INSULATOR (NATURAL) | Clip - INSULATOR (NATURAL) |
| 25 | 91534-SR3-003 | Clip - DOOR SUB SEAL | Clip - DOOR SUB SEAL |
| 20 | 91534-ST0-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE) | Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE) |
| 15 | 91535-SR3-003 | Clip - DASHBOARD INSULATOR LOCK (BLACK) | Clip - DASHBOARD INSULATOR LOCK (BLACK) |
| 26 | 91536-SR3-003 | Clip - SUCTION PIPE (BLACK) | Clip - SUCTION PIPE (BLACK) |
| 34 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 35 | 91546-SR3-003 | Clamp - 16.5 | Clamp - 16.5 |
| 36 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 26 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 20 | 91547-SR3-003 | Clamp - WIRE HARNESS | Clamp - WIRE HARNESS |
| 29 | 91550-SH5-003 | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) |
| 30 | 91550-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 16 | 91551-SE0-003 | Bolt - FLANGE, 5X7 | Bolt - FLANGE, 5X7 |
| 18 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 32 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 21 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 22 | 91556-SR3-003 | Clip - COUPLER | Clip - COUPLER |
| 33 | 91557-SR3-003 | Clip - WIRE HARNESS PROTECTOR (RED) | Clip - WIRE HARNESS PROTECTOR (RED) |
| 37 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 19 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 19 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 34 | 91560-SR3-003 | Band - HARNESS (NATURAL)(113MM) | Band - HARNESS (NATURAL)(113MM) |
| 16 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 38 | 91571-SR3-004 | Holder - COUPLER | Holder - COUPLER |
| 35 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 41 | 91591-SR3-010 | Clip A - BRAKE | Clip A - BRAKE |
| 45 | 91595-SR3-003 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 47 | 91597-SH3-Y01 | Clamp - VENT TUBE (BLACK) | Clamp - VENT TUBE (BLACK) |
| 41 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 29 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 15 | 91610-SB2-003 | Plug - HOLE, 16.7MM (BLACK) | Plug - HOLE, 16.7MM (BLACK) |
| 16 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 17 | 91616-SR3-000 | Seal - FR. INNER LOWER (110X110) (BLACK) | Seal - FR. INNER LOWER (110X110) (BLACK) |
| 18 | 91617-SB6-000 | Grommet - WASHER HOSE, 32MM | Grommet - WASHER HOSE, 32MM |
| 38 | 91619-SA5-000 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
| 41 | 91626-SR3-003 | Ring - WIRE HARNESS | Ring - WIRE HARNESS |
| 18 | 91631-SR3-000 | Plug - AIR CONDITIONER HOLE | Plug - AIR CONDITIONER HOLE |
| 42 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 43 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 17 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
| 23 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 16 | 91647-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 43 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 44 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| 21 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
