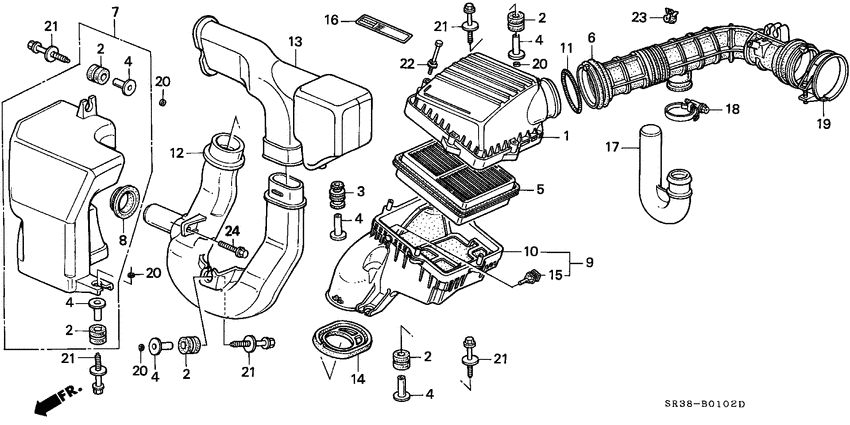

Air cleaner (3) 6 / 24

#	OEM	EG5	ES5
2	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
20	75353-671-000	Lock - SCREW	Lock - SCREW
21	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
22	90091-P36-000	Bolt-washer - 5X28	Bolt-washer - 5X28

Air conditioner (COOLING UNIT; 4) 5 / 35

#	OEM	EG5	ES5
27	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
28	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
30	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
33	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
34	90659-692-000	Clamp - CASE	Clamp - CASE

Air conditioner (HOSES/PIPES; 2) 4 / 19

#	OEM	EG5	ES5
2	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
3	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
14	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
15	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"

Battery (2) 4 / 17

#	OEM	EG5	ES5
5	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
11	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
12	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
13	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12

Body structure components (1) 1 / 3

#	OEM	EG5	ES5
37	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Body structure components (3) 1 / 5

#	OEM	EG5	ES5
32	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

Brake lines (2) 5 / 27

#	OEM	EG5	ES5
15	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
30	46462-SE0-000	Bolt - OIL	Bolt - OIL
31	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
34	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
37	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Brake master cylinder/ master power (1) 5 / 25

#	OEM	EG5	ES5
9	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
10	46185-SE0-003	Seal - ROD	Seal - ROD
30	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
31	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
32	57562-SF1-003	Circlip	Circlip

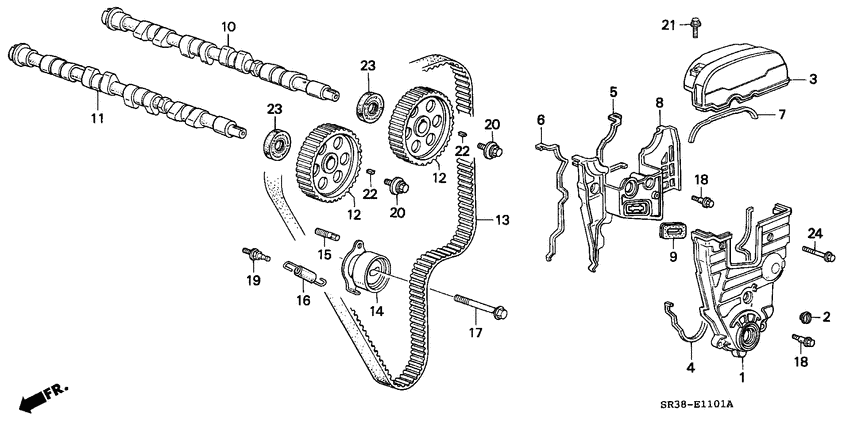

Camshaft/timing belt (2) 4 / 26

#	OEM	EG5	ES5
18	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
19	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING	Bolt - TIMING BELT ADJUSTER SPRING
20	90031-PT0-003	Bolt-washer - 8X22	Bolt-washer - 8X22
20	90032-ZW5-003	Bolt-washer, 8x22	Bolt-washer, 8x22

Clutch housing (1) 23 / 32

#	OEM	EG5	ES5
7	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
7	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
7	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
7	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
7	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
7	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
7	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
7	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
7	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
7	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
7	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
7	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
7	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
7	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
7	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
7	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
7	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
8	90015-634-010	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
9	91002-PS0-003	Bearing - BALL, 26X58X15 (NTN)	Bearing - BALL, 26X58X15 (NTN)
10	91005-PS1-003	Bearing - SEALED BALL, 6208C (NTN)	Bearing - SEALED BALL, 6208C (NTN)
12	91205-PL3-A02	Oil seal - 35X56X8(NOK)	Oil seal - 35X56X8(NOK)
12	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
14	91216-PL3-005	Oil seal - 26X42X7 (NOK)	Oil seal - 26X42X7 (NOK)

Clutch master cylinder (2) 4 / 33

#	OEM	EG5	ES5
1	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	46182-500-013	Circlip	Circlip
34	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch release (1) 2 / 14

#	OEM	EG5	ES5
5	22825-PX5-A00	Bolt - RELEASE FORK	Bolt - RELEASE FORK
7	22841-P20-000	Boot - RELEASE FORK	Boot - RELEASE FORK

Clutch/torque converter 3 / 8

#	OEM	EG5	ES5
9	90011-PM0-000	Bolt - 12MM	Bolt - 12MM
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
13	91006-634-008	Bearing - CLUTCH PILOT (NTN)	Bearing - CLUTCH PILOT (NTN)

Combination switch 1 / 23

#	OEM	EG5	ES5
4	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD

Console 2 / 8

#	OEM	EG5	ES5
12	88324-SB3-950	Cover - RR. ASHTRAY	Cover - RR. ASHTRAY
13	90137-SH3-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16

Control unit (CABIN; 2) 1 / 20

#	OEM	EG5	ES5
19	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)

Control unit (ENGINE ROOM; 2) 4 / 11

#	OEM	EG5	ES5
3	38212-SM4-003	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
5	38216-SM4-003	Fuse - BLOCK (80A)	Fuse - BLOCK (80A)
9	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
11	90129-SP0-000	Screw-washer - 5X12	Screw-washer - 5X12

Countershaft (1) 3 / 17

#	OEM	EG5	ES5
9	23926-PB6-010	Washer - SPRING, 22MM	Washer - SPRING, 22MM
10	90202-PB6-010	Nut - FLANGE, 22MM	Nut - FLANGE, 22MM
11	90603-PL3-000	Ring - SNAP, 52MM	Ring - SNAP, 52MM

Cylinder block/oil pan (1) 13 / 29

#	OEM	EG5	ES5
2	11106-PE0-300	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
4	11126-PK1-003	Bolt - SEALING, 22MM	Bolt - SEALING, 22MM
17	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
18	90007-PM6-003	Bolt-washer - 11X116	Bolt-washer - 11X116
20	90008-PM6-003	Bolt-washer - 11X131	Bolt-washer - 11X131
22	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
25	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
28	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
30	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
31	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
32	91214-PLE-003	Oil seal	Oil seal
33	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)	O-ring - 7.2X1.7 (ARAI)
33	91312-107-000	O-ring (7x1.7)	O-ring (7x1.7)

Cylinder head (2) 2 / 17

#	OEM	EG5	ES5
13	90026-PE0-000	Bolt - STUD, 8X37	Bolt - STUD, 8X37
13	90026-PT0-000	Bolt - STUD, 8X38	Bolt - STUD, 8X38

Cylinder head cover (1) 1 / 12

#	OEM	EG5	ES5
10	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Door lining 2 / 6

#	OEM	EG5	ES5
16	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Door locks 6 / 26

#	OEM	EG5	ES5
6	72123-SR0-003	Ring - OUTSIDE HANDLE	Ring - OUTSIDE HANDLE
26	72175-SH3-901	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
29	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
32	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
33	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
34	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Door panels 3 / 17

#	OEM	EG5	ES5
19	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
21	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
24	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Door windows 2 / 16

#	OEM	EG5	ES5
21	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
22	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Emblems 1 / 7

#	OEM	EG5	ES5
17	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

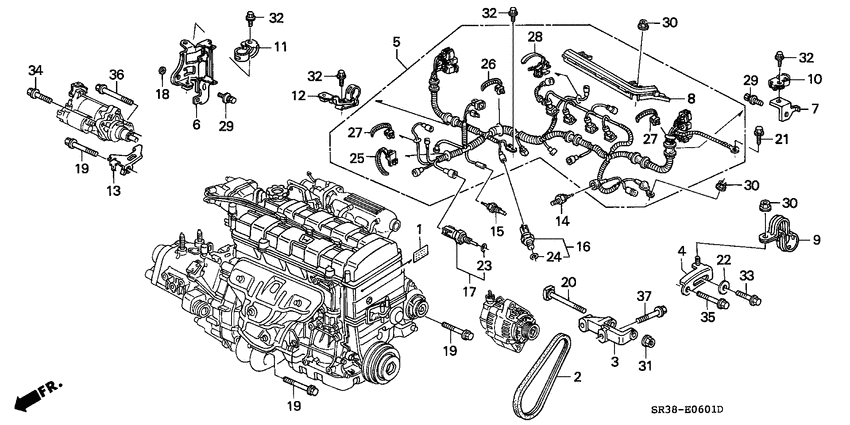

Engine wire harness/clamp (2) 7 / 31

#	OEM	EG5	ES5
16	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
16	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
18	75353-671-000	Lock - SCREW	Lock - SCREW
19	90050-PG7-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
24	91307-PN4-000	O-ring - 17.5X1.4	O-ring - 17.5X1.4
24	91307-PN3-000	O-ring,17.8x1.4	O-ring,17.8x1.4
25	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)

Exhaust pipe 2 / 19

#	OEM	EG5	ES5
31	18231-SR3-A22	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
48	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

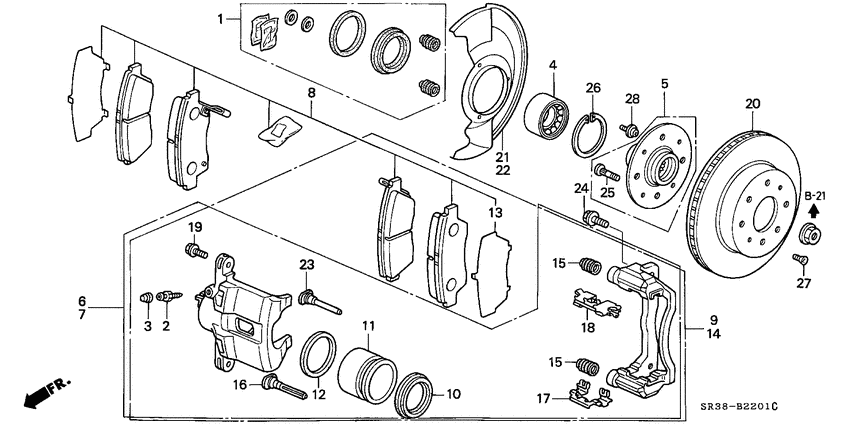

Front brake (2) 6 / 29

#	OEM	EG5	ES5
2	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
17	45237-SR3-003	Retainer a	Retainer a
24	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
25	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
25	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)

Front driveshaft/ half shaft 3 / 30

#	OEM	EG5	ES5
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
20	90305-692-010	Nut	Nut
28	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)

Front fenders 2 / 13

#	OEM	EG5	ES5
14	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
16	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front seat (1) 3 / 7

#	OEM	EG5	ES5
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
17	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Front seat components (1) 1 / 14

#	OEM	EG5	ES5
18	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22

Front shock absorber 2 / 20

#	OEM	EG5	ES5
12	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front windshield wiper (2) 8 / 25

#	OEM	EG5	ES5
1	76632-S5H-T01	Rubber - BLADE (450MM)	Rubber - BLADE (450MM)
4	76516-SE0-003	Rubber - BRACKETLESS MOUNTING	Rubber - BRACKETLESS MOUNTING
5	76516-SR3-003	Rubber - MOUNTING	Rubber - MOUNTING
6	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
7	76517-SM4-003	Collar	Collar
9	76524-SD4-003	Dust seal	Dust seal
10	76524-SE0-013	Dust seal	Dust seal
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32

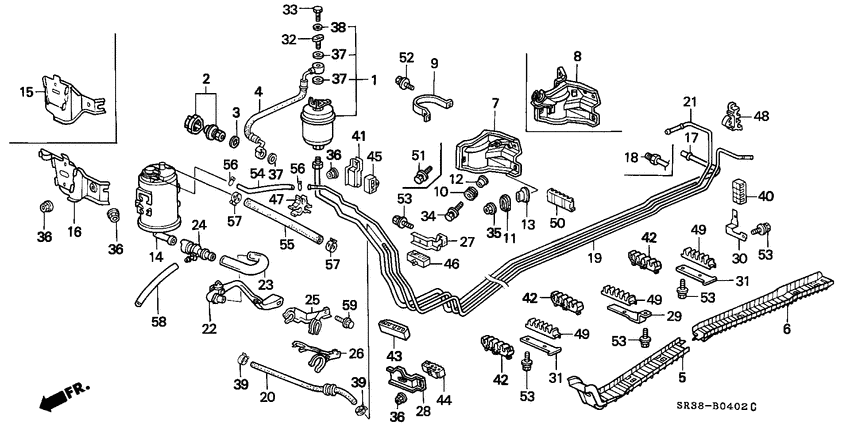

Fuel pipe (3) 3 / 45

#	OEM	EG5	ES5
35	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
35	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
36	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

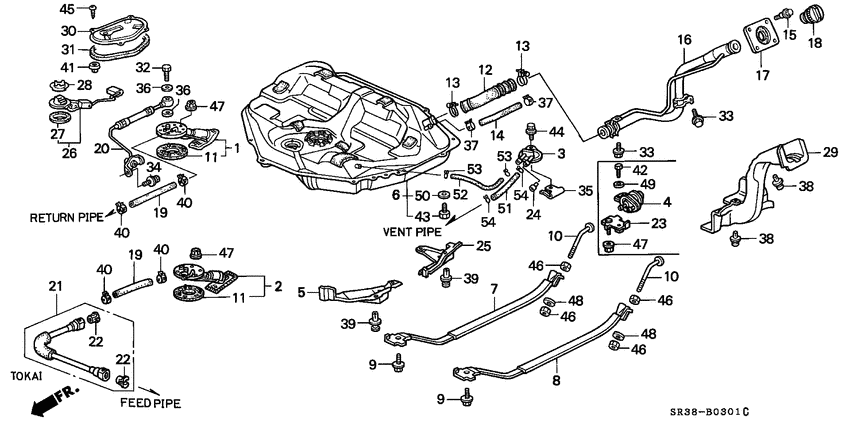

Fuel tank (2) 3 / 38

#	OEM	EG5	ES5
9	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
18	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)	Cap comp. - FUEL FILLER (TOYODA)
41	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet 5 / 17

#	OEM	EG5	ES5
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM	Cap - FLOOR HOLE, 24MM
6	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
11	90860-SA5-003	Plug - HOLE, 16MM	Plug - HOLE, 16MM
13	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
16	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM

Headlight (1) 1 / 26

#	OEM	EG5	ES5
13	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)

Heater blower 4 / 14

#	OEM	EG5	ES5
8	90121-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
10	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
11	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater control 3 / 23

#	OEM	EG5	ES5
20	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
21	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
23	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Heater unit 2 / 11

#	OEM	EG5	ES5
10	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
11	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Hood 5 / 26

#	OEM	EG5	ES5
1	17706-SC3-003	Clip - FUEL PIPE	Clip - FUEL PIPE
10	74134-SH3-003	Grommet - HOOD WIRE	Grommet - HOOD WIRE
16	74177-SD4-000	Cushion a - HOOD	Cushion a - HOOD
19	74144-SR3-000	Cushion - HOOD	Cushion - HOOD
29	91604-SD2-013	Grommet - HOOD STAY	Grommet - HOOD STAY

Instrument panel (2) 3 / 14

#	OEM	EG5	ES5
23	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
24	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
27	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (2) 8 / 23

#	OEM	EG5	ES5
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
9	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
22	90137-SH3-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
23	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
25	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
26	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
30	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
31	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (PGM-FI; 1) 1 / 16

#	OEM	EG5	ES5
5	16638-PH3-S00	Insulator - FUEL PIPE	Insulator - FUEL PIPE

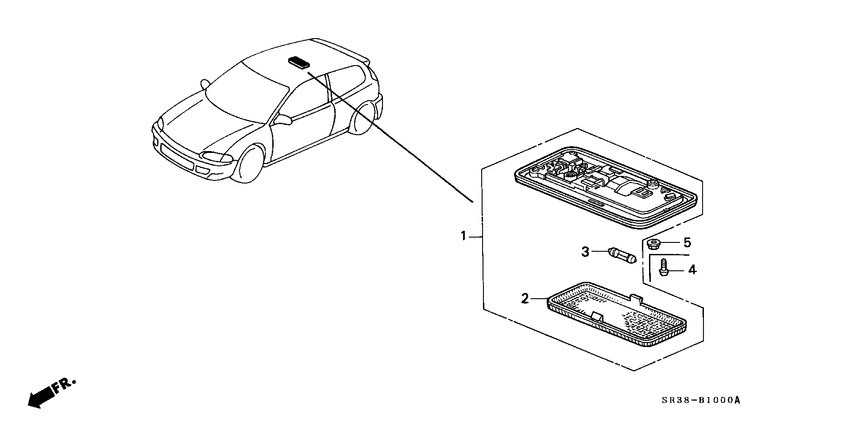

Interior light 2 / 7

#	OEM	EG5	ES5
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W

Knuckle 1 / 18

#	OEM	EG5	ES5
15	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Lower gate 6 / 31

#	OEM	EG5	ES5
4	72616-SM4-003	Snap - NATURAL	Snap - NATURAL
5	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
15	74815-SK8-000	Grommet - KEY CYLINDER(BLACK)	Grommet - KEY CYLINDER(BLACK)
34	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
39	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
43	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Mainshaft (1) 3 / 15

#	OEM	EG5	ES5
2	23261-PL3-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
10	23927-PL3-000	Washer - SPRING, 36MM	Washer - SPRING, 36MM
11	23928-PL3-000	Washer - 26MM	Washer - 26MM

Mirror 1 / 14

#	OEM	EG5	ES5
29	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH

Oil pump/oil strainer (1) 7 / 21

#	OEM	EG5	ES5
5	15231-PM3-000	Valve - RELIEF	Valve - RELIEF
6	15232-PM3-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
9	15302-PE0-300	Washer - SEALING, 14MM	Washer - SEALING, 14MM
10	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
12	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
14	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
16	91308-PK1-003	O-ring - 26.2X2.4 (NOK)	O-ring - 26.2X2.4 (NOK)

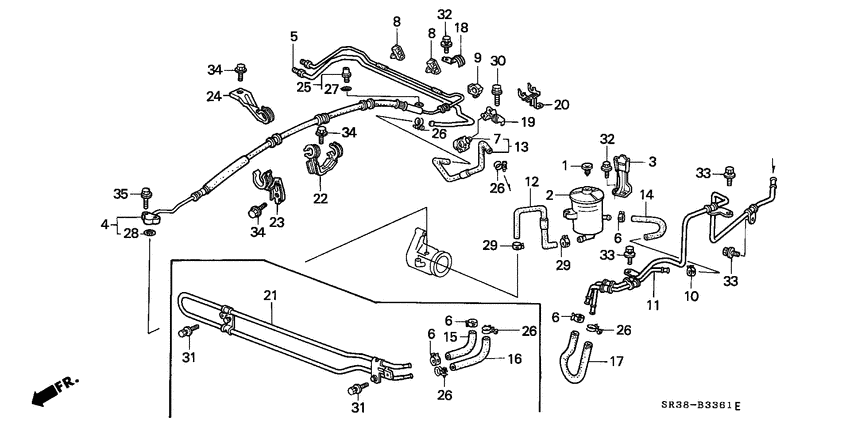

P.s. lines (2) 6 / 23

#	OEM	EG5	ES5
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
10	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
26	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
26	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
29	91405-PE0-003	Clamp - TUBE (D20)	Clamp - TUBE (D20)
29	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

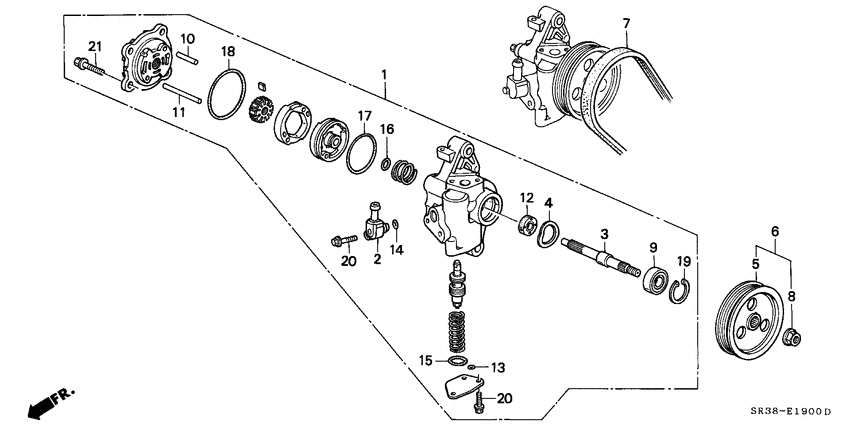

P.s. pump 1 / 18

#	OEM	EG5	ES5
14	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9

P.s. pump bracket 1 / 7

#	OEM	EG5	ES5
4	56996-P01-000	Bolt - POWER STEERING PUMP ADJUSTING WING	Bolt - POWER STEERING PUMP ADJUSTING WING

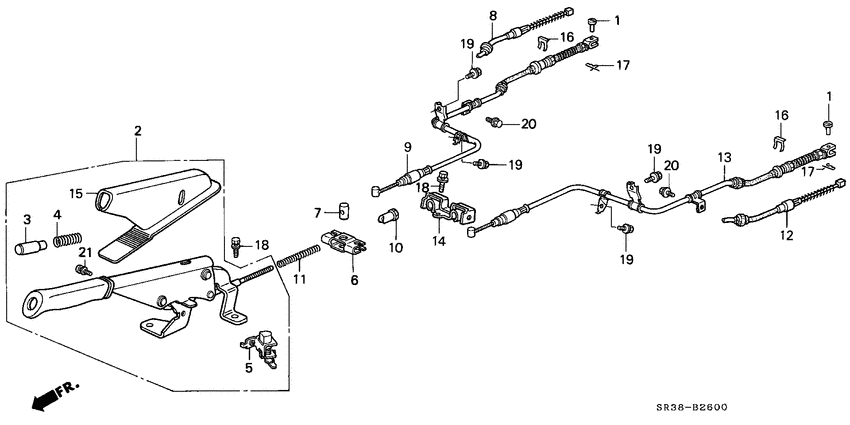

Parking brake 1 / 13

#	OEM	EG5	ES5
16	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Pedal (2) 4 / 28

#	OEM	EG5	ES5
7	17921-SA4-730	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE
22	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
29	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
33	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN

Piston/crankshaft 4 / 39

#	OEM	EG5	ES5
6	13112-PE0-000	Pin - PISTON	Pin - PISTON
7	13204-PE1-003	Bolt	Bolt
8	13205-634-010	Nut	Nut
17	90704-634-000	Key - 4.5X11.0	Key - 4.5X11.0

Radiator (DENSO) 5 / 15

#	OEM	EG5	ES5
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
10	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose 3 / 16

#	OEM	EG5	ES5
12	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)	Clip - WATER HOSE(CHUO SPRING)
13	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)	Clip - WATER HOSE (CHUO SPRING)
21	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

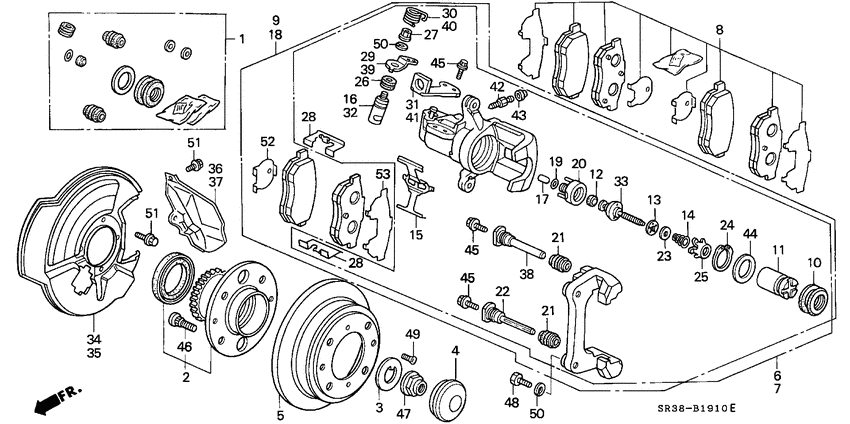

Rear brake (DISK) 16 / 46

#	OEM	EG5	ES5
13	43223-SD2-932	BEARING A	BEARING A
14	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
16	43228-SD2-933	Shaft a	Shaft a
17	43229-SD2-931	Rod	Rod
23	43236-S04-003	Spacer	Spacer
27	43243-SD2-931	Nut - PARKING	Nut - PARKING
30	43246-SD2-931	Spring - R. RETURN	Spring - R. RETURN
32	43248-SD2-933	Shaft b	Shaft b
38	43262-S84-A51	Pin b	Pin b
40	43266-SD2-931	Spring - L. RETURN	Spring - L. RETURN
42	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
43	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
45	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
46	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
46	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
47	90305-692-010	Nut	Nut

Rear seat (1) 3 / 13

#	OEM	EG5	ES5
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
18	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25

Rear shock absorber 1 / 20

#	OEM	EG5	ES5
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

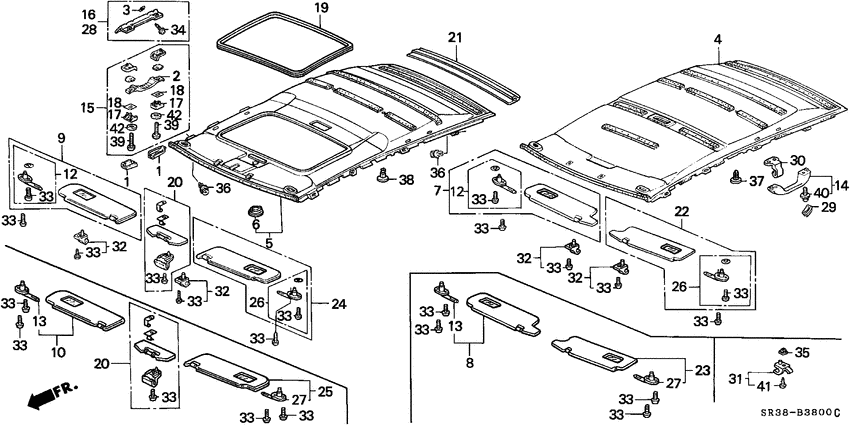

Roof lining 1 / 6

#	OEM	EG5	ES5
3	75353-671-000	Lock - SCREW	Lock - SCREW

Shift fork (1) 1 / 10

#	OEM	EG5	ES5
10	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift rod/shift holder (1) 3 / 20

#	OEM	EG5	ES5
16	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
17	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
20	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Side lining (1) 1 / 13

#	OEM	EG5	ES5
23	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Side protectors 1 / 27

#	OEM	EG5	ES5
33	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

Sliding roof (3) 1 / 33

#	OEM	EG5	ES5
33	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Speed sensor 1 / 4

#	OEM	EG5	ES5
3	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Steering column 2 / 15

#	OEM	EG5	ES5
13	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
14	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Taillight 2 / 27

#	OEM	EG5	ES5
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
30	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Tire/wheel disk 4 / 40

#	OEM	EG5	ES5
6	42753-SH3-003	Valve - RIM (US PACIFIC)	Valve - RIM (US PACIFIC)
6	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
22	83850-SH3-000	Plate - ANCHOR BOLT	Plate - ANCHOR BOLT
26	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 1 / 10

#	OEM	EG5	ES5
3	89101-SW5-003	Bag - TOOL	Bag - TOOL

Transmission housing (1) 2 / 52

#	OEM	EG5	ES5
4	21396-P20-000	Cap - BREATHER	Cap - BREATHER
7	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM

Trunk box 1 / 7

#	OEM	EG5	ES5
24	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)

Water pump 2 / 17

#	OEM	EG5	ES5
6	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
20	91314-634-000	O-ring	O-ring

Water valve 1 / 9

#	OEM	EG5	ES5
10	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Windshield washer 4 / 26

#	OEM	EG5	ES5
6	38516-SA5-671	Packing - T-TYPE) (MITSUBA	Packing - T-TYPE) (MITSUBA
7	38519-SB0-003	Bush - WASHER TANK (MITSUBA)	Bush - WASHER TANK (MITSUBA)
17	76830-SM4-003	Joint y - WASHER	Joint y - WASHER
21	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM

Wire harness (2) 6 / 40

#	OEM	EG5	ES5
8	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
21	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
25	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
27	91547-SH3-003	Clip - BAND(NATURAL)(160MM)	Clip - BAND(NATURAL)(160MM)
32	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
43	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
