Air cleaner (3) 24

#	OEM	部品名
1	17210-P07-000	Cover comp. - AIR CLEANER
2	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
3	17212-P07-000	Rubber - AIR CLEANER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING
5	17220-P07-T00	Element assy. - AIR CLEANER
6	17228-P29-000	Tube - AIR FLOW
7	17230-P04-G00	Chamber assy - RESONATOR
8	17232-P04-G00	Seal - RESONATOR RUBBER
9	17240-P07-000	Case comp. - AIR CLEANER
10	17241-P07-C00	Case comp. - AIR CLEANER (CANADA)
11	17243-PD1-000	Spring - AIR INTAKE TUBE
12	17243-P30-000	Tube a - AIR INTAKE
13	17248-P30-000	Tube assy. b - AIR INTAKE
14	17249-P07-000	Rubber - AIR INTAKE SEAL
15	17254-P08-300	Grommet - AIR CLEANER
16	17273-P00-T01	Label - AIR CLEANER
19	17316-PH3-003	Clamp - AIR FLOW TUBE (70)
20	75353-671-000	Lock - SCREW
21	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
22	90091-P36-000	Bolt-washer - 5X28
22	90091-P07-A01	Bolt-washer - 5X28
22	90091-PE2-000	Bolt-washer - 5X25
23	91405-PG7-003	Clip - HOSE (D13)

Air con (COMPRESSOR; HADSYS) 22

#	OEM	部品名
1	38801-P06-006	Valve sub assy. - SAFETY
2	38810-P76-016	Compressor comp. - HADSYS
2	38810-P76-006	Compressor comp. - HADSYS
3	38829-P06-006	Nut
4	38900-P06-006	Clutch set - COMPRESSOR
5	38908-P06-016	Protector set - THERMAL
5	38908-P06-006	Protector set - THERMAL
6	38912-P06-006	Shim set
7	38913-P06-006	Circlip - EXTERNAL, 45MM
8	38914-P06-006	Circlip - EXTERNAL, 35MM
9	38920-P01-003	Belt - COMPRESSOR (BANDO)
9	38920-P01-004	Belt - COMPRESSOR (MITSUBOSHI)
9	31110-P75-507	Belt
10	38924-P06-006	Coil set - SOLENOID
11	38926-PM3-000	Stay - IDLE PULLEY
12	38930-P06-A00	Bracket - COMPRESSOR
15	38942-P01-003	Pulley comp - IDLE
17	38944-P02-000	Collar - IDLE PULLEY
18	38945-P01-000	Cover - BEARING
19	38946-P01-000	Bolt - IDLE PULLEY
21	90021-P01-000	Bolt - FLANGE, 8X85
22	90023-P01-000	Bolt - FLANGE, 8X105

Air conditioner (CONDENSER) 23

#	OEM	部品名
1	17925-SR3-010	Clamp - THROTTLE WIRE
2	80107-SR3-000	Bracket - CONDENSER UPPER
3	80110-SR3-023	Condenser comp. - SAK
4	80115-SR3-000	Seal - UPPER CONDENSER
5	80116-SR3-000	Seal - R. CONDENSER
6	80117-SR3-000	Seal - L. CONDENSER
7	80151-SR3-013	Motor - COOLING FAN
8	80152-SR3-013	Fan comp - COOLING (MITSUBA)
9	80161-SR3-000	Shroud comp. - CONDENSER FAN
10	80162-SR3-000	Protector - FAN MOTOR
11	80174-SR3-000	Mount - R. CONDENSER
12	80175-SR3-000	Mount - L. CONDENSER
13	80176-SR3-000	Rubber - CONDENSER MOUNTING
14	80177-SR3-003	Mount - CONDENSER LOWER
15	80373-SR3-000	Bracket - DISCHARGE HOSE
16	80440-SS0-901	Switch - DUAL PRESSURE (FUJI)
16	80440-SK3-901	Switch - DUAL PRESSURE (SAGINOMIYA)
17	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
18	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)
18	90311-MB6-003	Nut toothed 5mm
19	90078-PR3-000	Screw - PAN, 4X8
20	90403-PM3-004	Washer - PLAIN, 7MM
21	90659-PG6-000	Clip - WIRE HARNESS

Air conditioner (COOLING UNIT; 4) 35

#	OEM	部品名
1	32147-SF1-003	Connector - DIODE(3P)
2	32148-SF1-003	Rubber - SEAL
4	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
6	80201-SR3-000	Case - EVAPORATOR UPPER
7	80202-SR3-000	Case - EVAPORATOR LOWER
8	80205-SR3-000	Insulator - EVAPORATOR UPPER
9	80206-SR3-000	Insulator - EVAPORATOR LOWER
10	80214-SL5-A01	Insulator - EXPANSION
11	80215-ST7-003	Evaporator comp.
12	80220-ST7-A02	Valve assy. - EXPANSION (10N) (FUJI KOKI)
13	80223-ST7-A01	O-ring - FUJI KOKI
14	80225-SR3-000	Clamp
15	80266-SR3-000	Plate - EVAPORATOR HARNESS
16	80271-SR3-000	Hose - DRAIN
17	80272-SF4-000	Grommet - DRAIN HOSE
18	80286-SR3-000	Seal - EVAPORATOR INNER
19	80287-SR3-000	Seal - EVAPORATOR OUTER
20	80288-SR3-000	Seal - EVAPORATOR JOINT
21	80291-SR3-000	Grommet - EVAPORATOR SENSOR
22	80430-SR3-003	Thermostat - AIR CONDITIONER
22	80411-SR3-013	Knob - AIR CONDITIONER SWITCH
23	80460-SR3-020	Harness - AIR CONDITIONER WIRE (MANUAL AIR CONDITIONER)
24	80464-SR3-000	Grommet - AIR CONDITIONER PIPE
25	80491-SR3-000	Bracket - AIR CONDITIONER RELAY
26	80566-SR3-003	Clip - EVAPORATOR SENSOR
27	80872-ST7-000	O-ring - 1/2"
28	80873-ST7-000	O-ring - 8MM
29	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
30	90153-SE0-003	Bolt - EARTH, 6X12
31	90155-SE0-003	Screw - TAPPING, 6X20
32	90156-SH3-000	Bolt-washer - 6X24
33	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
34	90659-692-000	Clamp - CASE
35	91546-SR3-003	Clamp - 16.5
36	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)

Air conditioner (HOSES/PIPES; 2) 19

#	OEM	部品名
2	80871-ST7-000	O-ring - 5/8"
3	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80311-ST7-901	Hose comp. - SUCTION (NICHIRIN)
4	80311-ST7-902	Hose comp. - SUCTION (NICHIRIN)
5	80315-SR3-902	Hose comp. - DISCHARGE (NICHIRIN)
6	80331-SR3-013	Pipe - CONDENSER (SAK)
7	80341-ST7-003	Pipe a - RECEIVER (SAK)
8	80351-ST7-003	Receiver comp
9	80352-SR3-000	Bracket - LIQUID TANK
10	80360-SE0-013	Clamp a - SUCTION HOSE
11	80362-SR3-000	Clamp - SUCTION HOSE
12	80363-SR3-000	Stay - SUCTION HOSE
13	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
14	80873-ST7-000	O-ring - 8MM
15	80872-ST7-000	O-ring - 1/2"
16	91548-SR3-003	Clip - 8MM
17	91599-SH3-A31	Clamp - PURGE HOSE
18	80865-ST0-003	Cap h - VALVE (NICHIRIN)
19	80866-ST0-003	Cap l - VALVE (NICHIRIN)

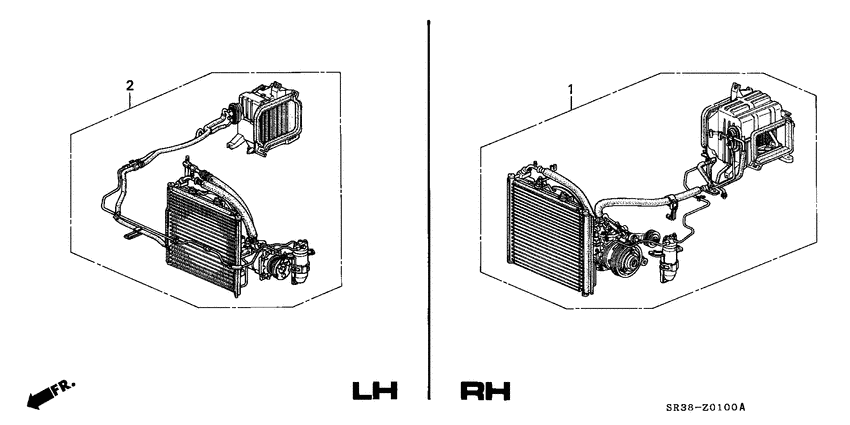

Air conditioner (KIT) 1

#	OEM	部品名
1	80000-SR3-T13	General assy. - AIR CONDITIONER

Alternator (DENSO; 1) 20

#	OEM	部品名
1	31100-P04-G03	Alternator assy - CJQ20) (DENSO
2	31101-P01-013	Rotor assy.
3	31105-P01-003	Holder assy. - BRUSH
4	31111-PD1-014	Bearing - RR. GENERATOR
5	31114-PD1-044	Bearing - FR. GENERATOR
6	31116-PE0-023	Plate - RETAINER (###)
7	31118-PD1-004	Bush - INSULATION
8	31119-PH1-004	Bush - INSULATION
9	31127-PD2-014	Rectifier assy.
10	31135-PD2-004	Cover - RR. END (###)
11	31138-PD1-004	Cover - BEARING
12	31141-PR3-003	Pulley
13	31142-PD1-004	Nut - PULLEY LOCK
14	31145-PD1-004	Bolt - STUD, 6X68
15	31146-PD1-004	Screw-washer - 4X19
16	31147-PD1-004	Screw-washer - 4X6 (###)
17	31148-PD1-004	Screw-washer - 4X25
18	31150-P04-G03	Regulator assy
19	90231-PD1-014	Nut-washer - 5MM
20	91415-PR2-E01	Clip - CORD

Auto radio 6

#	OEM	部品名
1	39100-SE3-Q82	Tuner assy - AUTO RADIO (AM/FM+CASSETTE) (PIONEER)
8	39103-SE3-Q81	Knob a
10	39104-SE3-Q81	Knob - SWITCH
14	39105-SE3-Q81	Knob - FADER
16	39110-SE3-Q81	Fuse - 4A
20	91551-SE0-003	Bolt - FLANGE, 5X7

Battery (2) 17

#	OEM	部品名
1	31500-SH2-Q12	Battery assy - 46B24R<S>-MF) (YUASA
1	31500-SR3-Q02	Battery assy - 46B24R<S>-MF) (PANASONIC
2	31512-SR3-000	Plate - BATTERY SETTING
3	31513-SR3-000	Bolt - BATTERY SETTING
4	31521-SR3-000	Box assy - BATTERY
5	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
5	31542-SA5-664	Plug - VENT (MF) (YUASA)
6	32410-SR3-E01	Cable assy - STARTER
7	32414-SR3-000	Clamp a - STARTER CABLE
8	32415-SR3-000	Clamp b - STARTER CABLE
9	32416-SR3-000	Clamp c - STARTER CABLE
10	32600-SR3-E01	Cable assy - BATTERY EARTH
11	32601-SK7-900	Bolt - BATTERY TERMINAL
12	32602-SK7-900	Nut - BATTERY TERMINAL
13	90153-SE0-003	Bolt - EARTH, 6X12
14	90656-PB1-003	Band - OIL HOSE
15	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)

Body structure components (1) 3

#	OEM	部品名
36	61901-611-000	Grommet - EMBLEM HOLE
37	90105-634-000	Bolt-washer (8x20)
38	90852-671-003	Plug - HOLE

Body structure components (3) 5

#	OEM	部品名
28	70494-SE0-000	Spring - FUEL LID OPENER
29	74422-SH3-000	Cushion - FUEL FILLER LID
30	75450-SR3-000	Outlet assy - RR. AIR
31	75451-SP0-000	Clip - RR. AIR OUTLET
32	90147-634-003	Bolt - FENDER, 6X18

Brake lines (2) 27

#	OEM	部品名
1	01464-SR3-030	Hose set - R. FR. BRAKE
2	01465-SR3-020	Hose set - L. FR. BRAKE
4	01466-SR3-903	Hose set - R. RR. BRAKE
5	01468-SR3-902	Hose set - L. RR. BRAKE
6	46210-SR3-952	Valve assy. - DUAL PROPORTIONING
7	46310-SR3-020	Pipe comp. a - BRAKE
8	46320-ST0-000	Pipe comp. b - BRAKE
9	46321-ST0-000	Pipe comp. h - BRAKE
10	46330-SR3-N00	Pipe comp. c - BRAKE
12	46340-SR3-N00	Pipe comp. d - BRAKE
13	46360-ST0-000	Pipe comp. f - BRAKE
15	46380-SH3-000	Grommet a - BRAKE PIPE
16	46391-SR3-J00	Clamp - BRAKE PIPE
17	46391-SR3-J10	Clamp - BRAKE PIPE
19	46391-SR3-931	Clip d - BRAKE PIPE
20	46392-SR3-000	Clip - BRAKE PIPE
22	46392-SR3-921	Clip - BRAKE PIPE
23	46392-SR3-931	Clip - BRAKE PIPE
24	46393-SR3-003	Clip - BRAKE PIPE
25	46410-SR3-023	Hose - R. FR. BRAKE (NICHIRIN)
26	46411-SR3-023	Hose - L. FR. BRAKE (NICHIRIN)
28	46430-SR3-941	Hose - R. RR. BRAKE (NICHIRIN) (DISK)
29	46431-SR3-941	Hose - L. RR. BRAKE (NICHIRIN) (DISK)
30	46462-SE0-000	Bolt - OIL
31	46472-568-000	Packing - OIL BOLT
34	90651-538-000	Clip - BRAKE HOSE
37	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Brake master cylinder/ master power (1) 25

#	OEM	部品名
1	06464-SR3-910	Power set - MASTER (9")
3	46100-SR3-013	Cylinder assy. - MASTER
3	46100-SR3-043	MASTER CYLINDER A
4	46120-SH3-003	Piston assy. - PRIMARY
5	46122-SH3-003	Piston assy. - SECONDARY
6	46135-SF4-003	Guide assy - PISTON
7	46138-SM4-003	Packing
8	46139-SM4-013	Bolt - STOP
9	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
10	46185-SE0-003	Seal - ROD
11	46191-634-000	Gasket - MASTER CYLINDER BRACKET
12	46400-SR3-911	Power assy. - MASTER (9")
13	46403-SE0-003	Valve comp. - CHECK (NISSIN)
15	46404-SR3-010	Tube a - MASTER POWER
17	46405-SR3-J10	Tube b - MASTER POWER
18	46406-SR3-J00	Stay - MASTER POWER TUBE
24	46512-SB2-000	Pin - PEDAL
25	46660-SC2-013	Tank - RESERVE
26	46662-SH3-003	Cap comp. - RESERVE TANK
27	46665-ST5-003	Band - RESERVE TANK
28	46666-692-013	Filter - MASTER CYLINDER
29	46669-692-003	Seal - RESERVE TANK
30	53729-671-003	Clamp d - 15.5MM
31	57173-SB0-801	O-ring - CONNECTOR
32	57562-SF1-003	Circlip

Breather chamber 13

#	OEM	部品名
2	11851-P01-000	Chamber set - BREATHER
4	11854-PM3-000	Joint - BREATHER CHAMBER
6	11855-PC6-000	Grommet - PCV VALVE
7	11855-P07-000	Tube a - PCV
9	11856-P29-000	Tube b - PCV
12	17130-P0A-003	Valve assy. - PCV
12	17130-PK1-003	Valve assy. - PCV
15	17135-P29-010	Pipe comp - BREATHER
17	91324-PC6-000	O-ring - 20.6X2.6
19	91405-679-004	Clamp - TUBE (D17)
19	91405-PM5-004	Clamp - TUBE (D17)
21	91405-P05-A01	Clamp - TUBE (D13.8)
22	17153-PP5-000	Tube - BREATHER

Bumpers (1) 12

#	OEM	部品名
5	71113-SH2-000	Nut - LICENSE PLATE
6	71144-SR3-013	Grommet - BUMPER SIDE
9	71521-SR3-010	Spacer - RR. BUMPER
10	90101-SE0-010	Bolt assy. b - BUMPER
11	90102-SK7-000	Bolt assy - BUMPER
12	90109-SE0-003	Bolt b - BUMPER
14	90112-SM4-003	Bolt - BUMPER
16	90121-SA7-000	Screw - TAPPING, 5X16
17	90130-SB0-010	Bolt assy - BUMPER
19	90540-SA7-000	Washer - BUMPER
22	91503-SP0-013	Clip A - BUMPER
22	91503-SP0-003	Clip A

Camshaft/timing belt (2) 26

#	OEM	部品名
1	11810-P29-010	Cover comp. - TIMING BELT LOWER
1	11810-P29-000	Cover comp. - TIMING BELT LOWER
2	11812-PE0-300	Grommet - TIMING BELT COVER HOLE
3	11820-P29-000	Cover comp. - TIMING BELT UPPER
4	11831-PM7-000	Rubber - LOWER SEAL
5	11832-P29-000	Rubber - R. BACK SEAL
6	11833-P29-000	Rubber - L. BACK SEAL
7	11834-PM7-000	Rubber - UPPER COVER SEAL
8	11840-P29-000	Cover - TIMING BELT BACK
9	11925-P29-000	Rubber a - ENGINE MOUNTING BRACKET SEAL
10	14111-PM7-000	Camshaft - INTAKE
11	14121-PM7-000	Camshaft - EX.
12	14211-PM7-003	Pulley - TIMING BELT DRIVEN
13	14400-PK2-004	Belt - TIMING (UNITTA)
14	14510-PM7-004	Tensioner comp - TIMING BELT (NIPPON SEIKO)
15	14513-PE0-015	Bolt - TENSIONER (M6)
16	14516-PM7-010	Spring - TIMING BELT ADJUSTER
17	14517-PG6-000	Bolt a - TENSIONER
18	90007-679-000	Bolt a - TIMING BELT COVER
19	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING
20	90031-PT0-003	Bolt-washer - 8X22
20	90032-ZW5-003	Bolt-washer, 8x22
21	90225-PM7-000	Bolt - FLANGE, 6X22
22	90741-657-000	Key - 25.4X13
23	91203-PR4-004	Oil seal - 27X43X9 (ARAI)
23	91203-PFB-013	OIL SEAL

Clutch housing (1) 32

#	OEM	部品名
1	21000-P20-B02	Case comp. - CLUTCH
2	21103-PL3-B00	Plate c - OIL GUIDE
3	21120-PG2-003	Magnet - TRANSMISSION
4	41100-P20-B01	Case comp. - DIFFERENTIAL
5	41233-PL3-A00	Gear - FINAL DRIVEN
6	41312-PL3-B00	Gear - SPEEDOMETER DRIVE
7	41456-PL3-B00	Shim r - 80MM(1.65)
7	41451-PL3-B00	Shim l - 80MM(1.15)
7	41446-PL3-B00	Shim f - 80MM(1.5)
7	41457-PL3-B00	Shim s - 80MM(1.75)
7	41441-PL3-B00	Shim a - 80MM(1.0)
7	41452-PL3-B00	Shim m - 80MM(1.25)
7	41447-PL3-B00	Shim g - 80MM(1.6)
7	41442-PL3-B00	Shim b - 80MM(1.1)
7	41453-PL3-B00	Shim n - 80MM(1.35)
7	41448-PL3-B00	Shim h - 80MM(1.7)
7	41443-PL3-B00	Shim c - 80MM(1.2)
7	41454-PL3-B00	Shim p - 80MM(1.45)
7	41449-PL3-B00	Shim j - 80MM(1.8)
7	41444-PL3-B00	Shim d - 80MM(1.3)
7	41455-PL3-B00	Shim q - 80MM(1.55)
7	41450-PL3-B00	Shim k - 80MM(1.05)
7	41445-PL3-B00	Shim e - 80MM(1.4)
8	90015-634-010	Bolt - FLANGE, 10MM
9	91002-PS0-003	Bearing - BALL, 26X58X15 (NTN)
10	91005-PS1-003	Bearing - SEALED BALL, 6208C (NTN)
11	91101-PL3-B03	Bearing - NEEDLE, 30X55X21 (NTN)
12	91205-PL3-A02	Oil seal - 35X56X8(NOK)
12	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
13	91215-PL3-003	Oil seal - 14X25X15 (ARAI)
13	91215-PL3-005	Oil seal - 14X25X15 (NOK)
14	91216-PL3-005	Oil seal - 26X42X7 (NOK)

Clutch master cylinder (2) 33

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-SA5-003	Yoke comp. - NISSIN
4	46164-632-000	Float
5	46182-500-013	Circlip
6	46184-611-000	Dust seal - MASTER CYLINDER
7	46912-SD4-000	Pin - CLUTCH PEDAL
9	46920-SR3-013	Cylinder assy. - CLUTCH MASTER
11	46926-SF1-003	Piston assy.
12	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
13	46930-SR3-013	Cylinder assy. - SLAVE
14	46932-SD4-003	Piston - SLAVE CYLINDER
15	46933-SD4-013	Cup a - PISTON
16	46934-SD4-003	Cup b - PISTON
17	46935-SP0-000	Spring - SLAVE CYLINDER
18	46937-SR3-003	Boot - SLAVE CYLINDER
19	46938-SD4-003	Rod - PUSH
20	46950-SL4-003	Rod assy - PUSH
21	46952-SD4-003	Joint - TUBE
22	46953-SD4-003	Packing
23	46960-SR3-010	Pipe comp. a - CLUTCH
24	46961-SR3-013	Hose - CLUTCH
25	46966-SR3-000	Holder - TANK
26	46970-SR3-000	Pipe comp. b - CLUTCH
27	46971-SR3-010	Tube - CLUTCH FLUID
28	46972-SD4-003	Tank - CLUTCH FLUID
29	46973-SD4-003	Cap comp. - RESERVE TANK
30	46975-SD4-003	Seal - RESERVE TANK
31	46995-SR3-000	Bracket a - CLUTCH PIPE
32	46996-SR3-000	Bracket b - CLUTCH PIPE
33	46998-SR3-000	Clamp - CLUTCH PIPE
34	90651-538-000	Clip - BRAKE HOSE
41	46918-ST7-000	Clamp - TUBE (D10.5)

Clutch release (1) 14

#	OEM	部品名
1	21221-P20-000	Stay - RELEASE PIPE
2	21222-P20-000	Hanger - TRANSMISSION
3	22810-P20-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
3	22810-P20-005	Bearing - CLUTCH RELEASE (NSK)
4	22821-P20-000	Fork - CLUTCH RELEASE
5	22825-PX5-A00	Bolt - RELEASE FORK
6	22835-P20-010	Spring - RELEASE FORK SETTING
7	22841-P20-000	Boot - RELEASE FORK
8	23811-P36-000	Holder comp - SPEEDOMETER GEAR
9	23820-P00-000	Gear comp - SPEEDOMETER
10	90003-P03-000	Bolt-washer - 6X26
11	90638-689-000	Clip - SPEEDOMETER GEAR
12	91304-PT0-000	O-ring - 14.8X1.9
13	91313-611-010	O-ring - 23.5X2

Clutch/torque converter 8

#	OEM	部品名
1	21350-PR1-030	Cover - CLUTCH CASE
4	22100-P08-000	Flywheel comp.
5	22200-P29-030	Disk comp - FRICTION
6	22300-P29-010	Disk comp - PRESSURE
9	90011-PM0-000	Bolt - 12MM
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
13	91006-634-008	Bearing - CLUTCH PILOT (NTN)
13	91006-634-004	Bearing - CLUTCH PILOT (KOYO)

Combination switch 23

#	OEM	部品名
1	04352-SR3-000	Shoe set - HORN (SERVICE)
2	35010-SR3-E01	Cylinder set - KEY
2	35010-SR3-E11	Cylinder set - KEY
3	35100-SR3-E02	Lock assy - STEERING
3	35100-SR3-E12	Lock assy - STEERING
4	35102-SG0-003	Bolt - BREAK HEAD
4	35102-SV4-003	Bolt - BREAK HEAD
5	35103-SE3-003	Screw - RECESSED, 3X8
6	35113-SH3-G02	Key - BLANK (MAIN) (MOLD=BLACK)
7	35130-SR3-901	Switch comp - STEERING
8	35250-SR3-963	Switch assy - COMBINATION
8	35250-SR3-J62	Switch assy - COMBINATION
9	35251-SR3-003	Body - SWITCH
9	35251-SR3-A81	Body - SWITCH
10	35255-SR3-013	Switch assy - LIGHTING (A)
11	35256-SR3-961	Switch assy - WIPER (B) (INTERMITTENT/RR.WIPER)
12	35257-SR3-J81	Ring assy - SLIP (TEC)
13	35259-SR3-013	Shoe - HORN
14	35400-SL4-003	Switch assy - DOOR
15	35401-SL4-003	Cover - DOOR SWITCH
16	35409-692-013	Screw - FLANGE, 4X12
17	53271-SR3-000	Cam - TURN SIGNAL SWITCH CANCEL
18	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)

Console 8

#	OEM	部品名
1	77180-SR3-000	Bracket - INSTRUMENT CENTER LOWER
2	77189-SR3-000	Cover - CENTER LOWER BRACKET
8	83418-SR3-000	Latch assy
12	88324-SB3-950	Cover - RR. ASHTRAY
13	90137-SH3-000	Screw - TAPPING, 4X16
14	90153-SB6-003	Bolt - EARTH, 6X12(ZN)
15	90666-SD4-003	Clip - FITTING
16	91647-SH3-003	Grommet - SCREW, 4MM

Control unit (CABIN; 2) 20

#	OEM	部品名
2	37820-P29-T01	Control module - ENGINE
3	37821-P28-E00	Cover - ELECTRONIC CONTROL UNIT
4	37860-P27-B01	Sensor assy - IMA
5	37862-PJ0-601	Cap - IGNITION MIXTURE ADJUSTER SENSOR
6	37865-P27-B00	Stay - IMA
7	38200-SR3-J31	Box assy - JOINT
7	38200-SR3-J21	Box assy - JOINT
8	38203-SR3-000	Bracket - R. FUSE BOX
9	38205-SR3-Q01	Label - FUSE
11	38210-SR3-A81	Fuser assy. - SRS (L)
12	38235-SA5-003	Puller - FUSE (SUMITOMO)
13	38300-SE3-004	Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO)
13	38300-SE3-003	Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA)
14	38380-SR3-003	Control unit - AUTO DOOR LOCK (MITSUBA)
15	38600-SH3-G11	Control unit - INTEGRATED (LIGHTING ALARM)
16	39400-SR3-003	Relay assy - MAIN (RZ-0132) (MITSUBA)
16	39400-S10-003	Relay assy - MAIN (MITSUBA)
18	39793-SF4-003	Relay assy - POWER (DENSO) (5P) (05670-8830)
19	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
22	90670-SG0-003	Grommet - SCREW, 4MM

Control unit (ENGINE ROOM; 2) 11

#	OEM	部品名
1	38100-SR3-013	Horn assy - LOW (MITSUBA)
2	38211-SM4-003	Fuse - BLOCK (30A)
3	38212-SM4-003	Fuse - BLOCK (40A)
4	38213-SM4-003	Fuse - BLOCK (50A)
5	38216-SM4-003	Fuse - BLOCK (80A)
6	38250-SR3-E01	Box assy - MAIN FUSE
7	38251-SR3-003	Upper Cover
8	38252-SR3-003	Cover - LOWER
9	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
11	90129-SP0-000	Screw-washer - 5X12
12	90130-SR3-003	Bolt - 5X13

Countershaft (1) 17

#	OEM	部品名
1	23221-P20-A41	Countershaft
2	23421-P20-A00	Gear - COUNTERSHAFT LOW
3	23431-P20-A00	Gear - COUNTERSHAFT SECOND
4	23461-P20-A00	Gear - COUNTERSHAFT FIFTH
5	23471-P20-A00	Gear - COUNTERSHAFT THIRD
6	23481-P20-A00	Gear - COUNTERSHAFT FOURTH
7	23521-P20-315	Sleeve set - SYNCHRONIZER (1-2)
8	23912-P20-010	Collar - DISTANCE, 33X39X32
9	23926-PB6-010	Washer - SPRING, 22MM
10	90202-PB6-010	Nut - FLANGE, 22MM
11	90603-PL3-000	Ring - SNAP, 52MM
12	91003-PL3-B04	Bearing - BALL, 25X52X14/15 (TOYO)
13	91102-PL3-B04	Bearing - NEEDLE, 25X52.2X15 (NTN)
14	91104-P20-008	Bearing - NEEDLE, 36X41X25.5
15	91105-P20-008	Bearing - NEEDLE, 39X44X27
16	91211-PL3-T01	Damper - FRICTION (LOW)
17	91212-P20-008	Damper - FRICTION (SECOND)

Cylinder block/oil pan (1) 29

#	OEM	部品名
1	11000-P29-000	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM
3	11111-PM3-300	Pipe - OIL LEVEL
4	11126-PK1-003	Bolt - SEALING, 22MM
5	11200-P08-020	Pan comp - OIL
6	11251-P01-004	Packing - OIL PAN (OTSUKA)
7	11301-P00-T00	Cover - R. SIDE
8	11311-PM3-000	Cover - BREATHING PORT
11	11910-P29-000	Bracket - ENGINE MOUNTING
13	11950-PM7-010	Stiffener - ENGINE
14	11960-P28-A00	Stiffener - RR. ENGINE
15	15140-PM7-000	Orifice assy
16	15650-P03-000	Gauge comp. - OIL LEVEL
17	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
18	90007-PM6-003	Bolt-washer - 11X116
19	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5
20	90008-PM6-003	Bolt-washer - 11X131
22	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
23	90041-P01-000	Bolt - STUD, 12X40
25	90042-PR3-000	Bolt - STUD, 6X28
27	90084-657-000	Bolt - SEALING, 16X9.5
28	90401-PR4-000	Washer - SEALING, 28MM
29	90443-PA5-000	Washer - SEALING, 16MM
30	90715-PC6-000	Dowel pin - 13X20
31	90703-PE0-000	Dowel pin - 18X22
32	91214-PE1-721	Oil seal - 80X100X10 (NOK)
32	91214-PLE-003	Oil seal
33	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)
33	91312-107-000	O-ring (7x1.7)

Cylinder head (2) 17

#	OEM	部品名
1	11912-PG6-010	Hanger - RR. ENGINE
2	12100-PM7-E01	Head assy - CYLINDER
3	12204-PM7-305	Guide - IN. VALVE (OS)
4	12205-PM7-305	Guide - EX. VALVE (OS)
5	12210-PT2-003	Seal a - VALVE STEM (ARAI)
5	12210-PT2-004	Seal a - VALVE STEM (NOK)
6	12211-PT2-003	Seal b - VALVE STEM (ARAI)
6	12211-PT2-004	Seal b - VALVE STEM (NOK)
7	12251-PM7-003	Gasket - CYLINDER HEAD
8	12513-P30-000	Rubber comp - CYLINDER HEAD SEAL
9	90002-PG6-000	Bolt - FLANGE, 6X40
10	90003-PG6-000	Bolt - FLANGE, 6X60
10	90003-PH3-000	Bolt - FLANGE, 6X60
11	90006-PG6-003	Bolt-washer - 11X155
12	90014-PM7-000	Bolt a - CYLINDER HEAD COVER
13	90026-PE0-000	Bolt - STUD, 8X37
13	90026-PT0-000	Bolt - STUD, 8X38

Cylinder head cover (1) 12

#	OEM	部品名
2	12030-P29-000	Packing set - HEAD COVER
4	12310-PM7-000	Cover assy. - CYLINDER HEAD
6	12341-PM7-000	Packing - CYLINDER HEAD COVER
7	12342-PG6-000	Packing b - HEAD COVER
7	12342-PT2-000	Packing b - HEAD COVER
9	15610-PC6-000	Cap assy. - OIL FILLER
10	15613-PC6-000	Packing, Oil Filler
16	32761-PM7-000	Stay a - HIGH TENSION CORD CLAMP
18	32762-P29-000	Stay - HIGH TENSION CORD CLAMP
19	90012-PM7-000	Bolt B, Head Cover
22	90213-PH3-000	Nut - CAP, 6MM
23	90441-PK2-000	Washer - HEAD COVER

Distributor (TEC) 11

#	OEM	部品名
1	30100-P29-006	Distributor assy - TD-43U) (TEC
2	30102-PT2-026	Distributor Cap
3	30103-P08-003	Distributor Rotor Head Assembly
4	30105-P29-006	Housing comp - DISTRIBUTOR (TEC)
5	30107-P08-006	Cover - LEAK
6	30110-PA1-732	O-ring - 26.4X3.1 (TEC)
9	30130-P06-006	Igniter unit - E12-303) (HITACHI
10	30132-PT2-006	Packing - CAP
11	30135-P08-006	Screw-washer - 5X12
11	30135-P73-004	Screw-washer - 5X12
12	30510-PT2-006	Ignition Coil

Door lining 6

#	OEM	部品名
3	72335-SR3-003	Weatherstrip - DOOR INNER
8	83508-SR3-000	Bracket assy - PULL POCKET
16	90662-SB2-003	Grommet - SCREW, 5MM
17	90678-SK7-003	Clip - SPEAKER
19	91560-SP0-003	Clip - DOOR LINING (GRAY)
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Door locks 26

#	OEM	部品名
1	72110-SR3-J01	Lock assy - R. FR. POWER DOOR (###)
2	72110-SR3-003	Lock assy - R. FR. DOOR
4	72116-SR3-J01	Switch assy - R. DOOR LOCK
6	72123-SR0-003	Ring - OUTSIDE HANDLE
8	72131-SR3-003	Rod - R. INSIDE HANDLE
9	72132-SR3-003	Rod - R. INSIDE LOCK
10	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT
11	72135-SR3-003	Striker assy - DOOR LOCK
12	72136-SR3-003	Joint
13	72139-SR3-003	Fastener - NATURAL
15	72145-SR3-003	Cylinder - R. DOOR
16	72146-SR3-003	Cylinder - L. DOOR
18	72150-SR3-J11	Lock assy - L. FR. POWER DOOR
19	72150-SR3-003	Lock assy - L. FR. DOOR
22	72165-SR3-J11	Actuator - L. FR. DOOR LOCK
24	72171-SR3-003	Rod - L. INSIDE HANDLE
25	72172-SR3-003	Rod - L. INSIDE LOCK
26	72175-SH3-901	Holder - DOOR LOCK ROD
28	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)
29	90120-SV4-000	Bolt - LOCK STRIKER
30	35103-SE3-003	Screw - RECESSED, 3X8
31	90102-SR3-003	Screw - TAPPING, 3X14
32	90120-SM4-000	Screw - TAPPING
33	90662-SB2-003	Grommet - SCREW, 5MM
34	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
35	91580-SM4-003	Clip - COUPLER(ORANGE)

Door panels 17

#	OEM	部品名
11	72310-SR3-003	Weatherstrip - R. FR. DOOR
12	72321-SR3-J10	Seal - R. FR. DOOR HOLE
13	72325-SR3-004	Sub seal - R. FR. DOOR
13	72325-SR3-014	Sub seal - R. FR. DOOR
14	72340-SH3-003	Checker comp. - DOOR
15	72350-SR3-003	Weatherstrip - L. FR. DOOR
16	72361-SR3-J00	Seal - L. FR. DOOR HOLE
17	72365-SR3-004	Sub seal - L. FR. DOOR
17	72365-SR3-014	Sub seal - L. FR. DOOR
18	75760-SB2-003	Pin - DOOR CHECKER
19	75891-SA7-000	Stopper - DOOR
20	90001-SD2-000	Bolt - FLANGE, 8X22
21	90157-SA0-000	Bolt-washer - 8X25
22	90686-692-003	Cap - LINING MOUNT
23	90755-SB2-000	E-ring - 6MM
24	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
25	91534-SR3-003	Clip - DOOR SUB SEAL

Door windows 16

#	OEM	部品名
2	72211-SR3-J01	Regulator - R. FR. DOOR POWER
5	72215-SR3-003	Motor assy. - R. WINDOW
6	72231-SR3-003	Sash - R. DOOR CENTER LOWER
7	72235-SR3-004	Runchannel - R. FR. DOOR
8	72246-SR3-003	Stopper - DOOR GLASS
10	72251-SR3-J01	Regulator - L. FR. DOOR POWER
11	72255-SR3-003	Motor assy. - L. WINDOW
12	72271-SR3-003	Sash - L. DOOR CENTER LOWER
13	72275-SR3-004	Runchannel - L. FR. DOOR
14	73300-SR3-000	Glass assy - R. FR. DOOR (BLUE)
15	73350-SR3-000	Glass assy - L. FR. DOOR (BLUE)
18	90011-896-000	Bolt - FLANGE, 6X8
19	90115-SG0-003	Bolt - FLANGE, 6MM
20	90120-SE3-003	Bolt - FLANGE, 6X12
21	91555-SM4-003	Clip - COUPLER (RED)
22	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)

Emblems 7

#	OEM	部品名
1	17669-SM4-W00	Label - FUEL FILLER CAUTION (SUPER PREMIUM GASOLINE)
2	19043-P01-E01	Label - COOLANT CAUTION
3	42760-SR3-T20	Placard - TIRE PRESSURE SPECIFICATION
5	75700-SR3-000	Emblem - CENTER (H)
6	75701-SR3-000	Emblem - RR. CENTER (H)
15	77871-SD4-G80	Label - SRS CAUTION
17	91512-SR3-004	Clip - TUBULAR

Engine mounts 31

#	OEM	部品名
1	50200-SR3-951	Beam - RR. (POWER STEERING)
2	50203-SR3-010	Collar - RR. BEAM
7	50805-SR3-900	RUBBER TRANSMISSION MOUNTING (MT)
11	50810-SR3-030	Rubber - RR. ENGINE MOUNTING INSULATOR (MT)
13	50820-SR3-J11	RUBBER ASSY., ENGINE SIDE MOUNTING (HYDRO)
16	50827-SR3-010	BRACKET , ENGINE REAR MOUNTING
17	50841-SR3-030	Rubber, Rh. fr. stopper insulator (mt)
18	50842-SR3-030	Rubber, Lh. fr. stopper insulator (mt)
19	50843-SR3-010	Bracket - R. FR. STOPPER (MT)
23	50844-SR3-010	Bracket - L. FR. STOPPER
24	90131-ST7-000	Bolt - L. FR. STOPPER
25	90133-SR3-010	Bolt - R. FR. STOPPER
26	90161-SR3-000	Bolt - FLANGE, 14X107
26	90161-S04-000	Bolt - FLANGE, 14X100
28	90162-SR3-000	Bolt - FLANGE, 14X60
29	90165-SM4-020	Bolt - FLANGE, 12X101
30	90166-SR3-000	Bolt - FLANGE, 10X30
31	90167-SR3-000	Bolt - FLANGE, 14X120
33	90176-S04-000	Bolt-washer - 10X32.5
33	90176-SK7-013	Bolt - FLANGE, 10X31
34	90182-SR3-000	Bolt - FLANGE, 12X112
35	90183-SR3-000	Bolt - FLANGE, 12X100
36	90187-SR3-000	Bolt - FLANGE, 10X53
38	90188-SR3-010	Bolt - FLANGE, 14X67
39	90190-SR3-000	Bolt - FLANGE, 12X64
41	90371-SR3-000	Nut - FLANGE, 12MM
42	90372-SR3-003	Nut - FLANGE, 12MM
43	90380-SR3-000	Bolt - STUD, 12X57.6
44	90504-SR3-010	Washer - FR. STOPPER
45	90505-SB2-000	Washer - SIDE MOUNTING
46	90505-SR3-000	Washer - RR. BRACKET, 14MM

Engine wire harness/clamp (2) 31

#	OEM	部品名
1	17274-P29-E01	Label - PLUG CAUTION
2	31110-P01-003	Belt - ALTERNATOR (BANDO)
2	31110-P01-004	Belt - ALTERNATOR (MITSUBOSHI)
3	31112-P01-000	Bracket - ALTERNATOR
4	31113-P08-000	Stay - ALTERNATOR
5	32110-P29-T02	Harness - ENGINE WIRE
6	32113-P01-000	Stay comp - R. COUPLER
8	32127-P05-A00	Holder comp - HARNESS
9	32741-P08-000	Clamp a - ENGINE HARNESS (BLACK)
10	32744-P01-000	Clamp d - ENGINE HARNESS (GREEN)
11	32744-P05-A01	Clamp d - ENGINE HARNESS (BLACK)
12	32746-P01-000	Clamp f - ENGINE HARNESS (BLUE)
13	32752-P01-000	Stay b - ENGINE WIRE HARNESS
14	37240-PT0-013	Switch - OIL PRESSURE (DENSO)
14	37240-PT0-004	Switch - OIL PRESSURE (TEC)
15	37750-PH2-014	Thermo unit - DENSO
16	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
16	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
17	37870-PJ7-003	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)
18	75353-671-000	Lock - SCREW
19	90050-PG7-000	Bolt - FLANGE, 12X65
20	90057-PG7-003	Bolt - ALTERNATOR
21	90130-SR3-003	Bolt - 5X13
22	90430-657-000	Washer - 23X8.3X3.2
23	91307-PJ7-003	O-ring - 9.5X1.5 (MATSUSHITA)
23	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
24	91307-PN4-000	O-ring - 17.5X1.4
24	91307-PN3-000	O-ring,17.8x1.4
25	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
26	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
28	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)

Exhaust manifold (2) 13

#	OEM	部品名
1	11942-P08-000	Stay - EX. MANIFOLD
2	18100-P29-Y00	Manifold assy - EX.
3	18110-PG6-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
4	18120-P08-000	Cover a - EX. MANIFOLD
5	18121-P08-000	Cover b - EX. MANIFOLD
9	90010-PE2-900	Bolt - SPECIAL, 10X22
10	90015-PH7-000	Bolt-washer - 8X14
10	90015-PT0-J00	Bolt-washer - 8X14
11	90022-PE0-000	Bolt - FLANGE, 8X10
12	90065-PG6-000	Bolt, STUD, 10X24
13	90212-PD2-003	Nut - SELF-LOCK, 8MM
13	90212-RCA-A01	Nut - SELF-LOCK, 8MM
14	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe 19

#	OEM	部品名
4	18030-SR3-A70	Silencer set - EX.
10	18210-SR3-A72	Pipe a - EX.
12	18212-SB2-961	Gasket - EX. PIPE (ISHINO)
17	18213-SR3-A21	Stay - EX. MOUNTING
21	18215-SH3-J01	Rubber - EX. MOUNTING (70X55X30)
22	18215-SR3-000	Rubber - EX. MOUNTING
23	18215-671-000	Rubber - SILENCER MOUNTING (74X53X22)
25	18220-SR3-G83	Pipe b - EX.
28	18229-SB2-003	Gasket - EX. FLEXIBLE (45MM-59MM)
29	18229-SH3-X30	Gasket - EX. FLEXIBLE (50.8MM-64MM)
30	18230-SA0-930	Spring - FLEXIBLE JOINT
31	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
32	18231-SR3-J01	Bolt a - FLEXIBLE JOINT
34	18310-SR3-J41	Finisher - EX. PIPE (48.6MM)
38	74651-SR3-000	Plate - FUEL TANK BAFFLE
39	74653-SR3-000	Sensor assy - VENT PRESSURE
41	90110-679-003	Nut - SELF-LOCK, 8MM
47	90117-SB2-000	Nut - SELF-LOCK, 8MM
48	90212-SA5-003	Nut - SELF-LOCK, 10MM

Floor mat 11

#	OEM	部品名
1	64436-692-000	Clip - GUIDE
2	83101-SR3-982	Insulator - DASHBOARD
3	83103-SR3-003	Insulator - DASHBOARD UPPER
4	83107-ST7-000	Insulator - DASHBOARD WINDSHIELD LOWER
5	83108-ST7-000	Insulator - DASHBOARD UPPER CENTER
9	84521-SR3-E00	Lid comp - SPARE TIRE
12	90668-SH3-003	Clip - SIDE LINING
13	91532-SR3-003	Clip - DASHBOARD INSULATOR (BLACK)
14	91533-SR3-003	Clip - INSULATOR (NATURAL)
15	91535-SR3-003	Clip - DASHBOARD INSULATOR LOCK (BLACK)
17	91641-SH3-013	Grommet assy, GARNISH

Front brake (2) 29

#	OEM	部品名
1	01463-SR3-000	Caliper set - FR.
2	43352-SM4-951	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW
4	44300-S04-004	Bearing assy - FR. HUB (KOYO SEIKO)
4	44300-SR3-008	Bearing assy - FR. HUB (NTN)
4	44300-S04-008	Bearing assy - HUB (NTN)
4	44300-SR3-004	Bearing assy - FR. HUB (KOYO SEIKO)
4	44300-SR3-015	Bearing assy - FR. HUB (FUJIKOSHI)
5	44600-SR3-980	Hub assy - FR.
6	45018-SR3-G00	Caliper sub assy. - R. FR.
7	45019-SR3-G00	Caliper sub assy. - L. FR.
8	45022-SR3-G01	Pad set - FR.
11	45216-SR3-003	Piston
11	45216-S5A-003	Piston
16	45235-SR3-003	Pin a
17	45237-SR3-003	Retainer a
18	45238-SR3-003	Retainer b
19	45240-SA7-003	Bolt - FLANGE, 8X22
20	45251-SR3-A10	Disk - FR. BRAKE
21	45255-SR3-000	Guard - R. FR. BRAKE SPLASH
21	45255-SR3-010	Guard - R. FR. BRAKE SPLASH
22	45256-SR3-000	Guard - L. FR. BRAKE SPLASH
22	45256-SR3-010	Guard - L. FR. BRAKE SPLASH
23	45262-SR3-003	Pin b
24	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
25	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
25	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
25	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
26	90681-SR3-A10	Circlip - SPECIAL INTERNAL, 73MM

Front driveshaft/ half shaft 30

#	OEM	部品名
1	44010-SR3-A04	Driveshaft set - R.
2	44011-SR3-A04	Driveshaft set - L.
3	44017-SR3-900	Boot set - INBOARD
3	44017-SR3-901	Boot set
5	44310-SH3-J00	Joint comp - INBOARD
6	44310-ST7-900	Joint comp - INBOARD
6	44310-SL5-N00	Joint comp - INBOARD
7	44328-SB0-300	Band - INBOARD BOOT
8	44329-SB0-300	Band - DRIVESHAFT BOOT
8	44352-SA2-300	Band - DAMPER WEIGHT
9	44319-SE0-000	Set ring - 28X2.0
9	44319-S84-300	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44336-SB0-300	Ring a - STOPPER
12	44338-SB0-300	Circlip - 26MM
13	44347-SF1-003	Ring - OUTBOARD
15	44351-SR3-A01	Damper - DYNAMIC (HOKUSHIN)
17	44500-SR3-010	Shaft assy - HALF
18	44511-SR3-000	Support - HALF SHAFT BEARING
19	90102-SF1-000	Bolt - HEX., 10X1.25
20	90305-692-010	Nut
21	90681-SR3-000	Circlip - EXTERNAL, 33MM
22	91057-SR3-008	Bearing - HALF SHAFT(NTN)
23	91260-SR3-003	Seal - HALF SHAFT OUTER(NOK)
23	91260-SR3-004	Seal - HALF SHAFT OUTER (ARAI)
25	44014-ST7-N00	Joint set - OUTBOARD
26	44018-SR3-C53	Boot set - OUTBOARD
26	44018-SR3-C56	Boot set
27	44337-SB0-300	Ring b - STOPPER
28	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)

Front fenders 13

#	OEM	部品名
7	74101-SR3-000	RH FR. INNER Fender
9	74110-SR3-000	Extension assy - SPLASH SHIELD
9	74110-SR3-010	Extension assy - SPLASH SHIELD
11	74115-SR3-000	Guard - R. FR. SPLASH
11	74115-SR3-010	Guard - R. FR. SPLASH
12	74151-SR3-000	LH FR. INNER Fender
13	74165-SR3-000	Guard - L. FR. SPLASH
13	74165-SR3-010	Guard - L. FR. SPLASH
14	90126-SR4-000	Screw-washer - 5X16
15	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
16	90682-SB0-003	Grommet - SCREW, 5MM
17	91512-SM4-003	Clip - INNER FENDER
18	91516-SK7-013	Clip - UNDER COVER

Front seat (1) 7

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	04810-SR3-G01	Frame set - R. FR. SEATBACK
3	04811-SR3-J01	Frame set - FR. SEAT CUSHION
4	04815-SR3-G01	Frame set - L. FR. SEATBACK
17	90134-SE3-003	Screw - TAPPING, 5X10
18	90161-SB4-003	Screw - FLAT, 4X16

Front seat components (1) 14

#	OEM	部品名
1	77208-SA5-003	Bush - NYLON (TS TECH)
2	77209-SB0-003	Washer - NYLON
3	77517-SA5-014	Cap - SLIDE ADJUSTER
5	81230-SR3-J03	Adjuster - R. RECLINING
8	81260-SR3-J02	Adjuster - OUTER SLIDE
9	81270-SR3-J01	Adjuster - R. INNER SLIDE
11	81630-SR3-T02	Adjuster - L. RECLINING
13	81636-SR3-003	Knob a - L. RECLINING
15	81670-SR3-G01	Adjuster - L. INNER SLIDE
16	90128-SR4-003	Bolt-washer - 8X19
17	90135-SK7-A01	Bolt-washer - 10X27
18	90143-SR3-000	Bolt-washer - 10X22
19	90155-SH3-000	Bolt-washer - 8X25
20	90143-SR3-900	Bolt-washer - 10X22

Front shock absorber 20

#	OEM	部品名
1	51401-SR3-K02	Spring - FR. (MITSUBISHI)
1	51401-SR3-K01	Spring - FR. (SHOWA)
2	51601-SR3-306	Absorber assy - R. FR. SHOCK (SHOWA) (###)
3	51602-SR3-306	Absorber assy - L. FR. SHOCK (SHOWA) (###)
4	51605-SR3-013	Absorber unit - R. FR. SHOCK
5	51606-SR3-013	Absorber unit - L. FR. SHOCK
6	51621-SB0-004	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)
6	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
7	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
7	51631-S7S-J01	RUBBER DAMPER M
7	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
8	51675-SH3-024	Base - SHOCK ABSORBER MOUNTING (SHOWA)
9	51685-SH3-014	Plate - DUST COVER(SHOWA)
10	51686-SR3-003	Rubber - SPRING MOUNTING (SHOWA)
11	51687-SR3-003	Cover - FR. SLEEVE DUST (SHOWA)
12	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
13	52690-SG0-000	Plate - BUMP STOP
14	52722-SE0-006	Rubber - BUMP STOPPER (POLYURETHAN KASEI)
15	90304-SR3-014	Nut - FLANGE, 10MM (OHASHI)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 26

#	OEM	部品名
1	51300-SR3-013	Spring - FR. STABILIZER
2	51306-SR3-010	Bush - STABILIZER HOLDER
3	51308-SR3-000	Holder - R. FR. STABILIZER
4	51312-SR3-000	Rubber - STABILIZER END
5	51350-SR3-020	Arm assy. - R. FR. LOWER
6	51360-SR3-020	Arm assy. - L. FR. LOWER
7	51392-SR3-024	Bush - FR. LOWER ARM
8	51395-SR3-N03	Bush comp - R. FR. COMPLIANCE (YAMASHITA)
9	51396-SR3-N03	Bush comp - L. FR. COMPLIANCE (YAMASHITA)
10	51398-SR3-000	Washer b - FR. RADIUS ARM (14MM)
11	51399-SR3-010	Washer a - FR. RADIUS ARM (18MM)
12	51810-SH3-003	Bush - SHOCK ABSORBER FORK (HOKUSHIN)
12	51810-SH3-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)
12	51810-SK7-004	Bush - SHOCK ABSORBER FORK
13	51811-SR3-010	Fork - R. FR. SHOCK ABSORBER
14	51821-SR3-010	Fork - L. FR. SHOCK ABSORBER
16	90112-SE0-000	Bolt - FR. STABILIZER
17	90118-SR3-003	Bolt - SELF-LOCK, 12X76
18	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42
19	90162-SR3-000	Bolt - FLANGE, 14X60
20	90164-SR3-013	Bolt - SELF-LOCK, 14X34
21	90168-SR3-000	Bolt - FLANGE, 14X35
22	90175-SH3-005	Bolt - SHOCK ABSORBER FORK
23	90213-SR3-013	Nut - SELF-LOCK, 14MM
24	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
25	90362-SF1-003	Nut - SELF-LOCK, 8MM

Front windshield 20

#	OEM	部品名
1	73111-SR3-Y00	Glass - FR. WINDSHIELD (BLUE)
2	73125-SR3-000	Rubber a - FR. WINDSHIELD DAM
3	73126-SR3-000	Rubber b - FR. WINDSHIELD DAM
4	73127-SR3-003	Holder - FR. WINDSHIELD GLASS
5	73151-SR3-013	Molding - FR. WINDSHIELD UPPER
6	73152-SR3-003	Molding assy. - R. FR. WINDSHIELD SIDE
7	73162-SR3-003	Molding assy. - L. FR. WINDSHIELD SIDE
8	73511-SR3-000	Glass - R. QUARTER (BLUE)
9	73561-SR3-000	Glass - L. QUARTER (BLUE)
10	73810-SR3-000	Molding - R. QUARTER
11	73860-SR3-000	Molding - L. QUARTER
12	91501-SR3-003	Clip A - R. QUARTER WINDOW (BLUE)
13	91502-SR3-003	Clip b - QUARTER WINDOW (NATURAL)
14	91505-SR3-003	Clip A - L. QUARTER WINDOW (NATURAL)
15	91511-SR3-003	Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE)
16	91518-SR3-003	Clip A - FR. WINDSHIELD SIDE MOLDING (YELLOW)
17	91519-SR3-003	Clip b - FR. WINDSHIELD SIDE MOLDING (GREEN)
18	91520-SR3-003	Clip c - FR. WINDSHIELD SIDE MOLDING (RED)
19	91521-SR3-003	Clip f - FR. WINDSHIELD SIDE MOLDING (PURPLE)
20	91534-ST0-003	Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE)

Front windshield wiper (2) 25

#	OEM	部品名
1	38472-SB2-003	Rubber - BLADE (450MM)
1	76632-S5H-T01	Rubber - BLADE (450MM)
2	76505-SR3-003	Motor comp - FR. WIPER (MITSUBA)
3	76515-SR3-003	Seal a
4	76516-SE0-003	Rubber - BRACKETLESS MOUNTING
5	76516-SR3-003	Rubber - MOUNTING
6	76517-SE0-003	Collar - BRACKETLESS
7	76517-SM4-003	Collar
8	76520-SR3-003	Link a assy. - R.
9	76524-SD4-003	Dust seal
10	76524-SE0-013	Dust seal
11	76530-SR3-013	Link comp - FR. WIPER
11	76530-SR3-003	Link comp - FR. WIPER
12	76540-SR3-003	Rod unit a
13	76550-SM4-003	Rod unit b
14	76561-SD4-003	Cap - PIVOT
15	76600-SR3-Q01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76610-SR3-Q01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-SR3-Q01	Blade - WINDSHIELD WIPER (550MM) (DRIVER SIDE)
18	76622-SR3-003	Rubber - BLADE (550MM)
19	76630-SH3-E11	Blade
19	76630-SF4-315	New Genuine Part
20	90126-SR3-000	Bolt-washer - 6X32
21	90201-SK7-000	Nut - HEX. CAP, 10MM
22	91556-SR3-003	Clip - COUPLER

Fuel pipe (3) 45

#	OEM	部品名
1	16010-ST5-931	Strainer set - FUEL (TOYO ROKI)
2	16680-PE7-661	Damper assy. - PULSATION
2	16680-PCX-003	Damper assy. - PULSATION
3	16705-PD1-003	Gasket - SILENCER
4	16722-P28-L01	Hose comp. - FUEL FEED
5	16913-SR3-000	Cover - FR. FUEL PIPE
6	16914-SR3-000	Cover - RR. FUEL PIPE
8	16918-ST7-J30	Stay - FUEL STRAINER
8	16918-ST7-930	Stay - FUEL STRAINER
9	16919-ST5-930	Band - FUEL STRAINER
10	16922-SH3-930	Rubber - MOUNTING
11	16922-SR3-931	Rubber - MOUNTING
12	16923-SP0-930	Collar - DISTANCE
13	16923-SR3-930	Collar - DISTANCE
17	17700-SR3-N30	Pipe comp - FUEL FEED
20	17723-SR3-J91	Hose - PRESSURE REGULATOR RETURN
21	17740-SR3-N30	Pipe comp - FUEL RETURN
25	17749-SR3-J82	Clamp - RETURN HOSE
27	17761-SR3-010	Stay a - FUEL PIPE
28	17762-SR3-J00	Stay b - FUEL PIPE
29	17763-SR3-000	Stay c - FUEL PIPE
30	17764-SR3-J00	Stay d - FUEL PIPE
31	17765-SM4-000	Stay e - FUEL PIPE
32	90008-PP4-E02	Bolt - BANJO, 12MM
33	90009-PP4-E01	Bolt - SEALING, 6MM
34	90156-SH3-000	Bolt-washer - 6X24
35	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
35	90301-SP0-003	Nut - PAINT CUTTING, 6MM
36	90361-SV4-003	Nut - PAINT CUTTING, 6MM
37	90428-PD6-003	Washer - SEALING, 12MM
38	90430-PD6-003	Washer - SEALING, 6MM
39	91406-SL4-931	Clamp - FUEL HOSE (D10.5)
40	91590-SR3-J31	CLAMP J, FUEL PIPE
41	91591-SR3-010	Clip A - BRAKE
42	91592-SR3-J32	Clamp h - FUEL PIPE (SANOU)
42	91592-SR3-J31	Clamp h - FUEL PIPE (NIFCO)
43	91593-SR3-J31	Clamp g - FUEL PIPE
44	91594-SR3-J32	Clamp f - FUEL PIPE (SANOU)
44	91594-SR3-J31	Clamp f - FUEL PIPE (NIFCO)
45	91595-SR3-003	Clamp a - FUEL PIPE
46	91596-SR3-J31	Clamp b - FUEL PIPE
48	91597-SR3-003	Clamp c - FUEL PIPE
49	91598-SR3-J32	Clamp d - FUEL PIPE (SANOU)
49	91598-SR3-J31	Clamp d - FUEL PIPE (NIFCO)
50	91599-SR3-J32	Clamp e - FUEL PIPE

Fuel tank (2) 38

#	OEM	部品名
2	17040-SR3-D30	Pump set - FUEL (DENSO)
4	17371-ST5-003	Valve - TWO WAY (TEC)
5	17372-SR3-010	Cover - TWO WAY VALVE
6	17500-SR3-930	Tank comp. - FUEL
7	17521-SR3-000	Band assy. - R. FUEL TANK MOUNTING
8	17522-SR3-000	Band assy. - L. FUEL TANK MOUNTING
9	17525-SM4-000	Bolt-washer - 10X35
10	17525-SR3-000	Bolt - FUEL TANK MOUNTING
10	17525-SR3-305	Bolt
11	17574-SE0-000	Packing - BASE
12	17651-SR3-000	Tube - FILLER NECK
13	17652-SA5-000	Clip - FILLER TUBE
14	17653-SH7-000	Tube - BREATHER
15	17656-SR3-003	Bolt - FILLER PIPE MOUNTING
16	17660-SR3-000	Pipe comp - FUEL FILLER
16	17660-S04-000	Pipe comp - FUEL FILLER
17	17662-SR3-000	Packing - FUEL FILLER
18	17670-SM4-013	Cap comp. - FUEL FILLER (TOYO)
18	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)
18	17670-SM1-A03	Cap comp. - FUEL FILLER (STANT)
19	17704-SR3-930	Hose - FUEL PIPE RETURN
21	17710-SR3-A31	Tube comp - FUEL JOINT (TOKAI)
22	17711-ST0-003	Retainer - YELLOW) (TOKAI
23	17726-SR3-930	Bracket - TWO WAY VALVE
24	17728-SM4-G00	Chamber - FUEL VENT AIR (BLACK)
25	17733-SR3-010	Protector - FUEL FILLER PIPE
26	37800-SR3-981	Meter unit - FUEL (NS)
26	37800-S04-305	(meter)unit assy
27	37801-SJ4-003	Packing - BASE
28	37802-SD2-000	Retainer - FUEL UNIT
29	74559-SR3-010	Cover - FUEL FILLER PIPE
30	74661-SR3-000	Cap - FLOOR MAINTENANCE HOLE
31	74662-SR3-000	Rubber - SEAL
37	90602-SA7-931	Clamp - FUEL HOSE, 18.5MM
38	90657-SA5-003	Clip - SIDE APRON MOLDING
39	90657-SH3-013	Clip - TWO WAY VALVE COVER
40	91406-SL4-931	Clamp - FUEL HOSE (D10.5)
41	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Gasket kit/engine assy./ transmission assy. 5

#	OEM	部品名
1	06110-P29-020	Gasket kit - CYLINDER HEAD (###)
2	06111-P08-000	Gasket kit - CYLINDER BLOCK
4	10002-P29-P01	General assy. - CYLINDER BLOCK (D16A9)
5	10003-P29-P01	General assy. - CYLINDER HEAD
6	20011-P20-X42	Transmission assy - S20

Grommet 17

#	OEM	部品名
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM
2	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
4	83431-SA4-000	Cushion - FR. TRUNK
5	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
6	90615-SR3-000	Cap - WELD HOLE, 51X77
8	90852-671-003	Plug - HOLE
9	90855-SA0-000	Plug - VENTILATION HOLE, 20MM
10	90856-SR3-000	Plug - HOLE, 18MM
11	90860-SA5-003	Plug - HOLE, 16MM
12	91601-SR3-000	Plug - HOLE, 10MM
13	82871-671-000	Grommet - DRAIN HOLE, 25MM
14	91605-SE3-003	Plug - ID PLATE HOLE, 4.4MM
15	91610-SB2-003	Plug - HOLE, 16.7MM (BLACK)
16	91615-SH3-000	Cap - FLOOR HOLE, 49MM
17	91616-SR3-000	Seal - FR. INNER LOWER (110X110) (BLACK)
18	91617-SB6-000	Grommet - WASHER HOSE, 32MM
20	91631-SR3-000	Plug - AIR CONDITIONER HOLE

Headlight (1) 26

#	OEM	部品名
2	33100-SR3-E01	Headlight assy - R.
3	33101-SR3-E01	Headlight unit - R.
4	33102-SR3-G01	Plate - R.
5	33104-SR3-G01	Nut - SPECIAL (3)
6	33109-SR3-A01	Nut e - SPECIAL
7	33115-SV4-G01	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)
7	33115-SM4-003	Bulb
7	33115-SM3-003	Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY)
8	33126-SH3-003	Cover - RUBBER
9	33150-SR3-E01	Headlight assy - L.
10	33151-SR3-E01	Headlight unit - L.
11	33152-SR3-G01	Plate - L.
12	33300-SR3-013	Light assy - R. FR. TURN
13	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
14	33301-SR3-013	Lamp unit - R.
15	33305-SH3-A01	Socket comp - GRAY
16	33350-SR3-013	Light assy - L. FR. TURN
17	33351-SR3-013	Lamp unit - L.
18	33800-SR3-G01	Light assy - R. SIDE TURN
19	33801-SR3-G01	Housing comp - R.
20	33802-SR3-G01	Housing comp - L.
21	33850-SR3-G01	Light assy - L. SIDE TURN
22	34303-SS1-003	Socket comp - 2P
23	34304-SH3-A01	Socket comp.
24	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
25	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Heater blower 14

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79192-SR3-003	Bush - LINK
3	79305-SR3-003	Blower sub assy. - DENSO
4	79310-SR3-003	Motor assy. - BLOWER (DENSO)
5	79330-SR3-003	Resistor - BLOWER
6	79350-SR3-003	Motor assy. - FRESH & RECIRCULAR
7	79810-SR3-003	Duct - HEATER
8	90121-SR3-003	Screw - TAPPING, 5X12
9	90123-SR3-003	Screw - TAPPING, 4X16
10	90132-SR3-003	Screw - TAPPING, 5X16
11	90133-SR3-003	Screw-washer - 4X16
12	90155-SE0-003	Screw - TAPPING, 6X20
13	90156-SH3-000	Bolt-washer - 6X24
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

Heater control 23

#	OEM	部品名
1	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
3	32157-SR3-010	Sub cord a - HEATER
4	32257-SR3-000	Sub cord b - HEATER
5	79500-SR3-013	Control assy. - HEATER
5	79500-SR3-J02	Control assy. - HEATER (AIR CONDITIONER)
6	79512-SR3-003	Lever
7	79514-SR3-003	Slider
8	79529-SR3-003	Stopper - CONTROL LEVER
9	79542-SR3-000	Cable - TEMPERATURE CONTROL
10	79550-SR3-013	Garnish
11	79551-SR3-013	Display - MODE CONTROL
12	79570-SR3-003	Switch assy - HEATER FAN
13	79601-SR3-013	Knob a
14	79602-SR3-013	Knob b
15	79603-SR3-013	Knob c
16	79604-SR3-013	Knob d
17	79612-SR3-013	Lid - AIR CONDITIONER SWITCH
18	79629-SR3-003	Bulb assy - BLUE) (14V 14W
19	80411-SR3-013	Knob - AIR CONDITIONER SWITCH
20	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
21	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
22	91580-SM4-003	Clip - COUPLER(ORANGE)
23	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Heater unit 11

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79100-SR3-003	Heater unit
3	79110-SR3-003	Core comp - HEATER
4	79140-SR3-003	Motor assy. - MODE
5	79192-SR3-003	Bush - LINK
6	79195-SF1-003	Holder - ROD
7	79544-SR3-000	Cable - WATER VALVE CONTROL
8	90122-SR3-003	Screw - TAPPING, 5X12
9	90125-SR3-003	Screw - TAPPING, 5X15
10	90133-SR3-003	Screw-washer - 4X16
11	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

High tension cord/plug 11

#	OEM	部品名
1	32701-P29-010	Cord comp - RESISTANCE (NO.1) (###)
2	32702-P29-010	Cord comp - RESISTANCE (NO.2)
3	32703-P29-010	Cord comp - RESISTANCE (NO.3)
4	32704-P29-010	Cord comp - RESISTANCE (NO.4) (###)
5	32722-P29-010	Cord comp - HIGH TENSION (###)
6	32763-PM3-000	Clamp c - HIGH TENSION CORD
10	32765-PM7-000	Clamp a - HIGH TENSION CORD
14	32766-PR4-A00	Clamp c - HIGH TENSION CORD
19	32777-695-000	Clamp - HIGH TENSION CORD
20	90003-P01-000	Bolt-washer - 8X28
22	32722-P29-405	Cord comp - HIGH TENSION

Hood 26

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
5	61210-SR3-000	Cowl top assy.
6	74120-SR3-A01	Lock assy - HOOD
7	74130-SR3-000	Wire assy. - HOOD
8	74131-SH3-003	Cover - HOOD WIRE
9	74132-SH4-J01	Lever assy. - HOOD WIRE
10	74134-SH3-003	Grommet - HOOD WIRE
11	74141-SR3-000	Hood Insulator
12	74142-SR3-010	Rubber - HOOD SEAL
13	74143-SR3-000	Rubber - RR. HOOD SEAL
14	74145-SR3-000	Stay - HOOD OPENER
15	74149-SR3-000	Cover - CONDENSER
16	74177-SD4-000	Cushion a - HOOD
17	74213-SR3-300	Cover - R. HOOD HINGE
18	74214-SR3-300	Cover - L. HOOD HINGE
19	74144-SR3-000	Cushion - HOOD
20	90127-SA0-000	Bolt-washer - 6X16
21	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
22	90672-SJ4-013	Holder - ROD
23	90700-SJ4-000	Clip - ENGINE HOOD INSULATOR
24	91508-SR3-000	Clip - COWL TOP (BLACK)
24	91508-SX8-003	Clip - COWL TOP
25	91512-SM4-003	Clip - INNER FENDER
26	91515-SR3-000	Clip - RR. HOOD
27	91520-SM4-C01	Clip - HOOD SEAL RUBBER
29	91604-SD2-013	Grommet - HOOD STAY

Instrument panel (2) 14

#	OEM	部品名
1	75513-SR3-000	Cushion - SIDE
5	77140-SR3-000	Bracket comp. - INSTRUMENT DRIVER SIDE
6	77145-SR3-000	Bracket comp. - INSTRUMENT PASSENGER SIDE
8	77212-SR3-003	Blind - COLUMN
10	77230-SM4-G00	Lid assy - AUDIO HOLE
14	77411-SR3-003	Duct - CENTER AIR CONDITIONER
15	77466-SR3-000	Seal - FR. INSTRUMENT
20	77623-SR3-000	Bush - UPPER VENT KNOB
22	90106-SD2-000	Nut - SPRING
23	90128-SA7-000	Bolt-washer - 6X25
24	90302-SA4-003	Nut - SPRING, 4MM
25	90650-SE3-000	Clip - RADIO PANEL
26	90666-SD4-003	Clip - FITTING
27	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (2) 23

#	OEM	部品名
2	35505-692-003	Bulb - 14V 1.4W
7	66405-SD4-000	Stay - GLOVE BOX HINGE
8	66417-SB3-670	Rubber - GLOVE BOX STOPPER
9	66418-579-000	Stopper - GLOVE BOX LID
10	77160-SR3-010	Frame comp - INSTRUMENT CENTER LOWER
14	77509-SR3-000	Stopper - GLOVE BOX
16	77542-SR3-000	Striker - GLOVE BOX
17	77551-SR3-000	Frame - GLOVE BOX
20	77730-SR3-003	Holder comp - FR. ASHTRAY
21	77755-SH3-010	Spring - COIN POCKET
22	90137-SH3-000	Screw - TAPPING, 4X16
23	90140-SH3-003	Bolt-washer - 5X18
24	90144-SP0-000	Screw - TAPPING, 4X16 (PO)
25	90157-SA0-000	Bolt-washer - 8X25
26	90302-SA4-003	Nut - SPRING, 4MM
27	90305-SA0-000	Nut - FLOATING, 4MM
28	90665-SM4-003	Grommet - SCREW, 4MM (YELLOW)
29	90666-SD4-003	Clip - FITTING
30	91555-SM4-003	Clip - COUPLER (RED)
31	91640-SM4-003	Grommet - SCREW, 4MM
39	39600-SW3-305	Lighter unit - CIGARETTE
39	39600-SW3-505	LIGHTER ASSYCIGA
40	39628-S04-305	Cord assy

Intake manifold (PGM-FI; 1) 16

#	OEM	部品名
1	06164-P27-K02	Packing set - INJECTOR
2	16472-PD6-000	Seal ring - INJECTOR (OTSUKA)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)
4	16620-P28-A01	Pipe assy. - FUEL
5	16638-PH3-S00	Insulator - FUEL PIPE
6	16740-P05-A01	Regulator assy - PRESSURE
7	16741-PG7-005	O-ring - PRESSURE REGULATOR
8	17100-P29-010	Manifold comp - INTAKE
9	17105-P29-004	Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS)
10	17132-P29-000	Stay - INTAKE MANIFOLD
11	37880-P05-A00	Sensor assy - AIR TEMP
12	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)
12	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)
12	16074-ZY3-000	O-ring
13	91303-PK2-005	O-ring (7.5X1.5)

Interior light 7

#	OEM	部品名
2	34252-692-003	Lens - DAIICHI) (SUNROOF
2	34252-SB2-003	Lens - DAIICHI
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
3	34295-538-003	Bulb - 12V 5W) (DAIICHI
3	34295-SD4-003	Bulb - 12V 5W.K
4	35409-SD2-003	Screw - EARTH, 4X12 (ZN)

Knuckle 18

#	OEM	部品名
1	44348-SR3-000	Ring - FR. KNUCKLE
2	51210-SR3-000	Knuckle comp - R. FR.
3	51215-SR3-000	Knuckle comp - L. FR.
4	51220-S04-003	Joint comp - LOWER BALL (MUSASHI)
4	51220-SR3-003	Joint comp - LOWER BALL (MUSASHI)
5	51225-SR3-003	Boot - LOWER BALL DUST (MUSASHI)
6	51450-SR3-013	Arm assy. - R. FR. UPPER
7	51455-SR3-004	Bush - FR. UPPER ARM (SUMITOMO)
7	51455-SR3-003	Bush - FR. UPPER ARM (YAMASHITA)
8	51460-SR3-013	Arm assy. - L. FR. UPPER
9	51464-SK7-003	Boot - UPPER BALL JOINT
9	51464-S04-003	Boot - UPPER BALL JOINT
10	52338-SL0-003	Circlip - CONTROL ARM
13	90185-SR3-013	Bolt - FR. ARM UPPER (10X58)
14	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
15	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
16	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
17	90363-SF1-000	Nut - CASTLE, 12MM

Lower gate 31

#	OEM	部品名
3	72116-SM4-003	Snap d - VIOLET
4	72616-SM4-003	Snap - NATURAL
5	73219-693-951	Seal - FUEL LID OPENER (GREEN)
6	74411-SR3-003	Cable - FUEL LID OPENER
7	74440-SR3-003	Weatherstrip - TAILGATE
8	74441-SR3-003	Weatherstrip - STEP GATE
9	74442-SR3-003	Clip - R. LOWER GATE WEATHERSTRIP
10	74443-SR3-003	Clip - L. LOWER GATE WEATHERSTRIP
11	74790-SR3-003	Handle assy - LOWER GATE
12	74810-SR3-003	Lock assy - TAILGATE
13	74812-SR3-003	Cylinder - TAILGATE
14	74814-SR3-003	Rod - TAILGATE OPENER
15	74815-SK8-000	Grommet - KEY CYLINDER(BLACK)
16	74830-SR3-003	Cable - TAILGATE OPENER
17	74851-SR3-003	Rod - R. LOWER GATE LOCK
18	74852-SR3-003	Rod - L. LOWER GATE LOCK
21	74860-SR3-003	Lock assy - R. LOWER GATE
22	74862-SR3-003	Striker - LOWER GATE
23	74870-SR3-003	Lock assy - L. LOWER GATE
26	74910-SR3-003	Cable comp - LOWER GATE SUPPORT
27	74911-SR3-000	Guide - SUPPORT CABLE
28	75513-SB4-000	Cushion - LOCK ROD (15MMX40MM)
31	90113-SR3-003	Bolt b - FLANGE
32	90504-SR3-003	Washer - BOLT HOLD
34	90662-SB2-003	Grommet - SCREW, 5MM
35	90691-SC5-003	Clip A - OPENER CABLE
36	90692-SK8-003	Clip - TRUNK OPENER CABLE
37	91513-SR3-003	Snap
38	91514-SR3-003	Snap - BLACK
39	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
43	90105-634-000	Bolt-washer (8x20)

Mainshaft (1) 15

#	OEM	部品名
1	23210-P20-A01	Mainshaft comp.
2	23261-PL3-000	Shaft - REVERSE GEAR
3	23441-P20-A00	Gear - MAINSHAFT THIRD
4	23451-P20-A00	Gear - MAINSHAFT FOURTH
5	23540-P20-000	Gear comp - REVERSE IDLE
6	23581-P20-A00	Gear - MAINSHAFT FIFTH
7	23623-P20-315	Sleeve set - SYNCHRONIZER (3-4)
8	23626-PL3-325	Sleeve set - SYNCHRONIZER (5)
9	23915-P20-000	Collar - DISTANCE, 27X34X32X50.4
10	23927-PL3-000	Washer - SPRING, 36MM
11	23928-PL3-000	Washer - 26MM
12	91004-PL3-B03	Bearing - ANGULAR BALL, 22X70X17.5 (NTN)
13	91106-PL3-008	Bearing - NEEDLE, 34X39X23
14	91107-PL3-018	Bearing - NEEDLE, 34X39X27.5
15	91108-PL3-008	Bearing - NEEDLE, 32X37X23.5 (NTN)

Mirror 14

#	OEM	部品名
1	04762-SR3-J11	Mirror sub assy. - R. REMOTE CONTROL
2	04764-SR3-J11	Mirror sub assy. - L. REMOTE CONTROL
11	76213-SR3-003	Pin - STOPPER
13	76220-SR3-900	Sub garnish - R. DOOR MIRROR
20	76270-SR3-900	Sub garnish - L. DOOR MIRROR
23	76409-SL0-003	Washer - TOOTHED
24	76410-SL4-003	Bolt - LOCK
25	76419-SL4-003	Spring - HOLDER
26	76420-SL4-003	Plate - HOOK
27	76290-SR3-003	Screw - TAPPING, 4X10 (TRUSS) (###)
28	76291-SR3-003	Screw - TAPPING, 4X16 (TRUSS)
29	90615-SK7-003	Clip - MIRROR GARNISH
32	04763-SR3-000	Actuator set - R. DOOR MIRROR
33	04766-SR3-000	Actuator set - L. DOOR MIRROR

Oil pump/oil strainer (1) 21

#	OEM	部品名
2	15100-P29-003	Pump assy. - OIL
2	15100-P29-013	Pump assy. - OIL
3	15220-P08-000	Strainer comp. - OIL
4	15221-PM3-S00	Packing - OIL STRAINER
5	15231-PM3-000	Valve - RELIEF
6	15232-PM3-000	Spring - RELIEF VALVE
7	15233-P01-000	Bolt - SEALING, 14MM
8	15301-PE0-300	Bolt - SEALING, 14MM
9	15302-PE0-300	Washer - SEALING, 14MM
10	15400-PR3-405	Cartridge - OIL FILTER (TOYO ROKI)
10	15400-PR3-505	Cartridge - OIL FILTER (TENNEX)
10	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)
10	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
11	15400-PR3-305	Cartridge set - OIL FILTER (TOYO ROKI)
11	15400-PR3-406	Cartridge set - OIL FILTER (TOYO ROKI)
12	90015-PH1-013	Holder - OIL FILTER
13	90020-PE0-000	Bolt - STUD, 8X28
14	90042-PR3-000	Bolt - STUD, 6X28
15	91212-P01-003	Oil seal - 31X46X7 (NOK)
16	91308-PK1-003	O-ring - 26.2X2.4 (NOK)
16	91307-PE0-010	O-ring - 25X2.4

P.s. gear box (2) 29

#	OEM	部品名
1	53010-SR3-010	End set - RACK
2	53411-SR3-950	Tube - AIR TRANSFER
3	53434-SD9-000	Clip - TIE ROD
3	53434-S04-J51	CLIP, TIE ROD
4	53436-SH3-950	Cushion b - POWER STEERING GEAR BOX
5	53438-SR3-J51	Bracket - POWER STEERING GEAR BOX
6	53446-SR3-950	Rubber t - BAND
7	53447-SH3-950	Band - TRANSFER TUBE
9	53449-SL0-A00	Band b - BELLOWS
9	53449-S04-J51	Band b - BELLOWS
10	53501-SR3-000	Grommet a - STEERING
11	53502-SR3-950	Grommet b - STEERING
12	53534-SR3-N52	Dust seal comp. - TIE ROD
13	53534-SR3-N62	Dust seal comp. - TIE ROD
14	53536-SR3-000	Washer - TIE ROD LOCK
15	53540-SR3-003	End comp - R. TIE ROD
15	53540-S04-003	End comp - R. TIE ROD
16	53546-SH0-A01	Boot - TIE ROD END (TECHNICAL AUTO PARTS)
16	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
17	53548-SL0-A01	Circlip - TIE ROD
18	53560-S04-003	End comp - L. TIE ROD
18	53560-SR3-003	End comp - L. TIE ROD
19	53601-SR3-J74	Box assy - POWER STEERING GEAR
20	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
21	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
23	90108-SR3-951	Bolt - GEAR BOX MOUNTING (10X65)
24	90320-SF1-000	Nut - CASTLE, 10MM
25	90325-SM4-J00	Washer - PLAIN, 10MM
30	53447-SR3-J62	Clip - TRANSFER TUBE (JKC)

P.s. gear box components (2) 33

#	OEM	部品名
1	06531-SR3-J61	Seal kit a - POWER STEERING (ROTARY VALVE)
2	06533-SR3-J60	Seal set - POWER STEERING PISTON
3	06534-SR3-J60	Seal set - POWER STEERING VALVE (ROTARY VALVE)
4	06535-SR3-J60	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	53413-SR3-J62	Spring - RACK GUIDE PRESSURE
6	53414-SH3-003	Plug - ADJUSTER (JIDOSHA KIKI)
7	53415-SD5-961	Plate - PRESSURE (JIDOSHA KIKI)
8	53416-SD5-961	Guide - STEERING RACK (JIDOSHA KIKI)
9	53449-SL0-A00	Band b - BELLOWS
9	53449-S04-J51	Band b - BELLOWS
10	53458-SH3-003	Nut - LOCK (JIDOSHA KIKI)
11	53536-SR3-000	Washer - TIE ROD LOCK
12	53608-SR3-J62	Housing sub assy. - STEERING GEAR BOX (###)
13	53626-SR3-J72	Rack comp - STEERING
14	53630-SR3-J62	Holder comp - SEAL
15	53637-SR3-J62	Ring - RETAINING, 2X46
16	53640-SR3-J73	Body unit - VALVE
17	53641-SR3-J73	Valve assy. - STEERING
18	53645-SR3-J62	Housing assy. - VALVE
19	53651-SR3-J62	Bearing - RADIAL BALL, 22X39X9
20	53652-SR3-J62	Bearing - VALVE OIL, 20X32X7
20	06532-S04-000	Oil seal set - ROTARY VALVE
21	53653-SR3-J62	Circlip - EXTERNAL, 22MM
22	53654-SR3-J62	Spacer
23	53656-SR3-J62	Circlip - EXTERNAL, 20MM
24	53660-SR3-J62	Oil seal - VALVE, 26X35.5X6
24	53660-S04-J62	Oil seal - VALVE, 26X35.5X6
25	53665-SR3-J62	Oil seal - VALVE, 20X30X5
26	53666-SR3-J62	O-ring - 2.4X41.7
27	53667-SR3-J62	Shim
28	53668-SR3-J62	Bolt - SOCKET (M8)
29	53670-SR3-J63	Pipe a - CYLINDER
30	53671-SR3-J63	Pipe b - CYLINDER

P.s. lines (2) 23

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-SR3-951	Tank comp. - POWER STEERING OIL
3	53711-SR3-951	Bracket assy - OIL TANK
4	53713-SR3-E74	Hose comp. - POWER STEERING FEED
5	53720-SR3-953	Pipe comp - RETURN, 10MM
6	53721-SM4-013	Clamp d - 15.5MM
8	53728-SR3-951	Clip - POWER STEERING PIPE
9	53729-SL4-951	Clip - RETURN PIPE, 10MM
10	53729-671-003	Clamp d - 15.5MM
11	53730-SR3-951	Pipe comp - POWER STEERING COMBINATION
12	53731-SR3-971	Tube - POWER STEERING SUCTION
13	53732-SR3-952	Hose - POWER STEERING RETURN
14	53733-SR3-951	Tube - POWER STEERING OIL TANK
17	53735-SR3-960	Hose - OIL COOLER RETURN
18	53736-SR3-950	Holder - POWER STEERING PIPE
20	53737-SR3-952	Bracket - POWER STEERING PIPE
24	53775-SR3-971	Clamp - FEED HOSE
26	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
26	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
28	91370-SM4-004	O-ring - 11X1.9 (ARAI)
28	91370-SM4-003	O-ring - 11X1.9 (NOK)
29	91405-PE0-003	Clamp - TUBE (D20)
29	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

P.s. pump 18

#	OEM	部品名
1	56110-P02-020	Pump sub assy - POWER STEERING
2	56123-P30-000	Joint comp - IN. (###)
3	56141-P02-000	Shaft - POWER STEERING PUMP DRIVE
4	56167-PY3-000	Spacer - PUMP SEAL
5	56483-P29-000	Pulley - POWER STEERING PUMP
7	56992-P29-004	Belt - POWER STEERING PUMP (MITSUBOSHI)
7	56992-P29-003	Belt - POWER STEERING PUMP (BANDO)
8	90305-PT0-000	Nut - POWER STEERING PULLEY
9	91048-PY3-003	Bearing - RADIAL BALL, 15X38X12
10	91148-PY3-003	Roller - 5X26.8
11	91149-PY3-003	Roller - 4.5X49.8
12	91249-P02-003	Seal - POWER STEERING PUMP
13	91317-P02-003	O-ring - 5.8X1.9 (NOK)
14	91345-PY3-000	O-ring - 13.0X1.9
15	91346-PY3-000	O-ring - 22.1X1.9
16	91347-PY3-000	O-ring - 16.8X1.9
17	91348-PY3-000	O-ring - 54.0X1.9
18	91349-PY3-000	O-ring - 68.5X1.9

P.s. pump bracket 7

#	OEM	部品名
1	56994-P29-000	Bracket - POWER STEERING PUMP LOWER
4	56996-P01-000	Bolt - POWER STEERING PUMP ADJUSTING WING
6	56997-P29-000	Bracket - POWER STEERING PUMP UPPER
8	56998-P29-000	Bracket - FR. POWER STEERING PUMP
9	56999-PG6-000	Grommet - POWER STEERING PUMP BRACKET
10	90004-P30-000	Bolt - SPECIAL, 8MM
11	90601-P01-003	Clip - ADJUST BOLT

Parking brake 13

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
3	47142-659-310	Knob - PARKING BRAKE PUSH ROD
4	47143-SD4-300	Spring - PUSH ROD
5	47342-SM4-000	Switch - PARKING BRAKE
6	47360-SB2-000	Equalizer
7	47365-538-000	Pin - EQUALIZER
9	47510-SR3-933	Wire a - R. PARKING BRAKE
10	47522-594-000	Nut - PARKING BRAKE ADJUSTING
11	47537-671-670	Spring - PARKING BRAKE ROD
13	47560-SR3-933	Wire a - L. PARKING BRAKE
14	47572-SR3-010	Base - WIRE GUIDE
16	90651-538-000	Clip - BRAKE HOSE
17	90705-SD2-931	Pin - SNAP, 6MM

Pedal (2) 28

#	OEM	部品名
1	17800-SR3-000	Pedal comp - ACCELERATOR
3	17812-SA7-010	Washer - ACCELERATOR PEDAL
4	17814-SR3-000	Spring - ACCELERATOR RETURN
5	17816-SK7-000	Cover - ACCELERATOR PEDAL
6	17910-SR3-J01	Wire - THROTTLE
7	17921-SA4-730	Seal - THROTTLE CABLE
9	17925-SR3-N01	Clamp - THROTTLE WIRE
10	17926-SH3-003	Clip - THROTTLE WIRE
13	17932-SR3-000	Stay - THROTTLE WIRE
15	17934-SK3-G40	Stay - THROTTLE WIRE
16	17938-SE0-941	Clip - THROTTLE WIRE
17	35350-SE0-A03	Switch assy - STOP (TEC)
19	46500-SR3-000	Pedal assy - BRAKE
21	46504-ST5-300	Bush - PEDAL
22	46505-SA5-000	Pad - PEDAL STOPPER
23	46530-SR3-000	Spring assy - PEDAL RETURN
24	46535-SM4-000	Collar - PEDAL
26	46545-SH3-000	Cover - PEDAL
27	46590-SR3-010	Bracket - PEDAL
28	46904-SM4-300	Pad - ACCELERATOR STOPPER
29	46905-SK7-000	Stopper - CLUTCH PEDAL
31	46907-SR3-000	Spring - CLUTCH ASSISTANT
32	46910-SR3-J00	Pedal comp - CLUTCH
33	46911-SD4-930	Bush - PEDAL PIN
34	46981-SR3-930	Bush a - CLUTCH ASSISTANT
35	46982-SR3-930	Bush b - CLUTCH ASSISTANT
36	46990-SR3-000	Bracket - CLUTCH PEDAL
37	46991-SR3-010	Bracket - FOOTREST

Pillar garnish 2

#	OEM	部品名
6	90609-SG0-003	Clip - PILLAR GARNISH
7	90611-SR3-003	Clip - PILLAR GARNISH

Piston/crankshaft 39

#	OEM	部品名
1	13010-P29-000	Piston set - STD.
1	13020-P29-000	Piston set - OS 0.25
1	13030-P29-000	Piston set - OS 0.50
2	13011-PM6-G02	Ring set
2	13031-PM6-G02	Ring set - PISTON (OS 0.50) (RIKEN)
2	13021-PM6-G02	Ring set - PISTON (OS 0.25) (RIKEN)
3	13014-PG6-S10	Washer set - THRUST (DAIDO)
3	13014-PG6-S20	Washer set - THRUST (TAIHO)
6	13112-PE0-000	Pin - PISTON
7	13204-PE1-003	Bolt
8	13205-634-010	Nut
9	13210-PM6-000	Rod comp
10	13310-PM6-G01	Crankshaft comp - 24MM
11	13621-PM7-013	Pulley - TIMING BELT DRIVE (HITACHI)
12	13622-PM7-010	Plate - TIMING BELT GUIDE
13	13810-P29-003	Pulley comp
16	90017-P01-003	Bolt-washer - 14X29
17	90704-634-000	Key - 4.5X11.0
19	13212-PM6-G02	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
19	13215-PM6-G02	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
19	13211-PM6-G01	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
19	13214-PM6-G01	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
19	13217-PM6-G02	Bearing g - CONNECTING ROD (RED) (TAIHO)
19	13213-PM6-G02	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
19	13216-PM6-G02	Bearing f - CONNECTING ROD (PINK) (TAIHO)
19	13212-PM6-G01	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
19	13215-PM6-G01	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
19	13217-PM6-G01	Bearing g - CONNECTING ROD (RED) (DAIDO)
19	13211-PM6-G02	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
19	13214-PM6-G02	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
19	13213-PM6-G01	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
19	13216-PM6-G01	Bearing f - CONNECTING ROD (PINK) (DAIDO)
20	13324-PM6-014	Bearing d - MAIN (GREEN) (TAIHO)
20	13323-PM6-014	Bearing c - MAIN (BROWN) (TAIHO)
20	13322-PM6-014	Bearing b
20	13321-PM6-014	BEARING A - MAIN (BLUE) (TAIHO)
20	13327-PM6-014	Bearing g - MAIN (RED) (TAIHO)
20	13326-PM6-014	Bearing f
20	13325-PM6-014	Bearing e

Radiator (DENSO) 15

#	OEM	部品名
1	19010-P28-A03	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19014-PK1-003	Clip - HARNESS
5	19015-P08-013	Shroud comp - DENSO
7	19020-P08-003	Fan, COOLING (DENSO)
8	19030-P08-013	Motor - COOLING FAN (DENSO)
9	19033-P08-003	Stay - COUPLER (DENSO)
10	19045-P08-013	Cap comp. - RADIATOR (DENSO)
10	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)
11	19046-PV1-000	Seal - CAP
12	90041-P08-003	Screw-washer - 4X11
13	90042-PH2-003	Bolt-washer - 6X16 (DENSO)
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)

Radiator (TOYO) 16

#	OEM	部品名
1	19010-P28-A04	Radiator comp - TOYO
2	19011-PH2-004	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)
4	19015-P08-014	Shroud comp - TOYO
5	19017-PK1-004	Clip - HARNESS(T.RAD)
7	19020-PT0-004	Fan comp - COOLING (MITSUBA)
8	19030-P08-014	Motor - COOLING FAN (MITSUBA)
9	19032-PM3-004	Grommet - TOYO
10	19033-P08-004	Clamp - TOYO
11	19045-P08-014	Cap comp. - RADIATOR (T.RAD)
12	19046-PV1-000	Seal - CAP
13	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)
14	90042-PM3-004	Bolt-washer - 6X20 (TOYO)
14	90042-PZ1-004	Bolt-washer - 6X20
15	90050-PK1-004	Screw-washer - 4X12(T.RAD)
16	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)

Radiator hose 16

#	OEM	部品名
1	19101-P08-J00	Tank - RESERVE
2	19102-PM5-A00	Cap - RESERVE TANK
3	19104-PZ3-010	Tube a - RESERVE TANK (220MM)
4	19104-P08-000	Tube - RESERVE TANK
5	19106-PA0-020	Joint - RESERVE TANK
8	19115-P08-000	Bracket - RESERVE TANK
9	19501-P29-000	Hose - WATER UPPER
10	19502-P08-000	Hose - WATER LOWER
11	19510-P01-003	Clamp - STARTER CABLE
12	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
13	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)
14	19519-P08-013	Clamp - WATER HOSE
20	74172-SR3-000	Cushion - RADIATOR MOUNTING LOWER
21	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
22	74176-SR3-000	Bracket - RADIATOR MOUNT UPPER
23	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Radio antenna/speaker 13

#	OEM	部品名
1	39112-SH3-000	Bracket - FR. SPEAKER SEAL (12CM)
2	39113-SR3-000	Bracket - R. RR. SPEAKER
3	39114-SR3-000	Bracket - L. RR. SPEAKER
4	39120-SM4-901	Speaker assy - 120MM DUAL) (PIONEER
8	39150-SR3-003	Antenna assy - AUTO RADIO (MATSUSHITA)
9	39154-SR3-003	Packing - ANTENNA BASE (MATSUSHITA)
10	39156-SR3-C02	Sub feeder
10	39156-SR3-C01	Sub feeder
11	90105-SB6-003	Screw - PAN, 4X12
13	90502-SA0-003	Washer - WATER PROOF
14	90670-SG0-003	Grommet - SCREW, 4MM
15	90683-SB3-003	Clip - WIRE HARNESS
16	91570-SH3-003	Band - WIRE HARNESS (NATURAL)

Rear brake (DISK) 46

#	OEM	部品名
1	01473-SD2-932	Caliper set - RR.
1	01473-ST7-010	Caliper set
2	42200-SR3-A06	Bearing assy - HUB UNIT (KOYO)
3	42324-SB2-020	Washer - HUB UNIT
4	42326-SB2-000	Cap - HUB UNIT
4	42326-SFA-000	Cap - HUB UNIT
5	42510-SR3-000	Disk - RR. BRAKE
6	43018-SR3-000	Caliper sub assy. - R. RR.
7	43019-SR3-000	Caliper sub assy. - L. RR.
8	43022-SR3-G01	Pad set - RR.
11	43215-SH3-931	Piston assy.
13	43223-SD2-932	BEARING A
14	43224-SD2-931	Spring b - ADJUSTING
15	43227-SF1-003	Spring - PAD
16	43228-SD2-933	Shaft a
17	43229-SD2-931	Rod
20	43233-SD2-931	Piston comp - SLEEVE
22	43235-SD2-931	Pin a
23	43236-SD2-931	Spacer
23	43236-S04-003	Spacer
24	43238-SD2-931	Ring - RETAINING
25	43241-SD2-931	Guide - SPRING
27	43243-SD2-931	Nut - PARKING
28	43244-SD2-931	Retainer
29	43245-SH3-931	Lever - R.
30	43246-SD2-931	Spring - R. RETURN
31	43247-SH3-931	Arm - R.
32	43248-SD2-933	Shaft b
33	43249-SM4-951	Bolt - ADJUSTER
34	43253-SK7-020	Guard - R. RR. SPLASH
35	43254-SK7-020	Guard - L. RR. SPLASH
36	43255-SR3-932	Protector - R. RR. CALIPER
37	43256-SR3-932	Protector - L. RR. CALIPER
38	43262-SD2-931	Pin b
38	43262-S84-A51	Pin b
39	43265-SH3-931	Lever - L.
40	43266-SD2-931	Spring - L. RETURN
41	43267-SH3-931	Arm - L.
42	43352-SM4-951	Screw - BLEEDER
43	43353-SD5-003	Cap - BLEEDER SCREW
45	45240-SC2-003	Bolt - FLANGE, 8X22
46	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
46	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
46	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
47	90305-692-010	Nut
53	43227-SD2-305	Shim - OUTER PAD

Rear seat (1) 13

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	82122-SR3-J02	Pad - R. RR. SEATBACK MOLDING
3	82522-SR3-J02	Pad - L. RR. SEATBACK MOLDING
6	78178-SH3-000	Collar - RR. SEATBACK
7	78182-SA0-000	Clip - RR. SEAT PIN
8	78185-SB3-003	Striker - RR. SEAT
9	78186-SA5-000	Cover - RR. SEAT STRIKER
11	82129-SH3-000	Collar - RR. SEAT PIVOT
13	82132-SR3-J01	Pad - RR. SEAT CUSHION MOLDING
14	82220-SR3-J01	Lock assy - R. RR. SEAT
17	82620-SR3-J01	Lock assy - L. RR. SEAT
18	90128-SA7-000	Bolt-washer - 6X25

Rear shock absorber 20

#	OEM	部品名
1	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
2	51685-SH3-014	Plate - DUST COVER(SHOWA)
3	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
4	52441-SR3-N03	Spring - RR. (NHK SPRING)
4	52441-SR3-N02	Spring - RR. (MITSUBISHI)
4	52441-SR3-N01	Spring - RR. (SHOWA)
5	52610-SR3-A21	Absorber assy - RR. SHOCK
7	52611-SR3-013	Absorber unit - RR. SHOCK (SHOWA)
8	52622-SR3-003	Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN)
9	52675-SH3-024	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)
10	52686-SR3-003	Rubber - RR. SPRING MOUNTING (SHOWA)
11	52687-SR3-003	Cover - RR. DUST (SHOWA)
12	52688-SR3-003	End - RR. DUST COVER (SHOWA)
13	52690-SG0-000	Plate - BUMP STOP
14	52722-SR3-003	Rubber - RR. BUMP STOPPER (SHOWA)
15	52725-SJ4-000	Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA)
17	90172-SK7-003	Bolt - UPPER ARM, 10X68
17	90172-S04-003	Bolt - FLANGE, 10X68
18	90304-SR3-014	Nut - FLANGE, 10MM (OHASHI)
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear stabilizer/rear lower arm 31

#	OEM	部品名
3	46438-SR3-010	Bracket - R. RR. BRAKE HOSE (DISK)
4	46439-SR3-010	Bracket - L. RR. BRAKE HOSE (DISK)
5	52300-SR3-003	Spring - RR. STABILIZER
6	52303-SH3-020	Link comp - STABILIZER
7	52308-SR3-000	Holder - RR. STABILIZER
8	52312-SE0-000	Collar - STABILIZER INNER BUSH END
9	52314-SH3-000	Bush - STABILIZER LINKAGE
10	52315-SR3-000	Bush - RR. STABILIZER
11	52316-SA5-000	Bush - STABILIZER END
12	52317-SR3-010	Bracket - R. RR. STABILIZER
13	52318-SR3-010	Bracket - L. RR. STABILIZER
14	52341-SR3-000	Arm comp - RR. COMPENSATOR
15	52343-SR3-004	Bush - COMPENSATOR (YAMASHITA)
15	52343-SK7-003	Bush - COMPENSATOR (HOKUSHIN)
17	52350-SR3-901	Arm comp - R. RR. LOWER
20	52360-SR3-901	Arm comp - L. RR. LOWER
23	52365-SH3-014	Bush - RR. LOWER ARM (YAMASHITA)
24	52370-SR3-981	Arm comp - R. RR. TRAILING (DISK)
25	52371-SR3-981	Arm comp - L. RR. TRAILING (DISK)
26	52390-SR3-000	Arm comp
27	52393-SR3-004	Bush - UPPER ARM INNER (YAMASHITA)
28	52395-SH3-004	Bush - RR. UPPER ARM (YAMASHITA)
29	52400-SR3-000	Arm comp
34	90117-SH3-004	Bolt - UPPER ARM, 10X30
35	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42
36	90171-SR3-003	Bolt - TORQUE COMPENSATOR, 10X59
37	90172-SK7-003	Bolt - UPPER ARM, 10X68
37	90172-S04-003	Bolt - FLANGE, 10X68
38	90173-SR3-003	Bolt - LOWER ARM, 10X80
39	90174-SJ4-003	Bolt - TRAILING ARM BUSH, 12X60
41	90551-SH3-000	Washer - 24X10X2.3

Rear wiper 17

#	OEM	部品名
1	68135-SR3-020	Plate - RR. WIPER MOTOR BASE
2	76700-SR3-003	Motor assy. - RR. WIPER (MITSUBA)
3	76705-SR3-003	Cover - UPPER MOTOR
4	76707-SR3-000	Seal a
5	76708-SE1-003	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM
7	76711-SF1-003	Cap - PIVOT
8	76721-SR3-003	Cover - HEAD
9	76725-SR3-003	Cover - LOWER MOTOR
10	76732-SR3-003	Rubber - BLADE (275MM)
10	76732-SR3-305	Blade rubber 275m
11	76740-SR3-003	Arm & blade, RR. WINDSHIELD WIPER
12	90105-SR3-000	Seal - TAILGATE OPENER STAY & WIPER MOTOR
14	90108-SR3-901	Bolt - RR. WIPER MOTOR BASE PLATE, 6MM
14	90108-SR3-900	Bolt - RR. WIPER MOTOR BASE PLATE, 6MM
15	90109-SR3-000	Seal - RR. WIPER MOTOR BASE PLATE
16	90410-SD3-660	Washer - PLAIN, 8MM

Roof lining 6

#	OEM	部品名
3	75353-671-000	Lock - SCREW
17	83243-SK8-A40	Cover - GRAB RAIL
18	83248-SG0-003	Spacer - GRAB RAIL
28	83291-SR3-000	Bracket - L. FR. GRAB RAIL (SUNROOF)
33	90131-SH3-A12	Screw - PAN, 5X16
34	90195-SA0-000	Screw-washer - 6X20

Seatbelts 5

#	OEM	部品名
6	81481-SF1-G02	Cap - SEATBELT ANCHOR
7	81490-ST7-000	Bag - R. PROTECTOR
13	81890-ST7-000	Bag - L. PROTECTOR
18	82490-SR3-000	Bag - PROTECTOR
22	90688-SR3-003	Clip - BAG PROTECTOR

Shift fork (1) 10

#	OEM	部品名
1	24200-PL3-010	Fork - FIFTH GEARSHIFT
2	24210-P20-A00	Fork comp - GEARSHIFT (3-4)
3	24220-P20-010	Fork comp - SHIFT (1-2)
4	24230-P20-000	Holder comp - REVERSE SHIFT
5	24243-P20-000	Piece - FIFTH & REVERSE SHIFT
6	24261-P20-000	Shaft - SHIFT FORK (1-2)
7	24271-P20-000	Shaft - FIFTH & REVERSE SHIFT FORK
8	24455-PG1-300	Spring - SHIFT FORK SETTING
9	24455-PG2-A10	Spring - FORK SET BALL
10	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 25

#	OEM	部品名
1	24313-PF5-000	Clip - CHANGE JOINT PIN
1	54113-611-505	CLIP, SHIFT JOINT
2	54101-SH3-010	Lever - CHANGE
3	54102-SH3-901	Knob comp,change
4	54105-692-010	Washer - THRUST
5	54107-SA0-010	Bush, RR. JOINT
7	54109-SA7-000	Seal A, CHANGE LEVER DUST
8	54110-SH3-003	Seat - CHANGE LEVER BALL
9	54111-SH3-000	Holder - CHANGE BALL
10	54114-SB2-000	Collar - PIPE MOUNTING
11	54115-SH3-000	Dust seal B, Change
12	54117-SH3-000	Collar - RR. JOINT
13	54201-SR3-A01	Rod comp - CHANGE
14	54301-SR3-A00	Extension - CHANGE
15	54303-SF4-000	Rubber - EXTENSION END
16	54304-SH3-020	Bracket - EXTENSION
19	54306-SH3-000	Rubber, EXTENSION MOUNTING
20	54307-SH3-010	Stopper - EXTENSION MOUNTING
21	54308-SH3-000	Bolt - EXTENSION
22	54309-SH3-000	Collar - EXTENSION END
23	90114-SA0-000	Nut - SELF-LOCK, 6MM
24	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
25	90117-HA7-670	Bolt - FLANGE, 8X18
26	91301-671-671	O-ring - 1.9X11
26	91303-HA0-004	O-ring, 11x1.9 (nok)

Shift rod/shift holder (1) 20

#	OEM	部品名
1	24311-PL3-020	Rod - SHIFT
2	24316-P20-000	Boot - SHIFT ROD
3	24351-P20-010	Shaft - SHIFT ARM B
4	24411-P20-000	Arm a - SHIFT
5	24421-PL3-000	Arm b - SHIFT
6	24422-PL3-000	Arm c - SHIFT
7	24430-PL3-010	Interlock comp.
8	24432-PL3-010	Retainer - REVERSE SELECT
9	24433-P20-000	Bolt - INTERLOCK
10	24440-PL3-000	Cam comp - REVERSE LOCK
11	24452-P20-000	Spring - BALL SETTING
12	24456-P20-000	Spring - SELECT SET BALL
13	24461-PB6-000	Collar - SPRING
14	24464-PL3-010	Spring - FIRST-SECOND SELECT
15	24465-P20-000	Spring - REVERSE SELECT
16	24519-PB6-000	Screw - BALL SPRING SETTING
17	90028-PB6-010	Bolt - SPECIAL, 6X22.5
18	90029-PL3-010	Bolt - SPECIAL, 8MM
19	90082-PL3-000	Plug - 28MM
20	90412-679-000	Washer - CONICAL SPRING, 8MM

Side lining (1) 13

#	OEM	部品名
1	34260-SH3-004	Light assy - TRUNK ROOM
2	34262-SH3-004	Lens
3	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
10	83739-SH2-000	Plate - CENTER SHELF LOCK
11	83739-SH5-003	Holder - RR. SIDE LINING
19	84402-SH2-000	Bar - SUPPORT
20	84402-SH5-000	Bar a - SUPPORT
23	90302-SA4-003	Nut - SPRING, 4MM
24	90609-SG0-003	Clip - PILLAR GARNISH
25	90668-SH3-003	Clip - SIDE LINING
26	90674-SK7-000	Clip - SNAP FITTING
27	90678-SK7-003	Clip - SPEAKER
28	90683-693-000	Grommet - SCREW, 5MM

Side protectors 27

#	OEM	部品名
1	71800-SR3-000	Garnish assy - R. SIDE SILL
2	71850-SR3-000	Garnish assy - L. SIDE SILL
3	72410-SR3-003	Molding assy. - R. FR. DOOR
4	72430-SR3-003	Garnish - R. DOOR SASH
5	72450-SR3-003	Molding assy. - L. FR. DOOR
6	72470-SR3-003	Garnish - L. DOOR SASH
7	74306-SR3-003	Molding assy. R. ROOF
8	74307-SR3-003	Clip - ROOF MOLDING
9	74316-SR3-003	Molding assy. L. ROOF
13	75301-SR3-003	Protector comp - R. FR. FENDER
14	75302-SR3-003	Protector comp - R. DOOR
15	75304-SR3-003	Protector comp - R. RR. FENDER
16	75305-SH2-003	Clip - SIDE PROTECTOR
17	75305-SR3-003	Clip - FR. FENDER PROTECTOR
18	75321-SR3-003	Protector comp - L. FR. FENDER
19	75322-SR3-003	Protector comp - L. DOOR
20	75324-SR3-003	Protector comp - L. RR. FENDER
21	75328-SR3-003	Clip - SIDE PROTECTOR
22	75807-671-010	Nut - SIDE PROTECTOR (BLACK)
25	90119-SR3-000	Screw - TAPPING, 4X10
25	90116-SE0-000	Screw - TAPPING, 4X12
28	90331-SD5-003	Nut - SPRING, 5MM
30	90688-SB0-013	Clip b
30	90668-SC5-003	Clip A - AIRSCOOP GRILLE
31	91509-SR3-003	Clip - SASH GARNISH (NATURAL)
32	91510-SR3-003	Clip - DOOR MOLDING (NATURAL)
33	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH

Sliding roof (2) 14

#	OEM	部品名
1	15707-634-000	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM
3	70052-SH3-000	Valve - FR. DRAIN (SUNROOF)
4	70060-SR3-000	Tube - RR. DRAIN VINYL (SUNROOF)
5	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)
6	70080-SR3-003	Seal - SUNROOF FRAME
7	70100-SR3-013	Frame comp - SUNROOF
8	70200-SR3-J01	Glass assy - ROOF (SUNROOF)
9	70291-SR3-003	Bolt - STAY, 6MM
12	70331-SR3-003	Stay - R. ROOF GLASS
13	70333-SR3-013	Slider - R.
14	70334-SR3-003	Slider b - GLASS LIFTER
15	70336-SR3-003	Stay - L. ROOF GLASS
16	70338-SR3-013	Slider - L.

Sliding roof (3) 33

#	OEM	部品名
1	70011-SR3-003	Hinge - TIE
2	70081-SR3-003	Sub seal - FRAME
3	70231-SR3-003	Channel - R. FR. DRAIN
4	70236-SR3-003	Channel - L. FR. DRAIN
5	70240-SR3-003	Channel comp. - DRAIN
6	70242-SR3-003	Seal - RR. DRAIN CHANNEL MAIN
7	70245-SR3-003	Clip - DRAIN CHANNEL
8	70246-SR3-003	Cushion - TAPE
9	70302-SR3-003	Stopper - FR.
10	70308-SR3-003	Stopper - RR.
11	70310-SR3-003	Rail - R. GUIDE
12	70312-SR3-003	Holder - R. FR. RAIL
13	70313-SR3-003	Holder - R. RR. RAIL
14	70314-SR3-003	Guide - FR. RAIL HOLDER
15	70315-SR3-003	Rail - L. GUIDE
16	70317-SR3-003	Holder - L. FR. RAIL
17	70318-SR3-003	Holder - L. RR. RAIL
18	70319-SR3-003	Cover - SPRING HOOK
19	70320-SR3-003	Rail - R. SUNSHADE
20	70325-SR3-003	Rail - L. SUNSHADE
21	70332-SR3-003	Slider a - GLASS LIFTER
22	70340-SR3-003	Anchor comp. - R.
23	70345-SR3-003	Anchor comp. - L.
24	70347-SR3-003	Spring - ANCHOR
25	70361-SR3-003	Link - R. SLIDE STOPPER
26	70366-SR3-003	Link - L. SLIDE STOPPER
27	70372-SR3-003	Lifter - R.
28	70377-SR3-003	Lifter - L.
29	70391-SR3-003	Screw - PAN, 5X10
30	70400-SR3-003	Cable assy - SUNROOF
31	70450-SR3-003	Motor assy. - SUNROOF
32	70639-SR3-003	Hook - MAP LIGHT
33	91555-SM4-003	Clip - COUPLER (RED)

Speed sensor 4

#	OEM	部品名
1	78410-SR3-004	Sensor assy - SPEED (NS)
1	78410-SV4-003	Sensor assy - SPEED (MATSUSHITA)
2	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)
3	90302-SA4-003	Nut - SPRING, 4MM

Speedometer components 16

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37103-SD2-003	Bulb & socket
4	37106-SJ4-J00	Knob - TRIP
5	37238-SD2-A00	Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN
6	78108-SR3-G01	Panel - PRINT
7	78110-SR3-J03	Case assy.
8	78115-SR3-C32	Speedometer assy
9	78125-SR3-721	Tachometer assy.
10	78130-SR3-E02	Meter assy - FUEL & TEMPERATURE
13	78155-SR3-C02	Visor assy - METER
13	78155-SR3-C52	Visor assy - METER
15	78190-SR3-J03	Srs unit
17	90131-SF4-003	Screw-washer - 3X16 (NS)
18	90132-SM4-003	Screw-washer - 3X16
20	91547-SR3-003	Clamp - WIRE HARNESS

Starter motor (DENSO; 1) 14

#	OEM	部品名
1	31200-P01-003	Motor assy. - STARTER (DRLFO) (DENSO)
2	31201-657-671	Screw - DENSO) (###
3	31202-657-671	Bolt - THROUGH (###)
4	31204-657-671	Clutch comp. - OVERRUNNING(###)
5	31205-657-671	Ball - STEEL (DENSO)
6	31206-PE0-662	Yoke comp - DENSO) (###
7	31207-657-672	Armature comp - DENSO)(###
8	31208-657-671	Plate comp - BRUSH HOLDER (DENSO)(###)
9	31210-P01-003	Switch assy - MAGNETIC (###)
10	31222-657-671	Gear - IDLE (DENSO)(###)
11	31225-PB2-006	Roller - BEARING (DENSO)
12	31226-PB2-006	Retainer - BEARING (DENSO)(###)
13	31235-PE0-662	Cover - TERMINAL (DENSO)
14	31291-P01-003	Stay - ENGINE WIRE HARNESS (###)

Starter motor (MITSUBA; 1) 16

#	OEM	部品名
1	31200-P01-015	Motor assy. - STARTER (SM-302-48) (MITSUBA)
1	31200-P01-005	Motor assy. - STARTER (SM-302-48) (MITSUBA)
2	31202-PC2-006	Bolt - THROUGH (MITSUBA)
3	31204-P01-305	Gear assy - ###
3	31204-PJ7-903	Gear assy. - PINION (MITSUBA)
5	31207-PC2-016	Armature comp - MITSUBA
7	31210-P01-005	Switch assy - ###
8	31211-PC2-006	Ring - SQUARE (MITSUBA)
9	31215-PC2-006	Washer - THRUST, 1.2 (MITSUBA)
10	31216-PC2-006	Washer - THRUST, 0.2 (MITSUBA)
11	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
12	31235-PJ7-903	Cover - TERMINAL (MITSUBA) (###)
13	31251-PJ7-904	Tube - LABYRINTH (###)
14	31252-PD2-006	Rubber - BUSH (MITSUBA)
15	31291-PM1-005	Stay assy - ENGINE WIRE HARNESS (###)
17	31260-PJ7-006	Stator set - ###

Steering column 15

#	OEM	部品名
1	53200-SR3-020	Column assy - STEERING (TILT)
1	53200-SR3-G81	Column assy - STEERING
2	53201-SL4-003	Guide - ABSORBING PLATE
3	53202-SR3-J00	Plate - ABSORBING
4	53216-SR3-000	Holder b - STEERING COLUMN
5	53217-SR3-000	Collar - STEERING RETAINER
6	53320-SR3-010	Cover - STEERING JOINT
7	53323-SM4-013	Joint comp. b - STEERING
8	53325-SH3-000	Clip A - JOINT COVER
9	53326-SB0-000	Clip b - JOINT COVER
10	53363-SR3-010	Pivot comp - COLUMN
12	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
13	90361-SR3-000	Nut - FLANGE, 8MM
14	90511-671-003	Washer - TOOTHED LOCK
15	90654-SR3-003	Clip - STEERING JOINT COVER

Steering wheel (2) 8

#	OEM	部品名
2	77954-SR3-G80	Label - MONITOR CAUTION (GERMAN)
7	78519-SR3-J81	Spacer - BODY COVER
10	78527-SR3-J81	Label - BODY COVER CAUTION
11	78529-SR3-J82	Label - CAP A CAUTION
12	90123-SR3-J80	Bolt - MASKING, 5X12
13	90134-SR3-J81	Bolt - TORX, 6X20
14	90172-SL4-003	Screw-washer - 5X12
15	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Switch (2) 7

#	OEM	部品名
1	35145-SR3-901	Frame - TWO KEY
2	35145-SR3-911	Frame - THREE KEY
9	35510-SR3-003	Switch assy - HAZARD
11	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)
12	39700-SR3-003	Clock assy - DIGITAL (NS)
12	39700-SR3-004	Clock assy - DIGITAL (JECO)
15	90666-SD4-003	Clip - FITTING

Tailgate 20

#	OEM	部品名
5	62316-679-003	Grommet - SCREW, 4MM
7	68215-SR3-000	Plate - HINGE SET
8	68217-SR3-000	Seal - TAILGATE HINGE
12	73201-SR3-J00	Glass - RR. WINDSHIELD (CLEAR)
13	73220-SR3-J00	Garnish - RR. WIPER HARNESS
14	73221-SR3-J00	Garnish - RR. WIPER HARNESS (B)
15	73222-SR3-J00	Garnish - RR. WIPER HARNESS (C)
16	74813-SR3-003	Striker - TAILGATE
17	74820-SR3-003	Stay assy - TAILGATE OPENER
18	74820-SR3-305	Stay assy - TAILGATE OPENER
19	74990-SR3-G00	Garnish - TAILGATE SPOILER
28	90101-SR3-000	Nut - OPENER STAY LOWER PIVOT, 8MM
29	90105-SR3-000	Seal - TAILGATE OPENER STAY & WIPER MOTOR
30	90106-SR3-000	Spacer - TAILGATE OPENER STAY
31	90111-SR3-000	Plate - HINGE & WINDOW ATTACHMENT
32	90112-SR3-000	Bolt - TAILGATE STRIKER, 6MM
33	90114-SR3-000	Spacer - HINGE & WINDOW ATTACHMENT
34	90222-SB4-000	Nut-washer - 6MM
35	90307-SH3-000	Nut - SPOILER CAP, 6MM
37	90502-SR3-000	Plate - HINGE & WINDOW ATTACHMENT

Taillight 27

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33500-SR3-Q01	Taillight assy. - R. (###)
4	33501-SR3-Q01	Lamp unit - R.
5	33502-SR3-G01	Socket - COUPLER
6	33503-SR3-A01	Gasket - BASE
7	33550-SR3-Q01	Taillight assy. - L. (###)
8	33551-SR3-Q01	Lamp unit - L.
9	34100-SR3-G01	Light assy - LICENSE (###)
10	34101-SR3-A01	Lens
11	34102-SR3-A01	Housing
12	34103-SR3-A01	Packing - LENS
13	34104-SE3-A01	Screw - TAPPING, 4X20
14	34104-SR3-A01	Shade
15	34150-SR3-J01	Light assy - R. LID (###)
16	34151-SR3-J01	Lamp unit - R.
18	34152-SR3-J01	Cord - COUPLER
19	34153-SR3-A01	Gasket - R. BASE
20	34154-SR3-A01	Seal - PACKING
21	34155-SR3-J01	Light assy - L. LID (###)
22	34156-SR3-J01	Lamp unit - L.
24	34158-SR3-A01	Gasket - L. BASE
25	34304-SH3-A01	Socket comp.
26	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
27	34911-634-611	Bulb - 12V 21/5W) (ECE) (STANLEY
28	90301-SE0-902	Nut - SPECIAL, 5MM
29	90521-SE3-003	Grommet - SCREW, 4MM
30	91555-SM4-003	Clip - COUPLER (RED)

Throttle body 19

#	OEM	部品名
1	16016-PM6-005	Screw set
2	16075-PE2-005	O-ring - 31.2X1.9
3	16075-P07-000	O-ring
4	16076-P64-000	O-ring
5	16077-P06-A00	O-ring
6	16078-P06-A00	O-ring - 15.8X1.9
7	16080-P07-000	Screw-washer - 4X16
8	16081-P06-A00	Bolt - FLANGE, 6X40
9	16176-P06-A01	Gasket - THROTTLE BODY (ISHINO GASKET)
9	16176-P06-A02	Gasket - THROTTLE BODY (NIPPON LEAKLESS)
10	16179-P06-A00	Binder
11	16400-P29-T01	Throttle Body Assy - GR03D
12	16411-P06-A00	Stay - THROTTLE WIRE
14	16500-P75-000	Valve assy. - FAST IDLE (AF42C)
18	36450-P08-004	Valve assy. - ELECTRONIC AIR CONTROL (TEC)
19	36453-P0D-004	O-ring b
20	36454-PS4-003	Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)
21	36455-PM3-J01	Packing - ELECTRONIC AIR CONTROL VALVE (TEC)
22	37830-P05-A01	Sensor assy - MAP

Tire/wheel disk 40

#	OEM	部品名
2	42700-SR3-J12	Disk - ALUMINIUM WHEEL (14X5 1/2J) (ASAHI)
3	42700-SR3-964	Disk - WHEEL (14X5J) (KANAI) (BLACK)
3	42700-SR3-965	Disk - WHEEL (14X5J) (YUNO) (BLACK)
4	42751-SH3-F66	Tire - 185/60R14 82H) (DUNLOP
4	42751-SB2-F04	Tire - 185/60R14 82H) (BRIDGESTONE
6	42753-SH3-003	Valve - RIM (US PACIFIC)
6	42753-SB8-661	Valve - RIM (SCHRADER)
8	44721-SH0-A01	Weight - BALANCE (10G) (THOS. SALMON)
8	44728-SH0-A01	Weight - BALANCE (25G) (THOS. SALMON)
8	44729-SH0-A01	Weight - BALANCE (35G) (THOS. SALMON)
8	44727-SB2-003	Weight - BALANCE (15G) (YAMATE)
8	44724-SB2-003	Weight - BALANCE (40G) (YAMATE)
8	44723-SB2-003	Weight - BALANCE (30G) (YAMATE)
8	44727-SH0-A01	Weight - BALANCE (15G) (THOS. SALMON)
8	44724-SH0-A01	Weight - BALANCE (40G) (THOS. SALMON)
8	44726-SB2-003	Weight - BALANCE (5G) (YAMATE)
8	44722-SB2-003	Weight - BALANCE (20G) (YAMATE)
8	44726-SH0-A01	Weight - BALANCE (5G) (THOS. SALMON)
8	44729-SB2-003	Weight - BALANCE (35G) (YAMATE)
8	44723-SH0-A01	Weight - BALANCE (30G) (THOS. SALMON)
8	44730-SB2-013	Weight - BALANCE (45G) (YAMATE)
8	44722-SH0-A01	Weight - BALANCE (20G) (THOS. SALMON)
8	44730-SH0-A01	Weight - BALANCE (45G) (THOS. SALMON)
8	44721-SB2-003	Weight - BALANCE (10G) (YAMATE)
8	44728-SB2-003	Weight - BALANCE (25G) (YAMATE)
8	44725-SH0-A01	Weight - BALANCE (50G) (THOS. SALMON)
8	44725-SB2-003	Weight - BALANCE (50G) (YAMATE)
9	44723-SF1-A01	Weight - BALANCE (30G) (YAMATE)
9	44726-SF1-A01	Weight - BALANCE (5G) (YAMATE)
9	44722-SF1-A01	Weight - BALANCE (20G) (YAMATE)
9	44729-SF1-A01	Weight - BALANCE (35G) (YAMATE)
9	44730-SF1-A01	Weight - BALANCE (45G) (YAMATE)
9	44721-SF1-A01	Weight - BALANCE (10G) (YAMATE)
9	44728-SF1-A01	Weight - BALANCE (25G) (YAMATE)
9	44727-SF1-A01	Weight - BALANCE (15G) (YAMATE)
9	44724-SF1-A01	Weight - BALANCE (40G) (YAMATE)
11	44732-SR3-J00	Cap - ALUMINIUM WHEEL CENTER
22	83850-SH3-000	Plate - ANCHOR BOLT
23	83853-SA7-980	Bolt - ANCHOR (79MM)
26	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 10

#	OEM	部品名
1	71969-SA7-890	Wrench - SUNROOF
2	89000-SR3-E50	Tool set - SUNROOF
2	89000-SR3-G50	Tool set
3	89101-SW5-003	Bag - TOOL
3	89101-SH3-000	Bag - TOOL
4	89211-SE3-003	Wrench - WHEEL
5	89216-SF4-000	Wrench - PLUG
7	89310-SE3-013	Jack assy - PANTOGRAPH
9	89320-SE3-003	Bar - JACK
9	89320-S50-003	Bar - JACK

Transmission housing (1) 52

#	OEM	部品名
1	21104-PS1-020	Plate m - OIL GUIDE
2	21200-P20-B02	Case comp. - TRANSMISSION
3	21211-P20-020	Plate - OIL GUTTER
4	21396-P20-000	Cap - BREATHER
5	23967-PL3-B00	Shim ak - 70MM (1.68)
5	23952-PL3-B00	Shim v - 70MM (1.23)
5	23936-PL3-B00	Shim f - 70MM (0.75)
5	23947-PL3-B00	Shim q - 70MM (1.08)
5	23931-PL3-B00	Shim a - 70MM (0.60)
5	23963-PL3-B00	Shim ag - 70MM (1.56)
5	23958-PL3-B00	Shim ab - 70MM (1.41)
5	23942-PL3-B00	Shim l - 70MM (0.93)
5	23968-PL3-B00	Shim al - 70MM (1.71)
5	23953-PL3-B00	Shim w - 70MM (1.26)
5	23937-PL3-B00	Shim g - 70MM (0.78)
5	23948-PL3-B00	Shim r - 70MM (1.11)
5	23932-PL3-B00	Shim b - 70MM (0.63)
5	23959-PL3-B00	Shim ac - 70MM (1.44)
5	23943-PL3-B00	Shim m - 70MM (0.96)
5	23969-PL3-B00	Shim am - 70MM (1.74)
5	23954-PL3-B00	Shim x - 70MM (1.29)
5	23938-PL3-B00	Shim h - 70MM (0.81)
5	23964-PL3-B00	Shim ah - 70MM (1.59)
5	23949-PL3-B00	Shim s - 70MM (1.14)
5	23933-PL3-B00	Shim c - 70MM (0.66)
5	23960-PL3-B00	Shim ad - 70MM (1.47)
5	23944-PL3-B00	Shim n - 70MM (0.99)
5	23970-PL3-B00	Shim an - 70MM (1.77)
5	23955-PL3-B00	Shim y - 70MM (1.32)
5	23939-PL3-B00	Shim i - 70MM (0.84)
5	23965-PL3-B00	Shim ai - 70MM (1.62)
5	23950-PL3-B00	Shim t - 70MM (1.17)
5	23934-PL3-B00	Shim d - 70MM (0.69)
5	23961-PL3-B00	Shim ae - 70MM (1.50)
5	23945-PL3-B00	Shim o - 70MM (1.02)
5	23971-PL3-B00	Shim ao - 70MM (1.80)
5	23956-PL3-B00	Shim z - 70MM (1.35)
5	23940-PL3-B00	Shim j - 70MM (0.87)
5	23966-PL3-B00	Shim aj - 70MM (1.65)
5	23951-PL3-B00	Shim u - 70MM (1.20)
5	23935-PL3-B00	Shim e - 70MM (0.72)
5	23962-PL3-B00	Shim af - 70MM (1.53)
5	23946-PL3-B00	Shim p - 70MM (1.05)
5	23957-PL3-B00	Shim aa - 70MM (1.38)
5	23941-PL3-B00	Shim k - 70MM (0.90)
6	35600-P20-003	Switch assy - BACK UP LIGHT
7	90081-PB6-000	Bolt - PLUG, 14MM
8	90081-PL3-000	Screw - SEALING, 32MM
9	90083-P20-000	Bolt - SEALING, 10MM
10	91205-PG1-003	Oil seal - 40X62X8 (ARAI)
10	91205-PC9-711	Oil seal - 40X62X8 (NOK)
11	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)

Trunk box 7

#	OEM	部品名
8	84525-SR3-E00	Box - R. TRUNK FLOOR
12	84575-SR3-E00	Box - L. TRUNK FLOOR
21	90163-SA5-000	Screw-washer - 4X16
23	90609-SG0-003	Clip - PILLAR GARNISH
24	90610-SR3-003	Clip - GARNISH (KATO)
25	90674-SK7-000	Clip - SNAP FITTING
27	91611-SH2-003	Grommet - SCREW ADJUSTER

Valve/rocker arm (2) 14

#	OEM	部品名
1	14621-PG6-010	Arm - VALVE ROCKER
2	14711-PG6-000	Valve
3	14721-PG6-000	Valve - EX.
4	14744-PG6-003	Screw - TAPPET ADJUSTING
5	14745-PR4-A01	Bolt - END PIVOT (TOKAI TRW)
6	14761-PM7-004	Spring - IN. VALVE (ORANGE) (CHUO SPRING)
6	14761-PM7-003	Spring
7	14762-PM7-004	Spring - EX. VALVE (YELLOW-GREEN) (CHUO SPRING)
7	14762-PM7-003	Spring
8	14765-PG6-000	Retainer - VALVE SPRING
8	14771-ZJ8-000	Retainer, valve spring
9	14775-PG6-000	Seat - EX. VALVE SPRING
10	14781-PE0-003	Valve Cotter - (FUJI VALVE)
11	90206-PG6-000	Nut - TAPPET ADJUSTING

Water hose (2) 6

#	OEM	部品名
1	19506-P08-000	Hose - ELECTRONIC AIR CONTROL VALVE IN.
3	19507-P29-000	Hose - ELECTRONIC AIR CONTROL VALVE OUTLET
4	19508-P08-000	Hose, BY-PASS OUTLET
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8	19527-P29-J00	Hose a - BREATHER HEATER
9	19528-P29-J00	Hose b - BREATHER HEATER

Water pump 17

#	OEM	部品名
1	19200-P01-003	Pump comp - WATER (KEIHIN)
1	19200-P01-004	Pump comp, WATER (YAMADA)
3	19222-P01-003	O-ring - WATER PUMP (KEIHIN)
3	19222-P01-004	O-ring - WATER PUMP (YAMADA)
5	19301-P08-316	Thermostat assy - NIPPON THERMOSTAT
5	19301-PAA-306	Thermostat assy - NIPPON THERMOSTAT
5	19301-P08-305	Thermostat assy - FUJI THOMSON
6	19305-PT0-000	Rubber - THERMOSTAT MOUNTING
6	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
7	19311-P08-000	Cover - THERMOSTAT
9	19315-PG6-010	Cover
12	19320-P00-000	Case comp. - THERMOSTAT
14	19500-PE0-000	Joint, Tube
16	19505-P05-A00	Pipe - CONNECTING
16	19505-PM5-A00	Pipe - CONNECTING
17	19516-PC1-000	Bolt - BREATHING WATER
20	91314-634-000	O-ring

Water valve 9

#	OEM	部品名
2	79710-SR3-003	Valve assy. - WATER
3	79721-SR3-930	Hose a - WATER IN.
4	79722-SR3-000	Hose b, WATER IN.
5	79725-SR3-000	Hose - WATER OUTLET
6	79731-SR3-000	Grommet - HEATER PIPE
7	91405-PK1-003	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8	91549-SR3-003	Clamp - 24MM-35MM
10	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Windshield washer 26

#	OEM	部品名
1	38511-SD2-003	Adapter - NOZZLE (MITSUBA)
2	38512-SB0-922	Motor - WASHER (MITSUBA)
3	38512-SF0-013	Motor - WASHER (MITSUBA)
4	38513-SB0-961	Cap - WASHER MOUTH(MITSUBA)
4	76802-SS0-003	Cap - MOUTH
5	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
6	38516-SA5-671	Packing - T-TYPE) (MITSUBA
7	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
8	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
9	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
10	38564-SA7-013	Grommet - WASHER TUBE (MITSUBA)
11	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)
12	66427-SA7-000	Cushion - WIRE HARNESS (45X70) (GRAY)
13	76810-SR3-003	Nozzle assy. - R. FR. WASHER
14	76815-SR3-003	Nozzle assy. - L. FR. WASHER
15	76825-SH3-003	Tube a - RR. WASHER
16	76830-SL0-003	Joint y - TUBE (MITSUBA)
17	76830-SM4-003	Joint y - WASHER
18	76841-SR3-003	Tank
19	76850-SR3-003	Nozzle assy. - RR. WINDSHIELD WASHER
20	76854-SR3-003	Tube - R., 4X8X200
21	90652-SB2-023	Clip - TUBE, 7MM
22	91504-SR3-003	Clip - WASHER TUBE
23	91506-SR3-003	Clip - TUBE WASHER (NATURAL)
24	91512-SE0-003	Clip - WASHER TUBE
25	91531-SL4-J01	Clamp - TUBE, 3.5

Wire harness (2) 40

#	OEM	部品名
1	32100-SR3-Q32	Harness - CABIN WIRE
2	32108-SR3-E12	Harness - RR. WIRE
3	32113-SR3-000	Stay - L. COUPLER
4	32114-SR3-000	Bracket - RADIO EARTH
5	32117-SR3-Q03	Harness - INSTRUMENT WIRE
5	32117-SR3-Q02	Harness - INSTRUMENT WIRE
6	32119-SR3-000	Sub cord - TAILGATE
7	32129-SR3-000	Sub cord - RR. WIPER
8	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
9	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
10	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
11	32155-SR3-901	Cord - SUNROOF
11	32155-SR3-000	Cord assy - INTERIOR
12	32200-SR3-030	Harness - ENGINE ROOM WIRE
13	32555-SR3-000	Coupler - SHORT (ILLUMINATION)
14	32601-SR3-003	Cable assy - MISSION EARTH (SUMITOMO)
15	32610-SR3-900	Cable - SUB EARTH (300MM)
16	32751-SR3-902	Harness - DRIVER DOOR WIRE (R.C. MIRROR)
17	32752-SR3-902	Harness - PASSENGER DOOR WIRE (R.C. MIRROR)
18	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)
19	77961-SR3-J80	Harness - MAIN (SRS) (CONNECTED TO SLIP RING)
20	80463-SR3-000	Bracket - AIR CONDITIONER HARNESS
21	90153-SE0-003	Bolt - EARTH, 6X12
22	90154-SD4-003	Bolt - EARTH, 6X20
24	91540-SR3-003	Holder - COUPLER(YELLOW)
25	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
26	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
27	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
29	91549-SD2-003	Clip - WIRE HARNESS (BLACK)
30	91550-SH5-003	Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL)
31	91550-SM4-003	Clip - WIRE HARNESS
32	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
33	91554-SH3-003	Band - WIRE HARNESS (NATURAL) (100.5MM)
34	91557-SR3-003	Clip - WIRE HARNESS PROTECTOR (RED)
38	91570-SH3-003	Band - WIRE HARNESS (NATURAL)
39	91626-SR3-003	Ring - WIRE HARNESS
40	91637-SF1-003	Cap - 090 2P
41	91763-SH3-003	Bar - JOINT (6P)
42	91786-SR3-003	Bar - JOINT (10P)
43	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
