EC7 × ES4

共通 149 / 合計 3,781 · Jaccard 3.9%
EC7 Honda CIVIC — 2,021 中 149 共有
ES4 Honda CIVIC — 1,909 中 149 共有
149 件
Accelerator pedal (LH) 2 / 12
EC7 Accelerator pedal (LH)
ES4 Pedal (LH)
# OEM EC7 ES4
10 17921-SA4-730 Seal - THROTTLE CABLE Seal - THROTTLE CABLE
23 46505-SA7-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
Air conditioner (CARBURETOR COMPONENTS) 1 / 9
EC7 Air conditioner (CARBURETOR COMPONENTS)
ES4 Air conditioner (COOLING UNIT)
# OEM EC7 ES4
14 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
Air conditioner (CONDENSER) 1 / 23
EC7 Air conditioner (CONDENSER)
ES4 Air conditioner (CONDENSER)
# OEM EC7 ES4
32 80175-SE0-000 Mount - CONDENSER Mount - CONDENSER
Air conditioner (UNIT; LH) 4 / 41
EC7 Air conditioner (UNIT; LH)
ES4 Heater blower (LH)
# OEM EC7 ES4
31 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
33 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
35 90659-692-000 Clamp - CASE Clamp - CASE
38 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
Alternator (MITSUBISHI) 1 / 25
EC7 Alternator (MITSUBISHI)
ES4 Alternator (MITSUBISHI)
# OEM EC7 ES4
18 31146-PE0-004 Screw Screw
Battery 3 / 18
EC7 Battery
ES4 Battery
# OEM EC7 ES4
8 31542-SA5-665 Plug - VENT (MF) (PANASONIC) Plug - VENT (MF) (PANASONIC)
16 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
17 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
Body structure components 1 / 3
EC7 Body structure components
ES4 Front bulkhead
# OEM EC7 ES4
30 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
Brake line (LH) 4 / 38
EC7 Brake line (LH)
ES4 Brake lines (ABS; LH; 1)
# OEM EC7 ES4
12 46380-SH3-000 Grommet a - BRAKE PIPE Grommet a - BRAKE PIPE
29 46462-SE0-000 Bolt - OIL Bolt - OIL
30 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
33 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake master cylinder 3 / 14
EC7 Brake master cylinder
ES4 Brake master cylinder/ master power (LH)
# OEM EC7 ES4
7 57562-SF1-003 Circlip Circlip
8 46185-SE0-003 Seal - ROD Seal - ROD
14 57173-SB0-801 O-ring - CONNECTOR O-ring - CONNECTOR
Brake pedal/clutch pedal (LH) 2 / 20
EC7 Brake pedal/clutch pedal (LH)
ES4 Pedal (LH)
# OEM EC7 ES4
18 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
33 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Bumper (1) 1 / 28
EC7 Bumper (1)
ES4 Bumpers ('04-)
# OEM EC7 ES4
44 90303-SA5-003 Nut - FR. COMBINATION LIGHT Nut - FR. COMBINATION LIGHT
Camshaft/timing belt (SOHC) 2 / 23
EC7 Camshaft/timing belt (SOHC)
ES4 Camshaft/timing belt
# OEM EC7 ES4
17 90011-PG6-004 Bolt - TIMING BELT ADJUSTER SPRING Bolt - TIMING BELT ADJUSTER SPRING
20 91213-P2F-A01 Oil seal - 29X45X8 (ARAI) Oil seal - 29X45X8 (ARAI)
Clutch housing (1) 4 / 49
EC7 Clutch housing (1)
ES4 Clutch case
# OEM EC7 ES4
13 90015-634-010 Bolt - FLANGE, 10MM Bolt - FLANGE, 10MM
18 91205-PL3-A02 Oil seal - 35X56X8(NOK) Oil seal - 35X56X8(NOK)
18 91205-PL3-A01 Oil seal - 35X56X8 (ARAI) Oil seal - 35X56X8 (ARAI)
21 91216-PL3-005 Oil seal - 26X42X7 (NOK) Oil seal - 26X42X7 (NOK)
Clutch/torque converter 2 / 6
EC7 Clutch/torque converter
ES4 Clutch/torque converter
# OEM EC7 ES4
9 90011-PM0-000 Bolt - 12MM Bolt - 12MM
11 90034-689-000 Bolt - TWELVE POINT, 8MM (TOKAI TRW) Bolt - TWELVE POINT, 8MM (TOKAI TRW)
Combination switch 1 / 26
EC7 Combination switch
ES4 Combination switch (LH)
# OEM EC7 ES4
5 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
Console 1 / 12
EC7 Console
ES4 Console (1)
# OEM EC7 ES4
24 88324-SB3-950 Cover - RR. ASHTRAY Cover - RR. ASHTRAY

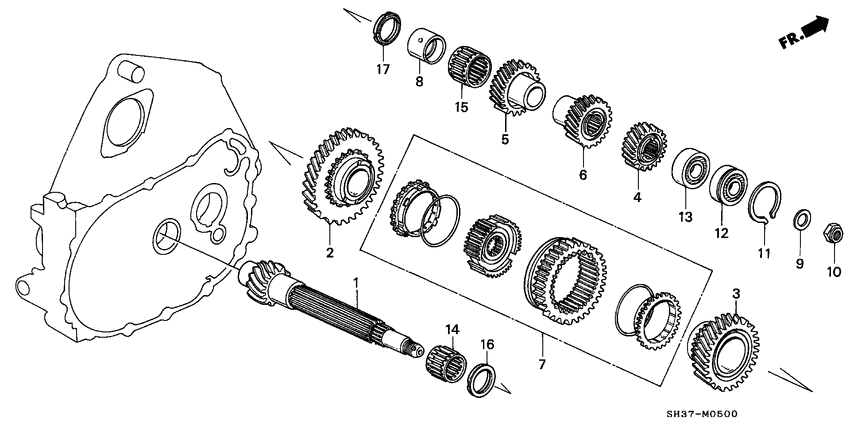

Countershaft/gear (1) 3 / 21
EC7 Countershaft/gear (1)
ES4 Countershaft
# OEM EC7 ES4
9 23926-PB6-010 Washer - SPRING, 22MM Washer - SPRING, 22MM
10 90202-PB6-010 Nut - FLANGE, 22MM Nut - FLANGE, 22MM
11 90603-PL3-000 Ring - SNAP, 52MM Ring - SNAP, 52MM
Cylinder block/oil pan 8 / 27
EC7 Cylinder block/oil pan
ES4 Cylinder block/oil pan
# OEM EC7 ES4
2 11106-PE0-300 Bolt - SEALING, 14MM Bolt - SEALING, 14MM
4 11126-PK1-003 Bolt - SEALING, 22MM Bolt - SEALING, 22MM
14 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
15 90008-PM0-003 Bolt-washer - 10X112 Bolt-washer - 10X112
18 90009-PH1-000 Bolt - DRAIN PLUG, 14MM Bolt - DRAIN PLUG, 14MM
22 90702-PE0-000 Dowel pin - 12X18 Dowel pin - 12X18
23 90703-PE0-000 Dowel pin - 18X22 Dowel pin - 18X22
24 91214-PLE-003 Oil seal Oil seal

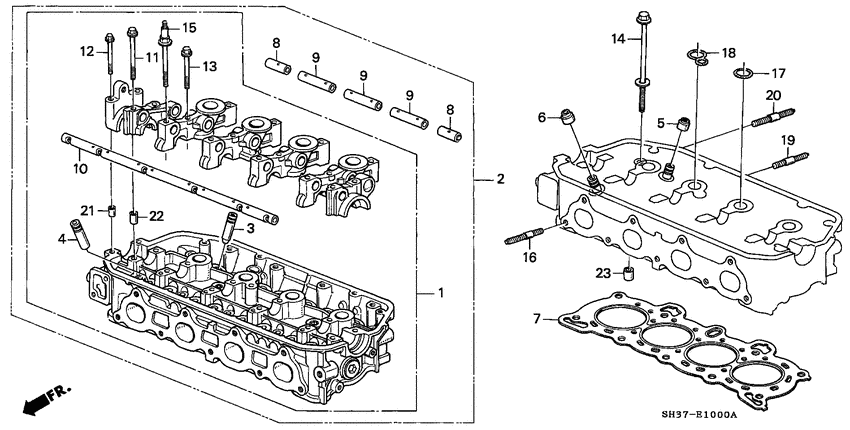

Cylinder head (SOHC) 4 / 25
EC7 Cylinder head (SOHC)
ES4 Cylinder head (SOHC)
# OEM EC7 ES4
3 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
14 90005-PM3-003 Bolt-washer - 10X140 (SAGA) Bolt-washer - 10X140 (SAGA)
16 90026-PE0-000 Bolt - STUD, 8X37 Bolt - STUD, 8X37
16 90026-PT0-000 Bolt - STUD, 8X38 Bolt - STUD, 8X38
Door lining 2 / 21
EC7 Door lining
ES4 Instrument panel garnish (LH; DRIVER SIDE)
# OEM EC7 ES4
25 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
26 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Door locks 3 / 20
EC7 Door locks
ES4 Rear door locks
# OEM EC7 ES4
34 72175-SH3-901 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
35 72175-SH3-003 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
40 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Door panels 2 / 6
EC7 Door panels
ES4 Rear door panels
# OEM EC7 ES4
12 75891-SA7-000 Stopper - DOOR Stopper - DOOR
14 90157-SA0-000 Bolt-washer - 8X25 Bolt-washer - 8X25
Emblem 1 / 7
EC7 Emblem
ES4 Emblems/caution labels
# OEM EC7 ES4
15 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine sub cord/clamp (1) 1 / 23
EC7 Engine sub cord/clamp (1)
ES4 Engine mounting bracket
# OEM EC7 ES4
25 90050-PG7-000 Bolt - FLANGE, 12X65 Bolt - FLANGE, 12X65
Exhaust pipe (1) 1 / 20
EC7 Exhaust pipe (1)
ES4 Exhaust pipe/silencer
# OEM EC7 ES4
40 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 1 / 6
EC7 Floor mat
ES4 Floor mat
# OEM EC7 ES4
12 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Front brake caliper (3) 2 / 17
EC7 Front brake caliper (3)
ES4 Front brake
# OEM EC7 ES4
2 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
15 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
Front combination light 3 / 23
EC7 Front combination light
ES4 Taillight/license light
# OEM EC7 ES4
3 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
15 34908-634-611 Bulb - 12V 21W) (ECE) (STANLEY Bulb - 12V 21W) (ECE) (STANLEY
31 90303-SA5-003 Nut - FR. COMBINATION LIGHT Nut - FR. COMBINATION LIGHT
Front fenders 3 / 19
EC7 Front fenders
ES4 Front fenders
# OEM EC7 ES4
17 90308-SB2-013 Nut - SUSPENSION, 5MM Nut - SUSPENSION, 5MM
18 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
19 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
Front shock absorber 2 / 22
EC7 Front shock absorber
ES4 Rear shock absorber
# OEM EC7 ES4
14 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front windshield wiper (1) 4 / 22
EC7 Front windshield wiper (1)
ES4 Front wiper (LH)
# OEM EC7 ES4
5 76516-SE0-003 Rubber - BRACKETLESS MOUNTING Rubber - BRACKETLESS MOUNTING
6 76517-SE0-003 Collar - BRACKETLESS Collar - BRACKETLESS
8 76524-SD4-003 Dust seal Dust seal
9 76524-SE0-013 Dust seal Dust seal
Fuel pipe/two way valve 1 / 18
EC7 Fuel pipe/two way valve
ES4 Fuel tank
# OEM EC7 ES4
35 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
Fuel tank 1 / 23
EC7 Fuel tank
ES4 Outer panels
# OEM EC7 ES4
23 90147-634-003 Bolt - FENDER, 6X18 Bolt - FENDER, 6X18
Glove box 2 / 8
EC7 Glove box
ES4 Instrument panel garnish (LH; PASSENGER SIDE)
# OEM EC7 ES4
3 66418-SB2-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
9 90140-SH3-003 Bolt-washer - 5X18 Bolt-washer - 5X18
Grommet 6 / 23
EC7 Grommet
ES4 Grommet (FRONT)
# OEM EC7 ES4
5 91615-SH3-000 Cap - FLOOR HOLE, 49MM Cap - FLOOR HOLE, 49MM
7 72207-SB2-000 Cap - FLOOR HOLE, 24MM Cap - FLOOR HOLE, 24MM
10 75826-605-300 Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
11 75826-634-300 Seal - INSIDE PANEL, 15MM Seal - INSIDE PANEL, 15MM
12 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
15 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
Heater blower 1 / 9
EC7 Heater blower
ES4 Heater blower (LH)
# OEM EC7 ES4
9 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
Heater control 1 / 34
EC7 Heater control
ES4 Wire harness (LH)
# OEM EC7 ES4
1 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
Heater unit 2 / 12
EC7 Heater unit
ES4 Heater unit (LH)
# OEM EC7 ES4
2 39248-692-003 Packing - HEATER Packing - HEATER
16 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
Hood 2 / 38
EC7 Hood
ES4 Hood (LH)
# OEM EC7 ES4
14 74134-SH3-003 Grommet - HOOD WIRE Grommet - HOOD WIRE
24 74177-SD4-000 Cushion a - HOOD Cushion a - HOOD
Instrument panel (LH) 6 / 30
EC7 Instrument panel (LH)
ES4 Instrument panel garnish (LH; DRIVER SIDE)
# OEM EC7 ES4
6 66418-579-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
45 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
46 90128-SA7-000 Bolt-washer - 6X25 Bolt-washer - 6X25
47 90139-SH3-003 Bolt-washer - 6X20 Bolt-washer - 6X20
48 90157-SA0-000 Bolt-washer - 8X25 Bolt-washer - 8X25
49 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
Intake manifold (1) 1 / 21
EC7 Intake manifold (1)
ES4 Water valve (LH)
# OEM EC7 ES4
15 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Knuckle 4 / 36
EC7 Knuckle
ES4 Front brake
# OEM EC7 ES4
17 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
17 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
21 90305-692-010 Nut Nut
22 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)

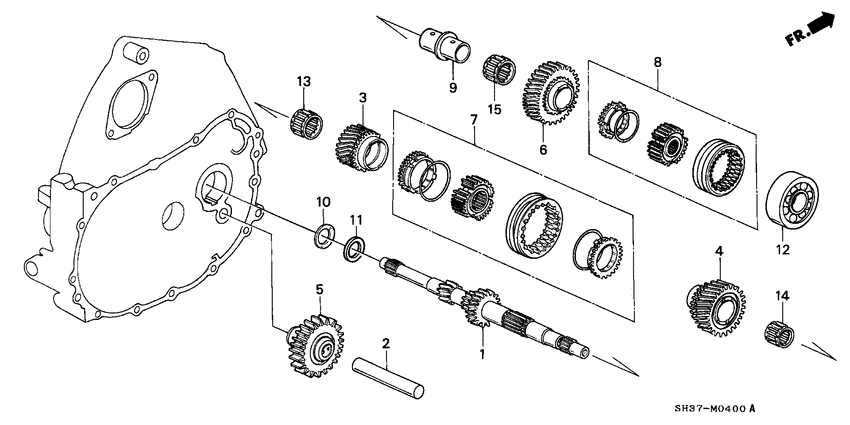

Mainshaft/gears (1) 3 / 15
EC7 Mainshaft/gears (1)
ES4 Mainshaft
# OEM EC7 ES4
2 23261-PL3-000 Shaft - REVERSE GEAR Shaft - REVERSE GEAR
10 23927-PL3-000 Washer - SPRING, 36MM Washer - SPRING, 36MM
11 23928-PL3-000 Washer - 26MM Washer - 26MM
Master power 2 / 14
EC7 Master power
ES4 Brake master cylinder/ master power (LH)
# OEM EC7 ES4
2 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
27 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Mirror/sunvisor 1 / 17
EC7 Mirror/sunvisor
ES4 Mirror (ELECTRIC REMOTE CONTROL)
# OEM EC7 ES4
32 88147-SA5-003 Washer - TOOTHED (MATSUYAMA) Washer - TOOTHED (MATSUYAMA)
Oil pump 5 / 25
EC7 Oil pump
ES4 Oil pump/oil strainer
# OEM EC7 ES4
10 15231-PM3-000 Valve - RELIEF Valve - RELIEF
11 15232-PM3-000 Spring - RELIEF VALVE Spring - RELIEF VALVE
14 15302-PE0-300 Washer - SEALING, 14MM Washer - SEALING, 14MM
15 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
19 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
Parking brake 5 / 13
EC7 Parking brake
ES4 Parking brake (1)
# OEM EC7 ES4
6 47360-SB2-000 Equalizer Equalizer
7 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
12 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
13 47537-671-670 Spring - PARKING BRAKE ROD Spring - PARKING BRAKE ROD
24 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
Piston/crankshaft 4 / 53
EC7 Piston/crankshaft
ES4 Piston/crankshaft
# OEM EC7 ES4
3 13112-PE0-000 Pin - PISTON Pin - PISTON
4 13204-PE1-003 Bolt Bolt
5 13205-634-010 Nut Nut
17 90704-634-000 Key - 4.5X11.0 Key - 4.5X11.0
Radiator (DENSO) 3 / 20
EC7 Radiator (DENSO)
ES4 Radiator (DENSO)
# OEM EC7 ES4
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
16 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose 1 / 18
EC7 Radiator hose
ES4 Radiator hose/reserve tan k
# OEM EC7 ES4
14 19511-PA6-003 Clip - WATER HOSE(CHUO SPRING) Clip - WATER HOSE(CHUO SPRING)
Rear brake drum 10 / 47
EC7 Rear brake drum
ES4 Rear brake (DRUM)
# OEM EC7 ES4
18 43323-663-003 Spring - RR. WHEEL CYLINDER Spring - RR. WHEEL CYLINDER
20 43352-568-003 SCREW, BLEEDER (NISSIN) SCREW, BLEEDER (NISSIN)
25 43364-S5A-003 Rod b - CONNECTING Rod b - CONNECTING
26 43365-SA5-003 Pin - PARKING BRAKE LEVER Pin - PARKING BRAKE LEVER
32 43375-SA0-003 U-clip U-clip
37 45175-SA0-013 Pin - TENSIONER Pin - TENSIONER
38 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
38 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
39 90305-692-010 Nut Nut
41 90001-SH3-000 Bolt - FLANGE, 10X13 Bolt - FLANGE, 10X13
Rear seat 1 / 7
EC7 Rear seat
ES4 Rear seat (3)
# OEM EC7 ES4
21 90128-SA7-000 Bolt-washer - 6X25 Bolt-washer - 6X25
Rear shock absorber 1 / 23
EC7 Rear shock absorber
ES4 Rear shock absorber
# OEM EC7 ES4
22 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Relay/horn/fuse box 1 / 18
EC7 Relay/horn/fuse box
ES4 Control unit (ENGINE ROOM)
# OEM EC7 ES4
29 39794-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7250) Relay assy - POWER(4P)(DENSO) (056700-7250)
Shift fork/fork shaft (1) 1 / 12
EC7 Shift fork/fork shaft (1)
ES4 Shift fork/shift holder
# OEM EC7 ES4
11 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
Shift rod/shift holder (1) 3 / 21
EC7 Shift rod/shift holder (1)
ES4 Shift fork/shift holder
# OEM EC7 ES4
16 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
17 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
20 90412-679-000 Washer - CONICAL SPRING, 8MM Washer - CONICAL SPRING, 8MM
Side protector 2 / 18
EC7 Side protector
ES4 Fuel tank
# OEM EC7 ES4
31 90657-SA5-003 Clip - SIDE APRON MOLDING Clip - SIDE APRON MOLDING
32 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Speedometer component (NS) 1 / 17
EC7 Speedometer component (NS)
ES4 Meter components (NS; 2)
# OEM EC7 ES4
5 37115-SA0-601 Packing - NS Packing - NS
Steering column (LH) 2 / 29
EC7 Steering column (LH)
ES4 Steering column
# OEM EC7 ES4
27 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
31 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
Tailgate 2 / 34
EC7 Tailgate
ES4 Trunk lid
# OEM EC7 ES4
9 73219-693-951 Seal - FUEL LID OPENER (GREEN) Seal - FUEL LID OPENER (GREEN)
41 90654-SA4-003 Clip - WIRE HARNESS, 6MM (WHITE) Clip - WIRE HARNESS, 6MM (WHITE)
Taillight (2) 5 / 24
EC7 Taillight (2)
ES4 Taillight/license light
# OEM EC7 ES4
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
2 33303-692-003 Packing - STANLEY Packing - STANLEY
2 33303-958-003 Gasket Gasket
3 33304-SF4-003 Screw - TAPPING, 4X45 Screw - TAPPING, 4X45
20 34908-634-611 Bulb - 12V 21W) (ECE) (STANLEY Bulb - 12V 21W) (ECE) (STANLEY
Tire/wheel disk 3 / 25
EC7 Tire/wheel disk
ES4 Tire/wheel disks
# OEM EC7 ES4
12 42753-SH3-003 Valve - RIM (US PACIFIC) Valve - RIM (US PACIFIC)
12 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
26 83850-SH3-000 Plate - ANCHOR BOLT Plate - ANCHOR BOLT
Tools/jack 1 / 7
EC7 Tools/jack
ES4 Tools/jack
# OEM EC7 ES4
5 89101-SW5-003 Bag - TOOL Bag - TOOL
Transmission housing (1) 1 / 51
EC7 Transmission housing (1)
ES4 Transmission case
# OEM EC7 ES4
7 90081-PB6-000 Bolt - PLUG, 14MM Bolt - PLUG, 14MM
Valve/rocker arm (SOHC) 2 / 18
EC7 Valve/rocker arm (SOHC)
ES4 Valve/rocker arm (SOHC)
# OEM EC7 ES4
10 14744-PM3-000 Screw - TAPPET ADJUSTING Screw - TAPPET ADJUSTING
15 14781-PJ7-003 Cotter - VALVE (FUJI VALVE) Cotter - VALVE (FUJI VALVE)
Washer tank 2 / 11
EC7 Washer tank
ES4 Windshield washer (2)
# OEM EC7 ES4
3 38516-SA5-671 Packing - T-TYPE) (MITSUBA Packing - T-TYPE) (MITSUBA
5 38519-SB0-003 Bush - WASHER TANK (MITSUBA) Bush - WASHER TANK (MITSUBA)
Washer tube 2 / 17
EC7 Washer tube
ES4 Windshield washer (2)
# OEM EC7 ES4
27 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
31 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Water pump 1 / 16
EC7 Water pump
ES4 Water pump/sensor
# OEM EC7 ES4
25 91314-634-000 O-ring O-ring
Water valve/duct 4 / 37
EC7 Water valve/duct
ES4 Water valve (LH)
# OEM EC7 ES4
35 90657-SA6-003 Clip - FR. INNER COWL Clip - FR. INNER COWL
38 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
38 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
39 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
Wire harness 4 / 32
EC7 Wire harness
ES4 Harness band/bracket (LH)
# OEM EC7 ES4
21 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
31 91547-SH3-003 Clip - BAND(NATURAL)(160MM) Clip - BAND(NATURAL)(160MM)
36 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
45 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
