CN2 × CS2

共通 276 / 合計 4,407 · Jaccard 6.3%
CN2 Honda ACCORD — 2,308 中 276 共有
CS2 Honda ACCORD — 2,375 中 276 共有
276 件

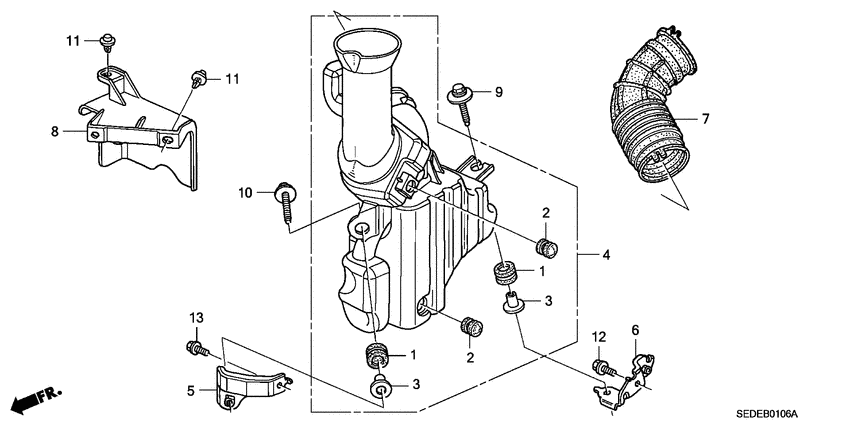

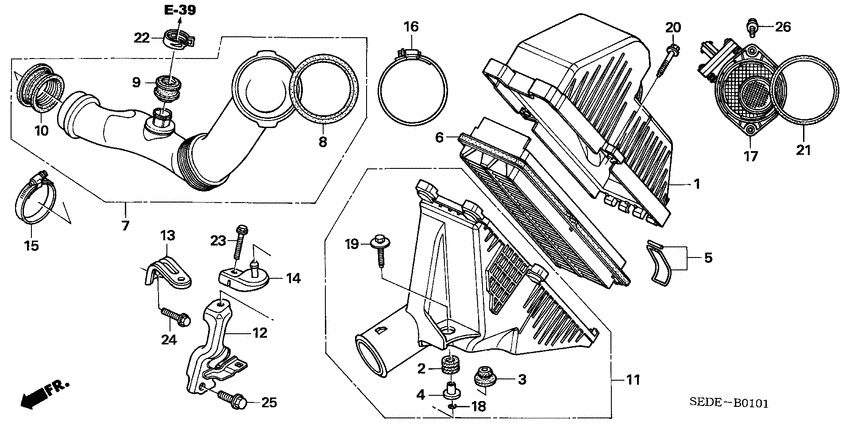

Air cleaner (DIESEL) 2 / 22
CN2 Air cleaner (DIESEL)
CS2 Air cleaner (V6)
# OEM CN2 CS2
3 17212-P2J-000 Rubber - AIR CLEANER MOUNTING Rubber - AIR CLEANER MOUNTING
18 75353-671-000 Lock - SCREW Lock - SCREW

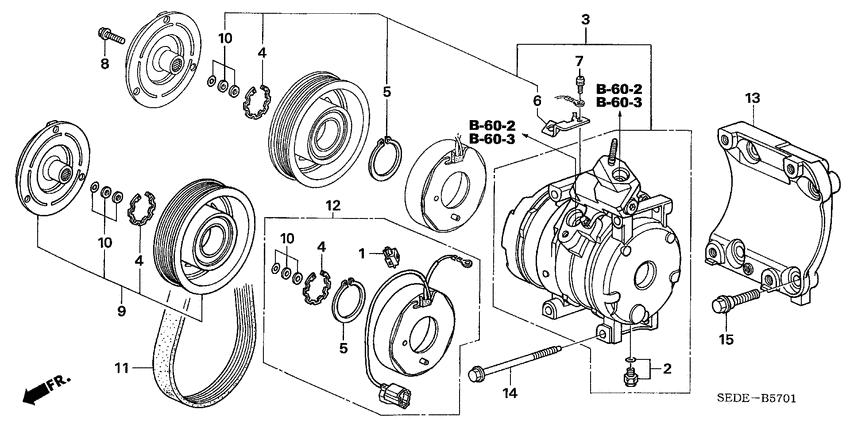

Air conditioner (COMPRESS OR; DIESEL) 6 / 16
CN2 Air conditioner (COMPRESS OR; DIESEL)
CS2 Air conditioner (COMPRESSOR; V6)
# OEM CN2 CS2
2 38801-P9K-E01 Valve sub assy. - SAFETY Valve sub assy. - SAFETY
4 38812-PH1-003 Ring b - SNAP Ring b - SNAP
5 38812-671-003 Ring a - SNAP Ring a - SNAP
7 38827-PH7-003 Screw-washer - 5X8 Screw-washer - 5X8
8 38829-PR3-003 Bolt - WASHER HEAD Bolt - WASHER HEAD
10 38912-PH1-N01 Plate set - WASHER Plate set - WASHER

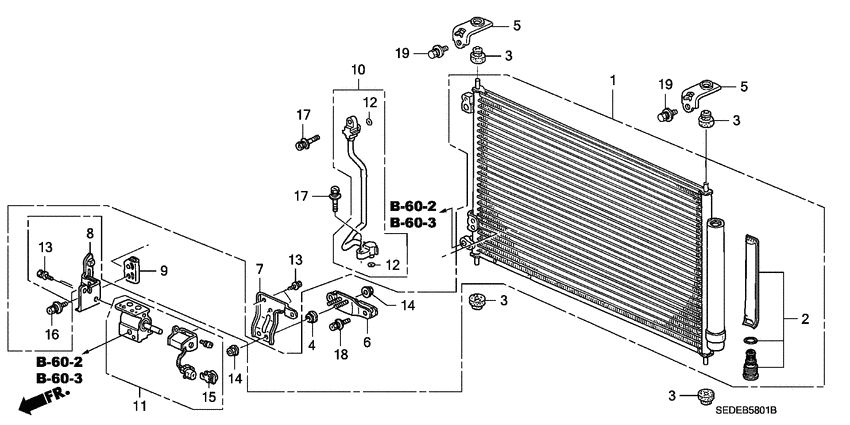

Air conditioner (CONDENSE R; DIESEL) 1 / 15
CN2 Air conditioner (CONDENSE R; DIESEL)
CS2 Air conditioner (CONDENSER)
# OEM CN2 CS2
3 80107-S2X-000 Mount - CONDENSER UPPER Mount - CONDENSER UPPER

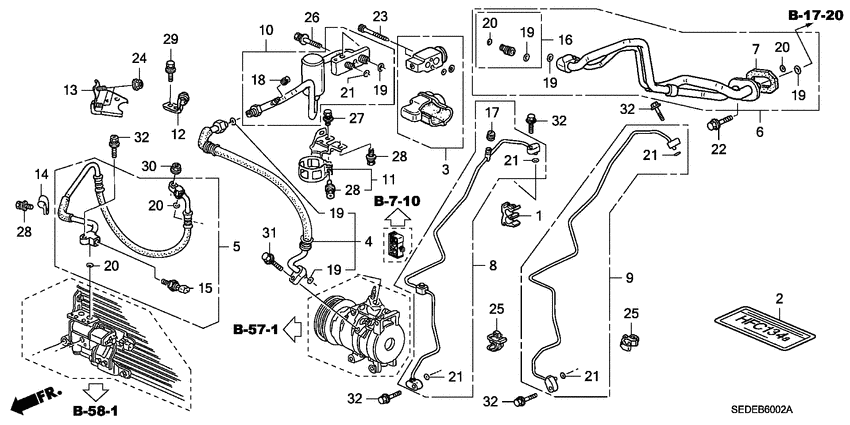

Air conditioner (HOSES/PI PES; LH; DIESEL) 3 / 25
CN2 Air conditioner (HOSES/PI PES; LH; DIESEL)
CS2 Air conditioner (HOSES/PIPES; V6)
# OEM CN2 CS2
2 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
22 90001-SDA-A00 Bolt - FLANGE, 6X38(GUIDE) Bolt - FLANGE, 6X38(GUIDE)
24 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Air conditioner (SENSOR) 2 / 6
CN2 Air conditioner (SENSOR)
CS2 Air conditioner (SENSOR)
# OEM CN2 CS2
3 80525-S30-941 Sensor assy - AMBIENT Sensor assy - AMBIENT
6 91517-SDA-A01 Clip - 8.5MM Clip - 8.5MM

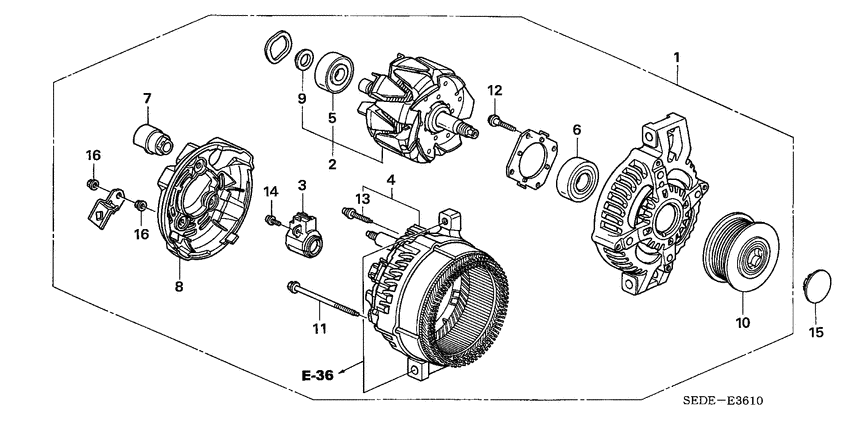

Alternator (DENSO; DIESEL) 8 / 16
CN2 Alternator (DENSO; DIESEL)
CS2 Alternator (DENSO; V6)
# OEM CN2 CS2
3 31105-RAA-A01 Holder assy. - BRUSH Holder assy. - BRUSH
5 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
6 31114-PGK-A01 Bearing - FR. Bearing - FR.
9 31138-PD1-004 Cover - BEARING Cover - BEARING
11 31145-PGK-A01 Bolt Bolt
12 31146-PE9-941 Screw-washer Screw-washer
14 31147-PT0-003 Screw-washer Screw-washer
16 90231-PGK-A01 Nut - HEX., 5MM Nut - HEX., 5MM
Battery (DIESEL) 3 / 15
CN2 Battery (DIESEL)
CS2 Battery (V6)
# OEM CN2 CS2
9 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
11 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
13 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16

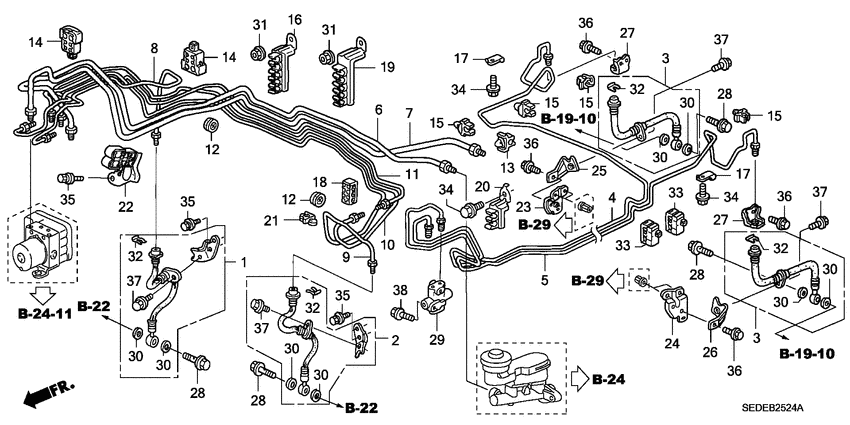

Brake lines (VSA; LH; DIESEL) 3 / 33
CN2 Brake lines (VSA; LH; DIESEL)
CS2 Brake lines (VSA)
# OEM CN2 CS2
28 46462-SE0-000 Bolt - OIL Bolt - OIL
30 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
31 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM

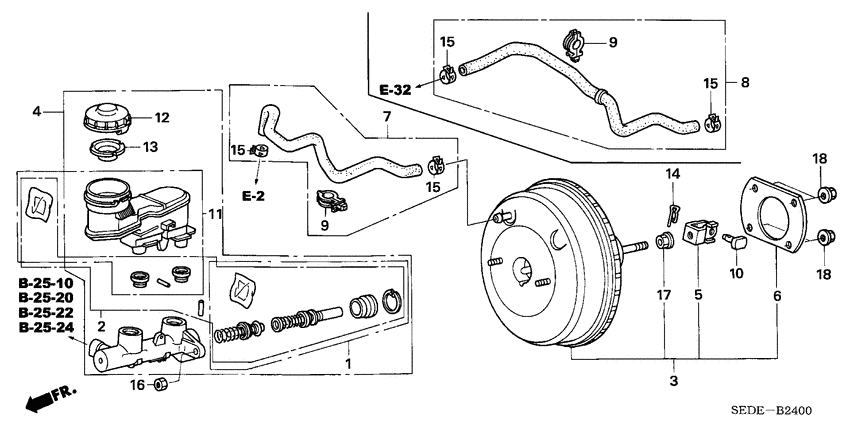

Brake master cylinder/ master power (LH) 4 / 15
CN2 Brake master cylinder/ master power (LH)
CS2 Brake master cylinder/ master power
# OEM CN2 CS2
6 46191-SDA-A00 Gasket - MASTER POWER Gasket - MASTER POWER
10 46512-S70-000 Pin - PEDAL Pin - PEDAL
14 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
15 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM

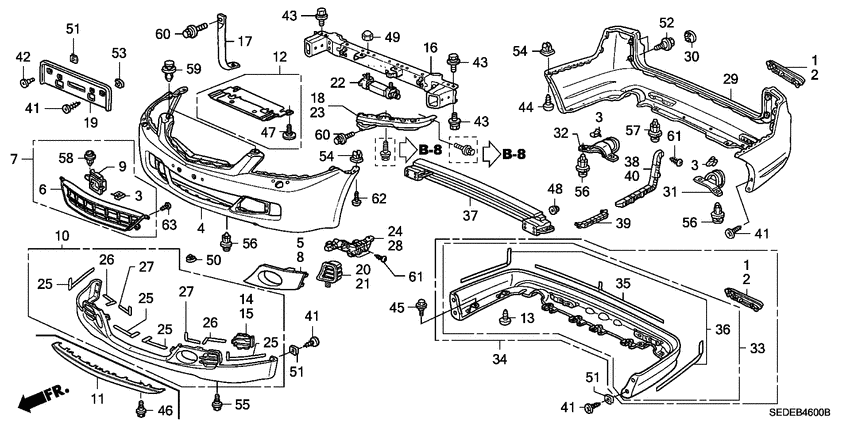

Bumpers 4 / 34
CN2 Bumpers
CS2 Bumpers
# OEM CN2 CS2
50 90305-SM4-000 Nut - AIR SPOILER CLIP Nut - AIR SPOILER CLIP
52 90501-SM4-003 Bolt - FENDER Bolt - FENDER
58 91505-S9A-003 Clip A - BUMPER Clip A - BUMPER
59 91506-S9A-003 Clip b - BUMPER Clip b - BUMPER
Center module 2 / 12
CN2 Center module
CS2 Instrument panel garnish (PASSENGER SIDE)
# OEM CN2 CS2
15 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
18 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

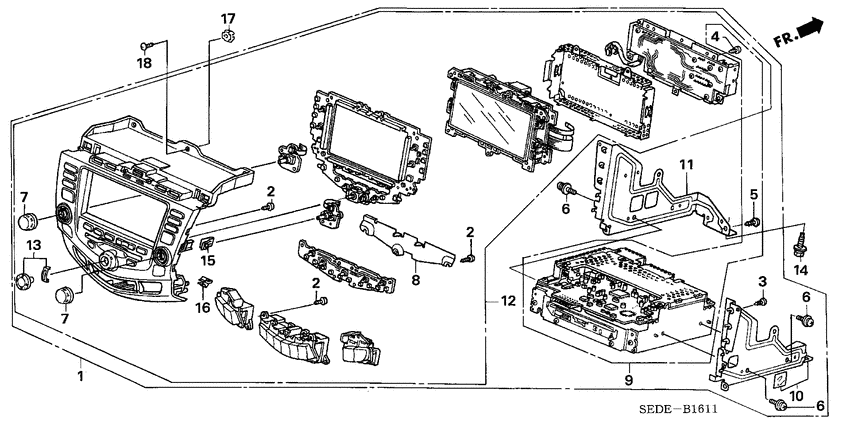

Center module (NAVI) 2 / 13
CN2 Center module (NAVI)
CS2 Instrument panel garnish (PASSENGER SIDE)
# OEM CN2 CS2
14 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
17 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

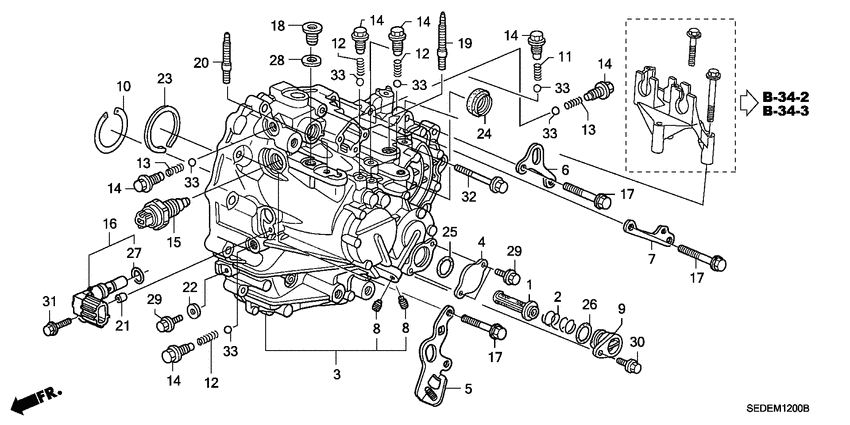

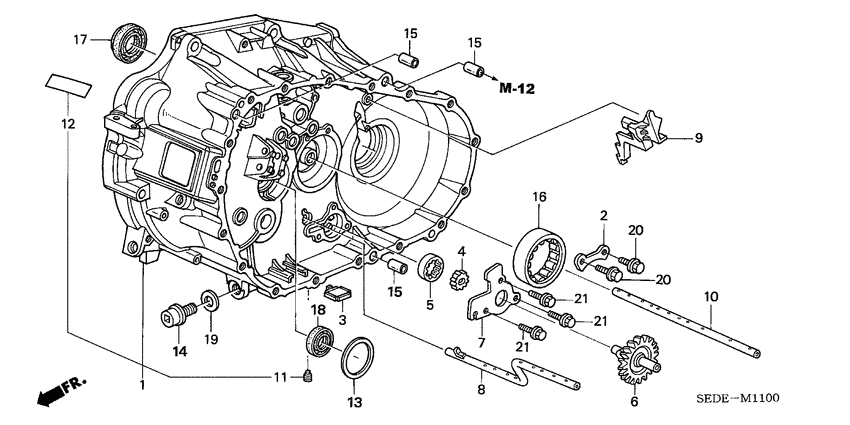

Clutch case (DIESEL) 1 / 18
CN2 Clutch case (DIESEL)
CS2 Torque converter case (V6)
# OEM CN2 CS2
17 91206-P0Z-005 Oil seal - 35X54X8 (NOK) Oil seal - 35X54X8 (NOK)

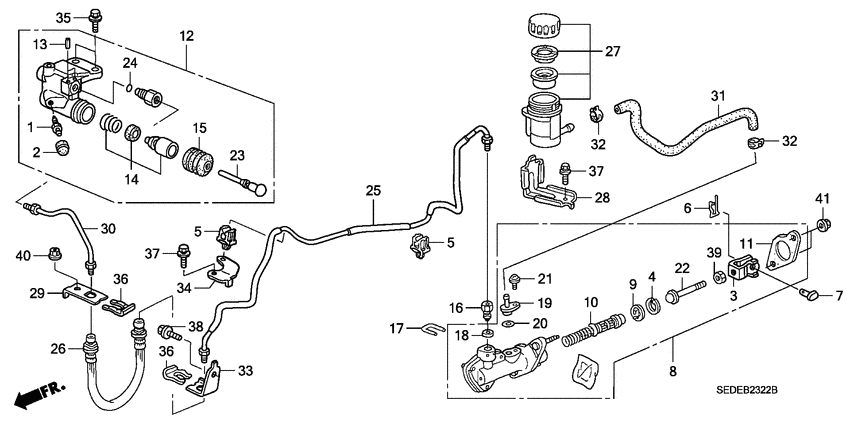

Clutch master cylinder (DIESEL; LH) 1 / 36
CN2 Clutch master cylinder (DIESEL; LH)
CS2 Brake master cylinder/ master power
# OEM CN2 CS2
6 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)

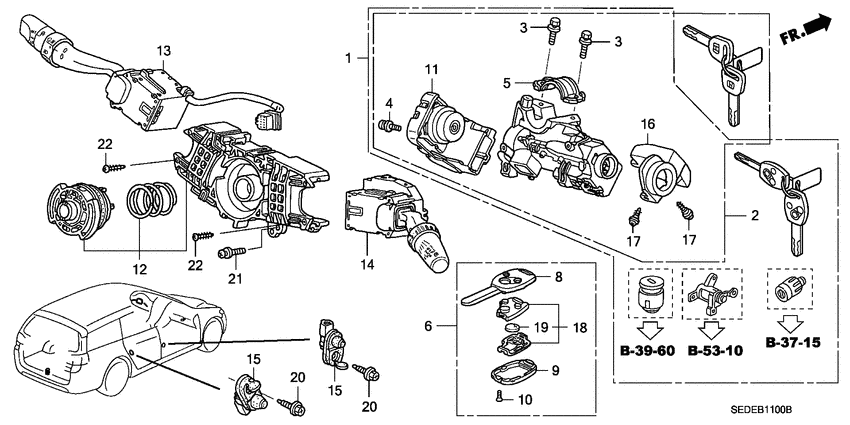

Combination switch (LH) 6 / 20
CN2 Combination switch (LH)
CS2 Combination switch
# OEM CN2 CS2
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
10 35116-SDA-A11 Screw - FLAT Screw - FLAT
17 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
19 72148-S0A-000 Battery CR1616 Battery CR1616

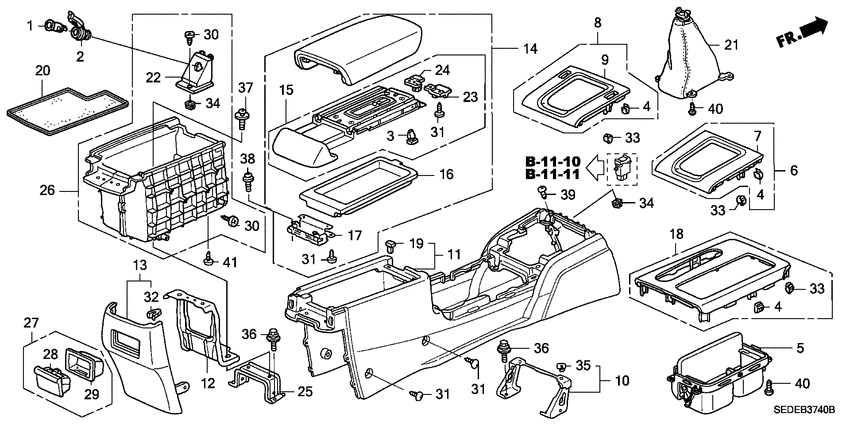

Console 4 / 16
CN2 Console
CS2 Console
# OEM CN2 CS2
2 39624-SZ3-L01 Socket assy Socket assy
32 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
34 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
35 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

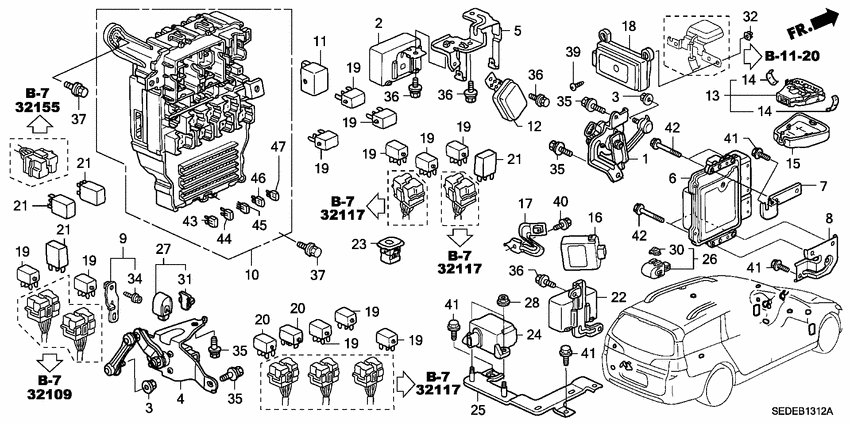

Control unit (CABIN; DIESEL; LH) 4 / 25
CN2 Control unit (CABIN; DIESEL; LH)
CS2 Control unit (ENGINE ROOM; 2)
# OEM CN2 CS2
20 39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) Relay assy, ENGINE CONTROL MODULE (DENSO)
20 39794-SDA-901 Relay assy, ENGINE CONTROL MODULE (MITSUBA) Relay assy, ENGINE CONTROL MODULE (MITSUBA)
28 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
32 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Control unit (ENGINE ROOM; DIESEL) 3 / 28
CN2 Control unit (ENGINE ROOM; DIESEL)
CS2 Control unit (ENGINE ROOM; 1; V6)
# OEM CN2 CS2
18 39792-SDA-A01 Relay assy - MICRO ISO Relay assy - MICRO ISO
23 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
25 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16

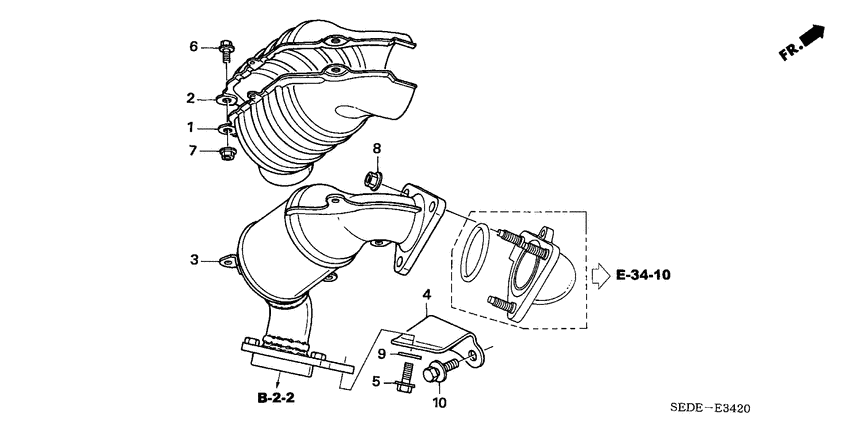

Converter (DIESEL) 1 / 9
CN2 Converter (DIESEL)
CS2 Converter (V6)
# OEM CN2 CS2
6 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
Crankshaft/piston (DIESEL) 1 / 43
CN2 Crankshaft/piston (DIESEL)
CS2 Crankshaft/piston (V6)
# OEM CN2 CS2
5 13204-P8A-A01 Bolt - CONNECTING ROD Bolt - CONNECTING ROD

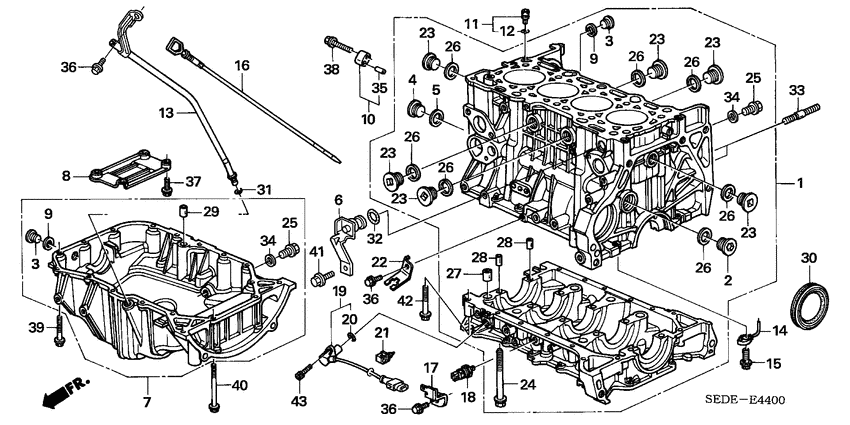

Cylinder block/oil pan (DIESEL) 4 / 34
CN2 Cylinder block/oil pan (DIESEL)
CS2 Cylinder block/oil pan (V6)
# OEM CN2 CS2
9 12207-PC6-300 Washer - SEALING, 16MM Washer - SEALING, 16MM
12 15142-P8A-A00 O-ring - 8.8X2.4 O-ring - 8.8X2.4
25 90009-PY3-000 DRAIN PLUG BOLT, 14MM DRAIN PLUG BOLT, 14MM
26 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
Cylinder head cover (DIESEL) 1 / 12
CN2 Cylinder head cover (DIESEL)
CS2 Cylinder head cover (V6)
# OEM CN2 CS2
7 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler

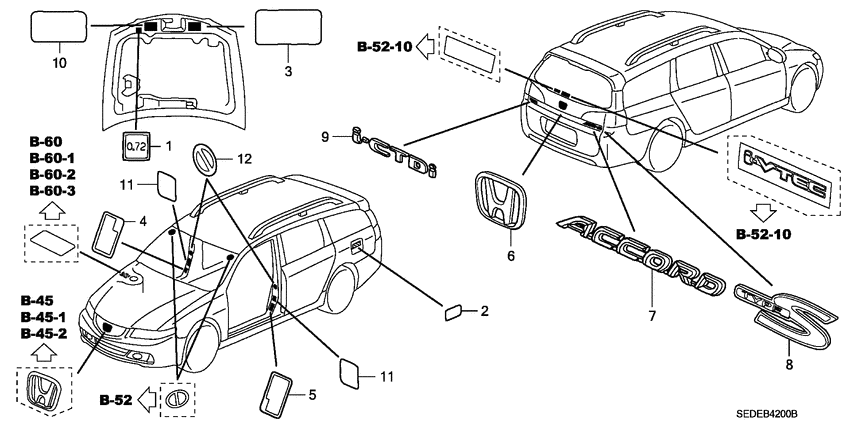

Emblems/caution labels 1 / 10
CN2 Emblems/caution labels
CS2 Emblems/caution labels
# OEM CN2 CS2
11 78031-SDA-G80 Label - SIDE AIRBAG CAUTION Label - SIDE AIRBAG CAUTION
Engine cover (DIESEL) 1 / 9
CN2 Engine cover (DIESEL)
CS2 Front grille
# OEM CN2 CS2
8 90301-ST0-003 push nut, 3mm push nut, 3mm

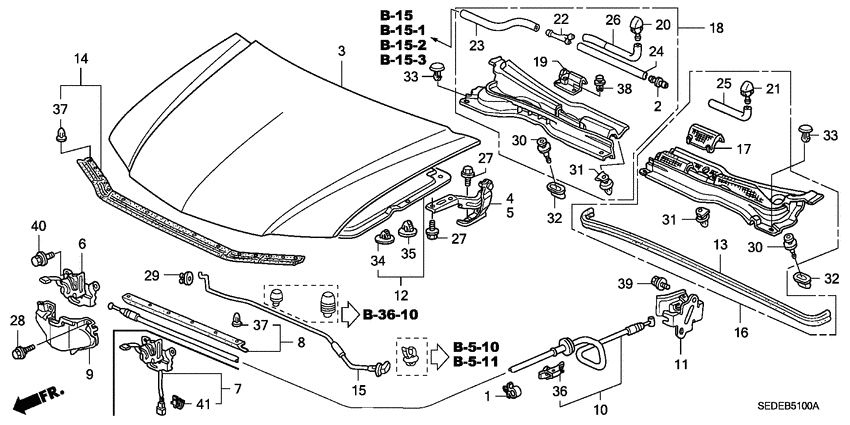

Engine hood (LH) 5 / 34
CN2 Engine hood (LH)
CS2 Engine hood
# OEM CN2 CS2
27 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
30 90602-SX0-003 Clip - COWL TOP Clip - COWL TOP
31 90602-S5A-003 Clip - COWL TOP Clip - COWL TOP
32 90603-SX0-003 Grommet - COWL TOP Grommet - COWL TOP
34 91501-STK-003 Clip - ENGINE HOOD INSULATOR Clip - ENGINE HOOD INSULATOR

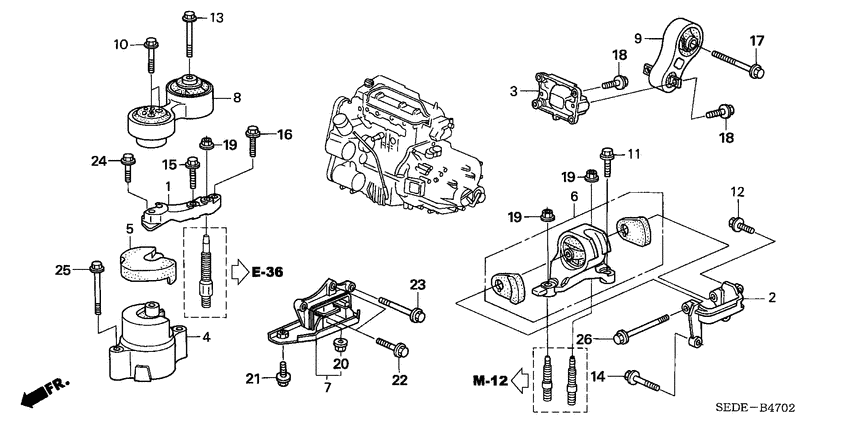

Engine mounts (DIESEL) 1 / 19
CN2 Engine mounts (DIESEL)
CS2 Engine mounts (V6)
# OEM CN2 CS2
19 90371-SEF-000 Nut - FLANGE, 12MM Nut - FLANGE, 12MM
Engine wire harness (LH; DIESEL) 3 / 23
CN2 Engine wire harness (LH; DIESEL)
CS2 Battery (V6)
# OEM CN2 CS2
14 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
15 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
23 91558-P8C-A01 Clip - HARNESS BAND (VIOLET) (150MM) Clip - HARNESS BAND (VIOLET) (150MM)

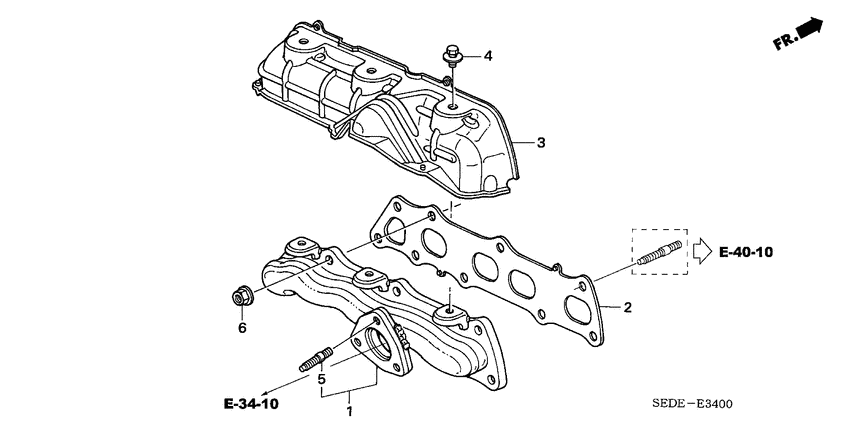

Exhaust manifold (DIESEL) 1 / 7
CN2 Exhaust manifold (DIESEL)
CS2 Exhaust pipe (V6)
# OEM CN2 CS2
6 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM

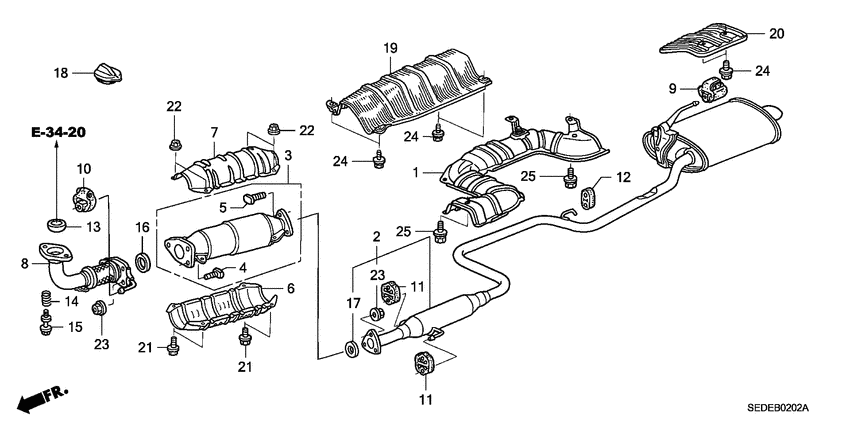

Exhaust pipe (DIESEL) 5 / 23
CN2 Exhaust pipe (DIESEL)
CS2 Exhaust pipe (V6)
# OEM CN2 CS2
4 18176-PT0-003 Bolt - CONVERTER Bolt - CONVERTER
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
12 18215-S84-A20 Rubber - EX. MOUNTING Rubber - EX. MOUNTING
21 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
23 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 2 / 7
CN2 Floor mat
CS2 Rear tray/ trunk side garnish
# OEM CN2 CS2
20 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
21 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR

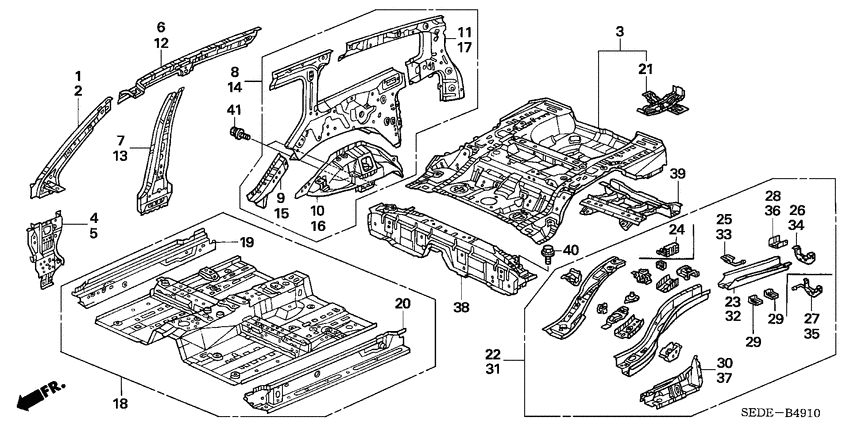

Floor/inner panels 1 / 1
CN2 Floor/inner panels
CS2 Bumpers
# OEM CN2 CS2
40 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15

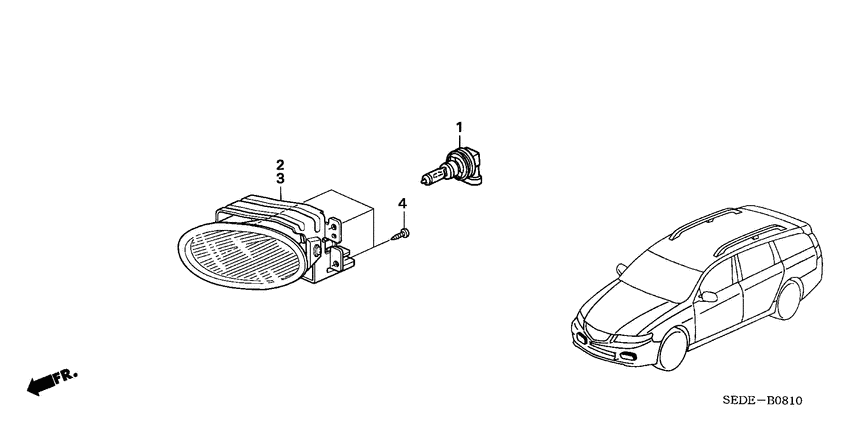

Fog light 3 / 5
CN2 Fog light
CS2 Fog light
# OEM CN2 CS2
1 33165-S5A-003 Bulb - H11) (12V 55W) (STANLEY Bulb - H11) (12V 55W) (STANLEY
1 33165-SAA-003 Bulb - H11) (12V 55W) (KOITO Bulb - H11) (12V 55W) (KOITO
4 90113-SJA-A00 Screw - TAPPING, 5X14 Screw - TAPPING, 5X14
Front beam/rear beam (DIESEL) 3 / 22
CN2 Front beam/rear beam (DIESEL)
CS2 Front sub frame/rear beam
# OEM CN2 CS2
19 90176-SDA-A00 Bolt - FLANGE, 14X135 Bolt - FLANGE, 14X135
22 90396-S5A-010 Bolt - FLANGE, 12X75 Bolt - FLANGE, 12X75
23 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM

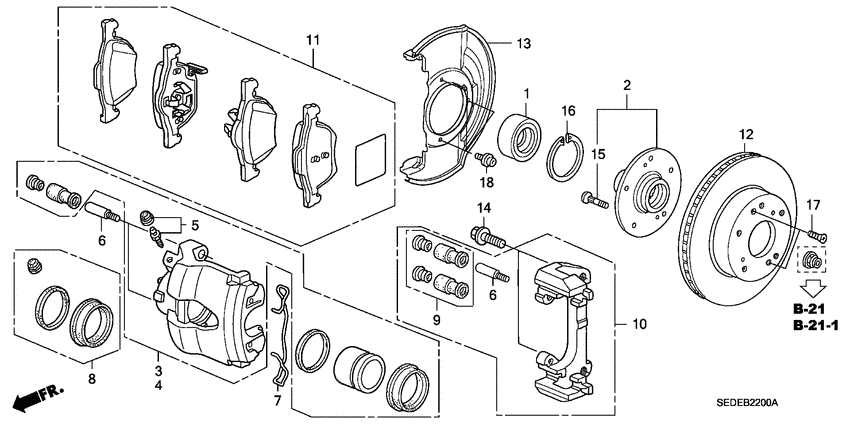

Front brake 4 / 21
CN2 Front brake
CS2 Rear brake
# OEM CN2 CS2
14 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
15 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
15 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
15 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
Front bulkhead/dashboard 2 / 2
CN2 Front bulkhead/dashboard
CS2 Front bulkhead/dashboard
# OEM CN2 CS2
36 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20
37 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15

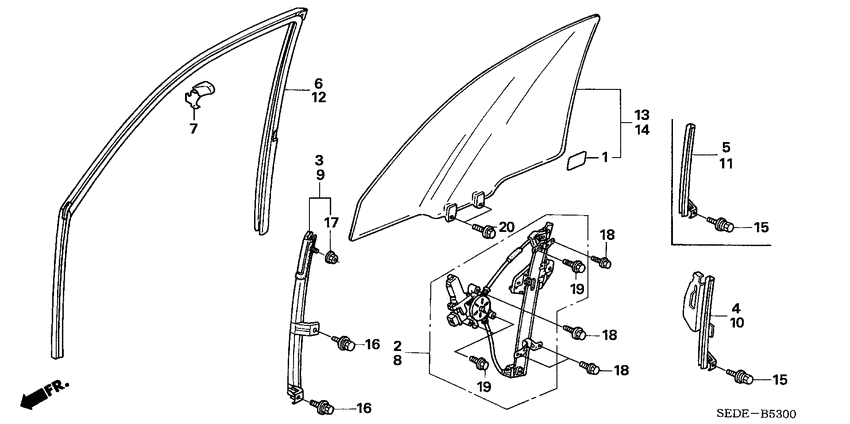

Front door glass/door reg ulator 1 / 13
CN2 Front door glass/door reg ulator
CS2 Door glass/regulator
# OEM CN2 CS2
1 39885-S5A-G11 Label - IMMOBILIZER & SECURITY Label - IMMOBILIZER & SECURITY

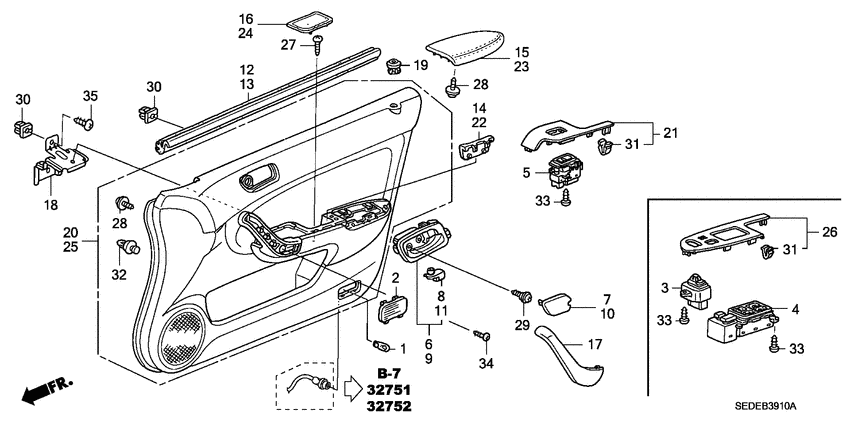

Front door lining (LH) 5 / 15
CN2 Front door lining (LH)
CS2 Door locks/outer handle
# OEM CN2 CS2
8 72134-S2X-003 Snap - R. (NATURAL) Snap - R. (NATURAL)
11 72174-S2X-003 Snap - L. (BLACK) Snap - L. (BLACK)
29 90141-SDA-000 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
30 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
31 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

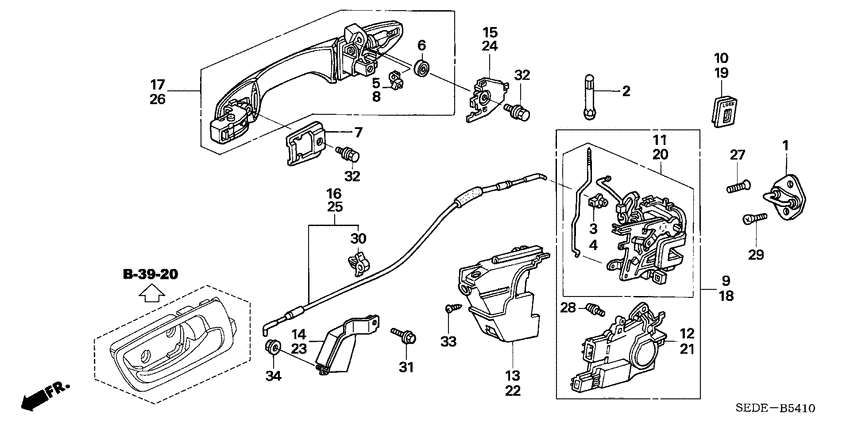

Front door locks/outer ha ndle 5 / 37
CN2 Front door locks/outer ha ndle
CS2 Door locks/outer handle
# OEM CN2 CS2
7 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
12 72135-SDA-A01 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
40 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
42 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
43 91591-SJ6-013 Clip s - FUEL PIPE Clip s - FUEL PIPE

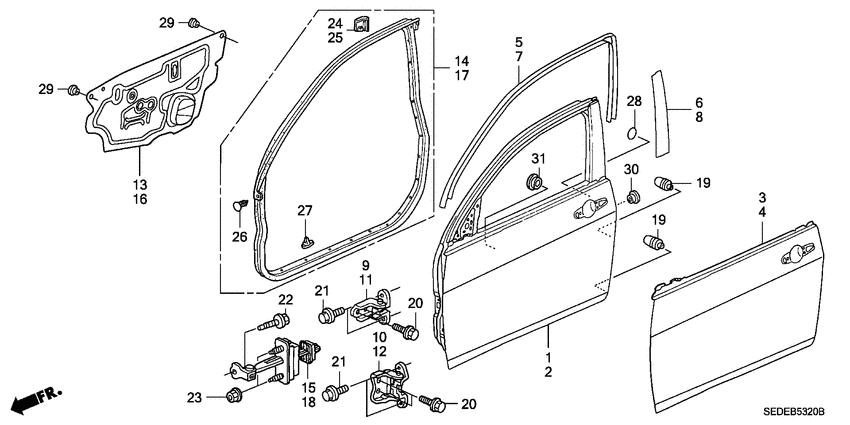

Front door panels 5 / 18
CN2 Front door panels
CS2 Door panels
# OEM CN2 CS2
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
20 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
21 90102-S3N-003 Bolt - FLANGE, 8X24.5 (10.5MM) Bolt - FLANGE, 8X24.5 (10.5MM)
21 90102-SFA-305 Bolt - FLANGE, 8X18 (SERVICE) Bolt - FLANGE, 8X18 (SERVICE)
22 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22

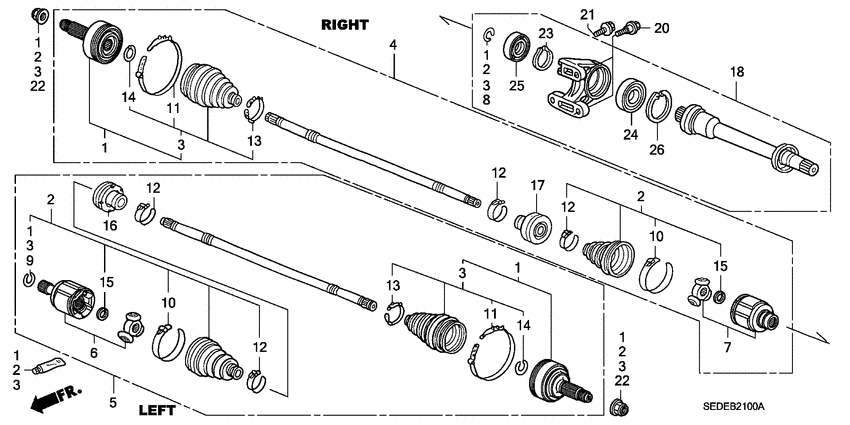

Front driveshaft/half sha ft (1) 5 / 23
CN2 Front driveshaft/half sha ft (1)
CS2 Front driveshaft/ half shaft (V6)
# OEM CN2 CS2
9 44319-S1K-300 Set ring - 30X2.2 Set ring - 30X2.2
10 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
12 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
20 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
21 90165-SE0-000 Bolt - FLANGE, 10X37 Bolt - FLANGE, 10X37
Front fenders (DIESEL) 8 / 27
CN2 Front fenders (DIESEL)
CS2 Bumpers
# OEM CN2 CS2
13 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
16 90144-SA0-020 Bolt - BUMPER SETTING (6X15) (BLACK) Bolt - BUMPER SETTING (6X15) (BLACK)
16 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
17 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
19 90305-SM4-000 Nut - AIR SPOILER CLIP Nut - AIR SPOILER CLIP
21 90682-SEA-003 Clip - TAPPING SCREW, 5MM Clip - TAPPING SCREW, 5MM
23 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
24 91533-SG0-000 Clip b - FAIRING Clip b - FAIRING
Front grille (1) 2 / 9
CN2 Front grille (1)
CS2 Front grille
# OEM CN2 CS2
8 90301-ST0-003 push nut, 3mm push nut, 3mm
10 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front knuckle/upper arm 3 / 16
CN2 Front knuckle/upper arm
CS2 Front knuckle
# OEM CN2 CS2
7 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
9 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
12 90172-SDA-A00 Bolt - FLANGE, 10X78 Bolt - FLANGE, 10X78
Front seat (L.; LH; 1) 7 / 19
CN2 Front seat (L.; LH; 1)
CS2 Front seat (R.)
# OEM CN2 CS2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
21 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
22 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
23 90610-S10-003 Clip - GARNISH Clip - GARNISH
25 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
26 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
27 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front seat (R.; LH; 1) 6 / 16
CN2 Front seat (R.; LH; 1)
CS2 Front seat (R.)
# OEM CN2 CS2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
18 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
19 90610-S10-003 Clip - GARNISH Clip - GARNISH
21 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
22 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
23 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front seat components (L.; MANUAL HEIGHT) 2 / 12
CN2 Front seat components (L.; MANUAL HEIGHT)
CS2 Front seat (L.)
# OEM CN2 CS2
16 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
17 90135-S7A-J51 Bolt-washer - 10X25 Bolt-washer - 10X25
Front seat components (R.; MANUAL SEAT) 1 / 3
CN2 Front seat components (R.; MANUAL SEAT)
CS2 Front seat components (L.; POWER HEIGHT)
# OEM CN2 CS2
4 90135-S7A-J51 Bolt-washer - 10X25 Bolt-washer - 10X25
Front shock absorber 9 / 17
CN2 Front shock absorber
CS2 Front shock absorber
# OEM CN2 CS2
6 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
9 51684-SDA-A02 Mount - FR. DUST COVER LOWER Mount - FR. DUST COVER LOWER
10 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
12 51688-SDA-A01 Sleeve - FR. DUST COVER Sleeve - FR. DUST COVER
13 51689-SDA-A01 Cover - FR. END DUST Cover - FR. END DUST
15 51722-SS0-004 Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
16 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
17 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
18 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front stabilizer/ front lower arm 4 / 21
CN2 Front stabilizer/ front lower arm
CS2 Front lower arm
# OEM CN2 CS2
3 51308-SDA-A00 Bracket - FR. STABILIZER Bracket - FR. STABILIZER
16 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
21 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Front windshield wiper (LH) 2 / 22
CN2 Front windshield wiper (LH)
CS2 Front windshield wiper
# OEM CN2 CS2
21 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
22 91611-SDA-A00 Cap - FR. WIPER ARM (12MM) Cap - FR. WIPER ARM (12MM)
Fuel pipe (DIESEL) 1 / 17
CN2 Fuel pipe (DIESEL)
CS2 Control unit (CABIN; 1)
# OEM CN2 CS2
14 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel strainer (DIESEL) 3 / 26
CN2 Fuel strainer (DIESEL)
CS2 Fuel pipe (V6)
# OEM CN2 CS2
29 91406-SAA-J00 Clamp - TUBE (D12) Clamp - TUBE (D12)
30 91407-SDB-000 Clamp - TUBE (D12.5) Clamp - TUBE (D12.5)
34 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank (DIESEL) 4 / 27
CN2 Fuel tank (DIESEL)
CS2 Fuel tank
# OEM CN2 CS2
6 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
11 17652-SDA-A31 Clip - FILLER TUBE Clip - FILLER TUBE
22 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
24 91462-SDA-003 Clamp - FUEL TUBE (D18) Clamp - FUEL TUBE (D18)
Grommet (FRONT) 5 / 11
CN2 Grommet (FRONT)
CS2 Grommet (FRONT)
# OEM CN2 CS2
1 75826-634-300 Seal - INSIDE PANEL, 15MM Seal - INSIDE PANEL, 15MM
2 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
9 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
10 91615-SH3-000 Cap - FLOOR HOLE, 49MM Cap - FLOOR HOLE, 49MM
11 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Grommet (LOWER) 4 / 6
CN2 Grommet (LOWER)
CS2 Grommet (LOWER)
# OEM CN2 CS2
1 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
2 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
3 90860-SA5-003 Plug - HOLE, 16MM Plug - HOLE, 16MM
6 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
Grommet (REAR) 5 / 8
CN2 Grommet (REAR)
CS2 Grommet (REAR)
# OEM CN2 CS2
1 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
2 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
3 90615-S5A-003 Plug - HOLE, 27X56 Plug - HOLE, 27X56
4 90682-SDA-A01 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
5 90857-SDA-A00 Cap - WELD HOLE Cap - WELD HOLE
Grommet (SIDE) 2 / 5
CN2 Grommet (SIDE)
CS2 Grommet (FRONT)
# OEM CN2 CS2
5 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
6 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Harness band/bracket (LH) 19 / 58
CN2 Harness band/bracket (LH)
CS2 Harness band/bracket
# OEM CN2 CS2
8 32132-S6A-003 Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
10 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
20 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
21 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
22 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
24 91476-SB6-003 Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
28 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
31 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
32 91531-S84-003 Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
35 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
36 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
37 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
42 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
44 91550-ST0-003 Clip - WIRE HARNESS (NATURAL) (110MM) Clip - WIRE HARNESS (NATURAL) (110MM)
54 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
61 91902-S2X-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
62 91902-S3N-003 Plaster - WIRE HARNESS (50X50) Plaster - WIRE HARNESS (50X50)
66 32133-SLA-003 Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
Headlight 3 / 16
CN2 Headlight
CS2 Headlight
# OEM CN2 CS2
2 33105-S5N-C01 Nut - SPECIAL Nut - SPECIAL
17 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
20 33305-S5A-003 Socket comp - T10 Socket comp - T10
Heater blower (LH) 4 / 10
CN2 Heater blower (LH)
CS2 Heater unit
# OEM CN2 CS2
7 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
8 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
9 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
10 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (LH) 7 / 28
CN2 Heater unit (LH)
CS2 Heater unit
# OEM CN2 CS2
1 39248-692-003 Packing - HEATER Packing - HEATER
19 80534-S84-A41 Aspirator Aspirator
27 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
28 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
29 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
30 90661-S2A-003 Clip - DRAIN HOSE Clip - DRAIN HOSE
32 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Install pipe/vacuum pump (DIESEL) 2 / 26
CN2 Install pipe/vacuum pump (DIESEL)
CS2 Fuel pipe (V6)
# OEM CN2 CS2
1 16725-RAC-003 Clamp - FUEL HOSE (NATURAL) Clamp - FUEL HOSE (NATURAL)
21 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Instrument panel (LH) 5 / 14
CN2 Instrument panel (LH)
CS2 Instrument panel
# OEM CN2 CS2
6 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
17 90106-S84-A00 Bolt-washer - 8X40 Bolt-washer - 8X40
19 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
21 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
24 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (DRIVER SIDE; LH) 5 / 13
CN2 Instrument panel garnish (DRIVER SIDE; LH)
CS2 Meter components (NS)
# OEM CN2 CS2
1 37115-SA0-601 Packing - NS Packing - NS
4 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
18 90101-S2K-000 Screw - TAPPING, 4X16(IT) Screw - TAPPING, 4X16(IT)
21 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
23 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (PASSENGER SIDE; LH) 5 / 26
CN2 Instrument panel garnish (PASSENGER SIDE; LH)
CS2 Instrument panel garnish (PASSENGER SIDE)
# OEM CN2 CS2
9 66418-SB2-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
10 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
40 90140-SDA-A00 Bolt-washer - 5X19 Bolt-washer - 5X19
42 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
45 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Intercooler 1 / 18
CN2 Intercooler
CS2 Floor/inner panels
# OEM CN2 CS2
16 75353-671-000 Lock - SCREW Lock - SCREW
Interior light 6 / 15
CN2 Interior light
CS2 Interior light
# OEM CN2 CS2
1 34251-S5A-003 Lens Lens
3 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
3 04110-SWA-305 BULB T10X318W BULB T10X318W
5 34401-SDA-A21 Lens - R. Lens - R.
7 34402-SDA-A21 Lens - L. Lens - L.
23 90148-S6A-013 Bolt - EARTH, 5X14 Bolt - EARTH, 5X14
Meter components (NS) 1 / 6
CN2 Meter components (NS)
CS2 Meter components (NS)
# OEM CN2 CS2
1 37115-SA0-601 Packing - NS Packing - NS
Mirror 2 / 21
CN2 Mirror
CS2 Mirror
# OEM CN2 CS2
19 90109-SDF-003 Screw - TAPPING, 4X14 Screw - TAPPING, 4X14
23 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Molding 1 / 43
CN2 Molding
CS2 Emblems/caution labels
# OEM CN2 CS2
50 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Navigation system (LH) 3 / 12
CN2 Navigation system (LH)
CS2 Radio antenna/speaker
# OEM CN2 CS2
8 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
9 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
10 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Outer panels/rear panel 5 / 8
CN2 Outer panels/rear panel
CS2 Outer panels/rear panel
# OEM CN2 CS2
36 75450-SDA-A01 Outlet assy - RR. AIR Outlet assy - RR. AIR
37 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
38 90147-634-003 Bolt - FENDER, 6X18 Bolt - FENDER, 6X18
39 90684-SD4-003 Clip - FUEL LID OPENER Clip - FUEL LID OPENER
40 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
P.s. gear box (LH) 1 / 16
CN2 P.s. gear box (LH)
CS2 P.s. gear box
# OEM CN2 CS2
5 53449-S84-A01 Band - BELLOWS Band - BELLOWS
P.s. gear box components (LH) 10 / 23
CN2 P.s. gear box components (LH)
CS2 P.s. gear box components
# OEM CN2 CS2
2 06532-S50-003 Oil seal set - ROTARY VALVE Oil seal set - ROTARY VALVE
3 06534-S84-A01 Ring set - POWER STEERING SEAL (ROTARY VALVE) Ring set - POWER STEERING SEAL (ROTARY VALVE)
4 06535-S50-003 Ring set - POWER STEERING SEAL (ROTARY VALVE) Ring set - POWER STEERING SEAL (ROTARY VALVE)
6 53414-S84-A01 Screw - RACK GUIDE Screw - RACK GUIDE
8 53449-S84-A01 Band - BELLOWS Band - BELLOWS
9 53458-S84-A01 Nut - LOCK Nut - LOCK
17 53656-S84-A01 Circlip - EXTERNAL, 20MM Circlip - EXTERNAL, 20MM
18 53660-S50-003 Oil seal - 27X38X5.5 (SHOWA) Oil seal - 27X38X5.5 (SHOWA)
20 53666-S50-003 O-ring - 41.5X2 (SHOWA) O-ring - 41.5X2 (SHOWA)
23 90105-S50-003 Bolt - FLANGE, 8X28 Bolt - FLANGE, 8X28
P.s. lines (DIESEL; LH) 6 / 24
CN2 P.s. lines (DIESEL; LH)
CS2 P.s. lines (V6)
# OEM CN2 CS2
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
6 53728-SDB-A01 Clip - RETURN PIPE Clip - RETURN PIPE
9 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
16 53736-SH3-950 Holder b - POWER STEERING PIPE Holder b - POWER STEERING PIPE
22 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
24 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
Parking brake (LH) 5 / 8
CN2 Parking brake (LH)
CS2 Parking brake
# OEM CN2 CS2
3 47360-SB2-000 Equalizer Equalizer
4 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
6 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
7 47537-671-670 Spring - PARKING BRAKE ROD Spring - PARKING BRAKE ROD
9 47572-ST0-000 Base - WIRE GUIDE Base - WIRE GUIDE
Pedal (LH) 5 / 25
CN2 Pedal (LH)
CS2 Pedal
# OEM CN2 CS2
6 36750-SMA-003 Switch assy - STOP & CRUISE (PANASONIC) Switch assy - STOP & CRUISE (PANASONIC)
9 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
24 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
25 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
26 90361-S3C-003 Nut - PAINT CUTTING, 8MM Nut - PAINT CUTTING, 8MM
Power steering pump (DIESEL) 9 / 23
CN2 Power steering pump (DIESEL)
CS2 Power steering pump/ bracket (V6)
# OEM CN2 CS2
6 90305-PAA-A01 Nut - POWER STEERING PULLEY Nut - POWER STEERING PULLEY
7 90693-P2A-003 Circlip - INTERNAL, 40MM Circlip - INTERNAL, 40MM
7 90693-PAA-A01 Circlip - INTERNAL, 40MM Circlip - INTERNAL, 40MM
8 91048-P2A-003 Bearing - RADIAL BALL, 17X40X12 Bearing - RADIAL BALL, 17X40X12
9 91249-PNC-003 Seal - POWER STEERING PUMP Seal - POWER STEERING PUMP
15 91347-PAA-A01 O-ring - 16.7X1.8 O-ring - 16.7X1.8
17 91348-P2A-003 O-ring - 51.0X2.4 O-ring - 51.0X2.4
20 91350-PLA-003 Bolt - FLANGE, 8X35 Bolt - FLANGE, 8X35
21 91350-P8C-A01 Bolt - FLANGE, 6X20 Bolt - FLANGE, 6X20
Radiator (DIESEL) 5 / 19
CN2 Radiator (DIESEL)
CS2 Radiator (V6)
# OEM CN2 CS2
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
12 90041-P3G-003 Screw-washer - 5X11 Screw-washer - 5X11
14 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
15 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose/reserve tan k (DIESEL) 4 / 20
CN2 Radiator hose/reserve tan k (DIESEL)
CS2 Water hose (V6)
# OEM CN2 CS2
2 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
16 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
18 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
18 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Radio antenna/speaker 1 / 11
CN2 Radio antenna/speaker
CS2 Instrument panel garnish (PASSENGER SIDE)
# OEM CN2 CS2
12 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
Rear brake 8 / 23
CN2 Rear brake
CS2 Rear brake
# OEM CN2 CS2
13 43235-S84-A51 Pin a Pin a
15 43262-S84-A51 Pin b Pin b
16 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
17 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
18 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
20 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
20 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
20 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
Rear door lining 5 / 12
CN2 Rear door lining
CS2 Door locks/outer handle
# OEM CN2 CS2
4 72134-S2X-003 Snap - R. (NATURAL) Snap - R. (NATURAL)
7 72174-S2X-003 Snap - L. (BLACK) Snap - L. (BLACK)
22 90141-SDA-000 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
23 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
24 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
Rear door locks/outer han dle 3 / 25
CN2 Rear door locks/outer han dle
CS2 Door locks/outer handle
# OEM CN2 CS2
1 72135-SDA-A01 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
29 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
30 91591-SJ6-013 Clip s - FUEL PIPE Clip s - FUEL PIPE
Rear door panels 5 / 18
CN2 Rear door panels
CS2 Door panels
# OEM CN2 CS2
20 75891-SA7-000 Stopper - DOOR Stopper - DOOR
21 90102-S3N-003 Bolt - FLANGE, 8X24.5 (10.5MM) Bolt - FLANGE, 8X24.5 (10.5MM)
21 90102-SFA-305 Bolt - FLANGE, 8X18 (SERVICE) Bolt - FLANGE, 8X18 (SERVICE)
22 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
24 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
Rear lower arm 4 / 39
CN2 Rear lower arm
CS2 Front knuckle
# OEM CN2 CS2
2 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
36 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Rear seat (L.) 4 / 29
CN2 Rear seat (L.)
CS2 Front seat (L.)
# OEM CN2 CS2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
44 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
46 90135-S7A-J51 Bolt-washer - 10X25 Bolt-washer - 10X25
49 90650-S6M-J01 Clip - RATCHET, 10MM Clip - RATCHET, 10MM
Rear seat (R.) 4 / 30
CN2 Rear seat (R.)
CS2 Front seat (L.)
# OEM CN2 CS2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
49 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
51 90135-S7A-J51 Bolt-washer - 10X25 Bolt-washer - 10X25
53 90650-S6M-J01 Clip - RATCHET, 10MM Clip - RATCHET, 10MM
Rear shock absorber 1 / 10
CN2 Rear shock absorber
CS2 Front shock absorber
# OEM CN2 CS2
10 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear windshield 1 / 10
CN2 Rear windshield
CS2 Rear windshield/ quarter glass
# OEM CN2 CS2
12 91536-SS0-J01 Fastener a - WINDSHIELD Fastener a - WINDSHIELD
Resonator chamber (DIESEL) 2 / 11
CN2 Resonator chamber (DIESEL)
CS2 Air cleaner (V6)
# OEM CN2 CS2
2 17213-PV0-000 Rubber - AIR CLEANER CASE MOUNTING Rubber - AIR CLEANER CASE MOUNTING
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Seatbelts 2 / 7
CN2 Seatbelts
CS2 Front seat (L.)
# OEM CN2 CS2
17 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
19 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
Side lining 3 / 16
CN2 Side lining
CS2 Taillight/license light
# OEM CN2 CS2
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
8 75353-671-000 Lock - SCREW Lock - SCREW
30 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
Side sill garnish 5 / 19
CN2 Side sill garnish
CS2 Bumpers
# OEM CN2 CS2
9 90144-SA0-020 Bolt - BUMPER SETTING (6X15) (BLACK) Bolt - BUMPER SETTING (6X15) (BLACK)
9 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
10 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
14 90682-SEA-003 Clip - TAPPING SCREW, 5MM Clip - TAPPING SCREW, 5MM
18 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Srs unit (LH) 8 / 26
CN2 Srs unit (LH)
CS2 Harness band/bracket
# OEM CN2 CS2
13 90133-SDC-003 Bolt-washer - 5X16 Bolt-washer - 5X16
14 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
16 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
17 91531-S84-003 Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
18 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
19 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
20 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
24 91902-S2X-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
Steering column 6 / 10
CN2 Steering column
CS2 Steering column
# OEM CN2 CS2
8 77873-SDA-E80 Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
9 90135-SDA-000 Bolt - STEERING JOINT YOKE Bolt - STEERING JOINT YOKE
9 90135-SZT-000 Bolt - STEERING JOINT YOKE Bolt - STEERING JOINT YOKE
10 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
11 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
12 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Steering wheel (SRS; 2) 2 / 14
CN2 Steering wheel (SRS; 2)
CS2 Steering wheel (SRS)
# OEM CN2 CS2
14 90134-S6A-A80 Bolt - HEX., 6X23 Bolt - HEX., 6X23
16 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Tailgate 2 / 26
CN2 Tailgate
CS2 Floor/inner panels
# OEM CN2 CS2
23 75353-671-000 Lock - SCREW Lock - SCREW
28 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
Tailgate lining 1 / 7
CN2 Tailgate lining
CS2 Floor mat
# OEM CN2 CS2
16 91560-S6A-003 Clip - DOOR LINING(ORANGE) Clip - DOOR LINING(ORANGE)
Taillight/license light 5 / 27
CN2 Taillight/license light
CS2 Taillight/license light
# OEM CN2 CS2
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
3 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
10 33514-S50-003 Socket - T20W S3 Socket - T20W S3
12 34102-S2K-013 Housing comp Housing comp
18 34906-ST5-003 Bulb - 12V 21W/5W) (STANLEY Bulb - 12V 21W/5W) (STANLEY
Tire/wheel disks 5 / 27
CN2 Tire/wheel disks
CS2 Tire/wheel disks
# OEM CN2 CS2
9 42753-671-003 Valve - RIM (TAIHEIYO) Valve - RIM (TAIHEIYO)
9 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
11 42767-SH3-E00 Plate - SPARE TIRE CAUTION (T-TYPE) Plate - SPARE TIRE CAUTION (T-TYPE)
19 74651-S2X-003 Adapter - SPARE TIRE Adapter - SPARE TIRE
20 74652-SDA-003 Bolt - SPARE TIRE Bolt - SPARE TIRE
Tools/jack 2 / 5
CN2 Tools/jack
CS2 Tools/jack
# OEM CN2 CS2
12 89310-SFE-003 Jack assy - PANTOGRAPH Jack assy - PANTOGRAPH
13 89311-SFE-003 Plate - JACK CAUTION Plate - JACK CAUTION
Transmission case (DIESEL) 2 / 56
CN2 Transmission case (DIESEL)
CS2 Transmission case (V6)
# OEM CN2 CS2
24 91205-P0X-005 Oil seal - 40X56X9 (NOK) Oil seal - 40X56X9 (NOK)
27 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
Turbocharger (DIESEL) 1 / 20
CN2 Turbocharger (DIESEL)
CS2 Converter (V6)
# OEM CN2 CS2
16 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
Valve stem seal/glow plug (DIESEL) 3 / 16
CN2 Valve stem seal/glow plug (DIESEL)
CS2 Front cylinder head (V6)
# OEM CN2 CS2
3 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
3 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
4 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
Water hose (DIESEL) 1 / 13
CN2 Water hose (DIESEL)
CS2 Water hose (V6)
# OEM CN2 CS2
9 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Water valve (LH) 3 / 8
CN2 Water valve (LH)
CS2 Water hose (V6)
# OEM CN2 CS2
7 90661-SL5-003 Clip, WATER HOSE Clip, WATER HOSE
8 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
8 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer (2) 2 / 22
CN2 Windshield washer (2)
CS2 Windshield washer
# OEM CN2 CS2
20 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
21 91511-SJ8-003 Clip - WASHER TUBE Clip - WASHER TUBE
Windshield washer (HEADLIGHT WASHER; 2) 2 / 48
CN2 Windshield washer (HEADLIGHT WASHER; 2)
CS2 Windshield washer
# OEM CN2 CS2
47 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
48 91511-SJ8-003 Clip - WASHER TUBE Clip - WASHER TUBE
Wire harness (LH) 2 / 26
CN2 Wire harness (LH)
CS2 Wire harness (1)
# OEM CN2 CS2
20 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
21 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
