Accelerator sensor (LH) 7

#	OEM	部品名
1	36641-PY3-000	Collar - ACTUATOR MOUNT
2	37971-RBB-003	SENSOR ASSY., ACCELERATOR PEDAL
3	37972-RCA-A01	Stay - THROTTLE WIRE
4	37976-RBB-A00	Bracket - ACCELERATOR PEDAL SENSOR
5	37977-RCA-A00	Stay comp - ACCELERATOR PEDAL SENSOR
6	37978-RCA-A00	Rubber - MOUNT
7	37996-RCA-A00	Cover comp. - ACCELERATOR PEDAL SENSOR

Air cleaner (DIESEL) 22

#	OEM	部品名
1	17210-RBD-E00	Cover comp. - AIR CLEANER
2	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING
3	17212-P2J-000	Rubber - AIR CLEANER MOUNTING
4	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
5	17216-RBD-E00	Clip set - AIR CLEANER
6	17220-RBD-E00	Element assy. - AIR CLEANER
7	17225-RBD-E01	Tube assy - AIR FLOW
8	17226-RBD-E01	Rubber - AIR FLOW METER SEAL
9	17227-RBD-E01	Rubber - BREATHER PIPE SEAL
10	17229-RBD-E01	Insulator - AIR FLOW TUBE
11	17244-RBD-E00	Case set - AIR CLEANER
12	17261-RBD-E01	Stay comp. a - AIR CLEANER
13	17262-RBD-E00	Stay comp. b - AIR CLEANER
14	17263-RBD-E00	Stay comp. c - AIR CLEANER
15	17314-RBD-E01	Band - AIR FLOW TUBE(D62)
16	17315-RBD-E01	Band - AIR FLOW TUBE (D95)
17	37980-RBD-E01	Meter assy - AIR FLOW
18	75353-671-000	Lock - SCREW
19	90001-PGM-000	Bolt-washer - SPECIAL, 6X30
20	90091-P36-000	Bolt-washer - 5X28
21	91315-RBD-E01	Ring - AIR FLOW METER SEAL
22	91405-RBD-E01	Clamp - TUBE (D28.5)

Air conditioner (COMPRESS OR; DIESEL) 16

#	OEM	部品名
1	38773-PR3-003	Clip - WIRE HARNESS
2	38801-P9K-E01	Valve sub assy. - SAFETY
3	38810-RMA-G01	Compressor comp.
4	38812-PH1-003	Ring b - SNAP
5	38812-671-003	Ring a - SNAP
6	38816-RCA-A01	Stay - LEAD WIRE
7	38827-PH7-003	Screw-washer - 5X8
8	38829-PR3-003	Bolt - WASHER HEAD
9	38900-RBD-E11	Clutch set
10	38912-PH1-N01	Plate set - WASHER
11	38920-RBD-E03	Belt - COMPRESSOR (BANDO)
11	38920-RBD-E01	Belt - COMPRESSOR (BANDO)
11	38920-RBD-E02	Belt - COMPRESSOR (MITSUBOSHI)
12	38924-RBD-E11	Stator set
13	38930-RBD-E00	Bracket - COMPRESSOR
14	90023-P30-000	Bolt - FLANGE, 8X90

Air conditioner (CONDENSE R; DIESEL) 15

#	OEM	部品名
1	80110-SEF-E11	Condenser comp.
2	80101-SFE-003	Filter sub assy.
3	80107-S2X-000	Mount - CONDENSER UPPER
4	80109-SEF-E11	Rubber
5	80111-SEF-E00	Bracket - CONDENSER MOUNT UPPER
6	80112-SEF-E11	Bracket a
7	80113-SEF-E11	Bracket b
8	80114-SEF-E11	Bracket c
9	80115-SEF-E11	Bracket d
10	80316-SEF-E11	Pipe - DISCHARGE
11	80482-SEF-E11	Valve assy. - MAGNET
12	80872-SN7-003	O-ring - 1/2"
13	90101-SEF-E11	Screw-washer - 5X8
14	90301-SEF-E11	Nut - M6
15	91565-S0X-003	Clip - COUPLER (DARK GREEN)

Air conditioner (HOSES/PI PES; LH; DIESEL) 25

#	OEM	部品名
1	17926-S6M-003	Clip - THROTTLE WIRE
2	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
3	80221-SEF-E12	Valve assy. - EXPANSION
4	80311-SEF-E12	Hose comp. - SUCTION
5	80315-SEF-E12	Hose comp. DISCHARGE
6	80321-SEF-G11	Pipe, AIR CONDITIONER
7	80325-SEF-E00	Seal - FLANGE
8	80341-SEF-E11	Pipe comp, RECEIVER
9	80342-SEF-E11	Pipe, BYPASS
10	80351-SEF-E12	Tank comp. - SUCTION
11	80352-SEF-E11	Bracket comp. - LIQUID TANK
12	80362-SEF-E00	Clamp - SUCTION HOSE
13	80363-SEF-E00	Stay - SUCTION HOSE
14	80365-S3N-000	Clamp - DISCHARGE HOSE
15	80450-S7S-003	Sensor assy - PRESSURE
16	80483-SEF-E11	Valve assy. - CHECK
17	80865-SN7-003	Cap h - VALVE
18	80866-SN7-003	Cap l - VALVE
19	80871-SN7-003	O-ring - 5/8"
20	80872-SN7-003	O-ring - 1/2"
21	80873-SN7-003	O-ring - 8MM
22	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)
23	90121-S7S-003	Bolt - FLANGE
24	90361-SV4-003	Nut - PAINT CUTTING, 6MM
25	91548-SR3-003	Clip - 8MM

Air conditioner (SENSOR) 6

#	OEM	部品名
1	80510-SDA-A41	Sensor assy - SUN BEAM
2	80521-SEA-000	Bracket - AMBIENT SENSOR
3	80525-S30-941	Sensor assy - AMBIENT
4	80530-SDA-A41	Sensor assy - IN CAR
5	80541-SDA-A41	Hose a - ASPIRATOR
6	91517-SDA-A01	Clip - 8.5MM

Alloy wheel 16 x 6,5jj 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Alloy wheel 17 x 7,0jj 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Alternator (DENSO; DIESEL) 16

#	OEM	部品名
1	31100-RBD-E02	Alternator assy - CSC91) (DENSO
2	31101-RAA-A01	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH
4	31108-RBD-E01	Frame assy - RR. STATOR
5	31111-PT0-003	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.
7	31119-RBD-E01	Bush - INSULATION
8	31135-RBD-E01	Cover - RR. END
9	31138-PD1-004	Cover - BEARING
10	31141-RBD-E02	Pulley comp - ONE WAY CLUTCH
11	31145-PGK-A01	Bolt
12	31146-PE9-941	Screw-washer
13	31147-PGK-A01	Screw
14	31147-PT0-003	Screw-washer
15	31195-RBD-E01	Cap - PULLEY
16	90231-PGK-A01	Nut - HEX., 5MM

Battery (DIESEL) 15

#	OEM	部品名
1	31500-SEF-E00	Battery assy - JOHNSON
2	31510-SEF-E00	Cover - BATTERY TERMINAL
3	31512-SEF-E00	Plate - BATTERY SETTING
4	31513-SEF-G00	Bolt - BATTERY SETTING (163MM)
5	31513-SN7-G00	Bolt - BATTERY SETTING(185MM)
6	31531-SEF-E00	Cover assy. - BATTERY
7	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
8	32600-SEF-010	Cable assy - BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SEF-G00	Bracket - EARTH CABLE
11	32602-SK7-900	Nut - BATTERY TERMINAL
12	32743-RBD-E00	Stay c - HARNESS
13	90149-SE0-003	Bolt - EARTH, 6X16
14	91531-S5B-003	Band - HARNESS (BLACK) (120MM)
15	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)

Brake lines (VSA; LH; DIESEL) 33

#	OEM	部品名
1	01464-SEA-E00	Hose set - R. FR. BRAKE
2	01465-SEA-E00	Hose set - L. FR. BRAKE
3	01466-SED-000	Hose set - RR. BRAKE
4	46330-SEG-G00	Pipe comp. c - BRAKE
5	46340-SEG-G00	Pipe comp. d - BRAKE
6	46374-SEF-G60	Pipe comp. u - BRAKE
7	46375-SEF-G52	Pipe comp. v - BRAKE
8	46376-SEF-E52	Pipe comp. w - BRAKE
9	46377-SEF-G52	Pipe comp. x - BRAKE
10	46378-SEF-G52	Pipe comp. y - BRAKE
11	46379-SEF-G51	Pipe comp. z - BRAKE
12	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
13	46391-SDA-A01	Clip g - BRAKE PIPE
14	46391-SEF-E51	Clip A - BRAKE PIPE
15	46391-S5A-J01	Clip - BRAKE PIPE
16	46393-SDB-A00	Clip b - BRAKE PIPE
17	46393-S84-A00	Clamp - BRAKE PIPE
18	46394-SDA-003	Clip d - BRAKE PIPE
19	46394-SDB-A00	Clip c - BRAKE PIPE
20	46395-SDA-A00	Clip e - BRAKE PIPE
21	46396-SDA-003	Clip f - BRAKE PIPE
22	46397-SEF-E50	Clip - BRAKE PIPE
23	46427-SED-000	Bracket a - R. BRAKE HOSE
24	46428-SED-000	Bracket a - L. BRAKE HOSE
25	46435-SED-000	Bracket b - R. BRAKE HOSE
26	46436-SED-000	Bracket b - L. BRAKE HOSE
27	46437-S9A-000	Bracket - RR. BRAKE HOSE
28	46462-SE0-000	Bolt - OIL
29	46470-S5T-E01	Joint - FOUR WAY
30	46472-568-000	Packing - OIL BOLT
31	90361-SV4-003	Nut - PAINT CUTTING, 6MM
32	90651-538-000	Clip - BRAKE HOSE
33	91595-SED-003	Clamp a - FUEL PIPE

Brake master cylinder/ master power (LH) 15

#	OEM	部品名
2	01462-SDD-A02	Piston set - MASTER CYLINDER
3	01469-SEF-G61	Power set - MASTER (10")
4	46101-SDD-G51	Cylinder set - MASTER
5	46151-SA7-951	Yoke comp - NISSIN
6	46191-SDA-A00	Gasket - MASTER POWER
8	46402-SEF-G02	Tube assy - MASTER POWER
9	46407-S84-A01	Clamp - TUBE
10	46512-S70-000	Pin - PEDAL
11	46661-SDC-A02	Reservoir set - OIL
12	46662-SDC-A02	Cap comp. - RESERVOIR
13	46666-SDC-A01	Filter
14	46911-S70-003	Pin, LOCK(8MM)
15	53729-671-003	Clamp d - 15.5MM
16	90301-SDC-013	Nut - HEX., 8MM
17	90301-SEF-013	Nut - 10MM

Bumpers 34

#	OEM	部品名
1	33505-SEA-013	Reflector assy - R. RR.
2	33555-SEA-013	Reflector assy - L. RR.
3	60854-SB2-000	Clip - FR. SPOILER
7	71103-SEF-E02	Grille - FR. BUMPER LOWER
9	71108-SEF-E00	Garnish - R. AIR IN.
11	71110-SEA-013	Spoiler - FR. BUMPER AIR
17	71139-SEA-E00	Pipe - GUARD
18	71140-SEA-000	Beam comp - R. FR. BUMPER UPPER
19	71145-SEA-E02	Base - FR. LICENSE PLATE
20	71146-SEF-E00	Cover - R. INTAKE DUCT
21	71147-SEF-E00	Cover - L. INTAKE DUCT
22	71185-SEF-E01	Damper assy. - FR. BUMPER
23	71190-SEA-000	Beam comp - L. FR. BUMPER UPPER
24	71193-SEA-003	Spacer - R. FR. BUMPER SIDE
28	71198-SEA-003	Spacer - L. FR. BUMPER SIDE
38	71593-SED-003	Spacer - R. RR. BUMPER SIDE
39	71594-SED-000	Spacer - RR. BUMPER
40	71598-SED-003	Spacer - L. RR. BUMPER SIDE
41	90103-SDA-A00	Screw - TAPPING, 5X20
42	90110-SE0-003	Bolt c - BUMPER
43	90110-SE7-000	Bolt-washer - 8X21
44	90114-SZ3-000	Screw-washer - 5X20
46	90144-SEA-000	Bolt - BUMPER
48	90302-SD2-003	Nut-washer - 8MM
49	90302-SEA-000	Nut - CAP, 10MM
50	90305-SM4-000	Nut - AIR SPOILER CLIP
51	90308-SB2-013	Nut - SUSPENSION, 5MM
52	90501-SM4-003	Bolt - FENDER
53	90658-SEA-000	Nut - CLIP, 6MM
54	90682-SB0-003	Grommet - SCREW, 5MM
56	91503-SZ3-003	Clip A
57	91503-SZ5-003	Clip - BUMPER FACE
58	91505-S9A-003	Clip A - BUMPER
59	91506-S9A-003	Clip b - BUMPER

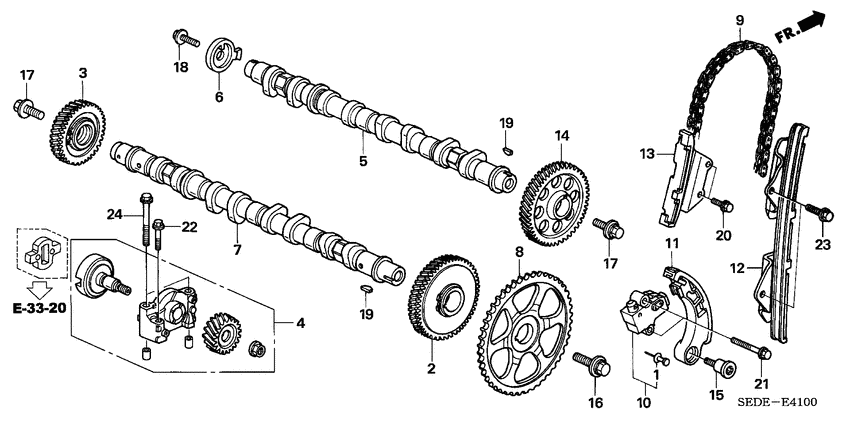

Camshaft/cam chain (DIESEL) 19

#	OEM	部品名
1	13451-RBD-003	Stopper - TOOL
2	14010-RBD-E00	Gear assy. - EX. CAM
3	14020-RBD-E00	Gear assy. - EX. CAM (2)
4	14030-RBD-E00	Shaft assy - FUEL PUMP
5	14111-RBD-E00	Camshaft - INTAKE
6	14113-RBD-E01	Plate - TDC PULSE
7	14121-RBD-E00	Camshaft - EX.
8	14210-RBD-E00	Sprocket - CAM CHAIN DRIVEN
9	14401-RBD-E01	Chain - 118L) (DAIDO
10	14410-RBD-E01	Tensioner Assy - CAM CHAIN
11	14420-RBD-E01	Arm comp - CAM CHAIN TENSIONER
12	14430-RBD-E01	Guide comp. a - CAM CHAIN
13	14440-RMA-E01	Guide comp. b - CAM CHAIN
14	14441-RBD-E00	Gear - INTAKE CAM
15	90003-PNA-000	Bolt - TENSIONER PIVOT
16	90032-RBD-E01	Bolt-washer - 12X25
17	90042-RBD-E01	Bolt-washer - 10X25
18	90052-RBD-E01	Bolt-washer - 6X20
19	90741-RBD-E00	Key - WOODRUFF, 17X11

Center module 12

#	OEM	部品名
2	39061-SDA-A01	Screw - M2.6X8) (P
3	39062-SDA-A01	Screw - M2.6X10) (P
4	39064-SDA-A01	Screw - M4X12
5	39069-SDA-A01	Screw - M5X8
8	39175-SED-G23	Head unit - ALPINE
9	39176-SEA-J21	Bracket - R. SIDE
11	39177-SEA-J71	Bracket - L. SIDE
14	39171-SEA-J01	Knob assy - ROTARY
15	90133-SM4-003	Bolt-washer - 5X16
16	90666-SM4-003	Clip - SNAP FITTING
17	90666-S84-A01	Clip - SNAP FITTING
18	91640-SM4-003	Grommet - SCREW, 4MM

Center module (NAVI) 13

#	OEM	部品名
2	39062-SDA-A01	Screw - M2.6X10) (P
3	39064-SDA-A01	Screw - M4X12
4	39065-SDA-A41	Screw - M3X5
5	39066-SDN-A41	Screw - M3X6
6	39069-SDA-A01	Screw - M5X8
8	39173-SDA-A41	Cover - FR. AIR CONDITIONER
9	39175-SED-G83	Head unit - ALPINE
10	39176-SEA-J41	Bracket - R. SIDE
11	39177-SDA-A42	Bracket - L. SIDE
14	90133-SM4-003	Bolt-washer - 5X16
15	90666-SM4-003	Clip - SNAP FITTING
16	90666-S84-A01	Clip - SNAP FITTING
17	91640-SM4-003	Grommet - SCREW, 4MM

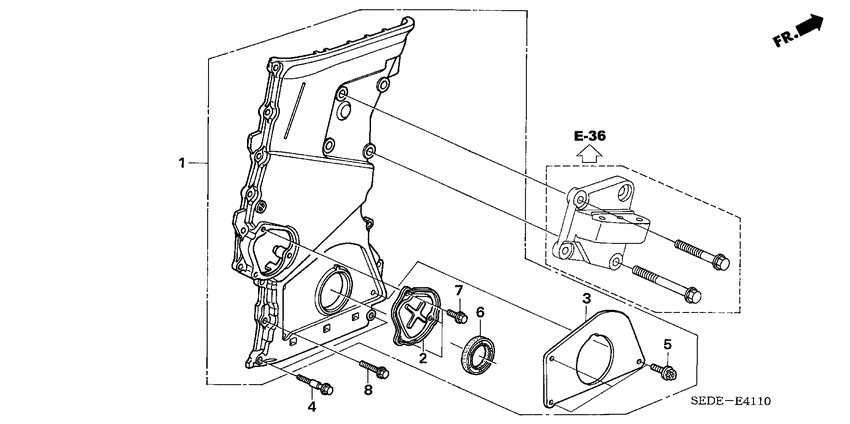

Chain case (DIESEL) 7

#	OEM	部品名
1	11410-RBD-E02	Case assy. - CHAIN
2	11412-RBD-E00	Cover - CHAIN CASE
3	11413-RMA-E00	Plate - CHAIN CASE
4	90021-PNA-000	Bolt - SPECIAL, 6X31
5	90031-RMA-E01	Bolt - CHAIN CASE PLATE
6	91212-RBD-E01	Oil seal - 43X58X7(ARAI)
6	91212-RBD-E02	Oil seal - 43X58X7(NOK)

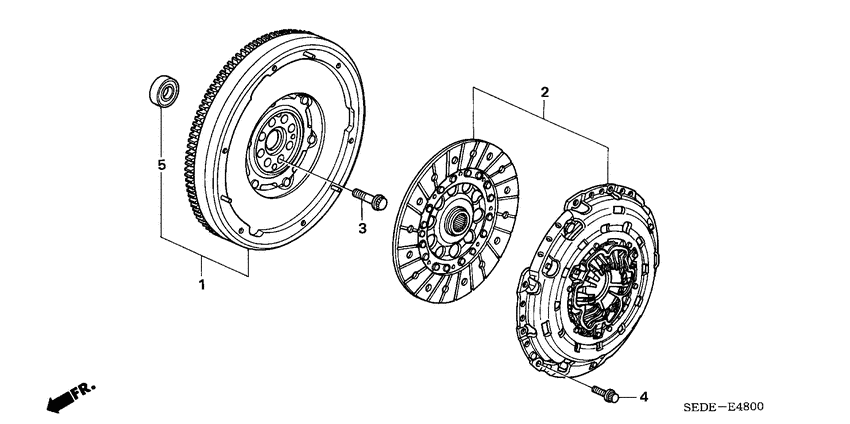

Clutch (DIESEL) 5

#	OEM	部品名
1	22100-RBD-006	Flywheel comp.
2	22105-PGE-315	Clutch set
3	90011-RBD-000	Bolt - 12MM
4	90034-PR7-F00	Bolt - TWELVE POINT, 8MM
5	91006-PGE-008	Bearing - PILOT

Clutch case (DIESEL) 18

#	OEM	部品名
1	21000-RAW-000	Case comp. - CLUTCH
2	21101-PYZ-000	Plate - NEEDLE SET
3	21120-PYZ-000	Magnet comp. - TRANSMISSION
4	21171-PR8-007	Rotor - INNER OIL PUMP (41)
5	21172-PR8-007	Rotor - OUTER OIL PUMP (41)
6	21173-PYZ-000	Shaft comp. - OIL PUMP
7	21176-PYZ-000	Plate - OIL PUMP
8	21177-PYZ-000	Pipe - OIL GUIDE
9	21179-PYZ-000	Plate - OIL GUTTER
10	21182-PYZ-010	Pipe a - OIL GUIDE
11	21245-PX4-003	Screw - SEALING
12	21351-PGE-300	Label - CLUTCH CAUTION
13	23927-PYZ-000	Washer - SPRING, 64MM
14	90081-PB6-000	Bolt - PLUG, 14MM
15	90705-PG2-000	Dowel pin - 14X20
16	91103-PYZ-003	Bearing - NEEDLE, 44X72X23
17	91206-P0Z-005	Oil seal - 35X54X8 (NOK)
18	91216-PG1-005	Oil seal - 28X43X7 (NOK)

Clutch master cylinder (DIESEL; LH) 36

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	45353-S3Y-003	Cap - BLEEDER
3	46151-S5A-A01	Yoke
4	46182-500-013	Circlip
5	46394-S04-003	Clip A
6	46911-S70-003	Pin, LOCK(8MM)
7	46912-S84-A00	Pin - CLUTCH PEDAL
8	46920-S7A-A03	Cylinder assy. - CLUTCH MASTER
9	46921-S5A-003	Plate - STOPPER
10	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
11	46928-S5A-A01	Seal - MASTER CYLINDER
12	46930-SEF-E01	Cylinder assy. - CLUTCH SLAVE
13	46931-S5A-003	Pin - SPRING
14	46932-S3M-A01	Piston - SLAVE CYLINDER
15	46937-SS1-003	Boot - SLAVE CYLINDER
16	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
17	46942-S5A-003	Pin - SNAP
18	46943-S5A-003	Seal - RING
19	46944-S5A-J01	Connector
20	46945-S5A-003	O-ring
21	46946-S5A-003	Screw-washer - 4X12
22	46947-S5A-003	Rod - PUSH
23	46948-SEF-E01	Rod - PUSH
24	46949-S5A-003	Seal - RING
25	46960-SEF-G01	Pipe comp. a - CLUTCH
26	46961-SEF-E01	Hose - CLUTCH
27	46965-S6A-013	Tank assy. - CLUTCH FLUID
28	46966-SDA-A02	Holder - TANK
29	46968-SEF-E01	Bracket b - CLUTCH PIPE
30	46970-SEF-E01	Pipe comp. b - CLUTCH
31	46971-SDA-A01	Tube - CLUTCH FLUID
32	46972-S6F-E01	Clamp - TUBE (D12)
33	46995-SEF-E01	Bracket a - CLUTCH PIPE
34	46996-SEF-E00	Stay - CLUTCH PIPE CLIP
35	90106-S7A-E00	Bolt - FLANGE, 8X30
36	90651-538-000	Clip - BRAKE HOSE

Clutch release (DIESEL) 6

#	OEM	部品名
1	21399-PYZ-000	Plate - BREATHER
2	22810-PPT-003	Bearing - CLUTCH RELEASE
3	22821-PPP-000	Fork, CLUTCH RELEASE
4	22825-P0S-000	Bolt - RELEASE FORK
5	22835-P0S-000	Spring - RELEASE FORK SETTING
6	22841-PPP-000	Boot - RELEASE FORK

Combination switch (LH) 20

#	OEM	部品名
1	06350-SED-D20	Cylinder set - KEY
2	35100-SEA-E51	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35111-SED-405	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
8	35113-SED-307	Key comp. - TRANSMITTER TOP CASE (BLANK)
9	35114-SEA-E11	Bottom comp. - TRANSMITTER KEY CASE
10	35116-SDA-A11	Screw - FLAT
11	35130-SAA-J51	Switch comp - STEERING
12	35251-SEA-J01	Body comp - SWITCH
13	35255-SDA-H01	Switch assy - LIGHTING & TURN SIGNAL
14	35256-SED-E91	Switch assy - WIPER
15	35400-S6A-003	Switch assy - DOOR (DAIICHI)
16	39730-S2A-G01	Immobilizer unit
17	72118-ST7-003	Screw - TAPPING, 3X5
18	72147-SED-E01	Module assy. - KEYLESS
19	72148-S0A-000	Battery CR1616
20	90132-S2H-G11	Screw - ET, 5.5X18
20	90132-S2H-G01	Screw - ET, 5X18

Console 16

#	OEM	部品名
1	39620-SZ3-003	Cap assy.
2	39624-SZ3-L01	Socket assy
3	66418-SD4-900	Stopper - CONSOLE LOCK
4	77205-S0X-A01	Clip - SNAP FITTING
17	83409-SDA-A02	Hinge comp - ARMREST
19	83412-SDA-A01	Stopper - ARMREST
20	83413-SDA-A01	Mat - CONSOLE BOX
23	83418-SDA-A01	Lock - ARMREST
24	83419-SDA-A01	Lock - TRAY
29	88326-SDC-Y01	Holder comp - RR. ASHTRAY
30	90144-SDA-A01	Screw - TAPPING, 4X16(PO)
31	90144-SP0-000	Screw - TAPPING, 4X16 (PO)
32	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
33	90666-S84-A01	Clip - SNAP FITTING
34	91640-SM4-003	Grommet - SCREW, 4MM
35	91641-SM4-003	Grommet - SCREW, 4MM

Control unit (CABIN; DIESEL; LH) 25

#	OEM	部品名
5	36701-SEA-G00	Bracket - UNIT
6	37820-RBD-E93	Control module - ENGINE (REWRITABLE)
6	37820-RBD-E94	Control module - ENGINE (REWRITABLE)
7	37821-RBD-G00	Bracket - ENGINE CONTROL MODULE UPPER
8	37822-RBD-G00	Bracket - ENGINE CONTROL MODULE LOWER
9	38183-SED-000	Bracket - CARGO LIGHT RELAY
10	38200-SEF-S11	Box assy - FUSE
10	38200-SEF-G45	Box assy - FUSE
11	38300-SDC-A02	Relay assy - TURN SIGNAL & HAZARD (DENSO)
11	38300-SHJ-A04	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)
12	38310-SEA-G01	Relay - CLEANER CONTROL
13	38970-SJA-003	Sensor assy - RAIN
14	38971-S3V-A01	Clip - SPRING
16	39720-SEA-E02	Imoes unit
17	39721-SEA-G00	Bracket - IMOES UNIT
18	39770-SEA-E01	Hft unit - BLUETOOTH
19	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
19	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
20	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)
20	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
21	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
24	39960-SEF-003	Sensor assy - CLUSTER
25	39961-SEF-G00	Bracket - YAW & G SENSOR
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM
32	91640-SM4-003	Grommet - SCREW, 4MM

Control unit (ENGINE ROOM; DIESEL) 28

#	OEM	部品名
1	38100-SDB-A02	Horn assy - LOW (MITSUBA)
2	38101-SEA-E00	Bracket - HORN
3	38150-SDB-A02	Horn assy - HIGH (MITSUBA)
4	38150-ST7-G02	Horn assy - HIGH (MITSUBA)
5	38182-SEF-G11	Cover - MULTI RELAY (RELAY/FUSE)
6	38184-SEF-E00	Bracket - MULTI RELAY BOX
7	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)
8	38231-S04-003	Fuse - BLOCK (30A)
9	38231-S04-961	Fuse - BLOCK (40A)
10	38231-S10-003	Fuse - BLOCK (20A)
11	38232-SDA-A11	Fuse b - MULTI BLOCK (50A/50A)
12	38235-SDA-A01	Puller - MINI FUSE
13	38250-SEG-E13	Box assy - RELAY
13	38250-SEG-S01	Box assy - RELAY
14	38251-SEF-E00	Bracket - RELAY BOX
15	38252-SEF-A01	Cover - LOWER
16	38254-SEF-G00	Bracket comp. - SUB RELAY BOX
17	38254-SEG-E11	Cover - UPPER
18	39792-SDA-A01	Relay assy - MICRO ISO
19	39794-RBD-E02	Control unit - GLOW
20	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
20	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
21	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
22	70062-SDA-A00	Valve - RR. DRAIN(SUNROOF)
23	90114-SM4-900	Bolt - 6X15
24	90129-SDA-000	Screw-washer - 5X16
25	90150-S84-003	Bolt - EARTH, 8X16
35	38182-SDA-003	Cover - RELAY BLOCK UPPER(2P)

Converter (DIESEL) 9

#	OEM	部品名
1	18183-RBD-E00	Cover comp. - PRE-CONVERTER LOWER
2	18184-RBD-E00	Cover comp. - PRE-CONVERTER UPPER
3	18190-RBD-E00	Pre-converter comp.
4	18198-RBD-E00	Stay - PRE-CONVERTER
5	90010-PE2-900	Bolt - SPECIAL, 10X22
6	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
7	90115-SL5-A00	Nut - FLANGE, 6MM
8	90212-RBD-E01	Nut - FLANGE, 10MM
9	90451-PE2-000	Washer - SPECIAL, 11X28

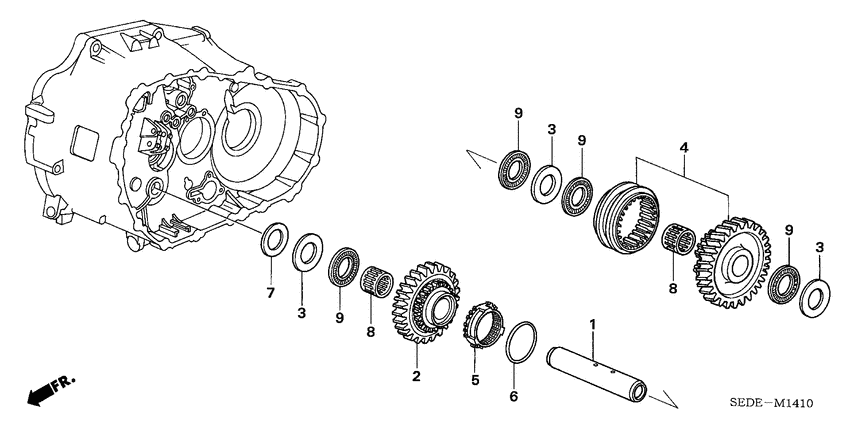

Countershaft (DIESEL) 43

#	OEM	部品名
1	23221-PYZ-000	Countershaft
2	23421-PYZ-010	Gear - COUNTERSHAFT LOW
3	23431-RAW-000	Gear - COUNTERSHAFT SECOND
4	23461-RMB-000	Gear - COUNTERSHAFT FIFTH
5	23471-RPP-000	Gear - COUNTERSHAFT THIRD
6	23481-RPP-000	Gear - COUNTERSHAFT FOURTH
7	23491-RMB-000	Gear - COUNTERSHAFT SIXTH
8	23618-RAW-305	Sleeve set - SYNCHRONIZER (1-2)
9	23741-PYZ-010	Gear - COUNTERSHAFT REVERSE
10	23917-PYZ-000	Collar - DISTANCE, 43X52X23
11	23986-PPP-000	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)
11	23984-PPP-000	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)
12	90011-PPP-000	Bolt - SPECIAL, 20X25
13	91003-PYZ-006	Bearing - BALL, 30X75X23
14	91104-PYZ-003	Bearing - NEEDLE, 54X59X23
15	91105-PYZ-003	Bearing - NEEDLE, 52X57X23

Crankshaft/piston (DIESEL) 43

#	OEM	部品名
1	13010-RMA-E00	Piston set a - STD.
1	13020-RMA-E00	Piston set b - STD.
1	13030-RMA-E00	Piston set - OS 0.25
2	13011-RMA-E01	Ring set - PISTON (STD.)
2	13021-RMA-E01	Ring set - PISTON (OS 0.25)
3	13111-RBD-E00	Pin - PISTON
4	13115-RBD-E00	Clip - PISTON PIN
5	13204-P8A-A01	Bolt - CONNECTING ROD
6	13210-RJL-E00	Rod comp - CONNECTING
7	13214-RBD-E01	Bearing d - CONNECTING ROD UPPER (GREEN) (TAIHO)
7	13216-RBD-E01	Bearing f - CONNECTING ROD UPPER (PINK) (TAIHO)
7	13211-RBD-E01	BEARING A - CONNECTING ROD UPPER (BLUE) (TAIHO)
7	13213-RBD-E01	Bearing c - CONNECTING ROD UPPER (BROWN) (TAIHO)
7	13215-RBD-E01	Bearing e - CONNECTING ROD UPPER (YELLOW) (TAIHO)
7	13212-RBD-E01	Bearing b - CONNECTING ROD UPPER (BLACK) (TAIHO)
8	13223-RBD-E01	Bearing c - CONNECTING ROD LOWER (BROWN) (TAIHO)
8	13225-RBD-E01	Bearing e - CONNECTING ROD LOWER (YELLOW) (TAIHO)
8	13222-RBD-E01	Bearing b - CONNECTING ROD LOWER (BLACK) (TAIHO)
8	13224-RBD-E01	Bearing d - CONNECTING ROD LOWER (GREEN) (TAIHO)
8	13226-RBD-E01	Bearing f - CONNECTING ROD LOWER (PINK) (TAIHO)
8	13221-RBD-E01	BEARING A - CONNECTING ROD LOWER (BLUE) (TAIHO)
9	13310-RBD-E00	Crankshaft comp.
10	13323-RBD-E01	Bearing c - MAIN UPPER (BROWN) (DAIDO)
10	13325-RBD-E01	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
10	13327-RBD-E01	Bearing g - MAIN UPPER (RED) (DAIDO)
10	13322-RBD-E01	Bearing b - MAIN UPPER (BLACK) (DAIDO)
10	13324-RBD-E01	Bearing d - MAIN UPPER (GREEN) (DAIDO)
10	13326-RBD-E01	Bearing f - MAIN UPPER (PINK) (DAIDO)
10	13321-RBD-E01	BEARING A - MAIN UPPER (BLUE) (DAIDO)
11	13331-RBD-E01	Washer - THRUST
12	13345-RBD-E01	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
12	13347-RBD-E01	Bearing g - MAIN LOWER (RED) (DAIDO)
12	13342-RBD-E01	Bearing b - MAIN LOWER (BLACK) (DAIDO)
12	13344-RBD-E01	Bearing d - MAIN LOWER (GREEN) (DAIDO)
12	13346-RBD-E01	Bearing f - MAIN LOWER (PINK) (DAIDO)
12	13341-RBD-E01	BEARING A - MAIN LOWER (BLUE) (DAIDO)
12	13343-RBD-E01	Bearing c - MAIN LOWER (BROWN) (DAIDO)
13	13620-RBD-E00	Sprocket - CHAIN DRIVE
14	13622-RBD-E00	Plate - CRANK PULSER
15	13810-RBD-E01	Pulley comp - CRANKSHAFT
16	90017-PCX-013	Bolt-washer - 16X49
17	90018-RBD-E01	Bolt - HEX., 6X12
18	90704-PT0-000	Key - 4.5X38.5

Cylinder block/oil pan (DIESEL) 34

#	OEM	部品名
1	11000-RBD-E01	Block assy - CYLINDER
2	11106-PR4-013	Bolt - SEALING, 28MM
3	11106-PT0-300	Bolt - SEALING, 16MM
4	11106-PWA-300	Bolt - SEALING, 24MM
5	11107-PWA-300	Washer - SEALING, 24MM
6	11108-RSR-E00	Plug - EGR WATER
7	11200-RBD-E00	Pan assy - OIL
8	11221-RBD-E00	Plate - BAFFLE
9	12207-PC6-300	Washer - SEALING, 16MM
10	14850-RBD-E00	Jet comp - CHAIN OIL
11	15140-RBD-E00	Orifice assy - OIL CONTROL
12	15142-P8A-A00	O-ring - 8.8X2.4
13	15200-RBD-E02	Pipe comp - OIL LEVEL
14	15280-RBD-E01	Body comp - OIL JET
15	15290-RBD-E01	Bolt comp - OIL JET
16	15650-RBD-E02	Gauge comp. - OIL LEVEL
17	32748-RBD-E00	Stay h - HARNESS
18	37240-PHM-003	Switch assy - OIL PRESSURE
19	37500-RBD-E01	Sensor assy - CRANK
20	37501-RBD-E01	O-ring
21	37748-RBD-E01	Clip - WIRE HARNESS
22	37845-RBD-E00	Stay - CRANK SENSOR
23	90001-PHM-000	Bolt - DRAIN PLUG, 28MM
24	90007-RBD-E01	Bolt-washer - 11X102
25	90009-PY3-000	DRAIN PLUG BOLT, 14MM
26	90401-PR4-000	Washer - SEALING, 28MM
27	90703-PE0-000	Dowel pin - 18X22
28	90715-PC6-000	Dowel pin - 13X20
29	90715-PNA-000	Dowel pin - 13X14
30	91214-RBD-E01	Oil seal - 87X104X10(ARAI)
30	91214-RBD-E02	Oil seal - 87X104X10(NOK)
31	91308-PH9-000	O-ring - 8.8X1.9
31	91302-GE0-000	O-ring (8.8x1.9)
32	91316-PHM-003	O-ring - 13.6X3.8

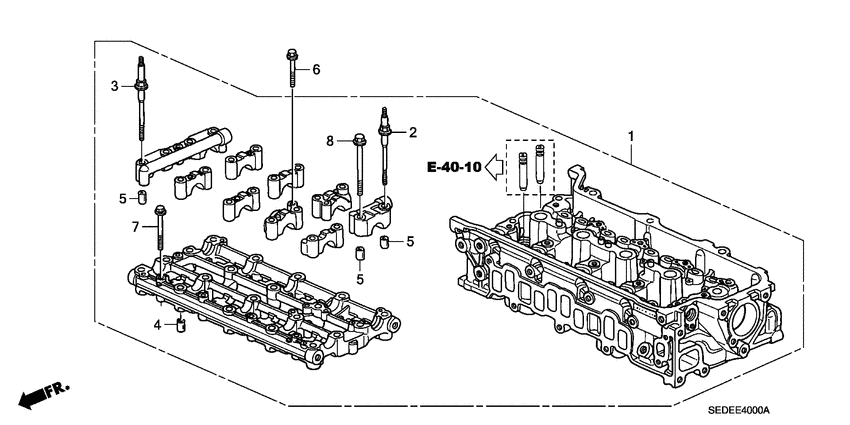

Cylinder head (DIESEL) 3

#	OEM	部品名
1	12100-RMA-E01	Head assy - CYLINDER
2	90012-RBD-E01	Bolt a - HEAD COVER
3	90013-RBD-E01	Bolt b - HEAD COVER

Cylinder head cover (DIESEL) 12

#	OEM	部品名
1	12030-RMA-E01	Packing set - HEAD COVER
2	12310-RMA-E00	Cover comp. - CYLINDER HEAD
3	12341-RMA-E00	Packing a - HEAD COVER
4	12342-RBD-E01	Packing b - HEAD COVER
5	12343-RBD-E01	Packing c - HEAD COVER
6	15610-RBD-E00	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler
8	17137-RBD-E00	Pipe comp - BREATHER
9	17153-RBD-E00	Tube - BREATHER
10	19513-REA-Z01	Clamp - WATER HOSE
11	90213-PH3-000	Nut - CAP, 6MM
12	90441-PNA-010	Washer - HEAD COVER

Differential (DIESEL) 45

#	OEM	部品名
1	41100-RAT-305	Differential set.
2	41233-PYZ-000	Gear - FINAL DRIVEN
3	41381-P7T-000	Spacer - 46X80X1
4	41382-P7T-000	Spacer - 46X81X1
5	41454-PYZ-000	Shim s - 81MM (2.53)
5	41449-PYZ-000	Shim m - 81MM (2.38)
5	41444-PYZ-000	Shim g - 81MM (2.23)
5	41439-PYZ-000	Shim b - 81MM (2.08)
5	41471-PYZ-000	Shim ak - 81MM (3.04)
5	41466-PYZ-000	Shim ae - 81MM (2.89)
5	41461-PYZ-000	Shim z - 81MM (2.74)
5	41456-PYZ-000	Shim u - 81MM (2.59)
5	41451-PYZ-000	Shim p - 81MM (2.44)
5	41446-PYZ-000	Shim j - 81MM (2.29)
5	41441-PYZ-000	Shim d - 81MM (2.14)
5	41473-PYZ-000	Shim am - 81MM (3.10)
5	41468-PYZ-000	Shim ag - 81MM (2.95)
5	41463-PYZ-000	Shim ab - 81MM (2.80)
5	41458-PYZ-000	Shim w - 81MM (2.65)
5	41453-PYZ-000	Shim r - 81MM (2.50)
5	41448-PYZ-000	Shim l - 81MM (2.35)
5	41475-PYZ-000	Shim ap - 81MM (3.16)
5	41443-PYZ-000	Shim f - 81MM (2.20)
5	41438-PYZ-000	Shim a - 81MM (2.05)
5	41470-PYZ-000	Shim aj - 81MM (3.01)
5	41465-PYZ-000	Shim ad - 81MM (2.86)
5	41460-PYZ-000	Shim y - 81MM (2.71)
5	41455-PYZ-000	Shim t - 81MM (2.56)
5	41450-PYZ-000	Shim n - 81MM (2.41)
5	41445-PYZ-000	Shim h - 81MM (2.26)
5	41440-PYZ-000	Shim c - 81MM (2.11)
5	41472-PYZ-000	Shim al - 81MM (3.07)
5	41467-PYZ-000	Shim af - 81MM (2.92)
5	41462-PYZ-000	Shim aa - 81MM (2.77)
5	41457-PYZ-000	Shim v - 81MM (2.62)
5	41452-PYZ-000	Shim q - 81MM (2.47)
5	41447-PYZ-000	Shim k - 81MM (2.32)
5	41442-PYZ-000	Shim e - 81MM (2.17)
5	41474-PYZ-000	Shim an - 81MM (3.13)
5	41469-PYZ-000	Shim ah - 81MM (2.98)
5	41464-PYZ-000	Shim ac - 81MM (2.83)
5	41459-PYZ-000	Shim x - 81MM (2.68)
6	90017-PYZ-000	Bolt - SPECIAL, 11MM
7	91005-R08-003	Bearing - TAPER, 45X80X21
8	91006-R08-003	Bearing - TAPER, 45X81X18

Duct 4

#	OEM	部品名
1	83331-SDA-A00	Duct - R. RR. HEATER
2	83332-SDA-A00	Duct - R. RR. HEATER JOINT
3	83381-SDA-A00	Duct - L. RR. HEATER
4	83382-SDA-A00	Duct - L. RR. HEATER JOINT

Egr valve (DIESEL) 6

#	OEM	部品名
1	18710-RSR-E03	Valve assy. - EGR
2	18713-RMA-E01	Gasket - EGR PASSAGE
3	18715-RSR-E01	Gasket - EGR VALVE
4	18722-RBD-E01	Gasket - EGR COOLER
5	18725-RSR-E00	Pipe comp - EGR
6	90023-RSR-E00	Bolt - FLANGE, 8X22

Emblems/caution labels 10

#	OEM	部品名
1	17275-RBD-E01	Label - INFORMATION
2	17669-PLZ-E01	Label - FUEL FILLER CAUTION (DIESEL)
3	19043-RBD-E00	Label - COOLANT INFORMATION
5	42760-SEG-E11	Plate - TIRE PRESSURE CAUTION
6	75701-SED-E00	Mark - RR. EMBLEM (H) (A=75)
7	75722-SEA-003	Emblem - RR. (ACCORD)
9	75765-SEF-003	Emblem - RR. (I-CTDI)
10	77875-SDA-G80	Label - SRS CAUTION
11	78031-SDA-G80	Label - SIDE AIRBAG CAUTION
12	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)

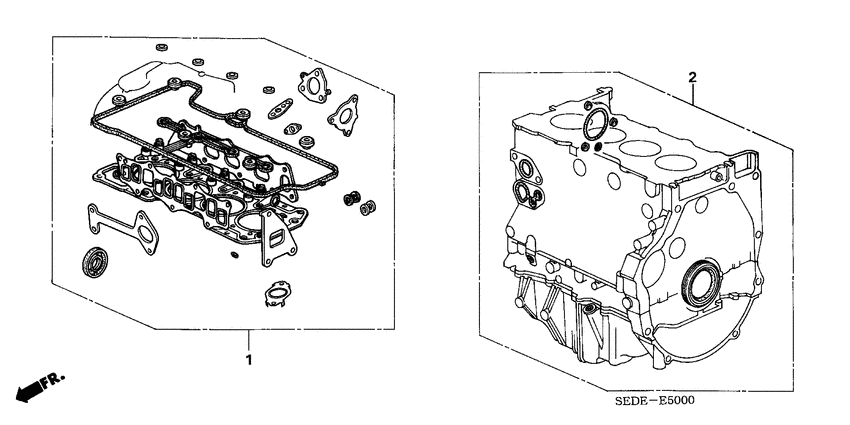

Engine assy./transmission assy. (DIESEL) 3

#	OEM	部品名
1	10002-RBD-E04	General assy. - CYLINDER BLOCK (WITH GASKET KIT)
2	10003-RBD-E03	General assy. - CYLINDER HEAD
3	20011-RBW-G60	Transmission assy.

Engine cover (DIESEL) 9

#	OEM	部品名
1	32121-RBD-E02	Cover comp. - ENGINE
2	32122-RBD-E00	Grommet
3	32123-RBD-E00	Emblem - ENGINE COVER
4	32124-RBD-E01	Insulator
5	90051-RBD-E01	Bolt a - ENGINE COVER STUD
6	90053-RBD-E01	Bolt b - ENGINE COVER STUD
7	90301-RBD-E00	Nut - PUSH, 5MM
8	90301-ST0-003	push nut, 3mm
9	90491-RBD-E00	Washer - ENGINE COVER

Engine hood (LH) 34

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
7	74120-SEA-E13	Lock assy - HOOD
8	74121-SEA-000	Rubber - HOOD SEAL
9	74125-SEA-000	Cover - HOOD LOCK
10	74130-SEA-G01	Wire assy. - HOOD
12	74141-SEF-E01	Insulator - HOOD
13	74143-SDA-A00	Rubber - RR. HOOD SEAL
14	74144-SEA-010	Rubber - HOOD SEAL
15	74145-SEF-E00	Stay - HOOD OPENER
16	74210-SEA-G01	Cowl top assy.FR. DRIVER
17	74215-SEA-G00	Lid - FR. COWL TOP DRIVER
18	74220-SEA-G01	Cowl top assy. FR. PASSENGER
19	74225-SEA-G00	Lid - FR. COWL TOP PASSENGER
20	76810-SEA-A01	Nozzle assy. - R. WASHER
21	76810-SEA-J01	Nozzle assy. - R. WASHER
22	76830-SL0-003	Joint y - TUBE (MITSUBA)
23	76832-SEA-003	Tube - 450MM
24	76837-SEA-G01	Tube - 320MM
25	76837-S7S-003	Tube - 360MM
26	76839-SZ3-A01	Tube b
27	90108-S0A-003	Bolt - FLANGE, 6X15
28	90112-SEA-000	Bolt - FLANGE, 6X12(DACRO)
29	90601-S84-A01	Grommet - HOOD OPEN STAY
30	90602-SX0-003	Clip - COWL TOP
31	90602-S5A-003	Clip - COWL TOP
32	90603-SX0-003	Grommet - COWL TOP
33	91501-SEA-901	Clip - FR. COWL
34	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
34	91501-STK-003	Clip - ENGINE HOOD INSULATOR
36	91504-SDA-003	Clip - HOOD OPEN WIRE
37	91518-SM4-003	Clip - TRUNK MOLDING
38	91549-P1E-003	Clip - AIR INTAKE COVER
41	91565-SD5-003	Clip - COUPLER(NATURAL)

Engine mounting bracket (DIESEL) 18

#	OEM	部品名
1	11910-RBD-E00	Bracket - ENGINE MOUNTING
2	31120-RMA-E01	Cover - ALTERNATOR
3	31170-RBD-E02	Tensioner Assy - AUTO
4	31180-RBD-E01	Pulley comp - IDLER
5	31185-RBD-E00	Cover - BEARING
6	31185-RBD-E12	Cover - BEARING
7	31186-RBD-E00	Cover - BEARING
8	31190-RBD-E01	Pulley comp - IDLE
9	32741-RBD-E00	Stay a - HARNESS
10	32746-RBD-E00	Stay f - HARNESS
11	38944-RBD-E00	Collar - IDLE PULLEY
12	90002-RBD-E00	Bolt - SPECIAL, 10X45
13	90002-RBD-E10	Bolt - SPECIAL, 12X38
14	90009-P0A-000	Bolt b - MOUNTING BRACKET, 10X56.2
15	90009-RBD-E00	Bolt - MOUNTING BRACKET(M10X43)
16	90025-RBD-E00	Bolt - SPECIAL, 8X70
17	90027-PND-A00	Bolt - SPECIAL, 10X50
18	90041-RBD-E00	Bolt - STUD, 12X105

Engine mounts (DIESEL) 19

#	OEM	部品名
1	50620-SEF-E00	Bracket - SIDE ENGINE MOUNTING
2	50650-SEF-E00	Bracket - TRANSMISSION MOUNT
3	50690-SEF-E00	Bracket - LOWER TORQUE ROD
4	50820-SEF-E01	Mounting assy. - ENGINE SIDE (HYD)
5	50824-SEF-E01	Cover - ENGINE SIDE MOUNT
6	50850-SEF-E03	MOUNTING ASSY., TRANSMISSION
7	50860-SEF-E00	Mounting assy. TRANSMISSION LOWER
8	50880-SEF-E00	Rod comp - UPPER TORQUE
9	50890-SEF-E00	ROD, LOWER TORQUE
10	90118-SDA-A00	Bolt - FLANGE, 12X87
11	90161-SEF-000	Bolt - FLANGE, 12X42
12	90162-SEF-000	Bolt - FLANGE, 10X30
13	90165-SEF-000	Bolt - FLANGE, 12X100
14	90167-SEF-000	Bolt - FLANGE, 10X55
15	90169-SEF-000	Bolt - FLANGE, 12X75
16	90172-SEF-000	Bolt - FLANGE, 12X45
17	90180-SEF-000	Bolt - FLANGE, 14X100
18	90190-S04-000	Bolt - FLANGE, 12X38
19	90371-SEF-000	Nut - FLANGE, 12MM

Engine wire harness (LH; DIESEL) 23

#	OEM	部品名
1	32110-RBD-G01	Harness - ENGINE WIRE
2	32111-RBD-E03	Sub cord - STARTER
3	32113-PLD-003	Collar - HARNESS GROMMET
4	32118-PLC-003	Holder - CORRUGATED TUBE (DARK GREEN)(19MM)
5	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
6	32126-RBD-E00	Holder comp. a - ENGINE HARNESS
7	32127-RBD-E00	Holder comp. b - ENGINE HARNESS
8	32128-RBD-E01	Holder comp. c - ENGINE HARNESS
9	32129-RAA-A01	Stay - JOINT CONNECTOR
10	32129-RMA-E00	Holder comp. d - ENGINE HARNESS
11	32130-RBD-E01	Holder comp. e - ENGINE HARNESS
12	32131-RBD-E00	Holder f - ENGINE HARNESS
13	32131-RSR-E00	Holder f - ENGINE HARNESS
14	32601-SK7-900	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL
16	32746-RAA-A01	Stay c - ENGINE HARNESS
17	38182-SEA-E01	Cover - RELAY BLOCK UPPER (FUSE)
19	90337-SJ4-003	Nut - A.L.B.
20	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
21	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
22	91552-RAA-003	Clip - HARNESS BAND (DARK BLUE) (135.4MM)
23	91558-P8C-A01	Clip - HARNESS BAND (VIOLET) (150MM)
24	91559-PAA-A01	Clip - HARNESS BAND(GRAY) (150MM)

Exhaust manifold (DIESEL) 7

#	OEM	部品名
1	18100-RBD-E11	Manifold assy - EX.
2	18115-RBD-E01	Gasket - EX. MANIFOLD (ISHINO GASKET)
3	18120-RBD-E00	Cover comp. - EX. MANIFOLD
4	90015-PH7-000	Bolt-washer - 8X14
4	90015-PT0-J00	Bolt-washer - 8X14
5	90065-RBD-E00	Bolt - STUD, 10X28
6	90212-SA5-003	Nut - SELF-LOCK, 10MM

Exhaust pipe (DIESEL) 23

#	OEM	部品名
1	17519-SEG-E00	Protector comp - FUEL TANK
2	18030-SEG-E01	Silencer set - EX.
3	18160-RBD-E00	Converter comp.
4	18176-PT0-003	Bolt - CONVERTER
5	18176-P08-003	Bolt - CONVERTER
6	18181-RBD-E00	Cover comp. - LOWER
7	18182-RBD-E00	Cover comp. - UPPER
8	18210-SEF-E02	Pipe a - EX.
9	18215-SDA-A22	Rubber - EX. MOUNTING
10	18215-SEA-J01	Rubber - EX. MOUNTING
11	18215-SZ5-003	Rubber - EX. MOUNTING
12	18215-S84-A20	Rubber - EX. MOUNTING
13	18229-S5A-J01	Gasket - EX. FLEXIBLE
14	18230-SV4-000	Spring - FLEXIBLE JOINT
15	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
16	18302-SP0-003	Gasket - EX. PIPE
17	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
18	36533-RAA-A10	Grommet - 31X41
19	74601-SDC-A01	Plate - FLOOR HEAT BAFFLE
20	74654-SEA-000	Plate - SILENCER BAFFLE
21	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
22	90115-SL5-A00	Nut - FLANGE, 6MM
23	90212-SA5-003	Nut - SELF-LOCK, 10MM

Floor carpet standard rhd 1

#	OEM	部品名
2	83605-SDA-A01	Holder - FLOOR MAT

Floor carpet standard rhd mt 1

#	OEM	部品名
2	83605-SDA-A01	Holder - FLOOR MAT

Floor mat 7

#	OEM	部品名
2	74251-SEF-G01	Insulator - DASHBOARD OUTER
3	74260-SEF-G00	Insulator - DASHBOARD
16	90611-SM4-013	Clip - PILLAR GARNISH
17	90661-SM4-013	Clip - L. FR. CORNER
20	90676-SE0-003	Clip - JOINT COVER PLATE
21	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
22	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Floor/inner panels 1

#	OEM	部品名
40	90108-S0A-003	Bolt - FLANGE, 6X15

Fog light 5

#	OEM	部品名
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO
2	33901-SEA-G51	Light unit - R. FOG
3	33951-SEA-G51	Light unit - L. FOG
4	90113-SJA-A00	Screw - TAPPING, 5X14

Front beam/rear beam (DIESEL) 22

#	OEM	部品名
1	50200-SEG-G00	Sub frame comp. - FR.
2	50220-SDA-A00	Stiffener - STEERING GEAR BOX
4	50260-SDA-A01	Rubber - FR. SUB FRAME FR. MOUNTING
5	50261-SDA-A02	Rubber, FR. SUB FRAME FR. STOPPER
6	50265-SEA-E00	Stay - R. FR. SUB FRAME MOUNTING
7	50266-SEA-E00	Stay - L. FR. SUB FRAME MOUNTING
8	50270-SEF-E01	Rubber - FR. SUB FRAME RR. MOUNTING
9	50271-SEF-E01	Stopper - FR. SUB FRAME RR.
10	50275-SDA-A00	Stay - R. RR. SUB FRAME MOUNTING
11	50276-SDA-A00	Stay - L. RR. SUB FRAME MOUNTING
12	50280-SEF-E00	Mounting - R. FR. SUB FRAME MIDDLE
13	50285-SEF-E00	Mounting - L. FR. SUB FRAME MIDDLE
14	50300-SED-E01	Beam - RR. CROSS
15	50410-SEG-E00	Damper - FR. SUB FRAME DYNAMIC
16	90160-SED-E01	Bolt - FLANGE, 14X103
17	90170-SDC-A00	Bolt - FLANGE, 10X34
18	90171-S3Y-000	Bolt - FLANGE, 10X35
19	90176-SDA-A00	Bolt - FLANGE, 14X135
20	90176-SEF-010	Bolt - FLANGE, 14X150
21	90186-SEF-010	Bolt - FLANGE, 12X33
22	90396-S5A-010	Bolt - FLANGE, 12X75
23	91613-SR3-003	Grommet - SUB FRAME, 15MM

Front brake 21

#	OEM	部品名
1	44300-SDA-A51	Bearing assy - FR. HUB (NTN)
1	44300-SDA-A52	Bearing assy - FR. HUB(NSK)
1	44300-SDA-A53	Bearing assy
2	44600-SDA-A10	Hub assy, FR.
3	45001-SEA-E01	Housing assy. - L.
4	45002-SEA-E01	Housing assy. - R.
5	45003-SEA-E01	Screw - BLEEDER
6	45004-SEA-E01	Pin - LOCATING
7	45005-SEA-E01	Clip - HOUSING
8	45006-SEA-E01	Seal kit
9	45007-SEA-E01	Bush kit
10	45010-SEA-E01	Anchor kit
11	45022-SEA-E01	Pad set - FR.
12	45251-SEA-E30	Disk - FR. BRAKE (16")
13	45255-SEA-000	GUARD, FR. BRAKE SPLASH
14	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
15	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
15	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
15	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)
15	90113-SA0-006	Bolt - WHEEL (SAGA)
16	90681-SDA-A00	Circlip - SPECIAL INTERNAL, 86MM

Front bulkhead/dashboard 2

#	OEM	部品名
36	90105-SV1-000	Bolt-washer - 8X20
37	90108-S0A-003	Bolt - FLANGE, 6X15

Front door glass/door reg ulator 13

#	OEM	部品名
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY
2	72210-SEC-A02	Regulator assy - R. FR. DOOR POWER
3	72230-SEF-E01	Sash - R. FR. DOOR FR. LOWER
5	72231-SEF-G01	Sash - R. FR. DOOR CENTER LOWER
6	72235-SEF-E02	Runchannel - R. FR. DOOR
8	72250-SEC-A02	Regulator assy - L. FR. DOOR POWER
9	72270-SEF-E01	Sash - L. FR. DOOR FR. LOWER
11	72271-SEF-G01	Sash - L. FR. DOOR CENTER LOWER
12	72275-SEF-E02	Runchannel - L. FR. DOOR
13	73300-SEF-E00	Glass assy - R. FR. DOOR (GREEN)(ASAHI)
14	73350-SEF-E00	Glass assy - L. FR. DOOR (GREEN)(ASAHI)
15	90132-SD4-000	Bolt-washer - 6X16
20	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)

Front door lining (LH) 15

#	OEM	部品名
1	33301-S70-003	Bulb - 12V 3.8W 2CP
2	34261-SDA-A01	Lens
3	35190-SDA-F51	Switch assy - REMOTE CONTROL MIRROR
4	35750-SEG-G11	Switch assy - POWER WINDOW MASTER
5	35770-SDA-A21	Switch assy - RR. POWER WINDOW
8	72134-S2X-003	Snap - R. (NATURAL)
11	72174-S2X-003	Snap - L. (BLACK)
12	72335-SEF-013	Weatherstrip - R. FR. DOOR INNER
13	72375-SEF-013	Weatherstrip - L. FR. DOOR INNER
27	90101-S03-000	Screw - TAPPING, 4X16
28	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
29	90141-SDA-000	Screw - TAPPING, 5X12
30	90662-SB2-003	Grommet - SCREW, 5MM
31	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
32	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Front door locks/outer ha ndle 37

#	OEM	部品名
1	72112-SEA-G01	Lock assy - R. FR. DOOR
3	72113-SR4-004	Snap - BLACK
4	72115-SDA-A01	Actuator assy - R. FR. DOOR LOCK
6	72117-SEA-003	Protector - R. FR. DOOR LOCK (POWER)
7	72118-ST7-003	Screw - TAPPING, 3X5
8	72119-SDA-A01	Holder - R. ROD
9	72130-SEA-G01	Protector - R. FR. OUTER HANDLE
10	72131-SEA-023	Cable - R. FR. INSIDE HANDLE
11	72133-SEA-013	Cable - R. FR. DOOR LOCK
12	72135-SDA-A01	Striker assy - DOOR LOCK
14	72139-SDA-A00	Protector - R. FR. DOOR KNOB
15	72139-SR0-A01	Snap - VIOLET
16	72139-S0A-003	Snap - PINK
17	72140-SEA-G11	Handle assy - R. FR. DOOR OUTSIDE
18	72141-SD4-004	Bush - R. JOINT
21	72143-SEA-003	Cap - BRACKET
22	72143-S04-003	Packing
23	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE
24	72152-SEA-G01	Lock assy - L. FR. DOOR
25	72155-SDA-A01	Actuator assy, Lh - L. FR. DOOR LOCK
26	72157-SEA-003	Protector - L. FR. DOOR LOCK (POWER)
27	72170-SEA-003	Protector - L. FR. OUTER HANDLE
28	72171-SEA-023	Cable - L. FR. INSIDE HANDLE
29	72173-SEA-013	Cable - L. FR. DOOR LOCK
30	72179-SDA-A00	Protector - L. FR. DOOR KNOB
31	72180-SEA-G11	Handle assy - L. FR. DOOR OUTSIDE
32	72181-SD4-004	Bush - L. JOINT
33	72181-SEA-G01	Cylinder set - L. DOOR
34	72182-SEA-G01	Switch assy - L. DOOR CYLINDER
35	90101-SEA-000	Screw - TAPPING
36	90102-SEA-000	Screw
37	90103-S7S-003	Screw - FLAT, 6X18.5
38	90141-S84-003	Screw - 3X10
40	90120-SV4-000	Bolt - LOCK STRIKER
41	90866-SA0-000	Grommet - SCREW, 4MM
42	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
43	91591-SJ6-013	Clip s - FUEL PIPE

Front door panels 18

#	OEM	部品名
13	72321-SEC-A51	Seal - R. FR. DOOR HOLE
14	72325-SEA-033	F/DOOR W/STRIP RH - R. FR. DOOR
15	72340-SEA-E02	Checker comp. - R. FR. DOOR
16	72361-SEC-A51	Seal - L. FR. DOOR HOLE
17	72365-SEA-033	Sub seal - L. FR. DOOR
18	72380-SEA-E02	Checker comp. - L. FR. DOOR
19	75891-SA7-000	Stopper - DOOR
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
22	90141-S04-000	Bolt - FLANGE, 8X22
23	90341-SDA-000	Nut - FLANGE, 6MM
24	90563-SDA-003	Clip - R. SUB SEAL B DOOR
25	90564-SDA-003	Clip - L. SUB SEAL B DOOR
26	91567-SR2-013	Clip
27	91568-SR2-003	Clip - DOOR WEATHERSTRIP
27	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
28	91651-S84-A00	Seal - DOOR PANEL HOLE

Front driveshaft/half sha ft (1) 23

#	OEM	部品名
1	44014-SEF-E00	Joint set - OUTBOARD
2	44017-SEF-E00	Boot set - INBOARD
3	44018-SEF-E00	Boot set - OUTBOARD
4	44305-SEF-E00	Driveshaft assy. - R.
5	44306-SEF-E00	Driveshaft assy. - L.
6	44310-SEF-E00	Joint comp - INBOARD
7	44310-SKN-E90	Joint comp - INBOARD
8	44319-SD4-010	Set ring - 30X2.2
9	44319-S1K-300	Set ring - 30X2.2
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44329-SEF-E01	Band c - DRIVESHAFT (NIPPON HATSUJO)
14	44337-SD4-300	Ring b - STOPPER
15	44338-SD4-300	Circlip - 28MM
16	44351-SEF-E11	Damper - DYNAMIC (TOUKAI)
17	44351-SEF-E01	Damper - DYNAMIC (TOUKAI)
18	44500-SEF-E00	Shaft assy - HALF
20	90102-SF1-000	Bolt - HEX., 10X1.25
21	90165-SE0-000	Bolt - FLANGE, 10X37
22	90305-SD4-003	Nut - SPINDLE (24MM)
24	91057-SH3-008	Bearing - HALF SHAFT (NTN)
25	91260-SEP-A01	Seal - HALF SHAFT OUTER (NOK)

Front fenders (DIESEL) 27

#	OEM	部品名
3	74100-SEF-E01	Fender assy - R. FR. INNER
4	74105-SEA-000	Enclosure - R. FR. FENDER
5	74111-SEF-E01	Cover assy. ENGINE UNDER
5	74111-SEF-305	Cover assy. ENGINE UNDER
6	74114-SEA-000	Lid - OIL DRAIN
7	74150-SEF-E01	Fender assy - L. FR. INNER
8	74155-SEA-000	Enclosure - L. FR. FENDER
9	74206-SEA-000	Garnish - R. FR. FENDER
10	74207-SEA-000	Garnish - L. FR. FENDER
11	74208-SEA-000	Rubber - R. SEAL
12	74209-SEA-000	Rubber - L. SEAL
13	90108-S0A-003	Bolt - FLANGE, 6X15
14	90111-SEA-000	Bolt-washer - 6X24
15	90114-SZ3-000	Screw-washer - 5X20
16	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
16	90111-SM4-003	Bolt - BUMPER
17	90149-SA0-003	Bolt - BUMPER
18	90301-SEA-003	Nut - PUSH 4MM
19	90305-SM4-000	Nut - AIR SPOILER CLIP
20	90305-SM4-003	Nut - CLIP, 6MM
21	90682-SEA-003	Clip - TAPPING SCREW, 5MM
22	91503-SZ3-003	Clip A
23	91512-SX0-003	Clip - INNER FENDER CLIP
24	91533-SG0-000	Clip b - FAIRING
25	91545-SE0-003	Clip assy. - 8MM
26	91560-S04-003	Clip - SIDE GARNISH (NATURAL)
27	91620-SA5-000	Plug - CONSOLE

Front grille (1) 9

#	OEM	部品名
2	71122-SEA-G91	Molding - FR. GRILLE
3	71123-SEA-013	Cover - FR. GRILLE
4	71124-SEA-G91	Molding - FR. GRILLE UPPER
5	71125-SEA-G91	Molding - FR. GRILLE LOWER
6	71129-SEA-003	Base - EMBLEM
7	75700-S9A-G00	Front Honda Emblem - (H)
8	90301-ST0-003	push nut, 3mm
9	91503-SZ3-003	Clip A
10	91512-SX0-003	Clip - INNER FENDER CLIP

Front knuckle/upper arm 16

#	OEM	部品名
1	44348-SDA-A00	Ring - FR. KNUCKLE
2	51210-SDA-A02	Knuckle comp - R. FR.
3	51215-SDA-A02	Knuckle comp - L. FR.
4	51225-SL5-003	Boot - LOWER BALL DUST
5	51450-SEA-003	Arm comp - R. FR. UPPER
6	51460-SEA-003	Arm comp - L. FR. UPPER
7	51464-S04-013	Boot, UPPER BALL JOINT
8	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)
9	52338-SL0-003	Circlip - CONTROL ARM
10	57450-SDH-003	Sensor assy - R. FR.
11	57455-SEF-013	Sensor assy - L. FR.
12	90172-SDA-A00	Bolt - FLANGE, 10X78
13	90321-SX0-003	Nut - UPPER ARM
14	90363-SDA-A03	Nut - CASTLE, 12MM
15	90701-SX0-003	Clip - UPPER ARM
16	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)

Front seat (L.; LH; 1) 19

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
9	81216-SEA-J11	Wire - R. AIRBAG (A)
10	81217-SEA-J11	Wire - AIRBAG (B)
11	81218-SEA-J01	Cover a - FR. BACK UNDER
12	81322-SP0-003	Clip - LUMBAR SUPPORT
14	81524-SEA-J51	Heater comp. - L. FR. SEATBACK
15	81527-SEA-G21	Pad comp - L. FR. SEATBACK
17	81534-SEA-J54	Heater comp. - L. FR. SEAT CUSHION
18	81537-SEA-J11	Pad comp - L. FR. SEAT CUSHION
21	90134-SE3-003	Screw - TAPPING, 5X10
22	90321-SP0-A80	Nut-washer - 6MM
23	90610-S10-003	Clip - GARNISH
24	90650-S7A-J01	Clip - RATCHET, 15MM
25	91533-S04-003	Clip - COUPLER (NATURAL)
26	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
27	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
28	91566-SP0-003	Clip - BACK COVER (NATURAL)
30	78055-SEA-G80	Module assy. - L. SIDE

Front seat (R.; LH; 1) 16

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	81124-SEA-J51	Heater comp. - R. FR. SEATBACK
6	81127-SEA-J11	Pad comp - R. FR. SEATBACK
9	81134-SEA-G34	Heater comp. - FR. SEAT CUSHION
10	81137-SEA-J01	Pad comp - R. FR. SEAT CUSHION
14	81216-SEA-J11	Wire - R. AIRBAG (A)
15	81217-SEA-J11	Wire - AIRBAG (B)
18	90321-SP0-A80	Nut-washer - 6MM
19	90610-S10-003	Clip - GARNISH
20	90650-S7A-J01	Clip - RATCHET, 15MM
21	91533-S04-003	Clip - COUPLER (NATURAL)
22	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
23	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
24	91566-SP0-003	Clip - BACK COVER (NATURAL)
26	78050-SEA-G80	Module assy. - R. SIDE

Front seat components (L.; MANUAL HEIGHT) 12

#	OEM	部品名
3	81214-SEA-J21	Spring a
4	81215-SEA-J21	Spring b - R.
5	81216-SDA-A42	Patch
6	81217-SDA-A42	Band - WIRE
7	81220-SEA-003	Ratchet assy. - FR. SEAT
9	81273-SEA-003	Handle assy - SLIDE ADJUSTER
10	81526-SEA-G12	Frame comp - L. FR. SEATBACK
12	81610-SDA-A42	Lumbar comp. - L. FR. SEAT
13	81615-SEA-J21	Spring b - L.
15	90101-SDA-000	Screw - FLAT, 4X30
16	90134-SE3-003	Screw - TAPPING, 5X10
17	90135-S7A-J51	Bolt-washer - 10X25

Front seat components (R.; MANUAL SEAT) 3

#	OEM	部品名
1	81126-SEA-G11	Frame comp - R. FR. SEATBACK
3	81273-SEA-003	Handle assy - SLIDE ADJUSTER
4	90135-S7A-J51	Bolt-washer - 10X25

Front shock absorber 17

#	OEM	部品名
1	51401-SEG-E02	Spring - FR.
2	51601-SEG-E03	Absorber assy - R. FR. SHOCK
3	51602-SEG-E03	Absorber assy - L. FR. SHOCK
4	51605-SEG-E02	Absorber unit - FR. SHOCK
6	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
7	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8	51675-SDA-A01	Base - FR. SHOCK ABSORBER MOUNTING
9	51684-SDA-A02	Mount - FR. DUST COVER LOWER
10	51685-SH3-014	Plate - DUST COVER(SHOWA)
11	51686-SDA-A01	Rubber - FR. SPRING MOUNTING
12	51688-SDA-A01	Sleeve - FR. DUST COVER
13	51689-SDA-A01	Cover - FR. END DUST
14	51689-SH9-003	Plate - BUMP STOP(SHOWA)
15	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
16	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
17	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 21

#	OEM	部品名
1	51300-SED-E01	Spring - FR. STABILIZER
2	51306-SED-004	Bush - FR. STABILIZER HOLDER
3	51308-SDA-A00	Bracket - FR. STABILIZER
4	51320-SED-013	Link comp - R. FR. STABILIZER
5	51321-SED-013	Link comp - L. FR. STABILIZER
6	51350-SDB-A00	Arm comp - R. FR. LOWER
7	51360-SDB-A00	Arm comp - L. FR. LOWER
8	51391-SDB-A01	Bush - FR. COMPLIANCE
9	51393-SDA-A02	BUSH, FR. ARM (LOWER)
10	51810-SDA-A01	BUSH, FR. SHOCK ABSORBER
11	51811-SEA-E00	Fork - R. FR. SHOCK ABSORBER
12	51821-SEA-E00	Fork - L. FR. SHOCK ABSORBER
13	74180-SEA-G00	Bar comp - R. FR. TOWER
15	74185-SEF-G00	Bar comp - L. FR. TOWER
16	90002-S10-000	Nut - FLANGE, 10MM
17	90117-S0A-000	Bolt - DAMPER LOCK(10X44)
18	90118-SDA-A00	Bolt - FLANGE, 12X87
19	90119-SDA-A00	Bolt - FLANGE, 14X94
20	90121-S0A-000	Bolt - DAMPER FORK(12X98)
21	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)

Front windshield 8

#	OEM	部品名
1	04731-SEA-000	Rubber set - FR. WINDSHIELD DAM
2	73111-SEA-G12	Glass set - FR. WINDSHIELD (GREEN)(ASAHI)
3	73126-SDA-A00	Seal - FR. WINDSHIELD UPPER
4	73150-SEA-013	Molding - FR. WINDSHIELD
5	77466-SEF-000	Seal a - FR. INSTRUMENT
6	77467-SEF-000	Seal b - FR. INSTRUMENT
7	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
8	91568-SDA-A01	Clip - WINDSHIELD UPPER

Front windshield wiper (LH) 22

#	OEM	部品名
1	76505-SDA-A01	Motor comp - FR. WIPER
2	76516-SDA-A01	Rubber - MOUNTING
3	76516-SM4-003	Rubber - MOUNTING
4	76517-SE0-003	Collar - BRACKETLESS
5	76517-SM4-003	Collar
6	76520-SEA-003	Link a assy.
7	76524-SD4-003	Dust seal
8	76524-SE0-013	Dust seal
9	76530-SEA-G01	Link comp - FR. WIPER
10	76540-SEA-003	Rod unit a
11	76550-SEA-003	Rod unit b
12	76561-SDA-A01	Cap - PIVOT
13	76561-SEA-003	Cap - PIVOT
14	76600-SEA-G11	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76601-SEA-003	Cover - ARM
16	76610-SEA-G11	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-SEA-G11	Blade - WINDSHIELD WIPER (650MM) (DRIVER SIDE)
18	76622-SEA-J11	Rubber - BLADE (650MM)
19	76630-SEA-G11	Blade - WINDSHIELD WIPER (375MM) (PASSENGER SIDE)
20	76632-SEA-J11	Rubber - BLADE (375MM)
21	90126-SR3-000	Bolt-washer - 6X32
22	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)

Fuel pipe (DIESEL) 17

#	OEM	部品名
1	16051-SEG-G02	Pipe comp - FUEL
3	17711-ST0-004	Retainer - WHITE) (SANOH
5	17723-SEF-G02	Hose - FUEL RETURN
7	17742-SEG-E01	Hose a - FUEL RETURN
9	17761-SEF-G00	Stay a - FUEL PIPE
10	17762-SDA-A00	Stay b - FUEL PIPE
11	17763-SDA-A01	Stay c - FUEL PIPE
12	17764-SDA-A01	Stay d - FUEL PIPE
13	17765-SEF-G02	Stay - FUEL PIPE
14	90361-SV4-003	Nut - PAINT CUTTING, 6MM
15	91411-SEB-003	Clamp - FUEL TUBE(D13.5)
16	91591-SEG-E01	Clamp - FUEL PIPE
17	91594-SDB-A00	Rubber a - FUEL PIPE INSULATOR
18	91595-SDB-A00	Rubber b - FUEL PIPE INSULATOR
19	91596-SDB-A01	Clamp c - FUEL PIPE
20	91597-SDB-A01	Clamp d - FUEL PIPE
21	91597-S6F-E00	Rubber a - FUEL PIPE INSULATOR

Fuel rail/high pressure p ump (DIESEL) 20

#	OEM	部品名
1	16610-RBD-E01	Rail assy - FUEL
2	16612-RBD-E01	Hose assy - INJECTOR FUEL RETURN
3	16613-RBD-E01	Hose - RAIL FUEL RETURN
4	16615-RBD-E01	Pipe comp - FUEL RETURN & VACUUM
5	16616-RBD-E00	Hose - FUEL RETURN
6	16617-RBD-E00	Holder comp - FUEL HOSE
7	16621-RBD-E01	Pipe comp - HIGH PRESSURE (#1)
8	16622-RBD-E01	Pipe comp - HIGH PRESSURE (#2)
9	16623-RBD-E01	Pipe comp - HIGH PRESSURE (#3/#4)
10	16629-RBD-E00	Pipe set - HIGH PRESSURE FEED
11	16631-RBD-E00	Clamp - HIGH PRESSURE PIPE
12	16633-RBD-E00	Rubber - CLAMP
13	16634-RMA-E01	Rubber - HIGH PRESSURE PIPE INSULATOR
14	16635-RMA-E00	Holder a - HIGH PRESSURE PIPE
15	16636-RMA-E00	Holder comp. b - HIGH PRESSURE PIPE
16	16790-RBD-E02	Pump assy. - HIGH PRESSURE
17	16791-RBD-E01	O-ring
18	16792-RBD-E01	Oldham
19	91405-RMA-E01	Clamp - HOSE(D12.8)
20	91593-RBD-E01	Clip - FUEL HOSE

Fuel strainer (DIESEL) 26

#	OEM	部品名
1	16712-SF4-J30	Cushion - FUEL STRAINER
2	16720-RBD-E03	Hose comp. - FUEL FEED
4	16900-RBD-G01	Strainer assy - FUEL
5	16901-RJL-E01	Cartridge assy. - FUEL STRAINER
7	16902-RBD-G00	Switch assy - WATER LEVEL
8	16902-SEF-E01	Primer - HAND
9	16903-RMA-E00	Plug assy. - DRAIN
11	16903-SEF-G04	Tube - OUTLET
13	16904-SEF-G01	Tube - INLET
14	16905-RMA-E00	Clip - WIRE HARNESS
15	16906-RMA-E00	O-ring
17	16906-SEF-G00	Stay - HAND PRIMER
18	16907-RMA-E00	O-ring
19	16908-RMA-E00	O-ring - DRAIN PLUG
20	16917-RBD-G00	Stay comp - FUEL TUBE
22	16918-RBD-G00	Bracket comp. - FUEL STRAINER
24	16919-SEF-G01	Guard - HAND PRIMER
25	16920-SEF-E01	Catcher - HAND PRIMER
26	37895-RBD-E01	Sensor assy - TEMP FUEL
27	91307-PZA-004	O-ring - 9.5X1.9
28	91405-RMA-E01	Clamp - HOSE(D12.8)
29	91406-SAA-J00	Clamp - TUBE (D12)
30	91407-SDB-000	Clamp - TUBE (D12.5)
31	91592-S6F-E01	Clamp - FUEL TUBE
32	91593-RBD-E01	Clip - FUEL HOSE
34	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Fuel tank (DIESEL) 27

#	OEM	部品名
1	17047-SEG-010	Meter comp
2	17371-S6F-E01	Valve - TWO WAY
3	17500-SEG-E01	Tank comp. - FUEL
4	17521-SED-010	Band - R. FUEL TANK MOUNTING
5	17522-SED-010	Band - L. FUEL TANK MOUNTING
6	17525-SM4-000	Bolt-washer - 10X35
7	17551-S84-A01	Packing
8	17570-SEG-E01	Valve - FUEL CUT
9	17574-SEA-003	Packing - BASE
10	17651-SED-003	Tube - FILLER NECK
11	17652-SDA-A31	Clip - FILLER TUBE
12	17653-SED-003	Tube - BREATHER
13	17660-SEG-E01	Pipe comp - FUEL FILLER
14	17662-SDA-A01	Packing - FUEL FILLER
15	17670-SKN-E02	Cap comp. - FUEL FILLER (TOYODA)
16	17708-SEG-E03	Module assy. - FUEL
17	17716-SEG-E00	Tube a - FUEL VENT
18	17724-SEG-E00	Tube b - FUEL VENT
19	74660-SEG-E00	Cap assy. - FUEL MAINTENANCE HOLE
20	90101-S84-000	Bolt-washer - 5X10
21	90103-SB0-010	Nut - FLANGE, 5MM
22	90150-S04-003	Bolt - EARTH, 6X16
23	91401-SDC-000	Clip - TUBE(B10)
24	91462-SDA-003	Clamp - FUEL TUBE (D18)
25	91594-S1A-E01	Clip - FUEL FILLER CAP
26	91597-S50-013	Clip A - FUEL PIPE
27	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Gasket kit (DIESEL) 6

#	OEM	部品名
1	06110-RSR-E41	Gasket kit d - CYLINDER HEAD (1.45MM)
1	06110-RSR-E31	Gasket kit c - CYLINDER HEAD (1.40MM)
1	06110-RSR-E21	Gasket Kit B - CYLINDER HEAD (1.35MM)
1	06110-RSR-E11	Gasket kit A - CYLINDER HEAD (1.30MM)
1	06110-RSR-E51	Gasket kit e - CYLINDER HEAD (1.50MM)
2	06111-RBD-E00	Gasket kit - CYLINDER BLOCK

Grommet (FRONT) 11

#	OEM	部品名
1	75826-634-300	Seal - INSIDE PANEL, 15MM
2	82871-671-000	Grommet - DRAIN HOLE, 25MM
3	90615-SR3-000	Cap - WELD HOLE, 51X77
4	90682-SB0-003	Grommet - SCREW, 5MM
5	91602-SZ5-000	Cushion - HOOD (11.6MM)
6	91603-SZ5-000	Cushion - HOOD (25MM)
7	91611-SM4-003	Plug - FLOOR HOLE, 25MM
8	91611-SS0-003	Plug - HOLE, 25MM
9	91613-SR3-003	Grommet - SUB FRAME, 15MM
10	91615-SH3-000	Cap - FLOOR HOLE, 49MM
11	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 6

#	OEM	部品名
1	82871-671-000	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90860-SA5-003	Plug - HOLE, 16MM
4	91602-SV4-003	Plug - HOLE, 15MM
5	91606-SK7-003	Plug - BLIND, 25MM
6	91613-SR3-003	Grommet - SUB FRAME, 15MM

Grommet (REAR) 8

#	OEM	部品名
1	82871-671-000	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90615-S5A-003	Plug - HOLE, 27X56
4	90682-SDA-A01	Grommet - SCREW, 5MM
5	90857-SDA-A00	Cap - WELD HOLE
6	91601-S1F-003	Plug
7	91610-SD4-000	Plug - HOLE, 28MM
8	91640-SED-000	Grommet - HOLE, 26X48

Grommet (SIDE) 5

#	OEM	部品名
1	91616-SEF-000	Block - FR. PILLAR INNER LOWER
3	91618-SE3-010	Seal - RR. PILLAR UPPER
4	91618-S5A-000	Seal - HOLE, 30X90
5	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
6	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Harness band/bracket (LH) 58

#	OEM	部品名
1	32112-S2K-003	Band - CABLE (90MM)
2	32123-SEF-E00	Stay - CABIN HARNESS
3	32125-RBD-G00	Holder comp - ENGINE CONTROL MODULE SUB CORD
4	32127-SEF-G00	Bracket d - CABIN WIRE HARNESS
5	32128-SEF-G00	Bracket b - CABIN WIRE HARNESS
6	32129-SEF-G00	Bracket c - CABIN WIRE HARNESS
7	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
8	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
10	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
11	32141-SDA-A00	Protector - FLOOR HARNESS
12	32146-SH3-003	Connector - DIODE(2P)
13	32171-SED-003	Protector - R. WIRE HARNESS
14	32172-SED-003	Protector - L. WIRE HARNESS
15	32177-SDA-003	Clip - FR. WIPER(BLACK)
16	32606-SEF-G00	Bracket comp. - SUB EARTH
19	80382-SEF-E11	Clip - RECEIVER PIPE
20	90149-SE0-003	Bolt - EARTH, 6X16
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM
22	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
24	91476-SB6-003	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
25	91501-RBD-E01	Clip - COUPLER
27	91507-S3Y-003	Clip - INSULATOR
28	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
29	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
30	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)
31	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
32	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
33	91533-SDA-003	Clip - COUPLER (BEIGE)
34	91533-SFE-003	Clip - RELAY HOLDER (BLACK)
35	91533-S04-003	Clip - COUPLER (NATURAL)
36	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
37	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
38	91540-S6A-003	Clip - HARNESS BAND(NATURAL) (150MM)
39	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)
40	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
41	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)
42	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
43	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
44	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
45	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
46	91555-SE0-003	Clip - WIRE HARNESS(BLACK)
47	91555-SM4-003	Clip - COUPLER (RED)
48	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)
49	91556-SP0-003	Clip - COUPLER(BROWN)
50	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
52	91559-SP0-003	Clip - NUT, 6MM
53	91559-SX0-003	Clip - HARNESS BAND (NATURAL) (155MM)
54	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
55	91560-SR3-003	Band - HARNESS (NATURAL)(113MM)
56	91565-SEL-003	Clip - COUPLER(BLACK)
57	91565-S0X-003	Clip - COUPLER (DARK GREEN)
58	91577-SS0-003	Clip - WIRE HARNESS (BLUE) (122.5MM)
61	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
62	91902-S3N-003	Plaster - WIRE HARNESS (50X50)
66	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
67	91726-SDA-300	Ring a - GROMMET
68	91727-SDA-300	Ring c - GROMMET
69	32747-RBD-G00	Stay g - HARNESS

Headlight 16

#	OEM	部品名
1	33101-SEA-G71	Headlight unit - R.
2	33105-S5N-C01	Nut - SPECIAL
6	33116-SD4-961	Socket - BULB (OSRAM) (HALOGEN)
9	33126-S0A-003	Cover - RUBBER
10	33127-SEF-G01	Cover
13	33130-S5A-G01	Adjuster unit - HEADLIGHT
14	33145-SEA-003	Gasket - SEAL
15	33147-SEA-G01	Cord comp
16	33151-SEA-G71	Headlight unit - L.
17	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
18	33303-SAA-003	Socket comp - T20 S) (AMBER
19	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
20	33305-S5A-003	Socket comp - T10
21	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)
22	90101-S5A-003	Tapping - SPECIAL, 5X18
23	90682-SB0-003	Grommet - SCREW, 5MM

Heater blower (LH) 10

#	OEM	部品名
1	79305-SEF-G01	Blower sub assy.
2	79308-SDA-A01	Seal - BLOWER OUTER
3	79310-SEA-G01	Motor assy. - FAN
4	79350-SDC-A01	Motor assy. - FRESH & RECIRCULAR
5	80290-SDC-A01	Filter assy - AIR CONDITIONER
6	80292-SDC-A01	Element - FILTER
7	90127-SX0-003	Screw - TAPPING, 4X16
8	90132-SR3-003	Screw - TAPPING, 5X16
9	90133-SR3-003	Screw-washer - 4X16
10	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 28

#	OEM	部品名
1	39248-692-003	Packing - HEATER
2	79021-SDA-A01	Seal a
3	79021-SEA-941	Packing - LINK
4	79106-SEF-G01	Sub heater unit
5	79115-SEA-G41	Core sub assy. - HEATER
6	79140-SDA-A01	Motor assy. - MODE
7	79160-SDC-A41	Motor assy. - TEMPERATURE DRIVER
8	79170-SDC-A41	Motor assy. - TEMPERATURE PASSENGER
9	79191-SZ3-A01	Nut - HOLDER
10	79330-SDR-A01	Transistor - POWER
11	79544-SDA-A11	Cable - WATER VALVE CONTROL
12	79731-SDA-A00	Grommet - HEATER PIPE
13	79770-SE0-000	Grommet - WATER VALVE CABLE
14	80203-SEA-E01	Plate - EVAPORATOR LOWER
16	80213-SEF-G11	Evaporator sub assy.
18	80271-SDA-A00	Hose - DRAIN
19	80534-S84-A41	Aspirator
20	80542-SDA-A41	Hose b - ASPIRATOR
22	80560-SEA-G01	Thermistor - AIR CONDITIONER
23	80650-SEA-G10	Sub harness - AIR CONDITIONER
27	90127-SX0-003	Screw - TAPPING, 4X16
28	90133-SR3-003	Screw-washer - 4X16
29	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
30	90661-S2A-003	Clip - DRAIN HOSE
31	91533-SDA-003	Clip - COUPLER (BEIGE)
32	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
33	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)
34	91580-SM4-003	Clip - COUPLER(ORANGE)

Injector (DIESEL) 6

#	OEM	部品名
1	16450-RMA-E02	Injector assy
2	16451-RBD-E01	Clip
3	16461-RBD-E01	Arm - NOZZLE
4	16472-RBD-E00	Gasket - NOZZLE
5	90019-RBD-E01	Bolt - SPECIAL SOCKET
6	16452-RMA-E01	O-ring - 16.8X1.8

Install pipe/vacuum pump (DIESEL) 26

#	OEM	部品名
1	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)
2	17205-PC6-000	Clamp - TUBE, 7.5X2
3	17400-RBD-E01	Pipe comp. a - INSTALL
4	17410-RSR-E00	Pipe comp. b - INSTALL
5	17411-RBD-E00	Pipe c - INSTALL
6	36010-RMA-E01	Joint comp - THREE WAY
7	36011-RMA-E01	Joint comp - TWO WAY
8	36100-RSR-E02	Filter assy - SOLENOID VALVE
9	36180-RBD-E01	Valve assy. - EVR
10	36181-RBD-E00	Tube a - EVR VALVE
11	36182-RBD-E00	Tube b - EVR VALVE
12	36183-RSR-E00	Tube c - EVR VALVE
13	36184-RSR-E00	Tube d - EVR VALVE
14	36185-RBD-E01	Chamber comp - VACUUM
15	36186-RBD-E00	Tube - VACUUM CHAMBER
16	36187-RBD-E00	Stay comp - EVR VALVE
17	36190-RSR-E01	Valve assy. - FREQUENCY SOLENOID
18	36191-RSR-E00	Tube - FREQUENCY SOLENOID
19	36300-RBD-E01	Pump assy. - VACUUM
20	36305-RBD-E00	Hose - VACUUM
21	53729-671-003	Clamp d - 15.5MM
22	90412-RBD-E01	Washer - SEALING, 8MM
23	90634-PA0-000	Cap - SEALING
24	91307-PY3-000	O-ring - 9.8X2.4
25	91310-RBD-E01	O-ring - 64.4X3.1
26	91597-PAA-A01	Clamp - TUBE

Instrument panel (LH) 14

#	OEM	部品名
2	39543-SEA-G00	Bracket - NAVIGATOR UNIT LOWER PASSENGER SIDE
3	39544-SEA-G00	Bracket - NAVIGATOR UNIT LOWER DRIVER SIDE
6	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
13	77466-SEA-010	Seal - FR. INSTRUMENT
14	77982-S9A-N81	Holder - COUPLER (2P)
15	90001-S10-010	Bolt-washer - 5X16
16	90104-SV4-000	Bolt-washer - 8X25
17	90106-S84-A00	Bolt-washer - 8X40
18	90108-S84-A00	Bolt-washer - 8MM(SRS)
19	90110-S84-A00	Bolt-washer - 8X20
20	90302-SA4-003	Nut - SPRING, 4MM
21	90321-SP0-A80	Nut-washer - 6MM
22	90651-S0A-003	Cap - BOLT, 8MM
24	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; LH) 13

#	OEM	部品名
1	37115-SA0-601	Packing - NS
2	39710-SEA-E01	Display assy - INFORMATION CENTER
3	66418-579-000	Stopper - GLOVE BOX LID
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
9	77279-SEA-E01	Clip - SNAP FITTING
12	77320-SEF-G00	Cover assy. - DRIVER UNDER
17	77752-SDC-Y01	Spring
18	90101-S2K-000	Screw - TAPPING, 4X16(IT)
19	90111-SDA-003	Screw - TAPPING, 3X10
20	90302-SA4-003	Nut - SPRING, 4MM
21	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
22	90666-S84-A01	Clip - SNAP FITTING
23	91640-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 26

#	OEM	部品名
1	33301-S70-003	Bulb - 12V 3.8W 2CP
2	39541-SEA-000	Bracket - R. NAVIGATOR UNIT SIDE
3	39542-SEA-000	Bracket - R. NAVIGATOR UNIT UPPER
4	39546-SEA-000	Bracket - L. NAVIGATOR UNIT SIDE
5	39547-SEA-000	Bracket - L. NAVIGATOR UNIT UPPER
6	39610-S2K-003	Knob assy
7	39620-S2K-003	Socket assy
8	39630-S0X-003	Ring assy - TYPE INCLUDING BULB
9	66418-SB2-000	Stopper - GLOVE BOX LID
10	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
12	77205-S0X-A01	Clip - SNAP FITTING
19	77282-SEA-G41	Mat - NAVIGATOR PANEL
25	77293-SDA-A01	Rubber - STOPPER
26	77345-SDG-P00	Cover assy. - PASSENGER UNDER
28	77520-SDA-A01	Cylinder - GLOVE BOX
29	77530-SDA-K02	Damper assy. - GLOVE BOX
32	77700-SDC-Y01	Ashtray assy. - FR.
33	77711-SDC-Y30	Holder comp - FR. ASHTRAY
34	77712-SDC-Y10	Cover - CIGARETTE LIGHTER
36	77715-SDA-K11	Spring - FR. ASHTRAY (LH)
39	78104-SS0-010	Label - FRENCH
40	90140-SDA-A00	Bolt-washer - 5X19
41	90306-SA0-000	Nut - FLOATING, 5MM
42	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
43	90666-S84-A01	Clip - SNAP FITTING
45	91640-SM4-003	Grommet - SCREW, 4MM

Intake manifold (DIESEL) 3

#	OEM	部品名
1	17100-RSR-E00	Manifold comp - INTAKE
2	17105-RBD-E01	Gasket - INTAKE MANIFOLD
3	17121-RMA-E01	Gasket - SWIRL CONTROL VALVE

Intercooler 18

#	OEM	部品名
1	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
2	17282-RBD-E02	Hose - TURBOCHARGER OUTLET
3	17283-RBD-E01	Pipe assy. - INTERCOOLER INTAKE
4	17284-RBD-E02	Hose - INTERCOOLER INTAKE
5	17285-RBD-E02	Hose - INTERCOOLER OUTLET
6	17288-RBD-E00	Rubber - INTERCOOLER PIPE MOUNTING
7	17316-RBD-E01	Band - INTERCOOLER HOSE (D56)
8	17317-RBD-E02	Band - INTERCOOLER HOSE (D53)
9	19700-RBD-E02	Intercooler assy
10	19701-RBD-E01	Stay a - INTERCOOLER
11	19702-RBD-E01	Stay comp. b - INTERCOOLER
12	19703-RBD-E01	Stay assy. c - INTERCOOLER
13	19705-RBD-E01	Rubber - INTERCOOLER MOUNTING UPPER
14	19711-RBD-E01	Guide comp - INTERCOOLER
15	74172-SD4-020	Cushion - RADIATOR MOUNTING LOWER
16	75353-671-000	Lock - SCREW
17	90001-PGM-000	Bolt-washer - SPECIAL, 6X30
18	90015-PWA-000	Bolt-washer - 6X14

Interior light 15

#	OEM	部品名
1	34251-S5A-003	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
4	34401-SDA-A01	Lens - R.
5	34401-SDA-A21	Lens - R.
6	34402-SDA-A01	Lens - L.
7	34402-SDA-A21	Lens - L.
8	34404-SDA-A01	Base comp.
9	34404-SDA-A21	Base comp.
19	83251-SDC-A01	Bush
20	83252-SDC-A01	Spring
21	83253-SDC-A01	Screw - TAPPING, 3X10
22	83254-SDC-A02	Cam set - LOCK
23	90148-S6A-013	Bolt - EARTH, 5X14
23	90148-S6A-003	Bolt - EARTH, 5X14

Mainshaft (DIESEL) 13

#	OEM	部品名
1	23210-RAW-000	Mainshaft comp.
2	23440-RPP-000	Gear comp - MAINSHAFT THIRD
3	23450-RPP-000	Gear comp - MAINSHAFT FOURTH
4	23581-RMB-000	Gear - MAINSHAFT FIFTH
5	23591-RMB-000	Gear - MAINSHAFT SIXTH
6	23623-RMB-305	Sleeve set - SYNCHRONIZER (3-4)
7	23626-RMB-305	Sleeve set - SYNCHRONIZER (5-6)
8	23915-PYZ-000	Collar - DISTANCE, 36X42X49
9	23916-RMB-000	Collar - DISTANCE, 33X42X24
10	91002-PCY-003	Bearing - BALL, 28X64X18
11	91004-RMB-003	Bearing - BALL, 31X82X20
12	91102-RMB-003	Bearing - NEEDLE, 42X47X24
13	91109-PYZ-003	Bearing - NEEDLE, 42X47X22

Meter components (NS) 6

#	OEM	部品名
1	37115-SA0-601	Packing - NS
2	78120-SEG-G23	Meter assy - SPEED & TACHO & FUEL & TEMPERATURE
3	78155-SDA-H01	Visor
4	78156-SDA-U01	Lens - METER
5	78171-SDA-H01	Visor - UNDER
6	90302-SA4-003	Nut - SPRING, 4MM

Mirror 21

#	OEM	部品名
1	34300-SEA-013	Light assy - R. SIDE TURN
2	34350-SEA-013	Light assy - L. SIDE TURN
4	76203-SEA-E22	Mirror sub assy. - R. (R2100) (HEATED)
5	76208-SEA-003	Sticker
6	76210-SEA-G31	Turn set - R. AUTO (HEATED)
7	76215-SEA-G31	Turn set - L. AUTO (HEATED)
8	76220-SEF-003	Garnish - R. DOOR MIRROR (R.C.)
9	76239-S6M-003	Screw - PAN, 5X10
11	76253-SEA-E22	Mirror sub assy. - L. (R2100) (HEATED)
12	76270-SEF-003	Garnish - L. DOOR MIRROR (R.C.)
14	76400-SEC-A12	Mirror assy - RR. VIEW (DAY/NIGHT)
15	76406-SEC-A01	Screw - TORX, (#10 X 3/8)
16	76410-SEC-A01	Cover - RR. VIEW MIRROR
17	76415-SEC-A01	Base set - RR. VIEW MIRROR HARNESS COVER
18	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)
19	90109-SDF-003	Screw - TAPPING, 4X14
20	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)
21	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)
22	90615-SK7-003	Clip - MIRROR GARNISH
23	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
24	91565-SEA-003	Clamp - HARNESS

Molding 43

#	OEM	部品名
1	72410-SED-J01	Molding assy. R. FR. DOOR
2	72425-SEA-003	Molding - R. FR. DOOR SASH
3	72450-SED-J01	Molding assy. L. FR. DOOR
4	72465-SEA-003	Molding - L. FR. DOOR SASH
5	72910-SED-J01	Molding assy. - R. RR. DOOR
6	72925-SED-J01	Molding - R. RR. DOOR SASH
7	72950-SED-J01	Molding assy. - L. RR. DOOR
8	72965-SED-J01	Molding - L. RR. DOOR SASH
9	73153-SEA-003	Clip A - R. WINDSHIELD (LIGHT RED)
10	73153-SED-003	Clip f - ROOF
11	73154-SEA-003	Clip b - R. WINDSHIELD (LIGHT BLUE)
12	73155-SEA-003	Clip c - WINDSHIELD (LIGHT GREEN)
13	73156-SEA-003	Clip d - R. WINDSHIELD (LIGHT YELLOW)
14	73157-SEA-003	Clip e - R. WINDSHIELD (BLACK)
15	73157-SED-E01	Molding - R. DRIP SIDE (C)
16	73159-SED-E01	Molding - R. DRIP SIDE (B)
17	73160-SED-E01	Molding - R. DRIP SIDE (RR.)
18	73161-SED-E01	Molding - R. DRIP SIDE (FR.)
19	73163-SEA-003	Clip A - L. WINDSHIELD (DARK RED)
20	73164-SEA-003	Clip b - L. WINDSHIELD (DARK BLUE)
21	73166-SEA-003	Clip d - L. WINDSHIELD (NATURAL)
22	73167-SEA-003	Clip e - L. WINDSHIELD (DARK GRAY)
23	73167-SED-E01	Molding - L. DRIP SIDE (C)
24	73169-SED-E01	Molding - L. DRIP SIDE (B)
25	73170-SED-E01	Molding - L. DRIP SIDE (RR.)
26	73171-SED-E01	Molding - L. DRIP SIDE (FR.)
27	74410-SED-000	Garnish - R. RR. PILLAR
28	74450-SED-000	Garnish - L. RR. PILLAR
33	75271-SED-E01	Pad - R. FR.
34	75272-SED-E01	Pad - R. CENTER
35	75273-SED-E01	Pad - R. RR.
40	75281-SED-E01	Pad - L. FR.
41	75282-SED-E01	Pad - L. CENTER
42	75283-SED-E01	Pad - L. RR.
46	75291-SED-E01	Spacer - BAR
47	90116-SED-E01	Bolt - FLANGE, 6X12
48	90148-SDA-000	Screw - TAPPING, 4X12(PO)
49	90306-SED-E01	Nut - SPECIAL, 6MM
50	91512-SR3-004	Clip - TUBULAR
51	91570-SDC-A01	Clip A - TAPE(BLUE)
52	91571-SDC-A01	Clip b - TAPE (NATURAL)
53	91572-SED-003	Clip A - ROOF MOLDING
54	91573-SED-003	Clip b - ROOF MOLDING

Navigation system (LH) 12

#	OEM	部品名
1	39162-SED-G00	Feeder assy. - RDS
2	39541-SEA-000	Bracket - R. NAVIGATOR UNIT SIDE
3	39542-SEA-000	Bracket - R. NAVIGATOR UNIT UPPER
4	39546-SEA-E11	Navigation unit - ALPINE
5	39546-SEA-000	Bracket - L. NAVIGATOR UNIT SIDE
6	39547-SEA-000	Bracket - L. NAVIGATOR UNIT UPPER
7	39835-SDR-A01	Antenna assy - GPS
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
9	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
10	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
11	91555-SM4-003	Clip - COUPLER (RED)
18	39010-SMG-E02	Dvd-rom set - NAVIGATOR

Oil filter case (DIESEL) 11

#	OEM	部品名
1	15401-RBD-E01	O-ring a - OIL FILTER CASE
2	15405-RBD-E01	Case kit - OIL FILTER
3	15420-RBD-E02	Filter assy - OIL
4	15430-RBD-E02	Element kit
5	15432-RBD-E02	O-ring a
6	15433-RBD-E02	O-ring b
7	15434-RBD-E02	O-ring c
8	15461-RBD-E01	O-ring b - OIL FILTER CASE
9	15500-RBD-E01	Cooler - ENGINE OIL
10	15501-RBD-E01	O-ring a - OIL COOLER
11	15502-RBD-E01	O-ring b - OIL COOLER

Oil pump (DIESEL) 23

#	OEM	部品名
1	13410-RBD-E00	Shaft comp. - FR. BALANCER
2	13420-RBD-E00	Shaft comp. - RR. BALANCER
3	13432-RMA-E00	Sprocket - DRIVEN (18T)
4	13441-RBD-E01	Chain - 58L)(DAIDO
5	13450-RBD-E01	Tensioner Assy - OIL PUMP CHAIN
6	13451-RBD-003	Stopper - TOOL
7	13460-RBD-E01	Guide - OIL PUMP CHAIN
8	13470-RBD-E01	Arm comp - OIL PUMP CHAIN TENSIONER
9	15110-RBD-E01	Holder set - PUMP
10	15115-PNA-003	Metal - BALANCER SHAFT (DAIDO)
10	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)
11	15123-PCX-003	Dowel pin - 18X13
12	15142-PE0-000	O-ring - 4.8X1.9
13	15142-RBD-E00	Orifice assy - BALANCER
14	15231-PR7-A00	Valve - RELIEF
15	15232-RBD-E01	Spring - RELIEF VALVE
16	15233-PR7-A00	Bolt - SEALING, 20MM
17	90003-PNA-000	Bolt - TENSIONER PIVOT
18	90004-PNA-000	Bolt - CHAIN GUIDE
19	90008-RBD-E00	Bolt - FLANGE, 8X68
20	90021-RBD-E00	Bolt - FLANGE, 10X118
21	90042-RBD-E01	Bolt-washer - 10X25
22	90743-RBD-E00	Key - 10X7

Outer panels/rear panel 8

#	OEM	部品名
31	70494-SE0-000	Spring - FUEL LID OPENER
32	70495-692-000	Cushion - FUEL FILLER LID
33	74411-SED-G01	Cable - FUEL LID OPENER
36	75450-SDA-A01	Outlet assy - RR. AIR
37	90108-S0A-003	Bolt - FLANGE, 6X15
38	90147-634-003	Bolt - FENDER, 6X18
39	90684-SD4-003	Clip - FUEL LID OPENER
40	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

P.s. gear box (LH) 16

#	OEM	部品名
1	53010-SDA-A01	End set - RACK
2	53434-S84-A01	Clip - STEERING TIE ROD
3	53436-SDA-A01	Cushion b - GEAR BOX
4	53438-SDA-A00	Bracket b - STEERING
5	53449-S84-A01	Band - BELLOWS
6	53502-SDA-A00	Grommet b - STEERING
7	53534-SED-G01	Dust seal - TIE ROD
8	53536-SDA-A02	Washer - TIE ROD LOCK
9	53537-S84-A01	Rubber - STOPPER
10	53540-SDA-A01	TIE ROD END OUTER RH - R. TIE ROD
11	53546-S84-003	Boot - TIE ROD END (NOK)
12	53560-SDA-A01	TIE ROD END OUTER LH - L. TIE ROD
13	53601-SEG-G07	Box comp - POWER STEERING GEAR
14	53685-SDA-A01	Bush - GEAR BOX MOUNTING
16	90108-SDA-003	Bolt - GEAR BOX MOUNTING
17	91411-S84-A01	Nut - HEX., 14MM

P.s. gear box components (LH) 23

#	OEM	部品名
1	06531-SDA-A01	Seal kit a - POWER STEERING (ROTARY VALVE)
2	06532-S50-003	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	53413-S0K-A01	Spring - RACK GUIDE PRESSURE
6	53414-S84-A01	Screw - RACK GUIDE
7	53416-S3M-A01	Guide - STEERING RACK
8	53449-S84-A01	Band - BELLOWS
9	53458-S84-A01	Nut - LOCK
10	53536-SDA-A02	Washer - TIE ROD LOCK
11	53537-S84-A01	Rubber - STOPPER
12	53608-SED-G01	Housing sub assy. - STEERING GEAR BOX
13	53626-SED-G02	Rack comp - STEERING
14	53630-SED-E01	End comp - CYLINDER
15	53641-SED-G02	Valve sub assy.
16	53645-SEF-G02	Housing comp - VALVE
17	53656-S84-A01	Circlip - EXTERNAL, 20MM
18	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)
19	53661-S84-A01	Washer - WAVE (NOK)
20	53666-S50-003	O-ring - 41.5X2 (SHOWA)
21	53670-SDA-A01	Pipe comp. a - CYLINDER
22	53671-SDA-A01	Pipe comp. b - CYLINDER
23	90105-S50-003	Bolt - FLANGE, 8X28

P.s. lines (DIESEL; LH) 24

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-SDA-A01	Tank comp. - POWER STEERING OIL
3	53712-SEF-E01	Bracket comp. - POWER STEERING TANK
4	53713-SEF-G02	Hose comp. - POWER STEERING FEED
5	53720-SEF-G01	Pipe comp. a - RETURN, 10MM
6	53728-SDB-A01	Clip - RETURN PIPE
7	53729-S0X-A01	Clip - RETURN HOSE(BLACK)
8	53729-S0X-003	Clip - RETURN HOSE (NATURAL)
9	53729-671-003	Clamp d - 15.5MM
10	53730-SEF-E01	Clamp - FEED HOSE
11	53731-SEF-E01	Tube - SUCTION
12	53733-SEF-E02	Hose - OIL TANK
13	53734-SEF-E01	Hose - POWER STEERING RETURN
14	53734-SEF-G01	Hose - POWER STEERING RETURN
15	53736-SDA-A01	Holder - POWER STEERING PIPE
16	53736-SH3-950	Holder b - POWER STEERING PIPE
17	53740-SDA-A00	Rubber - POWER STEERING PIPE HOLDER INSULATOR
18	53765-SEF-E01	Cooler, POWER STEERING OIL
19	53775-SEF-E00	Stay - SUCTION TUBE
20	53779-SEF-G00	Pipe comp. b, RETURN, 10MM
21	76820-S6M-003	Bracket - MOUTH
22	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
23	91370-SV4-000	O-ring - 14.4X1.9
24	91405-SS0-003	Clamp - TUBE (D21)

Parking brake (LH) 8

#	OEM	部品名
2	47342-SZ3-003	Switch - PARKING BRAKE
3	47360-SB2-000	Equalizer
4	47365-538-000	Pin - EQUALIZER
5	47510-SED-003	Wire - R. PARKING BRAKE
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING
7	47537-671-670	Spring - PARKING BRAKE ROD
8	47560-SED-003	Wire - L. PARKING BRAKE
9	47572-ST0-000	Base - WIRE GUIDE

Parking brake shoe 18

#	OEM	部品名
1	43053-SED-E50	Shoe set - RR. BRAKE
2	43110-S3N-003	Plate comp - R. RR. BRAKE BACK
3	43120-S3N-003	Plate comp - L. RR. BRAKE BACK
4	43171-SX0-J01	Spring - ROD
5	43172-SX0-N01	Spring a - BRAKE
6	43300-SX0-N01	Bolt comp - ANCHOR
7	43361-SX0-N01	Lever - R. PARKING BRAKE
8	43362-SX0-N01	Rod - R. CONNECTING
9	43365-SX0-N01	Pin - PARKING LEVER
10	43366-SX0-J01	Adjuster assy
11	43367-SX0-J01	Spring b - BRAKE
12	43371-SX0-N01	Lever - L. PARKING BRAKE
13	43372-SX0-N01	Rod - L. CONNECTING
14	43375-SA0-003	U-clip
15	43379-SA5-003	Washer - WAVE
16	45172-SP0-003	Spring - SHOE CLAMP
17	45175-SX0-N01	Pin - TENSIONER
18	90382-SP0-003	Nut - FLANGE, 16MM

Pedal (LH) 25

#	OEM	部品名
1	17800-SEA-G01	Pedal assy - ACCELERATOR
2	17818-SEA-G02	Stopper - ACCELERATOR PEDAL
3	17910-SEF-G02	Wire - THROTTLE
5	17930-SEF-G02	Stay comp - THROTTLE WIRE
6	36750-SDA-A02	Switch assy - STOP & CRUISE (TOYO)
6	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)
7	36760-PT0-004	Switch assy - CLUTCH
8	36760-SM4-003	Switch assy - CLUTCH
9	46505-SA5-000	Pad - PEDAL STOPPER
10	46505-SA7-000	Pad - PEDAL STOPPER
11	46545-SA5-000	Cover, Pedal
13	46591-SEA-G00	Stay assy - PEDAL
14	46598-SDA-A00	Stay assy. b - PEDAL
15	46600-SEA-G01	Pedal assy - BRAKE
16	46907-SDP-A01	Spring - CLUTCH ASSISTANT
17	46910-SEF-G42	Pedal comp - CLUTCH
18	46911-SD4-930	Bush - PEDAL PIN
19	46981-S2A-003	Bush a - CLUTCH ASSISTANT
20	46982-SDP-A01	Bush b - ASSISTANT
21	46991-SDA-G00	Bracket - FOOTREST
22	46992-SDA-A02	Plate - FOOTREST
23	75891-611-000	Cover - DOOR SWITCH
24	90301-SP0-003	Nut - PAINT CUTTING, 6MM
25	90361-SV4-003	Nut - PAINT CUTTING, 6MM
26	90361-S3C-003	Nut - PAINT CUTTING, 8MM

Pillar garnish (LH) 8

#	OEM	部品名
2	38205-SEF-E01	Label - FUSE
19	90666-SED-003	Clip - LINING PILLAR
20	91560-SED-003	Clip - PILLAR GARNISH (PINK)
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
22	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)
23	91560-S9A-A01	Clip - DOOR LINING (LIGHT BLUE)
24	91560-S9A-A11	Clip - PILLAR GARNISH (LIGHT GREEN)
25	91561-SDB-A02	Grommet - PILLAR GARNISH

Power steering pump (DIESEL) 23

#	OEM	部品名
1	56110-RBD-E02	Pump sub assy - POWER STEERING
2	56123-RMA-G01	Joint - INLET
3	56141-PNC-003	Shaft - POWER STEERING PUMP DRIVE
4	56483-PNC-004	Pulley - POWER STEERING PUMP
5	56997-RBD-E00	Bracket - POWER STEERING PUMP
6	90305-PAA-A01	Nut - POWER STEERING PULLEY
7	90693-P2A-003	Circlip - INTERNAL, 40MM
7	90693-PAA-A01	Circlip - INTERNAL, 40MM
8	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12
9	91249-PNC-003	Seal - POWER STEERING PUMP
10	91343-PNC-003	Seal - RUBBER
11	91344-PNC-003	Seal - SLIPPER
12	91345-PAA-A01	O-ring - 13.0X1.9
12	91345-PY3-000	O-ring - 13.0X1.9
13	91345-RJL-003	O-ring - 13.0X1.9
14	91346-PLA-003	O-ring - 23.8X2.4
15	91347-PAA-A01	O-ring - 16.7X1.8
16	91347-PLA-003	O-ring - 12.7X1.8
17	91348-P2A-003	O-ring - 51.0X2.4
18	91349-PNC-J01	Seal - PUMP COVER
19	91349-PNC-003	Seal b - PUMP COVER
20	91350-PLA-003	Bolt - FLANGE, 8X35
21	91350-P8C-A01	Bolt - FLANGE, 6X20

Radiator (DIESEL) 19

#	OEM	部品名
1	19010-RBD-E01	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19015-RBD-E01	Shroud comp.
5	19020-RBD-E01	Fan comp - COOLING
6	19030-RBD-E01	Motor - COOLING FAN
7	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
7	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
8	38611-RBD-E01	Fan comp - COOLING
9	38615-RBD-E01	Shroud comp. - AIR CONDITIONER
10	38616-RMA-E01	Motor - COOLING FAN
11	38617-RBB-003	Stay - COUPLER CLAMP
12	90041-P3G-003	Screw-washer - 5X11
13	90041-P5A-003	Screw-washer - 4X11
14	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
15	90043-PD2-003	Nut - HEX., 5MM (DENSO)
16	90438-RBD-E01	Nut - PLATE (M6)
17	91307-PN4-000	O-ring - 17.5X1.4
17	91307-PN3-000	O-ring,17.8x1.4

Radiator hose/reserve tan k (DIESEL) 20

#	OEM	部品名
1	19011-RBD-E01	Cap - AIR SEPARATOR
2	19012-671-300	Packing - DRAIN (DENSO)
3	19045-RBD-E01	Cap comp.
4	19046-RBD-E00	Label - RADIATOR CAP
6	19101-RBD-E01	Tank comp. - EXPANSION
7	19103-RBD-E00	Hose - EXPANSION UPPER
8	19105-RBD-E01	Tube - OVERFLOW
9	19501-RBD-E00	Hose - WATER UPPER
10	19506-RBD-E00	Hose assy - EXPANSION LOWER
11	19505-RBD-E00	Hose assy - WATER LOWER
12	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
12	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
13	19519-RBD-E01	Clamp - HOSE (BLACK)
14	74171-SEF-E00	Bracket - R. RADIATOR MOUNTING UPPER
15	74172-S10-970	Cushion - RADIATOR MOUNTING LOWER
16	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
17	74176-SEF-E00	Bracket - L. RADIATOR MOUNTING UPPER
18	91405-PK1-003	Clip, WATER HOSE, 24MM
18	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
19	91503-SS0-003	Holder - ROD

Radio antenna/speaker 11

#	OEM	部品名
1	39120-SEC-A01	Speaker assy - 17CM ND SINGLE) (PIONEER
2	39120-SEA-E21	Speaker assy - TWEETER (PIONEER)
3	39120-SED-E01	Speaker assy - SUB WOOFER (20CM) (PIONEER)
4	39124-SED-000	Bracket - SUB WOOFER
5	39155-SED-G01	Module unit - MAIN ANTENNA
6	39156-SED-G10	Sub feeder
7	39157-SED-G01	Module unit - SUB ANTENNA
8	39186-SED-G02	Amplifier assy - PREMIUM
11	77205-S0X-A01	Clip - SNAP FITTING
12	90133-SM4-003	Bolt-washer - 5X16
13	90153-SB6-003	Bolt - EARTH, 6X12(ZN)

Rear brake 23

#	OEM	部品名
1	01473-SP0-000	Caliper set - RR.
1	01473-SZ3-A01	SET, RR CALIPER
3	06435-S0K-J00	Shim set - RR.
4	42200-SED-952	Bearing assy - RR. HUB UNIT
5	42326-SLJ-000	Cap, Hub unit
6	42510-SZ3-J00	Disk - RR. BRAKE DRUM IN
7	42511-SP0-000	Cap - MAINTENANCE HOLE
8	43018-S7S-000	Caliper sub assy. - R. RR.
9	43019-S7S-000	Caliper sub assy. - L. RR.
10	43022-SED-E60	Pad set - RR.
11	43215-S7A-003	Piston
12	43227-SG0-013	Spring - PAD
13	43235-S84-A51	Pin a
14	43244-SG0-003	Retainer
15	43262-S84-A51	Pin b
16	43352-SM4-951	Screw - BLEEDER
17	43353-SD5-003	Cap - BLEEDER SCREW
18	45240-SC2-003	Bolt - FLANGE, 8X22
19	90103-SV4-013	Bolt - FLANGE, 10X30
20	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
20	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
20	90113-SA0-006	Bolt - WHEEL (SAGA)
21	90305-S0X-003	Nut - SPINDLE(24MM)

Rear door glass/door regu lator 12

#	OEM	部品名
1	72710-SED-003	Regulator assy - R. RR. DOOR POWER
2	72731-SED-013	Sash - R. RR. DOOR RR. LOWER
3	72735-SED-023	Runchannel - R. RR. DOOR
4	72750-SED-003	Regulator assy - L. RR. DOOR POWER
5	72771-SED-013	Sash - L. RR. DOOR RR. LOWER
6	72775-SED-023	Runchannel - L. RR. DOOR
7	73400-SED-G00	Glass assy - R. RR. DOOR (PRIVACY) (ASAHI)
8	73450-SED-G00	Glass assy - L. RR. DOOR (PRIVACY)(ASAHI)
9	90101-SED-000	Bolt-washer - 6X12
10	90115-SG0-003	Bolt - FLANGE, 6MM
11	90139-SEA-000	Bolt - FLANGE, 6X16 (GUIDE)
14	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)

Rear door lining 12

#	OEM	部品名
1	35770-SDA-A21	Switch assy - RR. POWER WINDOW
4	72134-S2X-003	Snap - R. (NATURAL)
7	72174-S2X-003	Snap - L. (BLACK)
8	72835-SED-013	Weatherstrip - R. RR. DOOR INNER
9	72875-SED-013	Weatherstrip - L. RR. DOOR INNER
21	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
22	90141-SDA-000	Screw - TAPPING, 5X12
23	90662-SB2-003	Grommet - SCREW, 5MM
24	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
25	91560-S5B-E81	Clip - DOOR LINING (YELLOW)
26	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
27	91610-SED-003	Grommet - INNER GARNISH

Rear door locks/outer han dle 25

#	OEM	部品名
1	72135-SDA-A01	Striker assy - DOOR LOCK
3	72139-SR0-A01	Snap - VIOLET
4	72139-S0A-003	Snap - PINK
5	72141-SD4-004	Bush - R. JOINT
6	72143-S04-003	Packing
7	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE
8	72181-SD4-004	Bush - L. JOINT
10	72612-SDA-A00	Cap - R. CHILD LOCK
11	72612-SED-G01	Lock assy - R. RR. DOOR
12	72615-SEA-G01	Actuator assy - R. DOOR LOCK
13	72617-SEA-003	Protector - R. RR. DOOR LOCK (POWER)
15	72630-SEA-003	Protector - R. RR. OUTER HANDLE
16	72631-SED-013	Cable - R. RR. INSIDE HANDLE
17	72640-SEA-J11	Handle assy - R. RR. DOOR OUTSIDE
19	72652-SDA-A00	Cap - L. CHILD LOCK
20	72652-SED-G01	Lock assy - L. RR. DOOR
21	72655-SEA-G01	Actuator assy - L. DOOR LOCK
22	72657-SEA-003	Protector - L. RR. DOOR LOCK (POWER)
24	72670-SEA-003	Protector - L. RR. OUTER HANDLE
25	72671-SED-013	Cable - L. RR. INSIDE HANDLE
26	72680-SEA-J11	Handle assy - L. RR. DOOR OUTSIDE
27	90103-S7S-003	Screw - FLAT, 6X18.5
28	90141-S84-003	Screw - 3X10
29	90120-SV4-000	Bolt - LOCK STRIKER
30	91591-SJ6-013	Clip s - FUEL PIPE

Rear door panels 18

#	OEM	部品名
13	72142-SM4-000	Stopper - DOOR
14	72821-SED-000	Seal - R. RR. DOOR HOLE
15	72825-SED-033	Sub seal - R. RR. DOOR
16	72840-SEA-E02	Checker comp. - R. RR. DOOR
17	72861-SED-000	Seal - L. RR. DOOR HOLE
18	72865-SED-033	Sub seal - L. RR. DOOR
19	72880-SEA-E02	Checker comp. - L. RR. DOOR
20	75891-SA7-000	Stopper - DOOR
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
22	90141-S04-000	Bolt - FLANGE, 8X22
23	90341-SDA-000	Nut - FLANGE, 6MM
24	90361-SR3-000	Nut - FLANGE, 8MM
25	90565-SDA-003	Clip - DOOR SUB SEAL
26	90663-SED-003	Clip b - R. DOOR SUB SEAL
27	90664-SED-003	Clip b - L. DOOR SUB SEAL
28	91568-SR2-003	Clip - DOOR WEATHERSTRIP
28	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Rear floor box 22

#	OEM	部品名
1	82184-SDA-A01	Cylinder - RR. ARMREST LID
2	83308-S2G-003	Latch - FLOOR LID
3	83309-S2G-003	Striker - FLOOR LID
6	83829-SED-003	Bracket - CARGO FLOOR
8	83831-SED-003	Stay comp
9	83832-SED-003	Stay comp
10	83833-SED-003	Cloth a
13	84521-SED-E00	Pin - ARMREST LID
17	84524-SED-000	Bracket - R. LID SUPPORT
19	84527-SED-013	Hinge comp - TRUNK FLOOR LID
22	84529-SED-E01	Pin comp. - LOCK
23	84531-SED-E00	Cover
24	84532-SED-E00	Bracket a
25	84538-SED-E01	Rod comp
26	84540-SED-E02	Bracket comp. - R.
27	84541-SED-E02	Bracket comp. - L.
28	84574-SED-000	Bracket - L. LID SUPPORT
29	84576-SED-000	Tape
32	90156-SH3-000	Bolt-washer - 6X24
33	90662-S47-003	Grommet - SCREW, 5MM
35	90671-SED-003	Clip - FLOOR LID, 7MM
36	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Rear lower arm 39

#	OEM	部品名
1	51308-SX0-000	Bracket - FR. STABILIZER
2	51464-S04-013	Boot, UPPER BALL JOINT
3	52210-S3N-020	Knuckle comp - R. RR. (ABS)
4	52215-S3N-020	Knuckle comp - L. RR. (ABS)
5	52300-SED-013	Spring - RR. STABILIZER
6	52315-SED-004	Bush - RR. STABILIZER HOLDER
7	52320-SED-003	Link comp - RR. STABILIZER
8	52338-SL0-003	Circlip - CONTROL ARM
9	52345-SED-000	Arm comp. a - RR. LOWER
11	52355-SED-E01	Arm comp. b - R. RR. LOWER
12	52360-SED-E01	Arm comp. b - L. RR. LOWER
13	52363-SJK-010	Washer - LOWER ARM
14	52368-S3N-003	Bush b - RR. LOWER ARM
15	52371-SED-000	Arm assy. - R. RR. TRAILING
16	52372-SED-000	Arm assy. - L. RR. TRAILING
17	52387-S3N-000	Bolt - LOWER ARM ADJUSTING
18	52388-SZ3-000	Plate - CAM
19	52390-SED-003	Arm assy. - R. RR. UPPER
20	52400-SED-003	Arm assy. - L. RR. UPPER
21	52677-SED-010	Bracket - R. RR. TRAILING ARM
22	52678-SED-010	Bracket - L. RR. TRAILING ARM
23	57470-SED-003	Sensor assy - R. RR.
24	57475-SED-003	Sensor assy - L. RR.
25	90002-S10-000	Nut - FLANGE, 10MM
26	90024-SX0-000	Bolt a - TRAILING ARM (10X35)
27	90026-SM4-000	Bolt b - TRAILING ARM (10X45)
28	90028-SM4-000	Bolt - TRAILING, 8X19
29	90162-SED-000	Bolt - FLANGE, 14X50
30	90168-SED-020	Bolt - FLANGE, 14X92
31	90170-S7S-J01	Bolt - LOWER ARM
32	90172-SP0-000	Bolt b - SHOCK ABSORBER BRACKET
33	90174-SP0-003	Bolt - SHOCK ABSORBER LOCK, 12X88
34	90215-S3N-003	Nut - SELF-LOCK, 12MM (SATO RASHI)
35	90217-SED-000	Nut - TRAILING ARM, 10MM
36	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
37	90321-SX0-003	Nut - UPPER ARM
38	90362-S0X-A01	Nut - SELF-LOCK, 12MM (NYLON)
39	90438-SED-000	Washer - TRAILING
40	90701-SX0-003	Clip - UPPER ARM

Rear seat (L.) 29

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	17525-S0X-A00	Bolt-washer - 10X25
3	78182-SA0-000	Clip - RR. SEAT PIN
4	81143-SED-003	Guide comp - HEADREST FREE
6	82122-SED-003	Rotation unit - HEADREST
12	82153-SED-003	Bolt - RR. CUSHION SPRING
13	82170-SED-003	Leg assy - INNER
20	82294-SED-J01	Bolt - HINGE
21	82297-SED-003	Cover unit - HEADREST
22	82298-SED-003	Cable - HEADREST
23	82299-SED-003	Bush
26	82526-SED-003	Frame comp - L. RR. SEATBACK
27	82527-SED-J01	Pad comp - L. RR. SEATBACK
30	82537-SED-J01	Pad & frame comp. - L. RR. CUSHION
32	82560-SED-003	Leg assy - L. OUTER
34	82590-SED-003	Link assy - L. SLIDE
36	82620-SED-003	Lock assy - L. RR. SEAT
37	82625-SED-003	Striker comp. - L. RR. SEAT
39	82627-SED-J01	Bracket - L. HOLDER
40	82628-SED-J01	Bracket comp. - L. RR. SEATBACK BASE
44	90134-SE3-003	Screw - TAPPING, 5X10
45	90134-S7A-003	Screw - TAPPING
46	90135-S7A-J51	Bolt-washer - 10X25
47	90161-SP0-931	Bolt-washer - 6X18
48	90611-SR3-003	Clip - PILLAR GARNISH
49	90650-S6M-J01	Clip - RATCHET, 10MM
50	90651-SW5-003	Clip
51	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Rear seat (R.) 30

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	17525-S0X-A00	Bolt-washer - 10X25
3	78182-SA0-000	Clip - RR. SEAT PIN
4	81143-SED-003	Guide comp - HEADREST FREE
10	82122-SED-003	Rotation unit - HEADREST
13	82126-SED-J21	Frame comp - R. RR. SEATBACK
14	82127-SED-J21	Pad comp - R. RR. SEATBACK
18	82137-SED-J01	Pad & frame comp. - R. RR. CUSHION
22	82153-SED-003	Bolt - RR. CUSHION SPRING
24	82160-SED-003	Leg assy - R. OUTER
25	82170-SED-003	Leg assy - INNER
27	82181-SED-003	Bush - ARMREST
29	82183-SED-003	Bracket - ARMREST OUTER
32	82190-SED-003	Link assy - R. SLIDE
35	82220-SED-003	Lock assy - R. RR. SEAT
36	82225-SED-003	Striker comp. - R. RR. SEAT
38	82227-SED-J01	Bracket comp. - R. RR. SEATBACK HOLDER
39	82228-SED-J01	Bracket comp. - R. RR. SEATBACK BASE
45	82294-SED-J01	Bolt - HINGE
46	82297-SED-003	Cover unit - HEADREST
47	82298-SED-003	Cable - HEADREST
48	82299-SED-003	Bush
49	90134-SE3-003	Screw - TAPPING, 5X10
50	90134-S7A-003	Screw - TAPPING
51	90135-S7A-J51	Bolt-washer - 10X25
52	90611-SR3-003	Clip - PILLAR GARNISH
53	90650-S6M-J01	Clip - RATCHET, 10MM
54	90651-SW5-003	Clip
55	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Rear shock absorber 10

#	OEM	部品名
1	52441-SEG-E01	Spring - RR.
2	52610-SEG-E02	Absorber assy - RR. SHOCK
3	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
4	52622-SX0-003	Bush - RR. SHOCK ABSORBER LOWER
5	52631-SED-J01	Rubber - SHOCK ABSORBER MOUNTING
6	52631-SED-024	Rubber - SHOCK ABSORBER MOUNTING
7	52686-SX0-003	Rubber - RR. SPRING MOUNTING
8	52748-SX0-010	Seat - RR. SPRING LOWER
9	90174-SP0-003	Bolt - SHOCK ABSORBER LOCK, 12X88
10	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear windshield 10

#	OEM	部品名
1	04733-SED-000	Rubber set - RR. WINDSHIELD DAM
3	73211-SED-J03	Glass set - RR. WINDSHIELD (PRIVACY)(ASAHI)
4	73511-SED-G12	Glass set - R. QUARTER (PRIVACY)(NIPPON SAFETY)
5	73561-SED-G12	Glass set - L. QUARTER (PRIVACY)(NIPPON SAFETY)
6	73810-SED-003	Seal - R. FR. QUARTER GLASS
7	73850-SED-003	Seal - L. FR. QUARTER GLASS
9	76707-SED-000	Seal a
10	91501-S70-003	Fastener b - WINDSHIELD
11	91502-S70-003	Fastener b - RR. WINDSHIELD
12	91536-SS0-J01	Fastener a - WINDSHIELD

Rear wiper 13

#	OEM	部品名
1	38448-SD2-003	Rubber - WIPER MOUNTING
2	76622-S50-003	Rubber - BLADE (300MM)
2	76632-SFA-003	RUBBER, BLADE (300MM)
3	76702-S9A-003	Collar
4	76706-SK7-003	Washer a - SPECIAL
5	76708-SE1-003	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM
7	76710-SED-003	Motor comp - RR. WINDSHIELD WIPER
8	76711-SED-003	Cap - PIVOT
9	76720-SED-003	Arm - RR. WIPER
10	76721-S3N-003	Cover - ARM
11	76730-SED-003	Blade - RR. WINDSHIELD WIPER (300MM)
12	91352-SA5-951	O-ring - 7.8X1.9(ARAI)

Resonator chamber (DIESEL) 11

#	OEM	部品名
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING
2	17213-PV0-000	Rubber - AIR CLEANER CASE MOUNTING
3	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
4	17230-RBD-E00	Pipe set - AIR INTAKE
5	17233-RBD-E00	Stay comp. a - RESONATOR
6	17234-RBD-E00	Stay comp. b - RESONATOR
7	17251-RBD-E00	Tube - AIR INTAKE
8	17252-RBD-E00	Cover - AIR INTAKE
9	90001-PGM-000	Bolt-washer - SPECIAL, 6X30
10	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
11	91505-SL0-003	Clip - COWL TOP

Reverse gear shaft (DIESEL) 9

#	OEM	部品名
1	23261-PYZ-000	Shaft - REVERSE GEAR
2	23541-PYZ-000	Gear - REVERSE DRIVE
3	23546-PYZ-000	Washer - THRUST, 20X36X2
4	23627-PYZ-000	Sleeve set - REVERSE
5	23642-PR8-010	Ring - BLOCKING, 44MM
6	23651-PB6-960	Spring - SYNCHRONIZER (44MM)
7	23926-PY5-000	Washer - SPRING, 33MM
8	91106-PYZ-003	Bearing - NEEDLE, 20X25X19
9	91132-PR8-003	Bearing - THRUST NEEDLE, 20X37X2.5

Roof lining 12

#	OEM	部品名
5	83205-SED-003	Pad b - R. RR. ROOF SIDE
7	83222-SEA-N81	Lens
8	83223-S7A-J51	Bulb - 12V 2.0W
15	83255-SED-003	Pad b - L. RR. ROOF SIDE
22	83426-SED-000	Hook assy - R. CARGO NET
26	83476-SED-000	Hook assy - L. CARGO NET
30	90136-SDA-003	Screw - ET, 5X24
30	90137-S0A-003	Screw - ET, 6X28
31	90136-S30-003	Screw - ET, 5X18
31	90137-S30-003	Screw - ET, 6X18
32	90662-S9A-003	Fastener - ROOF LINING
33	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Seatbelts 7

#	OEM	部品名
5	81491-SEA-E00	Protector - R. FR. SEATBELT
8	81891-SEA-E00	Protector - L. FR. SEATBELT
12	82296-SED-003	Belt - COVER
17	90610-SR3-003	Clip - GARNISH (KATO)
19	91533-S04-003	Clip - COUPLER (NATURAL)
20	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
21	91560-S0X-A01	Clip - DOOR LINING (NATURAL)

Shift arm (DIESEL) 13

#	OEM	部品名
1	24411-R08-000	Arm - SHIFT
2	24460-PYZ-000	Lever comp - SELECT
3	24470-RAW-000	Lever comp - SHIFT
4	24481-PYZ-000	Arm - SELECT
5	24521-PYZ-000	Cam - SELECT LOCK
6	24522-PYZ-010	Pin - SELECTOR LOCK
7	24523-PYZ-000	Spring - SELECTOR LOCK PIN
8	28250-RMB-003	Solenoid assy. - SELECTOR LOCK
9	90029-PL3-010	Bolt - SPECIAL, 8MM
10	90412-679-000	Washer - CONICAL SPRING, 8MM
11	91208-PPP-003	Dust seal - 14X20X4
12	91209-PE9-003	Dust seal - 16X23X5(ARAI)
12	91209-PE9-005	Dust seal - 16X23X5(NOK)

Shift fork (DIESEL) 12

#	OEM	部品名
1	24200-PYZ-000	Fork comp - GEARSHIFT (5-6)
2	24204-RJV-000	Piece - SHIFT (5-6)
3	24210-PYZ-000	Fork comp - GEARSHIFT (3-4)
4	24220-PYZ-000	Fork comp - GEARSHIFT (1-2)
5	24230-PYZ-000	Fork comp - REVERSE GEARSHIFT
6	24234-PYZ-000	Piece comp. - REVERSE SHIFT
7	24351-PYZ-000	Shaft - SHIFT PIECE
8	24430-PYZ-000	Interlock comp. - S
9	24440-RJV-000	Piece comp. - GEARSHIFT (6MT)
10	24458-PYZ-000	Spring - SELECT RETURN
11	24491-PYZ-000	Lever - REVERSE SHIFT
12	24494-PYZ-000	Pin - 8X50

Shift lever (DIESEL; LH) 14

#	OEM	部品名
1	24600-PYZ-000	Stay - CHANGE WIRE
2	54100-SEF-G01	Lever sub assy. - CHANGE
3	54103-SDA-003	Ring
4	54110-SEA-A01	Knob comp. - OUTER (LEATHER)
5	54117-S30-003	Rubber - FLOATING
6	54118-S10-000	Washer assy. - WIRE
7	54119-SDA-A01	Collar - FLOATING
8	54310-SEF-L02	Wire comp - CHANGE
9	54317-SEF-G00	Stay - CHANGE WIRE
10	54357-SF1-003	Plate - CHANGE WIRE
11	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
12	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
13	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
14	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Side lining 16

#	OEM	部品名
1	34103-S2K-003	Bulb - WEDGE (12V 5W)
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	34261-SED-003	Lens
3	34262-SED-003	Base comp.
4	39624-S2K-003	Ring
5	39632-SDA-L01	Socket assy
6	74641-SED-000	Insulator - R. RR. WHEELHOUSE
7	74691-SED-000	Insulator - L. RR. WHEELHOUSE
8	75353-671-000	Lock - SCREW
11	84605-SM5-A01	Spring - SIDE LID
26	84661-SED-E00	Mark - AID
27	84662-SED-E00	Nut - SPEED, 10MM
30	90676-SE0-003	Clip - JOINT COVER PLATE
31	90681-693-000	Grommet - SCREW, 4MM
32	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
33	91560-S9A-A11	Clip - PILLAR GARNISH (LIGHT GREEN)

Side sill garnish 19

#	OEM	部品名
3	74550-SED-000	Cover - RR. UNDER
4	74560-SED-000	Fender assy - R. RR. INNER
5	74561-SED-000	Strake - R. RR.
6	74566-SED-000	Strake - L. RR.
7	74565-SED-000	Fender assy - L. RR. INNER
8	90103-SDA-A00	Screw - TAPPING, 5X20
9	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
9	90111-SM4-003	Bolt - BUMPER
10	90149-SA0-003	Bolt - BUMPER
11	90331-S3Y-003	Nut - SPRING, 5MM
12	90331-SS0-000	Nut - SPRING, 5MM
13	90601-S30-003	Grommet - COWL TOP
14	90682-SEA-003	Clip - TAPPING SCREW, 5MM
15	91503-SZ3-003	Clip A
16	91503-S2X-003	Clip - SIDE SILL COVER
17	91512-SED-003	Clip - INNER FENDER
18	91512-SX0-003	Clip - INNER FENDER CLIP
19	91513-SEA-000	Clip - SIDE SILL GARNISH
20	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH

Srs unit (LH) 26

#	OEM	部品名
1	77900-SEA-E41	Reel assy - CABLE (FURUKAWA)
1	77900-SEA-E51	Reel assy - CABLE (FURUKAWA)
2	77930-SEG-E81	Sensor assy - FR. CRASH (TRW)
3	77960-SEG-G82	Srs unit - TRW
4	77962-SED-G21	Harness - SIDE CURTAIN AIRBAG SUB WIRE (INCLUDE FEEDER)
4	77962-SED-G40	Harness - SIDE CURTAIN AIRBAG SUB WIRE (INCLUDE FEEDER)
5	77970-SED-C82	Sensor assy - SIDE IMPACT (TRW)
6	77970-SED-J82	Sensor assy - SIDE IMPACT (TRW)
7	77971-SEF-E00	Cover - FR. CRASH SENSOR
8	78800-SED-G81	Module assy. - R. SIDE CURTAIN AIRBAG
9	78827-SDB-A81	Bolt - 5X12
10	78850-SED-G81	Module assy. - L. SIDE CURTAIN AIRBAG
11	83241-SEA-N80	Bracket - FR. GRAB RAIL
12	83242-SEA-N80	Bracket - RR. GRAB RAIL
13	90133-SDC-003	Bolt-washer - 5X16
14	90137-S84-A01	Bolt - TORX EARTH, 6X20
15	90178-SDB-003	Bolt-washer - 6X20
16	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
17	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
18	91533-S04-003	Clip - COUPLER (NATURAL)
19	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
20	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
21	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
22	91559-SM4-003	Clip - POWER STEERING TUBE (135MM)
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
24	91902-S2X-003	Plaster - WIRE HARNESS(50X100)

Starter motor (MITSUBISHI; DIESEL) 25

#	OEM	部品名
1	31200-RBD-E01	Motor assy. - STARTER (MHG020/MHG023) (MITSUBISHI)
2	31201-P5A-A03	Rotor comp
3	31202-P5A-A01	Yoke comp.
4	31203-RBD-E01	Holder comp - BRUSH
5	31204-P5A-A01	Spring - BRUSH
6	31205-PY3-004	Screw - FLANGE
7	31211-RBD-E01	Clutch - OVERRUNNING
8	31213-RBD-E01	Shaft assy - GEAR
9	31214-RBD-E01	Gear assy. - INTERNAL
10	31215-PY3-004	Gear assy. - PLANETARY
11	31217-PY3-004	Stopper set
12	31217-RBD-E01	Plate
13	31218-PY3-004	Ball - STEEL
14	31219-RBD-E01	Packing
15	31220-RAA-A01	Nut
16	31220-RBD-E01	Switch assy - MAGNET
17	31223-RBD-E01	Shaft assy - CLUTCH
18	31231-RBD-E01	Lever set
19	31241-RBD-E01	Bracket - FR.
20	31242-RBD-E01	Bracket - RR.
21	31243-PY3-004	Bolt a - THROUGH
22	31244-PV1-A03	Bolt b - THROUGH
23	31245-PV1-A03	Nut - FLANGE
24	31293-RBD-E01	Support
25	90011-ZG5-003	Screw - FLANGE, 6X23

Steering column 10

#	OEM	部品名
1	53200-SEA-G01	Column assy - STEERING
3	53320-SEF-G00	Cover assy. - STEERING JOINT
4	53331-SDA-A02	Cover comp. - STEERING JOINT
6	53333-SDA-A00	Sponge - SEALING
8	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
9	90135-SDA-000	Bolt - STEERING JOINT YOKE
9	90135-SZT-000	Bolt - STEERING JOINT YOKE
10	90361-SR3-000	Nut - FLANGE, 8MM
11	90361-SV4-003	Nut - PAINT CUTTING, 6MM
12	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS; 2) 14

#	OEM	部品名
1	35870-SEC-A11	Switch assy - MULTI INFORMATION
2	35871-SEA-J11	Case
3	35880-SEA-E41	Switch assy - AUDIO REMOTE & CRUISE
3	35880-SEA-E21	Switch assy - AUDIO REMOTE & CRUISE
3	35880-SEA-E81	Switch assy - AUDIO REMOTE & CRUISE
4	35890-SEA-E21	Switch assy - HFT (3SP)
5	35891-SEC-J11	Case
9	78516-SEA-J41	Plate set - R. SWITCH
10	78517-SDN-A81	Plate - SWITCH SET
12	78519-SEA-J41	Hook - PLATE
13	78520-SDB-A81	Damper comp - STEERING
14	90134-S6A-A80	Bolt - HEX., 6X23
15	90136-SF1-A02	Screw - TAPPING, 4X18 (NIPPON PURASUTO)
16	90161-SV4-003	Bolt - STEERING HANDLE

Swirl control valve (DIESEL) 10

#	OEM	部品名
1	16176-RMA-E01	Gasket - AIR INTAKE
2	17110-RBD-E10	Passage - AIR INTAKE
3	17120-RMC-E01	VALVE ASSY., SWIRL CONTROL
4	17125-RSR-E00	Stay comp - SWIRL CONTROL VALVE
5	17129-RMA-E00	Diaphragm assy.
6	32120-RBD-E02	Stay comp - ENGINE COVER
7	32742-RBD-E01	Stay b - HARNESS
8	37830-RBD-E01	Sensor assy, MAP & TA
9	37831-PDF-E01	O-ring
10	90018-PR7-A00	Screw - PAN, 5X12

Switch (LH) 13

#	OEM	部品名
1	35300-SEA-J01	Switch assy - VSA OFF
3	35510-SEA-003	Switch assy - HAZARD
4	35600-SDA-A01	Switch assy - R. HEATED SEAT
5	35650-SDA-A01	Switch assy - L. HEATED SEAT
6	35651-SDA-A01	Tape
8	35820-SEA-E11	Switch assy - HEADLIGHT ADJUST
9	35850-SEA-E11	Bulb comp. - 14V 60MA
10	35850-SEA-J01	Bulb comp. - 14V 40MA
13	35851-SEA-E11	Bulb comp. - 14V 40MA
14	35850-SDA-L01	Bulb (14V 80MA)
14	35852-SDA-A01	Bulb comp. - 14V 40MA
15	35852-SDA-A11	Bulb comp. b - 14V 70MA
16	35910-S04-G01	Switch assy - INERTIA

Tailgate 26

#	OEM	部品名
1	04741-SEG-000	Stay set - R. TAILGATE OPEN
2	04746-SEG-000	Stay set - L. TAILGATE OPEN
3	32173-SED-003	Cover - R. TAILGATE HINGE
4	32174-SED-003	Cover - L. TAILGATE HINGE
5	34271-SED-003	Light assy - HIGH MOUNT STOP
6	34273-SED-J01	Cord - COUPLER (2)
10	74440-SED-013	Weatherstrip - TAILGATE
11	74801-SED-G01	Lock set - TAILGATE
12	74801-S7S-003	Lock - TAILGATE
13	74807-S6M-003	Snap - 3.5MM) (NATURAL
14	74810-S3V-A02	Handle assy - TAILGATE
15	74813-SEY-003	Striker assy - TAILGATE
16	74816-S2G-003	Band
17	74829-SED-010	Stopper - TAILGATE
18	74830-SED-E01	Cable - TAILGATE OPENER
19	74896-SEY-003	Actuator assy - TAILGATE
20	74899-SEG-000	Damper - TAILGATE DYNAMIC
23	75353-671-000	Lock - SCREW
24	90102-SED-000	Bolt - SPECIAL, 6MM
25	90102-SZ3-000	Bolt - FLANGE, 8X22 (10.5MM)
26	90106-SEY-003	Screw - 3X28
27	90107-SEY-003	Bolt - TAILGATE LOCK
28	90120-SV4-000	Bolt - LOCK STRIKER
29	90303-S2G-003	Nut - 6MM
30	90308-SB2-013	Nut - SUSPENSION, 5MM
32	91560-S3Y-003	Clip - DOOR LINING

Tailgate lining 7

#	OEM	部品名
12	90137-S1A-E01	Screw - ET, 6X18
12	90136-S1A-E01	Screw - ET, 5X18
13	90322-S47-003	Nut - SPEED, 6MM
14	90665-SZ3-003	Clip - PILLAR GARNISH
16	91560-S6A-003	Clip - DOOR LINING(ORANGE)
17	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
18	91566-SP0-003	Clip - BACK COVER (NATURAL)

Taillight/license light 27

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33302-S5A-A01	Socket comp. - T20 W
3	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
4	33303-S5A-003	Socket comp - T20 S
5	33304-SED-003	Socket comp - T10
6	33501-SED-003	Lamp unit - R.
7	33506-SED-003	Lamp unit - L.
8	33507-SED-003	Cap - R. BEZEL (1)
9	33508-SED-003	Cap - R. BEZEL (2)
10	33514-S50-003	Socket - T20W S3
11	34101-S2K-902	Lens
12	34102-S2K-003	Housing comp
12	34102-S2K-013	Housing comp
13	34103-S2K-003	Bulb - WEDGE (12V 5W)
14	34151-SED-003	Lamp unit - R.
15	34153-SED-003	Gasket - R. BASE
16	34156-SED-G01	Lamp unit - L.
17	34158-SED-003	Gasket - L. BASE
18	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY
20	90001-S10-A00	Bolt-washer - 5X16
21	90102-SX0-000	Bolt - SPECIAL, 6MM
22	90303-S2G-003	Nut - 6MM
23	90321-S06-000	Nut - HEX. CAP, 5MM
24	90501-SCA-003	Bolt - INSERT
25	90501-S9A-003	Clip - TAILGATE GARNISH
26	91560-S3Y-003	Clip - DOOR LINING
27	91626-S0X-A01	Grommet - TAILLIGHT

Tire/wheel disks 27

#	OEM	部品名
2	42700-SED-G91	Disk - ALUMINIUM WHEEL (KOSEI) (16X6 1/2JJ)
3	42700-SZ3-E31	Disk - WHEEL(16X4T)(KANAI)
7	42751-SEA-E14	Tire - 205/55R16 91V) (MICHELIN
8	42751-SP1-607	Tire - T135/80D16 101M)(DUNLOP
9	42753-671-003	Valve - RIM (TAIHEIYO)
9	42753-SB8-661	Valve - RIM (SCHRADER)
10	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
10	42767-SB2-620	Plate - SPARE TIRE CAUTION (T-TYPE)(FRENCH)
11	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
12	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)
12	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)
12	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)
12	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)
12	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)
12	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)
12	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)
12	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)
12	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)
12	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)
12	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)
12	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)
12	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)
12	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)
16	44732-SEA-Z00	Cap - ALUMINIUM WHEEL CENTER
19	74651-S2X-003	Adapter - SPARE TIRE
20	74652-SDA-003	Bolt - SPARE TIRE
23	90381-S4L-003	Nut - WHEEL(FUSE RASHI)

Tools/jack 5

#	OEM	部品名
9	89101-SED-000	Spacer
11	89211-S05-003	Wrench - WHEEL
12	89310-SFE-003	Jack assy - PANTOGRAPH
13	89311-SFE-003	Plate - JACK CAUTION
14	89320-S05-003	Bar - JACK

Transmission case (DIESEL) 56

#	OEM	部品名
1	21180-PR8-016	Strainer comp. - OIL PUMP
2	21181-PR8-000	Spring - STRAINER SETTING
3	21200-RMB-010	Case comp. - TRANSMISSION
4	21217-PYZ-000	Cap - TRANSMISSION CASE
5	21220-RAW-000	Hanger, A TRANSMISSION
6	21230-RAW-000	Hanger b - TRANSMISSION
7	21240-RAW-000	Hanger c - TRANSMISSION
8	21245-PX4-003	Screw - SEALING
9	21261-RAW-000	Cover - STRAINER
10	23941-PR8-F00	Shim k - 82MM (0.90MM)
10	23936-PR8-F00	Shim f - 82MM (0.75MM)
10	23931-PR8-F00	Shim a - 82MM (0.60MM)
10	23958-RAT-000	Shim ac - 82MM (1.41MM)
10	23953-RAT-000	Shim x - 82MM (1.26MM)
10	23948-PR8-F00	Shim r - 82MM (1.11MM)
10	23943-PR8-F00	Shim m - 82MM (0.96MM)
10	23938-PR8-F00	Shim h - 82MM (0.81MM)
10	23933-PR8-F00	Shim c - 82MM (0.66MM)
10	23955-RAT-000	Shim z - 82MM (1.32MM)
10	23950-PR8-F00	Shim t - 82MM (1.17MM)
10	23945-PR8-F00	Shim o - 82MM (1.02MM)
10	23940-PR8-F00	Shim j - 82MM (0.87MM)
10	23935-PR8-F00	Shim e - 82MM (0.72MM)
10	23957-RAT-000	Shim ab - 82MM (1.38MM)
10	23952-RAT-000	Shim w - 82MM (1.23MM)
10	23947-PR8-F00	Shim q - 82MM (1.08MM)
10	23942-PR8-F00	Shim l - 82MM (0.93MM)
10	23937-PR8-F00	Shim g - 82MM (0.78MM)
10	23932-PR8-F00	Shim b - 82MM (0.63MM)
10	23959-RAT-000	Shim ad - 82MM (1.44MM)
10	23954-RAT-000	Shim y - 82MM (1.29MM)
10	23949-PR8-F00	Shim s - 82MM (1.14MM)
10	23944-PR8-F00	Shim n - 82MM (0.99MM)
10	23939-PR8-F00	Shim i - 82MM (0.84MM)
10	23934-PR8-F00	Shim d - 82MM (0.69MM)
10	23956-RAT-000	Shim aa - 82MM (1.35MM)
10	23951-PR8-F00	Shim u - 82MM (1.20MM)
10	23946-PR8-F00	Shim p - 82MM (1.05MM)
11	24452-P16-000	Spring a - BALL SETTING
12	24455-PCY-000	Spring a - FORK SET BALL
13	24455-PYZ-000	Spring - SELECT SET BALL
14	24519-PB6-000	Screw - BALL SPRING SETTING
15	28700-PHR-003	Switch assy - BACK LIGHT (TOKAI)(GRAY)
15	28700-PWL-003	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
16	28820-PWR-013	Pick up assy. MATSUSHITA
17	90013-PG1-010	Bolt - SPECIAL, 10X42
18	90081-PWT-000	Bolt - DRAIN PLUG, 20MM
19	90166-SEF-000	Bolt - STUD, 12X107
20	90168-SEF-000	Bolt - STUD, 12X73
21	90401-RPP-000	Washer - PLAIN
22	90442-397-000	Washer - SEALING, 6MM
23	90615-R08-000	Ring - SNAP, 75MM
24	91205-P0X-005	Oil seal - 40X56X9 (NOK)
25	91301-P5A-000	O-ring - 37.7X3.5
26	91307-PR8-005	O-ring - 29.7X2.4
27	91309-PX4-003	O-ring - 16X2.1 (NOK)

Turbocharger (DIESEL) 20

#	OEM	部品名
1	15530-RBD-E00	Pipe comp - TURBOCHARGER OIL
2	15531-PFD-000	Bolt comp - TURBOCHARGER OIL FILTER
3	15543-RBD-E01	Gasket a - OIL RETURN PIPE
4	15544-RBD-E01	Gasket b - OIL RETURN PIPE
5	18233-RBD-E01	Gasket A, Ex.
6	18234-RBD-E01	Gasket b - EX.
7	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
8	18900-RBD-E03	Turbocharger assy
9	18925-RBD-E00	Stay - TURBOCHARGER
10	18950-RBD-E00	Joint assy. - EX.
11	18960-RBD-E00	Cover - EX. JOINT
12	19524-RBD-E00	Packing - TURBOCHARGER WATER PIPE
13	19545-RBD-E00	Pipe comp - TURBOCHARGER WATER
14	25951-639-000	Bolt - JOINT
15	90010-PE2-900	Bolt - SPECIAL, 10X22
16	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
17	90065-RBD-E00	Bolt - STUD, 10X28
18	90212-RBD-E01	Nut - FLANGE, 10MM
19	90428-PFD-000	Washer - SEALING, 12MM
20	90451-PE2-000	Washer - SPECIAL, 11X28

Valve stem seal/glow plug (DIESEL) 16

#	OEM	部品名
1	12204-RBD-305	Guide - IN. VALVE(OS)
2	12205-RBD-305	Guide - EX. VALVE(OS)
3	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
4	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
5	12252-RBD-E01	Gasket b - CYLINDER HEAD (1.35MM)
5	12254-RBD-E01	Gasket d - CYLINDER HEAD (1.45MM)
5	12251-RBD-E01	Gasket a - CYLINDER HEAD (1.30MM)
5	12253-RBD-E01	Gasket c - CYLINDER HEAD (1.40MM)
5	12255-RBD-E01	Gasket e - CYLINDER HEAD (1.50MM)
6	12291-RBD-E01	Plug - GLOW
7	37501-RBD-E01	O-ring
8	37841-RBD-E01	Sensor assy - CYLINDER
9	90005-RBD-E01	Bolt-washer - 13X203
10	90026-RMA-E01	Bolt - STUD, 10X48.5
11	90701-RBD-E00	Dowel pin - 16X20

Valve/rocker arm (DIESEL) 8

#	OEM	部品名
1	14540-RBD-E01	Lifter comp - VALVE
2	14621-RBD-E01	Arm comp - ROCKER
3	14711-RBD-E00	Valve - IN.
4	14721-RBD-E00	Valve - EX.
5	14761-RBD-E01	Spring - VALVE (NIPPON HATSUJO)
6	14765-R06-E00	Retainer - VALVE SPRING
7	14775-RBD-E00	Seat - VALVE SPRING
8	14781-PCX-004	Cotter - VALVE

Vsa modulator (DIESEL) 4

#	OEM	部品名
1	57110-SEG-E61	Modulator assy - VSA
2	57115-SEF-E01	Bracket assy - MODULATOR
3	57101-SHJ-A02	Rubber - MOUNT
4	57376-S9A-N00	Bolt - ABS MOUNTING

Water hose (DIESEL) 13

#	OEM	部品名
1	19106-RBD-E01	Hose - AIR SEPARATION
2	19315-RBD-E00	Cover - WATER OUTLET
3	19340-RBD-E00	Cover comp. - AIR SEPARATION
4	19425-RJL-E00	Cover - HEATER OUTLET
5	19504-RBD-E00	Hose - HEATER
6	19508-RBD-E00	Hose - BYPASS
7	19510-RBD-E10	Pipe comp - HEATER
8	19511-PV1-A01	Clip - WATER HOSE
9	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
10	19515-RBD-E00	Hose - BREATHER HEATER
11	19516-PC1-000	Bolt - BREATHING WATER
12	32115-RSR-E00	Harness - TW SENSOR
13	37870-RBD-E01	Sensor comp - TW

Water pump (DIESEL) 11

#	OEM	部品名
1	19200-RBD-E01	Pump comp - WATER
2	19222-RBD-E01	Packing - WATER PUMP
3	19301-RBD-305	Thermostat assy.
4	19305-RBD-E00	Rubber - THERMOSTAT MOUNTING
5	19311-RBD-E00	Cover comp. - THERMOSTAT
6	19313-RBD-E00	Packing - THERMOSTAT CASE
7	19320-RBD-E00	Case comp. - THERMOSTAT
8	32744-RBD-E01	Stay d - HARNESS
9	37773-PLZ-E51	Switch - THERMO (A-100)
10	91307-PN4-000	O-ring - 17.5X1.4
10	91307-PN3-000	O-ring,17.8x1.4

Water valve (LH) 8

#	OEM	部品名
1	79710-SDC-A01	Valve assy. - WATER
3	79721-SEF-G00	Hose a - WATER IN.
4	79722-SDA-A00	Hose b - WATER IN.
6	79725-SEF-G00	Hose - WATER OUTLET
7	90661-SL5-003	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	91557-S87-A01	Clamp - HEATER

Windshield washer (2) 22

#	OEM	部品名
1	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA
3	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
4	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
5	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
6	66427-SA7-000	Cushion - WIRE HARNESS (45X70) (GRAY)
7	76802-SEF-003	Cap unit - MOUTH
8	76805-SEF-003	Hose - WASHER
9	76806-SE0-J01	Motor - RR. WASHER (MITSUBA)
10	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)
11	76809-SE0-003	Grommet - WASHER TANK
12	76812-SEF-003	Mouth - WASHER
13	76829-SM4-003	Joint i - WASHER
14	76838-SEA-003	Tube set - WASHER
15	76839-SL0-G51	Tube f - 50MM) (BLACK
16	76840-SED-E01	Tank set - WASHER
17	76850-SED-951	Nozzle assy. - RR. WINDSHIELD
18	76851-SED-951	Grommet - WASHER
19	76851-SEA-003	Grommet - WASHER TUBE
20	90652-SB2-023	Clip - TUBE, 7MM
21	91511-SJ8-003	Clip - WASHER TUBE
22	91563-SR2-003	Clip - TILTER CABLE

Windshield washer (HEADLIGHT WASHER; 2) 48

#	OEM	部品名
1	38514-692-731	Bush
2	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
3	38516-SA5-671	Packing - T-TYPE) (MITSUBA
4	38516-SB3-003	Holder - MOTOR
5	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
6	38524-SB0-761	Hose d
7	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
8	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
9	66427-SA7-000	Cushion - WIRE HARNESS (45X70) (GRAY)
10	76802-SEF-S01	Cap unit - MOUTH
11	76803-SE1-S03	Clip - WASHER HOSE
12	76803-SH2-S10	Clip - WASHER HOSE
13	76805-SEF-S01	Hose set - WASHER (H/L LAVEL)
14	76806-SE0-J01	Motor - RR. WASHER (MITSUBA)
15	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)
16	76806-S5A-S01	Pump - WASHER
17	76809-SE0-003	Grommet - WASHER TANK
18	76812-SEF-003	Mouth - WASHER
19	76828-SH3-S03	Joint l
20	76829-SM4-003	Joint i - WASHER
21	76838-SEA-S01	Tube set - WASHER
22	76839-SL0-G51	Tube f - 50MM) (BLACK
23	76845-SEA-S01	Bracket - WASHER MOTOR
24	76850-SED-951	Nozzle assy. - RR. WINDSHIELD
25	76851-SED-951	Grommet - WASHER
26	76851-SEA-003	Grommet - WASHER TUBE
27	76870-SED-S01	Tank set - WASHER
28	76880-SEA-S02	Nozzle assy. - R. HEADLIGHT WASHER
28	76880-SEA-S03	Nozzle assy. - R. HEADLIGHT WASHER
31	76883-S7A-S01	Screw
32	76885-SEA-S02	Nozzle assy. - L. HEADLIGHT WASHER
32	76885-SEA-S03	Nozzle assy. - L. HEADLIGHT WASHER
35	76892-SS0-S03	Hose - 115MM
36	76892-S9A-S01	Hose
37	76893-SEA-S01	Hose
38	76894-SEA-S01	Hose
39	76896-SEA-S01	Cushion
40	76897-SEA-S01	Cushion
41	76898-SEA-S01	Joint assy.
42	76899-SEA-S01	Joint
43	90118-SEA-S01	Bolt-washer - 6X20
44	90132-SEA-003	Screw - PAN, 5X12
45	90141-S5T-G01	Bolt - BUMPER SPOILER
46	90316-SM5-G03	Nut - HEX., 6MM
47	90652-SB2-023	Clip - TUBE, 7MM
48	91511-SJ8-003	Clip - WASHER TUBE
49	91563-SR2-003	Clip - TILTER CABLE
55	76895-SEA-S01	Hose

Wire harness (LH) 26

#	OEM	部品名
1	32100-SEF-G50	Harness - FR. END WIRE
1	32100-SEF-E40	Harness - FR. END WIRE
2	32108-SED-G11	Harness - RR. WIRE (INCLUDE WASHER TUBE)
3	32109-SED-J12	Harness - POWER TAILGATE SUB WIRE
4	32112-RBD-G01	Sub cord - ENGINE CONTROL MODULE
5	32117-SEG-S12	Harness - INSTRUMENT WIRE (INCLUDE FEEDER)
5	32117-SEG-S22	Harness - INSTRUMENT WIRE (INCLUDE FEEDER)
5	32117-SEG-S31	Harness - INSTRUMENT WIRE (INCLUDE FEEDER)
6	32118-SED-000	Sub cord - LICENSE
7	32120-SEG-G31	Harness - CABIN WIRE
7	32120-SEG-G62	Harness - CABIN WIRE
8	32140-SEG-G32	Harness - FLOOR WIRE (INCLUDE WASHER TUBE)
8	32140-SEG-G12	Harness - FLOOR WIRE (INCLUDE WASHER TUBE)
9	32155-SEA-G70	Cord - INTERIOR & SUNROOF
9	32155-SEA-G21	Cord - INTERIOR & SUNROOF
12	32610-SEF-000	Cable - SUB EARTH
13	32751-SEA-G02	Harness - DRIVER DOOR WIRE
14	32752-SEF-G01	Harness - FR. DOOR WIRE (PASSENGER SIDE)
15	32753-SED-G11	Harness - R. RR. DOOR WIRE
16	32754-SED-G11	Harness - L. RR. DOOR WIRE
17	32757-SEA-G02	Sub cord - DRIVER DOOR
18	32758-SEF-G01	Sub cord - PASSENGER DOOR
19	35505-692-003	Bulb - 14V 1.4W
20	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
21	90149-SE0-003	Bolt - EARTH, 6X16
22	90149-SE0-902	Bolt - EARTH, 6X24(SN)
