検索 › 比較 › CM5 × CW1
CM5
Honda ACCORD — 2,907 中 843 共有
CW1
Honda ACCORD — 2,629 中 843 共有
Air cleaner (L4) 7 / 26
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 9 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 18 | 37980-RNA-A01 | Meter assy - AIR FLOW | Meter assy - AIR FLOW |
| 19 | 37985-RAD-L11 | Gasket | Gasket |
| 20 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 21 | 90005-RGA-000 | Bolt - CLAMP, 4X25 | Bolt - CLAMP, 4X25 |
| 23 | 90700-SB0-003 | Clip - AIR BLEED TUBE | Clip - AIR BLEED TUBE |
Air conditioner (COMPRESSOR; L4) 2 / 15
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 14 | 90023-PNA-000 | Bolt - FLANGE, 8X80 | Bolt - FLANGE, 8X80 |
| 15 | 90024-PNA-000 | Bolt - FLANGE, 8X65 | Bolt - FLANGE, 8X65 |
Air conditioner (CONDENSER) 1 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 10 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
Air conditioner (HOSES/PIPES) 7 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 12 | 80865-SL0-003 | Cap - VALVE (H) | Cap - VALVE (H) |
| 13 | 80866-SL0-003 | Cap - VALVE(L) | Cap - VALVE(L) |
| 14 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 15 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 16 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 17 | 90001-SDA-A00 | Bolt - FLANGE, 6X38(GUIDE) | Bolt - FLANGE, 6X38(GUIDE) |
Air conditioner (HOSES/PIPES; LH) 7 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 12 | 80865-SL0-003 | Cap - VALVE (H) | Cap - VALVE (H) |
| 13 | 80866-SL0-003 | Cap - VALVE(L) | Cap - VALVE(L) |
| 14 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 15 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 16 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 17 | 90001-SDA-A00 | Bolt - FLANGE, 6X38(GUIDE) | Bolt - FLANGE, 6X38(GUIDE) |
Air conditioner (SENSOR) 1 / 6
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
Alternator (DENSO; L4) 10 / 16
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 31101-RTA-003 | Rotor assy. | Rotor assy. |
| 3 | 31105-RAA-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 5 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 6 | 31114-PGK-A01 | Bearing - FR. | Bearing - FR. |
| 9 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 11 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 12 | 31145-PGK-A01 | Bolt | Bolt |
| 13 | 31146-PE9-941 | Screw-washer | Screw-washer |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 16 | 90231-PGK-A01 | Nut - HEX., 5MM | Nut - HEX., 5MM |
Battery (L4) 6 / 15
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 31500-S3N-G52 | Battery assy - 55B24L<S>-MF) (FURUKAWA | Battery assy - 55B24L<S>-MF) (FURUKAWA |
| 3 | 31513-SDA-A00 | Bolt - BATTERY SETTING (195MM) | Bolt - BATTERY SETTING (195MM) |
| 8 | 31542-SA5-666 | Plug - VENT (MF) (FURUKAWA) | Plug - VENT (MF) (FURUKAWA) |
| 11 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 12 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 13 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
Brake lines (ABS) 5 / 29
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 14 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 25 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 27 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 28 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 29 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake lines (ABS; LH) 5 / 28
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 14 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 25 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 27 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 28 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 29 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake master cylinder/ master power 4 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 46191-SDA-A00 | Gasket - MASTER POWER | Gasket - MASTER POWER |
| 11 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 15 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 16 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Brake master cylinder/ master power (LH) 4 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 46191-SDA-A00 | Gasket - MASTER POWER | Gasket - MASTER POWER |
| 11 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 15 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 16 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Bumpers 9 / 33
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 25 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 27 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 28 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 29 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 30 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 30 | 90156-S0K-000 | Grommet - FR. LICENSE BASE | Grommet - FR. LICENSE BASE |
| 31 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 37 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 38 | 91503-SZ3-003 | Clip A | Clip A |
Camshaft/cam chain (L4) 3 / 19
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 10 | 14511-PNA-003 | Stopper - TOOL | Stopper - TOOL |
| 14 | 90003-PNA-000 | Bolt - TENSIONER PIVOT | Bolt - TENSIONER PIVOT |
| 17 | 90703-PNA-300 | Dowel pin - 4.2X10.3 | Dowel pin - 4.2X10.3 |
Center module (MANUAL AIR CONDITIONER) 2 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 14 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 17 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Center module (STANLEY; AUTO AIR CONDITIONER) 3 / 10
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 11 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 14 | 91551-SE0-003 | Bolt - FLANGE, 5X7 | Bolt - FLANGE, 5X7 |
| 15 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Chain case (L4) 4 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 4 | 90021-PNA-000 | Bolt - SPECIAL, 6X31 | Bolt - SPECIAL, 6X31 |
| 5 | 90028-PNB-003 | Bolt - SPECIAL, 6X20.5(GUIDE) | Bolt - SPECIAL, 6X20.5(GUIDE) |
| 6 | 91212-RTA-003 | Oil seal - 43X58X7 (NOK) | Oil seal - 43X58X7 (NOK) |
| 8 | 91333-PNC-006 | O-ring | O-ring |
Clutch (4TH-5TH; L4; 2.4L) 9 / 21
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 22533-PX4-010 | Seat - RETURN SPRING | Seat - RETURN SPRING |
| 2 | 22536-PRP-013 | Spring - CLUTCH WAVE | Spring - CLUTCH WAVE |
| 3 | 22541-PX4-004 | Spring - CLUTCH RETURN (SANKO) | Spring - CLUTCH RETURN (SANKO) |
| 6 | 22651-RFK-003 | Guide comp - CLUTCH (4-5) | Guide comp - CLUTCH (4-5) |
| 8 | 22680-RCR-003 | Piston comp - CLUTCH | Piston comp - CLUTCH |
| 9 | 90603-PX4-000 | Circlip - EXTERNAL, 47MM | Circlip - EXTERNAL, 47MM |
| 10 | 90605-P7T-003 | Ring - SNAP, 133MM | Ring - SNAP, 133MM |
| 11 | 91302-PX4-004 | O-ring - 46.8X2.2 (NOK) | O-ring - 46.8X2.2 (NOK) |
| 12 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |
Clutch (LOW-THIRD; L4; 2.4L) 5 / 36
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 22541-RCL-A01 | Spring - CLUTCH RETURN (F.C.C) | Spring - CLUTCH RETURN (F.C.C) |
| 15 | 90603-P6H-003 | Circlip - EXTERNAL, 43MM | Circlip - EXTERNAL, 43MM |
| 17 | 91302-PA9-003 | O-ring, 39.8X2.2 (ARAI) | O-ring, 39.8X2.2 (ARAI) |
| 17 | 91302-PA9-004 | O-ring - 39.8X2.2 (NOK) | O-ring - 39.8X2.2 (NOK) |
| 18 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |

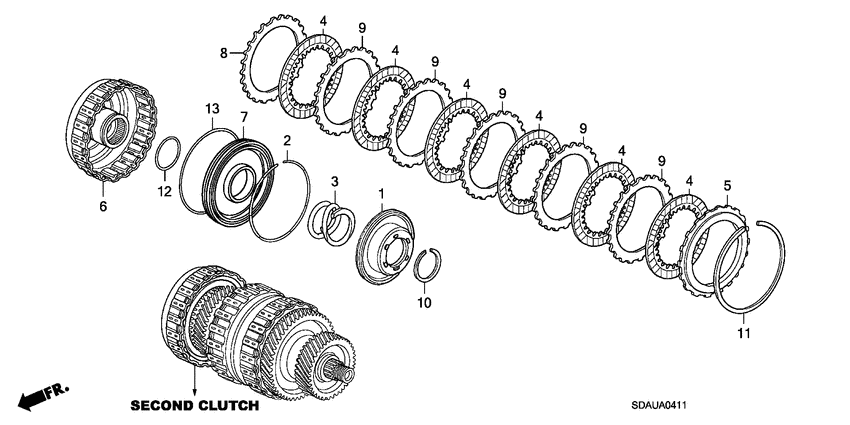

Clutch (SECOND; L4; 2.4L) 6 / 22
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 22533-RCL-003 | Retainer comp - RETURN SPRING | Retainer comp - RETURN SPRING |
| 3 | 22541-RCL-A01 | Spring - CLUTCH RETURN (F.C.C) | Spring - CLUTCH RETURN (F.C.C) |
| 10 | 90603-P6H-003 | Circlip - EXTERNAL, 43MM | Circlip - EXTERNAL, 43MM |
| 12 | 91302-PA9-004 | O-ring - 39.8X2.2 (NOK) | O-ring - 39.8X2.2 (NOK) |
| 12 | 91302-PA9-003 | O-ring, 39.8X2.2 (ARAI) | O-ring, 39.8X2.2 (ARAI) |
| 13 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |
Clutch case (L4) 6 / 10
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 21101-PPP-000 | Plate - NEEDLE SET | Plate - NEEDLE SET |
| 3 | 21103-PPP-000 | Plate c - OIL GUIDE | Plate c - OIL GUIDE |
| 4 | 21120-PWL-000 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 6 | 90705-PG2-000 | Dowel pin - 14X20 | Dowel pin - 14X20 |
| 7 | 91001-PPP-005 | Bearing - BALL, 28X64X15 | Bearing - BALL, 28X64X15 |
| 10 | 91216-PG1-005 | Oil seal - 28X43X7 (NOK) | Oil seal - 28X43X7 (NOK) |
Clutch master cylinder 25 / 41
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 4 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 5 | 46151-S5A-A01 | Yoke | Yoke |
| 6 | 46182-500-013 | Circlip | Circlip |
| 8 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 9 | 46912-S84-A00 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 10 | 46920-S7A-A03 | Cylinder assy. - CLUTCH MASTER | Cylinder assy. - CLUTCH MASTER |
| 11 | 46921-S5A-003 | Plate - STOPPER | Plate - STOPPER |
| 12 | 46926-S5A-013 | Piston comp - CLUTCH MASTER CYLINDER | Piston comp - CLUTCH MASTER CYLINDER |
| 13 | 46928-S5A-A01 | Seal - MASTER CYLINDER | Seal - MASTER CYLINDER |
| 15 | 46931-S5A-003 | Pin - SPRING | Pin - SPRING |
| 16 | 46932-S5A-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 17 | 46937-SS1-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 18 | 46941-S5A-003 | Connector - CLUTCH MASTER CYLINDER | Connector - CLUTCH MASTER CYLINDER |
| 19 | 46942-S5A-003 | Pin - SNAP | Pin - SNAP |
| 20 | 46943-S5A-003 | Seal - RING | Seal - RING |
| 21 | 46944-S5A-J01 | Connector | Connector |
| 22 | 46945-S5A-003 | O-ring | O-ring |
| 23 | 46946-S5A-003 | Screw-washer - 4X12 | Screw-washer - 4X12 |
| 24 | 46947-S5A-003 | Rod - PUSH | Rod - PUSH |
| 25 | 46948-S5A-003 | Rod - PUSH | Rod - PUSH |
| 26 | 46949-S5A-003 | Seal - RING | Seal - RING |
| 31 | 46965-S6A-013 | Tank assy. - CLUTCH FLUID | Tank assy. - CLUTCH FLUID |
| 39 | 90106-S7A-E00 | Bolt - FLANGE, 8X30 | Bolt - FLANGE, 8X30 |
| 40 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Clutch release (L4) 4 / 5
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 22821-PPP-000 | Fork, CLUTCH RELEASE | Fork, CLUTCH RELEASE |
| 3 | 22825-P0S-000 | Bolt - RELEASE FORK | Bolt - RELEASE FORK |
| 4 | 22835-P0S-000 | Spring - RELEASE FORK SETTING | Spring - RELEASE FORK SETTING |
| 5 | 22841-PPP-000 | Boot - RELEASE FORK | Boot - RELEASE FORK |
Clutch/torque converter (L4) 6 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 22103-PNA-003 | Bush - 21X24X8 | Bush - 21X24X8 |
| 7 | 90011-PNA-B00 | Bolt - 12MM | Bolt - 12MM |
| 9 | 90023-PA9-000 | Bolt - SPECIAL | Bolt - SPECIAL |
| 9 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 11 | 90429-PC6-900 | Washer - 40X86X2 | Washer - 40X86X2 |
| 12 | 91302-RNA-003 | O-ring - 35.5X1.9 | O-ring - 35.5X1.9 |
Combination switch 6 / 26
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 18 | 35400-S6A-003 | Switch assy - DOOR (DAIICHI) | Switch assy - DOOR (DAIICHI) |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
Combination switch (LH) 6 / 24
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 18 | 35400-S6A-003 | Switch assy - DOOR (DAIICHI) | Switch assy - DOOR (DAIICHI) |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
Console 3 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 39624-SZ3-L01 | Socket assy | Socket assy |
| 34 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 36 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Control unit (CABIN) 7 / 16
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 7 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 8 | 39794-SDA-003 | Relay assy - FUEL PUMP (MITSUBA) | Relay assy - FUEL PUMP (MITSUBA) |
| 8 | 39794-SDA-004 | RELAY ASSY., FUEL PUMP (DENSO) | RELAY ASSY., FUEL PUMP (DENSO) |
| 9 | 39794-SDA-902 | Relay assy, ENGINE CONTROL MODULE (DENSO) | Relay assy, ENGINE CONTROL MODULE (DENSO) |
| 9 | 39794-SDA-901 | Relay assy, ENGINE CONTROL MODULE (MITSUBA) | Relay assy, ENGINE CONTROL MODULE (MITSUBA) |
| 16 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Control unit (CABIN; LH) 7 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 12 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 12 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 13 | 39794-SDA-004 | RELAY ASSY., FUEL PUMP (DENSO) | RELAY ASSY., FUEL PUMP (DENSO) |
| 13 | 39794-SDA-003 | Relay assy - FUEL PUMP (MITSUBA) | Relay assy - FUEL PUMP (MITSUBA) |
| 14 | 39794-SDA-902 | Relay assy, ENGINE CONTROL MODULE (DENSO) | Relay assy, ENGINE CONTROL MODULE (DENSO) |
| 14 | 39794-SDA-901 | Relay assy, ENGINE CONTROL MODULE (MITSUBA) | Relay assy, ENGINE CONTROL MODULE (MITSUBA) |
| 21 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Control unit (ENGINE ROOM) 5 / 20
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 14 | 39792-SDA-A01 | Relay assy - MICRO ISO | Relay assy - MICRO ISO |
| 15 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 15 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 17 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 19 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
Countershaft (L4) 51 / 70
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 21215-PRP-000 | Holder - IDLE SHAFT | Holder - IDLE SHAFT |
| 4 | 23427-PRP-020 | Gear - PARKING | Gear - PARKING |
| 7 | 23521-PPS-305 | Sleeve set - SYNCHRONIZER (1-2) | Sleeve set - SYNCHRONIZER (1-2) |
| 9 | 23917-PPP-000 | Collar - DISTANCE, 40X47X28 | Collar - DISTANCE, 40X47X28 |
| 10 | 23531-PRP-010 | Gear - COUNTERSHAFT REVERSE | Gear - COUNTERSHAFT REVERSE |
| 11 | 23541-PRP-000 | Gear - REVERSE IDLE | Gear - REVERSE IDLE |
| 11 | 23986-PPP-000 | Shim f - 35MM (1.27) | Shim f - 35MM (1.27) |
| 11 | 23983-PPP-900 | Shim ac - 35MM (1.07) | Shim ac - 35MM (1.07) |
| 11 | 23981-PPP-000 | Shim a - 35MM (0.87) | Shim a - 35MM (0.87) |
| 11 | 23994-PPP-900 | Shim ap - 35MM (1.95) | Shim ap - 35MM (1.95) |
| 11 | 23992-PPP-000 | Shim m - 35MM (1.75) | Shim m - 35MM (1.75) |
| 11 | 23989-PPP-900 | Shim aj - 35MM (1.55) | Shim aj - 35MM (1.55) |
| 11 | 23987-PPP-000 | Shim g - 35MM (1.35) | Shim g - 35MM (1.35) |
| 11 | 23984-PPP-900 | Shim ad - 35MM (1.15) | Shim ad - 35MM (1.15) |
| 11 | 23982-PPP-000 | Shim b - 35MM (0.95) | Shim b - 35MM (0.95) |
| 11 | 23993-PPP-000 | Shim n - 35MM (1.83) | Shim n - 35MM (1.83) |
| 11 | 23990-PPP-900 | Shim ak - 35MM (1.63) | Shim ak - 35MM (1.63) |
| 11 | 23988-PPP-000 | Shim h - 35MM (1.43) | Shim h - 35MM (1.43) |
| 11 | 23985-PPP-900 | Shim ae - 35MM (1.23) | Shim ae - 35MM (1.23) |
| 11 | 23983-PPP-000 | Shim c - 35MM (1.03) | Shim c - 35MM (1.03) |
| 11 | 23994-PPP-000 | Shim p - 35MM (1.91) | Shim p - 35MM (1.91) |
| 11 | 23991-PPP-900 | Shim al - 35MM (1.71) | Shim al - 35MM (1.71) |
| 11 | 23989-PPP-000 | Shim j - 35MM (1.51) | Shim j - 35MM (1.51) |
| 11 | 23986-PPP-900 | Shim af - 35MM (1.31) | Shim af - 35MM (1.31) |
| 11 | 23984-PPP-000 | Shim d - 35MM (1.11) | Shim d - 35MM (1.11) |
| 11 | 23981-PPP-900 | Shim aa - 35MM (0.91) | Shim aa - 35MM (0.91) |
| 11 | 23995-PPP-000 | Shim q - 35MM (1.99) | Shim q - 35MM (1.99) |
| 11 | 23992-PPP-900 | Shim am - 35MM (1.79) | Shim am - 35MM (1.79) |
| 11 | 23990-PPP-000 | Shim k - 35MM (1.59) | Shim k - 35MM (1.59) |
| 11 | 23987-PPP-900 | Shim ag - 35MM (1.39) | Shim ag - 35MM (1.39) |
| 11 | 23985-PPP-000 | Shim e - 35MM (1.19) | Shim e - 35MM (1.19) |
| 11 | 23982-PPP-900 | Shim ab - 35MM (0.99) | Shim ab - 35MM (0.99) |
| 11 | 23993-PPP-900 | Shim an - 35MM (1.87) | Shim an - 35MM (1.87) |
| 11 | 23991-PPP-000 | Shim l - 35MM (1.67) | Shim l - 35MM (1.67) |
| 11 | 23988-PPP-900 | Shim ah - 35MM (1.47) | Shim ah - 35MM (1.47) |
| 12 | 23542-P6H-000 | Shaft - REVERSE IDLE GEAR | Shaft - REVERSE IDLE GEAR |
| 12 | 90011-PPP-000 | Bolt - SPECIAL, 20X25 | Bolt - SPECIAL, 20X25 |
| 13 | 23565-PRP-010 | Selector - REVERSE GEAR | Selector - REVERSE GEAR |
| 13 | 90601-PPP-000 | Ring - SNAP, 72MM | Ring - SNAP, 72MM |
| 14 | 23566-PRP-000 | Hub - SELECTOR | Hub - SELECTOR |
| 15 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 15 | 91101-PPP-003 | Bearing - NEEDLE, 47X52X23 | Bearing - NEEDLE, 47X52X23 |
| 16 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 16 | 91212-PPP-004 | Damper - FRICTION (SECOND) | Damper - FRICTION (SECOND) |
| 17 | 90431-P6H-000 | Cotter - 31MM | Cotter - 31MM |
| 18 | 90441-RFK-010 | Collar - 37X41X54.3 | Collar - 37X41X54.3 |
| 19 | 90445-PPV-000 | Collar - 35X47X7.8 | Collar - 35X47X7.8 |
| 21 | 91024-PRP-004 | Bearing - NEEDLE, 40X46X14.5 (KOYO) | Bearing - NEEDLE, 40X46X14.5 (KOYO) |
| 22 | 91025-P0X-003 | Bearing - NEEDLE, 15X20X16 (NTN) | Bearing - NEEDLE, 15X20X16 (NTN) |
| 23 | 91028-P0Z-013 | Bearing - NEEDLE, 35X41X25.8 (NTN) | Bearing - NEEDLE, 35X41X25.8 (NTN) |
| 24 | 91306-P0X-003 | O-ring - 8.1X4 (NOK) | O-ring - 8.1X4 (NOK) |
Crankshaft/piston (L4) 3 / 52
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 10 | 13331-PNA-004 | Washer - THRUST(TAIHO) | Washer - THRUST(TAIHO) |
| 15 | 90017-PCX-013 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 16 | 90704-PNA-000 | Key - 4.5X21 | Key - 4.5X21 |
Cylinder block/oil pan (L4) 6 / 29
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 17 | 90028-PNB-003 | Bolt - SPECIAL, 6X20.5(GUIDE) | Bolt - SPECIAL, 6X20.5(GUIDE) |
| 19 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 20 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 22 | 91214-RTA-004 | Oil seal - 80X98X10 (ARAI) | Oil seal - 80X98X10 (ARAI) |
| 22 | 91214-RNB-A01 | Oil seal (80x98x10) | Oil seal (80x98x10) |
| 22 | 91214-PWA-003 | Oil seal - 80X98X10 (NOK) | Oil seal - 80X98X10 (NOK) |
Cylinder head (L4) 1 / 12
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 11 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |
Cylinder head cover (L4) 5 / 19
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 15610-RGA-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 13 | 90207-RAA-A10 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
| 16 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 16 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
Differential (L4) 87 / 91
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 41100-RKY-030 | Differential comp. | Differential comp. |
| 1 | 41100-R5M-305 | SETDIFF COMP | SETDIFF COMP |
| 3 | 41381-PPV-000 | Spacer - 41X80X1 | Spacer - 41X80X1 |
| 3 | 41454-PL3-B00 | Shim p - 80MM(1.45) | Shim p - 80MM(1.45) |
| 3 | 41449-PL3-B00 | Shim j - 80MM(1.8) | Shim j - 80MM(1.8) |
| 3 | 41444-PL3-B00 | Shim d - 80MM(1.3) | Shim d - 80MM(1.3) |
| 3 | 41456-PL3-B00 | Shim r - 80MM(1.65) | Shim r - 80MM(1.65) |
| 3 | 41451-PL3-B00 | Shim l - 80MM(1.15) | Shim l - 80MM(1.15) |
| 3 | 41446-PL3-B00 | Shim f - 80MM(1.5) | Shim f - 80MM(1.5) |
| 3 | 41441-PL3-B00 | Shim a - 80MM(1.0) | Shim a - 80MM(1.0) |
| 3 | 41453-PL3-B00 | Shim n - 80MM(1.35) | Shim n - 80MM(1.35) |
| 3 | 41448-PL3-B00 | Shim h - 80MM(1.7) | Shim h - 80MM(1.7) |
| 3 | 41443-PL3-B00 | Shim c - 80MM(1.2) | Shim c - 80MM(1.2) |
| 3 | 41455-PL3-B00 | Shim q - 80MM(1.55) | Shim q - 80MM(1.55) |
| 3 | 41450-PL3-B00 | Shim k - 80MM(1.05) | Shim k - 80MM(1.05) |
| 3 | 41445-PL3-B00 | Shim e - 80MM(1.4) | Shim e - 80MM(1.4) |
| 3 | 41457-PL3-B00 | Shim s - 80MM(1.75) | Shim s - 80MM(1.75) |
| 3 | 41452-PL3-B00 | Shim m - 80MM(1.25) | Shim m - 80MM(1.25) |
| 3 | 41447-PL3-B00 | Shim g - 80MM(1.6) | Shim g - 80MM(1.6) |
| 3 | 41442-PL3-B00 | Shim b - 80MM(1.1) | Shim b - 80MM(1.1) |
| 4 | 41382-RKY-900 | Spacer - 41X76.2X1 | Spacer - 41X76.2X1 |
| 4 | 90017-PPP-000 | Bolt - SPECIAL, 11MM | Bolt - SPECIAL, 11MM |
| 5 | 41450-PK4-000 | Shim j - 76MM (2.65) | Shim j - 76MM (2.65) |
| 5 | 41434-PRP-000 | Shim og - 76MM (1.85) | Shim og - 76MM (1.85) |
| 5 | 41448-PAX-000 | Shim u - 76MM (2.575) | Shim u - 76MM (2.575) |
| 5 | 41432-PAX-000 | Shim e - 76MM (1.775) | Shim e - 76MM (1.775) |
| 5 | 41445-PK4-000 | Shim e - 76MM (2.40) | Shim e - 76MM (2.40) |
| 5 | 41429-PRP-000 | Shim ob - 76MM (1.60) | Shim ob - 76MM (1.60) |
| 5 | 41443-PAX-000 | Shim p - 76MM (2.325) | Shim p - 76MM (2.325) |
| 5 | 41456-PK4-000 | Shim p - 76MM (2.95) | Shim p - 76MM (2.95) |
| 5 | 41440-PX4-700 | Shim u - 76MM (2.15) | Shim u - 76MM (2.15) |
| 5 | 41454-PAX-000 | Shim oa - 76MM (2.875) | Shim oa - 76MM (2.875) |
| 5 | 41438-PAX-000 | Shim k - 76MM (2.075) | Shim k - 76MM (2.075) |
| 5 | 41451-PK4-000 | Shim k - 76MM (2.70) | Shim k - 76MM (2.70) |
| 5 | 41435-PRP-000 | Shim oh - 76MM (1.90) | Shim oh - 76MM (1.90) |
| 5 | 41449-PAX-000 | Shim v - 76MM (2.625) | Shim v - 76MM (2.625) |
| 5 | 41433-PAX-000 | Shim f - 76MM (1.825) | Shim f - 76MM (1.825) |
| 5 | 41446-PK4-000 | Shim f - 76MM (2.45) | Shim f - 76MM (2.45) |
| 5 | 41430-PRP-000 | Shim oc - 76MM (1.65) | Shim oc - 76MM (1.65) |
| 5 | 41428-PAX-000 | Shim a - 76MM (1.575) | Shim a - 76MM (1.575) |
| 5 | 41444-PAX-000 | Shim q - 76MM (2.375) | Shim q - 76MM (2.375) |
| 5 | 41457-PK4-000 | Shim q - 76MM (3.00) | Shim q - 76MM (3.00) |
| 5 | 41441-PK4-000 | Shim a - 76MM (2.20) | Shim a - 76MM (2.20) |
| 5 | 41455-PAX-000 | Shim ob - 76MM (2.925) | Shim ob - 76MM (2.925) |
| 5 | 41439-PAX-000 | Shim l - 76MM (2.125) | Shim l - 76MM (2.125) |
| 5 | 41452-PK4-000 | Shim l - 76MM (2.75) | Shim l - 76MM (2.75) |
| 5 | 41436-PRP-000 | Shim oi - 76MM (1.95) | Shim oi - 76MM (1.95) |
| 5 | 41450-PAX-000 | Shim w - 76MM (2.675) | Shim w - 76MM (2.675) |
| 5 | 41434-PAX-000 | Shim g - 76MM (1.875) | Shim g - 76MM (1.875) |
| 5 | 41447-PK4-000 | Shim g - 76MM (2.50) | Shim g - 76MM (2.50) |
| 5 | 41431-PRP-000 | Shim od - 76MM (1.70) | Shim od - 76MM (1.70) |
| 5 | 41445-PAX-000 | Shim r - 76MM (2.425) | Shim r - 76MM (2.425) |
| 5 | 41429-PAX-000 | Shim b - 76MM (1.625) | Shim b - 76MM (1.625) |
| 5 | 41442-PK4-000 | Shim b - 76MM (2.25) | Shim b - 76MM (2.25) |
| 5 | 41456-PAX-000 | Shim oc - 76MM (2.975) | Shim oc - 76MM (2.975) |
| 5 | 41440-PAX-000 | Shim m - 76MM (2.175) | Shim m - 76MM (2.175) |
| 5 | 41453-PK4-000 | Shim m - 76MM (2.80) | Shim m - 76MM (2.80) |
| 5 | 41437-PRP-000 | Shim oj - 76MM (2.00) | Shim oj - 76MM (2.00) |
| 5 | 41451-PAX-000 | Shim x - 76MM (2.725) | Shim x - 76MM (2.725) |
| 5 | 41435-PAX-000 | Shim h - 76MM (1.925) | Shim h - 76MM (1.925) |
| 5 | 41448-PK4-000 | Shim h - 76MM (2.55) | Shim h - 76MM (2.55) |
| 5 | 41432-PRP-000 | Shim oe - 76MM (1.75) | Shim oe - 76MM (1.75) |
| 5 | 41446-PAX-000 | Shim s - 76MM (2.475) | Shim s - 76MM (2.475) |
| 5 | 41430-PAX-000 | Shim c - 76MM (1.675) | Shim c - 76MM (1.675) |
| 5 | 41443-PK4-000 | Shim c - 76MM (2.30) | Shim c - 76MM (2.30) |
| 5 | 41457-PAX-000 | Shim od - 76MM (3.025) | Shim od - 76MM (3.025) |
| 5 | 41441-PAX-000 | Shim n - 76MM (2.225) | Shim n - 76MM (2.225) |
| 5 | 41454-PK4-000 | Shim n - 76MM (2.85) | Shim n - 76MM (2.85) |
| 5 | 41438-PX4-700 | Shim s - 76MM (2.05) | Shim s - 76MM (2.05) |
| 5 | 41452-PAX-000 | Shim y - 76MM (2.775) | Shim y - 76MM (2.775) |
| 5 | 41436-PAX-000 | Shim i - 76MM (1.975) | Shim i - 76MM (1.975) |
| 5 | 41449-PK4-000 | Shim i - 76MM (2.60) | Shim i - 76MM (2.60) |
| 5 | 41433-PRP-000 | Shim of - 76MM (1.80) | Shim of - 76MM (1.80) |
| 5 | 41447-PAX-000 | Shim t - 76MM (2.525) | Shim t - 76MM (2.525) |
| 5 | 41431-PAX-000 | Shim d - 76MM (1.725) | Shim d - 76MM (1.725) |
| 5 | 41428-PRP-000 | Shim oa - 76MM (1.55) | Shim oa - 76MM (1.55) |
| 5 | 41444-PK4-000 | Shim d - 76MM (2.35) | Shim d - 76MM (2.35) |
| 5 | 41458-PK4-000 | Shim r - 76MM (3.05) | Shim r - 76MM (3.05) |
| 5 | 41442-PAX-000 | Shim o - 76MM (2.275) | Shim o - 76MM (2.275) |
| 5 | 41455-PK4-000 | Shim o - 76MM (2.90) | Shim o - 76MM (2.90) |
| 5 | 41439-PX4-700 | Shim t - 76MM (2.10) | Shim t - 76MM (2.10) |
| 5 | 41453-PAX-000 | Shim z - 76MM (2.825) | Shim z - 76MM (2.825) |
| 5 | 41437-PAX-000 | Shim j - 76MM (2.025) | Shim j - 76MM (2.025) |
| 5 | 91005-PPS-003 | Bearing - BALL, 40X80X18(NTN) | Bearing - BALL, 40X80X18(NTN) |
| 6 | 90003-PA9-003 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 7 | 91121-RFK-013 | Bearing - SPECIAL TAPER, 40X80X20.25 | Bearing - SPECIAL TAPER, 40X80X20.25 |
| 8 | 91122-RFK-013 | Bearing - SPECIAL TAPER, 40X76.2X19 | Bearing - SPECIAL TAPER, 40X76.2X19 |
Emblems/caution labels 3 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 19043-PLA-E00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 16 | 78031-SDA-G80 | Label - SIDE AIRBAG CAUTION | Label - SIDE AIRBAG CAUTION |
| 17 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine cover (L4) 1 / 4
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 17213-P8A-A00 | Rubber - INTAKE MANIFOLD COVER MOUNTING | Rubber - INTAKE MANIFOLD COVER MOUNTING |
Engine hood 8 / 41
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 32 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 33 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 34 | 90602-SX0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 37 | 90603-SX0-003 | Grommet - COWL TOP | Grommet - COWL TOP |
| 40 | 91501-STK-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 42 | 91504-SDA-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 43 | 91515-SDA-A01 | Clip - HOOD LOCK COVER | Clip - HOOD LOCK COVER |
| 45 | 91518-S10-003 | Clip - MOLDING | Clip - MOLDING |
Engine hood (LH) 8 / 40
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 32 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 33 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 34 | 90602-SX0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 37 | 90603-SX0-003 | Grommet - COWL TOP | Grommet - COWL TOP |
| 39 | 91501-STK-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 42 | 91504-SDA-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 43 | 91515-SDA-A01 | Clip - HOOD LOCK COVER | Clip - HOOD LOCK COVER |
| 45 | 91518-S10-003 | Clip - MOLDING | Clip - MOLDING |
Engine mounts (L4; AT) 5 / 29
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 19 | 90161-SDA-A01 | Bolt - FLANGE, 12X45 | Bolt - FLANGE, 12X45 |
| 21 | 90163-SDA-A01 | Bolt - FLANGE, 10X35 | Bolt - FLANGE, 10X35 |
| 22 | 90163-S5A-000 | Bolt - FLANGE, 10X20 | Bolt - FLANGE, 10X20 |
| 24 | 90166-SDA-A00 | Bolt - FLANGE, 12X80 | Bolt - FLANGE, 12X80 |
| 29 | 90371-S87-A00 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
Engine mounts (L4; MT) 5 / 26
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 15 | 90161-SDA-A01 | Bolt - FLANGE, 12X45 | Bolt - FLANGE, 12X45 |
| 17 | 90163-SDA-A01 | Bolt - FLANGE, 10X35 | Bolt - FLANGE, 10X35 |
| 18 | 90163-S5A-000 | Bolt - FLANGE, 10X20 | Bolt - FLANGE, 10X20 |
| 20 | 90166-SDA-A00 | Bolt - FLANGE, 12X80 | Bolt - FLANGE, 12X80 |
| 25 | 90371-S87-A00 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
Engine wire harness (L4) 5 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 12 | 32418-PND-300 | Cover - BATTERY TERMINAL | Cover - BATTERY TERMINAL |
| 13 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 14 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 18 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 19 | 91507-RTA-003 | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) |
Engine wire harness (L4; LH) 5 / 25
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 12 | 32418-PND-300 | Cover - BATTERY TERMINAL | Cover - BATTERY TERMINAL |
| 13 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 14 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 18 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 19 | 91507-RTA-003 | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) |
Exhaust manifold (L4) 1 / 9
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Exhaust manifold (L4; 2) 1 / 9
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Exhaust pipe (L4) 3 / 33
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 10 | 18215-S84-A20 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 14 | 18302-SP0-003 | Gasket - EX. PIPE | Gasket - EX. PIPE |
| 30 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Floor mat 3 / 7
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 26 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 27 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 28 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front brake (L4) 4 / 27
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 18 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 19 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 19 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 19 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
Front bulkhead/dashboard 1 / 1
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 30 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
Front door glass/ regulator 1 / 12
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
Front door lining 6 / 15
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 25 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 26 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 28 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 29 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door lining (LH) 6 / 15
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 25 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 26 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 28 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 29 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door locks/ outer handle 7 / 33
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 12 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 19 | 72141-SD4-004 | Bush - R. JOINT | Bush - R. JOINT |
| 21 | 72143-S04-003 | Packing | Packing |
| 32 | 72181-SD4-004 | Bush - L. JOINT | Bush - L. JOINT |
| 35 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 39 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
Front door panels 5 / 19
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 20 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 21 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 22 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 22 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 23 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
Front driveshaft (L4; AT) 7 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 44319-S0A-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 7 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 10 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44329-S04-A01 | Band c - DRIVESHAFT (NIPPON HATSUJO) | Band c - DRIVESHAFT (NIPPON HATSUJO) |
| 12 | 44337-SA2-300 | Ring b - STOPPER | Ring b - STOPPER |
| 13 | 44338-SA2-300 | Circlip - 24MM | Circlip - 24MM |
Front driveshaft/half sha ft (L4; MT) 10 / 29
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 44319-SE0-000 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 9 | 44319-S0A-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44327-SX0-C02 | Band - OUTBOARD BOOT (NIPPON HATSUJO) | Band - OUTBOARD BOOT (NIPPON HATSUJO) |
| 12 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 19 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 22 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 23 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 24 | 91260-SR3-003 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
Front fenders 8 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 16 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 17 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 18 | 90305-SM4-003 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 20 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 21 | 91503-SZ3-003 | Clip A | Clip A |
| 22 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 23 | 91533-SG0-000 | Clip b - FAIRING | Clip b - FAIRING |
| 24 | 91545-SE0-003 | Clip assy. - 8MM | Clip assy. - 8MM |
Front grille 4 / 8
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 5 | 75700-S9A-G00 | Front Honda Emblem - (H) | Front Honda Emblem - (H) |
| 6 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 8 | 91503-SZ3-003 | Clip A | Clip A |
| 9 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Front lower arm 7 / 21
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 51308-SDA-A00 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 9 | 51393-SDA-A02 | BUSH, FR. ARM (LOWER) | BUSH, FR. ARM (LOWER) |
| 15 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 16 | 90117-S0A-000 | Bolt - DAMPER LOCK(10X44) | Bolt - DAMPER LOCK(10X44) |
| 19 | 90121-S0A-000 | Bolt - DAMPER FORK(12X98) | Bolt - DAMPER FORK(12X98) |
| 20 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 21 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Front seat (L.) 3 / 8
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 41 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 43 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
Front seat (L.; LH) 7 / 34
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 38 | 90101-SDA-000 | Screw - FLAT, 4X30 | Screw - FLAT, 4X30 |
| 41 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 42 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 47 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 48 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 49 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
Front seat (R.) 2 / 7
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 23 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
Front seat (R.; LH) 7 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 35 | 90160-S5A-003 | Screw - TRUSS, 6X12 | Screw - TRUSS, 6X12 |
| 36 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 37 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 40 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 41 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 42 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
Front seat components (L.; FULL POWER SEAT) 5 / 15
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 12 | 81653-SDB-A71 | Switch assy - L. (8WAY) | Switch assy - L. (8WAY) |
| 14 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 18 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 19 | 91533-S82-003 | Clip - COUPLER(BLACK) | Clip - COUPLER(BLACK) |
| 20 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Front seat components (L.; MANUAL HEIGHT) 1 / 9
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 10 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
Front seat components (R.; MANUAL SEAT) 1 / 8
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
Front shock absorber 11 / 27
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 5 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 6 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 8 | 51684-SDA-A02 | Mount - FR. DUST COVER LOWER | Mount - FR. DUST COVER LOWER |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 11 | 51688-SDA-A01 | Sleeve - FR. DUST COVER | Sleeve - FR. DUST COVER |
| 12 | 51689-SDA-A01 | Cover - FR. END DUST | Cover - FR. END DUST |
| 13 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 14 | 51722-SS0-004 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 15 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 16 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front sub frame/rear beam 7 / 39
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 12 | 50280-SDA-A01 | Rubber - R. FR. SUB FRAME MIDDLE MOUNTING | Rubber - R. FR. SUB FRAME MIDDLE MOUNTING |
| 13 | 50285-SDA-A01 | Rubber - L. FR. SUB FRAME MIDDLE MOUNTING | Rubber - L. FR. SUB FRAME MIDDLE MOUNTING |
| 29 | 90170-SDC-A00 | Bolt - FLANGE, 10X34 | Bolt - FLANGE, 10X34 |
| 32 | 90176-SDA-A00 | Bolt - FLANGE, 14X135 | Bolt - FLANGE, 14X135 |
| 33 | 90177-SDA-A00 | Bolt - FLANGE, 14X150 | Bolt - FLANGE, 14X150 |
| 36 | 90186-SDA-A00 | Bolt - FLANGE, 12X33 | Bolt - FLANGE, 12X33 |
| 38 | 90396-S5A-010 | Bolt - FLANGE, 12X75 | Bolt - FLANGE, 12X75 |
Front windshield wiper 7 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 76516-SDA-A01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 3 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 5 | 76517-SM4-003 | Collar | Collar |
| 7 | 76524-SD4-003 | Dust seal | Dust seal |
| 22 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 23 | 91611-SDA-A00 | Cap - FR. WIPER ARM (12MM) | Cap - FR. WIPER ARM (12MM) |
Front windshield wiper (LH) 7 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 76516-SDA-A01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 3 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 5 | 76517-SM4-003 | Collar | Collar |
| 7 | 76524-SD4-003 | Dust seal | Dust seal |
| 22 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 23 | 91611-SDA-A00 | Cap - FR. WIPER ARM (12MM) | Cap - FR. WIPER ARM (12MM) |
Fuel injector (L4) 4 / 21
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 16451-PLC-000 | Clip - INJECTOR | Clip - INJECTOR |
| 11 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 17 | 91301-PLC-000 | O-ring - 7.47X3.6 | O-ring - 7.47X3.6 |
| 19 | 91302-PNA-003 | O-ring - 7.45X3.61(NOK) | O-ring - 7.45X3.61(NOK) |
Fuel pipe 5 / 34
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 9 | 16725-RAC-003 | Clamp - FUEL HOSE (NATURAL) | Clamp - FUEL HOSE (NATURAL) |
| 18 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 25 | 91405-SDA-000 | Clamp - TUBE(D10.5) | Clamp - TUBE(D10.5) |
| 27 | 91407-SDB-000 | Clamp - TUBE (D12.5) | Clamp - TUBE (D12.5) |
| 37 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Fuel tank 4 / 43
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 14 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 30 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 36 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 41 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Fuel tank (2) 5 / 37
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 16 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 20 | 17652-SDA-A31 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 27 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 31 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 33 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Grommet (FRONT) 4 / 8
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 6 | 91613-SR3-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 7 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 8 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Grommet (LOWER) 3 / 4
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 4 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
Grommet (REAR) 3 / 5
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 3 | 90857-SDA-A00 | Cap - WELD HOLE | Cap - WELD HOLE |
Grommet (SIDE) 1 / 6
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Harness band/bracket 8 / 53
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 8 | 32133-SLA-003 | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) |
| 28 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 31 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 33 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 35 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 53 | 91559-SX0-003 | Clip - HARNESS BAND (NATURAL) (155MM) | Clip - HARNESS BAND (NATURAL) (155MM) |
| 54 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
Harness band/bracket (LH) 9 / 50
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 7 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 8 | 32133-SLA-003 | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) |
| 28 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 31 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 33 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 35 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 52 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 57 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
Headlight 4 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 4 | 33115-S84-A11 | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) |
| 8 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 9 | 33303-SAA-003 | Socket comp - T20 S) (AMBER | Socket comp - T20 S) (AMBER |
| 10 | 33303-S2R-003 | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) |
Heater blower 6 / 10
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 5 | 80290-SDC-A01 | Filter assy - AIR CONDITIONER | Filter assy - AIR CONDITIONER |
| 6 | 80292-SDC-A01 | Element - FILTER | Element - FILTER |
| 7 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 8 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 9 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 10 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater blower (LH) 4 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 9 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 10 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 11 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater unit 10 / 29
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 22 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 23 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 24 | 90126-S5A-003 | Bolt - SOCKET, 5X40 | Bolt - SOCKET, 5X40 |
| 25 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 26 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 27 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 28 | 90661-S2A-003 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 30 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 32 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Heater unit (LH) 11 / 32
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 18 | 80534-S84-A41 | Aspirator | Aspirator |
| 22 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 23 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 24 | 90126-S5A-003 | Bolt - SOCKET, 5X40 | Bolt - SOCKET, 5X40 |
| 25 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 26 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 27 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 28 | 90661-S2A-003 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 30 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 32 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |

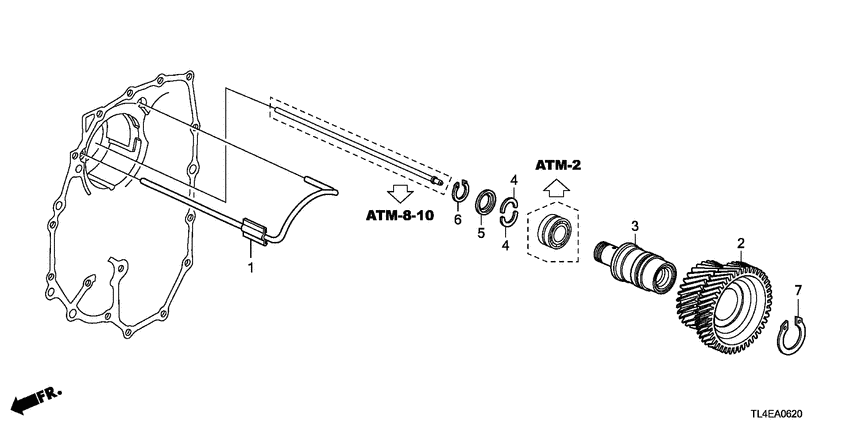

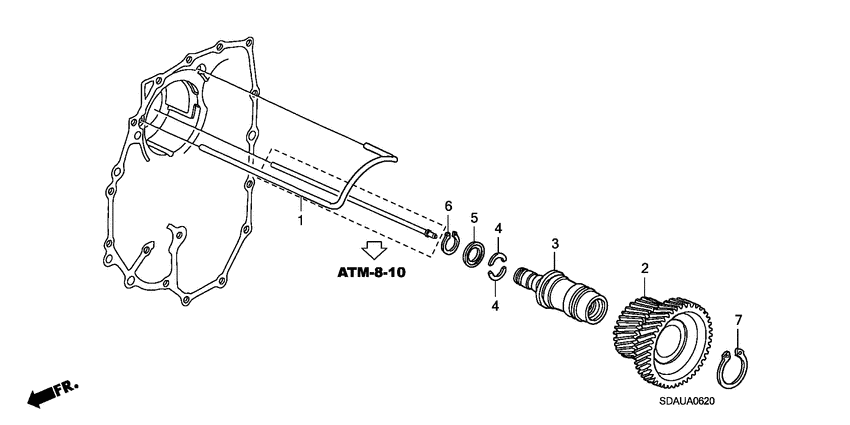

Idle shaft (L4) 3 / 5
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 23516-RCL-A00 | Shaft - IDLE | Shaft - IDLE |
| 4 | 90431-PRP-000 | Cotter - 17MM | Cotter - 17MM |
| 5 | 90432-PRP-000 | Retainer - COTTER | Retainer - COTTER |
Install pipe/tubing (L4) 2 / 13
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 16725-PNA-003 | Clamp a - FUEL HOSE | Clamp a - FUEL HOSE |
| 10 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Instrument panel 5 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 11 | 90001-S10-010 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 15 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 16 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 17 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
Instrument panel (LH) 5 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 11 | 90001-S10-010 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 15 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 16 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 17 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
Instrument panel garnish (DRIVER SIDE) 5 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 16 | 90101-S2K-000 | Screw - TAPPING, 4X16(IT) | Screw - TAPPING, 4X16(IT) |
| 18 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 19 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 21 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (DRIVER SIDE; LH) 5 / 10
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 18 | 90101-S2K-000 | Screw - TAPPING, 4X16(IT) | Screw - TAPPING, 4X16(IT) |
| 20 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 21 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 24 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (PASSENGER SIDE) 9 / 26
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 2 | 39610-S2H-G01 | Knob assy | Knob assy |
| 3 | 39620-S0X-003 | Socket assy | Socket assy |
| 6 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 20 | 77520-SDA-A01 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 31 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 32 | 90306-SA0-000 | Nut - FLOATING, 5MM | Nut - FLOATING, 5MM |
| 33 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 35 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (PASSENGER SIDE; LH) 9 / 27
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 3 | 39610-S2H-G01 | Knob assy | Knob assy |
| 4 | 39620-S0X-003 | Socket assy | Socket assy |
| 7 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 21 | 77520-SDA-A01 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 33 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 34 | 90306-SA0-000 | Nut - FLOATING, 5MM | Nut - FLOATING, 5MM |
| 35 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 38 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Intake manifold (L4) 4 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 17212-PE2-000 | Rubber a - AIR CLEANER CASE MOUNTING | Rubber a - AIR CLEANER CASE MOUNTING |
| 7 | 17216-PE2-003 | Collar - AIR CLEANER(TOYO ROKI) | Collar - AIR CLEANER(TOYO ROKI) |
| 9 | 37835-PGK-A01 | O-ring | O-ring |
| 18 | 90005-P28-A00 | Bolt-washer - SPECIAL, 6X28 | Bolt-washer - SPECIAL, 6X28 |
Intake manifold (L4; 2) 5 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 17212-PE2-000 | Rubber a - AIR CLEANER CASE MOUNTING | Rubber a - AIR CLEANER CASE MOUNTING |
| 7 | 17216-PE2-003 | Collar - AIR CLEANER(TOYO ROKI) | Collar - AIR CLEANER(TOYO ROKI) |
| 9 | 37835-PGK-A01 | O-ring | O-ring |
| 11 | 50931-SDA-A01 | Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID | Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID |
| 18 | 90005-P28-A00 | Bolt-washer - SPECIAL, 6X28 | Bolt-washer - SPECIAL, 6X28 |
Interior light 7 / 15
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 34251-S5A-003 | Lens | Lens |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 5 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 7 | 34401-SDA-A21 | Lens - R. | Lens - R. |
| 9 | 34402-SDA-A21 | Lens - L. | Lens - L. |
Knuckle 4 / 20
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 9 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 12 | 90172-SDA-A00 | Bolt - FLANGE, 10X78 | Bolt - FLANGE, 10X78 |
| 13 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
L. side cover (L4) 36 / 40
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 21515-PPV-010 | Stay e - HARNESS | Stay e - HARNESS |
| 4 | 21724-RCT-000 | Rubber - POSITION SENSOR COVER | Rubber - POSITION SENSOR COVER |
| 5 | 21725-RCT-000 | Collar - POSITION SENSOR COVER | Collar - POSITION SENSOR COVER |
| 6 | 21812-PRP-030 | Packing - L. SIDE COVER | Packing - L. SIDE COVER |
| 7 | 22713-PW4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 8 | 22713-PX4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 9 | 22715-PRP-000 | Pipe comp. b - FEED | Pipe comp. b - FEED |
| 10 | 22725-P6H-000 | Pipe comp. b - FEED | Pipe comp. b - FEED |
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 12 | 24532-PX4-000 | Lever - PARKING BRAKE | Lever - PARKING BRAKE |
| 13 | 24535-PRP-040 | Spring - PARKING BRAKE | Spring - PARKING BRAKE |
| 14 | 24539-PA9-003 | Stopper - PARKING BRAKE (3) | Stopper - PARKING BRAKE (3) |
| 14 | 24538-PA9-003 | Stopper - PARKING BRAKE (2) | Stopper - PARKING BRAKE (2) |
| 14 | 24537-PA9-003 | Stopper - PARKING BRAKE (1) | Stopper - PARKING BRAKE (1) |
| 15 | 24552-PRP-000 | Spring - PARKING PAWL | Spring - PARKING PAWL |
| 16 | 24553-PN6-000 | Roller - PARKING BRAKE | Roller - PARKING BRAKE |
| 17 | 24555-PN6-000 | Pin - ROLLER, 6MM | Pin - ROLLER, 6MM |
| 18 | 24561-PRP-010 | Pawl - PARKING BRAKE | Pawl - PARKING BRAKE |
| 19 | 24562-PRP-000 | Shaft - PARKING | Shaft - PARKING |
| 21 | 28950-RCL-A00 | Harness - POSITION SENSOR | Harness - POSITION SENSOR |
| 22 | 90004-PRH-010 | Bolt - SPECIAL, 8X30 | Bolt - SPECIAL, 8X30 |
| 23 | 90005-PRH-010 | Bolt - SPECIAL, 8X38 | Bolt - SPECIAL, 8X38 |
| 24 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 25 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 26 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 27 | 90602-PX4-000 | Circlip b - INTERNAL, 47MM | Circlip b - INTERNAL, 47MM |
| 28 | 90702-PL4-000 | Dowel pin - 8X44 | Dowel pin - 8X44 |
| 29 | 91006-P1B-003 | Bearing - BALL, 9X20X6 | Bearing - BALL, 9X20X6 |
| 30 | 91103-RCL-023 | Bearing - NEEDLE, 32X55X18.5 | Bearing - NEEDLE, 32X55X18.5 |
| 31 | 91201-PA9-004 | Oil seal - 9X18X7 (ARAI) | Oil seal - 9X18X7 (ARAI) |
| 32 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 33 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 34 | 91305-PX4-003 | O-ring - 40X1.9 (NOK) | O-ring - 40X1.9 (NOK) |
| 35 | 91311-PA9-004 | O-ring - 7.7X1.9 (NOK) | O-ring - 7.7X1.9 (NOK) |
| 36 | 91314-PW4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 37 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
Main valve body (L4) 8 / 9
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 3 | 27112-PRP-030 | Plate - MAIN SEPARATING | Plate - MAIN SEPARATING |
| 4 | 27122-P6H-000 | Cap - 12MM | Cap - 12MM |
| 5 | 27132-P6H-000 | Cap - 14MM | Cap - 14MM |
| 6 | 27142-P6H-000 | Cap - 15MM | Cap - 15MM |
| 7 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 8 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 9 | 91108-PRP-003 | Roller - 4X23.8 | Roller - 4X23.8 |
Mainshaft (L4) 20 / 41
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 22814-PRP-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 2 | 23210-RCL-010 | Mainshaft comp. | Mainshaft comp. |
| 2 | 23261-PPP-000 | Shaft - REVERSE GEAR | Shaft - REVERSE GEAR |
| 5 | 23540-PPS-000 | Gear comp - REVERSE IDLE | Gear comp - REVERSE IDLE |
| 6 | 90203-PX4-010 | Nut - FLANGE, 24MM | Nut - FLANGE, 24MM |
| 7 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 9 | 90501-PRP-000 | Collar - 27X34X66.3 | Collar - 27X34X66.3 |
| 10 | 90603-P0X-000 | Set ring - 23MM | Set ring - 23MM |
| 11 | 91017-PZK-003 | Bearing - NEEDLE, 23X29X18 | Bearing - NEEDLE, 23X29X18 |
| 12 | 91018-PW7-A02 | Bearing - THRUST NEEDLE, 34X46X2 | Bearing - THRUST NEEDLE, 34X46X2 |
| 12 | 23915-PPP-000 | Collar - DISTANCE, 32X39X52 | Collar - DISTANCE, 32X39X52 |
| 13 | 91023-PCJ-003 | Bearing - THRUST NEEDLE, 34X53.5X2.5 | Bearing - THRUST NEEDLE, 34X53.5X2.5 |
| 14 | 91026-PRP-003 | Bearing - THRUST NEEDLE, 57.6X71X2 | Bearing - THRUST NEEDLE, 57.6X71X2 |
| 14 | 23927-PG2-A00 | Washer - SPRING, 28MM | Washer - SPRING, 28MM |
| 15 | 91107-PRP-003 | Bearing - NEEDLE, 34X40X39.5 | Bearing - NEEDLE, 34X40X39.5 |
| 15 | 23928-PS1-000 | Washer - 28MM | Washer - 28MM |
| 16 | 91109-PRP-003 | Bearing - NEEDLE, 52X57X18 | Bearing - NEEDLE, 52X57X18 |
| 16 | 90401-PG1-000 | Washer - DRAIN PLUG, 10MM | Washer - DRAIN PLUG, 10MM |
| 17 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
| 17 | 91002-RAS-003 | Bearing - BALL, 28X72X18 | Bearing - BALL, 28X72X18 |
Meter components (NS) 1 / 7
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Mirror 4 / 21
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 19 | 90109-SEA-003 | Screw - TAPPING, 4X20 (TRUSS) | Screw - TAPPING, 4X20 (TRUSS) |
| 20 | 90109-S70-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 21 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 22 | 91565-SEA-003 | Clamp - HARNESS | Clamp - HARNESS |
Mirror (1) 2 / 13
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 14 | 90109-S70-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 17 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
Oil level gauge/ atf pipe (L4) 10 / 19
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 4 | 25430-PLR-003 | Filter, ATF | Filter, ATF |
| 5 | 25431-RAA-000 | Stay a - ATF FILTER | Stay a - ATF FILTER |
| 8 | 25613-RCL-000 | Pipe comp - ATF GAUGE | Pipe comp - ATF GAUGE |
| 9 | 25615-RCL-003 | Cap - ATF FILLER | Cap - ATF FILLER |
| 13 | 25950-RCL-000 | Bolt comp - JOINT | Bolt comp - JOINT |
| 14 | 25951-RGR-000 | Bolt - JOINT | Bolt - JOINT |
| 15 | 90471-RGR-000 | Washer - DRAIN PLUG, 12MM | Washer - DRAIN PLUG, 12MM |
| 16 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 16 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
| 17 | 91308-PH0-013 | O-ring - 17.8X1.9 (NOK) | O-ring - 17.8X1.9 (NOK) |
Oil pump (L4) 6 / 20
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 13 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 13 | 15400-PLM-A02 | OIL FILTER (HONEYWELL) | OIL FILTER (HONEYWELL) |
| 13 | 15400-RTA-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 14 | 90004-PNA-000 | Bolt - CHAIN GUIDE | Bolt - CHAIN GUIDE |
| 16 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 17 | 90031-PNA-004 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
Oil pump (L4; 2) 6 / 20
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 13 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 13 | 15400-PLM-A02 | OIL FILTER (HONEYWELL) | OIL FILTER (HONEYWELL) |
| 13 | 15400-RTA-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 14 | 90004-PNA-000 | Bolt - CHAIN GUIDE | Bolt - CHAIN GUIDE |
| 16 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 17 | 90031-PNA-004 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
P.s. gear box 3 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 9 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 18 | 91411-S84-A01 | Nut - HEX., 14MM | Nut - HEX., 14MM |
P.s. gear box (LH) 3 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 9 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 18 | 91411-S84-A01 | Nut - HEX., 14MM | Nut - HEX., 14MM |
P.s. gear box components 4 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 9 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 10 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 11 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
P.s. gear box components (LH) 4 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 9 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 10 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 11 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
P.s. lines (L4) 1 / 26
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
P.s. lines (LH; L4) 1 / 28
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 9 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Parking brake 4 / 9
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 4 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 6 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 9 | 47572-ST0-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 10 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Parking brake (LH) 4 / 9
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 4 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 6 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 9 | 47572-ST0-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 10 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Pedal 6 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 8 | 46545-SA5-000 | Cover, Pedal | Cover, Pedal |
| 15 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 21 | 75891-611-000 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 22 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 23 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
Pedal (LH) 4 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 9 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 12 | 46545-S84-A81 | Cover - PEDAL | Cover - PEDAL |
| 26 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 27 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
Pillar garnish 1 / 5
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 25 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Pillar garnish (LH) 1 / 5
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 25 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Protector 3 / 10
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 12 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 15 | 90682-SDA-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 16 | 91503-SZ3-003 | Clip A | Clip A |
Protector/ side sill garnish 3 / 8
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 12 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 15 | 90682-SDA-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 16 | 91503-SZ3-003 | Clip A | Clip A |
Radiator (L4) 8 / 25
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 7 | 19045-RAA-003 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 8 | 19046-RAA-A00 | Label - RADIATOR CAP | Label - RADIATOR CAP |
| 14 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 16 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 17 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 18 | 91307-PLC-004 | O-ring - 9.5X1.9 (MATSUSHITA) | O-ring - 9.5X1.9 (MATSUSHITA) |
Radiator hose (L4) 10 / 27
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 11 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 11 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 14 | 25214-RAA-003 | Hose - ATF, 370MM(BRIDGESTONE) | Hose - ATF, 370MM(BRIDGESTONE) |
| 20 | 74172-SDA-A00 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 20 | 74172-SM4-970 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 21 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 22 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 22 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
| 23 | 91503-S7A-003 | Clip - FR. GRILLE | Clip - FR. GRILLE |
Radio antenna/speaker 4 / 15
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 11 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 12 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 13 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 15 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
Rear brake 8 / 43
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 16 | 43235-S84-A51 | Pin a | Pin a |
| 28 | 43262-S84-A51 | Pin b | Pin b |
| 31 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 32 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 33 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 35 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 35 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 35 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
Rear door lining 6 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 23 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 24 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 25 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 26 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 27 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door locks/ outer handle 3 / 26
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 5 | 72143-S04-003 | Packing | Packing |
| 26 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
Rear door panels 6 / 21
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 21 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 22 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 22 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 23 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 25 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 29 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
Rear lower arm 6 / 37
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 13 | 52363-SJK-010 | Washer - LOWER ARM | Washer - LOWER ARM |
| 25 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 28 | 90181-S84-A00 | Bolt - TRAILING ARM, 12X68 | Bolt - TRAILING ARM, 12X68 |
| 29 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 31 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Rear seat 4 / 22
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 3 | 78182-SA0-000 | Clip - RR. SEAT PIN | Clip - RR. SEAT PIN |
| 11 | 82137-SDA-003 | Clip - RR. SEAT CUSHION | Clip - RR. SEAT CUSHION |
| 36 | 90140-SA5-000 | Bolt - SPLASH GUARD | Bolt - SPLASH GUARD |
Rear shock absorber 9 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 2 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 3 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 4 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 10 | 52686-SDA-A01 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 15 | 52748-S0A-004 | Cover - RR. LOWER MOUNT DUST | Cover - RR. LOWER MOUNT DUST |
| 17 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 18 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Rear tray/side lining 4 / 10
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 25 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 27 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 28 | 91562-S0X-A01 | Clip - ROOF LINING (BLACK) | Clip - ROOF LINING (BLACK) |
Rear windshield 2 / 5
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 91563-SV4-003 | Fastener a - RR. WINDSHIELD | Fastener a - RR. WINDSHIELD |
| 5 | 91568-SV4-003 | Fastener b - RR. WINDSHIELD | Fastener b - RR. WINDSHIELD |
Regulator (L4) 18 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 22741-P7Z-000 | Pipe - 8X198 | Pipe - 8X198 |
| 2 | 22753-PRP-000 | Pipe - 6X201 | Pipe - 6X201 |
| 3 | 22770-RCL-010 | Pipe a - JOINT | Pipe a - JOINT |
| 4 | 22772-RCL-010 | Pipe b - JOINT | Pipe b - JOINT |
| 5 | 25155-PRP-000 | Shaft assy - STATOR | Shaft assy - STATOR |
| 6 | 27132-P6H-000 | Cap - 14MM | Cap - 14MM |
| 9 | 27246-PN6-800 | Cap - REGULATOR SPRING | Cap - REGULATOR SPRING |
| 10 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 11 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 12 | 27561-PRP-000 | Piston - LOW ACCUMULATOR | Piston - LOW ACCUMULATOR |
| 13 | 27562-PRP-000 | Spring a - LOW ACCUMULATOR | Spring a - LOW ACCUMULATOR |
| 14 | 27564-PRP-000 | Spring b - LOW ACCUMULATOR | Spring b - LOW ACCUMULATOR |
| 15 | 27574-PRP-000 | Piston - THIRD ACCUMULATOR | Piston - THIRD ACCUMULATOR |
| 19 | 90089-PK4-000 | Bolt - STOPPER, 6MM | Bolt - STOPPER, 6MM |
| 20 | 90701-PK4-000 | Dowel pin - 8X80 | Dowel pin - 8X80 |
| 21 | 91316-PF4-003 | O-ring - 31X1.7 (ARAI) | O-ring - 31X1.7 (ARAI) |
| 22 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 23 | 91331-PC9-003 | O-ring | O-ring |
Resonator chamber (L4) 4 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-PE2-000 | Rubber a - AIR CLEANER CASE MOUNTING | Rubber a - AIR CLEANER CASE MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 10 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Roof lining 2 / 14
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 23 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 26 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Seatbelts 1 / 7
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 16 | 91507-SL9-003 | Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) | Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
Secondary shaft (L4) 40 / 45
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 22814-PRP-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 2 | 23230-PRP-020 | Shaft comp. - SECONDARY | Shaft comp. - SECONDARY |
| 7 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 8 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 9 | 90443-PRP-000 | Collar - 27X37X36.5 | Collar - 27X37X36.5 |
| 10 | 90505-RCT-000 | Washer - THRUST, 40X51.5X4.90 | Washer - THRUST, 40X51.5X4.90 |
| 10 | 90507-RCT-000 | Washer - THRUST, 40X51.5X5.00 | Washer - THRUST, 40X51.5X5.00 |
| 10 | 90504-RCT-000 | Washer - THRUST, 40X51.5X4.85 | Washer - THRUST, 40X51.5X4.85 |
| 10 | 90506-RCT-000 | Washer - THRUST, 40X51.5X4.95 | Washer - THRUST, 40X51.5X4.95 |
| 10 | 90508-RCT-000 | Washer - THRUST, 40X51.5X5.05 | Washer - THRUST, 40X51.5X5.05 |
| 10 | 90503-RCT-000 | Washer - THRUST, 40X51.5X4.80 | Washer - THRUST, 40X51.5X4.80 |
| 11 | 90512-PRP-010 | Washer - THRUST, 37X58X3.925 | Washer - THRUST, 37X58X3.925 |
| 11 | 90529-PRP-000 | Washer - THRUST, 37X58X4.350 | Washer - THRUST, 37X58X4.350 |
| 11 | 90524-PRP-000 | Washer - THRUST, 37X58X4.225 | Washer - THRUST, 37X58X4.225 |
| 11 | 90519-PRP-010 | Washer - THRUST, 37X58X4.100 | Washer - THRUST, 37X58X4.100 |
| 11 | 90514-PRP-010 | Washer - THRUST, 37X58X3.975 | Washer - THRUST, 37X58X3.975 |
| 11 | 90526-PRP-000 | Washer - THRUST, 37X58X4.275 | Washer - THRUST, 37X58X4.275 |
| 11 | 90521-PRP-010 | Washer - THRUST, 37X58X4.150 | Washer - THRUST, 37X58X4.150 |
| 11 | 90516-PRP-010 | Washer - THRUST, 37X58X4.025 | Washer - THRUST, 37X58X4.025 |
| 11 | 90511-PRP-010 | Washer - THRUST, 37X58X3.900 | Washer - THRUST, 37X58X3.900 |
| 11 | 90528-PRP-000 | Washer - THRUST, 37X58X4.325 | Washer - THRUST, 37X58X4.325 |
| 11 | 90523-PRP-000 | Washer - THRUST, 37X58X4.200 | Washer - THRUST, 37X58X4.200 |
| 11 | 90518-PRP-010 | Washer - THRUST, 37X58X4.075 | Washer - THRUST, 37X58X4.075 |
| 11 | 90513-PRP-010 | Washer - THRUST, 37X58X3.950 | Washer - THRUST, 37X58X3.950 |
| 11 | 90530-PRP-000 | Washer - THRUST, 37X58X4.375 | Washer - THRUST, 37X58X4.375 |
| 11 | 90525-PRP-000 | Washer - THRUST, 37X58X4.250 | Washer - THRUST, 37X58X4.250 |
| 11 | 90520-PRP-010 | Washer - THRUST, 37X58X4.125 | Washer - THRUST, 37X58X4.125 |
| 11 | 90515-PRP-010 | Washer - THRUST, 37X58X4.000 | Washer - THRUST, 37X58X4.000 |
| 11 | 90527-PRP-000 | Washer - THRUST, 37X58X4.300 | Washer - THRUST, 37X58X4.300 |
| 11 | 90522-PRP-010 | Washer - THRUST, 37X58X4.175 | Washer - THRUST, 37X58X4.175 |
| 11 | 90517-PRP-010 | Washer - THRUST, 37X58X4.050 | Washer - THRUST, 37X58X4.050 |
| 12 | 90621-PRP-000 | Circlip - EXTERNAL, 32MM | Circlip - EXTERNAL, 32MM |
| 13 | 91021-PRP-013 | Needle - THRUST, 40X53X2.5 | Needle - THRUST, 40X53X2.5 |
| 14 | 91022-PRP-003 | Needle - THRUST, 46.6X59.5X2.5 | Needle - THRUST, 46.6X59.5X2.5 |
| 15 | 91027-PRP-003 | Needle - THRUST, 37X57X2.5 | Needle - THRUST, 37X57X2.5 |
| 16 | 91028-PRP-003 | Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24) | Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24) |
| 17 | 91105-PRP-005 | Bearing - NEEDLE, 40X47X16 (NSK) | Bearing - NEEDLE, 40X47X16 (NSK) |
| 18 | 91106-PRP-025 | Bearing - NEEDLE, 40X46X20.5 (NSK) | Bearing - NEEDLE, 40X46X20.5 (NSK) |
| 19 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
| 20 | 91326-P4V-003 | O-ring - 26.7X1.9(NOK) | O-ring - 26.7X1.9(NOK) |
Select lever (LH) 3 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 18 | 90351-SB2-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 19 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 20 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Servo body (L4) 23 / 27
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 22748-P24-J00 | Pipe - 8X220 | Pipe - 8X220 |
| 2 | 24271-PRP-000 | Shaft - SHIFT FORK | Shaft - SHIFT FORK |
| 3 | 24630-PRP-000 | Arm comp - CHANGE DETENT | Arm comp - CHANGE DETENT |
| 4 | 24635-PRP-000 | Collar - CHANGE DETENT ARM | Collar - CHANGE DETENT ARM |
| 5 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 7 | 27412-PRP-010 | Plate - SERVO SEPARATING | Plate - SERVO SEPARATING |
| 8 | 27561-PRP-000 | Piston - LOW ACCUMULATOR | Piston - LOW ACCUMULATOR |
| 9 | 27562-PRP-000 | Spring a - LOW ACCUMULATOR | Spring a - LOW ACCUMULATOR |
| 10 | 27564-PRP-000 | Spring b - LOW ACCUMULATOR | Spring b - LOW ACCUMULATOR |
| 11 | 27572-PRP-000 | Piston - SECOND ACCUMULATOR | Piston - SECOND ACCUMULATOR |
| 12 | 27574-PRP-000 | Piston - THIRD ACCUMULATOR | Piston - THIRD ACCUMULATOR |
| 13 | 27580-PRP-J00 | Cover - SERVO ACCUMULATOR | Cover - SERVO ACCUMULATOR |
| 15 | 27583-PRP-000 | Spring - THIRD ACCUMULATOR | Spring - THIRD ACCUMULATOR |
| 17 | 28400-PRP-004 | Solenoid assy. a | Solenoid assy. a |
| 18 | 28500-PRP-004 | Solenoid assy. b | Solenoid assy. b |
| 19 | 90001-PRP-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 20 | 90433-PRP-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 21 | 91301-P7Z-004 | O-ring - 7.6X1.9 (DENSO) | O-ring - 7.6X1.9 (DENSO) |
| 22 | 91302-P7Z-004 | O-ring - 9.6X1.9 (DENSO) | O-ring - 9.6X1.9 (DENSO) |
| 23 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 24 | 91331-PC9-003 | O-ring | O-ring |
| 25 | 91331-PL5-J00 | O-ring - 20.2X2.4 (NOK) | O-ring - 20.2X2.4 (NOK) |
| 26 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
Shift arm (L4) 12 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 4 | 24411-PPP-010 | Arm - SHIFT | Arm - SHIFT |
| 7 | 24433-PH8-000 | Bolt - INTERLOCK | Bolt - INTERLOCK |
| 9 | 24464-PPP-000 | Spring - FIRST-SECOND SELECT | Spring - FIRST-SECOND SELECT |
| 10 | 24466-PPP-000 | Spring - FIFTH-SIXTH SELECT | Spring - FIFTH-SIXTH SELECT |
| 11 | 24467-PPP-000 | Plate - SELECT STOPPER | Plate - SELECT STOPPER |
| 13 | 24474-RAP-000 | Cover - DUST | Cover - DUST |
| 14 | 24479-PPP-000 | Cover - SHIFT LEVER | Cover - SHIFT LEVER |
| 15 | 90029-611-010 | Bolt - HEX., 8X24 | Bolt - HEX., 8X24 |
| 16 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 17 | 91207-PPP-003 | Dust seal - 18X24X5 | Dust seal - 18X24X5 |
| 18 | 91208-PPP-003 | Dust seal - 14X20X4 | Dust seal - 14X20X4 |
Shift fork (L4) 16 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 24111-PRP-000 | Fork - REVERSE SHIFT | Fork - REVERSE SHIFT |
| 2 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 3 | 24410-PPV-000 | Shaft comp. - CONTROL | Shaft comp. - CONTROL |
| 3 | 24220-RAP-000 | Fork comp - GEARSHIFT (1-2) | Fork comp - GEARSHIFT (1-2) |
| 4 | 24634-PRP-060 | Spring - DETENT LEVER | Spring - DETENT LEVER |
| 4 | 24230-PPP-000 | Holder comp - REVERSE SHIFT | Holder comp - REVERSE SHIFT |
| 6 | 25421-RXH-010 | Plate - BAFFLE | Plate - BAFFLE |
| 6 | 24455-PHR-000 | Spring - BALL SETTING | Spring - BALL SETTING |
| 7 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 8 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 9 | 90001-PA9-000 | Bolt - HEX., 6MM | Bolt - HEX., 6MM |
| 10 | 90433-RCL-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 11 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 12 | 90715-SDA-000 | Pin - SNAP, 8MM | Pin - SNAP, 8MM |
| 13 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
| 14 | 91308-PW4-003 | O-ring - 21.8X1.9 | O-ring - 21.8X1.9 |
Shift lever 2 / 13
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 54118-S10-000 | Washer assy. - WIRE | Washer assy. - WIRE |
| 9 | 54357-SF1-003 | Plate - CHANGE WIRE | Plate - CHANGE WIRE |
Solenoid (L4) 9 / 16
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 21511-RCL-000 | Stay a - HARNESS | Stay a - HARNESS |
| 2 | 22749-PW4-000 | Pipe - 35MM | Pipe - 35MM |
| 3 | 22760-PPW-000 | Pipe comp - JOINT | Pipe comp - JOINT |
| 7 | 28262-PRP-000 | Packing b - LINEAR SOLENOID | Packing b - LINEAR SOLENOID |
| 8 | 28360-PRP-003 | Harness - SOLENOID WIRE | Harness - SOLENOID WIRE |
| 13 | 90471-PW7-A00 | PACKING, 10MM | PACKING, 10MM |
| 14 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 15 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 16 | 91329-PRP-003 | O-ring - 23.3X2.4 | O-ring - 23.3X2.4 |
Srs unit 2 / 5
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 15 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 19 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Srs unit (LH) 2 / 6
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 15 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 19 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Starter motor (DENSO; L4) 15 / 27
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 30201-PH9-004 | Ring - SNAP (DENSO) | Ring - SNAP (DENSO) |
| 2 | 30202-P3F-003 | Collar - CLUTCH STOP | Collar - CLUTCH STOP |
| 12 | 31208-P3F-003 | Screw - PAN, 4MM | Screw - PAN, 4MM |
| 15 | 31214-P3F-003 | Gear assy. - INTERNAL | Gear assy. - INTERNAL |
| 16 | 31215-P3F-003 | Gear comp - PLANETARY | Gear comp - PLANETARY |
| 17 | 31216-RAA-003 | Absorber comp - SHOCK | Absorber comp - SHOCK |
| 18 | 31217-P3F-003 | Plate - SEAL | Plate - SEAL |
| 19 | 31218-P3F-003 | Washer a | Washer a |
| 20 | 31219-P3F-003 | Washer b | Washer b |
| 21 | 31220-PH9-004 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 22 | 31220-P3F-003 | Washer c | Washer c |
| 23 | 31223-PA0-006 | Nut - HEX. | Nut - HEX. |
| 24 | 31228-PLR-A01 | O-ring | O-ring |
| 25 | 31231-P3F-003 | Plate comp - BRUSH HOLDER | Plate comp - BRUSH HOLDER |
| 27 | 31292-PLR-A01 | Bolt-washer | Bolt-washer |
Steering column 6 / 11
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 77873-SDA-E80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
| 9 | 90135-SDA-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 9 | 90135-SZT-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 10 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 11 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 12 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
Steering wheel (SRS; L4) 2 / 7
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 11 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 12 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
Taillight 5 / 24
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 2 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 3 | 33303-S2R-003 | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) |
| 7 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 23 | 91512-S50-003 | Clip - LICENSE GARNISH | Clip - LICENSE GARNISH |
Taillight/license light 4 / 25
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 2 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 3 | 33303-S2R-003 | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) |
| 7 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 24 | 91512-S50-003 | Clip - LICENSE GARNISH | Clip - LICENSE GARNISH |
Tire/wheel disks 19 / 89
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 7 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 7 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 9 | 44728-SEA-J02 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 9 | 44723-SEA-J01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 9 | 44722-SEA-J01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 9 | 44721-SEA-J01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 9 | 44723-SEA-J02 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 9 | 44722-SEA-J02 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 9 | 44721-SEA-J02 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 9 | 44728-SEA-J01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 9 | 44727-SEA-J01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 9 | 44729-SEA-J01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 9 | 44726-SEA-J01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 9 | 44727-SEA-J02 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 9 | 44729-SEA-J02 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 9 | 44726-SEA-J02 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 12 | 44732-S9A-A00 | Cap - ALUMINIUM WHEEL CENTER | Cap - ALUMINIUM WHEEL CENTER |
| 15 | 74651-S2X-003 | Adapter - SPARE TIRE | Adapter - SPARE TIRE |
| 16 | 74652-SDA-003 | Bolt - SPARE TIRE | Bolt - SPARE TIRE |
Tools/jack 1 / 12
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 11 | 89320-S05-003 | Bar - JACK | Bar - JACK |
Torque converter case (L4) 15 / 21
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 21101-PRP-000 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 1 | 21101-RG0-A00 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 3 | 23225-PRP-020 | Plate - OIL GUIDE | Plate - OIL GUIDE |
| 4 | 23235-PRP-000 | Collar - OIL GUIDE | Collar - OIL GUIDE |
| 5 | 25422-PN6-801 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 6 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 7 | 90081-PX4-003 | Bolt - PLUG, 18MM | Bolt - PLUG, 18MM |
| 8 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 9 | 90471-PX4-000 | Washer - DRAIN PLUG, 18MM | Washer - DRAIN PLUG, 18MM |
| 10 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 12 | 90705-PA9-000 | Dowel pin - 14X25 | Dowel pin - 14X25 |
| 13 | 91001-PRP-004 | Bearing - BALL, 40X68X7.5 | Bearing - BALL, 40X68X7.5 |
| 14 | 91005-PRP-003 | Bearing - BALL, 32X68X9 | Bearing - BALL, 32X68X9 |
| 17 | 91207-P7Z-003 | Oil seal - 44X68X8 (NOK) | Oil seal - 44X68X8 (NOK) |
| 18 | 91301-PRP-003 | O-ring - 31.7X1.95 (NOK) | O-ring - 31.7X1.95 (NOK) |
Transmission case (L4) 75 / 87
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 21104-PPP-000 | Plate m - OIL GUIDE | Plate m - OIL GUIDE |
| 2 | 21231-RCL-000 | Hanger - TRANSMISSION | Hanger - TRANSMISSION |
| 4 | 21396-PX5-000 | Cap - BREATHER | Cap - BREATHER |
| 5 | 21514-RCL-A01 | Stay d - HARNESS | Stay d - HARNESS |
| 7 | 28450-RCL-000 | Cover - SOLENOID | Cover - SOLENOID |
| 8 | 28451-PRP-010 | Packing - SOLENOID COVER | Packing - SOLENOID COVER |
| 8 | 23976-PPP-J00 | Shim at - 72MM (1.95) | Shim at - 72MM (1.95) |
| 8 | 23944-P21-000 | Shim n - 72MM(0.99) | Shim n - 72MM(0.99) |
| 8 | 23971-P21-000 | Shim ao - 72MM(1.80) | Shim ao - 72MM(1.80) |
| 8 | 23939-P21-000 | Shim i - 72MM(0.84) | Shim i - 72MM(0.84) |
| 8 | 23966-P21-000 | Shim aj - 72MM(1.65) | Shim aj - 72MM(1.65) |
| 8 | 23934-P21-000 | Shim d - 72MM(0.69) | Shim d - 72MM(0.69) |
| 8 | 23961-P21-000 | Shim ae - 72MM(1.50) | Shim ae - 72MM(1.50) |
| 8 | 23956-P21-000 | Shim z - 72MM(1.35) | Shim z - 72MM(1.35) |
| 8 | 23983-PPP-J00 | Shim bb - 72MM (2.16) | Shim bb - 72MM (2.16) |
| 8 | 23951-P21-000 | Shim u - 72MM(1.20) | Shim u - 72MM(1.20) |
| 8 | 23978-PPP-J00 | Shim aw - 72MM (2.01) | Shim aw - 72MM (2.01) |
| 8 | 23946-P21-000 | Shim p - 72MM(1.05) | Shim p - 72MM(1.05) |
| 8 | 23973-PPP-J00 | Shim aq - 72MM (1.86) | Shim aq - 72MM (1.86) |
| 8 | 23941-P21-000 | Shim k - 72MM(0.90) | Shim k - 72MM(0.90) |
| 8 | 23968-P21-000 | Shim al - 72MM(1.71) | Shim al - 72MM(1.71) |
| 8 | 23936-P21-000 | Shim f - 72MM(0.75) | Shim f - 72MM(0.75) |
| 8 | 23931-P21-000 | Shim a - 72MM(0.60) | Shim a - 72MM(0.60) |
| 8 | 23963-P21-000 | Shim ag - 72MM(1.56) | Shim ag - 72MM(1.56) |
| 8 | 23958-P21-000 | Shim ab - 72MM(1.41) | Shim ab - 72MM(1.41) |
| 8 | 23985-PPP-J00 | Shim bd - 72MM (2.22) | Shim bd - 72MM (2.22) |
| 8 | 23953-P21-000 | Shim w - 72MM(1.26) | Shim w - 72MM(1.26) |
| 8 | 23980-PPP-J00 | Shim ay - 72MM (2.07) | Shim ay - 72MM (2.07) |
| 8 | 23948-P21-000 | Shim r - 72MM(1.11) | Shim r - 72MM(1.11) |
| 8 | 23975-PPP-J00 | Shim as - 72MM (1.92) | Shim as - 72MM (1.92) |
| 8 | 23943-P21-000 | Shim m - 72MM(0.96) | Shim m - 72MM(0.96) |
| 8 | 23970-P21-000 | Shim an - 72MM(1.77) | Shim an - 72MM(1.77) |
| 8 | 23938-P21-000 | Shim h - 72MM(0.81) | Shim h - 72MM(0.81) |
| 8 | 23965-P21-000 | Shim ai - 72MM(1.62) | Shim ai - 72MM(1.62) |
| 8 | 23933-P21-000 | Shim c - 72MM(0.66) | Shim c - 72MM(0.66) |
| 8 | 23960-P21-000 | Shim ad - 72MM(1.47) | Shim ad - 72MM(1.47) |
| 8 | 23955-P21-000 | Shim y - 72MM(1.32) | Shim y - 72MM(1.32) |
| 8 | 23982-PPP-J00 | Shim ba - 72MM (2.13) | Shim ba - 72MM (2.13) |
| 8 | 23950-P21-000 | Shim t - 72MM(1.17) | Shim t - 72MM(1.17) |
| 8 | 23977-PPP-J00 | Shim av - 72MM (1.98) | Shim av - 72MM (1.98) |
| 8 | 23945-P21-000 | Shim o - 72MM(1.02) | Shim o - 72MM(1.02) |
| 8 | 23972-PPP-J00 | Shim ap - 72MM (1.83) | Shim ap - 72MM (1.83) |
| 8 | 23940-P21-000 | Shim j - 72MM(0.87) | Shim j - 72MM(0.87) |
| 8 | 23967-P21-000 | Shim ak - 72MM(1.68) | Shim ak - 72MM(1.68) |
| 8 | 23935-P21-000 | Shim e - 72MM(0.72) | Shim e - 72MM(0.72) |
| 8 | 23962-P21-000 | Shim af - 72MM(1.53) | Shim af - 72MM(1.53) |
| 8 | 23957-P21-000 | Shim aa - 72MM(1.38) | Shim aa - 72MM(1.38) |
| 8 | 23984-PPP-J00 | Shim bc - 72MM (2.19) | Shim bc - 72MM (2.19) |
| 8 | 23952-P21-000 | Shim v - 72MM(1.23) | Shim v - 72MM(1.23) |
| 8 | 23979-PPP-J00 | Shim ax - 72MM (2.04) | Shim ax - 72MM (2.04) |
| 8 | 23947-P21-000 | Shim q - 72MM(1.08) | Shim q - 72MM(1.08) |
| 8 | 23974-PPP-J00 | Shim ar - 72MM (1.89) | Shim ar - 72MM (1.89) |
| 8 | 23942-P21-000 | Shim l - 72MM(0.93) | Shim l - 72MM(0.93) |
| 8 | 23969-P21-000 | Shim am - 72MM(1.74) | Shim am - 72MM(1.74) |
| 8 | 23937-P21-000 | Shim g - 72MM(0.78) | Shim g - 72MM(0.78) |
| 8 | 23932-P21-000 | Shim b - 72MM(0.63) | Shim b - 72MM(0.63) |
| 8 | 23964-P21-000 | Shim ah - 72MM(1.59) | Shim ah - 72MM(1.59) |
| 8 | 23959-P21-000 | Shim ac - 72MM(1.44) | Shim ac - 72MM(1.44) |
| 8 | 23986-PPP-J00 | Shim be - 72MM (2.25) | Shim be - 72MM (2.25) |
| 8 | 23954-P21-000 | Shim x - 72MM(1.29) | Shim x - 72MM(1.29) |
| 8 | 23981-PPP-J00 | Shim az - 72MM (2.10) | Shim az - 72MM (2.10) |
| 8 | 23949-P21-000 | Shim s - 72MM(1.14) | Shim s - 72MM(1.14) |
| 9 | 90609-PX4-000 | Ring - SNAP, 80MM | Ring - SNAP, 80MM |
| 9 | 28820-PWR-013 | Pick up assy. MATSUSHITA | Pick up assy. MATSUSHITA |
| 10 | 90613-PRP-000 | Ring - SNAP, 48MM | Ring - SNAP, 48MM |
| 10 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 11 | 90614-PRP-000 | Ring - SNAP, 55MM | Ring - SNAP, 55MM |
| 12 | 90615-P0Z-000 | Ring - SNAP, 82MM | Ring - SNAP, 82MM |
| 13 | 91002-RCR-026 | Bearing - BALL, 27X82X18.5 | Bearing - BALL, 27X82X18.5 |
| 13 | 91205-PL3-B01 | Oil seal - 40X56X8(ARAI) | Oil seal - 40X56X8(ARAI) |
| 14 | 91003-RFK-025 | Bearing - BALL, 31X80X16.5 | Bearing - BALL, 31X80X16.5 |
| 14 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 15 | 91004-RFK-016 | Bearing - BALL, 26.8X55X14.5 | Bearing - BALL, 26.8X55X14.5 |
| 16 | 91006-PRP-026 | Bearing - BALL, 20X48X24 | Bearing - BALL, 20X48X24 |
| 17 | 91205-P0X-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
Trunk lid 4 / 25
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 21 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 21 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 22 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 25 | 90856-SDA-A01 | Plug - TRUNK DRAIN | Plug - TRUNK DRAIN |
Valve/rocker arm (L4) 2 / 17
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 12 | 14781-RGM-A01 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 13 | 90206-PM3-004 | Nut - TAPPET ADJUSTING (TOKAI TRW) | Nut - TAPPET ADJUSTING (TOKAI TRW) |
Vtc oil control valve (L4) 6 / 20
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 1 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 1 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 2 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 2 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 12 | 90001-P70-000 | Bolt - FLANGE, 10X10.5 | Bolt - FLANGE, 10X10.5 |
| 16 | 91319-PAA-A01 | O-ring - 13X1.5 | O-ring - 13X1.5 |
Water hose (L4) 1 / 8
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 6 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Water pump (L4) 1 / 23
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 5 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | GASKET, EGR VALVE (ISHINO GASKET) |
Water valve 2 / 8
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Water valve (LH) 2 / 8
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Windshield washer 1 / 9
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 9 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Windshield washer (2) 1 / 9
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 9 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Wire harness 3 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 15 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 16 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 17 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
Wire harness (LH) 3 / 18
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 15 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 16 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 17 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| # | OEM | CM5 | CW1 |
|---|---|---|---|
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 1 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 2 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 2 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 10 | 13331-PNA-004 | Washer - THRUST(TAIHO) | Washer - THRUST(TAIHO) |
| 10 | 14511-PNA-003 | Stopper - TOOL | Stopper - TOOL |
| 12 | 14781-RGM-A01 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 13 | 15400-PLM-A02 | OIL FILTER (HONEYWELL) | OIL FILTER (HONEYWELL) |
| 13 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 13 | 15400-RTA-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 6 | 15610-RGA-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 2 | 16451-PLC-000 | Clip - INJECTOR | Clip - INJECTOR |
| 1 | 16725-PNA-003 | Clamp a - FUEL HOSE | Clamp a - FUEL HOSE |
| 9 | 16725-RAC-003 | Clamp - FUEL HOSE (NATURAL) | Clamp - FUEL HOSE (NATURAL) |
| 7 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 6 | 17212-PE2-000 | Rubber a - AIR CLEANER CASE MOUNTING | Rubber a - AIR CLEANER CASE MOUNTING |
| 3 | 17213-P8A-A00 | Rubber - INTAKE MANIFOLD COVER MOUNTING | Rubber - INTAKE MANIFOLD COVER MOUNTING |
| 7 | 17216-PE2-003 | Collar - AIR CLEANER(TOYO ROKI) | Collar - AIR CLEANER(TOYO ROKI) |
| 9 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 14 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 20 | 17652-SDA-A31 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 11 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 10 | 18215-S84-A20 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 14 | 18302-SP0-003 | Gasket - EX. PIPE | Gasket - EX. PIPE |
| 5 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | GASKET, EGR VALVE (ISHINO GASKET) |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 2 | 19043-PLA-E00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 7 | 19045-RAA-003 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 8 | 19046-RAA-A00 | Label - RADIATOR CAP | Label - RADIATOR CAP |
| 2 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 11 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 11 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 6 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 2 | 21101-PPP-000 | Plate - NEEDLE SET | Plate - NEEDLE SET |
| 1 | 21101-PRP-000 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 1 | 21101-RG0-A00 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 3 | 21103-PPP-000 | Plate c - OIL GUIDE | Plate c - OIL GUIDE |
| 1 | 21104-PPP-000 | Plate m - OIL GUIDE | Plate m - OIL GUIDE |
| 4 | 21120-PWL-000 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 1 | 21215-PRP-000 | Holder - IDLE SHAFT | Holder - IDLE SHAFT |
| 2 | 21231-RCL-000 | Hanger - TRANSMISSION | Hanger - TRANSMISSION |
| 2 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 4 | 21396-PX5-000 | Cap - BREATHER | Cap - BREATHER |
| 1 | 21511-RCL-000 | Stay a - HARNESS | Stay a - HARNESS |
| 5 | 21514-RCL-A01 | Stay d - HARNESS | Stay d - HARNESS |
| 2 | 21515-PPV-010 | Stay e - HARNESS | Stay e - HARNESS |
| 4 | 21724-RCT-000 | Rubber - POSITION SENSOR COVER | Rubber - POSITION SENSOR COVER |
| 5 | 21725-RCT-000 | Collar - POSITION SENSOR COVER | Collar - POSITION SENSOR COVER |
| 6 | 21812-PRP-030 | Packing - L. SIDE COVER | Packing - L. SIDE COVER |
| 2 | 22103-PNA-003 | Bush - 21X24X8 | Bush - 21X24X8 |
| 1 | 22533-PX4-010 | Seat - RETURN SPRING | Seat - RETURN SPRING |
| 1 | 22533-RCL-003 | Retainer comp - RETURN SPRING | Retainer comp - RETURN SPRING |
| 2 | 22536-PRP-013 | Spring - CLUTCH WAVE | Spring - CLUTCH WAVE |
| 3 | 22541-PX4-004 | Spring - CLUTCH RETURN (SANKO) | Spring - CLUTCH RETURN (SANKO) |
| 7 | 22541-RCL-A01 | Spring - CLUTCH RETURN (F.C.C) | Spring - CLUTCH RETURN (F.C.C) |
| 6 | 22651-RFK-003 | Guide comp - CLUTCH (4-5) | Guide comp - CLUTCH (4-5) |
| 8 | 22680-RCR-003 | Piston comp - CLUTCH | Piston comp - CLUTCH |
| 7 | 22713-PW4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 8 | 22713-PX4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 9 | 22715-PRP-000 | Pipe comp. b - FEED | Pipe comp. b - FEED |
| 10 | 22725-P6H-000 | Pipe comp. b - FEED | Pipe comp. b - FEED |
| 1 | 22741-P7Z-000 | Pipe - 8X198 | Pipe - 8X198 |
| 1 | 22748-P24-J00 | Pipe - 8X220 | Pipe - 8X220 |
| 2 | 22749-PW4-000 | Pipe - 35MM | Pipe - 35MM |
| 2 | 22753-PRP-000 | Pipe - 6X201 | Pipe - 6X201 |
| 3 | 22760-PPW-000 | Pipe comp - JOINT | Pipe comp - JOINT |
| 3 | 22770-RCL-010 | Pipe a - JOINT | Pipe a - JOINT |
| 4 | 22772-RCL-010 | Pipe b - JOINT | Pipe b - JOINT |
| 1 | 22814-PRP-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 2 | 22821-PPP-000 | Fork, CLUTCH RELEASE | Fork, CLUTCH RELEASE |
| 3 | 22825-P0S-000 | Bolt - RELEASE FORK | Bolt - RELEASE FORK |
| 4 | 22835-P0S-000 | Spring - RELEASE FORK SETTING | Spring - RELEASE FORK SETTING |
| 5 | 22841-PPP-000 | Boot - RELEASE FORK | Boot - RELEASE FORK |
| 2 | 23210-RCL-010 | Mainshaft comp. | Mainshaft comp. |
| 3 | 23225-PRP-020 | Plate - OIL GUIDE | Plate - OIL GUIDE |
| 2 | 23230-PRP-020 | Shaft comp. - SECONDARY | Shaft comp. - SECONDARY |
| 4 | 23235-PRP-000 | Collar - OIL GUIDE | Collar - OIL GUIDE |
| 2 | 23261-PPP-000 | Shaft - REVERSE GEAR | Shaft - REVERSE GEAR |
| 4 | 23427-PRP-020 | Gear - PARKING | Gear - PARKING |
| 3 | 23516-RCL-A00 | Shaft - IDLE | Shaft - IDLE |
| 7 | 23521-PPS-305 | Sleeve set - SYNCHRONIZER (1-2) | Sleeve set - SYNCHRONIZER (1-2) |
| 10 | 23531-PRP-010 | Gear - COUNTERSHAFT REVERSE | Gear - COUNTERSHAFT REVERSE |
| 5 | 23540-PPS-000 | Gear comp - REVERSE IDLE | Gear comp - REVERSE IDLE |
| 11 | 23541-PRP-000 | Gear - REVERSE IDLE | Gear - REVERSE IDLE |
| 12 | 23542-P6H-000 | Shaft - REVERSE IDLE GEAR | Shaft - REVERSE IDLE GEAR |
| 13 | 23565-PRP-010 | Selector - REVERSE GEAR | Selector - REVERSE GEAR |
| 14 | 23566-PRP-000 | Hub - SELECTOR | Hub - SELECTOR |
| 12 | 23915-PPP-000 | Collar - DISTANCE, 32X39X52 | Collar - DISTANCE, 32X39X52 |
| 9 | 23917-PPP-000 | Collar - DISTANCE, 40X47X28 | Collar - DISTANCE, 40X47X28 |
| 14 | 23927-PG2-A00 | Washer - SPRING, 28MM | Washer - SPRING, 28MM |
| 15 | 23928-PS1-000 | Washer - 28MM | Washer - 28MM |
| 8 | 23931-P21-000 | Shim a - 72MM(0.60) | Shim a - 72MM(0.60) |
| 8 | 23932-P21-000 | Shim b - 72MM(0.63) | Shim b - 72MM(0.63) |
| 8 | 23933-P21-000 | Shim c - 72MM(0.66) | Shim c - 72MM(0.66) |
| 8 | 23934-P21-000 | Shim d - 72MM(0.69) | Shim d - 72MM(0.69) |
| 8 | 23935-P21-000 | Shim e - 72MM(0.72) | Shim e - 72MM(0.72) |
| 8 | 23936-P21-000 | Shim f - 72MM(0.75) | Shim f - 72MM(0.75) |
| 8 | 23937-P21-000 | Shim g - 72MM(0.78) | Shim g - 72MM(0.78) |
| 8 | 23938-P21-000 | Shim h - 72MM(0.81) | Shim h - 72MM(0.81) |
| 8 | 23939-P21-000 | Shim i - 72MM(0.84) | Shim i - 72MM(0.84) |
| 8 | 23940-P21-000 | Shim j - 72MM(0.87) | Shim j - 72MM(0.87) |
| 8 | 23941-P21-000 | Shim k - 72MM(0.90) | Shim k - 72MM(0.90) |
| 8 | 23942-P21-000 | Shim l - 72MM(0.93) | Shim l - 72MM(0.93) |
| 8 | 23943-P21-000 | Shim m - 72MM(0.96) | Shim m - 72MM(0.96) |
| 8 | 23944-P21-000 | Shim n - 72MM(0.99) | Shim n - 72MM(0.99) |
| 8 | 23945-P21-000 | Shim o - 72MM(1.02) | Shim o - 72MM(1.02) |
| 8 | 23946-P21-000 | Shim p - 72MM(1.05) | Shim p - 72MM(1.05) |
| 8 | 23947-P21-000 | Shim q - 72MM(1.08) | Shim q - 72MM(1.08) |
| 8 | 23948-P21-000 | Shim r - 72MM(1.11) | Shim r - 72MM(1.11) |
| 8 | 23949-P21-000 | Shim s - 72MM(1.14) | Shim s - 72MM(1.14) |
| 8 | 23950-P21-000 | Shim t - 72MM(1.17) | Shim t - 72MM(1.17) |
| 8 | 23951-P21-000 | Shim u - 72MM(1.20) | Shim u - 72MM(1.20) |
| 8 | 23952-P21-000 | Shim v - 72MM(1.23) | Shim v - 72MM(1.23) |
| 8 | 23953-P21-000 | Shim w - 72MM(1.26) | Shim w - 72MM(1.26) |
| 8 | 23954-P21-000 | Shim x - 72MM(1.29) | Shim x - 72MM(1.29) |
| 8 | 23955-P21-000 | Shim y - 72MM(1.32) | Shim y - 72MM(1.32) |
| 8 | 23956-P21-000 | Shim z - 72MM(1.35) | Shim z - 72MM(1.35) |
| 8 | 23957-P21-000 | Shim aa - 72MM(1.38) | Shim aa - 72MM(1.38) |
| 8 | 23958-P21-000 | Shim ab - 72MM(1.41) | Shim ab - 72MM(1.41) |
| 8 | 23959-P21-000 | Shim ac - 72MM(1.44) | Shim ac - 72MM(1.44) |
| 8 | 23960-P21-000 | Shim ad - 72MM(1.47) | Shim ad - 72MM(1.47) |
| 8 | 23961-P21-000 | Shim ae - 72MM(1.50) | Shim ae - 72MM(1.50) |
| 8 | 23962-P21-000 | Shim af - 72MM(1.53) | Shim af - 72MM(1.53) |
| 8 | 23963-P21-000 | Shim ag - 72MM(1.56) | Shim ag - 72MM(1.56) |
| 8 | 23964-P21-000 | Shim ah - 72MM(1.59) | Shim ah - 72MM(1.59) |
| 8 | 23965-P21-000 | Shim ai - 72MM(1.62) | Shim ai - 72MM(1.62) |
| 8 | 23966-P21-000 | Shim aj - 72MM(1.65) | Shim aj - 72MM(1.65) |
| 8 | 23967-P21-000 | Shim ak - 72MM(1.68) | Shim ak - 72MM(1.68) |
| 8 | 23968-P21-000 | Shim al - 72MM(1.71) | Shim al - 72MM(1.71) |
| 8 | 23969-P21-000 | Shim am - 72MM(1.74) | Shim am - 72MM(1.74) |
| 8 | 23970-P21-000 | Shim an - 72MM(1.77) | Shim an - 72MM(1.77) |
| 8 | 23971-P21-000 | Shim ao - 72MM(1.80) | Shim ao - 72MM(1.80) |
| 8 | 23972-PPP-J00 | Shim ap - 72MM (1.83) | Shim ap - 72MM (1.83) |
| 8 | 23973-PPP-J00 | Shim aq - 72MM (1.86) | Shim aq - 72MM (1.86) |
| 8 | 23974-PPP-J00 | Shim ar - 72MM (1.89) | Shim ar - 72MM (1.89) |
| 8 | 23975-PPP-J00 | Shim as - 72MM (1.92) | Shim as - 72MM (1.92) |
| 8 | 23976-PPP-J00 | Shim at - 72MM (1.95) | Shim at - 72MM (1.95) |
| 8 | 23977-PPP-J00 | Shim av - 72MM (1.98) | Shim av - 72MM (1.98) |
| 8 | 23978-PPP-J00 | Shim aw - 72MM (2.01) | Shim aw - 72MM (2.01) |
| 8 | 23979-PPP-J00 | Shim ax - 72MM (2.04) | Shim ax - 72MM (2.04) |
| 8 | 23980-PPP-J00 | Shim ay - 72MM (2.07) | Shim ay - 72MM (2.07) |
| 11 | 23981-PPP-000 | Shim a - 35MM (0.87) | Shim a - 35MM (0.87) |
| 11 | 23981-PPP-900 | Shim aa - 35MM (0.91) | Shim aa - 35MM (0.91) |
| 8 | 23981-PPP-J00 | Shim az - 72MM (2.10) | Shim az - 72MM (2.10) |
| 11 | 23982-PPP-000 | Shim b - 35MM (0.95) | Shim b - 35MM (0.95) |
| 11 | 23982-PPP-900 | Shim ab - 35MM (0.99) | Shim ab - 35MM (0.99) |
| 8 | 23982-PPP-J00 | Shim ba - 72MM (2.13) | Shim ba - 72MM (2.13) |
| 11 | 23983-PPP-000 | Shim c - 35MM (1.03) | Shim c - 35MM (1.03) |
| 11 | 23983-PPP-900 | Shim ac - 35MM (1.07) | Shim ac - 35MM (1.07) |
| 8 | 23983-PPP-J00 | Shim bb - 72MM (2.16) | Shim bb - 72MM (2.16) |
| 11 | 23984-PPP-000 | Shim d - 35MM (1.11) | Shim d - 35MM (1.11) |
| 11 | 23984-PPP-900 | Shim ad - 35MM (1.15) | Shim ad - 35MM (1.15) |
| 8 | 23984-PPP-J00 | Shim bc - 72MM (2.19) | Shim bc - 72MM (2.19) |
| 11 | 23985-PPP-000 | Shim e - 35MM (1.19) | Shim e - 35MM (1.19) |
| 11 | 23985-PPP-900 | Shim ae - 35MM (1.23) | Shim ae - 35MM (1.23) |
| 8 | 23985-PPP-J00 | Shim bd - 72MM (2.22) | Shim bd - 72MM (2.22) |
| 11 | 23986-PPP-000 | Shim f - 35MM (1.27) | Shim f - 35MM (1.27) |
| 11 | 23986-PPP-900 | Shim af - 35MM (1.31) | Shim af - 35MM (1.31) |
| 8 | 23986-PPP-J00 | Shim be - 72MM (2.25) | Shim be - 72MM (2.25) |
| 11 | 23987-PPP-000 | Shim g - 35MM (1.35) | Shim g - 35MM (1.35) |
| 11 | 23987-PPP-900 | Shim ag - 35MM (1.39) | Shim ag - 35MM (1.39) |
| 11 | 23988-PPP-000 | Shim h - 35MM (1.43) | Shim h - 35MM (1.43) |
| 11 | 23988-PPP-900 | Shim ah - 35MM (1.47) | Shim ah - 35MM (1.47) |
| 11 | 23989-PPP-000 | Shim j - 35MM (1.51) | Shim j - 35MM (1.51) |
| 11 | 23989-PPP-900 | Shim aj - 35MM (1.55) | Shim aj - 35MM (1.55) |
| 11 | 23990-PPP-000 | Shim k - 35MM (1.59) | Shim k - 35MM (1.59) |
| 11 | 23990-PPP-900 | Shim ak - 35MM (1.63) | Shim ak - 35MM (1.63) |
| 11 | 23991-PPP-000 | Shim l - 35MM (1.67) | Shim l - 35MM (1.67) |
| 11 | 23991-PPP-900 | Shim al - 35MM (1.71) | Shim al - 35MM (1.71) |
| 11 | 23992-PPP-000 | Shim m - 35MM (1.75) | Shim m - 35MM (1.75) |
| 11 | 23992-PPP-900 | Shim am - 35MM (1.79) | Shim am - 35MM (1.79) |
| 11 | 23993-PPP-000 | Shim n - 35MM (1.83) | Shim n - 35MM (1.83) |
| 11 | 23993-PPP-900 | Shim an - 35MM (1.87) | Shim an - 35MM (1.87) |
| 11 | 23994-PPP-000 | Shim p - 35MM (1.91) | Shim p - 35MM (1.91) |
| 11 | 23994-PPP-900 | Shim ap - 35MM (1.95) | Shim ap - 35MM (1.95) |
| 11 | 23995-PPP-000 | Shim q - 35MM (1.99) | Shim q - 35MM (1.99) |
| 1 | 24111-PRP-000 | Fork - REVERSE SHIFT | Fork - REVERSE SHIFT |
| 3 | 24220-RAP-000 | Fork comp - GEARSHIFT (1-2) | Fork comp - GEARSHIFT (1-2) |
| 4 | 24230-PPP-000 | Holder comp - REVERSE SHIFT | Holder comp - REVERSE SHIFT |
| 2 | 24271-PRP-000 | Shaft - SHIFT FORK | Shaft - SHIFT FORK |
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 3 | 24410-PPV-000 | Shaft comp. - CONTROL | Shaft comp. - CONTROL |
| 4 | 24411-PPP-010 | Arm - SHIFT | Arm - SHIFT |
| 7 | 24433-PH8-000 | Bolt - INTERLOCK | Bolt - INTERLOCK |
| 6 | 24455-PHR-000 | Spring - BALL SETTING | Spring - BALL SETTING |
| 9 | 24464-PPP-000 | Spring - FIRST-SECOND SELECT | Spring - FIRST-SECOND SELECT |
| 10 | 24466-PPP-000 | Spring - FIFTH-SIXTH SELECT | Spring - FIFTH-SIXTH SELECT |
| 11 | 24467-PPP-000 | Plate - SELECT STOPPER | Plate - SELECT STOPPER |
| 13 | 24474-RAP-000 | Cover - DUST | Cover - DUST |
| 14 | 24479-PPP-000 | Cover - SHIFT LEVER | Cover - SHIFT LEVER |
| 7 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 12 | 24532-PX4-000 | Lever - PARKING BRAKE | Lever - PARKING BRAKE |
| 13 | 24535-PRP-040 | Spring - PARKING BRAKE | Spring - PARKING BRAKE |
| 14 | 24537-PA9-003 | Stopper - PARKING BRAKE (1) | Stopper - PARKING BRAKE (1) |
| 14 | 24538-PA9-003 | Stopper - PARKING BRAKE (2) | Stopper - PARKING BRAKE (2) |
| 14 | 24539-PA9-003 | Stopper - PARKING BRAKE (3) | Stopper - PARKING BRAKE (3) |
| 15 | 24552-PRP-000 | Spring - PARKING PAWL | Spring - PARKING PAWL |
| 16 | 24553-PN6-000 | Roller - PARKING BRAKE | Roller - PARKING BRAKE |
| 17 | 24555-PN6-000 | Pin - ROLLER, 6MM | Pin - ROLLER, 6MM |
| 18 | 24561-PRP-010 | Pawl - PARKING BRAKE | Pawl - PARKING BRAKE |
| 19 | 24562-PRP-000 | Shaft - PARKING | Shaft - PARKING |
| 3 | 24630-PRP-000 | Arm comp - CHANGE DETENT | Arm comp - CHANGE DETENT |
| 4 | 24634-PRP-060 | Spring - DETENT LEVER | Spring - DETENT LEVER |
| 4 | 24635-PRP-000 | Collar - CHANGE DETENT ARM | Collar - CHANGE DETENT ARM |
| 1 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 5 | 25155-PRP-000 | Shaft assy - STATOR | Shaft assy - STATOR |
| 14 | 25214-RAA-003 | Hose - ATF, 370MM(BRIDGESTONE) | Hose - ATF, 370MM(BRIDGESTONE) |
| 6 | 25421-RXH-010 | Plate - BAFFLE | Plate - BAFFLE |
| 5 | 25422-PN6-801 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 4 | 25430-PLR-003 | Filter, ATF | Filter, ATF |
| 5 | 25431-RAA-000 | Stay a - ATF FILTER | Stay a - ATF FILTER |
| 8 | 25613-RCL-000 | Pipe comp - ATF GAUGE | Pipe comp - ATF GAUGE |
| 9 | 25615-RCL-003 | Cap - ATF FILLER | Cap - ATF FILLER |
| 13 | 25950-RCL-000 | Bolt comp - JOINT | Bolt comp - JOINT |
| 14 | 25951-RGR-000 | Bolt - JOINT | Bolt - JOINT |
| 3 | 27112-PRP-030 | Plate - MAIN SEPARATING | Plate - MAIN SEPARATING |
| 4 | 27122-P6H-000 | Cap - 12MM | Cap - 12MM |
| 5 | 27132-P6H-000 | Cap - 14MM | Cap - 14MM |
| 6 | 27142-P6H-000 | Cap - 15MM | Cap - 15MM |
| 9 | 27246-PN6-800 | Cap - REGULATOR SPRING | Cap - REGULATOR SPRING |
| 7 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 7 | 27412-PRP-010 | Plate - SERVO SEPARATING | Plate - SERVO SEPARATING |
| 8 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 12 | 27561-PRP-000 | Piston - LOW ACCUMULATOR | Piston - LOW ACCUMULATOR |
| 13 | 27562-PRP-000 | Spring a - LOW ACCUMULATOR | Spring a - LOW ACCUMULATOR |
| 14 | 27564-PRP-000 | Spring b - LOW ACCUMULATOR | Spring b - LOW ACCUMULATOR |
| 11 | 27572-PRP-000 | Piston - SECOND ACCUMULATOR | Piston - SECOND ACCUMULATOR |
| 15 | 27574-PRP-000 | Piston - THIRD ACCUMULATOR | Piston - THIRD ACCUMULATOR |
| 13 | 27580-PRP-J00 | Cover - SERVO ACCUMULATOR | Cover - SERVO ACCUMULATOR |
| 15 | 27583-PRP-000 | Spring - THIRD ACCUMULATOR | Spring - THIRD ACCUMULATOR |
| 7 | 28262-PRP-000 | Packing b - LINEAR SOLENOID | Packing b - LINEAR SOLENOID |
| 8 | 28360-PRP-003 | Harness - SOLENOID WIRE | Harness - SOLENOID WIRE |
| 17 | 28400-PRP-004 | Solenoid assy. a | Solenoid assy. a |
| 7 | 28450-RCL-000 | Cover - SOLENOID | Cover - SOLENOID |
| 8 | 28451-PRP-010 | Packing - SOLENOID COVER | Packing - SOLENOID COVER |
| 18 | 28500-PRP-004 | Solenoid assy. b | Solenoid assy. b |
| 9 | 28820-PWR-013 | Pick up assy. MATSUSHITA | Pick up assy. MATSUSHITA |
| 21 | 28950-RCL-A00 | Harness - POSITION SENSOR | Harness - POSITION SENSOR |
| 1 | 30201-PH9-004 | Ring - SNAP (DENSO) | Ring - SNAP (DENSO) |
| 2 | 30202-P3F-003 | Collar - CLUTCH STOP | Collar - CLUTCH STOP |
| 2 | 31101-RTA-003 | Rotor assy. | Rotor assy. |
| 3 | 31105-RAA-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 5 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 6 | 31114-PGK-A01 | Bearing - FR. | Bearing - FR. |
| 9 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 11 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 12 | 31145-PGK-A01 | Bolt | Bolt |
| 13 | 31146-PE9-941 | Screw-washer | Screw-washer |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 12 | 31208-P3F-003 | Screw - PAN, 4MM | Screw - PAN, 4MM |
| 15 | 31214-P3F-003 | Gear assy. - INTERNAL | Gear assy. - INTERNAL |
| 16 | 31215-P3F-003 | Gear comp - PLANETARY | Gear comp - PLANETARY |
| 17 | 31216-RAA-003 | Absorber comp - SHOCK | Absorber comp - SHOCK |
| 18 | 31217-P3F-003 | Plate - SEAL | Plate - SEAL |
| 19 | 31218-P3F-003 | Washer a | Washer a |
| 20 | 31219-P3F-003 | Washer b | Washer b |
| 22 | 31220-P3F-003 | Washer c | Washer c |
| 21 | 31220-PH9-004 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 23 | 31223-PA0-006 | Nut - HEX. | Nut - HEX. |
| 24 | 31228-PLR-A01 | O-ring | O-ring |
| 25 | 31231-P3F-003 | Plate comp - BRUSH HOLDER | Plate comp - BRUSH HOLDER |
| 27 | 31292-PLR-A01 | Bolt-washer | Bolt-washer |
| 1 | 31500-S3N-G52 | Battery assy - 55B24L<S>-MF) (FURUKAWA | Battery assy - 55B24L<S>-MF) (FURUKAWA |
| 3 | 31513-SDA-A00 | Bolt - BATTERY SETTING (195MM) | Bolt - BATTERY SETTING (195MM) |
| 8 | 31542-SA5-666 | Plug - VENT (MF) (FURUKAWA) | Plug - VENT (MF) (FURUKAWA) |
| 1 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 7 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 8 | 32133-SLA-003 | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) |
| 12 | 32418-PND-300 | Cover - BATTERY TERMINAL | Cover - BATTERY TERMINAL |
| 11 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 12 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 4 | 33115-S84-A11 | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) |
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 8 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 10 | 33303-S2R-003 | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) |
| 9 | 33303-SAA-003 | Socket comp - T20 S) (AMBER | Socket comp - T20 S) (AMBER |
| 2 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 7 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 1 | 34251-S5A-003 | Lens | Lens |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 5 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 7 | 34401-SDA-A21 | Lens - R. | Lens - R. |
| 9 | 34402-SDA-A21 | Lens - L. | Lens - L. |
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 18 | 35400-S6A-003 | Switch assy - DOOR (DAIICHI) | Switch assy - DOOR (DAIICHI) |
| 15 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 9 | 37835-PGK-A01 | O-ring | O-ring |
| 18 | 37980-RNA-A01 | Meter assy - AIR FLOW | Meter assy - AIR FLOW |
| 19 | 37985-RAD-L11 | Gasket | Gasket |
| 1 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 2 | 39610-S2H-G01 | Knob assy | Knob assy |
| 3 | 39620-S0X-003 | Socket assy | Socket assy |
| 2 | 39624-SZ3-L01 | Socket assy | Socket assy |
| 14 | 39792-SDA-A01 | Relay assy - MICRO ISO | Relay assy - MICRO ISO |
| 8 | 39794-SDA-003 | Relay assy - FUEL PUMP (MITSUBA) | Relay assy - FUEL PUMP (MITSUBA) |
| 8 | 39794-SDA-004 | RELAY ASSY., FUEL PUMP (DENSO) | RELAY ASSY., FUEL PUMP (DENSO) |
| 9 | 39794-SDA-901 | Relay assy, ENGINE CONTROL MODULE (MITSUBA) | Relay assy, ENGINE CONTROL MODULE (MITSUBA) |
| 9 | 39794-SDA-902 | Relay assy, ENGINE CONTROL MODULE (DENSO) | Relay assy, ENGINE CONTROL MODULE (DENSO) |
| 7 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 7 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 1 | 41100-R5M-305 | SETDIFF COMP | SETDIFF COMP |
| 1 | 41100-RKY-030 | Differential comp. | Differential comp. |
| 3 | 41381-PPV-000 | Spacer - 41X80X1 | Spacer - 41X80X1 |
| 4 | 41382-RKY-900 | Spacer - 41X76.2X1 | Spacer - 41X76.2X1 |
| 5 | 41428-PAX-000 | Shim a - 76MM (1.575) | Shim a - 76MM (1.575) |
| 5 | 41428-PRP-000 | Shim oa - 76MM (1.55) | Shim oa - 76MM (1.55) |
| 5 | 41429-PAX-000 | Shim b - 76MM (1.625) | Shim b - 76MM (1.625) |
| 5 | 41429-PRP-000 | Shim ob - 76MM (1.60) | Shim ob - 76MM (1.60) |
| 5 | 41430-PAX-000 | Shim c - 76MM (1.675) | Shim c - 76MM (1.675) |
| 5 | 41430-PRP-000 | Shim oc - 76MM (1.65) | Shim oc - 76MM (1.65) |
| 5 | 41431-PAX-000 | Shim d - 76MM (1.725) | Shim d - 76MM (1.725) |
| 5 | 41431-PRP-000 | Shim od - 76MM (1.70) | Shim od - 76MM (1.70) |
| 5 | 41432-PAX-000 | Shim e - 76MM (1.775) | Shim e - 76MM (1.775) |
| 5 | 41432-PRP-000 | Shim oe - 76MM (1.75) | Shim oe - 76MM (1.75) |
| 5 | 41433-PAX-000 | Shim f - 76MM (1.825) | Shim f - 76MM (1.825) |
| 5 | 41433-PRP-000 | Shim of - 76MM (1.80) | Shim of - 76MM (1.80) |
| 5 | 41434-PAX-000 | Shim g - 76MM (1.875) | Shim g - 76MM (1.875) |
| 5 | 41434-PRP-000 | Shim og - 76MM (1.85) | Shim og - 76MM (1.85) |
| 5 | 41435-PAX-000 | Shim h - 76MM (1.925) | Shim h - 76MM (1.925) |
| 5 | 41435-PRP-000 | Shim oh - 76MM (1.90) | Shim oh - 76MM (1.90) |
| 5 | 41436-PAX-000 | Shim i - 76MM (1.975) | Shim i - 76MM (1.975) |
| 5 | 41436-PRP-000 | Shim oi - 76MM (1.95) | Shim oi - 76MM (1.95) |
| 5 | 41437-PAX-000 | Shim j - 76MM (2.025) | Shim j - 76MM (2.025) |
| 5 | 41437-PRP-000 | Shim oj - 76MM (2.00) | Shim oj - 76MM (2.00) |
| 5 | 41438-PAX-000 | Shim k - 76MM (2.075) | Shim k - 76MM (2.075) |
| 5 | 41438-PX4-700 | Shim s - 76MM (2.05) | Shim s - 76MM (2.05) |
| 5 | 41439-PAX-000 | Shim l - 76MM (2.125) | Shim l - 76MM (2.125) |
| 5 | 41439-PX4-700 | Shim t - 76MM (2.10) | Shim t - 76MM (2.10) |
| 5 | 41440-PAX-000 | Shim m - 76MM (2.175) | Shim m - 76MM (2.175) |
| 5 | 41440-PX4-700 | Shim u - 76MM (2.15) | Shim u - 76MM (2.15) |
| 5 | 41441-PAX-000 | Shim n - 76MM (2.225) | Shim n - 76MM (2.225) |
| 5 | 41441-PK4-000 | Shim a - 76MM (2.20) | Shim a - 76MM (2.20) |
| 3 | 41441-PL3-B00 | Shim a - 80MM(1.0) | Shim a - 80MM(1.0) |
| 5 | 41442-PAX-000 | Shim o - 76MM (2.275) | Shim o - 76MM (2.275) |
| 5 | 41442-PK4-000 | Shim b - 76MM (2.25) | Shim b - 76MM (2.25) |
| 3 | 41442-PL3-B00 | Shim b - 80MM(1.1) | Shim b - 80MM(1.1) |
| 5 | 41443-PAX-000 | Shim p - 76MM (2.325) | Shim p - 76MM (2.325) |
| 5 | 41443-PK4-000 | Shim c - 76MM (2.30) | Shim c - 76MM (2.30) |
| 3 | 41443-PL3-B00 | Shim c - 80MM(1.2) | Shim c - 80MM(1.2) |
| 5 | 41444-PAX-000 | Shim q - 76MM (2.375) | Shim q - 76MM (2.375) |
| 5 | 41444-PK4-000 | Shim d - 76MM (2.35) | Shim d - 76MM (2.35) |
| 3 | 41444-PL3-B00 | Shim d - 80MM(1.3) | Shim d - 80MM(1.3) |
| 5 | 41445-PAX-000 | Shim r - 76MM (2.425) | Shim r - 76MM (2.425) |
| 5 | 41445-PK4-000 | Shim e - 76MM (2.40) | Shim e - 76MM (2.40) |
| 3 | 41445-PL3-B00 | Shim e - 80MM(1.4) | Shim e - 80MM(1.4) |
| 5 | 41446-PAX-000 | Shim s - 76MM (2.475) | Shim s - 76MM (2.475) |
| 5 | 41446-PK4-000 | Shim f - 76MM (2.45) | Shim f - 76MM (2.45) |
| 3 | 41446-PL3-B00 | Shim f - 80MM(1.5) | Shim f - 80MM(1.5) |
| 5 | 41447-PAX-000 | Shim t - 76MM (2.525) | Shim t - 76MM (2.525) |
| 5 | 41447-PK4-000 | Shim g - 76MM (2.50) | Shim g - 76MM (2.50) |
| 3 | 41447-PL3-B00 | Shim g - 80MM(1.6) | Shim g - 80MM(1.6) |
| 5 | 41448-PAX-000 | Shim u - 76MM (2.575) | Shim u - 76MM (2.575) |
| 5 | 41448-PK4-000 | Shim h - 76MM (2.55) | Shim h - 76MM (2.55) |
| 3 | 41448-PL3-B00 | Shim h - 80MM(1.7) | Shim h - 80MM(1.7) |
| 5 | 41449-PAX-000 | Shim v - 76MM (2.625) | Shim v - 76MM (2.625) |
| 5 | 41449-PK4-000 | Shim i - 76MM (2.60) | Shim i - 76MM (2.60) |
| 3 | 41449-PL3-B00 | Shim j - 80MM(1.8) | Shim j - 80MM(1.8) |
| 5 | 41450-PAX-000 | Shim w - 76MM (2.675) | Shim w - 76MM (2.675) |
| 5 | 41450-PK4-000 | Shim j - 76MM (2.65) | Shim j - 76MM (2.65) |
| 3 | 41450-PL3-B00 | Shim k - 80MM(1.05) | Shim k - 80MM(1.05) |
| 5 | 41451-PAX-000 | Shim x - 76MM (2.725) | Shim x - 76MM (2.725) |
| 5 | 41451-PK4-000 | Shim k - 76MM (2.70) | Shim k - 76MM (2.70) |
| 3 | 41451-PL3-B00 | Shim l - 80MM(1.15) | Shim l - 80MM(1.15) |
| 5 | 41452-PAX-000 | Shim y - 76MM (2.775) | Shim y - 76MM (2.775) |
| 5 | 41452-PK4-000 | Shim l - 76MM (2.75) | Shim l - 76MM (2.75) |
| 3 | 41452-PL3-B00 | Shim m - 80MM(1.25) | Shim m - 80MM(1.25) |
| 5 | 41453-PAX-000 | Shim z - 76MM (2.825) | Shim z - 76MM (2.825) |
| 5 | 41453-PK4-000 | Shim m - 76MM (2.80) | Shim m - 76MM (2.80) |
| 3 | 41453-PL3-B00 | Shim n - 80MM(1.35) | Shim n - 80MM(1.35) |
| 5 | 41454-PAX-000 | Shim oa - 76MM (2.875) | Shim oa - 76MM (2.875) |
| 5 | 41454-PK4-000 | Shim n - 76MM (2.85) | Shim n - 76MM (2.85) |
| 3 | 41454-PL3-B00 | Shim p - 80MM(1.45) | Shim p - 80MM(1.45) |
| 5 | 41455-PAX-000 | Shim ob - 76MM (2.925) | Shim ob - 76MM (2.925) |
| 5 | 41455-PK4-000 | Shim o - 76MM (2.90) | Shim o - 76MM (2.90) |
| 3 | 41455-PL3-B00 | Shim q - 80MM(1.55) | Shim q - 80MM(1.55) |
| 5 | 41456-PAX-000 | Shim oc - 76MM (2.975) | Shim oc - 76MM (2.975) |
| 5 | 41456-PK4-000 | Shim p - 76MM (2.95) | Shim p - 76MM (2.95) |
| 3 | 41456-PL3-B00 | Shim r - 80MM(1.65) | Shim r - 80MM(1.65) |
| 5 | 41457-PAX-000 | Shim od - 76MM (3.025) | Shim od - 76MM (3.025) |
| 5 | 41457-PK4-000 | Shim q - 76MM (3.00) | Shim q - 76MM (3.00) |
| 3 | 41457-PL3-B00 | Shim s - 80MM(1.75) | Shim s - 80MM(1.75) |
| 5 | 41458-PK4-000 | Shim r - 76MM (3.05) | Shim r - 76MM (3.05) |
| 7 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 7 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 16 | 43235-S84-A51 | Pin a | Pin a |
| 28 | 43262-S84-A51 | Pin b | Pin b |
| 3 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 31 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 4 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 7 | 44319-S0A-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 7 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44319-SE0-000 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44327-SX0-C02 | Band - OUTBOARD BOOT (NIPPON HATSUJO) | Band - OUTBOARD BOOT (NIPPON HATSUJO) |
| 11 | 44329-S04-A01 | Band c - DRIVESHAFT (NIPPON HATSUJO) | Band c - DRIVESHAFT (NIPPON HATSUJO) |
| 10 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 12 | 44337-SA2-300 | Ring b - STOPPER | Ring b - STOPPER |
| 13 | 44338-SA2-300 | Circlip - 24MM | Circlip - 24MM |
| 9 | 44721-SEA-J01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 9 | 44721-SEA-J02 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 9 | 44722-SEA-J01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 9 | 44722-SEA-J02 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 9 | 44723-SEA-J01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 9 | 44723-SEA-J02 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 9 | 44726-SEA-J01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 9 | 44726-SEA-J02 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 9 | 44727-SEA-J01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 9 | 44727-SEA-J02 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 9 | 44728-SEA-J01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 9 | 44728-SEA-J02 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 9 | 44729-SEA-J01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 9 | 44729-SEA-J02 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 12 | 44732-S9A-A00 | Cap - ALUMINIUM WHEEL CENTER | Cap - ALUMINIUM WHEEL CENTER |
| 33 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 5 | 46151-S5A-A01 | Yoke | Yoke |
| 6 | 46182-500-013 | Circlip | Circlip |
| 6 | 46191-SDA-A00 | Gasket - MASTER POWER | Gasket - MASTER POWER |
| 14 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 25 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 27 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 6 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 11 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 12 | 46545-S84-A81 | Cover - PEDAL | Cover - PEDAL |
| 8 | 46545-SA5-000 | Cover, Pedal | Cover, Pedal |
| 15 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 15 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 9 | 46912-S84-A00 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 10 | 46920-S7A-A03 | Cylinder assy. - CLUTCH MASTER | Cylinder assy. - CLUTCH MASTER |
| 11 | 46921-S5A-003 | Plate - STOPPER | Plate - STOPPER |
| 12 | 46926-S5A-013 | Piston comp - CLUTCH MASTER CYLINDER | Piston comp - CLUTCH MASTER CYLINDER |
| 13 | 46928-S5A-A01 | Seal - MASTER CYLINDER | Seal - MASTER CYLINDER |
| 15 | 46931-S5A-003 | Pin - SPRING | Pin - SPRING |
| 16 | 46932-S5A-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 17 | 46937-SS1-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 18 | 46941-S5A-003 | Connector - CLUTCH MASTER CYLINDER | Connector - CLUTCH MASTER CYLINDER |
| 19 | 46942-S5A-003 | Pin - SNAP | Pin - SNAP |
| 20 | 46943-S5A-003 | Seal - RING | Seal - RING |
| 21 | 46944-S5A-J01 | Connector | Connector |
| 22 | 46945-S5A-003 | O-ring | O-ring |
| 23 | 46946-S5A-003 | Screw-washer - 4X12 | Screw-washer - 4X12 |
| 24 | 46947-S5A-003 | Rod - PUSH | Rod - PUSH |
| 25 | 46948-S5A-003 | Rod - PUSH | Rod - PUSH |
| 26 | 46949-S5A-003 | Seal - RING | Seal - RING |
| 31 | 46965-S6A-013 | Tank assy. - CLUTCH FLUID | Tank assy. - CLUTCH FLUID |
| 4 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 6 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 9 | 47572-ST0-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 12 | 50280-SDA-A01 | Rubber - R. FR. SUB FRAME MIDDLE MOUNTING | Rubber - R. FR. SUB FRAME MIDDLE MOUNTING |
| 13 | 50285-SDA-A01 | Rubber - L. FR. SUB FRAME MIDDLE MOUNTING | Rubber - L. FR. SUB FRAME MIDDLE MOUNTING |
| 11 | 50931-SDA-A01 | Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID | Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID |
| 3 | 51308-SDA-A00 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 9 | 51393-SDA-A02 | BUSH, FR. ARM (LOWER) | BUSH, FR. ARM (LOWER) |
| 7 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 5 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 6 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 8 | 51684-SDA-A02 | Mount - FR. DUST COVER LOWER | Mount - FR. DUST COVER LOWER |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 11 | 51688-SDA-A01 | Sleeve - FR. DUST COVER | Sleeve - FR. DUST COVER |
| 12 | 51689-SDA-A01 | Cover - FR. END DUST | Cover - FR. END DUST |
| 13 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 14 | 51722-SS0-004 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 15 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 13 | 52363-SJK-010 | Washer - LOWER ARM | Washer - LOWER ARM |
| 10 | 52686-SDA-A01 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 15 | 52748-S0A-004 | Cover - RR. LOWER MOUNT DUST | Cover - RR. LOWER MOUNT DUST |
| 6 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 9 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 8 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 9 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 16 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 6 | 54118-S10-000 | Washer assy. - WIRE | Washer assy. - WIRE |
| 9 | 54357-SF1-003 | Plate - CHANGE WIRE | Plate - CHANGE WIRE |
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 12 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 19 | 72141-SD4-004 | Bush - R. JOINT | Bush - R. JOINT |
| 21 | 72143-S04-003 | Packing | Packing |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
| 32 | 72181-SD4-004 | Bush - L. JOINT | Bush - L. JOINT |
| 20 | 74172-SDA-A00 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 20 | 74172-SM4-970 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 21 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 15 | 74651-S2X-003 | Adapter - SPARE TIRE | Adapter - SPARE TIRE |
| 16 | 74652-SDA-003 | Bolt - SPARE TIRE | Bolt - SPARE TIRE |
| 3 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 5 | 75700-S9A-G00 | Front Honda Emblem - (H) | Front Honda Emblem - (H) |
| 2 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 21 | 75891-611-000 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 20 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 2 | 76516-SDA-A01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 3 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 5 | 76517-SM4-003 | Collar | Collar |
| 7 | 76524-SD4-003 | Dust seal | Dust seal |
| 20 | 77520-SDA-A01 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 8 | 77873-SDA-E80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
| 16 | 78031-SDA-G80 | Label - SIDE AIRBAG CAUTION | Label - SIDE AIRBAG CAUTION |
| 3 | 78182-SA0-000 | Clip - RR. SEAT PIN | Clip - RR. SEAT PIN |
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 5 | 80290-SDC-A01 | Filter assy - AIR CONDITIONER | Filter assy - AIR CONDITIONER |
| 6 | 80292-SDC-A01 | Element - FILTER | Element - FILTER |
| 3 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
| 18 | 80534-S84-A41 | Aspirator | Aspirator |
| 12 | 80865-SL0-003 | Cap - VALVE (H) | Cap - VALVE (H) |
| 13 | 80866-SL0-003 | Cap - VALVE(L) | Cap - VALVE(L) |
| 14 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 15 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 10 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 12 | 81653-SDB-A71 | Switch assy - L. (8WAY) | Switch assy - L. (8WAY) |
| 11 | 82137-SDA-003 | Clip - RR. SEAT CUSHION | Clip - RR. SEAT CUSHION |
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 32 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 11 | 89320-S05-003 | Bar - JACK | Bar - JACK |
| 20 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 12 | 90001-P70-000 | Bolt - FLANGE, 10X10.5 | Bolt - FLANGE, 10X10.5 |
| 9 | 90001-PA9-000 | Bolt - HEX., 6MM | Bolt - HEX., 6MM |
| 19 | 90001-PRP-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 11 | 90001-S10-010 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 17 | 90001-SDA-A00 | Bolt - FLANGE, 6X38(GUIDE) | Bolt - FLANGE, 6X38(GUIDE) |
| 15 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 6 | 90003-PA9-003 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 14 | 90003-PNA-000 | Bolt - TENSIONER PIVOT | Bolt - TENSIONER PIVOT |
| 14 | 90004-PNA-000 | Bolt - CHAIN GUIDE | Bolt - CHAIN GUIDE |
| 22 | 90004-PRH-010 | Bolt - SPECIAL, 8X30 | Bolt - SPECIAL, 8X30 |
| 18 | 90005-P28-A00 | Bolt-washer - SPECIAL, 6X28 | Bolt-washer - SPECIAL, 6X28 |
| 23 | 90005-PRH-010 | Bolt - SPECIAL, 8X38 | Bolt - SPECIAL, 8X38 |
| 21 | 90005-RGA-000 | Bolt - CLAMP, 4X25 | Bolt - CLAMP, 4X25 |
| 7 | 90011-PNA-B00 | Bolt - 12MM | Bolt - 12MM |
| 12 | 90011-PPP-000 | Bolt - SPECIAL, 20X25 | Bolt - SPECIAL, 20X25 |
| 16 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 15 | 90017-PCX-013 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 4 | 90017-PPP-000 | Bolt - SPECIAL, 11MM | Bolt - SPECIAL, 11MM |
| 4 | 90021-PNA-000 | Bolt - SPECIAL, 6X31 | Bolt - SPECIAL, 6X31 |
| 9 | 90023-PA9-000 | Bolt - SPECIAL | Bolt - SPECIAL |
| 14 | 90023-PNA-000 | Bolt - FLANGE, 8X80 | Bolt - FLANGE, 8X80 |
| 24 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 15 | 90024-PNA-000 | Bolt - FLANGE, 8X65 | Bolt - FLANGE, 8X65 |
| 8 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 5 | 90028-PNB-003 | Bolt - SPECIAL, 6X20.5(GUIDE) | Bolt - SPECIAL, 6X20.5(GUIDE) |
| 15 | 90029-611-010 | Bolt - HEX., 8X24 | Bolt - HEX., 8X24 |
| 17 | 90031-PNA-004 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 9 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 14 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 16 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 17 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 10 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 7 | 90081-PX4-003 | Bolt - PLUG, 18MM | Bolt - PLUG, 18MM |
| 19 | 90089-PK4-000 | Bolt - STOPPER, 6MM | Bolt - STOPPER, 6MM |
| 16 | 90101-S2K-000 | Screw - TAPPING, 4X16(IT) | Screw - TAPPING, 4X16(IT) |
| 38 | 90101-SDA-000 | Screw - FLAT, 4X30 | Screw - FLAT, 4X30 |
| 21 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 22 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 19 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 22 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 25 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 30 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 39 | 90106-S7A-E00 | Bolt - FLANGE, 8X30 | Bolt - FLANGE, 8X30 |
| 18 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 27 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 20 | 90109-S70-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 19 | 90109-SEA-003 | Screw - TAPPING, 4X20 (TRUSS) | Screw - TAPPING, 4X20 (TRUSS) |
| 15 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 28 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 29 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 19 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 19 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 19 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 17 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 30 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 16 | 90117-S0A-000 | Bolt - DAMPER LOCK(10X44) | Bolt - DAMPER LOCK(10X44) |
| 35 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 19 | 90121-S0A-000 | Bolt - DAMPER FORK(12X98) | Bolt - DAMPER FORK(12X98) |
| 24 | 90126-S5A-003 | Bolt - SOCKET, 5X40 | Bolt - SOCKET, 5X40 |
| 22 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 7 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 8 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 25 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 23 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 14 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 9 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 11 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 41 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 14 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 9 | 90135-SDA-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 9 | 90135-SZT-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 15 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 36 | 90140-SA5-000 | Bolt - SPLASH GUARD | Bolt - SPLASH GUARD |
| 31 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 23 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 26 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 11 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 31 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 13 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 36 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 19 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 30 | 90156-S0K-000 | Grommet - FR. LICENSE BASE | Grommet - FR. LICENSE BASE |
| 35 | 90160-S5A-003 | Screw - TRUSS, 6X12 | Screw - TRUSS, 6X12 |
| 19 | 90161-SDA-A01 | Bolt - FLANGE, 12X45 | Bolt - FLANGE, 12X45 |
| 12 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
| 22 | 90163-S5A-000 | Bolt - FLANGE, 10X20 | Bolt - FLANGE, 10X20 |
| 21 | 90163-SDA-A01 | Bolt - FLANGE, 10X35 | Bolt - FLANGE, 10X35 |
| 24 | 90166-SDA-A00 | Bolt - FLANGE, 12X80 | Bolt - FLANGE, 12X80 |
| 29 | 90170-SDC-A00 | Bolt - FLANGE, 10X34 | Bolt - FLANGE, 10X34 |
| 12 | 90172-SDA-A00 | Bolt - FLANGE, 10X78 | Bolt - FLANGE, 10X78 |
| 32 | 90176-SDA-A00 | Bolt - FLANGE, 14X135 | Bolt - FLANGE, 14X135 |
| 33 | 90177-SDA-A00 | Bolt - FLANGE, 14X150 | Bolt - FLANGE, 14X150 |
| 28 | 90181-S84-A00 | Bolt - TRAILING ARM, 12X68 | Bolt - TRAILING ARM, 12X68 |
| 36 | 90186-SDA-A00 | Bolt - FLANGE, 12X33 | Bolt - FLANGE, 12X33 |
| 15 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 6 | 90203-PX4-010 | Nut - FLANGE, 24MM | Nut - FLANGE, 24MM |
| 13 | 90206-PM3-004 | Nut - TAPPET ADJUSTING (TOKAI TRW) | Nut - TAPPET ADJUSTING (TOKAI TRW) |
| 13 | 90207-RAA-A10 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
| 7 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 20 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 16 | 90231-PGK-A01 | Nut - HEX., 5MM | Nut - HEX., 5MM |
| 16 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 6 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 16 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 18 | 90305-SM4-003 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 32 | 90306-SA0-000 | Nut - FLOATING, 5MM | Nut - FLOATING, 5MM |
| 21 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 13 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 42 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 10 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 18 | 90351-SB2-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 23 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
| 25 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 28 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 29 | 90371-S87-A00 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 38 | 90396-S5A-010 | Bolt - FLANGE, 12X75 | Bolt - FLANGE, 12X75 |
| 16 | 90401-PG1-000 | Washer - DRAIN PLUG, 10MM | Washer - DRAIN PLUG, 10MM |
| 19 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 16 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 16 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 11 | 90429-PC6-900 | Washer - 40X86X2 | Washer - 40X86X2 |
| 17 | 90431-P6H-000 | Cotter - 31MM | Cotter - 31MM |
| 4 | 90431-PRP-000 | Cotter - 17MM | Cotter - 17MM |
| 5 | 90432-PRP-000 | Retainer - COTTER | Retainer - COTTER |
| 25 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 20 | 90433-PRP-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 10 | 90433-RCL-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 18 | 90441-RFK-010 | Collar - 37X41X54.3 | Collar - 37X41X54.3 |
| 9 | 90443-PRP-000 | Collar - 27X37X36.5 | Collar - 27X37X36.5 |
| 19 | 90445-PPV-000 | Collar - 35X47X7.8 | Collar - 35X47X7.8 |
| 26 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 13 | 90471-PW7-A00 | PACKING, 10MM | PACKING, 10MM |
| 9 | 90471-PX4-000 | Washer - DRAIN PLUG, 18MM | Washer - DRAIN PLUG, 18MM |
| 15 | 90471-RGR-000 | Washer - DRAIN PLUG, 12MM | Washer - DRAIN PLUG, 12MM |
| 9 | 90501-PRP-000 | Collar - 27X34X66.3 | Collar - 27X34X66.3 |
| 10 | 90503-RCT-000 | Washer - THRUST, 40X51.5X4.80 | Washer - THRUST, 40X51.5X4.80 |
| 10 | 90504-RCT-000 | Washer - THRUST, 40X51.5X4.85 | Washer - THRUST, 40X51.5X4.85 |
| 10 | 90505-RCT-000 | Washer - THRUST, 40X51.5X4.90 | Washer - THRUST, 40X51.5X4.90 |
| 10 | 90506-RCT-000 | Washer - THRUST, 40X51.5X4.95 | Washer - THRUST, 40X51.5X4.95 |
| 10 | 90507-RCT-000 | Washer - THRUST, 40X51.5X5.00 | Washer - THRUST, 40X51.5X5.00 |
| 10 | 90508-RCT-000 | Washer - THRUST, 40X51.5X5.05 | Washer - THRUST, 40X51.5X5.05 |
| 12 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 11 | 90511-PRP-010 | Washer - THRUST, 37X58X3.900 | Washer - THRUST, 37X58X3.900 |
| 11 | 90512-PRP-010 | Washer - THRUST, 37X58X3.925 | Washer - THRUST, 37X58X3.925 |
| 11 | 90513-PRP-010 | Washer - THRUST, 37X58X3.950 | Washer - THRUST, 37X58X3.950 |
| 11 | 90514-PRP-010 | Washer - THRUST, 37X58X3.975 | Washer - THRUST, 37X58X3.975 |
| 11 | 90515-PRP-010 | Washer - THRUST, 37X58X4.000 | Washer - THRUST, 37X58X4.000 |
| 11 | 90516-PRP-010 | Washer - THRUST, 37X58X4.025 | Washer - THRUST, 37X58X4.025 |
| 11 | 90517-PRP-010 | Washer - THRUST, 37X58X4.050 | Washer - THRUST, 37X58X4.050 |
| 11 | 90518-PRP-010 | Washer - THRUST, 37X58X4.075 | Washer - THRUST, 37X58X4.075 |
| 11 | 90519-PRP-010 | Washer - THRUST, 37X58X4.100 | Washer - THRUST, 37X58X4.100 |
| 11 | 90520-PRP-010 | Washer - THRUST, 37X58X4.125 | Washer - THRUST, 37X58X4.125 |
| 11 | 90521-PRP-010 | Washer - THRUST, 37X58X4.150 | Washer - THRUST, 37X58X4.150 |
| 11 | 90522-PRP-010 | Washer - THRUST, 37X58X4.175 | Washer - THRUST, 37X58X4.175 |
| 11 | 90523-PRP-000 | Washer - THRUST, 37X58X4.200 | Washer - THRUST, 37X58X4.200 |
| 11 | 90524-PRP-000 | Washer - THRUST, 37X58X4.225 | Washer - THRUST, 37X58X4.225 |
| 11 | 90525-PRP-000 | Washer - THRUST, 37X58X4.250 | Washer - THRUST, 37X58X4.250 |
| 11 | 90526-PRP-000 | Washer - THRUST, 37X58X4.275 | Washer - THRUST, 37X58X4.275 |
| 11 | 90527-PRP-000 | Washer - THRUST, 37X58X4.300 | Washer - THRUST, 37X58X4.300 |
| 11 | 90528-PRP-000 | Washer - THRUST, 37X58X4.325 | Washer - THRUST, 37X58X4.325 |
| 11 | 90529-PRP-000 | Washer - THRUST, 37X58X4.350 | Washer - THRUST, 37X58X4.350 |
| 11 | 90530-PRP-000 | Washer - THRUST, 37X58X4.375 | Washer - THRUST, 37X58X4.375 |
| 13 | 90601-PPP-000 | Ring - SNAP, 72MM | Ring - SNAP, 72MM |
| 27 | 90602-PX4-000 | Circlip b - INTERNAL, 47MM | Circlip b - INTERNAL, 47MM |
| 34 | 90602-SX0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 10 | 90603-P0X-000 | Set ring - 23MM | Set ring - 23MM |
| 15 | 90603-P6H-003 | Circlip - EXTERNAL, 43MM | Circlip - EXTERNAL, 43MM |
| 9 | 90603-PX4-000 | Circlip - EXTERNAL, 47MM | Circlip - EXTERNAL, 47MM |
| 37 | 90603-SX0-003 | Grommet - COWL TOP | Grommet - COWL TOP |
| 10 | 90605-P7T-003 | Ring - SNAP, 133MM | Ring - SNAP, 133MM |
| 9 | 90609-PX4-000 | Ring - SNAP, 80MM | Ring - SNAP, 80MM |
| 43 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 10 | 90613-PRP-000 | Ring - SNAP, 48MM | Ring - SNAP, 48MM |
| 11 | 90614-PRP-000 | Ring - SNAP, 55MM | Ring - SNAP, 55MM |
| 12 | 90615-P0Z-000 | Ring - SNAP, 82MM | Ring - SNAP, 82MM |
| 21 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 12 | 90621-PRP-000 | Circlip - EXTERNAL, 32MM | Circlip - EXTERNAL, 32MM |
| 16 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 16 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
| 29 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 28 | 90661-S2A-003 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 34 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 26 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 22 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 37 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 15 | 90682-SDA-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 23 | 90700-SB0-003 | Clip - AIR BLEED TUBE | Clip - AIR BLEED TUBE |
| 20 | 90701-PK4-000 | Dowel pin - 8X80 | Dowel pin - 8X80 |
| 28 | 90702-PL4-000 | Dowel pin - 8X44 | Dowel pin - 8X44 |
| 20 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 17 | 90703-PNA-300 | Dowel pin - 4.2X10.3 | Dowel pin - 4.2X10.3 |
| 16 | 90704-PNA-000 | Key - 4.5X21 | Key - 4.5X21 |
| 12 | 90705-PA9-000 | Dowel pin - 14X25 | Dowel pin - 14X25 |
| 6 | 90705-PG2-000 | Dowel pin - 14X20 | Dowel pin - 14X20 |
| 12 | 90715-SDA-000 | Pin - SNAP, 8MM | Pin - SNAP, 8MM |
| 25 | 90856-SDA-A01 | Plug - TRUNK DRAIN | Plug - TRUNK DRAIN |
| 3 | 90857-SDA-A00 | Cap - WELD HOLE | Cap - WELD HOLE |
| 7 | 91001-PPP-005 | Bearing - BALL, 28X64X15 | Bearing - BALL, 28X64X15 |
| 13 | 91001-PRP-004 | Bearing - BALL, 40X68X7.5 | Bearing - BALL, 40X68X7.5 |
| 17 | 91002-RAS-003 | Bearing - BALL, 28X72X18 | Bearing - BALL, 28X72X18 |
| 13 | 91002-RCR-026 | Bearing - BALL, 27X82X18.5 | Bearing - BALL, 27X82X18.5 |
| 14 | 91003-RFK-025 | Bearing - BALL, 31X80X16.5 | Bearing - BALL, 31X80X16.5 |
| 15 | 91004-RFK-016 | Bearing - BALL, 26.8X55X14.5 | Bearing - BALL, 26.8X55X14.5 |
| 5 | 91005-PPS-003 | Bearing - BALL, 40X80X18(NTN) | Bearing - BALL, 40X80X18(NTN) |
| 14 | 91005-PRP-003 | Bearing - BALL, 32X68X9 | Bearing - BALL, 32X68X9 |
| 29 | 91006-P1B-003 | Bearing - BALL, 9X20X6 | Bearing - BALL, 9X20X6 |
| 16 | 91006-PRP-026 | Bearing - BALL, 20X48X24 | Bearing - BALL, 20X48X24 |
| 11 | 91017-PZK-003 | Bearing - NEEDLE, 23X29X18 | Bearing - NEEDLE, 23X29X18 |
| 12 | 91018-PW7-A02 | Bearing - THRUST NEEDLE, 34X46X2 | Bearing - THRUST NEEDLE, 34X46X2 |
| 13 | 91021-PRP-013 | Needle - THRUST, 40X53X2.5 | Needle - THRUST, 40X53X2.5 |
| 14 | 91022-PRP-003 | Needle - THRUST, 46.6X59.5X2.5 | Needle - THRUST, 46.6X59.5X2.5 |
| 13 | 91023-PCJ-003 | Bearing - THRUST NEEDLE, 34X53.5X2.5 | Bearing - THRUST NEEDLE, 34X53.5X2.5 |
| 21 | 91024-PRP-004 | Bearing - NEEDLE, 40X46X14.5 (KOYO) | Bearing - NEEDLE, 40X46X14.5 (KOYO) |
| 22 | 91025-P0X-003 | Bearing - NEEDLE, 15X20X16 (NTN) | Bearing - NEEDLE, 15X20X16 (NTN) |
| 14 | 91026-PRP-003 | Bearing - THRUST NEEDLE, 57.6X71X2 | Bearing - THRUST NEEDLE, 57.6X71X2 |
| 15 | 91027-PRP-003 | Needle - THRUST, 37X57X2.5 | Needle - THRUST, 37X57X2.5 |
| 23 | 91028-P0Z-013 | Bearing - NEEDLE, 35X41X25.8 (NTN) | Bearing - NEEDLE, 35X41X25.8 (NTN) |
| 16 | 91028-PRP-003 | Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24) | Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24) |
| 23 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 15 | 91101-PPP-003 | Bearing - NEEDLE, 47X52X23 | Bearing - NEEDLE, 47X52X23 |
| 30 | 91103-RCL-023 | Bearing - NEEDLE, 32X55X18.5 | Bearing - NEEDLE, 32X55X18.5 |
| 17 | 91105-PRP-005 | Bearing - NEEDLE, 40X47X16 (NSK) | Bearing - NEEDLE, 40X47X16 (NSK) |
| 18 | 91106-PRP-025 | Bearing - NEEDLE, 40X46X20.5 (NSK) | Bearing - NEEDLE, 40X46X20.5 (NSK) |
| 15 | 91107-PRP-003 | Bearing - NEEDLE, 34X40X39.5 | Bearing - NEEDLE, 34X40X39.5 |
| 9 | 91108-PRP-003 | Roller - 4X23.8 | Roller - 4X23.8 |
| 16 | 91109-PRP-003 | Bearing - NEEDLE, 52X57X18 | Bearing - NEEDLE, 52X57X18 |
| 7 | 91121-RFK-013 | Bearing - SPECIAL TAPER, 40X80X20.25 | Bearing - SPECIAL TAPER, 40X80X20.25 |
| 8 | 91122-RFK-013 | Bearing - SPECIAL TAPER, 40X76.2X19 | Bearing - SPECIAL TAPER, 40X76.2X19 |
| 31 | 91201-PA9-004 | Oil seal - 9X18X7 (ARAI) | Oil seal - 9X18X7 (ARAI) |
| 17 | 91205-P0X-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
| 13 | 91205-PL3-B01 | Oil seal - 40X56X8(ARAI) | Oil seal - 40X56X8(ARAI) |
| 17 | 91207-P7Z-003 | Oil seal - 44X68X8 (NOK) | Oil seal - 44X68X8 (NOK) |
| 17 | 91207-PPP-003 | Dust seal - 18X24X5 | Dust seal - 18X24X5 |
| 18 | 91208-PPP-003 | Dust seal - 14X20X4 | Dust seal - 14X20X4 |
| 13 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
| 16 | 91212-PPP-004 | Damper - FRICTION (SECOND) | Damper - FRICTION (SECOND) |
| 6 | 91212-RTA-003 | Oil seal - 43X58X7 (NOK) | Oil seal - 43X58X7 (NOK) |
| 22 | 91214-PWA-003 | Oil seal - 80X98X10 (NOK) | Oil seal - 80X98X10 (NOK) |
| 22 | 91214-RNB-A01 | Oil seal (80x98x10) | Oil seal (80x98x10) |
| 22 | 91214-RTA-004 | Oil seal - 80X98X10 (ARAI) | Oil seal - 80X98X10 (ARAI) |
| 10 | 91216-PG1-005 | Oil seal - 28X43X7 (NOK) | Oil seal - 28X43X7 (NOK) |
| 24 | 91260-SR3-003 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
| 21 | 91301-P7Z-004 | O-ring - 7.6X1.9 (DENSO) | O-ring - 7.6X1.9 (DENSO) |
| 32 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 17 | 91301-PLC-000 | O-ring - 7.47X3.6 | O-ring - 7.47X3.6 |
| 18 | 91301-PRP-003 | O-ring - 31.7X1.95 (NOK) | O-ring - 31.7X1.95 (NOK) |
| 22 | 91302-P7Z-004 | O-ring - 9.6X1.9 (DENSO) | O-ring - 9.6X1.9 (DENSO) |
| 17 | 91302-PA9-003 | O-ring, 39.8X2.2 (ARAI) | O-ring, 39.8X2.2 (ARAI) |
| 17 | 91302-PA9-004 | O-ring - 39.8X2.2 (NOK) | O-ring - 39.8X2.2 (NOK) |
| 19 | 91302-PNA-003 | O-ring - 7.45X3.61(NOK) | O-ring - 7.45X3.61(NOK) |
| 11 | 91302-PX4-004 | O-ring - 46.8X2.2 (NOK) | O-ring - 46.8X2.2 (NOK) |
| 12 | 91302-RNA-003 | O-ring - 35.5X1.9 | O-ring - 35.5X1.9 |
| 12 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |
| 33 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 34 | 91305-PX4-003 | O-ring - 40X1.9 (NOK) | O-ring - 40X1.9 (NOK) |
| 24 | 91306-P0X-003 | O-ring - 8.1X4 (NOK) | O-ring - 8.1X4 (NOK) |
| 18 | 91307-PLC-004 | O-ring - 9.5X1.9 (MATSUSHITA) | O-ring - 9.5X1.9 (MATSUSHITA) |
| 17 | 91308-PH0-013 | O-ring - 17.8X1.9 (NOK) | O-ring - 17.8X1.9 (NOK) |
| 14 | 91308-PW4-003 | O-ring - 21.8X1.9 | O-ring - 21.8X1.9 |
| 15 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 35 | 91311-PA9-004 | O-ring - 7.7X1.9 (NOK) | O-ring - 7.7X1.9 (NOK) |
| 36 | 91314-PW4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 21 | 91316-PF4-003 | O-ring - 31X1.7 (ARAI) | O-ring - 31X1.7 (ARAI) |
| 17 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
| 16 | 91319-PAA-A01 | O-ring - 13X1.5 | O-ring - 13X1.5 |
| 22 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 20 | 91326-P4V-003 | O-ring - 26.7X1.9(NOK) | O-ring - 26.7X1.9(NOK) |
| 16 | 91329-PRP-003 | O-ring - 23.3X2.4 | O-ring - 23.3X2.4 |
| 23 | 91331-PC9-003 | O-ring | O-ring |
| 25 | 91331-PL5-J00 | O-ring - 20.2X2.4 (NOK) | O-ring - 20.2X2.4 (NOK) |
| 11 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |
| 8 | 91333-PNC-006 | O-ring | O-ring |
| 26 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
| 16 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 16 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 25 | 91405-SDA-000 | Clamp - TUBE(D10.5) | Clamp - TUBE(D10.5) |
| 27 | 91407-SDB-000 | Clamp - TUBE (D12.5) | Clamp - TUBE (D12.5) |
| 18 | 91411-S84-A01 | Nut - HEX., 14MM | Nut - HEX., 14MM |
| 40 | 91501-STK-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 23 | 91503-S7A-003 | Clip - FR. GRILLE | Clip - FR. GRILLE |
| 38 | 91503-SZ3-003 | Clip A | Clip A |
| 42 | 91504-SDA-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 18 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 28 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 19 | 91507-RTA-003 | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) |
| 16 | 91507-SL9-003 | Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) | Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
| 23 | 91512-S50-003 | Clip - LICENSE GARNISH | Clip - LICENSE GARNISH |
| 17 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 22 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 43 | 91515-SDA-A01 | Clip - HOOD LOCK COVER | Clip - HOOD LOCK COVER |
| 27 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 45 | 91518-S10-003 | Clip - MOLDING | Clip - MOLDING |
| 31 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 16 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 19 | 91533-S82-003 | Clip - COUPLER(BLACK) | Clip - COUPLER(BLACK) |
| 23 | 91533-SG0-000 | Clip b - FAIRING | Clip b - FAIRING |
| 48 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 39 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 24 | 91545-SE0-003 | Clip assy. - 8MM | Clip assy. - 8MM |
| 14 | 91551-SE0-003 | Bolt - FLANGE, 5X7 | Bolt - FLANGE, 5X7 |
| 54 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 53 | 91559-SX0-003 | Clip - HARNESS BAND (NATURAL) (155MM) | Clip - HARNESS BAND (NATURAL) (155MM) |
| 28 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 28 | 91562-S0X-A01 | Clip - ROOF LINING (BLACK) | Clip - ROOF LINING (BLACK) |
| 3 | 91563-SV4-003 | Fastener a - RR. WINDSHIELD | Fastener a - RR. WINDSHIELD |
| 22 | 91565-SEA-003 | Clamp - HARNESS | Clamp - HARNESS |
| 5 | 91568-SV4-003 | Fastener b - RR. WINDSHIELD | Fastener b - RR. WINDSHIELD |
| 32 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 4 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 23 | 91611-SDA-A00 | Cap - FR. WIPER ARM (12MM) | Cap - FR. WIPER ARM (12MM) |
| 6 | 91613-SR3-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 7 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 8 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 17 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 29 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
| 57 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
