Air cleaner (2.0L) 18

#	OEM	部品名
1	17202-R60-U00	Case set - AIR CLEANER
2	17211-R60-U00	Cover comp. - AIR CLEANER
3	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING
5	17217-P2J-300	Clip - AIR CLEANER
6	17220-R60-U00	Element assy. - AIR CLEANER
7	17228-R60-U00	Tube - AIR FLOW
8	17234-R60-U00	Chamber - AIR FLOW
9	17261-R60-U00	Stay comp - AIR CLEANER
10	17316-P1E-000	Clamp - AIR FLOW TUBE (70)
11	17316-RYE-A01	Clamp - AIR FLOW(78)
12	17318-PLZ-E01	Band - HOSE (D50)
13	37980-RNA-A01	Meter assy - AIR FLOW
14	37985-RAD-L11	Gasket
15	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
16	90005-RGA-000	Bolt - CLAMP, 4X25
17	90700-SB0-003	Clip - AIR BLEED TUBE

Air conditioner (COMPRESSOR; 2.0L) 13

#	OEM	部品名
1	38801-RK8-006	Valve sub assy. - SAFETY
1	38801-RB0-006	Valve sub assy. - SAFETY
2	38810-RL2-G01	Compressor comp.
3	38829-RB0-006	Nut
4	38900-RL2-G01	Clutch set - COMPRESSOR
4	38900-R62-H01	Clutch set - COMPRESSOR
5	38908-R62-H01	Protector set - THERMAL
6	38912-RB0-006	Shim set
7	38913-RB0-006	Circlip - EXTERNAL, 45MM
8	38914-RB0-006	Circlip - EXTERNAL, 35MM
9	38924-R62-H01	Coil set - SOLENOID
10	90023-PNA-000	Bolt - FLANGE, 8X80
11	90024-PNA-000	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER) 7

#	OEM	部品名
1	80100-TL1-G01	Condenser assy
2	80101-S9A-013	Filter sub assy.
3	80111-TL1-G01	Bracket comp. - L. UPPER
4	80112-TL1-G01	Bracket comp. - R. UPPER
5	80113-TL1-G01	Bracket comp. - LOWER
6	80192-TL1-G02	Bolt - FLANGE
7	90121-TL1-G00	Bolt-washer - 6X12

Air conditioner (HOSES/PIPES; 2.0L; RH) 17

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-TL1-G01	Hose comp. - SUCTION
3	80315-TL1-G01	Hose comp. - DISCHARGE
4	80321-TL1-E01	Pipe comp - AIR CONDITIONER
5	80341-TL1-G01	Pipe comp - RECEIVER
6	80360-TL1-G00	Clamp - SUCTION PIPE
7	80382-S7A-003	Clip - AIR CONDITIONER PIPE
8	80450-SFE-003	Sensor assy - PRESSURE
9	80865-SL0-003	Cap - VALVE (H)
10	80866-SL0-003	Cap - VALVE(L)
11	80871-ST7-000	O-ring - 5/8"
12	80872-ST7-000	O-ring - 1/2"
13	80873-ST7-000	O-ring - 8MM
14	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)
15	91548-S3N-003	Clip - RECEIVER PIPE
16	91548-S5A-003	Clip - RECEIVER PIPE
17	91548-TA0-A01	Clip - RECEIVER PIPE

Air conditioner/heater (SENSOR) 4

#	OEM	部品名
1	80510-S0A-941	Sensor - SUN BEAM
2	80525-S30-941	Sensor assy - AMBIENT
3	80530-TL1-G01	Sensor assy - IN CAR
4	80541-TL1-E01	Hose a - ASPIRATOR

Alternator (DENSO; 2.0L) 15

#	OEM	部品名
1	31100-RZP-G01	Alternator assy - CSF37) (DENSO
2	31101-RTA-003	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH
4	31108-RZP-G01	Frame assy - RR. STATOR
5	31111-PT0-003	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.
7	31119-RZP-G01	Bush - INSULATION
8	31135-RZP-G01	Cover - RR. END
9	31138-PD1-004	Cover - BEARING
10	31141-RZP-G01	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt
13	31146-PE9-941	Screw-washer
14	31147-PT0-003	Screw-washer
15	90231-PGK-A01	Nut - HEX., 5MM

Alternator bracket/ tensioner (2.0L) 14

#	OEM	部品名
1	31110-RL2-G01	Belt - ALTERNATOR(BANDO)
1	31110-RL2-G02	Belt - ALTERNATOR (MITSUBOSHI)
2	31113-RNA-A00	Bracket - ALTERNATOR
3	31114-RZP-G00	Insulator - HEAT
4	31170-RZP-G03	Tensioner assy, Auto
4	31170-RZP-G05	TENSIONER ASSY, AUTO
5	31175-RNA-000	Bracket - IDLE PULLEY
6	31185-RNA-000	Cover - BEARING
7	31190-RL2-G01	Pulley comp - IDLER
8	32750-RNA-A00	Stay k - ENGINE HARNESS
9	90001-RWK-000	Bolt - SPECIAL, 8X85
10	90006-P8F-A00	Bolt-washer - 8X32
11	90030-RNA-A00	Bolt - SPECIAL, 10X40
12	90031-PRA-000	Bolt - SPECIAL FLANGE, 10X25

Audio unit 15

#	OEM	部品名
2	39104-SWA-A11	Screw - 2.6X6
3	39104-TL0-G01	Button - SELECT
4	39104-TL0-G11	Button - VOLUME
5	39104-TL0-G21	Screw - BIND, 2.6X8
6	39105-TL0-G01	Knob assy - SELECT
7	39105-TL0-G11	Knob assy - VOLUME
9	39107-TL4-G01	Chassis assy - MATSUSHITA
11	39111-TL0-000	Bracket - R. RADIO
12	39161-TL0-000	Bracket - L. RADIO
13	39710-TL3-Q11	Display assy - CENTER (STANLEY)
14	39712-TP1-X01	Case set - B
16	90133-SM4-003	Bolt-washer - 5X16
17	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
18	90666-TL0-G01	Clip - SNAP FITTING(YELLOW)
19	91551-SE0-003	Bolt - FLANGE, 5X7

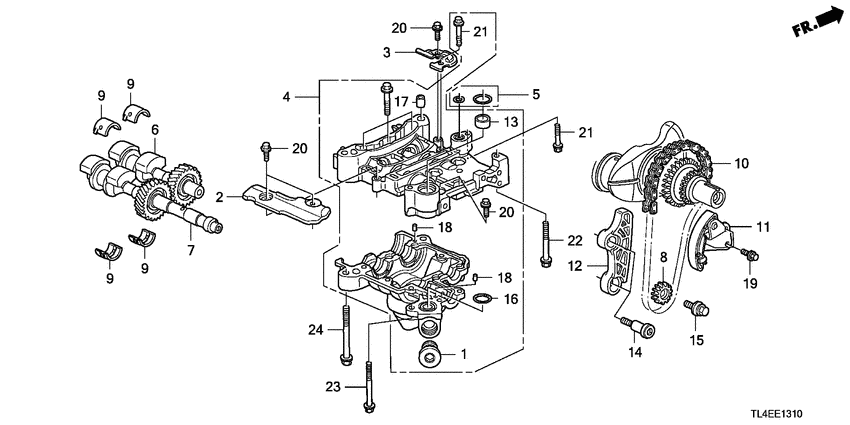

Balancer shaft (2.0L) 16

#	OEM	部品名
1	11107-RNA-A00	Bolt - SEALING, 24MM
2	11222-RZP-000	Plate b - BAFFLE
3	11223-RZP-000	Plate c - BAFFLE
4	13406-RZP-000	Holder set - BALANCER
5	13407-RZP-000	O-ring set - BALANCER
6	13410-R60-U00	Shaft comp. - FR. BALANCER
7	13420-R60-U00	Shaft comp. - RR. BALANCER
8	13432-RZP-003	Sprocket - DRIVEN (17T)
9	13435-RZP-004	Bearing - BALANCE SHAFT
10	13441-RZP-013	Chain - 60L
11	13450-RZP-004	Tensioner comp - BALANCER SHAFT CHAIN
12	13460-RZP-003	Guide - BALANCER SHAFT CHAIN
13	15123-RZP-000	Dowel pin - 23X13
14	90004-PNA-000	Bolt - CHAIN GUIDE
15	90031-PNA-004	Bolt-washer - 10X30
16	91321-P0X-003	O-ring - 25X2.4 (NOK)

Battery 12

#	OEM	部品名
1	31500-S3N-G51	Battery assy - 55B24L<S>-MF) (PANASONIC
1	31500-S3N-G52	Battery assy - 55B24L<S>-MF) (FURUKAWA
2	31512-TA2-900	Plate - BATTERY SETTING
3	31513-SDA-A00	Bolt - BATTERY SETTING (195MM)
4	31521-TA2-900	Box - BATTERY(55B)
5	31531-SEA-010	Cover - BATTERY
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	32600-TP1-A00	Cable assy - BATTERY EARTH
8	32601-SK7-900	Bolt - BATTERY TERMINAL
9	32602-SK7-900	Nut - BATTERY TERMINAL
10	90149-SE0-003	Bolt - EARTH, 6X16

Brake lines (VSA; RH) 26

#	OEM	部品名
1	01464-TL1-G00	Hose set - R. FR. BRAKE
2	01465-TL1-G00	Hose set - L. FR. BRAKE
3	01466-TA0-A00	Hose set - R. RR. BRAKE
4	01468-TA0-A00	Hose set - L. RR. BRAKE
5	46330-TL1-E01	Pipe comp. c - BRAKE
6	46340-TL1-E00	Pipe comp. d - BRAKE
7	46374-TL1-E00	Pipe comp. u - BRAKE
8	46375-TL1-E00	Pipe comp. v - BRAKE
9	46376-TL1-E00	Pipe comp. w - BRAKE
10	46377-TL1-E01	Pipe comp. x - BRAKE
11	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
12	46391-STK-A01	Clip - BRAKE PIPE
13	46391-S5A-Z01	Clip - BRAKE PIPE
14	46391-TA1-A01	Clip - BRAKE PIPE
15	46392-TA1-A01	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE
17	46393-TC0-T01	Clip - BRAKE PIPE
18	46428-TA0-A00	Bracket - R. FR. BRAKE HOSE
19	46429-TA0-A00	Bracket - L. FR. BRAKE HOSE
20	46435-TA0-A00	Bracket a - R. RR. BRAKE HOSE
21	46436-TA0-A00	Bracket a - L. RR. BRAKE HOSE
22	46438-TA0-A00	Bracket b - R. RR. BRAKE HOSE
23	46439-TA0-A00	Bracket b - L. RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT
26	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/ master power (RH) 24

#	OEM	部品名
1	01462-SWA-A00	Cylinder set - MASTER
1	01462-SWA-A02	CYLINDER SET, MASTER
2	01469-TL1-E00	Power set - MASTER (10")
3	46100-TL1-E01	Cylinder assy. - MASTER
4	46135-SDA-A01	Guide assy - PISTON
5	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
6	46185-SE0-003	Seal - ROD
7	46191-SDA-A00	Gasket - MASTER POWER
9	46402-TL1-E01	Tube assy - MASTER POWER
12	46406-TL1-E00	Stay - MASTER POWER TUBE
13	46407-STK-A01	Clamp - TUBE
14	46512-S70-000	Pin - PEDAL
15	46661-SDA-A01	Reservoir set
16	46662-S9A-003	Cap comp. - RESERVE TANK
17	46665-S04-J01	Grommet
18	46666-S2K-003	Filter - BRAKE RESERVOIR
19	46669-S5A-003	Diaphragm
20	46911-S70-003	Pin, LOCK(8MM)
21	53729-671-003	Clamp d - 15.5MM
22	57173-SB0-801	O-ring - CONNECTOR
23	57515-S30-003	Pin - STOP
24	57520-SWA-A01	Piston assy. - PRIMARY
25	57540-SWA-A01	Piston assy. - SECONDARY
26	57562-SF1-003	Circlip

Breather tube (2.0L) 7

#	OEM	部品名
1	17130-PND-A01	Valve assy. - PCV
2	17131-RNA-A00	Tube - PCV
3	17137-R60-U00	Pipe comp - BREATHER
4	17153-R60-U00	Tube - BREATHER
5	91405-RGA-003	Clamp - TUBE (D20)
6	91405-679-004	Clamp - TUBE (D17)
6	91405-PM5-004	Clamp - TUBE (D17)

Camshaft/cam chain (2.0L) 13

#	OEM	部品名
1	14110-R60-U00	Camshaft comp.
2	14211-RNA-A01	Sprocket - CAM CHAIN DRIVEN (46T)
3	14221-R60-U01	Plate - TDC PULSER
4	14222-PWA-004	Bolt - TDC PULSER PLATE
5	14401-RNA-A01	Chain - 136L
6	14510-RNA-A01	Tensioner comp - CAM CHAIN
7	14511-PNA-003	Stopper - TOOL
8	14520-RNA-A01	Arm comp - CAM CHAIN TENSIONER
9	14530-RNA-A01	Guide - CAM CHAIN
10	90003-PNA-000	Bolt - TENSIONER PIVOT
11	90004-RNA-A00	Bolt - CHAIN GUIDE
12	90031-RNA-A01	Bolt-washer - 10X30
13	90703-PNA-300	Dowel pin - 4.2X10.3

Canister 13

#	OEM	部品名
1	17300-SNA-013	Canister assy
1	17300-SNA-023	Canister assy
2	17358-TA0-G00	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY
4	17372-TA0-G00	Tube - DRAIN
5	17378-TA0-A00	Stay - DRAIN BOX
6	17723-TA0-G00	Tube c - FUEL VENT
7	17724-TA0-G00	Tube assy - FUEL PURGE
8	17743-TA0-G01	Box - FUEL DRAIN
9	90150-TL0-003	Bolt-washer - 6X18
10	91404-SDC-000	Clamp - TUBE (D10)
11	91404-TA0-G01	Clamp - FUEL TUBE (D10)
12	91591-SMA-931	Clamp - TUBE (D11)

Clutch (2ND) 23

#	OEM	部品名
1	22533-RCL-003	Retainer comp - RETURN SPRING
2	22537-RCL-013	Spring - CLUTCH WAVE
3	22541-RCL-A01	Spring - CLUTCH RETURN (F.C.C)
4	22544-R94-003	Disk - CLUTCH
6	22554-RCL-003	Plate - CLUTCH END (4) (2.9MM)
6	22558-RCL-003	Plate - CLUTCH END (8) (3.3MM)
6	22553-RCL-003	Plate - CLUTCH END (3) (2.8MM)
6	22557-RCL-003	Plate - CLUTCH END (7) (3.2MM)
6	22552-RCL-003	Plate - CLUTCH END (2) (2.7MM)
6	22556-RCL-003	Plate - CLUTCH END (6) (3.1MM)
6	22551-RCL-003	Plate, CLUTCH END (1) (2.6MM)
6	22555-RCL-003	Plate - CLUTCH END (5) (3.0MM)
6	22559-RCL-003	Plate - CLUTCH END (9) (3.4MM)
8	22610-R00-003	Guide comp - SECOND CLUTCH
9	22621-R00-003	Piston - SECOND CLUTCH
12	22643-RCL-003	Plate - CLUTCH WAVE (2.0MM)
13	22643-RCL-801	Plate - CLUTCH (4.0MM)
14	22653-P7Z-003	Plate - CLUTCH (2.0MM)
15	90603-P6H-003	Circlip - EXTERNAL, 43MM
16	90605-PX4-000	Ring - SNAP, 129MM
18	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
18	91302-PA9-004	O-ring - 39.8X2.2 (NOK)
19	91303-PX4-004	O-ring - 114X2.2 (NOK)

Clutch (4TH-5TH) 21

#	OEM	部品名
1	22533-PX4-010	Seat - RETURN SPRING
2	22536-PRP-013	Spring - CLUTCH WAVE
3	22541-PX4-004	Spring - CLUTCH RETURN (SANKO)
4	22546-R91-003	Disk - CLUTCH
5	22587-R91-003	Plate - CLUTCH END (7) (2.7MM)
5	22582-R91-003	Plate - CLUTCH END (2) (2.2MM)
5	22589-R91-003	Plate - CLUTCH END (9) (2.9MM)
5	22584-R91-003	Plate - CLUTCH END (4) (2.4MM)
5	22586-R91-003	Plate - CLUTCH END (6) (2.6MM)
5	22581-R91-003	Plate - CLUTCH END (1) (2.1MM)
5	22588-R91-003	Plate - CLUTCH END (8) (2.8MM)
5	22583-R91-003	Plate - CLUTCH END (3) (2.3MM)
5	22585-R91-003	Plate - CLUTCH END (5) (2.5MM)
6	22651-RFK-003	Guide comp - CLUTCH (4-5)
7	22653-R91-003	Plate - CLUTCH WAVE (2.0MM)
8	22680-RCR-003	Piston comp - CLUTCH
9	22680-R90-003	Piston comp - CLUTCH
10	90603-PX4-000	Circlip - EXTERNAL, 47MM
11	90605-P7T-003	Ring - SNAP, 133MM
12	91302-PX4-004	O-ring - 46.8X2.2 (NOK)
13	91303-PX4-004	O-ring - 114X2.2 (NOK)

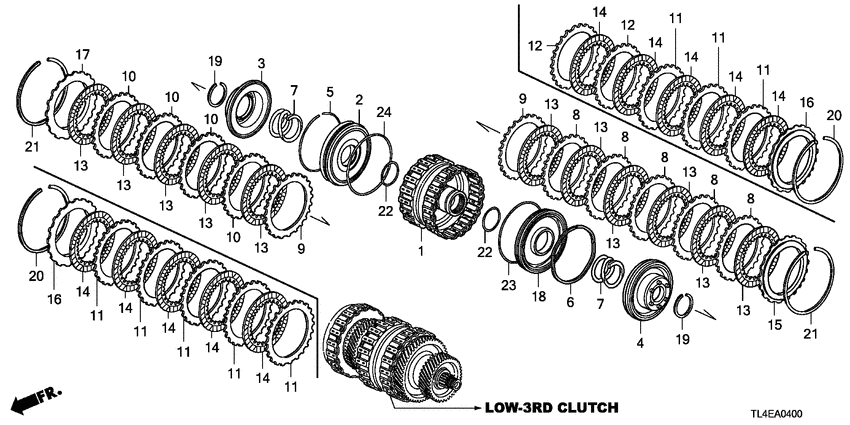

Clutch (LOW-3RD) 22

#	OEM	部品名
1	22510-RCL-003	Guide comp - CLUTCH (1-3)
2	22521-RCL-003	Piston - CLUTCH
3	22533-RCL-003	Retainer comp - RETURN SPRING
5	22536-PRP-013	Spring - CLUTCH WAVE
7	22541-PRP-003	Spring - CLUTCH RETURN (F.C.C)
11	22543-RCL-003	Plate - CLUTCH WAVE (1.6MM)
12	22543-RCL-901	Plate, CLUTCH (1.6MM)
14	22544-R94-003	Disk - CLUTCH
16	22559-RCL-003	Plate - CLUTCH END (9) (3.4MM)
16	22554-RCL-003	Plate - CLUTCH END (4) (2.9MM)
16	22556-RCL-003	Plate - CLUTCH END (6) (3.1MM)
16	22551-RCL-003	Plate, CLUTCH END (1) (2.6MM)
16	22558-RCL-003	Plate - CLUTCH END (8) (3.3MM)
16	22553-RCL-003	Plate - CLUTCH END (3) (2.8MM)
16	22555-RCL-003	Plate - CLUTCH END (5) (3.0MM)
16	22557-RCL-003	Plate - CLUTCH END (7) (3.2MM)
16	22552-RCL-003	Plate - CLUTCH END (2) (2.7MM)
19	90603-P6H-003	Circlip - EXTERNAL, 43MM
20	90605-PX4-000	Ring - SNAP, 129MM
22	91302-PA9-004	O-ring - 39.8X2.2 (NOK)
22	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
23	91303-PX4-004	O-ring - 114X2.2 (NOK)

Clutch case 12

#	OEM	部品名
1	21000-R87-000	Case comp. - CLUTCH
2	21101-PPP-000	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION
5	21212-RZF-000	Plate - BAFFLE
6	28700-PWL-013	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
7	32746-R60-U00	Stay f - ENGINE HARNESS
8	90705-PG2-000	Dowel pin - 14X20
9	91001-PPP-005	Bearing - BALL, 28X64X15
10	91003-R88-003	Bearing - NEEDLE, 40X68X20
11	91206-RCT-003	Oil seal - 35X58X8 (NOK)
12	91216-PG1-005	Oil seal - 28X43X7 (NOK)

Clutch master cylinder (RH) 36

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke
4	46182-500-013	Circlip
5	46391-STK-A01	Clip - BRAKE PIPE
6	46911-S70-003	Pin, LOCK(8MM)
7	46912-S84-A00	Pin - CLUTCH PEDAL
8	46920-S7A-A03	Cylinder assy. - CLUTCH MASTER
9	46921-SMG-X01	Plate - STOPPER
9	46921-S5A-003	Plate - STOPPER
10	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
11	46928-S5A-A01	Seal - MASTER CYLINDER
12	46930-TB0-A01	Cylinder assy. - CLUTCH SLAVE
13	46931-S5A-003	Pin - SPRING
14	46932-S5A-003	Piston - SLAVE CYLINDER
15	46937-SS1-003	Boot - SLAVE CYLINDER
16	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
17	46942-S5A-003	Pin - SNAP
18	46943-S5A-003	Seal - RING
19	46944-S5A-J01	Connector
20	46945-S5A-003	O-ring
21	46946-S5A-003	Screw-washer - 4X12
22	46947-S5A-003	Rod - PUSH
23	46948-S5A-003	Rod - PUSH
24	46949-S5A-003	Seal - RING
25	46960-TC0-013	Pipe comp. a - CLUTCH
26	46961-TA0-A01	Hose - CLUTCH
27	46965-S6A-013	Tank assy. - CLUTCH FLUID
28	46966-TC0-003	Holder - TANK
29	46968-SEF-E01	Bracket b - CLUTCH PIPE
30	46970-TB0-A02	Pipe comp. b - CLUTCH
31	46971-TC0-003	Tube - CLUTCH FLUID
32	46995-TA0-A01	Bracket a - CLUTCH PIPE
33	46997-S04-A01	Clip A - PIPE
34	90106-S7A-E00	Bolt - FLANGE, 8X30
35	90651-538-000	Clip - BRAKE HOSE

Clutch release 5

#	OEM	部品名
1	22810-RPN-003	Bearing, CLUTCH RELEASE
2	22821-PPP-000	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK

Clutch/torque converter 12

#	OEM	部品名
2	21351-RWP-000	Cover - TORQUE CONVERTER CASE
3	22100-R60-005	Flywheel comp.
4	22103-PNA-003	Bush - 21X24X8
5	22200-R60-005	Disk comp - FRICTION
6	22300-R60-005	Disk comp - PRESSURE
7	26000-R60-305	Converter assy - TORQUE
8	26251-RNA-000	Plate - DRIVE
9	90011-PNA-B00	Bolt - 12MM
10	90023-PA9-000	Bolt - SPECIAL
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
12	90429-PC6-900	Washer - 40X86X2
13	91302-RNA-003	O-ring - 35.5X1.9

Combination switch 5

#	OEM	部品名
1	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH
2	35255-TA0-G11	Switch assy - LIGHTING & TURN SIGNAL
3	35256-SWA-A11	Switch assy - WIPER
4	35400-S6A-003	Switch assy - DOOR (DAIICHI)
5	90132-SFE-003	Screw - EARTH, 5X18

Console (RH) 22

#	OEM	部品名
1	39112-TA0-003	Jack assy - AUX IN.
5	39620-TA0-003	Cap assy.
6	39624-SZ3-L01	Socket assy
15	83404-TL0-G01	Box comp - CONSOLE
16	83405-TL0-G01	Rail - R. BOX
17	83406-TL0-G01	Rail - L. BOX
19	83408-TL0-E01	Garnish - CUP HOLDER
20	83409-TL0-G11	Lid - INNER BOX
23	83413-TL0-G01	Mat - CONSOLE
27	83422-TL0-E01	Pocket assy - DRIVER SIDE
28	83425-TA0-A00	Bracket comp. - CENTER CONSOLE
29	83426-TL0-G00	Bracket - RR. CENTER CONSOLE
30	83427-TL0-E01	Pocket assy - PASSENGER SIDE
35	90123-SJA-000	Bolt-washer - 6X16
36	90144-TA0-A01	Screw - TAPPING, 4X12 (PO)
37	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
38	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
39	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)
40	90669-SHJ-A01	Clip - SNAP FITTING
41	90669-SWA-A01	Clip - SNAP FITTING
42	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
43	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)

Control unit (CABIN; 1; RH) 20

#	OEM	部品名
8	38141-TL0-G00	Bracket - RELAY BLOCK
9	38150-SLA-013	Horn assy - HIGH
10	38200-TL4-N01	Box assy - DRIVER FUSE
10	38200-TL4-N11	Box assy - DRIVER FUSE
11	38210-TL4-N01	Box assy - PASSENGER FUSE
13	38221-SNA-A31	Fuse - BLADE(7.5A)
14	38221-SNA-A41	Fuse - BLADE(10A)
15	38221-SNA-A51	Fuse - BLADE(15A)
16	38221-SNA-A61	Fuse - BLADE(20A)
17	38253-TL4-G00	Bracket - SECURITY HORN
22	39770-TL0-G01	Hft unit - BLUETOOTH
23	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
23	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
30	39961-TL0-000	Bracket - YAW & G SENSOR
31	39970-TL0-G01	Sensor - YAW & G
32	39980-TL1-E04	Eps unit
37	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
38	90150-S84-003	Bolt - EARTH, 8X16
40	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
42	91534-S03-003	Clip - COUPLER (NATURAL) (SEAL)

Control unit (CABIN; 2) 4

#	OEM	部品名
2	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
2	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1) 26

#	OEM	部品名
1	37820-RL2-N03	Control module - ENGINE (REWRITABLE)
1	37820-RL2-N63	Control module - ENGINE (REWRITABLE)
2	37821-RL2-G00	Bracket comp. - ENGINE CONTROL MODULE
3	37823-R60-U00	Cover - ENGINE CONTROL MODULE
4	38100-TL0-G01	Horn assy - LOW
5	38150-TL0-G01	Horn assy - HIGH
6	38211-SNA-A01	Fuse - BLOCK (20A)
7	38211-SNA-A21	Fuse - BLOCK (40A)
8	38221-SNA-A31	Fuse - BLADE(7.5A)
9	38221-SNA-A41	Fuse - BLADE(10A)
10	38221-SNA-A51	Fuse - BLADE(15A)
11	38221-SNA-A61	Fuse - BLADE(20A)
12	38221-SNA-A81	Fuse - BLADE(30A)
13	38231-SEP-A01	Fuse a - MULTI BLOCK (100A/40A)
14	38232-TA0-A11	Fuse - MULTI BLOCK(D-2)
15	38233-TA0-A01	Fuse e - MULTI BLOCK
16	38235-TA0-A01	Puller - FUSE
17	38251-TA2-U00	Bracket - RELAY BOX
18	38254-TA0-003	Relay unit
19	38255-SNA-003	Detector unit - ELECTRONIC LOAD
20	38256-TL1-G01	Cover - RELAY BOX(UPPER)
21	38257-TA0-A01	Cover - LOWER
22	90114-SM4-900	Bolt - 6X15
23	90129-TA0-000	Bolt-washer - 5X16
24	90150-S84-003	Bolt - EARTH, 8X16
25	90301-S7A-003	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; 2) 5

#	OEM	部品名
1	39792-SDA-A01	Relay assy - MICRO ISO
3	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
8	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
8	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)

Converter (2.0L) 17

#	OEM	部品名
1	18115-RNA-004	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
1	18115-RNA-007	Gasket - EX. MANIFOLD (NOK)
2	18120-RNB-A00	Cover comp. - CHAMBER
3	18160-R60-U00	Converter comp.
4	18181-RNA-A00	Cover, FR. CONVERTER
5	18197-R60-U00	Bracket - CONVERTER STAY
6	18198-R60-U00	Stay - CONVERTER
7	18716-RNA-A01	Gasket a - EGR PIPE
8	18717-RNA-A00	Pipe comp - EGR
9	18719-RNA-A01	Gasket b - EGR PIPE
10	18720-RNA-A00	Bolt - FLANGE, 8X20
11	36531-R60-U01	Sensor - AIR FUEL RATIO
12	36532-RNA-A01	Sensor - OXYGEN
13	90001-RNA-A00	Bolt - FLANGE, 8X27
14	90003-RNA-A00	Bolt - FLANGE, 6X12
15	90004-PLC-000	Bolt-washer - 10X25
16	90065-PG6-000	Bolt, STUD, 10X24

Countershaft 66

#	OEM	部品名
1	23221-RM3-010	Countershaft
1	21215-PRP-000	Holder - IDLE SHAFT
2	23421-RM3-000	Gear - COUNTERSHAFT LOW
2	23221-RH3-020	Countershaft
3	23431-RM3-000	Gear - COUNTERSHAFT SECOND
3	23421-RZH-000	Gear - COUNTERSHAFT LOW
4	23461-RM3-000	Gear - COUNTERSHAFT FIFTH
4	23427-PRP-020	Gear - PARKING
5	23471-RM3-000	Gear - COUNTERSHAFT THIRD
5	23441-R00-000	Gear - COUNTERSHAFT SECOND
6	23481-RM3-000	Gear - COUNTERSHAFT FOURTH
6	23451-R00-000	Gear - COUNTERSHAFT THIRD
7	23491-RM3-000	Gear - COUNTERSHAFT SIXTH
7	23471-R90-B00	Gear - COUNTERSHAFT FOURTH
8	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)
8	23491-R00-000	Gear - COUNTERSHAFT FIFTH
9	23914-RZF-000	Collar - DISTANCE, 40X47X27.5
9	23531-PRP-010	Gear - COUNTERSHAFT REVERSE
10	23917-PPP-000	Collar - DISTANCE, 40X47X28
10	23541-PRP-000	Gear - REVERSE IDLE
11	23984-PPP-000	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)
11	23986-PPP-000	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)
11	23542-P6H-000	Shaft - REVERSE IDLE GEAR
12	90011-PPP-000	Bolt - SPECIAL, 20X25
12	23565-PRP-010	Selector - REVERSE GEAR
13	90601-PPP-000	Ring - SNAP, 72MM
13	23566-PRP-000	Hub - SELECTOR
14	91004-PPP-014	Bearing - BALL, 30X72X17
14	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23
15	90402-P0Z-000	Washer - SPRING, 24MM
16	91212-PPP-004	Damper - FRICTION (SECOND)
16	90431-P6H-000	Cotter - 31MM
17	90441-RFK-010	Collar - 37X41X54.3
18	90445-PPV-000	Collar - 35X47X7.8
20	91024-PRP-004	Bearing - NEEDLE, 40X46X14.5 (KOYO)
21	91025-P0X-003	Bearing - NEEDLE, 15X20X16 (NTN)
22	91028-P0Z-013	Bearing - NEEDLE, 35X41X25.8 (NTN)
23	91306-P0X-003	O-ring - 8.1X4 (NOK)

Crankshaft/piston 35

#	OEM	部品名
1	13020-RNA-Y00	Piston set - OS 0.25
1	13010-RNA-Y00	Piston set - STD.
2	13021-RZP-004	Ring set - PISTON (OS 0.25) (RIKEN)
2	13011-RZP-004	Ring set - PISTON (STD.) (RIKEN)
3	13111-RNA-A00	Pin - PISTON
4	13115-RNA-A00	Clip - PISTON PIN
5	13204-RNA-A01	Bolt - CONNECTING ROD
6	13210-RZP-000	Rod comp - CONNECTING
7	13215-RNE-A01	Bearing e - CONNECTING ROD (PINK) (TAIHO)
7	13216-RNE-A01	Bearing f - CONNECTING ROD (RED) (TAIHO)
7	13211-RNE-A01	BEARING A - CONNECTING ROD (BLACK) (TAIHO)
7	13212-RNE-A01	Bearing b - CONNECTING ROD (BROWN) (TAIHO)
7	13213-RNE-A01	Bearing c - CONNECTING ROD (GREEN) (TAIHO)
7	13214-RNE-A01	Bearing d - CONNECTING ROD (YELLOW) (TAIHO)
8	13310-RZP-000	Crankshaft comp.
8	13310-R6A-000	Crankshaft comp.
9	13323-RZP-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13324-RZP-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13325-RZP-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13326-RZP-003	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13321-RZP-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13322-RZP-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)
11	13344-RZP-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13345-RZP-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
11	13346-RZP-003	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13341-RZP-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13342-RZP-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13343-RZP-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)
12	13620-RZP-003	Sprocket comp - CHAIN DRIVE
14	13622-R60-U00	Plate - CRANK PULSER
16	13810-RZP-003	Pulley comp - CRANKSHAFT
17	90013-RNA-A01	Bolt - HEX., 6X9
19	90017-PCX-013	Bolt-washer - 16X49
20	90704-PNA-000	Key - 4.5X21

Cylinder block/oil pan (2.0L) 42

#	OEM	部品名
1	11000-R60-U00	Block assy - CYLINDER
2	11103-RNA-A01	Plate - PARTITION
3	11105-RNA-A00	Bolt - SEALING, 20MM
4	11106-RNA-A00	Washer - SEALING, 20MM
5	11107-PWA-300	Washer - SEALING, 24MM
6	11107-RNA-A00	Bolt - SEALING, 24MM
7	11135-RZP-000	Orifice assy - LOWER BLOCK
8	11200-RZV-E02	Pan assy - OIL
9	11850-RNA-A00	Cover comp. - BREATHER
10	15142-PE0-000	O-ring - 4.8X1.9
11	15280-RZP-000	Body comp - OIL JET
12	15290-RZP-000	Bolt comp - OIL JET
13	30530-RNA-A01	Sensor comp - KNOCK
14	32117-RZP-G00	Sub harness - OIL LEVEL SENSOR
15	32134-RZP-G00	Holder g - ENGINE WIRE HARNESS UPPER
16	32139-RZP-G00	Holder g - ENGINE WIRE HARNESS LOWER
17	32179-RZP-G00	Insulator - OIL PRESSURE SWITCH HEAT
18	32747-R60-U00	Stay g - ENGINE HARNESS
19	37241-RNA-A01	Switch assy, OIL PRESSURE
20	37310-RSA-G02	Sensor assy - OIL LEVEL
21	37311-RL2-G00	Cover - OIL LEVEL SENSOR
22	37312-RSA-G02	Packing - OIL LEVEL SENSOR
23	37500-R60-U01	SENSOR ASSY CRANK
24	37501-R60-U00	Cover - CRANK SENSOR
25	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
26	90002-RNA-A00	Bolt - SEALING, 36MM
27	90007-RNA-A01	Bolt-washer - 10X97
28	90008-RNA-000	Washer - SEALING, 36MM
29	90009-PY3-000	DRAIN PLUG BOLT, 14MM
30	90016-RNA-A00	Bolt - FLANGE, 6X35
31	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)
32	90051-RGA-003	Bolt - SPECIAL, 6X20.8
33	90401-PR4-000	Washer - SEALING, 28MM
34	90701-PD2-000	Dowel pin - 12X14
35	90703-PE0-000	Dowel pin - 18X22
36	90705-RNA-A00	Dowel pin - 20X22
37	91214-RTA-004	Oil seal - 80X98X10 (ARAI)
37	91214-RNB-A01	Oil seal (80x98x10)
37	91214-PWA-003	Oil seal - 80X98X10 (NOK)
38	91301-RNA-A02	O-ring - 20X2.3 (ARAI)
38	91301-RNA-A01	O-ring - 20X2.3 (NOK)
39	91333-PNC-006	O-ring

Cylinder head (2.0L) 11

#	OEM	部品名
1	12200-R60-U00	Head comp - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)
4	12231-RNA-A00	Holder comp - ROCKER SHAFT (NO.1)
5	12232-RNA-A00	Holder comp - ROCKER SHAFT
6	12235-RNA-A00	Holder comp - ROCKER SHAFT (NO.5)
7	12236-RNA-A00	Holder comp - LOST MOTION
8	14631-RNA-A00	Shaft comp. - ROCKER
9	15140-P0A-000	Orifice assy - CAM JOURNAL
10	15142-PE0-000	O-ring - 4.8X1.9
11	90008-PT2-000	Bolt - FLANGE, 6X65

Cylinder head cover (2.0L) 6

#	OEM	部品名
1	12310-RNA-A01	Cover comp. - CYLINDER HEAD
2	12341-RNA-A01	Packing - HEAD COVER
3	15610-RGA-000	Cap assy. - OIL FILLER
4	15613-PC6-000	Packing, Oil Filler
5	15650-RZP-000	Gauge - OIL LEVEL
6	90011-RNA-A00	Bolt - HEAD COVER

Differential 90

#	OEM	部品名
1	41100-RKY-030	Differential comp.
1	41100-R5M-305	SETDIFF COMP
2	41100-R88-A00	Differential comp.
2	41233-RH3-020	Gear - FINAL DRIVEN
3	41233-RM3-000	Gear - FINAL DRIVEN
3	41381-PPV-000	Spacer - 41X80X1
4	41382-RKY-900	Spacer - 41X76.2X1
5	41457-PL3-B00	Shim s - 80MM(1.75)
5	41452-PL3-B00	Shim m - 80MM(1.25)
5	41447-PL3-B00	Shim g - 80MM(1.6)
5	41442-PL3-B00	Shim b - 80MM(1.1)
5	41454-PL3-B00	Shim p - 80MM(1.45)
5	41449-PL3-B00	Shim j - 80MM(1.8)
5	41444-PL3-B00	Shim d - 80MM(1.3)
5	41456-PL3-B00	Shim r - 80MM(1.65)
5	41451-PL3-B00	Shim l - 80MM(1.15)
5	41446-PL3-B00	Shim f - 80MM(1.5)
5	41441-PL3-B00	Shim a - 80MM(1.0)
5	41453-PL3-B00	Shim n - 80MM(1.35)
5	41448-PL3-B00	Shim h - 80MM(1.7)
5	41443-PL3-B00	Shim c - 80MM(1.2)
5	41455-PL3-B00	Shim q - 80MM(1.55)
5	41450-PL3-B00	Shim k - 80MM(1.05)
5	41445-PL3-B00	Shim e - 80MM(1.4)
5	41452-PAX-000	Shim y - 76MM (2.775)
5	41436-PAX-000	Shim i - 76MM (1.975)
5	41449-PK4-000	Shim i - 76MM (2.60)
5	41433-PRP-000	Shim of - 76MM (1.80)
5	41447-PAX-000	Shim t - 76MM (2.525)
5	41431-PAX-000	Shim d - 76MM (1.725)
5	41428-PRP-000	Shim oa - 76MM (1.55)
5	41444-PK4-000	Shim d - 76MM (2.35)
5	41458-PK4-000	Shim r - 76MM (3.05)
5	41442-PAX-000	Shim o - 76MM (2.275)
5	41455-PK4-000	Shim o - 76MM (2.90)
5	41439-PX4-700	Shim t - 76MM (2.10)
5	41453-PAX-000	Shim z - 76MM (2.825)
5	41437-PAX-000	Shim j - 76MM (2.025)
5	41450-PK4-000	Shim j - 76MM (2.65)
5	41434-PRP-000	Shim og - 76MM (1.85)
5	41448-PAX-000	Shim u - 76MM (2.575)
5	41432-PAX-000	Shim e - 76MM (1.775)
5	41429-PRP-000	Shim ob - 76MM (1.60)
5	41445-PK4-000	Shim e - 76MM (2.40)
5	41443-PAX-000	Shim p - 76MM (2.325)
5	41456-PK4-000	Shim p - 76MM (2.95)
5	41440-PX4-700	Shim u - 76MM (2.15)
5	41454-PAX-000	Shim oa - 76MM (2.875)
5	41438-PAX-000	Shim k - 76MM (2.075)
5	41451-PK4-000	Shim k - 76MM (2.70)
5	41435-PRP-000	Shim oh - 76MM (1.90)
5	41449-PAX-000	Shim v - 76MM (2.625)
5	41433-PAX-000	Shim f - 76MM (1.825)
5	41446-PK4-000	Shim f - 76MM (2.45)
5	41430-PRP-000	Shim oc - 76MM (1.65)
5	41428-PAX-000	Shim a - 76MM (1.575)
5	41444-PAX-000	Shim q - 76MM (2.375)
5	41457-PK4-000	Shim q - 76MM (3.00)
5	41441-PK4-000	Shim a - 76MM (2.20)
5	41455-PAX-000	Shim ob - 76MM (2.925)
5	41439-PAX-000	Shim l - 76MM (2.125)
5	41452-PK4-000	Shim l - 76MM (2.75)
5	41436-PRP-000	Shim oi - 76MM (1.95)
5	41450-PAX-000	Shim w - 76MM (2.675)
5	41434-PAX-000	Shim g - 76MM (1.875)
5	41447-PK4-000	Shim g - 76MM (2.50)
5	41431-PRP-000	Shim od - 76MM (1.70)
5	41429-PAX-000	Shim b - 76MM (1.625)
5	41445-PAX-000	Shim r - 76MM (2.425)
5	41442-PK4-000	Shim b - 76MM (2.25)
5	41456-PAX-000	Shim oc - 76MM (2.975)
5	41440-PAX-000	Shim m - 76MM (2.175)
5	41453-PK4-000	Shim m - 76MM (2.80)
5	41437-PRP-000	Shim oj - 76MM (2.00)
5	41451-PAX-000	Shim x - 76MM (2.725)
5	41435-PAX-000	Shim h - 76MM (1.925)
5	41448-PK4-000	Shim h - 76MM (2.55)
5	41432-PRP-000	Shim oe - 76MM (1.75)
5	41430-PAX-000	Shim c - 76MM (1.675)
5	41446-PAX-000	Shim s - 76MM (2.475)
5	41443-PK4-000	Shim c - 76MM (2.30)
5	41457-PAX-000	Shim od - 76MM (3.025)
5	41441-PAX-000	Shim n - 76MM (2.225)
5	41454-PK4-000	Shim n - 76MM (2.85)
5	41438-PX4-700	Shim s - 76MM (2.05)
6	90017-PPP-000	Bolt - SPECIAL, 11MM
6	90003-PA9-003	Bolt - FLANGE, 10MM
7	91121-RFK-013	Bearing - SPECIAL TAPER, 40X80X20.25
8	91005-PPS-003	Bearing - BALL, 40X80X18(NTN)
8	91122-RFK-013	Bearing - SPECIAL TAPER, 40X76.2X19

Duct (RH) 7

#	OEM	部品名
1	77400-TL0-E01	Duct assy - INSTRUMENT AIR CONDITIONER
2	77430-TL0-E01	Duct a - INSTRUMENT PASSENGER AIR CONDITIONER
3	77435-TL0-E01	Duct b - INSTRUMENT PASSENGER AIR CONDITIONER
4	77460-TL0-E01	Duct assy - FR. DEFROSTER
6	83332-TA0-A01	Duct assy - R. RR. HEATER JOINT
7	83335-TA0-A00	Bracket assy - RR. HEATER DUCT
9	83382-TA0-A01	Duct assy - L. RR. HEATER JOINT

Emblems/caution labels 8

#	OEM	部品名
2	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
3	19043-PLA-E00	Label - COOLANT INFORMATION
5	42760-TL5-E00	Plate - TIRE PRESSURE CAUTION
6	75701-TL4-G00	Emblem - RR. (H)
8	75722-TL4-G00	Emblem - RR. (ACCORD)
9	78031-SDA-G80	Label - SIDE AIRBAG CAUTION
10	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
11	91512-SR3-004	Clip - TUBULAR

Engine assy./ transmission assy. 4

#	OEM	部品名
1	10002-RL2-E00	General assy. - CYLINDER BLOCK
4	10003-R60-U00	General assy. - CYLINDER HEAD
5	20011-RM3-S50	Transmission assy.
5	20021-R94-000	Transmission assy.

Engine hood (RH) 28

#	OEM	部品名
4	74120-TL0-G01	Lock assy - HOOD (SECURITY SWITCH)
5	74125-TL0-G00	Cover - HOOD LOCK
6	74130-TL0-E01	Wire assy. - HOOD
7	74134-SM4-000	Grommet - HOOD WIRE
9	74141-TL0-G00	Insulator - HOOD
10	74143-TL0-G00	Rubber - RR. HOOD SEAL
10	74143-TL0-G01	Rubber - RR. HOOD SEAL
11	74145-TL0-G00	Stay - HOOD OPENER
12	74208-TL0-E00	Cowl top set - FR.
13	74212-TL0-G00	Cover - R. HOOD HINGE
14	74222-TL0-G00	Cover - L. HOOD HINGE
15	74225-TL0-E00	Umbrella - AIR CONDITIONER HOLE
16	76810-TL0-003	Nozzle assy. - WINDSHIELD
17	76827-SFE-003	Tube - 420MM
18	76830-SL0-003	Joint y - TUBE (MITSUBA)
19	76833-SMA-003	Tube - 80MM
20	76837-SJA-003	Tube - 600MM
21	90108-S0A-003	Bolt - FLANGE, 6X15
22	90112-SEA-000	Bolt - FLANGE, 6X12(DACRO)
23	90123-TA0-A00	Bolt-washer - 6X18
24	90601-S84-A01	Grommet - HOOD OPEN STAY
25	90602-SX0-003	Clip - COWL TOP
26	90602-TA0-003	Clip - COWL TOP
27	90603-SX0-003	Grommet - COWL TOP
28	90603-TL0-003	Grommet - COWL TOP
29	91501-STK-003	Clip - ENGINE HOOD INSULATOR
30	91504-SDA-003	Clip - HOOD OPEN WIRE
31	91512-SX0-003	Clip - INNER FENDER CLIP

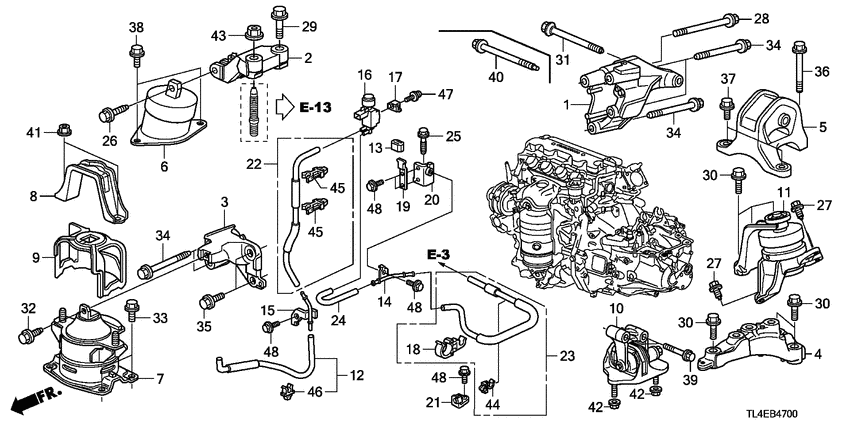

Engine mounts (2.0L; AT) 45

#	OEM	部品名
1	50610-TA2-H00	Bracket - RR. ENGINE MOUNTING
2	50620-TL1-E00	Bracket - ENGINE SIDE MOUNTING
3	50630-TA2-H00	Bracket - FR. ENGINE MOUNTING
4	50810-TA2-H01	Rubber assy. - RR. ENGINE MOUNTING
5	50820-TA2-H01	Rubber assy. - ENGINE SIDE MOUNTING
6	50830-TA2-H01	Rubber assy. - FR. ENGINE MOUNTING
7	50835-TA0-A01	Stopper - FR. ENGINE MOUNT
8	50839-TA2-H01	Insulator - FR. ENGINE MOUNT HEAT
9	50850-TA2-H02	Rubber assy. - TRANSMISSION LOWER MOUNTING
9	50850-TA2-H03	MTG RUB ASSY TRNS
10	50870-TL1-E02	Rubber assy. - TRANSMISSION UPPER MOUNTING
11	50910-TA2-H00	Tube - 3.5X320
12	50917-SV7-A00	Rubber - MOUNTING
13	50921-TA2-H00	Pipe assy. - SOLENOID VALVE
14	50922-TA2-H00	Pipe b - SOLENOID VALVE
15	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
16	50932-TA2-H01	Stay b - SOLENOID VALVE
17	50933-S3X-003	Clamp - TUBE
18	50933-TA2-H01	Stay c - SOLENOID VALVE
19	50935-TA2-H01	Stay a - ELECTRONIC CONTROL MOUNT SOLENOID
20	50940-TA2-H00	Stay b - ELECTRONIC CONTROL MOUNT SOLENOID
21	50950-TA2-H02	Tube a - ELECTRONIC CONTROL MOUNT SOLENOID
22	50960-TA2-H01	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID
23	50970-TA2-H01	Tube c - ELECTRONIC CONTROL MOUNT SOLENOID
24	90017-RPK-000	Bolt - SPECIAL, 8X40
25	90161-SDA-A01	Bolt - FLANGE, 12X45
26	90161-TA0-A01	Bolt - FLANGE, 10X25
27	90161-TA2-H00	Bolt - FLANGE, 12X135
28	90162-STK-A00	Bolt - FLANGE, 14X55
29	90162-TA0-A00	Bolt - FLANGE, 12X50
30	90163-SDA-A01	Bolt - FLANGE, 10X35
31	90163-S5A-000	Bolt - FLANGE, 10X20
32	90164-SAA-000	Bolt - FLANGE, 12X100
33	90164-S5A-010	Bolt - FLANGE, 12X40
34	90166-SDA-A00	Bolt - FLANGE, 12X80
35	90167-SAA-010	Bolt - FLANGE, 10X25
36	90167-TA0-A00	Bolt - FLANGE, 12X40
37	90176-SKN-000	Bolt - FLANGE, 12X30
38	90176-TA0-A01	Bolt - FLANGE, 12X139
39	90371-SEF-000	Nut - FLANGE, 12MM
40	90371-S87-A00	Nut - FLANGE, 10MM
41	90382-SJA-000	Nut - FLANGE, 14MM
42	90601-PB1-003	Clamp - TUBE, 3.5
43	90651-TA2-H01	Clip A - TUBE
44	91531-SZ5-003	Clip - TUBE, 3.5

Engine mounts (2.0L; MT) 47

#	OEM	部品名
1	50610-TA2-H00	Bracket - RR. ENGINE MOUNTING
2	50620-TL1-E00	Bracket - ENGINE SIDE MOUNTING
3	50630-TA2-H00	Bracket - FR. ENGINE MOUNTING
4	50675-TA2-H00	Bracket - TRANSMISSION UPPER MOUNTING BASE
5	50810-TA2-H11	Rubber assy. - RR. ENGINE MOUNTING
6	50820-TA2-H11	Rubber assy. - ENGINE SIDE MOUNTING
6	50820-TA2-H12	Rubber assy.
7	50830-TA2-H11	Rubber assy. - FR. ENGINE MOUNTING
7	50830-TA2-H12	Rubber assy.
8	50835-TA0-A12	Stopper - FR. ENGINE MOUNT
9	50839-TA2-H01	Insulator - FR. ENGINE MOUNT HEAT
10	50850-TL1-E11	Rubber - TRANSMISSION LOWER MOUNTING INSULATOR
11	50870-TL1-E12	Rubber assy. - TRANSMISSION UPPER MOUNTING
12	50910-TA2-H00	Tube - 3.5X320
13	50917-SV7-A00	Rubber - MOUNTING
14	50921-TA2-H00	Pipe assy. - SOLENOID VALVE
15	50922-TA2-H00	Pipe b - SOLENOID VALVE
16	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
17	50932-TA2-H01	Stay b - SOLENOID VALVE
18	50933-S3X-003	Clamp - TUBE
19	50933-TA2-H01	Stay c - SOLENOID VALVE
20	50935-TA2-H01	Stay a - ELECTRONIC CONTROL MOUNT SOLENOID
21	50940-TA2-H00	Stay b - ELECTRONIC CONTROL MOUNT SOLENOID
22	50950-TA2-H02	Tube a - ELECTRONIC CONTROL MOUNT SOLENOID
23	50960-TA2-H01	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID
24	50970-TA2-H01	Tube c - ELECTRONIC CONTROL MOUNT SOLENOID
25	90017-RPK-000	Bolt - SPECIAL, 8X40
26	90161-SDA-A01	Bolt - FLANGE, 12X45
27	90161-TA0-A01	Bolt - FLANGE, 10X25
28	90161-TA2-H00	Bolt - FLANGE, 12X135
29	90162-STK-A00	Bolt - FLANGE, 14X55
30	90162-TA0-A00	Bolt - FLANGE, 12X50
31	90162-TL1-E01	Bolt - FLANGE, 12X150
32	90163-SDA-A01	Bolt - FLANGE, 10X35
33	90163-S5A-000	Bolt - FLANGE, 10X20
34	90164-SAA-000	Bolt - FLANGE, 12X100
35	90164-S5A-010	Bolt - FLANGE, 12X40
36	90166-SDA-A00	Bolt - FLANGE, 12X80
37	90167-TA0-A00	Bolt - FLANGE, 12X40
38	90176-SKN-000	Bolt - FLANGE, 12X30
39	90176-S3Y-000	Bolt - FLANGE, 10X65
41	90371-SEF-000	Nut - FLANGE, 12MM
42	90371-S87-A00	Nut - FLANGE, 10MM
43	90382-SJA-000	Nut - FLANGE, 14MM
44	90601-PB1-003	Clamp - TUBE, 3.5
45	90651-TA2-H01	Clip A - TUBE
46	91531-SZ5-003	Clip - TUBE, 3.5

Engine wire harness (2.0L) 34

#	OEM	部品名
1	32107-R70-A01	Holder - CORRUGATED (DARK BROWN) (7MM)
2	32110-RL2-G00	Harness - ENGINE WIRE
2	32110-RL2-G50	Harness - ENGINE WIRE
3	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)
4	32116-RGA-003	Holder - CORRUGATED (DARK GREEN) (13MM)
5	32116-R60-U00	Holder - STARTER CABLE
6	32118-PLM-A01	Holder - CORRUGATED TUBE (DARK GREEN) (19MM)
7	32119-R40-003	Holder - CORRUGATED (BLACK) (19MM)
8	32119-R60-003	Holder - CORRUGATED (BLACK) (15MM)
9	32120-RNA-000	Cover assy. - ENGINE WIRE HARNESS
10	32124-R60-003	Holder - CORRUGATED (DARK BROWN) (22MM)
11	32127-RNA-A00	Holder comp. a - ENGINE HARNESS
12	32128-RNA-A00	Holder comp. b - ENGINE HARNESS
13	32128-RRC-300	Holder - ENGINE HARNESS MISSION
14	32129-RL2-G00	Cover - ENGINE CONTROL MODULE COUPLER
15	32129-RZP-G00	Holder c - ENGINE HARNESS UPPER
16	32130-RNA-A00	Holder c - ENGINE HARNESS LOWER
17	32131-RNA-A00	Holder d - ENGINE HARNESS
18	32133-R60-U50	Holder f - ENGINE HARNESS
19	32142-R60-U00	Holder h - ENGINE HARNESS
20	32418-PND-300	Cover - BATTERY TERMINAL
21	32601-SK7-900	Bolt - BATTERY TERMINAL
22	32602-SK7-900	Nut - BATTERY TERMINAL
23	90051-RGA-003	Bolt - SPECIAL, 6X20.8
24	90501-SS8-A01	Retainer
25	91501-P8A-A01	Stud
26	91505-R40-004	Clip - ENGINE HARNESS(5WAY)
27	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
28	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
29	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
30	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
31	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
32	91558-SM4-003	Clip - TUBE(BLACK)(135MM)
33	91601-P8A-A01	Receptacle

Engine wire harness stay 2

#	OEM	部品名
1	32741-R60-U00	Stay a - ENGINE HARNESS
3	32752-R40-A00	Stay - ENGINE HARNESS

Exhaust pipe (2.0L) 15

#	OEM	部品名
1	18210-TA2-M11	Pipe a - EX.
1	18210-TL1-E02	Pipe a - EX.
2	18213-TA2-M00	Stay - EX.
3	18215-S84-A20	Rubber - EX. MOUNTING
4	18215-TA0-A01	Rubber - EX. MOUNTING
5	18215-TA0-A21	Rubber - EX. MOUNTING
6	18302-SP0-003	Gasket - EX. PIPE
7	18307-TL5-G01	Silencer comp - EX.
8	18310-SJK-013	Finisher - EX. PIPE
9	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
10	74601-TA0-A00	Plate a - FR. FLOOR HEAT BAFFLE
11	74602-TL0-G00	Plate b - FR. FLOOR HEAT BAFFLE
12	74654-TA1-A00	Plate - R. SILENCER BAFFLE
13	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
14	90212-SA5-003	Nut - SELF-LOCK, 10MM

Floor mat 6

#	OEM	部品名
1	74251-TA0-000	Insulator - DASHBOARD OUTER
2	74260-TL0-E00	Insulator - DASHBOARD
13	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
14	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
15	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
16	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Floor/inner panels 3

#	OEM	部品名
6	64316-TL4-G01	Separator - QUARTER PILLAR OUTSIDE
8	64322-TL0-G01	Separator - RR. WHEEL ARCH
40	90101-SFE-000	Bolt-washer - 8MM

Fog light 5

#	OEM	部品名
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO
2	33900-TL0-E01	Light assy - R. FR. FOG
3	33950-TL0-E01	Light assy - L. FR. FOG
4	90113-SJA-A00	Screw - TAPPING, 5X14

Front brake (1) 19

#	OEM	部品名
1	44300-TA0-A51	Bearing assy - FR. HUB
2	44600-TA0-A00	Hub assy - FR.
3	45001-TL1-G01	Housing assy. - L.
4	45002-TL1-G01	Housing assy. - R.
5	45003-TL1-G01	Screw assy. - BLEEDER
6	45004-SEA-E01	Pin - LOCATING
7	45005-TL1-G01	Clip - HOUSING
8	45006-SEA-E01	Seal kit
9	45007-SEA-E01	Bush kit
10	45010-TL1-G01	Anchor kit
11	45022-TL1-G01	Pad set - FR.
12	45251-TL1-G00	Disk - FR. BRAKE
13	45255-TA0-A00	Guard - FR. SPLASH
14	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
15	90113-SD4-902	Bolt - WHEEL (SAGA)
15	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)
15	90113-SD4-901	Bolt - WHEEL (MEIRA)
15	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)
16	90681-SJK-000	Circlip - INTERNAL, 91MM

Front bulkhead/dashboard 4

#	OEM	部品名
39	74250-SJA-A00	Cover - VIN PLATE
40	90105-SV1-000	Bolt-washer - 8X20
41	90110-SE7-000	Bolt-washer - 8X21
42	90671-SHJ-A02	Rivet - VIN PLATE

Front bumper 27

#	OEM	部品名
2	71103-TL0-G01	Cover - R. FR. FOG LIGHT
4	71104-TL0-G00	Plate - R. INDUCTION
5	71105-TL0-G10	Plate - INDUCTION CENTER
6	71106-TL0-G00	Plate a - INDUCTION
7	71107-TL0-G00	Grille - FR. BUMPER LOWER
8	71108-TL0-G01	Cover - L. FR. FOG LIGHT
10	71109-TL0-G00	Plate - L. INDUCTION
11	71110-TL0-G00	Spoiler - FR. BUMPER AIR
14	71140-TL0-G01	Beam - R. FR. BUMPER UPPER
14	25214-P72-305	Beam
15	71145-TL0-G00	Base - FR. LICENSE PLATE
16	71190-TL0-G01	Beam - L. FR. BUMPER UPPER
17	71193-TL0-G00	Spacer - R. FR. BUMPER
18	71198-TL0-G00	Spacer - L. FR. BUMPER
19	90047-PH7-000	Bolt-washer - 6X22
20	90102-SFE-000	Bolt-washer - 8X23
22	90103-TA0-000	Screw - TAPPING, 5X20
23	90110-SE7-000	Bolt-washer - 8X21
24	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
24	90111-SM4-003	Bolt - BUMPER
25	90156-S0K-000	Grommet - FR. LICENSE BASE
26	90192-SG0-003	Bolt - BUMPER CORNER
28	90323-SE0-000	Nut - CLIP, 6MM
28	90305-SH3-000	Nut - AIR SPOILER CLIP
31	91503-SZ3-003	Clip A
32	91505-S9A-003	Clip A - BUMPER
33	91506-S9A-003	Clip b - BUMPER

Front door glass/ regulator 13

#	OEM	部品名
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY
2	72210-TL0-003	Regulator assy - R. FR. DOOR POWER
3	72230-TL0-003	Sash - R. FR. DOOR FR. LOWER
4	72231-TL0-003	Sash - R. FR. DOOR CENTER LOWER
5	72235-TL2-A01	Runchannel - R. FR. DOOR
7	72250-TL0-003	Regulator assy - L. FR. DOOR POWER
8	72270-TL0-003	Sash - L. FR. DOOR FR. LOWER
9	72271-TL0-003	Sash - L. FR. DOOR CENTER LOWER
10	72275-TL2-A01	Runchannel - L. FR. DOOR
11	73300-TL0-E20	Glass assy - R. FR. DOOR (GREEN) (ASAHI)
12	73350-TL0-E20	Glass assy - L. FR. DOOR (GREEN) (ASAHI)
13	90021-SFA-000	Bolt - FLANGE, 6X10
14	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)

Front door lining (RH) 28

#	OEM	部品名
1	32755-TL0-G00	Sub cord - COURTESY LIGHT
2	32757-TL0-E00	Sub cord - DRIVER DOOR
3	33301-S70-003	Bulb - 12V 3.8W 2CP
4	34261-TL0-003	Lens
5	35190-TA0-003	Switch assy - REMOTE CONTROL MIRROR
6	35750-TL3-N01	Switch assy - POWER WINDOW MASTER
7	35760-TL0-E01	Switch assy - POWER WINDOW ASSISTANT
9	35961-TL0-E01	Switch assy - R. SEAT MEMORY
10	72335-TL0-G01	Weatherstrip - R. FR. DOOR INNER
11	72375-TL0-G01	Weatherstrip - L. FR. DOOR INNER
16	83503-TL0-G01	Bracket a - R. FR. GRIP
17	83504-TL0-G01	Bracket b - R. FR. GRIP
20	83508-TL0-G00	Bracket - R. PULL POCKET
32	83553-TL0-G01	Bracket a - L. FR. GRIP
33	83554-TL0-G01	Bracket b - L. FR. GRIP
36	83558-TL0-G00	Bracket - L. PULL POCKET
43	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
44	90662-SB2-003	Grommet - SCREW, 5MM
45	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
46	90678-SK7-003	Clip - SPEAKER
47	91533-STK-003	Clip - COUPLER(NATURAL)
48	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
49	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
50	91560-S6A-003	Clip - DOOR LINING(ORANGE)
50	91560-S7A-901	Clip - RR. SIDE LINING (DARK BROWN)
52	91560-TL0-G01	Clip - DOOR END GARNISH (LIGHT BROWN)
53	91560-TL0-G21	Clip - DOOR END GARNISH (LIGHT BROWN)(SEAL)
54	91561-S5P-A01	Screw - GROMMET, 5.23

Front door locks/ outer handle 35

#	OEM	部品名
2	72110-TL0-Q01	Latch assy - R. FR. DOOR POWER
3	72112-SJK-003	Protector - R. DOOR LATCH
5	72117-TL0-003	Seal
6	72118-TL0-003	Seal
7	72119-TL0-003	Seal
10	72131-TL0-G01	Cable - FR. INSIDE HANDLE
11	72133-TL0-G01	Cable - FR. DOOR LOCK
12	72134-SHJ-003	Clip s - CABLE END (NATURAL)
12	72174-SHJ-003	Clip t - CABLE END (BLACK)
13	72135-SDA-A01	Striker assy - DOOR LOCK
14	72141-SD4-004	Bush - R. JOINT
15	72141-TL0-E01	R. Handle comp.
16	72142-TL0-E01	Base comp. - R.
17	72143-S04-003	Packing
18	72143-TL0-E01	RH handle cover comp.
19	72144-SJD-003	Retainer
20	72144-TA0-A11	Holder comp
21	72145-TL0-E01	Cylinder - R. DOOR
22	72146-TL0-A61	Collar
23	72148-TL0-E01	Seat a - R.
24	72149-SAA-003	Snap - R.
25	72149-TL0-E01	Seat b - R.
27	72150-TL0-Q01	Latch assy - L. FR. DOOR POWER
28	72152-SJK-003	Protector - L. DOOR LATCH
33	72181-SD4-004	Bush - L. JOINT
34	72181-TL0-E01	L. Handle comp
35	72182-TL0-E01	Base comp. - L.
36	72183-TL0-E01	LH handle cover comp
38	72188-TL0-E01	Seat a - L.
39	72189-SAA-003	Snap - L.
40	72189-TL0-E01	Seat b - L.
41	74387-S3C-003	Fastener
42	90120-SV4-000	Bolt - LOCK STRIKER
43	90141-SDA-000	Screw - TAPPING, 5X12
44	90662-SB2-003	Grommet - SCREW, 5MM

Front door panels 15

#	OEM	部品名
9	72142-S10-000	Stopper - DOOR
10	72310-TL0-003	Weatherstrip - R. FR. DOOR
11	72321-TL0-003	Seal - R. FR. DOOR HOLE
12	72340-TL0-003	Checker comp. - R. FR. DOOR
13	72350-TL0-003	Weatherstrip - L. FR. DOOR
14	72361-TL0-003	Seal - L. FR. DOOR HOLE
15	72380-TL0-003	Checker comp. - L. FR. DOOR
16	75891-SA7-000	Stopper - DOOR
17	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
18	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
18	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
19	90141-S04-000	Bolt - FLANGE, 8X22
20	90651-S4N-003	Clip
21	91568-SJA-003	Clip - DOOR WEATHERSTRIP
22	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)

Front driveshaft/half sha ft (2.0L) 42

#	OEM	部品名
1	44014-TL1-E51	Joint set - OUTBOARD
1	44014-TL1-E01	Joint set - OUTBOARD
2	44017-TL1-E50	Boot set - INBOARD
2	44017-TL1-E51	Boot set
2	44017-TA0-A00	Boot set - INBOARD
3	44018-TL1-E51	Boot set - OUTBOARD
3	44018-TL1-E01	Boot set - OUTBOARD
3	44018-TL1-E02	BOOT SETOUTBOARD
4	44305-TL1-E50	Driveshaft assy. - R.
4	44305-TL1-E00	Driveshaft assy. - R.
5	44306-TL1-E50	Driveshaft assy. - L.
5	44306-TL1-E00	Driveshaft assy. - L.
6	44310-SEA-E00	Joint comp - INBOARD
6	44310-TL1-E00	Joint comp - INBOARD
7	44310-TL1-306	Joint set - INBOARD
7	44310-TL1-305	Joint set - INBOARD
8	44319-SE0-000	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44327-TL1-E01	Band b - DRIVESHAFT (NIPPON HATSUJO)
12	44329-SEF-E01	Band c - DRIVESHAFT (NIPPON HATSUJO)
12	44329-S04-A01	Band c - DRIVESHAFT (NIPPON HATSUJO)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-SD4-300	Ring b - STOPPER
14	44337-SA2-300	Ring b - STOPPER
15	44338-SD4-300	Circlip - 28MM
15	44338-SA2-300	Circlip - 24MM
16	44351-SJH-E01	Damper - DYNAMIC
16	44351-TL1-E11	Damper - DYNAMIC
17	44351-TL0-G01	Damper - DYNAMIC
17	44351-TL1-E01	Damper - DYNAMIC
18	44500-TA2-J10	Shaft assy - HALF
18	44500-SMA-J00	Shaft assy - HALF
19	90102-SF1-000	Bolt - HEX., 10X1.25
20	90168-S5A-000	Bolt - FLANGE, 12X35
21	90305-S3V-A11	Nut - SPINDLE
22	90681-SR3-000	Circlip - EXTERNAL, 33MM
23	91057-SR3-008	Bearing - HALF SHAFT(NTN)
24	91260-SR3-003	Seal - HALF SHAFT OUTER(NOK)
24	91260-SDB-A01	Seal - HALF SHAFT OUTER(NOK)

Front fenders 17

#	OEM	部品名
8	74100-TL0-G00	Fender assy - R. FR. INNER
9	74105-TL0-G00	Enclosure - R. FR. FENDER
10	74110-TL0-G00	Cover assy. ENGINE UNDER
11	74150-TL0-G00	Fender assy - L. FR. INNER
12	74155-TL0-G00	Enclosure - L. FR. FENDER
13	74206-TL0-G00	Garnish - R. FR. FENDER
14	74207-TL0-G00	Garnish - L. FR. FENDER
15	90108-SF1-000	Bolt-washer - 6X15
16	90141-TL0-000	Bolt - BUMPER
17	90305-SM4-003	Nut - CLIP, 6MM
18	90682-SEA-003	Clip - TAPPING SCREW, 5MM
19	90853-SJA-A00	Rivet - 4.8MM
20	91501-SEA-003	Clip - FR. COWL
21	91505-S9A-003	Clip A - BUMPER
22	91512-SX0-003	Clip - INNER FENDER CLIP
23	91533-SG0-000	Clip b - FAIRING
24	91545-SE0-003	Clip assy. - 8MM

Front grille 13

#	OEM	部品名
1	71121-TL0-G02	BASE, FR. GRILLE
4	71123-TL0-G01	MOLDING, FR. GRILLE UPPER
5	71124-TL0-G01	MOLDING, RH. FR. GRILLE CENTER
6	71125-TL0-G01	MOLDING, LH. FR. GRILLE CENTER
7	71126-TL0-G01	MOLDING, FR. GRILLE LOWER
10	71129-TL0-G01	COVER, FR. GRILLE
11	71194-TL0-G00	Bracket - FR. GRILLE
12	74147-TL0-G00	Seal - CENTER HOOD
13	74175-SJA-000	Cushion - HOOD
14	75700-S9A-G00	Front Honda Emblem - (H)
15	90301-ST0-003	push nut, 3mm
17	91503-SZ3-003	Clip A
18	91512-SX0-003	Clip - INNER FENDER CLIP

Front knuckle 16

#	OEM	部品名
1	42524-SNA-003	Clip - COUPLER (BLACK)
2	44348-TA0-A00	Ring - FR. KNUCKLE
3	51210-TA0-020	Knuckle comp - R. FR.
4	51215-TA0-020	Knuckle comp - L. FR.
5	51220-TA0-A02	Joint comp - FR. LOWER BALL
6	51225-TA0-A01	Boot - FR. LOWER BALL DUST
7	51226-TA0-A01	Circlip - LOWER BALL(FR.)
8	51464-S04-013	Boot, UPPER BALL JOINT
9	51510-TA0-A03	F/UPPER ARM RH - R. FR. UPPER
10	51520-TA0-A03	F/UPPER ARM LH - L. FR. UPPER
11	52338-SL0-003	Circlip - CONTROL ARM
12	57450-TA0-A01	Sensor assy - R. FR.
13	57455-TA0-A01	Sensor assy - L. FR.
14	90172-SDA-A00	Bolt - FLANGE, 10X78
15	90309-SJA-000	Nut - CASTLE, 14MM
16	90321-SE0-000	Nut - UPPER BALL PIN, 10MM

Front seat (L.; RH) 12

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	78055-TL0-G91	Module assy. - L. SIDE
8	81217-TL0-G01	Wire b - AIRBAG
12	81527-TL3-Q21	Pad comp - L. FR. SEATBACK (WITH OPDS SENSOR)
14	81534-TL3-Q21	Heater comp. - L. FR. SEAT CUSHION
15	81537-TL0-E21	Pad comp - L. FR. SEAT CUSHION (WITH SITTING SWITCH)
16	81616-TL0-G01	Wire a - L. AIRBAG
22	90134-SE3-003	Screw - TAPPING, 5X10
23	90321-SP0-A80	Nut-washer - 6MM
24	90610-S10-003	Clip - GARNISH
25	91533-S82-003	Clip - COUPLER(BLACK)
26	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat (R.; RH) 14

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	78050-TL0-G81	Module assy. - R. SIDE
5	81124-TL0-G61	Heater comp. - R. FR. SEATBACK
6	81127-TL0-E21	Pad comp - R. FR. SEATBACK
9	81134-TL0-E21	Heater comp. - R. FR. SEAT CUSHION
10	81137-TL0-E21	Pad comp - R. FR. SEAT CUSHION
14	81216-TL0-G01	Wire a - R. AIRBAG
15	81217-TL0-G01	Wire b - AIRBAG
23	90134-SE3-003	Screw - TAPPING, 5X10
24	90321-SP0-A80	Nut-washer - 6MM
25	90610-S10-003	Clip - GARNISH
26	91533-S82-003	Clip - COUPLER(BLACK)
27	91535-STK-003	Clip - COUPLER (DARK BLUE)
28	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat components (L.; FULL POWER SEAT; 1) 30

#	OEM	部品名
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
2	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)
5	81161-TL0-H01	Opds unit
6	81162-TL2-X01	Cord - R. OPDS
7	81199-TL0-003	Band a
8	81201-TL0-G21	Cable assy
9	81202-TL0-G21	Cable
10	81231-TL0-G21	Shaft
11	81233-TL0-G21	Bolt - RECLINING MOTOR
12	81236-SDG-H71	Nut - PUSH
14	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END
15	81526-TL3-Q21	Frame comp - L. FR. SEAT
16	81603-TL0-G21	Motor - SLIDE
17	81604-TL0-E21	Motor assy. - R. FR. HEIGHT
18	81605-TL0-E21	Motor assy. - L. RR. HEIGHT
19	81606-TL0-E21	Cord - L. POWER SEAT
20	81632-TL0-E21	Motor assy. - R. RECLINING
24	81653-SDB-A71	Switch assy - L. (8WAY)
25	81661-TL3-Q21	Cover - L. FR. SEATBACK OPDS
29	90135-S7A-J51	Bolt-washer - 10X25
30	90160-S5A-003	Screw - TRUSS, 6X12
31	90610-S10-003	Clip - GARNISH
32	90650-S6M-J01	Clip - RATCHET, 10MM
33	90650-S6M-J11	Clip - RATCHET, 20MM
35	91533-S5A-003	Clip - COUPLER (NATURAL)
36	91533-S82-003	Clip - COUPLER(BLACK)
37	91535-STK-003	Clip - COUPLER (DARK BLUE)
38	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
39	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
40	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat components (R.; FULL POWER SEAT; 2) 31

#	OEM	部品名
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
2	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)
5	81126-TL0-E21	Frame comp - R. FR. SEAT
8	81190-TL0-G01	Lumbar comp. - R. FR. SEATBACK
9	81190-TL0-G11	Wire - R. FR. SEATBACK LUMBAR
10	81190-TL0-G21	Spring - FR. SEATBACK LUMBAR
11	81199-TL0-003	Band a
12	81201-TL0-G21	Cable assy
13	81202-TL0-G21	Cable
14	81204-TL0-E21	Motor assy. - L. FR. HEIGHT
15	81205-TL0-E21	Motor assy. - R. RR. HEIGHT
16	81206-TL0-E21	Cord - R. POWER SEAT
18	81228-TL0-G01	M.s.c. unit
19	81231-TL0-G21	Shaft
20	81232-TL0-E21	Motor assy. - L. RECLINING
21	81233-TL0-G21	Bolt - RECLINING MOTOR
22	81236-SDG-H71	Nut - PUSH
27	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END
28	81322-SP0-003	Clip - LUMBAR SUPPORT
29	81590-TL0-G11	Wire - L. FR. SEATBACK LUMBAR
30	81603-TL0-E21	Motor - SLIDE
32	90101-SDA-000	Screw - FLAT, 4X30
33	90134-SE3-003	Screw - TAPPING, 5X10
34	90135-S7A-J51	Bolt-washer - 10X25
35	90610-S10-003	Clip - GARNISH
36	90650-S6M-J01	Clip - RATCHET, 10MM
37	90650-S6M-J11	Clip - RATCHET, 20MM
39	91533-S82-003	Clip - COUPLER(BLACK)
40	91535-TA0-003	Clip - COUPLER (DARK BROWN)
41	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
42	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front shock absorber 22

#	OEM	部品名
1	51401-TL4-E11	Spring - FR.
1	51401-TL4-E21	Spring - FR.
3	51610-TL5-E11	Absorber assy - R. FR. SHOCK
3	51610-TL5-E21	Absorber assy - R. FR. SHOCK
4	51611-TL1-E01	Absorber unit - R. FR. SHOCK
5	51620-TL5-E11	Absorber assy - L. FR. SHOCK
5	51620-TL5-E21	Absorber assy - L. FR. SHOCK
6	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
7	51621-TL1-E01	Absorber unit - L. FR. SHOCK
8	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
9	51675-TA0-A02	Base - R. FR. SHOCK ABSORBER MOUNTING
10	51676-TA0-A02	Base - L. FR. SHOCK ABSORBER MOUNTING
11	51684-SDA-A02	Mount - FR. DUST COVER LOWER
12	51685-SH3-014	Plate - DUST COVER(SHOWA)
13	51686-TA0-A01	Rubber - FR. SPRING MOUNT
14	51688-SDA-A01	Sleeve - FR. DUST COVER
15	51689-SDA-A01	Cover - FR. END DUST
16	51689-SH3-004	Plate - BUMP STOP (SHOWA)
17	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
18	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
19	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)
20	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 20

#	OEM	部品名
1	51271-TA0-A01	Fork - R. FR. SHOCK ABSORBER
2	51281-TA0-A01	Fork - L. FR. SHOCK ABSORBER
3	51300-TA0-A01	Spring - FR. STABILIZER
4	51306-TA0-A01	Bush - FR. STABILIZER HOLDER
6	51308-SDA-A00	Bracket - FR. STABILIZER
7	51320-TA0-A01	Link comp - R. FR. STABILIZER
8	51325-TA0-A01	Link comp - L. FR. STABILIZER
9	51350-TA0-A00	Arm comp - R. FR. LOWER
10	51360-TA0-A00	Arm comp - L. FR. LOWER
11	51391-TA0-A01	Bush - FR. COMPLIANCE
12	51393-SDA-A02	BUSH, FR. ARM (LOWER)
13	51810-TA0-A01	Bush - SHOCK ABSORBER FORK
14	74180-TL0-E00	Bar comp - FR. TOWER
15	90002-S10-000	Nut - FLANGE, 10MM
16	90117-S0A-000	Bolt - DAMPER LOCK(10X44)
17	90118-TA0-A10	Bolt-washer - 12X92
18	90119-SFE-000	Bolt - FLANGE, 14X100
19	90121-S0A-000	Bolt - DAMPER FORK(12X98)
20	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)

Front sub frame/rear beam 26

#	OEM	部品名
1	50200-TL1-E12	Sub frame comp. - FR.
2	50260-TA0-A01	Rubber - FR. SUB FRAME MOUNTING
3	50261-TA0-A01	Rubber - FR. SUB FRAME STOPPER
4	50265-TA0-A00	Stay - R. FR. SUB FRAME MOUNTING(FR.)
5	50266-TA0-A00	Stay - L. FR. SUB FRAME MOUNTING(FR.)
6	50275-TA0-A00	Stay - FR. SUB FRAME MOUNTING (RR.)
7	50280-SDA-A01	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING
8	50285-SDA-A01	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING
9	50300-TA0-A50	Sub frame assy. - RR. SUSPENSION
10	50360-TA0-A01	Rubber - RR. SUB FRAME FR. MOUNTING
11	50365-TA0-A00	Stay - RR. SUB FRAME MOUNTING (FR.)
12	50370-TA0-A01	Rubber - RR. SUB FRAME RR. MOUNTING
13	50375-TL0-E00	Stay - R. RR. SUB FRAME MOUNTING(RR.)
14	50376-TL0-E00	Stay - L. RR. SUB FRAME MOUNTING(RR.)
15	50420-TL5-E01	Damper - FR. SUB FRAME RR. DYNAMIC
16	50451-TL1-E00	Mass - RR. BASE BRACKET
17	50680-TL1-E00	Bracket - RR. ENGINE MOUNTING BASE
18	90101-SWA-A00	Bolt-washer - 8X16
19	90166-TA0-A00	Bolt - FLANGE, 8X16
20	90167-TA0-A00	Bolt - FLANGE, 12X40
21	90170-SDC-A00	Bolt - FLANGE, 10X34
22	90175-TA0-A00	Bolt - FLANGE, 14X100
23	90176-SDA-A00	Bolt - FLANGE, 14X135
24	90177-SDA-A00	Bolt - FLANGE, 14X150
25	90186-SDA-A00	Bolt - FLANGE, 12X33
26	90396-S5A-010	Bolt - FLANGE, 12X75

Front windshield 13

#	OEM	部品名
3	73111-TL0-E10	Glass set - FR. WINDSHIELD (GREEN) (ASAHI)
4	73125-TL0-000	Seal - FR. WINDSHIELD UPPER
5	73126-TL0-000	Rubber a - FR. WINDSHIELD DAM
6	73127-TL0-000	Rubber b - FR. WINDSHIELD DAM
7	73150-TL0-G01	Molding - FR. WINDSHIELD
9	73153-TL0-E01	Clip - R. FR. WINDSHIELD SIDE GARNISH
11	73163-TL0-E01	Clip - L. FR. WINDSHIELD SIDE GARNISH
13	77466-TL0-000	Seal a - FR. INSTRUMENT
14	91568-TA0-A00	Clip, FR. Windshield (Upper)
15	91573-TL0-E01	Clip A - FR. SIDE GARNISH
15	91573-TL0-305	CLIP A FR SIDE GAR
16	91574-TL0-E01	Clip b - FR. SIDE GARNISH
16	91574-TL0-305	CLIP B FR SIDE GAR

Front windshield wiper (RH) 25

#	OEM	部品名
1	76505-TA0-J02	Motor comp - FR. WIPER
2	76516-SDA-A01	Rubber - MOUNTING
3	76516-SJK-003	Rubber - MOUNTING
4	76516-SM4-003	Rubber - MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS
6	76517-SJK-003	Collar
7	76517-SM4-003	Collar
8	76520-TA0-A01	Link assy. a
9	76524-SD4-003	Dust seal
10	76524-SL0-A01	Dust seal
11	76530-TL0-E02	Link comp - FR. WIPER
12	76540-TL0-G01	Rod unit a
13	76550-TL0-G01	Rod unit b
14	76561-SEA-003	Cap - PIVOT
15	76600-TL0-E01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76602-TL0-G01	Cover - ARM
17	76610-TL0-E01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
18	76620-TL0-E01	Blade - WINDSHIELD WIPER (DRIVER SIDE) (600MM)
19	76622-SLN-A11	Rubber - BLADE(600MM)
19	76622-SLN-A12	RUBBER, BLADE 600MM
20	76630-TL0-E01	Blade - WINDSHIELD WIPER (PASSENGER SIDE) (550MM)
21	76632-SHJ-A11	Rubber, BLADE(550MM)
21	76632-SHJ-A12	BLADE RUBBER
22	90126-SR3-000	Bolt-washer - 6X32
23	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)

Fuel injector (2.0L) 11

#	OEM	部品名
1	16450-RZP-003	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR
3	16620-R60-U01	Pipe comp - FUEL
4	16640-RNA-A00	Cover - FUEL PIPE
5	16722-R60-U01	Hose comp. - FUEL FEED
6	16725-R40-A00	Holder a - FUEL CONNECTOR (BEIGE)
7	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING
8	17711-S0X-A31	Retainer - GREEN)(TOKAI
9	90027-RNA-A00	Bolt - FUEL PIPE
10	91301-PLC-000	O-ring - 7.47X3.6
11	91302-PNA-003	O-ring - 7.45X3.61(NOK)

Fuel pipe 21

#	OEM	部品名
1	16723-R42-A00	Stay assy - FUEL FEED HOSE
2	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)
3	16725-R40-A00	Holder a - FUEL CONNECTOR (BEIGE)
4	17700-TL1-E01	Pipe comp - FUEL FEED
5	17711-S84-004	Retainer - WHITE)(SANOH
7	17717-TA0-G50	Hose assy - FUEL PURGE
8	17720-TL1-E01	Pipe - FUEL PURGE
10	17761-TA0-E00	Stay a - FUEL PIPE
11	17762-TA0-A00	Stay b - FUEL PIPE
12	90150-S04-003	Bolt - EARTH, 6X16
13	91405-SDA-000	Clamp - TUBE(D10.5)
14	91407-SDB-000	Clamp - TUBE (D12.5)
15	91515-SDA-A01	Clip - HOOD LOCK COVER
16	91591-TA0-A01	Clamp a - FUEL PIPE(BLACK)
17	91592-TA0-G01	Clamp - FUEL PIPE
18	91594-TA0-G00	Rubber a - FUEL PIPE INSULATOR
19	91595-TA0-G00	Rubber b - FUEL PIPE INSULATOR
20	91596-TA0-G01	Clamp c - FUEL PIPE
21	91597-TA0-G01	Clamp d - FUEL PIPE
22	91598-TA0-G01	Clamp e - FUEL PIPE
23	91599-TA0-G01	Clamp f - FUEL PIPE

Fuel tank 26

#	OEM	部品名
1	17044-TL1-G01	Tank set - FUEL
2	17046-SWE-T00	Nut & packing set - FUEL LOCK
3	17508-TA0-G01	Clip - FUEL VENT
4	17512-TA0-A01	Cushion - FUEL TANK
5	17513-TA0-A00	Circlip - PROTECTOR
6	17518-TA0-A00	Protector - FUEL TANK
7	17521-TA0-A00	Band - R. FUEL TANK MOUNTING
8	17522-TA0-A00	Band - L. FUEL TANK MOUNTING
9	17525-SM4-000	Bolt-washer - 10X35
10	17651-TC0-E02	Tube - FILLER NECK
11	17652-SDA-A31	Clip - FILLER TUBE
12	17652-SEL-003	Clip - FILLER TUBE (39MM)
13	17653-TA0-G01	Tube assy - BREATHER
14	17660-TL5-G01	Pipe comp - FUEL FILLER
15	17668-TL4-G00	Cover - FUEL FILLER PIPE
16	17670-SJA-013	Cap comp. FUEL FILLER
16	17670-T3W-003	CAP, FUEL FILLER
17	17710-TA0-G00	Tube assy - FUEL VENT
18	74660-TA0-A00	Cap assy. - FLOOR MAINTENANCE HOLE
19	90150-S04-003	Bolt - EARTH, 6X16
20	90361-TA0-A00	Nut - CAP, 6MM
21	91404-TA0-G01	Clamp - FUEL TUBE (D10)
22	91462-SDA-003	Clamp - FUEL TUBE (D18)
23	91512-SX0-003	Clip - INNER FENDER CLIP
24	91593-TA0-G01	Clamp - BREATHER TUBE(BLACK)
25	91601-TA0-003	Clip - FUEL MAINTENANCE HOLE CAP

Fuel tank set short parts 4

#	OEM	部品名
2	17045-TL1-G00	Module set - FUEL PUMP
4	17047-TL1-G00	Meter set
5	17048-TA0-000	Strainer set - FUEL
6	17052-TA1-000	Regulator set - PRESSURE

Gasket kit (2.0L) 4

#	OEM	部品名
1	06110-R60-U00	Gasket kit - CYLINDER HEAD
2	06112-R96-000	Gasket kit - AT TRANSMISSION
3	06114-RNA-010	Gasket kit - CHAIN CASE
3	06114-RNA-Z00	Gasket kit - CHAIN CASE

Grommet (FRONT) 12

#	OEM	部品名
1	74829-SR2-000	Stopper - TRUNK LID
2	75826-634-300	Seal - INSIDE PANEL, 15MM
3	77150-S2X-003	Holder - INSTRUMENT UPPER
5	90615-S5A-003	Plug - HOLE, 27X56
6	90826-SNA-003	Grommet - 25MM (BURRING)
8	90860-SA5-003	Plug - HOLE, 16MM
9	91611-TA0-003	Plug - FLOOR HOLE, 25MM
10	91612-TA0-003	Plug - FLOOR HOLE, 25MM
11	91613-SR3-003	Grommet - SUB FRAME, 15MM
12	91615-SH3-000	Cap - FLOOR HOLE, 49MM
13	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
17	91903-SNA-003	Plaster - WIRE HARNESS(50X100)

Grommet (LOWER) 4

#	OEM	部品名
1	82871-671-000	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90815-SNA-003	Grommet - 15MM
4	91606-SK7-003	Plug - BLIND, 25MM

Grommet (REAR) 7

#	OEM	部品名
1	74401-TL0-G00	Tape - R. SIDE SILL PROTECTION
2	74405-TL0-G00	Tape - L. SIDE SILL PROTECTION
3	82871-671-000	Grommet - DRAIN HOLE, 25MM
4	90830-TA0-003	Grommet - 30MM
5	90857-SDA-A00	Cap - WELD HOLE
6	91609-SJ8-003	Plug - BLIND, 46MM
7	91640-SED-000	Grommet - HOLE, 26X48

Grommet (SIDE) 1

#	OEM	部品名
1	91616-S9A-000	Block - FR. PILLAR INNER LOWER

Harness band/bracket (RH) 38

#	OEM	部品名
2	32112-S2K-003	Band - CABLE (90MM)
4	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
5	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
6	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
11	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
14	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)
15	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
16	91508-STX-A00	Clip - HARNESS BAND(BLACK) (148MM)
17	91531-SCC-901	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)
18	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)
19	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
20	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
21	91533-STK-003	Clip - COUPLER(NATURAL)
22	91534-STK-003	Clip - COUPLER(NATURAL) (WITH SEAL)
23	91534-SWA-003	Clip - COUPLER(DARK GRAY)
24	91535-STK-003	Clip - COUPLER (DARK BLUE)
25	91535-TA0-003	Clip - COUPLER (DARK BROWN)
27	91536-STK-003	Clip - RELAY HOLDER(NATURAL)
28	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
29	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
30	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)
31	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
32	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
33	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)
34	91545-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)
35	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
36	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
37	91549-STK-003	Holder - HARNESS (NATURAL) (113MM)
38	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)
41	91558-SAA-003	Clip - HARNESS BAND(30)(BLACK) (151.5MM)
43	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
44	91559-SX0-003	Clip - HARNESS BAND (NATURAL) (155MM)
45	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
47	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
48	91661-TA0-003	Holder - HARNESS(BLACK)
49	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
50	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
51	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Headlight 17

#	OEM	部品名
1	06100-TL0-G01	Leg kit a - R. HEADLIGHT MOUNTING
2	06150-TL0-G01	Leg kit a - L. HEADLIGHT MOUNTING
3	33100-TL0-E01	Headlight assy - R.
4	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
5	33121-TL0-G01	Gasket - SEAL(2)
6	33126-SNA-A01	Cover - RUBBER
7	33127-TL0-G01	Cover - 2
8	33130-SJK-J01	Adjuster unit - HEADLIGHT
9	33147-SEA-G01	Cord comp
10	33150-TL0-E01	Headlight assy - L.
11	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
13	33303-S5A-003	Socket comp - T20 S
14	33305-S5A-003	Socket comp - T10
15	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)
16	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
16	90111-SM4-003	Bolt - BUMPER

Heater blower (RH) 11

#	OEM	部品名
1	79022-TA0-A01	Packing - AIR INTAKE
2	79305-TL1-E01	Blower sub assy.
3	79306-TA0-A01	Seal - BLOWER OUTER
4	79310-TL1-E01	Motor assy. - FAN
5	79350-TA0-J21	Motor assy. - FRESH & RECIRCULAR
6	80290-SDC-A01	Filter assy - AIR CONDITIONER
7	80292-SDC-A01	Element - FILTER
8	90127-S84-003	Screw - TAPPING, 4X16
9	90132-SR3-003	Screw - TAPPING, 5X16
10	90155-SE0-003	Screw - TAPPING, 6X20
11	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

Heater control 1

#	OEM	部品名
6	79671-STK-A01	Bulb - NEO WEDGE(14V 0.05A)

Heater unit (RH) 40

#	OEM	部品名
1	39248-692-003	Packing - HEATER
3	77287-TA0-U00	Bracket - DRIVER INSTRUMENT CENTER LOWER COVER
4	77465-TL0-G02	Duct assy - DEFROSTER JOINT
5	79021-TA0-A01	Seal a
6	79023-TL1-G01	Packing set
7	79024-TA0-A01	Packing - RR. HEATER
9	79030-TA0-A01	Stay - HEATER PIPE
10	79102-TA0-J21	Duct assy - PASSENGER HEATER
11	79106-TL1-E02	Heater sub assy.
12	79107-TA0-J21	Cover - HEATER CORE
13	79108-TC0-Z41	Plate - EVAPORATOR LOWER
14	79109-TA0-J21	Insulator - EVAPORATOR LOWER
15	79115-TA0-J21	Core sub assy. - HEATER
16	79140-TA0-J21	Motor assy. - MODE
17	79160-TA0-J21	Motor assy. - AIR MIX (DRIVER SIDE)
18	79170-TA0-J21	Motor assy. - AIR MIX (PASSENGER SIDE)
19	79330-SNA-A01	Transistor - POWER
20	79731-S5A-000	Grommet - HEATER PIPE
21	80211-TL1-E01	Evaporator comp.
22	80221-TC0-Z41	Valve assy. - EXPANSION
23	80222-TA0-A01	Seal - EXPANSION VALVE
24	80271-TA0-J00	Hose - DRAIN
25	80534-S84-A41	Aspirator
26	80542-TA0-J01	Hose b - ASPIRATOR
27	80560-TC0-Z41	Thermistor - AIR CONDITIONER
28	80566-SVA-A01	Clip - EVAPORATOR SENSOR
29	80650-TA0-J20	Sub cord - AIR CONDITIONER
30	80871-S5A-003	O-ring - 5/8"
31	80872-S5A-003	O-ring - 1/2"
32	90122-TA0-A01	Screw - TAPPING, 4X14(PO)
33	90126-S5A-003	Bolt - SOCKET, 5X40
34	90127-SX0-003	Screw - TAPPING, 4X16
35	90127-S84-003	Screw - TAPPING, 4X16
36	90133-SR3-003	Screw-washer - 4X16
37	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
38	90661-S2A-003	Clip - DRAIN HOSE
39	91533-STK-003	Clip - COUPLER(NATURAL)
40	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
41	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)
42	91580-SM4-003	Clip - COUPLER(ORANGE)

Idle shaft 5

#	OEM	部品名
1	22750-RXH-010	Pipe comp - LUBRICATION
2	23515-R90-000	Gear - IDLE
3	23516-RCL-A00	Shaft - IDLE
4	90431-PRP-000	Cotter - 17MM
5	90432-PRP-000	Retainer - COTTER

Instrument panel (RH) 26

#	OEM	部品名
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
5	77102-TL0-G01	Insulator g
7	77104-TL0-G01	Cushion a
8	77105-TL0-E02	Frame comp - CENTER POCKET
9	77106-TL0-E01	Stay assy - INSTRUMENT CENTER
10	77107-TL0-G01	Cushion b
11	77108-TL0-G01	Stay - R. FR. INSTRUMENT
12	77109-TL0-G01	Stay - L. FR. INSTRUMENT
13	77113-TA0-A00	Bracket - CENTER JOINT
21	77466-TL0-G01	Seal, FR. Instrument
22	77467-TL0-G01	Seal - INSTRUMENT DASHBOARD
25	77820-TL0-E81	Module assy. - PASSENGER
26	77854-TL0-E81	Nut - LOCK(M6)
27	77857-TL0-E81	Hook - BRACKET
29	90101-S6A-000	Bolt-washer - 8MM
30	90106-TA0-A00	Bolt-washer - 8X40
31	90107-S7S-000	Bolt-washer - 8X50
32	90110-S84-A00	Bolt-washer - 8X20
33	90111-TA0-A00	Bolt-washer - 8X68
34	90134-SFA-N81	Bolt - FLANGE, 6X20 (ADHESIVE)
35	90140-SDA-A00	Bolt-washer - 5X19
36	90302-SA4-003	Nut - SPRING, 4MM
37	90666-SD4-003	Clip - FITTING
38	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
39	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)
40	91640-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; RH) 9

#	OEM	部品名
2	77259-SLJ-003	Cushion - CLIP
5	77303-TL0-G01	Damper
7	77321-TL0-E01	Cover assy. - DRIVER UNDER
8	77322-TA6-A00	Cap - DRIVER UNDER COVER STAY
13	90101-S2K-000	Screw - TAPPING, 4X16(IT)
14	90146-SMG-E10	Stopper - GLOVE BOX LID
15	90666-SD4-003	Clip - FITTING
16	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
17	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)

Instrument panel garnish (PASSENGER SIDE; RH) 23

#	OEM	部品名
2	34760-TL0-G11	Light assy - AMBIENT(AMBER)
3	39610-S2H-G01	Knob assy
4	39620-S0X-003	Socket assy
5	39630-SFE-003	Ring assy - TYPE INCLUDING BULB
6	66418-SA5-000	Stopper - GLOVE BOX LID
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
9	77288-TL0-G01	Label - PUSH UP
10	77296-TL0-G01	Latch
12	77299-TL0-G01	Cover - CIGARETTE LIGHTER
13	77346-TL0-E01	Cover assy. - PASSENGER UNDER
14	77501-TL0-E02	Separator
15	77502-TL0-G01	Lid - MAINTENANCE
16	77504-TL0-G01	Arm
18	77506-TL0-G01	Stopper assy - GLOVE BOX
20	77520-SDA-A01	Cylinder - GLOVE BOX
21	77530-TL0-G01	Damper assy. - GLOVE BOX(A)
23	77545-TL0-E01	Cap - DRIVER SIDE LOCK
24	77546-TL0-E01	Cap - PASSENGER SIDE LOCK
28	77700-TL0-E01	Ashtray assy. - FR.
29	90140-SDA-A00	Bolt-washer - 5X19
30	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
31	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)
32	91640-SM4-003	Grommet - SCREW, 4MM

Intake manifold (2.0L) 21

#	OEM	部品名
1	16725-PNA-003	Clamp a - FUEL HOSE
2	17100-R60-U00	Manifold comp - INTAKE
3	17101-R60-U00	Cover comp. - BYPASS VALVE
4	17102-RNA-A01	Packing - BYPASS VALVE COVER
5	17103-RNA-A01	Packing b - BYPASS VALVE
6	17104-RNA-A01	Packing a - BYPASS VALVE
7	17105-RNA-A01	Packing a - INTAKE MANIFOLD
8	17106-RNA-A01	Packing b - INTAKE MANIFOLD
9	17107-RNA-A01	Packing, throttle body
10	17108-RNA-A01	O-ring - 31.2X3.5
11	17113-RNA-A00	Stiffener - INTAKE MANIFOLD
12	17116-RNA-A00	Plate - THROTTLE FLANGE
13	17132-RSA-G00	Stay assy - INTAKE MANIFOLD
14	17150-RNA-A01	Actuator assy - BYPASS VALVE
15	17153-RCA-A01	Packing - BYPASS VALVE ACTUATOR
16	17210-RNA-A01	Valve assy. - BYPASS
17	17213-RNA-A00	Rubber - INTAKE MANIFOLD MOUNTING
18	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
19	37830-RNA-A01	Sensor assy - MAP
20	37835-PGK-A01	O-ring
21	90001-PGM-000	Bolt-washer - SPECIAL, 6X30

Interior light (1) 19

#	OEM	部品名
1	34251-S5A-003	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
4	34265-TL4-003	Lens comp
5	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI
5	34351-657-921	Bulb - 12V/5W) (STANLEY
6	34401-SDA-A01	Lens - R.
7	34401-SDA-A21	Lens - R.
8	34402-SDA-A01	Lens - L.
9	34402-SDA-A21	Lens - L.
10	34404-SDA-A02	Base comp.
11	34404-SDA-A22	Base comp.
19	83251-TA0-A01	Bush
20	83252-TA0-A01	Spring
21	83253-TA0-A01	Grommet - SCREW, 5MM
22	83254-TA0-A01	Screw - TAPPING, 5X12
23	83255-TA0-A01	Screw - TAPPING(3X8)
24	90148-S6A-013	Bolt - EARTH, 5X14
25	91560-TA0-A01	Clip - MAP LIGHT

Key cylinder components 13

#	OEM	部品名
1	35102-SV4-003	Bolt - BREAK HEAD
2	35103-S04-003	Screw - RECESSED
3	35108-S30-003	Holder - COLUMN
4	35113-TL4-E10	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
5	35117-STK-A11	Screw - FLAT
6	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
7	35118-TL4-E11	Cover comp. - MODULE
8	35119-TL0-305	Bottom comp. - TRANSMITTER KEY CASE (BLANK)
9	35130-TA0-901	Switch comp - STEERING
10	39730-TL0-G01	Immobilizer & keyless unit
11	72118-ST7-003	Screw - TAPPING, 3X5
12	72147-TL4-E11	Transmitter assy - KEYLESS
13	72148-S0A-000	Battery CR1616

Key cylinder set 4

#	OEM	部品名
1	06350-TL4-N01	Cylinder set - KEY
1	06350-TL4-N11	Cylinder set - KEY
3	06351-TE0-A01	Lock assy - STEERING
3	06351-TE0-A11	Lock assy - STEERING

L. side cover 40

#	OEM	部品名
1	21240-RCV-010	Cover comp., L. SIDE
2	21515-PPV-010	Stay e - HARNESS
3	21720-RCT-010	Cover comp. - POSITION SENSOR
4	21724-RCT-000	Rubber - POSITION SENSOR COVER
5	21725-RCT-000	Collar - POSITION SENSOR COVER
6	21812-PRP-030	Packing - L. SIDE COVER
7	22713-PW4-000	Guide a - FEED PIPE
8	22713-PX4-000	Guide a - FEED PIPE
9	22715-PRP-000	Pipe comp. b - FEED
10	22725-P6H-000	Pipe comp. b - FEED
11	24282-634-000	Bolt - SHAFT FORK SETTING
12	24532-PX4-000	Lever - PARKING BRAKE
13	24535-PRP-040	Spring - PARKING BRAKE
14	24537-PA9-003	Stopper - PARKING BRAKE (1)
14	24539-PA9-003	Stopper - PARKING BRAKE (3)
14	24538-PA9-003	Stopper - PARKING BRAKE (2)
15	24552-PRP-000	Spring - PARKING PAWL
16	24553-PN6-000	Roller - PARKING BRAKE
17	24555-PN6-000	Pin - ROLLER, 6MM
18	24561-PRP-010	Pawl - PARKING BRAKE
19	24562-PRP-000	Shaft - PARKING
20	28900-RPC-013	Sensor assy - POSITION
21	28950-RCL-A00	Harness - POSITION SENSOR
22	90004-PRH-010	Bolt - SPECIAL, 8X30
23	90005-PRH-010	Bolt - SPECIAL, 8X38
24	90024-612-000	Bolt - SEALING, 8MM
25	90433-639-000	Washer - LOCK, 6MM
26	90471-580-000	Packing - 8MM
27	90602-PX4-000	Circlip b - INTERNAL, 47MM
28	90702-PL4-000	Dowel pin - 8X44
29	91006-P1B-003	Bearing - BALL, 9X20X6
30	91103-RCL-023	Bearing - NEEDLE, 32X55X18.5
31	91201-PA9-004	Oil seal - 9X18X7 (ARAI)
32	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
33	91305-PC9-003	O-ring - 34X1.9 (ARAI)
34	91305-PX4-003	O-ring - 40X1.9 (NOK)
35	91311-PA9-004	O-ring - 7.7X1.9 (NOK)
36	91314-PW4-003	O-ring - 11X1.9 (NOK)
37	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
44	90001-RLJ-000	Bolt - FLANGE, 6X18

Main valve body 9

#	OEM	部品名
1	25145-PA9-010	Shaft - OIL PUMP GEAR
2	27000-RXH-000	Body assy - MAIN VALVE
3	27112-PRP-030	Plate - MAIN SEPARATING
4	27122-P6H-000	Cap - 12MM
5	27132-P6H-000	Cap - 14MM
6	27142-P6H-000	Cap - 15MM
7	27263-PX3-000	Seat - VALVE SPRING
8	27524-P6H-000	Clip - CAP
9	91108-PRP-003	Roller - 4X23.8

Mainshaft 48

#	OEM	部品名
1	23210-RM3-000	Mainshaft comp.
1	22814-PRP-003	Ring - SEALING, 29MM
2	23261-PPP-000	Shaft - REVERSE GEAR
2	23210-RCL-010	Mainshaft comp.
3	23440-RM3-000	Gear comp, MAINSHAFT THIRD
3	23461-R90-B00	Gear - MAINSHAFT FOURTH
4	23450-RM3-000	Gear comp - MAINSHAFT FOURTH
4	23481-R00-000	Gear - MAINSHAFT FIFTH
5	23540-PPS-000	Gear comp - REVERSE IDLE
5	23511-R90-000	Gear - MAINSHAFT IDLE
6	23580-RM3-000	Gear comp - MAINSHAFT FIFTH
6	90203-PX4-010	Nut - FLANGE, 24MM
7	23590-RM3-000	Gear comp - MAINSHAFT SIXTH
7	90402-P0Z-000	Washer - SPRING, 24MM
8	90426-RCT-000	Washer - THRUST, 41X68X4.750
8	90421-RCT-000	Washer - THRUST, 41X68X4.625
8	90416-RCT-000	Washer - THRUST, 41X68X4.500
8	90428-RCT-000	Washer - THRUST, 41X68X4.800
8	90423-RCT-000	Washer - THRUST, 41X68X4.675
8	90418-RCT-000	Washer - THRUST, 41X68X4.550
8	90425-RCT-000	Washer - THRUST, 41X68X4.725
8	90420-RCT-000	Washer - THRUST, 41X68X4.600
8	90415-RCT-000	Washer - THRUST, 41X68X4.475
8	90427-RCT-000	Washer - THRUST, 41X68X4.775
8	90422-RCT-000	Washer - THRUST, 41X68X4.650
8	90417-RCT-000	Washer - THRUST, 41X68X4.525
8	90424-RCT-000	Washer - THRUST, 41X68X4.700
8	90419-RCT-000	Washer - THRUST, 41X68X4.575
8	90414-RCT-000	Washer - THRUST, 41X68X4.450
9	23623-RM3-305	Sleeve set - SYNCHRONIZER (3-4)
9	90501-PRP-000	Collar - 27X34X66.3
10	23626-RM3-305	Sleeve set - SYNCHRONIZER (5-6)
10	90603-P0X-000	Set ring - 23MM
11	23915-PPP-000	Collar - DISTANCE, 32X39X52
11	91017-PZK-003	Bearing - NEEDLE, 23X29X18
12	23916-PNS-000	Collar - DISTANCE, 28X35X24
12	91018-PW7-A02	Bearing - THRUST NEEDLE, 34X46X2
13	23927-PG2-A00	Washer - SPRING, 28MM
13	91023-PCJ-003	Bearing - THRUST NEEDLE, 34X53.5X2.5
14	23928-PS1-000	Washer - 28MM
14	91026-PRP-003	Bearing - THRUST NEEDLE, 57.6X71X2
15	90401-PG1-000	Washer - DRAIN PLUG, 10MM
15	91107-PRP-003	Bearing - NEEDLE, 34X40X39.5
16	91002-RAS-003	Bearing - BALL, 28X72X18
16	91109-PRP-003	Bearing - NEEDLE, 52X57X18
17	91102-RZF-006	Bearing - NEEDLE, 39X44X24
17	91316-PR9-003	O-ring - 33X1.9 (ARAI)
18	91103-RAS-003	Bearing - NEEDLE, 35X41X24

Meter 7

#	OEM	部品名
1	78100-TL1-N12	Meter assy - COMBINATION
1	78100-TL1-N02	Meter assy - COMBINATION
2	78113-TL0-A01	Knob
3	78117-S6M-901	Screw - TAPPING, 3X12
4	78159-TL0-G01	Lens comp
5	90140-TL0-000	Bolt-washer - 5X25
6	90306-SA0-000	Nut - FLOATING, 5MM

Mirror 18

#	OEM	部品名
1	34300-TL0-G01	Light assy - R. SIDE TURN
2	34350-TL0-G01	Light assy - L. SIDE TURN
6	76201-TL0-E21	Tube e
7	76202-TL0-E21	Cover - R. BASE
8	76203-TL0-E21	Mirror sub assy. - R. (R1400) (HEATED)
9	76204-TL0-E22	Turn set - R. AUTO
11	76210-TL0-E21	Actuator set - R.(AUTO TURN) (R1400)
12	76215-TL0-E21	Actuator set - L.(AUTO TURN) (R1400)
14	76252-TL0-E21	Cover - L. BASE
15	76253-TL0-E21	Mirror sub assy. - L. (R1400) (HEATED)
16	76254-TL0-E22	Turn set - L. AUTO
18	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)
22	90109-SDF-003	Screw - TAPPING, 4X14
23	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)
24	90109-TA0-003	Screw-washer - 5X12
25	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)
26	90615-SK7-003	Clip - MIRROR GARNISH
27	91565-SEA-003	Clamp - HARNESS

Molding/roof rail 38

#	OEM	部品名
1	72410-TL0-003	Molding assy. R. FR. DOOR
2	72425-TL0-003	Molding assy. R. FR. DOOR SASH
3	72430-TL0-003	Garnish - R. FR. DOOR CENTER PILLAR
4	72450-TL0-003	Molding assy. L. FR. DOOR
5	72465-TL0-003	Molding assy. - L. FR. DOOR SASH
6	72470-TL0-003	Garnish - L. FR. DOOR CENTER PILLAR
7	72910-TL4-003	Molding assy. R. RR. DOOR
8	72925-TL4-003	Molding assy. - R. RR. DOOR SASH
9	72930-TL0-003	Garnish - R. RR. DOOR CENTER PILLAR
10	72950-TL4-003	Molding assy. L. RR. DOOR
11	72965-TL4-003	Molding assy. - L. RR. DOOR SASH
12	72970-TL0-003	Garnish - L. RR. DOOR CENTER PILLAR
13	73510-TL4-G01	Molding assy. - R. QUARTER WINDSHIELD
14	73560-TL4-G01	Molding assy. - L. QUARTER WINDSHIELD
15	74306-TL4-G00	Molding assy. - R. FR. ROOF
16	74307-TL4-G00	Molding assy. - R. CENTER ROOF
17	74308-TL4-G00	Molding assy. - R. QUARTER ROOF
18	74316-TL4-G00	Molding assy. - L. FR. ROOF
19	74317-TL4-G00	Molding assy. - L. CENTER ROOF
20	74318-TL4-G00	Molding assy. - L. QUARTER ROOF
21	74410-TL4-G00	Garnish - R. RR. GUTTER
22	74450-TL4-G00	Garnish - L. RR. GUTTER
25	75271-TL4-G01	Pad - R. FR.
26	75272-TL4-G01	Pad - R. CENTER
27	75273-TL4-G01	Pad - R. RR.
29	75277-TL4-G01	Cover - R. CENTER
31	75281-TL4-G01	Pad - L. FR.
32	75282-TL4-G01	Pad - L. CENTER
33	75283-TL4-G01	Pad - L. RR.
35	75287-TL4-G01	Cover - L. CENTER
37	90116-SED-E01	Bolt - FLANGE, 6X12
38	90142-SWA-000	Screw - TAPPING, 4X10(PO)
39	90306-SED-E01	Nut - SPECIAL, 6MM
40	90601-S30-003	Grommet - COWL TOP
41	90602-SX0-003	Clip - COWL TOP
42	91503-STK-A01	Clip - DOOR MOLDING
43	91512-SWA-003	Clip - QUARTER MOLDING(FR.)
44	91513-SWA-003	Clip - QUARTER MOLDING CORNER

Oil level gauge/atf pipe 20

#	OEM	部品名
1	24901-R40-000	Cover - CONTROL WIRE
2	24902-RWK-900	Bracket - WIRE COVER
3	25213-RTA-007	Hose - ATF, 175MM
4	25430-PLR-003	Filter, ATF
5	25431-RAA-000	Stay a - ATF FILTER
6	25432-RWK-900	Stay comp. b - ATF FILTER
7	25610-RFK-013	Gauge comp. - ATF
8	25613-RCL-000	Pipe comp - ATF GAUGE
9	25615-RCL-003	Cap - ATF FILLER
10	25910-RXH-000	Pipe comp. a - ATF
11	25920-RXH-000	Pipe comp. b - ATF
12	25930-R00-000	Pipe comp. c - ATF
13	25950-RCL-000	Bolt comp - JOINT
14	25951-RGR-000	Bolt - JOINT
15	32745-R60-U50	Stay e - ENGINE HARNESS
17	32748-R60-U50	Stay h - ENGINE HARNESS
18	90471-RGR-000	Washer - DRAIN PLUG, 12MM
19	90635-PT0-802	Clip, Oil Pipe
19	90635-RV0-003	CLIP, OIL PIPE
20	91308-PH0-013	O-ring - 17.8X1.9 (NOK)

Oil pump (2.0L) 14

#	OEM	部品名
1	12513-P72-003	Plug - CYLINDER HEAD
2	15100-RZP-003	Pump assy. - OIL
2	15100-R1P-U01	PUMP ASSY OIL
3	15101-RNA-A00	O-ring set - OIL PUMP
4	15112-RNA-A00	Cover - CHAIN CASE
5	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)
5	15400-PLM-A02	OIL FILTER (HONEYWELL)
5	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
6	38930-RZP-G00	Bracket - COMPRESSOR
7	90009-RNA-A00	Bolt - SPECIAL, 8X65
8	90015-PH1-013	Holder - OIL FILTER
9	90021-PNA-000	Bolt - SPECIAL, 6X31
10	90041-RNA-A00	Bolt - STUD, 14X90
11	91212-RTA-003	Oil seal - 43X58X7 (NOK)

Outer panels/rear panel 10

#	OEM	部品名
12	63136-TL0-G01	Separator - FR. PILLAR INSIDE
13	63138-TL0-G01	Separator - FR. PILLAR OUTSIDE
15	63217-TL0-G01	Separator - CENTER PILLAR OUTSIDE
17	63229-TL0-G01	Separator - CENTER PILLAR INSIDE
30	74480-TL4-G01	Adapter assy - FUEL LID
31	74486-TF0-013	Lifter - FUEL LID PUSH
32	74490-TL4-G00	Grommet - FUEL FILLER
35	74700-TL4-G01	Actuator assy - FUEL LID
36	75450-SDE-T00	Outlet assy - RR. AIR
37	90101-SFE-000	Bolt-washer - 8MM

P.s. gear box (EPS; RH) 34

#	OEM	部品名
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)
2	53100-TL1-E01	Sensor comp, TORQUE
3	53106-S0A-003	O-ring - 54.4X3.1
4	53413-S04-G51	Spring - RACK GUIDE PRESSURE
5	53414-S84-A01	Screw - RACK GUIDE
6	53416-TL0-G01	Guide comp - STEERING RACK
7	53434-TA0-A02	Clip - STEERING TIE ROD
8	53449-SJK-003	Band - BELLOWS
9	53458-S84-A01	Nut - LOCK
10	53502-TL0-G01	Grommet - STEERING
11	53536-SDA-A02	Washer - TIE ROD LOCK
12	53537-S3N-003	Rubber - STOPPER
13	53537-S84-A01	Rubber - STOPPER
14	53537-TL1-G01	Dust seal set - TIE ROD
15	53540-TA0-A01	End comp - R. TIE ROD
16	53560-TA0-A01	End comp - L. TIE ROD
17	53601-TL1-E03	Box comp - STEERING GEAR
18	53610-TL1-G01	End comp - RACK
19	53682-TL1-E00	Harness comp. - EPS
20	53685-TL0-G01	Bush - STEERING GEAR BOX MOUNTING
21	53685-TL0-G11	Bush - STEERING GEAR BOX MOUNTING
22	53685-TL0-G21	Bush - STEERING GEAR BOX MOUNTING
23	53692-TL1-G00	Baffle - EPS HEAT
24	53751-TL0-G00	Stay - HARNESS
25	53752-TL0-E00	Stay - COUPLER HOLD
26	53753-TL0-G01	Case comp. - HARNESS HOLD
27	90103-S0A-N01	Screw - PAN, 5X8
28	90108-TL0-G00	Bolt - GEAR BOX MOUNTING
29	90108-TL1-G00	Bolt - GEAR BOX MOUNTING
30	90428-S0A-003	Washer - DRAIN
31	90506-TL0-G00	Washer - PLAIN, 2.6MM
32	91251-SEA-003	Circlip
33	91411-S84-A01	Nut - HEX., 14MM
34	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)

Parking brake (RH) 9

#	OEM	部品名
2	47342-STX-A01	Switch - PARKING BRAKE
3	47360-TL0-G01	Equalizer
4	47365-538-000	Pin - EQUALIZER
5	47510-TL1-G02	Wire - R. PARKING BRAKE
7	47522-594-000	Nut - PARKING BRAKE ADJUSTING
8	47537-SDG-003	Spring - PARKING BRAKE ROD
10	47560-TL1-G02	Wire - L. PARKING BRAKE
11	47572-ST0-000	Base - WIRE GUIDE
12	90104-TA0-003	Bolt - FLANGE, 8X22

Pedal (RH) 24

#	OEM	部品名
1	17800-TL0-E04	Pedal assy - ACCELERATOR
1	17800-TL0-E84	Pedal assy - ACCELERATOR
3	17818-TL0-E01	Stopper comp - ACCELERATOR
4	17820-TL0-G02	Clip - ACCELERATOR PEDAL
5	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)
5	36750-SDA-A02	Switch assy - STOP & CRUISE (TOYO)
7	36760-SM4-003	Switch assy - CLUTCH
9	46505-SA5-000	Pad - PEDAL STOPPER
10	46530-TL0-E02	Spring assy - PEDAL RETURN
11	46545-SA5-000	Cover, Pedal
14	46545-S84-A81	Cover - PEDAL
15	46590-TA0-000	Stay - PEDAL STIFFENER
16	46600-TL0-E02	Pedal assy - BRAKE
17	46600-TL0-E82	Pedal assy - BRAKE
18	46910-TL1-Q01	Pedal comp - CLUTCH
19	46911-SD4-930	Bush - PEDAL PIN
20	46982-TA0-A81	Bush - RETURN SPRING
21	46991-TL0-E00	Bracket - FOOTREST
22	46992-TA0-J01	Plate - FOOTREST
24	75891-611-000	Cover - DOOR SWITCH
25	90104-SFE-003	Bolt - FLANGE, 8X23
26	90301-SP0-003	Nut - PAINT CUTTING, 6MM
27	90361-SV4-003	Nut - PAINT CUTTING, 6MM
28	90361-S3C-003	Nut - PAINT CUTTING, 8MM

Pillar garnish (RH) 5

#	OEM	部品名
1	38205-TL0-E00	Label - DRIVER FUSE
2	38215-TL3-N00	Label - PASSENGER FUSE
20	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
21	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
22	91561-TA0-A01	Clip - FR. PILLAR GARNISH

Plug hole coil/plug (2.0L) 6

#	OEM	部品名
1	12290-R60-U01	Plug - SPARK(IZFR6K11NS)(NGK)
1	12290-R60-U02	Plug - SPARK(SKJ20DR-M11S) (DENSO)
2	30511-RZP-G00	Insulator - COIL HEAT
3	30520-RNA-A01	Coil comp - PLUG HOLE
4	30522-RNA-A01	Seal - PLUG HOLE
5	90207-RAA-A10	Nut - HEX. CAP, 6MM

Radiator (2.0L) 21

#	OEM	部品名
1	19010-RL2-G01	Radiator comp - DENSO
1	19010-RL2-G51	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19013-RZP-G01	Seal
5	19014-RL2-G01	Seal - LOWER
6	19015-R60-U01	Shroud comp.
7	19020-R60-U01	Fan - COOLING
8	19030-R60-U01	Motor - COOLING FAN(DENSO)
9	19045-RAA-003	Cap comp. - RADIATOR (DENSO)
11	19046-RAA-A00	Label - RADIATOR CAP
12	32175-PDA-E01	Clip - HARNESS
13	37870-RTA-005	Sensor assy - WATER TEMP (DENSO)
14	38611-R60-U01	Fan - COOLING
15	38615-R60-U01	Shroud comp. - AIR CONDITIONER
16	38616-R60-U01	Motor - COOLING FAN(DENSO)
17	38619-R60-U01	Cover - FAN MOTOR
18	90041-P3G-003	Screw-washer - 5X11
19	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
20	90043-PD2-003	Nut - HEX., 5MM (DENSO)
21	91307-RTA-005	O-ring - DENSO

Radiator hose/reserve tan k (2.0L) 27

#	OEM	部品名
1	19025-RL2-G00	Seal - R. RADIATOR SIDE
2	19026-RL2-G00	Seal - L. RADIATOR SIDE
3	19101-RL2-G00	Tank - RESERVE
4	19102-PM5-A00	Cap - RESERVE TANK
5	19103-RL2-G00	Hose - RESERVE TANK
6	19104-RL2-G00	Tube - RESERVE TANK
7	19106-RSA-G00	Joint - RESERVE TANK
8	19115-RL2-G00	Bracket - RESERVE TANK
9	19501-RL2-G01	Hose - WATER UPPER
10	19502-RL2-G01	Hose - WATER LOWER
11	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
12	25212-RFE-006	Hose - ATF, 300MM(NICHIRIN)
13	25214-RAA-003	Hose - ATF, 370MM(BRIDGESTONE)
14	25215-RAA-003	Hose - ATF, 155MM(BRIDGESTONE)
15	25940-R60-000	Pipe comp. d - ATF
16	25941-R60-000	Plate - ATF HOSE GUARD
17	74171-TL1-G00	Bracket - R. RADIATOR UPPER MOUNTING
18	74172-SM4-970	Cushion - RADIATOR MOUNTING LOWER
18	74172-SDA-A00	Cushion - RADIATOR MOUNTING LOWER
19	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
20	74176-TL1-G00	Bracket - L. RADIATOR UPPER MOUNTING
21	90635-PT0-802	Clip, Oil Pipe
21	90635-RV0-003	CLIP, OIL PIPE
22	91503-SZ3-003	Clip A
23	91503-TL0-003	Holder - ROD(BLACK)
24	91512-SND-003	Clip - TRUNK SPOILER

Radio antenna/speaker (RH) 18

#	OEM	部品名
1	39120-TF0-901	Speaker assy - 17CM ND SINGLE) (FOSTER
4	39120-TL0-G51	Speaker assy - TWEETER(FOSTER)
9	39155-TL4-G01	Module unit - MAIN ANTENNA
10	39156-TL0-E11	Sub feeder
11	39157-TL4-G01	Module unit - SUB ANTENNA
12	39160-TL4-E01	Feeder assy. - ANTENNA
13	39167-TL4-G11	Feeder assy. - RDS
14	39168-TL4-G01	Feeder assy. - SUB ANTENNA (INCLUDE WASHER TUBE)
18	90109-SLJ-003	Screw - 5X40
20	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
21	90309-SLJ-003	Nut assy. - SPEAKER
22	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
23	91533-STK-003	Clip - COUPLER(NATURAL)
24	91534-SWA-003	Clip - COUPLER(DARK GRAY)
25	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
26	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)
31	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
32	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Rear brake (1) 31

#	OEM	部品名
1	01473-TA0-A00	Rear Caliper Seal Set
1	01473-TA0-A51	CALIPER SEAL SET, REAR
2	06435-TA0-A00	Shim set - RR.
3	42200-TA0-A51	Bearing assy - RR. HUB UNIT
4	42510-TA0-A00	Disk - RR. BRAKE
5	43018-TA0-A01	Caliper sub assy. - R. RR.
5	43018-TA0-A51	Caliper sub assy. - R. RR.
6	43019-TA0-A01	Caliper sub assy. - L. RR.
6	43019-TA0-A51	Caliper sub assy. - L. RR.
7	43022-TL1-G01	Pad set - RR.
8	43215-TA0-A01	Piston assy.
8	43215-TA0-A51	Piston assy.
9	43235-S84-A51	Pin a
10	43244-TA0-A01	Retainer
10	43244-TA0-A02	Retainer
11	43247-TA0-A01	Arm - R.
11	43247-TA0-J01	Arm - R.
12	43253-TA0-A00	Guard, RR. SPLASH
13	43262-S84-A51	Pin b
14	43267-TA0-A01	Arm - L.
14	43267-TA0-J01	Arm - L.
15	43352-SM4-951	Screw - BLEEDER
16	43353-SD5-003	Cap - BLEEDER SCREW
17	45240-SC2-003	Bolt - FLANGE, 8X22
18	90103-SJK-000	Bolt - CALIPER MOUNTING
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-006	Bolt - WHEEL (SAGA)
20	90160-TA0-A00	Bolt-washer - 12X44
21	91352-TA0-A52	O-ring - 71X2.4 (UCHIYAMA)
21	91352-TA0-A51	O-ring - 71X2.4 (NOK)

Rear bumper 16

#	OEM	部品名
1	33505-SLJ-013	Reflector assy - R. RR.
2	33555-SLJ-013	Reflector assy - L. RR.
6	71506-TL6-G01	Garnish - R. RR. BUMPER EX. PIPE
9	71593-TL4-G01	Spacer - R. RR. BUMPER SIDE
10	71598-TL4-G01	Spacer - L. RR. BUMPER SIDE
11	90103-SDA-A00	Screw - TAPPING, 5X20
12	90103-TA0-000	Screw - TAPPING, 5X20
13	90110-SE7-000	Bolt-washer - 8X21
14	90113-SJA-A00	Screw - TAPPING, 5X14
15	90114-SZ3-000	Screw-washer - 5X20
16	90345-S04-000	Nut - SUSPENSION, 5MM
17	90501-SM4-003	Bolt - FENDER
18	90682-SB0-003	Grommet - SCREW, 5MM
19	90682-SJA-A01	Grommet - SCREW, 5MM
20	91505-S9A-003	Clip A - BUMPER
21	91609-SE0-A00	Protection - CUSHION

Rear door glass/regulator 14

#	OEM	部品名
1	72710-TL0-013	Regulator assy - R. RR. DOOR POWER
2	72731-TL4-003	Sash - R. RR. DOOR QUARTER
3	72735-TL4-003	Runchannel - R. RR. DOOR
4	72750-TL0-013	Regulator assy - L. RR. DOOR POWER
5	72771-TL4-003	Sash - L. RR. DOOR QUARTER
6	72775-TL4-003	Runchannel - L. RR. DOOR
7	73400-TL4-000	Glass assy - R. RR. DOOR (GREEN) (NIPPON SAFETY)
8	73410-TL4-003	Glass - R. RR. DOOR QUARTER (GREEN) (NIPPON SAFETY)
9	73450-TL4-000	Glass assy - L. RR. DOOR (GREEN) (NIPPON SAFETY)
10	73460-TL4-003	Glass - L. RR. DOOR QUARTER (GREEN) (NIPPON SAFETY)
11	90021-SFA-000	Bolt - FLANGE, 6X10
12	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)
13	90146-SP0-000	Screw - TAPPING, 4X12 (PO)
14	91605-SK7-003	Grommet - SCREW, 4MM

Rear door lining 18

#	OEM	部品名
1	33301-S70-003	Bulb - 12V 3.8W 2CP
2	34261-TL0-003	Lens
3	35770-TL0-E01	Switch assy - RR. POWER WINDOW
5	72835-TL0-G01	Weatherstrip - R. RR. DOOR INNER
6	72875-TL0-G01	Weatherstrip - L. RR. DOOR INNER
9	83508-TL0-G00	Bracket - R. PULL POCKET
10	83558-TL0-G00	Bracket - L. PULL POCKET
13	83703-TL0-G01	Bracket a - R. RR. GRIP
14	83704-TL0-G01	Bracket b - R. RR. GRIP
25	83753-TL0-G01	Bracket a - L. RR. GRIP
26	83754-TL0-G01	Bracket b - L. RR. GRIP
34	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
35	90662-SB2-003	Grommet - SCREW, 5MM
36	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
37	90678-SK7-003	Clip - SPEAKER
38	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
39	91560-TL0-G21	Clip - DOOR END GARNISH (LIGHT BROWN)(SEAL)
40	91562-S0X-A01	Clip - ROOF LINING (BLACK)

Rear door locks/ outer handle 37

#	OEM	部品名
1	72112-SJK-003	Protector - R. DOOR LATCH
3	72119-TL0-003	Seal
5	72134-SHJ-003	Clip s - CABLE END (NATURAL)
5	72174-SHJ-003	Clip t - CABLE END (BLACK)
6	72135-SDA-A01	Striker assy - DOOR LOCK
7	72141-SD4-004	Bush - R. JOINT
8	72141-TL0-E01	R. Handle comp.
9	72142-TL0-E01	Base comp. - R.
10	72143-S04-003	Packing
11	72143-TL0-G01	Cover comp. - R.
12	72144-TA0-A11	Holder comp
13	72146-TL0-A61	Collar
14	72148-TL0-E01	Seat a - R.
15	72149-SAA-003	Snap - R.
16	72149-TL0-E01	Seat b - R.
17	72152-SJK-003	Protector - L. DOOR LATCH
21	72181-SD4-004	Bush - L. JOINT
22	72181-TL0-E01	L. Handle comp
23	72182-TL0-E01	Base comp. - L.
24	72183-TL0-E01	LH handle cover comp
25	72188-TL0-E01	Seat a - L.
26	72189-SAA-003	Snap - L.
27	72189-TL0-E01	Seat b - L.
29	72610-TL0-J02	Latch assy - R. RR. DOOR POWER
29	72610-TL0-J01	Latch assy - R. RR. DOOR POWER
30	72612-SFA-000	Cap - CHILD LOCK
31	72613-SNA-003	Seal
32	72617-TL0-003	Seal
33	72618-TL0-003	Seal
35	72631-TL0-G01	Cable - RR. INSIDE HANDLE
36	72633-TL0-G01	Cable - RR. DOOR LOCK
38	72650-TL0-J02	Latch assy - L. RR. DOOR POWER
38	72650-TL0-J01	Latch assy - L. RR. DOOR POWER
40	74387-S3C-003	Fastener
41	90120-SV4-000	Bolt - LOCK STRIKER
42	90141-SDA-000	Screw - TAPPING, 5X12
43	90662-SB2-003	Grommet - SCREW, 5MM

Rear door panels 15

#	OEM	部品名
9	72142-S10-000	Stopper - DOOR
10	72810-TL4-003	Weatherstrip - R. RR. DOOR
11	72821-TL0-003	Seal - R. RR. DOOR HOLE
12	72840-TL0-003	Checker comp. - R. RR. DOOR
13	72850-TL4-003	Weatherstrip - L. RR. DOOR
14	72861-TL0-003	Seal - L. RR. DOOR HOLE
15	72880-TL0-003	Checker comp. - L. RR. DOOR
16	75891-SA7-000	Stopper - DOOR
17	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
17	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
18	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)
19	90141-S04-000	Bolt - FLANGE, 8X22
20	90651-S4N-003	Clip
21	91518-S10-003	Clip - MOLDING
22	91568-SJA-003	Clip - DOOR WEATHERSTRIP

Rear floor box 12

#	OEM	部品名
1	83308-S2G-003	Latch - FLOOR LID
2	83309-S2G-003	Striker - FLOOR LID
4	83829-SED-003	Bracket - CARGO FLOOR
5	83831-SED-003	Stay comp
6	83832-SED-003	Stay comp
9	84524-TL4-G00	Bracket - R. FR. LID SUPPORT
11	84526-TL4-G00	Bracket - R. RR. LID SUPPORT
13	84574-TL4-G00	Bracket - L. FR. LID SUPPORT
14	84576-TL4-G00	Bracket - L. RR. LID SUPPORT
15	90101-SFE-000	Bolt-washer - 8MM
16	90123-SJA-000	Bolt-washer - 6X16
18	90671-SED-003	Clip - FLOOR LID, 7MM

Rear knuckle 36

#	OEM	部品名
1	42518-TL1-G00	Bracket - RR. ABS SENSOR
2	42528-TA0-A01	Clip - COUPLER
3	51226-SL0-003	Circlip - LOWER BALL
4	52210-TC0-T00	Knuckle comp - R. RR.
5	52215-TC0-T00	Knuckle comp - L. RR.
6	52300-TL0-E01	Spring - RR. STABILIZER
7	52306-TL0-E01	Bush - RR. STABILIZER HOLDER
8	52308-TA0-A00	Bracket - RR. STABILIZER HOLDER
9	52320-TA0-A01	Link comp - R. RR. STABILIZER
10	52325-TA0-A01	Link comp - L. RR. STABILIZER
11	52340-TA0-A00	Arm comp - R. RR. CONTROL
12	52345-TA0-A00	Arm comp - L. RR. CONTROL
13	52350-TA0-A00	Arm comp. b - RR. LOWER
15	52363-SJK-010	Washer - LOWER ARM
16	52370-TL0-E00	Arm comp. a - R. RR. LOWER
17	52375-TL0-E00	Arm comp. a - L. RR. LOWER
18	52387-SJA-010	Plate - CAM(M12)
19	52510-TL0-E01	Arm comp - R. RR. UPPER
20	52514-TA0-A01	Boot - RR. UPPER BALL
21	52520-TL0-E01	Arm comp - L. RR. UPPER
22	57470-TL1-G02	Sensor assy - RR.
22	57470-TL1-G01	Sensor assy - RR.
23	90002-TA0-A00	Nut - FLANGE, 10MM
24	90100-SHJ-A00	Bolt - FLANGE, 6X16.5
25	90118-SNA-000	Bolt - FLANGE, 12X84
26	90118-TA0-A00	Bolt - FLANGE, 12X90
27	90166-TA0-A00	Bolt - FLANGE, 8X16
28	90178-TA0-A00	Bolt - RR. CONTROL ARM ADJUST
29	90181-S84-A00	Bolt - TRAILING ARM, 12X68
30	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
31	90362-SJA-000	Nut - SELF-LOCK, 12MM (NYLON)
32	90365-TA0-A00	Nut - CASTLE, 14MM
33	90370-SJA-000	Nut - SELF-LOCK, 12MM(CLINCH)
34	90651-SWA-000	Washer - RR. KNUCKLE
35	90701-SKC-003	Pin - SPLIT(M14)
37	57477-TA0-305	Seal - LIP(BLACK)

Rear seat 25

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	78182-SA0-000	Clip - RR. SEAT PIN
3	81123-SMA-J51	Screw - 6X18
4	81383-S7A-003	Clip - MAT, 5MM
5	81388-SLJ-J01	Bolt - ARMREST
8	82126-TL4-G01	Frame comp - R. RR. SEATBACK
9	82127-TL4-G01	Pad comp - R. RR. SEATBACK
10	82129-TL4-G00	Collar c
12	82132-TL0-G01	Pad & frame comp. - RR. SEAT CUSHION
13	82137-SDA-003	Clip - RR. SEAT CUSHION
23	82222-TL4-G01	Patch - L. RR. SEATBACK LOCK
25	82290-TL4-G01	Bracket comp. - R. SEAT PIVOT
26	82291-S04-000	Cover - RR. CENTER PIVOT
27	82292-TL4-000	Collar - RR. CENTER SEAT PIVOT
28	82295-TL4-G01	Bracket comp. - CENTER SEAT PIVOT
30	82526-TL4-G01	Frame comp - L. RR. SEATBACK
31	82527-TL4-G01	Pad comp - L. RR. SEATBACK
36	82690-TL4-G01	Bracket comp. - L. SEAT PIVOT
38	90110-SE7-000	Bolt-washer - 8X21
39	90123-SJA-000	Bolt-washer - 6X16
40	90139-S6A-003	Bolt - FLANGE, 8X35
41	90140-SA5-000	Bolt - SPLASH GUARD
42	90143-S70-J21	Bolt-washer - 8X16
43	90610-S10-003	Clip - GARNISH
44	90669-SHJ-A01	Clip - SNAP FITTING

Rear shock absorber 17

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
3	51685-SH3-014	Plate - DUST COVER(SHOWA)
4	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
5	52441-TL4-E42	Spring - RR.
7	52610-TL4-E42	Absorber assy - R. RR. SHOCK
8	52611-TL4-E01	Absorber unit - RR. SHOCK
9	52620-TL4-E42	Absorber assy - L. RR. SHOCK
10	52675-TA0-A01	Base - RR. SHOCK ABSORBER MOUNTING
11	52686-SDA-A01	Rubber - RR. SPRING MOUNTING
12	52687-TA0-A01	Cover comp. - DUST
13	52690-SG0-000	Plate - BUMP STOP
14	52722-SJA-003	Rubber - RR. BUMP STOPPER
15	52748-S0A-004	Cover - RR. LOWER MOUNT DUST
16	90182-TA0-A00	Bolt - FLANGE, 12X80
17	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear windshield/ quarter glass 14

#	OEM	部品名
2	73211-TL4-G01	Glass set - RR. WINDSHIELD (GREEN) (ASAHI)
3	73225-TL4-G00	Rubber a - WINDSHIELD DAM
4	73226-TL4-G00	Rubber b - WINDSHIELD DAM
5	73227-TL4-G00	Rubber c - WINDSHIELD DAM
6	73511-TL4-G01	Glass set - R. QUARTER (GREEN) (ASAHI)
7	73561-TL4-G01	Glass set - L. QUARTER (GREEN) (ASAHI)
8	73810-TL4-G01	Seal - R. QUARTER GLASS FR.
9	73860-TL4-G01	Seal - L. QUARTER GLASS FR.
10	75717-SNB-E01	Sticker - I-VTEC
12	76707-STK-000	Seal a
13	91502-S70-003	Fastener b - RR. WINDSHIELD
14	91503-TF0-000	Clip b - QUARTER WINDSHIELD
15	91563-SV4-003	Fastener a - RR. WINDSHIELD
16	91568-SV4-003	Fastener b - RR. WINDSHIELD

Rear wiper 12

#	OEM	部品名
1	38448-SD2-003	Rubber - WIPER MOUNTING
2	76622-S50-003	Rubber - BLADE (300MM)
2	76632-SFA-003	RUBBER, BLADE (300MM)
3	76702-S9A-003	Collar
4	76706-SK7-003	Washer a - SPECIAL
5	76708-SE1-003	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM
7	76710-TL4-G01	Motor comp - WIPER
8	76711-STK-003	Cap - PIVOT
9	76720-SCV-A01	Arm - RR. WIPER
10	76721-SCV-A01	Cover - ARM
11	76730-S3N-003	Blade - WINDSHIELD WIPER (300MM)

Regulator body 23

#	OEM	部品名
1	22741-P7Z-000	Pipe - 8X198
2	22753-PRP-000	Pipe - 6X201
3	22770-RCL-010	Pipe a - JOINT
4	22772-RCL-010	Pipe b - JOINT
5	25155-PRP-000	Shaft assy - STATOR
6	27132-P6H-000	Cap - 14MM
7	27200-RXH-000	Body assy - REGULATOR
8	27212-PRP-020	Plate - REGULATOR SEPARATING
9	27246-PN6-800	Cap - REGULATOR SPRING
10	27263-PX3-000	Seat - VALVE SPRING
11	27524-P6H-000	Clip - CAP
12	27561-PRP-000	Piston - LOW ACCUMULATOR
13	27562-PRP-000	Spring a - LOW ACCUMULATOR
14	27564-PRP-000	Spring b - LOW ACCUMULATOR
15	27574-PRP-000	Piston - THIRD ACCUMULATOR
16	27583-PRP-000	Spring - THIRD ACCUMULATOR
17	27591-PRP-J00	Cover - REGULATOR ACCUMULATOR
18	90001-PRP-000	Bolt - FLANGE, 6X30
19	90089-PK4-000	Bolt - STOPPER, 6MM
20	90701-PK4-000	Dowel pin - 8X80
21	91316-PF4-003	O-ring - 31X1.7 (ARAI)
22	91321-PF4-004	O-ring - 18.3X2.4(NOK)
23	91331-PC9-003	O-ring

Resonator chamber (2.0L) 19

#	OEM	部品名
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING
2	17212-PLC-000	Rubber - AIR CLEANER MOUNTING
3	17213-PD1-000	Rubber - AIR CLEANER CASE MOUNTING
4	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING
6	17230-RL2-G00	Chamber assy - RESONATOR
7	17251-R60-U00	Tube - AIR CLEANER CONNECTING
8	17253-R60-U00	Tube assy. b - AIR INTAKE
9	17254-RL2-G00	Tube c - AIR INTAKE
10	17255-RL2-G00	Cover assy. - SPLASH
11	17256-RBB-A00	Ring - SEAL
12	17256-R60-U00	Stay comp - AIR INTAKE
13	17257-RL2-G00	Shield - AIR INTAKE
14	17263-P0A-000	Rubber - AIR CLEANER STAY
15	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
16	90005-P28-A00	Bolt-washer - SPECIAL, 6X28
17	90120-PZA-000	Bolt - FLANGE, 6X12
18	90601-R60-U01	Clip - AIR INTAKE COVER
19	91503-SZ3-003	Clip A

Roof lining 7

#	OEM	部品名
14	83247-SNA-A01	Clip - GRAB RAIL
15	83247-TL4-G00	Hook comp - R. CARGO NET
21	83297-TL4-G00	Hook comp - L. CARGO NET
23	90662-SWA-003	Fastener - ROOF LINING
24	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
25	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
26	91560-S7A-901	Clip - RR. SIDE LINING (DARK BROWN)

Seatbelts 22

#	OEM	部品名
3	81441-S2G-N51	Collar - 5H
4	81441-S50-J22	Collar - 2H
5	81441-S50-N22	Collar - 2H
6	81441-TA0-A01	Collar - 10H
7	81441-TL0-G21	Collar - 3H
10	81460-SNA-A01	Adjuster - SHOULDER SLIDE
16	82451-TL4-G01	Anchor comp. - R. RR. SEATBELT OUTER
20	82851-TL4-G01	Anchor comp. - L. RR. SEATBELT OUTER
22	90123-S04-J30	Washer - WAVE
23	90142-SED-J01	Bolt-washer - 7/16"X28
24	90142-SFE-J01	Bolt - 7/16"X44
25	90142-SJA-A31	Bolt - 7/16"X36
26	90142-SNA-A41	Bolt-washer - 8X25
27	90142-SNA-004	Bolt - 7/16"X24
28	90142-S04-J32	Bolt - 7/16"X23.4
29	90142-TA0-004	Bolt - FLANGE, 7/16"X28
30	90142-TL0-004	Bolt - 7/16"X34
31	90142-TL4-G01	Bolt - 7/16"X22
32	90543-S50-004	Washer - SPRING
33	90543-S50-902	Washer - SPRING
34	91534-SWA-003	Clip - COUPLER(DARK GRAY)
35	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)

Secondary shaft 44

#	OEM	部品名
1	22814-PRP-003	Ring - SEALING, 29MM
2	23230-PRP-020	Shaft comp. - SECONDARY
3	23411-R00-000	Gear - SECONDARY SHAFT LOW
4	23431-R00-000	Gear - SECONDARY SHAFT SECOND
5	23455-R00-000	Gear - SECONDARY SHAFT THIRD
6	23521-R90-000	Gear - SECONDARY SHAFT IDLE
7	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)
8	90402-P0Z-000	Washer - SPRING, 24MM
9	90443-PRP-000	Collar - 27X37X36.5
10	90504-RCT-000	Washer - THRUST, 40X51.5X4.85
10	90506-RCT-000	Washer - THRUST, 40X51.5X4.95
10	90508-RCT-000	Washer - THRUST, 40X51.5X5.05
10	90503-RCT-000	Washer - THRUST, 40X51.5X4.80
10	90505-RCT-000	Washer - THRUST, 40X51.5X4.90
10	90507-RCT-000	Washer - THRUST, 40X51.5X5.00
11	90511-PRP-010	Washer - THRUST, 37X58X3.900
11	90528-PRP-000	Washer - THRUST, 37X58X4.325
11	90523-PRP-000	Washer - THRUST, 37X58X4.200
11	90518-PRP-010	Washer - THRUST, 37X58X4.075
11	90513-PRP-010	Washer - THRUST, 37X58X3.950
11	90530-PRP-000	Washer - THRUST, 37X58X4.375
11	90525-PRP-000	Washer - THRUST, 37X58X4.250
11	90520-PRP-010	Washer - THRUST, 37X58X4.125
11	90515-PRP-010	Washer - THRUST, 37X58X4.000
11	90527-PRP-000	Washer - THRUST, 37X58X4.300
11	90522-PRP-010	Washer - THRUST, 37X58X4.175
11	90517-PRP-010	Washer - THRUST, 37X58X4.050
11	90512-PRP-010	Washer - THRUST, 37X58X3.925
11	90529-PRP-000	Washer - THRUST, 37X58X4.350
11	90524-PRP-000	Washer - THRUST, 37X58X4.225
11	90519-PRP-010	Washer - THRUST, 37X58X4.100
11	90514-PRP-010	Washer - THRUST, 37X58X3.975
11	90526-PRP-000	Washer - THRUST, 37X58X4.275
11	90521-PRP-010	Washer - THRUST, 37X58X4.150
11	90516-PRP-010	Washer - THRUST, 37X58X4.025
12	90621-PRP-000	Circlip - EXTERNAL, 32MM
13	91021-PRP-013	Needle - THRUST, 40X53X2.5
14	91022-PRP-003	Needle - THRUST, 46.6X59.5X2.5
15	91027-PRP-003	Needle - THRUST, 37X57X2.5
16	91028-PRP-003	Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24)
17	91105-PRP-005	Bearing - NEEDLE, 40X47X16 (NSK)
18	91106-PRP-025	Bearing - NEEDLE, 40X46X20.5 (NSK)
19	91316-PR9-003	O-ring - 33X1.9 (ARAI)
20	91326-P4V-003	O-ring - 26.7X1.9(NOK)

Select lever (RH) 17

#	OEM	部品名
1	35505-692-003	Bulb - 14V 1.4W
2	35740-TL0-E81	Harness assy
3	39550-TA0-A01	Solenoid - SHIFT LOCK
4	54023-TL0-G81	Stopper set - SHIFT LOCK
5	54030-SYA-981	Release - SHIFT LOCK
6	54031-SYA-981	Spring - RELEASE RETURN
7	54032-SYA-981	Extension - SHIFT LOCK
10	54200-TL0-G82	Bracket set - SELECT LEVER
11	54201-TL0-E80	Bracket - SELECT LEVER
12	54202-TA0-A51	Holder - WIRE
15	54315-TL1-G02	Wire - CONTROL
16	54711-TL0-E82	Escutcheon - CONSOLE
19	54722-S9A-981	Strap - CABLE
20	54903-SYA-981	SCREW, FLAT 5x8
21	90126-SYA-981	Screw-washer - 3X12
22	90351-SB2-003	Nut - FLANGE, 8MM
23	91533-S04-003	Clip - COUPLER (NATURAL)

Servo body 26

#	OEM	部品名
1	22748-P24-J00	Pipe - 8X220
2	24271-PRP-000	Shaft - SHIFT FORK
3	24630-PRP-000	Arm comp - CHANGE DETENT
4	24635-PRP-000	Collar - CHANGE DETENT ARM
5	27263-PX3-000	Seat - VALVE SPRING
6	27400-RXH-000	Body assy - SERVO
7	27412-PRP-010	Plate - SERVO SEPARATING
8	27561-PRP-000	Piston - LOW ACCUMULATOR
9	27562-PRP-000	Spring a - LOW ACCUMULATOR
10	27564-PRP-000	Spring b - LOW ACCUMULATOR
11	27572-PRP-000	Piston - SECOND ACCUMULATOR
12	27574-PRP-000	Piston - THIRD ACCUMULATOR
13	27580-PRP-J00	Cover - SERVO ACCUMULATOR
14	27581-PRP-000	Spring a - SECOND ACCUMULATOR
15	27583-PRP-000	Spring - THIRD ACCUMULATOR
16	27584-PRP-000	Spring b - SECOND ACCUMULATOR
17	28400-PRP-004	Solenoid assy. a
18	28500-PRP-004	Solenoid assy. b
19	90001-PRP-000	Bolt - FLANGE, 6X30
20	90433-PRP-000	Washer - LOCK, 6MM
21	91301-P7Z-004	O-ring - 7.6X1.9 (DENSO)
22	91302-P7Z-004	O-ring - 9.6X1.9 (DENSO)
23	91321-PF4-004	O-ring - 18.3X2.4(NOK)
24	91331-PC9-003	O-ring
25	91331-PL5-J00	O-ring - 20.2X2.4 (NOK)
26	91344-580-000	O-ring - 31X2.7 (ARAI)

Shift arm 23

#	OEM	部品名
1	21396-P20-000	Cap - BREATHER
2	21520-RAS-000	Cover comp. - SHIFT ARM
3	24411-PPP-010	Arm - SHIFT
4	24412-PNS-000	Arm - MAINSHAFT BRAKE SYSTEM
5	24413-PNS-000	Spring - MAINSHAFT BRAKE SYSTEM RETURN
6	24430-PNS-000	Interlock comp.
7	24433-PH8-000	Bolt - INTERLOCK
8	24460-RPW-000	Lever comp - SELECT
9	24464-PPP-000	Spring - FIRST-SECOND SELECT
10	24466-PPP-000	Spring - FIFTH-SIXTH SELECT
11	24467-PPP-000	Plate - SELECT STOPPER
12	24470-R88-000	Lever comp - SHIFT
13	24474-RAP-000	Cover - DUST
14	24479-PPP-000	Cover - SHIFT LEVER
15	24521-PNS-000	Cam a - SELECT LOCK
16	24522-PNS-000	Cam b - SELECT LOCK
17	24524-PNS-000	Spring - SELECT LOCK RETURN
18	28251-RAS-003	Solenoid sub assy.
19	90029-611-010	Bolt - HEX., 8X24
20	90402-R88-000	Washer - PLAIN, 14MM
21	90412-679-000	Washer - CONICAL SPRING, 8MM
22	91207-PPP-003	Dust seal - 18X24X5
23	91208-PPP-003	Dust seal - 14X20X4

Shift fork 22

#	OEM	部品名
1	24201-RAS-000	Fork comp - GEARSHIFT (5-6)
1	24111-PRP-000	Fork - REVERSE SHIFT
2	24210-RAS-000	Fork comp - GEARSHIFT (3-4)
2	24282-634-000	Bolt - SHAFT FORK SETTING
3	24220-RAP-000	Fork comp - GEARSHIFT (1-2)
3	24410-PPV-000	Shaft comp. - CONTROL
4	24230-PPP-000	Holder comp - REVERSE SHIFT
4	24634-PRP-060	Spring - DETENT LEVER
5	24240-PNS-000	Piece comp. - REVERSE SHIFT
5	25420-RXH-003	Strainer assy - ATF
6	24455-PHR-000	Spring - BALL SETTING
6	25421-RXH-010	Plate - BAFFLE
7	24519-PB6-000	Screw - BALL SPRING SETTING
7	54313-TA0-A80	Lever comp - CONTROL
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5
8	54314-SEB-980	Pin - CONTROL WIRE
9	90001-PA9-000	Bolt - HEX., 6MM
10	90433-RCL-000	Washer - LOCK, 6MM
11	90433-639-000	Washer - LOCK, 6MM
12	90715-SDA-000	Pin - SNAP, 8MM
13	91209-612-003	Oil seal - 12X22X7 (ARAI)
14	91308-PW4-003	O-ring - 21.8X1.9

Shift lever 12

#	OEM	部品名
1	54100-TL1-E01	Lever sub assy. - CHANGE
5	54117-SNA-A01	Rubber - FLOATING
6	54118-S10-000	Washer assy. - WIRE
7	54119-SNA-A02	Collar - FLOATING
8	54310-TL1-G01	Wire comp - CHANGE
9	54322-SWA-T01	Washer - SELECT
10	54323-SWA-T01	Bush - SHIFT
11	54324-SWA-T01	Washer - SHIFT
12	54325-SWA-T01	Bush - SELECT
13	54357-SF1-003	Plate - CHANGE WIRE
14	90161-SP0-931	Bolt-washer - 6X18
15	90175-SEL-T81	Pin - LOCK, 8MM

Side lining 10

#	OEM	部品名
1	39620-TA0-003	Cap assy.
2	39624-SZ3-L01	Socket assy
3	74641-TL0-G00	Insulator - R. RR. WHEELHOUSE
4	74691-TL0-G00	Insulator - L. RR. WHEELHOUSE
17	84603-SJA-X01	Rivet
22	84613-TL4-G12	Belt assy. - TRUNK SIDE LINING
29	90676-SE0-003	Clip - JOINT COVER PLATE
30	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
31	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
32	91560-S6A-003	Clip - DOOR LINING(ORANGE)

Side sill garnish/ under cover 15

#	OEM	部品名
3	74510-TL0-G00	Cover assy. - R. MIDDLE FLOOR UNDER
4	74512-TL0-G00	Strake - R. RR.
6	74550-TL4-G00	Cover assy. - RR. UNDER
7	74551-TL4-G00	Fender - R. RR. INNER
8	74561-TA0-A00	Cover - L. MIDDLE FLOOR UNDER
9	74562-TL0-G00	Strake - L. RR.
10	74591-TL4-G00	Fender - L. RR. INNER
11	90103-TA0-000	Screw - TAPPING, 5X20
13	90144-SEA-000	Bolt - BUMPER
14	90149-SA0-003	Bolt - BUMPER
15	90207-RAA-A10	Nut - HEX. CAP, 6MM
16	90331-S3Y-003	Nut - SPRING, 5MM
17	90682-SDA-A01	Grommet - SCREW, 5MM
19	91503-S7A-003	Clip - FR. GRILLE
20	91505-S9A-003	Clip A - BUMPER

Solenoid 16

#	OEM	部品名
1	21511-RCL-000	Stay a - HARNESS
2	22749-PW4-000	Pipe - 35MM
3	22760-PPW-000	Pipe comp - JOINT
4	28250-R90-003	Solenoid assy. a - LINEAR
5	28252-RPC-000	Packing a - LINEAR SOLENOID
6	28260-R90-004	Solenoid assy. b - LINEAR
7	28262-PRP-000	Packing b - LINEAR SOLENOID
8	28360-PRP-003	Harness - SOLENOID WIRE
9	28600-R90-003	Switch assy - AT OIL PRESSURE
10	28600-R94-004	Switch assy - AT OIL PRESSURE
11	28810-R90-003	Pick up assy. - TOYO
13	28820-R29-003	Pick up assy.
14	90471-PW7-A00	PACKING, 10MM
15	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
16	91309-PX4-003	O-ring - 16X2.1 (NOK)
17	91329-PRP-003	O-ring - 23.3X2.4

Spool valve (2.0L) 20

#	OEM	部品名
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)
3	12215-RNA-A00	Collar - SPARK PLUG COIL
4	12216-RNA-A00	Bolt - SPARK PLUG COIL
5	12240-RNA-A00	Cover comp. - CAMSHAFT THRUST
6	12251-R60-U01	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
7	15810-RWK-003	Valve assy. Spool
8	15826-RNA-A01	Filter assy - SPOOL VALVE
9	17147-RNA-A00	Joint - EGR
10	32743-RNA-A01	Stay c - ENGINE HARNESS
11	32744-RZP-G00	Stay d - ENGINE WIRE HARNESS
12	37510-RNA-A01	Sensor assy - TDC
13	90001-P70-000	Bolt - FLANGE, 10X10.5
14	90005-RNA-A01	Bolt-washer - 11X176
15	90026-P8A-A00	Bolt - STUD, 8X41
16	91302-PX4-004	O-ring - 46.8X2.2 (NOK)
17	91319-PAA-A01	O-ring - 13X1.5
18	91333-PNA-003	O-ring - 15X1.9

Srs unit (RH) 33

#	OEM	部品名
1	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
2	77900-TL0-G21	Reel assy - CABLE (FURUKAWA)
3	77930-TC0-H11	Sensor assy - FR. CRASH(TRW)
4	77930-TC0-H21	Sensor assy - FR. CRASH(TRW)
5	77960-TL0-N92	Srs unit - TRW) (REWRITABLE
6	77962-TL4-N20	Harness - SRS FLOOR WIRE
6	77962-TL4-N30	Harness - SRS FLOOR WIRE
7	77965-TL4-G00	Sub cord - SRS FLOOR
8	77970-TC0-A11	Sensor assy - SIDE IMPACT(TRW)
9	78819-STK-A81	Clip - SIDE CURTAIN AIRBAG (8.5MM)
10	78848-TL0-G81	Bolt - SIDE CURTAIN AIRBAG (5X13)
11	78870-TL4-G81	Module assy. - R. SIDE CURTAIN AIRBAG
12	78875-TL4-G81	Module assy. - L. SIDE CURTAIN AIRBAG
13	83247-TL0-G00	Bracket set - R. FR. GRAB RAIL
14	83248-TL4-G00	Bracket set - R. RR. GRAB RAIL
15	83297-TL0-G00	Bracket set - L. FR. GRAB RAIL
16	83298-TL4-G00	Bracket set - L. RR. GRAB RAIL
17	90133-SDC-003	Bolt-washer - 5X16
18	90137-S84-A01	Bolt - TORX EARTH, 6X20
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
20	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
21	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
22	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
23	91533-STK-003	Clip - COUPLER(NATURAL)
25	91534-SWA-003	Clip - COUPLER(DARK GRAY)
26	91535-TA0-003	Clip - COUPLER (DARK BROWN)
27	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
28	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
29	91545-SJA-003	Clip - WIRE HARNESS(SEAL) (125MM)
30	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
31	91559-ST5-901	Clip - WIRE HARNESS (32.5MM)
32	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
33	91903-SNA-003	Plaster - WIRE HARNESS(50X100)

Starter motor (DENSO; 2.0L) 31

#	OEM	部品名
1	30201-PH9-004	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP
3	31200-RZP-E01	Motor assy. - STARTER(DSKEQ) (DENSO)
3	31200-RNA-003	Motor assy. - STARTER (DSKEG/DSKET) (DENSO)
4	31201-RZP-E01	Housing comp - DRIVE SIDE
4	31201-RNA-003	Housing comp - DRIVE SIDE
5	31202-PM3-J01	Bolt - THROUGH (DENSO)
6	31202-RNA-A01	Endframe comp. - COMMUTATOR
7	31203-PCA-003	Lever - PINION DRIVE
8	31204-RNA-003	Switch assy - MAGNET
9	31205-RTA-003	Yoke set
10	31206-RTA-003	Armature comp.
11	31207-PCA-003	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM
13	31211-PCX-A01	Brush - +
14	31212-P3F-003	Spring - BRUSH
15	31213-PCA-003	Shaft - DRIVE
16	31213-RNA-A01	Cover
17	31214-P3F-003	Gear assy. - INTERNAL
18	31215-P3F-003	Gear comp - PLANETARY
19	31216-RAA-003	Absorber comp - SHOCK
20	31217-P3F-003	Plate - SEAL
21	31218-P3F-003	Washer a
22	31219-P3F-003	Washer b
23	31220-PH9-004	Nut - HEX., 8MM
24	31220-P3F-003	Washer c
25	31223-PA0-006	Nut - HEX.
26	31228-PLR-A01	O-ring
27	31231-P3F-003	Plate comp - BRUSH HOLDER
28	31291-RZP-G01	Stay - ENGINE WIRE HARNESS
29	31292-PLR-A01	Bolt-washer

Steering column 7

#	OEM	部品名
1	53200-TL0-E03	Column assy - STEERING
3	53320-TA0-U01	Cover - STEERING JOINT
4	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
5	90135-SDA-000	Bolt - STEERING JOINT YOKE
5	90135-SZT-000	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS) 15

#	OEM	部品名
3	35880-TL0-E01	Switch assy - AUDIO REMOTE
6	36770-TL0-E01	Switch assy - CRUISE
8	77901-TL0-E30	Sub cord - CABLE REEL
8	77901-TL0-E40	Sub cord - CABLE REEL
8	77901-TL0-G40	Sub cord - CABLE REEL
8	77901-TL0-G30	Sub cord - CABLE REEL
10	78503-TL0-A81	Plate comp - HORN
13	78516-TL0-A41	Plate - R. SWITCH SET
14	78517-TL0-A41	Plate - L. SWITCH SET
16	78520-TA0-A81	Damper comp - STEERING
17	78523-TA0-A81	Spring - HORN
18	78524-TA0-A81	Bolt - TORX, (M5X8)
19	78525-TA0-A81	Plate - HOOK
24	90134-S6A-A80	Bolt - HEX., 6X23
25	90161-SV4-003	Bolt - STEERING HANDLE

Switch (RH) 9

#	OEM	部品名
2	35300-SMA-003	Switch assy - VSA OFF
5	35510-TL0-E02	Switch assy - HAZARD
6	35600-TL0-003	Switch assy - R. HEATED SEAT
7	35650-TL0-003	Switch assy - L. HEATED SEAT
12	35820-TL0-E01	Switch assy - HEADLIGHT ADJUSTER
17	35850-TA0-Y01	Bulb comp. a - 14V 60MA
21	35852-SMA-003	Bulb comp. b - 14V 40MA
22	35855-SMA-003	Bulb comp. - 14V 80MA
23	35856-SYY-003	Bulb comp. - 14V 80MA

Tailgate 28

#	OEM	部品名
1	34270-TL4-G01	Light assy - HIGH MOUNT STOP
5	71603-SL0-S01	Grommet - TRUNK SUB SPOILER
6	74440-TL4-G01	Weatherstrip - TAILGATE
8	74800-SMG-G01	Lock assy - TAILGATE
9	74810-TL4-G01	Switch assy - TAILGATE OPENER
10	74813-SFE-003	Striker assy - TAILGATE
11	74820-TL4-G01	Stay assy - TAILGATE OPEN
12	74824-TL4-G00	Bracket - R. TAILGATE OPEN STAY
13	74829-SED-010	Stopper - TAILGATE
14	74874-TL4-G00	Bracket - L. TAILGATE OPEN STAY
16	74895-TL4-G00	Garnish - R. TAILGATE HINGE
17	74896-TL4-G00	Garnish - L. TAILGATE HINGE
18	74899-TL4-G01	Damper - TAILGATE DYNAMIC
21	74903-TL4-G01	Bracket
22	75353-671-000	Lock - SCREW
23	90001-S10-010	Bolt-washer - 5X16
24	90101-SLJ-003	Bolt - FLANGE, 8X18
25	90102-SX0-000	Bolt - SPECIAL, 6MM
26	90102-S7A-000	Bolt-washer - 6X12
27	90107-SEY-003	Bolt - TAILGATE LOCK
28	90109-SCK-003	Stud - BALL
29	90120-SV4-000	Bolt - LOCK STRIKER
30	90305-S7S-000	Nut - FLANGE, 8MM
31	90307-SHJ-A01	Nut - CAP, 6MM
32	90308-SMG-E01	Nut - GARNISH (M5)
33	90856-SDA-A01	Plug - TRUNK DRAIN
34	91512-S50-003	Clip - LICENSE GARNISH
35	91513-SJK-003	Clip - TAILGATE GARNISH

Tailgate lining 10

#	OEM	部品名
9	84642-TL4-G01	Bracket
10	84643-SFE-003	Shaft
12	84647-SFE-003	Clip assy. - FLAP
13	84647-TL4-G01	Spring comp
14	84648-TL4-G01	Plate comp - R.
15	84698-TL4-G01	Plate comp - L.
16	90106-SS0-003	Grommet - SCREW
18	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
19	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
20	91562-S0X-A01	Clip - ROOF LINING (BLACK)

Taillight/license light 24

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33301-SNA-003	Bulb - 12V 5W) (STANLEY
3	33302-S5A-A01	Socket comp. - T20 W
4	33303-SAA-003	Socket comp - T20 S) (AMBER
5	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
7	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
8	33304-SED-003	Socket comp - T10
9	33500-TL4-G01	Taillight assy. - R.
10	33513-S50-003	Socket - T20W S2
11	33514-S50-003	Socket - T20W S3
12	33550-TL4-G01	Taillight assy. - L.
13	34103-SNB-003	Gasket - BASE
14	34105-TL4-003	Housing comp
15	34106-SNB-013	Lens comp
16	34150-TL4-E01	Light assy - R. LID
17	34152-TL4-G01	Gasket - BASE
18	34155-TL4-E01	Light assy - L. LID
19	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY
20	74890-TL4-G01	Garnish assy - RR. LICENSE
21	90001-S10-A00	Bolt-washer - 5X16
22	90321-TL4-003	Nut - HEX. CAP, 5MM
23	90665-S47-003	Clip
24	91560-S5H-003	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)
25	91626-S0X-A01	Grommet - TAILLIGHT

Throttle body (2.0L) 5

#	OEM	部品名
1	16400-RL2-G01	Throttle body - ELECTRONIC CONTROL (GMD2B)
2	36162-RNA-A01	Valve assy. - PURGE CONTROL SOLENOID
3	37835-PGK-A01	O-ring
4	90012-RNA-A00	Bolt-washer - 8X55
5	90020-RNA-A01	Bolt-washer - 5X20

Tire/wheel disks 24

#	OEM	部品名
6	42700-TL0-G92	Disk - ALUMINIUM WHEEL (16X6 1/2J) (KOSEI)
6	42700-TL0-G91	Disk - ALUMINIUM WHEEL (16X6 1/2J) (ENKEI)
8	42751-TL0-E21	Tire - 205/60R16 92V) (BRIDGESTONE
8	42751-TL0-E22	Tire - 205/60R16 92V) (DUNLOP
9	42753-671-003	Valve - RIM (TAIHEIYO)
9	42753-SB8-661	Valve - RIM (SCHRADER)
12	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)
12	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)
12	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)
12	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)
12	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)
12	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)
12	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)
12	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)
12	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)
12	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)
12	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)
12	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)
12	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)
12	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)
15	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER
18	74651-S2X-003	Adapter - SPARE TIRE
19	74652-SDA-003	Bolt - SPARE TIRE
21	90381-S4L-003	Nut - WHEEL(FUSE RASHI)

Tools/jack 5

#	OEM	部品名
5	84541-TL5-N01	Box - TOOL
6	89211-SYP-003	Wrench - WHEEL
7	89310-SFE-003	Jack assy - PANTOGRAPH
8	89311-SFE-003	Plate - JACK CAUTION
9	89320-S05-003	Bar - JACK

Torque converter case 18

#	OEM	部品名
1	21101-PRP-000	Plate - BEARING SETTING
1	21101-RG0-A00	Plate - BEARING SETTING
2	21111-R94-000	Case - TORQUE CONVERTER
3	23225-PRP-020	Plate - OIL GUIDE
4	23235-PRP-000	Collar - OIL GUIDE
5	25422-PN6-801	Magnet comp. - TRANSMISSION
6	90024-612-000	Bolt - SEALING, 8MM
7	90081-PX4-003	Bolt - PLUG, 18MM
8	90433-639-000	Washer - LOCK, 6MM
9	90471-PX4-000	Washer - DRAIN PLUG, 18MM
10	90471-580-000	Packing - 8MM
12	90705-PA9-000	Dowel pin - 14X25
13	91001-PRP-004	Bearing - BALL, 40X68X7.5
14	91005-PRP-003	Bearing - BALL, 32X68X9
15	91102-RXH-003	Bearing - NEEDLE, 36X64X19.9
16	91206-RCT-003	Oil seal - 35X58X8 (NOK)
17	91207-P7Z-003	Oil seal - 44X68X8 (NOK)
18	91301-PRP-003	O-ring - 31.7X1.95 (NOK)

Transmission case 89

#	OEM	部品名
1	21104-PPP-000	Plate m - OIL GUIDE
1	21210-R90-000	Case comp. - TRANSMISSION
2	21200-RPW-000	Case comp. - TRANSMISSION
2	21231-RCL-000	Hanger - TRANSMISSION
3	21211-RZF-000	Plate - OIL GUTTER
3	21396-PX5-000	Cap - BREATHER
4	21220-RPN-000	Hanger comp. a - TRANSMISSION
4	21399-RXH-020	Plate - BREATHER
5	21222-R88-000	Hanger comp. - TRANSMISSION
5	21514-RCL-A01	Stay d - HARNESS
6	21223-RZF-000	Hanger comp. b - TRANSMISSION
6	21811-R90-000	Packing - TORQUE CONVERTER CASE
7	28450-RCL-000	Cover - SOLENOID
8	23976-PPP-J00	Shim at - 72MM (1.95)
8	23944-P21-000	Shim n - 72MM(0.99)
8	23971-P21-000	Shim ao - 72MM(1.80)
8	23939-P21-000	Shim i - 72MM(0.84)
8	23966-P21-000	Shim aj - 72MM(1.65)
8	23934-P21-000	Shim d - 72MM(0.69)
8	23961-P21-000	Shim ae - 72MM(1.50)
8	23956-P21-000	Shim z - 72MM(1.35)
8	23983-PPP-J00	Shim bb - 72MM (2.16)
8	23951-P21-000	Shim u - 72MM(1.20)
8	23978-PPP-J00	Shim aw - 72MM (2.01)
8	23946-P21-000	Shim p - 72MM(1.05)
8	23973-PPP-J00	Shim aq - 72MM (1.86)
8	23941-P21-000	Shim k - 72MM(0.90)
8	23968-P21-000	Shim al - 72MM(1.71)
8	23936-P21-000	Shim f - 72MM(0.75)
8	23931-P21-000	Shim a - 72MM(0.60)
8	23963-P21-000	Shim ag - 72MM(1.56)
8	23958-P21-000	Shim ab - 72MM(1.41)
8	23985-PPP-J00	Shim bd - 72MM (2.22)
8	23953-P21-000	Shim w - 72MM(1.26)
8	23980-PPP-J00	Shim ay - 72MM (2.07)
8	23948-P21-000	Shim r - 72MM(1.11)
8	23975-PPP-J00	Shim as - 72MM (1.92)
8	23943-P21-000	Shim m - 72MM(0.96)
8	23970-P21-000	Shim an - 72MM(1.77)
8	23938-P21-000	Shim h - 72MM(0.81)
8	23965-P21-000	Shim ai - 72MM(1.62)
8	23933-P21-000	Shim c - 72MM(0.66)
8	23960-P21-000	Shim ad - 72MM(1.47)
8	23955-P21-000	Shim y - 72MM(1.32)
8	23982-PPP-J00	Shim ba - 72MM (2.13)
8	23950-P21-000	Shim t - 72MM(1.17)
8	23977-PPP-J00	Shim av - 72MM (1.98)
8	23945-P21-000	Shim o - 72MM(1.02)
8	23972-PPP-J00	Shim ap - 72MM (1.83)
8	23940-P21-000	Shim j - 72MM(0.87)
8	23967-P21-000	Shim ak - 72MM(1.68)
8	23935-P21-000	Shim e - 72MM(0.72)
8	23962-P21-000	Shim af - 72MM(1.53)
8	23957-P21-000	Shim aa - 72MM(1.38)
8	23984-PPP-J00	Shim bc - 72MM (2.19)
8	23952-P21-000	Shim v - 72MM(1.23)
8	23979-PPP-J00	Shim ax - 72MM (2.04)
8	23947-P21-000	Shim q - 72MM(1.08)
8	23974-PPP-J00	Shim ar - 72MM (1.89)
8	23942-P21-000	Shim l - 72MM(0.93)
8	23969-P21-000	Shim am - 72MM(1.74)
8	23937-P21-000	Shim g - 72MM(0.78)
8	23932-P21-000	Shim b - 72MM(0.63)
8	23964-P21-000	Shim ah - 72MM(1.59)
8	23959-P21-000	Shim ac - 72MM(1.44)
8	23986-PPP-J00	Shim be - 72MM (2.25)
8	23954-P21-000	Shim x - 72MM(1.29)
8	23981-PPP-J00	Shim az - 72MM (2.10)
8	23949-P21-000	Shim s - 72MM(1.14)
8	28451-PRP-010	Packing - SOLENOID COVER
9	24601-RPW-000	Stay - CHANGE WIRE
9	32746-RZP-G50	Stay f - ENGINE WIRE HARNESS
10	28820-PWR-013	Pick up assy. MATSUSHITA
11	32745-RZP-G00	Stay e - ENGINE HARNESS
11	32749-R60-U60	Stay j - ENGINE HARNESS
12	90609-PX4-000	Ring - SNAP, 80MM
13	90081-PB6-000	Bolt - PLUG, 14MM
13	90613-PRP-000	Ring - SNAP, 48MM
14	90081-RPF-000	Bolt - SEALING, 32MM
14	90614-PRP-000	Ring - SNAP, 55MM
15	90401-RM3-000	Washer - PLAIN, 2.3MM
15	90615-P0Z-000	Ring - SNAP, 82MM
16	91205-PL3-B01	Oil seal - 40X56X8(ARAI)
16	91002-RCR-026	Bearing - BALL, 27X82X18.5
17	91309-PX4-003	O-ring - 16X2.1 (NOK)
17	91003-RFK-025	Bearing - BALL, 31X80X16.5
18	91004-RFK-016	Bearing - BALL, 26.8X55X14.5
19	91006-PRP-026	Bearing - BALL, 20X48X24
20	91205-P0X-005	Oil seal - 40X56X9 (NOK)

Valve/rocker arm (2.0L) 13

#	OEM	部品名
1	14620-RNA-A01	Arm assy. - ROCKER
2	14711-R60-U00	Valve - IN.
3	14721-P2A-000	Valve - EX.
4	14744-PM3-000	Screw - TAPPET ADJUSTING
5	14761-RNA-A02	Spring, IN. VALVE (VIOLET) (CHUO SPRING)
5	14761-RNA-A01	Spring - IN. VALVE (VIOLET) (NIPPON HATSUJO)
6	14762-RNA-A02	Spring - EX. VALVE (GRAY) (CHUO SPRING)
6	14762-RNA-A01	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)
7	14765-RGA-000	Retainer - VALVE SPRING
8	14775-P08-000	Seat - VALVE SPRING
9	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)
10	14820-RNA-A01	Motion comp - LOST
11	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)

Vsa modulator 5

#	OEM	部品名
1	57101-SLJ-003	Rubber - MOUNT
2	57110-TL1-G03	Modulator assy - VSA (REWRITABLE)
2	57110-TL1-G24	Modulator assy - VSA (REWRITABLE)
4	57115-TL1-G01	Bracket - MODULATOR
5	57376-SNA-A00	Bolt - MOUNTING

Water hose (2.0L) 5

#	OEM	部品名
1	19506-RNA-A01	Hose - THERMOBODY IN.
2	19507-R60-U01	Hose - THROTTLE BODY OUTLET
3	19508-RNA-A01	Hose - BYPASS
4	19509-RNA-A01	Hose - DEVICE
5	19512-PK2-003	Clip - HOSE, 18.7MM

Water hose (2.0L; RH) 8

#	OEM	部品名
1	79721-TL1-E10	Hose - WATER IN.
1	79721-TA2-J00	Hose - WATER IN.
2	79725-TL1-E10	Hose - WATER OUTLET
2	79725-TA2-J00	Hose - WATER OUTLET
3	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)
4	79751-TA2-A00	Stay - HEATER HOSE
5	91405-PK1-003	Clip, WATER HOSE, 24MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water pump (2.0L) 25

#	OEM	部品名
1	18011-R60-U00	EGR Valve set
1	18011-RNA-A00	EGR Valve set
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-RZP-013	Pump comp - WATER
4	19222-RNA-A00	Packing - WATER PUMP
5	19224-RZP-003	Pulley - WATER PUMP
6	19301-RNA-305	Thermostat assy - FUJI SEIKO
6	19301-RNA-306	Thermostat assy - NIPPON THERMOSTAT
7	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
8	19311-RNA-A00	Cover - THERMOSTAT
9	19315-RNA-A01	Cover comp. - WATER OUTLET
10	19320-RNA-A00	Case comp. - THERMOSTAT
11	19322-RNA-A01	Gasket - THERMOSTAT CASE
12	19425-RNA-A00	Cover - HEATER OUTLET
13	19426-RNA-A01	Gasket - HEATER OUTLET
14	19505-RNA-A00	Pipe assy. - CONNECTING
15	36536-R60-U00	Stay - SENSOR HARNESS
16	37870-RWC-A01	Water Temp Sensor assy - (PANASONIC)
17	90010-RNA-A00	Bolt - SPECIAL, 8X87
18	90013-PCX-000	Bolt - SPECIAL, 6X12
19	90014-RNA-A00	Bolt - SPECIAL, 6X29.5
20	90015-RNA-A00	Bolt - SEALING, 16MM
21	90401-RNA-A00	Washer - SEALING, 16MM
22	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)
23	91314-PH7-003	O-ring 31.2X4.1 (NOK)

Windshield washer 30

#	OEM	部品名
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
3	76802-SEF-S01	Cap unit - MOUTH
4	76805-TL0-G02	Hose
7	76809-SE0-003	Grommet - WASHER TANK
9	76821-TL4-003	Tube sub assy.
10	76822-TL4-003	Tube sub assy.
11	76841-TA0-U01	Tank - WASHER (4.5L FR.)
13	76842-S2K-J11	Bush - WASHER TANK
14	76846-TF0-013	Pump set - WASHER
14	76846-TF0-003	Pump set - WASHER
15	76850-TL4-G01	Nozzle assy. - RR. WINDSHIELD
16	76851-S30-003	Grommet - WASHER TUBE
17	76857-SE1-003	Grommet b - RR. WASHER TUBE
18	76864-TL0-G01	Tube - 1280MM
19	76867-TL4-G01	Tube - 110MM
20	76868-TL4-G01	Cushion
21	76868-TL4-G11	Cushion
22	76871-TL4-G01	Tube - 1650MM
23	76872-TL4-G01	Tube - 1360MM
24	76874-TL4-G01	Tube - 380MM
25	76875-TL4-G01	Tube - 70MM
26	76876-TL4-G01	Tube - 500MM
27	76878-TL4-G01	Tube - 80MM
28	90652-SB2-023	Clip - TUBE, 7MM
29	91511-TA0-A01	Clip - WASHER TUBE & OPEN WIRE
30	91511-TL4-G01	Clip - WASHER TUBE
31	91512-SX0-003	Clip - INNER FENDER CLIP
32	91902-SNA-003	Plaster - WIRE HARNESS(50X50)
33	91903-SNA-003	Plaster - WIRE HARNESS(50X100)

Wire harness (1; RH) 11

#	OEM	部品名
1	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)
2	32120-TL1-N01	Harness - L. CABIN WIRE
2	32120-TL1-N11	Harness - L. CABIN WIRE
3	32140-TL4-N00	Harness - R. SIDE WIRE
4	32601-TA0-A10	Cable assy - MISSION EARTH
4	32601-TA0-A00	Cable assy - MISSION EARTH
6	32602-TL0-G10	Cable assy - EPS EARTH
8	32610-TA2-U00	Cable assy - SUB EARTH
10	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
11	90149-SE0-003	Bolt - EARTH, 6X16
12	90153-SE0-003	Bolt - EARTH, 6X12

Wire harness (2; RH) 9

#	OEM	部品名
1	32108-TL4-E00	Harness - RR. WIRE
2	32109-TL4-E00	Cord - TAILGATE
4	32117-TL4-N10	Harness - INSTRUMENT WIRE
4	32117-TL4-N00	Harness - INSTRUMENT WIRE
5	32160-TL4-N20	Harness - L. SIDE WIRE
6	35506-SMA-003	Bulb - 14V 1.4W
7	90120-PZA-000	Bolt - FLANGE, 6X12
8	90137-S84-A01	Bolt - TORX EARTH, 6X20
9	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (3; RH) 12

#	OEM	部品名
1	32100-TL1-N00	Harness - R. CABIN WIRE
2	32116-TL0-G00	Harness - SWITCH SUB WIRE
3	32118-TL0-E50	Harness - AUDIO SUB WIRE
3	32118-TL0-E40	Harness - AUDIO SUB WIRE
5	32155-TL0-N10	Cord - INTERIOR
5	32155-TL0-N00	Cord - INTERIOR
9	32751-TL4-N00	Harness - DOOR WIRE (DRIVER SIDE)
10	32752-TL0-E00	Harness - DOOR WIRE (PASSENGER SIDE)
11	32753-TL0-A00	Harness - R. RR. DOOR WIRE
12	32754-TL0-A00	Harness - L. RR. DOOR WIRE
13	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
14	90149-SE0-003	Bolt - EARTH, 6X16
