CH4 × CW1

共通 259 / 合計 4,794 · Jaccard 5.4%
CH4 Honda ACCORD — 2,424 中 259 共有
CW1 Honda ACCORD — 2,629 中 259 共有
259 件
Accumulator body (V6) 2 / 15
CH4 Accumulator body (V6)
CW1 Regulator body
# OEM CH4 CW1
3 27524-P6H-000 Clip - CAP Clip - CAP
15 91331-PC9-003 O-ring O-ring

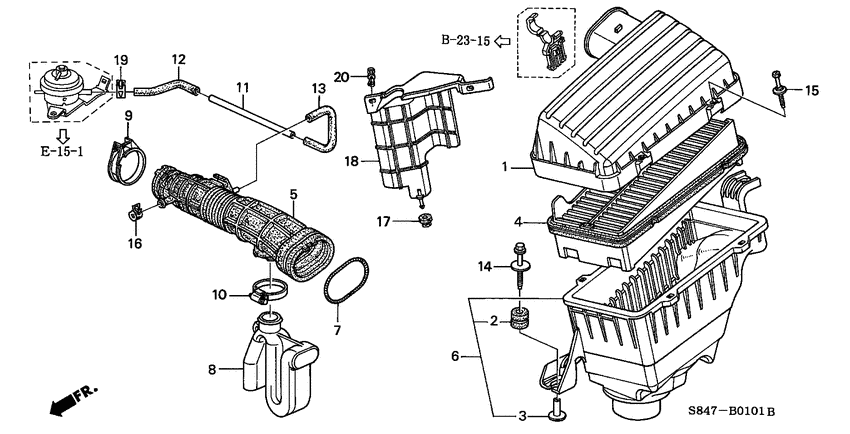

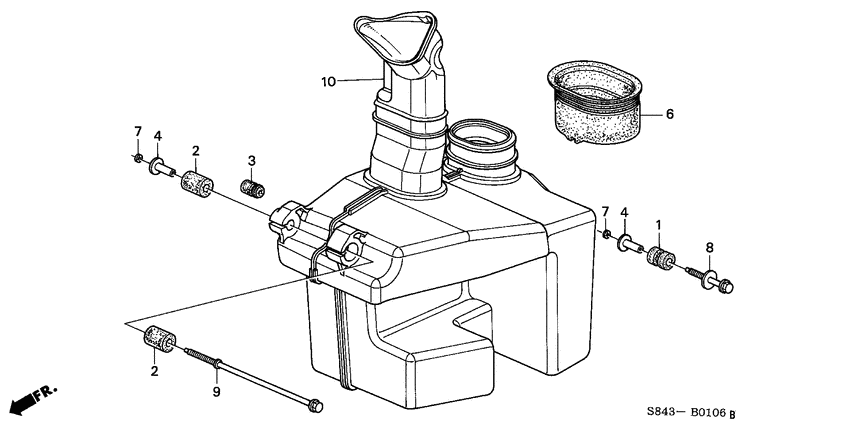

Air cleaner (V6) 6 / 24
CH4 Air cleaner (V6)
CW1 Air cleaner (2.0L)
# OEM CH4 CW1
2 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
3 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
14 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
16 91405-679-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
16 91405-PM5-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
17 17213-P8A-A00 Rubber - INTAKE MANIFOLD COVER MOUNTING Rubber - INTAKE MANIFOLD COVER MOUNTING
Air conditioner (COOLING UNIT; LH) 4 / 30
CH4 Air conditioner (COOLING UNIT; LH)
CW1 Air conditioner (HOSES/PIPES; 2.0L; RH)
# OEM CH4 CW1
25 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
26 80873-ST7-000 O-ring - 8MM O-ring - 8MM
27 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
28 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)

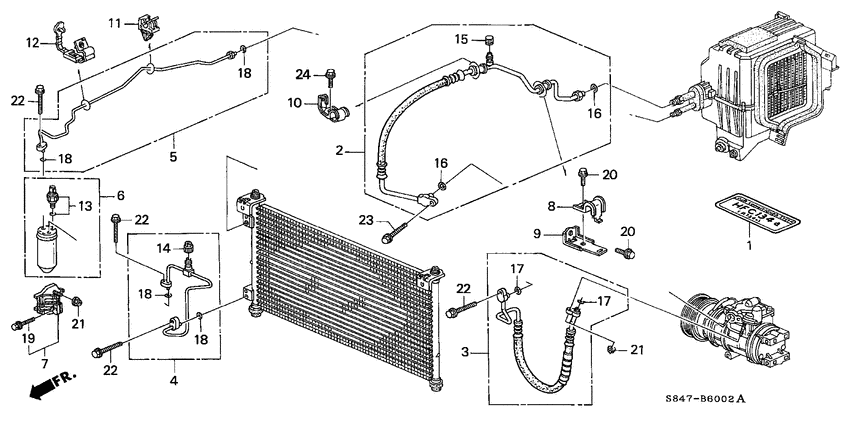

Air conditioner (HOSES/PIPES; V6; LH) 5 / 21
CH4 Air conditioner (HOSES/PIPES; V6; LH)
CW1 Air conditioner (HOSES/PIPES; 2.0L; RH)
# OEM CH4 CW1
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
16 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
16 80871-S5A-003 O-ring - 5/8" O-ring - 5/8"
17 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
18 80873-ST7-000 O-ring - 8MM O-ring - 8MM

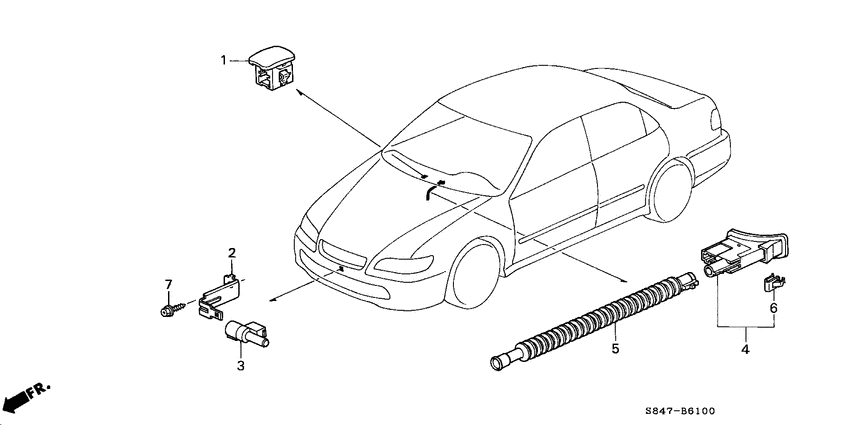

Air conditioner (SENSOR) 1 / 5
CH4 Air conditioner (SENSOR)
CW1 Instrument panel (RH)
# OEM CH4 CW1
6 90666-SD4-003 Clip - FITTING Clip - FITTING

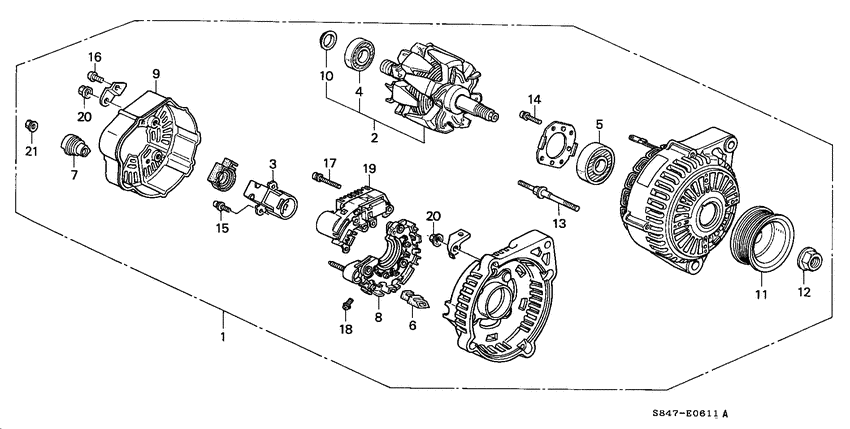

Alternator (DENSO; V6) 4 / 32
CH4 Alternator (DENSO; V6)
CW1 Alternator (DENSO; 2.0L)
# OEM CH4 CW1
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
12 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
15 31147-PT0-003 Screw-washer Screw-washer
Auto radio 1 / 8
CH4 Auto radio
CW1 Audio unit
# OEM CH4 CW1
6 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16

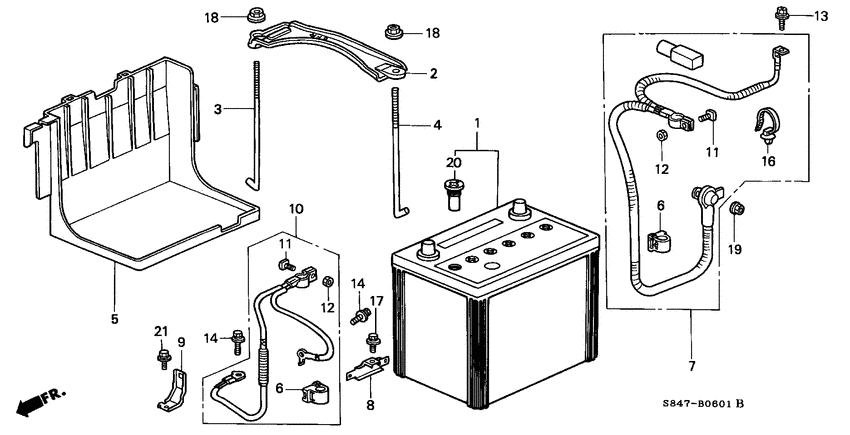

Battery (V6) 6 / 16
CH4 Battery (V6)
CW1 Battery
# OEM CH4 CW1
11 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
12 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
13 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
14 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
16 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
20 31542-SA5-666 Plug - VENT (MF) (FURUKAWA) Plug - VENT (MF) (FURUKAWA)

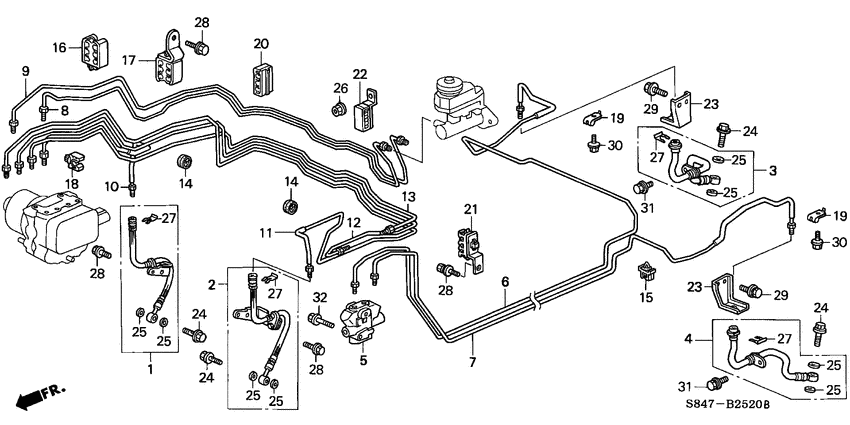

Brake lines (V6; ABS; LH) 4 / 32
CH4 Brake lines (V6; ABS; LH)
CW1 Brake lines (VSA; RH)
# OEM CH4 CW1
14 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
24 46462-SE0-000 Bolt - OIL Bolt - OIL
25 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Brake master cylinder/ master power 6 / 20
CH4 Brake master cylinder/ master power
CW1 Brake master cylinder/ master power (RH)
# OEM CH4 CW1
5 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
14 46512-S70-000 Pin - PEDAL Pin - PEDAL
17 46665-S04-J01 Grommet Grommet
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
21 57515-S30-003 Pin - STOP Pin - STOP
29 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
Breather tube (V6) 2 / 9
CH4 Breather tube (V6)
CW1 Breather tube (2.0L)
# OEM CH4 CW1
5 91405-679-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
5 91405-PM5-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
Bumpers ('01-) 4 / 22
CH4 Bumpers ('01-)
CW1 Front bumper
# OEM CH4 CW1
23 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
25 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
27 90156-S0K-000 Grommet - FR. LICENSE BASE Grommet - FR. LICENSE BASE
30 91503-SZ3-003 Clip A Clip A
Bumpers (-'00) 3 / 21
CH4 Bumpers (-'00)
CW1 Front bumper
# OEM CH4 CW1
28 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
29 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
33 91503-SZ3-003 Clip A Clip A
Clutch (V6) 9 / 46
CH4 Clutch (V6)
CW1 Clutch (4TH-5TH)
# OEM CH4 CW1
4 22533-PX4-010 Seat - RETURN SPRING Seat - RETURN SPRING
9 22541-PX4-004 Spring - CLUTCH RETURN (SANKO) Spring - CLUTCH RETURN (SANKO)
19 22653-P7Z-003 Plate - CLUTCH (2.0MM) Plate - CLUTCH (2.0MM)
21 90603-PX4-000 Circlip - EXTERNAL, 47MM Circlip - EXTERNAL, 47MM
22 90603-P6H-003 Circlip - EXTERNAL, 43MM Circlip - EXTERNAL, 43MM
23 90605-PX4-000 Ring - SNAP, 129MM Ring - SNAP, 129MM
24 91302-PA9-003 O-ring, 39.8X2.2 (ARAI) O-ring, 39.8X2.2 (ARAI)
25 91302-PX4-004 O-ring - 46.8X2.2 (NOK) O-ring - 46.8X2.2 (NOK)
27 91303-PX4-004 O-ring - 114X2.2 (NOK) O-ring - 114X2.2 (NOK)
Combination switch (LH) 4 / 28
CH4 Combination switch (LH)
CW1 Key cylinder components
# OEM CH4 CW1
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
18 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
Console 4 / 16
CH4 Console
CW1 Instrument panel garnish (PASSENGER SIDE; RH)
# OEM CH4 CW1
5 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
28 90146-SP0-000 Screw - TAPPING, 4X12 (PO) Screw - TAPPING, 4X12 (PO)
29 90666-SD4-003 Clip - FITTING Clip - FITTING
30 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Control unit (ENGINE ROOM; LH) 1 / 24
CH4 Control unit (ENGINE ROOM; LH)
CW1 Control unit (CABIN; 1; RH)
# OEM CH4 CW1
20 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16

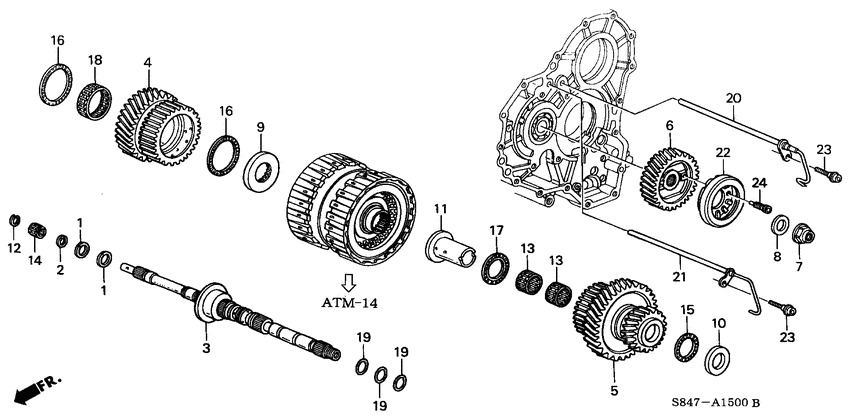

Countershaft (V6) 2 / 31
CH4 Countershaft (V6)
CW1 Countershaft
# OEM CH4 CW1
16 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
18 90431-P6H-000 Cotter - 31MM Cotter - 31MM

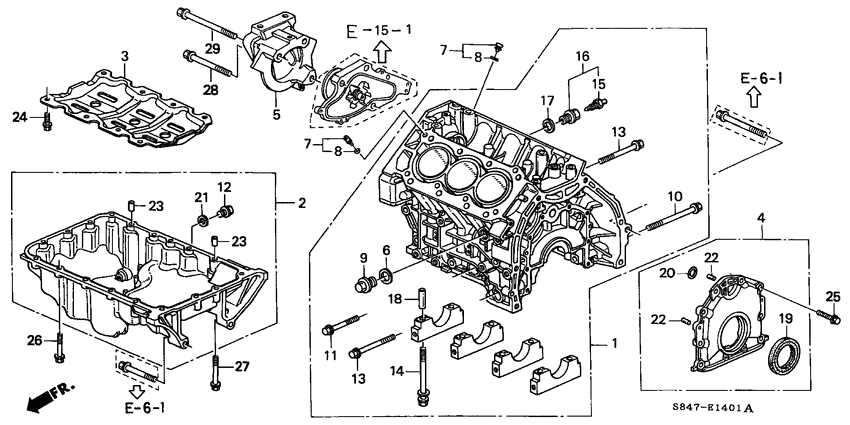

Cylinder block/oil pan (V6) 2 / 23
CH4 Cylinder block/oil pan (V6)
CW1 Cylinder block/oil pan (2.0L)
# OEM CH4 CW1
9 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
12 90009-PY3-000 DRAIN PLUG BOLT, 14MM DRAIN PLUG BOLT, 14MM

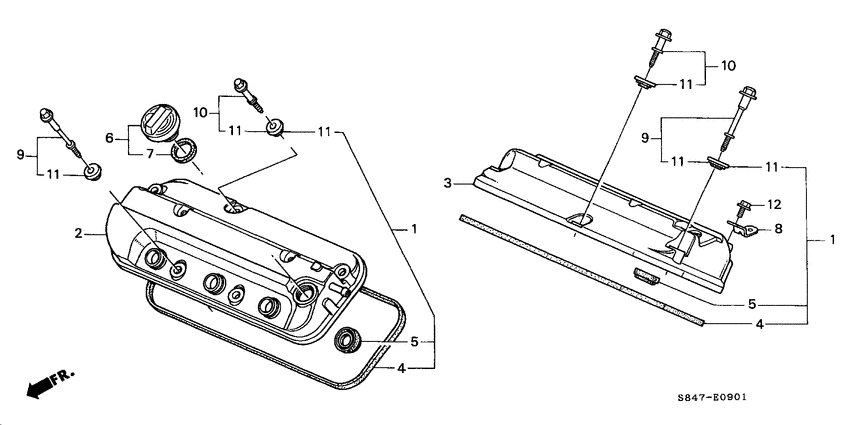

Cylinder head cover (V6) 2 / 14
CH4 Cylinder head cover (V6)
CW1 Cylinder head cover (2.0L)
# OEM CH4 CW1
6 15610-RGA-000 Cap assy. - OIL FILLER Cap assy. - OIL FILLER
7 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Differential (V6) 1 / 48
CH4 Differential (V6)
CW1 Differential
# OEM CH4 CW1
6 90003-PA9-003 Bolt - FLANGE, 10MM Bolt - FLANGE, 10MM
Duct (LH) 1 / 7
CH4 Duct (LH)
CW1 Engine hood (RH)
# OEM CH4 CW1
8 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Emblems/caution labels 3 / 13
CH4 Emblems/caution labels
CW1 Emblems/caution labels
# OEM CH4 CW1
1 17669-SS0-X30 Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY) Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
18 78527-S04-G80 Label - SRS CAUTION (CHILD SEAT) Label - SRS CAUTION (CHILD SEAT)
19 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine hood (LH) 2 / 30
CH4 Engine hood (LH)
CW1 Engine hood (RH)
# OEM CH4 CW1
8 74134-SM4-000 Grommet - HOOD WIRE Grommet - HOOD WIRE
24 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15

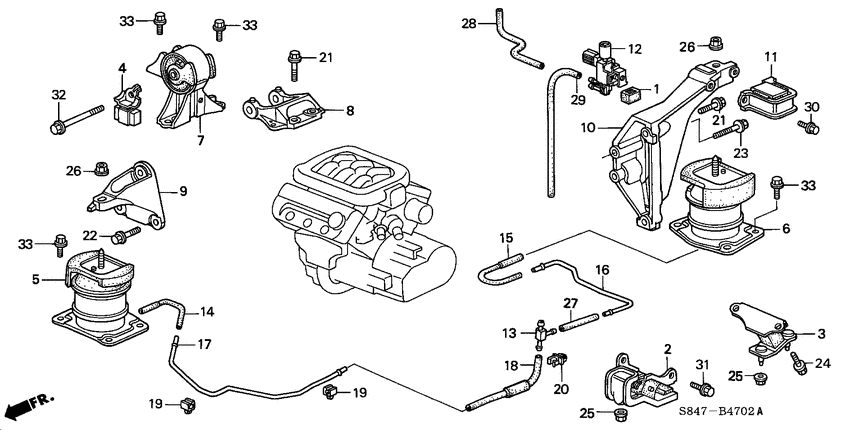

Engine mounts (V6) 1 / 26
CH4 Engine mounts (V6)
CW1 Engine mounts (2.0L; AT)
# OEM CH4 CW1
25 90371-S87-A00 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
Engine wire harness (L4; LH) 1 / 1
CH4 Engine wire harness (L4; LH)
CW1 Engine wire harness (2.0L)
# OEM CH4 CW1
17 91558-SM4-003 Clip - TUBE(BLACK)(135MM) Clip - TUBE(BLACK)(135MM)

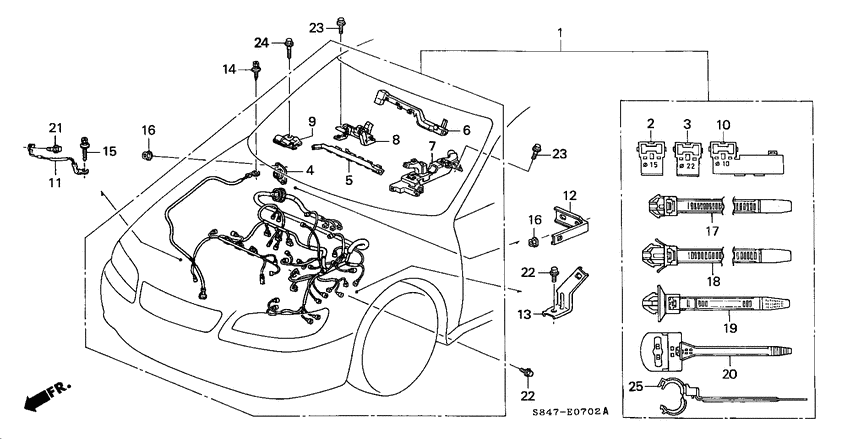

Engine wire harness (V6; LH) 4 / 25
CH4 Engine wire harness (V6; LH)
CW1 Control unit (ENGINE ROOM; 1)
# OEM CH4 CW1
14 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
16 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
21 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
25 91558-SM4-003 Clip - TUBE(BLACK)(135MM) Clip - TUBE(BLACK)(135MM)

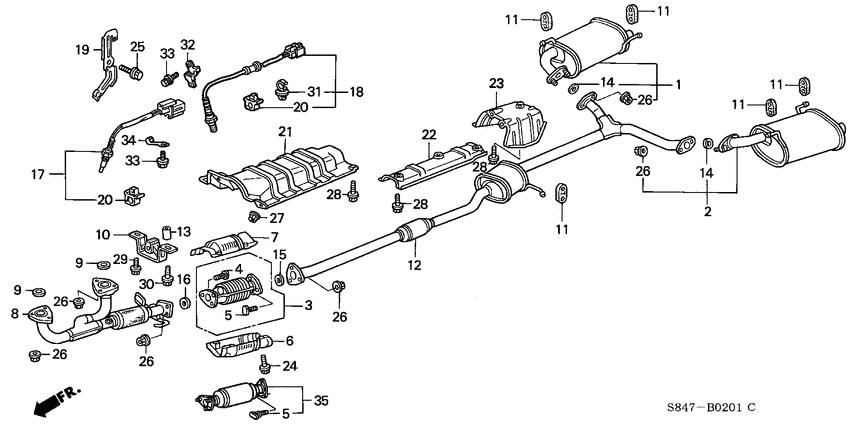

Exhaust pipe (V6) 4 / 34
CH4 Exhaust pipe (V6)
CW1 Exhaust pipe (2.0L)
# OEM CH4 CW1
11 18215-S84-A20 Rubber - EX. MOUNTING Rubber - EX. MOUNTING
16 18393-SS0-J30 Gasket - PRE-CHAMBER (57.5MM-58.5MM) Gasket - PRE-CHAMBER (57.5MM-58.5MM)
26 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
27 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Floor mat 2 / 11
CH4 Floor mat
CW1 Side lining
# OEM CH4 CW1
11 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
18 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR

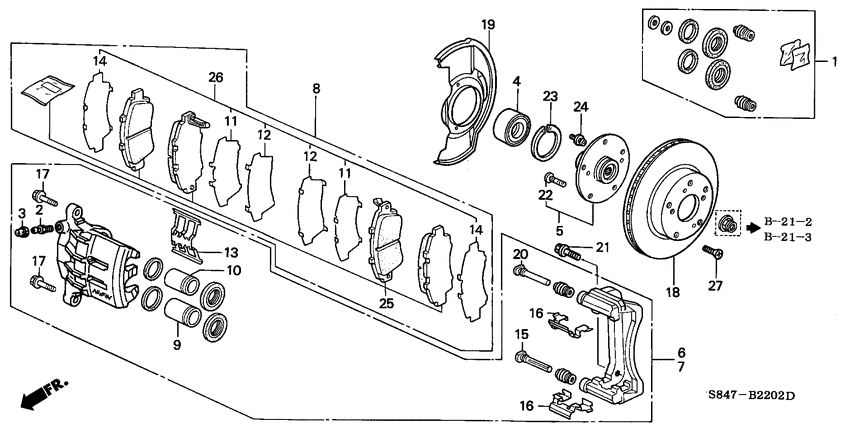

Front brake (3) 6 / 26
CH4 Front brake (3)
CW1 Front brake (1)
# OEM CH4 CW1
2 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
3 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
21 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
22 90113-SD4-902 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
22 90113-SD4-901 Bolt - WHEEL (MEIRA) Bolt - WHEEL (MEIRA)
22 90113-S84-901 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Front bulkhead 1 / 2
CH4 Front bulkhead
CW1 Front bulkhead/dashboard
# OEM CH4 CW1
33 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20

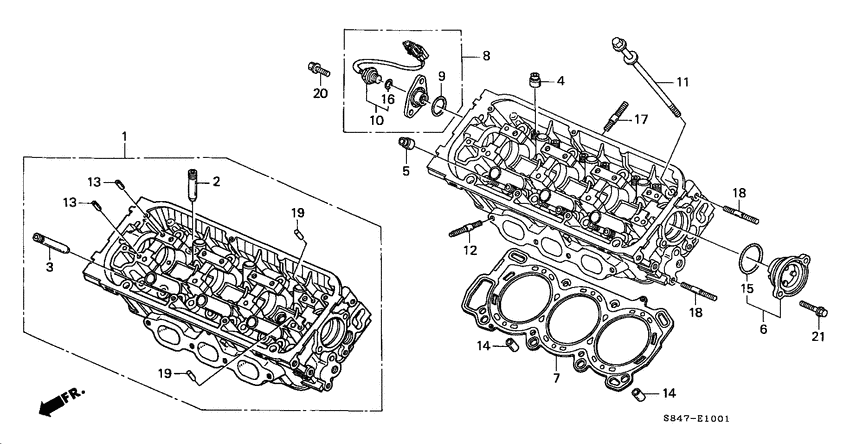

Front cylinder head (V6) 6 / 19
CH4 Front cylinder head (V6)
CW1 Spool valve (2.0L)
# OEM CH4 CW1
2 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
3 12205-PJ7-305 Guide - EX. VALVE (OS) Guide - EX. VALVE (OS)
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
12 90026-P8A-A00 Bolt - STUD, 8X41 Bolt - STUD, 8X41
Front door lining (LH) 3 / 10
CH4 Front door lining (LH)
CW1 Front door lining (RH)
# OEM CH4 CW1
20 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
21 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
22 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 1 / 38
CH4 Front door locks
CW1 Front door locks/ outer handle
# OEM CH4 CW1
37 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
Front door panels 4 / 30
CH4 Front door panels
CW1 Front door panels
# OEM CH4 CW1
15 75891-SA7-000 Stopper - DOOR Stopper - DOOR
16 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
17 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
24 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Front door windows 1 / 17
CH4 Front door windows
CW1 Heater unit (RH)
# OEM CH4 CW1
15 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Front driveshaft/ half shaft (V6; '99-) 6 / 37
CH4 Front driveshaft/ half shaft (V6; '99-)
CW1 Front driveshaft/half sha ft (2.0L)
# OEM CH4 CW1
8 44319-S0A-300 Set ring - 28X2.0 Set ring - 28X2.0
8 44319-S84-300 Set ring - 28X2.0 Set ring - 28X2.0
9 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
10 44327-SX0-C02 Band - OUTBOARD BOOT (NIPPON HATSUJO) Band - OUTBOARD BOOT (NIPPON HATSUJO)
11 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
17 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
Front fenders 6 / 11
CH4 Front fenders
CW1 Rear bumper
# OEM CH4 CW1
7 90501-SM4-003 Bolt - FENDER Bolt - FENDER
8 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
10 90305-SM4-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
12 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
14 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP

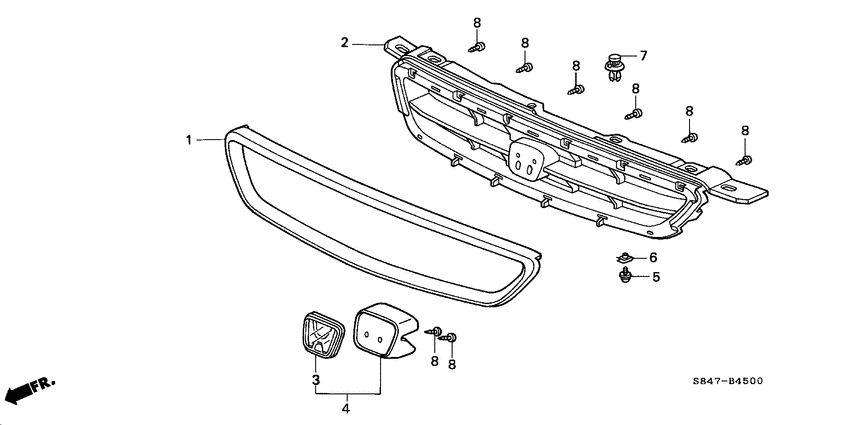

Front grille 1 / 7
CH4 Front grille
CW1 Front bumper
# OEM CH4 CW1
7 91503-SZ3-003 Clip A Clip A
Front lower arm 5 / 29
CH4 Front lower arm
CW1 Front stabilizer/ front lower arm
# OEM CH4 CW1
21 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
22 90117-S0A-000 Bolt - DAMPER LOCK(10X44) Bolt - DAMPER LOCK(10X44)
24 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
28 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Front seat (L.; 2) 4 / 20
CH4 Front seat (L.; 2)
CW1 Front seat (L.; RH)
# OEM CH4 CW1
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
23 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
28 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
32 81322-SP0-003 Clip - LUMBAR SUPPORT Clip - LUMBAR SUPPORT
Front seat (R.; 2) 3 / 24
CH4 Front seat (R.; 2)
CW1 Front seat (L.; RH)
# OEM CH4 CW1
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
22 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
27 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front seat components (L.; 3) 2 / 13
CH4 Front seat components (L.; 3)
CW1 Select lever (RH)
# OEM CH4 CW1
17 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
18 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front shock absorber 7 / 18
CH4 Front shock absorber
CW1 Front shock absorber
# OEM CH4 CW1
5 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
6 51631-SV7-004 Rubber - SHOCK ABSORBER MOUNTING(SHOWA) Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
10 51689-SH3-004 Plate - BUMP STOP (SHOWA) Plate - BUMP STOP (SHOWA)
13 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
14 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
15 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front windshield wiper (LH) 3 / 19
CH4 Front windshield wiper (LH)
CW1 Front windshield wiper (RH)
# OEM CH4 CW1
4 76517-SM4-003 Collar Collar
6 76524-SD4-003 Dust seal Dust seal
18 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe (1) 1 / 41
CH4 Fuel pipe (1)
CW1 Pedal (RH)
# OEM CH4 CW1
28 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank 4 / 40
CH4 Fuel tank
CW1 Fuel tank
# OEM CH4 CW1
8 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
26 17711-S84-004 Retainer - WHITE)(SANOH Retainer - WHITE)(SANOH
36 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
41 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Grommet 4 / 13
CH4 Grommet
CW1 Grommet (LOWER)
# OEM CH4 CW1
3 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
8 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
11 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
12 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Harness band/bracket 4 / 24
CH4 Harness band/bracket
CW1 Harness band/bracket (RH)
# OEM CH4 CW1
8 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
16 91559-ST5-003 Clip - HARNESS BAND OFFSET(30) (NATURAL) Clip - HARNESS BAND OFFSET(30) (NATURAL)
17 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
24 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
Headlight 2 / 19
CH4 Headlight
CW1 Headlight
# OEM CH4 CW1
2 33115-S84-A11 Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Heater blower (LH) 4 / 16
CH4 Heater blower (LH)
CW1 Heater unit (RH)
# OEM CH4 CW1
13 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
14 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
16 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (LH) 5 / 16
CH4 Heater unit (LH)
CW1 Heater unit (RH)
# OEM CH4 CW1
2 39248-692-003 Packing - HEATER Packing - HEATER
12 80534-S84-A41 Aspirator Aspirator
14 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
15 90127-S84-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
16 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
High tension cord/ plug (V6) 1 / 16
CH4 High tension cord/ plug (V6)
CW1 Engine wire harness (2.0L)
# OEM CH4 CW1
14 91601-P8A-A01 Receptacle Receptacle
Instrument panel (LH) 5 / 18
CH4 Instrument panel (LH)
CW1 Instrument panel (RH)
# OEM CH4 CW1
5 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
35 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
36 90666-SD4-003 Clip - FITTING Clip - FITTING
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
43 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
Instrument panel garnish (LH) 3 / 17
CH4 Instrument panel garnish (LH)
CW1 Instrument panel garnish (PASSENGER SIDE; RH)
# OEM CH4 CW1
8 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
36 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Intake manifold (V6) 1 / 15
CH4 Intake manifold (V6)
CW1 Fuel injector (2.0L)
# OEM CH4 CW1
13 17213-P8A-A00 Rubber - INTAKE MANIFOLD COVER MOUNTING Rubber - INTAKE MANIFOLD COVER MOUNTING
Intake manifold cover (1) 2 / 17
CH4 Intake manifold cover (1)
CW1 Engine wire harness (2.0L)
# OEM CH4 CW1
14 90501-SS8-A01 Retainer Retainer
17 91501-P8A-A01 Stud Stud
Intake manifold cover (2) 3 / 24
CH4 Intake manifold cover (2)
CW1 Engine wire harness (2.0L)
# OEM CH4 CW1
20 90501-SS8-A01 Retainer Retainer
23 91501-P8A-A01 Stud Stud
24 91601-P8A-A01 Receptacle Receptacle
Interior light 2 / 9
CH4 Interior light
CW1 Interior light (1)
# OEM CH4 CW1
5 34295-SJ8-003 Bulb - 12V 5W) (DAIICHI Bulb - 12V 5W) (DAIICHI
5 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
Knuckle 4 / 17
CH4 Knuckle
CW1 Front knuckle
# OEM CH4 CW1
6 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
15 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
17 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
L. side cover (V6) 21 / 36
CH4 L. side cover (V6)
CW1 L. side cover
# OEM CH4 CW1
7 22713-PW4-000 Guide a - FEED PIPE Guide a - FEED PIPE
8 22713-PX4-000 Guide a - FEED PIPE Guide a - FEED PIPE
10 22725-P6H-000 Pipe comp. b - FEED Pipe comp. b - FEED
11 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
12 24532-PX4-000 Lever - PARKING BRAKE Lever - PARKING BRAKE
14 24538-PA9-003 Stopper - PARKING BRAKE (2) Stopper - PARKING BRAKE (2)
14 24537-PA9-003 Stopper - PARKING BRAKE (1) Stopper - PARKING BRAKE (1)
14 24539-PA9-003 Stopper - PARKING BRAKE (3) Stopper - PARKING BRAKE (3)
16 24553-PN6-000 Roller - PARKING BRAKE Roller - PARKING BRAKE
17 24555-PN6-000 Pin - ROLLER, 6MM Pin - ROLLER, 6MM
21 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
22 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
23 90471-580-000 Packing - 8MM Packing - 8MM
24 90602-PX4-000 Circlip b - INTERNAL, 47MM Circlip b - INTERNAL, 47MM
26 91006-P1B-003 Bearing - BALL, 9X20X6 Bearing - BALL, 9X20X6
27 91201-PA9-004 Oil seal - 9X18X7 (ARAI) Oil seal - 9X18X7 (ARAI)
28 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
29 91305-PC9-003 O-ring - 34X1.9 (ARAI) O-ring - 34X1.9 (ARAI)
30 91305-PX4-003 O-ring - 40X1.9 (NOK) O-ring - 40X1.9 (NOK)
31 91311-PA9-004 O-ring - 7.7X1.9 (NOK) O-ring - 7.7X1.9 (NOK)
32 91314-PW4-003 O-ring - 11X1.9 (NOK) O-ring - 11X1.9 (NOK)
Main valve body (V6) 5 / 15
CH4 Main valve body (V6)
CW1 Main valve body
# OEM CH4 CW1
3 25145-PA9-010 Shaft - OIL PUMP GEAR Shaft - OIL PUMP GEAR
6 27122-P6H-000 Cap - 12MM Cap - 12MM
7 27132-P6H-000 Cap - 14MM Cap - 14MM
8 27142-P6H-000 Cap - 15MM Cap - 15MM
10 27524-P6H-000 Clip - CAP Clip - CAP
Mainshaft (V6) 3 / 36
CH4 Mainshaft (V6)
CW1 Mainshaft
# OEM CH4 CW1
8 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
12 90603-P0X-000 Set ring - 23MM Set ring - 23MM
19 91316-PR9-003 O-ring - 33X1.9 (ARAI) O-ring - 33X1.9 (ARAI)
Mirror (2) 2 / 10
CH4 Mirror (2)
CW1 Mirror
# OEM CH4 CW1
11 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
12 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Oil level gauge (V6) 1 / 12
CH4 Oil level gauge (V6)
CW1 Shift fork
# OEM CH4 CW1
9 90001-PA9-000 Bolt - HEX., 6MM Bolt - HEX., 6MM
Oil pump/oil strainer (V6) 2 / 32
CH4 Oil pump/oil strainer (V6)
CW1 Oil pump (2.0L)
# OEM CH4 CW1
9 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
21 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
Parking brake 2 / 10
CH4 Parking brake
CW1 Parking brake (RH)
# OEM CH4 CW1
6 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
9 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
Pedal (LH) 4 / 13
CH4 Pedal (LH)
CW1 Pedal (RH)
# OEM CH4 CW1
7 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
12 46545-S84-A81 Cover - PEDAL Cover - PEDAL
24 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
25 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Pillar garnish (LH) 1 / 4
CH4 Pillar garnish (LH)
CW1 Floor mat
# OEM CH4 CW1
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Power steering lines (V6; LH) 1 / 25
CH4 Power steering lines (V6; LH)
CW1 Brake master cylinder/ master power (RH)
# OEM CH4 CW1
9 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Radiator (V6) 4 / 13
CH4 Radiator (V6)
CW1 Radiator (2.0L)
# OEM CH4 CW1
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
11 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
12 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose (V6) 6 / 22
CH4 Radiator hose (V6)
CW1 Radiator hose/reserve tan k (2.0L)
# OEM CH4 CW1
2 19102-PM5-A00 Cap - RESERVE TANK Cap - RESERVE TANK
8 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
8 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
17 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
19 90635-PT0-802 Clip, Oil Pipe Clip, Oil Pipe
19 90635-RV0-003 CLIP, OIL PIPE CLIP, OIL PIPE
Radio antenna/speaker 3 / 16
CH4 Radio antenna/speaker
CW1 Harness band/bracket (RH)
# OEM CH4 CW1
12 90666-SD4-003 Clip - FITTING Clip - FITTING
13 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
14 91545-S30-003 Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
Rear brake (DISK; V6) 8 / 46
CH4 Rear brake (DISK; V6)
CW1 Rear brake (1)
# OEM CH4 CW1
16 43235-S84-A51 Pin a Pin a
29 43262-S84-A51 Pin b Pin b
33 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
34 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
35 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
37 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
37 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
37 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
Rear cylinder head (V6) 6 / 17
CH4 Rear cylinder head (V6)
CW1 Spool valve (2.0L)
# OEM CH4 CW1
1 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
2 12205-PJ7-305 Guide - EX. VALVE (OS) Guide - EX. VALVE (OS)
5 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
5 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
6 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
12 90026-P8A-A00 Bolt - STUD, 8X41 Bolt - STUD, 8X41
Rear door lining 3 / 9
CH4 Rear door lining
CW1 Front door lining (RH)
# OEM CH4 CW1
19 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
20 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 2 / 35
CH4 Rear door locks
CW1 Front door locks/ outer handle
# OEM CH4 CW1
36 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
37 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Rear door panels 3 / 30
CH4 Rear door panels
CW1 Front door panels
# OEM CH4 CW1
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
21 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
26 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Rear door windows 1 / 22
CH4 Rear door windows
CW1 Heater unit (RH)
# OEM CH4 CW1
21 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Rear lower arm 6 / 36
CH4 Rear lower arm
CW1 Front stabilizer/ front lower arm
# OEM CH4 CW1
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
26 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
28 90181-S84-A00 Bolt - TRAILING ARM, 12X68 Bolt - TRAILING ARM, 12X68
29 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
31 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Rear seat 3 / 22
CH4 Rear seat
CW1 Rear seat
# OEM CH4 CW1
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
3 78182-SA0-000 Clip - RR. SEAT PIN Clip - RR. SEAT PIN
31 90140-SA5-000 Bolt - SPLASH GUARD Bolt - SPLASH GUARD
Rear shock absorber 6 / 23
CH4 Rear shock absorber
CW1 Rear shock absorber
# OEM CH4 CW1
1 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
2 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
3 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
12 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
16 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Regulator (V6) 7 / 16
CH4 Regulator (V6)
CW1 Regulator body
# OEM CH4 CW1
1 22741-P7Z-000 Pipe - 8X198 Pipe - 8X198
5 27142-P6H-000 Cap - 15MM Cap - 15MM
8 27246-PN6-800 Cap - REGULATOR SPRING Cap - REGULATOR SPRING
9 27524-P6H-000 Clip - CAP Clip - CAP
11 90089-PK4-000 Bolt - STOPPER, 6MM Bolt - STOPPER, 6MM
12 90701-PK4-000 Dowel pin - 8X80 Dowel pin - 8X80
13 91316-PF4-003 O-ring - 31X1.7 (ARAI) O-ring - 31X1.7 (ARAI)
Resonator chamber (V6) 4 / 9
CH4 Resonator chamber (V6)
CW1 Air cleaner (2.0L)
# OEM CH4 CW1
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
4 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
7 75353-671-000 Lock - SCREW Lock - SCREW
8 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Seatbelt 1 / 8
CH4 Seatbelt
CW1 Front seat components (L.; FULL POWER SEAT; 1)
# OEM CH4 CW1
18 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Secondary shaft (V6) 2 / 28
CH4 Secondary shaft (V6)
CW1 Mainshaft
# OEM CH4 CW1
7 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
17 91316-PR9-003 O-ring - 33X1.9 (ARAI) O-ring - 33X1.9 (ARAI)
Select lever (LH) 1 / 17
CH4 Select lever (LH)
CW1 Select lever (RH)
# OEM CH4 CW1
10 90351-SB2-003 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
Sensor/solenoid (V6) 3 / 20
CH4 Sensor/solenoid (V6)
CW1 Solenoid
# OEM CH4 CW1
14 90471-PW7-A00 PACKING, 10MM PACKING, 10MM
15 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
19 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
Servo body (V6) 5 / 18
CH4 Servo body (V6)
CW1 Main valve body
# OEM CH4 CW1
3 27122-P6H-000 Cap - 12MM Cap - 12MM
4 27132-P6H-000 Cap - 14MM Cap - 14MM
8 27524-P6H-000 Clip - CAP Clip - CAP
14 91331-PC9-003 O-ring O-ring
15 91344-580-000 O-ring - 31X2.7 (ARAI) O-ring - 31X2.7 (ARAI)
Shift fork (V6) 3 / 12
CH4 Shift fork (V6)
CW1 Shift fork
# OEM CH4 CW1
3 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
9 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
10 91209-612-003 Oil seal - 12X22X7 (ARAI) Oil seal - 12X22X7 (ARAI)
Srs unit (SIDE SRS; LH) 6 / 20
CH4 Srs unit (SIDE SRS; LH)
CW1 Harness band/bracket (RH)
# OEM CH4 CW1
9 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
10 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
11 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
12 91534-S03-003 Clip - COUPLER (NATURAL) (SEAL) Clip - COUPLER (NATURAL) (SEAL)
13 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
15 91545-S30-003 Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
Steering column 2 / 12
CH4 Steering column
CW1 Steering column
# OEM CH4 CW1
9 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
10 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Steering wheel (SRS; V6) 1 / 10
CH4 Steering wheel (SRS; V6)
CW1 Steering wheel (SRS)
# OEM CH4 CW1
13 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Taillight 5 / 19
CH4 Taillight
CW1 Taillight/license light
# OEM CH4 CW1
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
2 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
5 33513-S50-003 Socket - T20W S2 Socket - T20W S2
6 33514-S50-003 Socket - T20W S3 Socket - T20W S3
16 34906-ST5-003 Bulb - 12V 21W/5W) (STANLEY Bulb - 12V 21W/5W) (STANLEY
Tire/wheel disks 2 / 18
CH4 Tire/wheel disks
CW1 Tire/wheel disks
# OEM CH4 CW1
5 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
17 90381-S4L-003 Nut - WHEEL(FUSE RASHI) Nut - WHEEL(FUSE RASHI)
Tools/jack 1 / 7
CH4 Tools/jack
CW1 Tools/jack
# OEM CH4 CW1
7 89320-S05-003 Bar - JACK Bar - JACK
Torque converter (V6) 2 / 6
CH4 Torque converter (V6)
CW1 Clutch/torque converter
# OEM CH4 CW1
4 90023-PA9-000 Bolt - SPECIAL Bolt - SPECIAL
5 90429-PC6-900 Washer - 40X86X2 Washer - 40X86X2
Torque converter housing (V6) 5 / 14
CH4 Torque converter housing (V6)
CW1 Torque converter case
# OEM CH4 CW1
5 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
6 90471-PW7-A00 PACKING, 10MM PACKING, 10MM
7 90471-580-000 Packing - 8MM Packing - 8MM
8 90705-PA9-000 Dowel pin - 14X25 Dowel pin - 14X25
14 91207-P7Z-003 Oil seal - 44X68X8 (NOK) Oil seal - 44X68X8 (NOK)
Transmission housing (V6) 5 / 17
CH4 Transmission housing (V6)
CW1 Torque converter case
# OEM CH4 CW1
6 25422-PN6-801 Magnet comp. - TRANSMISSION Magnet comp. - TRANSMISSION
8 90081-PX4-003 Bolt - PLUG, 18MM Bolt - PLUG, 18MM
10 90471-PX4-000 Washer - DRAIN PLUG, 18MM Washer - DRAIN PLUG, 18MM
11 90615-P0Z-000 Ring - SNAP, 82MM Ring - SNAP, 82MM
17 91205-P0X-005 Oil seal - 40X56X9 (NOK) Oil seal - 40X56X9 (NOK)
Trunk lid (LH) 3 / 24
CH4 Trunk lid (LH)
CW1 Tailgate
# OEM CH4 CW1
26 75353-671-000 Lock - SCREW Lock - SCREW
27 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
32 91609-SE0-A00 Protection - CUSHION Protection - CUSHION
Water pump/sensor (V6) 2 / 26
CH4 Water pump/sensor (V6)
CW1 Water pump (2.0L)
# OEM CH4 CW1
2 18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) GASKET, EGR VALVE (ISHINO GASKET)
18 91314-PH7-003 O-ring 31.2X4.1 (NOK) O-ring 31.2X4.1 (NOK)
Water valve (V6; LH) 3 / 11
CH4 Water valve (V6; LH)
CW1 Water hose (2.0L; RH)
# OEM CH4 CW1
5 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
7 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer (V6) 1 / 14
CH4 Windshield washer (V6)
CW1 Windshield washer
# OEM CH4 CW1
12 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
Wire harness (LH) 3 / 25
CH4 Wire harness (LH)
CW1 Wire harness (1; RH)
# OEM CH4 CW1
15 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
16 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
