CE8 × CG1

共通 171 / 合計 4,012 · Jaccard 4.3%
CE8 Honda ACCORD — 1,991 中 171 共有
CG1 Honda ACCORD — 2,192 中 171 共有
171 件
Air cleaner 2 / 23
CE8 Air cleaner
CG1 Air cleaner (V6)
# OEM CE8 CG1
43 90091-P36-000 Bolt-washer - 5X28 Bolt-washer - 5X28
44 91549-P1E-003 Clip - AIR INTAKE COVER Clip - AIR INTAKE COVER
Auto cruise (LH) 1 / 2
CE8 Auto cruise (LH)
CG1 L. side cover (V6)
# OEM CE8 CG1
20 91618-SA5-000 Grommet b - CONTROL WIRE, 16MM Grommet b - CONTROL WIRE, 16MM
Battery 4 / 18
CE8 Battery
CG1 Battery (V6)
# OEM CE8 CG1
9 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
10 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
14 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
16 91551-SW5-003 Clip - HARNESS BAND (BROWN) (151MM) Clip - HARNESS BAND (BROWN) (151MM)
Brake lines 3 / 27
CE8 Brake lines
CG1 Brake lines (ABS; V6; RH)
# OEM CE8 CG1
16 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
38 46462-SE0-000 Bolt - OIL Bolt - OIL
40 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
Brake master cylinder 2 / 16
CE8 Brake master cylinder
CG1 Brake master cylinder/ master power
# OEM CE8 CG1
8 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
25 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Breather tube (SOHC/DOHC) 4 / 8
CE8 Breather tube (SOHC/DOHC)
CG1 Breather tube (V6)
# OEM CE8 CG1
6 17139-PK1-000 Grommet - PCV VALVE Grommet - PCV VALVE
7 91405-PH7-003 Clamp - TUBE (D15) Clamp - TUBE (D15)
8 91405-679-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
8 91405-PM5-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
Bumpers ('96) 3 / 17
CE8 Bumpers ('96)
CG1 Bumpers (2)
# OEM CE8 CG1
7 71598-SL4-013 Spacer - BUMPER SIDE Spacer - BUMPER SIDE
11 90109-SS0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
12 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
Camshaft (SOHC) 1 / 31
CE8 Camshaft (SOHC)
CG1 Timing belt cover (V6)
# OEM CE8 CG1
20 90007-679-000 Bolt a - TIMING BELT COVER Bolt a - TIMING BELT COVER
Clutch master cylinder (LH) 1 / 36
CE8 Clutch master cylinder (LH)
CG1 Brake lines (ABS; V6; RH)
# OEM CE8 CG1
10 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
Console 3 / 22
CE8 Console
CG1 Console
# OEM CE8 CG1
38 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
39 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
40 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Control unit (CABIN) 1 / 27
CE8 Control unit (CABIN)
CG1 Control unit (CABIN; RH)
# OEM CE8 CG1
30 39792-SM4-013 Relay assy - POWER (4P NO.305) (DENSO) Relay assy - POWER (4P NO.305) (DENSO)
Control unit (ENGINE ROOM) 4 / 22
CE8 Control unit (ENGINE ROOM)
CG1 Control unit (ENGINE ROOM; RH)
# OEM CE8 CG1
19 38213-SM4-003 Fuse - BLOCK (50A) Fuse - BLOCK (50A)
29 39792-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7410) Relay assy - POWER(4P)(DENSO) (056700-7410)
34 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
39 90182-SB6-000 Bolt-washer - 6X16 Bolt-washer - 6X16
Cross beam 1 / 11
CE8 Cross beam
CG1 Rear beam/cross beam
# OEM CE8 CG1
13 91613-SE0-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
Cylinder block (SOHC/SOHC VTEC) 3 / 32
CE8 Cylinder block (SOHC/SOHC VTEC)
CG1 Cylinder block/oil pan (V6)
# OEM CE8 CG1
17 12207-634-300 Washer - SEALING BOLT Washer - SEALING BOLT
23 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
35 90705-PT0-000 Dowel pin - 16X22 Dowel pin - 16X22
Cylinder head (SOHC) 3 / 20
CE8 Cylinder head (SOHC)
CG1 Front cylinder head (V6)
# OEM CE8 CG1
2 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
3 12205-PJ7-305 Guide - EX. VALVE (OS) Guide - EX. VALVE (OS)
12 90005-PT0-003 Bolt-washer - 12X163 Bolt-washer - 12X163
Cylinder head cover (SOHC/DOHC) 1 / 9
CE8 Cylinder head cover (SOHC/DOHC)
CG1 Cylinder head cover (V6)
# OEM CE8 CG1
10 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Driveshaft 2 / 17
CE8 Driveshaft
CG1 Front driveshaft (V6; 2)
# OEM CE8 CG1
15 90165-SE0-000 Bolt - FLANGE, 10X37 Bolt - FLANGE, 10X37
16 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
Emblems 1 / 10
CE8 Emblems
CG1 Emblems/caution labels
# OEM CE8 CG1
29 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine wire harness/clamp 6 / 36
CE8 Engine wire harness/clamp
CG1 Water pump/sensor (V6)
# OEM CE8 CG1
26 37240-PT0-023 Switch - OIL PRESSURE(DENSO) Switch - OIL PRESSURE(DENSO)
26 37240-PT0-014 Switch - OIL PRESSURE (TEC) Switch - OIL PRESSURE (TEC)
28 37750-PH2-014 Thermo unit - DENSO Thermo unit - DENSO
29 37870-PK2-005 Sensor assy - WATER TEMP (HADSYS) Sensor assy - WATER TEMP (HADSYS)
37 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
42 91307-PK2-005 O-ring - 9.5X1.5(HONDA KIKAKI) O-ring - 9.5X1.5(HONDA KIKAKI)
Exhaust manifold (SOHC) 4 / 15
CE8 Exhaust manifold (SOHC)
CG1 Exhaust manifold (V6)
# OEM CE8 CG1
13 90015-PT0-J00 Bolt-washer - 8X14 Bolt-washer - 8X14
15 90065-PC1-300 Bolt - STUD, 10X34.5 Bolt - STUD, 10X34.5
16 90212-PD2-003 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM
16 90212-RCA-A01 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM
Exhaust pipe 6 / 25
CE8 Exhaust pipe
CG1 Exhaust pipe (V6)
# OEM CE8 CG1
3 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
4 18176-PT0-003 Bolt - CONVERTER Bolt - CONVERTER
21 18393-SH3-S00 Gasket - PRE-CHAMBER (52.5MM-53.5MM) Gasket - PRE-CHAMBER (52.5MM-53.5MM)
28 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
28 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
30 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 1 / 7
CE8 Floor mat
CG1 Steering column
# OEM CE8 CG1
17 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Front brake 2 / 20
CE8 Front brake
CG1 Front brake (V6)
# OEM CE8 CG1
13 45240-SM4-003 Bolt - FLANGE, 10X24 Bolt - FLANGE, 10X24
18 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
Front door lining 3 / 12
CE8 Front door lining
CG1 Pillar garnish (RH)
# OEM CE8 CG1
30 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
31 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
31 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 7 / 32
CE8 Front door locks
CG1 Front door locks
# OEM CE8 CG1
33 72175-SH3-003 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
35 72634-SM4-003 Snap - R. (BLUE) Snap - R. (BLUE)
36 72674-SM4-003 Snap - L. (BROWN) Snap - L. (BROWN)
37 75411-634-000 Joint Joint
38 90120-SM4-000 Screw - TAPPING Screw - TAPPING
39 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
40 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Front door panels 3 / 13
CE8 Front door panels
CG1 Front door panels
# OEM CE8 CG1
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
21 90686-692-003 Cap - LINING MOUNT Cap - LINING MOUNT
23 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
Front door windows 2 / 20
CE8 Front door windows
CG1 Rear door windows
# OEM CE8 CG1
17 90011-896-000 Bolt - FLANGE, 6X8 Bolt - FLANGE, 6X8
19 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Front fenders 5 / 12
CE8 Front fenders
CG1 Front fenders
# OEM CE8 CG1
7 90106-SE1-000 Bolt-washer - 6X15 Bolt-washer - 6X15
9 90114-SE0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
11 90305-SM4-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
12 90501-SM4-003 Bolt - FENDER Bolt - FENDER
13 90657-SB0-003 Clip, SPLASH SHIELD Clip, SPLASH SHIELD
Front seat (L.) 3 / 19
CE8 Front seat (L.)
CG1 Front seat (SIDE SRS; L.)
# OEM CE8 CG1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
36 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Front seat (R.) 3 / 19
CE8 Front seat (R.)
CG1 Front seat (SIDE SRS; L.)
# OEM CE8 CG1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
36 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Front stabilizer/ front lower arm 3 / 28
CE8 Front stabilizer/ front lower arm
CG1 Front lower arm
# OEM CE8 CG1
17 51398-SM4-000 Collar - RADIUS ROD Collar - RADIUS ROD
28 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
29 90303-SF1-003 Nut - SELF-LOCK, 12MM Nut - SELF-LOCK, 12MM
Front windshield wiper (LH) 1 / 24
CE8 Front windshield wiper (LH)
CG1 Front windshield wiper (RH)
# OEM CE8 CG1
21 90201-SK7-000 Nut - HEX. CAP, 10MM Nut - HEX. CAP, 10MM
Fuel pipe ('96) 2 / 39
CE8 Fuel pipe ('96)
CG1 Fuel pipe (1)
# OEM CE8 CG1
22 17743-SM4-003 Cap - DRAIN TUBE Cap - DRAIN TUBE
40 90428-PD6-003 Washer - SEALING, 12MM Washer - SEALING, 12MM
Fuel tank 5 / 38
CE8 Fuel tank
CG1 Fuel tank
# OEM CE8 CG1
8 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
21 17670-S3N-003 Cap comp. - FUEL FILLER (TOYODA) Cap comp. - FUEL FILLER (TOYODA)
27 17711-ST0-003 Retainer - YELLOW) (TOKAI Retainer - YELLOW) (TOKAI
41 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
44 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
Grommet 6 / 25
CE8 Grommet
CG1 Grommet
# OEM CE8 CG1
6 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
15 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
16 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
17 91611-SM4-003 Plug - FLOOR HOLE, 25MM Plug - FLOOR HOLE, 25MM
26 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
27 91623-SE0-003 Plug - BLIND, 12MM Plug - BLIND, 12MM
Headlight ('96) 1 / 20
CE8 Headlight ('96)
CG1 Headlight
# OEM CE8 CG1
16 34304-SH3-A01 Socket comp. Socket comp.
Heater blower 2 / 21
CE8 Heater blower
CG1 Air conditioner (COOLING UNIT; RH)
# OEM CE8 CG1
20 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
21 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Heater unit (1) 1 / 16
CE8 Heater unit (1)
CG1 Exhaust pipe (V6)
# OEM CE8 CG1
18 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Hood ('96) 4 / 26
CE8 Hood ('96)
CG1 Hood (RH)
# OEM CE8 CG1
6 74134-SM4-000 Grommet - HOOD WIRE Grommet - HOOD WIRE
22 90106-SE1-000 Bolt-washer - 6X15 Bolt-washer - 6X15
30 91515-SM4-003 Clip - ANCHOR Clip - ANCHOR
32 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
Instrument panel (LH) 3 / 14
CE8 Instrument panel (LH)
CG1 Instrument panel garnish (RH)
# OEM CE8 CG1
23 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
26 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
27 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (LH) 1 / 23
CE8 Instrument panel garnish (LH)
CG1 Instrument panel garnish (RH)
# OEM CE8 CG1
5 66417-SA0-000 Rubber - GLOVE BOX STOPPER Rubber - GLOVE BOX STOPPER
Intake manifold (SOHC) 8 / 29
CE8 Intake manifold (SOHC)
CG1 Fuel injector (V6; 3)
# OEM CE8 CG1
2 16472-P0H-A01 Seal ring - INJECTOR (NOK) Seal ring - INJECTOR (NOK)
2 16472-PH7-003 Seal ring - INJECTOR (OTSUKA) Seal ring - INJECTOR (OTSUKA)
3 16473-P10-A01 Cushion ring - INJECTOR (NOK) Cushion ring - INJECTOR (NOK)
3 16473-PD6-000 Cushion ring - INJECTOR (OTSUKA) Cushion ring - INJECTOR (OTSUKA)
25 90428-PD6-003 Washer - SEALING, 12MM Washer - SEALING, 12MM
27 91301-PM7-003 O-ring - 7.3X2.2 (ARAI) O-ring - 7.3X2.2 (ARAI)
27 91301-P2F-A01 O-ring - 7.3X2.2 (NOK) O-ring - 7.3X2.2 (NOK)
27 16074-ZY3-000 O-ring O-ring
Interior light 1 / 6
CE8 Interior light
CG1 Wire harness (RH)
# OEM CE8 CG1
11 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
Knuckle 4 / 16
CE8 Knuckle
CG1 Knuckle
# OEM CE8 CG1
8 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
14 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
16 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
17 90363-SF1-000 Nut - CASTLE, 12MM Nut - CASTLE, 12MM
Oil pump 5 / 31
CE8 Oil pump
CG1 Oil pump/oil strainer (V6)
# OEM CE8 CG1
9 15231-PE0-000 Valve - RELIEF Valve - RELIEF
10 15232-PG6-000 Spring - RELIEF VALVE Spring - RELIEF VALVE
11 15233-PC6-000 Bolt - SEALING, 18MM Bolt - SEALING, 18MM
15 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
20 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
Outer panels 2 / 7
CE8 Outer panels
CG1 Outer panels
# OEM CE8 CG1
36 90103-SM4-010 Bolt - FLANGE, 6X18 Bolt - FLANGE, 6X18
37 90664-SB3-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
P.s. line (LH; '96) 4 / 24
CE8 P.s. line (LH; '96)
CG1 Power steering lines (V6; RH)
# OEM CE8 CG1
8 53729-SS0-003 Clip - RETURN HOSE Clip - RETURN HOSE
23 90635-SM4-A01 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
23 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
24 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
Piston/crankshaft 3 / 50
CE8 Piston/crankshaft
CG1 Crankshaft/piston (V6)
# OEM CE8 CG1
19 90017-PY3-003 Bolt-washer - 16X49 Bolt-washer - 16X49
19 90017-RJA-003 Bolt-washer - 16X49 Bolt-washer - 16X49
22 90704-PT0-000 Key - 4.5X38.5 Key - 4.5X38.5
Protector 5 / 18
CE8 Protector
CG1 Protector
# OEM CE8 CG1
15 90114-SE0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
17 90331-SD5-003 Nut - SPRING, 5MM Nut - SPRING, 5MM
18 90505-SM4-003 Clip - GARNISH Clip - GARNISH
18 90505-SX0-003 Clip - GARNISH Clip - GARNISH
21 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
Radiator 5 / 18
CE8 Radiator
CG1 Radiator (V6)
# OEM CE8 CG1
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
9 19045-PAA-A01 Cap comp. - RADIATOR (DENSO) Cap comp. - RADIATOR (DENSO)
13 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
14 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose 3 / 19
CE8 Radiator hose
CG1 Radiator hose (V6)
# OEM CE8 CG1
8 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
9 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
28 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Radio antenna/speaker 3 / 15
CE8 Radio antenna/speaker
CG1 Radio antenna/speaker
# OEM CE8 CG1
1 39112-SM4-000 Bracket - FR. SPEAKER SEAL Bracket - FR. SPEAKER SEAL
17 90666-SD4-003 Clip - FITTING Clip - FITTING
20 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Rear brake 3 / 31
CE8 Rear brake
CG1 Rear brake (DISK; V6)
# OEM CE8 CG1
13 43215-SM4-951 Piston assy. Piston assy.
14 43243-SD2-931 Nut - PARKING Nut - PARKING
27 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Rear door lining 2 / 13
CE8 Rear door lining
CG1 Pillar garnish (RH)
# OEM CE8 CG1
23 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
23 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 8 / 33
CE8 Rear door locks
CG1 Front door locks
# OEM CE8 CG1
16 72175-SH3-003 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
17 72175-SH3-901 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
24 72634-SM4-003 Snap - R. (BLUE) Snap - R. (BLUE)
31 72674-SM4-003 Snap - L. (BROWN) Snap - L. (BROWN)
34 75411-634-000 Joint Joint
35 90120-SM4-000 Screw - TAPPING Screw - TAPPING
36 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
37 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Rear door panels 4 / 15
CE8 Rear door panels
CG1 Front door panels
# OEM CE8 CG1
20 75891-SA7-000 Stopper - DOOR Stopper - DOOR
22 90686-692-003 Cap - LINING MOUNT Cap - LINING MOUNT
25 91530-SH4-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
26 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
Rear door windows 1 / 13
CE8 Rear door windows
CG1 Harness band/bracket
# OEM CE8 CG1
18 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Rear seat (2) 3 / 16
CE8 Rear seat (2)
CG1 Rear seat
# OEM CE8 CG1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
24 90003-692-000 Bolt - FLANGE, 6X16 Bolt - FLANGE, 6X16
Rear stabilizer/ rear lower arm 6 / 48
CE8 Rear stabilizer/ rear lower arm
CG1 Rear lower arm
# OEM CE8 CG1
19 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
24 52364-634-020 Washer - LOWER ARM Washer - LOWER ARM
49 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
50 90216-SE0-010 Nut Nut
50 90216-SE0-305 NUT, LWR ARM NUT, LWR ARM
53 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
Srs unit (LH) 2 / 11
CE8 Srs unit (LH)
CG1 Harness band/bracket
# OEM CE8 CG1
2 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
16 91551-SW5-003 Clip - HARNESS BAND (BROWN) (151MM) Clip - HARNESS BAND (BROWN) (151MM)
Steering column 3 / 16
CE8 Steering column
CG1 Steering column
# OEM CE8 CG1
15 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
16 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
17 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR

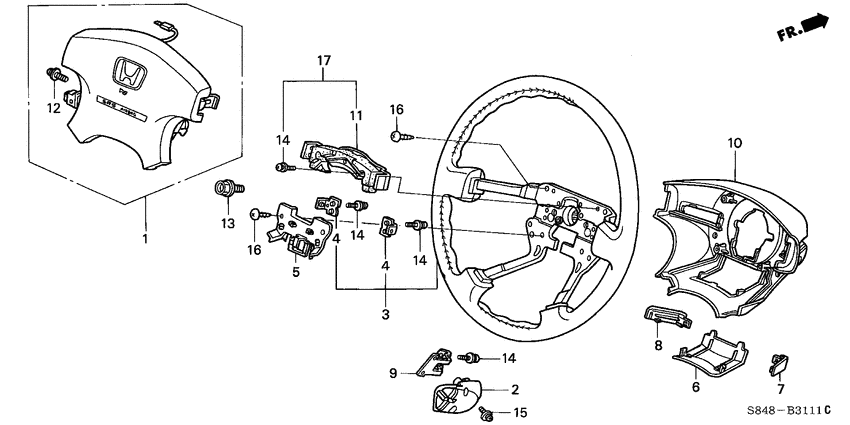

Steering wheel (SRS; 2) 1 / 6
CE8 Steering wheel (SRS; 2)
CG1 Steering wheel (SRS; V6)
# OEM CE8 CG1
22 90134-S04-A81 Bolt - HEX., 6X12 Bolt - HEX., 6X12
Trunk lid 2 / 19
CE8 Trunk lid
CG1 Trunk lid (RH)
# OEM CE8 CG1
21 74873-SM4-003 Clip - TRUNK OPENER SPRING Clip - TRUNK OPENER SPRING
33 90109-SM4-000 Bolt - SPECIAL, 6X35 Bolt - SPECIAL, 6X35
Valve/rocker arm (SOHC) 3 / 15
CE8 Valve/rocker arm (SOHC)
CG1 Valve/rocker arm (FRONT; V6)
# OEM CE8 CG1
9 14744-PT0-004 Screw - TAPPET ADJUSTING Screw - TAPPET ADJUSTING
14 14781-PJ7-003 Cotter - VALVE (FUJI VALVE) Cotter - VALVE (FUJI VALVE)
15 90206-PT0-004 Nut - TAPPET ADJUSTING Nut - TAPPET ADJUSTING
Washer nozzle/washer tube 1 / 21
CE8 Washer nozzle/washer tube
CG1 Windshield washer (V6)
# OEM CE8 CG1
1 36062-671-000 Clamp b - TUBE Clamp b - TUBE
Water hose (SOHC) 1 / 10
CE8 Water hose (SOHC)
CG1 Water valve (V6; RH)
# OEM CE8 CG1
5 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Water pump (SOHC/DOHC) 4 / 23
CE8 Water pump (SOHC/DOHC)
CG1 Water pump/sensor (V6)
# OEM CE8 CG1
14 37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
17 91307-PN4-000 O-ring - 17.5X1.4 O-ring - 17.5X1.4
17 91307-PN3-000 O-ring,17.8x1.4 O-ring,17.8x1.4
19 91314-PH7-003 O-ring 31.2X4.1 (NOK) O-ring 31.2X4.1 (NOK)
Water valve 3 / 10
CE8 Water valve
CG1 Water valve (V6; RH)
# OEM CE8 CG1
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
7 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8 91553-SM4-003 Clamp - HEATER HOSE (24MM & 39MM) Clamp - HEATER HOSE (24MM & 39MM)
Wire harness (LH) 6 / 42
CE8 Wire harness (LH)
CG1 Harness band/bracket
# OEM CE8 CG1
9 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
10 32133-SM4-003 Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
11 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
20 32312-SM4-013 Holder - COUPLER Holder - COUPLER
27 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
39 91551-SW5-003 Clip - HARNESS BAND (BROWN) (151MM) Clip - HARNESS BAND (BROWN) (151MM)
