Air cleaner 23

#	OEM	部品名
1	17211-P45-G00	Cover comp. - AIR CLEANER
2	17213-PT2-000	Rubber - AIR CLEANER CASE MOUNTING
3	17214-PT2-000	Collar - AIR CLEANER MOUNTING
4	17220-P45-G00	Element assy. - AIR CLEANER
5	17228-P45-G00	Tube - AIR FLOW
10	17241-P45-G00	Case comp. - AIR CLEANER
11	17242-P45-G01	Tube a - AIR INTAKE
12	17243-P45-G00	Seal - AIR INTAKE RUBBER
14	17245-P45-G00	Cover - AIR INTAKE
15	17246-P45-G00	Plate - AIR INTAKE
16	17249-P45-G01	Spring - AIR FLOW TUBE
17	17252-P45-G00	Tube b - RESONATOR CONNECTING
26	17261-PT2-010	Stay a - AIR CLEANER
27	17262-P45-G00	Stay b - AIR CONDITIONER
28	17281-P45-G00	Tube - SIDE BRANCH
30	17282-PT2-000	Clamp - TUBE
31	17284-P45-G01	Clamp - TUBE, 44MM
32	17316-PH3-003	Clamp - AIR FLOW TUBE (70)
42	90010-PT2-000	Bolt-washer - SPECIAL, 6X25
43	90091-P36-000	Bolt-washer - 5X28
44	91549-P1E-003	Clip - AIR INTAKE COVER
56	17242-P45-G02	Tube a - AIR INTAKE
57	17247-P45-G00	Tube b - AIR INTAKE

Alternator (BOSCH) 9

#	OEM	部品名
1	31100-P45-G04	Alternator assy - BOSCH
2	31101-P45-G03	Rotor assy.
3	31109-P45-G03	Frame assy - DRIVE END
4	31121-P45-G03	End - RR. FRAME
5	31135-P45-G03	Cover - RR. END
6	31141-P45-G03	Pulley
7	31145-P45-G03	Screw - WAVE WASHER
8	31150-P45-G03	Regulator assy
9	91415-P45-G03	Bracket - HARNESS

Auto cruise (LH) 2

#	OEM	部品名
17	90852-SB5-003	Plug - HOLE
20	91618-SA5-000	Grommet b - CONTROL WIRE, 16MM

Auto radio ('96) 2

#	OEM	部品名
6	39111-SN7-G00	Bracket - AUTO RADIO
9	91551-SE0-003	Bolt - FLANGE, 5X7

Battery 18

#	OEM	部品名
1	31500-SN7-S02	Battery assy - 75D23R-MF) (DELCO
2	31512-SN7-G00	Plate - BATTERY SETTING (8-9 INCHI)
3	31513-SN7-G00	Bolt - BATTERY SETTING(185MM)
4	32410-SN7-G02	Cable assy - STARTER
5	32411-SM4-A00	Bracket - CABLE
6	32412-SM4-A00	Bracket - CABLE (A)
7	32414-SM4-A00	Bracket - CABLE (B)
8	32600-SN7-G01	Cable assy - EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL
11	32746-SM4-000	Clamp - STARTER CABLE
12	74190-SN7-000	Base - BATTERY SETTING
13	90115-SM4-000	Bolt-washer - 8X30
14	90149-SE0-003	Bolt - EARTH, 6X16
15	90301-SM4-003	Nut - SPRING, 6MM
16	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
17	91563-SF4-003	Band - WIRE HARNESS (WHITE) (100.5MM)
18	91584-SM4-003	Clip - CABLE BAND (BLACK)

Brake lines 27

#	OEM	部品名
1	46210-SN7-G01	Valve assy. - DUAL PROPORTIONING
2	46310-SN7-G01	Pipe comp. a - BRAKE
3	46320-SN7-G01	Pipe comp. b - BRAKE
4	46321-SN7-G01	Pipe comp. h - BRAKE
5	46330-SN7-G01	Pipe comp. c - BRAKE
6	46331-SN7-000	Pipe comp. e - R. BRAKE
7	46340-SN7-G01	Pipe comp. d - BRAKE
8	46360-SN7-G01	Pipe comp. f - BRAKE
9	46361-SN7-000	Pipe comp. e - L. BRAKE
16	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
18	46391-SE0-931	Clamp - BRAKE PIPE
19	46391-SM4-A00	Clip A - BRAKE PIPE
21	46391-SM4-J01	Clamp - BRAKE PIPE
22	46392-SE0-000	Clip - BRAKE PIPE
23	46392-SM4-A01	Clip b - BRAKE PIPE
24	46392-SM4-A50	Clip b - BRAKE PIPE
30	46410-SN7-003	Hose - R. FR. BRAKE
31	46411-SN7-003	Hose - L. FR. BRAKE
32	46430-SN7-003	Hose a - RR. BRAKE
33	46431-SN7-003	Hose b - RR. BRAKE
34	46435-SM4-000	Bracket - R. RR. BRAKE HOSE
35	46436-SM4-000	Bracket - L. RR. BRAKE HOSE
36	46438-SM4-000	Bracket - R. RR. BRAKE HOSE
37	46439-SM4-000	Bracket - L. RR. BRAKE HOSE
38	46462-SE0-000	Bolt - OIL
40	46472-568-000	Packing - OIL BOLT
45	90651-SN7-003	Clip - BRAKE HOSE

Brake master cylinder 16

#	OEM	部品名
3	46012-SN7-010	Power set - MASTER
4	46016-ST3-E00	Tank set - RESERVE
6	46100-SN7-013	Cylinder assy. - MASTER
7	46110-SN7-E01	Cylinder comp - 23.8MM
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
9	46185-ST3-003	Seal - ROD
10	46191-SN7-000	Packing - MASTER CYLINDER STAY
14	46403-SE0-003	Valve comp. - CHECK (NISSIN)
15	46404-SM4-A00	Tube a - MASTER POWER
17	46405-SM4-A00	Tube b - MASTER POWER
20	46407-SN7-G00	Clamp - CHECK VALVE
22	46512-SB2-000	Pin - PEDAL
25	53729-671-003	Clamp d - 15.5MM
27	90751-ST3-003	Pin - SPRING
34	46662-ST3-003	Cap assy. - RESERVOIR
35	46666-ST3-003	Filter

Breather tube (SOHC/DOHC) 8

#	OEM	部品名
1	17130-P0A-003	Valve assy. - PCV
1	17130-PK1-003	Valve assy. - PCV
3	17137-PT3-A02	Pipe comp - BREATHER
5	17138-PT3-A00	Tube - BREATHER
6	17139-PK1-000	Grommet - PCV VALVE
7	91405-PH7-003	Clamp - TUBE (D15)
8	91405-679-004	Clamp - TUBE (D17)
8	91405-PM5-004	Clamp - TUBE (D17)

Bumpers ('96) 17

#	OEM	部品名
2	71120-SN7-003	Molding - FR. BUMPER
3	71140-SN7-010	Beam assy - FR. BUMPER
5	71520-SN7-003	Molding - RR. BUMPER
6	71540-SN7-000	Beam comp - RR. BUMPER UPPER
7	71598-SL4-013	Spacer - BUMPER SIDE
8	74827-SL9-000	Stopper - TRUNK LID
9	90103-SD4-000	Screw - TAPPING, 5X16
10	90109-SL9-000	Screw - TAPPING, 5X16
11	90109-SS0-000	Screw - TAPPING, 5X20
12	90110-SE7-000	Bolt-washer - 8X21
13	90302-SD2-003	Nut-washer - 8MM
14	90312-SM4-000	Nut-washer - 8MM
15	90651-SL9-013	Grommet - SCREW, 5MM
16	90652-SL9-003	Clip - BUMPER
17	90682-SN7-G00	Grommet - SCREW, 5MM
18	91502-SM4-000	Clip - BUMPER FACE (PO)
19	91505-SL9-003	Spacer - FR. BUMPER CLIP

Camshaft (SOHC) 31

#	OEM	部品名
1	11810-P45-G10	Cover - TIMING BELT LOWER
2	11811-P45-G00	Rubber - TIMING BELT LOWER SEAL
3	11820-P45-G10	Cover - TIMING BELT UPPER
4	11830-P45-G10	Cover - TIMING BELT BACK
5	11831-P45-G00	Rubber a - TIMING BELT BACK SEAL
6	11832-P45-G00	Rubber b - TIMING BELT BACK SEAL
7	11833-P45-G00	Rubber c - TIMING BELT BACK SEAL
8	11925-P45-G00	Rubber a - ENGINE MOUNTING BRACKET SEAL
9	11926-P45-G00	Rubber b - ENGINE MOUNTING BRACKET SEAL
10	13404-PT0-004	Adjuster comp - BALANCER BELT (NIPPON SEIKO)
11	13405-PT0-004	Belt - BALANCER TIMING (UNITTA)
12	13407-P0A-000	Spring - BELT ADJUSTER
13	13415-P0A-000	Bracket - BALANCER BELT ADJUSTER
14	14111-PT4-F50	Camshaft
15	14210-P45-G00	Pulley - TIMING BELT DRIVEN
16	14400-P45-G01	Belt - TIMING
17	14510-PT0-004	Adjuster comp - TIMING BELT (NIPPON SEIKO)
18	14516-P0A-000	Spring comp - TIMING BELT ADJUSTER
19	90002-PT0-000	Bolt b - TIMING BELT COVER
20	90007-679-000	Bolt a - TIMING BELT COVER
21	90015-PT0-000	Bolt - TIMING BELT ADJUSTER SPRING
22	90016-PT0-000	Bolt - TIMING BELT ADJUSTER
23	90018-PT0-010	Bolt - BALANCER BELT ADJUSTER
24	90031-PT0-003	Bolt-washer - 8X22
24	90032-ZW5-003	Bolt-washer, 8x22
25	90051-PT0-000	Bolt - SUB BELT ADJUSTER SPRING
26	90216-P0A-000	Nut - 10MM
27	90401-PT0-000	Rubber - TIMING BELT ADJUSTER
28	90501-MB7-610	Washer - 10.3X25
29	90741-657-000	Key - 25.4X13
30	91213-PT0-003	Oil seal - 28X42X8 (ARAI)

Clutch housing 24

#	OEM	部品名
1	21000-P16-J00	Case comp. - CLUTCH
2	21101-PG2-000	Plate - NEEDLE BEARING SETTING
3	21103-PX5-010	Plate c - OIL GUIDE
4	21120-PG2-003	Magnet - TRANSMISSION
5	22810-PX5-J02	Bearing - CLUTCH RELEASE (KOYO SEIKO)
6	22821-P0S-000	Fork - CLUTCH RELEASE
7	22825-P0S-000	Bolt - RELEASE FORK
8	22835-P0S-000	Spring - RELEASE FORK SETTING
9	22841-PX5-000	Boot - RELEASE FORK
10	23815-P0A-A00	Holder comp - SPEEDOMETER GEAR
11	23820-P0A-900	Gear comp - SPEEDOMETER
12	24600-PX5-000	Stay - CHANGE WIRE
13	90011-PT0-000	Bolt-washer - 8X26
14	90030-PG2-000	Bolt - SPECIAL, 6MM
15	90638-689-000	Clip - SPEEDOMETER GEAR
16	90705-PG2-000	Dowel pin - 14X20
17	91002-PG1-018	Bearing - BALL, 63/28C (TOYO)
18	91103-PX5-004	Bearing - NEEDLE, 38X65X22 (KOYO)
19	91205-PX5-005	Oil seal - 35X56X8 (NOK)
19	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
20	91216-PH8-003	Oil seal - 28X41X7 (ARAI)
20	91216-PH8-005	Oil seal - 28X41X7 (NOK)
21	91304-PT0-000	O-ring - 14.8X1.9
22	91313-611-010	O-ring - 23.5X2

Clutch master cylinder (LH) 36

#	OEM	部品名
1	43352-SN7-003	Screw - BLEEDER
2	43353-SN7-003	Cap - BLEEDER SCREW
3	46015-SN7-000	Cylinder set - MASTER
4	46151-SA5-003	Yoke comp. - NISSIN
6	46175-671-651	Screw - SOCKET
7	46182-500-013	Circlip
8	46184-611-000	Dust seal - MASTER CYLINDER
9	46472-SM4-000	Packing - OIL BOLT
10	46472-568-000	Packing - OIL BOLT
11	46912-SD4-000	Pin - CLUTCH PEDAL
12	46918-SM4-020	Clip a13 - TUBE
13	46920-SM4-A03	Cylinder assy. - CLUTCH MASTER
15	46926-SF1-003	Piston assy.
16	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
17	46930-SN7-010	Cylinder assy. - SLAVE
18	46938-SD4-003	Rod - PUSH
19	46939-SM4-010	Joint - CLUTCH HOSE
20	46950-SM4-950	Rod assy - PUSH
21	46952-SD4-003	Joint - TUBE
22	46953-SD4-003	Packing
23	46960-SM4-A03	Pipe assy. a - CLUTCH
24	46960-SM4-913	Pipe assy. b - CLUTCH
25	46961-SN7-003	Hose - CLUTCH
26	46963-SD4-020	Bolt - CLUTCH OIL
27	46964-SM4-020	Clamp - CLUTCH PIPE
28	46966-SM4-A01	Holder - TANK
29	46970-SM4-020	Pipe comp - CLUTCH
30	46971-SM4-A01	Tube - CLUTCH FLUID
31	46972-SD4-003	Tank - CLUTCH FLUID
32	46973-SD4-003	Cap comp. - RESERVE TANK
34	46993-SM4-G52	Damper assy. - CLUTCH
35	46995-SM4-G52	Bracket - CLUTCH PIPE
36	46997-SM4-A00	Clamp - CLUTCH PIPE
37	46999-SM4-010	Bracket - CLUTCH PIPE
38	90180-SM4-003	Bolt - FLANGE, 6X30
39	90651-SN7-003	Clip - BRAKE HOSE

Clutch/torque converter 7

#	OEM	部品名
2	21350-P45-000	Cover comp. - CLUTCH CASE
4	21352-P45-300	Rubber - CLUTCH CASE COVER
5	22100-P44-004	Flywheel comp.
6	22200-P44-014	Disk comp - FRICTION
7	22300-P44-004	Disk comp - PRESSURE
10	90011-PH3-000	Bolt - FLANGE, 12MM
12	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination meter components 21

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37103-SL0-003	Socket assy - BULB (BASE:GREEN)
4	37106-SJ4-J00	Knob - TRIP
5	37115-SA0-601	Packing - NS
6	37237-SL9-003	Bulb
7	78110-SN7-G01	Case assy.
8	78115-SN7-G03	Visor assy - METER
9	78120-SN7-G21	Speedometer assy
10	78125-SN7-G02	Tachometer assy.
11	78130-SN7-G02	Meter assy - FUEL
12	78135-SN7-G02	Meter assy - TEMPERATURE
13	78140-SN7-G61	Panel - PRINT
14	78141-SN7-G01	Cover
15	78142-SN7-G01	Panel - MAIN PRINT
16	78166-SN7-G01	Illumination assy.
18	78182-SM4-003	Socket assy - BULB (14V-100MA) (BASE:BROWN)
19	78230-SN7-G02	Display assy - WARNING
20	90130-SE3-003	Screw-washer - 3X30.5
21	90133-SL9-003	Screw-washer - 3X18
22	90133-SS1-003	Screw-washer - 3X18

Combination switch 20

#	OEM	部品名
3	04809-SN7-G20	Key & unit assy. - IMMOBILIZER (SERVICE)
4	35010-SN7-G01	Cylinder set - KEY
5	35100-SN7-G02	Lock assy - STEERING
6	35102-SN7-G01	Bolt - BREAK HEAD
7	35103-SE3-003	Screw - RECESSED, 3X8
10	35105-SN7-G01	Ring - IGNITION KEY ILLUMINATION
11	35106-SN7-G01	Cap - ILLUMINATION
13	35108-SN7-G01	Holder - COLUMN
15	35110-SN7-G01	Receiver comp - IMMOBILISER
17	35113-SN7-G00	Key - BLANK (IMMOBILIZER) (MAIN)
18	35130-SN7-G01	Switch comp - STEERING
19	35132-SN7-G01	Clip
20	35135-SN7-G01	Cord assy - SWITCH
21	35251-SN7-G11	Body - SWITCH
22	35254-SN7-G11	Cord assy - COMBINATION SWITCH
23	35255-SN7-E12	Switch assy - LIGHTING
24	35256-SN7-E01	Switch assy - WIPER
26	35400-SK4-E00	Switch assy - DOOR
29	53271-SN7-G01	Cam - TURN SIGNAL SWITCH
32	90674-WA8-003	Band - CABLE, 120MM (BLACK)

Console 22

#	OEM	部品名
1	35505-ST3-E01	Bulb - T5 1.2W
4	39600-SN7-E01	Lighter assy - CIGARETTE
6	39610-ST3-E01	Knob comp. - CIGARETTE LIGHTER
7	66418-688-000	Stopper - GLOVE BOX LID
8	74633-SN7-010	Insulator a - FR. CONSOLE
10	77297-SN7-E00	Bracket - FR. CONSOLE (B)
13	77712-SN7-E00	Spring - FR. ASHTRAY (A)
19	83404-SN7-E00	Plate - SET COVER
21	83406-SN7-E00	Bracket - BOX UNDER
22	83407-SN7-E00	Hinge assy - RR. CONSOLE
23	83408-SN7-E00	Lock
25	83413-SN7-E10	Plate - BOOT SET
29	83425-SN7-E00	Bracket - RR. CONSOLE
30	83426-SN7-E00	Bracket - RR. CONSOLE (C)
31	83427-SN7-E00	Bracket - RR. CONSOLE (D)
34	90606-SN7-E00	Spring - FR. ASHTRAY
35	90609-SN7-G00	Clip - INSTRUMENT LOWER
36	90609-SN7-E01	Clip - PILLAR GARNISH
37	90659-SA5-003	Grommet - SCREW, 4MM
38	91555-SM4-003	Clip - COUPLER (RED)
39	91640-SM4-003	Grommet - SCREW, 4MM
40	91641-SM4-003	Grommet - SCREW, 4MM

Control device (KG,KS; '96) 13

#	OEM	部品名
1	17205-PM5-L51	Clamp - TUBE, 7.5X2
2	17290-PR7-A01	Valve assy. - CONTROL
5	36003-P45-G00	Valve set - SOLENOID
6	36010-PA6-004	Joint - THREE WAY
8	36013-PE0-004	Holder - SOLENOID, 3.5MM
9	36033-P45-G01	Stay comp
10	36034-PM6-901	Plug - SEALING
11	36058-PA0-004	Rubber - CUSHION
12	36080-PE1-661	Clamp - CONTROL BOX TUBE
13	36194-PD2-661	Filter assy - AIR
14	37830-P13-003	Sensor assy - MAP
15	90041-PM5-A01	Screw-washer - 5X8
16	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Control unit (CABIN) 27

#	OEM	部品名
2	32121-SM4-003	Bracket a - FUSE BOX
3	32122-SM4-003	Bracket b - FUSE BOX
4	32123-SM4-003	Bracket c - FUSE BOX
6	32502-SM4-003	Fuse - F7.5) (LITTEL
7	32503-SM4-003	Fuse - F10) (LITTEL
8	32504-SM4-003	Fuse - F15)(LITTEL
9	32505-SM4-003	Fuse - F20) (LITTEL
10	32507-SM4-003	Fuse - F30) (LITTEL
13	37740-PT3-A01	Timer - RADIATOR FAN (SHINDENGEN)
14	37820-P45-G31	Control module - ENGINE
14	37820-P45-G30	Control module - ENGINE
15	37821-P45-G00	Cover comp. - L. ELECTRONIC CONTROL UNIT
16	38200-SN7-G12	Box assy - FUSE
18	38235-SA5-003	Puller - FUSE (SUMITOMO)
20	38300-SK3-G01	Relay assy - TURN SIGNAL & HAZARD
21	38310-SK4-S01	Relay - CLEANER CONTROL
25	38380-SN7-G01	Control unit - AUTO DOOR LOCK
26	38600-SN7-S01	Control unit - INTEGRATED
27	39400-SN7-000	Relay assy - MAIN
30	39792-SM4-013	Relay assy - POWER (4P NO.305) (DENSO)
32	39793-SN7-010	Bracket - POWER RELAY
33	39794-SG0-003	Relay assy - POWER (4P) (DENSO) (056700-8250)
34	39797-SK4-E00	Relay assy - POWER (YWB 10027)
35	39870-SN7-G01	Control unit - RR. FOG LAMP
36	90101-SA4-000	Screw - TAPPING, 4X12
37	90137-SF1-000	Bolt-washer - 6X25
38	90662-693-003	Grommet - SCREW, 4MM (BLUE)

Control unit (ENGINE ROOM) 22

#	OEM	部品名
2	32502-SM4-003	Fuse - F7.5) (LITTEL
3	32503-SM4-003	Fuse - F10) (LITTEL
4	32504-SM4-003	Fuse - F15)(LITTEL
5	32505-SM4-003	Fuse - F20) (LITTEL
6	32507-SM4-003	Fuse - F30) (LITTEL
8	38100-SN7-G11	Horn assy - LOW
14	38150-SN7-G11	Horn assy - HIGH
17	38211-SM4-003	Fuse - BLOCK (30A)
18	38212-SM4-003	Fuse - BLOCK (40A)
19	38213-SM4-003	Fuse - BLOCK (50A)
20	38216-SM4-003	Fuse - BLOCK (80A)
22	38250-SN7-S03	Box assy - RELAY
23	38251-SN7-G10	Bracket - RELAY BOX
25	38255-SN7-G03	Cover - UPPER
28	39762-SN7-000	Relay assy - POWER, 5P
29	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
29	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
32	39797-SK4-E00	Relay assy - POWER (YWB 10027)
34	90114-SM4-900	Bolt - 6X15
35	90138-SM4-003	Bolt-washer - 8X14
37	90153-SA5-900	Screw-washer - 5X9
39	90182-SB6-000	Bolt-washer - 6X16

Countershaft ('94-) 18

#	OEM	部品名
1	23220-PX5-J41	Countershaft comp.
2	23421-P0S-J40	Gear - COUNTERSHAFT LOW
3	23431-P0S-C40	Gear - COUNTERSHAFT SECOND
4	23461-P38-C00	Gear - COUNTERSHAFT FIFTH
5	23471-P0S-A40	Gear - COUNTERSHAFT THIRD
6	23481-PX5-U41	Gear - COUNTERSHAFT FOURTH
7	23521-P16-315	Sleeve set - SYNCHRONIZER (1-2)
8	23918-P21-010	Collar - DISTANCE, 36.5X42X29 (0.07-0.09)
9	23921-PG1-000	Washer a - 40X54X1.96
10	23926-PG1-010	Washer - SPRING, 23MM
11	90202-PH8-000	Nut - HEX., 23MM
12	90602-PG1-770	Ring - SNAP, 56MM
13	91003-PG2-008	Bearing - SPECIAL BALL (NTN)
14	91102-PG2-008	Bearing - NEEDLE, 25X56.4X19
15	91105-P16-008	Bearing - NEEDLE, 40X46X26.8 (NTN)
16	91105-P21-003	Bearing - NEEDLE, 42X47X24
17	91211-PX5-008	Damper - FRICTION (LOW)
18	91212-PX5-018	Damper - FRICTION (SECOND)

Cross beam 11

#	OEM	部品名
1	50100-SN7-010	Beam - CENTER
2	50200-SN7-000	Beam - RR.
4	50220-SN7-A00	Stiffener - STEERING GEAR BOX
6	50250-SN7-A00	Beam - FR.
7	50300-SN7-G00	Beam - RR. SUSPENSION CROSS
8	90166-SF1-010	Bolt-washer - 10X21
9	90190-SM4-003	Bolt - FLANGE, 12X108
10	90191-SM4-003	Bolt - FLANGE, 12X95
11	90192-SM4-003	Bolt - FLANGE, 12X139
12	90506-SE0-000	Washer - PLAIN, 12MM
13	91613-SE0-003	Grommet - SUB FRAME, 15MM

Cylinder block (SOHC/SOHC VTEC) 32

#	OEM	部品名
1	11000-P45-G00	Block assy - CYLINDER
5	11108-PT0-003	Bolt - SEALING, 18MM
6	11109-PK2-010	Seal - TIMING RUBBER
7	11126-PK1-003	Bolt - SEALING, 22MM
8	11130-PT0-030	Bridge comp - BEARING CAP
9	11200-P45-G00	Pan comp - OIL
11	11251-P45-G00	Packing comp. - OIL PAN
12	11300-PT0-B00	Cover assy. - R. SIDE
13	11910-P45-G00	Bracket - ENGINE MOUNTING
15	11912-P45-G00	Stay a - ENGINE MOUNTING BRACKET
16	11913-PT0-010	Stay - ENGINE MOUNT BRACKET (B)
17	12207-634-300	Washer - SEALING BOLT
18	13421-PT0-003	Metal - BALANCER SHAFT (NO.1) (DAIDO)
19	13422-PT0-013	Metal - BALANCER SHAFT (NO.2) (DAIDO)
20	13423-PT0-003	Metal - BALANCER SHAFT (NO.3) (DAIDO)
21	15140-PH3-000	Orifice assy - OIL CONTROL
22	15142-PH3-003	O-ring - 10.8X2.4 (ARAI)
23	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
24	90007-PAA-T01	Bolt-washer - 11X121
25	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5
27	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
29	90030-PT0-000	Bolt - STUD, 10X35
30	90041-PA5-000	Bolt - STUD, 6X28
31	90041-PT0-000	Bolt - STUD, 12X60
32	90042-PR3-000	Bolt - STUD, 6X28
33	90051-PH7-000	Bolt - FLANGE, 6X18
34	90061-PT0-000	Bolt - DRAIN PLUG, 12MM
35	90705-PT0-000	Dowel pin - 16X22
36	90715-PC6-000	Dowel pin - 13X20
37	91214-P7A-004	Oil seal - 80X100X10 (ARAI)
37	91214-PAA-A01	Oil seal - 80X100X10 (NOK)
38	91323-PH7-003	Packing - BEARING CAP BRIDGE (ARAI)

Cylinder head (SOHC) 20

#	OEM	部品名
1	12100-P45-G00	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)
4	12210-P45-G01	Seal a - VALVE STEM (CORCOS)
5	12211-P45-G01	Seal b - VALVE STEM (CORCOS)
6	12251-PT0-J03	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)
7	14631-P0B-A00	Shaft a - ROCKER ARM
8	14632-P0B-A00	Shaft b - ROCKER ARM
9	14633-P0B-A00	Shaft - EX. VALVE ROCKER ARM
10	90003-PT0-000	Bolt - FLANGE, 6X50
11	90004-PT0-000	Bolt - FLANGE, 6X50
12	90005-PT0-003	Bolt-washer - 12X163
13	90006-PT0-003	Bolt-washer - 12X199
14	90007-PT0-000	Bolt - FLANGE, 8X55
15	90002-P0A-000	Bolt - FLANGE, 8X76
16	90012-PT0-000	Bolt a - HEAD COVER
17	90013-PT0-000	Bolt b - HEAD COVER
18	90026-PT0-000	Bolt - STUD, 8X38
19	91301-PT0-004	O-ring - 29.7X2.5 (NOK)
19	91301-PT0-003	O-ring - 29.7X2.5 (ARAI)

Cylinder head cover (SOHC/DOHC) 9

#	OEM	部品名
1	12030-PT0-000	Packing set - HEAD COVER
3	12310-P0D-000	Cover comp. - CYLINDER HEAD
5	12341-P45-G00	Gasket - CYLINDER HEAD COVER
7	12342-P45-G00	Packing b - HEAD COVER
9	15610-P2A-000	Cap assy. - OIL FILLER
10	15613-PC6-000	Packing, Oil Filler
13	32762-PT0-010	Stay b - HIGH TENSION CORD CLAMP
14	90213-PH3-000	Nut - CAP, 6MM
15	90441-PT0-000	Washer - HEAD COVER

Differential 39

#	OEM	部品名
1	41100-PX5-E43	Differential comp.
2	41221-PW5-Z00	Gear - DIFFERENTIAL SIDE
3	41233-PX5-J41	Gear - FINAL DRIVEN
4	41310-PX5-E41	Case comp. - DIFFERENTIAL
5	41313-PX5-000	Roller - 5X37
6	41321-PX5-030	Shaft - PINION
8	41358-PG1-000	Washer h - DIFFERENTIAL PINION THRUST(1.05MM)
8	41353-PG1-000	Washer c - DIFFERENTIAL PINION THRUST(0.8MM)
8	41355-PG1-000	Washer e - DIFFERENTIAL PINION THRUST(0.9MM)
8	41357-PG1-000	Washer g - DIFFERENTIAL PINION THRUST(1.0MM)
8	41352-PG1-000	Washer b - DIFFERENTIAL PINION THRUST(0.75MM)
8	41354-PG1-000	Washer d - DIFFERENTIAL PINION THRUST(0.85MM)
8	41356-PG1-000	Washer f - DIFFERENTIAL PINION THRUST(0.95MM)
8	41351-PG1-000	Washer a - DIFFERENTIAL PINION THRUST(0.7MM)
9	41371-PG2-000	Washer - THRUST, 37X55X1.5
10	41380-PG2-A10	Shim - 75MM
11	41393-PX5-000	Shim m - 68MM (2.26)
11	41388-PX5-000	Shim h - 68MM (2.11)
11	41383-PX5-000	Shim c - 68MM (1.96)
11	41400-PX5-000	Shim t - 68MM (2.47)
11	41395-PX5-000	Shim o - 68MM (2.32)
11	41390-PX5-000	Shim j - 68MM (2.17)
11	41385-PX5-000	Shim e - 68MM (2.02)
11	41397-PX5-000	Shim q - 68MM (2.38)
11	41392-PX5-000	Shim l - 68MM (2.23)
11	41387-PX5-000	Shim g - 68MM (2.08)
11	41382-PX5-000	Shim b - 68MM (1.93)
11	41399-PX5-000	Shim s - 68MM (2.44)
11	41394-PX5-000	Shim n - 68MM (2.29)
11	41389-PX5-000	Shim i - 68MM (2.14)
11	41384-PX5-000	Shim d - 68MM (1.99)
11	41396-PX5-000	Shim p - 68MM (2.35)
11	41391-PX5-000	Shim k - 68MM (2.20)
11	41386-PX5-000	Shim f - 68MM (2.05)
11	41381-PX5-000	Shim a - 68MM (1.90)
11	41398-PX5-000	Shim r - 68MM (2.41)
12	90017-689-000	Bolt - SPECIAL, 10MM
13	91005-PG2-004	Bearing - TAPER, 40X75X21 (KOYO)
14	91006-PX5-008	Bearing - TAPER, 40X68X22 (NTN)

Distributor (LUCAS AUTOMOTIVE LTD.) 11

#	OEM	部品名
1	30100-P45-G01	Distributor assy - B1DCC4) (LUCAS AUTOMOTIVE LTD.
2	30102-P45-G02	Cap assy.
3	30103-P0A-A01	Head - ROTOR
4	30105-P45-G01	Housing comp - DISTRIBUTOR
5	30110-P45-G01	O-ring
6	30120-P0A-A01	Igniter unit - HITACHI
7	30132-P45-G01	Packing
8	30135-P0A-A01	Bolt-washer - 5X14
9	30136-P0A-A01	Bolt-washer - 6X30
10	30137-P0A-A01	Screw - PAN, 4X12
11	30500-P0A-A01	Coil - IGNITION

Driveshaft 17

#	OEM	部品名
1	44010-SN7-E00	Driveshaft set - R.
2	44011-SN7-E00	Driveshaft set - L.
3	44017-SN7-010	Boot set - INBOARD
4	44018-SN7-010	Boot set - OUTBOARD
7	44310-SN7-315	Joint comp - INBOARD
8	44310-SN7-316	Joint comp - INBOARD
9	44319-SK3-E10	Set ring - 28X2.0
10	44338-SK3-E10	Circlip - 26MM
11	44340-SN7-003	Joint comp - OUTBOARD
13	44500-SN7-000	Shaft assy - HALF
14	90161-SN7-000	Bolt - FLANGE, 10X1.25
15	90165-SE0-000	Bolt - FLANGE, 10X37
16	90305-SD4-003	Nut - SPINDLE (24MM)
17	90681-SN7-300	Circlip - EXTERNAL, 33MM
18	91057-SR3-008	Bearing - HALF SHAFT(NTN)
19	91260-SR3-004	Seal - HALF SHAFT OUTER (ARAI)
19	91260-SR3-003	Seal - HALF SHAFT OUTER(NOK)

Emblems 10

#	OEM	部品名
2	17669-SN7-X30	Label - FUEL FILLER CAUTION
5	42760-SN7-G11	Plate - TIRE PRESSURE CAUTION
7	72638-SN7-G00	Plate - RR. DOOR LOCK CAUTION
8	75700-SP0-G01	Emblem - FR. (H)
9	75701-SN7-E00	Emblem - RR. CENTER (H MARK)
12	75711-SN7-G01	Emblem - RR. (HONDA)
14	75722-SN7-G01	Emblem - RR. (ACCORD)
16	75731-SN7-G11	Emblem - RR. (2.0IS)
27	77875-SS0-S80	Label - SRS CAUTION
29	91512-SR3-004	Clip - TUBULAR

Engine mounts (MT; 1) 16

#	OEM	部品名
1	50805-SN7-000	Rubber - MISSION MOUNTING INSULATOR (MT)
2	50810-SN7-000	Rubber - ENGINE RR. INSULATOR (MT)
3	50820-SN7-000	Rubber - ENGINE SIDE INSULATOR (MT)
4	50825-SN7-000	Bracket - TRANSMISSION MOUNTING (MT)
5	50826-SN7-000	Bracket - FR. ENGINE MOUNTING
6	50827-SN7-000	Bracket - ENGINE RR. MOUNTING (MT)
7	50830-SN7-000	Rod assy - TORQUE (MT)
8	50839-SM4-010	Nut - YOKE, 12MM
9	90165-SM4-020	Bolt - FLANGE, 12X101
10	90169-SM4-000	Bolt - FLANGE, 12X30
11	90170-SM4-000	Bolt - FLANGE, 12X40
12	90173-SM4-000	Bolt - FLANGE, 12X60
13	90174-SM4-000	Bolt - FLANGE, 10X22
14	90188-SL4-010	Bolt - FLANGE, 10X35
15	90371-SM4-000	Nut - FLANGE, 10MM
16	90504-SB0-000	Washer - PLAIN, 12MM

Engine wire harness/clamp 36

#	OEM	部品名
2	31110-P44-G03	Belt - ALTERNATOR (NON AIR CONDITIONER)
3	31112-PT0-000	Bracket - ALTERNATOR
4	31117-PT0-000	Plate - ALTERNATOR ADJUSTER
5	31118-PT0-000	Stay - ALTERNATOR ADJUSTER
6	32110-P45-G01	Harness - ENGINE WIRE
8	32112-P45-G00	Stay comp - COUPLER
9	32113-P45-G00	Stay comp - COUPLER
10	32127-PT2-000	Holder comp - HARNESS
12	32610-SM4-000	Cable - SUB EARTH
13	32741-P45-G00	Clamp a - ENGINE WIRE HARNESS
14	32742-PT2-000	Clamp b - ENGINE WIRE HARNESS
16	32744-PT0-000	Clamp d - ENGINE WIRE HARNESS (BLACK)
17	32745-PT2-010	Clamp e - ENGINE WIRE HARNESS
18	32746-PT2-000	Clamp f - ENGINE WIRE HARNESS
19	32748-P45-G00	Stay - ENGINE WIRE HARNESS CLAMP
20	32749-PT0-000	Stay a - ENGINE WIRE HARNESS
22	32751-P45-G00	Stay c - ENGINE WIRE HARNESS
23	32754-PT2-000	Stay b - ALTERNATOR
26	37240-PT0-023	Switch - OIL PRESSURE(DENSO)
26	37240-PT0-014	Switch - OIL PRESSURE (TEC)
28	37750-PH2-014	Thermo unit - DENSO
29	37870-PK2-005	Sensor assy - WATER TEMP (HADSYS)
31	90004-PA0-000	Bolt - HEX., 6X14
32	90006-PT2-003	Bolt - FLANGE, 6X16
33	90023-PE0-000	Bolt - FLANGE, 6X10
34	90052-PT0-000	Bolt - FLANGE, 10X60
35	90053-PT0-000	Bolt - FLANGE, 10X50
37	90149-SE0-003	Bolt - EARTH, 6X16
38	90204-PH7-000	Nut - SPECIAL
39	90310-PT0-003	Bolt - SPECIAL
40	90312-PT0-000	Bolt - ADJUSTER SPECIAL
41	90313-PT0-000	Bolt - SPECIAL, 10X90
42	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
44	91506-P0A-A01	Clip - ALTERNATOR CORD
46	91507-PT3-A01	Band - WIRE HARNESS (BLACK) (90.4MM)
47	91547-P45-003	Band - WIRE HARNESS (NATURAL) (123.5MM)

Exhaust manifold (SOHC) 15

#	OEM	部品名
1	11942-PT0-000	Stay - L. EX. MANIFOLD
2	18000-P45-G00	Manifold assy - EX.
4	18115-PT0-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
4	18115-PT0-004	Gasket - EX. MANIFOLD (ISHINO GASKET)
5	18120-P45-G00	Cover comp. a - EX. MANIFOLD
6	18121-PT0-000	Cover comp. b - EX. MANIFOLD
8	36531-P45-G01	Sensor - OXYGEN
9	36533-PT0-000	Clamp a - OXYGEN SENSOR
10	36534-PT0-003	Clamp b - OXYGEN SENSOR
12	90010-PE2-900	Bolt - SPECIAL, 10X22
13	90015-PT0-J00	Bolt-washer - 8X14
15	90065-PC1-300	Bolt - STUD, 10X34.5
16	90212-PD2-003	Nut - SELF-LOCK, 8MM
16	90212-RCA-A01	Nut - SELF-LOCK, 8MM
17	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe 25

#	OEM	部品名
1	18030-SN7-930	Silencer set - EX.
2	18160-P45-G10	Converter comp. - ECJ/ENJ335
3	18176-P08-003	Bolt - CONVERTER
4	18176-PT0-003	Bolt - CONVERTER
5	18181-PT4-X00	Cover - LOWER
6	18182-PT4-X00	Cover - UPPER
7	18210-SN7-G10	Pipe a - EX.
10	18212-SM4-003	Gasket - EX. PIPE (ISHINO)
11	18213-SN7-X50	Stay - EX. PIPE
13	18215-SN7-A50	Rubber - EX. MOUNTING
14	18215-SN7-A60	Rubber - EX. MOUNTING
16	18220-SN7-G10	Pipe b - EX.
17	18222-SN7-000	Bracket - EX. PIPE MOUNTING
19	18303-SM4-020	Gasket - SILENCER
20	18310-SN7-E00	Finisher - EX. PIPE
21	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
24	74601-SN7-000	Plate - FLOOR HEAT BAFFLE
25	74610-SN7-000	Reinforcement - FR. CROSSMEMBER
26	74651-SM4-000	Plate - TANK BAFFLE
27	74655-SN7-000	Plate - SILENCER BAFFLE
28	90023-PK1-000	Bolt - FLANGE, 6X10
28	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
29	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
30	90212-SA5-003	Nut - SELF-LOCK, 10MM
31	90212-671-005	Nut - SELF-LOCK, 10MM

Floor mat 7

#	OEM	部品名
2	83101-SN7-G01	Insulator - DASHBOARD
3	83106-SM4-A00	Bracket - DASHBOARD INSULATOR
13	84525-SN7-E00	Spacer - R. TRUNK
17	90676-SB2-003	Clip - DASHBOARD INSULATOR
19	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)
20	91547-SM4-003	Cap - INSULATOR
21	91641-SH3-013	Grommet assy, GARNISH

Front brake 20

#	OEM	部品名
1	01463-SN7-000	Caliper set - FR.
2	44200-SN7-008	Bearing assy - FR. HUB UNIT
3	44600-SN7-G00	Hub assy - FR.
4	45010-SN7-G41	Pin set - FR.
5	45012-SN7-G41	Body set - R. FR. CALIPER
6	45013-SN7-G41	Body set - L. FR. CALIPER
7	45014-SN7-G42	Bracket set - R. FR. CALIPER
8	45015-SN7-G42	Bracket set - L. FR. CALIPER
9	45017-SN7-G00	Boot set - FR. PIN
10	45022-SN7-G42	Pad set - FR.
12	45216-SN7-G41	Piston
13	45240-SM4-003	Bolt - FLANGE, 10X24
14	45251-SN7-E40	Disk - FR. BRAKE (14")
15	45255-SN7-000	Guard - FR. SPLASH (14")
16	45352-SN7-G41	Screw - BLEEDER
17	45353-SN7-G41	Cap - BLEEDER
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
19	90114-SM4-000	Bolt - FLANGE, 10X20
20	90163-SM4-005	Bolt - WHEEL (NAGOYA RASHI)
21	90164-SM4-013	Bolt - FR. HUB UNIT, 10X40

Front bulkhead 1

#	OEM	部品名
22	60821-SM4-000	Hook - TIE DOWN

Front door lining 12

#	OEM	部品名
1	32198-SN7-900	Sub cord - REMOTE CONTROL MIRROR
7	35190-SN7-G11	Switch assy - REMOTE CONTROL MIRROR
8	72335-SN7-G01	Weatherstrip - R. FR. DOOR INNER
9	72375-SN7-G01	Weatherstrip - L. FR. DOOR INNER
16	83529-SN7-G00	Bracket - COVER LOCK
27	90131-SE3-003	Screw - TAPPING, 4X16
29	90662-693-003	Grommet - SCREW, 4MM (BLUE)
30	91555-SM4-003	Clip - COUPLER (RED)
31	91560-SP0-003	Clip - DOOR LINING (GRAY)
31	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
33	91562-SM4-013	Grommet - DOOR LINING
34	91626-SP0-003	Grommet - SCREW, 5MM

Front door locks 32

#	OEM	部品名
1	72110-SN7-G14	Lock assy - R. FR. DOOR
2	72112-SN7-G01	Snap - R.
3	72115-SN7-G11	Actuator assy - R. FR. DOOR LOCK
5	72117-SN7-G00	Protector - R. DOOR LOCK
6	72118-SN7-G00	Tube - PROTECTOR
8	72121-SN7-G01	Base - R. INSIDE HANDLE
9	72123-SN7-G01	Ring
11	72131-SN7-G01	Rod - R. FR. DOOR INSIDE HANDLE
12	72134-SN7-G01	Bush - JOINT
13	72135-SN7-G00	Striker - DOOR LOCK
14	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
16	72138-SN7-G00	Cushion - LOCK ROD
17	72140-SN7-G02	Handle assy - R. FR. DOOR OUTSIDE
19	72143-SN7-G00	Hook
20	72145-SN7-G13	Cylinder - R. DOOR
21	72146-SN7-G13	Cylinder - L. DOOR
25	72150-SN7-G13	Lock assy - L. FR. DOOR
27	72156-SN7-E01	Switch assy - L. DOOR LOCK
28	72157-SN7-G00	Protector - L. DOOR LOCK
30	72161-SN7-G01	Base - L. INSIDE HANDLE
31	72162-SN7-G01	Snap - L.
32	72171-SN7-G01	Rod - L. FR. DOOR INSIDE HANDLE
33	72175-SH3-003	Holder - DOOR LOCK ROD
34	72180-SN7-G02	Handle assy - L. FR. OUTSIDE
35	72634-SM4-003	Snap - R. (BLUE)
36	72674-SM4-003	Snap - L. (BROWN)
37	75411-634-000	Joint
38	90120-SM4-000	Screw - TAPPING
39	90662-SB2-003	Grommet - SCREW, 5MM
40	91555-SM4-003	Clip - COUPLER (RED)
41	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
43	91582-SM4-003	Clip - WIRE HARNESS

Front door panels 13

#	OEM	部品名
11	72142-SM4-000	Stopper - DOOR
12	72310-SN7-G02	Weatherstrip - R. FR. DOOR
13	72321-SN7-G20	Seal - R. FR. DOOR HOLE
14	72327-SM4-010	Seal - DOOR UPPER HOLE
15	72340-SN7-G02	Checker comp. - FR. DOOR
16	72350-SN7-G02	Weatherstrip - L. FR. DOOR
17	72361-SN7-G20	Seal - L. FR. DOOR HOLE
18	75760-SK3-E00	Pin - DOOR CHECKER
19	75891-SA7-000	Stopper - DOOR
20	90101-SE3-003	Bolt-washer - 8X23.5
21	90686-692-003	Cap - LINING MOUNT
22	90852-SA5-000	Plug - HOLE, 10MM
23	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Front door windows 20

#	OEM	部品名
1	35118-SX0-G00	Label - IMMOBILIZER
2	72211-SN7-G01	Regulator - R. FR. DOOR POWER
3	72213-SN7-G01	Screw - COUNTERSUNK
4	72215-SN7-G11	Motor assy. - R. FR. DOOR POWER WINDOW
5	72230-SN7-G00	Sash - R. FR. DOOR LOWER
6	72231-SN7-G00	Sash - R. FR. DOOR CENTER LOWER
7	72235-SN7-G01	Runchannel - R. FR. DOOR
8	72237-SM4-003	Clip - FR. DOOR GLASS GUIDE
9	72251-SN7-G01	Regulator - L. FR. DOOR POWER
10	72255-SN7-G01	Motor assy. - L. FR. DOOR POWER WINDOW
11	72270-SN7-G00	Sash - L. FR. DOOR LOWER
12	72271-SN7-G00	Sash - L. FR. DOOR CENTER LOWER
13	72275-SN7-G01	Runchannel - L. FR. DOOR
14	72332-SM4-003	Stopper - DOOR GLASS
15	73300-SN7-G10	Glass assy - R. FR. DOOR (GREEN)
16	73350-SN7-G10	Glass assy - L. FR. DOOR (GREEN)
17	90011-896-000	Bolt - FLANGE, 6X8
18	90104-SN7-G00	Bolt-washer - 6X16
19	91555-SM4-003	Clip - COUPLER (RED)
20	90116-ST3-E00	Bolt - FLANGE, 6X12

Front fenders 12

#	OEM	部品名
4	74101-SL9-000	Fender - R. FR. INNER
5	74111-SN7-000	Shield - FR. SPLASH
6	74151-SL9-000	Fender - L. FR. INNER
7	90106-SE1-000	Bolt-washer - 6X15
8	90108-SF1-000	Bolt-washer - 6X15
9	90114-SE0-000	Screw - TAPPING, 5X20
10	90119-SE0-000	Bolt - FLANGE, 6MM
11	90305-SM4-003	Nut - CLIP, 6MM
12	90501-SM4-003	Bolt - FENDER
13	90657-SB0-003	Clip, SPLASH SHIELD
14	90682-SN7-G00	Grommet - SCREW, 5MM
15	91512-SM4-003	Clip - INNER FENDER

Front grille ('96) 5

#	OEM	部品名
1	75114-SN7-G00	Grille & lip set
2	75120-SN7-G00	Molding - FR. GRILLE
3	75307-SN7-000	Nut - SIDE PROTECTOR
4	90157-SP0-901	Clip - FR. GRILLE
8	75305-ST3-E00	Bolt - SIDE PROTECTOR

Front seat (L.) 19

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	38535-SN7-S11	Heater comp. - L. FR. CUSHION
3	38536-SF1-S01	Seat unit - HEATED
4	38595-SN7-S12	Heater comp. - L. FR. SEATBACK
6	81123-SN7-003	Silencer - FR. BACK
9	81133-SN7-003	Silencer - FR. CUSHION
10	81136-SN7-E01	Shaft - RECLINER
12	81144-SN7-E02	Guide - HEADREST
13	81146-SN7-E01	Lock - SPRING
18	81234-SN7-E11	Tensioner Assy - R. FR. SEATBELT
20	81522-SN7-S12	Pad & frame comp. - L. FR. SEATBACK
27	90184-SN7-003	Screw - 4.2X9.5
29	90187-SN7-003	Screw - TAPPING, 5X16
30	90381-SN7-013	Screw - SELF TAPPING, 5X16
32	90582-SN7-003	Self-locking
33	90583-SN7-003	Washer - D5
35	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
36	91555-SM4-003	Clip - COUPLER (RED)

Front seat (R.) 19

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	38530-SN7-S11	Heater comp. - R. FR. CUSHION
3	38536-SF1-S01	Seat unit - HEATED
4	38590-SN7-S12	Heater comp. - R. FR. SEATBACK
7	81122-SN7-S12	Pad & frame comp. - R. FR. SEATBACK
8	81123-SN7-003	Silencer - FR. BACK
12	81133-SN7-003	Silencer - FR. CUSHION
14	81136-SN7-E01	Shaft - RECLINER
16	81144-SN7-E02	Guide - HEADREST
17	81146-SN7-E01	Lock - SPRING
22	81234-SN7-E11	Tensioner Assy - R. FR. SEATBELT
27	90184-SN7-003	Screw - 4.2X9.5
29	90187-SN7-003	Screw - TAPPING, 5X16
30	90381-SN7-013	Screw - SELF TAPPING, 5X16
32	90582-SN7-003	Self-locking
33	90583-SN7-003	Washer - D5
35	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
36	91555-SM4-003	Clip - COUPLER (RED)

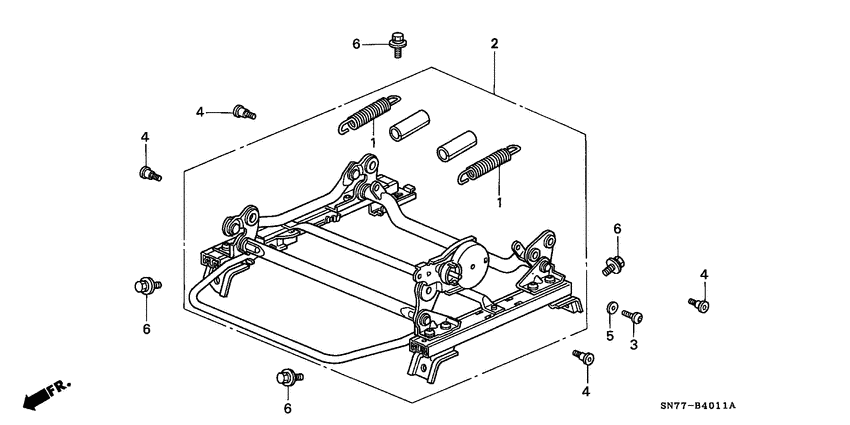

Front seat components (L.; 2) 5

#	OEM	部品名
1	81227-ST3-E31	Spring - HELPER
2	81550-ST3-E32	Device comp. - L. FR. SEAT
3	90182-SN7-003	Bolt - TORX, 8X16
4	90183-SN7-003	Bolt - TORX, 8X10
5	90538-SN7-003	Washer - PLAIN, 8MM

Front seat components (R.; 1) 3

#	OEM	部品名
1	81150-SN7-E11	Slide comp. - R. RECLINING OUTER
2	90182-SN7-003	Bolt - TORX, 8X16
3	90538-SN7-003	Washer - PLAIN, 8MM

Front shock absorber 16

#	OEM	部品名
1	51401-SN7-G01	Spring - FR.
2	51601-SN7-G03	Absorber assy - R. FR. SHOCK
3	51602-SN7-G03	Absorber assy - L. FR. SHOCK
4	51605-SN7-E02	Absorber unit - R. FR. SHOCK
5	51606-SN7-E02	Absorber unit - L. FR. SHOCK
6	51631-SN7-E01	Rubber - SHOCK ABSORBER MOUNTING
7	51675-SN7-E01	Base - SHOCK ABSORBER MOUNTING
8	51685-SN7-E01	Plate - DUST COVER
9	51686-SN7-E01	Rubber - FR. SPRING MOUNTING
10	51687-SN7-E01	Cover - FR. SLEEVE DUST
11	51722-SN7-E03	Rubber - FR. BUMP STOPPER
12	52621-SK3-000	Washer - RR. SHOCK ABSORBER MOUNTING
13	52689-SN7-E01	Plate - BUMP STOP
14	51728-SN7-E01	Collar - FR. SHOCK ABSORBER MOUNTING
15	90304-SN7-E00	Nut - FR. SHOCK ABSORBER FLANGE
16	90364-SN7-E01	Nut - SELF-LOCK, 10MM

Front stabilizer/ front lower arm 28

#	OEM	部品名
1	51300-SN7-E01	Spring - FR. STABILIZER
2	51306-SN7-E01	Bush - STABILIZER HOLDER
3	51308-SG0-020	Bracket - FR. STABILIZER
4	51311-SM4-010	Collar a - STABILIZER END (7.6MM)
5	51312-SM4-000	Collar b - STABILIZER END (27.2MM)
6	51313-SM4-010	Washer - STABILIZER END
7	51314-SN7-E00	Rubber - STABILIZER END
8	51352-SN7-000	Rod - R. FR. RADIUS (MT)
10	51355-SN7-010	Arm comp - R. FR. LOWER
11	51362-SN7-000	Rod - L. FR. RADIUS
12	51365-SN7-010	Arm comp - L. FR. LOWER
13	51381-SN7-E01	Bush - FR. RADIUS ROD (FR.)
14	51391-SN7-E01	Bush - FR. RADIUS ROD (RR.)
15	51393-SN7-003	Bush - FR. LOWER ARM
16	51394-SM4-010	Washer - CASTER ADJUSTER
17	51398-SM4-000	Collar - RADIUS ROD
18	51399-SM4-000	Washer - FR. RADIUS ROD
20	51810-SN7-003	Bush - SHOCK ABSORBER FORK
21	51811-SM4-030	Fork - R. FR. SHOCK ABSORBER
22	51821-SM4-030	Fork - L. FR. SHOCK ABSORBER
23	90112-SM4-020	Bolt - STABILIZER LINK (8X95)
24	90117-SM4-003	Bolt - FR. SHOCK ABSORBER LOCK (10X44)
25	90118-SM4-013	Bolt - SELF-LOCK, 12X80
26	90121-SM4-010	Bolt - SHOCK ABSORBER FORK (12X98)
27	90178-SM4-013	Bolt - FR. RADIUS ROD (12X31)
28	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
29	90303-SF1-003	Nut - SELF-LOCK, 12MM
30	90362-SF1-003	Nut - SELF-LOCK, 8MM

Front windshield 17

#	OEM	部品名
1	73111-SN7-G00	Glass - FR. WINDSHIELD (GREEN)
2	73125-SN7-G01	Rubber - FR. WINDSHIELD DAM
3	73126-SM4-000	Spacer - FR. WINDSHIELD
4	73151-SN7-G00	Molding - FR. WINDSHIELD UPPER
5	73152-SN7-G00	Molding assy. - R. FR. WINDSHIELD SIDE
6	73155-SN7-G00	Joint - R. FR. WINDSHIELD SIDE & CORNER (###)
7	73162-SN7-G00	Molding assy. - L. FR. WINDSHIELD SIDE
8	73165-SN7-G00	Joint - L. FR. WINDSHIELD SIDE & CORNER (###)
9	77116-SN7-G00	Seal - FR. WINDSHIELD
10	91524-SN7-G01	Clip - FR. WINDSHIELD SIDE (A)
11	91525-SN7-G01	Clip - FR. WINDSHIELD SIDE (B)
12	91526-SN7-G01	Clip - FR. WINDSHIELD SIDE (C)
13	91527-SN7-G01	Clip - FR. WINDSHIELD SIDE (D)
14	91531-SM4-003	Clip - FR. WINDSHIELD UPPER (YELLOW)
15	91532-SN7-G00	Clip - FR. WINDSHIELD SIDE (B)
16	91533-SN7-G00	Clip - FR. WINDSHIELD SIDE (D)
17	91534-SM4-003	Clip - FR. WINDSHIELD UPPER MOLDING (GREEN)

Front windshield wiper (LH) 24

#	OEM	部品名
1	76505-SN7-G05	Motor comp - FR. WIPER (LH)
2	76506-SN7-G05	Cover - MOTOR
3	76510-SN7-E05	Rubber - MOUNTING
4	76515-SN7-E05	Seal a
5	76516-SN7-E05	Rubber - MOUNTING
6	76517-SN7-E05	Collar
7	76520-SN7-E05	Link unit a
8	76524-SN7-E05	Dust seal
9	76530-SN7-G05	Link comp - FR. WIPER
10	76540-SN7-G05	Rod unit a - LH
11	76550-SN7-E05	Rod unit b
12	76558-SN7-E05	Cap - PIVOT
13	76561-SN7-E05	Cap - PIVOT
14	76600-SN7-G05	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-SN7-G05	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
16	76620-SN7-G05	Blade - WINDSHIELD WIPER (550MM) (DRIVER SIDE)
17	76630-SN7-E05	Blade - WINDSHIELD WIPER (500MM) (PASSENGER SIDE)
18	90116-SN7-E05	Bolt - 6X15
19	90126-SN7-G00	Bolt-washer - 6X32
20	90166-SN7-E05	Screw - SELF-TAPPING, 3X10
21	90201-SK7-000	Nut - HEX. CAP, 10MM
22	90317-SN7-E05	Nut - HEX., 8MM
23	90545-SN7-G05	Washer - SPRING, 8MM
24	91620-SN7-E05	Grommet - WIPER MOTOR

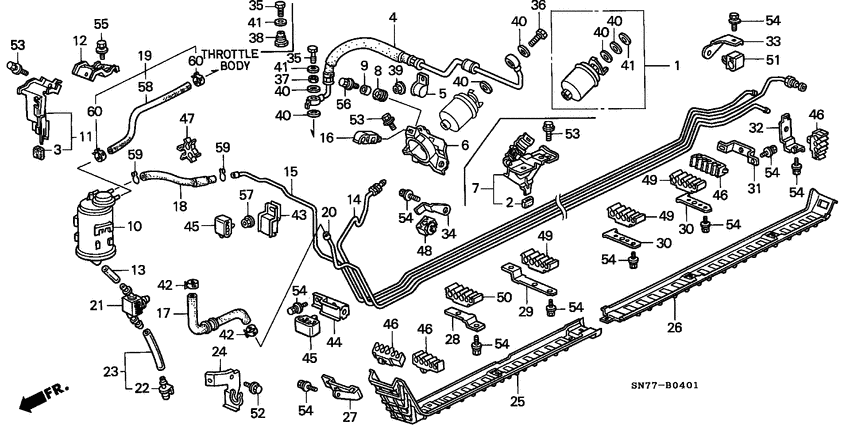

Fuel pipe ('96) 39

#	OEM	部品名
1	16010-ST5-932	Strainer set - FUEL (TOYO ROKI)
4	16720-P45-G01	Hose comp. - FUEL FEED
6	16918-SN7-A30	Stay - FUEL STRAINER
8	16922-SH3-930	Rubber - MOUNTING
9	16923-SK3-E30	Collar - DISTANCE
10	17300-SN7-G51	Canister assy
13	17372-SM5-A00	Tube - CANISTER
14	17700-SN7-Y00	Pipe comp - FUEL FEED
15	17720-SN7-A30	Pipe comp - VENT
16	17722-SM4-A31	Clamp - VENT TUBE
17	17723-SN7-E30	Hose - PRESSURE REGULATOR RETURN
19	17725-SN7-G31	Hose assy - PURGE
20	17740-SN7-A30	Pipe comp - RETURN
21	17742-SN7-003	Joint - CANISTER DRAIN TUBE
22	17743-SM4-003	Cap - DRAIN TUBE
23	17744-SM4-000	Tube assy - DRAIN
24	17749-SN7-E30	Clamp - RETURN HOSE
25	17752-SN7-G00	Cover - FR. FUEL PIPE
26	17753-SN7-000	Cover - RR. FUEL PIPE
27	17761-SN7-000	Stay a - FUEL PIPE
28	17763-SN7-000	Stay c - FUEL PIPE
29	17764-SN7-000	Stay d - FUEL PIPE
30	17765-SN7-000	Stay e - FUEL PIPE
31	17766-SM4-000	Stay f - FUEL PIPE
32	17767-SM4-000	Stay g - FUEL PIPE
33	17768-SN7-930	Stay h - FUEL PIPE
34	17769-SN7-000	Bracket - PIPE CLAMP
36	90020-PD6-000	Bolt - SEALING, 12MM
37	90201-PD1-000	Nut a - SEALING, 12MM
40	90428-PD6-003	Washer - SEALING, 12MM
42	91406-SN7-930	Clamp - FUEL HOSE, 10.5MM
43	91591-SM4-000	Bracket - CLIP (B)
44	91592-SM4-000	Bracket c - CLIP
45	91595-SN7-931	Clip b - FUEL PIPE
46	91596-SN7-932	Clamp c - FUEL PIPE
48	91597-SN7-003	Clip A - FUEL PIPE
49	91598-SN7-932	Clamp b - FUEL PIPE
50	91599-SN7-932	Clamp a - FUEL PIPE
51	91599-ST3-E31	Clamp e - FUEL PIPE

Fuel tank 38

#	OEM	部品名
1	17040-SN7-E31	Pump set - FUEL
2	17371-SM4-A02	Valve - TWO WAY (TEC)
3	17500-SN7-A31	Tank comp. - FUEL
4	17511-SM4-000	Bracket - FUEL TANK BAND
6	17521-SN7-000	Band assy. - R. FUEL TANK MOUNTING
7	17522-SN7-000	Band assy. - L. FUEL TANK MOUNTING
8	17525-SM4-000	Bolt-washer - 10X35
9	17570-SM4-000	Valve - FUEL CUT
10	17574-SN7-000	Packing - BASE
11	17575-SM4-000	Packing - FUEL CUT VALVE
12	17651-SN7-000	Tube - FILLER NECK
14	17652-SN7-000	Clip - FILLER TUBE
15	17656-SM4-000	Bolt - FILLER PIPE MOUNTING
16	17658-SM4-000	Tube assy - BREATHER (260MM)
17	17659-SL5-000	Holder - FILLER PACKING
18	17660-SN7-A00	Pipe comp - FUEL FILLER
19	17662-SL5-000	Packing - FUEL FILLER PIPE
20	17663-SL5-A00	Band - FILLER PACKING
21	17670-SM1-A03	Cap comp. - FUEL FILLER (STANT)
21	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)
22	17704-SE0-930	Hose - FUEL TANK RETURN
23	17704-SN7-E30	Hose - FUEL PIPE RETURN
26	17707-SN7-E31	Tube comp - FUEL JOINT
27	17711-ST0-003	Retainer - YELLOW) (TOKAI
28	17731-SN7-930	Pipe comp - FUEL
29	17733-SM4-930	Protector - FUEL HOSE JOINT
30	37800-SM4-A03	Meter unit - FUEL (NS)
31	37801-SE3-000	Packing - BASE
32	37802-SE0-000	Retainer - FUEL UNIT
33	74660-SM4-000	Cap assy. - FLOOR MAINTENANCE HOLE
39	90657-SH3-013	Clip - TWO WAY VALVE COVER
40	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
41	90700-SB0-003	Clip - AIR BLEED TUBE
42	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM
42	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM
43	91406-SN7-930	Clamp - FUEL HOSE, 10.5MM
44	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)
45	91691-SN7-003	Clip - WIRE HARNESS

Gasket kit/ transmission assy. 5

#	OEM	部品名
1	06110-P5R-E01	Gasket kit - CYLINDER HEAD
2	06111-P5R-E01	Gasket kit - CYLINDER BLOCK (###)
4	10002-P42-E10	General assy. - CYLINDER BLOCK
5	10003-P42-E10	General assy. - CYLINDER HEAD
6	20011-P38-C42	Transmission assy - MT

Grommet 25

#	OEM	部品名
1	72205-SK3-E00	Cap - FLOOR HOLE
2	72849-SN7-000	Insulator b - SIDE SILL
3	74231-SM4-E00	Valve - R. FR. WHEELHOUSE UPPER MEMBER
4	75826-SB3-300	Seal - DASHBOARD UPPER HOLE, 30MM
5	75826-634-300	Seal - INSIDE PANEL, 15MM
6	82871-671-000	Grommet - DRAIN HOLE, 25MM
7	85268-SN7-000	Protection - TAILGATE
9	90615-SM4-000	Cap - WELD HOLE, 46X72
10	90852-671-003	Plug - HOLE
11	90855-SA0-000	Plug - VENTILATION HOLE, 20MM
12	90861-SA5-003	Plug - HOLE, 20MM
13	91606-SD2-003	Plug - HOLE, 15MM
14	91606-SN7-000	Insulator b - SIDE SILL
15	91606-SK7-003	Plug - BLIND, 25MM
16	91610-SD4-000	Plug - HOLE, 28MM
17	91611-SM4-003	Plug - FLOOR HOLE, 25MM
19	91613-SA5-000	Grommet b - CONTROL WIRE
20	91614-SA5-000	Grommet - HEATER LEVER HOLE (20MM)
21	91615-SA5-000	Grommet - HOLE, 25MM
22	91615-SM4-000	Plug - BLIND, 20X30
23	91616-SN7-000	Seal - FR. PILLAR INNER LOWER
24	91618-SN7-000	Seal - RR. PILLAR UPPER
25	91618-SM4-003	Plug - HOLE, 7MM
26	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
27	91623-SE0-003	Plug - BLIND, 12MM

Headlight ('96) 20

#	OEM	部品名
1	33103-SN7-G02	Housing comp - R.
2	33121-SN7-G01	Cover - L.
3	33122-SN7-G01	Sealing
4	33124-SN7-G01	Screw - TAPPING
5	33130-SN7-G01	Adjuster unit - HEADLIGHT
6	33131-SN7-G01	Sealing
7	33153-SN7-G02	Housing comp - L.
8	33171-SN7-G01	Cover - R.
9	33302-SN7-G02	Housing - R.
10	33305-SN7-G00	Socket comp.
11	33352-SN7-G02	Housing - L.
12	33800-SN7-E02	Light assy - R. SIDE TURN (###)
13	33802-SN7-E01	Housing comp - R.
14	33850-SN7-E01	Light assy - L. SIDE TURN (###)
15	33852-SN7-E01	Housing comp - L.
16	34304-SH3-A01	Socket comp.
17	34351-SN7-G00	Bulb - POSITION (12V 5W)
18	34901-SN7-G00	Bulb - HEADLIGHT (HI) (12V 55W)
19	34903-SN7-G10	Bulb - 12V 21W) (AMBER
20	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Heater blower 21

#	OEM	部品名
1	06793-SN7-G01	Motor set - BLOWER
2	79300-SN7-G02	Blower assy - LH
3	79307-SN7-E01	Clamp - CASE
4	79309-SN7-G01	Bracket
5	79317-SN7-E01	Grommet
6	79319-SN7-E01	Plug - EXPANSION
7	79330-SN7-E01	Resistor assy.
8	79350-SN7-G01	Motor assy. - FRESH & RECIRCULAR (LH)
9	79381-SN7-E01	Bush
10	79390-SN7-E01	Clamp - HARNESS
11	79391-SN7-E01	Screw - TAPPING
12	79392-SN7-E01	Screw - TAPPING
13	79393-SN7-E01	Screw - TAPPING
14	79396-SN7-E01	Washer - PLAIN
15	79397-SN7-E01	Screw - TAPPING
16	79398-SN7-E01	Holder a
17	79399-SN7-E01	Holder b
18	79810-SN7-S10	Duct - HEATER
19	90134-SM4-000	Bolt-washer - 6X20
20	90155-SE0-003	Screw - TAPPING, 6X20
21	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Heater control 20

#	OEM	部品名
1	39383-SA5-000	Clamp - CONTROL CABLE
2	79510-SN7-Y01	Control comp. - TEMPERATURE
3	79512-SN7-E02	Base - TEMPERATURE CONTROL LOWER
4	79513-SN7-E11	Cover - DUST
5	79520-SN7-Y01	Control comp. - MODE
5	79520-SN7-G12	Control comp. - MODE
6	79521-SN7-E11	Lever - MODE CONTROL
7	79522-SN7-E01	Lever - TEMPERATURE CONTROL
8	79537-SN7-E02	Pin - CLICK
9	79541-SN7-Y01	Cable - MODE CONTROL
10	79542-SN7-Y01	Cable - TEMPERATURE CONTROL
11	79550-SN7-R00	Illumination assy. - HEATER
12	79555-SN7-E01	Bulb - NEO WEDGE
13	79556-SN7-E01	Bulb
14	79570-SN7-E01	Switch assy - FAN
15	79581-ST3-E01	Knob - HEATER CONTROL
17	79591-SN7-E01	Spring - HEATER CONTROL
18	79595-SN7-E12	Shaft - TEMPERATURE CONTROL
19	79596-SN7-E12	Shaft - MODE CONTROL
20	79691-SN7-E01	Screw - TAPPING, 4X12

Heater duct 4

#	OEM	部品名
2	77421-SN7-G00	Duct - DRIVER SIDE AIR CONDITIONER
4	77422-SN7-G00	Duct - DRIVER SIDE DEFROSTER
6	77432-SN7-G00	Duct - PASSENGER SIDE DEFROSTER
7	83331-SN7-G00	Duct - RR. HEATER

Heater unit (1) 16

#	OEM	部品名
2	79107-SN7-G11	Outlet - DRIVER FEET
3	79108-SN7-G12	Duct - FEET
4	79109-SN7-G11	Cover - EXCHANGE HEAT
6	79181-SN7-E11	Spacer - MODE & TEMPERATURE
7	79182-SN7-E11	Bush - RETAINER
8	79183-SN7-E11	Clamp - CABLE
9	79184-SN7-E11	Bush - PIVOT
10	79185-SN7-E11	Bush
11	79189-SN7-E11	Pin - SETTING
12	79191-SN7-E11	Clip - CASE
13	79192-SN7-E11	Holder b
14	79193-SN7-E11	Bracket - MOUNTING UPPER
15	79194-SN7-E11	Bracket - MOUNTING UPPER
16	79195-SN7-E11	Bracket - HEAT EXCHANGE PIPE
17	79544-SM4-A00	Cable - WATER VALVE CONTROL
18	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Heater unit (2) 2

#	OEM	部品名
2	79100-SM5-A52	Heater unit - DENSO
3	79110-SM4-A01	Core comp - HEATER

High tension cord/ spark plug 11

#	OEM	部品名
1	32700-PT0-000	Cord assy - HIGH TENSION (SUMITOMO)(###)
2	32701-PT0-000	Cord comp - RESISTANCE (NO.1) (SUMITOMO)
3	32702-PT0-000	Cord comp - RESISTANCE (NO.2) (SUMITOMO)
4	32703-PT0-000	Cord comp - RESISTANCE (NO.3) (SUMITOMO)
4	32703-P0B-A00	Cord comp - RESISTANCE (NO.3) (SUMITOMO)
5	32704-PT0-000	Cord comp - RESISTANCE (NO.4) (SUMITOMO)
8	32765-PT0-000	Clamp a - HIGH TENSION CORD
9	32766-PM3-000	Clamp b - HIGH TENSION CORD
13	32767-PT0-000	Grommet - HIGH TENSION CORD
19	90003-P01-000	Bolt-washer - 8X28
21	32722-P0B-405	Cord comp (Auto) - HIGH TENSION (SUMITOMO)

Hood ('96) 26

#	OEM	部品名
4	74120-SN7-013	Lock assy - HOOD
5	74130-SN7-G00	Wire assy. - HOOD
6	74134-SM4-000	Grommet - HOOD WIRE
9	74143-SL9-000	Rubber - HOOD RR. SEAL
10	74144-SE0-000	Cushion - HOOD
11	74145-SN7-000	Stay - HOOD OPENER
12	74148-SN7-010	Protector - R. HEADLIGHT
13	74149-SN7-000	Protector - L. HEADLIGHT
14	74177-SD4-000	Cushion a - HOOD
15	74200-SN7-G00	Cowl top assy.
16	74211-SL9-300	Cover - R. HOOD HINGE
17	74221-SM4-A00	Screen - WATER
18	74234-SM4-G00	Valve - R. DRAIN DASHBOARD UPPER
19	74261-SL9-300	Cover - L. HOOD HINGE
20	74284-SM4-G00	Valve - L. DRAIN DASHBOARD UPPER
21	74825-SM4-G01	Plug - WIPER LINK HOLE
22	90106-SE1-000	Bolt-washer - 6X15
23	90107-SM4-003	Clip - HOOD SEAL
24	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
25	90677-SE0-003	Holder - ROD
27	91501-SM4-003	Clip - ANCHOR
28	91502-SL9-003	Clamp - HOOD WIRE
29	91508-SM4-003	Clip - COWL TOP
30	91515-SM4-003	Clip - ANCHOR
32	91558-SE3-003	Clip - HOOD WIRE
34	91604-SD2-013	Grommet - HOOD STAY

Inner panels 1

#	OEM	部品名
40	90127-SE0-000	Bolt-washer - 6X15

Instrument panel (LH) 14

#	OEM	部品名
5	77106-SL9-000	Bracket - VISOR
6	77109-SL9-000	Cap - INSTRUMENT STAY
7	77114-SN7-E00	Seal - INSTRUMENT PANEL SIDE (200MM)
9	77140-SN7-G01	Bracket comp. - INSTRUMENT DRIVER SIDE
10	77145-SN7-G00	Bracket - INSTRUMENT ASSISTANT SIDE
12	77311-SN7-G10	Frame - DRIVER SIDE LOWER
13	77542-SL9-000	Striker - GLOVE BOX
14	77551-SN7-G01	Frame - GLOVE BOX
20	77907-SW5-003	Holder - CONNECTOR (2P)
22	90128-SA7-000	Bolt-washer - 6X25
23	90302-SA4-003	Nut - SPRING, 4MM
25	90659-SA5-003	Grommet - SCREW, 4MM
26	91640-SM4-003	Grommet - SCREW, 4MM
27	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH) 23

#	OEM	部品名
1	34254-SK3-E02	Lamp assy. - GLOVE BOX
2	34295-SK3-E00	Bulb
3	66406-SD2-A00	Plate - GLOVE BOX STOPPER
4	66407-SA5-000	Arm - GLOVE BOX STOPPER
5	66417-SA0-000	Rubber - GLOVE BOX STOPPER
6	66418-SB2-000	Stopper - GLOVE BOX LID
7	66456-SA5-000	Spring - GLOVE BOX ARM
15	77353-SL9-010	Blind - COLUMN (###)
17	77371-SJ5-000	Ring - COLUMN COVER
20	77477-SN7-E00	Clip - SIDE DEFROSTER
23	77506-SM4-900	Stopper - GLOVE BOX LID
24	77510-SL4-000	Hinge - GLOVE BOX
25	77520-SN7-E02	Cylinder - GLOVE BOX
27	77605-SE3-A10	Label a - TEMPERATURE
28	77606-SE3-A10	Label b - TEMPERATURE
33	77755-SN7-E00	Spring - COIN POCKET
35	90151-SM4-003	Bolt-washer - 5X12
36	90302-SN7-E00	Nut - SPRING, 4MM
37	90310-SL9-000	Nut - SPEED
38	90609-SG0-003	Clip - PILLAR GARNISH
39	90609-SN7-G00	Clip - INSTRUMENT LOWER
40	90609-SN7-E01	Clip - PILLAR GARNISH
41	90650-SE3-000	Clip - RADIO PANEL

Intake manifold (SOHC) 29

#	OEM	部品名
1	06164-P2J-000	INJECTOR (1pc), packing set
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)
6	16610-PT3-A00	Pipe comp - FUEL
7	16623-PT2-000	Cover - FUEL LINE
8	16638-P45-G00	Collar - FUEL PIPE
9	16740-P45-G00	Regulator assy - PRESSURE
10	16741-PG7-005	O-ring - PRESSURE REGULATOR
11	17110-P45-G00	Manifold comp. b - INTAKE
12	17100-P45-G01	Manifold comp. a - INTAKE
13	17105-PT2-014	Packing - INTAKE MANIFOLD (NIPPON LEAKLESS)
15	17121-PT3-A01	Packing - INTAKE MANIFOLD (B) (ISHINO GASKET)
16	17125-P45-G00	Stay comp - INTAKE MANIFOLD
17	18011-P45-G00	Valve set - EGR
18	18715-P45-G01	Gasket - EGR VALVE (NIPPON LEAKLESS)
19	32752-PT2-000	Stay d - ENGINE WIRE HARNESS
20	37880-P05-A00	Sensor assy - AIR TEMP
21	90009-PE2-010	Bolt - SEALING, 6MM
21	90009-RMX-010	Bolt,sealing 6mm
23	90020-P0A-003	Bolt - SEALING, 12MM
25	90428-PD6-003	Washer - SEALING, 12MM
26	90430-PD6-003	Washer - SEALING, 6MM
27	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)
27	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)
27	16074-ZY3-000	O-ring
28	91301-PR3-003	O-ring - 23.8X1.9
29	91303-PK2-005	O-ring (7.5X1.5)

Interior light 6

#	OEM	部品名
2	34251-SN7-G01	Lens
3	34252-SN7-G00	Lid - INTERIOR LIGHT
4	34260-SN7-G01	Light assy - TRUNK ROOM
6	34295-SN7-G01	Bulb - 12V 5W
7	34296-SN7-G01	Bulb - 12V 5W
11	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Knuckle 16

#	OEM	部品名
1	51210-SN7-E01	Knuckle comp - R. FR.
1	51210-SN7-E03	Knuckle comp - R. FR.
3	51215-SN7-E01	Knuckle comp - L. FR.
3	51215-SN7-E03	Knuckle comp - L. FR.
4	51220-SM4-013	Joint comp - FR. LOWER BALL (MUSASHI)
4	51220-SM1-A02	Joint comp - FR. LOWER BALL (MUSASHI)
5	51450-SN7-003	Arm assy. - R. FR. UPPER
6	51460-SN7-003	Arm assy. - L. FR. UPPER
7	52225-SF1-013	Boot - LOWER BALL DUST
8	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)
9	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
10	53548-SL0-A01	Circlip - TIE ROD
14	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
16	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
17	90363-SF1-000	Nut - CASTLE, 12MM
19	90856-SA0-000	Plug - COATING HOLE, 25MM

Mainshaft 18

#	OEM	部品名
1	23210-P0S-J40	Mainshaft comp.
2	23261-PX5-A00	Shaft - REVERSE IDLE GEAR
3	23441-P0S-A40	Gear - MAINSHAFT THIRD
4	23451-PX5-U41	Gear - MAINSHAFT FOURTH
5	23540-P16-000	Gear comp - REVERSE IDLE
6	23581-P38-C00	Gear - MAINSHAFT FIFTH
7	23623-P0S-305	Sleeve set - SYNCHRONIZER (3-4)
8	23626-PX5-307	Sleeve set - SYNCHRONIZER (5)
9	23645-PX5-010	Ring - BLOCKING (50S)
12	23652-PB6-000	Spring - SYNCHRONIZER (50MM)
13	23915-P21-000	Collar - DISTANCE, 31X38X56.5
15	23927-PG2-A00	Washer - SPRING, 28MM
16	23928-PS1-000	Washer - 28MM
18	90401-PG1-000	Washer - DRAIN PLUG, 10MM
19	91004-PX5-008	Bearing - BALL, 28X78X20
20	91104-P21-008	Bearing - NEEDLE, 38X43X26 (NTN)
23	23916-P16-J00	Collar - DISTANCE, 28X37X17.2
24	23647-P16-J00	Ring - TAPER CONE

Mirror 11

#	OEM	部品名
1	04769-SM4-J01	Holder set - ACTUATOR
6	76203-SN7-G21	Mirror - R. (1800C)
7	76213-SM4-003	Pin - STOPPER
8	76220-SN7-G00	Garnish - R. DOOR MIRROR (R.C.)
14	76253-SN7-G21	Mirror - L. (1800C)
15	76270-SN7-G00	Garnish - L. DOOR MIRROR (R.C.)
17	76400-SN7-G10	Mirror assy - RR. VIEW
21	90410-SN7-G01	Screw - TAPPING, 4X10 (P0)
22	90416-SN7-G01	Screw - TAPPING, 4X16 (P0)
23	90615-SN7-G00	Clip - MIRROR GARNISH
24	91559-SN7-000	Clip - WIRE HARNESS (WHITE) (55MM)

Molding 25

#	OEM	部品名
1	72410-SN7-G00	Molding assy. - R. FR. DOOR
2	72411-SM2-003	Collar - FR. DOOR
3	72420-SN7-G00	Molding - R. DRIP ROOF
4	72430-SN7-G00	Garnish - R. FR. DOOR CENTER
5	72450-SN7-G00	Molding assy. - L. FR. DOOR
6	72460-SN7-G00	Molding - L. DRIP ROOF
7	72470-SN7-G00	Garnish - L. FR. DOOR CENTER
8	72910-SN7-G00	Molding assy. - R. RR. DOOR
9	72930-SN7-G00	Garnish - R. RR. DOOR CENTER
10	72950-SN7-G00	Molding assy. - L. RR. DOOR
11	72970-SN7-G00	Garnish - L. RR. DOOR CENTER
12	74306-SN7-000	Molding - R. ROOF
13	74308-SL9-000	Bracket - ROOF MOLDING
14	74316-SN7-000	Molding - L. ROOF
15	90121-SM4-003	Screw - TAPPING, 4X10
16	90122-SM3-013	Screw-washer
17	90130-SM2-003	Screw - TAPPING, 4X11
18	90668-SG0-003	Grommet - SCREW, 4MM(OVAL)
19	91528-SN7-000	Clip - DRIP MOLDING
20	91531-SN7-G00	Clip - DOOR MOLDING
21	91537-SN7-G00	Clip - DOOR MOLDING END
22	91539-SN7-G00	Holder - R. FR. DOOR MOLDING
23	91540-SN7-G00	Holder - L. FR. DOOR MOLDING
24	91619-SM4-003	Grommet - CENTER PILLAR GARNISH (OVAL)
25	91625-SM4-004	Grommet - CENTER PILLAR GARNISH UPPER

Oil pump 31

#	OEM	部品名
1	13500-PT0-J00	Case set - GEAR
4	15113-PT0-003	Packing a - OIL PUMP (ARAI)
5	15114-PT0-003	Packing b - OIL PUMP (ARAI)
6	15200-P45-G01	Pipe comp - OIL LEVEL
7	15220-P45-G00	Strainer comp. - OIL
8	15221-PT0-000	Packing - OIL STRAINER
8	15221-P5K-004	Packing - OIL STRAINER
9	15231-PE0-000	Valve - RELIEF
10	15232-PG6-000	Spring - RELIEF VALVE
11	15233-PC6-000	Bolt - SEALING, 18MM
12	15233-PK1-000	Bolt - SEALING, 20MM
14	15400-PH1-F03	Cartridge - OIL FILTER (LABINAL-PURFLUX)
15	15400-PR3-405	Cartridge - OIL FILTER (TOYO ROKI)
15	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)
15	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
16	15400-PR3-406	Cartridge set - OIL FILTER (TOYO ROKI)
19	15650-P0B-A02	Gauge comp. - OIL LEVEL
20	90015-PH1-013	Holder - OIL FILTER
21	90018-PT0-010	Bolt - BALANCER BELT ADJUSTER
22	90023-PT0-003	Bolt-washer - 8X33
23	90042-PR3-000	Bolt - STUD, 6X28
24	90052-PK1-000	Bolt - FLANGE, 6X25
25	90063-PC6-000	Bolt - STUD, 6X25
26	90703-PT0-000	Dowel pin - 49X10
27	91212-PAA-A02	Oil seal - 40X52X7 (ARAI)
27	91212-PAA-A01	Oil seal - 40X52X7 (NOK)
28	91233-PT0-003	Oil seal - 27X40X8 (NOK)
29	91309-PJ7-010	O-ring - 11.5X3.5
30	91313-PC9-004	O-ring - 9X2.3 (ARAI)
30	91313-PC9-003	O-ring - 9X2.3(NOK)
41	15100-PT0-030	Oil Pump assy

Outer panels 7

#	OEM	部品名
33	70494-SE0-000	Spring - FUEL LID OPENER
34	74422-SS0-000	Cushion - FUEL FILLER LID
35	75450-SM4-000	Outlet assy - RR. AIR
36	90103-SM4-010	Bolt - FLANGE, 6X18
37	90664-SB3-003	Grommet - SCREW, 5MM
38	91602-SL4-000	Stopper - FR. BUMPER FACE
39	91602-SM4-000	Spacer - RR. BUMPER

P.s. gear box (LH; '96) 11

#	OEM	部品名
1	53434-SN7-010	Bracket d - GEAR BOX
2	53436-SV4-010	Cushion b - GEAR BOX
3	53438-SN7-010	Bracket b - STEERING GEAR BOX
4	53501-SM4-000	Grommet a - STEERING
5	53502-SN7-010	Grommet b - STEERING
6	53600-SN7-G02	Box assy - POWER STEERING GEAR (LH)
7	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
8	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
9	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)
12	53535-S1A-E01	Tube - BELLOW
13	53536-S1A-E01	Housing - BELLOW

P.s. line (LH; '96) 24

#	OEM	部品名
1	53697-SK3-E01	Cap - OIL TANK
2	53701-SN7-000	Tank comp. - POWER STEERING OIL
3	53711-SM4-010	Bracket assy - OIL TANK
4	53713-SN7-G31	Hose comp. - FEED (LH)
5	53720-SN7-G01	Pipe comp - RETURN, 10MM
6	53721-SM4-013	Clamp d - 15.5MM
7	53729-SN7-000	Clamp - D15.5
8	53729-SS0-003	Clip - RETURN HOSE
9	53730-SM4-900	Clamp - FEED HOSE
11	53731-SN7-E80	Tube - SUCTION
12	53732-SM4-050	Hose - OIL COOLER IN.
13	53733-SN7-E00	Hose - OIL TANK
14	53734-SN7-G00	Hose - RETURN
15	53735-SM4-050	Tube - OIL COOLER RETURN (B)
16	53736-SM4-010	Holder b - POWER STEERING PIPE
17	53736-ST5-J21	Bolt - POWER STEERING SEALING, 16MM
18	53738-ST5-J21	Washer - POWER STEERING SEALING, 16MM
19	53746-SN7-G00	Stay - RETURN PIPE, 10MM
20	53765-SN7-E00	Cooler comp - POWER STEERING OIL
21	53779-SN7-010	Pipe comp - POWER STEERING COMBINATION
22	90188-SM4-000	Bolt - FLANGE, 6X12 (BLACK)
23	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
23	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
24	91405-SS0-003	Clamp - TUBE (D21)

P.s. pump/bracket 10

#	OEM	部品名
2	32750-P45-G00	Clamp - ENGINE WIRE HARNESS
3	56100-P45-E81	Pump assy. - POWER STEERING
3	56100-P45-E84	Pump assy. - POWER STEERING
4	56992-P44-G03	Belt - POWER STEERING PUMP
5	56994-P45-G00	Bracket - POWER STEERING PUMP
7	56995-P45-G00	Bolt - POWER STEERING PUMP ADJUSTING
8	56996-P0A-000	Bolt - SPECIAL, 8X62
9	56998-P45-G00	Plate comp - POWER STEERING PUMP ADJUSTER
10	90091-P0A-000	Bolt - POWER STEERING PUMP ADJUSTING
11	90202-P0A-A01	Nut-washer - 8MM

Parking brake 13

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
4	47143-SN7-003	Spring - PUSH ROD
5	47342-SN7-003	Switch assy - BRAKE LEVER
6	47360-SN7-003	Equalizer
7	47365-SN7-003	Pin - EQUALIZER
8	47510-SN7-953	Wire a - R. PARKING BRAKE
9	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING
10	47537-SN7-003	Spring - PARKING BRAKE ROD
11	47560-SN7-953	Wire a - L. PARKING BRAKE
12	47572-SN7-000	Base - WIRE GUIDE
13	74656-SN7-000	Bracket - TANK BAFFLE PLATE
15	90651-SN7-003	Clip - BRAKE HOSE
16	90705-SD2-931	Pin - SNAP, 6MM

Pedal (LH) 28

#	OEM	部品名
1	17800-SN7-A00	Pedal comp - ACCELERATOR
3	17805-SK3-000	Pad - PEDAL STOPPER
4	17812-SA7-010	Washer - ACCELERATOR PEDAL
5	17814-SM4-000	Spring - ACCELERATOR PEDAL
6	17816-SN7-000	Cover - ACCELERATOR PEDAL
11	17910-SN7-A32	Wire - THROTTLE
12	17921-SA4-730	Seal - THROTTLE CABLE
13	17931-SM4-A00	Stay - THROTTLE WIRE
14	17934-SN7-A00	Clamp - THROTTLE
15	17938-SE0-941	Clip - THROTTLE WIRE
16	35350-SK4-E00	Switch assy - STOP
18	46500-SN7-A00	Pedal comp - BRAKE
20	46504-SK3-300	Bush - PEDAL
21	46505-SK3-000	Pad - PEDAL STOPPER
22	46530-SM4-000	Spring assy - PEDAL RETURN
23	46535-SM4-000	Collar - PEDAL
24	46545-SN7-000	Cover - PEDAL
26	46590-SN7-A01	Bracket - PEDAL
29	46910-SN7-G00	Pedal comp - CLUTCH
30	46911-SN7-000	Bush - PEDAL PIN
32	46936-SN7-000	Collar - CLUTCH PEDAL
33	46980-SD4-930	Spring - CLUTCH ASSISTANT
34	46981-SN7-930	Bush a - CLUTCH ASSISTANT
35	46982-SN7-930	Bush b - CLUTCH ASSISTANT
36	46990-SN7-940	Bracket - CLUTCH PEDAL
37	46991-SN7-G00	Bracket - FOOTREST
38	75891-611-000	Cover - DOOR SWITCH
41	90855-SA0-000	Plug - VENTILATION HOLE, 20MM

Pillar garnish 6

#	OEM	部品名
2	38205-SN7-G11	Label - FUSE
28	90609-SE1-960	Clip - PILLAR GARNISH
29	90609-SG0-003	Clip - PILLAR GARNISH
30	90609-SN7-E01	Clip - PILLAR GARNISH
31	90666-SD4-000	Clip - PILLAR LINING
33	91580-SF9-003	Clip - COWL SIDE

Piston/crankshaft 50

#	OEM	部品名
1	13010-P45-G00	Piston set a - STD.
1	13020-P45-G00	Piston set b - STD.
1	13040-P45-G00	Piston set - OS 0.50
1	13030-P45-G00	Piston set - OS 0.25
2	13031-P0C-G01	Ring set - PISTON (OS 0.50)
2	13021-P45-G01	Ring set - PISTON (OS 0.25) (TEIKOKU)
2	13021-P0C-G03	Ring set - PISTON (OS 0.25) (RIKEN)
2	13011-P0C-G04	Ring set - PISTON (STD.) (RIKEN)
2	13031-P45-G01	Ring set - PISTON (OS 0.50) (TEIKOKU)
3	13014-PAA-810	Washer set - THRUST (TAIHO)
3	13014-PAA-800	Washer set - THRUST (DAIDO)
5	13112-PT0-000	Pin - PISTON
6	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)
6	13205-634-010	Nut
7	13210-PT1-000	Rod comp - CONNECTING
8	13213-463-003	Bolt - CONNECTING ROD (NAGOYA RASHI)
9	13310-P0D-000	Crankshaft comp.
10	13324-PT0-003	Bearing d - MAIN (YELLOW) (DAIDO)
10	13321-PT0-003	BEARING A - MAIN (BLACK) (DAIDO)
10	13323-PT0-003	Bearing c - MAIN (GREEN) (DAIDO)
10	13325-PT0-003	Bearing e - MAIN (PINK) (DAIDO)
10	13322-PT0-003	Bearing b - MAIN (BROWN) (DAIDO)
11	13400-PT1-010	Shaft comp. - RR. BALANCER
12	13401-PT1-010	Shaft - FR. BALANCER
13	13402-PT0-000	Pulley b - FR. TIMING BELT DRIVEN
14	13406-PT0-003	Metal f - THRUST BALANCER SHAFT
15	13408-P45-G00	Pulley - BALANCER BELT DRIVE
16	13621-P45-G00	Pulley - TIMING BELT DRIVE
17	13622-PV1-000	Plate - TIMING BELT GUIDE
18	13810-P45-G00	Pulley comp - CRANKSHAFT
19	90017-PY3-003	Bolt-washer - 16X49
19	90017-RJA-003	Bolt-washer - 16X49
20	90019-PT0-000	Bolt - FLANGE, 6X18
21	90031-PT0-003	Bolt-washer - 8X22
21	90032-ZW5-003	Bolt-washer, 8x22
22	90704-PT0-000	Key - 4.5X38.5
23	13212-PD2-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
23	13211-PD2-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
23	13216-PD2-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)
23	13215-PD2-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
23	13214-PD2-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
23	13217-PD2-004	Bearing g - CONNECTING ROD (RED) (TAIHO)
23	13212-PC6-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
23	13211-PC6-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
23	13216-PC6-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
23	13215-PC6-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
23	13214-PC6-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
23	13213-PD2-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
23	13217-PC6-003	Bearing g - CONNECTING ROD (RED) (DAIDO)
23	13213-PC6-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)

Protector 18

#	OEM	部品名
1	71800-SN7-000	Garnish assy - R. SIDE SILL
2	71850-SN7-000	Garnish assy - L. SIDE SILL
3	74430-SN7-000	Protector - RR. WHEEL ARCH
3	74430-SN7-010	Protector - RR. WHEEL ARCH
4	74559-SN7-000	Cover - FUEL PIPE
7	75301-SN7-G12	Protector comp - R. FR. FENDER
8	75302-SN7-G12	Protector comp - R. FR. DOOR
9	75303-SN7-G12	Protector comp - R. RR. DOOR
10	75307-SN7-000	Nut - SIDE PROTECTOR
11	75321-SN7-G12	Protector comp - L. FR. FENDER
12	75322-SN7-G12	Protector comp - L. FR. DOOR
13	75323-SN7-G12	Protector comp - L. RR. DOOR
15	90114-SE0-000	Screw - TAPPING, 5X20
17	90331-SD5-003	Nut - SPRING, 5MM
18	90505-SM4-003	Clip - GARNISH
18	90505-SX0-003	Clip - GARNISH
21	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH
22	91545-SE0-003	Clip assy. - 8MM

Radiator 18

#	OEM	部品名
1	19010-P45-505	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19014-PK1-003	Clip - HARNESS
5	19015-PT0-J01	Shroud comp - DENSO
5	19015-PT0-003	Shroud comp - DENSO
6	19020-PT0-003	Fan - COOLING (DENSO)
6	19020-PH1-621	Fan - COOLING (DENSO)
7	19030-PT0-003	Motor - COOLING FAN (DENSO)
7	19030-PT0-J01	Motor - COOLING FAN (DENSO)
8	19033-PT0-013	Stay - COUPLER (DENSO)
9	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)
11	19046-PV1-000	Seal - CAP
12	90041-PH2-003	Screw-washer - 4X10 (DENSO)
13	90042-PH2-003	Bolt-washer - 6X16 (DENSO)
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)
15	90201-PT0-003	Nut - SQUARE

Radiator hose 19

#	OEM	部品名
1	19101-P45-G00	Tank - RESERVE
2	19103-P45-G00	Hose a - RESERVE TANK
3	19104-P45-G00	Hose b - RESERVE TANK
4	19110-P45-G00	Cap set - RESERVE TANK
4	19110-PT0-000	Cap set - RESERVE TANK
5	19115-PT0-000	Bracket - RESERVE TANK
6	19501-P45-G00	Hose - WATER UPPER
7	19502-P45-G00	Hose - WATER LOWER
8	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
9	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
10	19519-PT0-000	Clamp - LOWER HOSE
23	74142-SN8-000	Rubber - RADIATOR SIDE SEAL
24	74144-SN8-000	Seal - BULKHEAD UPPER
26	74171-SN8-000	Bracket - RADIATOR MOUNT
27	74172-SM4-000	Cushion - RADIATOR MOUNTING LOWER
28	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
31	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
33	90685-SF1-003	Clip - BULKHEAD UPPER SEAL
34	91512-SM4-003	Clip - INNER FENDER

Radio antenna/speaker 15

#	OEM	部品名
1	39112-SM4-000	Bracket - FR. SPEAKER SEAL
3	39120-SN7-E21	Speaker assy - 6 1/2" SINGLE CON
6	39150-SN7-E01	Antenna assy - MOTOR
7	39151-SN7-003	Bracket
8	39152-SN7-003	Mast assy.
9	39154-SN7-003	Nut - MOUNTING
10	39155-SN7-003	Motor assy.
11	39156-SN7-003	Insulator
12	39159-SN7-E01	Sub feeder - MOTOR ANTENNA
13	39170-SJ4-000	Valve - RR. MOTOR ANTENNA DRAIN
16	90662-693-003	Grommet - SCREW, 4MM (BLUE)
17	90666-SD4-003	Clip - FITTING
18	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
19	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
20	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Rear brake 31

#	OEM	部品名
1	01473-SN7-010	Caliper set - RR.
2	42200-SN7-J01	Bearing assy - RR. HUB UNIT
3	42324-SK3-E00	Washer - HUB UNIT
4	42326-SG0-000	Cap - HUB UNIT
5	42510-SN7-000	Disk - RR. BRAKE
6	43010-SN7-000	Pin set - RR.
7	43012-SN7-G00	Body set - R. RR. CALIPER
8	43013-SN7-G00	Body set - L. RR. CALIPER
9	43014-SN7-G00	Bracket set - R. RR. CALIPER
10	43015-SN7-G00	Bracket set - L. RR. CALIPER
11	43017-SN7-G00	Boot set - RR. PIN
12	43022-SN7-000	Pad set - RR.
13	43215-SM4-951	Piston assy.
14	43243-SD2-931	Nut - PARKING
15	43245-SM4-950	Lever
16	43246-SN7-G01	Spring - R. RETURN
17	43247-SN7-G01	Arm - R.
18	43253-SN7-000	Guard - R. RR. SPLASH (14")
19	43254-SN7-000	Guard - L. RR. SPLASH (14")
20	43255-SN7-000	Protector - R. RR. CALIPER
21	43256-SN7-000	Protector - L. RR. CALIPER
22	43266-SN7-G01	Spring - L. RETURN
23	43267-SN7-G01	Arm - L.
24	45240-SA7-003	Bolt - FLANGE, 8X22
25	45352-SN7-G41	Screw - BLEEDER
26	45353-SN7-G41	Cap - BLEEDER
27	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
27	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
27	90113-SA0-006	Bolt - WHEEL (SAGA)
28	90305-692-010	Nut
29	90103-SN7-003	Bolt - FLANGE, 10X25

Rear door lining 13

#	OEM	部品名
5	35761-SN7-G02	Panel - R. RR.
6	35762-SN7-G01	Body
7	35766-SN7-G02	Panel - L. RR.
8	72835-SN7-G01	Weatherstrip - R. RR. DOOR INNER
9	72875-SN7-G01	Weatherstrip - L. RR. DOOR INNER
10	72940-SN7-G00	Garnish - R. RR. DOOR INNER
11	72980-SN7-G00	Garnish - L. RR. DOOR INNER
12	83529-SN7-G00	Bracket - COVER LOCK
21	90131-SE3-003	Screw - TAPPING, 4X16
22	90615-SN7-G00	Clip - MIRROR GARNISH
23	91560-SP0-003	Clip - DOOR LINING (GRAY)
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
24	91626-SP0-003	Grommet - SCREW, 5MM

Rear door locks 33

#	OEM	部品名
1	72112-SN7-G01	Snap - R.
2	72117-SN7-G00	Protector - R. DOOR LOCK
4	72121-SN7-G01	Base - R. INSIDE HANDLE
6	72134-SN7-G01	Bush - JOINT
7	72135-SN7-G00	Striker - DOOR LOCK
8	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
10	72138-SN7-G00	Cushion - LOCK ROD
11	72138-SN7-G10	Cushion - LOCK ROD
12	72157-SN7-G00	Protector - L. DOOR LOCK
14	72161-SN7-G01	Base - L. INSIDE HANDLE
15	72162-SN7-G01	Snap - L.
16	72175-SH3-003	Holder - DOOR LOCK ROD
17	72175-SH3-901	Holder - DOOR LOCK ROD
18	72610-SN7-G13	Lock assy - R. RR. DOOR
19	72615-SN7-G12	Actuator assy - R. RR. DOOR LOCK
20	72630-SM4-003	Crank assy - RR. DOOR LOCK
21	72631-SN7-G01	Rod - R. RR. INSIDE HANDLE
22	72632-SN7-G02	Rod - R. RR. DOOR LOCK
23	72633-SN7-G01	Rod - RR. DOOR LOCK KNOB
24	72634-SM4-003	Snap - R. (BLUE)
25	72639-SN7-G00	Protector - R. RR. DOOR ROD
26	72640-SN7-G01	Handle assy - RR. OUTSIDE
27	72650-SN7-G13	Lock assy - L. RR. DOOR
28	72655-SN7-G12	Actuator assy - L. RR. DOOR LOCK
29	72671-SN7-G01	Rod - L. RR. INSIDE HANDLE
30	72672-SN7-G02	Rod - L. RR. DOOR LOCK
31	72674-SM4-003	Snap - L. (BROWN)
32	72679-SN7-G00	Protector - L. RR. DOOR ROD
33	72680-SN7-G01	Handle assy - L. RR. OUTSIDE
34	75411-634-000	Joint
35	90120-SM4-000	Screw - TAPPING
36	90662-SB2-003	Grommet - SCREW, 5MM
37	91555-SM4-003	Clip - COUPLER (RED)

Rear door panels 15

#	OEM	部品名
13	72326-SN7-G00	Seal - RR. DOOR LOWER
14	72810-SN7-G01	Weatherstrip - R. RR. DOOR
15	72821-SN7-G20	Seal - R. RR. DOOR HOLE
16	72840-SN7-G02	Checker comp. - RR. DOOR
17	72850-SN7-G01	Weatherstrip - L. RR. DOOR
18	72861-SN7-G20	Seal - L. RR. DOOR HOLE
19	75760-SK3-E00	Pin - DOOR CHECKER
20	75891-SA7-000	Stopper - DOOR
21	90101-SE3-003	Bolt-washer - 8X23.5
22	90686-692-003	Cap - LINING MOUNT
23	90852-SA5-000	Plug - HOLE, 10MM
24	91530-SE0-003	Clip A - DOOR WEATHERSTRIP
24	90664-671-003	Clip - CANOE
25	91530-SH4-003	Clip - DOOR WEATHERSTRIP
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Rear door windows 13

#	OEM	部品名
4	72237-SM4-003	Clip - FR. DOOR GLASS GUIDE
5	72710-SN7-G12	Regulator - R. RR. DOOR POWER
7	72730-SN7-G00	Garnish - R. RR. DOOR
8	72731-SN7-G00	Sash - R. RR. DOOR FR. LOWER
9	72735-SN7-G01	Runchannel - R. RR. DOOR
10	72750-SN7-G12	Regulator - L. RR. DOOR POWER
12	72770-SN7-G00	Garnish - L. RR. DOOR
13	72771-SN7-G00	Sash - L. RR. DOOR FR. LOWER
14	72775-SN7-G01	Runchannel - L. RR. DOOR
15	73400-SN7-G00	Glass assy - R. RR. DOOR (GREEN)
16	73450-SN7-G00	Glass assy - L. RR. DOOR (GREEN)
17	90307-SH3-000	Nut - SPOILER CAP, 6MM
18	91555-SM4-003	Clip - COUPLER (RED)

Rear seat (2) 16

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	82122-SN7-E11	Pad & frame comp. - R. RR. SEATBACK
6	82127-SE3-004	Collar - SEATBACK SETTING (TACHI-S)
7	82128-SN7-E21	Collar b - RR. SEATBACK SIDE SETTING
9	82132-SN7-E11	Pad & frame comp. - RR. SEAT CUSHION
10	82137-SE3-004	Rubber - RR. CUSHION SETTING
15	82220-SN7-E21	Lock assy - R. RR. SEAT
16	82290-SN7-E21	Bracket comp. - SEAT PIVOT
17	82291-SN7-E21	Bush - CENTER PIVOT
18	82295-SN7-E21	Bracket - CENTER SEAT PIVOT
20	82522-SN7-E11	Pad & frame comp. - L. RR. SEATBACK
23	82620-SN7-E22	Lock assy - L. RR. SEAT
24	90003-692-000	Bolt - FLANGE, 6X16
25	90139-SH3-003	Bolt-washer - 6X20
26	90186-SN7-003	Bolt - ARMREST

Rear shock absorber 18

#	OEM	部品名
1	51685-SN7-E01	Plate - DUST COVER
2	52441-SN7-E02	Spring - RR.
3	52610-SN7-E03	Absorber assy - R. RR. SHOCK
4	52611-SN7-E02	Absorber unit - RR. SHOCK
5	52620-SN7-E03	Absorber assy - L. RR. SHOCK
6	52621-SN7-E01	Washer - RR. SHOCK ABSORBER MOUNTING
7	52675-SN7-E01	Base - RR. SHOCK ABSORBER MOUNTING
8	52676-SN7-E02	Seal - RR. SHOCK ABSORBER MOUNTING
9	52685-SN7-E01	Tube - EXTENSION DUST
10	52686-SN7-E01	Rubber - RR. SPRING MOUNTING
11	52687-SN7-E01	Cover - RR. DUST
12	52689-SN7-E01	Plate - BUMP STOP
13	52722-SN7-E04	Rubber - RR. BUMP STOPPER
14	52725-SN7-E01	Rubber - RR. SHOCK ABSORBER MOUNTING
15	52728-SN7-E02	Collar - RR. SHOCK ABSORBER MOUNTING
16	52748-SN7-E01	Rubber - RR. SPRING SEAT
17	90021-SM4-003	Bolt - SHOCK ABSORBER, 10X68
18	90364-SN7-E01	Nut - SELF-LOCK, 10MM

Rear stabilizer/ rear lower arm 48

#	OEM	部品名
1	51464-S04-003	Boot - UPPER BALL JOINT
2	52111-SN7-910	Knuckle comp - R. RR. (DISK)
3	52116-SN7-910	Knuckle comp - L. RR. (DISK)
4	52212-SM4-910	Bracket a - R. RR. KNUCKLE (DISK)
5	52213-SM4-010	Protector - RR. KNUCKLE
6	52214-SM4-000	Bracket b - RR. KNUCKLE
7	52217-SM4-910	Bracket a - L. RR. KNUCKLE (DISK)
8	52300-SN7-E00	Spring - RR. STABILIZER
10	52306-SN7-E01	Link - RR. STABILIZER
11	52308-SN7-E00	Bracket - RR. STABILIZER BUSH
12	52309-SE0-000	Washer - RR. STABILIZER END
13	52310-SE0-003	Shaft - STABILIZER LINK
14	52312-SK3-000	Collar - STABILIZER INNER BUSH END
15	52315-SN7-E00	Bush - RR. STABILIZER
16	52316-SK3-000	Bush - STABILIZER END
17	52317-SM4-A00	Bracket - R. RR. STABILIZER
18	52318-SM4-A00	Bracket - L. RR. STABILIZER
19	52338-SL0-003	Circlip - CONTROL ARM
20	52345-SN7-000	Arm comp - R. RR. LOWER (A)
21	52350-SN7-000	Arm comp - L. RR. LOWER (A)
22	52355-SN7-000	Arm comp - R. RR. LOWER (B)
23	52360-SN7-000	Arm comp - L. RR. LOWER (B)
24	52364-634-020	Washer - LOWER ARM
25	52366-SM4-003	Bolt - KNUCKLE (12X221)
26	52371-SN7-E00	Arm assy. - R. RR. TRAILING
27	52372-SN7-E00	Arm assy. - L. RR. TRAILING
28	52387-SE0-023	Bolt - LOWER ARM ADJUSTING
29	52388-SE0-030	Plate - CAM
30	52390-SM1-A04	Arm comp - R. RR. UPPER
31	52400-SM1-A04	Arm comp - L. RR. UPPER
32	52622-SN7-003	Bush - RR. SHOCK ABSORBER LOWER
33	52677-SN7-E00	Bracket - R. RR. TRAILING ARM
34	52678-SN7-E00	Bracket - L. RR. TRAILING ARM
37	90118-SL4-003	Bolt - SELF-LOCK, 12X84
38	90022-SM4-003	Bolt - TRAILING ARM BRACKET, 12X69
39	90023-SM4-003	Bolt - TRAILING ARM BRACKET, 12X55.5
40	90024-SM4-000	Bolt a - TRAILING ARM (10X57)
42	90026-SM4-000	Bolt b - TRAILING ARM (10X45)
45	90119-SM4-003	Bolt - RR. LOWER ARM, 12X66
47	90168-SN7-000	Bolt - FLANGE, 8X35
48	90212-SA7-010	Nut - SELF-LOCK, 10MM
49	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
50	90216-SE0-010	Nut
50	90216-SE0-305	NUT, LWR ARM
51	90217-SM4-003	Nut - TRAILING ARM, 10MM
52	90230-SB0-950	Bolt-washer - 6X12 (GREEN)
53	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
54	90438-SE0-000	Washer - TRAILING, 12MM

Rear windshield 19

#	OEM	部品名
2	73211-SN7-G12	Glass - RR. WINDSHIELD (GREEN)
3	73225-SN7-G00	Rubber - RR. WINDSHIELD DAM
4	73226-SM4-000	Spacer - RR. WINDSHIELD
5	73251-SN7-G00	Molding - RR. WINDSHIELD UPPER
6	73253-SN7-G00	Molding - R. RR. SIDE
7	73254-SN7-G00	Molding - R. RR. CORNER
8	73255-SN7-G00	Cover - R. LOWER
9	73256-SN7-G00	Joint - R. RR. WINDSHIELD SIDE
10	73257-SN7-G00	Joint - CENTER
11	73263-SN7-G00	Molding - L. RR. SIDE
12	73264-SN7-G00	Molding - L. RR. CORNER
13	73265-SN7-G00	Cover - L. LOWER
14	73266-SN7-G00	Joint - L. RR. WINDSHIELD SIDE
16	73500-SN7-G01	Glass assy - R. OPERA (GREEN)
18	73550-SN7-G01	Glass assy - L. OPERA (GREEN)
19	91529-SN7-G00	Holder - RR. WINDSHIELD LOWER MOLDING
20	91530-SN7-G00	Clip - RR. WINDSHIELD UPPER & SIDE MOLDING
21	91536-SS0-000	Fastener a - WINDSHIELD
22	91541-SM4-003	Clip assy. - RR. WINDSHIELD SIDE MOLDING (BLUE)

Resonator chamber 10

#	OEM	部品名
1	17213-PT2-000	Rubber - AIR CLEANER CASE MOUNTING
2	17214-PT2-000	Collar - AIR CLEANER MOUNTING
3	17230-PT2-010	Chamber assy - RESONATOR
4	17232-PT2-000	Tube a - RESONATOR CONNECTING
5	17233-PT2-000	Seal - RESONATOR RUBBER
6	17256-PT0-000	Rubber - IN.
7	17257-PT0-000	Grommet - INTAKE
8	17259-PE0-661	Collar - MOUNTING
9	17260-PT3-A00	Stay - AIR INTAKE
10	90010-PT2-000	Bolt-washer - SPECIAL, 6X25

Roof lining 4

#	OEM	部品名
17	90132-SL9-901	Bolt-washer - 5X35
18	90132-SP0-003	Screw - PAN, 5X15
19	90133-SG0-003	Bolt-washer - 5X30
22	90673-SE0-003	Clip - ROOF LINING

Seatbelts 2

#	OEM	部品名
5	81491-SN7-E00	Bag - PROTECTOR
11	90668-SH5-003	Clip - MAT, 5MM

Shift arm 17

#	OEM	部品名
1	24411-PX5-010	Arm - SHIFT
2	24431-PX5-000	Interlock comp.
3	24433-PX5-000	Bolt - INTERLOCK
4	24440-PK5-000	Cam comp - REVERSE LOCK
5	24460-PX5-010	Lever comp - SELECT
6	24463-PK5-000	Pin - SELECT RETURN
7	24464-P0S-000	Spring - SELECT RETURN
8	24465-P0S-000	Spring - FIFTH & REVERSE SELECT
9	24470-PX5-000	Lever comp - SHIFT
10	24474-PK5-000	Boot - SHIFT LEVER
11	24480-PK5-000	Arm comp - SELECT
12	90028-PB6-010	Bolt - SPECIAL, 6X22.5
13	90029-PX5-010	Bolt - SPECIAL, 8X24
14	90406-PX5-010	Washer - LOCK
15	91209-PE9-003	Dust seal - 16X23X5(ARAI)
15	91209-PE9-005	Dust seal - 16X23X5(NOK)
16	91215-PK5-000	Oil seal - 16X27X14

Shift fork 8

#	OEM	部品名
1	24200-P16-J01	Fork comp - FIFTH GEARSHIFT
2	24210-P0S-010	Fork comp - GEARSHIFT (3-4)
3	24220-PX5-J01	Fork comp - GEARSHIFT (1-2)
4	24230-PX5-J00	Holder comp - REVERSE SHIFT
5	24243-PX5-J00	Piece - FIFTH & REVERSE SHIFT
6	24452-P16-000	Spring a - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 32

#	OEM	部品名
1	54101-SN7-000	Lever - CHANGE
3	54105-SN7-000	Bracket - CHANGE LEVER
4	54109-SC2-003	Bush b - CHANGE LEVER
5	54110-SN7-000	Seat - CHANGE LEVER BALL
6	54111-SM4-000	Holder - CHANGE BALL
7	54112-SN7-000	Pivot - CHANGE LEVER
8	54113-SM4-000	Bush - CHANGE PIVOT
9	54114-SN7-000	Guide - CHANGE LEVER PIVOT
10	54115-SN7-000	Linkage - CHANGE LEVER
11	54117-SN7-000	Rubber a - FLOATING
12	54118-SH9-000	Rubber b - FLOATING
13	54118-SM4-020	Washer assy. - WIRE
14	54119-SN7-000	Collar - FLOATING
15	54141-SM4-000	Collar - SELECT LINK
16	54210-SN7-000	Bush c - CHANGE LEVER
17	54211-SD9-010	Ball - CUSHION
18	54310-SN7-000	Wire comp - CHANGE
19	54311-SN7-010	Bracket - CHANGE WIRE
20	54340-SC2-000	Washer - WAVE
21	54357-SN7-000	Plate - CHANGE WIRE
22	90101-SM4-900	Bolt-washer - 8X45
23	90114-SA0-000	Nut - SELF-LOCK, 6MM
24	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
25	90136-SM4-901	Nut - SELF-LOCK, 5MM
26	90156-SM4-000	Bolt-washer - 6X20
27	90365-SM4-980	Nut - JOINT
28	90551-SM4-000	Washer - SHIFT WIRE
29	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
30	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
31	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
32	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)
33	91301-SD9-000	O-ring - 2.3X24.5

Speed sensor 2

#	OEM	部品名
1	78410-SV4-003	Sensor assy - SPEED (MATSUSHITA)
3	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)

Srs unit (LH) 11

#	OEM	部品名
2	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
3	77900-SN7-G82	Reel assy - CABLE
5	77960-SN7-H81	Srs unit
6	77961-SN7-G60	Harness - SRS MAIN WIRE
7	77963-SV4-A01	Clip - SRS HARNESS (BLUE) (153MM)
8	77964-SN7-G01	Cover - SRS UNIT
9	77965-SN7-G00	Bracket - SRS UNIT
10	90101-SA4-000	Screw - TAPPING, 4X12
11	90137-SR3-003	Bolt - TORX EARTH, 6X25
15	91546-SM4-A01	Clip - HARNESS BAND (120MM)
16	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)

Starter motor (MITSUBA/VALEO; MT) 13

#	OEM	部品名
1	31200-P45-G11	Motor assy. - STARTER (D7RSA10) (VALEO)
2	31202-P0C-004	Bolt - SETTING
3	31204-P0A-004	Gear assy - ###
4	31206-P0C-004	Yoke assy - ###
5	31207-P0C-004	Armature assy - ###
6	31208-P0G-A01	Stay assy - BRUSH
7	31210-P45-G11	Switch assy
8	31211-P1K-E01	Ring - SQUARE
9	31217-P1K-E01	Screw-washer - 4X26.5
10	31235-P0G-A01	Cover - TERMINAL (###)
11	31251-PD2-026	Tube - LABYRINTH
12	31252-PD2-006	Rubber - BUSH (MITSUBA)
13	31292-P45-G11	Stay assy - ENGINE WIRE HARNESS (###)

Steering column 16

#	OEM	部品名
1	46597-SM4-A02	Stay - PEDAL BRACKET
2	53200-SN7-G02	Column assy - STEERING
3	53216-SN7-000	Holder b - STEERING COLUMN
4	53217-SN7-000	Collar - STEERING RETAINER
6	53320-SN7-S80	Cover - STEERING JOINT (LH)
7	53323-ST3-E01	Joint comp. b - STEERING
8	53325-SN7-000	Clip A - JOINT COVER
9	53326-SN7-000	Clip b - JOINT COVER
10	53363-SN7-G00	Pivot comp - COLUMN
11	53371-SN7-000	Spring - COLUMN HANGER
12	77873-SN7-S80	Label - STEERING COLUMN CAUTION
14	90135-SF1-000	Bolt - CENTER SHAFT YOKE
15	90361-SM4-003	Nut - FLANGE, 8MM
15	90361-SR3-000	Nut - FLANGE, 8MM
16	90511-671-003	Washer - TOOTHED LOCK
17	90676-SB2-003	Clip - DASHBOARD INSULATOR

Steering wheel (SRS; 2) 6

#	OEM	部品名
15	78509-SN7-E81	Cover - BOSS PLATE
18	78521-ST3-E81	Button a - HORN
19	78522-ST3-E81	Button b - HORN
20	78526-ST3-E81	Cord comp - HORN
22	90134-S04-A81	Bolt - HEX., 6X12
23	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Switch (LH) 17

#	OEM	部品名
2	35150-SN7-G11	Controller - ILLUMINATION
3	35170-SN7-E11	Switch assy - RR. FOG
4	35500-SN7-G01	Switch assy - HAZARD
6	35505-SN7-G01	Bulb comp. - NEO-WEDGE (12V 1.2W)
8	35510-SN7-E11	Switch assy - RR. DEFOGGER & HEADLIGHT WASHER
9	35511-SM4-000	Bulb - T3) (TEC
10	35750-SN7-G12	Switch assy - POWER WINDOW MASTER
11	35820-SN7-G01	Switch assy - HEADLIGHT ADJUST
15	35850-SV4-003	Bulb comp.
16	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)
17	35851-SS0-003	Bulb - NEO WEDGE (14V 60MA)
18	35852-SN7-G01	Bulb - NEO WEDGE (14V 40MA)
19	35910-S04-G01	Switch assy - INERTIA
20	35912-SN7-G00	Bracket - INERTIA SWITCH
21	38535-SN7-S01	Switch assy - HEATED SEAT
22	39700-SN7-G01	Clock assy - DIGITAL
31	35460-SN7-G01	Switch assy - HEADLIGHT WASHER

Taillight 29

#	OEM	部品名
1	33301-SN7-E01	Bulb - 12V 5W
3	33501-SN7-G02	Housing comp - R.
4	33502-SN7-G02	Cover comp. - R.
5	33503-SN7-G01	Seal - GASKET
7	33551-SN7-G02	Housing comp - L.
8	33552-SN7-G02	Cover comp. - L.
9	34100-SN7-E01	Light assy - LICENSE
10	34101-SN7-E01	Lens
11	34103-SN7-E01	Seal - PACKING
12	34104-SN7-E01	Screw - TAPPING, 4X16
13	34150-SN7-G01	Light assy - R. LID (###)
14	34151-SN7-G01	Housing comp - R.
15	34152-SN7-G01	Cover comp. - R.
16	34153-SN7-G01	Seal - GASKET
17	34155-SN7-G01	Light assy - L. LID (###)
18	34156-SN7-G01	Housing comp - L.
19	34157-SN7-G01	Cover comp. - L.
21	34903-SN7-E01	Bulb - 12V 21W) (CLEAR
22	34903-SN7-G00	Bulb - 12V 21W
23	34903-SN7-G10	Bulb - 12V 21W) (AMBER
24	34906-SN7-G00	Bulb - 12V 21W/5W
26	75525-SD4-013	Clip - RR. PANEL GARNISH
27	90102-SN7-010	Bolt assy - LICENSE GARNISH
28	90301-SE0-902	Nut - SPECIAL, 5MM
29	90501-SL9-003	Clip - LICENSE GARNISH
30	90521-SS0-003	Grommet - SPECIAL SCREW (M4) (YELLOW)
31	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)
32	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)
33	91524-SE0-003	Clip - COWL TOP

Throttle body (SOHC) 12

#	OEM	部品名
1	16016-P45-G00	Screw set
2	16075-PE2-005	O-ring - 31.2X1.9
3	16077-PR3-005	O-ring
4	16176-PT2-004	Gasket - THROTTLE BODY (NIPPON LEAKLESS)
6	16400-P45-G01	Throttle Body Assy - GF76A
7	16411-PT2-000	Stay - THROTTLE WIRE
8	16500-P45-G01	Valve assy. - FAST IDLE (AF15D)
11	36450-PT5-X01	Valve assy. - ELECTRONIC AIR CONTROL (DENSO)
12	36454-PS4-003	Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)
13	36455-PT3-A01	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)
14	90634-PA0-000	Cap - SEALING
15	91304-PE2-005	O-ring - 15.8X1.9

Tie rod 6

#	OEM	部品名
11	53540-SM4-003	End comp - R. TIE ROD (MUSASHI)
13	53546-SH0-A01	Boot - TIE ROD END (TECHNICAL AUTO PARTS)
13	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
14	53560-SM4-003	End comp - L. TIE ROD (MUSASHI)
16	90320-SF1-000	Nut - CASTLE, 10MM
17	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)

Tire/wheel disk 30

#	OEM	部品名
2	42700-SN7-G21	Disk - WHEEL (15X5 1/2JJ)
4	42700-SN7-G91	Disk - ALUMINIUM WHEEL (15X5 1/2JJ)
5	42751-SN7-F11	Tire - 185/65R15 88H) (PIRELLI
5	42751-SM4-F62	Tire - 185/65R15 88H) (DUNLOP U.K.
7	42753-SK3-000	Valve - RIM(A.R.G.)
8	44721-SN7-G02	Weight - BALANCE (10G)
8	44730-SN7-G02	Weight - BALANCE (45G)
8	44724-SN7-G02	Weight - BALANCE (40G)
8	44729-SN7-G02	Weight - BALANCE (35G)
8	44722-SN7-G02	Weight - BALANCE (20G)
8	44728-SN7-G02	Weight - BALANCE (25G)
8	44727-SN7-G02	Weight - BALANCE (15G)
8	44723-SN7-G02	Weight - BALANCE (30G)
8	44726-SN7-G02	Weight - BALANCE (5G)
9	44725-SN7-004	Weight - BALANCE (50G)
9	44726-SN7-003	Weight - BALANCE (5G)
9	44729-SN7-004	Weight - BALANCE (35G)
9	44730-SN7-003	Weight - BALANCE (45G)
9	44728-SN7-004	Weight - BALANCE (25G)
9	44727-SN7-004	Weight - BALANCE (15G)
9	44729-SN7-003	Weight - BALANCE (35G)
9	44728-SN7-003	Weight - BALANCE (25G)
9	44726-SN7-004	Weight - BALANCE (5G)
9	44727-SN7-003	Weight - BALANCE (15G)
9	44730-SN7-004	Weight - BALANCE (45G)
17	44733-SN7-G90	Trim - WHEEL (15")
19	44736-SA0-981	Nut - WHEEL (FUSE RASHI)
20	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
21	74654-SN7-000	Bolt - ANCHOR
22	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)

Tools/jack 3

#	OEM	部品名
2	89101-SN7-E00	Box - TOOL
3	89104-SG9-000	Wrench - WHEEL NUT
4	89310-SN7-E01	Jack assy

Transmission housing 54

#	OEM	部品名
1	21104-PX5-010	Plate m - OIL GUIDE
2	21200-PX5-010	Case comp. - TRANSMISSION
3	21222-PX5-000	Hanger b - TRANSMISSION
4	21223-PX5-000	Hanger a - TRANSMISSION
5	21396-PX5-000	Cap - BREATHER
6	21520-PX5-000	Cover comp. - SHIFT ARM
7	23975-PK5-000	Shim ai - 78MM (2.22)
7	23960-PK5-000	Shim t - 78MM (1.77)
7	23944-PK5-000	Shim d - 78MM (1.29)
7	23971-PK5-000	Shim ae - 78MM (2.10)
7	23955-PK5-000	Shim o - 78MM (1.62)
7	23966-PK5-000	Shim z - 78MM (1.95)
7	23950-PK5-000	Shim j - 78MM (1.47)
7	23976-PK5-000	Shim aj - 78MM (2.25)
7	23961-PK5-000	Shim u - 78MM (1.80)
7	23945-PK5-000	Shim e - 78MM (1.32)
7	23972-PK5-000	Shim af - 78MM (2.13)
7	23956-PK5-000	Shim p - 78MM (1.65)
7	23967-PK5-000	Shim aa - 78MM (1.98)
7	23951-PK5-000	Shim k - 78MM (1.50)
7	23977-PK5-000	Shim ak - 78MM (2.28)
7	23962-PK5-000	Shim v - 78MM (1.83)
7	23946-PK5-000	Shim f - 78MM (1.35)
7	23957-PK5-000	Shim q - 78MM (1.68)
7	23941-PK5-000	Shim a - 78MM (1.20)
7	23973-PK5-000	Shim ag - 78MM (2.16)
7	23968-PK5-000	Shim ab - 78MM (2.01)
7	23952-PK5-000	Shim l - 78MM (1.53)
7	23978-PK5-000	Shim al - 78MM (2.31)
7	23963-PK5-000	Shim w - 78MM (1.86)
7	23947-PK5-000	Shim g - 78MM (1.38)
7	23958-PK5-000	Shim r - 78MM (1.71)
7	23942-PK5-000	Shim b - 78MM (1.23)
7	23974-PK5-000	Shim ah - 78MM (2.19)
7	23969-PK5-000	Shim ac - 78MM (2.04)
7	23953-PK5-000	Shim m - 78MM (1.56)
7	23979-PK5-000	Shim am - 78MM (2.34)
7	23964-PK5-000	Shim x - 78MM (1.89)
7	23948-PK5-000	Shim h - 78MM (1.41)
7	23948-P16-000	Shim h - 78MM (1.41)
7	23959-PK5-000	Shim s - 78MM (1.74)
7	23943-PK5-000	Shim c - 78MM (1.26)
7	23970-PK5-000	Shim ad - 78MM (2.07)
7	23954-PK5-000	Shim n - 78MM (1.59)
7	23980-PK5-000	Shim an - 78MM (2.37)
7	23965-PK5-000	Shim y - 78MM (1.92)
7	23949-PK5-000	Shim i - 78MM (1.44)
8	35600-PK5-003	Switch assy - BACK UP LIGHT (TEC)
9	90041-PX5-000	Bolt - STUD, 10X55
10	90042-PX5-010	Bolt - STUD, 10X50
11	90081-PB6-000	Bolt - PLUG, 14MM
12	90081-PX5-000	Screw - SEALING, 32MM
13	90083-PK5-000	Bolt - SEALING, 28MM
14	91206-PX5-005	Oil seal - 40X58X8(NOK)

Trunk lid 19

#	OEM	部品名
7	74411-SN7-G00	Cable - FUEL LID OPENER (LH)
8	74827-SH2-003	Stopper - TAILGATE
9	74827-SL9-000	Stopper - TRUNK LID
10	74851-SM4-003	Lock - TRUNK
12	74861-SN7-003	Cylinder - TRUNK
13	74862-SE3-003	Striker - TRUNK
14	74863-SN7-000	Rod - TRUNK LOCK
15	74864-SM4-003	Cover - TRUNK LOCK
16	74865-SN7-000	Weatherstrip - TRUNK LID
17	74866-SM3-003	Holder - ROD
19	74871-SN7-003	Spring - R. TRUNK OPENER
20	74872-SN7-003	Spring - L. TRUNK OPENER
21	74873-SM4-003	Clip - TRUNK OPENER SPRING
22	74880-SN7-G00	Cable - TRUNK OPENER
27	74886-SN7-003	Cylinder - TRUNK RELEASE
29	83418-SG3-003	Cushion - TRUNK HINGE
30	85268-SN7-000	Protection - TAILGATE
31	90106-SE3-000	Bolt-washer - 6X12
33	90109-SM4-000	Bolt - SPECIAL, 6X35

Trunk lining 5

#	OEM	部品名
14	90399-SB3-003	Nut - PUSH, 2.8MM
16	90609-SN7-G00	Clip - INSTRUMENT LOWER
17	90609-SN7-E01	Clip - PILLAR GARNISH
20	90668-SJ4-003	Clip - RR. TRAY
21	90669-SM4-003	Clip - GARNISH

Valve/rocker arm (SOHC) 15

#	OEM	部品名
1	14621-PT0-000	Arm comp - IN. ROCKER (A)
2	14622-PT0-000	Arm comp - IN. ROCKER (B)
3	14623-PT0-000	Arm comp - EX. ROCKER
4	14645-PT0-003	Spring a - VALVE ROCKER ARM (SANKO)
5	14646-PN4-003	Spring b - VALVE ROCKER ARM (SANKO)
6	14647-PT0-000	Washer - WAVE
7	14711-P45-G01	Valve - IN.
8	14721-P45-G01	Valve - EX.
9	14744-PT0-004	Screw - TAPPET ADJUSTING
10	14761-P45-G00	Spring - IN. VALVE
11	14762-P45-G00	Spring - EX. VALVE
12	14765-PT0-000	Retainer - VALVE SPRING
13	14775-PT0-000	Seat - VALVE SPRING
14	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
15	90206-PT0-004	Nut - TAPPET ADJUSTING

Washer nozzle/washer tube 21

#	OEM	部品名
1	36062-671-000	Clamp b - TUBE
2	76803-SN7-E06	Band - WASHER HOSE
3	76803-SN7-E90	Clip - WASHER HOSE
4	76810-SN7-G05	Nozzle - R. WINDSHIELD WASHER
5	76815-SN7-G05	Nozzle - L. WINDSHIELD WASHER
6	76816-SK4-E00	Adapter - NOZZLE
7	76820-SN7-G05	Grommet - TUBE WASHER
8	76826-SN7-E06	Valve - ONE WAY
9	76828-SN7-G05	Joint l - WASHER
10	76829-SN7-G05	Joint i - WASHER
11	76830-SN7-G05	Joint y - WASHER
12	76880-SN7-E07	Nozzle assy. - R. HEADLIGHT WASHER
13	76881-SN7-E06	Plate - HEADLIGHT WASHER NOZZLE
14	76885-SN7-E07	Nozzle assy. - L. HEADLIGHT WASHER
15	76891-SN7-G06	Hose a
16	76893-SN7-G06	Hose c
17	76892-SN7-E07	Hose b
18	76896-SN7-E06	Joint l
19	90652-SN7-G00	Clip - TUBE, 7MM
20	91512-SN7-G00	Clip - TUBE WASHER
22	91551-SN7-E00	Band - WIRE HARNESS (110MM)

Washer tank 15

#	OEM	部品名
1	76802-SN7-E05	Cap - WASHER MOUTH
2	76803-SN7-E06	Band - WASHER HOSE
3	76804-SN7-G05	Float - WASHER HOSE
4	76805-SN7-G05	Hose - WASHER
5	76806-SN7-E05	Motor - FR. WASHER
6	76806-SN7-E06	Pump - WASHER (H/L)
7	76812-SN7-E05	Mouth assy. - WASHER
8	76838-SN7-G05	Grommet - WASHER TANK
9	76841-SN7-E05	Tank
10	76842-SN7-E05	Bush - WASHER TANK
11	76847-SN7-E06	Packing
12	76894-SN7-E06	Hose d
13	76896-SN7-E96	Joint - HEADLIGHT WASHER TUBE
14	90130-SE0-000	Screw - TAPPING, 6X16 (DACRO COATING)
15	91619-SA5-000	Grommet - SCREW, 6MM

Water hose (SOHC) 10

#	OEM	部品名
1	19504-P45-G00	Hose - BYPASS IN.
2	19507-P45-G00	Hose a - FAST IDLE CONTROL
3	19508-P45-G00	Hose b - FAST IDLE CONTROL
4	19510-P45-G00	Hose - THROTTLE BODY
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
6	19513-P45-G00	Hose - ELECTRONIC AIR CONTROL VALVE
7	19514-P45-G00	Hose a - BREATHER HEATER
8	19515-P45-G00	Hose b - BREATHER HEATER
9	19527-P45-G00	Clamp comp - HEATER HOSE
10	53740-SE0-953	Clip - SENSOR HOSE

Water pump (SOHC/DOHC) 23

#	OEM	部品名
1	19200-P0A-003	Pump comp - WATER (YAMADA)
2	19222-PT0-300	Packing - WATER PUMP
3	19223-PT0-000	Rubber - WATER PUMP SEAL
4	19301-P08-316	Thermostat assy - NIPPON THERMOSTAT
4	19301-PAA-306	Thermostat assy - NIPPON THERMOSTAT
4	19301-P1K-307	Thermostat assy - WESTERN THOMSON
4	19301-P08-305	Thermostat assy - FUJI THOMSON
5	19305-PT0-000	Rubber - THERMOSTAT MOUNTING
5	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
6	19311-P45-G00	Cover - THERMOSTAT
7	19313-PT0-000	Packing - THERMOSTAT CASE
8	19320-PT2-000	Case comp. - THERMOSTAT
9	19360-PT3-A00	Cover - WATER OUTLET
10	19500-PT0-000	Joint - TUBE
11	19505-P45-G00	Pipe comp - CONNECTING
12	19516-PC1-000	Bolt - BREATHING WATER
13	32757-P51-900	Stay g - ENGINE WIRE HARNESS
14	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
15	37773-PT3-A01	Switch - THERMO (A-106) (UCHIYA)
16	90002-PD2-000	Bolt - FLANGE, 8X16
17	91307-PN4-000	O-ring - 17.5X1.4
17	91307-PN3-000	O-ring,17.8x1.4
19	91314-PH7-003	O-ring 31.2X4.1 (NOK)

Water valve 10

#	OEM	部品名
1	39223-SB2-003	Clamp - WATER HOSE, 24MM
2	79710-SN7-E03	Valve assy. - WATER
3	79721-SN7-E01	Hose a - WATER IN.
3	79721-SM4-010	Hose a - WATER IN.
4	79722-SM4-010	Hose b - WATER IN.
5	79725-SN7-E02	Hose - WATER OUTLET
6	79731-SH3-000	Grommet - HEATER PIPE
7	91405-PK1-003	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8	91553-SM4-003	Clamp - HEATER HOSE (24MM & 39MM)

Wire harness (LH) 42

#	OEM	部品名
1	32100-SN7-S03	Harness - CABIN WIRE
1	32100-SN7-S04	Harness - CABIN WIRE
3	32107-SN7-S02	Harness - FLOOR WIRE
4	32108-SN7-G02	Harness - RR. WIRE
7	32117-SN7-S02	Harness - INSTRUMENT WIRE
8	32128-SN7-G00	Holder - COUPLER (LH)
9	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
10	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
11	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	32134-SN7-000	Band - WIRE HARNESS OFFSET (10)
13	32135-SN7-G00	Stay - DASHBOARD HARNESS (LH)
15	32155-SN7-G01	Cord - INTERIOR
16	32158-SN7-S02	Harness - SIDE WIRE
17	32170-SM4-010	Cord - FUEL UNIT
18	32202-SN7-000	Cord - DEFROSTER EARTH
19	32311-SN7-G00	Holder - COUPLER (LH)
20	32312-SM4-013	Holder - COUPLER
21	32610-SM4-000	Cable - SUB EARTH
22	32751-SN7-S01	Harness - DOOR WIRE (DRIVER SIDE)
23	32752-SN7-S01	Harness - DOOR WIRE (PASSENGER SIDE)
24	32753-SN7-G11	Harness - R. RR. DOOR WIRE
25	32754-SN7-G11	Harness - L. RR. DOOR WIRE
26	77961-SN7-G60	Harness - SRS MAIN WIRE
27	90149-SE0-003	Bolt - EARTH, 6X16
28	90153-SE0-003	Bolt - EARTH, 6X12
31	90676-SA8-003	Band - WIRE HARNESS, 150MM (BLUE)
32	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
33	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
35	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
36	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
37	91550-SN7-000	Clip - WIRE HARNESS
38	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
39	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
41	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
42	91555-SN7-000	Clip - COUPLER
43	91556-SM4-003	Clip - BAND (BLACK) (100MM)
44	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
46	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
47	91570-SG0-003	Band - HARNESS (123.5MM) (BLUE) (WITH SEAL)
48	91572-SM4-003	Clip - WIRE HARNESS
49	91582-SM4-003	Clip - WIRE HARNESS
50	91763-SH3-003	Bar - JOINT (6P)
