CD6 × CP1

共通 215 / 合計 4,708 · Jaccard 4.6%
CD6 Honda ACCORD — 2,472 中 215 共有
CP1 Honda ACCORD — 2,451 中 215 共有
215 件
Abs modulator 1 / 20
CD6 Abs modulator
CP1 Clutch master cylinder
# OEM CD6 CP1
1 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW

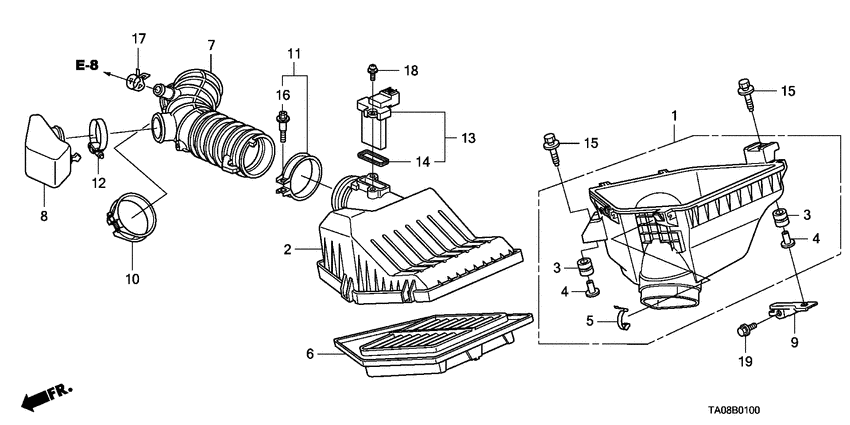

Air cleaner 4 / 17
CD6 Air cleaner
CP1 Air cleaner (2.0L)
# OEM CD6 CP1
2 17212-PN3-000 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
2 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
5 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
25 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Air conditioner (CONDENSER; RH) 1 / 19
CD6 Air conditioner (CONDENSER; RH)
CP1 Air conditioner (CONDENSER)
# OEM CD6 CP1
17 80175-SE0-000 Mount - CONDENSER Mount - CONDENSER
Air conditioner (COOLING UNIT; RH) 4 / 21
CD6 Air conditioner (COOLING UNIT; RH)
CP1 Air conditioner (HOSES/PIPES; 2.0L; LH)
# OEM CD6 CP1
15 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
16 80873-SN7-003 O-ring - 8MM O-ring - 8MM
19 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
20 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Air conditioner (HOSES/PIPES; RH) 6 / 24
CD6 Air conditioner (HOSES/PIPES; RH)
CP1 Air conditioner (HOSES/PIPES; 2.0L; LH)
# OEM CD6 CP1
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
17 80865-SN7-003 Cap h - VALVE Cap h - VALVE
19 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
20 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
22 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
23 80873-SN7-003 O-ring - 8MM O-ring - 8MM

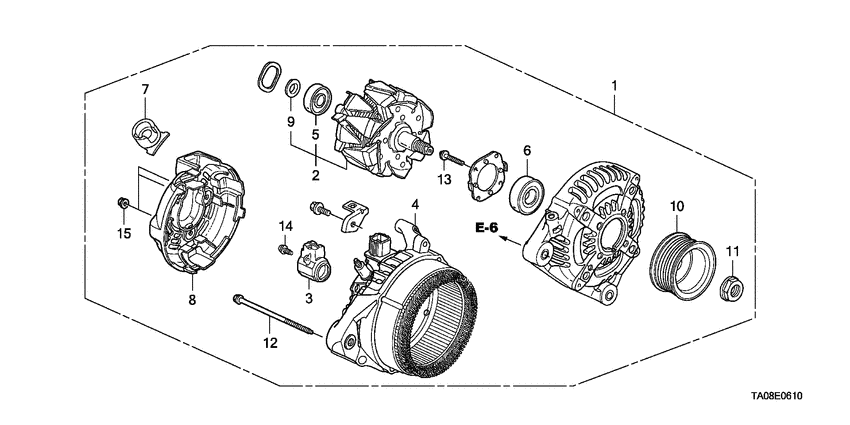

Alternator (DENSO) 4 / 21
CD6 Alternator (DENSO)
CP1 Alternator (DENSO; 2.0L)
# OEM CD6 CP1
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
12 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
15 31147-PT0-003 Screw-washer Screw-washer
Battery 4 / 17
CD6 Battery
CP1 Battery (2.0L)
# OEM CD6 CP1
6 31542-SA5-665 Plug - VENT (MF) (PANASONIC) Plug - VENT (MF) (PANASONIC)
12 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
13 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
16 90114-SM4-900 Bolt - 6X15 Bolt - 6X15

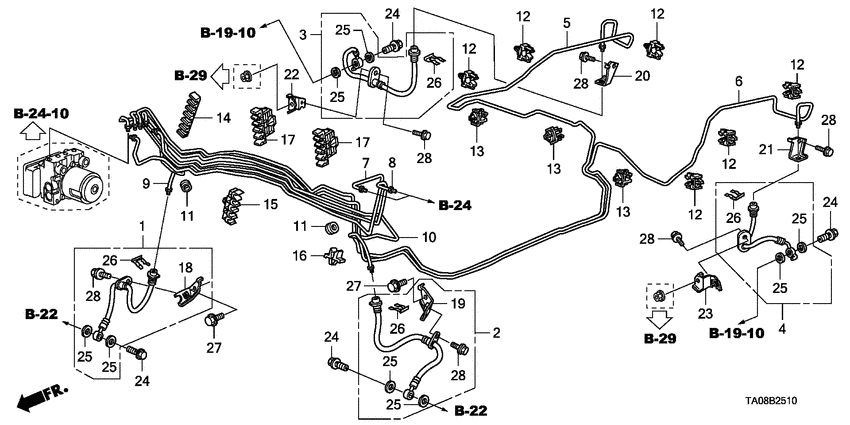

Brake lines (ABS; RH) 5 / 35
CD6 Brake lines (ABS; RH)
CP1 Brake lines (ABS; LH)
# OEM CD6 CP1
14 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
30 46462-SE0-000 Bolt - OIL Bolt - OIL
32 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
36 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
37 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE

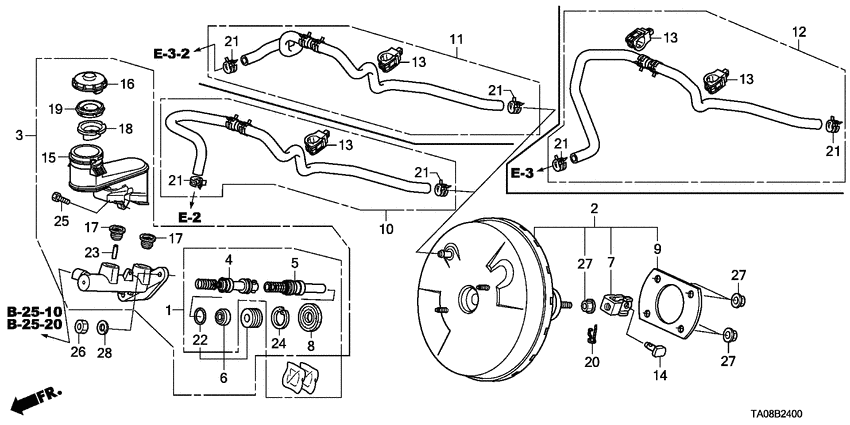

Brake master cylinder/ master power 5 / 25
CD6 Brake master cylinder/ master power
CP1 Brake master cylinder/ master power (LH)
# OEM CD6 CP1
8 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
9 46185-SE0-003 Seal - ROD Seal - ROD
26 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
27 57173-SB0-801 O-ring - CONNECTOR O-ring - CONNECTOR
28 57562-SF1-003 Circlip Circlip

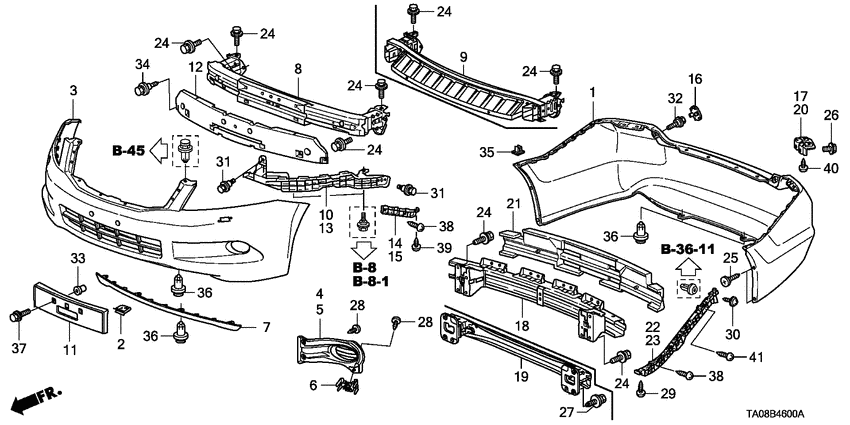

Bumpers (2) 3 / 21
CD6 Bumpers (2)

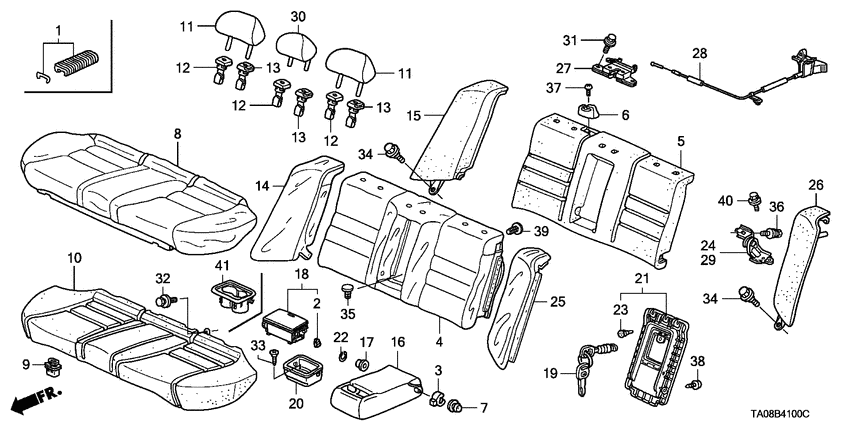

CP1 Rear seat
# OEM CD6 CP1
21 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
24 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
30 90675-SA5-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
Clutch 6 / 29
CD6 Clutch
CP1 Clutch (4TH-5TH; L4)
# OEM CD6 CP1
3 22533-PX4-010 Seat - RETURN SPRING Seat - RETURN SPRING
5 22541-PX4-004 Spring - CLUTCH RETURN (SANKO) Spring - CLUTCH RETURN (SANKO)
19 90603-PX4-000 Circlip - EXTERNAL, 47MM Circlip - EXTERNAL, 47MM
20 90605-PX4-000 Ring - SNAP, 129MM Ring - SNAP, 129MM
21 91302-PX4-004 O-ring - 46.8X2.2 (NOK) O-ring - 46.8X2.2 (NOK)
22 91303-PX4-004 O-ring - 114X2.2 (NOK) O-ring - 114X2.2 (NOK)
Clutch/torque converter 2 / 7
CD6 Clutch/torque converter
CP1 Clutch/torque converter (L4)
# OEM CD6 CP1
9 90023-PA9-000 Bolt - SPECIAL Bolt - SPECIAL
11 90429-PC6-900 Washer - 40X86X2 Washer - 40X86X2

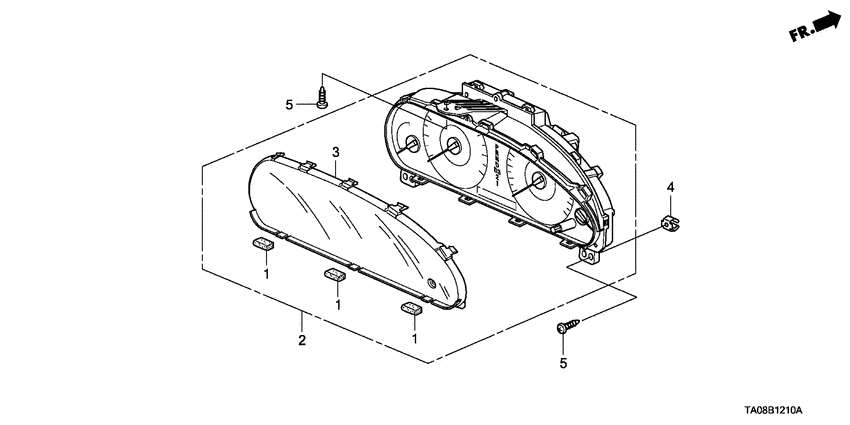

Combination meter components 2 / 25
CD6 Combination meter components
CP1 Meter components
# OEM CD6 CP1
6 37115-SA0-601 Packing - NS Packing - NS
27 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

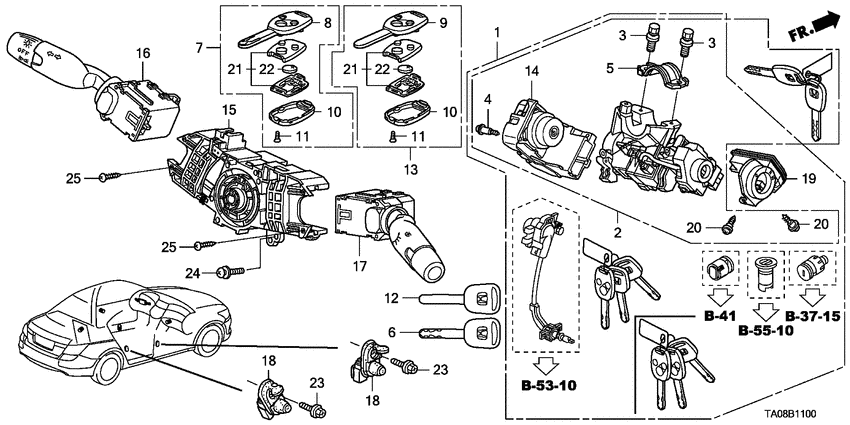

Combination switch (4) 1 / 22
CD6 Combination switch (4)
CP1 Combination switch (LH)
# OEM CD6 CP1
5 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
Console (RH) 5 / 21
CD6 Console (RH)
CP1 Instrument panel garnish (PASSENGER SIDE; LH)
# OEM CD6 CP1
2 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
12 77234-SV4-003 Clip Clip
33 90139-SM4-003 Bolt-washer - 5X20 Bolt-washer - 5X20
37 90666-SD4-003 Clip - FITTING Clip - FITTING
40 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

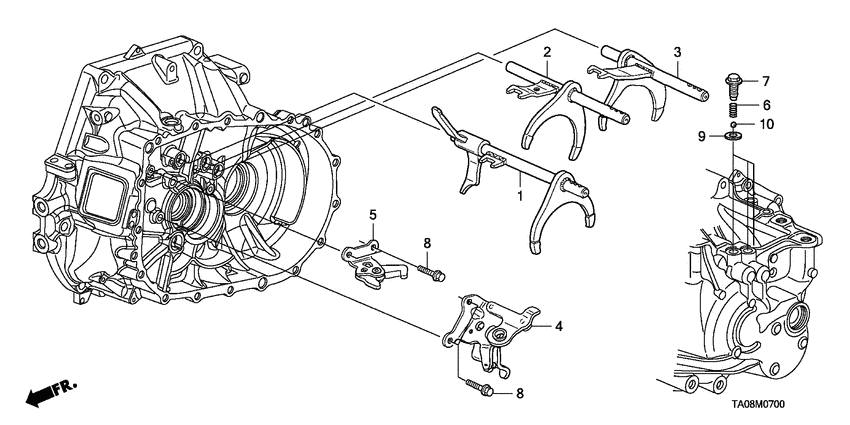

Control lever 1 / 19
CD6 Control lever
CP1 Shift fork (L4)
# OEM CD6 CP1
15 90001-PA9-000 Bolt - HEX., 6MM Bolt - HEX., 6MM
Control unit (CABIN; 2) 1 / 30
CD6 Control unit (CABIN; 2)
CP1 Radio antenna/speaker (LH)
# OEM CD6 CP1
30 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
Control unit (ENGINE ROOM) 1 / 28
CD6 Control unit (ENGINE ROOM)
CP1 Control unit (ENGINE ROOM; 1; 2.0L)
# OEM CD6 CP1
20 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
Countershaft 1 / 28
CD6 Countershaft
CP1 Mainshaft (L4)
# OEM CD6 CP1
14 90203-PX4-010 Nut - FLANGE, 24MM Nut - FLANGE, 24MM

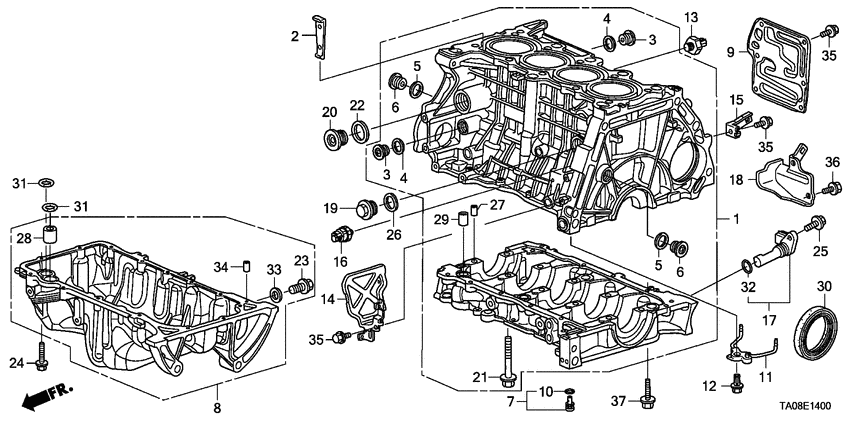

Cylinder block/oil pan (DOHC VTEC) 1 / 41
CD6 Cylinder block/oil pan (DOHC VTEC)
CP1 Cylinder block/oil pan (2.0L)
# OEM CD6 CP1
25 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM

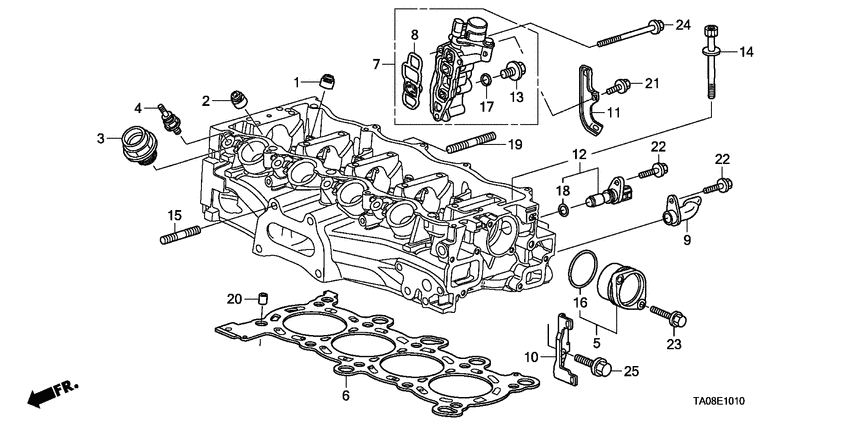

Cylinder head (DOHC VTEC) 5 / 27
CD6 Cylinder head (DOHC VTEC)
CP1 Spool valve (2.0L)
# OEM CD6 CP1
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
5 12211-PZ1-004 Seal b - VALVE STEM(NOK) Seal b - VALVE STEM(NOK)
18 90001-P70-000 Bolt - FLANGE, 10X10.5 Bolt - FLANGE, 10X10.5

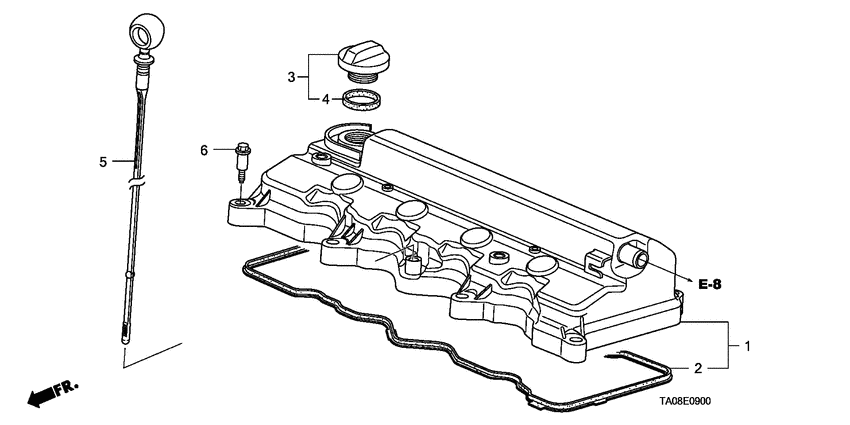

Cylinder head cover (DOHC VTEC) 1 / 13
CD6 Cylinder head cover (DOHC VTEC)
CP1 Cylinder head cover (2.0L)
# OEM CD6 CP1
7 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Differential gear 19 / 23
CD6 Differential gear
CP1 Differential (L4)
# OEM CD6 CP1
3 41455-PK4-000 Shim o - 76MM (2.90) Shim o - 76MM (2.90)
3 41450-PK4-000 Shim j - 76MM (2.65) Shim j - 76MM (2.65)
3 41445-PK4-000 Shim e - 76MM (2.40) Shim e - 76MM (2.40)
3 41457-PK4-000 Shim q - 76MM (3.00) Shim q - 76MM (3.00)
3 41452-PK4-000 Shim l - 76MM (2.75) Shim l - 76MM (2.75)
3 41447-PK4-000 Shim g - 76MM (2.50) Shim g - 76MM (2.50)
3 41442-PK4-000 Shim b - 76MM (2.25) Shim b - 76MM (2.25)
3 41454-PK4-000 Shim n - 76MM (2.85) Shim n - 76MM (2.85)
3 41449-PK4-000 Shim i - 76MM (2.60) Shim i - 76MM (2.60)
3 41444-PK4-000 Shim d - 76MM (2.35) Shim d - 76MM (2.35)
3 41456-PK4-000 Shim p - 76MM (2.95) Shim p - 76MM (2.95)
3 41451-PK4-000 Shim k - 76MM (2.70) Shim k - 76MM (2.70)
3 41446-PK4-000 Shim f - 76MM (2.45) Shim f - 76MM (2.45)
3 41441-PK4-000 Shim a - 76MM (2.20) Shim a - 76MM (2.20)
3 41458-PK4-000 Shim r - 76MM (3.05) Shim r - 76MM (3.05)
3 41453-PK4-000 Shim m - 76MM (2.80) Shim m - 76MM (2.80)
3 41448-PK4-000 Shim h - 76MM (2.55) Shim h - 76MM (2.55)
3 41443-PK4-000 Shim c - 76MM (2.30) Shim c - 76MM (2.30)
4 90003-PA9-003 Bolt - FLANGE, 10MM Bolt - FLANGE, 10MM

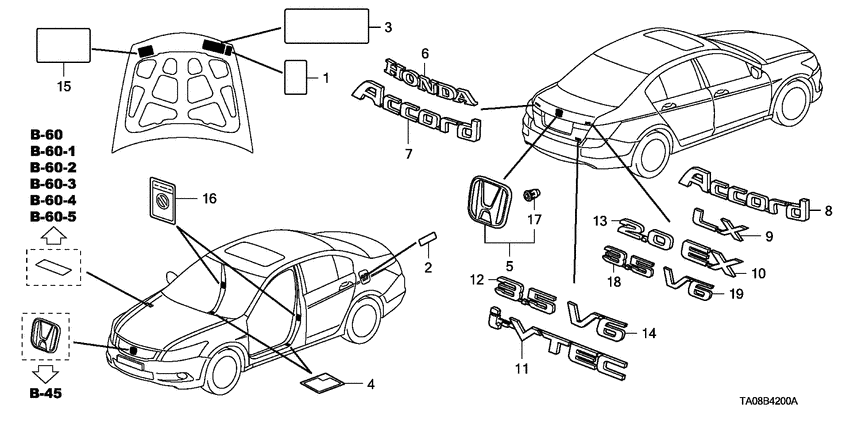

Emblems 1 / 11
CD6 Emblems
CP1 Emblems/caution labels
# OEM CD6 CP1
28 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine hood 1 / 23
CD6 Engine hood

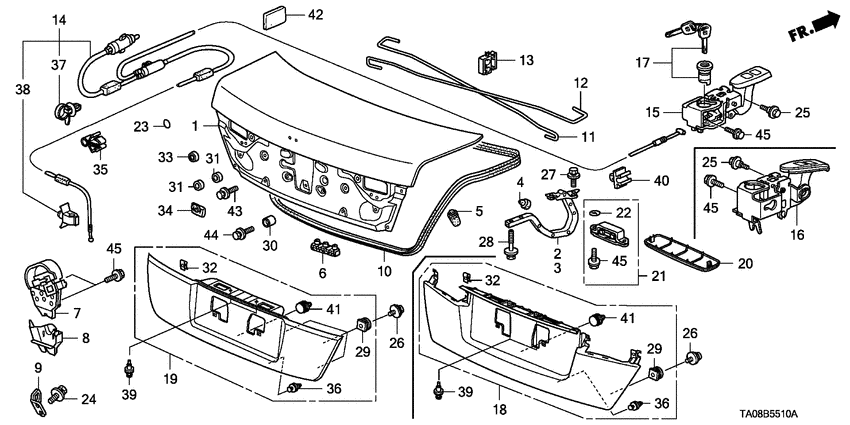

CP1 Trunk lid
# OEM CD6 CP1
29 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
Engine mounts (6) 1 / 25
CD6 Engine mounts (6)
CP1 Engine mounts (2.0L; AT)
# OEM CD6 CP1
13 50917-SV7-A00 Rubber - MOUNTING Rubber - MOUNTING
Engine wire harness/clamp (DOHC VTEC) 2 / 42
CD6 Engine wire harness/clamp (DOHC VTEC)
CP1 Control unit (ENGINE ROOM; 1; 2.0L)
# OEM CD6 CP1
29 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
30 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16

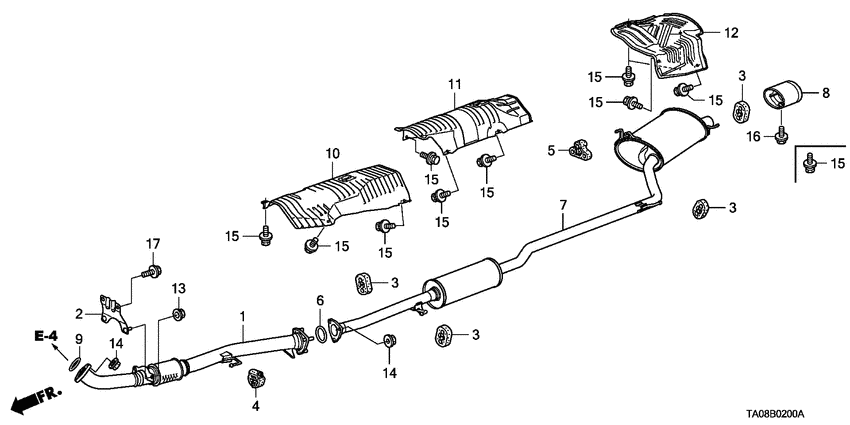

Exhaust pipe (2) 2 / 30
CD6 Exhaust pipe (2)
CP1 Exhaust pipe (2.0L)
# OEM CD6 CP1
33 90115-659-003 Nut - SELF-LOCK, 8MM (CLINCH) Nut - SELF-LOCK, 8MM (CLINCH)
35 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM

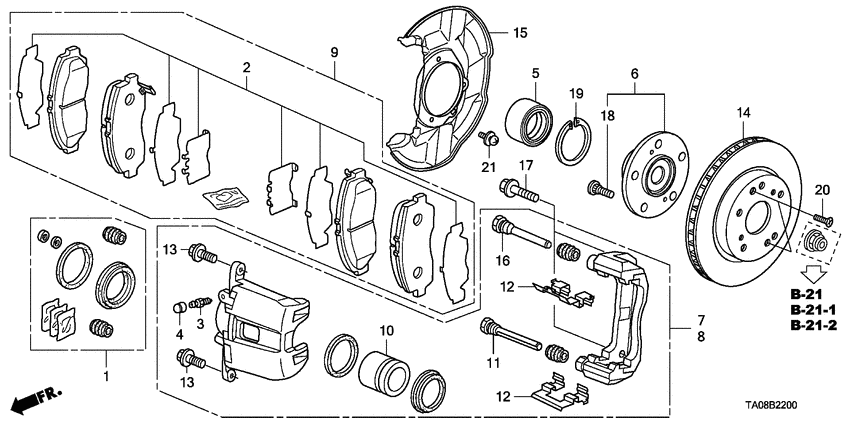

Front brake (15") 5 / 26
CD6 Front brake (15")
CP1 Front brake
# OEM CD6 CP1
2 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
3 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
9 45216-SM4-003 Piston Piston
16 45240-SM4-003 Bolt - FLANGE, 10X24 Bolt - FLANGE, 10X24
20 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)

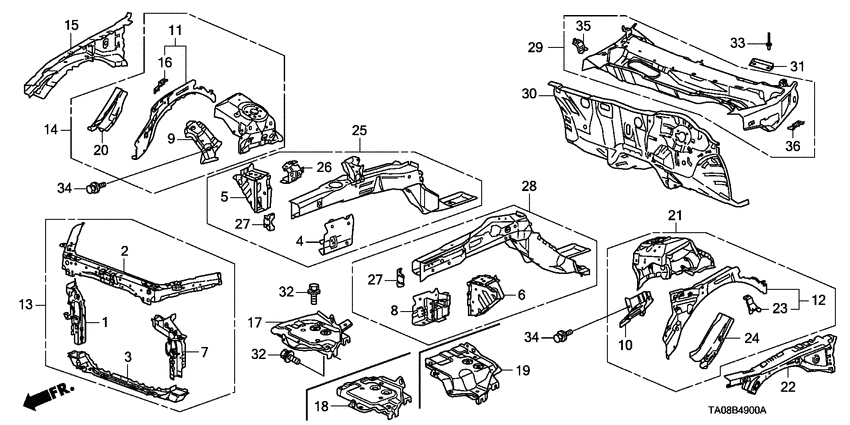

Front bulkhead 1 / 2
CD6 Front bulkhead
CP1 Front bulkhead/dashboard
# OEM CD6 CP1
32 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20
Front combination light 1 / 11
CD6 Front combination light
CP1 Rear tray/side lining
# OEM CD6 CP1
4 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
Front door lining (RH) 1 / 13
CD6 Front door lining (RH)
CP1 Front door lining (LH)
# OEM CD6 CP1
22 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)

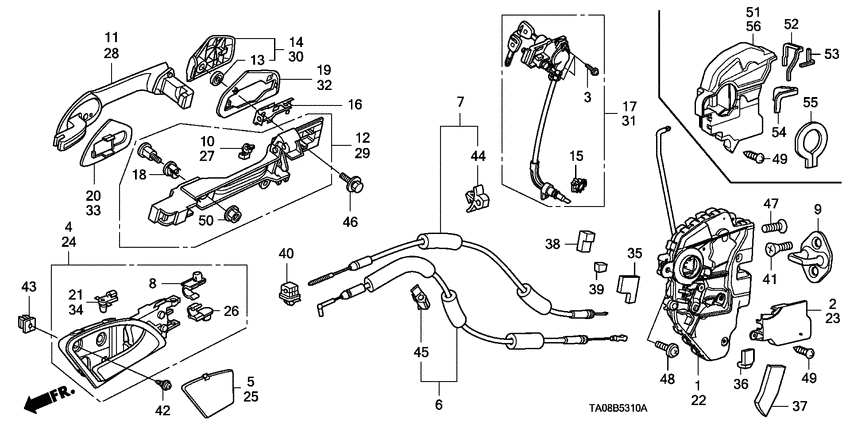

Front door locks 1 / 38
CD6 Front door locks
CP1 Front door locks/ outer handle
# OEM CD6 CP1
47 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
Front driveshaft 6 / 18
CD6 Front driveshaft
CP1 Front driveshaft/half sha ft (2.0L)
# OEM CD6 CP1
7 44319-SE0-000 Set ring - 28X2.0 Set ring - 28X2.0
7 44319-S84-300 Set ring - 28X2.0 Set ring - 28X2.0
8 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
12 44338-SB0-300 Circlip - 26MM Circlip - 26MM
25 44337-SB0-300 Ring b - STOPPER Ring b - STOPPER
26 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
Front fenders 4 / 11
CD6 Front fenders
CP1 Front fenders
# OEM CD6 CP1
8 90108-SF1-000 Bolt-washer - 6X15 Bolt-washer - 6X15
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
12 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
13 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front grille 1 / 4
CD6 Front grille
CP1 Bumpers
# OEM CD6 CP1
6 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM

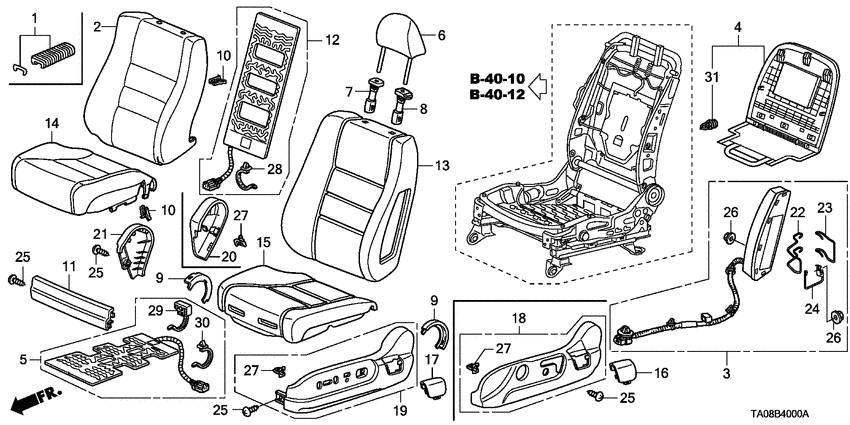

Front seat 2 / 11
CD6 Front seat
CP1 Front seat (L.; LH)
# OEM CD6 CP1
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
31 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Front shock absorber 4 / 17
CD6 Front shock absorber
CP1 Front shock absorber
# OEM CD6 CP1
9 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
12 51689-SH3-004 Plate - BUMP STOP (SHOWA) Plate - BUMP STOP (SHOWA)
14 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

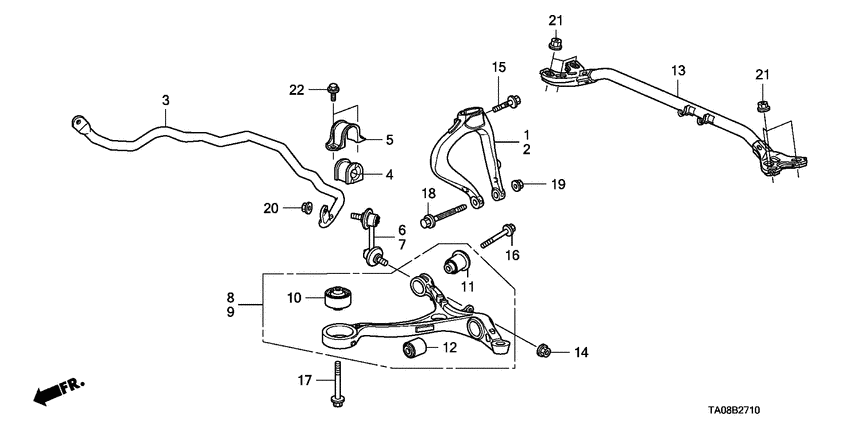

Front stabilizer/ front lower arm 1 / 28
CD6 Front stabilizer/ front lower arm
CP1 Front lower arm
# OEM CD6 CP1
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
Front windshield wiper (2) 4 / 24
CD6 Front windshield wiper (2)
CP1 Front windshield wiper (LH)
# OEM CD6 CP1
4 76516-SM4-003 Rubber - MOUNTING Rubber - MOUNTING
5 76517-SM4-003 Collar Collar
8 76524-SD4-003 Dust seal Dust seal
20 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe (5) 1 / 37
CD6 Fuel pipe (5)
CP1 Pedal (LH)
# OEM CD6 CP1
28 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM

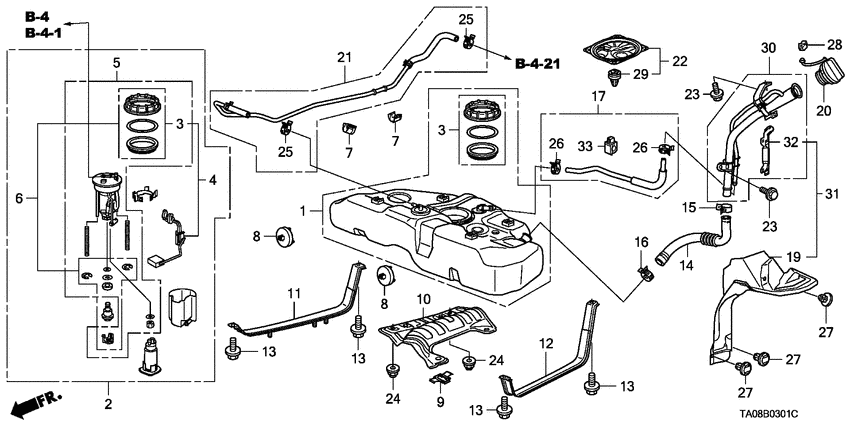

Fuel tank (1) 2 / 45
CD6 Fuel tank (1)
CP1 Fuel tank (KU/KW)
# OEM CD6 CP1
8 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
40 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
Governor/accumulator body 2 / 14
CD6 Governor/accumulator body
CP1 Regulator body (L4)
# OEM CD6 CP1
22 91321-PF4-004 O-ring - 18.3X2.4(NOK) O-ring - 18.3X2.4(NOK)
23 91321-P0X-003 O-ring - 25X2.4 (NOK) O-ring - 25X2.4 (NOK)

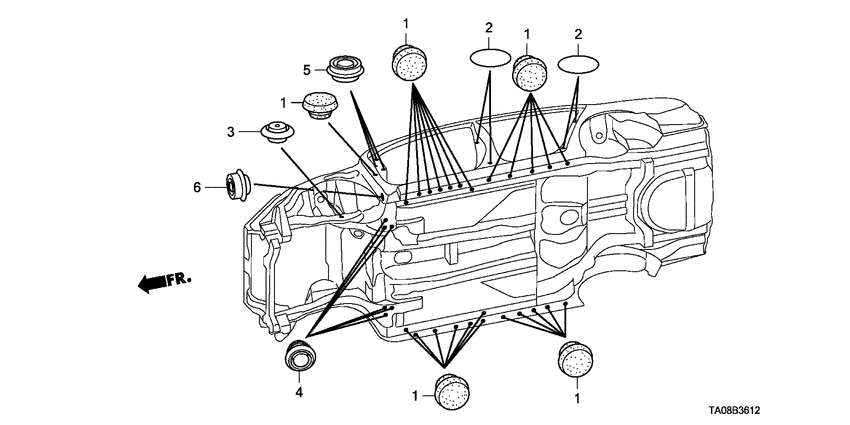

Grommet 4 / 17
CD6 Grommet
CP1 Grommet (LOWER)
# OEM CD6 CP1
9 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
10 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
16 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
22 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Headlight (2) 1 / 19
CD6 Headlight (2)
CP1 Interior light
# OEM CD6 CP1
10 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY

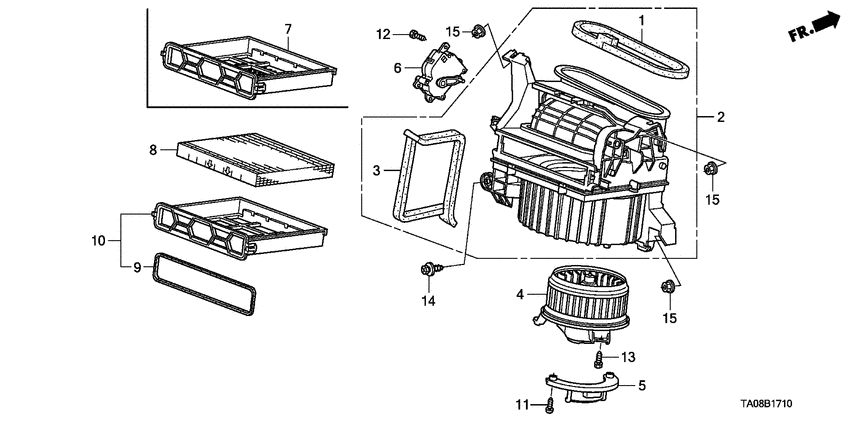

Heater blower (2) 4 / 13
CD6 Heater blower (2)
CP1 Heater blower (LH)
# OEM CD6 CP1
12 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
13 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
14 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
15 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (2) 1 / 19
CD6 Heater unit (2)
CP1 Heater unit (LH)
# OEM CD6 CP1
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16

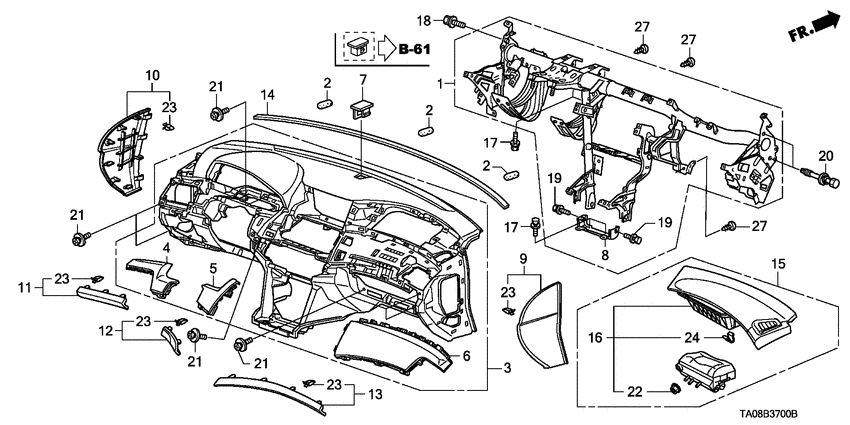

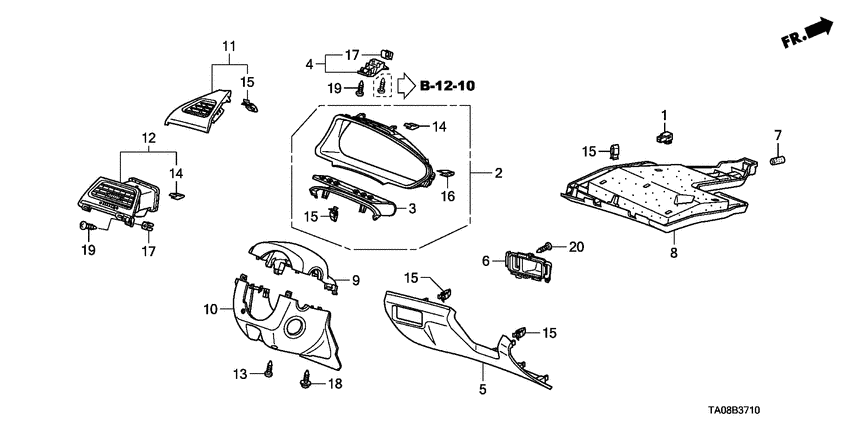

Instrument panel (RH) 4 / 18
CD6 Instrument panel (RH)
CP1 Instrument panel (LH)
# OEM CD6 CP1
5 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
28 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
29 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
31 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

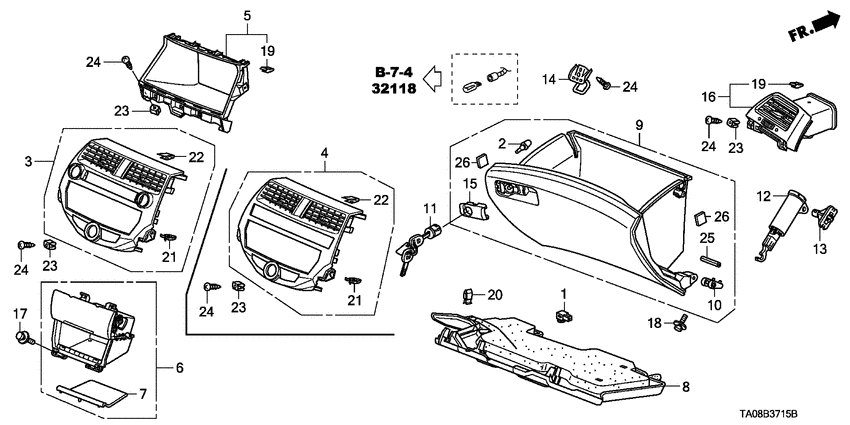

Instrument panel garnish (RH) 1 / 31
CD6 Instrument panel garnish (RH)
CP1 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CD6 CP1
43 90666-SD4-003 Clip - FITTING Clip - FITTING
Intake manifold (DOHC VTEC) 1 / 35
CD6 Intake manifold (DOHC VTEC)
CP1 Water pump (2.0L)
# OEM CD6 CP1
18 18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) GASKET, EGR VALVE (ISHINO GASKET)

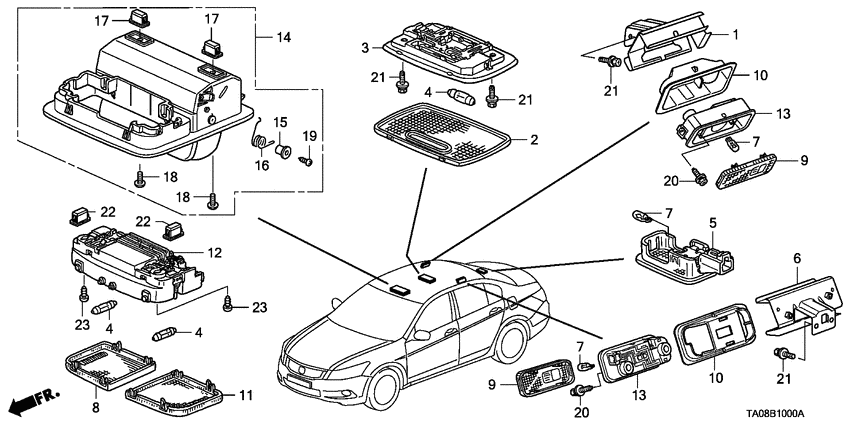

Interior light 4 / 11
CD6 Interior light
CP1 Interior light
# OEM CD6 CP1
5 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
5 04110-SWA-305 BULB T10X318W BULB T10X318W
10 34295-SJ8-003 Bulb - 12V 5W) (DAIICHI Bulb - 12V 5W) (DAIICHI
10 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY

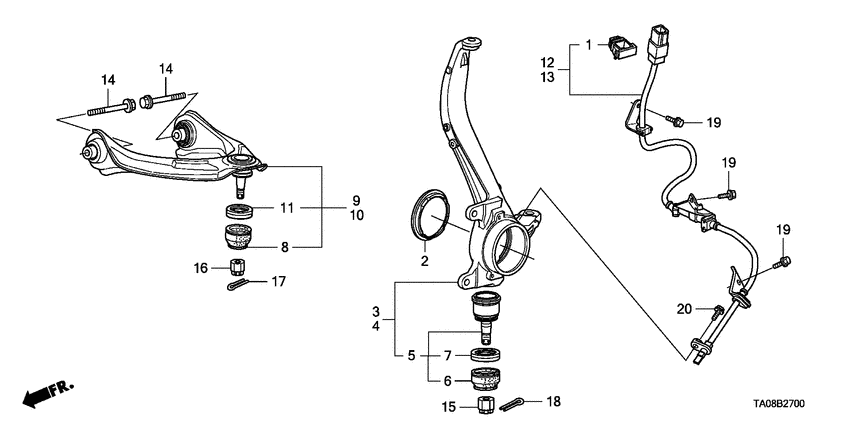

Knuckle 2 / 18
CD6 Knuckle
CP1 Front lower arm
# OEM CD6 CP1
15 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
17 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
Main valve body (2) 1 / 14
CD6 Main valve body (2)
CP1 Main valve body (L4)
# OEM CD6 CP1
4 25145-PA9-010 Shaft - OIL PUMP GEAR Shaft - OIL PUMP GEAR

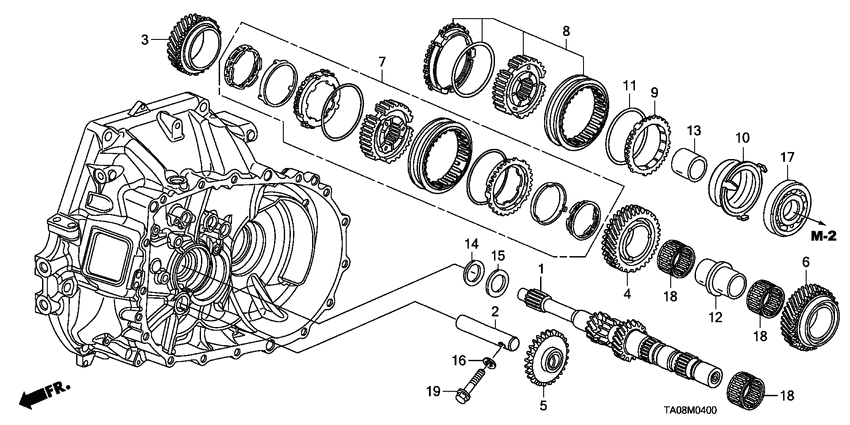

Mainshaft 2 / 22
CD6 Mainshaft
CP1 Mainshaft (L4)
# OEM CD6 CP1
12 90603-P0X-000 Set ring - 23MM Set ring - 23MM
20 91305-PC9-003 O-ring - 34X1.9 (ARAI) O-ring - 34X1.9 (ARAI)

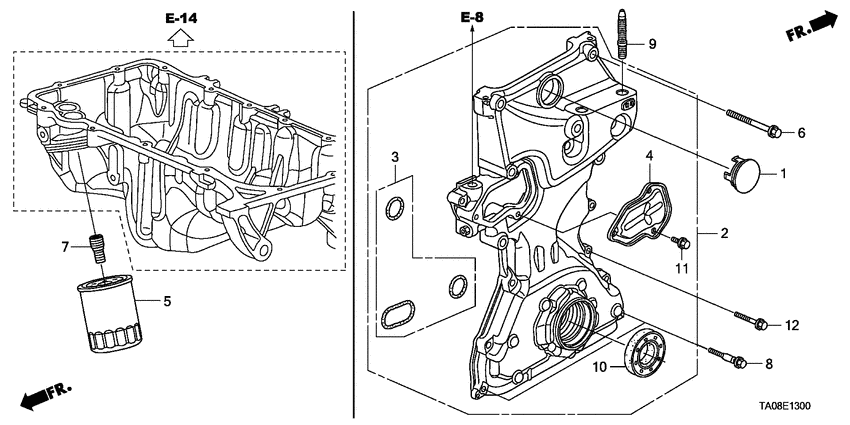

Oil pump/oil strainer 1 / 37
CD6 Oil pump/oil strainer
CP1 Oil pump (2.0L)
# OEM CD6 CP1
12 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)

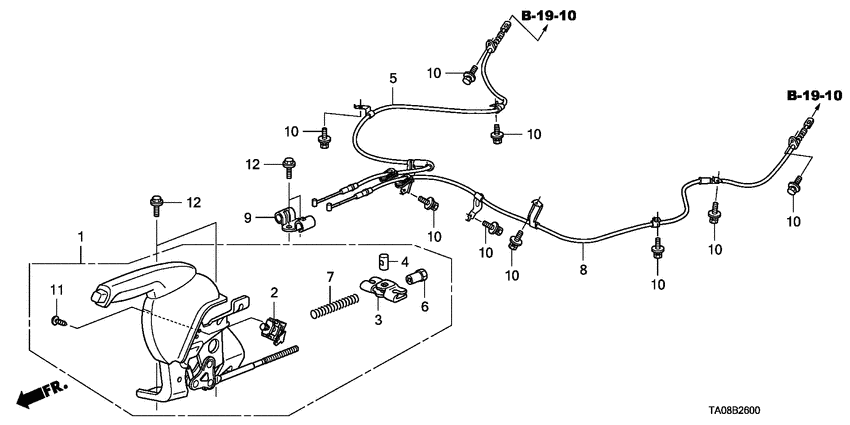

Parking brake 5 / 14
CD6 Parking brake
CP1 Parking brake (LH)
# OEM CD6 CP1
6 47360-SB2-000 Equalizer Equalizer
7 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
10 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
11 47537-671-670 Spring - PARKING BRAKE ROD Spring - PARKING BRAKE ROD
17 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE

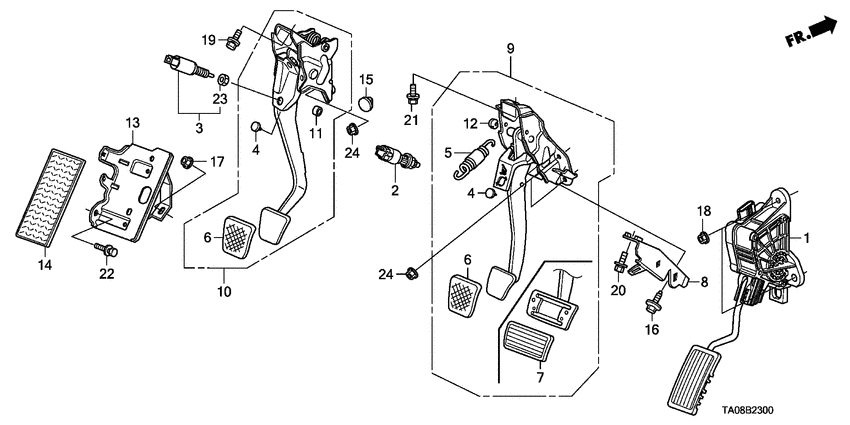

Pedal 1 / 19
CD6 Pedal
CP1 Pedal (LH)
# OEM CD6 CP1
21 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER

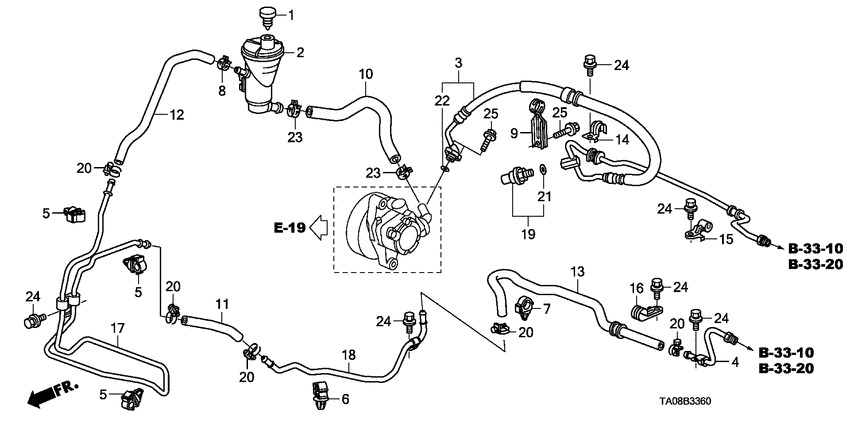

Power steering lines (RH) 6 / 25
CD6 Power steering lines (RH)
CP1 P.s. lines (LH; 2.0L)
# OEM CD6 CP1
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
8 53729-SS0-003 Clip - RETURN HOSE Clip - RETURN HOSE
11 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
17 53736-SH3-950 Holder b - POWER STEERING PIPE Holder b - POWER STEERING PIPE
23 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
26 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)

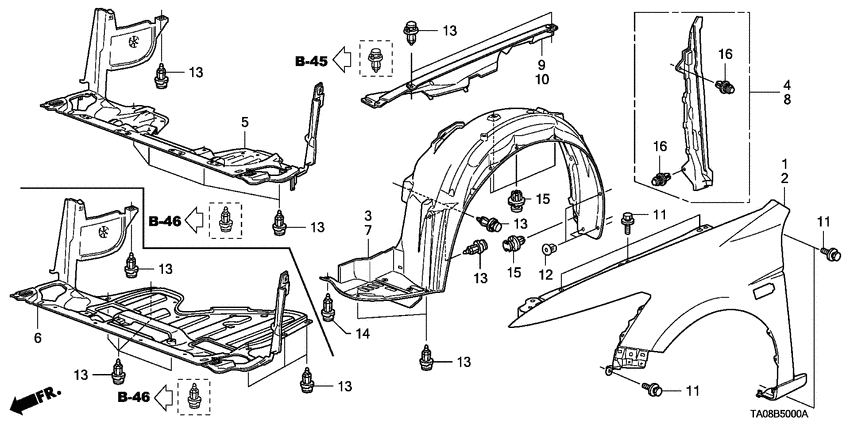

Protector 3 / 20
CD6 Protector
CP1 Bumpers
# OEM CD6 CP1
18 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
23 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
24 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP

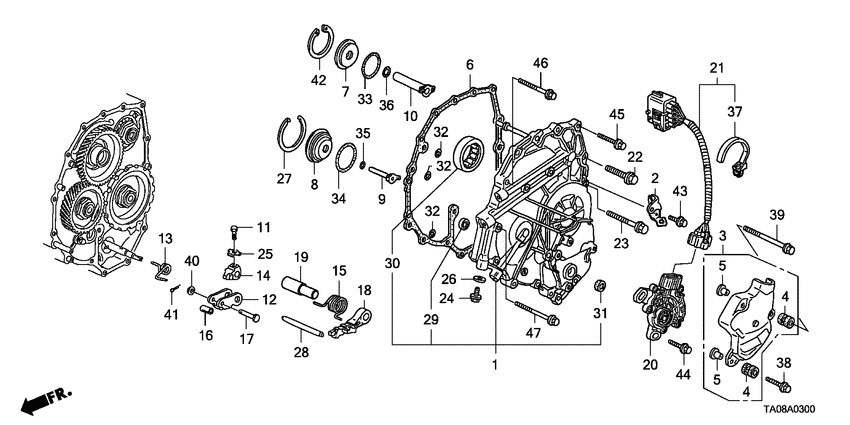

R. side cover (2) 17 / 32
CD6 R. side cover (2)
CP1 L. side cover (L4)
# OEM CD6 CP1
3 22713-PX4-000 Guide a - FEED PIPE Guide a - FEED PIPE
6 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
7 24532-PX4-000 Lever - PARKING BRAKE Lever - PARKING BRAKE
9 24538-PA9-003 Stopper - PARKING BRAKE (2) Stopper - PARKING BRAKE (2)
9 24537-PA9-003 Stopper - PARKING BRAKE (1) Stopper - PARKING BRAKE (1)
9 24539-PA9-003 Stopper - PARKING BRAKE (3) Stopper - PARKING BRAKE (3)
11 24553-PN6-000 Roller - PARKING BRAKE Roller - PARKING BRAKE
12 24555-PN6-000 Pin - ROLLER, 6MM Pin - ROLLER, 6MM
17 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
18 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
19 90471-580-000 Packing - 8MM Packing - 8MM
20 90602-PX4-000 Circlip b - INTERNAL, 47MM Circlip b - INTERNAL, 47MM
22 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
23 91305-PX4-003 O-ring - 40X1.9 (NOK) O-ring - 40X1.9 (NOK)
24 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
25 91311-PA9-004 O-ring - 7.7X1.9 (NOK) O-ring - 7.7X1.9 (NOK)
26 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE

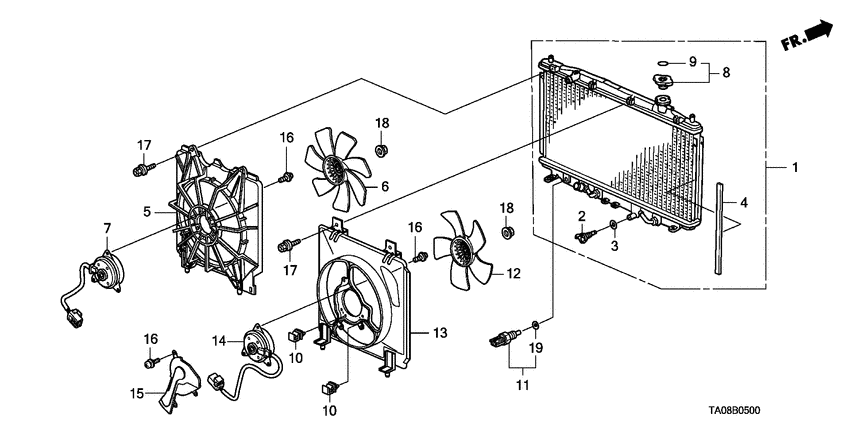

Radiator (DENSO) 4 / 17
CD6 Radiator (DENSO)
CP1 Radiator (2.0L)
# OEM CD6 CP1
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
14 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
15 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)

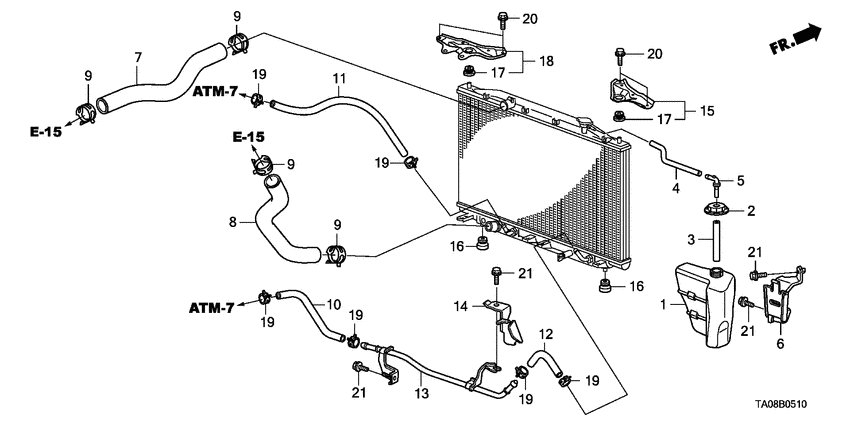

Radiator hose 6 / 27
CD6 Radiator hose
CP1 Radiator hose/reserve tan k (2.0L)
# OEM CD6 CP1
3 19102-PM5-A00 Cap - RESERVE TANK Cap - RESERVE TANK
10 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
11 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
23 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
25 90635-PT0-802 Clip, Oil Pipe Clip, Oil Pipe
25 90635-RV0-003 CLIP, OIL PIPE CLIP, OIL PIPE
Radio antenna/speaker 1 / 20
CD6 Radio antenna/speaker
CP1 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CD6 CP1
24 90666-SD4-003 Clip - FITTING Clip - FITTING

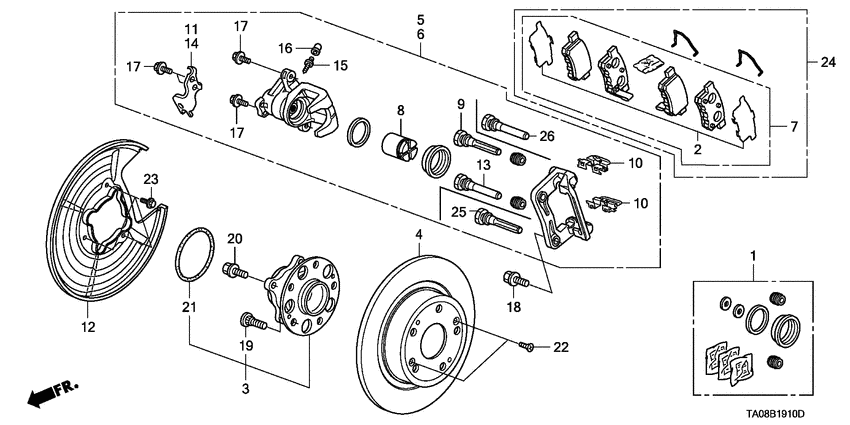

Rear brake (DISK) 6 / 49
CD6 Rear brake (DISK)
CP1 Rear brake
# OEM CD6 CP1
34 43262-S84-A51 Pin b Pin b
37 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
38 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
39 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
40 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
40 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Rear door lining 1 / 14
CD6 Rear door lining
CP1 Front door lining (LH)
# OEM CD6 CP1
16 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
Rear door locks 1 / 33
CD6 Rear door locks
CP1 Front door locks/ outer handle
# OEM CD6 CP1
34 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
Rear door panels 1 / 17
CD6 Rear door panels
CP1 Front door panels
# OEM CD6 CP1
22 75891-SA7-000 Stopper - DOOR Stopper - DOOR
Rear seat (2) 1 / 10
CD6 Rear seat (2)
CP1 Front seat (L.; LH)
# OEM CD6 CP1
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)

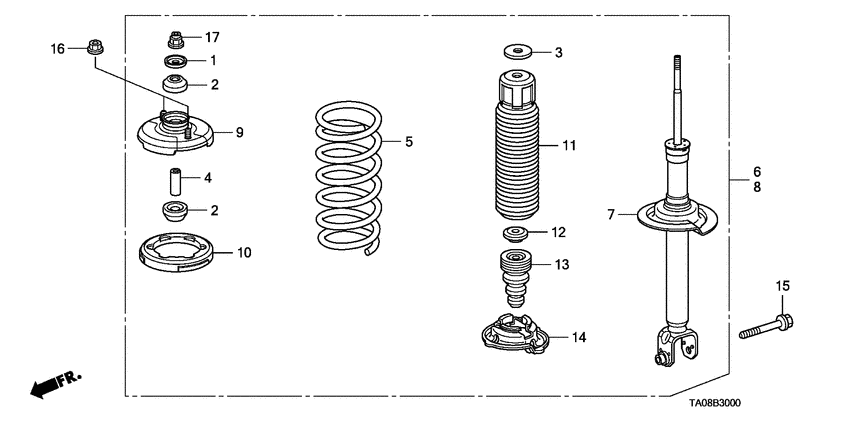

Rear shock absorber 2 / 18
CD6 Rear shock absorber
CP1 Rear shock absorber
# OEM CD6 CP1
10 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear stabilizer/ rear lower arm 5 / 61
CD6 Rear stabilizer/ rear lower arm
CP1 Front knuckle
# OEM CD6 CP1
1 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
19 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
46 90115-659-003 Nut - SELF-LOCK, 8MM (CLINCH) Nut - SELF-LOCK, 8MM (CLINCH)
50 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
54 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
Regulator 4 / 14
CD6 Regulator
CP1 Regulator body (L4)
# OEM CD6 CP1
4 27246-PN6-800 Cap - REGULATOR SPRING Cap - REGULATOR SPRING
12 90089-PK4-000 Bolt - STOPPER, 6MM Bolt - STOPPER, 6MM
13 90701-PK4-000 Dowel pin - 8X80 Dowel pin - 8X80
15 91316-PF4-003 O-ring - 31X1.7 (ARAI) O-ring - 31X1.7 (ARAI)
Resonator chamber 4 / 11
CD6 Resonator chamber
CP1 Air cleaner (2.0L)
# OEM CD6 CP1
1 17212-PN3-000 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
3 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Secondary shaft 2 / 26
CD6 Secondary shaft
CP1 Mainshaft (L4)
# OEM CD6 CP1
7 90203-PX4-010 Nut - FLANGE, 24MM Nut - FLANGE, 24MM
17 91305-PC9-003 O-ring - 34X1.9 (ARAI) O-ring - 34X1.9 (ARAI)

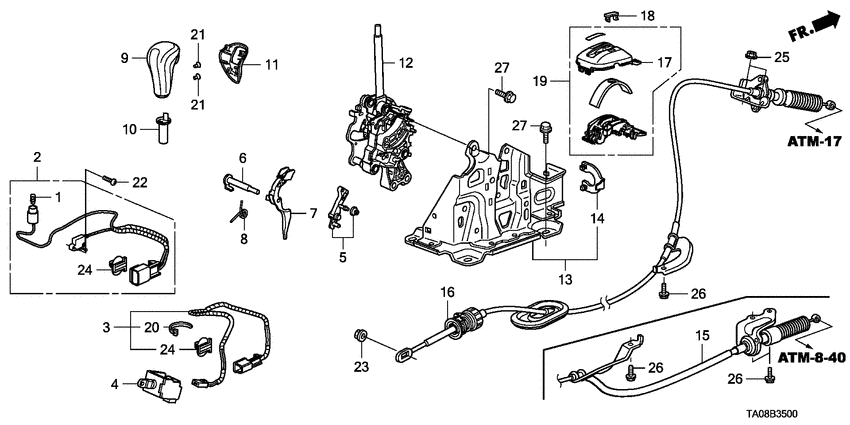

Select lever (RH) 1 / 35
CD6 Select lever (RH)
CP1 Select lever (LH)
# OEM CD6 CP1
1 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W

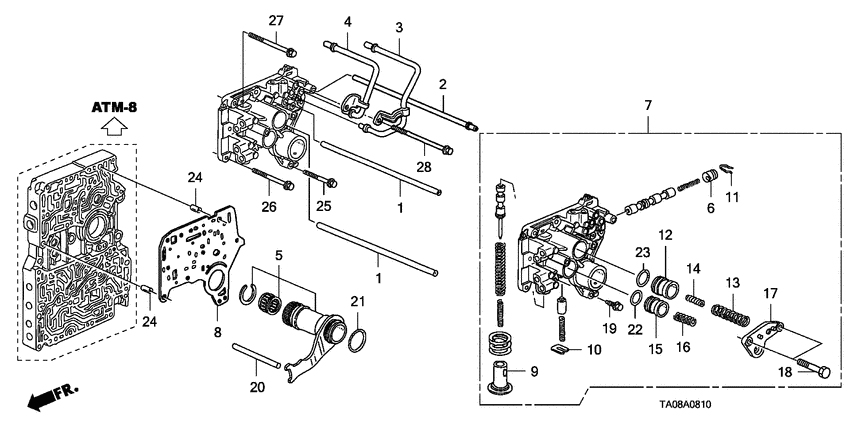

Servo body (2) 4 / 27
CD6 Servo body (2)
CP1 Servo body (L4)
# OEM CD6 CP1
21 91308-PH0-013 O-ring - 17.8X1.9 (NOK) O-ring - 17.8X1.9 (NOK)
23 91321-PF4-004 O-ring - 18.3X2.4(NOK) O-ring - 18.3X2.4(NOK)
25 91331-PC9-003 O-ring O-ring
27 91344-580-000 O-ring - 31X2.7 (ARAI) O-ring - 31X2.7 (ARAI)

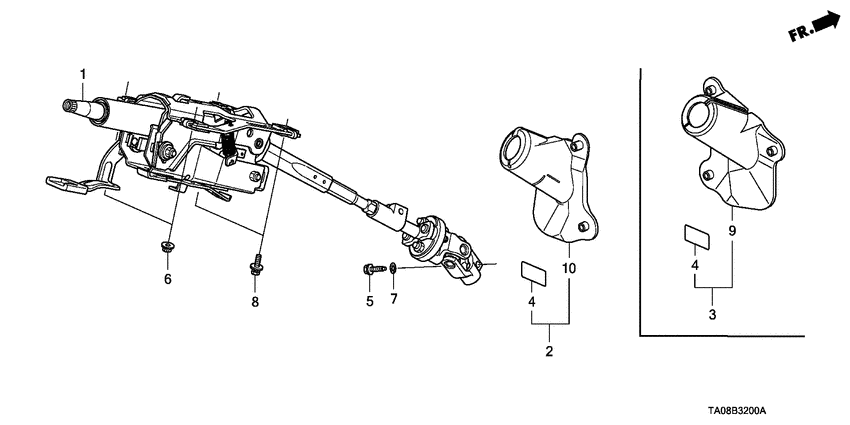

Steering column 1 / 15
CD6 Steering column
CP1 Steering column
# OEM CD6 CP1
15 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Taillight (2) 1 / 26
CD6 Taillight (2)
CP1 Rear tray/side lining
# OEM CD6 CP1
3 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)

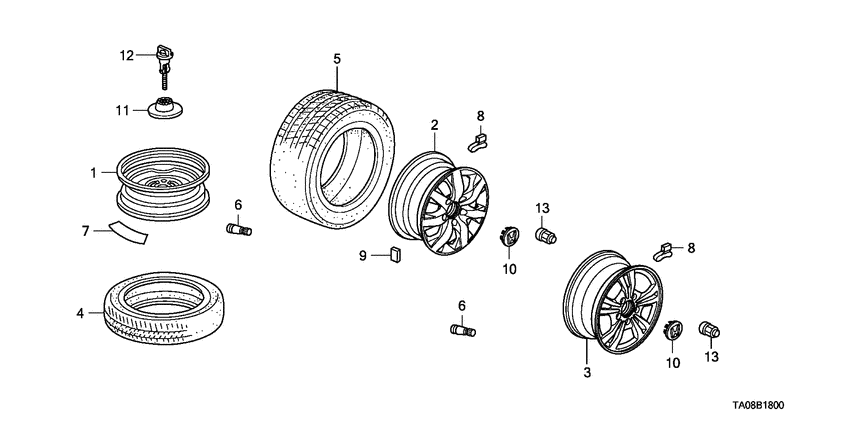

Tire/wheel disk 2 / 21
CD6 Tire/wheel disk
CP1 Tire/wheel disks
# OEM CD6 CP1
10 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
28 90304-SF0-751 Nut - WHEEL (FUSE RASHI) Nut - WHEEL (FUSE RASHI)

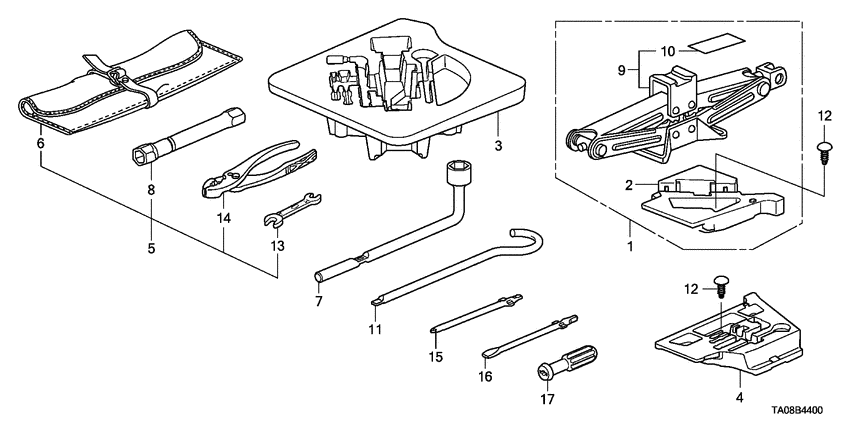

Tools/jack 2 / 14
CD6 Tools/jack
CP1 Tools/jack
# OEM CD6 CP1
6 89216-SF4-000 Wrench - PLUG Wrench - PLUG
10 89320-S05-003 Bar - JACK Bar - JACK

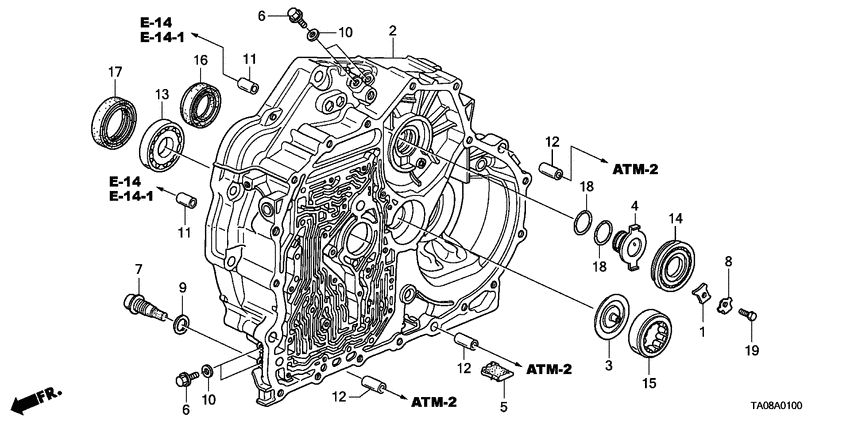

Torque converter housing 5 / 22
CD6 Torque converter housing
CP1 Torque converter case (L4)
# OEM CD6 CP1
10 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
11 90471-580-000 Packing - 8MM Packing - 8MM
12 90705-PA9-000 Dowel pin - 14X25 Dowel pin - 14X25
16 91205-P0X-005 Oil seal - 40X56X9 (NOK) Oil seal - 40X56X9 (NOK)
18 91209-612-003 Oil seal - 12X22X7 (ARAI) Oil seal - 12X22X7 (ARAI)
Transmission housing (2) 8 / 32
CD6 Transmission housing (2)
CP1 L. side cover (L4)
# OEM CD6 CP1
11 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
20 90081-PX4-003 Bolt - PLUG, 18MM Bolt - PLUG, 18MM
21 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
22 90471-PX4-000 Washer - DRAIN PLUG, 18MM Washer - DRAIN PLUG, 18MM
24 90609-PX4-000 Ring - SNAP, 80MM Ring - SNAP, 80MM
29 91025-P0X-003 Bearing - NEEDLE, 15X20X16 (NTN) Bearing - NEEDLE, 15X20X16 (NTN)
30 91201-PA9-004 Oil seal - 9X18X7 (ARAI) Oil seal - 9X18X7 (ARAI)
32 91306-P0X-003 O-ring - 8.1X4 (NOK) O-ring - 8.1X4 (NOK)
Trunk lid ('96/'97) 3 / 28
CD6 Trunk lid ('96/'97)
CP1 Trunk lid
# OEM CD6 CP1
9 74822-SW5-003 Cushion - TRUNK HINGE Cushion - TRUNK HINGE
30 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
32 90109-SM4-000 Bolt - SPECIAL, 6X35 Bolt - SPECIAL, 6X35

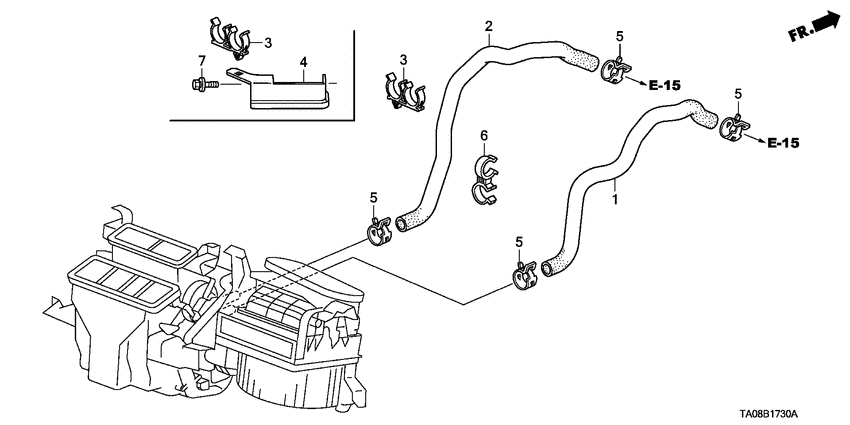

Water hose (DOHC VTEC) 3 / 12
CD6 Water hose (DOHC VTEC)
CP1 Water hose (LH; 2.0L)
# OEM CD6 CP1
3 19512-PK2-003 Clip - HOSE, 18.7MM Clip - HOSE, 18.7MM
11 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
11 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Water valve 2 / 8
CD6 Water valve
CP1 Water hose (LH; 2.0L)
# OEM CD6 CP1
6 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
6 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer 2 / 18
CD6 Windshield washer
CP1 Windshield washer (KU/KW)
# OEM CD6 CP1
5 38562-SA0-003 Joint l - WASHER TUBE(MITSUBA) Joint l - WASHER TUBE(MITSUBA)
8 76809-SE0-003 Grommet - WASHER TANK Grommet - WASHER TANK
Wire harness (2) 8 / 43
CD6 Wire harness (2)
CP1 Harness band/bracket (LH)
# OEM CD6 CP1
12 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
23 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
24 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
26 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
27 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
39 91556-SM4-003 Clip - BAND (BLACK) (100MM) Clip - BAND (BLACK) (100MM)
40 91559-SE3-003 Clip - WIRE HARNESS (WHITE) (55MM) Clip - WIRE HARNESS (WHITE) (55MM)
41 91559-ST5-003 Clip - HARNESS BAND OFFSET(30) (NATURAL) Clip - HARNESS BAND OFFSET(30) (NATURAL)
