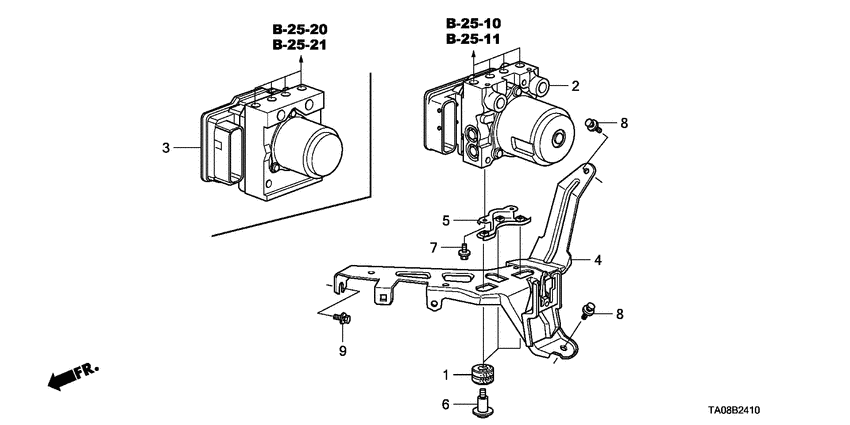

Abs/vsa modulator 5

#	OEM	部品名
1	57101-TA0-003	Rubber - MOUNT
2	57110-TA0-A01	Modulator assy - ABS
4	57115-TA2-T01	Bracket - MODULATOR
5	57116-SLJ-000	Bracket - MODULATOR
6	57376-SNA-A00	Bolt - MOUNTING

Air cleaner (2.0L) 18

#	OEM	部品名
1	17202-R60-U00	Case set - AIR CLEANER
2	17211-R60-U00	Cover comp. - AIR CLEANER
3	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING
5	17217-P2J-300	Clip - AIR CLEANER
6	17220-R60-U00	Element assy. - AIR CLEANER
7	17228-R60-U00	Tube - AIR FLOW
8	17234-R60-U00	Chamber - AIR FLOW
9	17261-R60-U00	Stay comp - AIR CLEANER
10	17316-P1E-000	Clamp - AIR FLOW TUBE (70)
11	17316-RYE-A01	Clamp - AIR FLOW(78)
12	17318-PLZ-E01	Band - HOSE (D50)
13	37980-RNA-A01	Meter assy - AIR FLOW
14	37985-RAD-L11	Gasket
15	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
16	90005-RGA-000	Bolt - CLAMP, 4X25
17	90700-SB0-003	Clip - AIR BLEED TUBE

Air conditioner (COMPRESSOR; 2.0L) 12

#	OEM	部品名
1	38801-PDF-E02	Valve sub assy. - SAFETY
2	38810-R60-W02	Compressor comp.
3	38829-PDF-E02	Nut - 9MM
4	38900-R60-W01	Clutch set - COMPRESSOR
5	38908-R60-W02	Protector set - THERMAL
6	38912-PE1-702	Shim set
7	38913-PP4-E02	Ring - SNAP
8	38914-P07-004	Ring f - SNAP
9	38924-R60-W01	Coil set - FIELD
10	38930-RZP-G00	Bracket - COMPRESSOR
11	90023-PNA-000	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER) 7

#	OEM	部品名
1	80107-S2X-000	Mount - CONDENSER UPPER
2	80110-TA0-A01	Condenser comp.
3	80111-TA0-A00	Bracket - CONDENSER UPPER
5	80175-SE0-000	Mount - CONDENSER
6	80351-SDC-A01	Receiver comp
7	80352-SDA-A01	Clamp
8	80873-ST7-000	O-ring - 8MM

Air conditioner (HOSES/PIPES; 2.0L; LH) 19

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-TA2-A01	Hose comp. - SUCTION
3	80315-TA2-A01	Hose comp. - DISCHARGE
4	80321-TA0-A01	Pipe assy. - AIR CONDITIONER
5	80341-TA0-A01	Pipe comp - RECEIVER
6	80360-TA0-A00	Clamp a - AIR CONDITIONER PIPE
7	80381-SNA-A01	Clip - RECEIVER PIPE
8	80440-S3N-003	Switch assy - PRESSURE (DENSO)
9	80865-SN7-003	Cap h - VALVE
10	80866-SN7-003	Cap l - VALVE
11	80871-SN7-003	O-ring - 5/8"
12	80871-ST7-000	O-ring - 5/8"
13	80872-ST7-000	O-ring - 1/2"
14	80873-SN7-003	O-ring - 8MM
15	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)
16	91548-S3N-003	Clip - RECEIVER PIPE
17	91548-TA0-A01	Clip - RECEIVER PIPE
18	91555-S84-A01	Clamp - AIR CONDITIONER PIPE
19	91901-S0X-A00	Screw - PAN, 4X8

Alternator (DENSO; 2.0L) 15

#	OEM	部品名
1	31100-RZP-G01	Alternator assy - CSF37) (DENSO
2	31101-RTA-003	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH
4	31108-RZP-G01	Frame assy - RR. STATOR
5	31111-PT0-003	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.
7	31119-RZP-G01	Bush - INSULATION
8	31135-RZP-G01	Cover - RR. END
9	31138-PD1-004	Cover - BEARING
10	31141-RZP-G01	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt
13	31146-PE9-941	Screw-washer
14	31147-PT0-003	Screw-washer
15	90231-PGK-A01	Nut - HEX., 5MM

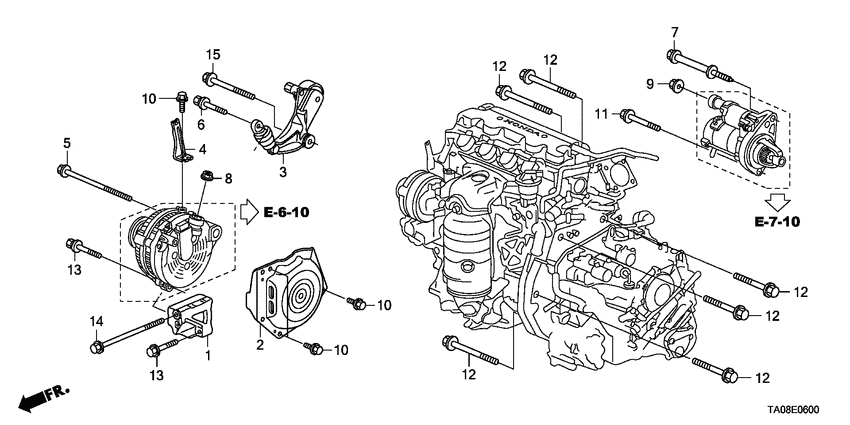

Alternator bracket/ tensioner (2.0L) 8

#	OEM	部品名
1	31113-RNA-A00	Bracket - ALTERNATOR
2	31114-RZP-G00	Insulator - HEAT
3	31170-RZP-G03	Tensioner assy, Auto
3	31170-RZP-G05	TENSIONER ASSY, AUTO
4	32750-RNA-A00	Stay k - ENGINE HARNESS
5	90001-RWK-000	Bolt - SPECIAL, 8X85
6	90006-P8F-A00	Bolt-washer - 8X32
7	90030-RNA-A00	Bolt - SPECIAL, 10X40

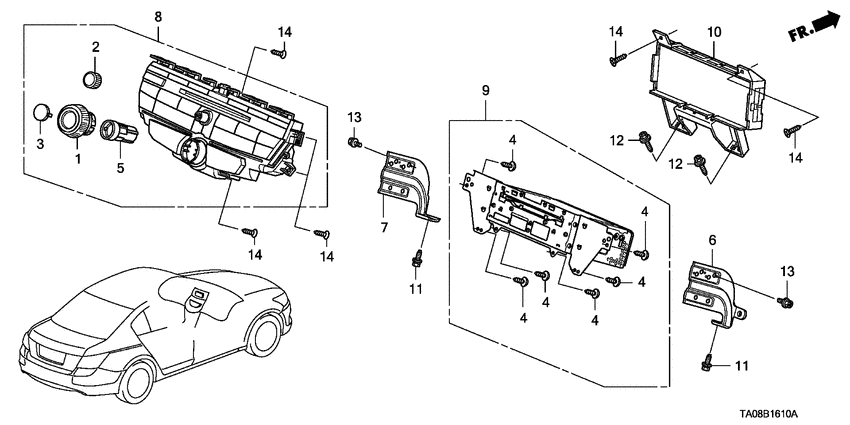

Audio unit (1CD) 12

#	OEM	部品名
1	39103-TA0-A01	Knob - VOLUME
2	39104-TA0-A01	Knob - SOUND
3	39105-TA0-A01	Button - VOLUME
4	39106-TA0-A01	Screw - M3X8
5	39107-TA0-A01	Button - ILLUMI
6	39111-TA0-A00	Bracket - R. RADIO
7	39161-TA0-A00	Bracket - L. RADIO
9	39171-TA0-Y01	Tuner assy - CLARION
10	39710-TA0-A01	Display assy - CENTER (STANLEY)
11	90130-SCC-300	Bolt-washer - 5X13
12	90140-SDA-A00	Bolt-washer - 5X19
13	91551-SWA-901	Bolt - FLANGE, 5X7

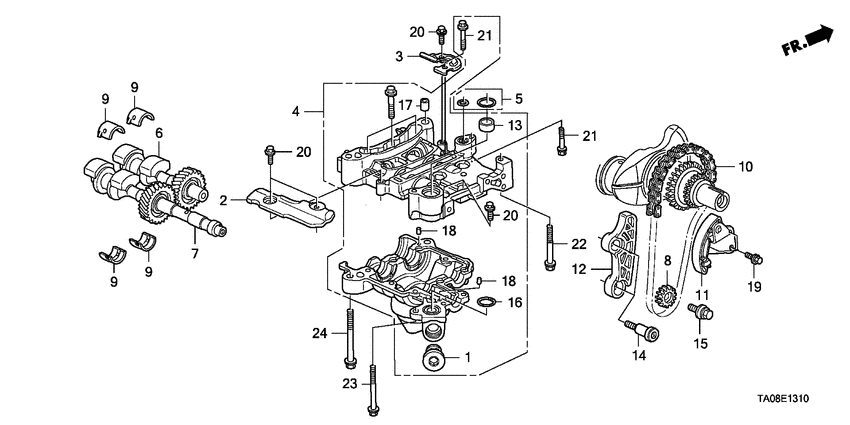

Balancer shaft (2.0L) 16

#	OEM	部品名
1	11107-RNA-A00	Bolt - SEALING, 24MM
2	11222-RZP-000	Plate b - BAFFLE
3	11223-RZP-000	Plate c - BAFFLE
4	13406-RZP-000	Holder set - BALANCER
5	13407-RZP-000	O-ring set - BALANCER
6	13410-R60-U00	Shaft comp. - FR. BALANCER
7	13420-R60-U00	Shaft comp. - RR. BALANCER
8	13432-RZP-003	Sprocket - DRIVEN (17T)
9	13435-RZP-004	Bearing - BALANCE SHAFT
10	13441-RZP-013	Chain - 60L
11	13450-RZP-004	Tensioner comp - BALANCER SHAFT CHAIN
12	13460-RZP-003	Guide - BALANCER SHAFT CHAIN
13	15123-RZP-000	Dowel pin - 23X13
14	90004-PNA-000	Bolt - CHAIN GUIDE
15	90031-PNA-004	Bolt-washer - 10X30
16	91321-P0X-003	O-ring - 25X2.4 (NOK)

Battery (2.0L) 12

#	OEM	部品名
1	31500-S3N-G51	Battery assy - 55B24L<S>-MF) (PANASONIC
1	31500-S3N-G52	Battery assy - 55B24L<S>-MF) (FURUKAWA
2	31512-TA2-900	Plate - BATTERY SETTING
3	31513-SDA-A00	Bolt - BATTERY SETTING (195MM)
4	31521-TA2-900	Box - BATTERY(55B)
5	31531-SEA-010	Cover - BATTERY
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	32600-TA0-A00	Cable assy - BATTERY EARTH
8	32601-SK7-900	Bolt - BATTERY TERMINAL
9	32602-SK7-900	Nut - BATTERY TERMINAL
10	90149-SE0-003	Bolt - EARTH, 6X16

Brake lines (ABS; LH) 26

#	OEM	部品名
1	01464-TA0-A00	Hose set - R. FR. BRAKE
2	01465-TA0-A00	Hose set - L. FR. BRAKE
3	01466-TA0-A00	Hose set - R. RR. BRAKE
4	01468-TA0-A00	Hose set - L. RR. BRAKE
5	46330-TA0-A00	Pipe comp. c - BRAKE
6	46340-TA0-A00	Pipe comp. d - BRAKE
7	46374-TA0-A00	Pipe comp. u - BRAKE
8	46375-TA0-A01	Pipe comp. v - BRAKE
9	46376-TA0-A00	Pipe comp. w - BRAKE
10	46377-TA0-A00	Pipe comp. x - BRAKE
11	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
12	46391-STK-A01	Clip - BRAKE PIPE
13	46391-S5A-Z01	Clip - BRAKE PIPE
14	46391-TA0-A01	Clip - BRAKE PIPE
15	46392-TA0-A01	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE
17	46393-TA0-A01	Clip - BRAKE PIPE
18	46428-TA0-A00	Bracket - R. FR. BRAKE HOSE
19	46429-TA0-A00	Bracket - L. FR. BRAKE HOSE
20	46435-TA0-A00	Bracket a - R. RR. BRAKE HOSE
21	46436-TA0-A00	Bracket a - L. RR. BRAKE HOSE
22	46438-TA0-A00	Bracket b - R. RR. BRAKE HOSE
23	46439-TA0-A00	Bracket b - L. RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT
26	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 22

#	OEM	部品名
1	01462-TA0-A00	Cylinder set - MASTER (20.64MM)
1	01462-TA0-A01	CYLINDER SET MASTER
2	01469-TA0-A00	Power set - MASTER (10")
3	46100-TA0-A01	Cylinder assy. - MASTER
4	46120-TA0-A01	Piston assy. - PRIMARY
5	46122-TA0-A01	Piston assy. - SECONDARY
6	46135-SDA-A01	Guide assy - PISTON
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
8	46185-SE0-003	Seal - ROD
9	46191-SDA-A00	Gasket - MASTER POWER
12	46402-TA2-A01	Tube assy - MASTER POWER
13	46407-STK-A01	Clamp - TUBE
14	46512-S70-000	Pin - PEDAL
15	46661-SDA-A01	Reservoir set
16	46662-S9A-003	Cap comp. - RESERVE TANK
17	46665-S04-J01	Grommet
18	46666-S2K-003	Filter - BRAKE RESERVOIR
19	46669-S5A-003	Diaphragm
20	46911-S70-003	Pin, LOCK(8MM)
21	53729-671-003	Clamp d - 15.5MM
22	57173-SB0-801	O-ring - CONNECTOR
24	57562-SF1-003	Circlip

Breather tube (2.0L) 7

#	OEM	部品名
1	17130-PND-A01	Valve assy. - PCV
2	17131-RNA-A00	Tube - PCV
3	17137-R60-U00	Pipe comp - BREATHER
4	17153-R60-U00	Tube - BREATHER
5	91405-RGA-003	Clamp - TUBE (D20)
6	91405-679-004	Clamp - TUBE (D17)
6	91405-PM5-004	Clamp - TUBE (D17)

Bumpers 33

#	OEM	部品名
2	60854-SB2-000	Clip - FR. SPOILER
4	71102-TA0-A00	Cover - R. FR. FOG LIGHT
5	71107-TA0-A00	Cover - L. FR. FOG LIGHT
6	71109-TA1-J01	Clip - SELF HOLD
7	71110-TA0-A00	Spoiler - FR. BUMPER LIP
8	71130-TA0-A00	Beam comp - FR. BUMPER
10	71140-TA0-J00	Beam - R. FR. BUMPER UPPER
10	71140-TA0-A00	Beam - R. FR. BUMPER UPPER
11	71145-TA0-K00	Base - FR. LICENSE PLATE
12	71172-TA0-K00	Box - FR. BUMPER BEAM
13	71190-TA0-J00	Beam - L. FR. BUMPER UPPER
13	71190-TA0-A00	Beam - L. FR. BUMPER UPPER
14	71193-TA0-A00	Spacer - R. FR. BUMPER
15	71198-TA0-A00	Spacer - L. FR. BUMPER
17	71505-S5A-J00	Bracket - R. RR. BUMPER SIDE
18	71530-TA0-A00	Beam comp - RR. BUMPER
20	71555-S5A-J00	Bracket - L. RR. BUMPER SIDE
21	71570-TA0-A00	Absorber - RR. BUMPER
22	71593-TA0-A00	Spacer - R. RR. BUMPER SIDE
23	71598-TA0-A00	Spacer - L. RR. BUMPER SIDE
24	90102-SFE-000	Bolt-washer - 8X23
25	90103-TA0-000	Screw - TAPPING, 5X20
26	90108-S0A-003	Bolt - FLANGE, 6X15
28	90113-SJA-A00	Screw - TAPPING, 5X14
29	90114-SZ3-000	Screw-washer - 5X20
30	90126-SR4-000	Screw-washer - 5X16
31	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
31	90111-SM4-003	Bolt - BUMPER
32	90149-SA0-003	Bolt - BUMPER
33	90156-S0K-000	Grommet - FR. LICENSE BASE
34	90501-SM4-003	Bolt - FENDER
35	90682-SB0-003	Grommet - SCREW, 5MM
36	91505-S9A-003	Clip A - BUMPER

Camshaft/cam chain (2.0L) 13

#	OEM	部品名
1	14110-R60-U00	Camshaft comp.
2	14211-RNA-A01	Sprocket - CAM CHAIN DRIVEN (46T)
3	14221-R60-U01	Plate - TDC PULSER
4	14222-PWA-004	Bolt - TDC PULSER PLATE
5	14401-RNA-A01	Chain - 136L
6	14510-RNA-A01	Tensioner comp - CAM CHAIN
7	14511-PNA-003	Stopper - TOOL
8	14520-RNA-A01	Arm comp - CAM CHAIN TENSIONER
9	14530-RNA-A01	Guide - CAM CHAIN
10	90003-PNA-000	Bolt - TENSIONER PIVOT
11	90004-RNA-A00	Bolt - CHAIN GUIDE
12	90031-RNA-A01	Bolt-washer - 10X30
13	90703-PNA-300	Dowel pin - 4.2X10.3

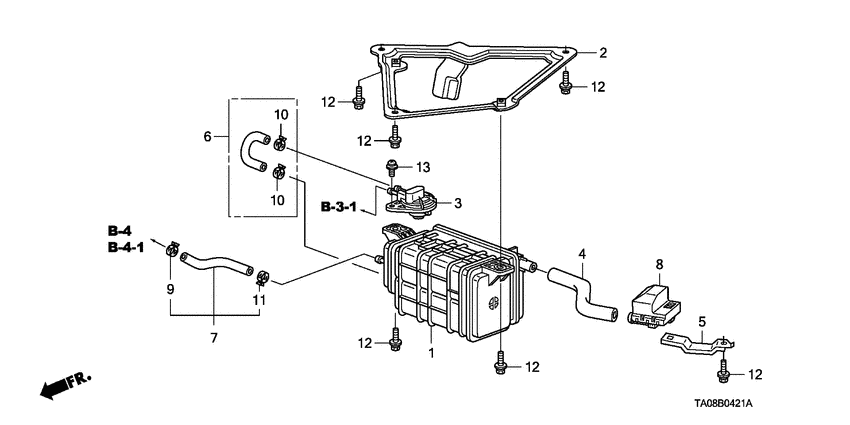

Canister (KU/KW) 12

#	OEM	部品名
1	17300-SNA-023	Canister assy
1	17300-SNA-013	Canister assy
2	17358-TA0-G00	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY
4	17372-TA0-G00	Tube - DRAIN
5	17378-TA0-A00	Stay - DRAIN BOX
6	17723-TA0-G00	Tube c - FUEL VENT
7	17724-TA0-G00	Tube assy - FUEL PURGE
8	17743-TA0-G01	Box - FUEL DRAIN
9	91404-SDC-000	Clamp - TUBE (D10)
10	91404-TA0-G01	Clamp - FUEL TUBE (D10)
11	91591-SMA-931	Clamp - TUBE (D11)

Clutch (2ND; L4) 23

#	OEM	部品名
1	22533-RCL-003	Retainer comp - RETURN SPRING
2	22537-RCL-013	Spring - CLUTCH WAVE
3	22541-RCL-A01	Spring - CLUTCH RETURN (F.C.C)
4	22544-R94-003	Disk - CLUTCH
6	22558-RCL-003	Plate - CLUTCH END (8) (3.3MM)
6	22553-RCL-003	Plate - CLUTCH END (3) (2.8MM)
6	22559-RCL-003	Plate - CLUTCH END (9) (3.4MM)
6	22554-RCL-003	Plate - CLUTCH END (4) (2.9MM)
6	22555-RCL-003	Plate - CLUTCH END (5) (3.0MM)
6	22556-RCL-003	Plate - CLUTCH END (6) (3.1MM)
6	22551-RCL-003	Plate, CLUTCH END (1) (2.6MM)
6	22557-RCL-003	Plate - CLUTCH END (7) (3.2MM)
6	22552-RCL-003	Plate - CLUTCH END (2) (2.7MM)
8	22610-R00-003	Guide comp - SECOND CLUTCH
9	22621-R00-003	Piston - SECOND CLUTCH
12	22643-RCL-003	Plate - CLUTCH WAVE (2.0MM)
13	22643-RCL-801	Plate - CLUTCH (4.0MM)
14	22653-P7Z-003	Plate - CLUTCH (2.0MM)
15	90603-P6H-003	Circlip - EXTERNAL, 43MM
16	90605-PX4-000	Ring - SNAP, 129MM
18	91302-PA9-004	O-ring - 39.8X2.2 (NOK)
18	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
19	91303-PX4-004	O-ring - 114X2.2 (NOK)

Clutch (4TH-5TH; L4) 20

#	OEM	部品名
1	22533-PX4-010	Seat - RETURN SPRING
2	22536-PRP-013	Spring - CLUTCH WAVE
3	22541-PX4-004	Spring - CLUTCH RETURN (SANKO)
4	22546-R91-003	Disk - CLUTCH
5	22587-R91-003	Plate - CLUTCH END (7) (2.7MM)
5	22582-R91-003	Plate - CLUTCH END (2) (2.2MM)
5	22589-R91-003	Plate - CLUTCH END (9) (2.9MM)
5	22584-R91-003	Plate - CLUTCH END (4) (2.4MM)
5	22586-R91-003	Plate - CLUTCH END (6) (2.6MM)
5	22581-R91-003	Plate - CLUTCH END (1) (2.1MM)
5	22588-R91-003	Plate - CLUTCH END (8) (2.8MM)
5	22583-R91-003	Plate - CLUTCH END (3) (2.3MM)
5	22585-R91-003	Plate - CLUTCH END (5) (2.5MM)
6	22651-RFK-003	Guide comp - CLUTCH (4-5)
7	22653-R91-003	Plate - CLUTCH WAVE (2.0MM)
8	22680-RCR-003	Piston comp - CLUTCH
9	90603-PX4-000	Circlip - EXTERNAL, 47MM
10	90605-P7T-003	Ring - SNAP, 133MM
11	91302-PX4-004	O-ring - 46.8X2.2 (NOK)
12	91303-PX4-004	O-ring - 114X2.2 (NOK)

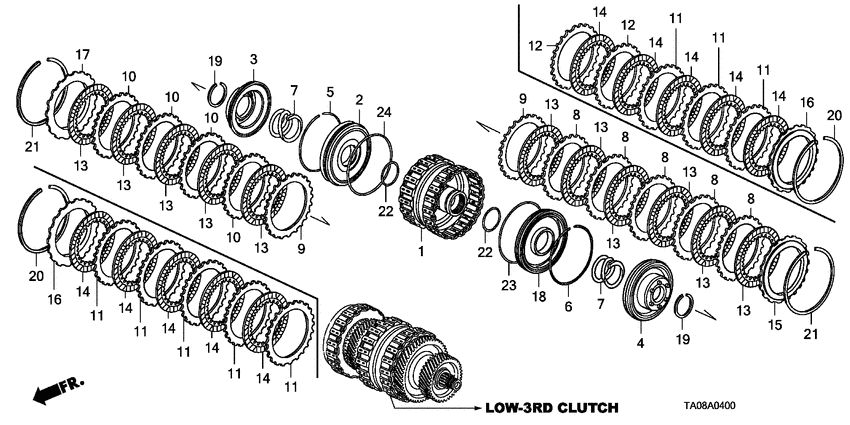

Clutch (LOW-3RD; L4) 22

#	OEM	部品名
1	22510-RCL-003	Guide comp - CLUTCH (1-3)
2	22521-RCL-003	Piston - CLUTCH
3	22533-RCL-003	Retainer comp - RETURN SPRING
5	22536-PRP-013	Spring - CLUTCH WAVE
7	22541-PRP-003	Spring - CLUTCH RETURN (F.C.C)
11	22543-RCL-003	Plate - CLUTCH WAVE (1.6MM)
12	22543-RCL-901	Plate, CLUTCH (1.6MM)
14	22544-R94-003	Disk - CLUTCH
16	22552-RCL-003	Plate - CLUTCH END (2) (2.7MM)
16	22556-RCL-003	Plate - CLUTCH END (6) (3.1MM)
16	22555-RCL-003	Plate - CLUTCH END (5) (3.0MM)
16	22551-RCL-003	Plate, CLUTCH END (1) (2.6MM)
16	22559-RCL-003	Plate - CLUTCH END (9) (3.4MM)
16	22554-RCL-003	Plate - CLUTCH END (4) (2.9MM)
16	22558-RCL-003	Plate - CLUTCH END (8) (3.3MM)
16	22553-RCL-003	Plate - CLUTCH END (3) (2.8MM)
16	22557-RCL-003	Plate - CLUTCH END (7) (3.2MM)
19	90603-P6H-003	Circlip - EXTERNAL, 43MM
20	90605-PX4-000	Ring - SNAP, 129MM
22	91302-PA9-004	O-ring - 39.8X2.2 (NOK)
22	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
23	91303-PX4-004	O-ring - 114X2.2 (NOK)

Clutch case (L4) 12

#	OEM	部品名
1	21000-R87-000	Case comp. - CLUTCH
2	21101-PPP-000	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION
5	21212-RZF-000	Plate - BAFFLE
6	28700-PWL-013	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
7	32746-R60-U00	Stay f - ENGINE HARNESS
8	90705-PG2-000	Dowel pin - 14X20
9	91001-PPP-005	Bearing - BALL, 28X64X15
10	91003-PPS-003	Bearing - NEEDLE, 35X68X20
11	91206-RCT-003	Oil seal - 35X58X8 (NOK)
12	91216-PG1-005	Oil seal - 28X43X7 (NOK)

Clutch master cylinder 33

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke
4	46182-500-013	Circlip
5	46391-STK-A01	Clip - BRAKE PIPE
6	46911-S70-003	Pin, LOCK(8MM)
7	46912-S84-A00	Pin - CLUTCH PEDAL
9	46921-SMG-X01	Plate - STOPPER
10	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
11	46928-S5A-A01	Seal - MASTER CYLINDER
12	46930-TB0-A01	Cylinder assy. - CLUTCH SLAVE
13	46931-S5A-003	Pin - SPRING
14	46932-S5A-003	Piston - SLAVE CYLINDER
15	46937-SS1-003	Boot - SLAVE CYLINDER
16	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
17	46942-S5A-003	Pin - SNAP
18	46943-S5A-003	Seal - RING
19	46944-S5A-J01	Connector
20	46945-S5A-003	O-ring
21	46946-S5A-003	Screw-washer - 4X12
22	46947-S5A-003	Rod - PUSH
23	46948-S5A-003	Rod - PUSH
24	46949-S5A-003	Seal - RING
25	46960-TA0-A02	Pipe comp. a - CLUTCH
26	46961-TA0-A01	Hose - CLUTCH
27	46965-TA0-A02	Tank assy. - CLUTCH
28	46968-SEF-E01	Bracket b - CLUTCH PIPE
29	46970-TB0-A02	Pipe comp. b - CLUTCH
30	46971-TA0-A01	Tube - CLUTCH FLUID
31	46995-TA0-A01	Bracket a - CLUTCH PIPE
32	90106-S7A-E00	Bolt - FLANGE, 8X30
33	90651-538-000	Clip - BRAKE HOSE
39	46925-TA0-A01	Cylinder assy. - CLUTCH MASTER

Clutch release (L4) 5

#	OEM	部品名
1	22810-RPN-003	Bearing, CLUTCH RELEASE
2	22821-PPP-000	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK

Clutch/torque converter (L4) 12

#	OEM	部品名
2	21351-RWP-000	Cover - TORQUE CONVERTER CASE
3	22100-R60-005	Flywheel comp.
4	22103-PNA-003	Bush - 21X24X8
5	22200-R60-005	Disk comp - FRICTION
6	22300-R60-005	Disk comp - PRESSURE
7	26000-R60-305	Converter assy - TORQUE
8	26251-RNA-000	Plate - DRIVE
9	90011-PNA-B00	Bolt - 12MM
10	90023-PA9-000	Bolt - SPECIAL
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
12	90429-PC6-900	Washer - 40X86X2
13	91302-RNA-003	O-ring - 35.5X1.9

Combination switch (LH) 38

#	OEM	部品名
1	06350-TA0-T23	Cylinder set - KEY
1	06350-TA0-E03	Cylinder set - KEY
1	06350-TA0-T74	Cylinder set - KEY
1	06350-TA0-E14	Cylinder set - KEY
1	06350-TA0-T73	Cylinder set - KEY
1	06350-TA0-E13	Cylinder set - KEY
2	06351-TA0-A01	Lock assy - STEERING
2	06351-TA0-A11	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35111-TA0-A31	Key comp. - IMMOBILIZER (MAIN)
6	35112-TA0-A01	Key comp. - IMMOBILIZER(SUB)
7	35111-TA0-U12	Key comp. - IMMOBILIZER & TRANSMITTER
7	35111-TA0-W22	Key comp. - IMMOBILIZER & TRANSMITTER
7	35111-TA0-U13	Key comp. - IMMOBILIZER & TRANSMITTER
8	35113-SNB-J01	Key comp. - TRANSMITTER TOP CASE
9	35113-SNB-305	Key comp. - TRANSMITTER TOP CASE (BLANK)
10	35114-TA0-W21	Bottom comp. - TRANSMITTER KEY CASE
10	35114-SNB-J01	Bottom comp. - TRANSMITTER KEY CASE
11	35116-SDA-A11	Screw - FLAT
12	35118-TA0-A30	Key comp. - IMMOBILIZER(MAIN) (BLANK)
12	35119-TA0-A00	Key comp. - IMMOBILIZER (SUB) (BLANK)
13	35118-TA0-W21	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
13	35118-TA0-U11	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
13	35118-TA0-U12	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
14	35130-TA0-901	Switch comp - STEERING
15	35251-TA0-B01	Body comp - SWITCH
16	35255-TA0-A02	Switch assy - LIGHTING & TURN SIGNAL
17	35256-TA0-A02	Switch assy - WIPER
18	35400-S6A-003	Switch assy - DOOR (DAIICHI)
19	39730-TA0-E02	Immobilizer & keyless unit
20	72118-ST7-003	Screw - TAPPING, 3X5
21	72147-TA0-U12	Module assy. - KEYLESS
21	72147-TA0-W22	Module assy. - KEYLESS
21	72147-TA0-U13	Module assy. - KEYLESS
22	72148-S0A-000	Battery CR1616
23	90132-SFE-003	Screw - EARTH, 5X18

Console (LH) 26

#	OEM	部品名
1	39112-TA0-A01	Jack assy - AUX IN.
2	39610-S2H-G01	Knob assy
3	39620-S0X-003	Socket assy
4	39620-TA0-003	Cap assy.
5	39624-SZ3-L01	Socket assy
6	39630-SFE-003	Ring assy - TYPE INCLUDING BULB
13	77637-S9A-003	Seal a - CLOSE
14	77638-S9A-003	Seal b - OPEN
15	77700-TA0-Y02	Ashtray assy. - FR.
23	83407-TA0-A01	Spring - L.
24	83408-TA0-A01	Spring - R.
25	83409-TA0-A01	Pin - HINGE
26	83410-TA0-A01	Screw - TAPPING, 2X6
27	83411-TA0-A01	Damper
28	83412-TA1-Y01	Bracket - CONSOLE
33	83425-TA0-A00	Bracket comp. - CENTER CONSOLE
36	83452-TA1-Y01	Mat
38	83461-TA1-Y01	Duct assy - L. SIDE BOX
39	83462-TA1-Y01	Duct assy - R. SIDE BOX
40	90123-SJA-000	Bolt-washer - 6X16
41	90144-TA0-A01	Screw - TAPPING, 4X12 (PO)
42	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
43	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)
44	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)
45	90669-SHJ-A01	Clip - SNAP FITTING
47	91640-SM4-003	Grommet - SCREW, 4MM

Control unit (CABIN; 1; LH) 11

#	OEM	部品名
6	38200-TA0-K11	Box assy - DRIVER FUSE
6	38200-TA0-K22	Box assy - DRIVER FUSE
7	38210-TA0-K02	Box assy - PASSENGER FUSE
8	38211-SNA-A11	Fuse - BLOCK (30A)
9	38221-SNA-A31	Fuse - BLADE(7.5A)
10	38221-SNA-A41	Fuse - BLADE(10A)
11	38221-SNA-A51	Fuse - BLADE(15A)
12	38221-SNA-A61	Fuse - BLADE(20A)
16	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
16	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
26	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Control unit (CABIN; 2) 4

#	OEM	部品名
2	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
2	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1; 2.0L) 25

#	OEM	部品名
1	37820-R60-W03	Control module - ENGINE (REWRITABLE)
1	37820-R60-U54	Control module - ENGINE (REWRITABLE)
2	37821-R60-U00	Bracket comp. - ENGINE CONTROL MODULE
3	37823-R60-U00	Cover - ENGINE CONTROL MODULE
4	38100-STK-A02	Horn assy - LOW
5	38150-TA0-A01	Horn assy - HIGH
6	38211-SNA-A01	Fuse - BLOCK (20A)
7	38211-SNA-A21	Fuse - BLOCK (40A)
8	38221-SNA-A31	Fuse - BLADE(7.5A)
9	38221-SNA-A41	Fuse - BLADE(10A)
10	38221-SNA-A51	Fuse - BLADE(15A)
11	38221-SNA-A61	Fuse - BLADE(20A)
12	38221-SNA-A81	Fuse - BLADE(30A)
13	38231-SLJ-003	Fuse a - MULTI BLOCK (100A/60A)
14	38232-TA0-A11	Fuse - MULTI BLOCK(D-2)
16	38235-TA0-A01	Puller - FUSE
17	38251-TA2-D00	Bracket - RELAY BOX
18	38254-TA0-A01	Relay unit
19	38255-SNA-003	Detector unit - ELECTRONIC LOAD
20	38256-TA0-H01	Cover - RELAY BOX (UPPER)
21	38257-TA0-A01	Cover - LOWER
22	90114-SM4-900	Bolt - 6X15
23	90129-TA0-000	Bolt-washer - 5X16
24	90150-S84-003	Bolt - EARTH, 8X16
25	90301-S7A-003	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; 2) 5

#	OEM	部品名
1	39792-SDA-A01	Relay assy - MICRO ISO
3	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
8	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
8	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)

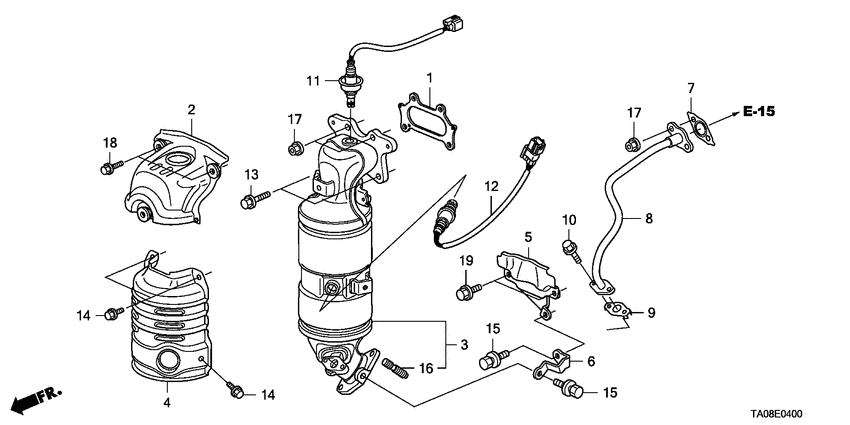

Converter (2.0L) 17

#	OEM	部品名
1	18115-RNA-004	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
1	18115-RNA-007	Gasket - EX. MANIFOLD (NOK)
2	18120-RNA-A00	Cover comp. - CHAMBER
3	18160-R60-U00	Converter comp.
4	18181-RNA-A00	Cover, FR. CONVERTER
5	18197-R60-U00	Bracket - CONVERTER STAY
6	18198-R60-U00	Stay - CONVERTER
7	18716-RNA-A01	Gasket a - EGR PIPE
8	18717-RNA-A00	Pipe comp - EGR
9	18719-RNA-A01	Gasket b - EGR PIPE
10	18720-RNA-A00	Bolt - FLANGE, 8X20
11	36531-R60-U01	Sensor - AIR FUEL RATIO
12	36532-RNA-A01	Sensor - OXYGEN
13	90001-RNA-A00	Bolt - FLANGE, 8X27
14	90003-RNA-A00	Bolt - FLANGE, 6X12
15	90004-PLC-000	Bolt-washer - 10X25
16	90065-PG6-000	Bolt, STUD, 10X24

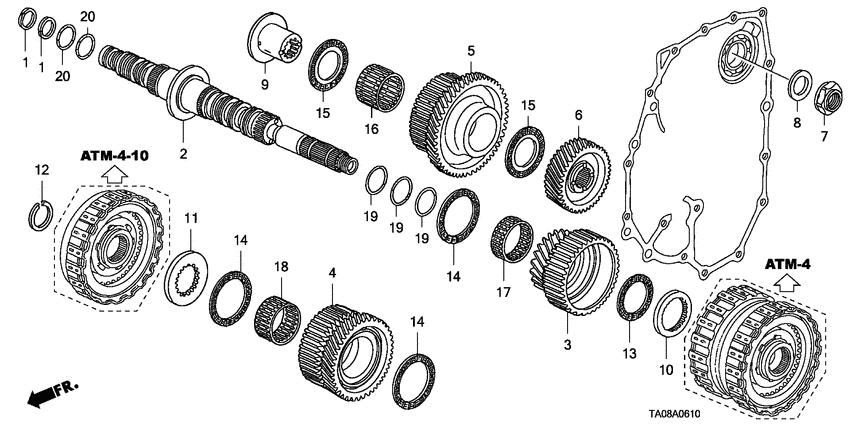

Countershaft (L4) 68

#	OEM	部品名
1	23221-R87-010	Countershaft
1	21215-PRP-000	Holder - IDLE SHAFT
2	23421-R88-000	Gear - COUNTERSHAFT LOW
2	23221-RH3-020	Countershaft
3	23431-R88-000	Gear - COUNTERSHAFT SECOND
3	23421-RZH-000	Gear - COUNTERSHAFT LOW
4	23461-R88-000	Gear - COUNTERSHAFT FIFTH
4	23427-PRP-020	Gear - PARKING
5	23471-R88-000	Gear - COUNTERSHAFT THIRD
5	23441-R00-000	Gear - COUNTERSHAFT SECOND
6	23481-R88-000	Gear - COUNTERSHAFT FOURTH
6	23451-R00-000	Gear - COUNTERSHAFT THIRD
7	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)
7	23471-R90-B00	Gear - COUNTERSHAFT FOURTH
8	23914-RZF-000	Collar - DISTANCE, 40X47X27.5
8	23491-R00-000	Gear - COUNTERSHAFT FIFTH
9	23917-PPP-000	Collar - DISTANCE, 40X47X28
9	23531-PRP-010	Gear - COUNTERSHAFT REVERSE
10	23918-PPP-000	Collar - DISTANCE, 37X44X32.5
10	23541-PRP-000	Gear - REVERSE IDLE
11	23985-PPP-000	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)
11	23986-PPP-000	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)
11	23984-PPP-000	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)
11	23542-P6H-000	Shaft - REVERSE IDLE GEAR
12	90011-PPP-000	Bolt - SPECIAL, 20X25
12	23565-PRP-010	Selector - REVERSE GEAR
13	90601-PPP-000	Ring - SNAP, 72MM
13	23566-PRP-000	Hub - SELECTOR
14	91004-PPP-014	Bearing - BALL, 30X72X17
14	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23
15	90402-P0Z-000	Washer - SPRING, 24MM
16	91212-PPP-004	Damper - FRICTION (SECOND)
16	90431-P6H-000	Cotter - 31MM
17	90441-RFK-010	Collar - 37X41X54.3
18	41233-RPT-010	Gear - FINAL DRIVEN
18	90445-PPV-000	Collar - 35X47X7.8
19	90614-P0Z-000	Ring - SNAP, 35MM
20	91024-PRP-004	Bearing - NEEDLE, 40X46X14.5 (KOYO)
21	91025-P0X-003	Bearing - NEEDLE, 15X20X16 (NTN)
22	91028-P0Z-013	Bearing - NEEDLE, 35X41X25.8 (NTN)
23	91306-P0X-003	O-ring - 8.1X4 (NOK)

Crankshaft/piston (L4) 35

#	OEM	部品名
1	13010-RNA-Y00	Piston set - STD.
1	13020-RNA-Y00	Piston set - OS 0.25
2	13011-RZP-004	Ring set - PISTON (STD.) (RIKEN)
2	13021-RZP-004	Ring set - PISTON (OS 0.25) (RIKEN)
3	13111-RNA-A00	Pin - PISTON
4	13115-RNA-A00	Clip - PISTON PIN
5	13204-RNA-A01	Bolt - CONNECTING ROD
6	13210-RZP-000	Rod comp - CONNECTING
7	13216-RNE-A01	Bearing f - CONNECTING ROD (RED) (TAIHO)
7	13211-RNE-A01	BEARING A - CONNECTING ROD (BLACK) (TAIHO)
7	13212-RNE-A01	Bearing b - CONNECTING ROD (BROWN) (TAIHO)
7	13213-RNE-A01	Bearing c - CONNECTING ROD (GREEN) (TAIHO)
7	13214-RNE-A01	Bearing d - CONNECTING ROD (YELLOW) (TAIHO)
7	13215-RNE-A01	Bearing e - CONNECTING ROD (PINK) (TAIHO)
8	13310-RZP-000	Crankshaft comp.
8	13310-R6A-000	Crankshaft comp.
9	13326-RZP-003	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13321-RZP-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13322-RZP-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)
9	13323-RZP-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13324-RZP-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13325-RZP-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)
11	13342-RZP-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13343-RZP-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13344-RZP-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13345-RZP-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
11	13346-RZP-003	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13341-RZP-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)
12	13620-RZP-003	Sprocket comp - CHAIN DRIVE
14	13622-R60-U00	Plate - CRANK PULSER
16	13810-RZP-003	Pulley comp - CRANKSHAFT
17	90013-RNA-A01	Bolt - HEX., 6X9
19	90017-PCX-013	Bolt-washer - 16X49
20	90704-PNA-000	Key - 4.5X21

Cylinder block/oil pan (2.0L) 35

#	OEM	部品名
1	11000-R60-U00	Block assy - CYLINDER
2	11103-RNA-A01	Plate - PARTITION
3	11105-RNA-A00	Bolt - SEALING, 20MM
4	11106-RNA-A00	Washer - SEALING, 20MM
5	11107-PWA-300	Washer - SEALING, 24MM
6	11107-RNA-A00	Bolt - SEALING, 24MM
7	11135-RZP-000	Orifice assy - LOWER BLOCK
8	11200-RZP-020	Pan assy - OIL
9	11850-RNA-A00	Cover comp. - BREATHER
10	15142-PE0-000	O-ring - 4.8X1.9
11	15280-RZP-000	Body comp - OIL JET
12	15290-RZP-000	Bolt comp - OIL JET
13	30530-RNA-A01	Sensor comp - KNOCK
14	32179-RZP-G00	Insulator - OIL PRESSURE SWITCH HEAT
15	32747-R60-U00	Stay g - ENGINE HARNESS
16	37241-RNA-A01	Switch assy, OIL PRESSURE
17	37500-R60-U01	SENSOR ASSY CRANK
18	37501-R60-U00	Cover - CRANK SENSOR
19	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
20	90002-RNA-A00	Bolt - SEALING, 36MM
21	90007-RNA-A01	Bolt-washer - 10X97
22	90008-RNA-000	Washer - SEALING, 36MM
23	90009-PY3-000	DRAIN PLUG BOLT, 14MM
24	90016-RNA-A00	Bolt - FLANGE, 6X35
25	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)
26	90401-PR4-000	Washer - SEALING, 28MM
27	90701-PD2-000	Dowel pin - 12X14
28	90703-PE0-000	Dowel pin - 18X22
29	90705-RNA-A00	Dowel pin - 20X22
30	91214-PWA-003	Oil seal - 80X98X10 (NOK)
30	91214-RTA-004	Oil seal - 80X98X10 (ARAI)
30	91214-RNB-A01	Oil seal (80x98x10)
31	91301-RNA-A02	O-ring - 20X2.3 (ARAI)
31	91301-RNA-A01	O-ring - 20X2.3 (NOK)
32	91333-PNC-006	O-ring

Cylinder head (2.0L) 11

#	OEM	部品名
1	12200-R60-U00	Head comp - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)
4	12231-RNA-A00	Holder comp - ROCKER SHAFT (NO.1)
5	12232-RNA-A00	Holder comp - ROCKER SHAFT
6	12235-RNA-A00	Holder comp - ROCKER SHAFT (NO.5)
7	12236-RNA-A00	Holder comp - LOST MOTION
8	14631-RNA-A00	Shaft comp. - ROCKER
9	15140-P0A-000	Orifice assy - CAM JOURNAL
10	15142-PE0-000	O-ring - 4.8X1.9
11	90008-PT2-000	Bolt - FLANGE, 6X65

Cylinder head cover (2.0L) 7

#	OEM	部品名
1	12310-RNA-A01	Cover comp. - CYLINDER HEAD
2	12341-RNA-A01	Packing - HEAD COVER
3	15610-RGA-000	Cap assy. - OIL FILLER
3	15610-PFB-000	Cap assy. - OIL FILLER
4	15613-PC6-000	Packing, Oil Filler
5	15650-RZP-000	Gauge - OIL LEVEL
6	90011-RNA-A00	Bolt - HEAD COVER

Differential (L4) 89

#	OEM	部品名
1	41100-R88-A00	Differential comp.
1	41100-RKY-030	Differential comp.
1	41100-R5M-305	SETDIFF COMP
2	41233-RH3-020	Gear - FINAL DRIVEN
3	41455-PL3-B00	Shim q - 80MM(1.55)
3	41450-PL3-B00	Shim k - 80MM(1.05)
3	41445-PL3-B00	Shim e - 80MM(1.4)
3	41457-PL3-B00	Shim s - 80MM(1.75)
3	41452-PL3-B00	Shim m - 80MM(1.25)
3	41447-PL3-B00	Shim g - 80MM(1.6)
3	41442-PL3-B00	Shim b - 80MM(1.1)
3	41454-PL3-B00	Shim p - 80MM(1.45)
3	41449-PL3-B00	Shim j - 80MM(1.8)
3	41444-PL3-B00	Shim d - 80MM(1.3)
3	41456-PL3-B00	Shim r - 80MM(1.65)
3	41451-PL3-B00	Shim l - 80MM(1.15)
3	41446-PL3-B00	Shim f - 80MM(1.5)
3	41441-PL3-B00	Shim a - 80MM(1.0)
3	41453-PL3-B00	Shim n - 80MM(1.35)
3	41448-PL3-B00	Shim h - 80MM(1.7)
3	41443-PL3-B00	Shim c - 80MM(1.2)
3	41381-PPV-000	Spacer - 41X80X1
4	90017-PPP-000	Bolt - SPECIAL, 11MM
4	41382-RKY-900	Spacer - 41X76.2X1
5	91005-PPS-003	Bearing - BALL, 40X80X18(NTN)
5	41452-PAX-000	Shim y - 76MM (2.775)
5	41436-PAX-000	Shim i - 76MM (1.975)
5	41449-PK4-000	Shim i - 76MM (2.60)
5	41433-PRP-000	Shim of - 76MM (1.80)
5	41447-PAX-000	Shim t - 76MM (2.525)
5	41431-PAX-000	Shim d - 76MM (1.725)
5	41428-PRP-000	Shim oa - 76MM (1.55)
5	41444-PK4-000	Shim d - 76MM (2.35)
5	41458-PK4-000	Shim r - 76MM (3.05)
5	41442-PAX-000	Shim o - 76MM (2.275)
5	41455-PK4-000	Shim o - 76MM (2.90)
5	41439-PX4-700	Shim t - 76MM (2.10)
5	41453-PAX-000	Shim z - 76MM (2.825)
5	41437-PAX-000	Shim j - 76MM (2.025)
5	41450-PK4-000	Shim j - 76MM (2.65)
5	41434-PRP-000	Shim og - 76MM (1.85)
5	41448-PAX-000	Shim u - 76MM (2.575)
5	41432-PAX-000	Shim e - 76MM (1.775)
5	41429-PRP-000	Shim ob - 76MM (1.60)
5	41445-PK4-000	Shim e - 76MM (2.40)
5	41443-PAX-000	Shim p - 76MM (2.325)
5	41456-PK4-000	Shim p - 76MM (2.95)
5	41440-PX4-700	Shim u - 76MM (2.15)
5	41454-PAX-000	Shim oa - 76MM (2.875)
5	41438-PAX-000	Shim k - 76MM (2.075)
5	41451-PK4-000	Shim k - 76MM (2.70)
5	41435-PRP-000	Shim oh - 76MM (1.90)
5	41449-PAX-000	Shim v - 76MM (2.625)
5	41433-PAX-000	Shim f - 76MM (1.825)
5	41446-PK4-000	Shim f - 76MM (2.45)
5	41430-PRP-000	Shim oc - 76MM (1.65)
5	41428-PAX-000	Shim a - 76MM (1.575)
5	41444-PAX-000	Shim q - 76MM (2.375)
5	41457-PK4-000	Shim q - 76MM (3.00)
5	41441-PK4-000	Shim a - 76MM (2.20)
5	41455-PAX-000	Shim ob - 76MM (2.925)
5	41439-PAX-000	Shim l - 76MM (2.125)
5	41452-PK4-000	Shim l - 76MM (2.75)
5	41436-PRP-000	Shim oi - 76MM (1.95)
5	41450-PAX-000	Shim w - 76MM (2.675)
5	41434-PAX-000	Shim g - 76MM (1.875)
5	41447-PK4-000	Shim g - 76MM (2.50)
5	41431-PRP-000	Shim od - 76MM (1.70)
5	41429-PAX-000	Shim b - 76MM (1.625)
5	41445-PAX-000	Shim r - 76MM (2.425)
5	41442-PK4-000	Shim b - 76MM (2.25)
5	41456-PAX-000	Shim oc - 76MM (2.975)
5	41440-PAX-000	Shim m - 76MM (2.175)
5	41453-PK4-000	Shim m - 76MM (2.80)
5	41437-PRP-000	Shim oj - 76MM (2.00)
5	41451-PAX-000	Shim x - 76MM (2.725)
5	41435-PAX-000	Shim h - 76MM (1.925)
5	41448-PK4-000	Shim h - 76MM (2.55)
5	41432-PRP-000	Shim oe - 76MM (1.75)
5	41430-PAX-000	Shim c - 76MM (1.675)
5	41446-PAX-000	Shim s - 76MM (2.475)
5	41443-PK4-000	Shim c - 76MM (2.30)
5	41457-PAX-000	Shim od - 76MM (3.025)
5	41441-PAX-000	Shim n - 76MM (2.225)
5	41454-PK4-000	Shim n - 76MM (2.85)
5	41438-PX4-700	Shim s - 76MM (2.05)
6	90003-PA9-003	Bolt - FLANGE, 10MM
7	91121-RFK-013	Bearing - SPECIAL TAPER, 40X80X20.25
8	91122-RFK-013	Bearing - SPECIAL TAPER, 40X76.2X19

Duct 7

#	OEM	部品名
1	77410-TA0-A01	Duct assy - AIR CONDITIONER INSTRUMENT CENTER
3	83332-TA0-A01	Duct assy - R. RR. HEATER JOINT
4	83335-TA0-A00	Bracket assy - RR. HEATER DUCT
6	83382-TA0-A01	Duct assy - L. RR. HEATER JOINT
7	83465-TA0-Y01	Duct assy - RR. VENT CENTER
8	83467-TA0-Y01	Duct assy - RR. VENT PASSENGER
9	83466-TA0-Y01	Duct assy - RR. VENT DRIVER

Emblems/caution labels 9

#	OEM	部品名
2	17669-RRM-K00	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
3	19043-PLA-E00	Label - COOLANT INFORMATION
4	42760-TA0-M00	Plate - TIRE PRESSURE CAUTION
5	75701-TA0-000	Emblem - RR. (H)
7	75722-TA0-A01	Emblem - RR. (ACCORD)
9	75723-TA1-Y00	Emblem - RR. (LX)
11	75725-TA0-Y00	Emblem - RR. (I-VTEC)
13	75731-TA2-W00	Emblem - RR. (2.0)
17	91512-SR3-004	Clip - TUBULAR

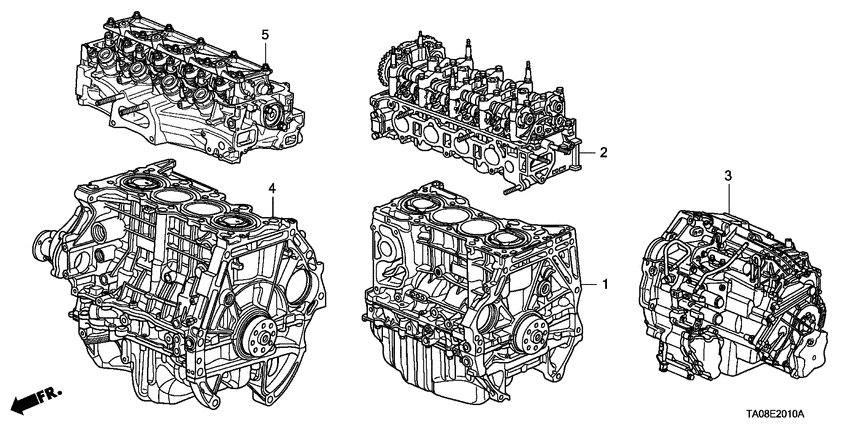

Engine assy./ transmission assy. (L4) 4

#	OEM	部品名
3	20011-R87-E31	Transmission assy.
3	20021-R94-000	Transmission assy.
4	10002-R60-U00	General assy. - CYLINDER BLOCK
5	10003-R60-U00	General assy. - CYLINDER HEAD

Engine hood (LH) 23

#	OEM	部品名
5	74120-TA6-A01	Lock assy - HOOD
6	74125-TA0-A00	Cover - HOOD LOCK
7	74130-TA0-A01	Wire assy. - HOOD
9	74141-TA0-A00	Insulator - HOOD
10	74143-TA0-A00	Rubber - RR. HOOD SEAL
11	74145-TA1-305	Dumper assy. - R. HOOD OPENER
12	74148-TA0-A00	Rubber - HOOD SEAL
13	74195-TA1-305	Dumper assy. - L. HOOD OPENER
14	74210-TA0-A00	Cowl top assy. - FR. DRIVER
15	74212-TA0-A00	Cover - R. HOOD HINGE
16	74220-TA0-A00	Cowl top assy. - FR. PASSENGER
17	74222-TA0-A00	Cover - L. HOOD HINGE
18	74225-TA0-A00	Umbrella - AIR CONDITIONER HOLE
19	90108-S0A-003	Bolt - FLANGE, 6X15
20	90123-TA0-A00	Bolt-washer - 6X18
21	90602-SX0-003	Clip - COWL TOP
22	90602-S5A-003	Clip - COWL TOP
23	90602-TA0-003	Clip - COWL TOP
24	90603-SX0-003	Grommet - COWL TOP
25	91501-STK-003	Clip - ENGINE HOOD INSULATOR
26	91512-SX0-003	Clip - INNER FENDER CLIP
27	91518-S10-003	Clip - MOLDING
28	91560-S04-003	Clip - SIDE GARNISH (NATURAL)

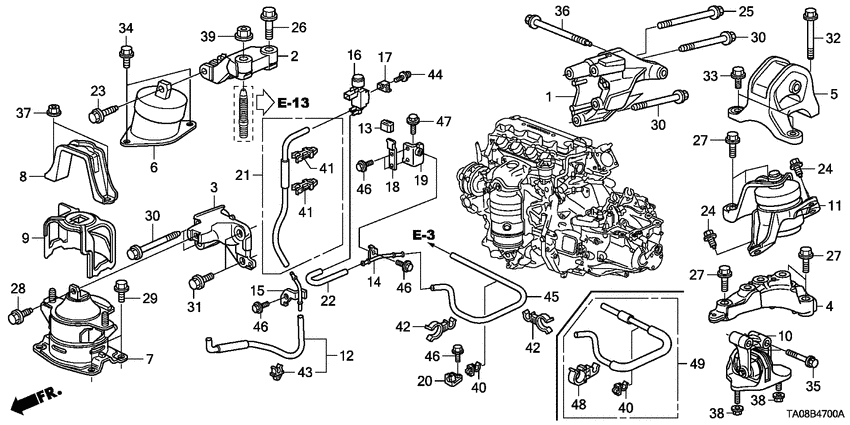

Engine mounts (2.0L; AT) 45

#	OEM	部品名
1	50610-TA2-H00	Bracket - RR. ENGINE MOUNTING
2	50620-TA2-H00	Bracket - ENGINE SIDE MOUNTING
3	50630-TA2-H00	Bracket - FR. ENGINE MOUNTING
4	50810-TA2-H01	Rubber assy. - RR. ENGINE MOUNTING
5	50820-TA2-H01	Rubber assy. - ENGINE SIDE MOUNTING
6	50830-TA2-H01	Rubber assy. - FR. ENGINE MOUNTING
7	50835-TA0-A01	Stopper - FR. ENGINE MOUNT
8	50839-TA2-H01	Insulator - FR. ENGINE MOUNT HEAT
9	50850-TA2-H02	Rubber assy. - TRANSMISSION LOWER MOUNTING
9	50850-TA2-H03	MTG RUB ASSY TRNS
10	50870-TA2-H03	Rubber assy. - TRANSMISSION UPPER MOUNTING
11	50910-TA2-H00	Tube - 3.5X320
12	50917-SV7-A00	Rubber - MOUNTING
13	50921-TA2-H00	Pipe assy. - SOLENOID VALVE
14	50922-TA2-H00	Pipe b - SOLENOID VALVE
15	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
16	50932-TA2-H01	Stay b - SOLENOID VALVE
17	50933-TA2-H01	Stay c - SOLENOID VALVE
18	50935-TA2-H01	Stay a - ELECTRONIC CONTROL MOUNT SOLENOID
19	50940-TA2-H00	Stay b - ELECTRONIC CONTROL MOUNT SOLENOID
20	50950-TA2-H02	Tube a - ELECTRONIC CONTROL MOUNT SOLENOID
21	50970-TA2-H01	Tube c - ELECTRONIC CONTROL MOUNT SOLENOID
22	90161-SDA-A01	Bolt - FLANGE, 12X45
23	90161-TA0-A01	Bolt - FLANGE, 10X25
24	90161-TA2-H00	Bolt - FLANGE, 12X135
25	90162-STK-A00	Bolt - FLANGE, 14X55
26	90162-TA0-A00	Bolt - FLANGE, 12X50
27	90163-SDA-A01	Bolt - FLANGE, 10X35
28	90163-S5A-000	Bolt - FLANGE, 10X20
29	90164-SAA-000	Bolt - FLANGE, 12X100
30	90164-S5A-010	Bolt - FLANGE, 12X40
31	90166-SDA-A00	Bolt - FLANGE, 12X80
32	90167-SAA-010	Bolt - FLANGE, 10X25
33	90167-TA0-A00	Bolt - FLANGE, 12X40
34	90176-SKN-000	Bolt - FLANGE, 12X30
35	90176-TA0-A01	Bolt - FLANGE, 12X139
36	90371-SEF-000	Nut - FLANGE, 12MM
37	90371-S87-A00	Nut - FLANGE, 10MM
38	90382-SJA-000	Nut - FLANGE, 14MM
39	90601-PB1-003	Clamp - TUBE, 3.5
40	90651-TA2-H01	Clip A - TUBE
42	91531-SZ5-003	Clip - TUBE, 3.5
46	90017-RPK-000	Bolt - SPECIAL, 8X40
47	50933-S3X-003	Clamp - TUBE
48	50960-TA2-H01	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID

Engine mounts (2.0L; MT) 47

#	OEM	部品名
1	50610-TA2-H00	Bracket - RR. ENGINE MOUNTING
2	50620-TA2-H00	Bracket - ENGINE SIDE MOUNTING
3	50630-TA2-H00	Bracket - FR. ENGINE MOUNTING
4	50675-TA2-H00	Bracket - TRANSMISSION UPPER MOUNTING BASE
5	50810-TA2-H11	Rubber assy. - RR. ENGINE MOUNTING
6	50820-TA2-H11	Rubber assy. - ENGINE SIDE MOUNTING
6	50820-TA2-H12	Rubber assy.
7	50830-TA2-H11	Rubber assy. - FR. ENGINE MOUNTING
7	50830-TA2-H12	Rubber assy.
8	50835-TA0-A12	Stopper - FR. ENGINE MOUNT
9	50839-TA2-H01	Insulator - FR. ENGINE MOUNT HEAT
10	50850-TA2-H11	Rubber assy. - TRANSMISSION LOWER MOUNTING
11	50870-TA0-A13	Rubber assy. - TRANSMISSION UPPER MOUNTING
12	50910-TA2-H00	Tube - 3.5X320
13	50917-SV7-A00	Rubber - MOUNTING
14	50921-TA2-H00	Pipe assy. - SOLENOID VALVE
15	50922-TA2-H00	Pipe b - SOLENOID VALVE
16	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
17	50932-TA2-H01	Stay b - SOLENOID VALVE
18	50933-TA2-H01	Stay c - SOLENOID VALVE
19	50935-TA2-H01	Stay a - ELECTRONIC CONTROL MOUNT SOLENOID
20	50940-TA2-H00	Stay b - ELECTRONIC CONTROL MOUNT SOLENOID
21	50950-TA2-H02	Tube a - ELECTRONIC CONTROL MOUNT SOLENOID
22	50970-TA2-H01	Tube c - ELECTRONIC CONTROL MOUNT SOLENOID
23	90161-SDA-A01	Bolt - FLANGE, 12X45
24	90161-TA0-A01	Bolt - FLANGE, 10X25
25	90161-TA2-H00	Bolt - FLANGE, 12X135
26	90162-STK-A00	Bolt - FLANGE, 14X55
27	90162-TA0-A00	Bolt - FLANGE, 12X50
28	90163-SDA-A01	Bolt - FLANGE, 10X35
29	90163-S5A-000	Bolt - FLANGE, 10X20
30	90164-SAA-000	Bolt - FLANGE, 12X100
31	90164-S5A-010	Bolt - FLANGE, 12X40
32	90166-SDA-A00	Bolt - FLANGE, 12X80
33	90167-TA0-A00	Bolt - FLANGE, 12X40
34	90176-SKN-000	Bolt - FLANGE, 12X30
35	90176-S3Y-000	Bolt - FLANGE, 10X65
36	90176-TA0-A01	Bolt - FLANGE, 12X139
37	90371-SEF-000	Nut - FLANGE, 12MM
38	90371-S87-A00	Nut - FLANGE, 10MM
39	90382-SJA-000	Nut - FLANGE, 14MM
40	90601-PB1-003	Clamp - TUBE, 3.5
41	90651-TA2-H01	Clip A - TUBE
43	91531-SZ5-003	Clip - TUBE, 3.5
47	90017-RPK-000	Bolt - SPECIAL, 8X40
48	50933-S3X-003	Clamp - TUBE
49	50960-TA2-H01	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID

Engine wire harness (2.0L) 34

#	OEM	部品名
1	32107-R70-A01	Holder - CORRUGATED (DARK BROWN) (7MM)
2	32110-R60-U00	Harness - ENGINE WIRE
2	32110-R60-U50	Harness - ENGINE WIRE
3	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)
4	32116-RGA-003	Holder - CORRUGATED (DARK GREEN) (13MM)
5	32116-R60-U00	Holder - STARTER CABLE
6	32118-PLM-A01	Holder - CORRUGATED TUBE (DARK GREEN) (19MM)
7	32119-R40-003	Holder - CORRUGATED (BLACK) (19MM)
8	32119-R60-003	Holder - CORRUGATED (BLACK) (15MM)
9	32120-RNA-000	Cover assy. - ENGINE WIRE HARNESS
10	32124-R60-003	Holder - CORRUGATED (DARK BROWN) (22MM)
11	32127-RNA-A00	Holder comp. a - ENGINE HARNESS
12	32128-RNA-A00	Holder comp. b - ENGINE HARNESS
13	32128-RRC-300	Holder - ENGINE HARNESS MISSION
14	32129-RZP-G00	Holder c - ENGINE HARNESS UPPER
15	32130-RNA-A00	Holder c - ENGINE HARNESS LOWER
16	32131-RNA-A00	Holder d - ENGINE HARNESS
17	32133-R60-U50	Holder f - ENGINE HARNESS
18	32142-R60-U00	Holder h - ENGINE HARNESS
19	32418-PND-300	Cover - BATTERY TERMINAL
20	32601-SK7-900	Bolt - BATTERY TERMINAL
21	32602-SK7-900	Nut - BATTERY TERMINAL
22	90051-RGA-003	Bolt - SPECIAL, 6X20.8
23	90501-SS8-A01	Retainer
24	91501-P8A-A01	Stud
25	91505-R40-004	Clip - ENGINE HARNESS(5WAY)
26	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
27	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
28	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
29	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
30	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
31	91558-SM4-003	Clip - TUBE(BLACK)(135MM)
32	91601-P8A-A01	Receptacle
33	91705-RB0-000	Cover - ENGINE CONTROL MODULE COUPLER

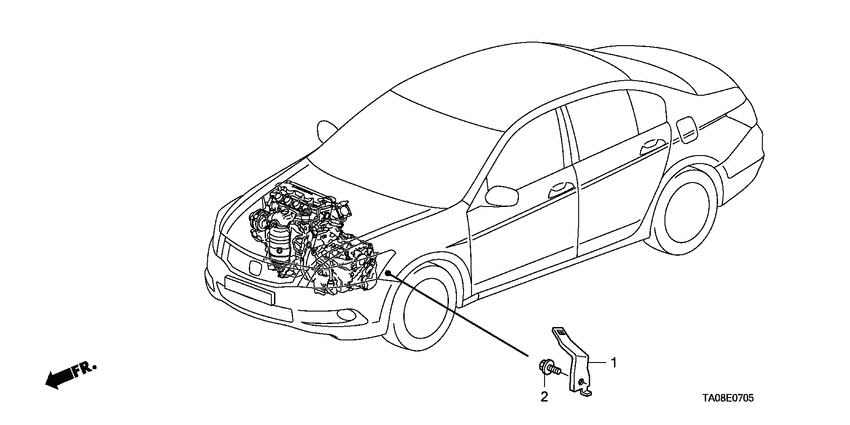

Engine wire harness stay (2.0L) 1

#	OEM	部品名
1	32741-R60-U00	Stay a - ENGINE HARNESS

Exhaust pipe (2.0L) 15

#	OEM	部品名
1	18210-TA2-M11	Pipe a - EX.
1	18210-TA2-M02	Pipe a - EX.
2	18213-TA2-M00	Stay - EX.
3	18215-S84-A20	Rubber - EX. MOUNTING
4	18215-TA0-A01	Rubber - EX. MOUNTING
5	18215-TA0-A21	Rubber - EX. MOUNTING
6	18302-SP0-003	Gasket - EX. PIPE
7	18307-TA2-M02	Silencer comp - EX.
8	18310-TA1-A03	Finisher - EX.
9	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
10	74601-TA0-A00	Plate a - FR. FLOOR HEAT BAFFLE
11	74602-TA0-A00	Plate b - FR. FLOOR HEAT BAFFLE
12	74654-TA1-A00	Plate - R. SILENCER BAFFLE
13	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
14	90212-SA5-003	Nut - SELF-LOCK, 10MM

Floor mat 9

#	OEM	部品名
1	74251-TA0-A00	Insulator - DASHBOARD OUTER
2	74260-TA0-A00	Insulator - DASHBOARD
4	83303-TA0-003	Hook
13	83650-SHJ-A01	Holder - FLOOR MAT
22	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
23	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
24	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)
25	91560-S6A-003	Clip - DOOR LINING(ORANGE)
26	91560-SLA-003	Clip - GARNISH (SEAL)

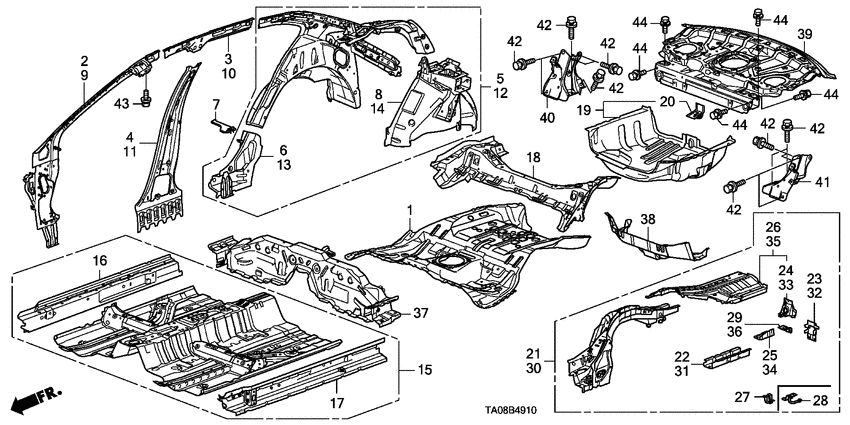

Floor/inner panels 2

#	OEM	部品名
7	64322-TA0-A01	Separator - RR. WHEEL ARCH
42	90101-SFE-000	Bolt-washer - 8MM

Front brake 22

#	OEM	部品名
1	01463-S87-A00	Front Caliper Seal Set
2	06455-S0K-J00	Shim set - FR.
3	43352-SM4-951	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW
5	44300-TA0-A51	Bearing assy - FR. HUB
6	44600-TA0-A00	Hub assy - FR.
7	45018-SEA-J02	Caliper sub-assy. Rh. Front
8	45019-SEA-J02	Caliper sub-assy. Lh. Front
9	45022-SEA-J11	Pad set - FR.
10	45216-SM4-003	Piston
11	45235-S0K-A01	Pin a
12	45237-S0K-A01	Retainer
13	45240-SM4-003	Bolt - FLANGE, 10X24
14	45251-TA1-A00	Disk - FR. BRAKE
15	45255-TA0-A00	Guard - FR. SPLASH
16	45262-S0K-A01	Pin b
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
18	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-SD4-901	Bolt - WHEEL (MEIRA)
18	90113-SD4-902	Bolt - WHEEL (SAGA)
18	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)
19	90681-SJK-000	Circlip - INTERNAL, 91MM

Front bulkhead/dashboard 3

#	OEM	部品名
31	74250-SJA-A00	Cover - VIN PLATE
32	90105-SV1-000	Bolt-washer - 8X20
33	90671-SHJ-A02	Rivet - VIN PLATE

Front door glass/ regulator 14

#	OEM	部品名
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY
2	72210-TC0-T02	Regulator assy - R. FR. DOOR POWER
3	72230-TA1-J01	Sash - R. FR. DOOR FR. LOWER
4	72231-TA0-A01	Sash - R. FR. DOOR CENTER LOWER
5	72235-TC0-003	Runchannel - R. FR. DOOR
6	72250-TC0-T12	Regulator assy - L. FR. DOOR POWER
7	72270-TA1-J01	Sash - L. FR. DOOR FR. LOWER
8	72271-TA0-A01	Sash - L. FR. DOOR CENTER LOWER
9	72275-TC0-003	Runchannel - L. FR. DOOR
10	73300-TA1-U00	Glass assy - R. FR. DOOR (GREEN) (ASAHI)
11	73350-TA1-U00	Glass assy - L. FR. DOOR (GREEN) (ASAHI)
12	90021-SFA-000	Bolt - FLANGE, 6X10
13	90115-SFE-003	Bolt - FLANGE, 6X12
14	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)

Front door lining (LH) 14

#	OEM	部品名
1	33301-S70-003	Bulb - 12V 3.8W 2CP
2	34261-SDA-A01	Lens
3	35190-TA0-A11	Switch assy - REMOTE CONTROL MIRROR
4	35750-TA0-W02	SWITCH, POWER WINDOW MASTER - LHD
5	35760-TA0-W01	Switch assy - POWER WINDOW ASSISTANT
6	72225-TA0-A00	Bracket assy - FR. DOOR LINING
7	72335-TC0-T01	Weatherstrip - R. FR. DOOR INNER
8	72375-TC0-T01	Weatherstrip - L. FR. DOOR INNER
22	90021-SFA-000	Bolt - FLANGE, 6X10
23	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
24	90146-SR3-000	Clip - HEADREST COVER
25	90662-SB2-003	Grommet - SCREW, 5MM
26	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
27	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

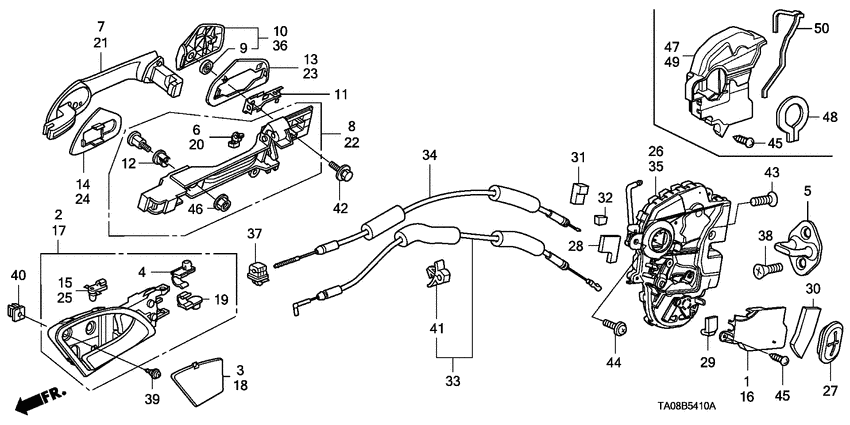

Front door locks/ outer handle 37

#	OEM	部品名
1	72110-TA0-A12	Latch assy - R. FR. DOOR POWER
1	72110-TA0-A11	Latch assy - R. FR. DOOR POWER
3	72118-SJK-003	Screw - TAPPING
6	72131-TA0-A01	Cable - FR. INSIDE HANDLE
7	72133-TA0-A01	Cable - FR. DOOR LOCK
8	72174-SHJ-003	Clip t - CABLE END (BLACK)
8	72134-SHJ-003	Clip s - CABLE END (NATURAL)
9	72135-SDA-A01	Striker assy - DOOR LOCK
10	72141-SD4-004	Bush - R. JOINT
12	72142-TA0-A01	Base comp. R.
13	72143-S04-003	Packing
15	72144-SJD-003	Retainer
16	72144-TA0-A11	Holder comp
18	72146-TA0-A61	Collar
19	72146-TA0-A71	Seat b - R.
20	72146-TA0-A91	Seat a - R.
21	72149-SLA-003	Snap - R.(NATURAL)
22	72150-TA0-A21	Latch assy - L. FR. DOOR POWER
22	72150-TA0-A22	Latch assy - L. FR. DOOR POWER
27	72181-SD4-004	Bush - L. JOINT
29	72182-TA0-A01	Base comp. - L.
31	72185-TA0-A01	Cylinder - L. DOOR
32	72186-TA0-A71	Seat b - L.
33	72186-TA0-A91	Seat a - L.
34	72189-SLA-003	Snap - L.(BLACK)
40	74387-S3C-003	Fastener
41	90120-SV4-000	Bolt - LOCK STRIKER
42	90141-SDA-000	Screw - TAPPING, 5X12
43	90662-SB2-003	Grommet - SCREW, 5MM
44	91591-SJ6-013	Clip s - FUEL PIPE
45	91691-TA0-003	Clip - DOOR CABLE
51	72112-TL2-A01	Protector - R. DOOR LATCH
52	72117-TL2-A01	Seal
53	72118-TA0-003	Seal
54	72118-TL0-003	Seal
55	72119-TL2-A01	Seal
56	72152-TL2-A01	Protector - L. DOOR LATCH

Front door panels 15

#	OEM	部品名
9	72142-SWA-A00	Stopper - DOOR
10	72310-TA0-A01	Weatherstrip - R. FR. DOOR
11	72321-TA0-A01	Seal - R. FR. DOOR HOLE
12	72340-TA0-A01	Checker comp. - R. FR. DOOR
13	72350-TA0-A01	Weatherstrip - L. FR. DOOR
14	72361-TA0-A01	Seal - L. FR. DOOR HOLE
15	72380-TA0-A01	Checker comp. - L. FR. DOOR
16	75891-SA7-000	Stopper - DOOR
17	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
18	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
18	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
19	90141-S04-000	Bolt - FLANGE, 8X22
20	90651-S4N-003	Clip
21	91568-SJA-003	Clip - DOOR WEATHERSTRIP
22	91651-S84-A01	Seal - DOOR PANEL HOLE

Front driveshaft/half sha ft (2.0L) 42

#	OEM	部品名
1	44014-TA0-A51	Joint set - OUTBOARD
1	44014-TA0-A01	Joint set - OUTBOARD
2	44017-TA0-A50	Boot set - INBOARD
2	44017-TA0-A51	BOOT SET, INBOARD
2	44017-TA0-A00	Boot set - INBOARD
3	44018-TA0-A51	Boot set - OUTBOARD
3	44018-TA0-A52	BOOT SETOUTBOARD
3	44018-TA0-A01	Boot set - OUTBOARD
4	44305-TA2-J50	Driveshaft assy. - R.
4	44305-TA2-J00	Driveshaft assy. - R.
5	44306-TA2-J50	Driveshaft assy. - L.
5	44306-TA2-J00	Driveshaft assy. - L.
6	44310-SMT-G00	Joint comp - INBOARD
6	44310-S0A-300	Joint comp - INBOARD
7	44310-TA0-306	Joint set - INBOARD
7	44310-TA0-305	Joint set - INBOARD
8	44319-SE0-000	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44327-S04-A01	Band b - DRIVESHAFT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)
13	44329-S04-A01	Band c - DRIVESHAFT (NIPPON HATSUJO)
14	44337-SB0-300	Ring b - STOPPER
14	44337-SA2-300	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM
15	44338-SA2-300	Circlip - 24MM
16	44351-SNW-003	Damper, DYNAMIC
16	44351-TA0-A01	Damper - DYNAMIC
17	44351-TA2-901	Damper - DYNAMIC
17	44351-SYR-003	Damper - DYNAMIC
18	44500-TA2-J10	Shaft assy - HALF
18	44500-SMA-J00	Shaft assy - HALF
19	90102-SF1-000	Bolt - HEX., 10X1.25
20	90168-S5A-000	Bolt - FLANGE, 12X35
21	90305-S3V-A11	Nut - SPINDLE
22	90681-SR3-000	Circlip - EXTERNAL, 33MM
23	91057-SR3-008	Bearing - HALF SHAFT(NTN)
24	91260-SR3-003	Seal - HALF SHAFT OUTER(NOK)
24	91260-SDB-A01	Seal - HALF SHAFT OUTER(NOK)

Front fenders 13

#	OEM	部品名
3	74100-TA0-A01	Fender assy - R. FR. INNER
4	74105-TA0-A10	Enclosure - R. FR. FENDER
5	74110-TA2-M00	Cover assy. - ENGINE UNDER
7	74150-TA0-A01	Fender assy - L. FR. INNER
8	74155-TA0-A10	Enclosure - L. FR. FENDER
9	74206-TA0-A10	Garnish - R. FR. FENDER
10	74207-TA0-A00	Garnish - L. FR. FENDER
11	90108-SF1-000	Bolt-washer - 6X15
12	90682-SEA-003	Clip - TAPPING SCREW, 5MM
13	91505-S9A-003	Clip A - BUMPER
14	91506-S9A-003	Clip b - BUMPER
15	91512-SX0-003	Clip - INNER FENDER CLIP
16	91533-SG0-000	Clip b - FAIRING

Front grille 9

#	OEM	部品名
1	71121-TA0-A00	Base - FR. GRILLE
2	71123-TA0-A00	Cover - FR. GRILLE
3	71126-TA0-A00	Molding - FR. GRILLE
4	74175-SJA-000	Cushion - HOOD
5	75700-TA0-A00	Emblem - FR. (H)
6	90301-ST0-003	push nut, 3mm
7	91505-S9A-003	Clip A - BUMPER
8	91506-S9A-003	Clip b - BUMPER
9	91512-SX0-003	Clip - INNER FENDER CLIP

Front knuckle 16

#	OEM	部品名
1	42524-SNA-003	Clip - COUPLER (BLACK)
2	44348-TA0-A00	Ring - FR. KNUCKLE
3	51210-TA0-020	Knuckle comp - R. FR.
4	51215-TA0-020	Knuckle comp - L. FR.
5	51220-TA0-A02	Joint comp - FR. LOWER BALL
6	51225-TA0-A01	Boot - FR. LOWER BALL DUST
7	51226-TA0-A01	Circlip - LOWER BALL(FR.)
8	51464-S04-013	Boot, UPPER BALL JOINT
9	51510-TA0-A03	F/UPPER ARM RH - R. FR. UPPER
10	51520-TA0-A03	F/UPPER ARM LH - L. FR. UPPER
11	52338-SL0-003	Circlip - CONTROL ARM
12	57450-TA0-A01	Sensor assy - R. FR.
13	57455-TA0-A01	Sensor assy - L. FR.
14	90172-SDA-A00	Bolt - FLANGE, 10X78
15	90309-SJA-000	Nut - CASTLE, 14MM
16	90321-SE0-000	Nut - UPPER BALL PIN, 10MM

Front lower arm 19

#	OEM	部品名
1	51271-TA0-A01	Fork - R. FR. SHOCK ABSORBER
2	51281-TA0-A01	Fork - L. FR. SHOCK ABSORBER
3	51300-TA0-A01	Spring - FR. STABILIZER
4	51306-TA0-A01	Bush - FR. STABILIZER HOLDER
5	51308-SDA-A00	Bracket - FR. STABILIZER
6	51320-TA0-A01	Link comp - R. FR. STABILIZER
7	51325-TA0-A01	Link comp - L. FR. STABILIZER
8	51350-TA0-A00	Arm comp - R. FR. LOWER
9	51360-TA0-A00	Arm comp - L. FR. LOWER
10	51391-TA0-A01	Bush - FR. COMPLIANCE
11	51393-SDA-A02	BUSH, FR. ARM (LOWER)
12	51810-TA0-A01	Bush - SHOCK ABSORBER FORK
14	90002-S10-000	Nut - FLANGE, 10MM
15	90117-S0A-000	Bolt - DAMPER LOCK(10X44)
16	90118-TA0-A10	Bolt-washer - 12X92
17	90119-SFE-000	Bolt - FLANGE, 14X100
18	90121-S0A-000	Bolt - DAMPER FORK(12X98)
19	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
20	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)

Front seat (L.; LH) 6

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
10	81291-TA0-A01	Clip
13	81527-TA0-K01	Pad comp - L. FR. SEATBACK
15	81537-TA0-A01	Pad comp - L. FR. SEAT CUSHION
25	90134-SE3-003	Screw - TAPPING, 5X10
27	90610-S10-003	Clip - GARNISH

Front seat (R.; LH) 6

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	81127-TA0-K01	Pad comp - R. FR. SEATBACK
9	81137-TA0-A01	Pad comp - R. FR. SEAT CUSHION
23	81291-TA0-A01	Clip
24	90134-SE3-003	Screw - TAPPING, 5X10
26	90610-S10-003	Clip - GARNISH

Front seat components (L.; MANUAL HEIGHT) 9

#	OEM	部品名
2	81261-TA0-A01	Cap - RAIL END UPPER
3	81271-TA0-A01	Protector - LOWER
4	81273-TA0-A01	Lever - FR. SEAT SLIDE
6	81526-TA0-K02	Frame comp - L. FR. SEAT
13	81675-TA0-A01	Holder - SPRING
14	81676-TA0-A01	Spring - HANDLE(R.)
15	81677-TA0-A01	Spring - HANDLE(L.)
17	90134-SE3-003	Screw - TAPPING, 5X10
18	90135-S7A-J51	Bolt-washer - 10X25

Front seat components (R.; MANUAL SEAT) 18

#	OEM	部品名
5	81126-TA0-K02	Frame comp - R. FR. SEAT
12	81261-TA0-A01	Cap - RAIL END UPPER
13	81271-TA0-A01	Protector - LOWER
14	81273-TA0-A01	Lever - FR. SEAT SLIDE
15	81281-STK-A01	Spring - FR. SEAT SWS
16	81282-STK-A01	Spacer - SWS(B)
17	81283-STK-A01	Spacer - SWS(A)
18	81675-TA0-A01	Holder - SPRING
19	81676-TA0-A01	Spring - HANDLE(R.)
20	81677-TA0-A01	Spring - HANDLE(L.)
21	90135-S7A-J51	Bolt-washer - 10X25
22	90351-SNA-A01	Nut - TORX(M10)
23	91052-SNA-A01	Bush - SWS(B)(NATURAL)
24	91053-SNA-A01	Bush - SWS(A)(BLACK)
25	91152-STK-A01	Collar - SWS(B)
26	91153-STK-A01	Collar - SWS(A)
35	81109-TA0-K01	Spacer comp
36	81136-TA0-K01	Frame comp - R. FR. SEAT

Front shock absorber 24

#	OEM	部品名
1	51401-TA0-A03	Spring - FR.
1	51401-TA0-A13	Spring - FR.
2	51610-TA0-P03	Absorber assy - R. FR. SHOCK
2	51610-TA0-P15	Absorber assy - R. FR. SHOCK
3	51611-TA0-P02	Absorber unit - R. FR. SHOCK
4	51620-TA0-P03	Absorber assy - L. FR. SHOCK
4	51620-TA0-P15	Absorber assy - L. FR. SHOCK
5	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
6	51621-TA0-P02	Absorber unit - L. FR. SHOCK
7	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8	51675-TA0-A11	Base - FR. SHOCK ABSORBER MOUNTING
10	51684-SDA-A02	Mount - FR. DUST COVER LOWER
11	51685-SR0-004	Plate - DUST COVER (A.S.I. SHOWA)
11	51685-SH3-014	Plate - DUST COVER(SHOWA)
12	51686-TA0-A01	Rubber - FR. SPRING MOUNT
13	51688-SDA-A01	Sleeve - FR. DUST COVER
14	51689-SDA-A01	Cover - FR. END DUST
15	51689-SH3-004	Plate - BUMP STOP (SHOWA)
16	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
16	51722-TA5-A01	Rubber - FR. BUMP STOPPER (SHOWA)
17	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
17	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
18	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front sub frame/rear beam (LH) 26

#	OEM	部品名
1	50200-TA2-H01	Sub frame comp. - FR.
2	50220-TA0-A00	Stiffener - STEERING GEAR BOX
4	50260-TA0-A01	Rubber - FR. SUB FRAME MOUNTING
5	50261-TA0-A01	Rubber - FR. SUB FRAME STOPPER
6	50265-TA0-A00	Stay - R. FR. SUB FRAME MOUNTING(FR.)
7	50266-TA0-A00	Stay - L. FR. SUB FRAME MOUNTING(FR.)
8	50275-TA0-A00	Stay - FR. SUB FRAME MOUNTING (RR.)
9	50280-SDA-A01	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING
10	50285-SDA-A01	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING
11	50300-TA0-A50	Sub frame assy. - RR. SUSPENSION
12	50360-TA0-A01	Rubber - RR. SUB FRAME FR. MOUNTING
13	50365-TA0-A00	Stay - RR. SUB FRAME MOUNTING (FR.)
14	50370-TA0-A01	Rubber - RR. SUB FRAME RR. MOUNTING
15	50375-TA0-A00	Washer - RR. SUB FRAME MOUNTING
16	50420-TA0-A01	Damper - FR. SUB FRAME RR. DYNAMIC
17	50680-TA0-A00	Base - RR. ENGINE MOUNTING
19	90176-S5A-000	Bolt - FLANGE, 10X30
20	90166-TA0-A00	Bolt - FLANGE, 8X16
21	90167-TA0-A00	Bolt - FLANGE, 12X40
22	90170-SDC-A00	Bolt - FLANGE, 10X34
23	90174-SMG-E01	Bolt - FLANGE, 14X67
24	90175-TA0-A00	Bolt - FLANGE, 14X100
25	90176-SDA-A00	Bolt - FLANGE, 14X135
26	90177-SDA-A00	Bolt - FLANGE, 14X150
27	90186-SDA-A00	Bolt - FLANGE, 12X33
28	90396-S5A-010	Bolt - FLANGE, 12X75

Front windshield 7

#	OEM	部品名
2	73111-TA0-A10	Glass set - FR. WINDSHIELD (GREEN) (ASAHI)
3	73125-TA0-000	Seal - FR. WINDSHIELD UPPER
4	73126-TA0-000	Rubber a - FR. WINDSHIELD DAM
5	73127-TA0-000	Rubber b - FR. WINDSHIELD DAM
6	73150-TA0-A01	Molding - FR. WINDSHIELD
7	76441-S84-A01	Spring
8	91568-TA0-A00	Clip, FR. Windshield (Upper)

Front windshield wiper (LH) 23

#	OEM	部品名
1	76505-TA0-A02	Motor comp - FR. WIPER
2	76516-SDA-A01	Rubber - MOUNTING
3	76516-SJK-003	Rubber - MOUNTING
4	76516-SM4-003	Rubber - MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS
6	76517-SJK-003	Collar
7	76517-SM4-003	Collar
8	76520-TA0-A01	Link assy. a
9	76524-SD4-003	Dust seal
10	76524-SL0-A01	Dust seal
11	76530-TA0-A01	Link comp - FR. WIPER
12	76540-TA0-A01	Rod unit a
13	76550-TA0-A01	Rod unit b
14	76561-SEA-003	Cap - PIVOT
15	76600-TA0-A01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76610-TA0-A01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-TA0-A01	Blade - WINDSHIELD WIPER (650MM)
18	76622-STK-A01	Rubber - BLADE (650MM)
18	76622-STK-A02	BLADE RUBBER
19	76630-TA0-A01	Blade - WINDSHIELD WIPER(475MM)
20	76632-TA0-A01	Rubber - BLADE(475MM)
21	90126-SR3-000	Bolt-washer - 6X32
22	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)

Fuel injector (2.0L) 11

#	OEM	部品名
1	16450-RZP-003	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR
3	16620-R60-U01	Pipe comp - FUEL
4	16640-RNA-A00	Cover - FUEL PIPE
5	16722-R60-U01	Hose comp. - FUEL FEED
6	16725-R40-A00	Holder a - FUEL CONNECTOR (BEIGE)
7	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING
8	17711-S0X-A31	Retainer - GREEN)(TOKAI
9	90027-RNA-A00	Bolt - FUEL PIPE
10	91301-PLC-000	O-ring - 7.47X3.6
11	91302-PNA-003	O-ring - 7.45X3.61(NOK)

Fuel pipe (L4) 20

#	OEM	部品名
1	16050-TA0-G00	Pipe assy. - FUEL
2	16723-R40-A00	Stay assy - FUEL FEED HOSE
3	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)
4	16725-R40-A00	Holder a - FUEL CONNECTOR (BEIGE)
6	17711-S84-004	Retainer - WHITE)(SANOH
8	17717-TA0-G50	Hose assy - FUEL PURGE
9	17761-TA0-A00	Stay a - FUEL PIPE
11	17762-TA0-A00	Stay b - FUEL PIPE
12	90150-S04-003	Bolt - EARTH, 6X16
13	91405-SDA-000	Clamp - TUBE(D10.5)
14	91407-SDB-000	Clamp - TUBE (D12.5)
15	91515-SDA-A01	Clip - HOOD LOCK COVER
16	91591-TA0-A01	Clamp a - FUEL PIPE(BLACK)
17	91592-TA0-G01	Clamp - FUEL PIPE
18	91594-TA0-G00	Rubber a - FUEL PIPE INSULATOR
19	91595-TA0-G00	Rubber b - FUEL PIPE INSULATOR
20	91596-TA0-G01	Clamp c - FUEL PIPE
21	91597-TA0-G01	Clamp d - FUEL PIPE
22	91598-TA0-G01	Clamp e - FUEL PIPE
23	91599-TA0-G01	Clamp f - FUEL PIPE

Fuel tank (KU/KW) 32

#	OEM	部品名
1	17044-TA0-G00	Tank set - FUEL
2	17045-TA0-G00	Module set - FUEL PUMP
3	17046-SWE-T00	Nut & packing set - FUEL LOCK
4	17047-TA0-000	Meter set
5	17048-TA0-000	Strainer set - FUEL
6	17052-TA1-000	Regulator set - PRESSURE
7	17508-TA0-G01	Clip - FUEL VENT
8	17512-TA0-A01	Cushion - FUEL TANK
9	17513-TA0-A00	Circlip - PROTECTOR
10	17518-TA0-A00	Protector - FUEL TANK
11	17521-TA0-A00	Band - R. FUEL TANK MOUNTING
12	17522-TA0-A00	Band - L. FUEL TANK MOUNTING
13	17525-SM4-000	Bolt-washer - 10X35
14	17651-TA0-G01	Tube comp - FILLER NECK
15	17652-SDA-A31	Clip - FILLER TUBE
16	17652-SEL-003	Clip - FILLER TUBE (39MM)
17	17653-TA0-G01	Tube assy - BREATHER
19	17668-TA0-A02	Cover - FUEL FILLER PIPE
20	17670-SJA-013	Cap comp. FUEL FILLER
20	17670-T3W-003	CAP, FUEL FILLER
21	17710-TA0-G00	Tube assy - FUEL VENT
22	74660-TA0-A00	Cap assy. - FLOOR MAINTENANCE HOLE
23	90150-S04-003	Bolt - EARTH, 6X16
24	90361-TA0-A00	Nut - CAP, 6MM
25	91404-TA0-G01	Clamp - FUEL TUBE (D10)
26	91462-SDA-003	Clamp - FUEL TUBE (D18)
27	91512-SX0-003	Clip - INNER FENDER CLIP
28	91594-SNA-A01	Clip - FILLER CAP
29	91601-TA0-003	Clip - FUEL MAINTENANCE HOLE CAP
30	17661-TA0-G00	Protector assy - FUEL FILLER PIPE
32	17669-TA0-G01	Protector - FUEL FILLER PIPE
33	91593-TA0-G01	Clamp - BREATHER TUBE(BLACK)

Gasket kit (2.0L) 4

#	OEM	部品名
1	06110-R60-U00	Gasket kit - CYLINDER HEAD
2	06112-R96-000	Gasket kit - AT TRANSMISSION
3	06114-RNA-010	Gasket kit - CHAIN CASE
3	06114-RNA-Z00	Gasket kit - CHAIN CASE

Grommet (FRONT) 11

#	OEM	部品名
1	74827-SK8-003	Stopper - TRUNK LID
2	75826-634-300	Seal - INSIDE PANEL, 15MM
3	77964-TA0-A01	Clip - PROTECTOR(NATURAL)
5	90615-S5A-003	Plug - HOLE, 27X56
6	90826-SNA-003	Grommet - 25MM (BURRING)
7	90860-SA5-003	Plug - HOLE, 16MM
9	91611-TA0-003	Plug - FLOOR HOLE, 25MM
10	91612-TA0-003	Plug - FLOOR HOLE, 25MM
11	91613-SR3-003	Grommet - SUB FRAME, 15MM
12	91615-SH3-000	Cap - FLOOR HOLE, 49MM
13	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 4

#	OEM	部品名
1	82871-671-000	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90815-SNA-003	Grommet - 15MM
4	91606-SK7-003	Plug - BLIND, 25MM

Grommet (REAR) 9

#	OEM	部品名
1	74401-TA0-A00	Tape - R. SIDE SILL PROTECTION
2	74405-TA0-A00	Tape - L. SIDE SILL PROTECTION
3	82871-671-000	Grommet - DRAIN HOLE, 25MM
4	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
5	90615-S5A-003	Plug - HOLE, 27X56
6	90664-SB3-003	Grommet - SCREW, 5MM
7	90857-SDA-A00	Cap - WELD HOLE
8	91610-SD4-000	Plug - HOLE, 28MM
12	90830-TA0-003	Grommet - 30MM

Grommet (SIDE) 1

#	OEM	部品名
2	91616-SLE-000	Block - FR. PILLAR INNER LOWER

Harness band/bracket (LH) 37

#	OEM	部品名
1	30510-TA0-A01	Condenser comp. - 1.0 MICRO F
3	32120-R70-A01	Holder - CORRUGATED (BLACK) (25MM)
4	32121-TA0-A00	Bracket - CABIN WIRE HARNESS
6	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
7	32146-SH3-003	Connector - DIODE(2P)
10	32752-R40-A00	Stay - ENGINE HARNESS
11	91501-R40-A00	Cover - ENGINE CONTROL MODULE COUPLER(A,B)
12	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)
13	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
14	91508-STX-A00	Clip - HARNESS BAND(BLACK) (148MM)
16	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)
17	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
19	91533-STK-003	Clip - COUPLER(NATURAL)
21	91534-SWA-003	Clip - COUPLER(DARK GRAY)
23	91536-STK-003	Clip - RELAY HOLDER(NATURAL)
24	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
25	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
26	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
27	91545-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)
28	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
29	91549-STK-003	Holder - HARNESS (NATURAL) (113MM)
30	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)
32	91556-SM4-003	Clip - BAND (BLACK) (100MM)
33	91558-SAA-003	Clip - HARNESS BAND(30)(BLACK) (151.5MM)
34	91558-TA0-003	Clip - WIRE HARNESS(BLACK)
35	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
36	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
37	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
39	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
40	91661-TA0-003	Holder - HARNESS(BLACK)
41	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
42	91902-SJA-000	Plaster - WIRE HARNESS (25X50)
43	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
44	91902-S3N-003	Plaster - WIRE HARNESS (50X50)
45	91902-TA0-000	Plaster - WIRE HARNESS(25X100)
48	91506-SA5-000	Clip - WIRE HARNESS (BLACK) (WITH SEAL)
50	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)

Headlight 15

#	OEM	部品名
1	33100-TA0-D01	Headlight assy - R.
2	33105-S5N-C01	Nut - SPECIAL
3	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
3	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
4	33116-S84-A01	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)
4	33116-S84-A11	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)
5	33126-TA0-A01	Cover - RUBBER
6	33150-TA0-D01	Headlight assy - L.
7	33301-SNA-003	Bulb - 12V 5W) (STANLEY
9	33301-TA0-Q01	Socket comp - T10
9	33301-TA0-D01	Socket comp - T10
10	33303-SAA-003	Socket comp - T20 S) (AMBER
11	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
14	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
14	90111-SM4-003	Bolt - BUMPER

Heater blower (LH) 12

#	OEM	部品名
1	79022-TA0-A01	Packing - AIR INTAKE
2	79305-TA0-A11	Blower sub assy.
3	79306-TA0-A01	Seal - BLOWER OUTER
4	79310-TA0-A01	Motor assy. - FAN
5	79315-TA0-A01	Cover assy. - BLOWER MOTOR
6	79350-TA0-A11	Motor assy. - FRESH & RECIRCULAR
7	80291-SDA-Y01	Plate assy. - BLOWER
11	90127-SX0-003	Screw - TAPPING, 4X16
12	90127-S84-003	Screw - TAPPING, 4X16
13	90132-SR3-003	Screw - TAPPING, 5X16
14	90155-SE0-003	Screw - TAPPING, 6X20
15	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

Heater control 2

#	OEM	部品名
5	79505-SNA-A01	Bulb a - NEO WEDGE (T4.2)
6	79506-SNA-A01	Bulb b - NEO WEDGE (T4.2)

Heater unit (LH) 36

#	OEM	部品名
1	39248-692-003	Packing - HEATER
2	77287-TA0-A00	Bracket - DRIVER INSTRUMENT CENTER LOWER COVER
3	79021-TA0-A01	Seal a
4	79023-TA0-A01	Packing set
5	79024-TA0-A01	Packing - RR. HEATER
6	79025-TA0-Y91	Packing - RR. VENT
7	79030-TA0-A01	Stay - HEATER PIPE
8	79102-TA0-A01	Duct assy - PASSENGER HEATER
9	79106-TA0-W21	Heater sub assy.
10	79107-TA0-A01	Cover - HEATER CORE
11	79109-TA0-A01	Insulator - EVAPORATOR LOWER
12	79115-TA0-A01	Core sub assy. - HEATER
13	79140-TA0-A11	Motor assy. - MODE
14	79160-TA0-A21	Motor assy. - AIR MIX (DRIVER SIDE)
16	79330-SNA-A01	Transistor - POWER
17	79731-S5A-000	Grommet - HEATER PIPE
18	80211-TA0-A01	Evaporator comp.
19	80221-TA0-A01	Valve assy. - EXPANSION
20	80222-TA0-A01	Seal - EXPANSION VALVE
21	80271-TA0-A00	Hose - DRAIN
24	80560-TA0-A01	Thermistor - AIR CONDITIONER
25	80566-SMA-003	Clip - EVAPORATOR SENSOR
26	80650-TA0-A10	Sub cord - AIR CONDITIONER
27	80871-ST7-000	O-ring - 5/8"
28	80872-ST7-000	O-ring - 1/2"
29	90122-TA0-A01	Screw - TAPPING, 4X14(PO)
30	90126-S5A-003	Bolt - SOCKET, 5X40
31	90127-SX0-003	Screw - TAPPING, 4X16
32	90127-S84-003	Screw - TAPPING, 4X16
33	90133-SR3-003	Screw-washer - 4X16
34	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
35	90661-S2A-003	Clip - DRAIN HOSE
36	91533-STK-003	Clip - COUPLER(NATURAL)
37	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)
38	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)
39	91580-SM4-003	Clip - COUPLER(ORANGE)

Idle shaft (L4) 5

#	OEM	部品名
1	22750-RXH-010	Pipe comp - LUBRICATION
2	23515-R90-000	Gear - IDLE
3	23516-RCL-A00	Shaft - IDLE
4	90431-PRP-000	Cotter - 17MM
5	90432-PRP-000	Retainer - COTTER

Instrument panel (LH) 11

#	OEM	部品名
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
8	77113-TA0-A00	Bracket - CENTER JOINT
14	77466-TA0-A00	Seal - FR. INSTRUMENT
17	90101-S6A-000	Bolt-washer - 8MM
18	90106-TA0-A00	Bolt-washer - 8X40
19	90110-S84-A00	Bolt-washer - 8X20
20	90111-TA0-A00	Bolt-washer - 8X68
21	90140-SDA-A00	Bolt-washer - 5X19
22	90321-SP0-A80	Nut-washer - 6MM
23	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
24	90669-SWA-A01	Clip - SNAP FITTING

Instrument panel garnish (DRIVER SIDE; LH) 7

#	OEM	部品名
3	77201-TA0-A01	Blind assy. - COLUMN
4	77205-TA0-A00	Bracket assy - METER VISOR
13	90101-S2K-000	Screw - TAPPING, 4X16(IT)
14	90666-SD4-003	Clip - FITTING
15	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
16	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)
17	91640-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 13

#	OEM	部品名
2	66418-SB2-000	Stopper - GLOVE BOX LID
10	77515-TA0-A01	Hinge - GLOVE BOX
11	77520-TA0-A01	Cylinder - GLOVE BOX
12	77531-TA0-Y01	Damper - GLOVE BOX
13	77532-TA0-A01	Collar
14	77541-TA0-A00	Striker comp. - GLOVE BOX
17	90139-SM4-003	Bolt-washer - 5X20
18	90140-SDA-A00	Bolt-washer - 5X19
19	90666-SD4-003	Clip - FITTING
21	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)
22	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)
23	91640-SM4-003	Grommet - SCREW, 4MM
26	77501-TA0-A01	Felt

Intake manifold (2.0L) 21

#	OEM	部品名
1	16725-PNA-003	Clamp a - FUEL HOSE
2	17100-R60-U00	Manifold comp - INTAKE
3	17101-R60-U00	Cover comp. - BYPASS VALVE
4	17102-RNA-A01	Packing - BYPASS VALVE COVER
5	17103-RNA-A01	Packing b - BYPASS VALVE
6	17104-RNA-A01	Packing a - BYPASS VALVE
7	17105-RNA-A01	Packing a - INTAKE MANIFOLD
8	17106-RNA-A01	Packing b - INTAKE MANIFOLD
9	17107-RNA-A01	Packing, throttle body
10	17108-RNA-A01	O-ring - 31.2X3.5
11	17113-RNA-A00	Stiffener - INTAKE MANIFOLD
12	17116-RNA-A00	Plate - THROTTLE FLANGE
13	17132-RNA-A00	Stay assy - INTAKE MANIFOLD
14	17150-RNA-A01	Actuator assy - BYPASS VALVE
15	17153-RCA-A01	Packing - BYPASS VALVE ACTUATOR
16	17210-RNA-A01	Valve assy. - BYPASS
17	17213-RNA-A00	Rubber - INTAKE MANIFOLD MOUNTING
18	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
19	37830-RNA-A01	Sensor assy - MAP
20	37835-PGK-A01	O-ring
21	90001-PGM-000	Bolt-washer - SPECIAL, 6X30

Interior light 16

#	OEM	部品名
2	34251-S5A-003	Lens
4	34253-671-003	Bulb - 12V 8W)(DAIICHI
4	04110-SWA-305	BULB T10X318W
5	34261-S5A-003	Lens comp
7	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI
7	34351-657-921	Bulb - 12V/5W) (STANLEY
8	34401-SDA-A01	Lens - R.
11	34402-SDA-A01	Lens - L.
12	34404-SDA-A02	Base comp.
15	83251-TA0-A01	Bush
16	83252-TA0-A01	Spring
17	83253-TA0-A01	Grommet - SCREW, 5MM
18	83254-TA0-A01	Screw - TAPPING, 5X12
19	83255-TA0-A01	Screw - TAPPING(3X8)
21	90148-S6A-013	Bolt - EARTH, 5X14
22	91560-TA0-A01	Clip - MAP LIGHT

L. side cover (L4) 41

#	OEM	部品名
1	21240-RCV-010	Cover comp., L. SIDE
2	21515-PPV-010	Stay e - HARNESS
3	21720-RCT-010	Cover comp. - POSITION SENSOR
3	21720-RCT-000	Cover comp. - POSITION SENSOR
4	21724-RCT-000	Rubber - POSITION SENSOR COVER
5	21725-RCT-000	Collar - POSITION SENSOR COVER
6	21812-PRP-030	Packing - L. SIDE COVER
7	22713-PW4-000	Guide a - FEED PIPE
8	22713-PX4-000	Guide a - FEED PIPE
9	22715-PRP-000	Pipe comp. b - FEED
10	22725-P6H-000	Pipe comp. b - FEED
11	24282-634-000	Bolt - SHAFT FORK SETTING
12	24532-PX4-000	Lever - PARKING BRAKE
13	24535-PRP-040	Spring - PARKING BRAKE
14	24539-PA9-003	Stopper - PARKING BRAKE (3)
14	24538-PA9-003	Stopper - PARKING BRAKE (2)
14	24537-PA9-003	Stopper - PARKING BRAKE (1)
15	24552-PRP-000	Spring - PARKING PAWL
16	24553-PN6-000	Roller - PARKING BRAKE
17	24555-PN6-000	Pin - ROLLER, 6MM
18	24561-PRP-010	Pawl - PARKING BRAKE
19	24562-PRP-000	Shaft - PARKING
20	28900-RPC-013	Sensor assy - POSITION
21	28950-RCL-A00	Harness - POSITION SENSOR
22	90004-PRH-010	Bolt - SPECIAL, 8X30
23	90005-PRH-010	Bolt - SPECIAL, 8X38
24	90024-612-000	Bolt - SEALING, 8MM
25	90433-639-000	Washer - LOCK, 6MM
26	90471-580-000	Packing - 8MM
27	90602-PX4-000	Circlip b - INTERNAL, 47MM
28	90702-PL4-000	Dowel pin - 8X44
29	91006-P1B-003	Bearing - BALL, 9X20X6
30	91103-RCL-023	Bearing - NEEDLE, 32X55X18.5
31	91201-PA9-004	Oil seal - 9X18X7 (ARAI)
32	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
33	91305-PC9-003	O-ring - 34X1.9 (ARAI)
34	91305-PX4-003	O-ring - 40X1.9 (NOK)
35	91311-PA9-004	O-ring - 7.7X1.9 (NOK)
36	91314-PW4-003	O-ring - 11X1.9 (NOK)
37	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
44	90001-RLJ-000	Bolt - FLANGE, 6X18

Main valve body (L4) 9

#	OEM	部品名
1	25145-PA9-010	Shaft - OIL PUMP GEAR
2	27000-RXH-000	Body assy - MAIN VALVE
3	27112-PRP-030	Plate - MAIN SEPARATING
4	27122-P6H-000	Cap - 12MM
5	27132-P6H-000	Cap - 14MM
6	27142-P6H-000	Cap - 15MM
7	27263-PX3-000	Seat - VALVE SPRING
8	27524-P6H-000	Clip - CAP
9	91108-PRP-003	Roller - 4X23.8

Mainshaft (L4) 49

#	OEM	部品名
1	23210-R88-000	Mainshaft comp.
1	22814-PRP-003	Ring - SEALING, 29MM
2	23261-PPP-000	Shaft - REVERSE GEAR
2	23210-RCL-010	Mainshaft comp.
3	23440-R88-000	Gear comp - MAINSHAFT THIRD
3	23461-R90-B00	Gear - MAINSHAFT FOURTH
4	23450-R88-000	Gear comp - MAINSHAFT FOURTH
4	23481-R00-000	Gear - MAINSHAFT FIFTH
5	23540-PPS-000	Gear comp - REVERSE IDLE
5	23511-R90-000	Gear - MAINSHAFT IDLE
6	23580-R88-000	Gear comp - MAINSHAFT FIFTH
6	90203-PX4-010	Nut - FLANGE, 24MM
7	23623-RZF-315	Sleeve set - SYNCHRONIZER (3-4)
7	90402-P0Z-000	Washer - SPRING, 24MM
8	23626-PPS-305	Sleeve set - SYNCHRONIZER (5)
8	90425-RCT-000	Washer - THRUST, 41X68X4.725
8	90420-RCT-000	Washer - THRUST, 41X68X4.600
8	90415-RCT-000	Washer - THRUST, 41X68X4.475
8	90427-RCT-000	Washer - THRUST, 41X68X4.775
8	90422-RCT-000	Washer - THRUST, 41X68X4.650
8	90417-RCT-000	Washer - THRUST, 41X68X4.525
8	90424-RCT-000	Washer - THRUST, 41X68X4.700
8	90419-RCT-000	Washer - THRUST, 41X68X4.575
8	90414-RCT-000	Washer - THRUST, 41X68X4.450
8	90426-RCT-000	Washer - THRUST, 41X68X4.750
8	90421-RCT-000	Washer - THRUST, 41X68X4.625
8	90416-RCT-000	Washer - THRUST, 41X68X4.500
8	90428-RCT-000	Washer - THRUST, 41X68X4.800
8	90423-RCT-000	Washer - THRUST, 41X68X4.675
8	90418-RCT-000	Washer - THRUST, 41X68X4.550
9	23641-PPP-000	Ring - BLOCKING, 66SZ
9	90501-PRP-000	Collar - 27X34X66.3
10	23647-PPP-000	Ring - TAPER CONE
10	90603-P0X-000	Set ring - 23MM
11	23651-PG1-000	Spring - SYNCHRONIZER (66)
11	91017-PZK-003	Bearing - NEEDLE, 23X29X18
12	23915-PPP-000	Collar - DISTANCE, 32X39X52
12	91018-PW7-A02	Bearing - THRUST NEEDLE, 34X46X2
13	23916-R88-000	Collar - DISTANCE, 28X40X24
13	91023-PCJ-003	Bearing - THRUST NEEDLE, 34X53.5X2.5
14	23927-PG2-A00	Washer - SPRING, 28MM
14	91026-PRP-003	Bearing - THRUST NEEDLE, 57.6X71X2
15	23928-PS1-000	Washer - 28MM
15	91107-PRP-003	Bearing - NEEDLE, 34X40X39.5
16	90401-PG1-000	Washer - DRAIN PLUG, 10MM
16	91109-PRP-003	Bearing - NEEDLE, 52X57X18
17	91002-RAS-003	Bearing - BALL, 28X72X18
17	91316-PR9-003	O-ring - 33X1.9 (ARAI)
18	91102-RZF-006	Bearing - NEEDLE, 39X44X24

Meter components 5

#	OEM	部品名
1	37115-SA0-601	Packing - NS
2	78100-TA2-W12	Meter assy - COMBINATION
2	78100-TA2-W02	Meter assy - COMBINATION
3	78156-TA0-A01	Lens - METER
4	91640-SM4-003	Grommet - SCREW, 4MM

Mirror (2) 17

#	OEM	部品名
1	34300-SJA-G02	Light assy - R. SIDE TURN
2	34350-SJA-G02	Light assy - L. SIDE TURN
7	76202-SJA-G01	Cover - R.
8	76204-TA0-Y01	Harness set - R. (R.C.)
9	76206-SJA-A01	Screw - TORX, 5X11
10	76206-TA0-R11	Control set - R. REMOTE
13	76210-SAP-J01	Actuator sub assy. - R.
14	76213-TA0-Y01	Mirror sub assy. - R. (R1400)
17	76252-SJA-G01	Cover - L.
18	76254-TA0-Y01	Harness set - L. (R.C.)
19	76256-TA0-R11	Control set - L. REMOTE
21	76260-SAP-J01	Actuator sub assy. - L.
22	76263-TA0-Y01	Mirror sub assy. - L. (R1400)
23	76400-SDA-A03	Mirror assy - RR. VIEW (DAY/NIGHT)
27	90145-SAA-J51	Screw - TAPPING, 4X14
28	90145-SCK-J01	Screw - TAPPING, 4X18
29	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

Molding 32

#	OEM	部品名
1	72410-TA0-A01	Molding assy. - R. FR. DOOR
2	72425-TA0-A01	Molding - R. FR. DOOR SASH
3	72430-TA0-A01	Garnish - R. FR. DOOR CENTER PILLAR
4	72431-TA0-000	Clip - SASH GARNISH
5	72450-TA0-A01	Molding assy. - L. FR. DOOR
6	72465-TA0-A01	Molding - L. FR. DOOR SASH
7	72470-TA0-A01	Garnish - L. FR. DOOR CENTER PILLAR
8	72910-TA0-A01	Molding assy. - R. RR. DOOR
9	72921-TA0-A01	Molding assy. - R. RR. DOOR SASH
10	72930-TA0-A01	Garnish - R. RR. DOOR CENTER PILLAR
11	72950-TA0-A01	Molding assy. - L. RR. DOOR
12	72961-TA0-A01	Molding assy. - L. RR. DOOR SASH
13	72970-TA0-A01	Garnish - L. RR. DOOR CENTER PILLAR
14	73152-TA0-A01	Molding assy. - R. DRIP SIDE
15	73154-TA0-A01	Clip A - WINDSHIELD
16	73155-TA0-A01	Clip b - WINDSHIELD
17	73156-TA0-A01	Clip c - WINDSHIELD
18	73157-TA0-A01	Clip d - WINDSHIELD
19	73162-TA0-A01	Molding assy. - L. DRIP SIDE
20	74510-TA0-A00	Cover assy. - R. MIDDLE FLOOR UNDER
21	74551-TA0-A00	Fender - R. RR. INNER
22	74560-TA0-A00	Cover assy. - L. MIDDLE FLOOR UNDER
23	74591-TA0-A00	Fender - L. RR. INNER
24	90103-TA0-000	Screw - TAPPING, 5X20
25	90141-TA0-A00	Screw - TAPPING, 4X10 (PO)
26	90149-SA0-003	Bolt - BUMPER
27	90207-RAA-A10	Nut - HEX. CAP, 6MM
28	90682-SDA-A01	Grommet - SCREW, 5MM
29	91503-STK-A01	Clip - DOOR MOLDING
30	91570-TA0-003	Clip A - FR. WINDSHIELD SIDE
31	91571-TA0-003	Clip b - FR. WINDSHIELD SIDE
32	91572-SDA-A01	Clip - ROOF MOLDING

Oil level gauge/ atf pipe (L4) 20

#	OEM	部品名
1	24901-R40-000	Cover - CONTROL WIRE
2	24902-RWK-900	Bracket - WIRE COVER
3	25213-RTA-007	Hose - ATF, 175MM
4	25430-PLR-003	Filter, ATF
5	25431-RAA-000	Stay a - ATF FILTER
6	25432-RWK-900	Stay comp. b - ATF FILTER
7	25610-RFK-013	Gauge comp. - ATF
9	25613-RCL-000	Pipe comp - ATF GAUGE
10	25615-RCL-003	Cap - ATF FILLER
11	25910-RXH-000	Pipe comp. a - ATF
12	25920-RXH-000	Pipe comp. b - ATF
13	25930-R00-000	Pipe comp. c - ATF
14	25950-RCL-000	Bolt comp - JOINT
15	25951-RGR-000	Bolt - JOINT
16	32745-R60-U50	Stay e - ENGINE HARNESS
18	32748-R60-U50	Stay h - ENGINE HARNESS
19	90471-RGR-000	Washer - DRAIN PLUG, 12MM
20	90635-PT0-802	Clip, Oil Pipe
20	90635-RV0-003	CLIP, OIL PIPE
21	91308-PH0-013	O-ring - 17.8X1.9 (NOK)

Oil pump (2.0L) 13

#	OEM	部品名
1	12513-P72-003	Plug - CYLINDER HEAD
2	15100-RZP-003	Pump assy. - OIL
2	15100-R1P-U01	PUMP ASSY OIL
3	15101-RNA-A00	O-ring set - OIL PUMP
4	15112-RNA-A00	Cover - CHAIN CASE
5	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)
5	15400-PLM-A02	OIL FILTER (HONEYWELL)
5	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
6	90009-RNA-A00	Bolt - SPECIAL, 8X65
7	90015-PH1-013	Holder - OIL FILTER
8	90021-PNA-000	Bolt - SPECIAL, 6X31
9	90041-RNA-A00	Bolt - STUD, 14X90
10	91212-RTA-003	Oil seal - 43X58X7 (NOK)

Outer panels/rear panel 12

#	OEM	部品名
10	63136-TA0-A01	Separator - R. FR. PILLAR INSIDE
11	63138-TA0-A01	Separator - FR. PILLAR OUTSIDE
13	63217-TA0-A01	Separator - R. CENTER PILLAR OUTSIDE
15	63229-TA0-A01	Separator - CENTER PILLAR INSIDE
18	63536-TA0-A01	Separator - L. FR. PILLAR INSIDE
20	63617-TA0-A01	Separator - L. CENTER PILLAR OUTSIDE
26	74480-TA0-A00	Adapter assy - FUEL CAP
27	74481-SNA-A00	Packing - FILLER PIPE
28	74490-TA0-A00	Grommet assy - FUEL CAP
29	74494-S3M-A00	Spring - FUEL LID OPEN
30	75450-SDE-T00	Outlet assy - RR. AIR
31	90147-634-003	Bolt - FENDER, 6X18

P.s. gear box (LH) 19

#	OEM	部品名
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)
2	53010-TA0-A01	End set - RACK
3	53434-TA0-A02	Clip - STEERING TIE ROD
4	53436-TA0-A01	Cushion b - GEAR BOX
5	53438-TA0-A00	Bracket b - STEERING GEAR BOX
6	53449-S84-A01	Band - BELLOWS
7	53502-TA0-A01	Grommet - STEERING
8	53534-TA0-A02	Dust seal - TIE ROD
9	53536-SJK-003	Washer - TIE ROD LOCK
10	53537-S3V-A01	Rubber - STOPPER
10	53537-S3N-003	Rubber - STOPPER
11	53540-TA0-A01	End comp - R. TIE ROD
12	53560-TA0-A01	End comp - L. TIE ROD
13	53601-TA0-A02	Box comp - POWER STEERING GEAR
14	53685-TA0-A01	Bush - STEERING GEAR BOX MOUNTING
17	90107-TA0-A00	Bolt-washer - 10X25
18	90108-TA0-A00	Bolt - FLANGE, 14X103
19	90505-TA0-A00	Washer - PLAIN, 14MM
20	91411-S84-A01	Nut - HEX., 14MM

P.s. gear box components (LH) 23

#	OEM	部品名
1	06531-TA0-A02	Seal kit a - POWER STEERING (ROTARY VALVE)
2	06532-S50-003	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	53413-SD4-951	Spring - RACK GUIDE PRESSURE
6	53414-S84-A01	Screw - RACK GUIDE
7	53416-TA0-A01	Guide comp - STEERING RACK
8	53449-S84-A01	Band - BELLOWS
9	53458-S84-A01	Nut - LOCK
10	53536-SJK-003	Washer - TIE ROD LOCK
11	53608-TA0-A01	Box sub assy. - POWER STEERING GEAR
12	53626-TA0-A01	Rack comp - STEERING
13	53630-TA0-A01	End comp - CYLINDER
14	53641-TA0-A01	Valve sub assy.
15	53645-TA0-A01	Housing comp - VALVE
16	53656-S84-A01	Circlip - EXTERNAL, 20MM
17	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)
18	53666-S50-003	O-ring - 41.5X2 (SHOWA)
19	53670-TA0-A01	Pipe comp. a - CYLINDER
20	53671-TA0-A01	Pipe comp. b - CYLINDER
21	53693-TA0-A01	Nut - SELF-LOCK
22	53694-TA0-A01	Bolt - BOTTOM
23	90105-S50-003	Bolt - FLANGE, 8X28

P.s. lines (LH; 2.0L) 24

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-TA2-003	Tank comp. - POWER STEERING OIL
3	53713-TA2-D05	Hose comp. - POWER STEERING FEED
3	53713-TA2-P05	Hose comp. - POWER STEERING FEED
4	53720-TA0-A00	Pipe comp. a - RETURN
5	53728-SDB-A01	Clip - RETURN PIPE
6	53728-S0X-A01	Clip - RETURN PIPE
7	53729-SS0-003	Clip - RETURN HOSE
8	53729-671-003	Clamp d - 15.5MM
9	53730-TA2-000	Clamp - FEED HOSE
10	53731-TA2-000	Tube - SUCTION
11	53732-TA0-A01	Hose - POWER STEERING OIL COOLER
12	53733-TA2-003	Hose - POWER STEERING OIL TANK
13	53734-TA0-A01	Hose - POWER STEERING RETURN
14	53736-SH3-950	Holder b - POWER STEERING PIPE
15	53736-TA0-A00	Holder - POWER STEERING PIPE
16	53737-TA0-A00	Holder - POWER STEERING HOSE
17	53765-TA0-000	Cooler comp - POWER STEERING OIL
18	53779-TA0-A00	Pipe comp. b - RETURN, 10MM
19	56490-PLA-A51	Switch assy - POWER STEERING PRESSURE(SAGINOMIYA)
20	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
21	91304-PA6-003	O-ring - 7.8X1.9
22	91370-TA0-000	O-ring - 14.4X1.9
23	91405-SS0-003	Clamp - TUBE (D21)

Parking brake (LH) 10

#	OEM	部品名
2	47342-TA0-A01	Switch - PARKING BRAKE
3	47360-SB2-000	Equalizer
4	47365-538-000	Pin - EQUALIZER
5	47510-TA0-A01	Wire - R. PARKING BRAKE
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING
7	47537-671-670	Spring - PARKING BRAKE ROD
8	47560-TA0-A01	Wire - L. PARKING BRAKE
9	47572-ST0-000	Base - WIRE GUIDE
11	47110-TA0-A01	Screw - TAPPING, 4X10
12	90104-TA0-003	Bolt - FLANGE, 8X22

Pedal (LH) 20

#	OEM	部品名
1	17800-TA0-A01	Pedal assy - ACCELERATOR
2	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)
2	36750-SDA-A02	Switch assy - STOP & CRUISE (TOYO)
3	36760-SM4-003	Switch assy - CLUTCH
4	46505-SA5-000	Pad - PEDAL STOPPER
5	46530-TL3-J81	Spring assy - PEDAL RETURN
6	46545-SA5-000	Cover, Pedal
7	46545-S84-A81	Cover - PEDAL
8	46590-TA0-A00	Stay - PEDAL STIFFENER
9	46600-TA0-A03	Pedal assy - BRAKE
9	46600-TA0-A83	Pedal assy - BRAKE
10	46910-TA0-A01	Pedal comp - CLUTCH
11	46911-SD4-930	Bush - PEDAL PIN
12	46982-TA0-A81	Bush - RETURN SPRING
13	46991-TA0-A80	Bracket - FOOTREST
14	46992-TA0-A81	Plate - FOOTREST
15	75891-611-000	Cover - DOOR SWITCH
16	90104-SFE-003	Bolt - FLANGE, 8X23
17	90361-SV4-003	Nut - PAINT CUTTING, 6MM
18	90361-S3C-003	Nut - PAINT CUTTING, 8MM

Pillar garnish (LH) 5

#	OEM	部品名
1	38205-TB0-H01	Label - DRIVER FUSE
2	38215-TB0-H10	Label - PASSENGER FUSE
18	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)
19	91560-SLJ-003	Clip - PILLAR GARNISH
20	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)

Plug hole coil/plug (2.0L) 6

#	OEM	部品名
1	12290-R60-U01	Plug - SPARK(IZFR6K11NS)(NGK)
1	12290-R60-U02	Plug - SPARK(SKJ20DR-M11S) (DENSO)
2	30511-RZP-G00	Insulator - COIL HEAT
3	30520-RNA-A01	Coil comp - PLUG HOLE
4	30522-RNA-A01	Seal - PLUG HOLE
5	90207-RAA-A10	Nut - HEX. CAP, 6MM

Power steering pump (2.0L) 21

#	OEM	部品名
1	56100-R60-T04	Pump assy. - POWER STEERING (L4)
1	56100-R60-T05	PUMP ASSY., POWER STEERING (L4)
1	56100-R60-P05	PUMP ASSYPSL4
2	56123-R60-T01	Joint - IN.
3	56483-R60-T01	Shaft comp. - POWER STEERING PUMP
3	56483-R60-T02	Shaft comp. - POWER STEERING PUMP
4	56992-R60-U02	Belt - POWER STEERING PUMP (MITSUBOSHI)
4	56992-R60-U01	Belt - POWER STEERING PUMP (BANDO)
5	90614-RFH-003	Ring - SNAP, 13MM
6	91249-R40-A01	Seal - POWER STEERING PUMP
7	91343-PLA-003	Seal - RUBBER
8	91344-PLA-003	Seal
9	91345-RJL-003	O-ring - 13.0X1.9
10	91345-R70-A11	O-ring - 14.8X1.9
11	91346-R40-A01	O-ring
12	91347-PAA-A01	O-ring - 16.7X1.8
13	91347-PLA-003	O-ring - 12.7X1.8
14	91348-R40-A01	O-ring - 57.2X1.9
15	91349-R40-A01	Seal - PUMP COVER
16	91350-P8C-A01	Bolt - FLANGE, 6X20
17	91350-R40-A01	Bolt - FLANGE, 8X40

Radiator (2.0L) 20

#	OEM	部品名
1	19010-R60-U01	Radiator comp - DENSO
1	19010-R60-U51	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19013-RZP-G01	Seal
5	19015-R60-U01	Shroud comp.
6	19020-R60-U01	Fan - COOLING
7	19030-R60-U01	Motor - COOLING FAN(DENSO)
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)
9	19046-RAA-A00	Label - RADIATOR CAP
10	32175-PDA-E01	Clip - HARNESS
11	37870-RTA-005	Sensor assy - WATER TEMP (DENSO)
12	38611-R60-U01	Fan - COOLING
13	38615-R60-U01	Shroud comp. - AIR CONDITIONER
14	38616-R60-U01	Motor - COOLING FAN(DENSO)
15	38619-R60-U01	Cover - FAN MOTOR
16	90041-P3G-003	Screw-washer - 5X11
17	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
18	90043-PD2-003	Nut - HEX., 5MM (DENSO)
19	91307-RTA-005	O-ring - DENSO

Radiator hose/reserve tan k (2.0L) 21

#	OEM	部品名
1	19101-R40-A00	Tank - RESERVE
2	19102-PM5-A00	Cap - RESERVE TANK
3	19103-R40-A00	Tube a - RESERVE TANK
4	19104-R40-A00	Tube b - RESERVE TANK
5	19106-RSA-G00	Joint - RESERVE TANK
6	19115-R40-A00	Bracket - RESERVE TANK
7	19501-R60-U01	Hose - WATER UPPER
8	19502-R60-U01	Hose - WATER LOWER
9	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
9	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
10	25212-RFE-006	Hose - ATF, 300MM(NICHIRIN)
11	25214-RAA-003	Hose - ATF, 370MM(BRIDGESTONE)
12	25215-RAA-003	Hose - ATF, 155MM(BRIDGESTONE)
13	25940-R60-000	Pipe comp. d - ATF
14	25941-R60-000	Plate - ATF HOSE GUARD
15	74171-TA0-A00	Bracket - R. RADIATOR UPPER MOUNTING
16	74172-TA0-A10	Cushion - RADIATOR MOUNTING LOWER
17	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
18	74176-TA2-A00	Bracket - L. RADIATOR UPPER MOUNTING
19	90635-PT0-802	Clip, Oil Pipe
19	90635-RV0-003	CLIP, OIL PIPE

Radio antenna/speaker (LH) 13

#	OEM	部品名
1	39120-SJC-A01	Speaker assy - TWEETER (STD.) (PIONEER)
2	39120-TA0-A01	Speaker assy - 17CM ND SINGLE) (PIONEER
3	39155-TA0-A01	Module unit - ANTENNA
4	39156-TA0-A01	Sub feeder - ANTENNA
5	39160-TA0-A01	Feeder assy. - RADIO
7	90109-SLJ-003	Screw - 5X40
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
9	90309-SLJ-003	Nut assy. - SPEAKER
10	91534-SWA-003	Clip - COUPLER(DARK GRAY)
11	91902-SJA-000	Plaster - WIRE HARNESS (25X50)
12	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
13	91902-S3N-003	Plaster - WIRE HARNESS (50X50)
14	91902-TA0-000	Plaster - WIRE HARNESS(25X100)

Rear brake 26

#	OEM	部品名
1	01473-TA0-A00	Rear Caliper Seal Set
1	01473-TA0-A51	CALIPER SEAL SET, REAR
2	06435-TA0-A00	Shim set - RR.
3	42200-TA0-A51	Bearing assy - RR. HUB UNIT
4	42510-TA0-A00	Disk - RR. BRAKE
5	43018-TA0-A51	Caliper sub assy. - R. RR.
6	43019-TA0-A51	Caliper sub assy. - L. RR.
8	43215-TA0-A51	Piston assy.
10	43244-TA0-A01	Retainer
10	43244-TA0-A02	Retainer
11	43247-TA0-J01	Arm - R.
12	43253-TA0-A00	Guard, RR. SPLASH
14	43267-TA0-J01	Arm - L.
15	43352-SM4-951	Screw - BLEEDER
16	43353-SD5-003	Cap - BLEEDER SCREW
17	45240-SC2-003	Bolt - FLANGE, 8X22
18	90103-SJK-000	Bolt - CALIPER MOUNTING
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-006	Bolt - WHEEL (SAGA)
20	90160-TA0-A00	Bolt-washer - 12X44
21	91352-TA0-A52	O-ring - 71X2.4 (UCHIYAMA)
21	91352-TA0-A51	O-ring - 71X2.4 (NOK)
24	43022-TA0-A51	Pad set - RR.
25	43235-S84-A51	Pin a
26	43262-S84-A51	Pin b

Rear door glass/regulator 15

#	OEM	部品名
2	72710-TA0-A01	Regulator assy - R. RR. DOOR POWER
3	72731-TA0-A01	Sash - R. RR. DOOR QUARTER
4	72735-TA0-A02	Runchannel - R. RR. DOOR
5	72750-TA0-A01	Regulator assy - L. RR. DOOR POWER
6	72771-TA0-A01	Sash - L. RR. DOOR QUARTER
7	72775-TA0-A02	Runchannel - L. RR. DOOR
8	73400-TA0-A00	Glass assy - R. RR. DOOR (GREEN) (ASAHI)
9	73405-TA0-A00	Glass - R. RR. DOOR QUARTER (GREEN) (ASAHI)
10	73441-TA0-A01	Seal - R. RR. DOOR QUARTER
11	73450-TA0-A00	Glass assy - L. RR. DOOR (GREEN) (ASAHI)
12	73455-TA0-A00	Glass - L. RR. DOOR QUARTER (GREEN) (ASAHI)
14	73491-TA0-A01	Seal - L. RR. DOOR QUARTER
15	90021-SFA-000	Bolt - FLANGE, 6X10
16	90115-SFE-004	Bolt - FLANGE, 6X12
17	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)

Rear door lining 8

#	OEM	部品名
1	35770-TA0-A11	Switch assy - RR. POWER WINDOW
2	72835-TA0-A01	Weatherstrip - R. RR. DOOR INNER
3	72875-TA0-A01	Weatherstrip - L. RR. DOOR INNER
16	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
17	90146-SR3-000	Clip - HEADREST COVER
18	90662-SB2-003	Grommet - SCREW, 5MM
19	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)
20	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

Rear door locks/ outer handle 30

#	OEM	部品名
4	72174-SHJ-003	Clip t - CABLE END (BLACK)
4	72134-SHJ-003	Clip s - CABLE END (NATURAL)
5	72135-SDA-A01	Striker assy - DOOR LOCK
6	72141-SD4-004	Bush - R. JOINT
8	72142-TA0-A01	Base comp. R.
9	72143-S04-003	Packing
11	72144-TA0-A11	Holder comp
12	72146-TA0-A61	Collar
13	72146-TA0-A71	Seat b - R.
14	72146-TA0-A91	Seat a - R.
15	72149-SLA-003	Snap - R.(NATURAL)
20	72181-SD4-004	Bush - L. JOINT
22	72182-TA0-A01	Base comp. - L.
23	72186-TA0-A71	Seat b - L.
24	72186-TA0-A91	Seat a - L.
25	72189-SLA-003	Snap - L.(BLACK)
26	72610-TC0-T11	Latch assy - R. RR. DOOR POWER
27	72612-SFA-000	Cap - CHILD LOCK
33	72631-TA0-A01	Cable - RR. INSIDE HANDLE
34	72633-TA0-A01	Cable - RR. DOOR LOCK
35	72650-TC0-T11	Latch assy - L. RR. DOOR POWER
37	74387-S3C-003	Fastener
38	90120-SV4-000	Bolt - LOCK STRIKER
39	90141-SDA-000	Screw - TAPPING, 5X12
40	90662-SB2-003	Grommet - SCREW, 5MM
41	91591-SJ6-013	Clip s - FUEL PIPE
47	72112-TL2-A01	Protector - R. DOOR LATCH
48	72119-TL2-A01	Seal
49	72152-TL2-A01	Protector - L. DOOR LATCH
50	72617-TL2-A01	Seal

Rear door panels 15

#	OEM	部品名
9	72810-TA0-A01	Weatherstrip - R. RR. DOOR
10	72821-TA0-A00	Seal - R. RR. DOOR HOLE
11	72840-TA0-A01	Checker comp. - R. RR. DOOR
12	72850-TA0-A01	Weatherstrip - L. RR. DOOR
13	72861-TA0-A00	Seal - L. RR. DOOR HOLE
14	72880-TA0-A01	Checker comp. - L. RR. DOOR
15	75891-SA7-000	Stopper - DOOR
16	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
16	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
17	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)
18	90141-S04-000	Bolt - FLANGE, 8X22
19	90651-S4N-003	Clip
20	90651-TA0-003	Clip - PANEL
21	91568-SJA-003	Clip - DOOR WEATHERSTRIP
22	91651-S84-A01	Seal - DOOR PANEL HOLE

Rear lower arm 37

#	OEM	部品名
1	42518-TA0-A00	Bracket - R. RR. ABS SENSOR
2	42519-TA0-A00	Bracket - L. RR. ABS SENSOR
3	42528-TA0-A01	Clip - COUPLER
4	51226-SL0-003	Circlip - LOWER BALL
5	52210-TA0-A00	Knuckle comp - R. RR.
6	52215-TA0-A00	Knuckle comp - L. RR.
7	52300-TA0-A01	Spring - RR. STABILIZER
8	52306-TA0-A02	Bush - RR. STABILIZER HOLDER
9	52308-TA0-A00	Bracket - RR. STABILIZER HOLDER
10	52320-TA0-A01	Link comp - R. RR. STABILIZER
11	52325-TA0-A01	Link comp - L. RR. STABILIZER
12	52340-TA0-A00	Arm comp - R. RR. CONTROL
13	52345-TA0-A00	Arm comp - L. RR. CONTROL
14	52350-TA0-A00	Arm comp. b - RR. LOWER
16	52363-SJK-010	Washer - LOWER ARM
17	52370-TA0-A00	Arm comp. a - R. RR. LOWER
18	52375-TA0-A00	Arm comp. a - L. RR. LOWER
19	52387-SJA-010	Plate - CAM(M12)
20	52510-TA0-A02	Arm comp - R. RR. UPPER
21	52514-TA0-A01	Boot - RR. UPPER BALL
22	52520-TA0-A02	Arm comp - L. RR. UPPER
23	57470-TA0-A02	Sensor assy - RR.
23	57470-TA0-A03	Sensor assy - RR.
24	90100-SHJ-A00	Bolt - FLANGE, 6X16.5
25	90118-SNA-000	Bolt - FLANGE, 12X84
26	90118-TA0-A00	Bolt - FLANGE, 12X90
27	90166-TA0-A00	Bolt - FLANGE, 8X16
28	90178-TA0-A00	Bolt - RR. CONTROL ARM ADJUST
29	90181-S84-A00	Bolt - TRAILING ARM, 12X68
30	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
31	90002-TA0-A00	Nut - FLANGE, 10MM
32	90362-SJA-000	Nut - SELF-LOCK, 12MM (NYLON)
33	90365-TA0-A00	Nut - CASTLE, 14MM
34	90370-SJA-000	Nut - SELF-LOCK, 12MM(CLINCH)
35	90651-SWA-000	Washer - RR. KNUCKLE
36	90701-SKC-003	Pin - SPLIT(M14)
38	57477-TA0-305	Seal - LIP(BLACK)

Rear seat 22

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	77234-SV4-003	Clip
3	78182-SA0-000	Clip - RR. SEAT PIN
5	82127-TA0-J01	Pad & frame comp. - RR. SEATBACK
7	82129-SM4-A00	Collar c
9	82137-SDA-003	Clip - RR. SEAT CUSHION
10	82137-TA0-A01	Pad & frame comp. - RR. SEAT CUSHION
15	82157-TA0-A01	Pad & frame comp. - R. SEATBACK SIDE
17	82182-SNE-A01	Collar a - RR. SEAT
19	82184-SDA-A01	Cylinder - RR. ARMREST LID
22	82189-SNE-A01	Clip - ARMREST
23	82189-S0K-A01	Damper
24	82290-TA0-A01	Bracket comp. - R. SEAT PIVOT
26	82557-TA0-A01	Pad & frame comp. - L. SEATBACK SIDE
27	82620-TA0-013	Lock assy - L. RR. SEAT
28	82621-TA0-013	Cable - RR. SEAT
29	82690-TA0-A01	Bracket comp. - L. SEAT PIVOT
31	90104-SJA-003	Bolt-washer - 6X16
32	90123-SJA-000	Bolt-washer - 6X16
33	90124-SDE-U11	Screw - TAPPING, 5X12
34	90140-SA5-000	Bolt - SPLASH GUARD
40	90110-SE7-000	Bolt-washer - 8X21

Rear shock absorber 19

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
3	51685-SH3-014	Plate - DUST COVER(SHOWA)
3	51685-SR0-004	Plate - DUST COVER (A.S.I. SHOWA)
4	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
4	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
5	52441-TA0-A03	Spring - RR.
6	52610-TA0-P05	Absorber assy - R. RR. SHOCK
7	52611-TA0-P03	Absorber unit - RR. SHOCK
8	52620-TA0-P05	Absorber assy - L. RR. SHOCK
9	52675-TA0-A01	Base - RR. SHOCK ABSORBER MOUNTING
10	52686-SDA-A01	Rubber - RR. SPRING MOUNTING
11	52687-TA0-A01	Cover comp. - DUST
12	52690-SG0-000	Plate - BUMP STOP
13	52722-SJA-003	Rubber - RR. BUMP STOPPER
14	52748-S0A-004	Cover - RR. LOWER MOUNT DUST
15	90182-TA0-A00	Bolt - FLANGE, 12X80
16	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/side lining 8

#	OEM	部品名
1	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
2	33513-S50-003	Socket - T20W S2
3	34271-S5A-A01	Lamp unit
6	74641-TL0-G00	Insulator - R. RR. WHEELHOUSE
7	74691-TL0-G00	Insulator - L. RR. WHEELHOUSE
20	84631-TA0-A00	Carpet - SPARE TIRE PAN
31	90676-SE0-003	Clip - JOINT COVER PLATE
33	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

Rear windshield 7

#	OEM	部品名
1	73211-TA0-U01	Glass set - RR. WINDSHIELD (GREEN) (ASAHI)
2	73225-TA0-A00	Rubber a - WINDSHIELD DAM
3	73226-TA0-A00	Rubber b - WINDSHIELD DAM
4	73227-TA0-A00	Rubber c - WINDSHIELD DAM
5	91536-SS0-J01	Fastener a - WINDSHIELD
6	91538-S7A-003	Fastener a - WINDSHIELD
7	91568-TA0-A00	Clip, FR. Windshield (Upper)

Regulator body (L4) 23

#	OEM	部品名
1	22741-P7Z-000	Pipe - 8X198
2	22753-PRP-000	Pipe - 6X201
3	22770-RCL-010	Pipe a - JOINT
4	22772-RCL-010	Pipe b - JOINT
5	25155-PRP-000	Shaft assy - STATOR
6	27132-P6H-000	Cap - 14MM
7	27200-RXH-000	Body assy - REGULATOR
8	27212-PRP-020	Plate - REGULATOR SEPARATING
9	27246-PN6-800	Cap - REGULATOR SPRING
10	27263-PX3-000	Seat - VALVE SPRING
11	27524-P6H-000	Clip - CAP
12	27561-PRP-000	Piston - LOW ACCUMULATOR
13	27562-PRP-000	Spring a - LOW ACCUMULATOR
14	27564-PRP-000	Spring b - LOW ACCUMULATOR
15	27574-PRP-000	Piston - THIRD ACCUMULATOR
16	27583-PRP-000	Spring - THIRD ACCUMULATOR
17	27591-PRP-J00	Cover - REGULATOR ACCUMULATOR
18	90001-PRP-000	Bolt - FLANGE, 6X30
19	90089-PK4-000	Bolt - STOPPER, 6MM
20	90701-PK4-000	Dowel pin - 8X80
21	91316-PF4-003	O-ring - 31X1.7 (ARAI)
22	91321-PF4-004	O-ring - 18.3X2.4(NOK)
23	91331-PC9-003	O-ring

Resonator chamber (2.0L) 17

#	OEM	部品名
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING
2	17212-PLC-000	Rubber - AIR CLEANER MOUNTING
3	17213-PD1-000	Rubber - AIR CLEANER CASE MOUNTING
4	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING
6	17230-R60-U00	Chamber assy - RESONATOR
7	17251-R60-U00	Tube - AIR CLEANER CONNECTING
8	17253-R60-U00	Tube assy. b - AIR INTAKE
9	17254-R60-U00	Tube c - AIR INTAKE
10	17255-R60-U00	Cover assy. - SPLASH
11	17256-RBB-A00	Ring - SEAL
12	17256-R60-U00	Stay comp - AIR INTAKE
13	17263-P0A-000	Rubber - AIR CLEANER STAY
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
15	90005-P28-A00	Bolt-washer - SPECIAL, 6X28
16	90120-PZA-000	Bolt - FLANGE, 6X12
17	90601-R60-U01	Clip - AIR INTAKE COVER

Roof lining 16

#	OEM	部品名
1	78819-STK-A81	Clip - SIDE CURTAIN AIRBAG (8.5MM)
4	83203-TA0-Y11	Pad assy - R. FR. ROOF SIDE
5	83204-TA0-Y01	Pad assy - R. RR. ROOF SIDE
7	83231-TA0-A91	Bulb
8	83232-TA0-A91	Lens a
9	83233-TA0-A91	Lens b
12	83242-TA0-A00	Bracket - R. RR. GRAB RAIL
15	83247-SNA-A01	Clip - GRAB RAIL
16	83247-TA0-A10	Bracket set - R. FR. GRAB RAIL
17	83253-TA0-Y11	Pad assy - L. FR. ROOF SIDE
18	83254-TA0-Y01	Pad assy - L. RR. ROOF SIDE
20	83292-TA0-A00	Bracket - L. RR. GRAB RAIL
21	83297-TA0-A10	Bracket set - L. FR. GRAB RAIL
23	90133-SDC-003	Bolt-washer - 5X16
24	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
25	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)

Seatbelts 19

#	OEM	部品名
11	81441-S2G-N51	Collar - 5H
12	81441-S50-J51	Collar - 5H
12	81441-S50-J22	Collar - 2H
14	81441-TA0-A01	Collar - 10H
15	81441-TA0-A11	Collar - 8H
16	81460-SNA-A01	Adjuster - SHOULDER SLIDE
18	90123-S04-J30	Washer - WAVE
19	90123-S3Y-003	Bolt - SHOULDER, 6X20(6.2)
20	90142-SED-J01	Bolt-washer - 7/16"X28
21	90142-SJA-A31	Bolt - 7/16"X36
22	90142-SNA-J11	Bolt - 7/16"X17.6
23	90142-SNA-004	Bolt - 7/16"X24
24	90142-S04-J32	Bolt - 7/16"X23.4
26	90142-TA0-004	Bolt - FLANGE, 7/16"X28
28	90543-S50-902	Washer - SPRING
31	91608-S5A-003	Boot - FLOOR
32	91640-TA0-003	Grommet - SCREW, 6MM
33	90142-SNA-A41	Bolt-washer - 8X25
38	81891-TA0-A00	Protector - L. FR. SEATBELT

Secondary shaft (L4) 44

#	OEM	部品名
1	22814-PRP-003	Ring - SEALING, 29MM
2	23230-PRP-020	Shaft comp. - SECONDARY
3	23411-R00-000	Gear - SECONDARY SHAFT LOW
4	23431-R00-000	Gear - SECONDARY SHAFT SECOND
5	23455-R00-000	Gear - SECONDARY SHAFT THIRD
6	23521-R90-000	Gear - SECONDARY SHAFT IDLE
7	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)
8	90402-P0Z-000	Washer - SPRING, 24MM
9	90443-PRP-000	Collar - 27X37X36.5
10	90504-RCT-000	Washer - THRUST, 40X51.5X4.85
10	90506-RCT-000	Washer - THRUST, 40X51.5X4.95
10	90508-RCT-000	Washer - THRUST, 40X51.5X5.05
10	90503-RCT-000	Washer - THRUST, 40X51.5X4.80
10	90505-RCT-000	Washer - THRUST, 40X51.5X4.90
10	90507-RCT-000	Washer - THRUST, 40X51.5X5.00
11	90511-PRP-010	Washer - THRUST, 37X58X3.900
11	90528-PRP-000	Washer - THRUST, 37X58X4.325
11	90523-PRP-000	Washer - THRUST, 37X58X4.200
11	90518-PRP-010	Washer - THRUST, 37X58X4.075
11	90513-PRP-010	Washer - THRUST, 37X58X3.950
11	90530-PRP-000	Washer - THRUST, 37X58X4.375
11	90525-PRP-000	Washer - THRUST, 37X58X4.250
11	90520-PRP-010	Washer - THRUST, 37X58X4.125
11	90515-PRP-010	Washer - THRUST, 37X58X4.000
11	90527-PRP-000	Washer - THRUST, 37X58X4.300
11	90522-PRP-010	Washer - THRUST, 37X58X4.175
11	90517-PRP-010	Washer - THRUST, 37X58X4.050
11	90512-PRP-010	Washer - THRUST, 37X58X3.925
11	90529-PRP-000	Washer - THRUST, 37X58X4.350
11	90524-PRP-000	Washer - THRUST, 37X58X4.225
11	90519-PRP-010	Washer - THRUST, 37X58X4.100
11	90514-PRP-010	Washer - THRUST, 37X58X3.975
11	90526-PRP-000	Washer - THRUST, 37X58X4.275
11	90521-PRP-010	Washer - THRUST, 37X58X4.150
11	90516-PRP-010	Washer - THRUST, 37X58X4.025
12	90621-PRP-000	Circlip - EXTERNAL, 32MM
13	91021-PRP-013	Needle - THRUST, 40X53X2.5
14	91022-PRP-003	Needle - THRUST, 46.6X59.5X2.5
15	91027-PRP-003	Needle - THRUST, 37X57X2.5
16	91028-PRP-003	Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24)
17	91105-PRP-005	Bearing - NEEDLE, 40X47X16 (NSK)
18	91106-PRP-025	Bearing - NEEDLE, 40X46X20.5 (NSK)
19	91316-PR9-003	O-ring - 33X1.9 (ARAI)
20	91326-P4V-003	O-ring - 26.7X1.9(NOK)

Select lever (LH) 18

#	OEM	部品名
1	35505-692-003	Bulb - 14V 1.4W
2	35740-TA0-A51	Switch set - PARKING PIN
3	35750-TA0-A52	Harness assy - SOLENOID
4	39550-TA0-A01	Solenoid - SHIFT LOCK
5	54023-SYA-981	Stopper set - SHIFT LOCK
6	54024-SWA-A82	Shaft - SHIFT LOCK
7	54030-TA0-A51	Release - SHIFT LOCK
8	54031-TA0-A51	Spring - RELEASE
10	54131-TA0-A51	Ring - KNOB
12	54200-TA0-A52	Bracket set - SELECT LEVER
13	54201-TA0-000	Bracket - SELECT LEVER
14	54202-TA0-A51	Holder - WIRE
15	54315-TA0-A83	Wire - CONTROL
20	54722-TA0-A51	Strap - CABLE
21	54903-SYA-981	SCREW, FLAT 5x8
22	90126-SYA-981	Screw-washer - 3X12
23	90351-SB2-003	Nut - FLANGE, 8MM
24	91533-S04-003	Clip - COUPLER (NATURAL)

Servo body (L4) 26

#	OEM	部品名
1	22748-P24-J00	Pipe - 8X220
2	24271-PRP-000	Shaft - SHIFT FORK
3	24630-PRP-000	Arm comp - CHANGE DETENT
4	24635-PRP-000	Collar - CHANGE DETENT ARM
5	27263-PX3-000	Seat - VALVE SPRING
6	27400-RXH-000	Body assy - SERVO
7	27412-PRP-010	Plate - SERVO SEPARATING
8	27561-PRP-000	Piston - LOW ACCUMULATOR
9	27562-PRP-000	Spring a - LOW ACCUMULATOR
10	27564-PRP-000	Spring b - LOW ACCUMULATOR
11	27572-PRP-000	Piston - SECOND ACCUMULATOR
12	27574-PRP-000	Piston - THIRD ACCUMULATOR
13	27580-PRP-J00	Cover - SERVO ACCUMULATOR
14	27581-PRP-000	Spring a - SECOND ACCUMULATOR
15	27583-PRP-000	Spring - THIRD ACCUMULATOR
16	27584-PRP-000	Spring b - SECOND ACCUMULATOR
17	28400-PRP-004	Solenoid assy. a
18	28500-PRP-004	Solenoid assy. b
19	90001-PRP-000	Bolt - FLANGE, 6X30
20	90433-PRP-000	Washer - LOCK, 6MM
21	91301-P7Z-004	O-ring - 7.6X1.9 (DENSO)
22	91302-P7Z-004	O-ring - 9.6X1.9 (DENSO)
23	91321-PF4-004	O-ring - 18.3X2.4(NOK)
24	91331-PC9-003	O-ring
25	91331-PL5-J00	O-ring - 20.2X2.4 (NOK)
26	91344-580-000	O-ring - 31X2.7 (ARAI)

Shift arm (L4) 18

#	OEM	部品名
1	21396-P20-000	Cap - BREATHER
2	21520-RAP-000	Cover comp. - SHIFT ARM
3	24411-PPP-010	Arm - SHIFT
4	24412-PPP-000	Striker - REVERSE LOCK CAM
5	24430-PPP-010	Interlock comp.
6	24433-PH8-000	Bolt - INTERLOCK
7	24460-RPT-000	Lever comp - SELECT
8	24464-PPP-000	Spring - FIRST-SECOND SELECT
9	24466-PPP-000	Spring - FIFTH-SIXTH SELECT
10	24467-PPP-000	Plate - SELECT STOPPER
11	24470-R88-000	Lever comp - SHIFT
12	24474-RAP-000	Cover - DUST
13	24479-PPP-000	Cover - SHIFT LEVER
14	90029-611-010	Bolt - HEX., 8X24
15	90402-R88-000	Washer - PLAIN, 14MM
16	90412-679-000	Washer - CONICAL SPRING, 8MM
17	91207-PPP-003	Dust seal - 18X24X5
18	91208-PPP-003	Dust seal - 14X20X4

Shift fork (L4) 22

#	OEM	部品名
1	24201-RAP-010	Fork comp - FIFTH-REVERSE GEARSHIFT
1	24111-PRP-000	Fork - REVERSE SHIFT
2	24210-RAP-000	Fork comp - GEARSHIFT (3-4)
2	24282-634-000	Bolt - SHAFT FORK SETTING
3	24220-RAP-000	Fork comp - GEARSHIFT (1-2)
3	24410-PPV-000	Shaft comp. - CONTROL
4	24230-PPP-000	Holder comp - REVERSE SHIFT
4	24634-PRP-060	Spring - DETENT LEVER
5	24440-PLW-000	Cam comp - REVERSE LOCK
5	25420-RXH-003	Strainer assy - ATF
6	24455-PHR-000	Spring - BALL SETTING
6	25421-RXH-010	Plate - BAFFLE
7	24519-PB6-000	Screw - BALL SPRING SETTING
7	54313-TA0-A80	Lever comp - CONTROL
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5
8	54314-SEB-980	Pin - CONTROL WIRE
9	90001-PA9-000	Bolt - HEX., 6MM
10	90433-RCL-000	Washer - LOCK, 6MM
11	90433-639-000	Washer - LOCK, 6MM
12	90715-SDA-000	Pin - SNAP, 8MM
13	91209-612-003	Oil seal - 12X22X7 (ARAI)
14	91308-PW4-003	O-ring - 21.8X1.9

Shift lever 12

#	OEM	部品名
1	54100-TA0-A01	Lever sub assy. - CHANGE
3	54117-SDA-A01	Rubber - FLOATING
4	54118-S10-000	Washer assy. - WIRE
5	54119-SDA-A01	Collar - FLOATING
6	54310-TA0-A03	Wire comp - CHANGE
7	54322-SWA-T01	Washer - SELECT
8	54323-SWA-T01	Bush - SHIFT
9	54324-SWA-T01	Washer - SHIFT
10	54325-SWA-T01	Bush - SELECT
11	54357-SF1-003	Plate - CHANGE WIRE
12	90161-SP0-931	Bolt-washer - 6X18
13	90175-SEL-T81	Pin - LOCK, 8MM

Solenoid (L4) 16

#	OEM	部品名
1	21511-RCL-000	Stay a - HARNESS
3	22749-PW4-000	Pipe - 35MM
4	22760-PPW-000	Pipe comp - JOINT
5	28250-R90-003	Solenoid assy. a - LINEAR
6	28252-RPC-000	Packing a - LINEAR SOLENOID
7	28260-R90-004	Solenoid assy. b - LINEAR
8	28262-PRP-000	Packing b - LINEAR SOLENOID
9	28360-PRP-003	Harness - SOLENOID WIRE
10	28600-R90-003	Switch assy - AT OIL PRESSURE
11	28600-R94-004	Switch assy - AT OIL PRESSURE
12	28810-R90-003	Pick up assy. - TOYO
14	28820-R29-003	Pick up assy.
15	90471-PW7-A00	PACKING, 10MM
16	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
17	91309-PX4-003	O-ring - 16X2.1 (NOK)
18	91329-PRP-003	O-ring - 23.3X2.4

Spool valve (2.0L) 20

#	OEM	部品名
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)
3	12215-RNA-A00	Collar - SPARK PLUG COIL
4	12216-RNA-A00	Bolt - SPARK PLUG COIL
5	12240-RNA-A00	Cover comp. - CAMSHAFT THRUST
6	12251-R60-U01	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
7	15810-RWK-003	Valve assy. Spool
8	15826-RNA-A01	Filter assy - SPOOL VALVE
9	17147-RNA-A00	Joint - EGR
10	32743-RNA-A01	Stay c - ENGINE HARNESS
11	32744-RZP-G00	Stay d - ENGINE WIRE HARNESS
12	37510-RNA-A01	Sensor assy - TDC
13	90001-P70-000	Bolt - FLANGE, 10X10.5
14	90005-RNA-A01	Bolt-washer - 11X176
15	90026-P8A-A00	Bolt - STUD, 8X41
16	91302-PX4-004	O-ring - 46.8X2.2 (NOK)
17	91319-PAA-A01	O-ring - 13X1.5
18	91333-PNA-003	O-ring - 15X1.9

Srs unit (LH) 17

#	OEM	部品名
1	77900-TA0-S12	Reel assy - CABLE(FURUKAWA)
2	77930-TC0-H11	Sensor assy - FR. CRASH(TRW)
3	77930-TC0-H21	Sensor assy - FR. CRASH(TRW)
4	77960-TC0-W61	Srs unit - TRW) (REWRITABLE
5	77962-TA0-K01	Harness - SRS FLOOR WIRE
5	77962-TA0-K11	Harness - SRS FLOOR WIRE
7	77964-TA0-A01	Clip - PROTECTOR(NATURAL)
19	90137-S84-A01	Bolt - TORX EARTH, 6X20
20	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
23	91533-STK-003	Clip - COUPLER(NATURAL)
25	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)
26	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
27	91545-SJA-003	Clip - WIRE HARNESS(SEAL) (125MM)
28	91545-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)
29	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
31	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
33	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)

Starter motor (DENSO; 2.0L) 31

#	OEM	部品名
1	30201-PH9-004	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP
3	31200-RZP-E01	Motor assy. - STARTER(DSKEQ) (DENSO)
3	31200-RNA-003	Motor assy. - STARTER (DSKEG/DSKET) (DENSO)
4	31201-RZP-E01	Housing comp - DRIVE SIDE
4	31201-RNA-003	Housing comp - DRIVE SIDE
5	31202-PM3-J01	Bolt - THROUGH (DENSO)
6	31202-RNA-A01	Endframe comp. - COMMUTATOR
7	31203-PCA-003	Lever - PINION DRIVE
8	31204-RNA-003	Switch assy - MAGNET
9	31205-RTA-003	Yoke set
10	31206-RTA-003	Armature comp.
11	31207-PCA-003	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM
13	31213-PCA-003	Shaft - DRIVE
14	31213-RNA-A01	Cover
15	31214-P3F-003	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL
19	31218-P3F-003	Washer a
20	31219-P3F-003	Washer b
21	31220-PH9-004	Nut - HEX., 8MM
22	31220-P3F-003	Washer c
23	31223-PA0-006	Nut - HEX.
24	31228-PLR-A01	O-ring
25	31231-P3F-003	Plate comp - BRUSH HOLDER
26	31291-RZP-G01	Stay - ENGINE WIRE HARNESS
27	31292-PLR-A01	Bolt-washer
29	31211-PCX-A01	Brush - +
30	31212-P3F-003	Spring - BRUSH

Steering column 8

#	OEM	部品名
1	53200-TA0-A12	Column assy - STEERING
2	53320-TA0-T01	Cover - STEERING JOINT
4	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
5	90135-SDA-000	Bolt - STEERING JOINT YOKE
5	90135-SZT-000	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK
10	53320-TA0-L01	Cover - STEERING JOINT

Steering wheel (SRS) 10

#	OEM	部品名
1	35880-TA0-A11	Switch assy - AUDIO REMOTE
2	36770-TA0-A11	Switch assy - CRUISE
4	77901-TA0-A00	Sub cord - CABLE REEL
6	78503-TA0-A81	Plate comp - HORN
11	78520-TA0-A81	Damper comp - STEERING
12	78523-TA0-A81	Spring - HORN
13	78524-TA0-A81	Bolt - TORX, (M5X8)
14	78525-TA0-A81	Plate - HOOK
15	90134-S6A-A80	Bolt - HEX., 6X23
16	90161-SV4-003	Bolt - STEERING HANDLE

Switch (LH) 2

#	OEM	部品名
2	35510-TA0-J02	Switch assy - HAZARD
6	35851-TA0-J02	Bulb comp. - 14V 80MA

Taillight/license light 14

#	OEM	部品名
1	33301-SNA-003	Bulb - 12V 5W) (STANLEY
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
3	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
4	33500-TA0-T01	Taillight assy. - R.
5	33502-TA0-A01	Gasket - BASE
6	33513-S50-003	Socket - T20W S2
7	33514-S2R-003	Socket - T20W SY
8	33515-S50-003	Socket - T20W W
9	33550-TA0-T01	Taillight assy. - L.
10	34103-SNB-003	Gasket - BASE
11	34105-SNB-003	Housing comp
12	34106-SNB-013	Lens comp
19	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY
22	91626-TA0-A01	Grommet - TAILLIGHT

Throttle body (2.0L) 5

#	OEM	部品名
1	16400-RL2-G01	Throttle body - ELECTRONIC CONTROL (GMD2B)
2	36162-RNA-A01	Valve assy. - PURGE CONTROL SOLENOID
3	37835-PGK-A01	O-ring
4	90012-RNA-A00	Bolt-washer - 8X55
5	90020-RNA-A01	Bolt-washer - 5X20

Tire/wheel disks 29

#	OEM	部品名
3	42700-TA0-P91	Disk - ALUMINIUM WHEEL (16X6 1/2J) (ENKEI)
5	42751-TC0-Y07	Tire - 215/60R16 95H) (BRIDGESTONE
6	42753-671-003	Valve - RIM (TAIHEIYO)
6	42753-SB8-661	Valve - RIM (SCHRADER)
8	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)
8	44729-S5A-A11	Weight - BALANCE (35G) (PLOMBCO)
8	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)
8	44721-S5A-A11	Weight - BALANCE(10G)(PLOMBCO)
8	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)
8	44723-S5A-A11	Weight - BALANCE (30G) (PLOMBCO)
8	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)
8	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)
8	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)
8	44726-S5A-A11	Weight - BALANCE (5G) (PLOMBCO)
8	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)
8	44728-S5A-A11	Weight - BALANCE (25G) (PLOMBCO)
8	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)
8	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)
8	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)
8	44722-S5A-A11	Weight - BALANCE (20G) (PLOMBCO)
8	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)
8	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)
8	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)
8	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)
8	44727-S5A-A11	Weight - BALANCE (15G) (PLOMBCO)
10	44732-SMG-G00	Cap - ALUMINIUM WHEEL CENTER
11	74651-S2X-003	Adapter - SPARE TIRE
12	74652-SDA-003	Bolt - SPARE TIRE
13	90304-SF0-751	Nut - WHEEL (FUSE RASHI)

Tools/jack 10

#	OEM	部品名
1	84525-TA0-Y00	Spacer assy. - R. TRUNK
2	84526-TA0-Y00	Spacer - R. TRUNK
4	84576-TA0-Y00	Spacer - L. TRUNK
5	89000-TA0-Y00	Tool set
6	89101-SMG-E01	Bag - TOOL
7	89211-SYP-003	Wrench - WHEEL
8	89216-SF4-000	Wrench - PLUG
9	89310-SFE-003	Jack assy - PANTOGRAPH
10	89311-SFE-003	Plate - JACK CAUTION
11	89320-S05-003	Bar - JACK

Torque converter case (L4) 19

#	OEM	部品名
1	21101-PRP-000	Plate - BEARING SETTING
1	21101-RG0-A00	Plate - BEARING SETTING
2	21111-R94-000	Case - TORQUE CONVERTER
3	23225-PRP-020	Plate - OIL GUIDE
4	23235-PRP-000	Collar - OIL GUIDE
5	25422-PN6-801	Magnet comp. - TRANSMISSION
6	90024-612-000	Bolt - SEALING, 8MM
7	90081-PX4-003	Bolt - PLUG, 18MM
8	90433-639-000	Washer - LOCK, 6MM
9	90471-PX4-000	Washer - DRAIN PLUG, 18MM
10	90471-580-000	Packing - 8MM
11	90701-PW8-000	Dowel pin - 14X15
12	90705-PA9-000	Dowel pin - 14X25
13	91001-PRP-004	Bearing - BALL, 40X68X7.5
14	91005-PRP-003	Bearing - BALL, 32X68X9
15	91102-RXH-003	Bearing - NEEDLE, 36X64X19.9
16	91206-RCT-003	Oil seal - 35X58X8 (NOK)
17	91207-P7Z-003	Oil seal - 44X68X8 (NOK)
18	91301-PRP-003	O-ring - 31.7X1.95 (NOK)

Transmission case (L4) 89

#	OEM	部品名
1	21104-PPP-000	Plate m - OIL GUIDE
1	21210-R90-000	Case comp. - TRANSMISSION
2	21200-RPW-000	Case comp. - TRANSMISSION
2	21231-RCL-000	Hanger - TRANSMISSION
3	21211-RZF-000	Plate - OIL GUTTER
3	21396-PX5-000	Cap - BREATHER
4	21220-RPN-000	Hanger comp. a - TRANSMISSION
4	21399-RXH-020	Plate - BREATHER
5	21222-R88-000	Hanger comp. - TRANSMISSION
5	21514-RCL-A01	Stay d - HARNESS
6	21223-RZF-000	Hanger comp. b - TRANSMISSION
6	21811-R90-000	Packing - TORQUE CONVERTER CASE
7	23977-PPP-J00	Shim av - 72MM (1.98)
7	23945-P21-000	Shim o - 72MM(1.02)
7	23972-PPP-J00	Shim ap - 72MM (1.83)
7	23940-P21-000	Shim j - 72MM(0.87)
7	23967-P21-000	Shim ak - 72MM(1.68)
7	23935-P21-000	Shim e - 72MM(0.72)
7	23962-P21-000	Shim af - 72MM(1.53)
7	23957-P21-000	Shim aa - 72MM(1.38)
7	23984-PPP-J00	Shim bc - 72MM (2.19)
7	23952-P21-000	Shim v - 72MM(1.23)
7	23979-PPP-J00	Shim ax - 72MM (2.04)
7	23947-P21-000	Shim q - 72MM(1.08)
7	23974-PPP-J00	Shim ar - 72MM (1.89)
7	23942-P21-000	Shim l - 72MM(0.93)
7	23969-P21-000	Shim am - 72MM(1.74)
7	23937-P21-000	Shim g - 72MM(0.78)
7	23932-P21-000	Shim b - 72MM(0.63)
7	23964-P21-000	Shim ah - 72MM(1.59)
7	23959-P21-000	Shim ac - 72MM(1.44)
7	23986-PPP-J00	Shim be - 72MM (2.25)
7	23954-P21-000	Shim x - 72MM(1.29)
7	23981-PPP-J00	Shim az - 72MM (2.10)
7	23949-P21-000	Shim s - 72MM(1.14)
7	23976-PPP-J00	Shim at - 72MM (1.95)
7	23944-P21-000	Shim n - 72MM(0.99)
7	23971-P21-000	Shim ao - 72MM(1.80)
7	23939-P21-000	Shim i - 72MM(0.84)
7	23966-P21-000	Shim aj - 72MM(1.65)
7	23934-P21-000	Shim d - 72MM(0.69)
7	23961-P21-000	Shim ae - 72MM(1.50)
7	23956-P21-000	Shim z - 72MM(1.35)
7	23983-PPP-J00	Shim bb - 72MM (2.16)
7	23951-P21-000	Shim u - 72MM(1.20)
7	23978-PPP-J00	Shim aw - 72MM (2.01)
7	23946-P21-000	Shim p - 72MM(1.05)
7	23973-PPP-J00	Shim aq - 72MM (1.86)
7	23941-P21-000	Shim k - 72MM(0.90)
7	23968-P21-000	Shim al - 72MM(1.71)
7	23936-P21-000	Shim f - 72MM(0.75)
7	23931-P21-000	Shim a - 72MM(0.60)
7	23963-P21-000	Shim ag - 72MM(1.56)
7	23958-P21-000	Shim ab - 72MM(1.41)
7	23985-PPP-J00	Shim bd - 72MM (2.22)
7	23953-P21-000	Shim w - 72MM(1.26)
7	23980-PPP-J00	Shim ay - 72MM (2.07)
7	23948-P21-000	Shim r - 72MM(1.11)
7	23975-PPP-J00	Shim as - 72MM (1.92)
7	23943-P21-000	Shim m - 72MM(0.96)
7	23970-P21-000	Shim an - 72MM(1.77)
7	23938-P21-000	Shim h - 72MM(0.81)
7	23933-P21-000	Shim c - 72MM(0.66)
7	23965-P21-000	Shim ai - 72MM(1.62)
7	23960-P21-000	Shim ad - 72MM(1.47)
7	23955-P21-000	Shim y - 72MM(1.32)
7	23982-PPP-J00	Shim ba - 72MM (2.13)
7	23950-P21-000	Shim t - 72MM(1.17)
8	24601-RPW-000	Stay - CHANGE WIRE
8	28450-RCL-000	Cover - SOLENOID
9	28820-PWR-013	Pick up assy. MATSUSHITA
9	28451-PRP-010	Packing - SOLENOID COVER
10	32745-RZP-G00	Stay e - ENGINE HARNESS
10	32746-RZP-G50	Stay f - ENGINE WIRE HARNESS
11	90081-PB6-000	Bolt - PLUG, 14MM
11	32749-R60-U60	Stay j - ENGINE HARNESS
12	90081-RPF-000	Bolt - SEALING, 32MM
12	90609-PX4-000	Ring - SNAP, 80MM
13	90401-R88-010	Washer - PLAIN, 4.5MM
13	90613-PRP-000	Ring - SNAP, 48MM
14	91205-PL3-B01	Oil seal - 40X56X8(ARAI)
14	90614-PRP-000	Ring - SNAP, 55MM
15	91309-PX4-003	O-ring - 16X2.1 (NOK)
15	90615-P0Z-000	Ring - SNAP, 82MM
16	91002-RCR-026	Bearing - BALL, 27X82X18.5
17	91003-RFK-025	Bearing - BALL, 31X80X16.5
18	91004-RFK-016	Bearing - BALL, 26.8X55X14.5
19	91006-PRP-026	Bearing - BALL, 20X48X24
20	91205-P0X-005	Oil seal - 40X56X9 (NOK)

Trunk lid 29

#	OEM	部品名
4	74822-SW5-003	Cushion - TRUNK HINGE
5	74829-S9A-000	Stopper - TAILGATE
6	74829-TA0-A00	Stopper - TRUNK LID LOWER
7	74851-TA0-003	Lock assy - TRUNK
8	74852-TA0-901	Cover - TRUNK LOCK
9	74862-TA0-003	Striker - TRUNK
10	74865-TA0-A01	Weatherstrip - TRUNK LID
11	74871-TA0-G00	Spring - R. TRUNK OPENER
12	74872-TA0-A00	Spring - L. TRUNK OPENER
13	74873-TA0-003	Clip - TRUNK OPENER SPRING
14	74880-TA0-A01	Cable - TRUNK & FUEL LID OPENER
17	74886-SDA-A01	Cylinder - TRUNK REMOTE CONTROL
21	74899-SFY-A01	Damper - TAILGATE DYNAMIC
22	75353-671-000	Lock - SCREW
24	90101-TA0-000	Bolt-washer - 6X16
25	90102-SNA-000	Bolt - SPECIAL, 6MM
26	90102-TA0-900	Bolt-washer - 6X12
27	90108-SF1-000	Bolt-washer - 6X15
28	90109-SM4-000	Bolt - SPECIAL, 6X35
29	90303-TA0-003	Nut - GARNISH, 6MM
32	90675-SA5-003	Nut - CLIP, 6MM
33	90812-SNA-003	Grommet - 12MM
34	90856-S6M-003	Plug - TAILGATE DRAIN
36	91513-SJK-003	Clip - TAILGATE GARNISH
38	91558-SE3-003	Clip - HOOD WIRE
39	91560-SDA-A01	Clip - RR. LICENSE GARNISH
40	91560-SDE-T01	Clip - FUEL LID OPENER CABLE
41	91560-S0X-A01	Clip - DOOR LINING (NATURAL)
42	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Valve/rocker arm (2.0L) 13

#	OEM	部品名
1	14620-RNA-A01	Arm assy. - ROCKER
2	14711-R60-U00	Valve - IN.
3	14721-P2A-000	Valve - EX.
4	14744-PM3-000	Screw - TAPPET ADJUSTING
5	14761-RNA-A02	Spring, IN. VALVE (VIOLET) (CHUO SPRING)
5	14761-RNA-A01	Spring - IN. VALVE (VIOLET) (NIPPON HATSUJO)
6	14762-RNA-A02	Spring - EX. VALVE (GRAY) (CHUO SPRING)
6	14762-RNA-A01	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)
7	14765-RGA-000	Retainer - VALVE SPRING
8	14775-P08-000	Seat - VALVE SPRING
9	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)
10	14820-RNA-A01	Motion comp - LOST
11	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose (2.0L) 5

#	OEM	部品名
1	19506-RNA-A01	Hose - THERMOBODY IN.
2	19507-R60-U01	Hose - THROTTLE BODY OUTLET
3	19508-RNA-A01	Hose - BYPASS
4	19509-RNA-A01	Hose - DEVICE
5	19512-PK2-003	Clip - HOSE, 18.7MM

Water hose (LH; 2.0L) 9

#	OEM	部品名
1	79721-TA2-A10	Hose - WATER IN.
1	79721-TA2-A00	Hose - WATER IN.
2	79725-TA2-A10	Hose - WATER OUTLET
2	79725-TA2-A00	Hose - WATER OUTLET
3	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)
4	79751-TA2-A00	Stay - HEATER HOSE
5	91405-PK1-003	Clip, WATER HOSE, 24MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
6	91551-SD5-003	Clamp - HEATER

Water pump (2.0L) 25

#	OEM	部品名
1	18011-R60-U00	EGR Valve set
1	18011-RNA-A00	EGR Valve set
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-RZP-013	Pump comp - WATER
4	19222-RNA-A00	Packing - WATER PUMP
5	19224-RZP-003	Pulley - WATER PUMP
6	19301-RNA-305	Thermostat assy - FUJI SEIKO
6	19301-RNA-306	Thermostat assy - NIPPON THERMOSTAT
7	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
8	19311-RNA-A00	Cover - THERMOSTAT
9	19315-RNA-A01	Cover comp. - WATER OUTLET
10	19320-RNA-A00	Case comp. - THERMOSTAT
11	19322-RNA-A01	Gasket - THERMOSTAT CASE
12	19425-RNA-A00	Cover - HEATER OUTLET
13	19426-RNA-A01	Gasket - HEATER OUTLET
14	19505-RNA-A00	Pipe assy. - CONNECTING
15	36536-R60-U00	Stay - SENSOR HARNESS
16	37870-RWC-A01	Water Temp Sensor assy - (PANASONIC)
17	90010-RNA-A00	Bolt - SPECIAL, 8X87
18	90013-PCX-000	Bolt - SPECIAL, 6X12
19	90014-RNA-A00	Bolt - SPECIAL, 6X29.5
20	90015-RNA-A00	Bolt - SEALING, 16MM
21	90401-RNA-A00	Washer - SEALING, 16MM
22	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)
23	91314-PH7-003	O-ring 31.2X4.1 (NOK)

Windshield washer (KU/KW) 21

#	OEM	部品名
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
3	76802-SEF-S01	Cap unit - MOUTH
4	76805-TA0-C01	Hose
5	76809-SE0-003	Grommet - WASHER TANK
6	76810-TA0-A01	Nozzle assy. - WINDSHIELD
7	76827-TA0-A01	Tube - 440MM
8	76830-SL0-003	Joint y - TUBE (MITSUBA)
9	76832-SNA-003	Tube - 260MM
10	76832-TA0-U01	Tube - 840MM
11	76834-TA0-A01	Tube - 590MM
12	76837-TA0-A01	Tube - 790MM
13	76841-TA0-U01	Tank - WASHER (4.5L FR.)
14	76842-S2K-J11	Bush - WASHER TANK
15	76846-TA0-A01	Pump set - WASHER (FR.)
15	76846-TA0-A02	Pump set - WASHER(FR.)
16	76851-TA0-A01	Tube - BELLOWS
17	90652-S2A-003	Clip - TUBE, 7MM
18	91511-TA0-A01	Clip - WASHER TUBE & OPEN WIRE
19	91512-SX0-003	Clip - INNER FENDER CLIP
20	91523-SM4-003	Clip - WASHER TUBE

Wire harness (1; LH) 9

#	OEM	部品名
2	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)
3	32120-TA0-W11	Harness - L. CABIN WIRE
3	32120-TA0-W01	Harness - L. CABIN WIRE
4	32140-TA0-H40	Harness - R. SIDE WIRE
5	32601-TA0-A10	Cable assy - MISSION EARTH
5	32601-TA0-A00	Cable assy - MISSION EARTH
7	32610-TA2-U00	Cable assy - SUB EARTH
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
9	90149-SE0-003	Bolt - EARTH, 6X16

Wire harness (2; LH) 6

#	OEM	部品名
1	32117-TA0-W01	Harness - INSTRUMENT WIRE
1	32117-TA0-W31	Harness - INSTRUMENT WIRE
2	32160-TA0-W00	Harness - L. SIDE WIRE
3	35505-S30-003	Bulb - T5) (14V 1.4W
4	90137-S84-A01	Bolt - TORX EARTH, 6X20
5	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (3; LH) 11

#	OEM	部品名
1	32100-TA0-K00	Harness - R. CABIN WIRE
4	32118-TA0-Y40	Harness - AUDIO SUB WIRE (INCLUDE SUB FEEDER)
5	32155-TA0-W20	Cord - INTERIOR
8	32202-TA0-A00	Cord - DEFOGGER SUB
9	32751-TA0-Y00	Harness - DOOR WIRE (DRIVER SIDE)
10	32752-TA0-H00	Harness - DOOR WIRE (PASSENGER SIDE)
11	32753-TA0-A10	Harness - R. RR. DOOR WIRE
12	32754-TA0-A10	Harness - L. RR. DOOR WIRE
13	33301-S70-003	Bulb - 12V 3.8W 2CP
14	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
15	90149-SE0-003	Bolt - EARTH, 6X16
