Accelerator pedal 3 / 18

#	OEM	CA4	CB1
3	17812-SA7-010	Washer - ACCELERATOR PEDAL	Washer - ACCELERATOR PEDAL
5	17816-SF1-000	Cover - ACCELERATOR PEDAL	Cover - ACCELERATOR PEDAL
12	17921-SA4-730	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE

Air cleaner (CARBURETOR) 9 / 31

#	OEM	CA4	CB1
2	17150-PA6-004	Valve - CHECK	Valve - CHECK
7	17212-689-000	Washer - AIR CLEANER COVER	Washer - AIR CLEANER COVER
9	17217-657-000	Clip b - WIRE (DACRO COATING)	Clip b - WIRE (DACRO COATING)
19	17250-PH1-004	Sensor comp - AIR IN.	Sensor comp - AIR IN.
25	17257-689-310	Pin - PLUG LOCK	Pin - PLUG LOCK
28	17263-PE0-020	Supporter comp. - CLEANER	Supporter comp. - CLEANER
45	90203-PB2-000	Nut - AIR CLEANER COVER (DACRO COATING)	Nut - AIR CLEANER COVER (DACRO COATING)
46	90308-SD2-A00	Nut - FLANGE, 6MM (DACRO COATING)	Nut - FLANGE, 6MM (DACRO COATING)
48	90001-PT0-000	Screw - PAN, 4X25	Screw - PAN, 4X25

Air cleaner tubing (CARBURETOR) 5 / 16

#	OEM	CA4	CB1
5	17150-PA6-004	Valve - CHECK	Valve - CHECK
9	36051-657-300	Rubber - CONTROL VALVE MOUNTING	Rubber - CONTROL VALVE MOUNTING
10	36052-657-300	Collar - CONTROL VALVE	Collar - CONTROL VALVE
11	36053-657-003	Rubber b - MOUNTING	Rubber b - MOUNTING
12	36054-657-003	Collar b - DISTANCE	Collar b - DISTANCE

Air conditioner (COMPRESSOR) 5 / 23

#	OEM	CA4	CB1
5	38812-PH1-003	Ring b - SNAP	Ring b - SNAP
6	38812-671-003	Ring a - SNAP	Ring a - SNAP
7	38814-PH1-003	Washer b - PLATE	Washer b - PLATE
7	38815-PH1-003	Washer c - PLATE	Washer c - PLATE
7	38813-PH1-003	Washer a - PLATE	Washer a - PLATE

Air conditioner (CONDENSER) 1 / 10

#	OEM	CA4	CB1
9	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER

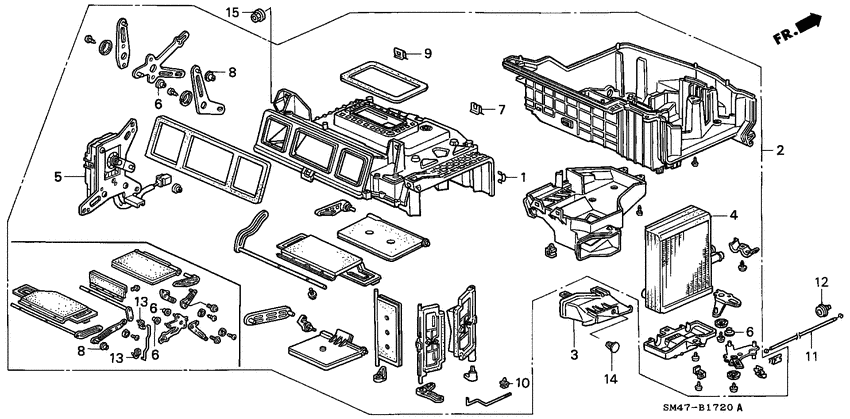

Air conditioner (COOLER UNIT) 4 / 20

#	OEM	CA4	CB1
1	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)	Bulb - NEO WEDGE (14V 65MA)
4	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
18	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
21	91549-SE0-003	Holder - DRAIN HOSE	Holder - DRAIN HOSE

Air conditioner (HOSE/PIPE) 6 / 26

#	OEM	CA4	CB1
2	38646-SA5-003	O-ring - 8MM	O-ring - 8MM
3	38647-692-660	O-ring - 1/2"	O-ring - 1/2"
4	38648-692-660	O-ring - 5/8"	O-ring - 5/8"
9	38725-SA5-003	Diode assy.	Diode assy.
12	39798-SE0-003	Relay assy - POWER (4P) (058700-1170) (DENSO)	Relay assy - POWER (4P) (058700-1170) (DENSO)
12	80490-SM4-A01	Relay assy - POWER (DENSO)	Relay assy - POWER (DENSO)

Alternator 16 / 27

#	OEM	CA4	CB1
2	31101-PD2-014	Rotor assy. - ALTERNATOR	Rotor assy. - ALTERNATOR
5	31111-PD1-014	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
8	31118-PD1-004	Bush - INSULATION	Bush - INSULATION
9	31119-PH1-004	Bush - INSULATION	Bush - INSULATION
11	31127-PD2-014	Rectifier assy.	Rectifier assy.
12	31129-PD1-014	Spring - BRUSH (###)	Spring - BRUSH (###)
13	31135-PD2-004	Cover - RR. END (###)	Cover - RR. END (###)
14	31138-PD1-004	Cover - BEARING	Cover - BEARING
15	31141-PH1-004	Pulley - ALTERNATOR (DENSO)	Pulley - ALTERNATOR (DENSO)
16	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
18	31144-PD1-004	Brush	Brush
18	31144-P01-003	Brush	Brush
19	31145-PD1-004	Bolt - STUD, 6X68	Bolt - STUD, 6X68
20	31146-PD1-004	Screw-washer - 4X19	Screw-washer - 4X19
22	31148-PD1-004	Screw-washer - 4X25	Screw-washer - 4X25
24	90231-PD1-014	Nut-washer - 5MM	Nut-washer - 5MM

Alternator bracket/sensor 1 / 13

#	OEM	CA4	CB1
7	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO

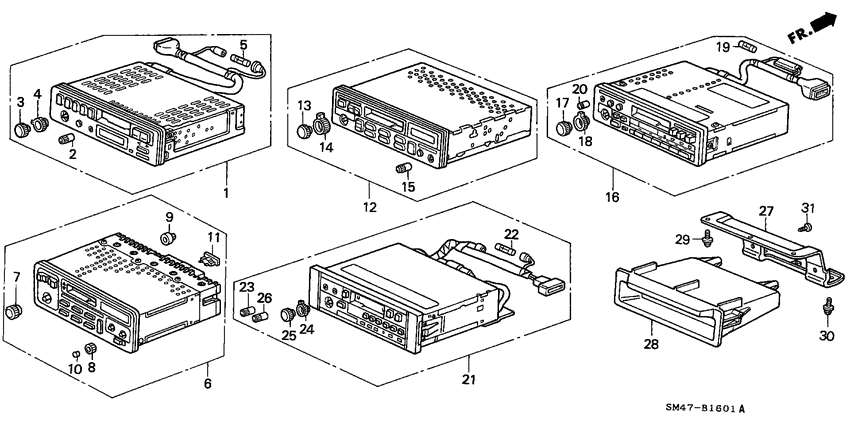

Auto radio 1 / 10

#	OEM	CA4	CB1
23	91551-SE0-003	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7

Brake lines (RH) 7 / 36

#	OEM	CA4	CB1
14	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
20	46392-SE0-000	Clip - BRAKE PIPE	Clip - BRAKE PIPE
32	46462-SE0-000	Bolt - OIL	Bolt - OIL
33	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
38	90105-SB0-003	Bolt-washer - 8X16	Bolt-washer - 8X16
40	90115-SB2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
41	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake pedal/clutch pedal 4 / 14

#	OEM	CA4	CB1
6	46504-679-300	Bush - PEDAL	Bush - PEDAL
7	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
13	46545-SA5-000	Cover, Pedal	Cover, Pedal
16	75891-611-000	Cover - DOOR SWITCH	Cover - DOOR SWITCH

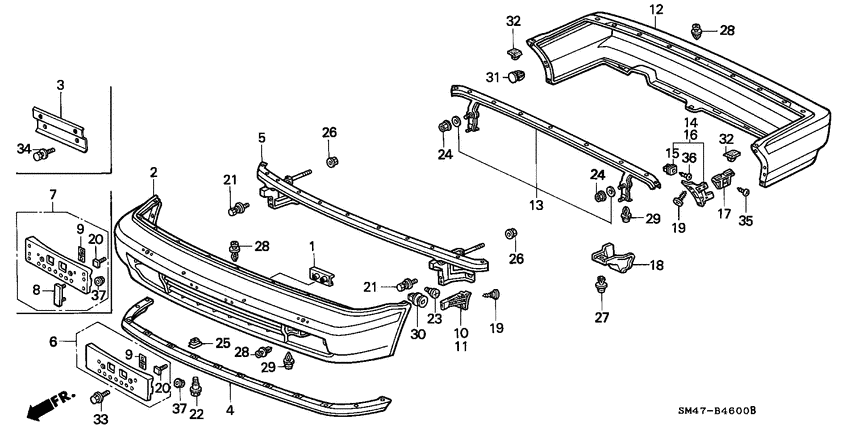

Bumpers (KP/KQ/KT/KU/KZ) 2 / 42

#	OEM	CA4	CB1
1	62521-SB2-000	Nut - LICENSE PLATE	Nut - LICENSE PLATE
39	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM

Camshaft/timing belt 2 / 15

#	OEM	CA4	CB1
10	90501-MB7-610	Washer - 10.3X25	Washer - 10.3X25
11	90741-657-000	Key - 25.4X13	Key - 25.4X13

Carburetor 8 / 28

#	OEM	CA4	CB1
3	16013-PG6-005	Float set	Float set
5	16016-PH4-741	Screw set	Screw set
6	16017-PE0-701	Rod set	Rod set
7	16019-PH1-601	Rod set - PUMP	Rod set - PUMP
12	16037-PE0-921	Plate - SETTING	Plate - SETTING
25	16097-PE0-922	Cap - SEALING	Cap - SEALING
30	17148-MC7-003	Bolt-washer - 6X16	Bolt-washer - 6X16
32	90409-657-000	Washer - SPRING, 8MM	Washer - SPRING, 8MM

Clutch housing 1 / 17

#	OEM	CA4	CB1
6	21120-PG2-003	Magnet - TRANSMISSION	Magnet - TRANSMISSION

Clutch/flywheel 1 / 5

#	OEM	CA4	CB1
6	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Console 1 / 8

#	OEM	CA4	CB1
30	90666-SD4-003	Clip - FITTING	Clip - FITTING

Control lever/control wire 1 / 24

#	OEM	CA4	CB1
24	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Cylinder block/oil pan 4 / 25

#	OEM	CA4	CB1
16	90002-PD2-000	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
19	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
21	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
25	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20

Cylinder head cover 1 / 8

#	OEM	CA4	CB1
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Differential gear 6 / 33

#	OEM	CA4	CB1
5	41341-PC8-020	Gear - DIFFERENTIAL PINION	Gear - DIFFERENTIAL PINION
6	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)	Washer b - DIFFERENTIAL PINION (0.8MM)
6	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)	Washer d - DIFFERENTIAL PINION (1.0MM)
6	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)	Washer a - DIFFERENTIAL PINION (0.7MM)
6	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)	Washer c - DIFFERENTIAL PINION (0.9MM)
7	90017-689-000	Bolt - SPECIAL, 10MM	Bolt - SPECIAL, 10MM

Driveshaft 1 / 26

#	OEM	CA4	CB1
20	44352-SA2-300	Band - DAMPER WEIGHT	Band - DAMPER WEIGHT

Duct 4 / 11

#	OEM	CA4	CB1
1	39383-SA5-000	Clamp - CONTROL CABLE	Clamp - CONTROL CABLE
16	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
17	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
18	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Emblems 5 / 12

#	OEM	CA4	CB1
3	19043-PK1-650	Mark - RADIATOR CAUTION	Mark - RADIATOR CAUTION
4	31511-SB2-671	Mark - BATTERY CAUTION (MAINTENANCE FREE)	Mark - BATTERY CAUTION (MAINTENANCE FREE)
15	76501-SA1-600	Plate, RR. DOOR LOCK CAUTION	Plate, RR. DOOR LOCK CAUTION
17	87351-SA0-003	Clip - TUBULAR	Clip - TUBULAR
17	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine sub cord/harness clamp 2 / 20

#	OEM	CA4	CB1
26	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
31	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)

Exhaust manifold (1) 2 / 14

#	OEM	CA4	CB1
17	90065-PC1-300	Bolt - STUD, 10X34.5	Bolt - STUD, 10X34.5
21	90653-689-000	Circlip - 34MM	Circlip - 34MM

Exhaust pipe 5 / 20

#	OEM	CA4	CB1
10	18215-SE0-G00	Rubber - EX. PIPE MOUNTING (60X50X20)	Rubber - EX. PIPE MOUNTING (60X50X20)
20	18310-692-013	Finisher - EX. PIPE (SANKEI)	Finisher - EX. PIPE (SANKEI)
25	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
26	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
27	90212-671-005	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

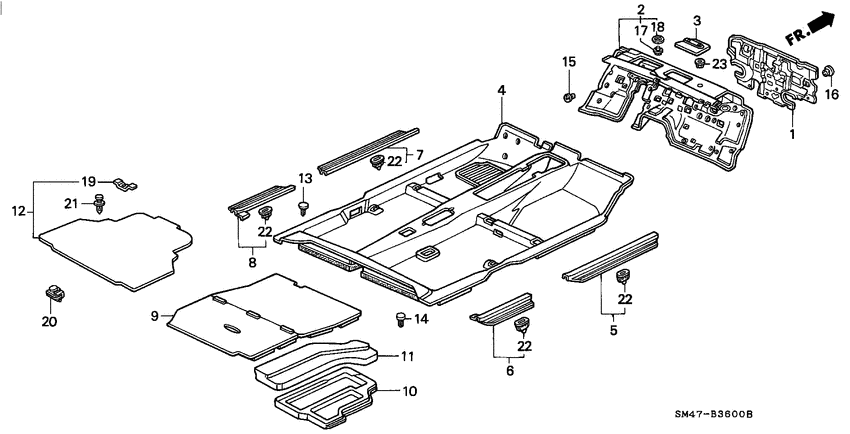

Floor mat 1 / 11

#	OEM	CA4	CB1
14	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Front brake caliper 2 / 21

#	OEM	CA4	CB1
4	45215-671-672	Screw - BLEEDER	Screw - BLEEDER
7	45219-671-672	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW

Front combination light 2 / 15

#	OEM	CA4	CB1
8	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
25	90303-SA5-003	Nut - FR. COMBINATION LIGHT	Nut - FR. COMBINATION LIGHT

Front door lining (4D) 2 / 18

#	OEM	CA4	CB1
44	91530-SH4-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
45	91561-SE3-003	Grommet - SCREW, 6MM	Grommet - SCREW, 6MM

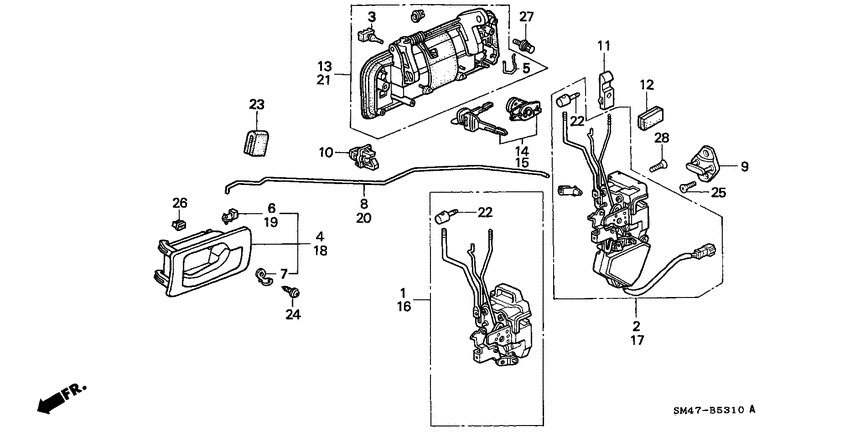

Front door locks (4D) 1 / 21

#	OEM	CA4	CB1
24	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)	Cushion - LOCK ROD (35MMX58MM)

Front door panels (4D) 3 / 6

#	OEM	CA4	CB1
15	75760-SB2-003	Pin - DOOR CHECKER	Pin - DOOR CHECKER
16	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
17	90101-SE3-003	Bolt-washer - 8X23.5	Bolt-washer - 8X23.5

Front fenders 7 / 23

#	OEM	CA4	CB1
15	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
17	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
18	90119-SE0-000	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM
20	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
24	90675-SB0-003	Clip - FR. COWL	Clip - FR. COWL
24	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
25	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front lower arm/ front stabilizer 2 / 26

#	OEM	CA4	CB1
22	90303-SF1-003	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM
23	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)

Front shock absorber 5 / 22

#	OEM	CA4	CB1
6	51621-SB0-004	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)
6	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
7	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
7	51631-S7S-J01	RUBBER DAMPER M	RUBBER DAMPER M
15	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front window/regulator (4D) 3 / 15

#	OEM	CA4	CB1
5	72212-SH3-003	Spring - SPIRAL	Spring - SPIRAL
21	75342-679-000	Pin - WINDOW REGULATOR HANDLE	Pin - WINDOW REGULATOR HANDLE
23	90011-896-000	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8

Front windshield 1 / 10

#	OEM	CA4	CB1
3	73126-SE0-000	Spacer - FR. WINDSHIELD	Spacer - FR. WINDSHIELD

Front windshield wiper (RH) 1 / 19

#	OEM	CA4	CB1
7	76524-SE0-013	Dust seal	Dust seal

Fuel Pump (CARBURETOR) 5 / 11

#	OEM	CA4	CB1
2	16900-SE0-004	Strainer comp. - FUEL (TOYO ROKI)	Strainer comp. - FUEL (TOYO ROKI)
2	16900-SE0-003	Strainer comp. - FUEL (TOKYO ROKI)	Strainer comp. - FUEL (TOKYO ROKI)
4	17574-SE0-000	Packing - BASE	Packing - BASE
8	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
12	90552-SD4-000	Washer - PLAIN, 5MM	Washer - PLAIN, 5MM

Fuel tank 8 / 34

#	OEM	CA4	CB1
20	37801-SE3-000	Packing - BASE	Packing - BASE
21	37802-SE0-000	Retainer - FUEL UNIT	Retainer - FUEL UNIT
25	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
26	90675-SB0-003	Clip - FR. COWL	Clip - FR. COWL
26	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
27	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
28	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE
31	91691-SE0-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS

Glove box 5 / 16

#	OEM	CA4	CB1
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
7	66417-SA0-000	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
16	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
17	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
19	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Grommet 14 / 50

#	OEM	CA4	CB1
5	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
9	72849-SA5-000	Insulator b - SIDE SILL HOLD	Insulator b - SIDE SILL HOLD
14	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM
15	75891-611-000	Cover - DOOR SWITCH	Cover - DOOR SWITCH
16	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
17	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
21	90851-SA6-000	Plug - HOLE	Plug - HOLE
23	91613-SA5-000	Grommet b - CONTROL WIRE	Grommet b - CONTROL WIRE
24	90852-SA5-000	Plug - HOLE, 10MM	Plug - HOLE, 10MM
25	90852-671-003	Plug - HOLE	Plug - HOLE
36	91606-SD2-003	Plug - HOLE, 15MM	Plug - HOLE, 15MM
37	91606-SE0-000	Seal - 20X20	Seal - 20X20
46	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
47	91623-SE0-003	Plug - BLIND, 12MM	Plug - BLIND, 12MM

Headlight (2) 2 / 11

#	OEM	CA4	CB1
6	33115-692-741	Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN)	Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN)
15	34901-671-631	Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS)	Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS)

Heater blower 2 / 20

#	OEM	CA4	CB1
4	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
15	80789-SH3-003	Holder - ROD	Holder - ROD

Heater control (LEVER TYPE) 3 / 28

#	OEM	CA4	CB1
2	39356-SB6-000	Spring - HEATER CONTROL	Spring - HEATER CONTROL
8	39383-SA5-000	Clamp - CONTROL CABLE	Clamp - CONTROL CABLE
26	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12

Heater unit 1 / 11

#	OEM	CA4	CB1
15	80789-SH3-003	Holder - ROD	Holder - ROD

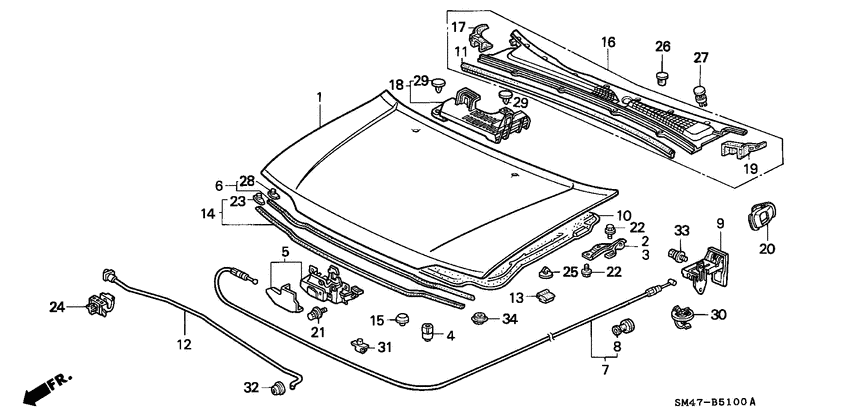

Hood 5 / 31

#	OEM	CA4	CB1
24	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
25	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
26	90106-SE3-000	Bolt-washer - 6X12	Bolt-washer - 6X12
33	90677-SE0-003	Holder - ROD	Holder - ROD
35	91513-SE0-003	Clip - HOOD SEAL	Clip - HOOD SEAL

Instrument panel (RH) 8 / 27

#	OEM	CA4	CB1
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
6	66418-SB0-010	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
9	66856-SA0-660	Lock - FUSE PANEL	Lock - FUSE PANEL
10	66857-SA0-660	Spring - FUSE PANEL	Spring - FUSE PANEL
38	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
40	90601-836-000	E-ring - 4MM	E-ring - 4MM
42	90666-SD4-003	Clip - FITTING	Clip - FITTING
46	39600-SW3-505	LIGHTER ASSYCIGA	LIGHTER ASSYCIGA

Instrument stays (RH) 1 / 9

#	OEM	CA4	CB1
11	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16

Intake manifold (CARBURETOR) 2 / 9

#	OEM	CA4	CB1
2	16105-PJ7-000	O-ring - CARBURETOR INSULATOR	O-ring - CARBURETOR INSULATOR
11	90064-PH1-300	Bolt - STUD, 8X57	Bolt - STUD, 8X57

Interior light 4 / 10

#	OEM	CA4	CB1
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
5	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
9	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Knuckle 9 / 34

#	OEM	CA4	CB1
7	51213-SE0-000	Protector - KNUCKLE	Protector - KNUCKLE
18	53546-SA0-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
23	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
23	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
23	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)	Bolt - WHEEL (TOKAI TRW)
24	90114-SB0-000	Bolt-washer - 6X12	Bolt-washer - 6X12
25	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
26	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM
27	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

Main fuse/horn 10 / 31

#	OEM	CA4	CB1
1	16760-SA5-951	Relay assy - FUEL CUT	Relay assy - FUEL CUT
16	38235-SA5-003	Puller - FUSE (SUMITOMO)	Puller - FUSE (SUMITOMO)
22	38255-SE0-003	Band - LOWER COVER	Band - LOWER COVER
28	38300-SE3-003	Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA)	Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA)
28	38300-SE3-004	Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO)	Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO)
30	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
30	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)	Relay assy - POWER(4P)(DENSO) (056700-7410)
31	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)
31	39794-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2203)	Relay assy - POWER (4P) (MITSUBA) (RC-2203)
32	90153-SA5-900	Screw-washer - 5X9	Screw-washer - 5X9

Master cylinder 4 / 13

#	OEM	CA4	CB1
8	46185-SE0-003	Seal - ROD	Seal - ROD
11	46665-671-651	Band - RESERVE TANK	Band - RESERVE TANK
13	46669-692-003	Seal - RESERVE TANK	Seal - RESERVE TANK
14	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR

Master power 4 / 17

#	OEM	CA4	CB1
3	46151-SE0-003	Yoke - PUSH ROD(NISSIN)	Yoke - PUSH ROD(NISSIN)
4	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
17	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
19	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

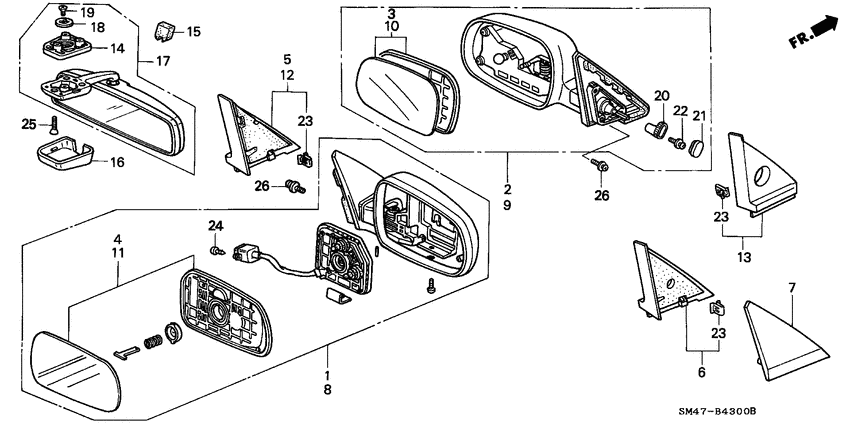

Mirror/sunvisor 7 / 21

#	OEM	CA4	CB1
31	83248-SG0-003	Spacer - GRAB RAIL	Spacer - GRAB RAIL
36	88147-SA5-003	Washer - TOOTHED (MATSUYAMA)	Washer - TOOTHED (MATSUYAMA)
37	88148-SE0-003	Bolt - LOCK, 6X7 (MATSUYAMA)	Bolt - LOCK, 6X7 (MATSUYAMA)
38	88154-SA7-003	Knob - DOOR MIRROR (MATSUYAMA)	Knob - DOOR MIRROR (MATSUYAMA)
40	88159-SA7-003	Cap - DOOR MIRROR KNOB (MATSUYAMA)	Cap - DOOR MIRROR KNOB (MATSUYAMA)
44	90110-SA7-003	Screw-washer - 3X16 (MATSUYAMA)	Screw-washer - 3X16 (MATSUYAMA)
47	90133-SE3-003	Bolt-washer - 5X25	Bolt-washer - 5X25

Oil pump/oil filter 2 / 21

#	OEM	CA4	CB1
12	15233-PC6-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
15	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)

Opening trim (4D) 1 / 10

#	OEM	CA4	CB1
28	90609-SG0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH

Parking brake 5 / 12

#	OEM	CA4	CB1
4	47142-671-010	Knob - PARKING BRAKE PUSH ROD	Knob - PARKING BRAKE PUSH ROD
7	47360-SB2-000	Equalizer	Equalizer
8	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
11	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
12	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD

Piston/connecting rod 3 / 29

#	OEM	CA4	CB1
4	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)	Nut - CONNECTING ROD (NAGOYA RASHI)
4	13205-634-010	Nut	Nut
7	13213-463-003	Bolt - CONNECTING ROD (NAGOYA RASHI)	Bolt - CONNECTING ROD (NAGOYA RASHI)

Radiator (TOYO) 5 / 26

#	OEM	CA4	CB1
2	19011-PH2-004	Cock - DRAIN (T.RAD)	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)	Packing - DRAIN (T.RAD)
7	19020-PG6-004	Fan - COOLING (MITSUBA)	Fan - COOLING (MITSUBA)
16	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)	Nut - HEX., 5MM(MITSUBA)
19	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)	Washer - PLAIN, 7MM (MITSUBA)

Radiator hose/ reserve tank 1 / 32

#	OEM	CA4	CB1
8	19107-PA0-000	Clip - RESERVE TANK JOINT	Clip - RESERVE TANK JOINT

Rear brake drum 6 / 25

#	OEM	CA4	CB1
2	42324-SB2-000	Washer - HUB UNIT	Washer - HUB UNIT
19	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)	Bolt - WHEEL (TOKAI TRW)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
20	90305-692-010	Nut	Nut
21	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

Rear brake shoe 9 / 33

#	OEM	CA4	CB1
7	43305-SE1-003	Bolt-washer - 6X12	Bolt-washer - 6X12
11	43323-663-003	Spring - RR. WHEEL CYLINDER	Spring - RR. WHEEL CYLINDER
12	43345-SA5-013	Plug - ADJUSTER	Plug - ADJUSTER
13	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
14	43353-548-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
25	43375-SA0-003	U-clip	U-clip
28	43379-SA5-003	Washer - WAVE	Washer - WAVE
29	45172-SA0-003	Spring - SHOE CLAMP	Spring - SHOE CLAMP
29	45172-S04-003	Spring - SHOE CLAMP	Spring - SHOE CLAMP

Rear door lining (4D) 2 / 17

#	OEM	CA4	CB1
29	91530-SH4-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
30	91561-SE3-003	Grommet - SCREW, 6MM	Grommet - SCREW, 6MM

Rear door locks (4D) 3 / 23

#	OEM	CA4	CB1
19	75411-634-000	Joint	Joint
20	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)	Cushion - LOCK ROD (35MMX58MM)
22	72175-SH3-901	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD

Rear door panels (4D) 3 / 6

#	OEM	CA4	CB1
16	75760-SB2-003	Pin - DOOR CHECKER	Pin - DOOR CHECKER
17	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
18	90101-SE3-003	Bolt-washer - 8X23.5	Bolt-washer - 8X23.5

Rear door windows/ regulator (4D) 3 / 20

#	OEM	CA4	CB1
2	72212-SH3-003	Spring - SPIRAL	Spring - SPIRAL
26	75342-679-000	Pin - WINDOW REGULATOR HANDLE	Pin - WINDOW REGULATOR HANDLE
28	90011-896-000	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8

Rear lower arm/ rear stabilizer 8 / 35

#	OEM	CA4	CB1
15	52364-634-020	Washer - LOWER ARM	Washer - LOWER ARM
24	52387-SE0-023	Bolt - LOWER ARM ADJUSTING	Bolt - LOWER ARM ADJUSTING
25	52388-SE0-030	Plate - CAM	Plate - CAM
30	90173-SM4-000	Bolt - FLANGE, 12X60	Bolt - FLANGE, 12X60
38	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
39	90216-SE0-010	Nut	Nut
39	90216-SE0-305	NUT, LWR ARM	NUT, LWR ARM
41	90438-SE0-000	Washer - TRAILING, 12MM	Washer - TRAILING, 12MM

Rear shock absorber 5 / 24

#	OEM	CA4	CB1
5	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
10	52688-SE0-003	Plate - RR. BUMP STOP	Plate - RR. BUMP STOP
12	52725-SB2-003	Rubber - RR. SHOCK ABSORBER MOUNTING (YAMASHITA)	Rubber - RR. SHOCK ABSORBER MOUNTING (YAMASHITA)
13	52728-SB2-004	Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA)	Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/ trunk side garnish (4D) 1 / 12

#	OEM	CA4	CB1
19	84656-SE3-000	Stopper - TRUNK SIDE GARNISH	Stopper - TRUNK SIDE GARNISH

Select lever (AT; RH) 1 / 21

#	OEM	CA4	CB1
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Select lever bracket (AT) 1 / 8

#	OEM	CA4	CB1
8	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM

Shift arm/shift rod 1 / 22

#	OEM	CA4	CB1
13	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift fork/ setting screw 1 / 6

#	OEM	CA4	CB1
6	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING

Side protectors (4D) 2 / 39

#	OEM	CA4	CB1
32	75807-671-010	Nut - SIDE PROTECTOR (BLACK)	Nut - SIDE PROTECTOR (BLACK)
35	90662-693-003	Grommet - SCREW, 4MM (BLUE)	Grommet - SCREW, 4MM (BLUE)

Speedometer components (ND) 1 / 23

#	OEM	CA4	CB1
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Speedometer components (NS) 6 / 30

#	OEM	CA4	CB1
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
6	37102-SE3-003	Socket assy - BULB (T-10) (NS)	Socket assy - BULB (T-10) (NS)
7	37105-SE3-003	Socket assy - BULB (T-5) (BASE:BROWN)	Socket assy - BULB (T-5) (BASE:BROWN)
8	37106-SB2-003	Knob - TRIP (NS)	Knob - TRIP (NS)
12	37237-SE3-003	Bulb - T-10) (BASE:BROWN	Bulb - T-10) (BASE:BROWN

Steering column (RH) 2 / 32

#	OEM	CA4	CB1
17	53326-SB0-000	Clip b - JOINT COVER	Clip b - JOINT COVER
28	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16

Steering gear box (RH) 2 / 19

#	OEM	CA4	CB1
15	53458-SE0-003	Nut - RACK SCREW LOCK	Nut - RACK SCREW LOCK
15	53458-S01-A51	Nut - LOCK	Nut - LOCK

Steering wheel (NIPPON PURASUTO) 2 / 9

#	OEM	CA4	CB1
12	90107-SA5-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
13	90380-SB2-003	Nut - SELF-LOCK (OHASHI)	Nut - SELF-LOCK (OHASHI)

Steering wheel (TOKYO SEAT) 1 / 7

#	OEM	CA4	CB1
11	90380-SB2-003	Nut - SELF-LOCK (OHASHI)	Nut - SELF-LOCK (OHASHI)

Switch (1) 1 / 12

#	OEM	CA4	CB1
26	90666-SD4-003	Clip - FITTING	Clip - FITTING

Switch (2) 3 / 13

#	OEM	CA4	CB1
3	35102-SG0-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
14	35410-692-003	Cover - DOOR SWITCH	Cover - DOOR SWITCH

Taillight (4D) 3 / 28

#	OEM	CA4	CB1
6	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
14	34104-SE3-A01	Screw - TAPPING, 4X20	Screw - TAPPING, 4X20
33	90521-SE3-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Tie rod 5 / 14

#	OEM	CA4	CB1
5	53434-SD9-000	Clip - TIE ROD	Clip - TIE ROD
5	53434-S04-J51	CLIP, TIE ROD	CLIP, TIE ROD
11	53535-SB3-000	Washer - TIE ROD STOPPER	Washer - TIE ROD STOPPER
12	53536-SB2-000	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
15	53546-SA0-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)

Tire/wheel disk 12 / 37

#	OEM	CA4	CB1
13	44723-693-000	Weight - BALANCE (30G)	Weight - BALANCE (30G)
13	44727-693-000	Weight - BALANCE (15G)	Weight - BALANCE (15G)
13	44724-693-000	Weight - BALANCE (40G)	Weight - BALANCE (40G)
13	44728-693-000	Weight - BALANCE (25G)	Weight - BALANCE (25G)
13	44729-693-000	Weight - BALANCE (35G)	Weight - BALANCE (35G)
13	44721-693-000	Weight - BALANCE (10G)	Weight - BALANCE (10G)
13	44730-693-000	Weight - BALANCE (45G)	Weight - BALANCE (45G)
13	44725-693-000	Weight - BALANCE (50G)	Weight - BALANCE (50G)
13	44722-693-000	Weight - BALANCE (20G)	Weight - BALANCE (20G)
13	44726-693-000	Weight - BALANCE (5G)	Weight - BALANCE (5G)
24	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)
25	90304-SE0-901	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)

Tools / jack 4 / 8

#	OEM	CA4	CB1
4	89211-SE3-003	Wrench - WHEEL	Wrench - WHEEL
7	89310-SE3-013	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
8	89320-SE3-003	Bar - JACK	Bar - JACK
8	89320-S50-003	Bar - JACK	Bar - JACK

Torque rod/front beam 1 / 21

#	OEM	CA4	CB1
22	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Transmission housing 1 / 33

#	OEM	CA4	CB1
6	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM

Trunk lid (4D) 5 / 24

#	OEM	CA4	CB1
12	74862-SE3-003	Striker - TRUNK	Striker - TRUNK
23	83431-SA4-000	Cushion - FR. TRUNK	Cushion - FR. TRUNK
26	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
28	90106-SE3-000	Bolt-washer - 6X12	Bolt-washer - 6X12
31	90691-SC5-003	Clip A - OPENER CABLE	Clip A - OPENER CABLE

Two way valve 3 / 10

#	OEM	CA4	CB1
10	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
14	90167-SD4-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
16	90552-SD4-000	Washer - PLAIN, 5MM	Washer - PLAIN, 5MM

Water pump/thermostat (CARBURETOR) 2 / 23

#	OEM	CA4	CB1
17	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER
19	90004-PA0-000	Bolt - HEX., 6X14	Bolt - HEX., 6X14

Water valve 1 / 9

#	OEM	CA4	CB1
8	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE

Windshield washer 7 / 20

#	OEM	CA4	CB1
2	38511-SD2-003	Adapter - NOZZLE (MITSUBA)	Adapter - NOZZLE (MITSUBA)
3	38513-SB0-961	Cap - WASHER MOUTH(MITSUBA)	Cap - WASHER MOUTH(MITSUBA)
3	76802-SS0-003	Cap - MOUTH	Cap - MOUTH
11	76804-SE0-003	Float - WASHER	Float - WASHER
21	90130-SE0-000	Screw - TAPPING, 6X16 (DACRO COATING)	Screw - TAPPING, 6X16 (DACRO COATING)
22	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
23	91512-SE0-003	Clip - WASHER TUBE	Clip - WASHER TUBE

Wire harness (2) 2 / 15

#	OEM	CA4	CB1
24	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)	Clip - WIRE HARNESS (WHITE) (55MM)
25	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)

Wire harness/ battery cable (1) 12 / 36

#	OEM	CA4	CB1
13	32601-SA5-003	Bolt - BATTERY TERMINAL (SUMITOMO)	Bolt - BATTERY TERMINAL (SUMITOMO)
14	32602-SA5-003	Nut - BATTERY TERMINAL (SUMITOMO)	Nut - BATTERY TERMINAL (SUMITOMO)
26	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
27	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
29	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
33	90667-SB2-003	Clip - WIRE HARNESS (GRAY) (HARNESS TAPING) (50MM)	Clip - WIRE HARNESS (GRAY) (HARNESS TAPING) (50MM)
34	90672-SA0-003	Strap - CABLE, 118MM(BLACK)	Strap - CABLE, 118MM(BLACK)
35	90676-SA8-003	Band - WIRE HARNESS, 150MM (BLUE)	Band - WIRE HARNESS, 150MM (BLUE)
40	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
41	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
47	91559-SE0-003	Clip - WIRE HARNESS (23.2MM)	Clip - WIRE HARNESS (23.2MM)
48	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
