A.l.b. accumulator (LH) 36

#	OEM	部品名
1	46396-SM4-951	Clip c - BRAKE PIPE
2	46397-SM4-952	Clip A - BRAKE PIPE
3	46462-SE0-000	Bolt - OIL
4	46472-568-000	Packing - OIL BOLT
5	57070-SG0-801	Accumulator
6	57088-SM4-023	Bracket - ACCUMULATOR
7	57090-SM4-G52	Pipe comp - ACCUMULATOR
8	57092-SM4-G53	Pipe comp - PUMP
9	57139-SB0-801	O-ring - DIVIDER
10	57175-SM4-950	Bracket - COUPLER
11	57188-SB0-801	Joint - PUMP
12	57199-SB0-801	Clamp - HOSE, 14MM
13	57310-SM4-E00	Pump assy.
14	57311-SG0-801	Pump comp
15	57318-SM4-E00	Cover - MOTOR (A.L.B.)
16	57348-SB0-801	Bleed - AIR
17	57349-SB0-801	Cap - AIR BLEED
18	57355-SM4-950	Bracket - PUMP
19	57358-SH9-800	Mount - PUMP
20	57359-SM4-801	Collar - MOUNTING
21	57360-SM4-E00	Motor assy. - A.L.B.
21	57360-SL0-003	Motor assy. - ABS
22	57364-SB0-801	O-ring - MOTOR
23	57370-SM4-951	Hose comp. - PUMP
24	57371-SM4-G51	Hose comp. b - PUMP
25	57373-SM4-G51	Clamp - PIPE PUMP
26	57373-SM4-950	Clamp - PIPE PUMP
27	57374-SH9-801	Rubber - SUCTION PIPE
28	57375-SM4-951	Bracket - POWER UNIT
29	57376-SM4-800	Bolt - HEX., 6X28
30	57377-SL4-800	Washer - ABS PUMP
31	57380-SM4-951	Hose - PRESSURE
32	57390-SM4-003	Switch assy - PRESSURE
33	80382-SM4-A00	Stay - RECEIVER PIPE
34	90127-SB0-801	Bolt - SENSOR LOCK, 6X12
34	90118-958-003	Bolt, flange, 6x12

A.l.b. modulator (LH) 31

#	OEM	部品名
1	46175-671-651	Screw - SOCKET
2	46472-568-000	Packing - OIL BOLT
3	46669-692-003	Seal - RESERVE TANK
4	57110-SM4-G52	Modulator assy
5	57115-SM4-G51	Bracket - MODULATOR
6	57116-SP0-305	Head set a - MODULATOR
7	57117-SP0-305	Head set b - MODULATOR
8	57118-SG0-801	O-ring - HEAD
9	57119-SK7-003	Mark - RESERVE TANK (A.L.B.)
10	57120-SG0-805	Piston comp - FR.
11	57121-SG0-801	Spring - FR. MODULATOR
12	57139-SB0-801	O-ring - DIVIDER
13	57140-SG0-805	Piston comp - RR.
14	57141-SF1-801	Spring - RR. MODULATOR
15	57174-SM4-800	Bracket - COUPLER
16	57181-SM4-G01	Head comp - SOLENOID
17	57182-SF1-801	Cover - SOLENOID
18	57183-SG0-801	Grommet - SEAL
19	57184-SG0-801	Spring - ADJUST COVER
20	57185-SB0-801	Spring - SOLENOID ADJUST
21	57186-SG0-801	Plate - SOLENOID SET
22	57188-SB0-801	Joint - PUMP
23	57191-SG0-802	Tank comp. - RESERVE
24	57193-SG0-802	Filter - TANK
25	57196-SK7-003	Cap comp. - RESERVE TANK
26	57197-SB0-801	Screw - HEX. SOCKET HEAD, 8X20
27	57202-SB0-801	O-ring - SOLENOID
28	57210-SM4-003	Solenoid assy. - R. FR.
29	57220-SM4-003	Solenoid assy. - L. FR.
30	57250-SM4-003	Solenoid assy. - RR.
31	90105-SG0-003	Bolt-washer - 8X16

Air cleaner (CARBURETOR) 39

#	OEM	部品名
1	17150-PA6-004	Valve - CHECK
2	17201-PT0-000	Cover set - AIR CLEANER
3	17212-689-000	Washer - AIR CLEANER COVER
4	17213-PT2-000	Rubber - AIR CLEANER CASE MOUNTING
5	17214-PT2-000	Collar - AIR CLEANER MOUNTING
6	17216-671-000	Clip A - WIRE (DACRO COATING)
7	17217-657-000	Clip b - WIRE (DACRO COATING)
8	17220-PT0-G01	Element comp - AIR CLEANER
8	17220-PT0-G02	Element comp,clea
9	17230-PT0-900	Chamber assy - RESONATOR
10	17240-PT0-G01	Case assy. - AIR CLEANER
11	17242-PT0-900	Tube a - AIR INTAKE
12	17243-PT0-000	Tube b - AIR INTAKE
13	17245-PT0-003	Diaphragm - CONTROL VALVE
14	17247-689-010	Insulator - SENSOR
15	17248-PT0-000	Seal - AIR INTAKE RUBBER
16	17250-PH1-004	Sensor comp - AIR IN.
17	17251-PT0-000	Valve comp. - AIR CONTROL
18	17253-PT0-300	Plug - CONTROL VALVE
19	17255-PT0-010	Stay - R. CLEANER CASE
20	17256-PT0-000	Rubber - IN.
21	17257-PT0-000	Grommet - INTAKE
22	17257-689-310	Pin - PLUG LOCK
23	17258-PT0-300	Packing - AIR CLEANER COVER
24	17259-PE0-661	Collar - MOUNTING
25	17260-PE0-660	Rubber - MOUNTING
26	17261-PT2-000	Stay a - AIR CLEANER
27	17263-PE0-020	Supporter comp. - CLEANER
28	17266-PE0-300	Insulator - CLEANER CASE
29	17271-PT0-000	Case - BREATHER ELEMENT
30	17272-PM3-000	Packing - BREATHER
31	17273-PT0-B00	Plate - CAUTION
32	17274-PM3-000	Element - BREATHER
33	17274-PT0-B00	Label - PLUG CAUTION
34	17307-PM4-000	Seal rubber - RESONATOR
36	90001-PT0-000	Screw - PAN, 4X25
37	90010-PT2-000	Bolt-washer - SPECIAL, 6X25
38	90203-PB2-000	Nut - AIR CLEANER COVER (DACRO COATING)
39	90775-PG7-000	Bolt-washer - 6X20

Air conditioner (CARBURETOR COMPONENTS) 10

#	OEM	部品名
1	16080-PT0-B00	Bolt - HEX. (5X16)
2	16181-PC3-781	Pin - SPLIT, 1.2
3	16203-657-300	Washer - PLAIN, 4MM
4	36053-PT1-E01	Rubber - MOUNTING
5	36138-PM1-G01	Filter assy - SOLENOID VALVE
6	36161-PT1-F01	Valve assy. - IDLE UP SOLENOID
7	38770-PT0-B00	Control set - AIR CONDITIONER IDLE
8	38775-PT0-B00	Stay - AIR CONDITIONER SOLENOID VALVE
9	38780-PT0-B00	Control set - CARBURETOR IDLE
10	91594-SE0-931	Clip - VENT TUBE

Air conditioner (COMPRESSOR) 14

#	OEM	部品名
1	18127-PT0-000	Insulator - EX. MANIFOLD HEAT
2	38810-PT0-003	Compressor comp. - DENSO
3	38812-PH1-003	Ring b - SNAP
4	38812-671-003	Ring a - SNAP
5	38814-PH1-003	Washer b - PLATE
5	38813-PH1-003	Washer a - PLATE
5	38815-PH1-003	Washer c - PLATE
6	38827-PH7-003	Screw-washer - 5X8
7	38829-PR3-003	Bolt - WASHER HEAD
8	38900-PT0-003	Clutch - MAGNETIC
9	38920-PT0-003	Belt - COMPRESSOR (MITSUBOSHI)
9	38920-PT0-004	Belt - COMPRESSOR (BANDO)
10	38930-PT0-000	Bracket - COMPRESSOR
11	90380-PT0-000	Bolt-washer - SPECIAL, 8X94

Air conditioner (CONDENSER) 11

#	OEM	部品名
1	32175-PT0-003	Clip - COOLING FAN HARNESS
2	38611-PT0-003	Fan - COOLING (DENSO)
3	38615-PT0-003	Shroud comp. - AIR CONDITIONER (DENSO)
4	38616-PT0-003	Motor - COOLING FAN (DENSO)
5	38619-PT0-003	Protector - FAN MOTOR (DENSO)
6	80100-SM4-013	Condenser assy
7	80107-SM4-000	Mount - CONDENSER UPPER
8	80175-SE0-000	Mount - CONDENSER
9	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
10	90020-PT0-003	Screw-washer - 5X10
11	90021-PT0-003	Screw-washer - 4X6

Air conditioner (HOSES/PIPES; LH) 45

#	OEM	部品名
1	17304-PT0-004	Clamp a - HOT AIR PIPE
2	38646-SA5-003	O-ring - 8MM
3	38647-692-660	O-ring - 1/2"
4	38648-692-660	O-ring - 5/8"
5	38725-SA5-003	Diode assy.
6	39798-SE0-003	Relay assy - POWER (4P) (058700-1170) (DENSO)
6	80490-SM4-A01	Relay assy - POWER (DENSO)
7	53796-SF1-951	Clamp - PROTECTOR
8	80310-SM4-A03	Hose comp. - SUCTION (DENSO)
9	80315-SM4-003	Hose comp. - DISCHARGE
10	80321-SM4-G05	Pipe comp - SUCTION
11	80331-SM4-013	Pipe - CONDENSER
12	80341-SM4-G03	Pipe comp - RECEIVER (A)
13	80342-SM4-A05	Pipe b - RECEIVER (SAK)
14	80343-SM4-G00	Pipe c - RECEIVER
15	80351-SM4-003	Receiver comp
16	80352-SM4-940	Bracket - LIQUID TANK
17	80354-SM4-940	Protector
18	80361-SM4-A00	Clamp - SUCTION PIPE (A)
19	80362-SM4-A00	Clamp - SUCTION HOSE
20	80363-SM4-A00	Stay - SUCTION HOSE
21	80364-SM4-A00	Stay - SUCTION PIPE (A)
22	80365-SM4-A00	Clamp - SUCTION PIPE
23	80381-SM4-A00	Clamp - RECEIVER PIPE
24	80382-SM4-A00	Stay - RECEIVER PIPE
25	80383-SM4-003	Clip c - RECEIVER PIPE
26	80384-SM4-A01	Clip - RECEIVER PIPE(B)
27	80385-SM4-A00	Clamp - RECEIVER PIPE (C)
28	80386-SM4-A00	Stay - RECEIVER PIPE
29	80387-SM4-A01	Clip - RECEIVER PIPE
30	80440-SM4-000	Switch - DUAL PRESSURE
31	80460-SM4-B04	Harness - AIR CONDITIONER WIRE
32	80491-SM4-A00	Bracket - AIR CONDITIONER RELAY
33	80493-SM4-000	Clamp - SLEEVE
34	80850-SM4-Y02	Control assy. - COMPRESSOR
35	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
36	90101-SA4-000	Screw - TAPPING, 4X12
37	90101-SM4-000	Bolt-washer - 6X20
38	90153-SE0-003	Bolt - EARTH, 6X12
39	90308-SD2-A00	Nut - FLANGE, 6MM (DACRO COATING)
40	91301-SM4-A00	O-ring - 8MM
41	91315-SE0-000	O-ring - 1/2"
42	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
43	91639-SF1-013	Cap - VALVE (SAK)
44	91640-SD4-003	Cap - VALVE

Air conditioner (UNIT; LH) 18

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79192-SM4-003	Holder a - HEATER
3	79193-SM4-003	Holder b - HEATER
4	80200-SM4-G04	Cooling unit
5	80201-SM4-G01	Case - UPPER
6	80202-SM4-G01	Case - LOWER
7	80206-SD4-003	Holder
8	80210-SM4-G01	Evaporator sub assy.
8	80210-SM4-G02	Evaporator sub assy.
9	80220-SM4-G02	Valve assy. - EXPANSION (DENSO)
10	80261-SM4-000	Band - AIR CONDITIONER (A)
11	80271-SM4-000	Hose - DRAIN
12	80272-SF4-000	Grommet - DRAIN HOSE
13	80380-SM4-G00	Grommet - AIR CONDITIONER PIPE
13	80380-SF4-000	Grommet - AIR CONDITIONER PIPE
14	80411-SM4-A02	Knob - AIR CONDITIONER (BUTTON TYPE)
16	80430-SM4-003	Thermostat - AIR CONDITIONER
17	91549-SE0-003	Holder - DRAIN HOSE

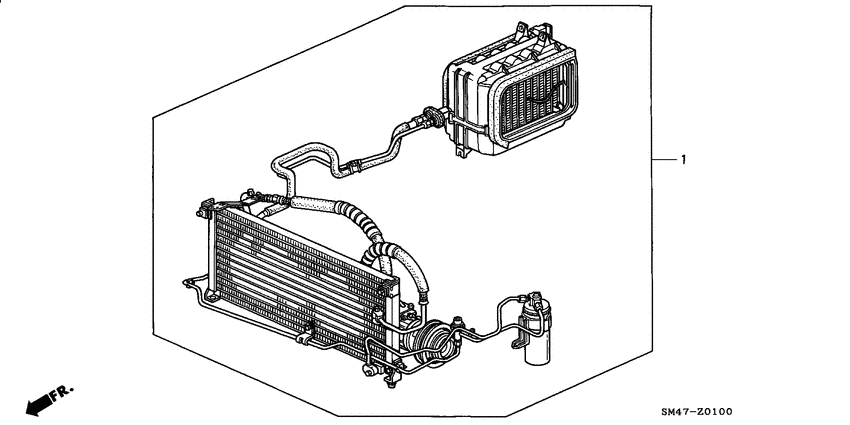

Air conditioner kit 1

#	OEM	部品名
1	80000-SM4-B01	General assy. - AIR CONDITIONER

Alternator (DENSO) 47

#	OEM	部品名
1	31100-PT0-B01	Alternator assy - CJP28) (DENSO
1	31100-PT0-B91	Alternator assy - CJN61) (DENSO
2	31101-PT0-003	Rotor assy.
2	31101-PD2-014	Rotor assy. - ALTERNATOR
3	31103-PT0-003	Seal - RING
4	31104-PT0-003	Seal - RING
5	31105-PT0-003	Holder assy. - BRUSH
5	31105-PE9-942	Holder assy. - ALTERNATOR BRUSH
5	31105-PT0-B91	Holder assy. - BRUSH (###)
6	31109-PT0-003	Frame assy - DRIVE END
6	31109-PT0-J01	Frame assy - DRIVE END
7	31111-PD1-014	Bearing - RR. GENERATOR
7	31111-PT0-003	Bearing - RR. GENERATOR
8	31114-PD1-034	Bearing - FR. GENERATOR
8	31114-PT0-003	Bearing - FR. GENERATOR
9	31116-PT0-003	Plate - RETAINER
9	31116-PE0-023	Plate - RETAINER (###)
10	31118-PT0-003	Bush - INSULATION
10	31118-PD1-004	Bush - INSULATION
11	31119-PH1-004	Bush - INSULATION
11	31119-PT0-003	Bush - INSULATION
12	31121-PK1-004	Frame - RR. END
12	31121-PT0-003	Frame - RR. END (###)
13	31127-PT0-003	Rectifier assy.
13	31127-PD2-014	Rectifier assy.
14	31129-PD1-014	Spring - BRUSH (###)
15	31135-PD2-004	Cover - RR. END (###)
15	31135-PT0-003	Cover - RR. END
16	31138-PD1-004	Cover - BEARING
17	31141-PT0-003	Pulley - ###
17	31141-PH1-004	Pulley - ALTERNATOR (DENSO)
18	31142-PD1-004	Nut - PULLEY LOCK
19	31144-PD1-004	Brush
19	31144-P01-003	Brush
20	31145-PD1-004	Bolt - STUD, 6X68
21	31146-PD1-004	Screw-washer - 4X19
21	31146-PT0-003	Screw
22	31147-PD1-004	Screw-washer - 4X6 (###)
22	31147-PT0-003	Screw-washer
23	31148-PT0-003	Screw - WAVE WASHER
23	31148-PD1-004	Screw-washer - 4X25
24	31150-PD2-014	Regulator assy - ###
25	90231-PD1-014	Nut-washer - 5MM
26	90232-PT0-003	Nut - HEX., 6MM
27	90424-PR7-A01	Washer
27	90424-PK1-004	Washer
28	91415-PT0-013	Clip - CORD

Auto radio (1) 13

#	OEM	部品名
1	39100-SE3-Q82	Tuner assy - AUTO RADIO (AM/FM+CASSETTE) (PIONEER)
2	39103-SE3-Q81	Knob a
3	39104-SE3-Q81	Knob - SWITCH
4	39105-SE3-Q81	Knob - FADER
5	39110-SE3-Q81	Fuse - 4A
12	39100-SM4-C01	Tuner assy - AUTO RADIO (ALPINE) (AM/FM+CASSETTE)
13	39103-SM4-C01	Knob - VOLUME
14	39104-SM4-C01	Knob - FADER BASS
15	39105-SM4-C01	Knob - BALANCE TREBLE
27	39111-SM4-000	Bracket - AUTO RADIO
28	39116-SM4-G00	Pocket - AUTO RADIO
29	91551-SE0-003	Bolt - FLANGE, 5X7
30	90151-SM4-003	Bolt-washer - 5X12

Auto radio (2) 17

#	OEM	部品名
1	39100-SM4-F11	Tuner assy - AUTO RADIO (FM/MW/LW+CASSETTE)(BLAUPUNKT)
3	39103-SM4-G11	Knob - VOLUME (ON-OFF)
4	39104-SM4-G11	Knob - VOLUME (TREBLE/BASS)
5	39100-SM4-F21	Tuner assy - AUTO RADIO (FM/MW/LW+CASSETTE) (PHILIPS)
6	39102-SG0-G71	Cable assy
7	39103-SM4-G21	Knob - VOLUME (ON-OFF)
8	39104-SM4-G21	Knob - BALANCE CONTROL
9	39105-SM4-G21	Knob - TONE CONTROL
14	39100-SM4-F71	Tuner assy - FM/MW/LW+CASSETTE) (PHILIPS
15	39102-SF1-G61	Cable assy - STEREO (D)
16	39103-SF1-G31	Knob - VOLUME
17	39104-SF1-G31	Knob - TONE
18	39106-SF1-G31	Cover - PLATE
24	39111-SM4-000	Bracket - AUTO RADIO
25	39116-SM4-G00	Pocket - AUTO RADIO
27	91551-SE0-003	Bolt - FLANGE, 5X7
28	90151-SM4-003	Bolt-washer - 5X12

Battery 27

#	OEM	部品名
1	30505-PV0-003	Condenser comp. - C-146A) (SHOWA
2	31500-SF1-G42	Battery assy - 70D23R-MF) (PANASONIC
2	31500-SF1-G19	Battery assy - 70D23R-MF) (YUASA
2	31500-SF1-G43	Battery assy - 70D23R-MF) (FURUKAWA
4	31512-SM4-000	Plate - BATTERY SETTING (70D/80D)
5	31513-SM4-000	Bolt - BATTERY SETTING(195MM)
6	31542-SE3-902	Plug - VENT (MF) (YUASA)
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)
7	32410-SM4-000	Cable assy - STARTER
7	32410-SM4-900	Cable assy - STARTER
8	32411-SM4-A00	Bracket - CABLE
9	32412-SM4-A00	Bracket - CABLE (A)
10	32414-SM4-A00	Bracket - CABLE (B)
11	32600-SM4-A00	Cable assy - EARTH
12	32601-SA5-003	Bolt - BATTERY TERMINAL (SUMITOMO)
13	32602-SA5-003	Nut - BATTERY TERMINAL (SUMITOMO)
14	32746-SM4-000	Clamp - STARTER CABLE
15	74190-SM4-001	Base - BATTERY SETTING
16	90115-SM4-000	Bolt-washer - 8X30
17	90149-SE0-003	Bolt - EARTH, 6X16
18	90153-SE0-003	Bolt - EARTH, 6X12
19	90301-SM4-003	Nut - SPRING, 6MM
20	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
21	91563-SF4-003	Band - WIRE HARNESS (WHITE) (100.5MM)
22	91568-SH3-003	Strap - WIRE HARNESS (BLACK) (101MM)
23	91584-SM4-003	Clip - CABLE BAND (BLACK)

Body structure components (FRONT BULKHEAD) 2

#	OEM	部品名
20	60821-SM4-000	Hook - TIE DOWN
35	74231-SM4-E00	Valve - R. FR. WHEELHOUSE UPPER MEMBER

Body structure components (INNER PANEL) 2

#	OEM	部品名
37	90127-SE0-000	Bolt-washer - 6X15
38	91616-SD2-003	Grommet - SCREW, 4X16

Body structure components (OUTER PANEL) 5

#	OEM	部品名
25	74422-SM4-000	Cushion - FUEL FILLER LID
26	74494-SM4-000	Spring - FUEL LID OPENER
27	75450-SM4-000	Outlet assy - RR. AIR
28	90103-SM4-010	Bolt - FLANGE, 6X18
29	90664-SB3-003	Grommet - SCREW, 5MM

Brake hose/brake pipe (LH) 44

#	OEM	部品名
1	46210-SM4-A03	Valve assy. - DUAL PROPORTIONING
2	46310-SM4-A03	Pipe comp. a - BRAKE
3	46320-SM4-A02	Pipe comp. b - BRAKE
4	46321-SM4-A02	Pipe comp. h - BRAKE
5	46330-SM4-A03	Pipe comp. c - BRAKE
6	46331-SM4-A01	Pipe comp. e - R. BRAKE
7	46331-SM4-951	Pipe comp. e - R. BRAKE
8	46340-SM4-A02	Pipe comp. d - BRAKE
9	46360-SM4-A02	Pipe comp. f - BRAKE
10	46361-SM4-A01	Pipe comp. e - L. BRAKE
11	46361-SM4-951	Pipe comp. e - L. BRAKE
12	46374-SM4-G52	Pipe comp. u - BRAKE
13	46375-SM4-G53	Pipe comp. v - BRAKE
14	46376-SM4-G51	Pipe comp. w - BRAKE
15	46377-SM4-G53	Pipe comp. x - BRAKE
16	46378-SM4-G53	Pipe comp. y - BRAKE
17	46379-SM4-G53	Pipe comp. z - BRAKE
18	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
19	46382-SM4-300	Grommet - BRAKE PIPE
20	46391-SE0-931	Clamp - BRAKE PIPE
21	46391-SM4-A00	Clip A - BRAKE PIPE
22	46391-SM4-G00	Clip A - BRAKE PIPE
23	46391-SM4-J01	Clamp - BRAKE PIPE
24	46392-SE0-000	Clip - BRAKE PIPE
25	46392-SM4-A01	Clip b - BRAKE PIPE
26	46392-SM4-A50	Clip b - BRAKE PIPE
27	46392-SM4-G01	Clip b - BRAKE PIPE
28	46392-SM4-G50	Clip b - BRAKE PIPE
30	46410-SM4-013	Hose - R. FR. BRAKE (NICHIRIN)
31	46411-SM4-013	Hose - L. FR. BRAKE (NICHIRIN)
32	46430-SM4-003	Hose a - RR. BRAKE (NICHIRIN)
34	46431-SM4-951	Hose b - RR. BRAKE (NICHIRIN)
35	46435-SM4-000	Bracket - R. RR. BRAKE HOSE
36	46436-SM4-000	Bracket - L. RR. BRAKE HOSE
37	46438-SM4-000	Bracket - R. RR. BRAKE HOSE
39	46439-SM4-000	Bracket - L. RR. BRAKE HOSE
41	46462-SE0-000	Bolt - OIL
42	46470-SH9-802	Joint - FOUR WAY
43	46472-568-000	Packing - OIL BOLT
44	46475-SM4-G02	Bracket - FOUR WAY JOINT
45	90105-SB0-003	Bolt-washer - 8X16
46	90105-SD9-003	Bolt-washer - 8X20
47	90115-SB2-003	Nut - SELF-LOCK, 8MM
48	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/ master power 23

#	OEM	部品名
1	46100-SM4-A02	Cylinder assy. - MASTER
2	46120-SM4-003	Piston assy. - PRIMARY
3	46122-SM4-003	Piston assy. - SECONDARY
4	46135-SE3-013	Guide assy - PISTON
5	46138-SM4-003	Packing
6	46139-SM4-013	Bolt - STOP
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
8	46185-SE0-003	Seal - ROD
9	46191-634-000	Gasket - MASTER CYLINDER BRACKET
11	46400-SM4-003	Power assy. - MASTER (7"+8")
13	46403-SE0-003	Valve comp. - CHECK (NISSIN)
15	46404-SM4-G00	Tube a - MASTER POWER
18	46405-SM4-A00	Tube b - MASTER POWER
20	46407-SM4-A80	Clamp - CHECK VALVE
23	46512-SB2-000	Pin - PEDAL
24	46660-SM4-003	Tank - RESERVE
25	46662-SM4-003	Cap comp. - RESERVE TANK
26	46665-671-651	Band - RESERVE TANK
27	46666-SE3-013	Filter - MASTER CYLINDER
28	46669-SE3-003	Seal - RESERVE TANK
29	53729-671-003	Clamp d - 15.5MM
30	57173-SB0-801	O-ring - CONNECTOR
31	57562-SF1-003	Circlip

Brake master cylinder/ master power (A.L.B.) 23

#	OEM	部品名
1	46100-SM4-G52	Cylinder assy. - MASTER
2	46138-SM4-003	Packing
3	46151-SE0-003	Yoke - PUSH ROD(NISSIN)
4	46185-SE0-003	Seal - ROD
5	46191-634-000	Gasket - MASTER CYLINDER BRACKET
7	46400-SM4-951	Power assy. - MASTER (8"+9")
9	46403-SE0-003	Valve comp. - CHECK (NISSIN)
11	46404-SM4-G00	Tube a - MASTER POWER
13	46405-SM4-A00	Tube b - MASTER POWER
15	46407-SM4-A80	Clamp - CHECK VALVE
18	46512-SB2-000	Pin - PEDAL
19	46660-SM4-003	Tank - RESERVE
20	46662-SM4-003	Cap comp. - RESERVE TANK
21	46665-671-651	Band - RESERVE TANK
22	46666-SE3-013	Filter - MASTER CYLINDER
23	46669-SE3-003	Seal - RESERVE TANK
24	53729-671-003	Clamp d - 15.5MM
25	57173-SB0-801	O-ring - CONNECTOR
26	57515-SM4-013	Bolt comp - STOPPER
27	57520-SD4-013	Piston assy. - PRIMARY
28	57540-SD4-013	Piston assy. - SECONDARY
29	57560-SD4-003	Guide assy - PISTON
30	57562-SF1-003	Circlip

Breather tube 6

#	OEM	部品名
2	17130-PK1-003	Valve assy. - PCV
3	17135-PT0-000	Tube a - BREATHER
5	17138-PT0-000	Tube b - BREATHER
7	17139-PK1-000	Grommet - PCV VALVE
9	91405-679-004	Clamp - TUBE (D17)
9	91405-PM5-004	Clamp - TUBE (D17)

Bumper 27

#	OEM	部品名
1	62521-SB2-000	Nut - LICENSE PLATE
2	71101-SM4-G00	Face - FR. BUMPER
5	71140-SM4-000	Beam comp - FR. BUMPER UPPER
6	71145-SM4-G00	Base - FR. LICENSE PLATE
9	71148-SG9-600	Nut
10	71190-SM4-000	Slide - R. FR. BUMPER CORNER
11	71195-SM4-000	Slide - L. FR. BUMPER CORNER
12	71501-SM4-000	Face - RR. BUMPER
13	71540-SM4-000	Beam comp - RR. BUMPER UPPER
14	71590-SM4-000	Slide - R. RR. BUMPER CORNER
15	71593-SM4-003	Clip - BUMPER CORNER SLIDE
16	71595-SM4-000	Slide - L. RR. BUMPER CORNER
17	71598-SL4-013	Spacer - BUMPER SIDE
18	74710-SM4-A00	Protector - RR. FRAME END
19	90103-SD4-000	Screw - TAPPING, 5X16
20	90104-SD4-000	Bolt - CORNER SLIDE
21	90110-SE7-000	Bolt-washer - 8X21
23	90112-SM4-003	Bolt - BUMPER
24	90302-SD2-003	Nut-washer - 8MM
26	90312-SM4-000	Nut-washer - 8MM
27	90675-SB0-003	Clip - FR. COWL
27	91501-S04-003	Clip - INNER FENDER
28	91502-SM4-000	Clip - BUMPER FACE (PO)
29	91504-SM4-000	Clip - BUMPER FACE (SP)
30	91509-SM4-000	Clip - BUMPER CORNER SLIDE
31	91602-SM4-000	Spacer - RR. BUMPER
32	91603-SM4-000	Spacer - RR. BUMPER END

Camshaft/timing belt 34

#	OEM	部品名
1	11810-PT0-010	Cover - TIMING BELT LOWER
2	11811-PT0-000	Rubber - TIMING BELT LOWER SEAL
3	11820-PT0-000	Cover - TIMING BELT UPPER
4	11830-PT0-000	Cover - TIMING BELT BACK
5	11831-PT0-000	Rubber a - TIMING BELT BACK SEAL
6	11832-PT0-000	Rubber b - TIMING BELT BACK SEAL
7	11833-PT0-000	Rubber c - TIMING BELT BACK SEAL
8	11925-PT0-000	Rubber a - ENGINE MOUNTING BRACKET SEAL
9	11926-PT0-000	Rubber b - ENGINE MOUNTING BRACKET SEAL
10	13404-PT0-004	Adjuster comp - BALANCER BELT (NIPPON SEIKO)
10	13404-PT0-003	Adjuster comp - BALANCER BELT (KOYO)
11	13405-PT0-004	Belt - BALANCER TIMING (UNITTA)
12	13407-PT0-000	Spring b comp. - BELT ADJUSTER
13	13415-PT0-000	Bracket - BALANCER BELT ADJUSTER
13	13415-P0A-000	Bracket - BALANCER BELT ADJUSTER
14	14111-PT0-000	Camshaft
15	14210-PT0-003	Pulley - TIMING BELT DRIVEN
16	14400-PT0-004	Belt - TIMING (UNITTA) (113RU24 A-555)
17	14510-PT0-004	Adjuster comp - TIMING BELT (NIPPON SEIKO)
17	14510-PT0-003	Adjuster comp - TIMING BELT (KOYO)
18	14516-PT0-000	Spring comp - TIMING BELT ADJUSTER
19	90002-PT0-000	Bolt b - TIMING BELT COVER
20	90007-679-000	Bolt a - TIMING BELT COVER
21	90015-PT0-000	Bolt - TIMING BELT ADJUSTER SPRING
22	90016-PT0-000	Bolt - TIMING BELT ADJUSTER
23	90018-PT0-000	Bolt - BALANCER BELT ADJUSTER
24	90031-PT0-003	Bolt-washer - 8X22
24	90032-ZW5-003	Bolt-washer, 8x22
25	90051-PT0-000	Bolt - SUB BELT ADJUSTER SPRING
26	90216-PT0-000	Nut - 10MM
27	90401-PT0-000	Rubber - TIMING BELT ADJUSTER
28	90501-MB7-610	Washer - 10.3X25
29	90741-657-000	Key - 25.4X13
30	91213-PT0-003	Oil seal - 28X42X8 (ARAI)

Carburetor 32

#	OEM	部品名
1	16010-PT1-000	Gasket set
2	16011-PT1-000	Valve set - FLOAT
3	16013-PG6-005	Float set
4	16014-PT0-B01	Cap set - CHOKE
5	16016-PH4-741	Screw set
6	16017-PE0-701	Rod set
7	16019-PH1-601	Rod set - PUMP
8	16020-PT1-000	Diaphragm set - SECOND
9	16021-PT1-000	Diaphragm set - PUMP
12	16037-PE0-921	Plate - SETTING
14	16041-PE0-701	Economizer set
15	16042-PH4-661	Diaphragm set - AIR CONDITIONER
16	16043-PT0-B00	Diaphragm set - DASHPOT
17	16044-PT0-B00	Diaphragm set - SHED
18	16045-PT1-000	Diaphragm set
19	16046-PT1-000	Cover set - DIAPHRAGM
20	16077-PT1-000	Gasket - AIR HORN
21	16079-PT1-000	Gasket
22	16081-PH5-005	Bolt-washer - 5X16
23	16082-PT0-F00	Bolt - RECESSED, 5X12
24	16093-PT1-000	Gasket
25	16097-PE0-922	Cap - SEALING
26	16100-PT0-B01	Carburetor assy - ED58C
27	16181-PC3-781	Pin - SPLIT, 1.2
28	16199-PG6-005	Tube
29	16230-PT1-010	Valve - FUEL MAGNETIC
30	17148-MC7-003	Bolt-washer - 6X16
31	90085-PE0-300	Bolt - STUD, 6X25
32	90409-657-000	Washer - SPRING, 8MM
33	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
44	99104-PJ7-0500	Jet - SLOW, #50
45	99105-PH2-0650	Jet - MAIN AIR, #65

Clutch housing 19

#	OEM	部品名
1	21000-PX5-J01	Case comp. - CLUTCH
2	21101-PG2-000	Plate - NEEDLE BEARING SETTING
3	21103-PX5-000	Plate c - OIL GUIDE
4	21120-PG2-003	Magnet - TRANSMISSION
5	22810-PX5-J01	Bearing - CLUTCH RELEASE (KOYO SEIKO)
5	22810-PX5-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
6	22821-PX5-000	Fork - CLUTCH RELEASE
7	22825-PX5-A00	Bolt - RELEASE FORK
8	22835-PX5-A00	Spring - RELEASE FORK SETTING
9	22841-PX5-000	Boot - RELEASE FORK
10	24600-PX5-000	Stay - CHANGE WIRE
11	90030-PG2-000	Bolt - SPECIAL, 6MM
12	90705-PG2-000	Dowel pin - 14X20
13	91002-PX5-000	Bearing - SPECIAL BALL, 63/28C
14	91103-PG2-004	Bearing - NEEDLE, 33X62X22 (KOYO)
15	91205-PX5-005	Oil seal - 35X56X8 (NOK)
15	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
15	91205-PX5-003	Oil seal - 35X56X8 (ARAI)
16	91216-PH8-005	Oil seal - 28X41X7 (NOK)

Clutch master cylinder (LH) 44

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-548-003	Cap - BLEEDER SCREW
3	46151-SA5-003	Yoke comp. - NISSIN
4	46164-632-000	Float
5	46175-671-651	Screw - SOCKET
6	46182-500-013	Circlip
7	46184-611-000	Dust seal - MASTER CYLINDER
8	46472-SM4-000	Packing - OIL BOLT
9	46472-568-000	Packing - OIL BOLT
10	46912-SD4-000	Pin - CLUTCH PEDAL
11	46918-SM4-020	Clip a13 - TUBE
12	46920-SM4-A03	Cylinder assy. - CLUTCH MASTER
14	46926-SF1-003	Piston assy.
15	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
16	46930-SM4-003	Cylinder assy. - SLAVE
17	46932-SD4-003	Piston - SLAVE CYLINDER
18	46933-SD4-013	Cup a - PISTON
19	46934-SD4-003	Cup b - PISTON
20	46935-SD4-003	Spring - SLAVE CYLINDER
21	46937-SD4-003	Boot - SLAVE CYLINDER
22	46938-SD4-003	Rod - PUSH
23	46939-SM4-010	Joint - CLUTCH HOSE
24	46950-SM4-950	Rod assy - PUSH
25	46952-SD4-003	Joint - TUBE
26	46953-SD4-003	Packing
27	46960-SM4-A03	Pipe assy. a - CLUTCH
28	46960-SM4-911	Pipe assy. b - CLUTCH
29	46961-SM4-013	Hose - CLUTCH
30	46963-SD4-020	Bolt - CLUTCH OIL
31	46964-SM4-020	Clamp - CLUTCH PIPE
32	46966-SM4-A01	Holder - TANK
33	46970-SM4-020	Pipe comp - CLUTCH
34	46971-SM4-A01	Tube - CLUTCH FLUID
35	46972-SD4-003	Tank - CLUTCH FLUID
36	46973-SD4-003	Cap comp. - RESERVE TANK
37	46975-SD4-003	Seal - RESERVE TANK
38	46993-SM4-951	Damper assy. - CLUTCH
38	46993-SM4-G51	Damper assy. - CLUTCH
39	46995-SM4-950	Bracket - CLUTCH PIPE
39	46995-SM4-G50	Bracket - CLUTCH PIPE
40	46997-SM4-A00	Clamp - CLUTCH PIPE
41	46999-SM4-010	Bracket - CLUTCH PIPE
42	90180-SM4-003	Bolt - FLANGE, 6X30
44	90651-538-000	Clip - BRAKE HOSE

Clutch/torque converter 6

#	OEM	部品名
1	21350-PT0-000	Cover - CLUTCH CASE
3	22100-PT0-000	Flywheel comp.
4	22200-PT0-020	Disk comp - FRICTION
5	22300-PT0-000	Disk comp - PRESSURE
8	90011-PH3-000	Bolt - FLANGE, 12MM
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch 23

#	OEM	部品名
2	35100-SM4-G21	Lock assy - STEERING
3	35102-SG0-003	Bolt - BREAK HEAD
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-SA5-003	Screw - RECESSED, 3X8
5	35105-SM4-A01	Ring - IGNITION KEY ILLUMINATION
6	35106-SM4-A01	Cover - ILLUMINATION RING
7	35107-SM4-A01	Cap - ILLUMINATION RING
8	35113-SH3-G02	Key - BLANK (MAIN) (MOLD=BLACK)
9	35114-SH4-K01	Key - BLANK (SUB) (MOLD=GRAY)
10	35130-SM4-305	Switch comp - STEERING
12	35250-SM4-G24	Switch assy - COMBINATION
13	35254-SM4-G21	Cord assy - COMBINATION SWITCH
14	35255-SM4-G02	Switch assy - LIGHTING
15	35256-SM4-G02	Switch assy - WIPER
17	35400-SG0-023	Switch assy - DOOR
18	35409-SG0-901	Screw - FLANGE, 6X12
19	35417-SE3-003	Cover - DOOR SWITCH
19	35410-692-003	Cover - DOOR SWITCH
20	35505-692-003	Bulb - 14V 1.4W
21	53271-SM4-003	Cam - TURN SIGNAL SWITCH CANCEL
22	90674-WA8-003	Band - CABLE, 120MM (BLACK)
24	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
25	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)

Console 10

#	OEM	部品名
8	77296-SM4-000	Bracket - FR. CONSOLE (A)
9	77297-SM4-000	Bracket - FR. CONSOLE (B)
17	83415-SM4-J00	Plate - BOOT SETTING
18	83425-SM4-000	Bracket b - RR. CONSOLE
22	83484-SM4-003	Cover - RR. ASHTRAY
23	90101-SA4-000	Screw - TAPPING, 4X12
24	90102-SA4-000	Screw - TAPPING, 4X16
25	90302-SA4-003	Nut - SPRING, 4MM
26	90666-SD4-000	Clip - PILLAR LINING
27	91641-SM4-003	Grommet - SCREW, 4MM

Control device (MT) 17

#	OEM	部品名
1	16300-PK1-751	Valve - CONTROL
2	36001-PT1-F01	Stay - CONTROL VALVE
3	36002-PT1-E01	Bracket - CONTROL VALVE
4	36022-PT1-F01	Label - CONTROL DEVICE
5	36024-PM2-G11	Clamp - TUBE, 7.5X4
6	36024-PM5-A01	Clamp - TUBE, 7.5X2S
7	36051-657-300	Rubber - CONTROL VALVE MOUNTING
8	36052-657-300	Collar - CONTROL VALVE
9	36053-PT1-E01	Rubber - MOUNTING
10	36053-657-003	Rubber b - MOUNTING
11	36054-657-003	Collar b - DISTANCE
12	36055-PT1-E01	Washer - PLAIN (A)
13	36056-PT1-E01	Washer - PLAIN (B)
14	36134-PT1-F01	Chamber comp - VACUUM
15	36138-PM1-G01	Filter assy - SOLENOID VALVE
16	36161-PT1-F01	Valve assy. - IDLE UP SOLENOID
17	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Control unit (A.L.B.) 12

#	OEM	部品名
1	38212-SM4-000	Fuse - BLOCK (40A)
2	38230-SM4-003	Box assy - A.L.B. FUSE
3	38231-SM4-000	Cover
4	39790-SM4-003	Control unit - A.L.B.
5	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
5	39794-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2203)
6	39795-SM4-010	Bracket - A.L.B. UNIT
7	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
7	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)
8	90114-SG0-003	Bolt - 5X13
9	90153-SA5-900	Screw-washer - 5X9
10	90344-692-003	Nut - CLIP, 6MM

Countershaft/gear 23

#	OEM	部品名
1	23220-PX5-J40	Countershaft comp.
2	23421-PX5-J40	Gear - COUNTERSHAFT LOW
3	23431-PX5-S00	Gear - COUNTERSHAFT SECOND
4	23461-PX5-J80	Gear - COUNTERSHAFT FIFTH
5	23471-PX5-J40	Gear - COUNTERSHAFT THIRD
6	23481-PX5-J40	Gear - COUNTERSHAFT FOURTH
7	23521-PX5-305	Sleeve set - SYNCHRONIZER (1-2)
8	23918-PH8-000	Collar b - DISTANCE, 36X44X29 (0.00/-0.02)
8	23917-PH8-000	Collar a - DISTANCE, 36X44X29 (+0.05/+0.03)
9	23923-PG1-000	Washer c - 40X54X2.02
9	23925-PG1-000	Washer e - 40X54X2.08
9	23922-PG1-000	Washer b - 40X54X1.99
9	23924-PG1-000	Washer d - 40X54X2.05
9	23921-PG1-000	Washer a - 40X54X1.96
10	23926-PG1-010	Washer - SPRING, 23MM
11	90202-PH8-000	Nut - HEX., 23MM
12	90603-PL3-000	Ring - SNAP, 52MM
13	91003-PL3-B04	Bearing - BALL, 25X52X14/15 (TOYO)
14	91102-PL3-B04	Bearing - NEEDLE, 25X52.2X15 (NTN)
15	91105-PX5-008	Bearing - NEEDLE, 40X46X26.8 (NTN)
16	91107-PK5-008	Bearing - NEEDLE, 44X50X24 (TOYO)
17	91211-PX5-008	Damper - FRICTION (LOW)
18	91212-PX5-008	Damper - FRICTION (SECOND)

Cross beam 10

#	OEM	部品名
1	50100-SM4-000	Beam - CENTER
2	50200-SM4-A03	Beam - RR.
3	50250-SM4-G03	Beam - FR.
4	50300-SM4-G01	Beam - RR. SUSPENSION CROSS
6	90161-SF1-000	Bolt - FLANGE, 12X105
7	90166-SF1-010	Bolt-washer - 10X21
8	90176-SM4-000	Bolt - FLANGE, 12X95
9	90177-SM4-010	Bolt - FLANGE, 12X136
11	90506-SE0-000	Washer - PLAIN, 12MM
12	91613-SE0-003	Grommet - SUB FRAME, 15MM

Cylinder block/oil pan 32

#	OEM	部品名
1	11000-PT0-010	Block assy - CYLINDER
2	11109-PK2-010	Seal - TIMING RUBBER
3	11126-PK1-003	Bolt - SEALING, 22MM
4	11130-PT0-000	Bridge comp - BEARING CAP
5	11200-PT0-000	Pan comp - OIL
7	11251-PT0-000	Gasket - OIL PAN
8	11300-PT0-B00	Cover assy. - R. SIDE
9	11910-PT0-020	Bracket - ENGINE MOUNTING
10	11912-PT0-000	Stay a - ENGINE MOUNTING BRACKET
11	12207-634-300	Washer - SEALING BOLT
12	13421-PT0-003	Metal - BALANCER SHAFT (NO.1) (DAIDO)
13	13422-PT0-013	Metal - BALANCER SHAFT (NO.2) (DAIDO)
14	13423-PT0-003	Metal - BALANCER SHAFT (NO.3) (DAIDO)
15	15140-PH3-000	Orifice assy - OIL CONTROL
16	15142-PH3-003	O-ring - 10.8X2.4 (ARAI)
17	15200-PT0-000	Pipe comp - OIL LEVEL
18	15650-PT0-003	Gauge comp. - OIL LEVEL
19	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
20	90007-PK1-003	Bolt-washer - 11X121
21	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5
22	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
23	90030-PT0-000	Bolt - STUD, 10X35
24	90041-PA5-000	Bolt - STUD, 6X28
25	90041-PT0-000	Bolt - STUD, 12X60
26	90051-PH7-000	Bolt - FLANGE, 6X18
27	90061-PT0-000	Bolt - DRAIN PLUG, 12MM
28	90705-PT0-000	Dowel pin - 16X22
29	90715-PC6-000	Dowel pin - 13X20
30	91214-PR4-A01	Oil seal - 80X100X10 (NOK)
30	91214-PH3-751	Oil seal - 80X100X10 (ARAI)
31	91309-PJ7-010	O-ring - 11.5X3.5
32	91323-PH7-003	Packing - BEARING CAP BRIDGE (ARAI)

Cylinder head 21

#	OEM	部品名
1	12100-PT0-F00	Head assy - CYLINDER
4	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
5	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)
6	12251-PT0-J03	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)
7	14631-PT0-010	Shaft a - VALVE ROCKER ARM
8	14632-PT0-010	Shaft b - VALVE ROCKER ARM
9	14633-PT0-000	Shaft - EX. VALVE ROCKER ARM
9	14633-P0B-A00	Shaft - EX. VALVE ROCKER ARM
10	90003-PT0-000	Bolt - FLANGE, 6X50
11	90004-PT0-000	Bolt - FLANGE, 6X50
12	90005-PT0-003	Bolt-washer - 12X163
13	90006-PT0-003	Bolt-washer - 12X199
14	90007-PT0-000	Bolt - FLANGE, 8X55
15	90008-PT0-000	Bolt - FLANGE, 8X77
16	90012-PT0-000	Bolt a - HEAD COVER
17	90013-PT0-000	Bolt b - HEAD COVER
18	90026-PT0-000	Bolt - STUD, 8X38
19	91301-PT0-004	O-ring - 29.7X2.5 (NOK)
19	91301-PT0-003	O-ring - 29.7X2.5 (ARAI)

Cylinder head cover 9

#	OEM	部品名
1	12310-PT0-000	Cover comp. - CYLINDER HEAD
2	12341-PT0-000	Packing - CYLINDER HEAD COVER
3	12342-PT0-000	Packing b - HEAD COVER
4	15610-PC6-000	Cap assy. - OIL FILLER
5	15613-PC6-000	Packing, Oil Filler
6	32761-PT0-000	Stay a - HIGH TENSION CORD CLAMP
7	32762-PT0-010	Stay b - HIGH TENSION CORD CLAMP
8	90213-PH3-000	Nut - CAP, 6MM
9	90441-PT0-000	Washer - HEAD COVER

Differential 35

#	OEM	部品名
1	41221-PC8-030	Gear - DRIVE PINION
2	41233-PX5-J40	Gear - FINAL DRIVEN
3	41310-PX5-S80	Case comp. - DIFFERENTIAL
4	41313-PX5-000	Roller - 5X37
5	41321-PX5-020	Shaft - PINION
6	41341-PC8-020	Gear - DIFFERENTIAL PINION
7	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)
7	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)
7	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)
7	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)
8	90425-680-900	Washer - THRUST, 28X50X1.5
9	41380-PX5-000	Shim - 68MM
10	41400-PX5-000	Shim t - 68MM (2.47)
10	41395-PX5-000	Shim o - 68MM (2.32)
10	41390-PX5-000	Shim j - 68MM (2.17)
10	41385-PX5-000	Shim e - 68MM (2.02)
10	41397-PX5-000	Shim q - 68MM (2.38)
10	41392-PX5-000	Shim l - 68MM (2.23)
10	41387-PX5-000	Shim g - 68MM (2.08)
10	41382-PX5-000	Shim b - 68MM (1.93)
10	41399-PX5-000	Shim s - 68MM (2.44)
10	41394-PX5-000	Shim n - 68MM (2.29)
10	41389-PX5-000	Shim i - 68MM (2.14)
10	41384-PX5-000	Shim d - 68MM (1.99)
10	41396-PX5-000	Shim p - 68MM (2.35)
10	41391-PX5-000	Shim k - 68MM (2.20)
10	41386-PX5-000	Shim f - 68MM (2.05)
10	41381-PX5-000	Shim a - 68MM (1.90)
10	41398-PX5-000	Shim r - 68MM (2.41)
10	41393-PX5-000	Shim m - 68MM (2.26)
10	41388-PX5-000	Shim h - 68MM (2.11)
10	41383-PX5-000	Shim c - 68MM (1.96)
11	90017-689-000	Bolt - SPECIAL, 10MM
13	91006-PX5-004	Bearing - TAPER, 40X68X22 (KOYO)
13	91006-PX5-008	Bearing - TAPER, 40X68X22 (NTN)

Distributor (HITACHI) 23

#	OEM	部品名
1	30100-PT0-005	Distributor assy - CM1T-217) (HITACHI
2	30101-PM3-005	Plate assy.
3	30102-PM3-045	Cap assy.
4	30103-PM3-025	Head - ROTOR
5	30117-PT0-005	Control set - VACUUM
6	30110-PC6-005	O-ring
7	30113-PT0-005	Coupling set
7	30113-P01-005	Coupling set
8	30115-634-005	Point assy - CARBON
9	30120-PM3-005	Igniter unit
10	30121-PM3-005	Stator
11	30123-PC1-005	Magnet set - PICK UP
12	30126-PM3-005	Reluctor set
13	30128-PM3-015	Wire - LEAD
14	30131-PT0-005	Harness assy
14	30131-P01-005	Harness assy
15	30132-PT0-005	Packing - 1
16	30135-PT0-005	Screw - PAN, 4X10
17	30138-PM3-005	Packing - 2
17	91308-MA6-005	O-ring (14.6x3.6)
18	30139-PM3-015	Plug
19	30500-PT0-005	Coil - IGNITION
20	91301-PK1-005	O-ring

Driveshaft/half shaft 29

#	OEM	部品名
1	44010-SM4-010	Driveshaft set
1	44010-SM4-951	Driveshaft set - ABS
5	44310-SM4-310	Joint comp - INBOARD
6	44310-SM4-901	Joint comp - INBOARD
7	44315-SM4-003	Boot - INBOARD (NOK)
8	44319-SE0-000	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0
9	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
10	44328-SB0-300	Band - INBOARD BOOT
11	44329-SB0-300	Band - DRIVESHAFT BOOT
11	44352-SA2-300	Band - DAMPER WEIGHT
12	44333-SM4-003	Boot - OUTBOARD (NOK)
13	44336-SB0-300	Ring a - STOPPER
14	44338-SB0-300	Circlip - 26MM
16	44500-SM4-020	Shaft assy - HALF
17	44510-SM4-020	Shaft comp. - HALF
18	44511-SM4-010	Support - HALF SHAFT BEARING
19	90102-SF1-000	Bolt - HEX., 10X1.25
20	91057-SH3-008	Bearing - HALF SHAFT (NTN)
21	91260-SK7-014	Seal - HALF SHAFT OUTER (ARAI)
21	91260-SK7-013	Seal - HALF SHAFT OUTER (NOK)
22	91262-SH3-003	Seal - HALF SHAFT INNER
25	90165-SE0-000	Bolt - FLANGE, 10X37
26	44014-SV4-000	Joint set - OUTBOARD
26	44014-SV4-950	Joint set - OUTBOARD
27	44018-S30-C00	Boot set - OUTBOARD
28	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
29	44337-SB0-300	Ring b - STOPPER
30	90305-SD4-003	Nut - SPINDLE (24MM)

Emblem 13

#	OEM	部品名
1	17669-SD4-P00	Label - FUEL FILLER CAUTION (REGULAR GASOLINE)
3	19043-PK1-650	Mark - RADIATOR CAUTION
4	31511-SB2-671	Mark - BATTERY CAUTION (MAINTENANCE FREE)
6	42760-SM4-F02	Plate - TIRE PRESSURE CAUTION (NON T-TIRE)
7	42760-SM4-G02	Plate - TIRE PRESSURE CAUTION
7	42760-SM4-G12	Plate - TIRE PRESSURE CAUTION
8	57079-SM4-G00	Plate - CAUTION (A.L.B.)
9	75701-SM4-A00	Emblem - RR. CENTER (H)
11	75711-SM4-000	Emblem - RR. (HONDA)
12	75722-SM4-000	Emblem - RR. (ACCORD)
17	76501-SA1-600	Plate, RR. DOOR LOCK CAUTION
18	87351-SA0-003	Clip - TUBULAR
18	91512-SR3-004	Clip - TUBULAR

Engine mounts 17

#	OEM	部品名
2	50805-SM4-020	Rubber - MISSION MOUNTING INSULATOR
5	50810-SM4-000	Rubber - ENGINE RR. INSULATOR (MT)
6	50814-SF1-010	Insulator - FR. ENGINE MOUNTING RUBBER (MT)
7	50820-SM4-020	Rubber - ENGINE SIDE INSULATOR (MT)
8	50825-SM4-000	Bracket - TRANSMISSION MOUNTING (MT)
10	50826-SM4-J01	Bracket - FR. ENGINE MOUNTING (MT)
14	50827-SM4-000	Bracket - ENGINE RR. MOUNTING (MT)
19	50839-SM4-010	Nut - YOKE, 12MM
25	90165-SM4-020	Bolt - FLANGE, 12X101
27	90168-SM4-010	Bolt - FLANGE, 12X90
28	90169-SM4-000	Bolt - FLANGE, 12X30
29	90170-SM4-000	Bolt - FLANGE, 12X40
30	90172-SM4-000	Bolt - FLANGE, 10X19
31	90173-SM4-000	Bolt - FLANGE, 12X60
32	90371-SM4-000	Nut - FLANGE, 10MM
33	90504-SB0-000	Washer - PLAIN, 12MM
34	90174-SM4-000	Bolt - FLANGE, 10X22

Engine wire harness/clamp 30

#	OEM	部品名
1	28291-PR0-003	Band - SOLENOID HARNESS (BLACK)
2	31110-PT0-004	Belt - ALTERNATOR (BANDO)
2	31110-PT0-003	Belt - ALTERNATOR (MITSUBOSHI)
3	31112-PT0-000	Bracket - ALTERNATOR
4	31117-PT0-000	Plate - ALTERNATOR ADJUSTER
5	31118-PT0-000	Stay - ALTERNATOR ADJUSTER
6	32110-PT1-F00	Harness - ENGINE WIRE
7	32112-PT1-X00	Stay comp - COUPLER
9	32610-SM4-000	Cable - SUB EARTH
12	32744-PT0-000	Clamp d - ENGINE WIRE HARNESS (BLACK)
13	32745-PT0-000	Clamp e - ENGINE WIRE HARNESS
14	32746-PT0-000	Clamp f - ENGINE WIRE HARNESS
15	32748-PT0-000	Stay - ENGINE WIRE HARNESS CLAMP
16	32749-PT0-000	Stay a - ENGINE WIRE HARNESS
17	32750-PT0-000	Stay b - ENGINE WIRE HARNESS
20	32754-PT0-000	Stay b - ALTERNATOR
22	37240-PT0-013	Switch - OIL PRESSURE (DENSO)
22	37240-PT0-004	Switch - OIL PRESSURE (TEC)
23	37750-PH2-014	Thermo unit - DENSO
25	90004-PA0-000	Bolt - HEX., 6X14
27	90052-PT0-000	Bolt - FLANGE, 10X60
28	90053-PT0-000	Bolt - FLANGE, 10X50
29	90149-SE0-003	Bolt - EARTH, 6X16
30	90204-PH7-000	Nut - SPECIAL
31	90310-PT0-003	Bolt - SPECIAL
32	90312-PT0-000	Bolt - ADJUSTER SPECIAL
33	90313-PT0-000	Bolt - SPECIAL, 10X90
36	91507-752-003	Clip - WIRE HARNESS(GRAY)(50MM)
37	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
38	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)

Exhaust manifold (2.0L) 18

#	OEM	部品名
1	11942-PT0-000	Stay - L. EX. MANIFOLD
2	17302-PT0-003	Pipe - HOT AIR
3	17304-PT0-004	Clamp a - HOT AIR PIPE
4	17305-PT0-003	Clamp b - HOT AIR PIPE
6	18000-PT0-B01	Manifold assy - EX.
10	18115-PT0-004	Gasket - EX. MANIFOLD (ISHINO GASKET)
10	18115-PT0-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
11	18120-PT0-B00	Cover comp. a - EX. MANIFOLD
12	18121-PT0-000	Cover comp. b - EX. MANIFOLD
13	32747-PT0-010	Clamp g - ENGINE WIRE HARNESS
18	90010-PE2-900	Bolt - SPECIAL, 10X22
19	90015-PT0-B00	Bolt-washer - 8X14
19	90015-PT0-J00	Bolt-washer - 8X14
21	90065-PC1-300	Bolt - STUD, 10X34.5
22	90212-PD2-003	Nut - SELF-LOCK, 8MM
22	90212-RCA-A01	Nut - SELF-LOCK, 8MM
23	90451-PE2-000	Washer - SPECIAL, 11X28
24	90653-689-000	Circlip - 34MM

Exhaust pipe 20

#	OEM	部品名
7	18210-SM4-020	Pipe a - EX.
10	18212-SM4-003	Gasket - EX. PIPE (ISHINO)
11	18213-SM4-003	Stay - EX. PIPE
11	18213-SM4-A31	Stay - EX. PIPE
12	18215-SA7-000	Rubber - SILENCER MOUNTING (70X45X25)
13	18215-SE0-G00	Rubber - EX. PIPE MOUNTING (60X50X20)
15	18220-SM4-G02	Pipe b - EX.
16	18222-SM4-003	Bracket - EX. PIPE MOUNTING
17	18282-SM4-020	Bracket b - FLEXIBLE MOUNTING
18	18303-SE1-S01	Gasket - SILENCER
20	18307-SM4-A33	Silencer comp - EX.
23	18310-692-013	Finisher - EX. PIPE (SANKEI)
24	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
27	74601-SM4-A00	Plate - FLOOR HEAT BAFFLE
28	74610-SM4-000	Reinforcement - FR. CROSSMEMBER
29	74651-SM4-000	Plate - TANK BAFFLE
30	74655-SM4-000	Plate - SILENCER BAFFLE
32	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
33	90212-SA5-003	Nut - SELF-LOCK, 10MM
34	90212-671-005	Nut - SELF-LOCK, 10MM

Floor mat 13

#	OEM	部品名
2	83101-SM4-A01	Insulator - DASHBOARD
3	83106-SM4-A00	Bracket - DASHBOARD INSULATOR
9	84521-SM4-G00	Lid - SPARE TIRE
9	84521-SM4-Y01	Lid - SPARE TIRE
9	84521-SM4-G10	Lid - SPARE TIRE
10	84525-SM4-E10	Spacer - R. TRUNK
11	84575-SM4-E02	Spacer - L. TRUNK
15	90676-SB2-003	Clip - DASHBOARD INSULATOR
17	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)
18	91547-SM4-003	Cap - INSULATOR
19	91567-SM4-003	Clip - UPPER
20	91568-SM4-013	Clip - LOWER
22	91641-SH3-013	Grommet assy, GARNISH

Front brake (1) 27

#	OEM	部品名
1	44200-SM4-013	Bearing assy - FR. HUB UNIT (NIPPON SEIKO)
1	44200-SM4-018	Bearing assy - FR. HUB UNIT (NTN)
2	44600-SM4-020	Hub assy - FR.
3	45022-SM4-A00	Pad set - FR.
3	45022-SM4-A01	Set,pad fr (adr 5
4	45210-SM4-A02	Caliper assy - R. (AKEBONO)
5	45214-SM4-A01	Boot - PISTON
6	45215-671-672	Screw - BLEEDER
7	45216-SM4-A01	Piston
8	45217-SM4-A01	Seal - PISTON
9	45219-671-672	Cap - BLEEDER SCREW
10	45225-SM4-A01	Shim a - INNER
11	45226-SM4-A01	Shim b - INNER
12	45228-SM4-A01	Shim - OUTER
13	45230-SM4-A02	Caliper assy - L. (AKEBONO)
14	45233-SM4-A01	Bush
15	45234-SM4-A02	Boot - PIN
16	45235-SM4-A01	Pin a
17	45236-SM4-A01	Pin b
18	45237-SM4-A01	Clip - PAD
19	45251-SM4-020	Disk - FR. BRAKE (14")
20	45255-SM4-010	Guard - FR. SPLASH (14")
21	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
22	90114-SM4-000	Bolt - FLANGE, 10X20
23	90163-SM4-003	Bolt - WHEEL (TOUKAI)
24	90164-SM4-003	Bolt - FR. HUB UNIT, 10X40
25	90305-SD4-003	Nut - SPINDLE (24MM)

Front combination light 15

#	OEM	部品名
1	33300-SM4-G02	Light assy - R. FR. TURN SIGNAL
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33302-SM4-G02	Lens - R.
4	33303-SM4-003	Holder
5	33305-SH3-A01	Socket comp - GRAY
6	33305-SM4-A01	Tube
7	33350-SM4-G02	Light assy - L. FR. TURN SIGNAL
8	33352-SM4-G02	Lens - L.
9	33800-SM4-013	Light assy - R. SIDE TURN (###)
10	33802-SM4-013	Housing comp - R.
11	33850-SM4-013	Light assy - L. SIDE TURN (###)
12	33852-SM4-013	Housing comp - L.
13	34304-SH3-A01	Socket comp.
14	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
15	90303-SA5-003	Nut - FR. COMBINATION LIGHT

Front door lining 19

#	OEM	部品名
3	34258-SM4-G01	Lens - R.
4	34259-SM4-G01	Lens - L.
5	34262-SM4-010	Plate - COURTESY LIGHT
6	34282-SM4-000	Plate - L. COURTESY LIGHT
7	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
11	72335-SM4-003	Weatherstrip - R. FR. DOOR INNER
12	72375-SM4-003	Weatherstrip - L. FR. DOOR INNER
18	83531-SM4-000	Bracket - DOOR LINING
35	90101-SA4-000	Screw - TAPPING, 4X12
36	90137-SL4-003	Screw - TAPPING, 6X20
37	90302-SA4-003	Nut - SPRING, 4MM
38	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)
39	90666-SH4-003	Clip - SPEAKER
40	90665-SM4-003	Grommet - SCREW, 4MM (YELLOW)
41	90668-SM4-003	Lock - PUSH
42	91560-SM4-003	Clip - DOOR LINING
42	91560-SL4-003	Clip - DOOR LINING
43	91561-SE3-003	Grommet - SCREW, 6MM
45	91562-SM4-013	Grommet - DOOR LINING

Front door locks 22

#	OEM	部品名
1	72110-SM4-G02	Lock assy - R. FR. DOOR
2	72110-SM4-902	Lock assy - R. FR. POWER DOOR
3	72119-SM1-003	Stopper a - OUTSIDE HANDLE
5	72123-SR0-003	Ring - OUTSIDE HANDLE
6	72134-SM4-003	Snap - R. (VIOLET)
8	72131-SM4-003	Rod - R. FR. INSIDE HANDLE
9	72135-SM4-003	Striker assy - DOOR
10	72136-SM4-003	Holder - ROD, 4MM
12	72138-SM4-000	Cushion - LOCK ROD
13	72140-SM4-J01	Handle assy - R. FR. DOOR OUTSIDE
14	72145-SM4-003	Cylinder - R. DOOR
15	72146-SM4-003	Cylinder - L. DOOR
16	72150-SM4-G02	Lock assy - L. FR. DOOR
17	72150-SM4-912	Lock assy - L. FR. POWER DOOR
19	72174-SM4-003	Snap - L. (YELLOW)
20	72171-SM4-003	Rod - L. FR. INSIDE HANDLE
21	72180-SM4-J01	Handle assy - L. FR. OUTSIDE
22	75411-634-000	Joint
23	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)
24	90120-SM4-000	Screw - TAPPING
25	90130-SM4-000	Bolt - LOCK STRIKER
26	90669-SB6-003	Grommet - SCREW ADJUSTER

Front door panels 18

#	OEM	部品名
10	72142-SM4-000	Stopper - DOOR
11	72310-SM4-023	Weatherstrip - R. FR. DOOR
12	72321-SM4-A00	Seal - R. FR. DOOR HOLE
12	72321-SM4-G21	Seal - R. FR. DOOR HOLE
13	72326-SM4-003	Weatherstrip - R. FR. LOWER
14	72340-SM4-013	Checker comp. - FR. DOOR
15	72350-SM4-023	Weatherstrip - L. FR. DOOR
16	72361-SM4-A00	Seal - L. FR. DOOR HOLE
16	72361-SM4-G21	Seal - L. FR. DOOR HOLE
17	72366-SM4-003	Weatherstrip - L. FR. LOWER
19	75760-SB2-003	Pin - DOOR CHECKER
20	72327-SM4-010	Seal - DOOR UPPER HOLE
21	75891-SA7-000	Stopper - DOOR
22	90101-SE3-003	Bolt-washer - 8X23.5
26	90755-SB2-000	E-ring - 6MM
27	90852-SA5-000	Plug - HOLE, 10MM
28	91530-SH4-003	Clip - DOOR WEATHERSTRIP
29	91630-SM4-003	Clip - DOOR HOLE SEAL

Front door windows 17

#	OEM	部品名
1	72210-SM4-901	Regulator - R. FR. DOOR (MANUAL)
3	72212-SH3-003	Spring - SPIRAL
5	72230-SM4-A00	Sash - R. FR. DOOR LOWER
6	72231-SM4-A01	Sash - R. FR. DOOR CENTER LOWER
7	72235-SM4-003	Runchannel - R. FR. DOOR
8	72237-SM4-003	Clip - FR. DOOR GLASS GUIDE
9	72250-SM4-901	Regulator - L. FR. DOOR (MANUAL)
12	72270-SM4-A00	Sash - L. FR. DOOR LOWER
13	72271-SM4-A01	Sash - L. FR. DOOR CENTER LOWER
14	72275-SM4-003	Runchannel - L. FR. DOOR
15	72332-SM4-003	Stopper - DOOR GLASS
16	73300-SM4-000	Glass assy - R. FR. DOOR (BLUE)
17	73350-SM4-000	Glass assy - L. FR. DOOR (BLUE)
18	75330-671-601	Handle assy - REGULATOR
19	75342-679-000	Pin - WINDOW REGULATOR HANDLE
21	90011-896-000	Bolt - FLANGE, 6X8
22	90115-SG0-003	Bolt - FLANGE, 6MM

Front fenders 11

#	OEM	部品名
4	74101-SM4-000	Fender - R. FR. INNER
5	74111-SM4-A00	Shield - FR. SPLASH
6	74151-SM4-000	Fender - L. FR. INNER
7	90108-SF1-000	Bolt-washer - 6X15
8	90119-SE0-000	Bolt - FLANGE, 6MM
9	90139-SE0-003	Screw-washer - 5X25
10	90501-SM4-003	Bolt - FENDER
11	90305-SM4-003	Nut - CLIP, 6MM
12	90657-SB0-003	Clip, SPLASH SHIELD
13	90682-SB0-003	Grommet - SCREW, 5MM
14	91512-SM4-003	Clip - INNER FENDER

Front grille 7

#	OEM	部品名
1	75101-SM4-003	Grille - FR. (BLACK)
2	75103-SJ4-003	Clip - FR. GRILLE
3	75120-SM4-A01	Molding - FR. GRILLE
4	75700-SM4-G01	Emblem - FR. CENTER GRILLE
5	90125-SM4-003	Screw - TAPPING, 5X16
6	90682-SB0-003	Grommet - SCREW, 5MM
7	91635-SM4-003	Grommet - SCREW, 5MM (BLACK)

Front seat 7

#	OEM	部品名
7	81125-SM4-G11	Seatback - R. FR.
9	81135-SM4-J21	Cushion - R. FR. SEAT
17	81525-SM4-G11	Seatback - L. FR.
19	81535-SM4-J21	Cushion - L. FR. SEAT
21	90161-SB4-003	Screw - FLAT, 4X16
25	91560-SM4-003	Clip - DOOR LINING
25	91560-SL4-003	Clip - DOOR LINING

Front seat components (L.) 8

#	OEM	部品名
1	77208-SA5-003	Bush - NYLON (TS TECH)
2	77209-SB0-003	Washer - NYLON
3	81261-SK7-013	Cap - SLIDE RAIL END
4	81261-SM4-J01	Cap - RAIL END LOWER
5	81262-SM4-J01	Cap - RAIL END UPPER
6	81550-SM4-C01	Slide comp. - L. RECLINING OUTER
8	81670-SM4-C01	Adjuster - L. INNER SLIDE
9	90180-SE3-000	Bolt-washer - 10X27

Front seat components (R.) 8

#	OEM	部品名
1	77208-SA5-003	Bush - NYLON (TS TECH)
2	77209-SB0-003	Washer - NYLON
3	81150-SM4-C01	Slide comp. - R. RECLINING OUTER
5	81261-SK7-013	Cap - SLIDE RAIL END
6	81261-SM4-J01	Cap - RAIL END LOWER
7	81262-SM4-J01	Cap - RAIL END UPPER
8	81270-SM4-C01	Adjuster - R. INNER SLIDE
9	90180-SE3-000	Bolt-washer - 10X27

Front shock absorber 24

#	OEM	部品名
1	51401-SM4-Y01	Spring - FR. (SHOWA)
1	51401-SM4-004	Spring - FR. (SHOWA)
2	51601-SM4-Y05	Absorber assy - R. FR. SHOCK
2	51601-SM4-E24	Absorber assy - R. FR. SHOCK
3	51602-SM4-Y05	Absorber assy - L. FR. SHOCK
3	51602-SM4-E24	Absorber assy - L. FR. SHOCK
4	51605-SM4-Y02	Absorber unit - R. FR. SHOCK (SHOWA)
4	51605-SM4-E02	Absorber unit - R. FR. SHOCK (SHOWA)
5	51606-SM4-Y02	Absorber unit - L. FR. SHOCK (SHOWA)
5	51606-SM4-E02	Absorber unit - L. FR. SHOCK (SHOWA)
6	51621-SB0-004	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)
6	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
7	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
7	51631-S7S-J01	RUBBER DAMPER M
7	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
8	51675-SM4-004	Base - SHOCK ABSORBER MOUNTING (SHOWA)
9	51686-SM4-004	Rubber - FR. SPRING SEAT (SHOWA)
10	51687-SM4-014	Cover - FR. SLEEVE DUST (SHOWA)
11	51722-SM4-003	Rubber - FR. BUMP STOPPER (NOK)
12	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
13	51685-SH3-014	Plate - DUST COVER(SHOWA)
14	52690-SG0-000	Plate - BUMP STOP
15	90304-SM4-000	Nut - FR. SHOCK ABSORBER FLANGE (10MM)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 29

#	OEM	部品名
1	51300-SM4-023	Spring - FR. STABILIZER
2	51306-SM4-010	Bush - STABILIZER HOLDER
3	51308-SG0-020	Bracket - FR. STABILIZER
4	51311-SM4-010	Collar a - STABILIZER END (7.6MM)
5	51312-SM4-000	Collar b - STABILIZER END (27.2MM)
6	51313-SM4-010	Washer - STABILIZER END
7	51314-SM4-020	Rubber - STABILIZER END
8	51352-SM4-013	Rod - FR. RADIUS
10	51355-SM4-040	Arm comp - R. FR. LOWER
11	51362-SM4-003	Rod - L. FR. RADIUS
12	51365-SM4-040	Arm comp - L. FR. LOWER
13	51381-SM4-013	Bush - FR. RADIUS ROD (RR.)
14	51391-SM4-013	Bush - FR. RADIUS ROD (FR.)
15	51393-SM4-013	Bush - FR. LOWER ARM (HOKUSHIN)
16	51394-SM4-010	Washer - CASTER ADJUSTER
17	51398-SM4-000	Collar - RADIUS ROD
18	51399-SM4-000	Washer - FR. RADIUS ROD
19	51810-SM4-003	Bush - SHOCK ABSORBER FORK (HOKUSHIN)
19	51810-SM4-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)
20	51811-SM4-030	Fork - R. FR. SHOCK ABSORBER
21	51821-SM4-030	Fork - L. FR. SHOCK ABSORBER
22	90112-SM4-020	Bolt - STABILIZER LINK (8X95)
23	90117-SM4-003	Bolt - FR. SHOCK ABSORBER LOCK (10X44)
24	90118-SM4-013	Bolt - SELF-LOCK, 12X80
25	90121-SM4-010	Bolt - SHOCK ABSORBER FORK (12X98)
26	90178-SM4-013	Bolt - FR. RADIUS ROD (12X31)
27	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
28	90303-SF1-003	Nut - SELF-LOCK, 12MM
29	90362-SF1-003	Nut - SELF-LOCK, 8MM

Front windshield 18

#	OEM	部品名
1	73111-SM4-000	Glass - FR. WINDSHIELD (BLUE)
1	73111-SM4-A00	Glass - FR. WINDSHIELD (BLUE) (HALF SHADE)
1	73111-SM4-507	Glass
2	73125-SM4-000	Rubber - FR. WINDSHIELD DAM
2	73125-SL4-000	Rubber - FR. WINDSHIELD DAM
3	73126-SE0-000	Spacer - FR. WINDSHIELD
4	73151-SM4-A01	Molding - FR. WINDSHIELD UPPER
5	73152-SM4-A02	Molding assy. - R. FR. WINDSHIELD SIDE & CORNER
6	73158-SM4-003	Clip - FR. WINDSHIELD SIDE (E) (RED)
7	73159-SM4-003	Grommet - FR. END (M4)
8	73162-SM4-A02	Molding assy. - L. FR. WINDSHIELD SIDE & CORNER
9	77466-SM4-000	Seal - FR. INSTRUMENT
10	90136-SM4-003	Screw - TAPPING, 4X16
11	91524-SM4-003	Clip A - FR. WINDSHIELD SIDE MOLDING (WHITE)
12	91525-SM4-003	Clip b - FR. WINDSHIELD SIDE MOLDING (PINK)
13	91531-SM4-003	Clip - FR. WINDSHIELD UPPER (YELLOW)
14	91532-SM4-003	Clip - FR. WINDSHIELD SIDE (C) (GRAY)
15	91534-SM4-003	Clip - FR. WINDSHIELD UPPER MOLDING (GREEN)

Front windshield wiper (LH) 25

#	OEM	部品名
1	38472-SB0-671	Rubber - BLADE (475MM)
2	76505-SM4-A01	Motor comp - FR. WIPER
3	76510-SM4-003	Rubber - MOUNTING
4	76515-SM4-003	Seal a
5	76516-SM4-003	Rubber - MOUNTING
6	76517-SM4-003	Collar
7	76520-SM4-003	Link unit a
8	76524-SD4-003	Dust seal
9	76524-SE0-013	Dust seal
10	76530-SM4-G01	Link comp - FR. WIPER
11	76540-SM4-003	Rod unit a
12	76550-SM4-003	Rod unit b
13	76558-SM4-003	Cap - PIVOT
14	76561-SD4-003	Cap - PIVOT
15	76600-SM4-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76610-SM4-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-SM4-G01	Blade - WINDSHIELD WIPER (550MM)
18	76622-SM4-G01	Rubber - BLADE (550MM)
18	76622-SZ3-003	Blade Rubber (550MM)
19	76630-SM4-A01	Blade - WINDSHIELD WIPER (475MM) (PASSENGER SIDE)
20	90116-SM4-000	Bolt-washer - 6X16
21	90126-SM4-000	Bolt-washer - 6X32
22	90201-SK7-000	Nut - HEX. CAP, 10MM
23	90317-SM4-003	Nut - HEX., 10MM
24	91620-SM4-003	Grommet - WIPER MOTOR (BLACK)

Fuel pipe (CARBURETOR; 1) 26

#	OEM	部品名
1	16233-PT1-G00	Hose - FUEL
2	16234-PT1-G00	Clamp b - FUEL FILTER
3	16235-PT0-003	Filter b - FUEL
4	16236-PC1-003	Protector - BLACK
5	17300-SD2-013	Canister assy
6	17310-SF1-G00	Cap - CANISTER PORT
7	17727-SM4-003	Clamp - PURGE HOSE
8	17737-PT1-E00	Hose - CANISTER VENT (270)
9	17740-SM4-A30	Pipe comp - FUEL RETURN
10	17742-SF1-A01	Joint - DRAIN TUBE
11	17752-SM4-003	Protector - FUEL PIPE
12	17758-SM4-000	Stopper - RETURN PIPE (BLACK)
13	17761-SM4-000	Stay a - FUEL PIPE
14	17763-SM4-000	Stay c - FUEL PIPE
15	17764-SM4-000	Stay d - FUEL PIPE
16	17765-SM4-000	Stay e - FUEL PIPE
17	17766-SM4-000	Stay f - FUEL PIPE
18	17767-SM4-000	Stay g - FUEL PIPE
19	17769-SM4-000	Bracket - PIPE CLAMP
20	90146-SM4-000	Bolt-washer - 6X16
21	90682-SA0-671	Clamp - CANISTER HOSE
22	91596-SM4-003	Clamp c - FUEL PIPE
23	91597-SM4-013	Clip - FUEL PIPE (A)
24	91598-SM4-003	Clamp b - FUEL PIPE
25	91599-SM4-003	Clamp a - FUEL PIPE
27	17701-SM4-A00	Hose - FUEL FEED

Fuel tank (CARBURETOR; 1) 42

#	OEM	部品名
1	16900-SE0-003	Strainer comp. - FUEL (TOKYO ROKI)
1	16900-SE0-004	Strainer comp. - FUEL (TOYO ROKI)
2	16902-SM4-000	Cover - FUEL STRAINER
3	17371-SM4-013	Valve - TWO WAY (TEC)
4	17500-SM4-A02	Tank comp. - FUEL
5	17511-SM4-000	Bracket - FUEL TANK BAND
6	17519-SM4-000	Protector - FUEL TANK
7	17521-SM4-020	Band assy. - R. FUEL TANK MOUNTING
8	17522-SM4-020	Band assy. - L. FUEL TANK MOUNTING
9	17525-SM4-000	Bolt-washer - 10X35
10	17570-SM4-000	Valve - FUEL CUT
11	17574-SE0-000	Packing - BASE
12	17575-SM4-000	Packing - FUEL CUT VALVE
13	17651-SM4-000	Tube - FILLER NECK
14	17652-SA5-000	Clip - FILLER TUBE
15	17656-SM4-000	Bolt - FILLER PIPE MOUNTING
16	17658-SM4-000	Tube assy - BREATHER (260MM)
17	17660-SM4-G01	Pipe comp - FUEL FILLER
18	17662-SM4-000	Packing - FUEL FILLER
19	17670-SM4-004	Cap comp. - FUEL FILLER (TOYODA)
20	17702-SM4-000	Tube b - FUEL FEED
21	17703-SM4-000	Tube - FUEL FEED
22	17708-SM4-A01	Pump unit - FUEL
23	17714-SM4-G01	Bracket - FUEL TUBE CLAMP
24	17728-SM4-G00	Chamber - FUEL VENT AIR (BLACK)
25	17733-SM4-930	Protector - FUEL HOSE JOINT
26	37800-SM4-A03	Meter unit - FUEL (NS)
26	37800-SM4-A04	Meter unit - FUEL (DENSO)
27	37801-SE3-000	Packing - BASE
28	37802-SE0-000	Retainer - FUEL UNIT
29	74660-SM4-000	Cap assy. - FLOOR MAINTENANCE HOLE
30	90146-SM4-000	Bolt-washer - 6X16
31	90091-PC1-000	Bolt-washer - 6X16
32	90167-SD4-000	Screw - TAPPING, 5X12
33	90552-SD4-000	Washer - PLAIN, 5MM
34	90657-SH3-013	Clip - TWO WAY VALVE COVER
35	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
36	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)
37	90700-SB0-003	Clip - AIR BLEED TUBE
38	91594-SM4-013	Clamp - FUEL TUBE
39	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)
40	91691-SE0-003	Clip - WIRE HARNESS

Gasket kit/ transmission assy. 5

#	OEM	部品名
1	06110-PT0-000	Gasket kit - CYLINDER HEAD
2	06111-PT0-000	Gasket kit - CYLINDER BLOCK (###)
4	10002-PT0-G01	General assy. - CYLINDER BLOCK
5	10003-PT0-010	General assy. - CYLINDER HEAD
6	20011-PX5-S81	Transmission assy - H2S8

Grommet 23

#	OEM	部品名
1	72206-SA5-000	Cap - FLOOR HOLE, 53MM
2	72849-SA5-000	Insulator b - SIDE SILL HOLD
3	74232-SM4-A00	Plug - DASHBOARD UPPER HOLE
5	75826-SB3-300	Seal - DASHBOARD UPPER HOLE, 30MM
7	75826-634-300	Seal - INSIDE PANEL, 15MM
8	82871-671-000	Grommet - DRAIN HOLE, 25MM
9	84136-SM4-A00	Seal - SEATBELT HOLE
10	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
11	90615-SM4-000	Cap - WELD HOLE, 46X72
13	90851-SA6-000	Plug - HOLE
14	90852-SA5-000	Plug - HOLE, 10MM
15	90852-SB5-003	Plug - HOLE
16	90852-671-003	Plug - HOLE
17	91606-SD2-003	Plug - HOLE, 15MM
18	91606-SE0-000	Seal - 20X20
19	91610-SD4-000	Plug - HOLE, 28MM
20	91610-SF4-003	Plug - HOLE, 36X65
21	91611-SM4-003	Plug - FLOOR HOLE, 25MM
22	91613-SA5-000	Grommet b - CONTROL WIRE
23	91616-SM4-000	Seal - FR. PILLAR INNER LOWER
24	91618-SM4-003	Plug - HOLE, 7MM
25	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
26	91623-SE0-003	Plug - BLIND, 12MM

Headlight 19

#	OEM	部品名
1	33100-SM4-G02	Headlight assy - R. (STANLEY)
2	33103-SM4-G02	Housing comp - R.
3	33105-SM4-A01	Nut b - SPECIAL
4	33115-692-741	Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN)
5	33116-SD4-961	Socket - BULB (OSRAM) (HALOGEN)
6	33117-SM4-003	Clip - LENS HOLDER
7	33122-SM4-003	Screw - TAPPING, 4X12
8	33126-SM4-003	Cover - RUBBER
9	33150-SM4-G02	Headlight assy - L. (STANLEY)
10	33153-SM4-G02	Housing comp - L.
11	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	34300-SM4-G02	Light assy - R. FR. POSITION
13	34301-SM4-G02	Lens comp - R.
14	34304-SH3-A01	Socket comp.
15	34350-SM4-G02	Light assy - L. FR. POSITION
16	34351-SM4-G02	Lens comp - L.
18	34901-671-631	Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS)
19	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
20	90302-SA4-003	Nut - SPRING, 4MM

Heater blower 14

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79192-SM4-003	Holder a - HEATER
3	79300-SM4-A01	Blower assy - DENSO
4	79305-SM4-A01	Cover - BLOWER UNDER
5	79310-SM4-A01	Motor assy. - BLOWER
6	79321-SM4-A01	Fan a
7	79322-SM4-A01	Fan b
8	79330-SM4-003	Resistor - BLOWER
9	79350-SM4-A01	Motor assy. - FRESH & RECIRCULAR
10	79391-SM4-003	Holder - BLOWER
11	79810-SM4-A01	Duct - HEATER
12	80789-SH3-003	Holder - ROD
13	90155-SE0-003	Screw - TAPPING, 6X20
14	90134-SM4-000	Bolt-washer - 6X20

Heater control (BUTTON TYPE) 17

#	OEM	部品名
1	39356-SB6-000	Spring - HEATER CONTROL
2	79537-SM4-A00	Pin - CLICK
3	39383-SA5-000	Clamp - CONTROL CABLE
4	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)
5	79510-SM4-A00	Control comp. - TEMPERATURE
6	79512-SM4-A00	Base - TEMPERATURE CONTROL LOWER
7	79513-SM4-A00	Cover - DUST
8	79522-SM4-A00	Lever - TEMPERATURE CONTROL
9	79542-SM4-A00	Cable - TEMPERATURE CONTROL
10	79570-SM4-003	Switch assy - FAN
11	79581-SM4-003	Knob - HEATER CONTROL
12	79595-SM4-A00	Shaft - TEMPERATURE CONTROL
13	79612-SM4-A01	Lid - AIR CONDITIONER SWITCH (BUTTON TYPE)
14	79620-SM4-A21	Switch assy - MODE CONTROL (ALPS)
14	79620-SM4-A01	Switch assy - MODE CONTROL (AIR CONDITIONER) (ALPS)
15	80411-SM4-A02	Knob - AIR CONDITIONER (BUTTON TYPE)
16	90107-SA5-000	Screw - TAPPING, 4X12

Heater duct 6

#	OEM	部品名
1	77411-SM4-A00	Duct - CENTER AIR CONDITIONER
2	77420-SM4-A00	Duct assy - DRIVER AIR CONDITIONER JOINT
4	83331-SM4-003	Duct - RR. HEATER
5	83332-SM4-003	Duct - R. SEPARATOR
6	83382-SM4-003	Duct - L. SEPARATOR
7	90101-SA4-000	Screw - TAPPING, 4X12

Heater unit 13

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79100-SM4-G03	Heater unit
2	79105-SM4-A01	Case - HEATER OUTLET
4	79110-SM4-A01	Core comp - HEATER
5	79140-SM4-G02	Motor assy. - MODE
6	79192-SD4-003	Bush - 6.7MM
7	79192-SM4-003	Holder a - HEATER
8	79193-SD4-003	Bush - 5MM
9	79193-SM4-003	Holder b - HEATER
10	79196-SF1-003	Adjuster - ROD
11	79544-SM4-A00	Cable - WATER VALVE CONTROL
12	79770-SE0-000	Grommet - WATER VALVE CABLE
14	90657-671-631	Clip - TRIM (BLACK)

High tension cord/ spark plug 6

#	OEM	部品名
6	32765-PT0-000	Clamp a - HIGH TENSION CORD
7	32766-PM3-000	Clamp b - HIGH TENSION CORD
8	32767-PT0-000	Grommet - HIGH TENSION CORD
9	90003-PH7-000	Bolt-washer - 8X28
11	32700-PT0-G00	Cord assy - HIGH TENSION (NICHIWAKIKI)
11	32700-PT0-305	CORD COMPHIGHT

Hood 26

#	OEM	部品名
4	63511-SF0-003	Cushion - HOOD
4	74144-SE0-000	Cushion - HOOD
5	74120-SM4-003	Lock assy - HOOD
6	74121-SM4-000	Rubber - HOOD SEAL
7	74130-SM4-A01	Wire assy. - HOOD
8	74134-SM4-000	Grommet - HOOD WIRE
11	74143-SM4-000	Rubber - RR. HOOD SEAL
12	74145-SM4-000	Stay - HOOD OPENER
13	74146-SM4-000	Cushion - HOOD SIDE
14	74148-SM4-000	Rubber - FR. HOOD SEAL
15	74177-SD4-000	Cushion a - HOOD
16	74200-SM4-A00	Cowl top assy.
17	74211-SM4-000	Cover - R. HOOD HINGE
18	74221-SM4-A00	Screen - WATER
19	74261-SM4-000	Cover - L. HOOD HINGE
20	74825-SM4-G01	Plug - WIPER LINK HOLE
21	90103-SL4-000	Bolt-washer - 6X16
22	90106-SE1-000	Bolt-washer - 6X15
23	90107-SM4-003	Clip - HOOD SEAL
24	90677-SE0-003	Holder - ROD
26	91501-SM4-003	Clip - ANCHOR
27	91508-SM4-003	Clip - COWL TOP
28	91513-SE0-003	Clip - HOOD SEAL
29	91515-SM4-003	Clip - ANCHOR
31	91558-SE3-003	Clip - HOOD WIRE
32	91604-SD2-013	Grommet - HOOD STAY

Install pipe/tubing (1) 11

#	OEM	部品名
1	16137-657-670	Joint - THREE WAY
2	17350-PT0-003	Valve assy. - THERMO WAX SWITCHING
3	17363-PE2-013	Clamp - TUBE, 7.5X2
4	17370-PT1-F02	Thermovalve - (40C)
5	17370-PT1-X01	Thermovalve - 55C)(DENSO
6	17400-PT1-F01	Pipe - INSTALL
7	17417-PT0-000	Tube - INSTALL
8	17736-PT0-010	Hose - CANISTER VENT
10	36146-PH4-901	Valve - CHECK, #50
11	90634-PA0-000	Cap - SEALING
12	90682-SA0-671	Clamp - CANISTER HOSE

Instrument panel (LH) 17

#	OEM	部品名
2	77116-SM4-000	Bracket - INSTRUMENT CENTER
4	77140-SM4-000	Bracket - R. INSTRUMENT SIDE
5	77145-SM4-000	Bracket - L. INSTRUMENT SIDE
6	77146-SM4-A01	Beam - INSTRUMENT CENTER
8	77460-SM4-003	Duct - R. DEFROSTER
9	77465-SM4-003	Duct - L. DEFROSTER
10	77466-SM4-000	Seal - FR. INSTRUMENT
11	77467-SM4-000	Seal - R. INSTRUMENT SIDE
12	77468-SM4-000	Seal - L. INSTRUMENT SIDE
15	77542-SM4-000	Striker - GLOVE BOX
16	77551-SM4-A00	Frame - GLOVE BOX
18	90101-SA4-000	Screw - TAPPING, 4X12
19	90128-SA7-000	Bolt-washer - 6X25
20	90128-SA7-900	Bolt-washer - 6X25
21	90144-SM4-003	Screw - 4X12
22	90609-SG0-003	Clip - PILLAR GARNISH
23	90666-SD4-003	Clip - FITTING

Instrument panel garnish (LH) 37

#	OEM	部品名
1	34254-SM4-013	Lamp assy. - GLOVE BOX
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
3	39383-SA5-000	Clamp - CONTROL CABLE
6	66161-SB2-000	Label - COIN
7	66417-SA0-000	Rubber - GLOVE BOX STOPPER
9	77201-SM4-003	Seal - CENTER OUTLET
10	77203-SM4-003	Seal - DRIVER OUTLET
11	77209-SM4-A01	Cable - PANEL CENTER
12	77220-SM4-003	Outlet assy - CENTER
13	77225-SM4-003	Outlet assy - DRIVER
14	77230-SM4-G00	Lid assy - AUDIO HOLE
16	77355-SG0-A00	Label - IGNITION INFORMATION
18	77371-SM4-000	Ring - COLUMN COVER
20	77502-SM4-A01	Box - GLOVE
21	66418-SB0-010	Stopper - GLOVE BOX LID
22	77510-SM4-003	Hinge - GLOVE BOX
23	77530-SM4-G01	Damper assy. - GLOVE BOX
25	77710-SM4-003	Ashtray - FR.
26	77712-SM4-003	Plate - FIRE PROTECTOR
31	77721-SM4-003	Protector - CIGARETTE LIGHTER
32	77730-SM4-003	Holder comp - FR. ASHTRAY
33	77750-SM4-003	Pocket assy - COIN
34	77754-SM4-A00	Holder - COIN POCKET
35	90101-SA4-000	Screw - TAPPING, 4X12
36	90102-SA4-000	Screw - TAPPING, 4X16
37	90107-SA4-000	Screw - TAPPING, 4X16
38	90107-SE3-000	Screw-washer - 4X12
39	90123-SM4-000	Screw - TAPPING, 4X12 (PO)
40	90144-SM4-003	Screw - 4X12
41	90302-SM4-003	Nut a - SPECIAL
42	90650-SE3-000	Clip - RADIO PANEL
43	90670-SM4-003	Clip - GLOVE BOX
44	91640-SM4-003	Grommet - SCREW, 4MM
53	35505-692-003	Bulb - 14V 1.4W
56	39600-SW3-305	Lighter unit - CIGARETTE
56	39600-SW3-505	LIGHTER ASSYCIGA
57	39628-SM4-307	Cord assy

Intake manifold 14

#	OEM	部品名
1	16105-PJ7-000	O-ring - CARBURETOR INSULATOR
2	16210-PT0-000	Insulator - CARBURETOR
3	16215-PT0-003	Packing - CARBURETOR INSULATOR (ISHINO GASKET)
3	16215-PT0-004	Packing - CARBURETOR INSULATOR (NIPPON LEAKLESS)
4	17100-PT0-G00	Manifold comp - INTAKE
5	17105-PT0-004	Packing - INTAKE MANIFOLD (NIPPON LEAKLESS)
5	17105-PT0-003	Packing - INTAKE MANIFOLD (ISHINO GASKET)
6	17125-PT0-000	Stay comp - INTAKE MANIFOLD
7	17133-PT0-000	Stay - CARBURETOR SOLENOID COUPLER
11	19504-PT0-000	Hose - BYPASS IN.
12	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
14	32753-PT1-F00	Stay - SHEDDER VALVE COUPLER
17	90023-PE0-000	Bolt - FLANGE, 6X10
18	90064-PH1-300	Bolt - STUD, 8X57

Interior light 7

#	OEM	部品名
2	34251-SM4-961	Lens - DAIICHI
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
4	34260-SM4-003	Light assy - TRUNK ROOM
5	34262-SM4-003	Lens
6	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
7	90152-SE0-003	Nut - EARTH, 5MM (ZN)

Knuckle 23

#	OEM	部品名
1	51210-SM4-J02	Knuckle comp - R. FR.
1	51210-SM4-J52	Knuckle comp - R. FR.
2	51213-SE0-000	Protector - KNUCKLE
3	51215-SM4-J02	Knuckle comp - L. FR.
3	51215-SM4-J52	Knuckle comp - L. FR.
4	51220-SM1-A01	Joint comp - LOWER BALL (TECHNICAL AUTO PARTS)
4	51220-SM4-003	Joint comp - FR. LOWER BALL (MUSASHI)
5	51450-SM4-A02	Arm assy. - R. FR. UPPER
6	51460-SM4-A02	Arm assy. - L. FR. UPPER
7	52225-SF1-003	Boot - LOWER BALL DUST
8	52226-SF1-003	Circlip - LOWER BALL
9	57450-SM4-954	Sensor assy - R. FR.
10	57451-SM4-950	Bracket - COUPLER (L.)
11	57452-SM4-950	Bracket - COUPLER (R.)
12	57455-SM4-954	Sensor assy - L. FR.
13	90114-SB0-000	Bolt-washer - 6X12
14	90127-SB0-801	Bolt - SENSOR LOCK, 6X12
14	90118-958-003	Bolt, flange, 6x12
15	90127-SM4-951	Bolt - SENSOR LOCK(8X14)
16	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
17	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
18	90363-SF1-000	Nut - CASTLE, 12MM
19	90682-SF1-000	Circlip - EXTERNAL, 42MM

Mainshaft/gears 21

#	OEM	部品名
1	23210-PX5-S00	Mainshaft comp.
2	23261-PX5-000	Shaft - REVERSE IDLE GEAR
3	23441-PX5-J40	Gear - MAINSHAFT THIRD
4	23451-PX5-J40	Gear - MAINSHAFT FOURTH
5	23540-PX5-000	Gear comp - REVERSE IDLE
6	23581-PX5-J40	Gear - MAINSHAFT FIFTH
7	23623-PX5-306	Sleeve set - SYNCHRONIZER (3-4)
8	23626-PX5-306	Sleeve set - SYNCHRONIZER (5)
9	23645-PX5-000	Ring - BLOCKING (50S)
10	23646-PX5-000	Ring - BRAKE STOPPER
11	23647-PX5-000	Ring - TAPER CONE
12	23652-PB6-000	Spring - SYNCHRONIZER (50MM)
13	23916-PX5-000	Collar - DISTANCE, 28X37X15
14	23917-PX5-000	Collar - DISTANCE, 31X38X56.5
15	23927-PG2-A00	Washer - SPRING, 28MM
16	23928-PS1-000	Washer - 28MM
17	90012-PG1-000	Bolt - SPECIAL, 10X31.5
18	90401-PG1-000	Washer - DRAIN PLUG, 10MM
19	91004-PF5-008	Bearing - BALL, 6306/28 (NTN)
20	91104-PK5-008	Bearing - NEEDLE, 38X43X26 (NTN)
21	91108-PX5-008	Bearing - NEEDLE, 37X42X14.8 (NTN)

Mirror 15

#	OEM	部品名
2	76200-SM4-G04	Mirror assy - R. DOOR
3	76203-SM4-G04	Mirror - R. (1800)
6	76220-SM4-901	Garnish - R. DOOR MIRROR
9	76250-SM4-G04	Mirror assy - L. DOOR
9	76250-SM4-G05	Mirror assy - L. DOOR
10	76253-SM4-G04	Mirror - L. (1800)
13	76270-SM4-901	Garnish - L. DOOR MIRROR
14	76401-SH3-901	Base - STAY (MATSUYAMA)
15	76403-SM4-000	Holder - RR. VIEW MIRROR
18	88147-SA5-003	Washer - TOOTHED (MATSUYAMA)
19	88148-SE0-003	Bolt - LOCK, 6X7 (MATSUYAMA)
20	88154-SA7-003	Knob - DOOR MIRROR (MATSUYAMA)
21	88159-SA7-003	Cap - DOOR MIRROR KNOB (MATSUYAMA)
22	90110-SA7-003	Screw-washer - 3X16 (MATSUYAMA)
23	90615-SK7-003	Clip - MIRROR GARNISH

Molding 33

#	OEM	部品名
1	72373-SM4-003	Clip - RR. DOOR GLASS GUIDE
2	72410-SM4-003	Molding - R. FR. DOOR
3	72411-SM4-003	Collar - FR. DOOR
4	72420-SM4-003	Molding - R. DRIP ROOF
5	72430-SM4-003	Garnish - R. FR. DOOR CENTER
6	72450-SM4-003	Molding - L. FR. DOOR
7	72460-SM4-003	Molding - L. DRIP ROOF
8	72470-SM4-003	Garnish - L. FR. DOOR CENTER
9	72910-SM4-003	Molding - R. RR. DOOR
10	72915-SM4-023	Garnish - R. RR. PILLAR
11	72930-SM4-003	Garnish - R. RR. DOOR CENTER
12	72950-SM4-003	Molding - L. RR. DOOR
13	72955-SM4-023	Garnish - L. RR. PILLAR
14	72970-SM4-003	Garnish - L. RR. DOOR CENTER
15	74306-SM4-000	Molding - R. ROOF
16	74316-SM4-000	Molding - L. ROOF
17	90121-SM4-003	Screw - TAPPING, 4X10
18	90129-SM4-003	Screw - TAPPING, 4X12
19	90668-SG0-003	Grommet - SCREW, 4MM(OVAL)
20	91503-SG0-003	Grommet - SCREW, 4MM (CIRCLE)
21	91527-SM4-003	Clip - DOOR MOLDING
22	91528-SM4-023	Clip - DRIP MOLDING
23	91536-SM4-003	Grommet - SCREW, 4MM
24	91537-SM4-003	Clip - CAP END
25	91539-SM4-003	Holder - R. FR. DOOR MOLDING
26	91540-SM4-003	Holder - L. FR. DOOR MOLDING
27	91542-SM4-003	Clip - RR. PILLAR
28	91619-SM4-003	Grommet - CENTER PILLAR GARNISH (OVAL)
29	91623-SM4-003	Clip - DOOR MOLDING (B)
30	91625-SM4-004	Grommet - CENTER PILLAR GARNISH UPPER
31	91627-SM4-003	Grommet - RR. PILLAR GARNISH LOWER
32	91631-SM4-003	Clip - R. RR. CAP END
33	91632-SM4-003	Clip - L. RR. CAP END

Oil pump 32

#	OEM	部品名
2	13500-PT0-J00	Case set - GEAR
6	13519-PT0-000	Plate - PULLEY SIDE
7	15100-PT0-020	Oil Pump assy
8	15110-PT0-020	Body comp - OIL PUMP
9	15112-PT0-000	Cover - OIL PUMP
10	15113-PT0-003	Packing a - OIL PUMP (ARAI)
11	15114-PT0-003	Packing b - OIL PUMP (ARAI)
12	15131-PT0-003	Rotor - OIL PUMP INNER
13	15132-PT0-003	Rotor - OIL PUMP OUTER
14	15220-PT0-000	Strainer comp. - OIL
15	15221-PT0-000	Packing - OIL STRAINER
15	15221-P5K-004	Packing - OIL STRAINER
16	15231-PE0-000	Valve - RELIEF
17	15232-PG6-000	Spring - RELIEF VALVE
18	15233-PC6-000	Bolt - SEALING, 18MM
19	15233-PK1-000	Bolt - SEALING, 20MM
20	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)
20	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
20	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)
21	15400-PR3-305	Cartridge set - OIL FILTER (TOYO ROKI)
24	90015-PH1-013	Holder - OIL FILTER
25	90018-PT0-010	Bolt - BALANCER BELT ADJUSTER
26	90023-PT0-003	Bolt-washer - 8X33
27	90041-PA5-000	Bolt - STUD, 6X28
28	90052-PK1-000	Bolt - FLANGE, 6X25
29	90063-PC6-000	Bolt - STUD, 6X25
30	90703-PT0-000	Dowel pin - 49X10
31	91212-PT0-003	Oil seal - 40X52X7 (NOK)
31	91212-P0A-004	Oil seal - 40X52X7 (ARAI)
32	91233-PT0-003	Oil seal - 27X40X8 (NOK)
33	91313-PC9-003	O-ring - 9X2.3(NOK)
33	91313-PC9-004	O-ring - 9X2.3 (ARAI)

Opening trim 12

#	OEM	部品名
1	38205-SM4-G00	Label - FUSE
3	66856-SA0-660	Lock - FUSE PANEL
4	66857-SA0-660	Spring - FUSE PANEL
29	90601-836-000	E-ring - 4MM
30	90609-SD4-000	Clip - PILLAR GARNISH
31	90609-SG0-003	Clip - PILLAR GARNISH
32	90611-SM4-013	Clip - PILLAR GARNISH
33	90666-SD4-000	Clip - PILLAR LINING
34	90666-SM4-003	Clip - SNAP FITTING
35	90683-693-000	Grommet - SCREW, 5MM
36	91580-SF9-003	Clip - COWL SIDE
37	91638-SM4-003	Grommet - SCREW, 5MM

P.s. gear box (2WS; LH) 11

#	OEM	部品名
1	53436-SM4-000	Cushion b - POWER STEERING GEAR BOX
2	53438-SM4-000	Bracket b - STEERING GEAR BOX
3	53459-SH3-A50	Stay - TRANSFER TUBE
4	53501-SM4-000	Grommet a - STEERING
5	53502-SM4-010	Grommet b - STEERING
6	53601-SM4-A03	Box assy - POWER STEERING GEAR
7	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
8	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
9	53692-SM4-A02	Guard - SPLASH
10	53760-SM4-000	Rubber - GEAR BOX
11	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)

P.s. gear box components (2WS; LH) 64

#	OEM	部品名
1	53412-634-000	O-ring - RACK GUIDE (YAMADA)
2	53413-SD4-951	Spring - RACK GUIDE PRESSURE
3	53414-634-010	Screw - RACK GUIDE
4	53416-SF1-951	Guide - STEERING RACK
5	53426-SE0-951	Dust seal - STEERING PINION
6	53458-SE0-003	Nut - RACK SCREW LOCK
6	53458-S01-A51	Nut - LOCK
7	53608-SM4-A01	Housing sub assy. - STEERING GEAR BOX
8	53611-SM4-003	Cylinder comp
9	53612-SM4-000	Barrel - CYLINDER
10	53613-SK7-950	Retainer - PACKING
11	53614-SM4-000	Cap - CYLINDER
12	53615-SD4-950	Washer - RETAINER
13	53617-SF1-950	Port - ORIFICE
14	53622-SM4-A01	Pinion - STEERING
15	53625-SE0-950	Cap - GEAR BOX HOUSING
16	53626-SM4-A01	Rack comp - STEERING
17	53629-SF1-J61	Ring - PISTON SEAL (NOK)
18	53630-SM4-000	Spring - CYLINDER
19	53631-SM4-003	Bush a - STEERING RACK
20	53632-SF1-951	Bushing b - STEERING RACK
21	53633-SK7-951	Packing - CYLINDER END (NOK)
22	53634-SF1-951	Clip - BUSH STOPPER
23	53640-SM4-A02	Body unit - VALVE
24	53643-SK7-A51	Port comp. - VALVE
25	53645-SK7-A50	Cap - VALVE BODY
26	53647-SM4-010	Spool - FOUR WAY
27	53650-SK7-J51	Valve - GAIN CONTROL
28	53658-SM4-000	Orifice - SENSOR
29	53660-SK7-J52	Seal - PORT (ARAI)
29	53660-SK7-J51	Seal - PORT (NOK)
30	53661-SK7-J52	Seal - CAP (ARAI)
30	53661-SK7-J51	Seal - CAP (NOK)
31	53666-SK7-A51	Plunger - DIAMETER=8MM
32	53667-SM4-020	Spring - RETURN
33	53687-SK7-J50	Spring - GAIN CONTROL VALVE
34	53790-SK7-J51	Valve - PRESSURE CONTROL
35	90102-SK7-J50	Bolt - POWER STEERING VALVE
36	90684-SD4-950	Ring - SNAP, 31MM
37	90693-SE0-951	Circlip - INTERNAL, 28MM
38	90697-SE0-951	Circlip - EXTERNAL, 30MM
39	91052-SD4-J62	Bearing - 6906Z
40	91053-SD4-J61	Bearing - 6001Z
41	91103-429-000	Dowel pin - 8X10
42	91154-SK7-J51	Roller - 3.5X31.8 (NTN)
43	91202-SM4-003	Ring - BACK UP
44	91350-671-004	O-ring - 3.4MM (NOK)
44	91350-671-003	O-ring - 3.4MM (ARAI)
44	91305-MCJ-751	O-ring (3.2x1.1)
45	91352-SF4-951	O-ring - 9.8X1.9 (NOK)
45	91318-PT0-003	O-ring - 9.8X1.9 (NOK)
46	91353-SA5-951	O-ring - 11X1.9 (ARAI)
47	91354-SD4-951	O-ring - 27.5X2 (NOK)
47	91354-SD4-952	O-ring - 27.5X2 (ARAI)
48	91364-SF1-J61	O-ring - 33.5X2.4 (NOK)
48	91364-SF1-J62	O-ring - 33.5X2.4 (ARAI)
49	91360-SM4-004	O-ring - 54.5X2.4 (ARAI)
49	91360-SM4-003	O-ring - 54.5X2.4 (NOK)
50	91361-SA5-952	O-ring - 46X1.5 (NOK)
50	91361-SA5-951	O-ring - 46X1.5 (ARAI)
51	91362-SE0-952	O-ring - 45.5X2 (NOK)
51	91362-SE0-951	O-ring - 45.5X2 (ARAI)
52	91385-SF1-J62	O-ring - 39X1.5 (ARAI)
52	91385-SF1-J61	O-ring - 39X1.5 (NOK)

P.s. line 42

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-SM4-013	Tank comp. - POWER STEERING OIL
3	53703-SM4-040	Pipe comp. a - SENSOR RETURN (10MM)
4	53711-SM4-010	Bracket assy - OIL TANK
5	53713-SM4-F05	Hose comp. - FEED
6	53720-SM4-A07	Pipe - RETURN, 10MM
8	53723-SM4-013	Clip - RETURN, 6MM
9	53724-SM4-A00	Pipe comp - RETURN, 6MM
11	53725-SM4-030	Hose - SPEED SENSOR INLET
12	53726-SM4-A01	Pipe comp - SENSOR
13	53727-SM4-F01	Tube a - SPEED SENSOR RETURN
16	53729-SE0-951	Clip - RETURN PIPE, 10MM
17	53729-671-003	Clamp d - 15.5MM
18	53730-SM4-F02	Clamp - FEED HOSE
20	53731-SM4-030	Tube - SUCTION
21	53732-SM4-050	Hose - OIL COOLER IN.
22	53733-SM4-000	Tube - OIL COOLER RETURN
23	53734-SM4-A02	Hose - COMBINATION PIPE IN.
24	53735-SM4-040	Tube - OIL COOLER RETURN (B)
25	53736-SM4-010	Holder b - POWER STEERING PIPE
26	53737-SM4-000	Tube - COMBINATION PIPE RETURN
28	53740-SE0-953	Clip - SENSOR HOSE
30	53740-SM4-000	Clamp - RETURN HOSE (A)
31	53741-SM4-010	Holder c - POWER STEERING PIPE
32	53742-SM4-A01	Rubber - POWER STEERING PIPE
33	53745-SM4-000	Tube b - SPEED SENSOR RETURN
34	53746-SM4-A01	Clamp - RETURN PIPE, 10MM
35	53748-SM4-000	Rubber - MOUNTING
36	53753-SM4-013	Clip - RETURN HOSE
37	53765-SM4-060	Cooler comp - POWER STEERING OIL
42	53779-SM4-F00	Pipe comp - POWER STEERING COMBINATION
43	56490-PT1-023	Switch assy - POWER STEERING PRESSURE
44	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
44	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
46	90854-SM4-000	Collar - OIL TANK
47	91304-PA6-003	O-ring - 7.8X1.9
48	91370-SM4-003	O-ring - 11X1.9 (NOK)
48	91370-SM4-004	O-ring - 11X1.9 (ARAI)
49	91410-SA1-950	Clip - SENSOR HOSE
50	91462-SA5-950	Clamp d - 19MM
54	90188-SM4-000	Bolt - FLANGE, 6X12 (BLACK)
58	53775-SM4-A00	Tube c - DRAIN

P.s. pump 36

#	OEM	部品名
1	31114-PL2-000	Bolt - TENSIONER
2	56110-PT0-050	Pump sub assy - POWER STEERING
3	56250-PT0-310	Cover comp. - FR. PUMP (###)
4	56350-PC1-010	Spool assy. - A) (-0.005 / 0) (###
4	56360-PC1-010	Spool assy. - B) (0 / +0.006) (###
5	56385-PC1-000	Spring - SPOOL (###)
6	56471-PT0-000	Cover - PORT HOUSING (###)
7	56472-PT0-300	Cover - PORT HOUSING (B) (###)
8	56483-PV0-000	Pulley - POWER STEERING PUMP
9	56500-PT3-010	Sensor assy - POWER STEERING
10	56992-PT0-J02	Belt - POWER STEERING PUMP (BANDO)
10	56992-PT0-J01	Belt - POWER STEERING PUMP (MITSUBOSHI)
11	56994-PT0-000	Bracket - POWER STEERING PUMP
12	56998-PT0-000	Stay - POWER STEERING PUMP ADJUSTER
13	90001-PC1-000	Bolt - FLANGE, 6X78
14	90011-PT0-000	Bolt-washer - 8X26
15	90305-PT0-000	Nut - POWER STEERING PULLEY
16	90306-PT0-000	Key - POWER STEERING PULLEY
17	90311-PT0-000	Bolt - ADJUSTER SPECIAL
18	90701-679-000	Dowel pin - 8X10
19	91201-PT0-004	Oil seal - 20X34X7 (ARAI)
19	91201-PT0-003	Oil seal - 20X34X7 (NOK)
20	91303-PT0-004	Seal - HOUSING (ARAI)
20	91303-PT0-003	Seal - HOUSING (NOK)
21	91304-PT0-000	O-ring - 14.8X1.9
22	91305-PT0-004	Seal - PLUNGER (ARAI)
22	91305-PT0-003	Seal - PLUNGER (NOK)
23	91306-PT0-004	Seal - FR. COVER (ARAI)
23	91306-PT0-003	Seal - FR. COVER (NOK)
24	91313-611-010	O-ring - 23.5X2
25	91317-PT0-004	O-ring - 3.8X1.9 (ARAI)
25	91317-PT0-003	O-ring - 3.8X1.9 (NOK)
26	91318-PT0-004	O-ring - 9.8X1.9 (ARAI)
26	91318-PT0-003	O-ring - 9.8X1.9 (NOK)
27	91322-PT0-004	O-ring - 17.8X1.9 (ARAI)
27	91322-PT0-003	O-ring - 17.8X1.9 (NOK)

Parking brake (2WS) 16

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
3	47142-671-010	Knob - PARKING BRAKE PUSH ROD
4	47143-SD4-300	Spring - PUSH ROD
5	47342-SM4-000	Switch - PARKING BRAKE
6	47360-SB2-000	Equalizer
7	47365-538-000	Pin - EQUALIZER
8	47510-SM4-A04	Wire a - R. PARKING BRAKE
9	47510-SM4-955	Wire a - R. PARKING BRAKE
10	47522-594-000	Nut - PARKING BRAKE ADJUSTING
11	47537-671-670	Spring - PARKING BRAKE ROD
12	47560-SM4-A04	Wire a - L. PARKING BRAKE
13	47560-SM4-955	Wire a - L. PARKING BRAKE
14	47572-SE0-300	Base - WIRE GUIDE
15	74656-SM4-000	Bracket - TANK BAFFLE PLATE
16	90651-538-000	Clip - BRAKE HOSE
17	90705-SD2-931	Pin - SNAP, 6MM

Pedal (LH) 31

#	OEM	部品名
1	17800-SM4-A00	Pedal comp - ACCELERATOR
3	17812-SA7-010	Washer - ACCELERATOR PEDAL
4	17814-SM4-000	Spring - ACCELERATOR PEDAL
5	17816-SF1-000	Cover - ACCELERATOR PEDAL
10	17910-SM4-G02	Wire - THROTTLE
11	17921-SA4-730	Seal - THROTTLE CABLE
13	17932-SM4-G00	Clamp - HOSE WIRE
15	17938-SE0-941	Clip - THROTTLE WIRE
19	35350-SE0-A03	Switch assy - STOP (TEC)
21	46500-SM4-A00	Pedal assy - BRAKE
23	46504-SD4-300	Bush - PEDAL
24	46504-679-300	Bush - PEDAL
25	46505-SA5-000	Pad - PEDAL STOPPER
26	46530-SM4-000	Spring assy - PEDAL RETURN
27	46535-SM4-000	Collar - PEDAL
28	46545-SA5-000	Cover, Pedal
30	46590-SM4-A01	Bracket - PEDAL
31	46904-SM4-300	Pad - ACCELERATOR STOPPER
32	46905-SM4-300	Bolt - ACCELERATOR STOPPER
33	46910-SM4-G02	Pedal comp - CLUTCH
34	46911-SD4-003	Bush - PEDAL PIN
35	46914-SM4-300	Cap - ACCELERATOR
36	46936-SM4-000	Collar - CLUTCH PEDAL
37	46980-SD4-930	Spring - CLUTCH ASSISTANT
38	46981-SD4-930	Bush a - CLUTCH ASSISTANT
39	46982-SD4-930	Bush b - CLUTCH ASSISTANT
40	46990-SM4-940	Bracket - CLUTCH PEDAL
41	46991-SM4-A02	Bracket - FOOTREST
42	75891-611-000	Cover - DOOR SWITCH
43	90212-671-005	Nut - SELF-LOCK, 10MM
44	90382-SM4-000	Nut - HEX. CAP, 6MM

Piston/crankshaft 43

#	OEM	部品名
1	13031-PT0-B03	Ring set - PISTON (OS 0.50) (TEIKOKU)
1	13021-PT0-B04	Ring set - PISTON (OS 0.25) (RIKEN)
1	13031-PT0-B04	Ring set - PISTON (OS 0.50) (RIKEN)
1	13011-PT0-B04	Ring set - PISTON (STD.)(RIKEN)
1	13011-PT0-B03	Ring set - PISTON (STD.) (TEIKOKU)
1	13021-PT0-B03	Ring set - PISTON (OS 0.25) (TEIKOKU)
2	13102-PT0-000	Piston b - STD.
2	13105-PT0-000	Piston - OS 0.50
2	13101-PT0-000	Piston a - STD.
2	13103-PT0-000	Piston - OS 0.25
3	13112-PT0-000	Pin - PISTON
4	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)
4	13205-634-010	Nut
5	13210-PT0-000	Rod comp - CONNECTING
6	13212-PK1-751	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
6	13217-PK1-751	Bearing g - CONNECTING ROD (RED) (DAIDO)
6	13211-PK1-751	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
6	13216-PK1-751	Bearing f - CONNECTING ROD (PINK) (DAIDO)
6	13215-PK1-751	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
6	13214-PK1-751	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
6	13213-PK1-751	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
7	13213-463-003	Bolt - CONNECTING ROD (NAGOYA RASHI)
8	13310-PT0-000	Crankshaft comp.
9	13324-PT0-B01	Bearing d - MAIN (YELLOW) (DAIDO)
9	13323-PT0-B01	Bearing c - MAIN (GREEN) (DAIDO)
9	13322-PT0-B01	Bearing b - MAIN (BROWN) (DAIDO)
9	13321-PT0-B01	BEARING A - MAIN (BLACK) (DAIDO)
9	13325-PT0-B01	Bearing e - MAIN (PINK) (DAIDO)
10	13331-PT0-004	Washer - THRUST (TAIHO)
10	13331-PT0-003	Washer - THRUST (DAIDO)
11	13400-PT0-010	Shaft comp. - RR. BALANCER
12	13401-PT0-010	Shaft - FR. BALANCER
13	13402-PT0-000	Pulley b - FR. TIMING BELT DRIVEN
14	13406-PT0-003	Metal f - THRUST BALANCER SHAFT
15	13408-PT0-003	Pulley - BALANCER BELT DRIVE
16	13621-PT0-003	Pulley - TIMING BELT DRIVE
17	13622-PT0-000	Plate - TIMING BELT GUIDE
18	13811-PT0-000	Pulley - CRANKSHAFT
19	90017-PT0-003	Bolt-washer - 14X33
20	90031-PT0-003	Bolt-washer - 8X22
20	90032-ZW5-003	Bolt-washer, 8x22
21	90704-PT0-000	Key - 4.5X38.5
22	90019-PT0-000	Bolt - FLANGE, 6X18

Protector 30

#	OEM	部品名
1	71800-SM4-000	Garnish assy - R. SIDE SILL
2	71850-SM4-000	Garnish assy - L. SIDE SILL
3	74430-SM4-A00	Protector - RR. WHEEL ARCH
4	74553-SM4-A00	Protector - R. RR. WHEELHOUSE
5	74559-SM4-000	Cover - FUEL PIPE
6	75301-SM4-G01	Protector comp - R. FR. FENDER
7	75302-SM4-G01	Protector comp - R. FR. DOOR
8	75303-SM4-G01	Protector comp - R. RR. DOOR
9	75305-SM4-A01	Clip assy. - FENDER
10	75321-SM4-G01	Protector comp - L. FR. FENDER
11	75322-SM4-G01	Protector comp - L. FR. DOOR
12	75323-SM4-G01	Protector comp - L. RR. DOOR
13	75328-SM4-G01	Clip b - MOLDING
14	75329-SH4-013	Clip b - MOLDING
15	75800-SM4-003	Mudguard - R. FR.
16	75807-671-010	Nut - SIDE PROTECTOR (BLACK)
17	75810-SM4-003	Mudguard - L. FR.
18	75820-SM4-003	Mudguard - R. RR.
19	75830-SM4-003	Mudguard - L. RR.
20	90114-SE0-000	Screw - TAPPING, 5X20
21	90139-SE0-003	Screw-washer - 5X25
22	90324-SM4-000	Nut - SUSPENSION, 5MM
23	90308-SB2-013	Nut - SUSPENSION, 5MM
24	90330-SM4-000	Nut - SUSPENSION, 5MM
25	90331-SD5-003	Nut - SPRING, 5MM
26	90505-SM4-003	Clip - GARNISH
26	90505-SX0-003	Clip - GARNISH
27	90682-SB0-003	Grommet - SCREW, 5MM
28	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH
29	91545-SE0-003	Clip assy. - 8MM

Radiator (TOYO) 16

#	OEM	部品名
1	19010-PT0-004	Radiator comp - TOYO
2	19011-PH2-004	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)
4	19015-PT0-J02	Shroud comp - TOYO
4	19015-PT0-004	Shroud comp - TOYO
5	19017-PK1-004	Clip - HARNESS(T.RAD)
7	19020-PT0-004	Fan comp - COOLING (MITSUBA)
7	19020-PG6-004	Fan - COOLING (MITSUBA)
8	19030-PT0-004	Motor - COOLING FAN (MITSUBA)
8	19030-PT0-J02	Motor - COOLING FAN (MITSUBA)
9	19033-PT0-014	Clamp - SHROUD
10	19045-PT0-004	Cap comp - TOYO
11	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)
12	90042-PK1-004	Bolt-washer - 6X16
13	90050-PK1-004	Screw-washer - 4X12(T.RAD)
14	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)

Radiator hose 16

#	OEM	部品名
1	19101-PT0-000	Tank - RESERVE
2	19102-PM3-000	Cap - RESERVE TANK
3	19103-PT0-000	Hose - RESERVE TANK
4	19104-PT0-000	Tube - RESERVE TANK
5	19106-PA0-020	Joint - RESERVE TANK
6	19107-PA0-000	Clip - RESERVE TANK JOINT
7	19115-PT0-000	Bracket - RESERVE TANK
8	19501-PT0-000	Hose - WATER UPPER
9	19502-PT0-000	Hose - WATER LOWER
10	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
11	19511-PK1-003	Clip - WATER HOSE
12	19519-PT0-000	Clamp - LOWER HOSE
18	74171-SM4-000	Bracket - RADIATOR MOUNT
19	74172-SM4-000	Cushion - RADIATOR MOUNTING LOWER
20	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
22	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Radio antenna/speaker 16

#	OEM	部品名
1	39112-SM4-000	Bracket - FR. SPEAKER SEAL
2	39120-SF1-A02	Speaker assy - 6 1/2" SINGLE) (PANASONIC
3	39120-SF1-A81	Speaker assy - 5" DUAL) (PANASONIC
5	39122-SD2-000	Bracket - DOOR SPEAKER
10	39150-SM4-F02	Antenna assy - MOTOR (MATSUSHITA)
11	39151-SM4-003	Bracket - MOTOR ANTENNA
12	39152-SM4-003	Mast assy.
13	39154-SG0-003	Nut
14	39155-SM4-F02	Motor assy.
15	39156-SM4-A01	Insulator
16	39159-SM4-A01	Sub feeder - ANTENNA
20	39170-SJ4-000	Valve - RR. MOTOR ANTENNA DRAIN
22	90662-693-003	Grommet - SCREW, 4MM (BLUE)
23	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
24	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
25	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Rear brake (DISK; 2WS) 52

#	OEM	部品名
1	42200-SM4-J51	Bearing assy - RR. HUB UNIT (NTN) (ABS)
2	42324-SB2-000	Washer - HUB UNIT
3	42326-SG0-000	Cap - HUB UNIT
4	42510-SM4-950	Disk - RR. BRAKE
5	43022-SM4-G00	Pad set - RR.
6	43210-SM4-G04	Caliper assy - R. RR. (NISSIN) (9CLP-14S)
7	43214-SM4-951	Boot - PISTON
8	43215-SM4-951	Piston assy.
9	43218-SD2-931	Cup
10	43223-SD2-932	BEARING A
11	43224-SD2-931	Spring b - ADJUSTING
12	43224-SM4-951	Shim - BRAKE PAD OUTER
13	43225-SG0-003	Shim - BRAKE PAD INNER
14	43227-SG0-013	Spring - PAD
15	43228-SD2-933	Shaft a
16	43229-SD2-931	Rod
17	43230-SM4-G04	Caliper assy - L. RR. (NISSIN) (9CLP-14S)
18	43232-SD2-931	O-ring
19	43233-SD2-931	Piston comp - SLEEVE
20	43234-SD2-931	Cover - DUST
20	43234-S04-003	Cover - DUST
21	43235-SD2-931	Pin a
22	43236-SD2-931	Spacer
22	43236-S04-003	Spacer
23	43238-SF1-003	Ring - RETAINING
24	43241-SF1-003	Guide - SPRING
25	43242-SD2-933	Cover - SHAFT
26	43243-SD2-931	Nut - PARKING
27	43244-SG0-003	Retainer
28	43245-SM4-950	Lever
29	43246-SE0-931	Spring - R. RETURN
30	43247-SE0-931	Arm - R.
31	43248-SD2-933	Shaft b
32	43249-SM4-951	Bolt - ADJUSTER
33	43253-SM4-952	Guard - R. RR. SPLASH (ABS)
33	43253-SM4-953	Splash guard r rr
34	43254-SM4-952	Guard - L. RR. SPLASH (ABS)
35	43255-SM4-954	Protector - R. RR. CALIPER
36	43256-SM4-954	Protector - L. RR. CALIPER
37	43262-SD2-931	Pin b
37	43262-S84-A51	Pin b
38	43266-SE0-931	Spring - L. RETURN
39	43267-SE0-931	Arm - L.
40	43352-SM4-951	Screw - BLEEDER
41	43353-SA0-003	Cap - BLEEDER SCREW
41	43353-SD5-003	Cap - BLEEDER SCREW
42	45209-961-006	Seal - PISTON
43	45240-SC2-003	Bolt - FLANGE, 8X22
44	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
44	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
44	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
45	90305-692-010	Nut

Rear brake (DRUM) 45

#	OEM	部品名
1	42200-SM4-008	Bearing assy - RR. HUB UNIT (NTN)
1	42200-SM4-004	Bearing assy - RR. HUB UNIT (KOYO SEIKO)
2	42324-SB2-000	Washer - HUB UNIT
3	42326-SG0-000	Cap - HUB UNIT
4	42610-SM4-010	Drum - RR. BRAKE
5	43110-SM4-A01	Plate comp, R. RR. BRAKE BACK
6	43120-SM4-A01	Plate comp, L. RR. BRAKE BACK
7	43153-SM4-A01	Shoe comp. a - RR. BRAKE
8	43154-SM4-A01	Shoe comp. b - RR. BRAKE
9	43155-SM4-A01	Shoe comp. c - RR. BRAKE
10	43171-SM4-A01	Spring a - BRAKE
11	43172-SM4-A01	Spring b - BRAKE
12	43300-SM4-A01	Cylinder assy. - R. RR. WHEEL
13	43301-SM4-A01	Cylinder assy. - L. RR. WHEEL
14	43305-SE1-003	Bolt-washer - 6X12
15	43315-671-631	Cover - DUST
15	43315-SN4-003	Cover - DUST
16	43321-SM4-A01	Piston - WHEEL CYLINDER
17	43322-663-003	Cup - PISTON
18	43323-663-003	Spring - RR. WHEEL CYLINDER
19	43345-SA5-013	Plug - ADJUSTER
20	43352-SM4-003	Screw - BLEEDER
21	43353-548-003	Cap - BLEEDER SCREW
22	43360-SM4-A02	Lever comp - R. PARKING BRAKE
23	43362-SM4-A01	Rod a - R. CONNECTING
24	43363-SM4-A02	Bolt - R. ADJUSTER
25	43364-SM4-A01	Rod b - CONNECTING
26	43367-SM4-A01	Spring - R. ADJUSTER
27	43368-SM4-A01	Lever - R. ADJUSTER
28	43370-SM4-A02	Lever comp - L. PARKING BRAKE
29	43372-SM4-A01	Rod a - L. CONNECTING
30	43373-SM4-A02	Bolt - L. ADJUSTER
31	43375-SA0-003	U-clip
32	43377-SM4-A01	Spring - L. ADJUSTER
33	43378-SM4-A01	Lever - L. ADJUSTER
34	43379-SA5-003	Washer - WAVE
35	45172-SA0-003	Spring - SHOE CLAMP
35	45172-S04-003	Spring - SHOE CLAMP
36	45175-SA0-013	Pin - TENSIONER
37	90001-SM4-003	Bolt - FLANGE, 10X18
38	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
38	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
38	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
39	90305-692-010	Nut
40	43053-SM4-A00	Shoe set - RR. BRAKE

Rear door lining 13

#	OEM	部品名
2	34257-SM4-000	Plate - COURTESY LIGHT
3	34261-SM4-G01	Lens - DAIICHI
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
7	72835-SM4-003	Weatherstrip - R. RR. DOOR INNER
8	72875-SM4-003	Weatherstrip - L. RR. DOOR INNER
10	83531-SM4-000	Bracket - DOOR LINING
21	90137-SL4-003	Screw - TAPPING, 6X20
22	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)
23	90665-SM4-003	Grommet - SCREW, 4MM (YELLOW)
24	90668-SM4-003	Lock - PUSH
25	91560-SM4-003	Clip - DOOR LINING
25	91560-SL4-003	Clip - DOOR LINING
26	91561-SE3-003	Grommet - SCREW, 6MM

Rear door locks 22

#	OEM	部品名
1	72119-SM1-003	Stopper a - OUTSIDE HANDLE
3	72135-SM4-003	Striker assy - DOOR
5	72175-SH3-901	Holder - DOOR LOCK ROD
6	72610-SM4-J02	Lock assy - R. RR. POWER DOOR
7	72610-SM4-013	Lock assy - R. RR. DOOR
9	72634-SM4-003	Snap - R. (BLUE)
10	72630-SM4-003	Crank assy - RR. DOOR LOCK
11	72631-SM4-003	Rod - R. RR. DOOR INSIDE HANDLE
12	72632-SM4-003	Rod - R. RR. DOOR LOCK
13	72633-SM4-003	Rod - RR. DOOR LOCK KNOB
14	72640-SM4-J01	Handle assy - RR. OUTSIDE
15	72650-SM4-J02	Lock assy - L. RR. POWER DOOR
16	72650-SM4-013	Lock assy - L. RR. DOOR
18	72674-SM4-003	Snap - L. (BROWN)
19	72671-SM4-003	Rod - L. RR. DOOR INSIDE HANDLE
20	72672-SM4-003	Rod - L. RR. DOOR LOCK
21	75411-634-000	Joint
22	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)
23	90120-SM4-000	Screw - TAPPING
24	90130-SM4-000	Bolt - LOCK STRIKER
25	90669-SB6-003	Grommet - SCREW ADJUSTER
26	91555-SM4-003	Clip - COUPLER (RED)

Rear door panels 13

#	OEM	部品名
12	72810-SM4-023	Weatherstrip - R. RR. DOOR
13	72821-SM4-A00	Seal - RR. DOOR HOLE
13	72821-SM4-G01	Seal - R. RR. DOOR HOLE
14	72840-SM4-013	Checker comp. - RR. DOOR
15	72850-SM4-023	Weatherstrip - L. RR. DOOR
16	72861-SM4-G01	Seal - L. RR. DOOR HOLE
18	75760-SB2-003	Pin - DOOR CHECKER
19	75891-SA7-000	Stopper - DOOR
20	90101-SE3-003	Bolt-washer - 8X23.5
24	90755-SB2-000	E-ring - 6MM
25	90852-SA5-000	Plug - HOLE, 10MM
26	91530-SH4-003	Clip - DOOR WEATHERSTRIP
27	91630-SM4-003	Clip - DOOR HOLE SEAL

Rear door windows 19

#	OEM	部品名
1	72373-SM4-003	Clip - RR. DOOR GLASS GUIDE
3	72710-SM4-003	Regulator assy - R. RR. DOOR
4	72731-SM4-003	Sash - R. RR. DOOR CENTER
5	72733-SM4-A00	Sash - R. RR. DOOR CENTER LOWER
6	72735-SM4-003	Runchannel - R. RR. DOOR
7	72739-SM4-003	Runchannel - R. RR. DOOR LOWER
8	72740-SM4-013	Holder - RUNCHANNEL & RR. DOOR SASH
10	72750-SM4-003	Regulator assy - L. RR. DOOR
11	72771-SM4-003	Sash - L. RR. DOOR CENTER
12	72773-SM4-A00	Sash - L. RR. DOOR CENTER LOWER
13	72775-SM4-003	Runchannel - L. RR. DOOR
14	72779-SM4-003	Runchannel - L. RR. DOOR LOWER
15	73400-SM4-000	Glass assy - R. RR. DOOR (BLUE)
16	73410-SM4-004	Glass assy - R. RR. DOOR QUARTER (BLUE)(ASAHI)
17	73450-SM4-000	Glass assy - L. RR. DOOR (BLUE)
18	73460-SM4-004	Glass assy - L. RR. DOOR QUARTER (BLUE)(ASAHI)
19	75330-671-601	Handle assy - REGULATOR
20	75342-679-000	Pin - WINDOW REGULATOR HANDLE
22	90112-SB4-000	Bolt - FLANGE, 6X14

Rear panel lining 10

#	OEM	部品名
1	38689-680-960	E-ring - 4MM
3	66856-SF1-000	Lock - JACK COVER
4	66857-SA0-660	Spring - FUSE PANEL
5	84426-SF4-000	Stopper - RR. SHELF
7	84503-SM4-000	Panel - RR. TRAY
16	84656-SE3-000	Stopper - TRUNK SIDE GARNISH
17	84657-SM4-S00	Belt comp - LASHING
20	90609-SG0-003	Clip - PILLAR GARNISH
25	91575-SM4-003	Clip - RR. TRAY
27	91638-SM4-003	Grommet - SCREW, 5MM

Rear seat (1) 7

#	OEM	部品名
1	78113-SB0-003	Rubber - RR. CUSHION SETTING (TS TECH)
6	82125-SM4-J21	Pad & frame - RR. SEATBACK
7	82127-SM4-J01	Collar - RR. SEATBACK SETTING (A) (TS TECH)
9	82135-SM4-J01	Pad & frame - RR. SEAT CUSHION
13	82325-SM4-J21	Insulator - R. RR. BULKHEAD COVER
14	82725-SM4-J21	Insulator - L. RR. BULKHEAD COVER
15	90003-692-000	Bolt - FLANGE, 6X16

Rear shock absorber 26

#	OEM	部品名
1	52441-SM4-014	Spring - RR. (SHOWA)
1	52441-SM4-013	Spring - RR. (MITSUBISHI SEIKO)
1	52441-SM4-Y02	Spring - RR. (MITSUBISHI)
1	52441-SM4-914	Spring - RR. (SHOWA)
1	52441-SM4-913	Spring - RR. (MITSUBISHI)
2	52610-SM4-915	Absorber assy - R. RR. SHOCK
2	52610-SM4-Y05	Absorber assy - R. RR. SHOCK
2	52610-SM4-925	Absorber assy - R. RR. SHOCK
3	52611-SM4-913	Absorber unit - RR. SHOCK
3	52611-SM4-Y02	Absorber unit - RR. SHOCK
4	52620-SM4-915	Absorber assy - L. RR. SHOCK
4	52620-SM4-Y05	Absorber assy - L. RR. SHOCK
4	52620-SM4-925	Absorber assy - L. RR. SHOCK
5	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
6	52675-SM4-004	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)
7	52686-SM4-004	Rubber - RR. SPRING SEAT (SHOWA)
8	52687-SM4-004	Cover comp. - RR. SLEEVE DUST (SHOWA)
9	52688-SE0-003	Plate - RR. BUMP STOP
10	52690-SG0-000	Plate - BUMP STOP
11	52722-SM4-013	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
11	52722-SM4-A02	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
12	52725-SB2-003	Rubber - RR. SHOCK ABSORBER MOUNTING (YAMASHITA)
13	52728-SB2-004	Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA)
14	52748-SM4-014	Rubber - SPRING SEAT (SHOWA)
15	90021-SM4-003	Bolt - SHOCK ABSORBER, 10X68
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear stabilizer/ rear lower arm (2WS) 73

#	OEM	部品名
1	51464-SK7-003	Boot - UPPER BALL JOINT
2	51467-SH3-003	Circlip - UPPER BALL JOINT
3	52111-SM4-010	Knuckle comp - R. RR. (DRUM)
3	52111-SM4-911	Knuckle comp - R. RR. (DISK)
4	52116-SM4-010	Knuckle comp - L. RR. (DRUM)
4	52116-SM4-911	Knuckle comp - L. RR. (DISK)
5	52212-SM4-000	Bracket a - R. RR. KNUCKLE (DRUM)
5	52212-SM4-910	Bracket a - R. RR. KNUCKLE (DISK)
6	52213-SM4-010	Protector - RR. KNUCKLE
7	52214-SM4-000	Bracket b - RR. KNUCKLE
8	52217-SM4-000	Bracket a - L. RR. KNUCKLE (DRUM)
8	52217-SM4-910	Bracket a - L. RR. KNUCKLE (DISK)
9	52300-SM4-004	Spring - RR. STABILIZER (CHUO HATSUJO)
9	52300-SM4-003	Spring - RR. STABILIZER (NIPPON HATSUJO)
10	52306-SE0-A00	Link - RR. STABILIZER
11	52308-SE0-020	Bracket - RR. STABILIZER BUSH
12	52309-SE0-000	Washer - RR. STABILIZER END
13	52310-SE0-003	Shaft - STABILIZER LINK
14	52312-SE0-000	Collar - STABILIZER INNER BUSH END
15	52315-SJ4-000	Bush - RR. STABILIZER
16	52316-SA5-000	Bush - STABILIZER END
17	52317-SM4-A00	Bracket - R. RR. STABILIZER
18	52318-SM4-A00	Bracket - L. RR. STABILIZER
19	52345-SM4-A00	Arm comp - R. RR. LOWER (A)
20	52350-SM4-A00	Arm comp - L. RR. LOWER (A)
21	52355-SM4-A00	Arm comp - R. RR. LOWER (B)
21	52355-SM4-A10	Arm comp - R. RR. LOWER (B) (ABS)
22	52360-SM4-A00	Arm comp - L. RR. LOWER (B)
22	52360-SM4-A10	Arm comp - L. RR. LOWER (B) (ABS)
23	52364-634-020	Washer - LOWER ARM
24	52365-SM1-A01	Bush a - RR. LOWER ARM (YUSA)
24	52365-SM4-004	Bush a - RR. LOWER ARM (YAMASHITA)
25	52366-SM1-A01	Bush ad - RR. LOWER ARM (YUSA)
25	52366-SM4-004	Bush ad - RR. LOWER ARM (YAMASHITA)
26	52366-SM4-003	Bolt - KNUCKLE (12X221)
27	52367-SM4-004	Bush b - RR. LOWER ARM (YAMASHITA)
27	52367-SM1-A01	Bush b - RR. LOWER ARM (YUSA)
28	52368-SM1-A01	Bush b - RR. LOWER ARM (YUSA)
28	52368-SM4-004	Bush bd - RR. LOWER ARM (YAMASHITA)
29	52371-SM4-A00	Arm assy. - R. RR. TRAILING
30	52372-SM4-A00	Arm assy. - L. RR. TRAILING
31	52387-SE0-023	Bolt - LOWER ARM ADJUSTING
32	52388-SE0-030	Plate - CAM
33	52390-SM4-A03	Arm comp - R. RR. UPPER
34	52393-SM4-004	Bush - RR. UPPER ARM (YAMASHITA)
34	52393-SM4-013	Bush - RR. UPPER ARM (HOKUSHIN)
35	52400-SM4-A03	Arm comp - L. RR. UPPER
36	52622-SM4-003	Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN)
36	52622-SM4-014	Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA)
37	52677-SM4-A00	Bracket - R. RR. TRAILING ARM
38	52678-SM4-A00	Bracket - L. RR. TRAILING ARM
39	57470-SM4-952	Sensor assy - R. RR.
40	57475-SM4-952	Sensor assy - L. RR.
41	90020-SM4-003	Bolt - TRAILING ARM, 12X83.5
42	90022-SM4-003	Bolt - TRAILING ARM BRACKET, 12X69
43	90023-SM4-003	Bolt - TRAILING ARM BRACKET, 12X55.5
44	90024-SM4-000	Bolt a - TRAILING ARM (10X57)
45	90025-SG0-000	Bolt - FLANGE, 10X45
46	90026-SM4-000	Bolt b - TRAILING ARM (10X45)
47	90028-SM4-000	Bolt - TRAILING, 8X19
48	90114-SB0-000	Bolt-washer - 6X12
49	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
50	90119-SM4-003	Bolt - RR. LOWER ARM, 12X66
51	90127-SB0-801	Bolt - SENSOR LOCK, 6X12
51	90118-958-003	Bolt, flange, 6x12
52	90128-SM4-952	Bolt - SENSOR LOCK, 8X20
53	90212-SA7-010	Nut - SELF-LOCK, 10MM
54	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
55	90216-SE0-010	Nut
55	90216-SE0-305	NUT, LWR ARM
56	90217-SM4-003	Nut - TRAILING ARM, 10MM
57	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
58	90438-SE0-000	Washer - TRAILING, 12MM

Rear windshield 15

#	OEM	部品名
1	73211-SM4-A00	Glass - RR. WINDSHIELD (BLUE)
2	73225-SM4-010	Rubber - RR. WINDSHIELD DAM
3	73226-SM4-000	Spacer - RR. WINDSHIELD
4	73251-SM4-A01	Molding - RR. WINDSHIELD UPPER
5	73252-SM4-A01	Molding assy. - R. RR. WINDSHIELD SIDE & CORNER
6	73256-SM4-003	Clip - RR. WINDSHIELD CORNER
7	73262-SM4-A01	Molding assy. - L. RR. WINDSHIELD SIDE & CORNER
8	73266-SM4-A01	Joint - CENTER
9	91505-SM4-000	Clip - R. RR. ROOF MOLDING END (ORANGE)
10	91506-SM4-000	Clip - L. RR. ROOF MOLDING END (GREEN)
11	91526-SM4-004	Holder - RR. WINDSHIELD LOWER
12	91529-SM4-003	Clip - RR. UPPER (WHITE)
13	91530-SM4-003	Clip - RR. WINDSHIELD SIDE MOLDING
14	91535-SM4-003	Clip - RR. WINDSHIELD UPPER MOLDING (BLACK)
15	91541-SM4-003	Clip assy. - RR. WINDSHIELD SIDE MOLDING (BLUE)

Relay/horn/fuse box 48

#	OEM	部品名
1	16760-SA5-951	Relay assy - FUEL CUT
2	32121-SM4-003	Bracket a - FUSE BOX
3	32122-SM4-003	Bracket b - FUSE BOX
4	32123-SM4-003	Bracket c - FUSE BOX
7	38100-SM4-A01	Horn assy - LOW
7	38100-SM4-901	Horn assy - LOW (MITSUBA)
8	38101-SM4-E00	Bracket - R. HORN
9	38150-SH3-003	Horn assy - HIGH (MITSUBA)
10	38151-SM4-A00	Bracket - L. HORN
11	38200-SM4-G01	Box assy - FUSE
12	38201-SM4-003	Cover - FUSE BOX
13	38211-SM4-003	Fuse - BLOCK (30A)
14	38212-SM4-003	Fuse - BLOCK (40A)
15	38213-SM4-003	Fuse - BLOCK (50A)
16	38216-SM4-003	Fuse - BLOCK (80A)
17	38235-SA5-003	Puller - FUSE (SUMITOMO)
18	38250-SM4-G02	Box assy - RELAY
19	38251-SM4-A01	Bracket - RELAY BOX
19	38251-SM4-010	Bracket - RELAY BOX
20	38251-SM4-003	Cover - UPPER
21	38252-SM4-003	Cover - LOWER
22	38253-SM4-G01	Label
23	38255-SE0-003	Band - LOWER COVER
24	38300-SE3-004	Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO)
24	38300-SE3-003	Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA)
26	38380-SM4-G01	Control unit - AUTO DOOR LOCK
27	38600-SM4-X01	Control unit - INTEGRATED (SUMITOMO)
28	39400-SM4-003	Relay assy - MAIN (MITSUBA) (RZ-0088)
29	39700-SM4-003	Clock assy - DIGITAL (NS)
30	39762-SB0-004	Relay assy - POWER (5P) (056700-6710) (DENSO)
31	39762-SG0-003	Relay assy - POWER (5P) (DENSO) (056700-8160)
32	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
32	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
33	39793-SE3-003	Relay assy - POWER (5P) (MITSUBA)
33	39793-SE3-004	Relay assy - POWER (5P) (058700-1081) (DENSO)
35	39794-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2203)
35	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
36	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
36	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)
37	39797-SM4-003	Relay assy - POWER (4P) (MITSUBA) (RC-2223)
39	90114-SM4-900	Bolt - 6X15
40	90122-SM4-003	Screw-washer - 5X12
41	90137-SF1-000	Bolt-washer - 6X25
42	90138-SM4-003	Bolt-washer - 8X14
43	90153-SA5-900	Screw-washer - 5X9
44	90182-SB6-000	Bolt-washer - 6X16
45	90301-SM4-901	Nut - SPRING, 6MM
46	90662-693-003	Grommet - SCREW, 4MM (BLUE)

Roof lining 10

#	OEM	部品名
1	32155-SM4-000	Cord - INTERIOR
2	32155-SM4-J00	Cord - INTERIOR
4	34251-SM4-003	Lens
5	34253-671-003	Bulb - 12V 8W)(DAIICHI
5	04110-SWA-305	BULB T10X318W
6	75353-671-000	Lock - SCREW
11	90133-SM4-003	Bolt-washer - 5X16
12	90609-SM4-003	Clip - ROOF LINING
13	90667-SD4-003	Clip - ROOF LINING
14	90673-SE0-003	Clip - ROOF LINING

Seatbelt 3

#	OEM	部品名
7	81491-SM4-A00	Protector - R. SEATBELT
10	81891-SM4-A00	Protector - L. SEATBELT
15	84136-SM4-A00	Seal - SEATBELT HOLE

Shift arm 17

#	OEM	部品名
1	24411-PX5-000	Arm - SHIFT
2	24431-PX5-000	Interlock comp.
3	24433-PX5-000	Bolt - INTERLOCK
4	24440-PK5-000	Cam comp - REVERSE LOCK
5	24460-PX5-010	Lever comp - SELECT
6	24463-PK5-000	Pin - SELECT RETURN
7	24464-PX5-000	Spring - SELECT RETURN
8	24465-PX5-000	Spring - FIFTH & REVERSE SELECT
9	24470-PX5-000	Lever comp - SHIFT
10	24474-PK5-000	Boot - SHIFT LEVER
11	24480-PK5-000	Arm comp - SELECT
12	90028-PB6-010	Bolt - SPECIAL, 6X22.5
13	90029-PX5-010	Bolt - SPECIAL, 8X24
14	90406-PX5-010	Washer - LOCK
15	91209-PE9-003	Dust seal - 16X23X5(ARAI)
15	91209-PE9-005	Dust seal - 16X23X5(NOK)
16	91215-PK5-000	Oil seal - 16X27X14

Shift fork 9

#	OEM	部品名
1	24200-PX5-J00	Fork comp - FIFTH GEARSHIFT
2	24210-PX5-J00	Fork comp - GEARSHIFT (3-4)
3	24220-PX5-J00	Fork comp - GEARSHIFT (1-2)
4	24230-PX5-000	Holder comp - REVERSE SHIFT
4	24230-PX5-J00	Holder comp - REVERSE SHIFT
5	24243-PX5-J00	Piece - FIFTH & REVERSE SHIFT
6	24452-PX5-000	Spring a - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 32

#	OEM	部品名
1	54101-SM4-020	Lever - CHANGE
3	54105-SM4-020	Bracket - CHANGE LEVER
4	54109-SC2-003	Bush b - CHANGE LEVER
5	54110-SF1-003	Seat - CHANGE LEVER BALL
6	54111-SM4-000	Holder - CHANGE BALL
7	54112-SM4-000	Pivot - CHANGE LEVER
7	54112-SV4-000	Pivot - CHANGE LEVER
8	54113-SM4-000	Bush - CHANGE PIVOT
9	54114-SM4-003	Guide - CHANGE LEVER PIVOT
10	54115-SM4-020	Linkage - CHANGE LEVER
11	54117-SM4-003	Rubber a - FLOATING
12	54118-SH9-000	Rubber b - FLOATING
13	54118-SM4-020	Washer assy. - WIRE
14	54119-SM4-000	Collar - FLOATING
15	54140-SM4-000	Housing - CHANGE LEVER
16	54141-SM4-000	Collar - SELECT LINK
17	54210-SM4-000	Bush c - CHANGE LEVER
18	54211-SD9-010	Ball - CUSHION
19	54310-SM4-050	Wire comp - CHANGE
21	54340-SC2-000	Washer - WAVE
22	54357-SF1-003	Plate - CHANGE WIRE
23	90101-SM4-900	Bolt-washer - 8X45
24	90114-SA0-000	Nut - SELF-LOCK, 6MM
25	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
26	90156-SM4-000	Bolt-washer - 6X20
27	90365-SM4-980	Nut - JOINT
28	90551-SM4-000	Washer - SHIFT WIRE
29	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
30	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
31	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
32	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)
33	91301-SD9-000	O-ring - 2.3X24.5

Sliding roof (FRAME) 20

#	OEM	部品名
1	17348-673-000	Clip - AIR HOSE, 20.5MM
2	70044-SM4-003	Shim - SIDE (2.0)
3	70050-SM4-J00	Tube - FR. DRAIN (SUNROOF)
4	70050-SM4-000	Tube - FR. DRAIN (SUNROOF)
5	70052-SH3-000	Valve - FR. DRAIN (SUNROOF)
6	70060-SM4-010	Tube - RR. DRAIN (SUNROOF)
7	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)
8	70062-SJ4-000	Valve - RR. DRAIN (SUNROOF)
9	70080-SM4-003	Seal - FRAME DRAIN (SUNROOF)
10	70100-SM4-003	Frame comp - SUNROOF
11	70200-SM4-000	Glass assy - ROOF (SUNROOF)
12	70332-SM4-003	Slider - FR. SLIDE STAY
13	70620-SM4-003	Cover - R. STAY
14	70623-SM4-003	Cap - STAY COVER
15	70625-SM4-003	Cover - L. STAY
18	83213-SM4-000	Plate comp
19	90110-SM4-003	Screw - PAN, 5X6 (STAY COVER)
20	90130-693-000	Screw - TAPPING, 4X10
21	90646-657-000	Clip - AIR HOSE, 16MM
22	91504-SE3-920	Clip - SLIDE ROOF DRAIN TUBE

Sliding roof (MOTOR) 30

#	OEM	部品名
1	70040-SM4-003	Shim - FR. SUNROOF (10)
1	70041-SM4-003	Shim - FR. SUNROOF (20)
2	70042-SM4-003	Shim - RR. SUNROOF (10)
2	70043-SM4-003	Shim - RR. SUNROOF (20)
3	70090-SM4-003	Stopper - SUNSHADE
4	70310-SM4-003	Rail - R. GUIDE (SUNROOF)
5	70315-SM4-003	Rail - L. GUIDE (SUNROOF)
6	70320-SM4-013	Rail - R. SUNSHADE (SUNROOF)
7	70322-SM4-003	Holder - R. SUNSHADE RAIL
8	70325-SM4-013	Rail - L. SUNSHADE (SUNROOF)
9	70327-SM4-003	Holder - L. SUNSHADE RAIL
10	70361-SM4-003	Link - LIFT UP (SUNROOF)
11	70363-SM4-003	Slider - R. LINK
12	70368-SM4-003	Slider - L. LINK
13	70370-SM4-003	Guide - R. LIFT UP (SUNROOF)
14	70372-SM4-003	Lifter - R. LINK
15	70373-SM4-003	Stopper - SLIDE
16	70375-SM4-003	Guide - L. LIFT UP (SUNROOF)
17	70377-SM4-003	Lifter - L. LINK
18	70380-SM4-003	Collar - LIFT UP LINK (SUNROOF)
19	70384-SM4-003	Shaft - LIFT UP LINK (SUNROOF)
20	70400-SM4-003	Cable assy - SUNROOF
21	70450-SM4-003	Motor assy. - SUNROOF
21	70450-SV4-J01	Motor assy. - SUNROOF
22	70500-SM4-003	Deflector comp.
23	70630-SM4-003	Cover - R. RAIL
24	70631-SM4-003	Cover - R. RAIL HOLDER
25	70632-SM4-003	Cover - L. RAIL HOLDER
26	70635-SM4-003	Cover - L. RAIL
27	90316-SM4-003	Nut-washer - 6MM

Speed sensor 4

#	OEM	部品名
1	78410-SM4-003	Sensor assy - SPEED (MATSUSHITA DENSHI)
2	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)
3	78415-SM4-000	Bracket - SPEEDOMETER SENSOR
4	90102-SA4-000	Screw - TAPPING, 4X16

Speedometer component (NS) 25

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37102-SE3-003	Socket assy - BULB (T-10) (NS)
4	37105-SE3-003	Socket assy - BULB (T-5) (BASE:BROWN)
5	37106-SB2-003	Knob - TRIP (NS)
6	37237-SE3-003	Bulb - T-10) (BASE:BROWN
7	78110-SM4-003	Case assy.
8	78116-SM4-003	Cover
9	78120-SM4-F02	Panel - SPEEDOMETER ASSY. & TACHOMETER ASSY. & PRINT
10	78130-SM4-013	Meter assy - FUEL & TEMPERATURE
11	78145-SM4-F01	Panel - WARNING PRINT
12	78155-SM4-003	Visor assy - METER
13	78162-SM4-003	Prism - OT
14	78163-SM4-003	Packing
15	78166-SM4-003	Illumination assy.
16	78171-SM4-F01	Visor assy - METER UNDER
16	78171-SM4-F21	Visor assy - METER UNDER
17	78176-SM4-003	Rubber
20	78182-SM4-003	Socket assy - BULB (14V-100MA) (BASE:BROWN)
21	78183-SM4-003	Socket assy - BULB (14V-100MA) (BASE:BROWN)
22	78184-SM4-003	Socket assy - BULB (14V-60MA) (BASE:GRAY)
23	90131-SM4-003	Screw-washer - 3X8
24	90132-SM4-003	Screw-washer - 3X16
25	90134-SM4-003	Screw-washer - 3X27
26	90135-SM4-003	Screw-washer - 3X22

Starter motor (MITSUBA) 16

#	OEM	部品名
1	31200-PT1-T03	Motor assy. - STARTER (SM-402-04) (MITSUBA)
2	31202-PR3-004	Bolt - THROUGH (###)
3	31203-PT0-005	Cover - GEAR (###)
4	31204-PJ7-903	Gear assy. - PINION (MITSUBA)
5	31206-PR3-004	Yoke assy.
6	31207-PR3-014	Armature assy - ###
7	31208-PT0-005	Plate comp - BRUSH HOLDER
8	31209-PT0-005	Bracket - RR. UNIT
9	31210-PT0-015	Switch assy
10	31211-PC2-006	Ring - SQUARE (MITSUBA)
11	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
12	31229-PT0-005	Fr. assy.
13	31235-PT0-005	Cover - TERMINAL (###)
14	31251-PD2-026	Tube - LABYRINTH
15	31252-PD2-006	Rubber - BUSH (MITSUBA)
16	31291-PT0-015	Stay assy - ENGINE WIRE HARNESS

Steering column 17

#	OEM	部品名
1	06539-SM4-800	Steering kit - LH
2	46597-SM4-A02	Stay - PEDAL BRACKET
3	53200-SM4-G05	Column assy - STEERING
4	53201-SK7-000	Guide - ABSORBING PLATE
5	53216-SM4-010	Holder b - STEERING COLUMN
6	53217-SM4-000	Collar - STEERING RETAINER
7	53320-SM4-A04	Cover - STEERING JOINT
8	53323-SM4-003	Joint comp. b - STEERING
9	53325-SM4-003	Clip A - JOINT COVER
10	53326-SB0-000	Clip b - JOINT COVER
11	53362-SB3-000	Tube - RUBBER
12	53363-SM4-A02	Pivot comp - COLUMN
13	53371-SM4-013	Spring - COLUMN HANGER
14	90104-SL4-000	Bolt - STEERING YOKE, 8X28
16	90361-SM4-003	Nut - FLANGE, 8MM
16	90361-SR3-000	Nut - FLANGE, 8MM
18	90676-SB2-003	Clip - DASHBOARD INSULATOR

Steering wheel 9

#	OEM	部品名
2	53153-SA0-004	Washer - TS TECH
3	53154-SA0-004	Screw - SLIDE (TS TECH)
6	78505-SM4-004	Ring - SLIP
8	78508-SM4-004	Spring - COIL (TS TECH)
9	78509-SM4-004	Cord - HORN (TS TECH)
11	78515-SM4-004	Plate - HORN (TS TECH)
12	78520-SM4-900	Damper - DYNAMIC (TS TECH)
13	78531-SM4-G00	Emblem - STEERING WHEEL
14	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Sunvisor/grab rail (LH) 13

#	OEM	部品名
1	75353-671-000	Lock - SCREW
6	83242-SM4-000	Bracket - R. RR. GRAB RAIL (NORMAL ROOF)
7	83242-SM4-980	Bracket - R. RR. GRAB RAIL (SUNROOF)
9	83246-SM4-000	Bracket - R. FR. GRAB RAIL (NORMAL ROOF)
10	83246-SM4-981	Bracket - R. FR. GRAB RAIL (SUNROOF)
11	83247-SM4-980	Bracket - FR. GRAB RAIL UPPER
12	83248-SG0-003	Spacer - GRAB RAIL
15	83292-SM4-000	Bracket - L. RR. GRAB RAIL (NORMAL ROOF)
16	83292-SM4-980	Bracket - L. RR. GRAB RAIL (SUNROOF)
21	90133-SE3-003	Bolt-washer - 5X25
22	90133-SG0-003	Bolt-washer - 5X30
23	90133-SM4-003	Bolt-washer - 5X16
24	90139-SM4-003	Bolt-washer - 5X20

Switch 10

#	OEM	部品名
1	35150-SM4-951	Controller - ILLUMINATION (ALPS)
2	35170-SM4-G51	Switch assy - RR. FOG LIGHT (TEC)
5	35500-SM4-003	Switch assy - HAZARD (TEC)
6	35505-SM4-901	Bulb - 14V 60MA
7	35510-SM4-951	Switch assy - RR. DEFOGGER (TEC)
8	35511-SM4-000	Bulb - T3) (TEC
12	35830-SM4-J51	Switch assy - ROOF & LID
13	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
14	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)
18	90666-SD4-000	Clip - PILLAR LINING

Taillight 27

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33500-SM4-E02	Taillight assy. - R. (###)
3	33501-SM4-E02	Housing comp - R.
4	33502-SM4-E01	Cord comp - R.
5	33503-SM4-003	Gasket - BASE
6	33504-SM4-A01	Bezel - R.
7	33550-SM4-E02	Taillight assy. - L. (###)
8	33551-SM4-E02	Housing comp - L.
9	33552-SM4-E01	Cord comp - L.
10	33554-SM4-A01	Bezel - L.
11	34100-SM4-G02	Light assy - LICENSE
12	34101-SM4-013	Lens
13	34103-SM4-003	Seal - PACKING
14	34104-SE3-A01	Screw - TAPPING, 4X20
15	34150-SM4-G02	Light assy - R. LID (WITH ONE BULB) (###)
16	34151-SM4-G02	Housing comp - R.
17	34152-SM4-G01	Cover & cord comp. - R.
18	34155-SM4-G02	Light assy - L. LID (WITH TWO BULBS)
19	34156-SM4-G02	Housing comp - L.
20	34157-SM4-G01	Cover & cord comp. - L.
21	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
22	34911-634-611	Bulb - 12V 21/5W) (ECE) (STANLEY
23	37540-SM4-E01	Sensor - STOP LAMP FAILURE
24	37540-SM4-G01	Sensor - STOP LAMP FAILURE
25	90301-SE0-902	Nut - SPECIAL, 5MM
26	90521-SE3-003	Grommet - SCREW, 4MM
27	91555-SM4-003	Clip - COUPLER (RED)

Tie rod 19

#	OEM	部品名
1	53411-SM4-000	Tube - AIR TRANSFER
2	53434-SD9-000	Clip - TIE ROD
2	53434-S04-J51	CLIP, TIE ROD
3	53446-SM4-010	Rubber - BAND (T)
4	53447-SM4-000	Band - TRANSFER TUBE
6	53448-SM4-000	Clip - TRANSFER TUBE
8	53449-SM4-000	Band - BELLOWS
10	53521-SM4-013	End comp - FR. RACK
11	53534-SD4-000	Dust seal comp. - TIE ROD
12	53535-SB3-000	Washer - TIE ROD STOPPER
14	53536-SB2-000	Washer - TIE ROD LOCK
15	53540-SM4-003	End comp - R. TIE ROD (MUSASHI)
16	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
18	53560-SM4-003	End comp - L. TIE ROD (MUSASHI)
23	90320-SF1-000	Nut - CASTLE, 10MM
25	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)
30	53540-SM4-004	End comp - R. TIE ROD (TOKAI)
31	53546-SM4-004	Boot - TIE ROD END (TOKAI)
32	53560-SM4-004	End comp - L. TIE ROD (TOKAI)

Tire/wheel disk 77

#	OEM	部品名
1	42700-SM4-A02	Disk - WHEEL (14X4T) (KANAI)
1	42700-SM4-A52	Disk - WHEEL (15X4T) (KANAI)
2	42700-SM4-E23	Disk - ALUMINIUM WHEEL (15X5 1/2JJ) (ASAHI)
2	42700-SM4-E21	Disk - ALUMINIUM WHEEL (15X5 1/2JJ) (ENKEI)
3	42700-SM4-E11	Disk - ALUMINIUM WHEEL (14X5 1/2JJ) (ENKEI)
4	42700-SM4-G21	Disk - WHEEL (15X5 1/2JJ) (KANAI) (BLACK)
4	42700-SM4-G23	Disk - WHEEL (15X5 1/2JJ) (TOPY) (BLACK)
5	42700-SM4-J00	Disk - WHEEL (14X5J) (BLACK)
5	42700-SM4-J05	Disk - WHEEL (14X5J) (TOPY) (BLACK)
5	42700-SM4-J01	Disk - WHEEL (14X5J) (BLACK) (KANAI)
5	42700-SM4-J03	Disk - WHEEL (14X5J) (YUNO) (BLACK)
6	42700-SM4-003	Disk - WHEEL (14X5J) (KANAI) (ALUMINIUM TONE SILVER)
6	42700-SM4-006	Disk - WHEEL (HONDA ENG.) (14X5J) ALUMINIUM TONE SILVER)
6	42700-SM4-000	Disk - WHEEL (14X5J) (TOPY) (ALUMINIUM TONE SILVER)
6	42700-SM4-005	Disk - WHEEL (14X5J) (YUNO) (ALUMINIUM TONE SILVER)
8	42751-SF0-607	Tire - T105/70D14) (YOKOHAMA
8	42751-SF0-606	Tire - T105/70D14) (BRIDGESTONE
8	42751-SF0-608	Tire - T105/70D14) (DUNLOP
8	42751-SG0-A15	Tire - T135/90D15) (BRIDGESTONE
8	42751-SG0-A16	Tire - T135/90D15) (DUNLOP
9	42751-SM4-F22	Tire - 185/65R15 87H) (DUNLOP IN GERMANY
9	42751-SM4-S04	Tire - 185/70R14 88H) (BRIDGESTONE
9	42751-SM4-S16	Tire - 195/60R15 87V) (DUNLOP
9	42751-SM4-S05	Tire - 185/70R14 88H) (DUNLOP
9	42751-SM4-F32	Tire - 185/65R15 87H) (DUNLOP U.K.
11	42753-SE0-A02	Valve - RIM (SCHRADER)
11	42753-SB8-661	Valve - RIM (SCHRADER)
11	42753-671-003	Valve - RIM (TAIHEIYO)
12	42767-SE1-G00	Plate - SPARE TIRE CAUTION (T-TYPE)
12	42767-SE1-G10	Plate - SPARE TIRE CAUTION (T-TYPE)
13	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
14	42767-SM4-G01	Plate - SPARE TIRE CAUTION (T-TYPE) (A.L.B.)
15	44723-SF1-A01	Weight - BALANCE (30G) (YAMATE)
15	44727-SF1-A01	Weight - BALANCE (15G) (YAMATE)
15	44730-SF1-A01	Weight - BALANCE (45G) (YAMATE)
15	44729-SF1-A01	Weight - BALANCE (35G) (YAMATE)
15	44722-SF1-A01	Weight - BALANCE (20G) (YAMATE)
15	44726-SF1-A01	Weight - BALANCE (5G) (YAMATE)
15	44724-SF1-A01	Weight - BALANCE (40G) (YAMATE)
15	44728-SF1-A01	Weight - BALANCE (25G) (YAMATE)
15	44721-SF1-A01	Weight - BALANCE (10G) (YAMATE)
16	44722-SM4-003	Weight - BALANCE (20G) (YAMATE)
16	44726-SM4-003	Weight - BALANCE (5G) (YAMATE)
16	44724-SM4-003	Weight - BALANCE (40G) (YAMATE)
16	44728-SM4-003	Weight - BALANCE (25G) (YAMATE)
16	44722-693-000	Weight - BALANCE (20G)
16	44726-693-000	Weight - BALANCE (5G)
16	44724-693-000	Weight - BALANCE (40G)
16	44728-693-000	Weight - BALANCE (25G)
16	44721-SM4-003	Weight - BALANCE (10G) (YAMATE)
16	44725-SM4-003	Weight - BALANCE (50G) (YAMATE)
16	44723-SM4-003	Weight - BALANCE (30G) (YAMATE)
16	44727-SM4-003	Weight - BALANCE (15G) (YAMATE)
16	44721-693-000	Weight - BALANCE (10G)
16	44725-693-000	Weight - BALANCE (50G)
16	44730-SM4-003	Weight - BALANCE (45G) (YAMATE)
16	44723-693-000	Weight - BALANCE (30G)
16	44729-SM4-003	Weight - BALANCE (35G) (YAMATE)
16	44727-693-000	Weight - BALANCE (15G)
16	44730-693-000	Weight - BALANCE (45G)
16	44729-693-000	Weight - BALANCE (35G)
17	44732-SL4-N03	Cap assy. - ALUMINIUM WHEEL CENTER
18	44732-SM4-E10	Cap assy. - ALUMINIUM WHEEL CENTER
19	44732-SM4-J02	Cap assy. - WHEEL TRIM CENTER (BLADE SILVER METALLIC-Z)
20	44732-SM4-N00	Cap - WHEEL CENTER (BLACK)
21	44733-SM4-G23	Trim - WHEEL (15") (BLADE SILVER METALLIC-Z)
23	44733-SM4-033	Trim - WHEEL (14") (SANKEI)
24	44736-SA0-981	Nut - WHEEL (FUSE RASHI)
25	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
26	44738-SB6-801	Retainer - ALUMINIUM CENTER CAP
27	74654-SE0-000	Bolt - ANCHOR (64MM)
27	74654-SE0-T01	Bolt - ANCHOR (104MM)
27	74654-SE0-980	Bolt - ANCHOR (88MM)
28	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)
29	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)
30	90304-SE0-901	Nut - WHEEL (FUSE RASHI)
31	90381-SM4-003	Nut comp. - WHEEL (FUSE RASHI)

Tools/jack 9

#	OEM	部品名
1	71969-SA7-890	Wrench - SUNROOF
2	89000-SM4-000	Tool set
2	89000-SM4-900	Tool set - SUNROOF
3	89101-SW5-A01	Bag - TOOL
4	89211-SE3-003	Wrench - WHEEL
5	89216-SF4-000	Wrench - PLUG
6	89310-SE3-013	Jack assy - PANTOGRAPH
7	89320-SE3-003	Bar - JACK
7	89320-S50-003	Bar - JACK

Transmission housing 53

#	OEM	部品名
1	21104-PX5-J00	Plate m - OIL GUIDE
2	21200-PX5-J00	Case comp. - TRANSMISSION
3	21222-PX5-000	Hanger b - TRANSMISSION
4	21223-PX5-000	Hanger a - TRANSMISSION
5	21396-PX5-000	Cap - BREATHER
6	21520-PX5-000	Cover comp. - SHIFT ARM
7	23978-PH8-900	Shim al - 75MM (2.31)
7	23963-PH8-900	Shim w - 75MM (1.86)
7	23947-PH8-900	Shim g - 75MM (1.38)
7	23958-PH8-900	Shim r - 75MM (1.71)
7	23942-PH8-900	Shim b - 75MM (1.23)
7	23974-PH8-900	Shim ah - 75MM (2.19)
7	23969-PH8-900	Shim ac - 75MM (2.04)
7	23953-PH8-900	Shim m - 75MM (1.56)
7	23979-PH8-900	Shim am - 75MM (2.34)
7	23964-PH8-900	Shim x - 75MM (1.89)
7	23948-PH8-900	Shim h - 75MM (1.41)
7	23959-PH8-900	Shim s - 75MM (1.74)
7	23943-PH8-900	Shim c - 75MM (1.26)
7	23970-PH8-900	Shim ad - 75MM (2.07)
7	23954-PH8-900	Shim n - 75MM (1.59)
7	23980-PH8-900	Shim an - 75MM (2.37)
7	23965-PH8-900	Shim y - 75MM (1.92)
7	23949-PH8-900	Shim i - 75MM (1.44)
7	23975-PH8-900	Shim ai - 75MM (2.22)
7	23960-PH8-900	Shim t - 75MM (1.77)
7	23944-PH8-900	Shim d - 75MM (1.29)
7	23971-PH8-900	Shim ae - 75MM (2.10)
7	23955-PH8-900	Shim o - 75MM (1.62)
7	23966-PH8-900	Shim z - 75MM (1.95)
7	23950-PH8-900	Shim j - 75MM (1.47)
7	23976-PH8-900	Shim aj - 75MM (2.25)
7	23961-PH8-900	Shim u - 75MM (1.80)
7	23945-PH8-900	Shim e - 75MM (1.32)
7	23972-PH8-900	Shim af - 75MM (2.13)
7	23956-PH8-900	Shim p - 75MM (1.65)
7	23967-PH8-900	Shim aa - 75MM (1.98)
7	23951-PH8-900	Shim k - 75MM (1.50)
7	23977-PH8-900	Shim ak - 75MM (2.28)
7	23962-PH8-900	Shim v - 75MM (1.83)
7	23946-PH8-900	Shim f - 75MM (1.35)
7	23941-PH8-900	Shim a - 75MM (1.20)
7	23973-PH8-900	Shim ag - 75MM (2.16)
7	23957-PH8-900	Shim q - 75MM (1.68)
7	23968-PH8-900	Shim ab - 75MM (2.01)
7	23952-PH8-900	Shim l - 75MM (1.53)
8	35600-PK5-003	Switch assy - BACK UP LIGHT (TEC)
9	90041-PX5-000	Bolt - STUD, 10X55
10	90042-PX5-000	Bolt - STUD, 10X50
11	90081-PB6-000	Bolt - PLUG, 14MM
12	90081-PX5-000	Screw - SEALING, 32MM
13	90083-PK5-000	Bolt - SEALING, 28MM
14	91206-PX5-000	Oil seal - 40X58X8

Trunk lid 28

#	OEM	部品名
9	74411-SM4-A01	Cable - FUEL LID OPENER
10	74826-SM4-000	Protector - RR. COMBINATION
11	74827-SM4-003	Stopper - TRUNK LID
12	74850-SM4-G01	Lock assy - TRUNK
13	74861-SM4-003	Cylinder - TRUNK
14	74862-SE3-003	Striker - TRUNK
15	74863-SM4-G00	Rod - TRUNK LOCK
16	74864-SM4-003	Cover - TRUNK LOCK
17	74865-SM4-000	Weatherstrip - TRUNK LID
18	74871-SM4-000	Spring - R. TRUNK OPENER
19	74872-SM4-000	Spring - L. TRUNK OPENER
20	74873-SM4-003	Clip - TRUNK OPENER SPRING
21	74880-SM4-A00	Cable - TRUNK OPENER
26	74886-SH4-A03	Cylinder - TRUNK REMOTE CONTROL
27	74895-SM4-E01	Molding - TRUNK LID
28	83418-SG3-003	Cushion - TRUNK HINGE
29	83431-SA4-000	Cushion - FR. TRUNK
30	85267-671-000	Cushion - TAILGATE
31	90101-SM3-003	Screw-washer - 6X14
32	90106-SE3-000	Bolt-washer - 6X12
33	90109-SM4-000	Bolt - SPECIAL, 6X35
36	90661-SC7-003	Grommet - SCREW, 5MM
37	90691-SC5-003	Clip A - OPENER CABLE
38	90691-SF1-003	Clip c - OPENER CABLE
39	90851-SK7-003	Plug - HOLE, 20X40
40	91516-SM4-013	Clip - RR. COMBINATION PROTECTOR
41	91517-SM4-003	Cap - HINGE ARM END
42	91518-SM4-003	Clip - TRUNK MOLDING

Valve/rocker arm 15

#	OEM	部品名
1	14621-PT0-000	Arm comp - IN. ROCKER (A)
2	14622-PT0-000	Arm comp - IN. ROCKER (B)
3	14623-PT0-000	Arm comp - EX. ROCKER
4	14645-PT0-003	Spring a - VALVE ROCKER ARM (SANKO)
5	14646-PN4-003	Spring b - VALVE ROCKER ARM (SANKO)
6	14647-PT0-000	Washer - WAVE
7	14711-PT0-000	Valve - IN.
8	14721-PT0-B00	Valve - EX.
9	14744-PT0-004	Screw - TAPPET ADJUSTING
10	14761-PT0-003	Spring - VALVE (ORANGE) (NIPPON HATSUJO)
10	14761-PT0-004	Spring - VALVE (ORANGE) (CHUO SPRING)
12	14765-PT0-000	Retainer - VALVE SPRING
13	14775-PT0-000	Seat - VALVE SPRING
14	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
15	90206-PT0-004	Nut - TAPPET ADJUSTING

Washer nozzle/washer tube 12

#	OEM	部品名
1	36062-671-000	Clamp b - TUBE
2	38511-SD2-003	Adapter - NOZZLE (MITSUBA)
3	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
6	76810-SM4-J01	Nozzle - R. WINDSHIELD WASHER
7	76815-SM4-J01	Nozzle - L. WINDSHIELD WASHER
8	76820-SM4-003	Grommet - TUBE WASHER
10	76829-SM4-003	Joint i - WASHER
11	76830-SM4-003	Joint y - WASHER
12	76875-SM4-003	Bellows - FR. WASHER
19	90652-SB2-023	Clip - TUBE, 7MM
20	91512-SE0-003	Clip - WASHER TUBE
21	91523-SM4-003	Clip - WASHER TUBE

Washer tank 12

#	OEM	部品名
1	38513-SB0-961	Cap - WASHER MOUTH(MITSUBA)
1	76802-SS0-003	Cap - MOUTH
9	76804-SE0-003	Float - WASHER
10	76805-SM4-A01	Hose - WASHER
12	38512-SB0-922	Motor - WASHER (MITSUBA)
14	76807-SE0-921	Packing - T-TYPE
18	76812-SM4-003	Mouth assy. - WASHER (MITSUBA)
19	76838-SK7-003	Grommet - WASHER TANK
20	76841-SM4-C01	Tank
22	76842-SE0-003	Bush - WASHER TANK (MITSUBA)
26	90130-SE0-000	Screw - TAPPING, 6X16 (DACRO COATING)
27	90668-SA5-003	Grommet - SCREW, 6MM

Water hose 9

#	OEM	部品名
2	19330-PD2-013	Valve - THERMO (B-60)
5	19507-PT0-000	Hose a - BYPASS
7	19508-PT0-000	Hose b - BYPASS
17	19527-PT0-000	Clamp comp - HEATER HOSE
19	79721-SM4-010	Hose a - WATER IN.
20	79725-SM4-040	Hose - WATER OUTLET
21	91405-PD1-004	Clamp - TUBE(D12)
22	91405-PK1-003	Clip, WATER HOSE, 24MM
22	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water pump 19

#	OEM	部品名
1	19200-PT0-013	Pump comp - WATER (YAMADA)
2	19222-PT0-300	Packing - WATER PUMP
3	19223-PT0-000	Rubber - WATER PUMP SEAL
4	19300-PT0-004	Thermostat - 90) (NIPPON THERMOSTAT
4	19300-PT0-003	Thermostat - 90) (FUJI SEIKO
5	19305-PT0-000	Rubber - THERMOSTAT MOUNTING
5	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
6	19311-PT0-000	Cover - THERMOSTAT
7	19313-PT0-000	Packing - THERMOSTAT CASE
8	19320-PT0-000	Case comp. - THERMOSTAT
9	19360-PT0-000	Cover - WATER OUTLET
10	19500-PT0-000	Joint - TUBE
11	19505-PT0-000	Pipe comp - CONNECTING
12	19516-PC1-000	Bolt - BREATHING WATER
13	37773-PT0-004	Sensor - THERMO (A-93) (TEC)
15	90002-PD2-000	Bolt - FLANGE, 8X16
17	91307-611-000	O-ring (13.5X1.4)
17	91307-PH7-660	O-ring (13.5X1.4)
18	91314-PH7-003	O-ring 31.2X4.1 (NOK)

Water valve 6

#	OEM	部品名
1	79710-SM4-A03	Valve assy. - WATER (DENSO)
2	79722-SM4-010	Hose b - WATER IN.
3	79731-SH3-000	Grommet - HEATER PIPE
4	91405-PK1-003	Clip, WATER HOSE, 24MM
4	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
5	91553-SM4-003	Clamp - HEATER HOSE (24MM & 39MM)

Wire harness 53

#	OEM	部品名
1	32100-SM4-F01	Harness - CABIN WIRE
1	32100-SM4-F21	Harness - CABIN WIRE
3	32107-SM4-G01	Harness - FLOOR WIRE
3	32107-SM4-R11	Harness - FLOOR WIRE
4	32108-SM4-G01	Harness - RR. WIRE
4	32108-SM4-G11	Harness - RR. WIRE
5	32109-SM4-003	Ring - WHEELHOUSE HOLE, 40MM (WHITE)
6	32109-SM4-901	Ring - WHEELHOUSE HOLE, 30MM
7	32117-SM4-G91	Harness - INSTRUMENT WIRE
8	32120-SM4-G00	Cord - FR. SPEAKER
9	32128-SM4-A01	Holder - COUPLER
10	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
11	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
12	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
13	32135-SM4-A00	Stay - DASHBOARD HARNESS (LH)
14	32156-SM4-A01	Cord - SUNROOF
16	32170-SM4-010	Cord - FUEL UNIT
17	32202-SH4-000	Cord - DEFROSTER EARTH
18	32311-SM4-A01	Holder - COUPLER
21	32751-SM4-G01	Harness - FR. DOOR WIRE (DRIVER SIDE)
22	32752-SM4-G01	Harness - FR. DOOR WIRE (PASSENGER SIDE)
23	32753-SM4-G01	Harness - R. RR. DOOR WIRE
24	32754-SM4-G01	Harness - L. RR. DOOR WIRE
25	32760-SM4-010	Protector - R. DOOR WIRE HARNESS
26	32765-SM4-010	Protector - L. DOOR WIRE HARNESS
27	38240-SM4-003	Stay - FUEL CUT COUPLER
29	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
30	90149-SE0-003	Bolt - EARTH, 6X16
31	90602-SB2-003	Clip - PROTECTOR
32	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
33	90660-SB2-000	Clip - CORD
34	90667-SB2-003	Clip - WIRE HARNESS (GRAY) (HARNESS TAPING) (50MM)
35	90672-SA0-003	Strap - CABLE, 118MM(BLACK)
36	90676-SA8-003	Band - WIRE HARNESS, 150MM (BLUE)
37	90691-SA0-003	Clip - WIRE HARNESS (WHITE)
38	90850-SH4-K00	Cap - OUTSIDE HOLE
39	91504-SM4-003	Clip - DOOR PROTECTOR
40	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
41	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
42	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
43	91548-SF4-003	Band - HARNESS (WITH SEAL) (WHITE) (93.5MM)
45	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
47	91552-SD2-003	Clip - WIRE HARNESS
48	91554-SM4-003	Holder - BRACKET (RED)
49	91555-SM4-003	Clip - COUPLER (RED)
50	91559-SE0-003	Clip - WIRE HARNESS (23.2MM)
51	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
52	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
53	91570-SG0-003	Band - HARNESS (123.5MM) (BLUE) (WITH SEAL)
54	91614-SE7-000	Grommet - RR. DOOR HOLE (BLACK)
55	91642-SM4-003	Grommet - WIRE HARNESS (20MM) (WHITE)
56	91643-SM4-003	Grommet - WIRE HARNESS (28MM) (WHITE)
57	91763-SH3-003	Bar - JOINT (6P)
