19" alloy wheel 19 x 7,5j 1 / 1

#	OEM	RE5	RE7
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

Abs/vsa modulator 2 / 4

#	OEM	RE5	RE7
1	57101-STK-A01	Rubber - DAMPER	Rubber - DAMPER
3	57115-SWA-A00	Bracket - MODULATOR(VSA)	Bracket - MODULATOR(VSA)

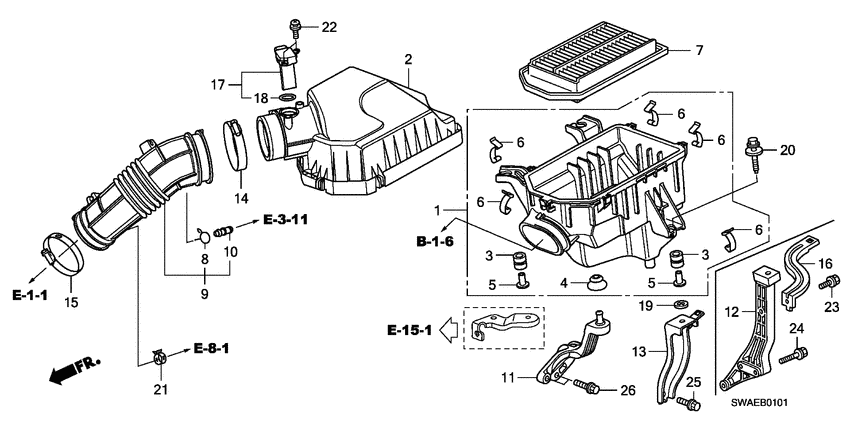

Air cleaner (2.0L) 7 / 18

#	OEM	RE5	RE7
3	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
6	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
17	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
18	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE

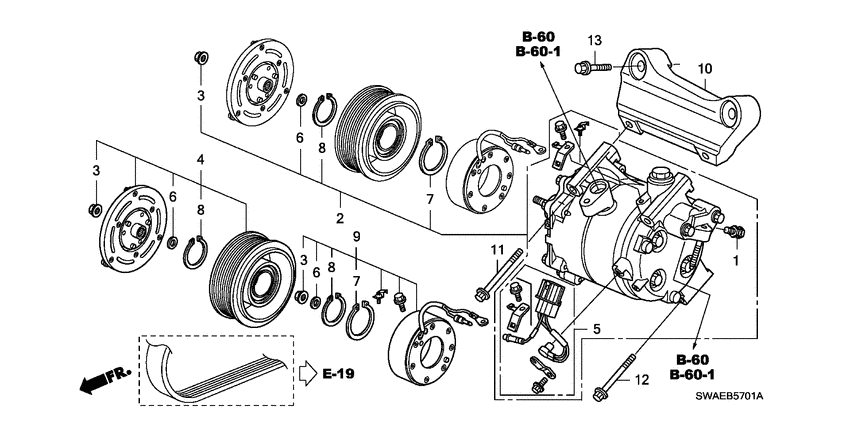

Air conditioner (2.0L; COMPRESSOR) 7 / 13

#	OEM	RE5	RE7
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Air conditioner (CONDENSER) 6 / 6

#	OEM	RE5	RE7
1	80101-SFE-003	Filter sub assy.	Filter sub assy.
2	80107-S2X-000	Mount - CONDENSER UPPER	Mount - CONDENSER UPPER
3	80110-SWW-G02	Condenser comp.	Condenser comp.
4	80111-SWA-A01	Bracket - R. CONDENSER UPPER	Bracket - R. CONDENSER UPPER
5	80112-SWA-J00	Bracket - L. CONDENSER UPPER	Bracket - L. CONDENSER UPPER
6	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER

Air conditioner (HOSES/PI PES; LH; 2.0L; 2.4L) 19 / 21

#	OEM	RE5	RE7
1	17713-SE0-003	Clamp - FUEL PIPE	Clamp - FUEL PIPE
2	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
7	80321-SWW-G01	Pipe comp - AIR CONDITIONER	Pipe comp - AIR CONDITIONER
8	80325-SDA-A00	Seal - FLANGE	Seal - FLANGE
9	80341-SWW-G01	Pipe comp - RECEIVER	Pipe comp - RECEIVER
10	80361-SWA-A00	Stay - AIR CONDITIONER PIPE	Stay - AIR CONDITIONER PIPE
11	80362-SJA-A00	Clamp - SUCTION HOSE	Clamp - SUCTION HOSE
12	80366-SFA-000	Rubber - MOUNT	Rubber - MOUNT
13	80367-SFA-000	Collar - DISTANCE	Collar - DISTANCE
14	80381-SJA-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
15	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
16	80865-SL0-003	Cap - VALVE (H)	Cap - VALVE (H)
17	80866-SJC-A00	Cap l - VALVE (PARKER)	Cap l - VALVE (PARKER)
18	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
19	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
20	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
21	90105-SFA-003	Bolt-washer - 6X30	Bolt-washer - 6X30
22	90203-SB0-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
23	91541-SEY-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE

Alternator (DENSO; 2.0L) 10 / 15

#	OEM	RE5	RE7
2	31101-RTA-003	Rotor assy.	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
14	31147-PT0-003	Screw-washer	Screw-washer
15	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

Antenna (LH) 16 / 16

#	OEM	RE5	RE7
1	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
2	39151-S6A-E02	Element assy. - YOKOO	Element assy. - YOKOO
2	39151-S6A-E03	ELEMENT ASSY YOKOO	ELEMENT ASSY YOKOO
3	39152-SWA-A03	Base comp. - ANTENNA	Base comp. - ANTENNA
4	39153-TA0-A02	Nut assy. - ANTENNA (YOKOO)	Nut assy. - ANTENNA (YOKOO)
5	39156-SWA-A01	Sub feeder assy. - ANTENNA	Sub feeder assy. - ANTENNA
7	39160-SWA-A03	Feeder assy. - ANTENNA	Feeder assy. - ANTENNA
8	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
9	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
10	91533-SWA-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
11	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
14	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
15	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
16	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
17	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)

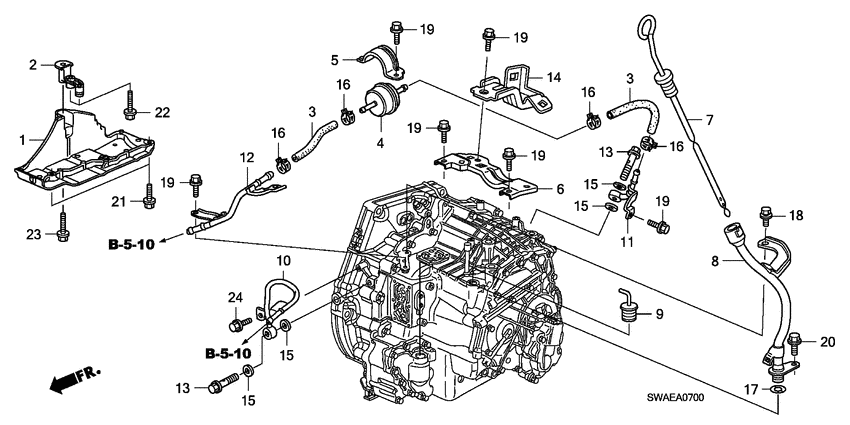

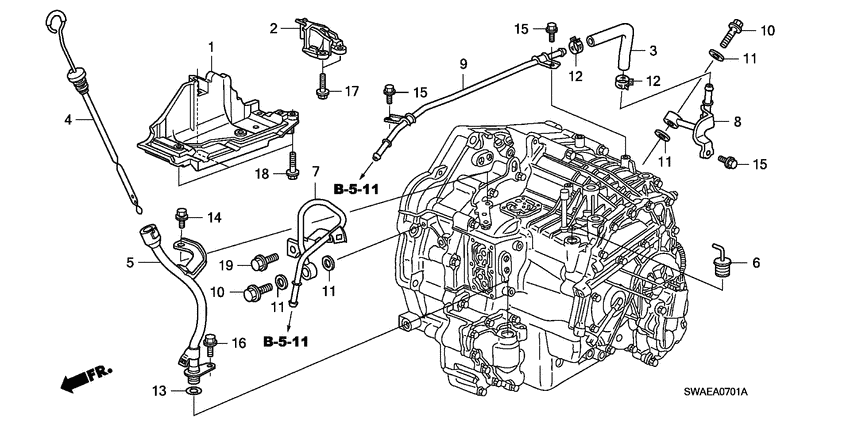

Atf pipe (2.0L) 9 / 18

#	OEM	RE5	RE7
4	25430-PLR-003	Filter, ATF	Filter, ATF
8	25613-RCL-000	Pipe comp - ATF GAUGE	Pipe comp - ATF GAUGE
9	25615-RCL-003	Cap - ATF FILLER	Cap - ATF FILLER
11	25920-RXH-000	Pipe comp. b - ATF	Pipe comp. b - ATF
13	25951-RGR-000	Bolt - JOINT	Bolt - JOINT
15	90471-RGR-000	Washer - DRAIN PLUG, 12MM	Washer - DRAIN PLUG, 12MM
16	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
16	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE
17	91308-PH0-013	O-ring - 17.8X1.9 (NOK)	O-ring - 17.8X1.9 (NOK)

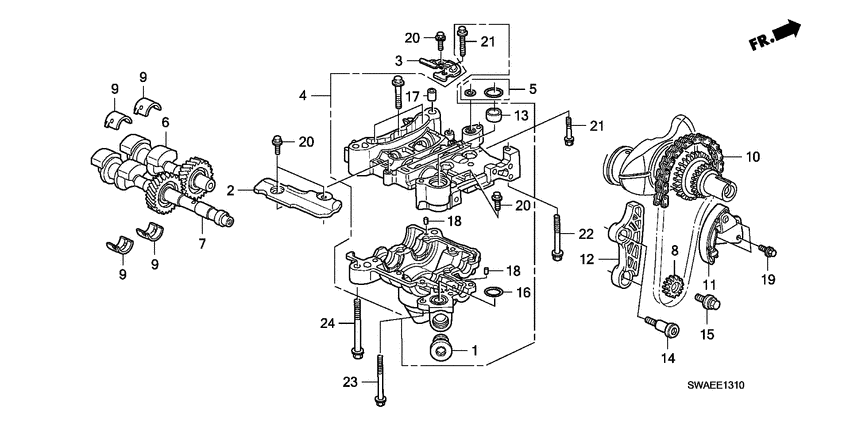

Balancer shaft (2.0L) 2 / 16

#	OEM	RE5	RE7
14	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
15	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30

Battery (2.0L; 2.4L) 6 / 12

#	OEM	RE5	RE7
12	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)	Holder - CORRUGATED(BLACK) (10MM)
14	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
16	32607-SMJ-E01	Washer - BATTERY TERMINAL	Washer - BATTERY TERMINAL
17	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
18	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)

Brake lines (VSA; 2.0L; 2.4L; LH; 1) 27 / 27

#	OEM	RE5	RE7
1	01464-SWA-000	HOSE SET, R. FR. BRAKE	HOSE SET, R. FR. BRAKE
2	01465-SWA-000	HOSE SET, L. FR. BRAKE	HOSE SET, L. FR. BRAKE
3	01466-SWA-000	Hose set - RR. BRAKE	Hose set - RR. BRAKE
4	46330-SWA-K01	Pipe comp. c - BRAKE	Pipe comp. c - BRAKE
5	46340-SWA-K01	Pipe comp. d - BRAKE	Pipe comp. d - BRAKE
6	46374-SWW-G00	Pipe comp. u - BRAKE	Pipe comp. u - BRAKE
7	46375-SWW-G00	Pipe comp. v - BRAKE	Pipe comp. v - BRAKE
8	46376-SWA-A00	Pipe comp. w - BRAKE	Pipe comp. w - BRAKE
9	46377-SWA-A00	Pipe comp. x - BRAKE	Pipe comp. x - BRAKE
10	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
11	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
12	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
13	46392-SAA-901	Clip - BRAKE PIPE	Clip - BRAKE PIPE
14	46392-SWA-A00	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-SMG-E01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46394-SEA-023	Clip d - BRAKE PIPE	Clip d - BRAKE PIPE
18	46395-STK-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
19	46435-SWA-A00	Bracket - R. RR. BRAKE HOSE	Bracket - R. RR. BRAKE HOSE
20	46436-SWA-A00	Bracket - L. RR. BRAKE HOSE	Bracket - L. RR. BRAKE HOSE
21	46437-SWA-A00	Bracket - RR. BRAKE HOSE	Bracket - RR. BRAKE HOSE
22	46462-SE0-000	Bolt - OIL	Bolt - OIL
23	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
24	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
25	90651-SN7-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
29	32752-SWY-G00	Stay - ENGINE HARNESS(P)	Stay - ENGINE HARNESS(P)
30	46395-SWA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE

Brake master cylinder/ master power (LH; 1) 22 / 23

#	OEM	RE5	RE7
1	01469-SWW-G01	Power set - MASTER(10")	Power set - MASTER(10")
2	46017-SWW-G00	Hose set - RESERVE TANK	Hose set - RESERVE TANK
3	46101-SWW-G01	Cylinder set - MASTER	Cylinder set - MASTER
4	46185-SWW-G01	O-ring	O-ring
5	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
6	46197-SWW-G01	Nut	Nut
9	46407-SWA-A00	Stay - MASTER POWER TUBE	Stay - MASTER POWER TUBE
10	46407-SWA-003	Clamp - MASTER POWER TUBE	Clamp - MASTER POWER TUBE
11	46407-S84-A01	Clamp - TUBE	Clamp - TUBE
12	46411-SWW-G01	Pipe - VACUUM	Pipe - VACUUM
13	46412-SWW-G01	Grommet - CHECK VALVE	Grommet - CHECK VALVE
14	46512-S70-000	Pin - PEDAL	Pin - PEDAL
15	46660-SWW-G01	Reservoir assy - OIL	Reservoir assy - OIL
16	46662-SDC-A02	Cap comp. - RESERVOIR	Cap comp. - RESERVOIR
17	46665-SWW-G01	Grommet	Grommet
18	46666-SDC-A01	Filter	Filter
19	46674-SWW-G00	Bracket - RESERVE TANK	Bracket - RESERVE TANK
20	46676-SWW-G01	Screw	Screw
21	46680-SWW-G01	Reservoir	Reservoir
22	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
23	53729-SWW-G01	Clamp	Clamp
24	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Breather pipe (2.0L) 2 / 7

#	OEM	RE5	RE7
6	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
6	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Bumpers ('10) 34 / 35

#	OEM	RE5	RE7
2	33505-SWA-J01	Reflector assy - R. RR.	Reflector assy - R. RR.
3	33555-SWA-J01	Reflector assy - L. RR.	Reflector assy - L. RR.
5	71102-SWA-G00	Face - FR. BUMPER LOWER	Face - FR. BUMPER LOWER
6	71103-SWA-000	Garnish - R. FR. SIDE	Garnish - R. FR. SIDE
9	71108-SWA-000	Garnish - L. FR. SIDE	Garnish - L. FR. SIDE
10	71109-TA1-J01	Clip - SELF HOLD	Clip - SELF HOLD
12	71140-SWA-000	Beam - R. FR. BUMPER UPPER	Beam - R. FR. BUMPER UPPER
14	71145-SWA-G00	Base - FR. LICENSE PLATE	Base - FR. LICENSE PLATE
15	71146-SWA-010	Beam - FR. BUMPER CENTER UPPER	Beam - FR. BUMPER CENTER UPPER
17	71148-SG9-600	Nut	Nut
18	71148-SWA-000	Support - FR. CENTER UPPER BEAM	Support - FR. CENTER UPPER BEAM
19	71190-SWA-000	Beam - L. FR. BUMPER UPPER	Beam - L. FR. BUMPER UPPER
20	71193-SWA-003	Spacer - R. FR. BUMPER SIDE	Spacer - R. FR. BUMPER SIDE
21	71198-SWA-003	Spacer - L. FR. BUMPER SIDE	Spacer - L. FR. BUMPER SIDE
24	71593-SWA-A01	Spacer - R. RR. BUMPER SIDE	Spacer - R. RR. BUMPER SIDE
25	71598-SWA-A01	Spacer - L. RR. BUMPER SIDE	Spacer - L. RR. BUMPER SIDE
26	90107-S9V-A01	Bolt - RR. BUMPER STOPPER	Bolt - RR. BUMPER STOPPER
27	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
28	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
29	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
30	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
31	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
32	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
33	90601-SWA-000	Clip - SNAP FIT	Clip - SNAP FIT
34	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
35	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
36	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
41	71110-SWW-G10	Cover - R. FR. BUMPER INSIDE	Cover - R. FR. BUMPER INSIDE
42	71150-SWW-G10	Cover - L. FR. BUMPER INSIDE	Cover - L. FR. BUMPER INSIDE
44	71160-SWW-G10	Cover - R. FR. BUMPER OUTSIDE	Cover - R. FR. BUMPER OUTSIDE
45	71165-SWW-G00	Support - R. FR. BUMPER SIDE GARNISH	Support - R. FR. BUMPER SIDE GARNISH
46	71180-SWW-G10	Cover - L. FR. BUMPER OUTSIDE	Cover - L. FR. BUMPER OUTSIDE
48	71185-SWW-G00	Support - L. FR. BUMPER SIDE GARNISH	Support - L. FR. BUMPER SIDE GARNISH
50	90113-SJA-A00	Screw - TAPPING, 5X14	Screw - TAPPING, 5X14

Camshaft/cam chain (2.0L) 3 / 13

#	OEM	RE5	RE7
7	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
10	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
13	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Canister 19 / 19

#	OEM	RE5	RE7
1	17300-SNA-013	Canister assy	Canister assy
1	17300-SNA-023	Canister assy	Canister assy
2	17358-SWA-000	Bracket - CANISTER	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY	Valve - TWO WAY
4	17579-SWA-000	Plate - BAFFLE CANISTER	Plate - BAFFLE CANISTER
5	17714-SWA-000	Tube assy. b - FUEL VENT	Tube assy. b - FUEL VENT
6	17724-SNA-000	Tube - FUEL VENT	Tube - FUEL VENT
7	17740-SWA-000	Tube a - DRAIN	Tube a - DRAIN
8	17741-SWA-000	Tube assy. a - DRAIN	Tube assy. a - DRAIN
9	17742-SDA-A02	Joint - DRAIN TUBE	Joint - DRAIN TUBE
10	17742-SWA-003	Joint - DRAIN TUBE	Joint - DRAIN TUBE
11	17743-SWA-A00	Tube b - DRAIN	Tube b - DRAIN
12	17745-SWA-000	Tube c - DRAIN	Tube c - DRAIN
13	17749-SWA-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
14	38166-P1A-003	Joint - TWO WAY, 5MM	Joint - TWO WAY, 5MM
15	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
16	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
17	91591-SJF-003	Clamp - VENT TUBE (NATURAL)	Clamp - VENT TUBE (NATURAL)
18	91595-SCV-A01	Clip - DRAIN TUBE	Clip - DRAIN TUBE

Center console (1) 12 / 13

#	OEM	RE5	RE7
2	39620-SNA-003	Cap assy.	Cap assy.
3	39624-SZ3-L01	Socket assy	Socket assy
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
7	83410-SWA-U01	Panel - HEATED SEAT SWITCH	Panel - HEATED SEAT SWITCH
10	83417-SWA-J01	Lid - MAINTENANCE	Lid - MAINTENANCE
11	83418-SWA-J01	Clip - BOX	Clip - BOX
12	83419-SWA-J01	Bracket - BOX	Bracket - BOX
13	83421-SWA-U00	Bracket comp. - CENTER CONSOLE (RR.)	Bracket comp. - CENTER CONSOLE (RR.)
14	83423-SWA-000	Bracket - CENTER CONSOLE RR.	Bracket - CENTER CONSOLE RR.
16	83432-SWA-J01	Mat - BOX CONSOLE	Mat - BOX CONSOLE
26	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
27	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Clutch (FOURTH-FIFTH; 2.0L; 2.4L) 19 / 20

#	OEM	RE5	RE7
1	22533-PX4-010	Seat - RETURN SPRING	Seat - RETURN SPRING
2	22536-PRP-013	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
3	22541-PX4-004	Spring - CLUTCH RETURN (SANKO)	Spring - CLUTCH RETURN (SANKO)
5	22587-R91-003	Plate - CLUTCH END (7) (2.7MM)	Plate - CLUTCH END (7) (2.7MM)
5	22582-R91-003	Plate - CLUTCH END (2) (2.2MM)	Plate - CLUTCH END (2) (2.2MM)
5	22589-R91-003	Plate - CLUTCH END (9) (2.9MM)	Plate - CLUTCH END (9) (2.9MM)
5	22584-R91-003	Plate - CLUTCH END (4) (2.4MM)	Plate - CLUTCH END (4) (2.4MM)
5	22586-R91-003	Plate - CLUTCH END (6) (2.6MM)	Plate - CLUTCH END (6) (2.6MM)
5	22581-R91-003	Plate - CLUTCH END (1) (2.1MM)	Plate - CLUTCH END (1) (2.1MM)
5	22588-R91-003	Plate - CLUTCH END (8) (2.8MM)	Plate - CLUTCH END (8) (2.8MM)
5	22583-R91-003	Plate - CLUTCH END (3) (2.3MM)	Plate - CLUTCH END (3) (2.3MM)
5	22585-R91-003	Plate - CLUTCH END (5) (2.5MM)	Plate - CLUTCH END (5) (2.5MM)
6	22651-RFK-003	Guide comp - CLUTCH (4-5)	Guide comp - CLUTCH (4-5)
7	22653-R91-003	Plate - CLUTCH WAVE (2.0MM)	Plate - CLUTCH WAVE (2.0MM)
8	22680-RCR-003	Piston comp - CLUTCH	Piston comp - CLUTCH
9	90603-PX4-000	Circlip - EXTERNAL, 47MM	Circlip - EXTERNAL, 47MM
10	90605-P7T-003	Ring - SNAP, 133MM	Ring - SNAP, 133MM
11	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
12	91303-PX4-004	O-ring - 114X2.2 (NOK)	O-ring - 114X2.2 (NOK)

Clutch (LOW-THIRD; 2.0L) 6 / 23

#	OEM	RE5	RE7
3	22533-RCL-003	Retainer comp - RETURN SPRING	Retainer comp - RETURN SPRING
4	22536-PRP-013	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
11	90603-P6H-003	Circlip - EXTERNAL, 43MM	Circlip - EXTERNAL, 43MM
13	91302-PA9-004	O-ring - 39.8X2.2 (NOK)	O-ring - 39.8X2.2 (NOK)
13	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)
14	91303-PX4-004	O-ring - 114X2.2 (NOK)	O-ring - 114X2.2 (NOK)

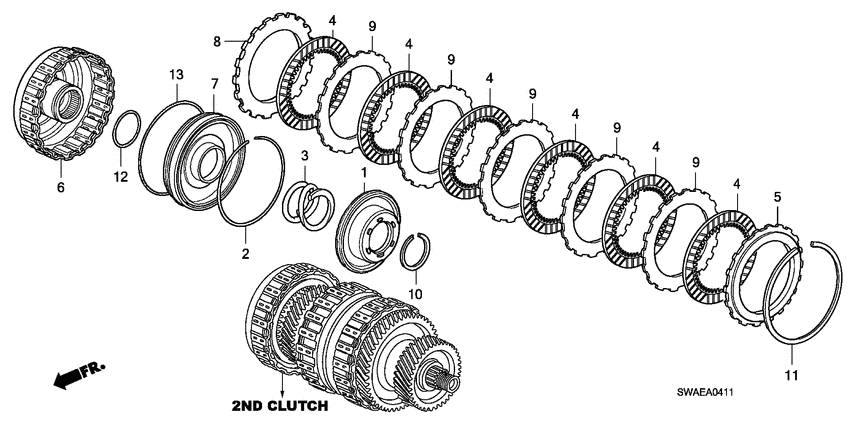

Clutch (SECOND; 2.0L) 6 / 23

#	OEM	RE5	RE7
1	22533-RCL-003	Retainer comp - RETURN SPRING	Retainer comp - RETURN SPRING
3	22541-RCL-A01	Spring - CLUTCH RETURN (F.C.C)	Spring - CLUTCH RETURN (F.C.C)
11	90603-P6H-003	Circlip - EXTERNAL, 43MM	Circlip - EXTERNAL, 43MM
13	91302-PA9-004	O-ring - 39.8X2.2 (NOK)	O-ring - 39.8X2.2 (NOK)
13	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)
14	91303-PX4-004	O-ring - 114X2.2 (NOK)	O-ring - 114X2.2 (NOK)

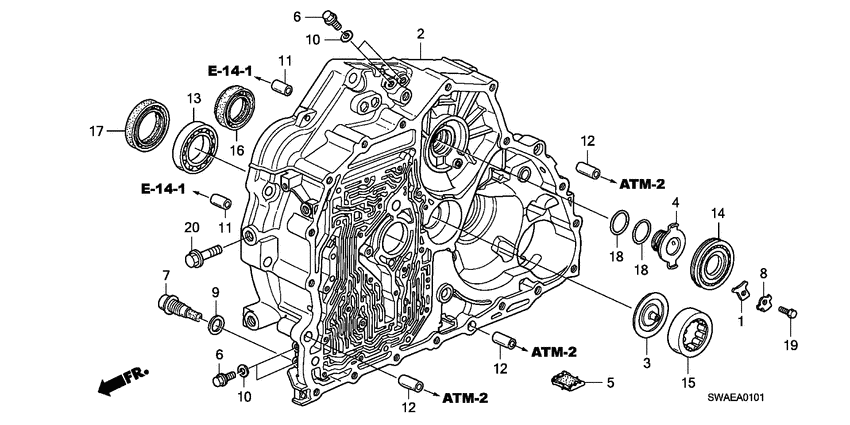

Clutch case (2.0L) 1 / 12

#	OEM	RE5	RE7
11	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)

Clutch master cylinder (2.0L; 2.4L; LH) 2 / 36

#	OEM	RE5	RE7
5	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
7	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)

Clutch/torque converter 3 / 14

#	OEM	RE5	RE7
12	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
14	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2
15	91302-RNA-003	O-ring - 35.5X1.9	O-ring - 35.5X1.9

Combination switch (LH) 18 / 22

#	OEM	RE5	RE7
2	06350-SWW-E51	Cylinder set - KEY	Cylinder set - KEY
3	06351-SWA-911	Lock assy - STEERING	Lock assy - STEERING
4	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
5	35103-S04-003	Screw - RECESSED	Screw - RECESSED
6	35108-S30-003	Holder - COLUMN	Holder - COLUMN
8	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
15	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
16	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH	Sensor assy - STEERING & BODY SWITCH
19	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)	Switch assy - DOOR (MATSUSHITA)
20	39730-SWA-Y02	Immobilizer & keyless unit	Immobilizer & keyless unit
21	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
23	72148-S0A-000	Battery CR1616	Battery CR1616
24	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18
27	35113-TL4-E10	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
28	35117-STK-A11	Screw - FLAT	Screw - FLAT
29	35118-TL4-E11	Cover comp. - MODULE	Cover comp. - MODULE
30	35119-TL0-305	Bottom comp. - TRANSMITTER KEY CASE (BLANK)	Bottom comp. - TRANSMITTER KEY CASE (BLANK)
31	72147-TL4-E11	Transmitter assy - KEYLESS	Transmitter assy - KEYLESS

Console 5 / 5

#	OEM	RE5	RE7
1	39610-SAA-003	Knob assy	Knob assy
2	39620-SAA-G01	Housing assy.	Housing assy.
3	39625-SAA-G01	Ring - MOUNTING	Ring - MOUNTING
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
10	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Control unit (CABIN; 2) 2 / 2

#	OEM	RE5	RE7
1	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)	Relay assy - POWER (MICRO ISO) (OMRON)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)

Control unit (CABIN; LH; 1) 11 / 14

#	OEM	RE5	RE7
6	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
7	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
8	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
9	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
10	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
15	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)	Relay assy - POWER (MICRO ISO) (OMRON)
20	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
22	39960-SYY-003	Sensor - YAW & 2G	Sensor - YAW & 2G
26	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
27	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
29	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; 2.0L; 2.4L; 1) 33 / 38

#	OEM	RE5	RE7
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
2	32411-SWA-000	Bracket - STARTER CABLE	Bracket - STARTER CABLE
5	37821-RZA-900	Bracket comp. - ENGINE CONTROL MODULE	Bracket comp. - ENGINE CONTROL MODULE
6	37822-RZA-000	Sub bracket comp. - ENGINE CONTROL MODULE	Sub bracket comp. - ENGINE CONTROL MODULE
7	37823-RZA-000	Cover - ENGINE CONTROL MODULE	Cover - ENGINE CONTROL MODULE
8	38100-SWA-A02	Horn assy - LOW	Horn assy - LOW
11	38150-SWA-A02	Horn assy - HIGH	Horn assy - HIGH
13	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
14	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
15	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
16	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
17	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
18	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
19	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
20	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
21	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
22	38231-SNA-A11	Fuse a - MULTI BLOCK (80A/50A)	Fuse a - MULTI BLOCK (80A/50A)
23	38232-SDA-A01	Fuse b - MULTI BLOCK (40A/50A)	Fuse b - MULTI BLOCK (40A/50A)
24	38232-SMG-E01	Fuse b - MULTI BLOCK(40A/20A)	Fuse b - MULTI BLOCK(40A/20A)
25	38235-TA0-A01	Puller - FUSE	Puller - FUSE
26	38250-SWA-013	Box assy - RELAY	Box assy - RELAY
27	38251-SWA-000	Bracket - RELAY BOX(RR.)	Bracket - RELAY BOX(RR.)
28	38256-SWA-003	Cover - RELAY BOX	Cover - RELAY BOX
29	38257-SNA-A02	Cover - LOWER	Cover - LOWER
31	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)	Relay assy - POWER (MICRO ISO) (OMRON)
32	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
33	80521-SWA-940	Bracket - AMBIENT SENSOR	Bracket - AMBIENT SENSOR
34	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
35	90106-SDA-A00	Bolt-washer - 6X25	Bolt-washer - 6X25
36	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
37	90129-SX8-003	Screw-washer - 5X12	Screw-washer - 5X12
38	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
39	90661-SWA-A01	Clip	Clip

Control unit (ENGINE ROOM; 2.0L; 2.4L; 2) 5 / 5

#	OEM	RE5	RE7
1	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
3	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)	Relay assy - POWER (MICRO ISO) (OMRON)
8	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
8	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
10	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Corner sensor/back sensor 1 / 1

#	OEM	RE5	RE7
10	90825-SNA-003	Grommet - 25MM	Grommet - 25MM

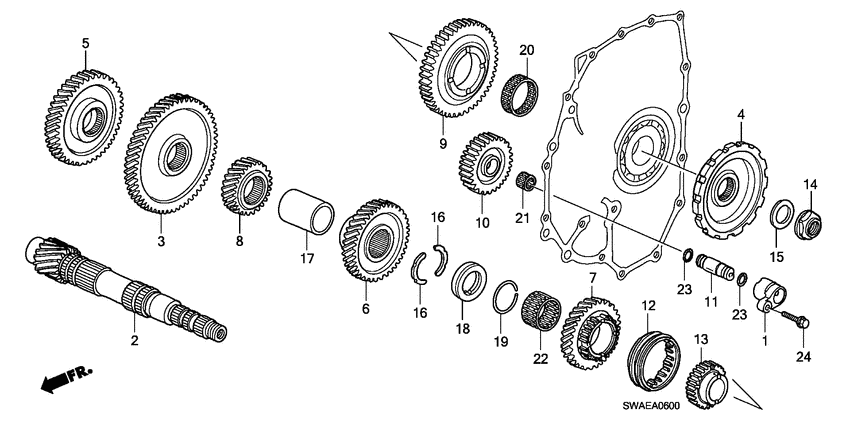

Countershaft (2.0L; 2.4L) 20 / 67

#	OEM	RE5	RE7
1	21215-PRP-000	Holder - IDLE SHAFT	Holder - IDLE SHAFT
2	23221-RZH-000	Countershaft	Countershaft
3	23421-RZH-000	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
4	23427-PRP-020	Gear - PARKING	Gear - PARKING
7	23471-R90-B00	Gear - COUNTERSHAFT FOURTH	Gear - COUNTERSHAFT FOURTH
9	23531-PRP-010	Gear - COUNTERSHAFT REVERSE	Gear - COUNTERSHAFT REVERSE
10	23541-PRP-000	Gear - REVERSE IDLE	Gear - REVERSE IDLE
11	23542-P6H-000	Shaft - REVERSE IDLE GEAR	Shaft - REVERSE IDLE GEAR
12	23565-PRP-010	Selector - REVERSE GEAR	Selector - REVERSE GEAR
13	23566-PRP-000	Hub - SELECTOR	Hub - SELECTOR
14	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)	Nut - FLANGE, 24MM (LEFT HAND THREAD)
15	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
16	90431-P6H-000	Cotter - 31MM	Cotter - 31MM
17	90441-RFK-010	Collar - 37X41X54.3	Collar - 37X41X54.3
18	90445-PPV-000	Collar - 35X47X7.8	Collar - 35X47X7.8
19	90614-P0Z-000	Ring - SNAP, 35MM	Ring - SNAP, 35MM
20	91024-PRP-004	Bearing - NEEDLE, 40X46X14.5 (KOYO)	Bearing - NEEDLE, 40X46X14.5 (KOYO)
21	91025-P0X-003	Bearing - NEEDLE, 15X20X16 (NTN)	Bearing - NEEDLE, 15X20X16 (NTN)
22	91028-P0Z-013	Bearing - NEEDLE, 35X41X25.8 (NTN)	Bearing - NEEDLE, 35X41X25.8 (NTN)
23	91306-P0X-003	O-ring - 8.1X4 (NOK)	O-ring - 8.1X4 (NOK)

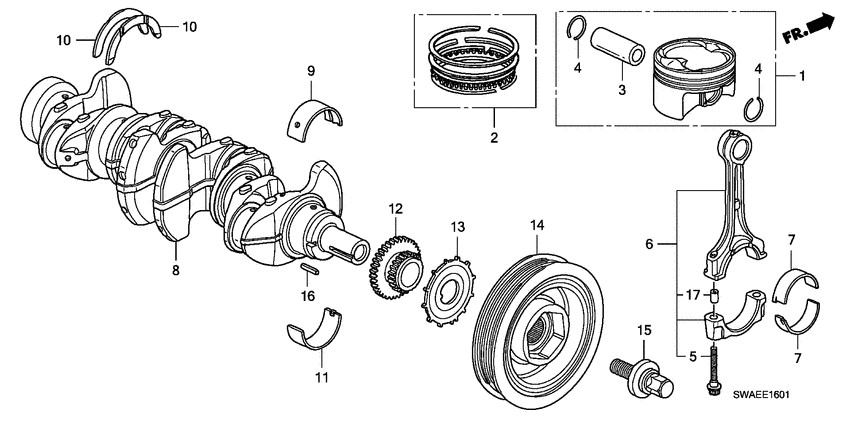

Crankshaft/piston (2.0L) 3 / 36

#	OEM	RE5	RE7
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
16	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
17	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

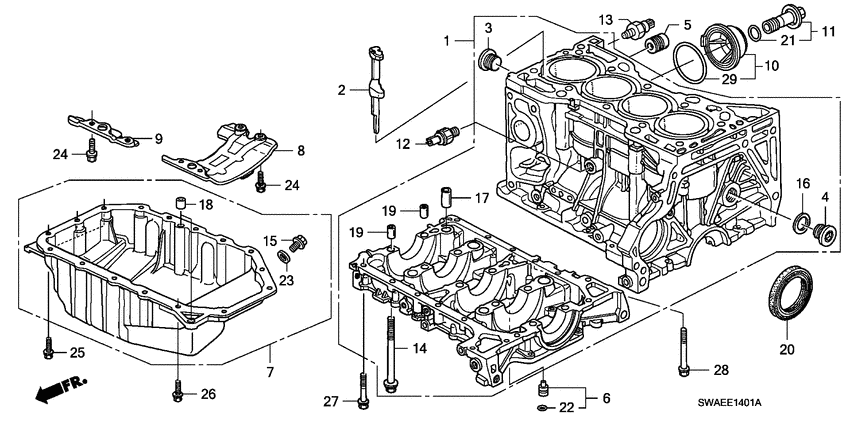

Cylinder block/oil pan (2.0L) 5 / 38

#	OEM	RE5	RE7
19	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
28	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
30	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
32	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
34	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22

Cylinder head cover (2.0L) 1 / 6

#	OEM	RE5	RE7
4	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

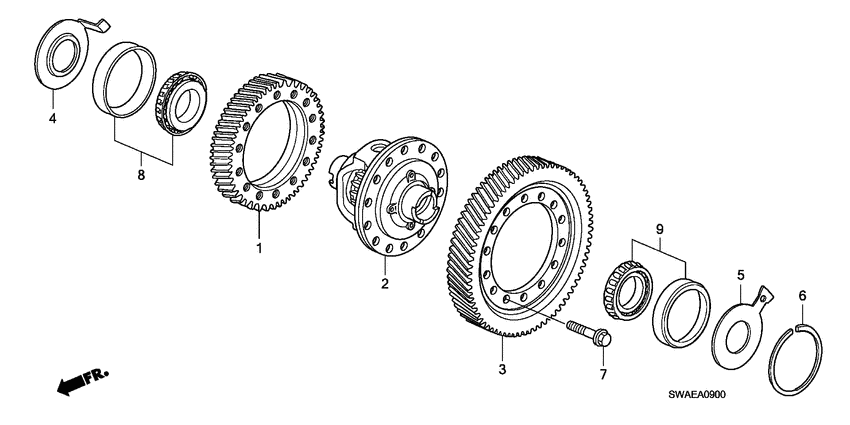

Differential (2.0L; 2.4L) 69 / 91

#	OEM	RE5	RE7
1	29011-RZH-000	Gear - TRANSFER DRIVE	Gear - TRANSFER DRIVE
2	41100-RZH-003	Differential assy	Differential assy
3	41233-RZH-000	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
4	41381-PPV-000	Spacer - 41X80X1	Spacer - 41X80X1
5	41382-RKY-900	Spacer - 41X76.2X1	Spacer - 41X76.2X1
6	41451-PK4-000	Shim k - 76MM (2.70)	Shim k - 76MM (2.70)
6	41435-PRP-000	Shim oh - 76MM (1.90)	Shim oh - 76MM (1.90)
6	41449-PAX-000	Shim v - 76MM (2.625)	Shim v - 76MM (2.625)
6	41433-PAX-000	Shim f - 76MM (1.825)	Shim f - 76MM (1.825)
6	41446-PK4-000	Shim f - 76MM (2.45)	Shim f - 76MM (2.45)
6	41430-PRP-000	Shim oc - 76MM (1.65)	Shim oc - 76MM (1.65)
6	41428-PAX-000	Shim a - 76MM (1.575)	Shim a - 76MM (1.575)
6	41444-PAX-000	Shim q - 76MM (2.375)	Shim q - 76MM (2.375)
6	41457-PK4-000	Shim q - 76MM (3.00)	Shim q - 76MM (3.00)
6	41441-PK4-000	Shim a - 76MM (2.20)	Shim a - 76MM (2.20)
6	41455-PAX-000	Shim ob - 76MM (2.925)	Shim ob - 76MM (2.925)
6	41439-PAX-000	Shim l - 76MM (2.125)	Shim l - 76MM (2.125)
6	41452-PK4-000	Shim l - 76MM (2.75)	Shim l - 76MM (2.75)
6	41436-PRP-000	Shim oi - 76MM (1.95)	Shim oi - 76MM (1.95)
6	41450-PAX-000	Shim w - 76MM (2.675)	Shim w - 76MM (2.675)
6	41434-PAX-000	Shim g - 76MM (1.875)	Shim g - 76MM (1.875)
6	41447-PK4-000	Shim g - 76MM (2.50)	Shim g - 76MM (2.50)
6	41431-PRP-000	Shim od - 76MM (1.70)	Shim od - 76MM (1.70)
6	41429-PAX-000	Shim b - 76MM (1.625)	Shim b - 76MM (1.625)
6	41445-PAX-000	Shim r - 76MM (2.425)	Shim r - 76MM (2.425)
6	41442-PK4-000	Shim b - 76MM (2.25)	Shim b - 76MM (2.25)
6	41456-PAX-000	Shim oc - 76MM (2.975)	Shim oc - 76MM (2.975)
6	41440-PAX-000	Shim m - 76MM (2.175)	Shim m - 76MM (2.175)
6	41453-PK4-000	Shim m - 76MM (2.80)	Shim m - 76MM (2.80)
6	41437-PRP-000	Shim oj - 76MM (2.00)	Shim oj - 76MM (2.00)
6	41451-PAX-000	Shim x - 76MM (2.725)	Shim x - 76MM (2.725)
6	41435-PAX-000	Shim h - 76MM (1.925)	Shim h - 76MM (1.925)
6	41448-PK4-000	Shim h - 76MM (2.55)	Shim h - 76MM (2.55)
6	41432-PRP-000	Shim oe - 76MM (1.75)	Shim oe - 76MM (1.75)
6	41446-PAX-000	Shim s - 76MM (2.475)	Shim s - 76MM (2.475)
6	41430-PAX-000	Shim c - 76MM (1.675)	Shim c - 76MM (1.675)
6	41443-PK4-000	Shim c - 76MM (2.30)	Shim c - 76MM (2.30)
6	41457-PAX-000	Shim od - 76MM (3.025)	Shim od - 76MM (3.025)
6	41441-PAX-000	Shim n - 76MM (2.225)	Shim n - 76MM (2.225)
6	41454-PK4-000	Shim n - 76MM (2.85)	Shim n - 76MM (2.85)
6	41438-PX4-700	Shim s - 76MM (2.05)	Shim s - 76MM (2.05)
6	41452-PAX-000	Shim y - 76MM (2.775)	Shim y - 76MM (2.775)
6	41436-PAX-000	Shim i - 76MM (1.975)	Shim i - 76MM (1.975)
6	41449-PK4-000	Shim i - 76MM (2.60)	Shim i - 76MM (2.60)
6	41433-PRP-000	Shim of - 76MM (1.80)	Shim of - 76MM (1.80)
6	41447-PAX-000	Shim t - 76MM (2.525)	Shim t - 76MM (2.525)
6	41431-PAX-000	Shim d - 76MM (1.725)	Shim d - 76MM (1.725)
6	41428-PRP-000	Shim oa - 76MM (1.55)	Shim oa - 76MM (1.55)
6	41444-PK4-000	Shim d - 76MM (2.35)	Shim d - 76MM (2.35)
6	41458-PK4-000	Shim r - 76MM (3.05)	Shim r - 76MM (3.05)
6	41442-PAX-000	Shim o - 76MM (2.275)	Shim o - 76MM (2.275)
6	41455-PK4-000	Shim o - 76MM (2.90)	Shim o - 76MM (2.90)
6	41439-PX4-700	Shim t - 76MM (2.10)	Shim t - 76MM (2.10)
6	41453-PAX-000	Shim z - 76MM (2.825)	Shim z - 76MM (2.825)
6	41437-PAX-000	Shim j - 76MM (2.025)	Shim j - 76MM (2.025)
6	41450-PK4-000	Shim j - 76MM (2.65)	Shim j - 76MM (2.65)
6	41434-PRP-000	Shim og - 76MM (1.85)	Shim og - 76MM (1.85)
6	41448-PAX-000	Shim u - 76MM (2.575)	Shim u - 76MM (2.575)
6	41432-PAX-000	Shim e - 76MM (1.775)	Shim e - 76MM (1.775)
6	41429-PRP-000	Shim ob - 76MM (1.60)	Shim ob - 76MM (1.60)
6	41445-PK4-000	Shim e - 76MM (2.40)	Shim e - 76MM (2.40)
6	41443-PAX-000	Shim p - 76MM (2.325)	Shim p - 76MM (2.325)
6	41456-PK4-000	Shim p - 76MM (2.95)	Shim p - 76MM (2.95)
6	41440-PX4-700	Shim u - 76MM (2.15)	Shim u - 76MM (2.15)
6	41454-PAX-000	Shim oa - 76MM (2.875)	Shim oa - 76MM (2.875)
6	41438-PAX-000	Shim k - 76MM (2.075)	Shim k - 76MM (2.075)
7	90003-PGV-000	Bolt - SPECIAL, 10X35	Bolt - SPECIAL, 10X35
8	91121-RZH-003	Bearing - SPECIAL TAPER, 40X80X21.75	Bearing - SPECIAL TAPER, 40X80X21.75
9	91122-RZH-003	Bearing - SPECIAL TAPER, 40X76.2X20.5	Bearing - SPECIAL TAPER, 40X76.2X20.5

Duct 7 / 7

#	OEM	RE5	RE7
1	77410-SWA-A02	Duct assy - CENTER	Duct assy - CENTER
3	83331-SWA-A01	Duct assy - RR. HEATER	Duct assy - RR. HEATER
4	83332-SWA-A01	Duct assy - RR. HEATER JOINT (A)	Duct assy - RR. HEATER JOINT (A)
5	83333-SWA-A02	Duct - RR. HEATER JOINT(B)	Duct - RR. HEATER JOINT(B)
7	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
8	91550-SS0-003	Clip - SRS COVER	Clip - SRS COVER
9	91560-SLA-003	Clip - GARNISH (SEAL)	Clip - GARNISH (SEAL)

Emblems/caution labels 4 / 7

#	OEM	RE5	RE7
3	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
6	75722-SWA-003	Emblem - RR.(CR-V)	Emblem - RR.(CR-V)
8	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
9	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)	Label - SRS CAUTION (CHILD SEAT)

Engine hood (LH) 31 / 32

#	OEM	RE5	RE7
1	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
7	74130-SWW-G02	Wire assy. - HOOD	Wire assy. - HOOD
9	74141-SWW-G01	Insulator - HOOD	Insulator - HOOD
10	74143-SWA-A00	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
11	74145-SWA-A00	Stay - HOOD OPENER	Stay - HOOD OPENER
13	74148-SWA-A00	Rubber - HOOD CENTER SEAL	Rubber - HOOD CENTER SEAL
15	74212-SWA-A00	Cover - HOOD HINGE DRIVER SIDE	Cover - HOOD HINGE DRIVER SIDE
16	74215-SWA-A00	Lid - L. COWL TOP	Lid - L. COWL TOP
17	74218-SWW-G00	Cowl top set c - FR. DRIVER SIDE	Cowl top set c - FR. DRIVER SIDE
18	74222-SWA-A00	Cover - HOOD HINGE PASSENGER SIDE	Cover - HOOD HINGE PASSENGER SIDE
19	74225-SWA-A00	Lid - R. COWL TOP	Lid - R. COWL TOP
20	74226-SWA-A00	Lid - FRAME NUMBER	Lid - FRAME NUMBER
21	74228-SWW-G00	Cowl top set c - FR. PASSENGER SIDE	Cowl top set c - FR. PASSENGER SIDE
22	76810-SWA-E01	Nozzle assy.	Nozzle assy.
23	76811-SWA-E01	Joint comp - TUBE Y(###)	Joint comp - TUBE Y(###)
25	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
26	76832-SWA-003	Tube - 280MM	Tube - 280MM
27	76839-SJA-014	Tube - 700MM	Tube - 700MM
28	76870-SWA-N01	Tube - 200MM	Tube - 200MM
29	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	90602-SLJ-003	Clip - COWL TOP	Clip - COWL TOP
31	90603-SLJ-003	Clip - COWL TOP	Clip - COWL TOP
32	90672-S5A-003	Holder - ROD	Holder - ROD
33	91501-SEA-003	Clip - FR. COWL	Clip - FR. COWL
34	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
35	91501-SWA-003	Clip - INSULATOR	Clip - INSULATOR
36	91504-SDA-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE
37	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
38	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
40	91604-S5A-003	Grommet - HOOD STAY	Grommet - HOOD STAY
44	74142-SWA-A00	Rubber, HOOD SEAL	Rubber, HOOD SEAL

Engine mounts (2.0L; AT) 14 / 20

#	OEM	RE5	RE7
1	50451-SWA-A00	Mass - SIDE ENGINE MOUNTING	Mass - SIDE ENGINE MOUNTING
2	50625-STK-A00	Stay - SIDE ENGINE MOUNTING	Stay - SIDE ENGINE MOUNTING
6	50850-SWA-A81	Rubber assy. - MISSION MOUNTING	Rubber assy. - MISSION MOUNTING
7	50855-SWA-A80	Stay - MISSION MOUNTING	Stay - MISSION MOUNTING
9	50890-SWA-A81	Rod, LOWER TORQUE	Rod, LOWER TORQUE
11	90180-SWY-E00	Bolt - FLANGE, 14X108	Bolt - FLANGE, 14X108
12	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
13	90165-SMG-E00	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
14	90165-S04-000	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
15	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
16	90169-S5A-003	Bolt - FLANGE, 12X87	Bolt - FLANGE, 12X87
18	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
19	90371-SMG-E00	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
20	90380-S04-000	Bolt - STUD, 12X73	Bolt - STUD, 12X73

Engine mounts (2.0L; MT) 8 / 17

#	OEM	RE5	RE7
1	50451-SWA-A00	Mass - SIDE ENGINE MOUNTING	Mass - SIDE ENGINE MOUNTING
2	50625-STK-A00	Stay - SIDE ENGINE MOUNTING	Stay - SIDE ENGINE MOUNTING
9	90180-SWY-E00	Bolt - FLANGE, 14X108	Bolt - FLANGE, 14X108
10	90165-S04-000	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
12	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
13	90169-S5A-003	Bolt - FLANGE, 12X87	Bolt - FLANGE, 12X87
16	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
17	90371-SMG-E00	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM

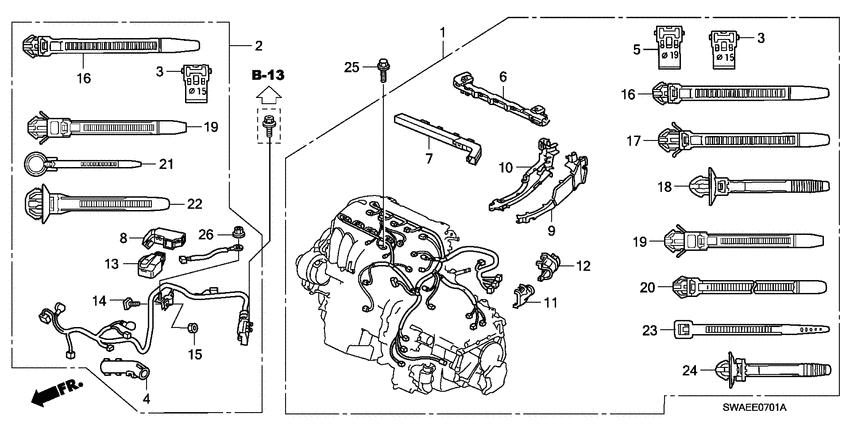

Engine wire harness (2.0L) 11 / 38

#	OEM	RE5	RE7
7	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
10	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
17	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
25	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
26	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
31	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
32	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
33	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
34	91531-S5B-003	Band - HARNESS (BLACK) (120MM)	Band - HARNESS (BLACK) (120MM)
35	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
38	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Exhaust pipe/silencer (2.0L) 10 / 16

#	OEM	RE5	RE7
3	18215-SMG-E11	Rubber - EX. MOUNTING (YAMASHITA)	Rubber - EX. MOUNTING (YAMASHITA)
4	18215-SNA-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
5	18215-SWA-J01	Rubber - EX. MOUNTING (YAMASHITA)	Rubber - EX. MOUNTING (YAMASHITA)
7	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
9	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
10	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
11	18231-SNA-A00	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
12	18231-S10-003	Bolt - FLEXIBLE JOINT	Bolt - FLEXIBLE JOINT
15	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
16	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 9 / 9

#	OEM	RE5	RE7
1	74251-SWA-A00	Insulator - DASHBOARD OUTER	Insulator - DASHBOARD OUTER
3	74255-SWA-A00	Stopper - FOOTREST	Stopper - FOOTREST
4	74260-SWW-G00	Insulator - DASHBOARD	Insulator - DASHBOARD
22	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
23	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
24	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
25	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
26	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)
27	91641-SH3-013	Grommet assy, GARNISH	Grommet assy, GARNISH

Floor/inner panels 4 / 4

#	OEM	RE5	RE7
11	64322-SWA-A01	Separator - RR. WHEELHOUSE	Separator - RR. WHEELHOUSE
41	90101-SFA-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
42	90101-SWA-A00	Bolt-washer - 8X16	Bolt-washer - 8X16
44	90112-SWW-G00	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20

Front brake (1) 25 / 25

#	OEM	RE5	RE7
1	01463-SWW-G00	Caliper set - FR.(16" ZOH60)	Caliper set - FR.(16" ZOH60)
2	44300-SWW-E01	Bearing assy - FR. HUB	Bearing assy - FR. HUB
3	44600-SJK-J00	Hub assy - FR.	Hub assy - FR.
3	44600-SWW-E00	Hub assy - FR.	Hub assy - FR.
4	45018-SWW-G00	Caliper sub assy. - R. FR.	Caliper sub assy. - R. FR.
5	45019-SWW-G00	Caliper sub assy. - L. FR.	Caliper sub assy. - L. FR.
6	45022-SWW-G02	Pad set - FR.(ZOH60,GA4594)	Pad set - FR.(ZOH60,GA4594)
6	45022-T1E-G00	PAD SET FR	PAD SET FR
7	45216-SWW-G01	Piston	Piston
8	45219-SWW-G01	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
9	45226-SWW-G01	Double sticky	Double sticky
10	45235-SWW-G01	Pin - GUIDE	Pin - GUIDE
11	45236-SWW-G01	Pin - LOCK	Pin - LOCK
12	45237-SWW-G01	Spring a - PAD	Spring a - PAD
13	45238-SWW-G01	Spring b - PAD	Spring b - PAD
14	45240-SWW-G01	Screw	Screw
15	45251-SWW-G01	Disk - FR. BRAKE	Disk - FR. BRAKE
16	45255-SWW-000	Guard - FR. SPLASH	Guard - FR. SPLASH
17	45352-SWW-G01	Screw - BLEEDER	Screw - BLEEDER
18	90107-S3V-A00	Bolt - CALIPER MOUNT	Bolt - CALIPER MOUNT
19	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
19	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
19	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
20	90681-SWW-G00	Circlip - SPECIAL INTERNAL,	Circlip - SPECIAL INTERNAL,

Front bulkhead/dashboard 10 / 10

#	OEM	RE5	RE7
25	60659-SWA-A01	Separator - R. FR. WHEELHOUSE UPPER MEMBER	Separator - R. FR. WHEELHOUSE UPPER MEMBER
31	60759-SWA-A01	Separator - L. FR. WHEELHOUSE UPPER MEMBER	Separator - L. FR. WHEELHOUSE UPPER MEMBER
42	74250-SMG-E00	Cover - VIN PLATE	Cover - VIN PLATE
43	74252-SWY-G00	Insulator - DASHBOARD UPPER EXTENSION	Insulator - DASHBOARD UPPER EXTENSION
46	74500-SWW-G00	Extension comp - DASHBOARD UPPER	Extension comp - DASHBOARD UPPER
47	90300-SFE-010	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
48	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
50	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
52	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
54	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Front door lining (LH) 19 / 19

#	OEM	RE5	RE7
1	35750-SWA-G01	Switch assy - POWER WINDOW MASTER	Switch assy - POWER WINDOW MASTER
2	35760-SWA-G01	Switch assy - POWER WINDOW PASSENGER	Switch assy - POWER WINDOW PASSENGER
3	72225-SWA-A00	Bracket assy. a - R. FR. DOOR LINING	Bracket assy. a - R. FR. DOOR LINING
4	72226-SWA-A00	Bracket assy. b - FR. DOOR LINING	Bracket assy. b - FR. DOOR LINING
5	72265-SWA-A00	Bracket assy. a - L. FR. DOOR LINING	Bracket assy. a - L. FR. DOOR LINING
6	72335-SWY-E01	Weatherstrip - R. FR. DOOR INNER	Weatherstrip - R. FR. DOOR INNER
7	72375-SWY-E01	Weatherstrip - L. FR. DOOR INNER	Weatherstrip - L. FR. DOOR INNER
11	83505-SWW-E01	Bracket comp. - R. FR. DOOR LINING(B)	Bracket comp. - R. FR. DOOR LINING(B)
17	83535-SWW-E01	Bracket - R. FR. GRIP(A)	Bracket - R. FR. GRIP(A)
21	83555-SWW-E01	Bracket comp. - L. FR. DOOR LINING(B)	Bracket comp. - L. FR. DOOR LINING(B)
26	83585-SWW-E01	Bracket - L. FR. GRIP(A)	Bracket - L. FR. GRIP(A)
27	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
29	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
30	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
31	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
32	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
33	91627-SWA-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
34	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
40	90144-SWA-000	Screw - TAPPING, 4X12(PO)	Screw - TAPPING, 4X12(PO)

Front door locks/ outer handle (1) 24 / 25

#	OEM	RE5	RE7
2	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
4	72118-SJK-003	Screw - TAPPING	Screw - TAPPING
7	72130-SWA-A01	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
8	72131-SWA-E01	Cable - FR. INSIDE HANDLE	Cable - FR. INSIDE HANDLE
9	72133-SJC-A01	Packing	Packing
10	72133-SWA-E01	Cable - FR. DOOR LOCK	Cable - FR. DOOR LOCK
11	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
11	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
12	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
14	72141-SNE-A00	Bush - R. JOINT	Bush - R. JOINT
15	72144-SJD-003	Retainer	Retainer
17	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
18	72149-SWA-E00	Snap - R.	Snap - R.
19	72150-SWA-G02	Latch assy - L. FR. DOOR POWER	Latch assy - L. FR. DOOR POWER
20	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
24	72170-SWA-A01	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
27	72181-SNE-A00	Bush - L. JOINT	Bush - L. JOINT
28	72185-SWA-A01	Cylinder - L. DOOR	Cylinder - L. DOOR
29	72189-SWA-E00	Snap - L.	Snap - L.
30	74387-S3C-003	Fastener	Fastener
31	90101-SJK-003	Screw - TAPPING (ONE WAY)	Screw - TAPPING (ONE WAY)
32	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
33	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
34	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door panels 18 / 18

#	OEM	RE5	RE7
5	67324-SWA-A01	Tape - R. FR. DOOR SASH	Tape - R. FR. DOOR SASH
6	67364-SWA-A01	Tape - L. FR. DOOR SASH	Tape - L. FR. DOOR SASH
11	72142-SWA-A00	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
13	72310-SWW-E02	Weatherstrip - R. FR. DOOR	Weatherstrip - R. FR. DOOR
14	72321-SWA-A01	Seal - R. FR. DOOR HOLE	Seal - R. FR. DOOR HOLE
15	72340-SWA-A01	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
16	72350-SWW-E02	Weatherstrip - L. FR. DOOR	Weatherstrip - L. FR. DOOR
17	72361-SWA-A01	Seal - L. FR. DOOR HOLE	Seal - L. FR. DOOR HOLE
18	72380-SWA-A01	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
19	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
20	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
20	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
22	90651-SWW-E01	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET
23	72311-S5S-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
24	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL
25	91563-SWW-E01	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET

Front door windows/ regulator 10 / 13

#	OEM	RE5	RE7
2	72210-SWY-E01	Regulator assy - R. FR. DOOR POWER	Regulator assy - R. FR. DOOR POWER
3	72230-SWY-E01	Sash - R. FR. DOOR FR. LOWER	Sash - R. FR. DOOR FR. LOWER
4	72231-SWY-E01	Sash - R. FR. DOOR CENTER LOWER	Sash - R. FR. DOOR CENTER LOWER
5	72235-SWW-E11	Runchannel - R. FR. DOOR	Runchannel - R. FR. DOOR
6	72250-SWY-E01	Regulator assy - L. FR. DOOR POWER	Regulator assy - L. FR. DOOR POWER
7	72270-SWY-E01	Sash - L. FR. DOOR FR. LOWER	Sash - L. FR. DOOR FR. LOWER
8	72271-SWY-E01	Sash - L. FR. DOOR CENTER LOWER	Sash - L. FR. DOOR CENTER LOWER
9	72275-SWW-E11	Runchannel - L. FR. DOOR	Runchannel - L. FR. DOOR
12	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
13	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Front driveshaft/ half shaft (2.0L) 21 / 24

#	OEM	RE5	RE7
1	44014-SWE-T01	Joint set - OUTBOARD	Joint set - OUTBOARD
2	44017-SWE-T00	Boot set - INBOARD	Boot set - INBOARD
3	44018-SWE-T01	Boot set - OUTBOARD	Boot set - OUTBOARD
5	44306-SWA-900	Driveshaft assy. L.	Driveshaft assy. L.
6	44310-SWA-305	Joint set - INBOARD	Joint set - INBOARD
6	44310-SWA-306	SETJOINT COMP IN	SETJOINT COMP IN
7	44310-S9A-300	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)	Band - DRIVESHAFT (NIPPON HATSUJO)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
17	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
18	90305-S3V-A11	Nut - SPINDLE	Nut - SPINDLE
19	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
20	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
21	91260-SWA-A01	Seal - HALF SHAFT OUTER	Seal - HALF SHAFT OUTER

Front fenders 16 / 17

#	OEM	RE5	RE7
7	74100-SWW-G02	Fender assy - R. FR. INNER	Fender assy - R. FR. INNER
8	74105-SWA-A10	Enclosure - R. FR. FENDER	Enclosure - R. FR. FENDER
9	74111-SWW-G01	Shield - FR. SPLASH	Shield - FR. SPLASH
12	74150-SWW-G02	Fender assy - L. FR. INNER	Fender assy - L. FR. INNER
13	74155-SWA-A10	Enclosure - L. FR. FENDER	Enclosure - L. FR. FENDER
14	74206-SWW-G01	Garnish - R. FR. FENDER	Garnish - R. FR. FENDER
15	74207-SWW-G01	Garnish - L. FR. FENDER	Garnish - L. FR. FENDER
17	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
18	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
20	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
21	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
22	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
23	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
27	91617-SLJ-000	Seal - FR. FENDER PANEL	Seal - FR. FENDER PANEL

Front grille ('10) 15 / 15

#	OEM	RE5	RE7
1	71121-SWW-E31	Base - FR. GRILLE UPPER	Base - FR. GRILLE UPPER
2	71122-SWW-E31	Base - FR. GRILLE EMBLEM	Base - FR. GRILLE EMBLEM
3	71123-SWW-E31	Base - FR. GRILLE LOWER	Base - FR. GRILLE LOWER
4	71124-SWW-E31	Molding a - R. FR. GRILLE UPPER	Molding a - R. FR. GRILLE UPPER
6	71126-SWW-E31	Molding a - FR. GRILLE CENTER	Molding a - FR. GRILLE CENTER
8	71128-SWW-E31	Cover - FR. GRILLE EMBLEM	Cover - FR. GRILLE EMBLEM
9	71129-SWW-E31	Molding - FR. GRILLE LOWER	Molding - FR. GRILLE LOWER
10	71141-SWW-G00	Cover - FR. GRILLE	Cover - FR. GRILLE
11	71174-SWW-E31	Molding a - L. FR. GRILLE UPPER	Molding a - L. FR. GRILLE UPPER
13	74175-SJA-000	Cushion - HOOD	Cushion - HOOD
14	75700-S9A-G00	Front Honda Emblem - (H)	Front Honda Emblem - (H)
15	90301-ST0-003	push nut, 3mm	push nut, 3mm
16	91503-SZ3-003	Clip A	Clip A
17	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
18	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front knuckle 25 / 26

#	OEM	RE5	RE7
1	42521-STK-A01	Clamp - FR. WIRE(DARK BLUE)	Clamp - FR. WIRE(DARK BLUE)
2	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
4	51211-SWA-A10	Knuckle - R. FR.(ABS)	Knuckle - R. FR.(ABS)
5	51216-SWA-A10	Knuckle - L. FR.(ABS)	Knuckle - L. FR.(ABS)
6	51220-SWA-A01	Joint comp - R. FR. LOWER BALL	Joint comp - R. FR. LOWER BALL
7	51225-SNA-A01	Boot - FR. LOWER BALL DUST	Boot - FR. LOWER BALL DUST
8	51300-SWA-A01	Spring - FR. STABILIZER	Spring - FR. STABILIZER
9	51306-SWW-P51	Bush - R. FR. STABILIZER HOLDER	Bush - R. FR. STABILIZER HOLDER
10	51308-SWW-P50	Bracket - FR. STABILIZER	Bracket - FR. STABILIZER
11	51320-STK-A01	Link comp - FR. STABILIZER	Link comp - FR. STABILIZER
13	51360-SWA-E80	Arm assy. - L. FR. LOWER	Arm assy. - L. FR. LOWER
14	51395-SWA-E80	Bracket comp. - R. FR. COMPLIANCE	Bracket comp. - R. FR. COMPLIANCE
15	51396-SWA-E80	Bracket comp. - L. FR. COMPLIANCE	Bracket comp. - L. FR. COMPLIANCE
16	57450-SXS-003	Sensor assy - R. FR.	Sensor assy - R. FR.
17	57455-SXS-003	Sensor assy - L. FR.	Sensor assy - L. FR.
18	90018-SNA-010	Bolt - FLANGE, 12X18	Bolt - FLANGE, 12X18
19	90116-SNA-010	Bolt, FLANGE, 14X94	Bolt, FLANGE, 14X94
20	90118-SNA-000	Bolt - FLANGE, 12X84	Bolt - FLANGE, 12X84
21	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22	90363-S3V-A01	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
23	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)
24	91507-STK-A01	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
28	51307-SWW-P51	Bush - L. FR. STABILIZER HOLDER	Bush - L. FR. STABILIZER HOLDER
29	51230-SWA-A01	Joint comp - L. FR. LOWER BALL	Joint comp - L. FR. LOWER BALL

Front seat (L.) 15 / 17

#	OEM	RE5	RE7
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
2	78055-SWW-G70	Module assy. - L. SIDE	Module assy. - L. SIDE
3	81123-SNA-A01	Screw - 6X18	Screw - 6X18
7	81186-S0X-A01	Pin - FR. ARMREST CENTER	Pin - FR. ARMREST CENTER
8	81187-S0X-A01	Pin - FR. ARMREST	Pin - FR. ARMREST
9	81189-S0X-003	Washer - WAVE	Washer - WAVE
11	81291-SNA-A01	Clip	Clip
12	81383-SHJ-A01	Bush - ARMREST (A)	Bush - ARMREST (A)
15	81524-SNB-E01	Heater comp. - L. FR. SEATBACK	Heater comp. - L. FR. SEATBACK
19	81534-SWA-A22	Heater comp. - L. FR. SEAT CUSHION	Heater comp. - L. FR. SEAT CUSHION
22	81560-SNA-A01	Holder - L. MODULE	Holder - L. MODULE
33	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
34	90610-S10-003	Clip - GARNISH	Clip - GARNISH
35	90650-KV3-000	Band - WIRE	Band - WIRE
37	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat (R.) 15 / 17

#	OEM	RE5	RE7
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
2	78050-SWW-G70	Module assy. - R. SIDE	Module assy. - R. SIDE
4	81123-SNA-A01	Screw - 6X18	Screw - 6X18
5	81124-SNB-E01	Heater comp. - R. FR. SEATBACK	Heater comp. - R. FR. SEATBACK
9	81134-SWA-A22	Heater comp. - R. FR. SEAT CUSHION	Heater comp. - R. FR. SEAT CUSHION
15	81160-SNA-A01	Holder - R. MODULE	Holder - R. MODULE
19	81186-S0X-A01	Pin - FR. ARMREST CENTER	Pin - FR. ARMREST CENTER
20	81187-S0X-A01	Pin - FR. ARMREST	Pin - FR. ARMREST
21	81189-S0X-003	Washer - WAVE	Washer - WAVE
32	81291-SNA-A01	Clip	Clip
34	81383-SHJ-A01	Bush - ARMREST (A)	Bush - ARMREST (A)
36	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
38	90610-S10-003	Clip - GARNISH	Clip - GARNISH
39	90650-KV3-000	Band - WIRE	Band - WIRE
41	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat components (L.) 10 / 10

#	OEM	RE5	RE7
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
2	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)	Relay assy - POWER(5P) (MICRO ISO)
4	81133-SNB-E01	Cord - HEATED SEAT	Cord - HEATED SEAT
5	81136-SNA-A11	Lever comp - FR. SEAT CUSHION	Lever comp - FR. SEAT CUSHION
7	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
11	81526-SWY-E01	Frame comp - L. FR. SEAT	Frame comp - L. FR. SEAT
15	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
16	90610-S10-003	Clip - GARNISH	Clip - GARNISH
18	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
22	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Front seat components (R.) 14 / 14

#	OEM	RE5	RE7
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
2	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)	Relay assy - POWER(5P) (MICRO ISO)
6	81126-SWY-G01	Frame comp - R. FR. SEAT	Frame comp - R. FR. SEAT
7	81133-SNB-E01	Cord - HEATED SEAT	Cord - HEATED SEAT
8	81136-SNA-A11	Lever comp - FR. SEAT CUSHION	Lever comp - FR. SEAT CUSHION
9	81172-SWW-G61	Sub cord	Sub cord
10	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
15	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
16	90610-S10-003	Clip - GARNISH	Clip - GARNISH
18	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
19	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
20	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
21	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
22	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Front shock absorber 21 / 25

#	OEM	RE5	RE7
1	51401-SWW-E13	Spring - R. FR.	Spring - R. FR.
2	51402-STK-A02	Cover - R. FR. DUST	Cover - R. FR. DUST
3	51403-STK-A01	Cover - L. FR. DUST	Cover - L. FR. DUST
4	51406-SWW-E13	Spring - L. FR.	Spring - L. FR.
5	51601-SWT-E71	Absorber assy - R. FR. SHOCK	Absorber assy - R. FR. SHOCK
6	51602-SWT-E71	Absorber assy - L. FR. SHOCK	Absorber assy - L. FR. SHOCK
7	51605-SWA-E21	Absorber unit - R. FR. SHOCK	Absorber unit - R. FR. SHOCK
8	51606-SWA-E21	Absorber unit - L. FR. SHOCK	Absorber unit - L. FR. SHOCK
9	51608-SNA-000	Cap - FR. SHOCK ABSORBER MOUNTING	Cap - FR. SHOCK ABSORBER MOUNTING
10	51684-STK-A02	Rubber - R. FR. SPRING LOWER MOUNT	Rubber - R. FR. SPRING LOWER MOUNT
11	51688-STK-A01	Seat comp - FR. SPRING UPPER	Seat comp - FR. SPRING UPPER
13	51694-STK-A02	Rubber - L. FR. SPRING LOWER MOUNT	Rubber - L. FR. SPRING LOWER MOUNT
14	51722-SWE-T01	Rubber - FR. BUMP STOPPER	Rubber - FR. BUMP STOPPER
15	51726-SWA-A01	Bearing - FR. SHOCK ABSORBER MOUNT	Bearing - FR. SHOCK ABSORBER MOUNT
16	51920-SWA-A01	Rubber - FR. SHOCK ABSORBER MOUNTING	Rubber - FR. SHOCK ABSORBER MOUNTING
17	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
18	90120-STK-000	Bolt - FLANGE, 16X62(SERVICE)	Bolt - FLANGE, 16X62(SERVICE)
18	90119-S6M-Z01	Bolt - FLANGE, 16X62	Bolt - FLANGE, 16X62
19	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)
20	90300-SFE-010	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
21	90382-STK-A01	Nut - FLANGE, 16MM	Nut - FLANGE, 16MM

Front sub frame/ rear beam 5 / 7

#	OEM	RE5	RE7
2	50300-SWA-A00	Beam - RR. CROSS	Beam - RR. CROSS
3	90161-SD5-020	Bolt - FLANGE, 12X82	Bolt - FLANGE, 12X82
4	90163-SWE-T00	Bolt - FLANGE, 14X80	Bolt - FLANGE, 14X80
5	90182-S2H-000	Bolt - FLANGE, 12X25	Bolt - FLANGE, 12X25
6	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115

Front windshield 5 / 6

#	OEM	RE5	RE7
1	04731-SWW-G00	Rubber set - FR. WINDSHIELD DAM	Rubber set - FR. WINDSHIELD DAM
5	73125-SWW-000	Seal - FR. WINDSHIELD UPPER	Seal - FR. WINDSHIELD UPPER
6	73150-SWW-G01	Molding - FR. WINDSHIELD	Molding - FR. WINDSHIELD
7	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)	Label - SRS CAUTION (CHILD SEAT)
8	91568-SWW-G01	Clip - FR. WINDSHIELD UPPER	Clip - FR. WINDSHIELD UPPER

Front windshield wiper (LH) 25 / 25

#	OEM	RE5	RE7
1	76501-SWA-003	Harness assy - FR. WIPER MOTOR	Harness assy - FR. WIPER MOTOR
2	76505-SWA-A02	Motor comp - FR. WIPER	Motor comp - FR. WIPER
3	76516-SE0-003	Rubber - BRACKETLESS MOUNTING	Rubber - BRACKETLESS MOUNTING
4	76516-SR3-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
6	76517-SM4-003	Collar	Collar
7	76520-SWA-003	Link assy. a	Link assy. a
8	76524-SD4-003	Dust seal	Dust seal
9	76524-SL0-A01	Dust seal	Dust seal
10	76530-SWA-G01	Link comp - FR. WIPER	Link comp - FR. WIPER
11	76540-SWA-003	Rod unit a	Rod unit a
12	76550-SWA-A01	Rod unit b	Rod unit b
13	76561-SEA-003	Cap - PIVOT	Cap - PIVOT
14	76600-SWA-A11	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-SWA-A11	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
16	76620-SWA-A01	Blade - WINDSHIELD WIPER(650MM)	Blade - WINDSHIELD WIPER(650MM)
16	76620-SWA-A02	BLADEWSHLD WIPER	BLADEWSHLD WIPER
17	76622-STK-A01	Rubber - BLADE (650MM)	Rubber - BLADE (650MM)
17	76622-STK-A02	BLADE RUBBER	BLADE RUBBER
18	76630-SWA-A01	Blade - WINDSHIELD WIPER(425MM)	Blade - WINDSHIELD WIPER(425MM)
18	76630-SWA-A02	BLADEWSHLD WIPER	BLADEWSHLD WIPER
19	76632-SWA-J01	Rubber - BLADE(425MM)	Rubber - BLADE(425MM)
19	76632-SWA-J02	BLADE RUBBER	BLADE RUBBER
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
21	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

Fuel injector (2.0L) 4 / 8

#	OEM	RE5	RE7
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
5	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
7	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
8	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Fuel pipe (1; LH) 23 / 26

#	OEM	RE5	RE7
1	16050-SWW-G30	Pipe set - FUEL	Pipe set - FUEL
5	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
7	16730-RZA-A00	Stay assy - FUEL HOSE	Stay assy - FUEL HOSE
8	16732-SWA-000	Rubber - FUEL PIPE	Rubber - FUEL PIPE
9	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
10	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
11	17724-SWA-000	Tube assy - PURGE	Tube assy - PURGE
14	17761-SWA-A00	Stay a - FUEL PIPE	Stay a - FUEL PIPE
15	17762-SWA-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
16	17763-SWA-J00	Stay c - FUEL PIPE	Stay c - FUEL PIPE
17	17927-SS1-003	Clip - WIRE	Clip - WIRE
18	53728-SDB-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
19	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
20	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
21	91406-SAA-J00	Clamp - TUBE (D12)	Clamp - TUBE (D12)
22	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
23	91592-S9A-A31	Clip - FUEL PIPE	Clip - FUEL PIPE
24	91594-SDD-E00	Rubber a - FUEL PIPE INSULATOR	Rubber a - FUEL PIPE INSULATOR
25	91595-S5A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
26	91596-SWA-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
27	91598-SWA-003	Clamp c - FUEL PIPE	Clamp c - FUEL PIPE
28	91599-SDD-E00	Rubber e - FUEL PIPE INSULATOR	Rubber e - FUEL PIPE INSULATOR
29	91599-S5A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE

Fuel tank (2.0L; 2.4L) 31 / 33

#	OEM	RE5	RE7
1	17044-SWW-E01	Tank comp. - FUEL	Tank comp. - FUEL
3	17046-SWW-E00	Nut & packing set - FUEL LOCK	Nut & packing set - FUEL LOCK
4	17047-SWW-E00	Meter comp	Meter comp
5	17048-SWW-E00	Strainer set - FUEL	Strainer set - FUEL
7	17513-S0E-003	Circlip	Circlip
8	17518-SWA-000	Pipe, FUEL TANK GUARD	Pipe, FUEL TANK GUARD
9	17519-SWA-000	Protector comp - FUEL TANK	Protector comp - FUEL TANK
10	17521-SWA-000	Band - R. FUEL TANK MOUNTING	Band - R. FUEL TANK MOUNTING
11	17522-SWA-000	Band - L. FUEL TANK MOUNTING	Band - L. FUEL TANK MOUNTING
12	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
13	17651-SWE-E02	Tube - FILLER NECK	Tube - FILLER NECK
14	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
15	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
16	17653-SWA-000	Tube - BREATHER JOINT	Tube - BREATHER JOINT
17	17656-SWA-003	Pipe assy. - BREATHER JOINT	Pipe assy. - BREATHER JOINT
18	17660-SWA-Q01	Pipe comp - FUEL FILLER	Pipe comp - FUEL FILLER
19	17662-S04-003	Packing - FUEL FILLER (WITH CLIP)	Packing - FUEL FILLER (WITH CLIP)
20	17668-SWA-J00	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
21	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
21	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
22	17711-SWA-003	Retainer	Retainer
23	17722-SWA-000	Tube assy. a - FUEL VENT	Tube assy. a - FUEL VENT
24	74660-S1C-E00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
25	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
26	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
27	91413-S5A-003	Clamp - FUEL TUBE (D17)	Clamp - FUEL TUBE (D17)
28	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)
29	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
30	91594-SNA-A01	Clip - FILLER CAP	Clip - FILLER CAP
31	91599-SCA-E01	Cap - FUEL TUBE CLAMP	Cap - FUEL TUBE CLAMP
32	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet (FRONT) 9 / 9

#	OEM	RE5	RE7
2	74827-SH2-003	Stopper - TAILGATE	Stopper - TAILGATE
3	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
4	90820-SNA-003	Grommet - 20MM	Grommet - 20MM
6	91551-SWA-J01	Cap - SIDE LINING	Cap - SIDE LINING
7	91606-SE0-000	Seal - 20X20	Seal - 20X20
8	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
10	91612-TA0-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
11	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
12	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 4 / 4

#	OEM	RE5	RE7
1	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
5	90825-SNA-003	Grommet - 25MM	Grommet - 25MM
6	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 4 / 4

#	OEM	RE5	RE7
2	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
4	91609-S10-000	Plug - BLIND, 30X78	Plug - BLIND, 30X78
5	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM
6	91611-SWW-003	Plug - HOLE, 24X52	Plug - HOLE, 24X52

Harness band/bracket (LH; 1) 33 / 33

#	OEM	RE5	RE7
5	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
6	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
7	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
8	91476-SD4-003	Clip - OFFSET (21) (BROWN) (60MM)	Clip - OFFSET (21) (BROWN) (60MM)
11	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
12	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
13	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
14	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
15	91531-SCC-901	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)
16	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)	Clip - HARNESS BAND (NATURAL) (145MM)
17	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
18	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
19	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
21	91534-STK-003	Clip - COUPLER(NATURAL) (WITH SEAL)	Clip - COUPLER(NATURAL) (WITH SEAL)
22	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
23	91535-STK-003	Clip - COUPLER (DARK BLUE)	Clip - COUPLER (DARK BLUE)
24	91536-STK-003	Clip - RELAY HOLDER(NATURAL)	Clip - RELAY HOLDER(NATURAL)
25	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
27	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
28	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
31	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
32	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
33	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
35	91549-STK-003	Holder - HARNESS (NATURAL) (113MM)	Holder - HARNESS (NATURAL) (113MM)
39	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
40	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
41	32113-TA0-003	Band - CABLE(BLACK)(100MM)	Band - CABLE(BLACK)(100MM)
42	32119-R40-003	Holder - CORRUGATED (BLACK) (19MM)	Holder - CORRUGATED (BLACK) (19MM)
43	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)
44	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)
45	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)	Clip - HARNESS BAND(BLACK) (140.3MM)
46	91550-SWA-003	Clip - WIRE HARNESS (CORRUGATED 13MM-19MM)	Clip - WIRE HARNESS (CORRUGATED 13MM-19MM)

Harness band/bracket (LH; 2) 9 / 10

#	OEM	RE5	RE7
1	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
2	32202-SWA-A00	Bracket - CABIN WIRE HARNESS (ENGINE ROOM HARNESS)	Bracket - CABIN WIRE HARNESS (ENGINE ROOM HARNESS)
6	38253-SWA-000	Bracket - ENGINE ROOM WIRE HARNESS	Bracket - ENGINE ROOM WIRE HARNESS
10	91622-SWA-300	Grommet - RING	Grommet - RING
11	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
12	91723-SWA-003	Coupler - WATER PROOF (23P 040 J/C) (DARK BLUE)	Coupler - WATER PROOF (23P 040 J/C) (DARK BLUE)
13	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
14	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
16	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Headlight 20 / 24

#	OEM	RE5	RE7
1	06100-SWA-A11	Replacement stay kit b - R. HEADLIGHT	Replacement stay kit b - R. HEADLIGHT
2	06100-SWA-A21	Replacement stay kit c - R. HEADLIGHT	Replacement stay kit c - R. HEADLIGHT
3	06100-SWA-J01	Replacement stay kit a - R. HEADLIGHT	Replacement stay kit a - R. HEADLIGHT
4	06150-SWA-A11	Replacement stay kit b - L. HEADLIGHT	Replacement stay kit b - L. HEADLIGHT
5	06150-SWA-A21	Replacement stay kit c - L. HEADLIGHT	Replacement stay kit c - L. HEADLIGHT
6	06150-SWA-J01	Replacement stay kit a - L. HEADLIGHT	Replacement stay kit a - L. HEADLIGHT
9	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
12	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
12	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
15	33121-SFE-901	Seal - GASKET (2)	Seal - GASKET (2)
17	33121-SWA-J01	Cover - 2	Cover - 2
18	33124-SJD-J01	Seal - GASKET	Seal - GASKET
21	33130-SJK-J01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
24	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
25	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
26	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
27	33513-S84-A01	Socket - T10	Socket - T10
29	90101-S5A-003	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
30	90109-SFE-000	Bolt-washer - 6X18	Bolt-washer - 6X18
31	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Heater blower (LH) 13 / 15

#	OEM	RE5	RE7
2	79021-SWA-A00	Bracket assy - HEATER	Bracket assy - HEATER
4	79306-SNK-A01	Seal - BLOWER OUTER	Seal - BLOWER OUTER
5	79307-SWW-G01	Packing - IN.	Packing - IN.
6	79310-SWW-G11	Motor assy. - FAN	Motor assy. - FAN
10	80291-SJA-A01	Frame - FILTER	Frame - FILTER
11	80292-SWW-G01	Element - FILTER	Element - FILTER
12	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
13	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
14	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
15	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
16	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
17	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
18	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Heater control (LH) 1 / 1

#	OEM	RE5	RE7
8	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Heater unit (LH) 26 / 35

#	OEM	RE5	RE7
1	39248-692-003	Packing - HEATER	Packing - HEATER
2	46407-SAA-003	Clamp - TUBE	Clamp - TUBE
3	79021-SDG-W01	Seal a	Seal a
4	79102-SWW-G01	Duct assy - HEATER (PASSENGER SIDE)	Duct assy - HEATER (PASSENGER SIDE)
5	79103-SWW-A01	Packing set - VENT	Packing set - VENT
6	79104-SNK-A01	Packing	Packing
8	79107-SWW-G01	Cover - HEATER PIPE	Cover - HEATER PIPE
9	79108-SNK-A01	Plate - EVAPORATOR LOWER	Plate - EVAPORATOR LOWER
10	79109-SNK-A01	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
11	79110-SNK-A01	Core sub assy. - HEATER	Core sub assy. - HEATER
12	79140-SWW-G01	Motor assy. - MODE	Motor assy. - MODE
15	79308-SWW-G01	Joint set - DUCT	Joint set - DUCT
16	79330-SDG-W51	Transistor - POWER	Transistor - POWER
20	80211-SWW-G03	Evaporator comp.	Evaporator comp.
21	80221-SWW-G02	Valve assy. - EXPANSION	Valve assy. - EXPANSION
25	80560-SWW-G01	Thermistor - AIR CONDITIONER	Thermistor - AIR CONDITIONER
26	80566-SNK-A01	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
28	90121-SNA-A00	Bolt - STUD, 6X49	Bolt - STUD, 6X49
29	90126-S5J-M01	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
30	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
31	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
32	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
33	90661-S2A-003	Clip - DRAIN HOSE	Clip - DRAIN HOSE
34	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
35	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
36	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)

Idle shaft 5 / 5

#	OEM	RE5	RE7
1	22750-RXH-010	Pipe comp - LUBRICATION	Pipe comp - LUBRICATION
2	23515-R90-000	Gear - IDLE	Gear - IDLE
3	23516-RCL-A00	Shaft - IDLE	Shaft - IDLE
4	90431-PRP-000	Cotter - 17MM	Cotter - 17MM
5	90432-PRP-000	Retainer - COTTER	Retainer - COTTER

Instrument panel (LH) 19 / 19

#	OEM	RE5	RE7
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
5	77106-SWW-E00	Insulator - INSTRUMENT PANEL CENTER	Insulator - INSTRUMENT PANEL CENTER
6	77107-SWW-G00	Insulator - INSTRUMENT PANEL DRIVER	Insulator - INSTRUMENT PANEL DRIVER
7	77108-SWW-G00	Insulator - INSTRUMENT PANEL PASSENGER	Insulator - INSTRUMENT PANEL PASSENGER
11	77150-SWA-A00	Bracket comp. - CENTER JOINT	Bracket comp. - CENTER JOINT
15	77466-SEA-010	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
16	77550-SWA-A00	Frame - GLOVE BOX	Frame - GLOVE BOX
19	90107-S7S-000	Bolt-washer - 8X50	Bolt-washer - 8X50
20	90110-SV4-000	Bolt-washer - 8X21	Bolt-washer - 8X21
21	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
22	90111-SFA-000	Bolt-washer - 8X86	Bolt-washer - 8X86
23	90111-SWA-A01	Bolt-washer - 8X62	Bolt-washer - 8X62
24	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
26	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
27	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
28	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
29	90669-SWA-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
30	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
31	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; LH) 11 / 12

#	OEM	RE5	RE7
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
8	77255-SWA-A00	Bracket - R. RADIO	Bracket - R. RADIO
9	77256-SWA-A00	Bracket - L. RADIO	Bracket - L. RADIO
29	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
30	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
31	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
32	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
33	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
34	91503-SZ3-003	Clip A	Clip A
36	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
43	90650-SE3-000	Clip - RADIO PANEL	Clip - RADIO PANEL

Instrument panel garnish (PASSENGER SIDE; LH) 10 / 12

#	OEM	RE5	RE7
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
4	77259-SLJ-003	Cushion - CLIP	Cushion - CLIP
7	77335-SWA-A01	Lid - SIDE	Lid - SIDE
11	77509-SLJ-003	Cushion - CLIP	Cushion - CLIP
14	77520-SDA-A01	Cylinder - GLOVE BOX	Cylinder - GLOVE BOX
15	77530-SWA-G01	Damper assy. - GLOVE BOX	Damper assy. - GLOVE BOX
21	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
22	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
23	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
24	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (2.0L) 4 / 21

#	OEM	RE5	RE7
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
18	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
19	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
20	37835-PGK-A01	O-ring	O-ring

Interior light 9 / 11

#	OEM	RE5	RE7
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
4	34401-SDA-A21	Lens - R.	Lens - R.
5	34402-SDA-A21	Lens - L.	Lens - L.
6	34404-SDA-A22	Base comp.	Base comp.
17	83251-SDC-A01	Bush	Bush
19	83253-SDC-A01	Screw - TAPPING, 3X10	Screw - TAPPING, 3X10
22	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

L. side cover (2.0L; 2.4L) 41 / 41

#	OEM	RE5	RE7
1	21240-RCV-010	Cover comp., L. SIDE	Cover comp., L. SIDE
2	21515-PPV-010	Stay e - HARNESS	Stay e - HARNESS
3	21720-RCT-000	Cover comp. - POSITION SENSOR	Cover comp. - POSITION SENSOR
3	21720-RCT-010	Cover comp. - POSITION SENSOR	Cover comp. - POSITION SENSOR
4	21724-RCT-000	Rubber - POSITION SENSOR COVER	Rubber - POSITION SENSOR COVER
5	21725-RCT-000	Collar - POSITION SENSOR COVER	Collar - POSITION SENSOR COVER
6	21812-PRP-030	Packing - L. SIDE COVER	Packing - L. SIDE COVER
7	22713-PW4-000	Guide a - FEED PIPE	Guide a - FEED PIPE
8	22713-PX4-000	Guide a - FEED PIPE	Guide a - FEED PIPE
9	22715-PRP-000	Pipe comp. b - FEED	Pipe comp. b - FEED
10	22725-P6H-000	Pipe comp. b - FEED	Pipe comp. b - FEED
11	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
12	24532-PX4-000	Lever - PARKING BRAKE	Lever - PARKING BRAKE
13	24535-PRP-040	Spring - PARKING BRAKE	Spring - PARKING BRAKE
14	24537-PA9-003	Stopper - PARKING BRAKE (1)	Stopper - PARKING BRAKE (1)
14	24539-PA9-003	Stopper - PARKING BRAKE (3)	Stopper - PARKING BRAKE (3)
14	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
15	24552-PRP-000	Spring - PARKING PAWL	Spring - PARKING PAWL
16	24553-PN6-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
17	24555-PN6-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
18	24561-PRP-010	Pawl - PARKING BRAKE	Pawl - PARKING BRAKE
19	24562-PRP-000	Shaft - PARKING	Shaft - PARKING
20	28900-RPC-013	Sensor assy - POSITION	Sensor assy - POSITION
21	28950-RCL-A00	Harness - POSITION SENSOR	Harness - POSITION SENSOR
22	90004-PRH-010	Bolt - SPECIAL, 8X30	Bolt - SPECIAL, 8X30
23	90005-PRH-010	Bolt - SPECIAL, 8X38	Bolt - SPECIAL, 8X38
24	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
25	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
26	90471-580-000	Packing - 8MM	Packing - 8MM
27	90602-PX4-000	Circlip b - INTERNAL, 47MM	Circlip b - INTERNAL, 47MM
28	90702-PL4-000	Dowel pin - 8X44	Dowel pin - 8X44
29	91006-P1B-003	Bearing - BALL, 9X20X6	Bearing - BALL, 9X20X6
30	91103-RCL-023	Bearing - NEEDLE, 32X55X18.5	Bearing - NEEDLE, 32X55X18.5
31	91201-PA9-004	Oil seal - 9X18X7 (ARAI)	Oil seal - 9X18X7 (ARAI)
32	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
33	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
34	91305-PX4-003	O-ring - 40X1.9 (NOK)	O-ring - 40X1.9 (NOK)
35	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)
36	91314-PW4-003	O-ring - 11X1.9 (NOK)	O-ring - 11X1.9 (NOK)
37	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
44	90001-RLJ-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18

Main valve body (2.0L; 2.4L) 9 / 9

#	OEM	RE5	RE7
1	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
2	27000-RXH-000	Body assy - MAIN VALVE	Body assy - MAIN VALVE
3	27112-PRP-030	Plate - MAIN SEPARATING	Plate - MAIN SEPARATING
4	27122-P6H-000	Cap - 12MM	Cap - 12MM
5	27132-P6H-000	Cap - 14MM	Cap - 14MM
6	27142-P6H-000	Cap - 15MM	Cap - 15MM
7	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
8	27524-P6H-000	Clip - CAP	Clip - CAP
9	91108-PRP-003	Roller - 4X23.8	Roller - 4X23.8

Mainshaft (2.0L; 2.4L) 30 / 48

#	OEM	RE5	RE7
1	22814-PRP-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
2	23210-RCL-010	Mainshaft comp.	Mainshaft comp.
3	23461-RZH-000	Gear - MAINSHAFT FOURTH	Gear - MAINSHAFT FOURTH
5	23511-R90-000	Gear - MAINSHAFT IDLE	Gear - MAINSHAFT IDLE
6	90203-PX4-010	Nut - FLANGE, 24MM	Nut - FLANGE, 24MM
7	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
8	90422-RCT-000	Washer - THRUST, 41X68X4.650	Washer - THRUST, 41X68X4.650
8	90417-RCT-000	Washer - THRUST, 41X68X4.525	Washer - THRUST, 41X68X4.525
8	90424-RCT-000	Washer - THRUST, 41X68X4.700	Washer - THRUST, 41X68X4.700
8	90419-RCT-000	Washer - THRUST, 41X68X4.575	Washer - THRUST, 41X68X4.575
8	90414-RCT-000	Washer - THRUST, 41X68X4.450	Washer - THRUST, 41X68X4.450
8	90426-RCT-000	Washer - THRUST, 41X68X4.750	Washer - THRUST, 41X68X4.750
8	90421-RCT-000	Washer - THRUST, 41X68X4.625	Washer - THRUST, 41X68X4.625
8	90416-RCT-000	Washer - THRUST, 41X68X4.500	Washer - THRUST, 41X68X4.500
8	90428-RCT-000	Washer - THRUST, 41X68X4.800	Washer - THRUST, 41X68X4.800
8	90423-RCT-000	Washer - THRUST, 41X68X4.675	Washer - THRUST, 41X68X4.675
8	90418-RCT-000	Washer - THRUST, 41X68X4.550	Washer - THRUST, 41X68X4.550
8	90425-RCT-000	Washer - THRUST, 41X68X4.725	Washer - THRUST, 41X68X4.725
8	90420-RCT-000	Washer - THRUST, 41X68X4.600	Washer - THRUST, 41X68X4.600
8	90415-RCT-000	Washer - THRUST, 41X68X4.475	Washer - THRUST, 41X68X4.475
8	90427-RCT-000	Washer - THRUST, 41X68X4.775	Washer - THRUST, 41X68X4.775
9	90501-PRP-000	Collar - 27X34X66.3	Collar - 27X34X66.3
10	90603-P0X-000	Set ring - 23MM	Set ring - 23MM
11	91017-PZK-003	Bearing - NEEDLE, 23X29X18	Bearing - NEEDLE, 23X29X18
12	91018-PW7-A02	Bearing - THRUST NEEDLE, 34X46X2	Bearing - THRUST NEEDLE, 34X46X2
13	91023-PCJ-003	Bearing - THRUST NEEDLE, 34X53.5X2.5	Bearing - THRUST NEEDLE, 34X53.5X2.5
14	91026-PRP-003	Bearing - THRUST NEEDLE, 57.6X71X2	Bearing - THRUST NEEDLE, 57.6X71X2
15	91107-PRP-003	Bearing - NEEDLE, 34X40X39.5	Bearing - NEEDLE, 34X40X39.5
16	91109-PRP-003	Bearing - NEEDLE, 52X57X18	Bearing - NEEDLE, 52X57X18
17	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)

Meter components (NS) 5 / 7

#	OEM	RE5	RE7
1	37115-SA0-601	Packing - NS	Packing - NS
3	78155-SWA-J01	Visor	Visor
4	78156-SWA-J01	Lens	Lens
5	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
6	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Mirror 10 / 16

#	OEM	RE5	RE7
1	34300-SWA-003	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
2	34350-SWA-003	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
15	76253-SWW-E31	Mirror sub assy. - L.(HEATED) (R1400)	Mirror sub assy. - L.(HEATED) (R1400)
22	90108-SWW-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
23	90107-SWW-003	Screw - TAPPING, 4X20	Screw - TAPPING, 4X20
24	90106-SWW-003	Screw-washer - 5X12	Screw-washer - 5X12
25	90109-SWW-003	Screw - TAPPING, 4X14(TRUSS)	Screw - TAPPING, 4X14(TRUSS)
26	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
27	91565-SEA-003	Clamp - HARNESS	Clamp - HARNESS
28	91610-SJ4-003	Grommet - MIRROR GARNISH	Grommet - MIRROR GARNISH

Molding 34 / 34

#	OEM	RE5	RE7
1	72410-SWA-A01	Molding assy., R. FR. DOOR	Molding assy., R. FR. DOOR
1	72410-SWA-A02	MOLDING ASSY., R. FR. DOOR	MOLDING ASSY., R. FR. DOOR
2	72425-SWA-A02	MOLDING, R. FR. DOOR SASH	MOLDING, R. FR. DOOR SASH
3	72450-SWA-A01	Molding assy., L. FR. DOOR	Molding assy., L. FR. DOOR
3	72450-SWA-A02	MOLDING ASSY., L. FR. DOOR	MOLDING ASSY., L. FR. DOOR
4	72465-SWA-A02	MOLDING, L. FR. DOOR SASH	MOLDING, L. FR. DOOR SASH
5	72721-SWW-E00	Garnish - R. RR. DOOR QUARTER OUTER	Garnish - R. RR. DOOR QUARTER OUTER
6	72761-SWW-E00	Garnish - L. RR. DOOR QUARTER OUTER	Garnish - L. RR. DOOR QUARTER OUTER
7	72910-SWA-A01	Molding assy., R. RR. DOOR	Molding assy., R. RR. DOOR
7	72910-SWA-A02	MOLDING ASSY., R. RR. DOOR	MOLDING ASSY., R. RR. DOOR
8	72925-SWA-A02	Molding - R. RR. DOOR SASH	Molding - R. RR. DOOR SASH
9	72950-SWA-A01	Molding assy., L. RR. DOOR	Molding assy., L. RR. DOOR
9	72950-SWA-A02	MOLDING ASSY., L. RR. DOOR	MOLDING ASSY., L. RR. DOOR
10	72965-SWA-A02	Molding - L. RR. DOOR SASH	Molding - L. RR. DOOR SASH
11	73152-SWA-003	Garnish assy - R. FR. WINDSHIELD SIDE	Garnish assy - R. FR. WINDSHIELD SIDE
12	73153-SWA-003	Lid - R. FR. WINDSHIELD SIDE GARNISH	Lid - R. FR. WINDSHIELD SIDE GARNISH
14	73162-SWA-003	Garnish assy - L. FR. WINDSHIELD SIDE	Garnish assy - L. FR. WINDSHIELD SIDE
15	73163-SWA-003	Lid - L. FR. WINDSHIELD SIDE GARNISH	Lid - L. FR. WINDSHIELD SIDE GARNISH
16	75230-SWA-003	Garnish assy - R. FR. ROOF SIDE	Garnish assy - R. FR. ROOF SIDE
17	75232-SWA-003	Lid b - R. ROOF SIDE GARNISH	Lid b - R. ROOF SIDE GARNISH
18	75233-SWA-003	Lid c - R. ROOF SIDE GARNISH	Lid c - R. ROOF SIDE GARNISH
19	75234-SWA-003	Lid d - R. ROOF SIDE GARNISH	Lid d - R. ROOF SIDE GARNISH
20	75235-SWA-003	Garnish assy - R. RR. ROOF SIDE	Garnish assy - R. RR. ROOF SIDE
21	75240-SWA-003	Garnish assy - L. FR. ROOF SIDE	Garnish assy - L. FR. ROOF SIDE
22	75242-SWA-003	Lid b - L. ROOF SIDE GARNISH	Lid b - L. ROOF SIDE GARNISH
23	75243-SWA-003	Lid c - L. ROOF SIDE GARNISH	Lid c - L. ROOF SIDE GARNISH
24	75244-SWA-003	Lid d - L. ROOF SIDE GARNISH	Lid d - L. ROOF SIDE GARNISH
25	75245-SWA-003	Garnish assy - L. RR. ROOF SIDE	Garnish assy - L. RR. ROOF SIDE
27	75491-SWA-003	Clip - FR. PILLAR CORNER GARNISH	Clip - FR. PILLAR CORNER GARNISH
29	90142-SWA-000	Screw - TAPPING, 4X10(PO)	Screw - TAPPING, 4X10(PO)
30	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
31	91503-SWA-A01	Clip - DOOR MOLDING	Clip - DOOR MOLDING
32	91570-SWA-003	Clip A - TAPE	Clip A - TAPE
33	91571-SWA-003	Clip b - FR. WINDSHIELD SIDE GARNISH	Clip b - FR. WINDSHIELD SIDE GARNISH

Oil pump (2.0L) 6 / 13

#	OEM	RE5	RE7
5	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
5	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
7	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
8	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
10	91212-RNA-A01	Oil seal - 43X58X7(ARAI)	Oil seal - 43X58X7(ARAI)
10	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)

Outer panels/roof panel 18 / 18

#	OEM	RE5	RE7
11	63137-SWA-A01	Separator - FR. PILLAR OUTSIDE	Separator - FR. PILLAR OUTSIDE
12	63138-SWA-A01	Separator - R. FR. PILLAR INSIDE	Separator - R. FR. PILLAR INSIDE
14	63217-SWA-A01	Separator - R. CENTER PILLAR OUTSIDE	Separator - R. CENTER PILLAR OUTSIDE
16	63224-SWA-A01	Separator - R. CENTER PILLAR INSIDE	Separator - R. CENTER PILLAR INSIDE
21	63538-SWA-A01	Separator - L. FR. PILLAR INSIDE	Separator - L. FR. PILLAR INSIDE
23	63617-SWA-A01	Separator - L. CENTER PILLAR OUTSIDE	Separator - L. CENTER PILLAR OUTSIDE
25	63624-SWA-A01	Separator - L. CENTER PILLAR INSIDE	Separator - L. CENTER PILLAR INSIDE
34	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
35	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
36	74411-SWW-G01	Cable - FUEL LID OPENER	Cable - FUEL LID OPENER
37	74421-S3N-000	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER
40	75450-SMA-003	Outlet assy - RR. AIR	Outlet assy - RR. AIR
41	90103-SS1-000	Bolt - FUEL FILLER LID	Bolt - FUEL FILLER LID
44	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
45	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18
47	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
48	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
49	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)

P.s. gear box (EPS; LH) 7 / 31

#	OEM	RE5	RE7
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
10	53434-SWA-023	Bracket a - GEAR BOX	Bracket a - GEAR BOX
11	53438-SWA-013	Bracket b - GEAR BOX	Bracket b - GEAR BOX
19	53540-SWA-A02	TIE-ROD END comp	TIE-ROD END comp
29	90107-SWA-A02	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
30	90108-STK-A00	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
31	90506-STK-A00	Washer - PLAIN, 10MM	Washer - PLAIN, 10MM

Parking brake (LH; 1) 9 / 9

#	OEM	RE5	RE7
5	47123-SWA-A02	Bracket - CONSOLE	Bracket - CONSOLE
6	47342-SHJ-A01	Switch - HAND BRAKE	Switch - HAND BRAKE
7	47360-SB2-000	Equalizer	Equalizer
8	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
9	47510-SWA-013	Wire b - R. PARKING BRAKE	Wire b - R. PARKING BRAKE
10	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
11	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
12	47560-SWA-013	Wire b - L. PARKING BRAKE	Wire b - L. PARKING BRAKE
13	47572-SWA-000	Base - WIRE GUIDE	Base - WIRE GUIDE

Parking brake shoe 18 / 18

#	OEM	RE5	RE7
1	43053-SWW-000	Shoe set - RR. BRAKE	Shoe set - RR. BRAKE
1	43053-SWW-010	SHOE SETRRBRAKE	SHOE SETRRBRAKE
2	43110-SWW-003	Plate comp - R. PARKING BRAKE BACK	Plate comp - R. PARKING BRAKE BACK
3	43120-SWW-003	Plate comp - L. PARKING BRAKE BACK	Plate comp - L. PARKING BRAKE BACK
4	43154-SWA-003	Shoe comp - PARKING BRAKE	Shoe comp - PARKING BRAKE
5	43171-SX0-J01	Spring - ROD	Spring - ROD
6	43172-STK-A01	Spring a - BRAKE	Spring a - BRAKE
7	43361-SWA-003	Lever - R. PARKING BRAKE	Lever - R. PARKING BRAKE
8	43362-SFE-J01	Strut	Strut
9	43365-SFE-J02	Pin - PARKING LEVER	Pin - PARKING LEVER
10	43366-SHJ-A01	Adjuster assy	Adjuster assy
11	43367-SFE-J02	Spring - RETURN	Spring - RETURN
12	43371-SWA-003	Lever - L. PARKING BRAKE	Lever - L. PARKING BRAKE
13	43375-SA0-003	U-clip	U-clip
14	43379-SA5-003	Washer - WAVE	Washer - WAVE
15	45172-S9A-E01	Spring - SHOE CLAMP	Spring - SHOE CLAMP
16	45175-SA0-013	Pin - TENSIONER	Pin - TENSIONER
17	90382-SJK-000	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM

Pedal (LH) 11 / 20

#	OEM	RE5	RE7
1	17800-STK-A81	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
6	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
7	46530-SFE-981	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
8	46540-SWA-A01	Spring assy - PROTECTOR	Spring assy - PROTECTOR
10	46545-S84-A81	Cover - PEDAL	Cover - PEDAL
11	46600-SWA-G81	Pedal assy - BRAKE	Pedal assy - BRAKE
15	46991-SWW-G01	Bracket - FOOTREST	Bracket - FOOTREST
16	46992-STK-A81	Plate - FOOTREST BRACKET	Plate - FOOTREST BRACKET
17	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
18	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
19	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

Pillar garnish 6 / 6

#	OEM	RE5	RE7
15	84132-STK-A00	Cap	Cap
21	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
23	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
24	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
25	91561-SJK-J01	Clip b - PILLAR GARNISH	Clip b - PILLAR GARNISH
26	91562-SJK-003	Pin	Pin

Plug hole coil (2.0L) 1 / 4

#	OEM	RE5	RE7
4	90207-RAA-A00	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM

Propeller shaft 5 / 5

#	OEM	RE5	RE7
1	40100-SXS-A01	Shaft assy - PROPELLER	Shaft assy - PROPELLER
2	40540-SWA-A10	Protector - NO.1 PROPELLER SHAFT	Protector - NO.1 PROPELLER SHAFT
3	40541-SWA-A00	Protector - NO.2 PROPELLER SHAFT	Protector - NO.2 PROPELLER SHAFT
4	90113-S10-000	Bolt - 12POINT 8X21	Bolt - 12POINT 8X21
5	90382-SH9-003	Bolt - FLANGE, 10X29	Bolt - FLANGE, 10X29

Radiator (2.0L) 13 / 22

#	OEM	RE5	RE7
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
5	19015-RZA-A01	Shroud comp.	Shroud comp.
7	19030-RZA-A01	Motor, Cooling fan	Motor, Cooling fan
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
13	37870-RZA-007	Sensor assy - WATER TEMP(NTCL)	Sensor assy - WATER TEMP(NTCL)
18	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
19	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
20	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
21	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
22	91307-RZA-007	O-ring	O-ring

Radiator hose/ reserve tank (2.0L) 14 / 21

#	OEM	RE5	RE7
1	19101-RZA-A00	Tank - RESERVE	Tank - RESERVE
2	19102-RNA-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
3	19103-RZA-A00	Hose - RESERVE TANK	Hose - RESERVE TANK
4	19104-RZA-A01	Tube - RESERVE TANK	Tube - RESERVE TANK
5	19106-RSA-G00	Joint - RESERVE TANK	Joint - RESERVE TANK
6	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)	Clamp - RESERVE TANK TUBE (BLACK)
9	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
9	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
14	74171-SWA-000	Bracket - R. RADIATOR MOUNTING UPPER	Bracket - R. RADIATOR MOUNTING UPPER
15	74172-SWA-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
16	74173-SWA-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
17	74176-SWA-000	Bracket - L. RADIATOR MOUNTING UPPER	Bracket - L. RADIATOR MOUNTING UPPER
18	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
18	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE

Rear brake (1) 21 / 21

#	OEM	RE5	RE7
1	01473-SWW-G00	Caliper set - RR.(16" ZOH38)	Caliper set - RR.(16" ZOH38)
2	42200-STK-951	BEARING ASSY., REAR HUB UNIT	BEARING ASSY., REAR HUB UNIT
3	42510-SWW-G01	Disk - RR. BRAKE DRUM IN	Disk - RR. BRAKE DRUM IN
4	42511-SP0-000	Cap - MAINTENANCE HOLE	Cap - MAINTENANCE HOLE
5	43018-SWW-G00	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
6	43019-SWW-G00	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
7	43022-SWW-G02	Pad set - RR.(ZOH38,GA 3409)	Pad set - RR.(ZOH38,GA 3409)
8	43215-SWW-G01	Piston	Piston
9	43235-SWW-G01	Pin - GUIDE	Pin - GUIDE
10	43237-SWW-G01	Spring a - PAD	Spring a - PAD
11	43238-SWW-G01	Spring b - PAD	Spring b - PAD
12	43262-SWW-G01	Pin - LOCK	Pin - LOCK
13	45219-SWW-G01	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
14	45240-SWW-G01	Screw	Screw
15	45352-SWW-G01	Screw - BLEEDER	Screw - BLEEDER
16	90103-SJK-000	Bolt - CALIPER MOUNTING	Bolt - CALIPER MOUNTING
17	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
17	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
17	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
17	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
18	90160-SJK-000	Bolt-washer - 12X46	Bolt-washer - 12X46

Rear differential/mount 35 / 35

#	OEM	RE5	RE7
1	40120-P6R-003	Magnet comp. - RR. DIFFERENTIAL	Magnet comp. - RR. DIFFERENTIAL
2	40441-P6R-010	Flange - COMPANION	Flange - COMPANION
3	41010-R09-000	Carrier sub assy. - RR. DIFFERENTIAL	Carrier sub assy. - RR. DIFFERENTIAL
4	41011-R09-A00	Case kit - T.C.D.	Case kit - T.C.D.
5	41935-RFT-003	Box - BREATHER TUBE	Box - BREATHER TUBE
6	41936-P6R-003	Clamp - BREATHER TUBE	Clamp - BREATHER TUBE
7	41937-R09-000	Tube b - BREATHER	Tube b - BREATHER
8	41938-R09-000	Tube a - BREATHER	Tube a - BREATHER
9	41939-RFT-003	Clamp - BREATHER	Clamp - BREATHER
10	48940-RFT-000	Strainer - ATF	Strainer - ATF
11	50530-SWA-000	Bracket b - R. RR. DIFFERENTIAL	Bracket b - R. RR. DIFFERENTIAL
12	50540-SWA-000	Bracket b - L. RR. DIFFERENTIAL	Bracket b - L. RR. DIFFERENTIAL
13	50710-SWA-A02	Mounting assy. a - RR. DIFFERENTIAL	Mounting assy. a - RR. DIFFERENTIAL
14	50711-SWA-020	Rubber a - RR. DIFFERENTIAL INSULATOR	Rubber a - RR. DIFFERENTIAL INSULATOR
15	50712-SWA-030	Insulator - RR. DIFFERENTIAL HEAT	Insulator - RR. DIFFERENTIAL HEAT
16	50713-SWA-000	Stopper a - RR. DIFFERENTIAL MOUNTING	Stopper a - RR. DIFFERENTIAL MOUNTING
17	50714-SWA-010	Plate	Plate
18	50721-S5C-013	Rubber b - RR. DIFFERENTIAL MOUNTING	Rubber b - RR. DIFFERENTIAL MOUNTING
19	90001-PWT-680	Bolt - FLANGE, 6X28	Bolt - FLANGE, 6X28
20	90001-PWT-730	Bolt - FLANGE, 6X50	Bolt - FLANGE, 6X50
21	90081-PWT-000	Bolt - DRAIN PLUG, 20MM	Bolt - DRAIN PLUG, 20MM
22	90161-SWA-000	Bolt - FLANGE, 12X67.5	Bolt - FLANGE, 12X67.5
23	90162-S5A-000	Bolt - FLANGE, 10X80	Bolt - FLANGE, 10X80
24	90163-SR7-010	Bolt - FLANGE, 10X119	Bolt - FLANGE, 10X119
25	90166-S87-A00	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
26	90173-SWA-010	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
27	90203-PX4-010	Nut - FLANGE, 24MM	Nut - FLANGE, 24MM
28	90371-S9A-000	Nut - YOKE, 10MM	Nut - YOKE, 10MM
29	90403-PL9-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
30	90702-P6R-008	Pin - OIL PUMP	Pin - OIL PUMP
31	91201-PWT-003	Oil seal - 40X56X9 (NOK)	Oil seal - 40X56X9 (NOK)
32	91202-PWT-003	Oil seal - 35X78X8.5 (NOK)	Oil seal - 35X78X8.5 (NOK)
33	91203-PWT-003	Oil seal - 35X50X8.5 (NOK)	Oil seal - 35X50X8.5 (NOK)
34	91303-P6R-003	O-ring - 25X2.6	O-ring - 25X2.6
35	91304-P6R-003	Ring - BACK UP, 25MM	Ring - BACK UP, 25MM

Rear door lining 18 / 18

#	OEM	RE5	RE7
1	35770-SWA-G01	Switch assy - RR. POWER WINDOW	Switch assy - RR. POWER WINDOW
2	72835-SWA-A01	Weatherstrip - RR. DOOR INNER	Weatherstrip - RR. DOOR INNER
6	83535-SWW-E01	Bracket - R. FR. GRIP(A)	Bracket - R. FR. GRIP(A)
7	83585-SWW-E01	Bracket - L. FR. GRIP(A)	Bracket - L. FR. GRIP(A)
11	83705-SWW-E01	Bracket comp. - R. RR. DOOR LINING(B)	Bracket comp. - R. RR. DOOR LINING(B)
12	83709-SWA-000	Bracket - PULL POCKET(R.)	Bracket - PULL POCKET(R.)
20	83755-SWW-E01	Bracket comp. - L. RR. DOOR LINING(B)	Bracket comp. - L. RR. DOOR LINING(B)
21	83759-SWA-000	Bracket - PULL POCKET(L.)	Bracket - PULL POCKET(L.)
26	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
28	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
29	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
30	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
31	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
32	91560-S0X-A01	Clip - DOOR LINING (NATURAL)	Clip - DOOR LINING (NATURAL)
33	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
34	91627-SWA-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
35	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
41	90144-SWA-000	Screw - TAPPING, 4X12(PO)	Screw - TAPPING, 4X12(PO)

Rear door locks/ outer handle (1) 22 / 24

#	OEM	RE5	RE7
1	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
5	72130-SWA-A01	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
6	72133-SJC-A01	Packing	Packing
7	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
7	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
8	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
10	72141-SNE-A00	Bush - R. JOINT	Bush - R. JOINT
11	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
12	72149-SWA-E00	Snap - R.	Snap - R.
13	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
17	72170-SWA-A01	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
20	72181-SNE-A00	Bush - L. JOINT	Bush - L. JOINT
21	72189-SWA-E00	Snap - L.	Snap - L.
23	72612-SNA-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
24	72613-SNA-003	Seal	Seal
25	72631-SWA-E01	Cable - RR. INSIDE HANDLE	Cable - RR. INSIDE HANDLE
26	72633-SWA-E01	Cable - RR. DOOR LOCK	Cable - RR. DOOR LOCK
28	72652-SNA-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
29	74387-S3C-003	Fastener	Fastener
30	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
31	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
32	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door panels 18 / 18

#	OEM	RE5	RE7
5	67824-SWA-A01	Tape set - R. RR. DOOR SASH	Tape set - R. RR. DOOR SASH
6	67864-SWA-A01	Tape set - L. RR. DOOR SASH	Tape set - L. RR. DOOR SASH
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
13	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
14	72810-SWW-E01	Weatherstrip - R. RR. DOOR	Weatherstrip - R. RR. DOOR
15	72821-SWA-A00	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
16	72840-SWA-A01	CHECKER COMP., R. RR. DOOR	CHECKER COMP., R. RR. DOOR
17	72850-SWW-E01	Weatherstrip - L. RR. DOOR	Weatherstrip - L. RR. DOOR
18	72861-SWA-A00	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
19	72880-SWA-A01	CHECKER COMP., L. RR. DOOR	CHECKER COMP., L. RR. DOOR
20	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
20	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
21	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)	Bolt - FLANGE, 8X22 (TORX)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
23	72311-S5S-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
24	91563-S4N-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET
26	91568-S9V-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP

Rear door windows/ regulator 10 / 10

#	OEM	RE5	RE7
1	72710-SWA-A02	Regulator assy - R. RR. DOOR POWER	Regulator assy - R. RR. DOOR POWER
2	72731-SWA-A01	Sash - R. RR. DOOR QUARTER	Sash - R. RR. DOOR QUARTER
3	72735-SWW-E01	Runchannel - R. RR. DOOR	Runchannel - R. RR. DOOR
4	72750-SWA-A02	Regulator assy - L. RR. DOOR POWER	Regulator assy - L. RR. DOOR POWER
5	72771-SWA-A01	Sash - L. RR. DOOR QUARTER	Sash - L. RR. DOOR QUARTER
6	72775-SWW-E01	Runchannel - L. RR. DOOR	Runchannel - L. RR. DOOR
7	73400-SWW-E00	Glass assy - R. RR. DOOR (GREEN)(AGC)	Glass assy - R. RR. DOOR (GREEN)(AGC)
8	73450-SWW-E00	Glass assy - L. RR. DOOR (GREEN)(AGC)	Glass assy - L. RR. DOOR (GREEN)(AGC)
9	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
10	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Rear driveshaft (1) 15 / 15

#	OEM	RE5	RE7
1	42017-SXS-A11	Boot set - INBOARD	Boot set - INBOARD
2	42018-SXS-A01	Boot set - OUTBOARD	Boot set - OUTBOARD
3	42310-SXS-A01	Driveshaft assy. - R.	Driveshaft assy. - R.
4	42311-SXS-A01	Driveshaft assy. - L.	Driveshaft assy. - L.
5	42320-SXS-A01	INBOARD Joint comp (Rh)	INBOARD Joint comp (Rh)
6	42320-SXS-A11	INBOARD Joint comp (Lh)	INBOARD Joint comp (Lh)
7	42330-SXS-A01	Joint comp - OUTBOARD	Joint comp - OUTBOARD
8	44317-SCA-E21	Band - OUTBOARD BOOT	Band - OUTBOARD BOOT
9	44318-SCA-E31	Band - OUTBOARD SHAFT BOOT	Band - OUTBOARD SHAFT BOOT
10	44319-SCA-E21	Set ring - 24X1.6	Set ring - 24X1.6
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44337-SCA-E21	Ring b - STOPPER	Ring b - STOPPER
14	44338-SCA-E21	Circlip	Circlip
15	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)

Rear lower arm 27 / 27

#	OEM	RE5	RE7
1	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
2	42524-SWA-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
3	52210-SWA-A00	Knuckle comp - R. RR.	Knuckle comp - R. RR.
4	52215-SWA-A00	Knuckle comp - L. RR.	Knuckle comp - L. RR.
5	52300-SWA-A01	Spring - RR. STABILIZER	Spring - RR. STABILIZER
6	52306-SWA-A01	Bush - RR. STABILIZER HOLDER	Bush - RR. STABILIZER HOLDER
7	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
8	52320-SWA-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
9	52321-SWA-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
10	52352-SWA-A01	Protector - RR. LOWER ARM	Protector - RR. LOWER ARM
11	52370-SWA-A10	Arm comp - R. RR. TRAILING	Arm comp - R. RR. TRAILING
12	52371-SWA-A10	Arm comp - L. RR. TRAILING	Arm comp - L. RR. TRAILING
13	52387-SFE-000	Bolt - TRAILING ARM ADJUST	Bolt - TRAILING ARM ADJUST
14	52388-S7A-013	Plate - CAM	Plate - CAM
15	52390-SWA-A00	Arm comp - RR. UPPER	Arm comp - RR. UPPER
16	57470-SXS-003	Sensor assy - R. RR.	Sensor assy - R. RR.
17	57475-SXS-003	Sensor assy - L. RR.	Sensor assy - L. RR.
18	57477-SXS-305	Seal - ABS SENSOR(BLACK)	Seal - ABS SENSOR(BLACK)
19	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
20	90100-SHJ-A00	Bolt - FLANGE, 6X16.5	Bolt - FLANGE, 6X16.5
21	90181-SFE-020	Bolt - FLANGE, 14X88.5	Bolt - FLANGE, 14X88.5
22	90183-SWA-A00	Bolt - FLANGE, 12X54	Bolt - FLANGE, 12X54
23	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
24	90395-SNA-003	Nut - LOCK FLANGE	Nut - LOCK FLANGE
25	90396-S7A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
26	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5
27	90651-SWA-000	Washer - RR. KNUCKLE	Washer - RR. KNUCKLE

Rear seat 10 / 10

#	OEM	RE5	RE7
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
5	82127-SWW-E31	Pad assy - R. RR. SEATBACK	Pad assy - R. RR. SEATBACK
6	82129-S5A-000	Collar - RR. SEAT PIVOT	Collar - RR. SEAT PIVOT
8	82137-SWW-E31	Pad assy - R. RR. SEAT CUSHION	Pad assy - R. RR. SEAT CUSHION
11	82172-SWW-E31	Pad assy - R. RR. SEATBACK LOWER	Pad assy - R. RR. SEATBACK LOWER
14	82187-S10-J01	Collar - ARMREST	Collar - ARMREST
16	82527-SWW-E31	Pad assy - L. RR. SEATBACK	Pad assy - L. RR. SEATBACK
18	82537-SWW-E31	Pad assy - L. RR. SEAT CUSHION	Pad assy - L. RR. SEAT CUSHION
22	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
23	90657-SH3-013	Clip - TWO WAY VALVE COVER	Clip - TWO WAY VALVE COVER

Rear seat components (1) 16 / 16

#	OEM	RE5	RE7
1	82122-SWA-A01	Bolt - FLANGE	Bolt - FLANGE
2	82126-SWA-J01	Frame comp - R. RR. SEATBACK	Frame comp - R. RR. SEATBACK
3	82128-SWA-A01	Bush - RR. SEATBACK(A)	Bush - RR. SEATBACK(A)
4	82129-SWA-A01	Bolt - RR. SEATBACK	Bolt - RR. SEATBACK
7	82221-SWA-A01	Cover - R. RR. SEAT LEVER INNER	Cover - R. RR. SEAT LEVER INNER
9	82234-SWA-A01	Cable - LOCK CONTROL CENTER	Cable - LOCK CONTROL CENTER
10	82235-SWA-A01	Cable - LOCK CONTROL	Cable - LOCK CONTROL
12	82526-SWA-J01	Frame comp - L. RR. SEATBACK	Frame comp - L. RR. SEATBACK
14	82621-SWA-A01	Cover - L. RR. SEAT LEVER INNER	Cover - L. RR. SEAT LEVER INNER
16	82926-SWA-A01	Frame comp - RR. SEATBACK CENTER	Frame comp - RR. SEATBACK CENTER
17	82928-SWA-A01	Spring - RELEASE LEVER	Spring - RELEASE LEVER
18	82929-SWA-A01	Silencer	Silencer
19	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
20	90134-S10-J11	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
21	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
22	90650-KV3-000	Band - WIRE	Band - WIRE

Rear seat components (2) 19 / 19

#	OEM	RE5	RE7
2	82136-SWB-A01	Frame comp - R. RR. SEAT CUSHION	Frame comp - R. RR. SEAT CUSHION
4	82139-SWA-A01	Cable - RR. SEAT CUSHION	Cable - RR. SEAT CUSHION
5	82191-SWA-A01	Screw - PAN(5X10)	Screw - PAN(5X10)
11	82222-SWA-A01	Lock assy - R. INTER	Lock assy - R. INTER
12	82224-SWA-A01	Strap assy - RR. SEAT CUSHION	Strap assy - RR. SEAT CUSHION
13	82226-SWA-A01	Cable comp. b - LOCK	Cable comp. b - LOCK
14	82227-SWA-A01	Nut - PUSH	Nut - PUSH
15	82229-SWA-A01	Cable comp. c - LOCK	Cable comp. c - LOCK
17	82261-SWA-A01	Packing	Packing
18	82271-SWA-A01	Screw - TAPPING(5X10)	Screw - TAPPING(5X10)
26	82533-SWA-A01	Pin - RR. SEAT CUSHION HINGE	Pin - RR. SEAT CUSHION HINGE
27	82534-SWA-A01	Bolt - L. RR. SEAT CUSHION HINGE	Bolt - L. RR. SEAT CUSHION HINGE
28	82536-SWB-A01	Frame comp - L. RR. SEAT CUSHION	Frame comp - L. RR. SEAT CUSHION
29	82538-SWA-A01	Bush - RR. SEAT CUSHION(A)	Bush - RR. SEAT CUSHION(A)
30	82539-SWA-A01	Bush - RR. SEAT CUSHION(B)	Bush - RR. SEAT CUSHION(B)
35	82622-SWA-A01	Lock assy - L. INTER	Lock assy - L. INTER
43	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
44	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
45	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Rear shock absorber 18 / 28

#	OEM	RE5	RE7
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
2	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
3	52441-SWY-E11	Spring - RR.	Spring - RR.
5	52611-SWA-A11	Absorber unit - RR. SHOCK	Absorber unit - RR. SHOCK
7	52620-SWR-R61	Absorber assy - L. RR. SHOCK	Absorber assy - L. RR. SHOCK
8	52622-S7A-014	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
9	52631-SCA-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
10	52675-SWA-A02	Base - RR. SHOCK ABSORBER MOUNTING	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING	Seal - SHOCK ABSORBER MOUNTING
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
13	52687-SWA-A01	Cover - RR. DUST	Cover - RR. DUST
14	51689-SH9-003	Plate - BUMP STOP(SHOWA)	Plate - BUMP STOP(SHOWA)
15	52722-SWW-R01	Rubber - RR. BUMP STOPPER	Rubber - RR. BUMP STOPPER
16	52748-SWN-H01	Cover - RR. LOWER MOUNT DUST	Cover - RR. LOWER MOUNT DUST
17	90181-SFE-020	Bolt - FLANGE, 14X88.5	Bolt - FLANGE, 14X88.5
18	90300-SFE-010	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear windshield/ quarter windows 19 / 19

#	OEM	RE5	RE7
1	04733-SWA-000	Rubber set - RR. WINDSHIELD DAM	Rubber set - RR. WINDSHIELD DAM
2	73211-SWW-G11	Glass set - RR. WINDSHIELD (GREEN)(AGC)	Glass set - RR. WINDSHIELD (GREEN)(AGC)
3	73510-SWA-003	Molding assy. - R. QUARTER WINDSHIELD	Molding assy. - R. QUARTER WINDSHIELD
4	73511-SWW-E11	Glass - R. QUARTER(GREEN)(AGC)	Glass - R. QUARTER(GREEN)(AGC)
5	73525-SWA-000	Spacer	Spacer
6	73560-SWA-003	Molding assy. - L. QUARTER WINDSHIELD	Molding assy. - L. QUARTER WINDSHIELD
7	73561-SWW-E11	Glass - L. QUARTER(GREEN)(AGC)	Glass - L. QUARTER(GREEN)(AGC)
8	73810-SWA-003	Seal - R. QUARTER GLASS FR.	Seal - R. QUARTER GLASS FR.
9	73860-SWA-003	Seal - L. QUARTER GLASS FR.	Seal - L. QUARTER GLASS FR.
11	75717-SNB-E01	Sticker - I-VTEC	Sticker - I-VTEC
13	76707-STK-000	Seal a	Seal a
14	76834-SNA-003	Tube - 140MM	Tube - 140MM
15	76850-SWA-013	Nozzle assy. - RR. WINDSHIELD	Nozzle assy. - RR. WINDSHIELD
16	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
17	91502-SWA-003	Clip A - QUARTER WINDSHIELD	Clip A - QUARTER WINDSHIELD
18	91502-S70-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD
19	91512-SWA-003	Clip - QUARTER MOLDING(FR.)	Clip - QUARTER MOLDING(FR.)
20	91513-SWA-003	Clip - QUARTER MOLDING CORNER	Clip - QUARTER MOLDING CORNER
21	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD

Rear wiper 12 / 12

#	OEM	RE5	RE7
1	76622-S2X-003	Rubber - BLADE (350MM)	Rubber - BLADE (350MM)
1	76632-S2K-004	RUBBER BLADE	RUBBER BLADE
2	76701-S6A-003	Rubber - MOUNTING	Rubber - MOUNTING
3	76702-S6A-003	Collar	Collar
4	76706-SK7-003	Washer a - SPECIAL	Washer a - SPECIAL
5	76708-SE1-003	Washer b - SPECIAL	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM	Nut - SPECIAL, 18MM
7	76710-SWA-003	Motor, WIPER	Motor, WIPER
8	76711-STK-003	Cap - PIVOT	Cap - PIVOT
9	76720-SWA-003	Arm - RR. WIPER	Arm - RR. WIPER
10	76721-SCV-A01	Cover - ARM	Cover - ARM
11	76730-SFA-003	Blade - RR. WINDSHIELD WIPER (350MM)	Blade - RR. WINDSHIELD WIPER (350MM)

Regulator body (2.0L; 2.4L) 21 / 23

#	OEM	RE5	RE7
1	22741-P7Z-000	Pipe - 8X198	Pipe - 8X198
2	22753-PRP-000	Pipe - 6X201	Pipe - 6X201
3	22770-RCL-010	Pipe a - JOINT	Pipe a - JOINT
4	22772-RCL-010	Pipe b - JOINT	Pipe b - JOINT
5	25155-PRP-000	Shaft assy - STATOR	Shaft assy - STATOR
6	27132-P6H-000	Cap - 14MM	Cap - 14MM
9	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
10	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
11	27524-P6H-000	Clip - CAP	Clip - CAP
12	27561-PRP-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
13	27562-PRP-000	Spring a - LOW ACCUMULATOR	Spring a - LOW ACCUMULATOR
14	27564-PRP-000	Spring b - LOW ACCUMULATOR	Spring b - LOW ACCUMULATOR
15	27574-PRP-000	Piston - THIRD ACCUMULATOR	Piston - THIRD ACCUMULATOR
16	27583-PRP-000	Spring - THIRD ACCUMULATOR	Spring - THIRD ACCUMULATOR
17	27591-PRP-J00	Cover - REGULATOR ACCUMULATOR	Cover - REGULATOR ACCUMULATOR
18	90001-PRP-000	Bolt - FLANGE, 6X30	Bolt - FLANGE, 6X30
19	90089-PK4-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
20	90701-PK4-000	Dowel pin - 8X80	Dowel pin - 8X80
21	91316-PF4-003	O-ring - 31X1.7 (ARAI)	O-ring - 31X1.7 (ARAI)
22	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
23	91331-PC9-003	O-ring	O-ring

Resonator chamber (2.0L) 9 / 15

#	OEM	RE5	RE7
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
2	17212-PLC-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
3	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
8	17255-RZA-000	Tube e - AIR INTAKE	Tube e - AIR INTAKE
13	17263-P0A-000	Rubber - AIR CLEANER STAY	Rubber - AIR CLEANER STAY
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
15	90005-P28-A00	Bolt-washer - SPECIAL, 6X28	Bolt-washer - SPECIAL, 6X28
16	90120-PZA-000	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Roof lining (1) 7 / 7

#	OEM	RE5	RE7
17	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
21	83266-SWN-H52	Cover - ELR BRACKET	Cover - ELR BRACKET
23	83268-S9A-A01	Clip - ELR BRACKET	Clip - ELR BRACKET
27	90131-SCV-A00	Screw - PAN, 5X23	Screw - PAN, 5X23
28	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
30	90662-SWA-003	Fastener - ROOF LINING	Fastener - ROOF LINING
32	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Seatbelts 32 / 32

#	OEM	RE5	RE7
5	81425-SJD-J01	Washer - SPRING	Washer - SPRING
6	81425-SWA-J01	Washer - LOCK	Washer - LOCK
7	81425-S2H-003	Washer - SPRING	Washer - SPRING
8	81426-S2H-003	Washer - PLAIN	Washer - PLAIN
9	81430-S2H-003	Bearing	Bearing
10	81439-SWA-J01	Clip - HARNESS	Clip - HARNESS
11	81439-S2H-003	Clip - HARNESS	Clip - HARNESS
12	81441-SWA-A01	Collar - 15H	Collar - 15H
13	81441-SWA-J01	Collar - 8H	Collar - 8H
14	81441-SWA-J21	Collar - 7H	Collar - 7H
15	81441-S2H-003	Collar - 13H	Collar - 13H
16	81442-S2H-003	Bearing	Bearing
17	81446-SWA-003	Washer - PLAIN	Washer - PLAIN
18	81446-S2H-003	Washer - WAVE	Washer - WAVE
19	81448-S2H-003	Washer - PLAIN	Washer - PLAIN
28	82410-SWW-E01	Plate assy. - CHILD SEAT ANCHOR (R.)	Plate assy. - CHILD SEAT ANCHOR (R.)
30	82424-SWA-A01	Washer - PLAIN	Washer - PLAIN
31	82424-SWA-003	Washer - PLAIN	Washer - PLAIN
34	82491-SWA-A00	Protector - R. RR. SEATBELT	Protector - R. RR. SEATBELT
35	82810-SWW-E01	Plate assy. - CHILD SEAT ANCHOR (L.)	Plate assy. - CHILD SEAT ANCHOR (L.)
38	82891-SWA-A00	Protector - L. RR. SEATBELT	Protector - L. RR. SEATBELT
40	90142-SWA-A11	Bolt-washer - 7/16"X28	Bolt-washer - 7/16"X28
41	90142-SWA-A21	Bolt - 7/16"X25	Bolt - 7/16"X25
42	90142-SWA-A31	Bolt - 7/16"X25	Bolt - 7/16"X25
43	90142-SWA-A41	Bolt - 7/16"X22	Bolt - 7/16"X22
44	90142-SWA-J01	Bolt - FLANGE, 7/16"X55	Bolt - FLANGE, 7/16"X55
45	90142-SWA-003	Bolt - 7/16"X22	Bolt - 7/16"X22
46	90142-S0X-A31	Bolt - 7/16"X33	Bolt - 7/16"X33
47	90142-S10-J71	Bolt - 7/16"X28	Bolt - 7/16"X28
48	90143-SWA-003	Bolt - 7/16"X54	Bolt - 7/16"X54
49	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
50	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)

Secondary shaft (2.0L; 2.4L) 41 / 44

#	OEM	RE5	RE7
1	22814-PRP-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
2	23230-PRP-020	Shaft comp. - SECONDARY	Shaft comp. - SECONDARY
6	23521-R90-000	Gear - SECONDARY SHAFT IDLE	Gear - SECONDARY SHAFT IDLE
7	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)	Nut - FLANGE, 24MM (LEFT HAND THREAD)
8	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
9	90443-PRP-000	Collar - 27X37X36.5	Collar - 27X37X36.5
10	90506-RCT-000	Washer - THRUST, 40X51.5X4.95	Washer - THRUST, 40X51.5X4.95
10	90508-RCT-000	Washer - THRUST, 40X51.5X5.05	Washer - THRUST, 40X51.5X5.05
10	90503-RCT-000	Washer - THRUST, 40X51.5X4.80	Washer - THRUST, 40X51.5X4.80
10	90505-RCT-000	Washer - THRUST, 40X51.5X4.90	Washer - THRUST, 40X51.5X4.90
10	90507-RCT-000	Washer - THRUST, 40X51.5X5.00	Washer - THRUST, 40X51.5X5.00
10	90504-RCT-000	Washer - THRUST, 40X51.5X4.85	Washer - THRUST, 40X51.5X4.85
11	90513-PRP-010	Washer - THRUST, 37X58X3.950	Washer - THRUST, 37X58X3.950
11	90530-PRP-000	Washer - THRUST, 37X58X4.375	Washer - THRUST, 37X58X4.375
11	90525-PRP-000	Washer - THRUST, 37X58X4.250	Washer - THRUST, 37X58X4.250
11	90520-PRP-010	Washer - THRUST, 37X58X4.125	Washer - THRUST, 37X58X4.125
11	90515-PRP-010	Washer - THRUST, 37X58X4.000	Washer - THRUST, 37X58X4.000
11	90527-PRP-000	Washer - THRUST, 37X58X4.300	Washer - THRUST, 37X58X4.300
11	90522-PRP-010	Washer - THRUST, 37X58X4.175	Washer - THRUST, 37X58X4.175
11	90517-PRP-010	Washer - THRUST, 37X58X4.050	Washer - THRUST, 37X58X4.050
11	90512-PRP-010	Washer - THRUST, 37X58X3.925	Washer - THRUST, 37X58X3.925
11	90529-PRP-000	Washer - THRUST, 37X58X4.350	Washer - THRUST, 37X58X4.350
11	90524-PRP-000	Washer - THRUST, 37X58X4.225	Washer - THRUST, 37X58X4.225
11	90519-PRP-010	Washer - THRUST, 37X58X4.100	Washer - THRUST, 37X58X4.100
11	90514-PRP-010	Washer - THRUST, 37X58X3.975	Washer - THRUST, 37X58X3.975
11	90526-PRP-000	Washer - THRUST, 37X58X4.275	Washer - THRUST, 37X58X4.275
11	90521-PRP-010	Washer - THRUST, 37X58X4.150	Washer - THRUST, 37X58X4.150
11	90516-PRP-010	Washer - THRUST, 37X58X4.025	Washer - THRUST, 37X58X4.025
11	90511-PRP-010	Washer - THRUST, 37X58X3.900	Washer - THRUST, 37X58X3.900
11	90528-PRP-000	Washer - THRUST, 37X58X4.325	Washer - THRUST, 37X58X4.325
11	90523-PRP-000	Washer - THRUST, 37X58X4.200	Washer - THRUST, 37X58X4.200
11	90518-PRP-010	Washer - THRUST, 37X58X4.075	Washer - THRUST, 37X58X4.075
12	90621-PRP-000	Circlip - EXTERNAL, 32MM	Circlip - EXTERNAL, 32MM
13	91021-PRP-013	Needle - THRUST, 40X53X2.5	Needle - THRUST, 40X53X2.5
14	91022-PRP-003	Needle - THRUST, 46.6X59.5X2.5	Needle - THRUST, 46.6X59.5X2.5
15	91027-PRP-003	Needle - THRUST, 37X57X2.5	Needle - THRUST, 37X57X2.5
16	91028-PRP-003	Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24)	Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24)
17	91105-PRP-005	Bearing - NEEDLE, 40X47X16 (NSK)	Bearing - NEEDLE, 40X47X16 (NSK)
18	91106-PRP-025	Bearing - NEEDLE, 40X46X20.5 (NSK)	Bearing - NEEDLE, 40X46X20.5 (NSK)
19	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)
20	91326-P4V-003	O-ring - 26.7X1.9(NOK)	O-ring - 26.7X1.9(NOK)

Select lever (LH) 25 / 26

#	OEM	RE5	RE7
1	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
3	39550-SYA-982	Solenoid assy. - AT SHIFT LOCK	Solenoid assy. - AT SHIFT LOCK
4	54023-SYA-981	Stopper set - SHIFT LOCK	Stopper set - SHIFT LOCK
5	54024-SWA-A82	Shaft - SHIFT LOCK	Shaft - SHIFT LOCK
6	54030-SWA-A82	Release - SHIFT LOCK	Release - SHIFT LOCK
7	54031-SWA-A81	Spring - RELEASE RETURN	Spring - RELEASE RETURN
8	54110-SYA-981	Stopper - SHIFT LOCK	Stopper - SHIFT LOCK
10	54132-SWA-A82	Knob assy - PUSH	Knob assy - PUSH
11	54133-SFA-981	Spring - PUSH KNOB	Spring - PUSH KNOB
12	54134-SWA-982	Ring - KNOB	Ring - KNOB
13	54200-SWA-A81	Bracket set - SELECT LEVER	Bracket set - SELECT LEVER
14	54203-SYA-982	Bracket - R. FIXING	Bracket - R. FIXING
15	54219-SYA-981	Bolt - FLANGE, 8X12	Bolt - FLANGE, 8X12
16	54300-SWA-982	Cover set - SELECT LEVER	Cover set - SELECT LEVER
20	54711-SWA-A82	Escutcheon - CONSOLE	Escutcheon - CONSOLE
23	54722-S9A-981	Strap - CABLE	Strap - CABLE
24	54750-SWA-A82	Switch assy - PARKING PIN & AT INDICATOR LAMP & D3 HARNESS	Switch assy - PARKING PIN & AT INDICATOR LAMP & D3 HARNESS
25	54903-SYA-981	SCREW, FLAT 5x8	SCREW, FLAT 5x8
26	90126-SYA-981	Screw-washer - 3X12	Screw-washer - 3X12
27	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
28	90302-SJK-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
29	90351-SB2-003	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
30	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
31	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
33	54340-SWA-A01	Insulator - CONTROL WIRE	Insulator - CONTROL WIRE

Servo body (2.0L; 2.4L) 23 / 26

#	OEM	RE5	RE7
1	22748-P24-J00	Pipe - 8X220	Pipe - 8X220
2	24271-PRP-000	Shaft - SHIFT FORK	Shaft - SHIFT FORK
3	24630-PRP-000	Arm comp - CHANGE DETENT	Arm comp - CHANGE DETENT
4	24635-PRP-000	Collar - CHANGE DETENT ARM	Collar - CHANGE DETENT ARM
5	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
7	27412-PRP-010	Plate - SERVO SEPARATING	Plate - SERVO SEPARATING
8	27561-PRP-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
9	27562-PRP-000	Spring a - LOW ACCUMULATOR	Spring a - LOW ACCUMULATOR
10	27564-PRP-000	Spring b - LOW ACCUMULATOR	Spring b - LOW ACCUMULATOR
11	27572-PRP-000	Piston - SECOND ACCUMULATOR	Piston - SECOND ACCUMULATOR
12	27574-PRP-000	Piston - THIRD ACCUMULATOR	Piston - THIRD ACCUMULATOR
13	27580-PRP-J00	Cover - SERVO ACCUMULATOR	Cover - SERVO ACCUMULATOR
15	27583-PRP-000	Spring - THIRD ACCUMULATOR	Spring - THIRD ACCUMULATOR
17	28400-PRP-004	Solenoid assy. a	Solenoid assy. a
18	28500-PRP-004	Solenoid assy. b	Solenoid assy. b
19	90001-PRP-000	Bolt - FLANGE, 6X30	Bolt - FLANGE, 6X30
20	90433-PRP-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
21	91301-P7Z-004	O-ring - 7.6X1.9 (DENSO)	O-ring - 7.6X1.9 (DENSO)
22	91302-P7Z-004	O-ring - 9.6X1.9 (DENSO)	O-ring - 9.6X1.9 (DENSO)
23	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
24	91331-PC9-003	O-ring	O-ring
25	91331-PL5-J00	O-ring - 20.2X2.4 (NOK)	O-ring - 20.2X2.4 (NOK)
26	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Shift fork (2.0L; 2.4L) 14 / 14

#	OEM	RE5	RE7
1	24111-PRP-000	Fork - REVERSE SHIFT	Fork - REVERSE SHIFT
2	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
3	24410-PPV-000	Shaft comp. - CONTROL	Shaft comp. - CONTROL
4	24634-PRP-060	Spring - DETENT LEVER	Spring - DETENT LEVER
5	25420-RXH-003	Strainer assy - ATF	Strainer assy - ATF
6	25421-RXH-010	Plate - BAFFLE	Plate - BAFFLE
7	54313-SWA-A80	Lever comp - CONTROL	Lever comp - CONTROL
8	54314-SEB-980	Pin - CONTROL WIRE	Pin - CONTROL WIRE
9	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
10	90433-RCL-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
11	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
12	90715-SDA-000	Pin - SNAP, 8MM	Pin - SNAP, 8MM
13	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)
14	91308-PW4-003	O-ring - 21.8X1.9	O-ring - 21.8X1.9

Shift lever (2.0L; 2.4L) 3 / 14

#	OEM	RE5	RE7
13	90302-SJK-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
14	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
16	54340-SWA-A01	Insulator - CONTROL WIRE	Insulator - CONTROL WIRE

Side lining 15 / 18

#	OEM	RE5	RE7
1	39620-SNA-003	Cap assy.	Cap assy.
2	39624-SZ3-L01	Socket assy	Socket assy
4	75353-671-000	Lock - SCREW	Lock - SCREW
6	84524-SWW-003	Strap	Strap
7	84525-SWW-003	Hook	Hook
9	84526-SWW-003	Screw - FLAT, 4X8	Screw - FLAT, 4X8
10	84527-SWW-003	Screw - 4X8	Screw - 4X8
14	84614-SEA-E00	Hook assy - TIE DOWN	Hook assy - TIE DOWN
19	84624-SWA-E01	Band	Band
24	84637-SWA-E01	Belt assy. - FR.	Belt assy. - FR.
25	84638-SWA-E01	Belt assy. - RR.	Belt assy. - RR.
33	84667-S9A-003	Nut - PUSH	Nut - PUSH
40	91505-SL0-003	Clip - COWL TOP	Clip - COWL TOP
43	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
44	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)

Side sill garnish/ protector 32 / 32

#	OEM	RE5	RE7
1	71704-SL3-000	Seal - GASKET	Seal - GASKET
2	71800-SWW-G02	Garnish assy - R. SIDE SILL	Garnish assy - R. SIDE SILL
3	71850-SWW-G02	Garnish assy - L. SIDE SILL	Garnish assy - L. SIDE SILL
4	74115-SWW-G00	Protector - R. FR. WHEEL ARCH	Protector - R. FR. WHEEL ARCH
5	74118-SWA-000	Spacer set	Spacer set
6	74165-SWW-G00	Protector - L. FR. WHEEL ARCH	Protector - L. FR. WHEEL ARCH
7	74410-SWW-G01	Protector - R. RR. WHEEL ARCH	Protector - R. RR. WHEEL ARCH
8	74450-SWW-G01	Protector - L. RR. WHEEL ARCH	Protector - L. RR. WHEEL ARCH
9	74475-SWA-A00	Strake - R. RR.	Strake - R. RR.
10	74485-SWA-A00	Strake - L. RR.	Strake - L. RR.
11	75312-SWW-E01	Garnish assy - R. FR. DOOR LOWER	Garnish assy - R. FR. DOOR LOWER
12	75313-SWW-E01	Garnish assy - R. RR. DOOR LOWER	Garnish assy - R. RR. DOOR LOWER
13	75315-S9A-004	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
14	75316-S9A-004	Clip - DOOR LOWER GARNISH	Clip - DOOR LOWER GARNISH
15	75332-SWW-E01	Garnish assy - L. FR. DOOR LOWER	Garnish assy - L. FR. DOOR LOWER
16	75333-SWW-E01	Garnish assy - L. RR. DOOR LOWER	Garnish assy - L. RR. DOOR LOWER
17	75800-SWW-E00	Mudguard - R. FR.	Mudguard - R. FR.
18	75810-SWW-E00	Mudguard - L. FR.	Mudguard - L. FR.
19	75820-SWW-E00	Mudguard - R. RR.	Mudguard - R. RR.
20	75830-SWW-E00	Mudguard - L. RR.	Mudguard - L. RR.
21	90114-SAA-G01	Screw - TAPPING, 5X17	Screw - TAPPING, 5X17
22	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
23	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
24	90304-SE3-000	Nut - CLIP, 5MM	Nut - CLIP, 5MM
25	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
26	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
27	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
28	91503-SZ3-003	Clip A	Clip A
29	91504-SP1-003	Clip - FR. FENDER LOWER	Clip - FR. FENDER LOWER
30	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
31	91513-SMG-E01	Clip - RR. WHEEL ARCH GARNISH	Clip - RR. WHEEL ARCH GARNISH
32	91513-SMG-E11	Clip - FR. WHEEL ARCH GARNISH	Clip - FR. WHEEL ARCH GARNISH

Solenoid (2.0L; 2.4L) 16 / 16

#	OEM	RE5	RE7
1	21511-RCL-000	Stay a - HARNESS	Stay a - HARNESS
2	22749-PW4-000	Pipe - 35MM	Pipe - 35MM
3	22760-PPW-000	Pipe comp - JOINT	Pipe comp - JOINT
4	28250-RPC-003	Solenoid assy. a - LINEAR	Solenoid assy. a - LINEAR
5	28252-RPC-000	Packing a - LINEAR SOLENOID	Packing a - LINEAR SOLENOID
6	28260-PRP-014	SOLENOID ASSY. B, LINEAR	SOLENOID ASSY. B, LINEAR
7	28262-PRP-000	Packing b - LINEAR SOLENOID	Packing b - LINEAR SOLENOID
8	28360-PRP-003	Harness - SOLENOID WIRE	Harness - SOLENOID WIRE
9	28600-RCL-003	Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN)	Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN)
9	28600-RCL-004	SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA)	SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA)
11	28810-RZH-004	Pick up assy.	Pick up assy.
13	28820-RWE-003	Pick up assy. - MATSUSHITA	Pick up assy. - MATSUSHITA
14	90471-PW7-A00	PACKING, 10MM	PACKING, 10MM
15	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
16	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
17	91329-PRP-003	O-ring - 23.3X2.4	O-ring - 23.3X2.4

Speaker 3 / 3

#	OEM	RE5	RE7
2	39120-SMG-E02	Speaker assy - 17CM SINGLE)(ND) (PP	Speaker assy - 17CM SINGLE)(ND) (PP
9	90109-SLJ-003	Screw - 5X40	Screw - 5X40
10	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER

Spool valve (2.0L) 5 / 18

#	OEM	RE5	RE7
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
16	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
17	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5
18	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Srs unit (LH) 12 / 12

#	OEM	RE5	RE7
2	77900-SNA-U31	Reel assy - CABLE (FURUKAWA)	Reel assy - CABLE (FURUKAWA)
4	77930-SWA-E11	Sensor assy - FR. CRASH	Sensor assy - FR. CRASH
5	77960-SWA-G22	Srs unit	Srs unit
6	77970-SWA-E11	Sensor assy - SIDE IMPACT	Sensor assy - SIDE IMPACT
7	78870-SWA-E80	Module assy. - R. SIDE CURTAIN AIRBAG	Module assy. - R. SIDE CURTAIN AIRBAG
8	78875-SWA-E80	Module assy. - L. SIDE CURTAIN AIRBAG	Module assy. - L. SIDE CURTAIN AIRBAG
9	83241-SWA-A30	Bracket comp. - FR. GRAB RAIL	Bracket comp. - FR. GRAB RAIL
10	83242-SWA-A30	Bracket comp. - RR. GRAB RAIL	Bracket comp. - RR. GRAB RAIL
11	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
12	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
13	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
14	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)

Steering column 6 / 7

#	OEM	RE5	RE7
2	53320-STK-G01	Cover - STEERING JOINT	Cover - STEERING JOINT
4	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
5	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 8 / 9

#	OEM	RE5	RE7
1	35871-SYP-J01	Case	Case
2	35875-SWA-G01	Switch assy - MULTI INFORMATION	Switch assy - MULTI INFORMATION
13	78517-SWA-N81	Set plate - R.	Set plate - R.
17	78525-STK-A81	Guide - CORD	Guide - CORD
20	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
21	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE
22	90173-SL4-003	Screw-washer - 4X12	Screw-washer - 4X12
23	90178-SNB-N61	Screw - TAPPING, 3X8(PO)	Screw - TAPPING, 3X8(PO)

Switch (LH) 5 / 11

#	OEM	RE5	RE7
8	35510-SWA-J01	Switch assy - HAZARD	Switch assy - HAZARD
9	35600-SNB-003	Switch assy - R. HEATED SEAT	Switch assy - R. HEATED SEAT
10	35650-SNB-003	Switch assy - L. HEATED SEAT	Switch assy - L. HEATED SEAT
18	35910-S04-G01	Switch assy - INERTIA	Switch assy - INERTIA
22	91902-SWA-003	Plaster - WIRE HARNESS	Plaster - WIRE HARNESS

Tailgate 24 / 24

#	OEM	RE5	RE7
4	74440-SWW-E01	Weatherstrip - TAILGATE	Weatherstrip - TAILGATE
5	74800-SMG-G01	Lock assy - TAILGATE	Lock assy - TAILGATE
6	74810-SWA-A01	Switch assy - TAILGATE OPENER	Switch assy - TAILGATE OPENER
7	74813-SFE-003	Striker assy - TAILGATE	Striker assy - TAILGATE
8	74820-SWA-A01	Stay assy - R. TAILGATE OPEN	Stay assy - R. TAILGATE OPEN
9	74827-SWA-A10	Stopper - TAILGATE	Stopper - TAILGATE
10	74836-SWA-A00	Garnish assy - R. TAILGATE UPPER	Garnish assy - R. TAILGATE UPPER
11	74870-SWA-A01	Stay assy - L. TAILGATE OPEN	Stay assy - L. TAILGATE OPEN
12	74886-SWA-A00	Garnish assy - L. TAILGATE UPPER	Garnish assy - L. TAILGATE UPPER
14	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
15	90101-SLJ-003	Bolt - FLANGE, 8X18	Bolt - FLANGE, 8X18
16	90105-S10-000	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
17	90107-SMG-E02	Bolt - TAILGATE LOCK	Bolt - TAILGATE LOCK
18	90109-SWA-A00	Stud - BALL	Stud - BALL
19	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
20	90303-SWA-A00	Bolt - GARNISH, 6MM	Bolt - GARNISH, 6MM
21	90308-SMG-E01	Nut - GARNISH (M5)	Nut - GARNISH (M5)
22	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
23	90661-SC7-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
24	90856-S6M-003	Plug - TAILGATE DRAIN	Plug - TAILGATE DRAIN
25	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH
26	91513-SJK-003	Clip - TAILGATE GARNISH	Clip - TAILGATE GARNISH
27	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)
28	91612-SWW-003	Plug - HOLE, 30X40	Plug - HOLE, 30X40

Tailgate lining 4 / 4

#	OEM	RE5	RE7
25	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
26	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
27	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
28	91562-S0X-A01	Clip - ROOF LINING (BLACK)	Clip - ROOF LINING (BLACK)

Tailgate spoiler primed 1 / 1

#	OEM	RE5	RE7
3	90307-S03-000	Nut - SPOILER CAP, 6MM	Nut - SPOILER CAP, 6MM

Taillight/license light 27 / 27

#	OEM	RE5	RE7
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33301-S04-004	Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)	Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)
4	34903-SN7-G00	Bulb - 12V 21W	Bulb - 12V 21W
5	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
7	33501-SWW-G01	Lamp unit - R. TAIL	Lamp unit - R. TAIL
8	33502-SWW-G02	Socket comp. - 1	Socket comp. - 1
9	33502-SWW-E02	Socket comp. - 2	Socket comp. - 2
10	33506-SWA-A01	Cap - BEZEL	Cap - BEZEL
11	33513-S50-003	Socket - T20W S2	Socket - T20W S2
12	33551-SWW-G01	Lamp unit - L. TAIL	Lamp unit - L. TAIL
13	34101-S60-013	Lens	Lens
14	34102-S60-003	Housing comp	Housing comp
15	34103-S60-003	Gasket	Gasket
16	34271-SWA-G01	Lamp unit	Lamp unit
18	34906-SN7-G00	Bulb - 12V 21W/5W	Bulb - 12V 21W/5W
19	74890-SWW-E01	Garnish assy - RR. LICENSE	Garnish assy - RR. LICENSE
20	74895-S5A-000	Bolt - SPECIAL, 5MM	Bolt - SPECIAL, 5MM
21	75523-SS0-000	Packing - SEAL	Packing - SEAL
22	75701-SWA-000	Emblem - RR.(H)	Emblem - RR.(H)
23	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
24	90102-STK-A00	Bolt-washer - 5X12	Bolt-washer - 5X12
25	90301-ST0-003	push nut, 3mm	push nut, 3mm
26	90308-SMG-E01	Nut - GARNISH (M5)	Nut - GARNISH (M5)
27	90665-S47-003	Clip	Clip
28	91512-SJK-003	Clip - TAILGATE GARNISH	Clip - TAILGATE GARNISH
29	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
32	34100-S60-013	Light assy - LICENSE	Light assy - LICENSE

Temper wheel kit 9 / 15

#	OEM	RE5	RE7
2	42700-SWA-G51	Disk - WHEEL(17X4T)(RING TECHS)	Disk - WHEEL(17X4T)(RING TECHS)
4	42753-SE0-A02	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
4	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
7	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)	Plate - SPARE TIRE CAUTION (T-TYPE)
8	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
11	84524-SWW-003	Strap	Strap
12	84525-SWW-003	Hook	Hook
13	84526-SWW-003	Screw - FLAT, 4X8	Screw - FLAT, 4X8
14	84527-SWW-003	Screw - 4X8	Screw - 4X8

Throttle body (2.0L) 1 / 5

#	OEM	RE5	RE7
3	37835-PGK-A01	O-ring	O-ring

Tire/wheel disks 53 / 59

#	OEM	RE5	RE7
3	42700-SWA-G51	Disk - WHEEL(17X4T)(RING TECHS)	Disk - WHEEL(17X4T)(RING TECHS)
6	42751-SWA-904	Tire - T155/90D17 101M)(KENDA	Tire - T155/90D17 101M)(KENDA
7	42753-SN8-E00	Valve - RIM	Valve - RIM
7	42753-SE0-A02	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
7	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
7	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
7	42753-SG9-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)
7	42753-SH3-003	Valve - RIM (US PACIFIC)	Valve - RIM (US PACIFIC)
7	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)
9	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)	Plate - SPARE TIRE CAUTION (T-TYPE)
10	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
10	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
10	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
10	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
10	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
10	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
10	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
10	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
10	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
10	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
10	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
10	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
10	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
10	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
11	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
11	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
11	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
11	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
11	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
11	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
11	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
11	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
11	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
11	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
11	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
11	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
11	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
11	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
11	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
11	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
11	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
11	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
11	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
11	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
11	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
11	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
11	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
11	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
11	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
11	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
11	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
15	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
16	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE

Tools/jack 8 / 11

#	OEM	RE5	RE7
3	89000-SWW-E00	Tool set	Tool set
5	89101-SMG-E01	Bag - TOOL	Bag - TOOL
6	89102-538-000	Driver, SCREW(NO.2 + -)	Driver, SCREW(NO.2 + -)
7	89103-538-000	Grip	Grip
8	89211-SCA-E00	Wrench - WHEEL	Wrench - WHEEL
9	89310-SWW-E01	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
10	89311-SWW-E01	Plate - JACK CAUTION	Plate - JACK CAUTION
11	89320-SCA-E00	Bar - JACK	Bar - JACK

Torque converter case (2.0L) 17 / 18

#	OEM	RE5	RE7
1	21101-PRP-000	Plate - BEARING SETTING	Plate - BEARING SETTING
1	21101-RG0-A00	Plate - BEARING SETTING	Plate - BEARING SETTING
3	23225-PRP-020	Plate - OIL GUIDE	Plate - OIL GUIDE
4	23235-PRP-000	Collar - OIL GUIDE	Collar - OIL GUIDE
5	25422-PN6-801	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
6	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
7	90081-PX4-003	Bolt - PLUG, 18MM	Bolt - PLUG, 18MM
8	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
9	90471-PX4-000	Washer - DRAIN PLUG, 18MM	Washer - DRAIN PLUG, 18MM
10	90471-580-000	Packing - 8MM	Packing - 8MM
12	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
13	91001-PRP-004	Bearing - BALL, 40X68X7.5	Bearing - BALL, 40X68X7.5
14	91005-PRP-003	Bearing - BALL, 32X68X9	Bearing - BALL, 32X68X9
15	91102-RXH-003	Bearing - NEEDLE, 36X64X19.9	Bearing - NEEDLE, 36X64X19.9
16	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
17	91207-P7Z-003	Oil seal - 44X68X8 (NOK)	Oil seal - 44X68X8 (NOK)
18	91301-PRP-003	O-ring - 31.7X1.95 (NOK)	O-ring - 31.7X1.95 (NOK)

Transfer (2.0L; 2.4L) 93 / 153

#	OEM	RE5	RE7
1	21411-RZK-000	Holder - TRANSFER	Holder - TRANSFER
2	29000-RZK-000	Transfer assy	Transfer assy
3	29102-RXH-000	Shaft - TRANSFER	Shaft - TRANSFER
4	29210-RXH-000	Gear set - TRANSFER HYPOID	Gear set - TRANSFER HYPOID
5	29360-RXH-000	Collar - TRANSFER	Collar - TRANSFER
7	29361-PH8-000	Washer - SPRING, 22MM	Washer - SPRING, 22MM
8	29424-P1C-000	Shim - 25MM(2.09)	Shim - 25MM(2.09)
8	29419-P1C-000	Shim - 25MM(1.94)	Shim - 25MM(1.94)
8	29414-P1C-000	Shim - 25MM(1.79)	Shim - 25MM(1.79)
8	29426-P1C-000	Shim - 25MM(2.15)	Shim - 25MM(2.15)
8	29421-P1C-000	Shim - 25MM(2.00)	Shim - 25MM(2.00)
8	29416-P1C-000	Shim - 25MM(1.85)	Shim - 25MM(1.85)
8	29411-P1C-000	Shim - 25MM(1.70)	Shim - 25MM(1.70)
8	29428-P1C-000	Shim - 25MM(2.21)	Shim - 25MM(2.21)
8	29423-P1C-000	Shim - 25MM(2.06)	Shim - 25MM(2.06)
8	29418-P1C-000	Shim - 25MM(1.91)	Shim - 25MM(1.91)
8	29413-P1C-000	Shim - 25MM(1.76)	Shim - 25MM(1.76)
8	29425-P1C-000	Shim - 25MM(2.12)	Shim - 25MM(2.12)
8	29420-P1C-000	Shim - 25MM(1.97)	Shim - 25MM(1.97)
8	29415-P1C-000	Shim - 25MM(1.82)	Shim - 25MM(1.82)
8	29427-P1C-000	Shim - 25MM(2.18)	Shim - 25MM(2.18)
8	29422-P1C-000	Shim - 25MM(2.03)	Shim - 25MM(2.03)
8	29417-P1C-000	Shim - 25MM(1.88)	Shim - 25MM(1.88)
8	29412-P1C-000	Shim - 25MM(1.73)	Shim - 25MM(1.73)
8	29429-P1C-000	Shim - 25MM(2.24)	Shim - 25MM(2.24)
8	29611-P4T-010	Flange - COMPANION	Flange - COMPANION
9	41271-RFT-000	Spacer - PINION	Spacer - PINION
11	41373-PS3-000	Shim m - 35MM(1.08)	Shim m - 35MM(1.08)
11	41368-PS3-000	Shim h - 35MM(0.93)	Shim h - 35MM(0.93)
11	41363-PS3-000	Shim c - 35MM(0.78)	Shim c - 35MM(0.78)
11	41374-PS3-000	Shim n - 35MM(1.11)	Shim n - 35MM(1.11)
11	41369-PS3-000	Shim i - 35MM(0.96)	Shim i - 35MM(0.96)
11	41364-PS3-000	Shim d - 35MM(0.81)	Shim d - 35MM(0.81)
11	41370-PS3-000	Shim j - 35MM(0.99)	Shim j - 35MM(0.99)
11	41365-PS3-000	Shim e - 35MM(0.84)	Shim e - 35MM(0.84)
11	41371-PS3-000	Shim k - 35MM(1.02)	Shim k - 35MM(1.02)
11	41366-PS3-000	Shim f - 35MM(0.87)	Shim f - 35MM(0.87)
11	41361-PS3-000	Shim a - 35MM(0.72)	Shim a - 35MM(0.72)
11	41372-PS3-000	Shim l - 35MM(1.05)	Shim l - 35MM(1.05)
11	41367-PS3-000	Shim g - 35MM(0.90)	Shim g - 35MM(0.90)
11	41362-PS3-000	Shim b - 35MM(0.75)	Shim b - 35MM(0.75)
11	41426-PW8-010	Shim z - 75MM (2.39)	Shim z - 75MM (2.39)
11	41405-PW8-010	Shim e - 75MM (1.76)	Shim e - 75MM (1.76)
11	41421-PW8-010	Shim u - 75MM (2.24)	Shim u - 75MM (2.24)
11	41403-PGV-000	Shim ac - 75MM (1.58)	Shim ac - 75MM (1.58)
11	41418-PW8-010	Shim r - 75MM (2.15)	Shim r - 75MM (2.15)
11	41414-PGV-000	Shim zi - 75MM (2.66)	Shim zi - 75MM (2.66)
11	41411-PW8-010	Shim k - 75MM (1.94)	Shim k - 75MM (1.94)
11	41409-PGV-000	Shim zd - 75MM (2.51)	Shim zd - 75MM (2.51)
11	41406-PW8-010	Shim f - 75MM (1.79)	Shim f - 75MM (1.79)
11	41423-PW8-010	Shim w - 75MM (2.30)	Shim w - 75MM (2.30)
11	41404-PGV-000	Shim ad - 75MM (1.61)	Shim ad - 75MM (1.61)
11	41401-PGV-000	Shim aa - 75MM (1.52)	Shim aa - 75MM (1.52)
11	41415-PW8-010	Shim o - 75MM (2.06)	Shim o - 75MM (2.06)
11	41412-PW8-010	Shim l - 75MM (1.97)	Shim l - 75MM (1.97)
11	41410-PGV-000	Shim ze - 75MM (2.54)	Shim ze - 75MM (2.54)
11	41407-PW8-010	Shim g - 75MM (1.82)	Shim g - 75MM (1.82)
11	41425-PW8-010	Shim y - 75MM (2.36)	Shim y - 75MM (2.36)
11	41405-PGV-000	Shim ae - 75MM (1.64)	Shim ae - 75MM (1.64)
11	41420-PW8-010	Shim t - 75MM (2.21)	Shim t - 75MM (2.21)
11	41402-PW8-010	Shim b - 75MM (1.67)	Shim b - 75MM (1.67)
11	41417-PW8-010	Shim q - 75MM (2.12)	Shim q - 75MM (2.12)
11	41413-PW8-010	Shim m - 75MM (2.00)	Shim m - 75MM (2.00)
11	41411-PGV-000	Shim zf - 75MM (2.57)	Shim zf - 75MM (2.57)
11	41408-PW8-010	Shim h - 75MM (1.85)	Shim h - 75MM (1.85)
11	41406-PGV-000	Shim za - 75MM (2.42)	Shim za - 75MM (2.42)
11	41422-PW8-010	Shim v - 75MM (2.27)	Shim v - 75MM (2.27)
11	41403-PW8-010	Shim c - 75MM (1.70)	Shim c - 75MM (1.70)
11	41419-PW8-010	Shim s - 75MM (2.18)	Shim s - 75MM (2.18)
11	41414-PW8-010	Shim n - 75MM (2.03)	Shim n - 75MM (2.03)
11	41412-PGV-000	Shim zg - 75MM (2.60)	Shim zg - 75MM (2.60)
11	41409-PW8-010	Shim i - 75MM (1.88)	Shim i - 75MM (1.88)
11	41407-PGV-000	Shim zb - 75MM (2.45)	Shim zb - 75MM (2.45)
11	41424-PW8-010	Shim x - 75MM (2.33)	Shim x - 75MM (2.33)
11	41404-PW8-010	Shim d - 75MM (1.73)	Shim d - 75MM (1.73)
11	41402-PGV-000	Shim ab - 75MM (1.55)	Shim ab - 75MM (1.55)
11	41416-PW8-010	Shim p - 75MM (2.09)	Shim p - 75MM (2.09)
11	41413-PGV-000	Shim zh - 75MM (2.63)	Shim zh - 75MM (2.63)
11	41410-PW8-010	Shim j - 75MM (1.91)	Shim j - 75MM (1.91)
11	41408-PGV-000	Shim zc - 75MM (2.48)	Shim zc - 75MM (2.48)
12	90001-RFL-000	Bolt - FLANGE, 10X135	Bolt - FLANGE, 10X135
13	90201-PH8-000	Nut - HEX., 22MM	Nut - HEX., 22MM
14	91022-PRV-003	Bearing - TAPER, 25X57X16.25	Bearing - TAPER, 25X57X16.25
14	90705-PF4-000	Dowel pin - 14X20	Dowel pin - 14X20
15	91006-RXH-003	Bearing - TAPER, 45X75X20	Bearing - TAPER, 45X75X20
16	91122-PS5-003	Bearing - TAPER, 35X62X21	Bearing - TAPER, 35X62X21
17	91125-PRV-003	Bearing - TAPER, 26.9X50.2X14.2(NTN)	Bearing - TAPER, 26.9X50.2X14.2(NTN)
17	91102-P0Z-003	Bearing - NEEDLE, 38.5X67X21	Bearing - NEEDLE, 38.5X67X21
18	91201-P6R-003	Oil seal - 40X56X9(NOK)	Oil seal - 40X56X9(NOK)
19	91303-P4T-003	O-ring - 23X2.6(NOK)	O-ring - 23X2.6(NOK)
21	91304-P4T-003	Ring - BACK UP, 23MM	Ring - BACK UP, 23MM
21	91301-PH8-005	O-ring - 74.5X2.5 (NOK)	O-ring - 74.5X2.5 (NOK)
24	91304-RKJ-003	O-ring - 102X2.2	O-ring - 102X2.2

Transmission case (2.0L; 2.4L) 18 / 92

#	OEM	RE5	RE7
1	21210-RXH-020	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
2	21231-RCL-000	Hanger - TRANSMISSION	Hanger - TRANSMISSION
3	21396-PX5-000	Cap - BREATHER	Cap - BREATHER
4	21399-RXH-020	Plate - BREATHER	Plate - BREATHER
7	21514-RCL-A01	Stay d - HARNESS	Stay d - HARNESS
8	21811-RXH-000	Packing - TORQUE CONVERTER CASE	Packing - TORQUE CONVERTER CASE
9	28450-RCL-000	Cover - SOLENOID	Cover - SOLENOID
10	28451-PRP-010	Packing - SOLENOID COVER	Packing - SOLENOID COVER
14	90609-PX4-000	Ring - SNAP, 80MM	Ring - SNAP, 80MM
15	90613-PRP-000	Ring - SNAP, 48MM	Ring - SNAP, 48MM
16	90614-PRP-000	Ring - SNAP, 55MM	Ring - SNAP, 55MM
17	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
17	90615-P0Z-000	Ring - SNAP, 82MM	Ring - SNAP, 82MM
18	91002-RCR-026	Bearing - BALL, 27X82X18.5	Bearing - BALL, 27X82X18.5
19	91003-RFK-025	Bearing - BALL, 31X80X16.5	Bearing - BALL, 31X80X16.5
20	91004-RFK-016	Bearing - BALL, 26.8X55X14.5	Bearing - BALL, 26.8X55X14.5
21	91006-PRP-026	Bearing - BALL, 20X48X24	Bearing - BALL, 20X48X24
22	91205-P0X-005	Oil seal - 40X56X9 (NOK)	Oil seal - 40X56X9 (NOK)

Under cover 4 / 7

#	OEM	RE5	RE7
7	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
8	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
9	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
10	91503-SZ3-003	Clip A	Clip A

Valve/rocker arm (2.0L) 2 / 11

#	OEM	RE5	RE7
9	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
11	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose (2.0L) 5 / 16

#	OEM	RE5	RE7
5	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
8	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
9	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
10	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
10	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water pump (2.0L) 2 / 24

#	OEM	RE5	RE7
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
22	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)

Wheel disk al 19x 1 / 1

#	OEM	RE5	RE7
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

Windshield washer 26 / 27

#	OEM	RE5	RE7
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
3	76802-SJD-003	Cap unit - MOUTH	Cap unit - MOUTH
4	76805-SWA-003	Hose	Hose
5	76846-TF0-003	Pump set - WASHER	Pump set - WASHER
6	76809-SWA-003	Packing	Packing
7	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)	Valve - ONE WAY (RR.) (MITSUBA)
8	76821-SWA-003	Tube - CORRUGATE	Tube - CORRUGATE
9	76825-SH3-003	Tube a - RR. WASHER	Tube a - RR. WASHER
10	76826-SWA-003	Tube sub assy.	Tube sub assy.
11	76874-SWA-003	Tube - 940MM	Tube - 940MM
12	76864-TL0-G01	Tube - 1280MM	Tube - 1280MM
13	76839-SWA-003	Tube - 3040MM	Tube - 3040MM
15	76842-S2K-J11	Bush - WASHER TANK	Bush - WASHER TANK
16	76851-S30-003	Grommet - WASHER TUBE	Grommet - WASHER TUBE
17	76867-SWA-003	Tube - 80MM	Tube - 80MM
18	76868-SWA-003	Tube - 560MM	Tube - 560MM
19	76870-SYA-003	Tube - 140MM	Tube - 140MM
20	76872-SWA-003	Tube - 220MM	Tube - 220MM
21	76873-SWA-003	Tube - 1200MM	Tube - 1200MM
22	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
23	91501-SJ6-003	Clip - WASHER TUBE	Clip - WASHER TUBE
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
26	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
27	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Wire harness (LH; 1) 3 / 7

#	OEM	RE5	RE7
4	32610-SWA-010	Cable - SUB EARTH	Cable - SUB EARTH
6	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
7	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (LH; 2) 1 / 7

#	OEM	RE5	RE7
9	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (LH; 3) 3 / 4

#	OEM	RE5	RE7
2	32107-SWA-G01	Harness - CENTER FLOOR WIRE	Harness - CENTER FLOOR WIRE
3	32109-SWA-G01	Cord - TAILGATE	Cord - TAILGATE
4	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (LH; 4) 2 / 5

#	OEM	RE5	RE7
4	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
5	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
