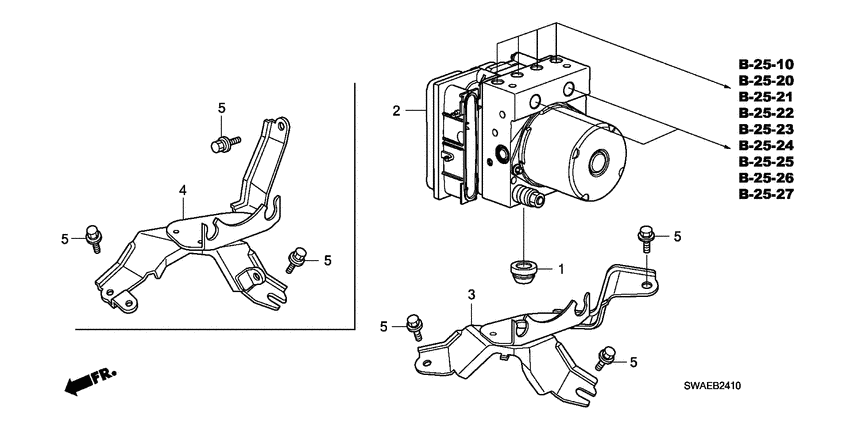

Abs/vsa modulator 1 / 3

#	OEM	RE4	RE5
1	57101-STK-A01	Rubber - DAMPER	Rubber - DAMPER

Air cleaner (2.4L) 8 / 21

#	OEM	RE4	RE5
3	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
6	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
19	75353-671-000	Lock - SCREW	Lock - SCREW
20	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
21	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE

Air conditioner (COMPRESSOR; 2.4L) 6 / 12

#	OEM	RE4	RE5
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER) 4 / 6

#	OEM	RE4	RE5
2	80107-S2X-000	Mount - CONDENSER UPPER	Mount - CONDENSER UPPER
3	80111-SWA-A01	Bracket - R. CONDENSER UPPER	Bracket - R. CONDENSER UPPER
4	80112-SWA-J00	Bracket - L. CONDENSER UPPER	Bracket - L. CONDENSER UPPER
5	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER

Air conditioner (HOSES/PIPES; LH) 16 / 21

#	OEM	RE4	RE5
1	17713-SE0-003	Clamp - FUEL PIPE	Clamp - FUEL PIPE
2	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
7	80325-SDA-A00	Seal - FLANGE	Seal - FLANGE
9	80361-SWA-A00	Stay - AIR CONDITIONER PIPE	Stay - AIR CONDITIONER PIPE
10	80362-SJA-A00	Clamp - SUCTION HOSE	Clamp - SUCTION HOSE
11	80366-SFA-000	Rubber - MOUNT	Rubber - MOUNT
12	80367-SFA-000	Collar - DISTANCE	Collar - DISTANCE
13	80381-SJA-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
14	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
15	80865-SL0-003	Cap - VALVE (H)	Cap - VALVE (H)
17	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
18	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
19	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
20	90105-SFA-003	Bolt-washer - 6X30	Bolt-washer - 6X30
21	90203-SB0-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
22	91541-SEY-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE

Air conditioner (SENSOR) 3 / 5

#	OEM	RE4	RE5
3	80521-SWA-940	Bracket - AMBIENT SENSOR	Bracket - AMBIENT SENSOR
4	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
5	90661-SWA-A01	Clip	Clip

Alternator (DENSO; 2.4L) 10 / 16

#	OEM	RE4	RE5
2	31101-RTA-003	Rotor assy.	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
15	31147-PT0-003	Screw-washer	Screw-washer
16	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

Antenna (LH) 16 / 17

#	OEM	RE4	RE5
1	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
2	39151-S6A-E02	Element assy. - YOKOO	Element assy. - YOKOO
2	39151-S6A-E03	ELEMENT ASSY YOKOO	ELEMENT ASSY YOKOO
3	39152-SWA-A03	Base comp. - ANTENNA	Base comp. - ANTENNA
4	39153-TA0-A02	Nut assy. - ANTENNA (YOKOO)	Nut assy. - ANTENNA (YOKOO)
5	39156-SWA-A01	Sub feeder assy. - ANTENNA	Sub feeder assy. - ANTENNA
7	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
8	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
9	91533-SWA-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
10	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
11	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
12	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
13	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
14	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
15	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)
16	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)

Audio unit (1) 4 / 10

#	OEM	RE4	RE5
5	77255-SWA-A00	Bracket - R. RADIO	Bracket - R. RADIO
6	77256-SWA-A00	Bracket - L. RADIO	Bracket - L. RADIO
7	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
8	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Auto air conditioner control (LH) 1 / 1

#	OEM	RE4	RE5
7	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Battery 6 / 13

#	OEM	RE4	RE5
7	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)	Holder - CORRUGATED(BLACK) (10MM)
9	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
11	32607-SMJ-E01	Washer - BATTERY TERMINAL	Washer - BATTERY TERMINAL
12	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
13	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)

Brake lines (ABS; LH) 17 / 27

#	OEM	RE4	RE5
1	01464-SWA-000	HOSE SET, R. FR. BRAKE	HOSE SET, R. FR. BRAKE
2	01465-SWA-000	HOSE SET, L. FR. BRAKE	HOSE SET, L. FR. BRAKE
3	01466-SWA-000	Hose set - RR. BRAKE	Hose set - RR. BRAKE
10	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
12	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
13	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
14	46392-SAA-901	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46392-SWA-A00	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
20	46395-STK-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
21	46435-SWA-A00	Bracket - R. RR. BRAKE HOSE	Bracket - R. RR. BRAKE HOSE
22	46436-SWA-A00	Bracket - L. RR. BRAKE HOSE	Bracket - L. RR. BRAKE HOSE
23	46437-SWA-A00	Bracket - RR. BRAKE HOSE	Bracket - RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
27	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 7 / 27

#	OEM	RE4	RE5
10	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
12	46407-SWA-A00	Stay - MASTER POWER TUBE	Stay - MASTER POWER TUBE
13	46407-S84-A01	Clamp - TUBE	Clamp - TUBE
14	46512-S70-000	Pin - PEDAL	Pin - PEDAL
21	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
22	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
32	46407-SWA-003	Clamp - MASTER POWER TUBE	Clamp - MASTER POWER TUBE

Breather pipe (2.4L) 2 / 9

#	OEM	RE4	RE5
8	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
8	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Bumpers ('10) 25 / 29

#	OEM	RE4	RE5
3	33505-SWA-J01	Reflector assy - R. RR.	Reflector assy - R. RR.
4	33555-SWA-J01	Reflector assy - L. RR.	Reflector assy - L. RR.
6	71103-SWA-000	Garnish - R. FR. SIDE	Garnish - R. FR. SIDE
9	71108-SWA-000	Garnish - L. FR. SIDE	Garnish - L. FR. SIDE
12	71140-SWA-000	Beam - R. FR. BUMPER UPPER	Beam - R. FR. BUMPER UPPER
15	71145-SWA-G00	Base - FR. LICENSE PLATE	Base - FR. LICENSE PLATE
17	71146-SWA-010	Beam - FR. BUMPER CENTER UPPER	Beam - FR. BUMPER CENTER UPPER
19	71148-SG9-600	Nut	Nut
20	71148-SWA-000	Support - FR. CENTER UPPER BEAM	Support - FR. CENTER UPPER BEAM
21	71190-SWA-000	Beam - L. FR. BUMPER UPPER	Beam - L. FR. BUMPER UPPER
22	71193-SWA-003	Spacer - R. FR. BUMPER SIDE	Spacer - R. FR. BUMPER SIDE
23	71198-SWA-003	Spacer - L. FR. BUMPER SIDE	Spacer - L. FR. BUMPER SIDE
26	71593-SWA-A01	Spacer - R. RR. BUMPER SIDE	Spacer - R. RR. BUMPER SIDE
27	71598-SWA-A01	Spacer - L. RR. BUMPER SIDE	Spacer - L. RR. BUMPER SIDE
28	90107-S9V-A01	Bolt - RR. BUMPER STOPPER	Bolt - RR. BUMPER STOPPER
29	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
30	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
31	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
33	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
34	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
35	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
36	90601-SWA-000	Clip - SNAP FIT	Clip - SNAP FIT
37	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
38	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
39	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Camshaft/cam chain (2.4L) 3 / 18

#	OEM	RE4	RE5
10	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
14	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
17	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Canister (1) 19 / 19

#	OEM	RE4	RE5
1	17300-SNA-023	Canister assy	Canister assy
1	17300-SNA-013	Canister assy	Canister assy
2	17358-SWA-000	Bracket - CANISTER	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY	Valve - TWO WAY
4	17579-SWA-000	Plate - BAFFLE CANISTER	Plate - BAFFLE CANISTER
5	17714-SWA-000	Tube assy. b - FUEL VENT	Tube assy. b - FUEL VENT
6	17724-SNA-000	Tube - FUEL VENT	Tube - FUEL VENT
7	17740-SWA-000	Tube a - DRAIN	Tube a - DRAIN
8	17741-SWA-000	Tube assy. a - DRAIN	Tube assy. a - DRAIN
9	17742-SDA-A02	Joint - DRAIN TUBE	Joint - DRAIN TUBE
10	17742-SWA-003	Joint - DRAIN TUBE	Joint - DRAIN TUBE
11	17743-SWA-A00	Tube b - DRAIN	Tube b - DRAIN
12	17745-SWA-000	Tube c - DRAIN	Tube c - DRAIN
13	17749-SWA-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
14	38166-P1A-003	Joint - TWO WAY, 5MM	Joint - TWO WAY, 5MM
15	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
16	91591-SJF-003	Clamp - VENT TUBE (NATURAL)	Clamp - VENT TUBE (NATURAL)
17	91595-SCV-A01	Clip - DRAIN TUBE	Clip - DRAIN TUBE
22	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)

Center console (1) 11 / 14

#	OEM	RE4	RE5
2	39620-SNA-003	Cap assy.	Cap assy.
3	39624-SZ3-L01	Socket assy	Socket assy
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
8	83417-SWA-J01	Lid - MAINTENANCE	Lid - MAINTENANCE
9	83418-SWA-J01	Clip - BOX	Clip - BOX
10	83419-SWA-J01	Bracket - BOX	Bracket - BOX
11	83421-SWA-U00	Bracket comp. - CENTER CONSOLE (RR.)	Bracket comp. - CENTER CONSOLE (RR.)
12	83423-SWA-000	Bracket - CENTER CONSOLE RR.	Bracket - CENTER CONSOLE RR.
14	83432-SWA-J01	Mat - BOX CONSOLE	Mat - BOX CONSOLE
22	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
23	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Chain case (2.4L) 5 / 9

#	OEM	RE4	RE5
4	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
5	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
6	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)
6	91212-RNA-A01	Oil seal - 43X58X7(ARAI)	Oil seal - 43X58X7(ARAI)
8	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Clutch case (2.4L) 10 / 11

#	OEM	RE4	RE5
2	21101-PPP-000	Plate - NEEDLE SET	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
5	21212-RZF-000	Plate - BAFFLE	Plate - BAFFLE
6	28700-PWL-013	Switch assy - BACK LIGHT (U-SHIN)(BLACK)	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
7	90705-PG2-000	Dowel pin - 14X20	Dowel pin - 14X20
8	91001-PPP-005	Bearing - BALL, 28X64X15	Bearing - BALL, 28X64X15
9	91003-RZF-003	Bearing - NEEDLE, 33X68X20	Bearing - NEEDLE, 33X68X20
10	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
11	91216-PG1-005	Oil seal - 28X43X7 (NOK)	Oil seal - 28X43X7 (NOK)

Clutch master cylinder (LH) 32 / 36

#	OEM	RE4	RE5
1	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke	Yoke
4	46182-500-013	Circlip	Circlip
5	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
6	46394-S04-003	Clip A	Clip A
7	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
8	46912-S84-A00	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
10	46921-SMG-X01	Plate - STOPPER	Plate - STOPPER
11	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER	Piston comp - CLUTCH MASTER CYLINDER
13	46931-S5A-003	Pin - SPRING	Pin - SPRING
14	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
15	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
16	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
17	46942-S5A-003	Pin - SNAP	Pin - SNAP
18	46943-S5A-003	Seal - RING	Seal - RING
19	46947-SMG-E41	Rod - PUSH	Rod - PUSH
20	46948-S5A-003	Rod - PUSH	Rod - PUSH
21	46949-S5A-003	Seal - RING	Seal - RING
22	46961-SWA-G01	Hose - CLUTCH	Hose - CLUTCH
23	46962-SWA-G02	Pipe assy. a - CLUTCH	Pipe assy. a - CLUTCH
24	46965-S5A-013	Tank assy. - CLUTCH FLUID	Tank assy. - CLUTCH FLUID
25	46968-SEF-E01	Bracket b - CLUTCH PIPE	Bracket b - CLUTCH PIPE
27	46971-SWA-G02	Tube - CLUTCH FLUID	Tube - CLUTCH FLUID
29	46976-SWA-G00	Clip - CLUTCH TUBE	Clip - CLUTCH TUBE
30	46980-SWA-G01	Pipe comp. c - CLUTCH	Pipe comp. c - CLUTCH
31	46985-SMJ-E01	Damper comp - CLUTCH	Damper comp - CLUTCH
32	46986-SWA-G01	Bracket - DAMPER	Bracket - DAMPER
34	90106-S7A-E00	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
35	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
36	91594-SM4-013	Clamp - FUEL TUBE	Clamp - FUEL TUBE
42	06469-SMG-G01	Stopper set - RETAINING CLIP	Stopper set - RETAINING CLIP

Clutch release (2.4L) 5 / 5

#	OEM	RE4	RE5
1	22810-RPN-003	Bearing, CLUTCH RELEASE	Bearing, CLUTCH RELEASE
2	22821-PPP-000	Fork, CLUTCH RELEASE	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK	Boot - RELEASE FORK

Clutch/torque converter 4 / 8

#	OEM	RE4	RE5
6	22200-RZA-005	Disk comp - FRICTION	Disk comp - FRICTION
6	22200-R6V-005	DISK COMPFRICTIO	DISK COMPFRICTIO
10	90011-PNA-B00	Bolt - 12MM	Bolt - 12MM
12	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch (LH) 10 / 23

#	OEM	RE4	RE5
3	06351-SWA-901	Lock assy - STEERING	Lock assy - STEERING
4	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
5	35103-S04-003	Screw - RECESSED	Screw - RECESSED
6	35108-S30-003	Holder - COLUMN	Holder - COLUMN
9	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
15	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
18	35256-SWA-A02	Switch assy - WIPER	Switch assy - WIPER
21	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
23	72148-S0A-000	Battery CR1616	Battery CR1616
24	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18

Console 5 / 5

#	OEM	RE4	RE5
1	39610-SAA-003	Knob assy	Knob assy
2	39620-SAA-G01	Housing assy.	Housing assy.
5	39625-SAA-G01	Ring - MOUNTING	Ring - MOUNTING
6	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
12	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Control unit (CABIN; 1; LH) 7 / 9

#	OEM	RE4	RE5
2	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
3	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
4	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
5	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
6	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
10	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
15	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25

Control unit (CABIN; 2) 2 / 4

#	OEM	RE4	RE5
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1) 28 / 29

#	OEM	RE4	RE5
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
2	32411-SWA-000	Bracket - STARTER CABLE	Bracket - STARTER CABLE
4	37821-RZA-000	Bracket comp. - ENGINE CONTROL MODULE	Bracket comp. - ENGINE CONTROL MODULE
6	37822-RZA-000	Sub bracket comp. - ENGINE CONTROL MODULE	Sub bracket comp. - ENGINE CONTROL MODULE
7	37823-RZA-000	Cover - ENGINE CONTROL MODULE	Cover - ENGINE CONTROL MODULE
8	38100-SWA-A02	Horn assy - LOW	Horn assy - LOW
9	38150-SWA-A02	Horn assy - HIGH	Horn assy - HIGH
11	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
12	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
13	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
14	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
15	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
16	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
17	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
18	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
19	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
20	38231-SNA-A11	Fuse a - MULTI BLOCK (80A/50A)	Fuse a - MULTI BLOCK (80A/50A)
21	38232-SDA-A01	Fuse b - MULTI BLOCK (40A/50A)	Fuse b - MULTI BLOCK (40A/50A)
22	38232-SMG-E01	Fuse b - MULTI BLOCK(40A/20A)	Fuse b - MULTI BLOCK(40A/20A)
23	38235-TA0-A01	Puller - FUSE	Puller - FUSE
24	38250-SWA-013	Box assy - RELAY	Box assy - RELAY
26	38256-SWA-003	Cover - RELAY BOX	Cover - RELAY BOX
27	38257-SNA-A02	Cover - LOWER	Cover - LOWER
28	38258-SWA-000	Bracket - RR. RELAY BOX & HOLDER TANK	Bracket - RR. RELAY BOX & HOLDER TANK
30	90106-SDA-A00	Bolt-washer - 6X25	Bolt-washer - 6X25
31	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
32	90129-SX8-003	Screw-washer - 5X12	Screw-washer - 5X12
33	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Control unit (ENGINE ROOM; 2) 5 / 6

#	OEM	RE4	RE5
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
6	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
6	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
8	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
10	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Countershaft 44 / 44

#	OEM	RE4	RE5
1	23221-RZF-000	Countershaft	Countershaft
2	23421-RZF-000	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
3	23431-PPT-000	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
4	23461-RAR-000	Gear - COUNTERSHAFT FIFTH	Gear - COUNTERSHAFT FIFTH
5	23471-PPP-000	Gear - COUNTERSHAFT THIRD	Gear - COUNTERSHAFT THIRD
6	23481-RAR-000	Gear - COUNTERSHAFT FOURTH	Gear - COUNTERSHAFT FOURTH
7	23491-RAS-000	Gear - COUNTERSHAFT SIXTH	Gear - COUNTERSHAFT SIXTH
8	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)	Sleeve set - SYNCHRONIZER (1-2)
9	23914-RZF-000	Collar - DISTANCE, 40X47X27.5	Collar - DISTANCE, 40X47X27.5
10	23917-PPP-000	Collar - DISTANCE, 40X47X28	Collar - DISTANCE, 40X47X28
11	23986-PPP-000	Shim f - 35MM (1.27)	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)	Shim af - 35MM (1.31)
11	23984-PPP-000	Shim d - 35MM (1.11)	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)	Shim ah - 35MM (1.47)
12	90011-PPP-000	Bolt - SPECIAL, 20X25	Bolt - SPECIAL, 20X25
13	90601-PPP-000	Ring - SNAP, 72MM	Ring - SNAP, 72MM
14	91004-PPP-014	Bearing - BALL, 30X72X17	Bearing - BALL, 30X72X17
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23	Bearing - NEEDLE, 47X52X23
16	91212-PPP-004	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)

Crankshaft/piston (2.4L) 3 / 40

#	OEM	RE4	RE5
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
15	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
16	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Cylinder block/oil pan (2.4L) 4 / 25

#	OEM	RE4	RE5
13	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
15	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
16	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
17	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22

Cylinder head (2.4L) 1 / 11

#	OEM	RE4	RE5
11	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head cover (2.4L) 1 / 13

#	OEM	RE4	RE5
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Differential (2.4L) 22 / 22

#	OEM	RE4	RE5
1	29011-PPS-000	Gear - TRANSFER DRIVE	Gear - TRANSFER DRIVE
2	41100-RZF-000	Differential comp.	Differential comp.
3	41233-RZF-000	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
4	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
4	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
4	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
4	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
4	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
4	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
4	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
4	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
4	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
4	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
4	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
4	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
4	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
4	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
4	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
4	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
4	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
5	90017-PPS-000	Bolt - SPECIAL, 11MM	Bolt - SPECIAL, 11MM
6	91005-PPS-003	Bearing - BALL, 40X80X18(NTN)	Bearing - BALL, 40X80X18(NTN)

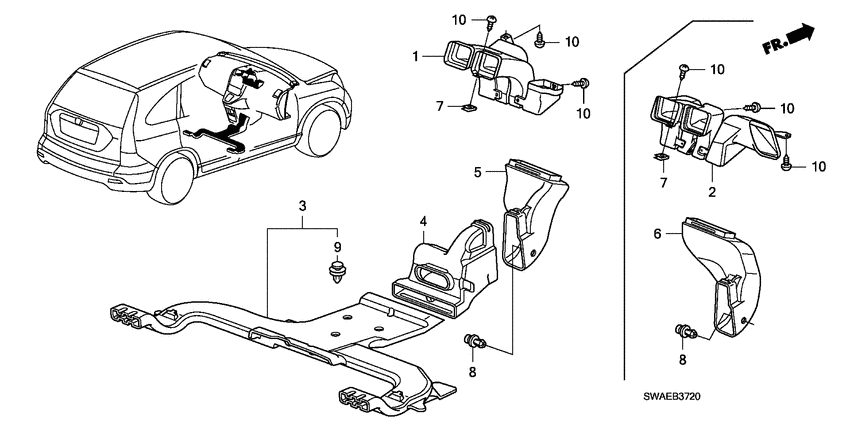

Duct 7 / 7

#	OEM	RE4	RE5
1	77410-SWA-A02	Duct assy - CENTER	Duct assy - CENTER
3	83331-SWA-A01	Duct assy - RR. HEATER	Duct assy - RR. HEATER
4	83332-SWA-A01	Duct assy - RR. HEATER JOINT (A)	Duct assy - RR. HEATER JOINT (A)
5	83333-SWA-A02	Duct - RR. HEATER JOINT(B)	Duct - RR. HEATER JOINT(B)
7	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
8	91550-SS0-003	Clip - SRS COVER	Clip - SRS COVER
9	91560-SLA-003	Clip - GARNISH (SEAL)	Clip - GARNISH (SEAL)

Emblems/caution labels 2 / 5

#	OEM	RE4	RE5
2	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
5	75722-SWA-003	Emblem - RR.(CR-V)	Emblem - RR.(CR-V)

Engine cover (2.4L) 2 / 4

#	OEM	RE4	RE5
3	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
4	90207-RAA-A00	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM

Engine hood (LH) 25 / 33

#	OEM	RE4	RE5
1	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
9	74143-SWA-A00	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
10	74145-SWA-A00	Stay - HOOD OPENER	Stay - HOOD OPENER
12	74148-SWA-A00	Rubber - HOOD CENTER SEAL	Rubber - HOOD CENTER SEAL
15	74212-SWA-A00	Cover - HOOD HINGE DRIVER SIDE	Cover - HOOD HINGE DRIVER SIDE
16	74215-SWA-A00	Lid - L. COWL TOP	Lid - L. COWL TOP
19	74222-SWA-A00	Cover - HOOD HINGE PASSENGER SIDE	Cover - HOOD HINGE PASSENGER SIDE
20	74225-SWA-A00	Lid - R. COWL TOP	Lid - R. COWL TOP
21	74226-SWA-A00	Lid - FRAME NUMBER	Lid - FRAME NUMBER
25	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
26	76832-SWA-003	Tube - 280MM	Tube - 280MM
28	76870-SWA-N01	Tube - 200MM	Tube - 200MM
29	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	90602-SLJ-003	Clip - COWL TOP	Clip - COWL TOP
31	90603-SLJ-003	Clip - COWL TOP	Clip - COWL TOP
32	90672-S5A-003	Holder - ROD	Holder - ROD
33	91501-SEA-003	Clip - FR. COWL	Clip - FR. COWL
34	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
35	91501-SWA-003	Clip - INSULATOR	Clip - INSULATOR
36	91504-SDA-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE
37	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
38	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
39	91535-STK-003	Clip - COUPLER (DARK BLUE)	Clip - COUPLER (DARK BLUE)
40	91604-S5A-003	Grommet - HOOD STAY	Grommet - HOOD STAY
43	74142-SWA-A00	Rubber, HOOD SEAL	Rubber, HOOD SEAL

Engine mounts (2.4L; MT) 10 / 20

#	OEM	RE4	RE5
1	50451-SWA-A00	Mass - SIDE ENGINE MOUNTING	Mass - SIDE ENGINE MOUNTING
2	50625-STK-A00	Stay - SIDE ENGINE MOUNTING	Stay - SIDE ENGINE MOUNTING
7	50880-SWA-A01	Rod - UPPER TORQUE	Rod - UPPER TORQUE
8	50890-SWA-A02	Rod, LOWER TORQUE	Rod, LOWER TORQUE
11	90165-S04-000	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
13	90168-SZ3-000	Bolt - FLANGE, 12X63	Bolt - FLANGE, 12X63
14	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
15	90169-S5A-003	Bolt - FLANGE, 12X87	Bolt - FLANGE, 12X87
16	90186-S2H-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
18	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM

Engine wire harness (2.4L) 10 / 23

#	OEM	RE4	RE5
3	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
11	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
14	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
16	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
17	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
18	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
21	91531-S5B-003	Band - HARNESS (BLACK) (120MM)	Band - HARNESS (BLACK) (120MM)
22	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
24	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Exhaust manifold (2.4L) 1 / 9

#	OEM	RE4	RE5
7	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Exhaust pipe/silencer (2.4L) 10 / 27

#	OEM	RE4	RE5
5	18215-SMG-E11	Rubber - EX. MOUNTING (YAMASHITA)	Rubber - EX. MOUNTING (YAMASHITA)
6	18215-SNA-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
7	18215-SWA-J01	Rubber - EX. MOUNTING (YAMASHITA)	Rubber - EX. MOUNTING (YAMASHITA)
10	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
11	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
12	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
13	18231-SNA-A00	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
14	18231-S10-003	Bolt - FLEXIBLE JOINT	Bolt - FLEXIBLE JOINT
25	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
26	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 8 / 9

#	OEM	RE4	RE5
1	74251-SWA-A00	Insulator - DASHBOARD OUTER	Insulator - DASHBOARD OUTER
3	74255-SWA-A00	Stopper - FOOTREST	Stopper - FOOTREST
22	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
23	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
24	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
25	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
26	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)
27	91641-SH3-013	Grommet assy, GARNISH	Grommet assy, GARNISH

Floor/inner panels 3 / 3

#	OEM	RE4	RE5
9	64322-SWA-A01	Separator - RR. WHEELHOUSE	Separator - RR. WHEELHOUSE
35	90101-SFA-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
36	90101-SWA-A00	Bolt-washer - 8X16	Bolt-washer - 8X16

Front brake 7 / 25

#	OEM	RE4	RE5
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
6	44600-SJK-J00	Hub assy - FR.	Hub assy - FR.
17	90107-S3V-A00	Bolt - CALIPER MOUNT	Bolt - CALIPER MOUNT
18	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
18	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
18	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)

Front bulkhead/dashboard 6 / 11

#	OEM	RE4	RE5
20	60659-SWA-A01	Separator - R. FR. WHEELHOUSE UPPER MEMBER	Separator - R. FR. WHEELHOUSE UPPER MEMBER
26	60759-SWA-A01	Separator - L. FR. WHEELHOUSE UPPER MEMBER	Separator - L. FR. WHEELHOUSE UPPER MEMBER
42	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
45	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
47	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
49	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Front door lining (LH) 10 / 19

#	OEM	RE4	RE5
3	72225-SWA-A00	Bracket assy. a - R. FR. DOOR LINING	Bracket assy. a - R. FR. DOOR LINING
4	72226-SWA-A00	Bracket assy. b - FR. DOOR LINING	Bracket assy. b - FR. DOOR LINING
5	72265-SWA-A00	Bracket assy. a - L. FR. DOOR LINING	Bracket assy. a - L. FR. DOOR LINING
26	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
29	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
30	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
31	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
32	91627-SWA-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
33	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
38	90144-SWA-000	Screw - TAPPING, 4X12(PO)	Screw - TAPPING, 4X12(PO)

Front door locks/ outer handle 14 / 33

#	OEM	RE4	RE5
7	72118-SJK-003	Screw - TAPPING	Screw - TAPPING
10	72130-SWA-A01	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
13	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
13	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
14	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
19	72144-SJD-003	Retainer	Retainer
21	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
27	72170-SWA-A01	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
32	72185-SWA-A01	Cylinder - L. DOOR	Cylinder - L. DOOR
34	74387-S3C-003	Fastener	Fastener
35	90101-SJK-003	Screw - TAPPING (ONE WAY)	Screw - TAPPING (ONE WAY)
37	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
38	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
40	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door panels 13 / 17

#	OEM	RE4	RE5
5	67324-SWA-A01	Tape - R. FR. DOOR SASH	Tape - R. FR. DOOR SASH
6	67364-SWA-A01	Tape - L. FR. DOOR SASH	Tape - L. FR. DOOR SASH
11	72142-SWA-A00	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
14	72321-SWA-A01	Seal - R. FR. DOOR HOLE	Seal - R. FR. DOOR HOLE
16	72340-SWA-A01	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
18	72361-SWA-A01	Seal - L. FR. DOOR HOLE	Seal - L. FR. DOOR HOLE
19	72380-SWA-A01	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
24	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL

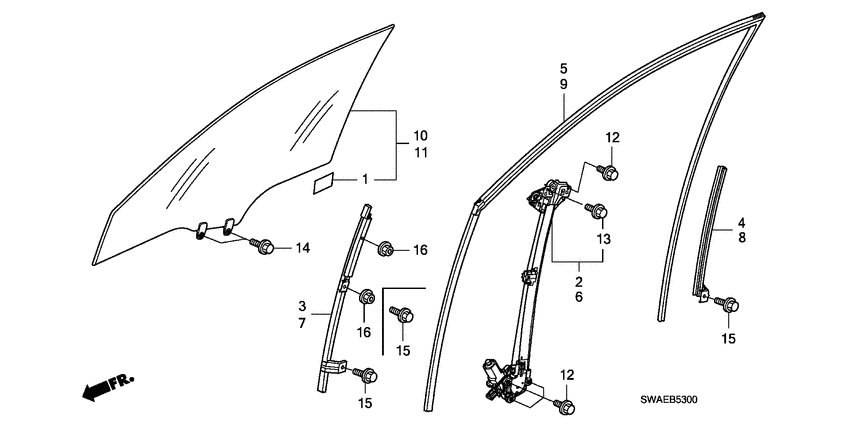

Front door windows/ regulator 2 / 14

#	OEM	RE4	RE5
12	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
13	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Front driveshaft/ half shaft (2.4L) 18 / 27

#	OEM	RE4	RE5
5	44306-SWA-900	Driveshaft assy. L.	Driveshaft assy. L.
6	44310-SWA-305	Joint set - INBOARD	Joint set - INBOARD
6	44310-SWA-306	SETJOINT COMP IN	SETJOINT COMP IN
7	44310-S9A-300	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)	Band - DRIVESHAFT (NIPPON HATSUJO)
14	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
18	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
20	90305-S3V-A11	Nut - SPINDLE	Nut - SPINDLE
21	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
22	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
23	91260-SWA-A01	Seal - HALF SHAFT OUTER	Seal - HALF SHAFT OUTER

Front fenders 11 / 17

#	OEM	RE4	RE5
8	74105-SWA-A10	Enclosure - R. FR. FENDER	Enclosure - R. FR. FENDER
13	74155-SWA-A10	Enclosure - L. FR. FENDER	Enclosure - L. FR. FENDER
17	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
18	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
20	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
21	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
22	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
23	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
27	91617-SLJ-000	Seal - FR. FENDER PANEL	Seal - FR. FENDER PANEL

Front grille ('10) 5 / 14

#	OEM	RE4	RE5
13	74175-SJA-000	Cushion - HOOD	Cushion - HOOD
15	90301-ST0-003	push nut, 3mm	push nut, 3mm
16	91503-SZ3-003	Clip A	Clip A
17	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
18	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front knuckle 15 / 25

#	OEM	RE4	RE5
2	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
4	51211-SWA-A10	Knuckle - R. FR.(ABS)	Knuckle - R. FR.(ABS)
5	51216-SWA-A10	Knuckle - L. FR.(ABS)	Knuckle - L. FR.(ABS)
6	51220-SWA-A01	Joint comp - R. FR. LOWER BALL	Joint comp - R. FR. LOWER BALL
7	51225-SNA-A01	Boot - FR. LOWER BALL DUST	Boot - FR. LOWER BALL DUST
8	51300-SWA-A01	Spring - FR. STABILIZER	Spring - FR. STABILIZER
11	51320-STK-A01	Link comp - FR. STABILIZER	Link comp - FR. STABILIZER
18	90018-SNA-010	Bolt - FLANGE, 12X18	Bolt - FLANGE, 12X18
19	90116-SNA-010	Bolt, FLANGE, 14X94	Bolt, FLANGE, 14X94
20	90118-SNA-000	Bolt - FLANGE, 12X84	Bolt - FLANGE, 12X84
21	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22	90363-S3V-A01	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
23	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)
28	51230-SWA-A01	Joint comp - L. FR. LOWER BALL	Joint comp - L. FR. LOWER BALL

Front seat (L.) 11 / 14

#	OEM	RE4	RE5
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
3	81123-SNA-A01	Screw - 6X18	Screw - 6X18
8	81186-S0X-A01	Pin - FR. ARMREST CENTER	Pin - FR. ARMREST CENTER
9	81187-S0X-A01	Pin - FR. ARMREST	Pin - FR. ARMREST
10	81189-S0X-003	Washer - WAVE	Washer - WAVE
12	81291-SNA-A01	Clip	Clip
14	81383-SHJ-A01	Bush - ARMREST (A)	Bush - ARMREST (A)
35	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
37	90610-S10-003	Clip - GARNISH	Clip - GARNISH
38	90650-KV3-000	Band - WIRE	Band - WIRE
41	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat (L.; POWER SEAT) 11 / 26

#	OEM	RE4	RE5
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
3	81123-SNA-A01	Screw - 6X18	Screw - 6X18
9	81186-S0X-A01	Pin - FR. ARMREST CENTER	Pin - FR. ARMREST CENTER
10	81187-S0X-A01	Pin - FR. ARMREST	Pin - FR. ARMREST
11	81189-S0X-003	Washer - WAVE	Washer - WAVE
18	81383-SHJ-A01	Bush - ARMREST (A)	Bush - ARMREST (A)
41	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
42	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
43	90610-S10-003	Clip - GARNISH	Clip - GARNISH
44	90650-KV3-000	Band - WIRE	Band - WIRE
46	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat (R.) 11 / 16

#	OEM	RE4	RE5
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
4	81123-SNA-A01	Screw - 6X18	Screw - 6X18
18	81186-S0X-A01	Pin - FR. ARMREST CENTER	Pin - FR. ARMREST CENTER
19	81187-S0X-A01	Pin - FR. ARMREST	Pin - FR. ARMREST
20	81189-S0X-003	Washer - WAVE	Washer - WAVE
31	81291-SNA-A01	Clip	Clip
33	81383-SHJ-A01	Bush - ARMREST (A)	Bush - ARMREST (A)
35	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
37	90610-S10-003	Clip - GARNISH	Clip - GARNISH
38	90650-KV3-000	Band - WIRE	Band - WIRE
41	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat components (L.) 3 / 5

#	OEM	RE4	RE5
5	81136-SNA-A11	Lever comp - FR. SEAT CUSHION	Lever comp - FR. SEAT CUSHION
7	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
16	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front seat components (L.; POWER SEAT) 4 / 19

#	OEM	RE4	RE5
26	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
30	90610-S10-003	Clip - GARNISH	Clip - GARNISH
32	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
33	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)

Front seat components (R.) 3 / 5

#	OEM	RE4	RE5
8	81136-SNA-A11	Lever comp - FR. SEAT CUSHION	Lever comp - FR. SEAT CUSHION
12	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
20	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front shock absorber 12 / 20

#	OEM	RE4	RE5
2	51402-STK-A02	Cover - R. FR. DUST	Cover - R. FR. DUST
3	51403-STK-A01	Cover - L. FR. DUST	Cover - L. FR. DUST
9	51608-SNA-000	Cap - FR. SHOCK ABSORBER MOUNTING	Cap - FR. SHOCK ABSORBER MOUNTING
10	51684-STK-A02	Rubber - R. FR. SPRING LOWER MOUNT	Rubber - R. FR. SPRING LOWER MOUNT
12	51694-STK-A02	Rubber - L. FR. SPRING LOWER MOUNT	Rubber - L. FR. SPRING LOWER MOUNT
13	51722-SWE-T01	Rubber - FR. BUMP STOPPER	Rubber - FR. BUMP STOPPER
15	51920-SWA-A01	Rubber - FR. SHOCK ABSORBER MOUNTING	Rubber - FR. SHOCK ABSORBER MOUNTING
16	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
17	90120-STK-000	Bolt - FLANGE, 16X62(SERVICE)	Bolt - FLANGE, 16X62(SERVICE)
17	90119-S6M-Z01	Bolt - FLANGE, 16X62	Bolt - FLANGE, 16X62
18	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)
19	90382-STK-A01	Nut - FLANGE, 16MM	Nut - FLANGE, 16MM

Front sub frame/ rear beam 5 / 6

#	OEM	RE4	RE5
2	50300-SWA-A00	Beam - RR. CROSS	Beam - RR. CROSS
3	90161-SD5-020	Bolt - FLANGE, 12X82	Bolt - FLANGE, 12X82
4	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
5	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115
6	90163-SWE-T00	Bolt - FLANGE, 14X80	Bolt - FLANGE, 14X80

Front windshield wiper (LH) 24 / 25

#	OEM	RE4	RE5
1	76501-SWA-003	Harness assy - FR. WIPER MOTOR	Harness assy - FR. WIPER MOTOR
2	76505-SWA-A02	Motor comp - FR. WIPER	Motor comp - FR. WIPER
3	76516-SE0-003	Rubber - BRACKETLESS MOUNTING	Rubber - BRACKETLESS MOUNTING
4	76516-SR3-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
6	76517-SM4-003	Collar	Collar
7	76520-SWA-003	Link assy. a	Link assy. a
8	76524-SD4-003	Dust seal	Dust seal
9	76524-SL0-A01	Dust seal	Dust seal
11	76540-SWA-003	Rod unit a	Rod unit a
12	76550-SWA-A01	Rod unit b	Rod unit b
13	76561-SEA-003	Cap - PIVOT	Cap - PIVOT
14	76600-SWA-A11	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-SWA-A11	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
16	76620-SWA-A01	Blade - WINDSHIELD WIPER(650MM)	Blade - WINDSHIELD WIPER(650MM)
16	76620-SWA-A02	BLADEWSHLD WIPER	BLADEWSHLD WIPER
17	76622-STK-A01	Rubber - BLADE (650MM)	Rubber - BLADE (650MM)
17	76622-STK-A02	BLADE RUBBER	BLADE RUBBER
18	76630-SWA-A01	Blade - WINDSHIELD WIPER(425MM)	Blade - WINDSHIELD WIPER(425MM)
18	76630-SWA-A02	BLADEWSHLD WIPER	BLADEWSHLD WIPER
19	76632-SWA-J01	Rubber - BLADE(425MM)	Rubber - BLADE(425MM)
19	76632-SWA-J02	BLADE RUBBER	BLADE RUBBER
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
21	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

Fuel injector (2.4L) 4 / 22

#	OEM	RE4	RE5
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
11	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
17	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
19	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Fuel pipe (1) 22 / 27

#	OEM	RE4	RE5
4	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
6	16730-RZA-A00	Stay assy - FUEL HOSE	Stay assy - FUEL HOSE
7	16732-SWA-000	Rubber - FUEL PIPE	Rubber - FUEL PIPE
8	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
9	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
10	17724-SWA-000	Tube assy - PURGE	Tube assy - PURGE
12	17761-SWA-A00	Stay a - FUEL PIPE	Stay a - FUEL PIPE
13	17762-SWA-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
14	17763-SWA-J00	Stay c - FUEL PIPE	Stay c - FUEL PIPE
15	17927-SS1-003	Clip - WIRE	Clip - WIRE
16	53728-SDB-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
17	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
18	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
19	91406-SAA-J00	Clamp - TUBE (D12)	Clamp - TUBE (D12)
20	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
21	91592-S9A-A31	Clip - FUEL PIPE	Clip - FUEL PIPE
22	91594-SDD-E00	Rubber a - FUEL PIPE INSULATOR	Rubber a - FUEL PIPE INSULATOR
23	91595-S5A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
24	91596-SWA-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
25	91598-SWA-003	Clamp c - FUEL PIPE	Clamp c - FUEL PIPE
26	91599-SDD-E00	Rubber e - FUEL PIPE INSULATOR	Rubber e - FUEL PIPE INSULATOR
27	91599-S5A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE

Fuel tank (1) 24 / 33

#	OEM	RE4	RE5
7	17513-S0E-003	Circlip	Circlip
8	17518-SWA-000	Pipe, FUEL TANK GUARD	Pipe, FUEL TANK GUARD
9	17519-SWA-000	Protector comp - FUEL TANK	Protector comp - FUEL TANK
10	17521-SWA-000	Band - R. FUEL TANK MOUNTING	Band - R. FUEL TANK MOUNTING
11	17522-SWA-000	Band - L. FUEL TANK MOUNTING	Band - L. FUEL TANK MOUNTING
12	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
14	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
15	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
16	17653-SWA-000	Tube - BREATHER JOINT	Tube - BREATHER JOINT
17	17656-SWA-003	Pipe assy. - BREATHER JOINT	Pipe assy. - BREATHER JOINT
19	17662-S04-003	Packing - FUEL FILLER (WITH CLIP)	Packing - FUEL FILLER (WITH CLIP)
20	17668-SWA-J00	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
21	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
21	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
22	17711-SWA-003	Retainer	Retainer
23	17722-SWA-000	Tube assy. a - FUEL VENT	Tube assy. a - FUEL VENT
24	74660-S1C-E00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
25	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
26	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
27	91413-S5A-003	Clamp - FUEL TUBE (D17)	Clamp - FUEL TUBE (D17)
28	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)
29	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
30	91594-SNA-A01	Clip - FILLER CAP	Clip - FILLER CAP
32	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

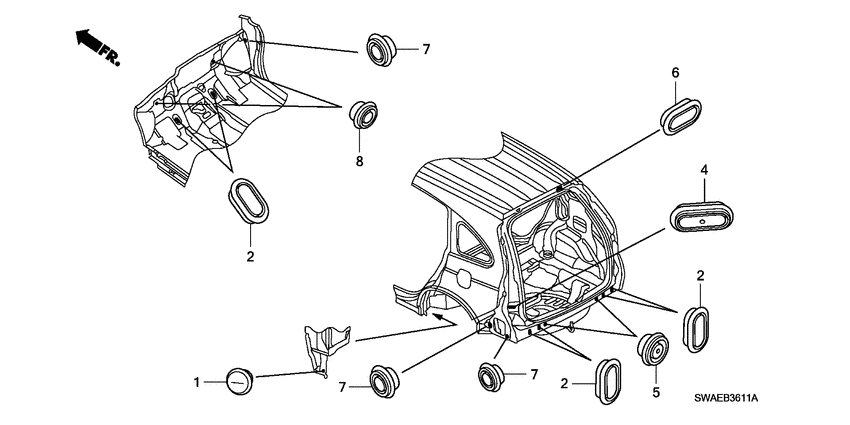

Grommet (FRONT) 8 / 10

#	OEM	RE4	RE5
1	74827-SH2-003	Stopper - TAILGATE	Stopper - TAILGATE
2	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
3	90820-SNA-003	Grommet - 20MM	Grommet - 20MM
5	91551-SWA-J01	Cap - SIDE LINING	Cap - SIDE LINING
6	91606-SE0-000	Seal - 20X20	Seal - 20X20
7	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
9	91612-TA0-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
10	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 2 / 3

#	OEM	RE4	RE5
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 3 / 4

#	OEM	RE4	RE5
2	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
3	91609-S10-000	Plug - BLIND, 30X78	Plug - BLIND, 30X78
4	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Harness band/bracket (LH) 41 / 43

#	OEM	RE4	RE5
3	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
5	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
6	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
7	32202-SWA-A00	Bracket - CABIN WIRE HARNESS (ENGINE ROOM HARNESS)	Bracket - CABIN WIRE HARNESS (ENGINE ROOM HARNESS)
8	38253-SWA-000	Bracket - ENGINE ROOM WIRE HARNESS	Bracket - ENGINE ROOM WIRE HARNESS
9	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
10	91476-SD4-003	Clip - OFFSET (21) (BROWN) (60MM)	Clip - OFFSET (21) (BROWN) (60MM)
11	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
12	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
13	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
14	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
15	91531-SCC-901	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)
16	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)	Clip - HARNESS BAND (NATURAL) (145MM)
17	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
18	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
19	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
21	91534-STK-003	Clip - COUPLER(NATURAL) (WITH SEAL)	Clip - COUPLER(NATURAL) (WITH SEAL)
22	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
23	91535-STK-003	Clip - COUPLER (DARK BLUE)	Clip - COUPLER (DARK BLUE)
24	91536-STK-003	Clip - RELAY HOLDER(NATURAL)	Clip - RELAY HOLDER(NATURAL)
25	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
27	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
30	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
31	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
33	91549-STK-003	Holder - HARNESS (NATURAL) (113MM)	Holder - HARNESS (NATURAL) (113MM)
35	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
36	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
37	91622-SWA-300	Grommet - RING	Grommet - RING
38	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
40	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
41	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
42	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)
43	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
46	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
47	32119-R40-003	Holder - CORRUGATED (BLACK) (19MM)	Holder - CORRUGATED (BLACK) (19MM)
48	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)
49	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)
50	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)	Clip - HARNESS BAND(BLACK) (140.3MM)
51	91550-SWA-003	Clip - WIRE HARNESS (CORRUGATED 13MM-19MM)	Clip - WIRE HARNESS (CORRUGATED 13MM-19MM)
52	32113-TA0-003	Band - CABLE(BLACK)(100MM)	Band - CABLE(BLACK)(100MM)

Headlight 15 / 17

#	OEM	RE4	RE5
3	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
6	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
9	33121-SFE-901	Seal - GASKET (2)	Seal - GASKET (2)
10	33121-SWA-J01	Cover - 2	Cover - 2
11	33124-SJD-J01	Seal - GASKET	Seal - GASKET
17	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
18	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
19	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
20	33513-S84-A01	Socket - T10	Socket - T10
21	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)	Bulb - HEADLIGHT(H1)(12V 55W)
22	90101-S5A-003	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
23	90109-SFE-000	Bolt-washer - 6X18	Bolt-washer - 6X18
24	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
26	33121-SJD-J01	Cover - 2	Cover - 2

Heater blower (LH) 8 / 15

#	OEM	RE4	RE5
1	79021-SWA-A00	Bracket assy - HEATER	Bracket assy - HEATER
11	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
12	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
13	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
14	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
16	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
17	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
18	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Heater unit (LH) 10 / 34

#	OEM	RE4	RE5
1	39248-692-003	Packing - HEATER	Packing - HEATER
2	46407-SAA-003	Clamp - TUBE	Clamp - TUBE
25	90121-SNA-A00	Bolt - STUD, 6X49	Bolt - STUD, 6X49
26	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
28	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
30	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
31	90661-S2A-003	Clip - DRAIN HOSE	Clip - DRAIN HOSE
32	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
33	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
34	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)

Install pipe/tubing (2.4L) 2 / 11

#	OEM	RE4	RE5
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
10	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Instrument panel (LH) 18 / 18

#	OEM	RE4	RE5
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
4	77107-SWW-G00	Insulator - INSTRUMENT PANEL DRIVER	Insulator - INSTRUMENT PANEL DRIVER
6	77150-SWA-A00	Bracket comp. - CENTER JOINT	Bracket comp. - CENTER JOINT
10	77466-SEA-010	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
11	77550-SWA-A00	Frame - GLOVE BOX	Frame - GLOVE BOX
13	90107-S7S-000	Bolt-washer - 8X50	Bolt-washer - 8X50
14	90110-SV4-000	Bolt-washer - 8X21	Bolt-washer - 8X21
15	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
16	90111-SFA-000	Bolt-washer - 8X86	Bolt-washer - 8X86
17	90111-SWA-A01	Bolt-washer - 8X62	Bolt-washer - 8X62
18	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
20	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
21	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
22	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
23	90669-SWA-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
24	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
27	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; LH) 6 / 9

#	OEM	RE4	RE5
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
24	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
25	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
26	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
27	91503-SZ3-003	Clip A	Clip A
28	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 11 / 14

#	OEM	RE4	RE5
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
4	77259-SLJ-003	Cushion - CLIP	Cushion - CLIP
6	77333-SWA-A01	Lid assy - MAINTENANCE	Lid assy - MAINTENANCE
7	77335-SWA-A01	Lid - SIDE	Lid - SIDE
11	77509-SLJ-003	Cushion - CLIP	Cushion - CLIP
15	77530-SWA-G01	Damper assy. - GLOVE BOX	Damper assy. - GLOVE BOX
20	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
21	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
22	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
23	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
24	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (2.4L) 5 / 12

#	OEM	RE4	RE5
6	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
7	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
9	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
10	37835-PGK-A01	O-ring	O-ring
12	90005-P28-A00	Bolt-washer - SPECIAL, 6X28	Bolt-washer - SPECIAL, 6X28

Interior light 9 / 12

#	OEM	RE4	RE5
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
4	34401-SDA-A21	Lens - R.	Lens - R.
5	34402-SDA-A21	Lens - L.	Lens - L.
6	34404-SDA-A22	Base comp.	Base comp.
12	83251-SDC-A01	Bush	Bush
13	83253-SDC-A01	Screw - TAPPING, 3X10	Screw - TAPPING, 3X10
14	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

Mainshaft 17 / 17

#	OEM	RE4	RE5
1	23210-RZF-000	Mainshaft comp.	Mainshaft comp.
2	23261-PPP-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
3	23440-PPS-F80	Gear comp - MAINSHAFT THIRD	Gear comp - MAINSHAFT THIRD
4	23450-RZF-000	Gear comp - MAINSHAFT FOURTH	Gear comp - MAINSHAFT FOURTH
5	23540-PPS-000	Gear comp - REVERSE IDLE	Gear comp - REVERSE IDLE
6	23580-RAR-000	Gear comp - MAINSHAFT FIFTH	Gear comp - MAINSHAFT FIFTH
7	23590-RZF-000	Gear comp - MAINSHAFT SIXTH	Gear comp - MAINSHAFT SIXTH
8	23623-RZF-315	Sleeve set - SYNCHRONIZER (3-4)	Sleeve set - SYNCHRONIZER (3-4)
9	23626-PNS-315	Sleeve set - SYNCHRONIZER (5-6)	Sleeve set - SYNCHRONIZER (5-6)
10	23915-PPP-000	Collar - DISTANCE, 32X39X52	Collar - DISTANCE, 32X39X52
11	23916-PNS-000	Collar - DISTANCE, 28X35X24	Collar - DISTANCE, 28X35X24
12	23927-PG2-A00	Washer - SPRING, 28MM	Washer - SPRING, 28MM
13	23928-PS1-000	Washer - 28MM	Washer - 28MM
14	90401-PG1-000	Washer - DRAIN PLUG, 10MM	Washer - DRAIN PLUG, 10MM
15	91002-RAS-003	Bearing - BALL, 28X72X18	Bearing - BALL, 28X72X18
16	91102-RZF-006	Bearing - NEEDLE, 39X44X24	Bearing - NEEDLE, 39X44X24
17	91103-RAS-003	Bearing - NEEDLE, 35X41X24	Bearing - NEEDLE, 35X41X24

Meter components (NS) 5 / 6

#	OEM	RE4	RE5
1	37115-SA0-601	Packing - NS	Packing - NS
3	78155-SWA-J01	Visor	Visor
4	78156-SWA-J01	Lens	Lens
5	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
6	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Mirror 6 / 20

#	OEM	RE4	RE5
1	34300-SWA-003	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
2	34350-SWA-003	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
18	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
24	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
25	91565-SEA-003	Clamp - HARNESS	Clamp - HARNESS
26	91610-SJ4-003	Grommet - MIRROR GARNISH	Grommet - MIRROR GARNISH

Molding 32 / 34

#	OEM	RE4	RE5
1	72410-SWA-A01	Molding assy., R. FR. DOOR	Molding assy., R. FR. DOOR
1	72410-SWA-A02	MOLDING ASSY., R. FR. DOOR	MOLDING ASSY., R. FR. DOOR
2	72425-SWA-A02	MOLDING, R. FR. DOOR SASH	MOLDING, R. FR. DOOR SASH
3	72450-SWA-A01	Molding assy., L. FR. DOOR	Molding assy., L. FR. DOOR
3	72450-SWA-A02	MOLDING ASSY., L. FR. DOOR	MOLDING ASSY., L. FR. DOOR
4	72465-SWA-A02	MOLDING, L. FR. DOOR SASH	MOLDING, L. FR. DOOR SASH
7	72910-SWA-A01	Molding assy., R. RR. DOOR	Molding assy., R. RR. DOOR
7	72910-SWA-A02	MOLDING ASSY., R. RR. DOOR	MOLDING ASSY., R. RR. DOOR
8	72925-SWA-A02	Molding - R. RR. DOOR SASH	Molding - R. RR. DOOR SASH
9	72950-SWA-A01	Molding assy., L. RR. DOOR	Molding assy., L. RR. DOOR
9	72950-SWA-A02	MOLDING ASSY., L. RR. DOOR	MOLDING ASSY., L. RR. DOOR
10	72965-SWA-A02	Molding - L. RR. DOOR SASH	Molding - L. RR. DOOR SASH
11	73152-SWA-003	Garnish assy - R. FR. WINDSHIELD SIDE	Garnish assy - R. FR. WINDSHIELD SIDE
12	73153-SWA-003	Lid - R. FR. WINDSHIELD SIDE GARNISH	Lid - R. FR. WINDSHIELD SIDE GARNISH
13	73162-SWA-003	Garnish assy - L. FR. WINDSHIELD SIDE	Garnish assy - L. FR. WINDSHIELD SIDE
14	73163-SWA-003	Lid - L. FR. WINDSHIELD SIDE GARNISH	Lid - L. FR. WINDSHIELD SIDE GARNISH
15	75230-SWA-003	Garnish assy - R. FR. ROOF SIDE	Garnish assy - R. FR. ROOF SIDE
16	75232-SWA-003	Lid b - R. ROOF SIDE GARNISH	Lid b - R. ROOF SIDE GARNISH
17	75233-SWA-003	Lid c - R. ROOF SIDE GARNISH	Lid c - R. ROOF SIDE GARNISH
18	75234-SWA-003	Lid d - R. ROOF SIDE GARNISH	Lid d - R. ROOF SIDE GARNISH
19	75235-SWA-003	Garnish assy - R. RR. ROOF SIDE	Garnish assy - R. RR. ROOF SIDE
20	75240-SWA-003	Garnish assy - L. FR. ROOF SIDE	Garnish assy - L. FR. ROOF SIDE
21	75242-SWA-003	Lid b - L. ROOF SIDE GARNISH	Lid b - L. ROOF SIDE GARNISH
22	75243-SWA-003	Lid c - L. ROOF SIDE GARNISH	Lid c - L. ROOF SIDE GARNISH
23	75244-SWA-003	Lid d - L. ROOF SIDE GARNISH	Lid d - L. ROOF SIDE GARNISH
24	75245-SWA-003	Garnish assy - L. RR. ROOF SIDE	Garnish assy - L. RR. ROOF SIDE
26	75491-SWA-003	Clip - FR. PILLAR CORNER GARNISH	Clip - FR. PILLAR CORNER GARNISH
28	90142-SWA-000	Screw - TAPPING, 4X10(PO)	Screw - TAPPING, 4X10(PO)
29	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
30	91503-SWA-A01	Clip - DOOR MOLDING	Clip - DOOR MOLDING
31	91570-SWA-003	Clip A - TAPE	Clip A - TAPE
32	91571-SWA-003	Clip b - FR. WINDSHIELD SIDE GARNISH	Clip b - FR. WINDSHIELD SIDE GARNISH

Oil pump (2.4L) 5 / 25

#	OEM	RE4	RE5
18	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
18	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
19	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
21	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
22	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30

Outer panels/roof panel 18 / 22

#	OEM	RE4	RE5
10	63137-SWA-A01	Separator - FR. PILLAR OUTSIDE	Separator - FR. PILLAR OUTSIDE
11	63138-SWA-A01	Separator - R. FR. PILLAR INSIDE	Separator - R. FR. PILLAR INSIDE
13	63217-SWA-A01	Separator - R. CENTER PILLAR OUTSIDE	Separator - R. CENTER PILLAR OUTSIDE
15	63224-SWA-A01	Separator - R. CENTER PILLAR INSIDE	Separator - R. CENTER PILLAR INSIDE
19	63538-SWA-A01	Separator - L. FR. PILLAR INSIDE	Separator - L. FR. PILLAR INSIDE
21	63617-SWA-A01	Separator - L. CENTER PILLAR OUTSIDE	Separator - L. CENTER PILLAR OUTSIDE
23	63624-SWA-A01	Separator - L. CENTER PILLAR INSIDE	Separator - L. CENTER PILLAR INSIDE
32	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
33	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
35	74421-S3N-000	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER
38	75450-SMA-003	Outlet assy - RR. AIR	Outlet assy - RR. AIR
39	90103-SS1-000	Bolt - FUEL FILLER LID	Bolt - FUEL FILLER LID
42	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
43	90142-SWA-A21	Bolt - 7/16"X25	Bolt - 7/16"X25
44	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18
46	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
47	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
48	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)

P.s. gear box (HPS; LH) 7 / 20

#	OEM	RE4	RE5
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
3	53434-SWA-023	Bracket a - GEAR BOX	Bracket a - GEAR BOX
5	53438-SWA-013	Bracket b - GEAR BOX	Bracket b - GEAR BOX
11	53540-SWA-A02	TIE-ROD END comp	TIE-ROD END comp
17	90107-SWA-A02	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
18	90108-STK-A00	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
19	90506-STK-A00	Washer - PLAIN, 10MM	Washer - PLAIN, 10MM

P.s. lines (HPS; LH) 2 / 29

#	OEM	RE4	RE5
8	53728-SDB-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
13	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Parking brake (MT; LH) 9 / 9

#	OEM	RE4	RE5
5	47123-SWA-A02	Bracket - CONSOLE	Bracket - CONSOLE
6	47342-SHJ-A01	Switch - HAND BRAKE	Switch - HAND BRAKE
7	47360-SB2-000	Equalizer	Equalizer
8	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
9	47510-SWA-013	Wire b - R. PARKING BRAKE	Wire b - R. PARKING BRAKE
10	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
11	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
12	47560-SWA-013	Wire b - L. PARKING BRAKE	Wire b - L. PARKING BRAKE
13	47572-SWA-000	Base - WIRE GUIDE	Base - WIRE GUIDE

Parking brake shoe 14 / 16

#	OEM	RE4	RE5
3	43154-SWA-003	Shoe comp - PARKING BRAKE	Shoe comp - PARKING BRAKE
4	43171-SX0-J01	Spring - ROD	Spring - ROD
5	43172-STK-A01	Spring a - BRAKE	Spring a - BRAKE
6	43361-SWA-003	Lever - R. PARKING BRAKE	Lever - R. PARKING BRAKE
7	43362-SFE-J01	Strut	Strut
8	43365-SFE-J02	Pin - PARKING LEVER	Pin - PARKING LEVER
9	43366-SHJ-A01	Adjuster assy	Adjuster assy
10	43367-SFE-J02	Spring - RETURN	Spring - RETURN
11	43371-SWA-003	Lever - L. PARKING BRAKE	Lever - L. PARKING BRAKE
12	43375-SA0-003	U-clip	U-clip
13	43379-SA5-003	Washer - WAVE	Washer - WAVE
14	45172-S9A-E01	Spring - SHOE CLAMP	Spring - SHOE CLAMP
15	45175-SA0-013	Pin - TENSIONER	Pin - TENSIONER
16	90382-SJK-000	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM

Pedal (LH) 14 / 16

#	OEM	RE4	RE5
1	17800-STK-A81	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
2	35350-S5A-J04	Switch assy - STOP (TOYO)	Switch assy - STOP (TOYO)
2	35350-SMA-003	Switch assy - STOP (PANASONIC)	Switch assy - STOP (PANASONIC)
3	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
4	46530-SFE-981	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
5	46540-SWA-A01	Spring assy - PROTECTOR	Spring assy - PROTECTOR
6	46545-SA5-000	Cover, Pedal	Cover, Pedal
8	46600-SWA-G01	Pedal assy - BRAKE	Pedal assy - BRAKE
9	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
11	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN
15	46992-STK-A81	Plate - FOOTREST BRACKET	Plate - FOOTREST BRACKET
16	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
17	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
18	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

Pillar garnish 3 / 4

#	OEM	RE4	RE5
20	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
21	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
22	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Propeller shaft 4 / 5

#	OEM	RE4	RE5
2	40540-SWA-A10	Protector - NO.1 PROPELLER SHAFT	Protector - NO.1 PROPELLER SHAFT
3	40541-SWA-A00	Protector - NO.2 PROPELLER SHAFT	Protector - NO.2 PROPELLER SHAFT
4	90113-S10-000	Bolt - 12POINT 8X21	Bolt - 12POINT 8X21
5	90382-SH9-003	Bolt - FLANGE, 10X29	Bolt - FLANGE, 10X29

Radiator (2.4L) 14 / 21

#	OEM	RE4	RE5
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
4	19015-RZA-A01	Shroud comp.	Shroud comp.
7	19030-RZA-A01	Motor, Cooling fan	Motor, Cooling fan
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
9	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
12	37870-RZA-007	Sensor assy - WATER TEMP(NTCL)	Sensor assy - WATER TEMP(NTCL)
13	38611-PNL-G01	Fan - COOLING(DENSO)(BLACK)	Fan - COOLING(DENSO)(BLACK)
17	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
18	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
20	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
21	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
22	91307-RZA-007	O-ring	O-ring

Radiator hose/reserve tan k (2.4L) 12 / 14

#	OEM	RE4	RE5
1	19101-RZA-A00	Tank - RESERVE	Tank - RESERVE
2	19102-RNA-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
3	19103-RZA-A00	Hose - RESERVE TANK	Hose - RESERVE TANK
4	19104-RZA-A01	Tube - RESERVE TANK	Tube - RESERVE TANK
5	19106-RSA-G00	Joint - RESERVE TANK	Joint - RESERVE TANK
6	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)	Clamp - RESERVE TANK TUBE (BLACK)
9	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
9	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
16	74171-SWA-000	Bracket - R. RADIATOR MOUNTING UPPER	Bracket - R. RADIATOR MOUNTING UPPER
17	74172-SWA-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
18	74173-SWA-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
19	74176-SWA-000	Bracket - L. RADIATOR MOUNTING UPPER	Bracket - L. RADIATOR MOUNTING UPPER

Rear brake 8 / 24

#	OEM	RE4	RE5
3	42200-STK-951	BEARING ASSY., REAR HUB UNIT	BEARING ASSY., REAR HUB UNIT
5	42511-SP0-000	Cap - MAINTENANCE HOLE	Cap - MAINTENANCE HOLE
16	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
18	90103-SJK-000	Bolt - CALIPER MOUNTING	Bolt - CALIPER MOUNTING
19	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
19	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
19	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
20	90160-SJK-000	Bolt-washer - 12X46	Bolt-washer - 12X46

Rear differential/mount 35 / 35

#	OEM	RE4	RE5
1	40120-P6R-003	Magnet comp. - RR. DIFFERENTIAL	Magnet comp. - RR. DIFFERENTIAL
2	40441-P6R-010	Flange - COMPANION	Flange - COMPANION
3	41010-R09-000	Carrier sub assy. - RR. DIFFERENTIAL	Carrier sub assy. - RR. DIFFERENTIAL
4	41011-R09-A00	Case kit - T.C.D.	Case kit - T.C.D.
5	41935-RFT-003	Box - BREATHER TUBE	Box - BREATHER TUBE
6	41936-P6R-003	Clamp - BREATHER TUBE	Clamp - BREATHER TUBE
7	41937-R09-000	Tube b - BREATHER	Tube b - BREATHER
8	41938-R09-000	Tube a - BREATHER	Tube a - BREATHER
9	41939-RFT-003	Clamp - BREATHER	Clamp - BREATHER
10	48940-RFT-000	Strainer - ATF	Strainer - ATF
11	50530-SWA-000	Bracket b - R. RR. DIFFERENTIAL	Bracket b - R. RR. DIFFERENTIAL
12	50540-SWA-000	Bracket b - L. RR. DIFFERENTIAL	Bracket b - L. RR. DIFFERENTIAL
13	50710-SWA-A02	Mounting assy. a - RR. DIFFERENTIAL	Mounting assy. a - RR. DIFFERENTIAL
14	50711-SWA-020	Rubber a - RR. DIFFERENTIAL INSULATOR	Rubber a - RR. DIFFERENTIAL INSULATOR
15	50712-SWA-030	Insulator - RR. DIFFERENTIAL HEAT	Insulator - RR. DIFFERENTIAL HEAT
16	50713-SWA-000	Stopper a - RR. DIFFERENTIAL MOUNTING	Stopper a - RR. DIFFERENTIAL MOUNTING
17	50714-SWA-010	Plate	Plate
18	50721-S5C-013	Rubber b - RR. DIFFERENTIAL MOUNTING	Rubber b - RR. DIFFERENTIAL MOUNTING
19	90001-PWT-680	Bolt - FLANGE, 6X28	Bolt - FLANGE, 6X28
20	90001-PWT-730	Bolt - FLANGE, 6X50	Bolt - FLANGE, 6X50
21	90081-PWT-000	Bolt - DRAIN PLUG, 20MM	Bolt - DRAIN PLUG, 20MM
22	90161-SWA-000	Bolt - FLANGE, 12X67.5	Bolt - FLANGE, 12X67.5
23	90162-S5A-000	Bolt - FLANGE, 10X80	Bolt - FLANGE, 10X80
24	90163-SR7-010	Bolt - FLANGE, 10X119	Bolt - FLANGE, 10X119
25	90166-S87-A00	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
26	90173-SWA-010	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
27	90203-PX4-010	Nut - FLANGE, 24MM	Nut - FLANGE, 24MM
28	90371-S9A-000	Nut - YOKE, 10MM	Nut - YOKE, 10MM
29	90403-PL9-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
30	90702-P6R-008	Pin - OIL PUMP	Pin - OIL PUMP
31	91201-PWT-003	Oil seal - 40X56X9 (NOK)	Oil seal - 40X56X9 (NOK)
32	91202-PWT-003	Oil seal - 35X78X8.5 (NOK)	Oil seal - 35X78X8.5 (NOK)
33	91203-PWT-003	Oil seal - 35X50X8.5 (NOK)	Oil seal - 35X50X8.5 (NOK)
34	91303-P6R-003	O-ring - 25X2.6	O-ring - 25X2.6
35	91304-P6R-003	Ring - BACK UP, 25MM	Ring - BACK UP, 25MM

Rear door lining 12 / 18

#	OEM	RE4	RE5
2	72835-SWA-A01	Weatherstrip - RR. DOOR INNER	Weatherstrip - RR. DOOR INNER
11	83709-SWA-000	Bracket - PULL POCKET(R.)	Bracket - PULL POCKET(R.)
20	83759-SWA-000	Bracket - PULL POCKET(L.)	Bracket - PULL POCKET(L.)
25	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
28	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
29	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
30	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
31	91560-S0X-A01	Clip - DOOR LINING (NATURAL)	Clip - DOOR LINING (NATURAL)
32	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
33	91627-SWA-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
34	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
39	90144-SWA-000	Screw - TAPPING, 4X12(PO)	Screw - TAPPING, 4X12(PO)

Rear door locks/ outer handle 12 / 31

#	OEM	RE4	RE5
7	72130-SWA-A01	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
8	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
8	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
9	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
14	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
19	72170-SWA-A01	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
25	72612-SNA-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
30	72652-SNA-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
32	74387-S3C-003	Fastener	Fastener
34	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
35	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
37	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door panels 13 / 18

#	OEM	RE4	RE5
5	67824-SWA-A01	Tape set - R. RR. DOOR SASH	Tape set - R. RR. DOOR SASH
6	67864-SWA-A01	Tape set - L. RR. DOOR SASH	Tape set - L. RR. DOOR SASH
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
14	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
16	72821-SWA-A00	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
17	72840-SWA-A01	CHECKER COMP., R. RR. DOOR	CHECKER COMP., R. RR. DOOR
19	72861-SWA-A00	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
20	72880-SWA-A01	CHECKER COMP., L. RR. DOOR	CHECKER COMP., L. RR. DOOR
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)	Bolt - FLANGE, 8X22 (TORX)
23	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Rear door windows/ regulator 6 / 12

#	OEM	RE4	RE5
1	72710-SWA-A02	Regulator assy - R. RR. DOOR POWER	Regulator assy - R. RR. DOOR POWER
2	72731-SWA-A01	Sash - R. RR. DOOR QUARTER	Sash - R. RR. DOOR QUARTER
4	72750-SWA-A02	Regulator assy - L. RR. DOOR POWER	Regulator assy - L. RR. DOOR POWER
5	72771-SWA-A01	Sash - L. RR. DOOR QUARTER	Sash - L. RR. DOOR QUARTER
9	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
10	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Rear driveshaft 1 / 11

#	OEM	RE4	RE5
11	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)

Rear lower arm 23 / 27

#	OEM	RE4	RE5
1	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
2	42524-SWA-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
3	52210-SWA-A00	Knuckle comp - R. RR.	Knuckle comp - R. RR.
4	52215-SWA-A00	Knuckle comp - L. RR.	Knuckle comp - L. RR.
5	52300-SWA-A01	Spring - RR. STABILIZER	Spring - RR. STABILIZER
6	52306-SWA-A01	Bush - RR. STABILIZER HOLDER	Bush - RR. STABILIZER HOLDER
7	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
8	52320-SWA-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
9	52321-SWA-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
10	52352-SWA-A01	Protector - RR. LOWER ARM	Protector - RR. LOWER ARM
11	52370-SWA-A10	Arm comp - R. RR. TRAILING	Arm comp - R. RR. TRAILING
12	52371-SWA-A10	Arm comp - L. RR. TRAILING	Arm comp - L. RR. TRAILING
13	52387-SFE-000	Bolt - TRAILING ARM ADJUST	Bolt - TRAILING ARM ADJUST
14	52388-S7A-013	Plate - CAM	Plate - CAM
15	52390-SWA-A00	Arm comp - RR. UPPER	Arm comp - RR. UPPER
19	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
20	90100-SHJ-A00	Bolt - FLANGE, 6X16.5	Bolt - FLANGE, 6X16.5
21	90181-SFE-020	Bolt - FLANGE, 14X88.5	Bolt - FLANGE, 14X88.5
22	90183-SWA-A00	Bolt - FLANGE, 12X54	Bolt - FLANGE, 12X54
23	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
25	90396-S7A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
26	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5
27	90651-SWA-000	Washer - RR. KNUCKLE	Washer - RR. KNUCKLE

Rear seat 4 / 9

#	OEM	RE4	RE5
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
6	82129-S5A-000	Collar - RR. SEAT PIVOT	Collar - RR. SEAT PIVOT
14	82187-S10-J01	Collar - ARMREST	Collar - ARMREST
22	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Rear seat components (1) 16 / 16

#	OEM	RE4	RE5
1	82128-SWA-A01	Bush - RR. SEATBACK(A)	Bush - RR. SEATBACK(A)
2	82122-SWA-A01	Bolt - FLANGE	Bolt - FLANGE
4	82126-SWA-J01	Frame comp - R. RR. SEATBACK	Frame comp - R. RR. SEATBACK
6	82129-SWA-A01	Bolt - RR. SEATBACK	Bolt - RR. SEATBACK
9	82221-SWA-A01	Cover - R. RR. SEAT LEVER INNER	Cover - R. RR. SEAT LEVER INNER
11	82234-SWA-A01	Cable - LOCK CONTROL CENTER	Cable - LOCK CONTROL CENTER
12	82235-SWA-A01	Cable - LOCK CONTROL	Cable - LOCK CONTROL
14	82526-SWA-J01	Frame comp - L. RR. SEATBACK	Frame comp - L. RR. SEATBACK
16	82621-SWA-A01	Cover - L. RR. SEAT LEVER INNER	Cover - L. RR. SEAT LEVER INNER
18	82926-SWA-A01	Frame comp - RR. SEATBACK CENTER	Frame comp - RR. SEATBACK CENTER
19	82928-SWA-A01	Spring - RELEASE LEVER	Spring - RELEASE LEVER
20	82929-SWA-A01	Silencer	Silencer
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90134-S10-J11	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
23	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
24	90650-KV3-000	Band - WIRE	Band - WIRE

Rear seat components (2) 17 / 19

#	OEM	RE4	RE5
4	82139-SWA-A01	Cable - RR. SEAT CUSHION	Cable - RR. SEAT CUSHION
5	82191-SWA-A01	Screw - PAN(5X10)	Screw - PAN(5X10)
11	82222-SWA-A01	Lock assy - R. INTER	Lock assy - R. INTER
12	82224-SWA-A01	Strap assy - RR. SEAT CUSHION	Strap assy - RR. SEAT CUSHION
13	82226-SWA-A01	Cable comp. b - LOCK	Cable comp. b - LOCK
14	82227-SWA-A01	Nut - PUSH	Nut - PUSH
15	82229-SWA-A01	Cable comp. c - LOCK	Cable comp. c - LOCK
17	82261-SWA-A01	Packing	Packing
18	82271-SWA-A01	Screw - TAPPING(5X10)	Screw - TAPPING(5X10)
26	82533-SWA-A01	Pin - RR. SEAT CUSHION HINGE	Pin - RR. SEAT CUSHION HINGE
27	82534-SWA-A01	Bolt - L. RR. SEAT CUSHION HINGE	Bolt - L. RR. SEAT CUSHION HINGE
29	82538-SWA-A01	Bush - RR. SEAT CUSHION(A)	Bush - RR. SEAT CUSHION(A)
30	82539-SWA-A01	Bush - RR. SEAT CUSHION(B)	Bush - RR. SEAT CUSHION(B)
35	82622-SWA-A01	Lock assy - L. INTER	Lock assy - L. INTER
43	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
44	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
45	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Rear shock absorber 15 / 18

#	OEM	RE4	RE5
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
2	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
5	52611-SWA-A11	Absorber unit - RR. SHOCK	Absorber unit - RR. SHOCK
8	52622-S7A-014	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
9	52631-SCA-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
10	52675-SWA-A02	Base - RR. SHOCK ABSORBER MOUNTING	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING	Seal - SHOCK ABSORBER MOUNTING
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
13	52687-SWA-A01	Cover - RR. DUST	Cover - RR. DUST
14	52690-SWA-A01	Plate comp - RR. BUMP STOP	Plate comp - RR. BUMP STOP
15	52722-SWA-A01	Rubber - RR. BUMP STOPPER	Rubber - RR. BUMP STOPPER
16	90181-SFE-020	Bolt - FLANGE, 14X88.5	Bolt - FLANGE, 14X88.5
17	90300-SFE-010	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear windshield/ quarter windows 16 / 20

#	OEM	RE4	RE5
1	04733-SWA-000	Rubber set - RR. WINDSHIELD DAM	Rubber set - RR. WINDSHIELD DAM
4	73510-SWA-003	Molding assy. - R. QUARTER WINDSHIELD	Molding assy. - R. QUARTER WINDSHIELD
6	73525-SWA-000	Spacer	Spacer
7	73560-SWA-003	Molding assy. - L. QUARTER WINDSHIELD	Molding assy. - L. QUARTER WINDSHIELD
9	73810-SWA-003	Seal - R. QUARTER GLASS FR.	Seal - R. QUARTER GLASS FR.
10	73860-SWA-003	Seal - L. QUARTER GLASS FR.	Seal - L. QUARTER GLASS FR.
11	75717-SNB-E01	Sticker - I-VTEC	Sticker - I-VTEC
13	76707-STK-000	Seal a	Seal a
14	76834-SNA-003	Tube - 140MM	Tube - 140MM
15	76850-SWA-013	Nozzle assy. - RR. WINDSHIELD	Nozzle assy. - RR. WINDSHIELD
16	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
17	91502-SWA-003	Clip A - QUARTER WINDSHIELD	Clip A - QUARTER WINDSHIELD
18	91502-S70-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD
19	91512-SWA-003	Clip - QUARTER MOLDING(FR.)	Clip - QUARTER MOLDING(FR.)
20	91513-SWA-003	Clip - QUARTER MOLDING CORNER	Clip - QUARTER MOLDING CORNER
21	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD

Rear wiper 12 / 12

#	OEM	RE4	RE5
1	76622-S2X-003	Rubber - BLADE (350MM)	Rubber - BLADE (350MM)
1	76632-S2K-004	RUBBER BLADE	RUBBER BLADE
2	76701-S6A-003	Rubber - MOUNTING	Rubber - MOUNTING
3	76702-S6A-003	Collar	Collar
4	76706-SK7-003	Washer a - SPECIAL	Washer a - SPECIAL
5	76708-SE1-003	Washer b - SPECIAL	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM	Nut - SPECIAL, 18MM
7	76710-SWA-003	Motor, WIPER	Motor, WIPER
8	76711-STK-003	Cap - PIVOT	Cap - PIVOT
9	76720-SWA-003	Arm - RR. WIPER	Arm - RR. WIPER
10	76721-SCV-A01	Cover - ARM	Cover - ARM
11	76730-SFA-003	Blade - RR. WINDSHIELD WIPER (350MM)	Blade - RR. WINDSHIELD WIPER (350MM)

Resonator chamber (2.4L) 8 / 16

#	OEM	RE4	RE5
1	17212-PLC-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
3	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
11	17255-RZA-000	Tube e - AIR INTAKE	Tube e - AIR INTAKE
13	17263-P0A-000	Rubber - AIR CLEANER STAY	Rubber - AIR CLEANER STAY
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
15	90005-P28-A00	Bolt-washer - SPECIAL, 6X28	Bolt-washer - SPECIAL, 6X28
16	90120-PZA-000	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Roof lining 5 / 18

#	OEM	RE4	RE5
15	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
24	90131-SCV-A00	Screw - PAN, 5X23	Screw - PAN, 5X23
26	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
27	90662-SWA-003	Fastener - ROOF LINING	Fastener - ROOF LINING
28	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)

Seatbelts 23 / 25

#	OEM	RE4	RE5
5	81425-SJD-J01	Washer - SPRING	Washer - SPRING
6	81425-S2H-003	Washer - SPRING	Washer - SPRING
7	81426-S2H-003	Washer - PLAIN	Washer - PLAIN
8	81430-S2H-003	Bearing	Bearing
9	81439-S2H-003	Clip - HARNESS	Clip - HARNESS
10	81441-SWA-A01	Collar - 15H	Collar - 15H
11	81441-S2H-003	Collar - 13H	Collar - 13H
12	81442-S2H-003	Bearing	Bearing
13	81446-SWA-003	Washer - PLAIN	Washer - PLAIN
14	81446-S2H-003	Washer - WAVE	Washer - WAVE
15	81448-S2H-003	Washer - PLAIN	Washer - PLAIN
27	82424-SWA-A01	Washer - PLAIN	Washer - PLAIN
28	82424-SWA-003	Washer - PLAIN	Washer - PLAIN
32	82491-SWA-A00	Protector - R. RR. SEATBELT	Protector - R. RR. SEATBELT
36	82891-SWA-A00	Protector - L. RR. SEATBELT	Protector - L. RR. SEATBELT
40	90142-SWA-A31	Bolt - 7/16"X25	Bolt - 7/16"X25
41	90142-SWA-A41	Bolt - 7/16"X22	Bolt - 7/16"X22
42	90142-SWA-003	Bolt - 7/16"X22	Bolt - 7/16"X22
43	90142-S0X-A31	Bolt - 7/16"X33	Bolt - 7/16"X33
44	90142-S10-J71	Bolt - 7/16"X28	Bolt - 7/16"X28
45	90143-SWA-003	Bolt - 7/16"X54	Bolt - 7/16"X54
46	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
47	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)

Shift arm/shift lever 23 / 24

#	OEM	RE4	RE5
2	21396-P20-000	Cap - BREATHER	Cap - BREATHER
3	21399-RZF-000	Plate - BREATHER	Plate - BREATHER
4	21520-PNS-000	Cover comp. - SHIFT ARM	Cover comp. - SHIFT ARM
5	24411-PPP-010	Arm - SHIFT	Arm - SHIFT
6	24412-PNS-000	Arm - MAINSHAFT BRAKE SYSTEM	Arm - MAINSHAFT BRAKE SYSTEM
7	24413-PNS-000	Spring - MAINSHAFT BRAKE SYSTEM RETURN	Spring - MAINSHAFT BRAKE SYSTEM RETURN
8	24430-PNS-000	Interlock comp.	Interlock comp.
9	24433-PH8-000	Bolt - INTERLOCK	Bolt - INTERLOCK
10	24460-RZF-000	Lever comp - SELECT	Lever comp - SELECT
11	24464-PPP-000	Spring - FIRST-SECOND SELECT	Spring - FIRST-SECOND SELECT
12	24466-PPP-000	Spring - FIFTH-SIXTH SELECT	Spring - FIFTH-SIXTH SELECT
13	24467-PPP-000	Plate - SELECT STOPPER	Plate - SELECT STOPPER
14	24470-RZF-010	Lever comp - SHIFT	Lever comp - SHIFT
15	24479-PPP-000	Cover - SHIFT LEVER	Cover - SHIFT LEVER
16	24521-PNS-000	Cam a - SELECT LOCK	Cam a - SELECT LOCK
17	24522-PNS-000	Cam b - SELECT LOCK	Cam b - SELECT LOCK
18	24524-PNS-000	Spring - SELECT LOCK RETURN	Spring - SELECT LOCK RETURN
19	28251-PNS-003	Solenoid comp.	Solenoid comp.
20	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
21	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
22	91207-PPP-003	Dust seal - 18X24X5	Dust seal - 18X24X5
23	91208-PPP-003	Dust seal - 14X20X4	Dust seal - 14X20X4
25	90402-R88-000	Washer - PLAIN, 14MM	Washer - PLAIN, 14MM

Shift fork/shift holder 5 / 8

#	OEM	RE4	RE5
4	24230-PPP-000	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
5	24240-PNS-000	Piece comp. - REVERSE SHIFT	Piece comp. - REVERSE SHIFT
6	24455-PHR-000	Spring - BALL SETTING	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 12 / 14

#	OEM	RE4	RE5
3	54117-SDA-A01	Rubber - FLOATING	Rubber - FLOATING
4	54119-SDA-A01	Collar - FLOATING	Collar - FLOATING
6	54322-SWA-T01	Washer - SELECT	Washer - SELECT
7	54323-SWA-T01	Bush - SHIFT	Bush - SHIFT
8	54324-SWA-T01	Washer - SHIFT	Washer - SHIFT
9	54325-SWA-T01	Bush - SELECT	Bush - SELECT
10	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
11	90106-SYA-010	Bolt-washer - 6X32	Bolt-washer - 6X32
12	90175-SEL-T81	Pin - LOCK, 8MM	Pin - LOCK, 8MM
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
15	90302-SJK-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
16	54340-SWA-A01	Insulator - CONTROL WIRE	Insulator - CONTROL WIRE

Side lining 8 / 11

#	OEM	RE4	RE5
1	39620-SNA-003	Cap assy.	Cap assy.
2	39624-SZ3-L01	Socket assy	Socket assy
3	75353-671-000	Lock - SCREW	Lock - SCREW
11	84614-SEA-E00	Hook assy - TIE DOWN	Hook assy - TIE DOWN
26	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
27	91505-SL0-003	Clip - COWL TOP	Clip - COWL TOP
30	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
31	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)

Side sill garnish/ protector 19 / 35

#	OEM	RE4	RE5
1	71704-SL3-000	Seal - GASKET	Seal - GASKET
5	74118-SWA-000	Spacer set	Spacer set
9	74475-SWA-A00	Strake - R. RR.	Strake - R. RR.
10	74485-SWA-A00	Strake - L. RR.	Strake - L. RR.
15	75315-S9A-004	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
16	75316-S9A-004	Clip - DOOR LOWER GARNISH	Clip - DOOR LOWER GARNISH
23	90114-SAA-G01	Screw - TAPPING, 5X17	Screw - TAPPING, 5X17
24	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
25	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
27	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
28	90304-SE3-000	Nut - CLIP, 5MM	Nut - CLIP, 5MM
29	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
30	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
31	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
32	91503-SZ3-003	Clip A	Clip A
33	91504-SP1-003	Clip - FR. FENDER LOWER	Clip - FR. FENDER LOWER
34	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
35	91513-SMG-E01	Clip - RR. WHEEL ARCH GARNISH	Clip - RR. WHEEL ARCH GARNISH
36	91513-SMG-E11	Clip - FR. WHEEL ARCH GARNISH	Clip - FR. WHEEL ARCH GARNISH

Speaker 4 / 5

#	OEM	RE4	RE5
2	39120-SMG-E02	Speaker assy - 17CM SINGLE)(ND) (PP	Speaker assy - 17CM SINGLE)(ND) (PP
5	90109-SLJ-003	Screw - 5X40	Screw - 5X40
6	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER
7	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Spool valve (2.4L) 3 / 18

#	OEM	RE4	RE5
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
16	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5

Srs unit (LH) 3 / 6

#	OEM	RE4	RE5
4	77930-SWA-E11	Sensor assy - FR. CRASH	Sensor assy - FR. CRASH
13	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
15	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)

Starter motor (DENSO; 2.4L) 19 / 29

#	OEM	RE4	RE5
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP	Collar - CLUTCH STOP
5	31202-PR4-003	Bolt - THROUGH (DENSO)	Bolt - THROUGH (DENSO)
10	31206-RNA-A01	Armature comp.	Armature comp.
12	31208-P3F-003	Screw - PAN, 4MM	Screw - PAN, 4MM
15	31214-P3F-003	Gear assy. - INTERNAL	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL	Plate - SEAL
19	31218-P3F-003	Washer a	Washer a
20	31219-P3F-003	Washer b	Washer b
21	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
22	31220-P3F-003	Washer c	Washer c
23	31223-PA0-006	Nut - HEX.	Nut - HEX.
24	31228-PLR-A01	O-ring	O-ring
25	31231-P3F-003	Plate comp - BRUSH HOLDER	Plate comp - BRUSH HOLDER
27	31292-PLR-A01	Bolt-washer	Bolt-washer
29	31211-PCX-A01	Brush - +	Brush - +
30	31212-P3F-003	Spring - BRUSH	Spring - BRUSH

Steering column 6 / 8

#	OEM	RE4	RE5
2	53320-STK-G01	Cover - STEERING JOINT	Cover - STEERING JOINT
4	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
5	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 3 / 3

#	OEM	RE4	RE5
9	78525-STK-A81	Guide - CORD	Guide - CORD
12	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
13	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch (LH) 1 / 2

#	OEM	RE4	RE5
3	35510-SWA-J01	Switch assy - HAZARD	Switch assy - HAZARD

Tailgate 20 / 22

#	OEM	RE4	RE5
5	74800-SMG-G01	Lock assy - TAILGATE	Lock assy - TAILGATE
6	74810-SWA-A01	Switch assy - TAILGATE OPENER	Switch assy - TAILGATE OPENER
7	74813-SFE-003	Striker assy - TAILGATE	Striker assy - TAILGATE
8	74820-SWA-A01	Stay assy - R. TAILGATE OPEN	Stay assy - R. TAILGATE OPEN
9	74827-SWA-A10	Stopper - TAILGATE	Stopper - TAILGATE
11	74836-SWA-A00	Garnish assy - R. TAILGATE UPPER	Garnish assy - R. TAILGATE UPPER
12	74870-SWA-A01	Stay assy - L. TAILGATE OPEN	Stay assy - L. TAILGATE OPEN
13	74886-SWA-A00	Garnish assy - L. TAILGATE UPPER	Garnish assy - L. TAILGATE UPPER
15	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
16	90101-SLJ-003	Bolt - FLANGE, 8X18	Bolt - FLANGE, 8X18
17	90105-S10-000	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
19	90109-SWA-A00	Stud - BALL	Stud - BALL
20	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
21	90303-SWA-A00	Bolt - GARNISH, 6MM	Bolt - GARNISH, 6MM
22	90308-SMG-E01	Nut - GARNISH (M5)	Nut - GARNISH (M5)
23	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
24	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH
25	91513-SJK-003	Clip - TAILGATE GARNISH	Clip - TAILGATE GARNISH
26	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)
28	90856-S6M-003	Plug - TAILGATE DRAIN	Plug - TAILGATE DRAIN

Tailgate lining 4 / 6

#	OEM	RE4	RE5
25	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
26	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
27	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
28	91562-S0X-A01	Clip - ROOF LINING (BLACK)	Clip - ROOF LINING (BLACK)

Taillight/license light 19 / 26

#	OEM	RE4	RE5
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
5	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
9	33506-SWA-A01	Cap - BEZEL	Cap - BEZEL
10	33513-S50-003	Socket - T20W S2	Socket - T20W S2
12	34101-S60-013	Lens	Lens
13	34102-S60-003	Housing comp	Housing comp
14	34103-S60-003	Gasket	Gasket
15	34271-SWA-G01	Lamp unit	Lamp unit
18	74895-S5A-000	Bolt - SPECIAL, 5MM	Bolt - SPECIAL, 5MM
19	75523-SS0-000	Packing - SEAL	Packing - SEAL
21	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
22	90102-STK-A00	Bolt-washer - 5X12	Bolt-washer - 5X12
23	90301-ST0-003	push nut, 3mm	push nut, 3mm
24	90308-SMG-E01	Nut - GARNISH (M5)	Nut - GARNISH (M5)
25	90665-S47-003	Clip	Clip
26	91512-SJK-003	Clip - TAILGATE GARNISH	Clip - TAILGATE GARNISH
27	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
30	34100-S60-013	Light assy - LICENSE	Light assy - LICENSE
31	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)

Tire/wheel disks 48 / 50

#	OEM	RE4	RE5
4	42751-SWA-A08	Tire - 225/65R17 102T) (BRIDGESTONE	Tire - 225/65R17 102T) (BRIDGESTONE
5	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
5	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
6	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
6	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
6	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
6	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
6	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
6	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
6	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
6	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
6	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
6	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
6	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
6	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
6	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
6	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
7	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
7	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
7	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
7	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
7	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
7	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
7	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
7	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
7	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
7	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
7	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
7	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
7	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
7	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
7	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
7	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
7	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
7	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
7	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
7	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
7	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
7	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
7	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
7	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
7	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
7	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
7	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
9	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
11	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
12	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE
14	90304-SF0-751	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)

Tools/jack 3 / 8

#	OEM	RE4	RE5
2	89101-SMG-E01	Bag - TOOL	Bag - TOOL
3	89102-538-000	Driver, SCREW(NO.2 + -)	Driver, SCREW(NO.2 + -)
4	89103-538-000	Grip	Grip

Transfer 101 / 101

#	OEM	RE4	RE5
1	21411-RZF-000	Holder - TRANSFER	Holder - TRANSFER
2	29000-RZF-000	Transfer assy	Transfer assy
3	29100-PPS-A00	Shaft comp. - TRANSFER	Shaft comp. - TRANSFER
4	29210-RZF-000	Gear set - TRANSFER HYPOID	Gear set - TRANSFER HYPOID
5	29351-PH8-910	Spacer - TRANSFER	Spacer - TRANSFER
6	29360-PRH-000	Collar - TRANSFER	Collar - TRANSFER
7	29361-PH8-000	Washer - SPRING, 22MM	Washer - SPRING, 22MM
8	29424-P1C-000	Shim - 25MM(2.09)	Shim - 25MM(2.09)
8	29419-P1C-000	Shim - 25MM(1.94)	Shim - 25MM(1.94)
8	29414-P1C-000	Shim - 25MM(1.79)	Shim - 25MM(1.79)
8	29426-P1C-000	Shim - 25MM(2.15)	Shim - 25MM(2.15)
8	29421-P1C-000	Shim - 25MM(2.00)	Shim - 25MM(2.00)
8	29416-P1C-000	Shim - 25MM(1.85)	Shim - 25MM(1.85)
8	29411-P1C-000	Shim - 25MM(1.70)	Shim - 25MM(1.70)
8	29428-P1C-000	Shim - 25MM(2.21)	Shim - 25MM(2.21)
8	29423-P1C-000	Shim - 25MM(2.06)	Shim - 25MM(2.06)
8	29418-P1C-000	Shim - 25MM(1.91)	Shim - 25MM(1.91)
8	29413-P1C-000	Shim - 25MM(1.76)	Shim - 25MM(1.76)
8	29425-P1C-000	Shim - 25MM(2.12)	Shim - 25MM(2.12)
8	29420-P1C-000	Shim - 25MM(1.97)	Shim - 25MM(1.97)
8	29415-P1C-000	Shim - 25MM(1.82)	Shim - 25MM(1.82)
8	29427-P1C-000	Shim - 25MM(2.18)	Shim - 25MM(2.18)
8	29422-P1C-000	Shim - 25MM(2.03)	Shim - 25MM(2.03)
8	29417-P1C-000	Shim - 25MM(1.88)	Shim - 25MM(1.88)
8	29412-P1C-000	Shim - 25MM(1.73)	Shim - 25MM(1.73)
8	29429-P1C-000	Shim - 25MM(2.24)	Shim - 25MM(2.24)
9	29611-PLT-000	Flange - COMPANION	Flange - COMPANION
10	41402-PPS-000	Shim ax - 76MM(2.43)	Shim ax - 76MM(2.43)
10	41397-PPS-000	Shim ar - 76MM(2.28)	Shim ar - 76MM(2.28)
10	41371-PPS-000	Shim l - 76MM(1.50)	Shim l - 76MM(1.50)
10	41394-PPS-000	Shim am - 76MM(2.19)	Shim am - 76MM(2.19)
10	41389-PPS-000	Shim ag - 76MM(2.04)	Shim ag - 76MM(2.04)
10	41366-PPS-000	Shim f - 76MM(1.35)	Shim f - 76MM(1.35)
10	41384-PPS-000	Shim ab - 76MM(1.89)	Shim ab - 76MM(1.89)
10	41409-PPS-000	Shim be - 76MM(2.64)	Shim be - 76MM(2.64)
10	41379-PPS-000	Shim w - 76MM(1.74)	Shim w - 76MM(1.74)
10	41361-PPS-000	Shim a - 76MM(1.20)	Shim a - 76MM(1.20)
10	41404-PPS-000	Shim az - 76MM(2.49)	Shim az - 76MM(2.49)
10	41399-PPS-000	Shim at - 76MM(2.34)	Shim at - 76MM(2.34)
10	41372-PPS-000	Shim m - 76MM(1.53)	Shim m - 76MM(1.53)
10	41391-PPS-000	Shim aj - 76MM(2.10)	Shim aj - 76MM(2.10)
10	41367-PPS-000	Shim g - 76MM(1.38)	Shim g - 76MM(1.38)
10	41386-PPS-000	Shim ad - 76MM(1.95)	Shim ad - 76MM(1.95)
10	41381-PPS-000	Shim y - 76MM(1.80)	Shim y - 76MM(1.80)
10	41362-PPS-000	Shim b - 76MM(1.23)	Shim b - 76MM(1.23)
10	41406-PPS-000	Shim bb - 76MM(2.55)	Shim bb - 76MM(2.55)
10	41376-PPS-000	Shim s - 76MM(1.65)	Shim s - 76MM(1.65)
10	41401-PPS-000	Shim aw - 76MM(2.40)	Shim aw - 76MM(2.40)
10	41373-PPS-000	Shim n - 76MM(1.56)	Shim n - 76MM(1.56)
10	41396-PPS-000	Shim ap - 76MM(2.25)	Shim ap - 76MM(2.25)
10	41368-PPS-000	Shim h - 76MM(1.41)	Shim h - 76MM(1.41)
10	41393-PPS-000	Shim al - 76MM(2.16)	Shim al - 76MM(2.16)
10	41388-PPS-000	Shim af - 76MM(2.01)	Shim af - 76MM(2.01)
10	41383-PPS-000	Shim aa - 76MM(1.86)	Shim aa - 76MM(1.86)
10	41363-PPS-000	Shim c - 76MM(1.26)	Shim c - 76MM(1.26)
10	41408-PPS-000	Shim bd - 76MM(2.61)	Shim bd - 76MM(2.61)
10	41378-PPS-000	Shim u - 76MM(1.71)	Shim u - 76MM(1.71)
10	41403-PPS-000	Shim ay - 76MM(2.46)	Shim ay - 76MM(2.46)
10	41374-PPS-000	Shim p - 76MM(1.59)	Shim p - 76MM(1.59)
10	41398-PPS-000	Shim as - 76MM(2.31)	Shim as - 76MM(2.31)
10	41369-PPS-000	Shim j - 76MM(1.44)	Shim j - 76MM(1.44)
10	41395-PPS-000	Shim an - 76MM(2.22)	Shim an - 76MM(2.22)
10	41390-PPS-000	Shim ah - 76MM(2.07)	Shim ah - 76MM(2.07)
10	41385-PPS-000	Shim ac - 76MM(1.92)	Shim ac - 76MM(1.92)
10	41364-PPS-000	Shim d - 76MM(1.29)	Shim d - 76MM(1.29)
10	41410-PPS-000	Shim bf - 76MM(2.67)	Shim bf - 76MM(2.67)
10	41380-PPS-000	Shim x - 76MM(1.77)	Shim x - 76MM(1.77)
10	41405-PPS-000	Shim ba - 76MM(2.52)	Shim ba - 76MM(2.52)
10	41375-PPS-000	Shim r - 76MM(1.62)	Shim r - 76MM(1.62)
10	41400-PPS-000	Shim au - 76MM(2.37)	Shim au - 76MM(2.37)
10	41370-PPS-000	Shim k - 76MM(1.47)	Shim k - 76MM(1.47)
10	41392-PPS-000	Shim ak - 76MM(2.13)	Shim ak - 76MM(2.13)
10	41387-PPS-000	Shim ae - 76MM(1.98)	Shim ae - 76MM(1.98)
10	41365-PPS-000	Shim e - 76MM(1.32)	Shim e - 76MM(1.32)
10	41382-PPS-000	Shim z - 76MM(1.83)	Shim z - 76MM(1.83)
10	41407-PPS-000	Shim bc - 76MM(2.58)	Shim bc - 76MM(2.58)
10	41377-PPS-000	Shim t - 76MM(1.68)	Shim t - 76MM(1.68)
11	41373-PS3-000	Shim m - 35MM(1.08)	Shim m - 35MM(1.08)
11	41368-PS3-000	Shim h - 35MM(0.93)	Shim h - 35MM(0.93)
11	41363-PS3-000	Shim c - 35MM(0.78)	Shim c - 35MM(0.78)
11	41374-PS3-000	Shim n - 35MM(1.11)	Shim n - 35MM(1.11)
11	41369-PS3-000	Shim i - 35MM(0.96)	Shim i - 35MM(0.96)
11	41364-PS3-000	Shim d - 35MM(0.81)	Shim d - 35MM(0.81)
11	41370-PS3-000	Shim j - 35MM(0.99)	Shim j - 35MM(0.99)
11	41365-PS3-000	Shim e - 35MM(0.84)	Shim e - 35MM(0.84)
11	41371-PS3-000	Shim k - 35MM(1.02)	Shim k - 35MM(1.02)
11	41366-PS3-000	Shim f - 35MM(0.87)	Shim f - 35MM(0.87)
11	41361-PS3-000	Shim a - 35MM(0.72)	Shim a - 35MM(0.72)
11	41372-PS3-000	Shim l - 35MM(1.05)	Shim l - 35MM(1.05)
11	41367-PS3-000	Shim g - 35MM(0.90)	Shim g - 35MM(0.90)
11	41362-PS3-000	Shim b - 35MM(0.75)	Shim b - 35MM(0.75)
12	90001-PRH-000	Bolt - FLANGE, 10X113	Bolt - FLANGE, 10X113
13	90201-PH8-000	Nut - HEX., 22MM	Nut - HEX., 22MM
14	91022-PRV-003	Bearing - TAPER, 25X57X16.25	Bearing - TAPER, 25X57X16.25
15	91122-PPS-003	Bearing - SPECIAL TAPER, 40X76.2X16	Bearing - SPECIAL TAPER, 40X76.2X16
16	91122-PS5-003	Bearing - TAPER, 35X62X21	Bearing - TAPER, 35X62X21
17	91125-PRV-003	Bearing - TAPER, 26.9X50.2X14.2(NTN)	Bearing - TAPER, 26.9X50.2X14.2(NTN)
18	91201-P6R-003	Oil seal - 40X56X9(NOK)	Oil seal - 40X56X9(NOK)
19	91303-P4T-003	O-ring - 23X2.6(NOK)	O-ring - 23X2.6(NOK)
20	91304-PRH-003	O-ring - 92X2.2(ARAI)	O-ring - 92X2.2(ARAI)
21	91304-P4T-003	Ring - BACK UP, 23MM	Ring - BACK UP, 23MM

Transmission case 71 / 71

#	OEM	RE4	RE5
1	21104-PPP-000	Plate m - OIL GUIDE	Plate m - OIL GUIDE
2	21200-RZF-000	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
3	21211-RZF-000	Plate - OIL GUTTER	Plate - OIL GUTTER
4	21220-RZF-010	Hanger comp. a - TRANSMISSION	Hanger comp. a - TRANSMISSION
5	21222-PZF-000	Hanger - TRANSMISSION	Hanger - TRANSMISSION
6	21223-RZF-000	Hanger comp. b - TRANSMISSION	Hanger comp. b - TRANSMISSION
7	21225-RZF-000	Stay b - HARNESS	Stay b - HARNESS
8	23976-PPP-J00	Shim at - 72MM (1.95)	Shim at - 72MM (1.95)
8	23944-P21-000	Shim n - 72MM(0.99)	Shim n - 72MM(0.99)
8	23971-P21-000	Shim ao - 72MM(1.80)	Shim ao - 72MM(1.80)
8	23939-P21-000	Shim i - 72MM(0.84)	Shim i - 72MM(0.84)
8	23966-P21-000	Shim aj - 72MM(1.65)	Shim aj - 72MM(1.65)
8	23934-P21-000	Shim d - 72MM(0.69)	Shim d - 72MM(0.69)
8	23961-P21-000	Shim ae - 72MM(1.50)	Shim ae - 72MM(1.50)
8	23956-P21-000	Shim z - 72MM(1.35)	Shim z - 72MM(1.35)
8	23983-PPP-J00	Shim bb - 72MM (2.16)	Shim bb - 72MM (2.16)
8	23951-P21-000	Shim u - 72MM(1.20)	Shim u - 72MM(1.20)
8	23978-PPP-J00	Shim aw - 72MM (2.01)	Shim aw - 72MM (2.01)
8	23946-P21-000	Shim p - 72MM(1.05)	Shim p - 72MM(1.05)
8	23973-PPP-J00	Shim aq - 72MM (1.86)	Shim aq - 72MM (1.86)
8	23941-P21-000	Shim k - 72MM(0.90)	Shim k - 72MM(0.90)
8	23968-P21-000	Shim al - 72MM(1.71)	Shim al - 72MM(1.71)
8	23936-P21-000	Shim f - 72MM(0.75)	Shim f - 72MM(0.75)
8	23931-P21-000	Shim a - 72MM(0.60)	Shim a - 72MM(0.60)
8	23963-P21-000	Shim ag - 72MM(1.56)	Shim ag - 72MM(1.56)
8	23958-P21-000	Shim ab - 72MM(1.41)	Shim ab - 72MM(1.41)
8	23985-PPP-J00	Shim bd - 72MM (2.22)	Shim bd - 72MM (2.22)
8	23953-P21-000	Shim w - 72MM(1.26)	Shim w - 72MM(1.26)
8	23980-PPP-J00	Shim ay - 72MM (2.07)	Shim ay - 72MM (2.07)
8	23948-P21-000	Shim r - 72MM(1.11)	Shim r - 72MM(1.11)
8	23975-PPP-J00	Shim as - 72MM (1.92)	Shim as - 72MM (1.92)
8	23943-P21-000	Shim m - 72MM(0.96)	Shim m - 72MM(0.96)
8	23970-P21-000	Shim an - 72MM(1.77)	Shim an - 72MM(1.77)
8	23938-P21-000	Shim h - 72MM(0.81)	Shim h - 72MM(0.81)
8	23965-P21-000	Shim ai - 72MM(1.62)	Shim ai - 72MM(1.62)
8	23933-P21-000	Shim c - 72MM(0.66)	Shim c - 72MM(0.66)
8	23960-P21-000	Shim ad - 72MM(1.47)	Shim ad - 72MM(1.47)
8	23955-P21-000	Shim y - 72MM(1.32)	Shim y - 72MM(1.32)
8	23982-PPP-J00	Shim ba - 72MM (2.13)	Shim ba - 72MM (2.13)
8	23950-P21-000	Shim t - 72MM(1.17)	Shim t - 72MM(1.17)
8	23977-PPP-J00	Shim av - 72MM (1.98)	Shim av - 72MM (1.98)
8	23945-P21-000	Shim o - 72MM(1.02)	Shim o - 72MM(1.02)
8	23972-PPP-J00	Shim ap - 72MM (1.83)	Shim ap - 72MM (1.83)
8	23940-P21-000	Shim j - 72MM(0.87)	Shim j - 72MM(0.87)
8	23967-P21-000	Shim ak - 72MM(1.68)	Shim ak - 72MM(1.68)
8	23935-P21-000	Shim e - 72MM(0.72)	Shim e - 72MM(0.72)
8	23962-P21-000	Shim af - 72MM(1.53)	Shim af - 72MM(1.53)
8	23957-P21-000	Shim aa - 72MM(1.38)	Shim aa - 72MM(1.38)
8	23984-PPP-J00	Shim bc - 72MM (2.19)	Shim bc - 72MM (2.19)
8	23952-P21-000	Shim v - 72MM(1.23)	Shim v - 72MM(1.23)
8	23979-PPP-J00	Shim ax - 72MM (2.04)	Shim ax - 72MM (2.04)
8	23947-P21-000	Shim q - 72MM(1.08)	Shim q - 72MM(1.08)
8	23974-PPP-J00	Shim ar - 72MM (1.89)	Shim ar - 72MM (1.89)
8	23942-P21-000	Shim l - 72MM(0.93)	Shim l - 72MM(0.93)
8	23969-P21-000	Shim am - 72MM(1.74)	Shim am - 72MM(1.74)
8	23937-P21-000	Shim g - 72MM(0.78)	Shim g - 72MM(0.78)
8	23932-P21-000	Shim b - 72MM(0.63)	Shim b - 72MM(0.63)
8	23964-P21-000	Shim ah - 72MM(1.59)	Shim ah - 72MM(1.59)
8	23959-P21-000	Shim ac - 72MM(1.44)	Shim ac - 72MM(1.44)
8	23986-PPP-J00	Shim be - 72MM (2.25)	Shim be - 72MM (2.25)
8	23954-P21-000	Shim x - 72MM(1.29)	Shim x - 72MM(1.29)
8	23981-PPP-J00	Shim az - 72MM (2.10)	Shim az - 72MM (2.10)
8	23949-P21-000	Shim s - 72MM(1.14)	Shim s - 72MM(1.14)
9	24601-RZF-000	Stay - CHANGE WIRE	Stay - CHANGE WIRE
10	28820-PWR-013	Pick up assy. MATSUSHITA	Pick up assy. MATSUSHITA
11	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
12	90081-RPF-000	Bolt - SEALING, 32MM	Bolt - SEALING, 32MM
13	90380-S10-000	Bolt - STUD, 12X83.8	Bolt - STUD, 12X83.8
14	90401-RAR-000	Washer - PLAIN	Washer - PLAIN
15	91205-PL3-B01	Oil seal - 40X56X8(ARAI)	Oil seal - 40X56X8(ARAI)
16	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Valve/rocker arm (2.4L) 2 / 16

#	OEM	RE4	RE5
12	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
13	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose (2.4L) 4 / 17

#	OEM	RE4	RE5
5	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
6	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
7	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water pump (2.4L) 2 / 23

#	OEM	RE4	RE5
5	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
18	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)

Windshield washer (2) 27 / 28

#	OEM	RE4	RE5
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
3	76802-SJD-003	Cap unit - MOUTH	Cap unit - MOUTH
4	76805-SWA-003	Hose	Hose
5	76846-TF0-003	Pump set - WASHER	Pump set - WASHER
6	76809-SWA-003	Packing	Packing
7	76821-SWA-003	Tube - CORRUGATE	Tube - CORRUGATE
8	76825-SH3-003	Tube a - RR. WASHER	Tube a - RR. WASHER
9	76826-SWA-003	Tube sub assy.	Tube sub assy.
10	76874-SWA-003	Tube - 940MM	Tube - 940MM
11	76864-TL0-G01	Tube - 1280MM	Tube - 1280MM
12	76839-SWA-003	Tube - 3040MM	Tube - 3040MM
13	76841-SWA-G03	Tank - WASHER(4.8L FR.-RR.)	Tank - WASHER(4.8L FR.-RR.)
14	76842-S2K-J11	Bush - WASHER TANK	Bush - WASHER TANK
15	76851-S30-003	Grommet - WASHER TUBE	Grommet - WASHER TUBE
16	76867-SWA-003	Tube - 80MM	Tube - 80MM
17	76868-SWA-003	Tube - 560MM	Tube - 560MM
18	76870-SYA-003	Tube - 140MM	Tube - 140MM
19	76872-SWA-003	Tube - 220MM	Tube - 220MM
20	76873-SWA-003	Tube - 1200MM	Tube - 1200MM
21	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
22	91501-SJ6-003	Clip - WASHER TUBE	Clip - WASHER TUBE
23	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
24	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
25	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)
27	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
28	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)	Valve - ONE WAY (RR.) (MITSUBA)

Wire harness (LH; 1) 3 / 4

#	OEM	RE4	RE5
2	32610-SWA-010	Cable - SUB EARTH	Cable - SUB EARTH
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
4	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (LH; 2) 1 / 8

#	OEM	RE4	RE5
8	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (LH; 3) 2 / 5

#	OEM	RE4	RE5
3	32109-SWA-G01	Cord - TAILGATE	Cord - TAILGATE
4	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (LH; 4) 2 / 5

#	OEM	RE4	RE5
4	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
5	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
