検索 › 比較 › RE1 × RE2

RE1 × RE2

共通 1,735 / 合計 2,895 · Jaccard 59.9%

RE1 Honda CR-V — 2,118 中 1,735 共有

RE2 Honda CR-V — 2,512 中 1,735 共有

1,735 件

Abs/vsa modulator 2 / 3

#	OEM	RE1	RE2
1	57101-STK-A01	Rubber - DAMPER	Rubber - DAMPER
3	57115-SWA-000	Bracket - MODULATOR(ABS)	Bracket - MODULATOR(ABS)

Air cleaner (2.0L) 18 / 18

#	OEM	RE1	RE2
1	17201-RZP-G00	Case set - AIR CLEANER	Case set - AIR CLEANER
2	17211-RZP-G00	Cover comp. - AIR CLEANER	Cover comp. - AIR CLEANER
3	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
6	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
7	17220-RZP-Y00	Element assy. - AIR CLEANER	Element assy. - AIR CLEANER
8	17225-RZP-G00	Tube - AIR FLOW	Tube - AIR FLOW
9	17260-RZP-G00	Stay comp. a - AIR CLEANER	Stay comp. a - AIR CLEANER
10	17263-RZP-G00	Stay comp. c - AIR CLEANER	Stay comp. c - AIR CLEANER
11	17315-P5K-000	Clamp - AIR FLOW TUBE (74)	Clamp - AIR FLOW TUBE (74)
12	17316-P1E-000	Clamp - AIR FLOW TUBE (70)	Clamp - AIR FLOW TUBE (70)
14	32742-RZP-G00	Stay b - ENGINE HARNESS	Stay b - ENGINE HARNESS
15	37980-RNA-A01	Meter assy - AIR FLOW	Meter assy - AIR FLOW
16	37985-RAD-L11	Gasket	Gasket
17	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
18	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE

Air conditioner (COMPRESSOR; 2.0L) 13 / 13

#	OEM	RE1	RE2
1	38801-PDF-E02	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
2	38810-RZV-G03	Compressor comp.	Compressor comp.
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
4	38900-RZV-G01	Clutch set - COMPRESSOR	Clutch set - COMPRESSOR
5	38908-RZV-G03	Protector set - THERMAL	Protector set - THERMAL
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
9	38924-RZV-G02	Coil set - FIELD	Coil set - FIELD
10	38930-RZP-G00	Bracket - COMPRESSOR	Bracket - COMPRESSOR
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Air conditioner (CONDENSER) 6 / 6

#	OEM	RE1	RE2
1	80101-S9A-013	Filter sub assy.	Filter sub assy.
2	80107-S2X-000	Mount - CONDENSER UPPER	Mount - CONDENSER UPPER
3	80111-SWA-A01	Bracket - R. CONDENSER UPPER	Bracket - R. CONDENSER UPPER
4	80112-SWA-J00	Bracket - L. CONDENSER UPPER	Bracket - L. CONDENSER UPPER
5	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
7	80110-SWA-A01	Condenser comp.	Condenser comp.

Air conditioner (HOSES/PIPES; RH) 22 / 22

#	OEM	RE1	RE2
1	17713-SE0-003	Clamp - FUEL PIPE	Clamp - FUEL PIPE
2	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
5	80311-SWC-013	Hose comp. - SUCTION	Hose comp. - SUCTION
7	80315-SWC-013	Hose comp. - DISCHARGE	Hose comp. - DISCHARGE
8	80321-SWA-003	Pipe comp - AIR CONDITIONER	Pipe comp - AIR CONDITIONER
9	80325-SDA-A00	Seal - FLANGE	Seal - FLANGE
10	80341-SWA-A01	Pipe comp - RECEIVER	Pipe comp - RECEIVER
11	80361-SWA-A00	Stay - AIR CONDITIONER PIPE	Stay - AIR CONDITIONER PIPE
12	80362-SJA-A00	Clamp - SUCTION HOSE	Clamp - SUCTION HOSE
13	80366-SFA-000	Rubber - MOUNT	Rubber - MOUNT
14	80367-SFA-000	Collar - DISTANCE	Collar - DISTANCE
15	80381-SJA-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
16	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
17	80865-SL0-003	Cap - VALVE (H)	Cap - VALVE (H)
18	80866-SL0-003	Cap - VALVE(L)	Cap - VALVE(L)
19	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
20	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
21	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
22	90105-SFA-003	Bolt-washer - 6X30	Bolt-washer - 6X30
23	90203-SB0-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
24	91536-SFE-003	Clip - AIR CONDITIONER PIPE	Clip - AIR CONDITIONER PIPE
25	91541-SEY-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE

Air conditioner (SENSOR) 5 / 5

#	OEM	RE1	RE2
1	80510-SDA-A41	Sensor assy - SUN BEAM	Sensor assy - SUN BEAM
2	80519-SWA-A40	Sub harness - SUN BEAM	Sub harness - SUN BEAM
3	80521-SWA-940	Bracket - AMBIENT SENSOR	Bracket - AMBIENT SENSOR
4	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
5	90661-SWA-A01	Clip	Clip

Alternator (DENSO; 2.0L) 15 / 15

#	OEM	RE1	RE2
1	31100-RZP-G01	Alternator assy - CSF37) (DENSO	Alternator assy - CSF37) (DENSO
2	31101-RTA-003	Rotor assy.	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
4	31108-RZP-G01	Frame assy - RR. STATOR	Frame assy - RR. STATOR
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
7	31119-RZP-G01	Bush - INSULATION	Bush - INSULATION
8	31135-RZP-G01	Cover - RR. END	Cover - RR. END
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
10	31141-RZP-G01	Pulley	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
14	31147-PT0-003	Screw-washer	Screw-washer
15	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

Alternator bracket (2.0L) 14 / 14

#	OEM	RE1	RE2
1	31110-RWK-003	Belt - ALTERNATOR (BANDO)	Belt - ALTERNATOR (BANDO)
1	31110-RWK-004	Belt - ALTERNATOR (MITSUBOSHI)	Belt - ALTERNATOR (MITSUBOSHI)
2	31113-RNA-A00	Bracket - ALTERNATOR	Bracket - ALTERNATOR
3	31114-RZP-G00	Insulator - HEAT	Insulator - HEAT
4	31170-RZP-G03	Tensioner assy, Auto	Tensioner assy, Auto
4	31170-RZP-G05	TENSIONER ASSY, AUTO	TENSIONER ASSY, AUTO
5	31175-RNA-000	Bracket - IDLE PULLEY	Bracket - IDLE PULLEY
6	31185-RNA-000	Cover - BEARING	Cover - BEARING
7	31190-RL2-G01	Pulley comp - IDLER	Pulley comp - IDLER
8	32750-RNA-A00	Stay k - ENGINE HARNESS	Stay k - ENGINE HARNESS
9	90001-RWK-000	Bolt - SPECIAL, 8X85	Bolt - SPECIAL, 8X85
10	90006-P8F-A00	Bolt-washer - 8X32	Bolt-washer - 8X32
11	90030-RNA-A00	Bolt - SPECIAL, 10X40	Bolt - SPECIAL, 10X40
12	90031-PRA-000	Bolt - SPECIAL FLANGE, 10X25	Bolt - SPECIAL FLANGE, 10X25

Antenna (RH) 17 / 18

#	OEM	RE1	RE2
1	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
2	39151-S6A-E02	Element assy. - YOKOO	Element assy. - YOKOO
2	39151-S6A-E03	ELEMENT ASSY YOKOO	ELEMENT ASSY YOKOO
3	39152-SWA-A03	Base comp. - ANTENNA	Base comp. - ANTENNA
4	39153-TA0-A02	Nut assy. - ANTENNA (YOKOO)	Nut assy. - ANTENNA (YOKOO)
5	39156-SWA-J01	Sub feeder assy. - ANTENNA	Sub feeder assy. - ANTENNA
6	39160-SWA-J03	Feeder assy. - ANTENNA	Feeder assy. - ANTENNA
7	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
8	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
9	91533-SWA-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
10	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
11	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
12	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
13	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
14	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
15	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)
16	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)

Audio unit (1) 8 / 10

#	OEM	RE1	RE2
2	39104-SWA-A11	Screw - 2.6X6	Screw - 2.6X6
5	77255-SWA-A00	Bracket - R. RADIO	Bracket - R. RADIO
6	77256-SWA-A00	Bracket - L. RADIO	Bracket - L. RADIO
7	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
8	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
9	91551-SWA-901	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7
12	39103-SWA-A11	Knob assy - VOLUME	Knob assy - VOLUME
14	39108-SWA-A11	Button - VOLUME	Button - VOLUME

Auto air conditioner control (RH) 1 / 1

#	OEM	RE1	RE2
7	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Balancer shaft (2.0L) 16 / 16

#	OEM	RE1	RE2
1	11107-RNA-A00	Bolt - SEALING, 24MM	Bolt - SEALING, 24MM
2	11222-RZP-000	Plate b - BAFFLE	Plate b - BAFFLE
3	11223-RZP-000	Plate c - BAFFLE	Plate c - BAFFLE
5	13406-RZP-000	Holder set - BALANCER	Holder set - BALANCER
6	13407-RZP-000	O-ring set - BALANCER	O-ring set - BALANCER
7	13410-R60-U00	Shaft comp. - FR. BALANCER	Shaft comp. - FR. BALANCER
8	13420-R60-U00	Shaft comp. - RR. BALANCER	Shaft comp. - RR. BALANCER
9	13432-RZP-003	Sprocket - DRIVEN (17T)	Sprocket - DRIVEN (17T)
10	13435-RZP-004	Bearing - BALANCE SHAFT	Bearing - BALANCE SHAFT
11	13441-RZP-013	Chain - 60L	Chain - 60L
12	13450-RZP-004	Tensioner comp - BALANCER SHAFT CHAIN	Tensioner comp - BALANCER SHAFT CHAIN
13	13460-RZP-003	Guide - BALANCER SHAFT CHAIN	Guide - BALANCER SHAFT CHAIN
14	15123-RZP-000	Dowel pin - 23X13	Dowel pin - 23X13
15	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
16	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30
17	91321-P0X-003	O-ring - 25X2.4 (NOK)	O-ring - 25X2.4 (NOK)

Battery 13 / 13

#	OEM	RE1	RE2
1	31500-S7C-G01	Battery - 46B24L<S>-MF) (PANASONIC	Battery - 46B24L<S>-MF) (PANASONIC
2	31512-SA5-000	Plate - BATTERY SETTING	Plate - BATTERY SETTING
3	31513-SDA-A00	Bolt - BATTERY SETTING (195MM)	Bolt - BATTERY SETTING (195MM)
4	31521-SWA-A00	Box - BATTERY(55B)	Box - BATTERY(55B)
5	31531-SNA-000	Cover - BATTERY (46B24)	Cover - BATTERY (46B24)
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
7	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)	Holder - CORRUGATED(BLACK) (10MM)
8	32600-SWA-A00	Cable assy - BATTERY EARTH	Cable assy - BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
11	32607-SMJ-E01	Washer - BATTERY TERMINAL	Washer - BATTERY TERMINAL
12	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
13	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)

Brake lines (ABS; RH) 27 / 27

#	OEM	RE1	RE2
1	01464-SWA-000	HOSE SET, R. FR. BRAKE	HOSE SET, R. FR. BRAKE
2	01465-SWA-000	HOSE SET, L. FR. BRAKE	HOSE SET, L. FR. BRAKE
3	01466-SWA-000	Hose set - RR. BRAKE	Hose set - RR. BRAKE
4	46330-SWA-Q01	Pipe comp. c - BRAKE	Pipe comp. c - BRAKE
5	46340-SWA-Q01	Pipe comp. d - BRAKE	Pipe comp. d - BRAKE
6	46374-SWA-Q01	Pipe comp. u - BRAKE	Pipe comp. u - BRAKE
7	46375-SWA-Q01	Pipe comp. v - BRAKE	Pipe comp. v - BRAKE
8	46376-SWA-Q01	Pipe comp. w - BRAKE	Pipe comp. w - BRAKE
9	46377-SWA-Q01	Pipe comp. x - BRAKE	Pipe comp. x - BRAKE
10	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
11	46390-SNA-A02	Clip - BRAKE PIPE	Clip - BRAKE PIPE
12	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
13	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
14	46392-SAA-901	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46392-SWA-J00	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46393-SMG-E51	Clip - BRAKE PIPE	Clip - BRAKE PIPE
18	46394-SEA-023	Clip d - BRAKE PIPE	Clip d - BRAKE PIPE
19	46395-STK-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
20	46396-SCV-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
21	46435-SWA-A00	Bracket - R. RR. BRAKE HOSE	Bracket - R. RR. BRAKE HOSE
22	46436-SWA-A00	Bracket - L. RR. BRAKE HOSE	Bracket - L. RR. BRAKE HOSE
23	46437-SWA-A00	Bracket - RR. BRAKE HOSE	Bracket - RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
27	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (RH) 24 / 26

RE1 Brake master cylinder/ master power (RH)

RE2 Brake master cylinder/ master power (RH)

#	OEM	RE1	RE2
1	01462-SWA-P00	Cylinder set - MASTER	Cylinder set - MASTER
2	01469-SWA-J00	Power set - MASTER(10.5")	Power set - MASTER(10.5")
3	46017-SWA-J00	Hose set - RESERVE TANK	Hose set - RESERVE TANK
4	46100-SWA-Q01	Cylinder assy. - MASTER	Cylinder assy. - MASTER
5	46120-SWA-P01	Piston assy. - PRIMARY	Piston assy. - PRIMARY
6	46122-SWA-P01	Piston assy. - SECONDARY	Piston assy. - SECONDARY
7	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
9	46185-SE0-003	Seal - ROD	Seal - ROD
10	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
12	46402-SWC-T01	Tube assy - MASTER POWER	Tube assy - MASTER POWER
15	46512-S70-000	Pin - PEDAL	Pin - PEDAL
16	46661-SWA-J00	Reservoir set	Reservoir set
17	46662-SLE-J01	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
18	46665-S04-J01	Grommet	Grommet
19	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
20	46669-S5A-003	Diaphragm	Diaphragm
23	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
24	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
25	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
26	57515-S30-003	Pin - STOP	Pin - STOP
27	57562-SF1-003	Circlip	Circlip
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
35	46680-SWA-J01	Union - RESERVOIR	Union - RESERVOIR

Breather pipe (2.0L) 7 / 7

#	OEM	RE1	RE2
1	17130-PND-A01	Valve assy. - PCV	Valve assy. - PCV
2	17131-RNA-A00	Tube - PCV	Tube - PCV
3	17137-RZP-G00	Pipe, Breather	Pipe, Breather
4	17153-RZP-G00	Tube - BREATHER	Tube - BREATHER
5	91405-RGA-003	Clamp - TUBE (D20)	Clamp - TUBE (D20)
6	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
6	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Bumpers ('10) 32 / 32

#	OEM	RE1	RE2
3	33505-SWA-J01	Reflector assy - R. RR.	Reflector assy - R. RR.
4	33555-SWA-J01	Reflector assy - L. RR.	Reflector assy - L. RR.
5	71102-SWA-A01	Face - FR. BUMPER LOWER	Face - FR. BUMPER LOWER
6	71103-SWA-000	Garnish - R. FR. SIDE	Garnish - R. FR. SIDE
7	71105-SWA-003	Garnish - R. FR. FOG LIGHT	Garnish - R. FR. FOG LIGHT
8	71106-SWA-003	Garnish - L. FR. FOG LIGHT	Garnish - L. FR. FOG LIGHT
9	71108-SWA-000	Garnish - L. FR. SIDE	Garnish - L. FR. SIDE
10	71109-TA1-J01	Clip - SELF HOLD	Clip - SELF HOLD
12	71140-SWA-000	Beam - R. FR. BUMPER UPPER	Beam - R. FR. BUMPER UPPER
12	71140-SWA-J00	Beam - R. FR. BUMPER UPPER	Beam - R. FR. BUMPER UPPER
15	71145-SWA-G00	Base - FR. LICENSE PLATE	Base - FR. LICENSE PLATE
17	71146-SWA-010	Beam - FR. BUMPER CENTER UPPER	Beam - FR. BUMPER CENTER UPPER
19	71148-SG9-600	Nut	Nut
20	71148-SWA-000	Support - FR. CENTER UPPER BEAM	Support - FR. CENTER UPPER BEAM
21	71190-SWA-000	Beam - L. FR. BUMPER UPPER	Beam - L. FR. BUMPER UPPER
21	71190-SWA-J00	Beam - L. FR. BUMPER UPPER	Beam - L. FR. BUMPER UPPER
22	71193-SWA-003	Spacer - R. FR. BUMPER SIDE	Spacer - R. FR. BUMPER SIDE
23	71198-SWA-003	Spacer - L. FR. BUMPER SIDE	Spacer - L. FR. BUMPER SIDE
24	71502-SWA-A00	Face - RR. BUMPER LOWER	Face - RR. BUMPER LOWER
26	71593-SWA-A01	Spacer - R. RR. BUMPER SIDE	Spacer - R. RR. BUMPER SIDE
27	71598-SWA-A01	Spacer - L. RR. BUMPER SIDE	Spacer - L. RR. BUMPER SIDE
28	90107-S9V-A01	Bolt - RR. BUMPER STOPPER	Bolt - RR. BUMPER STOPPER
29	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
30	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
31	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
33	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
34	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
35	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
36	90601-SWA-000	Clip - SNAP FIT	Clip - SNAP FIT
37	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
38	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
39	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Camshaft/cam chain (2.0L) 13 / 13

#	OEM	RE1	RE2
1	14110-RZP-000	Camshaft comp.	Camshaft comp.
2	14211-RNA-A01	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
3	14221-RNA-A01	Plate - TDC PULSER	Plate - TDC PULSER
4	14222-PWA-004	Bolt - TDC PULSER PLATE	Bolt - TDC PULSER PLATE
5	14401-RNA-A01	Chain - 136L	Chain - 136L
6	14510-RNA-A01	Tensioner comp - CAM CHAIN	Tensioner comp - CAM CHAIN
7	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
8	14520-RNA-A01	Arm comp - CAM CHAIN TENSIONER	Arm comp - CAM CHAIN TENSIONER
9	14530-RNA-A01	Guide - CAM CHAIN	Guide - CAM CHAIN
10	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
11	90004-RNA-A00	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
12	90031-RNA-A01	Bolt-washer - 10X30	Bolt-washer - 10X30
13	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Canister (1) 19 / 19

#	OEM	RE1	RE2
1	17300-SNA-013	Canister assy	Canister assy
1	17300-SNA-023	Canister assy	Canister assy
2	17358-SWA-000	Bracket - CANISTER	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY	Valve - TWO WAY
4	17579-SWA-000	Plate - BAFFLE CANISTER	Plate - BAFFLE CANISTER
5	17714-SWA-000	Tube assy. b - FUEL VENT	Tube assy. b - FUEL VENT
6	17724-SNA-000	Tube - FUEL VENT	Tube - FUEL VENT
7	17740-SWA-000	Tube a - DRAIN	Tube a - DRAIN
8	17741-SWA-000	Tube assy. a - DRAIN	Tube assy. a - DRAIN
9	17742-SDA-A02	Joint - DRAIN TUBE	Joint - DRAIN TUBE
10	17742-SWA-003	Joint - DRAIN TUBE	Joint - DRAIN TUBE
11	17743-SWA-A00	Tube b - DRAIN	Tube b - DRAIN
12	17745-SWA-000	Tube c - DRAIN	Tube c - DRAIN
13	17749-SWA-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
14	38166-P1A-003	Joint - TWO WAY, 5MM	Joint - TWO WAY, 5MM
15	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
16	91591-SJF-003	Clamp - VENT TUBE (NATURAL)	Clamp - VENT TUBE (NATURAL)
17	91595-SCV-A01	Clip - DRAIN TUBE	Clip - DRAIN TUBE
22	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)

Center console (1) 11 / 14

#	OEM	RE1	RE2
1	39112-SMA-003	Jack assy - AUX IN.	Jack assy - AUX IN.
2	39620-SNA-003	Cap assy.	Cap assy.
3	39624-SZ3-L01	Socket assy	Socket assy
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
7	83416-SWA-U31	Panel - JACK(E)	Panel - JACK(E)
8	83417-SWA-J01	Lid - MAINTENANCE	Lid - MAINTENANCE
9	83418-SWA-J01	Clip - BOX	Clip - BOX
10	83419-SWA-J01	Bracket - BOX	Bracket - BOX
14	83432-SWA-J01	Mat - BOX CONSOLE	Mat - BOX CONSOLE
22	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
23	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Clutch case (2.0L) 1 / 12

#	OEM	RE1	RE2
11	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)

Clutch master cylinder (RH) 4 / 35

#	OEM	RE1	RE2
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
7	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
34	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch/torque converter 1 / 9

#	OEM	RE1	RE2
2	21351-RWP-000	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE

Combination switch (RH) 16 / 23

#	OEM	RE1	RE2
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
6	35111-SNB-A01	Key comp. - IMMOBILIZER (MAIN) (BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLACK)
8	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
10	35113-SMG-E11	Key comp. - TRANSMITTER TOP CASE	Key comp. - TRANSMITTER TOP CASE
11	35113-SMG-305	Key comp. - TRANSMITTER TOP CASE (BLANK)	Key comp. - TRANSMITTER TOP CASE (BLANK)
13	35116-SDA-A11	Screw - FLAT	Screw - FLAT
14	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
15	35251-TA0-B01	Body comp - SWITCH	Body comp - SWITCH
18	35400-S6A-003	Switch assy - DOOR (DAIICHI)	Switch assy - DOOR (DAIICHI)
19	39730-SWA-K01	Immobilizer & keyless unit	Immobilizer & keyless unit
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
21	72147-SWA-K11	Module assy. - KEYLESS	Module assy. - KEYLESS
22	72148-S0A-000	Battery CR1616	Battery CR1616
23	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18

Console 4 / 4

#	OEM	RE1	RE2
3	39620-SNA-003	Cap assy.	Cap assy.
4	39624-SZ3-L01	Socket assy	Socket assy
6	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
12	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Control unit (CABIN; 1; RH) 15 / 16

#	OEM	RE1	RE2
2	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
3	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
4	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
5	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
6	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
10	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
10	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
16	39980-SWW-E02	Eps unit	Eps unit
17	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
18	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
19	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
23	39113-SWA-A01	Adapter assy - USB(H-TYPE)	Adapter assy - USB(H-TYPE)
24	39113-SWA-901	Adapter assy - USB	Adapter assy - USB
25	39114-SWA-A01	Cord assy - USB	Cord assy - USB
27	91551-SWA-901	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7

Control unit (CABIN; 2) 4 / 4

#	OEM	RE1	RE2
1	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)	RELAY ASSY., FUEL PUMP (DENSO)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1) 25 / 29

#	OEM	RE1	RE2
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
2	32411-SWA-000	Bracket - STARTER CABLE	Bracket - STARTER CABLE
6	37822-RZA-000	Sub bracket comp. - ENGINE CONTROL MODULE	Sub bracket comp. - ENGINE CONTROL MODULE
7	37823-RZA-000	Cover - ENGINE CONTROL MODULE	Cover - ENGINE CONTROL MODULE
11	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
12	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
13	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
14	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
15	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
16	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
17	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
18	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
19	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
20	38231-SNA-A11	Fuse a - MULTI BLOCK (80A/50A)	Fuse a - MULTI BLOCK (80A/50A)
21	38232-SDA-A01	Fuse b - MULTI BLOCK (40A/50A)	Fuse b - MULTI BLOCK (40A/50A)
22	38232-SMG-E01	Fuse b - MULTI BLOCK(40A/20A)	Fuse b - MULTI BLOCK(40A/20A)
23	38235-TA0-A01	Puller - FUSE	Puller - FUSE
24	38250-SWA-013	Box assy - RELAY	Box assy - RELAY
25	38251-SWA-000	Bracket - RELAY BOX(RR.)	Bracket - RELAY BOX(RR.)
26	38256-SWA-003	Cover - RELAY BOX	Cover - RELAY BOX
27	38257-SNA-A02	Cover - LOWER	Cover - LOWER
30	90106-SDA-A00	Bolt-washer - 6X25	Bolt-washer - 6X25
31	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
32	90129-SX8-003	Screw-washer - 5X12	Screw-washer - 5X12
33	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Control unit (ENGINE ROOM; 2) 6 / 6

#	OEM	RE1	RE2
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
1	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
6	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
6	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
8	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
10	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Converter (2.0L) 18 / 18

#	OEM	RE1	RE2
1	18115-RNA-004	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
1	18115-RNA-007	Gasket - EX. MANIFOLD (NOK)	Gasket - EX. MANIFOLD (NOK)
2	18120-RNA-A00	Cover comp. - CHAMBER	Cover comp. - CHAMBER
3	18160-RZP-G01	Converter comp.	Converter comp.
4	18181-RNA-A00	Cover, FR. CONVERTER	Cover, FR. CONVERTER
5	18197-RNA-A00	Bracket - CONVERTER STAY	Bracket - CONVERTER STAY
6	18198-RNA-A00	Stay - CONVERTER	Stay - CONVERTER
7	18199-RNA-A00	Stay - CONVERTER SUB	Stay - CONVERTER SUB
8	18716-RNA-A01	Gasket a - EGR PIPE	Gasket a - EGR PIPE
9	18717-RNA-A00	Pipe comp - EGR	Pipe comp - EGR
10	18719-RNA-A01	Gasket b - EGR PIPE	Gasket b - EGR PIPE
11	18720-RNA-A00	Bolt - FLANGE, 8X20	Bolt - FLANGE, 8X20
12	32177-RZP-G00	Insulator - CRANK SENSOR HEAT	Insulator - CRANK SENSOR HEAT
13	36531-RNA-J01	Sensor - AIR FUEL RATIO	Sensor - AIR FUEL RATIO
14	36532-RNA-A01	Sensor - OXYGEN	Sensor - OXYGEN
15	90001-RNA-A00	Bolt - FLANGE, 8X27	Bolt - FLANGE, 8X27
16	90003-RNA-A00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
17	90004-PLC-000	Bolt-washer - 10X25	Bolt-washer - 10X25

Crankshaft/piston (2.0L) 37 / 37

#	OEM	RE1	RE2
1	13010-RNA-Y00	Piston set - STD.	Piston set - STD.
1	13020-RNA-Y00	Piston set - OS 0.25	Piston set - OS 0.25
2	13021-RZP-004	Ring set - PISTON (OS 0.25) (RIKEN)	Ring set - PISTON (OS 0.25) (RIKEN)
2	13011-RZP-004	Ring set - PISTON (STD.) (RIKEN)	Ring set - PISTON (STD.) (RIKEN)
2	13021-RZP-003	Ring set - PISTON (OS 0.25) (TEIKOKU)	Ring set - PISTON (OS 0.25) (TEIKOKU)
2	13011-RZP-003	Ring set - PISTON (STD.) (TEIKOKU)	Ring set - PISTON (STD.) (TEIKOKU)
3	13111-RNA-A00	Pin - PISTON	Pin - PISTON
4	13115-RNA-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-RNA-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
6	13210-RZP-000	Rod comp - CONNECTING	Rod comp - CONNECTING
7	13216-RNE-A01	Bearing f - CONNECTING ROD (RED) (TAIHO)	Bearing f - CONNECTING ROD (RED) (TAIHO)
7	13211-RNE-A01	BEARING A - CONNECTING ROD (BLACK) (TAIHO)	BEARING A - CONNECTING ROD (BLACK) (TAIHO)
7	13213-RNE-A01	Bearing c - CONNECTING ROD (GREEN) (TAIHO)	Bearing c - CONNECTING ROD (GREEN) (TAIHO)
7	13215-RNE-A01	Bearing e - CONNECTING ROD (PINK) (TAIHO)	Bearing e - CONNECTING ROD (PINK) (TAIHO)
7	13212-RNE-A01	Bearing b - CONNECTING ROD (BROWN) (TAIHO)	Bearing b - CONNECTING ROD (BROWN) (TAIHO)
7	13214-RNE-A01	Bearing d - CONNECTING ROD (YELLOW) (TAIHO)	Bearing d - CONNECTING ROD (YELLOW) (TAIHO)
8	13310-RZP-000	Crankshaft comp.	Crankshaft comp.
8	13310-R6A-000	Crankshaft comp.	Crankshaft comp.
9	13324-RZP-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13326-RZP-003	Bearing f - MAIN UPPER (PINK) (DAIDO)	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13321-RZP-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13323-RZP-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13325-RZP-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13322-RZP-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)	Bearing b - MAIN UPPER (BLACK) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
11	13344-RZP-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13346-RZP-003	Bearing f - MAIN LOWER (PINK) (DAIDO)	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13341-RZP-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13343-RZP-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13345-RZP-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
11	13342-RZP-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)	Bearing b - MAIN LOWER (BLACK) (DAIDO)
12	13620-RZP-003	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-RNA-A00	Plate - CRANK PULSER	Plate - CRANK PULSER
14	13810-RZP-003	Pulley comp - CRANKSHAFT	Pulley comp - CRANKSHAFT
15	90013-RNA-A01	Bolt - HEX., 6X9	Bolt - HEX., 6X9
16	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
17	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Cylinder block/oil pan (2.0L) 34 / 34

#	OEM	RE1	RE2
1	11000-RZP-J00	Block assy - CYLINDER	Block assy - CYLINDER
2	11103-RNA-A01	Plate - PARTITION	Plate - PARTITION
3	11105-RNA-A00	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
4	11106-RNA-A00	Washer - SEALING, 20MM	Washer - SEALING, 20MM
5	11107-PWA-300	Washer - SEALING, 24MM	Washer - SEALING, 24MM
6	11107-RNA-A00	Bolt - SEALING, 24MM	Bolt - SEALING, 24MM
7	11135-RZP-000	Orifice assy - LOWER BLOCK	Orifice assy - LOWER BLOCK
8	11200-RZP-020	Pan assy - OIL	Pan assy - OIL
9	11850-RNA-A00	Cover comp. - BREATHER	Cover comp. - BREATHER
10	15142-PE0-000	O-ring - 4.8X1.9	O-ring - 4.8X1.9
11	15280-RZP-000	Body comp - OIL JET	Body comp - OIL JET
12	15290-RZP-000	Bolt comp - OIL JET	Bolt comp - OIL JET
13	30530-RNA-A01	Sensor comp - KNOCK	Sensor comp - KNOCK
14	32179-RZP-G00	Insulator - OIL PRESSURE SWITCH HEAT	Insulator - OIL PRESSURE SWITCH HEAT
15	32747-RNA-A00	Stay g - ENGINE HARNESS	Stay g - ENGINE HARNESS
16	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
17	37500-RAA-A01	Sensor assy - CRANK	Sensor assy - CRANK
18	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
19	90002-RNA-A00	Bolt - SEALING, 36MM	Bolt - SEALING, 36MM
20	90007-RNA-A01	Bolt-washer - 10X97	Bolt-washer - 10X97
21	90008-RNA-000	Washer - SEALING, 36MM	Washer - SEALING, 36MM
22	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
23	90016-RNA-A00	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
24	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
25	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
26	90701-PD2-000	Dowel pin - 12X14	Dowel pin - 12X14
27	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
28	90705-RNA-A00	Dowel pin - 20X22	Dowel pin - 20X22
29	91214-RTA-004	Oil seal - 80X98X10 (ARAI)	Oil seal - 80X98X10 (ARAI)
29	91214-RNB-A01	Oil seal (80x98x10)	Oil seal (80x98x10)
29	91214-PWA-003	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)
30	91301-RNA-A01	O-ring - 20X2.3 (NOK)	O-ring - 20X2.3 (NOK)
30	91301-RNA-A02	O-ring - 20X2.3 (ARAI)	O-ring - 20X2.3 (ARAI)
31	91333-PNC-006	O-ring	O-ring

Cylinder head (2.0L) 11 / 11

#	OEM	RE1	RE2
1	12200-R60-U00	Head comp - CYLINDER	Head comp - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	12231-RNA-A00	Holder comp - ROCKER SHAFT (NO.1)	Holder comp - ROCKER SHAFT (NO.1)
5	12232-RNA-A00	Holder comp - ROCKER SHAFT	Holder comp - ROCKER SHAFT
6	12235-RNA-A00	Holder comp - ROCKER SHAFT (NO.5)	Holder comp - ROCKER SHAFT (NO.5)
7	12236-RNA-A00	Holder comp - LOST MOTION	Holder comp - LOST MOTION
8	14631-RNA-A00	Shaft comp. - ROCKER	Shaft comp. - ROCKER
9	15140-P0A-000	Orifice assy - CAM JOURNAL	Orifice assy - CAM JOURNAL
10	15142-PE0-000	O-ring - 4.8X1.9	O-ring - 4.8X1.9
11	90008-PT2-000	Bolt - FLANGE, 6X65	Bolt - FLANGE, 6X65

Cylinder head cover (2.0L) 7 / 7

#	OEM	RE1	RE2
1	12310-RNA-A01	Cover comp. - CYLINDER HEAD	Cover comp. - CYLINDER HEAD
2	12341-RNA-A01	Packing - HEAD COVER	Packing - HEAD COVER
3	15610-PFB-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
3	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
4	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
5	15650-RZP-000	Gauge - OIL LEVEL	Gauge - OIL LEVEL
6	90011-RNA-A00	Bolt - HEAD COVER	Bolt - HEAD COVER

Duct 7 / 7

#	OEM	RE1	RE2
2	77410-SWA-013	Duct assy - CENTER	Duct assy - CENTER
3	83331-SWA-A01	Duct assy - RR. HEATER	Duct assy - RR. HEATER
4	83332-SWA-A01	Duct assy - RR. HEATER JOINT (A)	Duct assy - RR. HEATER JOINT (A)
6	83333-SWA-J02	Duct - RR. HEATER JOINT(B)	Duct - RR. HEATER JOINT(B)
7	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
8	91550-SS0-003	Clip - SRS COVER	Clip - SRS COVER
9	91560-SLA-003	Clip - GARNISH (SEAL)	Clip - GARNISH (SEAL)

Emblems/caution labels 4 / 6

#	OEM	RE1	RE2
2	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
3	42760-SWA-T00	Plate - TIRE PRESSURE CAUTION	Plate - TIRE PRESSURE CAUTION
5	75722-SWA-003	Emblem - RR.(CR-V)	Emblem - RR.(CR-V)
7	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION

Engine assy./ transmission assy. (2.0L) 2 / 3

RE1 Engine assy./ transmission assy. (2.0L)

RE2 Engine assy./ transmission assy. (2.0L)

#	OEM	RE1	RE2
1	10002-RZP-000	General assy. - CYLINDER BLOCK	General assy. - CYLINDER BLOCK
2	10003-RZP-000	General assy. - CYLINDER HEAD	General assy. - CYLINDER HEAD

Engine hood (RH) 33 / 33

#	OEM	RE1	RE2
1	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
5	74120-SWA-A12	Lock assy - HOOD	Lock assy - HOOD
6	74130-SWA-013	Wire assy. - HOOD	Wire assy. - HOOD
8	74141-SWA-A01	Insulator - HOOD	Insulator - HOOD
9	74143-SWA-A00	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
10	74145-SWA-A00	Stay - HOOD OPENER	Stay - HOOD OPENER
12	74148-SWA-A00	Rubber - HOOD CENTER SEAL	Rubber - HOOD CENTER SEAL
15	74212-SWA-000	Cover - HOOD HINGE DRIVER SIDE	Cover - HOOD HINGE DRIVER SIDE
16	74215-SWA-000	Lid - R. COWL TOP	Lid - R. COWL TOP
17	74218-SWA-000	Cowl top set a - FR. DRIVER SIDE	Cowl top set a - FR. DRIVER SIDE
19	74222-SWA-000	Cover - HOOD HINGE PASSENGER SIDE	Cover - HOOD HINGE PASSENGER SIDE
20	74225-SWA-000	Lid - L. COWL TOP	Lid - L. COWL TOP
21	74226-SWA-A00	Lid - FRAME NUMBER	Lid - FRAME NUMBER
22	74228-SWA-000	Cowl top set a - FR. PASSENGER SIDE	Cowl top set a - FR. PASSENGER SIDE
23	76810-SWA-003	Nozzle assy. - R.	Nozzle assy. - R.
24	76815-SWA-003	Nozzle assy. - L.	Nozzle assy. - L.
25	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
26	76832-SWA-003	Tube - 280MM	Tube - 280MM
27	76837-SJA-C01	Tube - 740MM	Tube - 740MM
28	76870-SWA-N01	Tube - 200MM	Tube - 200MM
29	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	90602-SLJ-003	Clip - COWL TOP	Clip - COWL TOP
31	90603-SLJ-003	Clip - COWL TOP	Clip - COWL TOP
32	90672-S5A-003	Holder - ROD	Holder - ROD
33	91501-SEA-003	Clip - FR. COWL	Clip - FR. COWL
34	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
35	91501-SWA-003	Clip - INSULATOR	Clip - INSULATOR
36	91504-SDA-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE
37	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
38	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
39	91535-STK-003	Clip - COUPLER (DARK BLUE)	Clip - COUPLER (DARK BLUE)
40	91604-S5A-003	Grommet - HOOD STAY	Grommet - HOOD STAY
43	74142-SWA-A00	Rubber, HOOD SEAL	Rubber, HOOD SEAL

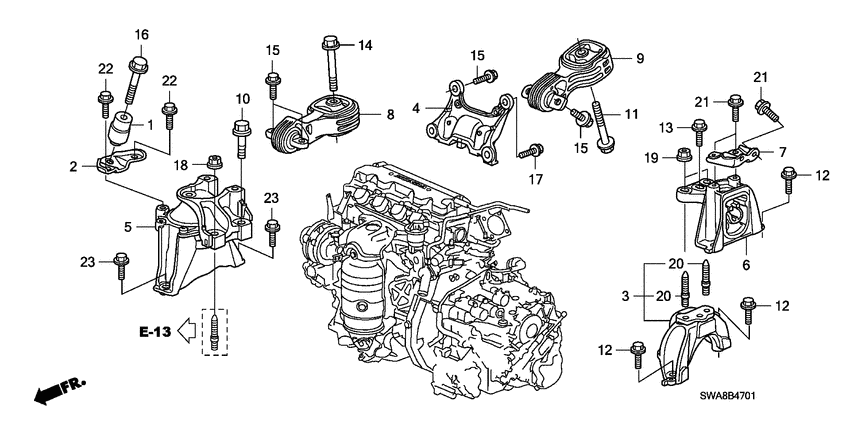

Engine mounts (2.0L; MT) 12 / 17

#	OEM	RE1	RE2
1	50451-SWA-A00	Mass - SIDE ENGINE MOUNTING	Mass - SIDE ENGINE MOUNTING
2	50625-STK-A00	Stay - SIDE ENGINE MOUNTING	Stay - SIDE ENGINE MOUNTING
3	50690-SWC-E00	Bracket - TORQUE ROD LOWER	Bracket - TORQUE ROD LOWER
4	50820-SWC-E01	Rubber assy. - ENGINE SIDE MOUNTING	Rubber assy. - ENGINE SIDE MOUNTING
8	90160-SNA-A00	Bolt - FLANGE, 14X67	Bolt - FLANGE, 14X67
9	90161-SR3-000	Bolt - FLANGE, 14X107	Bolt - FLANGE, 14X107
10	90165-S04-000	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
12	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
13	90169-S5A-003	Bolt - FLANGE, 12X87	Bolt - FLANGE, 12X87
14	90186-S2H-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
16	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
17	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM

Engine wire harness (2.0L) 30 / 34

Exhaust pipe/silencer (2.0L) 15 / 16

#	OEM	RE1	RE2
1	18210-SWC-J01	Pipe a - EX.	Pipe a - EX.
2	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
3	18215-SMG-E11	Rubber - EX. MOUNTING (YAMASHITA)	Rubber - EX. MOUNTING (YAMASHITA)
4	18215-SNA-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
5	18215-SWA-J01	Rubber - EX. MOUNTING (YAMASHITA)	Rubber - EX. MOUNTING (YAMASHITA)
6	18220-SWC-J01	Pipe b - EX.	Pipe b - EX.
7	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
8	18229-S5A-J01	Gasket - EX. FLEXIBLE	Gasket - EX. FLEXIBLE
9	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
10	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
11	18231-SNA-A00	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
12	18231-S10-003	Bolt - FLEXIBLE JOINT	Bolt - FLEXIBLE JOINT
14	74601-SWC-N00	Plate a - FLOOR HEAT BAFFLE	Plate a - FLOOR HEAT BAFFLE
15	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
16	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 8 / 8

#	OEM	RE1	RE2
2	74251-SWA-000	Insulator - DASHBOARD OUTER	Insulator - DASHBOARD OUTER
4	74260-SWA-010	Insulator - DASHBOARD	Insulator - DASHBOARD
22	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
23	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
24	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
25	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
26	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)
27	91641-SH3-013	Grommet assy, GARNISH	Grommet assy, GARNISH

Floor/inner panels 3 / 3

#	OEM	RE1	RE2
9	64322-SWA-A01	Separator - RR. WHEELHOUSE	Separator - RR. WHEELHOUSE
35	90101-SFA-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
36	90101-SWA-A00	Bolt-washer - 8X16	Bolt-washer - 8X16

Fog light 5 / 5

#	OEM	RE1	RE2
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO	Bulb - H11) (12V 55W) (KOITO
4	90113-SJA-A00	Screw - TAPPING, 5X14	Screw - TAPPING, 5X14
5	33900-SWA-J11	Light assy - R. FR. FOG	Light assy - R. FR. FOG
6	33950-SWA-J11	Light assy - L. FR. FOG	Light assy - L. FR. FOG

Front brake 25 / 25

#	OEM	RE1	RE2
1	01463-SHJ-A00	Caliper set, FR.	Caliper set, FR.
1	01463-SHJ-A01	CALIPER SET, FR.	CALIPER SET, FR.
2	06455-SHJ-A00	Shim set - FR.	Shim set - FR.
3	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	44300-SJK-J01	Bearing assy - FR. HUB	Bearing assy - FR. HUB
5	44300-T0A-951	BEARING ASSY FR H	BEARING ASSY FR H
6	44600-SJK-J00	Hub assy - FR.	Hub assy - FR.
7	45018-SHJ-A01	Caliper sub assy. - R.	Caliper sub assy. - R.
8	45019-SHJ-A01	Caliper sub assy. - L.	Caliper sub assy. - L.
9	45022-SHJ-A50	Pad set - FR.	Pad set - FR.
9	45022-SHJ-A51	Disc brake pad set, FR	Disc brake pad set, FR
10	45216-SHJ-A01	Piston	Piston
11	45235-S0K-A01	Pin a	Pin a
12	45237-SHJ-A01	Retainer	Retainer
13	45240-SM4-003	Bolt - FLANGE, 10X24	Bolt - FLANGE, 10X24
14	45251-SWA-A20	Disk - FR. BRAKE	Disk - FR. BRAKE
15	45255-STK-A00	Guard - FR. SPLASH	Guard - FR. SPLASH
16	45262-SHJ-A01	Pin b	Pin b
17	90107-S3V-A00	Bolt - CALIPER MOUNT	Bolt - CALIPER MOUNT
18	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
18	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
18	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
19	90681-SJK-000	Circlip - INTERNAL, 91MM	Circlip - INTERNAL, 91MM

Front bulkhead/dashboard 11 / 11

#	OEM	RE1	RE2
20	60659-SWA-A01	Separator - R. FR. WHEELHOUSE UPPER MEMBER	Separator - R. FR. WHEELHOUSE UPPER MEMBER
26	60759-SWA-A01	Separator - L. FR. WHEELHOUSE UPPER MEMBER	Separator - L. FR. WHEELHOUSE UPPER MEMBER
38	74252-SWA-000	Insulator - DASHBOARD UPPER EXTENSION	Insulator - DASHBOARD UPPER EXTENSION
41	74500-SWA-000	Extension comp - DASHBOARD UPPER	Extension comp - DASHBOARD UPPER
42	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
43	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
44	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
45	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
46	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)	Bolt - FLANGE, 6X16(GUIDE)
47	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
49	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Front door lining (RH) 19 / 19

#	OEM	RE1	RE2
1	35750-SWA-J01	Switch assy - POWER WINDOW MASTER	Switch assy - POWER WINDOW MASTER
2	35760-SWA-J01	Sub switch assy. - POWER WINDOW	Sub switch assy. - POWER WINDOW
3	72225-SWA-A00	Bracket assy. a - R. FR. DOOR LINING	Bracket assy. a - R. FR. DOOR LINING
4	72226-SWA-A00	Bracket assy. b - FR. DOOR LINING	Bracket assy. b - FR. DOOR LINING
5	72265-SWA-A00	Bracket assy. a - L. FR. DOOR LINING	Bracket assy. a - L. FR. DOOR LINING
6	72335-SWA-A01	Weatherstrip - R. FR. DOOR INNER	Weatherstrip - R. FR. DOOR INNER
7	72375-SWA-A01	Weatherstrip - L. FR. DOOR INNER	Weatherstrip - L. FR. DOOR INNER
10	83505-SWA-A01	Bracket comp. - R. FR. DOOR LINING(B)	Bracket comp. - R. FR. DOOR LINING(B)
17	83535-SWA-A01	Bracket - GRIP(A)	Bracket - GRIP(A)
20	83555-SWA-A01	Bracket comp. - L. FR. DOOR LINING(B)	Bracket comp. - L. FR. DOOR LINING(B)
26	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
27	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
28	90132-SWA-003	Screw - TAPPING, 4X10(PO)	Screw - TAPPING, 4X10(PO)
29	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
30	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
31	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
32	91627-SWA-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
33	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
38	90144-SWA-000	Screw - TAPPING, 4X12(PO)	Screw - TAPPING, 4X12(PO)

Front door locks/ outer handle 33 / 33

#	OEM	RE1	RE2
1	72110-SWA-Q01	LATCH ASSY., RH. FR. DOOR POWER	LATCH ASSY., RH. FR. DOOR POWER
2	72111-SEN-H01	Fastener - BLACK	Fastener - BLACK
3	72112-SWA-A01	Cover - R. LEVER	Cover - R. LEVER
4	72113-SWA-A01	Seal - COUPLER	Seal - COUPLER
5	72114-SWA-A01	Seal - DOOR LATCH	Seal - DOOR LATCH
6	72115-SWA-A01	Seal - DOOR LOCK	Seal - DOOR LOCK
7	72118-SJK-003	Screw - TAPPING	Screw - TAPPING
10	72130-SWA-A01	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
11	72131-SWA-A01	Cable - R. FR. INSIDE HANDLE	Cable - R. FR. INSIDE HANDLE
12	72133-SWA-A01	Cable - FR. DOOR LOCK	Cable - FR. DOOR LOCK
13	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
13	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
14	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
15	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
17	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
18	72143-S04-003	Packing	Packing
19	72144-SJD-003	Retainer	Retainer
20	72145-SWA-A01	Cylinder - R. DOOR	Cylinder - R. DOOR
21	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
22	72149-SAA-003	Snap - R.	Snap - R.
23	72150-SWA-Q01	Latch assy - L. FR. DOOR POWER	Latch assy - L. FR. DOOR POWER
24	72152-SWA-A01	Cover - L. LEVER	Cover - L. LEVER
27	72170-SWA-A01	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
28	72171-SWA-A01	Cable - L. FR. INSIDE HANDLE	Cable - L. FR. INSIDE HANDLE
31	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
33	72189-SAA-003	Snap - L.	Snap - L.
34	74387-S3C-003	Fastener	Fastener
35	90101-SJK-003	Screw - TAPPING (ONE WAY)	Screw - TAPPING (ONE WAY)
36	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
37	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
38	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
39	90141-SWA-A01	Screw - TAPPING	Screw - TAPPING
40	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door panels 17 / 17

#	OEM	RE1	RE2
5	67324-SWA-A01	Tape - R. FR. DOOR SASH	Tape - R. FR. DOOR SASH
6	67364-SWA-A01	Tape - L. FR. DOOR SASH	Tape - L. FR. DOOR SASH
11	72142-SWA-A00	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
13	72310-SWA-A02	Weatherstrip, R. FR. DOOR	Weatherstrip, R. FR. DOOR
14	72321-SWA-A01	Seal - R. FR. DOOR HOLE	Seal - R. FR. DOOR HOLE
16	72340-SWA-A01	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
17	72350-SWA-A02	Weatherstrip, L. FR. DOOR	Weatherstrip, L. FR. DOOR
18	72361-SWA-A01	Seal - L. FR. DOOR HOLE	Seal - L. FR. DOOR HOLE
19	72380-SWA-A01	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
23	90651-S4N-003	Clip	Clip
24	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL
25	91563-SFA-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET

Front door windows/ regulator 14 / 14

#	OEM	RE1	RE2
1	39885-S5A-A11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
2	72210-SWA-J01	Regulator assy - R. FR. DOOR POWER	Regulator assy - R. FR. DOOR POWER
3	72230-SWA-A01	Sash - R. FR. DOOR FR. LOWER	Sash - R. FR. DOOR FR. LOWER
4	72231-SWA-A01	Sash - R. FR. DOOR CENTER LOWER	Sash - R. FR. DOOR CENTER LOWER
5	72235-SWA-A02	Runchannel - R. FR. DOOR	Runchannel - R. FR. DOOR
6	72250-SWA-J01	Regulator assy - L. FR. DOOR POWER	Regulator assy - L. FR. DOOR POWER
7	72270-SWA-A01	Sash - L. FR. DOOR FR. LOWER	Sash - L. FR. DOOR FR. LOWER
8	72271-SWA-A01	Sash - L. FR. DOOR CENTER LOWER	Sash - L. FR. DOOR CENTER LOWER
9	72275-SWA-A02	Runchannel - L. FR. DOOR	Runchannel - L. FR. DOOR
10	73300-SWA-A00	Glass assy - R. FR. DOOR (GREEN)(AGC)	Glass assy - R. FR. DOOR (GREEN)(AGC)
11	73350-SWA-A00	Glass assy - L. FR. DOOR (GREEN)(AGC)	Glass assy - L. FR. DOOR (GREEN)(AGC)
12	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
13	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
14	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)	Bolt - FLANGE, 6X16(GUIDE)

Front driveshaft/ half shaft (2.0L) 24 / 25

#	OEM	RE1	RE2
1	44014-SWA-010	Outboard Joint set	Outboard Joint set
2	44017-SJM-000	Boot set - INBOARD	Boot set - INBOARD
2	44017-SJM-010	BOOT SETINBOARD	BOOT SETINBOARD
3	44018-SJM-010	Boot set - OUTBOARD	Boot set - OUTBOARD
3	44018-SJM-020	BOOT SETOUTBOARD	BOOT SETOUTBOARD
4	44305-SWC-900	Driveshaft assy. - R.	Driveshaft assy. - R.
5	44306-SWA-900	Driveshaft assy. L.	Driveshaft assy. L.
6	44310-SWA-305	Joint set - INBOARD	Joint set - INBOARD
6	44310-SWA-306	SETJOINT COMP IN	SETJOINT COMP IN
7	44310-S9A-300	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)	Band - DRIVESHAFT (NIPPON HATSUJO)
14	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
17	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
18	90305-S3V-A11	Nut - SPINDLE	Nut - SPINDLE
19	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
20	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
21	91260-SWA-A01	Seal - HALF SHAFT OUTER	Seal - HALF SHAFT OUTER

Front fenders 17 / 17

#	OEM	RE1	RE2
7	74100-SWA-A01	Fender assy - R. FR. INNER	Fender assy - R. FR. INNER
8	74105-SWA-A10	Enclosure - R. FR. FENDER	Enclosure - R. FR. FENDER
10	74111-SWA-A01	Shield - FR. SPLASH	Shield - FR. SPLASH
12	74150-SWA-A01	Liner, Fender assy - L. FR. INNER	Liner, Fender assy - L. FR. INNER
13	74155-SWA-A10	Enclosure - L. FR. FENDER	Enclosure - L. FR. FENDER
14	74206-SWA-A00	Garnish - R. FR. FENDER	Garnish - R. FR. FENDER
15	74207-SWA-A00	Garnish - L. FR. FENDER	Garnish - L. FR. FENDER
16	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
17	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
18	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
20	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
21	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
22	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
23	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
27	91617-SLJ-000	Seal - FR. FENDER PANEL	Seal - FR. FENDER PANEL

Front grille ('10) 14 / 14

#	OEM	RE1	RE2
1	71121-SWA-J31	Base - FR. GRILLE UPPER	Base - FR. GRILLE UPPER
2	71122-SWA-J31	Base - FR. GRILLE EMBLEM	Base - FR. GRILLE EMBLEM
3	71123-SWA-J31	Base - FR. GRILLE LOWER	Base - FR. GRILLE LOWER
5	71125-SWA-J31	Molding b - R. FR. GRILLE UPPER	Molding b - R. FR. GRILLE UPPER
7	71127-SWA-J31	Molding b - FR. GRILLE CENTER	Molding b - FR. GRILLE CENTER
9	71129-SWA-J31	Molding - FR. GRILLE LOWER	Molding - FR. GRILLE LOWER
10	71141-SWA-000	Cover - FR. GRILLE	Cover - FR. GRILLE
12	71175-SWA-J31	Molding b - L. FR. GRILLE UPPER	Molding b - L. FR. GRILLE UPPER
13	74175-SJA-000	Cushion - HOOD	Cushion - HOOD
14	75700-TA0-A00	Emblem - FR. (H)	Emblem - FR. (H)
15	90301-ST0-003	push nut, 3mm	push nut, 3mm
16	91503-SZ3-003	Clip A	Clip A
17	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
18	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front knuckle 24 / 25

#	OEM	RE1	RE2
1	42521-SWA-003	Clamp - FR. WIRE(DARK BLUE)	Clamp - FR. WIRE(DARK BLUE)
2	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
4	51211-SWA-A10	Knuckle - R. FR.(ABS)	Knuckle - R. FR.(ABS)
5	51216-SWA-A10	Knuckle - L. FR.(ABS)	Knuckle - L. FR.(ABS)
6	51220-SWA-A01	Joint comp - R. FR. LOWER BALL	Joint comp - R. FR. LOWER BALL
7	51225-SNA-A01	Boot - FR. LOWER BALL DUST	Boot - FR. LOWER BALL DUST
8	51300-SWA-A01	Spring - FR. STABILIZER	Spring - FR. STABILIZER
9	51306-SWA-A01	BUSH, FR. STABILIZER HOLDER	BUSH, FR. STABILIZER HOLDER
10	51308-SAA-000	Bracket - FR. STABILIZER	Bracket - FR. STABILIZER
11	51320-STK-A01	Link comp - FR. STABILIZER	Link comp - FR. STABILIZER
13	51360-SWA-E40	Arm assy., L. FR. LOWER	Arm assy., L. FR. LOWER
14	51395-SWA-E02	Bracket comp. - R. FR. COMPLIANCE	Bracket comp. - R. FR. COMPLIANCE
14	51396-SWA-E02	Bracket comp. - L. FR. COMPLIANCE	Bracket comp. - L. FR. COMPLIANCE
16	57450-SWA-013	SENSOR ASSY., RH. FRONT	SENSOR ASSY., RH. FRONT
17	57455-SWA-013	SENSOR ASSY., L. FR.	SENSOR ASSY., L. FR.
18	90018-SNA-010	Bolt - FLANGE, 12X18	Bolt - FLANGE, 12X18
19	90116-SNA-010	Bolt, FLANGE, 14X94	Bolt, FLANGE, 14X94
20	90118-SNA-000	Bolt - FLANGE, 12X84	Bolt - FLANGE, 12X84
21	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22	90363-S3V-A01	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
23	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)
24	91507-SWA-003	Clip - HARNESS BAND (GRAY) (96.9MM)	Clip - HARNESS BAND (GRAY) (96.9MM)
28	51230-SWA-A01	Joint comp - L. FR. LOWER BALL	Joint comp - L. FR. LOWER BALL

Front seat (L.) 18 / 19

#	OEM	RE1	RE2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
2	78055-SWA-G70	Module assy. - L. SIDE	Module assy. - L. SIDE
3	81123-SNA-A01	Screw - 6X18	Screw - 6X18
7	81162-SWA-X01	Cord - OPDS	Cord - OPDS
8	81186-S0X-A01	Pin - FR. ARMREST CENTER	Pin - FR. ARMREST CENTER
9	81187-S0X-A01	Pin - FR. ARMREST	Pin - FR. ARMREST
10	81189-S0X-003	Washer - WAVE	Washer - WAVE
12	81291-SNA-A01	Clip	Clip
13	81299-SWA-A01	Lock - PURSE	Lock - PURSE
14	81383-SHJ-A01	Bush - ARMREST (A)	Bush - ARMREST (A)
21	81537-SWA-J51	Pad comp - L. FR. SEAT CUSHION	Pad comp - L. FR. SEAT CUSHION
23	81560-SNA-A01	Holder - L. MODULE	Holder - L. MODULE
24	81561-SWA-A01	Opds unit - L.	Opds unit - L.
35	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
36	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
37	90610-S10-003	Clip - GARNISH	Clip - GARNISH
38	90650-KV3-000	Band - WIRE	Band - WIRE
41	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat (R.; POWER SEAT) 25 / 27

#	OEM	RE1	RE2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
2	78050-SWA-G80	Module assy. - R. SIDE	Module assy. - R. SIDE
3	81102-SWA-A51	Motor assy. - R. RECLINING	Motor assy. - R. RECLINING
5	81123-SNA-A01	Screw - 6X18	Screw - 6X18
9	81127-SWA-951	Pad comp - R. FR. SEATBACK	Pad comp - R. FR. SEATBACK
13	81137-SWA-951	Pad comp - R. FR. SEAT CUSHION	Pad comp - R. FR. SEAT CUSHION
19	81160-SWA-921	Holder - R. MODULE	Holder - R. MODULE
21	81186-S0X-A01	Pin - FR. ARMREST CENTER	Pin - FR. ARMREST CENTER
22	81187-S0X-A01	Pin - FR. ARMREST	Pin - FR. ARMREST
23	81189-S0X-003	Washer - WAVE	Washer - WAVE
24	81190-SWB-A51	Lumbar comp. - R. FR. SEATBACK	Lumbar comp. - R. FR. SEATBACK
25	81214-STK-A01	Spring a - FR. SEATBACK LUMBAR	Spring a - FR. SEATBACK LUMBAR
26	81215-SDB-A71	Spring - R. LUMBAR	Spring - R. LUMBAR
28	81236-SDG-H71	Nut - PUSH	Nut - PUSH
31	81241-SDG-H71	Shaft	Shaft
31	81241-SJK-J11	Shaft - FR. SEAT	Shaft - FR. SEAT
32	81242-SDG-H71	Cover - SHAFT	Cover - SHAFT
36	81383-SHJ-A01	Bush - ARMREST (A)	Bush - ARMREST (A)
39	81615-SDB-A71	Spring - L. LUMBER	Spring - L. LUMBER
40	90102-SDG-H71	Bolt-washer - 6MM	Bolt-washer - 6MM
41	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
42	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
43	90610-S10-003	Clip - GARNISH	Clip - GARNISH
44	90650-KV3-000	Band - WIRE	Band - WIRE
46	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat components (L.) 7 / 9

#	OEM	RE1	RE2
5	81136-SNA-A11	Lever comp - FR. SEAT CUSHION	Lever comp - FR. SEAT CUSHION
7	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
15	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
16	90610-S10-003	Clip - GARNISH	Clip - GARNISH
19	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
20	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
21	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat components (R.; POWER SEAT) 18 / 18

RE1 Front seat components (R.; POWER SEAT)

RE2 Front seat components (R.; POWER SEAT)

#	OEM	RE1	RE2
6	81139-SWA-A51	Frame sub comp. - FR. SEAT CUSHION	Frame sub comp. - FR. SEAT CUSHION
7	81200-SWA-N51	Device comp. - R. FR. SEAT	Device comp. - R. FR. SEAT
8	81206-SWA-901	Cord - R. POWER SEAT	Cord - R. POWER SEAT
10	81217-SFY-J21	Bolt - UPPER	Bolt - UPPER
11	81218-SFY-J21	Bolt - LOWER	Bolt - LOWER
12	81219-SFY-J21	Screw - HEIGHT	Screw - HEIGHT
15	81255-SZ3-A01	Switch assy - LUMBAR SUPPORT	Switch assy - LUMBAR SUPPORT
20	81601-SJA-A01	Motor assy. - L. SLIDE	Motor assy. - L. SLIDE
21	81603-SFY-J21	Motor - L. HEIGHT	Motor - L. HEIGHT
22	81608-STK-A01	Holder - FR. SEAT HARNESS	Holder - FR. SEAT HARNESS
23	81614-SJA-A01	Box assy - L. GEAR	Box assy - L. GEAR
24	81616-SJA-A01	Cable assy	Cable assy
26	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
27	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
28	90143-ST5-900	Bolt-washer - 8X22	Bolt-washer - 8X22
30	90610-S10-003	Clip - GARNISH	Clip - GARNISH
32	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
33	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)

Front shock absorber 16 / 20

#	OEM	RE1	RE2
2	51402-STK-A02	Cover - R. FR. DUST	Cover - R. FR. DUST
3	51403-STK-A01	Cover - L. FR. DUST	Cover - L. FR. DUST
7	51605-SWA-J21	Absorber unit - R. FR. SHOCK	Absorber unit - R. FR. SHOCK
8	51606-SWA-J21	Absorber unit - L. FR. SHOCK	Absorber unit - L. FR. SHOCK
9	51608-SNA-000	Cap - FR. SHOCK ABSORBER MOUNTING	Cap - FR. SHOCK ABSORBER MOUNTING
10	51684-STK-A02	Rubber - R. FR. SPRING LOWER MOUNT	Rubber - R. FR. SPRING LOWER MOUNT
11	51688-SWA-A11	Seat comp - FR. SPRING UPPER	Seat comp - FR. SPRING UPPER
12	51694-STK-A02	Rubber - L. FR. SPRING LOWER MOUNT	Rubber - L. FR. SPRING LOWER MOUNT
13	51722-SWE-T01	Rubber - FR. BUMP STOPPER	Rubber - FR. BUMP STOPPER
14	51726-SWA-A00	Bearing - FR. SHOCK ABSORBER MOUNT	Bearing - FR. SHOCK ABSORBER MOUNT
15	51920-SWA-A01	Rubber - FR. SHOCK ABSORBER MOUNTING	Rubber - FR. SHOCK ABSORBER MOUNTING
16	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
17	90120-STK-000	Bolt - FLANGE, 16X62(SERVICE)	Bolt - FLANGE, 16X62(SERVICE)
17	90119-S6M-Z01	Bolt - FLANGE, 16X62	Bolt - FLANGE, 16X62
18	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)
19	90382-STK-A01	Nut - FLANGE, 16MM	Nut - FLANGE, 16MM

Front sub frame/ rear beam 5 / 6

#	OEM	RE1	RE2
2	50300-SWA-000	Beam - RR. CROSS	Beam - RR. CROSS
3	90161-SD5-020	Bolt - FLANGE, 12X82	Bolt - FLANGE, 12X82
4	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
5	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115
6	90163-SWE-T00	Bolt - FLANGE, 14X80	Bolt - FLANGE, 14X80

Front windshield 4 / 5

#	OEM	RE1	RE2
1	04731-SWA-000	Rubber set - FR. WINDSHIELD DAM	Rubber set - FR. WINDSHIELD DAM
3	73125-SWA-000	Seal - FR. WINDSHIELD UPPER	Seal - FR. WINDSHIELD UPPER
4	73150-SWA-003	Molding - FR. WINDSHIELD	Molding - FR. WINDSHIELD
5	91568-SWA-A01	Clip - FR. WINDSHIELD UPPER	Clip - FR. WINDSHIELD UPPER

Front windshield wiper (RH) 24 / 24

#	OEM	RE1	RE2
1	76505-SWA-013	Motor comp - FR. WIPER	Motor comp - FR. WIPER
2	76501-SWA-003	Harness assy - FR. WIPER MOTOR	Harness assy - FR. WIPER MOTOR
3	76516-SE0-003	Rubber - BRACKETLESS MOUNTING	Rubber - BRACKETLESS MOUNTING
4	76516-SR3-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
6	76517-SM4-003	Collar	Collar
7	76520-SWA-003	Link assy. a	Link assy. a
8	76524-SD4-003	Dust seal	Dust seal
9	76524-SL0-A01	Dust seal	Dust seal
10	76530-SWA-003	Link comp - FR. WIPER	Link comp - FR. WIPER
11	76540-SWA-003	Rod unit a	Rod unit a
12	76550-SWA-003	Rod unit b	Rod unit b
13	76561-SEA-003	Cap - PIVOT	Cap - PIVOT
14	76600-SWA-J01	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-SWA-J01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
16	76620-SWA-J01	Blade - WINDSHIELD WIPER(650MM)	Blade - WINDSHIELD WIPER(650MM)
17	76622-STK-A01	Rubber - BLADE (650MM)	Rubber - BLADE (650MM)
17	76622-STK-A02	BLADE RUBBER	BLADE RUBBER
18	76630-SWA-J01	Blade - WINDSHIELD WIPER(425MM)	Blade - WINDSHIELD WIPER(425MM)
18	76630-SWA-J02	Blade - WINDSHIELD WIPER(425MM)	Blade - WINDSHIELD WIPER(425MM)
19	76632-SWA-J01	Rubber - BLADE(425MM)	Rubber - BLADE(425MM)
19	76632-SWA-J02	BLADE RUBBER	BLADE RUBBER
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
21	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

Fuel injector (2.0L) 8 / 8

#	OEM	RE1	RE2
1	16450-RZP-003	Injector assy - FUEL	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
3	16620-R60-U01	Pipe comp - FUEL	Pipe comp - FUEL
4	16640-RNA-A00	Cover - FUEL PIPE	Cover - FUEL PIPE
5	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
6	90027-RNA-A00	Bolt - FUEL PIPE	Bolt - FUEL PIPE
7	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
8	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Fuel pipe (3) 26 / 26

#	OEM	RE1	RE2
1	16050-SWA-J00	Pipe set - FUEL	Pipe set - FUEL
3	16722-RZP-013	Hose comp. - FUEL FEED	Hose comp. - FUEL FEED
4	16725-R40-A00	Holder a - FUEL CONNECTOR (BEIGE)	Holder a - FUEL CONNECTOR (BEIGE)
5	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
7	16730-RZA-A00	Stay assy - FUEL HOSE	Stay assy - FUEL HOSE
8	16732-SWA-000	Rubber - FUEL PIPE	Rubber - FUEL PIPE
9	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
10	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
11	17724-SWA-000	Tube assy - PURGE	Tube assy - PURGE
13	17726-SWC-U01	Hose assy - FUEL PURGE	Hose assy - FUEL PURGE
14	17761-SWA-J00	Stay a - FUEL PIPE	Stay a - FUEL PIPE
15	17762-SWA-J00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
16	17763-SWA-J00	Stay c - FUEL PIPE	Stay c - FUEL PIPE
17	17927-SS1-003	Clip - WIRE	Clip - WIRE
18	53728-SDB-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
19	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
20	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
21	91406-SAA-J00	Clamp - TUBE (D12)	Clamp - TUBE (D12)
22	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
23	91592-S9A-A31	Clip - FUEL PIPE	Clip - FUEL PIPE
24	91595-S5A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
25	91596-SWA-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
26	91598-SWA-003	Clamp c - FUEL PIPE	Clamp c - FUEL PIPE
27	91598-S5A-930	Rubber - FUEL PIPE INSULATOR	Rubber - FUEL PIPE INSULATOR
28	91598-S6M-930	Rubber - FUEL PIPE INSULATOR	Rubber - FUEL PIPE INSULATOR
29	91599-S5A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE

Fuel tank (1) 32 / 33

#	OEM	RE1	RE2
1	17044-SWA-010	Tank comp. - FUEL	Tank comp. - FUEL
3	17046-SMA-000	Nut & packing set - FUEL LOCK	Nut & packing set - FUEL LOCK
4	17047-SWA-000	Meter comp	Meter comp
5	17048-SWA-000	Strainer set - FUEL	Strainer set - FUEL
6	17052-SWC-Y00	Regulator assy - PRESSURE	Regulator assy - PRESSURE
7	17513-S0E-003	Circlip	Circlip
8	17518-SWA-000	Pipe, FUEL TANK GUARD	Pipe, FUEL TANK GUARD
9	17519-SWA-000	Protector comp - FUEL TANK	Protector comp - FUEL TANK
10	17521-SWA-000	Band - R. FUEL TANK MOUNTING	Band - R. FUEL TANK MOUNTING
11	17522-SWA-000	Band - L. FUEL TANK MOUNTING	Band - L. FUEL TANK MOUNTING
12	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
13	17651-SWA-003	Tube - FILLER NECK	Tube - FILLER NECK
14	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
15	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
16	17653-SWA-000	Tube - BREATHER JOINT	Tube - BREATHER JOINT
17	17656-SWA-003	Pipe assy. - BREATHER JOINT	Pipe assy. - BREATHER JOINT
18	17660-SWA-U01	Pipe comp - FUEL FILLER	Pipe comp - FUEL FILLER
19	17662-S04-003	Packing - FUEL FILLER (WITH CLIP)	Packing - FUEL FILLER (WITH CLIP)
20	17668-SWA-J00	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
21	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
21	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
22	17711-SWA-003	Retainer	Retainer
23	17722-SWA-000	Tube assy. a - FUEL VENT	Tube assy. a - FUEL VENT
24	74660-S1C-E00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
25	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
26	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
27	91413-S5A-003	Clamp - FUEL TUBE (D17)	Clamp - FUEL TUBE (D17)
28	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)
29	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
30	91594-SNA-A01	Clip - FILLER CAP	Clip - FILLER CAP
31	91599-S9A-931	Cap - FUEL TUBE CLAMP	Cap - FUEL TUBE CLAMP
32	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Gasket kit (2.0L) 2 / 2

#	OEM	RE1	RE2
1	06110-RZP-000	Gasket kit - CYLINDER HEAD	Gasket kit - CYLINDER HEAD
3	06114-RNA-Z00	Gasket kit - CHAIN CASE	Gasket kit - CHAIN CASE

Grommet (FRONT) 9 / 9

#	OEM	RE1	RE2
1	74827-SH2-003	Stopper - TAILGATE	Stopper - TAILGATE
2	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
3	90820-SNA-003	Grommet - 20MM	Grommet - 20MM
5	91551-SWA-J01	Cap - SIDE LINING	Cap - SIDE LINING
6	91606-SE0-000	Seal - 20X20	Seal - 20X20
7	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
8	91613-SNA-013	Plug - FLOOR HOLE, 50MM	Plug - FLOOR HOLE, 50MM
9	91612-TA0-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
10	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 2 / 2

#	OEM	RE1	RE2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 4 / 4

#	OEM	RE1	RE2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
3	91609-S10-000	Plug - BLIND, 30X78	Plug - BLIND, 30X78
4	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Harness band/bracket (RH) 41 / 41

Headlight 14 / 18

#	OEM	RE1	RE2
3	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
6	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
9	33121-SFE-901	Seal - GASKET (2)	Seal - GASKET (2)
10	33121-SWA-J01	Cover - 2	Cover - 2
11	33124-SJD-J01	Seal - GASKET	Seal - GASKET
14	33130-SJK-J01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
17	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
18	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
19	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
20	33513-S84-A01	Socket - T10	Socket - T10
22	90101-S5A-003	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
23	90109-SFE-000	Bolt-washer - 6X18	Bolt-washer - 6X18
24	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Heater blower (RH) 15 / 15

#	OEM	RE1	RE2
1	79021-SWA-000	Bracket assy - HEATER	Bracket assy - HEATER
2	79305-SWA-951	Blower sub assy.	Blower sub assy.
3	79306-SNA-A01	Seal - BLOWER OUTER	Seal - BLOWER OUTER
4	79307-STK-A41	Packing - IN.	Packing - IN.
5	79310-SMA-941	Motor assy. - FAN	Motor assy. - FAN
6	79350-SNB-942	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
7	80291-SDA-Y01	Plate assy. - BLOWER	Plate assy. - BLOWER
8	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
9	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
10	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
11	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
12	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
13	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
15	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Heater unit (RH) 37 / 37

#	OEM	RE1	RE2
1	17711-S84-A01	Clamp - VENT TUBE	Clamp - VENT TUBE
2	39248-692-003	Packing - HEATER	Packing - HEATER
3	46407-SAA-003	Clamp - TUBE	Clamp - TUBE
4	79021-SNA-A01	Seal a	Seal a
6	79102-SWA-N01	Duct assy - HEATER (PASSENGER SIDE)	Duct assy - HEATER (PASSENGER SIDE)
7	79103-SWA-A41	Packing set - VENT	Packing set - VENT
8	79104-SNA-A01	Packing	Packing
9	79106-SWA-952	Heater sub assy.	Heater sub assy.
10	79107-SWA-N01	Cover - HEATER PIPE	Cover - HEATER PIPE
11	79108-SVA-A01	Plate - EVAPORATOR LOWER	Plate - EVAPORATOR LOWER
12	79109-SNB-003	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
13	79110-SNB-013	Core sub assy. - HEATER	Core sub assy. - HEATER
14	79140-SWA-941	Motor assy. - MODE	Motor assy. - MODE
15	79160-SWA-941	Motor assy. - AIR MIX (DRIVER SIDE)	Motor assy. - AIR MIX (DRIVER SIDE)
16	79170-SWA-941	Motor assy. - AIR MIX (PASSENGER SIDE)	Motor assy. - AIR MIX (PASSENGER SIDE)
17	79308-SNL-K01	Joint set - DUCT	Joint set - DUCT
18	79330-SNA-A01	Transistor - POWER	Transistor - POWER
19	79544-SWA-010	Cable - WATER VALVE CONTROL	Cable - WATER VALVE CONTROL
20	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE
21	80211-SWA-023	Evaporator comp.	Evaporator comp.
22	80221-SWA-013	Valve assy. - EXPANSION	Valve assy. - EXPANSION
23	80271-SWA-000	Hose - DRAIN	Hose - DRAIN
24	80534-S84-A41	Aspirator	Aspirator
25	80542-SWA-941	Hose b - ASPIRATOR	Hose b - ASPIRATOR
26	80560-SWA-A01	Thermistor - AIR CONDITIONER	Thermistor - AIR CONDITIONER
27	80566-SVA-A01	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
28	80650-SWA-940	Sub harness - AIR CONDITIONER	Sub harness - AIR CONDITIONER
29	90121-SNA-A00	Bolt - STUD, 6X49	Bolt - STUD, 6X49
30	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
31	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
32	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
33	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
34	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
35	90661-S2A-003	Clip - DRAIN HOSE	Clip - DRAIN HOSE
36	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
37	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
38	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)

Instrument panel (RH) 18 / 18

#	OEM	RE1	RE2
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
4	77107-SWW-E00	Insulator - INSTRUMENT PANEL DRIVER	Insulator - INSTRUMENT PANEL DRIVER
6	77150-SWA-A00	Bracket comp. - CENTER JOINT	Bracket comp. - CENTER JOINT
10	77466-SEA-010	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
11	77550-SWA-000	Frame - GLOVE BOX	Frame - GLOVE BOX
13	90107-S7S-000	Bolt-washer - 8X50	Bolt-washer - 8X50
14	90110-SV4-000	Bolt-washer - 8X21	Bolt-washer - 8X21
15	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
16	90111-SFA-000	Bolt-washer - 8X86	Bolt-washer - 8X86
17	90111-SWA-A01	Bolt-washer - 8X62	Bolt-washer - 8X62
18	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
20	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
21	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
22	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
23	90669-SWA-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
24	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
27	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; RH) 12 / 13

RE1 Instrument panel garnish (DRIVER SIDE; RH)

RE2 Instrument panel garnish (DRIVER SIDE; RH)

#	OEM	RE1	RE2
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
7	77255-SWA-A00	Bracket - R. RADIO	Bracket - R. RADIO
8	77256-SWA-A00	Bracket - L. RADIO	Bracket - L. RADIO
25	80541-SWA-941	Hose a - ASPIRATOR	Hose a - ASPIRATOR
27	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
28	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
29	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
30	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
31	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
32	91503-SZ3-003	Clip A	Clip A
33	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
39	90650-SE3-000	Clip - RADIO PANEL	Clip - RADIO PANEL

Instrument panel garnish (PASSENGER SIDE; RH) 15 / 16

RE1 Instrument panel garnish (PASSENGER SIDE; RH)

RE2 Instrument panel garnish (PASSENGER SIDE; RH)

#	OEM	RE1	RE2
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
4	77259-SLJ-003	Cushion - CLIP	Cushion - CLIP
6	77333-SWA-003	Lid assy - MAINTENANCE	Lid assy - MAINTENANCE
6	77336-SWA-U01	Lid assy - MAINTENANCE	Lid assy - MAINTENANCE
7	77335-SWA-003	Lid - SIDE	Lid - SIDE
11	77509-SLJ-003	Cushion - CLIP	Cushion - CLIP
14	77530-SWA-003	Damper assy. - GLOVE BOX	Damper assy. - GLOVE BOX
19	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
20	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
21	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
22	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
27	39115-SWA-A51	Holder assy. - USB CONNECTOR	Holder assy. - USB CONNECTOR
28	39115-SWA-A61	Lid - USB HOLDER	Lid - USB HOLDER
29	39118-SWA-A01	Sub cord assy. - USB	Sub cord assy. - USB
30	91567-SK3-E01	Clamp - CABLE	Clamp - CABLE

Intake manifold (2.0L) 21 / 21

#	OEM	RE1	RE2
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
2	17100-RNA-A00	Manifold comp - INTAKE	Manifold comp - INTAKE
3	17101-RNA-A00	Cover comp. - BYPASS VALVE	Cover comp. - BYPASS VALVE
4	17102-RNA-A01	Packing - BYPASS VALVE COVER	Packing - BYPASS VALVE COVER
5	17103-RNA-A01	Packing b - BYPASS VALVE	Packing b - BYPASS VALVE
6	17104-RNA-A01	Packing a - BYPASS VALVE	Packing a - BYPASS VALVE
7	17105-RNA-A01	Packing a - INTAKE MANIFOLD	Packing a - INTAKE MANIFOLD
8	17106-RNA-A01	Packing b - INTAKE MANIFOLD	Packing b - INTAKE MANIFOLD
9	17107-RNA-A01	Packing, throttle body	Packing, throttle body
10	17108-RNA-A01	O-ring - 31.2X3.5	O-ring - 31.2X3.5
11	17113-RNA-A00	Stiffener - INTAKE MANIFOLD	Stiffener - INTAKE MANIFOLD
12	17116-RNA-A00	Plate - THROTTLE FLANGE	Plate - THROTTLE FLANGE
13	17132-RNA-A00	Stay assy - INTAKE MANIFOLD	Stay assy - INTAKE MANIFOLD
14	17150-RNA-A01	Actuator assy - BYPASS VALVE	Actuator assy - BYPASS VALVE
15	17153-RCA-A01	Packing - BYPASS VALVE ACTUATOR	Packing - BYPASS VALVE ACTUATOR
16	17210-RNA-A01	Valve assy. - BYPASS	Valve assy. - BYPASS
17	17213-RNA-A00	Rubber - INTAKE MANIFOLD MOUNTING	Rubber - INTAKE MANIFOLD MOUNTING
18	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
19	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
20	37835-PGK-A01	O-ring	O-ring
21	90001-PGM-000	Bolt-washer - SPECIAL, 6X30	Bolt-washer - SPECIAL, 6X30

Interior light 9 / 9

#	OEM	RE1	RE2
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
4	34401-SDA-A21	Lens - R.	Lens - R.
5	34402-SDA-A21	Lens - L.	Lens - L.
6	34404-SDA-A22	Base comp.	Base comp.
12	83251-SDC-A01	Bush	Bush
13	83253-SDC-A01	Screw - TAPPING, 3X10	Screw - TAPPING, 3X10
14	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

Meter components (NS) 5 / 6

#	OEM	RE1	RE2
1	37115-SA0-601	Packing - NS	Packing - NS
3	78155-SWA-J01	Visor	Visor
4	78156-SWA-J01	Lens	Lens
5	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
6	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Mirror 16 / 20

#	OEM	RE1	RE2
1	34300-SWA-003	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
2	34350-SWA-003	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
6	76204-SWA-J41	Tube e	Tube e
8	76208-SWA-U41	Turn set - R. AUTO	Turn set - R. AUTO
9	76210-SWA-U41	Actuator comp. - R.(AUTO TURN) (R1400)	Actuator comp. - R.(AUTO TURN) (R1400)
18	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
19	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)	Screw - TAPPING, 4X12 (TRUSS)
20	90109-SDF-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
21	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)	Screw - TAPPING, 4X20 (TRUSS)
22	90109-SFA-003	Screw-washer - 5X12	Screw-washer - 5X12
22	90109-TA0-003	Screw-washer - 5X12	Screw-washer - 5X12
23	90109-SAG-H01	Screw - TAPPING, 4X14(TRUSS)	Screw - TAPPING, 4X14(TRUSS)
23	90109-SNB-003	Screw - TAPPING, 4X14 (TRUSS)	Screw - TAPPING, 4X14 (TRUSS)
24	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
25	91565-SEA-003	Clamp - HARNESS	Clamp - HARNESS
26	91610-SJ4-003	Grommet - MIRROR GARNISH	Grommet - MIRROR GARNISH

Molding 34 / 34

#	OEM	RE1	RE2
1	72410-SWA-A01	Molding assy., R. FR. DOOR	Molding assy., R. FR. DOOR
1	72410-SWA-A02	MOLDING ASSY., R. FR. DOOR	MOLDING ASSY., R. FR. DOOR
2	72425-SWA-A02	MOLDING, R. FR. DOOR SASH	MOLDING, R. FR. DOOR SASH
3	72450-SWA-A01	Molding assy., L. FR. DOOR	Molding assy., L. FR. DOOR
3	72450-SWA-A02	MOLDING ASSY., L. FR. DOOR	MOLDING ASSY., L. FR. DOOR
4	72465-SWA-A02	MOLDING, L. FR. DOOR SASH	MOLDING, L. FR. DOOR SASH
5	72721-SWA-003	Garnish - R. RR. DOOR QUARTER OUTER	Garnish - R. RR. DOOR QUARTER OUTER
6	72761-SWA-003	Garnish - L. RR. DOOR QUARTER OUTER	Garnish - L. RR. DOOR QUARTER OUTER
7	72910-SWA-A01	Molding assy., R. RR. DOOR	Molding assy., R. RR. DOOR
7	72910-SWA-A02	MOLDING ASSY., R. RR. DOOR	MOLDING ASSY., R. RR. DOOR
8	72925-SWA-A02	Molding - R. RR. DOOR SASH	Molding - R. RR. DOOR SASH
9	72950-SWA-A01	Molding assy., L. RR. DOOR	Molding assy., L. RR. DOOR
9	72950-SWA-A02	MOLDING ASSY., L. RR. DOOR	MOLDING ASSY., L. RR. DOOR
10	72965-SWA-A02	Molding - L. RR. DOOR SASH	Molding - L. RR. DOOR SASH
11	73152-SWA-003	Garnish assy - R. FR. WINDSHIELD SIDE	Garnish assy - R. FR. WINDSHIELD SIDE
12	73153-SWA-003	Lid - R. FR. WINDSHIELD SIDE GARNISH	Lid - R. FR. WINDSHIELD SIDE GARNISH
13	73162-SWA-003	Garnish assy - L. FR. WINDSHIELD SIDE	Garnish assy - L. FR. WINDSHIELD SIDE
14	73163-SWA-003	Lid - L. FR. WINDSHIELD SIDE GARNISH	Lid - L. FR. WINDSHIELD SIDE GARNISH
15	75230-SWA-003	Garnish assy - R. FR. ROOF SIDE	Garnish assy - R. FR. ROOF SIDE
16	75232-SWA-003	Lid b - R. ROOF SIDE GARNISH	Lid b - R. ROOF SIDE GARNISH
17	75233-SWA-003	Lid c - R. ROOF SIDE GARNISH	Lid c - R. ROOF SIDE GARNISH
18	75234-SWA-003	Lid d - R. ROOF SIDE GARNISH	Lid d - R. ROOF SIDE GARNISH
19	75235-SWA-003	Garnish assy - R. RR. ROOF SIDE	Garnish assy - R. RR. ROOF SIDE
20	75240-SWA-003	Garnish assy - L. FR. ROOF SIDE	Garnish assy - L. FR. ROOF SIDE
21	75242-SWA-003	Lid b - L. ROOF SIDE GARNISH	Lid b - L. ROOF SIDE GARNISH
22	75243-SWA-003	Lid c - L. ROOF SIDE GARNISH	Lid c - L. ROOF SIDE GARNISH
23	75244-SWA-003	Lid d - L. ROOF SIDE GARNISH	Lid d - L. ROOF SIDE GARNISH
24	75245-SWA-003	Garnish assy - L. RR. ROOF SIDE	Garnish assy - L. RR. ROOF SIDE
26	75491-SWA-003	Clip - FR. PILLAR CORNER GARNISH	Clip - FR. PILLAR CORNER GARNISH
28	90142-SWA-000	Screw - TAPPING, 4X10(PO)	Screw - TAPPING, 4X10(PO)
29	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
30	91503-SWA-A01	Clip - DOOR MOLDING	Clip - DOOR MOLDING
31	91570-SWA-003	Clip A - TAPE	Clip A - TAPE
32	91571-SWA-003	Clip b - FR. WINDSHIELD SIDE GARNISH	Clip b - FR. WINDSHIELD SIDE GARNISH

Oil pump (2.0L) 13 / 13

#	OEM	RE1	RE2
1	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
2	15100-RZP-003	Pump assy. - OIL	Pump assy. - OIL
2	15100-R1P-U01	PUMP ASSY OIL	PUMP ASSY OIL
3	15101-RNA-A00	O-ring set - OIL PUMP	O-ring set - OIL PUMP
4	15112-RNA-A00	Cover - CHAIN CASE	Cover - CHAIN CASE
5	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
5	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
5	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
6	90009-RNA-A00	Bolt - SPECIAL, 8X65	Bolt - SPECIAL, 8X65
7	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
8	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
9	90041-RNA-A00	Bolt - STUD, 14X90	Bolt - STUD, 14X90
10	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)

Outer panels/roof panel 22 / 22

#	OEM	RE1	RE2
10	63137-SWA-A01	Separator - FR. PILLAR OUTSIDE	Separator - FR. PILLAR OUTSIDE
11	63138-SWA-A01	Separator - R. FR. PILLAR INSIDE	Separator - R. FR. PILLAR INSIDE
13	63217-SWA-A01	Separator - R. CENTER PILLAR OUTSIDE	Separator - R. CENTER PILLAR OUTSIDE
15	63224-SWA-A01	Separator - R. CENTER PILLAR INSIDE	Separator - R. CENTER PILLAR INSIDE
19	63538-SWA-A01	Separator - L. FR. PILLAR INSIDE	Separator - L. FR. PILLAR INSIDE
21	63617-SWA-A01	Separator - L. CENTER PILLAR OUTSIDE	Separator - L. CENTER PILLAR OUTSIDE
23	63624-SWA-A01	Separator - L. CENTER PILLAR INSIDE	Separator - L. CENTER PILLAR INSIDE
32	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
33	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
34	74411-SWA-003	Cable - FUEL LID OPENER	Cable - FUEL LID OPENER
35	74421-S3N-000	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER
38	75450-SMA-003	Outlet assy - RR. AIR	Outlet assy - RR. AIR
39	90103-SS1-000	Bolt - FUEL FILLER LID	Bolt - FUEL FILLER LID
40	90103-SWA-A00	Bolt-washer - 8MM	Bolt-washer - 8MM
41	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
42	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
43	90142-SWA-A21	Bolt - 7/16"X25	Bolt - 7/16"X25
44	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18
45	90302-SD2-003	Nut-washer - 8MM	Nut-washer - 8MM
46	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
47	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
48	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)

P.s. gear box (EPS) 35 / 35

#	OEM	RE1	RE2
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
2	53010-SWC-G02	End set - RACK	End set - RACK
3	53413-SMA-003	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
4	53414-SMA-003	Screw - RACK GUIDE	Screw - RACK GUIDE
5	53416-SMA-003	Guide - STEERING RACK	Guide - STEERING RACK
6	53417-SMA-003	O-ring - 24X3.5	O-ring - 24X3.5
7	53418-S2K-003	Spring - CONICAL	Spring - CONICAL
8	53419-S2K-003	Washer - PLAIN	Washer - PLAIN
9	53434-SAA-G01	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
10	53434-SWA-023	Bracket a - GEAR BOX	Bracket a - GEAR BOX
11	53438-SWA-013	Bracket b - GEAR BOX	Bracket b - GEAR BOX
12	53449-SMA-003	Band	Band
13	53458-S2K-003	Nut - LOCK	Nut - LOCK
14	53502-SWC-E00	Grommet - STEERING(EPS)	Grommet - STEERING(EPS)
15	53534-SMA-003	Dust seal - TIE ROD	Dust seal - TIE ROD
16	53535-SMA-003	Spacer	Spacer
17	53536-SMA-003	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
18	53540-SWA-A02	TIE-ROD END comp	TIE-ROD END comp
19	53541-SWC-E01	Screw - PAN, 5X14	Screw - PAN, 5X14
20	53572-SWC-E01	Bracket - MOTOR CONNECTOR	Bracket - MOTOR CONNECTOR
21	53573-SWC-E01	Bracket - MOTOR CONNECTOR	Bracket - MOTOR CONNECTOR
22	53601-SWC-E04	Box, Steering Gear	Box, Steering Gear
23	53602-SWC-E01	Motor comp	Motor comp
24	53684-SWC-G01	Bush a - STEERING GEAR BOX MOUNTING	Bush a - STEERING GEAR BOX MOUNTING
25	53685-SWC-G01	Bush b - STEERING GEAR BOX MOUNTING	Bush b - STEERING GEAR BOX MOUNTING
26	53686-SWC-G01	Bush c - STEERING GEAR BOX MOUNTING	Bush c - STEERING GEAR BOX MOUNTING
27	53692-SWC-E01	Heat guard	Heat guard
28	53692-SWC-U01	Plate - POWER STEERING HEAT BAFFLE	Plate - POWER STEERING HEAT BAFFLE
29	53693-SWC-E01	Heat guard	Heat guard
30	90105-SMA-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
31	90107-SWA-A02	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
32	90108-STK-A00	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
33	90506-STK-A00	Washer - PLAIN, 10MM	Washer - PLAIN, 10MM
34	91351-SMA-003	O-ring - MOTOR	O-ring - MOTOR
39	53451-SWC-G01	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8

Parking brake shoe 12 / 16

#	OEM	RE1	RE2
1	43110-STK-A02	Plate comp - R. PARKING BRAKE BACK	Plate comp - R. PARKING BRAKE BACK
2	43120-STK-A02	Plate comp - L. PARKING BRAKE BACK	Plate comp - L. PARKING BRAKE BACK
4	43171-SX0-J01	Spring - ROD	Spring - ROD
5	43172-STK-A01	Spring a - BRAKE	Spring a - BRAKE
7	43362-SFE-J01	Strut	Strut
8	43365-SFE-J02	Pin - PARKING LEVER	Pin - PARKING LEVER
10	43367-SFE-J02	Spring - RETURN	Spring - RETURN
12	43375-SA0-003	U-clip	U-clip
13	43379-SA5-003	Washer - WAVE	Washer - WAVE
14	45172-S9A-E01	Spring - SHOE CLAMP	Spring - SHOE CLAMP
15	45175-SA0-013	Pin - TENSIONER	Pin - TENSIONER
16	90382-SJK-000	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM

Pedal (RH) 9 / 16

#	OEM	RE1	RE2
1	17800-SWA-E81	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
2	35350-S5A-J04	Switch assy - STOP (TOYO)	Switch assy - STOP (TOYO)
2	35350-SMA-003	Switch assy - STOP (PANASONIC)	Switch assy - STOP (PANASONIC)
4	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
5	46530-SFE-981	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
6	46540-SNC-A81	Spring assy - PROTECTOR	Spring assy - PROTECTOR
19	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
20	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
21	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

Pillar garnish 4 / 7

#	OEM	RE1	RE2
19	91560-SMA-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
20	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
21	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
22	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Plug hole coil (2.0L) 4 / 4

#	OEM	RE1	RE2
1	30511-RZP-G00	Insulator - COIL HEAT	Insulator - COIL HEAT
2	30520-RNA-A01	Coil comp - PLUG HOLE	Coil comp - PLUG HOLE
3	30522-RNA-A01	Seal - PLUG HOLE	Seal - PLUG HOLE
4	90207-RAA-A10	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM

Radiator (2.0L) 17 / 21

#	OEM	RE1	RE2
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
4	19013-RZP-G01	Seal	Seal
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
9	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
10	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
11	32175-PDA-E01	Clip - HARNESS	Clip - HARNESS
12	37870-RZA-007	Sensor assy - WATER TEMP(NTCL)	Sensor assy - WATER TEMP(NTCL)
13	38611-PNA-003	Fan - COOLING(DENSO)(NATURAL)	Fan - COOLING(DENSO)(NATURAL)
14	38615-RZP-G01	Shroud comp.	Shroud comp.
15	38616-RZP-G01	Motor - COOLING FAN	Motor - COOLING FAN
16	38619-RZP-G01	Protector - FAN MOTOR	Protector - FAN MOTOR
17	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
18	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
19	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
20	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
21	91307-RZA-007	O-ring	O-ring

Radiator hose/reserve tan k (2.0L) 14 / 14

#	OEM	RE1	RE2
1	19101-RZA-A00	Tank - RESERVE	Tank - RESERVE
2	19102-RNA-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
3	19103-RZA-A00	Hose - RESERVE TANK	Hose - RESERVE TANK
4	19104-RZA-A01	Tube - RESERVE TANK	Tube - RESERVE TANK
5	19106-RSA-G00	Joint - RESERVE TANK	Joint - RESERVE TANK
6	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)	Clamp - RESERVE TANK TUBE (BLACK)
7	19501-RZP-G01	Hose - WATER UPPER	Hose - WATER UPPER
8	19502-RZP-G01	Hose - WATER LOWER	Hose - WATER LOWER
9	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
9	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
14	74171-SWA-000	Bracket - R. RADIATOR MOUNTING UPPER	Bracket - R. RADIATOR MOUNTING UPPER
15	74172-SWA-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
16	74173-SWA-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
17	74176-SWA-000	Bracket - L. RADIATOR MOUNTING UPPER	Bracket - L. RADIATOR MOUNTING UPPER

Rear brake 22 / 24

#	OEM	RE1	RE2
1	01473-SZ3-A00	Caliper set - RR.	Caliper set - RR.
1	01473-SZ3-A01	SET, RR CALIPER	SET, RR CALIPER
2	06435-S84-J00	Shim set - RR.	Shim set - RR.
4	42510-SWA-A00	Disk - RR. BRAKE DRUM IN	Disk - RR. BRAKE DRUM IN
5	42511-SP0-000	Cap - MAINTENANCE HOLE	Cap - MAINTENANCE HOLE
6	43018-SWA-A10	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
7	43019-SWA-A10	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
8	43022-S9A-010	Pad set - RR.	Pad set - RR.
8	43022-S9A-020	PAD SET RR	PAD SET RR
9	43215-S9A-003	Piston	Piston
10	43227-S9A-E01	Spring - PAD	Spring - PAD
11	43235-S84-A51	Pin a	Pin a
12	43244-SG0-003	Retainer	Retainer
13	43244-S9A-003	Retainer a	Retainer a
14	43262-S84-A51	Pin b	Pin b
15	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
16	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
17	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
18	90103-SJK-000	Bolt - CALIPER MOUNTING	Bolt - CALIPER MOUNTING
19	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
19	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
20	90160-SJK-000	Bolt-washer - 12X46	Bolt-washer - 12X46

Rear door lining 18 / 18

#	OEM	RE1	RE2
1	35760-SWA-J01	Sub switch assy. - POWER WINDOW	Sub switch assy. - POWER WINDOW
2	72835-SWA-A01	Weatherstrip - RR. DOOR INNER	Weatherstrip - RR. DOOR INNER
6	83535-SWA-A01	Bracket - GRIP(A)	Bracket - GRIP(A)
10	83705-SWA-A01	Bracket comp. - R. RR. DOOR LINING(B)	Bracket comp. - R. RR. DOOR LINING(B)
11	83709-SWA-000	Bracket - PULL POCKET(R.)	Bracket - PULL POCKET(R.)
19	83755-SWA-A01	Bracket comp. - L. RR. DOOR LINING(B)	Bracket comp. - L. RR. DOOR LINING(B)
20	83759-SWA-000	Bracket - PULL POCKET(L.)	Bracket - PULL POCKET(L.)
25	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
26	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
27	90132-SWA-003	Screw - TAPPING, 4X10(PO)	Screw - TAPPING, 4X10(PO)
28	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
29	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
30	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
31	91560-S0X-A01	Clip - DOOR LINING (NATURAL)	Clip - DOOR LINING (NATURAL)
32	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
33	91627-SWA-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
34	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
39	90144-SWA-000	Screw - TAPPING, 4X12(PO)	Screw - TAPPING, 4X12(PO)

Rear door locks/ outer handle 31 / 31

#	OEM	RE1	RE2
1	72111-SEN-H01	Fastener - BLACK	Fastener - BLACK
2	72112-SWA-A01	Cover - R. LEVER	Cover - R. LEVER
3	72113-SWA-A01	Seal - COUPLER	Seal - COUPLER
4	72114-SWA-A01	Seal - DOOR LATCH	Seal - DOOR LATCH
7	72130-SWA-A01	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
8	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
8	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
9	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
10	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
12	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
13	72143-S04-003	Packing	Packing
14	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
15	72149-SAA-003	Snap - R.	Snap - R.
16	72152-SWA-A01	Cover - L. LEVER	Cover - L. LEVER
19	72170-SWA-A01	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
22	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
23	72189-SAA-003	Snap - L.	Snap - L.
24	72610-SWA-A01	LATCH ASSY., R. RR. DOOR POWER	LATCH ASSY., R. RR. DOOR POWER
25	72612-SNA-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
26	72615-SWA-A01	Seal - RR. DOOR LATCH	Seal - RR. DOOR LATCH
27	72631-SWA-A01	Cable - R. RR. INSIDE HANDLE	Cable - R. RR. INSIDE HANDLE
28	72633-SWA-A01	Cable - RR. DOOR LOCK	Cable - RR. DOOR LOCK
29	72650-SWA-A01	LATCH ASSY., L. RR. DOOR POWER	LATCH ASSY., L. RR. DOOR POWER
30	72652-SNA-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
31	72671-SWA-A01	Cable - L. RR. INSIDE HANDLE	Cable - L. RR. INSIDE HANDLE
32	74387-S3C-003	Fastener	Fastener
33	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
34	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
35	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
36	90141-SWA-A01	Screw - TAPPING	Screw - TAPPING
37	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door panels 18 / 18

#	OEM	RE1	RE2
5	67824-SWA-A01	Tape set - R. RR. DOOR SASH	Tape set - R. RR. DOOR SASH
6	67864-SWA-A01	Tape set - L. RR. DOOR SASH	Tape set - L. RR. DOOR SASH
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
14	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
15	72810-SWA-A01	Weatherstrip, R. RR. DOOR	Weatherstrip, R. RR. DOOR
16	72821-SWA-A00	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
17	72840-SWA-A01	CHECKER COMP., R. RR. DOOR	CHECKER COMP., R. RR. DOOR
18	72850-SWA-A01	Weatherstrip, L. RR. DOOR	Weatherstrip, L. RR. DOOR
19	72861-SWA-A00	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
20	72880-SWA-A01	CHECKER COMP., L. RR. DOOR	CHECKER COMP., L. RR. DOOR
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)	Bolt - FLANGE, 8X22 (TORX)
23	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
24	90651-S4N-003	Clip	Clip
25	91563-SFA-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET
26	91568-SJA-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP

Rear door windows/ regulator 12 / 12

#	OEM	RE1	RE2
1	72710-SWA-A02	Regulator assy - R. RR. DOOR POWER	Regulator assy - R. RR. DOOR POWER
2	72731-SWA-A01	Sash - R. RR. DOOR QUARTER	Sash - R. RR. DOOR QUARTER
3	72735-SWA-A01	Runchannel - R. RR. DOOR	Runchannel - R. RR. DOOR
4	72750-SWA-A02	Regulator assy - L. RR. DOOR POWER	Regulator assy - L. RR. DOOR POWER
5	72771-SWA-A01	Sash - L. RR. DOOR QUARTER	Sash - L. RR. DOOR QUARTER
6	72775-SWA-A01	Runchannel - L. RR. DOOR	Runchannel - L. RR. DOOR
7	73400-SWA-A00	Glass assy - R. RR. DOOR (GREEN)(AGC)	Glass assy - R. RR. DOOR (GREEN)(AGC)
8	73450-SWA-A00	Glass assy - L. RR. DOOR (GREEN)(AGC)	Glass assy - L. RR. DOOR (GREEN)(AGC)
9	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
10	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
11	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)	Bolt - FLANGE, 6X16(GUIDE)
12	90123-SJA-000	Bolt-washer - 6X16	Bolt-washer - 6X16

Rear lower arm 25 / 27

#	OEM	RE1	RE2
1	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
2	42524-SWA-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
5	52300-SWA-A01	Spring - RR. STABILIZER	Spring - RR. STABILIZER
6	52306-SWA-A01	Bush - RR. STABILIZER HOLDER	Bush - RR. STABILIZER HOLDER
7	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
8	52320-SWA-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
9	52321-SWA-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
10	52352-SWA-A01	Protector - RR. LOWER ARM	Protector - RR. LOWER ARM
11	52370-SWA-J10	Arm comp, R. RR. TRAILING	Arm comp, R. RR. TRAILING
12	52371-SWA-J10	Arm comp, L. RR. TRAILING	Arm comp, L. RR. TRAILING
13	52387-SFE-000	Bolt - TRAILING ARM ADJUST	Bolt - TRAILING ARM ADJUST
14	52388-S7A-013	Plate - CAM	Plate - CAM
15	52390-SWA-A00	Arm comp - RR. UPPER	Arm comp - RR. UPPER
16	57470-SWA-013	SENSOR ASSY., RH. REAR	SENSOR ASSY., RH. REAR
17	57475-SWA-013	SENSOR ASSY., LH. REAR	SENSOR ASSY., LH. REAR
18	57477-SWA-305	Seal - LIP(GRAY)	Seal - LIP(GRAY)
19	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
20	90100-SHJ-A00	Bolt - FLANGE, 6X16.5	Bolt - FLANGE, 6X16.5
21	90181-SFE-020	Bolt - FLANGE, 14X88.5	Bolt - FLANGE, 14X88.5
22	90183-SWA-A00	Bolt - FLANGE, 12X54	Bolt - FLANGE, 12X54
23	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
24	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)	Nut - LOCK FLANGE(CLINCH)
25	90396-S7A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
26	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5
27	90651-SWA-000	Washer - RR. KNUCKLE	Washer - RR. KNUCKLE

Rear seat 9 / 9

#	OEM	RE1	RE2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
5	82127-SWA-A01	Pad assy - R. RR. SEATBACK	Pad assy - R. RR. SEATBACK
6	82129-S5A-000	Collar - RR. SEAT PIVOT	Collar - RR. SEAT PIVOT
8	82137-SWA-A01	Pad assy - R. RR. SEAT CUSHION	Pad assy - R. RR. SEAT CUSHION
11	82172-SWA-A01	Pad assy - R. RR. SEATBACK LOWER	Pad assy - R. RR. SEATBACK LOWER
14	82187-S10-J01	Collar - ARMREST	Collar - ARMREST
16	82527-SWA-A01	Pad assy - L. RR. SEATBACK	Pad assy - L. RR. SEATBACK
18	82537-SWA-A01	Pad assy - L. RR. SEAT CUSHION	Pad assy - L. RR. SEAT CUSHION
22	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Rear seat components (1) 14 / 16

#	OEM	RE1	RE2
1	82128-SWA-A01	Bush - RR. SEATBACK(A)	Bush - RR. SEATBACK(A)
2	82122-SWA-A01	Bolt - FLANGE	Bolt - FLANGE
6	82129-SWA-A01	Bolt - RR. SEATBACK	Bolt - RR. SEATBACK
9	82221-SWA-A01	Cover - R. RR. SEAT LEVER INNER	Cover - R. RR. SEAT LEVER INNER
11	82234-SWA-A01	Cable - LOCK CONTROL CENTER	Cable - LOCK CONTROL CENTER
12	82235-SWA-A01	Cable - LOCK CONTROL	Cable - LOCK CONTROL
16	82621-SWA-A01	Cover - L. RR. SEAT LEVER INNER	Cover - L. RR. SEAT LEVER INNER
18	82926-SWA-A01	Frame comp - RR. SEATBACK CENTER	Frame comp - RR. SEATBACK CENTER
19	82928-SWA-A01	Spring - RELEASE LEVER	Spring - RELEASE LEVER
20	82929-SWA-A01	Silencer	Silencer
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90134-S10-J11	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
23	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
24	90650-KV3-000	Band - WIRE	Band - WIRE

Rear seat components (2) 17 / 19

#	OEM	RE1	RE2
4	82139-SWA-A01	Cable - RR. SEAT CUSHION	Cable - RR. SEAT CUSHION
5	82191-SWA-A01	Screw - PAN(5X10)	Screw - PAN(5X10)
11	82222-SWA-A01	Lock assy - R. INTER	Lock assy - R. INTER
12	82224-SWA-A01	Strap assy - RR. SEAT CUSHION	Strap assy - RR. SEAT CUSHION
13	82226-SWA-A01	Cable comp. b - LOCK	Cable comp. b - LOCK
14	82227-SWA-A01	Nut - PUSH	Nut - PUSH
15	82229-SWA-A01	Cable comp. c - LOCK	Cable comp. c - LOCK
17	82261-SWA-A01	Packing	Packing
18	82271-SWA-A01	Screw - TAPPING(5X10)	Screw - TAPPING(5X10)
26	82533-SWA-A01	Pin - RR. SEAT CUSHION HINGE	Pin - RR. SEAT CUSHION HINGE
27	82534-SWA-A01	Bolt - L. RR. SEAT CUSHION HINGE	Bolt - L. RR. SEAT CUSHION HINGE
29	82538-SWA-A01	Bush - RR. SEAT CUSHION(A)	Bush - RR. SEAT CUSHION(A)
30	82539-SWA-A01	Bush - RR. SEAT CUSHION(B)	Bush - RR. SEAT CUSHION(B)
35	82622-SWA-A01	Lock assy - L. INTER	Lock assy - L. INTER
43	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
44	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
45	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Rear shock absorber 15 / 18

Rear windshield/ quarter windows 19 / 19

#	OEM	RE1	RE2
1	04733-SWA-000	Rubber set - RR. WINDSHIELD DAM	Rubber set - RR. WINDSHIELD DAM
3	73211-SWA-A11	Glass set - RR. WINDSHIELD (GREEN)(AGC)	Glass set - RR. WINDSHIELD (GREEN)(AGC)
4	73510-SWA-003	Molding assy. - R. QUARTER WINDSHIELD	Molding assy. - R. QUARTER WINDSHIELD
5	73511-SWA-A11	Glass - R. QUARTER(GREEN)(AGC)	Glass - R. QUARTER(GREEN)(AGC)
6	73525-SWA-000	Spacer	Spacer
7	73560-SWA-003	Molding assy. - L. QUARTER WINDSHIELD	Molding assy. - L. QUARTER WINDSHIELD
8	73561-SWA-A11	Glass - L. QUARTER(GREEN)(AGC)	Glass - L. QUARTER(GREEN)(AGC)
9	73810-SWA-003	Seal - R. QUARTER GLASS FR.	Seal - R. QUARTER GLASS FR.
10	73860-SWA-003	Seal - L. QUARTER GLASS FR.	Seal - L. QUARTER GLASS FR.
11	75717-SNB-E01	Sticker - I-VTEC	Sticker - I-VTEC
13	76707-STK-000	Seal a	Seal a
14	76834-SNA-003	Tube - 140MM	Tube - 140MM
15	76850-SWA-013	Nozzle assy. - RR. WINDSHIELD	Nozzle assy. - RR. WINDSHIELD
16	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
17	91502-SWA-003	Clip A - QUARTER WINDSHIELD	Clip A - QUARTER WINDSHIELD
18	91502-S70-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD
19	91512-SWA-003	Clip - QUARTER MOLDING(FR.)	Clip - QUARTER MOLDING(FR.)
20	91513-SWA-003	Clip - QUARTER MOLDING CORNER	Clip - QUARTER MOLDING CORNER
21	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD

Rear wiper 12 / 12

#	OEM	RE1	RE2
1	76622-S2X-003	Rubber - BLADE (350MM)	Rubber - BLADE (350MM)
1	76632-S2K-004	RUBBER BLADE	RUBBER BLADE
2	76701-S6A-003	Rubber - MOUNTING	Rubber - MOUNTING
3	76702-S6A-003	Collar	Collar
4	76706-SK7-003	Washer a - SPECIAL	Washer a - SPECIAL
5	76708-SE1-003	Washer b - SPECIAL	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM	Nut - SPECIAL, 18MM
7	76710-SWA-003	Motor, WIPER	Motor, WIPER
8	76711-STK-003	Cap - PIVOT	Cap - PIVOT
9	76720-SWA-003	Arm - RR. WIPER	Arm - RR. WIPER
10	76721-SCV-A01	Cover - ARM	Cover - ARM
11	76730-SFA-003	Blade - RR. WINDSHIELD WIPER (350MM)	Blade - RR. WINDSHIELD WIPER (350MM)

Resonator chamber (2.0L) 15 / 15

#	OEM	RE1	RE2
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
2	17212-PLC-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
3	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
5	17230-RZP-G50	Chamber assy. a - RESONATOR	Chamber assy. a - RESONATOR
6	17236-RZP-G00	Chamber set - RESONATOR(B)	Chamber set - RESONATOR(B)
7	17251-RZP-G00	Tube a - AIR INTAKE	Tube a - AIR INTAKE
8	17255-RZA-000	Tube e - AIR INTAKE	Tube e - AIR INTAKE
9	17256-RNA-A00	Ring - SEAL	Ring - SEAL
10	17258-RZP-G00	Tube assy - AIR IN.(C)	Tube assy - AIR IN.(C)
11	17259-RZP-T00	Stay comp - AIR INTAKE	Stay comp - AIR INTAKE
12	17263-P0A-000	Rubber - AIR CLEANER STAY	Rubber - AIR CLEANER STAY
13	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
14	90005-P28-A00	Bolt-washer - SPECIAL, 6X28	Bolt-washer - SPECIAL, 6X28
15	90120-PZA-000	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Roof lining 12 / 15

#	OEM	RE1	RE2
1	78819-STK-A81	Clip - SIDE CURTAIN AIRBAG (8.5MM)	Clip - SIDE CURTAIN AIRBAG (8.5MM)
4	83202-SWA-J01	Pad assy - R. FR. ROOF SIDE	Pad assy - R. FR. ROOF SIDE
5	83203-SWA-J01	Pad assy - R. RR. ROOF SIDE	Pad assy - R. RR. ROOF SIDE
11	83241-SWA-A00	Bracket - FR. GRAB RAIL	Bracket - FR. GRAB RAIL
12	83242-SWA-A00	Bracket - RR. GRAB RAIL	Bracket - RR. GRAB RAIL
15	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
16	83252-SWA-J01	Pad assy - L. FR. ROOF SIDE	Pad assy - L. FR. ROOF SIDE
17	83253-SWA-J01	Pad assy - L. RR. ROOF SIDE	Pad assy - L. RR. ROOF SIDE
24	90131-SCV-A00	Screw - PAN, 5X23	Screw - PAN, 5X23
26	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
27	90662-SWA-003	Fastener - ROOF LINING	Fastener - ROOF LINING
28	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)

Seatbelts 22 / 22

#	OEM	RE1	RE2
5	81425-SJD-J01	Washer - SPRING	Washer - SPRING
6	81425-S2H-003	Washer - SPRING	Washer - SPRING
7	81426-S2H-003	Washer - PLAIN	Washer - PLAIN
8	81430-S2H-003	Bearing	Bearing
9	81439-S2H-003	Clip - HARNESS	Clip - HARNESS
10	81441-SWA-A01	Collar - 15H	Collar - 15H
11	81441-S2H-003	Collar - 13H	Collar - 13H
12	81442-S2H-003	Bearing	Bearing
13	81446-SWA-003	Washer - PLAIN	Washer - PLAIN
14	81446-S2H-003	Washer - WAVE	Washer - WAVE
15	81448-S2H-003	Washer - PLAIN	Washer - PLAIN
27	82424-SWA-A01	Washer - PLAIN	Washer - PLAIN
28	82424-SWA-003	Washer - PLAIN	Washer - PLAIN
32	82491-SWA-A00	Protector - R. RR. SEATBELT	Protector - R. RR. SEATBELT
36	82891-SWA-A00	Protector - L. RR. SEATBELT	Protector - L. RR. SEATBELT
37	90142-SWA-A01	Bolt - FLANGE, 7/16"X17.6	Bolt - FLANGE, 7/16"X17.6
40	90142-SWA-A31	Bolt - 7/16"X25	Bolt - 7/16"X25
41	90142-SWA-A41	Bolt - 7/16"X22	Bolt - 7/16"X22
42	90142-SWA-003	Bolt - 7/16"X22	Bolt - 7/16"X22
43	90142-S0X-A31	Bolt - 7/16"X33	Bolt - 7/16"X33
44	90142-S10-J71	Bolt - 7/16"X28	Bolt - 7/16"X28
45	90143-SWA-003	Bolt - 7/16"X54	Bolt - 7/16"X54

Shift lever 3 / 14

#	OEM	RE1	RE2
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
15	90302-SJK-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
16	54340-SWA-A01	Insulator - CONTROL WIRE	Insulator - CONTROL WIRE

Side lining 11 / 11

#	OEM	RE1	RE2
1	39620-SNA-003	Cap assy.	Cap assy.
2	39624-SZ3-L01	Socket assy	Socket assy
3	75353-671-000	Lock - SCREW	Lock - SCREW
8	84526-SWA-003	Plate	Plate
11	84614-SEA-E00	Hook assy - TIE DOWN	Hook assy - TIE DOWN
16	84636-SWA-003	Reinforce assy. - R. SHELF	Reinforce assy. - R. SHELF
25	84686-SWA-013	Reinforce assy. - L. SHELF	Reinforce assy. - L. SHELF
26	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
27	91505-SL0-003	Clip - COWL TOP	Clip - COWL TOP
30	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
31	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)

Side sill garnish/ protector 35 / 35

#	OEM	RE1	RE2
1	71704-SL3-000	Seal - GASKET	Seal - GASKET
2	71800-SWA-A01	Garnish assy - R. SIDE SILL	Garnish assy - R. SIDE SILL
3	71850-SWA-A01	Garnish assy - L. SIDE SILL	Garnish assy - L. SIDE SILL
4	74115-SWA-A00	Protector - R. FR. WHEEL ARCH	Protector - R. FR. WHEEL ARCH
5	74118-SWA-000	Spacer set	Spacer set
6	74165-SWA-A00	Protector L. FR. WHEEL ARCH	Protector L. FR. WHEEL ARCH
7	74410-SWA-A00	Protector - R. RR. WHEEL ARCH	Protector - R. RR. WHEEL ARCH
8	74450-SWA-A00	Protector - L. RR. WHEEL ARCH	Protector - L. RR. WHEEL ARCH
9	74475-SWA-A00	Strake - R. RR.	Strake - R. RR.
10	74485-SWA-A00	Strake - L. RR.	Strake - L. RR.
11	74603-SWA-A00	Cover - R. MIDDLE FLOOR UNDER	Cover - R. MIDDLE FLOOR UNDER
12	74613-SWA-A00	Cover - L. MIDDLE FLOOR UNDER	Cover - L. MIDDLE FLOOR UNDER
13	75312-SWA-003	Garnish assy - R. FR. DOOR LOWER	Garnish assy - R. FR. DOOR LOWER
14	75313-SWA-003	Garnish assy - R. RR. DOOR LOWER	Garnish assy - R. RR. DOOR LOWER
15	75315-S9A-004	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
16	75316-S9A-004	Clip - DOOR LOWER GARNISH	Clip - DOOR LOWER GARNISH
17	75332-SWA-003	Garnish assy - L. FR. DOOR LOWER	Garnish assy - L. FR. DOOR LOWER
18	75333-SWA-003	Garnish assy - L. RR. DOOR LOWER	Garnish assy - L. RR. DOOR LOWER
19	75800-SWA-003	Mudguard - R. FR.	Mudguard - R. FR.
20	75810-SWA-003	Mudguard - L. FR.	Mudguard - L. FR.
21	75820-SWA-003	Mudguard - R. RR.	Mudguard - R. RR.
22	75830-SWA-003	Mudguard - L. RR.	Mudguard - L. RR.
23	90114-SAA-G01	Screw - TAPPING, 5X17	Screw - TAPPING, 5X17
24	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
25	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
27	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
28	90304-SE3-000	Nut - CLIP, 5MM	Nut - CLIP, 5MM
29	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
30	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
31	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
32	91503-SZ3-003	Clip A	Clip A
33	91504-SP1-003	Clip - FR. FENDER LOWER	Clip - FR. FENDER LOWER
34	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
35	91513-SMG-E01	Clip - RR. WHEEL ARCH GARNISH	Clip - RR. WHEEL ARCH GARNISH
36	91513-SMG-E11	Clip - FR. WHEEL ARCH GARNISH	Clip - FR. WHEEL ARCH GARNISH

Speaker 5 / 5

#	OEM	RE1	RE2
1	39120-SED-E11	Speaker assy - TWEETER (MATSUSHITA)	Speaker assy - TWEETER (MATSUSHITA)
2	39120-SMG-E02	Speaker assy - 17CM SINGLE)(ND) (PP	Speaker assy - 17CM SINGLE)(ND) (PP
5	90109-SLJ-003	Screw - 5X40	Screw - 5X40
6	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER
7	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Spool valve (2.0L) 21 / 21

#	OEM	RE1	RE2
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
3	12215-RNA-A00	Collar - SPARK PLUG COIL	Collar - SPARK PLUG COIL
4	12216-RNA-A00	Bolt - SPARK PLUG COIL	Bolt - SPARK PLUG COIL
5	12240-RNA-A00	Cover comp. - CAMSHAFT THRUST	Cover comp. - CAMSHAFT THRUST
6	12251-RNA-A01	Gasket comp - CYLINDER HEAD (NOK)	Gasket comp - CYLINDER HEAD (NOK)
6	12251-RNA-A02	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
7	15810-RNA-A01	Valve assy, Spool	Valve assy, Spool
8	15826-RNA-A01	Filter assy - SPOOL VALVE	Filter assy - SPOOL VALVE
9	17147-RNA-A00	Joint - EGR	Joint - EGR
10	32743-RNA-A01	Stay c - ENGINE HARNESS	Stay c - ENGINE HARNESS
11	32744-RZP-G00	Stay d - ENGINE WIRE HARNESS	Stay d - ENGINE WIRE HARNESS
12	37260-RNA-A01	Sensor - OIL PRESSURE	Sensor - OIL PRESSURE
13	37510-RNA-A01	Sensor assy - TDC	Sensor assy - TDC
14	90005-RNA-A01	Bolt-washer - 11X176	Bolt-washer - 11X176
15	90026-P8A-A00	Bolt - STUD, 8X41	Bolt - STUD, 8X41
16	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
17	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5
18	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Srs unit (RH) 7 / 15

#	OEM	RE1	RE2
2	77900-SMG-E01	Reel assy - CABLE (FURUKAWA)	Reel assy - CABLE (FURUKAWA)
4	77930-SWA-E11	Sensor assy - FR. CRASH	Sensor assy - FR. CRASH
5	77960-SWA-Z61	Srs unit	Srs unit
6	77970-SWA-E11	Sensor assy - SIDE IMPACT	Sensor assy - SIDE IMPACT
12	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
13	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
15	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)

Starter motor (DENSO; 2.0L) 27 / 29

#	OEM	RE1	RE2
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP	Collar - CLUTCH STOP
5	31202-PM3-J01	Bolt - THROUGH (DENSO)	Bolt - THROUGH (DENSO)
6	31202-RNA-A01	Endframe comp. - COMMUTATOR	Endframe comp. - COMMUTATOR
7	31203-PCA-003	Lever - PINION DRIVE	Lever - PINION DRIVE
8	31204-RNA-003	Switch assy - MAGNET	Switch assy - MAGNET
9	31205-RTA-003	Yoke set	Yoke set
10	31206-RTA-003	Armature comp.	Armature comp.
11	31207-PCA-003	Clutch comp. - OVERRUNNING	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM	Screw - PAN, 4MM
13	31213-PCA-003	Shaft - DRIVE	Shaft - DRIVE
14	31213-RNA-A01	Cover	Cover
15	31214-P3F-003	Gear assy. - INTERNAL	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL	Plate - SEAL
19	31218-P3F-003	Washer a	Washer a
20	31219-P3F-003	Washer b	Washer b
21	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
22	31220-P3F-003	Washer c	Washer c
23	31223-PA0-006	Nut - HEX.	Nut - HEX.
24	31228-PLR-A01	O-ring	O-ring
25	31231-P3F-003	Plate comp - BRUSH HOLDER	Plate comp - BRUSH HOLDER
26	31291-RZP-G01	Stay - ENGINE WIRE HARNESS	Stay - ENGINE WIRE HARNESS
27	31292-PLR-A01	Bolt-washer	Bolt-washer
29	31211-PCX-A01	Brush - +	Brush - +
30	31212-P3F-003	Spring - BRUSH	Spring - BRUSH

Steering column 8 / 8

#	OEM	RE1	RE2
1	53200-SWW-E03	Column assy - STEERING	Column assy - STEERING
3	53320-SWA-E01	Cover - STEERING JOINT	Cover - STEERING JOINT
4	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
5	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
10	53320-SWA-J00	Cover - STEERING JOINT(RH)	Cover - STEERING JOINT(RH)

Steering wheel (SRS) 5 / 5

#	OEM	RE1	RE2
1	35880-SWA-A01	Switch assy - AUDIO REMOTE	Switch assy - AUDIO REMOTE
9	78525-STK-A81	Guide - CORD	Guide - CORD
12	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
13	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE
17	77901-SWA-W00	Sub cord - CABLE REEL	Sub cord - CABLE REEL

Switch (RH) 2 / 5

#	OEM	RE1	RE2
1	35190-SWA-J02	Switch assy - REMOTE CONTROL MIRROR	Switch assy - REMOTE CONTROL MIRROR
3	35510-SWA-J01	Switch assy - HAZARD	Switch assy - HAZARD

Tailgate 22 / 23

#	OEM	RE1	RE2
4	74440-SWA-003	Weatherstrip - TAILGATE	Weatherstrip - TAILGATE
5	74800-SMG-G01	Lock assy - TAILGATE	Lock assy - TAILGATE
6	74810-SWA-A01	Switch assy - TAILGATE OPENER	Switch assy - TAILGATE OPENER
7	74813-SFE-003	Striker assy - TAILGATE	Striker assy - TAILGATE
8	74820-SWA-A01	Stay assy - R. TAILGATE OPEN	Stay assy - R. TAILGATE OPEN
9	74827-SWA-A10	Stopper - TAILGATE	Stopper - TAILGATE
11	74836-SWA-A00	Garnish assy - R. TAILGATE UPPER	Garnish assy - R. TAILGATE UPPER
12	74870-SWA-A01	Stay assy - L. TAILGATE OPEN	Stay assy - L. TAILGATE OPEN
13	74886-SWA-A00	Garnish assy - L. TAILGATE UPPER	Garnish assy - L. TAILGATE UPPER
15	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
16	90101-SLJ-003	Bolt - FLANGE, 8X18	Bolt - FLANGE, 8X18
17	90105-S10-000	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
18	90107-SEY-003	Bolt - TAILGATE LOCK	Bolt - TAILGATE LOCK
19	90109-SWA-A00	Stud - BALL	Stud - BALL
20	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
21	90303-SWA-A00	Bolt - GARNISH, 6MM	Bolt - GARNISH, 6MM
22	90308-SMG-E01	Nut - GARNISH (M5)	Nut - GARNISH (M5)
23	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
24	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH
25	91513-SJK-003	Clip - TAILGATE GARNISH	Clip - TAILGATE GARNISH
26	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)
28	90856-S6M-003	Plug - TAILGATE DRAIN	Plug - TAILGATE DRAIN

Tailgate lining 6 / 6

#	OEM	RE1	RE2
8	84426-SWA-003	Cap	Cap
12	84430-SWA-003	Nut	Nut
25	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
26	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
27	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
28	91562-S0X-A01	Clip - ROOF LINING (BLACK)	Clip - ROOF LINING (BLACK)

Taillight/license light 24 / 27

#	OEM	RE1	RE2
1	33301-SNA-003	Bulb - 12V 5W) (STANLEY	Bulb - 12V 5W) (STANLEY
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
5	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
7	33502-SWA-A01	Socket comp.	Socket comp.
9	33506-SWA-A01	Cap - BEZEL	Cap - BEZEL
10	33513-S50-003	Socket - T20W S2	Socket - T20W S2
12	34101-S60-013	Lens	Lens
13	34102-S60-003	Housing comp	Housing comp
14	34103-S60-003	Gasket	Gasket
15	34271-SWA-G01	Lamp unit	Lamp unit
16	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
17	74890-SWA-U01	Garnish assy - RR. LICENSE	Garnish assy - RR. LICENSE
18	74895-S5A-000	Bolt - SPECIAL, 5MM	Bolt - SPECIAL, 5MM
19	75523-SS0-000	Packing - SEAL	Packing - SEAL
20	75701-SMA-000	Emblem - RR. (H)	Emblem - RR. (H)
21	90001-S10-010	Bolt-washer - 5X16	Bolt-washer - 5X16
22	90102-STK-A00	Bolt-washer - 5X12	Bolt-washer - 5X12
23	90301-ST0-003	push nut, 3mm	push nut, 3mm
24	90308-SMG-E01	Nut - GARNISH (M5)	Nut - GARNISH (M5)
25	90665-S47-003	Clip	Clip
26	91512-SJK-003	Clip - TAILGATE GARNISH	Clip - TAILGATE GARNISH
27	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
30	34100-S60-013	Light assy - LICENSE	Light assy - LICENSE
31	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)

Throttle body (2.0L) 5 / 5

#	OEM	RE1	RE2
1	16400-RZP-G01	Throttle body - ELECTRONIC CONTROL(GMD2A)	Throttle body - ELECTRONIC CONTROL(GMD2A)
2	36162-RNA-A01	Valve assy. - PURGE CONTROL SOLENOID	Valve assy. - PURGE CONTROL SOLENOID
3	37835-PGK-A01	O-ring	O-ring
4	90012-RNA-A00	Bolt-washer - 8X55	Bolt-washer - 8X55
5	90020-RNA-A01	Bolt-washer - 5X20	Bolt-washer - 5X20

Tire/wheel disks 50 / 50

#	OEM	RE1	RE2
4	42751-SWA-A08	Tire - 225/65R17 102T) (BRIDGESTONE	Tire - 225/65R17 102T) (BRIDGESTONE
5	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
5	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
6	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
6	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
6	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
6	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
6	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
6	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
6	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
6	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
6	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
6	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
6	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
6	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
6	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
6	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
7	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
7	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
7	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
7	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
7	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
7	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
7	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
7	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
7	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
7	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
7	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
7	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
7	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
7	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
7	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
7	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
7	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
7	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
7	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
7	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
7	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
7	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
7	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
7	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
7	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
7	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
7	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
9	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
11	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
12	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE
14	90304-SF0-751	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)
15	42700-SWA-C71	Disk - ALUMINIUM WHEEL (17X6 1/2J)(ENKEI)	Disk - ALUMINIUM WHEEL (17X6 1/2J)(ENKEI)
15	42700-SWA-C72	Disk - ALUMINIUM WHEEL (17X6 1/2J)(HITACHI)	Disk - ALUMINIUM WHEEL (17X6 1/2J)(HITACHI)

Tools/jack 8 / 8

#	OEM	RE1	RE2
1	89000-SWA-J00	Tool set	Tool set
2	89101-SMG-E01	Bag - TOOL	Bag - TOOL
3	89102-538-000	Driver, SCREW(NO.2 + -)	Driver, SCREW(NO.2 + -)
4	89103-538-000	Grip	Grip
5	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
6	89310-SWA-003	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
7	89311-SWA-003	Plate - JACK CAUTION	Plate - JACK CAUTION
8	89320-S2G-003	Bar - JACK	Bar - JACK

Transmission case 1 / 72

#	OEM	RE1	RE2
16	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Valve/rocker arm (2.0L) 11 / 11

#	OEM	RE1	RE2
1	14620-RNA-A01	Arm assy. - ROCKER	Arm assy. - ROCKER
2	14711-RNA-A00	Valve - IN.	Valve - IN.
3	14721-P2A-000	Valve - EX.	Valve - EX.
4	14744-PM3-000	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
5	14761-RNA-A02	Spring, IN. VALVE (VIOLET) (CHUO SPRING)	Spring, IN. VALVE (VIOLET) (CHUO SPRING)
6	14762-RNA-A02	Spring - EX. VALVE (GRAY) (CHUO SPRING)	Spring - EX. VALVE (GRAY) (CHUO SPRING)
7	14765-RGA-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
8	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
9	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
10	14820-RNA-A01	Motion comp - LOST	Motion comp - LOST
11	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose (2.0L) 16 / 16

#	OEM	RE1	RE2
1	79710-SWC-G01	Valve assy. - WATER	Valve assy. - WATER
1	19506-RNA-A01	Hose - THERMOBODY IN.	Hose - THERMOBODY IN.
2	79721-SWC-G00	Hose a - WATER IN.	Hose a - WATER IN.
2	19507-RZP-G01	Hose - THERMOBODY OUTLET	Hose - THERMOBODY OUTLET
3	79722-SWC-G00	Hose b - WATER IN.	Hose b - WATER IN.
3	19508-RNA-A01	Hose - BYPASS	Hose - BYPASS
4	79720-SWC-G00	Hose assy - WATER OUTLET	Hose assy - WATER OUTLET
4	19509-RZP-G01	Hose - DEVICE	Hose - DEVICE
5	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
5	19512-PK2-003	Clip - HOSE, 18.7MM	Clip - HOSE, 18.7MM
6	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)	Clamp - HEATER HOSE (NATURAL)
7	79751-SWC-G00	Stay - HEATER HOSE	Stay - HEATER HOSE
8	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
9	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
10	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
10	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water pump (2.0L) 25 / 25

#	OEM	RE1	RE2
1	18011-RNA-J00	EGR Valve set	EGR Valve set
1	18011-RNA-A00	EGR Valve set	EGR Valve set
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-RZP-013	Pump comp - WATER	Pump comp - WATER
4	19222-RNA-A00	Packing - WATER PUMP	Packing - WATER PUMP
5	19224-RZP-003	Pulley - WATER PUMP	Pulley - WATER PUMP
6	19301-RNA-305	Thermostat assy - FUJI SEIKO	Thermostat assy - FUJI SEIKO
6	19301-RNA-306	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
7	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
8	19311-RNA-A00	Cover - THERMOSTAT	Cover - THERMOSTAT
9	19315-RNA-A01	Cover comp. - WATER OUTLET	Cover comp. - WATER OUTLET
10	19320-RNA-A00	Case comp. - THERMOSTAT	Case comp. - THERMOSTAT
11	19322-RNA-A01	Gasket - THERMOSTAT CASE	Gasket - THERMOSTAT CASE
12	19425-RNA-J00	Cover - HEATER OUTLET	Cover - HEATER OUTLET
13	19426-RNA-A01	Gasket - HEATER OUTLET	Gasket - HEATER OUTLET
14	19505-RNA-A00	Pipe assy. - CONNECTING	Pipe assy. - CONNECTING
15	36536-RNA-A00	Stay - SENSOR HARNESS	Stay - SENSOR HARNESS
16	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)	Sensor assy, WATER TEMP (MATSUSHITA)
17	90010-RNA-A00	Bolt - SPECIAL, 8X87	Bolt - SPECIAL, 8X87
18	90013-PCX-000	Bolt - SPECIAL, 6X12	Bolt - SPECIAL, 6X12
19	90014-RNA-A00	Bolt - SPECIAL, 6X29.5	Bolt - SPECIAL, 6X29.5
20	90015-RNA-A00	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM
21	90401-RNA-A00	Washer - SEALING, 16MM	Washer - SEALING, 16MM
22	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)
23	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)

Windshield washer (1) 28 / 28

#	OEM	RE1	RE2
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
3	76802-SJD-003	Cap unit - MOUTH	Cap unit - MOUTH
4	76805-SWA-003	Hose	Hose
5	76806-SMA-J02	Motor - WASHER	Motor - WASHER
5	76806-SMA-J01	Motor - WASHER	Motor - WASHER
6	76809-SWA-003	Packing	Packing
7	76821-SWA-003	Tube - CORRUGATE	Tube - CORRUGATE
8	76825-SH3-003	Tube a - RR. WASHER	Tube a - RR. WASHER
9	76826-SWA-003	Tube sub assy.	Tube sub assy.
10	76834-SWA-003	Tube - 930MM	Tube - 930MM
11	76873-SWA-003	Tube - 1200MM	Tube - 1200MM
12	76839-SWA-003	Tube - 3040MM	Tube - 3040MM
13	76841-SWA-013	Tank - WASHER(2.5L FR.-RR.)	Tank - WASHER(2.5L FR.-RR.)
14	76842-S2K-J11	Bush - WASHER TANK	Bush - WASHER TANK
15	76851-S30-003	Grommet - WASHER TUBE	Grommet - WASHER TUBE
16	76867-SWA-003	Tube - 80MM	Tube - 80MM
17	76868-SWA-003	Tube - 560MM	Tube - 560MM
18	76870-SYA-003	Tube - 140MM	Tube - 140MM
19	76872-SWA-003	Tube - 220MM	Tube - 220MM
21	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
22	91501-SJ6-003	Clip - WASHER TUBE	Clip - WASHER TUBE
23	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
24	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
25	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)
27	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
28	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)	Valve - ONE WAY (RR.) (MITSUBA)
29	76808-SWA-003	Holder - MOTOR	Holder - MOTOR

Wire harness (RH; 1) 3 / 4

#	OEM	RE1	RE2
2	32610-SWA-010	Cable - SUB EARTH	Cable - SUB EARTH
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
4	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (RH; 2) 4 / 8

#	OEM	RE1	RE2
4	32751-SWA-Z00	Harness - DRIVER DOOR WIRE	Harness - DRIVER DOOR WIRE
6	32753-SWA-000	Harness - R. RR. DOOR WIRE	Harness - R. RR. DOOR WIRE
7	32754-SWA-000	Harness - L. RR. DOOR WIRE	Harness - L. RR. DOOR WIRE
8	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (RH; 3) 2 / 6

#	OEM	RE1	RE2
2	32107-SWA-U02	Harness - CENTER FLOOR WIRE	Harness - CENTER FLOOR WIRE
4	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (RH; 4) 2 / 7

#	OEM	RE1	RE2
4	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
5	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

#	OEM	RE1	RE2
1	01462-SWA-P00	Cylinder set - MASTER	Cylinder set - MASTER
1	01463-SHJ-A00	Caliper set, FR.	Caliper set, FR.
1	01463-SHJ-A01	CALIPER SET, FR.	CALIPER SET, FR.
1	01464-SWA-000	HOSE SET, R. FR. BRAKE	HOSE SET, R. FR. BRAKE
2	01465-SWA-000	HOSE SET, L. FR. BRAKE	HOSE SET, L. FR. BRAKE
3	01466-SWA-000	Hose set - RR. BRAKE	Hose set - RR. BRAKE
2	01469-SWA-J00	Power set - MASTER(10.5")	Power set - MASTER(10.5")
1	01473-SZ3-A00	Caliper set - RR.	Caliper set - RR.
1	01473-SZ3-A01	SET, RR CALIPER	SET, RR CALIPER
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
1	04731-SWA-000	Rubber set - FR. WINDSHIELD DAM	Rubber set - FR. WINDSHIELD DAM
1	04733-SWA-000	Rubber set - RR. WINDSHIELD DAM	Rubber set - RR. WINDSHIELD DAM
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
1	06110-RZP-000	Gasket kit - CYLINDER HEAD	Gasket kit - CYLINDER HEAD
3	06114-RNA-Z00	Gasket kit - CHAIN CASE	Gasket kit - CHAIN CASE
2	06435-S84-J00	Shim set - RR.	Shim set - RR.
2	06455-SHJ-A00	Shim set - FR.	Shim set - FR.
1	10002-RZP-000	General assy. - CYLINDER BLOCK	General assy. - CYLINDER BLOCK
2	10003-RZP-000	General assy. - CYLINDER HEAD	General assy. - CYLINDER HEAD
1	11000-RZP-J00	Block assy - CYLINDER	Block assy - CYLINDER
2	11103-RNA-A01	Plate - PARTITION	Plate - PARTITION
3	11105-RNA-A00	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
4	11106-RNA-A00	Washer - SEALING, 20MM	Washer - SEALING, 20MM
5	11107-PWA-300	Washer - SEALING, 24MM	Washer - SEALING, 24MM
1	11107-RNA-A00	Bolt - SEALING, 24MM	Bolt - SEALING, 24MM
7	11135-RZP-000	Orifice assy - LOWER BLOCK	Orifice assy - LOWER BLOCK
8	11200-RZP-020	Pan assy - OIL	Pan assy - OIL
2	11222-RZP-000	Plate b - BAFFLE	Plate b - BAFFLE
3	11223-RZP-000	Plate c - BAFFLE	Plate c - BAFFLE
9	11850-RNA-A00	Cover comp. - BREATHER	Cover comp. - BREATHER
1	12200-R60-U00	Head comp - CYLINDER	Head comp - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
3	12215-RNA-A00	Collar - SPARK PLUG COIL	Collar - SPARK PLUG COIL
4	12216-RNA-A00	Bolt - SPARK PLUG COIL	Bolt - SPARK PLUG COIL
4	12231-RNA-A00	Holder comp - ROCKER SHAFT (NO.1)	Holder comp - ROCKER SHAFT (NO.1)
5	12232-RNA-A00	Holder comp - ROCKER SHAFT	Holder comp - ROCKER SHAFT
6	12235-RNA-A00	Holder comp - ROCKER SHAFT (NO.5)	Holder comp - ROCKER SHAFT (NO.5)
7	12236-RNA-A00	Holder comp - LOST MOTION	Holder comp - LOST MOTION
5	12240-RNA-A00	Cover comp. - CAMSHAFT THRUST	Cover comp. - CAMSHAFT THRUST
6	12251-RNA-A01	Gasket comp - CYLINDER HEAD (NOK)	Gasket comp - CYLINDER HEAD (NOK)
6	12251-RNA-A02	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
1	12310-RNA-A01	Cover comp. - CYLINDER HEAD	Cover comp. - CYLINDER HEAD
2	12341-RNA-A01	Packing - HEAD COVER	Packing - HEAD COVER
1	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
1	13010-RNA-Y00	Piston set - STD.	Piston set - STD.
2	13011-RZP-003	Ring set - PISTON (STD.) (TEIKOKU)	Ring set - PISTON (STD.) (TEIKOKU)
2	13011-RZP-004	Ring set - PISTON (STD.) (RIKEN)	Ring set - PISTON (STD.) (RIKEN)
1	13020-RNA-Y00	Piston set - OS 0.25	Piston set - OS 0.25
2	13021-RZP-003	Ring set - PISTON (OS 0.25) (TEIKOKU)	Ring set - PISTON (OS 0.25) (TEIKOKU)
2	13021-RZP-004	Ring set - PISTON (OS 0.25) (RIKEN)	Ring set - PISTON (OS 0.25) (RIKEN)
3	13111-RNA-A00	Pin - PISTON	Pin - PISTON
4	13115-RNA-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-RNA-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
6	13210-RZP-000	Rod comp - CONNECTING	Rod comp - CONNECTING
7	13211-RNE-A01	BEARING A - CONNECTING ROD (BLACK) (TAIHO)	BEARING A - CONNECTING ROD (BLACK) (TAIHO)
7	13212-RNE-A01	Bearing b - CONNECTING ROD (BROWN) (TAIHO)	Bearing b - CONNECTING ROD (BROWN) (TAIHO)
7	13213-RNE-A01	Bearing c - CONNECTING ROD (GREEN) (TAIHO)	Bearing c - CONNECTING ROD (GREEN) (TAIHO)
7	13214-RNE-A01	Bearing d - CONNECTING ROD (YELLOW) (TAIHO)	Bearing d - CONNECTING ROD (YELLOW) (TAIHO)
7	13215-RNE-A01	Bearing e - CONNECTING ROD (PINK) (TAIHO)	Bearing e - CONNECTING ROD (PINK) (TAIHO)
7	13216-RNE-A01	Bearing f - CONNECTING ROD (RED) (TAIHO)	Bearing f - CONNECTING ROD (RED) (TAIHO)
8	13310-R6A-000	Crankshaft comp.	Crankshaft comp.
8	13310-RZP-000	Crankshaft comp.	Crankshaft comp.
9	13321-RZP-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13322-RZP-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)	Bearing b - MAIN UPPER (BLACK) (DAIDO)
9	13323-RZP-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13324-RZP-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13325-RZP-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13326-RZP-003	Bearing f - MAIN UPPER (PINK) (DAIDO)	Bearing f - MAIN UPPER (PINK) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
11	13341-RZP-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13342-RZP-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13343-RZP-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13344-RZP-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13345-RZP-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
11	13346-RZP-003	Bearing f - MAIN LOWER (PINK) (DAIDO)	Bearing f - MAIN LOWER (PINK) (DAIDO)
5	13406-RZP-000	Holder set - BALANCER	Holder set - BALANCER
6	13407-RZP-000	O-ring set - BALANCER	O-ring set - BALANCER
7	13410-R60-U00	Shaft comp. - FR. BALANCER	Shaft comp. - FR. BALANCER
8	13420-R60-U00	Shaft comp. - RR. BALANCER	Shaft comp. - RR. BALANCER
9	13432-RZP-003	Sprocket - DRIVEN (17T)	Sprocket - DRIVEN (17T)
10	13435-RZP-004	Bearing - BALANCE SHAFT	Bearing - BALANCE SHAFT
11	13441-RZP-013	Chain - 60L	Chain - 60L
12	13450-RZP-004	Tensioner comp - BALANCER SHAFT CHAIN	Tensioner comp - BALANCER SHAFT CHAIN
13	13460-RZP-003	Guide - BALANCER SHAFT CHAIN	Guide - BALANCER SHAFT CHAIN
12	13620-RZP-003	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-RNA-A00	Plate - CRANK PULSER	Plate - CRANK PULSER
14	13810-RZP-003	Pulley comp - CRANKSHAFT	Pulley comp - CRANKSHAFT
1	14110-RZP-000	Camshaft comp.	Camshaft comp.
2	14211-RNA-A01	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
3	14221-RNA-A01	Plate - TDC PULSER	Plate - TDC PULSER
4	14222-PWA-004	Bolt - TDC PULSER PLATE	Bolt - TDC PULSER PLATE
5	14401-RNA-A01	Chain - 136L	Chain - 136L
6	14510-RNA-A01	Tensioner comp - CAM CHAIN	Tensioner comp - CAM CHAIN
7	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
8	14520-RNA-A01	Arm comp - CAM CHAIN TENSIONER	Arm comp - CAM CHAIN TENSIONER
9	14530-RNA-A01	Guide - CAM CHAIN	Guide - CAM CHAIN
1	14620-RNA-A01	Arm assy. - ROCKER	Arm assy. - ROCKER
8	14631-RNA-A00	Shaft comp. - ROCKER	Shaft comp. - ROCKER
2	14711-RNA-A00	Valve - IN.	Valve - IN.
3	14721-P2A-000	Valve - EX.	Valve - EX.
4	14744-PM3-000	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
5	14761-RNA-A02	Spring, IN. VALVE (VIOLET) (CHUO SPRING)	Spring, IN. VALVE (VIOLET) (CHUO SPRING)
6	14762-RNA-A02	Spring - EX. VALVE (GRAY) (CHUO SPRING)	Spring - EX. VALVE (GRAY) (CHUO SPRING)
7	14765-RGA-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
8	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
9	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
10	14820-RNA-A01	Motion comp - LOST	Motion comp - LOST
2	15100-R1P-U01	PUMP ASSY OIL	PUMP ASSY OIL
2	15100-RZP-003	Pump assy. - OIL	Pump assy. - OIL
3	15101-RNA-A00	O-ring set - OIL PUMP	O-ring set - OIL PUMP
4	15112-RNA-A00	Cover - CHAIN CASE	Cover - CHAIN CASE
14	15123-RZP-000	Dowel pin - 23X13	Dowel pin - 23X13
9	15140-P0A-000	Orifice assy - CAM JOURNAL	Orifice assy - CAM JOURNAL
10	15142-PE0-000	O-ring - 4.8X1.9	O-ring - 4.8X1.9
11	15280-RZP-000	Body comp - OIL JET	Body comp - OIL JET
12	15290-RZP-000	Bolt comp - OIL JET	Bolt comp - OIL JET
5	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
5	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
5	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
3	15610-PFB-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
3	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
4	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
5	15650-RZP-000	Gauge - OIL LEVEL	Gauge - OIL LEVEL
7	15810-RNA-A01	Valve assy, Spool	Valve assy, Spool
8	15826-RNA-A01	Filter assy - SPOOL VALVE	Filter assy - SPOOL VALVE
1	16050-SWA-J00	Pipe set - FUEL	Pipe set - FUEL
1	16400-RZP-G01	Throttle body - ELECTRONIC CONTROL(GMD2A)	Throttle body - ELECTRONIC CONTROL(GMD2A)
1	16450-RZP-003	Injector assy - FUEL	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
3	16620-R60-U01	Pipe comp - FUEL	Pipe comp - FUEL
4	16640-RNA-A00	Cover - FUEL PIPE	Cover - FUEL PIPE
3	16722-RZP-013	Hose comp. - FUEL FEED	Hose comp. - FUEL FEED
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
4	16725-R40-A00	Holder a - FUEL CONNECTOR (BEIGE)	Holder a - FUEL CONNECTOR (BEIGE)
5	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
7	16730-RZA-A00	Stay assy - FUEL HOSE	Stay assy - FUEL HOSE
8	16732-SWA-000	Rubber - FUEL PIPE	Rubber - FUEL PIPE
1	17044-SWA-010	Tank comp. - FUEL	Tank comp. - FUEL
3	17046-SMA-000	Nut & packing set - FUEL LOCK	Nut & packing set - FUEL LOCK
4	17047-SWA-000	Meter comp	Meter comp
5	17048-SWA-000	Strainer set - FUEL	Strainer set - FUEL
6	17052-SWC-Y00	Regulator assy - PRESSURE	Regulator assy - PRESSURE
2	17100-RNA-A00	Manifold comp - INTAKE	Manifold comp - INTAKE
3	17101-RNA-A00	Cover comp. - BYPASS VALVE	Cover comp. - BYPASS VALVE
4	17102-RNA-A01	Packing - BYPASS VALVE COVER	Packing - BYPASS VALVE COVER
5	17103-RNA-A01	Packing b - BYPASS VALVE	Packing b - BYPASS VALVE
6	17104-RNA-A01	Packing a - BYPASS VALVE	Packing a - BYPASS VALVE
7	17105-RNA-A01	Packing a - INTAKE MANIFOLD	Packing a - INTAKE MANIFOLD
8	17106-RNA-A01	Packing b - INTAKE MANIFOLD	Packing b - INTAKE MANIFOLD
9	17107-RNA-A01	Packing, throttle body	Packing, throttle body
10	17108-RNA-A01	O-ring - 31.2X3.5	O-ring - 31.2X3.5
11	17113-RNA-A00	Stiffener - INTAKE MANIFOLD	Stiffener - INTAKE MANIFOLD
12	17116-RNA-A00	Plate - THROTTLE FLANGE	Plate - THROTTLE FLANGE
1	17130-PND-A01	Valve assy. - PCV	Valve assy. - PCV
2	17131-RNA-A00	Tube - PCV	Tube - PCV
13	17132-RNA-A00	Stay assy - INTAKE MANIFOLD	Stay assy - INTAKE MANIFOLD
3	17137-RZP-G00	Pipe, Breather	Pipe, Breather
9	17147-RNA-A00	Joint - EGR	Joint - EGR
14	17150-RNA-A01	Actuator assy - BYPASS VALVE	Actuator assy - BYPASS VALVE
15	17153-RCA-A01	Packing - BYPASS VALVE ACTUATOR	Packing - BYPASS VALVE ACTUATOR
4	17153-RZP-G00	Tube - BREATHER	Tube - BREATHER
1	17201-RZP-G00	Case set - AIR CLEANER	Case set - AIR CLEANER
16	17210-RNA-A01	Valve assy. - BYPASS	Valve assy. - BYPASS
2	17211-RZP-G00	Cover comp. - AIR CLEANER	Cover comp. - AIR CLEANER
4	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
2	17212-PLC-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
3	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
17	17213-RNA-A00	Rubber - INTAKE MANIFOLD MOUNTING	Rubber - INTAKE MANIFOLD MOUNTING
18	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
6	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
7	17220-RZP-Y00	Element assy. - AIR CLEANER	Element assy. - AIR CLEANER
8	17225-RZP-G00	Tube - AIR FLOW	Tube - AIR FLOW
5	17230-RZP-G50	Chamber assy. a - RESONATOR	Chamber assy. a - RESONATOR
6	17236-RZP-G00	Chamber set - RESONATOR(B)	Chamber set - RESONATOR(B)
7	17251-RZP-G00	Tube a - AIR INTAKE	Tube a - AIR INTAKE
8	17255-RZA-000	Tube e - AIR INTAKE	Tube e - AIR INTAKE
9	17256-RNA-A00	Ring - SEAL	Ring - SEAL
10	17258-RZP-G00	Tube assy - AIR IN.(C)	Tube assy - AIR IN.(C)
11	17259-RZP-T00	Stay comp - AIR INTAKE	Stay comp - AIR INTAKE
9	17260-RZP-G00	Stay comp. a - AIR CLEANER	Stay comp. a - AIR CLEANER
12	17263-P0A-000	Rubber - AIR CLEANER STAY	Rubber - AIR CLEANER STAY
10	17263-RZP-G00	Stay comp. c - AIR CLEANER	Stay comp. c - AIR CLEANER
1	17300-SNA-013	Canister assy	Canister assy
1	17300-SNA-023	Canister assy	Canister assy
11	17315-P5K-000	Clamp - AIR FLOW TUBE (74)	Clamp - AIR FLOW TUBE (74)
12	17316-P1E-000	Clamp - AIR FLOW TUBE (70)	Clamp - AIR FLOW TUBE (70)
2	17358-SWA-000	Bracket - CANISTER	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY	Valve - TWO WAY
7	17513-S0E-003	Circlip	Circlip
8	17518-SWA-000	Pipe, FUEL TANK GUARD	Pipe, FUEL TANK GUARD
9	17519-SWA-000	Protector comp - FUEL TANK	Protector comp - FUEL TANK
10	17521-SWA-000	Band - R. FUEL TANK MOUNTING	Band - R. FUEL TANK MOUNTING
11	17522-SWA-000	Band - L. FUEL TANK MOUNTING	Band - L. FUEL TANK MOUNTING
12	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
4	17579-SWA-000	Plate - BAFFLE CANISTER	Plate - BAFFLE CANISTER
13	17651-SWA-003	Tube - FILLER NECK	Tube - FILLER NECK
14	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
15	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
16	17653-SWA-000	Tube - BREATHER JOINT	Tube - BREATHER JOINT
17	17656-SWA-003	Pipe assy. - BREATHER JOINT	Pipe assy. - BREATHER JOINT
18	17660-SWA-U01	Pipe comp - FUEL FILLER	Pipe comp - FUEL FILLER
19	17662-S04-003	Packing - FUEL FILLER (WITH CLIP)	Packing - FUEL FILLER (WITH CLIP)
20	17668-SWA-J00	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
21	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
21	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
9	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
10	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
1	17711-S84-A01	Clamp - VENT TUBE	Clamp - VENT TUBE
22	17711-SWA-003	Retainer	Retainer
1	17713-SE0-003	Clamp - FUEL PIPE	Clamp - FUEL PIPE
5	17714-SWA-000	Tube assy. b - FUEL VENT	Tube assy. b - FUEL VENT
23	17722-SWA-000	Tube assy. a - FUEL VENT	Tube assy. a - FUEL VENT
6	17724-SNA-000	Tube - FUEL VENT	Tube - FUEL VENT
11	17724-SWA-000	Tube assy - PURGE	Tube assy - PURGE
13	17726-SWC-U01	Hose assy - FUEL PURGE	Hose assy - FUEL PURGE
7	17740-SWA-000	Tube a - DRAIN	Tube a - DRAIN
8	17741-SWA-000	Tube assy. a - DRAIN	Tube assy. a - DRAIN
9	17742-SDA-A02	Joint - DRAIN TUBE	Joint - DRAIN TUBE
10	17742-SWA-003	Joint - DRAIN TUBE	Joint - DRAIN TUBE
11	17743-SWA-A00	Tube b - DRAIN	Tube b - DRAIN
12	17745-SWA-000	Tube c - DRAIN	Tube c - DRAIN
13	17749-SWA-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
14	17761-SWA-J00	Stay a - FUEL PIPE	Stay a - FUEL PIPE
15	17762-SWA-J00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
16	17763-SWA-J00	Stay c - FUEL PIPE	Stay c - FUEL PIPE
1	17800-SWA-E81	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
17	17927-SS1-003	Clip - WIRE	Clip - WIRE
1	18011-RNA-A00	EGR Valve set	EGR Valve set
1	18011-RNA-J00	EGR Valve set	EGR Valve set
1	18115-RNA-004	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
1	18115-RNA-007	Gasket - EX. MANIFOLD (NOK)	Gasket - EX. MANIFOLD (NOK)
2	18120-RNA-A00	Cover comp. - CHAMBER	Cover comp. - CHAMBER
3	18160-RZP-G01	Converter comp.	Converter comp.
4	18181-RNA-A00	Cover, FR. CONVERTER	Cover, FR. CONVERTER
5	18197-RNA-A00	Bracket - CONVERTER STAY	Bracket - CONVERTER STAY
6	18198-RNA-A00	Stay - CONVERTER	Stay - CONVERTER
7	18199-RNA-A00	Stay - CONVERTER SUB	Stay - CONVERTER SUB
1	18210-SWC-J01	Pipe a - EX.	Pipe a - EX.
2	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
3	18215-SMG-E11	Rubber - EX. MOUNTING (YAMASHITA)	Rubber - EX. MOUNTING (YAMASHITA)
4	18215-SNA-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
5	18215-SWA-J01	Rubber - EX. MOUNTING (YAMASHITA)	Rubber - EX. MOUNTING (YAMASHITA)
6	18220-SWC-J01	Pipe b - EX.	Pipe b - EX.
8	18229-S5A-J01	Gasket - EX. FLEXIBLE	Gasket - EX. FLEXIBLE
7	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
9	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
10	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
12	18231-S10-003	Bolt - FLEXIBLE JOINT	Bolt - FLEXIBLE JOINT
11	18231-SNA-A00	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
8	18716-RNA-A01	Gasket a - EGR PIPE	Gasket a - EGR PIPE
9	18717-RNA-A00	Pipe comp - EGR	Pipe comp - EGR
10	18719-RNA-A01	Gasket b - EGR PIPE	Gasket b - EGR PIPE
11	18720-RNA-A00	Bolt - FLANGE, 8X20	Bolt - FLANGE, 8X20
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
4	19013-RZP-G01	Seal	Seal
2	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
9	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
10	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
1	19101-RZA-A00	Tank - RESERVE	Tank - RESERVE
2	19102-RNA-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
3	19103-RZA-A00	Hose - RESERVE TANK	Hose - RESERVE TANK
4	19104-RZA-A01	Tube - RESERVE TANK	Tube - RESERVE TANK
5	19106-RSA-G00	Joint - RESERVE TANK	Joint - RESERVE TANK
6	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)	Clamp - RESERVE TANK TUBE (BLACK)
3	19200-RZP-013	Pump comp - WATER	Pump comp - WATER
4	19222-RNA-A00	Packing - WATER PUMP	Packing - WATER PUMP
5	19224-RZP-003	Pulley - WATER PUMP	Pulley - WATER PUMP
6	19301-RNA-305	Thermostat assy - FUJI SEIKO	Thermostat assy - FUJI SEIKO
6	19301-RNA-306	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
7	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
8	19311-RNA-A00	Cover - THERMOSTAT	Cover - THERMOSTAT
9	19315-RNA-A01	Cover comp. - WATER OUTLET	Cover comp. - WATER OUTLET
10	19320-RNA-A00	Case comp. - THERMOSTAT	Case comp. - THERMOSTAT
11	19322-RNA-A01	Gasket - THERMOSTAT CASE	Gasket - THERMOSTAT CASE
12	19425-RNA-J00	Cover - HEATER OUTLET	Cover - HEATER OUTLET
13	19426-RNA-A01	Gasket - HEATER OUTLET	Gasket - HEATER OUTLET
7	19501-RZP-G01	Hose - WATER UPPER	Hose - WATER UPPER
8	19502-RZP-G01	Hose - WATER LOWER	Hose - WATER LOWER
14	19505-RNA-A00	Pipe assy. - CONNECTING	Pipe assy. - CONNECTING
1	19506-RNA-A01	Hose - THERMOBODY IN.	Hose - THERMOBODY IN.
2	19507-RZP-G01	Hose - THERMOBODY OUTLET	Hose - THERMOBODY OUTLET
3	19508-RNA-A01	Hose - BYPASS	Hose - BYPASS
4	19509-RZP-G01	Hose - DEVICE	Hose - DEVICE
9	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
9	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
5	19512-PK2-003	Clip - HOSE, 18.7MM	Clip - HOSE, 18.7MM
10	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
2	21351-RWP-000	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP	Collar - CLUTCH STOP
1	30511-RZP-G00	Insulator - COIL HEAT	Insulator - COIL HEAT
2	30520-RNA-A01	Coil comp - PLUG HOLE	Coil comp - PLUG HOLE
3	30522-RNA-A01	Seal - PLUG HOLE	Seal - PLUG HOLE
13	30530-RNA-A01	Sensor comp - KNOCK	Sensor comp - KNOCK
1	31100-RZP-G01	Alternator assy - CSF37) (DENSO	Alternator assy - CSF37) (DENSO
2	31101-RTA-003	Rotor assy.	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
4	31108-RZP-G01	Frame assy - RR. STATOR	Frame assy - RR. STATOR
1	31110-RWK-003	Belt - ALTERNATOR (BANDO)	Belt - ALTERNATOR (BANDO)
1	31110-RWK-004	Belt - ALTERNATOR (MITSUBOSHI)	Belt - ALTERNATOR (MITSUBOSHI)
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
2	31113-RNA-A00	Bracket - ALTERNATOR	Bracket - ALTERNATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
3	31114-RZP-G00	Insulator - HEAT	Insulator - HEAT
7	31119-RZP-G01	Bush - INSULATION	Bush - INSULATION
8	31135-RZP-G01	Cover - RR. END	Cover - RR. END
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
10	31141-RZP-G01	Pulley	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
14	31147-PT0-003	Screw-washer	Screw-washer
4	31170-RZP-G03	Tensioner assy, Auto	Tensioner assy, Auto
4	31170-RZP-G05	TENSIONER ASSY, AUTO	TENSIONER ASSY, AUTO
5	31175-RNA-000	Bracket - IDLE PULLEY	Bracket - IDLE PULLEY
6	31185-RNA-000	Cover - BEARING	Cover - BEARING
7	31190-RL2-G01	Pulley comp - IDLER	Pulley comp - IDLER
5	31202-PM3-J01	Bolt - THROUGH (DENSO)	Bolt - THROUGH (DENSO)
6	31202-RNA-A01	Endframe comp. - COMMUTATOR	Endframe comp. - COMMUTATOR
7	31203-PCA-003	Lever - PINION DRIVE	Lever - PINION DRIVE
8	31204-RNA-003	Switch assy - MAGNET	Switch assy - MAGNET
9	31205-RTA-003	Yoke set	Yoke set
10	31206-RTA-003	Armature comp.	Armature comp.
11	31207-PCA-003	Clutch comp. - OVERRUNNING	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM	Screw - PAN, 4MM
29	31211-PCX-A01	Brush - +	Brush - +
30	31212-P3F-003	Spring - BRUSH	Spring - BRUSH
13	31213-PCA-003	Shaft - DRIVE	Shaft - DRIVE
14	31213-RNA-A01	Cover	Cover
15	31214-P3F-003	Gear assy. - INTERNAL	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL	Plate - SEAL
19	31218-P3F-003	Washer a	Washer a
20	31219-P3F-003	Washer b	Washer b
22	31220-P3F-003	Washer c	Washer c
21	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
23	31223-PA0-006	Nut - HEX.	Nut - HEX.
24	31228-PLR-A01	O-ring	O-ring
25	31231-P3F-003	Plate comp - BRUSH HOLDER	Plate comp - BRUSH HOLDER
26	31291-RZP-G01	Stay - ENGINE WIRE HARNESS	Stay - ENGINE WIRE HARNESS
27	31292-PLR-A01	Bolt-washer	Bolt-washer
1	31500-S7C-G01	Battery - 46B24L<S>-MF) (PANASONIC	Battery - 46B24L<S>-MF) (PANASONIC
2	31512-SA5-000	Plate - BATTERY SETTING	Plate - BATTERY SETTING
3	31513-SDA-A00	Bolt - BATTERY SETTING (195MM)	Bolt - BATTERY SETTING (195MM)
4	31521-SWA-A00	Box - BATTERY(55B)	Box - BATTERY(55B)
5	31531-SNA-000	Cover - BATTERY (46B24)	Cover - BATTERY (46B24)
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
2	32107-SWA-U02	Harness - CENTER FLOOR WIRE	Harness - CENTER FLOOR WIRE
7	32113-R60-003	Holder - CORRUGATED(BLACK) (10MM)	Holder - CORRUGATED(BLACK) (10MM)
54	32113-TA0-003	Band - CABLE(BLACK)(100MM)	Band - CABLE(BLACK)(100MM)
2	32114-RNA-003	Holder - CORRUGATED (DARK GREEN) (7MM)	Holder - CORRUGATED (DARK GREEN) (7MM)
3	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
5	32116-RGA-003	Holder - CORRUGATED (DARK GREEN) (13MM)	Holder - CORRUGATED (DARK GREEN) (13MM)
6	32116-RNA-003	Holder - CORRUGATED (DARK GREEN) (13MM)	Holder - CORRUGATED (DARK GREEN) (13MM)
7	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
10	32120-RNA-000	Cover assy. - ENGINE WIRE HARNESS	Cover assy. - ENGINE WIRE HARNESS
11	32125-RRA-300	Holder - STARTER SUB CORD	Holder - STARTER SUB CORD
12	32127-RNA-A00	Holder comp. a - ENGINE HARNESS	Holder comp. a - ENGINE HARNESS
13	32128-RNA-A00	Holder comp. b - ENGINE HARNESS	Holder comp. b - ENGINE HARNESS
14	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
15	32129-RZP-G00	Holder c - ENGINE HARNESS UPPER	Holder c - ENGINE HARNESS UPPER
16	32130-RNA-A00	Holder c - ENGINE HARNESS LOWER	Holder c - ENGINE HARNESS LOWER
17	32131-RNA-A00	Holder d - ENGINE HARNESS	Holder d - ENGINE HARNESS
1	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
5	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
11	32175-PDA-E01	Clip - HARNESS	Clip - HARNESS
12	32177-RZP-G00	Insulator - CRANK SENSOR HEAT	Insulator - CRANK SENSOR HEAT
14	32179-RZP-G00	Insulator - OIL PRESSURE SWITCH HEAT	Insulator - OIL PRESSURE SWITCH HEAT
2	32411-SWA-000	Bracket - STARTER CABLE	Bracket - STARTER CABLE
18	32413-PRA-003	Cover - STARTER CABLE TERMINAL	Cover - STARTER CABLE TERMINAL
19	32418-RBG-300	Cover - BATTERY TERMINAL	Cover - BATTERY TERMINAL
8	32600-SWA-A00	Cable assy - BATTERY EARTH	Cable assy - BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
11	32607-SMJ-E01	Washer - BATTERY TERMINAL	Washer - BATTERY TERMINAL
2	32610-SWA-010	Cable - SUB EARTH	Cable - SUB EARTH
14	32742-RZP-G00	Stay b - ENGINE HARNESS	Stay b - ENGINE HARNESS
10	32743-RNA-A01	Stay c - ENGINE HARNESS	Stay c - ENGINE HARNESS
11	32744-RZP-G00	Stay d - ENGINE WIRE HARNESS	Stay d - ENGINE WIRE HARNESS
15	32747-RNA-A00	Stay g - ENGINE HARNESS	Stay g - ENGINE HARNESS
8	32750-RNA-A00	Stay k - ENGINE HARNESS	Stay k - ENGINE HARNESS
4	32751-SWA-Z00	Harness - DRIVER DOOR WIRE	Harness - DRIVER DOOR WIRE
6	32753-SWA-000	Harness - R. RR. DOOR WIRE	Harness - R. RR. DOOR WIRE
7	32754-SWA-000	Harness - L. RR. DOOR WIRE	Harness - L. RR. DOOR WIRE
3	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
6	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
6	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
9	33121-SFE-901	Seal - GASKET (2)	Seal - GASKET (2)
10	33121-SWA-J01	Cover - 2	Cover - 2
11	33124-SJD-J01	Seal - GASKET	Seal - GASKET
14	33130-SJK-J01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO	Bulb - H11) (12V 55W) (KOITO
17	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
1	33301-SNA-003	Bulb - 12V 5W) (STANLEY	Bulb - 12V 5W) (STANLEY
19	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
18	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
7	33502-SWA-A01	Socket comp.	Socket comp.
3	33505-SWA-J01	Reflector assy - R. RR.	Reflector assy - R. RR.
9	33506-SWA-A01	Cap - BEZEL	Cap - BEZEL
10	33513-S50-003	Socket - T20W S2	Socket - T20W S2
20	33513-S84-A01	Socket - T10	Socket - T10
4	33555-SWA-J01	Reflector assy - L. RR.	Reflector assy - L. RR.
5	33900-SWA-J11	Light assy - R. FR. FOG	Light assy - R. FR. FOG
6	33950-SWA-J11	Light assy - L. FR. FOG	Light assy - L. FR. FOG
30	34100-S60-013	Light assy - LICENSE	Light assy - LICENSE
12	34101-S60-013	Lens	Lens
13	34102-S60-003	Housing comp	Housing comp
14	34103-S60-003	Gasket	Gasket
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
15	34271-SWA-G01	Lamp unit	Lamp unit
1	34300-SWA-003	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
2	34350-SWA-003	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
4	34401-SDA-A21	Lens - R.	Lens - R.
5	34402-SDA-A21	Lens - L.	Lens - L.
6	34404-SDA-A22	Base comp.	Base comp.
16	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
6	35111-SNB-A01	Key comp. - IMMOBILIZER (MAIN) (BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLACK)
11	35113-SMG-305	Key comp. - TRANSMITTER TOP CASE (BLANK)	Key comp. - TRANSMITTER TOP CASE (BLANK)
10	35113-SMG-E11	Key comp. - TRANSMITTER TOP CASE	Key comp. - TRANSMITTER TOP CASE
13	35116-SDA-A11	Screw - FLAT	Screw - FLAT
8	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
14	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
1	35190-SWA-J02	Switch assy - REMOTE CONTROL MIRROR	Switch assy - REMOTE CONTROL MIRROR
15	35251-TA0-B01	Body comp - SWITCH	Body comp - SWITCH
2	35350-S5A-J04	Switch assy - STOP (TOYO)	Switch assy - STOP (TOYO)
2	35350-SMA-003	Switch assy - STOP (PANASONIC)	Switch assy - STOP (PANASONIC)
18	35400-S6A-003	Switch assy - DOOR (DAIICHI)	Switch assy - DOOR (DAIICHI)
3	35510-SWA-J01	Switch assy - HAZARD	Switch assy - HAZARD
1	35750-SWA-J01	Switch assy - POWER WINDOW MASTER	Switch assy - POWER WINDOW MASTER
2	35760-SWA-J01	Sub switch assy. - POWER WINDOW	Sub switch assy. - POWER WINDOW
1	35880-SWA-A01	Switch assy - AUDIO REMOTE	Switch assy - AUDIO REMOTE
2	36162-RNA-A01	Valve assy. - PURGE CONTROL SOLENOID	Valve assy. - PURGE CONTROL SOLENOID
13	36531-RNA-J01	Sensor - AIR FUEL RATIO	Sensor - AIR FUEL RATIO
14	36532-RNA-A01	Sensor - OXYGEN	Sensor - OXYGEN
15	36536-RNA-A00	Stay - SENSOR HARNESS	Stay - SENSOR HARNESS
1	37115-SA0-601	Packing - NS	Packing - NS
16	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
12	37260-RNA-A01	Sensor - OIL PRESSURE	Sensor - OIL PRESSURE
17	37500-RAA-A01	Sensor assy - CRANK	Sensor assy - CRANK
13	37510-RNA-A01	Sensor assy - TDC	Sensor assy - TDC
6	37822-RZA-000	Sub bracket comp. - ENGINE CONTROL MODULE	Sub bracket comp. - ENGINE CONTROL MODULE
7	37823-RZA-000	Cover - ENGINE CONTROL MODULE	Cover - ENGINE CONTROL MODULE
19	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
20	37835-PGK-A01	O-ring	O-ring
16	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)	Sensor assy, WATER TEMP (MATSUSHITA)
12	37870-RZA-007	Sensor assy - WATER TEMP(NTCL)	Sensor assy - WATER TEMP(NTCL)
15	37980-RNA-A01	Meter assy - AIR FLOW	Meter assy - AIR FLOW
16	37985-RAD-L11	Gasket	Gasket
14	38166-P1A-003	Joint - TWO WAY, 5MM	Joint - TWO WAY, 5MM
11	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
2	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
13	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
3	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
4	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
5	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
6	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
18	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
19	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
20	38231-SNA-A11	Fuse a - MULTI BLOCK (80A/50A)	Fuse a - MULTI BLOCK (80A/50A)
21	38232-SDA-A01	Fuse b - MULTI BLOCK (40A/50A)	Fuse b - MULTI BLOCK (40A/50A)
22	38232-SMG-E01	Fuse b - MULTI BLOCK(40A/20A)	Fuse b - MULTI BLOCK(40A/20A)
23	38235-TA0-A01	Puller - FUSE	Puller - FUSE
24	38250-SWA-013	Box assy - RELAY	Box assy - RELAY
25	38251-SWA-000	Bracket - RELAY BOX(RR.)	Bracket - RELAY BOX(RR.)
6	38253-SWA-000	Bracket - ENGINE ROOM WIRE HARNESS	Bracket - ENGINE ROOM WIRE HARNESS
7	38254-SWA-A00	Bracket - ENGINE HARNESS	Bracket - ENGINE HARNESS
26	38256-SWA-003	Cover - RELAY BOX	Cover - RELAY BOX
27	38257-SNA-A02	Cover - LOWER	Cover - LOWER
1	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
13	38611-PNA-003	Fan - COOLING(DENSO)(NATURAL)	Fan - COOLING(DENSO)(NATURAL)
14	38615-RZP-G01	Shroud comp.	Shroud comp.
15	38616-RZP-G01	Motor - COOLING FAN	Motor - COOLING FAN
16	38619-RZP-G01	Protector - FAN MOTOR	Protector - FAN MOTOR
1	38801-PDF-E02	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
2	38810-RZV-G03	Compressor comp.	Compressor comp.
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
4	38900-RZV-G01	Clutch set - COMPRESSOR	Clutch set - COMPRESSOR
5	38908-RZV-G03	Protector set - THERMAL	Protector set - THERMAL
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
9	38924-RZV-G02	Coil set - FIELD	Coil set - FIELD
10	38930-RZP-G00	Bracket - COMPRESSOR	Bracket - COMPRESSOR
12	39103-SWA-A11	Knob assy - VOLUME	Knob assy - VOLUME
2	39104-SWA-A11	Screw - 2.6X6	Screw - 2.6X6
14	39108-SWA-A11	Button - VOLUME	Button - VOLUME
1	39112-SMA-003	Jack assy - AUX IN.	Jack assy - AUX IN.
24	39113-SWA-901	Adapter assy - USB	Adapter assy - USB
23	39113-SWA-A01	Adapter assy - USB(H-TYPE)	Adapter assy - USB(H-TYPE)
25	39114-SWA-A01	Cord assy - USB	Cord assy - USB
27	39115-SWA-A51	Holder assy. - USB CONNECTOR	Holder assy. - USB CONNECTOR
28	39115-SWA-A61	Lid - USB HOLDER	Lid - USB HOLDER
29	39118-SWA-A01	Sub cord assy. - USB	Sub cord assy. - USB
1	39120-SED-E11	Speaker assy - TWEETER (MATSUSHITA)	Speaker assy - TWEETER (MATSUSHITA)
2	39120-SMG-E02	Speaker assy - 17CM SINGLE)(ND) (PP	Speaker assy - 17CM SINGLE)(ND) (PP
2	39151-S6A-E02	Element assy. - YOKOO	Element assy. - YOKOO
2	39151-S6A-E03	ELEMENT ASSY YOKOO	ELEMENT ASSY YOKOO
3	39152-SWA-A03	Base comp. - ANTENNA	Base comp. - ANTENNA
4	39153-TA0-A02	Nut assy. - ANTENNA (YOKOO)	Nut assy. - ANTENNA (YOKOO)
5	39156-SWA-J01	Sub feeder assy. - ANTENNA	Sub feeder assy. - ANTENNA
6	39160-SWA-J03	Feeder assy. - ANTENNA	Feeder assy. - ANTENNA
2	39248-692-003	Packing - HEATER	Packing - HEATER
2	39620-SNA-003	Cap assy.	Cap assy.
3	39624-SZ3-L01	Socket assy	Socket assy
19	39730-SWA-K01	Immobilizer & keyless unit	Immobilizer & keyless unit
8	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
10	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)
3	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)	RELAY ASSY., FUEL PUMP (DENSO)
6	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
6	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
10	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
10	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
1	39885-S5A-A11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
16	39980-SWW-E02	Eps unit	Eps unit
4	42510-SWA-A00	Disk - RR. BRAKE DRUM IN	Disk - RR. BRAKE DRUM IN
5	42511-SP0-000	Cap - MAINTENANCE HOLE	Cap - MAINTENANCE HOLE
1	42521-SWA-003	Clamp - FR. WIRE(DARK BLUE)	Clamp - FR. WIRE(DARK BLUE)
2	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
2	42524-SWA-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
15	42700-SWA-C71	Disk - ALUMINIUM WHEEL (17X6 1/2J)(ENKEI)	Disk - ALUMINIUM WHEEL (17X6 1/2J)(ENKEI)
15	42700-SWA-C72	Disk - ALUMINIUM WHEEL (17X6 1/2J)(HITACHI)	Disk - ALUMINIUM WHEEL (17X6 1/2J)(HITACHI)
4	42751-SWA-A08	Tire - 225/65R17 102T) (BRIDGESTONE	Tire - 225/65R17 102T) (BRIDGESTONE
5	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
5	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
3	42760-SWA-T00	Plate - TIRE PRESSURE CAUTION	Plate - TIRE PRESSURE CAUTION
6	43018-SWA-A10	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
7	43019-SWA-A10	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
8	43022-S9A-010	Pad set - RR.	Pad set - RR.
8	43022-S9A-020	PAD SET RR	PAD SET RR
1	43110-STK-A02	Plate comp - R. PARKING BRAKE BACK	Plate comp - R. PARKING BRAKE BACK
2	43120-STK-A02	Plate comp - L. PARKING BRAKE BACK	Plate comp - L. PARKING BRAKE BACK
4	43171-SX0-J01	Spring - ROD	Spring - ROD
5	43172-STK-A01	Spring a - BRAKE	Spring a - BRAKE
9	43215-S9A-003	Piston	Piston
10	43227-S9A-E01	Spring - PAD	Spring - PAD
11	43235-S84-A51	Pin a	Pin a
13	43244-S9A-003	Retainer a	Retainer a
12	43244-SG0-003	Retainer	Retainer
14	43262-S84-A51	Pin b	Pin b
3	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
7	43362-SFE-J01	Strut	Strut
8	43365-SFE-J02	Pin - PARKING LEVER	Pin - PARKING LEVER
10	43367-SFE-J02	Spring - RETURN	Spring - RETURN
12	43375-SA0-003	U-clip	U-clip
13	43379-SA5-003	Washer - WAVE	Washer - WAVE
1	44014-SWA-010	Outboard Joint set	Outboard Joint set
2	44017-SJM-000	Boot set - INBOARD	Boot set - INBOARD
2	44017-SJM-010	BOOT SETINBOARD	BOOT SETINBOARD
3	44018-SJM-010	Boot set - OUTBOARD	Boot set - OUTBOARD
3	44018-SJM-020	BOOT SETOUTBOARD	BOOT SETOUTBOARD
5	44300-SJK-J01	Bearing assy - FR. HUB	Bearing assy - FR. HUB
5	44300-T0A-951	BEARING ASSY FR H	BEARING ASSY FR H
4	44305-SWC-900	Driveshaft assy. - R.	Driveshaft assy. - R.
5	44306-SWA-900	Driveshaft assy. L.	Driveshaft assy. L.
7	44310-S9A-300	Joint comp - INBOARD	Joint comp - INBOARD
6	44310-SWA-305	Joint set - INBOARD	Joint set - INBOARD
6	44310-SWA-306	SETJOINT COMP IN	SETJOINT COMP IN
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)	Band - DRIVESHAFT (NIPPON HATSUJO)
14	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
6	44600-SJK-J00	Hub assy - FR.	Hub assy - FR.
7	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
6	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
6	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
7	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
7	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
7	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
6	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
6	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
7	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
7	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
6	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
6	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
7	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
7	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
7	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
7	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
7	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
7	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
7	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
7	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
7	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
6	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
6	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
7	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
7	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
7	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
6	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
6	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
7	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
7	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
7	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
6	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
6	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
7	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
7	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
6	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
6	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
7	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
7	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
7	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
7	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
9	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
7	45018-SHJ-A01	Caliper sub assy. - R.	Caliper sub assy. - R.
8	45019-SHJ-A01	Caliper sub assy. - L.	Caliper sub assy. - L.
9	45022-SHJ-A50	Pad set - FR.	Pad set - FR.
9	45022-SHJ-A51	Disc brake pad set, FR	Disc brake pad set, FR
14	45172-S9A-E01	Spring - SHOE CLAMP	Spring - SHOE CLAMP
15	45175-SA0-013	Pin - TENSIONER	Pin - TENSIONER
10	45216-SHJ-A01	Piston	Piston
11	45235-S0K-A01	Pin a	Pin a
12	45237-SHJ-A01	Retainer	Retainer
17	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
13	45240-SM4-003	Bolt - FLANGE, 10X24	Bolt - FLANGE, 10X24
14	45251-SWA-A20	Disk - FR. BRAKE	Disk - FR. BRAKE
15	45255-STK-A00	Guard - FR. SPLASH	Guard - FR. SPLASH
16	45262-SHJ-A01	Pin b	Pin b
3	46017-SWA-J00	Hose set - RESERVE TANK	Hose set - RESERVE TANK
4	46100-SWA-Q01	Cylinder assy. - MASTER	Cylinder assy. - MASTER
5	46120-SWA-P01	Piston assy. - PRIMARY	Piston assy. - PRIMARY
6	46122-SWA-P01	Piston assy. - SECONDARY	Piston assy. - SECONDARY
7	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
9	46185-SE0-003	Seal - ROD	Seal - ROD
10	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
4	46330-SWA-Q01	Pipe comp. c - BRAKE	Pipe comp. c - BRAKE
5	46340-SWA-Q01	Pipe comp. d - BRAKE	Pipe comp. d - BRAKE
6	46374-SWA-Q01	Pipe comp. u - BRAKE	Pipe comp. u - BRAKE
7	46375-SWA-Q01	Pipe comp. v - BRAKE	Pipe comp. v - BRAKE
8	46376-SWA-Q01	Pipe comp. w - BRAKE	Pipe comp. w - BRAKE
9	46377-SWA-Q01	Pipe comp. x - BRAKE	Pipe comp. x - BRAKE
10	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
11	46390-SNA-A02	Clip - BRAKE PIPE	Clip - BRAKE PIPE
13	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
12	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
14	46392-SAA-901	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46392-SWA-J00	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46393-SMG-E51	Clip - BRAKE PIPE	Clip - BRAKE PIPE
18	46394-SEA-023	Clip d - BRAKE PIPE	Clip d - BRAKE PIPE
19	46395-STK-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
20	46396-SCV-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
12	46402-SWC-T01	Tube assy - MASTER POWER	Tube assy - MASTER POWER
3	46407-SAA-003	Clamp - TUBE	Clamp - TUBE
21	46435-SWA-A00	Bracket - R. RR. BRAKE HOSE	Bracket - R. RR. BRAKE HOSE
22	46436-SWA-A00	Bracket - L. RR. BRAKE HOSE	Bracket - L. RR. BRAKE HOSE
23	46437-SWA-A00	Bracket - RR. BRAKE HOSE	Bracket - RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
4	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
15	46512-S70-000	Pin - PEDAL	Pin - PEDAL
5	46530-SFE-981	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
6	46540-SNC-A81	Spring assy - PROTECTOR	Spring assy - PROTECTOR
16	46661-SWA-J00	Reservoir set	Reservoir set
17	46662-SLE-J01	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
18	46665-S04-J01	Grommet	Grommet
19	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
20	46669-S5A-003	Diaphragm	Diaphragm
35	46680-SWA-J01	Union - RESERVOIR	Union - RESERVOIR
23	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
2	50300-SWA-000	Beam - RR. CROSS	Beam - RR. CROSS
1	50451-SWA-A00	Mass - SIDE ENGINE MOUNTING	Mass - SIDE ENGINE MOUNTING
2	50625-STK-A00	Stay - SIDE ENGINE MOUNTING	Stay - SIDE ENGINE MOUNTING
3	50690-SWC-E00	Bracket - TORQUE ROD LOWER	Bracket - TORQUE ROD LOWER
4	50820-SWC-E01	Rubber assy. - ENGINE SIDE MOUNTING	Rubber assy. - ENGINE SIDE MOUNTING
4	51211-SWA-A10	Knuckle - R. FR.(ABS)	Knuckle - R. FR.(ABS)
5	51216-SWA-A10	Knuckle - L. FR.(ABS)	Knuckle - L. FR.(ABS)
6	51220-SWA-A01	Joint comp - R. FR. LOWER BALL	Joint comp - R. FR. LOWER BALL
7	51225-SNA-A01	Boot - FR. LOWER BALL DUST	Boot - FR. LOWER BALL DUST
28	51230-SWA-A01	Joint comp - L. FR. LOWER BALL	Joint comp - L. FR. LOWER BALL
8	51300-SWA-A01	Spring - FR. STABILIZER	Spring - FR. STABILIZER
9	51306-SWA-A01	BUSH, FR. STABILIZER HOLDER	BUSH, FR. STABILIZER HOLDER
10	51308-SAA-000	Bracket - FR. STABILIZER	Bracket - FR. STABILIZER
11	51320-STK-A01	Link comp - FR. STABILIZER	Link comp - FR. STABILIZER
13	51360-SWA-E40	Arm assy., L. FR. LOWER	Arm assy., L. FR. LOWER
14	51395-SWA-E02	Bracket comp. - R. FR. COMPLIANCE	Bracket comp. - R. FR. COMPLIANCE
14	51396-SWA-E02	Bracket comp. - L. FR. COMPLIANCE	Bracket comp. - L. FR. COMPLIANCE
2	51402-STK-A02	Cover - R. FR. DUST	Cover - R. FR. DUST
3	51403-STK-A01	Cover - L. FR. DUST	Cover - L. FR. DUST
7	51605-SWA-J21	Absorber unit - R. FR. SHOCK	Absorber unit - R. FR. SHOCK
8	51606-SWA-J21	Absorber unit - L. FR. SHOCK	Absorber unit - L. FR. SHOCK
9	51608-SNA-000	Cap - FR. SHOCK ABSORBER MOUNTING	Cap - FR. SHOCK ABSORBER MOUNTING
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
10	51684-STK-A02	Rubber - R. FR. SPRING LOWER MOUNT	Rubber - R. FR. SPRING LOWER MOUNT
11	51688-SWA-A11	Seat comp - FR. SPRING UPPER	Seat comp - FR. SPRING UPPER
12	51694-STK-A02	Rubber - L. FR. SPRING LOWER MOUNT	Rubber - L. FR. SPRING LOWER MOUNT
13	51722-SWE-T01	Rubber - FR. BUMP STOPPER	Rubber - FR. BUMP STOPPER
14	51726-SWA-A00	Bearing - FR. SHOCK ABSORBER MOUNT	Bearing - FR. SHOCK ABSORBER MOUNT
2	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
15	51920-SWA-A01	Rubber - FR. SHOCK ABSORBER MOUNTING	Rubber - FR. SHOCK ABSORBER MOUNTING
5	52300-SWA-A01	Spring - RR. STABILIZER	Spring - RR. STABILIZER
6	52306-SWA-A01	Bush - RR. STABILIZER HOLDER	Bush - RR. STABILIZER HOLDER
7	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
8	52320-SWA-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
9	52321-SWA-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
10	52352-SWA-A01	Protector - RR. LOWER ARM	Protector - RR. LOWER ARM
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
11	52370-SWA-J10	Arm comp, R. RR. TRAILING	Arm comp, R. RR. TRAILING
12	52371-SWA-J10	Arm comp, L. RR. TRAILING	Arm comp, L. RR. TRAILING
13	52387-SFE-000	Bolt - TRAILING ARM ADJUST	Bolt - TRAILING ARM ADJUST
14	52388-S7A-013	Plate - CAM	Plate - CAM
15	52390-SWA-A00	Arm comp - RR. UPPER	Arm comp - RR. UPPER
5	52611-SWA-A11	Absorber unit - RR. SHOCK	Absorber unit - RR. SHOCK
8	52622-S7A-014	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
9	52631-SCA-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
10	52675-SWA-A02	Base - RR. SHOCK ABSORBER MOUNTING	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING	Seal - SHOCK ABSORBER MOUNTING
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
13	52687-SWA-A01	Cover - RR. DUST	Cover - RR. DUST
14	52690-SWA-A01	Plate comp - RR. BUMP STOP	Plate comp - RR. BUMP STOP
15	52722-SWA-A01	Rubber - RR. BUMP STOPPER	Rubber - RR. BUMP STOPPER
2	53010-SWC-G02	End set - RACK	End set - RACK
1	53200-SWW-E03	Column assy - STEERING	Column assy - STEERING
3	53320-SWA-E01	Cover - STEERING JOINT	Cover - STEERING JOINT
10	53320-SWA-J00	Cover - STEERING JOINT(RH)	Cover - STEERING JOINT(RH)
3	53413-SMA-003	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
4	53414-SMA-003	Screw - RACK GUIDE	Screw - RACK GUIDE
5	53416-SMA-003	Guide - STEERING RACK	Guide - STEERING RACK
6	53417-SMA-003	O-ring - 24X3.5	O-ring - 24X3.5
7	53418-S2K-003	Spring - CONICAL	Spring - CONICAL
8	53419-S2K-003	Washer - PLAIN	Washer - PLAIN
9	53434-SAA-G01	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
10	53434-SWA-023	Bracket a - GEAR BOX	Bracket a - GEAR BOX
11	53438-SWA-013	Bracket b - GEAR BOX	Bracket b - GEAR BOX
12	53449-SMA-003	Band	Band
39	53451-SWC-G01	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8
13	53458-S2K-003	Nut - LOCK	Nut - LOCK
14	53502-SWC-E00	Grommet - STEERING(EPS)	Grommet - STEERING(EPS)
15	53534-SMA-003	Dust seal - TIE ROD	Dust seal - TIE ROD
16	53535-SMA-003	Spacer	Spacer
17	53536-SMA-003	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
18	53540-SWA-A02	TIE-ROD END comp	TIE-ROD END comp
19	53541-SWC-E01	Screw - PAN, 5X14	Screw - PAN, 5X14
20	53572-SWC-E01	Bracket - MOTOR CONNECTOR	Bracket - MOTOR CONNECTOR
21	53573-SWC-E01	Bracket - MOTOR CONNECTOR	Bracket - MOTOR CONNECTOR
22	53601-SWC-E04	Box, Steering Gear	Box, Steering Gear
23	53602-SWC-E01	Motor comp	Motor comp
24	53684-SWC-G01	Bush a - STEERING GEAR BOX MOUNTING	Bush a - STEERING GEAR BOX MOUNTING
25	53685-SWC-G01	Bush b - STEERING GEAR BOX MOUNTING	Bush b - STEERING GEAR BOX MOUNTING
26	53686-SWC-G01	Bush c - STEERING GEAR BOX MOUNTING	Bush c - STEERING GEAR BOX MOUNTING
27	53692-SWC-E01	Heat guard	Heat guard
28	53692-SWC-U01	Plate - POWER STEERING HEAT BAFFLE	Plate - POWER STEERING HEAT BAFFLE
29	53693-SWC-E01	Heat guard	Heat guard
18	53728-SDB-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
24	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
16	54340-SWA-A01	Insulator - CONTROL WIRE	Insulator - CONTROL WIRE
1	57101-STK-A01	Rubber - DAMPER	Rubber - DAMPER
3	57115-SWA-000	Bracket - MODULATOR(ABS)	Bracket - MODULATOR(ABS)
25	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
16	57450-SWA-013	SENSOR ASSY., RH. FRONT	SENSOR ASSY., RH. FRONT
17	57455-SWA-013	SENSOR ASSY., L. FR.	SENSOR ASSY., L. FR.
16	57470-SWA-013	SENSOR ASSY., RH. REAR	SENSOR ASSY., RH. REAR
17	57475-SWA-013	SENSOR ASSY., LH. REAR	SENSOR ASSY., LH. REAR
18	57477-SWA-305	Seal - LIP(GRAY)	Seal - LIP(GRAY)
26	57515-S30-003	Pin - STOP	Pin - STOP
27	57562-SF1-003	Circlip	Circlip
20	60659-SWA-A01	Separator - R. FR. WHEELHOUSE UPPER MEMBER	Separator - R. FR. WHEELHOUSE UPPER MEMBER
26	60759-SWA-A01	Separator - L. FR. WHEELHOUSE UPPER MEMBER	Separator - L. FR. WHEELHOUSE UPPER MEMBER
10	63137-SWA-A01	Separator - FR. PILLAR OUTSIDE	Separator - FR. PILLAR OUTSIDE
11	63138-SWA-A01	Separator - R. FR. PILLAR INSIDE	Separator - R. FR. PILLAR INSIDE
13	63217-SWA-A01	Separator - R. CENTER PILLAR OUTSIDE	Separator - R. CENTER PILLAR OUTSIDE
15	63224-SWA-A01	Separator - R. CENTER PILLAR INSIDE	Separator - R. CENTER PILLAR INSIDE
19	63538-SWA-A01	Separator - L. FR. PILLAR INSIDE	Separator - L. FR. PILLAR INSIDE
21	63617-SWA-A01	Separator - L. CENTER PILLAR OUTSIDE	Separator - L. CENTER PILLAR OUTSIDE
23	63624-SWA-A01	Separator - L. CENTER PILLAR INSIDE	Separator - L. CENTER PILLAR INSIDE
9	64322-SWA-A01	Separator - RR. WHEELHOUSE	Separator - RR. WHEELHOUSE
6	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
5	67324-SWA-A01	Tape - R. FR. DOOR SASH	Tape - R. FR. DOOR SASH
6	67364-SWA-A01	Tape - L. FR. DOOR SASH	Tape - L. FR. DOOR SASH
5	67824-SWA-A01	Tape set - R. RR. DOOR SASH	Tape set - R. RR. DOOR SASH
6	67864-SWA-A01	Tape set - L. RR. DOOR SASH	Tape set - L. RR. DOOR SASH
32	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
5	71102-SWA-A01	Face - FR. BUMPER LOWER	Face - FR. BUMPER LOWER
6	71103-SWA-000	Garnish - R. FR. SIDE	Garnish - R. FR. SIDE
7	71105-SWA-003	Garnish - R. FR. FOG LIGHT	Garnish - R. FR. FOG LIGHT
8	71106-SWA-003	Garnish - L. FR. FOG LIGHT	Garnish - L. FR. FOG LIGHT
9	71108-SWA-000	Garnish - L. FR. SIDE	Garnish - L. FR. SIDE
10	71109-TA1-J01	Clip - SELF HOLD	Clip - SELF HOLD
1	71121-SWA-J31	Base - FR. GRILLE UPPER	Base - FR. GRILLE UPPER
2	71122-SWA-J31	Base - FR. GRILLE EMBLEM	Base - FR. GRILLE EMBLEM
3	71123-SWA-J31	Base - FR. GRILLE LOWER	Base - FR. GRILLE LOWER
5	71125-SWA-J31	Molding b - R. FR. GRILLE UPPER	Molding b - R. FR. GRILLE UPPER
7	71127-SWA-J31	Molding b - FR. GRILLE CENTER	Molding b - FR. GRILLE CENTER
9	71129-SWA-J31	Molding - FR. GRILLE LOWER	Molding - FR. GRILLE LOWER
12	71140-SWA-000	Beam - R. FR. BUMPER UPPER	Beam - R. FR. BUMPER UPPER
12	71140-SWA-J00	Beam - R. FR. BUMPER UPPER	Beam - R. FR. BUMPER UPPER
10	71141-SWA-000	Cover - FR. GRILLE	Cover - FR. GRILLE
15	71145-SWA-G00	Base - FR. LICENSE PLATE	Base - FR. LICENSE PLATE
17	71146-SWA-010	Beam - FR. BUMPER CENTER UPPER	Beam - FR. BUMPER CENTER UPPER
19	71148-SG9-600	Nut	Nut
20	71148-SWA-000	Support - FR. CENTER UPPER BEAM	Support - FR. CENTER UPPER BEAM
12	71175-SWA-J31	Molding b - L. FR. GRILLE UPPER	Molding b - L. FR. GRILLE UPPER
21	71190-SWA-000	Beam - L. FR. BUMPER UPPER	Beam - L. FR. BUMPER UPPER
21	71190-SWA-J00	Beam - L. FR. BUMPER UPPER	Beam - L. FR. BUMPER UPPER
22	71193-SWA-003	Spacer - R. FR. BUMPER SIDE	Spacer - R. FR. BUMPER SIDE
23	71198-SWA-003	Spacer - L. FR. BUMPER SIDE	Spacer - L. FR. BUMPER SIDE
24	71502-SWA-A00	Face - RR. BUMPER LOWER	Face - RR. BUMPER LOWER
26	71593-SWA-A01	Spacer - R. RR. BUMPER SIDE	Spacer - R. RR. BUMPER SIDE
27	71598-SWA-A01	Spacer - L. RR. BUMPER SIDE	Spacer - L. RR. BUMPER SIDE
1	71704-SL3-000	Seal - GASKET	Seal - GASKET
2	71800-SWA-A01	Garnish assy - R. SIDE SILL	Garnish assy - R. SIDE SILL
3	71850-SWA-A01	Garnish assy - L. SIDE SILL	Garnish assy - L. SIDE SILL
1	72110-SWA-Q01	LATCH ASSY., RH. FR. DOOR POWER	LATCH ASSY., RH. FR. DOOR POWER
2	72111-SEN-H01	Fastener - BLACK	Fastener - BLACK
3	72112-SWA-A01	Cover - R. LEVER	Cover - R. LEVER
4	72113-SWA-A01	Seal - COUPLER	Seal - COUPLER
5	72114-SWA-A01	Seal - DOOR LATCH	Seal - DOOR LATCH
6	72115-SWA-A01	Seal - DOOR LOCK	Seal - DOOR LOCK
7	72118-SJK-003	Screw - TAPPING	Screw - TAPPING
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
10	72130-SWA-A01	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
11	72131-SWA-A01	Cable - R. FR. INSIDE HANDLE	Cable - R. FR. INSIDE HANDLE
12	72133-SWA-A01	Cable - FR. DOOR LOCK	Cable - FR. DOOR LOCK
13	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
14	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
15	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
17	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
11	72142-SWA-A00	Stopper - DOOR	Stopper - DOOR
18	72143-S04-003	Packing	Packing
19	72144-SJD-003	Retainer	Retainer
20	72145-SWA-A01	Cylinder - R. DOOR	Cylinder - R. DOOR
21	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
21	72147-SWA-K11	Module assy. - KEYLESS	Module assy. - KEYLESS
22	72148-S0A-000	Battery CR1616	Battery CR1616
22	72149-SAA-003	Snap - R.	Snap - R.
23	72150-SWA-Q01	Latch assy - L. FR. DOOR POWER	Latch assy - L. FR. DOOR POWER
24	72152-SWA-A01	Cover - L. LEVER	Cover - L. LEVER
27	72170-SWA-A01	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
28	72171-SWA-A01	Cable - L. FR. INSIDE HANDLE	Cable - L. FR. INSIDE HANDLE
13	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
31	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
33	72189-SAA-003	Snap - L.	Snap - L.
2	72210-SWA-J01	Regulator assy - R. FR. DOOR POWER	Regulator assy - R. FR. DOOR POWER
3	72225-SWA-A00	Bracket assy. a - R. FR. DOOR LINING	Bracket assy. a - R. FR. DOOR LINING
4	72226-SWA-A00	Bracket assy. b - FR. DOOR LINING	Bracket assy. b - FR. DOOR LINING
3	72230-SWA-A01	Sash - R. FR. DOOR FR. LOWER	Sash - R. FR. DOOR FR. LOWER
4	72231-SWA-A01	Sash - R. FR. DOOR CENTER LOWER	Sash - R. FR. DOOR CENTER LOWER
5	72235-SWA-A02	Runchannel - R. FR. DOOR	Runchannel - R. FR. DOOR
6	72250-SWA-J01	Regulator assy - L. FR. DOOR POWER	Regulator assy - L. FR. DOOR POWER
5	72265-SWA-A00	Bracket assy. a - L. FR. DOOR LINING	Bracket assy. a - L. FR. DOOR LINING
7	72270-SWA-A01	Sash - L. FR. DOOR FR. LOWER	Sash - L. FR. DOOR FR. LOWER
8	72271-SWA-A01	Sash - L. FR. DOOR CENTER LOWER	Sash - L. FR. DOOR CENTER LOWER
9	72275-SWA-A02	Runchannel - L. FR. DOOR	Runchannel - L. FR. DOOR
13	72310-SWA-A02	Weatherstrip, R. FR. DOOR	Weatherstrip, R. FR. DOOR
14	72321-SWA-A01	Seal - R. FR. DOOR HOLE	Seal - R. FR. DOOR HOLE
6	72335-SWA-A01	Weatherstrip - R. FR. DOOR INNER	Weatherstrip - R. FR. DOOR INNER
16	72340-SWA-A01	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
17	72350-SWA-A02	Weatherstrip, L. FR. DOOR	Weatherstrip, L. FR. DOOR
18	72361-SWA-A01	Seal - L. FR. DOOR HOLE	Seal - L. FR. DOOR HOLE
7	72375-SWA-A01	Weatherstrip - L. FR. DOOR INNER	Weatherstrip - L. FR. DOOR INNER
19	72380-SWA-A01	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
1	72410-SWA-A01	Molding assy., R. FR. DOOR	Molding assy., R. FR. DOOR
1	72410-SWA-A02	MOLDING ASSY., R. FR. DOOR	MOLDING ASSY., R. FR. DOOR
2	72425-SWA-A02	MOLDING, R. FR. DOOR SASH	MOLDING, R. FR. DOOR SASH
3	72450-SWA-A01	Molding assy., L. FR. DOOR	Molding assy., L. FR. DOOR
3	72450-SWA-A02	MOLDING ASSY., L. FR. DOOR	MOLDING ASSY., L. FR. DOOR
4	72465-SWA-A02	MOLDING, L. FR. DOOR SASH	MOLDING, L. FR. DOOR SASH
24	72610-SWA-A01	LATCH ASSY., R. RR. DOOR POWER	LATCH ASSY., R. RR. DOOR POWER
25	72612-SNA-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
26	72615-SWA-A01	Seal - RR. DOOR LATCH	Seal - RR. DOOR LATCH
27	72631-SWA-A01	Cable - R. RR. INSIDE HANDLE	Cable - R. RR. INSIDE HANDLE
28	72633-SWA-A01	Cable - RR. DOOR LOCK	Cable - RR. DOOR LOCK
29	72650-SWA-A01	LATCH ASSY., L. RR. DOOR POWER	LATCH ASSY., L. RR. DOOR POWER
30	72652-SNA-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
31	72671-SWA-A01	Cable - L. RR. INSIDE HANDLE	Cable - L. RR. INSIDE HANDLE
1	72710-SWA-A02	Regulator assy - R. RR. DOOR POWER	Regulator assy - R. RR. DOOR POWER
5	72721-SWA-003	Garnish - R. RR. DOOR QUARTER OUTER	Garnish - R. RR. DOOR QUARTER OUTER
2	72731-SWA-A01	Sash - R. RR. DOOR QUARTER	Sash - R. RR. DOOR QUARTER
3	72735-SWA-A01	Runchannel - R. RR. DOOR	Runchannel - R. RR. DOOR
4	72750-SWA-A02	Regulator assy - L. RR. DOOR POWER	Regulator assy - L. RR. DOOR POWER
6	72761-SWA-003	Garnish - L. RR. DOOR QUARTER OUTER	Garnish - L. RR. DOOR QUARTER OUTER
5	72771-SWA-A01	Sash - L. RR. DOOR QUARTER	Sash - L. RR. DOOR QUARTER
6	72775-SWA-A01	Runchannel - L. RR. DOOR	Runchannel - L. RR. DOOR
15	72810-SWA-A01	Weatherstrip, R. RR. DOOR	Weatherstrip, R. RR. DOOR
16	72821-SWA-A00	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
2	72835-SWA-A01	Weatherstrip - RR. DOOR INNER	Weatherstrip - RR. DOOR INNER
17	72840-SWA-A01	CHECKER COMP., R. RR. DOOR	CHECKER COMP., R. RR. DOOR
18	72850-SWA-A01	Weatherstrip, L. RR. DOOR	Weatherstrip, L. RR. DOOR
19	72861-SWA-A00	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
20	72880-SWA-A01	CHECKER COMP., L. RR. DOOR	CHECKER COMP., L. RR. DOOR
7	72910-SWA-A01	Molding assy., R. RR. DOOR	Molding assy., R. RR. DOOR
7	72910-SWA-A02	MOLDING ASSY., R. RR. DOOR	MOLDING ASSY., R. RR. DOOR
8	72925-SWA-A02	Molding - R. RR. DOOR SASH	Molding - R. RR. DOOR SASH
9	72950-SWA-A01	Molding assy., L. RR. DOOR	Molding assy., L. RR. DOOR
9	72950-SWA-A02	MOLDING ASSY., L. RR. DOOR	MOLDING ASSY., L. RR. DOOR
10	72965-SWA-A02	Molding - L. RR. DOOR SASH	Molding - L. RR. DOOR SASH
3	73125-SWA-000	Seal - FR. WINDSHIELD UPPER	Seal - FR. WINDSHIELD UPPER
4	73150-SWA-003	Molding - FR. WINDSHIELD	Molding - FR. WINDSHIELD
11	73152-SWA-003	Garnish assy - R. FR. WINDSHIELD SIDE	Garnish assy - R. FR. WINDSHIELD SIDE
12	73153-SWA-003	Lid - R. FR. WINDSHIELD SIDE GARNISH	Lid - R. FR. WINDSHIELD SIDE GARNISH
13	73162-SWA-003	Garnish assy - L. FR. WINDSHIELD SIDE	Garnish assy - L. FR. WINDSHIELD SIDE
14	73163-SWA-003	Lid - L. FR. WINDSHIELD SIDE GARNISH	Lid - L. FR. WINDSHIELD SIDE GARNISH
3	73211-SWA-A11	Glass set - RR. WINDSHIELD (GREEN)(AGC)	Glass set - RR. WINDSHIELD (GREEN)(AGC)
33	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
10	73300-SWA-A00	Glass assy - R. FR. DOOR (GREEN)(AGC)	Glass assy - R. FR. DOOR (GREEN)(AGC)
11	73350-SWA-A00	Glass assy - L. FR. DOOR (GREEN)(AGC)	Glass assy - L. FR. DOOR (GREEN)(AGC)
7	73400-SWA-A00	Glass assy - R. RR. DOOR (GREEN)(AGC)	Glass assy - R. RR. DOOR (GREEN)(AGC)
8	73450-SWA-A00	Glass assy - L. RR. DOOR (GREEN)(AGC)	Glass assy - L. RR. DOOR (GREEN)(AGC)
4	73510-SWA-003	Molding assy. - R. QUARTER WINDSHIELD	Molding assy. - R. QUARTER WINDSHIELD
5	73511-SWA-A11	Glass - R. QUARTER(GREEN)(AGC)	Glass - R. QUARTER(GREEN)(AGC)
6	73525-SWA-000	Spacer	Spacer
7	73560-SWA-003	Molding assy. - L. QUARTER WINDSHIELD	Molding assy. - L. QUARTER WINDSHIELD
8	73561-SWA-A11	Glass - L. QUARTER(GREEN)(AGC)	Glass - L. QUARTER(GREEN)(AGC)
9	73810-SWA-003	Seal - R. QUARTER GLASS FR.	Seal - R. QUARTER GLASS FR.
10	73860-SWA-003	Seal - L. QUARTER GLASS FR.	Seal - L. QUARTER GLASS FR.
7	74100-SWA-A01	Fender assy - R. FR. INNER	Fender assy - R. FR. INNER
8	74105-SWA-A10	Enclosure - R. FR. FENDER	Enclosure - R. FR. FENDER
10	74111-SWA-A01	Shield - FR. SPLASH	Shield - FR. SPLASH
4	74115-SWA-A00	Protector - R. FR. WHEEL ARCH	Protector - R. FR. WHEEL ARCH
5	74118-SWA-000	Spacer set	Spacer set
5	74120-SWA-A12	Lock assy - HOOD	Lock assy - HOOD
6	74130-SWA-013	Wire assy. - HOOD	Wire assy. - HOOD
8	74141-SWA-A01	Insulator - HOOD	Insulator - HOOD
43	74142-SWA-A00	Rubber, HOOD SEAL	Rubber, HOOD SEAL
9	74143-SWA-A00	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
10	74145-SWA-A00	Stay - HOOD OPENER	Stay - HOOD OPENER
12	74148-SWA-A00	Rubber - HOOD CENTER SEAL	Rubber - HOOD CENTER SEAL
12	74150-SWA-A01	Liner, Fender assy - L. FR. INNER	Liner, Fender assy - L. FR. INNER
13	74155-SWA-A10	Enclosure - L. FR. FENDER	Enclosure - L. FR. FENDER
6	74165-SWA-A00	Protector L. FR. WHEEL ARCH	Protector L. FR. WHEEL ARCH
14	74171-SWA-000	Bracket - R. RADIATOR MOUNTING UPPER	Bracket - R. RADIATOR MOUNTING UPPER
15	74172-SWA-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
16	74173-SWA-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
13	74175-SJA-000	Cushion - HOOD	Cushion - HOOD
17	74176-SWA-000	Bracket - L. RADIATOR MOUNTING UPPER	Bracket - L. RADIATOR MOUNTING UPPER
14	74206-SWA-A00	Garnish - R. FR. FENDER	Garnish - R. FR. FENDER
15	74207-SWA-A00	Garnish - L. FR. FENDER	Garnish - L. FR. FENDER
15	74212-SWA-000	Cover - HOOD HINGE DRIVER SIDE	Cover - HOOD HINGE DRIVER SIDE
16	74215-SWA-000	Lid - R. COWL TOP	Lid - R. COWL TOP
17	74218-SWA-000	Cowl top set a - FR. DRIVER SIDE	Cowl top set a - FR. DRIVER SIDE
19	74222-SWA-000	Cover - HOOD HINGE PASSENGER SIDE	Cover - HOOD HINGE PASSENGER SIDE
20	74225-SWA-000	Lid - L. COWL TOP	Lid - L. COWL TOP
21	74226-SWA-A00	Lid - FRAME NUMBER	Lid - FRAME NUMBER
22	74228-SWA-000	Cowl top set a - FR. PASSENGER SIDE	Cowl top set a - FR. PASSENGER SIDE
2	74251-SWA-000	Insulator - DASHBOARD OUTER	Insulator - DASHBOARD OUTER
38	74252-SWA-000	Insulator - DASHBOARD UPPER EXTENSION	Insulator - DASHBOARD UPPER EXTENSION
4	74260-SWA-010	Insulator - DASHBOARD	Insulator - DASHBOARD
34	74387-S3C-003	Fastener	Fastener
7	74410-SWA-A00	Protector - R. RR. WHEEL ARCH	Protector - R. RR. WHEEL ARCH
34	74411-SWA-003	Cable - FUEL LID OPENER	Cable - FUEL LID OPENER
35	74421-S3N-000	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER
4	74440-SWA-003	Weatherstrip - TAILGATE	Weatherstrip - TAILGATE
8	74450-SWA-A00	Protector - L. RR. WHEEL ARCH	Protector - L. RR. WHEEL ARCH
9	74475-SWA-A00	Strake - R. RR.	Strake - R. RR.
10	74485-SWA-A00	Strake - L. RR.	Strake - L. RR.
41	74500-SWA-000	Extension comp - DASHBOARD UPPER	Extension comp - DASHBOARD UPPER
14	74601-SWC-N00	Plate a - FLOOR HEAT BAFFLE	Plate a - FLOOR HEAT BAFFLE
11	74603-SWA-A00	Cover - R. MIDDLE FLOOR UNDER	Cover - R. MIDDLE FLOOR UNDER
12	74613-SWA-A00	Cover - L. MIDDLE FLOOR UNDER	Cover - L. MIDDLE FLOOR UNDER
11	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
12	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE
24	74660-S1C-E00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
5	74800-SMG-G01	Lock assy - TAILGATE	Lock assy - TAILGATE
6	74810-SWA-A01	Switch assy - TAILGATE OPENER	Switch assy - TAILGATE OPENER
7	74813-SFE-003	Striker assy - TAILGATE	Striker assy - TAILGATE
8	74820-SWA-A01	Stay assy - R. TAILGATE OPEN	Stay assy - R. TAILGATE OPEN
1	74827-SH2-003	Stopper - TAILGATE	Stopper - TAILGATE
9	74827-SWA-A10	Stopper - TAILGATE	Stopper - TAILGATE
11	74836-SWA-A00	Garnish assy - R. TAILGATE UPPER	Garnish assy - R. TAILGATE UPPER
12	74870-SWA-A01	Stay assy - L. TAILGATE OPEN	Stay assy - L. TAILGATE OPEN
13	74886-SWA-A00	Garnish assy - L. TAILGATE UPPER	Garnish assy - L. TAILGATE UPPER
17	74890-SWA-U01	Garnish assy - RR. LICENSE	Garnish assy - RR. LICENSE
18	74895-S5A-000	Bolt - SPECIAL, 5MM	Bolt - SPECIAL, 5MM
15	75230-SWA-003	Garnish assy - R. FR. ROOF SIDE	Garnish assy - R. FR. ROOF SIDE
16	75232-SWA-003	Lid b - R. ROOF SIDE GARNISH	Lid b - R. ROOF SIDE GARNISH
17	75233-SWA-003	Lid c - R. ROOF SIDE GARNISH	Lid c - R. ROOF SIDE GARNISH
18	75234-SWA-003	Lid d - R. ROOF SIDE GARNISH	Lid d - R. ROOF SIDE GARNISH
19	75235-SWA-003	Garnish assy - R. RR. ROOF SIDE	Garnish assy - R. RR. ROOF SIDE
20	75240-SWA-003	Garnish assy - L. FR. ROOF SIDE	Garnish assy - L. FR. ROOF SIDE
21	75242-SWA-003	Lid b - L. ROOF SIDE GARNISH	Lid b - L. ROOF SIDE GARNISH
22	75243-SWA-003	Lid c - L. ROOF SIDE GARNISH	Lid c - L. ROOF SIDE GARNISH
23	75244-SWA-003	Lid d - L. ROOF SIDE GARNISH	Lid d - L. ROOF SIDE GARNISH
24	75245-SWA-003	Garnish assy - L. RR. ROOF SIDE	Garnish assy - L. RR. ROOF SIDE
13	75312-SWA-003	Garnish assy - R. FR. DOOR LOWER	Garnish assy - R. FR. DOOR LOWER
14	75313-SWA-003	Garnish assy - R. RR. DOOR LOWER	Garnish assy - R. RR. DOOR LOWER
15	75315-S9A-004	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
16	75316-S9A-004	Clip - DOOR LOWER GARNISH	Clip - DOOR LOWER GARNISH
17	75332-SWA-003	Garnish assy - L. FR. DOOR LOWER	Garnish assy - L. FR. DOOR LOWER
18	75333-SWA-003	Garnish assy - L. RR. DOOR LOWER	Garnish assy - L. RR. DOOR LOWER
3	75353-671-000	Lock - SCREW	Lock - SCREW
38	75450-SMA-003	Outlet assy - RR. AIR	Outlet assy - RR. AIR
26	75491-SWA-003	Clip - FR. PILLAR CORNER GARNISH	Clip - FR. PILLAR CORNER GARNISH
19	75523-SS0-000	Packing - SEAL	Packing - SEAL
14	75700-TA0-A00	Emblem - FR. (H)	Emblem - FR. (H)
20	75701-SMA-000	Emblem - RR. (H)	Emblem - RR. (H)
11	75717-SNB-E01	Sticker - I-VTEC	Sticker - I-VTEC
5	75722-SWA-003	Emblem - RR.(CR-V)	Emblem - RR.(CR-V)
19	75800-SWA-003	Mudguard - R. FR.	Mudguard - R. FR.
20	75810-SWA-003	Mudguard - L. FR.	Mudguard - L. FR.
21	75820-SWA-003	Mudguard - R. RR.	Mudguard - R. RR.
22	75830-SWA-003	Mudguard - L. RR.	Mudguard - L. RR.
6	76204-SWA-J41	Tube e	Tube e
8	76208-SWA-U41	Turn set - R. AUTO	Turn set - R. AUTO
9	76210-SWA-U41	Actuator comp. - R.(AUTO TURN) (R1400)	Actuator comp. - R.(AUTO TURN) (R1400)
18	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
2	76501-SWA-003	Harness assy - FR. WIPER MOTOR	Harness assy - FR. WIPER MOTOR
1	76505-SWA-013	Motor comp - FR. WIPER	Motor comp - FR. WIPER
3	76516-SE0-003	Rubber - BRACKETLESS MOUNTING	Rubber - BRACKETLESS MOUNTING
4	76516-SR3-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
6	76517-SM4-003	Collar	Collar
7	76520-SWA-003	Link assy. a	Link assy. a
8	76524-SD4-003	Dust seal	Dust seal
9	76524-SL0-A01	Dust seal	Dust seal
10	76530-SWA-003	Link comp - FR. WIPER	Link comp - FR. WIPER
11	76540-SWA-003	Rod unit a	Rod unit a
12	76550-SWA-003	Rod unit b	Rod unit b
13	76561-SEA-003	Cap - PIVOT	Cap - PIVOT
14	76600-SWA-J01	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-SWA-J01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
16	76620-SWA-J01	Blade - WINDSHIELD WIPER(650MM)	Blade - WINDSHIELD WIPER(650MM)
1	76622-S2X-003	Rubber - BLADE (350MM)	Rubber - BLADE (350MM)
17	76622-STK-A01	Rubber - BLADE (650MM)	Rubber - BLADE (650MM)
17	76622-STK-A02	BLADE RUBBER	BLADE RUBBER
18	76630-SWA-J01	Blade - WINDSHIELD WIPER(425MM)	Blade - WINDSHIELD WIPER(425MM)
18	76630-SWA-J02	Blade - WINDSHIELD WIPER(425MM)	Blade - WINDSHIELD WIPER(425MM)
1	76632-S2K-004	RUBBER BLADE	RUBBER BLADE
19	76632-SWA-J01	Rubber - BLADE(425MM)	Rubber - BLADE(425MM)
19	76632-SWA-J02	BLADE RUBBER	BLADE RUBBER
2	76701-S6A-003	Rubber - MOUNTING	Rubber - MOUNTING
3	76702-S6A-003	Collar	Collar
4	76706-SK7-003	Washer a - SPECIAL	Washer a - SPECIAL
13	76707-STK-000	Seal a	Seal a
5	76708-SE1-003	Washer b - SPECIAL	Washer b - SPECIAL
6	76709-SE0-A01	Nut - SPECIAL, 18MM	Nut - SPECIAL, 18MM
7	76710-SWA-003	Motor, WIPER	Motor, WIPER
8	76711-STK-003	Cap - PIVOT	Cap - PIVOT
9	76720-SWA-003	Arm - RR. WIPER	Arm - RR. WIPER
10	76721-SCV-A01	Cover - ARM	Cover - ARM
11	76730-SFA-003	Blade - RR. WINDSHIELD WIPER (350MM)	Blade - RR. WINDSHIELD WIPER (350MM)
3	76802-SJD-003	Cap unit - MOUTH	Cap unit - MOUTH
4	76805-SWA-003	Hose	Hose
5	76806-SMA-J01	Motor - WASHER	Motor - WASHER
5	76806-SMA-J02	Motor - WASHER	Motor - WASHER
29	76808-SWA-003	Holder - MOTOR	Holder - MOTOR
6	76809-SWA-003	Packing	Packing
23	76810-SWA-003	Nozzle assy. - R.	Nozzle assy. - R.
28	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)	Valve - ONE WAY (RR.) (MITSUBA)
24	76815-SWA-003	Nozzle assy. - L.	Nozzle assy. - L.
7	76821-SWA-003	Tube - CORRUGATE	Tube - CORRUGATE
8	76825-SH3-003	Tube a - RR. WASHER	Tube a - RR. WASHER
9	76826-SWA-003	Tube sub assy.	Tube sub assy.
25	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
26	76832-SWA-003	Tube - 280MM	Tube - 280MM
14	76834-SNA-003	Tube - 140MM	Tube - 140MM
10	76834-SWA-003	Tube - 930MM	Tube - 930MM
27	76837-SJA-C01	Tube - 740MM	Tube - 740MM
12	76839-SWA-003	Tube - 3040MM	Tube - 3040MM
13	76841-SWA-013	Tank - WASHER(2.5L FR.-RR.)	Tank - WASHER(2.5L FR.-RR.)
14	76842-S2K-J11	Bush - WASHER TANK	Bush - WASHER TANK
15	76850-SWA-013	Nozzle assy. - RR. WINDSHIELD	Nozzle assy. - RR. WINDSHIELD
15	76851-S30-003	Grommet - WASHER TUBE	Grommet - WASHER TUBE
16	76867-SWA-003	Tube - 80MM	Tube - 80MM
17	76868-SWA-003	Tube - 560MM	Tube - 560MM
28	76870-SWA-N01	Tube - 200MM	Tube - 200MM
18	76870-SYA-003	Tube - 140MM	Tube - 140MM
19	76872-SWA-003	Tube - 220MM	Tube - 220MM
11	76873-SWA-003	Tube - 1200MM	Tube - 1200MM
4	77107-SWW-E00	Insulator - INSTRUMENT PANEL DRIVER	Insulator - INSTRUMENT PANEL DRIVER
6	77150-SWA-A00	Bracket comp. - CENTER JOINT	Bracket comp. - CENTER JOINT
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
5	77255-SWA-A00	Bracket - R. RADIO	Bracket - R. RADIO
6	77256-SWA-A00	Bracket - L. RADIO	Bracket - L. RADIO
4	77259-SLJ-003	Cushion - CLIP	Cushion - CLIP
6	77333-SWA-003	Lid assy - MAINTENANCE	Lid assy - MAINTENANCE
7	77335-SWA-003	Lid - SIDE	Lid - SIDE
6	77336-SWA-U01	Lid assy - MAINTENANCE	Lid assy - MAINTENANCE
2	77410-SWA-013	Duct assy - CENTER	Duct assy - CENTER
10	77466-SEA-010	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
11	77509-SLJ-003	Cushion - CLIP	Cushion - CLIP
14	77530-SWA-003	Damper assy. - GLOVE BOX	Damper assy. - GLOVE BOX
11	77550-SWA-000	Frame - GLOVE BOX	Frame - GLOVE BOX
4	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
2	77900-SMG-E01	Reel assy - CABLE (FURUKAWA)	Reel assy - CABLE (FURUKAWA)
17	77901-SWA-W00	Sub cord - CABLE REEL	Sub cord - CABLE REEL
4	77930-SWA-E11	Sensor assy - FR. CRASH	Sensor assy - FR. CRASH
5	77960-SWA-Z61	Srs unit	Srs unit
6	77970-SWA-E11	Sensor assy - SIDE IMPACT	Sensor assy - SIDE IMPACT
7	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
2	78050-SWA-G80	Module assy. - R. SIDE	Module assy. - R. SIDE
2	78055-SWA-G70	Module assy. - L. SIDE	Module assy. - L. SIDE
3	78155-SWA-J01	Visor	Visor
4	78156-SWA-J01	Lens	Lens
9	78525-STK-A81	Guide - CORD	Guide - CORD
1	78819-STK-A81	Clip - SIDE CURTAIN AIRBAG (8.5MM)	Clip - SIDE CURTAIN AIRBAG (8.5MM)
4	79021-SNA-A01	Seal a	Seal a
1	79021-SWA-000	Bracket assy - HEATER	Bracket assy - HEATER
6	79102-SWA-N01	Duct assy - HEATER (PASSENGER SIDE)	Duct assy - HEATER (PASSENGER SIDE)
7	79103-SWA-A41	Packing set - VENT	Packing set - VENT
8	79104-SNA-A01	Packing	Packing
9	79106-SWA-952	Heater sub assy.	Heater sub assy.
10	79107-SWA-N01	Cover - HEATER PIPE	Cover - HEATER PIPE
11	79108-SVA-A01	Plate - EVAPORATOR LOWER	Plate - EVAPORATOR LOWER
12	79109-SNB-003	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
13	79110-SNB-013	Core sub assy. - HEATER	Core sub assy. - HEATER
14	79140-SWA-941	Motor assy. - MODE	Motor assy. - MODE
15	79160-SWA-941	Motor assy. - AIR MIX (DRIVER SIDE)	Motor assy. - AIR MIX (DRIVER SIDE)
16	79170-SWA-941	Motor assy. - AIR MIX (PASSENGER SIDE)	Motor assy. - AIR MIX (PASSENGER SIDE)
2	79305-SWA-951	Blower sub assy.	Blower sub assy.
3	79306-SNA-A01	Seal - BLOWER OUTER	Seal - BLOWER OUTER
4	79307-STK-A41	Packing - IN.	Packing - IN.
17	79308-SNL-K01	Joint set - DUCT	Joint set - DUCT
5	79310-SMA-941	Motor assy. - FAN	Motor assy. - FAN
18	79330-SNA-A01	Transistor - POWER	Transistor - POWER
6	79350-SNB-942	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
19	79544-SWA-010	Cable - WATER VALVE CONTROL	Cable - WATER VALVE CONTROL
1	79710-SWC-G01	Valve assy. - WATER	Valve assy. - WATER
4	79720-SWC-G00	Hose assy - WATER OUTLET	Hose assy - WATER OUTLET
2	79721-SWC-G00	Hose a - WATER IN.	Hose a - WATER IN.
3	79722-SWC-G00	Hose b - WATER IN.	Hose b - WATER IN.
5	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
6	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)	Clamp - HEATER HOSE (NATURAL)
7	79751-SWC-G00	Stay - HEATER HOSE	Stay - HEATER HOSE
20	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE
2	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
1	80101-S9A-013	Filter sub assy.	Filter sub assy.
2	80107-S2X-000	Mount - CONDENSER UPPER	Mount - CONDENSER UPPER
7	80110-SWA-A01	Condenser comp.	Condenser comp.
3	80111-SWA-A01	Bracket - R. CONDENSER UPPER	Bracket - R. CONDENSER UPPER
4	80112-SWA-J00	Bracket - L. CONDENSER UPPER	Bracket - L. CONDENSER UPPER
5	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
21	80211-SWA-023	Evaporator comp.	Evaporator comp.
22	80221-SWA-013	Valve assy. - EXPANSION	Valve assy. - EXPANSION
23	80271-SWA-000	Hose - DRAIN	Hose - DRAIN
7	80291-SDA-Y01	Plate assy. - BLOWER	Plate assy. - BLOWER
5	80311-SWC-013	Hose comp. - SUCTION	Hose comp. - SUCTION
7	80315-SWC-013	Hose comp. - DISCHARGE	Hose comp. - DISCHARGE
8	80321-SWA-003	Pipe comp - AIR CONDITIONER	Pipe comp - AIR CONDITIONER
9	80325-SDA-A00	Seal - FLANGE	Seal - FLANGE
10	80341-SWA-A01	Pipe comp - RECEIVER	Pipe comp - RECEIVER
11	80361-SWA-A00	Stay - AIR CONDITIONER PIPE	Stay - AIR CONDITIONER PIPE
12	80362-SJA-A00	Clamp - SUCTION HOSE	Clamp - SUCTION HOSE
13	80366-SFA-000	Rubber - MOUNT	Rubber - MOUNT
14	80367-SFA-000	Collar - DISTANCE	Collar - DISTANCE
15	80381-SJA-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
16	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
1	80510-SDA-A41	Sensor assy - SUN BEAM	Sensor assy - SUN BEAM
2	80519-SWA-A40	Sub harness - SUN BEAM	Sub harness - SUN BEAM
3	80521-SWA-940	Bracket - AMBIENT SENSOR	Bracket - AMBIENT SENSOR
4	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
24	80534-S84-A41	Aspirator	Aspirator
25	80541-SWA-941	Hose a - ASPIRATOR	Hose a - ASPIRATOR
25	80542-SWA-941	Hose b - ASPIRATOR	Hose b - ASPIRATOR
26	80560-SWA-A01	Thermistor - AIR CONDITIONER	Thermistor - AIR CONDITIONER
27	80566-SVA-A01	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
28	80650-SWA-940	Sub harness - AIR CONDITIONER	Sub harness - AIR CONDITIONER
17	80865-SL0-003	Cap - VALVE (H)	Cap - VALVE (H)
18	80866-SL0-003	Cap - VALVE(L)	Cap - VALVE(L)
19	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
20	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
21	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
3	81102-SWA-A51	Motor assy. - R. RECLINING	Motor assy. - R. RECLINING
3	81123-SNA-A01	Screw - 6X18	Screw - 6X18
9	81127-SWA-951	Pad comp - R. FR. SEATBACK	Pad comp - R. FR. SEATBACK
5	81136-SNA-A11	Lever comp - FR. SEAT CUSHION	Lever comp - FR. SEAT CUSHION
13	81137-SWA-951	Pad comp - R. FR. SEAT CUSHION	Pad comp - R. FR. SEAT CUSHION
6	81139-SWA-A51	Frame sub comp. - FR. SEAT CUSHION	Frame sub comp. - FR. SEAT CUSHION
19	81160-SWA-921	Holder - R. MODULE	Holder - R. MODULE
7	81162-SWA-X01	Cord - OPDS	Cord - OPDS
8	81186-S0X-A01	Pin - FR. ARMREST CENTER	Pin - FR. ARMREST CENTER
9	81187-S0X-A01	Pin - FR. ARMREST	Pin - FR. ARMREST
10	81189-S0X-003	Washer - WAVE	Washer - WAVE
24	81190-SWB-A51	Lumbar comp. - R. FR. SEATBACK	Lumbar comp. - R. FR. SEATBACK
7	81200-SWA-N51	Device comp. - R. FR. SEAT	Device comp. - R. FR. SEAT
8	81206-SWA-901	Cord - R. POWER SEAT	Cord - R. POWER SEAT
25	81214-STK-A01	Spring a - FR. SEATBACK LUMBAR	Spring a - FR. SEATBACK LUMBAR
26	81215-SDB-A71	Spring - R. LUMBAR	Spring - R. LUMBAR
10	81217-SFY-J21	Bolt - UPPER	Bolt - UPPER
11	81218-SFY-J21	Bolt - LOWER	Bolt - LOWER
12	81219-SFY-J21	Screw - HEIGHT	Screw - HEIGHT
28	81236-SDG-H71	Nut - PUSH	Nut - PUSH
31	81241-SDG-H71	Shaft	Shaft
31	81241-SJK-J11	Shaft - FR. SEAT	Shaft - FR. SEAT
32	81242-SDG-H71	Cover - SHAFT	Cover - SHAFT
15	81255-SZ3-A01	Switch assy - LUMBAR SUPPORT	Switch assy - LUMBAR SUPPORT
7	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
12	81291-SNA-A01	Clip	Clip
13	81299-SWA-A01	Lock - PURSE	Lock - PURSE
14	81383-SHJ-A01	Bush - ARMREST (A)	Bush - ARMREST (A)
6	81425-S2H-003	Washer - SPRING	Washer - SPRING
5	81425-SJD-J01	Washer - SPRING	Washer - SPRING
7	81426-S2H-003	Washer - PLAIN	Washer - PLAIN
8	81430-S2H-003	Bearing	Bearing
9	81439-S2H-003	Clip - HARNESS	Clip - HARNESS
11	81441-S2H-003	Collar - 13H	Collar - 13H
10	81441-SWA-A01	Collar - 15H	Collar - 15H
12	81442-S2H-003	Bearing	Bearing
14	81446-S2H-003	Washer - WAVE	Washer - WAVE
13	81446-SWA-003	Washer - PLAIN	Washer - PLAIN
15	81448-S2H-003	Washer - PLAIN	Washer - PLAIN
21	81537-SWA-J51	Pad comp - L. FR. SEAT CUSHION	Pad comp - L. FR. SEAT CUSHION
23	81560-SNA-A01	Holder - L. MODULE	Holder - L. MODULE
24	81561-SWA-A01	Opds unit - L.	Opds unit - L.
20	81601-SJA-A01	Motor assy. - L. SLIDE	Motor assy. - L. SLIDE
21	81603-SFY-J21	Motor - L. HEIGHT	Motor - L. HEIGHT
22	81608-STK-A01	Holder - FR. SEAT HARNESS	Holder - FR. SEAT HARNESS
23	81614-SJA-A01	Box assy - L. GEAR	Box assy - L. GEAR
39	81615-SDB-A71	Spring - L. LUMBER	Spring - L. LUMBER
24	81616-SJA-A01	Cable assy	Cable assy
2	82122-SWA-A01	Bolt - FLANGE	Bolt - FLANGE
5	82127-SWA-A01	Pad assy - R. RR. SEATBACK	Pad assy - R. RR. SEATBACK
1	82128-SWA-A01	Bush - RR. SEATBACK(A)	Bush - RR. SEATBACK(A)
6	82129-S5A-000	Collar - RR. SEAT PIVOT	Collar - RR. SEAT PIVOT
6	82129-SWA-A01	Bolt - RR. SEATBACK	Bolt - RR. SEATBACK
8	82137-SWA-A01	Pad assy - R. RR. SEAT CUSHION	Pad assy - R. RR. SEAT CUSHION
4	82139-SWA-A01	Cable - RR. SEAT CUSHION	Cable - RR. SEAT CUSHION
11	82172-SWA-A01	Pad assy - R. RR. SEATBACK LOWER	Pad assy - R. RR. SEATBACK LOWER
14	82187-S10-J01	Collar - ARMREST	Collar - ARMREST
5	82191-SWA-A01	Screw - PAN(5X10)	Screw - PAN(5X10)
9	82221-SWA-A01	Cover - R. RR. SEAT LEVER INNER	Cover - R. RR. SEAT LEVER INNER
11	82222-SWA-A01	Lock assy - R. INTER	Lock assy - R. INTER
12	82224-SWA-A01	Strap assy - RR. SEAT CUSHION	Strap assy - RR. SEAT CUSHION
13	82226-SWA-A01	Cable comp. b - LOCK	Cable comp. b - LOCK
14	82227-SWA-A01	Nut - PUSH	Nut - PUSH
15	82229-SWA-A01	Cable comp. c - LOCK	Cable comp. c - LOCK
11	82234-SWA-A01	Cable - LOCK CONTROL CENTER	Cable - LOCK CONTROL CENTER
12	82235-SWA-A01	Cable - LOCK CONTROL	Cable - LOCK CONTROL
17	82261-SWA-A01	Packing	Packing
18	82271-SWA-A01	Screw - TAPPING(5X10)	Screw - TAPPING(5X10)
28	82424-SWA-003	Washer - PLAIN	Washer - PLAIN
27	82424-SWA-A01	Washer - PLAIN	Washer - PLAIN
32	82491-SWA-A00	Protector - R. RR. SEATBELT	Protector - R. RR. SEATBELT
16	82527-SWA-A01	Pad assy - L. RR. SEATBACK	Pad assy - L. RR. SEATBACK
26	82533-SWA-A01	Pin - RR. SEAT CUSHION HINGE	Pin - RR. SEAT CUSHION HINGE
27	82534-SWA-A01	Bolt - L. RR. SEAT CUSHION HINGE	Bolt - L. RR. SEAT CUSHION HINGE
18	82537-SWA-A01	Pad assy - L. RR. SEAT CUSHION	Pad assy - L. RR. SEAT CUSHION
29	82538-SWA-A01	Bush - RR. SEAT CUSHION(A)	Bush - RR. SEAT CUSHION(A)
30	82539-SWA-A01	Bush - RR. SEAT CUSHION(B)	Bush - RR. SEAT CUSHION(B)
16	82621-SWA-A01	Cover - L. RR. SEAT LEVER INNER	Cover - L. RR. SEAT LEVER INNER
35	82622-SWA-A01	Lock assy - L. INTER	Lock assy - L. INTER
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
36	82891-SWA-A00	Protector - L. RR. SEATBELT	Protector - L. RR. SEATBELT
18	82926-SWA-A01	Frame comp - RR. SEATBACK CENTER	Frame comp - RR. SEATBACK CENTER
19	82928-SWA-A01	Spring - RELEASE LEVER	Spring - RELEASE LEVER
20	82929-SWA-A01	Silencer	Silencer
4	83202-SWA-J01	Pad assy - R. FR. ROOF SIDE	Pad assy - R. FR. ROOF SIDE
5	83203-SWA-J01	Pad assy - R. RR. ROOF SIDE	Pad assy - R. RR. ROOF SIDE
11	83241-SWA-A00	Bracket - FR. GRAB RAIL	Bracket - FR. GRAB RAIL
12	83242-SWA-A00	Bracket - RR. GRAB RAIL	Bracket - RR. GRAB RAIL
15	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
12	83251-SDC-A01	Bush	Bush
16	83252-SWA-J01	Pad assy - L. FR. ROOF SIDE	Pad assy - L. FR. ROOF SIDE
13	83253-SDC-A01	Screw - TAPPING, 3X10	Screw - TAPPING, 3X10
17	83253-SWA-J01	Pad assy - L. RR. ROOF SIDE	Pad assy - L. RR. ROOF SIDE
3	83331-SWA-A01	Duct assy - RR. HEATER	Duct assy - RR. HEATER
4	83332-SWA-A01	Duct assy - RR. HEATER JOINT (A)	Duct assy - RR. HEATER JOINT (A)
6	83333-SWA-J02	Duct - RR. HEATER JOINT(B)	Duct - RR. HEATER JOINT(B)
7	83416-SWA-U31	Panel - JACK(E)	Panel - JACK(E)
8	83417-SWA-J01	Lid - MAINTENANCE	Lid - MAINTENANCE
9	83418-SWA-J01	Clip - BOX	Clip - BOX
10	83419-SWA-J01	Bracket - BOX	Bracket - BOX
14	83432-SWA-J01	Mat - BOX CONSOLE	Mat - BOX CONSOLE
10	83505-SWA-A01	Bracket comp. - R. FR. DOOR LINING(B)	Bracket comp. - R. FR. DOOR LINING(B)
17	83535-SWA-A01	Bracket - GRIP(A)	Bracket - GRIP(A)
20	83555-SWA-A01	Bracket comp. - L. FR. DOOR LINING(B)	Bracket comp. - L. FR. DOOR LINING(B)
10	83705-SWA-A01	Bracket comp. - R. RR. DOOR LINING(B)	Bracket comp. - R. RR. DOOR LINING(B)
11	83709-SWA-000	Bracket - PULL POCKET(R.)	Bracket - PULL POCKET(R.)
19	83755-SWA-A01	Bracket comp. - L. RR. DOOR LINING(B)	Bracket comp. - L. RR. DOOR LINING(B)
20	83759-SWA-000	Bracket - PULL POCKET(L.)	Bracket - PULL POCKET(L.)
8	84426-SWA-003	Cap	Cap
12	84430-SWA-003	Nut	Nut
8	84526-SWA-003	Plate	Plate
11	84614-SEA-E00	Hook assy - TIE DOWN	Hook assy - TIE DOWN
16	84636-SWA-003	Reinforce assy. - R. SHELF	Reinforce assy. - R. SHELF
25	84686-SWA-013	Reinforce assy. - L. SHELF	Reinforce assy. - L. SHELF
1	89000-SWA-J00	Tool set	Tool set
2	89101-SMG-E01	Bag - TOOL	Bag - TOOL
3	89102-538-000	Driver, SCREW(NO.2 + -)	Driver, SCREW(NO.2 + -)
4	89103-538-000	Grip	Grip
5	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
6	89310-SWA-003	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
7	89311-SWA-003	Plate - JACK CAUTION	Plate - JACK CAUTION
8	89320-S2G-003	Bar - JACK	Bar - JACK
17	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
21	90001-PGM-000	Bolt-washer - SPECIAL, 6X30	Bolt-washer - SPECIAL, 6X30
18	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
15	90001-RNA-A00	Bolt - FLANGE, 8X27	Bolt - FLANGE, 8X27
9	90001-RWK-000	Bolt - SPECIAL, 8X85	Bolt - SPECIAL, 8X85
21	90001-S10-010	Bolt-washer - 5X16	Bolt-washer - 5X16
15	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90002-RNA-A00	Bolt - SEALING, 36MM	Bolt - SEALING, 36MM
42	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
10	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
16	90003-RNA-A00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
17	90004-PLC-000	Bolt-washer - 10X25	Bolt-washer - 10X25
15	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
11	90004-RNA-A00	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
14	90005-P28-A00	Bolt-washer - SPECIAL, 6X28	Bolt-washer - SPECIAL, 6X28
14	90005-RNA-A01	Bolt-washer - 11X176	Bolt-washer - 11X176
10	90006-P8F-A00	Bolt-washer - 8X32	Bolt-washer - 8X32
20	90007-RNA-A01	Bolt-washer - 10X97	Bolt-washer - 10X97
11	90008-PT2-000	Bolt - FLANGE, 6X65	Bolt - FLANGE, 6X65
21	90008-RNA-000	Washer - SEALING, 36MM	Washer - SEALING, 36MM
22	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
6	90009-RNA-A00	Bolt - SPECIAL, 8X65	Bolt - SPECIAL, 8X65
17	90010-RNA-A00	Bolt - SPECIAL, 8X87	Bolt - SPECIAL, 8X87
6	90011-RNA-A00	Bolt - HEAD COVER	Bolt - HEAD COVER
4	90012-RNA-A00	Bolt-washer - 8X55	Bolt-washer - 8X55
18	90013-PCX-000	Bolt - SPECIAL, 6X12	Bolt - SPECIAL, 6X12
15	90013-RNA-A01	Bolt - HEX., 6X9	Bolt - HEX., 6X9
19	90014-RNA-A00	Bolt - SPECIAL, 6X29.5	Bolt - SPECIAL, 6X29.5
7	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
20	90015-RNA-A00	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM
23	90016-RNA-A00	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
16	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
18	90018-SNA-010	Bolt - FLANGE, 12X18	Bolt - FLANGE, 12X18
5	90020-RNA-A01	Bolt-washer - 5X20	Bolt-washer - 5X20
8	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
12	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65
15	90026-P8A-A00	Bolt - STUD, 8X41	Bolt - STUD, 8X41
6	90027-RNA-A00	Bolt - FUEL PIPE	Bolt - FUEL PIPE
24	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
11	90030-RNA-A00	Bolt - SPECIAL, 10X40	Bolt - SPECIAL, 10X40
16	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30
12	90031-PRA-000	Bolt - SPECIAL FLANGE, 10X25	Bolt - SPECIAL FLANGE, 10X25
12	90031-RNA-A01	Bolt-washer - 10X30	Bolt-washer - 10X30
17	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
18	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
9	90041-RNA-A00	Bolt - STUD, 14X90	Bolt - STUD, 14X90
19	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
20	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
22	90051-RGA-003	Bolt - SPECIAL, 6X20.8	Bolt - SPECIAL, 6X20.8
20	90100-SHJ-A00	Bolt - FLANGE, 6X16.5	Bolt - FLANGE, 6X16.5
26	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
27	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
22	90101-S5A-003	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
43	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
35	90101-SFA-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
35	90101-SJK-003	Screw - TAPPING (ONE WAY)	Screw - TAPPING (ONE WAY)
16	90101-SLJ-003	Bolt - FLANGE, 8X18	Bolt - FLANGE, 8X18
36	90101-SWA-A00	Bolt-washer - 8X16	Bolt-washer - 8X16
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
27	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
40	90102-SDG-H71	Bolt-washer - 6MM	Bolt-washer - 6MM
17	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90102-STK-A00	Bolt-washer - 5X12	Bolt-washer - 5X12
36	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
18	90103-SJK-000	Bolt - CALIPER MOUNTING	Bolt - CALIPER MOUNTING
22	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)	Bolt - FLANGE, 8X22 (TORX)
39	90103-SS1-000	Bolt - FUEL FILLER LID	Bolt - FUEL FILLER LID
40	90103-SWA-A00	Bolt-washer - 8MM	Bolt-washer - 8MM
19	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
17	90105-S10-000	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
22	90105-SFA-003	Bolt-washer - 6X30	Bolt-washer - 6X30
8	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
30	90105-SMA-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
43	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
19	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)	Screw - TAPPING, 4X12 (TRUSS)
30	90106-SDA-A00	Bolt-washer - 6X25	Bolt-washer - 6X25
17	90107-S3V-A00	Bolt - CALIPER MOUNT	Bolt - CALIPER MOUNT
13	90107-S7S-000	Bolt-washer - 8X50	Bolt-washer - 8X50
28	90107-S9V-A01	Bolt - RR. BUMPER STOPPER	Bolt - RR. BUMPER STOPPER
18	90107-SEY-003	Bolt - TAILGATE LOCK	Bolt - TAILGATE LOCK
31	90107-SWA-A02	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
29	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
44	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
32	90108-STK-A00	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
23	90109-SAG-H01	Screw - TAPPING, 4X14(TRUSS)	Screw - TAPPING, 4X14(TRUSS)
20	90109-SDF-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
21	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)	Screw - TAPPING, 4X20 (TRUSS)
22	90109-SFA-003	Screw-washer - 5X12	Screw-washer - 5X12
23	90109-SFE-000	Bolt-washer - 6X18	Bolt-washer - 6X18
5	90109-SLJ-003	Screw - 5X40	Screw - 5X40
23	90109-SNB-003	Screw - TAPPING, 4X14 (TRUSS)	Screw - TAPPING, 4X14 (TRUSS)
19	90109-SWA-A00	Stud - BALL	Stud - BALL
22	90109-TA0-003	Screw-washer - 5X12	Screw-washer - 5X12
15	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
29	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
14	90110-SV4-000	Bolt-washer - 8X21	Bolt-washer - 8X21
16	90111-SFA-000	Bolt-washer - 8X86	Bolt-washer - 8X86
30	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
17	90111-SWA-A01	Bolt-washer - 8X62	Bolt-washer - 8X62
18	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
18	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
4	90113-SJA-A00	Screw - TAPPING, 5X14	Screw - TAPPING, 5X14
18	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
23	90114-SAA-G01	Screw - TAPPING, 5X17	Screw - TAPPING, 5X17
31	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
15	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
13	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
19	90116-SNA-010	Bolt, FLANGE, 14X94	Bolt, FLANGE, 14X94
20	90118-SNA-000	Bolt - FLANGE, 12X84	Bolt - FLANGE, 12X84
17	90119-S6M-Z01	Bolt - FLANGE, 16X62	Bolt - FLANGE, 16X62
15	90120-PZA-000	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
17	90120-STK-000	Bolt - FLANGE, 16X62(SERVICE)	Bolt - FLANGE, 16X62(SERVICE)
37	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
29	90121-SNA-A00	Bolt - STUD, 6X49	Bolt - STUD, 6X49
12	90123-SJA-000	Bolt-washer - 6X16	Bolt-washer - 6X16
31	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
17	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
9	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
10	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
32	90129-SX8-003	Screw-washer - 5X12	Screw-washer - 5X12
24	90131-SCV-A00	Screw - PAN, 5X23	Screw - PAN, 5X23
23	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18
11	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
26	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
28	90132-SWA-003	Screw - TAPPING, 4X10(PO)	Screw - TAPPING, 4X10(PO)
26	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
7	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
12	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
22	90134-S10-J11	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
12	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
35	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
15	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
5	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
13	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
17	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
46	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)	Bolt - FLANGE, 6X16(GUIDE)
18	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
22	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
38	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
39	90141-SWA-A01	Screw - TAPPING	Screw - TAPPING
43	90142-S0X-A31	Bolt - 7/16"X33	Bolt - 7/16"X33
44	90142-S10-J71	Bolt - 7/16"X28	Bolt - 7/16"X28
28	90142-SWA-000	Screw - TAPPING, 4X10(PO)	Screw - TAPPING, 4X10(PO)
42	90142-SWA-003	Bolt - 7/16"X22	Bolt - 7/16"X22
37	90142-SWA-A01	Bolt - FLANGE, 7/16"X17.6	Bolt - FLANGE, 7/16"X17.6
43	90142-SWA-A21	Bolt - 7/16"X25	Bolt - 7/16"X25
40	90142-SWA-A31	Bolt - 7/16"X25	Bolt - 7/16"X25
41	90142-SWA-A41	Bolt - 7/16"X22	Bolt - 7/16"X22
42	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
28	90143-ST5-900	Bolt-washer - 8X22	Bolt-washer - 8X22
45	90143-SWA-003	Bolt - 7/16"X54	Bolt - 7/16"X54
31	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
38	90144-SWA-000	Screw - TAPPING, 4X12(PO)	Screw - TAPPING, 4X12(PO)
44	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18
14	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14
18	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
27	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
12	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
25	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
33	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
13	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
20	90160-SJK-000	Bolt-washer - 12X46	Bolt-washer - 12X46
8	90160-SNA-A00	Bolt - FLANGE, 14X67	Bolt - FLANGE, 14X67
3	90161-SD5-020	Bolt - FLANGE, 12X82	Bolt - FLANGE, 12X82
9	90161-SR3-000	Bolt - FLANGE, 14X107	Bolt - FLANGE, 14X107
13	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE
6	90163-SWE-T00	Bolt - FLANGE, 14X80	Bolt - FLANGE, 14X80
10	90165-S04-000	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
12	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
13	90169-S5A-003	Bolt - FLANGE, 12X87	Bolt - FLANGE, 12X87
5	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115
21	90181-SFE-020	Bolt - FLANGE, 14X88.5	Bolt - FLANGE, 14X88.5
22	90183-SWA-A00	Bolt - FLANGE, 12X54	Bolt - FLANGE, 12X54
14	90186-S2H-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
23	90203-SB0-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
11	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)
4	90207-RAA-A10	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM
16	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
16	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
18	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)
21	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
15	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM
17	90300-SFE-010	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
47	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
15	90301-ST0-003	push nut, 3mm	push nut, 3mm
7	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
45	90302-SD2-003	Nut-washer - 8MM	Nut-washer - 8MM
15	90302-SJK-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
21	90303-SWA-A00	Bolt - GARNISH, 6MM	Bolt - GARNISH, 6MM
28	90304-SE3-000	Nut - CLIP, 5MM	Nut - CLIP, 5MM
14	90304-SF0-751	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)
18	90305-S3V-A11	Nut - SPINDLE	Nut - SPINDLE
33	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
20	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
23	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
22	90308-SMG-E01	Nut - GARNISH (M5)	Nut - GARNISH (M5)
6	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER
36	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
29	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
34	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
21	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM
21	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
22	90363-S3V-A01	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
17	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
16	90382-SJK-000	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
19	90382-STK-A01	Nut - FLANGE, 16MM	Nut - FLANGE, 16MM
24	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)	Nut - LOCK FLANGE(CLINCH)
25	90396-S7A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
26	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5
25	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
21	90401-RNA-A00	Washer - SEALING, 16MM	Washer - SEALING, 16MM
35	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
23	90501-SS8-A01	Retainer	Retainer
33	90506-STK-A00	Washer - PLAIN, 10MM	Washer - PLAIN, 10MM
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
36	90601-SWA-000	Clip - SNAP FIT	Clip - SNAP FIT
30	90602-SLJ-003	Clip - COWL TOP	Clip - COWL TOP
31	90603-SLJ-003	Clip - COWL TOP	Clip - COWL TOP
37	90610-S10-003	Clip - GARNISH	Clip - GARNISH
2	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
2	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
7	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
38	90650-KV3-000	Band - WIRE	Band - WIRE
39	90650-SE3-000	Clip - RADIO PANEL	Clip - RADIO PANEL
27	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
23	90651-S4N-003	Clip	Clip
27	90651-SWA-000	Washer - RR. KNUCKLE	Washer - RR. KNUCKLE
21	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
35	90661-S2A-003	Clip - DRAIN HOSE	Clip - DRAIN HOSE
9	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
5	90661-SWA-A01	Clip	Clip
40	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
27	90662-SWA-003	Fastener - ROOF LINING	Fastener - ROOF LINING
30	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
25	90665-S47-003	Clip	Clip
30	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
8	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
29	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
23	90669-SWA-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
32	90672-S5A-003	Holder - ROD	Holder - ROD
22	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
19	90681-SJK-000	Circlip - INTERNAL, 91MM	Circlip - INTERNAL, 91MM
19	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
37	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
24	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
46	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
18	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE
26	90701-PD2-000	Dowel pin - 12X14	Dowel pin - 12X14
23	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)
27	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
13	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3
17	90704-PNA-000	Key - 4.5X21	Key - 4.5X21
28	90705-RNA-A00	Dowel pin - 20X22	Dowel pin - 20X22
3	90820-SNA-003	Grommet - 20MM	Grommet - 20MM
28	90856-S6M-003	Plug - TAILGATE DRAIN	Plug - TAILGATE DRAIN
20	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
11	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
10	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)
29	91214-PWA-003	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)
29	91214-RNB-A01	Oil seal (80x98x10)	Oil seal (80x98x10)
29	91214-RTA-004	Oil seal - 80X98X10 (ARAI)	Oil seal - 80X98X10 (ARAI)
21	91260-SWA-A01	Seal - HALF SHAFT OUTER	Seal - HALF SHAFT OUTER
7	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
30	91301-RNA-A01	O-ring - 20X2.3 (NOK)	O-ring - 20X2.3 (NOK)
30	91301-RNA-A02	O-ring - 20X2.3 (ARAI)	O-ring - 20X2.3 (ARAI)
8	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)
16	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
22	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)
21	91307-RZA-007	O-ring	O-ring
16	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
23	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)
17	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5
17	91321-P0X-003	O-ring - 25X2.4 (NOK)	O-ring - 25X2.4 (NOK)
18	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9
31	91333-PNC-006	O-ring	O-ring
34	91351-SMA-003	O-ring - MOTOR	O-ring - MOTOR
15	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
22	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
6	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
10	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
6	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
5	91405-RGA-003	Clamp - TUBE (D20)	Clamp - TUBE (D20)
20	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
21	91406-SAA-J00	Clamp - TUBE (D12)	Clamp - TUBE (D12)
22	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
27	91413-S5A-003	Clamp - FUEL TUBE (D17)	Clamp - FUEL TUBE (D17)
28	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)
9	91476-SD4-003	Clip - OFFSET (21) (BROWN) (60MM)	Clip - OFFSET (21) (BROWN) (60MM)
24	91501-P8A-A01	Stud	Stud
16	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
33	91501-SEA-003	Clip - FR. COWL	Clip - FR. COWL
22	91501-SJ6-003	Clip - WASHER TUBE	Clip - WASHER TUBE
34	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
35	91501-SWA-003	Clip - INSULATOR	Clip - INSULATOR
18	91502-S70-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD
17	91502-SWA-003	Clip A - QUARTER WINDSHIELD	Clip A - QUARTER WINDSHIELD
30	91503-SWA-A01	Clip - DOOR MOLDING	Clip - DOOR MOLDING
16	91503-SZ3-003	Clip A	Clip A
36	91504-SDA-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE
33	91504-SP1-003	Clip - FR. FENDER LOWER	Clip - FR. FENDER LOWER
38	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
27	91505-SL0-003	Clip - COWL TOP	Clip - COWL TOP
25	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
39	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
12	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
26	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
10	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
27	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
11	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
24	91507-SWA-003	Clip - HARNESS BAND (GRAY) (96.9MM)	Clip - HARNESS BAND (GRAY) (96.9MM)
13	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
24	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH
26	91512-SJK-003	Clip - TAILGATE GARNISH	Clip - TAILGATE GARNISH
19	91512-SWA-003	Clip - QUARTER MOLDING(FR.)	Clip - QUARTER MOLDING(FR.)
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91513-SJK-003	Clip - TAILGATE GARNISH	Clip - TAILGATE GARNISH
35	91513-SMG-E01	Clip - RR. WHEEL ARCH GARNISH	Clip - RR. WHEEL ARCH GARNISH
36	91513-SMG-E11	Clip - FR. WHEEL ARCH GARNISH	Clip - FR. WHEEL ARCH GARNISH
20	91513-SWA-003	Clip - QUARTER MOLDING CORNER	Clip - QUARTER MOLDING CORNER
23	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
37	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
24	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL
38	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
8	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
28	91531-S5B-003	Band - HARNESS (BLACK) (120MM)	Band - HARNESS (BLACK) (120MM)
17	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
14	91531-SCC-901	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)
15	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)	Clip - HARNESS BAND (NATURAL) (145MM)
10	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
15	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)
18	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
9	91533-SWA-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
20	91534-STK-003	Clip - COUPLER(NATURAL) (WITH SEAL)	Clip - COUPLER(NATURAL) (WITH SEAL)
32	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
39	91535-STK-003	Clip - COUPLER (DARK BLUE)	Clip - COUPLER (DARK BLUE)
24	91536-SFE-003	Clip - AIR CONDITIONER PIPE	Clip - AIR CONDITIONER PIPE
21	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
23	91536-STK-003	Clip - RELAY HOLDER(NATURAL)	Clip - RELAY HOLDER(NATURAL)
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
26	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
27	91540-S6A-003	Clip - HARNESS BAND(NATURAL) (150MM)	Clip - HARNESS BAND(NATURAL) (150MM)
20	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
13	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
16	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)
38	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)
25	91541-SEY-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
12	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
51	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)
33	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
32	91545-SWA-003	Clip - HARNESS BAND(BLACK) (100MM)(WITH SEAL)	Clip - HARNESS BAND(BLACK) (100MM)(WITH SEAL)
49	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
35	91549-STK-003	Holder - HARNESS (NATURAL) (113MM)	Holder - HARNESS (NATURAL) (113MM)
52	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)	Clip - HARNESS BAND(BLACK) (140.3MM)
8	91550-SS0-003	Clip - SRS COVER	Clip - SRS COVER
53	91550-SWA-003	Clip - WIRE HARNESS (CORRUGATED 13MM-19MM)	Clip - WIRE HARNESS (CORRUGATED 13MM-19MM)
30	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)	Band - WIRE HARNESS (BLACK) (172MM)
9	91551-SWA-901	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7
5	91551-SWA-J01	Cap - SIDE LINING	Cap - SIDE LINING
47	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
31	91558-SM4-003	Clip - TUBE(BLACK)(135MM)	Clip - TUBE(BLACK)(135MM)
32	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
37	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
25	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
31	91560-S0X-A01	Clip - DOOR LINING (NATURAL)	Clip - DOOR LINING (NATURAL)
27	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
31	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
26	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)
9	91560-SLA-003	Clip - GARNISH (SEAL)	Clip - GARNISH (SEAL)
24	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
19	91560-SMA-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
25	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
28	91562-S0X-A01	Clip - ROOF LINING (BLACK)	Clip - ROOF LINING (BLACK)
25	91563-SFA-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET
25	91565-SEA-003	Clamp - HARNESS	Clamp - HARNESS
41	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)
30	91567-SK3-E01	Clamp - CABLE	Clamp - CABLE
26	91568-SJA-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
5	91568-SWA-A01	Clip - FR. WINDSHIELD UPPER	Clip - FR. WINDSHIELD UPPER
31	91570-SWA-003	Clip A - TAPE	Clip A - TAPE
38	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
32	91571-SWA-003	Clip b - FR. WINDSHIELD SIDE GARNISH	Clip b - FR. WINDSHIELD SIDE GARNISH
26	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)
16	91591-SJF-003	Clamp - VENT TUBE (NATURAL)	Clamp - VENT TUBE (NATURAL)
23	91592-S9A-A31	Clip - FUEL PIPE	Clip - FUEL PIPE
30	91594-SNA-A01	Clip - FILLER CAP	Clip - FILLER CAP
24	91595-S5A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
17	91595-SCV-A01	Clip - DRAIN TUBE	Clip - DRAIN TUBE
25	91596-SWA-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
27	91598-S5A-930	Rubber - FUEL PIPE INSULATOR	Rubber - FUEL PIPE INSULATOR
28	91598-S6M-930	Rubber - FUEL PIPE INSULATOR	Rubber - FUEL PIPE INSULATOR
26	91598-SWA-003	Clamp c - FUEL PIPE	Clamp c - FUEL PIPE
29	91599-S5A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE
31	91599-S9A-931	Cap - FUEL TUBE CLAMP	Cap - FUEL TUBE CLAMP
33	91601-P8A-A01	Receptacle	Receptacle
32	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
40	91604-S5A-003	Grommet - HOOD STAY	Grommet - HOOD STAY
6	91606-SE0-000	Seal - 20X20	Seal - 20X20
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
3	91609-S10-000	Plug - BLIND, 30X78	Plug - BLIND, 30X78
4	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM
26	91610-SJ4-003	Grommet - MIRROR GARNISH	Grommet - MIRROR GARNISH
21	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)
7	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
9	91612-TA0-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
8	91613-SNA-013	Plug - FLOOR HOLE, 50MM	Plug - FLOOR HOLE, 50MM
27	91617-SLJ-000	Seal - FR. FENDER PANEL	Seal - FR. FENDER PANEL
10	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
39	91622-SWA-300	Grommet - RING	Grommet - RING
32	91627-SWA-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
27	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
27	91641-SH3-013	Grommet assy, GARNISH	Grommet assy, GARNISH
33	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
34	91705-RZP-003	Cover - ENGINE CONTROL MODULE COUPLER(C)	Cover - ENGINE CONTROL MODULE COUPLER(C)
40	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
41	91723-SWA-003	Coupler - WATER PROOF (23P 040 J/C) (DARK BLUE)	Coupler - WATER PROOF (23P 040 J/C) (DARK BLUE)
14	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
15	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)
13	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)

この比較のURL: https://xparts.kbsr.co.jp/compare/RE1/RE2
