Accelerator sensor (LH) 1 / 8

#	OEM	RD9	RE3
13	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

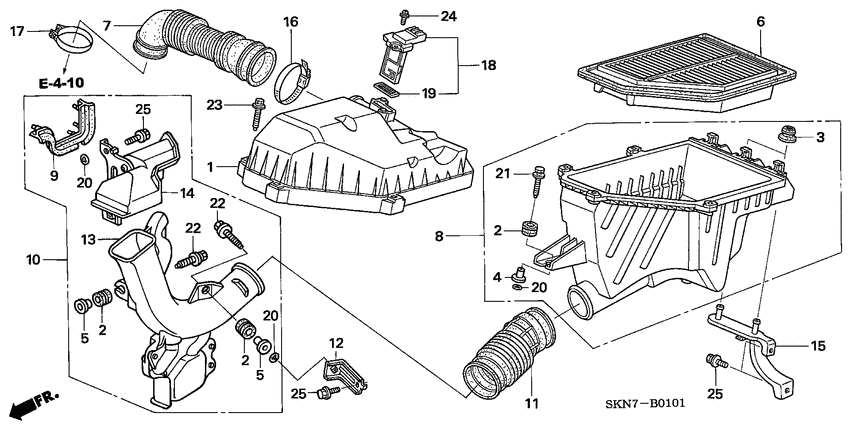

Air cleaner ('06) 4 / 23

#	OEM	RD9	RE3
2	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
3	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
5	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
20	75353-671-000	Lock - SCREW	Lock - SCREW

Air conditioner (CONDENSER) 1 / 6

#	OEM	RD9	RE3
2	80107-S2X-000	Mount - CONDENSER UPPER	Mount - CONDENSER UPPER

Air conditioner (HOSES/PIPES; LH) 4 / 39

#	OEM	RD9	RE3
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
33	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
34	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

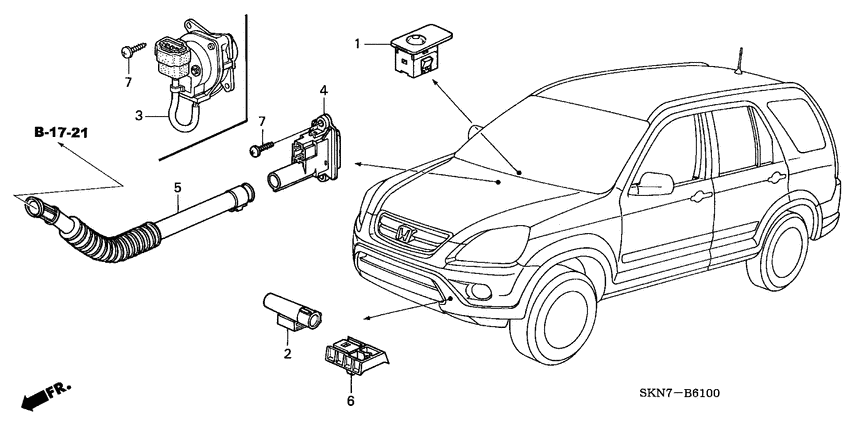

Air conditioner (SENSOR) 1 / 4

#	OEM	RD9	RE3
2	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT

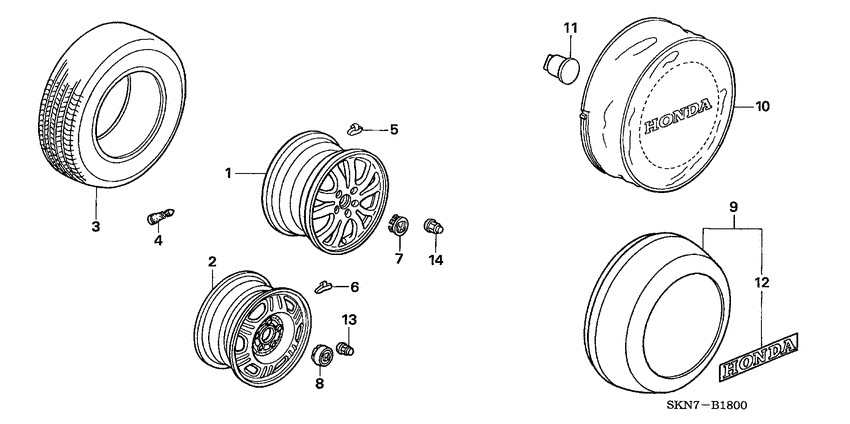

Alloy wheel 16x6.5jj 1 / 2

#	OEM	RD9	RE3
3	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)

Alternator (DENSO) 9 / 16

#	OEM	RD9	RE3
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
11	31145-PGK-A01	Bolt	Bolt
12	31146-PE9-941	Screw-washer	Screw-washer
13	31147-PGK-A01	Screw	Screw
14	31147-PT0-003	Screw-washer	Screw-washer
16	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

Antenna/speaker 2 / 12

#	OEM	RD9	RE3
16	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
17	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Auto radio 2 / 4

#	OEM	RD9	RE3
5	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
6	91551-SE0-003	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7

Brake lines (VSA; LH) 5 / 34

#	OEM	RD9	RE3
14	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
16	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
19	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
30	46462-SE0-000	Bolt - OIL	Bolt - OIL
32	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT

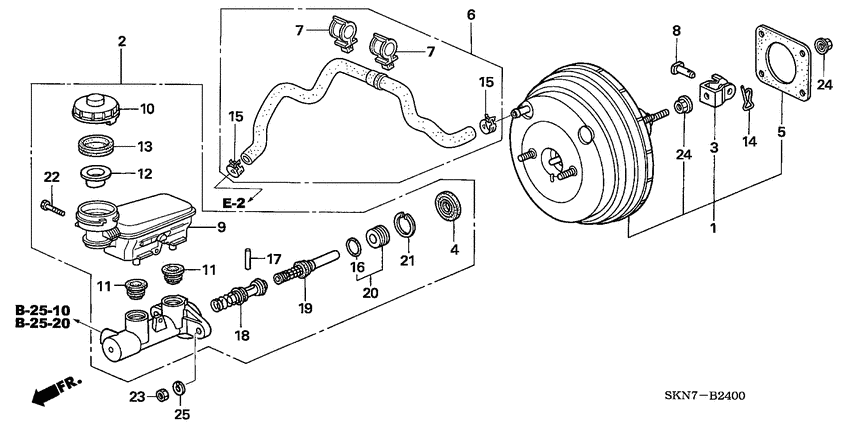

Brake master cylinder/ master power (LH) 13 / 21

#	OEM	RD9	RE3
3	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
4	46185-SE0-003	Seal - ROD	Seal - ROD
7	46407-S84-A01	Clamp - TUBE	Clamp - TUBE
8	46512-S70-000	Pin - PEDAL	Pin - PEDAL
10	46662-S9A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
11	46665-S04-J01	Grommet	Grommet
12	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
13	46669-S5A-003	Diaphragm	Diaphragm
14	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
15	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
16	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
17	57515-S30-003	Pin - STOP	Pin - STOP
21	57562-SF1-003	Circlip	Circlip

Bumpers 5 / 24

#	OEM	RD9	RE3
19	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
23	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
25	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
27	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
28	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Camshaft/cam chain 1 / 19

#	OEM	RD9	RE3
15	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT

Center table 2 / 14

#	OEM	RD9	RE3
22	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
23	90134-S10-J11	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10

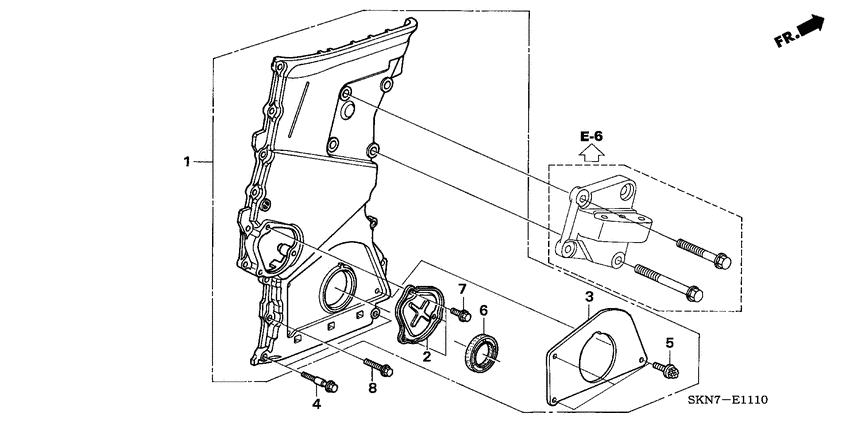

Chain case 1 / 8

#	OEM	RD9	RE3
4	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31

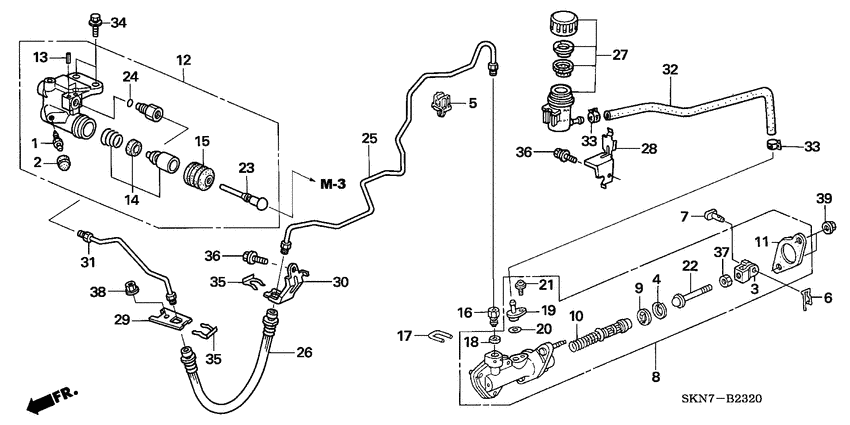

Clutch master cylinder (LH) 2 / 35

#	OEM	RD9	RE3
6	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
35	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

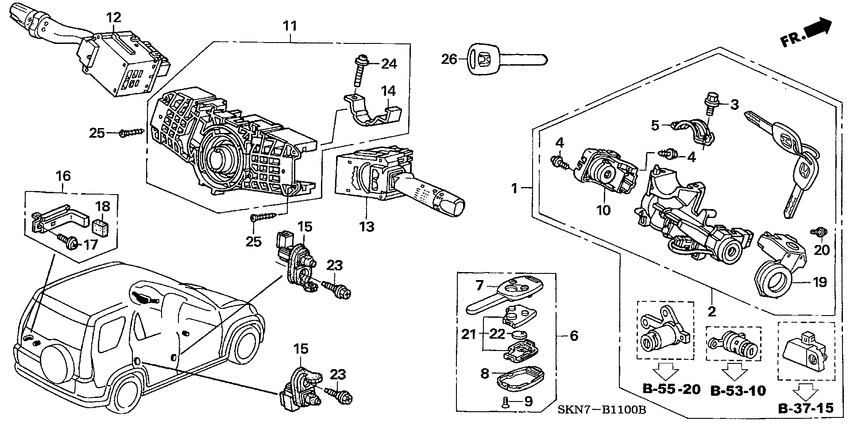

Combination switch (LH) 7 / 25

#	OEM	RD9	RE3
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
9	35116-SDA-A11	Screw - FLAT	Screw - FLAT
10	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
22	72148-S0A-000	Battery CR1616	Battery CR1616

Console (LH) 4 / 12

#	OEM	RD9	RE3
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
15	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
16	90610-S10-003	Clip - GARNISH	Clip - GARNISH
17	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Control unit (CABIN; LH; 1) 2 / 23

#	OEM	RD9	RE3
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
13	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Control unit (ENGINE ROOM; 1) 6 / 22

#	OEM	RD9	RE3
6	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
9	38232-SDA-A01	Fuse b - MULTI BLOCK (40A/50A)	Fuse b - MULTI BLOCK (40A/50A)
17	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
18	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
19	90129-SX8-003	Screw-washer - 5X12	Screw-washer - 5X12
20	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

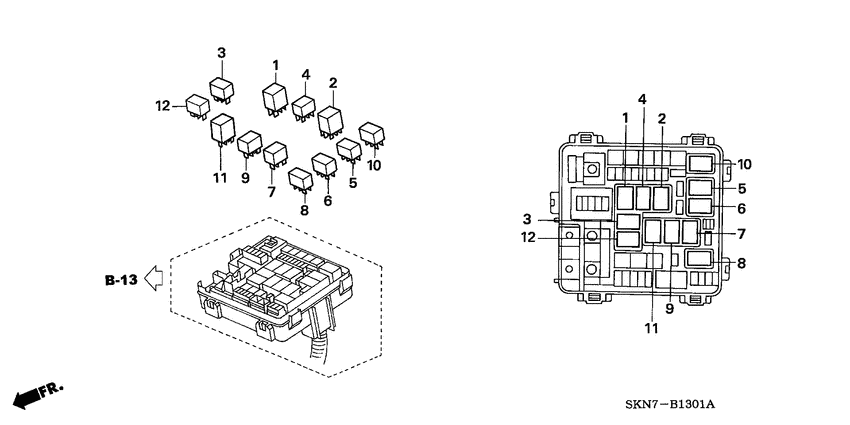

Control unit (ENGINE ROOM; 2) 6 / 7

#	OEM	RD9	RE3
1	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
3	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
3	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
10	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
10	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
11	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Converter 3 / 8

#	OEM	RD9	RE3
5	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
6	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
8	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

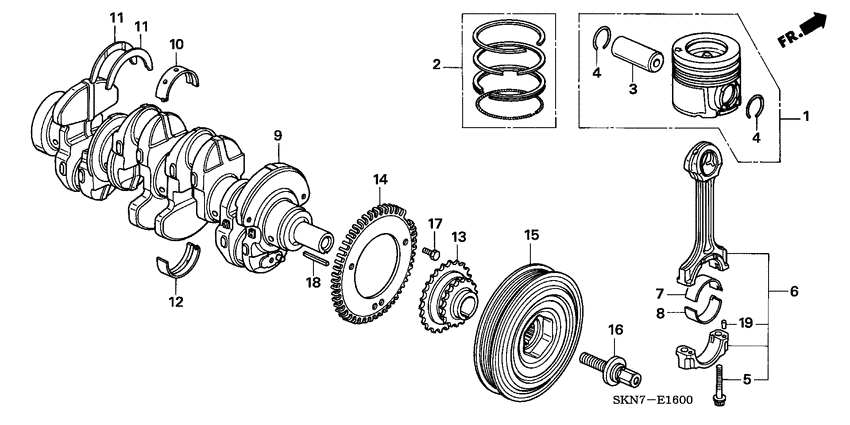

Crankshaft/piston 2 / 43

#	OEM	RD9	RE3
5	13204-P8A-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
16	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49

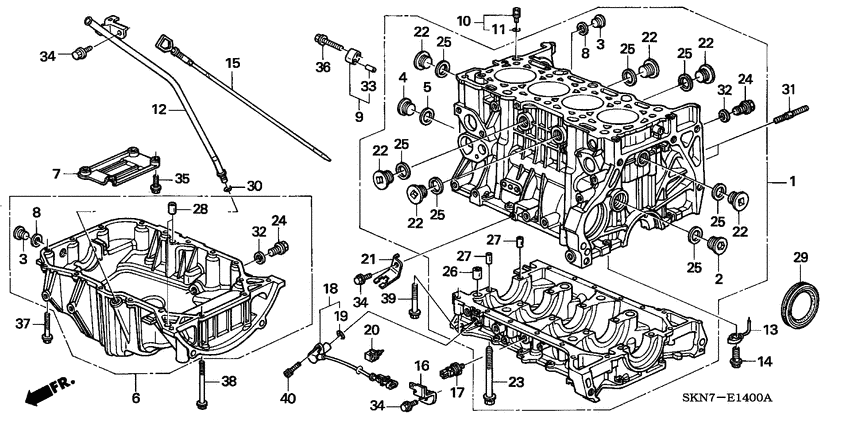

Cylinder block/oil pan 5 / 32

#	OEM	RD9	RE3
24	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
25	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
26	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
27	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
28	90715-PNA-000	Dowel pin - 13X14	Dowel pin - 13X14

Cylinder head cover 3 / 14

#	OEM	RD9	RE3
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
10	90213-PH3-000	Nut - CAP, 6MM	Nut - CAP, 6MM
11	90441-PNA-010	Washer - HEAD COVER	Washer - HEAD COVER

Emblems/caution labels 2 / 11

#	OEM	RD9	RE3
8	77875-SDA-G80	Label - SRS CAUTION	Label - SRS CAUTION
9	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION

Engine cover 1 / 9

#	OEM	RD9	RE3
8	90301-ST0-003	push nut, 3mm	push nut, 3mm

Engine hood (LH) 6 / 29

#	OEM	RD9	RE3
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
24	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
34	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
36	91565-SEL-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
37	91604-S5A-003	Grommet - HOOD STAY	Grommet - HOOD STAY

Engine mounting bracket 1 / 20

#	OEM	RD9	RE3
17	90027-PND-A00	Bolt - SPECIAL, 10X50	Bolt - SPECIAL, 10X50

Engine wire harness (LH) 11 / 33

#	OEM	RD9	RE3
4	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
6	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
17	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
18	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
23	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
26	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)	Clip - HARNESS BAND (NATURAL) (145MM)
27	91531-S5B-003	Band - HARNESS (BLACK) (120MM)	Band - HARNESS (BLACK) (120MM)
28	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
29	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
32	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)	Band - CLAMP(NATURAL)(143.2MM)
33	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Exhaust manifold 1 / 7

#	OEM	RD9	RE3
6	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Exhaust pipe/silencer (1) 5 / 23

#	OEM	RD9	RE3
4	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
13	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
17	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
20	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
22	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)

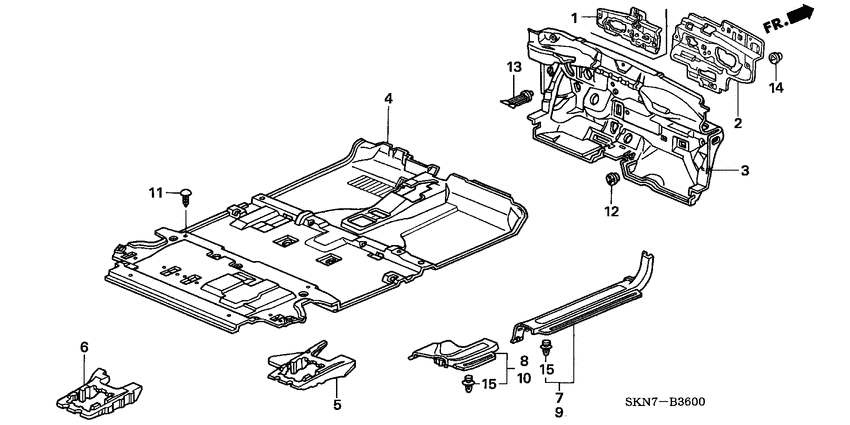

Floor mat 1 / 7

#	OEM	RD9	RE3
14	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Floor/inner panels 1 / 3

#	OEM	RD9	RE3
33	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Fog light 1 / 4

#	OEM	RD9	RE3
4	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP

Front brake 2 / 26

#	OEM	RD9	RE3
21	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
21	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Front bulkhead/dashboard 3 / 5

#	OEM	RD9	RE3
41	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
42	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
46	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Front door glass/ regulator 2 / 16

#	OEM	RD9	RE3
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
12	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Front door lining (LH) 4 / 12

#	OEM	RD9	RE3
14	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
15	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
16	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
18	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL

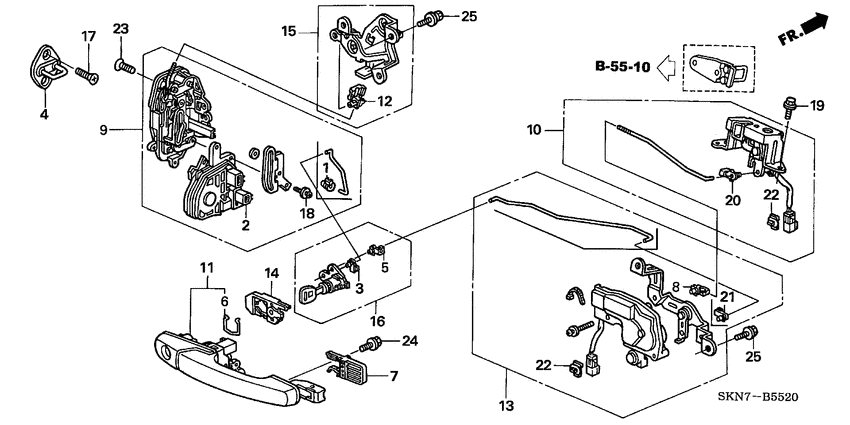

Front door locks/ outer handle (LH) 7 / 44

#	OEM	RD9	RE3
7	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
18	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
20	72143-S04-003	Packing	Packing
23	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
34	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
41	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
45	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)

Front door panels 5 / 15

#	OEM	RD9	RE3
11	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Front driveshaft/ half shaft 5 / 24

#	OEM	RD9	RE3
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
19	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
20	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37

Front fenders 12 / 23

#	OEM	RD9	RE3
12	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
13	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
14	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
15	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
15	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
16	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
17	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
18	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
19	91503-SZ3-003	Clip A	Clip A
20	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
21	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
23	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front grille 3 / 12

#	OEM	RD9	RE3
7	75700-S9A-G00	Front Honda Emblem - (H)	Front Honda Emblem - (H)
8	90301-ST0-003	push nut, 3mm	push nut, 3mm
9	91503-SZ3-003	Clip A	Clip A

Front knuckle/ front lower arm 2 / 23

#	OEM	RD9	RE3
19	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
21	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front seat (L.) 4 / 23

#	OEM	RD9	RE3
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
25	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
26	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
27	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front seat (R.) 3 / 21

#	OEM	RD9	RE3
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
26	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
27	90610-S10-003	Clip - GARNISH	Clip - GARNISH

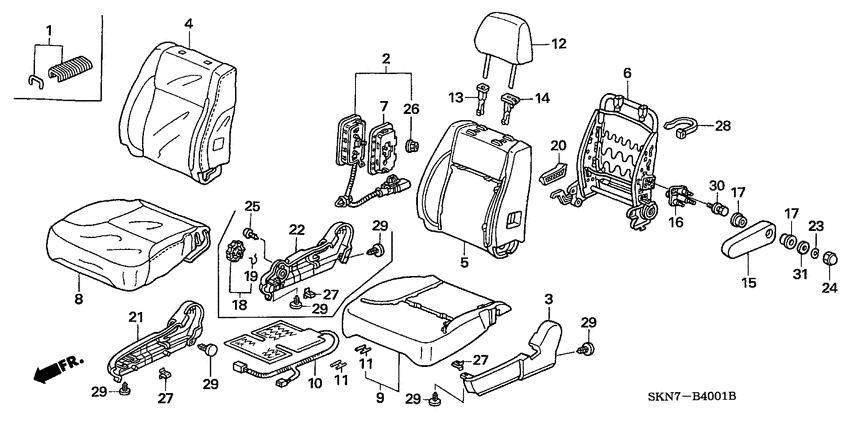

Front seat components (LH; DRIVER SIDE) 3 / 15

#	OEM	RD9	RE3
16	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
18	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Front seat components (LH; PASSENGER SIDE) 3 / 15

#	OEM	RD9	RE3
18	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
20	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
24	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Front shock absorber 3 / 16

#	OEM	RD9	RE3
12	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
13	90119-S6M-Z01	Bolt - FLANGE, 16X62	Bolt - FLANGE, 16X62
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)

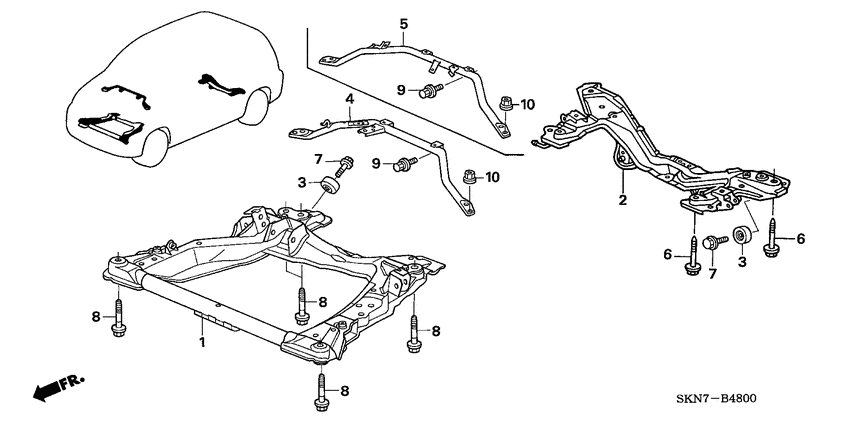

Front sub frame/ cross beam 2 / 7

#	OEM	RD9	RE3
6	90161-SD5-020	Bolt - FLANGE, 12X82	Bolt - FLANGE, 12X82
8	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115

Front windshield/ quarter glass 2 / 17

#	OEM	RD9	RE3
9	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
10	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM

Front wiper (LH) 3 / 21

#	OEM	RD9	RE3
5	76517-SM4-003	Collar	Collar
7	76524-SD4-003	Dust seal	Dust seal
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32

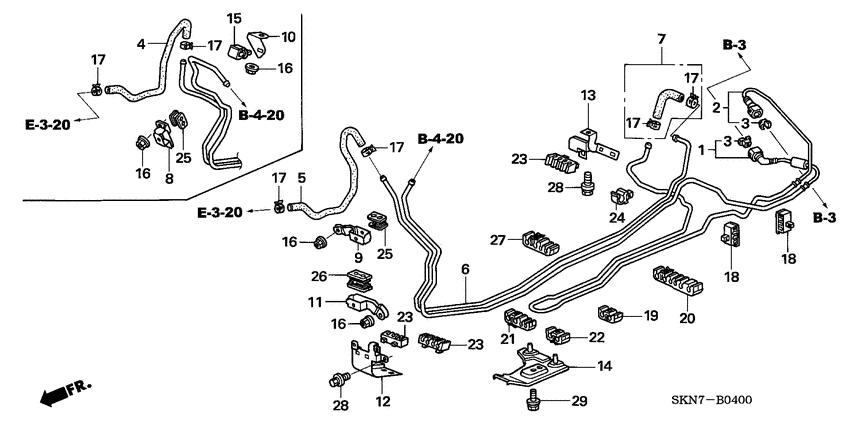

Fuel pipe 2 / 23

#	OEM	RD9	RE3
3	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
16	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

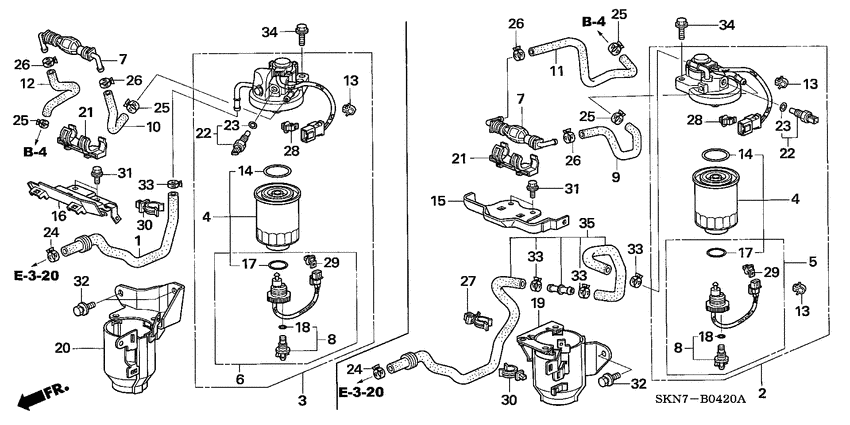

Fuel strainer 2 / 23

#	OEM	RD9	RE3
28	91565-SEL-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
29	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Fuel tank 6 / 38

#	OEM	RD9	RE3
6	17513-S0E-003	Circlip	Circlip
11	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
15	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
27	74660-S1C-E00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
28	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
37	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

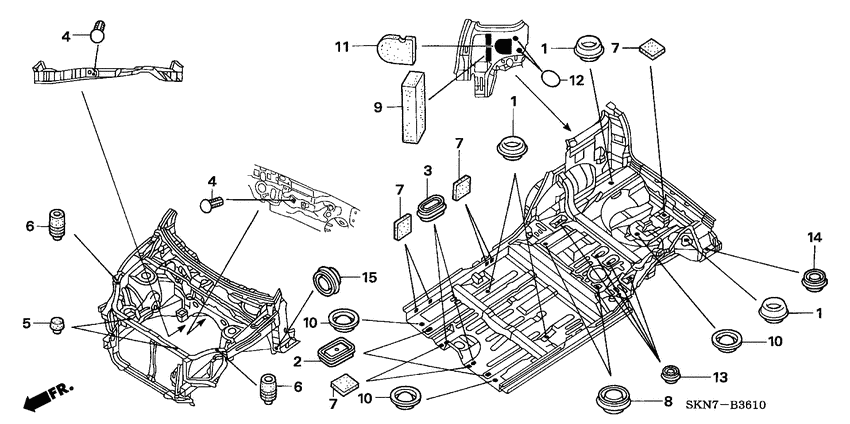

Grommet (FRONT) 5 / 12

#	OEM	RD9	RE3
2	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
3	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
7	91606-SE0-000	Seal - 20X20	Seal - 20X20
8	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
12	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 2 / 5

#	OEM	RD9	RE3
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 1 / 6

#	OEM	RD9	RE3
4	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Grommet (SIDE) 1 / 9

#	OEM	RD9	RE3
9	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Harness band/bracket (LH) 19 / 34

#	OEM	RD9	RE3
3	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
5	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
6	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
11	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
12	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
13	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
14	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)	Clip - HARNESS BAND (NATURAL) (145MM)
15	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
16	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)
18	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
20	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
21	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
22	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)
25	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
28	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)	Band - CLAMP(NATURAL)(143.2MM)
30	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
31	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
32	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
33	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

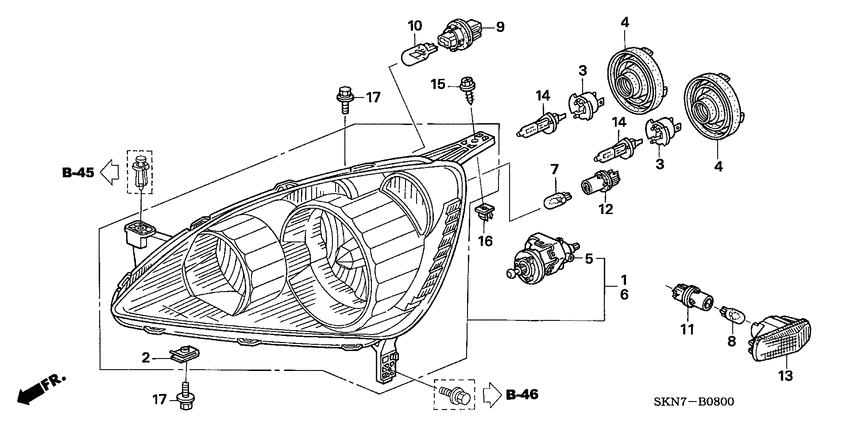

Headlight 7 / 16

#	OEM	RD9	RE3
2	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
7	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
9	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
10	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
14	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)	Bulb - HEADLIGHT(H1)(12V 55W)
15	90101-S5A-003	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
16	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Heater blower (LH) 4 / 23

#	OEM	RD9	RE3
19	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
20	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
21	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
22	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

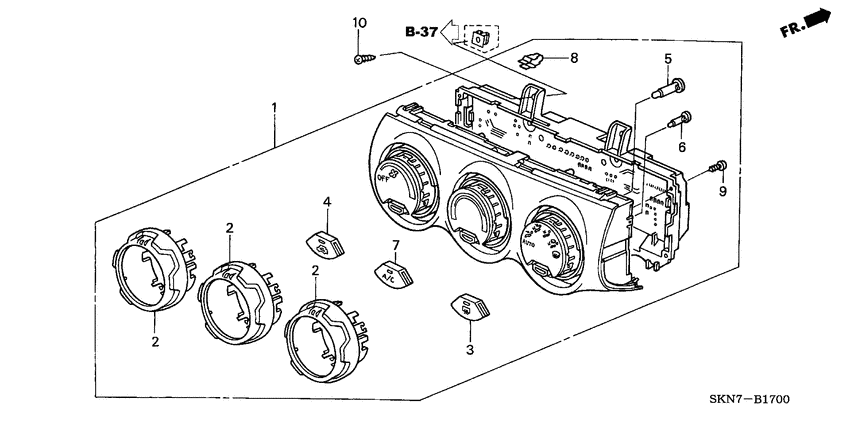

Heater control (LH) 1 / 5

#	OEM	RD9	RE3
8	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Heater unit (LH) 6 / 29

#	OEM	RD9	RE3
1	39248-692-003	Packing - HEATER	Packing - HEATER
23	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
25	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
26	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
29	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
30	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)	Clip - BAND (6MM BOSS)(NATURAL) (127MM)

Install pipe/vacuum pump 1 / 24

#	OEM	RD9	RE3
19	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Instrument panel (LH) 9 / 23

#	OEM	RD9	RE3
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
28	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
29	90111-SFA-000	Bolt-washer - 8X86	Bolt-washer - 8X86
30	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
31	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
32	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
33	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
36	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
37	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (LH; DRIVER SIDE) 3 / 11

#	OEM	RD9	RE3
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
17	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 4 / 15

#	OEM	RD9	RE3
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
22	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
23	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
24	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

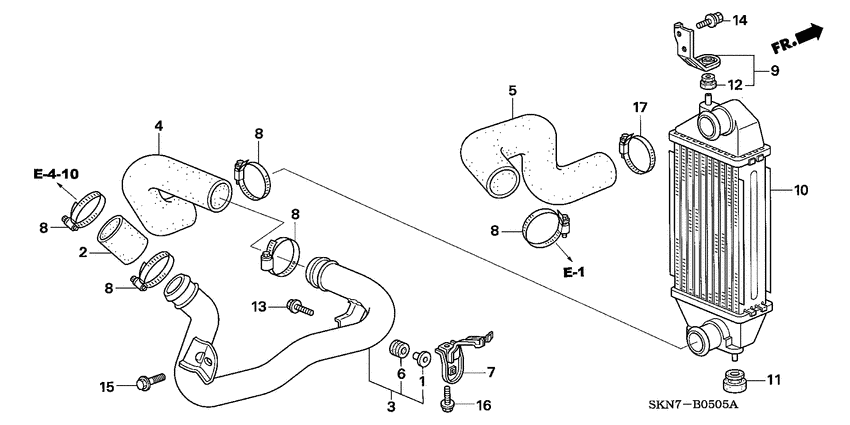

Intercooler 2 / 15

#	OEM	RD9	RE3
1	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
12	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Interior light 3 / 9

#	OEM	RD9	RE3
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W

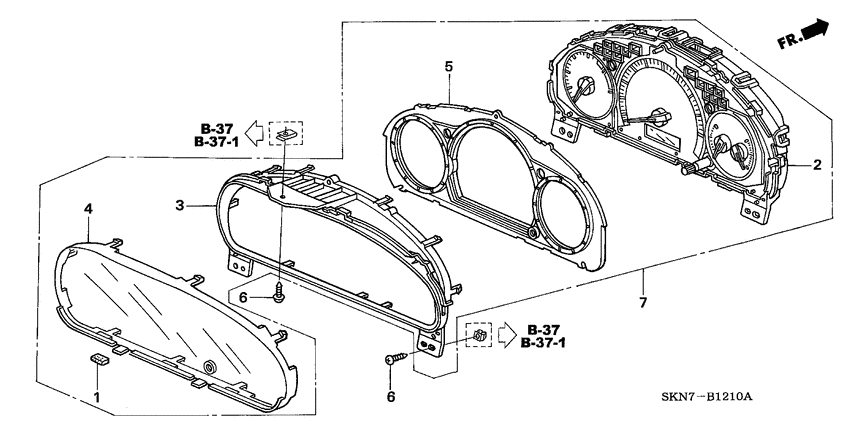

Meter components (NS) 1 / 7

#	OEM	RD9	RE3
1	37115-SA0-601	Packing - NS	Packing - NS

Oil pump 4 / 23

#	OEM	RD9	RE3
10	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)	Metal - BALANCER SHAFT(DAIDO)
11	15123-PCX-003	Dowel pin - 18X13	Dowel pin - 18X13
17	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
18	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE

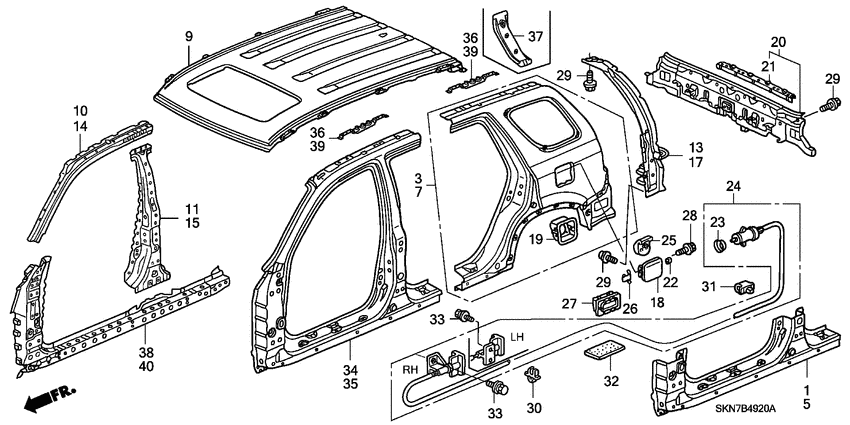

Outer panels/roof panel 5 / 10

#	OEM	RD9	RE3
22	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
23	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
29	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
31	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

P.s. gear box (LH) 1 / 22

#	OEM	RD9	RE3
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)

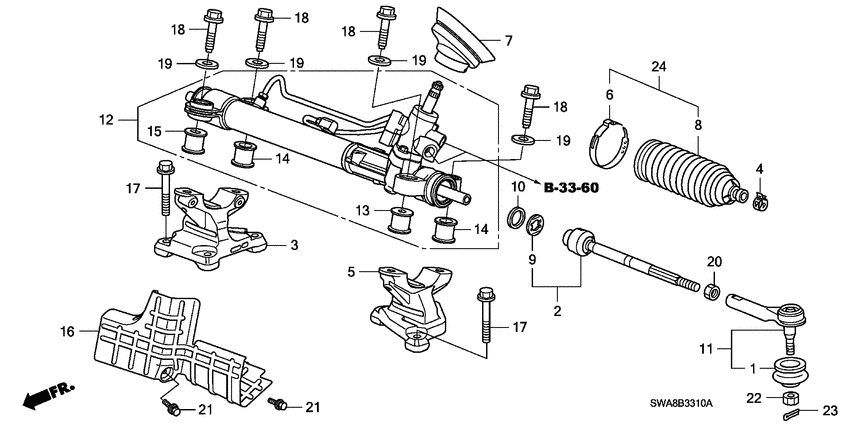

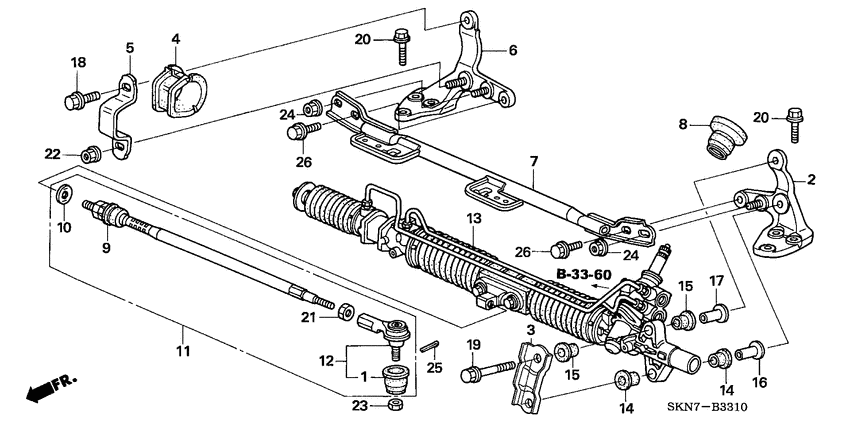

P.s. gear box components (LH) 6 / 41

#	OEM	RD9	RE3
2	06532-S50-003	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
30	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)	Oil seal - 27X38X5.5 (SHOWA)
35	53666-S50-003	O-ring - 41.5X2 (SHOWA)	O-ring - 41.5X2 (SHOWA)
38	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28

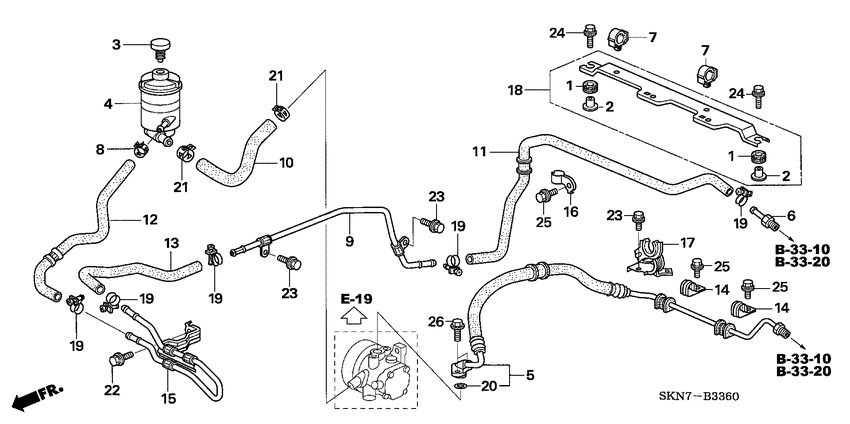

P.s. lines (LH) 7 / 22

#	OEM	RD9	RE3
1	16922-SH3-930	Rubber - MOUNTING	Rubber - MOUNTING
2	16923-SP0-930	Collar - DISTANCE	Collar - DISTANCE
3	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
8	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
19	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
20	91370-SV4-000	O-ring - 14.4X1.9	O-ring - 14.4X1.9
21	91405-SS0-003	Clamp - TUBE (D21)	Clamp - TUBE (D21)

Parking brake (LH) 2 / 16

#	OEM	RD9	RE3
1	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
17	91602-S6A-N00	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Parking brake shoe 7 / 17

#	OEM	RD9	RE3
5	43171-SX0-J01	Spring - ROD	Spring - ROD
8	43362-SFE-J01	Strut	Strut
10	43366-SX0-J01	Adjuster assy	Adjuster assy
13	43375-SA0-003	U-clip	U-clip
14	43379-SA5-003	Washer - WAVE	Washer - WAVE
15	45172-S9A-E01	Spring - SHOE CLAMP	Spring - SHOE CLAMP
16	45175-SA0-013	Pin - TENSIONER	Pin - TENSIONER

Pedal (LH) 2 / 21

#	OEM	RD9	RE3
9	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
21	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Pillar garnish 2 / 8

#	OEM	RD9	RE3
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
22	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Power steering pump 20 / 23

#	OEM	RD9	RE3
3	56141-PNC-003	Shaft - POWER STEERING PUMP DRIVE	Shaft - POWER STEERING PUMP DRIVE
4	56483-PNC-004	Pulley - POWER STEERING PUMP	Pulley - POWER STEERING PUMP
6	90305-PAA-A01	Nut - POWER STEERING PULLEY	Nut - POWER STEERING PULLEY
7	90693-P2A-003	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
7	90693-PAA-A01	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
8	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12	Bearing - RADIAL BALL, 17X40X12
9	91249-PNC-003	Seal - POWER STEERING PUMP	Seal - POWER STEERING PUMP
10	91344-PNC-003	Seal - SLIPPER	Seal - SLIPPER
11	91343-PNC-003	Seal - RUBBER	Seal - RUBBER
12	91345-PAA-A01	O-ring - 13.0X1.9	O-ring - 13.0X1.9
12	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9
13	91346-PLA-003	O-ring - 23.8X2.4	O-ring - 23.8X2.4
14	91347-PAA-A01	O-ring - 16.7X1.8	O-ring - 16.7X1.8
15	91347-PLA-003	O-ring - 12.7X1.8	O-ring - 12.7X1.8
16	91348-P2A-003	O-ring - 51.0X2.4	O-ring - 51.0X2.4
17	91349-PNC-J01	Seal - PUMP COVER	Seal - PUMP COVER
18	91349-PNC-003	Seal b - PUMP COVER	Seal b - PUMP COVER
19	91350-PLA-003	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
20	91350-P8C-A01	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20
24	91345-RJL-003	O-ring - 13.0X1.9	O-ring - 13.0X1.9

Protector/ side sill garnish 7 / 38

#	OEM	RD9	RE3
17	75315-S9A-004	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
18	75316-S9A-004	Clip - DOOR LOWER GARNISH	Clip - DOOR LOWER GARNISH
31	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
32	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
33	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
37	91504-SP1-003	Clip - FR. FENDER LOWER	Clip - FR. FENDER LOWER
38	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH

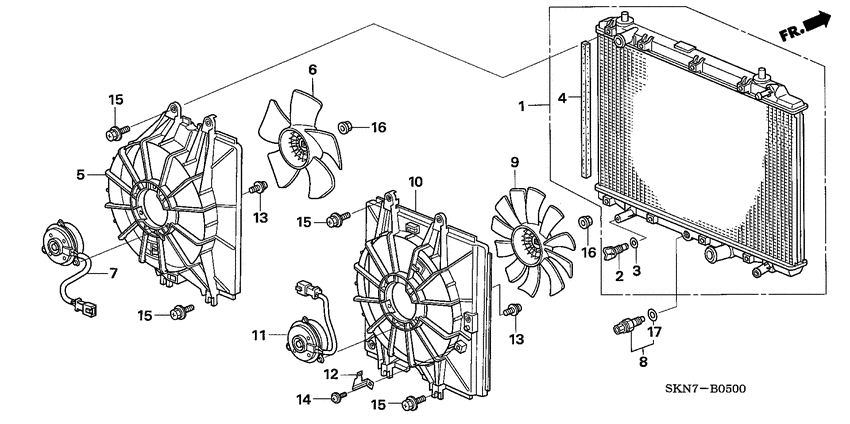

Radiator (DENSO) 6 / 18

#	OEM	RD9	RE3
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
13	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
14	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
15	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
16	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose/ reserve tank 4 / 22

#	OEM	RD9	RE3
17	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
17	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
18	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
21	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Rear brake 12 / 26

#	OEM	RD9	RE3
1	01473-SZ3-A01	SET, RR CALIPER	SET, RR CALIPER
3	06435-S84-J00	Shim set - RR.	Shim set - RR.
6	42511-SP0-000	Cap - MAINTENANCE HOLE	Cap - MAINTENANCE HOLE
10	43227-S9A-E01	Spring - PAD	Spring - PAD
11	43235-S84-A51	Pin a	Pin a
12	43244-SG0-003	Retainer	Retainer
13	43244-S9A-003	Retainer a	Retainer a
14	43262-S84-A51	Pin b	Pin b
15	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
16	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
18	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
23	43215-S9A-003	Piston	Piston

Rear differential/mount 1 / 34

#	OEM	RD9	RE3
25	90203-PX4-010	Nut - FLANGE, 24MM	Nut - FLANGE, 24MM

Rear door lining 4 / 12

#	OEM	RD9	RE3
14	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
15	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
16	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
19	91610-SJ4-003	Grommet - MIRROR GARNISH	Grommet - MIRROR GARNISH

Rear door locks/ outer handle (LH) 5 / 37

#	OEM	RD9	RE3
8	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
9	72143-S04-003	Packing	Packing
10	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
15	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
35	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

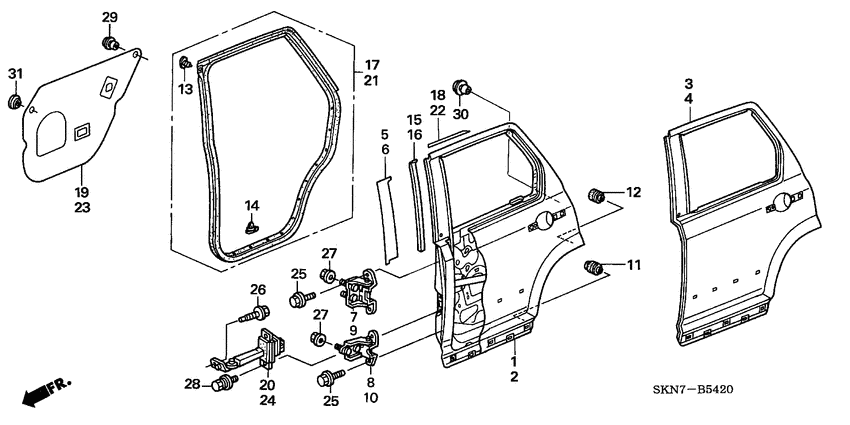

Rear door panels 6 / 20

#	OEM	RD9	RE3
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
25	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
25	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
26	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
27	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM

Rear door windows/ regulator 1 / 20

#	OEM	RD9	RE3
16	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Rear driveshaft 2 / 15

#	OEM	RD9	RE3
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)

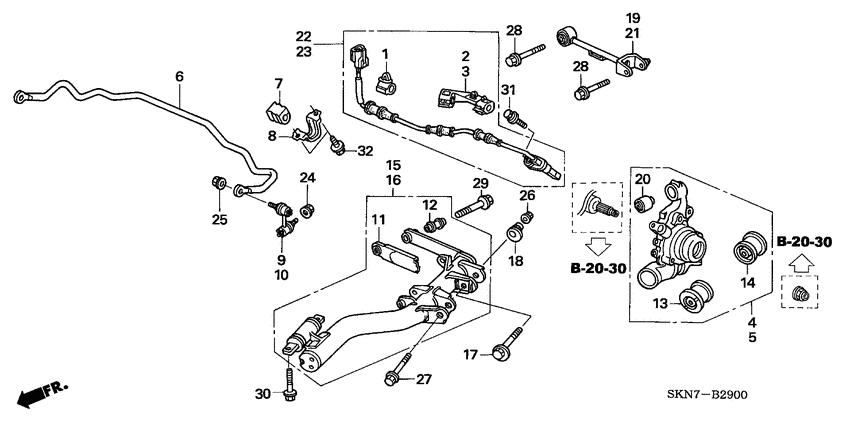

Rear lower arm 7 / 32

#	OEM	RD9	RE3
8	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
18	52388-S7A-013	Plate - CAM	Plate - CAM
24	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
25	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
26	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)	Nut - LOCK FLANGE(CLINCH)
28	90396-S7A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
29	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5

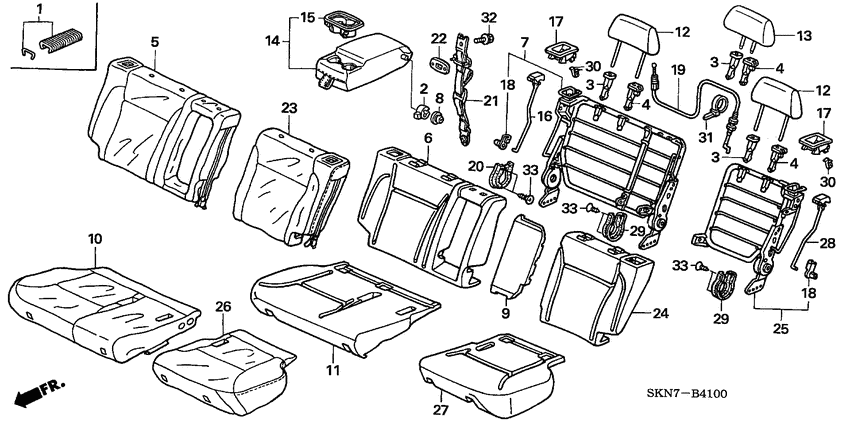

Rear seat 2 / 19

#	OEM	RD9	RE3
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
31	90650-KV3-000	Band - WIRE	Band - WIRE

Rear seat components 2 / 18

#	OEM	RD9	RE3
39	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
42	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Rear shock absorber 8 / 19

#	OEM	RD9	RE3
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
8	52622-S7A-014	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
9	52631-SCA-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING	Seal - SHOCK ABSORBER MOUNTING
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

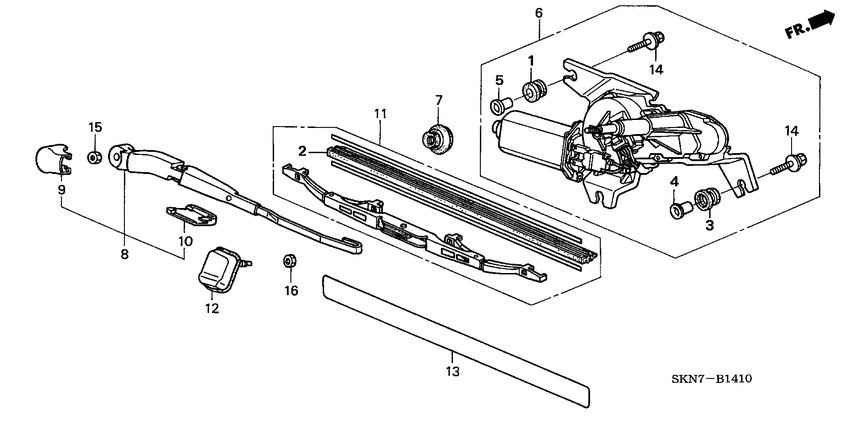

Rear wiper 2 / 14

#	OEM	RD9	RE3
3	76701-S6A-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76702-S6A-003	Collar	Collar

Roof lining 2 / 18

#	OEM	RD9	RE3
24	83268-S9A-A01	Clip - ELR BRACKET	Clip - ELR BRACKET
37	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

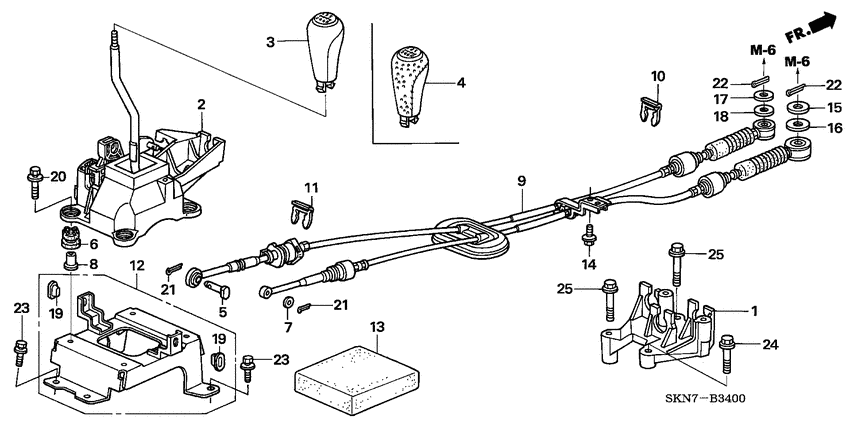

Shift lever 1 / 17

#	OEM	RD9	RE3
14	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

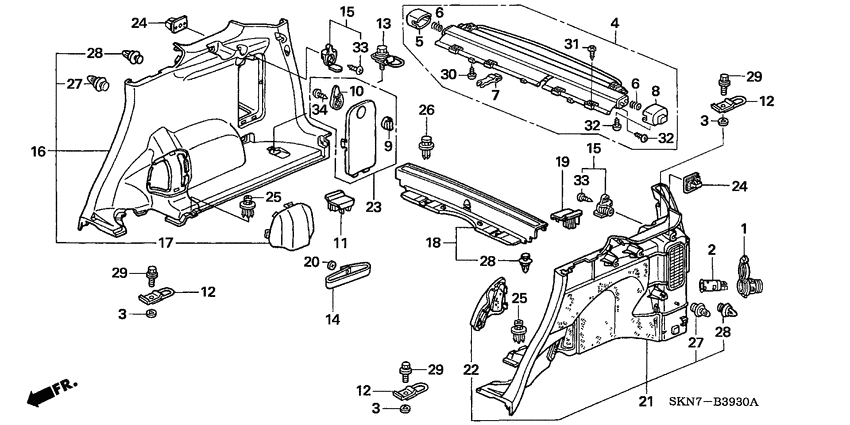

Side lining 2 / 12

#	OEM	RD9	RE3
3	75353-671-000	Lock - SCREW	Lock - SCREW
27	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)

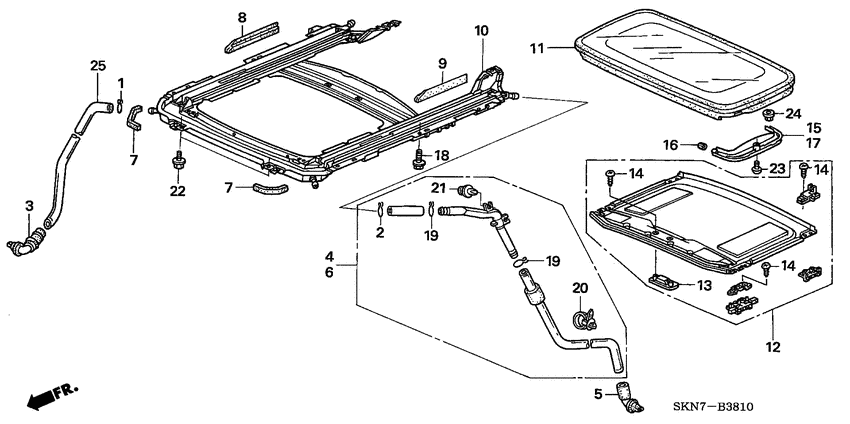

Sliding roof 1 / 19

#	OEM	RD9	RE3
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

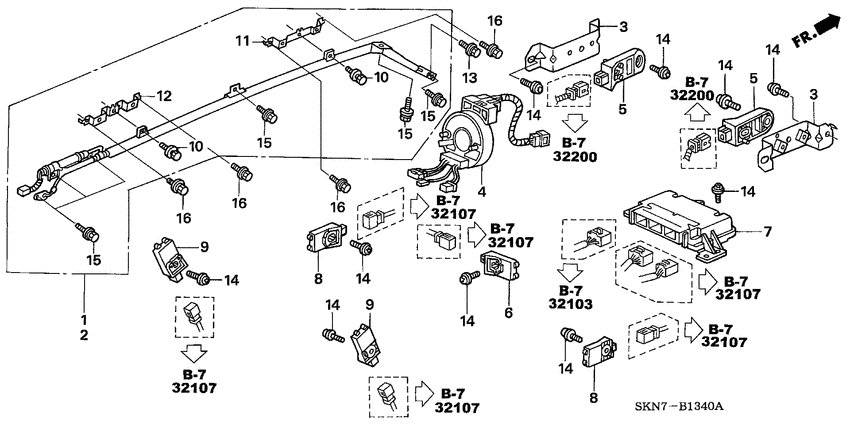

Srs unit (LH) 2 / 17

#	OEM	RD9	RE3
13	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20

Steering column 2 / 5

#	OEM	RD9	RE3
4	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 1 / 16

#	OEM	RD9	RE3
16	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Tailgate 6 / 26

#	OEM	RD9	RE3
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
14	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)	Valve - ONE WAY (RR.) (MITSUBA)
20	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
24	90105-S10-000	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
32	91560-S0X-A01	Clip - DOOR LINING (NATURAL)	Clip - DOOR LINING (NATURAL)

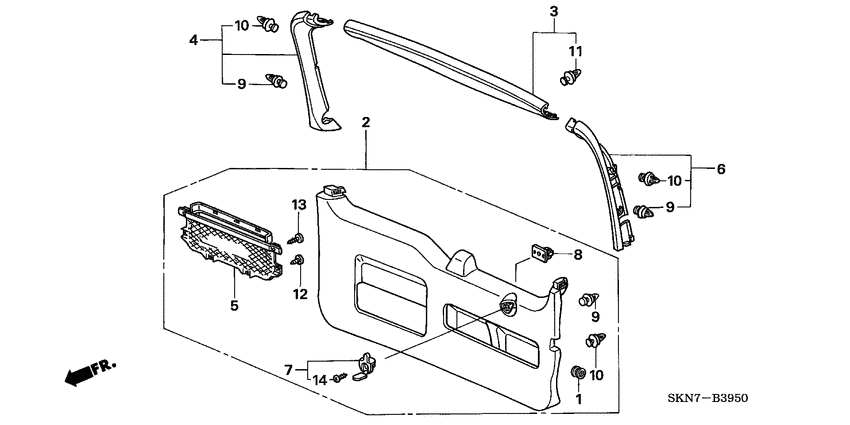

Tailgate lining 2 / 4

#	OEM	RD9	RE3
9	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
10	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Tailgate lock 4 / 25

#	OEM	RD9	RE3
8	74387-S3C-003	Fastener	Fastener
17	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
22	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

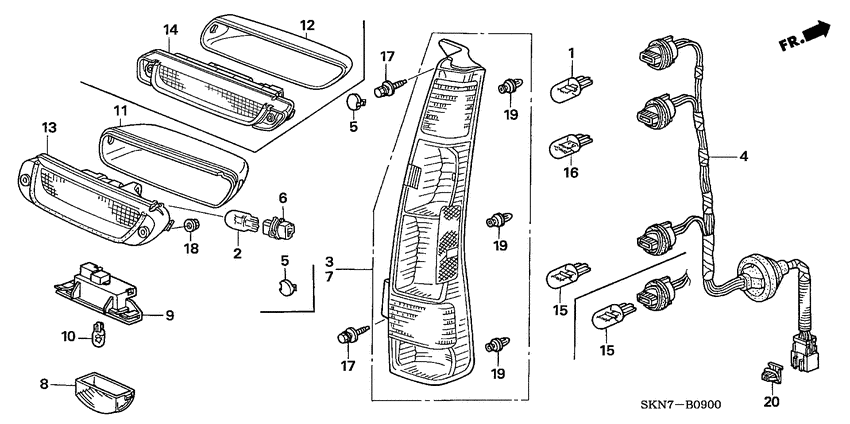

Taillight/license light 6 / 23

#	OEM	RD9	RE3
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
6	33513-S50-003	Socket - T20W S2	Socket - T20W S2
10	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
17	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90665-S47-003	Clip	Clip
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Tire/wheel disks 11 / 44

#	OEM	RD9	RE3
4	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
4	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
5	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
5	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
5	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
5	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
5	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
5	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
5	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
7	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
13	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

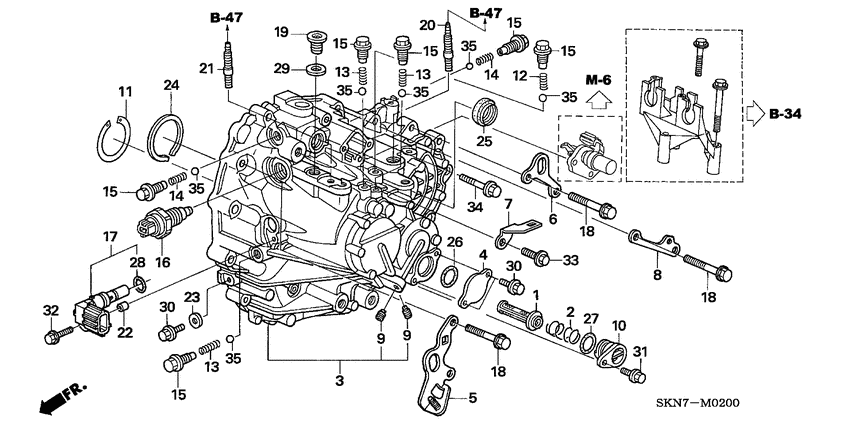

Transmission case 2 / 57

#	OEM	RD9	RE3
25	91205-P0X-005	Oil seal - 40X56X9 (NOK)	Oil seal - 40X56X9 (NOK)
28	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Turbocharger 4 / 27

#	OEM	RD9	RE3
12	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
21	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
22	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
26	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Valve stem seal/glow plug 3 / 16

#	OEM	RD9	RE3
3	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
4	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)

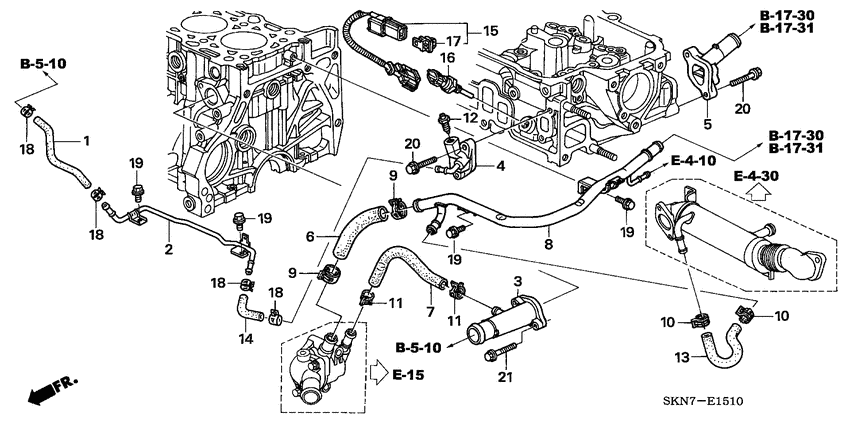

Water hose 2 / 17

#	OEM	RD9	RE3
11	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
17	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Water valve (LH) 4 / 9

#	OEM	RD9	RE3
5	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
7	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

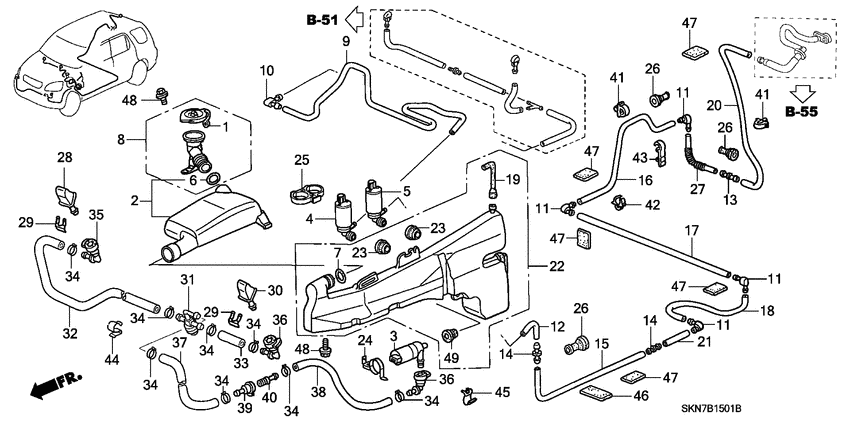

Windshield washer (2) 1 / 48

#	OEM	RD9	RE3
41	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM

Windshield washer (3) 1 / 49

#	OEM	RD9	RE3
44	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM

Wire harness (LH) 3 / 30

#	OEM	RD9	RE3
13	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
15	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
