Air cleaner 5 / 16

#	OEM	RD5	RE4
5	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
8	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
12	75353-671-000	Lock - SCREW	Lock - SCREW
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Air conditioner (COMPRESSOR) 3 / 15

#	OEM	RD5	RE4
11	38930-PNA-000	Bracket - COMPRESSOR	Bracket - COMPRESSOR
12	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
13	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER) 7 / 22

#	OEM	RD5	RE4
1	38611-PNA-003	Fan - COOLING(DENSO)(NATURAL)	Fan - COOLING(DENSO)(NATURAL)
1	38611-PNL-G01	Fan - COOLING(DENSO)(BLACK)	Fan - COOLING(DENSO)(BLACK)
4	38619-PPD-003	Protector - FAN MOTOR	Protector - FAN MOTOR
6	80101-S9A-013	Filter sub assy.	Filter sub assy.
15	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
18	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
19	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11

Air conditioner (HOSES/PIPES; RH) 5 / 25

#	OEM	RD5	RE4
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
18	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
19	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
20	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Air flow tube 3 / 13

#	OEM	RD5	RE4
3	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
4	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
12	90005-P28-A00	Bolt-washer - SPECIAL, 6X28	Bolt-washer - SPECIAL, 6X28

Antenna/speaker 4 / 12

#	OEM	RD5	RE4
3	39151-S6A-E02	Element assy. - YOKOO	Element assy. - YOKOO
3	39151-S6A-E03	ELEMENT ASSY YOKOO	ELEMENT ASSY YOKOO
16	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
17	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Auto radio 1 / 6

#	OEM	RD5	RE4
5	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16

Battery 5 / 17

#	OEM	RD5	RE4
1	31500-S7C-G01	Battery - 46B24L<S>-MF) (PANASONIC	Battery - 46B24L<S>-MF) (PANASONIC
7	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
10	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
11	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
14	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)

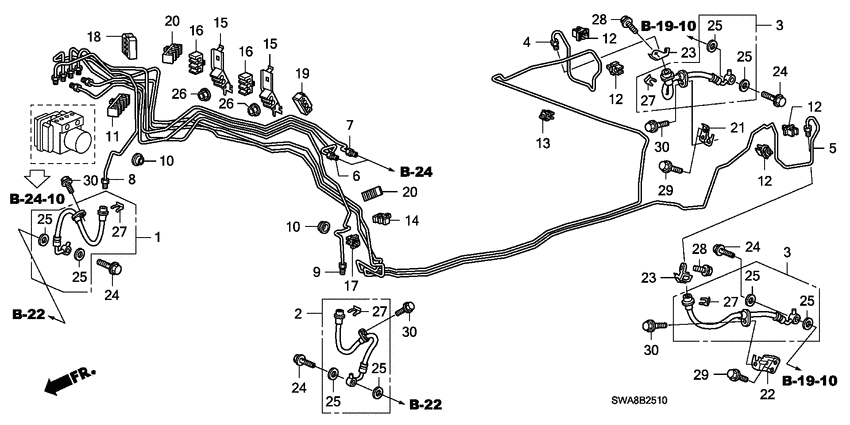

Brake lines (ABS; RH) 6 / 27

#	OEM	RD5	RE4
12	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
14	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
26	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
27	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (RH) 13 / 22

#	OEM	RD5	RE4
5	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
6	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
7	46185-SE0-003	Seal - ROD	Seal - ROD
11	46407-S84-A01	Clamp - TUBE	Clamp - TUBE
12	46512-S70-000	Pin - PEDAL	Pin - PEDAL
15	46665-S04-J01	Grommet	Grommet
16	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
17	46669-S5A-003	Diaphragm	Diaphragm
18	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
19	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
20	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
21	57515-S30-003	Pin - STOP	Pin - STOP
22	57562-SF1-003	Circlip	Circlip

Bumpers 5 / 27

#	OEM	RD5	RE4
19	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
23	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
25	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
27	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
28	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Camshaft/cam chain 11 / 18

#	OEM	RD5	RE4
2	14113-PNA-003	Plate - CAM PULSE	Plate - CAM PULSE
3	14114-PNA-003	Plate - TDC PULSE	Plate - TDC PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
6	14210-PNA-000	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
9	14510-PNA-003	Tensioner Assy, CAM CHAIN	Tensioner Assy, CAM CHAIN
9	14510-PRB-A01	Tensioner Assy, Cam Chain	Tensioner Assy, Cam Chain
10	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
14	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Center table 2 / 18

#	OEM	RD5	RE4
27	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
28	90134-S10-J11	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10

Chain case 8 / 9

#	OEM	RD5	RE4
2	11412-PNA-000	Cover - CHAIN CASE	Cover - CHAIN CASE
3	37500-PNB-003	Sensor assy - CRANK	Sensor assy - CRANK
4	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
5	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
6	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)
6	91212-RNA-A01	Oil seal - 43X58X7(ARAI)	Oil seal - 43X58X7(ARAI)
7	91302-PNA-004	O-ring - CHAIN CASE	O-ring - CHAIN CASE
8	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

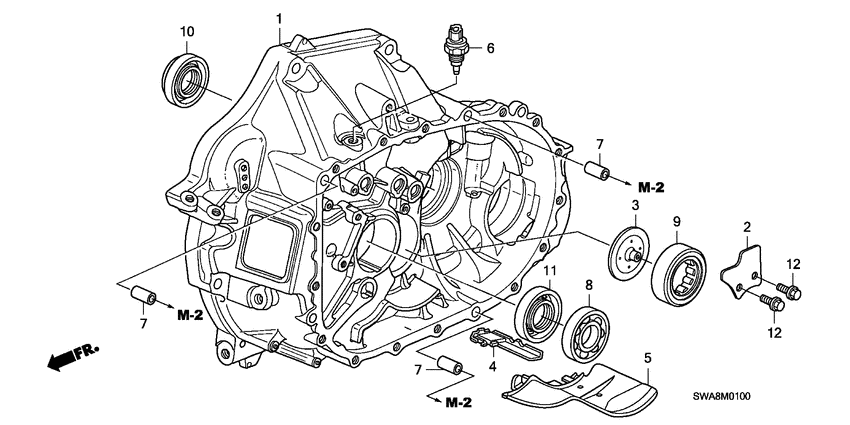

Clutch case 6 / 11

#	OEM	RD5	RE4
2	21101-PPP-000	Plate - NEEDLE SET	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
7	90705-PG2-000	Dowel pin - 14X20	Dowel pin - 14X20
8	91001-PPP-005	Bearing - BALL, 28X64X15	Bearing - BALL, 28X64X15
11	91216-PG1-005	Oil seal - 28X43X7 (NOK)	Oil seal - 28X43X7 (NOK)

Clutch master cylinder (RH) 16 / 40

#	OEM	RD5	RE4
2	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	46182-500-013	Circlip	Circlip
7	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
8	46912-S84-A00	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
11	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER	Piston comp - CLUTCH MASTER CYLINDER
14	46931-S5A-003	Pin - SPRING	Pin - SPRING
15	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
16	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
18	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
19	46942-S5A-003	Pin - SNAP	Pin - SNAP
20	46943-S5A-003	Seal - RING	Seal - RING
25	46948-S5A-003	Rod - PUSH	Rod - PUSH
26	46949-S5A-003	Seal - RING	Seal - RING
38	90106-S7A-E00	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
39	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch release 4 / 11

#	OEM	RD5	RE4
2	22821-PPP-000	Fork, CLUTCH RELEASE	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK	Boot - RELEASE FORK

Clutch/torque converter 3 / 12

#	OEM	RD5	RE4
3	22103-PNA-003	Bush - 21X24X8	Bush - 21X24X8
8	90011-PNA-B00	Bolt - 12MM	Bolt - 12MM
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch (RH) 5 / 19

#	OEM	RD5	RE4
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
11	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
21	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5

Console (RH; AT) 5 / 18

#	OEM	RD5	RE4
6	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
18	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
19	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
21	90610-S10-003	Clip - GARNISH	Clip - GARNISH
22	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Console (RH; MT) 4 / 12

#	OEM	RD5	RE4
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
15	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
16	90610-S10-003	Clip - GARNISH	Clip - GARNISH
17	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Control unit (CABIN; RH) 2 / 21

#	OEM	RD5	RE4
13	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
23	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM) 1 / 27

#	OEM	RD5	RE4
25	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Countershaft 36 / 44

#	OEM	RD5	RE4
5	23471-PPP-000	Gear - COUNTERSHAFT THIRD	Gear - COUNTERSHAFT THIRD
7	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)	Sleeve set - SYNCHRONIZER (1-2)
9	23917-PPP-000	Collar - DISTANCE, 40X47X28	Collar - DISTANCE, 40X47X28
11	23984-PPP-900	Shim ad - 35MM (1.15)	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)	Shim af - 35MM (1.31)
11	23984-PPP-000	Shim d - 35MM (1.11)	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)	Shim ah - 35MM (1.47)
11	23986-PPP-000	Shim f - 35MM (1.27)	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)	Shim g - 35MM (1.35)
12	90011-PPP-000	Bolt - SPECIAL, 20X25	Bolt - SPECIAL, 20X25
13	90601-PPP-000	Ring - SNAP, 72MM	Ring - SNAP, 72MM
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23	Bearing - NEEDLE, 47X52X23
16	91212-PPP-004	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)

Cylinder block/oil pan 11 / 21

#	OEM	RD5	RE4
2	11106-PNA-300	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
4	11108-PT0-003	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
8	11222-RAA-A00	Plate b - BAFFLE	Plate b - BAFFLE
10	30530-PNA-003	Knock Sensor - 30530-PNA-003	Knock Sensor - 30530-PNA-003
10	30530-PPL-A01	Knock Sensor	Knock Sensor
12	90006-PNA-003	Bolt-washer - 11X95	Bolt-washer - 11X95
14	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
16	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
17	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
18	90715-PNA-000	Dowel pin - 13X14	Dowel pin - 13X14
19	91214-PWA-Y01	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)

Cylinder head 7 / 9

#	OEM	RD5	RE4
2	12204-PNA-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	14631-PNE-000	Shaft - IN. ROCKER	Shaft - IN. ROCKER
6	37510-PNB-003	Sensor assy - TDC	Sensor assy - TDC
7	90011-PNA-003	Bolt A, Head Cover	Bolt A, Head Cover
8	90012-PNA-003	Bolt b - HEAD COVER	Bolt b - HEAD COVER
9	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head cover 11 / 17

#	OEM	RD5	RE4
1	12030-RTA-000	Packing set - HEAD COVER	Packing set - HEAD COVER
3	12341-RTA-000	Packing, CYLINDER HEAD COVER	Packing, CYLINDER HEAD COVER
4	12342-PCX-004	Seal - SPARK PLUG TUBE (NOK)	Seal - SPARK PLUG TUBE (NOK)
5	12500-PNC-020	Cover comp. - PLUG HOLE COIL	Cover comp. - PLUG HOLE COIL
6	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
9	90013-PNC-010	Bolt a - PLUG HOLE COIL COVER	Bolt a - PLUG HOLE COIL COVER
10	90014-R40-A00	Bolt b - PLUG HOLE COIL COVER	Bolt b - PLUG HOLE COIL COVER
11	90207-RAA-A10	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM
12	90213-PH3-000	Nut - CAP, 6MM	Nut - CAP, 6MM
13	90441-PNA-010	Washer - HEAD COVER	Washer - HEAD COVER

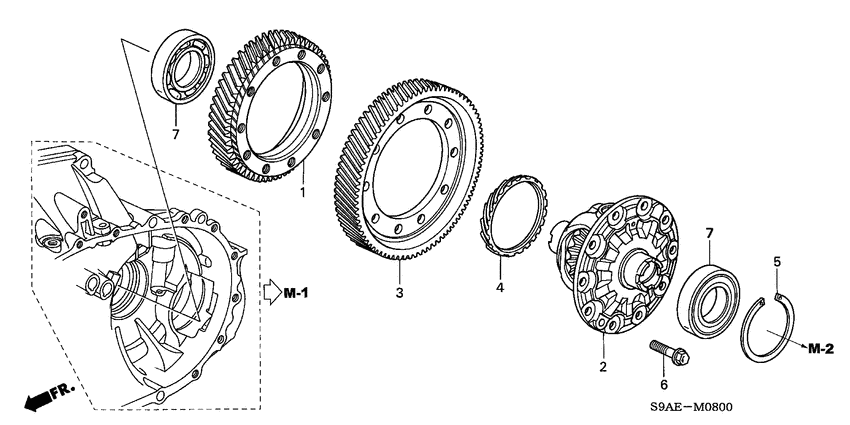

Differential 20 / 23

#	OEM	RD5	RE4
1	29011-PPS-000	Gear - TRANSFER DRIVE	Gear - TRANSFER DRIVE
5	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
5	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
5	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
5	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
5	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
5	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
5	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
5	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
5	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
5	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
5	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
5	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
5	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
5	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
5	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
5	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
5	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
6	90017-PPS-000	Bolt - SPECIAL, 11MM	Bolt - SPECIAL, 11MM
7	91005-PPS-003	Bearing - BALL, 40X80X18(NTN)	Bearing - BALL, 40X80X18(NTN)

Emblems/caution labels 1 / 6

#	OEM	RD5	RE4
2	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION

Engine hood (RH) 5 / 26

#	OEM	RD5	RE4
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
23	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
29	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
32	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
36	91604-S5A-003	Grommet - HOOD STAY	Grommet - HOOD STAY

Engine mounting bracket 8 / 12

#	OEM	RD5	RE4
4	31170-PNA-023	Tensioner assy, Auto	Tensioner assy, Auto
5	31180-PNA-J01	Pulley comp., IDLER	Pulley comp., IDLER
6	31185-PNA-003	Cover - BEARING	Cover - BEARING
7	90002-PNA-000	Bolt - SPECIAL, 10X28	Bolt - SPECIAL, 10X28
8	90008-PNA-000	Bolt - 10X75	Bolt - 10X75
9	90025-PNA-000	Bolt - SPECIAL, 8X105	Bolt - SPECIAL, 8X105
10	90027-PND-A00	Bolt - SPECIAL, 10X50	Bolt - SPECIAL, 10X50
12	90202-PNA-003	Nut - 10MM	Nut - 10MM

Engine mounts (AT) 5 / 17

#	OEM	RD5	RE4
9	90162-S5A-000	Bolt - FLANGE, 10X80	Bolt - FLANGE, 10X80
11	90167-S5A-010	Bolt - FLANGE, 12X88	Bolt - FLANGE, 12X88
12	90168-SZ3-000	Bolt - FLANGE, 12X63	Bolt - FLANGE, 12X63
13	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
17	90371-S5A-000	Nut - YOKE, 12MM	Nut - YOKE, 12MM

Engine mounts (MT) 5 / 17

#	OEM	RD5	RE4
9	90162-S5A-000	Bolt - FLANGE, 10X80	Bolt - FLANGE, 10X80
11	90167-S5A-010	Bolt - FLANGE, 12X88	Bolt - FLANGE, 12X88
12	90168-SZ3-000	Bolt - FLANGE, 12X63	Bolt - FLANGE, 12X63
13	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
17	90371-S5A-000	Nut - YOKE, 12MM	Nut - YOKE, 12MM

Engine wire harness (RH) 10 / 34

#	OEM	RD5	RE4
6	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
12	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
13	32418-RBG-300	Cover - BATTERY TERMINAL	Cover - BATTERY TERMINAL
14	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
22	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
27	91531-S5B-003	Band - HARNESS (BLACK) (120MM)	Band - HARNESS (BLACK) (120MM)
30	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)	Band - CLAMP(NATURAL)(143.2MM)
31	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
38	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)

Exhaust manifold 6 / 9

#	OEM	RD5	RE4
3	18115-PRB-A01	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)
3	18115-PNB-003	Gasket - EX. MANIFOLD (ISHINO GASKET)	Gasket - EX. MANIFOLD (ISHINO GASKET)
5	90005-P0A-000	Bolt-washer - 10X22	Bolt-washer - 10X22
6	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
7	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
8	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust pipe/silencer 9 / 22

#	OEM	RD5	RE4
3	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
10	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
11	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
12	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
14	18231-S10-003	Bolt - FLEXIBLE JOINT	Bolt - FLEXIBLE JOINT
22	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
22	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
23	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
24	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 2 / 8

#	OEM	RD5	RE4
14	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
16	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Floor/inner panels 1 / 4

#	OEM	RD5	RE4
34	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Fog light 1 / 4

#	OEM	RD5	RE4
4	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP

Front brake 3 / 28

#	OEM	RD5	RE4
21	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
21	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
21	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)

Front bulkhead/dashboard 2 / 3

#	OEM	RD5	RE4
38	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
39	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Front door glass/ regulator 1 / 14

#	OEM	RD5	RE4
12	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Front door lining (RH) 4 / 10

#	OEM	RD5	RE4
14	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
15	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
16	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
18	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL

Front door locks/ outer handle (3) 8 / 32

#	OEM	RD5	RE4
5	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
13	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
16	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
18	72143-S04-003	Packing	Packing
21	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
31	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
36	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
38	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

Front door panels 6 / 15

#	OEM	RD5	RE4
11	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
14	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Front driveshaft/ half shaft 15 / 29

#	OEM	RD5	RE4
6	44310-S9A-300	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)	Band - DRIVESHAFT (NIPPON HATSUJO)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
19	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
20	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
22	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)
23	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
24	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)

Front fenders 7 / 17

#	OEM	RD5	RE4
10	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
12	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
13	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
15	91503-SZ3-003	Clip A	Clip A
16	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
17	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
18	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front grille (2) 2 / 13

#	OEM	RD5	RE4
11	90301-ST0-003	push nut, 3mm	push nut, 3mm
12	91503-SZ3-003	Clip A	Clip A

Front knuckle/ front lower arm 2 / 22

#	OEM	RD5	RE4
18	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
20	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front seat (L.) 2 / 18

#	OEM	RD5	RE4
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
27	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front seat (R.) 3 / 20

#	OEM	RD5	RE4
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
25	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
27	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front seat components (RH; DRIVER SIDE) 2 / 13

#	OEM	RD5	RE4
17	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
18	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22

Front seat components (RH; PASSENGER SIDE) 2 / 15

#	OEM	RD5	RE4
20	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
21	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22

Front shock absorber 3 / 16

#	OEM	RD5	RE4
12	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
13	90119-S6M-Z01	Bolt - FLANGE, 16X62	Bolt - FLANGE, 16X62
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)

Front sub frame/ cross beam 2 / 8

#	OEM	RD5	RE4
7	90161-SD5-020	Bolt - FLANGE, 12X82	Bolt - FLANGE, 12X82
9	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115

Front windshield/ quarter glass 1 / 14

#	OEM	RD5	RE4
9	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Front wiper (RH) 3 / 21

#	OEM	RD5	RE4
5	76517-SM4-003	Collar	Collar
7	76524-SD4-003	Dust seal	Dust seal
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32

Fuel pipe 10 / 32

#	OEM	RD5	RE4
7	16727-PND-004	Clamp - FUEL HOSE (BLACK)	Clamp - FUEL HOSE (BLACK)
12	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
13	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
14	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
28	41936-P6R-003	Clamp - BREATHER TUBE	Clamp - BREATHER TUBE
29	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
31	91402-SDC-000	Clip - TUBE(B12)	Clip - TUBE(B12)
32	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
34	91595-S5A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
39	91599-S5A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE

Fuel tank 12 / 43

#	OEM	RD5	RE4
15	17513-S0E-003	Circlip	Circlip
21	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
25	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
26	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
29	17662-S04-003	Packing - FUEL FILLER (WITH CLIP)	Packing - FUEL FILLER (WITH CLIP)
35	74660-S1C-E00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
36	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
38	91413-S5A-003	Clamp - FUEL TUBE (D17)	Clamp - FUEL TUBE (D17)
39	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)
41	91599-S9A-931	Cap - FUEL TUBE CLAMP	Cap - FUEL TUBE CLAMP
42	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
47	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)

Grommet (FRONT) 4 / 12

#	OEM	RD5	RE4
2	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
3	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
7	91606-SE0-000	Seal - 20X20	Seal - 20X20
8	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM

Grommet (LOWER) 3 / 4

#	OEM	RD5	RE4
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
8	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM

Grommet (REAR) 2 / 5

#	OEM	RD5	RE4
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
4	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Grommet (SIDE) 1 / 9

#	OEM	RD5	RE4
9	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Harness band/bracket (RH) 11 / 27

#	OEM	RD5	RE4
4	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
5	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
9	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
10	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
11	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
15	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
19	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)
24	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
25	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
30	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)	Clip - BAND (6MM BOSS)(NATURAL) (127MM)

Headlight 7 / 15

#	OEM	RD5	RE4
2	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
7	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
9	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
10	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
14	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)	Bulb - HEADLIGHT(H1)(12V 55W)
15	90101-S5A-003	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
16	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Heater blower (RH) 4 / 18

#	OEM	RD5	RE4
18	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
19	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
20	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
21	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater control (RH) 1 / 3

#	OEM	RD5	RE4
8	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Heater unit (RH) 8 / 30

#	OEM	RD5	RE4
1	39248-692-003	Packing - HEATER	Packing - HEATER
25	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
26	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
29	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
30	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
31	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
34	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
35	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)	Clip - BAND (6MM BOSS)(NATURAL) (127MM)

Install pipe 2 / 14

#	OEM	RD5	RE4
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
13	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Instrument panel (RH) 9 / 18

#	OEM	RD5	RE4
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
22	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
23	90111-SFA-000	Bolt-washer - 8X86	Bolt-washer - 8X86
24	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
25	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
26	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
27	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
30	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
31	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (RH; DRIVER SIDE) 4 / 11

#	OEM	RD5	RE4
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
17	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
22	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)

Instrument panel garnish (RH; PASSENGER SIDE) 3 / 10

#	OEM	RD5	RE4
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
23	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
24	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Intake manifold 4 / 20

#	OEM	RD5	RE4
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
4	16638-PNA-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
17	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
19	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Interior light 3 / 8

#	OEM	RD5	RE4
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W

Mainshaft 8 / 20

#	OEM	RD5	RE4
2	23261-PPP-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
3	23440-PPS-F80	Gear comp - MAINSHAFT THIRD	Gear comp - MAINSHAFT THIRD
5	23540-PPS-000	Gear comp - REVERSE IDLE	Gear comp - REVERSE IDLE
12	23915-PPP-000	Collar - DISTANCE, 32X39X52	Collar - DISTANCE, 32X39X52
14	23927-PG2-A00	Washer - SPRING, 28MM	Washer - SPRING, 28MM
15	23928-PS1-000	Washer - 28MM	Washer - 28MM
16	90401-PG1-000	Washer - DRAIN PLUG, 10MM	Washer - DRAIN PLUG, 10MM
17	91002-RAS-003	Bearing - BALL, 28X72X18	Bearing - BALL, 28X72X18

Mainshaft (4AT) 1 / 22

#	OEM	RD5	RE4
6	90203-PX4-010	Nut - FLANGE, 24MM	Nut - FLANGE, 24MM

Meter components (NS) 1 / 6

#	OEM	RD5	RE4
1	37115-SA0-601	Packing - NS	Packing - NS

Mirror (2) 1 / 13

#	OEM	RD5	RE4
10	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)	Screw - TAPPING, 4X12 (TRUSS)

Oil pump 15 / 18

#	OEM	RD5	RE4
3	13432-PNA-000	Sprocket - DRIVEN(17T)	Sprocket - DRIVEN(17T)
4	13441-PNA-004	Chain - 62L	Chain - 62L
5	13450-PNA-004	Tensioner comp - BALANCER SHAFT CHAIN	Tensioner comp - BALANCER SHAFT CHAIN
6	13460-PNA-004	Guide comp - BALANCER SHAFT CHAIN	Guide comp - BALANCER SHAFT CHAIN
8	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)	Metal - BALANCER SHAFT(DAIDO)
9	15123-PCX-003	Dowel pin - 18X13	Dowel pin - 18X13
10	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
11	15232-RAA-A01	Spring - RELIEF VALVE	Spring - RELIEF VALVE
13	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
13	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
13	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
14	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
15	90009-PNA-000	Bolt - FLANGE, 8X55	Bolt - FLANGE, 8X55
16	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
17	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30

Outer panels/roof panel 6 / 9

#	OEM	RD5	RE4
22	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
23	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
28	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18
29	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
31	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

P.s. gear box components (RH) 6 / 41

#	OEM	RD5	RE4
2	06532-S50-003	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
30	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)	Oil seal - 27X38X5.5 (SHOWA)
35	53666-S50-003	O-ring - 41.5X2 (SHOWA)	O-ring - 41.5X2 (SHOWA)
38	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28

P.s. lines (RH) 6 / 20

#	OEM	RD5	RE4
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
6	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
14	56490-PNA-003	Switch assy - POWER STEERING PRESSURE	Switch assy - POWER STEERING PRESSURE
15	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
16	91304-PA6-003	O-ring - 7.8X1.9	O-ring - 7.8X1.9
18	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

Parking brake (RH) 4 / 17

#	OEM	RD5	RE4
2	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
8	47360-SB2-000	Equalizer	Equalizer
11	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
17	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Parking brake shoe 6 / 16

#	OEM	RD5	RE4
4	43171-SX0-J01	Spring - ROD	Spring - ROD
7	43362-SFE-J01	Strut	Strut
12	43375-SA0-003	U-clip	U-clip
13	43379-SA5-003	Washer - WAVE	Washer - WAVE
14	45172-S9A-E01	Spring - SHOE CLAMP	Spring - SHOE CLAMP
15	45175-SA0-013	Pin - TENSIONER	Pin - TENSIONER

Pcv tube 3 / 4

#	OEM	RD5	RE4
2	17130-PNA-003	Valve assy. - PCV	Valve assy. - PCV
4	17136-PNA-000	Joint - PCV VALVE	Joint - PCV VALVE
5	17139-PK1-000	Grommet - PCV VALVE	Grommet - PCV VALVE

Pedal (RH) 6 / 23

#	OEM	RD5	RE4
5	35350-S5A-J04	Switch assy - STOP (TOYO)	Switch assy - STOP (TOYO)
6	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
9	46545-SA5-000	Cover, Pedal	Cover, Pedal
13	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
14	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN
20	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Pillar garnish 2 / 4

#	OEM	RD5	RE4
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
22	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Piston/crankshaft 20 / 34

#	OEM	RD5	RE4
3	13111-PNA-010	Pin - PISTON	Pin - PISTON
4	13115-PRB-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-P8A-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
9	13324-PNA-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13326-PNA-003	Bearing f - MAIN UPPER (PINK) (DAIDO)	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13321-PNA-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13323-PNA-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13325-PNA-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13322-PNA-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)	Bearing b - MAIN UPPER (BLACK) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
11	13342-PNA-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13344-PNA-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13346-PNA-003	Bearing f - MAIN LOWER (PINK) (DAIDO)	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13341-PNA-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13343-PNA-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13345-PNA-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-PNA-003	Plate - CRANK PULSER	Plate - CRANK PULSER
15	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
16	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Plug hole coil 2 / 3

#	OEM	RD5	RE4
1	30520-RRA-007	IGNITION COIL	IGNITION COIL
2	30522-PFB-007	SEAL, PLUG HOLE	SEAL, PLUG HOLE

Power steering pump 19 / 22

#	OEM	RD5	RE4
3	56141-PNC-003	Shaft - POWER STEERING PUMP DRIVE	Shaft - POWER STEERING PUMP DRIVE
4	56483-PNC-004	Pulley - POWER STEERING PUMP	Pulley - POWER STEERING PUMP
5	90305-PAA-A01	Nut - POWER STEERING PULLEY	Nut - POWER STEERING PULLEY
6	90693-P2A-003	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
7	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12	Bearing - RADIAL BALL, 17X40X12
8	91249-PNC-003	Seal - POWER STEERING PUMP	Seal - POWER STEERING PUMP
9	91343-PNC-003	Seal - RUBBER	Seal - RUBBER
10	91344-PNC-003	Seal - SLIPPER	Seal - SLIPPER
11	91345-PAA-A01	O-ring - 13.0X1.9	O-ring - 13.0X1.9
11	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9
12	91346-PLA-003	O-ring - 23.8X2.4	O-ring - 23.8X2.4
13	91347-PAA-A01	O-ring - 16.7X1.8	O-ring - 16.7X1.8
14	91347-PLA-003	O-ring - 12.7X1.8	O-ring - 12.7X1.8
15	91348-P2A-003	O-ring - 51.0X2.4	O-ring - 51.0X2.4
16	91349-PNC-J01	Seal - PUMP COVER	Seal - PUMP COVER
17	91349-PNC-003	Seal b - PUMP COVER	Seal b - PUMP COVER
18	91350-PLA-003	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
19	91350-P8C-A01	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20
21	91345-RJL-003	O-ring - 13.0X1.9	O-ring - 13.0X1.9

Propeller shaft 2 / 7

#	OEM	RD5	RE4
4	90113-S10-000	Bolt - 12POINT 8X21	Bolt - 12POINT 8X21
5	90382-SH9-003	Bolt - FLANGE, 10X29	Bolt - FLANGE, 10X29

Protector/ side sill garnish 6 / 34

#	OEM	RD5	RE4
17	75315-S9A-004	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
18	75316-S9A-004	Clip - DOOR LOWER GARNISH	Clip - DOOR LOWER GARNISH
33	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
36	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
37	91504-SP1-003	Clip - FR. FENDER LOWER	Clip - FR. FENDER LOWER
38	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH

Radiator (DENSO) 8 / 16

#	OEM	RD5	RE4
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
5	19020-PNA-003	Fan - COOLING	Fan - COOLING
7	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
9	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
12	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
13	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose/ reserve tank 2 / 21

#	OEM	RD5	RE4
7	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
7	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)

Rear brake 14 / 27

#	OEM	RD5	RE4
1	01473-SZ3-A01	SET, RR CALIPER	SET, RR CALIPER
3	06435-S84-J00	Shim set - RR.	Shim set - RR.
6	42511-SP0-000	Cap - MAINTENANCE HOLE	Cap - MAINTENANCE HOLE
9	43022-S9A-010	Pad set - RR.	Pad set - RR.
9	43022-S9A-020	PAD SET RR	PAD SET RR
10	43215-S9A-003	Piston	Piston
11	43227-S9A-E01	Spring - PAD	Spring - PAD
12	43235-S84-A51	Pin a	Pin a
13	43244-SG0-003	Retainer	Retainer
14	43244-S9A-003	Retainer a	Retainer a
15	43262-S84-A51	Pin b	Pin b
16	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
17	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
19	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Rear differential/mount 20 / 34

#	OEM	RD5	RE4
1	40120-P6R-003	Magnet comp. - RR. DIFFERENTIAL	Magnet comp. - RR. DIFFERENTIAL
2	40441-P6R-010	Flange - COMPANION	Flange - COMPANION
5	41935-RFT-003	Box - BREATHER TUBE	Box - BREATHER TUBE
6	41936-P6R-003	Clamp - BREATHER TUBE	Clamp - BREATHER TUBE
9	41939-RFT-003	Clamp - BREATHER	Clamp - BREATHER
10	48940-RFT-000	Strainer - ATF	Strainer - ATF
16	50721-S5C-013	Rubber b - RR. DIFFERENTIAL MOUNTING	Rubber b - RR. DIFFERENTIAL MOUNTING
19	90001-PWT-680	Bolt - FLANGE, 6X28	Bolt - FLANGE, 6X28
20	90001-PWT-730	Bolt - FLANGE, 6X50	Bolt - FLANGE, 6X50
21	90081-PWT-000	Bolt - DRAIN PLUG, 20MM	Bolt - DRAIN PLUG, 20MM
23	90163-SR7-010	Bolt - FLANGE, 10X119	Bolt - FLANGE, 10X119
24	90166-S87-A00	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
25	90203-PX4-010	Nut - FLANGE, 24MM	Nut - FLANGE, 24MM
27	90403-PL9-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
29	90702-P6R-008	Pin - OIL PUMP	Pin - OIL PUMP
30	91201-PWT-003	Oil seal - 40X56X9 (NOK)	Oil seal - 40X56X9 (NOK)
31	91202-PWT-003	Oil seal - 35X78X8.5 (NOK)	Oil seal - 35X78X8.5 (NOK)
32	91203-PWT-003	Oil seal - 35X50X8.5 (NOK)	Oil seal - 35X50X8.5 (NOK)
33	91303-P6R-003	O-ring - 25X2.6	O-ring - 25X2.6
34	91304-P6R-003	Ring - BACK UP, 25MM	Ring - BACK UP, 25MM

Rear door lining 4 / 9

#	OEM	RD5	RE4
14	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
15	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
17	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
20	91610-SJ4-003	Grommet - MIRROR GARNISH	Grommet - MIRROR GARNISH

Rear door locks/ outer handle (3) 8 / 34

#	OEM	RD5	RE4
3	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
9	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
10	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
11	72143-S04-003	Packing	Packing
12	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
17	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
34	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
36	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

Rear door panels 7 / 20

#	OEM	RD5	RE4
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
14	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
25	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
25	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
26	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
27	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM

Rear door windows/ regulator 1 / 16

#	OEM	RD5	RE4
16	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Rear driveshaft 4 / 11

#	OEM	RD5	RE4
8	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
9	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
10	44319-S71-300	Set ring - 24X1.6	Set ring - 24X1.6
13	44338-S71-300	Circlip - 20MM	Circlip - 20MM

Rear lower arm 7 / 35

#	OEM	RD5	RE4
8	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
18	52388-S7A-013	Plate - CAM	Plate - CAM
24	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
25	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
26	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)	Nut - LOCK FLANGE(CLINCH)
28	90396-S7A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
29	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5

Rear seat 2 / 19

#	OEM	RD5	RE4
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
31	90650-KV3-000	Band - WIRE	Band - WIRE

Rear seat components 2 / 18

#	OEM	RD5	RE4
39	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
42	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Rear shock absorber 8 / 19

#	OEM	RD5	RE4
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
8	52622-S7A-014	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
9	52631-SCA-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING	Seal - SHOCK ABSORBER MOUNTING
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear wiper 2 / 14

#	OEM	RD5	RE4
3	76701-S6A-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76702-S6A-003	Collar	Collar

Select lever (RH) 1 / 24

#	OEM	RD5	RE4
24	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Shift arm 11 / 17

#	OEM	RD5	RE4
1	21396-P20-000	Cap - BREATHER	Cap - BREATHER
4	24411-PPP-010	Arm - SHIFT	Arm - SHIFT
7	24433-PH8-000	Bolt - INTERLOCK	Bolt - INTERLOCK
9	24464-PPP-000	Spring - FIRST-SECOND SELECT	Spring - FIRST-SECOND SELECT
10	24466-PPP-000	Spring - FIFTH-SIXTH SELECT	Spring - FIFTH-SIXTH SELECT
11	24467-PPP-000	Plate - SELECT STOPPER	Plate - SELECT STOPPER
13	24479-PPP-000	Cover - SHIFT LEVER	Cover - SHIFT LEVER
14	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
15	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
16	91207-PPP-003	Dust seal - 18X24X5	Dust seal - 18X24X5
17	91208-PPP-003	Dust seal - 14X20X4	Dust seal - 14X20X4

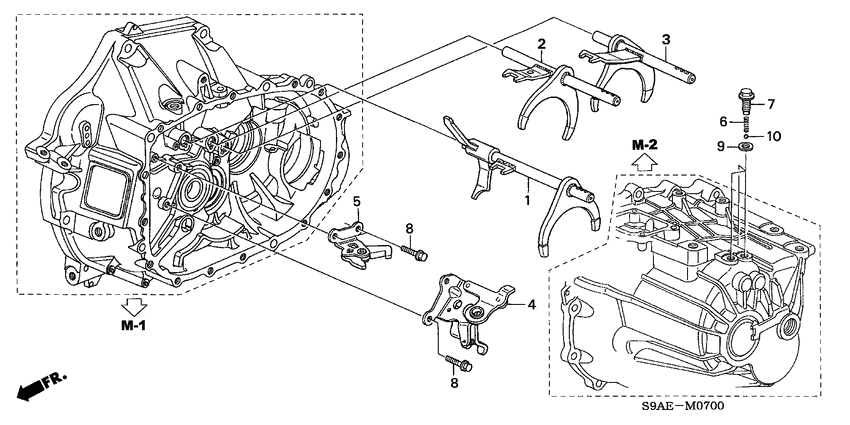

Shift fork 4 / 8

#	OEM	RD5	RE4
4	24230-PPP-000	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
6	24455-PHR-000	Spring - BALL SETTING	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 2 / 15

#	OEM	RD5	RE4
8	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
11	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

Side lining 2 / 11

#	OEM	RD5	RE4
3	75353-671-000	Lock - SCREW	Lock - SCREW
27	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)

Solenoid (4AT) 1 / 18

#	OEM	RD5	RE4
16	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Spool valve 16 / 19

#	OEM	RD5	RE4
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
4	15810-RAD-Y03	Spool Valve Assy	Spool Valve Assy
5	15815-RAA-A02	Filter assy, SPOOL VALVE	Filter assy, SPOOL VALVE
6	15816-PNA-013	Cover - VTEC SPOOL VALVE	Cover - VTEC SPOOL VALVE
8	15832-PNA-003	O-ring	O-ring
8	15832-PNA-023	ORING	ORING
9	15835-PNA-003	Bolt - VTC SOLENOID	Bolt - VTC SOLENOID
10	15840-RAA-A00	Strainer assy - VTC	Strainer assy - VTC
11	15845-RAA-A01	Filter assy - VTC	Filter assy - VTC
14	90005-PNA-003	Bolt-washer - 11X155	Bolt-washer - 11X155
15	90026-PNA-003	Bolt - STUD, 10X39.5	Bolt - STUD, 10X39.5
16	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5
23	90001-P70-000	Bolt - FLANGE, 10X10.5	Bolt - FLANGE, 10X10.5

Srs unit (RH) 1 / 6

#	OEM	RD5	RE4
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20

Steering column 2 / 5

#	OEM	RD5	RE4
4	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 1 / 10

#	OEM	RD5	RE4
20	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Tailgate 4 / 17

#	OEM	RD5	RE4
12	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
13	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
15	90105-S10-000	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
21	91560-S0X-A01	Clip - DOOR LINING (NATURAL)	Clip - DOOR LINING (NATURAL)

Tailgate lining 1 / 3

#	OEM	RD5	RE4
9	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)

Tailgate lock 4 / 21

#	OEM	RD5	RE4
8	74387-S3C-003	Fastener	Fastener
17	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
22	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Taillight/license light 8 / 19

#	OEM	RD5	RE4
1	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
6	33513-S50-003	Socket - T20W S2	Socket - T20W S2
10	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
16	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
17	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90665-S47-003	Clip	Clip
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Throttle body (2) 1 / 12

#	OEM	RD5	RE4
11	37835-PGK-A01	O-ring	O-ring

Tire/wheel disks 16 / 41

#	OEM	RD5	RE4
4	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
5	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
5	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
5	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
5	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
5	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
5	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
5	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
5	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
5	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
5	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
5	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
5	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
5	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
5	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
7	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER

Tools/jack 2 / 6

#	OEM	RD5	RE4
5	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
7	89320-S2G-003	Bar - JACK	Bar - JACK

Torque converter case (4AT) 1 / 21

#	OEM	RD5	RE4
16	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)

Transfer 98 / 101

#	OEM	RD5	RE4
3	29100-PPS-A00	Shaft comp. - TRANSFER	Shaft comp. - TRANSFER
5	29351-PH8-910	Spacer - TRANSFER	Spacer - TRANSFER
6	29360-PRH-000	Collar - TRANSFER	Collar - TRANSFER
7	29361-PH8-000	Washer - SPRING, 22MM	Washer - SPRING, 22MM
8	29424-P1C-000	Shim - 25MM(2.09)	Shim - 25MM(2.09)
8	29419-P1C-000	Shim - 25MM(1.94)	Shim - 25MM(1.94)
8	29414-P1C-000	Shim - 25MM(1.79)	Shim - 25MM(1.79)
8	29426-P1C-000	Shim - 25MM(2.15)	Shim - 25MM(2.15)
8	29421-P1C-000	Shim - 25MM(2.00)	Shim - 25MM(2.00)
8	29416-P1C-000	Shim - 25MM(1.85)	Shim - 25MM(1.85)
8	29411-P1C-000	Shim - 25MM(1.70)	Shim - 25MM(1.70)
8	29428-P1C-000	Shim - 25MM(2.21)	Shim - 25MM(2.21)
8	29423-P1C-000	Shim - 25MM(2.06)	Shim - 25MM(2.06)
8	29418-P1C-000	Shim - 25MM(1.91)	Shim - 25MM(1.91)
8	29413-P1C-000	Shim - 25MM(1.76)	Shim - 25MM(1.76)
8	29425-P1C-000	Shim - 25MM(2.12)	Shim - 25MM(2.12)
8	29420-P1C-000	Shim - 25MM(1.97)	Shim - 25MM(1.97)
8	29415-P1C-000	Shim - 25MM(1.82)	Shim - 25MM(1.82)
8	29427-P1C-000	Shim - 25MM(2.18)	Shim - 25MM(2.18)
8	29422-P1C-000	Shim - 25MM(2.03)	Shim - 25MM(2.03)
8	29417-P1C-000	Shim - 25MM(1.88)	Shim - 25MM(1.88)
8	29412-P1C-000	Shim - 25MM(1.73)	Shim - 25MM(1.73)
8	29429-P1C-000	Shim - 25MM(2.24)	Shim - 25MM(2.24)
9	29611-PLT-000	Flange - COMPANION	Flange - COMPANION
10	41373-PS3-000	Shim m - 35MM(1.08)	Shim m - 35MM(1.08)
10	41368-PS3-000	Shim h - 35MM(0.93)	Shim h - 35MM(0.93)
10	41363-PS3-000	Shim c - 35MM(0.78)	Shim c - 35MM(0.78)
10	41374-PS3-000	Shim n - 35MM(1.11)	Shim n - 35MM(1.11)
10	41369-PS3-000	Shim i - 35MM(0.96)	Shim i - 35MM(0.96)
10	41364-PS3-000	Shim d - 35MM(0.81)	Shim d - 35MM(0.81)
10	41370-PS3-000	Shim j - 35MM(0.99)	Shim j - 35MM(0.99)
10	41365-PS3-000	Shim e - 35MM(0.84)	Shim e - 35MM(0.84)
10	41371-PS3-000	Shim k - 35MM(1.02)	Shim k - 35MM(1.02)
10	41366-PS3-000	Shim f - 35MM(0.87)	Shim f - 35MM(0.87)
10	41361-PS3-000	Shim a - 35MM(0.72)	Shim a - 35MM(0.72)
10	41372-PS3-000	Shim l - 35MM(1.05)	Shim l - 35MM(1.05)
10	41367-PS3-000	Shim g - 35MM(0.90)	Shim g - 35MM(0.90)
10	41362-PS3-000	Shim b - 35MM(0.75)	Shim b - 35MM(0.75)
11	41402-PPS-000	Shim ax - 76MM(2.43)	Shim ax - 76MM(2.43)
11	41397-PPS-000	Shim ar - 76MM(2.28)	Shim ar - 76MM(2.28)
11	41371-PPS-000	Shim l - 76MM(1.50)	Shim l - 76MM(1.50)
11	41394-PPS-000	Shim am - 76MM(2.19)	Shim am - 76MM(2.19)
11	41389-PPS-000	Shim ag - 76MM(2.04)	Shim ag - 76MM(2.04)
11	41366-PPS-000	Shim f - 76MM(1.35)	Shim f - 76MM(1.35)
11	41384-PPS-000	Shim ab - 76MM(1.89)	Shim ab - 76MM(1.89)
11	41409-PPS-000	Shim be - 76MM(2.64)	Shim be - 76MM(2.64)
11	41379-PPS-000	Shim w - 76MM(1.74)	Shim w - 76MM(1.74)
11	41361-PPS-000	Shim a - 76MM(1.20)	Shim a - 76MM(1.20)
11	41404-PPS-000	Shim az - 76MM(2.49)	Shim az - 76MM(2.49)
11	41399-PPS-000	Shim at - 76MM(2.34)	Shim at - 76MM(2.34)
11	41372-PPS-000	Shim m - 76MM(1.53)	Shim m - 76MM(1.53)
11	41391-PPS-000	Shim aj - 76MM(2.10)	Shim aj - 76MM(2.10)
11	41367-PPS-000	Shim g - 76MM(1.38)	Shim g - 76MM(1.38)
11	41386-PPS-000	Shim ad - 76MM(1.95)	Shim ad - 76MM(1.95)
11	41381-PPS-000	Shim y - 76MM(1.80)	Shim y - 76MM(1.80)
11	41362-PPS-000	Shim b - 76MM(1.23)	Shim b - 76MM(1.23)
11	41406-PPS-000	Shim bb - 76MM(2.55)	Shim bb - 76MM(2.55)
11	41376-PPS-000	Shim s - 76MM(1.65)	Shim s - 76MM(1.65)
11	41401-PPS-000	Shim aw - 76MM(2.40)	Shim aw - 76MM(2.40)
11	41373-PPS-000	Shim n - 76MM(1.56)	Shim n - 76MM(1.56)
11	41396-PPS-000	Shim ap - 76MM(2.25)	Shim ap - 76MM(2.25)
11	41368-PPS-000	Shim h - 76MM(1.41)	Shim h - 76MM(1.41)
11	41393-PPS-000	Shim al - 76MM(2.16)	Shim al - 76MM(2.16)
11	41388-PPS-000	Shim af - 76MM(2.01)	Shim af - 76MM(2.01)
11	41383-PPS-000	Shim aa - 76MM(1.86)	Shim aa - 76MM(1.86)
11	41363-PPS-000	Shim c - 76MM(1.26)	Shim c - 76MM(1.26)
11	41408-PPS-000	Shim bd - 76MM(2.61)	Shim bd - 76MM(2.61)
11	41378-PPS-000	Shim u - 76MM(1.71)	Shim u - 76MM(1.71)
11	41403-PPS-000	Shim ay - 76MM(2.46)	Shim ay - 76MM(2.46)
11	41374-PPS-000	Shim p - 76MM(1.59)	Shim p - 76MM(1.59)
11	41398-PPS-000	Shim as - 76MM(2.31)	Shim as - 76MM(2.31)
11	41369-PPS-000	Shim j - 76MM(1.44)	Shim j - 76MM(1.44)
11	41395-PPS-000	Shim an - 76MM(2.22)	Shim an - 76MM(2.22)
11	41390-PPS-000	Shim ah - 76MM(2.07)	Shim ah - 76MM(2.07)
11	41385-PPS-000	Shim ac - 76MM(1.92)	Shim ac - 76MM(1.92)
11	41364-PPS-000	Shim d - 76MM(1.29)	Shim d - 76MM(1.29)
11	41410-PPS-000	Shim bf - 76MM(2.67)	Shim bf - 76MM(2.67)
11	41380-PPS-000	Shim x - 76MM(1.77)	Shim x - 76MM(1.77)
11	41405-PPS-000	Shim ba - 76MM(2.52)	Shim ba - 76MM(2.52)
11	41375-PPS-000	Shim r - 76MM(1.62)	Shim r - 76MM(1.62)
11	41400-PPS-000	Shim au - 76MM(2.37)	Shim au - 76MM(2.37)
11	41370-PPS-000	Shim k - 76MM(1.47)	Shim k - 76MM(1.47)
11	41392-PPS-000	Shim ak - 76MM(2.13)	Shim ak - 76MM(2.13)
11	41387-PPS-000	Shim ae - 76MM(1.98)	Shim ae - 76MM(1.98)
11	41365-PPS-000	Shim e - 76MM(1.32)	Shim e - 76MM(1.32)
11	41382-PPS-000	Shim z - 76MM(1.83)	Shim z - 76MM(1.83)
11	41407-PPS-000	Shim bc - 76MM(2.58)	Shim bc - 76MM(2.58)
11	41377-PPS-000	Shim t - 76MM(1.68)	Shim t - 76MM(1.68)
12	90001-PRH-000	Bolt - FLANGE, 10X113	Bolt - FLANGE, 10X113
13	90201-PH8-000	Nut - HEX., 22MM	Nut - HEX., 22MM
14	91022-PRV-003	Bearing - TAPER, 25X57X16.25	Bearing - TAPER, 25X57X16.25
15	91122-PPS-003	Bearing - SPECIAL TAPER, 40X76.2X16	Bearing - SPECIAL TAPER, 40X76.2X16
16	91122-PS5-003	Bearing - TAPER, 35X62X21	Bearing - TAPER, 35X62X21
17	91125-PRV-003	Bearing - TAPER, 26.9X50.2X14.2(NTN)	Bearing - TAPER, 26.9X50.2X14.2(NTN)
18	91201-P6R-003	Oil seal - 40X56X9(NOK)	Oil seal - 40X56X9(NOK)
19	91303-P4T-003	O-ring - 23X2.6(NOK)	O-ring - 23X2.6(NOK)
20	91304-PRH-003	O-ring - 92X2.2(ARAI)	O-ring - 92X2.2(ARAI)
21	91304-P4T-003	Ring - BACK UP, 23MM	Ring - BACK UP, 23MM

Transfer (4AT) 45 / 93

#	OEM	RD5	RE4
6	29351-PH8-910	Spacer - TRANSFER	Spacer - TRANSFER
7	29360-PRH-000	Collar - TRANSFER	Collar - TRANSFER
8	29361-PH8-000	Washer - SPRING, 22MM	Washer - SPRING, 22MM
9	29416-P1C-000	Shim - 25MM(1.85)	Shim - 25MM(1.85)
9	29411-P1C-000	Shim - 25MM(1.70)	Shim - 25MM(1.70)
9	29428-P1C-000	Shim - 25MM(2.21)	Shim - 25MM(2.21)
9	29423-P1C-000	Shim - 25MM(2.06)	Shim - 25MM(2.06)
9	29418-P1C-000	Shim - 25MM(1.91)	Shim - 25MM(1.91)
9	29413-P1C-000	Shim - 25MM(1.76)	Shim - 25MM(1.76)
9	29425-P1C-000	Shim - 25MM(2.12)	Shim - 25MM(2.12)
9	29420-P1C-000	Shim - 25MM(1.97)	Shim - 25MM(1.97)
9	29415-P1C-000	Shim - 25MM(1.82)	Shim - 25MM(1.82)
9	29427-P1C-000	Shim - 25MM(2.18)	Shim - 25MM(2.18)
9	29422-P1C-000	Shim - 25MM(2.03)	Shim - 25MM(2.03)
9	29417-P1C-000	Shim - 25MM(1.88)	Shim - 25MM(1.88)
9	29412-P1C-000	Shim - 25MM(1.73)	Shim - 25MM(1.73)
9	29429-P1C-000	Shim - 25MM(2.24)	Shim - 25MM(2.24)
9	29424-P1C-000	Shim - 25MM(2.09)	Shim - 25MM(2.09)
9	29419-P1C-000	Shim - 25MM(1.94)	Shim - 25MM(1.94)
9	29414-P1C-000	Shim - 25MM(1.79)	Shim - 25MM(1.79)
9	29426-P1C-000	Shim - 25MM(2.15)	Shim - 25MM(2.15)
9	29421-P1C-000	Shim - 25MM(2.00)	Shim - 25MM(2.00)
11	41371-PS3-000	Shim k - 35MM(1.02)	Shim k - 35MM(1.02)
11	41368-PS3-000	Shim h - 35MM(0.93)	Shim h - 35MM(0.93)
11	41363-PS3-000	Shim c - 35MM(0.78)	Shim c - 35MM(0.78)
11	41373-PS3-000	Shim m - 35MM(1.08)	Shim m - 35MM(1.08)
11	41365-PS3-000	Shim e - 35MM(0.84)	Shim e - 35MM(0.84)
11	41370-PS3-000	Shim j - 35MM(0.99)	Shim j - 35MM(0.99)
11	41367-PS3-000	Shim g - 35MM(0.90)	Shim g - 35MM(0.90)
11	41362-PS3-000	Shim b - 35MM(0.75)	Shim b - 35MM(0.75)
11	41372-PS3-000	Shim l - 35MM(1.05)	Shim l - 35MM(1.05)
11	41369-PS3-000	Shim i - 35MM(0.96)	Shim i - 35MM(0.96)
11	41364-PS3-000	Shim d - 35MM(0.81)	Shim d - 35MM(0.81)
11	41374-PS3-000	Shim n - 35MM(1.11)	Shim n - 35MM(1.11)
11	41366-PS3-000	Shim f - 35MM(0.87)	Shim f - 35MM(0.87)
11	41361-PS3-000	Shim a - 35MM(0.72)	Shim a - 35MM(0.72)
12	90001-PRH-000	Bolt - FLANGE, 10X113	Bolt - FLANGE, 10X113
13	90201-PH8-000	Nut - HEX., 22MM	Nut - HEX., 22MM
15	91022-PRV-003	Bearing - TAPER, 25X57X16.25	Bearing - TAPER, 25X57X16.25
17	91122-PS5-003	Bearing - TAPER, 35X62X21	Bearing - TAPER, 35X62X21
18	91125-PRV-003	Bearing - TAPER, 26.9X50.2X14.2(NTN)	Bearing - TAPER, 26.9X50.2X14.2(NTN)
19	91201-P6R-003	Oil seal - 40X56X9(NOK)	Oil seal - 40X56X9(NOK)
21	91303-P4T-003	O-ring - 23X2.6(NOK)	O-ring - 23X2.6(NOK)
22	91304-PRH-003	O-ring - 92X2.2(ARAI)	O-ring - 92X2.2(ARAI)
23	91304-P4T-003	Ring - BACK UP, 23MM	Ring - BACK UP, 23MM

Transmission case 59 / 66

#	OEM	RD5	RE4
1	21104-PPP-000	Plate m - OIL GUIDE	Plate m - OIL GUIDE
6	23978-PPP-J00	Shim aw - 72MM (2.01)	Shim aw - 72MM (2.01)
6	23946-P21-000	Shim p - 72MM(1.05)	Shim p - 72MM(1.05)
6	23973-PPP-J00	Shim aq - 72MM (1.86)	Shim aq - 72MM (1.86)
6	23941-P21-000	Shim k - 72MM(0.90)	Shim k - 72MM(0.90)
6	23968-P21-000	Shim al - 72MM(1.71)	Shim al - 72MM(1.71)
6	23936-P21-000	Shim f - 72MM(0.75)	Shim f - 72MM(0.75)
6	23931-P21-000	Shim a - 72MM(0.60)	Shim a - 72MM(0.60)
6	23963-P21-000	Shim ag - 72MM(1.56)	Shim ag - 72MM(1.56)
6	23958-P21-000	Shim ab - 72MM(1.41)	Shim ab - 72MM(1.41)
6	23985-PPP-J00	Shim bd - 72MM (2.22)	Shim bd - 72MM (2.22)
6	23953-P21-000	Shim w - 72MM(1.26)	Shim w - 72MM(1.26)
6	23980-PPP-J00	Shim ay - 72MM (2.07)	Shim ay - 72MM (2.07)
6	23948-P21-000	Shim r - 72MM(1.11)	Shim r - 72MM(1.11)
6	23975-PPP-J00	Shim as - 72MM (1.92)	Shim as - 72MM (1.92)
6	23943-P21-000	Shim m - 72MM(0.96)	Shim m - 72MM(0.96)
6	23970-P21-000	Shim an - 72MM(1.77)	Shim an - 72MM(1.77)
6	23938-P21-000	Shim h - 72MM(0.81)	Shim h - 72MM(0.81)
6	23933-P21-000	Shim c - 72MM(0.66)	Shim c - 72MM(0.66)
6	23965-P21-000	Shim ai - 72MM(1.62)	Shim ai - 72MM(1.62)
6	23960-P21-000	Shim ad - 72MM(1.47)	Shim ad - 72MM(1.47)
6	23955-P21-000	Shim y - 72MM(1.32)	Shim y - 72MM(1.32)
6	23982-PPP-J00	Shim ba - 72MM (2.13)	Shim ba - 72MM (2.13)
6	23950-P21-000	Shim t - 72MM(1.17)	Shim t - 72MM(1.17)
6	23977-PPP-J00	Shim av - 72MM (1.98)	Shim av - 72MM (1.98)
6	23945-P21-000	Shim o - 72MM(1.02)	Shim o - 72MM(1.02)
6	23972-PPP-J00	Shim ap - 72MM (1.83)	Shim ap - 72MM (1.83)
6	23940-P21-000	Shim j - 72MM(0.87)	Shim j - 72MM(0.87)
6	23967-P21-000	Shim ak - 72MM(1.68)	Shim ak - 72MM(1.68)
6	23935-P21-000	Shim e - 72MM(0.72)	Shim e - 72MM(0.72)
6	23962-P21-000	Shim af - 72MM(1.53)	Shim af - 72MM(1.53)
6	23957-P21-000	Shim aa - 72MM(1.38)	Shim aa - 72MM(1.38)
6	23984-PPP-J00	Shim bc - 72MM (2.19)	Shim bc - 72MM (2.19)
6	23952-P21-000	Shim v - 72MM(1.23)	Shim v - 72MM(1.23)
6	23979-PPP-J00	Shim ax - 72MM (2.04)	Shim ax - 72MM (2.04)
6	23947-P21-000	Shim q - 72MM(1.08)	Shim q - 72MM(1.08)
6	23974-PPP-J00	Shim ar - 72MM (1.89)	Shim ar - 72MM (1.89)
6	23942-P21-000	Shim l - 72MM(0.93)	Shim l - 72MM(0.93)
6	23969-P21-000	Shim am - 72MM(1.74)	Shim am - 72MM(1.74)
6	23937-P21-000	Shim g - 72MM(0.78)	Shim g - 72MM(0.78)
6	23932-P21-000	Shim b - 72MM(0.63)	Shim b - 72MM(0.63)
6	23964-P21-000	Shim ah - 72MM(1.59)	Shim ah - 72MM(1.59)
6	23959-P21-000	Shim ac - 72MM(1.44)	Shim ac - 72MM(1.44)
6	23986-PPP-J00	Shim be - 72MM (2.25)	Shim be - 72MM (2.25)
6	23954-P21-000	Shim x - 72MM(1.29)	Shim x - 72MM(1.29)
6	23981-PPP-J00	Shim az - 72MM (2.10)	Shim az - 72MM (2.10)
6	23949-P21-000	Shim s - 72MM(1.14)	Shim s - 72MM(1.14)
6	23976-PPP-J00	Shim at - 72MM (1.95)	Shim at - 72MM (1.95)
6	23944-P21-000	Shim n - 72MM(0.99)	Shim n - 72MM(0.99)
6	23971-P21-000	Shim ao - 72MM(1.80)	Shim ao - 72MM(1.80)
6	23939-P21-000	Shim i - 72MM(0.84)	Shim i - 72MM(0.84)
6	23934-P21-000	Shim d - 72MM(0.69)	Shim d - 72MM(0.69)
6	23966-P21-000	Shim aj - 72MM(1.65)	Shim aj - 72MM(1.65)
6	23961-P21-000	Shim ae - 72MM(1.50)	Shim ae - 72MM(1.50)
6	23956-P21-000	Shim z - 72MM(1.35)	Shim z - 72MM(1.35)
6	23983-PPP-J00	Shim bb - 72MM (2.16)	Shim bb - 72MM (2.16)
6	23951-P21-000	Shim u - 72MM(1.20)	Shim u - 72MM(1.20)
8	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
11	91205-PL3-B01	Oil seal - 40X56X8(ARAI)	Oil seal - 40X56X8(ARAI)

Valve/rocker arm 12 / 16

#	OEM	RD5	RE4
1	14620-RAA-A00	Arm assy. - ROCKER	Arm assy. - ROCKER
2	14624-RAA-A00	Arm assy. - EX. ROCKER	Arm assy. - EX. ROCKER
3	14647-RAA-A00	Washer - THRUST	Washer - THRUST
4	14711-PNA-000	Valve - IN.	Valve - IN.
6	14744-PNA-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
7	14744-PT0-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
9	14762-PNA-003	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)
9	14762-PNA-004	Spring - EX. VALVE (GRAY) (CHUO SPRING)	Spring - EX. VALVE (GRAY) (CHUO SPRING)
10	14765-RAA-A00	Retainer - VALVE SPRING	Retainer - VALVE SPRING
11	14775-PT0-000	Seat - VALVE SPRING	Seat - VALVE SPRING
13	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)
14	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING

Water pump 7 / 20

#	OEM	RD5	RE4
4	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
6	19322-PCX-003	O-ring - 43.8X3.1	O-ring - 43.8X3.1
7	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
15	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
19	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
20	90051-PNA-000	Bolt - SPECIAL, 6X28	Bolt - SPECIAL, 6X28
22	91315-PNA-003	O-ring - 19.3X3.8	O-ring - 19.3X3.8

Water valve (RH) 4 / 9

#	OEM	RD5	RE4
5	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
7	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer (2) 4 / 27

#	OEM	RD5	RE4
7	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
8	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
28	76851-S30-003	Grommet - WASHER TUBE	Grommet - WASHER TUBE
42	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM

Wire harness (RH) 2 / 18

#	OEM	RD5	RE4
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
15	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
