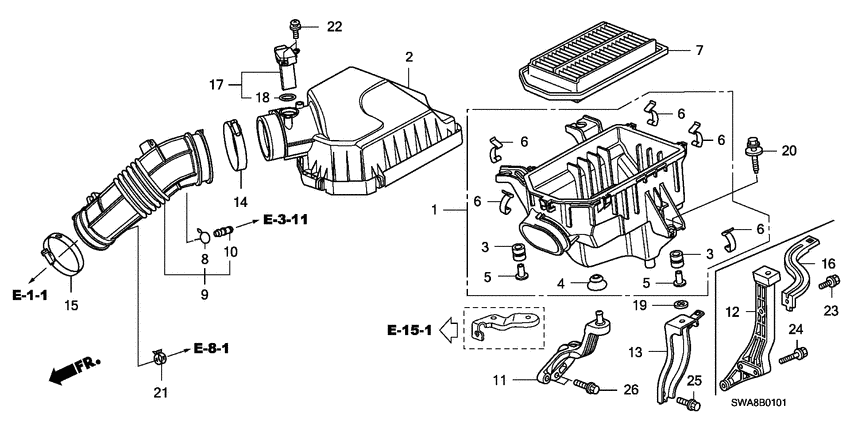

Air cleaner 5 / 16

#	OEM	RD5	RE3
5	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
8	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
12	75353-671-000	Lock - SCREW	Lock - SCREW
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Air conditioner (COMPRESSOR) 3 / 15

#	OEM	RD5	RE3
11	38930-PNA-000	Bracket - COMPRESSOR	Bracket - COMPRESSOR
12	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
13	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER) 7 / 22

#	OEM	RD5	RE3
1	38611-PNA-003	Fan - COOLING(DENSO)(NATURAL)	Fan - COOLING(DENSO)(NATURAL)
1	38611-PNL-G01	Fan - COOLING(DENSO)(BLACK)	Fan - COOLING(DENSO)(BLACK)
4	38619-PPD-003	Protector - FAN MOTOR	Protector - FAN MOTOR
6	80101-S9A-013	Filter sub assy.	Filter sub assy.
15	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
18	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
19	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11

Air conditioner (HOSES/PIPES; RH) 5 / 25

#	OEM	RD5	RE3
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
18	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
19	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
20	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Air flow tube 3 / 13

#	OEM	RD5	RE3
3	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
4	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
12	90005-P28-A00	Bolt-washer - SPECIAL, 6X28	Bolt-washer - SPECIAL, 6X28

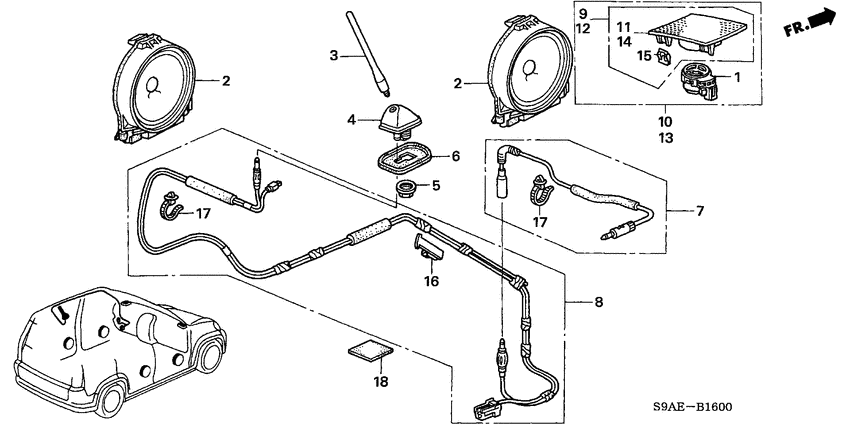

Antenna/speaker 4 / 12

#	OEM	RD5	RE3
3	39151-S6A-E02	Element assy. - YOKOO	Element assy. - YOKOO
3	39151-S6A-E03	ELEMENT ASSY YOKOO	ELEMENT ASSY YOKOO
16	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
17	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

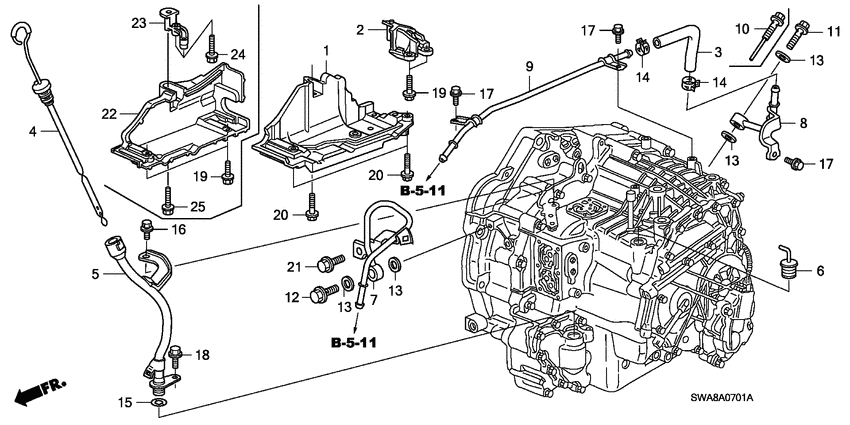

Atf pipe (4AT) 2 / 8

#	OEM	RD5	RE3
5	25951-RGR-000	Bolt - JOINT	Bolt - JOINT
6	90471-RGR-000	Washer - DRAIN PLUG, 12MM	Washer - DRAIN PLUG, 12MM

Auto radio 2 / 6

#	OEM	RD5	RE3
5	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
6	91551-SE0-003	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7

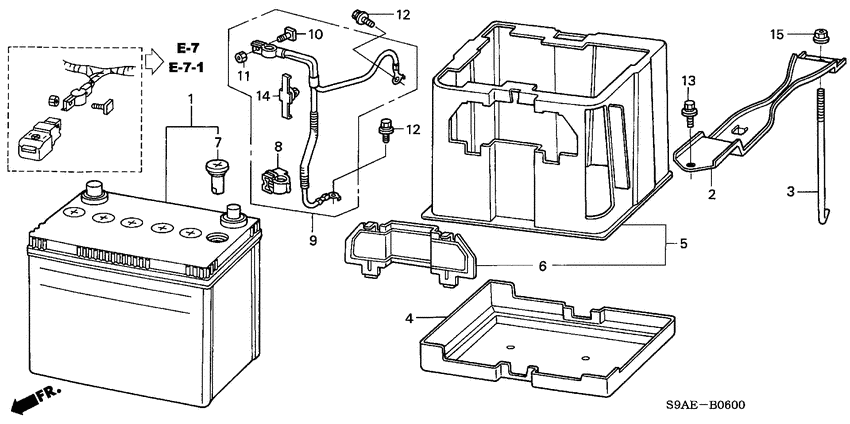

Battery 6 / 17

#	OEM	RD5	RE3
1	31500-S7C-G01	Battery - 46B24L<S>-MF) (PANASONIC	Battery - 46B24L<S>-MF) (PANASONIC
7	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
8	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
10	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
11	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
14	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)

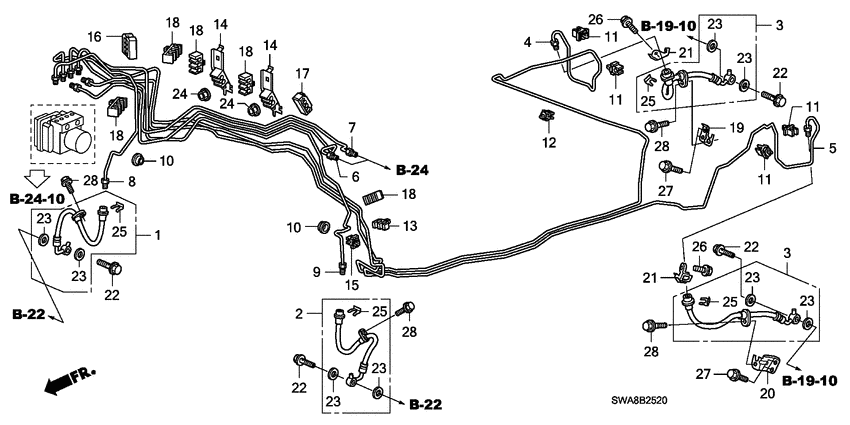

Brake lines (ABS; RH) 6 / 27

#	OEM	RD5	RE3
12	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
14	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
26	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
27	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

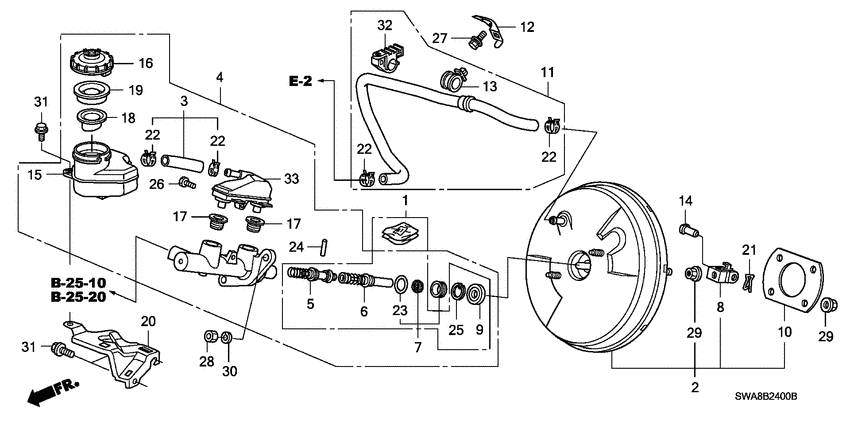

Brake master cylinder/ master power (RH) 14 / 22

#	OEM	RD5	RE3
5	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
6	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
7	46185-SE0-003	Seal - ROD	Seal - ROD
11	46407-S84-A01	Clamp - TUBE	Clamp - TUBE
12	46512-S70-000	Pin - PEDAL	Pin - PEDAL
14	46662-S9A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
15	46665-S04-J01	Grommet	Grommet
16	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
17	46669-S5A-003	Diaphragm	Diaphragm
18	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
19	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
20	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
21	57515-S30-003	Pin - STOP	Pin - STOP
22	57562-SF1-003	Circlip	Circlip

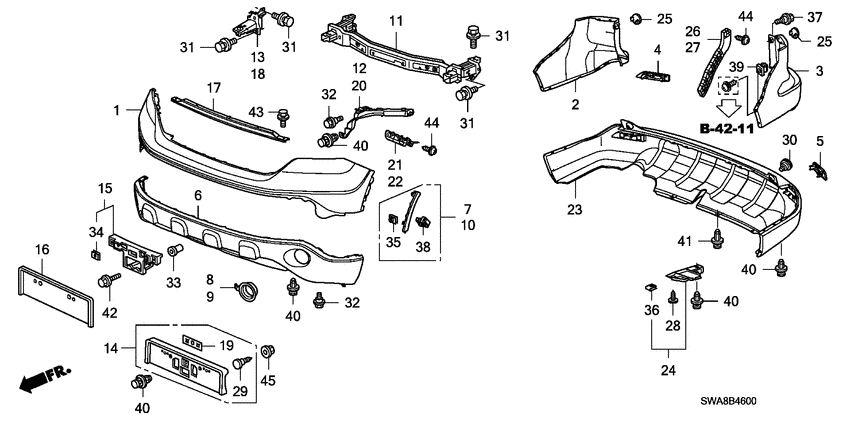

Bumpers 5 / 27

#	OEM	RD5	RE3
19	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
23	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
25	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
27	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
28	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Camshaft/cam chain 11 / 18

#	OEM	RD5	RE3
2	14113-PNA-003	Plate - CAM PULSE	Plate - CAM PULSE
3	14114-PNA-003	Plate - TDC PULSE	Plate - TDC PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
6	14210-PNA-000	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
9	14510-PNA-003	Tensioner Assy, CAM CHAIN	Tensioner Assy, CAM CHAIN
9	14510-PRB-A01	Tensioner Assy, Cam Chain	Tensioner Assy, Cam Chain
10	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
14	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Center table 2 / 18

#	OEM	RD5	RE3
27	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
28	90134-S10-J11	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10

Chain case 8 / 9

#	OEM	RD5	RE3
2	11412-PNA-000	Cover - CHAIN CASE	Cover - CHAIN CASE
3	37500-PNB-003	Sensor assy - CRANK	Sensor assy - CRANK
4	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
5	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
6	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)
6	91212-RNA-A01	Oil seal - 43X58X7(ARAI)	Oil seal - 43X58X7(ARAI)
7	91302-PNA-004	O-ring - CHAIN CASE	O-ring - CHAIN CASE
8	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

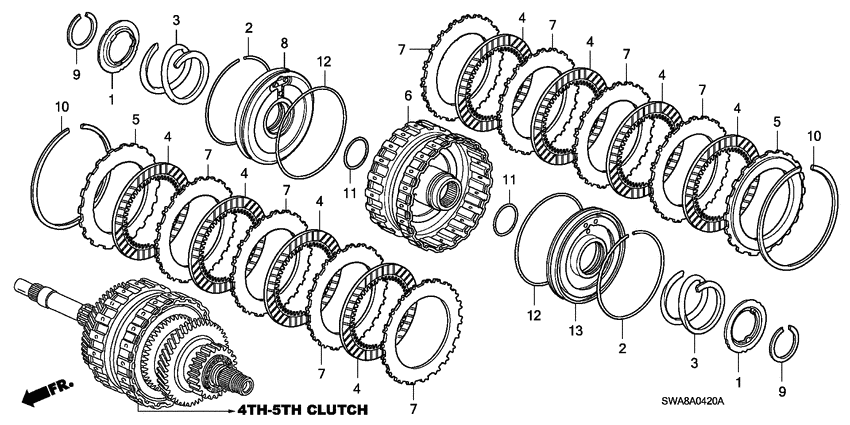

Clutch (3RD-4TH; 4AT) 7 / 22

#	OEM	RD5	RE3
1	22533-PX4-010	Seat - RETURN SPRING	Seat - RETURN SPRING
2	22536-PRP-013	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
3	22541-PX4-004	Spring - CLUTCH RETURN (SANKO)	Spring - CLUTCH RETURN (SANKO)
10	90603-PX4-000	Circlip - EXTERNAL, 47MM	Circlip - EXTERNAL, 47MM
11	90605-P7T-003	Ring - SNAP, 133MM	Ring - SNAP, 133MM
12	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
13	91303-PX4-004	O-ring - 114X2.2 (NOK)	O-ring - 114X2.2 (NOK)

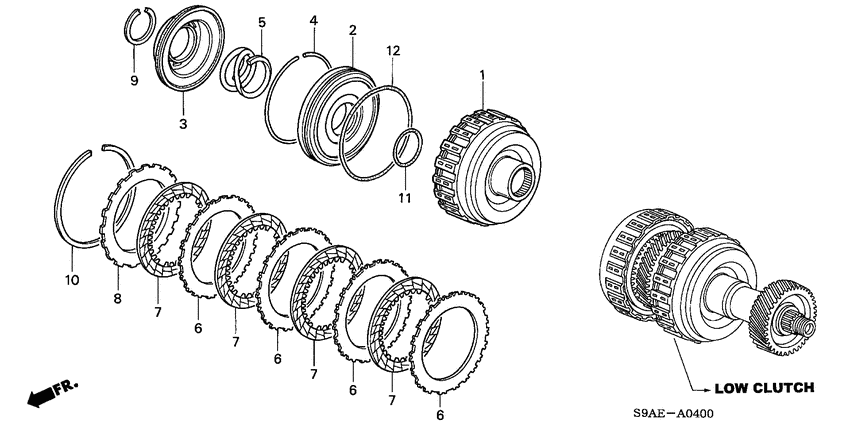

Clutch (LOW; 4AT) 5 / 23

#	OEM	RD5	RE3
3	22533-RCL-003	Retainer comp - RETURN SPRING	Retainer comp - RETURN SPRING
4	22536-PRP-013	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
9	90603-P6H-003	Circlip - EXTERNAL, 43MM	Circlip - EXTERNAL, 43MM
11	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)
12	91303-PX4-004	O-ring - 114X2.2 (NOK)	O-ring - 114X2.2 (NOK)

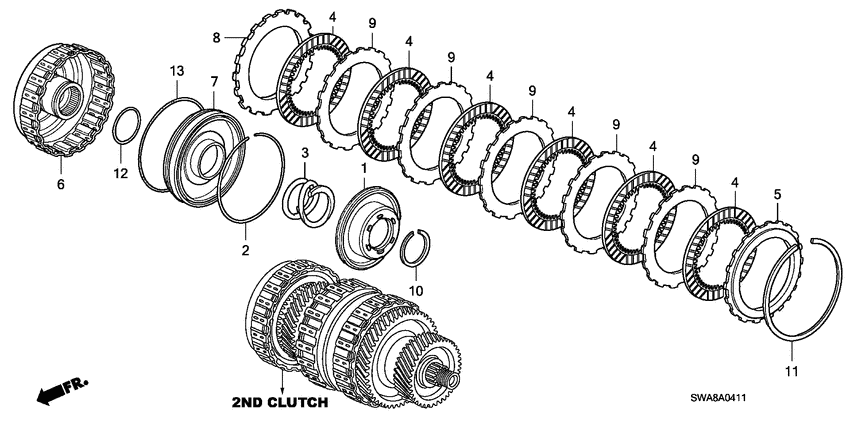

Clutch (SECOND; 4AT) 5 / 22

#	OEM	RD5	RE3
1	22533-RCL-003	Retainer comp - RETURN SPRING	Retainer comp - RETURN SPRING
10	90603-P6H-003	Circlip - EXTERNAL, 43MM	Circlip - EXTERNAL, 43MM
12	91302-PA9-004	O-ring - 39.8X2.2 (NOK)	O-ring - 39.8X2.2 (NOK)
12	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)
13	91303-PX4-004	O-ring - 114X2.2 (NOK)	O-ring - 114X2.2 (NOK)

Clutch master cylinder (RH) 3 / 40

#	OEM	RD5	RE3
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
7	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
39	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch/torque converter 4 / 12

#	OEM	RD5	RE3
7	26251-PNA-000	Plate - DRIVE	Plate - DRIVE
9	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
11	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2
12	91302-RNA-003	O-ring - 35.5X1.9	O-ring - 35.5X1.9

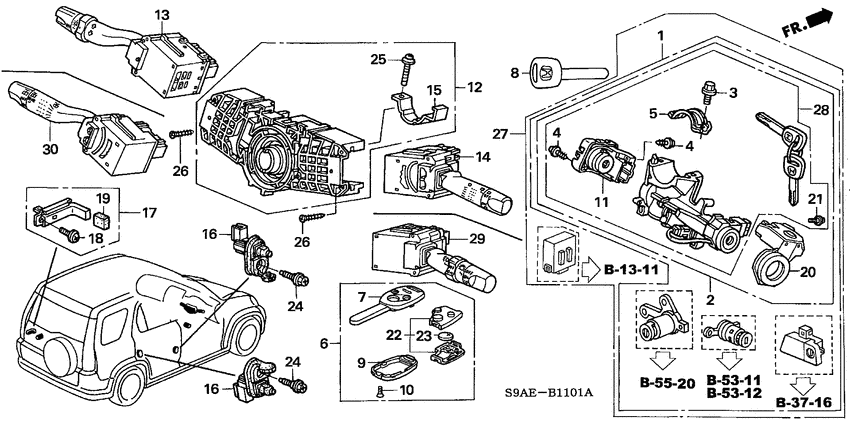

Combination switch (RH) 5 / 19

#	OEM	RD5	RE3
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
11	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
21	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5

Console (RH; AT) 5 / 18

#	OEM	RD5	RE3
6	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
18	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
19	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
21	90610-S10-003	Clip - GARNISH	Clip - GARNISH
22	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Console (RH; MT) 4 / 12

#	OEM	RD5	RE3
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
15	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
16	90610-S10-003	Clip - GARNISH	Clip - GARNISH
17	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Control unit (CABIN; RH) 2 / 21

#	OEM	RD5	RE3
13	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
23	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM) 1 / 27

#	OEM	RD5	RE3
25	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

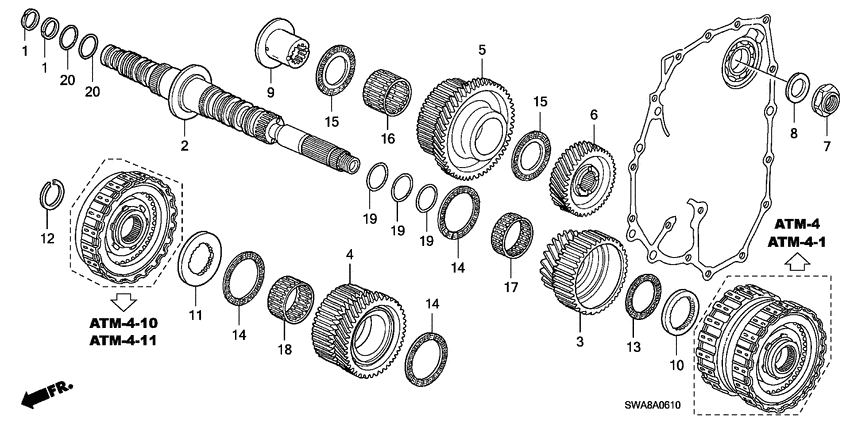

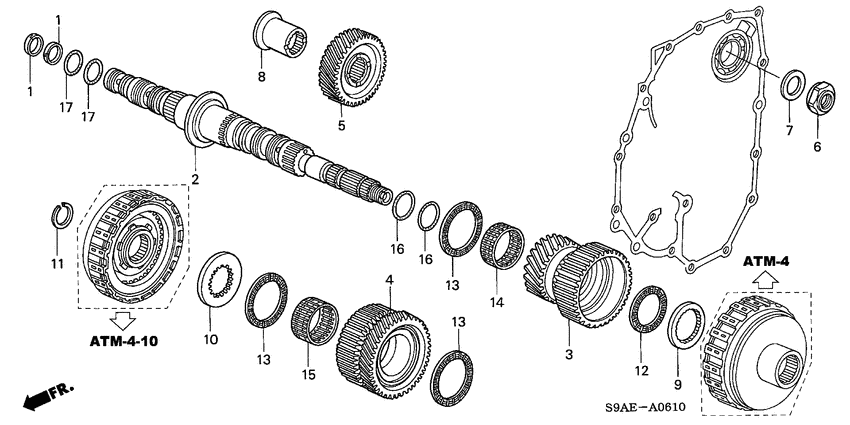

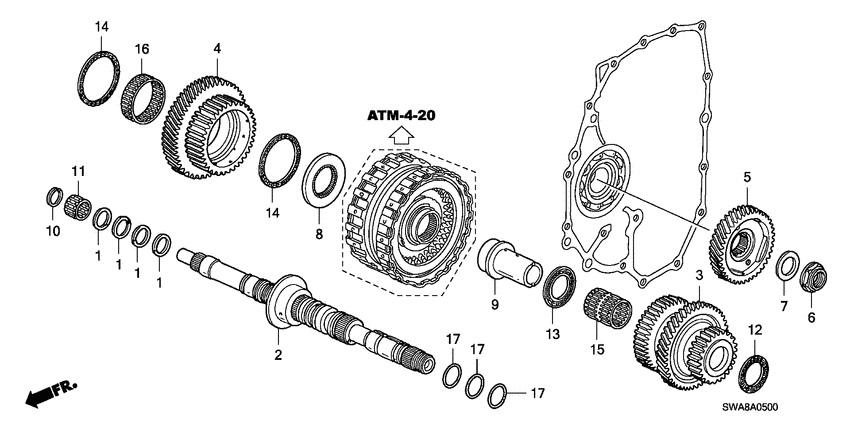

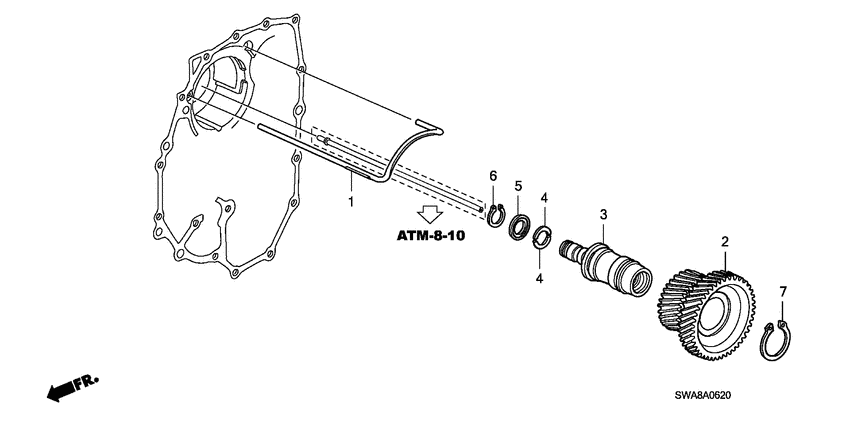

Countershaft (4AT) 15 / 22

#	OEM	RD5	RE3
1	21215-PRP-000	Holder - IDLE SHAFT	Holder - IDLE SHAFT
8	23531-PRP-010	Gear - COUNTERSHAFT REVERSE	Gear - COUNTERSHAFT REVERSE
9	23541-PRP-000	Gear - REVERSE IDLE	Gear - REVERSE IDLE
10	23542-P6H-000	Shaft - REVERSE IDLE GEAR	Shaft - REVERSE IDLE GEAR
11	23565-PRP-010	Selector - REVERSE GEAR	Selector - REVERSE GEAR
12	23566-PRP-000	Hub - SELECTOR	Hub - SELECTOR
13	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)	Nut - FLANGE, 24MM (LEFT HAND THREAD)
14	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
15	90431-P6H-000	Cotter - 31MM	Cotter - 31MM
17	90445-PPV-000	Collar - 35X47X7.8	Collar - 35X47X7.8
18	90614-P0Z-000	Ring - SNAP, 35MM	Ring - SNAP, 35MM
19	91024-PRP-004	Bearing - NEEDLE, 40X46X14.5 (KOYO)	Bearing - NEEDLE, 40X46X14.5 (KOYO)
20	91025-P0X-003	Bearing - NEEDLE, 15X20X16 (NTN)	Bearing - NEEDLE, 15X20X16 (NTN)
21	91028-P0Z-013	Bearing - NEEDLE, 35X41X25.8 (NTN)	Bearing - NEEDLE, 35X41X25.8 (NTN)
22	91306-P0X-003	O-ring - 8.1X4 (NOK)	O-ring - 8.1X4 (NOK)

Cylinder block/oil pan 11 / 21

#	OEM	RD5	RE3
2	11106-PNA-300	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
4	11108-PT0-003	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
8	11222-RAA-A00	Plate b - BAFFLE	Plate b - BAFFLE
10	30530-PNA-003	Knock Sensor - 30530-PNA-003	Knock Sensor - 30530-PNA-003
10	30530-PPL-A01	Knock Sensor	Knock Sensor
12	90006-PNA-003	Bolt-washer - 11X95	Bolt-washer - 11X95
14	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
16	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
17	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
18	90715-PNA-000	Dowel pin - 13X14	Dowel pin - 13X14
19	91214-PWA-Y01	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)

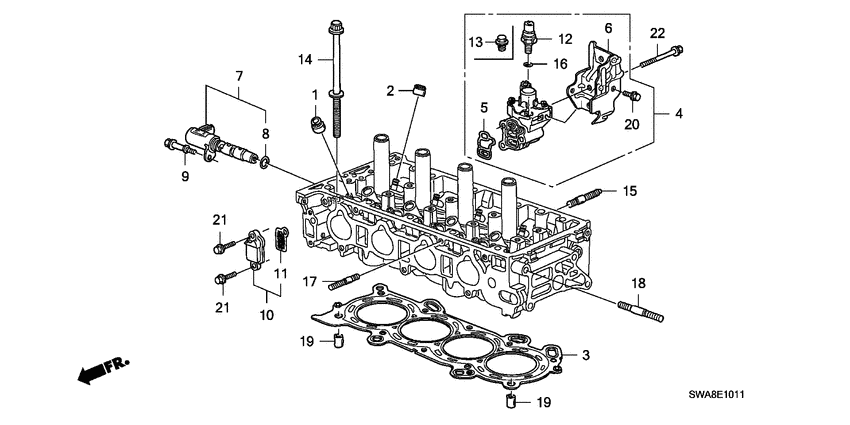

Cylinder head 7 / 9

#	OEM	RD5	RE3
2	12204-PNA-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	14631-PNE-000	Shaft - IN. ROCKER	Shaft - IN. ROCKER
6	37510-PNB-003	Sensor assy - TDC	Sensor assy - TDC
7	90011-PNA-003	Bolt A, Head Cover	Bolt A, Head Cover
8	90012-PNA-003	Bolt b - HEAD COVER	Bolt b - HEAD COVER
9	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

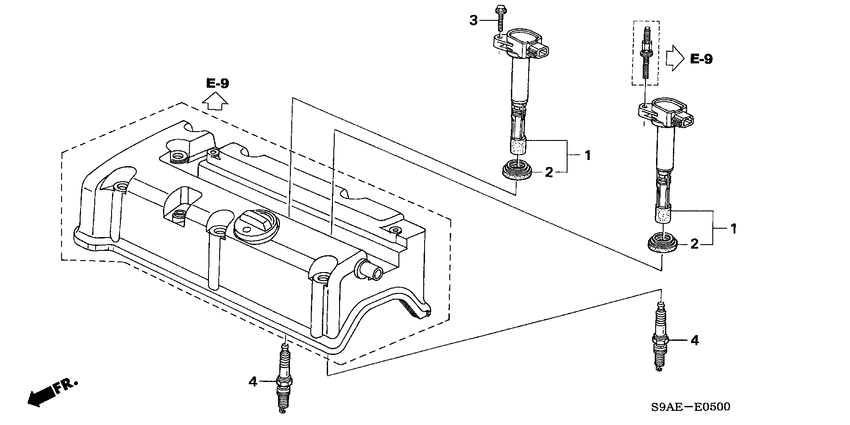

Cylinder head cover 11 / 17

#	OEM	RD5	RE3
1	12030-RTA-000	Packing set - HEAD COVER	Packing set - HEAD COVER
3	12341-RTA-000	Packing, CYLINDER HEAD COVER	Packing, CYLINDER HEAD COVER
4	12342-PCX-004	Seal - SPARK PLUG TUBE (NOK)	Seal - SPARK PLUG TUBE (NOK)
5	12500-PNC-020	Cover comp. - PLUG HOLE COIL	Cover comp. - PLUG HOLE COIL
6	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
9	90013-PNC-010	Bolt a - PLUG HOLE COIL COVER	Bolt a - PLUG HOLE COIL COVER
10	90014-R40-A00	Bolt b - PLUG HOLE COIL COVER	Bolt b - PLUG HOLE COIL COVER
11	90207-RAA-A10	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM
12	90213-PH3-000	Nut - CAP, 6MM	Nut - CAP, 6MM
13	90441-PNA-010	Washer - HEAD COVER	Washer - HEAD COVER

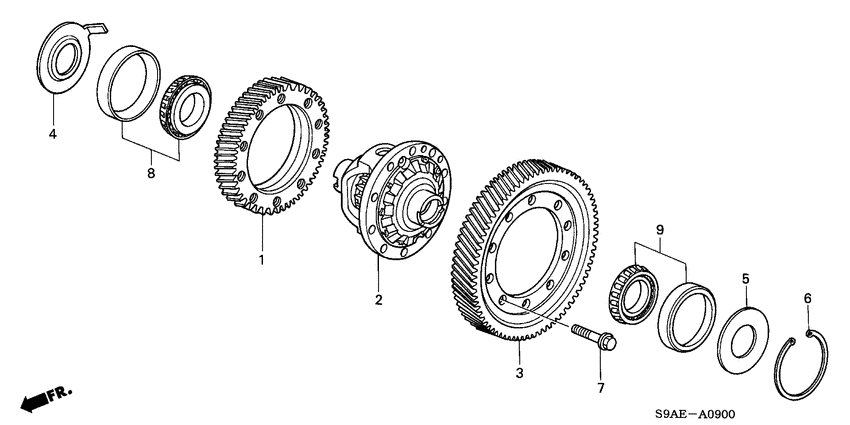

Differential (4AT) 62 / 73

#	OEM	RD5	RE3
4	41381-PPV-000	Spacer - 41X80X1	Spacer - 41X80X1
6	41449-PK4-000	Shim i - 76MM (2.60)	Shim i - 76MM (2.60)
6	41433-PRP-000	Shim of - 76MM (1.80)	Shim of - 76MM (1.80)
6	41447-PAX-000	Shim t - 76MM (2.525)	Shim t - 76MM (2.525)
6	41431-PAX-000	Shim d - 76MM (1.725)	Shim d - 76MM (1.725)
6	41444-PK4-000	Shim d - 76MM (2.35)	Shim d - 76MM (2.35)
6	41428-PRP-000	Shim oa - 76MM (1.55)	Shim oa - 76MM (1.55)
6	41458-PK4-000	Shim r - 76MM (3.05)	Shim r - 76MM (3.05)
6	41442-PAX-000	Shim o - 76MM (2.275)	Shim o - 76MM (2.275)
6	41455-PK4-000	Shim o - 76MM (2.90)	Shim o - 76MM (2.90)
6	41439-PX4-700	Shim t - 76MM (2.10)	Shim t - 76MM (2.10)
6	41453-PAX-000	Shim z - 76MM (2.825)	Shim z - 76MM (2.825)
6	41437-PAX-000	Shim j - 76MM (2.025)	Shim j - 76MM (2.025)
6	41450-PK4-000	Shim j - 76MM (2.65)	Shim j - 76MM (2.65)
6	41434-PRP-000	Shim og - 76MM (1.85)	Shim og - 76MM (1.85)
6	41448-PAX-000	Shim u - 76MM (2.575)	Shim u - 76MM (2.575)
6	41432-PAX-000	Shim e - 76MM (1.775)	Shim e - 76MM (1.775)
6	41445-PK4-000	Shim e - 76MM (2.40)	Shim e - 76MM (2.40)
6	41429-PRP-000	Shim ob - 76MM (1.60)	Shim ob - 76MM (1.60)
6	41443-PAX-000	Shim p - 76MM (2.325)	Shim p - 76MM (2.325)
6	41456-PK4-000	Shim p - 76MM (2.95)	Shim p - 76MM (2.95)
6	41440-PX4-700	Shim u - 76MM (2.15)	Shim u - 76MM (2.15)
6	41454-PAX-000	Shim oa - 76MM (2.875)	Shim oa - 76MM (2.875)
6	41438-PAX-000	Shim k - 76MM (2.075)	Shim k - 76MM (2.075)
6	41451-PK4-000	Shim k - 76MM (2.70)	Shim k - 76MM (2.70)
6	41435-PRP-000	Shim oh - 76MM (1.90)	Shim oh - 76MM (1.90)
6	41449-PAX-000	Shim v - 76MM (2.625)	Shim v - 76MM (2.625)
6	41433-PAX-000	Shim f - 76MM (1.825)	Shim f - 76MM (1.825)
6	41446-PK4-000	Shim f - 76MM (2.45)	Shim f - 76MM (2.45)
6	41430-PRP-000	Shim oc - 76MM (1.65)	Shim oc - 76MM (1.65)
6	41444-PAX-000	Shim q - 76MM (2.375)	Shim q - 76MM (2.375)
6	41428-PAX-000	Shim a - 76MM (1.575)	Shim a - 76MM (1.575)
6	41457-PK4-000	Shim q - 76MM (3.00)	Shim q - 76MM (3.00)
6	41441-PK4-000	Shim a - 76MM (2.20)	Shim a - 76MM (2.20)
6	41455-PAX-000	Shim ob - 76MM (2.925)	Shim ob - 76MM (2.925)
6	41439-PAX-000	Shim l - 76MM (2.125)	Shim l - 76MM (2.125)
6	41452-PK4-000	Shim l - 76MM (2.75)	Shim l - 76MM (2.75)
6	41436-PRP-000	Shim oi - 76MM (1.95)	Shim oi - 76MM (1.95)
6	41450-PAX-000	Shim w - 76MM (2.675)	Shim w - 76MM (2.675)
6	41434-PAX-000	Shim g - 76MM (1.875)	Shim g - 76MM (1.875)
6	41447-PK4-000	Shim g - 76MM (2.50)	Shim g - 76MM (2.50)
6	41431-PRP-000	Shim od - 76MM (1.70)	Shim od - 76MM (1.70)
6	41445-PAX-000	Shim r - 76MM (2.425)	Shim r - 76MM (2.425)
6	41429-PAX-000	Shim b - 76MM (1.625)	Shim b - 76MM (1.625)
6	41442-PK4-000	Shim b - 76MM (2.25)	Shim b - 76MM (2.25)
6	41456-PAX-000	Shim oc - 76MM (2.975)	Shim oc - 76MM (2.975)
6	41440-PAX-000	Shim m - 76MM (2.175)	Shim m - 76MM (2.175)
6	41453-PK4-000	Shim m - 76MM (2.80)	Shim m - 76MM (2.80)
6	41437-PRP-000	Shim oj - 76MM (2.00)	Shim oj - 76MM (2.00)
6	41451-PAX-000	Shim x - 76MM (2.725)	Shim x - 76MM (2.725)
6	41435-PAX-000	Shim h - 76MM (1.925)	Shim h - 76MM (1.925)
6	41448-PK4-000	Shim h - 76MM (2.55)	Shim h - 76MM (2.55)
6	41432-PRP-000	Shim oe - 76MM (1.75)	Shim oe - 76MM (1.75)
6	41446-PAX-000	Shim s - 76MM (2.475)	Shim s - 76MM (2.475)
6	41430-PAX-000	Shim c - 76MM (1.675)	Shim c - 76MM (1.675)
6	41443-PK4-000	Shim c - 76MM (2.30)	Shim c - 76MM (2.30)
6	41457-PAX-000	Shim od - 76MM (3.025)	Shim od - 76MM (3.025)
6	41441-PAX-000	Shim n - 76MM (2.225)	Shim n - 76MM (2.225)
6	41454-PK4-000	Shim n - 76MM (2.85)	Shim n - 76MM (2.85)
6	41438-PX4-700	Shim s - 76MM (2.05)	Shim s - 76MM (2.05)
6	41452-PAX-000	Shim y - 76MM (2.775)	Shim y - 76MM (2.775)
6	41436-PAX-000	Shim i - 76MM (1.975)	Shim i - 76MM (1.975)

Emblems/caution labels 1 / 6

#	OEM	RD5	RE3
7	77875-SDA-G80	Label - SRS CAUTION	Label - SRS CAUTION

Engine hood (RH) 5 / 26

#	OEM	RD5	RE3
2	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
23	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
29	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
32	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
36	91604-S5A-003	Grommet - HOOD STAY	Grommet - HOOD STAY

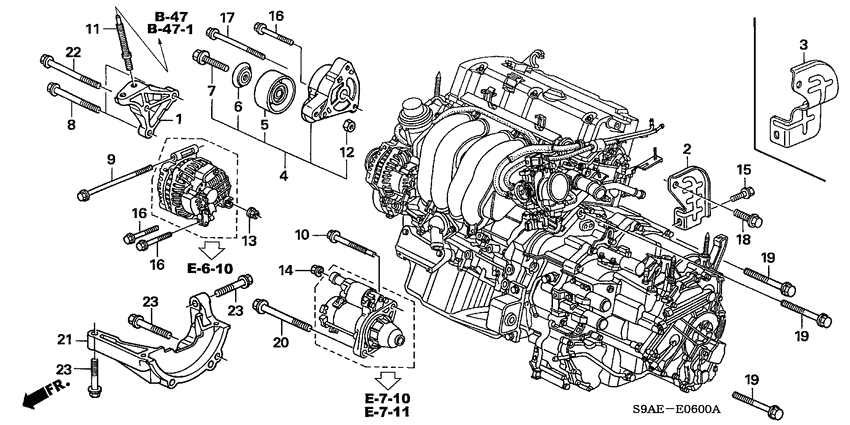

Engine mounting bracket 8 / 12

#	OEM	RD5	RE3
4	31170-PNA-023	Tensioner assy, Auto	Tensioner assy, Auto
5	31180-PNA-J01	Pulley comp., IDLER	Pulley comp., IDLER
6	31185-PNA-003	Cover - BEARING	Cover - BEARING
7	90002-PNA-000	Bolt - SPECIAL, 10X28	Bolt - SPECIAL, 10X28
8	90008-PNA-000	Bolt - 10X75	Bolt - 10X75
9	90025-PNA-000	Bolt - SPECIAL, 8X105	Bolt - SPECIAL, 8X105
10	90027-PND-A00	Bolt - SPECIAL, 10X50	Bolt - SPECIAL, 10X50
12	90202-PNA-003	Nut - 10MM	Nut - 10MM

Engine mounts (AT) 1 / 17

#	OEM	RD5	RE3
13	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35

Engine mounts (MT) 1 / 17

#	OEM	RD5	RE3
13	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35

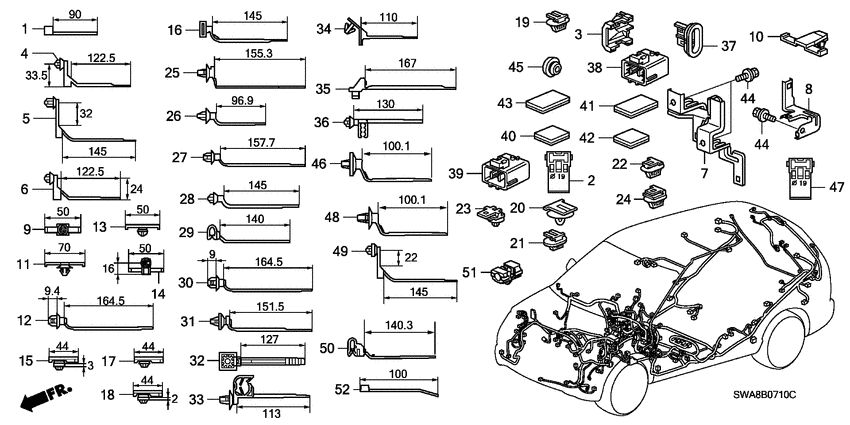

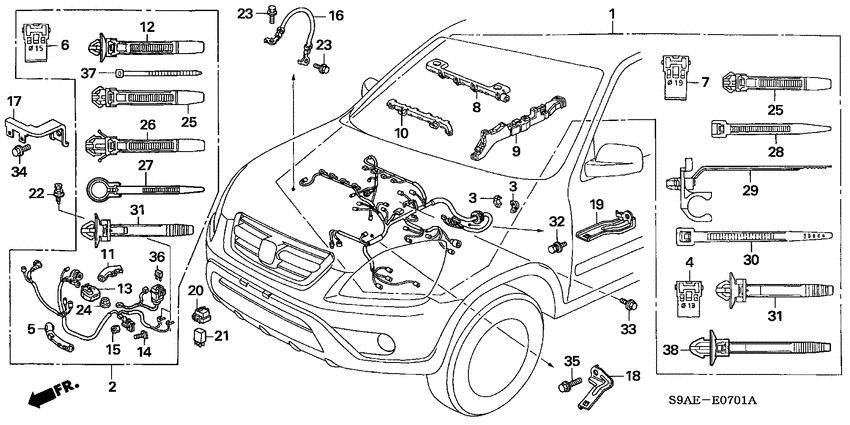

Engine wire harness (RH) 12 / 34

#	OEM	RD5	RE3
6	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
7	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
12	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
13	32418-RBG-300	Cover - BATTERY TERMINAL	Cover - BATTERY TERMINAL
14	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
22	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
27	91531-S5B-003	Band - HARNESS (BLACK) (120MM)	Band - HARNESS (BLACK) (120MM)
30	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)	Band - CLAMP(NATURAL)(143.2MM)
31	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
37	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
38	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)

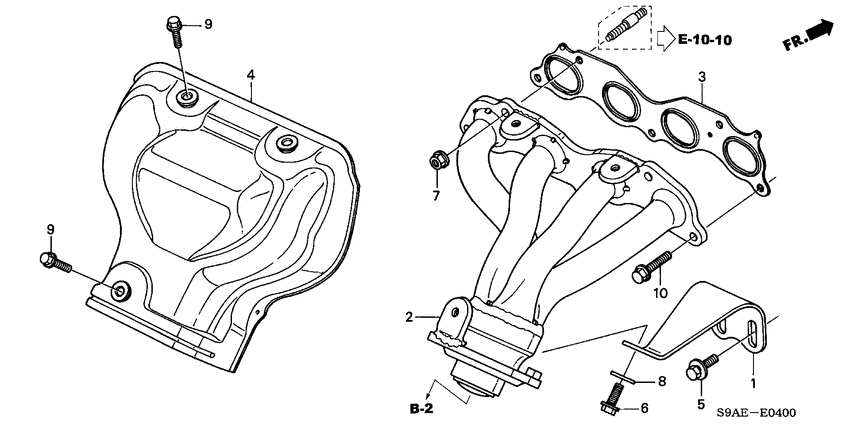

Exhaust manifold 6 / 9

#	OEM	RD5	RE3
3	18115-PRB-A01	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)
3	18115-PNB-003	Gasket - EX. MANIFOLD (ISHINO GASKET)	Gasket - EX. MANIFOLD (ISHINO GASKET)
5	90005-P0A-000	Bolt-washer - 10X22	Bolt-washer - 10X22
6	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
7	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
8	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust pipe/silencer 9 / 22

#	OEM	RD5	RE3
3	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
10	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
11	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
12	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
14	18231-S10-003	Bolt - FLEXIBLE JOINT	Bolt - FLEXIBLE JOINT
22	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
22	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
23	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
24	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

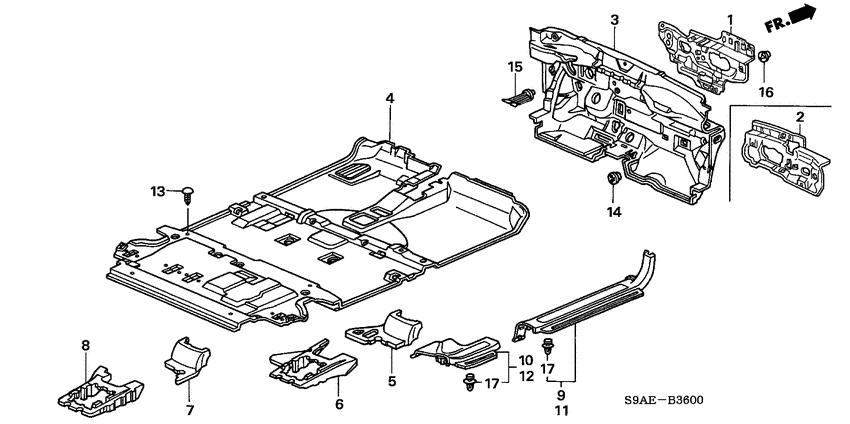

Floor mat 2 / 8

#	OEM	RD5	RE3
14	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
16	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Floor/inner panels 1 / 4

#	OEM	RD5	RE3
34	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Fog light 1 / 4

#	OEM	RD5	RE3
4	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP

Front brake 3 / 28

#	OEM	RD5	RE3
21	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
21	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
21	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)

Front bulkhead/dashboard 2 / 3

#	OEM	RD5	RE3
38	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
39	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Front door glass/ regulator 1 / 14

#	OEM	RD5	RE3
12	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

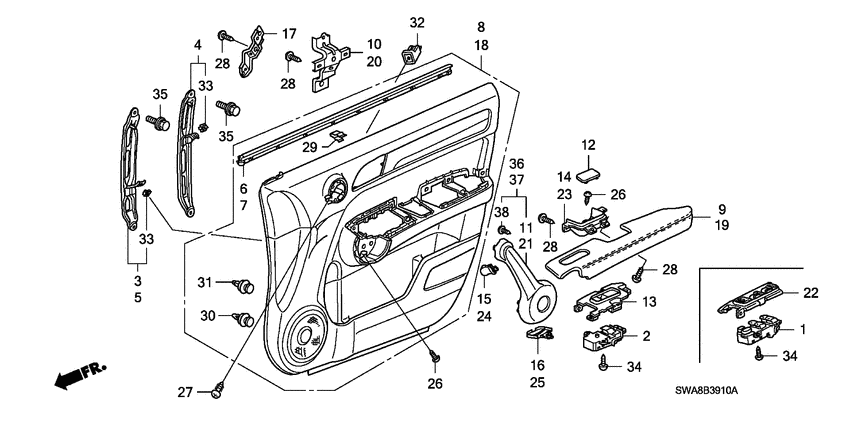

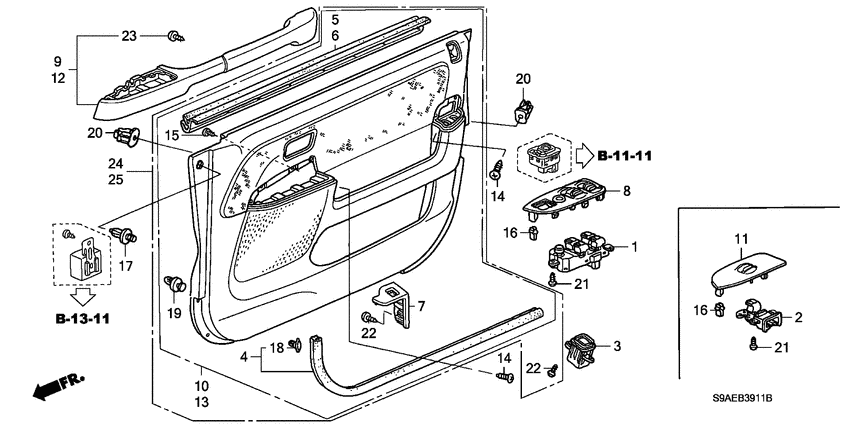

Front door lining (RH) 4 / 10

#	OEM	RD5	RE3
14	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
15	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
16	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
18	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL

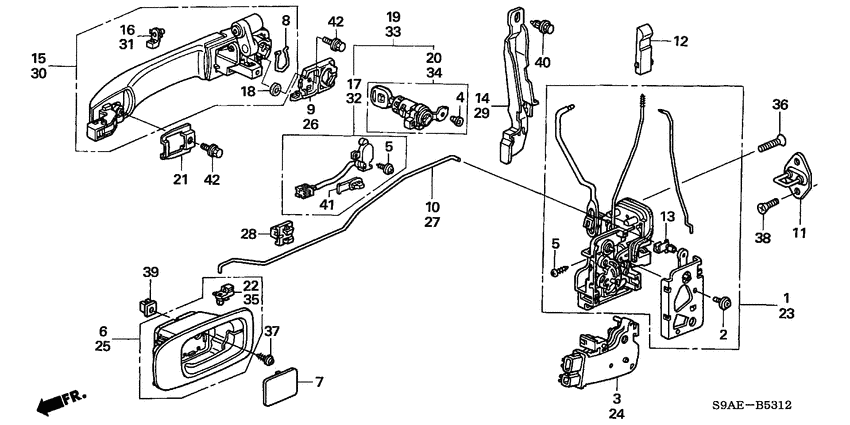

Front door locks/ outer handle (3) 8 / 32

#	OEM	RD5	RE3
5	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
13	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
16	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
18	72143-S04-003	Packing	Packing
21	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
31	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
36	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
38	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

Front door panels 6 / 15

#	OEM	RD5	RE3
11	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
14	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Front driveshaft/ half shaft 14 / 29

#	OEM	RD5	RE3
6	44310-S9A-300	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)	Band - DRIVESHAFT (NIPPON HATSUJO)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
19	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
20	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
23	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
24	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)

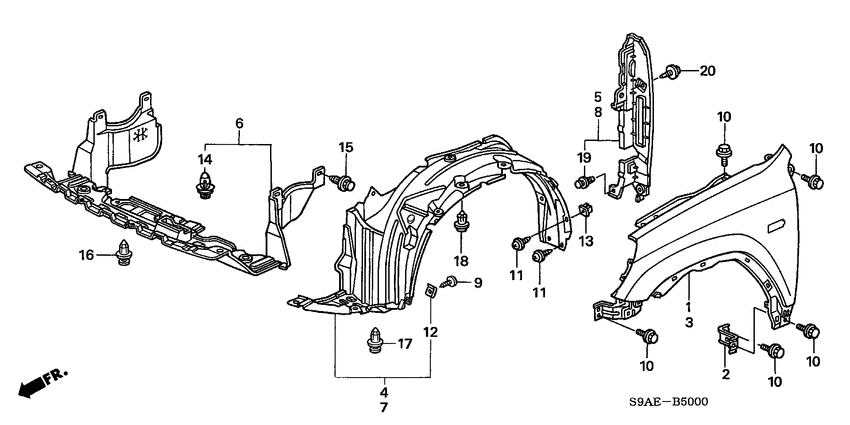

Front fenders 8 / 17

#	OEM	RD5	RE3
9	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
10	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
12	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
13	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
15	91503-SZ3-003	Clip A	Clip A
16	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
17	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
18	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front grille (2) 3 / 13

#	OEM	RD5	RE3
10	75700-S9A-G00	Front Honda Emblem - (H)	Front Honda Emblem - (H)
11	90301-ST0-003	push nut, 3mm	push nut, 3mm
12	91503-SZ3-003	Clip A	Clip A

Front knuckle/ front lower arm 2 / 22

#	OEM	RD5	RE3
18	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
20	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

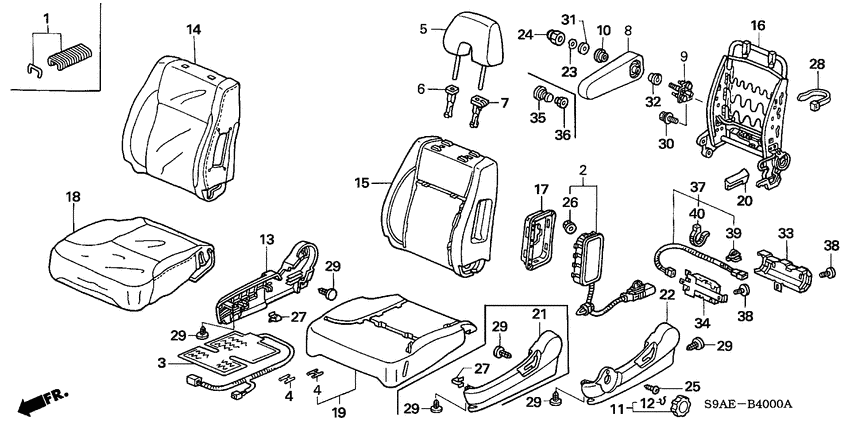

Front seat (L.) 2 / 18

#	OEM	RD5	RE3
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
27	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front seat (R.) 3 / 20

#	OEM	RD5	RE3
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
25	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
27	90610-S10-003	Clip - GARNISH	Clip - GARNISH

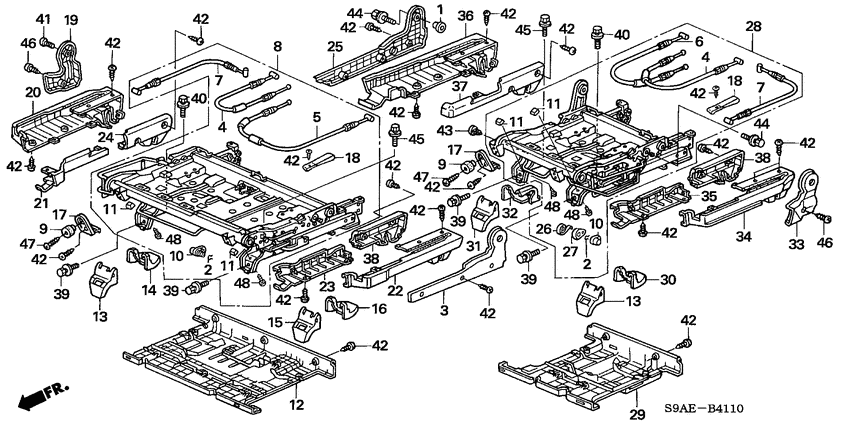

Front seat components (RH; DRIVER SIDE) 2 / 13

#	OEM	RD5	RE3
17	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
18	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22

Front seat components (RH; PASSENGER SIDE) 2 / 15

#	OEM	RD5	RE3
20	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
21	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22

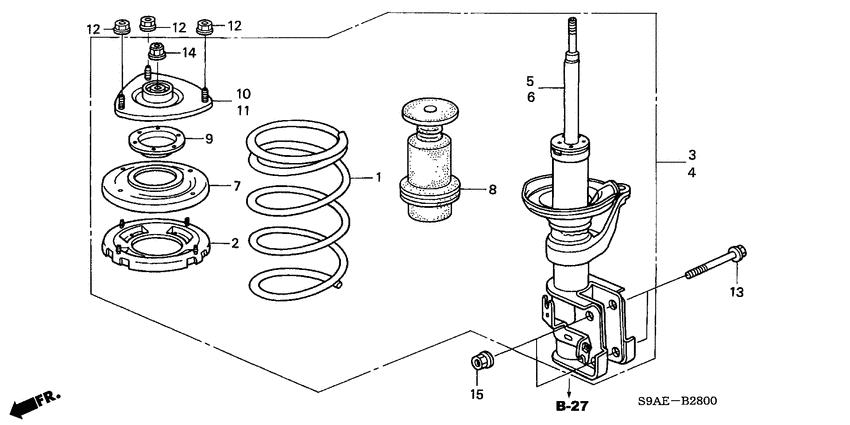

Front shock absorber 3 / 16

#	OEM	RD5	RE3
12	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
13	90119-S6M-Z01	Bolt - FLANGE, 16X62	Bolt - FLANGE, 16X62
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)

Front sub frame/ cross beam 2 / 8

#	OEM	RD5	RE3
7	90161-SD5-020	Bolt - FLANGE, 12X82	Bolt - FLANGE, 12X82
9	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115

Front windshield/ quarter glass 2 / 14

#	OEM	RD5	RE3
9	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
10	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM

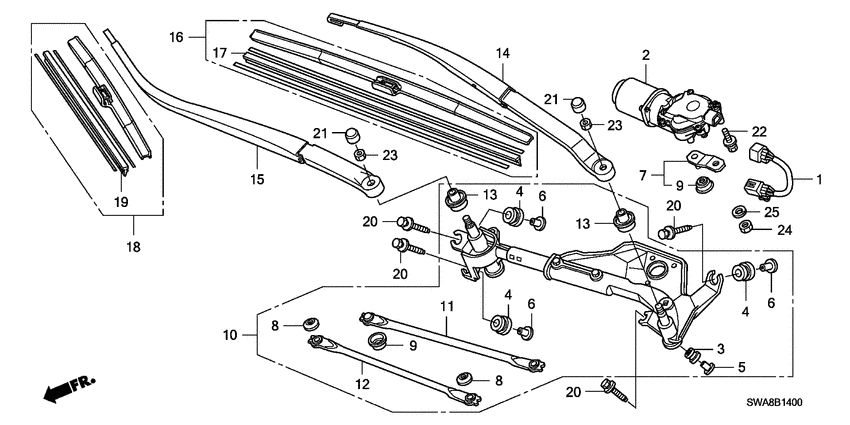

Front wiper (RH) 3 / 21

#	OEM	RD5	RE3
5	76517-SM4-003	Collar	Collar
7	76524-SD4-003	Dust seal	Dust seal
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32

Fuel pipe 6 / 32

#	OEM	RD5	RE3
7	16727-PND-004	Clamp - FUEL HOSE (BLACK)	Clamp - FUEL HOSE (BLACK)
12	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
13	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
14	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
29	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
31	91402-SDC-000	Clip - TUBE(B12)	Clip - TUBE(B12)

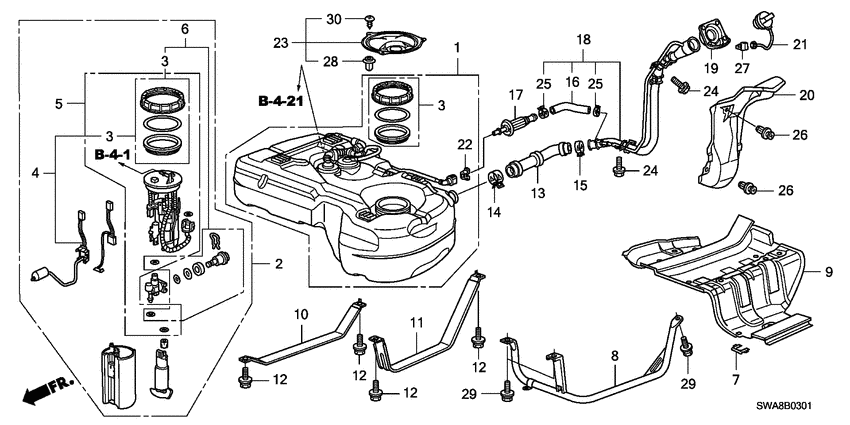

Fuel tank 7 / 43

#	OEM	RD5	RE3
15	17513-S0E-003	Circlip	Circlip
21	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
25	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
29	17662-S04-003	Packing - FUEL FILLER (WITH CLIP)	Packing - FUEL FILLER (WITH CLIP)
35	74660-S1C-E00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
36	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
42	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet (FRONT) 5 / 12

#	OEM	RD5	RE3
1	91613-SN4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
2	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
3	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
7	91606-SE0-000	Seal - 20X20	Seal - 20X20
8	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM

Grommet (LOWER) 3 / 4

#	OEM	RD5	RE3
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
8	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM

Grommet (REAR) 2 / 5

#	OEM	RD5	RE3
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
4	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Grommet (SIDE) 1 / 9

#	OEM	RD5	RE3
9	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Harness band/bracket (RH) 13 / 27

#	OEM	RD5	RE3
4	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
5	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
9	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
10	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
11	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
13	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)
15	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
18	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
19	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)
24	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
25	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
30	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)	Clip - BAND (6MM BOSS)(NATURAL) (127MM)

Headlight 7 / 15

#	OEM	RD5	RE3
2	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
7	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
9	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
10	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
14	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)	Bulb - HEADLIGHT(H1)(12V 55W)
15	90101-S5A-003	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
16	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

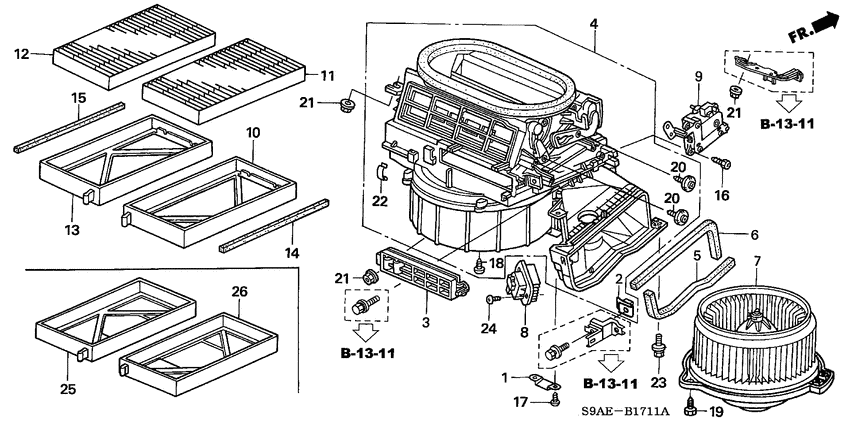

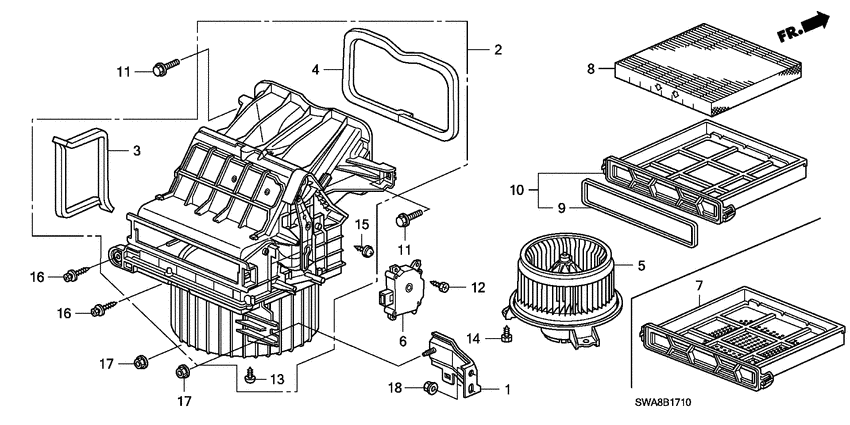

Heater blower (RH) 4 / 18

#	OEM	RD5	RE3
18	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
19	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
20	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
21	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater control (RH) 1 / 3

#	OEM	RD5	RE3
8	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Heater unit (RH) 8 / 30

#	OEM	RD5	RE3
1	39248-692-003	Packing - HEATER	Packing - HEATER
25	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
26	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
29	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
30	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
31	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
34	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
35	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)	Clip - BAND (6MM BOSS)(NATURAL) (127MM)

Idle shaft (4AT) 2 / 5

#	OEM	RD5	RE3
4	90431-PRP-000	Cotter - 17MM	Cotter - 17MM
5	90432-PRP-000	Retainer - COTTER	Retainer - COTTER

Install pipe 2 / 14

#	OEM	RD5	RE3
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
13	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Instrument panel (RH) 9 / 18

#	OEM	RD5	RE3
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
22	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
23	90111-SFA-000	Bolt-washer - 8X86	Bolt-washer - 8X86
24	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
25	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
26	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
27	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
30	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
31	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (RH; DRIVER SIDE) 4 / 11

#	OEM	RD5	RE3
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
17	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
22	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)

Instrument panel garnish (RH; PASSENGER SIDE) 3 / 10

#	OEM	RD5	RE3
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
23	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
24	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Intake manifold 4 / 20

#	OEM	RD5	RE3
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
4	16638-PNA-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
17	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
19	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

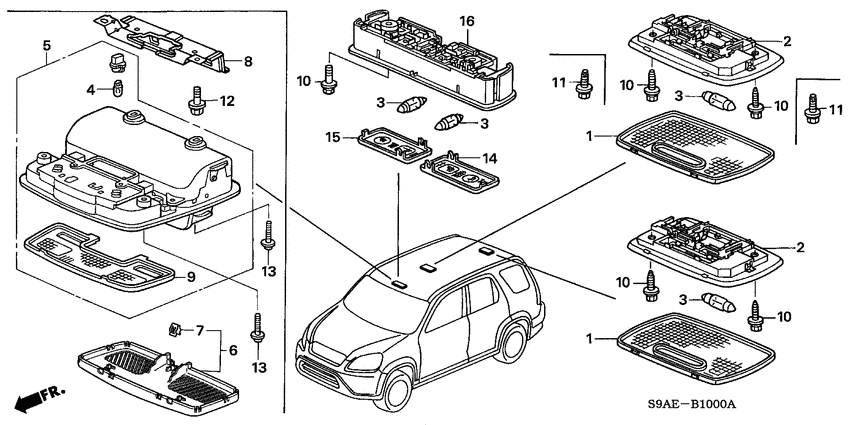

Interior light 3 / 8

#	OEM	RD5	RE3
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W

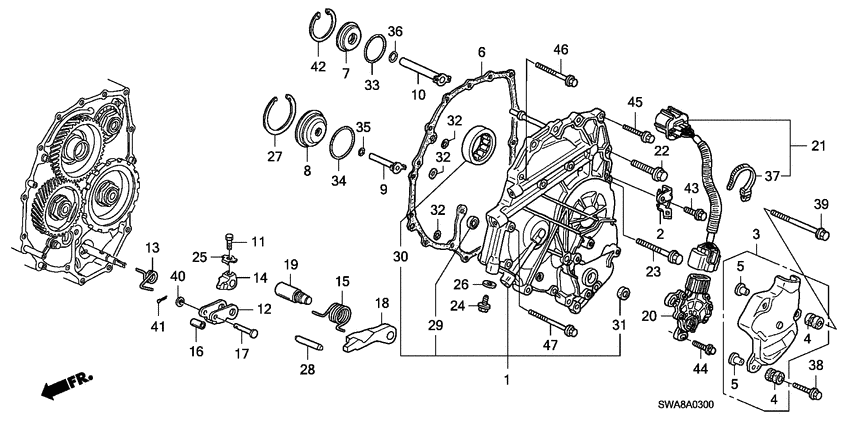

L. side cover (4AT) 31 / 38

#	OEM	RD5	RE3
2	21515-PPV-010	Stay e - HARNESS	Stay e - HARNESS
3	21720-RCT-000	Cover comp. - POSITION SENSOR	Cover comp. - POSITION SENSOR
4	21724-RCT-000	Rubber - POSITION SENSOR COVER	Rubber - POSITION SENSOR COVER
5	21725-RCT-000	Collar - POSITION SENSOR COVER	Collar - POSITION SENSOR COVER
6	21812-PRP-030	Packing - L. SIDE COVER	Packing - L. SIDE COVER
8	22713-PX4-000	Guide a - FEED PIPE	Guide a - FEED PIPE
9	22715-PRP-000	Pipe comp. b - FEED	Pipe comp. b - FEED
10	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
11	24532-PX4-000	Lever - PARKING BRAKE	Lever - PARKING BRAKE
12	24535-PRP-040	Spring - PARKING BRAKE	Spring - PARKING BRAKE
13	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
13	24537-PA9-003	Stopper - PARKING BRAKE (1)	Stopper - PARKING BRAKE (1)
13	24539-PA9-003	Stopper - PARKING BRAKE (3)	Stopper - PARKING BRAKE (3)
14	24552-PRP-000	Spring - PARKING PAWL	Spring - PARKING PAWL
15	24553-PN6-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
16	24555-PN6-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
17	24561-PRP-010	Pawl - PARKING BRAKE	Pawl - PARKING BRAKE
18	24562-PRP-000	Shaft - PARKING	Shaft - PARKING
21	90004-PRH-010	Bolt - SPECIAL, 8X30	Bolt - SPECIAL, 8X30
22	90005-PRH-010	Bolt - SPECIAL, 8X38	Bolt - SPECIAL, 8X38
23	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
24	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
25	90471-580-000	Packing - 8MM	Packing - 8MM
26	90602-PX4-000	Circlip b - INTERNAL, 47MM	Circlip b - INTERNAL, 47MM
27	90702-PL4-000	Dowel pin - 8X44	Dowel pin - 8X44
28	91006-P1B-003	Bearing - BALL, 9X20X6	Bearing - BALL, 9X20X6
30	91201-PA9-004	Oil seal - 9X18X7 (ARAI)	Oil seal - 9X18X7 (ARAI)
31	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
32	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
33	91305-PX4-003	O-ring - 40X1.9 (NOK)	O-ring - 40X1.9 (NOK)
34	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)

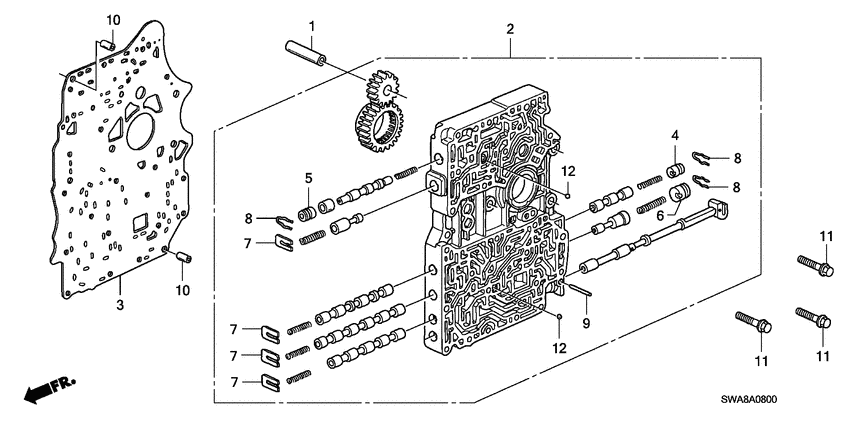

Main valve body (4AT) 7 / 9

#	OEM	RD5	RE3
1	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
4	27122-P6H-000	Cap - 12MM	Cap - 12MM
5	27132-P6H-000	Cap - 14MM	Cap - 14MM
6	27142-P6H-000	Cap - 15MM	Cap - 15MM
7	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
8	27524-P6H-000	Clip - CAP	Clip - CAP
9	91108-PRP-003	Roller - 4X23.8	Roller - 4X23.8

Mainshaft (4AT) 13 / 22

#	OEM	RD5	RE3
1	22814-PRP-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
2	23210-RCL-010	Mainshaft comp.	Mainshaft comp.
6	90203-PX4-010	Nut - FLANGE, 24MM	Nut - FLANGE, 24MM
7	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
9	90501-PRP-000	Collar - 27X34X66.3	Collar - 27X34X66.3
10	90603-P0X-000	Set ring - 23MM	Set ring - 23MM
11	91017-PZK-003	Bearing - NEEDLE, 23X29X18	Bearing - NEEDLE, 23X29X18
12	91018-PW7-A02	Bearing - THRUST NEEDLE, 34X46X2	Bearing - THRUST NEEDLE, 34X46X2
13	91023-PCJ-003	Bearing - THRUST NEEDLE, 34X53.5X2.5	Bearing - THRUST NEEDLE, 34X53.5X2.5
14	91026-PRP-003	Bearing - THRUST NEEDLE, 57.6X71X2	Bearing - THRUST NEEDLE, 57.6X71X2
15	91107-PRP-003	Bearing - NEEDLE, 34X40X39.5	Bearing - NEEDLE, 34X40X39.5
16	91109-PRP-003	Bearing - NEEDLE, 52X57X18	Bearing - NEEDLE, 52X57X18
17	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)

Meter components (NS) 1 / 6

#	OEM	RD5	RE3
1	37115-SA0-601	Packing - NS	Packing - NS

Mirror (2) 1 / 13

#	OEM	RD5	RE3
10	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)	Screw - TAPPING, 4X12 (TRUSS)

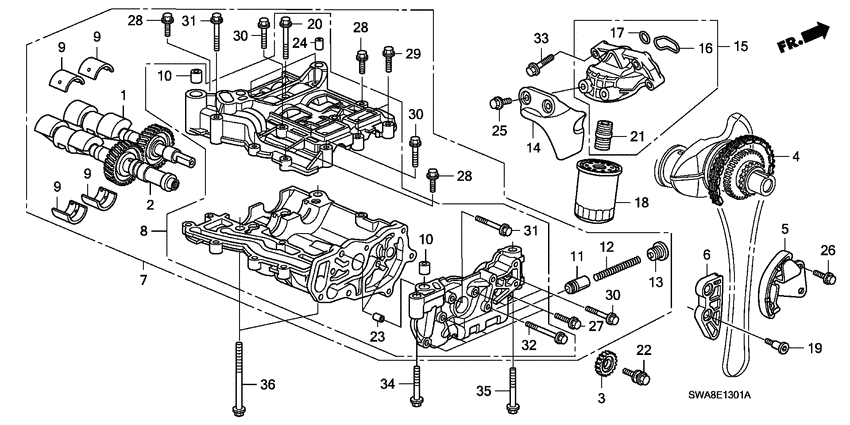

Oil pump 15 / 18

#	OEM	RD5	RE3
3	13432-PNA-000	Sprocket - DRIVEN(17T)	Sprocket - DRIVEN(17T)
4	13441-PNA-004	Chain - 62L	Chain - 62L
5	13450-PNA-004	Tensioner comp - BALANCER SHAFT CHAIN	Tensioner comp - BALANCER SHAFT CHAIN
6	13460-PNA-004	Guide comp - BALANCER SHAFT CHAIN	Guide comp - BALANCER SHAFT CHAIN
8	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)	Metal - BALANCER SHAFT(DAIDO)
9	15123-PCX-003	Dowel pin - 18X13	Dowel pin - 18X13
10	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
11	15232-RAA-A01	Spring - RELIEF VALVE	Spring - RELIEF VALVE
13	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
13	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
13	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
14	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
15	90009-PNA-000	Bolt - FLANGE, 8X55	Bolt - FLANGE, 8X55
16	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
17	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30

Outer panels/roof panel 6 / 9

#	OEM	RD5	RE3
22	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
23	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
28	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18
29	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
31	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

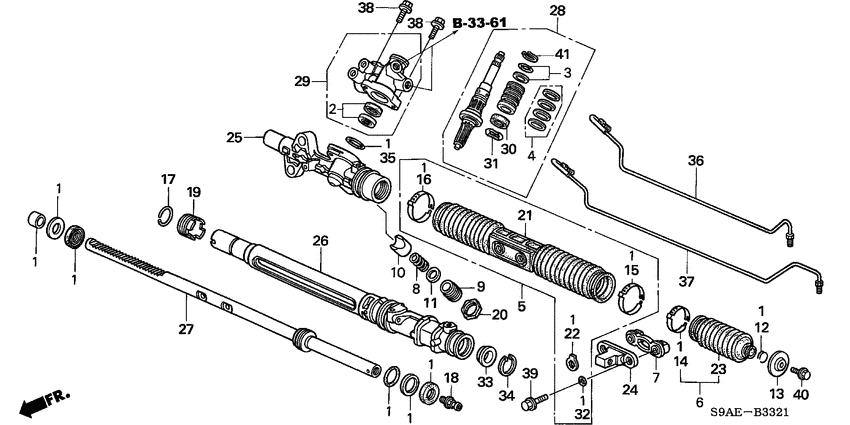

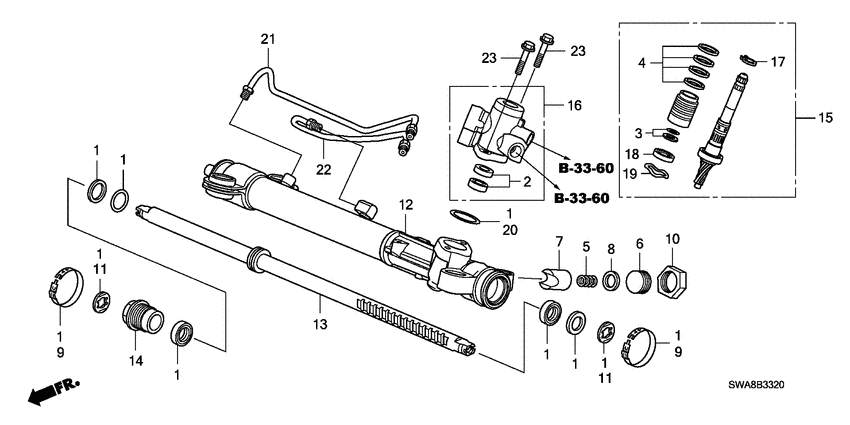

P.s. gear box components (RH) 6 / 41

#	OEM	RD5	RE3
2	06532-S50-003	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
30	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)	Oil seal - 27X38X5.5 (SHOWA)
35	53666-S50-003	O-ring - 41.5X2 (SHOWA)	O-ring - 41.5X2 (SHOWA)
38	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28

P.s. lines (RH) 6 / 20

#	OEM	RD5	RE3
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
6	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
14	56490-PNA-003	Switch assy - POWER STEERING PRESSURE	Switch assy - POWER STEERING PRESSURE
15	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
16	91304-PA6-003	O-ring - 7.8X1.9	O-ring - 7.8X1.9
17	91370-SV4-000	O-ring - 14.4X1.9	O-ring - 14.4X1.9

Parking brake (RH) 3 / 17

#	OEM	RD5	RE3
2	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
17	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
18	91602-S6A-N00	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

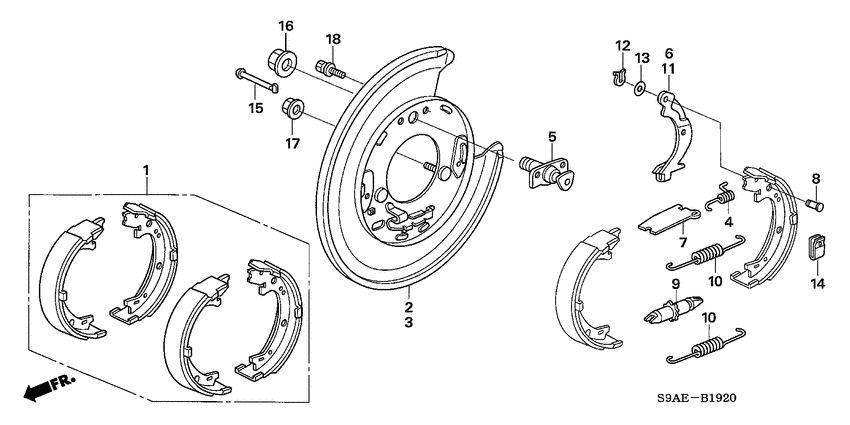

Parking brake shoe 7 / 16

#	OEM	RD5	RE3
4	43171-SX0-J01	Spring - ROD	Spring - ROD
7	43362-SFE-J01	Strut	Strut
9	43366-SX0-J01	Adjuster assy	Adjuster assy
12	43375-SA0-003	U-clip	U-clip
13	43379-SA5-003	Washer - WAVE	Washer - WAVE
14	45172-S9A-E01	Spring - SHOE CLAMP	Spring - SHOE CLAMP
15	45175-SA0-013	Pin - TENSIONER	Pin - TENSIONER

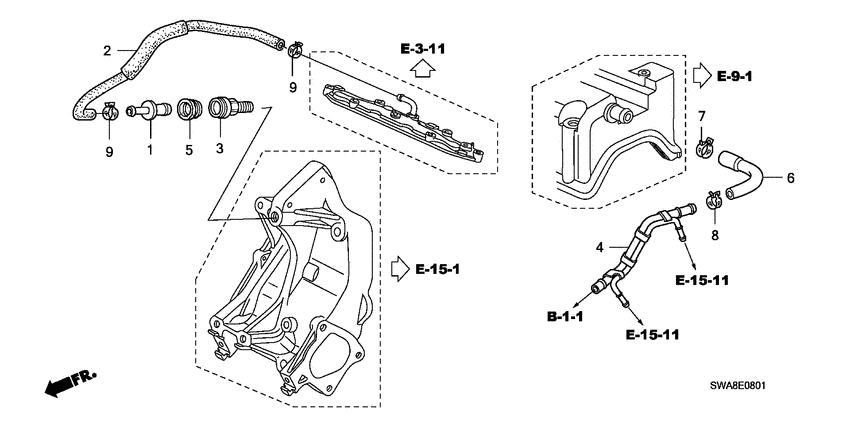

Pcv tube 3 / 4

#	OEM	RD5	RE3
2	17130-PNA-003	Valve assy. - PCV	Valve assy. - PCV
4	17136-PNA-000	Joint - PCV VALVE	Joint - PCV VALVE
5	17139-PK1-000	Grommet - PCV VALVE	Grommet - PCV VALVE

Pedal (RH) 3 / 23

#	OEM	RD5	RE3
6	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
10	46545-S84-A81	Cover - PEDAL	Cover - PEDAL
20	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

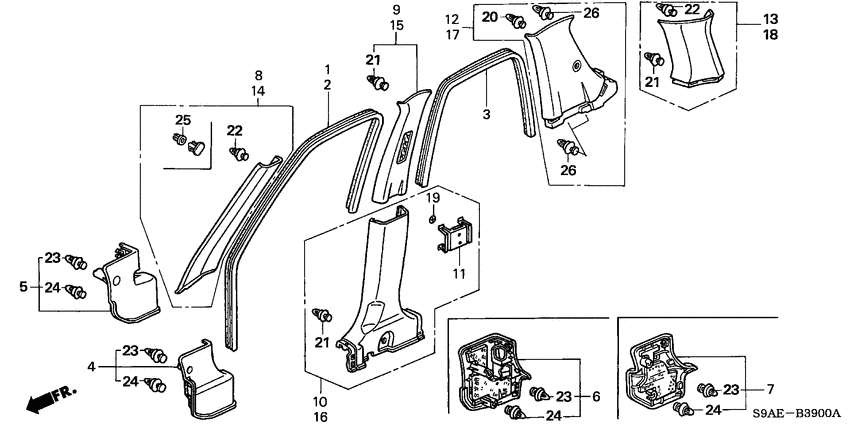

Pillar garnish 2 / 4

#	OEM	RD5	RE3
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
22	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Piston/crankshaft 20 / 34

#	OEM	RD5	RE3
3	13111-PNA-010	Pin - PISTON	Pin - PISTON
4	13115-PRB-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-P8A-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
9	13324-PNA-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13326-PNA-003	Bearing f - MAIN UPPER (PINK) (DAIDO)	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13321-PNA-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13323-PNA-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13325-PNA-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13322-PNA-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)	Bearing b - MAIN UPPER (BLACK) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
11	13342-PNA-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13344-PNA-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13346-PNA-003	Bearing f - MAIN LOWER (PINK) (DAIDO)	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13341-PNA-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13343-PNA-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13345-PNA-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-PNA-003	Plate - CRANK PULSER	Plate - CRANK PULSER
15	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
16	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Plug hole coil 2 / 3

#	OEM	RD5	RE3
1	30520-RRA-007	IGNITION COIL	IGNITION COIL
2	30522-PFB-007	SEAL, PLUG HOLE	SEAL, PLUG HOLE

Power steering pump 19 / 22

#	OEM	RD5	RE3
3	56141-PNC-003	Shaft - POWER STEERING PUMP DRIVE	Shaft - POWER STEERING PUMP DRIVE
4	56483-PNC-004	Pulley - POWER STEERING PUMP	Pulley - POWER STEERING PUMP
5	90305-PAA-A01	Nut - POWER STEERING PULLEY	Nut - POWER STEERING PULLEY
6	90693-P2A-003	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
7	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12	Bearing - RADIAL BALL, 17X40X12
8	91249-PNC-003	Seal - POWER STEERING PUMP	Seal - POWER STEERING PUMP
9	91343-PNC-003	Seal - RUBBER	Seal - RUBBER
10	91344-PNC-003	Seal - SLIPPER	Seal - SLIPPER
11	91345-PAA-A01	O-ring - 13.0X1.9	O-ring - 13.0X1.9
11	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9
12	91346-PLA-003	O-ring - 23.8X2.4	O-ring - 23.8X2.4
13	91347-PAA-A01	O-ring - 16.7X1.8	O-ring - 16.7X1.8
14	91347-PLA-003	O-ring - 12.7X1.8	O-ring - 12.7X1.8
15	91348-P2A-003	O-ring - 51.0X2.4	O-ring - 51.0X2.4
16	91349-PNC-J01	Seal - PUMP COVER	Seal - PUMP COVER
17	91349-PNC-003	Seal b - PUMP COVER	Seal b - PUMP COVER
18	91350-PLA-003	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
19	91350-P8C-A01	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20
21	91345-RJL-003	O-ring - 13.0X1.9	O-ring - 13.0X1.9

Protector/ side sill garnish 7 / 34

#	OEM	RD5	RE3
17	75315-S9A-004	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
18	75316-S9A-004	Clip - DOOR LOWER GARNISH	Clip - DOOR LOWER GARNISH
32	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
33	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
36	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
37	91504-SP1-003	Clip - FR. FENDER LOWER	Clip - FR. FENDER LOWER
38	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH

Radiator (DENSO) 8 / 16

#	OEM	RD5	RE3
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
5	19020-PNA-003	Fan - COOLING	Fan - COOLING
7	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
9	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
12	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
13	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

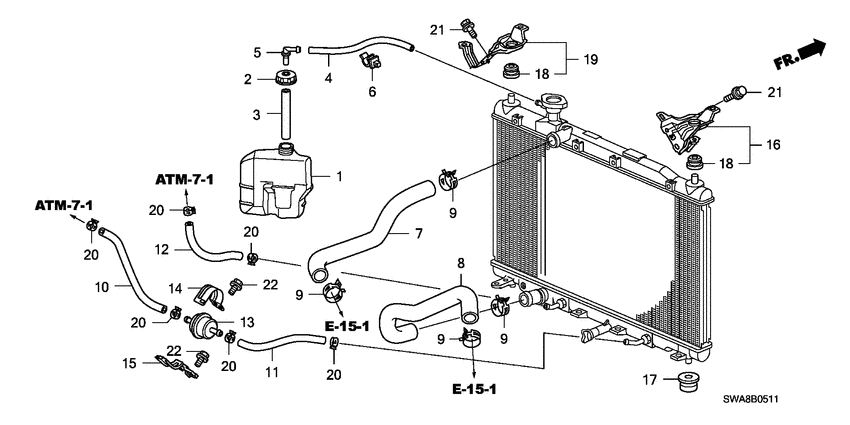

Radiator hose/ reserve tank 6 / 21

#	OEM	RD5	RE3
7	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
7	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
12	25430-PLR-003	Filter, ATF	Filter, ATF
17	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
19	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
19	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE

Rear brake 14 / 27

#	OEM	RD5	RE3
1	01473-SZ3-A01	SET, RR CALIPER	SET, RR CALIPER
3	06435-S84-J00	Shim set - RR.	Shim set - RR.
6	42511-SP0-000	Cap - MAINTENANCE HOLE	Cap - MAINTENANCE HOLE
9	43022-S9A-010	Pad set - RR.	Pad set - RR.
9	43022-S9A-020	PAD SET RR	PAD SET RR
10	43215-S9A-003	Piston	Piston
11	43227-S9A-E01	Spring - PAD	Spring - PAD
12	43235-S84-A51	Pin a	Pin a
13	43244-SG0-003	Retainer	Retainer
14	43244-S9A-003	Retainer a	Retainer a
15	43262-S84-A51	Pin b	Pin b
16	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
17	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
19	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

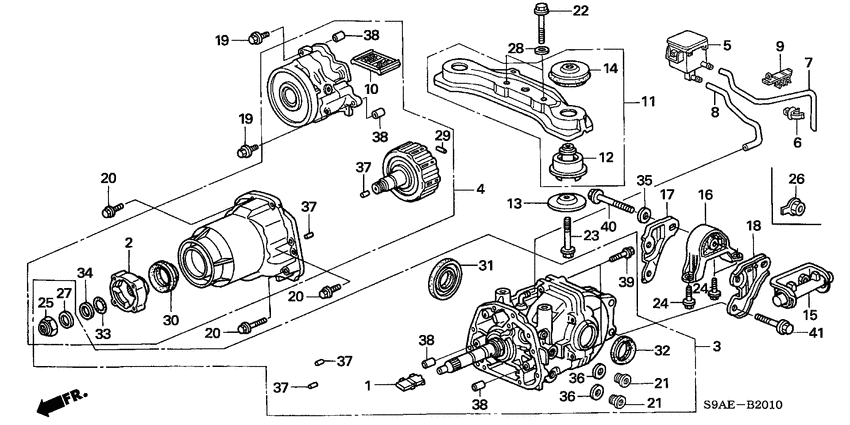

Rear differential/mount 1 / 34

#	OEM	RD5	RE3
25	90203-PX4-010	Nut - FLANGE, 24MM	Nut - FLANGE, 24MM

Rear door lining 4 / 9

#	OEM	RD5	RE3
14	90102-S10-000	Screw - TAPPING, 5X25	Screw - TAPPING, 5X25
15	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
17	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
20	91610-SJ4-003	Grommet - MIRROR GARNISH	Grommet - MIRROR GARNISH

Rear door locks/ outer handle (3) 8 / 34

#	OEM	RD5	RE3
3	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
9	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
10	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
11	72143-S04-003	Packing	Packing
12	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
17	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
34	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
36	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

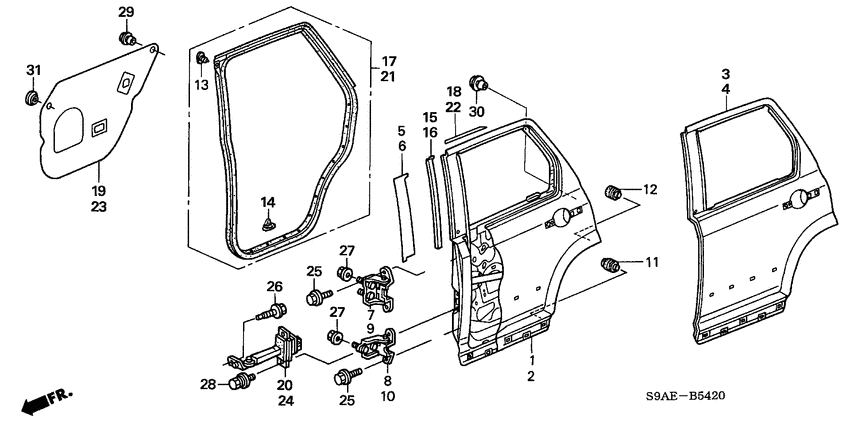

Rear door panels 7 / 20

#	OEM	RD5	RE3
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
12	72142-S9A-000	Stopper - DOOR	Stopper - DOOR
14	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
25	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
25	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
26	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
27	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM

Rear door windows/ regulator 1 / 16

#	OEM	RD5	RE3
16	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Rear driveshaft 2 / 11

#	OEM	RD5	RE3
8	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
9	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)

Rear lower arm 7 / 35

#	OEM	RD5	RE3
8	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
18	52388-S7A-013	Plate - CAM	Plate - CAM
24	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
25	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
26	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)	Nut - LOCK FLANGE(CLINCH)
28	90396-S7A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
29	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5

Rear seat 2 / 19

#	OEM	RD5	RE3
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
31	90650-KV3-000	Band - WIRE	Band - WIRE

Rear seat components 2 / 18

#	OEM	RD5	RE3
39	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
42	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Rear shock absorber 8 / 19

#	OEM	RD5	RE3
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
8	52622-S7A-014	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
9	52631-SCA-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING	Seal - SHOCK ABSORBER MOUNTING
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear wiper 2 / 14

#	OEM	RD5	RE3
3	76701-S6A-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76702-S6A-003	Collar	Collar

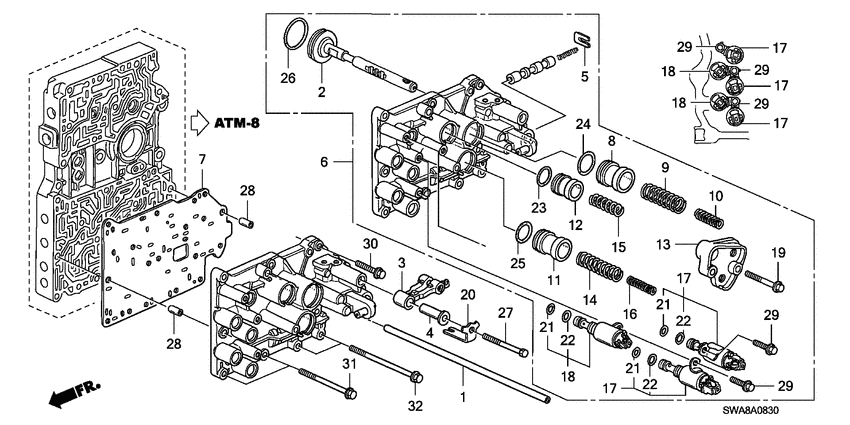

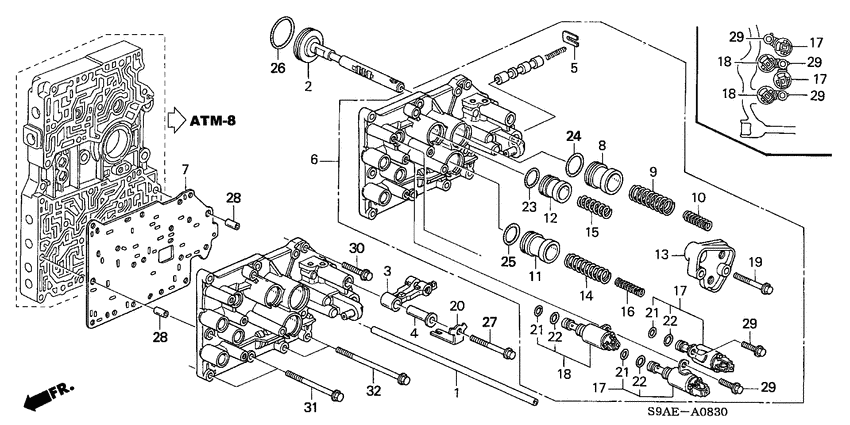

Regulator body (4AT) 16 / 27

#	OEM	RD5	RE3
1	22741-P7Z-000	Pipe - 8X198	Pipe - 8X198
2	22753-PRP-000	Pipe - 6X201	Pipe - 6X201
5	25155-PRP-000	Shaft assy - STATOR	Shaft assy - STATOR
6	27132-P6H-000	Cap - 14MM	Cap - 14MM
9	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
10	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
11	27524-P6H-000	Clip - CAP	Clip - CAP
12	27561-PRP-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
13	27562-PRP-000	Spring a - LOW ACCUMULATOR	Spring a - LOW ACCUMULATOR
14	27564-PRP-000	Spring b - LOW ACCUMULATOR	Spring b - LOW ACCUMULATOR
17	90089-PK4-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
18	90701-PK4-000	Dowel pin - 8X80	Dowel pin - 8X80
19	91316-PF4-003	O-ring - 31X1.7 (ARAI)	O-ring - 31X1.7 (ARAI)
20	91331-PC9-003	O-ring	O-ring
26	22770-RCL-010	Pipe a - JOINT	Pipe a - JOINT
27	22772-RCL-010	Pipe b - JOINT	Pipe b - JOINT

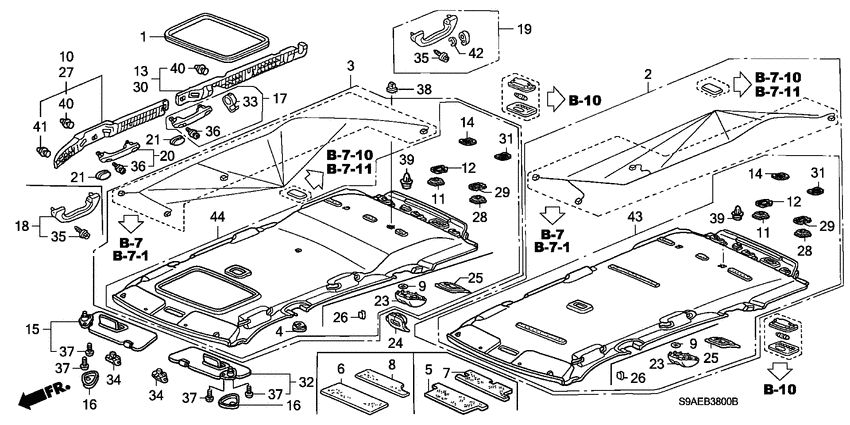

Roof lining 1 / 14

#	OEM	RD5	RE3
26	83268-S9A-A01	Clip - ELR BRACKET	Clip - ELR BRACKET

Secondary shaft (4AT) 29 / 41

#	OEM	RD5	RE3
1	22814-PRP-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
6	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)	Nut - FLANGE, 24MM (LEFT HAND THREAD)
7	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
10	90517-PRP-010	Washer - THRUST, 37X58X4.050	Washer - THRUST, 37X58X4.050
10	90512-PRP-010	Washer - THRUST, 37X58X3.925	Washer - THRUST, 37X58X3.925
10	90529-PRP-000	Washer - THRUST, 37X58X4.350	Washer - THRUST, 37X58X4.350
10	90524-PRP-000	Washer - THRUST, 37X58X4.225	Washer - THRUST, 37X58X4.225
10	90519-PRP-010	Washer - THRUST, 37X58X4.100	Washer - THRUST, 37X58X4.100
10	90514-PRP-010	Washer - THRUST, 37X58X3.975	Washer - THRUST, 37X58X3.975
10	90526-PRP-000	Washer - THRUST, 37X58X4.275	Washer - THRUST, 37X58X4.275
10	90521-PRP-010	Washer - THRUST, 37X58X4.150	Washer - THRUST, 37X58X4.150
10	90516-PRP-010	Washer - THRUST, 37X58X4.025	Washer - THRUST, 37X58X4.025
10	90511-PRP-010	Washer - THRUST, 37X58X3.900	Washer - THRUST, 37X58X3.900
10	90528-PRP-000	Washer - THRUST, 37X58X4.325	Washer - THRUST, 37X58X4.325
10	90523-PRP-000	Washer - THRUST, 37X58X4.200	Washer - THRUST, 37X58X4.200
10	90518-PRP-010	Washer - THRUST, 37X58X4.075	Washer - THRUST, 37X58X4.075
10	90513-PRP-010	Washer - THRUST, 37X58X3.950	Washer - THRUST, 37X58X3.950
10	90530-PRP-000	Washer - THRUST, 37X58X4.375	Washer - THRUST, 37X58X4.375
10	90525-PRP-000	Washer - THRUST, 37X58X4.250	Washer - THRUST, 37X58X4.250
10	90520-PRP-010	Washer - THRUST, 37X58X4.125	Washer - THRUST, 37X58X4.125
10	90515-PRP-010	Washer - THRUST, 37X58X4.000	Washer - THRUST, 37X58X4.000
10	90527-PRP-000	Washer - THRUST, 37X58X4.300	Washer - THRUST, 37X58X4.300
10	90522-PRP-010	Washer - THRUST, 37X58X4.175	Washer - THRUST, 37X58X4.175
11	90621-PRP-000	Circlip - EXTERNAL, 32MM	Circlip - EXTERNAL, 32MM
12	91021-PRP-013	Needle - THRUST, 40X53X2.5	Needle - THRUST, 40X53X2.5
13	91022-PRP-003	Needle - THRUST, 46.6X59.5X2.5	Needle - THRUST, 46.6X59.5X2.5
15	91106-PRP-025	Bearing - NEEDLE, 40X46X20.5 (NSK)	Bearing - NEEDLE, 40X46X20.5 (NSK)
16	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)
17	91326-P4V-003	O-ring - 26.7X1.9(NOK)	O-ring - 26.7X1.9(NOK)

Select lever (RH) 3 / 24

#	OEM	RD5	RE3
21	54722-S9A-981	Strap - CABLE	Strap - CABLE
23	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
24	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Servo body (4AT) 22 / 27

#	OEM	RD5	RE3
1	22748-P24-J00	Pipe - 8X220	Pipe - 8X220
2	24271-PRP-000	Shaft - SHIFT FORK	Shaft - SHIFT FORK
3	24630-PRP-000	Arm comp - CHANGE DETENT	Arm comp - CHANGE DETENT
4	24635-PRP-000	Collar - CHANGE DETENT ARM	Collar - CHANGE DETENT ARM
5	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
8	27561-PRP-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
9	27562-PRP-000	Spring a - LOW ACCUMULATOR	Spring a - LOW ACCUMULATOR
10	27564-PRP-000	Spring b - LOW ACCUMULATOR	Spring b - LOW ACCUMULATOR
11	27572-PRP-000	Piston - SECOND ACCUMULATOR	Piston - SECOND ACCUMULATOR
12	27574-PRP-000	Piston - THIRD ACCUMULATOR	Piston - THIRD ACCUMULATOR
13	27580-PRP-J00	Cover - SERVO ACCUMULATOR	Cover - SERVO ACCUMULATOR
15	27583-PRP-000	Spring - THIRD ACCUMULATOR	Spring - THIRD ACCUMULATOR
17	28400-PRP-004	Solenoid assy. a	Solenoid assy. a
18	28500-PRP-004	Solenoid assy. b	Solenoid assy. b
19	90001-PRP-000	Bolt - FLANGE, 6X30	Bolt - FLANGE, 6X30
20	90433-PRP-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
21	91301-P7Z-004	O-ring - 7.6X1.9 (DENSO)	O-ring - 7.6X1.9 (DENSO)
22	91302-P7Z-004	O-ring - 9.6X1.9 (DENSO)	O-ring - 9.6X1.9 (DENSO)
23	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
24	91331-PC9-003	O-ring	O-ring
25	91331-PL5-J00	O-ring - 20.2X2.4 (NOK)	O-ring - 20.2X2.4 (NOK)
26	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Shift fork (4AT) 10 / 15

#	OEM	RD5	RE3
1	24111-PRP-000	Fork - REVERSE SHIFT	Fork - REVERSE SHIFT
2	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
3	24410-PPV-000	Shaft comp. - CONTROL	Shaft comp. - CONTROL
4	24634-PRP-060	Spring - DETENT LEVER	Spring - DETENT LEVER
9	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
10	90433-RCL-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
11	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
12	90715-SDA-000	Pin - SNAP, 8MM	Pin - SNAP, 8MM
13	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)
14	91308-PW4-003	O-ring - 21.8X1.9	O-ring - 21.8X1.9

Shift lever 1 / 15

#	OEM	RD5	RE3
11	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

Side lining 2 / 11

#	OEM	RD5	RE3
3	75353-671-000	Lock - SCREW	Lock - SCREW
27	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)

Solenoid (4AT) 10 / 18

#	OEM	RD5	RE3
3	22749-PW4-000	Pipe - 35MM	Pipe - 35MM
4	22760-PPW-000	Pipe comp - JOINT	Pipe comp - JOINT
5	28250-RPC-003	Solenoid assy. a - LINEAR	Solenoid assy. a - LINEAR
7	28260-PRP-014	SOLENOID ASSY. B, LINEAR	SOLENOID ASSY. B, LINEAR
8	28262-PRP-000	Packing b - LINEAR SOLENOID	Packing b - LINEAR SOLENOID
11	28600-RCL-004	SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA)	SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA)
14	90471-PW7-A00	PACKING, 10MM	PACKING, 10MM
15	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
16	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
17	91329-PRP-003	O-ring - 23.3X2.4	O-ring - 23.3X2.4

Spool valve 14 / 19

#	OEM	RD5	RE3
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
5	15815-RAA-A02	Filter assy, SPOOL VALVE	Filter assy, SPOOL VALVE
6	15816-PNA-013	Cover - VTEC SPOOL VALVE	Cover - VTEC SPOOL VALVE
8	15832-PNA-003	O-ring	O-ring
8	15832-PNA-023	ORING	ORING
9	15835-PNA-003	Bolt - VTC SOLENOID	Bolt - VTC SOLENOID
10	15840-RAA-A00	Strainer assy - VTC	Strainer assy - VTC
11	15845-RAA-A01	Filter assy - VTC	Filter assy - VTC
14	90005-PNA-003	Bolt-washer - 11X155	Bolt-washer - 11X155
15	90026-PNA-003	Bolt - STUD, 10X39.5	Bolt - STUD, 10X39.5
16	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5

Srs unit (RH) 1 / 6

#	OEM	RD5	RE3
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20

Steering column 2 / 5

#	OEM	RD5	RE3
4	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 1 / 10

#	OEM	RD5	RE3
20	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Tailgate 4 / 17

#	OEM	RD5	RE3
12	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
13	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
15	90105-S10-000	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
21	91560-S0X-A01	Clip - DOOR LINING (NATURAL)	Clip - DOOR LINING (NATURAL)

Tailgate lining 1 / 3

#	OEM	RD5	RE3
9	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)

Tailgate lock 4 / 21

#	OEM	RD5	RE3
8	74387-S3C-003	Fastener	Fastener
17	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
22	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Taillight/license light 8 / 19

#	OEM	RD5	RE3
1	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
6	33513-S50-003	Socket - T20W S2	Socket - T20W S2
10	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
16	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
17	90001-S10-A00	Bolt-washer - 5X16	Bolt-washer - 5X16
19	90665-S47-003	Clip	Clip
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Throttle body (2) 1 / 12

#	OEM	RD5	RE3
11	37835-PGK-A01	O-ring	O-ring

Tire/wheel disks 17 / 41

#	OEM	RD5	RE3
4	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
5	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
5	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
5	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
5	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
5	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
5	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
5	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
5	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
5	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
5	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
5	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
5	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
5	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
5	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
7	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
13	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 2 / 6

#	OEM	RD5	RE3
5	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
7	89320-S2G-003	Bar - JACK	Bar - JACK

Torque converter case (4AT) 17 / 21

#	OEM	RD5	RE3
1	21101-PRP-000	Plate - BEARING SETTING	Plate - BEARING SETTING
1	21101-RG0-A00	Plate - BEARING SETTING	Plate - BEARING SETTING
3	23225-PRP-020	Plate - OIL GUIDE	Plate - OIL GUIDE
4	23235-PRP-000	Collar - OIL GUIDE	Collar - OIL GUIDE
5	25422-PN6-801	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
6	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
7	90081-PX4-003	Bolt - PLUG, 18MM	Bolt - PLUG, 18MM
8	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
9	90471-PX4-000	Washer - DRAIN PLUG, 18MM	Washer - DRAIN PLUG, 18MM
10	90471-580-000	Packing - 8MM	Packing - 8MM
11	90701-PW8-000	Dowel pin - 14X15	Dowel pin - 14X15
12	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
13	91001-PRP-004	Bearing - BALL, 40X68X7.5	Bearing - BALL, 40X68X7.5
14	91005-PRP-003	Bearing - BALL, 32X68X9	Bearing - BALL, 32X68X9
16	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
17	91207-P7Z-003	Oil seal - 44X68X8 (NOK)	Oil seal - 44X68X8 (NOK)
18	91301-PRP-003	O-ring - 31.7X1.95 (NOK)	O-ring - 31.7X1.95 (NOK)

Transmission case (4AT) 9 / 21

#	OEM	RD5	RE3
3	21396-PX5-000	Cap - BREATHER	Cap - BREATHER
9	28451-PRP-010	Packing - SOLENOID COVER	Packing - SOLENOID COVER
11	90609-PX4-000	Ring - SNAP, 80MM	Ring - SNAP, 80MM
12	90613-PRP-000	Ring - SNAP, 48MM	Ring - SNAP, 48MM
13	90614-PRP-000	Ring - SNAP, 55MM	Ring - SNAP, 55MM
14	90615-P0Z-000	Ring - SNAP, 82MM	Ring - SNAP, 82MM
17	91004-RFK-016	Bearing - BALL, 26.8X55X14.5	Bearing - BALL, 26.8X55X14.5
18	91006-PRP-026	Bearing - BALL, 20X48X24	Bearing - BALL, 20X48X24
19	91205-P0X-005	Oil seal - 40X56X9 (NOK)	Oil seal - 40X56X9 (NOK)

Valve/rocker arm 12 / 16

#	OEM	RD5	RE3
1	14620-RAA-A00	Arm assy. - ROCKER	Arm assy. - ROCKER
2	14624-RAA-A00	Arm assy. - EX. ROCKER	Arm assy. - EX. ROCKER
3	14647-RAA-A00	Washer - THRUST	Washer - THRUST
4	14711-PNA-000	Valve - IN.	Valve - IN.
6	14744-PNA-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
7	14744-PT0-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
9	14762-PNA-003	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)
9	14762-PNA-004	Spring - EX. VALVE (GRAY) (CHUO SPRING)	Spring - EX. VALVE (GRAY) (CHUO SPRING)
10	14765-RAA-A00	Retainer - VALVE SPRING	Retainer - VALVE SPRING
11	14775-PT0-000	Seat - VALVE SPRING	Seat - VALVE SPRING
13	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)
14	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING

Water pump 7 / 20

#	OEM	RD5	RE3
4	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
6	19322-PCX-003	O-ring - 43.8X3.1	O-ring - 43.8X3.1
7	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
15	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
19	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
20	90051-PNA-000	Bolt - SPECIAL, 6X28	Bolt - SPECIAL, 6X28
22	91315-PNA-003	O-ring - 19.3X3.8	O-ring - 19.3X3.8

Water valve (RH) 4 / 9

#	OEM	RD5	RE3
5	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
7	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer (2) 4 / 27

#	OEM	RD5	RE3
7	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
8	38562-663-920	Joint b - WASHER TUBE (MITSUBA)	Joint b - WASHER TUBE (MITSUBA)
28	76851-S30-003	Grommet - WASHER TUBE	Grommet - WASHER TUBE
42	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM

Wire harness (RH) 3 / 18

#	OEM	RD5	RE3
13	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
15	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
