RD1 × RE6

共通 230 / 合計 4,667 · Jaccard 4.9%
RD1 Honda CR-V — 2,257 中 230 共有
RE6 Honda CR-V — 2,640 中 230 共有
230 件
Air cleaner 5 / 18
RD1 Air cleaner
RE6 Resonator chamber (DIESEL; '10)
# OEM RD1 RE6
3 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
4 17212-P2J-000 Rubber - AIR CLEANER MOUNTING Rubber - AIR CLEANER MOUNTING
5 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
6 17217-P2J-300 Clip - AIR CLEANER Clip - AIR CLEANER
17 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35

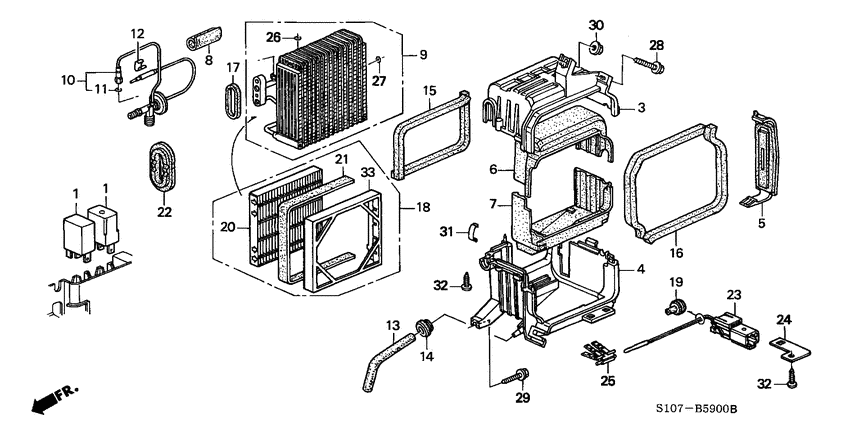

Air conditioner (COOLING UNIT; LH) 2 / 28
RD1 Air conditioner (COOLING UNIT; LH)
RE6 Heater blower (LH)
# OEM RD1 RE6
28 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
30 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)

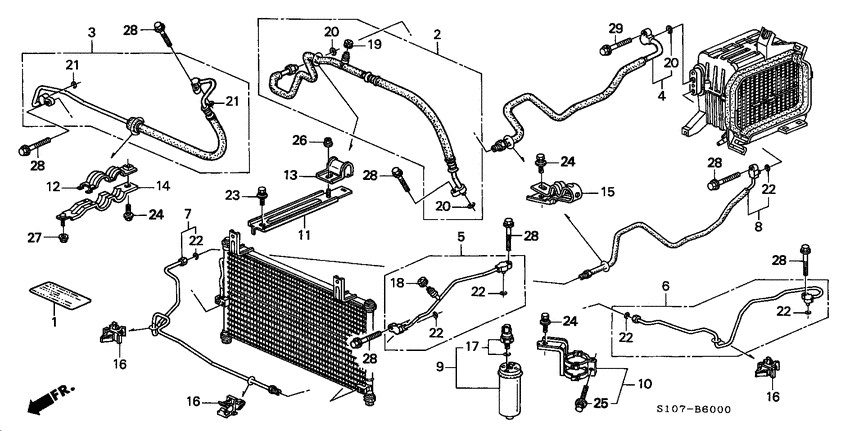

Air conditioner (HOSES/PIPES; LH) 2 / 23
RD1 Air conditioner (HOSES/PIPES; LH)
RE6 Air conditioner (DIESEL; HOSES/PIPES; LH; '10)
# OEM RD1 RE6
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
16 80387-SM4-A01 Clip - RECEIVER PIPE Clip - RECEIVER PIPE

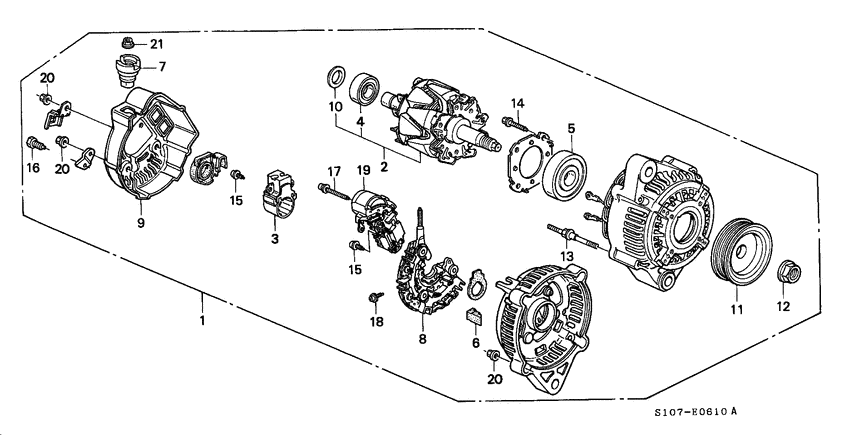

Alternator (DENSO) 3 / 21
RD1 Alternator (DENSO)
RE6 Alternator (DENSO; DIESEL; '10)
# OEM RD1 RE6
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
15 31147-PT0-003 Screw-washer Screw-washer
Alternator bracket 1 / 11
RD1 Alternator bracket

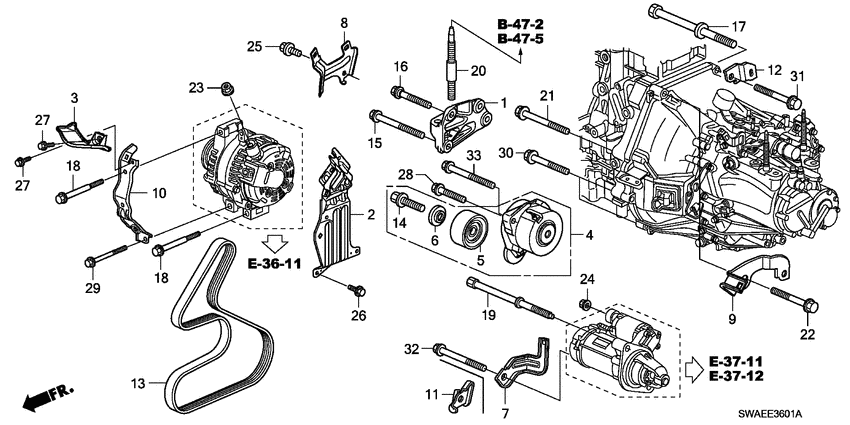

RE6 Engine mounting bracket (DIESEL; '10)
# OEM RD1 RE6
7 90051-PE0-000 Bolt - FLANGE, 12X70 Bolt - FLANGE, 12X70
Auto cruise 1 / 22
RD1 Auto cruise

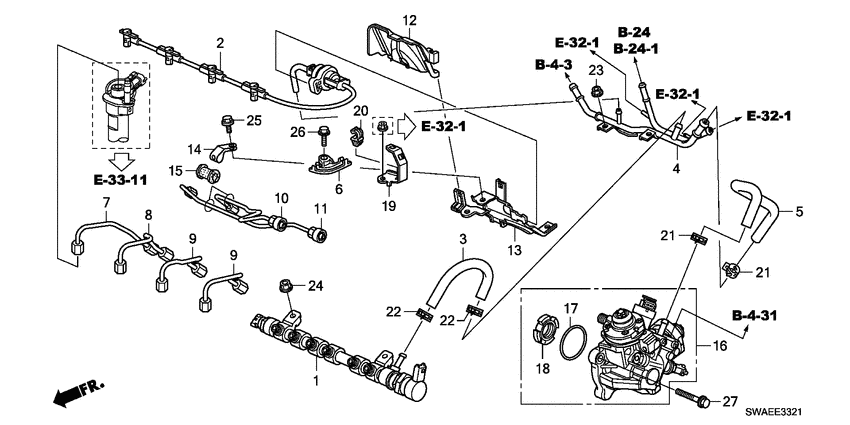

RE6 Fuel rail/high pressure p ump (DIESEL; '10)
# OEM RD1 RE6
12 36615-PJ5-003 Clamp - TUBE, 4.5(NATURAL) Clamp - TUBE, 4.5(NATURAL)
Battery (LH) 4 / 16
RD1 Battery (LH)
RE6 Battery (DIESEL)
# OEM RD1 RE6
10 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
11 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
14 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
16 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Brake lines (LH) 6 / 26
RD1 Brake lines (LH)
RE6 Brake lines (VSA; DIESEL; LH; 1)
# OEM RD1 RE6
13 46380-SH3-000 Grommet a - BRAKE PIPE Grommet a - BRAKE PIPE
20 46394-S04-003 Clip A Clip A
21 46462-SE0-000 Bolt - OIL Bolt - OIL
22 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
24 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
25 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake master cylinder/ master power 1 / 17
RD1 Brake master cylinder/ master power
RE6 Brake master cylinder/ master power (LH; 1)
# OEM RD1 RE6
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Bumpers 5 / 18
RD1 Bumpers
RE6 Bumpers ('10)
# OEM RD1 RE6
11 71148-SG9-600 Nut Nut
18 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
20 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
22 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
25 91503-SZ3-003 Clip A Clip A

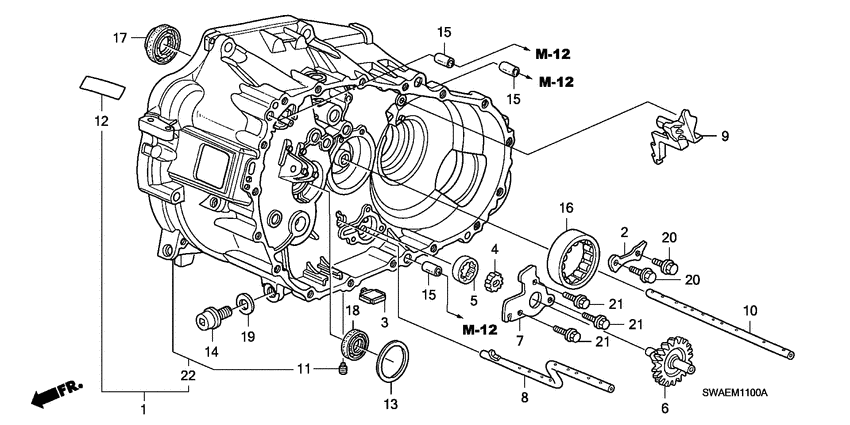

Clutch housing 1 / 13
RD1 Clutch housing
RE6 Clutch case (DIESEL)
# OEM RD1 RE6
7 90705-PG2-000 Dowel pin - 14X20 Dowel pin - 14X20
Clutch master cylinder (LH) 5 / 34
RD1 Clutch master cylinder (LH)
RE6 Clutch master cylinder (DIESEL; LH)
# OEM RD1 RE6
1 43352-567-000 Screw - BLEEDER Screw - BLEEDER
4 46182-500-013 Circlip Circlip
5 46512-S70-000 Pin - PEDAL Pin - PEDAL
6 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
33 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Clutch release 1 / 9
RD1 Clutch release
RE6 Clutch release (DIESEL; '10)
# OEM RD1 RE6
3 22825-P0S-000 Bolt - RELEASE FORK Bolt - RELEASE FORK
Combination meter components 3 / 22
RD1 Combination meter components
RE6 Meter components (NS)
# OEM RD1 RE6
4 37115-SA0-601 Packing - NS Packing - NS
24 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
25 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Combination switch (LH) 2 / 40
RD1 Combination switch (LH)
RE6 Combination switch (LH)
# OEM RD1 RE6
6 35103-S04-003 Screw - RECESSED Screw - RECESSED
29 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
Console 1 / 2
RD1 Console
RE6 Front door lining (LH)
# OEM RD1 RE6
15 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Control unit (CABIN; LH) 1 / 25
RD1 Control unit (CABIN; LH)
RE6 Control unit (CABIN; LH; 1)
# OEM RD1 RE6
19 39794-S10-003 Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
Cylinder block/oil pan 2 / 27
RD1 Cylinder block/oil pan
RE6 Cylinder block/oil pan (DIESEL; '10)
# OEM RD1 RE6
20 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
21 90715-PC6-000 Dowel pin - 13X20 Dowel pin - 13X20

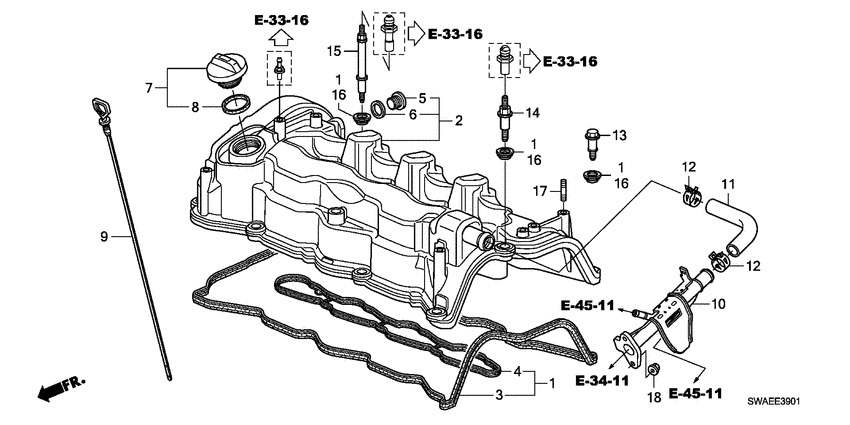

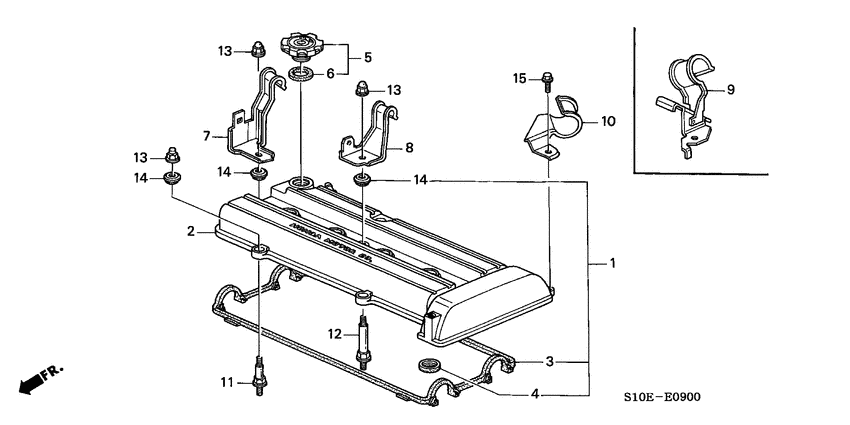

Cylinder head cover 1 / 14
RD1 Cylinder head cover
RE6 Cylinder head cover (DIESEL; '10)
# OEM RD1 RE6
6 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Engine wire harness (LH) 3 / 20
RD1 Engine wire harness (LH)
RE6 Wire harness (LH; 1)
# OEM RD1 RE6
13 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
14 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
15 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Exhaust manifold (2) 1 / 14
RD1 Exhaust manifold (2)
RE6 Converter (DIESEL; '10)
# OEM RD1 RE6
7 90010-PE2-900 Bolt - SPECIAL, 10X22 Bolt - SPECIAL, 10X22
Exhaust pipe 2 / 22
RD1 Exhaust pipe
RE6 Exhaust pipe/silencer (DIESEL; 3; '10)
# OEM RD1 RE6
21 90115-659-003 Nut - SELF-LOCK, 8MM (CLINCH) Nut - SELF-LOCK, 8MM (CLINCH)
23 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 2 / 16
RD1 Floor mat
RE6 Side lining
# OEM RD1 RE6
4 75353-671-000 Lock - SCREW Lock - SCREW
23 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
Front brake 2 / 22
RD1 Front brake
RE6 Front brake (1)
# OEM RD1 RE6
19 90113-SD4-902 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
19 90113-SD4-901 Bolt - WHEEL (MEIRA) Bolt - WHEEL (MEIRA)
Front bulkhead 1 / 5
RD1 Front bulkhead
RE6 Brake lines (VSA; DIESEL; LH; 1)
# OEM RD1 RE6
43 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM

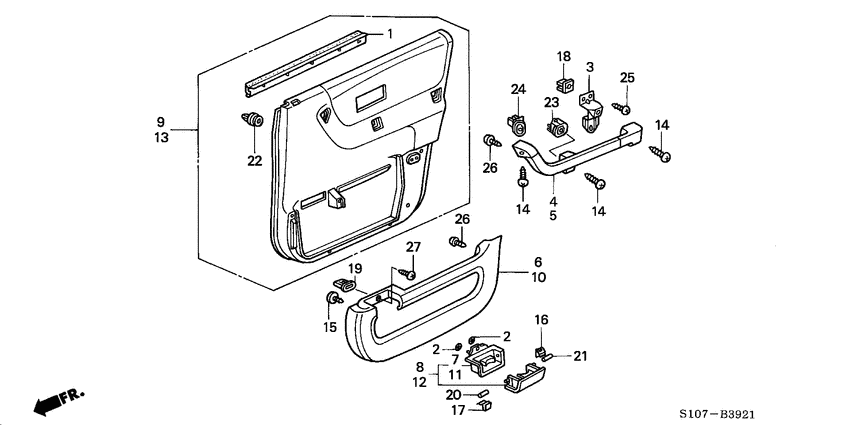

Front door lining 2 / 10
RD1 Front door lining
RE6 Rear door lining
# OEM RD1 RE6
13 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 3 / 31
RD1 Front door locks
RE6 Tailgate
# OEM RD1 RE6
9 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
39 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
42 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)

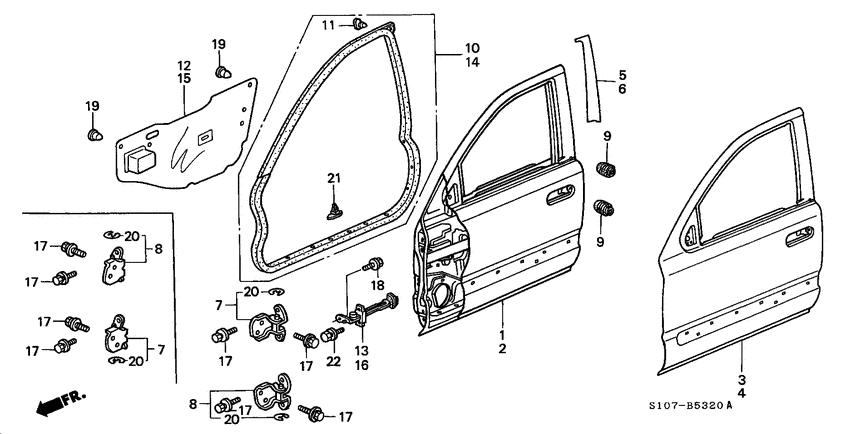

Front door panels 3 / 16
RD1 Front door panels
RE6 Front door panels
# OEM RD1 RE6
17 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
18 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
21 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP

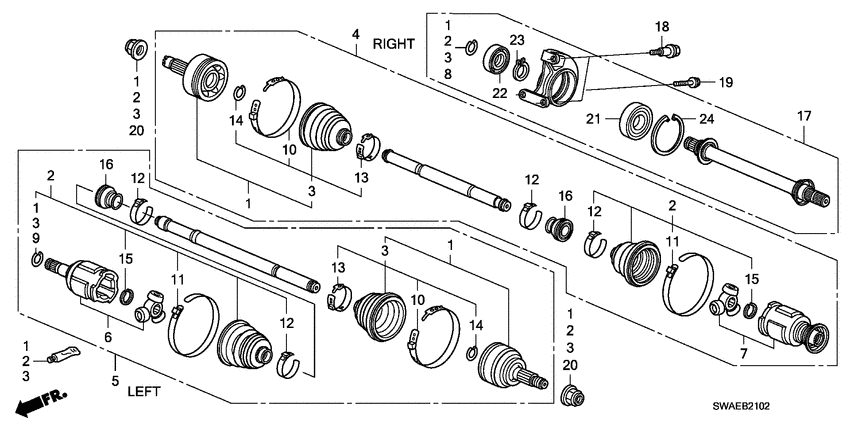

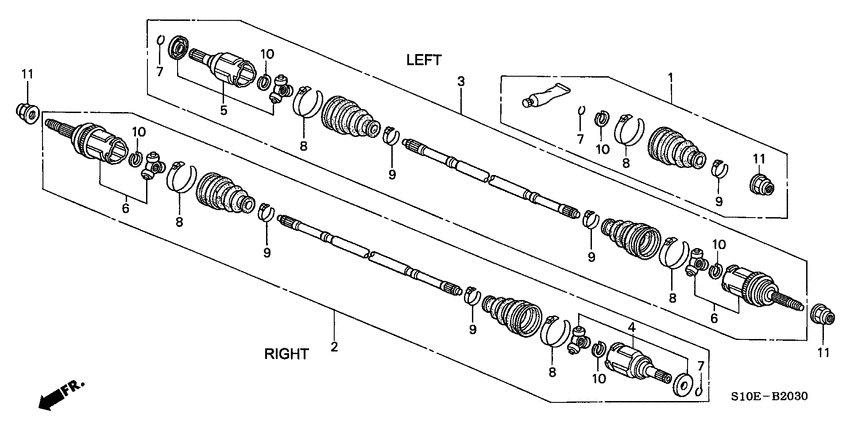

Front driveshaft 4 / 28
RD1 Front driveshaft
RE6 Front driveshaft/ half shaft (DIESEL)
# OEM RD1 RE6
9 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
11 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
19 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
20 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)

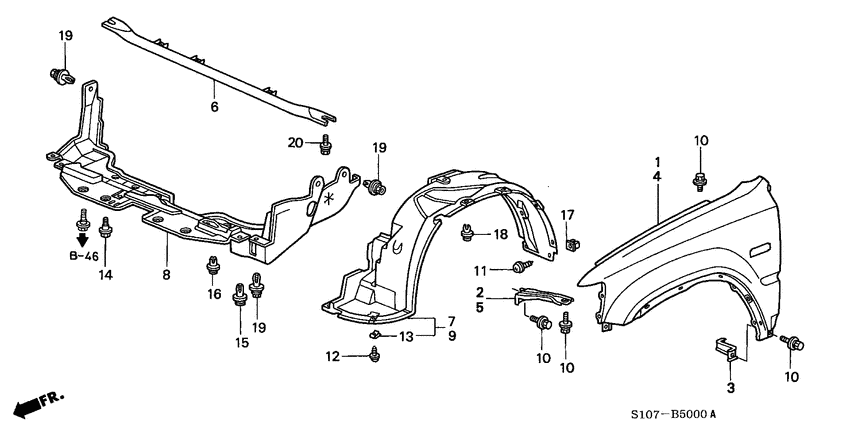

Front fenders 6 / 14
RD1 Front fenders
RE6 Front fenders
# OEM RD1 RE6
10 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
12 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
13 90331-SD5-003 Nut - SPRING, 5MM Nut - SPRING, 5MM
14 90501-SM4-003 Bolt - FENDER Bolt - FENDER
17 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
18 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front grille (2) 3 / 7
RD1 Front grille (2)
RE6 Front fenders
# OEM RD1 RE6
5 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
6 90301-ST0-003 push nut, 3mm push nut, 3mm
7 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Front seat 2 / 11
RD1 Front seat
RE6 Front seat (L.; POWER SEAT)
# OEM RD1 RE6
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
33 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Front seat components (L.) 2 / 20
RD1 Front seat components (L.)
RE6 Rear seat components (1)
# OEM RD1 RE6
25 90134-S10-J11 Screw - TAPPING, 4X10 Screw - TAPPING, 4X10
28 90143-ST5-900 Bolt-washer - 8X22 Bolt-washer - 8X22
Front seat components (R.) 2 / 17
RD1 Front seat components (R.)
RE6 Front seat components (L.; POWER SEAT)
# OEM RD1 RE6
24 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
28 90143-ST5-900 Bolt-washer - 8X22 Bolt-washer - 8X22

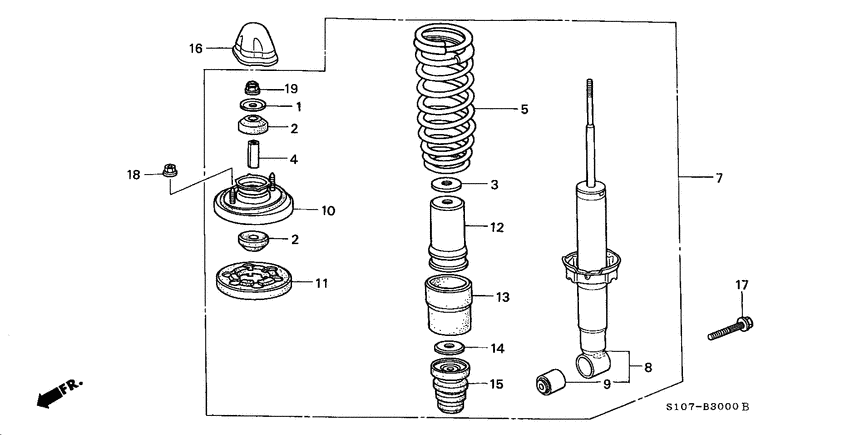

Front shock absorber 2 / 16
RD1 Front shock absorber
RE6 Rear shock absorber
# OEM RD1 RE6
12 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
15 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front stabilizer/ front lower arm 3 / 21
RD1 Front stabilizer/ front lower arm
RE6 Rear lower arm
# OEM RD1 RE6
14 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
20 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Front windshield wiper (LH) 6 / 22
RD1 Front windshield wiper (LH)
RE6 Front windshield wiper (LH)
# OEM RD1 RE6
3 76516-SE0-003 Rubber - BRACKETLESS MOUNTING Rubber - BRACKETLESS MOUNTING
4 76516-SR3-003 Rubber - MOUNTING Rubber - MOUNTING
5 76517-SE0-003 Collar - BRACKETLESS Collar - BRACKETLESS
6 76517-SM4-003 Collar Collar
8 76524-SD4-003 Dust seal Dust seal
19 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Front windshield/ quarter glass 1 / 13
RD1 Front windshield/ quarter glass
RE6 Rear windshield/ quarter windows
# OEM RD1 RE6
10 91536-SS0-J01 Fastener a - WINDSHIELD Fastener a - WINDSHIELD
Fuel pipe 2 / 47
RD1 Fuel pipe
RE6 Fuel pipe (2; DIESEL; '10)
# OEM RD1 RE6
9 16922-SH3-930 Rubber - MOUNTING Rubber - MOUNTING
33 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM

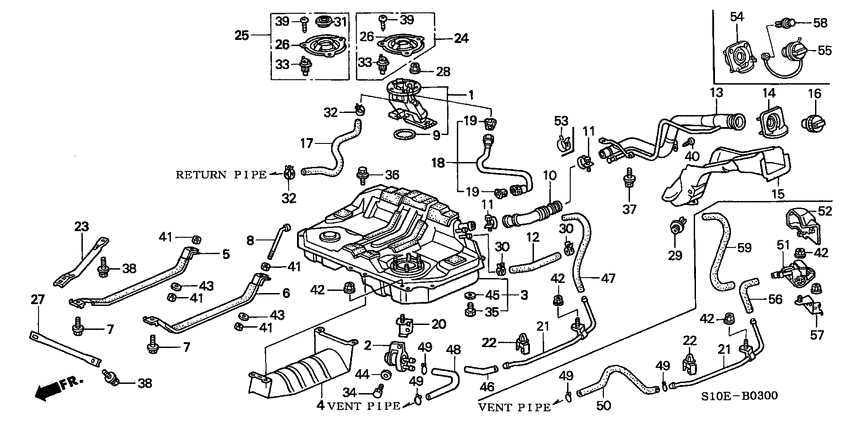

Fuel tank 4 / 34
RD1 Fuel tank
RE6 Fuel tank (DIESEL)
# OEM RD1 RE6
7 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
14 17662-S04-003 Packing - FUEL FILLER (WITH CLIP) Packing - FUEL FILLER (WITH CLIP)
33 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
37 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Grommet 3 / 18
RD1 Grommet
RE6 Grommet (LOWER)
# OEM RD1 RE6
6 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
14 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
17 91611-SS0-003 Plug - HOLE, 25MM Plug - HOLE, 25MM
Harness band/bracket (LH) 8 / 28
RD1 Harness band/bracket (LH)
RE6 Harness band/bracket (LH; 1)
# OEM RD1 RE6
10 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
12 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
13 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
14 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
16 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
23 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
26 91571-S10-003 Clip - WIRE HARNESS (NATURAL) (130MM) Clip - WIRE HARNESS (NATURAL) (130MM)
27 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)

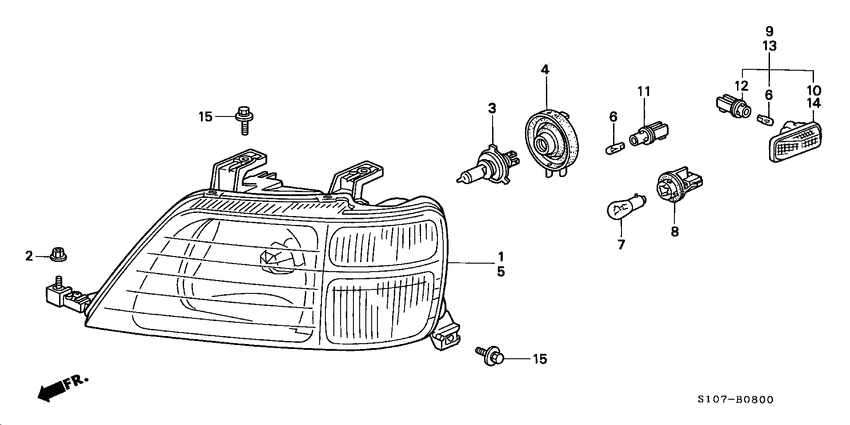

Headlight 2 / 18
RD1 Headlight
RE6 Taillight/license light
# OEM RD1 RE6
6 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
7 33301-S04-004 Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER) Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)
Heater blower (LH) 2 / 14
RD1 Heater blower (LH)
RE6 Heater blower (LH)
# OEM RD1 RE6
15 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
19 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater control 2 / 9
RD1 Heater control
RE6 Harness band/bracket (LH; 1)
# OEM RD1 RE6
11 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
12 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Heater unit (LH) 1 / 15
RD1 Heater unit (LH)
RE6 Heater blower (LH)
# OEM RD1 RE6
15 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Hood (LH) 2 / 22
RD1 Hood (LH)
RE6 Engine hood (LH)
# OEM RD1 RE6
22 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
30 91518-SM4-003 Clip - TRUNK MOLDING Clip - TRUNK MOLDING
Instrument panel (LH) 5 / 16
RD1 Instrument panel (LH)
RE6 Instrument panel (LH)
# OEM RD1 RE6
4 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
26 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
27 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
30 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
31 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (LH) 3 / 24
RD1 Instrument panel garnish (LH)
RE6 Instrument panel (LH)
# OEM RD1 RE6
39 90140-SH3-003 Bolt-washer - 5X18 Bolt-washer - 5X18
40 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
42 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
Intake manifold chamber 1 / 6
RD1 Intake manifold chamber
RE6 Air cleaner (DIESEL; '10)
# OEM RD1 RE6
4 17212-PE2-000 Rubber a - AIR CLEANER CASE MOUNTING Rubber a - AIR CLEANER CASE MOUNTING
Interior light 2 / 7
RD1 Interior light
RE6 Interior light
# OEM RD1 RE6
5 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
5 04110-SWA-305 BULB T10X318W BULB T10X318W
Lower gate 5 / 38
RD1 Lower gate
RE6 Tailgate
# OEM RD1 RE6
27 75523-SS0-000 Packing - SEAL Packing - SEAL
35 90105-S10-000 Bolt - FLANGE, 8X30 Bolt - FLANGE, 8X30
37 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
42 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
43 91609-S10-000 Plug - BLIND, 30X78 Plug - BLIND, 30X78
Molding 1 / 34
RD1 Molding
RE6 Front bulkhead/dashboard
# OEM RD1 RE6
34 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Outer panels 3 / 8
RD1 Outer panels
RE6 Outer panels/roof panel
# OEM RD1 RE6
26 70495-692-000 Cushion - FUEL FILLER LID Cushion - FUEL FILLER LID
32 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
33 90684-SD4-003 Clip - FUEL LID OPENER Clip - FUEL LID OPENER
Parking brake 4 / 14
RD1 Parking brake
RE6 Parking brake (LH; 1)
# OEM RD1 RE6
3 47360-SB2-000 Equalizer Equalizer
4 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
7 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
8 47537-671-670 Spring - PARKING BRAKE ROD Spring - PARKING BRAKE ROD
Pedal (LH) 3 / 28
RD1 Pedal (LH)
RE6 Pedal (LH)
# OEM RD1 RE6
12 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
30 46905-SK7-000 Stopper - CLUTCH PEDAL Stopper - CLUTCH PEDAL
32 46911-SD4-930 Bush - PEDAL PIN Bush - PEDAL PIN
Pillar garnish (LH) 1 / 6
RD1 Pillar garnish (LH)
RE6 Front seat (L.; POWER SEAT)
# OEM RD1 RE6
25 90610-S10-003 Clip - GARNISH Clip - GARNISH
Power steering gear box components (LH) 7 / 23
RD1 Power steering gear box components (LH)
RE6 P.s. gear box components (HPS; LH)
# OEM RD1 RE6
2 06532-S50-003 Oil seal set - ROTARY VALVE Oil seal set - ROTARY VALVE
3 06534-S84-A01 Ring set - POWER STEERING SEAL (ROTARY VALVE) Ring set - POWER STEERING SEAL (ROTARY VALVE)
4 06535-S50-003 Ring set - POWER STEERING SEAL (ROTARY VALVE) Ring set - POWER STEERING SEAL (ROTARY VALVE)
5 53413-S04-G51 Spring - RACK GUIDE PRESSURE Spring - RACK GUIDE PRESSURE
17 53660-S50-003 Oil seal - 27X38X5.5 (SHOWA) Oil seal - 27X38X5.5 (SHOWA)
19 53666-S50-003 O-ring - 41.5X2 (SHOWA) O-ring - 41.5X2 (SHOWA)
22 90105-S50-003 Bolt - FLANGE, 8X28 Bolt - FLANGE, 8X28
Power steering lines (LH) 4 / 22
RD1 Power steering lines (LH)
RE6 P.s. lines (HPS; DIESEL; LH)
# OEM RD1 RE6
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
8 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
17 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
20 91417-SZ3-003 Clamp - FUEL TUBE (D20) (CHUO HATSUJO) Clamp - FUEL TUBE (D20) (CHUO HATSUJO)
Power steering pump 9 / 20
RD1 Power steering pump
RE6 Power steering pump (DIESEL; '10)
# OEM RD1 RE6
8 90305-PAA-A01 Nut - POWER STEERING PULLEY Nut - POWER STEERING PULLEY
9 90693-P2A-003 Circlip - INTERNAL, 40MM Circlip - INTERNAL, 40MM
10 91048-P2A-003 Bearing - RADIAL BALL, 17X40X12 Bearing - RADIAL BALL, 17X40X12
12 91345-PAA-A01 O-ring - 13.0X1.9 O-ring - 13.0X1.9
12 91345-PY3-000 O-ring - 13.0X1.9 O-ring - 13.0X1.9
14 91348-P2A-003 O-ring - 51.0X2.4 O-ring - 51.0X2.4
16 91350-P8C-A01 Bolt - FLANGE, 6X20 Bolt - FLANGE, 6X20
17 90105-S50-003 Bolt - FLANGE, 8X28 Bolt - FLANGE, 8X28
21 91347-PAA-A01 O-ring - 16.7X1.8 O-ring - 16.7X1.8
Propeller shaft 1 / 5
RD1 Propeller shaft
RE6 Propeller shaft
# OEM RD1 RE6
4 90113-S10-000 Bolt - 12POINT 8X21 Bolt - 12POINT 8X21
Protector 3 / 24
RD1 Protector
RE6 Front fenders
# OEM RD1 RE6
22 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
23 90331-SD5-003 Nut - SPRING, 5MM Nut - SPRING, 5MM
29 91512-SJ6-J01 Clip A - GARNISH Clip A - GARNISH
Radiator hose 3 / 14
RD1 Radiator hose
RE6 Radiator hose/reserve tan k (DIESEL; '10)
# OEM RD1 RE6
9 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
10 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
19 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Radio antenna/speaker 2 / 15
RD1 Radio antenna/speaker
RE6 Harness band/bracket (LH; 1)
# OEM RD1 RE6
11 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
22 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
Rear brake 3 / 36
RD1 Rear brake
RE6 Parking brake shoe
# OEM RD1 RE6
27 43375-SA0-003 U-clip U-clip
30 43379-SA5-003 Washer - WAVE Washer - WAVE
32 45175-SA0-013 Pin - TENSIONER Pin - TENSIONER
Rear cross beam 1 / 12
RD1 Rear cross beam
RE6 Rear differential/mount
# OEM RD1 RE6
10 90163-SR7-010 Bolt - FLANGE, 10X119 Bolt - FLANGE, 10X119
Rear differential 9 / 26
RD1 Rear differential
RE6 Rear differential/mount
# OEM RD1 RE6
1 40120-P6R-003 Magnet comp. - RR. DIFFERENTIAL Magnet comp. - RR. DIFFERENTIAL
2 40441-P6R-010 Flange - COMPANION Flange - COMPANION
9 41936-P6R-003 Clamp - BREATHER TUBE Clamp - BREATHER TUBE
17 90203-PX4-010 Nut - FLANGE, 24MM Nut - FLANGE, 24MM
18 90403-PL9-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
19 90702-P6R-008 Pin - OIL PUMP Pin - OIL PUMP
20 91201-P6R-003 Oil seal - 40X56X9(NOK) Oil seal - 40X56X9(NOK)
25 91303-P6R-003 O-ring - 25X2.6 O-ring - 25X2.6
26 91304-P6R-003 Ring - BACK UP, 25MM Ring - BACK UP, 25MM
Rear door lining 2 / 17
RD1 Rear door lining
RE6 Rear door lining
# OEM RD1 RE6
18 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
22 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 3 / 30
RD1 Rear door locks
RE6 Tailgate
# OEM RD1 RE6
5 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
32 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
35 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Rear door panels 2 / 18
RD1 Rear door panels
RE6 Front door panels
# OEM RD1 RE6
23 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
26 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
Rear driveshaft 2 / 11
RD1 Rear driveshaft
RE6 Front driveshaft/ half shaft (DIESEL)
# OEM RD1 RE6
8 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
9 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
Rear seat 2 / 21
RD1 Rear seat
RE6 Rear seat
# OEM RD1 RE6
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
22 82187-S10-J01 Collar - ARMREST Collar - ARMREST
Rear shock absorber 2 / 22
RD1 Rear shock absorber
RE6 Rear shock absorber
# OEM RD1 RE6
4 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
19 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear stabilizer/rear lower arm 2 / 32
RD1 Rear stabilizer/rear lower arm
RE6 Rear lower arm
# OEM RD1 RE6
26 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
33 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Rear wiper 2 / 19
RD1 Rear wiper
RE6 Rear wiper
# OEM RD1 RE6
7 76708-SE1-003 Washer b - SPECIAL Washer b - SPECIAL
8 76709-SE0-A01 Nut - SPECIAL, 18MM Nut - SPECIAL, 18MM
Resonator chamber 4 / 5
RD1 Resonator chamber
RE6 Resonator chamber (DIESEL; '10)
# OEM RD1 RE6
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
2 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
4 75353-671-000 Lock - SCREW Lock - SCREW
5 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Shift arm 5 / 21
RD1 Shift arm
RE6 Shift arm/shift lever (DIESEL)
# OEM RD1 RE6
14 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
15 90029-PL3-010 Bolt - SPECIAL, 8MM Bolt - SPECIAL, 8MM
18 90412-679-000 Washer - CONICAL SPRING, 8MM Washer - CONICAL SPRING, 8MM
20 91209-PE9-005 Dust seal - 16X23X5(NOK) Dust seal - 16X23X5(NOK)
20 91209-PE9-003 Dust seal - 16X23X5(ARAI) Dust seal - 16X23X5(ARAI)
Shift fork 2 / 9
RD1 Shift fork
RE6 Transmission case (DIESEL)
# OEM RD1 RE6
7 24452-P16-000 Spring a - BALL SETTING Spring a - BALL SETTING
8 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
Shift lever 2 / 14
RD1 Shift lever
RE6 Brake master cylinder/ master power (LH; 1)
# OEM RD1 RE6
1 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
8 54357-SF1-003 Plate - CHANGE WIRE Plate - CHANGE WIRE
Side lining 1 / 15
RD1 Side lining
RE6 Front door lining (LH)
# OEM RD1 RE6
24 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Srs unit (LH) 2 / 8
RD1 Srs unit (LH)
RE6 Srs unit (LH)
# OEM RD1 RE6
6 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
7 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Steering column 2 / 10
RD1 Steering column
RE6 Instrument panel (LH)
# OEM RD1 RE6
8 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
9 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Steering wheel (SRS) 1 / 8
RD1 Steering wheel (SRS)
RE6 Steering wheel (SRS)
# OEM RD1 RE6
16 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Taillight 4 / 25
RD1 Taillight
RE6 Taillight/license light
# OEM RD1 RE6
2 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
3 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
28 90001-S10-A00 Bolt-washer - 5X16 Bolt-washer - 5X16
31 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Tire/wheel disk 3 / 19
RD1 Tire/wheel disk
RE6 Tire/wheel disks
# OEM RD1 RE6
4 42753-SE0-A02 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
4 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
14 90304-SA5-013 Nut - WHEEL (CHROME PLATED) (FUSE RASHI) Nut - WHEEL (CHROME PLATED) (FUSE RASHI)
Tools/jack 2 / 12
RD1 Tools/jack
RE6 Tools/jack
# OEM RD1 RE6
4 89102-538-000 Driver, SCREW(NO.2 + -) Driver, SCREW(NO.2 + -)
5 89103-538-000 Grip Grip
Transfer 41 / 96
RD1 Transfer
RE6 Transfer (DIESEL)
# OEM RD1 RE6
7 29351-PH8-910 Spacer - TRANSFER Spacer - TRANSFER
9 29361-PH8-000 Washer - SPRING, 22MM Washer - SPRING, 22MM
10 29415-P1C-000 Shim - 25MM(1.82) Shim - 25MM(1.82)
10 29427-P1C-000 Shim - 25MM(2.18) Shim - 25MM(2.18)
10 29422-P1C-000 Shim - 25MM(2.03) Shim - 25MM(2.03)
10 29417-P1C-000 Shim - 25MM(1.88) Shim - 25MM(1.88)
10 29412-P1C-000 Shim - 25MM(1.73) Shim - 25MM(1.73)
10 29429-P1C-000 Shim - 25MM(2.24) Shim - 25MM(2.24)
10 29424-P1C-000 Shim - 25MM(2.09) Shim - 25MM(2.09)
10 29419-P1C-000 Shim - 25MM(1.94) Shim - 25MM(1.94)
10 29414-P1C-000 Shim - 25MM(1.79) Shim - 25MM(1.79)
10 29426-P1C-000 Shim - 25MM(2.15) Shim - 25MM(2.15)
10 29421-P1C-000 Shim - 25MM(2.00) Shim - 25MM(2.00)
10 29416-P1C-000 Shim - 25MM(1.85) Shim - 25MM(1.85)
10 29411-P1C-000 Shim - 25MM(1.70) Shim - 25MM(1.70)
10 29428-P1C-000 Shim - 25MM(2.21) Shim - 25MM(2.21)
10 29423-P1C-000 Shim - 25MM(2.06) Shim - 25MM(2.06)
10 29418-P1C-000 Shim - 25MM(1.91) Shim - 25MM(1.91)
10 29413-P1C-000 Shim - 25MM(1.76) Shim - 25MM(1.76)
10 29425-P1C-000 Shim - 25MM(2.12) Shim - 25MM(2.12)
10 29420-P1C-000 Shim - 25MM(1.97) Shim - 25MM(1.97)
11 29611-P4T-010 Flange - COMPANION Flange - COMPANION
12 41370-PS3-000 Shim j - 35MM(0.99) Shim j - 35MM(0.99)
12 41367-PS3-000 Shim g - 35MM(0.90) Shim g - 35MM(0.90)
12 41362-PS3-000 Shim b - 35MM(0.75) Shim b - 35MM(0.75)
12 41372-PS3-000 Shim l - 35MM(1.05) Shim l - 35MM(1.05)
12 41364-PS3-000 Shim d - 35MM(0.81) Shim d - 35MM(0.81)
12 41374-PS3-000 Shim n - 35MM(1.11) Shim n - 35MM(1.11)
12 41369-PS3-000 Shim i - 35MM(0.96) Shim i - 35MM(0.96)
12 41366-PS3-000 Shim f - 35MM(0.87) Shim f - 35MM(0.87)
12 41361-PS3-000 Shim a - 35MM(0.72) Shim a - 35MM(0.72)
12 41371-PS3-000 Shim k - 35MM(1.02) Shim k - 35MM(1.02)
12 41368-PS3-000 Shim h - 35MM(0.93) Shim h - 35MM(0.93)
12 41363-PS3-000 Shim c - 35MM(0.78) Shim c - 35MM(0.78)
12 41373-PS3-000 Shim m - 35MM(1.08) Shim m - 35MM(1.08)
12 41365-PS3-000 Shim e - 35MM(0.84) Shim e - 35MM(0.84)
14 90201-PH8-000 Nut - HEX., 22MM Nut - HEX., 22MM
17 91122-PS5-003 Bearing - TAPER, 35X62X21 Bearing - TAPER, 35X62X21
20 91201-P6R-003 Oil seal - 40X56X9(NOK) Oil seal - 40X56X9(NOK)
23 91303-P4T-003 O-ring - 23X2.6(NOK) O-ring - 23X2.6(NOK)
24 91304-P4T-003 Ring - BACK UP, 23MM Ring - BACK UP, 23MM
Transmission housing 1 / 51
RD1 Transmission housing
RE6 Clutch case (DIESEL)
# OEM RD1 RE6
9 90081-PB6-000 Bolt - PLUG, 14MM Bolt - PLUG, 14MM
Water hose 1 / 5
RD1 Water hose
RE6 Radiator hose/reserve tan k (DIESEL; '10)
# OEM RD1 RE6
4 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Water pump/sensor 1 / 21
RD1 Water pump/sensor
RE6 Water pump (DIESEL; '10)
# OEM RD1 RE6
15 91314-PH7-003 O-ring 31.2X4.1 (NOK) O-ring 31.2X4.1 (NOK)
Water valve 3 / 9
RD1 Water valve
RE6 Water hose (DIESEL; '10)
# OEM RD1 RE6
6 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
6 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Windshield washer (1) 4 / 30
RD1 Windshield washer (1)
RE6 Windshield washer
# OEM RD1 RE6
5 38562-SA0-003 Joint l - WASHER TUBE(MITSUBA) Joint l - WASHER TUBE(MITSUBA)
6 38562-663-920 Joint b - WASHER TUBE (MITSUBA) Joint b - WASHER TUBE (MITSUBA)
13 76815-SD5-003 Valve - ONE WAY (RR.) (MITSUBA) Valve - ONE WAY (RR.) (MITSUBA)
24 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
Wire harness (LH) 3 / 16
RD1 Wire harness (LH)
RE6 Wire harness (LH; 1)
# OEM RD1 RE6
14 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
15 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
16 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
