RA3 × RL3

共通 232 / 合計 5,002 · Jaccard 4.6%
RA3 Honda ODYSSEY — 2,418 中 232 共有
RL3 Honda ODYSSEY — 2,816 中 232 共有
232 件
Accumulator body (2.3L) 4 / 14
RA3 Accumulator body (2.3L)
RL3 Regulator body ('07-)
# OEM RA3 RL3
2 27524-P6H-000 Clip - CAP Clip - CAP
3 27561-PAX-000 Piston - LOW ACCUMULATOR Piston - LOW ACCUMULATOR
12 90607-P6H-000 Ring - SNAP, 26MM Ring - SNAP, 26MM
14 91331-PC9-003 O-ring O-ring
Air cleaner 5 / 20
RA3 Air cleaner
RL3 Air cleaner
# OEM RA3 RL3
2 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
4 17213-PV0-000 Rubber - AIR CLEANER CASE MOUNTING Rubber - AIR CLEANER CASE MOUNTING
5 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
18 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
19 90091-P36-000 Bolt-washer - 5X28 Bolt-washer - 5X28
Air conditioner (COMPRESSOR; DENSO) 7 / 16
RA3 Air conditioner (COMPRESSOR; DENSO)
RL3 Air conditioner (COMPRESSOR)
# OEM RA3 RL3
1 38801-P9K-E01 Valve sub assy. - SAFETY Valve sub assy. - SAFETY
3 38812-PH1-003 Ring b - SNAP Ring b - SNAP
4 38812-671-003 Ring a - SNAP Ring a - SNAP
5 38827-PH7-003 Screw-washer - 5X8 Screw-washer - 5X8
6 38829-PR3-003 Bolt - WASHER HEAD Bolt - WASHER HEAD
11 38912-PH1-N01 Plate set - WASHER Plate set - WASHER
15 90023-P8A-A00 Bolt - FLANGE, 8X85 Bolt - FLANGE, 8X85

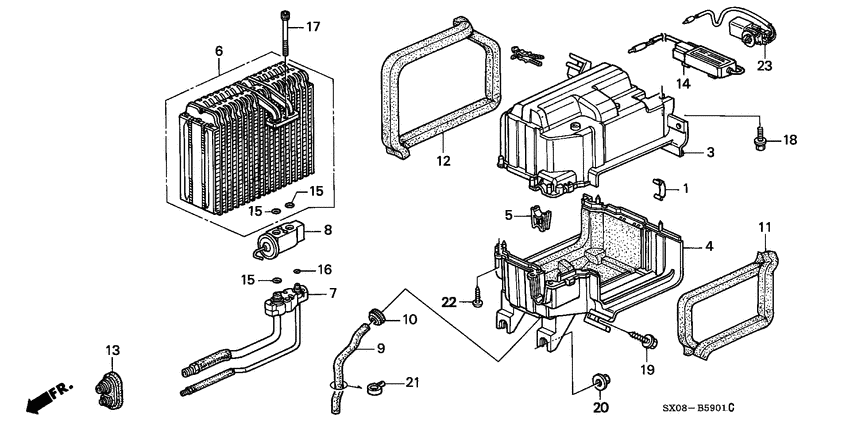

Air conditioner (COOLING UNIT; RH) 4 / 21
RA3 Air conditioner (COOLING UNIT; RH)
RL3 Heater unit
# OEM RA3 RL3
15 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
16 80873-SN7-003 O-ring - 8MM O-ring - 8MM
20 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
21 91549-SE0-003 Holder - DRAIN HOSE Holder - DRAIN HOSE
Air conditioner (REAR COOLING MOTOR) 5 / 27
RA3 Air conditioner (REAR COOLING MOTOR)
RL3 Rear heater unit
# OEM RA3 RL3
1 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
13 80206-SX0-961 Holder Holder
20 80872-SN7-003 O-ring - 1/2" O-ring - 1/2"
21 80873-SN7-003 O-ring - 8MM O-ring - 8MM
25 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Air conditioner (REAR COOLING UNIT) 3 / 18
RA3 Air conditioner (REAR COOLING UNIT)
RL3 Harness band/bracket
# OEM RA3 RL3
1 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
30 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
32 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Air conditioner (REAR PIPES; RH) 3 / 22
RA3 Air conditioner (REAR PIPES; RH)
RL3 Heater unit
# OEM RA3 RL3
18 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
19 80872-SN7-003 O-ring - 1/2" O-ring - 1/2"
20 80873-SN7-003 O-ring - 8MM O-ring - 8MM
Alternator (DENSO) 4 / 22
RA3 Alternator (DENSO)
RL3 Alternator (DENSO)
# OEM RA3 RL3
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
12 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
15 31147-PT0-003 Screw-washer Screw-washer
Alternator bracket/ engine stiffener 1 / 8
RA3 Alternator bracket/ engine stiffener
RL3 Battery
# OEM RA3 RL3
9 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Battery 4 / 22
RA3 Battery
RL3 Battery
# OEM RA3 RL3
3 31513-SM4-000 Bolt - BATTERY SETTING(195MM) Bolt - BATTERY SETTING(195MM)
13 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
14 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
19 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Brake lines (ABS; RH; 98/99; 1) 6 / 49
RA3 Brake lines (ABS; RH; 98/99; 1)
RL3 Brake lines (VSA)
# OEM RA3 RL3
19 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
41 46462-SE0-000 Bolt - OIL Bolt - OIL
43 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
46 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
48 90671-SB2-000 Bolt - FR. FENDER (DACRO COATING) Bolt - FR. FENDER (DACRO COATING)
49 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP

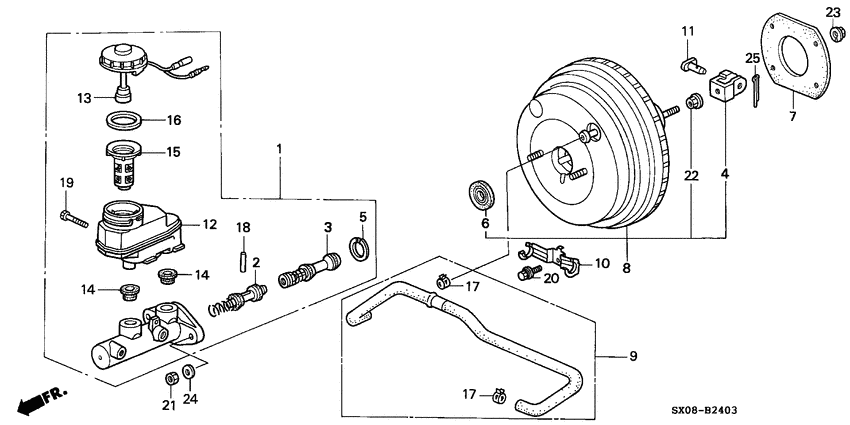

Brake master cylinder/ master power (RH; 98/99) 1 / 19
RA3 Brake master cylinder/ master power (RH; 98/99)
RL3 Brake master cylinder/ master power
# OEM RA3 RL3
17 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Bumpers (KK/KM/KP/KQ/KY/KZ) 3 / 25
RA3 Bumpers (KK/KM/KP/KQ/KY/KZ)
RL3 Bumpers ('08-)
# OEM RA3 RL3
20 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
23 90112-SX0-000 Bolt - FLANGE, 12X30 Bolt - FLANGE, 12X30
29 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
Camshaft/timing belt (2.3L) 1 / 27
RA3 Camshaft/timing belt (2.3L)
RL3 Cylinder head cover
# OEM RA3 RL3
16 90007-679-000 Bolt a - TIMING BELT COVER Bolt a - TIMING BELT COVER

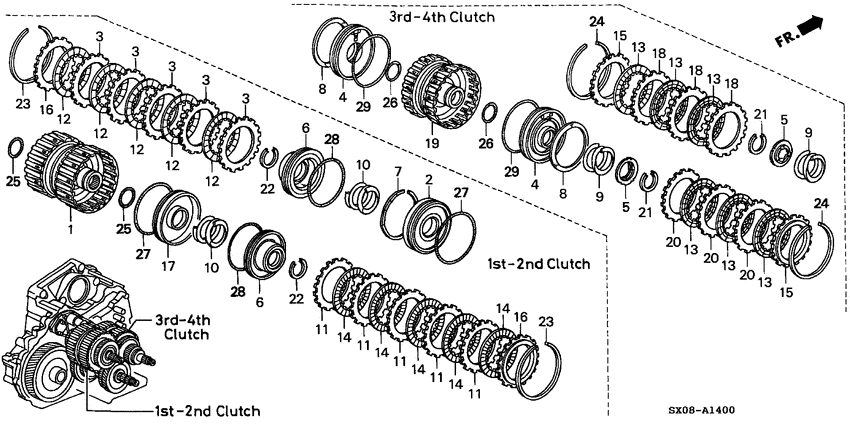

Clutch (2.3L) 3 / 46
RA3 Clutch (2.3L)
RL3 Clutch (2ND; '07-)
# OEM RA3 RL3
24 90605-PX4-000 Ring - SNAP, 129MM Ring - SNAP, 129MM
27 91303-PF4-004 O-ring - 110X2.2 (NOK) O-ring - 110X2.2 (NOK)
29 91303-PX4-004 O-ring - 114X2.2 (NOK) O-ring - 114X2.2 (NOK)
Combination meter components (98/99) 1 / 24
RA3 Combination meter components (98/99)
RL3 Duct
# OEM RA3 RL3
24 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Combination switch (RH; 3) 4 / 18
RA3 Combination switch (RH; 3)
RL3 Combination switch
# OEM RA3 RL3
5 35103-S04-003 Screw - RECESSED Screw - RECESSED
16 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
17 91507-SL9-003 Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
19 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Console (RH) 4 / 22
RA3 Console (RH)
RL3 Console
# OEM RA3 RL3
5 66417-SB3-670 Rubber - GLOVE BOX STOPPER Rubber - GLOVE BOX STOPPER
25 90139-SM4-003 Bolt-washer - 5X20 Bolt-washer - 5X20
26 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
30 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Control unit (ENGINE ROOM) 1 / 27
RA3 Control unit (ENGINE ROOM)
RL3 Control unit (ENGINE ROOM; 1)
# OEM RA3 RL3
25 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
Countershaft (2.3L) 1 / 29
RA3 Countershaft (2.3L)
RL3 Countershaft ('07-)
# OEM RA3 RL3
15 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
Crankshaft/piston 4 / 59
RA3 Crankshaft/piston
RL3 Crankshaft/piston
# OEM RA3 RL3
5 13111-PEA-000 Pin, piston Pin, piston
19 90017-RJA-003 Bolt-washer - 16X49 Bolt-washer - 16X49
23 13115-P5A-000 Clip - PISTON PIN Clip - PISTON PIN
24 13204-P8A-A01 Bolt - CONNECTING ROD Bolt - CONNECTING ROD

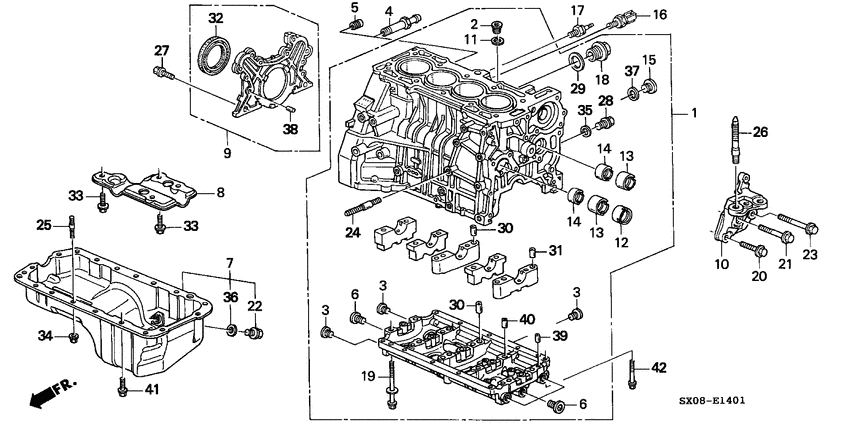

Cylinder block/oil pan (2.3L) 5 / 32
RA3 Cylinder block/oil pan (2.3L)
RL3 Front cylinder head
# OEM RA3 RL3
11 12207-634-300 Washer - SEALING BOLT Washer - SEALING BOLT
18 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
25 90041-PCA-000 Bolt - STUD, 6X32 Bolt - STUD, 6X32
29 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
30 90705-PT0-000 Dowel pin - 16X22 Dowel pin - 16X22
Cylinder head (2.3L) 5 / 22
RA3 Cylinder head (2.3L)
RL3 Front cylinder head
# OEM RA3 RL3
2 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
3 12205-PJ7-305 Guide - EX. VALVE (OS) Guide - EX. VALVE (OS)
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
5 12211-PZ1-004 Seal b - VALVE STEM(NOK) Seal b - VALVE STEM(NOK)
15 90005-PAA-A01 Bolt-washer - 12X163 Bolt-washer - 12X163
Cylinder head cover 3 / 11
RA3 Cylinder head cover
RL3 Cylinder head cover
# OEM RA3 RL3
6 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
14 12342-P08-004 Seal Seal
14 12342-RYE-004 Seal,spark plug t Seal,spark plug t

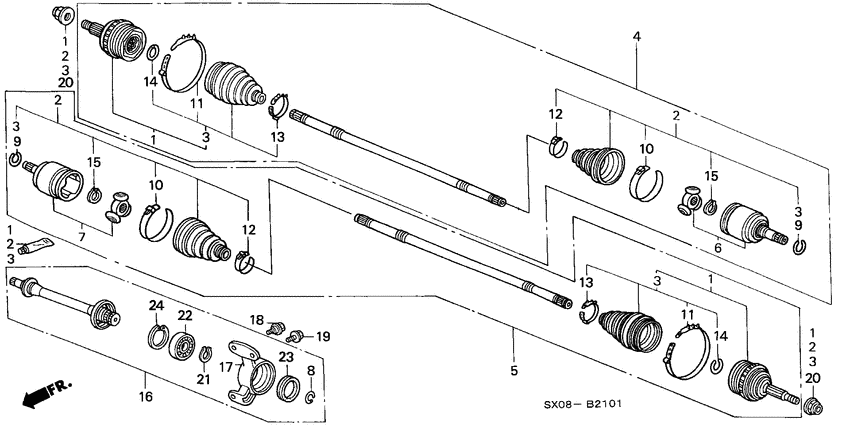

Driveshaft/half shaft (2) 4 / 27
RA3 Driveshaft/half shaft (2)
RL3 Front driveshaft/ half shaft
# OEM RA3 RL3
10 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
12 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
18 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
19 90165-SE0-000 Bolt - FLANGE, 10X37 Bolt - FLANGE, 10X37

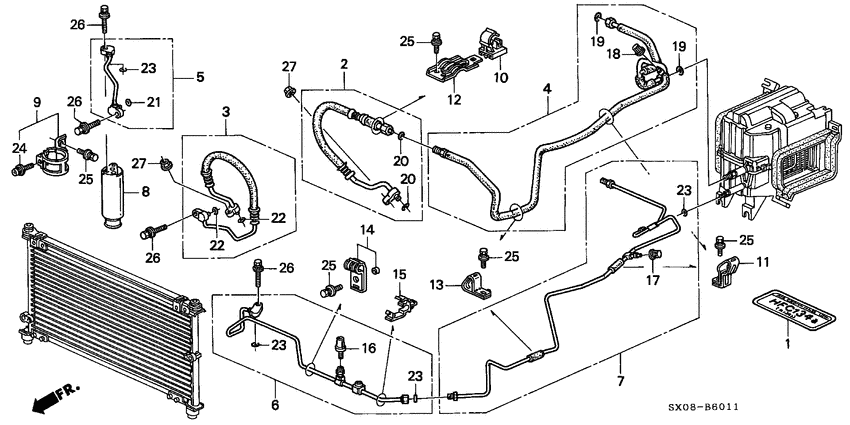

Dual air conditioner (HOSES/PIPES; RH) 5 / 23
RA3 Dual air conditioner (HOSES/PIPES; RH)
RL3 Heater unit
# OEM RA3 RL3
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
19 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
20 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
21 80872-SN7-003 O-ring - 1/2" O-ring - 1/2"
23 80873-SN7-003 O-ring - 8MM O-ring - 8MM
Engine mounts (RH) 1 / 25
RA3 Engine mounts (RH)
RL3 Engine mounts ('07-)
# OEM RA3 RL3
17 50919-SV7-A00 Joint - TWO WAY, #115 Joint - TWO WAY, #115
Engine wire harness (2.3L) 2 / 11
RA3 Engine wire harness (2.3L)
RL3 Harness band/bracket
# OEM RA3 RL3
11 91506-P01-003 Clip A - HARNESS BAND (DARK GRAY) (129.4MM) Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
13 91558-SM4-003 Clip - TUBE(BLACK)(135MM) Clip - TUBE(BLACK)(135MM)
Exhaust manifold 1 / 10
RA3 Exhaust manifold
RL3 Converter
# OEM RA3 RL3
9 90212-RCA-A01 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM
Exhaust pipe 4 / 29
RA3 Exhaust pipe
RL3 Exhaust pipe/silencer
# OEM RA3 RL3
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
35 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
35 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
38 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 2 / 12
RA3 Floor mat
RL3 Middle seat
# OEM RA3 RL3
13 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
15 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Front brake 3 / 23
RA3 Front brake
RL3 Front brake
# OEM RA3 RL3
2 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
3 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
16 45240-SM4-003 Bolt - FLANGE, 10X24 Bolt - FLANGE, 10X24

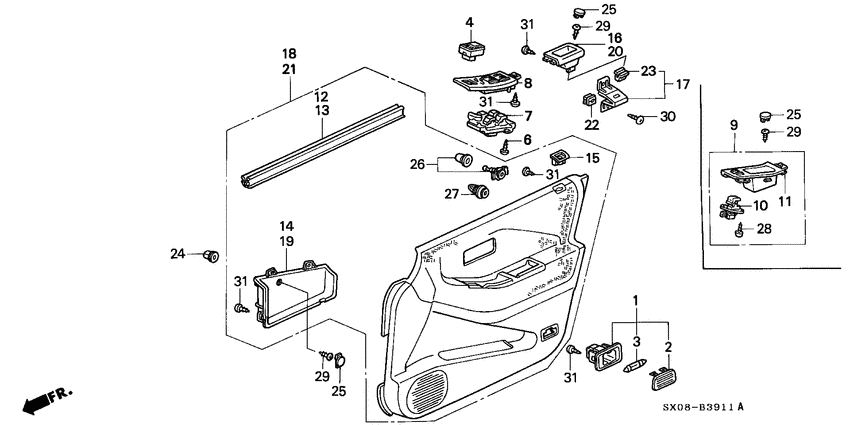

Front door lining (RH) 4 / 15
RA3 Front door lining (RH)
RL3 Tailgate lining
# OEM RA3 RL3
3 34295-SA5-003 Bulb - 12V 3.4W) (DAIICHI Bulb - 12V 3.4W) (DAIICHI
22 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
27 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
27 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 5 / 37
RA3 Front door locks
RL3 Slide door locks/ outer handle
# OEM RA3 RL3
3 72112-SR4-004 Snap - BROWN Snap - BROWN
4 72113-SR4-004 Snap - BLACK Snap - BLACK
36 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
39 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
42 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Front door panels 3 / 25
RA3 Front door panels
RL3 Front door panels
# OEM RA3 RL3
27 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
27 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
30 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Front door windows 1 / 26
RA3 Front door windows
RL3 Harness band/bracket
# OEM RA3 RL3
19 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Front fenders 4 / 9
RA3 Front fenders
RL3 Front fenders
# OEM RA3 RL3
7 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
8 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
11 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
12 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front seat (RH) 3 / 14
RA3 Front seat (RH)
RL3 Middle seat
# OEM RA3 RL3
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
38 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
40 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Front windshield wiper (RH) 3 / 29
RA3 Front windshield wiper (RH)
RL3 Front wiper
# OEM RA3 RL3
8 76517-SM4-003 Collar Collar
10 76524-SL0-A01 Dust seal Dust seal
28 90126-SM4-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe 1 / 29
RA3 Fuel pipe
RL3 Heater unit
# OEM RA3 RL3
25 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank 3 / 44
RA3 Fuel tank
RL3 Fuel tank
# OEM RA3 RL3
7 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
40 90671-SB2-000 Bolt - FR. FENDER (DACRO COATING) Bolt - FR. FENDER (DACRO COATING)
43 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Grommet 5 / 19
RA3 Grommet
RL3 Grommet (LOWER; 2)
# OEM RA3 RL3
2 72206-SA5-000 Cap - FLOOR HOLE, 53MM Cap - FLOOR HOLE, 53MM
4 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
5 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
9 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
14 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Heater blower (RH) 3 / 13
RA3 Heater blower (RH)
RL3 Heater blower
# OEM RA3 RL3
10 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
11 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
13 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater control 1 / 15
RA3 Heater control
RL3 Instrument panel
# OEM RA3 RL3
15 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Heater unit (RH) 2 / 14
RA3 Heater unit (RH)
RL3 Heater unit
# OEM RA3 RL3
10 79770-SE0-000 Grommet - WATER VALVE CABLE Grommet - WATER VALVE CABLE
11 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
Hood (RH) 3 / 29
RA3 Hood (RH)
RL3 Front door panels
# OEM RA3 RL3
29 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
30 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
34 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
Inner panels 3 / 3
RA3 Inner panels
RL3 Floor panels
# OEM RA3 RL3
35 74657-SE1-000 Hook - TIE DOWN Hook - TIE DOWN
36 90112-SX0-000 Bolt - FLANGE, 12X30 Bolt - FLANGE, 12X30
37 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
Instrument panel (RH) 5 / 21
RA3 Instrument panel (RH)
RL3 Instrument panel
# OEM RA3 RL3
8 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
39 90104-SV4-000 Bolt-washer - 8X25 Bolt-washer - 8X25
43 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
45 90666-SD4-003 Clip - FITTING Clip - FITTING
48 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (RH) 6 / 23
RA3 Instrument panel garnish (RH)
RL3 Instrument panel garnish (PASSENGER SIDE)
# OEM RA3 RL3
2 66417-SA0-000 Rubber - GLOVE BOX STOPPER Rubber - GLOVE BOX STOPPER
3 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
16 77508-SX0-000 Arm - GLOVE BOX STOPPER Arm - GLOVE BOX STOPPER
31 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
34 90666-SD4-003 Clip - FITTING Clip - FITTING
36 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Intake manifold (2.3L) 1 / 24
RA3 Intake manifold (2.3L)
RL3 Water pump
# OEM RA3 RL3
15 18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) GASKET, EGR VALVE (ISHINO GASKET)
Knuckle 2 / 16
RA3 Knuckle
RL3 Front knuckle
# OEM RA3 RL3
7 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
16 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Main valve body (2.3L) 4 / 11
RA3 Main valve body (2.3L)
RL3 Main valve body ('07-)
# OEM RA3 RL3
4 25145-PA9-010 Shaft - OIL PUMP GEAR Shaft - OIL PUMP GEAR
9 27142-P6H-000 Cap - 15MM Cap - 15MM
10 27524-P6H-000 Clip - CAP Clip - CAP
11 27750-PL5-J01 Filter - SECONDARY BODY Filter - SECONDARY BODY
Mainshaft (2.3L) 2 / 29
RA3 Mainshaft (2.3L)
RL3 Countershaft ('07-)
# OEM RA3 RL3
8 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
19 91316-PR9-003 O-ring - 33X1.9 (ARAI) O-ring - 33X1.9 (ARAI)
Middle seat (BENCH SEAT; 98/99) 2 / 23
RA3 Middle seat (BENCH SEAT; 98/99)
RL3 Front seat (L.; '08-)
# OEM RA3 RL3
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
51 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Middle seat (REMOVABLE SEAT) 3 / 13
RA3 Middle seat (REMOVABLE SEAT)
RL3 Middle seat
# OEM RA3 RL3
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
21 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
23 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Middle seat components (L.; REMOVABLE SEAT) 1 / 18
RA3 Middle seat components (L.; REMOVABLE SEAT)
RL3 Center table
# OEM RA3 RL3
17 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Middle seat components (R.; REMOVABLE SEAT) 1 / 18
RA3 Middle seat components (R.; REMOVABLE SEAT)
RL3 Center table
# OEM RA3 RL3
17 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Mirror 1 / 17
RA3 Mirror
RL3 Harness band/bracket
# OEM RA3 RL3
25 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Molding 1 / 21
RA3 Molding
RL3 Molding
# OEM RA3 RL3
36 91501-SM5-A00 Clip - ROOF MOLDING (6MM) (GRAY) Clip - ROOF MOLDING (6MM) (GRAY)
Oil pump/oil strainer 2 / 34
RA3 Oil pump/oil strainer
RL3 Oil pump
# OEM RA3 RL3
8 15231-PE0-000 Valve - RELIEF Valve - RELIEF
12 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
Outer panels 1 / 8
RA3 Outer panels
RL3 Slide door locks/ outer handle
# OEM RA3 RL3
33 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
P.s. lines (RH) 6 / 26
RA3 P.s. lines (RH)
RL3 P.s. lines
# OEM RA3 RL3
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
10 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
16 53736-SH3-950 Holder b - POWER STEERING PIPE Holder b - POWER STEERING PIPE
22 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
24 91370-SV4-000 O-ring - 14.4X1.9 O-ring - 14.4X1.9
25 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
P.s. pump (2.3L) 10 / 26
RA3 P.s. pump (2.3L)
RL3 Power steering pump
# OEM RA3 RL3
15 90305-PAA-A01 Nut - POWER STEERING PULLEY Nut - POWER STEERING PULLEY
16 90693-P2A-003 Circlip - INTERNAL, 40MM Circlip - INTERNAL, 40MM
17 91048-P2A-003 Bearing - RADIAL BALL, 17X40X12 Bearing - RADIAL BALL, 17X40X12
19 91345-PAA-A01 O-ring - 13.0X1.9 O-ring - 13.0X1.9
19 91345-PY3-000 O-ring - 13.0X1.9 O-ring - 13.0X1.9
20 91347-PAA-A01 O-ring - 16.7X1.8 O-ring - 16.7X1.8
21 91347-P2A-003 O-ring - 15.2X2.4 O-ring - 15.2X2.4
22 91348-P2A-003 O-ring - 51.0X2.4 O-ring - 51.0X2.4
23 91349-P2A-003 Seal - POWER STEERING PUMP COVER Seal - POWER STEERING PUMP COVER
24 91350-P8C-A01 Bolt - FLANGE, 6X20 Bolt - FLANGE, 6X20
Parking brake shoe 4 / 19
RA3 Parking brake shoe
RL3 Parking brake shoe
# OEM RA3 RL3
4 43171-SX0-J01 Spring - ROD Spring - ROD
14 43375-SA0-003 U-clip U-clip
15 43379-SA5-003 Washer - WAVE Washer - WAVE
18 90382-SP0-003 Nut - FLANGE, 16MM Nut - FLANGE, 16MM
Pedal (RH) 2 / 20
RA3 Pedal (RH)
RL3 Pedal
# OEM RA3 RL3
13 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
20 90222-SB4-000 Nut-washer - 6MM Nut-washer - 6MM
Pillar garnish (RH) 1 / 4
RA3 Pillar garnish (RH)
RL3 Middle seat
# OEM RA3 RL3
21 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Protector 2 / 21
RA3 Protector
RL3 Front fenders
# OEM RA3 RL3
16 90139-SE0-003 Screw-washer - 5X25 Screw-washer - 5X25
20 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
R. side cover (2.3L) 9 / 35
RA3 R. side cover (2.3L)
RL3 Transmission case ('07-)
# OEM RA3 RL3
5 22713-PW4-000 Guide a - FEED PIPE Guide a - FEED PIPE
9 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
19 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
20 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
21 90471-580-000 Packing - 8MM Packing - 8MM
26 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
27 91305-PC9-003 O-ring - 34X1.9 (ARAI) O-ring - 34X1.9 (ARAI)
30 91314-PW4-003 O-ring - 11X1.9 (NOK) O-ring - 11X1.9 (NOK)
31 91506-P01-003 Clip A - HARNESS BAND (DARK GRAY) (129.4MM) Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
Radiator (DENSO) 4 / 13
RA3 Radiator (DENSO)
RL3 Radiator
# OEM RA3 RL3
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
14 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
15 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose 5 / 25
RA3 Radiator hose
RL3 Radiator hose/reserve tan k
# OEM RA3 RL3
12 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
22 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
24 90635-PT0-802 Clip, Oil Pipe Clip, Oil Pipe
24 90635-RV0-003 CLIP, OIL PIPE CLIP, OIL PIPE
30 25216-P72-003 Clip - ATF HOSE (BLACK) Clip - ATF HOSE (BLACK)
Radio antenna/speaker (1) 2 / 5
RA3 Radio antenna/speaker (1)
RL3 Harness band/bracket
# OEM RA3 RL3
1 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
11 90666-SD4-003 Clip - FITTING Clip - FITTING
Rear brake 4 / 27
RA3 Rear brake
RL3 Rear brake
# OEM RA3 RL3
6 42511-SP0-000 Cap - MAINTENANCE HOLE Cap - MAINTENANCE HOLE
18 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
19 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
20 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
Rear door lining 5 / 15
RA3 Rear door lining
RL3 Tailgate lining
# OEM RA3 RL3
3 34295-SA5-003 Bulb - 12V 3.4W) (DAIICHI Bulb - 12V 3.4W) (DAIICHI
17 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
18 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 5 / 31
RA3 Rear door locks
RL3 Slide door locks/ outer handle
# OEM RA3 RL3
10 72149-SR4-000 Snap - R. Snap - R.
14 72189-SR4-000 Snap - L. Snap - L.
32 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
35 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
37 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Rear door panels 4 / 24
RA3 Rear door panels
RL3 Front door panels
# OEM RA3 RL3
25 75891-SA7-000 Stopper - DOOR Stopper - DOOR
28 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
28 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
31 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Rear door windows 1 / 23
RA3 Rear door windows
RL3 Harness band/bracket
# OEM RA3 RL3
20 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Rear lower arm 3 / 47
RA3 Rear lower arm
RL3 Rear lower arm
# OEM RA3 RL3
12 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
48 90701-SX0-003 Clip - UPPER ARM Clip - UPPER ARM
49 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Rear seat 1 / 18
RA3 Rear seat
RL3 Front seat (L.; '08-)
# OEM RA3 RL3
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
Regulator (2.3L) 3 / 13
RA3 Regulator (2.3L)
RL3 Main valve body ('07-)
# OEM RA3 RL3
9 27524-P6H-000 Clip - CAP Clip - CAP
10 27750-PL5-J01 Filter - SECONDARY BODY Filter - SECONDARY BODY
11 90089-PK4-000 Bolt - STOPPER, 6MM Bolt - STOPPER, 6MM
Resonator chamber 5 / 13
RA3 Resonator chamber
RL3 Resonator chamber
# OEM RA3 RL3
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
2 17213-PV0-000 Rubber - AIR CLEANER CASE MOUNTING Rubber - AIR CLEANER CASE MOUNTING
3 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
12 91549-P1E-003 Clip - AIR INTAKE COVER Clip - AIR INTAKE COVER
Roof lining (RH) 1 / 3
RA3 Roof lining (RH)
RL3 Floor panels
# OEM RA3 RL3
20 90301-SS0-000 Nut - CLIP, 6MM Nut - CLIP, 6MM
Seatbelts (RH) 1 / 8
RA3 Seatbelts (RH)
RL3 Floor panels
# OEM RA3 RL3
24 90301-SS0-000 Nut - CLIP, 6MM Nut - CLIP, 6MM
Secondary shaft (2.3L) 3 / 28
RA3 Secondary shaft (2.3L)
RL3 Third shaft ('07-)
# OEM RA3 RL3
1 22816-P6H-003 Ring - SEAL (35MM) Ring - SEAL (35MM)
7 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
17 91316-PR9-003 O-ring - 33X1.9 (ARAI) O-ring - 33X1.9 (ARAI)
Select lever (RH) 3 / 32
RA3 Select lever (RH)
RL3 Heater unit
# OEM RA3 RL3
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
37 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
38 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Sensor/solenoid (2.3L) 8 / 32
RA3 Sensor/solenoid (2.3L)
RL3 Accumulator body ('07-)
# OEM RA3 RL3
16 90471-PW7-A00 PACKING, 10MM PACKING, 10MM
17 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
18 91301-P6H-003 O-ring - 7.6X1.9 (KEIHIN) O-ring - 7.6X1.9 (KEIHIN)
18 91301-P7Z-004 O-ring - 7.6X1.9 (DENSO) O-ring - 7.6X1.9 (DENSO)
19 91302-P6H-003 O-ring - 9.6X1.9 (KEIHIN) O-ring - 9.6X1.9 (KEIHIN)
19 91302-P7W-A00 O-ring - 9.6X1.9 O-ring - 9.6X1.9
19 91302-P7Z-004 O-ring - 9.6X1.9 (DENSO) O-ring - 9.6X1.9 (DENSO)
21 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
Servo body (2.3L) 3 / 14
RA3 Servo body (2.3L)
RL3 Regulator body ('07-)
# OEM RA3 RL3
8 27524-P6H-000 Clip - CAP Clip - CAP
13 91331-PC9-003 O-ring O-ring
14 91344-580-000 O-ring - 31X2.7 (ARAI) O-ring - 31X2.7 (ARAI)
Shift fork (2.3L) 3 / 11
RA3 Shift fork (2.3L)
RL3 Shift fork ('07-)
# OEM RA3 RL3
2 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
8 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
9 91209-612-003 Oil seal - 12X22X7 (ARAI) Oil seal - 12X22X7 (ARAI)
Side lining 4 / 9
RA3 Side lining
RL3 Tailgate lining
# OEM RA3 RL3
1 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
22 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
29 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
29 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Srs unit (RH) 2 / 10
RA3 Srs unit (RH)
RL3 Srs sensor ('07-)
# OEM RA3 RL3
8 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
14 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Steering column (RH) 4 / 14
RA3 Steering column (RH)
RL3 Steering column
# OEM RA3 RL3
13 90135-SF1-000 Bolt - CENTER SHAFT YOKE Bolt - CENTER SHAFT YOKE
14 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
15 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
16 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Switch (RH) 1 / 10
RA3 Switch (RH)
RL3 Console
# OEM RA3 RL3
18 90666-SD4-003 Clip - FITTING Clip - FITTING
Tailgate 3 / 39
RA3 Tailgate
RL3 Tailgate
# OEM RA3 RL3
37 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
42 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
48 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Taillight 2 / 22
RA3 Taillight
RL3 Taillight/license light ('08-)
# OEM RA3 RL3
2 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
17 34906-ST5-003 Bulb - 12V 21W/5W) (STANLEY Bulb - 12V 21W/5W) (STANLEY
Throttle body (2.3L) 1 / 12
RA3 Throttle body (2.3L)
RL3 Intake manifold
# OEM RA3 RL3
12 91303-P0A-A02 O-ring O-ring
Tire/wheel disk 1 / 21
RA3 Tire/wheel disk
RL3 Tire/wheel disks
# OEM RA3 RL3
7 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Torque converter 2 / 5
RA3 Torque converter
RL3 Torque converter ('07-)
# OEM RA3 RL3
4 90023-PA9-000 Bolt - SPECIAL Bolt - SPECIAL
5 90429-PC6-900 Washer - 40X86X2 Washer - 40X86X2
Torque converter housing (2.3L) 3 / 15
RA3 Torque converter housing (2.3L)
RL3 Torque converter case ('07-)
# OEM RA3 RL3
4 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
5 90471-580-000 Packing - 8MM Packing - 8MM
7 90705-PF4-000 Dowel pin - 14X20 Dowel pin - 14X20
Transmission housing (2.3L) 3 / 21
RA3 Transmission housing (2.3L)
RL3 Torque converter case ('07-)
# OEM RA3 RL3
10 25422-PN6-801 Magnet comp. - TRANSMISSION Magnet comp. - TRANSMISSION
13 90081-PX4-003 Bolt - PLUG, 18MM Bolt - PLUG, 18MM
15 90471-PX4-000 Washer - DRAIN PLUG, 18MM Washer - DRAIN PLUG, 18MM
Valve/rocker arm (2.3L) 3 / 20
RA3 Valve/rocker arm (2.3L)
RL3 Valve/rocker arm (FRONT)
# OEM RA3 RL3
7 14744-PT0-004 Screw - TAPPET ADJUSTING Screw - TAPPET ADJUSTING
11 14775-PM3-000 Seat - VALVE SPRING Seat - VALVE SPRING
18 90206-PT0-004 Nut - TAPPET ADJUSTING Nut - TAPPET ADJUSTING
Water pump/sensor 1 / 27
RA3 Water pump/sensor
RL3 Water pump
# OEM RA3 RL3
24 91314-PH7-003 O-ring 31.2X4.1 (NOK) O-ring 31.2X4.1 (NOK)
Water valve 2 / 7
RA3 Water valve
RL3 Rear water hose
# OEM RA3 RL3
1 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
Windshield washer (98/99) 2 / 29
RA3 Windshield washer (98/99)
RL3 Windshield washer
# OEM RA3 RL3
28 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
31 91512-SE0-003 Clip - WASHER TUBE Clip - WASHER TUBE
Wire harness (RH) 14 / 51
RA3 Wire harness (RH)
RL3 Harness band/bracket
# OEM RA3 RL3
11 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
13 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
15 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
27 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
28 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
35 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
36 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
37 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
38 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
39 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
49 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
51 91571-S10-003 Clip - WIRE HARNESS (NATURAL) (130MM) Clip - WIRE HARNESS (NATURAL) (130MM)
52 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
66 91550-ST0-003 Clip - WIRE HARNESS (NATURAL) (110MM) Clip - WIRE HARNESS (NATURAL) (110MM)
