RA1 × RL3

共通 193 / 合計 5,158 · Jaccard 3.7%
RA1 Honda ODYSSEY — 2,535 中 193 共有
RL3 Honda ODYSSEY — 2,816 中 193 共有
193 件
Abs modulator (95/96/97) 1 / 18
RA1 Abs modulator (95/96/97)
RL3 Front brake
# OEM RA1 RL3
1 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
Air cleaner 5 / 19
RA1 Air cleaner
RL3 Air cleaner
# OEM RA1 RL3
2 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
4 17213-PV0-000 Rubber - AIR CLEANER CASE MOUNTING Rubber - AIR CLEANER CASE MOUNTING
5 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
18 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
19 90091-P36-000 Bolt-washer - 5X28 Bolt-washer - 5X28
Air conditioner (COMPRESSOR; DENSO) 5 / 16
RA1 Air conditioner (COMPRESSOR; DENSO)
RL3 Air conditioner (COMPRESSOR)
# OEM RA1 RL3
3 38812-PH1-003 Ring b - SNAP Ring b - SNAP
4 38812-671-003 Ring a - SNAP Ring a - SNAP
5 38827-PH7-003 Screw-washer - 5X8 Screw-washer - 5X8
6 38829-PR3-003 Bolt - WASHER HEAD Bolt - WASHER HEAD
11 38912-PH1-N01 Plate set - WASHER Plate set - WASHER
Air conditioner (COOLING UNIT; LH) 3 / 20
RA1 Air conditioner (COOLING UNIT; LH)
RL3 Heater unit
# OEM RA1 RL3
15 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
16 80873-SN7-003 O-ring - 8MM O-ring - 8MM
20 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Air conditioner (REAR COOLING MOTOR) 5 / 26
RA1 Air conditioner (REAR COOLING MOTOR)
RL3 Rear heater unit
# OEM RA1 RL3
1 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
13 80206-SX0-961 Holder Holder
20 80872-SN7-003 O-ring - 1/2" O-ring - 1/2"
21 80873-SN7-003 O-ring - 8MM O-ring - 8MM
25 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Air conditioner (REAR COOLING UNIT) 3 / 18
RA1 Air conditioner (REAR COOLING UNIT)
RL3 Harness band/bracket
# OEM RA1 RL3
1 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
30 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
32 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Air conditioner (REAR PIPES; LH) 3 / 22
RA1 Air conditioner (REAR PIPES; LH)
RL3 Heater unit
# OEM RA1 RL3
18 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
19 80872-SN7-003 O-ring - 1/2" O-ring - 1/2"
20 80873-SN7-003 O-ring - 8MM O-ring - 8MM
Alternator (DENSO) 4 / 21
RA1 Alternator (DENSO)
RL3 Alternator (DENSO)
# OEM RA1 RL3
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
12 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
15 31147-PT0-003 Screw-washer Screw-washer
Alternator bracket/ engine stiffener 1 / 10
RA1 Alternator bracket/ engine stiffener
RL3 Battery
# OEM RA1 RL3
9 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Auto radio 1 / 8
RA1 Auto radio

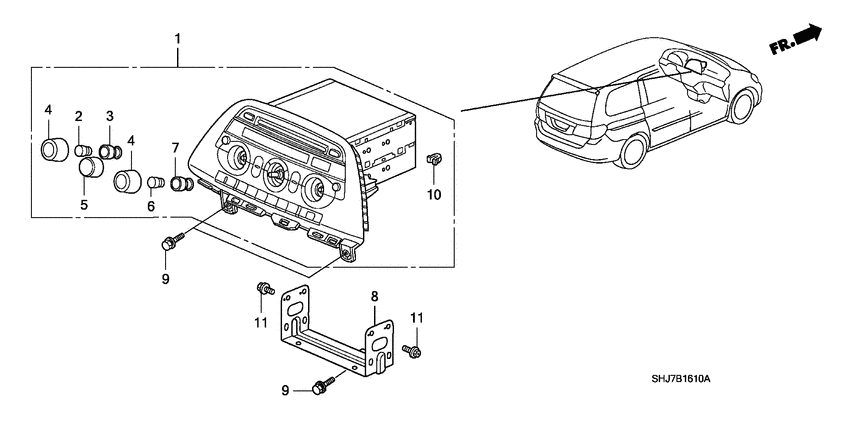

RL3 Audio unit
# OEM RA1 RL3
11 91551-SE0-003 Bolt - FLANGE, 5X7 Bolt - FLANGE, 5X7
Battery 4 / 22
RA1 Battery
RL3 Battery
# OEM RA1 RL3
3 31513-SM4-000 Bolt - BATTERY SETTING(195MM) Bolt - BATTERY SETTING(195MM)
13 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
14 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
19 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Brake lines (ABS; LH; 95/96/97) 6 / 48
RA1 Brake lines (ABS; LH; 95/96/97)
RL3 Brake lines (VSA)
# OEM RA1 RL3
19 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
40 46462-SE0-000 Bolt - OIL Bolt - OIL
42 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
45 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
48 90671-SB2-000 Bolt - FR. FENDER (DACRO COATING) Bolt - FR. FENDER (DACRO COATING)
49 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Brake lines (LH) 6 / 50
RA1 Brake lines (LH)
RL3 Brake lines (VSA)
# OEM RA1 RL3
19 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
40 46462-SE0-000 Bolt - OIL Bolt - OIL
43 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
47 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
49 90671-SB2-000 Bolt - FR. FENDER (DACRO COATING) Bolt - FR. FENDER (DACRO COATING)
50 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Brake master cylinder/ master power (LH; 95-97) 1 / 22
RA1 Brake master cylinder/ master power (LH; 95-97)
RL3 Brake master cylinder/ master power
# OEM RA1 RL3
19 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Breather tube 2 / 7
RA1 Breather tube
RL3 Breather pipe
# OEM RA1 RL3
6 91405-679-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
6 91405-PM5-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
Bumpers (KK/KM/KP/KQ/KY/KZ) 3 / 24
RA1 Bumpers (KK/KM/KP/KQ/KY/KZ)
RL3 Bumpers ('08-)
# OEM RA1 RL3
20 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
23 90112-SX0-000 Bolt - FLANGE, 12X30 Bolt - FLANGE, 12X30
29 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
Bumpers (KT/KU/KW) 2 / 21
RA1 Bumpers (KT/KU/KW)
RL3 Bumpers ('08-)
# OEM RA1 RL3
22 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
31 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
Camshaft/timing belt (2.2L) 1 / 31
RA1 Camshaft/timing belt (2.2L)
RL3 Cylinder head cover
# OEM RA1 RL3
19 90007-679-000 Bolt a - TIMING BELT COVER Bolt a - TIMING BELT COVER
Clutch (2.2L) 2 / 30
RA1 Clutch (2.2L)
RL3 Clutch (2ND; '07-)
# OEM RA1 RL3
20 90605-PX4-000 Ring - SNAP, 129MM Ring - SNAP, 129MM
22 91303-PX4-004 O-ring - 114X2.2 (NOK) O-ring - 114X2.2 (NOK)
Combination meter components (95/96/97) 1 / 27
RA1 Combination meter components (95/96/97)
RL3 Duct
# OEM RA1 RL3
28 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Combination switch (LH) 5 / 24
RA1 Combination switch (LH)
RL3 Harness band/bracket
# OEM RA1 RL3
2 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
5 35103-S04-003 Screw - RECESSED Screw - RECESSED
22 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
28 91507-SL9-003 Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
29 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Console (LH) 4 / 22
RA1 Console (LH)
RL3 Console
# OEM RA1 RL3
5 66417-SB3-670 Rubber - GLOVE BOX STOPPER Rubber - GLOVE BOX STOPPER
24 90139-SM4-003 Bolt-washer - 5X20 Bolt-washer - 5X20
25 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
29 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Control shaft/ atf strainer (2.2L) 3 / 12
RA1 Control shaft/ atf strainer (2.2L)
RL3 Shift fork ('07-)
# OEM RA1 RL3
3 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
11 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
12 91209-612-003 Oil seal - 12X22X7 (ARAI) Oil seal - 12X22X7 (ARAI)
Countershaft (2.2L) 1 / 31
RA1 Countershaft (2.2L)
RL3 Secondary shaft ('07-)
# OEM RA1 RL3
31 91307-PA9-003 O-ring 31.2X1.9 (ARAI) O-ring 31.2X1.9 (ARAI)
Crankshaft/piston 1 / 40
RA1 Crankshaft/piston
RL3 Crankshaft/piston
# OEM RA1 RL3
19 90017-RJA-003 Bolt-washer - 16X49 Bolt-washer - 16X49
Cylinder block/oil pan (2.2L) 4 / 33
RA1 Cylinder block/oil pan (2.2L)
RL3 Front cylinder head
# OEM RA1 RL3
12 12207-634-300 Washer - SEALING BOLT Washer - SEALING BOLT
18 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
25 90041-PA5-000 Bolt - STUD, 6X28 Bolt - STUD, 6X28
30 90705-PT0-000 Dowel pin - 16X22 Dowel pin - 16X22
Cylinder head (2.2L) 4 / 22
RA1 Cylinder head (2.2L)
RL3 Front cylinder head
# OEM RA1 RL3
2 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
3 12205-PJ7-305 Guide - EX. VALVE (OS) Guide - EX. VALVE (OS)
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
5 12211-PZ1-004 Seal b - VALVE STEM(NOK) Seal b - VALVE STEM(NOK)
Cylinder head cover 1 / 9
RA1 Cylinder head cover
RL3 Cylinder head cover
# OEM RA1 RL3
6 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Driveshaft/half shaft (1) 4 / 30
RA1 Driveshaft/half shaft (1)
RL3 Front driveshaft/ half shaft
# OEM RA1 RL3
8 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
10 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
15 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
16 90165-SE0-000 Bolt - FLANGE, 10X37 Bolt - FLANGE, 10X37
Dual air conditioner (HOSES/PIPES; LH) 4 / 22
RA1 Dual air conditioner (HOSES/PIPES; LH)
RL3 Air conditioner (HOSES/PIPES)
# OEM RA1 RL3
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
18 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
19 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
21 80873-SN7-003 O-ring - 8MM O-ring - 8MM
Engine mounts (LH) 1 / 24
RA1 Engine mounts (LH)
RL3 Engine mounts ('07-)
# OEM RA1 RL3
13 50919-SV7-A00 Joint - TWO WAY, #115 Joint - TWO WAY, #115
Engine wire harness (2.2L) 1 / 15
RA1 Engine wire harness (2.2L)
RL3 Harness band/bracket
# OEM RA1 RL3
15 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Exhaust manifold 1 / 12
RA1 Exhaust manifold
RL3 Converter
# OEM RA1 RL3
9 90212-RCA-A01 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM
Exhaust pipe 2 / 27
RA1 Exhaust pipe
RL3 Exhaust pipe/silencer
# OEM RA1 RL3
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
38 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 2 / 12
RA1 Floor mat
RL3 Middle seat
# OEM RA1 RL3
13 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
15 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Front brake 3 / 24
RA1 Front brake
RL3 Front brake
# OEM RA1 RL3
2 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
3 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
16 45240-SM4-003 Bolt - FLANGE, 10X24 Bolt - FLANGE, 10X24
Front door lining (LH) 4 / 15
RA1 Front door lining (LH)
RL3 Tailgate lining
# OEM RA1 RL3
3 34295-SA5-003 Bulb - 12V 3.4W) (DAIICHI Bulb - 12V 3.4W) (DAIICHI
22 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
27 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
27 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 5 / 37
RA1 Front door locks
RL3 Slide door locks/ outer handle
# OEM RA1 RL3
3 72112-SR4-004 Snap - BROWN Snap - BROWN
4 72113-SR4-004 Snap - BLACK Snap - BLACK
36 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
39 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
42 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Front door panels 3 / 24
RA1 Front door panels
RL3 Front door panels
# OEM RA1 RL3
27 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
27 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
30 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Front door windows 1 / 24
RA1 Front door windows
RL3 Harness band/bracket
# OEM RA1 RL3
19 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Front fenders 3 / 9
RA1 Front fenders
RL3 Bumpers ('08-)
# OEM RA1 RL3
8 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
11 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
12 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front seat (LH) 3 / 12
RA1 Front seat (LH)
RL3 Middle seat
# OEM RA1 RL3
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
28 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
30 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Front seat components (L.; HEIGHT ADJUSTER) 2 / 21
RA1 Front seat components (L.; HEIGHT ADJUSTER)
RL3 Center table
# OEM RA1 RL3
16 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
22 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Front windshield wiper (LH) 3 / 28
RA1 Front windshield wiper (LH)
RL3 Front wiper
# OEM RA1 RL3
8 76517-SM4-003 Collar Collar
10 76524-SL0-A01 Dust seal Dust seal
28 90126-SM4-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe 1 / 27
RA1 Fuel pipe
RL3 Heater unit
# OEM RA1 RL3
25 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank 4 / 45
RA1 Fuel tank
RL3 Fuel pipe
# OEM RA1 RL3
2 17371-SM4-013 Valve - TWO WAY (TEC) Valve - TWO WAY (TEC)
7 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
40 90671-SB2-000 Bolt - FR. FENDER (DACRO COATING) Bolt - FR. FENDER (DACRO COATING)
43 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Grommet 5 / 15
RA1 Grommet
RL3 Grommet (LOWER; 2)
# OEM RA1 RL3
2 72206-SA5-000 Cap - FLOOR HOLE, 53MM Cap - FLOOR HOLE, 53MM
4 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
5 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
9 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
14 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Heater blower (LH) 3 / 13
RA1 Heater blower (LH)
RL3 Heater blower
# OEM RA1 RL3
10 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
11 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
13 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater control 1 / 15
RA1 Heater control
RL3 Instrument panel
# OEM RA1 RL3
15 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Heater unit (LH) 2 / 14
RA1 Heater unit (LH)
RL3 Heater unit
# OEM RA1 RL3
10 79770-SE0-000 Grommet - WATER VALVE CABLE Grommet - WATER VALVE CABLE
11 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
Hood (LH) 2 / 27
RA1 Hood (LH)
RL3 Front door panels
# OEM RA1 RL3
28 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
29 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
Inner panels 2 / 2
RA1 Inner panels
RL3 Floor panels
# OEM RA1 RL3
35 74657-SE1-000 Hook - TIE DOWN Hook - TIE DOWN
36 90112-SX0-000 Bolt - FLANGE, 12X30 Bolt - FLANGE, 12X30
Instrument panel (LH) 4 / 20
RA1 Instrument panel (LH)
RL3 Instrument panel
# OEM RA1 RL3
8 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
38 90104-SV4-000 Bolt-washer - 8X25 Bolt-washer - 8X25
42 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
46 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (LH) 6 / 25
RA1 Instrument panel garnish (LH)
RL3 Instrument panel garnish (PASSENGER SIDE)
# OEM RA1 RL3
2 66417-SA0-000 Rubber - GLOVE BOX STOPPER Rubber - GLOVE BOX STOPPER
3 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
19 77508-SX0-000 Arm - GLOVE BOX STOPPER Arm - GLOVE BOX STOPPER
36 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
40 90666-SD4-003 Clip - FITTING Clip - FITTING
41 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Knuckle 2 / 18
RA1 Knuckle
RL3 Front knuckle
# OEM RA1 RL3
7 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
16 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Main valve body (2.2L) 2 / 14
RA1 Main valve body (2.2L)
RL3 Main valve body ('07-)
# OEM RA1 RL3
4 25145-PA9-010 Shaft - OIL PUMP GEAR Shaft - OIL PUMP GEAR
13 27750-PL5-J01 Filter - SECONDARY BODY Filter - SECONDARY BODY
Mainshaft (2.2L) 2 / 22
RA1 Mainshaft (2.2L)
RL3 Transmission case ('07-)
# OEM RA1 RL3
20 91305-PC9-003 O-ring - 34X1.9 (ARAI) O-ring - 34X1.9 (ARAI)
21 91307-PA9-003 O-ring 31.2X1.9 (ARAI) O-ring 31.2X1.9 (ARAI)
Middle seat (BENCH SEAT; 95/96/97) 2 / 23
RA1 Middle seat (BENCH SEAT; 95/96/97)
RL3 Front seat (L.; '08-)
# OEM RA1 RL3
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
44 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Mirror 1 / 25
RA1 Mirror
RL3 Harness band/bracket
# OEM RA1 RL3
25 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Molding 1 / 21
RA1 Molding
RL3 Molding
# OEM RA1 RL3
36 91501-SM5-A00 Clip - ROOF MOLDING (6MM) (GRAY) Clip - ROOF MOLDING (6MM) (GRAY)
Oil pump/oil strainer 2 / 30
RA1 Oil pump/oil strainer
RL3 Oil pump
# OEM RA1 RL3
8 15231-PE0-000 Valve - RELIEF Valve - RELIEF
12 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
Outer panels 1 / 8
RA1 Outer panels
RL3 Slide door locks/ outer handle
# OEM RA1 RL3
33 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
P.s. lines (LH) 5 / 25
RA1 P.s. lines (LH)
RL3 P.s. lines
# OEM RA1 RL3
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
8 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
20 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
22 91370-SV4-000 O-ring - 14.4X1.9 O-ring - 14.4X1.9
23 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
P.s. pump (2.2L) 1 / 27
RA1 P.s. pump (2.2L)
RL3 Power steering pump
# OEM RA1 RL3
21 91345-PY3-000 O-ring - 13.0X1.9 O-ring - 13.0X1.9
Parking brake shoe 5 / 21
RA1 Parking brake shoe
RL3 Parking brake shoe
# OEM RA1 RL3
4 43171-SX0-J01 Spring - ROD Spring - ROD
14 43375-SA0-003 U-clip U-clip
15 43379-SA5-003 Washer - WAVE Washer - WAVE
17 45175-SA0-013 Pin - TENSIONER Pin - TENSIONER
18 90382-SP0-003 Nut - FLANGE, 16MM Nut - FLANGE, 16MM
Pedal (LH) 1 / 20
RA1 Pedal (LH)
RL3 Pedal
# OEM RA1 RL3
12 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
Pillar garnish (LH) 1 / 5
RA1 Pillar garnish (LH)
RL3 Middle seat
# OEM RA1 RL3
21 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Protector 2 / 21
RA1 Protector
RL3 Front fenders
# OEM RA1 RL3
16 90139-SE0-003 Screw-washer - 5X25 Screw-washer - 5X25
20 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
R. side cover (2.2L) 7 / 34
RA1 R. side cover (2.2L)
RL3 Torque converter case ('07-)
# OEM RA1 RL3
6 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
20 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
21 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
22 90471-580-000 Packing - 8MM Packing - 8MM
27 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
29 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
31 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
Radiator (DENSO) 4 / 17
RA1 Radiator (DENSO)
RL3 Radiator
# OEM RA1 RL3
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
14 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
15 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose 5 / 26
RA1 Radiator hose
RL3 Radiator hose/reserve tan k
# OEM RA1 RL3
12 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
19 25216-PR3-000 Clamp - ATF HOSE (BLACK) Clamp - ATF HOSE (BLACK)
22 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
24 90635-PT0-802 Clip, Oil Pipe Clip, Oil Pipe
24 90635-RV0-003 CLIP, OIL PIPE CLIP, OIL PIPE
Radio antenna/speaker (1) 2 / 10
RA1 Radio antenna/speaker (1)
RL3 Harness band/bracket
# OEM RA1 RL3
1 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
11 90666-SD4-003 Clip - FITTING Clip - FITTING
Rear brake 4 / 27
RA1 Rear brake
RL3 Rear brake
# OEM RA1 RL3
6 42511-SP0-000 Cap - MAINTENANCE HOLE Cap - MAINTENANCE HOLE
18 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
19 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
20 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
Rear door lining 5 / 15
RA1 Rear door lining
RL3 Tailgate lining
# OEM RA1 RL3
3 34295-SA5-003 Bulb - 12V 3.4W) (DAIICHI Bulb - 12V 3.4W) (DAIICHI
17 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
18 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 5 / 31
RA1 Rear door locks
RL3 Slide door locks/ outer handle
# OEM RA1 RL3
10 72149-SR4-000 Snap - R. Snap - R.
14 72189-SR4-000 Snap - L. Snap - L.
32 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
35 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
37 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Rear door panels 4 / 24
RA1 Rear door panels
RL3 Front door panels
# OEM RA1 RL3
25 75891-SA7-000 Stopper - DOOR Stopper - DOOR
28 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
28 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
31 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Rear door windows 1 / 22
RA1 Rear door windows
RL3 Harness band/bracket
# OEM RA1 RL3
20 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Rear lower arm 3 / 50
RA1 Rear lower arm
RL3 Rear lower arm
# OEM RA1 RL3
12 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
48 90701-SX0-003 Clip - UPPER ARM Clip - UPPER ARM
49 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Rear seat 1 / 18
RA1 Rear seat
RL3 Front seat (L.; '08-)
# OEM RA1 RL3
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
Regulator body (2.2L) 2 / 16
RA1 Regulator body (2.2L)
RL3 Main valve body ('07-)
# OEM RA1 RL3
10 27750-PL5-J01 Filter - SECONDARY BODY Filter - SECONDARY BODY
12 90089-PK4-000 Bolt - STOPPER, 6MM Bolt - STOPPER, 6MM
Resonator chamber 5 / 13
RA1 Resonator chamber
RL3 Resonator chamber
# OEM RA1 RL3
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
2 17213-PV0-000 Rubber - AIR CLEANER CASE MOUNTING Rubber - AIR CLEANER CASE MOUNTING
3 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
12 91549-P1E-003 Clip - AIR INTAKE COVER Clip - AIR INTAKE COVER
Roof lining (LH) 1 / 3
RA1 Roof lining (LH)
RL3 Floor panels
# OEM RA1 RL3
21 90301-SS0-000 Nut - CLIP, 6MM Nut - CLIP, 6MM
Seatbelts (LH) 1 / 6
RA1 Seatbelts (LH)
RL3 Floor panels
# OEM RA1 RL3
22 90301-SS0-000 Nut - CLIP, 6MM Nut - CLIP, 6MM
Secondary shaft (2.2L) 2 / 26
RA1 Secondary shaft (2.2L)
RL3 Transmission case ('07-)
# OEM RA1 RL3
17 91305-PC9-003 O-ring - 34X1.9 (ARAI) O-ring - 34X1.9 (ARAI)
18 91307-PA9-003 O-ring 31.2X1.9 (ARAI) O-ring 31.2X1.9 (ARAI)
Select lever (LH) 1 / 21
RA1 Select lever (LH)
RL3 Heater unit
# OEM RA1 RL3
28 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Servo body (2.2L) 2 / 21
RA1 Servo body (2.2L)
RL3 Regulator body ('07-)
# OEM RA1 RL3
19 91331-PC9-003 O-ring O-ring
21 91344-580-000 O-ring - 31X2.7 (ARAI) O-ring - 31X2.7 (ARAI)
Side lining 4 / 9
RA1 Side lining
RL3 Tailgate lining
# OEM RA1 RL3
1 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
22 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
29 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
29 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Sliding roof 1 / 23
RA1 Sliding roof
RL3 Sliding roof
# OEM RA1 RL3
2 18534-634-670 Clip - AIR HOSE, 16MM Clip - AIR HOSE, 16MM
Steering column (LH) 4 / 15
RA1 Steering column (LH)
RL3 Steering column
# OEM RA1 RL3
13 90135-SF1-000 Bolt - CENTER SHAFT YOKE Bolt - CENTER SHAFT YOKE
14 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
15 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
16 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Steering wheel 1 / 7
RA1 Steering wheel
RL3 Middle seat strikers/ rear seat striker
# OEM RA1 RL3
11 90172-SL4-003 Screw-washer - 5X12 Screw-washer - 5X12
Switch (LH) 1 / 10
RA1 Switch (LH)
RL3 Console
# OEM RA1 RL3
15 90666-SD4-003 Clip - FITTING Clip - FITTING
Tailgate 3 / 41
RA1 Tailgate
RL3 Tailgate
# OEM RA1 RL3
37 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
42 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
48 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Taillight 3 / 29
RA1 Taillight
RL3 Taillight/license light ('08-)
# OEM RA1 RL3
1 34901-SB0-671 Bulb - 12V 5W 3CP) (STANLEY Bulb - 12V 5W 3CP) (STANLEY
2 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
17 34906-ST5-003 Bulb - 12V 21W/5W) (STANLEY Bulb - 12V 21W/5W) (STANLEY
Throttle body (2.2L) 1 / 23
RA1 Throttle body (2.2L)
RL3 Intake manifold
# OEM RA1 RL3
24 91303-P0A-A02 O-ring O-ring
Tire/wheel disk 1 / 33
RA1 Tire/wheel disk
RL3 Tire/wheel disks
# OEM RA1 RL3
7 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Torque converter 2 / 6
RA1 Torque converter
RL3 Torque converter ('07-)
# OEM RA1 RL3
4 90023-PA9-000 Bolt - SPECIAL Bolt - SPECIAL
5 90429-PC6-900 Washer - 40X86X2 Washer - 40X86X2
Torque converter housing (2.2L) 3 / 21
RA1 Torque converter housing (2.2L)
RL3 Torque converter case ('07-)
# OEM RA1 RL3
9 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
10 90471-580-000 Packing - 8MM Packing - 8MM
12 90705-PF4-000 Dowel pin - 14X20 Dowel pin - 14X20
Transmission housing (2.2L) 2 / 20
RA1 Transmission housing (2.2L)
RL3 Torque converter case ('07-)
# OEM RA1 RL3
12 90081-PX4-003 Bolt - PLUG, 18MM Bolt - PLUG, 18MM
13 90471-PX4-000 Washer - DRAIN PLUG, 18MM Washer - DRAIN PLUG, 18MM
Valve/rocker arm (2.2L) 2 / 17
RA1 Valve/rocker arm (2.2L)
RL3 Valve/rocker arm (FRONT)
# OEM RA1 RL3
9 14744-PT0-004 Screw - TAPPET ADJUSTING Screw - TAPPET ADJUSTING
15 90206-PT0-004 Nut - TAPPET ADJUSTING Nut - TAPPET ADJUSTING
Water pump/sensor 1 / 30
RA1 Water pump/sensor
RL3 Water pump
# OEM RA1 RL3
24 91314-PH7-003 O-ring 31.2X4.1 (NOK) O-ring 31.2X4.1 (NOK)
Water valve 2 / 7
RA1 Water valve
RL3 Rear water hose
# OEM RA1 RL3
1 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
Windshield washer (95/96/97) 2 / 28
RA1 Windshield washer (95/96/97)
RL3 Windshield washer
# OEM RA1 RL3
25 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
28 91512-SE0-003 Clip - WASHER TUBE Clip - WASHER TUBE
Wire harness (LH) 12 / 57
RA1 Wire harness (LH)
RL3 Harness band/bracket
# OEM RA1 RL3
9 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
11 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
13 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
26 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
27 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
34 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
35 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
36 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
37 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
38 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
39 91545-S30-003 Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
50 91571-S10-003 Clip - WIRE HARNESS (NATURAL) (130MM) Clip - WIRE HARNESS (NATURAL) (130MM)
