KA4 × KB2

共通 90 / 合計 6,052 · Jaccard 1.5%
KA4 Honda LEGEND — 3,094 中 90 共有
KB2 Honda LEGEND — 3,048 中 90 共有
90 件
Air conditioner (COMPRESSOR) 2 / 24
KA4 Air conditioner (COMPRESSOR)
KB2 Air conditioner (COMPRESSOR)
# OEM KA4 KB2
4 38812-671-003 Ring a - SNAP Ring a - SNAP
19 38827-PH7-003 Screw-washer - 5X8 Screw-washer - 5X8
Alternator (ND) 2 / 26
KA4 Alternator (ND)
KB2 Alternator (DENSO)
# OEM KA4 KB2
14 31138-PD1-004 Cover - BEARING Cover - BEARING
16 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
Brake lines (LH) 1 / 38
KA4 Brake lines (LH)
KB2 Brake lines (VSA; LH)
# OEM KA4 KB2
41 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake pedal/clutch pedal (LH) 1 / 35
KA4 Brake pedal/clutch pedal (LH)
KB2 Pedal (LH)
# OEM KA4 KB2
5 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
Bumpers 3 / 40
KA4 Bumpers
KB2 Bumpers ('09-)
# OEM KA4 KB2
54 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
55 90114-SE0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
73 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Clutch 1 / 40
KA4 Clutch
KB2 Clutch (LOW)
# OEM KA4 KB2
29 91303-PF4-004 O-ring - 110X2.2 (NOK) O-ring - 110X2.2 (NOK)
Console 2 / 40
KA4 Console
KB2 Console ('09-)
# OEM KA4 KB2
2 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
57 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
Control lever/ control wire 1 / 22
KA4 Control lever/ control wire
KB2 Shift fork
# OEM KA4 KB2
19 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
Countershaft 1 / 72
KA4 Countershaft
KB2 Countershaft
# OEM KA4 KB2
22 91025-PJ2-003 Bearing - NEEDLE, 14X18X15 (NTN) Bearing - NEEDLE, 14X18X15 (NTN)
Cylinder block/oil pan 3 / 32
KA4 Cylinder block/oil pan
KB2 Cylinder block/oil pan
# OEM KA4 KB2
18 90030-PH7-000 Bolt - BREATHING Bolt - BREATHING
20 90041-PA5-000 Bolt - STUD, 6X28 Bolt - STUD, 6X28
23 90715-PH7-000 Dowel pin - 13X37 Dowel pin - 13X37
Cylinder head (FRONT) 1 / 23
KA4 Cylinder head (FRONT)
KB2 Rear cylinder head ('09-)
# OEM KA4 KB2
5 12207-PC6-300 Washer - SEALING, 16MM Washer - SEALING, 16MM
Cylinder head cover 2 / 15
KA4 Cylinder head cover
KB2 Rear cylinder head ('09-)
# OEM KA4 KB2
1 12207-PC6-300 Washer - SEALING, 16MM Washer - SEALING, 16MM
8 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Driveshaft 3 / 12
KA4 Driveshaft
KB2 Front driveshaft/ half shaft
# OEM KA4 KB2
7 44319-SD4-010 Set ring - 30X2.2 Set ring - 30X2.2
14 44338-SD4-300 Circlip - 28MM Circlip - 28MM
16 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
Duct 1 / 22
KA4 Duct
KB2 Duct (LH)
# OEM KA4 KB2
22 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
Egr valve (2) 1 / 8
KA4 Egr valve (2)
KB2 Water pump ('09-)
# OEM KA4 KB2
6 18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) GASKET, EGR VALVE (ISHINO GASKET)
Exhaust manifold 1 / 11
KA4 Exhaust manifold
KB2 Exhaust manifold ('09-)
# OEM KA4 KB2
10 90212-RCA-A01 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM
Exhaust pipe 2 / 18
KA4 Exhaust pipe
KB2 Exhaust pipe/silencer
# OEM KA4 KB2
5 18212-SA7-003 Gasket - EX. PIPE (ISHINO) Gasket - EX. PIPE (ISHINO)
25 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Front combination light (2) 1 / 20
KA4 Front combination light (2)
KB2 Interior light
# OEM KA4 KB2
14 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
Front door locks 1 / 26
KA4 Front door locks
KB2 Front door lining (LH)
# OEM KA4 KB2
46 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM

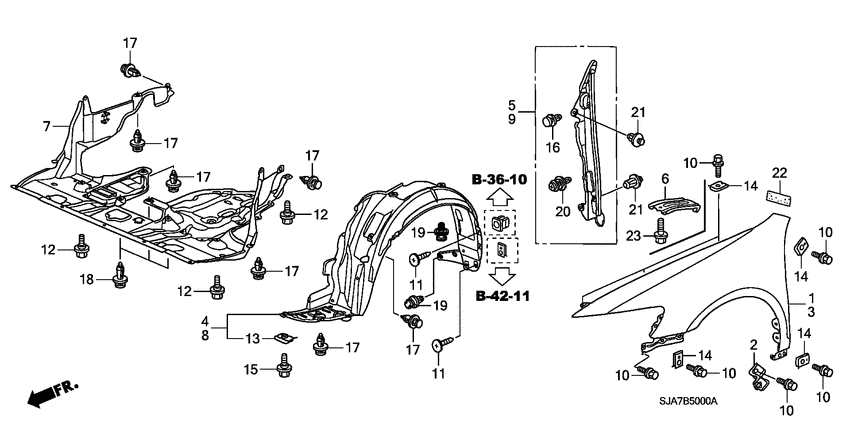

Front fender 3 / 29
KA4 Front fender
KB2 Front fenders
# OEM KA4 KB2
18 90108-SF1-000 Bolt-washer - 6X15 Bolt-washer - 6X15
19 90114-SE0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
32 91533-SG0-000 Clip b - FAIRING Clip b - FAIRING
Front grille 1 / 11
KA4 Front grille
KB2 Bumpers ('09-)
# OEM KA4 KB2
15 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Front lower arm/ front stabilizer 1 / 26
KA4 Front lower arm/ front stabilizer
KB2 Front lower arm
# OEM KA4 KB2
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
Front shock absorber 1 / 21
KA4 Front shock absorber
KB2 Front shock absorber
# OEM KA4 KB2
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Fuel tank (2) 1 / 24
KA4 Fuel tank (2)
KB2 Air cleaner ('09-)
# OEM KA4 KB2
26 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
Glove box 2 / 23
KA4 Glove box
KB2 Instrument panel garnish (LH)
# OEM KA4 KB2
18 77535-SD4-000 Label - TRUNK MAIN SWITCH Label - TRUNK MAIN SWITCH
28 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
Grommet 4 / 46
KA4 Grommet
KB2 Grommet (LOWER)
# OEM KA4 KB2
22 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
25 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
43 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
52 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Heater blower 2 / 26
KA4 Heater blower
KB2 Heater unit (LH)
# OEM KA4 KB2
4 39797-SE0-003 Relay assy - POWER (4P) (DENSO) (056700-7330) Relay assy - POWER (4P) (DENSO) (056700-7330)
4 39797-SE0-004 Relay assy - POWER (4P) (MITSUBA) (RC-2201) Relay assy - POWER (4P) (MITSUBA) (RC-2201)
Horn/fuse box 1 / 7
KA4 Horn/fuse box
KB2 Heater unit (LH)
# OEM KA4 KB2
8 39797-SE0-004 Relay assy - POWER (4P) (MITSUBA) (RC-2201) Relay assy - POWER (4P) (MITSUBA) (RC-2201)
Instrument panel lower (LH) 2 / 19
KA4 Instrument panel lower (LH)
KB2 Console ('09-)
# OEM KA4 KB2
4 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
6 66418-579-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
Interior accessories 1 / 17
KA4 Interior accessories
KB2 Roof lining
# OEM KA4 KB2
22 83248-SG0-003 Spacer - GRAB RAIL Spacer - GRAB RAIL
Interior light 2 / 9
KA4 Interior light
KB2 Interior light
# OEM KA4 KB2
3 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
3 04110-SWA-305 BULB T10X318W BULB T10X318W
Knuckle 1 / 18
KA4 Knuckle
KB2 Front lower arm
# OEM KA4 KB2
15 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
L. side cover 6 / 33
KA4 L. side cover
KB2 Rear differential/mount
# OEM KA4 KB2
15 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
16 90471-580-000 Packing - 8MM Packing - 8MM
20 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
21 91305-PC9-003 O-ring - 34X1.9 (ARAI) O-ring - 34X1.9 (ARAI)
23 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
25 91314-PC9-004 O-ring - 8.5X1.9 (NOK) O-ring - 8.5X1.9 (NOK)
Main valve body/governor (2) 2 / 21
KA4 Main valve body/governor (2)
KB2 Main valve body
# OEM KA4 KB2
4 25145-PA9-010 Shaft - OIL PUMP GEAR Shaft - OIL PUMP GEAR
23 27750-PL5-J01 Filter - SECONDARY BODY Filter - SECONDARY BODY
Mainshaft 1 / 51
KA4 Mainshaft
KB2 Secondary shaft
# OEM KA4 KB2
26 91307-PA9-003 O-ring 31.2X1.9 (ARAI) O-ring 31.2X1.9 (ARAI)
Master power (2) 1 / 10
KA4 Master power (2)
KB2 Brake master cylinder/ master power (LH)
# OEM KA4 KB2
14 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Oil cooler/oil filter 2 / 25
KA4 Oil cooler/oil filter
KB2 Breather tube
# OEM KA4 KB2
29 91405-679-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
29 91405-PM5-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
Oil pump 2 / 23
KA4 Oil pump
KB2 Transmission case
# OEM KA4 KB2
15 90041-PA5-000 Bolt - STUD, 6X28 Bolt - STUD, 6X28
20 91310-PH7-000 O-ring - 19.8X2.4 O-ring - 19.8X2.4
P.s. lines (LH) 2 / 41
KA4 P.s. lines (LH)
KB2 P.s. lines (LH; '09-)
# OEM KA4 KB2
16 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
39 91304-PA6-003 O-ring - 7.8X1.9 O-ring - 7.8X1.9
Radiator (ND) 2 / 16
KA4 Radiator (ND)
KB2 Radiator (DENSO)
# OEM KA4 KB2
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
13 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose/ reserve tank 1 / 30
KA4 Radiator hose/ reserve tank
KB2 Radiator hose/reserve tan k
# OEM KA4 KB2
16 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
Rear axle (2) 1 / 24
KA4 Rear axle (2)
KB2 Rear driveshaft
# OEM KA4 KB2
22 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
Rear door locks 1 / 25
KA4 Rear door locks
KB2 Front door lining (LH)
# OEM KA4 KB2
31 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Rear lower arm/ rear stabilizer (2) 1 / 43
KA4 Rear lower arm/ rear stabilizer (2)
KB2 Front lower arm
# OEM KA4 KB2
35 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
Rear shock absorber (2) 2 / 19
KA4 Rear shock absorber (2)
KB2 Rear shock absorber
# OEM KA4 KB2
6 52621-SB2-004 Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Regulator/lock up valve (2) 2 / 29
KA4 Regulator/lock up valve (2)
KB2 Rear differential/mount
# OEM KA4 KB2
24 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
26 90471-580-000 Packing - 8MM Packing - 8MM
Resonator chamber 1 / 19
KA4 Resonator chamber
KB2 Resonator chamber
# OEM KA4 KB2
2 17212-PE2-000 Rubber a - AIR CLEANER CASE MOUNTING Rubber a - AIR CLEANER CASE MOUNTING
Secondary body (2) 1 / 29
KA4 Secondary body (2)
KB2 Main valve body
# OEM KA4 KB2
20 27750-PL5-J01 Filter - SECONDARY BODY Filter - SECONDARY BODY
Select lever (LH) 1 / 33
KA4 Select lever (LH)
KB2 Console ('09-)
# OEM KA4 KB2
2 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
Servo body/modulator (2) 4 / 31
KA4 Servo body/modulator (2)
KB2 Accumulator body
# OEM KA4 KB2
2 22744-PG4-000 Pipe - TOP CLUTCH Pipe - TOP CLUTCH
5 25422-PN6-801 Magnet comp. - TRANSMISSION Magnet comp. - TRANSMISSION
31 91331-PC9-003 O-ring O-ring
34 91344-580-000 O-ring - 31X2.7 (ARAI) O-ring - 31X2.7 (ARAI)
Speedometer components (NS) 1 / 27
KA4 Speedometer components (NS)
KB2 Meter components (NS)
# OEM KA4 KB2
8 37115-SA0-601 Packing - NS Packing - NS
Steering column (LH) 2 / 19
KA4 Steering column (LH)
KB2 Steering column
# OEM KA4 KB2
21 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
22 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
Switch (2) 2 / 22
KA4 Switch (2)
KB2 Combination switch (LH)
# OEM KA4 KB2
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
20 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
Throttle valve shaft 2 / 20
KA4 Throttle valve shaft
KB2 Shift fork
# OEM KA4 KB2
2 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
16 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
Tire/wheel disk 2 / 35
KA4 Tire/wheel disk
KB2 Tire/wheel disks
# OEM KA4 KB2
8 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
8 42753-671-003 Valve - RIM (TAIHEIYO) Valve - RIM (TAIHEIYO)
Torque converter 2 / 6
KA4 Torque converter
KB2 Torque converter
# OEM KA4 KB2
4 90023-PA9-000 Bolt - SPECIAL Bolt - SPECIAL
5 90429-PC6-900 Washer - 40X86X2 Washer - 40X86X2
Torque converter housing 4 / 18
KA4 Torque converter housing
KB2 Torque converter case
# OEM KA4 KB2
9 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
10 90471-580-000 Packing - 8MM Packing - 8MM
11 90705-PF4-000 Dowel pin - 14X20 Dowel pin - 14X20
16 91209-612-003 Oil seal - 12X22X7 (ARAI) Oil seal - 12X22X7 (ARAI)
Trunk lid 1 / 19
KA4 Trunk lid
KB2 Outer panels/rear panel
# OEM KA4 KB2
5 73219-693-951 Seal - FUEL LID OPENER (GREEN) Seal - FUEL LID OPENER (GREEN)
Trunk side garnish 1 / 16
KA4 Trunk side garnish
KB2 Taillight/license light (3)
# OEM KA4 KB2
21 90662-693-003 Grommet - SCREW, 4MM (BLUE) Grommet - SCREW, 4MM (BLUE)
Valve/rocker arm (FRONT) 1 / 36
KA4 Valve/rocker arm (FRONT)
KB2 Rear cylinder head ('09-)
# OEM KA4 KB2
2 12207-PC6-300 Washer - SEALING, 16MM Washer - SEALING, 16MM
Valve/rocker arm (REAR) 1 / 36
KA4 Valve/rocker arm (REAR)
KB2 Rear cylinder head ('09-)
# OEM KA4 KB2
2 12207-PC6-300 Washer - SEALING, 16MM Washer - SEALING, 16MM
Water pump 1 / 15
KA4 Water pump
KB2 Water pump ('09-)
# OEM KA4 KB2
13 91314-PH7-003 O-ring 31.2X4.1 (NOK) O-ring 31.2X4.1 (NOK)
Water valve 2 / 13
KA4 Water valve
KB2 Water valve (LH)
# OEM KA4 KB2
11 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
11 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer 1 / 24
KA4 Windshield washer
KB2 Windshield washer/ headlight washer ('09-)
# OEM KA4 KB2
10 76809-SE0-003 Grommet - WASHER TANK Grommet - WASHER TANK
Wire harness (1) 7 / 48
KA4 Wire harness (1)
KB2 Battery ('09-)
# OEM KA4 KB2
10 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
11 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
22 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
34 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
35 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
37 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
46 91547-SF4-003 Band - WIRE HARNESS (BLUE) (123.5MM) Band - WIRE HARNESS (BLUE) (123.5MM)
