Accelerator pedal (LH) 2 / 14

#	OEM	KA4	KA8
4	17814-SD4-670	Spring - ACCELERATOR PEDAL	Spring - ACCELERATOR PEDAL
12	90551-SD4-010	Washer - PLAIN, 13MM	Washer - PLAIN, 13MM

Air cleaner 1 / 26

#	OEM	KA4	KA8
22	17315-PP8-003	Band c - AIR FLOW TUBE	Band c - AIR FLOW TUBE

Air conditioner (COMPRESSOR) 2 / 24

#	OEM	KA4	KA8
4	38812-671-003	Ring a - SNAP	Ring a - SNAP
19	38827-PH7-003	Screw-washer - 5X8	Screw-washer - 5X8

Air conditioner (UNIT; LH) 5 / 18

#	OEM	KA4	KA8
2	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
14	80382-SD4-000	Grommet - DRAIN HOSE	Grommet - DRAIN HOSE
18	90137-SD4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
19	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
20	91549-SE0-003	Holder - DRAIN HOSE	Holder - DRAIN HOSE

Alternator (ND) 4 / 26

#	OEM	KA4	KA8
14	31138-PD1-004	Cover - BEARING	Cover - BEARING
16	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
18	31145-PD1-004	Bolt - STUD, 6X68	Bolt - STUD, 6X68
23	90231-PD1-014	Nut-washer - 5MM	Nut-washer - 5MM

Alternator bracket 2 / 12

#	OEM	KA4	KA8
4	31114-PL2-000	Bolt - TENSIONER	Bolt - TENSIONER
12	90016-PA9-000	Bolt - FLANGE, 10X90	Bolt - FLANGE, 10X90

Atf cooler 1 / 25

#	OEM	KA4	KA8
22	90438-671-000	Washer - SPECIAL, 6MM	Washer - SPECIAL, 6MM

Battery/ignition coil 1 / 19

#	OEM	KA4	KA8
13	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)

Brake lines (LH) 5 / 38

#	OEM	KA4	KA8
12	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
20	46394-SB0-682	Clip b	Clip b
36	46462-SE0-000	Bolt - OIL	Bolt - OIL
37	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
41	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder (1) 8 / 14

#	OEM	KA4	KA8
6	57562-SF1-003	Circlip	Circlip
7	46185-SD4-932	Seal - ROD	Seal - ROD
8	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
10	46662-SD4-033	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
11	46666-SD4-013	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
12	46669-692-003	Seal - RESERVE TANK	Seal - RESERVE TANK
13	46671-SD4-003	O-ring - 49.7X2.4	O-ring - 49.7X2.4
14	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR

Brake pedal/clutch pedal (LH) 5 / 35

#	OEM	KA4	KA8
5	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
10	46535-692-000	Collar - PEDAL	Collar - PEDAL
15	46545-SE0-980	Cover - BRAKE PEDAL	Cover - BRAKE PEDAL
26	46991-SG0-A00	Cover - FOOTREST	Cover - FOOTREST
27	46992-SG0-A00	Pad - FOOTREST	Pad - FOOTREST

Bumpers 10 / 40

#	OEM	KA4	KA8
47	90102-SE0-010	Bolt assy. c - BUMPER	Bolt assy. c - BUMPER
53	90110-SE0-003	Bolt c - BUMPER	Bolt c - BUMPER
54	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
55	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
63	90303-SA5-003	Nut - FR. COMBINATION LIGHT	Nut - FR. COMBINATION LIGHT
64	90321-SE1-000	Nut - CLIP (AIR SPOILER)	Nut - CLIP (AIR SPOILER)
65	90540-SA7-000	Washer - BUMPER	Washer - BUMPER
71	90673-SB2-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM
72	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
73	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Camshaft/timing belt 6 / 17

#	OEM	KA4	KA8
4	14270-PH7-003	Pulley - RR. TIMING BELT DRIVEN	Pulley - RR. TIMING BELT DRIVEN
10	90016-PH7-000	Bolt - TIMING BELT ADJUSTING	Bolt - TIMING BELT ADJUSTING
11	90031-PH7-000	Bolt - FLANGE, 8X20	Bolt - FLANGE, 8X20
12	90401-634-000	Rubber - TIMING BELT ADJUSTER	Rubber - TIMING BELT ADJUSTER
13	90501-MB7-610	Washer - 10.3X25	Washer - 10.3X25
16	90021-PL2-000	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20

Change lever 1 / 30

#	OEM	KA4	KA8
27	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)

Clutch 4 / 40

#	OEM	KA4	KA8
11	22542-PA9-000	Seat - CLUTCH SPRING	Seat - CLUTCH SPRING
23	90603-PA9-000	Circlip - EXTERNAL, 40MM	Circlip - EXTERNAL, 40MM
27	91302-PA9-004	O-ring - 39.8X2.2 (NOK)	O-ring - 39.8X2.2 (NOK)
27	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)

Clutch master cylinder (LH) 1 / 35

#	OEM	KA4	KA8
6	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT

Console 5 / 40

#	OEM	KA4	KA8
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
7	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
57	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
60	90666-SD4-003	Clip - FITTING	Clip - FITTING
61	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

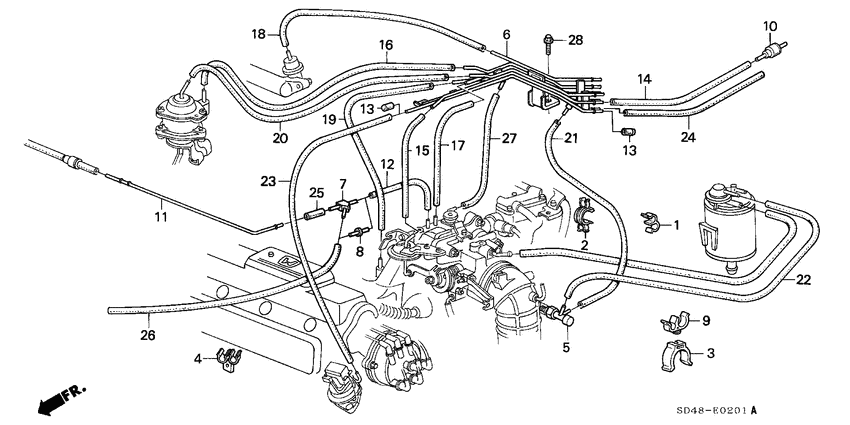

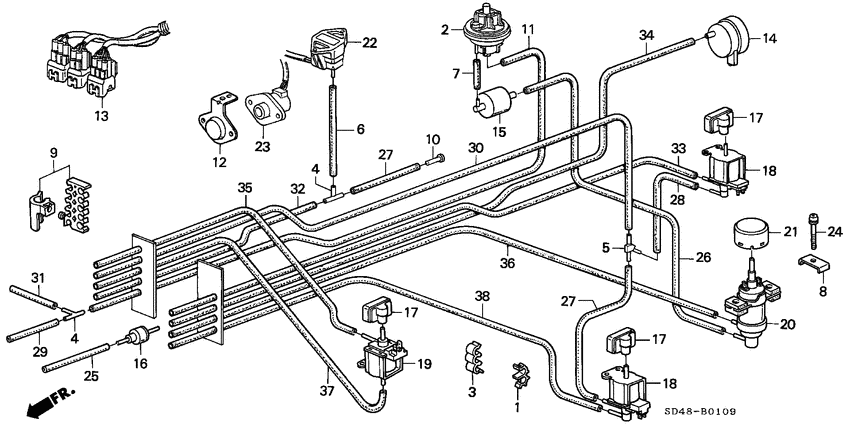

Control box tubing (4) 5 / 23

#	OEM	KA4	KA8
1	17205-PC6-000	Clamp - TUBE, 7.5X2	Clamp - TUBE, 7.5X2
5	36010-PE0-004	Joint - THREE WAY	Joint - THREE WAY
7	36013-PG7-661	Holder - SOLENOID, 3.5MM	Holder - SOLENOID, 3.5MM
10	36034-PM6-901	Plug - SEALING	Plug - SEALING
21	36194-PD2-661	Filter assy - AIR	Filter assy - AIR

Control lever/ control wire 2 / 22

#	OEM	KA4	KA8
17	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
19	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM

Control unit (1) 2 / 18

#	OEM	KA4	KA8
15	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
15	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)	Relay assy - POWER(4P)(DENSO) (056700-7410)

Countershaft 3 / 72

#	OEM	KA4	KA8
12	90602-PG1-770	Ring - SNAP, 56MM	Ring - SNAP, 56MM
13	91003-PG2-008	Bearing - SPECIAL BALL (NTN)	Bearing - SPECIAL BALL (NTN)
22	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)	Bearing - NEEDLE, 14X18X15 (NTN)

Crankshaft 3 / 30

#	OEM	KA4	KA8
3	13331-PH7-004	Washer - THRUST (TAIHO)	Washer - THRUST (TAIHO)
3	13331-PH7-003	Washer - THRUST (DAIDO)	Washer - THRUST (DAIDO)
10	90704-PH7-000	Key, SPECIAL	Key, SPECIAL

Cylinder block/oil pan 8 / 32

#	OEM	KA4	KA8
14	90009-PH7-003	Bolt - FLANGE, 9X86	Bolt - FLANGE, 9X86
15	90013-PH7-003	Bolt-washer - 10X56	Bolt-washer - 10X56
16	90014-PH7-003	Bolt-washer - 10X41	Bolt-washer - 10X41
23	90715-PH7-000	Dowel pin - 13X37	Dowel pin - 13X37
24	91214-PL2-004	Oil seal - 80X98X10 (ARAI)	Oil seal - 80X98X10 (ARAI)
24	91214-PNA-014	Oil seal - 80X98X10 (ARAI)	Oil seal - 80X98X10 (ARAI)
26	91305-PH7-003	O-ring - 12.5X2.4	O-ring - 12.5X2.4
33	90052-PH7-000	Bolt - FLANGE, 6X22	Bolt - FLANGE, 6X22

Cylinder head (FRONT) 2 / 23

#	OEM	KA4	KA8
14	90005-PH7-003	Bolt-washer - 11X164	Bolt-washer - 11X164
19	90719-PH7-000	Dowel pin - 13X37	Dowel pin - 13X37

Cylinder head (REAR) 2 / 21

#	OEM	KA4	KA8
12	90005-PH7-003	Bolt-washer - 11X164	Bolt-washer - 11X164
17	90719-PH7-000	Dowel pin - 13X37	Dowel pin - 13X37

Cylinder head cover 2 / 15

#	OEM	KA4	KA8
7	15610-PC6-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
8	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Differential gear 1 / 64

#	OEM	KA4	KA8
10	90017-PG2-000	Bolt - SPECIAL, 11MM	Bolt - SPECIAL, 11MM

Door trim 3 / 10

#	OEM	KA4	KA8
26	90609-SG0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
28	90661-SD4-003	Clip - DRIP SEAL END	Clip - DRIP SEAL END
31	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Duct 1 / 22

#	OEM	KA4	KA8
22	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Egr valve (2) 1 / 8

#	OEM	KA4	KA8
6	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)

Emblems 1 / 11

#	OEM	KA4	KA8
4	31511-SB2-671	Mark - BATTERY CAUTION (MAINTENANCE FREE)	Mark - BATTERY CAUTION (MAINTENANCE FREE)

Engine mounts 1 / 18

#	OEM	KA4	KA8
14	90116-SD4-010	Bolt - SIDE MOUNTING, 12MM	Bolt - SIDE MOUNTING, 12MM

Engine wire harness (2) 3 / 27

#	OEM	KA4	KA8
15	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
25	91307-PH7-660	O-ring (13.5X1.4)	O-ring (13.5X1.4)
26	91506-PH7-003	Clip - WIRE HARNESS (BLACK)	Clip - WIRE HARNESS (BLACK)

Exhaust manifold 5 / 11

#	OEM	KA4	KA8
9	90065-PC1-300	Bolt - STUD, 10X34.5	Bolt - STUD, 10X34.5
10	90212-PD2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
10	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
12	90015-PH7-000	Bolt-washer - 8X14	Bolt-washer - 8X14
12	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14

Exhaust pipe 5 / 18

#	OEM	KA4	KA8
6	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
8	18215-671-000	Rubber - SILENCER MOUNTING (74X53X22)	Rubber - SILENCER MOUNTING (74X53X22)
24	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
25	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
26	90212-671-005	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Front beam/torque rod 1 / 22

#	OEM	KA4	KA8
24	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Front brake caliper 2 / 19

#	OEM	KA4	KA8
2	43353-SA0-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW

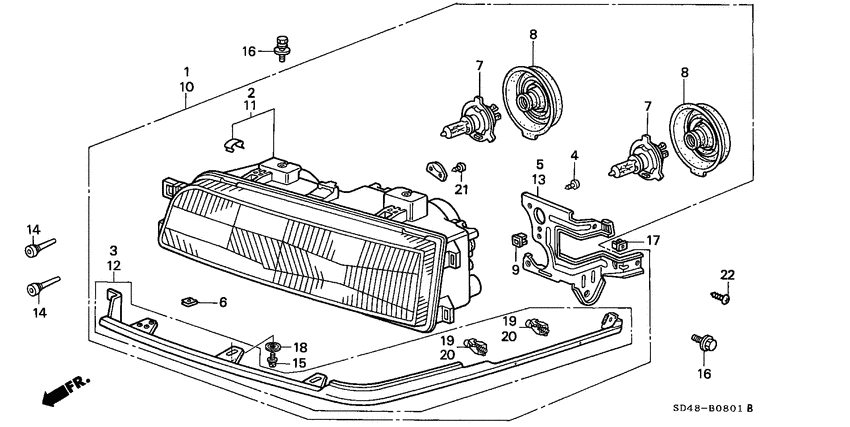

Front combination light (2) 3 / 20

#	OEM	KA4	KA8
8	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
14	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
18	90303-SA5-003	Nut - FR. COMBINATION LIGHT	Nut - FR. COMBINATION LIGHT

Front door lining 6 / 41

#	OEM	KA4	KA8
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
6	35851-SP1-901	Bulb b - NEO WEDGE(14V 100MA)	Bulb b - NEO WEDGE(14V 100MA)
57	90664-671-003	Clip - CANOE	Clip - CANOE
58	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
59	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
60	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Front door locks 1 / 26

#	OEM	KA4	KA8
46	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door panels 1 / 5

#	OEM	KA4	KA8
21	90101-SE3-003	Bolt-washer - 8X23.5	Bolt-washer - 8X23.5

Front door windows 3 / 17

#	OEM	KA4	KA8
3	72212-SH3-003	Spring - SPIRAL	Spring - SPIRAL
18	90120-SE3-003	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
20	90115-SG0-003	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM

Front fender 7 / 29

#	OEM	KA4	KA8
18	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
19	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
20	90119-SE0-000	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM
26	90540-SA7-000	Washer - BUMPER	Washer - BUMPER
28	90673-SB2-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM
31	91532-SG0-003	Clip - FAIRING	Clip - FAIRING
32	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING

Front grille 1 / 11

#	OEM	KA4	KA8
15	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front lower arm/ front stabilizer 2 / 26

#	OEM	KA4	KA8
22	90117-SM4-003	Bolt - FR. SHOCK ABSORBER LOCK (10X44)	Bolt - FR. SHOCK ABSORBER LOCK (10X44)
26	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)

Front seat 1 / 1

#	OEM	KA4	KA8
14	90161-SB4-003	Screw - FLAT, 4X16	Screw - FLAT, 4X16

Front seat components (LH) 3 / 14

#	OEM	KA4	KA8
5	77208-SA5-003	Bush - NYLON (TS TECH)	Bush - NYLON (TS TECH)
6	77209-SB0-003	Washer - NYLON	Washer - NYLON
7	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER

Front shock absorber 2 / 21

#	OEM	KA4	KA8
16	51689-SH3-004	Plate - BUMP STOP (SHOWA)	Plate - BUMP STOP (SHOWA)
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Fuel Pump 7 / 15

#	OEM	KA4	KA8
1	17574-SE0-000	Packing - BASE	Packing - BASE
14	90020-PD6-000	Bolt - SEALING, 12MM	Bolt - SEALING, 12MM
15	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
17	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
20	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM
20	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM
21	90164-SD4-000	Bolt-washer - 6X16	Bolt-washer - 6X16

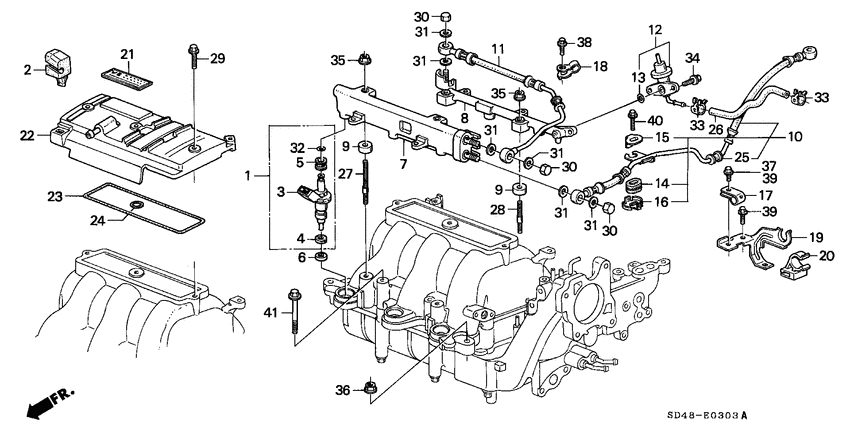

Fuel injector (2) 12 / 36

#	OEM	KA4	KA8
4	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)	Seal ring - INJECTOR (OTSUKA)
4	16472-P0H-A01	Seal ring - INJECTOR (NOK)	Seal ring - INJECTOR (NOK)
5	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
5	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
9	16638-PH7-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
13	16741-PG7-005	O-ring - PRESSURE REGULATOR	O-ring - PRESSURE REGULATOR
27	90026-PH7-000	Bolt - STUD, 6X64	Bolt - STUD, 6X64
30	90201-PD1-000	Nut a - SEALING, 12MM	Nut a - SEALING, 12MM
31	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
32	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
33	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM
33	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM

Fuel pipe 8 / 35

#	OEM	KA4	KA8
21	38608-692-000	Rubber - MOUNTING	Rubber - MOUNTING
23	90008-PD6-010	Bolt - BANJO, 12MM	Bolt - BANJO, 12MM
23	90008-PP4-E02	Bolt - BANJO, 12MM	Bolt - BANJO, 12MM
24	90009-PE2-010	Bolt - SEALING, 6MM	Bolt - SEALING, 6MM
24	90009-RMX-010	Bolt,sealing 6mm	Bolt,sealing 6mm
27	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
28	90430-PD6-003	Washer - SEALING, 6MM	Washer - SEALING, 6MM
29	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)	Bolt - FR. FENDER (DACRO COATING)

Fuel tank (2) 2 / 24

#	OEM	KA4	KA8
10	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
24	90103-SB0-010	Nut - FLANGE, 5MM	Nut - FLANGE, 5MM

Glove box 4 / 23

#	OEM	KA4	KA8
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
18	77535-SD4-000	Label - TRUNK MAIN SWITCH	Label - TRUNK MAIN SWITCH
25	90101-692-000	Screw - GLOVE BOX	Screw - GLOVE BOX
28	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Grommet 11 / 46

#	OEM	KA4	KA8
1	32169-647-010	Grommet - WASHER TUBE (18MM)	Grommet - WASHER TUBE (18MM)
7	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
11	72849-SA5-000	Insulator b - SIDE SILL HOLD	Insulator b - SIDE SILL HOLD
22	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
25	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
32	90856-SA0-000	Plug - COATING HOLE, 25MM	Plug - COATING HOLE, 25MM
33	90871-SG0-010	Valve - RR. DRAIN, 20MM	Valve - RR. DRAIN, 20MM
42	91606-SE0-000	Seal - 20X20	Seal - 20X20
43	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM
46	91613-SG0-003	Plug - FLOOR HOLE, 50MM	Plug - FLOOR HOLE, 50MM
48	91615-SA5-000	Grommet - HOLE, 25MM	Grommet - HOLE, 25MM

Hand brake 3 / 18

#	OEM	KA4	KA8
4	47142-671-010	Knob - PARKING BRAKE PUSH ROD	Knob - PARKING BRAKE PUSH ROD
5	47143-SD4-300	Spring - PUSH ROD	Spring - PUSH ROD
20	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Headlight (2) 1 / 20

#	OEM	KA4	KA8
17	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Heater blower 3 / 26

#	OEM	KA4	KA8
3	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
23	80789-SH3-003	Holder - ROD	Holder - ROD
24	90137-SD4-000	Bolt-washer - 6X20	Bolt-washer - 6X20

Heater unit 4 / 30

#	OEM	KA4	KA8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
26	79192-SD4-003	Bush - 6.7MM	Bush - 6.7MM
29	80789-SH3-003	Holder - ROD	Holder - ROD
37	90137-SD4-000	Bolt-washer - 6X20	Bolt-washer - 6X20

Hood 5 / 38

#	OEM	KA4	KA8
26	74177-SD4-000	Cushion a - HOOD	Cushion a - HOOD
35	90106-SD4-000	Bolt-washer - 8X16	Bolt-washer - 8X16
42	90664-671-003	Clip - CANOE	Clip - CANOE
46	90700-SB2-003	Clip - HOOD INSULATOR	Clip - HOOD INSULATOR
49	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Install pipe/tubing (2) 2 / 10

#	OEM	KA4	KA8
1	17205-PC6-000	Clamp - TUBE, 7.5X2	Clamp - TUBE, 7.5X2
8	36010-PL2-901	Joint - TWO WAY	Joint - TWO WAY

Instrument panel lower (LH) 3 / 19

#	OEM	KA4	KA8
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
4	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
6	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID

Instrument panel stays (LH) 1 / 11

#	OEM	KA4	KA8
10	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25

Instrument panel upper (LH) 1 / 14

#	OEM	KA4	KA8
26	90666-SD4-003	Clip - FITTING	Clip - FITTING

Intake manifold (2) 3 / 12

#	OEM	KA4	KA8
10	37880-PE2-013	Sensor assy - AIR TEMP	Sensor assy - AIR TEMP
11	91303-PD1-910	O-ring - 7.5X1.5	O-ring - 7.5X1.5
11	91303-PK2-005	O-ring (7.5X1.5)	O-ring (7.5X1.5)

Interior accessories 2 / 17

#	OEM	KA4	KA8
22	83248-SG0-003	Spacer - GRAB RAIL	Spacer - GRAB RAIL
38	90133-SG0-003	Bolt-washer - 5X30	Bolt-washer - 5X30

Interior light 2 / 9

#	OEM	KA4	KA8
5	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
6	34295-SD4-003	Bulb - 12V 5W.K	Bulb - 12V 5W.K

Knuckle 3 / 18

#	OEM	KA4	KA8
14	90113-SD4-900	Bolt - WHEEL	Bolt - WHEEL
15	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
17	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

L. side cover 8 / 33

#	OEM	KA4	KA8
2	21244-PF4-010	Spring - LOW ACCUMULATOR ONE WAY BALL	Spring - LOW ACCUMULATOR ONE WAY BALL
15	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
16	90471-580-000	Packing - 8MM	Packing - 8MM
20	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
21	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
22	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)
22	91308-PA9-004	O-ring - 19.8X1.9 (NOK)	O-ring - 19.8X1.9 (NOK)
23	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Main valve body/governor (2) 5 / 21

#	OEM	KA4	KA8
4	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
10	27256-PA9-000	Valve - RELIEF	Valve - RELIEF
11	27256-639-000	Valve - TORQUE CONVERTER CHECK	Valve - TORQUE CONVERTER CHECK
23	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY
28	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8

Mainshaft 4 / 51

#	OEM	KA4	KA8
22	91023-PG4-013	Bearing - THRUST NEEDLE, 36X56X2.5 (NTN)	Bearing - THRUST NEEDLE, 36X56X2.5 (NTN)
26	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)
27	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)
27	91308-PA9-004	O-ring - 19.8X1.9 (NOK)	O-ring - 19.8X1.9 (NOK)

Master power (2) 4 / 10

#	OEM	KA4	KA8
1	46151-SA7-951	Yoke comp - NISSIN	Yoke comp - NISSIN
2	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
12	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
14	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Oil cooler/oil filter 5 / 25

#	OEM	KA4	KA8
4	15400-PL2-305	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
4	15400-PL2-306	OIL FILTER (TOYO ROKI)	OIL FILTER (TOYO ROKI)
20	90015-PL2-000	Holder - OIL FILTER	Holder - OIL FILTER
25	91318-PY3-000	Packing - OIL PUMP	Packing - OIL PUMP
29	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Oil pump 3 / 23

#	OEM	KA4	KA8
11	15233-PC6-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
16	90051-PH7-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
25	90052-PH7-000	Bolt - FLANGE, 6X22	Bolt - FLANGE, 6X22

P.s. bracket/speed sensor 1 / 9

#	OEM	KA4	KA8
8	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

P.s. gear box components (LH) 10 / 62

#	OEM	KA4	KA8
2	53412-634-000	O-ring - RACK GUIDE (YAMADA)	O-ring - RACK GUIDE (YAMADA)
4	53414-634-010	Screw - RACK GUIDE	Screw - RACK GUIDE
4	53414-634-020	Screw	Screw
6	53426-SE0-951	Dust seal - STEERING PINION	Dust seal - STEERING PINION
7	53458-SE0-003	Nut - RACK SCREW LOCK	Nut - RACK SCREW LOCK
7	53458-S01-A51	Nut - LOCK	Nut - LOCK
13	53615-SD4-950	Washer - RETAINER	Washer - RETAINER
22	53633-SK7-951	Packing - CYLINDER END (NOK)	Packing - CYLINDER END (NOK)
36	90684-SD4-950	Ring - SNAP, 31MM	Ring - SNAP, 31MM
41	91103-429-000	Dowel pin - 8X10	Dowel pin - 8X10

P.s. lines (LH) 4 / 41

#	OEM	KA4	KA8
16	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
39	91304-PA6-003	O-ring - 7.8X1.9	O-ring - 7.8X1.9
41	91370-SB3-950	O-ring - 8.8X1.9	O-ring - 8.8X1.9
43	91462-SA5-950	Clamp d - 19MM	Clamp d - 19MM

Piston/connecting rod 2 / 25

#	OEM	KA4	KA8
4	13204-PY3-013	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
5	13205-PH7-000	Nut - CONNECTING ROD	Nut - CONNECTING ROD

Radiator (ND) 3 / 16

#	OEM	KA4	KA8
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
6	19020-PH7-661	Fan - COOLING (DENSO)	Fan - COOLING (DENSO)
13	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose/ reserve tank 3 / 30

#	OEM	KA4	KA8
23	37760-PH7-003	Sensor assy - RADIATOR FAN CONTROL (MATSUSHITA)	Sensor assy - RADIATOR FAN CONTROL (MATSUSHITA)
32	91307-611-000	O-ring (13.5X1.4)	O-ring (13.5X1.4)
32	91307-PH7-660	O-ring (13.5X1.4)	O-ring (13.5X1.4)

Radio antenna 1 / 12

#	OEM	KA4	KA8
12	39170-SD4-A00	Valve - RR. MOTOR ANTENNA DRAIN	Valve - RR. MOTOR ANTENNA DRAIN

Rear axle (2) 2 / 24

#	OEM	KA4	KA8
19	90113-SD4-900	Bolt - WHEEL	Bolt - WHEEL
23	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

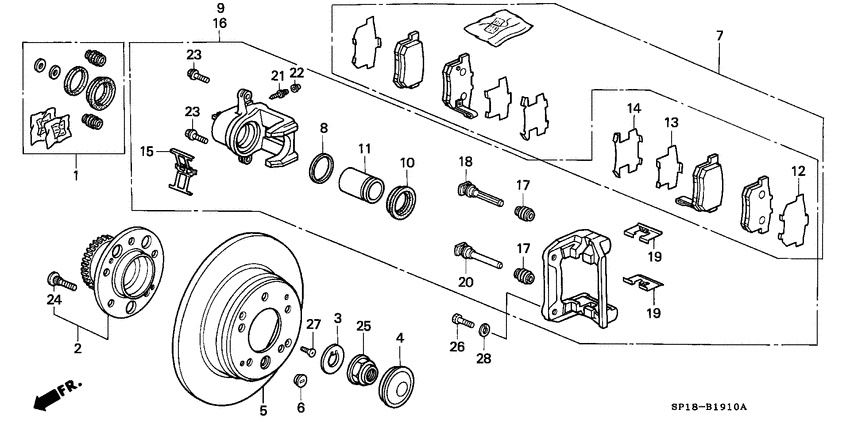

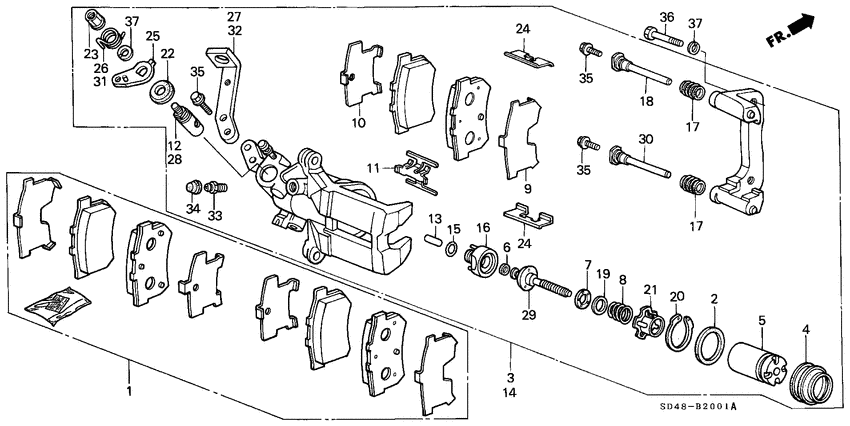

Rear brake caliper (2) 8 / 40

#	OEM	KA4	KA8
11	43227-SG0-013	Spring - PAD	Spring - PAD
18	43235-SD2-931	Pin a	Pin a
24	43244-SG0-003	Retainer	Retainer
30	43262-SD2-931	Pin b	Pin b
30	43262-S84-A51	Pin b	Pin b
34	43353-SA0-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
34	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
35	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Rear door lining 4 / 31

#	OEM	KA4	KA8
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
40	90664-671-003	Clip - CANOE	Clip - CANOE
41	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
42	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Rear door locks 1 / 25

#	OEM	KA4	KA8
31	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door panels 1 / 5

#	OEM	KA4	KA8
20	90101-SE3-003	Bolt-washer - 8X23.5	Bolt-washer - 8X23.5

Rear door windows 3 / 21

#	OEM	KA4	KA8
1	72212-SH3-003	Spring - SPIRAL	Spring - SPIRAL
22	90120-SE3-003	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
26	90115-SG0-003	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM

Rear lower arm/ rear stabilizer (2) 8 / 43

#	OEM	KA4	KA8
15	52364-634-020	Washer - LOWER ARM	Washer - LOWER ARM
30	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
34	90212-SA7-010	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
35	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
37	90362-SG0-013	Nut - TRAILING ARM, 12MM	Nut - TRAILING ARM, 12MM
37	90215-SMA-003	Nut	Nut
38	90438-SE0-000	Washer - TRAILING, 12MM	Washer - TRAILING, 12MM
39	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Rear shock absorber (2) 1 / 19

#	OEM	KA4	KA8
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

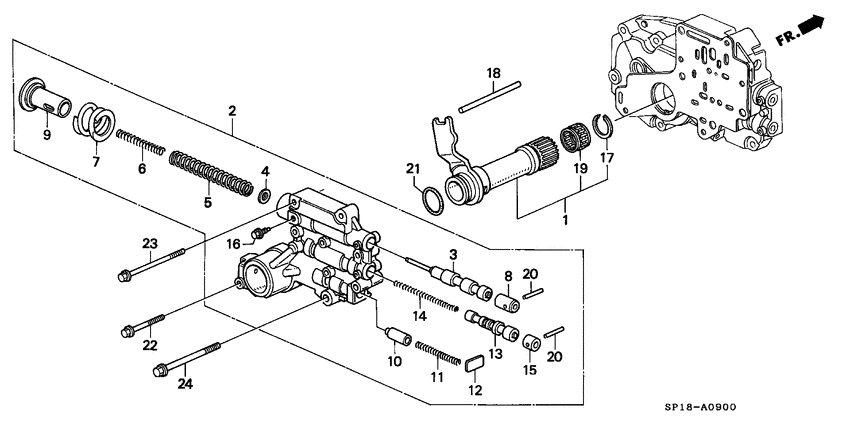

Regulator/lock up valve (2) 7 / 29

#	OEM	KA4	KA8
7	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
9	27256-PA9-000	Valve - RELIEF	Valve - RELIEF
20	27728-PF4-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
22	90004-PC9-000	Bolt - FLANGE, 6X90	Bolt - FLANGE, 6X90
24	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
26	90471-580-000	Packing - 8MM	Packing - 8MM
28	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8

Resonator chamber 2 / 19

#	OEM	KA4	KA8
2	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
17	36145-PM4-004	Valve - CHECK	Valve - CHECK

Roof lining 2 / 5

#	OEM	KA4	KA8
4	75522-611-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
11	90672-671-003	Clip - TRIM	Clip - TRIM

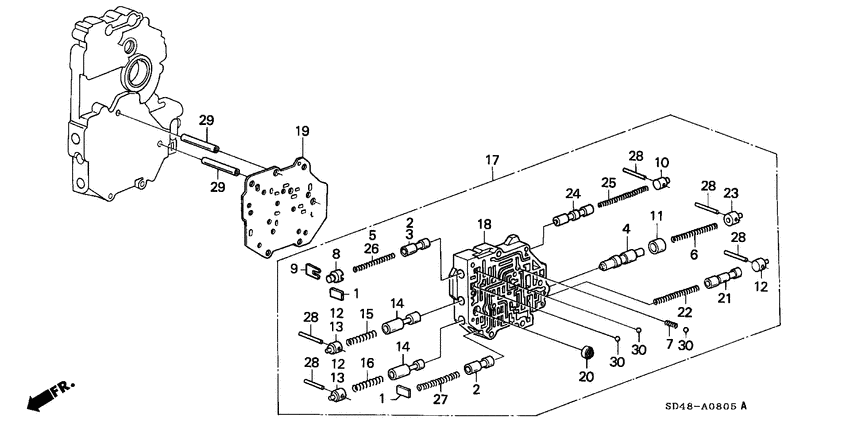

Secondary body (2) 6 / 29

#	OEM	KA4	KA8
1	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
10	27628-PK4-000	Cap - LOCK UP TIMING	Cap - LOCK UP TIMING
12	27653-PF4-000	Cap - CLUTCH PRESSURE CONTROL VALVE	Cap - CLUTCH PRESSURE CONTROL VALVE
14	27655-PC9-950	Valve - CLUTCH PRESSURE CONTROL	Valve - CLUTCH PRESSURE CONTROL
20	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY
28	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8

Select lever (LH) 5 / 33

#	OEM	KA4	KA8
1	30158-700-010	E-clip - 3MM	E-clip - 3MM
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
9	54026-SJ4-980	Collar - LOCK PIN	Collar - LOCK PIN
15	54114-SE0-980	Collar - LOCK PIN	Collar - LOCK PIN
30	54142-SA5-980	Bush - GUIDE	Bush - GUIDE

Servo body/modulator (2) 4 / 31

#	OEM	KA4	KA8
25	90004-PC9-000	Bolt - FLANGE, 6X90	Bolt - FLANGE, 6X90
31	91331-PC9-003	O-ring	O-ring
33	91344-PC9-004	O-ring - 29X2.4 (NOK)	O-ring - 29X2.4 (NOK)
34	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Side protectors (2) 1 / 35

#	OEM	KA4	KA8
26	75807-671-010	Nut - SIDE PROTECTOR (BLACK)	Nut - SIDE PROTECTOR (BLACK)

Speedometer components (NS) 3 / 27

#	OEM	KA4	KA8
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
8	37115-SA0-601	Packing - NS	Packing - NS

Steering column (LH) 2 / 19

#	OEM	KA4	KA8
18	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
21	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel 1 / 6

#	OEM	KA4	KA8
10	90380-SB2-003	Nut - SELF-LOCK (OHASHI)	Nut - SELF-LOCK (OHASHI)

Switch (1) 2 / 8

#	OEM	KA4	KA8
3	35851-SP1-901	Bulb b - NEO WEDGE(14V 100MA)	Bulb b - NEO WEDGE(14V 100MA)
17	90666-SD4-003	Clip - FITTING	Clip - FITTING

Switch (2) 3 / 22

#	OEM	KA4	KA8
4	35103-SE3-003	Screw - RECESSED, 3X8	Screw - RECESSED, 3X8
20	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
23	90690-SA0-003	Strap - WIRE HARNESS, 25MM (BLACK)	Strap - WIRE HARNESS, 25MM (BLACK)

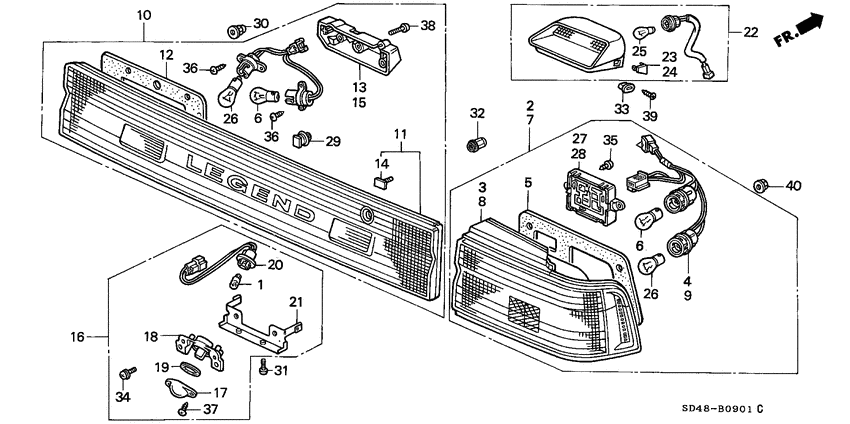

Taillight (2) 6 / 31

#	OEM	KA4	KA8
6	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
17	34101-SH3-A01	Lens	Lens
18	34102-SH3-A01	Housing	Housing
19	34103-SH3-A01	Packing	Packing
26	34906-SA0-003	Bulb - 12V 27W/5W	Bulb - 12V 27W/5W
30	75807-671-010	Nut - SIDE PROTECTOR (BLACK)	Nut - SIDE PROTECTOR (BLACK)

Throttle body (2) 4 / 24

#	OEM	KA4	KA8
2	16075-PE2-005	O-ring - 31.2X1.9	O-ring - 31.2X1.9
18	36454-PS4-003	Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)	Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)
19	36455-PT3-A01	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)
21	91304-PE2-005	O-ring - 15.8X1.9	O-ring - 15.8X1.9

Throttle valve shaft 1 / 20

#	OEM	KA4	KA8
16	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM

Tie rod 2 / 16

#	OEM	KA4	KA8
2	53434-SD9-000	Clip - TIE ROD	Clip - TIE ROD
2	53434-S04-J51	CLIP, TIE ROD	CLIP, TIE ROD

Timing belt cover 2 / 19

#	OEM	KA4	KA8
3	11825-PH7-000	Grommet - TIMING BELT COVER HOLE	Grommet - TIMING BELT COVER HOLE
17	90047-PH7-000	Bolt-washer - 6X22	Bolt-washer - 6X22

Tire/wheel disk 2 / 35

#	OEM	KA4	KA8
8	42753-SE0-A02	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
8	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)

Tools 1 / 8

#	OEM	KA4	KA8
9	89600-SE3-Y01	Extinguisher - FIRE	Extinguisher - FIRE

Torque converter 2 / 6

#	OEM	KA4	KA8
4	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
5	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2

Torque converter housing 4 / 18

#	OEM	KA4	KA8
9	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
10	90471-580-000	Packing - 8MM	Packing - 8MM
16	91209-612-000	Oil seal - 12X22X7	Oil seal - 12X22X7
16	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

Transmission housing 3 / 79

#	OEM	KA4	KA8
5	21321-689-000	Plug - BREATHER TUBE	Plug - BREATHER TUBE
16	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
17	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM

Trunk lid 4 / 19

#	OEM	KA4	KA8
18	83418-SG3-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
19	83431-SA4-000	Cushion - FR. TRUNK	Cushion - FR. TRUNK
23	90106-SE3-000	Bolt-washer - 6X12	Bolt-washer - 6X12
28	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER

Trunk side garnish 2 / 16

#	OEM	KA4	KA8
4	74825-692-000	Nut - SPIRE	Nut - SPIRE
29	91641-SH3-013	Grommet assy, GARNISH	Grommet assy, GARNISH

Vacuum tank/tubing 2 / 9

#	OEM	KA4	KA8
2	17205-PC6-000	Clamp - TUBE, 7.5X2	Clamp - TUBE, 7.5X2
7	36145-PM4-004	Valve - CHECK	Valve - CHECK

Water pump 3 / 15

#	OEM	KA4	KA8
10	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER
15	90052-PH7-000	Bolt - FLANGE, 6X22	Bolt - FLANGE, 6X22
16	90049-PH7-000	Bolt - FLANGE, 8X25	Bolt - FLANGE, 8X25

Water valve 3 / 13

#	OEM	KA4	KA8
1	36145-PM4-004	Valve - CHECK	Valve - CHECK
11	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
11	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer 4 / 24

#	OEM	KA4	KA8
3	38571-SA5-621	Valve - ONE WAY (MITSUBA)	Valve - ONE WAY (MITSUBA)
6	76804-SE0-003	Float - WASHER	Float - WASHER
9	76807-SE0-921	Packing - T-TYPE	Packing - T-TYPE
10	76809-SE0-003	Grommet - WASHER TANK	Grommet - WASHER TANK

Wire harness (1) 12 / 48

#	OEM	KA4	KA8
10	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
11	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
22	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
31	39762-SG0-003	Relay assy - POWER (5P) (DENSO) (056700-8160)	Relay assy - POWER (5P) (DENSO) (056700-8160)
32	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)
35	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
36	90153-SA5-900	Screw-washer - 5X9	Screw-washer - 5X9
37	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
46	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
49	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
50	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)	Clip - WIRE HARNESS (WHITE) (55MM)
51	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)

Wire harness (2) 1 / 14

#	OEM	KA4	KA8
14	90672-SA0-003	Strap - CABLE, 118MM(BLACK)	Strap - CABLE, 118MM(BLACK)
