Air conditioner (COMPRESSOR) 2 / 24

#	OEM	KA3	KB1
4	38812-671-003	Ring a - SNAP	Ring a - SNAP
22	38827-PH7-003	Screw-washer - 5X8	Screw-washer - 5X8

Alternator 2 / 26

#	OEM	KA3	KB1
14	31138-PD1-004	Cover - BEARING	Cover - BEARING
16	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK

Antenna/speaker 1 / 19

#	OEM	KA3	KB1
27	90662-693-003	Grommet - SCREW, 4MM (BLUE)	Grommet - SCREW, 4MM (BLUE)

Body structure components (3) 2 / 10

#	OEM	KA3	KB1
34	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
40	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Brake & clutch pedal (LH) 1 / 33

#	OEM	KA3	KB1
5	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER

Brake line 1 / 41

#	OEM	KA3	KB1
41	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Bumper 4 / 51

#	OEM	KA3	KB1
56	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
59	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
71	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
73	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Clutch 1 / 40

#	OEM	KA3	KB1
26	91303-PF4-004	O-ring - 110X2.2 (NOK)	O-ring - 110X2.2 (NOK)

Combination meter (COMPONENTS) 1 / 29

#	OEM	KA3	KB1
7	37115-SA0-601	Packing - NS	Packing - NS

Console 1 / 37

#	OEM	KA3	KB1
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Control box tubing (B,F,G,S,W,X,Y) 1 / 26

#	OEM	KA3	KB1
28	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)

Control lever/ control wire 1 / 22

#	OEM	KA3	KB1
19	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM

Countershaft 1 / 33

#	OEM	KA3	KB1
20	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)	Bearing - NEEDLE, 14X18X15 (NTN)

Cylinder block/oil pan 4 / 32

#	OEM	KA3	KB1
18	90030-PH7-000	Bolt - BREATHING	Bolt - BREATHING
20	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
23	90715-PH7-000	Dowel pin - 13X37	Dowel pin - 13X37
34	90052-PH7-000	Bolt - FLANGE, 6X22	Bolt - FLANGE, 6X22

Cylinder head (FRONT) 1 / 23

#	OEM	KA3	KB1
5	12207-PC6-300	Washer - SEALING, 16MM	Washer - SEALING, 16MM

Cylinder head cover 2 / 15

#	OEM	KA3	KB1
1	12207-PC6-300	Washer - SEALING, 16MM	Washer - SEALING, 16MM
8	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

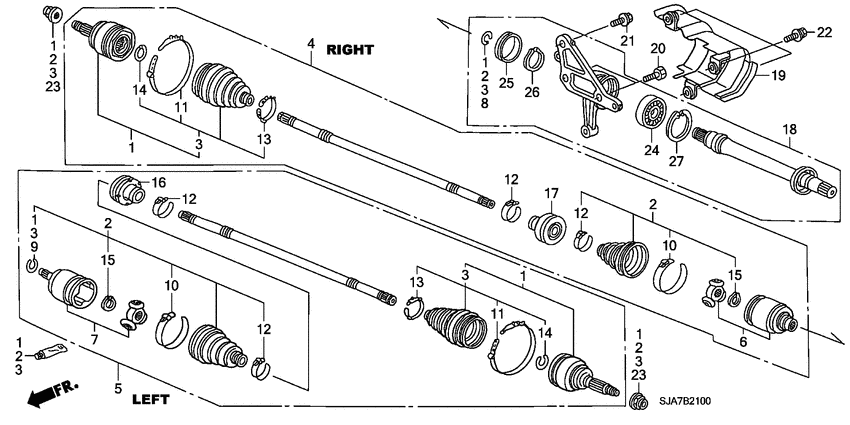

Driveshaft 4 / 16

#	OEM	KA3	KB1
4	44319-SD4-010	Set ring - 30X2.2	Set ring - 30X2.2
8	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
14	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
15	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)

Egr valve 1 / 10

#	OEM	KA3	KB1
9	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)

Exhaust manifold 1 / 11

#	OEM	KA3	KB1
11	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM

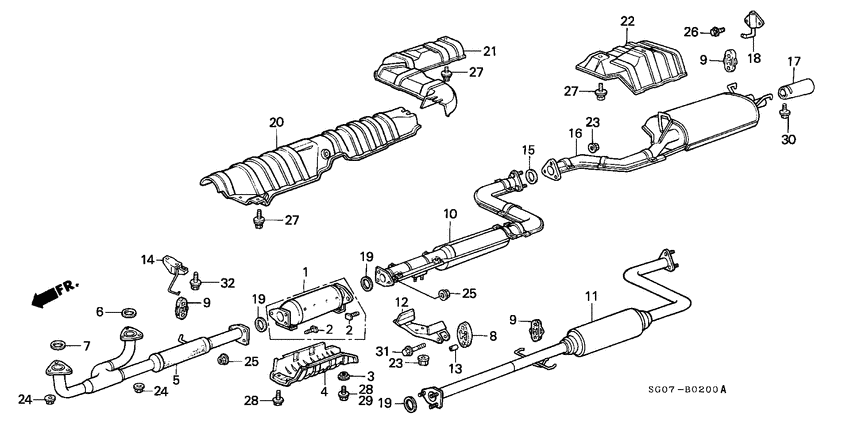

Exhaust pipe 2 / 18

#	OEM	KA3	KB1
6	18212-SA7-003	Gasket - EX. PIPE (ISHINO)	Gasket - EX. PIPE (ISHINO)
24	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

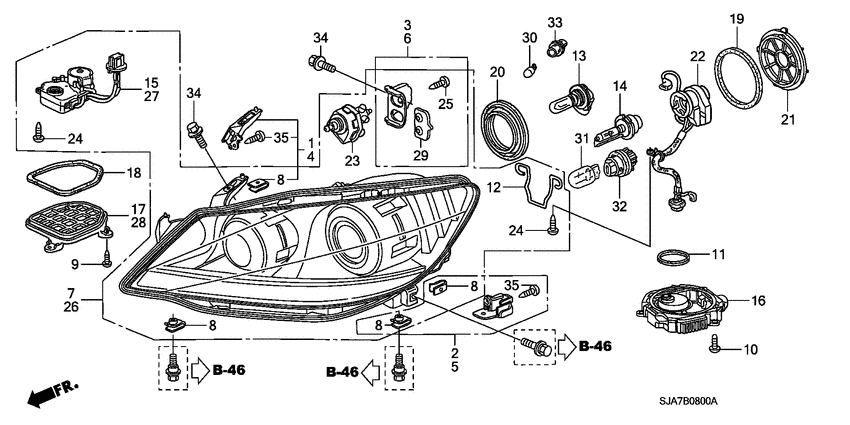

Front combination light 1 / 21

#	OEM	KA3	KB1
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)

Front door locks 2 / 33

#	OEM	KA3	KB1
57	90111-SA0-000	Screw - TAPPING, 4X8	Screw - TAPPING, 4X8
62	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door panels 1 / 7

#	OEM	KA3	KB1
18	75891-SA7-000	Stopper - DOOR	Stopper - DOOR

Front fenders 2 / 27

#	OEM	KA3	KB1
18	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
28	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING

Front grille 1 / 6

#	OEM	KA3	KB1
6	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front lower arm/ front stabilizer 1 / 27

#	OEM	KA3	KB1
23	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)

Fuel Pump 1 / 20

#	OEM	KA3	KB1
14	90663-SB2-003	Grommet - SCREW, 6MM	Grommet - SCREW, 6MM

Fuel tank 1 / 27

#	OEM	KA3	KB1
28	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE

Glove box 2 / 23

#	OEM	KA3	KB1
18	77535-SD4-000	Label - TRUNK MAIN SWITCH	Label - TRUNK MAIN SWITCH
28	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Grommet 2 / 29

#	OEM	KA3	KB1
8	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
9	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)

Heater blower 2 / 25

#	OEM	KA3	KB1
4	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)	Relay assy - POWER (4P) (DENSO) (056700-7330)
4	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)

Hood 1 / 33

#	OEM	KA3	KB1
41	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Ignition coil/battery 1 / 17

#	OEM	KA3	KB1
10	31513-SA5-670	Bolt - BATTERY SETTING, 225MM	Bolt - BATTERY SETTING, 225MM

Instrument panel lower (LH) 2 / 21

#	OEM	KA3	KB1
4	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
7	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID

Interior light 2 / 6

#	OEM	KA3	KB1
2	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
2	04110-SWA-305	BULB T10X318W	BULB T10X318W

Knuckle 2 / 19

#	OEM	KA3	KB1
15	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
16	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)

Left side cover 6 / 33

#	OEM	KA3	KB1
15	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
16	90471-580-000	Packing - 8MM	Packing - 8MM
20	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
21	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
23	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
25	91314-PC9-004	O-ring - 8.5X1.9 (NOK)	O-ring - 8.5X1.9 (NOK)

Main valve body/governor 2 / 21

#	OEM	KA3	KB1
4	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
23	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY

Mainshaft 1 / 39

#	OEM	KA3	KB1
25	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)

Master power 1 / 9

#	OEM	KA3	KB1
12	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Mirror/sunvisor 2 / 17

#	OEM	KA3	KB1
6	75353-671-000	Lock - SCREW	Lock - SCREW
24	83248-SG0-003	Spacer - GRAB RAIL	Spacer - GRAB RAIL

Oil cooler hose 2 / 20

#	OEM	KA3	KB1
15	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
15	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Oil cooler/oil filter 2 / 26

#	OEM	KA3	KB1
18	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
18	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Oil pump 4 / 23

#	OEM	KA3	KB1
11	15233-PC6-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
17	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
22	91310-PH7-000	O-ring - 19.8X2.4	O-ring - 19.8X2.4
31	90052-PH7-000	Bolt - FLANGE, 6X22	Bolt - FLANGE, 6X22

P.s. line (LH) 2 / 43

#	OEM	KA3	KB1
16	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
39	91304-PA6-003	O-ring - 7.8X1.9	O-ring - 7.8X1.9

Radiator 2 / 15

#	OEM	KA3	KB1
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
13	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose/ reserve tank 1 / 27

#	OEM	KA3	KB1
14	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)

Rear axle 1 / 24

#	OEM	KA3	KB1
21	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)

Rear lower arm/ rear stabilizer 1 / 46

#	OEM	KA3	KB1
35	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)

Rear shock absorber 2 / 17

#	OEM	KA3	KB1
5	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
11	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP

Rear tray/ trunk side garnish 1 / 15

#	OEM	KA3	KB1
22	90662-693-003	Grommet - SCREW, 4MM (BLUE)	Grommet - SCREW, 4MM (BLUE)

Regulator/ lock up valve 2 / 29

#	OEM	KA3	KB1
23	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
25	90471-580-000	Packing - 8MM	Packing - 8MM

Resonator chamber 1 / 19

#	OEM	KA3	KB1
2	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING

Secondary body 1 / 29

#	OEM	KA3	KB1
19	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY

Select lever (LH) 1 / 27

#	OEM	KA3	KB1
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Servo body/modulator 4 / 30

#	OEM	KA3	KB1
2	22744-PG4-000	Pipe - TOP CLUTCH	Pipe - TOP CLUTCH
5	25422-PN6-801	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
29	91331-PC9-003	O-ring	O-ring
32	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Side protector 1 / 16

#	OEM	KA3	KB1
14	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20

Sliding roof (1) 2 / 19

#	OEM	KA3	KB1
1	15707-634-000	Clip - OIL DRAIN TUBE	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM	Clip - AIR HOSE, 16MM

Steering column (LH) 2 / 20

#	OEM	KA3	KB1
25	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
26	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE

Switch (2) 2 / 23

#	OEM	KA3	KB1
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
21	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Throttle valve shaft 2 / 20

#	OEM	KA3	KB1
2	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
16	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM

Tire/wheel disk 2 / 34

#	OEM	KA3	KB1
6	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
6	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)

Torque converter 2 / 6

#	OEM	KA3	KB1
4	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
5	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2

Torque converter housing 4 / 19

#	OEM	KA3	KB1
9	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
10	90471-580-000	Packing - 8MM	Packing - 8MM
12	90705-PF4-000	Dowel pin - 14X20	Dowel pin - 14X20
17	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

Trunk lid 1 / 18

#	OEM	KA3	KB1
4	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)

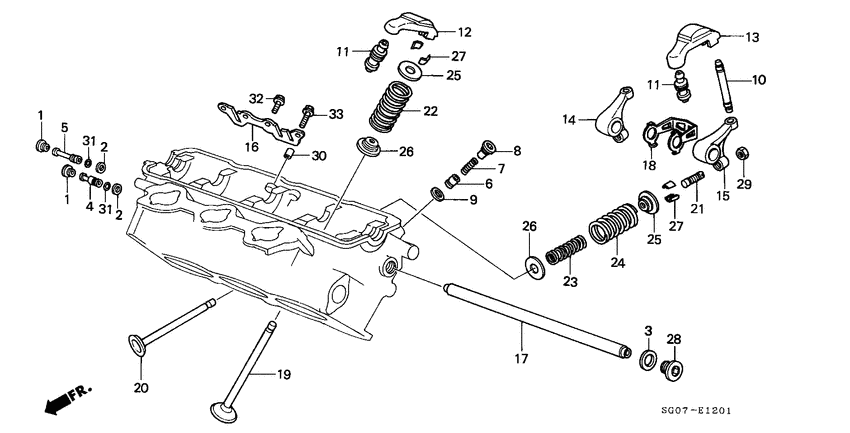

Valve/rocker arm (FRONT) 1 / 36

#	OEM	KA3	KB1
2	12207-PC6-300	Washer - SEALING, 16MM	Washer - SEALING, 16MM

Valve/rocker arm (REAR) 1 / 36

#	OEM	KA3	KB1
2	12207-PC6-300	Washer - SEALING, 16MM	Washer - SEALING, 16MM

Water pump 2 / 14

#	OEM	KA3	KB1
12	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)
15	90052-PH7-000	Bolt - FLANGE, 6X22	Bolt - FLANGE, 6X22

Water valve/water hose 2 / 12

#	OEM	KA3	KB1
10	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
10	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer 1 / 25

#	OEM	KA3	KB1
16	76809-SE0-003	Grommet - WASHER TANK	Grommet - WASHER TANK

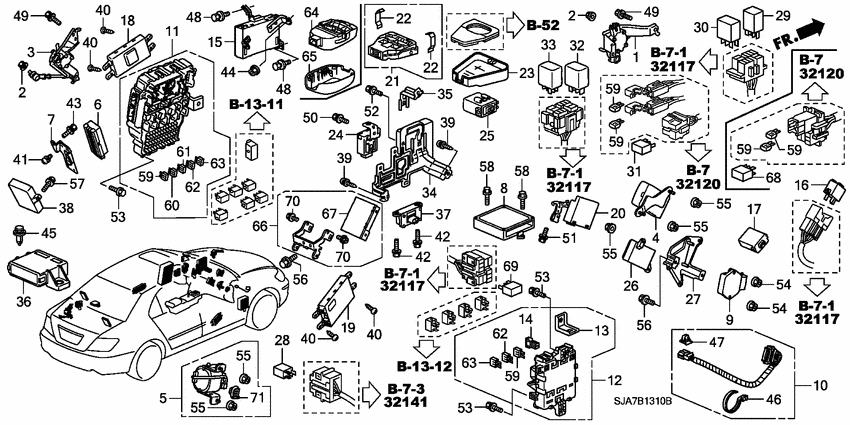

Wire harness (1) 4 / 40

#	OEM	KA3	KB1
9	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
11	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
28	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
30	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)

Wire harness (2) 2 / 23

#	OEM	KA3	KB1
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
16	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
