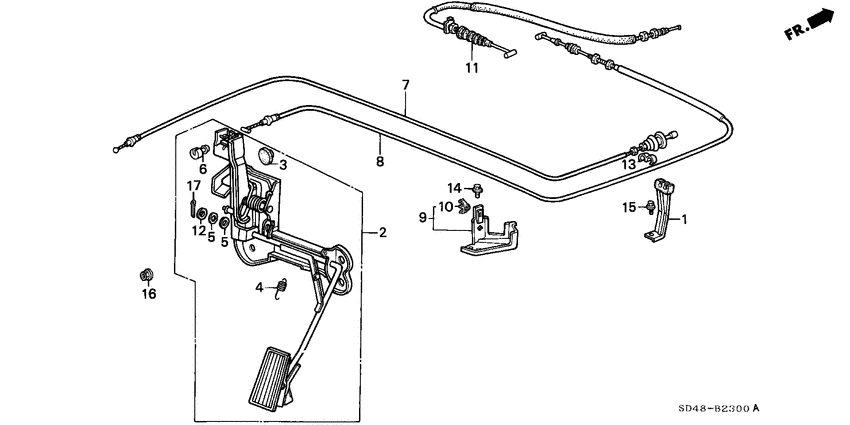

Accelerator pedal (LH) 2 / 16

#	OEM	KA2	KA8
4	17814-SD4-670	Spring - ACCELERATOR PEDAL	Spring - ACCELERATOR PEDAL
12	90551-SD4-010	Washer - PLAIN, 13MM	Washer - PLAIN, 13MM

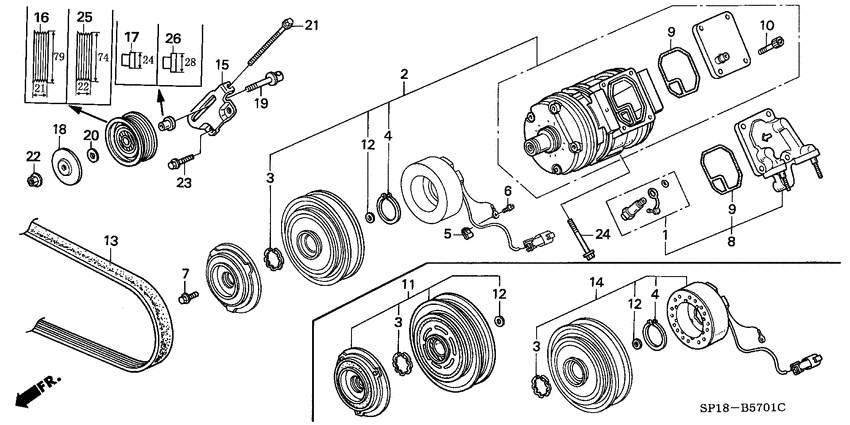

Air conditioner (COMPRESSOR) 1 / 19

#	OEM	KA2	KA8
4	38812-671-003	Ring a - SNAP	Ring a - SNAP

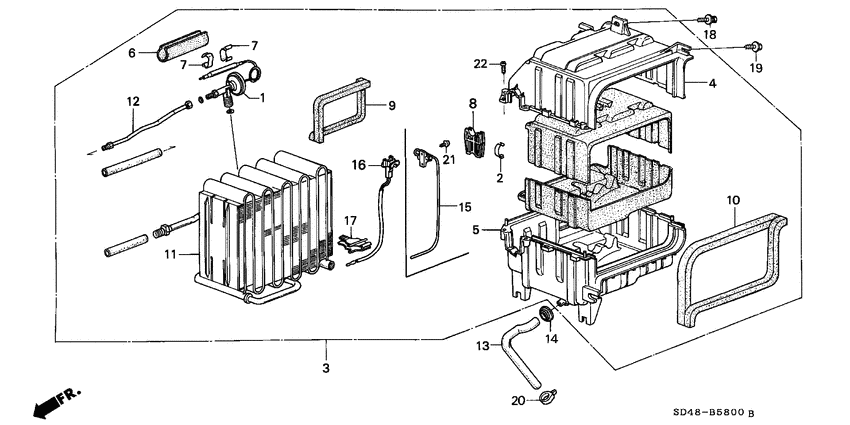

Air conditioner (UNIT; LH) 5 / 21

#	OEM	KA2	KA8
2	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
14	80382-SD4-000	Grommet - DRAIN HOSE	Grommet - DRAIN HOSE
18	90137-SD4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
19	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
20	91549-SE0-003	Holder - DRAIN HOSE	Holder - DRAIN HOSE

Alternator (ND) 4 / 27

#	OEM	KA2	KA8
14	31138-PD1-004	Cover - BEARING	Cover - BEARING
16	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
18	31145-PD1-004	Bolt - STUD, 6X68	Bolt - STUD, 6X68
23	90231-PD1-014	Nut-washer - 5MM	Nut-washer - 5MM

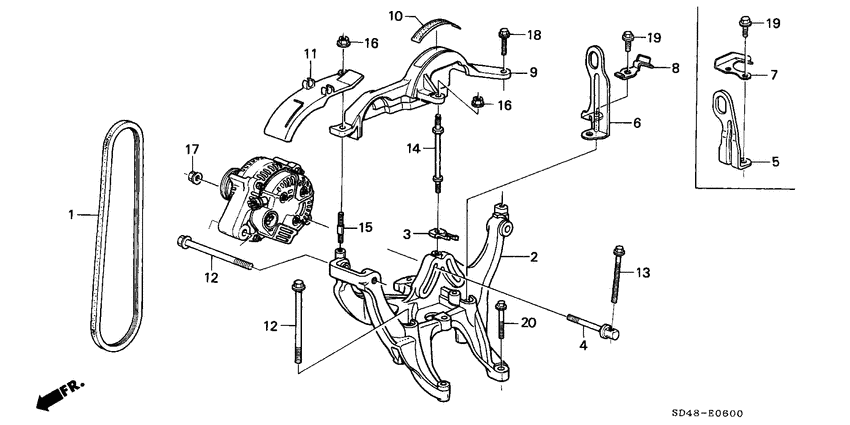

Alternator bracket 2 / 19

#	OEM	KA2	KA8
4	31114-PL2-000	Bolt - TENSIONER	Bolt - TENSIONER
12	90016-PA9-000	Bolt - FLANGE, 10X90	Bolt - FLANGE, 10X90

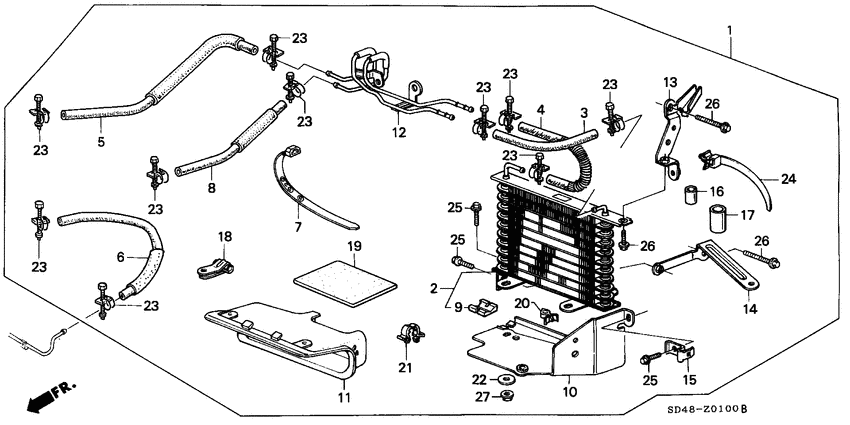

Atf cooler 1 / 22

#	OEM	KA2	KA8
22	90438-671-000	Washer - SPECIAL, 6MM	Washer - SPECIAL, 6MM

Brake lines (LH) 4 / 33

#	OEM	KA2	KA8
12	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
20	46394-SB0-682	Clip b	Clip b
37	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
41	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder (1) 5 / 14

#	OEM	KA2	KA8
8	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
11	46666-SD4-013	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
12	46669-692-003	Seal - RESERVE TANK	Seal - RESERVE TANK
13	46671-SD4-003	O-ring - 49.7X2.4	O-ring - 49.7X2.4
14	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR

Brake pedal/clutch pedal (LH) 3 / 34

#	OEM	KA2	KA8
5	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
10	46535-692-000	Collar - PEDAL	Collar - PEDAL
15	46545-SE0-980	Cover - BRAKE PEDAL	Cover - BRAKE PEDAL

Bumpers 7 / 42

#	OEM	KA2	KA8
47	90102-SE0-010	Bolt assy. c - BUMPER	Bolt assy. c - BUMPER
48	90103-SD4-000	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
60	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
60	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
64	90321-SE1-000	Nut - CLIP (AIR SPOILER)	Nut - CLIP (AIR SPOILER)
65	90540-SA7-000	Washer - BUMPER	Washer - BUMPER
71	90673-SB2-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM

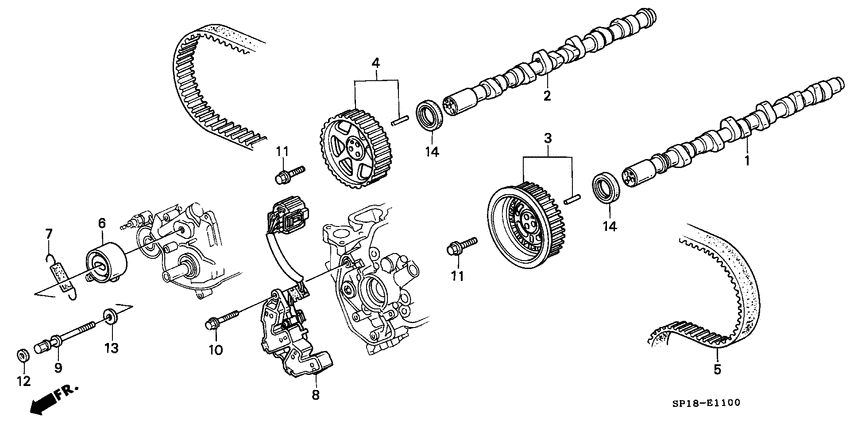

Camshaft/timing belt 5 / 17

#	OEM	KA2	KA8
4	14270-PH7-003	Pulley - RR. TIMING BELT DRIVEN	Pulley - RR. TIMING BELT DRIVEN
10	90016-PH7-000	Bolt - TIMING BELT ADJUSTING	Bolt - TIMING BELT ADJUSTING
11	90031-PH7-000	Bolt - FLANGE, 8X20	Bolt - FLANGE, 8X20
12	90401-634-000	Rubber - TIMING BELT ADJUSTER	Rubber - TIMING BELT ADJUSTER
13	90501-MB7-610	Washer - 10.3X25	Washer - 10.3X25

Change lever 1 / 30

#	OEM	KA2	KA8
27	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)

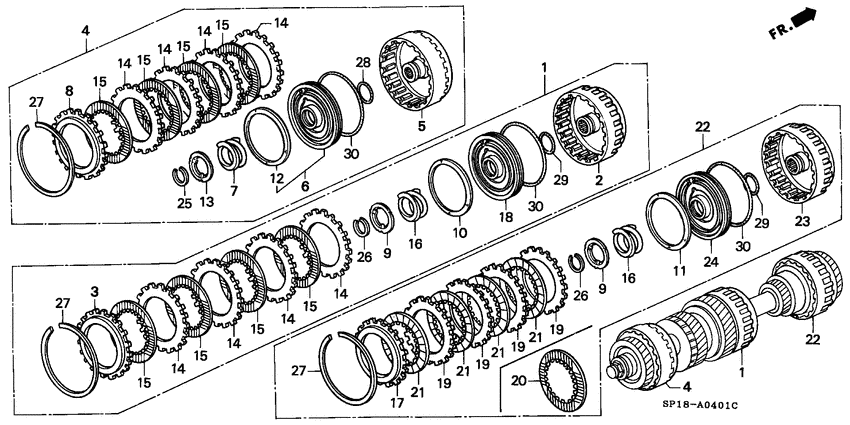

Clutch 4 / 44

#	OEM	KA2	KA8
11	22542-PA9-000	Seat - CLUTCH SPRING	Seat - CLUTCH SPRING
23	90603-PA9-000	Circlip - EXTERNAL, 40MM	Circlip - EXTERNAL, 40MM
27	91302-PA9-004	O-ring - 39.8X2.2 (NOK)	O-ring - 39.8X2.2 (NOK)
27	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)

Clutch master cylinder (LH) 1 / 33

#	OEM	KA2	KA8
6	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT

Console 6 / 30

#	OEM	KA2	KA8
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
47	83420-SD4-003	Plate	Plate
59	90666-SD4-003	Clip - FITTING	Clip - FITTING
61	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
72	39600-SW3-305	Lighter unit - CIGARETTE	Lighter unit - CIGARETTE
72	39600-SW3-505	LIGHTER ASSYCIGA	LIGHTER ASSYCIGA

Control box tubing (3) 4 / 28

#	OEM	KA2	KA8
2	17205-PC6-000	Clamp - TUBE, 7.5X2	Clamp - TUBE, 7.5X2
4	36010-PE0-004	Joint - THREE WAY	Joint - THREE WAY
10	36034-PM6-901	Plug - SEALING	Plug - SEALING
13	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)

Control lever/ control wire 2 / 25

#	OEM	KA2	KA8
17	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
19	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM

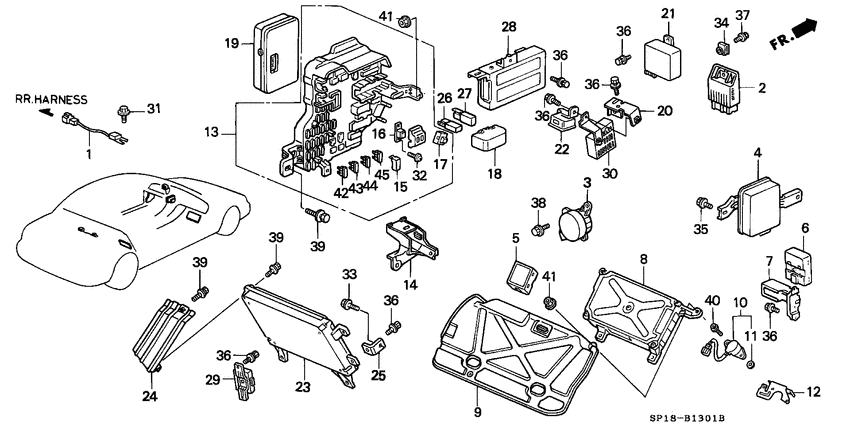

Control unit (1) 2 / 17

#	OEM	KA2	KA8
15	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
15	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)	Relay assy - POWER(4P)(DENSO) (056700-7410)

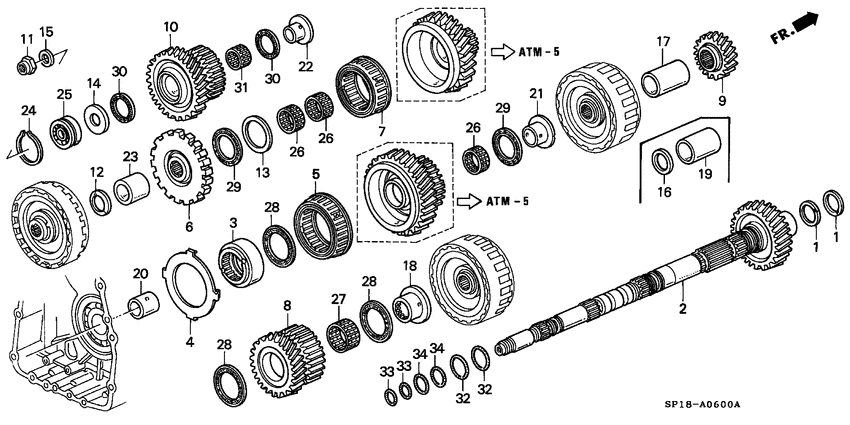

Countershaft 4 / 65

#	OEM	KA2	KA8
12	90602-PG1-770	Ring - SNAP, 56MM	Ring - SNAP, 56MM
13	91003-PG2-008	Bearing - SPECIAL BALL (NTN)	Bearing - SPECIAL BALL (NTN)
22	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)	Bearing - NEEDLE, 14X18X15 (NTN)
25	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)

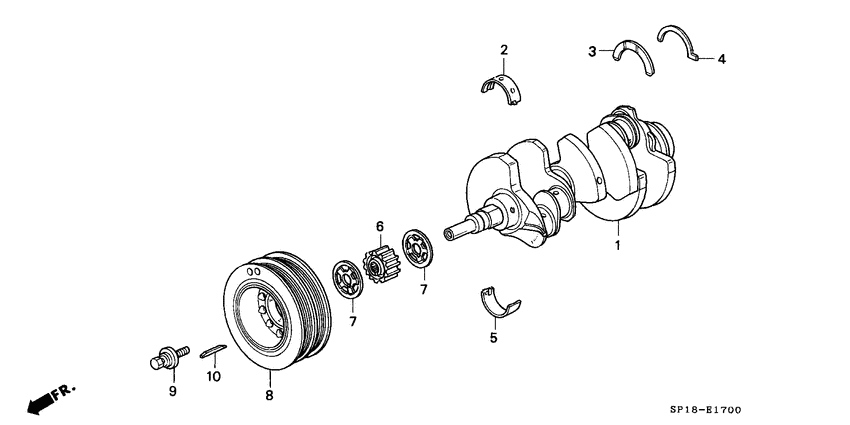

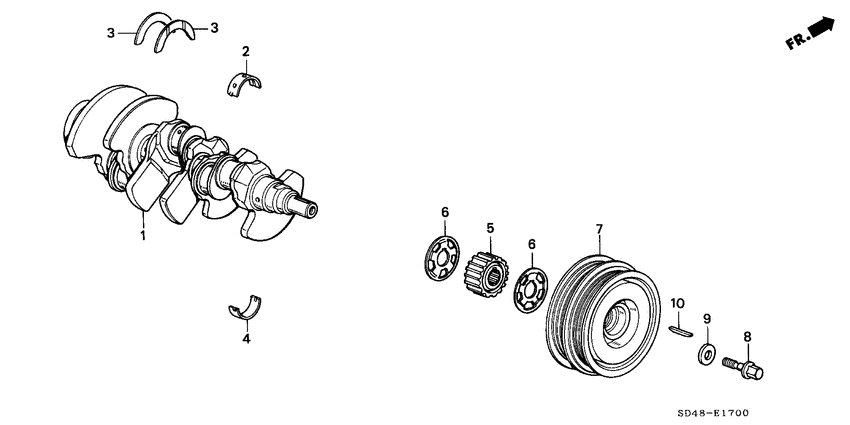

Crankshaft 3 / 51

#	OEM	KA2	KA8
3	13331-PH7-004	Washer - THRUST (TAIHO)	Washer - THRUST (TAIHO)
3	13331-PH7-003	Washer - THRUST (DAIDO)	Washer - THRUST (DAIDO)
10	90704-PH7-000	Key, SPECIAL	Key, SPECIAL

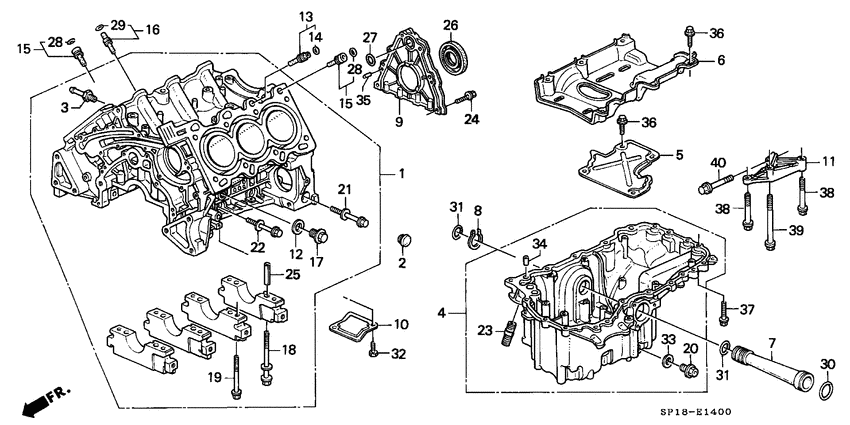

Cylinder block/oil pan 5 / 30

#	OEM	KA2	KA8
14	90009-PH7-003	Bolt - FLANGE, 9X86	Bolt - FLANGE, 9X86
15	90013-PH7-003	Bolt-washer - 10X56	Bolt-washer - 10X56
16	90014-PH7-003	Bolt-washer - 10X41	Bolt-washer - 10X41
23	90715-PH7-000	Dowel pin - 13X37	Dowel pin - 13X37
26	91305-PH7-003	O-ring - 12.5X2.4	O-ring - 12.5X2.4

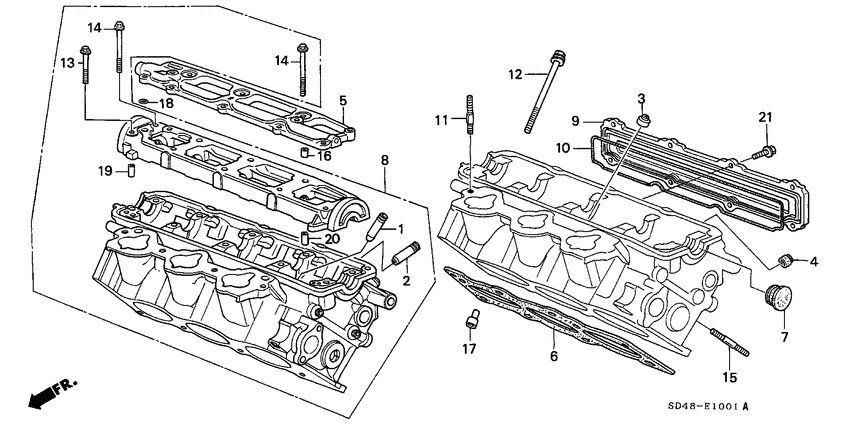

Cylinder head (FRONT) 2 / 23

#	OEM	KA2	KA8
14	90005-PH7-003	Bolt-washer - 11X164	Bolt-washer - 11X164
19	90719-PH7-000	Dowel pin - 13X37	Dowel pin - 13X37

Cylinder head (REAR) 2 / 22

#	OEM	KA2	KA8
12	90005-PH7-003	Bolt-washer - 11X164	Bolt-washer - 11X164
17	90719-PH7-000	Dowel pin - 13X37	Dowel pin - 13X37

Cylinder head cover 2 / 15

#	OEM	KA2	KA8
7	15610-PC6-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
8	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Differential gear 1 / 66

#	OEM	KA2	KA8
10	90017-PG2-000	Bolt - SPECIAL, 11MM	Bolt - SPECIAL, 11MM

Door trim 3 / 9

#	OEM	KA2	KA8
26	90609-SB6-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
28	90661-SD4-003	Clip - DRIP SEAL END	Clip - DRIP SEAL END
31	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Duct 1 / 22

#	OEM	KA2	KA8
22	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Egr valve (1) 1 / 8

#	OEM	KA2	KA8
9	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)

Engine wire harness (1) 1 / 26

#	OEM	KA2	KA8
23	91506-PH7-003	Clip - WIRE HARNESS (BLACK)	Clip - WIRE HARNESS (BLACK)

Exhaust manifold 5 / 14

#	OEM	KA2	KA8
9	90065-PC1-300	Bolt - STUD, 10X34.5	Bolt - STUD, 10X34.5
10	90212-PD2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
10	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
12	90015-PH7-000	Bolt-washer - 8X14	Bolt-washer - 8X14
12	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14

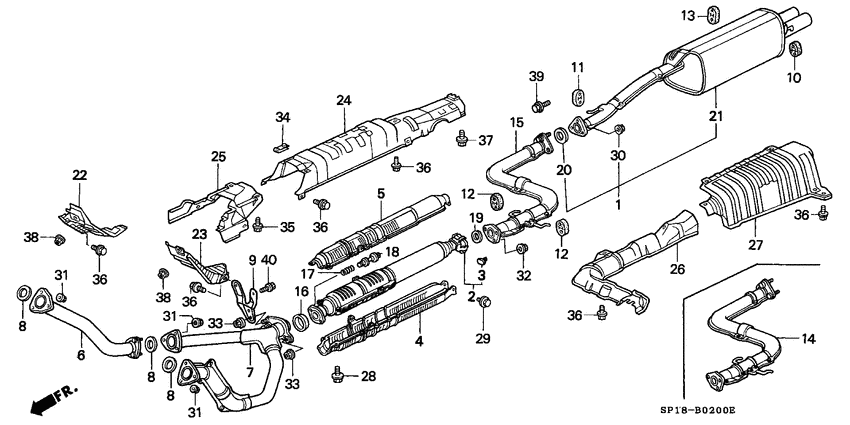

Exhaust pipe 5 / 18

#	OEM	KA2	KA8
6	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
8	18215-671-000	Rubber - SILENCER MOUNTING (74X53X22)	Rubber - SILENCER MOUNTING (74X53X22)
24	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
25	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
26	90212-671-005	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Front beam/torque rod 1 / 32

#	OEM	KA2	KA8
24	91615-SA5-000	Grommet - HOLE, 25MM	Grommet - HOLE, 25MM

Front brake caliper 2 / 24

#	OEM	KA2	KA8
2	43353-SA0-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW

Front combination light (1) 3 / 20

#	OEM	KA2	KA8
9	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
18	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
20	90303-SA5-003	Nut - FR. COMBINATION LIGHT	Nut - FR. COMBINATION LIGHT

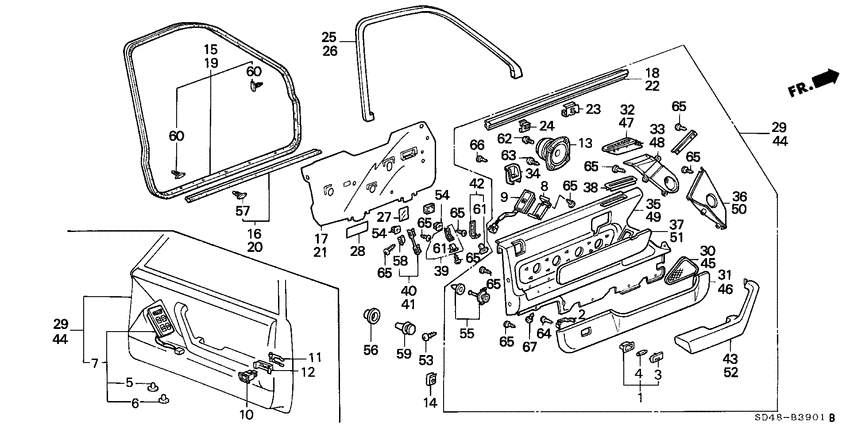

Front door lining 5 / 41

#	OEM	KA2	KA8
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
6	35851-SP1-901	Bulb b - NEO WEDGE(14V 100MA)	Bulb b - NEO WEDGE(14V 100MA)
57	90664-671-003	Clip - CANOE	Clip - CANOE
58	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
60	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Front door locks 1 / 20

#	OEM	KA2	KA8
46	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

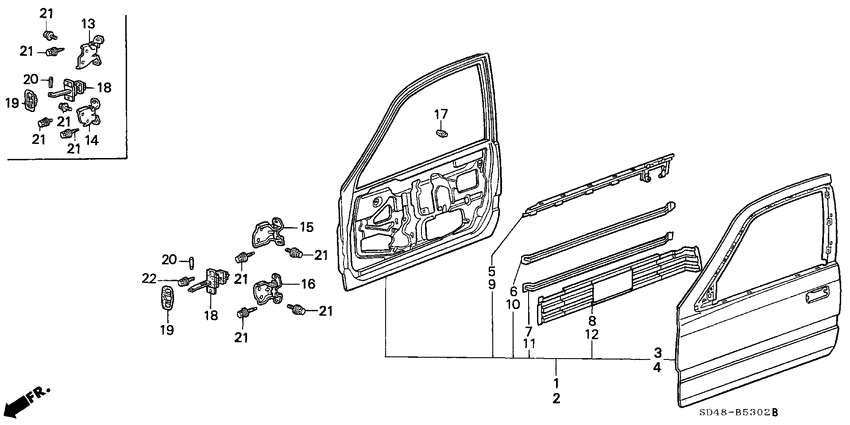

Front door panels 1 / 5

#	OEM	KA2	KA8
21	90101-SE3-003	Bolt-washer - 8X23.5	Bolt-washer - 8X23.5

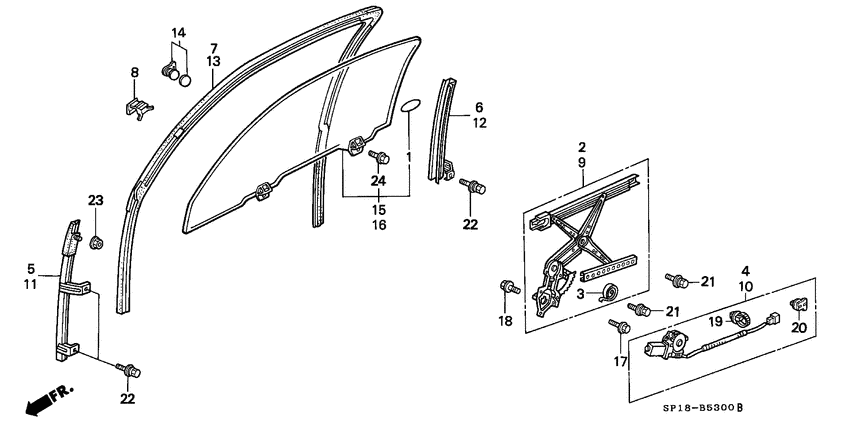

Front door windows 1 / 15

#	OEM	KA2	KA8
3	72212-SH3-003	Spring - SPIRAL	Spring - SPIRAL

Front fender 4 / 20

#	OEM	KA2	KA8
19	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
20	90119-SE0-000	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM
30	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
36	90673-SB2-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM

Front grille 1 / 5

#	OEM	KA2	KA8
15	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front seat 1 / 1

#	OEM	KA2	KA8
14	90161-SB4-003	Screw - FLAT, 4X16	Screw - FLAT, 4X16

Front seat components (LH) 2 / 12

#	OEM	KA2	KA8
5	77208-SA5-003	Bush - NYLON (TS TECH)	Bush - NYLON (TS TECH)
6	77209-SB0-003	Washer - NYLON	Washer - NYLON

Fuel Pump 6 / 18

#	OEM	KA2	KA8
1	17574-SE0-000	Packing - BASE	Packing - BASE
14	90020-PD6-000	Bolt - SEALING, 12MM	Bolt - SEALING, 12MM
15	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
17	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
20	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM
20	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM

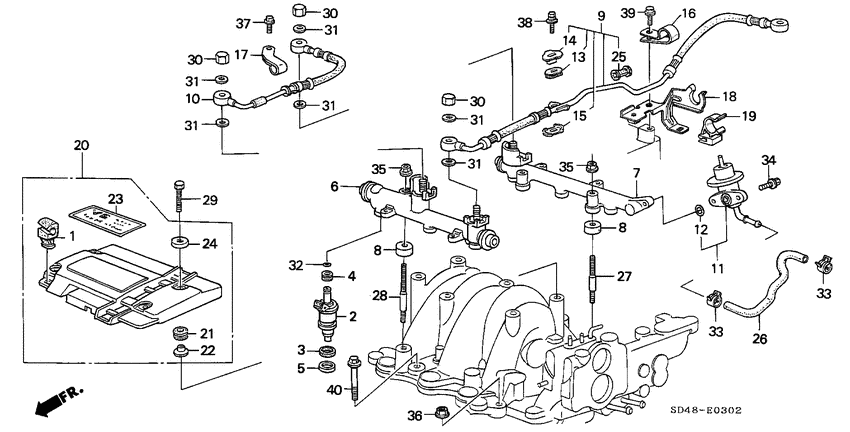

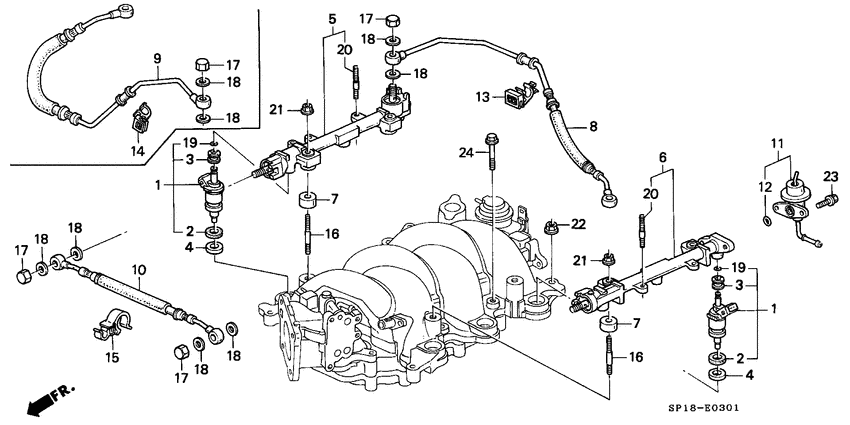

Fuel injector (1) 12 / 37

#	OEM	KA2	KA8
3	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)	Seal ring - INJECTOR (OTSUKA)
3	16472-P0H-A01	Seal ring - INJECTOR (NOK)	Seal ring - INJECTOR (NOK)
4	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
4	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
8	16638-PH7-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
12	16741-PG7-005	O-ring - PRESSURE REGULATOR	O-ring - PRESSURE REGULATOR
27	90026-PH7-000	Bolt - STUD, 6X64	Bolt - STUD, 6X64
30	90201-PD1-000	Nut a - SEALING, 12MM	Nut a - SEALING, 12MM
31	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
32	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
33	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM
33	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM

Fuel pipe 6 / 31

#	OEM	KA2	KA8
21	38608-692-000	Rubber - MOUNTING	Rubber - MOUNTING
24	90009-PE2-010	Bolt - SEALING, 6MM	Bolt - SEALING, 6MM
24	90009-RMX-010	Bolt,sealing 6mm	Bolt,sealing 6mm
27	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
28	90430-PD6-003	Washer - SEALING, 6MM	Washer - SEALING, 6MM
29	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)	Bolt - FR. FENDER (DACRO COATING)

Fuel tank (1) 1 / 24

#	OEM	KA2	KA8
10	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE

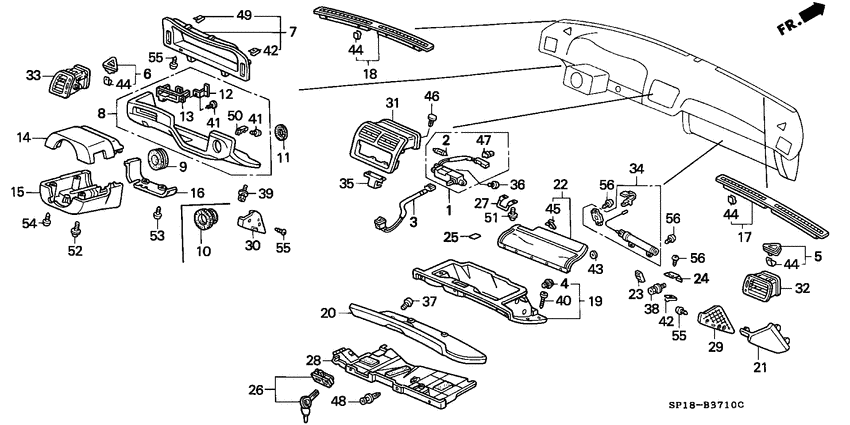

Glove box 4 / 23

#	OEM	KA2	KA8
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
18	77535-SD4-000	Label - TRUNK MAIN SWITCH	Label - TRUNK MAIN SWITCH
25	90101-692-000	Screw - GLOVE BOX	Screw - GLOVE BOX
28	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

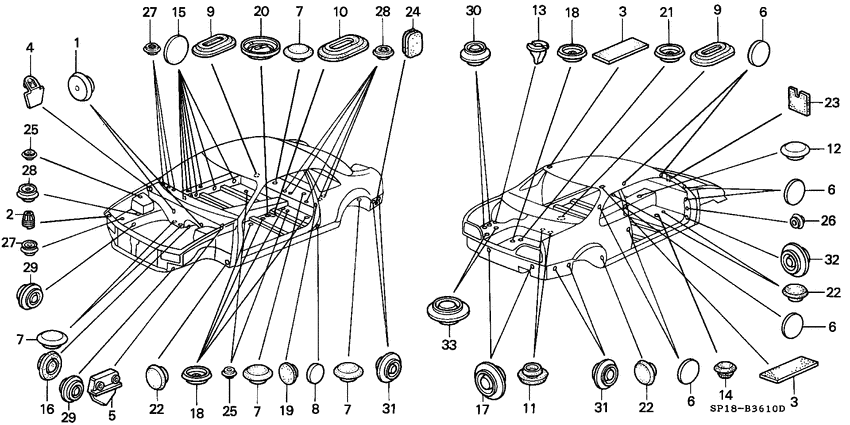

Grommet 6 / 33

#	OEM	KA2	KA8
1	32169-647-010	Grommet - WASHER TUBE (18MM)	Grommet - WASHER TUBE (18MM)
7	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
22	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
32	90856-SA0-000	Plug - COATING HOLE, 25MM	Plug - COATING HOLE, 25MM
42	91606-SE0-000	Seal - 20X20	Seal - 20X20
48	91615-SA5-000	Grommet - HOLE, 25MM	Grommet - HOLE, 25MM

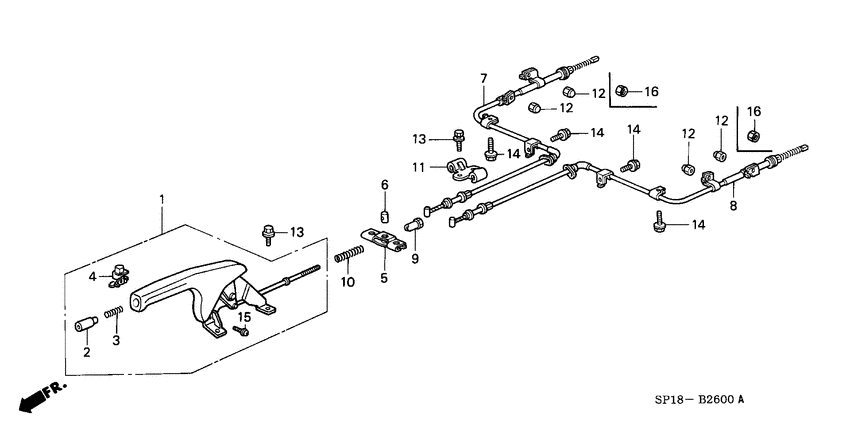

Hand brake 3 / 17

#	OEM	KA2	KA8
4	47142-671-010	Knob - PARKING BRAKE PUSH ROD	Knob - PARKING BRAKE PUSH ROD
5	47143-SD4-300	Spring - PUSH ROD	Spring - PUSH ROD
20	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Headlight (1) 1 / 16

#	OEM	KA2	KA8
17	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Heater blower 3 / 26

#	OEM	KA2	KA8
3	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
23	80789-SH3-003	Holder - ROD	Holder - ROD
24	90137-SD4-000	Bolt-washer - 6X20	Bolt-washer - 6X20

Heater unit 3 / 35

#	OEM	KA2	KA8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
26	79192-SD4-003	Bush - 6.7MM	Bush - 6.7MM
37	90137-SD4-000	Bolt-washer - 6X20	Bolt-washer - 6X20

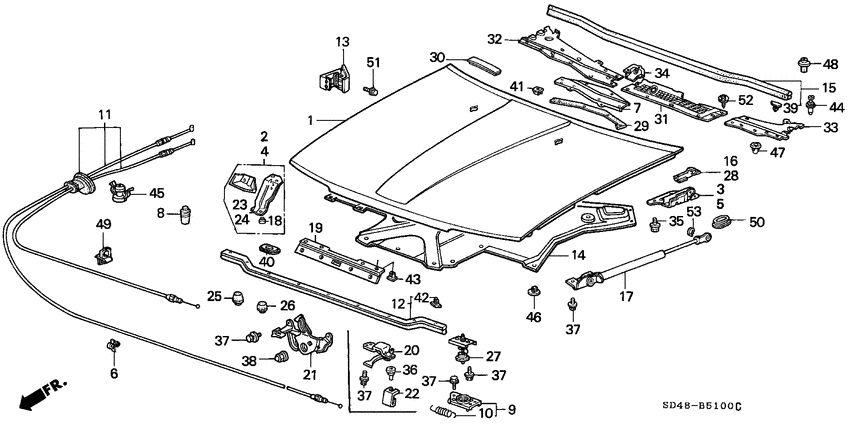

Hood 6 / 31

#	OEM	KA2	KA8
8	63511-SA5-003	Cushion - HOOD	Cushion - HOOD
26	74177-SD4-000	Cushion a - HOOD	Cushion a - HOOD
35	90106-SD4-000	Bolt-washer - 8X16	Bolt-washer - 8X16
42	90664-671-003	Clip - CANOE	Clip - CANOE
46	90700-SB2-003	Clip - HOOD INSULATOR	Clip - HOOD INSULATOR
49	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Instrument panel lower (LH) 3 / 19

#	OEM	KA2	KA8
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
4	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
6	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID

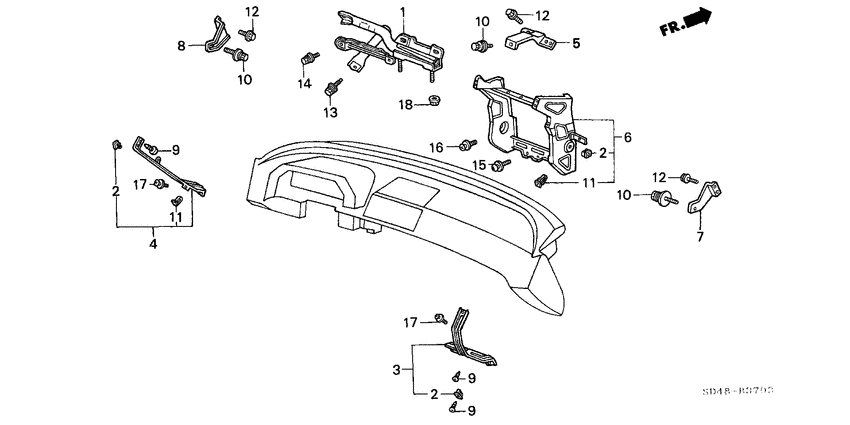

Instrument panel stays (LH) 1 / 11

#	OEM	KA2	KA8
10	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25

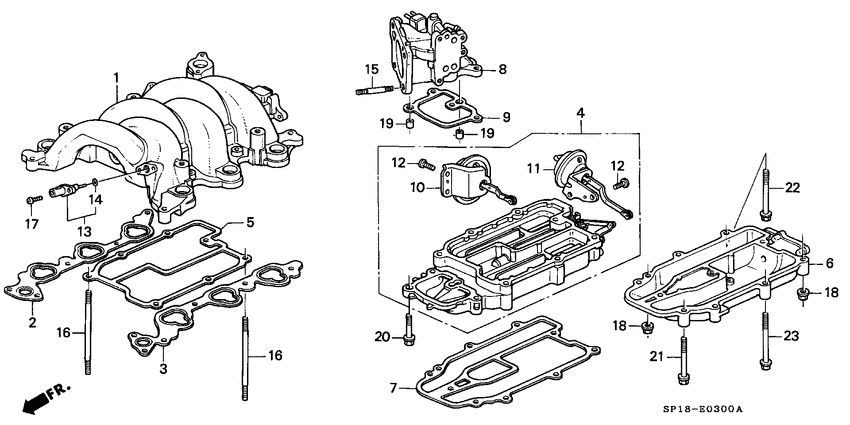

Intake manifold (1) 3 / 8

#	OEM	KA2	KA8
6	37880-PE2-013	Sensor assy - AIR TEMP	Sensor assy - AIR TEMP
7	91303-PD1-910	O-ring - 7.5X1.5	O-ring - 7.5X1.5
7	91303-PK2-005	O-ring (7.5X1.5)	O-ring (7.5X1.5)

Interior accessories 1 / 19

#	OEM	KA2	KA8
2	75353-671-000	Lock - SCREW	Lock - SCREW

Interior light 2 / 8

#	OEM	KA2	KA8
5	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
6	34295-SD4-003	Bulb - 12V 5W.K	Bulb - 12V 5W.K

Knuckle 3 / 23

#	OEM	KA2	KA8
14	90113-SD4-900	Bolt - WHEEL	Bolt - WHEEL
15	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
17	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

L. side cover 8 / 29

#	OEM	KA2	KA8
2	21244-PF4-010	Spring - LOW ACCUMULATOR ONE WAY BALL	Spring - LOW ACCUMULATOR ONE WAY BALL
15	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
16	90471-580-000	Packing - 8MM	Packing - 8MM
20	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
21	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
22	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)
22	91308-PA9-004	O-ring - 19.8X1.9 (NOK)	O-ring - 19.8X1.9 (NOK)
26	91344-PC9-004	O-ring - 29X2.4 (NOK)	O-ring - 29X2.4 (NOK)

Main valve body/governor (1) 4 / 37

#	OEM	KA2	KA8
4	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
11	27256-PA9-000	Valve - RELIEF	Valve - RELIEF
12	27256-639-000	Valve - TORQUE CONVERTER CHECK	Valve - TORQUE CONVERTER CHECK
29	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM

Mainshaft 4 / 64

#	OEM	KA2	KA8
22	91023-PG4-013	Bearing - THRUST NEEDLE, 36X56X2.5 (NTN)	Bearing - THRUST NEEDLE, 36X56X2.5 (NTN)
26	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)
27	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)
27	91308-PA9-004	O-ring - 19.8X1.9 (NOK)	O-ring - 19.8X1.9 (NOK)

Master power (1) 3 / 14

#	OEM	KA2	KA8
3	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
15	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
17	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

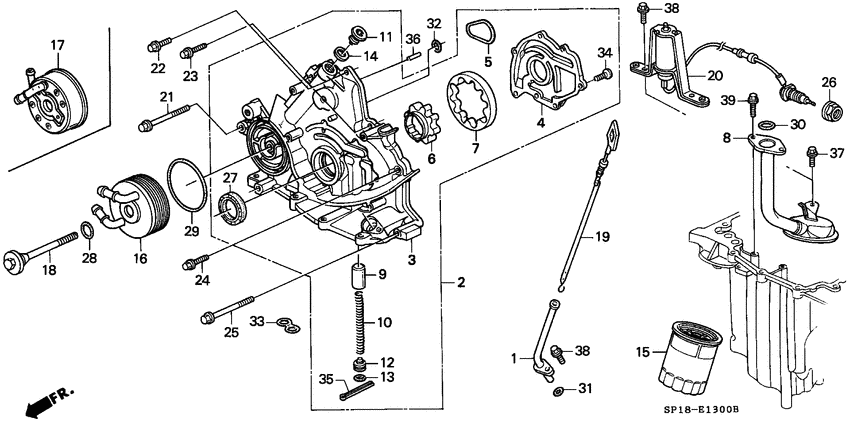

Oil cooler/oil filter 2 / 35

#	OEM	KA2	KA8
25	91318-PY3-000	Packing - OIL PUMP	Packing - OIL PUMP
29	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Oil pump 1 / 19

#	OEM	KA2	KA8
11	15233-PC6-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM

P.s. bracket/speed sensor 1 / 9

#	OEM	KA2	KA8
8	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

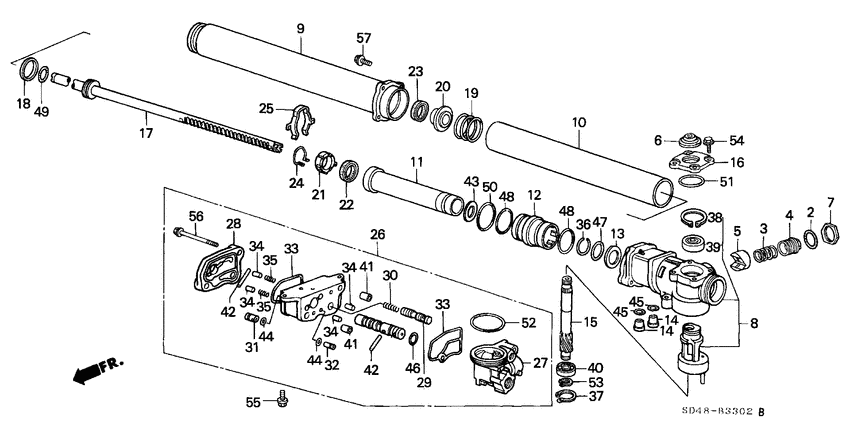

P.s. gear box components (LH) 10 / 65

#	OEM	KA2	KA8
2	53412-634-000	O-ring - RACK GUIDE (YAMADA)	O-ring - RACK GUIDE (YAMADA)
4	53414-634-010	Screw - RACK GUIDE	Screw - RACK GUIDE
4	53414-634-020	Screw	Screw
6	53426-SE0-951	Dust seal - STEERING PINION	Dust seal - STEERING PINION
7	53458-SE0-003	Nut - RACK SCREW LOCK	Nut - RACK SCREW LOCK
7	53458-S01-A51	Nut - LOCK	Nut - LOCK
13	53615-SD4-950	Washer - RETAINER	Washer - RETAINER
22	53633-SK7-951	Packing - CYLINDER END (NOK)	Packing - CYLINDER END (NOK)
36	90684-SD4-950	Ring - SNAP, 31MM	Ring - SNAP, 31MM
41	91103-429-000	Dowel pin - 8X10	Dowel pin - 8X10

P.s. lines (LH) 4 / 43

#	OEM	KA2	KA8
16	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
39	91304-PA6-003	O-ring - 7.8X1.9	O-ring - 7.8X1.9
41	91370-SB3-950	O-ring - 8.8X1.9	O-ring - 8.8X1.9
43	91462-SA5-950	Clamp d - 19MM	Clamp d - 19MM

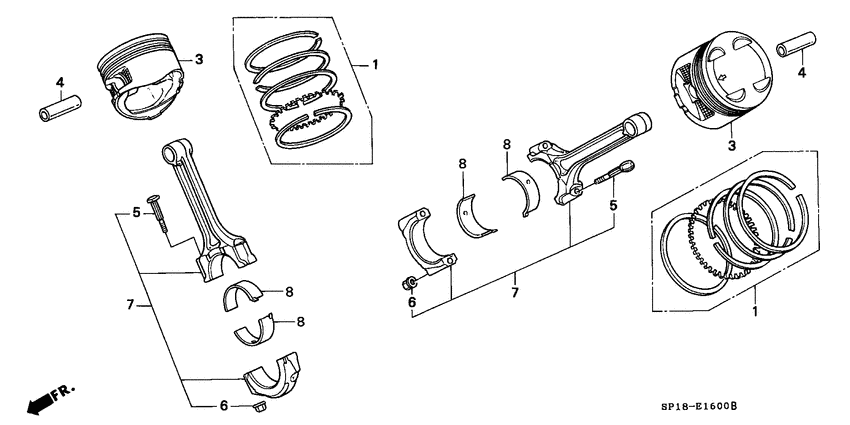

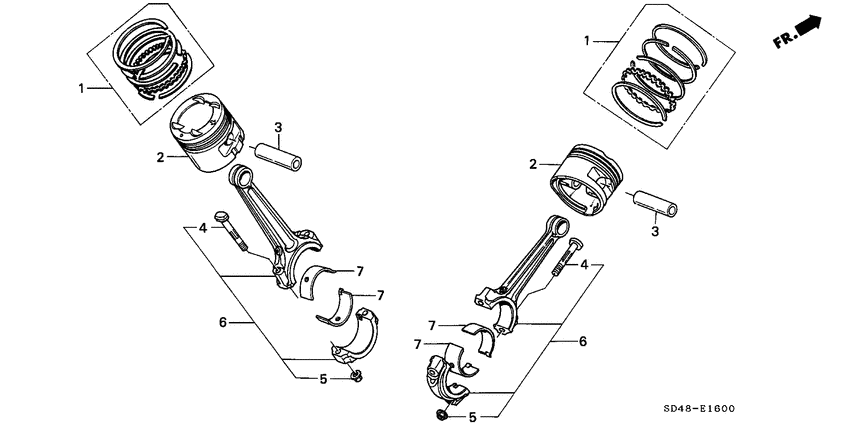

Piston/connecting rod 1 / 24

#	OEM	KA2	KA8
5	13205-PH7-000	Nut - CONNECTING ROD	Nut - CONNECTING ROD

Radiator (ND) 3 / 15

#	OEM	KA2	KA8
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
6	19020-PH7-661	Fan - COOLING (DENSO)	Fan - COOLING (DENSO)
13	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose/ reserve tank 3 / 32

#	OEM	KA2	KA8
23	37760-PH7-003	Sensor assy - RADIATOR FAN CONTROL (MATSUSHITA)	Sensor assy - RADIATOR FAN CONTROL (MATSUSHITA)
32	91307-611-000	O-ring (13.5X1.4)	O-ring (13.5X1.4)
32	91307-PH7-660	O-ring (13.5X1.4)	O-ring (13.5X1.4)

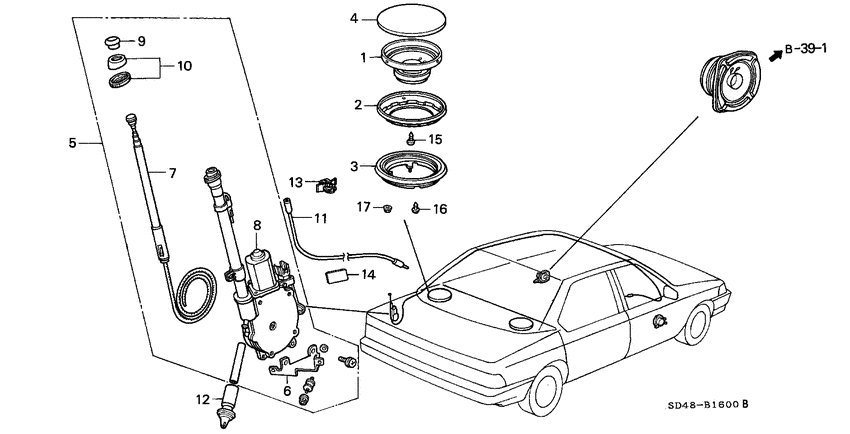

Radio antenna 1 / 10

#	OEM	KA2	KA8
12	39170-SD4-A00	Valve - RR. MOTOR ANTENNA DRAIN	Valve - RR. MOTOR ANTENNA DRAIN

Rear door lining 4 / 32

#	OEM	KA2	KA8
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
40	90664-671-003	Clip - CANOE	Clip - CANOE
41	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
42	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Rear door locks 1 / 22

#	OEM	KA2	KA8
31	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

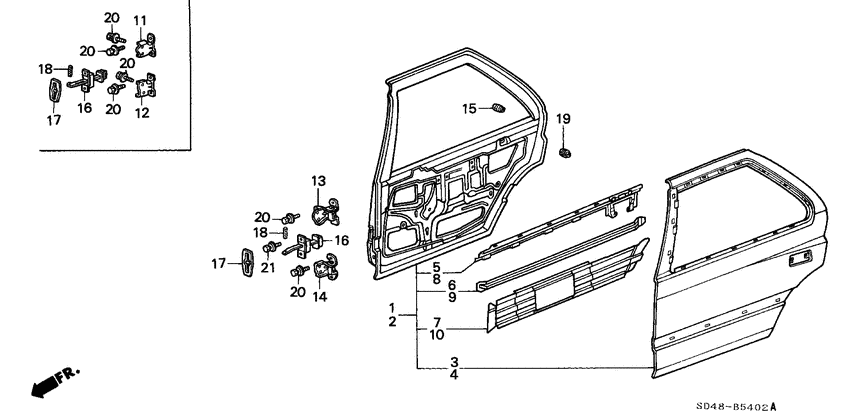

Rear door panels 1 / 5

#	OEM	KA2	KA8
20	90101-SE3-003	Bolt-washer - 8X23.5	Bolt-washer - 8X23.5

Rear door windows 1 / 19

#	OEM	KA2	KA8
1	72212-SH3-003	Spring - SPIRAL	Spring - SPIRAL

Rear lower arm/ rear stabilizer (1) 3 / 30

#	OEM	KA2	KA8
11	52364-634-020	Washer - LOWER ARM	Washer - LOWER ARM
24	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
28	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)

Rear shock absorber (1) 1 / 13

#	OEM	KA2	KA8
12	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)

Regulator/lock up valve (1) 5 / 35

#	OEM	KA2	KA8
23	27728-PF4-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
24	90004-PC9-000	Bolt - FLANGE, 6X90	Bolt - FLANGE, 6X90
26	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
28	90471-580-000	Packing - 8MM	Packing - 8MM
30	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8

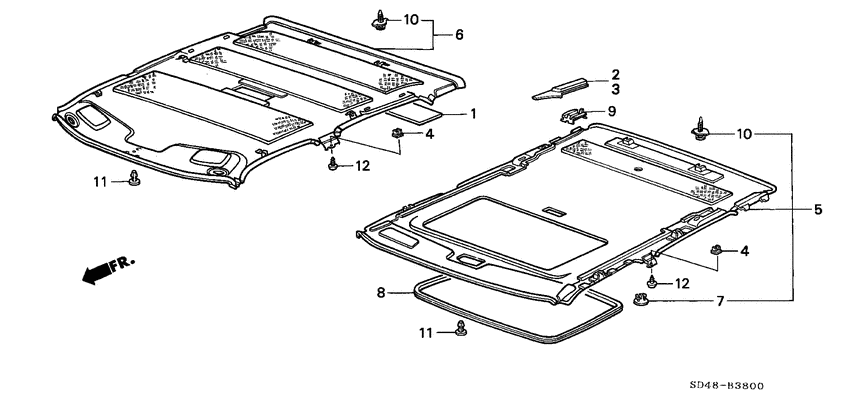

Roof lining 1 / 3

#	OEM	KA2	KA8
4	75522-611-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Secondary body (1) 5 / 31

#	OEM	KA2	KA8
1	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
4	27653-PF4-000	Cap - CLUTCH PRESSURE CONTROL VALVE	Cap - CLUTCH PRESSURE CONTROL VALVE
5	27655-PC9-950	Valve - CLUTCH PRESSURE CONTROL	Valve - CLUTCH PRESSURE CONTROL
18	27728-PF4-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
26	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8

Select lever (LH) 3 / 25

#	OEM	KA2	KA8
1	30158-700-010	E-clip - 3MM	E-clip - 3MM
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
30	54142-SA5-980	Bush - GUIDE	Bush - GUIDE

Servo body/modulator (1) 4 / 43

#	OEM	KA2	KA8
36	91326-PF4-004	O-ring - 24.4X2.4 (NOK)	O-ring - 24.4X2.4 (NOK)
37	91331-PC9-003	O-ring	O-ring
38	91344-PC9-004	O-ring - 29X2.4 (NOK)	O-ring - 29X2.4 (NOK)
39	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

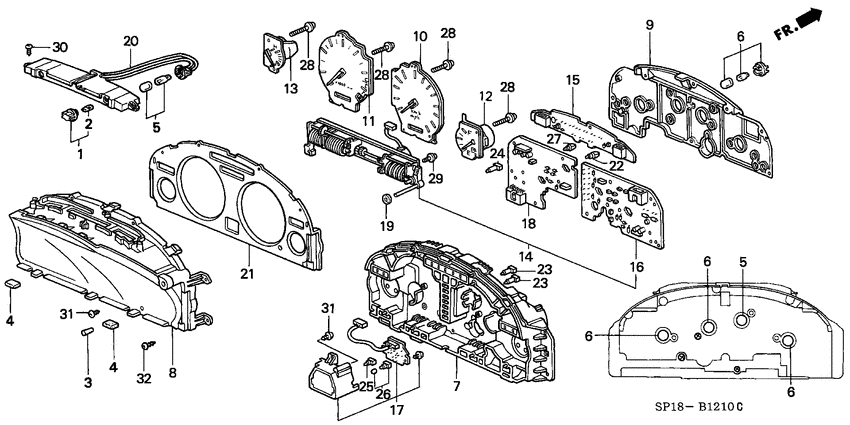

Speedometer components (NS) 3 / 30

#	OEM	KA2	KA8
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
8	37115-SA0-601	Packing - NS	Packing - NS

Steering column (LH) 2 / 20

#	OEM	KA2	KA8
18	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
21	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel 1 / 6

#	OEM	KA2	KA8
10	90380-SB2-003	Nut - SELF-LOCK (OHASHI)	Nut - SELF-LOCK (OHASHI)

Switch (1) 1 / 12

#	OEM	KA2	KA8
3	35851-SP1-901	Bulb b - NEO WEDGE(14V 100MA)	Bulb b - NEO WEDGE(14V 100MA)

Switch (2) 2 / 23

#	OEM	KA2	KA8
20	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
23	90690-SA0-003	Strap - WIRE HARNESS, 25MM (BLACK)	Strap - WIRE HARNESS, 25MM (BLACK)

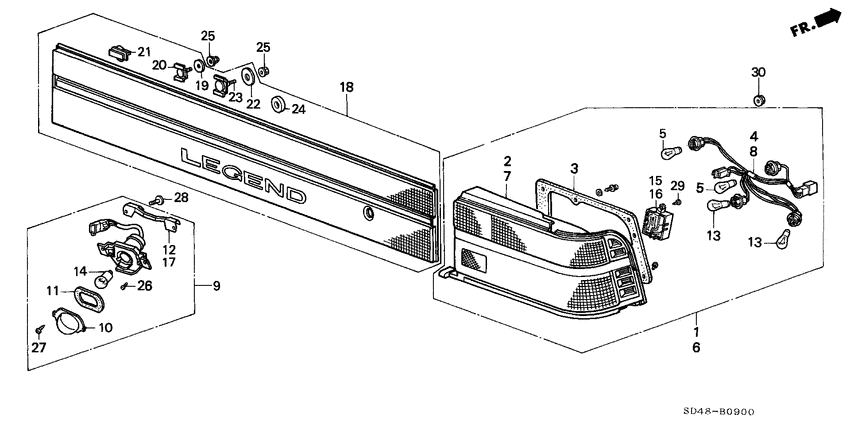

Taillight (1) 2 / 28

#	OEM	KA2	KA8
5	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
13	34906-SA0-003	Bulb - 12V 27W/5W	Bulb - 12V 27W/5W

Throttle body (1) 2 / 26

#	OEM	KA2	KA8
2	16075-PE2-005	O-ring - 31.2X1.9	O-ring - 31.2X1.9
23	91304-PE2-005	O-ring - 15.8X1.9	O-ring - 15.8X1.9

Throttle valve shaft 1 / 20

#	OEM	KA2	KA8
16	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM

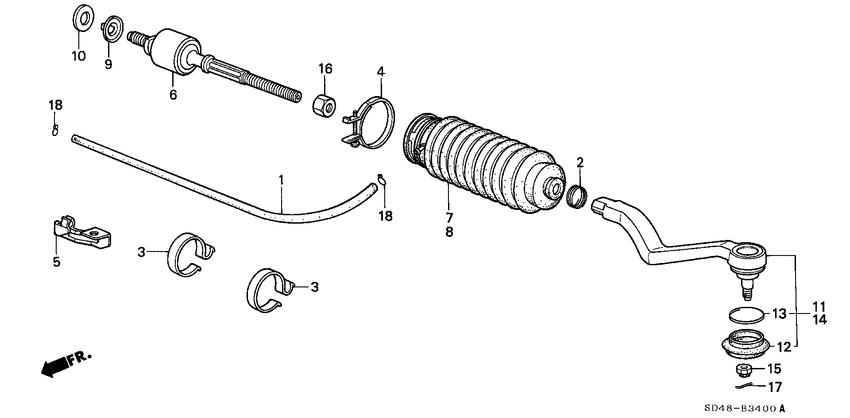

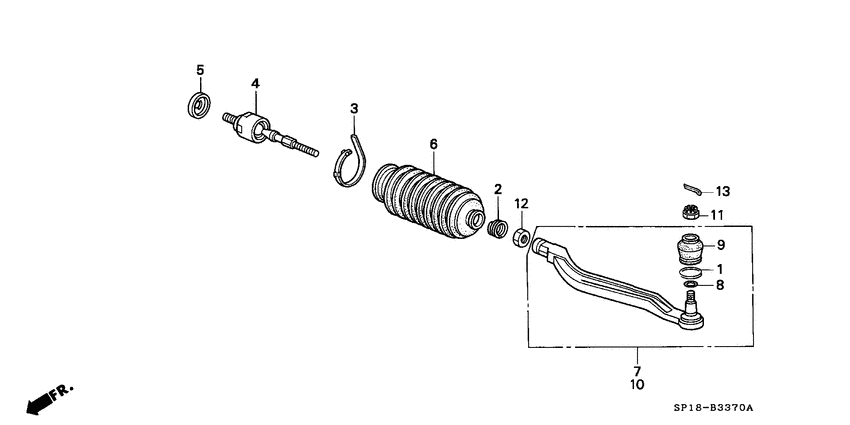

Tie rod 2 / 17

#	OEM	KA2	KA8
2	53434-SD9-000	Clip - TIE ROD	Clip - TIE ROD
2	53434-S04-J51	CLIP, TIE ROD	CLIP, TIE ROD

Timing belt cover 2 / 21

#	OEM	KA2	KA8
3	11825-PH7-000	Grommet - TIMING BELT COVER HOLE	Grommet - TIMING BELT COVER HOLE
17	90047-PH7-000	Bolt-washer - 6X22	Bolt-washer - 6X22

Tire/wheel disk 1 / 27

#	OEM	KA2	KA8
8	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)

Tools 4 / 9

#	OEM	KA2	KA8
7	89216-SB2-010	Wrench - BOX (P16)	Wrench - BOX (P16)
8	89218-611-003	Shaft - WRENCH (RIKEN)	Shaft - WRENCH (RIKEN)
8	89218-611-004	Shaft - WRENCH (KOWA)	Shaft - WRENCH (KOWA)
9	89600-SE3-Y01	Extinguisher - FIRE	Extinguisher - FIRE

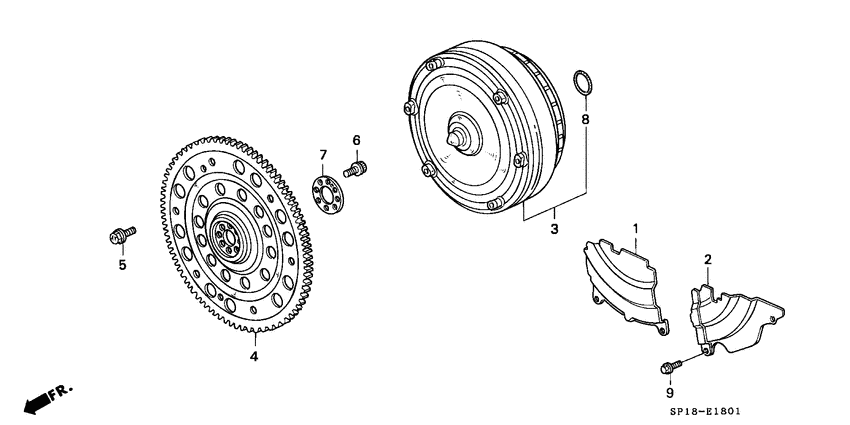

Torque converter 2 / 7

#	OEM	KA2	KA8
4	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
5	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2

Torque converter housing 5 / 14

#	OEM	KA2	KA8
9	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
10	90471-580-000	Packing - 8MM	Packing - 8MM
13	91102-PF0-003	Bearing - NEEDLE, 38.5X67X17	Bearing - NEEDLE, 38.5X67X17
16	91209-612-000	Oil seal - 12X22X7	Oil seal - 12X22X7
16	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

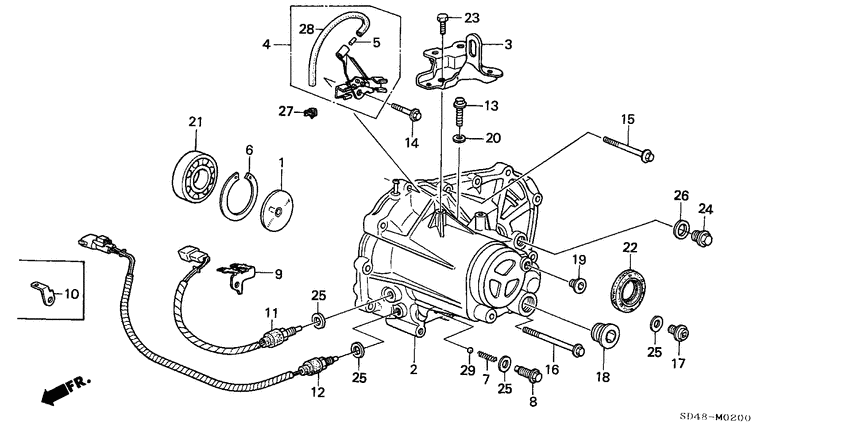

Transmission housing 3 / 48

#	OEM	KA2	KA8
5	21321-689-000	Plug - BREATHER TUBE	Plug - BREATHER TUBE
16	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
17	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM

Trunk lid 4 / 19

#	OEM	KA2	KA8
19	83431-SA4-000	Cushion - FR. TRUNK	Cushion - FR. TRUNK
23	90106-SE3-000	Bolt-washer - 6X12	Bolt-washer - 6X12
28	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
30	91544-SD4-003	Clip - COVER, 5MM	Clip - COVER, 5MM

Trunk side garnish 2 / 13

#	OEM	KA2	KA8
4	74825-692-000	Nut - SPIRE	Nut - SPIRE
27	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Vacuum tank/tubing 2 / 6

#	OEM	KA2	KA8
2	17205-PC6-000	Clamp - TUBE, 7.5X2	Clamp - TUBE, 7.5X2
7	36145-PM4-004	Valve - CHECK	Valve - CHECK

Water pump 1 / 13

#	OEM	KA2	KA8
10	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER

Water valve 1 / 13

#	OEM	KA2	KA8
1	36145-PM4-004	Valve - CHECK	Valve - CHECK

Windshield washer 5 / 24

#	OEM	KA2	KA8
3	38571-SA5-621	Valve - ONE WAY (MITSUBA)	Valve - ONE WAY (MITSUBA)
4	38581-SB2-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
6	76804-SE0-003	Float - WASHER	Float - WASHER
9	76807-SE0-921	Packing - T-TYPE	Packing - T-TYPE
10	76809-SE0-003	Grommet - WASHER TANK	Grommet - WASHER TANK

Wire harness (1) 6 / 44

#	OEM	KA2	KA8
22	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
32	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)
36	90153-SA5-900	Screw-washer - 5X9	Screw-washer - 5X9
37	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
38	90649-SC2-003	Band - WIRE HARNESS (NATURAL) (150MM)	Band - WIRE HARNESS (NATURAL) (150MM)
45	91508-SA4-003	Clip - WIRE HARNESS (BLACK)	Clip - WIRE HARNESS (BLACK)

Wire harness (2) 1 / 12

#	OEM	KA2	KA8
14	90672-SA0-003	Strap - CABLE, 118MM(BLACK)	Strap - CABLE, 118MM(BLACK)
