JZS147 × JZS160

共通 1,409 / 合計 12,334 · Jaccard 11.4%
JZS147 Toyota ARISTO — 7,357 中 1,409 共有
JZS160 Toyota ARISTO — 6,386 中 1,409 共有
1,409 件

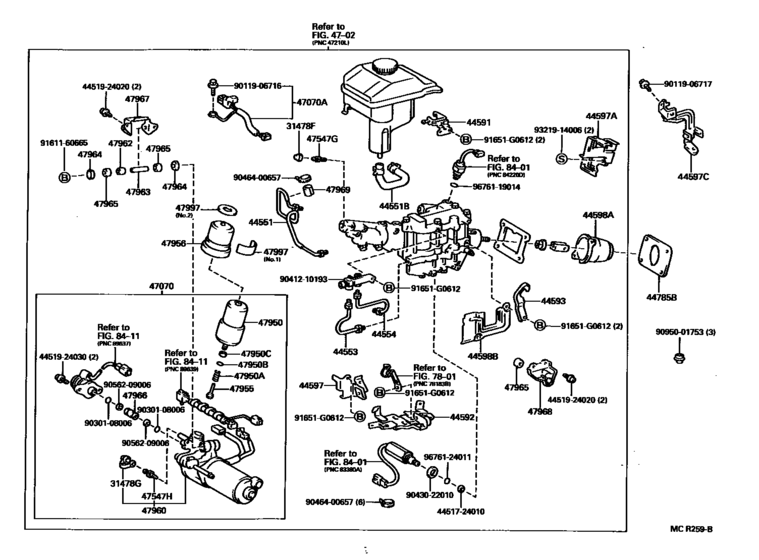

Abs & Vsc ([10.1991 - 08.1997] (9110-9708)JZS147) 6 / 27
JZS147 Abs & Vsc ([10.1991 - 08.1997] (9110-9708)JZS147)
JZS160 Abs & Vsc ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
88263 88263-24020 Relay, Skid Control Relay, Skid Control
88263 88263-24030 Relay, Skid Control Relay, Skid Control
89411 91651-B0620 New Genuine Part New Genuine Part
91651 91651-B0616 BOLT WWASHER BOLT WWASHER
9011906120 90119-06120 BOLT BOLT
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)

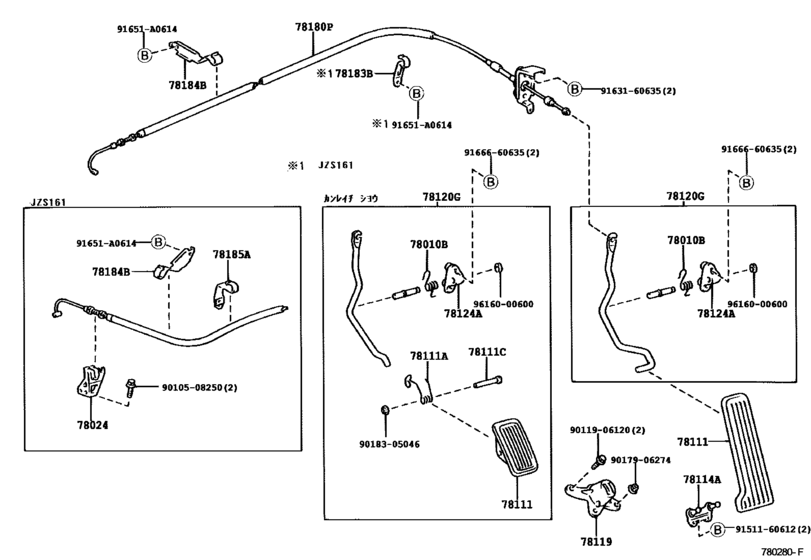

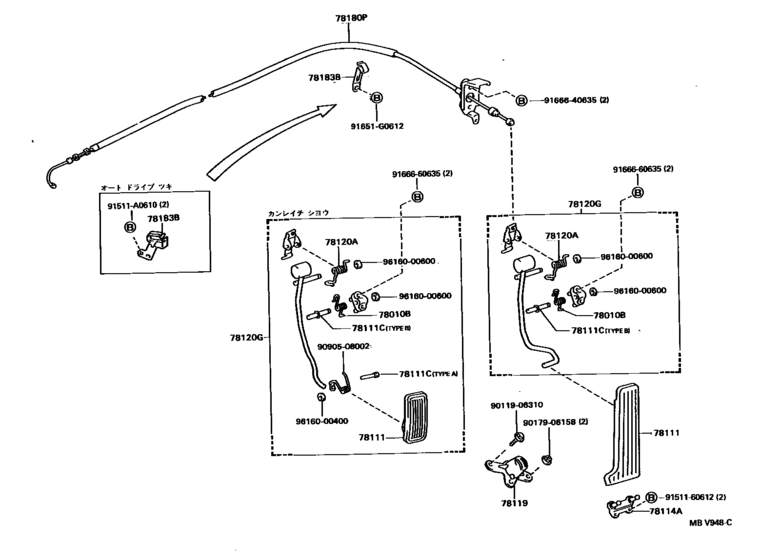

Accelerator Link ([10.1991 - ] (9110- )Q) 10 / 25
JZS147 Accelerator Link ([10.1991 - ] (9110- )Q)
JZS160 Accelerator Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
78010 90508-18103 Spring, Torsion (For Accelerator Link) Spring, Torsion (For Accelerator Link)
78111 78111-30110 Pedal, Accelerator Pedal, Accelerator
78114 78114-30060 Bracket, Accelerator Pedal Support Bracket, Accelerator Pedal Support
91511 91511-A0610 Bolt (For Propeller Shaft Heat Insulator) Bolt (For Propeller Shaft Heat Insulator)
91511 91531-A0610 Bolt (For Propeller Shaft Heat Insulator) Bolt (For Propeller Shaft Heat Insulator)
9011906310 90119-06428 New Genuine Part New Genuine Part
9151160612 91511-60612 BOLT BOLT
9166660635 91666-60635 New Genuine Part New Genuine Part
9616000400 96160-00400 Ring, E(For Release Arm) Ring, E(For Release Arm)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl) Ring, E(For Clutch Pedal Pawl)
Accelerator Link ([10.1991 - ] (9110- )V) 8 / 20
JZS147 Accelerator Link ([10.1991 - ] (9110- )V)
JZS160 Accelerator Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
78010 90508-18103 Spring, Torsion (For Accelerator Link) Spring, Torsion (For Accelerator Link)
78111 78111-30110 Pedal, Accelerator Pedal, Accelerator
78114 78114-30060 Bracket, Accelerator Pedal Support Bracket, Accelerator Pedal Support
9010508250 90105-08250 Bolt, Flange Bolt, Flange
9151160612 91511-60612 BOLT BOLT
9166660635 91666-60635 New Genuine Part New Genuine Part
9616000400 96160-00400 Ring, E(For Release Arm) Ring, E(For Release Arm)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl) Ring, E(For Clutch Pedal Pawl)
Air Cleaner ([10.1991 - 08.1997] (9110-9708)2JZGE) 5 / 18
JZS147 Air Cleaner ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Air Cleaner ([07.2000 - ] (0007- )2JZGE)
# OEM JZS147 JZS160
17849 17849-46020 Gasket, Intake Air Connector Gasket, Intake Air Connector
9011906467 90119-06467 BOLT WWASHER BOLT WWASHER
9011908891 90119-08891 BOLT BOLT
9012608020 90126-08020 New Genuine Part New Genuine Part
9017908153 90179-08153 NUT NUT

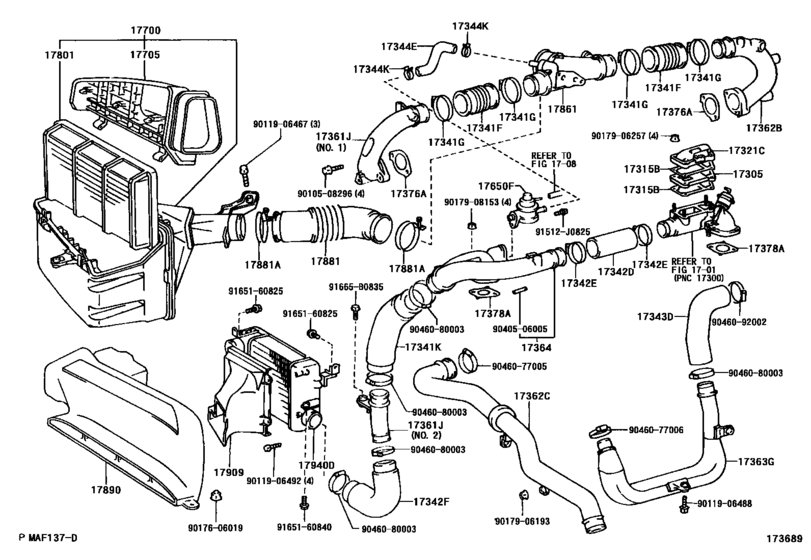

Air Cleaner ([10.1991 - 08.1997] (9110-9708)2JZGTE) 5 / 61
JZS147 Air Cleaner ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Air Cleaner ([07.2000 - ] (0007- )2JZGE)
# OEM JZS147 JZS160
91512 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9011906467 90119-06467 BOLT WWASHER BOLT WWASHER
9017906257 90179-06257 NUT NUT
9017908153 90179-08153 NUT NUT
9046080003 90460-80006 Clamp, Hose Clamp, Hose

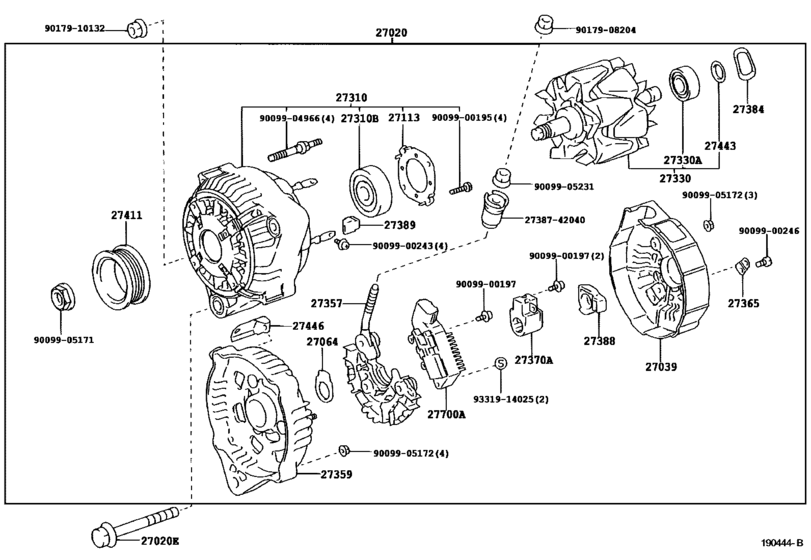

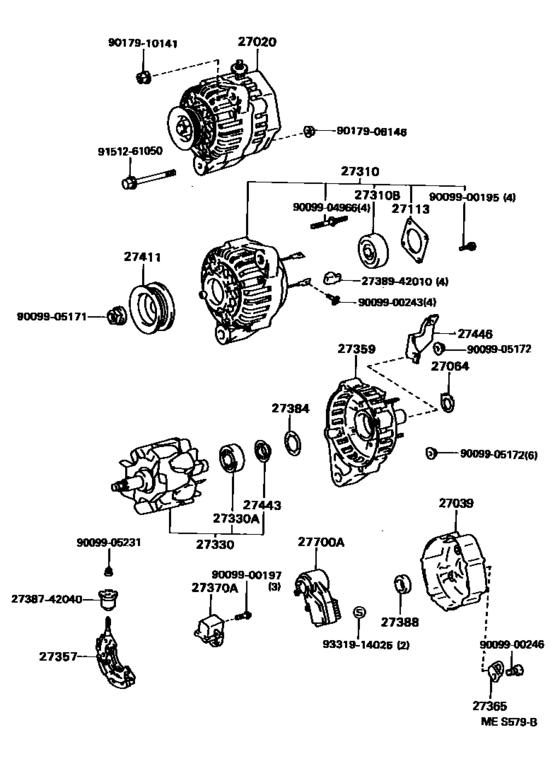

Alternator ([10.1991 - ] 12V 80A (9110- )2JZGE) 27 / 53
JZS147 Alternator ([10.1991 - ] 12V 80A (9110- )2JZGE)
JZS160 Alternator ([08.1997 - ] 12V 100A,120A (9708- ))
# OEM JZS147 JZS160
27039 27039-46170 Cover, Alternator Rear End Cover, Alternator Rear End
27064 27064-42010 Seal, Alternator Plate Seal, Alternator Plate
27113 27312-42010 Plate, Bearing Retainer, Alternator Plate, Bearing Retainer, Alternator
27310 90099-10192 Bearing(For Alternator Drive End Frame) Bearing(For Alternator Drive End Frame)
27330 90099-10194 Bearing(For Alternator Rotor) Bearing(For Alternator Rotor)
27359 27359-46100 Frame, Alternator Rectifier End Frame, Alternator Rectifier End
27365 27365-55080 Plate, Terminal Plate, Terminal
27370 27370-75060 Holder Assy, Alternator Brush Holder Assy, Alternator Brush
27384 27384-50030 Holder, Alternator Brush, A Holder, Alternator Brush, A
27388 27388-42010 Cover, Alternator Brush Cover, Alternator Brush
27411 27411-46080 Pulley, Alternator Pulley, Alternator
27443 27443-63020 Cover, Alternator Bearing Cover, Alternator Bearing
27700 27700-46060 Regulator Assy, Generator Regulator Assy, Generator
2738742040 27387-42040 Insulator, Terminal Insulator, Terminal
2738942010 27389-42010 Insulator, Terminal Insulator, Terminal
9009900195 90099-00195 New Genuine Part New Genuine Part
9009900197 90099-00197 Screw Screw
9009900243 90099-00243 SCREW WWASHER SCREW WWASHER
9009900246 90099-00246 New Genuine Part New Genuine Part
9009904966 90099-04966 Bearing(for Alternator Rotor) Bearing(for Alternator Rotor)
9009905171 90099-05171 Nut(For Alternator Pulley) Nut(For Alternator Pulley)
9009905172 90099-05172 New Genuine Part New Genuine Part
9009905231 90099-05231 New Genuine Part New Genuine Part
9017908146 90179-08204 Nut Nut
9017910141 90179-10132 Nut Nut
9151261050 91512-61050 Bolt(For Alternator) Bolt(For Alternator)
9331914025 93319-14025 Screw W Washer Screw W Washer
Alternator ([10.1991 - ] 12V 80A (9110- )2JZGTE) 24 / 39
JZS147 Alternator ([10.1991 - ] 12V 80A (9110- )2JZGTE)
JZS160 Alternator ([08.1997 - ] 12V 100A,120A (9708- ))
# OEM JZS147 JZS160
27064 27064-42010 Seal, Alternator Plate Seal, Alternator Plate
27113 27312-42010 Plate, Bearing Retainer, Alternator Plate, Bearing Retainer, Alternator
27310 90099-10192 Bearing(For Alternator Drive End Frame) Bearing(For Alternator Drive End Frame)
27330 90099-10194 Bearing(For Alternator Rotor) Bearing(For Alternator Rotor)
27365 27365-55080 Plate, Terminal Plate, Terminal
27370 27370-75060 Holder Assy, Alternator Brush Holder Assy, Alternator Brush
27384 27384-50030 Holder, Alternator Brush, A Holder, Alternator Brush, A
27388 27388-42010 Cover, Alternator Brush Cover, Alternator Brush
27411 27411-46080 Pulley, Alternator Pulley, Alternator
27443 27443-63020 Cover, Alternator Bearing Cover, Alternator Bearing
2738742040 27387-42040 Insulator, Terminal Insulator, Terminal
2738942010 27389-42010 Insulator, Terminal Insulator, Terminal
9009900195 90099-00195 New Genuine Part New Genuine Part
9009900197 90099-00197 Screw Screw
9009900243 90099-00243 SCREW WWASHER SCREW WWASHER
9009900246 90099-00246 New Genuine Part New Genuine Part
9009904966 90099-04966 Bearing(for Alternator Rotor) Bearing(for Alternator Rotor)
9009905171 90099-05171 Nut(For Alternator Pulley) Nut(For Alternator Pulley)
9009905172 90099-05172 New Genuine Part New Genuine Part
9009905231 90099-05231 New Genuine Part New Genuine Part
9017908146 90179-08204 Nut Nut
9017910141 90179-10132 Nut Nut
9151261050 91512-61050 Bolt(For Alternator) Bolt(For Alternator)
9331914025 93319-14025 Screw W Washer Screw W Washer

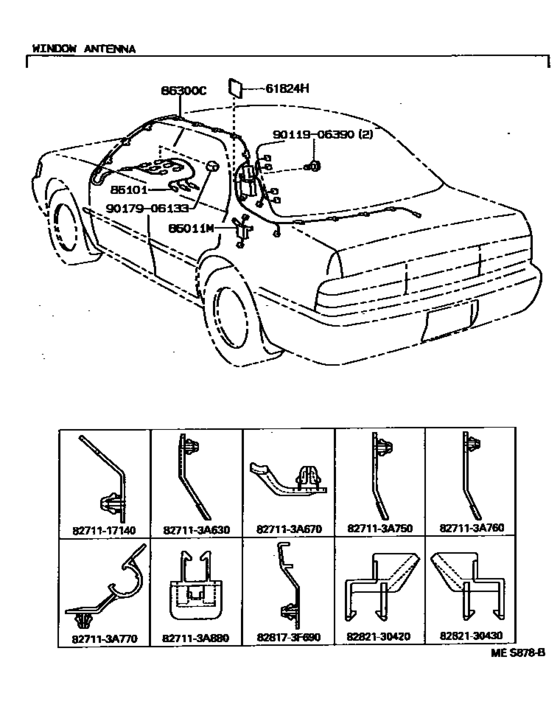

Antenna ([10.1991 - 08.1997] (9110-9708)) 1 / 19
JZS147 Antenna ([10.1991 - 08.1997] (9110-9708))
JZS160 Horn ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9011906390 90119-06390 BOLT WWASHER BOLT WWASHER
Automatic Light Control System (Conlight) ([10.1991 - 08.1997] (9110-9708)) 1 / 4
JZS147 Automatic Light Control System (Conlight) ([10.1991 - 08.1997] (9110-9708))
JZS160 Front Door Lock & Handle ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9356755014 93568-55014 Screw Screw
Battery & Battery Cable ([10.1991 - 08.1997] (9110-9708)) 1 / 6
JZS147 Battery & Battery Cable ([10.1991 - 08.1997] (9110-9708))
JZS160 Battery & Battery Cable ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9017908158 90179-08158 New Genuine Part New Genuine Part

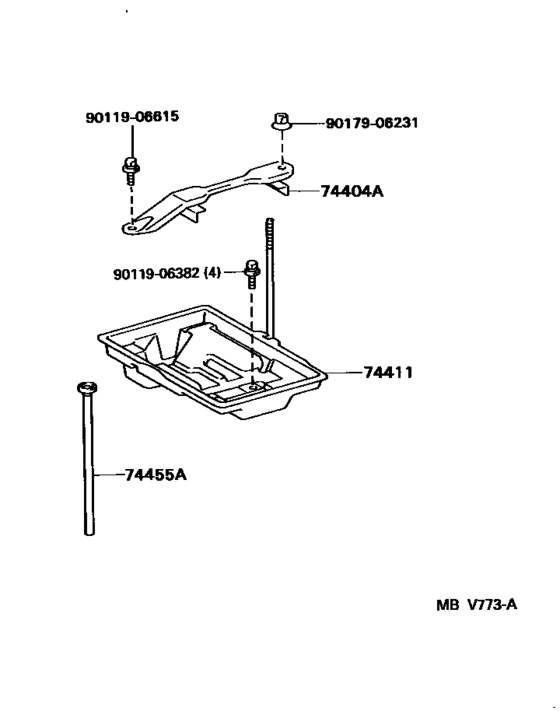

Battery Carrier ([10.1991 - ] (9110- )) 3 / 7
JZS147 Battery Carrier ([10.1991 - ] (9110- ))
JZS160 Battery Carrier ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
74455 74455-30020 Hose, Battery Drain Hose, Battery Drain
9011906382 90119-06382 Bolt Bolt
9017906231 90179-06206 Nut Nut

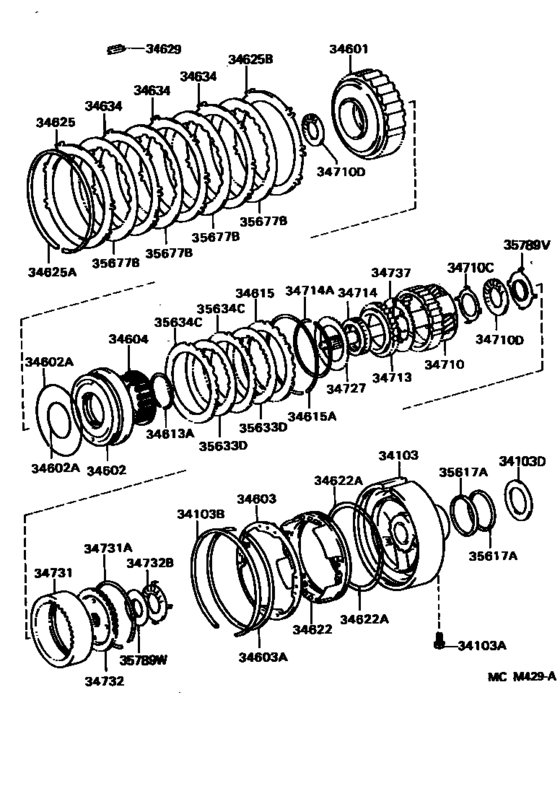

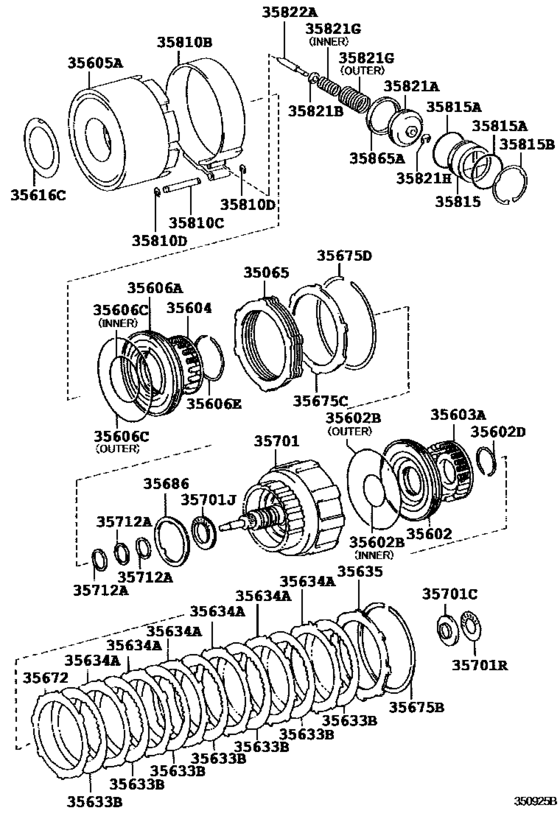

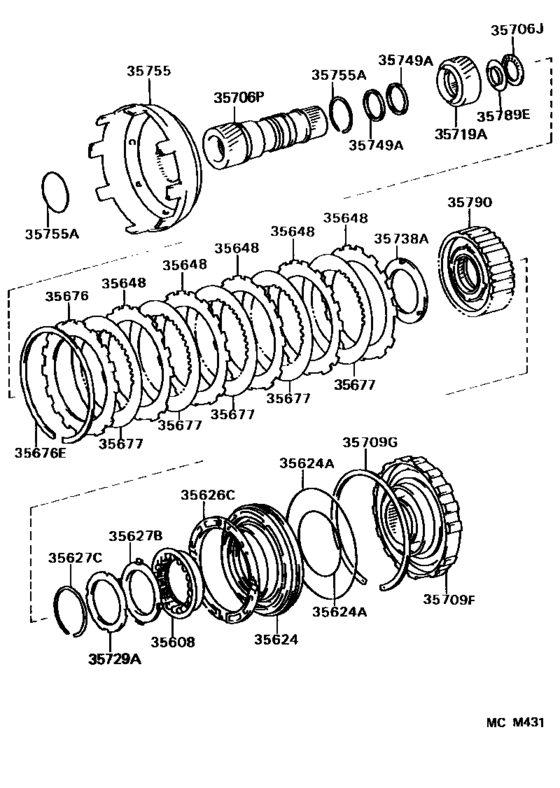

Brake Band & Multiple Disc Clutch (Atm) ([10.1991 - 10.1992] A340E,A341H (9110-9210)) 45 / 75
JZS147 Brake Band & Multiple Disc Clutch (Atm) ([10.1991 - 10.1992] A340E,A341H (9110-9210))
JZS160 Brake Band & Multiple Disc Clutch (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
35602 90301-39005 Ring, O (For Forward Clutch Piston) Ring, O (For Forward Clutch Piston)
35602 90301-99058 Ring, O (For Overdrive Direct Clutch Piston) Ring, O (For Overdrive Direct Clutch Piston)
35602 90520-35001 Ring, Shaft Snap(For Forward Clutch Piston Return Spring) Ring, Shaft Snap(For Forward Clutch Piston Return Spring)
35603 35603-50010 Spring Sub-Assy, Forward Clutch Return Spring Sub-Assy, Forward Clutch Return
35604 35604-35010 Spring Sub-Assy, Direct Clutch Return Spring Sub-Assy, Direct Clutch Return
35606 35606-35010 Piston Sub-Assy, Direct Clutch Piston Sub-Assy, Direct Clutch
35606 90301-65006 Ring, O (For Overdrive Direct Clutch Piston) Ring, O (For Overdrive Direct Clutch Piston)
35606 90520-58001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring) Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)
35606 35606-22030 Piston Sub-Assy, Direct Clutch Piston Sub-Assy, Direct Clutch
35616 35616-30050 Washer, Clutch Drum Thrust (For Direct Clutch Drum) Washer, Clutch Drum Thrust (For Direct Clutch Drum)
35634 35634-30110 Plate, Clutch (For Forward Multiple Disc Clutch) Plate, Clutch (For Forward Multiple Disc Clutch)
35635 35635-50010 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30040 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50020 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30050 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50030 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30060 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50040 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30070 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50050 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30080 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50060 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30090 Flange, Transfer Direct Clutch Flange, Transfer Direct Clutch
35675 90521-99001 Ring, Hole Snap, No.2 (For Overdrive) Ring, Hole Snap, No.2 (For Overdrive)
35675 90521-99032 Ring, Hole Snap (For Direct Clutch Flange) Ring, Hole Snap (For Direct Clutch Flange)
35686 35686-30010 Washer, Clutch Drum Thrust (For Input Shaft) Washer, Clutch Drum Thrust (For Input Shaft)
35701 35789-30110 Race, Thrust Bearing (For Input Shaft Rear) Race, Thrust Bearing (For Input Shaft Rear)
35701 90374-33001 Bearing, Thrust Needle Roller (For Input Shaft Front) Bearing, Thrust Needle Roller (For Input Shaft Front)
35701 90374-25005 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
35712 35712-30020 Ring, Input Shaft Oil Seal Ring, Input Shaft Oil Seal
35810 90249-07011 Pin (For 2Nd Coast Brake Band) Pin (For 2Nd Coast Brake Band)
35810 96160-00500 Ring, E(For Over Center Lever) Ring, E(For Over Center Lever)
35810 35810-14010 Band Assy, 2Nd Coast Brake Band Assy, 2Nd Coast Brake
35815 35815-30010 Cover, 2Nd Coast Brake Cover, 2Nd Coast Brake
35815 90301-48001 Ring, O (For 2Nd Coast Brake Cover) Ring, O (For 2Nd Coast Brake Cover)
35815 90521-60003 Ring, Hole Snap (For 2Nd Coast Brake Cover) Ring, Hole Snap (For 2Nd Coast Brake Cover)
35821 35821-30020 Piston, 2Nd Coast Brake Piston, 2Nd Coast Brake
35821 90201-06557 Washer, Plate (For 2Nd Coast Brake Piston) Washer, Plate (For 2Nd Coast Brake Piston)
35821 90501-26024 Spring, Compression (For 2Nd Coast Brake Piston) Spring, Compression (For 2Nd Coast Brake Piston)
35821 90501-27009 Spring, Compression (For 2Nd Coast Brake Piston) Spring, Compression (For 2Nd Coast Brake Piston)
35822 35822-50010 Rod, 2Nd Coast Brake Piston Rod, 2Nd Coast Brake Piston
35822 35822-50020 Rod, 2Nd Coast Brake Piston Rod, 2Nd Coast Brake Piston
35822 35822-32010 Rod, 2Nd Coast Brake Piston Rod, 2Nd Coast Brake Piston
35822 35822-32020 Rod, 2Nd Coast Brake Piston Rod, 2Nd Coast Brake Piston
35865 35865-30010 Ring, 2Nd Coast Brake Piston Oil Seal Ring, 2Nd Coast Brake Piston Oil Seal
Brake Band & Multiple Disc Clutch (Atm) ([10.1992 - ] A340E,A341H (9210- )) 45 / 74
JZS147 Brake Band & Multiple Disc Clutch (Atm) ([10.1992 - ] A340E,A341H (9210- ))
JZS160 Brake Band & Multiple Disc Clutch (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
35602 90301-39005 Ring, O (For Forward Clutch Piston) Ring, O (For Forward Clutch Piston)
35602 90301-99058 Ring, O (For Overdrive Direct Clutch Piston) Ring, O (For Overdrive Direct Clutch Piston)
35602 90520-35001 Ring, Shaft Snap(For Forward Clutch Piston Return Spring) Ring, Shaft Snap(For Forward Clutch Piston Return Spring)
35603 35603-50010 Spring Sub-Assy, Forward Clutch Return Spring Sub-Assy, Forward Clutch Return
35604 35604-35010 Spring Sub-Assy, Direct Clutch Return Spring Sub-Assy, Direct Clutch Return
35606 35606-35010 Piston Sub-Assy, Direct Clutch Piston Sub-Assy, Direct Clutch
35606 90301-65006 Ring, O (For Overdrive Direct Clutch Piston) Ring, O (For Overdrive Direct Clutch Piston)
35606 90520-58001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring) Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)
35606 35606-22030 Piston Sub-Assy, Direct Clutch Piston Sub-Assy, Direct Clutch
35616 35616-30050 Washer, Clutch Drum Thrust (For Direct Clutch Drum) Washer, Clutch Drum Thrust (For Direct Clutch Drum)
35634 35634-30110 Plate, Clutch (For Forward Multiple Disc Clutch) Plate, Clutch (For Forward Multiple Disc Clutch)
35635 35635-50010 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30040 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50020 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30050 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50030 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30060 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50040 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30070 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50050 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30080 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-50060 Flange, Forward Clutch Flange, Forward Clutch
35635 35635-30090 Flange, Transfer Direct Clutch Flange, Transfer Direct Clutch
35675 90521-99001 Ring, Hole Snap, No.2 (For Overdrive) Ring, Hole Snap, No.2 (For Overdrive)
35675 90521-99032 Ring, Hole Snap (For Direct Clutch Flange) Ring, Hole Snap (For Direct Clutch Flange)
35686 35686-30010 Washer, Clutch Drum Thrust (For Input Shaft) Washer, Clutch Drum Thrust (For Input Shaft)
35701 35789-30110 Race, Thrust Bearing (For Input Shaft Rear) Race, Thrust Bearing (For Input Shaft Rear)
35701 90374-33001 Bearing, Thrust Needle Roller (For Input Shaft Front) Bearing, Thrust Needle Roller (For Input Shaft Front)
35701 90374-25005 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
35712 35712-30020 Ring, Input Shaft Oil Seal Ring, Input Shaft Oil Seal
35810 90249-07011 Pin (For 2Nd Coast Brake Band) Pin (For 2Nd Coast Brake Band)
35810 96160-00500 Ring, E(For Over Center Lever) Ring, E(For Over Center Lever)
35810 35810-14010 Band Assy, 2Nd Coast Brake Band Assy, 2Nd Coast Brake
35815 35815-30010 Cover, 2Nd Coast Brake Cover, 2Nd Coast Brake
35815 90301-48001 Ring, O (For 2Nd Coast Brake Cover) Ring, O (For 2Nd Coast Brake Cover)
35815 90521-60003 Ring, Hole Snap (For 2Nd Coast Brake Cover) Ring, Hole Snap (For 2Nd Coast Brake Cover)
35821 35821-30020 Piston, 2Nd Coast Brake Piston, 2Nd Coast Brake
35821 90201-06557 Washer, Plate (For 2Nd Coast Brake Piston) Washer, Plate (For 2Nd Coast Brake Piston)
35821 90501-26024 Spring, Compression (For 2Nd Coast Brake Piston) Spring, Compression (For 2Nd Coast Brake Piston)
35821 90501-27009 Spring, Compression (For 2Nd Coast Brake Piston) Spring, Compression (For 2Nd Coast Brake Piston)
35822 35822-50010 Rod, 2Nd Coast Brake Piston Rod, 2Nd Coast Brake Piston
35822 35822-50020 Rod, 2Nd Coast Brake Piston Rod, 2Nd Coast Brake Piston
35822 35822-32010 Rod, 2Nd Coast Brake Piston Rod, 2Nd Coast Brake Piston
35822 35822-32020 Rod, 2Nd Coast Brake Piston Rod, 2Nd Coast Brake Piston
35865 35865-30010 Ring, 2Nd Coast Brake Piston Oil Seal Ring, 2Nd Coast Brake Piston Oil Seal
Brake Booster & Vacuum Tube ([10.1991 - ] (9110- )Q) 3 / 17
JZS147 Brake Booster & Vacuum Tube ([10.1991 - ] (9110- )Q)
JZS160 Brake Master Cylinder ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
44730 90430-12005 Gasket(For Water Hole) Gasket(For Water Hole)
9017908121 90179-08121 NUT NUT
9017908121 90179-08017 NUT NUT
Brake Master Cylinder ([10.1991 - ] (9110- )Q) 4 / 32
JZS147 Brake Master Cylinder ([10.1991 - ] (9110- )Q)
JZS160 Brake Master Cylinder ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
47255 47255-16010 Grommet, Master Cylinder Reservoir Grommet, Master Cylinder Reservoir
9014940006 90149-40006 Bolt Bolt
9017908146 90179-08204 Nut Nut
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock Nut, Master Cylinder Push Rod Clevis Lock
Brake Master Cylinder ([10.1991 - ] ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ/ﾊｲﾄﾞﾛ ﾌﾞﾚ-ｷ ﾌﾞ-ｽﾀ) (9110- )JZS147 ; (9210- )UZS143) 5 / 67
JZS147 Brake Master Cylinder ([10.1991 - ] ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ/ﾊｲﾄﾞﾛ ﾌﾞﾚ-ｷ ﾌﾞ-ｽﾀ) (9110- )JZS147 ; (9210- )UZS143)
JZS160 Brake Master Cylinder ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
47255 47255-16010 Grommet, Master Cylinder Reservoir Grommet, Master Cylinder Reservoir
9011906246 90119-06423 BOLT WWASHER BOLT WWASHER
9017908121 90179-08121 NUT NUT
9017908121 90179-08017 NUT NUT
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock Nut, Master Cylinder Push Rod Clevis Lock
Brake No.3, 1St & Reverse Brake (Atm) ([10.1991 - ] A340E,A341H (9110- )) 20 / 24
JZS147 Brake No.3, 1St & Reverse Brake (Atm) ([10.1991 - ] A340E,A341H (9110- ))
JZS160 Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
35068 35068-50010 Spring Sub-Assy, 1St & Reverse Brake Return Spring Sub-Assy, 1St & Reverse Brake Return
35068 90520-52262 Ring, Shaft Snap (For Underdrive Return Spring) Ring, Shaft Snap (For Underdrive Return Spring)
35622 35622-30010 Piston, Brake, No.2 Piston, Brake, No.2
35622 90301-57188 Ring, O (For Underdrive Clutch Piston) Ring, O (For Underdrive Clutch Piston)
35622 90301-56007 Ring, O (For Underdrive Clutch Piston) Ring, O (For Underdrive Clutch Piston)
35622 90301-99193 Ring, O (For Overdrive Brake Piston) Ring, O (For Overdrive Brake Piston)
35623 90301-99192 Ring, O (For Overdrive Direct Clutch Piston) Ring, O (For Overdrive Direct Clutch Piston)
35626 35626-30020 Sleeve, Brake Reaction Sleeve, Brake Reaction
35626 90301-68191 Ring (For Brake Reaction Sleeve Inner) Ring (For Brake Reaction Sleeve Inner)
35626 90301-67005 Ring (For Brake Reaction Sleeve Inner) Ring (For Brake Reaction Sleeve Inner)
35648 35648-30031 Plate, Clutch (For 1St & Reverse Brake) Plate, Clutch (For 1St & Reverse Brake)
35676 35676-50010 Flange, Brake (For 1St & Reverse Brake) Flange, Brake (For 1St & Reverse Brake)
35676 35676-50020 Flange, Brake (For 1St & Reverse Brake) Flange, Brake (For 1St & Reverse Brake)
35676 35676-50030 Flange, Brake (For 1St & Reverse Brake) Flange, Brake (For 1St & Reverse Brake)
35676 35676-50040 Flange, Brake (For 1St & Reverse Brake) Flange, Brake (For 1St & Reverse Brake)
35676 35676-50050 Flange, Brake (For 1St & Reverse Brake) Flange, Brake (For 1St & Reverse Brake)
35676 35676-50060 Flange, Brake (For 1St & Reverse Brake) Flange, Brake (For 1St & Reverse Brake)
35676 35676-30100 Flange, Brake (For 1St & Reverse Brake) Flange, Brake (For 1St & Reverse Brake)
35676 35676-30110 Flange, Brake (For 1St & Reverse Brake) Flange, Brake (For 1St & Reverse Brake)
35677 35677-30130 Disc, Clutch (For 1St & Reverse Brake) Disc, Clutch (For 1St & Reverse Brake)
Brake Pedal & Bracket ([10.1991 - ] (9110- )) 6 / 20
JZS147 Brake Pedal & Bracket ([10.1991 - ] (9110- ))
JZS160 Brake Pedal & Bracket ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
47101 90386-13015 Bush(For Clutch Pedal) Bush(For Clutch Pedal)
47121 47121-50010 Pad, Brake Pedal Pad, Brake Pedal
47124 90101-10015 Shaft, Clutch Pedal Shaft, Clutch Pedal
47124 90387-10003 Collar, Clutch Pedal Shaft Collar, Clutch Pedal Shaft
47131 90541-06036 Cushion, No.1(For Clutch Pedal) Cushion, No.1(For Clutch Pedal)
47264 90249-10064 Pin(For Push Rod) Pin(For Push Rod)

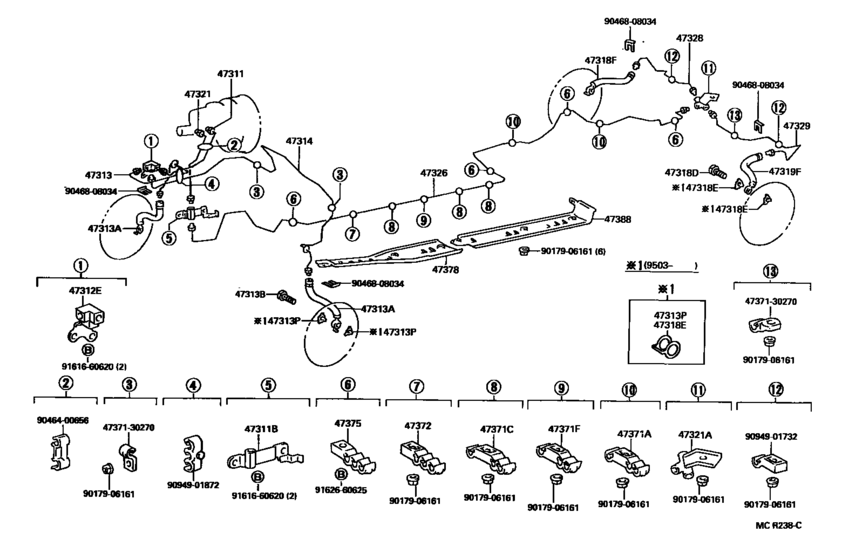

Brake Tube & Clamp ([10.1991 - 08.1996] (9110-9608)Q) 5 / 47
JZS147 Brake Tube & Clamp ([10.1991 - 08.1996] (9110-9608)Q)
JZS160 Brake Tube & Clamp ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
47313 90401-10058 Bolt, Union(For Front Flexible Hose) Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose) Gasket(For Front Flexible Hose)
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9046808034 90468-08034 CLIP CLIP
9161660620 91611-B0616 Bolt(For Transaxle Case Receiver) Bolt(For Transaxle Case Receiver)
Brake Tube & Clamp ([10.1991 - ] ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (9110- )Q) 6 / 66
JZS147 Brake Tube & Clamp ([10.1991 - ] ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (9110- )Q)
JZS160 Brake Tube & Clamp ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
47313 90401-10058 Bolt, Union(For Front Flexible Hose) Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose) Gasket(For Front Flexible Hose)
9017906009 90179-06156 Nut (For Transmission Control Cable) Nut (For Transmission Control Cable)
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9046808034 90468-08034 CLIP CLIP
9161660620 91611-B0616 Bolt(For Transaxle Case Receiver) Bolt(For Transaxle Case Receiver)
Brake Tube & Clamp ([10.1991 - ] ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) (9110- )JZS147) 5 / 45
JZS147 Brake Tube & Clamp ([10.1991 - ] ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) (9110- )JZS147)
JZS160 Brake Tube & Clamp ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
47313 90401-10058 Bolt, Union(For Front Flexible Hose) Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose) Gasket(For Front Flexible Hose)
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9046808034 90468-08034 CLIP CLIP
9161660620 91611-B0616 Bolt(For Transaxle Case Receiver) Bolt(For Transaxle Case Receiver)
Brake Tube & Clamp ([10.1991 - ] ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ/ﾊｲﾄﾞﾛ ﾌﾞﾚ-ｷ ﾌﾞ-ｽﾀ) (9110- )JZS147 ; (9210- )UZS143) 10 / 57
JZS147 Brake Tube & Clamp ([10.1991 - ] ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ/ﾊｲﾄﾞﾛ ﾌﾞﾚ-ｷ ﾌﾞ-ｽﾀ) (9110- )JZS147 ; (9210- )UZS143)
JZS160 Brake Master Cylinder ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
31478 31478-30010 Bleeder Plug Cap Bleeder Plug Cap

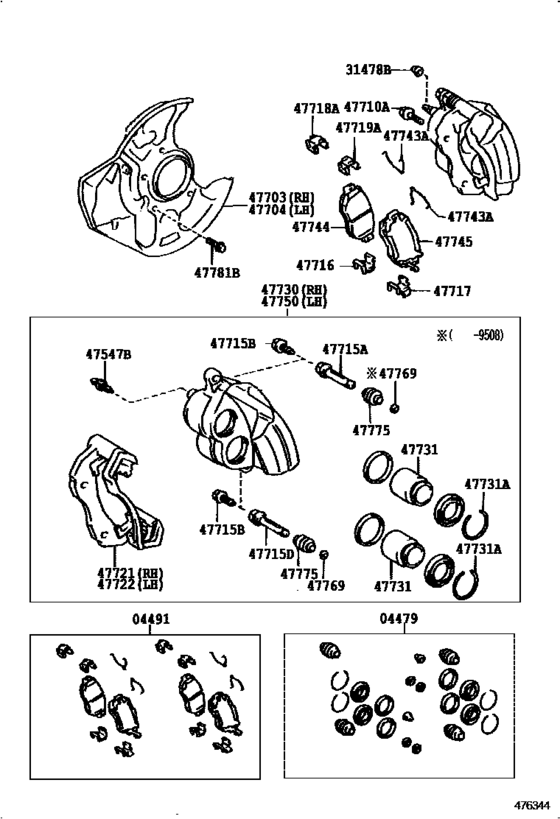

47547 47547-27030 Plug, Bleeder(For Front Disc Brake) Plug, Bleeder(For Front Disc Brake)
47962 47962-24010 Collar, Brake Booster Pump Collar, Brake Booster Pump
47963 47963-24010 Shaft, Brake Booster Pump Shaft, Brake Booster Pump
47964 47964-24010 Washer, Brake Booster Pump Washer, Brake Booster Pump
47965 47965-24010 Bush, Brake Booster Pump Bush, Brake Booster Pump
47997 47997-24020 Label, Brake Booster Accumlator Caution, No.1 Label, Brake Booster Accumlator Caution, No.1
4451924020 44519-24020 Bolt, Brake Actuator Bolt, Brake Actuator
9046400657 90464-00657 CLAMP CLAMP
9161160665 91611-60665 New Genuine Part New Genuine Part

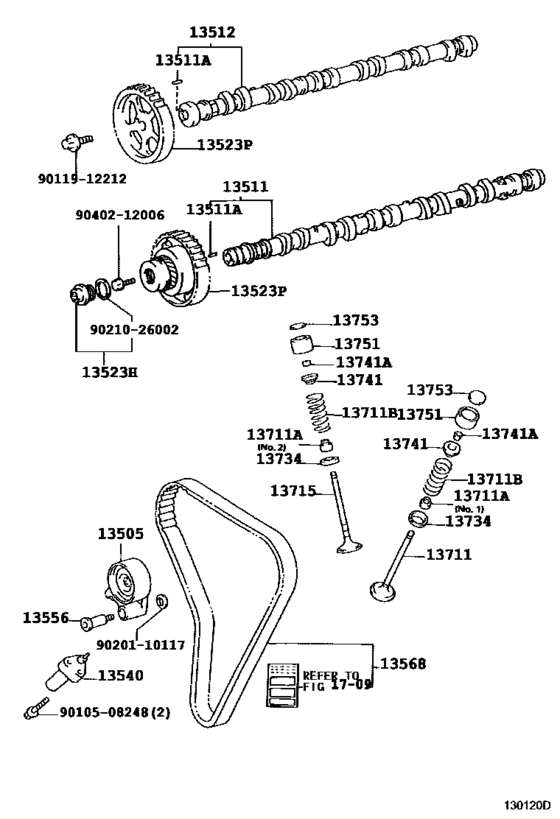

Camshaft & Valve ([10.1991 - 08.1997] (9110-9708)2JZ#) 34 / 47
JZS147 Camshaft & Valve ([10.1991 - 08.1997] (9110-9708)2JZ#)
JZS160 Camshaft & Valve ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
13505 13505-46041 Idler Sub-Assy, Timing Belt, No.1 Idler Sub-Assy, Timing Belt, No.1
13511 90250-05021 Pin, Straight Pin, Straight
13523 13523-46030 Pulley, Camshaft Timing Pulley, Camshaft Timing
13540 13540-46030 Tensioner Assy, Chain, No.1 Tensioner Assy, Chain, No.1
13556 13556-46010 Shaft, Timing Belt Idler Shaft, Timing Belt Idler
13568 13568-49036 Belt, Timing Belt, Timing
13711 13711-46022 Valve, Intake Valve, Intake
13711 90913-02088 Seal Or Ring, O(For Valve Stem Oil) Seal Or Ring, O(For Valve Stem Oil)
13711 90913-02090 Seal Or Ring, O(For Valve Stem Oil) Seal Or Ring, O(For Valve Stem Oil)
13715 13715-46020 Valve, Exhaust Valve, Exhaust
13734 90201-18017 Seat, Valve Spring Seat, Valve Spring
13741 13741-46020 Retainer, Valve Spring Retainer, Valve Spring
13741 90913-03025 Lock, Valve Spring Retainer Lock, Valve Spring Retainer
13751 13751-74020 Lifter, Valve Lifter, Valve
13753 13753-74010 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74030 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74050 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74070 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74090 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74110 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74130 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74150 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74170 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74190 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74210 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74230 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74250 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74270 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74290 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74310 Shim, Valve Adjusting Shim, Valve Adjusting
13753 13753-74330 Shim, Valve Adjusting Shim, Valve Adjusting
9010508248 90105-08248 BOLT WASHER BASED BOLT WASHER BASED
9011912212 90119-12212 BOLT BOLT
9020110117 90201-10117 WASHER WASHER

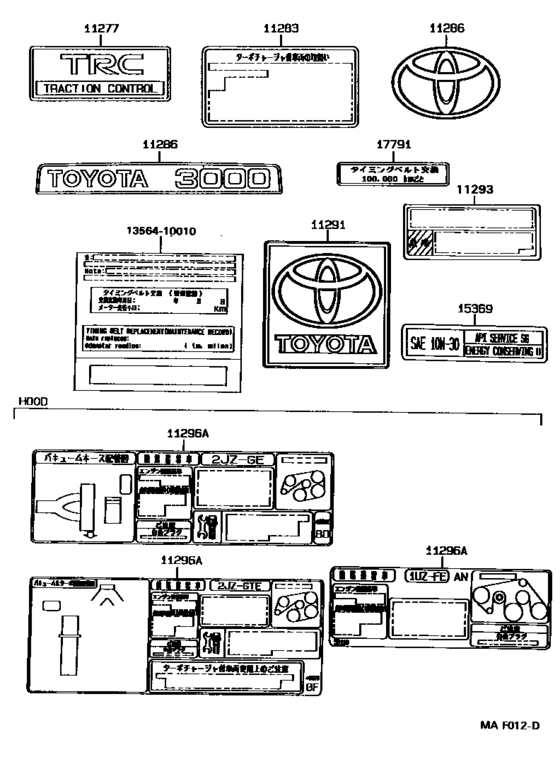

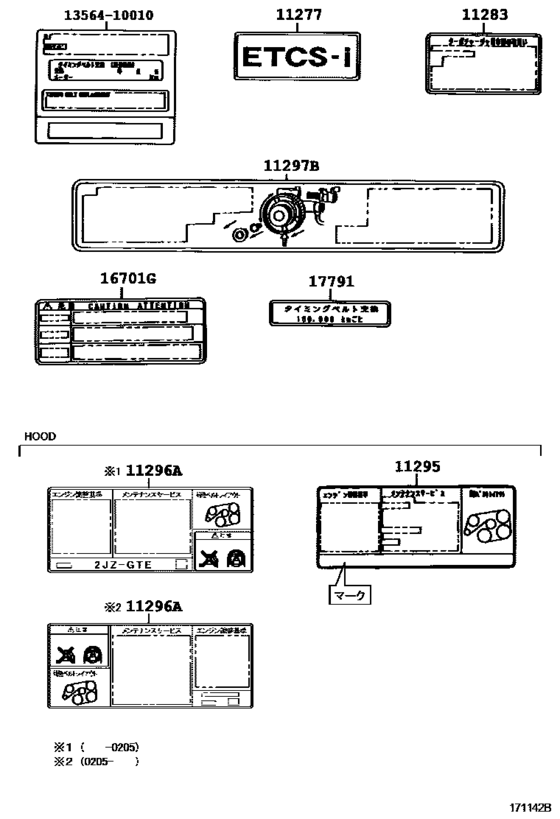

Caution Plate & Name Plate (Engine) ([10.1991 - ] (9110- )) 2 / 22
JZS147 Caution Plate & Name Plate (Engine) ([10.1991 - ] (9110- ))
JZS160 Caution Plate & Name Plate (Engine) ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
17791 17791-74040 Label, Maintenance Information Label, Maintenance Information
1356410010 13564-10010 Plate, Timing Belt Caution Plate, Timing Belt Caution

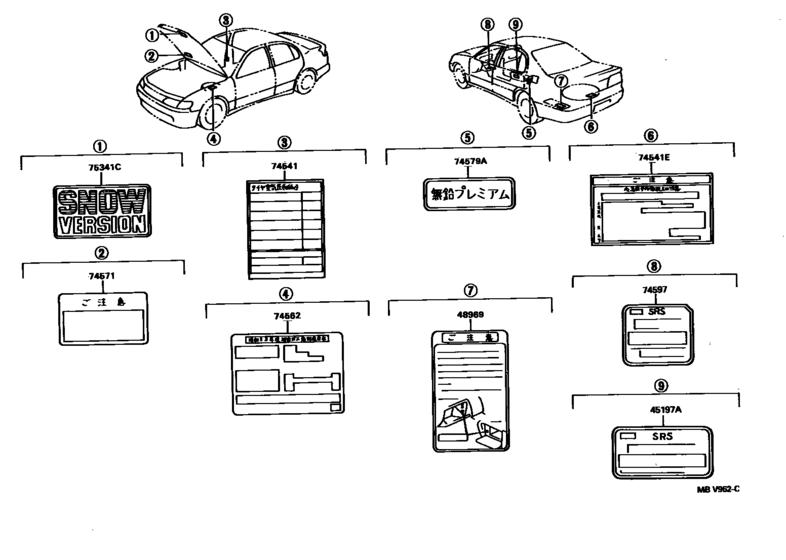

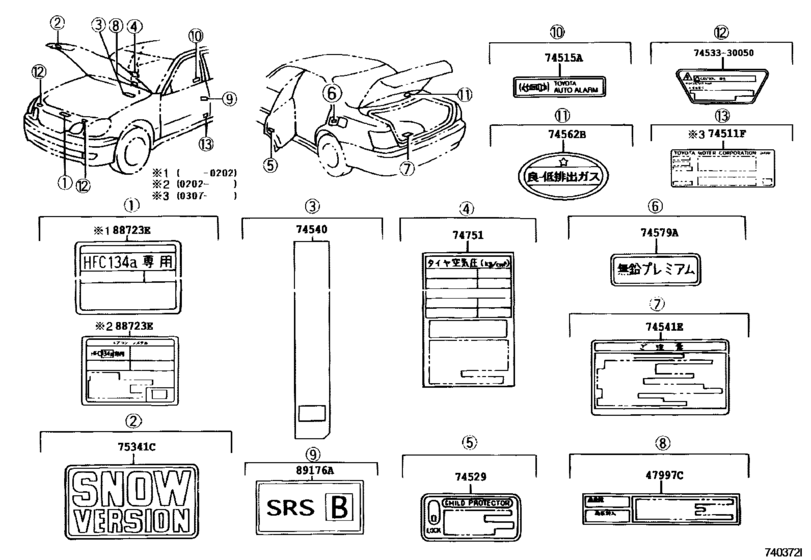

Caution Plate (Exterior & Interior) ([10.1991 - ] (9110- )) 3 / 17
JZS147 Caution Plate (Exterior & Interior) ([10.1991 - ] (9110- ))
JZS160 Caution Plate (Exterior & Interior) ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
74541 42668-40010 Plate, Compact Spare Tire Caution Plate, Compact Spare Tire Caution
74579 74579-24010 Plate, Fuel Caution Plate, Fuel Caution
75341 75341-20060 Plate, Hood Name (Snow Version) Plate, Hood Name (Snow Version)
Center Stop Lamp ([10.1991 - 08.1997] (9110-9708)) 1 / 10
JZS147 Center Stop Lamp ([10.1991 - 08.1997] (9110-9708))
JZS160 Inside Trim Board & Door Opening Trim Moulding ([07.2000 - ] (0007- ))
# OEM JZS147 JZS160
9356855012 93568-55012 SCREW SCREW
Center Support & Planetary Sun Gear (Atm) ([10.1991 - 10.1992] A340E,A341H (9110-9210) ; (9210- )Q,Z) 22 / 34
JZS147 Center Support & Planetary Sun Gear (Atm) ([10.1991 - 10.1992] A340E,A341H (9110-9210) ; (9210- )Q,Z)
JZS160 Center Support & Planetary Sun Gear (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160)
# OEM JZS147 JZS160
35608 35608-50010 Spring Sub-Assy, 2Nd Brake Piston Return Spring Sub-Assy, 2Nd Brake Piston Return
35624 35624-30010 Piston, 2Nd Brake Piston, 2Nd Brake
35624 90301-85001 Ring, O (For 2Nd Brake Piston) Ring, O (For 2Nd Brake Piston)
35624 90301-99038 Ring, O (For 2Nd Brake Piston) Ring, O (For 2Nd Brake Piston)
35626 35626-30030 Sleeve, 2Nd Brake Piston Sleeve, 2Nd Brake Piston
35627 35627-30010 Seat, 2Nd Brake Piston Return Spring Seat, 2Nd Brake Piston Return Spring
35627 90520-54001 Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat) Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat)
35648 35647-30020 Plate, Clutch (For 2Nd Brake) Plate, Clutch (For 2Nd Brake)
35648 35647-30030 Plate, Clutch (For 2Nd Brake) Plate, Clutch (For 2Nd Brake)
35676 35676-30020 Flange, Brake (For 2Nd Brake) Flange, Brake (For 2Nd Brake)
35676 90521-99032 Ring, Hole Snap (For Direct Clutch Flange) Ring, Hole Snap (For Direct Clutch Flange)
35706 35706-30061 Gear Sub-Assy, Planetary Sun Gear Sub-Assy, Planetary Sun
35709 35709-30061 Drum Sub-Assy, 2Nd Brake Drum Sub-Assy, 2Nd Brake
35709 90521-99044 Ring (For Brake Piston Outer) Ring (For Brake Piston Outer)
35729 35729-30010 Washer, 1 Way Clutch Thrust, No.2 Washer, 1 Way Clutch Thrust, No.2
35738 35738-30040 Washer, 1 Way Clutch Thrust, No.1 Washer, 1 Way Clutch Thrust, No.1
35749 35749-30010 Ring, Sun Gear Shaft Oil Seal Ring, Sun Gear Shaft Oil Seal
35755 35755-50010 Drum, Sun Gear Input Drum, Sun Gear Input
35755 90520-46002 Ring, Shaft Snap (For Sun Gear Input Drum) Ring, Shaft Snap (For Sun Gear Input Drum)
35755 90520-49001 Ring, Shaft Snap (For Sun Gear Input Drum) Ring, Shaft Snap (For Sun Gear Input Drum)
35789 35789-30150 Race, Thrust Bearing (For Planetary Sun Gear) Race, Thrust Bearing (For Planetary Sun Gear)
35790 35790-30050 Clutch Assy, 1 Way Clutch Assy, 1 Way
Center Support & Planetary Sun Gear (Atm) ([10.1992 - ] A340E (9210- )V) 18 / 26
JZS147 Center Support & Planetary Sun Gear (Atm) ([10.1992 - ] A340E (9210- )V)
JZS160 Center Support & Planetary Sun Gear (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160)
# OEM JZS147 JZS160
35608 35608-50010 Spring Sub-Assy, 2Nd Brake Piston Return Spring Sub-Assy, 2Nd Brake Piston Return
35624 35624-30010 Piston, 2Nd Brake Piston, 2Nd Brake
35624 90301-85001 Ring, O (For 2Nd Brake Piston) Ring, O (For 2Nd Brake Piston)
35624 90301-99038 Ring, O (For 2Nd Brake Piston) Ring, O (For 2Nd Brake Piston)
35626 35626-30030 Sleeve, 2Nd Brake Piston Sleeve, 2Nd Brake Piston
35627 35627-30010 Seat, 2Nd Brake Piston Return Spring Seat, 2Nd Brake Piston Return Spring
35627 90520-54001 Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat) Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat)
35676 35676-30020 Flange, Brake (For 2Nd Brake) Flange, Brake (For 2Nd Brake)
35676 90521-99032 Ring, Hole Snap (For Direct Clutch Flange) Ring, Hole Snap (For Direct Clutch Flange)
35706 35706-30061 Gear Sub-Assy, Planetary Sun Gear Sub-Assy, Planetary Sun
35709 35709-30061 Drum Sub-Assy, 2Nd Brake Drum Sub-Assy, 2Nd Brake
35709 90521-99044 Ring (For Brake Piston Outer) Ring (For Brake Piston Outer)
35729 35729-30010 Washer, 1 Way Clutch Thrust, No.2 Washer, 1 Way Clutch Thrust, No.2
35738 35738-30040 Washer, 1 Way Clutch Thrust, No.1 Washer, 1 Way Clutch Thrust, No.1
35749 35749-30010 Ring, Sun Gear Shaft Oil Seal Ring, Sun Gear Shaft Oil Seal
35755 35755-50010 Drum, Sun Gear Input Drum, Sun Gear Input
35755 90520-46002 Ring, Shaft Snap (For Sun Gear Input Drum) Ring, Shaft Snap (For Sun Gear Input Drum)
35755 90520-49001 Ring, Shaft Snap (For Sun Gear Input Drum) Ring, Shaft Snap (For Sun Gear Input Drum)
Center Support & Planetary Sun Gear (Atm) ([10.1992 - ] A340E,A341H (9110-9210) ; (9210- )Q,Z) 22 / 28
JZS147 Center Support & Planetary Sun Gear (Atm) ([10.1992 - ] A340E,A341H (9110-9210) ; (9210- )Q,Z)
JZS160 Center Support & Planetary Sun Gear (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160)
# OEM JZS147 JZS160
35608 35608-50010 Spring Sub-Assy, 2Nd Brake Piston Return Spring Sub-Assy, 2Nd Brake Piston Return
35624 35624-30010 Piston, 2Nd Brake Piston, 2Nd Brake
35624 90301-85001 Ring, O (For 2Nd Brake Piston) Ring, O (For 2Nd Brake Piston)
35624 90301-99038 Ring, O (For 2Nd Brake Piston) Ring, O (For 2Nd Brake Piston)
35626 35626-30030 Sleeve, 2Nd Brake Piston Sleeve, 2Nd Brake Piston
35627 35627-30010 Seat, 2Nd Brake Piston Return Spring Seat, 2Nd Brake Piston Return Spring
35627 90520-54001 Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat) Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat)
35648 35647-30020 Plate, Clutch (For 2Nd Brake) Plate, Clutch (For 2Nd Brake)
35648 35647-30030 Plate, Clutch (For 2Nd Brake) Plate, Clutch (For 2Nd Brake)
35676 35676-30020 Flange, Brake (For 2Nd Brake) Flange, Brake (For 2Nd Brake)
35676 90521-99032 Ring, Hole Snap (For Direct Clutch Flange) Ring, Hole Snap (For Direct Clutch Flange)
35706 35706-30061 Gear Sub-Assy, Planetary Sun Gear Sub-Assy, Planetary Sun
35709 35709-30061 Drum Sub-Assy, 2Nd Brake Drum Sub-Assy, 2Nd Brake
35709 90521-99044 Ring (For Brake Piston Outer) Ring (For Brake Piston Outer)
35729 35729-30010 Washer, 1 Way Clutch Thrust, No.2 Washer, 1 Way Clutch Thrust, No.2
35738 35738-30040 Washer, 1 Way Clutch Thrust, No.1 Washer, 1 Way Clutch Thrust, No.1
35749 35749-30010 Ring, Sun Gear Shaft Oil Seal Ring, Sun Gear Shaft Oil Seal
35755 35755-50010 Drum, Sun Gear Input Drum, Sun Gear Input
35755 90520-46002 Ring, Shaft Snap (For Sun Gear Input Drum) Ring, Shaft Snap (For Sun Gear Input Drum)
35755 90520-49001 Ring, Shaft Snap (For Sun Gear Input Drum) Ring, Shaft Snap (For Sun Gear Input Drum)
35789 35789-30150 Race, Thrust Bearing (For Planetary Sun Gear) Race, Thrust Bearing (For Planetary Sun Gear)
35790 35790-30050 Clutch Assy, 1 Way Clutch Assy, 1 Way

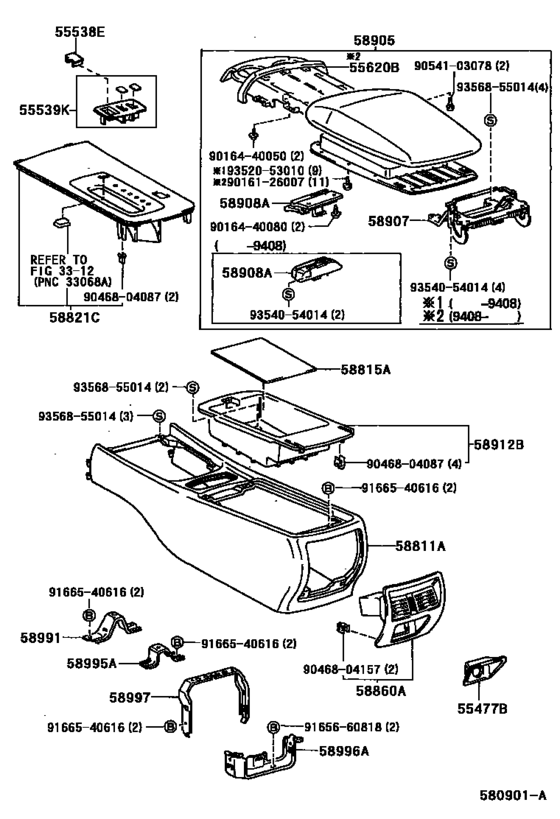

Console Box & Bracket ([10.1991 - ] (9110- )) 5 / 67
JZS147 Console Box & Bracket ([10.1991 - ] (9110- ))
JZS160 Console Box & Bracket ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9016126007 90161-26007 SCREW SCREW
9054103078 90541-03078 Cushion(For Cup Holder) Cushion(For Cup Holder)
9166540616 91665-40616 Screw(For Steering Column Tube) Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part New Genuine Part
9356855014 93568-55014 Screw Screw
Cowl Panel & Windshield Glass ([10.1991 - ] (9110- )) 5 / 54
JZS147 Cowl Panel & Windshield Glass ([10.1991 - ] (9110- ))
JZS160 Cowl Panel & Windshield Glass ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
56114 56114-50020 Retainer, Windshield Glass Retainer, Windshield Glass
9017906273 90179-06273 New Genuine Part New Genuine Part
9033330002 90333-30002 Cover, Front Floor Hole Cover, Front Floor Hole
9046706093 90467-06093 CLIP CLIP
9046710152 90467-10152 CLIP CLIP

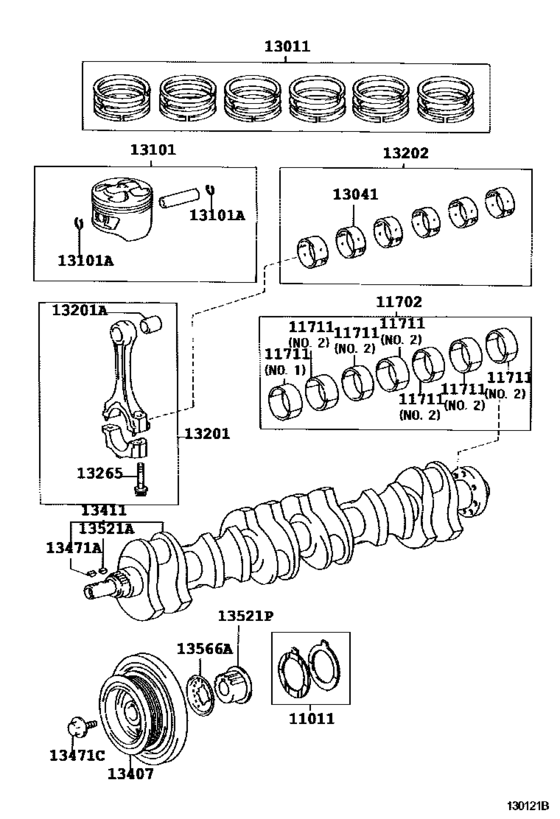

Crankshaft & Piston ([10.1991 - 08.1997] (9110-9708)2JZ#) 46 / 70
JZS147 Crankshaft & Piston ([10.1991 - 08.1997] (9110-9708)2JZ#)
JZS160 Crankshaft & Piston ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
11011 11011-46030 Washer Set, Crankshaft Thrust Washer Set, Crankshaft Thrust
11702 11704-46020 Bearing Set, Crankshaft Bearing Set, Crankshaft
11702 11704-46030 Bearing Set, Crankshaft Bearing Set, Crankshaft
11711 11071-46010-01 Bearing, Crankshaft - Refer to the repair manual Bearing, Crankshaft - Refer to the repair manual
11711 11071-46020-01 Bearing, Crankshaft Bearing, Crankshaft
11711 11071-46010-02 Bearing, Crankshaft Bearing, Crankshaft
11711 11071-46020-02 Bearing, Crankshaft Bearing, Crankshaft
11711 11071-46010-03 Bearing, Crankshaft Bearing, Crankshaft
11711 11071-46020-03 Bearing, Crankshaft Bearing, Crankshaft
11711 11071-46010-04 Bearing, Crankshaft Bearing, Crankshaft
11711 11071-46020-04 Bearing, Crankshaft Bearing, Crankshaft
11711 11071-46010-05 Bearing, Crankshaft Bearing, Crankshaft
11711 11071-46020-05 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46010-01 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46020-01 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46010-02 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46020-02 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46010-03 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46020-03 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46010-04 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46020-04 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46010-05 Bearing, Crankshaft Bearing, Crankshaft
11711 11701-46020-05 Bearing, Crankshaft Bearing, Crankshaft
13011 13011-46041 Ring Set, Piston Ring Set, Piston
13041 13041-46013-01 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46013-02 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46013-03 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46013-04 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46013-05 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46012-01 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46012-02 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46012-03 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46012-04 Bearing, Connecting Rod Bearing, Connecting Rod
13041 13041-46012-05 Bearing, Connecting Rod Bearing, Connecting Rod
13101 90521-25004 Ring, Hole Snap(For Piston Pin) Ring, Hole Snap(For Piston Pin)
13101 90520-22025 Ring, Hole Snap(For Piston Pin) Ring, Hole Snap(For Piston Pin)
13201 90999-73128 Bush(For Connecting Rod Small End) Bush(For Connecting Rod Small End)
13202 13204-46023 Connecting Rod Bearing Set (0.25) Connecting Rod Bearing Set (0.25)
13202 13204-46022 Bearing Set, Connecting Rod (0.25) Bearing Set, Connecting Rod (0.25)
13265 13265-46020 Bolt, Connecting Rod Bolt, Connecting Rod
13407 13407-46020 Damper Sub-Assy, Crankshaft Damper Sub-Assy, Crankshaft
13411 13401-46020 Crankshaft Crankshaft
13411 13401-46022 Crankshaft Crankshaft
13471 90280-05005 Key(For Oil Pump Drive Spline) Key(For Oil Pump Drive Spline)
13471 90119-18002 Bolt(For Crankshaft Pulley Set) Bolt(For Crankshaft Pulley Set)
13566 13566-46010 Guide, Timing Belt Guide, Timing Belt

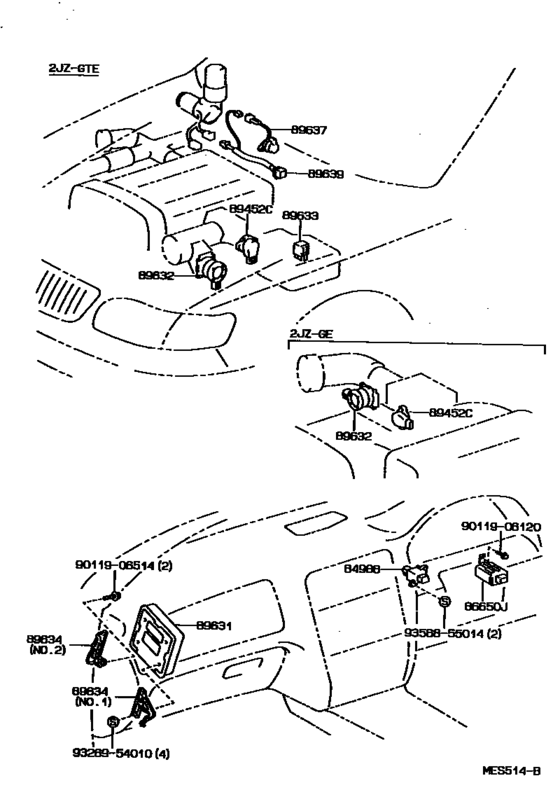

Cruise Control (Auto Drive) ([10.1991 - 08.1997] (9110-9708)V ; (9210-9708)UZS143) 1 / 16
JZS147 Cruise Control (Auto Drive) ([10.1991 - 08.1997] (9110-9708)V ; (9210-9708)UZS143)
JZS160 Accelerator Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9011906120 90119-06120 BOLT BOLT

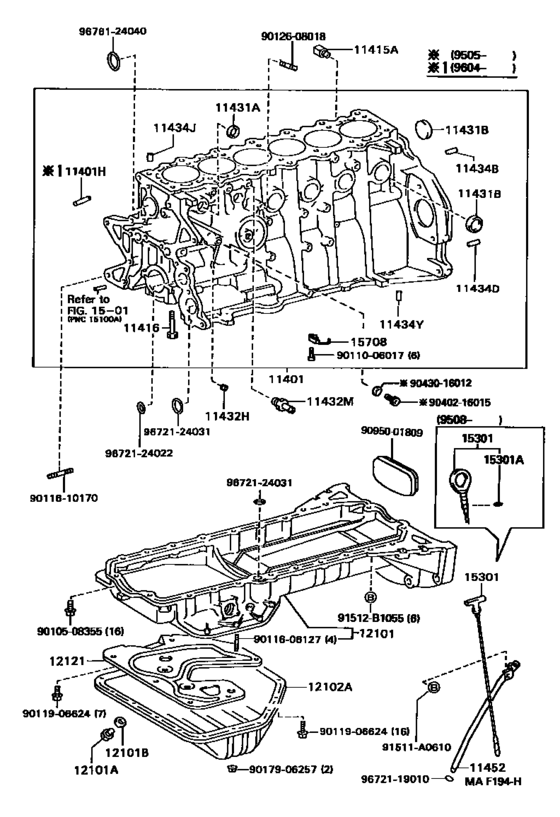

Cylinder Block ([10.1991 - 08.1997] (9110-9708)2JZGE) 32 / 50
JZS147 Cylinder Block ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Cylinder Block ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
11401 11401-49775 Block Sub-Assy, Cylinder Block Sub-Assy, Cylinder
11401 90430-16012 Gasket, W/head Taper Screw Plug Gasket, W/head Taper Screw Plug
11401 11401-49667 Block Sub-Assy, Cylinder Block Sub-Assy, Cylinder
11401 90406-08003 Union(For Cylinder Block Llc Drain) Union(For Cylinder Block Llc Drain)
11415 90910-09102 Plug, Water Drain Cock(For Cylinder Block) Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02104 Bolt(For Crankshaft Bearing Cap Set) Bolt(For Crankshaft Bearing Cap Set)
11431 96411-42500 Plug, Tight, No.1 Plug, Tight, No.1
11431 96411-43500 Plug, Tight, No.1 Plug, Tight, No.1
11432 90344-53015 Plug, W/head Taper Screw, No.1 Plug, W/head Taper Screw, No.1
11434 90250-10192 Pin, Straight(For Timing Gear Cover Set) Pin, Straight(For Timing Gear Cover Set)
11434 90250-06003 Pin, Straight Pin, Straight
11434 90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set) Pin, Ring(For Crankshaft Bearing Cap Set)
11452 11452-46010 Guide, Oil Level Gage Guide, Oil Level Gage
12101 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
12101 90341-12012 Plug(For Oil Pan Drain) Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug) Gasket (For Oil Pan Drain Plug)
12121 12121-46010 Plate, Oil Pan Baffle, No.1 Plate, Oil Pan Baffle, No.1
15301 15301-46023 Gage Sub-Assy, Oil Level Gage Sub-Assy, Oil Level
15301 96741-19005 O-Ring (For Oil Level Gage) O-Ring (For Oil Level Gage)
91511 91511-A0610 Bolt (For Propeller Shaft Heat Insulator) Bolt (For Propeller Shaft Heat Insulator)
91511 91531-A0610 Bolt (For Propeller Shaft Heat Insulator) Bolt (For Propeller Shaft Heat Insulator)
91512 91512-B1055 BOLT FLANGE BOLT FLANGE
9011606127 90116-06127 Bolt, Stud(For Oil Pan) Bolt, Stud(For Oil Pan)
9011610170 90116-10170 BOLT STUD BOLT STUD
9012608018 90126-08018 Bolt, Stud(For Egr Valve) Bolt, Stud(For Egr Valve)
9017906257 90179-06257 NUT NUT
9095001809 90950-01809 Plug, Semi Circular(For Chain Cover No.2) Plug, Semi Circular(For Chain Cover No.2)
9672119010 96721-19010 Ring, O(For Oil Level Gage Guide) Ring, O(For Oil Level Gage Guide)
9672124022 96721-24022 Ring, O(For Timing Gear Case, Upper) Ring, O(For Timing Gear Case, Upper)
9672124031 96721-24031 Ring, O Ring, O
9672124031 90301-A0032 Ring, O(For Oil Strainer) Ring, O(For Oil Strainer)
9676124040 96761-24040 Ring, O(For Water Pump) Ring, O(For Water Pump)
Cylinder Block ([10.1991 - 08.1997] (9110-9708)2JZGTE) 28 / 58
JZS147 Cylinder Block ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Cylinder Block ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
11401 90430-16012 Gasket, W/head Taper Screw Plug Gasket, W/head Taper Screw Plug
11401 90406-08003 Union(For Cylinder Block Llc Drain) Union(For Cylinder Block Llc Drain)
11415 90910-09102 Plug, Water Drain Cock(For Cylinder Block) Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02104 Bolt(For Crankshaft Bearing Cap Set) Bolt(For Crankshaft Bearing Cap Set)
11431 96411-42500 Plug, Tight, No.1 Plug, Tight, No.1
11431 96411-43500 Plug, Tight, No.1 Plug, Tight, No.1
11434 90250-10192 Pin, Straight(For Timing Gear Cover Set) Pin, Straight(For Timing Gear Cover Set)
11434 90250-06003 Pin, Straight Pin, Straight
11434 90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set) Pin, Ring(For Crankshaft Bearing Cap Set)
12101 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
12101 90341-12012 Plug(For Oil Pan Drain) Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug) Gasket (For Oil Pan Drain Plug)
12121 12121-46010 Plate, Oil Pan Baffle, No.1 Plate, Oil Pan Baffle, No.1
15301 15301-46023 Gage Sub-Assy, Oil Level Gage Sub-Assy, Oil Level
15301 96741-19005 O-Ring (For Oil Level Gage) O-Ring (For Oil Level Gage)
91511 91511-A0610 Bolt (For Propeller Shaft Heat Insulator) Bolt (For Propeller Shaft Heat Insulator)
91511 91531-A0610 Bolt (For Propeller Shaft Heat Insulator) Bolt (For Propeller Shaft Heat Insulator)
91512 91512-B1055 BOLT FLANGE BOLT FLANGE
9011606127 90116-06127 Bolt, Stud(For Oil Pan) Bolt, Stud(For Oil Pan)
9011610170 90116-10170 BOLT STUD BOLT STUD
9012608018 90126-08018 Bolt, Stud(For Egr Valve) Bolt, Stud(For Egr Valve)
9017906257 90179-06257 NUT NUT
9095001809 90950-01809 Plug, Semi Circular(For Chain Cover No.2) Plug, Semi Circular(For Chain Cover No.2)
9672119010 96721-19010 Ring, O(For Oil Level Gage Guide) Ring, O(For Oil Level Gage Guide)
9672124022 96721-24022 Ring, O(For Timing Gear Case, Upper) Ring, O(For Timing Gear Case, Upper)
9672124031 96721-24031 Ring, O Ring, O
9672124031 90301-A0032 Ring, O(For Oil Strainer) Ring, O(For Oil Strainer)
9676124040 96761-24040 Ring, O(For Water Pump) Ring, O(For Water Pump)

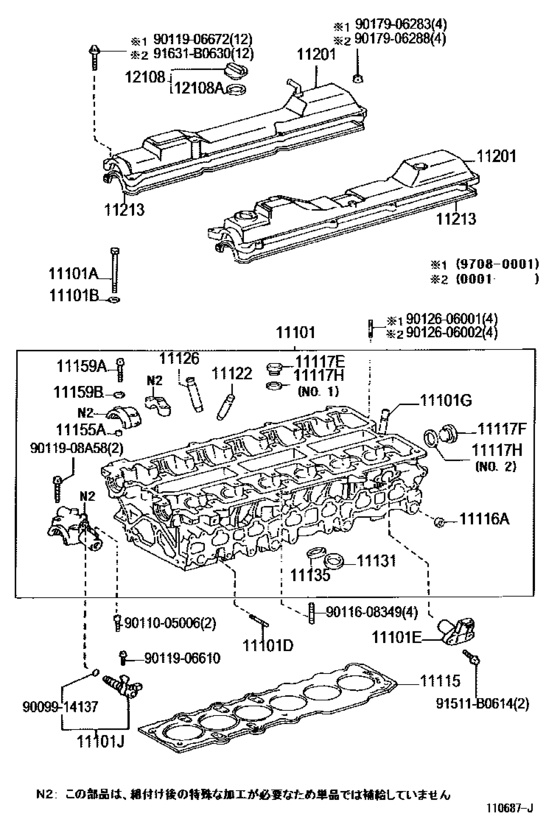

Cylinder Head ([10.1991 - 08.1997] (9110-9708)2JZGE) 36 / 75
JZS147 Cylinder Head ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Cylinder Head ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
11101 90910-02102 Bolt(For Cylinder Head Set) Bolt(For Cylinder Head Set)
11101 90201-11018 Washer, Plate(For Cylinder Head Set) Washer, Plate(For Cylinder Head Set)
11101 90201-11034 Washer, Plate(For Cylinder Head Set) Washer, Plate(For Cylinder Head Set)
11101 90116-08348 Bolt, Stud(For Water Outlet) Bolt, Stud(For Water Outlet)
11101 90406-17017 Union(For Cylinder Head) Union(For Cylinder Head)
11115 11115-46045 Gasket, Cylinder Head Gasket, Cylinder Head
11115 11115-46044 Gasket, Cylinder Head Gasket, Cylinder Head
11116 96411-42000 Plug, Tight, No.1 Plug, Tight, No.1
11117 90341-24010 Plug, W/head Taper Screw, No.1 Plug, W/head Taper Screw, No.1
11117 90341-36001 Plug, W/head Taper Screw, No.1 Plug, W/head Taper Screw, No.1
11117 90430-24010 Gasket(For Cylinder Head Screw Plug) Gasket(For Cylinder Head Screw Plug)
11117 90430-36003 Gasket(For Water Hole) Gasket(For Water Hole)
11122 11122-74030 Bush, Intake Valve Guide Bush, Intake Valve Guide
11122 11123-74030 Bush, Intake Valve Guide Bush, Intake Valve Guide
11126 11122-16010 Bush, Intake Valve Guide Bush, Intake Valve Guide
11126 11122-16020 Bush, Intake Valve Guide Bush, Intake Valve Guide
11126 11123-16010 Bush, Intake Valve Guide Bush, Intake Valve Guide
11131 11131-46020 Seat, Intake Valve Seat, Intake Valve
11131 11131-46060 Seat, Intake Valve Seat, Intake Valve
11131 11132-46020 Seat, Intake Valve Seat, Intake Valve
11131 11132-46060 Seat, Intake Valve Seat, Intake Valve
11135 11135-46020 Seat, Exhaust Valve Seat, Exhaust Valve
11135 11136-46020 Seat, Exhaust Valve Seat, Exhaust Valve
11155 90253-11021 Pin, Ring Pin, Ring
11159 90119-08890 Bolt(For Head To Camshaft Bearing Cap) Bolt(For Head To Camshaft Bearing Cap)
11159 90210-08033 Washer, Seal(For Head To Camshaft Bearing Cap) Washer, Seal(For Head To Camshaft Bearing Cap)
11201 12204-46031 Valve Sub-Assy, Ventilation Valve Sub-Assy, Ventilation
11201 90179-06288 NUT NUT
11213 11214-46011 Gasket, Cylinder Head Cover (Exhaust side) Gasket, Cylinder Head Cover (Exhaust side)
12108 12180-20030 Cap Sub-Assy, Oil Filler Cap Sub-Assy, Oil Filler
12108 12195-20020 Gasket(For Oil Filler Cap) Gasket(For Oil Filler Cap)
9011006009 90110-06009 Bolt Bolt
9011608349 90116-08349 New Genuine Part New Genuine Part
9011906672 90119-06672 New Genuine Part New Genuine Part
9012606001 90126-06001 STUD HEX LOBULAR STUD HEX LOBULAR
9017906283 90179-06283 New Genuine Part New Genuine Part
Cylinder Head ([10.1991 - 08.1997] (9110-9708)2JZGTE) 31 / 54
JZS147 Cylinder Head ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Cylinder Head ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
11101 90910-02102 Bolt(For Cylinder Head Set) Bolt(For Cylinder Head Set)
11101 90201-11018 Washer, Plate(For Cylinder Head Set) Washer, Plate(For Cylinder Head Set)
11101 90201-11034 Washer, Plate(For Cylinder Head Set) Washer, Plate(For Cylinder Head Set)
11101 90919-05007 Sensor, Cam Position Sensor, Cam Position
11101 90406-17017 Union(For Cylinder Head) Union(For Cylinder Head)
11117 90341-24010 Plug, W/head Taper Screw, No.1 Plug, W/head Taper Screw, No.1
11117 90341-36001 Plug, W/head Taper Screw, No.1 Plug, W/head Taper Screw, No.1
11117 90430-24010 Gasket(For Cylinder Head Screw Plug) Gasket(For Cylinder Head Screw Plug)
11117 90430-36003 Gasket(For Water Hole) Gasket(For Water Hole)
11122 11122-74030 Bush, Intake Valve Guide Bush, Intake Valve Guide
11122 11123-74030 Bush, Intake Valve Guide Bush, Intake Valve Guide
11126 11122-16010 Bush, Intake Valve Guide Bush, Intake Valve Guide
11126 11122-16020 Bush, Intake Valve Guide Bush, Intake Valve Guide
11126 11123-16010 Bush, Intake Valve Guide Bush, Intake Valve Guide
11131 11131-46020 Seat, Intake Valve Seat, Intake Valve
11131 11131-46060 Seat, Intake Valve Seat, Intake Valve
11131 11132-46020 Seat, Intake Valve Seat, Intake Valve
11131 11132-46060 Seat, Intake Valve Seat, Intake Valve
11135 11135-46020 Seat, Exhaust Valve Seat, Exhaust Valve
11135 11135-46050 Seat, Exhaust Valve Seat, Exhaust Valve
11135 11136-46020 Seat, Exhaust Valve Seat, Exhaust Valve
11135 11136-46050 Seat, Exhaust Valve Seat, Exhaust Valve
11155 90253-11021 Pin, Ring Pin, Ring
11159 90119-08890 Bolt(For Head To Camshaft Bearing Cap) Bolt(For Head To Camshaft Bearing Cap)
11159 90210-08033 Washer, Seal(For Head To Camshaft Bearing Cap) Washer, Seal(For Head To Camshaft Bearing Cap)
11213 11214-46011 Gasket, Cylinder Head Cover (Exhaust side) Gasket, Cylinder Head Cover (Exhaust side)
12108 12180-20030 Cap Sub-Assy, Oil Filler Cap Sub-Assy, Oil Filler
12108 12195-20020 Gasket(For Oil Filler Cap) Gasket(For Oil Filler Cap)
9011608349 90116-08349 New Genuine Part New Genuine Part
9012606001 90126-06001 STUD HEX LOBULAR STUD HEX LOBULAR
9017906288 90179-06288 NUT NUT

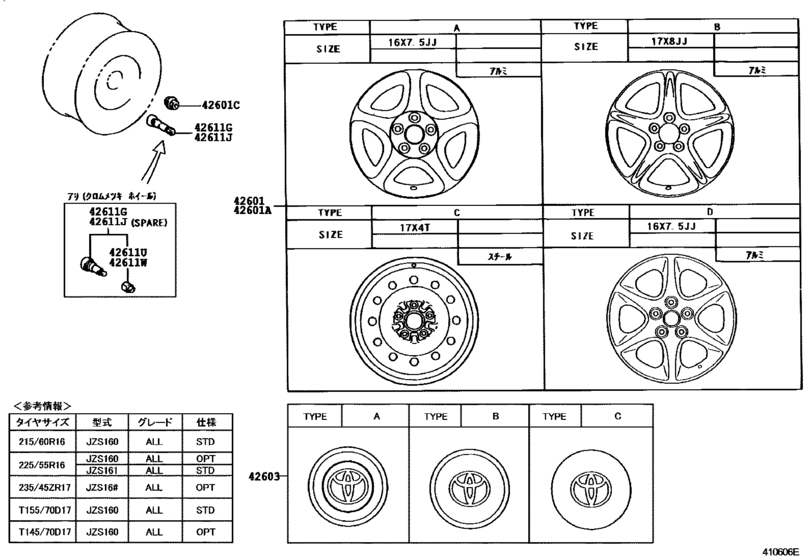

Disc Wheel & Wheel Cap ([10.1991 - ] (9110- )) 24 / 69
JZS147 Disc Wheel & Wheel Cap ([10.1991 - ] (9110- ))
JZS160 Disc Wheel & Wheel Cap ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
42601 42611-50090 Wheel, Disc (For Spare) Wheel, Disc (For Spare)
42601 42611-50091 Wheel, Disc (For Spare) Wheel, Disc (For Spare)
42611 90942-05009 Valve (For Tubeless Tire) Valve (For Tubeless Tire)
42611 90080-94031 Valve (For Tubeless Tire) Valve (For Tubeless Tire)
42611 90942-05028 Valve (For Tubeless Tire) Valve (For Tubeless Tire)
9094203146 90942-03146 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203147 90942-03147 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203148 90942-03148 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203149 90942-03149 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203150 90942-03150 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203151 90942-03151 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203152 90942-03152 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203153 90942-03153 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203154 90942-03154 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203155 90942-03155 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203156 90942-03156 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203167 90942-03167 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203208 90942-03208 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203209 90942-03209 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203210 90942-03210 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203211 90942-03211 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203212 90942-03212 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203213 90942-03213 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
9094203214 90942-03214 Weight, Balance (For Disc Wheel) Weight, Balance (For Disc Wheel)
Electronic Fuel Injection System ([10.1991 - 08.1997] (9110-9708)JZS147) 6 / 33
JZS147 Electronic Fuel Injection System ([10.1991 - 08.1997] (9110-9708)JZS147)
JZS160 Accelerator Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
91651 91651-A0614 BOLT WWASHER BOLT WWASHER
91651 91653-A0614 BOLT WWASHER BOLT WWASHER
9017906194 90179-06178 Nut (For Rear Wiper Arm Setting) Nut (For Rear Wiper Arm Setting)
9017906216 90179-06274 Nut Nut
9043012005 90430-12005 Gasket(For Water Hole) Gasket(For Water Hole)
9331915010 93319-15010 SCREW SCREW

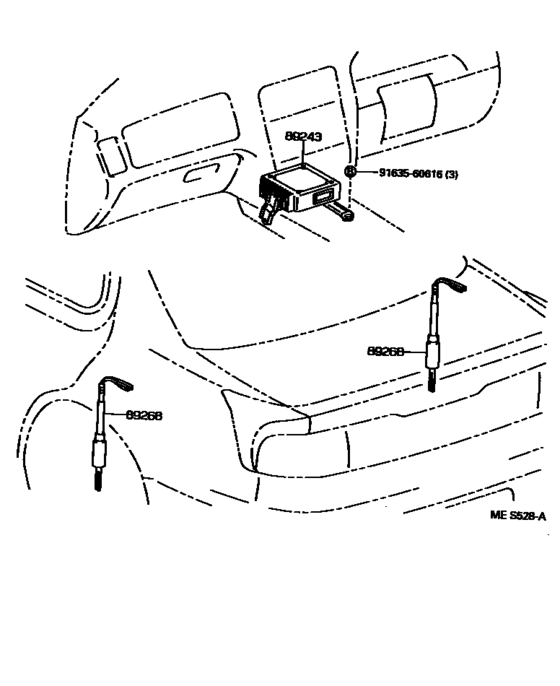

Electronic Modulated Suspension ([10.1991 - 08.1997] (9110-9708)JZS147) 2 / 4
JZS147 Electronic Modulated Suspension ([10.1991 - 08.1997] (9110-9708)JZS147)
JZS160 Wireless Door Lock ([07.2000 - ] (0007- ))
# OEM JZS147 JZS160
9163560616 91635-60616 BOLT WWASHER BOLT WWASHER
9163560616 91631-J0612 BRACKET BRACKET
Engine Oil Cooler ([10.1991 - 08.1997] (9110-9708)2JZGTE) 1 / 7
JZS147 Engine Oil Cooler ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Engine Oil Cooler ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9020122010 90201-22010 Washer, Plate(For Valve Spring Seat) Washer, Plate(For Valve Spring Seat)
Engine Oil Pump ([10.1991 - 08.1997] (9110-9708)2JZGE) 8 / 25
JZS147 Engine Oil Pump ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Engine Oil Pump ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
15100 90253-11021 Pin, Ring Pin, Ring
15101 90311-46001 Seal(For Crankshaft) Seal(For Crankshaft)
15133 15133-17010 Plug, Oil Pump Relief Valve Plug, Oil Pump Relief Valve
15134 15134-67020 Gasket, Oil Pump Relief Valve Gasket, Oil Pump Relief Valve
15147 15147-46010 Gasket, Oil Strainer Gasket, Oil Strainer
91511 91511-B0850 Bolt Bolt
9010508153 90105-08153 New Genuine Part New Genuine Part
9017906257 90179-06257 NUT NUT
Engine Oil Pump ([10.1991 - 08.1997] (9110-9708)2JZGTE) 8 / 31
JZS147 Engine Oil Pump ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Engine Oil Pump ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
11324 91631-B0616 BOLT WWASHER BOLT WWASHER
11324 11324-46030 Plate, Timing Belt Plate, Timing Belt
15100 90253-11021 Pin, Ring Pin, Ring
15101 90311-46001 Seal(For Crankshaft) Seal(For Crankshaft)
15147 15147-46010 Gasket, Oil Strainer Gasket, Oil Strainer
91511 91511-B0850 Bolt Bolt
9010508153 90105-08153 New Genuine Part New Genuine Part
9017906257 90179-06257 NUT NUT
Exhaust Pipe ([10.1991 - ] (9110- )2JZGE) 7 / 37
JZS147 Exhaust Pipe ([10.1991 - ] (9110- )2JZGE)
JZS160 Exhaust Pipe ([08.1997 - 07.2000] (9708-0007)2JZGE)
# OEM JZS147 JZS160
17408 17408-74040 Baffle Sub Assy, Exhaust Tail Pipe Baffle Sub Assy, Exhaust Tail Pipe
17430 90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear) Bolt Or Ring, Exhaust Pipe Front (For Rear)
17508 17508-50010 Support Sub-Assy, Exhaust Pipe, No.3 Support Sub-Assy, Exhaust Pipe, No.3
17508 17508-46060 Support Sub-Assy, Exhaust Pipe, No.3 Support Sub-Assy, Exhaust Pipe, No.3
17565 17565-46040 Support, Exhaust Pipe, No.1 Support, Exhaust Pipe, No.1
9010510023 90105-10023 Bolt Bolt
9010510023 91512-81035 BOLT BOLT
Exhaust Pipe ([10.1991 - ] (9110- )2JZGTE) 7 / 37
JZS147 Exhaust Pipe ([10.1991 - ] (9110- )2JZGTE)
JZS160 Exhaust Pipe ([08.1997 - 07.2000] (9708-0007)2JZGE)
# OEM JZS147 JZS160
17408 17408-74040 Baffle Sub Assy, Exhaust Tail Pipe Baffle Sub Assy, Exhaust Tail Pipe
17430 90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear) Bolt Or Ring, Exhaust Pipe Front (For Rear)
17508 17508-50010 Support Sub-Assy, Exhaust Pipe, No.3 Support Sub-Assy, Exhaust Pipe, No.3
17508 17508-46060 Support Sub-Assy, Exhaust Pipe, No.3 Support Sub-Assy, Exhaust Pipe, No.3
17565 17565-46040 Support, Exhaust Pipe, No.1 Support, Exhaust Pipe, No.1
9010510023 90105-10023 Bolt Bolt
9010510023 91512-81035 BOLT BOLT
Extension Housing (Atm) ([10.1991 - ] A340E (9110- )) 5 / 7
JZS147 Extension Housing (Atm) ([10.1991 - ] A340E (9110- ))
JZS160 Extension Housing (Atm) ([08.1997 - ] A340E,A650E (9708- ))
# OEM JZS147 JZS160
35108 90363-30063 Bearing (For Automatic Transmission Extension Housing) Bearing (For Automatic Transmission Extension Housing)
35108 90521-66006 Ring, Hole Snap (For Atm Extension Housing) Ring, Hole Snap (For Atm Extension Housing)
35108 90311-42024 Seal, Oil (For Automatic Transmission Extension Housing) Seal, Oil (For Automatic Transmission Extension Housing)
9011910232 90119-10232 Bolt (For Transmission Housing & Case Setting) Bolt (For Transmission Housing & Case Setting)
9011910233 90119-10233 New Genuine Part New Genuine Part
Floor Insulator ([10.1991 - ] (9110- )) 5 / 18
JZS147 Floor Insulator ([10.1991 - ] (9110- ))
JZS160 Floor Insulator ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9011906354 90119-06354 BOLT WWASHER BOLT WWASHER
9011906354 90119-06361 BOLT WWASHER BOLT WWASHER
9017906219 90179-06219 Nut Nut
9017906219 90182-A0005 Nut Nut
9054109151 90541-09151 Cushion(For Luggage Compartment Door Panel) Cushion(For Luggage Compartment Door Panel)
Floor Pan & Lower Back Panel ([10.1991 - ] (9110- )) 14 / 77
JZS147 Floor Pan & Lower Back Panel ([10.1991 - ] (9110- ))
JZS160 Floor Pan & Lower Back Panel ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
58313 90119-12247 Bolt Bolt
64777 64777-24040 Cushion, Spare Wheel Cushion, Spare Wheel
9011506167 90115-06167 Bolt, Weld(For Front Floor Panel, Center) Bolt, Weld(For Front Floor Panel, Center)
9011506243 90115-06243 Bolt, Weld(For Front Floor Panel, Center) Bolt, Weld(For Front Floor Panel, Center)
9011506273 90115-06273 New Genuine Part New Genuine Part
9011906354 90119-06354 BOLT WWASHER BOLT WWASHER
9011906354 90119-06361 BOLT WWASHER BOLT WWASHER
9033320001 90333-20001 PLUG PLUG
9033330002 90333-30002 Cover, Front Floor Hole Cover, Front Floor Hole
9095001527 90950-01527 PLUG PLUG
9095001668 90950-01668 New Genuine Part New Genuine Part
9095001731 90950-01731 Plug, Hole(For Luggage Compartment Door Panel) Plug, Hole(For Luggage Compartment Door Panel)
9095001763 90950-01763 New Genuine Part New Genuine Part
9095001808 90950-01808 PLUG HOLE PLUG HOLE
Floor Side Member ([10.1991 - ] (9110- )JZS147) 11 / 74
JZS147 Floor Side Member ([10.1991 - ] (9110- )JZS147)
JZS160 Floor Side Member ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
51681 51681-30070 Bracket, Flexible Hose Bracket, Flexible Hose
51681 51682-30050 Bracket, Flexible Hose Bracket, Flexible Hose
9011906354 90119-06354 BOLT WWASHER BOLT WWASHER
9011906354 90119-06361 BOLT WWASHER BOLT WWASHER
9011910551 91655-B1040 BOLT WWASHER BOLT WWASHER
9011912247 90119-12247 Bolt Bolt
9033320001 90333-20001 PLUG PLUG
9033330002 90333-30002 Cover, Front Floor Hole Cover, Front Floor Hole
9095001676 90950-01676 PLUGHOLE PLUGHOLE
9095001759 90950-01759 PLUG PLUG
9095001841 90950-01841 Direct Direct
Fog Lamp ([10.1991 - 08.1997] (9110-9708)) 1 / 9
JZS147 Fog Lamp ([10.1991 - 08.1997] (9110-9708))
JZS160 Front Bumper & Bumper Stay ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9017905061 90179-05061 NUT NUT
Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )JZS147) 12 / 46
JZS147 Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )JZS147)
JZS160 Front Axle Arm & Steering Knuckle ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
43211 43211-30210 Knuckle, Steering, Rh Knuckle, Steering, Rh
43212 43212-30210 Knuckle, Steering, Lh Knuckle, Steering, Lh
43330 90171-14002 Nut (For Rear Steering Knuckle Arm) Nut (For Rear Steering Knuckle Arm)
43355 43355-30030 Deflector, Lower Arm Ice, Rh Deflector, Lower Arm Ice, Rh
48068 90179-14019 Nut Nut
48068 90105-12141 Bolt (For Front Lower Ball Joint) Bolt (For Front Lower Ball Joint)
48610 48610-39015 Arm Assy, Front Suspension Upper, Rh Arm Assy, Front Suspension Upper, Rh
48610 90173-10010 Nut(For Suspension Upper Arm) Nut(For Suspension Upper Arm)
48610 90171-12002 Nut, Castle(For Tie Rod End) Nut, Castle(For Tie Rod End)
48630 48630-39015 Arm Assy, Front Suspension, Upper Lh Arm Assy, Front Suspension, Upper Lh
9025203008 90252-03008 PIN COTTER PIN COTTER
9046816017 90468-16017 CLIP CLIP
Front Axle Arm & Steering Knuckle ([10.1991 - 08.1995] (9110-9508)JZS147) 13 / 47
JZS147 Front Axle Arm & Steering Knuckle ([10.1991 - 08.1995] (9110-9508)JZS147)
JZS160 Front Axle Arm & Steering Knuckle ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
43211 43211-30210 Knuckle, Steering, Rh Knuckle, Steering, Rh
43212 43212-30210 Knuckle, Steering, Lh Knuckle, Steering, Lh
43330 90171-14002 Nut (For Rear Steering Knuckle Arm) Nut (For Rear Steering Knuckle Arm)
43355 43355-30030 Deflector, Lower Arm Ice, Rh Deflector, Lower Arm Ice, Rh
48068 90179-14019 Nut Nut
48068 90105-12141 Bolt (For Front Lower Ball Joint) Bolt (For Front Lower Ball Joint)
48610 48610-39015 Arm Assy, Front Suspension Upper, Rh Arm Assy, Front Suspension Upper, Rh
48610 90173-10010 Nut(For Suspension Upper Arm) Nut(For Suspension Upper Arm)
48610 90171-12002 Nut, Castle(For Tie Rod End) Nut, Castle(For Tie Rod End)
48630 48630-39015 Arm Assy, Front Suspension, Upper Lh Arm Assy, Front Suspension, Upper Lh
9020114020 90201-14020 WASHER WASHER
9025203008 90252-03008 PIN COTTER PIN COTTER
9046816017 90468-16017 CLIP CLIP
Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- )) 2 / 5
JZS147 Front Axle Arm & Steering Knuckle ([10.1991 - ] (9110- ))
JZS160 Front Axle Arm & Steering Knuckle ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
4199130030 41991-30030 Caution Plate, Rear Differential Caution Plate, Rear Differential
4199130040 41991-30040 Caution Plate, Rear Differential Caution Plate, Rear Differential
Front Axle Hub ([10.1991 - ] (9110- )JZS147) 11 / 17
JZS147 Front Axle Hub ([10.1991 - ] (9110- )JZS147)
JZS160 Front Axle Hub ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
43501 43502-30140 Hub Sub-Assy, Front Axle Hub Sub-Assy, Front Axle
43501 90942-02070 Bolt, Hub Bolt, Hub
43501 90942-02049 Bolt, Hub Bolt, Hub
43501 90942-02082 Bolt, Hub Bolt, Hub
43501 90903-63006 Bearing (For Front Axle Hub) Bearing (For Front Axle Hub)
43501 90311-50008 Seal, Oil (For Front Axle Hub) Seal, Oil (For Front Axle Hub)
43501 90521-82001 Ring, Hole Snap (For Front Axle Hub) Ring, Hole Snap (For Front Axle Hub)
43501 90179-24005 Nut (For Front Axle Shaft) Nut (For Front Axle Shaft)
43512 43512-50100 Disc, Front Disc, Front
43514 43514-50010 Cap, Front Hub Grease Cap, Front Hub Grease
43515 43515-24010 Rotor, Skid Control, Front Rotor, Skid Control, Front
Front Bumper & Bumper Stay ([10.1991 - ] (9110- )) 5 / 47
JZS147 Front Bumper & Bumper Stay ([10.1991 - ] (9110- ))
JZS160 Front Bumper & Bumper Stay ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9015960215 90159-60215 SCREW SCREW
9015960431 90159-60431 SCREW SCREW
9017905061 90179-05061 NUT NUT
9017906127 90179-06127 Bracket, Front Licence Plate Mounting Bracket, Front Licence Plate Mounting
9017906132 90179-06274 Nut Nut
Front Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )) 2 / 16
JZS147 Front Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- ))
JZS160 Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
4465 04465-30230 Pad Kit, Disc Brake, Front Pad Kit, Disc Brake, Front
4465 04465-22312 Pad Kit, Disc Brake, Front Pad Kit, Disc Brake, Front
Front Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )Q) 15 / 53
JZS147 Front Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )Q)
JZS160 Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
4479 04479-30190 Cylinder Kit, Disc Brake, Front Cylinder Kit, Disc Brake, Front
4479 04478-30240 Cylinder Kit, Disc Brake, Front Cylinder Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap Bleeder Plug Cap
47547 47547-27030 Plug, Bleeder(For Front Disc Brake) Plug, Bleeder(For Front Disc Brake)
47710 90105-12228 Bolt (For Transfer & Transaxle Setting) Bolt (For Transfer & Transaxle Setting)
47715 47715-30060 Pin, Front Disc Brake Cylinder Slide Pin, Front Disc Brake Cylinder Slide
47715 90105-08164 Bolt(For Front Disc Brake Cylinder Slide) Bolt(For Front Disc Brake Cylinder Slide)
47715 47715-22070 Pin, Front Disc Brake Cylinder Slide Pin, Front Disc Brake Cylinder Slide
47731 47731-30140 Piston, Front Disc Brake Piston, Front Disc Brake
47731 90520-52006 Ring, Set(For Disc Brake Piston) Ring, Set(For Disc Brake Piston)
47743 47743-30020 Spring, Anti-Squeal(For Front Disc Brake) Spring, Anti-Squeal(For Front Disc Brake)
47769 47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake) Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-30070 Boot, Bush Dust(For Front Disc Brake) Boot, Bush Dust(For Front Disc Brake)
47775 47775-50010 Boot, Bush Dust(For Front Disc Brake) Boot, Bush Dust(For Front Disc Brake)
47781 90148-60028 Bolt(For Dust Cover To Steering Knuckle Arm Setting) Bolt(For Dust Cover To Steering Knuckle Arm Setting)
Front Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )V ; (9210- )UZS143) 23 / 69
JZS147 Front Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )V ; (9210- )UZS143)
JZS160 Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
4479 04479-30190 Cylinder Kit, Disc Brake, Front Cylinder Kit, Disc Brake, Front
4479 04478-30240 Cylinder Kit, Disc Brake, Front Cylinder Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap Bleeder Plug Cap
47547 47547-27030 Plug, Bleeder(For Front Disc Brake) Plug, Bleeder(For Front Disc Brake)
47703 47781-30210 Cover, Disc Brake Dust, Front Rh Cover, Disc Brake Dust, Front Rh
47703 90148-60028 Bolt(For Dust Cover To Steering Knuckle Arm Setting) Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47703 47781-30191 Cover Sub-Assy, Disc Brake Dust, Front Rh Cover Sub-Assy, Disc Brake Dust, Front Rh
47704 47782-30210 Cover, Disc Brake Dust, Front Lh Cover, Disc Brake Dust, Front Lh
47704 47782-30191 Cover Sub-Assy, Disc Brake Dust, Front Lh Cover Sub-Assy, Disc Brake Dust, Front Lh
47710 90105-12228 Bolt (For Transfer & Transaxle Setting) Bolt (For Transfer & Transaxle Setting)
47715 47715-30060 Pin, Front Disc Brake Cylinder Slide Pin, Front Disc Brake Cylinder Slide
47715 90105-08164 Bolt(For Front Disc Brake Cylinder Slide) Bolt(For Front Disc Brake Cylinder Slide)
47715 47715-22070 Pin, Front Disc Brake Cylinder Slide Pin, Front Disc Brake Cylinder Slide
47718 47717-50051 Plate, Pad Support, No.3(For Front Disc Brake) Plate, Pad Support, No.3(For Front Disc Brake)
47719 47717-50061 Plate, Pad Support, No.4(For Front Disc Brake) Plate, Pad Support, No.4(For Front Disc Brake)
47721 47721-30180 Mounting, Front Disc Brake Cylinder, Rh Mounting, Front Disc Brake Cylinder, Rh
47722 47722-30100 Mounting, Front Disc Brake Cylinder, Lh Mounting, Front Disc Brake Cylinder, Lh
47731 47731-30140 Piston, Front Disc Brake Piston, Front Disc Brake
47731 90520-52006 Ring, Set(For Disc Brake Piston) Ring, Set(For Disc Brake Piston)
47743 47743-30020 Spring, Anti-Squeal(For Front Disc Brake) Spring, Anti-Squeal(For Front Disc Brake)
47769 47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake) Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-30070 Boot, Bush Dust(For Front Disc Brake) Boot, Bush Dust(For Front Disc Brake)
47775 47775-50010 Boot, Bush Dust(For Front Disc Brake) Boot, Bush Dust(For Front Disc Brake)
Front Door Lock & Handle ([10.1991 - ] (9110- )) 4 / 70
JZS147 Front Door Lock & Handle ([10.1991 - ] (9110- ))
JZS160 Rear Door Lock & Handle ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
69205 90541-04018 Cushion(For Front Door Inside Handle) Cushion(For Front Door Inside Handle)
9015960303 90159-60303 SCREW SCREW
9165140612 91651-40612 BOLT BOLT
9165140612 90080-11225 New Genuine Part New Genuine Part
Front Door Panel & Glass ([10.1991 - ] (9110- )) 15 / 128
JZS147 Front Door Panel & Glass ([10.1991 - ] (9110- ))
JZS160 Front Door Panel & Glass ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
67837 67837-50030 Seal, Front Door Dust Proof Seal, Front Door Dust Proof
67923 67923-30010 Cushion, Front Door Stiffener, No.1 Cushion, Front Door Stiffener, No.1
67923 67923-24030 Cushion, Front Door Stiffener, No.1 Cushion, Front Door Stiffener, No.1
9014880006 90148-80006 New Genuine Part New Genuine Part
9015940223 90159-40223 SCREW WWASHER SCREW WWASHER
9016750022 90167-50022 SCREW SCREW
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover) Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
9017906070 90080-17210 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
9018904200 90189-04200 GROMMET SCREW GROMMET SCREW
9033335002 90333-35002 Plug, Hole(For Rear Door Panel) Plug, Hole(For Rear Door Panel)
9054110027 90541-10027 Cushion(For Center Piller) Cushion(For Center Piller)
9165140612 91651-40612 BOLT BOLT
9165140612 90080-11225 New Genuine Part New Genuine Part
9356054025 93560-54025 SCREW SCREW
Front Door Window Regulator & Hinge ([10.1991 - ] (9110- )) 6 / 15
JZS147 Front Door Window Regulator & Hinge ([10.1991 - ] (9110- ))
JZS160 Front Door Window Regulator & Hinge ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9010508299 90105-08299 New Genuine Part New Genuine Part
9010510342 91512-81025 Bolt(For Torque Arm Setting) Bolt(For Torque Arm Setting)
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover) Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
9165140612 91651-40612 BOLT BOLT
9165140612 90080-11225 New Genuine Part New Genuine Part
Front Fender Apron & Dash Panel ([10.1991 - ] (9110- )) 8 / 58
JZS147 Front Fender Apron & Dash Panel ([10.1991 - ] (9110- ))
JZS160 Floor Side Member ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
53561 53561-30010 Guide, Hood Auxiliary Catch Hook Guide, Hood Auxiliary Catch Hook
53711 90333-20001 PLUG PLUG
9010506137 90105-06137 BOLT, WASHER BASED H BOLT, WASHER BASED H
9095001398 90950-01398 CUSHION CUSHION
9095001759 90950-01759 PLUG PLUG
9095001808 90950-01808 PLUG HOLE PLUG HOLE
9095001841 90950-01841 Direct Direct
9095006064 90950-06064 TAPESEAL TAPESEAL
Front Seat & Seat Track ([10.1991 - ] (9110- )) 3 / 275
JZS147 Front Seat & Seat Track ([10.1991 - ] (9110- ))
JZS160 Instrument Panel & Glove Compartment ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9046818071 90468-16019 Clip (For Rear Seat Back) Clip (For Rear Seat Back)
9162160816 91621-B0816 BOLT WWASHER BOLT WWASHER
9356014010 93560-14010 SCREW SCREW
Front Spring & Shock Absorber ([10.1991 - ] (9110- )Q) 16 / 49
JZS147 Front Spring & Shock Absorber ([10.1991 - ] (9110- )Q)
JZS160 Front Spring & Shock Absorber ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
48157 48157-30040 Insulator, Front Coil Spring, Upper Insulator, Front Coil Spring, Upper
48331 48331-30120 Bumper, Front Spring, Rh Bumper, Front Spring, Rh
48514 48514-30030 Bracket, Front Shock Absorber, Lower Rh Bracket, Front Shock Absorber, Lower Rh
48515 48515-30030 Bracket, Front Shock Absorber, Lower Lh Bracket, Front Shock Absorber, Lower Lh
48603 94187-11200 Nut Nut
48603 90177-12002 Nut Nut
48681 48681-30020 Gasket, Front Suspension Support Gasket, Front Suspension Support
48810 48810-30010 Link Assy, Front Stabilizer, Lh Link Assy, Front Stabilizer, Lh
48820 48820-30030 Link Assy, Front Stabilizer, Rh Link Assy, Front Stabilizer, Rh
9010508274 90105-08274 BOLT, WASHER BASED BOLT, WASHER BASED
9010514087 90105-14087 Bolt(For Front Shock Absorber Bracket Lower) Bolt(For Front Shock Absorber Bracket Lower)
9017908206 90179-08206 Nut(For Front Suspension Support) Nut(For Front Suspension Support)
9017910174 90179-10174 Nut(For Front Pneumatic Cylinder) Nut(For Front Pneumatic Cylinder)
9017912051 90179-12051 Nut(For Front Stabilizer Link) Nut(For Front Stabilizer Link)
9017914045 90179-14045 Nut(For Front Shock Absorber Bracket Lower) Nut(For Front Shock Absorber Bracket Lower)
9162961216 91629-61216 New Genuine Part New Genuine Part
Front Spring & Shock Absorber ([10.1991 - ] (9110- )V) 13 / 39
JZS147 Front Spring & Shock Absorber ([10.1991 - ] (9110- )V)
JZS160 Front Spring & Shock Absorber ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
48157 48157-30040 Insulator, Front Coil Spring, Upper Insulator, Front Coil Spring, Upper
48331 48331-30120 Bumper, Front Spring, Rh Bumper, Front Spring, Rh
48514 48514-30030 Bracket, Front Shock Absorber, Lower Rh Bracket, Front Shock Absorber, Lower Rh
48515 48515-30030 Bracket, Front Shock Absorber, Lower Lh Bracket, Front Shock Absorber, Lower Lh
48810 48810-30010 Link Assy, Front Stabilizer, Lh Link Assy, Front Stabilizer, Lh
48820 48820-30030 Link Assy, Front Stabilizer, Rh Link Assy, Front Stabilizer, Rh
9010508274 90105-08274 BOLT, WASHER BASED BOLT, WASHER BASED
9010514087 90105-14087 Bolt(For Front Shock Absorber Bracket Lower) Bolt(For Front Shock Absorber Bracket Lower)
9017908206 90179-08206 Nut(For Front Suspension Support) Nut(For Front Suspension Support)
9017910173 90179-10173 NUT NUT
9017912051 90179-12051 Nut(For Front Stabilizer Link) Nut(For Front Stabilizer Link)
9017914045 90179-14045 Nut(For Front Shock Absorber Bracket Lower) Nut(For Front Shock Absorber Bracket Lower)
9162961216 91629-61216 New Genuine Part New Genuine Part
Front Steering Gear & Link ([10.1991 - ] (9110- )JZS147) 19 / 93
JZS147 Front Steering Gear & Link ([10.1991 - ] (9110- )JZS147)
JZS160 Front Steering Gear & Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
44201 90562-33007 Ring(For Power Steering Control Valve) Ring(For Power Steering Control Valve)
44210 90311-19013 Seal, Oil(For Power Steering Control Valve) Seal, Oil(For Power Steering Control Valve)
44210 90363-19003 Bearing(For Rear Steering Control Valve Housing) Bearing(For Rear Steering Control Valve Housing)
45046 90171-12002 Nut, Castle(For Tie Rod End) Nut, Castle(For Tie Rod End)
45222 45222-22040 Cover, Steering Gear Dust Cover, Steering Gear Dust
45222 45222-51010 Cover, Dust(For Power Steering Gear) Cover, Dust(For Power Steering Gear)
45503 90214-14007 Washer, Claw(For Power Steering Rack End) Washer, Claw(For Power Steering Rack End)
45523 90502-32001 Spring(For Steering Gear Rack Guide) Spring(For Steering Gear Rack Guide)
45524 45524-16010 Cap(For Power Steering Pinion) Cap(For Power Steering Pinion)
45524 90179-36002 Nut(For Power Steering Pinion Cap) Nut(For Power Steering Pinion Cap)
45535 45535-30010 Boot, Steering Rack, No.1 Boot, Steering Rack, No.1
45535 90467-19012 Clip Clip
45535 90467-19019 Clip Clip
9017014012 90170-14012 Nut, Rack End Lock Nut, Rack End Lock
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock Nut, Master Cylinder Push Rod Clevis Lock
9020822002 90208-22002 LEXWASHERCONE SPRG LEXWASHERCONE SPRG
9046816017 90468-16017 CLIP CLIP
9151160825 91511-60825 Bolt (For Transfer Stiffener Plate) Bolt (For Transfer Stiffener Plate)
9151160825 91511-B0825 Bolt (For Transfer Stiffener Plate) Bolt (For Transfer Stiffener Plate)
Fuel Injection System ([10.1991 - 08.1997] (9110-9708)2JZ#) 4 / 18
JZS147 Fuel Injection System ([10.1991 - 08.1997] (9110-9708)2JZ#)
JZS160 Fuel Injection System ([08.1997 - 07.2000] (9708-0007))
# OEM JZS147 JZS160
23229 23229-16010 Clip(For Fuel Pump Filter) Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter) Clip(For Fuel Pump Filter)
23233 96135-51300 Clamp, Hose Clamp, Hose
23249 23249-74610 Rubber, Cushion(For Fuel Pump) Rubber, Cushion(For Fuel Pump)
Fuel Injection System ([10.1991 - 08.1997] (9110-9708)2JZGE) 16 / 57
JZS147 Fuel Injection System ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Fuel Injection System ([07.2000 - ] (0007- )2JZGE)
# OEM JZS147 JZS160
23250 90480-13005 Grommet(For Fuel Injector) Grommet(For Fuel Injector)
23270 23207-46021 Damper Assy, Fuel Pressure Pulsation Damper Assy, Fuel Pressure Pulsation
23270 90430-12026 Gasket Gasket
23270 90430-14008 Gasket(For Water Hole) Gasket(For Water Hole)
23849 90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set) Bolt, Union(For Fuel Pipe Or Hose Set)
91642 91641-C0612 New Genuine Part New Genuine Part
9007911021 90079-11021 New Genuine Part New Genuine Part
9010510416 90105-10416 New Genuine Part New Genuine Part
9011906610 90119-06610 New Genuine Part New Genuine Part
9011906610 90119-06493 BOLT WITH WASHER BOLT WITH WASHER
9011908893 90119-08893 New Genuine Part New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9017908153 90179-08153 NUT NUT
9056108009 90561-08009 Spacer, No.1(For Delivery Pipe) Spacer, No.1(For Delivery Pipe)
9211260818 92112-60818 Bolt, Stud(For Water Pump Coupling) Bolt, Stud(For Water Pump Coupling)
9613541300 96135-51300 Clamp, Hose Clamp, Hose
Fuel Injection System ([10.1991 - 08.1997] (9110-9708)2JZGTE) 16 / 64
JZS147 Fuel Injection System ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Fuel Injection System ([07.2000 - ] (0007- )2JZGE)
# OEM JZS147 JZS160
23270 23207-46021 Damper Assy, Fuel Pressure Pulsation Damper Assy, Fuel Pressure Pulsation
23270 90430-12026 Gasket Gasket
23270 90430-14008 Gasket(For Water Hole) Gasket(For Water Hole)
23849 90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set) Bolt, Union(For Fuel Pipe Or Hose Set)
91511 91511-J0840 Bolt(For Alternator) Bolt(For Alternator)
91642 91641-C0612 New Genuine Part New Genuine Part
9007911021 90079-11021 New Genuine Part New Genuine Part
9010508183 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9010510416 90105-10416 New Genuine Part New Genuine Part
9011906493 90119-06493 BOLT WITH WASHER BOLT WITH WASHER
9011906610 90119-06610 New Genuine Part New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9017908153 90179-08153 NUT NUT
9056108009 90561-08009 Spacer, No.1(For Delivery Pipe) Spacer, No.1(For Delivery Pipe)
9099992002 90999-92002 Air Hose (300 mm) Air Hose (300 mm)
9613541300 96135-51300 Clamp, Hose Clamp, Hose
Fuel Tank & Tube ([10.1991 - ] (9110- )) 11 / 55
JZS147 Fuel Tank & Tube ([10.1991 - ] (9110- ))
JZS160 Fuel Tank & Tube ([07.2000 - ] (0007- ))
# OEM JZS147 JZS160
77100 90105-12116 Plug(For Fuel Tank) Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank) Gasket(For Fuel Tank)
77316 77316-16010 Gasket (For Fuel Tank Cap) Gasket (For Fuel Tank Cap)
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover) Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9018905137 90189-05137 GROMMET SCREW GROMMET SCREW
9046022002 90460-22002 CLAMP CLAMP
9046022002 90460-22001 CLAMP CLAMP
9046713001 96135-51300 Clamp, Hose Clamp, Hose
9331914010 93319-14010 SCREW SCREW
Fuel Tank & Tube ([10.1991 - ] (9110- )JZS147) 7 / 53
JZS147 Fuel Tank & Tube ([10.1991 - ] (9110- )JZS147)
JZS160 Fuel Tank & Tube ([08.1997 - 07.2000] (9708-0007))
# OEM JZS147 JZS160
77413 77413-30040 Clamp, Fuel Tube, No.2 Clamp, Fuel Tube, No.2
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9017906246 90179-06274 Nut Nut
9044512259 95337-06020 Hose, Differential Pressure Control Hose, Differential Pressure Control
9046712039 96132-51100 Clip (For Hose) Clip (For Hose)
9046713039 96135-51300 Clamp, Hose Clamp, Hose
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose) Clamp Or Clip(For Radiator Reserve Tank Hose)
Headlamp ([10.1991 - 08.1997] (9110-9708)) 2 / 37
JZS147 Headlamp ([10.1991 - 08.1997] (9110-9708))
JZS160 Center Stop Lamp ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
81610 99132-12050 Bulb (12V 5W) Bulb (12V 5W)
9017906132 90179-06274 Nut Nut
Heating & Air Conditioning - Compressor ([10.1991 - 08.1997] (9110-9708)) 8 / 21
JZS147 Heating & Air Conditioning - Compressor ([10.1991 - 08.1997] (9110-9708))
JZS160 Heating & Air Conditioning - Compressor ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
88330 88335-14020 Washer Washer
9009904110 90099-04349 Bolt, Magnet Clutch Setting Bolt, Magnet Clutch Setting
9009907114 90099-07114 Ring, Snap (For Magnet Clutch) Ring, Snap (For Magnet Clutch)
9010510089 90105-10089 Bolt(For Alternator) Bolt(For Alternator)
9010510208 90105-10208 New Genuine Part New Genuine Part
9012610004 90126-10004 New Genuine Part New Genuine Part
9017910016 90179-10132 Nut Nut
9020110040 90201-10040 Washer, No.2 (For Center Support Bearing) Washer, No.2 (For Center Support Bearing)
Heating & Air Conditioning - Control & Air Duct ([10.1991 - 08.1997] ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ｺﾝﾄﾛ-ﾙ (9110-9708)) 3 / 11
JZS147 Heating & Air Conditioning - Control & Air Duct ([10.1991 - 08.1997] ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ｺﾝﾄﾛ-ﾙ (9110-9708))
JZS160 Console Box & Bracket ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9009490416 90094-90416 New Genuine Part New Genuine Part
9356755016 93567-55016 Screw Screw
9356755016 93568-55016 Screw Screw
Heating & Air Conditioning - Control & Air Duct ([10.1991 - 08.1997] ｴｱ ﾀﾞｸﾄ (9110-9708)) 5 / 35
JZS147 Heating & Air Conditioning - Control & Air Duct ([10.1991 - 08.1997] ｴｱ ﾀﾞｸﾄ (9110-9708))
JZS160 Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] ｴｱ ﾀﾞｸﾄ (9708- ))
# OEM JZS147 JZS160
87217 87217-50030-C0 Duct, Air, Rear No.6 Duct, Air, Rear No.6
87217 90950-01693-P1 Plug, Air Duct (Gray) Plug, Air Duct (Gray)
9014860005 90148-60005 New Genuine Part New Genuine Part
9015950138 90159-50138 SCREW SCREW
9356855014 93568-55014 Screw Screw
Heating & Air Conditioning - Control & Air Duct ([10.1991 - 08.1997] ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ｾﾝｻ(ｻ-ﾐｽﾀ) (9110-9708)) 2 / 8
JZS147 Heating & Air Conditioning - Control & Air Duct ([10.1991 - 08.1997] ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ｾﾝｻ(ｻ-ﾐｽﾀ) (9110-9708))
JZS160 Console Box & Bracket ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9356755016 93567-55016 Screw Screw
9356755016 93568-55016 Screw Screw
Heating & Air Conditioning - Cooler Piping ([01.1993 - 08.1997] (9301-9708)) 5 / 11
JZS147 Heating & Air Conditioning - Cooler Piping ([01.1993 - 08.1997] (9301-9708))
JZS160 Heating & Air Conditioning - Cooler Piping ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction) O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING O-RING
Heating & Air Conditioning - Cooler Piping ([10.1991 - 08.1997] (9110-9708)JZS147) 2 / 39
JZS147 Heating & Air Conditioning - Cooler Piping ([10.1991 - 08.1997] (9110-9708)JZS147)
JZS160 Heating & Air Conditioning - Cooler Piping ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
88375 88375-30280 Cap, Service Valve (For Cooler Pipe) Cap, Service Valve (For Cooler Pipe)
91631 91631-B0630 BOLT WWASHER BOLT WWASHER
Heating & Air Conditioning - Cooler Unit ([10.1991 - 08.1997] (9110-9708)) 9 / 40
JZS147 Heating & Air Conditioning - Cooler Unit ([10.1991 - 08.1997] (9110-9708))
JZS160 Heating & Air Conditioning - Cooler Unit ([08.2002 - ] (0208- ))
# OEM JZS147 JZS160
9009900968 90099-00968 Screw(For Air Conditioner Unit) Screw(For Air Conditioner Unit)
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction) O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING O-RING
9015950138 90159-50138 SCREW SCREW
9017906246 90179-06274 Nut Nut
9338516016 93385-16016 New Genuine Part New Genuine Part
Heating & Air Conditioning - Heater Unit & Blower ([10.1991 - 08.1997] ﾋ-ﾀ ﾌﾞﾛﾜ (9110-9708)) 1 / 16
JZS147 Heating & Air Conditioning - Heater Unit & Blower ([10.1991 - 08.1997] ﾋ-ﾀ ﾌﾞﾛﾜ (9110-9708))
JZS160 Switch & Relay & Computer ([08.1997 - ] ｶｳﾙ (9708- ))
# OEM JZS147 JZS160
9017906239 90179-06314 NUT NUT
Heating & Air Conditioning - Heater Unit & Blower ([10.1991 - 08.1997] ﾋ-ﾀ ﾗｼﾞｴ-ﾀ (9110-9708)) 1 / 26
JZS147 Heating & Air Conditioning - Heater Unit & Blower ([10.1991 - 08.1997] ﾋ-ﾀ ﾗｼﾞｴ-ﾀ (9110-9708))
JZS160 Heating & Air Conditioning - Cooler Unit ([08.1997 - 08.2002] (9708-0208))
# OEM JZS147 JZS160
9017906282 90179-06282 New Genuine Part New Genuine Part
Heating & Air Conditioning - Water Piping ([10.1991 - 08.1997] (9110-9708)JZS147) 1 / 15
JZS147 Heating & Air Conditioning - Water Piping ([10.1991 - 08.1997] (9110-9708)JZS147)
JZS160 Heating & Air Conditioning - Water Piping ([08.1997 - ] (9708- )JZS160)
# OEM JZS147 JZS160
9046722008 90467-22011 Clip(For Water By-Pass Hose No.1) Clip(For Water By-Pass Hose No.1)
Heating & Air Conditioning - Water Piping ([10.1991 - 08.1997] ｶﾝﾚｲﾁ ｼﾖｳ (9110-9708)JZS147) 3 / 28
JZS147 Heating & Air Conditioning - Water Piping ([10.1991 - 08.1997] ｶﾝﾚｲﾁ ｼﾖｳ (9110-9708)JZS147)
JZS160 Radiator & Water Outlet ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
9046713050 90467-13050 Clamp Or Clip, Hose(For Water By-Pass Hose) Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713050 96135-51300 Clamp, Hose Clamp, Hose
9046722008 90467-22011 Clip(For Water By-Pass Hose No.1) Clip(For Water By-Pass Hose No.1)
Hood & Front Fender ([10.1991 - ] (9110- )) 15 / 59
JZS147 Hood & Front Fender ([10.1991 - ] (9110- ))
JZS160 Hood & Front Fender ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
53879 53879-17020 Retainer, Front Fender Liner Retainer, Front Fender Liner
53882 53882-30030 Seal, Front Fender, Rh Seal, Front Fender, Rh
9011906514 90119-06514 BOLT WWASHER BOLT WWASHER
9015945005 90159-45005 LEXSCREW LEXSCREW
9015960507 90159-60507 SCREW WWASHER SCREW WWASHER
9017905060 90179-05060 LEXNUT LEXNUT
9017906273 90179-06273 New Genuine Part New Genuine Part
9018904014 90189-04014 CLIP CLIP
9046708011 90467-08011 Clip(For Headlamp Cover Seal) Clip(For Headlamp Cover Seal)
9046708011 90467-08011-TH CLIP CLIP
9046708011 90467-08011-83 Clip(For Headlamp Cover Seal) Clip(For Headlamp Cover Seal)
9095001392 90950-01392 Plug, Hole(For Luggage Compartment Door Panel) Plug, Hole(For Luggage Compartment Door Panel)
9095001506 90950-01506 Plug, Hole(For Luggage Compartment Door Panel) Plug, Hole(For Luggage Compartment Door Panel)
9095001527 90950-01527 PLUG PLUG
9095006064 90950-06064 TAPESEAL TAPESEAL
Hood Lock & Hinge ([10.1991 - ] (9110- )) 15 / 30
JZS147 Hood Lock & Hinge ([10.1991 - ] (9110- ))
JZS160 Hood Lock & Hinge ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
53440 68961-20051 Bolt, Hood Support, No.1 Bolt, Hood Support, No.1
53510 53510-50040 Lock Assy, Hood Lock Assy, Hood
53510 90506-09050 Spring, Tension(For Hood Lock) Spring, Tension(For Hood Lock)
53510 90506-18068 Spring, Tension(For Hood Lock) Spring, Tension(For Hood Lock)
53550 90508-18102 Spring, Torsion(For Hood Lock Hook) Spring, Torsion(For Hood Lock Hook)
53578 53578-50010 Nut, Hood Lock Nut, Hood Lock
53579 53579-50010 Cap, Hood Lock Nut Cap, Hood Lock Nut
9011906660 90119-06660 BOLT BOLT
9011906761 90119-06761 New Genuine Part New Genuine Part
9011906761 90119-06423 BOLT WWASHER BOLT WWASHER
9011908672 90119-08716 BOLT WWASHER BOLT WWASHER
9017908152 90179-08152 New Genuine Part New Genuine Part
9020110280 90201-10280 New Genuine Part New Genuine Part
9095901369 90959-01369 Clamp, Hood Lock Control Cable Clamp, Hood Lock Control Cable
9356755014 93568-55014 Screw Screw
Ignition Coil & Spark Plug ([10.1991 - 08.1997] (9110-9708)2JZGE) 2 / 29
JZS147 Ignition Coil & Spark Plug ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Ignition Coil & Spark Plug ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
19532 19532-46010 Holder, Resistive Cord, No.1 Holder, Resistive Cord, No.1
19534 19539-50010 Holder, Resistive Cord, No.1 Holder, Resistive Cord, No.1
Ignition Coil & Spark Plug ([10.1991 - 08.1997] (9110-9708)2JZGTE) 2 / 15
JZS147 Ignition Coil & Spark Plug ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Ignition Coil & Spark Plug ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9091911005 90919-11007 PLUG CAP PLUG CAP
9331915008 93319-15008 SCREW SCREW
Indicator ([10.1991 - 08.1997] (9110-9708)) 1 / 5
JZS147 Indicator ([10.1991 - 08.1997] (9110-9708))
JZS160 Front Door Lock & Handle ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9356855014 93568-55014 Screw Screw
Inside Trim Board & Door Opening Trim Moulding ([10.1991 - ] (9110- )) 2 / 74
JZS147 Inside Trim Board & Door Opening Trim Moulding ([10.1991 - ] (9110- ))
JZS160 Front Door Panel & Glass ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
67867 67867-50020 Retainer, Front Door Weatherstrip, Rh Retainer, Front Door Weatherstrip, Rh
6777189104 67771-89104 Clip (For Center Pillar Garnish Panel, Upper) Clip (For Center Pillar Garnish Panel, Upper)
Instrument Panel & Glove Compartment ([10.1991 - ] (9110- )) 19 / 130
JZS147 Instrument Panel & Glove Compartment ([10.1991 - ] (9110- ))
JZS160 Instrument Panel & Glove Compartment ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
55445 55445-30160-C0 Plate, Instrument Panel Finish Plate, Instrument Panel Finish
55489 55489-50010 Lens, Front Foot Lamp, No.1 Lens, Front Foot Lamp, No.1
55565 55565-50010-B3 Handle, Glove Compartment Door Lock Handle, Glove Compartment Door Lock
55569 55569-50010-22 Cover, Glove Compartment Door Lock Cover, Glove Compartment Door Lock
55574 55574-10010 Shaft, Glove Compartment Door Hinge Shaft, Glove Compartment Door Hinge
62199 62199-50010 Holder, Fusee Holder, Fusee
73970 90179-06125 Nut (For Rear Wiper Arm Setting) Nut (For Rear Wiper Arm Setting)
9010506051 90105-06168 BOLT WASHER BASED BOLT WASHER BASED
9011906077 90119-06077 Bolt Bolt
9016040021 90160-40021 New Genuine Part New Genuine Part
9016450043 93568-55014 Screw Screw
9016750022 90167-50022 SCREW SCREW
9016840054 90168-40054 New Genuine Part New Genuine Part
9017906097 90179-06206 Nut Nut
9017908025 90179-08025 Nut, Cap(For Cylinder Head Cover) Nut, Cap(For Cylinder Head Cover)
9046804177 90468-04177 Clip(For Instrument Panel Under Cover) Clip(For Instrument Panel Under Cover)
9356755016 93567-55016 Screw Screw
9356755016 93568-55016 Screw Screw
9359016016 93590-16016 New Genuine Part New Genuine Part
Interior Lamp ([10.1991 - 08.1997] (9110-9708)) 14 / 38
JZS147 Interior Lamp ([10.1991 - 08.1997] (9110-9708))
JZS160 Interior Lamp ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
81205 90981-11041 Bulb, Ash Receptacle Lamp Bulb, Ash Receptacle Lamp
81230 90981-11020 Bulb (For Lower Back Finish Panel Emblem) Bulb (For Lower Back Finish Panel Emblem)
81260 81260-50010 Lamp Assy, Glove Box Lamp Assy, Glove Box
81260 90981-11018 Bulb, Position Indicator Lamp Bulb, Position Indicator Lamp
81260 90981-14004 Bulb, Room Lamp, No.1 Bulb, Room Lamp, No.1
81261 81261-50010 Lens,glove Box Lamp Lens,glove Box Lamp
81330 81330-40020 Lamp Assy, Luggage Compartment, No.1 Lamp Assy, Luggage Compartment, No.1
81330 99132-12050 Bulb (12V 5W) Bulb (12V 5W)
81330 90080-81053 Bulb(For Clearance Lamp) Bulb(For Clearance Lamp)
81331 81331-50010 Lens, Luggage Compartment Lamp Lens, Luggage Compartment Lamp
81340 90981-14007 Bulb, Room Lamp, No.1 Bulb, Room Lamp, No.1
81870 81870-30060 Lamp Assy, Key Cylinder Lamp Assy, Key Cylinder
9016040021 90160-40021 New Genuine Part New Genuine Part
9331914010 93319-14010 SCREW SCREW
Luggage Compartment Door & Lock ([10.1991 - ] (9110- )) 4 / 33
JZS147 Luggage Compartment Door & Lock ([10.1991 - ] (9110- ))
JZS160 Luggage Compartment Door & Lock ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9010506051 90105-06168 BOLT WASHER BASED BOLT WASHER BASED
9011906661 91641-H0614 New Genuine Part New Genuine Part
9054107035 90541-07035 New Genuine Part New Genuine Part
9095001784 90950-01784 New Genuine Part New Genuine Part
Manifold ([10.1991 - 08.1997] (9110-9708)2JZGE) 18 / 45
JZS147 Manifold ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Manifold ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
17061 17061-46010 Diaphragm Sub-Assy Diaphragm Sub-Assy
17111 90119-08891 BOLT BOLT
17159 90126-10014 Bolt, Stud(For Manifold To Cylinder Head) Bolt, Stud(For Manifold To Cylinder Head)
17173 17173-46020 Gasket, Exhaust Manifold To Head Gasket, Exhaust Manifold To Head
17176 17176-46020 Gasket, Air Surge Tank To Intake Manifold Gasket, Air Surge Tank To Intake Manifold
17307 17307-46010 Lever Sub-Assy, Intake Air Control Lever Sub-Assy, Intake Air Control
9011908 90119-08A89 BOLT W-WASHER BOLT W-WASHER
9010506167 90105-06167 New Genuine Part New Genuine Part
9010508250 90105-08250 Bolt, Flange Bolt, Flange
9010510416 90105-10416 New Genuine Part New Genuine Part
9011606127 90116-06127 Bolt, Stud(For Oil Pan) Bolt, Stud(For Oil Pan)
9011608348 90116-08348 Bolt, Stud(For Water Outlet) Bolt, Stud(For Water Outlet)
9017007003 90170-07003 Nut, Hexagon(For Valve Adjusting) Nut, Hexagon(For Valve Adjusting)
9017908153 90179-08153 NUT NUT
9017910165 90179-10165 NUT NUT
9020407001 90204-07001 New Genuine Part New Genuine Part
9030408001 90304-08001 New Genuine Part New Genuine Part
9052302002 90523-02002 Ring, E(For Surge Tank Diaphrgm) Ring, E(For Surge Tank Diaphrgm)
Manifold ([10.1991 - 08.1997] (9110-9708)2JZGTE) 15 / 110
JZS147 Manifold ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Manifold ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
15481 90430-12026 Gasket Gasket
17111 90119-08891 BOLT BOLT
17129 90430-12005 Gasket(For Water Hole) Gasket(For Water Hole)
17129 96411-42000 Plug, Tight, No.1 Plug, Tight, No.1
17159 90126-10014 Bolt, Stud(For Manifold To Cylinder Head) Bolt, Stud(For Manifold To Cylinder Head)
17294 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose) Clamp Or Clip(For Radiator Reserve Tank Hose)
17294 96132-51100 Clip (For Hose) Clip (For Hose)
9010508250 90105-08250 Bolt, Flange Bolt, Flange
9010510117 90105-10417 Bolt (For Front Differential Carrier Cover Setting) Bolt (For Front Differential Carrier Cover Setting)
9011608348 90116-08348 Bolt, Stud(For Water Outlet) Bolt, Stud(For Water Outlet)
9011906610 90119-06610 New Genuine Part New Genuine Part
9011906610 90119-06493 BOLT WITH WASHER BOLT WITH WASHER
9012606002 90126-06002 New Genuine Part New Genuine Part
9017908153 90179-08153 NUT NUT
9017910165 90179-10165 NUT NUT
Mat & Carpet ([10.1991 - ] (9110- )) 1 / 31
JZS147 Mat & Carpet ([10.1991 - ] (9110- ))
JZS160 Inside Trim Board & Door Opening Trim Moulding ([07.2000 - ] (0007- ))
# OEM JZS147 JZS160
6777189104 67771-89104 Clip (For Center Pillar Garnish Panel, Upper) Clip (For Center Pillar Garnish Panel, Upper)
Meter ([10.1991 - 08.1997] (9110-9708)) 5 / 41
JZS147 Meter ([10.1991 - 08.1997] (9110-9708))
JZS160 Inside Trim Board & Door Opening Trim Moulding ([07.2000 - ] (0007- ))
# OEM JZS147 JZS160
83100 90981-11018 Bulb, Position Indicator Lamp Bulb, Position Indicator Lamp
9009900929 90099-00929 New Genuine Part New Genuine Part
9356755016 93567-55016 Screw Screw
9356755016 93568-55016 Screw Screw
9356855012 93568-55012 SCREW SCREW
Mirror ([10.1991 - 08.1997] (9110-9708)) 6 / 77
JZS147 Mirror ([10.1991 - 08.1997] (9110-9708))
JZS160 Mirror ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
87808 87808-24010 Holder Sub-Assy, Inner Mirror Holder Sub-Assy, Inner Mirror
87817 87817-24010 Spacer, Inner Rear View Mirror Spacer, Inner Rear View Mirror
87825 87825-24010 Spring, Inner Rear View Mirror Setting Spring, Inner Rear View Mirror Setting
9010506216 90105-06216 New Genuine Part New Genuine Part
9014860018 90148-60018 Screw Hex Lobular Screw Hex Lobular
9017906097 90179-06206 Nut Nut
Mounting ([10.1991 - 08.1997] (9110-9708)2JZ#) 3 / 14
JZS147 Mounting ([10.1991 - 08.1997] (9110-9708)2JZ#)
JZS160 Mounting ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
12391 12391-46020 Insulator, Engine Mounting Front, Heat, Rh Insulator, Engine Mounting Front, Heat, Rh
9010510417 90105-10417 Bolt (For Front Differential Carrier Cover Setting) Bolt (For Front Differential Carrier Cover Setting)
9017912153 90179-12153 New Genuine Part New Genuine Part
Mudguard & Spoiler ([10.1991 - ] (9110- )) 1 / 23
JZS147 Mudguard & Spoiler ([10.1991 - ] (9110- ))
JZS160 Accelerator Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9017906216 90179-06274 Nut Nut
Oil Cooler & Tube (Atm) ([10.1991 - ] A340E,A341H (9110- )) 15 / 33
JZS147 Oil Cooler & Tube (Atm) ([10.1991 - ] A340E,A341H (9110- ))
JZS160 Oil Cooler & Tube (Atm) ([08.1999 - ] A340E (9908- )JZS160)
# OEM JZS147 JZS160
32921 90407-16009 Union(For Oil Cooler Tube) Union(For Oil Cooler Tube)
32921 90301-11006 O Ring, Transaxle Case Elbow O Ring, Transaxle Case Elbow
32921 90404-16029 Union(For Oil Cooler Tube) Union(For Oil Cooler Tube)
32923 32924-30190 Clamp, Automatic Transmission Oil Cooler Tube Clamp, Automatic Transmission Oil Cooler Tube
32923 32929-30140 Clamp, Automatic Transmission Oil Cooler Tube Clamp, Automatic Transmission Oil Cooler Tube
32923 32929-30160 Clamp, Automatic Transmission Oil Cooler Tube Clamp, Automatic Transmission Oil Cooler Tube
32926 32926-30020 Cushion, Oil Cooler Tube(Atm) Cushion, Oil Cooler Tube(Atm)
32926 32926-30030 Cushion, Oil Cooler Tube(Atm) Cushion, Oil Cooler Tube(Atm)
32926 32926-30060 Cushion, Oil Cooler Tube(Atm) Cushion, Oil Cooler Tube(Atm)
9011908650 90119-08650 New Genuine Part New Genuine Part
9046716013 90467-16013 Clip(For Oil Return Hose) Clip(For Oil Return Hose)
9046716013 90467-16022 Clip(For Water Inlet Hose) Clip(For Water Inlet Hose)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt Bolt
9161160814 91611-60814 Bolt Bolt
Oil Filter ([10.1991 - 08.1997] (9110-9708)2JZGE) 10 / 20
JZS147 Oil Filter ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Oil Filter ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
15601 90915-20003 Oil Filter Sub-Assy (THAILAND) - MADE IN THAILAND Oil Filter Sub-Assy (THAILAND) - MADE IN THAILAND
15601 90915-20001 Filter Sub-Assy, Oil Filter Sub-Assy, Oil
15671 15670-46070 Bracket, Oil Filter Bracket, Oil Filter
15671 90301-68004 Gasket, Oil Filter Bracket Gasket, Oil Filter Bracket
15671 90301-68005 Ring, O(For Oil Filter Bracket) Ring, O(For Oil Filter Bracket)
1658146020 16581-46020 Clamp, Hose(For Water Hose) Clamp, Hose(For Water Hose)
9043020016 90430-20016 GASKET GASKET
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt Bolt
9161160616 91611-B0616 Bolt(For Transaxle Case Receiver) Bolt(For Transaxle Case Receiver)
Oil Filter ([10.1991 - 08.1997] (9110-9708)2JZGTE) 9 / 22
JZS147 Oil Filter ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Oil Filter ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
15601 90915-20003 Oil Filter Sub-Assy (THAILAND) - MADE IN THAILAND Oil Filter Sub-Assy (THAILAND) - MADE IN THAILAND
15601 90915-20001 Filter Sub-Assy, Oil Filter Sub-Assy, Oil
15671 90301-68005 Ring, O(For Oil Filter Bracket) Ring, O(For Oil Filter Bracket)
15671 90301-68004 Gasket, Oil Filter Bracket Gasket, Oil Filter Bracket
1658146020 16581-46020 Clamp, Hose(For Water Hose) Clamp, Hose(For Water Hose)
9043020016 90430-20016 GASKET GASKET
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt Bolt
9161160616 91611-B0616 Bolt(For Transaxle Case Receiver) Bolt(For Transaxle Case Receiver)
Overdrive & Electronic Controlled Transmission ([10.1991 - 08.1997] (9110-9708)JZS147) 13 / 30
JZS147 Overdrive & Electronic Controlled Transmission ([10.1991 - 08.1997] (9110-9708)JZS147)
JZS160 Overdrive & Electronic Controlled Transmission ([08.1997 - 07.2000] (9708-0007)JZS160)
# OEM JZS147 JZS160
35517 35517-50010 Plate, Transmission Wire Lock Plate, Transmission Wire Lock
84720 84999-10320 Bulb, Satellite Switch Bulb, Satellite Switch
85420 85420-50020 Solenoid Assy, Transmission Solenoid Assy, Transmission
85420 90301-06004 Ring, O No.3(For Transmission Solenoid) Ring, O No.3(For Transmission Solenoid)
89411 89411-50010 Sensor, Speed Sensor, Speed
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate) Bolt(For Transmission Case No.2 Plate)
9011906310 90119-06428 New Genuine Part New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9030111008 90301-11008 Ring,o (For Speedometer Driven Hole Cover) Ring,o (For Speedometer Driven Hole Cover)
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock) Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) Bolt (For Rear Differential Breather Plug Oil Deflector)
9161240616 91611-B0616 Bolt(For Transaxle Case Receiver) Bolt(For Transaxle Case Receiver)
9672124018 96721-24018 Ring, O Ring, O
Overdrive Gear (Atm) ([10.1991 - ] A340E,A341H (9110- )) 66 / 101
JZS147 Overdrive Gear (Atm) ([10.1991 - ] A340E,A341H (9110- ))
JZS160 Overdrive Gear (Atm) ([08.1997 - ] A340E,A650E (9708- ))
# OEM JZS147 JZS160
34103 90105-08281 Bolt (For Overdrive Support) Bolt (For Overdrive Support)
34103 90521-99033 Ring, Hole Snap (For Overdrive Support) Ring, Hole Snap (For Overdrive Support)
34103 35789-30090 Race, Thrust Bearing (For Overdrive Support Rear) Race, Thrust Bearing (For Overdrive Support Rear)
34601 34601-50030 Drum Sub-Assy, Overdrive Direct Clutch Drum Sub-Assy, Overdrive Direct Clutch
34602 34602-30020 Piston Sub-Assy, Overdrive Direct Clutch Piston Sub-Assy, Overdrive Direct Clutch
34602 90301-65006 Ring, O (For Overdrive Direct Clutch Piston) Ring, O (For Overdrive Direct Clutch Piston)
34602 90301-99086 Ring, O (For Overdrive Direct Clutch Piston) Ring, O (For Overdrive Direct Clutch Piston)
34604 34604-30010 Spring Sub-Assy, Overdrive Clutch Return Spring Sub-Assy, Overdrive Clutch Return
34613 90520-58001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring) Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)
34615 34615-30020 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-50050 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-30030 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-50040 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-30040 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-50030 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-30050 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-22030 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-30060 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-22020 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-30070 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 34615-22010 Flange, Overdrive Clutch Flange, Overdrive Clutch
34615 90521-99001 Ring, Hole Snap, No.2 (For Overdrive) Ring, Hole Snap, No.2 (For Overdrive)
34622 90301-99090 Ring, O (For Overdrive Brake Piston) Ring, O (For Overdrive Brake Piston)
34622 90301-99088 Ring, O (For Overdrive Brake Piston) Ring, O (For Overdrive Brake Piston)
34625 34625-22050 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-22040 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-50040 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-50030 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-50020 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-22030 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-22060 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-30120 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-30130 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-30140 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-30150 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-30160 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-30170 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 34625-30180 Flange, Overdrive Brake, No.1 Flange, Overdrive Brake, No.1
34625 90521-99027 Ring, Hole Snap (For Overdrive Brake Flange) Ring, Hole Snap (For Overdrive Brake Flange)
34629 34629-50010 Spring, Overdrive Brake Plate Stopper Spring, Overdrive Brake Plate Stopper
34634 34634-30030 Plate, Overdrive Brake Plate, Overdrive Brake
34634 34634-50010 Plate, Overdrive Brake Plate, Overdrive Brake
34710 34732-22011 Flange, Overdrive Planetary Ring Gear Flange, Overdrive Planetary Ring Gear
34710 35789-30052 Race, Thrust Bearing(For Overdrive Planetary Gear) Race, Thrust Bearing(For Overdrive Planetary Gear)
34710 90374-31008 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34710 35789-30050 Race, Thrust Bearing(For Overdrive Planetary Gear) Race, Thrust Bearing(For Overdrive Planetary Gear)
34710 90374-25005 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34710 90374-28008 Bearing,thrust Needle Roller(For Overdrive Direct Clutch) Bearing,thrust Needle Roller(For Overdrive Direct Clutch)
34710 34710-30090 Gear Assy, Overdrive Planetary Gear Assy, Overdrive Planetary
34710 34710-22031 Gear Assy, Overdrive Planetary Gear Assy, Overdrive Planetary
34710 34710-30091 Gear Assy, Overdrive Planetary Gear Assy, Overdrive Planetary
34713 34713-32010 Race, 1 Way Clutch Outer (For Overdrive) Race, 1 Way Clutch Outer (For Overdrive)
34714 90521-99028 Ring, Hole Snap(For 1 Way Clutch) Ring, Hole Snap(For 1 Way Clutch)
34714 35791-30060 Clutch, 1 Way(For Overdrive) Clutch, 1 Way(For Overdrive)
34727 34727-32010 Plate, Retaining (For Overdrive) Plate, Retaining (For Overdrive)
34731 34731-30030 Gear, Overdrive Planetary Ring Gear, Overdrive Planetary Ring
34731 90521-99024 Ring, Hole Snap (For Overdrive Planetary Ring Gear) Ring, Hole Snap (For Overdrive Planetary Ring Gear)
34732 34732-22010 Flange, Overdrive Planetary Ring Gear Flange, Overdrive Planetary Ring Gear
34732 90374-33002 Bearing, Thrust(For Overdrive Planetary Ring Gear Flange) Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)
34737 34737-30030 Washer, Overdrive Planetary Gear Thrust, No.3 Washer, Overdrive Planetary Gear Thrust, No.3
35617 35617-30020 Ring, Clutch Drum Oil Seal Ring, Clutch Drum Oil Seal
35633 35633-14010 Disc, Clutch (For Overdrive Direct Clutch) Disc, Clutch (For Overdrive Direct Clutch)
35634 34616-30010 Plate, Clutch (For Overdrive Direct Clutch) Plate, Clutch (For Overdrive Direct Clutch)
35677 34633-30030 Disc, Clutch (For Overdrive Brake) Disc, Clutch (For Overdrive Brake)
35789 35789-30060 Race, Thrust Bearing (For Overdrive Planetary Ring Gear) Race, Thrust Bearing (For Overdrive Planetary Ring Gear)
35789 35789-22060 Race, Thrust Bearing (For Overdrive Support Front) Race, Thrust Bearing (For Overdrive Support Front)
Package Tray Panel & Luggage Compartment Mat ([10.1991 - ] (9110- )) 3 / 58
JZS147 Package Tray Panel & Luggage Compartment Mat ([10.1991 - ] (9110- ))
JZS160 Package Tray Panel & Luggage Compartment Mat ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
64716 90467-05125-C0 Clip(For Package Tray Trim Panel) Clip(For Package Tray Trim Panel)
64716 90467-05125 Clip(For Package Tray Trim Panel) Clip(For Package Tray Trim Panel)
9046805060 90468-05060 Clip Clip
Parking Brake & Cable ([10.1991 - ] (9110- )) 33 / 90
JZS147 Parking Brake & Cable ([10.1991 - ] (9110- ))
JZS160 Parking Brake & Cable ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
46301 90240-08059 Pin, W/hole(For Intermediate Lever) Pin, W/hole(For Intermediate Lever)
46540 46540-44010 Shoe Assy, Parking Brake, No.1 Shoe Assy, Parking Brake, No.1
46550 46550-44010 Shoe Assy, Parking Brake, Rh Or Center No.2 Shoe Assy, Parking Brake, Rh Or Center No.2
46550 90507-20016 Spring, Tension, No.1(For Parking Brake Shoe Return) Spring, Tension, No.1(For Parking Brake Shoe Return)
46550 90506-12051 Spring, Tension, No.2(For Parking Brake Shoe Return) Spring, Tension, No.2(For Parking Brake Shoe Return)
46590 46590-44010 Shoe Assy, Parking Brake, Lh No.2 Shoe Assy, Parking Brake, Lh No.2
47405 47405-30040 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center
47406 47406-30040 Adjuster Sub-Assy, Parking Brake Shoe, Lh Adjuster Sub-Assy, Parking Brake Shoe, Lh
47447 47447-30020 Pin, Shoe Hold Down Spring(For Front Brake) Pin, Shoe Hold Down Spring(For Front Brake)
47447 47447-50010 Pin, Shoe Hold Down Spring(For Parking Brake) Pin, Shoe Hold Down Spring(For Parking Brake)
47447 90501-16053 Spring, Brake Shoe Hold Down Spring, Brake Shoe Hold Down
47447 90501-16118 Spring, Compression(For Parking Brake Shoe Hold Down) Spring, Compression(For Parking Brake Shoe Hold Down)
47449 47449-40010 Cup, Brake Shoe Hold Down Cup, Brake Shoe Hold Down
47449 47449-30030 Cup, Brake Shoe Hold Down Cup, Brake Shoe Hold Down
47456 47456-33010 Plate, Shoe Guide(For Parking Brake) Plate, Shoe Guide(For Parking Brake)
47459 47459-30010 Bolt, Parking Brake Shoe Guide Plate Set Bolt, Parking Brake Shoe Guide Plate Set
47611 47611-50010 Lever, Parking Brake Shoe, Rh Lever, Parking Brake Shoe, Rh
47611 90213-07018 Washer, Type C(For Parking Brake Shoe) Washer, Type C(For Parking Brake Shoe)
47611 90564-09184 Shim(For Parking Brake Shoe) Shim(For Parking Brake Shoe)
47611 90564-09185 Shim(For Parking Brake Shoe) Shim(For Parking Brake Shoe)
47611 90564-09186 Shim(For Parking Brake Shoe) Shim(For Parking Brake Shoe)
47612 47612-50010 Lever, Parking Brake Shoe, Lh Lever, Parking Brake Shoe, Lh
47613 90504-14002 Spring, Compression(For Parking Brake Shoe Strut) Spring, Compression(For Parking Brake Shoe Strut)
9011908 90119-08A61 New Genuine Part New Genuine Part
9011908681 90119-08681 BOLT W-WASHER BOLT W-WASHER
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9017908143 90179-08143 NUT NUT
9046808001 90468-08001 CLIP CLIP
9046814004 90468-14004 Union, Auxiliary Fuel Band Union, Auxiliary Fuel Band
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt Bolt
9161660612 91611-B0610 Bolt (For Transfer Oil Receiver No.1) Bolt (For Transfer Oil Receiver No.1)
9163360625 91631-60622 Screw Screw
Partial Engine Assembly ([10.1991 - ] (9110- )) 1 / 11
JZS147 Partial Engine Assembly ([10.1991 - ] (9110- ))
JZS160 Engine Oil Cooler ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
11000 90430-16012 Gasket, W/head Taper Screw Plug Gasket, W/head Taper Screw Plug
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1991 - ] A340E (9110- )JZS147) 26 / 39
JZS147 Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.1991 - ] A340E (9110- )JZS147)
JZS160 Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
34780 90179-22018 Nut (For Flange Yoke) Nut (For Flange Yoke)
34780 90201-30005 Washer, Plate (For Flange Yoke) Washer, Plate (For Flange Yoke)
34780 34780-30050 Yoke Assy, Flange Yoke Assy, Flange
35075 35789-30120 Race, Thrust Bearing (For Front Planetary Ring Gear Front) Race, Thrust Bearing (For Front Planetary Ring Gear Front)
35075 35075-50010 Gear Sub-Assy, Front Planetary Ring Gear Sub-Assy, Front Planetary Ring
35075 90374-35004 Bearing, Thrust Needle Roller (For Front Planetary Ring) Bearing, Thrust Needle Roller (For Front Planetary Ring)
35720 90520-24029 Ring, Shaft Snap (For Front Planetary Gear) Ring, Shaft Snap (For Front Planetary Gear)
35720 35720-30080 Gear Assy, Front Planetary Gear Assy, Front Planetary
35720 90374-35001 Bearing, Thrust Needle Roller (For Front Planetary Gear) Bearing, Thrust Needle Roller (For Front Planetary Gear)
35735 35735-30020 Ring, Planetary Output Shaft Oil Seal Ring, Planetary Output Shaft Oil Seal
35737 35737-30030 Washer, Planetary Carrier Thrust, No.1 Washer, Planetary Carrier Thrust, No.1
35738 35739-30030 Washer, Planetary Carrier Thrust, No.2 Washer, Planetary Carrier Thrust, No.2
35760 35705-30010 Gear Assy, Rear Planetary Gear Assy, Rear Planetary
35761 35761-50010 Gear, Rear Planetary Ring Gear, Rear Planetary Ring
35761 90521-99024 Ring, Hole Snap (For Overdrive Planetary Ring Gear) Ring, Hole Snap (For Overdrive Planetary Ring Gear)
35762 35762-30040 Flange, Rear Planetary Ring Gear Flange, Rear Planetary Ring Gear
35762 90374-39001 Bearing, Thrust Needle Roller (For Rear Planetary Flange) Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35762 90374-38003 Bearing, Thrust Needle Roller (For Rear Planetary Flange) Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35771 35771-30080 Shaft, Output Shaft, Output
35789 35789-30080 Race, Thrust Bearing (For Overdrive Support Front) Race, Thrust Bearing (For Overdrive Support Front)
35789 35789-30100 Race, Thrust Bearing (For Front Planetary Gear Rear) Race, Thrust Bearing (For Front Planetary Gear Rear)
35789 35789-30160 Race, Thrust Bearing (For Rear Planetary Flange) Race, Thrust Bearing (For Rear Planetary Flange)
35792 35792-14020 Clutch, 1 Way, No.2 Clutch, 1 Way, No.2
35792 90521-87001 Ring, Hole Snap (For Rear Planetary Ring Gear) Ring, Hole Snap (For Rear Planetary Ring Gear)
35797 35797-50010 Race, 1 Way Clutch Inner Race, 1 Way Clutch Inner
9031224001 90312-24001 Ring, O (For Atm Flange Yoke) Ring, O (For Atm Flange Yoke)
Power Steering Tube ([10.1991 - ] (9110- )Q) 17 / 38
JZS147 Power Steering Tube ([10.1991 - ] (9110- )Q)
JZS160 Power Steering Tube ([08.1997 - ] (9708- )JZS160)
# OEM JZS147 JZS160
44327 44327-30030 Gasket(For Pressure Hose) Gasket(For Pressure Hose)
44327 44327-30040 Gasket, Pressure Port, No.1 Gasket, Pressure Port, No.1
44406 90401-17005 Bolt, Union(For Return Tube) Bolt, Union(For Return Tube)
44406 96341-11703 Bolt, Union(For Return Tube) Bolt, Union(For Return Tube)
44410 96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube) Bolt, Union(For Rear Stabilizer Contorol Tube)
44444 44444-30100 Stay, Pump, Rear Stay, Pump, Rear
91656 91651-B0616 BOLT WWASHER BOLT WWASHER
9010510286 90105-10286 Bolt(For Torque Arm Setting) Bolt(For Torque Arm Setting)
9010510286 91512-81025 Bolt(For Torque Arm Setting) Bolt(For Torque Arm Setting)
9011906541 90119-06541 New Genuine Part New Genuine Part
9017906246 90179-06274 Nut Nut
9017910088 90179-10088 Nut Nut
9046716008 90467-16008 Clip(For Oil Return Hose) Clip(For Oil Return Hose)
9046716008 90467-16019 Clip(For Return No.1) Clip(For Return No.1)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2 Bolt (For Transfer Case)Cover No.2
9165140612 91651-40612 BOLT BOLT
9165140612 90080-11225 New Genuine Part New Genuine Part
Power Steering Tube ([10.1991 - ] (9110- )V) 15 / 41
JZS147 Power Steering Tube ([10.1991 - ] (9110- )V)
JZS160 Power Steering Tube ([08.1997 - ] (9708- )JZS160)
# OEM JZS147 JZS160
44327 44327-30030 Gasket(For Pressure Hose) Gasket(For Pressure Hose)
44327 44327-30040 Gasket, Pressure Port, No.1 Gasket, Pressure Port, No.1
44406 90401-17005 Bolt, Union(For Return Tube) Bolt, Union(For Return Tube)
44406 96341-11703 Bolt, Union(For Return Tube) Bolt, Union(For Return Tube)
44410 96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube) Bolt, Union(For Rear Stabilizer Contorol Tube)
91611 91612-B1020 Bolt (For Transfer Case)Cover No.2 Bolt (For Transfer Case)Cover No.2
9010510286 90105-10286 Bolt(For Torque Arm Setting) Bolt(For Torque Arm Setting)
9010510286 91512-81025 Bolt(For Torque Arm Setting) Bolt(For Torque Arm Setting)
9011906541 90119-06541 New Genuine Part New Genuine Part
9017906246 90179-06274 Nut Nut
9017910016 90179-10132 Nut Nut
9046716008 90467-16008 Clip(For Oil Return Hose) Clip(For Oil Return Hose)
9046716008 90467-16019 Clip(For Return No.1) Clip(For Return No.1)
9165140612 91651-40612 BOLT BOLT
9165140612 90080-11225 New Genuine Part New Genuine Part
Propeller Shaft & Universal Joint ([10.1991 - ] REAR (9110- )) 36 / 45
JZS147 Propeller Shaft & Universal Joint ([10.1991 - ] REAR (9110- ))
JZS160 Propeller Shaft & Universal Joint ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
37100 90105-12265 Bolt, No.1 (For Propeller Shaft & Differential Setting) Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90179-12128 Nut, No.1 (For Propeller Shaft & Differential Setting) Nut, No.1 (For Propeller Shaft & Differential Setting)
37100 90560-12059 Washer, No.1 (For Propeller Shaft & Differential Setting) Washer, No.1 (For Propeller Shaft & Differential Setting)
37100 90105-12264 Bolt, No.1 (For Propeller Shaft & Differential Setting) Bolt, No.1 (For Propeller Shaft & Differential Setting)
37101 90937-01343 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01344 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01345 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01346 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01347 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01348 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01349 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01350 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01351 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01352 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01353 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01354 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01366 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01444 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01445 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01446 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01447 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01448 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01449 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01452 Piece, Balance, No.1 (For Propeller Shaft) Piece, Balance, No.1 (For Propeller Shaft)
37230 90119-10133 Bolt, No.1 (For Center Support Bearing) Bolt, No.1 (For Center Support Bearing)
37230 90201-10008 Washer, No.2 (For Center Support Bearing) Washer, No.2 (For Center Support Bearing)
37230 90201-10017 Washer, No.2 (For Center Support Bearing) Washer, No.2 (For Center Support Bearing)
37230 90201-10033 Washer, No.2 (For Center Support Bearing) Washer, No.2 (For Center Support Bearing)
37230 90201-10034 Washer, No.2 (For Center Support Bearing) Washer, No.2 (For Center Support Bearing)
37230 90201-10106 Washer, No.2 (For Center Support Bearing) Washer, No.2 (For Center Support Bearing)
37328 37328-50010 Nut, Propeller Shaft Adjusting Nut, Propeller Shaft Adjusting
37334 37334-50010 Boot, Sliding Shaft Boot, Sliding Shaft
37341 37341-22010 Deflector, Propeller Shaft Dust, No.1 Deflector, Propeller Shaft Dust, No.1
37342 37342-50010 Deflector, Propeller Shaft Dust, No.2 Deflector, Propeller Shaft Dust, No.2
37342 90520-28009 Ring Or Spacer (For Mtm Speedometer Drive Gear) Ring Or Spacer (For Mtm Speedometer Drive Gear)
37511 37511-24010 Coupling, Flexible Coupling, Flexible
Radiator & Water Outlet ([10.1991 - 08.1997] (9110-9708)2JZ#) 3 / 28
JZS147 Radiator & Water Outlet ([10.1991 - 08.1997] (9110-9708)2JZ#)
JZS160 Radiator & Water Outlet ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock) Plug,air(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock) Packing(For Radiator Drain Cock)
16484 90467-11085 Clamp Or Clip(For Radiator Breather Hose) Clamp Or Clip(For Radiator Breather Hose)
Radiator & Water Outlet ([10.1991 - 08.1997] (9110-9708)2JZGE) 27 / 68
JZS147 Radiator & Water Outlet ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Radiator & Water Outlet ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
16261 16261-46020 Hose, Water By-Pass Hose, Water By-Pass
16261 90467-13050 Clamp Or Clip, Hose(For Water By-Pass Hose) Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51300 Clamp, Hose Clamp, Hose
16264 16264-46041 Hose, Water By-Pass, No.2 Hose, Water By-Pass, No.2
16268 16268-46011 Pipe, Water By-Pass, No.1 Pipe, Water By-Pass, No.1
16268 96761-24022 Ring, O(For Water By-Pass Pipe) Ring, O(For Water By-Pass Pipe)
16321 16321-46040 Inlet, Water Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1 Gasket, Water Inlet Housing, No.1
16326 16325-46010 Gasket, Water Inlet Housing, No.2 Gasket, Water Inlet Housing, No.2
16331 16331-46041 Outlet, Water Outlet, Water
16331 90916-03093 Thermostat Thermostat
16331 96761-24028 Ring,o(For Water Outlet) Ring,o(For Water Outlet)
16343 16343-46020 Gasket, Water Outlet Housing Gasket, Water Outlet Housing
16351 16351-46022 Outlet, Water By-Pass Outlet, Water By-Pass
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose) Clamp Or Clip(For Radiator Breather Hose)
16535 90480-40016 Support, Radiator, Lower Support, Radiator, Lower
16571 90467-37005 Clip(For Water Inlet Hose) Clip(For Water Inlet Hose)
16572 90466-41008 Clamp, Hose(For Radiator Hose) Clamp, Hose(For Radiator Hose)
9009904119 90099-04119 BOLT WASHER HEAD BOLT WASHER HEAD
9010506164 90105-06164 New Genuine Part New Genuine Part
9010508250 90105-08250 Bolt, Flange Bolt, Flange
9011908891 90119-08891 BOLT BOLT
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover) Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
9017906257 90179-06257 NUT NUT
9017908153 90179-08153 NUT NUT
9017908240 90179-08240 New Genuine Part New Genuine Part
Radiator & Water Outlet ([10.1991 - 08.1997] (9110-9708)2JZGTE) 22 / 115
JZS147 Radiator & Water Outlet ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Radiator & Water Outlet ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
16261 90467-13050 Clamp Or Clip, Hose(For Water By-Pass Hose) Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51300 Clamp, Hose Clamp, Hose
16325 16325-62010 Gasket, Water Inlet Housing, No.1 Gasket, Water Inlet Housing, No.1
16326 16325-46010 Gasket, Water Inlet Housing, No.2 Gasket, Water Inlet Housing, No.2
16331 90916-03093 Thermostat Thermostat
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose) Clamp Or Clip(For Radiator Breather Hose)
16535 90480-40016 Support, Radiator, Lower Support, Radiator, Lower
16571 90467-37005 Clip(For Water Inlet Hose) Clip(For Water Inlet Hose)
16572 90466-41008 Clamp, Hose(For Radiator Hose) Clamp, Hose(For Radiator Hose)
16927 44327-30030 Gasket(For Pressure Hose) Gasket(For Pressure Hose)
16941 90467-16008 Clip(For Oil Return Hose) Clip(For Oil Return Hose)
16941 90467-16019 Clip(For Return No.1) Clip(For Return No.1)
16941 90467-16013 Clip(For Oil Return Hose) Clip(For Oil Return Hose)
16941 90467-16022 Clip(For Water Inlet Hose) Clip(For Water Inlet Hose)
91656 91651-B0616 BOLT WWASHER BOLT WWASHER
9010508250 90105-08250 Bolt, Flange Bolt, Flange
9011906493 90119-06493 BOLT WITH WASHER BOLT WITH WASHER
9011906610 90119-06610 New Genuine Part New Genuine Part
9017906246 90179-06274 Nut Nut
9017908153 90179-08153 NUT NUT
9017908240 90179-08240 New Genuine Part New Genuine Part
9165160614 91651-60614 Bolt Bolt
Radiator Grille ([08.1994 - ] (9408- )) 1 / 11
JZS147 Radiator Grille ([08.1994 - ] (9408- ))
JZS160 Accelerator Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9017906274 90179-06274 Nut Nut
Radiator Grille ([10.1991 - 08.1994] (9110-9408)) 1 / 18
JZS147 Radiator Grille ([10.1991 - 08.1994] (9110-9408))
JZS160 Accelerator Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9017906274 90179-06274 Nut Nut
Radio Receiver & Amplifier & Condenser ([10.1991 - 08.1997] (9110-9708)) 4 / 32
JZS147 Radio Receiver & Amplifier & Condenser ([10.1991 - 08.1997] (9110-9708))
JZS160 Navigation & Front Monitor Display ([08.1997 - 08.1999] (9708-9908))
# OEM JZS147 JZS160
9011906067 90119-06067 BOLT BOLT
9011906112 91631-40612 New Genuine Part New Genuine Part
9011906620 90119-06620 BOLT WWASHER BOLT WWASHER
9015350010 90153-50010 BOLT BOLT
Rear Axle Housing & Differential ([10.1991 - ] (9110- )) 139 / 167
JZS147 Rear Axle Housing & Differential ([10.1991 - ] (9110- ))
JZS160 Rear Axle Housing & Differential ([08.1997 - 05.2003] (9708-0305))
# OEM JZS147 JZS160
41101 90105-08328 Bolt Bolt
41105 41105-24010 Retainer Sub-Assy, Rear Differential Carrier Retainer Sub-Assy, Rear Differential Carrier
41105 90301-96003 Ring, O (For Rear Differential Carrier Retainer) Ring, O (For Rear Differential Carrier Retainer)
41108 90341-18032 Plug Sub-Assy, Drain(Mtm) - No magnet Plug Sub-Assy, Drain(Mtm) - No magnet
41108 90341-18035 Plug, No.1 (With Magnet) Plug, No.1 (With Magnet)
41108 12157-10010 Gasket (For Drain Plug) Gasket (For Drain Plug)
41110 90110-14003 Bolt, No.1 (For Rear Differential Carrier Set) Bolt, No.1 (For Rear Differential Carrier Set)
41110 90110-14007 Bolt, No.1 (For Rear Differential Carrier Set) Bolt, No.1 (For Rear Differential Carrier Set)
41111 90250-10017 Pin, Straight(For Clutch Housing Set) Pin, Straight(For Clutch Housing Set)
41181 41108-14030 Cover, Rear Differential Carrier Cover, Rear Differential Carrier
41181 90105-10417 Bolt (For Front Differential Carrier Cover Setting) Bolt (For Front Differential Carrier Cover Setting)
41183 41183-14010 Deflector, Rear Differential Breather Plug Oil Deflector, Rear Differential Breather Plug Oil
41183 41183-50010 Deflector, Rear Differential Breather Plug Oil Deflector, Rear Differential Breather Plug Oil
41201 41201-80031 Final Gear Kit, Differential, Rear Final Gear Kit, Differential, Rear
41201 41201-39116 Final Gear Kit, Differential, Rear Final Gear Kit, Differential, Rear
41201 90366-45035 Bearing (For Rear Drive Pinion Rear) Bearing (For Rear Drive Pinion Rear)
41201 90366-45016 Bearing (For Rear Drive Pinion Rear) Bearing (For Rear Drive Pinion Rear)
41201 90366-45032 Bearing (For Rear Drive Pinion Rear) Bearing (For Rear Drive Pinion Rear)
41201 90366-34010 Bearing (For Rear Drive Pinion Front) Bearing (For Rear Drive Pinion Front)
41201 90311-44005 Seal, Oil (For Rear Differential Carrier) Seal, Oil (For Rear Differential Carrier)
41201 90201-70001 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70002 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70003 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70004 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70005 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70006 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70007 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70008 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70009 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70010 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70011 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70012 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70013 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70014 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70015 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70016 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70017 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70018 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70019 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70020 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70021 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70022 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70023 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70024 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70025 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70026 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70027 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70028 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70029 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70030 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70031 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70032 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70033 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70034 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70035 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70036 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70037 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70038 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70039 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70040 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70041 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70042 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 41201-80027 Final Gear Kit, Differential, Rear Final Gear Kit, Differential, Rear
41201 41201-59176 Final Gear Kit, Differential, Rear Final Gear Kit, Differential, Rear
41204 90179-26005 Nut (For Rear Drive Pinion) Nut (For Rear Drive Pinion)
41204 41204-24020 Flange Sub-Assy, Rear Drive Pinion Companion, Rear Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41214 41214-50010 Slinger, Rear Differential Drive Pinion Oil Slinger, Rear Differential Drive Pinion Oil
41231 41231-50010 Spacer, Rear Differential Drive Pinion Bearing Spacer, Rear Differential Drive Pinion Bearing
41252 41252-24010 Deflector, Dust (For Rear Differential) Deflector, Dust (For Rear Differential)
41301 41301-50H00 Case Sub-Assy, Rear Differential Case Sub-Assy, Rear Differential
41301 41301-50H01 Case Sub-assy, Rear Differential Case Sub-assy, Rear Differential
41301 41301-50H02 Case Sub-assy, Rear Differential Case Sub-assy, Rear Differential
41301 41301-24031 Case Sub-Assy, Rear Differential Case Sub-Assy, Rear Differential
41301 90366-50033 Bearing(For Rear Differential Case) Bearing(For Rear Differential Case)
41302 90105-12219 Bolt(For Rear Differential Case) Bolt(For Rear Differential Case)
41331 41331-24031 Gear, Rear Differential Side Gear, Rear Differential Side
41334 90311-47008 Seal, Oil (For Rear Differential Side Gear Shaft) Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90201-63001 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63002 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63003 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63004 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63005 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63006 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63007 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63008 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63009 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63010 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63011 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63012 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63013 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63014 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63015 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63016 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63017 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63018 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63019 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63020 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63021 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63022 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63023 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63024 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63025 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63026 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63027 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63028 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63029 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63030 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63031 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63032 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63033 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63034 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63035 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63036 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63037 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63038 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63039 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63040 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63041 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63042 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63043 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90521-34003 Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft) Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft)
41336 41336-24020 Cover, Dust(For Rear Differential Side Gear Shaft) Cover, Dust(For Rear Differential Side Gear Shaft)
41341 41341-24010 Pinion, Rear Differential Pinion, Rear Differential
41342 41342-50010 Shaft, Rear Differential Pinion Shaft, Rear Differential Pinion
41343 90250-06058 Pin, Straight(For Timing Gear Case) Pin, Straight(For Timing Gear Case)
41351 41351-24010 Washer, Rear Differential Pinion Thrust Washer, Rear Differential Pinion Thrust
41361 41361-40021 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-40100 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-40110 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-40120 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-40130 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-40140 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-40150 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41361 41362-40021 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41361 41363-40021 Washer, Rear Differential Side Gear Thrust, No.1 Washer, Rear Differential Side Gear Thrust, No.1
41651 41651-30020 Cushion, Rear Differential Mount, No.1 Cushion, Rear Differential Mount, No.1
41651 41651-30032 Cushion, Rear Differential Mount, No.2 Cushion, Rear Differential Mount, No.2
41654 41654-30010 Stopper, Rear Differential Mount, Lower Stopper, Rear Differential Mount, Lower
9165160614 91651-60614 Bolt Bolt
Rear Axle Housing & Differential ([10.1991 - ] ﾘﾐﾃﾂﾄﾞ ｽﾘﾂﾌﾟ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ (9110- )) 125 / 152
JZS147 Rear Axle Housing & Differential ([10.1991 - ] ﾘﾐﾃﾂﾄﾞ ｽﾘﾂﾌﾟ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ (9110- ))
JZS160 Rear Axle Housing & Differential ([08.1997 - 05.2003] (9708-0305))
# OEM JZS147 JZS160
41101 90105-08328 Bolt Bolt
41105 41105-24010 Retainer Sub-Assy, Rear Differential Carrier Retainer Sub-Assy, Rear Differential Carrier
41105 90301-96003 Ring, O (For Rear Differential Carrier Retainer) Ring, O (For Rear Differential Carrier Retainer)
41108 90341-18032 Plug Sub-Assy, Drain(Mtm) - No magnet Plug Sub-Assy, Drain(Mtm) - No magnet
41108 90341-18035 Plug, No.1 (With Magnet) Plug, No.1 (With Magnet)
41108 12157-10010 Gasket (For Drain Plug) Gasket (For Drain Plug)
41110 90110-14003 Bolt, No.1 (For Rear Differential Carrier Set) Bolt, No.1 (For Rear Differential Carrier Set)
41110 90110-14007 Bolt, No.1 (For Rear Differential Carrier Set) Bolt, No.1 (For Rear Differential Carrier Set)
41111 90250-10017 Pin, Straight(For Clutch Housing Set) Pin, Straight(For Clutch Housing Set)
41181 41108-14030 Cover, Rear Differential Carrier Cover, Rear Differential Carrier
41181 90105-10417 Bolt (For Front Differential Carrier Cover Setting) Bolt (For Front Differential Carrier Cover Setting)
41183 41183-14010 Deflector, Rear Differential Breather Plug Oil Deflector, Rear Differential Breather Plug Oil
41183 41183-50010 Deflector, Rear Differential Breather Plug Oil Deflector, Rear Differential Breather Plug Oil
41201 41201-80031 Final Gear Kit, Differential, Rear Final Gear Kit, Differential, Rear
41201 41201-39116 Final Gear Kit, Differential, Rear Final Gear Kit, Differential, Rear
41201 90366-45035 Bearing (For Rear Drive Pinion Rear) Bearing (For Rear Drive Pinion Rear)
41201 90366-45016 Bearing (For Rear Drive Pinion Rear) Bearing (For Rear Drive Pinion Rear)
41201 90366-45032 Bearing (For Rear Drive Pinion Rear) Bearing (For Rear Drive Pinion Rear)
41201 90366-34010 Bearing (For Rear Drive Pinion Front) Bearing (For Rear Drive Pinion Front)
41201 90311-44005 Seal, Oil (For Rear Differential Carrier) Seal, Oil (For Rear Differential Carrier)
41201 90201-70001 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70002 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70003 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70004 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70005 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70006 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70007 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70008 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70009 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70010 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70011 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70012 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70013 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70014 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70015 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70016 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70017 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70018 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70019 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70020 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70021 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70022 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70023 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70024 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70025 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70026 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70027 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70028 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70029 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70030 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70031 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70032 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70033 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70034 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70035 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70036 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70037 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70038 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70039 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70040 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70041 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-70042 Washer, Plate (For Rear Differential Drive Pinion) Washer, Plate (For Rear Differential Drive Pinion)
41201 41201-80027 Final Gear Kit, Differential, Rear Final Gear Kit, Differential, Rear
41201 41201-59176 Final Gear Kit, Differential, Rear Final Gear Kit, Differential, Rear
41204 90179-26005 Nut (For Rear Drive Pinion) Nut (For Rear Drive Pinion)
41204 41204-24020 Flange Sub-Assy, Rear Drive Pinion Companion, Rear Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41214 41214-50010 Slinger, Rear Differential Drive Pinion Oil Slinger, Rear Differential Drive Pinion Oil
41231 41231-50010 Spacer, Rear Differential Drive Pinion Bearing Spacer, Rear Differential Drive Pinion Bearing
41252 41252-24010 Deflector, Dust (For Rear Differential) Deflector, Dust (For Rear Differential)
41301 41301-50H00 Case Sub-Assy, Rear Differential Case Sub-Assy, Rear Differential
41301 41301-50H01 Case Sub-assy, Rear Differential Case Sub-assy, Rear Differential
41301 41301-50H02 Case Sub-assy, Rear Differential Case Sub-assy, Rear Differential
41301 41301-24031 Case Sub-Assy, Rear Differential Case Sub-Assy, Rear Differential
41301 90366-50033 Bearing(For Rear Differential Case) Bearing(For Rear Differential Case)
41302 90105-12219 Bolt(For Rear Differential Case) Bolt(For Rear Differential Case)
41334 90311-47008 Seal, Oil (For Rear Differential Side Gear Shaft) Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90201-63001 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63002 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63003 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63004 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63005 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63006 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63007 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63008 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63009 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63010 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63011 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63012 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63013 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63014 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63015 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63016 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63017 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63018 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63019 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63020 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63021 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63022 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63023 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63024 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63025 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63026 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63027 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63028 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63029 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63030 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63031 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63032 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63033 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63034 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63035 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63036 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63037 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63038 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63039 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63040 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63041 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63042 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90201-63043 Washer, Plate (For Rear Differential Side Gear Shaft) Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90521-34003 Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft) Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft)
41336 41336-24020 Cover, Dust(For Rear Differential Side Gear Shaft) Cover, Dust(For Rear Differential Side Gear Shaft)
41651 41651-30020 Cushion, Rear Differential Mount, No.1 Cushion, Rear Differential Mount, No.1
41651 41651-30032 Cushion, Rear Differential Mount, No.2 Cushion, Rear Differential Mount, No.2
41654 41654-30010 Stopper, Rear Differential Mount, Lower Stopper, Rear Differential Mount, Lower
9165160614 91651-60614 Bolt Bolt
Rear Axle Shaft & Hub ([10.1991 - ] (9110- )) 9 / 69
JZS147 Rear Axle Shaft & Hub ([10.1991 - ] (9110- ))
JZS160 Rear Axle Shaft & Hub ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
42311 90179-26006 Nut (For Rear Axle Shaft) Nut (For Rear Axle Shaft)
42311 90942-02070 Bolt, Hub Bolt, Hub
42311 90942-02049 Bolt, Hub Bolt, Hub
42311 90942-02082 Bolt, Hub Bolt, Hub
42341 90520-26028 Ring, Snap (For Rear Drive Shaft) Ring, Snap (For Rear Drive Shaft)
42428 42428-24010 Plate, Rear Axle Lock Nut Plate, Rear Axle Lock Nut
42452 42453-50010 Deflector, Rear Wheel Bearing Dust, No.1 Rh Deflector, Rear Wheel Bearing Dust, No.1 Rh
42491 47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake) Plug, Shoe Adjusting Hole (For Parking Brake)
9025204004 90252-04004 PIN COTTER PIN COTTER
Rear Bumper & Bumper Stay ([08.1994 - ] (9408- )) 3 / 87
JZS147 Rear Bumper & Bumper Stay ([08.1994 - ] (9408- ))
JZS160 Rear Bumper & Bumper Stay ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9015960215 90159-60215 SCREW SCREW
9017906132 90179-06274 Nut Nut
9090189004 90901-89004 GROMMET SCREW GROMMET SCREW
Rear Bumper & Bumper Stay ([10.1991 - 08.1994] (9110-9408)) 4 / 96
JZS147 Rear Bumper & Bumper Stay ([10.1991 - 08.1994] (9110-9408))
JZS160 Rear Bumper & Bumper Stay ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9015960215 90159-60215 SCREW SCREW
9017906097 90179-06206 Nut Nut
9017906132 90179-06274 Nut Nut
9090189004 90901-89004 GROMMET SCREW GROMMET SCREW
Rear Combination Lamp ([10.1991 - 08.1997] (9110-9708)) 3 / 30
JZS147 Rear Combination Lamp ([10.1991 - 08.1997] (9110-9708))
JZS160 Headlamp ([08.1997 - ] (9708- )JZS160)
# OEM JZS147 JZS160
9017905020 90179-05011 NUT NUT
9017905095 90179-05095 NUT NUT
9017905095 90179-05004 NUT NUT
Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )) 12 / 57
JZS147 Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- ))
JZS160 Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
31478 31478-30010 Bleeder Plug Cap Bleeder Plug Cap
47547 47547-27030 Plug, Bleeder(For Front Disc Brake) Plug, Bleeder(For Front Disc Brake)
47715 47715-22070 Pin, Front Disc Brake Cylinder Slide Pin, Front Disc Brake Cylinder Slide
47721 90105-08164 Bolt(For Front Disc Brake Cylinder Slide) Bolt(For Front Disc Brake Cylinder Slide)
47731 90520-52006 Ring, Set(For Disc Brake Piston) Ring, Set(For Disc Brake Piston)
47769 47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake) Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-30070 Boot, Bush Dust(For Front Disc Brake) Boot, Bush Dust(For Front Disc Brake)
47775 47775-50010 Boot, Bush Dust(For Front Disc Brake) Boot, Bush Dust(For Front Disc Brake)
47810 90105-12174 Bolt, Hexagon(For Rear Caliper) Bolt, Hexagon(For Rear Caliper)
9011910550 90119-10550 New Genuine Part New Genuine Part
9011910550 90080-11399 New Genuine Part New Genuine Part
9017910085 90179-10085 NUT NUT
Rear Door Lock & Handle ([10.1991 - ] (9110- )) 4 / 72
JZS147 Rear Door Lock & Handle ([10.1991 - ] (9110- ))
JZS160 Rear Door Lock & Handle ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
69205 90541-04018 Cushion(For Front Door Inside Handle) Cushion(For Front Door Inside Handle)
9015960303 90159-60303 SCREW SCREW
9165140612 91651-40612 BOLT BOLT
9165140612 90080-11225 New Genuine Part New Genuine Part
Rear Door Panel & Glass ([10.1991 - ] (9110- )) 13 / 125
JZS147 Rear Door Panel & Glass ([10.1991 - ] (9110- ))
JZS160 Front Door Panel & Glass ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
67923 67923-30010 Cushion, Front Door Stiffener, No.1 Cushion, Front Door Stiffener, No.1
67923 67923-24030 Cushion, Front Door Stiffener, No.1 Cushion, Front Door Stiffener, No.1
68617 68617-50010 Pin(For Front Door Check) Pin(For Front Door Check)
9015940223 90159-40223 SCREW WWASHER SCREW WWASHER
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover) Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
9017906070 90080-17210 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
9018904200 90189-04200 GROMMET SCREW GROMMET SCREW
9033335002 90333-35002 Plug, Hole(For Rear Door Panel) Plug, Hole(For Rear Door Panel)
9054110027 90541-10027 Cushion(For Center Piller) Cushion(For Center Piller)
9165140612 91651-40612 BOLT BOLT
9165140612 90080-11225 New Genuine Part New Genuine Part
9356054025 93560-54025 SCREW SCREW
Rear Door Window Regulator & Hinge ([10.1991 - ] (9110- )) 4 / 17
JZS147 Rear Door Window Regulator & Hinge ([10.1991 - ] (9110- ))
JZS160 Steering Column & Shaft ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover) Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
9165140612 91651-40612 BOLT BOLT
9165140612 90080-11225 New Genuine Part New Genuine Part
Rear License Plate Lamp ([10.1991 - 08.1997] (9110-9708)) 2 / 7
JZS147 Rear License Plate Lamp ([10.1991 - 08.1997] (9110-9708))
JZS160 Center Stop Lamp ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
81270 99132-12050 Bulb (12V 5W) Bulb (12V 5W)
81270 90080-81053 Bulb(For Clearance Lamp) Bulb(For Clearance Lamp)
Rear Moulding ([10.1991 - ] (9110- )) 2 / 5
JZS147 Rear Moulding ([10.1991 - ] (9110- ))
JZS160 Rear Moulding ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
75495 75495-30020 Clip, Outside Moulding, No.4 Clip, Outside Moulding, No.4
9016840062 90168-40062 New Genuine Part New Genuine Part
Rear Seat & Seat Track ([10.1991 - ] (9110- )) 4 / 163
JZS147 Rear Seat & Seat Track ([10.1991 - ] (9110- ))
JZS160 Rear Seat & Seat Track ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9011908 90119-08A94 New Genuine Part New Genuine Part
9017604015 90176-04015 New Genuine Part New Genuine Part
9017906129 90179-06129 NUT NUT
9046818071 90468-16019 Clip (For Rear Seat Back) Clip (For Rear Seat Back)
Rear Spring & Shock Absorber ([08.1995 - ] (9508- )Q) 8 / 76
JZS147 Rear Spring & Shock Absorber ([08.1995 - ] (9508- )Q)
JZS160 Rear Spring & Shock Absorber ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
48703 90170-14012 Nut, Rack End Lock Nut, Rack End Lock
48703 90179-12027 Nut, Castle (For Front Lower Ball Joint Setting) Nut, Castle (For Front Lower Ball Joint Setting)
48750 94187-11200 Nut Nut
48750 90177-12002 Nut Nut
48770 90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) Nut, Castle (For Front Lower Ball Joint Setting)
48780 90179-14045 Nut(For Front Shock Absorber Bracket Lower) Nut(For Front Shock Absorber Bracket Lower)
48830 90179-10054 Nut, No.1 (For Center Support Bearing) Nut, No.1 (For Center Support Bearing)
9020114020 90201-14020 WASHER WASHER
Rear Spring & Shock Absorber ([08.1995 - ] (9508- )V) 6 / 65
JZS147 Rear Spring & Shock Absorber ([08.1995 - ] (9508- )V)
JZS160 Rear Spring & Shock Absorber ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
48703 90170-14012 Nut, Rack End Lock Nut, Rack End Lock
48703 90179-12027 Nut, Castle (For Front Lower Ball Joint Setting) Nut, Castle (For Front Lower Ball Joint Setting)
48770 90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) Nut, Castle (For Front Lower Ball Joint Setting)
48780 90179-14045 Nut(For Front Shock Absorber Bracket Lower) Nut(For Front Shock Absorber Bracket Lower)
48830 90179-10054 Nut, No.1 (For Center Support Bearing) Nut, No.1 (For Center Support Bearing)
9020114020 90201-14020 WASHER WASHER
Rear Spring & Shock Absorber ([10.1991 - 08.1995] (9110-9508)Q) 8 / 76
JZS147 Rear Spring & Shock Absorber ([10.1991 - 08.1995] (9110-9508)Q)
JZS160 Rear Spring & Shock Absorber ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
48703 90170-14012 Nut, Rack End Lock Nut, Rack End Lock
48703 90179-12027 Nut, Castle (For Front Lower Ball Joint Setting) Nut, Castle (For Front Lower Ball Joint Setting)
48750 94187-11200 Nut Nut
48750 90177-12002 Nut Nut
48770 90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) Nut, Castle (For Front Lower Ball Joint Setting)
48780 90179-14045 Nut(For Front Shock Absorber Bracket Lower) Nut(For Front Shock Absorber Bracket Lower)
48830 90179-10054 Nut, No.1 (For Center Support Bearing) Nut, No.1 (For Center Support Bearing)
9020114020 90201-14020 WASHER WASHER
Rear Spring & Shock Absorber ([10.1991 - 08.1995] (9110-9508)V) 6 / 65
JZS147 Rear Spring & Shock Absorber ([10.1991 - 08.1995] (9110-9508)V)
JZS160 Rear Spring & Shock Absorber ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
48703 90170-14012 Nut, Rack End Lock Nut, Rack End Lock
48703 90179-12027 Nut, Castle (For Front Lower Ball Joint Setting) Nut, Castle (For Front Lower Ball Joint Setting)
48770 90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) Nut, Castle (For Front Lower Ball Joint Setting)
48780 90179-14045 Nut(For Front Shock Absorber Bracket Lower) Nut(For Front Shock Absorber Bracket Lower)
48830 90179-10054 Nut, No.1 (For Center Support Bearing) Nut, No.1 (For Center Support Bearing)
9020114020 90201-14020 WASHER WASHER
Roof Panel & Back Window Glass ([10.1991 - ] (9110- )) 8 / 108
JZS147 Roof Panel & Back Window Glass ([10.1991 - ] (9110- ))
JZS160 Roof Panel & Back Window Glass ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
61826 61825-22050 Cover, Roof Side, Inner Upper Cover, Roof Side, Inner Upper
64101 90468-05045 New Genuine Part New Genuine Part
9017906069 90179-06274 Nut Nut
9017906273 90179-06273 New Genuine Part New Genuine Part
9046714001 90467-14001 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
9046714001 90466-T0026 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
9090480007 90904-80007 Grommet, Sliding Roof Drain Grommet, Sliding Roof Drain
9616000400 96160-00400 Ring, E(For Release Arm) Ring, E(For Release Arm)
Roof Side Ventilator ([10.1991 - ] (9110- )) 1 / 5
JZS147 Roof Side Ventilator ([10.1991 - ] (9110- ))
JZS160 Fuel Tank & Tube ([07.2000 - ] (0007- ))
# OEM JZS147 JZS160
9018905137 90189-05137 GROMMET SCREW GROMMET SCREW
Seat Belt & Child Restraint Seat ([10.1991 - ] (9110- )) 3 / 182
JZS147 Seat Belt & Child Restraint Seat ([10.1991 - ] (9110- ))
JZS160 Seat Belt & Child Restraint Seat ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
73343 73343-50020-B0 Guide, Rear Seat Shoulder Belt, Rh (BLUE GRAY COLOR) Guide, Rear Seat Shoulder Belt, Rh (BLUE GRAY COLOR)
73344 73344-50010-B0 Guide, Rear Seat Shoulder Belt, Lh (BLUE GRAY COLOR) Guide, Rear Seat Shoulder Belt, Lh (BLUE GRAY COLOR)
9017604015 90176-04015 New Genuine Part New Genuine Part
Shift Lever & Retainer ([10.1991 - ] (9110- )JZS147) 7 / 65
JZS147 Shift Lever & Retainer ([10.1991 - ] (9110- )JZS147)
JZS160 Shift Lever & Retainer ([08.1997 - 01.2005] (9708-0501))
# OEM JZS147 JZS160
33675 33726-35010 Pin, W/hole (For Transmission Control Rod) Pin, W/hole (For Transmission Control Rod)
9017908001 90179-08233 NUT NUT
9046814004 90468-14004 Union, Auxiliary Fuel Band Union, Auxiliary Fuel Band
9046814033 90468-14033 CLIP CLIP
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing) Nut, No.1 (For Center Support Bearing)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) Washer, No.1 (For Propeller Shaft & Differential Setting)
9461310800 94613-10800 Spacer (For Control Select Lever Support) Spacer (For Control Select Lever Support)
Short Block Assembly ([10.1991 - ] (9110- )) 1 / 10
JZS147 Short Block Assembly ([10.1991 - ] (9110- ))
JZS160 Engine Oil Cooler ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
11400 90430-16012 Gasket, W/head Taper Screw Plug Gasket, W/head Taper Screw Plug
Side Member ([10.1991 - ] (9110- )) 7 / 80
JZS147 Side Member ([10.1991 - ] (9110- ))
JZS160 Side Member ([05.2002 - ] (0205- ))
# OEM JZS147 JZS160
62151 62151-30070 Pad, Cowl Side Silencer Pad, Cowl Side Silencer
9015945010 90159-45010 New Genuine Part New Genuine Part
9015960507 90159-60507 SCREW WWASHER SCREW WWASHER
9017908025 90179-08025 Nut, Cap(For Cylinder Head Cover) Nut, Cap(For Cylinder Head Cover)
9033330002 90333-30002 Cover, Front Floor Hole Cover, Front Floor Hole
9095001392 90950-01392 Plug, Hole(For Luggage Compartment Door Panel) Plug, Hole(For Luggage Compartment Door Panel)
9095001859 90950-01859 PLUG HOLE PLUG HOLE
Side Moulding ([10.1991 - ] (9110- )) 4 / 274
JZS147 Side Moulding ([10.1991 - ] (9110- ))
JZS160 Side Moulding ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
75867 75867-30110 Clip, Rocker Panel Moulding Clip, Rocker Panel Moulding
9015945005 90159-45005 LEXSCREW LEXSCREW
9016440096 90164-40096 SCREW BINDING SCREW BINDING
9018904014 90189-04014 CLIP CLIP
Spare Wheel Carrier ([10.1991 - ] (9110- )) 1 / 3
JZS147 Spare Wheel Carrier ([10.1991 - ] (9110- ))
JZS160 Spare Wheel Carrier ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
51900 51931-30010 Carrier Assy, Spare Wheel Carrier Assy, Spare Wheel
Speaker ([10.1991 - 08.1997] (9110-9708)) 4 / 25
JZS147 Speaker ([10.1991 - 08.1997] (9110-9708))
JZS160 Horn ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9011906390 90119-06390 BOLT WWASHER BOLT WWASHER
9015950327 90159-50327 SCREW WWASHER SCREW WWASHER
9015960303 90159-60303 SCREW SCREW
9356755014 93568-55014 Screw Screw
Standard Tool ([10.1991 - ] (9110- )) 13 / 21
JZS147 Standard Tool ([10.1991 - ] (9110- ))
JZS160 Standard Tool ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9110 09111-30120 Jack Assy Jack Assy
9113 09113-22020 Handle, Jack Handle, Jack
9120 09120-24010 Bag, Tool Bag, Tool
9130 99913-11500 Pliers (China) - No Toyota stamp Pliers (China) - No Toyota stamp
9135 99915-10700 Driver, Screw - No Toyota stamp Driver, Screw - No Toyota stamp
9135 90089-99009 Driver, Screw (ATC) (Thailand) - Screw Driver (ATC) Driver, Screw (ATC) (Thailand) - Screw Driver (ATC)
9141 99914-10810 Spanner (China) - No Toyota stamp Spanner (China) - No Toyota stamp
9141 09141-0K030 Spanner (ATC) (Thailand) - 8x10 Spanner (ATC) (Thailand) - 8x10
9141 99914-11214 Spanner (China) - No Toyota stamp Spanner (China) - No Toyota stamp
9141 09141-0K040 Spanner (Thailand) Spanner (Thailand)
9150 09150-26010 Wrench, Hub Nut Box Wrench, Hub Nut Box
9184 09184-00010 Stopper, Wheel Stopper, Wheel
9613230600 96132-51100 Clip (For Hose) Clip (For Hose)
Starter ([10.1991 - 08.1997] 12V 1.2KW (9110-9708)2JZ#) 27 / 47
JZS147 Starter ([10.1991 - 08.1997] 12V 1.2KW (9110-9708)2JZ#)
JZS160 Starter ([08.1997 - ] 12V 1.4KW (9708- ))
# OEM JZS147 JZS160
28011 28011-76070 Clutch Sub-Assy, Starter Clutch Sub-Assy, Starter
28100 28100-46140 Starter Assy Starter Assy
28110 28110-46090 Housing Assy, Starter Drive Housing Assy, Starter Drive
28120 90099-14064 Rubber(For Starter Yoke) Rubber(For Starter Yoke)
28130 28130-46090 Frame Assy, Starter Commutator End Frame Assy, Starter Commutator End
28140 28140-76070 Holder Assy, Starter Brush Holder Assy, Starter Brush
28143 90099-17112 Spring, Starter Brush Spring, Starter Brush
28159 28159-55050 Cover, Starter Protector Cover, Starter Protector
28160 28160-74070 Armature Assy, Starter Armature Assy, Starter
28160 90099-10196 Bearing, Starter Armature Bearing, Starter Armature
28160 90099-10197 Bearing, Starter Armature Bearing, Starter Armature
28165 28165-76070 Spring, Starter Magnet Switch Return Spring, Starter Magnet Switch Return
28169 28169-55050 Clamp, Starter Motor Lead Wire Clamp, Starter Motor Lead Wire
28175 28175-55050 Gasket, Magnet Switch Cover Gasket, Magnet Switch Cover
28199 28199-74110 Cover, Starter End Frame Cover, Starter End Frame
28226 28226-22050 Starter Kit, Battery Terminal Starter Kit, Battery Terminal
28226 28226-74070 Starter Kit, Battery Terminal Starter Kit, Battery Terminal
28228 28228-26040 Roller, Starter Idle Gear Clutch Roller, Starter Idle Gear Clutch
28229 28229-74070 Retainer, Starter Idle Gear Retainer, Starter Idle Gear
28235 28235-55050 Plunger, Magnet Switch Plunger, Magnet Switch
28252 28254-74070 Pinion, Starter Drive Pinion, Starter Drive
9009904449 90099-04449 New Genuine Part New Genuine Part
9009904474 90099-04474 New Genuine Part New Genuine Part
9009905129 90099-05129 Nut (For Front Wiper Arm Setting) Nut (For Front Wiper Arm Setting)
9009905251 90099-05251 New Genuine Part New Genuine Part
9009912009 90099-12009 Ball, Starter Clutch Ball, Starter Clutch
9017908146 90179-08204 Nut Nut
Starter ([10.1991 - 08.1997] 12V 1.4KW (9110-9708)2JZ# ; (9508-9708)1UZFE) 29 / 46
JZS147 Starter ([10.1991 - 08.1997] 12V 1.4KW (9110-9708)2JZ# ; (9508-9708)1UZFE)
JZS160 Starter ([08.1997 - ] 12V 1.4KW (9708- ))
# OEM JZS147 JZS160
28011 28011-76070 Clutch Sub-Assy, Starter Clutch Sub-Assy, Starter
28100 28100-46140 Starter Assy Starter Assy
28110 28110-46090 Housing Assy, Starter Drive Housing Assy, Starter Drive
28120 90099-14064 Rubber(For Starter Yoke) Rubber(For Starter Yoke)
28130 28130-46090 Frame Assy, Starter Commutator End Frame Assy, Starter Commutator End
28140 28140-76070 Holder Assy, Starter Brush Holder Assy, Starter Brush
28143 90099-17112 Spring, Starter Brush Spring, Starter Brush
28159 28159-55050 Cover, Starter Protector Cover, Starter Protector
28160 28160-74070 Armature Assy, Starter Armature Assy, Starter
28160 90099-10196 Bearing, Starter Armature Bearing, Starter Armature
28160 90099-10197 Bearing, Starter Armature Bearing, Starter Armature
28165 28165-76070 Spring, Starter Magnet Switch Return Spring, Starter Magnet Switch Return
28169 28169-55050 Clamp, Starter Motor Lead Wire Clamp, Starter Motor Lead Wire
28175 28175-55050 Gasket, Magnet Switch Cover Gasket, Magnet Switch Cover
28199 28199-74110 Cover, Starter End Frame Cover, Starter End Frame
28226 28226-22050 Starter Kit, Battery Terminal Starter Kit, Battery Terminal
28226 28226-74070 Starter Kit, Battery Terminal Starter Kit, Battery Terminal
28228 28228-26040 Roller, Starter Idle Gear Clutch Roller, Starter Idle Gear Clutch
28229 28229-74070 Retainer, Starter Idle Gear Retainer, Starter Idle Gear
28235 28235-55050 Plunger, Magnet Switch Plunger, Magnet Switch
28252 28254-74070 Pinion, Starter Drive Pinion, Starter Drive
9009904448 90099-04448 Bolt, Starter Bolt, Starter
9009904449 90099-04449 New Genuine Part New Genuine Part
9009904474 90099-04474 New Genuine Part New Genuine Part
9009905129 90099-05129 Nut (For Front Wiper Arm Setting) Nut (For Front Wiper Arm Setting)
9009905251 90099-05251 New Genuine Part New Genuine Part
9009912009 90099-12009 Ball, Starter Clutch Ball, Starter Clutch
9011910180 90119-10180 Bolt (For Transfer Extension Rear Housing) Bolt (For Transfer Extension Rear Housing)
9017908146 90179-08204 Nut Nut
Starter ([10.1992 - ] 12V 1.6KW (9210- )) 25 / 51
JZS147 Starter ([10.1992 - ] 12V 1.6KW (9210- ))
JZS160 Starter ([08.1997 - ] 12V 1.4KW (9708- ))
# OEM JZS147 JZS160
28011 28011-76070 Clutch Sub-Assy, Starter Clutch Sub-Assy, Starter
28100 28100-46140 Starter Assy Starter Assy
28110 28110-46090 Housing Assy, Starter Drive Housing Assy, Starter Drive
28120 90099-14064 Rubber(For Starter Yoke) Rubber(For Starter Yoke)
28130 28130-46090 Frame Assy, Starter Commutator End Frame Assy, Starter Commutator End
28140 28140-76070 Holder Assy, Starter Brush Holder Assy, Starter Brush
28143 90099-17112 Spring, Starter Brush Spring, Starter Brush
28159 28159-55050 Cover, Starter Protector Cover, Starter Protector
28160 28160-74070 Armature Assy, Starter Armature Assy, Starter
28160 90099-10196 Bearing, Starter Armature Bearing, Starter Armature
28160 90099-10197 Bearing, Starter Armature Bearing, Starter Armature
28165 28165-76070 Spring, Starter Magnet Switch Return Spring, Starter Magnet Switch Return
28169 28169-55050 Clamp, Starter Motor Lead Wire Clamp, Starter Motor Lead Wire
28175 28175-55050 Gasket, Magnet Switch Cover Gasket, Magnet Switch Cover
28199 28199-74110 Cover, Starter End Frame Cover, Starter End Frame
28226 28226-22050 Starter Kit, Battery Terminal Starter Kit, Battery Terminal
28226 28226-74070 Starter Kit, Battery Terminal Starter Kit, Battery Terminal
28228 28228-26040 Roller, Starter Idle Gear Clutch Roller, Starter Idle Gear Clutch
28229 28229-74070 Retainer, Starter Idle Gear Retainer, Starter Idle Gear
28235 28235-55050 Plunger, Magnet Switch Plunger, Magnet Switch
28252 28254-74070 Pinion, Starter Drive Pinion, Starter Drive
9009905129 90099-05129 Nut (For Front Wiper Arm Setting) Nut (For Front Wiper Arm Setting)
9009912009 90099-12009 Ball, Starter Clutch Ball, Starter Clutch
9017908146 90179-08204 Nut Nut
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing) Nut, No.1 (For Center Support Bearing)
Steering Column & Shaft ([10.1991 - ] (9110- )) 7 / 31
JZS147 Steering Column & Shaft ([10.1991 - ] (9110- ))
JZS160 Steering Column & Shaft ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
45283 45283-22010 Plate, Safety Caution Plate, Safety Caution
45897 45897-12020 Bolt, Steering Lock Set Bolt, Steering Lock Set
9011908560 90119-08560 Bolt, Hexagon Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer Bolt w-washer
9016450034 93568-55014 Screw Screw
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover) Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1 Nut, Rear Wiper Link Pivot, No.1
Steering Wheel ([10.1991 - ] (9110- )) 2 / 75
JZS147 Steering Wheel ([10.1991 - ] (9110- ))
JZS160 Steering Wheel ([08.1997 - ] 3-SPOKE (9708- ))
# OEM JZS147 JZS160
45201 90179-12071 Nut, Steering Wheel Set Nut, Steering Wheel Set
9356054012 93560-54012 Screw Screw
Steering Wheel ([10.1991 - ] ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ) (9110- )) 2 / 78
JZS147 Steering Wheel ([10.1991 - ] ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ) (9110- ))
JZS160 Steering Wheel ([08.1997 - ] 3-SPOKE (9708- ))
# OEM JZS147 JZS160
45201 90179-12071 Nut, Steering Wheel Set Nut, Steering Wheel Set
9356054012 93560-54012 Screw Screw
Steering Wheel ([10.1991 - ] ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) (9110- )) 2 / 77
JZS147 Steering Wheel ([10.1991 - ] ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) (9110- ))
JZS160 Steering Wheel ([08.1997 - ] 3-SPOKE (9708- ))
# OEM JZS147 JZS160
45201 90179-12071 Nut, Steering Wheel Set Nut, Steering Wheel Set
9356054012 93560-54012 Screw Screw
Suspension Crossmember & Under Cover ([10.1991 - ] (9110- )) 9 / 72
JZS147 Suspension Crossmember & Under Cover ([10.1991 - ] (9110- ))
JZS160 Suspension Crossmember & Under Cover ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
52285 52285-30021 Bolt, Differential Support Member Mounting, No.1 Bolt, Differential Support Member Mounting, No.1
9011908 90119-08A87 BOLT W-WASHER BOLT W-WASHER
9011910806 90119-10806 New Genuine Part New Genuine Part
9011912247 90119-12247 Bolt Bolt
9017905060 90179-05060 LEXNUT LEXNUT
9018906027 90189-06027 Grommet Grommet
9046707166 90467-07166 Clip(For Front Fender Apron Seal) Clip(For Front Fender Apron Seal)
9095001398 90950-01398 CUSHION CUSHION
9095001506 90950-01506 Plug, Hole(For Luggage Compartment Door Panel) Plug, Hole(For Luggage Compartment Door Panel)
Switch & Relay & Computer ([10.1991 - 08.1997] ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ (9110-9708)) 2 / 26
JZS147 Switch & Relay & Computer ([10.1991 - 08.1997] ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ (9110-9708))
JZS160 Switch & Relay & Computer ([08.1997 - ] ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ (9708- ))
# OEM JZS147 JZS160
9331914012 93319-14012 New Genuine Part New Genuine Part
9331915012 93319-15012 Screw Screw
Switch & Relay & Computer ([10.1991 - 08.1997] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ (9110-9708)) 6 / 38
JZS147 Switch & Relay & Computer ([10.1991 - 08.1997] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ (9110-9708))
JZS160 Switch & Relay & Computer ([08.1997 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (9708- ))
# OEM JZS147 JZS160
84242 84242-20030 Switch Assy, Courtesy Lamp (For Glove Box) Switch Assy, Courtesy Lamp (For Glove Box)
84330 84999-10320 Bulb, Satellite Switch Bulb, Satellite Switch
84840 84840-30150-C0 Switch Assy, Luggage Compartment Door Opening (Black) Switch Assy, Luggage Compartment Door Opening (Black)
85500 84999-10440 Bulb, Heater Blower Switch Bulb, Heater Blower Switch
85500 84998-10530 Cap Bulb Cap Bulb
9356855014 93568-55014 Screw Screw
Switch & Relay & Computer ([10.1991 - 08.1997] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9110-9708)JZS147) 4 / 37
JZS147 Switch & Relay & Computer ([10.1991 - 08.1997] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9110-9708)JZS147)
JZS160 Switch & Relay & Computer ([08.1997 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9708- )JZS160)
# OEM JZS147 JZS160
83530 83530-30090 Switch Assy, Oil Pressure (For Engine) Switch Assy, Oil Pressure (For Engine)
83530 83530-60020 Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
9165140830 91651-40830 Bolt, Radiator Side Support Plate Bolt, Radiator Side Support Plate
Switch & Relay & Computer ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾙ-ﾑ (9110-9708)) 5 / 51
JZS147 Switch & Relay & Computer ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾙ-ﾑ (9110-9708))
JZS160 Electronic Fuel Injection System ([07.2000 - ] (0007- )JZS160)
# OEM JZS147 JZS160
85910 90987-04002 Relay, Ignition, No.1 Relay, Ignition, No.1
85927 90987-03003 Relay Assy, Fuel Pump Relay Assy, Fuel Pump
9011906484 90119-06484 New Genuine Part New Genuine Part
9011906484 90119-06278 BOLT BOLT
9017906128 90179-06128 NUT NUT
Switch & Relay & Computer ([10.1991 - 08.1997] ｶｳﾙ LH (9110-9708)) 6 / 15
JZS147 Switch & Relay & Computer ([10.1991 - 08.1997] ｶｳﾙ LH (9110-9708))
JZS160 Wiring & Clamp ([08.1997 - ] ｶｳﾙ ﾜｲﾔ (9708- ))
# OEM JZS147 JZS160
82671 82671-30340 Block, Junction Block, Junction
82671 82671-30350 Block, Junction Block, Junction
82671 82671-30360 Block, Junction Block, Junction
82671 82671-30370 Block, Junction Block, Junction
83650 90986-01005 Fusee Fusee
9015950138 90159-50138 SCREW SCREW
Switch & Relay & Computer ([10.1991 - 08.1997] ｶｳﾙ RH (9110-9708)) 13 / 50
JZS147 Switch & Relay & Computer ([10.1991 - 08.1997] ｶｳﾙ RH (9110-9708))
JZS160 Switch & Relay & Computer ([08.1997 - ] ｶｳﾙ (9708- ))
# OEM JZS147 JZS160
82671 82671-30340 Block, Junction Block, Junction
82671 82671-30350 Block, Junction Block, Junction
82671 82671-30360 Block, Junction Block, Junction
82671 82671-30370 Block, Junction Block, Junction
84340 84340-32090 Switch Assy, Stop Lamp Switch Assy, Stop Lamp
84340 84340-42010 Switch Assy, Stop Lamp Switch Assy, Stop Lamp
84340 84340-32110 Switch Assy, Stop Lamp Switch Assy, Stop Lamp
84340 84340-42020 Switch Assy, Stop Lamp Switch Assy, Stop Lamp
85915 90987-04002 Relay, Ignition, No.1 Relay, Ignition, No.1
9011906120 90119-06120 BOLT BOLT
9011906310 90119-06428 New Genuine Part New Genuine Part
9163560616 91635-60616 BOLT WWASHER BOLT WWASHER
9163560616 91631-J0612 BRACKET BRACKET
Switch & Relay & Computer ([10.1991 - 08.1997] ﾘﾔﾄﾞｱ,ﾗｹﾞ-ｼﾞ(ﾄﾗﾝｸ) ｽｲﾂﾁ (9110-9708)) 2 / 15
JZS147 Switch & Relay & Computer ([10.1991 - 08.1997] ﾘﾔﾄﾞｱ,ﾗｹﾞ-ｼﾞ(ﾄﾗﾝｸ) ｽｲﾂﾁ (9110-9708))
JZS160 Switch & Relay & Computer ([08.1997 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (9708- ))
# OEM JZS147 JZS160
84903 84903-50040 Switch Sub-Assy, Door Un-Lock Switch Sub-Assy, Door Un-Lock
9017906216 90179-06274 Nut Nut
Switch & Relay & Computer ([10.1991 - 08.1997] ﾙ-ﾌ,ｼ-ﾄ,ﾌﾛﾝﾄﾄﾞｱ & ﾌﾛｱ ｽｲﾂﾁ (9110-9708)) 10 / 43
JZS147 Switch & Relay & Computer ([10.1991 - 08.1997] ﾙ-ﾌ,ｼ-ﾄ,ﾌﾛﾝﾄﾄﾞｱ & ﾌﾛｱ ｽｲﾂﾁ (9110-9708))
JZS160 Switch & Relay & Computer ([08.1997 - ] ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ,ｼ-ﾄ & ﾗﾂｹﾞ-ｼﾞ (9708- ))
# OEM JZS147 JZS160
84903 84903-50040 Switch Sub-Assy, Door Un-Lock Switch Sub-Assy, Door Un-Lock
84920 84920-30200-C0 Switch Assy, Power Seat Front, Rh Switch Assy, Power Seat Front, Rh
84921 84921-24030-C0 Knob, Power Seat Switch Knob, Power Seat Switch
84921 84921-24040-C0 Knob, Power Seat Switch Knob, Power Seat Switch
9011906514 90119-06514 BOLT WWASHER BOLT WWASHER
9011906746 91631-J0612 BRACKET BRACKET
9015940159 90159-40159 SCREW WWASHER SCREW WWASHER
9015940159 90159-A0028 SCREW WWASHER SCREW WWASHER
9353054010 93530-54010 SCREW SCREW
9353054010 90084-16012 SCREW SCREW
Throttle Link & Valve Lever (Atm) ([10.1991 - ] A340E (9110- )JZS147) 3 / 8
JZS147 Throttle Link & Valve Lever (Atm) ([10.1991 - ] A340E (9110- )JZS147)
JZS160 Transmission Case & Oil Pan (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
35520 90301-09012 Ring, O (For Automatic Transmission Case Plug) Ring, O (For Automatic Transmission Case Plug)
9161160616 91611-B0616 Bolt(For Transaxle Case Receiver) Bolt(For Transaxle Case Receiver)
9165140610 91651-40610 RIVET RIVET
Throttle Link & Valve Lever (Atm) ([10.1991 - ] A340E,A341H (9110- )) 14 / 23
JZS147 Throttle Link & Valve Lever (Atm) ([10.1991 - ] A340E,A341H (9110- ))
JZS160 Throttle Link & Valve Lever (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
35501 35501-60010 Rod Sub-Assy, Parking Lock Rod Sub-Assy, Parking Lock
35506 90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever) Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506 90311-12002 Oil Seal, Type T Oil Seal, Type T
35506 90560-20006 Spacer (For Manual Valve Lever) Spacer (For Manual Valve Lever)
35556 35556-30020 Shaft, Parking Lock Pawl Shaft, Parking Lock Pawl
35556 90523-08021 Ring, E (For Parking Lock Pawl Shaft) Ring, E (For Parking Lock Pawl Shaft)
35557 90508-21002 Spring, Torsion (For Parking Lock Pawl) Spring, Torsion (For Parking Lock Pawl)
35557 35557-60020 Pawl, Parking Lock Pawl, Parking Lock
35561 35561-30070 Shaft Sub-Assy, Manual Valve Lever Shaft Sub-Assy, Manual Valve Lever
35595 35595-60010 Bracket, Parking Lock Pawl Bracket, Parking Lock Pawl
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock) Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) Bolt (For Rear Differential Breather Plug Oil Deflector)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing) Nut, No.1 (For Center Support Bearing)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) Washer, No.1 (For Propeller Shaft & Differential Setting)
Timing Gear Cover & Rear End Plate ([10.1991 - 08.1997] (9110-9708)2JZGE) 12 / 32
JZS147 Timing Gear Cover & Rear End Plate ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
11322 11302-46031 Cover, Timing Belt, No.1 Cover, Timing Belt, No.1
11322 11328-46041 Gasket, Timing Belt Cover, No.1 Gasket, Timing Belt Cover, No.1
11325 11325-46042 Cover, Timing Belt, No.4 Cover, Timing Belt, No.4
11381 11381-46010 Retainer, Engine Rear Oil Seal Retainer, Engine Rear Oil Seal
11381 90311-90006 Seal, Engine Rear Oil Seal, Engine Rear Oil
11385 90311-40020 Seal, Oil(For Camshaft) Seal, Oil(For Camshaft)
9010510345 90105-10345 New Genuine Part New Genuine Part
9011006009 90110-06009 Bolt Bolt
9090480006 90904-80006 GROMMET GROMMET
9151160614 91511-B0614 BOLT, FLANGE BOLT, FLANGE
9151160620 91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) Bolt(For Clutch Release Bearing Hub Retainer)
9162160612 91621-J0612 BOLT W-WASHER BOLT W-WASHER
Timing Gear Cover & Rear End Plate ([10.1991 - 08.1997] (9110-9708)2JZGTE) 10 / 25
JZS147 Timing Gear Cover & Rear End Plate ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
11322 11302-46031 Cover, Timing Belt, No.1 Cover, Timing Belt, No.1
11322 11328-46041 Gasket, Timing Belt Cover, No.1 Gasket, Timing Belt Cover, No.1
11381 11381-46010 Retainer, Engine Rear Oil Seal Retainer, Engine Rear Oil Seal
11381 90311-90006 Seal, Engine Rear Oil Seal, Engine Rear Oil
11385 90311-40020 Seal, Oil(For Camshaft) Seal, Oil(For Camshaft)
9010510345 90105-10345 New Genuine Part New Genuine Part
9011006009 90110-06009 Bolt Bolt
9151160614 91511-B0614 BOLT, FLANGE BOLT, FLANGE
9151160620 91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) Bolt(For Clutch Release Bearing Hub Retainer)
9162160612 91621-J0612 BOLT W-WASHER BOLT W-WASHER
Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - ] A340E,A341H (9110- )) 24 / 36
JZS147 Torque Converter, Front Oil Pump & Chain (Atm) ([10.1991 - ] A340E,A341H (9110- ))
JZS160 Torque Converter, Front Oil Pump & Chain (Atm) ([08.1997 - ] A340E,A650E (9708- ))
# OEM JZS147 JZS160
32101 90105-10294 Bolt, Flywheel Setting Bolt, Flywheel Setting
32101 32101-22050 Gear Sub-Assy, Drive Plate & Ring Gear Sub-Assy, Drive Plate & Ring
32116 32116-22020 Spacer, Drive Plate, Front Spacer, Drive Plate, Front
32117 32117-22020 Spacer, Drive Plate, Rear Spacer, Drive Plate, Rear
35301 35301-35010 Body Sub-Assy, Front Oil Pump Body Sub-Assy, Front Oil Pump
35301 90311-38029 Seal, Oil (For Front Oil Pump) Seal, Oil (For Front Oil Pump)
35301 90311-38020 Seal, Oil (For Front Oil Pump) Seal, Oil (For Front Oil Pump)
35301 90301-99033 Ring, O (For Front Oil Pump Body) Ring, O (For Front Oil Pump Body)
35301 90105-08091 Bolt (For Front Oil Pump Setting) Bolt (For Front Oil Pump Setting)
35307 35789-30020 Race, Thrust Bearing (For Stator Shaft) Race, Thrust Bearing (For Stator Shaft)
35307 35789-30340 Race, Thrust Bearing (For Stator Shaft) Race, Thrust Bearing (For Stator Shaft)
35321 35321-12020 Gear, Front Oil Pump Drive Gear, Front Oil Pump Drive
35321 35321-12030 Gear, Front Oil Pump Drive Gear, Front Oil Pump Drive
35321 35321-12040 Gear, Front Oil Pump Drive Gear, Front Oil Pump Drive
35321 35321-12050 Gear, Front Oil Pump Drive Gear, Front Oil Pump Drive
35321 35321-12060 Gear, Front Oil Pump Drive Gear, Front Oil Pump Drive
35322 35322-12010 Gear, Front Oil Pump Driven Gear, Front Oil Pump Driven
35322 35322-12020 Gear, Front Oil Pump Driven Gear, Front Oil Pump Driven
35322 35322-12030 Gear, Front Oil Pump Driven Gear, Front Oil Pump Driven
35322 35322-12040 Gear, Front Oil Pump Driven Gear, Front Oil Pump Driven
35322 35322-12050 Gear, Front Oil Pump Driven Gear, Front Oil Pump Driven
35370 35370-30031 Shaft Sub-Assy, Stator Shaft Sub-Assy, Stator
35617 35617-30020 Ring, Clutch Drum Oil Seal Ring, Clutch Drum Oil Seal
9010506126 90105-06126 Bolt (For Stator Shaft) Bolt (For Stator Shaft)
Traction Control ([10.1991 - 08.1997] (9110-9708)JZS147) 4 / 18
JZS147 Traction Control ([10.1991 - 08.1997] (9110-9708)JZS147)
JZS160 Abs & Vsc ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
89633 89633-24010 Relay, Skid Control Relay, Skid Control
9011906120 90119-06120 BOLT BOLT
9011906514 90119-06514 BOLT WWASHER BOLT WWASHER
9356855014 93568-55014 Screw Screw
Transfer Case & Extension Housing ([10.1992 - ] (9210- )) 1 / 16
JZS147 Transfer Case & Extension Housing ([10.1992 - ] (9210- ))
JZS160 Transmission Case & Oil Pan (Atm) ([07.2000 - ] A650E (0007- )JZS160)
# OEM JZS147 JZS160
9011906513 90119-06513 Bolt (For Automatic Transmission Oil Pan) Bolt (For Automatic Transmission Oil Pan)
Transfer Valve Body & Valve Lever ([10.1992 - ] (9210- )) 4 / 4
JZS147 Transfer Valve Body & Valve Lever ([10.1992 - ] (9210- ))
JZS160 Valve Body & Oil Strainer (Atm) ([07.2000 - ] A650E (0007- )JZS160)
# OEM JZS147 JZS160
9010505002 90105-05002 New Genuine Part New Genuine Part
9010505008 90105-05008 New Genuine Part New Genuine Part
9010506075 90105-06075 New Genuine Part New Genuine Part
9010506075 91511-C0622 Strainer Bolt Strainer Bolt
Transmission Case & Oil Pan (Atm) ([10.1991 - ] A340E,A341H (9110- )) 15 / 31
JZS147 Transmission Case & Oil Pan (Atm) ([10.1991 - ] A340E,A341H (9110- ))
JZS160 Transmission Case & Oil Pan (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
35104 35104-30170 Case Sub-Assy, Automatic Transmission Case Sub-Assy, Automatic Transmission
35104 90341-08001 Plug, Transaxle Case, No.1 Plug, Transaxle Case, No.1
35106 35106-30130 Pan Sub-Assy, Automatic Transmission Oil Pan Sub-Assy, Automatic Transmission Oil
35106 90341-10011 Drain Plug (No Type) Drain Plug (No Type)
35106 35178-50010 Gasket, Drain Plug (Atm) Gasket, Drain Plug (Atm)
35106 35178-30010 Drain Plug Gasket Drain Plug Gasket
35111 90301-06196 O Ring, Transaxle Case, No.1 O Ring, Transaxle Case, No.1
35159 35159-30010 Gasket, Brake Drum Gasket, Brake Drum
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube) Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission) Magnet, Oil Cleaner (For Transmission)
9011906513 90119-06513 Bolt (For Automatic Transmission Oil Pan) Bolt (For Automatic Transmission Oil Pan)
9011910232 90119-10232 Bolt (For Transmission Housing & Case Setting) Bolt (For Transmission Housing & Case Setting)
9011912036 90119-12036 Bolt (For Transmission Housing & Case Setting) Bolt (For Transmission Housing & Case Setting)
9161160814 91611-60814 Bolt Bolt
9161961250 91619-61250 Bolt Bolt
Vacuum Piping ([10.1991 - 08.1997] (9110-9708)2JZGE) 11 / 37
JZS147 Vacuum Piping ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Vacuum Piping ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
17341 96132-51000 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
25804 25804-46060 Valve Set, Vacuum Control Valve Set, Vacuum Control
25860 25860-46010 Valve Assy, Vacuum Switching, No.1 Valve Assy, Vacuum Switching, No.1
25860 90910-12124 Valve Assy, Vacuum Switching, No.1 Valve Assy, Vacuum Switching, No.1
91642 91641-C0612 New Genuine Part New Genuine Part
91651 91651-B0616 BOLT WWASHER BOLT WWASHER
8271112120 82711-12120 Clamp(Rear Seat) Clamp(Rear Seat)
9011906610 90119-06610 New Genuine Part New Genuine Part
9011906610 90119-06493 BOLT WITH WASHER BOLT WITH WASHER
9017908153 90179-08153 NUT NUT
9099992002 90999-92002 Air Hose (300 mm) Air Hose (300 mm)
Vacuum Piping ([10.1991 - 08.1997] (9110-9708)2JZGTE) 7 / 47
JZS147 Vacuum Piping ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Vacuum Piping ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
17341 96132-51000 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
9010508250 90105-08250 Bolt, Flange Bolt, Flange
9011906610 90119-06610 New Genuine Part New Genuine Part
9011906610 90119-06493 BOLT WITH WASHER BOLT WITH WASHER
9017906257 90179-06257 NUT NUT
9017908153 90179-08153 NUT NUT
9099992002 90999-92002 Air Hose (300 mm) Air Hose (300 mm)
Vacuum Piping ([10.1991 - ] (9110- )2JZ#) 1 / 6
JZS147 Vacuum Piping ([10.1991 - ] (9110- )2JZ#)
JZS160 Vacuum Piping ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
9099992002 90999-92002 Air Hose (300 mm) Air Hose (300 mm)
Valve Body & Oil Strainer (Atm) ([10.1991 - ] A340E (9110- )JZS147) 32 / 63
JZS147 Valve Body & Oil Strainer (Atm) ([10.1991 - ] A340E (9110- )JZS147)
JZS160 Valve Body & Oil Strainer (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
35148 35148-16010 Gasket (For Automatic Transfer Case) Gasket (For Automatic Transfer Case)
35207 35207-22010 Spring Sub-Assy, B-0 Accumulator Spring Sub-Assy, B-0 Accumulator
35207 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring) Ring, Hole Snap (For B-3 Accumulator Spring)
35207 35207-50010 Spring Sub-Assy, B-0 Accumulator Spring Sub-Assy, B-0 Accumulator
35208 35208-30010 Spring Sub-Assy, B-2 Accumulator Spring Sub-Assy, B-2 Accumulator
35209 35209-50010 Spring Sub-Assy, C-2 Accumulator Spring Sub-Assy, C-2 Accumulator
35251 35251-30020 Body, Check Ball Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body) Spring, Compression (For Check Ball Body)
35285 35285-30040 Plate, Solenoid Lock Plate, Solenoid Lock
35330 35330-50010 Strainer Assy, Valve Body Oil Strainer Assy, Valve Body Oil
35409 35409-22020 Spring Sub-Assy, Manual Detent Spring Sub-Assy, Manual Detent
35418 35418-50010 Valve, Manual Valve, Manual
35419 35419-50010 Valve, Check, No.1 Valve, Check, No.1
35419 90501-09093 Spring, Compression (For Check Valve) Spring, Compression (For Check Valve)
35423 35423-30030 Piston, B-2 Accumulator Piston, B-2 Accumulator
35423 90301-31010 Ring, O (For B-2 Accumulator Piston) Ring, O (For B-2 Accumulator Piston)
35423 90501-24014 Spring, Compression (For B-2 Accumulator Piston) Spring, Compression (For B-2 Accumulator Piston)
35425 35425-30020 Piston, C-2 Accumulator Piston, C-2 Accumulator
35425 90501-28013 Spring, Compression (For C-2 Accumulator Piston) Spring, Compression (For C-2 Accumulator Piston)
35425 90301-25010 Ring, O(For Oil Pump Suction Pipe) Ring, O(For Oil Pump Suction Pipe)
35426 35426-50010 Piston, C-0 Accumulator Piston, C-0 Accumulator
35426 90301-24010 Ring, O (For C-0 Accumulator Piston) Ring, O (For C-0 Accumulator Piston)
35426 90501-21021 Spring, Compression (For C-0 Accumulator Piston) Spring, Compression (For C-0 Accumulator Piston)
35427 35427-30040 Piston, B-0 Accumulator Piston, B-0 Accumulator
35427 90301-26011 Ring, O (For C-3 Accumulator Piston) Ring, O (For C-3 Accumulator Piston)
35427 90905-01025 Spring, Compression (For B-0 Accumulator Piston) Spring, Compression (For B-0 Accumulator Piston)
35450 35495-22020 Ball (For Transfer Upper Valve Body) Ball (For Transfer Upper Valve Body)
35450 35496-22030 Ball (For Lower Valve Body) Ball (For Lower Valve Body)
35493 35493-50040 Seat, Valve Body Seat, Valve Body
35599 35599-22020 Cover, Manual Detent Spring Cover, Manual Detent Spring
3547450010 35474-30010 Cover, Accumulator Cover, Accumulator
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate) Bolt (For Transfer Relief Valve Plate)
Valve Body & Oil Strainer (Atm) ([10.1991 - ] A340E,A341H (9110- )) 85 / 126
JZS147 Valve Body & Oil Strainer (Atm) ([10.1991 - ] A340E,A341H (9110- ))
JZS160 Valve Body & Oil Strainer (Atm) ([08.1997 - 07.2000] A340E (9708-0007)JZS160 ; (9708- )JZS161)
# OEM JZS147 JZS160
35211 35211-50010 Sleeve, Lock Up Control Valve Sleeve, Lock Up Control Valve
35212 90501-06057 Spring, Compression (For Lock Up Relay Valve) Spring, Compression (For Lock Up Relay Valve)
35212 35212-30050 Valve, Lock Up Relay Valve, Lock Up Relay
35213 35213-50010 Plunger, Lock Up Relay Valve Plunger, Lock Up Relay Valve
35214 35214-50010 Valve, Lock Up Control Valve, Lock Up Control
35215 35215-50010 Sleeve, Lock Up Relay Valve Sleeve, Lock Up Relay Valve
35219 35219-50010 Plunger, Lock Up Control Valve Plunger, Lock Up Control Valve
35224 35224-50010 Valve, Reverse Control Valve, Reverse Control
35224 90282-03010 Key, Straight (For Lock Up Signal Valve) Key, Straight (For Lock Up Signal Valve)
35224 90339-05020 Plug (For Reverse Control Valve) Plug (For Reverse Control Valve)
35224 90501-06056 Spring, Compression (For Reverse Control Valve) Spring, Compression (For Reverse Control Valve)
35275 35275-30010 Valve, Solenoid Modulator Valve, Solenoid Modulator
35275 90501-12143 Spring, Compression(For Low-High Shift Valve) Spring, Compression(For Low-High Shift Valve)
35275 90339-04030 Plug (For Solenoid Modulator Valve) Plug (For Solenoid Modulator Valve)
35284 35284-50010 Valve, Solenoid Relay Valve, Solenoid Relay
35284 90501-06055 Spring, Compression (For Solenoid Relay Valve) Spring, Compression (For Solenoid Relay Valve)
35407 35407-50010 Plate Sub-Assy, Valve Body Cover Plate Sub-Assy, Valve Body Cover
35408 35408-50010 Plug Sub-Assy, Accumulator Control Valve Plug Sub-Assy, Accumulator Control Valve
35415 35415-30050 Valve, Primary Regulator Valve, Primary Regulator
35415 90201-08067 Washer (For Primary Regulator Valve) Washer (For Primary Regulator Valve)
35415 90501-14117 Spring, Compression (For Primary Regulator Valve) Spring, Compression (For Primary Regulator Valve)
35416 35416-50010 Plunger, Primary Regulator Valve, No.1 Plunger, Primary Regulator Valve, No.1
35417 35417-50011 Sleeve, Primary Regulator Valve Sleeve, Primary Regulator Valve
35419 35419-50020 Valve, Check, No.1 Valve, Check, No.1
35419 90360-06004 Ball, Detent(For Gear Shift Head No.4) Ball, Detent(For Gear Shift Head No.4)
35419 90080-36191 Ball, Check Valve Ball, Check Valve
35419 35419-50030 Valve, Check, No.2 Valve, Check, No.2
35420 90360-08003 Ball (For Lower Valve Body) Ball (For Lower Valve Body)
35421 35421-50010 Plug, C-1 Accumulator Valve Plug, C-1 Accumulator Valve
35422 35422-50011 Plunger, Primary Regulator Valve, No.2 Plunger, Primary Regulator Valve, No.2
35424 35424-50010 Valve, C-1 Accumulator Valve, C-1 Accumulator
35424 90501-15016 Spring, Compression (For C-1 Accumulator Valve) Spring, Compression (For C-1 Accumulator Valve)
35436 35436-50010 Retainer, C-1 Accumulator Valve Retainer, C-1 Accumulator Valve
35438 35438-22020 Seat (For Direct Clutch Modulator Valve Plug) Seat (For Direct Clutch Modulator Valve Plug)
35441 35441-50030 Strainer, Solenoid Oil Strainer, Solenoid Oil
35445 35445-50010 Valve, Low Modulator Valve, Low Modulator
35445 90501-10166 Spring, Compression (For 2Nd Coast Modulator Valve) Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-10167 Spring, Compression (For 2Nd Coast Modulator Valve) Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-07100 Spring, Compression (For Low Coast Modulator Valve) Spring, Compression (For Low Coast Modulator Valve)
35446 35446-50010 Plunger, Low Coast Modulator Valve Plunger, Low Coast Modulator Valve
35447 35447-14010 Plunger, Accumulator Control Valve Plunger, Accumulator Control Valve
35447 35447-50010 Plunger, Accumulator Control Valve Plunger, Accumulator Control Valve
35456 35456-30060 Valve, 2-3 Shift Valve, 2-3 Shift
35456 90501-09053 Spring, Compression (For 2-3 Shift Valve) Spring, Compression (For 2-3 Shift Valve)
35456 90339-05014 Plug, Low-High Signal Valve Plug, Low-High Signal Valve
35456 90282-03016 Key, Straight (For Lock Up Relay Valve Plug) Key, Straight (For Lock Up Relay Valve Plug)
35458 35458-50010 Valve, Cut Back Valve, Cut Back
35464 35464-12030 Valve, 1-2 Shift Valve, 1-2 Shift
35468 35468-30020 Valve, Secondary Regulator Valve, Secondary Regulator
35472 35472-50010 Cover, Lower Valve Body Cover, Lower Valve Body
35476 35476-50010 Valve, Cut Off Valve, Cut Off
35476 90339-05021 Plug (For Cut Off Valve) Plug (For Cut Off Valve)
35476 90501-06062 Spring, Compression (For Cut Off Valve) Spring, Compression (For Cut Off Valve)
35486 35486-50010 Seat, Pressure Relief Valve Spring Seat, Pressure Relief Valve Spring
35486 90501-11061 Spring, Compression(For Pressure Relife Valve) Spring, Compression(For Pressure Relife Valve)
35489 35489-50010 Valve, C-1 Orifice Control Valve, C-1 Orifice Control
35489 90501-08121 Spring, Compression (For C-1 Orifice Control Valve) Spring, Compression (For C-1 Orifice Control Valve)
35489 90501-08123 Spring, Compression (For C-1 Orifice Control Valve) Spring, Compression (For C-1 Orifice Control Valve)
35491 35491-50010 Valve, Accumulator Control, No.1 Valve, Accumulator Control, No.1
35491 90282-03015 Key, Straight (For Throttle Valve Plug) Key, Straight (For Throttle Valve Plug)
35491 90501-11049 Spring, Compression (For Accumulator Control Valve No.1) Spring, Compression (For Accumulator Control Valve No.1)
35492 35492-14010 Sleeve, Accumulator Control Valve Sleeve, Accumulator Control Valve
35492 35492-50010 Sleeve, Accumulator Control Valve Sleeve, Accumulator Control Valve
35493 35493-30030 Seat(For Center Differential Clutch Control Valve Plug) Seat(For Center Differential Clutch Control Valve Plug)
35493 35493-50050 Seat, Throttle Valve Spring Seat, Throttle Valve Spring
35493 35493-50010 Seat, Primary Regulator Valve Plug Seat, Primary Regulator Valve Plug
35493 35493-22020 Seat, Plug (For Lock Up Relay Valve) Seat, Plug (For Lock Up Relay Valve)
35493 35493-30080 Seat, 1-2 Shift Valve Plug Seat, 1-2 Shift Valve Plug
35493 35493-30040 Seat(For Low-High Shift Timing Valve Plug) Seat(For Low-High Shift Timing Valve Plug)
35493 35493-50020 Seat, Accumulator Control Valve Plug, No.1 Seat, Accumulator Control Valve Plug, No.1
35493 35493-50030 Seat, Accumulator Control Valve Plug, No.1 Seat, Accumulator Control Valve Plug, No.1
35497 35497-30040 Valve, 3-4 Shift Valve, 3-4 Shift
35497 90282-03002 Key, Straight (For Lock Up Signal Valve) Key, Straight (For Lock Up Signal Valve)
35521 90105-06018 Bolt (For Throttle Valve Cam Set) Bolt (For Throttle Valve Cam Set)
9010505001 90105-05001 New Genuine Part New Genuine Part
9010505002 90105-05002 New Genuine Part New Genuine Part
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate) Bolt (For Transfer Relief Valve Plate)
9010505008 90105-05008 New Genuine Part New Genuine Part
9010505037 90105-05037 New Genuine Part New Genuine Part
9010506025 90105-06025 New Genuine Part New Genuine Part
9010506025 91511-C0635 BOLT, FLANGE BOLT, FLANGE
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate) Bolt(For Transmission Case No.2 Plate)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter) Bolt(For Sensor Rotor Adapter)
9010506075 90105-06075 New Genuine Part New Genuine Part
9010506075 91511-C0622 Strainer Bolt Strainer Bolt
Vane Pump & Reservoir (Power Steering) ([10.1991 - ] (9110- )Q) 44 / 59
JZS147 Vane Pump & Reservoir (Power Steering) ([10.1991 - ] (9110- )Q)
JZS160 Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- )JZS160)
# OEM JZS147 JZS160
44302 44302-30120 Housing Sub-Assy, Vane Pump, Front Housing Sub-Assy, Vane Pump, Front
44302 90311-17007 Seal, Oil, No.2(For Vane Pump Housing) Seal, Oil, No.2(For Vane Pump Housing)
44302 90521-44002 Ring, Hole Snap(For Power Steering Gear Housing) Ring, Hole Snap(For Power Steering Gear Housing)
44305 44305-50010 Cap Sub-Assy, Vane Pump Oil Reservoir Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-50020 Cap Sub-Assy, Vane Pump Oil Reservoir Cap Sub-Assy, Vane Pump Oil Reservoir
44311 44311-22090 Pulley, Vane Pump Pulley, Vane Pump
44311 44311-22091 Pulley, Vane Pump Pulley, Vane Pump
44311 90179-12022 Nut(For Vane Pump Pulley) Nut(For Vane Pump Pulley)
44312 44312-26020 Shaft, Vane Pump Shaft, Vane Pump
44312 90363-17008 Bearing(For Vane Pump Shaft) Bearing(For Vane Pump Shaft)
44312 90363-17013 Bearing(For Vane Pump Shaft) Bearing(For Vane Pump Shaft)
44312 90520-15001 Ring, Snap, No.1(For Vane Pump Shaft) Ring, Snap, No.1(For Vane Pump Shaft)
44312 90520-15005 Ring, Snap, No.1(For Vane Pump Shaft) Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-26060 Rotor, Vane Pump Rotor, Vane Pump
44313 44313-26070 Rotor, Vane Pump Rotor, Vane Pump
44313 44313-26080 Rotor, Vane Pump Rotor, Vane Pump
44313 44313-26090 Rotor, Vane Pump Rotor, Vane Pump
44313 44313-26100 Rotor, Vane Pump Rotor, Vane Pump
44324 44324-30130 Housing Sub-Assy, Vane Pump, Rear Housing Sub-Assy, Vane Pump, Rear
44324 90301-18007 Ring, O(For Pump Housing Rear) Ring, O(For Pump Housing Rear)
44326 90250-04071 Pin, Straight(For Vane Pump Cam Ring) Pin, Straight(For Vane Pump Cam Ring)
44327 44327-26010 Gasket, Vane Pump Housing Gasket, Vane Pump Housing
44330 44330-26071 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26081 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26091 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26101 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26111 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26121 Valve Assy, Flow Control Valve Assy, Flow Control
44330 90501-13034 Spring, Compression(For Flow Control Valve) Spring, Compression(For Flow Control Valve)
44342 44342-26020 Plate, Vane Pump Side, Rear Plate, Vane Pump Side, Rear
44342 90301-47001 Ring, O(For Vane Pump Side Plate Rear) Ring, O(For Vane Pump Side Plate Rear)
44345 44345-26010 Plate, Vane Pump Plate, Vane Pump
44345 44345-26020 Plate, Vane Pump Plate, Vane Pump
44345 44345-26030 Plate, Vane Pump Plate, Vane Pump
44345 44345-26040 Plate, Vane Pump Plate, Vane Pump
44345 44345-26050 Plate, Vane Pump Plate, Vane Pump
44362 90301-11016 Ring, O(For Power Steering Suction Port) Ring, O(For Power Steering Suction Port)
44441 44441-30080 Bracket, Pump, Front Bracket, Pump, Front
44443 44443-22130 Bracket, Vane Pump Bracket, Vane Pump
9010508194 90105-08194 New Genuine Part New Genuine Part
9010508271 90105-08271 Bolt Bolt
9010510405 90105-10405 New Genuine Part New Genuine Part
9011908469 90119-08469 Bolt(for Dust Cover To Steering Knuckle Arm Setting) Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9020631001 90206-31001 WASHER WAVE WASHER WAVE
Vane Pump & Reservoir (Power Steering) ([10.1991 - ] (9110- )V) 41 / 63
JZS147 Vane Pump & Reservoir (Power Steering) ([10.1991 - ] (9110- )V)
JZS160 Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- )JZS160)
# OEM JZS147 JZS160
44302 44302-30120 Housing Sub-Assy, Vane Pump, Front Housing Sub-Assy, Vane Pump, Front
44302 90311-17007 Seal, Oil, No.2(For Vane Pump Housing) Seal, Oil, No.2(For Vane Pump Housing)
44302 90521-44002 Ring, Hole Snap(For Power Steering Gear Housing) Ring, Hole Snap(For Power Steering Gear Housing)
44311 44311-22090 Pulley, Vane Pump Pulley, Vane Pump
44311 44311-22091 Pulley, Vane Pump Pulley, Vane Pump
44311 90179-12022 Nut(For Vane Pump Pulley) Nut(For Vane Pump Pulley)
44312 44312-26020 Shaft, Vane Pump Shaft, Vane Pump
44312 90363-17008 Bearing(For Vane Pump Shaft) Bearing(For Vane Pump Shaft)
44312 90363-17013 Bearing(For Vane Pump Shaft) Bearing(For Vane Pump Shaft)
44312 90520-15001 Ring, Snap, No.1(For Vane Pump Shaft) Ring, Snap, No.1(For Vane Pump Shaft)
44312 90520-15005 Ring, Snap, No.1(For Vane Pump Shaft) Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-26060 Rotor, Vane Pump Rotor, Vane Pump
44313 44313-26070 Rotor, Vane Pump Rotor, Vane Pump
44313 44313-26080 Rotor, Vane Pump Rotor, Vane Pump
44313 44313-26090 Rotor, Vane Pump Rotor, Vane Pump
44313 44313-26100 Rotor, Vane Pump Rotor, Vane Pump
44324 44324-30130 Housing Sub-Assy, Vane Pump, Rear Housing Sub-Assy, Vane Pump, Rear
44324 90301-18007 Ring, O(For Pump Housing Rear) Ring, O(For Pump Housing Rear)
44326 90250-04071 Pin, Straight(For Vane Pump Cam Ring) Pin, Straight(For Vane Pump Cam Ring)
44327 44327-26010 Gasket, Vane Pump Housing Gasket, Vane Pump Housing
44330 44330-26071 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26081 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26091 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26101 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26111 Valve Assy, Flow Control Valve Assy, Flow Control
44330 44330-26121 Valve Assy, Flow Control Valve Assy, Flow Control
44330 90501-13034 Spring, Compression(For Flow Control Valve) Spring, Compression(For Flow Control Valve)
44337 90301-11016 Ring, O(For Power Steering Suction Port) Ring, O(For Power Steering Suction Port)
44342 44342-26020 Plate, Vane Pump Side, Rear Plate, Vane Pump Side, Rear
44342 90301-47001 Ring, O(For Vane Pump Side Plate Rear) Ring, O(For Vane Pump Side Plate Rear)
44345 44345-26010 Plate, Vane Pump Plate, Vane Pump
44345 44345-26020 Plate, Vane Pump Plate, Vane Pump
44345 44345-26030 Plate, Vane Pump Plate, Vane Pump
44345 44345-26040 Plate, Vane Pump Plate, Vane Pump
44345 44345-26050 Plate, Vane Pump Plate, Vane Pump
44441 44441-30080 Bracket, Pump, Front Bracket, Pump, Front
44443 44443-22130 Bracket, Vane Pump Bracket, Vane Pump
9010508194 90105-08194 New Genuine Part New Genuine Part
9010510405 90105-10405 New Genuine Part New Genuine Part
9011906541 90119-06541 New Genuine Part New Genuine Part
9020631001 90206-31001 WASHER WAVE WASHER WAVE
Ventilation Hose ([10.1991 - 08.1997] (9110-9708)2JZGE) 5 / 10
JZS147 Ventilation Hose ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Ventilation Hose ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
12204 12204-46030 Valve Sub-Assy, Ventilation Valve Sub-Assy, Ventilation
12204 90480-18001 Grommet(For Ventilation System) Grommet(For Ventilation System)
12261 90467-14001 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
12261 90466-T0026 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
12262 90467-18003 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
Ventilation Hose ([10.1991 - 08.1997] (9110-9708)2JZGTE) 2 / 10
JZS147 Ventilation Hose ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Ventilation Hose ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
12204 90480-18001 Grommet(For Ventilation System) Grommet(For Ventilation System)
12262 96134-51700 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
Water Pump ([10.1991 - 08.1997] (9110-9708)2JZGE) 7 / 26
JZS147 Water Pump ([10.1991 - 08.1997] (9110-9708)2JZGE)
JZS160 Water Pump ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
16100 90445-12291 GUM HOSE GUM HOSE
16620 16620-0W026 Tensioner Assy, V-Ribbed Belt Tensioner Assy, V-Ribbed Belt
16620 16620-0W024 Tensioner Assy, V-Ribbed Belt Tensioner Assy, V-Ribbed Belt
9010508183 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9010508257 90105-08257 New Genuine Part New Genuine Part
9151160830 91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) Bolt Or Ring, Exhaust Pipe Front (For Front)
9212260816 92122-60816 Bolt, Stud(For Water Pump Set) Bolt, Stud(For Water Pump Set)
Water Pump ([10.1991 - 08.1997] (9110-9708)2JZGTE) 7 / 74
JZS147 Water Pump ([10.1991 - 08.1997] (9110-9708)2JZGTE)
JZS160 Water Pump ([08.1997 - ] (9708- )2JZGE)
# OEM JZS147 JZS160
16620 16620-0W026 Tensioner Assy, V-Ribbed Belt Tensioner Assy, V-Ribbed Belt
16620 16620-0W024 Tensioner Assy, V-Ribbed Belt Tensioner Assy, V-Ribbed Belt
9002900002 90029-00002 Bolt(For Water Pump Cover) Bolt(For Water Pump Cover)
9010508183 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9010508257 90105-08257 New Genuine Part New Genuine Part
9151160830 91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) Bolt Or Ring, Exhaust Pipe Front (For Front)
9212260816 92122-60816 Bolt, Stud(For Water Pump Set) Bolt, Stud(For Water Pump Set)
Windshield Washer ([10.1991 - 08.1997] (9110-9708)) 15 / 69
JZS147 Windshield Washer ([10.1991 - 08.1997] (9110-9708))
JZS160 Windshield Washer ([08.1997 - ] 2.5L (9708- ))
# OEM JZS147 JZS160
85035 85381-30060-J0 Nozzle Sub-Assy, Washer Nozzle Sub-Assy, Washer
85035 85381-30060-A1 Nozzle Sub-Assy, Washer Nozzle Sub-Assy, Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar Bush, Windshield Washer Jar
85348 85375-10260 Joint, Windshield Washer Hose, No.1 Joint, Windshield Washer Hose, No.1
85371 90099-33299 Joint, Windshield Washer Elbow, No.2 Joint, Windshield Washer Elbow, No.2
85372 90099-33080 Hose, Windshield Washer (From Motor To Joint) Hose, Windshield Washer (From Motor To Joint)
8535520200 85355-20200 Joint, Windshield Washer Hose, No.1 Joint, Windshield Washer Hose, No.1
8536550030 85365-50030 Insulator, Windshield Washer Jar Insulator, Windshield Washer Jar
9011906382 90119-06382 Bolt Bolt
9011906450 90119-06442 BOLT WWASHER BOLT WWASHER
9011906484 90119-06484 New Genuine Part New Genuine Part
9011906484 90119-06278 BOLT BOLT
9017906143 90179-06143 NUT NUT
9017906242 90179-06274 Nut Nut
Windshield Wiper ([10.1991 - 08.1997] (9110-9708)) 3 / 57
JZS147 Windshield Wiper ([10.1991 - 08.1997] (9110-9708))
JZS160 Windshield Wiper ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
85178 90176-10005 Nut (For Front Wiper Arm Setting) Nut (For Front Wiper Arm Setting)
85220 85291-30020 Blade Assy, Windshield Wiper Blade Assy, Windshield Wiper
8271110380 82711-10380 Wire, Fuse To Fuse(for Combustion Heater) Wire, Fuse To Fuse(for Combustion Heater)
Wireless Door Lock ([10.1991 - 08.1997] (9110-9708)) 2 / 17
JZS147 Wireless Door Lock ([10.1991 - 08.1997] (9110-9708))
JZS160 Switch & Relay & Computer ([08.1997 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9708- ))
# OEM JZS147 JZS160
9011906390 90119-06390 BOLT WWASHER BOLT WWASHER
9017906216 90179-06274 Nut Nut
Wiring & Clamp ([10.1991 - 08.1997] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ﾜｲﾔ (9110-9708)) 2 / 12
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ﾜｲﾔ (9110-9708))
JZS160 Front Door Lock & Handle ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9016450043 93568-55014 Screw Screw
9165160614 91651-60614 Bolt Bolt
Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ (9110-9708)Q) 2 / 11
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ (9110-9708)Q)
JZS160 Wiring & Clamp ([08.1997 - ] ｴﾝｼﾞﾝ ﾜｲﾔ (9708- )JZS160)
# OEM JZS147 JZS160
9017906257 90179-06257 NUT NUT
9162160612 91621-J0612 BOLT W-WASHER BOLT W-WASHER
Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ (9110-9708)V) 2 / 8
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ (9110-9708)V)
JZS160 Wiring & Clamp ([08.1997 - ] ｴﾝｼﾞﾝ ﾜｲﾔ (9708- )JZS160)
# OEM JZS147 JZS160
9017906257 90179-06257 NUT NUT
9162160612 91621-J0612 BOLT W-WASHER BOLT W-WASHER
Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ NO.2,NO.3 ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ (9110-9708)) 2 / 22
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ NO.2,NO.3 ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ (9110-9708))
JZS160 Accelerator Link ([08.1997 - ] (9708- ))
# OEM JZS147 JZS160
9010508250 90105-08250 Bolt, Flange Bolt, Flange
9011906375 90119-06375 Bolt (For Transmission Housing & Case Setting) Bolt (For Transmission Housing & Case Setting)
Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ (9110-9708)) 9 / 17
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ (9110-9708))
JZS160 Wiring & Clamp ([08.1997 - ] ｴﾝｼﾞﾝ ﾜｲﾔ (9708- )JZS160)
# OEM JZS147 JZS160
91651 91651-A0614 BOLT WWASHER BOLT WWASHER
91651 91653-A0614 BOLT WWASHER BOLT WWASHER
8271024010 82710-24010 Harness Assy, Oil Heater Harness Assy, Oil Heater
8271524140 82715-24140 Bracket,wiring Harness Clamp Bracket,wiring Harness Clamp
8271524160 82715-24160 Bracket,wiring Harness Clamp Bracket,wiring Harness Clamp
8271530460 82715-30460 Bracket,wiring Harness Clamp Bracket,wiring Harness Clamp
9011906375 90119-06375 Bolt (For Transmission Housing & Case Setting) Bolt (For Transmission Housing & Case Setting)
9011906484 90119-06484 New Genuine Part New Genuine Part
9011906484 90119-06278 BOLT BOLT
Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ (9110-9708)) 6 / 51
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ (9110-9708))
JZS160 Wiring & Clamp ([08.1997 - ] ｴﾝｼﾞﾝﾙｰﾑ ﾜｲﾔ (9708- ))
# OEM JZS147 JZS160
82210 90982-08202 Fusible Link Fusible Link
82823 82823-22070 Cap, Terminal, No.1 Cap, Terminal, No.1
91621 91621-B0816 BOLT WWASHER BOLT WWASHER
9011906390 90119-06390 BOLT WWASHER BOLT WWASHER
9011908981 90119-08981 New Genuine Part New Genuine Part
9017906128 90179-06128 NUT NUT
Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ ｸﾗﾝﾌﾟ (9110-9708)) 2 / 10
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ ｸﾗﾝﾌﾟ (9110-9708))
JZS160 Electronic Fuel Injection System ([07.2000 - ] (0007- )JZS160)
# OEM JZS147 JZS160
9011906484 90119-06484 New Genuine Part New Genuine Part
9011906484 90119-06278 BOLT BOLT
Wiring & Clamp ([10.1991 - 08.1997] ｶｳﾙ ﾜｲﾔ (9110-9708)) 5 / 68
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｶｳﾙ ﾜｲﾔ (9110-9708))
JZS160 Switch & Relay & Computer ([08.1997 - ] ｶｳﾙ (9708- ))
# OEM JZS147 JZS160
9011906245 90119-06245 BOLT BOLT
9011906390 90119-06390 BOLT WWASHER BOLT WWASHER
9017906239 90179-06314 NUT NUT
9163560616 91635-60616 BOLT WWASHER BOLT WWASHER
9163560616 91631-J0612 BRACKET BRACKET
Wiring & Clamp ([10.1991 - 08.1997] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9110-9708)) 4 / 11
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9110-9708))
JZS160 Wiring & Clamp ([08.1997 - ] ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ (9708- ))
# OEM JZS147 JZS160
82001 90980-07338 Cable, Bond, No.1 Cable, Bond, No.1
9011906067 90119-06067 BOLT BOLT
9011908201 91611-60814 Bolt Bolt
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator) Bolt, Union(For Clutch Accumulator)
Wiring & Clamp ([10.1991 - 08.1997] ﾙ-ﾌ & ﾌﾛｱ ﾜｲﾔ (9110-9708)) 3 / 51
JZS147 Wiring & Clamp ([10.1991 - 08.1997] ﾙ-ﾌ & ﾌﾛｱ ﾜｲﾔ (9110-9708))
JZS160 Wireless Door Lock ([07.2000 - ] (0007- ))
# OEM JZS147 JZS160
9011906390 90119-06390 BOLT WWASHER BOLT WWASHER
9163560616 91635-60616 BOLT WWASHER BOLT WWASHER
9163560616 91631-J0612 BRACKET BRACKET
Wiring & Clamp ([10.1992 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ (9210-9708)) 9 / 43
JZS147 Wiring & Clamp ([10.1992 - 08.1997] ｴﾝｼﾞﾝ ﾜｲﾔ ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ (9210-9708))
JZS160 Wiring & Clamp ([08.1997 - ] ｴﾝｼﾞﾝ ﾜｲﾔ (9708- )JZS160)
# OEM JZS147 JZS160
8271024010 82710-24010 Harness Assy, Oil Heater Harness Assy, Oil Heater
8271524140 82715-24140 Bracket,wiring Harness Clamp Bracket,wiring Harness Clamp
8271524160 82715-24160 Bracket,wiring Harness Clamp Bracket,wiring Harness Clamp
8271530590 82715-30590 Bracket,wiring Harness Clamp Bracket,wiring Harness Clamp
8271530600 82715-30600 Bracket,wiring Harness Clamp Bracket,wiring Harness Clamp
9011906311 90119-06311 BOLT BOLT
9011906375 90119-06375 Bolt (For Transmission Housing & Case Setting) Bolt (For Transmission Housing & Case Setting)
9011906484 90119-06484 New Genuine Part New Genuine Part
9011906484 90119-06278 BOLT BOLT
