A.l.b. unit 1 / 5

#	OEM	HWZ	MA2
6	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)

A.t.f. cooler kit 1 / 12

#	OEM	HWZ	MA2
12	90635-671-000	Clip - OIL HOSE	Clip - OIL HOSE

Abs pump 3 / 15

#	OEM	HWZ	MA2
2	46462-SE0-000	Bolt - OIL	Bolt - OIL
3	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
4	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Air conditioner (COMPRESSOR; '93) 9 / 25

#	OEM	HWZ	MA2
15	38926-PM3-000	Stay - IDLE PULLEY	Stay - IDLE PULLEY
17	38942-PM3-000	Pulley comp - IDLE	Pulley comp - IDLE
18	38944-P01-000	Collar - IDLE PULLEY (10X17X12.5)	Collar - IDLE PULLEY (10X17X12.5)
19	38945-PR3-000	Cover - BEARING	Cover - BEARING
19	38945-P30-000	Cover - BEARING	Cover - BEARING
20	38946-P01-000	Bolt - IDLE PULLEY	Bolt - IDLE PULLEY
21	38947-P01-000	Nut - SPECIAL, 10MM	Nut - SPECIAL, 10MM
22	90021-PM3-000	Bolt - FLANGE, 8X85	Bolt - FLANGE, 8X85
23	90023-PM3-000	Bolt - FLANGE, 8X105	Bolt - FLANGE, 8X105

Air conditioner (CONDENSER) 6 / 14

#	OEM	HWZ	MA2
6	39139-SB3-003	Suppressor - NOISE (MITSUBA) (RZ-0062)	Suppressor - NOISE (MITSUBA) (RZ-0062)
10	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
11	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)	Nut - SPECIAL, 5MM (MITSUBA)
11	90311-MB6-003	Nut toothed 5mm	Nut toothed 5mm
13	90403-PM3-004	Washer - PLAIN, 7MM	Washer - PLAIN, 7MM
19	90078-PR3-000	Screw - PAN, 4X8	Screw - PAN, 4X8

Air conditioner (HOSES/PIPES) 2 / 30

#	OEM	HWZ	MA2
4	80874-SL0-900	O-ring - 3/8"	O-ring - 3/8"
8	38677-SB2-003	Clamp - SUCTION HOSE	Clamp - SUCTION HOSE

Air conditioner (UNIT) 22 / 34

#	OEM	HWZ	MA2
1	38625-SB2-000	Holder - EVAPORATOR PIPE	Holder - EVAPORATOR PIPE
2	38625-692-000	Grommet - TUBE	Grommet - TUBE
3	80874-SL0-900	O-ring - 3/8"	O-ring - 3/8"
9	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
12	80201-SH3-000	Case - EVAPORATOR UPPER	Case - EVAPORATOR UPPER
13	80202-SH3-000	Case - EVAPORATOR LOWER	Case - EVAPORATOR LOWER
14	80205-SH3-000	Insulator - EVAPORATOR UPPER	Insulator - EVAPORATOR UPPER
15	80206-SH3-000	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
21	80261-SH3-000	Band a - AIR CONDITIONER	Band a - AIR CONDITIONER
22	80265-SH3-000	Band b - AIR CONDITIONER	Band b - AIR CONDITIONER
23	80271-SH3-000	Hose - DRAIN	Hose - DRAIN
24	80272-SF4-000	Grommet - DRAIN HOSE	Grommet - DRAIN HOSE
25	80286-SH3-000	Seal - EVAPORATOR INNER	Seal - EVAPORATOR INNER
26	80287-SH3-000	Seal - EVAPORATOR OUTER	Seal - EVAPORATOR OUTER
27	80410-SJ4-003	Switch assy - AIR CONDITIONER	Switch assy - AIR CONDITIONER
28	80430-SF1-003	Thermostat - AIR CONDITIONER	Thermostat - AIR CONDITIONER
29	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
30	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
31	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
33	90659-692-000	Clamp - CASE	Clamp - CASE
34	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
37	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)

Alternator (DENSO) 23 / 26

#	OEM	HWZ	MA2
2	31101-PP4-J01	Rotor assy - ###	Rotor assy - ###
3	31105-PD1-034	Holder assy. - ALTERNATOR BRUSH	Holder assy. - ALTERNATOR BRUSH
3	31105-PZ1-003	Holder assy. - BRUSH	Holder assy. - BRUSH
4	31109-PM4-003	Frame assy - DRIVE END (###)	Frame assy - DRIVE END (###)
5	31111-PD1-014	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PD1-034	Bearing - FR. GENERATOR	Bearing - FR. GENERATOR
7	31116-PE0-023	Plate - RETAINER (###)	Plate - RETAINER (###)
8	31118-PD1-004	Bush - INSULATION	Bush - INSULATION
9	31119-PH1-004	Bush - INSULATION	Bush - INSULATION
10	31121-PM4-013	Frame - RR. END (###)	Frame - RR. END (###)
11	31127-PD1-014	Rectifier Assy - ###	Rectifier Assy - ###
12	31129-PD1-014	Spring - BRUSH (###)	Spring - BRUSH (###)
13	31135-PM4-003	Cover - RR. END (###)	Cover - RR. END (###)
14	31138-PD1-004	Cover - BEARING	Cover - BEARING
15	31141-PE0-013	Pulley - ###	Pulley - ###
16	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
17	31144-PD1-004	Brush	Brush
17	31144-P01-003	Brush	Brush
18	31145-PD1-004	Bolt - STUD, 6X68	Bolt - STUD, 6X68
19	31146-PD1-004	Screw-washer - 4X19	Screw-washer - 4X19
20	31148-PD1-004	Screw-washer - 4X25	Screw-washer - 4X25
21	31149-PD1-004	Screw-washer - 4X8 (###)	Screw-washer - 4X8 (###)
23	90231-PD1-014	Nut-washer - 5MM	Nut-washer - 5MM

Battery 4 / 10

#	OEM	HWZ	MA2
6	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
7	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
9	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
10	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)

Body structure components (OUTER PANEL) 1 / 9

#	OEM	HWZ	MA2
37	90663-SB0-003	Grommet - SCREW, 5MM(YELLOW)	Grommet - SCREW, 5MM(YELLOW)

Brake hose/brake pipe (RH) 3 / 26

#	OEM	HWZ	MA2
1	17712-SA0-000	Grommet - FUEL PIPE	Grommet - FUEL PIPE
29	46462-SE0-000	Bolt - OIL	Bolt - OIL
31	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT

Brake master cylinder/ master power (A.L.B.) 8 / 27

#	OEM	HWZ	MA2
2	46138-568-671	Packing	Packing
3	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
4	46185-SE0-003	Seal - ROD	Seal - ROD
8	46401-SE0-003	Valve assy. - CHECK (NISSIN)	Valve assy. - CHECK (NISSIN)
20	46665-671-651	Band - RESERVE TANK	Band - RESERVE TANK
25	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
26	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
31	57562-SF1-003	Circlip	Circlip

Breather chamber 5 / 12

#	OEM	HWZ	MA2
2	11854-PM3-000	Joint - BREATHER CHAMBER	Joint - BREATHER CHAMBER
3	11855-PC6-000	Grommet - PCV VALVE	Grommet - PCV VALVE
9	91324-PC6-000	O-ring - 20.6X2.6	O-ring - 20.6X2.6
10	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
10	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Bumper 6 / 33

#	OEM	HWZ	MA2
7	71197-SE3-010	Cushion - FR. BUMPER LOWER MOUNTING	Cushion - FR. BUMPER LOWER MOUNTING
17	90101-SE0-010	Bolt assy. b - BUMPER	Bolt assy. b - BUMPER
19	90105-SF1-000	Screw - CORNER SLIDE TAPPING	Screw - CORNER SLIDE TAPPING
21	90109-SE0-003	Bolt b - BUMPER	Bolt b - BUMPER
24	90301-SF1-000	Nut - WASHER CAP, 8MM	Nut - WASHER CAP, 8MM
29	90540-SA7-000	Washer - BUMPER	Washer - BUMPER

Camshaft/timing belt (DOHC) 10 / 27

#	OEM	HWZ	MA2
2	11812-PE0-300	Grommet - TIMING BELT COVER HOLE	Grommet - TIMING BELT COVER HOLE
9	11925-PM3-000	Rubber a - ENGINE MOUNTING BRACKET SEAL	Rubber a - ENGINE MOUNTING BRACKET SEAL
10	11926-PM3-000	Rubber b - ENGINE MOUNTING BRACKET SEAL	Rubber b - ENGINE MOUNTING BRACKET SEAL
15	14510-PM7-004	Tensioner comp - TIMING BELT (NIPPON SEIKO)	Tensioner comp - TIMING BELT (NIPPON SEIKO)
15	14510-PM7-003	Tensioner comp - TIMING BELT (KOYO SEIKO)	Tensioner comp - TIMING BELT (KOYO SEIKO)
16	14513-PE0-015	Bolt - TENSIONER (M6)	Bolt - TENSIONER (M6)
18	14517-PG6-000	Bolt a - TENSIONER	Bolt a - TENSIONER
19	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING	Bolt - TIMING BELT ADJUSTER SPRING
21	90031-PT0-003	Bolt-washer - 8X22	Bolt-washer - 8X22
21	90032-ZW5-003	Bolt-washer, 8x22	Bolt-washer, 8x22

Clutch 39 / 39

#	OEM	HWZ	MA2
1	22500-PL4-852	Clutch assy. - LOW	Clutch assy. - LOW
2	22510-PH0-670	Guide comp - LOW CLUTCH	Guide comp - LOW CLUTCH
3	22530-PC9-010	Piston comp - CLUTCH	Piston comp - CLUTCH
4	22530-PL4-851	Piston comp - LOW CLUTCH	Piston comp - LOW CLUTCH
5	22530-PL4-660	Piston comp - CLUTCH (CUTTING PISTON)	Piston comp - CLUTCH (CUTTING PISTON)
6	22537-PL4-003	Spring - CLUTCH DISK	Spring - CLUTCH DISK
7	22541-PC9-000	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
8	22542-PA9-000	Seat - CLUTCH SPRING	Seat - CLUTCH SPRING
9	22542-PF4-013	Spring - CLUTCH RETURN (SANKO)	Spring - CLUTCH RETURN (SANKO)
9	22542-PF4-004	Spring - CLUTCH RETURN (NHK SPRING)	Spring - CLUTCH RETURN (NHK SPRING)
10	22542-PL4-000	Seat - SECOND RETURN SPRING	Seat - SECOND RETURN SPRING
11	22543-PC9-000	Plate - CLUTCH (110MM)	Plate - CLUTCH (110MM)
12	22543-PH0-850	Plate - CLUTCH (110MM)	Plate - CLUTCH (110MM)
13	22544-PC9-020	Disk - CLUTCH	Disk - CLUTCH
14	22560-PC9-000	Plate - CLUTCH END (10) (3.3MM)	Plate - CLUTCH END (10) (3.3MM)
14	22555-PC9-000	Plate - CLUTCH END (5) (2.8MM)	Plate - CLUTCH END (5) (2.8MM)
14	22561-PC9-000	Plate - CLUTCH END (11) (2.1MM)	Plate - CLUTCH END (11) (2.1MM)
14	22557-PC9-000	Plate - CLUTCH END (7) (3.0MM)	Plate - CLUTCH END (7) (3.0MM)
14	22551-PC9-000	Plate - CLUTCH END (1) (2.4MM)	Plate - CLUTCH END (1) (2.4MM)
14	22562-PC9-000	Plate - CLUTCH END (12) (2.2MM)	Plate - CLUTCH END (12) (2.2MM)
14	22559-PC9-000	Plate - CLUTCH END (9) (3.2MM)	Plate - CLUTCH END (9) (3.2MM)
14	22552-PC9-000	Plate - CLUTCH END (2) (2.5MM)	Plate - CLUTCH END (2) (2.5MM)
14	22563-PC9-000	Plate - CLUTCH END (13) (2.3MM)	Plate - CLUTCH END (13) (2.3MM)
14	22556-PC9-000	Plate - CLUTCH END (6) (2.9MM)	Plate - CLUTCH END (6) (2.9MM)
14	22553-PC9-000	Plate - CLUTCH END (3) (2.6MM)	Plate - CLUTCH END (3) (2.6MM)
14	22558-PC9-000	Plate - CLUTCH END (8) (3.1MM)	Plate - CLUTCH END (8) (3.1MM)
14	22554-PC9-000	Plate - CLUTCH END (4) (2.7MM)	Plate - CLUTCH END (4) (2.7MM)
15	22600-PL4-851	Clutch assy. - SECOND	Clutch assy. - SECOND
16	22610-PL4-850	Guide comp - SECOND CLUTCH	Guide comp - SECOND CLUTCH
17	22650-PC9-030	Clutch assy. - THIRD	Clutch assy. - THIRD
18	22661-PC9-000	Guide comp - THIRD CLUTCH	Guide comp - THIRD CLUTCH
19	90603-PA9-000	Circlip - EXTERNAL, 40MM	Circlip - EXTERNAL, 40MM
20	90603-PL4-000	Circlip - EXTERNAL, 42MM	Circlip - EXTERNAL, 42MM
21	90605-PC9-000	Ring - SNAP, 119MM	Ring - SNAP, 119MM
22	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)
22	91302-PA9-004	O-ring - 39.8X2.2 (NOK)	O-ring - 39.8X2.2 (NOK)
23	91302-PL4-003	O-ring - 41.8X2.2 (NOK)	O-ring - 41.8X2.2 (NOK)
24	91303-PC9-004	O-ring - 104X2.2 (NOK)	O-ring - 104X2.2 (NOK)
24	91303-PC9-003	O-ring - 104X2.2 (ARAI)	O-ring - 104X2.2 (ARAI)

Clutch housing 32 / 35

#	OEM	HWZ	MA2
2	21103-PL3-B00	Plate c - OIL GUIDE	Plate c - OIL GUIDE
3	21120-PG2-003	Magnet - TRANSMISSION	Magnet - TRANSMISSION
6	41233-PL3-A00	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
8	41312-PL3-B00	Gear - SPEEDOMETER DRIVE	Gear - SPEEDOMETER DRIVE
13	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
13	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
13	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
13	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
13	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
13	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
13	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
13	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
13	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
13	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
13	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
13	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
13	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
13	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
13	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
13	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
13	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
14	90015-634-010	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
16	91002-PS0-003	Bearing - BALL, 26X58X15 (NTN)	Bearing - BALL, 26X58X15 (NTN)
18	91101-PL3-B03	Bearing - NEEDLE, 30X55X21 (NTN)	Bearing - NEEDLE, 30X55X21 (NTN)
19	91205-PL3-B02	Oil seal - 40X56X8(NOK)	Oil seal - 40X56X8(NOK)
19	91205-PL3-B01	Oil seal - 40X56X8(ARAI)	Oil seal - 40X56X8(ARAI)
20	91208-PB6-003	Dust seal - 16X21X4 (ARAI)	Dust seal - 16X21X4 (ARAI)
20	91208-PB6-005	Dust seal - 16X21X4 (NOK)	Dust seal - 16X21X4 (NOK)
21	91215-PL3-003	Oil seal - 14X25X15 (ARAI)	Oil seal - 14X25X15 (ARAI)
21	91215-PL3-005	Oil seal - 14X25X15 (NOK)	Oil seal - 14X25X15 (NOK)
22	91216-PL3-005	Oil seal - 26X42X7 (NOK)	Oil seal - 26X42X7 (NOK)
22	91216-PL3-003	Oil seal - 26X42X7 (ARAI)	Oil seal - 26X42X7 (ARAI)

Clutch release/ speedometer gear 14 / 16

#	OEM	HWZ	MA2
1	22810-PL3-005	Bearing - CLUTCH RELEASE (KOYO SEIKO)	Bearing - CLUTCH RELEASE (KOYO SEIKO)
2	22821-PL3-000	Fork - CLUTCH RELEASE	Fork - CLUTCH RELEASE
4	22840-PL3-000	Damper - RELEASE ARM	Damper - RELEASE ARM
5	22851-PB6-910	Spring - RELEASE ARM	Spring - RELEASE ARM
7	23811-PC1-000	Holder comp - SPEEDOMETER GEAR	Holder comp - SPEEDOMETER GEAR
8	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER	Plate - SPEEDOMETER GEAR HOLDER
9	23814-PM0-000	Seal - GEAR HOLDER	Seal - GEAR HOLDER
10	23820-PM1-000	Gear comp - SPEEDOMETER	Gear comp - SPEEDOMETER
11	90018-PF5-000	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
12	90029-PB6-911	Bolt - SPECIAL, 8X24	Bolt - SPECIAL, 8X24
13	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
14	90637-689-000	Clip - SPEEDOMETER CABLE	Clip - SPEEDOMETER CABLE
15	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
16	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Clutch/torque converter 9 / 14

#	OEM	HWZ	MA2
1	21350-PR1-030	Cover - CLUTCH CASE	Cover - CLUTCH CASE
2	21351-PM0-900	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
8	26251-PE1-913	Plate - DRIVE	Plate - DRIVE
9	90011-PM0-000	Bolt - 12MM	Bolt - 12MM
10	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
12	90429-PJ7-900	Washer - 40X85X2	Washer - 40X85X2
13	91006-634-008	Bearing - CLUTCH PILOT (NTN)	Bearing - CLUTCH PILOT (NTN)
14	91302-639-000	O-ring - 32X1.9	O-ring - 32X1.9

Combination meter 3 / 8

#	OEM	HWZ	MA2
4	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
5	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
6	90651-692-731	Nut - NYLON, 3MM	Nut - NYLON, 3MM

Combination meter (COMPONENTS) 16 / 31

#	OEM	HWZ	MA2
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35505-SJ4-003	Socket assy - BULB (14V 3W)	Socket assy - BULB (14V 3W)
3	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
4	35509-SA5-003	Bulb & socket - 8V 1.2W) (NS	Bulb & socket - 8V 1.2W) (NS
5	35511-SA5-003	Bulb - 8V 1.2W) (NS	Bulb - 8V 1.2W) (NS
6	37106-SJ4-J00	Knob - TRIP	Knob - TRIP
7	37115-SA0-601	Packing - NS	Packing - NS
8	37116-SB3-003	Rubber - SPEEDOMETER (NS)	Rubber - SPEEDOMETER (NS)
10	37237-SJ4-J00	Bulb - 3W T6.5 CAP) (NS	Bulb - 3W T6.5 CAP) (NS
11	37238-SD2-A00	Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN	Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN
14	78103-SJ4-J00	Bracket - L) (R. SIDE	Bracket - L) (R. SIDE
15	78105-SJ4-J00	Bracket - R) (L. SIDE	Bracket - R) (L. SIDE
25	90102-SB2-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
26	90131-SD2-003	Screw-washer - 4X12 (NS)	Screw-washer - 4X12 (NS)
27	90131-SF4-003	Screw-washer - 3X16 (NS)	Screw-washer - 3X16 (NS)
28	90134-SH3-003	Screw-washer - 3X10 (NS)	Screw-washer - 3X10 (NS)

Combination switch 1 / 13

#	OEM	HWZ	MA2
16	53271-SF1-003	Cam - TURN SIGNAL SWITCH CANCEL	Cam - TURN SIGNAL SWITCH CANCEL

Console 5 / 28

#	OEM	HWZ	MA2
1	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
31	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
38	90683-693-000	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
46	39600-S84-G01	Lighter assy - CIGARETTE	Lighter assy - CIGARETTE
46	39600-SW3-505	LIGHTER ASSYCIGA	LIGHTER ASSYCIGA

Control device (PGM-FI; 1.6L; 2) 1 / 11

#	OEM	HWZ	MA2
10	36138-PM1-G01	Filter assy - SOLENOID VALVE	Filter assy - SOLENOID VALVE

Control wire 26 / 29

#	OEM	HWZ	MA2
1	23811-PL4-000	Holder comp - SPEEDOMETER GEAR	Holder comp - SPEEDOMETER GEAR
2	23813-PL4-000	Plate - HOLDER	Plate - HOLDER
3	23814-689-000	Seal - GEAR HOLDER	Seal - GEAR HOLDER
4	23820-PC9-000	Gear - SPEEDOMETER DRIVEN	Gear - SPEEDOMETER DRIVEN
6	24365-PM0-901	Clamp - THROTTLE WIRE	Clamp - THROTTLE WIRE
10	24412-PL4-000	Lever - CONTROL	Lever - CONTROL
11	24414-PL4-000	Pin - CONTROL	Pin - CONTROL
12	24415-PA9-000	Roller - CONTROL LEVER	Roller - CONTROL LEVER
13	24901-PL4-000	Holder - CONTROL WIRE	Holder - CONTROL WIRE
14	25610-PL4-003	Gauge comp. - OIL LEVEL (ATF)	Gauge comp. - OIL LEVEL (ATF)
15	25910-PL4-000	Pipe comp. a - OIL HOSE	Pipe comp. a - OIL HOSE
16	25920-PL4-000	Pipe comp. b - OIL HOSE	Pipe comp. b - OIL HOSE
17	25950-PL4-000	Bolt comp - JOINT	Bolt comp - JOINT
18	25951-639-000	Bolt - JOINT	Bolt - JOINT
19	27494-PL4-000	Lever - THROTTLE CONTROL	Lever - THROTTLE CONTROL
20	27495-PF4-000	Spring - THROTTLE LEVER	Spring - THROTTLE LEVER
21	27496-PL4-000	Stay - THROTTLE CABLE	Stay - THROTTLE CABLE
23	54341-SA0-980	Boot - CONTROL WIRE	Boot - CONTROL WIRE
24	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
25	90010-PA9-000	Bolt - SPECIAL, 5X12	Bolt - SPECIAL, 5X12
26	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
27	90436-PA9-000	Washer - LOCK, 5MM	Washer - LOCK, 5MM
28	90437-PG4-000	Washer - TONGUED, 6MM	Washer - TONGUED, 6MM
29	90637-689-000	Clip - SPEEDOMETER CABLE	Clip - SPEEDOMETER CABLE
30	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
31	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Countershaft 54 / 65

#	OEM	HWZ	MA2
1	23221-PL3-A20	Countershaft	Countershaft
2	23421-PL3-010	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
3	23423-PA9-003	Clutch assy. - ONE WAY	Clutch assy. - ONE WAY
4	23427-PL4-010	Gear - PARKING	Gear - PARKING
8	23912-PL3-000	Collar - DISTANCE, 33X39X30	Collar - DISTANCE, 33X39X30
8	23531-PH0-000	Gear - COUNTERSHAFT REVERSE	Gear - COUNTERSHAFT REVERSE
9	23926-PB6-010	Washer - SPRING, 22MM	Washer - SPRING, 22MM
9	23541-PA9-010	Gear - REVERSE IDLE	Gear - REVERSE IDLE
10	90202-PB6-010	Nut - FLANGE, 22MM	Nut - FLANGE, 22MM
10	23542-PH0-020	Shaft - REVERSE IDLE GEAR	Shaft - REVERSE IDLE GEAR
11	90603-PL3-000	Ring - SNAP, 52MM	Ring - SNAP, 52MM
11	23543-PH0-000	Spring a - IDLE GEAR SHAFT	Spring a - IDLE GEAR SHAFT
12	91003-PL3-B04	Bearing - BALL, 25X52X14/15 (TOYO)	Bearing - BALL, 25X52X14/15 (TOYO)
12	23565-PP6-010	Selector - REVERSE GEAR	Selector - REVERSE GEAR
13	91102-PL3-B04	Bearing - NEEDLE, 25X52.2X15 (NTN)	Bearing - NEEDLE, 25X52.2X15 (NTN)
13	23566-PH0-000	Hub - SELECTOR	Hub - SELECTOR
14	91104-PL3-018	Bearing - NEEDLE, 36X41X24	Bearing - NEEDLE, 36X41X24
14	90202-PF4-010	Nut - FLANGE, 23MM	Nut - FLANGE, 23MM
15	91105-PL3-018	Bearing - NEEDLE, 39X44X25	Bearing - NEEDLE, 39X44X25
15	90414-PA9-010	Washer - SPLINE, 35X50X3.15	Washer - SPLINE, 35X50X3.15
15	90424-PA9-000	Washer - SPLINE, 35X50X2.95	Washer - SPLINE, 35X50X2.95
15	90418-PA9-000	Washer - SPLINE, 35X50X3.25	Washer - SPLINE, 35X50X3.25
15	90411-PA9-010	Washer - SPLINE, 35X50X3.00	Washer - SPLINE, 35X50X3.00
15	90420-PA9-000	Washer - SPLINE, 35X50X3.35	Washer - SPLINE, 35X50X3.35
15	90413-PA9-010	Washer - SPLINE, 35X50X3.10	Washer - SPLINE, 35X50X3.10
15	90423-PA9-000	Washer - SPLINE, 35X50X2.90	Washer - SPLINE, 35X50X2.90
15	90415-PA9-010	Washer - SPLINE, 35X50X3.20	Washer - SPLINE, 35X50X3.20
15	90419-PA9-000	Washer - SPLINE, 35X50X3.30	Washer - SPLINE, 35X50X3.30
15	90412-PA9-010	Washer - SPLINE, 35X50X3.05	Washer - SPLINE, 35X50X3.05
15	90421-PA9-000	Washer - SPLINE, 35X50X3.40	Washer - SPLINE, 35X50X3.40
16	91211-PL3-T01	Damper - FRICTION (LOW)	Damper - FRICTION (LOW)
16	90431-PC9-000	Cotter - 28MM	Cotter - 28MM
17	91212-P20-008	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)
17	90501-PL4-000	Collar - REVERSE GEAR	Collar - REVERSE GEAR
18	90511-PC9-000	Collar - DISTANCE, 28X38X38.90	Collar - DISTANCE, 28X38X38.90
18	90505-PC9-000	Collar - DISTANCE, 28X38X39.20	Collar - DISTANCE, 28X38X39.20
18	90508-PC9-000	Collar - DISTANCE, 28X38X39.05	Collar - DISTANCE, 28X38X39.05
18	90510-PC9-000	Collar - DISTANCE, 28X38X39.25	Collar - DISTANCE, 28X38X39.25
18	90504-PC9-000	Collar - DISTANCE, 28X38X39.10	Collar - DISTANCE, 28X38X39.10
18	90512-PC9-000	Collar - DISTANCE, 28X38X38.95	Collar - DISTANCE, 28X38X38.95
18	90507-PC9-000	Collar - DISTANCE, 28X38X39.30	Collar - DISTANCE, 28X38X39.30
18	90509-PC9-000	Collar - DISTANCE, 28X38X39.15	Collar - DISTANCE, 28X38X39.15
18	90503-PC9-000	Collar - DISTANCE, 28X38X39.00	Collar - DISTANCE, 28X38X39.00
19	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)	Bearing - NEEDLE, 32X38X20 (NTN)
20	91014-PA9-003	Bearing - THRUST NEEDLE, 35X52X2 (NTN)	Bearing - THRUST NEEDLE, 35X52X2 (NTN)
20	91014-PTD-901	Bearing - THRUST NEEDLE, 35X52X2	Bearing - THRUST NEEDLE, 35X52X2
21	91016-PA9-003	Bearing - NEEDLE, 28X33X20 (NTN)	Bearing - NEEDLE, 28X33X20 (NTN)
22	91024-PL4-003	Bearing - NEEDLE, 31X36X14	Bearing - NEEDLE, 31X36X14
23	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)	Bearing - NEEDLE, 14X18X15 (NTN)
24	91031-PC9-005	Bearing - THRUST NEEDLE, 39X54X2 (KOYO)	Bearing - THRUST NEEDLE, 39X54X2 (KOYO)
24	91031-PC9-003	Bearing - THRUST NEEDLE, 39X54X2 (NTN)	Bearing - THRUST NEEDLE, 39X54X2 (NTN)
24	91031-PC9-006	Bearing - THRUST NEEDLE, 39X54X2 (NIPPON SEIKO)	Bearing - THRUST NEEDLE, 39X54X2 (NIPPON SEIKO)
25	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)
25	91307-PA9-004	O-ring - 31.2X1.9 (NOK)	O-ring - 31.2X1.9 (NOK)

Cylinder block/oil pan 23 / 29

#	OEM	HWZ	MA2
2	11106-PE0-300	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
3	11111-PM3-300	Pipe - OIL LEVEL	Pipe - OIL LEVEL
4	11126-PK1-003	Bolt - SEALING, 22MM	Bolt - SEALING, 22MM
6	11200-PM1-010	Pan comp - OIL	Pan comp - OIL
7	11251-PE2-004	Gasket - OIL PAN (OTSUKA)	Gasket - OIL PAN (OTSUKA)
7	11251-PE2-003	Gasket - OIL PAN (KOKOKU)	Gasket - OIL PAN (KOKOKU)
7	11251-P01-004	Packing - OIL PAN (OTSUKA)	Packing - OIL PAN (OTSUKA)
12	11950-PM7-010	Stiffener - ENGINE	Stiffener - ENGINE
14	15650-PM3-004	Gauge comp. - OIL LEVEL (OTSUKA)	Gauge comp. - OIL LEVEL (OTSUKA)
15	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
16	90007-PM6-003	Bolt-washer - 11X116	Bolt-washer - 11X116
18	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5	Bolt - MOUNTING BRACKET, 10X32.5
19	90008-PM6-003	Bolt-washer - 11X131	Bolt-washer - 11X131
20	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
21	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
22	90041-PM3-000	Bolt - STUD, 12X44	Bolt - STUD, 12X44
23	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
25	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
26	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
27	91214-PE1-721	Oil seal - 80X100X10 (NOK)	Oil seal - 80X100X10 (NOK)
27	91214-PLE-003	Oil seal	Oil seal
28	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)	O-ring - 7.2X1.7 (ARAI)
28	91312-107-000	O-ring (7x1.7)	O-ring (7x1.7)

Cylinder head (DOHC) 2 / 16

#	OEM	HWZ	MA2
12	90026-PE0-000	Bolt - STUD, 8X37	Bolt - STUD, 8X37
12	90026-PT0-000	Bolt - STUD, 8X38	Bolt - STUD, 8X38

Cylinder head cover 4 / 11

#	OEM	HWZ	MA2
9	15610-PC6-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
10	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
21	90213-PH3-000	Nut - CAP, 6MM	Nut - CAP, 6MM
22	90441-PK2-000	Washer - HEAD COVER	Washer - HEAD COVER

Driveshaft 1 / 22

#	OEM	HWZ	MA2
17	90305-692-010	Nut	Nut

Emblem 2 / 12

#	OEM	HWZ	MA2
24	76501-SA1-600	Plate, RR. DOOR LOCK CAUTION	Plate, RR. DOOR LOCK CAUTION
25	91512-SJ4-003	Clip - TUBULAR	Clip - TUBULAR

Engine mounts 7 / 34

#	OEM	HWZ	MA2
3	50805-SH3-983	Rubber - TRANSMISSION MOUNTING (AT)	Rubber - TRANSMISSION MOUNTING (AT)
7	50825-SH3-984	Bracket - TRANSMISSION MOUNTING (AT)	Bracket - TRANSMISSION MOUNTING (AT)
10	50827-SH3-983	Bracket - RR. ENGINE MOUNTING (AT)	Bracket - RR. ENGINE MOUNTING (AT)
13	50839-SK7-000	Nut - YOKE, 12MM	Nut - YOKE, 12MM
13	50839-SH3-000	Nut - YOKE, 12MM	Nut - YOKE, 12MM
14	50840-SH3-000	Mounting assy. - FR. STOPPER (MT)	Mounting assy. - FR. STOPPER (MT)
31	91771-SH3-000	Washer - PLAIN, 10MM	Washer - PLAIN, 10MM

Engine wire harness/clamp 17 / 37

#	OEM	HWZ	MA2
1	31110-PM3-003	Belt - ALTERNATOR (BANDO)	Belt - ALTERNATOR (BANDO)
1	31110-PM3-506	Belt	Belt
3	31113-PM3-000	Stay - ALTERNATOR	Stay - ALTERNATOR
6	31117-PM5-A00	Plate - CAUTION	Plate - CAUTION
13	32743-PM3-010	Clamp b - ENGINE WIRE HARNESS	Clamp b - ENGINE WIRE HARNESS
22	37240-PD2-004	Switch - OIL PRESSURE (TEC)	Switch - OIL PRESSURE (TEC)
22	37240-PD2-003	Switch - OIL PRESSURE (DENSO)	Switch - OIL PRESSURE (DENSO)
23	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
24	37760-PM3-003	Switch assy - THERMOSTAT (A-93) (NIPPON THERMOSTAT)	Switch assy - THERMOSTAT (A-93) (NIPPON THERMOSTAT)
26	90050-PG7-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
28	90057-PG7-003	Bolt - ALTERNATOR	Bolt - ALTERNATOR
29	90430-657-000	Washer - 23X8.3X3.2	Washer - 23X8.3X3.2
31	91307-611-000	O-ring (13.5X1.4)	O-ring (13.5X1.4)
31	91307-PH7-660	O-ring (13.5X1.4)	O-ring (13.5X1.4)
32	91506-PM3-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS
34	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
35	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)

Exhaust manifold (1) 8 / 16

#	OEM	HWZ	MA2
11	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
12	90015-PH7-000	Bolt-washer - 8X14	Bolt-washer - 8X14
12	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
13	90022-PE0-000	Bolt - FLANGE, 8X10	Bolt - FLANGE, 8X10
14	90065-PG6-000	Bolt, STUD, 10X24	Bolt, STUD, 10X24
15	90212-PD2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
15	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
16	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust pipe 3 / 30

#	OEM	HWZ	MA2
19	18229-SH3-J10	Gasket - EX. FLEXIBLE (50.8MM-64MM)	Gasket - EX. FLEXIBLE (50.8MM-64MM)
23	18310-SB0-023	Finisher - EX. PIPE	Finisher - EX. PIPE
26	90115-SB2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM

Floor mat 2 / 8

#	OEM	HWZ	MA2
15	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
17	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Front combination light 5 / 20

#	OEM	HWZ	MA2
8	33305-SH3-A01	Socket comp - GRAY	Socket comp - GRAY
13	33800-SJ5-Q01	Light assy - SIDE TURN (###)	Light assy - SIDE TURN (###)
14	33801-SJ5-003	Lens	Lens
15	33802-SJ5-Q01	Cord comp	Cord comp
16	34304-SH3-A01	Socket comp.	Socket comp.

Front door lining 5 / 23

#	OEM	HWZ	MA2
28	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
30	90662-693-003	Grommet - SCREW, 4MM (BLUE)	Grommet - SCREW, 4MM (BLUE)
32	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
32	90664-671-003	Clip - CANOE	Clip - CANOE
39	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Front door locks 3 / 24

#	OEM	HWZ	MA2
21	72175-SH3-003	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
24	75411-634-000	Joint	Joint
30	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door panels 2 / 14

#	OEM	HWZ	MA2
22	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
22	90664-671-003	Clip - CANOE	Clip - CANOE

Front door windows 2 / 16

#	OEM	HWZ	MA2
5	72230-SJ4-000	Sash - R. FR. DOOR LOWER	Sash - R. FR. DOOR LOWER
12	72270-SJ4-000	Sash - L. FR. DOOR LOWER	Sash - L. FR. DOOR LOWER

Front fenders 1 / 11

#	OEM	HWZ	MA2
14	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front grille 2 / 6

#	OEM	HWZ	MA2
2	75103-SJ4-003	Clip - FR. GRILLE	Clip - FR. GRILLE
7	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Front stabilizer/ front lower arm 1 / 17

#	OEM	HWZ	MA2
17	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM

Front windshield wiper (RH) 13 / 20

#	OEM	HWZ	MA2
2	76513-SJ4-003	Seal a	Seal a
3	76516-SD5-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76516-SE0-003	Rubber - BRACKETLESS MOUNTING	Rubber - BRACKETLESS MOUNTING
5	76517-SD5-003	Collar	Collar
6	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
7	76518-SJ4-003	Cap - PIVOT	Cap - PIVOT
8	76520-SJ4-003	Link unit a	Link unit a
9	76524-SD4-003	Dust seal	Dust seal
11	76540-SJ4-003	Rod unit a - RH	Rod unit a - RH
12	76550-SJ4-003	Rod unit b - RH	Rod unit b - RH
13	76560-SJ4-003	Pivot assy. c	Pivot assy. c
14	76570-SJ4-003	Pivot assy. b	Pivot assy. b
20	90308-SE0-000	Nut - CAP, 8MM	Nut - CAP, 8MM

Front windshield/ quarter glass/rear glass 2 / 39

#	OEM	HWZ	MA2
2	73125-SJ4-000	Rubber - FR. WINDSHIELD DAM	Rubber - FR. WINDSHIELD DAM
35	91517-SJ4-003	Clip - FR. PILLAR GARNISH	Clip - FR. PILLAR GARNISH

Fuel tank (PGM-FI) 4 / 41

#	OEM	HWZ	MA2
11	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
17	17670-SA5-013	Cap comp. - FUEL FILLER	Cap comp. - FUEL FILLER
18	17682-679-013	Packing - FUEL FILLER CAP	Packing - FUEL FILLER CAP
32	90103-SB0-010	Nut - FLANGE, 5MM	Nut - FLANGE, 5MM

Fuse box/relay 5 / 38

#	OEM	HWZ	MA2
13	38212-SE0-000	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
17	38235-SA5-003	Puller - FUSE (SUMITOMO)	Puller - FUSE (SUMITOMO)
36	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
41	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
44	90662-693-003	Grommet - SCREW, 4MM (BLUE)	Grommet - SCREW, 4MM (BLUE)

Headlight 1 / 7

#	OEM	HWZ	MA2
9	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM

Heater blower 6 / 12

#	OEM	HWZ	MA2
1	39242-671-670	Fan - HEATER	Fan - HEATER
2	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
3	79191-SD4-003	Washer - LINK	Washer - LINK
5	79310-SH3-013	Motor assy.	Motor assy.
10	90307-SA0-003	Nut - FLANGE, 5MM	Nut - FLANGE, 5MM
12	90501-671-003	Washer - SPECIAL	Washer - SPECIAL

Heater duct (RH) 2 / 10

#	OEM	HWZ	MA2
7	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
8	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16

Heater unit 6 / 10

#	OEM	HWZ	MA2
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
2	39248-692-003	Packing - HEATER	Packing - HEATER
5	79181-SH3-003	Lever a - MODE	Lever a - MODE
6	79182-SH3-003	Lever b - MODE	Lever b - MODE
7	79183-SH3-003	Lever c - MODE	Lever c - MODE
8	79188-SH3-003	Lever b - AIR MODE	Lever b - AIR MODE

High tension cord/ spark plug 1 / 6

#	OEM	HWZ	MA2
16	90003-P01-000	Bolt-washer - 8X28	Bolt-washer - 8X28

Hood 7 / 27

#	OEM	HWZ	MA2
12	74143-SJ4-000	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
16	74177-SG0-000	Cushion a - HOOD	Cushion a - HOOD
18	74213-SJ4-000	Cover - R. HOOD HINGE	Cover - R. HOOD HINGE
19	74214-SJ4-000	Cover - L. HOOD HINGE	Cover - L. HOOD HINGE
25	90672-SJ4-013	Holder - ROD	Holder - ROD
29	91517-SH3-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
30	91604-SD2-013	Grommet - HOOD STAY	Grommet - HOOD STAY

Instrument panel (RH) 2 / 19

#	OEM	HWZ	MA2
9	77202-SJ5-000	Clip - INSTRUMENT PANEL FACE	Clip - INSTRUMENT PANEL FACE
29	90683-693-000	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Instrument panel garnish (RH) 11 / 20

#	OEM	HWZ	MA2
5	66405-SD4-000	Stay - GLOVE BOX HINGE	Stay - GLOVE BOX HINGE
6	66406-SJ5-000	Plate - GLOVE BOX STOPPER	Plate - GLOVE BOX STOPPER
7	66417-SB3-670	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
8	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
9	77123-SJ5-000	Bracket - GLOVE BOX STOPPER	Bracket - GLOVE BOX STOPPER
21	77774-SJ5-000	Absorber assy - SHOCK	Absorber assy - SHOCK
22	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
23	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
24	90305-SA0-000	Nut - FLOATING, 4MM	Nut - FLOATING, 4MM
25	90651-692-731	Nut - NYLON, 3MM	Nut - NYLON, 3MM
26	90659-SA5-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Interior light 3 / 6

#	OEM	HWZ	MA2
3	34251-SK7-004	Lens - DAIICHI	Lens - DAIICHI
5	34295-SD4-003	Bulb - 12V 5W.K	Bulb - 12V 5W.K
7	35409-SD2-003	Screw - EARTH, 4X12 (ZN)	Screw - EARTH, 4X12 (ZN)

Main valve body 31 / 37

#	OEM	HWZ	MA2
1	24461-PA9-010	Spring - ROLLER	Spring - ROLLER
2	24471-PN6-000	Roller - 6X16	Roller - 6X16
3	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
6	27112-P48-J01	Plate - MAIN SEPARATING	Plate - MAIN SEPARATING
7	27122-PA9-000	Cover - SHIFT VALVE	Cover - SHIFT VALVE
8	27122-PC9-000	Cover - SHIFT VALVE	Cover - SHIFT VALVE
9	27255-PC9-710	Spring - TORQUE CONVERTER CHECK VALVE	Spring - TORQUE CONVERTER CHECK VALVE
10	27256-PA9-000	Valve - RELIEF	Valve - RELIEF
11	27256-639-000	Valve - TORQUE CONVERTER CHECK	Valve - TORQUE CONVERTER CHECK
12	27257-PG4-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
13	27258-680-900	Seat - RELIEF VALVE SPRING	Seat - RELIEF VALVE SPRING
15	27310-PL4-000	Holder comp - GOVERNOR	Holder comp - GOVERNOR
16	27312-PA9-000	Pipe - 5X65	Pipe - 5X65
17	27312-PL4-000	Plate - GOVERNOR HOLDER SEPARATOR	Plate - GOVERNOR HOLDER SEPARATOR
18	27313-PF4-000	Filter - GOVERNOR	Filter - GOVERNOR
19	27314-PC9-000	Plate - GOVERNOR	Plate - GOVERNOR
21	27341-PF0-020	Shaft - GOVERNOR	Shaft - GOVERNOR
23	27350-PL4-000	Body - BYPASS	Body - BYPASS
24	27352-PL4-000	Cover - BYPASS BODY	Cover - BYPASS BODY
25	27370-PF4-000	Filter assy - EX.	Filter assy - EX.
26	27415-PF4-000	Valve - SECOND ORIFICE CONTROL	Valve - SECOND ORIFICE CONTROL
27	27417-P48-J00	Spring - SECOND ORIFICE CONTROL	Spring - SECOND ORIFICE CONTROL
28	27419-PF4-000	Cap - SECOND ORIFICE CONTROL VALVE	Cap - SECOND ORIFICE CONTROL VALVE
29	27421-PP6-000	Valve - MANUAL	Valve - MANUAL
30	27511-PC9-000	Sleeve - SHIFT VALVE	Sleeve - SHIFT VALVE
32	27750-PF4-000	Filter - SECONDARY BODY	Filter - SECONDARY BODY
33	90433-PF4-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
34	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
35	90451-PC9-000	Washer - THRUST, 14MM	Washer - THRUST, 14MM
36	90741-PA9-000	Key - WOODRUFF, 3MM	Key - WOODRUFF, 3MM
37	91704-PF4-000	Dowel pin - 8X40	Dowel pin - 8X40

Mainshaft 48 / 57

#	OEM	HWZ	MA2
1	22814-PA9-023	Ring - SEALING, 32MM	Ring - SEALING, 32MM
2	23261-PL3-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
5	23540-PL3-000	Gear comp - REVERSE IDLE	Gear comp - REVERSE IDLE
6	90201-PL4-000	Nut - FLANGE, 19MM	Nut - FLANGE, 19MM
7	23623-PL3-305	Sleeve set - SYNCHRONIZER (3-4)	Sleeve set - SYNCHRONIZER (3-4)
7	90406-PH0-000	Washer - THRUST, 28X40X1.5	Washer - THRUST, 28X40X1.5
8	23626-PL3-315	Sleeve set - SYNCHRONIZER (5)	Sleeve set - SYNCHRONIZER (5)
8	90407-PL4-000	Washer - THRUST, 26X53X4.5	Washer - THRUST, 26X53X4.5
9	23915-PL3-A00	Collar - DISTANCE, 27X34X32X55	Collar - DISTANCE, 27X34X32X55
9	90417-PC9-000	Washer - 26X45X3	Washer - 26X45X3
10	23927-PL3-000	Washer - SPRING, 36MM	Washer - SPRING, 36MM
10	90422-PL4-010	Washer - THRUST, 23X48.5X2.5	Washer - THRUST, 23X48.5X2.5
11	23928-PL3-000	Washer - 26MM	Washer - 26MM
11	90448-PC9-010	Washer - THRUST, 36.5X51X3.85	Washer - THRUST, 36.5X51X3.85
11	90443-PC9-010	Washer - THRUST, 36.5X51X3.60	Washer - THRUST, 36.5X51X3.60
11	90445-PC9-010	Washer - THRUST, 36.5X51X3.70	Washer - THRUST, 36.5X51X3.70
11	90447-PC9-010	Washer - THRUST, 36.5X51X3.80	Washer - THRUST, 36.5X51X3.80
11	90442-PC9-010	Washer - THRUST, 36.5X51X3.55	Washer - THRUST, 36.5X51X3.55
11	90449-PC9-010	Washer - THRUST, 36.5X51X3.90	Washer - THRUST, 36.5X51X3.90
11	90444-PC9-010	Washer - THRUST, 36.5X51X3.65	Washer - THRUST, 36.5X51X3.65
11	90446-PC9-010	Washer - THRUST, 36.5X51X3.75	Washer - THRUST, 36.5X51X3.75
11	90441-PC9-010	Washer - THRUST, 36.5X51X3.50	Washer - THRUST, 36.5X51X3.50
12	91004-PL3-B03	Bearing - ANGULAR BALL, 22X70X17.5 (NTN)	Bearing - ANGULAR BALL, 22X70X17.5 (NTN)
12	90502-PH0-000	Collar - MAINSHAFT FOURTH GEAR	Collar - MAINSHAFT FOURTH GEAR
13	91106-PL3-008	Bearing - NEEDLE, 34X39X23	Bearing - NEEDLE, 34X39X23
13	90506-PL4-000	Collar - DISTANCE, 20MM	Collar - DISTANCE, 20MM
14	91107-PL3-018	Bearing - NEEDLE, 34X39X27.5	Bearing - NEEDLE, 34X39X27.5
14	90508-PH0-000	Collar - 23MM	Collar - 23MM
15	91108-PL3-008	Bearing - NEEDLE, 32X37X23.5 (NTN)	Bearing - NEEDLE, 32X37X23.5 (NTN)
15	90603-689-900	Circlip - EXTERNAL, 20MM	Circlip - EXTERNAL, 20MM
16	90613-PA9-000	Ring - SNAP, 26MM	Ring - SNAP, 26MM
17	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)	Bearing - NEEDLE, 32X38X20 (NTN)
18	91011-428-008	Bearing - NEEDLE, 20X26X20	Bearing - NEEDLE, 20X26X20
18	91011-P48-008	Bearing - NEEDLE, 20X26X20	Bearing - NEEDLE, 20X26X20
19	91012-PZ4-003	Bearing - NEEDLE, 28X33X16.8 (NTN)	Bearing - NEEDLE, 28X33X16.8 (NTN)
20	91018-P56-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
20	91018-PA9-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
21	91019-PL4-003	Bearing - THRUST NEEDLE, 35X49X2	Bearing - THRUST NEEDLE, 35X49X2
22	91023-PS5-003	Bearing - THRUST NEEDLE, 36X52X2 (NTN)	Bearing - THRUST NEEDLE, 36X52X2 (NTN)
23	91024-PF4-003	Bearing - NEEDLE, 32X38X14 (NTN)	Bearing - NEEDLE, 32X38X14 (NTN)
24	91026-PS5-003	Bearing - THRUST NEEDLE, 42X58X2 (TOYO)	Bearing - THRUST NEEDLE, 42X58X2 (TOYO)
25	91028-PL4-003	Bearing - NEEDLE, 36X41X14.8	Bearing - NEEDLE, 36X41X14.8
26	91031-PC9-003	Bearing - THRUST NEEDLE, 39X54X2 (NTN)	Bearing - THRUST NEEDLE, 39X54X2 (NTN)
26	91031-PC9-006	Bearing - THRUST NEEDLE, 39X54X2 (NIPPON SEIKO)	Bearing - THRUST NEEDLE, 39X54X2 (NIPPON SEIKO)
26	91031-PC9-005	Bearing - THRUST NEEDLE, 39X54X2 (KOYO)	Bearing - THRUST NEEDLE, 39X54X2 (KOYO)
27	91307-PA9-004	O-ring - 31.2X1.9 (NOK)	O-ring - 31.2X1.9 (NOK)
27	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)
28	91308-PH0-013	O-ring - 17.8X1.9 (NOK)	O-ring - 17.8X1.9 (NOK)

Mirror 3 / 7

#	OEM	HWZ	MA2
8	76220-SJ4-901	Garnish - R. DOOR MIRROR	Garnish - R. DOOR MIRROR
16	76270-SJ4-901	Garnish - L. DOOR MIRROR	Garnish - L. DOOR MIRROR
21	91610-SJ4-003	Grommet - MIRROR GARNISH	Grommet - MIRROR GARNISH

Oil pump 15 / 23

#	OEM	HWZ	MA2
2	11311-PM3-000	Cover - BREATHING PORT	Cover - BREATHING PORT
9	15220-PM1-000	Strainer comp. - OIL	Strainer comp. - OIL
10	15221-PM3-S00	Packing - OIL STRAINER	Packing - OIL STRAINER
11	15231-PM3-000	Valve - RELIEF	Valve - RELIEF
12	15232-PM3-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
13	15233-P01-000	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
14	15301-PE0-300	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
15	15302-PE0-300	Washer - SEALING, 14MM	Washer - SEALING, 14MM
17	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
17	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
18	15400-PR3-305	Cartridge set - OIL FILTER (TOYO ROKI)	Cartridge set - OIL FILTER (TOYO ROKI)
23	90020-PE0-000	Bolt - STUD, 8X28	Bolt - STUD, 8X28
24	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
25	91212-P01-003	Oil seal - 31X46X7 (NOK)	Oil seal - 31X46X7 (NOK)
26	91307-PE0-010	O-ring - 25X2.4	O-ring - 25X2.4

Opening trim 2 / 6

#	OEM	HWZ	MA2
13	90609-SG0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
14	90667-SJ4-003	Clip - SEAT SIDE GARNISH	Clip - SEAT SIDE GARNISH

P.s. gear box (RH) 2 / 17

#	OEM	HWZ	MA2
16	90320-SF4-000	Nut - CASTLE, 10MM	Nut - CASTLE, 10MM
16	90320-SF1-000	Nut - CASTLE, 10MM	Nut - CASTLE, 10MM

P.s. line 2 / 24

#	OEM	HWZ	MA2
1	46217-579-000	Clip - TUBE	Clip - TUBE
25	91370-SB3-950	O-ring - 8.8X1.9	O-ring - 8.8X1.9

Parking brake 3 / 14

#	OEM	HWZ	MA2
4	47142-671-010	Knob - PARKING BRAKE PUSH ROD	Knob - PARKING BRAKE PUSH ROD
8	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
11	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING

Piston/crankshaft 28 / 57

#	OEM	HWZ	MA2
2	13011-PM6-G02	Ring set	Ring set
4	13112-PE0-000	Pin - PISTON	Pin - PISTON
5	13204-PE1-003	Bolt	Bolt
6	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)	Nut - CONNECTING ROD (NAGOYA RASHI)
6	13205-634-010	Nut	Nut
7	13210-PM6-000	Rod comp	Rod comp
10	13322-PH3-004	Bearing b - MAIN (BLACK) (TAIHO)	Bearing b - MAIN (BLACK) (TAIHO)
10	13327-PH3-004	Bearing g - MAIN (RED) (TAIHO)	Bearing g - MAIN (RED) (TAIHO)
10	13323-PH3-003	Bearing c - MAIN (BROWN) (DAIDO)	Bearing c - MAIN (BROWN) (DAIDO)
10	13323-PK1-752	Bearing c - MAIN (BROWN) (DAIDO)	Bearing c - MAIN (BROWN) (DAIDO)
10	13325-PH3-003	Bearing e - MAIN (YELLOW) (DAIDO)	Bearing e - MAIN (YELLOW) (DAIDO)
10	13325-PK1-752	Bearing e - MAIN (YELLOW) (DAIDO)	Bearing e - MAIN (YELLOW) (DAIDO)
10	13322-PH3-003	Bearing b - MAIN (BLACK) (DAIDO)	Bearing b - MAIN (BLACK) (DAIDO)
10	13322-PK1-752	Bearing b - MAIN (BLACK) (DAIDO)	Bearing b - MAIN (BLACK) (DAIDO)
10	13324-PH3-004	Bearing d - MAIN (GREEN) (TAIHO)	Bearing d - MAIN (GREEN) (TAIHO)
10	13327-PH3-003	Bearing g - MAIN (RED) (DAIDO)	Bearing g - MAIN (RED) (DAIDO)
10	13321-PH3-004	BEARING A - MAIN (BLUE) (TAIHO)	BEARING A - MAIN (BLUE) (TAIHO)
10	13326-PH3-004	Bearing f - MAIN (PINK) (TAIHO)	Bearing f - MAIN (PINK) (TAIHO)
10	13324-PH3-003	Bearing d - MAIN (GREEN) (DAIDO)	Bearing d - MAIN (GREEN) (DAIDO)
10	13324-PK1-752	Bearing d - MAIN (GREEN) (DAIDO)	Bearing d - MAIN (GREEN) (DAIDO)
10	13321-PH3-003	BEARING A	BEARING A
10	13326-PH3-003	Bearing f - MAIN (PINK) (DAIDO)	Bearing f - MAIN (PINK) (DAIDO)
10	13323-PH3-004	Bearing c - MAIN (BROWN) (TAIHO)	Bearing c - MAIN (BROWN) (TAIHO)
10	13325-PH3-004	Bearing e - MAIN (YELLOW) (TAIHO)	Bearing e - MAIN (YELLOW) (TAIHO)
11	13331-PG6-004	Washer - THRUST (TAIHO)	Washer - THRUST (TAIHO)
11	13331-PG6-003	Washer - THRUST (DAIDO)	Washer - THRUST (DAIDO)
16	90017-P01-003	Bolt-washer - 14X29	Bolt-washer - 14X29
18	90704-634-000	Key - 4.5X11.0	Key - 4.5X11.0

R. side cover 41 / 41

#	OEM	HWZ	MA2
1	21240-PL4-000	Cover comp. - R. SIDE	Cover comp. - R. SIDE
2	21244-PF4-010	Spring - LOW ACCUMULATOR ONE WAY BALL	Spring - LOW ACCUMULATOR ONE WAY BALL
3	21812-PL4-S01	Gasket - R. SIDE COVER	Gasket - R. SIDE COVER
4	22710-PH0-010	Pipe a - FEED	Pipe a - FEED
5	22713-PC9-010	Guide a - FEED PIPE	Guide a - FEED PIPE
6	22721-PA9-003	Flange - FEED PIPE	Flange - FEED PIPE
7	22722-PL4-000	Pipe c - FEED	Pipe c - FEED
8	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
9	24532-PN6-003	Lever - PARKING BRAKE	Lever - PARKING BRAKE
10	24535-PG4-000	Spring - PARKING BRAKE	Spring - PARKING BRAKE
11	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
11	24537-PA9-003	Stopper - PARKING BRAKE (1)	Stopper - PARKING BRAKE (1)
11	24539-PA9-003	Stopper - PARKING BRAKE (3)	Stopper - PARKING BRAKE (3)
12	24552-PL4-000	Spring - PARKING BRAKE PAWL	Spring - PARKING BRAKE PAWL
13	24553-PN6-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
14	24555-PN6-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
15	24561-PL4-020	Pawl - PARKING BRAKE	Pawl - PARKING BRAKE
16	24562-PA9-000	Shaft - PARKING BRAKE	Shaft - PARKING BRAKE
17	27561-PG4-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
18	27562-P48-J00	Spring a - LOW ACCUMULATOR	Spring a - LOW ACCUMULATOR
19	27563-PG4-000	Cover - LOW ACCUMULATOR	Cover - LOW ACCUMULATOR
20	27564-P48-J00	Spring b - LOW ACCUMULATOR	Spring b - LOW ACCUMULATOR
21	90024-PH0-000	Bolt - LOW ACCUMULATOR SEALING	Bolt - LOW ACCUMULATOR SEALING
22	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
23	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
24	90471-580-000	Packing - 8MM	Packing - 8MM
25	90507-PA9-000	Collar - 8X11	Collar - 8X11
26	90601-PC9-860	Circlip - INTERNAL, 38MM	Circlip - INTERNAL, 38MM
27	90702-PL4-000	Dowel pin - 8X44	Dowel pin - 8X44
28	90703-PA9-003	Roller - 2X19.8	Roller - 2X19.8
29	91301-PC9-004	O-ring - 7.7X2.3 (NOK)	O-ring - 7.7X2.3 (NOK)
29	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
30	91344-PN1-003	O-ring - 30.7X2.4 (NOK)	O-ring - 30.7X2.4 (NOK)
31	91305-PC9-004	O-ring - 34X1.9 (NOK)	O-ring - 34X1.9 (NOK)
31	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
32	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)
32	91308-PA9-004	O-ring - 19.8X1.9 (NOK)	O-ring - 19.8X1.9 (NOK)
33	91311-PA9-003	O-ring - 7.7X1.9 (ARAI)	O-ring - 7.7X1.9 (ARAI)
33	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)
34	91314-PC9-004	O-ring - 8.5X1.9 (NOK)	O-ring - 8.5X1.9 (NOK)
34	91314-PC9-003	O-ring - 8.5X1.9 (ARAI)	O-ring - 8.5X1.9 (ARAI)

Radiator 3 / 13

#	OEM	HWZ	MA2
8	19020-PM3-004	Fan comp - COOLING (MITSUBA)	Fan comp - COOLING (MITSUBA)
10	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)	Nut - HEX., 5MM(MITSUBA)
13	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)	Washer - PLAIN, 7MM (MITSUBA)

Radio antenna/speaker 2 / 5

#	OEM	HWZ	MA2
6	90502-SA0-003	Washer - WATER PROOF	Washer - WATER PROOF
7	90662-693-003	Grommet - SCREW, 4MM (BLUE)	Grommet - SCREW, 4MM (BLUE)

Rear brake (DISK) 1 / 25

#	OEM	HWZ	MA2
25	90305-692-010	Nut	Nut

Rear door lining 4 / 20

#	OEM	HWZ	MA2
18	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
21	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
21	90664-671-003	Clip - CANOE	Clip - CANOE
26	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Rear door lock 4 / 25

#	OEM	HWZ	MA2
7	72175-SH3-003	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
8	72175-SH3-901	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
24	75411-634-000	Joint	Joint
29	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door window 1 / 17

#	OEM	HWZ	MA2
20	76218-SB4-000	Collar b - RR. DOOR PANEL LOWER	Collar b - RR. DOOR PANEL LOWER

Rear panel lining 3 / 8

#	OEM	HWZ	MA2
8	90103-693-000	Screw - FLANGE TAPPING, 4X12	Screw - FLANGE TAPPING, 4X12
10	90609-SB6-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
15	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

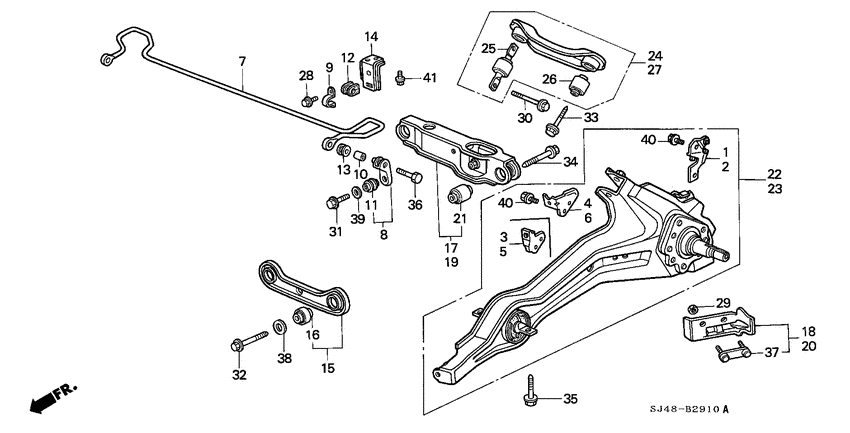

Rear stabilizer/ rear lower arm 3 / 46

#	OEM	HWZ	MA2
28	52393-SK7-004	Bush - UPPER ARM INNER (YAMASHITA)	Bush - UPPER ARM INNER (YAMASHITA)
29	52395-SK7-004	Bush - RR. UPPER ARM (YAMASHITA)	Bush - RR. UPPER ARM (YAMASHITA)
31	52622-SJ4-000	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER

Regulator 16 / 23

#	OEM	HWZ	MA2
1	25155-PL4-000	Shaft assy - STATOR	Shaft assy - STATOR
3	27221-PL4-000	Valve - REGULATOR	Valve - REGULATOR
4	27231-PF4-004	Spring a - REGULATOR VALVE (NHK SPRING)	Spring a - REGULATOR VALVE (NHK SPRING)
5	27232-PF4-000	Spring b - REGULATOR VALVE	Spring b - REGULATOR VALVE
6	27233-PL1-000	Spring - REACTION STATOR	Spring - REACTION STATOR
7	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
8	27255-PC9-710	Spring - TORQUE CONVERTER CHECK VALVE	Spring - TORQUE CONVERTER CHECK VALVE
9	27256-639-000	Valve - TORQUE CONVERTER CHECK	Valve - TORQUE CONVERTER CHECK
15	27626-PH0-900	Valve b - LOCK UP TIMING	Valve b - LOCK UP TIMING
18	27645-PL1-000	Cap - LOCK UP CONTROL	Cap - LOCK UP CONTROL
19	27728-PF4-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
20	90004-PC9-000	Bolt - FLANGE, 6X90	Bolt - FLANGE, 6X90
22	90089-PC9-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
23	90703-PL4-000	Dowel pin - 8X68	Dowel pin - 8X68
24	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8
25	91316-612-000	O-ring - 27.5X1.7	O-ring - 27.5X1.7

Secondary body/servo body 67 / 75

#	OEM	HWZ	MA2
1	22743-PF0-000	Pipe - THIRD CLUTCH	Pipe - THIRD CLUTCH
2	24278-PP6-000	Base - SERVO DETENT	Base - SERVO DETENT
3	24530-PN1-000	Sleeve comp. - SERVO DETENT	Sleeve comp. - SERVO DETENT
4	25422-PC9-000	Magnet - TRANSMISSION	Magnet - TRANSMISSION
5	25423-PC9-010	Spring - MAGNET HOLDER	Spring - MAGNET HOLDER
6	25424-PP6-010	Holder - MAGNET	Holder - MAGNET
7	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
8	27405-PP6-845	Body sub assy. - SERVO	Body sub assy. - SERVO
10	27413-PL1-000	Stay - STOPPER	Stay - STOPPER
11	27414-PL1-000	Plate - THROTTLE SEPARATING	Plate - THROTTLE SEPARATING
12	27415-PC9-010	Valve - ORIFICE CONTROL	Valve - ORIFICE CONTROL
13	27418-PF4-000	Spring - ORIFICE CONTROL VALVE	Spring - ORIFICE CONTROL VALVE
14	27419-PC9-010	SEAT, VALVE SPRING	SEAT, VALVE SPRING
15	27441-PP6-020	Cover - SERVO	Cover - SERVO
16	27442-PP6-030	Plate - SERVO COVER SEPARATING	Plate - SERVO COVER SEPARATING
17	27471-PP6-000	Valve - FOURTH EX.	Valve - FOURTH EX.
18	27478-PP6-000	Spring - FOURTH EX.	Spring - FOURTH EX.
19	27572-PP6-800	Piston - SECOND ACCUMULATOR	Piston - SECOND ACCUMULATOR
20	27574-PL4-000	Piston - THIRD ACCUMULATOR	Piston - THIRD ACCUMULATOR
21	27576-PN6-800	Piston - TOP ACCUMULATOR	Piston - TOP ACCUMULATOR
22	27577-P48-J01	Spring - TOP ACCUMULATOR	Spring - TOP ACCUMULATOR
23	27580-PP6-010	Cover - ACCUMULATOR	Cover - ACCUMULATOR
24	27581-P48-J01	Spring - SECOND ACCUMULATOR	Spring - SECOND ACCUMULATOR
25	27583-P48-J01	Spring - THIRD ACCUMULATOR	Spring - THIRD ACCUMULATOR
26	27646-PL4-000	Sleeve - KICK DOWN VALVE (###)	Sleeve - KICK DOWN VALVE (###)
27	27653-P48-J00	Cap - CLUTCH PRESSURE CONTROL VALVE	Cap - CLUTCH PRESSURE CONTROL VALVE
29	27700-P48-840	Body assy - SECONDARY	Body assy - SECONDARY
31	27715-PF4-000	Valve - SHIFT TIMING (###)	Valve - SHIFT TIMING (###)
32	27716-PL4-000	Spring - SHIFT TIMING VALVE (###)	Spring - SHIFT TIMING VALVE (###)
33	27721-PL4-000	Valve - KICK DOWN (###)	Valve - KICK DOWN (###)
34	27722-P48-J00	Spring - KICK DOWN VALVE	Spring - KICK DOWN VALVE
35	27724-PG4-000	Cap - KICK DOWN VALVE	Cap - KICK DOWN VALVE
36	27725-PF4-010	Valve - REVERSE CONTROL	Valve - REVERSE CONTROL
37	27726-PL4-000	Spring - REVERSE CONTROL VALVE	Spring - REVERSE CONTROL VALVE
38	27728-PF4-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
39	27728-PN0-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
40	27728-PP6-000	Cap - REVERSE CONTROL VALVE (###)	Cap - REVERSE CONTROL VALVE (###)
41	27731-PF4-000	Valve - LOCK UP CUT	Valve - LOCK UP CUT
42	27732-PF4-010	Spring - LOCK UP CUT VALVE (###)	Spring - LOCK UP CUT VALVE (###)
43	27735-P24-J00	Valve - TIMING (3-2)	Valve - TIMING (3-2)
44	27736-PL4-000	Spring - TIMING VALVE (3-2) (###)	Spring - TIMING VALVE (3-2) (###)
45	27756-PP6-020	Valve - SERVO CONTROL	Valve - SERVO CONTROL
46	27757-PP6-000	Valve - SERVO CONTROL SHORT	Valve - SERVO CONTROL SHORT
47	27758-PP6-020	Spring - SERVO CONTROL VALVE	Spring - SERVO CONTROL VALVE
48	27761-PP6-020	Valve - TIMING (2-1)	Valve - TIMING (2-1)
49	27762-PP6-010	Spring - TIMING (2-1)	Spring - TIMING (2-1)
50	27800-PL4-000	Body assy - MODULATOR	Body assy - MODULATOR
51	90001-PP6-000	Bolt - FLANGE, 6X133	Bolt - FLANGE, 6X133
52	90003-PP6-000	Bolt - FLANGE, 6X150	Bolt - FLANGE, 6X150
53	90004-PC9-000	Bolt - FLANGE, 6X90	Bolt - FLANGE, 6X90
54	90004-PP6-000	Bolt - HEX., 6X157	Bolt - HEX., 6X157
55	90005-PP6-000	Bolt - SPECIAL, 6X16	Bolt - SPECIAL, 6X16
57	90017-PF4-000	Bolt - FLANGE, 6X127	Bolt - FLANGE, 6X127
58	90018-PF4-000	Bolt - FLANGE, 6X140	Bolt - FLANGE, 6X140
59	90433-PF4-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
60	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8
61	91102-PF4-000	Roller - 3.5X19.8	Roller - 3.5X19.8
62	91317-PA9-003	O-ring - 33.2X2.4 (NOK)	O-ring - 33.2X2.4 (NOK)
62	91317-PA9-004	O-ring - 33.2X2.4 (ARAI)	O-ring - 33.2X2.4 (ARAI)
63	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
64	91324-PF4-004	O-ring - 28.3X2.4 (NOK)	O-ring - 28.3X2.4 (NOK)
65	91344-PC9-003	O-ring - 29X2.4 (ARAI)	O-ring - 29X2.4 (ARAI)
65	91344-PC9-004	O-ring - 29X2.4 (NOK)	O-ring - 29X2.4 (NOK)
66	91331-PC9-003	O-ring	O-ring
66	91331-PC9-004	O-ring - 21.2X2.4 (NOK)	O-ring - 21.2X2.4 (NOK)
68	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)
69	91704-PF4-000	Dowel pin - 8X40	Dowel pin - 8X40

Select lever 26 / 32

#	OEM	HWZ	MA2
1	30158-700-010	E-clip - 3MM	E-clip - 3MM
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
5	54110-SH3-980	Stopper comp - SELECT LEVER	Stopper comp - SELECT LEVER
6	54113-692-980	Collar - LOCK PIN	Collar - LOCK PIN
7	54115-SA5-981	Bolt - SELECTOR STOPPER	Bolt - SELECTOR STOPPER
8	54116-SA5-980	Collar - STOPPER	Collar - STOPPER
9	54117-692-980	Spring - LOCK PIN	Spring - LOCK PIN
10	54119-689-981	Pin - LOCK	Pin - LOCK
11	54120-SH3-980	Spring assy - SELECT STOPPER	Spring assy - SELECT STOPPER
12	54123-SE0-980	Collar - SELECT LEVER	Collar - SELECT LEVER
15	54132-SH4-982	Knob - PUSH	Knob - PUSH
16	54133-SA5-981	Spring - PUSH KNOB	Spring - PUSH KNOB
17	54135-SH3-981	Lever - SELECT	Lever - SELECT
18	54136-SH3-981	Rod comp - LOCK PIN	Rod comp - LOCK PIN
20	54202-SH5-981	Bracket - CONTROL	Bracket - CONTROL
21	54204-SH3-980	Guide - WIRE HARNESS	Guide - WIRE HARNESS
22	54205-SH3-971	Clamp - WIRE HARNESS	Clamp - WIRE HARNESS
24	54211-SH3-982	Indicator	Indicator
25	54222-SH3-980	Cover - SELECT LEVER	Cover - SELECT LEVER
26	54225-SH3-972	Clip - SELECT LEVER BRACKET	Clip - SELECT LEVER BRACKET
28	54318-SK3-E81	Seal - CONTROL	Seal - CONTROL
31	54361-SE0-980	Pipe - CONTROL WIRE ADJUSTING	Pipe - CONTROL WIRE ADJUSTING
32	54363-SE0-980	Pin - CONTROL WIRE ADJUSTER	Pin - CONTROL WIRE ADJUSTER
34	54710-SH3-981	Escutcheon comp. - CONSOLE	Escutcheon comp. - CONSOLE
35	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
36	90308-SA0-981	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM

Shift fork 11 / 11

#	OEM	HWZ	MA2
1	24200-PL3-010	Fork - FIFTH GEARSHIFT	Fork - FIFTH GEARSHIFT
2	24210-PL3-601	Fork comp - GEARSHIFT (3-4)	Fork comp - GEARSHIFT (3-4)
2	24210-PL3-040	Fork comp - GEARSHIFT (3-4)	Fork comp - GEARSHIFT (3-4)
3	24220-PL3-601	Fork comp - GEARSHIFT (1-2)	Fork comp - GEARSHIFT (1-2)
4	24230-PL3-000	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
5	24243-PL3-010	Piece - FIFTH & REVERSE SHIFT	Piece - FIFTH & REVERSE SHIFT
6	24261-PL3-600	Shaft - SHIFT FORK (1-2)	Shaft - SHIFT FORK (1-2)
7	24271-PL3-010	Shaft - SHIFT FORK (5-R)	Shaft - SHIFT FORK (5-R)
8	24455-PG1-300	Spring - SHIFT FORK SETTING	Spring - SHIFT FORK SETTING
10	24455-PG2-A10	Spring - FORK SET BALL	Spring - FORK SET BALL
11	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 21 / 29

#	OEM	HWZ	MA2
1	24313-PF5-000	Clip - CHANGE JOINT PIN	Clip - CHANGE JOINT PIN
1	54113-611-505	CLIP, SHIFT JOINT	CLIP, SHIFT JOINT
4	54105-SH3-010	Washer a - THRUST	Washer a - THRUST
5	54106-SH3-003	Washer b - THRUST	Washer b - THRUST
7	54107-SH3-003	Bush - RR. JOINT	Bush - RR. JOINT
9	54109-SA7-000	Seal A, CHANGE LEVER DUST	Seal A, CHANGE LEVER DUST
10	54110-SH3-003	Seat - CHANGE LEVER BALL	Seat - CHANGE LEVER BALL
11	54111-SH3-000	Holder - CHANGE BALL	Holder - CHANGE BALL
12	54114-SB2-000	Collar - PIPE MOUNTING	Collar - PIPE MOUNTING
13	54115-SH3-000	Dust seal B, Change	Dust seal B, Change
14	54117-SH3-000	Collar - RR. JOINT	Collar - RR. JOINT
17	54303-SJ4-000	Rubber - EXTENSION END	Rubber - EXTENSION END
19	54306-SH3-000	Rubber, EXTENSION MOUNTING	Rubber, EXTENSION MOUNTING
20	54307-SJ4-000	Stopper - EXTENSION MOUNTING	Stopper - EXTENSION MOUNTING
21	54308-SH3-000	Bolt - EXTENSION	Bolt - EXTENSION
22	54309-SH3-000	Collar - EXTENSION END	Collar - EXTENSION END
24	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
25	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
26	90117-HA7-670	Bolt - FLANGE, 8X18	Bolt - FLANGE, 8X18
27	91301-671-671	O-ring - 1.9X11	O-ring - 1.9X11
27	91303-HA0-004	O-ring, 11x1.9 (nok)	O-ring, 11x1.9 (nok)

Shift rod/shift arm 20 / 20

#	OEM	HWZ	MA2
1	24311-PL3-020	Rod - SHIFT	Rod - SHIFT
2	24316-P20-000	Boot - SHIFT ROD	Boot - SHIFT ROD
3	24351-P20-010	Shaft - SHIFT ARM B	Shaft - SHIFT ARM B
4	24411-P20-000	Arm a - SHIFT	Arm a - SHIFT
5	24421-PL3-000	Arm b - SHIFT	Arm b - SHIFT
6	24422-PL3-000	Arm c - SHIFT	Arm c - SHIFT
7	24430-PL3-010	Interlock comp.	Interlock comp.
8	24432-PL3-010	Retainer - REVERSE SELECT	Retainer - REVERSE SELECT
9	24433-P20-000	Bolt - INTERLOCK	Bolt - INTERLOCK
10	24440-PL3-000	Cam comp - REVERSE LOCK	Cam comp - REVERSE LOCK
11	24452-PA0-000	Spring - BALL SETTING	Spring - BALL SETTING
12	24456-P20-000	Spring - SELECT SET BALL	Spring - SELECT SET BALL
13	24461-PB6-000	Collar - SPRING	Collar - SPRING
14	24464-PL3-010	Spring - FIRST-SECOND SELECT	Spring - FIRST-SECOND SELECT
15	24465-P20-000	Spring - REVERSE SELECT	Spring - REVERSE SELECT
16	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
17	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
18	90029-PL3-010	Bolt - SPECIAL, 8MM	Bolt - SPECIAL, 8MM
19	90082-PL3-000	Plug - 28MM	Plug - 28MM
20	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Side protector 8 / 34

#	OEM	HWZ	MA2
21	75305-SH3-003	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
28	75800-SJ4-003	Mudguard - R. FR.	Mudguard - R. FR.
29	75807-671-010	Nut - SIDE PROTECTOR (BLACK)	Nut - SIDE PROTECTOR (BLACK)
30	75810-SJ4-003	Mudguard - L. FR.	Mudguard - L. FR.
35	90101-SE0-010	Bolt assy. b - BUMPER	Bolt assy. b - BUMPER
39	90662-693-003	Grommet - SCREW, 4MM (BLUE)	Grommet - SCREW, 4MM (BLUE)
41	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
49	91621-SF1-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Sliding roof (1) 3 / 7

#	OEM	HWZ	MA2
1	18534-634-670	Clip - AIR HOSE, 16MM	Clip - AIR HOSE, 16MM
3	70052-SH3-000	Valve - FR. DRAIN (SUNROOF)	Valve - FR. DRAIN (SUNROOF)
5	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)	Valve - RR. DRAIN (SUNROOF)

Starter motor (MITSUBA,VALEO) 10 / 20

#	OEM	HWZ	MA2
3	31203-PM1-005	Cover - GEAR	Cover - GEAR
4	31204-PD1-013	Gear assy. - PINION	Gear assy. - PINION
9	31210-PM1-015	Switch assy - ###	Switch assy - ###
10	31211-PC2-006	Ring - SQUARE (MITSUBA)	Ring - SQUARE (MITSUBA)
13	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)	Screw-washer - 4X28 (MITSUBA)
14	31229-PC2-036	Case comp. - FR.	Case comp. - FR.
15	31235-PJ7-903	Cover - TERMINAL (MITSUBA) (###)	Cover - TERMINAL (MITSUBA) (###)
16	31251-PJ7-904	Tube - LABYRINTH (###)	Tube - LABYRINTH (###)
17	31252-PD2-006	Rubber - BUSH (MITSUBA)	Rubber - BUSH (MITSUBA)
18	31291-PM1-005	Stay assy - ENGINE WIRE HARNESS (###)	Stay assy - ENGINE WIRE HARNESS (###)

Steering column 19 / 30

#	OEM	HWZ	MA2
2	53211-SH3-010	Holder - COLUMN UPPER	Holder - COLUMN UPPER
3	53212-SH3-010	Plate comp - BENDING	Plate comp - BENDING
5	53217-SD2-000	Collar - STEERING RETAINER	Collar - STEERING RETAINER
6	53218-SH3-010	Spring - BENDING PLATE	Spring - BENDING PLATE
10	53323-SF4-003	Joint comp. b - STEERING	Joint comp. b - STEERING
13	53350-SH3-020	Base - BENDING PLATE	Base - BENDING PLATE
14	53360-SH3-000	Lever comp - TILT	Lever comp - TILT
15	53361-SH3-000	Spring - TILT LEVER	Spring - TILT LEVER
16	53362-SB3-000	Tube - RUBBER	Tube - RUBBER
19	53364-SH3-000	Bolt - TILT LOCK	Bolt - TILT LOCK
22	53368-SH3-020	Guide - BENDING PLATE	Guide - BENDING PLATE
23	53369-SH3-010	Guide - RAIL	Guide - RAIL
24	53371-SB3-000	Spring - COLUMN HANGER	Spring - COLUMN HANGER
25	53373-SH3-000	Spindle - STOPPER	Spindle - STOPPER
26	53375-SH3-000	Washer - 10MM	Washer - 10MM
27	90132-SH3-000	Bolt - STEERING HANGER	Bolt - STEERING HANGER
28	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
29	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
32	90654-SA5-003	Clip - JOINT COVER	Clip - JOINT COVER

Steering wheel 4 / 5

#	OEM	HWZ	MA2
1	53154-SB3-951	Screw - SLIDE (NIPPON PURASUTO)	Screw - SLIDE (NIPPON PURASUTO)
2	53155-SB2-003	Spring - HORN (NIPPON PURASUTO)	Spring - HORN (NIPPON PURASUTO)
3	53156-SB3-961	Bush - NIPPON PURASUTO	Bush - NIPPON PURASUTO
9	90107-SA5-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12

Switch (2) 1 / 8

#	OEM	HWZ	MA2
3	35190-SJ4-003	Switch assy - REMOTE CONTROL MIRROR (ALPS)	Switch assy - REMOTE CONTROL MIRROR (ALPS)

Taillight 1 / 24

#	OEM	HWZ	MA2
22	90301-SE0-902	Nut - SPECIAL, 5MM	Nut - SPECIAL, 5MM

Torque converter housing 21 / 27

#	OEM	HWZ	MA2
2	23225-PH0-000	Plate - OIL GUIDE	Plate - OIL GUIDE
3	25420-PL4-010	Strainer - TRANSMISSION (ATF)	Strainer - TRANSMISSION (ATF)
4	25425-PL4-300	Pipe - SUCTION	Pipe - SUCTION
13	41312-PA9-010	Gear - SPEEDOMETER DRIVE	Gear - SPEEDOMETER DRIVE
17	90003-PA9-003	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
18	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
19	90414-689-000	Ring 1 - SNAP, 80X2.5	Ring 1 - SNAP, 80X2.5
19	90416-689-000	Ring 3 - SNAP, 80X2.7	Ring 3 - SNAP, 80X2.7
19	90418-689-000	Ring 5 - SNAP, 80X2.9	Ring 5 - SNAP, 80X2.9
19	90415-689-000	Ring 2 - SNAP, 80X2.6	Ring 2 - SNAP, 80X2.6
19	90417-689-000	Ring 4 - SNAP, 80X2.8	Ring 4 - SNAP, 80X2.8
21	90471-580-000	Packing - 8MM	Packing - 8MM
22	90608-PA9-000	Circlip - EXTERNAL, 90MM	Circlip - EXTERNAL, 90MM
23	91001-591-004	Bearing - BALL, 16008 (KOYO)	Bearing - BALL, 16008 (KOYO)
23	91001-PX4-004	Bearing - BALL, 40X68X9 (KOYO)	Bearing - BALL, 40X68X9 (KOYO)
24	91101-PL4-003	Bearing - NEEDLE, 36X62X18 (NTN)	Bearing - NEEDLE, 36X62X18 (NTN)
25	91205-PL3-B02	Oil seal - 40X56X8(NOK)	Oil seal - 40X56X8(NOK)
25	91205-PL3-B01	Oil seal - 40X56X8(ARAI)	Oil seal - 40X56X8(ARAI)
26	91207-639-015	Oil seal - 44X68X8 (NOK)	Oil seal - 44X68X8 (NOK)
27	91209-612-000	Oil seal - 12X22X7	Oil seal - 12X22X7
27	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

Transmission housing 75 / 83

#	OEM	HWZ	MA2
1	21104-PS1-020	Plate m - OIL GUIDE	Plate m - OIL GUIDE
1	21210-PL4-060	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
2	21215-PL4-000	Holder - REVERSE IDLE SHAFT	Holder - REVERSE IDLE SHAFT
3	21321-689-000	Plug - BREATHER TUBE	Plug - BREATHER TUBE
4	21390-PL3-000	Clamp comp - BREATHER	Clamp comp - BREATHER
4	21811-PL4-S01	Gasket - TORQUE CONVERTER CASE	Gasket - TORQUE CONVERTER CASE
5	23962-PL3-B00	Shim af - 70MM (1.53)	Shim af - 70MM (1.53)
5	23947-PL3-B00	Shim q - 70MM (1.08)	Shim q - 70MM (1.08)
5	23931-PL3-B00	Shim a - 70MM (0.60)	Shim a - 70MM (0.60)
5	23958-PL3-B00	Shim ab - 70MM (1.41)	Shim ab - 70MM (1.41)
5	23942-PL3-B00	Shim l - 70MM (0.93)	Shim l - 70MM (0.93)
5	23968-PL3-B00	Shim al - 70MM (1.71)	Shim al - 70MM (1.71)
5	23953-PL3-B00	Shim w - 70MM (1.26)	Shim w - 70MM (1.26)
5	23937-PL3-B00	Shim g - 70MM (0.78)	Shim g - 70MM (0.78)
5	23963-PL3-B00	Shim ag - 70MM (1.56)	Shim ag - 70MM (1.56)
5	23948-PL3-B00	Shim r - 70MM (1.11)	Shim r - 70MM (1.11)
5	23932-PL3-B00	Shim b - 70MM (0.63)	Shim b - 70MM (0.63)
5	23959-PL3-B00	Shim ac - 70MM (1.44)	Shim ac - 70MM (1.44)
5	23943-PL3-B00	Shim m - 70MM (0.96)	Shim m - 70MM (0.96)
5	23969-PL3-B00	Shim am - 70MM (1.74)	Shim am - 70MM (1.74)
5	23954-PL3-B00	Shim x - 70MM (1.29)	Shim x - 70MM (1.29)
5	23938-PL3-B00	Shim h - 70MM (0.81)	Shim h - 70MM (0.81)
5	23964-PL3-B00	Shim ah - 70MM (1.59)	Shim ah - 70MM (1.59)
5	23949-PL3-B00	Shim s - 70MM (1.14)	Shim s - 70MM (1.14)
5	23933-PL3-B00	Shim c - 70MM (0.66)	Shim c - 70MM (0.66)
5	23944-PL3-B00	Shim n - 70MM (0.99)	Shim n - 70MM (0.99)
5	23960-PL3-B00	Shim ad - 70MM (1.47)	Shim ad - 70MM (1.47)
5	23970-PL3-B00	Shim an - 70MM (1.77)	Shim an - 70MM (1.77)
5	23955-PL3-B00	Shim y - 70MM (1.32)	Shim y - 70MM (1.32)
5	23939-PL3-B00	Shim i - 70MM (0.84)	Shim i - 70MM (0.84)
5	23965-PL3-B00	Shim ai - 70MM (1.62)	Shim ai - 70MM (1.62)
5	23950-PL3-B00	Shim t - 70MM (1.17)	Shim t - 70MM (1.17)
5	23934-PL3-B00	Shim d - 70MM (0.69)	Shim d - 70MM (0.69)
5	23945-PL3-B00	Shim o - 70MM (1.02)	Shim o - 70MM (1.02)
5	23961-PL3-B00	Shim ae - 70MM (1.50)	Shim ae - 70MM (1.50)
5	23971-PL3-B00	Shim ao - 70MM (1.80)	Shim ao - 70MM (1.80)
5	23956-PL3-B00	Shim z - 70MM (1.35)	Shim z - 70MM (1.35)
5	23940-PL3-B00	Shim j - 70MM (0.87)	Shim j - 70MM (0.87)
5	23966-PL3-B00	Shim aj - 70MM (1.65)	Shim aj - 70MM (1.65)
5	23951-PL3-B00	Shim u - 70MM (1.20)	Shim u - 70MM (1.20)
5	23935-PL3-B00	Shim e - 70MM (0.72)	Shim e - 70MM (0.72)
5	23946-PL3-B00	Shim p - 70MM (1.05)	Shim p - 70MM (1.05)
5	23957-PL3-B00	Shim aa - 70MM (1.38)	Shim aa - 70MM (1.38)
5	23941-PL3-B00	Shim k - 70MM (0.90)	Shim k - 70MM (0.90)
5	23967-PL3-B00	Shim ak - 70MM (1.68)	Shim ak - 70MM (1.68)
5	23952-PL3-B00	Shim v - 70MM (1.23)	Shim v - 70MM (1.23)
5	23936-PL3-B00	Shim f - 70MM (0.75)	Shim f - 70MM (0.75)
5	23544-PC9-810	Spring b - IDLE GEAR SHAFT	Spring b - IDLE GEAR SHAFT
6	35600-PL3-013	Switch assy - BACK UP LIGHT	Switch assy - BACK UP LIGHT
7	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
7	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
8	90081-PL3-000	Screw - SEALING, 32MM	Screw - SEALING, 32MM
8	24411-PL4-300	Shaft - CONTROL	Shaft - CONTROL
9	90083-PL3-000	Bolt - SEALING, 10MM	Bolt - SEALING, 10MM
9	24421-PP6-000	Lever - MANUAL VALVE	Lever - MANUAL VALVE
10	24423-PA9-000	Pin - MANUAL VALVE	Pin - MANUAL VALVE
11	24425-639-000	Roller - MANUAL VALVE	Roller - MANUAL VALVE
12	27490-PF4-701	Shaft comp. - THROTTLE VALVE	Shaft comp. - THROTTLE VALVE
13	90007-PC9-811	Bolt - REVERSE HOLDER	Bolt - REVERSE HOLDER
14	90015-PF0-000	Bolt - FLANGE, 8X53	Bolt - FLANGE, 8X53
15	90016-PF0-000	Bolt - FLANGE, 8X70	Bolt - FLANGE, 8X70
16	90016-PL4-000	Bolt - FLANGE, 8X90	Bolt - FLANGE, 8X90
17	90017-PL4-000	Bolt - FLANGE, 8X125	Bolt - FLANGE, 8X125
18	90017-PP6-000	Bolt - FLANGE, 8X176	Bolt - FLANGE, 8X176
19	90018-PL4-000	Bolt - FLANGE, 8X115	Bolt - FLANGE, 8X115
20	90081-PF4-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
21	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
22	90603-PH0-000	Ring - SNAP, 64MM	Ring - SNAP, 64MM
23	90607-081-000	Circlip - 7MM	Circlip - 7MM
24	90609-PH0-000	Ring - SNAP, 70MM	Ring - SNAP, 70MM
25	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
26	91002-PL4-003	Bearing - RADIAL BALL, 26X70X17 (NTN)	Bearing - RADIAL BALL, 26X70X17 (NTN)
27	91004-PL4-003	Bearing - RADIAL BALL, 26X64X16	Bearing - RADIAL BALL, 26X64X16
28	91201-PA9-004	Oil seal - 9X18X7 (ARAI)	Oil seal - 9X18X7 (ARAI)
28	91201-PA9-003	Oil seal - 9X18X7 (NOK)	Oil seal - 9X18X7 (NOK)

Trunk lid 3 / 22

#	OEM	HWZ	MA2
6	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
27	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
28	90691-SC5-003	Clip A - OPENER CABLE	Clip A - OPENER CABLE

Water hose (1.4L,1.6L) 1 / 10

#	OEM	HWZ	MA2
10	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water pump 11 / 16

#	OEM	HWZ	MA2
1	19200-P01-004	Pump comp, WATER (YAMADA)	Pump comp, WATER (YAMADA)
1	19200-P01-003	Pump comp - WATER (KEIHIN)	Pump comp - WATER (KEIHIN)
2	19222-P01-003	O-ring - WATER PUMP (KEIHIN)	O-ring - WATER PUMP (KEIHIN)
2	19222-P01-004	O-ring - WATER PUMP (YAMADA)	O-ring - WATER PUMP (YAMADA)
5	19305-PT0-000	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
5	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
6	19311-PM3-000	Cover - THERMOSTAT	Cover - THERMOSTAT
9	19320-PM3-010	Case comp. - THERMOSTAT	Case comp. - THERMOSTAT
10	19500-PE0-000	Joint, Tube	Joint, Tube
14	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER
16	91314-634-000	O-ring	O-ring

Water valve 1 / 8

#	OEM	HWZ	MA2
6	79731-SH3-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE

Windshield washer (RH) 3 / 17

#	OEM	HWZ	MA2
1	38513-SB0-961	Cap - WASHER MOUTH(MITSUBA)	Cap - WASHER MOUTH(MITSUBA)
1	76802-SS0-003	Cap - MOUTH	Cap - MOUTH
16	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM

Wire harness 12 / 35

#	OEM	HWZ	MA2
16	32758-SE7-300	Grommet - FR. DOOR (A)	Grommet - FR. DOOR (A)
18	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
19	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
20	90666-SH3-010	Clip - INTERIOR & ROOF (SUNROOF)	Clip - INTERIOR & ROOF (SUNROOF)
22	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
24	91547-SD2-000	Clip - CORD (15MM)	Clip - CORD (15MM)
25	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
26	91547-SH3-003	Clip - BAND(NATURAL)(160MM)	Clip - BAND(NATURAL)(160MM)
28	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
31	91565-SH3-003	Clip - COUPLER HOLDER (BROWN)	Clip - COUPLER HOLDER (BROWN)
32	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)
36	91763-SH3-003	Bar - JOINT (6P)	Bar - JOINT (6P)
