Air cleaner 5 / 19

#	OEM	GE3	GG1
1	17136-REJ-W00	Grommet - BREATHER PIPE	Grommet - BREATHER PIPE
11	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
12	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
18	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
19	91405-PG7-003	Clip - HOSE (D13)	Clip - HOSE (D13)

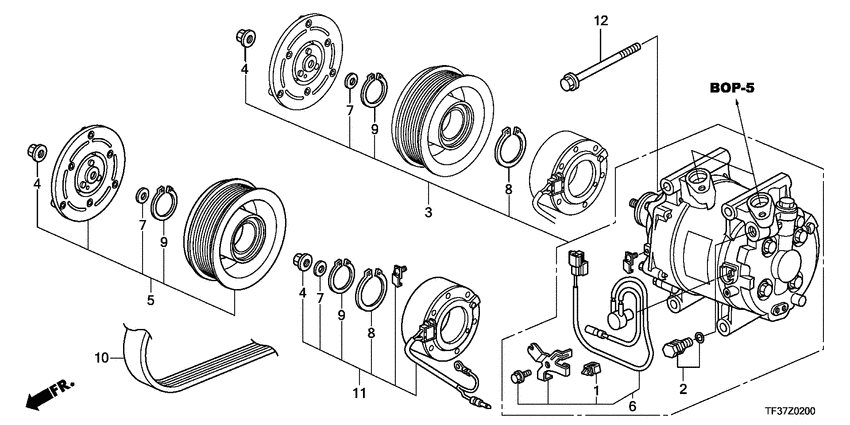

Air conditioner (COMPRESSOR; KEIHIN) 1 / 15

#	OEM	GE3	GG1
15	90023-PWA-000	Bolt - FLANGE, 8X102	Bolt - FLANGE, 8X102

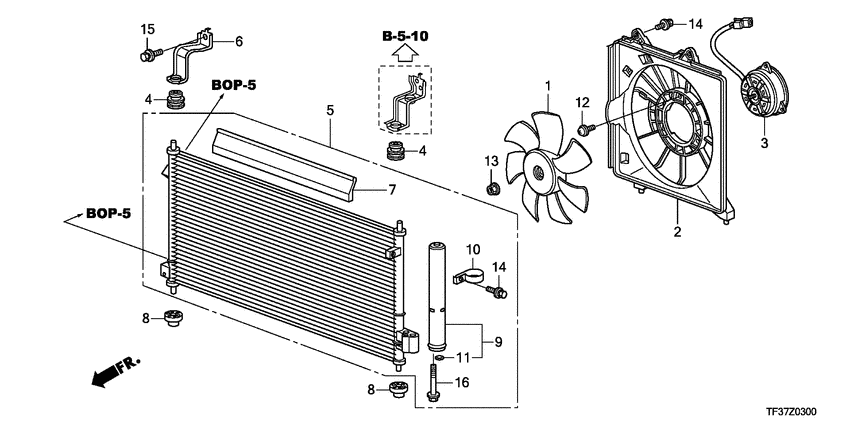

Air conditioner (CONDENSER) 2 / 14

#	OEM	GE3	GG1
12	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
14	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

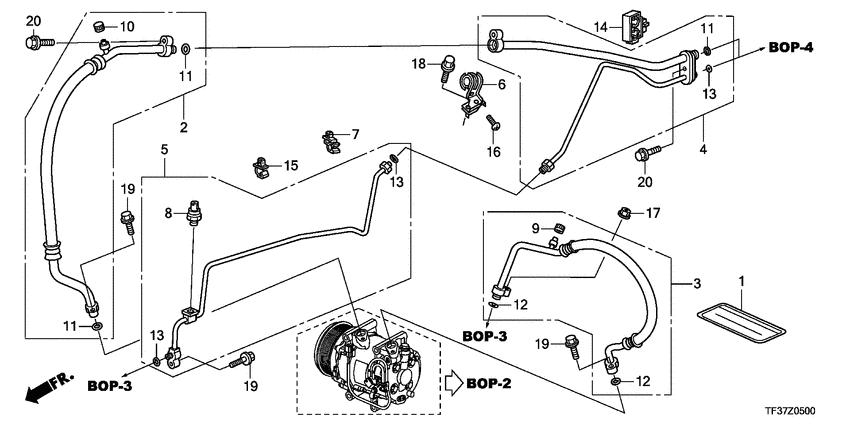

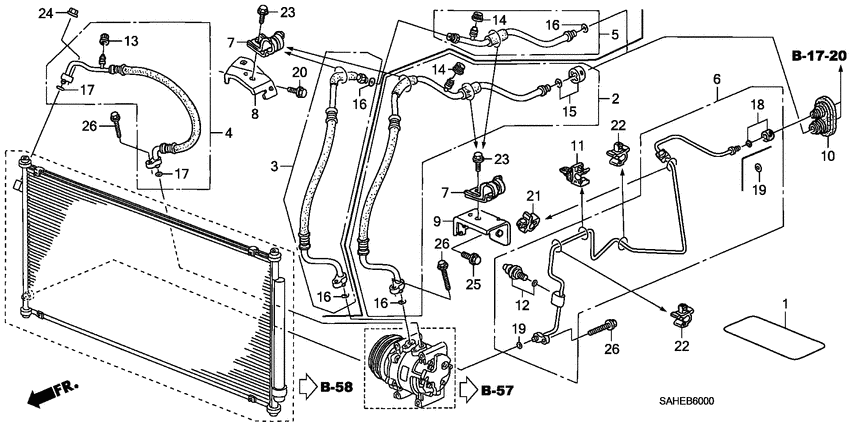

Air conditioner (HOSES/PIPES; LH) 3 / 19

#	OEM	GE3	GG1
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
20	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
22	91548-S3N-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE

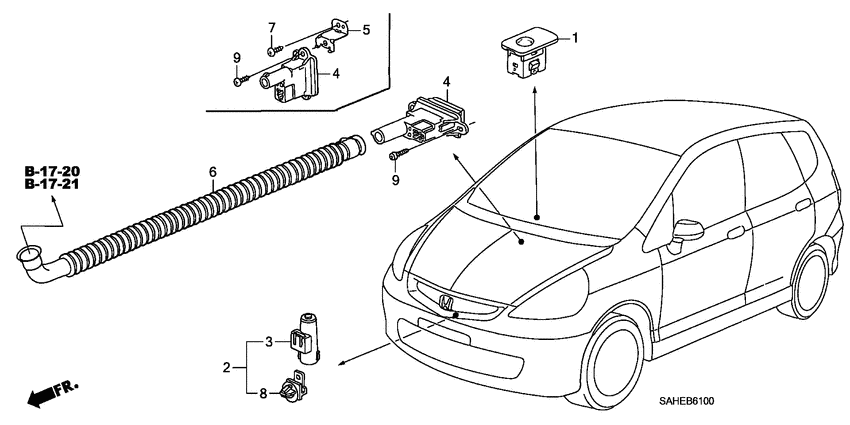

Air conditioner (SENSOR) 2 / 8

#	OEM	GE3	GG1
3	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
8	91555-S2R-003	Clip - AMBIENT SENSOR	Clip - AMBIENT SENSOR

Air intake tube 1 / 6

#	OEM	GE3	GG1
6	91503-SZ3-003	Clip A	Clip A

Alternator (MITSUBISHI) 6 / 13

#	OEM	GE3	GG1
4	31111-P08-J02	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
5	31114-P01-014	Bearing - FR. GENERATOR	Bearing - FR. GENERATOR
6	31123-RSH-004	Terminal set	Terminal set
7	31125-P08-J02	Bolt - FLANGE	Bolt - FLANGE
11	31142-P08-J02	Nut	Nut
12	31146-PE0-004	Screw	Screw

Alternator stay 1 / 5

#	OEM	GE3	GG1
5	90050-PG7-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65

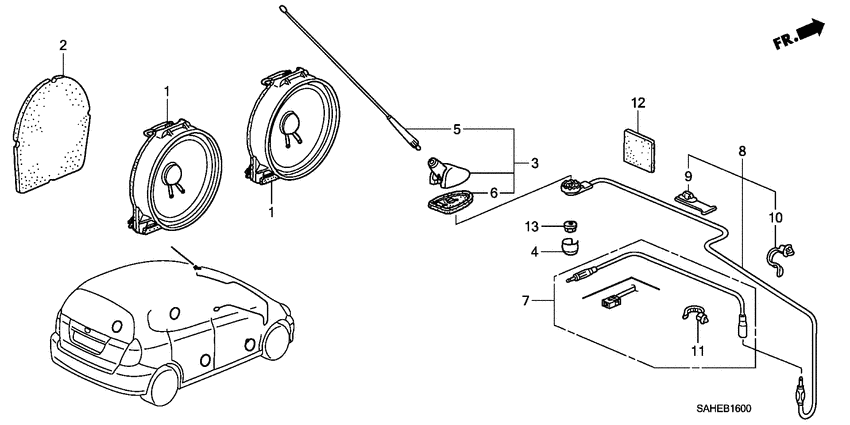

Antenna/speaker (LH) 2 / 12

#	OEM	GE3	GG1
9	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
11	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Auto air conditioner control (LH) 1 / 2

#	OEM	GE3	GG1
9	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Battery (LH) 7 / 21

#	OEM	GE3	GG1
3	31513-SP0-010	Bolt - BATTERY SETTING (210MM)	Bolt - BATTERY SETTING (210MM)
9	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
10	32132-P8C-A01	Holder - HARNESS (DARK BLUE) (10MM)	Holder - HARNESS (DARK BLUE) (10MM)
15	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
16	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
19	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
20	90337-SJ4-003	Nut - A.L.B.	Nut - A.L.B.

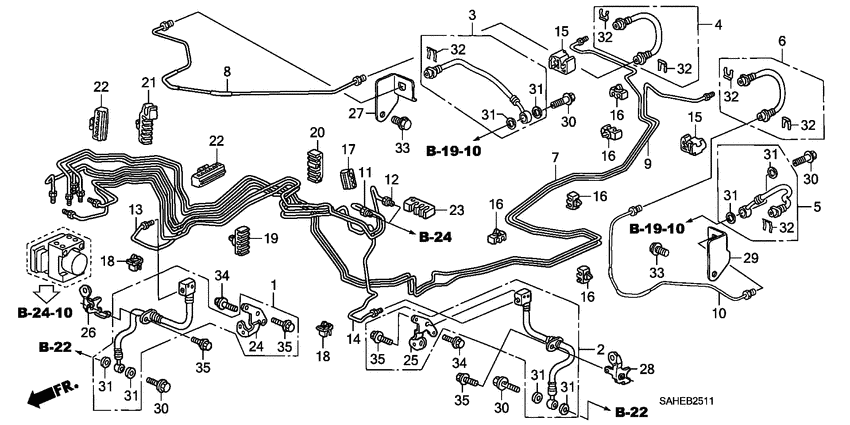

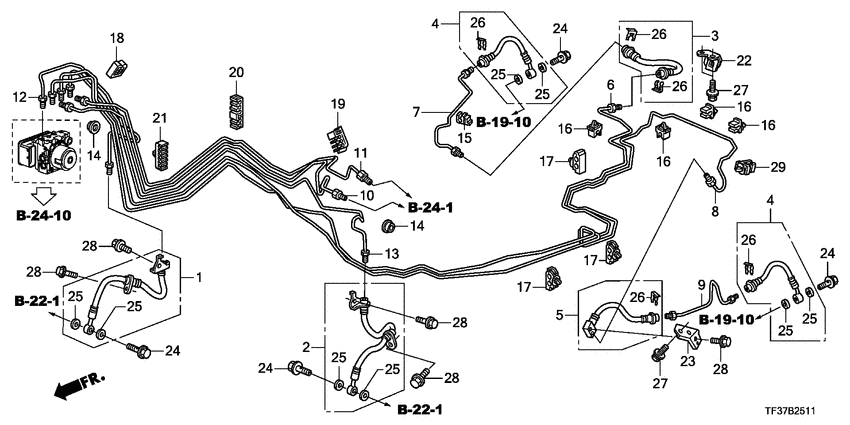

Brake lines (ABS; LH; DISK) 3 / 33

#	OEM	GE3	GG1
30	46462-SE0-000	Bolt - OIL	Bolt - OIL
31	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
32	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 10 / 20

#	OEM	GE3	GG1
6	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
9	46191-S2K-000	Packing - MASTER POWER	Packing - MASTER POWER
12	46512-S70-000	Pin - PEDAL	Pin - PEDAL
14	46662-S9A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
15	46665-S04-J01	Grommet	Grommet
16	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
17	46669-S5A-003	Diaphragm	Diaphragm
18	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
19	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
20	57515-S30-003	Pin - STOP	Pin - STOP

Breather pipe 2 / 10

#	OEM	GE3	GG1
1	11855-P72-000	Grommet, PCV Valve	Grommet, PCV Valve
2	17130-PWA-003	Valve assy. PCV	Valve assy. PCV

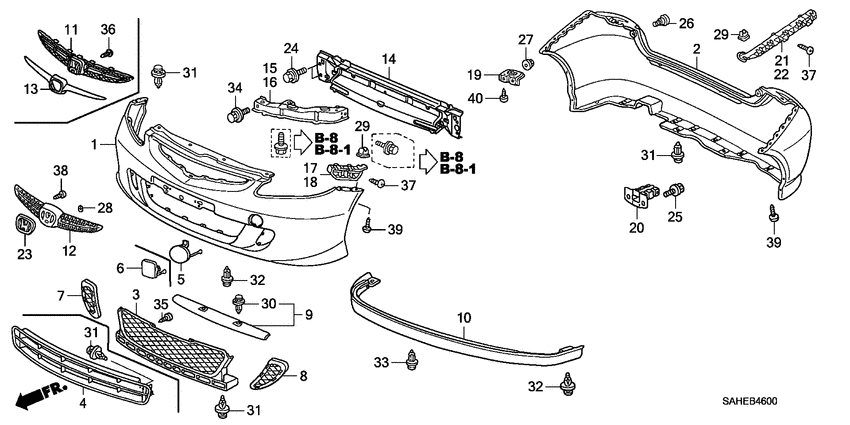

Bumpers 5 / 20

#	OEM	GE3	GG1
25	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
26	90149-SAA-003	Bolt - BUMPER	Bolt - BUMPER
28	90301-ST0-003	push nut, 3mm	push nut, 3mm
31	91503-SZ3-003	Clip A	Clip A
33	91503-S7A-003	Clip - FR. GRILLE	Clip - FR. GRILLE

Camshaft/cam chain 3 / 13

#	OEM	GE3	GG1
5	14222-PWA-004	Bolt - TDC PULSER PLATE	Bolt - TDC PULSER PLATE
11	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
13	90703-PWA-003	Dowel pin - 2.5X10	Dowel pin - 2.5X10

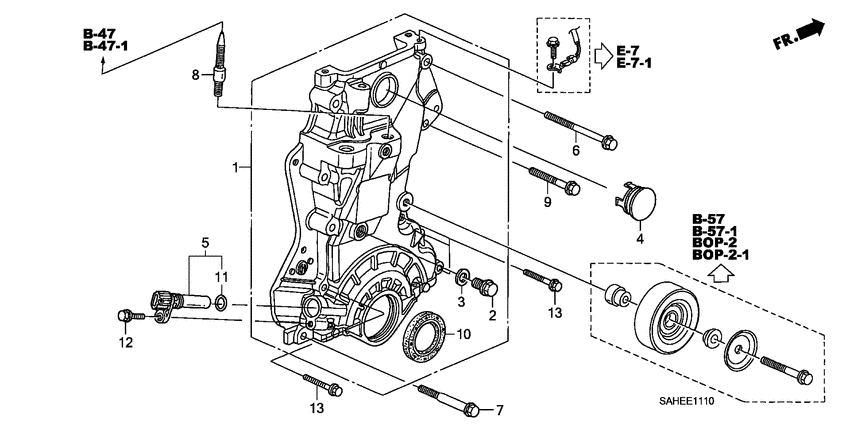

Chain case 7 / 13

#	OEM	GE3	GG1
4	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
6	90015-PF0-000	Bolt - FLANGE, 8X53	Bolt - FLANGE, 8X53
7	90021-PWA-003	Bolt - SPECIAL, 8X41	Bolt - SPECIAL, 8X41
9	90107-P4V-000	Bolt - FLANGE, 8X40	Bolt - FLANGE, 8X40
10	91212-PWA-003	Oil seal - 40X55X7 (NOK)	Oil seal - 40X55X7 (NOK)
11	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9
11	91333-PNC-006	O-ring	O-ring

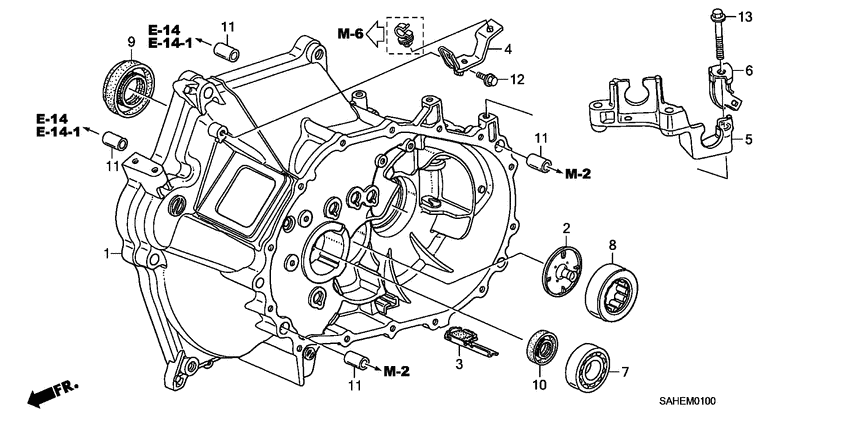

Clutch case 6 / 10

#	OEM	GE3	GG1
2	21103-PLW-000	Plate c - OIL GUIDE	Plate c - OIL GUIDE
3	21120-PWL-000	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
5	24601-PWL-000	Stay - CHANGE WIRE	Stay - CHANGE WIRE
8	91101-PHR-003	Bearing - NEEDLE, 34X59X20	Bearing - NEEDLE, 34X59X20
9	91206-PHR-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
10	91216-PHR-003	Oil seal - 26X40X7(NOK)	Oil seal - 26X40X7(NOK)

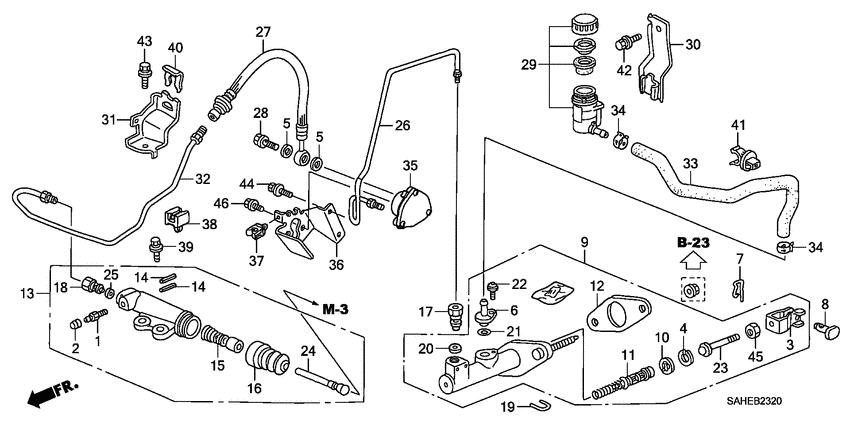

Clutch master cylinder (LH) 20 / 41

#	OEM	GE3	GG1
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
4	46182-500-013	Circlip	Circlip
5	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
6	46844-SAA-G01	Connector comp	Connector comp
7	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
8	46912-S84-A00	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
11	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER	Piston comp - CLUTCH MASTER CYLINDER
14	46931-S5A-003	Pin - SPRING	Pin - SPRING
15	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
16	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
18	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
19	46942-S5A-003	Pin - SNAP	Pin - SNAP
20	46943-S5A-003	Seal - RING	Seal - RING
21	46945-S5A-003	O-ring	O-ring
22	46946-S5A-003	Screw-washer - 4X12	Screw-washer - 4X12
24	46948-S5A-003	Rod - PUSH	Rod - PUSH
25	46949-S5A-003	Seal - RING	Seal - RING
31	46968-SAA-003	Bracket b - CLUTCH PIPE	Bracket b - CLUTCH PIPE
40	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
41	91594-SM4-013	Clamp - FUEL TUBE	Clamp - FUEL TUBE

Clutch release 1 / 11

#	OEM	GE3	GG1
1	22810-PLW-005	Bearing, CLUTCH RELEASE (NSK)	Bearing, CLUTCH RELEASE (NSK)

Clutch/flywheel 4 / 11

#	OEM	GE3	GG1
1	21350-PWA-010	Cover - CLUTCH CASE	Cover - CLUTCH CASE
7	90011-PM0-000	Bolt - 12MM	Bolt - 12MM
9	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
11	91006-PWA-008	BEARING, CLUTCH PILOT	BEARING, CLUTCH PILOT

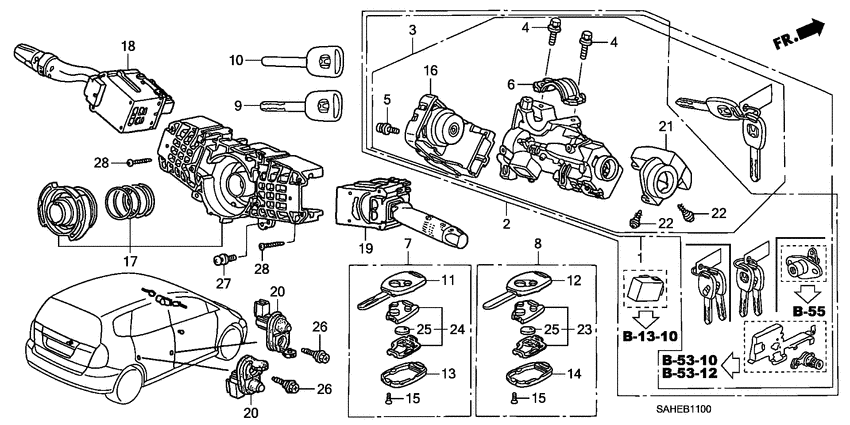

Combination switch (LH) 6 / 22

#	OEM	GE3	GG1
4	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
5	35103-S04-003	Screw - RECESSED	Screw - RECESSED
6	35108-S30-003	Holder - COLUMN	Holder - COLUMN
16	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
22	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
26	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18

Console 1 / 6

#	OEM	GE3	GG1
16	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (CABIN; LH) 9 / 29

#	OEM	GE3	GG1
2	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
16	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)	Relay assy - POWER (MICRO ISO) (OMRON)
17	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)
18	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
18	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
19	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
25	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
31	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)

Control unit (ENGINE ROOM; LH) 2 / 15

#	OEM	GE3	GG1
15	90113-SLJ-003	Bolt - SPECIAL, 6X14	Bolt - SPECIAL, 6X14
18	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

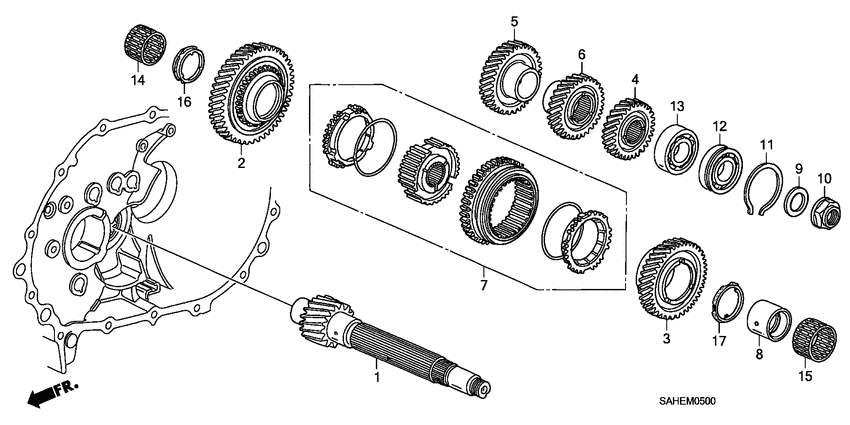

Countershaft 9 / 19

#	OEM	GE3	GG1
8	23912-PHR-000	Collar - DISTANCE, 34X40X27.5	Collar - DISTANCE, 34X40X27.5
9	23926-PB6-010	Washer - SPRING, 22MM	Washer - SPRING, 22MM
10	90201-PB6-020	Nut - FLANGE, 22MM	Nut - FLANGE, 22MM
11	90603-PL3-000	Ring - SNAP, 52MM	Ring - SNAP, 52MM
12	91003-P21-003	Bearing - BALL, 25X52X14/15 (NTN)	Bearing - BALL, 25X52X14/15 (NTN)
13	91006-PHR-003	Bearing - SPECIAL BALL, 6205	Bearing - SPECIAL BALL, 6205
15	91104-PHR-003	Bearing - NEEDLE, 40X45X22.5	Bearing - NEEDLE, 40X45X22.5
17	91212-PHR-003	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)
17	91212-PHR-013	Damper	Damper

Cylinder block/oil pan 11 / 17

#	OEM	GE3	GG1
2	11106-PWA-300	Bolt - SEALING, 24MM	Bolt - SEALING, 24MM
3	11107-PWA-300	Washer - SEALING, 24MM	Washer - SEALING, 24MM
5	11203-PWA-003	O-ring - 17.8X2.4 (NOK)	O-ring - 17.8X2.4 (NOK)
6	11252-PWA-000	Packing - OIL PAN	Packing - OIL PAN
11	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
12	90008-PM0-003	Bolt-washer - 10X112	Bolt-washer - 10X112
13	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
14	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
15	90702-PE0-000	Dowel pin - 12X18	Dowel pin - 12X18
16	90705-PT0-000	Dowel pin - 16X22	Dowel pin - 16X22
17	91214-PWA-003	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)

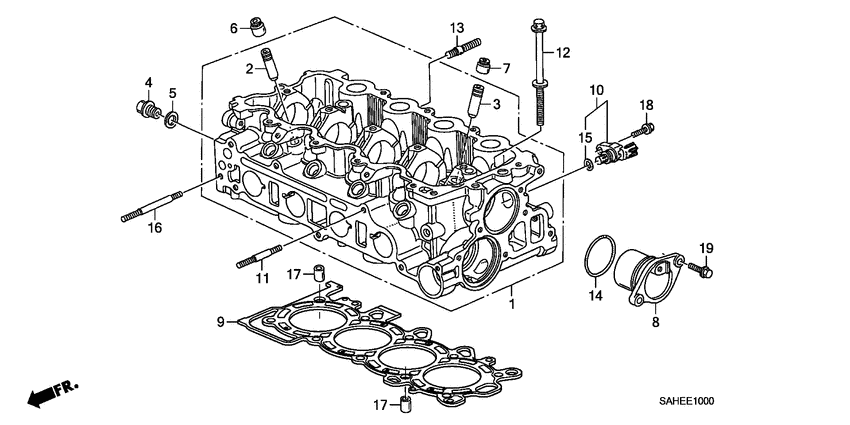

Cylinder head 8 / 17

#	OEM	GE3	GG1
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
6	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
6	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
7	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
7	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
12	90008-PWA-003	Bolt-washer - 9X155	Bolt-washer - 9X155
15	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head cover 2 / 7

#	OEM	GE3	GG1
4	15610-PFB-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
5	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Differential 19 / 47

#	OEM	GE3	GG1
4	41445-PL3-A00	Shim e - 72MM(1.4)	Shim e - 72MM(1.4)
4	41456-PL3-A00	Shim r - 72MM(1.65)	Shim r - 72MM(1.65)
4	41451-PL3-A00	Shim l - 72MM(1.15)	Shim l - 72MM(1.15)
4	41446-PL3-A00	Shim f - 72MM(1.5)	Shim f - 72MM(1.5)
4	41441-PL3-A00	Shim a - 72MM(1.0)	Shim a - 72MM(1.0)
4	41457-PL3-A00	Shim s - 72MM(1.75)	Shim s - 72MM(1.75)
4	41452-PL3-A00	Shim m - 72MM(1.25)	Shim m - 72MM(1.25)
4	41447-PL3-A00	Shim g - 72MM(1.6)	Shim g - 72MM(1.6)
4	41442-PL3-A00	Shim b - 72MM(1.1)	Shim b - 72MM(1.1)
4	41453-PL3-A00	Shim n - 72MM(1.35)	Shim n - 72MM(1.35)
4	41448-PL3-A00	Shim h - 72MM(1.7)	Shim h - 72MM(1.7)
4	41443-PL3-A00	Shim c - 72MM(1.2)	Shim c - 72MM(1.2)
4	41454-PL3-A00	Shim p - 72MM(1.45)	Shim p - 72MM(1.45)
4	41449-PL3-A00	Shim j - 72MM(1.8)	Shim j - 72MM(1.8)
4	41444-PL3-A00	Shim d - 72MM(1.3)	Shim d - 72MM(1.3)
4	41455-PL3-A00	Shim q - 72MM(1.55)	Shim q - 72MM(1.55)
4	41450-PL3-A00	Shim k - 72MM(1.05)	Shim k - 72MM(1.05)
5	90018-PWL-000	Bolt - SPECIAL, 10MM	Bolt - SPECIAL, 10MM
6	91005-PHR-003	Bearing - SEALED BALL, 6207 (NTN)	Bearing - SEALED BALL, 6207 (NTN)

Egr valve 1 / 4

#	OEM	GE3	GG1
4	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)

Emblems/caution labels 3 / 8

#	OEM	GE3	GG1
1	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
2	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
7	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION

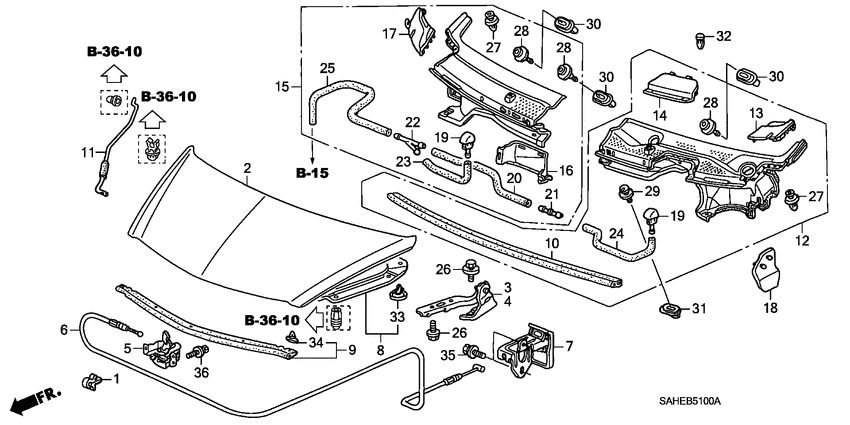

Engine hood (LH) 4 / 28

#	OEM	GE3	GG1
22	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
26	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
32	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
33	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR

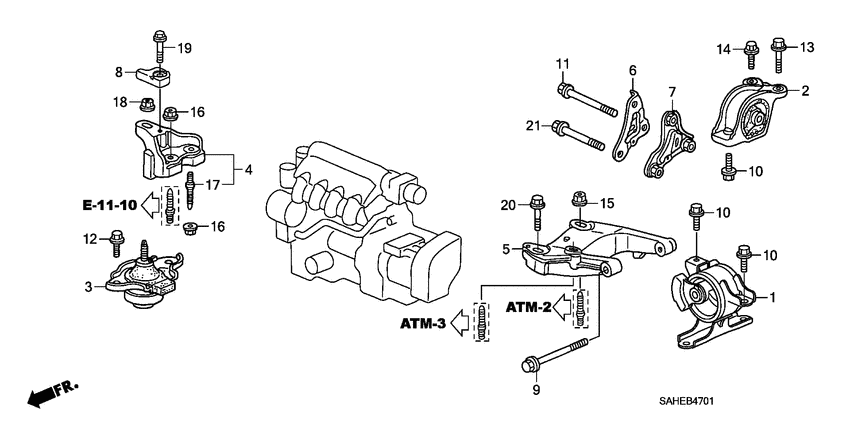

Engine mounts (CVT) 2 / 17

#	OEM	GE3	GG1
10	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
15	90371-SAA-010	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM

Engine mounts (MT) 1 / 24

#	OEM	GE3	GG1
13	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20

Engine wire harness (LH) 4 / 30

#	OEM	GE3	GG1
2	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
20	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
23	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
28	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Exhaust manifold (1) 2 / 7

#	OEM	GE3	GG1
5	90015-PWA-000	Bolt-washer - 6X14	Bolt-washer - 6X14
6	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Exhaust pipe/silencer 8 / 34

#	OEM	GE3	GG1
4	18176-PT0-003	Bolt - CONVERTER	Bolt - CONVERTER
13	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
14	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
16	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
27	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
28	90151-S3N-003	Rivet - BAFFLE PLATE	Rivet - BAFFLE PLATE
29	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
30	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 2 / 10

#	OEM	GE3	GG1
12	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
15	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Flywheel case 1 / 20

#	OEM	GE3	GG1
12	91206-PHR-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)

Front brake 8 / 21

#	OEM	GE3	GG1
3	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
11	45235-S0A-003	Pin a	Pin a
13	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
18	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
18	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Front bulkhead/dashboard 1 / 1

#	OEM	GE3	GG1
42	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

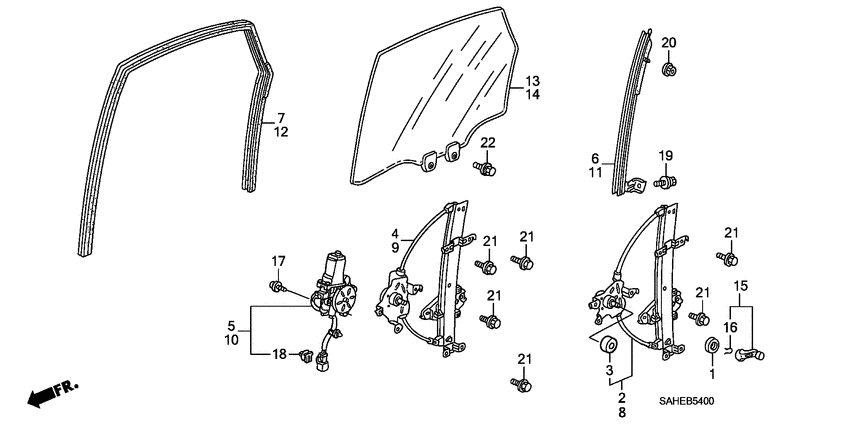

Front door glass/ door regulator 2 / 11

#	OEM	GE3	GG1
1	39885-S5A-G01	Label - IMMOBILIZER	Label - IMMOBILIZER
18	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front door lining (LH) 2 / 5

#	OEM	GE3	GG1
17	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
18	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door locks/ outer handle (3) 7 / 31

#	OEM	GE3	GG1
14	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
17	72143-S04-003	Packing	Packing
34	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
35	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
36	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
38	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
39	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER

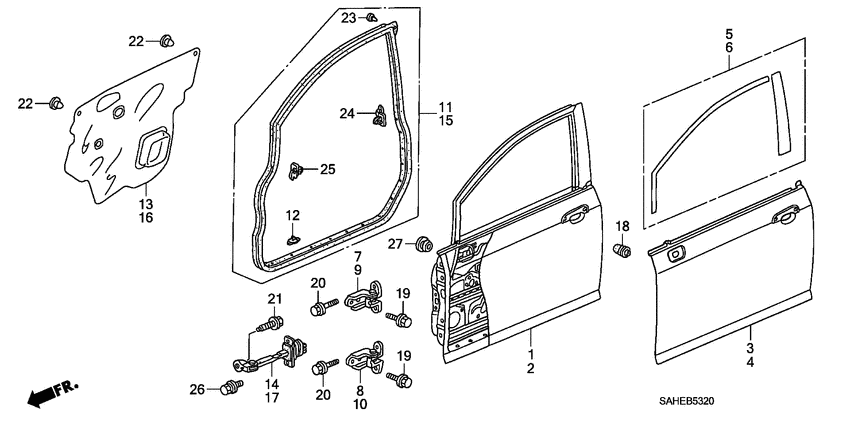

Front door panels 9 / 16

#	OEM	GE3	GG1
12	72311-S5S-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
18	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
19	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
20	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
20	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
23	91561-SZ3-003	Clip	Clip
24	91563-SP0-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET
25	91563-S4N-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET

Front driveshaft 10 / 19

#	OEM	GE3	GG1
2	44017-SEN-P01	Boot set - INBOARD	Boot set - INBOARD
6	44310-S5A-J00	Joint comp - INBOARD	Joint comp - INBOARD
7	44310-S5A-300	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-S04-300	Set ring - 26X1.8	Set ring - 26X1.8
8	44319-SR1-003	Set ring - 26X1.8 (GKN)	Set ring - 26X1.8 (GKN)
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44337-S04-300	Ring b - STOPPER	Ring b - STOPPER
14	44338-S04-300	Circlip - 23MM	Circlip - 23MM
18	90305-692-010	Nut	Nut

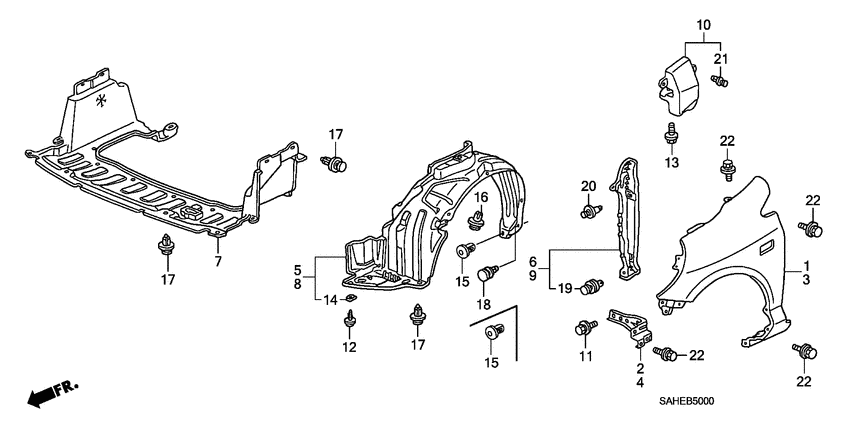

Front fenders 7 / 16

#	OEM	GE3	GG1
11	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
12	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
14	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
15	90682-SEA-003	Clip - TAPPING SCREW, 5MM	Clip - TAPPING SCREW, 5MM
16	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
17	91503-SZ3-003	Clip A	Clip A
20	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM

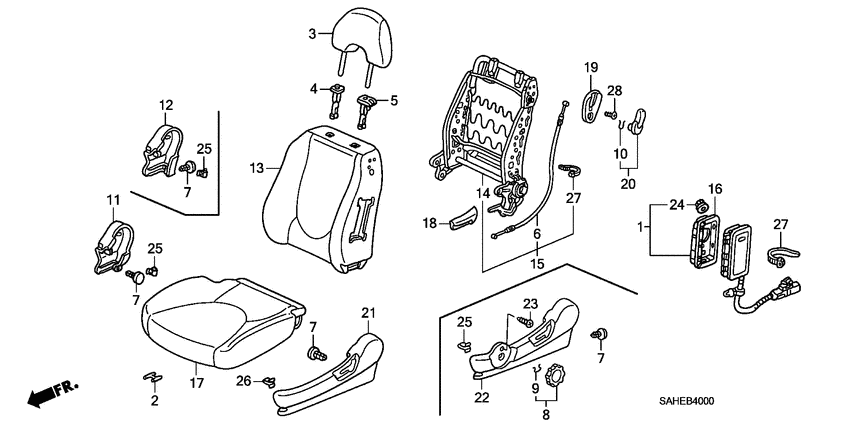

Front seat (L.) 3 / 10

#	OEM	GE3	GG1
23	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
24	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
27	90656-PB1-003	Band - OIL HOSE	Band - OIL HOSE

Front seat (R.) 3 / 9

#	OEM	GE3	GG1
24	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
26	90610-S10-003	Clip - GARNISH	Clip - GARNISH
27	90656-PB1-003	Band - OIL HOSE	Band - OIL HOSE

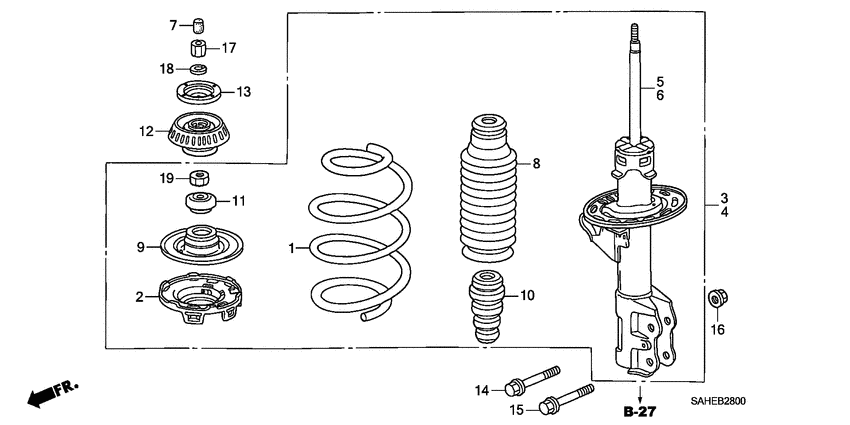

Front shock absorber 4 / 22

#	OEM	GE3	GG1
8	51686-SAA-E02	Sleeve - FR. DUST COVER	Sleeve - FR. DUST COVER
9	51688-SCC-004	Seat comp - SPRING UPPER	Seat comp - SPRING UPPER
16	90213-SAA-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
18	90551-SAA-000	Washer - WAVE, 12MM	Washer - WAVE, 12MM

Front stabilizer/ front lower arm 2 / 23

#	OEM	GE3	GG1
15	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
18	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front sub frame 3 / 10

#	OEM	GE3	GG1
9	90160-SAA-000	Bolt - FLANGE, 14X67	Bolt - FLANGE, 14X67
10	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
13	91503-SZ3-003	Clip A	Clip A

Front wiper (LH) 2 / 24

#	OEM	GE3	GG1
23	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
24	91611-S5A-000	Cap - FR. WIPER	Cap - FR. WIPER

Fuel pipe 8 / 34

#	OEM	GE3	GG1
5	16726-PWA-004	Cover b - FUEL CONNECTOR (BLACK)	Cover b - FUEL CONNECTOR (BLACK)
6	16727-PWA-004	Clamp - FUEL HOSE	Clamp - FUEL HOSE
14	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
15	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
16	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
30	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
34	91406-SAA-J00	Clamp - TUBE (D12)	Clamp - TUBE (D12)
40	91596-SAA-931	Clamp - FUEL TUBE	Clamp - FUEL TUBE

Fuel tank 8 / 42

#	OEM	GE3	GG1
16	17525-SAA-003	Bolt-washer - 10X45	Bolt-washer - 10X45
21	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
22	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
34	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
35	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
36	91406-SAA-J00	Clamp - TUBE (D12)	Clamp - TUBE (D12)
37	91414-SEL-003	Clamp - TUBE (D11.5)	Clamp - TUBE (D11.5)
38	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

Grommet (FRONT) 3 / 12

#	OEM	GE3	GG1
8	90651-S0A-003	Cap - BOLT, 8MM	Cap - BOLT, 8MM
15	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
18	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (REAR) 3 / 11

#	OEM	GE3	GG1
1	74470-SAA-003	Packing - FUEL LID LOCK	Packing - FUEL LID LOCK
2	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)

Grommet (UNDER) 4 / 4

#	OEM	GE3	GG1
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90810-SB2-660	Grommet - TIE DOWN, 20X35	Grommet - TIE DOWN, 20X35
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Harness band/bracket (LH) 11 / 30

#	OEM	GE3	GG1
1	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
4	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
5	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
15	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
16	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
22	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
26	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
33	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
34	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

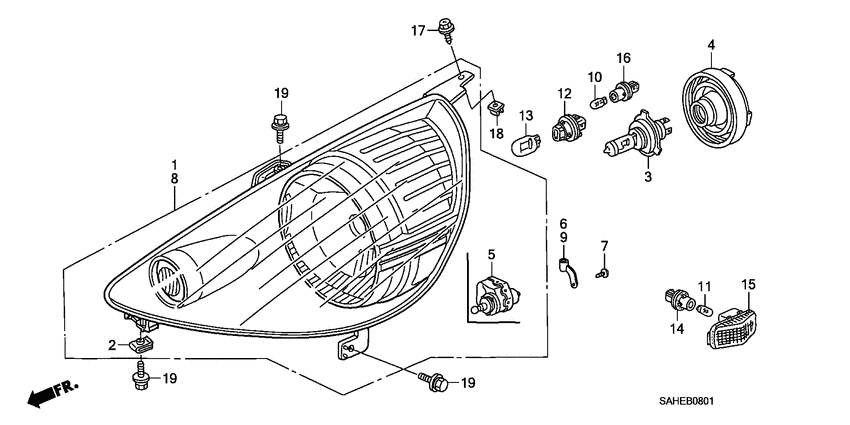

Headlight (2) 8 / 17

#	OEM	GE3	GG1
2	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
3	33115-SM4-003	Bulb	Bulb
3	33115-SV4-G01	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)
3	33115-SV4-003	Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM)	Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM)
5	33130-SJK-J01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
10	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
13	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)

Heater blower (LH) 1 / 11

#	OEM	GE3	GG1
12	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)

Heater unit (LH) 1 / 24

#	OEM	GE3	GG1
31	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Instrument panel (LH) 6 / 12

#	OEM	GE3	GG1
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
14	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
16	90111-SAA-003	Bolt-washer - 8X82	Bolt-washer - 8X82
17	90112-SAA-003	Bolt-washer - 8X62	Bolt-washer - 8X62
18	90113-SAA-003	Bolt - SPECIAL, 6X14	Bolt - SPECIAL, 6X14
20	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM

Instrument panel garnish (DRIVER SIDE; LH) 4 / 9

#	OEM	GE3	GG1
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
17	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
19	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
22	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 3 / 17

#	OEM	GE3	GG1
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
33	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
34	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Intake manifold (1) 5 / 23

#	OEM	GE3	GG1
3	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
16	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE
19	37835-PGK-A01	O-ring	O-ring
21	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
23	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Intake manifold (2) 1 / 21

#	OEM	GE3	GG1
15	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE

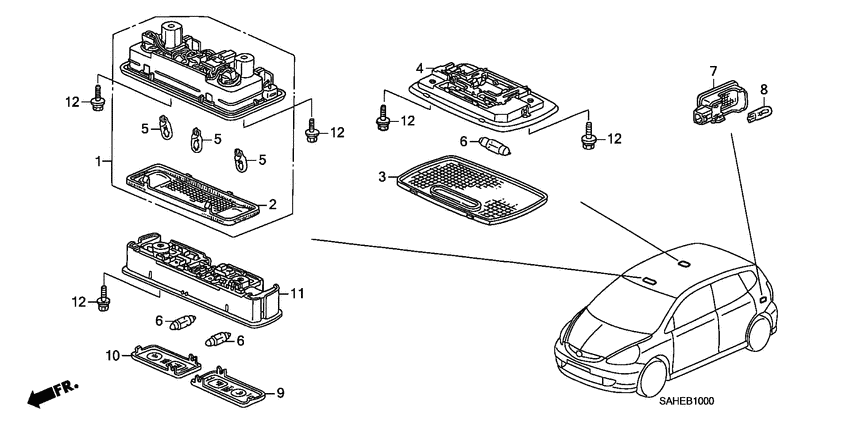

Interior light 6 / 10

#	OEM	GE3	GG1
3	34251-S5A-003	Lens	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W	BULB T10X318W
7	34261-S5A-003	Lens comp	Lens comp
8	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
8	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY

Mainshaft 10 / 16

#	OEM	GE3	GG1
2	23261-PL3-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
5	23540-PLW-000	Gear - REVERSE IDLE	Gear - REVERSE IDLE
8	23626-REM-305	Sleeve set - SYNCHRONIZER (5)	Sleeve set - SYNCHRONIZER (5)
9	23647-PLW-000	Ring - TAPER CONE	Ring - TAPER CONE
10	23915-PHR-010	Collar - DISTANCE, 29X35X52	Collar - DISTANCE, 29X35X52
11	23916-PLW-000	Collar - DISTANCE, 26X35X12	Collar - DISTANCE, 26X35X12
12	23927-PL3-000	Washer - SPRING, 36MM	Washer - SPRING, 36MM
13	23928-PL3-000	Washer - 26MM	Washer - 26MM
14	91004-PLW-A01	Bearing - BALL, 26X72X15.5	Bearing - BALL, 26X72X15.5
15	91105-PHR-003	Bearing - NEEDLE, 35X39X24	Bearing - NEEDLE, 35X39X24

Meter components (NS) 1 / 5

#	OEM	GE3	GG1
4	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

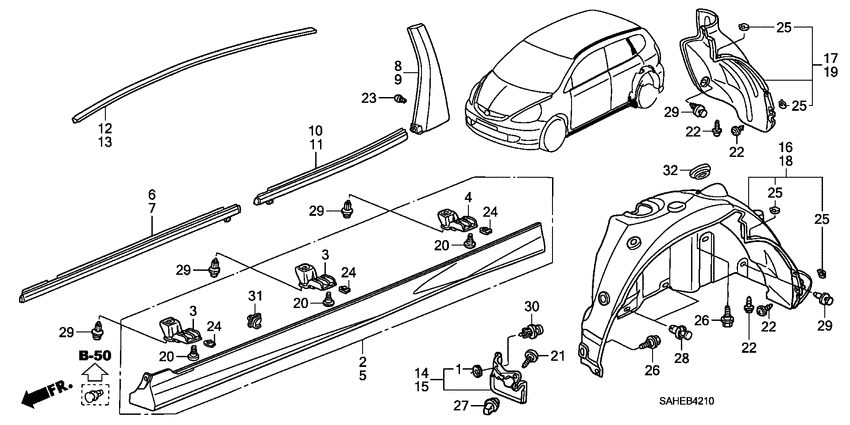

Molding/side sill garnish 5 / 22

#	OEM	GE3	GG1
23	90142-S04-000	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
25	90331-679-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
28	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
29	91503-SZ3-003	Clip A	Clip A
30	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Oil pump/oil strainer 12 / 16

#	OEM	GE3	GG1
5	15221-PZ1-000	Packing - OIL STRAINER	Packing - OIL STRAINER
6	15231-413-020	Valve - RELIEF	Valve - RELIEF
7	15232-PHM-003	Spring - RELIEF VALVE	Spring - RELIEF VALVE
8	15233-PFB-003	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
9	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
9	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
9	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
11	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
12	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
13	91308-PH9-000	O-ring - 8.8X1.9	O-ring - 8.8X1.9
13	91302-GE0-000	O-ring (8.8x1.9)	O-ring (8.8x1.9)
14	91326-PF4-004	O-ring - 24.4X2.4 (NOK)	O-ring - 24.4X2.4 (NOK)

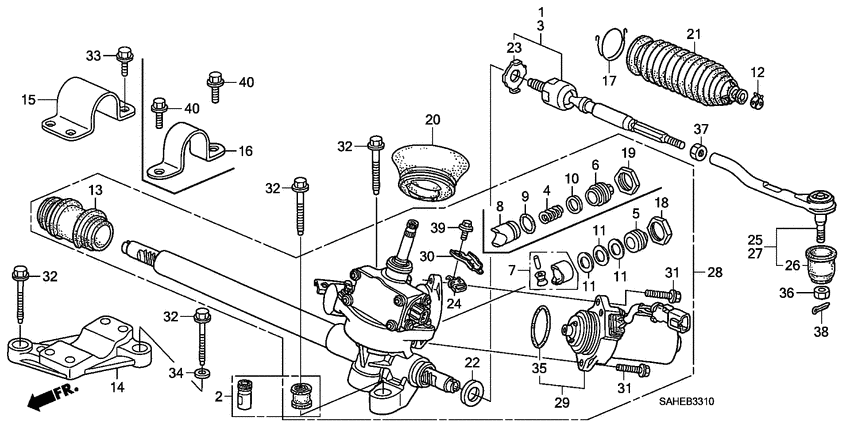

P.s. gear box (EPS; LH) 5 / 36

#	OEM	GE3	GG1
6	53414-S04-003	Screw - RACK GUIDE	Screw - RACK GUIDE
9	53417-SCC-003	O-ring - RACK GUIDE	O-ring - RACK GUIDE
10	53418-S04-G51	Washer - DISK	Washer - DISK
19	53458-S50-003	Nut - LOCK	Nut - LOCK
26	53546-S84-003	Boot - TIE ROD END (NOK)	Boot - TIE ROD END (NOK)

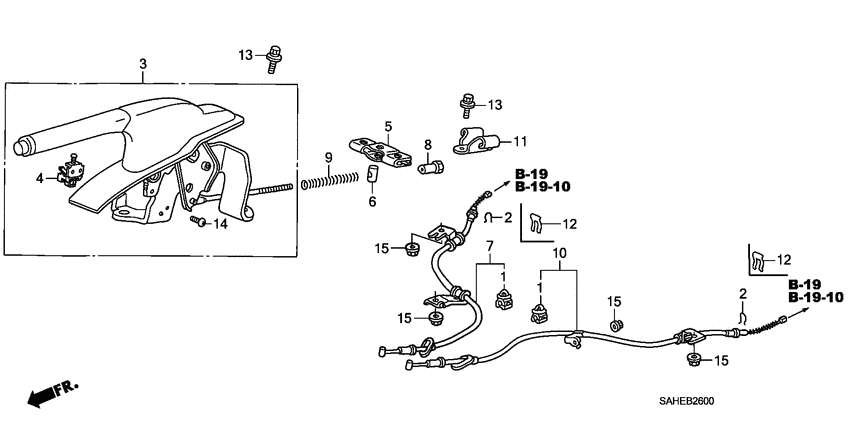

Parking brake 3 / 10

#	OEM	GE3	GG1
1	42514-SEL-T01	Clamp - WIRE	Clamp - WIRE
11	47572-SAA-000	Base - WIRE GUIDE	Base - WIRE GUIDE
12	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Pedal (LH) 3 / 20

#	OEM	GE3	GG1
8	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
12	46545-538-010	Cover - PEDAL	Cover - PEDAL
17	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN

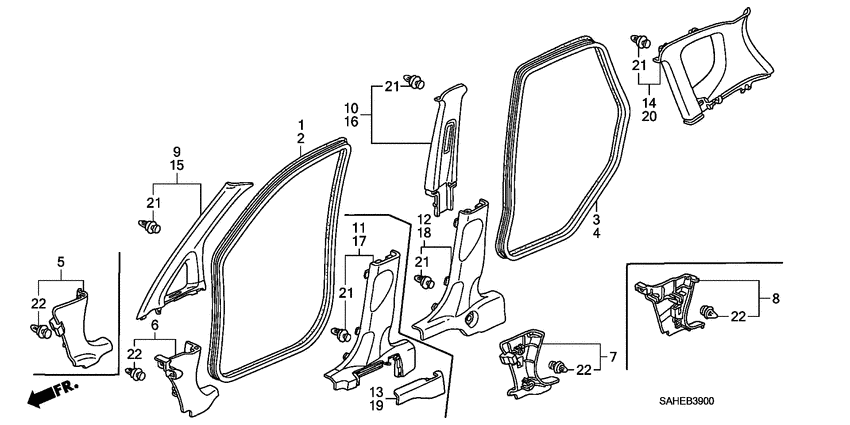

Pillar garnish 1 / 6

#	OEM	GE3	GG1
21	91560-SAA-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH

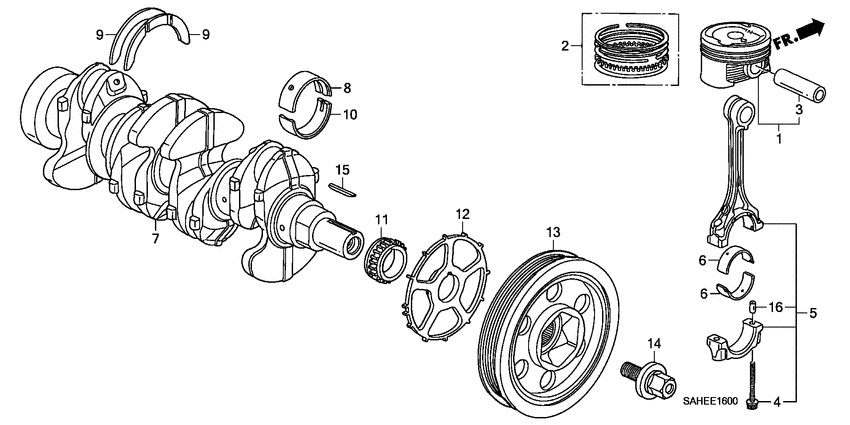

Piston/crankshaft 11 / 36

#	OEM	GE3	GG1
3	13111-PWA-000	Pin - PISTON	Pin - PISTON
4	13204-PWA-003	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
6	13212-PWA-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
6	13213-PWA-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
6	13214-PWA-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
6	13215-PWA-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
6	13216-PWA-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)	Bearing f - CONNECTING ROD (PINK) (DAIDO)
6	13217-PWA-003	Bearing g - CONNECTING ROD (RED) (DAIDO)	Bearing g - CONNECTING ROD (RED) (DAIDO)
9	13331-PR3-003	Washer - THRUST (DAIDO)	Washer - THRUST (DAIDO)
14	90017-PWA-G02	Bolt-washer - 14X36	Bolt-washer - 14X36
15	90704-PH7-000	Key, SPECIAL	Key, SPECIAL

Radiator (T.RAD) 6 / 17

#	OEM	GE3	GG1
2	19011-PH2-004	Cock - DRAIN (T.RAD)	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)	Packing - DRAIN (T.RAD)
8	19045-PWA-004	Cap comp. - RADIATOR (T.RAD)	Cap comp. - RADIATOR (T.RAD)
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
15	90042-PZ1-004	Bolt-washer - 6X20	Bolt-washer - 6X20
17	90403-P5M-004	Spacer - FAN, 8MM (MITSUBA)	Spacer - FAN, 8MM (MITSUBA)

Radiator hose/reserve tan k 3 / 24

#	OEM	GE3	GG1
8	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)	Clip - WATER HOSE(CHUO SPRING)
9	19511-P08-004	Clip - WATER HOSE (KATO HATSUJO)	Clip - WATER HOSE (KATO HATSUJO)
20	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

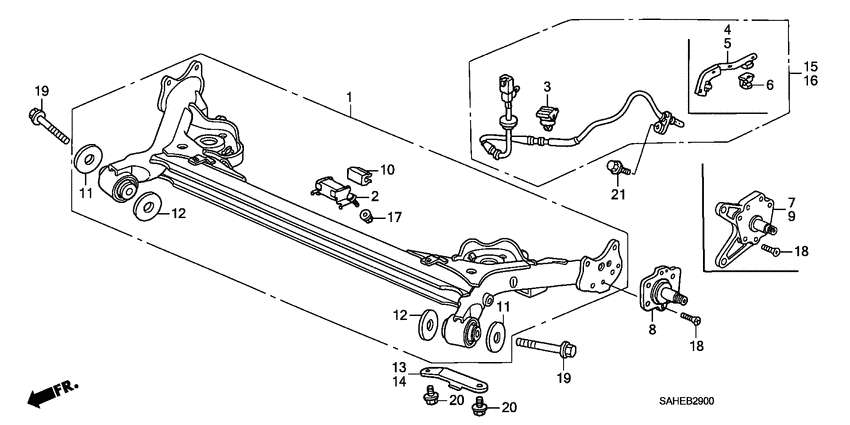

Rear axle 1 / 17

#	OEM	GE3	GG1
17	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)

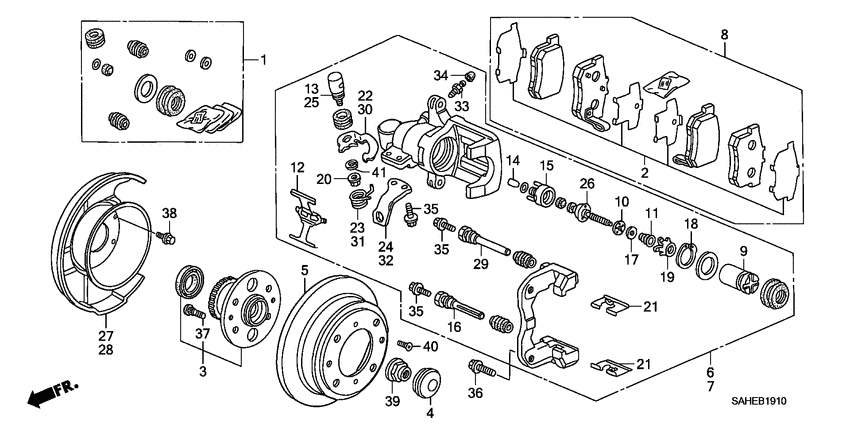

Rear brake (DISK) 26 / 44

#	OEM	GE3	GG1
1	01473-S04-000	Caliper set - RR.	Caliper set - RR.
2	06435-SAA-J50	Shim set - RR.	Shim set - RR.
9	43215-SH3-931	Piston assy.	Piston assy.
10	43223-SD2-932	BEARING A	BEARING A
11	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
12	43227-SF1-003	Spring - PAD	Spring - PAD
13	43228-SD2-933	Shaft a	Shaft a
14	43229-SD2-931	Rod	Rod
15	43233-S5A-J01	Piston comp - SLEEVE	Piston comp - SLEEVE
15	43233-TR0-A01	Piston, sleeve	Piston, sleeve
16	43235-S84-A51	Pin a	Pin a
17	43236-S04-003	Spacer	Spacer
18	43238-SD2-931	Ring - RETAINING	Ring - RETAINING
19	43241-SD2-931	Guide - SPRING	Guide - SPRING
20	43243-SD2-931	Nut - PARKING	Nut - PARKING
21	43244-SD2-931	Retainer	Retainer
25	43248-SD2-933	Shaft b	Shaft b
26	43249-S04-003	Bolt - ADJUSTER	Bolt - ADJUSTER
29	43262-S84-A51	Pin b	Pin b
33	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
34	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
35	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
37	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
37	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
37	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
37	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Rear door glass/ door regulator 1 / 10

#	OEM	GE3	GG1
16	75342-SA7-000	Pin - WINDOW REGULATOR HANDLE	Pin - WINDOW REGULATOR HANDLE

Rear door lining 2 / 6

#	OEM	GE3	GG1
18	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
19	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door locks/ outer handle (3) 7 / 30

#	OEM	GE3	GG1
1	72111-SEN-H01	Fastener - BLACK	Fastener - BLACK
1	72139-SR3-003	Fastener - NATURAL	Fastener - NATURAL
9	72143-S04-003	Packing	Packing
31	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
32	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
33	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
35	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Rear door panels 7 / 14

#	OEM	GE3	GG1
12	72311-S5S-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
21	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
23	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
24	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
25	91561-SZ3-003	Clip	Clip

Rear seat (L.) 9 / 29

#	OEM	GE3	GG1
1	77209-SB0-003	Washer - NYLON	Washer - NYLON
20	82194-SAA-003	Damper - UNDER COVER	Damper - UNDER COVER
25	82241-SAA-003	Bush - NYLON	Bush - NYLON
41	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
42	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
45	90151-SAA-003	Nut - LOCK, 8MM	Nut - LOCK, 8MM
46	90335-S2K-003	Nut - PUSH, 8MM	Nut - PUSH, 8MM
48	90535-S2K-003	Bush - RR. CUSHION	Bush - RR. CUSHION
50	90751-S2K-003	Pin a - SET	Pin a - SET

Rear seat (R.) 9 / 29

#	OEM	GE3	GG1
1	77209-SB0-003	Washer - NYLON	Washer - NYLON
31	82194-SAA-003	Damper - UNDER COVER	Damper - UNDER COVER
39	82241-SAA-003	Bush - NYLON	Bush - NYLON
40	90101-SAA-000	Bolt-washer - 8X22	Bolt-washer - 8X22
41	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
44	90151-SAA-003	Nut - LOCK, 8MM	Nut - LOCK, 8MM
45	90335-S2K-003	Nut - PUSH, 8MM	Nut - PUSH, 8MM
47	90535-S2K-003	Bush - RR. CUSHION	Bush - RR. CUSHION
49	90751-S2K-003	Pin a - SET	Pin a - SET

Rear shock absorber 4 / 9

#	OEM	GE3	GG1
4	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
6	52691-SAA-000	Rubber - RR. SPRING UPPER MOUNTING	Rubber - RR. SPRING UPPER MOUNTING
8	90172-SAA-010	Bolt - FLANGE, 10X73	Bolt - FLANGE, 10X73
9	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

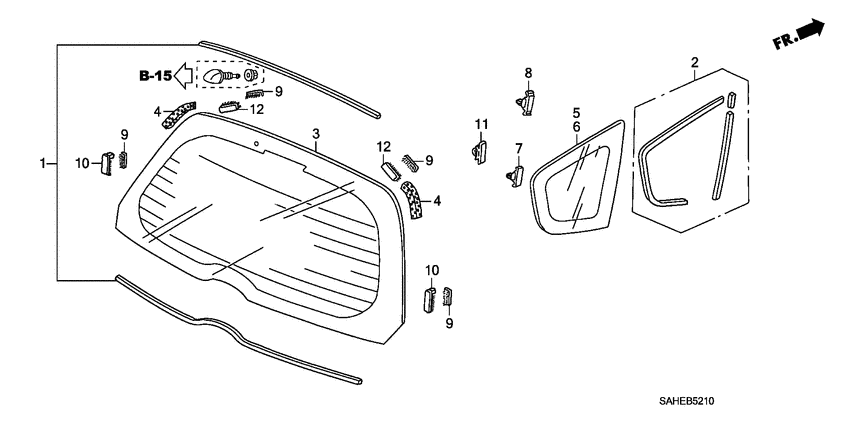

Rear windshield/ quarter glass 4 / 11

#	OEM	GE3	GG1
9	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
10	91502-S70-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD
11	91506-S47-003	Clip c - QUARTER WINDOW	Clip c - QUARTER WINDOW
12	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD

Seatbelts 2 / 9

#	OEM	GE3	GG1
25	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
26	90135-S1F-003	Bolt - FLANGE, 7/16"	Bolt - FLANGE, 7/16"

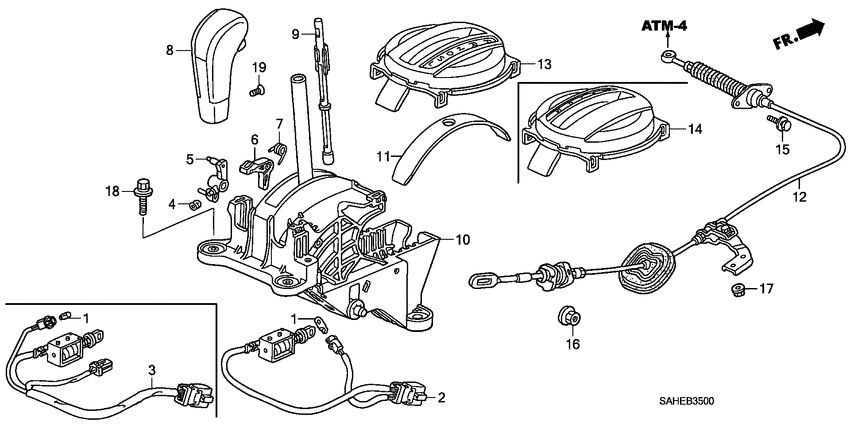

Select lever 1 / 12

#	OEM	GE3	GG1
17	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Shift fork 9 / 9

#	OEM	GE3	GG1
1	24201-PWL-000	Fork comp - GEARSHIFT(5TH)	Fork comp - GEARSHIFT(5TH)
2	24210-PWL-010	Fork comp - GEARSHIFT(3-4)	Fork comp - GEARSHIFT(3-4)
3	24220-PWL-010	Fork comp - GEARSHIFT(1-2)	Fork comp - GEARSHIFT(1-2)
4	24230-PWL-010	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
5	24240-PWL-010	Piece comp. - SHIFT(5-R)	Piece comp. - SHIFT(5-R)
6	24440-PWL-000	Cam comp - REVERSE LOCK	Cam comp - REVERSE LOCK
7	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
8	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
9	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Shift lever 5 / 11

#	OEM	GE3	GG1
3	54117-SAA-003	Rubber - FLOATING	Rubber - FLOATING
4	54118-SC2-000	Washer assy. - WIRE	Washer assy. - WIRE
5	54119-S30-003	Collar - FLOATING	Collar - FLOATING
7	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
8	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Shift lever/shift arm 15 / 19

#	OEM	GE3	GG1
1	21321-689-000	Plug - BREATHER TUBE	Plug - BREATHER TUBE
4	24411-PWL-010	Arm - SHIFT	Arm - SHIFT
5	24430-PWL-000	Interlock comp.	Interlock comp.
7	24464-PLW-000	Spring - SELECT	Spring - SELECT
8	24466-PHR-000	Collar - SELECT SPRING	Collar - SELECT SPRING
9	24467-PLW-000	Plate - SELECT SPRING	Plate - SELECT SPRING
11	24475-PWL-000	Cover - DUST	Cover - DUST
12	24479-PWL-000	Cover - SHIFT LEVER	Cover - SHIFT LEVER
13	41936-PDZ-003	Clamp - BREATHER TUBE	Clamp - BREATHER TUBE
14	41936-PFM-F01	Clamp - BREATHER TUBE	Clamp - BREATHER TUBE
15	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
16	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
17	91209-PE9-005	Dust seal - 16X23X5(NOK)	Dust seal - 16X23X5(NOK)
17	91209-PE9-003	Dust seal - 16X23X5(ARAI)	Dust seal - 16X23X5(ARAI)
18	91215-PHR-003	Oil seal - 18X30X7(NOK)	Oil seal - 18X30X7(NOK)

Side lining/ tailgate lining 1 / 8

#	OEM	GE3	GG1
25	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)

Srs unit (LH) 2 / 13

#	OEM	GE3	GG1
2	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
8	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20

Starter motor (DENSO) 3 / 21

#	OEM	GE3	GG1
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
14	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
15	31223-PA0-006	Nut - HEX.	Nut - HEX.

Starting clutch 1 / 26

#	OEM	GE3	GG1
17	90175-SEL-T81	Pin - LOCK, 8MM	Pin - LOCK, 8MM

Steering column 3 / 8

#	OEM	GE3	GG1
7	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
8	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
9	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

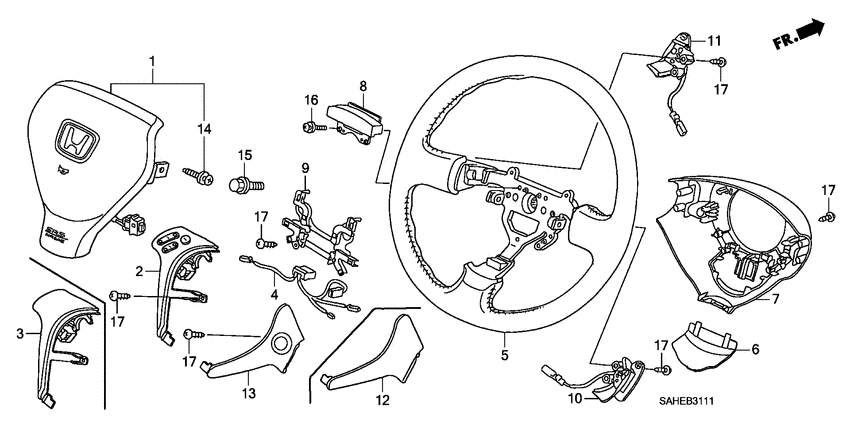

Steering wheel (SRS; 2) 2 / 7

#	OEM	GE3	GG1
14	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
15	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

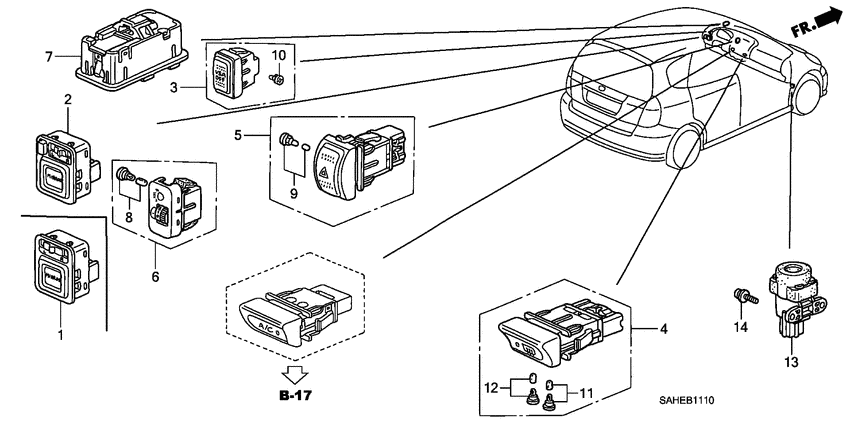

Switch (LH) 1 / 4

#	OEM	GE3	GG1
13	35910-S04-G01	Switch assy - INERTIA	Switch assy - INERTIA

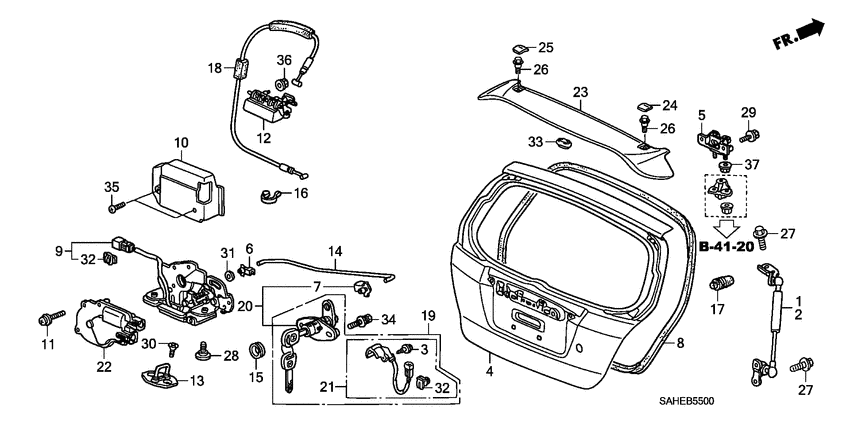

Tailgate 4 / 16

#	OEM	GE3	GG1
12	74810-S6A-003	Handle assy - TAILGATE	Handle assy - TAILGATE
27	90106-SAA-000	Bolt - FLANGE, 6X14	Bolt - FLANGE, 6X14
29	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

Taillight/license light 8 / 25

#	OEM	GE3	GG1
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
9	33513-S50-003	Socket - T20W S2	Socket - T20W S2
14	34100-S60-013	Light assy - LICENSE	Light assy - LICENSE
15	34101-S60-013	Lens	Lens
16	34102-S60-003	Housing comp	Housing comp
17	34103-S60-003	Gasket	Gasket
25	90301-ST0-003	push nut, 3mm	push nut, 3mm

Tire/wheel disks 12 / 22

#	OEM	GE3	GG1
8	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
8	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
10	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)	Plate - SPARE TIRE CAUTION (T-TYPE)
13	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
13	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
13	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
13	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
13	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
13	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
13	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
18	83853-SA7-980	Bolt - ANCHOR (79MM)	Bolt - ANCHOR (79MM)
20	90304-SC2-000	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)

Tools/jack 3 / 8

#	OEM	GE3	GG1
4	84703-S7A-000	Bag - EYEBOLT (M16)	Bag - EYEBOLT (M16)
7	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
10	89320-S2G-003	Bar - JACK	Bar - JACK

Transmission case 51 / 71

#	OEM	GE3	GG1
1	21104-PHR-000	Plate m - OIL GUIDE	Plate m - OIL GUIDE
2	21210-PWL-A00	Case - TRANSMISSION	Case - TRANSMISSION
4	21220-PWL-000	Hanger comp. - TRANSMISSION	Hanger comp. - TRANSMISSION
5	23946-P21-000	Shim p - 72MM(1.05)	Shim p - 72MM(1.05)
5	23941-P21-000	Shim k - 72MM(0.90)	Shim k - 72MM(0.90)
5	23968-P21-000	Shim al - 72MM(1.71)	Shim al - 72MM(1.71)
5	23936-P21-000	Shim f - 72MM(0.75)	Shim f - 72MM(0.75)
5	23931-P21-000	Shim a - 72MM(0.60)	Shim a - 72MM(0.60)
5	23963-P21-000	Shim ag - 72MM(1.56)	Shim ag - 72MM(1.56)
5	23958-P21-000	Shim ab - 72MM(1.41)	Shim ab - 72MM(1.41)
5	23953-P21-000	Shim w - 72MM(1.26)	Shim w - 72MM(1.26)
5	23948-P21-000	Shim r - 72MM(1.11)	Shim r - 72MM(1.11)
5	23943-P21-000	Shim m - 72MM(0.96)	Shim m - 72MM(0.96)
5	23970-P21-000	Shim an - 72MM(1.77)	Shim an - 72MM(1.77)
5	23938-P21-000	Shim h - 72MM(0.81)	Shim h - 72MM(0.81)
5	23933-P21-000	Shim c - 72MM(0.66)	Shim c - 72MM(0.66)
5	23965-P21-000	Shim ai - 72MM(1.62)	Shim ai - 72MM(1.62)
5	23960-P21-000	Shim ad - 72MM(1.47)	Shim ad - 72MM(1.47)
5	23955-P21-000	Shim y - 72MM(1.32)	Shim y - 72MM(1.32)
5	23950-P21-000	Shim t - 72MM(1.17)	Shim t - 72MM(1.17)
5	23945-P21-000	Shim o - 72MM(1.02)	Shim o - 72MM(1.02)
5	23940-P21-000	Shim j - 72MM(0.87)	Shim j - 72MM(0.87)
5	23967-P21-000	Shim ak - 72MM(1.68)	Shim ak - 72MM(1.68)
5	23935-P21-000	Shim e - 72MM(0.72)	Shim e - 72MM(0.72)
5	23962-P21-000	Shim af - 72MM(1.53)	Shim af - 72MM(1.53)
5	23957-P21-000	Shim aa - 72MM(1.38)	Shim aa - 72MM(1.38)
5	23952-P21-000	Shim v - 72MM(1.23)	Shim v - 72MM(1.23)
5	23947-P21-000	Shim q - 72MM(1.08)	Shim q - 72MM(1.08)
5	23942-P21-000	Shim l - 72MM(0.93)	Shim l - 72MM(0.93)
5	23969-P21-000	Shim am - 72MM(1.74)	Shim am - 72MM(1.74)
5	23937-P21-000	Shim g - 72MM(0.78)	Shim g - 72MM(0.78)
5	23932-P21-000	Shim b - 72MM(0.63)	Shim b - 72MM(0.63)
5	23964-P21-000	Shim ah - 72MM(1.59)	Shim ah - 72MM(1.59)
5	23959-P21-000	Shim ac - 72MM(1.44)	Shim ac - 72MM(1.44)
5	23954-P21-000	Shim x - 72MM(1.29)	Shim x - 72MM(1.29)
5	23949-P21-000	Shim s - 72MM(1.14)	Shim s - 72MM(1.14)
5	23944-P21-000	Shim n - 72MM(0.99)	Shim n - 72MM(0.99)
5	23971-P21-000	Shim ao - 72MM(1.80)	Shim ao - 72MM(1.80)
5	23939-P21-000	Shim i - 72MM(0.84)	Shim i - 72MM(0.84)
5	23934-P21-000	Shim d - 72MM(0.69)	Shim d - 72MM(0.69)
5	23966-P21-000	Shim aj - 72MM(1.65)	Shim aj - 72MM(1.65)
5	23961-P21-000	Shim ae - 72MM(1.50)	Shim ae - 72MM(1.50)
5	23956-P21-000	Shim z - 72MM(1.35)	Shim z - 72MM(1.35)
5	23951-P21-000	Shim u - 72MM(1.20)	Shim u - 72MM(1.20)
6	24455-PHR-000	Spring - BALL SETTING	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
9	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
10	90081-PX5-000	Screw - SEALING, 32MM	Screw - SEALING, 32MM
12	90401-P8A-A00	Washer - DRAIN, 18MM	Washer - DRAIN, 18MM
13	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
18	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

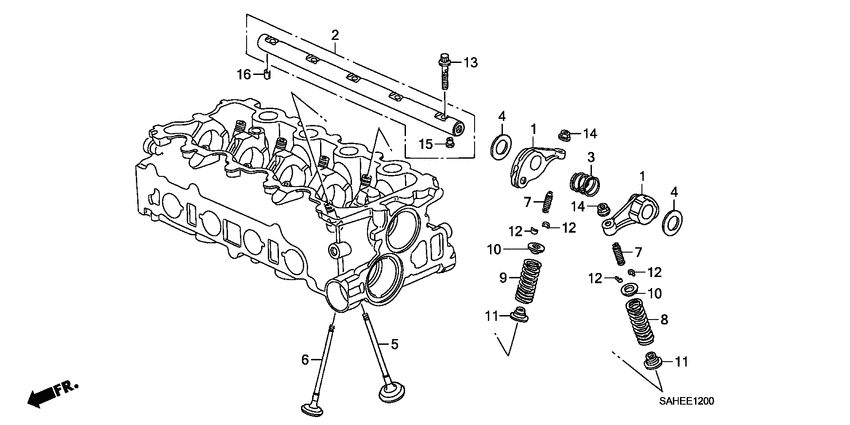

Valve/rocker arm 5 / 17

#	OEM	GE3	GG1
7	14744-PM3-000	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
10	14765-RGA-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
11	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
12	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
14	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose (LH) 2 / 6

#	OEM	GE3	GG1
5	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

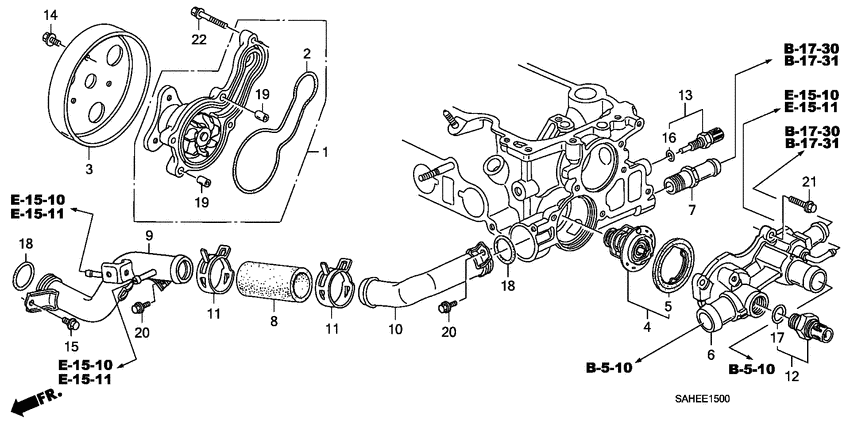

Water pump 6 / 21

#	OEM	GE3	GG1
5	19305-PT0-000	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
5	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
7	19500-PE0-000	Joint, Tube	Joint, Tube
11	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)	Clip - WATER HOSE(CHUO SPRING)
14	90013-PCX-000	Bolt - SPECIAL, 6X12	Bolt - SPECIAL, 6X12
16	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)

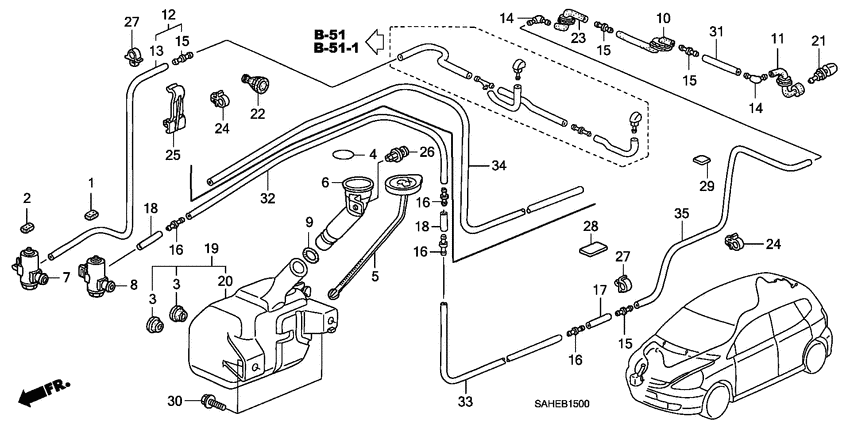

Windshield washer 4 / 22

#	OEM	GE3	GG1
24	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
26	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
28	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
29	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Wire harness (LH) 3 / 14

#	OEM	GE3	GG1
10	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
11	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
12	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
