Air cleaner 20 / 23

#	OEM	FD7	FN1
1	17136-RNA-A00	Grommet, BREATHER PIPE	Grommet, BREATHER PIPE
3	17211-RNA-A00	Cover comp. AIR CLEANER	Cover comp. AIR CLEANER
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
7	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
8	17217-RNA-A00	Clip - AIR CLEANER	Clip - AIR CLEANER
10	17225-RNA-A00	Tube - AIR FLOW	Tube - AIR FLOW
12	17261-RNA-A00	Stay comp. a - AIR CLEANER	Stay comp. a - AIR CLEANER
14	17262-RNA-A00	Stay comp. b - AIR CLEANER	Stay comp. b - AIR CLEANER
15	17263-RNA-A00	Stay comp. c - AIR CLEANER	Stay comp. c - AIR CLEANER
16	17315-P5K-000	Clamp - AIR FLOW TUBE (74)	Clamp - AIR FLOW TUBE (74)
17	17316-P1E-000	Clamp - AIR FLOW TUBE (70)	Clamp - AIR FLOW TUBE (70)
18	37980-RNA-A01	Meter assy - AIR FLOW	Meter assy - AIR FLOW
19	37985-RAD-L11	Gasket	Gasket
20	75353-671-000	Lock - SCREW	Lock - SCREW
21	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
22	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
22	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Air conditioner (COMPRESSOR) 15 / 15

#	OEM	FD7	FN1
1	31110-RWK-003	Belt - ALTERNATOR (BANDO)	Belt - ALTERNATOR (BANDO)
1	31110-RWK-004	Belt - ALTERNATOR (MITSUBOSHI)	Belt - ALTERNATOR (MITSUBOSHI)
2	38801-PDF-E02	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
3	38810-RNA-014	Compressor comp.	Compressor comp.
4	38829-PDF-E02	Nut - 9MM	Nut - 9MM
5	38900-RNA-A01	Clutch set - COMPRESSOR	Clutch set - COMPRESSOR
5	38900-RNC-Z51	Clutch set - COMPRESSOR	Clutch set - COMPRESSOR
6	38908-RNA-014	Protector set, Thermal	Protector set, Thermal
7	38912-PE1-702	Shim set	Shim set
8	38913-PP4-E02	Ring - SNAP	Ring - SNAP
9	38914-P07-004	Ring f - SNAP	Ring f - SNAP
10	38930-RZP-G00	Bracket - COMPRESSOR	Bracket - COMPRESSOR
10	38924-RNA-A01	Coil set - FIELD	Coil set - FIELD
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER; 2) 6 / 20

#	OEM	FD7	FN1
1	32175-RSA-G01	Clip - HARNESS	Clip - HARNESS
2	38611-RNA-A01	Fan - COOLING	Fan - COOLING
4	38616-RNA-A01	Motor - COOLING FAN	Motor - COOLING FAN
5	38619-RNA-A01	Protector - FAN MOTOR HEAT	Protector - FAN MOTOR HEAT
16	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
17	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11

Air conditioner (COOLING UNIT; LH) 3 / 16

#	OEM	FD7	FN1
1	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
1	39794-SDA-A03	Relay assy - POWER (MICRO ISO) (OMRON)	Relay assy - POWER (MICRO ISO) (OMRON)

Air conditioner (HOSES/PIPES; LH) 8 / 18

#	OEM	FD7	FN1
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
11	80381-SNA-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
12	80382-S7A-003	Clip - AIR CONDITIONER PIPE	Clip - AIR CONDITIONER PIPE
13	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
15	80866-ST0-003	Cap l - VALVE (NICHIRIN)	Cap l - VALVE (NICHIRIN)
16	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
17	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
18	80873-ST7-000	O-ring - 8MM	O-ring - 8MM

Alternator (MITSUBISHI) 13 / 13

#	OEM	FD7	FN1
1	31100-RNA-A01	Alternator assy. - AHGA67) (MITSUBISHI	Alternator assy. - AHGA67) (MITSUBISHI
2	31101-RNA-A01	Rotor assy.	Rotor assy.
3	31102-PNA-004	Stator	Stator
4	31111-P08-J02	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
5	31114-P01-014	Bearing - FR. GENERATOR	Bearing - FR. GENERATOR
6	31123-RNA-A01	Terminal set	Terminal set
7	31125-P08-J02	Bolt - FLANGE	Bolt - FLANGE
8	31127-RNA-A01	Rectifier assy.	Rectifier assy.
9	31140-P64-902	Brush set	Brush set
10	31141-RNA-A01	Pulley	Pulley
11	31142-P08-J02	Nut	Nut
12	31146-PE0-004	Screw	Screw
13	31150-RNA-A01	Regulator set	Regulator set

Alternator bracket/ tensioner 14 / 15

#	OEM	FD7	FN1
1	31110-RWK-003	Belt - ALTERNATOR (BANDO)	Belt - ALTERNATOR (BANDO)
2	31113-RNA-A00	Bracket - ALTERNATOR	Bracket - ALTERNATOR
3	31114-RNA-A00	Insulator - HEAT	Insulator - HEAT
4	31124-RNA-A00	Stay - COUPLER	Stay - COUPLER
5	31126-RNA-A00	Stay - HARNESS	Stay - HARNESS
6	31170-RWK-025	Tensioner assy, Auto	Tensioner assy, Auto
7	31175-RNA-000	Bracket - IDLE PULLEY	Bracket - IDLE PULLEY
8	31185-RNA-000	Cover - BEARING	Cover - BEARING
9	31190-RL2-G01	Pulley comp - IDLER	Pulley comp - IDLER
10	32750-RNA-A00	Stay k - ENGINE HARNESS	Stay k - ENGINE HARNESS
11	90001-RWK-000	Bolt - SPECIAL, 8X85	Bolt - SPECIAL, 8X85
12	90006-P8F-A00	Bolt-washer - 8X32	Bolt-washer - 8X32
13	90030-RNA-A00	Bolt - SPECIAL, 10X40	Bolt - SPECIAL, 10X40
14	90031-PRA-000	Bolt - SPECIAL FLANGE, 10X25	Bolt - SPECIAL FLANGE, 10X25

Antenna/speaker (LH) 10 / 15

#	OEM	FD7	FN1
2	39120-SMG-E02	Speaker assy - 17CM SINGLE)(ND) (PP	Speaker assy - 17CM SINGLE)(ND) (PP
7	90109-SLJ-003	Screw - 5X40	Screw - 5X40
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
9	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER
10	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
11	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
14	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
15	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
18	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Audio unit (LH) 1 / 10

#	OEM	FD7	FN1
12	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Battery 5 / 10

#	OEM	FD7	FN1
1	31500-SCA-E01	Battery - 46B24L<S>-MF) (FURUKAWA/EXIDE	Battery - 46B24L<S>-MF) (FURUKAWA/EXIDE
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)	Plug - VENT (MF) (FURUKAWA)
8	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
9	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
10	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Brake lines (VSA; LH) 7 / 35

#	OEM	FD7	FN1
13	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
17	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
18	46392-SAA-901	Clip - BRAKE PIPE	Clip - BRAKE PIPE
31	46462-SE0-000	Bolt - OIL	Bolt - OIL
33	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
34	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
35	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 13 / 25

#	OEM	FD7	FN1
7	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
9	46185-SE0-003	Seal - ROD	Seal - ROD
10	46191-S2K-000	Packing - MASTER POWER	Packing - MASTER POWER
13	46512-S70-000	Pin - PEDAL	Pin - PEDAL
16	46665-S04-J01	Grommet	Grommet
17	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
18	46669-S5A-003	Diaphragm	Diaphragm
20	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
21	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
22	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
23	57515-S30-003	Pin - STOP	Pin - STOP
24	57562-SF1-003	Circlip	Circlip

Bumpers 5 / 25

#	OEM	FD7	FN1
25	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
30	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
32	91503-SZ3-003	Clip A	Clip A
34	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Camshaft/cam chain 13 / 13

#	OEM	FD7	FN1
1	14110-RNA-A00	Camshaft comp.	Camshaft comp.
2	14211-RNA-A01	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
3	14221-RNA-A01	Plate - TDC PULSER	Plate - TDC PULSER
4	14222-PWA-004	Bolt - TDC PULSER PLATE	Bolt - TDC PULSER PLATE
5	14401-RNA-A01	Chain - 136L	Chain - 136L
6	14510-RNA-A01	Tensioner comp - CAM CHAIN	Tensioner comp - CAM CHAIN
7	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
8	14520-RNA-A01	Arm comp - CAM CHAIN TENSIONER	Arm comp - CAM CHAIN TENSIONER
9	14530-RNA-A01	Guide - CAM CHAIN	Guide - CAM CHAIN
10	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
11	90004-RNA-A00	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
12	90031-RNA-A01	Bolt-washer - 10X30	Bolt-washer - 10X30
13	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Canister 5 / 13

#	OEM	FD7	FN1
1	17300-SNA-013	Canister assy	Canister assy
1	17300-SNA-023	Canister assy	Canister assy
7	17724-SNA-000	Tube - FUEL VENT	Tube - FUEL VENT
9	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
15	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)

Clutch case 8 / 8

#	OEM	FD7	FN1
1	21000-RPF-000	Case comp. - CLUTCH	Case comp. - CLUTCH
3	21103-RPF-000	Plate c - OIL GUIDE	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
5	21220-RPF-000	Hanger comp. - TRANSMISSION	Hanger comp. - TRANSMISSION
6	91002-RPF-003	Bearing - SPECIAL BALL, 6305	Bearing - SPECIAL BALL, 6305
7	91101-RPF-003	Bearing - NEEDLE, 34X59X20	Bearing - NEEDLE, 34X59X20
8	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
9	91216-PHR-003	Oil seal - 26X40X7(NOK)	Oil seal - 26X40X7(NOK)

Clutch master cylinder (LH) 19 / 36

#	OEM	FD7	FN1
2	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	46182-500-013	Circlip	Circlip
7	46394-S04-003	Clip A	Clip A
8	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
9	46912-S84-A00	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
11	46921-SMG-X01	Plate - STOPPER	Plate - STOPPER
12	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER	Piston comp - CLUTCH MASTER CYLINDER
14	46930-SNA-A41	Cylinder assy. - CLUTCH SLAVE	Cylinder assy. - CLUTCH SLAVE
15	46931-S5A-003	Pin - SPRING	Pin - SPRING
16	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
17	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
18	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
19	46942-S5A-003	Pin - SNAP	Pin - SNAP
20	46943-S5A-003	Seal - RING	Seal - RING
25	46948-S5A-003	Rod - PUSH	Rod - PUSH
26	46949-S5A-003	Seal - RING	Seal - RING
29	46965-S5A-013	Tank assy. - CLUTCH FLUID	Tank assy. - CLUTCH FLUID
36	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch release 7 / 7

#	OEM	FD7	FN1
1	22810-PLW-005	Bearing, CLUTCH RELEASE (NSK)	Bearing, CLUTCH RELEASE (NSK)
2	22821-RF0-000	Fork - CLUTCH RELEASE	Fork - CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING	Spring - RELEASE FORK SETTING
5	22841-RPF-000	Boot - RELEASE FORK	Boot - RELEASE FORK
6	28810-PWR-013	Pick up assy. - MATSUSHITA	Pick up assy. - MATSUSHITA
7	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Clutch/torque converter 7 / 7

#	OEM	FD7	FN1
1	21351-RNA-000	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
2	22100-RNA-003	Flywheel comp.	Flywheel comp.
3	22103-RNA-004	Bush - 19X24X8	Bush - 19X24X8
4	22200-RNA-003	Disk comp - FRICTION	Disk comp - FRICTION
5	22300-RNA-003	Disk comp - PRESSURE	Disk comp - PRESSURE
8	90011-PNA-B00	Bolt - 12MM	Bolt - 12MM
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch (LH) 12 / 20

#	OEM	FD7	FN1
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
8	35111-SNB-305	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
12	35114-SMG-E21	Bottom comp. - TRANSMITTER KEY CASE	Bottom comp. - TRANSMITTER KEY CASE
13	35116-SDA-A11	Screw - FLAT	Screw - FLAT
14	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
15	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH	Sensor assy - STEERING & BODY SWITCH
18	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)	Switch assy - DOOR (MATSUSHITA)
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
22	72148-S0A-000	Battery CR1616	Battery CR1616
23	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18

Console (LH) 2 / 18

#	OEM	FD7	FN1
1	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
37	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Control unit (CABIN; 1; LH) 8 / 13

#	OEM	FD7	FN1
2	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
3	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
4	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
5	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
6	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
9	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
13	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)	Relay assy - POWER(5P) (MICRO ISO)
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (CABIN; 2) 2 / 2

#	OEM	FD7	FN1
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1) 13 / 30

#	OEM	FD7	FN1
4	37823-RNA-A00	Cover - ENGINE CONTROL MODULE	Cover - ENGINE CONTROL MODULE
11	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
12	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
13	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
14	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
15	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
16	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
17	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
18	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
19	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
29	90106-SDA-A00	Bolt-washer - 6X25	Bolt-washer - 6X25
31	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
33	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Control unit (ENGINE ROOM; 2) 2 / 5

#	OEM	FD7	FN1
3	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
10	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Converter 13 / 17

#	OEM	FD7	FN1
1	18115-RNA-004	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
4	18181-RNA-A00	Cover, FR. CONVERTER	Cover, FR. CONVERTER
6	18198-RNA-A00	Stay - CONVERTER	Stay - CONVERTER
8	18716-RNA-A01	Gasket a - EGR PIPE	Gasket a - EGR PIPE
9	18717-RNA-A00	Pipe comp - EGR	Pipe comp - EGR
10	18719-RNA-A01	Gasket b - EGR PIPE	Gasket b - EGR PIPE
11	18720-RNA-A00	Bolt - FLANGE, 8X20	Bolt - FLANGE, 8X20
12	32177-RZP-G00	Insulator - CRANK SENSOR HEAT	Insulator - CRANK SENSOR HEAT
13	36531-RNA-J01	Sensor - AIR FUEL RATIO	Sensor - AIR FUEL RATIO
14	36532-RNA-A01	Sensor - OXYGEN	Sensor - OXYGEN
15	90001-RNA-A00	Bolt - FLANGE, 8X27	Bolt - FLANGE, 8X27
16	90003-RNA-A00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
17	90004-PLC-000	Bolt-washer - 10X25	Bolt-washer - 10X25

Countershaft 37 / 37

#	OEM	FD7	FN1
1	23220-RPF-A00	Countershaft comp.	Countershaft comp.
2	23421-RPH-A00	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
3	23431-RPF-A00	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
4	23461-RPH-B00	Gear - COUNTERSHAFT FIFTH	Gear - COUNTERSHAFT FIFTH
5	23471-RPH-B00	Gear - COUNTERSHAFT THIRD	Gear - COUNTERSHAFT THIRD
6	23481-RPH-B00	Gear - COUNTERSHAFT FOURTH	Gear - COUNTERSHAFT FOURTH
7	23491-RPH-A00	Gear - COUNTERSHAFT SIXTH	Gear - COUNTERSHAFT SIXTH
8	23521-RPF-315	Sleeve set - SYNCHRONIZER (1-2)	Sleeve set - SYNCHRONIZER (1-2)
9	23911-RPF-000	Collar - DISTANCE, 39X44.5X25.4	Collar - DISTANCE, 39X44.5X25.4
10	23912-RPF-000	Collar - DISTANCE, 39X44.5X26.5	Collar - DISTANCE, 39X44.5X26.5
12	23975-RPF-000	Shim e - 32MM(1.72)	Shim e - 32MM(1.72)
12	23987-RPF-000	Shim s - 32MM(2.20)	Shim s - 32MM(2.20)
12	23982-RPF-000	Shim m - 32MM(2.00)	Shim m - 32MM(2.00)
12	23977-RPF-000	Shim g - 32MM(1.80)	Shim g - 32MM(1.80)
12	23972-RPF-000	Shim b - 32MM(1.60)	Shim b - 32MM(1.60)
12	23989-RPF-000	Shim u - 32MM(2.28)	Shim u - 32MM(2.28)
12	23984-RPF-000	Shim p - 32MM(2.08)	Shim p - 32MM(2.08)
12	23979-RPF-000	Shim j - 32MM(1.88)	Shim j - 32MM(1.88)
12	23974-RPF-000	Shim d - 32MM(1.68)	Shim d - 32MM(1.68)
12	23986-RPF-000	Shim r - 32MM(2.16)	Shim r - 32MM(2.16)
12	23981-RPF-000	Shim l - 32MM(1.96)	Shim l - 32MM(1.96)
12	23976-RPF-000	Shim f - 32MM(1.76)	Shim f - 32MM(1.76)
12	23971-RPF-000	Shim a - 32MM(1.56)	Shim a - 32MM(1.56)
12	23988-RPF-000	Shim t - 32MM(2.24)	Shim t - 32MM(2.24)
12	23983-RPF-000	Shim n - 32MM(2.04)	Shim n - 32MM(2.04)
12	23978-RPF-000	Shim h - 32MM(1.84)	Shim h - 32MM(1.84)
12	23973-RPF-000	Shim c - 32MM(1.64)	Shim c - 32MM(1.64)
12	23990-RPF-000	Shim v - 32MM(2.32)	Shim v - 32MM(2.32)
12	23985-RPF-000	Shim q - 32MM(2.12)	Shim q - 32MM(2.12)
12	23980-RPF-000	Shim k - 32MM(1.92)	Shim k - 32MM(1.92)
13	90011-RPF-000	Bolt - SPECIAL, 16X25 (LEFT HAND THREAD)	Bolt - SPECIAL, 16X25 (LEFT HAND THREAD)
14	90601-RPF-000	Ring - SNAP, 69MM	Ring - SNAP, 69MM
15	91003-RPF-003	Bearing - BALL, 26X69X22.5	Bearing - BALL, 26X69X22.5
16	91103-RPF-003	Bearing - NEEDLE, 44.5X48.5X21.5	Bearing - NEEDLE, 44.5X48.5X21.5
17	91211-RPF-008	Damper - FRICTION(LOW)	Damper - FRICTION(LOW)
18	91212-RPF-008	Damper, Friction (Second)	Damper, Friction (Second)
18	91212-RPF-018	Damper - FRICTION(SECOND)	Damper - FRICTION(SECOND)

Crankshaft/piston 34 / 35

#	OEM	FD7	FN1
1	13020-RNA-A00	Piston set - OS 0.25	Piston set - OS 0.25
1	13010-RNA-A00	Piston set - STD.	Piston set - STD.
2	13021-RNA-A02	Ring set - PISTON(OS 0.25) (RIKEN)	Ring set - PISTON(OS 0.25) (RIKEN)
2	13021-RNA-A01	Ring set - PISTON(OS 0.25) (TEIKOKU)	Ring set - PISTON(OS 0.25) (TEIKOKU)
3	13111-RNA-A00	Pin - PISTON	Pin - PISTON
4	13115-RNA-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-RNA-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
6	13210-RNA-A00	Rod comp - CONNECTING	Rod comp - CONNECTING
7	13211-RNA-A01	BEARING A - CONNECTING ROD (BLACK)(DAIDO)	BEARING A - CONNECTING ROD (BLACK)(DAIDO)
7	13212-RNA-A01	Bearing b - CONNECTING ROD (BROWN)(DAIDO)	Bearing b - CONNECTING ROD (BROWN)(DAIDO)
7	13213-RNA-A01	Bearing c - CONNECTING ROD (GREEN)(DAIDO)	Bearing c - CONNECTING ROD (GREEN)(DAIDO)
7	13214-RNA-A01	Bearing d - CONNECTING ROD (YELLOW)(DAIDO)	Bearing d - CONNECTING ROD (YELLOW)(DAIDO)
7	13215-RNA-A01	Bearing e - CONNECTING ROD (PINK)(DAIDO)	Bearing e - CONNECTING ROD (PINK)(DAIDO)
7	13216-RNA-A01	Bearing f - CONNECTING ROD(RED) (DAIDO)	Bearing f - CONNECTING ROD(RED) (DAIDO)
8	13310-RNA-A00	Crankshaft comp.	Crankshaft comp.
9	13325-RNA-A01	Bearing e - MAIN UPPER (YELLOW) (DAIDO)	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13326-RNA-A01	Bearing f - MAIN UPPER (PINK) (DAIDO)	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13321-RNA-A01	BEARING A - MAIN UPPER (BLUE) (DAIDO)	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13322-RNA-A01	Bearing b - MAIN UPPER (BLACK) (DAIDO)	Bearing b - MAIN UPPER (BLACK) (DAIDO)
9	13323-RNA-A01	Bearing c - MAIN UPPER (BROWN) (DAIDO)	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13324-RNA-A01	Bearing d - MAIN UPPER (GREEN) (DAIDO)	Bearing d - MAIN UPPER (GREEN) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
11	13346-RNA-A01	Bearing f - MAIN LOWER (PINK) (DAIDO)	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13341-RNA-A01	BEARING A - MAIN LOWER (BLUE) (DAIDO)	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13342-RNA-A01	Bearing b - MAIN LOWER (BLACK) (DAIDO)	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13343-RNA-A01	Bearing c - MAIN LOWER (BROWN) (DAIDO)	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13344-RNA-A01	Bearing d - MAIN LOWER (GREEN) (DAIDO)	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13345-RNA-A01	Bearing e - MAIN LOWER (YELLOW) (DAIDO)	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
12	13620-RNA-A01	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-RNA-A00	Plate - CRANK PULSER	Plate - CRANK PULSER
14	13810-RNA-A02	Pulley comp - CRANKSHAFT	Pulley comp - CRANKSHAFT
15	90013-RNA-A01	Bolt - HEX., 6X9	Bolt - HEX., 6X9
16	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
17	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Cylinder block/oil pan 34 / 37

#	OEM	FD7	FN1
1	11000-RNA-000	Block assy - CYLINDER	Block assy - CYLINDER
2	11103-RNA-A01	Plate - PARTITION	Plate - PARTITION
3	11105-RNA-A00	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
4	11106-RNA-A00	Washer - SEALING, 20MM	Washer - SEALING, 20MM
5	11107-PWA-300	Washer - SEALING, 24MM	Washer - SEALING, 24MM
6	11107-RNA-A00	Bolt - SEALING, 24MM	Bolt - SEALING, 24MM
7	11200-RSA-G03	Pan assy - OIL	Pan assy - OIL
8	11221-RNA-A00	Plate - BAFFLE	Plate - BAFFLE
9	11850-RNA-A00	Cover comp. - BREATHER	Cover comp. - BREATHER
10	15280-RZP-000	Body comp - OIL JET	Body comp - OIL JET
11	15290-RZP-000	Bolt comp - OIL JET	Bolt comp - OIL JET
12	30530-RNA-A01	Sensor comp - KNOCK	Sensor comp - KNOCK
13	32117-RSA-G10	Harness - OIL LEVEL SENSOR SUB	Harness - OIL LEVEL SENSOR SUB
14	32134-RSA-G10	Holder g - ENGINE WIRE HARNESS UPPER	Holder g - ENGINE WIRE HARNESS UPPER
15	32139-RSA-G10	Holder g - ENGINE WIRE HARNESS LOWER	Holder g - ENGINE WIRE HARNESS LOWER
16	32179-RNA-A02	Insulator - OIL PRESSURE SWITCH HEAT	Insulator - OIL PRESSURE SWITCH HEAT
18	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
19	37310-RSA-G02	Sensor assy - OIL LEVEL	Sensor assy - OIL LEVEL
21	37312-RSA-G02	Packing - OIL LEVEL SENSOR	Packing - OIL LEVEL SENSOR
22	37500-RAA-A01	Sensor assy - CRANK	Sensor assy - CRANK
23	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
24	90002-RNA-A00	Bolt - SEALING, 36MM	Bolt - SEALING, 36MM
25	90007-RNA-A01	Bolt-washer - 10X97	Bolt-washer - 10X97
26	90008-RNA-000	Washer - SEALING, 36MM	Washer - SEALING, 36MM
27	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
28	90016-RNA-A00	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
29	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
30	90051-RGA-003	Bolt - SPECIAL, 6X20.8	Bolt - SPECIAL, 6X20.8
31	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
32	90701-PD2-000	Dowel pin - 12X14	Dowel pin - 12X14
33	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
34	90705-RNA-A00	Dowel pin - 20X22	Dowel pin - 20X22
36	91301-RNA-A01	O-ring - 20X2.3 (NOK)	O-ring - 20X2.3 (NOK)
37	91333-PNC-006	O-ring	O-ring

Cylinder head 11 / 11

#	OEM	FD7	FN1
1	12200-RNA-A00	Head comp - CYLINDER	Head comp - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	12231-RNA-A00	Holder comp - ROCKER SHAFT (NO.1)	Holder comp - ROCKER SHAFT (NO.1)
5	12232-RNA-A00	Holder comp - ROCKER SHAFT	Holder comp - ROCKER SHAFT
6	12235-RNA-A00	Holder comp - ROCKER SHAFT (NO.5)	Holder comp - ROCKER SHAFT (NO.5)
7	12236-RNA-A00	Holder comp - LOST MOTION	Holder comp - LOST MOTION
8	14631-RNA-A00	Shaft comp. - ROCKER	Shaft comp. - ROCKER
9	15140-P0A-000	Orifice assy - CAM JOURNAL	Orifice assy - CAM JOURNAL
10	15142-PE0-000	O-ring - 4.8X1.9	O-ring - 4.8X1.9
11	90008-PT2-000	Bolt - FLANGE, 6X65	Bolt - FLANGE, 6X65

Cylinder head cover 6 / 6

#	OEM	FD7	FN1
1	12310-RNA-A01	Cover comp. - CYLINDER HEAD	Cover comp. - CYLINDER HEAD
2	12341-RNA-A01	Packing - HEAD COVER	Packing - HEAD COVER
3	15610-PFB-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
4	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
5	15650-RNA-A00	Gauge - OIL LEVEL	Gauge - OIL LEVEL
6	90011-RNA-A00	Bolt - HEAD COVER	Bolt - HEAD COVER

Differential 21 / 21

#	OEM	FD7	FN1
1	41100-RPF-000	Differential comp.	Differential comp.
2	41233-RPF-A50	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
3	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
3	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
3	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
3	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
3	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
3	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
3	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
3	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
3	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
3	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
3	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
3	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
3	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
3	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
3	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
3	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
3	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
4	90017-PPP-000	Bolt - SPECIAL, 11MM	Bolt - SPECIAL, 11MM
5	91005-PPS-003	Bearing - BALL, 40X80X18(NTN)	Bearing - BALL, 40X80X18(NTN)

Emblems/caution labels 3 / 8

#	OEM	FD7	FN1
1	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
20	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
21	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)	Label - SRS CAUTION (CHILD SEAT)

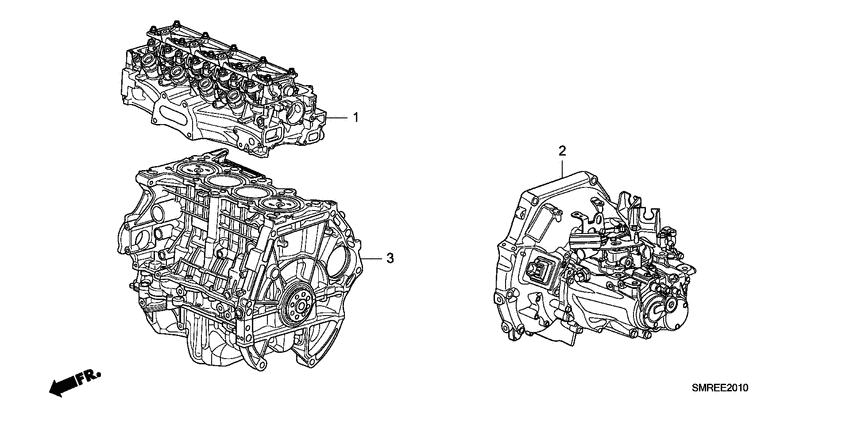

Engine assy./ transmission assy. 2 / 3

#	OEM	FD7	FN1
2	10003-RNA-A01	General assy. - CYLINDER HEAD	General assy. - CYLINDER HEAD
3	20011-RPH-E43	Transmission assy. - MT	Transmission assy. - MT

Engine hood (LH) 4 / 32

#	OEM	FD7	FN1
30	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
31	90301-ST0-003	push nut, 3mm	push nut, 3mm
32	90602-SFA-004	Clip - COWL TOP	Clip - COWL TOP
37	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR

Engine mounts (MT) 9 / 20

#	OEM	FD7	FN1
4	50690-SNA-A00	Bracket - TORQUE ROD LOWER	Bracket - TORQUE ROD LOWER
10	90160-SNA-A00	Bolt - FLANGE, 14X67	Bolt - FLANGE, 14X67
11	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
12	90165-SDA-A00	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
14	90165-S04-000	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
16	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
17	90170-SNA-A00	Bolt - FLANGE, 12X57	Bolt - FLANGE, 12X57
18	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
20	90380-S10-000	Bolt - STUD, 12X83.8	Bolt - STUD, 12X83.8

Engine wire harness 25 / 33

#	OEM	FD7	FN1
3	32114-RNA-003	Holder - CORRUGATED (DARK GREEN) (7MM)	Holder - CORRUGATED (DARK GREEN) (7MM)
4	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
5	32116-RGA-003	Holder - CORRUGATED (DARK GREEN) (13MM)	Holder - CORRUGATED (DARK GREEN) (13MM)
6	32116-RNA-003	Holder - CORRUGATED (DARK GREEN) (13MM)	Holder - CORRUGATED (DARK GREEN) (13MM)
8	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
11	32127-RNA-A00	Holder comp. a - ENGINE HARNESS	Holder comp. a - ENGINE HARNESS
12	32128-RNA-A00	Holder comp. b - ENGINE HARNESS	Holder comp. b - ENGINE HARNESS
13	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
14	32129-RNA-A00	Holder c - ENGINE HARNESS UPPER	Holder c - ENGINE HARNESS UPPER
15	32129-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (C)	Cover - ENGINE CONTROL MODULE COUPLER (C)
16	32130-RNA-A00	Holder c - ENGINE HARNESS LOWER	Holder c - ENGINE HARNESS LOWER
17	32131-RNA-A00	Holder d - ENGINE HARNESS	Holder d - ENGINE HARNESS
18	32132-RNA-A00	Holder e - ENGINE HARNESS	Holder e - ENGINE HARNESS
19	32133-RNA-A00	Holder f - ENGINE HARNESS	Holder f - ENGINE HARNESS
23	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
24	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
25	90051-RGA-003	Bolt - SPECIAL, 6X20.8	Bolt - SPECIAL, 6X20.8
26	90501-SS8-A01	Retainer	Retainer
27	91501-P8A-A01	Stud	Stud
28	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
29	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
31	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
32	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)	Band - WIRE HARNESS (BLACK) (172MM)
33	91558-SM4-003	Clip - TUBE(BLACK)(135MM)	Clip - TUBE(BLACK)(135MM)
35	91601-P8A-A01	Receptacle	Receptacle

Engine wire harness stay 1 / 4

#	OEM	FD7	FN1
4	32745-RNA-A00	Stay e - ENGINE HARNESS	Stay e - ENGINE HARNESS

Exhaust pipe/silencer 3 / 17

#	OEM	FD7	FN1
8	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
17	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
18	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 3 / 5

#	OEM	FD7	FN1
10	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
11	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Floor/inner panels 2 / 2

#	OEM	FD7	FN1
36	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
37	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Front brake (2) 7 / 23

#	OEM	FD7	FN1
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
6	44600-SNA-A00	Hub assy - FR.	Hub assy - FR.
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
18	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
18	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
18	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Front bulkhead/dashboard 3 / 5

#	OEM	FD7	FN1
38	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
39	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
40	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Front door glass/ door regulator 1 / 10

#	OEM	FD7	FN1
10	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10

Front door lining (LH) 2 / 10

#	OEM	FD7	FN1
17	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Front door lock/ outer handle 12 / 30

#	OEM	FD7	FN1
3	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
5	72118-SJK-003	Screw - TAPPING	Screw - TAPPING
12	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
13	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
14	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
23	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
29	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
30	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
34	90101-SJK-003	Screw - TAPPING (ONE WAY)	Screw - TAPPING (ONE WAY)
35	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
36	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
37	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door panels 5 / 13

#	OEM	FD7	FN1
17	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
18	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
19	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
19	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
20	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Front driveshaft/ half shaft (MT) 19 / 24

#	OEM	FD7	FN1
1	44014-SMG-E01	Joint set - OUTBOARD	Joint set - OUTBOARD
2	44017-SDE-T00	Boot set - INBOARD	Boot set - INBOARD
3	44018-SDE-T01	Boot set - OUTBOARD	Boot set - OUTBOARD
6	44310-S0A-300	Joint comp - INBOARD	Joint comp - INBOARD
7	44310-SMG-305	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SDG-P01	Band b - DRIVESHAFT (OETIKER INDUSTRIES)	Band b - DRIVESHAFT (OETIKER INDUSTRIES)
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SDG-P01	Band c - DRIVESHAFT (OETIKER INDUSTRIES)	Band c - DRIVESHAFT (OETIKER INDUSTRIES)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-SA2-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SA2-300	Circlip - 24MM	Circlip - 24MM
19	44500-SNA-A00	Shaft assy - HALF(MT)	Shaft assy - HALF(MT)
20	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
22	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
23	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
24	91260-SDB-A01	Seal - HALF SHAFT OUTER(NOK)	Seal - HALF SHAFT OUTER(NOK)

Front fenders 3 / 14

#	OEM	FD7	FN1
12	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
17	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
18	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM

Front grille 3 / 9

#	OEM	FD7	FN1
7	90301-ST0-003	push nut, 3mm	push nut, 3mm
9	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
10	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front seat (LH; DRIVER SIDE) 5 / 13

#	OEM	FD7	FN1
2	81123-SNA-A01	Screw - 6X18	Screw - 6X18
7	81291-SNA-A01	Clip	Clip
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90610-S10-003	Clip - GARNISH	Clip - GARNISH
25	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Front seat (LH; PASSENGER SIDE) 5 / 13

#	OEM	FD7	FN1
3	81123-SNA-A01	Screw - 6X18	Screw - 6X18
20	81291-SNA-A01	Clip	Clip
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90610-S10-003	Clip - GARNISH	Clip - GARNISH
25	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Front seat components (LH; DRIVER SIDE) 5 / 7

#	OEM	FD7	FN1
2	81133-SNB-E01	Cord - HEATED SEAT	Cord - HEATED SEAT
4	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
15	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
17	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
18	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Front seat components (LH; PASSENGER SIDE) 5 / 7

#	OEM	FD7	FN1
4	81133-SNB-E01	Cord - HEATED SEAT	Cord - HEATED SEAT
11	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
12	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
17	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Front shock absorber 1 / 18

#	OEM	FD7	FN1
17	90213-SR3-013	Nut - SELF-LOCK, 14MM	Nut - SELF-LOCK, 14MM

Front windshield wiper (LH) 7 / 26

#	OEM	FD7	FN1
3	76516-SJK-003	Rubber - MOUNTING	Rubber - MOUNTING
6	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
7	76517-SJK-003	Collar	Collar
8	76517-SM4-003	Collar	Collar
10	76524-SL0-A01	Dust seal	Dust seal
15	76561-SNA-A01	Cap - PIVOT	Cap - PIVOT
25	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32

Fuel injector 7 / 8

#	OEM	FD7	FN1
1	16450-RNA-A01	Injector assy - FUEL	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
4	16640-RNA-A00	Cover - FUEL PIPE	Cover - FUEL PIPE
5	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
6	90027-RNA-A00	Bolt - FUEL PIPE	Bolt - FUEL PIPE
7	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
8	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Fuel pipe 6 / 19

#	OEM	FD7	FN1
6	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
7	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
16	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
18	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
19	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
21	91595-S7A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE

Fuel tank 9 / 28

#	OEM	FD7	FN1
11	17525-S0X-A00	Bolt-washer - 10X25	Bolt-washer - 10X25
13	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
14	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
18	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
18	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
21	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
22	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
25	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
27	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Gasket kit 1 / 2

#	OEM	FD7	FN1
1	06110-RNA-000	Gasket kit - CYLINDER HEAD	Gasket kit - CYLINDER HEAD

Grommet (FRONT) 6 / 12

#	OEM	FD7	FN1
2	74144-SR3-000	Cushion - HOOD	Cushion - HOOD
4	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
5	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
10	91608-S5A-003	Boot - FLOOR	Boot - FLOOR
12	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
13	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 3 / 4

#	OEM	FD7	FN1
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
5	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 2 / 6

#	OEM	FD7	FN1
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
6	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Grommet (SIDE) 1 / 1

#	OEM	FD7	FN1
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM

Harness band/bracket (LH) 21 / 35

#	OEM	FD7	FN1
3	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
4	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
5	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
6	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
11	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
12	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
13	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
14	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
16	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
17	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
18	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
19	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
21	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
23	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
26	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
29	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
32	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
33	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
34	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
35	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Heater blower (LH) 2 / 13

#	OEM	FD7	FN1
13	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 3 / 32

#	OEM	FD7	FN1
31	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
33	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
34	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Instrument panel (LH) 3 / 14

#	OEM	FD7	FN1
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
23	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
24	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM

Instrument panel garnish (DRIVER SIDE; LH) 4 / 9

#	OEM	FD7	FN1
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
27	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
28	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
30	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 2 / 8

#	OEM	FD7	FN1
5	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
12	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Intake manifold 21 / 21

#	OEM	FD7	FN1
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
2	17100-RNA-A00	Manifold comp - INTAKE	Manifold comp - INTAKE
3	17101-RNA-A00	Cover comp. - BYPASS VALVE	Cover comp. - BYPASS VALVE
4	17102-RNA-A01	Packing - BYPASS VALVE COVER	Packing - BYPASS VALVE COVER
5	17103-RNA-A01	Packing b - BYPASS VALVE	Packing b - BYPASS VALVE
6	17104-RNA-A01	Packing a - BYPASS VALVE	Packing a - BYPASS VALVE
7	17105-RNA-A01	Packing a - INTAKE MANIFOLD	Packing a - INTAKE MANIFOLD
8	17106-RNA-A01	Packing b - INTAKE MANIFOLD	Packing b - INTAKE MANIFOLD
9	17107-RNA-A01	Packing, throttle body	Packing, throttle body
10	17108-RNA-A01	O-ring - 31.2X3.5	O-ring - 31.2X3.5
11	17113-RNA-A00	Stiffener - INTAKE MANIFOLD	Stiffener - INTAKE MANIFOLD
12	17116-RNA-A00	Plate - THROTTLE FLANGE	Plate - THROTTLE FLANGE
13	17132-RSA-G00	Stay assy - INTAKE MANIFOLD	Stay assy - INTAKE MANIFOLD
14	17150-RNA-A01	Actuator assy - BYPASS VALVE	Actuator assy - BYPASS VALVE
15	17153-RCA-A01	Packing - BYPASS VALVE ACTUATOR	Packing - BYPASS VALVE ACTUATOR
16	17210-RNA-A01	Valve assy. - BYPASS	Valve assy. - BYPASS
17	17213-RNA-A00	Rubber - INTAKE MANIFOLD MOUNTING	Rubber - INTAKE MANIFOLD MOUNTING
18	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
19	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
20	37835-PGK-A01	O-ring	O-ring
21	90001-PGM-000	Bolt-washer - SPECIAL, 6X30	Bolt-washer - SPECIAL, 6X30

Interior light 5 / 9

#	OEM	FD7	FN1
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
15	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

Knuckle 8 / 27

#	OEM	FD7	FN1
2	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42522-SNA-003	Clamp - WIRE (BLUE)	Clamp - WIRE (BLUE)
4	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
20	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
24	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
25	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
26	90363-S3V-A01	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
27	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)

Mainshaft 18 / 18

#	OEM	FD7	FN1
1	23210-RPH-A02	Mainshaft comp.	Mainshaft comp.
2	23261-RPF-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
3	23440-RPH-B00	Gear comp - MAINSHAFT THIRD	Gear comp - MAINSHAFT THIRD
4	23450-RPH-B00	Gear comp - MAINSHAFT FOURTH	Gear comp - MAINSHAFT FOURTH
5	23540-RPF-000	Gear comp - REVERSE IDLE	Gear comp - REVERSE IDLE
6	23581-RPH-B00	Gear - MAINSHAFT FIFTH	Gear - MAINSHAFT FIFTH
7	23591-RPH-A00	Gear - MAINSHAFT SIXTH	Gear - MAINSHAFT SIXTH
8	23623-RPF-305	Sleeve set - SYNCHRONIZER(3-4)	Sleeve set - SYNCHRONIZER(3-4)
9	23626-RPF-305	Sleeve set - SYNCHRONIZER (5-6)	Sleeve set - SYNCHRONIZER (5-6)
11	23915-RPF-000	Collar - DISTANCE, 29X35X49	Collar - DISTANCE, 29X35X49
12	23916-RPH-000	Collar - DISTANCE, 25X31X24	Collar - DISTANCE, 25X31X24
13	23927-PL3-000	Washer - SPRING, 36MM	Washer - SPRING, 36MM
14	23928-PL3-000	Washer - 26MM	Washer - 26MM
15	91004-RPF-003	Bearing - ANGULAR BALL, 25X62X17	Bearing - ANGULAR BALL, 25X62X17
16	91105-RPF-003	Bearing - NEEDLE, 35X39X24	Bearing - NEEDLE, 35X39X24
17	91106-RPF-003	Bearing - NEEDLE, 35X39X22.5	Bearing - NEEDLE, 35X39X22.5
18	91108-RPH-003	Bearing - NEEDLE, 31X35X24	Bearing - NEEDLE, 31X35X24
18	91108-RF8-005	Bearing - NEEDLE, 31X35X24	Bearing - NEEDLE, 31X35X24

Meter (NS) 1 / 7

#	OEM	FD7	FN1
7	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Mirror (SIDE TURN; ELECTRIC REMOTE CONTROL) 1 / 21

#	OEM	FD7	FN1
14	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)

Mudguard 1 / 7

#	OEM	FD7	FN1
9	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20

Oil pump 15 / 15

#	OEM	FD7	FN1
1	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
2	15100-RNC-T01	Pump assy. - OIL	Pump assy. - OIL
2	15100-R1A-A01	Oil Pump	Oil Pump
3	15101-RNA-A00	O-ring set - OIL PUMP	O-ring set - OIL PUMP
4	15112-RNA-A00	Cover - CHAIN CASE	Cover - CHAIN CASE
5	15220-RNA-A01	Strainer comp. - OIL	Strainer comp. - OIL
6	15221-RNA-A01	Gasket	Gasket
7	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
7	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
8	90009-RNA-A00	Bolt - SPECIAL, 8X65	Bolt - SPECIAL, 8X65
9	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
10	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
11	90041-RNA-A00	Bolt - STUD, 14X90	Bolt - STUD, 14X90
12	91212-RNA-A01	Oil seal - 43X58X7(ARAI)	Oil seal - 43X58X7(ARAI)
12	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)

P.s. gear box (EPS; LH) 12 / 33

#	OEM	FD7	FN1
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
2	53413-SCC-003	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
3	53414-S5A-003	Screw - RACK GUIDE	Screw - RACK GUIDE
5	53417-SMG-E01	O-ring - RACK GUIDE	O-ring - RACK GUIDE
6	53418-S5A-003	Washer - DISK	Washer - DISK
15	53536-SJK-003	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
16	53537-SMG-E01	Rubber - STOPPER	Rubber - STOPPER
22	53685-SMG-E01	Bushing - GEAR BOX MOUNTING	Bushing - GEAR BOX MOUNTING
28	90102-SFA-J02	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
29	90103-S0A-N01	Screw - PAN, 5X8	Screw - PAN, 5X8
31	90301-SEP-003	Nut - HEX., 14MM	Nut - HEX., 14MM
32	90428-S0A-003	Washer - DRAIN	Washer - DRAIN

Parking brake (LH) 2 / 9

#	OEM	FD7	FN1
14	90306-SA0-000	Nut - FLOATING, 5MM	Nut - FLOATING, 5MM
15	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Pcv tube 7 / 7

#	OEM	FD7	FN1
1	17130-PND-A01	Valve assy. - PCV	Valve assy. - PCV
2	17131-RNA-A00	Tube - PCV	Tube - PCV
3	17137-RNA-A00	Pipe comp - BREATHER	Pipe comp - BREATHER
4	17153-RNA-A00	Tube - BREATHER	Tube - BREATHER
5	91405-RGA-003	Clamp - TUBE (D20)	Clamp - TUBE (D20)
6	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
6	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Pedal (LH) 7 / 22

#	OEM	FD7	FN1
7	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
12	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
21	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
22	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
23	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
24	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM
31	36760-PT0-004	Switch assy - CLUTCH	Switch assy - CLUTCH

Pillar garnish 2 / 6

#	OEM	FD7	FN1
25	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
26	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Plug hole coil/plug 4 / 4

#	OEM	FD7	FN1
1	30511-RNA-A01	Insulator - COIL HEAT	Insulator - COIL HEAT
2	30520-RNA-A01	Coil comp - PLUG HOLE	Coil comp - PLUG HOLE
3	30522-RNA-A01	Seal - PLUG HOLE	Seal - PLUG HOLE
4	90207-RAA-A00	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM

Radiator (DENSO) 11 / 18

#	OEM	FD7	FN1
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
6	19020-RSA-G01	Fan - COOLING	Fan - COOLING
7	19030-RSA-G01	Motor - COOLING FAN	Motor - COOLING FAN
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
16	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
17	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
18	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
21	19013-RNA-J01	Seal	Seal

Radiator hose/reserve tan k 6 / 15

#	OEM	FD7	FN1
4	19102-RNA-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
11	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
13	74172-S5A-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
14	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
15	91503-SZ3-003	Clip A	Clip A

Rear brake (DISK) 6 / 44

#	OEM	FD7	FN1
32	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
34	90103-SV4-013	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
35	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
35	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
35	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
35	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Rear door glass/ door regulator 2 / 11

#	OEM	FD7	FN1
9	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
10	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Rear door lining 2 / 7

#	OEM	FD7	FN1
11	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
13	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear door lock/ outer handle 10 / 29

#	OEM	FD7	FN1
1	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
6	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
7	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
8	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
13	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
17	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
18	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
33	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
34	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
35	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door panels 4 / 16

#	OEM	FD7	FN1
18	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
19	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
19	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Rear lower arm 4 / 36

#	OEM	FD7	FN1
1	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
27	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
31	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Rear seat (FALL DOWN SEPARATELY) 1 / 21

#	OEM	FD7	FN1
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Rear tray/trunk lining 1 / 10

#	OEM	FD7	FN1
25	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear windshield/ quarter glass 3 / 10

#	OEM	FD7	FN1
7	75717-SNB-E01	Sticker - I-VTEC	Sticker - I-VTEC
8	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
9	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD

Resonator chamber 7 / 12

#	OEM	FD7	FN1
1	17115-PWA-000	Rubber - ENGINE COVER MOUNTING	Rubber - ENGINE COVER MOUNTING
2	17116-PWA-000	Collar - ENGINE COVER	Collar - ENGINE COVER
3	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
11	17256-RNA-A00	Ring - SEAL	Ring - SEAL
12	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Roof lining 3 / 10

#	OEM	FD7	FN1
15	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
22	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Seatbelts 6 / 20

#	OEM	FD7	FN1
2	81441-S2G-N51	Collar - 5H	Collar - 5H
4	81441-S50-N22	Collar - 2H	Collar - 2H
20	90135-S1F-003	Bolt - FLANGE, 7/16"	Bolt - FLANGE, 7/16"
25	90142-SNA-004	Bolt - 7/16"X24	Bolt - 7/16"X24
27	90543-S2G-C21	Washer - PLAIN	Washer - PLAIN
28	90543-S50-004	Washer - SPRING	Washer - SPRING

Shift arm/shift lever (6MT) 20 / 20

#	OEM	FD7	FN1
1	21396-P20-000	Cap - BREATHER	Cap - BREATHER
2	21520-RPH-000	Cover comp. - SHIFT ARM	Cover comp. - SHIFT ARM
3	24411-RPF-000	Arm - SHIFT	Arm - SHIFT
4	24430-RPH-010	Interlock comp.	Interlock comp.
5	24440-RPH-000	Piece comp. - SHIFT	Piece comp. - SHIFT
6	24455-RPF-000	Spring - SHIFT	Spring - SHIFT
7	24460-RPH-000	Lever comp - SELECT	Lever comp - SELECT
8	24470-RPH-000	Lever comp - SHIFT	Lever comp - SHIFT
9	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
10	24520-RPF-006	Screw comp - DETENT	Screw comp - DETENT
11	24522-RPH-000	Cam - SELECT LOCK	Cam - SELECT LOCK
12	24524-PNS-000	Spring - SELECT LOCK RETURN	Spring - SELECT LOCK RETURN
13	28251-PNS-003	Solenoid comp.	Solenoid comp.
14	32746-RNA-A00	Stay f - ENGINE HARNESS	Stay f - ENGINE HARNESS
15	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
16	90305-RPK-A00	Pin - SPRING, 5X25	Pin - SPRING, 5X25
17	90305-RPK-B00	Pin - SPRING, 3X25	Pin - SPRING, 3X25
18	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
19	91208-PPP-003	Dust seal - 14X20X4	Dust seal - 14X20X4
20	91208-RPF-005	Dust seal - 14X23X5	Dust seal - 14X23X5

Shift fork/shift holder 6 / 6

#	OEM	FD7	FN1
2	24201-RPH-000	Fork comp - FIFTH-SIXTH GEAR SHIFT	Fork comp - FIFTH-SIXTH GEAR SHIFT
3	24210-RPH-010	Fork comp - THIRD-FOURTH GEARSHIFT	Fork comp - THIRD-FOURTH GEARSHIFT
4	24220-RPF-000	Fork comp - LOW-SECOND GEARSHIFT	Fork comp - LOW-SECOND GEARSHIFT
5	24230-RPF-000	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
6	24240-RPH-000	Piece comp. - REVERSE SHIFT	Piece comp. - REVERSE SHIFT
7	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 8 / 12

#	OEM	FD7	FN1
3	54117-SNA-A01	Rubber - FLOATING	Rubber - FLOATING
6	54322-SWA-T01	Washer - SELECT	Washer - SELECT
7	54323-SWA-T01	Bush - SHIFT	Bush - SHIFT
8	54324-SWA-T01	Washer - SHIFT	Washer - SHIFT
9	54325-SWA-T01	Bush - SELECT	Bush - SELECT
10	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
11	90175-SEL-T81	Pin - LOCK, 8MM	Pin - LOCK, 8MM
12	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Spool valve 15 / 17

#	OEM	FD7	FN1
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
3	12215-RNA-A00	Collar - SPARK PLUG COIL	Collar - SPARK PLUG COIL
4	12216-RNA-A00	Bolt - SPARK PLUG COIL	Bolt - SPARK PLUG COIL
5	12240-RNA-A00	Cover comp. - CAMSHAFT THRUST	Cover comp. - CAMSHAFT THRUST
7	15810-RWK-003	Valve assy. Spool	Valve assy. Spool
8	15826-RNA-A01	Filter assy - SPOOL VALVE	Filter assy - SPOOL VALVE
9	17147-RNA-A00	Joint - EGR	Joint - EGR
10	32743-RNA-A01	Stay c - ENGINE HARNESS	Stay c - ENGINE HARNESS
13	37510-RNA-A01	Sensor assy - TDC	Sensor assy - TDC
14	90005-RNA-A01	Bolt-washer - 11X176	Bolt-washer - 11X176
16	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
17	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5
18	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9
26	90001-P70-000	Bolt - FLANGE, 10X10.5	Bolt - FLANGE, 10X10.5

Srs unit (LH) 5 / 8

#	OEM	FD7	FN1
4	77930-SNA-A32	Sensor assy - FR. CRASH(TRW)	Sensor assy - FR. CRASH(TRW)
6	77970-SNA-A32	Sensor assy - SIDE IMPACT (TRW)	Sensor assy - SIDE IMPACT (TRW)
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
16	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)
17	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Starter motor (DENSO) 27 / 29

#	OEM	FD7	FN1
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP	Collar - CLUTCH STOP
4	31201-RNA-A01	Housing comp - DRIVE SIDE	Housing comp - DRIVE SIDE
5	31202-PR4-003	Bolt - THROUGH (DENSO)	Bolt - THROUGH (DENSO)
6	31202-RNA-A01	Endframe comp. - COMMUTATOR	Endframe comp. - COMMUTATOR
7	31203-PCA-003	Lever - PINION DRIVE	Lever - PINION DRIVE
8	31204-RNA-003	Switch assy - MAGNET	Switch assy - MAGNET
9	31205-RNA-A01	Yoke set	Yoke set
10	31206-RNA-A01	Armature comp.	Armature comp.
11	31207-PCA-003	Clutch comp. - OVERRUNNING	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM	Screw - PAN, 4MM
13	31213-PCA-003	Shaft - DRIVE	Shaft - DRIVE
14	31213-RNA-A01	Cover	Cover
15	31214-P3F-003	Gear assy. - INTERNAL	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL	Plate - SEAL
19	31218-P3F-003	Washer a	Washer a
20	31219-P3F-003	Washer b	Washer b
21	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
22	31220-P3F-003	Washer c	Washer c
23	31223-PA0-006	Nut - HEX.	Nut - HEX.
24	31228-PLR-A01	O-ring	O-ring
25	31231-P3F-003	Plate comp - BRUSH HOLDER	Plate comp - BRUSH HOLDER
27	31292-PLR-A01	Bolt-washer	Bolt-washer
29	31211-PCX-A01	Brush - +	Brush - +
30	31212-P3F-003	Spring - BRUSH	Spring - BRUSH

Steering column 5 / 7

#	OEM	FD7	FN1
4	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
5	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 2 / 5

#	OEM	FD7	FN1
15	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
16	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch (LH) 1 / 12

#	OEM	FD7	FN1
12	35910-S04-G01	Switch assy - INERTIA	Switch assy - INERTIA

Throttle body 4 / 5

#	OEM	FD7	FN1
2	36162-RNA-A01	Valve assy. - PURGE CONTROL SOLENOID	Valve assy. - PURGE CONTROL SOLENOID
3	37835-PGK-A01	O-ring	O-ring
4	90012-RNA-A00	Bolt-washer - 8X55	Bolt-washer - 8X55
5	90020-RNA-A01	Bolt-washer - 5X20	Bolt-washer - 5X20

Tire/wheel disks 2 / 15

#	OEM	FD7	FN1
5	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)
14	74665-SM4-A00	Adapter - ANCHOR BOLT	Adapter - ANCHOR BOLT

Tools/jack 2 / 4

#	OEM	FD7	FN1
2	89310-SNB-E01	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
3	89311-SNB-E01	Plate - JACK CAUTION	Plate - JACK CAUTION

Transmission case 54 / 54

#	OEM	FD7	FN1
1	21104-RPF-000	Plate m - OIL GUIDE	Plate m - OIL GUIDE
2	21200-RPF-000	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
3	21211-RPF-000	Plate - OIL GUTTER	Plate - OIL GUTTER
4	23948-PZ9-000	Shim r - 52X62(1.36MM)	Shim r - 52X62(1.36MM)
4	23943-PZ9-000	Shim m - 52X62(1.21MM)	Shim m - 52X62(1.21MM)
4	23996-PZ9-000	Shim an - 52X62(2.02MM)	Shim an - 52X62(2.02MM)
4	23938-PZ9-000	Shim h - 52X62(1.06MM)	Shim h - 52X62(1.06MM)
4	23933-PZ9-000	Shim c - 52X62(0.91MM)	Shim c - 52X62(0.91MM)
4	23991-PZ9-000	Shim ai - 52X62(1.87MM)	Shim ai - 52X62(1.87MM)
4	23960-PZ9-000	Shim ad - 52X62(1.72MM)	Shim ad - 52X62(1.72MM)
4	23955-PZ9-000	Shim y - 52X62(1.57MM)	Shim y - 52X62(1.57MM)
4	23950-PZ9-000	Shim t - 52X62(1.42MM)	Shim t - 52X62(1.42MM)
4	23945-PZ9-000	Shim o - 52X62(1.27MM)	Shim o - 52X62(1.27MM)
4	23998-PZ9-000	Shim ap - 52X62(2.08MM)	Shim ap - 52X62(2.08MM)
4	23940-PZ9-000	Shim j - 52X62(1.12MM)	Shim j - 52X62(1.12MM)
4	23935-PZ9-000	Shim e - 52X62(0.97MM)	Shim e - 52X62(0.97MM)
4	23993-PZ9-000	Shim ak - 52X62(1.93MM)	Shim ak - 52X62(1.93MM)
4	23988-PZ9-000	Shim af - 52X62(1.78MM)	Shim af - 52X62(1.78MM)
4	23957-PZ9-000	Shim aa - 52X62(1.63MM)	Shim aa - 52X62(1.63MM)
4	23952-PZ9-000	Shim v - 52X62(1.48MM)	Shim v - 52X62(1.48MM)
4	23947-PZ9-000	Shim q - 52X62(1.33MM)	Shim q - 52X62(1.33MM)
4	23942-PZ9-000	Shim l - 52X62(1.18MM)	Shim l - 52X62(1.18MM)
4	23995-PZ9-000	Shim am - 52X62(1.99MM)	Shim am - 52X62(1.99MM)
4	23937-PZ9-000	Shim g - 52X62(1.03MM)	Shim g - 52X62(1.03MM)
4	23932-PZ9-000	Shim b - 52X62(0.88MM)	Shim b - 52X62(0.88MM)
4	23990-PZ9-000	Shim ah - 52X62(1.84MM)	Shim ah - 52X62(1.84MM)
4	23959-PZ9-000	Shim ac - 52X62(1.69MM)	Shim ac - 52X62(1.69MM)
4	23954-PZ9-000	Shim x - 52X62(1.54MM)	Shim x - 52X62(1.54MM)
4	23949-PZ9-000	Shim s - 52X62(1.39MM)	Shim s - 52X62(1.39MM)
4	23944-PZ9-000	Shim n - 52X62(1.24MM)	Shim n - 52X62(1.24MM)
4	23997-PZ9-000	Shim ao - 52X62(2.05MM)	Shim ao - 52X62(2.05MM)
4	23939-PZ9-000	Shim i - 52X62(1.09MM)	Shim i - 52X62(1.09MM)
4	23934-PZ9-000	Shim d - 52X62(0.94MM)	Shim d - 52X62(0.94MM)
4	23992-PZ9-000	Shim aj - 52X62(1.90MM)	Shim aj - 52X62(1.90MM)
4	23987-PZ9-000	Shim ae - 52X62(1.75MM)	Shim ae - 52X62(1.75MM)
4	23956-PZ9-000	Shim z - 52X62(1.60MM)	Shim z - 52X62(1.60MM)
4	23951-PZ9-000	Shim u - 52X62(1.45MM)	Shim u - 52X62(1.45MM)
4	23946-PZ9-000	Shim p - 52X62(1.30MM)	Shim p - 52X62(1.30MM)
4	23999-PZ9-000	Shim aq - 52X62(2.11MM)	Shim aq - 52X62(2.11MM)
4	23941-PZ9-000	Shim k - 52X62(1.15MM)	Shim k - 52X62(1.15MM)
4	23936-PZ9-000	Shim f - 52X62(1.00MM)	Shim f - 52X62(1.00MM)
4	23994-PZ9-000	Shim al - 52X62(1.96MM)	Shim al - 52X62(1.96MM)
4	23931-PZ9-000	Shim a - 52X62(0.85MM)	Shim a - 52X62(0.85MM)
4	23989-PZ9-000	Shim ag - 52X62(1.81MM)	Shim ag - 52X62(1.81MM)
4	23958-PZ9-000	Shim ab - 52X62(1.66MM)	Shim ab - 52X62(1.66MM)
4	23953-PZ9-000	Shim w - 52X62(1.51MM)	Shim w - 52X62(1.51MM)
5	24455-P4A-000	Spring - FORK SETTING BALL	Spring - FORK SETTING BALL
6	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
7	24601-RPF-000	Stay - CHANGE WIRE	Stay - CHANGE WIRE
8	28700-PWL-013	Switch assy - BACK LIGHT (U-SHIN)(BLACK)	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
9	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
10	90081-RPF-000	Bolt - SEALING, 32MM	Bolt - SEALING, 32MM
11	90401-P8A-A00	Washer - DRAIN, 18MM	Washer - DRAIN, 18MM
12	91205-PL3-B01	Oil seal - 40X56X8(ARAI)	Oil seal - 40X56X8(ARAI)

Trunk lid 1 / 20

#	OEM	FD7	FN1
36	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Valve/rocker arm 11 / 11

#	OEM	FD7	FN1
1	14620-RNA-A01	Arm assy. - ROCKER	Arm assy. - ROCKER
2	14711-RNA-A00	Valve - IN.	Valve - IN.
3	14721-P2A-000	Valve - EX.	Valve - EX.
4	14744-PM3-000	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
5	14761-RNA-A01	Spring - IN. VALVE (VIOLET) (NIPPON HATSUJO)	Spring - IN. VALVE (VIOLET) (NIPPON HATSUJO)
6	14762-RNA-A01	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)
7	14765-RGA-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
8	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
9	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
10	14820-RNA-A01	Motion comp - LOST	Motion comp - LOST
11	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose 8 / 11

#	OEM	FD7	FN1
3	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)	Clamp - HEATER HOSE (NATURAL)
4	19506-RNA-A01	Hose - THERMOBODY IN.	Hose - THERMOBODY IN.
4	79751-SNA-A00	Stay - HEATER HOSE	Stay - HEATER HOSE
5	19507-RNA-A01	Hose - THERMOBODY OUTLET	Hose - THERMOBODY OUTLET
5	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
7	19509-RNA-A01	Hose - DEVICE	Hose - DEVICE
8	19512-PK2-003	Clip - HOSE, 18.7MM	Clip - HOSE, 18.7MM

Water pump 24 / 24

#	OEM	FD7	FN1
1	18011-RNA-A00	EGR Valve set	EGR Valve set
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-RNA-A02	Pump comp - WATER	Pump comp - WATER
4	19222-RNA-A00	Packing - WATER PUMP	Packing - WATER PUMP
5	19224-RNA-A02	Pulley - WATER PUMP	Pulley - WATER PUMP
6	19301-RNA-305	Thermostat assy - FUJI SEIKO	Thermostat assy - FUJI SEIKO
6	19301-RNA-306	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
7	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
8	19311-RNA-A00	Cover - THERMOSTAT	Cover - THERMOSTAT
9	19315-RNA-A01	Cover comp. - WATER OUTLET	Cover comp. - WATER OUTLET
10	19320-RNA-A00	Case comp. - THERMOSTAT	Case comp. - THERMOSTAT
11	19322-RNA-A01	Gasket - THERMOSTAT CASE	Gasket - THERMOSTAT CASE
12	19425-RNA-A00	Cover - HEATER OUTLET	Cover - HEATER OUTLET
13	19426-RNA-A01	Gasket - HEATER OUTLET	Gasket - HEATER OUTLET
14	19505-RNA-A00	Pipe assy. - CONNECTING	Pipe assy. - CONNECTING
15	36536-RNA-A00	Stay - SENSOR HARNESS	Stay - SENSOR HARNESS
16	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)	Sensor assy, WATER TEMP (MATSUSHITA)
17	90010-RNA-A00	Bolt - SPECIAL, 8X87	Bolt - SPECIAL, 8X87
18	90013-PCX-000	Bolt - SPECIAL, 6X12	Bolt - SPECIAL, 6X12
19	90014-RNA-A00	Bolt - SPECIAL, 6X29.5	Bolt - SPECIAL, 6X29.5
20	90015-RNA-A00	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM
21	90401-RNA-A00	Washer - SEALING, 16MM	Washer - SEALING, 16MM
22	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)
23	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)

Wire harness (LH; 1) 3 / 6

#	OEM	FD7	FN1
1	32114-RNA-003	Holder - CORRUGATED (DARK GREEN) (7MM)	Holder - CORRUGATED (DARK GREEN) (7MM)
5	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
6	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (LH; 2) 2 / 3

#	OEM	FD7	FN1
2	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (LH; 3) 1 / 4

#	OEM	FD7	FN1
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (LH; 4) 1 / 8

#	OEM	FD7	FN1
9	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
