検索 › 比較 › FD4 × FK2
FD4
Honda CIVIC — 2,061 中 1,018 共有
FK2
Honda CIVIC — 2,232 中 1,018 共有
Air cleaner 19 / 23
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 17136-RNA-A00 | Grommet, BREATHER PIPE | Grommet, BREATHER PIPE |
| 3 | 17211-RNA-A00 | Cover comp. AIR CLEANER | Cover comp. AIR CLEANER |
| 4 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 5 | 17212-P2J-000 | Rubber - AIR CLEANER MOUNTING | Rubber - AIR CLEANER MOUNTING |
| 6 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 7 | 17217-P2J-300 | Clip - AIR CLEANER | Clip - AIR CLEANER |
| 8 | 17217-RNA-A00 | Clip - AIR CLEANER | Clip - AIR CLEANER |
| 10 | 17225-RNA-A00 | Tube - AIR FLOW | Tube - AIR FLOW |
| 14 | 17262-RNA-A00 | Stay comp. b - AIR CLEANER | Stay comp. b - AIR CLEANER |
| 15 | 17263-RNA-A00 | Stay comp. c - AIR CLEANER | Stay comp. c - AIR CLEANER |
| 16 | 17315-P5K-000 | Clamp - AIR FLOW TUBE (74) | Clamp - AIR FLOW TUBE (74) |
| 17 | 17316-P1E-000 | Clamp - AIR FLOW TUBE (70) | Clamp - AIR FLOW TUBE (70) |
| 18 | 37980-RNA-A01 | Meter assy - AIR FLOW | Meter assy - AIR FLOW |
| 19 | 37985-RAD-L11 | Gasket | Gasket |
| 20 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 21 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 22 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 22 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |

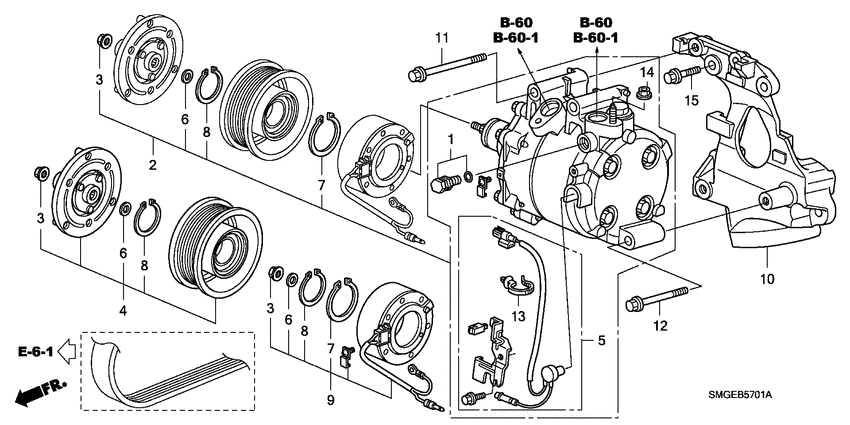

Air conditioner (COMPRESSOR) 11 / 12
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 38801-PDF-E02 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 2 | 38810-RNA-014 | Compressor comp. | Compressor comp. |
| 3 | 38829-PDF-E02 | Nut - 9MM | Nut - 9MM |
| 4 | 38900-RNC-Z51 | Clutch set - COMPRESSOR | Clutch set - COMPRESSOR |
| 5 | 38908-RNA-014 | Protector set, Thermal | Protector set, Thermal |
| 6 | 38912-PE1-702 | Shim set | Shim set |
| 7 | 38913-PP4-E02 | Ring - SNAP | Ring - SNAP |
| 8 | 38914-P07-004 | Ring f - SNAP | Ring f - SNAP |
| 9 | 38924-RNA-A01 | Coil set - FIELD | Coil set - FIELD |
| 11 | 90023-PNA-000 | Bolt - FLANGE, 8X80 | Bolt - FLANGE, 8X80 |
| 12 | 90024-PNA-000 | Bolt - FLANGE, 8X65 | Bolt - FLANGE, 8X65 |
Air conditioner (CONDENSER; 1) 7 / 17
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 32175-RSA-G01 | Clip - HARNESS | Clip - HARNESS |
| 3 | 38611-RNA-A01 | Fan - COOLING | Fan - COOLING |
| 5 | 38616-RNA-A01 | Motor - COOLING FAN | Motor - COOLING FAN |
| 6 | 38619-RNA-A01 | Protector - FAN MOTOR HEAT | Protector - FAN MOTOR HEAT |
| 14 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 16 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 17 | 90041-P5A-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
Air conditioner (HOSES/PIPES; LH) 8 / 19
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 12 | 80381-SNA-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 14 | 80450-SFE-003 | Sensor assy - PRESSURE | Sensor assy - PRESSURE |
| 15 | 80865-SL0-003 | Cap - VALVE (H) | Cap - VALVE (H) |
| 16 | 80866-ST0-003 | Cap l - VALVE (NICHIRIN) | Cap l - VALVE (NICHIRIN) |
| 17 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 18 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 19 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
Air conditioner (SENSOR) 1 / 6
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 4 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
Alternator (MITSUBISHI) 13 / 13
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 31100-RNA-A01 | Alternator assy. - AHGA67) (MITSUBISHI | Alternator assy. - AHGA67) (MITSUBISHI |
| 2 | 31101-RNA-A01 | Rotor assy. | Rotor assy. |
| 3 | 31102-PNA-004 | Stator | Stator |
| 4 | 31111-P08-J02 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 5 | 31114-P01-014 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 6 | 31123-RNA-A01 | Terminal set | Terminal set |
| 7 | 31125-P08-J02 | Bolt - FLANGE | Bolt - FLANGE |
| 8 | 31127-RNA-A01 | Rectifier assy. | Rectifier assy. |
| 9 | 31140-P64-902 | Brush set | Brush set |
| 10 | 31141-RNA-A01 | Pulley | Pulley |
| 11 | 31142-P08-J02 | Nut | Nut |
| 12 | 31146-PE0-004 | Screw | Screw |
| 13 | 31150-RNA-A01 | Regulator set | Regulator set |
Alternator bracket/ tensioner 13 / 13
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 31113-RNA-A00 | Bracket - ALTERNATOR | Bracket - ALTERNATOR |
| 3 | 31114-RNA-A00 | Insulator - HEAT | Insulator - HEAT |
| 4 | 31124-RNA-A00 | Stay - COUPLER | Stay - COUPLER |
| 5 | 31126-RNA-A00 | Stay - HARNESS | Stay - HARNESS |
| 6 | 31170-RWK-025 | Tensioner assy, Auto | Tensioner assy, Auto |
| 7 | 31175-RNA-000 | Bracket - IDLE PULLEY | Bracket - IDLE PULLEY |
| 8 | 31185-RNA-000 | Cover - BEARING | Cover - BEARING |
| 9 | 31190-RL2-G01 | Pulley comp - IDLER | Pulley comp - IDLER |
| 10 | 32750-RNA-A00 | Stay k - ENGINE HARNESS | Stay k - ENGINE HARNESS |
| 11 | 90001-RWK-000 | Bolt - SPECIAL, 8X85 | Bolt - SPECIAL, 8X85 |
| 12 | 90006-P8F-A00 | Bolt-washer - 8X32 | Bolt-washer - 8X32 |
| 13 | 90030-RNA-A00 | Bolt - SPECIAL, 10X40 | Bolt - SPECIAL, 10X40 |
| 14 | 90031-PRA-000 | Bolt - SPECIAL FLANGE, 10X25 | Bolt - SPECIAL FLANGE, 10X25 |
Antenna/speaker (LH) 10 / 17
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 7 | 90109-SLJ-003 | Screw - 5X40 | Screw - 5X40 |
| 8 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 9 | 90309-SLJ-003 | Nut assy. - SPEAKER | Nut assy. - SPEAKER |
| 10 | 91507-SAA-003 | Clip - WIRE HARNESS(NATURAL) (70MM) | Clip - WIRE HARNESS(NATURAL) (70MM) |
| 11 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 12 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 13 | 91531-S84-003 | Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) | Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
| 14 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 15 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 18 | 91903-SNA-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |

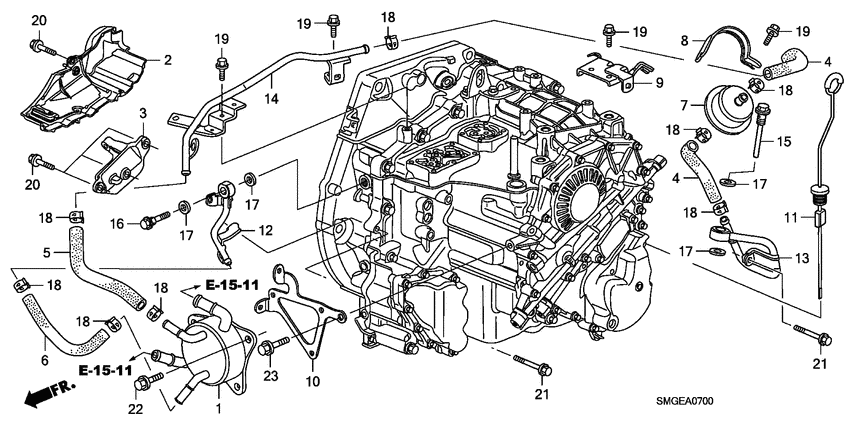

Atf pipe 18 / 19
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 19430-RNA-A51 | Warmer comp. - ATF | Warmer comp. - ATF |
| 2 | 24901-RNA-000 | Cover - CONTROL WIRE | Cover - CONTROL WIRE |
| 3 | 24905-RNA-000 | Bracket - CONTROL WIRE | Bracket - CONTROL WIRE |
| 4 | 25211-RPC-003 | Hose - ATF, 150MM | Hose - ATF, 150MM |
| 5 | 25212-RPC-003 | Hose - ATF, 165MM | Hose - ATF, 165MM |
| 6 | 25213-RPC-003 | Hose - ATF, 200MM (TOUKAI) | Hose - ATF, 200MM (TOUKAI) |
| 7 | 25430-PLR-003 | Filter, ATF | Filter, ATF |
| 8 | 25431-RPC-000 | Stay a - ATF FILTER | Stay a - ATF FILTER |
| 9 | 25432-RPC-000 | Stay comp. b - ATF FILTER | Stay comp. b - ATF FILTER |
| 10 | 25520-RPC-000 | Stay comp - ATF WARMER | Stay comp - ATF WARMER |
| 12 | 25910-RPC-000 | Pipe comp. a - ATF | Pipe comp. a - ATF |
| 13 | 25920-RPC-000 | Pipe comp. b - ATF | Pipe comp. b - ATF |
| 14 | 25930-RPC-000 | Pipe comp. c - ATF | Pipe comp. c - ATF |
| 15 | 25950-RAY-000 | Bolt comp - JOINT | Bolt comp - JOINT |
| 16 | 25951-RGR-000 | Bolt - JOINT | Bolt - JOINT |
| 17 | 90471-RGR-000 | Washer - DRAIN PLUG, 12MM | Washer - DRAIN PLUG, 12MM |
| 18 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 18 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
Audio unit (LH) 1 / 10
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 12 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
Battery 4 / 10
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 6 | 31542-SA5-666 | Plug - VENT (MF) (FURUKAWA) | Plug - VENT (MF) (FURUKAWA) |
| 8 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 9 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 10 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
Brake lines (VSA; LH) 7 / 35
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 17 | 46391-S5A-J01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 18 | 46392-SAA-901 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 31 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 33 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 34 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 35 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake master cylinder/ master power (LH) 13 / 25
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 7 | 46135-SDA-A01 | Guide assy - PISTON | Guide assy - PISTON |
| 8 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 9 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 10 | 46191-S2K-000 | Packing - MASTER POWER | Packing - MASTER POWER |
| 13 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 16 | 46665-S04-J01 | Grommet | Grommet |
| 17 | 46666-S2K-003 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 18 | 46669-S5A-003 | Diaphragm | Diaphragm |
| 20 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 21 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 22 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 23 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 24 | 57562-SF1-003 | Circlip | Circlip |
Bumpers 5 / 25
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 25 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 28 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 30 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 32 | 91503-SZ3-003 | Clip A | Clip A |
| 34 | 91506-S9A-003 | Clip b - BUMPER | Clip b - BUMPER |
Camshaft/cam chain 12 / 13
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 14211-RNA-A01 | Sprocket - CAM CHAIN DRIVEN (46T) | Sprocket - CAM CHAIN DRIVEN (46T) |
| 3 | 14221-RNA-A01 | Plate - TDC PULSER | Plate - TDC PULSER |
| 4 | 14222-PWA-004 | Bolt - TDC PULSER PLATE | Bolt - TDC PULSER PLATE |
| 5 | 14401-RNA-A01 | Chain - 136L | Chain - 136L |
| 6 | 14510-RNA-A01 | Tensioner comp - CAM CHAIN | Tensioner comp - CAM CHAIN |
| 7 | 14511-PNA-003 | Stopper - TOOL | Stopper - TOOL |
| 8 | 14520-RNA-A01 | Arm comp - CAM CHAIN TENSIONER | Arm comp - CAM CHAIN TENSIONER |
| 9 | 14530-RNA-A01 | Guide - CAM CHAIN | Guide - CAM CHAIN |
| 10 | 90003-PNA-000 | Bolt - TENSIONER PIVOT | Bolt - TENSIONER PIVOT |
| 11 | 90004-RNA-A00 | Bolt - CHAIN GUIDE | Bolt - CHAIN GUIDE |
| 12 | 90031-RNA-A01 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 13 | 90703-PNA-300 | Dowel pin - 4.2X10.3 | Dowel pin - 4.2X10.3 |

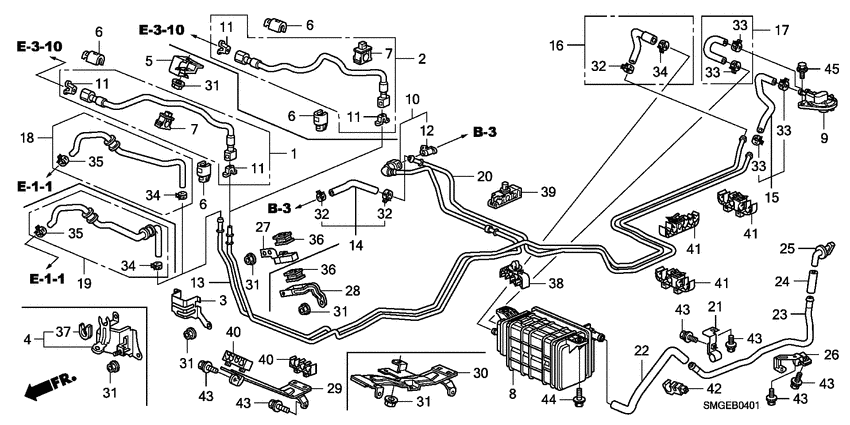

Canister 4 / 12
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 17300-SNA-023 | Canister assy | Canister assy |
| 7 | 17724-SNA-000 | Tube - FUEL VENT | Tube - FUEL VENT |
| 9 | 91404-SDC-000 | Clamp - TUBE (D10) | Clamp - TUBE (D10) |
| 15 | 91404-TA0-G01 | Clamp - FUEL TUBE (D10) | Clamp - FUEL TUBE (D10) |

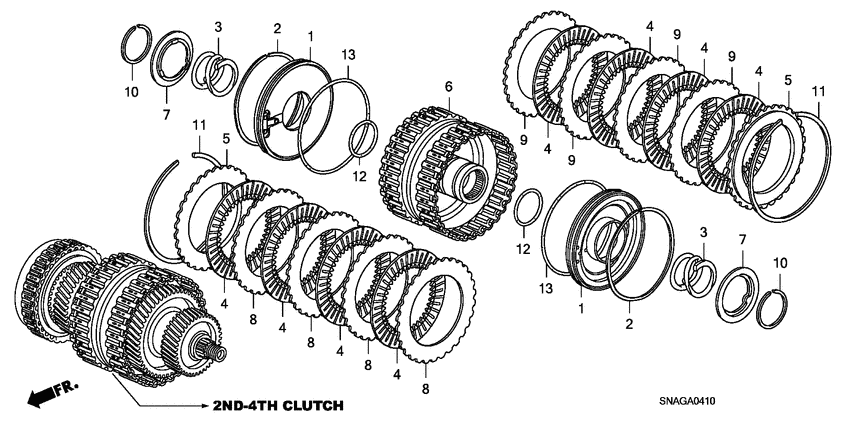

Clutch (2ND-4TH) 30 / 30
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22530-RPC-004 | Piston comp - CLUTCH | Piston comp - CLUTCH |
| 2 | 22536-RCT-014 | Spring - CLUTCH WAVE | Spring - CLUTCH WAVE |
| 3 | 22541-RPC-004 | Spring - CLUTCH RETURN | Spring - CLUTCH RETURN |
| 4 | 22544-RPC-004 | Disk - CLUTCH | Disk - CLUTCH |
| 5 | 22568-RPC-004 | Plate - CLUTCH END (17) (2.8MM) | Plate - CLUTCH END (17) (2.8MM) |
| 5 | 22563-RPC-004 | Plate - CLUTCH END (12) (2.3MM) | Plate - CLUTCH END (12) (2.3MM) |
| 5 | 22557-RPC-004 | Plate - CLUTCH END (7) (2.7MM) | Plate - CLUTCH END (7) (2.7MM) |
| 5 | 22552-RPC-004 | Plate - CLUTCH END (2) (2.2MM) | Plate - CLUTCH END (2) (2.2MM) |
| 5 | 22565-RPC-004 | Plate - CLUTCH END (14) (2.5MM) | Plate - CLUTCH END (14) (2.5MM) |
| 5 | 22559-RPC-004 | Plate - CLUTCH END (9) (2.9MM) | Plate - CLUTCH END (9) (2.9MM) |
| 5 | 22554-RPC-004 | Plate - CLUTCH END (4) (2.4MM) | Plate - CLUTCH END (4) (2.4MM) |
| 5 | 22567-RPC-004 | Plate - CLUTCH END (16) (2.7MM) | Plate - CLUTCH END (16) (2.7MM) |
| 5 | 22562-RPC-004 | Plate - CLUTCH END (11) (2.2MM) | Plate - CLUTCH END (11) (2.2MM) |
| 5 | 22556-RPC-004 | Plate - CLUTCH END (6) (2.6MM) | Plate - CLUTCH END (6) (2.6MM) |
| 5 | 22551-RPC-004 | Plate - CLUTCH END (1) (2.1MM) | Plate - CLUTCH END (1) (2.1MM) |
| 5 | 22569-RPC-004 | Plate - CLUTCH END (18) (2.9MM) | Plate - CLUTCH END (18) (2.9MM) |
| 5 | 22564-RPC-004 | Plate - CLUTCH END (13) (2.4MM) | Plate - CLUTCH END (13) (2.4MM) |
| 5 | 22558-RPC-004 | Plate - CLUTCH END (8) (2.8MM) | Plate - CLUTCH END (8) (2.8MM) |
| 5 | 22553-RPC-004 | Plate - CLUTCH END (3) (2.3MM) | Plate - CLUTCH END (3) (2.3MM) |
| 5 | 22566-RPC-004 | Plate - CLUTCH END (15) (2.6MM) | Plate - CLUTCH END (15) (2.6MM) |
| 5 | 22561-RPC-004 | Plate - CLUTCH END (10) (2.1MM) | Plate - CLUTCH END (10) (2.1MM) |
| 5 | 22555-RPC-004 | Plate - CLUTCH END (5) (2.5MM) | Plate - CLUTCH END (5) (2.5MM) |
| 6 | 22610-RPC-004 | Guide comp - CLUTCH (2-4) | Guide comp - CLUTCH (2-4) |
| 7 | 22633-RPC-004 | Retainer | Retainer |
| 8 | 22643-RPC-004 | Plate - CLUTCH (2.0MM) | Plate - CLUTCH (2.0MM) |
| 9 | 22653-RPC-004 | Plate - CLUTCH (1.6MM) | Plate - CLUTCH (1.6MM) |
| 10 | 90603-RPC-004 | Circlip - EXTERNAL, 42MM | Circlip - EXTERNAL, 42MM |
| 11 | 90605-RCT-004 | Ring - SNAP, 133MM | Ring - SNAP, 133MM |
| 12 | 91302-RCT-004 | O-ring - 40.2X2.2 | O-ring - 40.2X2.2 |
| 13 | 91303-RCT-004 | O-ring - 111.7X2.2 | O-ring - 111.7X2.2 |
Clutch (3RD-5TH) 20 / 20
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22537-RPC-003 | Spring - CLUTCH WAVE | Spring - CLUTCH WAVE |
| 2 | 22542-RPC-003 | Spring - CLUTCH RETURN | Spring - CLUTCH RETURN |
| 3 | 22545-RPC-003 | Disk - CLUTCH | Disk - CLUTCH |
| 4 | 22568-RPC-003 | Plate - CLUTCH END (8) (2.8MM) | Plate - CLUTCH END (8) (2.8MM) |
| 4 | 22563-RPC-003 | Plate - CLUTCH END (3) (2.3MM) | Plate - CLUTCH END (3) (2.3MM) |
| 4 | 22565-RPC-003 | Plate - CLUTCH END (5) (2.5MM) | Plate - CLUTCH END (5) (2.5MM) |
| 4 | 22567-RPC-003 | Plate - CLUTCH END (7) (2.7MM) | Plate - CLUTCH END (7) (2.7MM) |
| 4 | 22562-RPC-003 | Plate - CLUTCH END (2) (2.2MM) | Plate - CLUTCH END (2) (2.2MM) |
| 4 | 22569-RPC-003 | Plate - CLUTCH END (9) (2.9MM) | Plate - CLUTCH END (9) (2.9MM) |
| 4 | 22564-RPC-003 | Plate - CLUTCH END (4) (2.4MM) | Plate - CLUTCH END (4) (2.4MM) |
| 4 | 22566-RPC-003 | Plate - CLUTCH END (6) (2.6MM) | Plate - CLUTCH END (6) (2.6MM) |
| 4 | 22561-RPC-003 | Plate - CLUTCH END (1) (2.1MM) | Plate - CLUTCH END (1) (2.1MM) |
| 5 | 22633-RPC-003 | Seat - RETURN SPRING | Seat - RETURN SPRING |
| 6 | 22643-RPC-003 | Plate - CLUTCH WAVE (1.6MM) | Plate - CLUTCH WAVE (1.6MM) |
| 7 | 22651-RPC-003 | Guide comp - CLUTCH (3-5) | Guide comp - CLUTCH (3-5) |
| 8 | 22670-RPC-003 | Piston comp - CLUTCH | Piston comp - CLUTCH |
| 9 | 90603-RPC-003 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 10 | 90605-PX4-000 | Ring - SNAP, 129MM | Ring - SNAP, 129MM |
| 11 | 91303-PF4-004 | O-ring - 110X2.2 (NOK) | O-ring - 110X2.2 (NOK) |
| 12 | 91303-P0Z-003 | O-ring - 45.1X2.2 (NOK) | O-ring - 45.1X2.2 (NOK) |
Clutch (LOW) 20 / 20
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22510-RPC-003 | Guide comp - LOW CLUTCH | Guide comp - LOW CLUTCH |
| 2 | 22521-RPC-003 | Piston - CLUTCH | Piston - CLUTCH |
| 3 | 22533-RPC-003 | Retainer comp - RETURN SPRING | Retainer comp - RETURN SPRING |
| 4 | 22536-RPC-003 | Spring - CLUTCH WAVE | Spring - CLUTCH WAVE |
| 5 | 22541-RPC-003 | Spring - CLUTCH RETURN | Spring - CLUTCH RETURN |
| 6 | 22543-RPC-003 | Plate - CLUTCH WAVE (1.6MM) | Plate - CLUTCH WAVE (1.6MM) |
| 7 | 22544-RPC-003 | Disk - CLUTCH | Disk - CLUTCH |
| 8 | 22559-RPC-003 | Plate - CLUTCH END (9) (2.9MM) | Plate - CLUTCH END (9) (2.9MM) |
| 8 | 22554-RPC-003 | Plate - CLUTCH END (4) (2.4MM) | Plate - CLUTCH END (4) (2.4MM) |
| 8 | 22556-RPC-003 | Plate - CLUTCH END (6) (2.6MM) | Plate - CLUTCH END (6) (2.6MM) |
| 8 | 22551-RPC-003 | Plate - CLUTCH END (1) (2.1MM) | Plate - CLUTCH END (1) (2.1MM) |
| 8 | 22558-RPC-003 | Plate - CLUTCH END (8) (2.8MM) | Plate - CLUTCH END (8) (2.8MM) |
| 8 | 22553-RPC-003 | Plate - CLUTCH END (3) (2.3MM) | Plate - CLUTCH END (3) (2.3MM) |
| 8 | 22555-RPC-003 | Plate - CLUTCH END (5) (2.5MM) | Plate - CLUTCH END (5) (2.5MM) |
| 8 | 22557-RPC-003 | Plate - CLUTCH END (7) (2.7MM) | Plate - CLUTCH END (7) (2.7MM) |
| 8 | 22552-RPC-003 | Plate - CLUTCH END (2) (2.2MM) | Plate - CLUTCH END (2) (2.2MM) |
| 9 | 90602-RPC-003 | Circlip - EXTERNAL, 36MM | Circlip - EXTERNAL, 36MM |
| 10 | 90605-PA9-000 | Ring - SNAP, 114X1.8 | Ring - SNAP, 114X1.8 |
| 11 | 91302-RPC-003 | O-ring - 31.4X2.2 | O-ring - 31.4X2.2 |
| 12 | 91303-PA9-004 | O-ring - 100X2.2 (NOK) | O-ring - 100X2.2 (NOK) |
Clutch/torque converter 6 / 6
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 21351-RNA-000 | Cover - TORQUE CONVERTER CASE | Cover - TORQUE CONVERTER CASE |
| 6 | 26000-RNA-305 | Converter assy - TORQUE | Converter assy - TORQUE |
| 7 | 26251-RNA-000 | Plate - DRIVE | Plate - DRIVE |
| 9 | 90023-PA9-000 | Bolt - SPECIAL | Bolt - SPECIAL |
| 11 | 90429-PC6-900 | Washer - 40X86X2 | Washer - 40X86X2 |
| 12 | 91302-RNA-003 | O-ring - 35.5X1.9 | O-ring - 35.5X1.9 |
Combination switch (LH) 12 / 23
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 10 | 35113-SMG-E11 | Key comp. - TRANSMITTER TOP CASE | Key comp. - TRANSMITTER TOP CASE |
| 11 | 35113-SMG-305 | Key comp. - TRANSMITTER TOP CASE (BLANK) | Key comp. - TRANSMITTER TOP CASE (BLANK) |
| 13 | 35116-SDA-A11 | Screw - FLAT | Screw - FLAT |
| 14 | 35130-SAA-J51 | Switch comp - STEERING | Switch comp - STEERING |
| 15 | 35251-TA0-B11 | Sensor assy - STEERING & BODY SWITCH | Sensor assy - STEERING & BODY SWITCH |
| 18 | 35400-S5A-013 | Switch assy - DOOR (MATSUSHITA) | Switch assy - DOOR (MATSUSHITA) |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
| 23 | 90132-SFE-003 | Screw - EARTH, 5X18 | Screw - EARTH, 5X18 |
Console (LH) 3 / 24
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 77205-S0X-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 37 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 46 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Control unit (CABIN; 1; LH) 10 / 22
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 38211-SNA-A11 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 3 | 38221-SNA-A31 | Fuse - BLADE(7.5A) | Fuse - BLADE(7.5A) |
| 4 | 38221-SNA-A41 | Fuse - BLADE(10A) | Fuse - BLADE(10A) |
| 5 | 38221-SNA-A51 | Fuse - BLADE(15A) | Fuse - BLADE(15A) |
| 6 | 38221-SNA-A61 | Fuse - BLADE(20A) | Fuse - BLADE(20A) |
| 7 | 38221-SNA-A81 | Fuse - BLADE(30A) | Fuse - BLADE(30A) |
| 9 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 9 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 21 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 34 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
Control unit (CABIN; 2) 4 / 4
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 1 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 3 | 39794-SDA-004 | RELAY ASSY., FUEL PUMP (DENSO) | RELAY ASSY., FUEL PUMP (DENSO) |
| 3 | 39794-SDA-003 | Relay assy - FUEL PUMP (MITSUBA) | Relay assy - FUEL PUMP (MITSUBA) |
Control unit (ENGINE ROOM; 1) 13 / 29
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 4 | 37823-RNA-A00 | Cover - ENGINE CONTROL MODULE | Cover - ENGINE CONTROL MODULE |
| 11 | 38211-SNA-A01 | Fuse - BLOCK (20A) | Fuse - BLOCK (20A) |
| 12 | 38211-SNA-A11 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 13 | 38211-SNA-A21 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 14 | 38221-SNA-A31 | Fuse - BLADE(7.5A) | Fuse - BLADE(7.5A) |
| 15 | 38221-SNA-A41 | Fuse - BLADE(10A) | Fuse - BLADE(10A) |
| 16 | 38221-SNA-A51 | Fuse - BLADE(15A) | Fuse - BLADE(15A) |
| 17 | 38221-SNA-A61 | Fuse - BLADE(20A) | Fuse - BLADE(20A) |
| 18 | 38221-SNA-A81 | Fuse - BLADE(30A) | Fuse - BLADE(30A) |
| 19 | 38231-SDA-A01 | Fuse a - MULTI BLOCK (100A/70A) | Fuse a - MULTI BLOCK (100A/70A) |
| 29 | 90106-SDA-A00 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 31 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 33 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
Control unit (ENGINE ROOM; 2) 3 / 6
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 3 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 11 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
Converter 14 / 18
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 18115-RNA-004 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 2 | 18120-RNA-A00 | Cover comp. - CHAMBER | Cover comp. - CHAMBER |
| 4 | 18181-RNA-A00 | Cover, FR. CONVERTER | Cover, FR. CONVERTER |
| 6 | 18198-RNA-A00 | Stay - CONVERTER | Stay - CONVERTER |
| 8 | 18716-RNA-A01 | Gasket a - EGR PIPE | Gasket a - EGR PIPE |
| 9 | 18717-RNA-A00 | Pipe comp - EGR | Pipe comp - EGR |
| 10 | 18719-RNA-A01 | Gasket b - EGR PIPE | Gasket b - EGR PIPE |
| 11 | 18720-RNA-A00 | Bolt - FLANGE, 8X20 | Bolt - FLANGE, 8X20 |
| 12 | 32177-RZP-G00 | Insulator - CRANK SENSOR HEAT | Insulator - CRANK SENSOR HEAT |
| 13 | 36531-RNA-J01 | Sensor - AIR FUEL RATIO | Sensor - AIR FUEL RATIO |
| 14 | 36532-RNA-A01 | Sensor - OXYGEN | Sensor - OXYGEN |
| 15 | 90001-RNA-A00 | Bolt - FLANGE, 8X27 | Bolt - FLANGE, 8X27 |
| 16 | 90003-RNA-A00 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 17 | 90004-PLC-000 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |

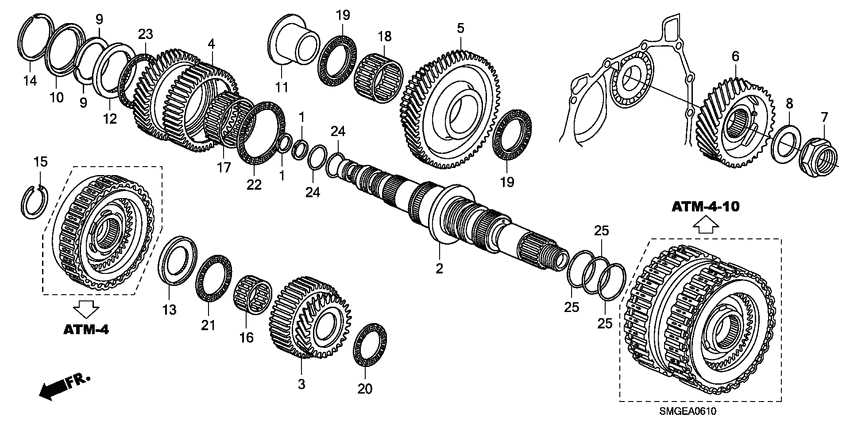

Countershaft 21 / 22
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 21215-RG5-000 | Holder - IDLE SHAFT | Holder - IDLE SHAFT |
| 3 | 23421-RPC-010 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 4 | 23427-RPC-000 | Gear - PARKING | Gear - PARKING |
| 5 | 23441-RPC-000 | Gear - COUNTERSHAFT SECOND | Gear - COUNTERSHAFT SECOND |
| 6 | 23451-RPC-J00 | Gear - COUNTERSHAFT THIRD | Gear - COUNTERSHAFT THIRD |
| 7 | 23491-RPC-J00 | Gear - COUNTERSHAFT FIFTH | Gear - COUNTERSHAFT FIFTH |
| 8 | 23531-RPC-000 | Gear - COUNTERSHAFT REVERSE | Gear - COUNTERSHAFT REVERSE |
| 9 | 23541-RPC-000 | Gear - REVERSE IDLE | Gear - REVERSE IDLE |
| 10 | 23542-P6H-000 | Shaft - REVERSE IDLE GEAR | Shaft - REVERSE IDLE GEAR |
| 11 | 23565-RPC-000 | Selector - REVERSE GEAR | Selector - REVERSE GEAR |
| 12 | 23566-RPC-000 | Hub - SELECTOR | Hub - SELECTOR |
| 13 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 14 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 15 | 90431-RPC-000 | Cotter - 29MM | Cotter - 29MM |
| 16 | 90441-RPC-000 | Collar - 33.2X40X26 | Collar - 33.2X40X26 |
| 17 | 90445-RPC-000 | Collar - 33X45X7.8 | Collar - 33X45X7.8 |
| 18 | 90616-RPC-000 | Ring - SNAP, 33MM | Ring - SNAP, 33MM |
| 19 | 91015-RPC-003 | Bearing - NEEDLE, 33X39X26.5 | Bearing - NEEDLE, 33X39X26.5 |
| 20 | 91017-RPC-004 | Bearing - NEEDLE, 36X42X17 | Bearing - NEEDLE, 36X42X17 |
| 21 | 91018-RPC-003 | Bearing - NEEDLE, 15X20X16 | Bearing - NEEDLE, 15X20X16 |
| 22 | 91306-P0X-003 | O-ring - 8.1X4 (NOK) | O-ring - 8.1X4 (NOK) |
Crankshaft/piston 31 / 54
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 13021-RNA-A02 | Ring set - PISTON(OS 0.25) (RIKEN) | Ring set - PISTON(OS 0.25) (RIKEN) |
| 2 | 13011-RNA-A02 | Ring set - PISTON(STD.)(RIKEN) | Ring set - PISTON(STD.)(RIKEN) |
| 2 | 13021-RNA-A01 | Ring set - PISTON(OS 0.25) (TEIKOKU) | Ring set - PISTON(OS 0.25) (TEIKOKU) |
| 3 | 13111-RNA-A00 | Pin - PISTON | Pin - PISTON |
| 4 | 13115-RNA-A00 | Clip - PISTON PIN | Clip - PISTON PIN |
| 5 | 13204-RNA-A01 | Bolt - CONNECTING ROD | Bolt - CONNECTING ROD |
| 7 | 13211-RNA-A01 | BEARING A - CONNECTING ROD (BLACK)(DAIDO) | BEARING A - CONNECTING ROD (BLACK)(DAIDO) |
| 7 | 13212-RNA-A01 | Bearing b - CONNECTING ROD (BROWN)(DAIDO) | Bearing b - CONNECTING ROD (BROWN)(DAIDO) |
| 7 | 13213-RNA-A01 | Bearing c - CONNECTING ROD (GREEN)(DAIDO) | Bearing c - CONNECTING ROD (GREEN)(DAIDO) |
| 7 | 13214-RNA-A01 | Bearing d - CONNECTING ROD (YELLOW)(DAIDO) | Bearing d - CONNECTING ROD (YELLOW)(DAIDO) |
| 7 | 13215-RNA-A01 | Bearing e - CONNECTING ROD (PINK)(DAIDO) | Bearing e - CONNECTING ROD (PINK)(DAIDO) |
| 7 | 13216-RNA-A01 | Bearing f - CONNECTING ROD(RED) (DAIDO) | Bearing f - CONNECTING ROD(RED) (DAIDO) |
| 9 | 13325-RNA-A01 | Bearing e - MAIN UPPER (YELLOW) (DAIDO) | Bearing e - MAIN UPPER (YELLOW) (DAIDO) |
| 9 | 13326-RNA-A01 | Bearing f - MAIN UPPER (PINK) (DAIDO) | Bearing f - MAIN UPPER (PINK) (DAIDO) |
| 9 | 13321-RNA-A01 | BEARING A - MAIN UPPER (BLUE) (DAIDO) | BEARING A - MAIN UPPER (BLUE) (DAIDO) |
| 9 | 13322-RNA-A01 | Bearing b - MAIN UPPER (BLACK) (DAIDO) | Bearing b - MAIN UPPER (BLACK) (DAIDO) |
| 9 | 13323-RNA-A01 | Bearing c - MAIN UPPER (BROWN) (DAIDO) | Bearing c - MAIN UPPER (BROWN) (DAIDO) |
| 9 | 13324-RNA-A01 | Bearing d - MAIN UPPER (GREEN) (DAIDO) | Bearing d - MAIN UPPER (GREEN) (DAIDO) |
| 10 | 13331-PNA-004 | Washer - THRUST(TAIHO) | Washer - THRUST(TAIHO) |
| 11 | 13346-RNA-A01 | Bearing f - MAIN LOWER (PINK) (DAIDO) | Bearing f - MAIN LOWER (PINK) (DAIDO) |
| 11 | 13341-RNA-A01 | BEARING A - MAIN LOWER (BLUE) (DAIDO) | BEARING A - MAIN LOWER (BLUE) (DAIDO) |
| 11 | 13342-RNA-A01 | Bearing b - MAIN LOWER (BLACK) (DAIDO) | Bearing b - MAIN LOWER (BLACK) (DAIDO) |
| 11 | 13343-RNA-A01 | Bearing c - MAIN LOWER (BROWN) (DAIDO) | Bearing c - MAIN LOWER (BROWN) (DAIDO) |
| 11 | 13344-RNA-A01 | Bearing d - MAIN LOWER (GREEN) (DAIDO) | Bearing d - MAIN LOWER (GREEN) (DAIDO) |
| 11 | 13345-RNA-A01 | Bearing e - MAIN LOWER (YELLOW) (DAIDO) | Bearing e - MAIN LOWER (YELLOW) (DAIDO) |
| 12 | 13620-RNA-A01 | Sprocket comp - CHAIN DRIVE | Sprocket comp - CHAIN DRIVE |
| 13 | 13622-RNA-A00 | Plate - CRANK PULSER | Plate - CRANK PULSER |
| 14 | 13810-RNA-A02 | Pulley comp - CRANKSHAFT | Pulley comp - CRANKSHAFT |
| 15 | 90013-RNA-A01 | Bolt - HEX., 6X9 | Bolt - HEX., 6X9 |
| 16 | 90017-PCX-013 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 17 | 90704-PNA-000 | Key - 4.5X21 | Key - 4.5X21 |
Cylinder block/oil pan 27 / 31
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 11103-RNA-A01 | Plate - PARTITION | Plate - PARTITION |
| 3 | 11105-RNA-A00 | Bolt - SEALING, 20MM | Bolt - SEALING, 20MM |
| 4 | 11106-RNA-A00 | Washer - SEALING, 20MM | Washer - SEALING, 20MM |
| 5 | 11107-PWA-300 | Washer - SEALING, 24MM | Washer - SEALING, 24MM |
| 6 | 11107-RNA-A00 | Bolt - SEALING, 24MM | Bolt - SEALING, 24MM |
| 8 | 11221-RNA-A00 | Plate - BAFFLE | Plate - BAFFLE |
| 9 | 11850-RNA-A00 | Cover comp. - BREATHER | Cover comp. - BREATHER |
| 10 | 15280-RZP-000 | Body comp - OIL JET | Body comp - OIL JET |
| 11 | 15290-RZP-000 | Bolt comp - OIL JET | Bolt comp - OIL JET |
| 12 | 30530-RNA-A01 | Sensor comp - KNOCK | Sensor comp - KNOCK |
| 16 | 32179-RNA-A02 | Insulator - OIL PRESSURE SWITCH HEAT | Insulator - OIL PRESSURE SWITCH HEAT |
| 18 | 37241-RNA-A01 | Switch assy, OIL PRESSURE | Switch assy, OIL PRESSURE |
| 22 | 37500-RAA-A01 | Sensor assy - CRANK | Sensor assy - CRANK |
| 23 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 24 | 90002-RNA-A00 | Bolt - SEALING, 36MM | Bolt - SEALING, 36MM |
| 25 | 90007-RNA-A01 | Bolt-washer - 10X97 | Bolt-washer - 10X97 |
| 26 | 90008-RNA-000 | Washer - SEALING, 36MM | Washer - SEALING, 36MM |
| 27 | 90009-PY3-000 | DRAIN PLUG BOLT, 14MM | DRAIN PLUG BOLT, 14MM |
| 28 | 90016-RNA-A00 | Bolt - FLANGE, 6X35 | Bolt - FLANGE, 6X35 |
| 29 | 90028-PNB-003 | Bolt - SPECIAL, 6X20.5(GUIDE) | Bolt - SPECIAL, 6X20.5(GUIDE) |
| 31 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 32 | 90701-PD2-000 | Dowel pin - 12X14 | Dowel pin - 12X14 |
| 33 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 34 | 90705-RNA-A00 | Dowel pin - 20X22 | Dowel pin - 20X22 |
| 35 | 91214-PWA-Y01 | Oil seal - 80X98X10 (NOK) | Oil seal - 80X98X10 (NOK) |
| 36 | 91301-RNA-A01 | O-ring - 20X2.3 (NOK) | O-ring - 20X2.3 (NOK) |
| 37 | 91333-PNC-006 | O-ring | O-ring |

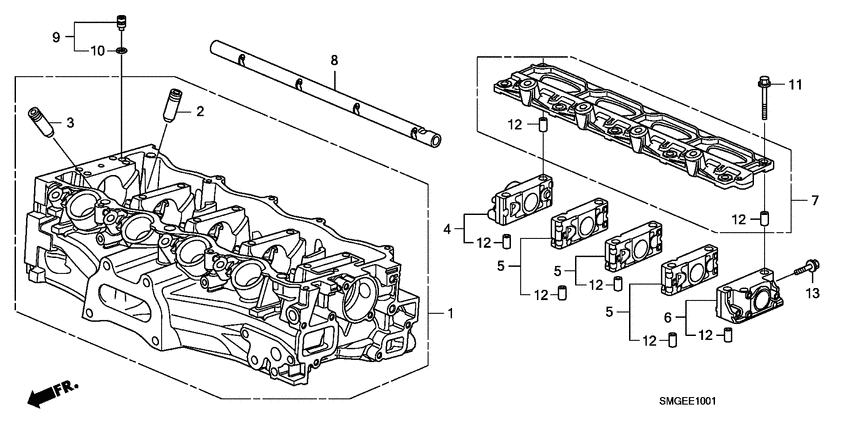

Cylinder head 10 / 11
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 3 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 4 | 12231-RNA-A00 | Holder comp - ROCKER SHAFT (NO.1) | Holder comp - ROCKER SHAFT (NO.1) |
| 5 | 12232-RNA-A00 | Holder comp - ROCKER SHAFT | Holder comp - ROCKER SHAFT |
| 6 | 12235-RNA-A00 | Holder comp - ROCKER SHAFT (NO.5) | Holder comp - ROCKER SHAFT (NO.5) |
| 7 | 12236-RNA-A00 | Holder comp - LOST MOTION | Holder comp - LOST MOTION |
| 8 | 14631-RNA-A00 | Shaft comp. - ROCKER | Shaft comp. - ROCKER |
| 9 | 15140-P0A-000 | Orifice assy - CAM JOURNAL | Orifice assy - CAM JOURNAL |
| 10 | 15142-PE0-000 | O-ring - 4.8X1.9 | O-ring - 4.8X1.9 |
| 11 | 90008-PT2-000 | Bolt - FLANGE, 6X65 | Bolt - FLANGE, 6X65 |
Cylinder head cover 6 / 6
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 12310-RNA-A01 | Cover comp. - CYLINDER HEAD | Cover comp. - CYLINDER HEAD |
| 2 | 12341-RNA-A01 | Packing - HEAD COVER | Packing - HEAD COVER |
| 3 | 15610-PFB-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 4 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 5 | 15650-RNA-A00 | Gauge - OIL LEVEL | Gauge - OIL LEVEL |
| 6 | 90011-RNA-A00 | Bolt - HEAD COVER | Bolt - HEAD COVER |

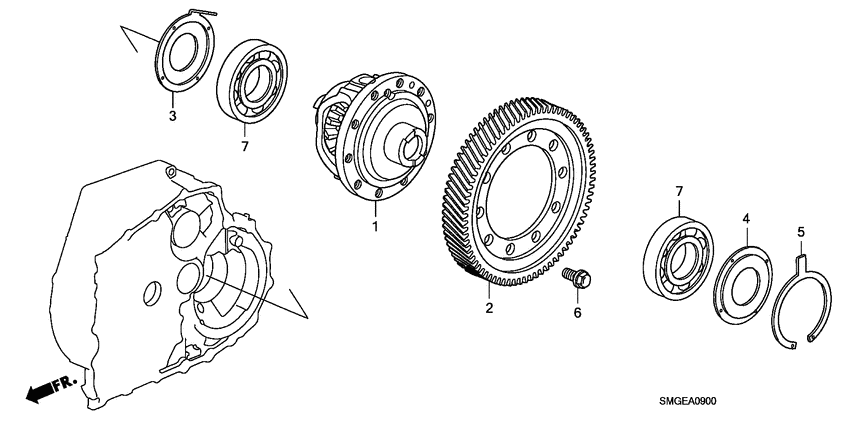

Differential 28 / 29
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 41100-RPC-010 | Differential comp. | Differential comp. |
| 3 | 41381-RPC-000 | Spacer - 41X90X1 | Spacer - 41X90X1 |
| 4 | 41382-RPC-000 | Spacer - 41X90X1 | Spacer - 41X90X1 |
| 5 | 41457-RPC-000 | Shim q - 90MM (2.10) | Shim q - 90MM (2.10) |
| 5 | 41452-RPC-000 | Shim l - 90MM (1.85) | Shim l - 90MM (1.85) |
| 5 | 41447-RPC-000 | Shim g - 90MM (1.60) | Shim g - 90MM (1.60) |
| 5 | 41442-RPC-000 | Shim b - 90MM (1.35) | Shim b - 90MM (1.35) |
| 5 | 41459-RPC-000 | Shim s - 90MM (2.20) | Shim s - 90MM (2.20) |
| 5 | 41454-RPC-000 | Shim n - 90MM (1.95) | Shim n - 90MM (1.95) |
| 5 | 41449-RPC-000 | Shim i - 90MM (1.70) | Shim i - 90MM (1.70) |
| 5 | 41444-RPC-000 | Shim d - 90MM (1.45) | Shim d - 90MM (1.45) |
| 5 | 41461-RPC-000 | Shim u - 90MM (2.30) | Shim u - 90MM (2.30) |
| 5 | 41456-RPC-000 | Shim p - 90MM (2.05) | Shim p - 90MM (2.05) |
| 5 | 41451-RPC-000 | Shim k - 90MM (1.80) | Shim k - 90MM (1.80) |
| 5 | 41446-RPC-000 | Shim f - 90MM (1.55) | Shim f - 90MM (1.55) |
| 5 | 41441-RPC-000 | Shim a - 90MM (1.30) | Shim a - 90MM (1.30) |
| 5 | 41463-RPC-000 | Shim w - 90MM (2.40) | Shim w - 90MM (2.40) |
| 5 | 41458-RPC-000 | Shim r - 90MM (2.15) | Shim r - 90MM (2.15) |
| 5 | 41453-RPC-000 | Shim m - 90MM (1.90) | Shim m - 90MM (1.90) |
| 5 | 41448-RPC-000 | Shim h - 90MM (1.65) | Shim h - 90MM (1.65) |
| 5 | 41443-RPC-000 | Shim c - 90MM (1.40) | Shim c - 90MM (1.40) |
| 5 | 41460-RPC-000 | Shim t - 90MM (2.25) | Shim t - 90MM (2.25) |
| 5 | 41455-RPC-000 | Shim o - 90MM (2.00) | Shim o - 90MM (2.00) |
| 5 | 41450-RPC-000 | Shim j - 90MM (1.75) | Shim j - 90MM (1.75) |
| 5 | 41445-RPC-000 | Shim e - 90MM (1.50) | Shim e - 90MM (1.50) |
| 5 | 41462-RPC-000 | Shim v - 90MM (2.35) | Shim v - 90MM (2.35) |
| 6 | 90003-PA9-003 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 7 | 91121-RPC-003 | Bearing - BALL, 40X90X20 | Bearing - BALL, 40X90X20 |
Emblems/caution labels 2 / 12
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 19043-PLA-E00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 20 | 78031-SDA-G80 | Label - SIDE AIRBAG CAUTION | Label - SIDE AIRBAG CAUTION |
Engine hood (LH) 5 / 34
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 30 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 31 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 32 | 90602-SFA-004 | Clip - COWL TOP | Clip - COWL TOP |
| 37 | 91501-STK-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 39 | 91565-SEL-003 | Clip - COUPLER(BLACK) | Clip - COUPLER(BLACK) |
Engine mounts (AT) 6 / 21
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 11 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 12 | 90160-SNA-A00 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 13 | 90164-S5A-010 | Bolt - FLANGE, 12X40 | Bolt - FLANGE, 12X40 |
| 18 | 90168-S5A-000 | Bolt - FLANGE, 12X35 | Bolt - FLANGE, 12X35 |
| 19 | 90213-S5A-003 | Nut - FLANGE, 14MM | Nut - FLANGE, 14MM |
| 21 | 90380-S10-000 | Bolt - STUD, 12X83.8 | Bolt - STUD, 12X83.8 |
Engine wire harness 27 / 32
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 32114-RNA-003 | Holder - CORRUGATED (DARK GREEN) (7MM) | Holder - CORRUGATED (DARK GREEN) (7MM) |
| 4 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 5 | 32116-RGA-003 | Holder - CORRUGATED (DARK GREEN) (13MM) | Holder - CORRUGATED (DARK GREEN) (13MM) |
| 6 | 32116-RNA-003 | Holder - CORRUGATED (DARK GREEN) (13MM) | Holder - CORRUGATED (DARK GREEN) (13MM) |
| 9 | 32119-P2E-A01 | Holder - CORRUGATED (DARK BLUE) (22MM) | Holder - CORRUGATED (DARK BLUE) (22MM) |
| 11 | 32127-RNA-A00 | Holder comp. a - ENGINE HARNESS | Holder comp. a - ENGINE HARNESS |
| 12 | 32128-RNA-A00 | Holder comp. b - ENGINE HARNESS | Holder comp. b - ENGINE HARNESS |
| 13 | 32128-RTA-003 | Cover - ENGINE CONTROL MODULE COUPLER (A,B) | Cover - ENGINE CONTROL MODULE COUPLER (A,B) |
| 14 | 32129-RNA-A00 | Holder c - ENGINE HARNESS UPPER | Holder c - ENGINE HARNESS UPPER |
| 15 | 32129-RTA-003 | Cover - ENGINE CONTROL MODULE COUPLER (C) | Cover - ENGINE CONTROL MODULE COUPLER (C) |
| 16 | 32130-RNA-A00 | Holder c - ENGINE HARNESS LOWER | Holder c - ENGINE HARNESS LOWER |
| 17 | 32131-RNA-A00 | Holder d - ENGINE HARNESS | Holder d - ENGINE HARNESS |
| 18 | 32132-RNA-A00 | Holder e - ENGINE HARNESS | Holder e - ENGINE HARNESS |
| 19 | 32133-RNA-A00 | Holder f - ENGINE HARNESS | Holder f - ENGINE HARNESS |
| 23 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 24 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 25 | 90051-RGA-003 | Bolt - SPECIAL, 6X20.8 | Bolt - SPECIAL, 6X20.8 |
| 26 | 90501-SS8-A01 | Retainer | Retainer |
| 27 | 91501-P8A-A01 | Stud | Stud |
| 28 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 29 | 91507-RTA-003 | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) |
| 30 | 91531-S5B-003 | Band - HARNESS (BLACK) (120MM) | Band - HARNESS (BLACK) (120MM) |
| 31 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 32 | 91551-PNA-003 | Band - WIRE HARNESS (BLACK) (172MM) | Band - WIRE HARNESS (BLACK) (172MM) |
| 33 | 91558-SM4-003 | Clip - TUBE(BLACK)(135MM) | Clip - TUBE(BLACK)(135MM) |
| 34 | 91558-ST5-003 | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
| 35 | 91601-P8A-A01 | Receptacle | Receptacle |

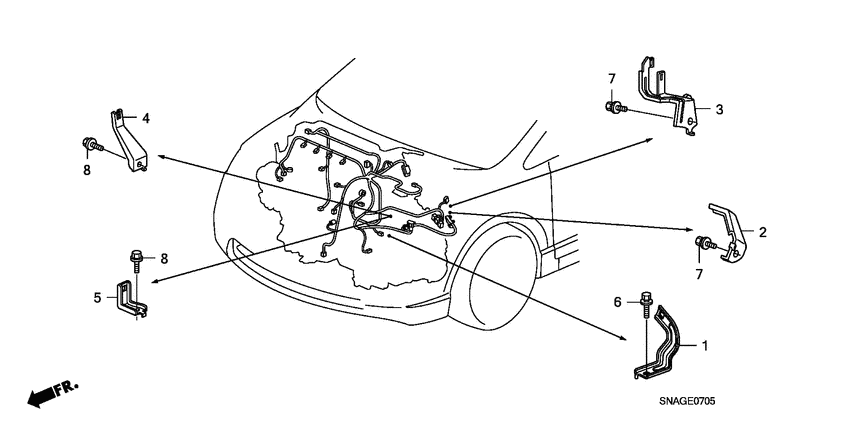

Engine wire harness stay 1 / 4
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 5 | 32745-RNA-A50 | Stay e - ENGINE HARNESS | Stay e - ENGINE HARNESS |
Exhaust pipe/silencer 3 / 18
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 8 | 18230-SV4-000 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 17 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 18 | 90301-SV7-000 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Floor mat 3 / 5
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 10 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 11 | 91560-S6A-003 | Clip - DOOR LINING(ORANGE) | Clip - DOOR LINING(ORANGE) |
| 12 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Floor/inner panels 2 / 2
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 36 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 37 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
Front brake (2) 6 / 25
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 6 | 44600-SNA-A00 | Hub assy - FR. | Hub assy - FR. |
| 17 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 18 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 18 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 18 | 90113-S5H-005 | Bolt - WHEEL (THAI MEIRA) | Bolt - WHEEL (THAI MEIRA) |
| 18 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
Front bulkhead/dashboard 3 / 5
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 38 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 39 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 40 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Front door glass/ door regulator 2 / 10
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 10 | 90021-SFA-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
Front door lining (LH) 4 / 15
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 17 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 18 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 19 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 21 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door lock/ outer handle 12 / 28
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 72112-SJK-003 | Protector - R. DOOR LATCH | Protector - R. DOOR LATCH |
| 5 | 72118-SJK-003 | Screw - TAPPING | Screw - TAPPING |
| 12 | 72134-SHJ-003 | Clip s - CABLE END (NATURAL) | Clip s - CABLE END (NATURAL) |
| 13 | 72134-S2X-003 | Snap - R. (NATURAL) | Snap - R. (NATURAL) |
| 14 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 23 | 72152-SJK-003 | Protector - L. DOOR LATCH | Protector - L. DOOR LATCH |
| 29 | 72174-SHJ-003 | Clip t - CABLE END (BLACK) | Clip t - CABLE END (BLACK) |
| 30 | 72174-S2X-003 | Snap - L. (BLACK) | Snap - L. (BLACK) |
| 34 | 90101-SJK-003 | Screw - TAPPING (ONE WAY) | Screw - TAPPING (ONE WAY) |
| 35 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 36 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 37 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Front door panels 5 / 15
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 17 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 18 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 19 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 19 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 20 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
Front driveshaft (AT) 4 / 18
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 8 | 44319-S04-300 | Set ring - 26X1.8 | Set ring - 26X1.8 |
| 8 | 44319-SR1-003 | Set ring - 26X1.8 (GKN) | Set ring - 26X1.8 (GKN) |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 12 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
Front fenders 3 / 14
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 12 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 17 | 91506-S9A-003 | Clip b - BUMPER | Clip b - BUMPER |
| 18 | 91545-SE0-003 | Clip assy. - 8MM | Clip assy. - 8MM |
Front grille 4 / 9
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 7 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 8 | 91503-SZ3-003 | Clip A | Clip A |
| 9 | 91506-S9A-003 | Clip b - BUMPER | Clip b - BUMPER |
| 10 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Front seat (LH; DRIVER SIDE) 7 / 11
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 81123-SNA-A01 | Screw - 6X18 | Screw - 6X18 |
| 7 | 81291-SNA-A01 | Clip | Clip |
| 16 | 81560-SNA-A01 | Holder - L. MODULE | Holder - L. MODULE |
| 21 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 22 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 24 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
| 25 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
Front seat (LH; PASSENGER SIDE) 7 / 11
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 81123-SNA-A01 | Screw - 6X18 | Screw - 6X18 |
| 15 | 81160-SNA-A01 | Holder - R. MODULE | Holder - R. MODULE |
| 20 | 81291-SNA-A01 | Clip | Clip |
| 21 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 22 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 24 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
| 25 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
Front seat components (LH; DRIVER SIDE) 3 / 5
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 4 | 81262-SNA-A01 | Cap - SLIDE ADJUSTER UPPER END | Cap - SLIDE ADJUSTER UPPER END |
| 14 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 15 | 90135-S5A-003 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
Front seat components (LH; PASSENGER SIDE) 5 / 9
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 11 | 81262-SNA-A01 | Cap - SLIDE ADJUSTER UPPER END | Cap - SLIDE ADJUSTER UPPER END |
| 12 | 90135-S5A-003 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
| 13 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 15 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 16 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Front shock absorber 1 / 18
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 17 | 90213-SR3-013 | Nut - SELF-LOCK, 14MM | Nut - SELF-LOCK, 14MM |
Front windshield wiper (LH) 7 / 26
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 76516-SJK-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76517-SJK-003 | Collar | Collar |
| 8 | 76517-SM4-003 | Collar | Collar |
| 10 | 76524-SL0-A01 | Dust seal | Dust seal |
| 15 | 76561-SNA-A01 | Cap - PIVOT | Cap - PIVOT |
| 25 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
Fuel injector 7 / 8
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 16450-RNA-A01 | Injector assy - FUEL | Injector assy - FUEL |
| 2 | 16451-PLC-000 | Clip - INJECTOR | Clip - INJECTOR |
| 4 | 16640-RNA-A00 | Cover - FUEL PIPE | Cover - FUEL PIPE |
| 5 | 17213-P8A-A00 | Rubber - INTAKE MANIFOLD COVER MOUNTING | Rubber - INTAKE MANIFOLD COVER MOUNTING |
| 6 | 90027-RNA-A00 | Bolt - FUEL PIPE | Bolt - FUEL PIPE |
| 7 | 91301-PLC-000 | O-ring - 7.47X3.6 | O-ring - 7.47X3.6 |
| 8 | 91302-PNA-003 | O-ring - 7.45X3.61(NOK) | O-ring - 7.45X3.61(NOK) |
Fuel pipe 6 / 19
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 6 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 7 | 17711-S84-004 | Retainer - WHITE)(SANOH | Retainer - WHITE)(SANOH |
| 16 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 18 | 91405-SDA-000 | Clamp - TUBE(D10.5) | Clamp - TUBE(D10.5) |
| 19 | 91407-SDB-000 | Clamp - TUBE (D12.5) | Clamp - TUBE (D12.5) |
| 21 | 91595-S7A-931 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
Fuel tank 9 / 28
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 11 | 17525-S0X-A00 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 13 | 17652-SDA-A31 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 14 | 17652-SEL-003 | Clip - FILLER TUBE (39MM) | Clip - FILLER TUBE (39MM) |
| 18 | 17670-SJA-013 | Cap comp. FUEL FILLER | Cap comp. FUEL FILLER |
| 18 | 17670-T3W-003 | CAP, FUEL FILLER | CAP, FUEL FILLER |
| 21 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 22 | 91404-TA0-G01 | Clamp - FUEL TUBE (D10) | Clamp - FUEL TUBE (D10) |
| 25 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 27 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |

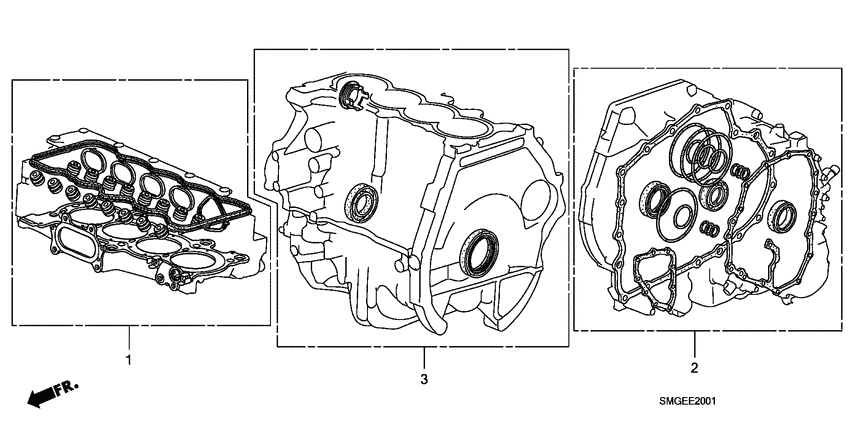

Gasket kit 2 / 3
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 06110-RNA-000 | Gasket kit - CYLINDER HEAD | Gasket kit - CYLINDER HEAD |
| 3 | 06114-RNA-Y00 | Gasket kit - CHAIN CASE | Gasket kit - CHAIN CASE |
Grommet (FRONT) 7 / 12
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 74144-SR3-000 | Cushion - HOOD | Cushion - HOOD |
| 4 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 5 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 10 | 91608-S5A-003 | Boot - FLOOR | Boot - FLOOR |
| 11 | 91613-SN4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 12 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 15 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Grommet (LOWER) 3 / 4
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 5 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
Grommet (REAR) 2 / 5
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 6 | 91610-SD4-000 | Plug - HOLE, 28MM | Plug - HOLE, 28MM |
Grommet (SIDE) 1 / 1
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
Harness band/bracket (LH) 21 / 32
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 4 | 32128-RTA-003 | Cover - ENGINE CONTROL MODULE COUPLER (A,B) | Cover - ENGINE CONTROL MODULE COUPLER (A,B) |
| 5 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 6 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 11 | 91507-SAA-003 | Clip - WIRE HARNESS(NATURAL) (70MM) | Clip - WIRE HARNESS(NATURAL) (70MM) |
| 12 | 91507-SNA-003 | Clip - HARNESS BAND(BROWN) (164.5MM) | Clip - HARNESS BAND(BROWN) (164.5MM) |
| 13 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 14 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 15 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 16 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 17 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 18 | 91540-S7S-003 | Clip - HARNESS BAND(BLACK) (157.7MM) | Clip - HARNESS BAND(BLACK) (157.7MM) |
| 19 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 21 | 91542-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM) | Clip - HARNESS BAND(DARK BLUE) (164.5MM) |
| 23 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 26 | 91552-SS0-003 | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) |
| 29 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 30 | 91560-S04-003 | Clip - SIDE GARNISH (NATURAL) | Clip - SIDE GARNISH (NATURAL) |
| 32 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 33 | 91723-SNA-003 | Coupler - WATER PROOF (23P 040 J/C) (BLACK) | Coupler - WATER PROOF (23P 040 J/C) (BLACK) |
| 34 | 91902-SNA-003 | Plaster - WIRE HARNESS(50X50) | Plaster - WIRE HARNESS(50X50) |
| 35 | 91903-SNA-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
Heater blower (LH) 2 / 15
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 13 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 14 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater unit (LH) 5 / 31
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 25 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 26 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 31 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 33 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 34 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Idle shaft 4 / 4
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 23515-RPC-020 | Gear - IDLE | Gear - IDLE |
| 2 | 23516-RG5-000 | Shaft - IDLE | Shaft - IDLE |
| 3 | 90431-PRP-000 | Cotter - 17MM | Cotter - 17MM |
| 4 | 90432-PRP-000 | Retainer - COTTER | Retainer - COTTER |
Instrument panel (LH) 3 / 14
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 23 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 24 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
Instrument panel garnish (DRIVER SIDE; LH) 4 / 9
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 4 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 27 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 28 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 30 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (PASSENGER SIDE; LH) 2 / 10
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 5 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 12 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |

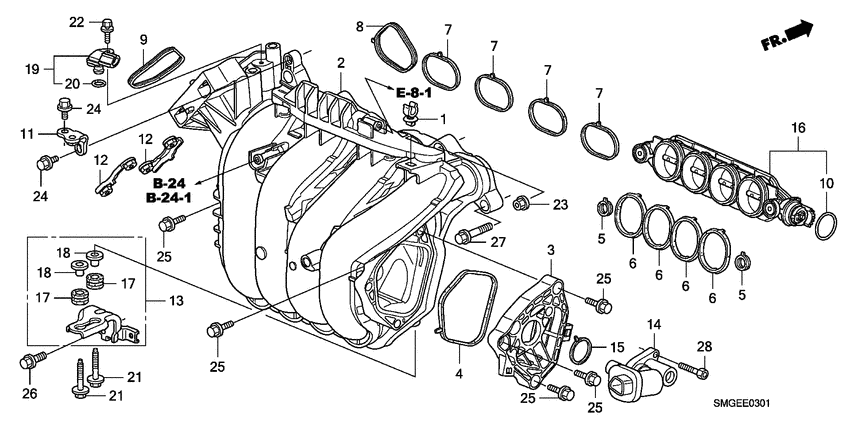

Intake manifold 20 / 21
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 16725-PNA-003 | Clamp a - FUEL HOSE | Clamp a - FUEL HOSE |
| 2 | 17100-RNA-A00 | Manifold comp - INTAKE | Manifold comp - INTAKE |
| 3 | 17101-RNA-A00 | Cover comp. - BYPASS VALVE | Cover comp. - BYPASS VALVE |
| 4 | 17102-RNA-A01 | Packing - BYPASS VALVE COVER | Packing - BYPASS VALVE COVER |
| 5 | 17103-RNA-A01 | Packing b - BYPASS VALVE | Packing b - BYPASS VALVE |
| 6 | 17104-RNA-A01 | Packing a - BYPASS VALVE | Packing a - BYPASS VALVE |
| 7 | 17105-RNA-A01 | Packing a - INTAKE MANIFOLD | Packing a - INTAKE MANIFOLD |
| 8 | 17106-RNA-A01 | Packing b - INTAKE MANIFOLD | Packing b - INTAKE MANIFOLD |
| 9 | 17107-RNA-A01 | Packing, throttle body | Packing, throttle body |
| 10 | 17108-RNA-A01 | O-ring - 31.2X3.5 | O-ring - 31.2X3.5 |
| 11 | 17113-RNA-A00 | Stiffener - INTAKE MANIFOLD | Stiffener - INTAKE MANIFOLD |
| 12 | 17116-RNA-A00 | Plate - THROTTLE FLANGE | Plate - THROTTLE FLANGE |
| 14 | 17150-RNA-A01 | Actuator assy - BYPASS VALVE | Actuator assy - BYPASS VALVE |
| 15 | 17153-RCA-A01 | Packing - BYPASS VALVE ACTUATOR | Packing - BYPASS VALVE ACTUATOR |
| 16 | 17210-RNA-A01 | Valve assy. - BYPASS | Valve assy. - BYPASS |
| 17 | 17213-RNA-A00 | Rubber - INTAKE MANIFOLD MOUNTING | Rubber - INTAKE MANIFOLD MOUNTING |
| 18 | 17216-PE2-003 | Collar - AIR CLEANER(TOYO ROKI) | Collar - AIR CLEANER(TOYO ROKI) |
| 19 | 37830-RNA-A01 | Sensor assy - MAP | Sensor assy - MAP |
| 20 | 37835-PGK-A01 | O-ring | O-ring |
| 21 | 90001-PGM-000 | Bolt-washer - SPECIAL, 6X30 | Bolt-washer - SPECIAL, 6X30 |
Interior light 5 / 9
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 34251-S5A-003 | Lens | Lens |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 15 | 90148-S6A-013 | Bolt - EARTH, 5X14 | Bolt - EARTH, 5X14 |
Knuckle 8 / 27
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 42522-SLJ-003 | Clamp - WIRE (BLACK) | Clamp - WIRE (BLACK) |
| 3 | 42522-SNA-003 | Clamp - WIRE (BLUE) | Clamp - WIRE (BLUE) |
| 4 | 42524-SNA-003 | Clip - COUPLER (BLACK) | Clip - COUPLER (BLACK) |
| 20 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 24 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 25 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 26 | 90363-S3V-A01 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 27 | 90701-SKC-003 | Pin - SPLIT(M14) | Pin - SPLIT(M14) |
L. side cover 42 / 42
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 21240-RPC-000 | Cover comp. L. SIDE | Cover comp. L. SIDE |
| 2 | 21515-RPC-000 | Stay c - HARNESS | Stay c - HARNESS |
| 3 | 21720-RPC-000 | Cover comp. - POSITION SENSOR | Cover comp. - POSITION SENSOR |
| 4 | 21722-RPC-000 | Stopper - POSITION SENSOR | Stopper - POSITION SENSOR |
| 5 | 21724-RCT-000 | Rubber - POSITION SENSOR COVER | Rubber - POSITION SENSOR COVER |
| 6 | 21725-RCT-000 | Collar - POSITION SENSOR COVER | Collar - POSITION SENSOR COVER |
| 7 | 21812-RPC-000 | Packing - L. SIDE COVER | Packing - L. SIDE COVER |
| 8 | 22713-PW4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 9 | 22713-RPC-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 10 | 22715-PRP-000 | Pipe comp. b - FEED | Pipe comp. b - FEED |
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 12 | 24532-PX4-000 | Lever - PARKING BRAKE | Lever - PARKING BRAKE |
| 13 | 24535-RPC-000 | Spring - PARKING BRAKE | Spring - PARKING BRAKE |
| 14 | 24539-PA9-003 | Stopper - PARKING BRAKE (3) | Stopper - PARKING BRAKE (3) |
| 14 | 24538-PA9-003 | Stopper - PARKING BRAKE (2) | Stopper - PARKING BRAKE (2) |
| 14 | 24537-PA9-003 | Stopper - PARKING BRAKE (1) | Stopper - PARKING BRAKE (1) |
| 15 | 24552-PRP-000 | Spring - PARKING PAWL | Spring - PARKING PAWL |
| 16 | 24553-PN6-000 | Roller - PARKING BRAKE | Roller - PARKING BRAKE |
| 17 | 24555-RDK-000 | Pin - ROLLER, 6MM | Pin - ROLLER, 6MM |
| 18 | 24561-RPC-000 | Pawl - PARKING BRAKE | Pawl - PARKING BRAKE |
| 19 | 24562-PRP-000 | Shaft - PARKING | Shaft - PARKING |
| 20 | 27430-RPC-003 | Bolt comp - AIR CHECK | Bolt comp - AIR CHECK |
| 21 | 28900-RPC-013 | Sensor assy - POSITION | Sensor assy - POSITION |
| 22 | 28950-RPC-000 | Harness - POSITION SENSOR | Harness - POSITION SENSOR |
| 23 | 90024-RPC-000 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 24 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 25 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 26 | 90471-PW7-A00 | PACKING, 10MM | PACKING, 10MM |
| 27 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 28 | 90472-RPC-000 | Packing - 10MM | Packing - 10MM |
| 29 | 90602-PX4-000 | Circlip b - INTERNAL, 47MM | Circlip b - INTERNAL, 47MM |
| 30 | 90702-PL4-000 | Dowel pin - 8X44 | Dowel pin - 8X44 |
| 31 | 91006-P1B-003 | Bearing - BALL, 9X20X6 | Bearing - BALL, 9X20X6 |
| 32 | 91102-RPC-003 | Bearing - NEEDLE, 30X52X19 | Bearing - NEEDLE, 30X52X19 |
| 33 | 91201-PA9-004 | Oil seal - 9X18X7 (ARAI) | Oil seal - 9X18X7 (ARAI) |
| 34 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 35 | 91304-RPC-003 | O-ring - 39X1.9 | O-ring - 39X1.9 |
| 36 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 37 | 91311-PA9-004 | O-ring - 7.7X1.9 (NOK) | O-ring - 7.7X1.9 (NOK) |
| 38 | 91314-PW4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 39 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 44 | 90001-RLJ-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
Main valve body 11 / 11
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22771-RPC-000 | Pipe a - JOINT | Pipe a - JOINT |
| 2 | 22772-RPC-000 | Pipe b - JOINT | Pipe b - JOINT |
| 3 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 4 | 27000-RPC-000 | Body assy - MAIN VALVE | Body assy - MAIN VALVE |
| 5 | 27112-RPC-000 | Plate - MAIN SEPARATING | Plate - MAIN SEPARATING |
| 6 | 27122-RGC-000 | Cap - 11MM | Cap - 11MM |
| 7 | 27132-P6H-000 | Cap - 14MM | Cap - 14MM |
| 8 | 27142-P6H-000 | Cap - 15MM | Cap - 15MM |
| 9 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 10 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 11 | 91108-PRP-003 | Roller - 4X23.8 | Roller - 4X23.8 |
Mainshaft 27 / 27
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22814-PRP-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 2 | 23210-RPC-000 | Mainshaft comp. | Mainshaft comp. |
| 3 | 23455-RPC-J00 | Gear - MAINSHAFT THIRD | Gear - MAINSHAFT THIRD |
| 4 | 23481-RPC-J00 | Gear - MAINSHAFT FIFTH | Gear - MAINSHAFT FIFTH |
| 5 | 23511-RPC-000 | Gear - MAINSHAFT IDLE | Gear - MAINSHAFT IDLE |
| 6 | 90203-RPC-000 | Nut - FLANGE, 22MM | Nut - FLANGE, 22MM |
| 7 | 90402-RPC-000 | Washer - SPRING, 22MM | Washer - SPRING, 22MM |
| 8 | 90420-RG0-000 | Washer - THRUST, 40X63X3.900 | Washer - THRUST, 40X63X3.900 |
| 8 | 90415-RG0-000 | Washer - THRUST, 40X63X3.775 | Washer - THRUST, 40X63X3.775 |
| 8 | 90422-RG0-000 | Washer - THRUST, 40X63X3.950 | Washer - THRUST, 40X63X3.950 |
| 8 | 90417-RG0-000 | Washer - THRUST, 40X63X3.825 | Washer - THRUST, 40X63X3.825 |
| 8 | 90424-RG0-000 | Washer - THRUST, 40X63X4.000 | Washer - THRUST, 40X63X4.000 |
| 8 | 90419-RG0-000 | Washer - THRUST, 40X63X3.875 | Washer - THRUST, 40X63X3.875 |
| 8 | 90414-RG0-000 | Washer - THRUST, 40X63X3.750 | Washer - THRUST, 40X63X3.750 |
| 8 | 90421-RG0-000 | Washer - THRUST, 40X63X3.925 | Washer - THRUST, 40X63X3.925 |
| 8 | 90416-RG0-000 | Washer - THRUST, 40X63X3.800 | Washer - THRUST, 40X63X3.800 |
| 8 | 90423-RG0-000 | Washer - THRUST, 40X63X3.975 | Washer - THRUST, 40X63X3.975 |
| 8 | 90418-RG0-000 | Washer - THRUST, 40X63X3.850 | Washer - THRUST, 40X63X3.850 |
| 9 | 90501-RPC-000 | Collar - 27X32X60.5 | Collar - 27X32X60.5 |
| 10 | 90603-P0X-000 | Set ring - 23MM | Set ring - 23MM |
| 11 | 91014-RPC-003 | Bearing - NEEDLE, 32X37X24 | Bearing - NEEDLE, 32X37X24 |
| 12 | 91016-RPC-003 | Bearing - NEEDLE, 47X52X15.5 | Bearing - NEEDLE, 47X52X15.5 |
| 13 | 91017-PZK-003 | Bearing - NEEDLE, 23X29X18 | Bearing - NEEDLE, 23X29X18 |
| 14 | 91022-RPC-003 | Needle - THRUST, 32X44X2 | Needle - THRUST, 32X44X2 |
| 15 | 91023-RPC-003 | Needle - THRUST, 32X51.5X2.5 | Needle - THRUST, 32X51.5X2.5 |
| 16 | 91024-RPC-003 | Needle - THRUST, 52.5X66.5X2 | Needle - THRUST, 52.5X66.5X2 |
| 17 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
Meter (NS) 1 / 7
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 7 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Mudguard 1 / 7
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 9 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
Oil pump 14 / 15
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 12513-P72-003 | Plug - CYLINDER HEAD | Plug - CYLINDER HEAD |
| 2 | 15100-RNC-T01 | Pump assy. - OIL | Pump assy. - OIL |
| 2 | 15100-R1A-A01 | Oil Pump | Oil Pump |
| 3 | 15101-RNA-A00 | O-ring set - OIL PUMP | O-ring set - OIL PUMP |
| 4 | 15112-RNA-A00 | Cover - CHAIN CASE | Cover - CHAIN CASE |
| 5 | 15220-RNA-A01 | Strainer comp. - OIL | Strainer comp. - OIL |
| 6 | 15221-RNA-A01 | Gasket | Gasket |
| 7 | 15400-PLM-A02 | OIL FILTER (HONEYWELL) | OIL FILTER (HONEYWELL) |
| 7 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 8 | 90009-RNA-A00 | Bolt - SPECIAL, 8X65 | Bolt - SPECIAL, 8X65 |
| 9 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 10 | 90021-PNA-000 | Bolt - SPECIAL, 6X31 | Bolt - SPECIAL, 6X31 |
| 11 | 90041-RNA-A00 | Bolt - STUD, 14X90 | Bolt - STUD, 14X90 |
| 12 | 91212-RTA-003 | Oil seal - 43X58X7 (NOK) | Oil seal - 43X58X7 (NOK) |
P.s. gear box (EPS; LH) 12 / 33
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 52362-S30-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 2 | 53413-SCC-003 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 3 | 53414-S5A-003 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 5 | 53417-SMG-E01 | O-ring - RACK GUIDE | O-ring - RACK GUIDE |
| 6 | 53418-S5A-003 | Washer - DISK | Washer - DISK |
| 15 | 53536-SJK-003 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 16 | 53537-SMG-E01 | Rubber - STOPPER | Rubber - STOPPER |
| 22 | 53685-SMG-E01 | Bushing - GEAR BOX MOUNTING | Bushing - GEAR BOX MOUNTING |
| 28 | 90102-SFA-J02 | Bolt - FLANGE, 8X35 | Bolt - FLANGE, 8X35 |
| 29 | 90103-S0A-N01 | Screw - PAN, 5X8 | Screw - PAN, 5X8 |
| 31 | 90301-SEP-003 | Nut - HEX., 14MM | Nut - HEX., 14MM |
| 32 | 90428-S0A-003 | Washer - DRAIN | Washer - DRAIN |
Parking brake (LH) 2 / 9
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 14 | 90306-SA0-000 | Nut - FLOATING, 5MM | Nut - FLOATING, 5MM |
| 15 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Pcv tube 7 / 7
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 17130-PND-A01 | Valve assy. - PCV | Valve assy. - PCV |
| 2 | 17131-RNA-A00 | Tube - PCV | Tube - PCV |
| 3 | 17137-RNA-A00 | Pipe comp - BREATHER | Pipe comp - BREATHER |
| 4 | 17153-RNA-A00 | Tube - BREATHER | Tube - BREATHER |
| 5 | 91405-RGA-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 6 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 6 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
Pedal (LH) 5 / 12
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 4 | 36750-SMA-003 | Switch assy - STOP & CRUISE (PANASONIC) | Switch assy - STOP & CRUISE (PANASONIC) |
| 7 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 21 | 90104-SFE-003 | Bolt - FLANGE, 8X23 | Bolt - FLANGE, 8X23 |
| 22 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 24 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
Pillar garnish 2 / 6
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 25 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 26 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
Plug hole coil/plug 4 / 4
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 30511-RNA-A01 | Insulator - COIL HEAT | Insulator - COIL HEAT |
| 2 | 30520-RNA-A01 | Coil comp - PLUG HOLE | Coil comp - PLUG HOLE |
| 3 | 30522-RNA-A01 | Seal - PLUG HOLE | Seal - PLUG HOLE |
| 4 | 90207-RAA-A00 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
Radiator (DENSO) 10 / 18
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 6 | 19020-RCJ-A01 | Fan - COOLING | Fan - COOLING |
| 7 | 19030-RNA-A51 | Motor - COOLING FAN | Motor - COOLING FAN |
| 8 | 19045-RAA-003 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 10 | 19046-RAA-A00 | Label - RADIATOR CAP | Label - RADIATOR CAP |
| 11 | 19047-PLC-003 | Cover - RADIATOR CAP (DENSO) | Cover - RADIATOR CAP (DENSO) |
| 16 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 17 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 18 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
Radiator hose/reserve tan k 6 / 16
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 4 | 19102-RNA-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 11 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 11 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 13 | 74172-S5A-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 14 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 15 | 91503-SZ3-003 | Clip A | Clip A |
Rear brake (DISK) 5 / 45
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 34 | 90103-SV4-013 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 35 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 35 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 35 | 90113-S5H-005 | Bolt - WHEEL (THAI MEIRA) | Bolt - WHEEL (THAI MEIRA) |
| 35 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
Rear door glass/ door regulator 2 / 10
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 9 | 90021-SFA-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 10 | 90115-SFE-004 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
Rear door lining 2 / 7
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 11 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 13 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door lock/ outer handle 13 / 27
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 72112-SJK-003 | Protector - R. DOOR LATCH | Protector - R. DOOR LATCH |
| 6 | 72134-SHJ-003 | Clip s - CABLE END (NATURAL) | Clip s - CABLE END (NATURAL) |
| 7 | 72134-S2X-003 | Snap - R. (NATURAL) | Snap - R. (NATURAL) |
| 8 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 13 | 72152-SJK-003 | Protector - L. DOOR LATCH | Protector - L. DOOR LATCH |
| 17 | 72174-SHJ-003 | Clip t - CABLE END (BLACK) | Clip t - CABLE END (BLACK) |
| 18 | 72174-S2X-003 | Snap - L. (BLACK) | Snap - L. (BLACK) |
| 23 | 72612-SNA-A00 | Cap - R. CHILD LOCK | Cap - R. CHILD LOCK |
| 24 | 72613-SNA-003 | Seal | Seal |
| 30 | 72652-SNA-A00 | Cap - L. CHILD LOCK | Cap - L. CHILD LOCK |
| 33 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 34 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 35 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Rear door panels 5 / 18
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 18 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 19 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 19 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 20 | 90103-SLA-000 | Bolt - FLANGE, 8X22 (TORX) | Bolt - FLANGE, 8X22 (TORX) |
| 21 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
Rear lower arm 4 / 36
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 42522-SLJ-003 | Clamp - WIRE (BLACK) | Clamp - WIRE (BLACK) |
| 3 | 42524-SNA-003 | Clip - COUPLER (BLACK) | Clip - COUPLER (BLACK) |
| 27 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 31 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Rear seat (FALL DOWN) 1 / 17
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
Rear tray/trunk lining 1 / 8
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 25 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear windshield/ quarter glass 3 / 10
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 7 | 75717-SNB-E01 | Sticker - I-VTEC | Sticker - I-VTEC |
| 8 | 91501-S70-003 | Fastener b - WINDSHIELD | Fastener b - WINDSHIELD |
| 9 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
Regulator body 23 / 23
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22743-PG4-000 | Pipe - THIRD CLUTCH | Pipe - THIRD CLUTCH |
| 2 | 22753-RG5-000 | Pipe - 6X196.5 | Pipe - 6X196.5 |
| 3 | 25155-RPC-000 | Shaft assy - STATOR | Shaft assy - STATOR |
| 4 | 27132-P6H-000 | Cap - 14MM | Cap - 14MM |
| 5 | 27200-RPC-000 | Body assy - REGULATOR | Body assy - REGULATOR |
| 6 | 27212-RPC-000 | Plate - REGULATOR SEPARATING | Plate - REGULATOR SEPARATING |
| 7 | 27246-PN6-800 | Cap - REGULATOR SPRING | Cap - REGULATOR SPRING |
| 8 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 9 | 27430-RPC-003 | Bolt comp - AIR CHECK | Bolt comp - AIR CHECK |
| 10 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 11 | 27561-PRP-000 | Piston - LOW ACCUMULATOR | Piston - LOW ACCUMULATOR |
| 12 | 27562-RPC-000 | Spring a - LOW ACCUMULATOR | Spring a - LOW ACCUMULATOR |
| 13 | 27564-RPC-000 | Spring b - LOW ACCUMULATOR | Spring b - LOW ACCUMULATOR |
| 14 | 27574-PRP-000 | Piston - THIRD ACCUMULATOR | Piston - THIRD ACCUMULATOR |
| 15 | 27583-PRP-000 | Spring - THIRD ACCUMULATOR | Spring - THIRD ACCUMULATOR |
| 16 | 27591-RPC-000 | Cover - REGULATOR ACCUMULATOR | Cover - REGULATOR ACCUMULATOR |
| 17 | 90001-PRP-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 18 | 90089-PK4-000 | Bolt - STOPPER, 6MM | Bolt - STOPPER, 6MM |
| 19 | 90472-RPC-000 | Packing - 10MM | Packing - 10MM |
| 20 | 90701-PK4-000 | Dowel pin - 8X80 | Dowel pin - 8X80 |
| 21 | 91316-PF4-003 | O-ring - 31X1.7 (ARAI) | O-ring - 31X1.7 (ARAI) |
| 22 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 23 | 91331-PC9-003 | O-ring | O-ring |
Resonator chamber 7 / 12
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 17115-PWA-000 | Rubber - ENGINE COVER MOUNTING | Rubber - ENGINE COVER MOUNTING |
| 2 | 17116-PWA-000 | Collar - ENGINE COVER | Collar - ENGINE COVER |
| 3 | 17212-PE2-000 | Rubber a - AIR CLEANER CASE MOUNTING | Rubber a - AIR CLEANER CASE MOUNTING |
| 4 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 6 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 11 | 17256-RNA-A00 | Ring - SEAL | Ring - SEAL |
| 12 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Roof lining 3 / 13
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 15 | 83247-SNA-A01 | Clip - GRAB RAIL | Clip - GRAB RAIL |
| 22 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 23 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Seatbelts 8 / 18
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 81441-S2G-N51 | Collar - 5H | Collar - 5H |
| 3 | 81441-S50-J22 | Collar - 2H | Collar - 2H |
| 19 | 90123-S04-J30 | Washer - WAVE | Washer - WAVE |
| 20 | 90135-S1F-003 | Bolt - FLANGE, 7/16" | Bolt - FLANGE, 7/16" |
| 25 | 90142-SNA-004 | Bolt - 7/16"X24 | Bolt - 7/16"X24 |
| 26 | 90142-S04-J32 | Bolt - 7/16"X23.4 | Bolt - 7/16"X23.4 |
| 27 | 90543-S2G-C21 | Washer - PLAIN | Washer - PLAIN |
| 29 | 90543-S50-902 | Washer - SPRING | Washer - SPRING |
Secondary shaft 53 / 53
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22814-RGC-003 | Seal - RING (21.2MM) | Seal - RING (21.2MM) |
| 2 | 23230-RG5-000 | Shaft comp. - SECONDARY | Shaft comp. - SECONDARY |
| 3 | 23411-RPC-020 | Gear - SECONDARY SHAFT LOW | Gear - SECONDARY SHAFT LOW |
| 4 | 23431-RPC-000 | Gear - SECONDARY SHAFT SECOND | Gear - SECONDARY SHAFT SECOND |
| 5 | 23461-RPC-J00 | Gear - SECONDARY SHAFT FOURTH | Gear - SECONDARY SHAFT FOURTH |
| 6 | 23521-RPC-010 | Gear - SECONDARY SHAFT IDLE | Gear - SECONDARY SHAFT IDLE |
| 7 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 8 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 9 | 90432-RPC-000 | Cotter - 39MM | Cotter - 39MM |
| 10 | 90433-RDK-000 | Retainer - COTTER | Retainer - COTTER |
| 11 | 90443-RPC-000 | Collar - 29X35X33 | Collar - 29X35X33 |
| 12 | 90510-RPC-000 | Washer - THRUST, 43X54.5X3.100 | Washer - THRUST, 43X54.5X3.100 |
| 12 | 90505-RPC-000 | Washer - THRUST, 43X54.5X2.975 | Washer - THRUST, 43X54.5X2.975 |
| 12 | 90512-RPC-000 | Washer - THRUST, 43X54.5X3.150 | Washer - THRUST, 43X54.5X3.150 |
| 12 | 90507-RPC-000 | Washer - THRUST, 43X54.5X3.025 | Washer - THRUST, 43X54.5X3.025 |
| 12 | 90502-RPC-000 | Washer - THRUST, 43X54.5X2.900 | Washer - THRUST, 43X54.5X2.900 |
| 12 | 90514-RPC-000 | Washer - THRUST, 43X54.5X3.200 | Washer - THRUST, 43X54.5X3.200 |
| 12 | 90509-RPC-000 | Washer - THRUST, 43X54.5X3.075 | Washer - THRUST, 43X54.5X3.075 |
| 12 | 90504-RPC-000 | Washer - THRUST, 43X54.5X2.950 | Washer - THRUST, 43X54.5X2.950 |
| 12 | 90511-RPC-000 | Washer - THRUST, 43X54.5X3.125 | Washer - THRUST, 43X54.5X3.125 |
| 12 | 90506-RPC-000 | Washer - THRUST, 43X54.5X3.000 | Washer - THRUST, 43X54.5X3.000 |
| 12 | 90513-RPC-000 | Washer - THRUST, 43X54.5X3.175 | Washer - THRUST, 43X54.5X3.175 |
| 12 | 90508-RPC-000 | Washer - THRUST, 43X54.5X3.050 | Washer - THRUST, 43X54.5X3.050 |
| 12 | 90503-RPC-000 | Washer - THRUST, 43X54.5X2.925 | Washer - THRUST, 43X54.5X2.925 |
| 13 | 90533-RG5-000 | Washer - THRUST, 31X50X4.225 | Washer - THRUST, 31X50X4.225 |
| 13 | 90528-RG5-000 | Washer - THRUST, 31X50X4.100 | Washer - THRUST, 31X50X4.100 |
| 13 | 90523-RG5-000 | Washer - THRUST, 31X50X3.975 | Washer - THRUST, 31X50X3.975 |
| 13 | 90535-RG5-000 | Washer - THRUST, 31X50X4.275 | Washer - THRUST, 31X50X4.275 |
| 13 | 90530-RG5-000 | Washer - THRUST, 31X50X4.150 | Washer - THRUST, 31X50X4.150 |
| 13 | 90525-RG5-000 | Washer - THRUST, 31X50X4.025 | Washer - THRUST, 31X50X4.025 |
| 13 | 90537-RG5-000 | Washer - THRUST, 31X50X4.325 | Washer - THRUST, 31X50X4.325 |
| 13 | 90532-RG5-000 | Washer - THRUST, 31X50X4.200 | Washer - THRUST, 31X50X4.200 |
| 13 | 90527-RG5-000 | Washer - THRUST, 31X50X4.075 | Washer - THRUST, 31X50X4.075 |
| 13 | 90522-RG5-000 | Washer - THRUST, 31X50X3.950 | Washer - THRUST, 31X50X3.950 |
| 13 | 90534-RG5-000 | Washer - THRUST, 31X50X4.250 | Washer - THRUST, 31X50X4.250 |
| 13 | 90529-RG5-000 | Washer - THRUST, 31X50X4.125 | Washer - THRUST, 31X50X4.125 |
| 13 | 90524-RG5-000 | Washer - THRUST, 31X50X4.000 | Washer - THRUST, 31X50X4.000 |
| 13 | 90536-RG5-000 | Washer - THRUST, 31X50X4.300 | Washer - THRUST, 31X50X4.300 |
| 13 | 90531-RG5-000 | Washer - THRUST, 31X50X4.175 | Washer - THRUST, 31X50X4.175 |
| 13 | 90526-RG5-000 | Washer - THRUST, 31X50X4.050 | Washer - THRUST, 31X50X4.050 |
| 13 | 90521-RG5-000 | Washer - THRUST, 31X50X3.925 | Washer - THRUST, 31X50X3.925 |
| 14 | 90608-RDK-000 | Circlip - EXTERNAL, 43MM | Circlip - EXTERNAL, 43MM |
| 15 | 90621-RPC-000 | Circlip - EXTERNAL, 26MM | Circlip - EXTERNAL, 26MM |
| 16 | 91011-RG5-005 | Bearing - NEEDLE, 31X38X18 | Bearing - NEEDLE, 31X38X18 |
| 17 | 91012-RPC-005 | Bearing - NEEDLE, 43X49X20.5 | Bearing - NEEDLE, 43X49X20.5 |
| 18 | 91013-RPC-003 | Bearing - NEEDLE, 35X41X24 | Bearing - NEEDLE, 35X41X24 |
| 19 | 91021-RPC-003 | Needle - THRUST, 35X53X2.5 | Needle - THRUST, 35X53X2.5 |
| 20 | 91025-RPC-003 | Needle - THRUST, 31X44X2.5 | Needle - THRUST, 31X44X2.5 |
| 21 | 91026-RPC-003 | Needle - THRUST, 38.5X51.5X2.5 | Needle - THRUST, 38.5X51.5X2.5 |
| 22 | 91027-RPC-003 | Needle - THRUST, 49.5X64X2.5 | Needle - THRUST, 49.5X64X2.5 |
| 23 | 91028-RPC-003 | Needle - THRUST, 43X55.5X2.5 | Needle - THRUST, 43X55.5X2.5 |
| 24 | 91307-RPC-000 | O-ring - 22.5X1.9 | O-ring - 22.5X1.9 |
| 25 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
Select lever (LH) 2 / 19
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 18 | 90351-SB2-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 19 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Servo body 29 / 29
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22743-PG4-000 | Pipe - THIRD CLUTCH | Pipe - THIRD CLUTCH |
| 2 | 22743-P4R-000 | Pipe - 8X192.5 | Pipe - 8X192.5 |
| 3 | 24271-PRP-000 | Shaft - SHIFT FORK | Shaft - SHIFT FORK |
| 4 | 24630-PRP-000 | Arm comp - CHANGE DETENT | Arm comp - CHANGE DETENT |
| 5 | 24635-PRP-000 | Collar - CHANGE DETENT ARM | Collar - CHANGE DETENT ARM |
| 6 | 27142-P6H-000 | Cap - 15MM | Cap - 15MM |
| 7 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 8 | 27400-RPC-000 | Body assy - SERVO | Body assy - SERVO |
| 9 | 27412-RPC-000 | Plate - SERVO SEPARATING | Plate - SERVO SEPARATING |
| 10 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 11 | 27572-PRP-000 | Piston - SECOND ACCUMULATOR | Piston - SECOND ACCUMULATOR |
| 12 | 27574-PRP-000 | Piston - THIRD ACCUMULATOR | Piston - THIRD ACCUMULATOR |
| 13 | 27575-RPC-000 | Spring b - TOP ACCUMULATOR | Spring b - TOP ACCUMULATOR |
| 14 | 27577-RPC-000 | Spring a - TOP ACCUMULATOR | Spring a - TOP ACCUMULATOR |
| 15 | 27580-RPC-000 | Cover - SERVO ACCUMULATOR | Cover - SERVO ACCUMULATOR |
| 16 | 27581-RPC-000 | Spring a - SECOND ACCUMULATOR | Spring a - SECOND ACCUMULATOR |
| 17 | 27584-RPC-000 | Spring b - SECOND ACCUMULATOR | Spring b - SECOND ACCUMULATOR |
| 18 | 28400-RPC-003 | Solenoid assy. a | Solenoid assy. a |
| 19 | 28500-RPC-003 | Solenoid assy. b | Solenoid assy. b |
| 20 | 90001-PRP-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 21 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 22 | 90433-PRP-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 23 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 24 | 91301-P6H-003 | O-ring - 7.6X1.9 (KEIHIN) | O-ring - 7.6X1.9 (KEIHIN) |
| 25 | 91302-P6H-003 | O-ring - 9.6X1.9 (KEIHIN) | O-ring - 9.6X1.9 (KEIHIN) |
| 25 | 91302-P7W-A00 | O-ring - 9.6X1.9 | O-ring - 9.6X1.9 |
| 26 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 27 | 91331-PL5-J00 | O-ring - 20.2X2.4 (NOK) | O-ring - 20.2X2.4 (NOK) |
| 28 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
Shift fork 10 / 10
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 24111-RPC-000 | Fork - REVERSE SHIFT | Fork - REVERSE SHIFT |
| 2 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 3 | 24410-RPC-000 | Shaft comp. - CONTROL | Shaft comp. - CONTROL |
| 4 | 24634-PRP-060 | Spring - DETENT LEVER | Spring - DETENT LEVER |
| 5 | 25420-RPC-003 | Strainer assy - ATF | Strainer assy - ATF |
| 6 | 90001-PA9-000 | Bolt - HEX., 6MM | Bolt - HEX., 6MM |
| 7 | 90433-PLX-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 8 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 9 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
| 10 | 91308-PW4-003 | O-ring - 21.8X1.9 | O-ring - 21.8X1.9 |
Solenoid 16 / 16
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 22749-PW4-000 | Pipe - 35MM | Pipe - 35MM |
| 2 | 22760-PPW-000 | Pipe comp - JOINT | Pipe comp - JOINT |
| 3 | 22775-RPC-000 | Pipe - 50MM | Pipe - 50MM |
| 4 | 28250-RPC-003 | Solenoid assy. a - LINEAR | Solenoid assy. a - LINEAR |
| 5 | 28252-RPC-000 | Packing a - LINEAR SOLENOID | Packing a - LINEAR SOLENOID |
| 6 | 28260-RPC-004 | Solenoid assy. b - LINEAR | Solenoid assy. b - LINEAR |
| 7 | 28262-RPC-000 | Packing b - LINEAR SOLENOID | Packing b - LINEAR SOLENOID |
| 8 | 28360-RPC-003 | Harness - SOLENOID WIRE | Harness - SOLENOID WIRE |
| 9 | 28600-RPC-003 | Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN) | Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN) |
| 10 | 28600-RPC-004 | Switch assy - AT OIL PRESSURE (SAGINOMIYA) | Switch assy - AT OIL PRESSURE (SAGINOMIYA) |
| 11 | 28810-RPC-003 | Pick up assy. | Pick up assy. |
| 12 | 28820-RPC-003 | Pick up assy. | Pick up assy. |
| 13 | 90471-PW7-A00 | PACKING, 10MM | PACKING, 10MM |
| 14 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 15 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 16 | 91329-PRP-003 | O-ring - 23.3X2.4 | O-ring - 23.3X2.4 |
Spool valve 17 / 21
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 2 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 3 | 12215-RNA-A00 | Collar - SPARK PLUG COIL | Collar - SPARK PLUG COIL |
| 4 | 12216-RNA-A00 | Bolt - SPARK PLUG COIL | Bolt - SPARK PLUG COIL |
| 5 | 12240-RNA-A00 | Cover comp. - CAMSHAFT THRUST | Cover comp. - CAMSHAFT THRUST |
| 6 | 12251-RNA-A02 | Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS) | Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS) |
| 7 | 15810-RWK-003 | Valve assy. Spool | Valve assy. Spool |
| 8 | 15826-RNA-A01 | Filter assy - SPOOL VALVE | Filter assy - SPOOL VALVE |
| 9 | 17147-RNA-A00 | Joint - EGR | Joint - EGR |
| 10 | 32743-RNA-A01 | Stay c - ENGINE HARNESS | Stay c - ENGINE HARNESS |
| 13 | 37510-RNA-A01 | Sensor assy - TDC | Sensor assy - TDC |
| 14 | 90005-RNA-A01 | Bolt-washer - 11X176 | Bolt-washer - 11X176 |
| 15 | 90026-RNA-A00 | Bolt - STUD, 8X25 | Bolt - STUD, 8X25 |
| 16 | 91302-PX4-004 | O-ring - 46.8X2.2 (NOK) | O-ring - 46.8X2.2 (NOK) |
| 17 | 91319-PAA-A01 | O-ring - 13X1.5 | O-ring - 13X1.5 |
| 18 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |
| 26 | 90001-P70-000 | Bolt - FLANGE, 10X10.5 | Bolt - FLANGE, 10X10.5 |
Srs unit (LH) 5 / 7
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 4 | 77930-SNA-A32 | Sensor assy - FR. CRASH(TRW) | Sensor assy - FR. CRASH(TRW) |
| 6 | 77970-SNA-A32 | Sensor assy - SIDE IMPACT (TRW) | Sensor assy - SIDE IMPACT (TRW) |
| 14 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 16 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 17 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Starter motor (DENSO) 29 / 29
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 30201-PH9-004 | Ring - SNAP (DENSO) | Ring - SNAP (DENSO) |
| 2 | 30202-P3F-003 | Collar - CLUTCH STOP | Collar - CLUTCH STOP |
| 3 | 31200-RNA-003 | Motor assy. - STARTER (DSKEG/DSKET) (DENSO) | Motor assy. - STARTER (DSKEG/DSKET) (DENSO) |
| 4 | 31201-RNA-003 | Housing comp - DRIVE SIDE | Housing comp - DRIVE SIDE |
| 5 | 31202-PM3-J01 | Bolt - THROUGH (DENSO) | Bolt - THROUGH (DENSO) |
| 6 | 31202-RNA-A01 | Endframe comp. - COMMUTATOR | Endframe comp. - COMMUTATOR |
| 7 | 31203-PCA-003 | Lever - PINION DRIVE | Lever - PINION DRIVE |
| 8 | 31204-RNA-003 | Switch assy - MAGNET | Switch assy - MAGNET |
| 9 | 31205-RTA-003 | Yoke set | Yoke set |
| 10 | 31206-RTA-003 | Armature comp. | Armature comp. |
| 11 | 31207-PCA-003 | Clutch comp. - OVERRUNNING | Clutch comp. - OVERRUNNING |
| 12 | 31208-P3F-003 | Screw - PAN, 4MM | Screw - PAN, 4MM |
| 13 | 31213-PCA-003 | Shaft - DRIVE | Shaft - DRIVE |
| 14 | 31213-RNA-A01 | Cover | Cover |
| 15 | 31214-P3F-003 | Gear assy. - INTERNAL | Gear assy. - INTERNAL |
| 16 | 31215-P3F-003 | Gear comp - PLANETARY | Gear comp - PLANETARY |
| 17 | 31216-RAA-003 | Absorber comp - SHOCK | Absorber comp - SHOCK |
| 18 | 31217-P3F-003 | Plate - SEAL | Plate - SEAL |
| 19 | 31218-P3F-003 | Washer a | Washer a |
| 20 | 31219-P3F-003 | Washer b | Washer b |
| 21 | 31220-PH9-004 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 22 | 31220-P3F-003 | Washer c | Washer c |
| 23 | 31223-PA0-006 | Nut - HEX. | Nut - HEX. |
| 24 | 31228-PLR-A01 | O-ring | O-ring |
| 25 | 31231-P3F-003 | Plate comp - BRUSH HOLDER | Plate comp - BRUSH HOLDER |
| 26 | 31291-RZP-G01 | Stay - ENGINE WIRE HARNESS | Stay - ENGINE WIRE HARNESS |
| 27 | 31292-PLR-A01 | Bolt-washer | Bolt-washer |
| 29 | 31211-PCX-A01 | Brush - + | Brush - + |
| 30 | 31212-P3F-003 | Spring - BRUSH | Spring - BRUSH |
Steering column 3 / 5
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 5 | 90135-SZT-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 6 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 7 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
Steering wheel (SRS) 2 / 7
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 15 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 16 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
Throttle body 4 / 5
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 36162-RNA-A01 | Valve assy. - PURGE CONTROL SOLENOID | Valve assy. - PURGE CONTROL SOLENOID |
| 3 | 37835-PGK-A01 | O-ring | O-ring |
| 4 | 90012-RNA-A00 | Bolt-washer - 8X55 | Bolt-washer - 8X55 |
| 5 | 90020-RNA-A01 | Bolt-washer - 5X20 | Bolt-washer - 5X20 |
Tire/wheel disks 45 / 64
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 5 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 5 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 6 | 44727-SEA-J02 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 6 | 44723-SEA-J01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 6 | 44722-SEA-J01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 6 | 44721-SEA-J01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 6 | 44723-SEA-J02 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 6 | 44722-SEA-J02 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 6 | 44721-SEA-J02 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 6 | 44727-SEA-J01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 6 | 44729-SEA-J01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 6 | 44726-SEA-J01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 6 | 44728-SEA-J01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 6 | 44729-SEA-J02 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 6 | 44726-SEA-J02 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 6 | 44728-SEA-J02 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 7 | 44729-SEA-N01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 7 | 44727-TP6-A01 | WEIGHT (35G) | WEIGHT (35G) |
| 7 | 44726-SEA-N01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 7 | 44721-TP6-A01 | WEIGHT, BALANCE (5G) | WEIGHT, BALANCE (5G) |
| 7 | 44728-SEA-N01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 7 | 44725-TP6-A01 | WEIGHT (25G) | WEIGHT (25G) |
| 7 | 44724-SEA-N02 | Weight - BALANCE (40G) (TOHO ZINC) | Weight - BALANCE (40G) (TOHO ZINC) |
| 7 | 44727-SEA-N01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 7 | 44723-TP6-A01 | WEIGHT (15G) | WEIGHT (15G) |
| 7 | 44729-SEA-N02 | Weight - BALANCE (35G) (TOHO ZINC) | Weight - BALANCE (35G) (TOHO ZINC) |
| 7 | 44726-SEA-N02 | Weight - BALANCE (5G) (TOHO ZINC) | Weight - BALANCE (5G) (TOHO ZINC) |
| 7 | 44728-SEA-N02 | Weight - BALANCE (25G) (TOHO ZINC) | Weight - BALANCE (25G) (TOHO ZINC) |
| 7 | 44725-SEA-N01 | Weight - BALANCE (50G) (TOHO) | Weight - BALANCE (50G) (TOHO) |
| 7 | 44727-SEA-N02 | Weight - BALANCE (15G) (TOHO ZINC) | Weight - BALANCE (15G) (TOHO ZINC) |
| 7 | 44723-SEA-N01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 7 | 44726-TP6-A01 | WEIGHT (30G) | WEIGHT (30G) |
| 7 | 44722-SEA-N01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 7 | 44724-TP6-A01 | WEIGHT (20G) | WEIGHT (20G) |
| 7 | 44725-SEA-N02 | Weight - BALANCE (50G) (TOHO ZINC) | Weight - BALANCE (50G) (TOHO ZINC) |
| 7 | 44721-SEA-N01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 7 | 44721-S5A-A20 | Weight - BALANCE (10G) | Weight - BALANCE (10G) |
| 7 | 44723-SEA-N02 | Weight - BALANCE (30G) (TOHO ZINC) | Weight - BALANCE (30G) (TOHO ZINC) |
| 7 | 44722-SEA-N02 | Weight - BALANCE (20G) (TOHO ZINC) | Weight - BALANCE (20G) (TOHO ZINC) |
| 7 | 44730-SEA-N01 | Weight - BALANCE (45G) (TOHO) | Weight - BALANCE (45G) (TOHO) |
| 7 | 44721-SEA-N02 | Weight - BALANCE (10G) (TOHO ZINC) | Weight - BALANCE (10G) (TOHO ZINC) |
| 7 | 44730-SEA-N02 | Weight - BALANCE (45G) (TOHO ZINC) | Weight - BALANCE (45G) (TOHO ZINC) |
| 7 | 44724-SEA-N01 | Weight - BALANCE (40G) (TOHO) | Weight - BALANCE (40G) (TOHO) |
| 9 | 44732-S9A-A00 | Cap - ALUMINIUM WHEEL CENTER | Cap - ALUMINIUM WHEEL CENTER |
| 14 | 74665-SM4-A00 | Adapter - ANCHOR BOLT | Adapter - ANCHOR BOLT |
Tools/jack 2 / 4
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 89310-S5A-Y02 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 3 | 89311-S5A-Y02 | Plate - JACK CAUTION | Plate - JACK CAUTION |
Torque converter case 19 / 21
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 21101-PRP-000 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 1 | 21101-RG0-A00 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 3 | 23225-RPC-000 | Plate - OIL GUIDE | Plate - OIL GUIDE |
| 4 | 23235-RPC-000 | Collar - OIL GUIDE | Collar - OIL GUIDE |
| 5 | 25422-PN6-801 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 6 | 27251-RPC-000 | Valve - LUBRICATION CHECK | Valve - LUBRICATION CHECK |
| 7 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 8 | 90025-RPC-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 9 | 90081-PX4-003 | Bolt - PLUG, 18MM | Bolt - PLUG, 18MM |
| 10 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 11 | 90471-PX4-000 | Washer - DRAIN PLUG, 18MM | Washer - DRAIN PLUG, 18MM |
| 12 | 90471-RPC-000 | Washer - DRAIN PLUG, 16MM | Washer - DRAIN PLUG, 16MM |
| 13 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 14 | 90705-PA9-000 | Dowel pin - 14X25 | Dowel pin - 14X25 |
| 15 | 91003-RPC-003 | Bearing - BALL, 26X62X11 | Bearing - BALL, 26X62X11 |
| 16 | 91001-PRP-004 | Bearing - BALL, 40X68X7.5 | Bearing - BALL, 40X68X7.5 |
| 17 | 91101-RPC-003 | Bearing - NEEDLE, 33.5X59X19 | Bearing - NEEDLE, 33.5X59X19 |
| 19 | 91207-P7Z-003 | Oil seal - 44X68X8 (NOK) | Oil seal - 44X68X8 (NOK) |
| 20 | 91326-P4V-003 | O-ring - 26.7X1.9(NOK) | O-ring - 26.7X1.9(NOK) |
Transmission case 16 / 17
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 21210-RPC-000 | Case comp. - TRANSMISSION | Case comp. - TRANSMISSION |
| 2 | 21231-RPC-000 | Hanger comp. - TRANSMISSION | Hanger comp. - TRANSMISSION |
| 4 | 21511-RPC-000 | Stay a - HARNESS | Stay a - HARNESS |
| 5 | 21514-RPC-000 | Stay b - HARNESS | Stay b - HARNESS |
| 6 | 21811-RPC-000 | Packing - TORQUE CONVERTER CASE | Packing - TORQUE CONVERTER CASE |
| 7 | 28450-RPC-000 | Cover - SOLENOID | Cover - SOLENOID |
| 8 | 28451-RPC-000 | Packing - SOLENOID COVER | Packing - SOLENOID COVER |
| 9 | 90603-PB6-000 | Ring - SNAP, 62MM | Ring - SNAP, 62MM |
| 10 | 90609-PC8-000 | Ring - SNAP, 68MM | Ring - SNAP, 68MM |
| 11 | 90612-RPC-000 | Ring - SNAP, 78MM | Ring - SNAP, 78MM |
| 12 | 90615-PF4-000 | Ring - SNAP, 75MM | Ring - SNAP, 75MM |
| 13 | 91001-RPC-006 | Bearing - BALL, 27X75X18.5 | Bearing - BALL, 27X75X18.5 |
| 14 | 91002-RPC-005 | Bearing - BALL, 29X78X19/16 | Bearing - BALL, 29X78X19/16 |
| 15 | 91004-RPC-016 | Bearing - BALL, 29X68X13 | Bearing - BALL, 29X68X13 |
| 16 | 91005-RPC-016 | Bearing - BALL, 20X62X16.5 | Bearing - BALL, 20X62X16.5 |
| 17 | 91205-PL3-A01 | Oil seal - 35X56X8 (ARAI) | Oil seal - 35X56X8 (ARAI) |
Trunk lid 3 / 32
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 36 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 44 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Valve/rocker arm 9 / 11
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 14620-RNA-A01 | Arm assy. - ROCKER | Arm assy. - ROCKER |
| 2 | 14711-RNA-A00 | Valve - IN. | Valve - IN. |
| 3 | 14721-P2A-000 | Valve - EX. | Valve - EX. |
| 4 | 14744-PM3-000 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 7 | 14765-RGA-000 | Retainer - VALVE SPRING | Retainer - VALVE SPRING |
| 8 | 14775-P08-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 9 | 14781-RGM-A01 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 10 | 14820-RNA-A01 | Motion comp - LOST | Motion comp - LOST |
| 11 | 90206-PM3-004 | Nut - TAPPET ADJUSTING (TOKAI TRW) | Nut - TAPPET ADJUSTING (TOKAI TRW) |
Water hose 9 / 13
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 19423-RNA-A01 | Clamp - ATF WARMER HOSE | Clamp - ATF WARMER HOSE |
| 3 | 79746-S5A-003 | Clamp - HEATER HOSE (NATURAL) | Clamp - HEATER HOSE (NATURAL) |
| 4 | 19506-RNA-A01 | Hose - THERMOBODY IN. | Hose - THERMOBODY IN. |
| 4 | 79751-SNA-A00 | Stay - HEATER HOSE | Stay - HEATER HOSE |
| 5 | 19507-RNA-A01 | Hose - THERMOBODY OUTLET | Hose - THERMOBODY OUTLET |
| 5 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 5 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 7 | 19509-RNA-A01 | Hose - DEVICE | Hose - DEVICE |
| 8 | 19512-PK2-003 | Clip - HOSE, 18.7MM | Clip - HOSE, 18.7MM |
Water pump 24 / 24
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 18011-RNA-A00 | EGR Valve set | EGR Valve set |
| 2 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | GASKET, EGR VALVE (ISHINO GASKET) |
| 3 | 19200-RNA-A02 | Pump comp - WATER | Pump comp - WATER |
| 4 | 19222-RNA-A00 | Packing - WATER PUMP | Packing - WATER PUMP |
| 5 | 19224-RNA-A02 | Pulley - WATER PUMP | Pulley - WATER PUMP |
| 6 | 19301-RNA-305 | Thermostat assy - FUJI SEIKO | Thermostat assy - FUJI SEIKO |
| 6 | 19301-RNA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 7 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 8 | 19311-RNA-A00 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 9 | 19315-RNA-A01 | Cover comp. - WATER OUTLET | Cover comp. - WATER OUTLET |
| 10 | 19320-RNA-A50 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 11 | 19322-RNA-A01 | Gasket - THERMOSTAT CASE | Gasket - THERMOSTAT CASE |
| 12 | 19425-RNA-A00 | Cover - HEATER OUTLET | Cover - HEATER OUTLET |
| 13 | 19426-RNA-A01 | Gasket - HEATER OUTLET | Gasket - HEATER OUTLET |
| 14 | 19505-RNA-A00 | Pipe assy. - CONNECTING | Pipe assy. - CONNECTING |
| 15 | 36536-RNA-A00 | Stay - SENSOR HARNESS | Stay - SENSOR HARNESS |
| 16 | 37870-PLC-004 | Sensor assy, WATER TEMP (MATSUSHITA) | Sensor assy, WATER TEMP (MATSUSHITA) |
| 17 | 90010-RNA-A00 | Bolt - SPECIAL, 8X87 | Bolt - SPECIAL, 8X87 |
| 18 | 90013-PCX-000 | Bolt - SPECIAL, 6X12 | Bolt - SPECIAL, 6X12 |
| 19 | 90014-RNA-A00 | Bolt - SPECIAL, 6X29.5 | Bolt - SPECIAL, 6X29.5 |
| 20 | 90015-RNA-A00 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 21 | 90401-RNA-A00 | Washer - SEALING, 16MM | Washer - SEALING, 16MM |
| 22 | 91307-PLC-004 | O-ring - 9.5X1.9 (MATSUSHITA) | O-ring - 9.5X1.9 (MATSUSHITA) |
| 23 | 91314-PH7-003 | O-ring 31.2X4.1 (NOK) | O-ring 31.2X4.1 (NOK) |
Wire harness (LH; 1) 3 / 6
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 1 | 32114-RNA-003 | Holder - CORRUGATED (DARK GREEN) (7MM) | Holder - CORRUGATED (DARK GREEN) (7MM) |
| 5 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 6 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
Wire harness (LH; 2) 2 / 3
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 2 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 3 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
Wire harness (LH; 3) 1 / 4
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
Wire harness (LH; 4) 1 / 7
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 9 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| # | OEM | FD4 | FK2 |
|---|---|---|---|
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 25 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 06110-RNA-000 | Gasket kit - CYLINDER HEAD | Gasket kit - CYLINDER HEAD |
| 3 | 06114-RNA-Y00 | Gasket kit - CHAIN CASE | Gasket kit - CHAIN CASE |
| 2 | 11103-RNA-A01 | Plate - PARTITION | Plate - PARTITION |
| 3 | 11105-RNA-A00 | Bolt - SEALING, 20MM | Bolt - SEALING, 20MM |
| 4 | 11106-RNA-A00 | Washer - SEALING, 20MM | Washer - SEALING, 20MM |
| 5 | 11107-PWA-300 | Washer - SEALING, 24MM | Washer - SEALING, 24MM |
| 6 | 11107-RNA-A00 | Bolt - SEALING, 24MM | Bolt - SEALING, 24MM |
| 8 | 11221-RNA-A00 | Plate - BAFFLE | Plate - BAFFLE |
| 9 | 11850-RNA-A00 | Cover comp. - BREATHER | Cover comp. - BREATHER |
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 3 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 1 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 2 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 3 | 12215-RNA-A00 | Collar - SPARK PLUG COIL | Collar - SPARK PLUG COIL |
| 4 | 12216-RNA-A00 | Bolt - SPARK PLUG COIL | Bolt - SPARK PLUG COIL |
| 4 | 12231-RNA-A00 | Holder comp - ROCKER SHAFT (NO.1) | Holder comp - ROCKER SHAFT (NO.1) |
| 5 | 12232-RNA-A00 | Holder comp - ROCKER SHAFT | Holder comp - ROCKER SHAFT |
| 6 | 12235-RNA-A00 | Holder comp - ROCKER SHAFT (NO.5) | Holder comp - ROCKER SHAFT (NO.5) |
| 7 | 12236-RNA-A00 | Holder comp - LOST MOTION | Holder comp - LOST MOTION |
| 5 | 12240-RNA-A00 | Cover comp. - CAMSHAFT THRUST | Cover comp. - CAMSHAFT THRUST |
| 6 | 12251-RNA-A02 | Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS) | Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS) |
| 1 | 12310-RNA-A01 | Cover comp. - CYLINDER HEAD | Cover comp. - CYLINDER HEAD |
| 2 | 12341-RNA-A01 | Packing - HEAD COVER | Packing - HEAD COVER |
| 1 | 12513-P72-003 | Plug - CYLINDER HEAD | Plug - CYLINDER HEAD |
| 2 | 13011-RNA-A02 | Ring set - PISTON(STD.)(RIKEN) | Ring set - PISTON(STD.)(RIKEN) |
| 2 | 13021-RNA-A01 | Ring set - PISTON(OS 0.25) (TEIKOKU) | Ring set - PISTON(OS 0.25) (TEIKOKU) |
| 2 | 13021-RNA-A02 | Ring set - PISTON(OS 0.25) (RIKEN) | Ring set - PISTON(OS 0.25) (RIKEN) |
| 3 | 13111-RNA-A00 | Pin - PISTON | Pin - PISTON |
| 4 | 13115-RNA-A00 | Clip - PISTON PIN | Clip - PISTON PIN |
| 5 | 13204-RNA-A01 | Bolt - CONNECTING ROD | Bolt - CONNECTING ROD |
| 7 | 13211-RNA-A01 | BEARING A - CONNECTING ROD (BLACK)(DAIDO) | BEARING A - CONNECTING ROD (BLACK)(DAIDO) |
| 7 | 13212-RNA-A01 | Bearing b - CONNECTING ROD (BROWN)(DAIDO) | Bearing b - CONNECTING ROD (BROWN)(DAIDO) |
| 7 | 13213-RNA-A01 | Bearing c - CONNECTING ROD (GREEN)(DAIDO) | Bearing c - CONNECTING ROD (GREEN)(DAIDO) |
| 7 | 13214-RNA-A01 | Bearing d - CONNECTING ROD (YELLOW)(DAIDO) | Bearing d - CONNECTING ROD (YELLOW)(DAIDO) |
| 7 | 13215-RNA-A01 | Bearing e - CONNECTING ROD (PINK)(DAIDO) | Bearing e - CONNECTING ROD (PINK)(DAIDO) |
| 7 | 13216-RNA-A01 | Bearing f - CONNECTING ROD(RED) (DAIDO) | Bearing f - CONNECTING ROD(RED) (DAIDO) |
| 9 | 13321-RNA-A01 | BEARING A - MAIN UPPER (BLUE) (DAIDO) | BEARING A - MAIN UPPER (BLUE) (DAIDO) |
| 9 | 13322-RNA-A01 | Bearing b - MAIN UPPER (BLACK) (DAIDO) | Bearing b - MAIN UPPER (BLACK) (DAIDO) |
| 9 | 13323-RNA-A01 | Bearing c - MAIN UPPER (BROWN) (DAIDO) | Bearing c - MAIN UPPER (BROWN) (DAIDO) |
| 9 | 13324-RNA-A01 | Bearing d - MAIN UPPER (GREEN) (DAIDO) | Bearing d - MAIN UPPER (GREEN) (DAIDO) |
| 9 | 13325-RNA-A01 | Bearing e - MAIN UPPER (YELLOW) (DAIDO) | Bearing e - MAIN UPPER (YELLOW) (DAIDO) |
| 9 | 13326-RNA-A01 | Bearing f - MAIN UPPER (PINK) (DAIDO) | Bearing f - MAIN UPPER (PINK) (DAIDO) |
| 10 | 13331-PNA-004 | Washer - THRUST(TAIHO) | Washer - THRUST(TAIHO) |
| 11 | 13341-RNA-A01 | BEARING A - MAIN LOWER (BLUE) (DAIDO) | BEARING A - MAIN LOWER (BLUE) (DAIDO) |
| 11 | 13342-RNA-A01 | Bearing b - MAIN LOWER (BLACK) (DAIDO) | Bearing b - MAIN LOWER (BLACK) (DAIDO) |
| 11 | 13343-RNA-A01 | Bearing c - MAIN LOWER (BROWN) (DAIDO) | Bearing c - MAIN LOWER (BROWN) (DAIDO) |
| 11 | 13344-RNA-A01 | Bearing d - MAIN LOWER (GREEN) (DAIDO) | Bearing d - MAIN LOWER (GREEN) (DAIDO) |
| 11 | 13345-RNA-A01 | Bearing e - MAIN LOWER (YELLOW) (DAIDO) | Bearing e - MAIN LOWER (YELLOW) (DAIDO) |
| 11 | 13346-RNA-A01 | Bearing f - MAIN LOWER (PINK) (DAIDO) | Bearing f - MAIN LOWER (PINK) (DAIDO) |
| 12 | 13620-RNA-A01 | Sprocket comp - CHAIN DRIVE | Sprocket comp - CHAIN DRIVE |
| 13 | 13622-RNA-A00 | Plate - CRANK PULSER | Plate - CRANK PULSER |
| 14 | 13810-RNA-A02 | Pulley comp - CRANKSHAFT | Pulley comp - CRANKSHAFT |
| 2 | 14211-RNA-A01 | Sprocket - CAM CHAIN DRIVEN (46T) | Sprocket - CAM CHAIN DRIVEN (46T) |
| 3 | 14221-RNA-A01 | Plate - TDC PULSER | Plate - TDC PULSER |
| 4 | 14222-PWA-004 | Bolt - TDC PULSER PLATE | Bolt - TDC PULSER PLATE |
| 5 | 14401-RNA-A01 | Chain - 136L | Chain - 136L |
| 6 | 14510-RNA-A01 | Tensioner comp - CAM CHAIN | Tensioner comp - CAM CHAIN |
| 7 | 14511-PNA-003 | Stopper - TOOL | Stopper - TOOL |
| 8 | 14520-RNA-A01 | Arm comp - CAM CHAIN TENSIONER | Arm comp - CAM CHAIN TENSIONER |
| 9 | 14530-RNA-A01 | Guide - CAM CHAIN | Guide - CAM CHAIN |
| 1 | 14620-RNA-A01 | Arm assy. - ROCKER | Arm assy. - ROCKER |
| 8 | 14631-RNA-A00 | Shaft comp. - ROCKER | Shaft comp. - ROCKER |
| 2 | 14711-RNA-A00 | Valve - IN. | Valve - IN. |
| 3 | 14721-P2A-000 | Valve - EX. | Valve - EX. |
| 4 | 14744-PM3-000 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 7 | 14765-RGA-000 | Retainer - VALVE SPRING | Retainer - VALVE SPRING |
| 8 | 14775-P08-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 9 | 14781-RGM-A01 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 10 | 14820-RNA-A01 | Motion comp - LOST | Motion comp - LOST |
| 2 | 15100-R1A-A01 | Oil Pump | Oil Pump |
| 2 | 15100-RNC-T01 | Pump assy. - OIL | Pump assy. - OIL |
| 3 | 15101-RNA-A00 | O-ring set - OIL PUMP | O-ring set - OIL PUMP |
| 4 | 15112-RNA-A00 | Cover - CHAIN CASE | Cover - CHAIN CASE |
| 9 | 15140-P0A-000 | Orifice assy - CAM JOURNAL | Orifice assy - CAM JOURNAL |
| 10 | 15142-PE0-000 | O-ring - 4.8X1.9 | O-ring - 4.8X1.9 |
| 5 | 15220-RNA-A01 | Strainer comp. - OIL | Strainer comp. - OIL |
| 6 | 15221-RNA-A01 | Gasket | Gasket |
| 10 | 15280-RZP-000 | Body comp - OIL JET | Body comp - OIL JET |
| 11 | 15290-RZP-000 | Bolt comp - OIL JET | Bolt comp - OIL JET |
| 7 | 15400-PLM-A02 | OIL FILTER (HONEYWELL) | OIL FILTER (HONEYWELL) |
| 7 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 3 | 15610-PFB-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 4 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 5 | 15650-RNA-A00 | Gauge - OIL LEVEL | Gauge - OIL LEVEL |
| 7 | 15810-RWK-003 | Valve assy. Spool | Valve assy. Spool |
| 8 | 15826-RNA-A01 | Filter assy - SPOOL VALVE | Filter assy - SPOOL VALVE |
| 1 | 16450-RNA-A01 | Injector assy - FUEL | Injector assy - FUEL |
| 2 | 16451-PLC-000 | Clip - INJECTOR | Clip - INJECTOR |
| 4 | 16640-RNA-A00 | Cover - FUEL PIPE | Cover - FUEL PIPE |
| 1 | 16725-PNA-003 | Clamp a - FUEL HOSE | Clamp a - FUEL HOSE |
| 2 | 17100-RNA-A00 | Manifold comp - INTAKE | Manifold comp - INTAKE |
| 3 | 17101-RNA-A00 | Cover comp. - BYPASS VALVE | Cover comp. - BYPASS VALVE |
| 4 | 17102-RNA-A01 | Packing - BYPASS VALVE COVER | Packing - BYPASS VALVE COVER |
| 5 | 17103-RNA-A01 | Packing b - BYPASS VALVE | Packing b - BYPASS VALVE |
| 6 | 17104-RNA-A01 | Packing a - BYPASS VALVE | Packing a - BYPASS VALVE |
| 7 | 17105-RNA-A01 | Packing a - INTAKE MANIFOLD | Packing a - INTAKE MANIFOLD |
| 8 | 17106-RNA-A01 | Packing b - INTAKE MANIFOLD | Packing b - INTAKE MANIFOLD |
| 9 | 17107-RNA-A01 | Packing, throttle body | Packing, throttle body |
| 10 | 17108-RNA-A01 | O-ring - 31.2X3.5 | O-ring - 31.2X3.5 |
| 11 | 17113-RNA-A00 | Stiffener - INTAKE MANIFOLD | Stiffener - INTAKE MANIFOLD |
| 1 | 17115-PWA-000 | Rubber - ENGINE COVER MOUNTING | Rubber - ENGINE COVER MOUNTING |
| 2 | 17116-PWA-000 | Collar - ENGINE COVER | Collar - ENGINE COVER |
| 12 | 17116-RNA-A00 | Plate - THROTTLE FLANGE | Plate - THROTTLE FLANGE |
| 1 | 17130-PND-A01 | Valve assy. - PCV | Valve assy. - PCV |
| 2 | 17131-RNA-A00 | Tube - PCV | Tube - PCV |
| 1 | 17136-RNA-A00 | Grommet, BREATHER PIPE | Grommet, BREATHER PIPE |
| 3 | 17137-RNA-A00 | Pipe comp - BREATHER | Pipe comp - BREATHER |
| 9 | 17147-RNA-A00 | Joint - EGR | Joint - EGR |
| 14 | 17150-RNA-A01 | Actuator assy - BYPASS VALVE | Actuator assy - BYPASS VALVE |
| 15 | 17153-RCA-A01 | Packing - BYPASS VALVE ACTUATOR | Packing - BYPASS VALVE ACTUATOR |
| 4 | 17153-RNA-A00 | Tube - BREATHER | Tube - BREATHER |
| 16 | 17210-RNA-A01 | Valve assy. - BYPASS | Valve assy. - BYPASS |
| 3 | 17211-RNA-A00 | Cover comp. AIR CLEANER | Cover comp. AIR CLEANER |
| 5 | 17212-P2J-000 | Rubber - AIR CLEANER MOUNTING | Rubber - AIR CLEANER MOUNTING |
| 4 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 3 | 17212-PE2-000 | Rubber a - AIR CLEANER CASE MOUNTING | Rubber a - AIR CLEANER CASE MOUNTING |
| 4 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 5 | 17213-P8A-A00 | Rubber - INTAKE MANIFOLD COVER MOUNTING | Rubber - INTAKE MANIFOLD COVER MOUNTING |
| 17 | 17213-RNA-A00 | Rubber - INTAKE MANIFOLD MOUNTING | Rubber - INTAKE MANIFOLD MOUNTING |
| 18 | 17216-PE2-003 | Collar - AIR CLEANER(TOYO ROKI) | Collar - AIR CLEANER(TOYO ROKI) |
| 6 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 7 | 17217-P2J-300 | Clip - AIR CLEANER | Clip - AIR CLEANER |
| 8 | 17217-RNA-A00 | Clip - AIR CLEANER | Clip - AIR CLEANER |
| 10 | 17225-RNA-A00 | Tube - AIR FLOW | Tube - AIR FLOW |
| 11 | 17256-RNA-A00 | Ring - SEAL | Ring - SEAL |
| 14 | 17262-RNA-A00 | Stay comp. b - AIR CLEANER | Stay comp. b - AIR CLEANER |
| 15 | 17263-RNA-A00 | Stay comp. c - AIR CLEANER | Stay comp. c - AIR CLEANER |
| 1 | 17300-SNA-023 | Canister assy | Canister assy |
| 16 | 17315-P5K-000 | Clamp - AIR FLOW TUBE (74) | Clamp - AIR FLOW TUBE (74) |
| 17 | 17316-P1E-000 | Clamp - AIR FLOW TUBE (70) | Clamp - AIR FLOW TUBE (70) |
| 11 | 17525-S0X-A00 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 13 | 17652-SDA-A31 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 14 | 17652-SEL-003 | Clip - FILLER TUBE (39MM) | Clip - FILLER TUBE (39MM) |
| 18 | 17670-SJA-013 | Cap comp. FUEL FILLER | Cap comp. FUEL FILLER |
| 18 | 17670-T3W-003 | CAP, FUEL FILLER | CAP, FUEL FILLER |
| 6 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 7 | 17711-S84-004 | Retainer - WHITE)(SANOH | Retainer - WHITE)(SANOH |
| 7 | 17724-SNA-000 | Tube - FUEL VENT | Tube - FUEL VENT |
| 1 | 18011-RNA-A00 | EGR Valve set | EGR Valve set |
| 1 | 18115-RNA-004 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 2 | 18120-RNA-A00 | Cover comp. - CHAMBER | Cover comp. - CHAMBER |
| 4 | 18181-RNA-A00 | Cover, FR. CONVERTER | Cover, FR. CONVERTER |
| 6 | 18198-RNA-A00 | Stay - CONVERTER | Stay - CONVERTER |
| 8 | 18230-SV4-000 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 2 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | GASKET, EGR VALVE (ISHINO GASKET) |
| 8 | 18716-RNA-A01 | Gasket a - EGR PIPE | Gasket a - EGR PIPE |
| 9 | 18717-RNA-A00 | Pipe comp - EGR | Pipe comp - EGR |
| 10 | 18719-RNA-A01 | Gasket b - EGR PIPE | Gasket b - EGR PIPE |
| 11 | 18720-RNA-A00 | Bolt - FLANGE, 8X20 | Bolt - FLANGE, 8X20 |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 6 | 19020-RCJ-A01 | Fan - COOLING | Fan - COOLING |
| 7 | 19030-RNA-A51 | Motor - COOLING FAN | Motor - COOLING FAN |
| 2 | 19043-PLA-E00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 8 | 19045-RAA-003 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 10 | 19046-RAA-A00 | Label - RADIATOR CAP | Label - RADIATOR CAP |
| 11 | 19047-PLC-003 | Cover - RADIATOR CAP (DENSO) | Cover - RADIATOR CAP (DENSO) |
| 4 | 19102-RNA-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 3 | 19200-RNA-A02 | Pump comp - WATER | Pump comp - WATER |
| 4 | 19222-RNA-A00 | Packing - WATER PUMP | Packing - WATER PUMP |
| 5 | 19224-RNA-A02 | Pulley - WATER PUMP | Pulley - WATER PUMP |
| 6 | 19301-RNA-305 | Thermostat assy - FUJI SEIKO | Thermostat assy - FUJI SEIKO |
| 6 | 19301-RNA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 7 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 8 | 19311-RNA-A00 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 9 | 19315-RNA-A01 | Cover comp. - WATER OUTLET | Cover comp. - WATER OUTLET |
| 10 | 19320-RNA-A50 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 11 | 19322-RNA-A01 | Gasket - THERMOSTAT CASE | Gasket - THERMOSTAT CASE |
| 3 | 19423-RNA-A01 | Clamp - ATF WARMER HOSE | Clamp - ATF WARMER HOSE |
| 12 | 19425-RNA-A00 | Cover - HEATER OUTLET | Cover - HEATER OUTLET |
| 13 | 19426-RNA-A01 | Gasket - HEATER OUTLET | Gasket - HEATER OUTLET |
| 1 | 19430-RNA-A51 | Warmer comp. - ATF | Warmer comp. - ATF |
| 14 | 19505-RNA-A00 | Pipe assy. - CONNECTING | Pipe assy. - CONNECTING |
| 4 | 19506-RNA-A01 | Hose - THERMOBODY IN. | Hose - THERMOBODY IN. |
| 5 | 19507-RNA-A01 | Hose - THERMOBODY OUTLET | Hose - THERMOBODY OUTLET |
| 7 | 19509-RNA-A01 | Hose - DEVICE | Hose - DEVICE |
| 11 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 11 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 8 | 19512-PK2-003 | Clip - HOSE, 18.7MM | Clip - HOSE, 18.7MM |
| 5 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 1 | 21101-PRP-000 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 1 | 21101-RG0-A00 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 1 | 21210-RPC-000 | Case comp. - TRANSMISSION | Case comp. - TRANSMISSION |
| 1 | 21215-RG5-000 | Holder - IDLE SHAFT | Holder - IDLE SHAFT |
| 2 | 21231-RPC-000 | Hanger comp. - TRANSMISSION | Hanger comp. - TRANSMISSION |
| 1 | 21240-RPC-000 | Cover comp. L. SIDE | Cover comp. L. SIDE |
| 1 | 21351-RNA-000 | Cover - TORQUE CONVERTER CASE | Cover - TORQUE CONVERTER CASE |
| 4 | 21511-RPC-000 | Stay a - HARNESS | Stay a - HARNESS |
| 5 | 21514-RPC-000 | Stay b - HARNESS | Stay b - HARNESS |
| 2 | 21515-RPC-000 | Stay c - HARNESS | Stay c - HARNESS |
| 3 | 21720-RPC-000 | Cover comp. - POSITION SENSOR | Cover comp. - POSITION SENSOR |
| 4 | 21722-RPC-000 | Stopper - POSITION SENSOR | Stopper - POSITION SENSOR |
| 5 | 21724-RCT-000 | Rubber - POSITION SENSOR COVER | Rubber - POSITION SENSOR COVER |
| 6 | 21725-RCT-000 | Collar - POSITION SENSOR COVER | Collar - POSITION SENSOR COVER |
| 6 | 21811-RPC-000 | Packing - TORQUE CONVERTER CASE | Packing - TORQUE CONVERTER CASE |
| 7 | 21812-RPC-000 | Packing - L. SIDE COVER | Packing - L. SIDE COVER |
| 1 | 22510-RPC-003 | Guide comp - LOW CLUTCH | Guide comp - LOW CLUTCH |
| 2 | 22521-RPC-003 | Piston - CLUTCH | Piston - CLUTCH |
| 1 | 22530-RPC-004 | Piston comp - CLUTCH | Piston comp - CLUTCH |
| 3 | 22533-RPC-003 | Retainer comp - RETURN SPRING | Retainer comp - RETURN SPRING |
| 2 | 22536-RCT-014 | Spring - CLUTCH WAVE | Spring - CLUTCH WAVE |
| 4 | 22536-RPC-003 | Spring - CLUTCH WAVE | Spring - CLUTCH WAVE |
| 1 | 22537-RPC-003 | Spring - CLUTCH WAVE | Spring - CLUTCH WAVE |
| 5 | 22541-RPC-003 | Spring - CLUTCH RETURN | Spring - CLUTCH RETURN |
| 3 | 22541-RPC-004 | Spring - CLUTCH RETURN | Spring - CLUTCH RETURN |
| 2 | 22542-RPC-003 | Spring - CLUTCH RETURN | Spring - CLUTCH RETURN |
| 6 | 22543-RPC-003 | Plate - CLUTCH WAVE (1.6MM) | Plate - CLUTCH WAVE (1.6MM) |
| 7 | 22544-RPC-003 | Disk - CLUTCH | Disk - CLUTCH |
| 4 | 22544-RPC-004 | Disk - CLUTCH | Disk - CLUTCH |
| 3 | 22545-RPC-003 | Disk - CLUTCH | Disk - CLUTCH |
| 8 | 22551-RPC-003 | Plate - CLUTCH END (1) (2.1MM) | Plate - CLUTCH END (1) (2.1MM) |
| 5 | 22551-RPC-004 | Plate - CLUTCH END (1) (2.1MM) | Plate - CLUTCH END (1) (2.1MM) |
| 8 | 22552-RPC-003 | Plate - CLUTCH END (2) (2.2MM) | Plate - CLUTCH END (2) (2.2MM) |
| 5 | 22552-RPC-004 | Plate - CLUTCH END (2) (2.2MM) | Plate - CLUTCH END (2) (2.2MM) |
| 8 | 22553-RPC-003 | Plate - CLUTCH END (3) (2.3MM) | Plate - CLUTCH END (3) (2.3MM) |
| 5 | 22553-RPC-004 | Plate - CLUTCH END (3) (2.3MM) | Plate - CLUTCH END (3) (2.3MM) |
| 8 | 22554-RPC-003 | Plate - CLUTCH END (4) (2.4MM) | Plate - CLUTCH END (4) (2.4MM) |
| 5 | 22554-RPC-004 | Plate - CLUTCH END (4) (2.4MM) | Plate - CLUTCH END (4) (2.4MM) |
| 8 | 22555-RPC-003 | Plate - CLUTCH END (5) (2.5MM) | Plate - CLUTCH END (5) (2.5MM) |
| 5 | 22555-RPC-004 | Plate - CLUTCH END (5) (2.5MM) | Plate - CLUTCH END (5) (2.5MM) |
| 8 | 22556-RPC-003 | Plate - CLUTCH END (6) (2.6MM) | Plate - CLUTCH END (6) (2.6MM) |
| 5 | 22556-RPC-004 | Plate - CLUTCH END (6) (2.6MM) | Plate - CLUTCH END (6) (2.6MM) |
| 8 | 22557-RPC-003 | Plate - CLUTCH END (7) (2.7MM) | Plate - CLUTCH END (7) (2.7MM) |
| 5 | 22557-RPC-004 | Plate - CLUTCH END (7) (2.7MM) | Plate - CLUTCH END (7) (2.7MM) |
| 8 | 22558-RPC-003 | Plate - CLUTCH END (8) (2.8MM) | Plate - CLUTCH END (8) (2.8MM) |
| 5 | 22558-RPC-004 | Plate - CLUTCH END (8) (2.8MM) | Plate - CLUTCH END (8) (2.8MM) |
| 8 | 22559-RPC-003 | Plate - CLUTCH END (9) (2.9MM) | Plate - CLUTCH END (9) (2.9MM) |
| 5 | 22559-RPC-004 | Plate - CLUTCH END (9) (2.9MM) | Plate - CLUTCH END (9) (2.9MM) |
| 4 | 22561-RPC-003 | Plate - CLUTCH END (1) (2.1MM) | Plate - CLUTCH END (1) (2.1MM) |
| 5 | 22561-RPC-004 | Plate - CLUTCH END (10) (2.1MM) | Plate - CLUTCH END (10) (2.1MM) |
| 4 | 22562-RPC-003 | Plate - CLUTCH END (2) (2.2MM) | Plate - CLUTCH END (2) (2.2MM) |
| 5 | 22562-RPC-004 | Plate - CLUTCH END (11) (2.2MM) | Plate - CLUTCH END (11) (2.2MM) |
| 4 | 22563-RPC-003 | Plate - CLUTCH END (3) (2.3MM) | Plate - CLUTCH END (3) (2.3MM) |
| 5 | 22563-RPC-004 | Plate - CLUTCH END (12) (2.3MM) | Plate - CLUTCH END (12) (2.3MM) |
| 4 | 22564-RPC-003 | Plate - CLUTCH END (4) (2.4MM) | Plate - CLUTCH END (4) (2.4MM) |
| 5 | 22564-RPC-004 | Plate - CLUTCH END (13) (2.4MM) | Plate - CLUTCH END (13) (2.4MM) |
| 4 | 22565-RPC-003 | Plate - CLUTCH END (5) (2.5MM) | Plate - CLUTCH END (5) (2.5MM) |
| 5 | 22565-RPC-004 | Plate - CLUTCH END (14) (2.5MM) | Plate - CLUTCH END (14) (2.5MM) |
| 4 | 22566-RPC-003 | Plate - CLUTCH END (6) (2.6MM) | Plate - CLUTCH END (6) (2.6MM) |
| 5 | 22566-RPC-004 | Plate - CLUTCH END (15) (2.6MM) | Plate - CLUTCH END (15) (2.6MM) |
| 4 | 22567-RPC-003 | Plate - CLUTCH END (7) (2.7MM) | Plate - CLUTCH END (7) (2.7MM) |
| 5 | 22567-RPC-004 | Plate - CLUTCH END (16) (2.7MM) | Plate - CLUTCH END (16) (2.7MM) |
| 4 | 22568-RPC-003 | Plate - CLUTCH END (8) (2.8MM) | Plate - CLUTCH END (8) (2.8MM) |
| 5 | 22568-RPC-004 | Plate - CLUTCH END (17) (2.8MM) | Plate - CLUTCH END (17) (2.8MM) |
| 4 | 22569-RPC-003 | Plate - CLUTCH END (9) (2.9MM) | Plate - CLUTCH END (9) (2.9MM) |
| 5 | 22569-RPC-004 | Plate - CLUTCH END (18) (2.9MM) | Plate - CLUTCH END (18) (2.9MM) |
| 6 | 22610-RPC-004 | Guide comp - CLUTCH (2-4) | Guide comp - CLUTCH (2-4) |
| 5 | 22633-RPC-003 | Seat - RETURN SPRING | Seat - RETURN SPRING |
| 7 | 22633-RPC-004 | Retainer | Retainer |
| 6 | 22643-RPC-003 | Plate - CLUTCH WAVE (1.6MM) | Plate - CLUTCH WAVE (1.6MM) |
| 8 | 22643-RPC-004 | Plate - CLUTCH (2.0MM) | Plate - CLUTCH (2.0MM) |
| 7 | 22651-RPC-003 | Guide comp - CLUTCH (3-5) | Guide comp - CLUTCH (3-5) |
| 9 | 22653-RPC-004 | Plate - CLUTCH (1.6MM) | Plate - CLUTCH (1.6MM) |
| 8 | 22670-RPC-003 | Piston comp - CLUTCH | Piston comp - CLUTCH |
| 8 | 22713-PW4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 9 | 22713-RPC-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 10 | 22715-PRP-000 | Pipe comp. b - FEED | Pipe comp. b - FEED |
| 2 | 22743-P4R-000 | Pipe - 8X192.5 | Pipe - 8X192.5 |
| 1 | 22743-PG4-000 | Pipe - THIRD CLUTCH | Pipe - THIRD CLUTCH |
| 1 | 22749-PW4-000 | Pipe - 35MM | Pipe - 35MM |
| 2 | 22753-RG5-000 | Pipe - 6X196.5 | Pipe - 6X196.5 |
| 2 | 22760-PPW-000 | Pipe comp - JOINT | Pipe comp - JOINT |
| 1 | 22771-RPC-000 | Pipe a - JOINT | Pipe a - JOINT |
| 2 | 22772-RPC-000 | Pipe b - JOINT | Pipe b - JOINT |
| 3 | 22775-RPC-000 | Pipe - 50MM | Pipe - 50MM |
| 1 | 22814-PRP-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 1 | 22814-RGC-003 | Seal - RING (21.2MM) | Seal - RING (21.2MM) |
| 2 | 23210-RPC-000 | Mainshaft comp. | Mainshaft comp. |
| 3 | 23225-RPC-000 | Plate - OIL GUIDE | Plate - OIL GUIDE |
| 2 | 23230-RG5-000 | Shaft comp. - SECONDARY | Shaft comp. - SECONDARY |
| 4 | 23235-RPC-000 | Collar - OIL GUIDE | Collar - OIL GUIDE |
| 3 | 23411-RPC-020 | Gear - SECONDARY SHAFT LOW | Gear - SECONDARY SHAFT LOW |
| 3 | 23421-RPC-010 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 4 | 23427-RPC-000 | Gear - PARKING | Gear - PARKING |
| 4 | 23431-RPC-000 | Gear - SECONDARY SHAFT SECOND | Gear - SECONDARY SHAFT SECOND |
| 5 | 23441-RPC-000 | Gear - COUNTERSHAFT SECOND | Gear - COUNTERSHAFT SECOND |
| 6 | 23451-RPC-J00 | Gear - COUNTERSHAFT THIRD | Gear - COUNTERSHAFT THIRD |
| 3 | 23455-RPC-J00 | Gear - MAINSHAFT THIRD | Gear - MAINSHAFT THIRD |
| 5 | 23461-RPC-J00 | Gear - SECONDARY SHAFT FOURTH | Gear - SECONDARY SHAFT FOURTH |
| 4 | 23481-RPC-J00 | Gear - MAINSHAFT FIFTH | Gear - MAINSHAFT FIFTH |
| 7 | 23491-RPC-J00 | Gear - COUNTERSHAFT FIFTH | Gear - COUNTERSHAFT FIFTH |
| 5 | 23511-RPC-000 | Gear - MAINSHAFT IDLE | Gear - MAINSHAFT IDLE |
| 1 | 23515-RPC-020 | Gear - IDLE | Gear - IDLE |
| 2 | 23516-RG5-000 | Shaft - IDLE | Shaft - IDLE |
| 6 | 23521-RPC-010 | Gear - SECONDARY SHAFT IDLE | Gear - SECONDARY SHAFT IDLE |
| 8 | 23531-RPC-000 | Gear - COUNTERSHAFT REVERSE | Gear - COUNTERSHAFT REVERSE |
| 9 | 23541-RPC-000 | Gear - REVERSE IDLE | Gear - REVERSE IDLE |
| 10 | 23542-P6H-000 | Shaft - REVERSE IDLE GEAR | Shaft - REVERSE IDLE GEAR |
| 11 | 23565-RPC-000 | Selector - REVERSE GEAR | Selector - REVERSE GEAR |
| 12 | 23566-RPC-000 | Hub - SELECTOR | Hub - SELECTOR |
| 1 | 24111-RPC-000 | Fork - REVERSE SHIFT | Fork - REVERSE SHIFT |
| 3 | 24271-PRP-000 | Shaft - SHIFT FORK | Shaft - SHIFT FORK |
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 3 | 24410-RPC-000 | Shaft comp. - CONTROL | Shaft comp. - CONTROL |
| 12 | 24532-PX4-000 | Lever - PARKING BRAKE | Lever - PARKING BRAKE |
| 13 | 24535-RPC-000 | Spring - PARKING BRAKE | Spring - PARKING BRAKE |
| 14 | 24537-PA9-003 | Stopper - PARKING BRAKE (1) | Stopper - PARKING BRAKE (1) |
| 14 | 24538-PA9-003 | Stopper - PARKING BRAKE (2) | Stopper - PARKING BRAKE (2) |
| 14 | 24539-PA9-003 | Stopper - PARKING BRAKE (3) | Stopper - PARKING BRAKE (3) |
| 15 | 24552-PRP-000 | Spring - PARKING PAWL | Spring - PARKING PAWL |
| 16 | 24553-PN6-000 | Roller - PARKING BRAKE | Roller - PARKING BRAKE |
| 17 | 24555-RDK-000 | Pin - ROLLER, 6MM | Pin - ROLLER, 6MM |
| 18 | 24561-RPC-000 | Pawl - PARKING BRAKE | Pawl - PARKING BRAKE |
| 19 | 24562-PRP-000 | Shaft - PARKING | Shaft - PARKING |
| 4 | 24630-PRP-000 | Arm comp - CHANGE DETENT | Arm comp - CHANGE DETENT |
| 4 | 24634-PRP-060 | Spring - DETENT LEVER | Spring - DETENT LEVER |
| 5 | 24635-PRP-000 | Collar - CHANGE DETENT ARM | Collar - CHANGE DETENT ARM |
| 2 | 24901-RNA-000 | Cover - CONTROL WIRE | Cover - CONTROL WIRE |
| 3 | 24905-RNA-000 | Bracket - CONTROL WIRE | Bracket - CONTROL WIRE |
| 3 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 3 | 25155-RPC-000 | Shaft assy - STATOR | Shaft assy - STATOR |
| 4 | 25211-RPC-003 | Hose - ATF, 150MM | Hose - ATF, 150MM |
| 5 | 25212-RPC-003 | Hose - ATF, 165MM | Hose - ATF, 165MM |
| 6 | 25213-RPC-003 | Hose - ATF, 200MM (TOUKAI) | Hose - ATF, 200MM (TOUKAI) |
| 5 | 25420-RPC-003 | Strainer assy - ATF | Strainer assy - ATF |
| 5 | 25422-PN6-801 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 7 | 25430-PLR-003 | Filter, ATF | Filter, ATF |
| 8 | 25431-RPC-000 | Stay a - ATF FILTER | Stay a - ATF FILTER |
| 9 | 25432-RPC-000 | Stay comp. b - ATF FILTER | Stay comp. b - ATF FILTER |
| 10 | 25520-RPC-000 | Stay comp - ATF WARMER | Stay comp - ATF WARMER |
| 12 | 25910-RPC-000 | Pipe comp. a - ATF | Pipe comp. a - ATF |
| 13 | 25920-RPC-000 | Pipe comp. b - ATF | Pipe comp. b - ATF |
| 14 | 25930-RPC-000 | Pipe comp. c - ATF | Pipe comp. c - ATF |
| 15 | 25950-RAY-000 | Bolt comp - JOINT | Bolt comp - JOINT |
| 16 | 25951-RGR-000 | Bolt - JOINT | Bolt - JOINT |
| 6 | 26000-RNA-305 | Converter assy - TORQUE | Converter assy - TORQUE |
| 7 | 26251-RNA-000 | Plate - DRIVE | Plate - DRIVE |
| 4 | 27000-RPC-000 | Body assy - MAIN VALVE | Body assy - MAIN VALVE |
| 5 | 27112-RPC-000 | Plate - MAIN SEPARATING | Plate - MAIN SEPARATING |
| 6 | 27122-RGC-000 | Cap - 11MM | Cap - 11MM |
| 7 | 27132-P6H-000 | Cap - 14MM | Cap - 14MM |
| 8 | 27142-P6H-000 | Cap - 15MM | Cap - 15MM |
| 5 | 27200-RPC-000 | Body assy - REGULATOR | Body assy - REGULATOR |
| 6 | 27212-RPC-000 | Plate - REGULATOR SEPARATING | Plate - REGULATOR SEPARATING |
| 7 | 27246-PN6-800 | Cap - REGULATOR SPRING | Cap - REGULATOR SPRING |
| 6 | 27251-RPC-000 | Valve - LUBRICATION CHECK | Valve - LUBRICATION CHECK |
| 9 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 8 | 27400-RPC-000 | Body assy - SERVO | Body assy - SERVO |
| 9 | 27412-RPC-000 | Plate - SERVO SEPARATING | Plate - SERVO SEPARATING |
| 20 | 27430-RPC-003 | Bolt comp - AIR CHECK | Bolt comp - AIR CHECK |
| 10 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 11 | 27561-PRP-000 | Piston - LOW ACCUMULATOR | Piston - LOW ACCUMULATOR |
| 12 | 27562-RPC-000 | Spring a - LOW ACCUMULATOR | Spring a - LOW ACCUMULATOR |
| 13 | 27564-RPC-000 | Spring b - LOW ACCUMULATOR | Spring b - LOW ACCUMULATOR |
| 11 | 27572-PRP-000 | Piston - SECOND ACCUMULATOR | Piston - SECOND ACCUMULATOR |
| 14 | 27574-PRP-000 | Piston - THIRD ACCUMULATOR | Piston - THIRD ACCUMULATOR |
| 13 | 27575-RPC-000 | Spring b - TOP ACCUMULATOR | Spring b - TOP ACCUMULATOR |
| 14 | 27577-RPC-000 | Spring a - TOP ACCUMULATOR | Spring a - TOP ACCUMULATOR |
| 15 | 27580-RPC-000 | Cover - SERVO ACCUMULATOR | Cover - SERVO ACCUMULATOR |
| 16 | 27581-RPC-000 | Spring a - SECOND ACCUMULATOR | Spring a - SECOND ACCUMULATOR |
| 15 | 27583-PRP-000 | Spring - THIRD ACCUMULATOR | Spring - THIRD ACCUMULATOR |
| 17 | 27584-RPC-000 | Spring b - SECOND ACCUMULATOR | Spring b - SECOND ACCUMULATOR |
| 16 | 27591-RPC-000 | Cover - REGULATOR ACCUMULATOR | Cover - REGULATOR ACCUMULATOR |
| 4 | 28250-RPC-003 | Solenoid assy. a - LINEAR | Solenoid assy. a - LINEAR |
| 5 | 28252-RPC-000 | Packing a - LINEAR SOLENOID | Packing a - LINEAR SOLENOID |
| 6 | 28260-RPC-004 | Solenoid assy. b - LINEAR | Solenoid assy. b - LINEAR |
| 7 | 28262-RPC-000 | Packing b - LINEAR SOLENOID | Packing b - LINEAR SOLENOID |
| 8 | 28360-RPC-003 | Harness - SOLENOID WIRE | Harness - SOLENOID WIRE |
| 18 | 28400-RPC-003 | Solenoid assy. a | Solenoid assy. a |
| 7 | 28450-RPC-000 | Cover - SOLENOID | Cover - SOLENOID |
| 8 | 28451-RPC-000 | Packing - SOLENOID COVER | Packing - SOLENOID COVER |
| 19 | 28500-RPC-003 | Solenoid assy. b | Solenoid assy. b |
| 9 | 28600-RPC-003 | Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN) | Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN) |
| 10 | 28600-RPC-004 | Switch assy - AT OIL PRESSURE (SAGINOMIYA) | Switch assy - AT OIL PRESSURE (SAGINOMIYA) |
| 11 | 28810-RPC-003 | Pick up assy. | Pick up assy. |
| 12 | 28820-RPC-003 | Pick up assy. | Pick up assy. |
| 21 | 28900-RPC-013 | Sensor assy - POSITION | Sensor assy - POSITION |
| 22 | 28950-RPC-000 | Harness - POSITION SENSOR | Harness - POSITION SENSOR |
| 1 | 30201-PH9-004 | Ring - SNAP (DENSO) | Ring - SNAP (DENSO) |
| 2 | 30202-P3F-003 | Collar - CLUTCH STOP | Collar - CLUTCH STOP |
| 1 | 30511-RNA-A01 | Insulator - COIL HEAT | Insulator - COIL HEAT |
| 2 | 30520-RNA-A01 | Coil comp - PLUG HOLE | Coil comp - PLUG HOLE |
| 3 | 30522-RNA-A01 | Seal - PLUG HOLE | Seal - PLUG HOLE |
| 12 | 30530-RNA-A01 | Sensor comp - KNOCK | Sensor comp - KNOCK |
| 1 | 31100-RNA-A01 | Alternator assy. - AHGA67) (MITSUBISHI | Alternator assy. - AHGA67) (MITSUBISHI |
| 2 | 31101-RNA-A01 | Rotor assy. | Rotor assy. |
| 3 | 31102-PNA-004 | Stator | Stator |
| 4 | 31111-P08-J02 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 2 | 31113-RNA-A00 | Bracket - ALTERNATOR | Bracket - ALTERNATOR |
| 5 | 31114-P01-014 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 3 | 31114-RNA-A00 | Insulator - HEAT | Insulator - HEAT |
| 6 | 31123-RNA-A01 | Terminal set | Terminal set |
| 4 | 31124-RNA-A00 | Stay - COUPLER | Stay - COUPLER |
| 7 | 31125-P08-J02 | Bolt - FLANGE | Bolt - FLANGE |
| 5 | 31126-RNA-A00 | Stay - HARNESS | Stay - HARNESS |
| 8 | 31127-RNA-A01 | Rectifier assy. | Rectifier assy. |
| 9 | 31140-P64-902 | Brush set | Brush set |
| 10 | 31141-RNA-A01 | Pulley | Pulley |
| 11 | 31142-P08-J02 | Nut | Nut |
| 12 | 31146-PE0-004 | Screw | Screw |
| 13 | 31150-RNA-A01 | Regulator set | Regulator set |
| 6 | 31170-RWK-025 | Tensioner assy, Auto | Tensioner assy, Auto |
| 7 | 31175-RNA-000 | Bracket - IDLE PULLEY | Bracket - IDLE PULLEY |
| 8 | 31185-RNA-000 | Cover - BEARING | Cover - BEARING |
| 9 | 31190-RL2-G01 | Pulley comp - IDLER | Pulley comp - IDLER |
| 3 | 31200-RNA-003 | Motor assy. - STARTER (DSKEG/DSKET) (DENSO) | Motor assy. - STARTER (DSKEG/DSKET) (DENSO) |
| 4 | 31201-RNA-003 | Housing comp - DRIVE SIDE | Housing comp - DRIVE SIDE |
| 5 | 31202-PM3-J01 | Bolt - THROUGH (DENSO) | Bolt - THROUGH (DENSO) |
| 6 | 31202-RNA-A01 | Endframe comp. - COMMUTATOR | Endframe comp. - COMMUTATOR |
| 7 | 31203-PCA-003 | Lever - PINION DRIVE | Lever - PINION DRIVE |
| 8 | 31204-RNA-003 | Switch assy - MAGNET | Switch assy - MAGNET |
| 9 | 31205-RTA-003 | Yoke set | Yoke set |
| 10 | 31206-RTA-003 | Armature comp. | Armature comp. |
| 11 | 31207-PCA-003 | Clutch comp. - OVERRUNNING | Clutch comp. - OVERRUNNING |
| 12 | 31208-P3F-003 | Screw - PAN, 4MM | Screw - PAN, 4MM |
| 29 | 31211-PCX-A01 | Brush - + | Brush - + |
| 30 | 31212-P3F-003 | Spring - BRUSH | Spring - BRUSH |
| 13 | 31213-PCA-003 | Shaft - DRIVE | Shaft - DRIVE |
| 14 | 31213-RNA-A01 | Cover | Cover |
| 15 | 31214-P3F-003 | Gear assy. - INTERNAL | Gear assy. - INTERNAL |
| 16 | 31215-P3F-003 | Gear comp - PLANETARY | Gear comp - PLANETARY |
| 17 | 31216-RAA-003 | Absorber comp - SHOCK | Absorber comp - SHOCK |
| 18 | 31217-P3F-003 | Plate - SEAL | Plate - SEAL |
| 19 | 31218-P3F-003 | Washer a | Washer a |
| 20 | 31219-P3F-003 | Washer b | Washer b |
| 22 | 31220-P3F-003 | Washer c | Washer c |
| 21 | 31220-PH9-004 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 23 | 31223-PA0-006 | Nut - HEX. | Nut - HEX. |
| 24 | 31228-PLR-A01 | O-ring | O-ring |
| 25 | 31231-P3F-003 | Plate comp - BRUSH HOLDER | Plate comp - BRUSH HOLDER |
| 26 | 31291-RZP-G01 | Stay - ENGINE WIRE HARNESS | Stay - ENGINE WIRE HARNESS |
| 27 | 31292-PLR-A01 | Bolt-washer | Bolt-washer |
| 6 | 31542-SA5-666 | Plug - VENT (MF) (FURUKAWA) | Plug - VENT (MF) (FURUKAWA) |
| 3 | 32114-RNA-003 | Holder - CORRUGATED (DARK GREEN) (7MM) | Holder - CORRUGATED (DARK GREEN) (7MM) |
| 4 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 5 | 32116-RGA-003 | Holder - CORRUGATED (DARK GREEN) (13MM) | Holder - CORRUGATED (DARK GREEN) (13MM) |
| 6 | 32116-RNA-003 | Holder - CORRUGATED (DARK GREEN) (13MM) | Holder - CORRUGATED (DARK GREEN) (13MM) |
| 9 | 32119-P2E-A01 | Holder - CORRUGATED (DARK BLUE) (22MM) | Holder - CORRUGATED (DARK BLUE) (22MM) |
| 11 | 32127-RNA-A00 | Holder comp. a - ENGINE HARNESS | Holder comp. a - ENGINE HARNESS |
| 12 | 32128-RNA-A00 | Holder comp. b - ENGINE HARNESS | Holder comp. b - ENGINE HARNESS |
| 13 | 32128-RTA-003 | Cover - ENGINE CONTROL MODULE COUPLER (A,B) | Cover - ENGINE CONTROL MODULE COUPLER (A,B) |
| 14 | 32129-RNA-A00 | Holder c - ENGINE HARNESS UPPER | Holder c - ENGINE HARNESS UPPER |
| 15 | 32129-RTA-003 | Cover - ENGINE CONTROL MODULE COUPLER (C) | Cover - ENGINE CONTROL MODULE COUPLER (C) |
| 16 | 32130-RNA-A00 | Holder c - ENGINE HARNESS LOWER | Holder c - ENGINE HARNESS LOWER |
| 17 | 32131-RNA-A00 | Holder d - ENGINE HARNESS | Holder d - ENGINE HARNESS |
| 18 | 32132-RNA-A00 | Holder e - ENGINE HARNESS | Holder e - ENGINE HARNESS |
| 6 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 5 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 19 | 32133-RNA-A00 | Holder f - ENGINE HARNESS | Holder f - ENGINE HARNESS |
| 1 | 32175-RSA-G01 | Clip - HARNESS | Clip - HARNESS |
| 12 | 32177-RZP-G00 | Insulator - CRANK SENSOR HEAT | Insulator - CRANK SENSOR HEAT |
| 16 | 32179-RNA-A02 | Insulator - OIL PRESSURE SWITCH HEAT | Insulator - OIL PRESSURE SWITCH HEAT |
| 8 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 9 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 10 | 32743-RNA-A01 | Stay c - ENGINE HARNESS | Stay c - ENGINE HARNESS |
| 5 | 32745-RNA-A50 | Stay e - ENGINE HARNESS | Stay e - ENGINE HARNESS |
| 10 | 32750-RNA-A00 | Stay k - ENGINE HARNESS | Stay k - ENGINE HARNESS |
| 1 | 34251-S5A-003 | Lens | Lens |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 11 | 35113-SMG-305 | Key comp. - TRANSMITTER TOP CASE (BLANK) | Key comp. - TRANSMITTER TOP CASE (BLANK) |
| 10 | 35113-SMG-E11 | Key comp. - TRANSMITTER TOP CASE | Key comp. - TRANSMITTER TOP CASE |
| 13 | 35116-SDA-A11 | Screw - FLAT | Screw - FLAT |
| 14 | 35130-SAA-J51 | Switch comp - STEERING | Switch comp - STEERING |
| 15 | 35251-TA0-B11 | Sensor assy - STEERING & BODY SWITCH | Sensor assy - STEERING & BODY SWITCH |
| 18 | 35400-S5A-013 | Switch assy - DOOR (MATSUSHITA) | Switch assy - DOOR (MATSUSHITA) |
| 2 | 36162-RNA-A01 | Valve assy. - PURGE CONTROL SOLENOID | Valve assy. - PURGE CONTROL SOLENOID |
| 13 | 36531-RNA-J01 | Sensor - AIR FUEL RATIO | Sensor - AIR FUEL RATIO |
| 14 | 36532-RNA-A01 | Sensor - OXYGEN | Sensor - OXYGEN |
| 15 | 36536-RNA-A00 | Stay - SENSOR HARNESS | Stay - SENSOR HARNESS |
| 4 | 36750-SMA-003 | Switch assy - STOP & CRUISE (PANASONIC) | Switch assy - STOP & CRUISE (PANASONIC) |
| 18 | 37241-RNA-A01 | Switch assy, OIL PRESSURE | Switch assy, OIL PRESSURE |
| 22 | 37500-RAA-A01 | Sensor assy - CRANK | Sensor assy - CRANK |
| 13 | 37510-RNA-A01 | Sensor assy - TDC | Sensor assy - TDC |
| 4 | 37823-RNA-A00 | Cover - ENGINE CONTROL MODULE | Cover - ENGINE CONTROL MODULE |
| 19 | 37830-RNA-A01 | Sensor assy - MAP | Sensor assy - MAP |
| 20 | 37835-PGK-A01 | O-ring | O-ring |
| 16 | 37870-PLC-004 | Sensor assy, WATER TEMP (MATSUSHITA) | Sensor assy, WATER TEMP (MATSUSHITA) |
| 18 | 37980-RNA-A01 | Meter assy - AIR FLOW | Meter assy - AIR FLOW |
| 19 | 37985-RAD-L11 | Gasket | Gasket |
| 11 | 38211-SNA-A01 | Fuse - BLOCK (20A) | Fuse - BLOCK (20A) |
| 2 | 38211-SNA-A11 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 13 | 38211-SNA-A21 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 3 | 38221-SNA-A31 | Fuse - BLADE(7.5A) | Fuse - BLADE(7.5A) |
| 4 | 38221-SNA-A41 | Fuse - BLADE(10A) | Fuse - BLADE(10A) |
| 5 | 38221-SNA-A51 | Fuse - BLADE(15A) | Fuse - BLADE(15A) |
| 6 | 38221-SNA-A61 | Fuse - BLADE(20A) | Fuse - BLADE(20A) |
| 7 | 38221-SNA-A81 | Fuse - BLADE(30A) | Fuse - BLADE(30A) |
| 19 | 38231-SDA-A01 | Fuse a - MULTI BLOCK (100A/70A) | Fuse a - MULTI BLOCK (100A/70A) |
| 3 | 38611-RNA-A01 | Fan - COOLING | Fan - COOLING |
| 5 | 38616-RNA-A01 | Motor - COOLING FAN | Motor - COOLING FAN |
| 6 | 38619-RNA-A01 | Protector - FAN MOTOR HEAT | Protector - FAN MOTOR HEAT |
| 1 | 38801-PDF-E02 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 2 | 38810-RNA-014 | Compressor comp. | Compressor comp. |
| 3 | 38829-PDF-E02 | Nut - 9MM | Nut - 9MM |
| 4 | 38900-RNC-Z51 | Clutch set - COMPRESSOR | Clutch set - COMPRESSOR |
| 5 | 38908-RNA-014 | Protector set, Thermal | Protector set, Thermal |
| 6 | 38912-PE1-702 | Shim set | Shim set |
| 7 | 38913-PP4-E02 | Ring - SNAP | Ring - SNAP |
| 8 | 38914-P07-004 | Ring f - SNAP | Ring f - SNAP |
| 9 | 38924-RNA-A01 | Coil set - FIELD | Coil set - FIELD |
| 11 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 3 | 39794-SDA-003 | Relay assy - FUEL PUMP (MITSUBA) | Relay assy - FUEL PUMP (MITSUBA) |
| 3 | 39794-SDA-004 | RELAY ASSY., FUEL PUMP (DENSO) | RELAY ASSY., FUEL PUMP (DENSO) |
| 9 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 9 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 1 | 41100-RPC-010 | Differential comp. | Differential comp. |
| 3 | 41381-RPC-000 | Spacer - 41X90X1 | Spacer - 41X90X1 |
| 4 | 41382-RPC-000 | Spacer - 41X90X1 | Spacer - 41X90X1 |
| 5 | 41441-RPC-000 | Shim a - 90MM (1.30) | Shim a - 90MM (1.30) |
| 5 | 41442-RPC-000 | Shim b - 90MM (1.35) | Shim b - 90MM (1.35) |
| 5 | 41443-RPC-000 | Shim c - 90MM (1.40) | Shim c - 90MM (1.40) |
| 5 | 41444-RPC-000 | Shim d - 90MM (1.45) | Shim d - 90MM (1.45) |
| 5 | 41445-RPC-000 | Shim e - 90MM (1.50) | Shim e - 90MM (1.50) |
| 5 | 41446-RPC-000 | Shim f - 90MM (1.55) | Shim f - 90MM (1.55) |
| 5 | 41447-RPC-000 | Shim g - 90MM (1.60) | Shim g - 90MM (1.60) |
| 5 | 41448-RPC-000 | Shim h - 90MM (1.65) | Shim h - 90MM (1.65) |
| 5 | 41449-RPC-000 | Shim i - 90MM (1.70) | Shim i - 90MM (1.70) |
| 5 | 41450-RPC-000 | Shim j - 90MM (1.75) | Shim j - 90MM (1.75) |
| 5 | 41451-RPC-000 | Shim k - 90MM (1.80) | Shim k - 90MM (1.80) |
| 5 | 41452-RPC-000 | Shim l - 90MM (1.85) | Shim l - 90MM (1.85) |
| 5 | 41453-RPC-000 | Shim m - 90MM (1.90) | Shim m - 90MM (1.90) |
| 5 | 41454-RPC-000 | Shim n - 90MM (1.95) | Shim n - 90MM (1.95) |
| 5 | 41455-RPC-000 | Shim o - 90MM (2.00) | Shim o - 90MM (2.00) |
| 5 | 41456-RPC-000 | Shim p - 90MM (2.05) | Shim p - 90MM (2.05) |
| 5 | 41457-RPC-000 | Shim q - 90MM (2.10) | Shim q - 90MM (2.10) |
| 5 | 41458-RPC-000 | Shim r - 90MM (2.15) | Shim r - 90MM (2.15) |
| 5 | 41459-RPC-000 | Shim s - 90MM (2.20) | Shim s - 90MM (2.20) |
| 5 | 41460-RPC-000 | Shim t - 90MM (2.25) | Shim t - 90MM (2.25) |
| 5 | 41461-RPC-000 | Shim u - 90MM (2.30) | Shim u - 90MM (2.30) |
| 5 | 41462-RPC-000 | Shim v - 90MM (2.35) | Shim v - 90MM (2.35) |
| 5 | 41463-RPC-000 | Shim w - 90MM (2.40) | Shim w - 90MM (2.40) |
| 2 | 42522-SLJ-003 | Clamp - WIRE (BLACK) | Clamp - WIRE (BLACK) |
| 3 | 42522-SNA-003 | Clamp - WIRE (BLUE) | Clamp - WIRE (BLUE) |
| 4 | 42524-SNA-003 | Clip - COUPLER (BLACK) | Clip - COUPLER (BLACK) |
| 5 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 5 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 8 | 44319-S04-300 | Set ring - 26X1.8 | Set ring - 26X1.8 |
| 8 | 44319-SR1-003 | Set ring - 26X1.8 (GKN) | Set ring - 26X1.8 (GKN) |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 12 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 6 | 44600-SNA-A00 | Hub assy - FR. | Hub assy - FR. |
| 7 | 44721-S5A-A20 | Weight - BALANCE (10G) | Weight - BALANCE (10G) |
| 6 | 44721-SEA-J01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 6 | 44721-SEA-J02 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 7 | 44721-SEA-N01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 7 | 44721-SEA-N02 | Weight - BALANCE (10G) (TOHO ZINC) | Weight - BALANCE (10G) (TOHO ZINC) |
| 7 | 44721-TP6-A01 | WEIGHT, BALANCE (5G) | WEIGHT, BALANCE (5G) |
| 6 | 44722-SEA-J01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 6 | 44722-SEA-J02 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 7 | 44722-SEA-N01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 7 | 44722-SEA-N02 | Weight - BALANCE (20G) (TOHO ZINC) | Weight - BALANCE (20G) (TOHO ZINC) |
| 6 | 44723-SEA-J01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 6 | 44723-SEA-J02 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 7 | 44723-SEA-N01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 7 | 44723-SEA-N02 | Weight - BALANCE (30G) (TOHO ZINC) | Weight - BALANCE (30G) (TOHO ZINC) |
| 7 | 44723-TP6-A01 | WEIGHT (15G) | WEIGHT (15G) |
| 7 | 44724-SEA-N01 | Weight - BALANCE (40G) (TOHO) | Weight - BALANCE (40G) (TOHO) |
| 7 | 44724-SEA-N02 | Weight - BALANCE (40G) (TOHO ZINC) | Weight - BALANCE (40G) (TOHO ZINC) |
| 7 | 44724-TP6-A01 | WEIGHT (20G) | WEIGHT (20G) |
| 7 | 44725-SEA-N01 | Weight - BALANCE (50G) (TOHO) | Weight - BALANCE (50G) (TOHO) |
| 7 | 44725-SEA-N02 | Weight - BALANCE (50G) (TOHO ZINC) | Weight - BALANCE (50G) (TOHO ZINC) |
| 7 | 44725-TP6-A01 | WEIGHT (25G) | WEIGHT (25G) |
| 6 | 44726-SEA-J01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 6 | 44726-SEA-J02 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 7 | 44726-SEA-N01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 7 | 44726-SEA-N02 | Weight - BALANCE (5G) (TOHO ZINC) | Weight - BALANCE (5G) (TOHO ZINC) |
| 7 | 44726-TP6-A01 | WEIGHT (30G) | WEIGHT (30G) |
| 6 | 44727-SEA-J01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 6 | 44727-SEA-J02 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 7 | 44727-SEA-N01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 7 | 44727-SEA-N02 | Weight - BALANCE (15G) (TOHO ZINC) | Weight - BALANCE (15G) (TOHO ZINC) |
| 7 | 44727-TP6-A01 | WEIGHT (35G) | WEIGHT (35G) |
| 6 | 44728-SEA-J01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 6 | 44728-SEA-J02 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 7 | 44728-SEA-N01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 7 | 44728-SEA-N02 | Weight - BALANCE (25G) (TOHO ZINC) | Weight - BALANCE (25G) (TOHO ZINC) |
| 6 | 44729-SEA-J01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 6 | 44729-SEA-J02 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 7 | 44729-SEA-N01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 7 | 44729-SEA-N02 | Weight - BALANCE (35G) (TOHO ZINC) | Weight - BALANCE (35G) (TOHO ZINC) |
| 7 | 44730-SEA-N01 | Weight - BALANCE (45G) (TOHO) | Weight - BALANCE (45G) (TOHO) |
| 7 | 44730-SEA-N02 | Weight - BALANCE (45G) (TOHO ZINC) | Weight - BALANCE (45G) (TOHO ZINC) |
| 9 | 44732-S9A-A00 | Cap - ALUMINIUM WHEEL CENTER | Cap - ALUMINIUM WHEEL CENTER |
| 7 | 46135-SDA-A01 | Guide assy - PISTON | Guide assy - PISTON |
| 8 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 9 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 10 | 46191-S2K-000 | Packing - MASTER POWER | Packing - MASTER POWER |
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 17 | 46391-S5A-J01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 18 | 46392-SAA-901 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 31 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 33 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 7 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 13 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 16 | 46665-S04-J01 | Grommet | Grommet |
| 17 | 46666-S2K-003 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 18 | 46669-S5A-003 | Diaphragm | Diaphragm |
| 20 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 1 | 52362-S30-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 2 | 53413-SCC-003 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 3 | 53414-S5A-003 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 5 | 53417-SMG-E01 | O-ring - RACK GUIDE | O-ring - RACK GUIDE |
| 6 | 53418-S5A-003 | Washer - DISK | Washer - DISK |
| 15 | 53536-SJK-003 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 16 | 53537-SMG-E01 | Rubber - STOPPER | Rubber - STOPPER |
| 22 | 53685-SMG-E01 | Bushing - GEAR BOX MOUNTING | Bushing - GEAR BOX MOUNTING |
| 21 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 22 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 23 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 24 | 57562-SF1-003 | Circlip | Circlip |
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 3 | 72112-SJK-003 | Protector - R. DOOR LATCH | Protector - R. DOOR LATCH |
| 5 | 72118-SJK-003 | Screw - TAPPING | Screw - TAPPING |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 13 | 72134-S2X-003 | Snap - R. (NATURAL) | Snap - R. (NATURAL) |
| 12 | 72134-SHJ-003 | Clip s - CABLE END (NATURAL) | Clip s - CABLE END (NATURAL) |
| 14 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
| 23 | 72152-SJK-003 | Protector - L. DOOR LATCH | Protector - L. DOOR LATCH |
| 30 | 72174-S2X-003 | Snap - L. (BLACK) | Snap - L. (BLACK) |
| 29 | 72174-SHJ-003 | Clip t - CABLE END (BLACK) | Clip t - CABLE END (BLACK) |
| 23 | 72612-SNA-A00 | Cap - R. CHILD LOCK | Cap - R. CHILD LOCK |
| 24 | 72613-SNA-003 | Seal | Seal |
| 30 | 72652-SNA-A00 | Cap - L. CHILD LOCK | Cap - L. CHILD LOCK |
| 2 | 74144-SR3-000 | Cushion - HOOD | Cushion - HOOD |
| 13 | 74172-S5A-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 14 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 14 | 74665-SM4-A00 | Adapter - ANCHOR BOLT | Adapter - ANCHOR BOLT |
| 20 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 7 | 75717-SNB-E01 | Sticker - I-VTEC | Sticker - I-VTEC |
| 17 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 3 | 76516-SJK-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76517-SJK-003 | Collar | Collar |
| 8 | 76517-SM4-003 | Collar | Collar |
| 10 | 76524-SL0-A01 | Dust seal | Dust seal |
| 15 | 76561-SNA-A01 | Cap - PIVOT | Cap - PIVOT |
| 1 | 77205-S0X-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 4 | 77930-SNA-A32 | Sensor assy - FR. CRASH(TRW) | Sensor assy - FR. CRASH(TRW) |
| 6 | 77970-SNA-A32 | Sensor assy - SIDE IMPACT (TRW) | Sensor assy - SIDE IMPACT (TRW) |
| 20 | 78031-SDA-G80 | Label - SIDE AIRBAG CAUTION | Label - SIDE AIRBAG CAUTION |
| 3 | 79746-S5A-003 | Clamp - HEATER HOSE (NATURAL) | Clamp - HEATER HOSE (NATURAL) |
| 4 | 79751-SNA-A00 | Stay - HEATER HOSE | Stay - HEATER HOSE |
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 12 | 80381-SNA-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 14 | 80450-SFE-003 | Sensor assy - PRESSURE | Sensor assy - PRESSURE |
| 4 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
| 15 | 80865-SL0-003 | Cap - VALVE (H) | Cap - VALVE (H) |
| 16 | 80866-ST0-003 | Cap l - VALVE (NICHIRIN) | Cap l - VALVE (NICHIRIN) |
| 17 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 18 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 14 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 2 | 81123-SNA-A01 | Screw - 6X18 | Screw - 6X18 |
| 15 | 81160-SNA-A01 | Holder - R. MODULE | Holder - R. MODULE |
| 4 | 81262-SNA-A01 | Cap - SLIDE ADJUSTER UPPER END | Cap - SLIDE ADJUSTER UPPER END |
| 7 | 81291-SNA-A01 | Clip | Clip |
| 2 | 81441-S2G-N51 | Collar - 5H | Collar - 5H |
| 3 | 81441-S50-J22 | Collar - 2H | Collar - 2H |
| 16 | 81560-SNA-A01 | Holder - L. MODULE | Holder - L. MODULE |
| 4 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 15 | 83247-SNA-A01 | Clip - GRAB RAIL | Clip - GRAB RAIL |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 2 | 89310-S5A-Y02 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 3 | 89311-S5A-Y02 | Plate - JACK CAUTION | Plate - JACK CAUTION |
| 21 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 26 | 90001-P70-000 | Bolt - FLANGE, 10X10.5 | Bolt - FLANGE, 10X10.5 |
| 6 | 90001-PA9-000 | Bolt - HEX., 6MM | Bolt - HEX., 6MM |
| 21 | 90001-PGM-000 | Bolt-washer - SPECIAL, 6X30 | Bolt-washer - SPECIAL, 6X30 |
| 23 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 17 | 90001-PRP-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 44 | 90001-RLJ-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 15 | 90001-RNA-A00 | Bolt - FLANGE, 8X27 | Bolt - FLANGE, 8X27 |
| 11 | 90001-RWK-000 | Bolt - SPECIAL, 8X85 | Bolt - SPECIAL, 8X85 |
| 24 | 90002-RNA-A00 | Bolt - SEALING, 36MM | Bolt - SEALING, 36MM |
| 20 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 6 | 90003-PA9-003 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 10 | 90003-PNA-000 | Bolt - TENSIONER PIVOT | Bolt - TENSIONER PIVOT |
| 16 | 90003-RNA-A00 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 17 | 90004-PLC-000 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 11 | 90004-RNA-A00 | Bolt - CHAIN GUIDE | Bolt - CHAIN GUIDE |
| 14 | 90005-RNA-A01 | Bolt-washer - 11X176 | Bolt-washer - 11X176 |
| 12 | 90006-P8F-A00 | Bolt-washer - 8X32 | Bolt-washer - 8X32 |
| 25 | 90007-RNA-A01 | Bolt-washer - 10X97 | Bolt-washer - 10X97 |
| 11 | 90008-PT2-000 | Bolt - FLANGE, 6X65 | Bolt - FLANGE, 6X65 |
| 26 | 90008-RNA-000 | Washer - SEALING, 36MM | Washer - SEALING, 36MM |
| 27 | 90009-PY3-000 | DRAIN PLUG BOLT, 14MM | DRAIN PLUG BOLT, 14MM |
| 8 | 90009-RNA-A00 | Bolt - SPECIAL, 8X65 | Bolt - SPECIAL, 8X65 |
| 17 | 90010-RNA-A00 | Bolt - SPECIAL, 8X87 | Bolt - SPECIAL, 8X87 |
| 6 | 90011-RNA-A00 | Bolt - HEAD COVER | Bolt - HEAD COVER |
| 4 | 90012-RNA-A00 | Bolt-washer - 8X55 | Bolt-washer - 8X55 |
| 18 | 90013-PCX-000 | Bolt - SPECIAL, 6X12 | Bolt - SPECIAL, 6X12 |
| 15 | 90013-RNA-A01 | Bolt - HEX., 6X9 | Bolt - HEX., 6X9 |
| 19 | 90014-RNA-A00 | Bolt - SPECIAL, 6X29.5 | Bolt - SPECIAL, 6X29.5 |
| 9 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 20 | 90015-RNA-A00 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 28 | 90016-RNA-A00 | Bolt - FLANGE, 6X35 | Bolt - FLANGE, 6X35 |
| 16 | 90017-PCX-013 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 5 | 90020-RNA-A01 | Bolt-washer - 5X20 | Bolt-washer - 5X20 |
| 10 | 90021-PNA-000 | Bolt - SPECIAL, 6X31 | Bolt - SPECIAL, 6X31 |
| 10 | 90021-SFA-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 9 | 90023-PA9-000 | Bolt - SPECIAL | Bolt - SPECIAL |
| 11 | 90023-PNA-000 | Bolt - FLANGE, 8X80 | Bolt - FLANGE, 8X80 |
| 24 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 12 | 90024-PNA-000 | Bolt - FLANGE, 8X65 | Bolt - FLANGE, 8X65 |
| 23 | 90024-RPC-000 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 8 | 90025-RPC-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 15 | 90026-RNA-A00 | Bolt - STUD, 8X25 | Bolt - STUD, 8X25 |
| 6 | 90027-RNA-A00 | Bolt - FUEL PIPE | Bolt - FUEL PIPE |
| 29 | 90028-PNB-003 | Bolt - SPECIAL, 6X20.5(GUIDE) | Bolt - SPECIAL, 6X20.5(GUIDE) |
| 13 | 90030-RNA-A00 | Bolt - SPECIAL, 10X40 | Bolt - SPECIAL, 10X40 |
| 14 | 90031-PRA-000 | Bolt - SPECIAL FLANGE, 10X25 | Bolt - SPECIAL FLANGE, 10X25 |
| 12 | 90031-RNA-A01 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 16 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 17 | 90041-P5A-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 11 | 90041-RNA-A00 | Bolt - STUD, 14X90 | Bolt - STUD, 14X90 |
| 17 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 18 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 25 | 90051-RGA-003 | Bolt - SPECIAL, 6X20.8 | Bolt - SPECIAL, 6X20.8 |
| 9 | 90081-PX4-003 | Bolt - PLUG, 18MM | Bolt - PLUG, 18MM |
| 18 | 90089-PK4-000 | Bolt - STOPPER, 6MM | Bolt - STOPPER, 6MM |
| 34 | 90101-SJK-003 | Screw - TAPPING (ONE WAY) | Screw - TAPPING (ONE WAY) |
| 36 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 19 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 11 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 19 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 28 | 90102-SFA-J02 | Bolt - FLANGE, 8X35 | Bolt - FLANGE, 8X35 |
| 29 | 90103-S0A-N01 | Screw - PAN, 5X8 | Screw - PAN, 5X8 |
| 25 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 20 | 90103-SLA-000 | Bolt - FLANGE, 8X22 (TORX) | Bolt - FLANGE, 8X22 (TORX) |
| 34 | 90103-SV4-013 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 21 | 90104-SFE-003 | Bolt - FLANGE, 8X23 | Bolt - FLANGE, 8X23 |
| 38 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 29 | 90106-SDA-A00 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 17 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 30 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 7 | 90109-SLJ-003 | Screw - 5X40 | Screw - 5X40 |
| 18 | 90113-S5H-005 | Bolt - WHEEL (THAI MEIRA) | Bolt - WHEEL (THAI MEIRA) |
| 18 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 18 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 18 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 31 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 10 | 90115-SFE-004 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 35 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 19 | 90123-S04-J30 | Washer - WAVE | Washer - WAVE |
| 25 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 23 | 90132-SFE-003 | Screw - EARTH, 5X18 | Screw - EARTH, 5X18 |
| 22 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 15 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 21 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 20 | 90135-S1F-003 | Bolt - FLANGE, 7/16" | Bolt - FLANGE, 7/16" |
| 15 | 90135-S5A-003 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
| 5 | 90135-SZT-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 14 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 20 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 36 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 26 | 90142-S04-J32 | Bolt - 7/16"X23.4 | Bolt - 7/16"X23.4 |
| 25 | 90142-SNA-004 | Bolt - 7/16"X24 | Bolt - 7/16"X24 |
| 15 | 90148-S6A-013 | Bolt - EARTH, 5X14 | Bolt - EARTH, 5X14 |
| 8 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 10 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 21 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 33 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 13 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 12 | 90160-SNA-A00 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 16 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
| 13 | 90164-S5A-010 | Bolt - FLANGE, 12X40 | Bolt - FLANGE, 12X40 |
| 18 | 90168-S5A-000 | Bolt - FLANGE, 12X35 | Bolt - FLANGE, 12X35 |
| 13 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 6 | 90203-RPC-000 | Nut - FLANGE, 22MM | Nut - FLANGE, 22MM |
| 11 | 90206-PM3-004 | Nut - TAPPET ADJUSTING (TOKAI TRW) | Nut - TAPPET ADJUSTING (TOKAI TRW) |
| 4 | 90207-RAA-A00 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
| 17 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 19 | 90213-S5A-003 | Nut - FLANGE, 14MM | Nut - FLANGE, 14MM |
| 17 | 90213-SR3-013 | Nut - SELF-LOCK, 14MM | Nut - SELF-LOCK, 14MM |
| 24 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 31 | 90301-SEP-003 | Nut - HEX., 14MM | Nut - HEX., 14MM |
| 28 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 31 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 18 | 90301-SV7-000 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 23 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 14 | 90306-SA0-000 | Nut - FLOATING, 5MM | Nut - FLOATING, 5MM |
| 25 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 9 | 90309-SLJ-003 | Nut assy. - SPEAKER | Nut assy. - SPEAKER |
| 13 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 14 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 18 | 90351-SB2-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 24 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
| 6 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 34 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 26 | 90363-S3V-A01 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 21 | 90380-S10-000 | Bolt - STUD, 12X83.8 | Bolt - STUD, 12X83.8 |
| 31 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 21 | 90401-RNA-A00 | Washer - SEALING, 16MM | Washer - SEALING, 16MM |
| 14 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 7 | 90402-RPC-000 | Washer - SPRING, 22MM | Washer - SPRING, 22MM |
| 8 | 90414-RG0-000 | Washer - THRUST, 40X63X3.750 | Washer - THRUST, 40X63X3.750 |
| 8 | 90415-RG0-000 | Washer - THRUST, 40X63X3.775 | Washer - THRUST, 40X63X3.775 |
| 8 | 90416-RG0-000 | Washer - THRUST, 40X63X3.800 | Washer - THRUST, 40X63X3.800 |
| 8 | 90417-RG0-000 | Washer - THRUST, 40X63X3.825 | Washer - THRUST, 40X63X3.825 |
| 8 | 90418-RG0-000 | Washer - THRUST, 40X63X3.850 | Washer - THRUST, 40X63X3.850 |
| 8 | 90419-RG0-000 | Washer - THRUST, 40X63X3.875 | Washer - THRUST, 40X63X3.875 |
| 8 | 90420-RG0-000 | Washer - THRUST, 40X63X3.900 | Washer - THRUST, 40X63X3.900 |
| 8 | 90421-RG0-000 | Washer - THRUST, 40X63X3.925 | Washer - THRUST, 40X63X3.925 |
| 8 | 90422-RG0-000 | Washer - THRUST, 40X63X3.950 | Washer - THRUST, 40X63X3.950 |
| 8 | 90423-RG0-000 | Washer - THRUST, 40X63X3.975 | Washer - THRUST, 40X63X3.975 |
| 8 | 90424-RG0-000 | Washer - THRUST, 40X63X4.000 | Washer - THRUST, 40X63X4.000 |
| 32 | 90428-S0A-003 | Washer - DRAIN | Washer - DRAIN |
| 11 | 90429-PC6-900 | Washer - 40X86X2 | Washer - 40X86X2 |
| 3 | 90431-PRP-000 | Cotter - 17MM | Cotter - 17MM |
| 15 | 90431-RPC-000 | Cotter - 29MM | Cotter - 29MM |
| 4 | 90432-PRP-000 | Retainer - COTTER | Retainer - COTTER |
| 9 | 90432-RPC-000 | Cotter - 39MM | Cotter - 39MM |
| 25 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 7 | 90433-PLX-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 22 | 90433-PRP-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 10 | 90433-RDK-000 | Retainer - COTTER | Retainer - COTTER |
| 16 | 90441-RPC-000 | Collar - 33.2X40X26 | Collar - 33.2X40X26 |
| 11 | 90443-RPC-000 | Collar - 29X35X33 | Collar - 29X35X33 |
| 17 | 90445-RPC-000 | Collar - 33X45X7.8 | Collar - 33X45X7.8 |
| 27 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 26 | 90471-PW7-A00 | PACKING, 10MM | PACKING, 10MM |
| 11 | 90471-PX4-000 | Washer - DRAIN PLUG, 18MM | Washer - DRAIN PLUG, 18MM |
| 17 | 90471-RGR-000 | Washer - DRAIN PLUG, 12MM | Washer - DRAIN PLUG, 12MM |
| 12 | 90471-RPC-000 | Washer - DRAIN PLUG, 16MM | Washer - DRAIN PLUG, 16MM |
| 28 | 90472-RPC-000 | Packing - 10MM | Packing - 10MM |
| 9 | 90501-RPC-000 | Collar - 27X32X60.5 | Collar - 27X32X60.5 |
| 26 | 90501-SS8-A01 | Retainer | Retainer |
| 12 | 90502-RPC-000 | Washer - THRUST, 43X54.5X2.900 | Washer - THRUST, 43X54.5X2.900 |
| 12 | 90503-RPC-000 | Washer - THRUST, 43X54.5X2.925 | Washer - THRUST, 43X54.5X2.925 |
| 12 | 90504-RPC-000 | Washer - THRUST, 43X54.5X2.950 | Washer - THRUST, 43X54.5X2.950 |
| 12 | 90505-RPC-000 | Washer - THRUST, 43X54.5X2.975 | Washer - THRUST, 43X54.5X2.975 |
| 12 | 90506-RPC-000 | Washer - THRUST, 43X54.5X3.000 | Washer - THRUST, 43X54.5X3.000 |
| 12 | 90507-RPC-000 | Washer - THRUST, 43X54.5X3.025 | Washer - THRUST, 43X54.5X3.025 |
| 12 | 90508-RPC-000 | Washer - THRUST, 43X54.5X3.050 | Washer - THRUST, 43X54.5X3.050 |
| 12 | 90509-RPC-000 | Washer - THRUST, 43X54.5X3.075 | Washer - THRUST, 43X54.5X3.075 |
| 12 | 90510-RPC-000 | Washer - THRUST, 43X54.5X3.100 | Washer - THRUST, 43X54.5X3.100 |
| 7 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 12 | 90511-RPC-000 | Washer - THRUST, 43X54.5X3.125 | Washer - THRUST, 43X54.5X3.125 |
| 12 | 90512-RPC-000 | Washer - THRUST, 43X54.5X3.150 | Washer - THRUST, 43X54.5X3.150 |
| 12 | 90513-RPC-000 | Washer - THRUST, 43X54.5X3.175 | Washer - THRUST, 43X54.5X3.175 |
| 12 | 90514-RPC-000 | Washer - THRUST, 43X54.5X3.200 | Washer - THRUST, 43X54.5X3.200 |
| 13 | 90521-RG5-000 | Washer - THRUST, 31X50X3.925 | Washer - THRUST, 31X50X3.925 |
| 13 | 90522-RG5-000 | Washer - THRUST, 31X50X3.950 | Washer - THRUST, 31X50X3.950 |
| 13 | 90523-RG5-000 | Washer - THRUST, 31X50X3.975 | Washer - THRUST, 31X50X3.975 |
| 13 | 90524-RG5-000 | Washer - THRUST, 31X50X4.000 | Washer - THRUST, 31X50X4.000 |
| 13 | 90525-RG5-000 | Washer - THRUST, 31X50X4.025 | Washer - THRUST, 31X50X4.025 |
| 13 | 90526-RG5-000 | Washer - THRUST, 31X50X4.050 | Washer - THRUST, 31X50X4.050 |
| 13 | 90527-RG5-000 | Washer - THRUST, 31X50X4.075 | Washer - THRUST, 31X50X4.075 |
| 13 | 90528-RG5-000 | Washer - THRUST, 31X50X4.100 | Washer - THRUST, 31X50X4.100 |
| 13 | 90529-RG5-000 | Washer - THRUST, 31X50X4.125 | Washer - THRUST, 31X50X4.125 |
| 13 | 90530-RG5-000 | Washer - THRUST, 31X50X4.150 | Washer - THRUST, 31X50X4.150 |
| 13 | 90531-RG5-000 | Washer - THRUST, 31X50X4.175 | Washer - THRUST, 31X50X4.175 |
| 13 | 90532-RG5-000 | Washer - THRUST, 31X50X4.200 | Washer - THRUST, 31X50X4.200 |
| 13 | 90533-RG5-000 | Washer - THRUST, 31X50X4.225 | Washer - THRUST, 31X50X4.225 |
| 13 | 90534-RG5-000 | Washer - THRUST, 31X50X4.250 | Washer - THRUST, 31X50X4.250 |
| 13 | 90535-RG5-000 | Washer - THRUST, 31X50X4.275 | Washer - THRUST, 31X50X4.275 |
| 13 | 90536-RG5-000 | Washer - THRUST, 31X50X4.300 | Washer - THRUST, 31X50X4.300 |
| 13 | 90537-RG5-000 | Washer - THRUST, 31X50X4.325 | Washer - THRUST, 31X50X4.325 |
| 27 | 90543-S2G-C21 | Washer - PLAIN | Washer - PLAIN |
| 29 | 90543-S50-902 | Washer - SPRING | Washer - SPRING |
| 29 | 90602-PX4-000 | Circlip b - INTERNAL, 47MM | Circlip b - INTERNAL, 47MM |
| 9 | 90602-RPC-003 | Circlip - EXTERNAL, 36MM | Circlip - EXTERNAL, 36MM |
| 32 | 90602-SFA-004 | Clip - COWL TOP | Clip - COWL TOP |
| 10 | 90603-P0X-000 | Set ring - 23MM | Set ring - 23MM |
| 9 | 90603-PB6-000 | Ring - SNAP, 62MM | Ring - SNAP, 62MM |
| 9 | 90603-RPC-003 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 10 | 90603-RPC-004 | Circlip - EXTERNAL, 42MM | Circlip - EXTERNAL, 42MM |
| 10 | 90605-PA9-000 | Ring - SNAP, 114X1.8 | Ring - SNAP, 114X1.8 |
| 10 | 90605-PX4-000 | Ring - SNAP, 129MM | Ring - SNAP, 129MM |
| 11 | 90605-RCT-004 | Ring - SNAP, 133MM | Ring - SNAP, 133MM |
| 14 | 90608-RDK-000 | Circlip - EXTERNAL, 43MM | Circlip - EXTERNAL, 43MM |
| 10 | 90609-PC8-000 | Ring - SNAP, 68MM | Ring - SNAP, 68MM |
| 22 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 11 | 90612-RPC-000 | Ring - SNAP, 78MM | Ring - SNAP, 78MM |
| 12 | 90615-PF4-000 | Ring - SNAP, 75MM | Ring - SNAP, 75MM |
| 5 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 18 | 90616-RPC-000 | Ring - SNAP, 33MM | Ring - SNAP, 33MM |
| 15 | 90621-RPC-000 | Circlip - EXTERNAL, 26MM | Circlip - EXTERNAL, 26MM |
| 18 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 18 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
| 35 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 37 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 12 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 30 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 32 | 90701-PD2-000 | Dowel pin - 12X14 | Dowel pin - 12X14 |
| 20 | 90701-PK4-000 | Dowel pin - 8X80 | Dowel pin - 8X80 |
| 27 | 90701-SKC-003 | Pin - SPLIT(M14) | Pin - SPLIT(M14) |
| 30 | 90702-PL4-000 | Dowel pin - 8X44 | Dowel pin - 8X44 |
| 33 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 13 | 90703-PNA-300 | Dowel pin - 4.2X10.3 | Dowel pin - 4.2X10.3 |
| 17 | 90704-PNA-000 | Key - 4.5X21 | Key - 4.5X21 |
| 14 | 90705-PA9-000 | Dowel pin - 14X25 | Dowel pin - 14X25 |
| 34 | 90705-RNA-A00 | Dowel pin - 20X22 | Dowel pin - 20X22 |
| 16 | 91001-PRP-004 | Bearing - BALL, 40X68X7.5 | Bearing - BALL, 40X68X7.5 |
| 13 | 91001-RPC-006 | Bearing - BALL, 27X75X18.5 | Bearing - BALL, 27X75X18.5 |
| 14 | 91002-RPC-005 | Bearing - BALL, 29X78X19/16 | Bearing - BALL, 29X78X19/16 |
| 15 | 91003-RPC-003 | Bearing - BALL, 26X62X11 | Bearing - BALL, 26X62X11 |
| 15 | 91004-RPC-016 | Bearing - BALL, 29X68X13 | Bearing - BALL, 29X68X13 |
| 16 | 91005-RPC-016 | Bearing - BALL, 20X62X16.5 | Bearing - BALL, 20X62X16.5 |
| 31 | 91006-P1B-003 | Bearing - BALL, 9X20X6 | Bearing - BALL, 9X20X6 |
| 16 | 91011-RG5-005 | Bearing - NEEDLE, 31X38X18 | Bearing - NEEDLE, 31X38X18 |
| 17 | 91012-RPC-005 | Bearing - NEEDLE, 43X49X20.5 | Bearing - NEEDLE, 43X49X20.5 |
| 18 | 91013-RPC-003 | Bearing - NEEDLE, 35X41X24 | Bearing - NEEDLE, 35X41X24 |
| 11 | 91014-RPC-003 | Bearing - NEEDLE, 32X37X24 | Bearing - NEEDLE, 32X37X24 |
| 19 | 91015-RPC-003 | Bearing - NEEDLE, 33X39X26.5 | Bearing - NEEDLE, 33X39X26.5 |
| 12 | 91016-RPC-003 | Bearing - NEEDLE, 47X52X15.5 | Bearing - NEEDLE, 47X52X15.5 |
| 13 | 91017-PZK-003 | Bearing - NEEDLE, 23X29X18 | Bearing - NEEDLE, 23X29X18 |
| 20 | 91017-RPC-004 | Bearing - NEEDLE, 36X42X17 | Bearing - NEEDLE, 36X42X17 |
| 21 | 91018-RPC-003 | Bearing - NEEDLE, 15X20X16 | Bearing - NEEDLE, 15X20X16 |
| 19 | 91021-RPC-003 | Needle - THRUST, 35X53X2.5 | Needle - THRUST, 35X53X2.5 |
| 14 | 91022-RPC-003 | Needle - THRUST, 32X44X2 | Needle - THRUST, 32X44X2 |
| 15 | 91023-RPC-003 | Needle - THRUST, 32X51.5X2.5 | Needle - THRUST, 32X51.5X2.5 |
| 16 | 91024-RPC-003 | Needle - THRUST, 52.5X66.5X2 | Needle - THRUST, 52.5X66.5X2 |
| 20 | 91025-RPC-003 | Needle - THRUST, 31X44X2.5 | Needle - THRUST, 31X44X2.5 |
| 21 | 91026-RPC-003 | Needle - THRUST, 38.5X51.5X2.5 | Needle - THRUST, 38.5X51.5X2.5 |
| 22 | 91027-RPC-003 | Needle - THRUST, 49.5X64X2.5 | Needle - THRUST, 49.5X64X2.5 |
| 23 | 91028-RPC-003 | Needle - THRUST, 43X55.5X2.5 | Needle - THRUST, 43X55.5X2.5 |
| 17 | 91101-RPC-003 | Bearing - NEEDLE, 33.5X59X19 | Bearing - NEEDLE, 33.5X59X19 |
| 32 | 91102-RPC-003 | Bearing - NEEDLE, 30X52X19 | Bearing - NEEDLE, 30X52X19 |
| 11 | 91108-PRP-003 | Roller - 4X23.8 | Roller - 4X23.8 |
| 7 | 91121-RPC-003 | Bearing - BALL, 40X90X20 | Bearing - BALL, 40X90X20 |
| 33 | 91201-PA9-004 | Oil seal - 9X18X7 (ARAI) | Oil seal - 9X18X7 (ARAI) |
| 17 | 91205-PL3-A01 | Oil seal - 35X56X8 (ARAI) | Oil seal - 35X56X8 (ARAI) |
| 19 | 91207-P7Z-003 | Oil seal - 44X68X8 (NOK) | Oil seal - 44X68X8 (NOK) |
| 9 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
| 12 | 91212-RTA-003 | Oil seal - 43X58X7 (NOK) | Oil seal - 43X58X7 (NOK) |
| 35 | 91214-PWA-Y01 | Oil seal - 80X98X10 (NOK) | Oil seal - 80X98X10 (NOK) |
| 24 | 91301-P6H-003 | O-ring - 7.6X1.9 (KEIHIN) | O-ring - 7.6X1.9 (KEIHIN) |
| 34 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 7 | 91301-PLC-000 | O-ring - 7.47X3.6 | O-ring - 7.47X3.6 |
| 36 | 91301-RNA-A01 | O-ring - 20X2.3 (NOK) | O-ring - 20X2.3 (NOK) |
| 25 | 91302-P6H-003 | O-ring - 9.6X1.9 (KEIHIN) | O-ring - 9.6X1.9 (KEIHIN) |
| 25 | 91302-P7W-A00 | O-ring - 9.6X1.9 | O-ring - 9.6X1.9 |
| 8 | 91302-PNA-003 | O-ring - 7.45X3.61(NOK) | O-ring - 7.45X3.61(NOK) |
| 16 | 91302-PX4-004 | O-ring - 46.8X2.2 (NOK) | O-ring - 46.8X2.2 (NOK) |
| 12 | 91302-RCT-004 | O-ring - 40.2X2.2 | O-ring - 40.2X2.2 |
| 12 | 91302-RNA-003 | O-ring - 35.5X1.9 | O-ring - 35.5X1.9 |
| 11 | 91302-RPC-003 | O-ring - 31.4X2.2 | O-ring - 31.4X2.2 |
| 12 | 91303-P0Z-003 | O-ring - 45.1X2.2 (NOK) | O-ring - 45.1X2.2 (NOK) |
| 12 | 91303-PA9-004 | O-ring - 100X2.2 (NOK) | O-ring - 100X2.2 (NOK) |
| 11 | 91303-PF4-004 | O-ring - 110X2.2 (NOK) | O-ring - 110X2.2 (NOK) |
| 13 | 91303-RCT-004 | O-ring - 111.7X2.2 | O-ring - 111.7X2.2 |
| 35 | 91304-RPC-003 | O-ring - 39X1.9 | O-ring - 39X1.9 |
| 36 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 22 | 91306-P0X-003 | O-ring - 8.1X4 (NOK) | O-ring - 8.1X4 (NOK) |
| 22 | 91307-PLC-004 | O-ring - 9.5X1.9 (MATSUSHITA) | O-ring - 9.5X1.9 (MATSUSHITA) |
| 24 | 91307-RPC-000 | O-ring - 22.5X1.9 | O-ring - 22.5X1.9 |
| 10 | 91308-PW4-003 | O-ring - 21.8X1.9 | O-ring - 21.8X1.9 |
| 15 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 37 | 91311-PA9-004 | O-ring - 7.7X1.9 (NOK) | O-ring - 7.7X1.9 (NOK) |
| 23 | 91314-PH7-003 | O-ring 31.2X4.1 (NOK) | O-ring 31.2X4.1 (NOK) |
| 38 | 91314-PW4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 21 | 91316-PF4-003 | O-ring - 31X1.7 (ARAI) | O-ring - 31X1.7 (ARAI) |
| 17 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
| 17 | 91319-PAA-A01 | O-ring - 13X1.5 | O-ring - 13X1.5 |
| 22 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 20 | 91326-P4V-003 | O-ring - 26.7X1.9(NOK) | O-ring - 26.7X1.9(NOK) |
| 16 | 91329-PRP-003 | O-ring - 23.3X2.4 | O-ring - 23.3X2.4 |
| 23 | 91331-PC9-003 | O-ring | O-ring |
| 27 | 91331-PL5-J00 | O-ring - 20.2X2.4 (NOK) | O-ring - 20.2X2.4 (NOK) |
| 18 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |
| 37 | 91333-PNC-006 | O-ring | O-ring |
| 28 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
| 9 | 91404-SDC-000 | Clamp - TUBE (D10) | Clamp - TUBE (D10) |
| 15 | 91404-TA0-G01 | Clamp - FUEL TUBE (D10) | Clamp - FUEL TUBE (D10) |
| 22 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 5 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 22 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 5 | 91405-RGA-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 18 | 91405-SDA-000 | Clamp - TUBE(D10.5) | Clamp - TUBE(D10.5) |
| 19 | 91407-SDB-000 | Clamp - TUBE (D12.5) | Clamp - TUBE (D12.5) |
| 27 | 91501-P8A-A01 | Stud | Stud |
| 8 | 91501-S70-003 | Fastener b - WINDSHIELD | Fastener b - WINDSHIELD |
| 37 | 91501-STK-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 32 | 91503-SZ3-003 | Clip A | Clip A |
| 28 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 34 | 91506-S9A-003 | Clip b - BUMPER | Clip b - BUMPER |
| 29 | 91507-RTA-003 | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) |
| 10 | 91507-SAA-003 | Clip - WIRE HARNESS(NATURAL) (70MM) | Clip - WIRE HARNESS(NATURAL) (70MM) |
| 12 | 91507-SNA-003 | Clip - HARNESS BAND(BROWN) (164.5MM) | Clip - HARNESS BAND(BROWN) (164.5MM) |
| 11 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 10 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 10 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 12 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 30 | 91531-S5B-003 | Band - HARNESS (BLACK) (120MM) | Band - HARNESS (BLACK) (120MM) |
| 13 | 91531-S84-003 | Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) | Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
| 14 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 16 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 9 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
| 15 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 18 | 91540-S7S-003 | Clip - HARNESS BAND(BLACK) (157.7MM) | Clip - HARNESS BAND(BLACK) (157.7MM) |
| 16 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 31 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 21 | 91542-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM) | Clip - HARNESS BAND(DARK BLUE) (164.5MM) |
| 18 | 91545-SE0-003 | Clip assy. - 8MM | Clip assy. - 8MM |
| 23 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 32 | 91551-PNA-003 | Band - WIRE HARNESS (BLACK) (172MM) | Band - WIRE HARNESS (BLACK) (172MM) |
| 26 | 91552-SS0-003 | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) |
| 33 | 91558-SM4-003 | Clip - TUBE(BLACK)(135MM) | Clip - TUBE(BLACK)(135MM) |
| 34 | 91558-ST5-003 | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
| 29 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 30 | 91560-S04-003 | Clip - SIDE GARNISH (NATURAL) | Clip - SIDE GARNISH (NATURAL) |
| 11 | 91560-S6A-003 | Clip - DOOR LINING(ORANGE) | Clip - DOOR LINING(ORANGE) |
| 12 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 26 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
| 39 | 91565-SEL-003 | Clip - COUPLER(BLACK) | Clip - COUPLER(BLACK) |
| 24 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
| 44 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 21 | 91595-S7A-931 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 35 | 91601-P8A-A01 | Receptacle | Receptacle |
| 27 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 5 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 10 | 91608-S5A-003 | Boot - FLOOR | Boot - FLOOR |
| 6 | 91610-SD4-000 | Plug - HOLE, 28MM | Plug - HOLE, 28MM |
| 11 | 91613-SN4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 12 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 15 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 30 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 33 | 91723-SNA-003 | Coupler - WATER PROOF (23P 040 J/C) (BLACK) | Coupler - WATER PROOF (23P 040 J/C) (BLACK) |
| 34 | 91902-SNA-003 | Plaster - WIRE HARNESS(50X50) | Plaster - WIRE HARNESS(50X50) |
| 18 | 91903-SNA-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
