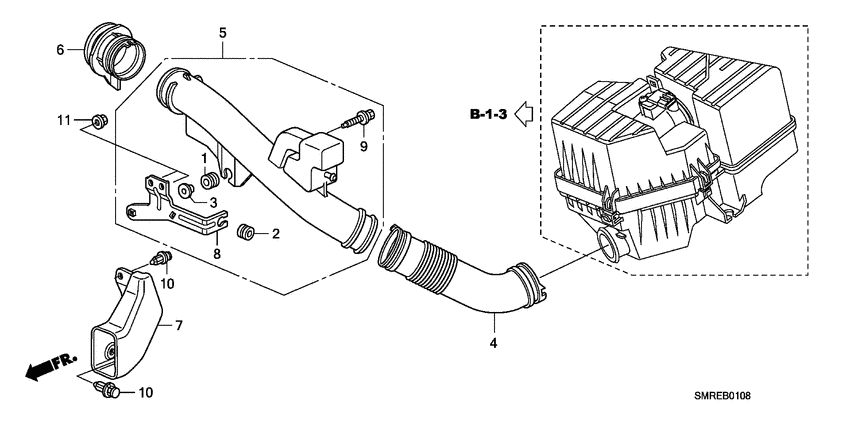

Air cleaner 8 / 15

#	OEM	FD3	FN4
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
7	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
11	37980-RNA-A01	Meter assy - AIR FLOW	Meter assy - AIR FLOW
12	37985-RAD-L11	Gasket	Gasket
13	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
14	91405-PG7-003	Clip - HOSE (D13)	Clip - HOSE (D13)

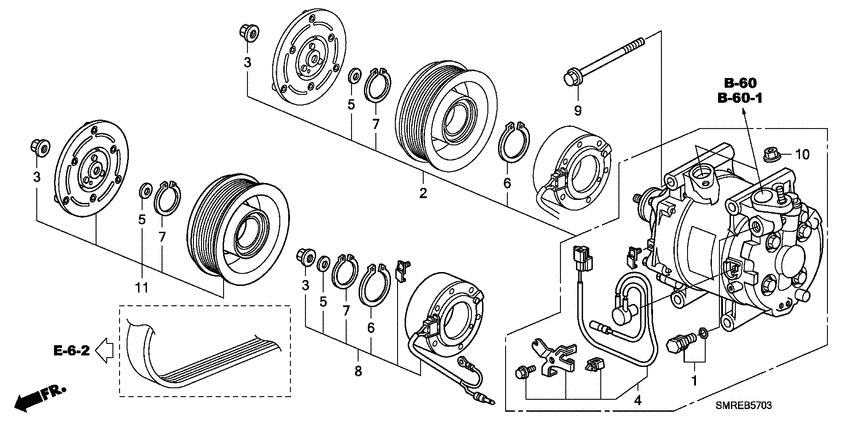

Air conditioner (COMPRESSOR) 4 / 17

#	OEM	FD3	FN4
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
12	38912-PE1-702	Shim set	Shim set
13	38913-PP4-E02	Ring - SNAP	Ring - SNAP
14	38914-P07-004	Ring f - SNAP	Ring f - SNAP

Air conditioner (CONDENSER) 1 / 9

#	OEM	FD3	FN4
9	80873-ST7-000	O-ring - 8MM	O-ring - 8MM

Air conditioner (HOSES/PIPES; LH) 8 / 21

#	OEM	FD3	FN4
9	80366-SFA-000	Rubber - MOUNT	Rubber - MOUNT
10	80367-SFA-000	Collar - DISTANCE	Collar - DISTANCE
11	80381-SNA-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
13	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
16	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
17	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
18	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
19	90105-SFA-003	Bolt-washer - 6X30	Bolt-washer - 6X30

Air conditioner (SENSOR) 1 / 6

#	OEM	FD3	FN4
3	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT

Antenna/speaker (LH) 9 / 17

#	OEM	FD3	FN4
8	90109-SLJ-003	Screw - 5X40	Screw - 5X40
9	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER
10	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
11	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
13	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
14	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
15	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
16	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Audio unit (LH) 1 / 11

#	OEM	FD3	FN4
11	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Battery 7 / 16

#	OEM	FD3	FN4
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)	Plug - VENT (MF) (FURUKAWA)
7	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
12	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
13	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
14	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
15	91531-S5B-003	Band - HARNESS (BLACK) (120MM)	Band - HARNESS (BLACK) (120MM)
16	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)

Brake lines (VSA; LH) 7 / 36

#	OEM	FD3	FN4
13	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
16	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46392-SAA-901	Clip - BRAKE PIPE	Clip - BRAKE PIPE
31	46462-SE0-000	Bolt - OIL	Bolt - OIL
33	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
35	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
36	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder (LH) 9 / 28

#	OEM	FD3	FN4
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
8	46191-S2K-000	Packing - MASTER POWER	Packing - MASTER POWER
9	46512-S70-000	Pin - PEDAL	Pin - PEDAL
13	46665-S04-J01	Grommet	Grommet
14	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
17	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
20	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
24	57515-S30-003	Pin - STOP	Pin - STOP

Brake power unit 1 / 9

#	OEM	FD3	FN4
2	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Bumpers ('09-) 5 / 26

#	OEM	FD3	FN4
24	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
27	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
29	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
31	91503-SZ3-003	Clip A	Clip A
33	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

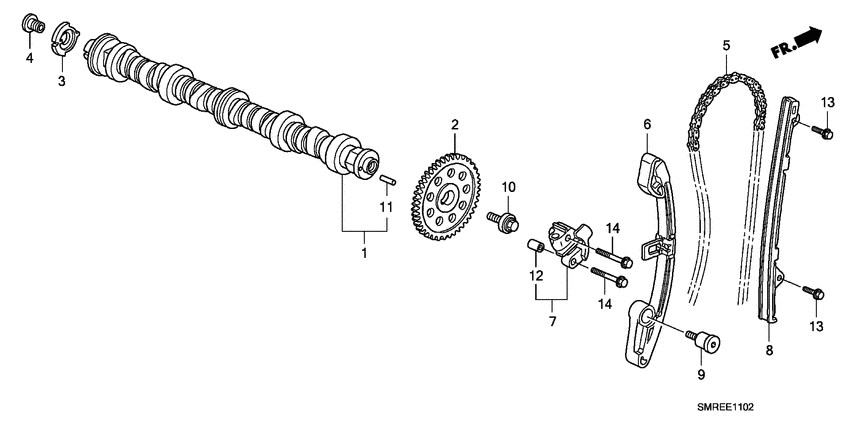

Camshaft/cam chain 4 / 12

#	OEM	FD3	FN4
4	14222-PWA-004	Bolt - TDC PULSER PLATE	Bolt - TDC PULSER PLATE
7	14512-RMX-000	Slider comp. - CAM CHAIN TENSIONER	Slider comp. - CAM CHAIN TENSIONER
9	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
11	90703-PWA-003	Dowel pin - 2.5X10	Dowel pin - 2.5X10

Canister 4 / 12

#	OEM	FD3	FN4
1	17300-SNA-023	Canister assy	Canister assy
7	17724-SNA-000	Tube - FUEL VENT	Tube - FUEL VENT
9	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
15	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)

Chain case 8 / 11

#	OEM	FD3	FN4
2	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
3	15302-PE0-300	Washer - SEALING, 14MM	Washer - SEALING, 14MM
5	90015-PF0-000	Bolt - FLANGE, 8X53	Bolt - FLANGE, 8X53
6	90021-PWA-003	Bolt - SPECIAL, 8X41	Bolt - SPECIAL, 8X41
7	90081-PZA-000	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
8	90107-P4V-000	Bolt - FLANGE, 8X40	Bolt - FLANGE, 8X40
10	91212-PWA-003	Oil seal - 40X55X7 (NOK)	Oil seal - 40X55X7 (NOK)
11	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Combination switch (LH) 11 / 24

#	OEM	FD3	FN4
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
7	35111-SNB-305	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
9	35114-SMG-E21	Bottom comp. - TRANSMITTER KEY CASE	Bottom comp. - TRANSMITTER KEY CASE
10	35116-SDA-A11	Screw - FLAT	Screw - FLAT
12	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH	Sensor assy - STEERING & BODY SWITCH
15	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)	Switch assy - DOOR (MATSUSHITA)
17	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
19	72148-S0A-000	Battery CR1616	Battery CR1616
20	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18

Console (LH) 2 / 17

#	OEM	FD3	FN4
1	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
32	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Control unit (CABIN; 2) 2 / 2

#	OEM	FD3	FN4
1	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)

Control unit (CABIN; LH; 1) 12 / 26

#	OEM	FD3	FN4
2	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
3	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
4	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
5	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
6	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
7	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
10	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
10	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
14	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)	Relay assy - POWER(5P) (MICRO ISO)
15	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
22	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
24	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)

Control unit (ENGINE ROOM; 1) 14 / 40

#	OEM	FD3	FN4
12	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
13	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
14	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
15	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
16	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
17	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
18	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
19	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
20	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
31	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)
31	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)	RELAY ASSY., FUEL PUMP (DENSO)
34	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
36	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
39	90106-SDA-A00	Bolt-washer - 6X25	Bolt-washer - 6X25

Control unit (ENGINE ROOM; 2) 3 / 6

#	OEM	FD3	FN4
3	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
10	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Crankshaft/piston 13 / 36

#	OEM	FD3	FN4
3	13111-PWA-000	Pin - PISTON	Pin - PISTON
4	13204-PWA-003	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
5	13210-RB0-000	Rod comp - CONNECTING	Rod comp - CONNECTING
6	13216-PWA-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)	Bearing f - CONNECTING ROD (PINK) (DAIDO)
6	13213-PWA-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
6	13215-PWA-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
6	13217-PWA-003	Bearing g - CONNECTING ROD (RED) (DAIDO)	Bearing g - CONNECTING ROD (RED) (DAIDO)
6	13212-PWA-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
6	13214-PWA-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
9	13331-PR3-004	Washer - THRUST (TAIHO)	Washer - THRUST (TAIHO)
9	13331-PR3-003	Washer - THRUST (DAIDO)	Washer - THRUST (DAIDO)
14	90017-PWA-G02	Bolt-washer - 14X36	Bolt-washer - 14X36
15	90704-PH7-000	Key, SPECIAL	Key, SPECIAL

Cylinder block/oil pan 14 / 20

#	OEM	FD3	FN4
2	11106-PWA-300	Bolt - SEALING, 24MM	Bolt - SEALING, 24MM
3	11107-PWA-300	Washer - SEALING, 24MM	Washer - SEALING, 24MM
5	11203-PWA-003	O-ring - 17.8X2.4 (NOK)	O-ring - 17.8X2.4 (NOK)
6	11252-PWA-000	Packing - OIL PAN	Packing - OIL PAN
9	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
10	37310-RSA-G02	Sensor assy - OIL LEVEL	Sensor assy - OIL LEVEL
13	37312-RSA-G02	Packing - OIL LEVEL SENSOR	Packing - OIL LEVEL SENSOR
14	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
15	90008-PM0-003	Bolt-washer - 10X112	Bolt-washer - 10X112
16	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
18	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
19	90702-PE0-000	Dowel pin - 12X18	Dowel pin - 12X18
20	90705-PT0-000	Dowel pin - 16X22	Dowel pin - 16X22
21	91214-PWA-003	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)

Cylinder head 12 / 24

#	OEM	FD3	FN4
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
4	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
5	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
7	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
17	90008-PWA-003	Bolt-washer - 9X155	Bolt-washer - 9X155
19	90015-PWA-000	Bolt-washer - 6X14	Bolt-washer - 6X14
20	90026-RMX-000	Bolt - STUD, 8X22	Bolt - STUD, 8X22
21	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5
22	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head cover 1 / 14

#	OEM	FD3	FN4
8	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Emblems/caution labels 3 / 10

#	OEM	FD3	FN4
3	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
10	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
11	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)	Label - SRS CAUTION (CHILD SEAT)

Engine hood (LH) 5 / 35

#	OEM	FD3	FN4
30	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
31	90301-ST0-003	push nut, 3mm	push nut, 3mm
32	90602-SFA-004	Clip - COWL TOP	Clip - COWL TOP
37	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
39	91565-SEL-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)

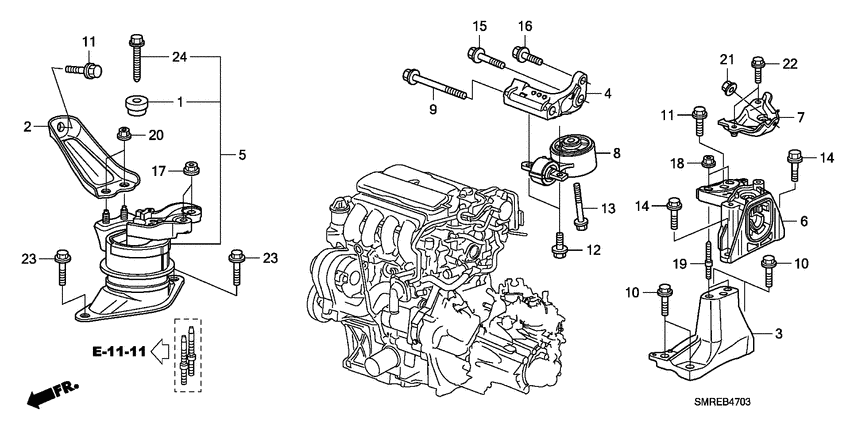

Engine mounts 3 / 15

#	OEM	FD3	FN4
9	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
14	90213-SAA-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
15	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM

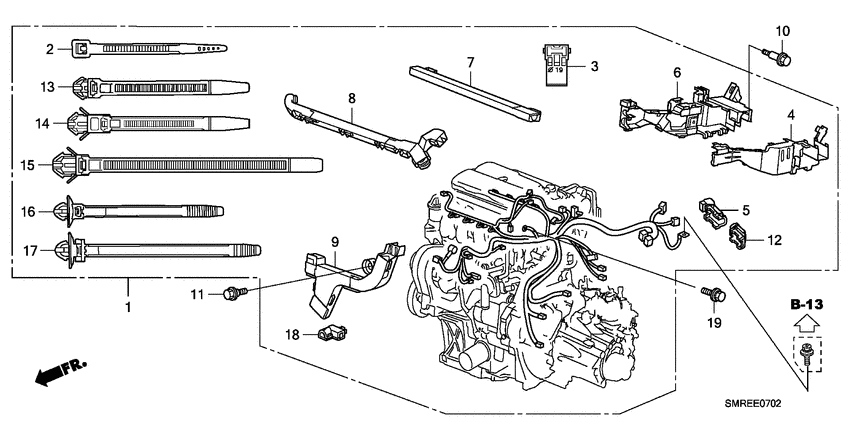

Engine wire harness 6 / 28

#	OEM	FD3	FN4
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
3	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
19	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
20	91507-PLC-003	Clip - WIRE HARNESS(DARK BLUE) (132.3MM)	Clip - WIRE HARNESS(DARK BLUE) (132.3MM)
21	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
27	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Engine wire harness stay 1 / 4

#	OEM	FD3	FN4
6	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Exhaust manifold 2 / 11

#	OEM	FD3	FN4
9	90004-PLC-000	Bolt-washer - 10X25	Bolt-washer - 10X25
10	90015-PWA-000	Bolt-washer - 6X14	Bolt-washer - 6X14

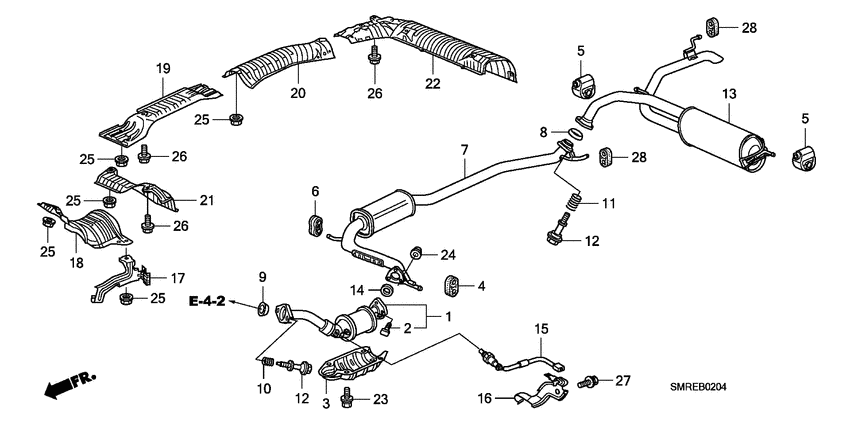

Exhaust pipe/silencer 6 / 26

#	OEM	FD3	FN4
11	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
15	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
22	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
23	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
24	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 3 / 5

#	OEM	FD3	FN4
10	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
11	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Floor/inner panels 1 / 1

#	OEM	FD3	FN4
35	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

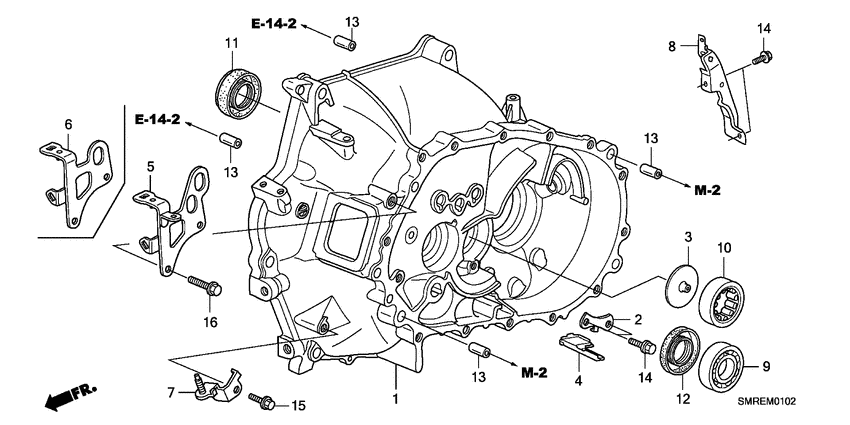

Flywheel case 1 / 16

#	OEM	FD3	FN4
12	91206-PHR-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)

Front brake 7 / 23

#	OEM	FD3	FN4
5	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
7	44600-SNA-A00	Hub assy - FR.	Hub assy - FR.
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
19	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Front bulkhead/dashboard 3 / 5

#	OEM	FD3	FN4
40	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
41	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
42	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Front door glass/ door regulator 2 / 10

#	OEM	FD3	FN4
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
10	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10

Front door lining (LH) 4 / 16

#	OEM	FD3	FN4
14	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
15	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
23	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
24	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front door lock/ outer handle 13 / 31

#	OEM	FD3	FN4
3	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
5	72118-SJK-003	Screw - TAPPING	Screw - TAPPING
12	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
14	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
15	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
24	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
30	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
32	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
36	90101-SJK-003	Screw - TAPPING (ONE WAY)	Screw - TAPPING (ONE WAY)
37	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
38	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
39	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
41	91503-SZ5-003	Clip - BUMPER FACE	Clip - BUMPER FACE

Front door panels 5 / 15

#	OEM	FD3	FN4
17	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
18	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
19	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
19	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
20	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

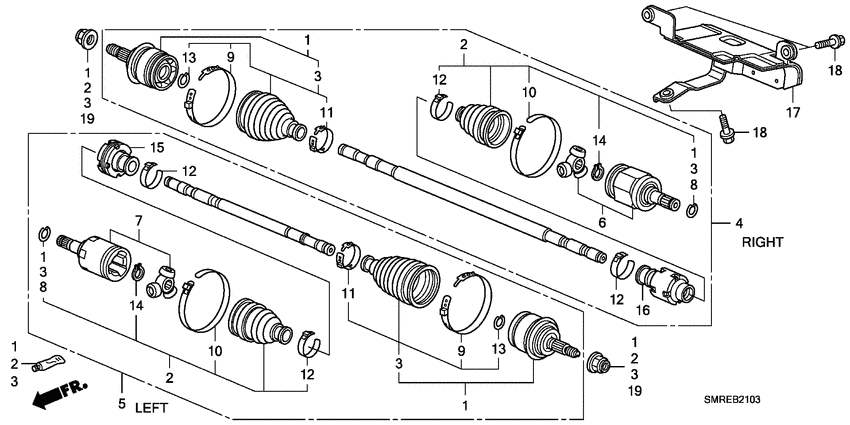

Front driveshaft/ half shaft 5 / 27

#	OEM	FD3	FN4
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S04-300	Set ring - 26X1.8	Set ring - 26X1.8
9	44319-SR1-003	Set ring - 26X1.8 (GKN)	Set ring - 26X1.8 (GKN)
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)

Front fenders 7 / 21

#	OEM	FD3	FN4
18	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
18	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
19	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
20	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
25	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
26	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM
27	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Front grille ('09-) 4 / 9

#	OEM	FD3	FN4
7	90301-ST0-003	push nut, 3mm	push nut, 3mm
8	91503-SZ3-003	Clip A	Clip A
9	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
10	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front seat (LH; DRIVER SIDE) 5 / 13

#	OEM	FD3	FN4
2	81123-SNA-A01	Screw - 6X18	Screw - 6X18
16	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
17	90610-S10-003	Clip - GARNISH	Clip - GARNISH
19	81291-SNA-A01	Clip	Clip
21	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Front seat (LH; PASSENGER SIDE) 5 / 13

#	OEM	FD3	FN4
3	81123-SNA-A01	Screw - 6X18	Screw - 6X18
16	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
17	90610-S10-003	Clip - GARNISH	Clip - GARNISH
19	81291-SNA-A01	Clip	Clip
21	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Front seat components (LH; DRIVER SIDE) 6 / 8

#	OEM	FD3	FN4
2	81133-SNB-E01	Cord - HEATED SEAT	Cord - HEATED SEAT
3	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
13	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
14	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
16	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
17	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Front seat components (LH; PASSENGER SIDE) 5 / 7

#	OEM	FD3	FN4
4	81133-SNB-E01	Cord - HEATED SEAT	Cord - HEATED SEAT
8	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
9	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
11	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
12	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)

Front shock absorber 1 / 19

#	OEM	FD3	FN4
18	90213-SR3-013	Nut - SELF-LOCK, 14MM	Nut - SELF-LOCK, 14MM

Front windshield wiper (LH) 7 / 26

#	OEM	FD3	FN4
3	76516-SJK-003	Rubber - MOUNTING	Rubber - MOUNTING
6	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
7	76517-SJK-003	Collar	Collar
8	76517-SM4-003	Collar	Collar
10	76524-SL0-A01	Dust seal	Dust seal
15	76561-SNA-A01	Cap - PIVOT	Cap - PIVOT
29	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32

Fuel injector 4 / 9

#	OEM	FD3	FN4
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
4	16638-PT2-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
8	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
9	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Fuel pipe 7 / 19

#	OEM	FD3	FN4
4	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
5	16725-RBA-J00	Cover a - FUEL CONNECTOR	Cover a - FUEL CONNECTOR
6	17711-S0X-004	Retainer - WHITE) (SANOH	Retainer - WHITE) (SANOH
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
16	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
17	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
19	91595-S7A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE

Fuel tank 11 / 32

#	OEM	FD3	FN4
11	17525-S0X-A00	Bolt-washer - 10X25	Bolt-washer - 10X25
13	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
14	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
18	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
18	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
20	17711-S0X-004	Retainer - WHITE) (SANOH	Retainer - WHITE) (SANOH
21	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
25	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
26	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
29	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
31	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet (FRONT) 7 / 12

#	OEM	FD3	FN4
1	74144-SR3-000	Cushion - HOOD	Cushion - HOOD
2	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
3	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
7	91608-S5A-003	Boot - FLOOR	Boot - FLOOR
8	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
9	91613-SN4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
12	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 3 / 4

#	OEM	FD3	FN4
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
5	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 2 / 5

#	OEM	FD3	FN4
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
5	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Grommet (SIDE) 1 / 1

#	OEM	FD3	FN4
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM

Harness band/bracket (LH) 20 / 37

#	OEM	FD3	FN4
4	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
10	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
11	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
14	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
16	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
17	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
18	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
19	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
21	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
22	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
24	91547-SH3-003	Clip - BAND(NATURAL)(160MM)	Clip - BAND(NATURAL)(160MM)
25	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
29	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
31	91565-SEL-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
32	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
33	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
34	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)
35	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Heater blower (LH) 2 / 16

#	OEM	FD3	FN4
12	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
13	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 5 / 34

#	OEM	FD3	FN4
27	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
28	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
33	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
35	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
36	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Ima battery 1 / 6

#	OEM	FD3	FN4
13	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)

Ima main cable/stay 6 / 16

#	OEM	FD3	FN4
26	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
27	90323-SE0-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM
27	90305-SH3-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
29	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
31	91559-S5A-003	Holder - HARNESS (BLACK)	Holder - HARNESS (BLACK)
35	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Ima pdu cooling unit 1 / 8

#	OEM	FD3	FN4
24	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Ima wire harness 4 / 5

#	OEM	FD3	FN4
7	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
9	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
10	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
11	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)

Instrument panel (LH) 3 / 14

#	OEM	FD3	FN4
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
22	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
23	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM

Instrument panel garnish (DRIVER SIDE; LH) 4 / 14

#	OEM	FD3	FN4
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
22	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
23	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
24	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 2 / 11

#	OEM	FD3	FN4
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
10	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

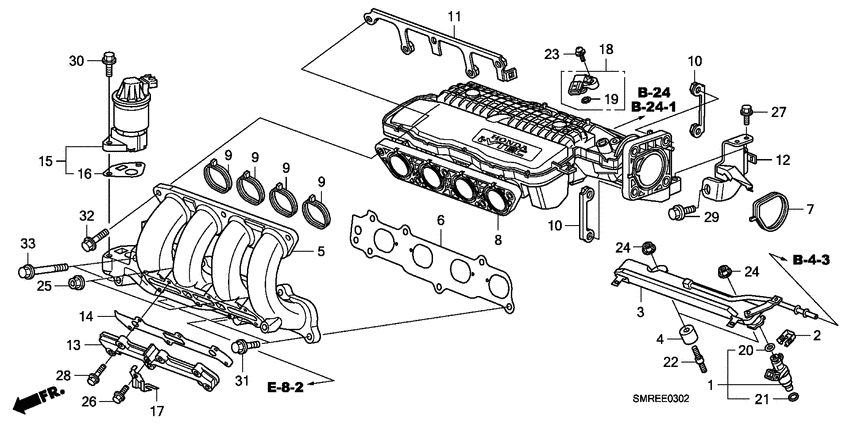

Intake manifold 2 / 15

#	OEM	FD3	FN4
13	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
15	37835-PGK-A01	O-ring	O-ring

Interior light 5 / 11

#	OEM	FD3	FN4
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
10	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

Intermediate plate 1 / 5

#	OEM	FD3	FN4
4	90471-580-000	Packing - 8MM	Packing - 8MM

Knuckle 7 / 28

#	OEM	FD3	FN4
2	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42522-SNA-003	Clamp - WIRE (BLUE)	Clamp - WIRE (BLUE)
4	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
20	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
25	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
26	90363-S3V-A01	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
27	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)

L. side cover 1 / 25

#	OEM	FD3	FN4
19	90471-580-000	Packing - 8MM	Packing - 8MM

Meter components (NS) 1 / 7

#	OEM	FD3	FN4
7	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Mirror (AUTO TURN) 1 / 18

#	OEM	FD3	FN4
15	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)

Mirror (ELECTRIC REMOTE CONTROL) 1 / 17

#	OEM	FD3	FN4
14	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)

Navigation system (LH) 12 / 23

#	OEM	FD3	FN4
1	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
10	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
11	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
12	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
13	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
14	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
16	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
17	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
18	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
20	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)	Clip - WIRE HARNESS (WHITE) (55MM)
25	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Oil pump 10 / 38

#	OEM	FD3	FN4
4	15221-PZ1-000	Packing - OIL STRAINER	Packing - OIL STRAINER
5	15231-413-020	Valve - RELIEF	Valve - RELIEF
6	15232-PHM-003	Spring - RELIEF VALVE	Spring - RELIEF VALVE
7	15233-PFB-003	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
8	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
8	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
8	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
10	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
11	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
13	91326-PF4-004	O-ring - 24.4X2.4 (NOK)	O-ring - 24.4X2.4 (NOK)

P.s. gear box (EPS; LH) 12 / 32

#	OEM	FD3	FN4
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
2	53413-SCC-003	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
3	53414-S5A-003	Screw - RACK GUIDE	Screw - RACK GUIDE
5	53417-SMG-E01	O-ring - RACK GUIDE	O-ring - RACK GUIDE
6	53418-S5A-003	Washer - DISK	Washer - DISK
15	53536-SJK-003	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
16	53537-SMG-E01	Rubber - STOPPER	Rubber - STOPPER
22	53685-SMG-E01	Bushing - GEAR BOX MOUNTING	Bushing - GEAR BOX MOUNTING
27	90102-SFA-J02	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
28	90103-S0A-N01	Screw - PAN, 5X8	Screw - PAN, 5X8
30	90301-SEP-003	Nut - HEX., 14MM	Nut - HEX., 14MM
31	90428-S0A-003	Washer - DRAIN	Washer - DRAIN

Parking brake (LH) 2 / 9

#	OEM	FD3	FN4
11	90306-SA0-000	Nut - FLOATING, 5MM	Nut - FLOATING, 5MM
12	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

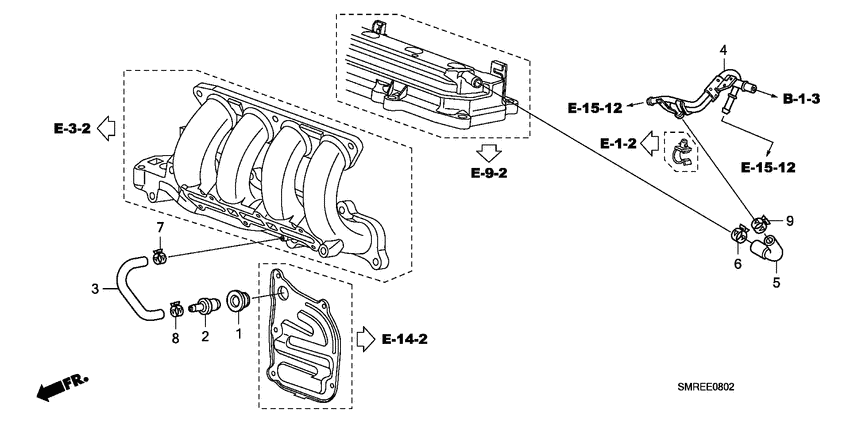

Pcv tube 2 / 6

#	OEM	FD3	FN4
1	11855-P72-000	Grommet, PCV Valve	Grommet, PCV Valve
6	91412-SDC-L01	Clamp - FUEL TUBE(D15.5)	Clamp - FUEL TUBE(D15.5)

Pedal (LH) 6 / 17

#	OEM	FD3	FN4
3	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)	Switch assy - STOP & CRUISE (PANASONIC)
11	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
12	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
14	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM
17	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER

Pillar garnish 3 / 8

#	OEM	FD3	FN4
25	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
26	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)
27	91561-SJD-003	Clip - PILLAR	Clip - PILLAR

Radiator (DENSO) 8 / 22

#	OEM	FD3	FN4
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
6	19020-RSH-E01	Fan - COOLING(DENSO)	Fan - COOLING(DENSO)
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
19	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
20	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
21	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose/reserve tan k 5 / 31

#	OEM	FD3	FN4
4	19102-RNA-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
14	19511-P08-004	Clip - WATER HOSE (KATO HATSUJO)	Clip - WATER HOSE (KATO HATSUJO)
14	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)	Clip - WATER HOSE(CHUO SPRING)
23	74172-S5A-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
26	91503-SZ3-003	Clip A	Clip A

Rear brake (DISK) 6 / 44

#	OEM	FD3	FN4
33	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
35	90103-SV4-013	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
36	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
36	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
36	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
36	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Rear door glass/ door regulator 2 / 10

#	OEM	FD3	FN4
9	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
10	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Rear door lining 2 / 7

#	OEM	FD3	FN4
11	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear door lock/ outer handle 10 / 27

#	OEM	FD3	FN4
1	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
6	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
7	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
8	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
13	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
17	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
18	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
33	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
34	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
35	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door panels 4 / 18

#	OEM	FD3	FN4
18	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
19	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
19	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
21	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Rear lower arm 4 / 37

#	OEM	FD3	FN4
1	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
25	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
29	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Rear seat 1 / 8

#	OEM	FD3	FN4
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Rear tray/trunk lining 1 / 9

#	OEM	FD3	FN4
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear windshield/ quarter glass 2 / 11

#	OEM	FD3	FN4
8	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
9	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD

Resonator chamber 2 / 8

#	OEM	FD3	FN4
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
3	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)

Roof lining 2 / 7

#	OEM	FD3	FN4
10	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
15	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Seatbelts 6 / 20

#	OEM	FD3	FN4
16	90135-S1F-003	Bolt - FLANGE, 7/16"	Bolt - FLANGE, 7/16"
20	81441-S2G-N51	Collar - 5H	Collar - 5H
22	81441-S50-N22	Collar - 2H	Collar - 2H
25	90142-SNA-004	Bolt - 7/16"X24	Bolt - 7/16"X24
29	90543-S2G-C21	Washer - PLAIN	Washer - PLAIN
30	90543-S50-004	Washer - SPRING	Washer - SPRING

Select lever (LH) 1 / 19

#	OEM	FD3	FN4
18	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Srs unit (LH) 7 / 14

#	OEM	FD3	FN4
1	77900-SNA-U31	Reel assy - CABLE (FURUKAWA)	Reel assy - CABLE (FURUKAWA)
2	77930-SNA-A32	Sensor assy - FR. CRASH(TRW)	Sensor assy - FR. CRASH(TRW)
4	77970-SNA-A32	Sensor assy - SIDE IMPACT (TRW)	Sensor assy - SIDE IMPACT (TRW)
9	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
10	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
11	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
12	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)

Starting clutch 1 / 24

#	OEM	FD3	FN4
15	90175-SEL-T81	Pin - LOCK, 8MM	Pin - LOCK, 8MM

Steering column 3 / 5

#	OEM	FD3	FN4
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 3 / 14

#	OEM	FD3	FN4
9	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
10	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE
18	35876-SMG-E01	Case	Case

Switch (LH) 1 / 14

#	OEM	FD3	FN4
12	35910-S04-G01	Switch assy - INERTIA	Switch assy - INERTIA

Tire/wheel disks 47 / 56

#	OEM	FD3	FN4
5	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
5	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
7	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)	Plate - SPARE TIRE CAUTION (T-TYPE)
8	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
8	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
8	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
8	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
8	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
8	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
8	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
8	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
8	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
8	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
8	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
8	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
8	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
8	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
9	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
9	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
9	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
9	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
9	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
9	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
9	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
9	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
9	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
9	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
9	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
9	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
9	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
9	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
9	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
9	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
9	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
9	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
9	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
9	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
9	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
9	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
9	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
9	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
9	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
9	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
9	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
12	74665-SM4-A00	Adapter - ANCHOR BOLT	Adapter - ANCHOR BOLT
15	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
16	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Transmission case 3 / 27

#	OEM	FD3	FN4
4	21396-P20-000	Cap - BREATHER	Cap - BREATHER
21	90471-580-000	Packing - 8MM	Packing - 8MM
27	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Trunk lid 1 / 26

#	OEM	FD3	FN4
34	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Under cover 3 / 18

#	OEM	FD3	FN4
12	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
14	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
17	91503-SZ3-003	Clip A	Clip A

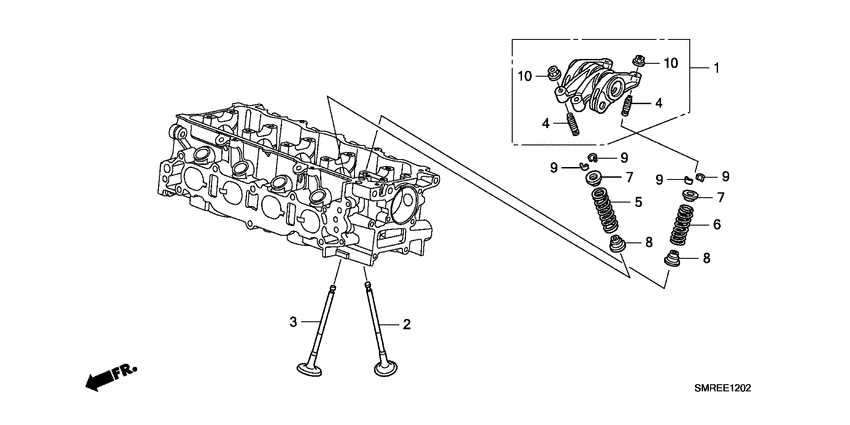

Valve/rocker arm 2 / 13

#	OEM	FD3	FN4
8	14765-RGA-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
9	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING

Water hose 1 / 5

#	OEM	FD3	FN4
1	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE

Water pump 2 / 14

#	OEM	FD3	FN4
5	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
13	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)

Water valve (LH) 2 / 11

#	OEM	FD3	FN4
12	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
12	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer/ headlight washer (3) 4 / 33

#	OEM	FD3	FN4
1	38514-692-731	Bush	Bush
6	76803-SH2-S10	Clip - WASHER HOSE	Clip - WASHER HOSE
12	76828-SH3-S03	Joint l	Joint l
31	90132-SEA-003	Screw - PAN, 5X12	Screw - PAN, 5X12

Wire harness (LH; 1) 2 / 7

#	OEM	FD3	FN4
4	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
5	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (LH; 2) 2 / 4

#	OEM	FD3	FN4
2	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (LH; 3) 1 / 4

#	OEM	FD3	FN4
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (LH; 4) 1 / 11

#	OEM	FD3	FN4
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
