FD3 × FN3

共通 334 / 合計 3,931 · Jaccard 8.5%
FD3 Honda CIVIC — 2,014 中 334 共有
FN3 Honda CIVIC — 2,251 中 334 共有
334 件
Air cleaner 4 / 15
FD3 Air cleaner
FN3 Air cleaner (DIESEL)
# OEM FD3 FN3
5 17212-P2J-000 Rubber - AIR CLEANER MOUNTING Rubber - AIR CLEANER MOUNTING
7 17217-P2J-300 Clip - AIR CLEANER Clip - AIR CLEANER
12 37985-RAD-L11 Gasket Gasket
13 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Air conditioner (COMPRESSOR) 5 / 17
FD3 Air conditioner (COMPRESSOR)
FN3 Air conditioner (COMPRESSOR; DIESEL)
# OEM FD3 FN3
3 38829-PDF-E02 Nut - 9MM Nut - 9MM
12 38912-PE1-702 Shim set Shim set
13 38913-PP4-E02 Ring - SNAP Ring - SNAP
14 38914-P07-004 Ring f - SNAP Ring f - SNAP
17 90051-RGA-003 Bolt - SPECIAL, 6X20.8 Bolt - SPECIAL, 6X20.8
Air conditioner (CONDENSER) 1 / 9
FD3 Air conditioner (CONDENSER)
FN3 Air conditioner (CONDENSER)
# OEM FD3 FN3
9 80873-ST7-000 O-ring - 8MM O-ring - 8MM
Air conditioner (HOSES/PIPES; LH) 8 / 21
FD3 Air conditioner (HOSES/PIPES; LH)
FN3 Air conditioner (HOSES/PIPES; LH; 1)
# OEM FD3 FN3
9 80366-SFA-000 Rubber - MOUNT Rubber - MOUNT
10 80367-SFA-000 Collar - DISTANCE Collar - DISTANCE
11 80381-SNA-A01 Clip - RECEIVER PIPE Clip - RECEIVER PIPE
13 80450-SFE-003 Sensor assy - PRESSURE Sensor assy - PRESSURE
16 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
17 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
18 80873-ST7-000 O-ring - 8MM O-ring - 8MM
19 90105-SFA-003 Bolt-washer - 6X30 Bolt-washer - 6X30
Air conditioner (SENSOR) 1 / 6
FD3 Air conditioner (SENSOR)
FN3 Air conditioner (SENSOR)
# OEM FD3 FN3
3 80525-S30-941 Sensor assy - AMBIENT Sensor assy - AMBIENT
Antenna/speaker (LH) 9 / 17
FD3 Antenna/speaker (LH)
FN3 Harness band/bracket (LH; 1)
# OEM FD3 FN3
8 90109-SLJ-003 Screw - 5X40 Screw - 5X40
9 90309-SLJ-003 Nut assy. - SPEAKER Nut assy. - SPEAKER
10 91507-SAA-003 Clip - WIRE HARNESS(NATURAL) (70MM) Clip - WIRE HARNESS(NATURAL) (70MM)
11 91510-SA5-003 Clip - OFFSET(10)(BROWN)(50MM) Clip - OFFSET(10)(BROWN)(50MM)
12 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
13 91533-S82-003 Clip - COUPLER(BLACK) Clip - COUPLER(BLACK)
14 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
15 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
16 91903-SNA-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
Audio unit (LH) 1 / 11
FD3 Audio unit (LH)
FN3 Auto radio (LH; 1)
# OEM FD3 FN3
11 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
Battery 4 / 16
FD3 Battery
FN3 Battery (DIESEL)
# OEM FD3 FN3
12 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
13 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
14 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
16 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
Brake lines (VSA; LH) 8 / 36
FD3 Brake lines (VSA; LH)
FN3 Brake lines (VSA; LH)
# OEM FD3 FN3
13 46380-SH3-000 Grommet a - BRAKE PIPE Grommet a - BRAKE PIPE
15 46391-SDA-A01 Clip g - BRAKE PIPE Clip g - BRAKE PIPE
16 46391-S5A-J01 Clip - BRAKE PIPE Clip - BRAKE PIPE
17 46392-SAA-901 Clip - BRAKE PIPE Clip - BRAKE PIPE
31 46462-SE0-000 Bolt - OIL Bolt - OIL
33 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
35 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
36 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake master cylinder (LH) 8 / 28
FD3 Brake master cylinder (LH)
FN3 Brake master cylinder/ master power (LH)
# OEM FD3 FN3
7 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
8 46191-S2K-000 Packing - MASTER POWER Packing - MASTER POWER
9 46512-S70-000 Pin - PEDAL Pin - PEDAL
13 46665-S04-J01 Grommet Grommet
14 46666-S2K-003 Filter - BRAKE RESERVOIR Filter - BRAKE RESERVOIR
17 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
24 57515-S30-003 Pin - STOP Pin - STOP
Brake power unit 1 / 9
FD3 Brake power unit
FN3 Brake master cylinder/ master power (LH)
# OEM FD3 FN3
2 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Bumpers ('09-) 6 / 26
FD3 Bumpers ('09-)
FN3 Molding/side sill garnish
# OEM FD3 FN3
24 90103-SDA-A00 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
27 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
29 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
31 91503-SZ3-003 Clip A Clip A
32 91505-S9A-003 Clip A - BUMPER Clip A - BUMPER
33 91506-S9A-003 Clip b - BUMPER Clip b - BUMPER

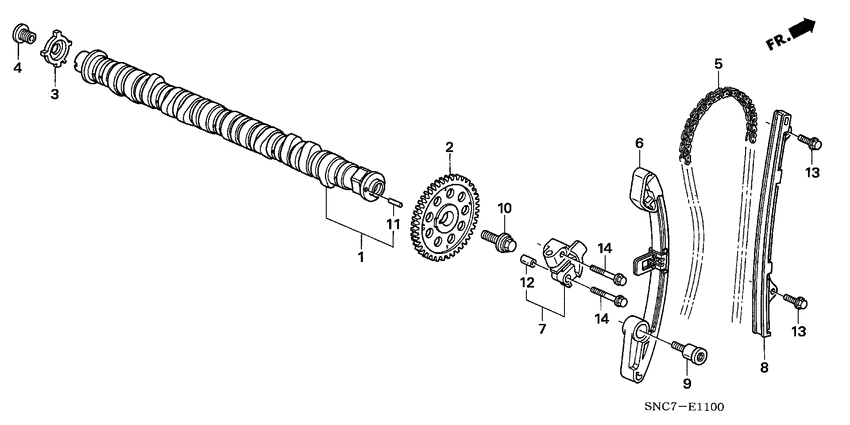

Camshaft/cam chain 1 / 12
FD3 Camshaft/cam chain
FN3 Camshaft/cam chain (DIESEL)
# OEM FD3 FN3
9 90003-PNA-000 Bolt - TENSIONER PIVOT Bolt - TENSIONER PIVOT

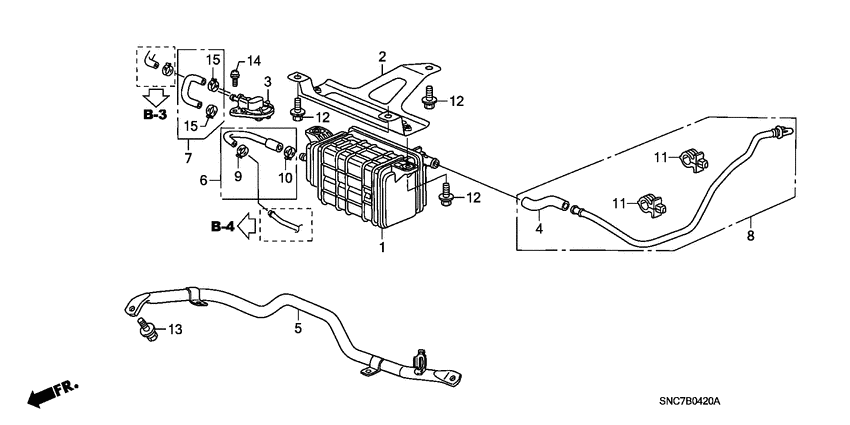

Canister 1 / 12
FD3 Canister
FN3 Fuel pipe (DIESEL)
# OEM FD3 FN3
9 91404-SDC-000 Clamp - TUBE (D10) Clamp - TUBE (D10)
Combination switch (LH) 11 / 24
FD3 Combination switch (LH)
FN3 Combination switch (LH)
# OEM FD3 FN3
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
7 35111-SNB-305 Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK) Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
9 35114-SMG-E21 Bottom comp. - TRANSMITTER KEY CASE Bottom comp. - TRANSMITTER KEY CASE
10 35116-SDA-A11 Screw - FLAT Screw - FLAT
12 35251-TA0-B11 Sensor assy - STEERING & BODY SWITCH Sensor assy - STEERING & BODY SWITCH
15 35400-S5A-013 Switch assy - DOOR (MATSUSHITA) Switch assy - DOOR (MATSUSHITA)
17 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
19 72148-S0A-000 Battery CR1616 Battery CR1616
20 90132-SFE-003 Screw - EARTH, 5X18 Screw - EARTH, 5X18

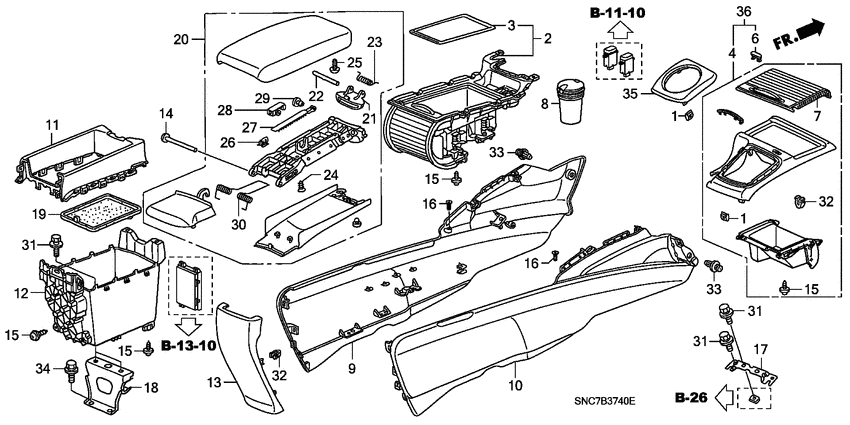

Console (LH) 2 / 17
FD3 Console (LH)
FN3 Console
# OEM FD3 FN3
1 77205-S0X-A01 Clip - SNAP FITTING Clip - SNAP FITTING
32 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
Control unit (CABIN; 2) 2 / 2
FD3 Control unit (CABIN; 2)
FN3 Control unit (CABIN; LH; 1)
# OEM FD3 FN3
1 39794-SDA-A02 Relay assy - POWER(MICRO ISO) (DENSO) Relay assy - POWER(MICRO ISO) (DENSO)
1 39794-SDA-A05 Relay assy - POWER(MICRO ISO) (MITSUBA) Relay assy - POWER(MICRO ISO) (MITSUBA)

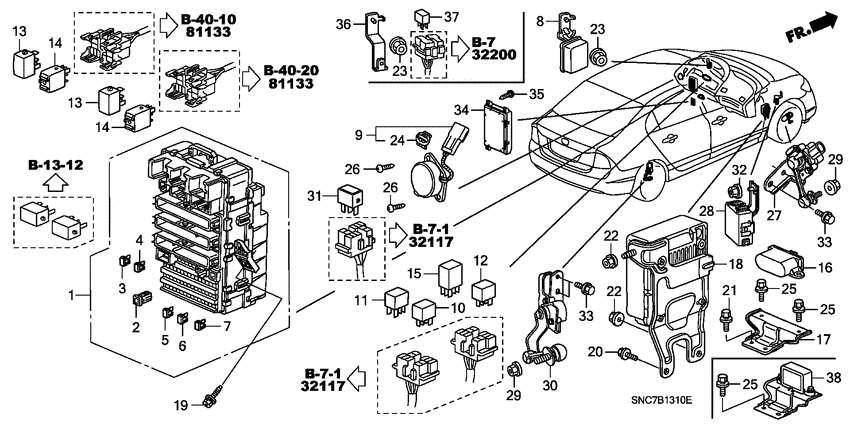

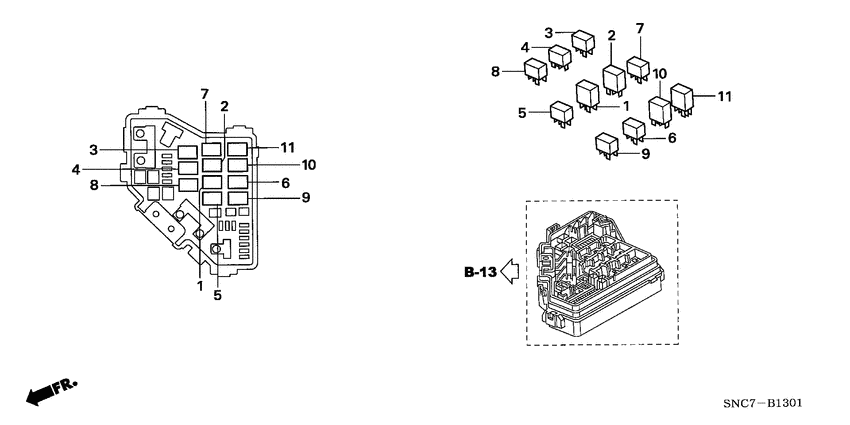

Control unit (CABIN; LH; 1) 12 / 26
FD3 Control unit (CABIN; LH; 1)
FN3 Control unit (CABIN; LH; 1)
# OEM FD3 FN3
2 38211-SNA-A11 Fuse - BLOCK (30A) Fuse - BLOCK (30A)
3 38221-SNA-A31 Fuse - BLADE(7.5A) Fuse - BLADE(7.5A)
4 38221-SNA-A41 Fuse - BLADE(10A) Fuse - BLADE(10A)
5 38221-SNA-A51 Fuse - BLADE(15A) Fuse - BLADE(15A)
6 38221-SNA-A61 Fuse - BLADE(20A) Fuse - BLADE(20A)
7 38221-SNA-A81 Fuse - BLADE(30A) Fuse - BLADE(30A)
10 39794-SDA-A05 Relay assy - POWER(MICRO ISO) (MITSUBA) Relay assy - POWER(MICRO ISO) (MITSUBA)
10 39794-SDA-A02 Relay assy - POWER(MICRO ISO) (DENSO) Relay assy - POWER(MICRO ISO) (DENSO)
14 39794-SNB-E01 Relay assy - POWER(5P) (MICRO ISO) Relay assy - POWER(5P) (MICRO ISO)
15 39794-S10-003 Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
22 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
24 91533-SDA-003 Clip - COUPLER (BEIGE) Clip - COUPLER (BEIGE)
Control unit (ENGINE ROOM; 1) 11 / 40
FD3 Control unit (ENGINE ROOM; 1)
FN3 Control unit (ENGINE ROOM; 1)
# OEM FD3 FN3
1 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
13 38211-SNA-A11 Fuse - BLOCK (30A) Fuse - BLOCK (30A)
14 38211-SNA-A21 Fuse - BLOCK (40A) Fuse - BLOCK (40A)
15 38221-SNA-A31 Fuse - BLADE(7.5A) Fuse - BLADE(7.5A)
16 38221-SNA-A41 Fuse - BLADE(10A) Fuse - BLADE(10A)
17 38221-SNA-A51 Fuse - BLADE(15A) Fuse - BLADE(15A)
18 38221-SNA-A61 Fuse - BLADE(20A) Fuse - BLADE(20A)
19 38221-SNA-A81 Fuse - BLADE(30A) Fuse - BLADE(30A)
20 38231-SDA-A01 Fuse a - MULTI BLOCK (100A/70A) Fuse a - MULTI BLOCK (100A/70A)
34 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
36 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
Control unit (ENGINE ROOM; 2) 3 / 6
FD3 Control unit (ENGINE ROOM; 2)
FN3 Control unit (CABIN; LH; 1)
# OEM FD3 FN3
3 39794-SDA-A05 Relay assy - POWER(MICRO ISO) (MITSUBA) Relay assy - POWER(MICRO ISO) (MITSUBA)
3 39794-SDA-A02 Relay assy - POWER(MICRO ISO) (DENSO) Relay assy - POWER(MICRO ISO) (DENSO)
10 39794-S10-003 Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
Cylinder block/oil pan 7 / 20
FD3 Cylinder block/oil pan
FN3 Cylinder block/oil pan (DIESEL)
# OEM FD3 FN3
2 11106-PWA-300 Bolt - SEALING, 24MM Bolt - SEALING, 24MM
3 11107-PWA-300 Washer - SEALING, 24MM Washer - SEALING, 24MM
9 37241-RNA-A01 Switch assy, OIL PRESSURE Switch assy, OIL PRESSURE
10 37310-RSA-G02 Sensor assy - OIL LEVEL Sensor assy - OIL LEVEL
13 37312-RSA-G02 Packing - OIL LEVEL SENSOR Packing - OIL LEVEL SENSOR
16 90009-PY3-000 DRAIN PLUG BOLT, 14MM DRAIN PLUG BOLT, 14MM
18 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
Cylinder head 3 / 24
FD3 Cylinder head
FN3 Valve stem seal/glow plug (DIESEL)
# OEM FD3 FN3
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
Cylinder head cover 1 / 14
FD3 Cylinder head cover
FN3 Cylinder head cover (DIESEL)
# OEM FD3 FN3
8 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Emblems/caution labels 2 / 10
FD3 Emblems/caution labels
FN3 Emblems/caution labels
# OEM FD3 FN3
10 78031-SDA-G80 Label - SIDE AIRBAG CAUTION Label - SIDE AIRBAG CAUTION
11 78527-S04-G80 Label - SRS CAUTION (CHILD SEAT) Label - SRS CAUTION (CHILD SEAT)
Engine hood (LH) 5 / 35
FD3 Engine hood (LH)
FN3 Engine hood (LH)
# OEM FD3 FN3
30 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
31 90301-ST0-003 push nut, 3mm push nut, 3mm
32 90602-SFA-004 Clip - COWL TOP Clip - COWL TOP
37 91501-STK-003 Clip - ENGINE HOOD INSULATOR Clip - ENGINE HOOD INSULATOR
39 91565-SEL-003 Clip - COUPLER(BLACK) Clip - COUPLER(BLACK)

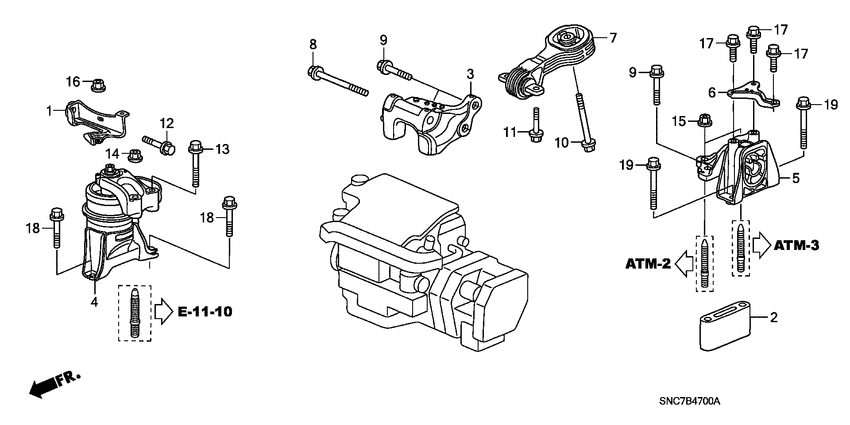

Engine mounts 1 / 15
FD3 Engine mounts
FN3 Engine mounts (DIESEL)
# OEM FD3 FN3
15 90371-SEF-000 Nut - FLANGE, 12MM Nut - FLANGE, 12MM
Engine wire harness 6 / 28
FD3 Engine wire harness
FN3 Harness band/bracket (LH; 1)
# OEM FD3 FN3
1 17212-PE2-000 Rubber a - AIR CLEANER CASE MOUNTING Rubber a - AIR CLEANER CASE MOUNTING
3 32112-S2K-003 Band - CABLE (90MM) Band - CABLE (90MM)
18 90051-RGA-003 Bolt - SPECIAL, 6X20.8 Bolt - SPECIAL, 6X20.8
19 91506-RTA-003 Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
20 91507-PLC-003 Clip - WIRE HARNESS(DARK BLUE) (132.3MM) Clip - WIRE HARNESS(DARK BLUE) (132.3MM)
21 91507-RTA-003 Clip b - HARNESS BAND (DARK GREEN) (129.4MM) Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
Engine wire harness stay 1 / 4
FD3 Engine wire harness stay
FN3 Brake lines (VSA; LH)
# OEM FD3 FN3
6 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Exhaust pipe/silencer 6 / 26
FD3 Exhaust pipe/silencer
FN3 Exhaust pipe/silencer (DIESEL; 1)
# OEM FD3 FN3
2 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
11 18230-SV4-000 Spring - FLEXIBLE JOINT Spring - FLEXIBLE JOINT
22 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
23 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
24 90301-SV7-000 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Floor mat 3 / 5
FD3 Floor mat
FN3 Front bulkhead/dashboard
# OEM FD3 FN3
10 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
11 91560-S6A-003 Clip - DOOR LINING(ORANGE) Clip - DOOR LINING(ORANGE)
12 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Floor/inner panels 1 / 1
FD3 Floor/inner panels
FN3 Engine hood (LH)
# OEM FD3 FN3
35 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
Front brake 5 / 23
FD3 Front brake
FN3 Front brake (1.4L; 1.8L; DIESEL)
# OEM FD3 FN3
18 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
19 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
19 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
19 90113-S5H-005 Bolt - WHEEL (THAI MEIRA) Bolt - WHEEL (THAI MEIRA)
19 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)

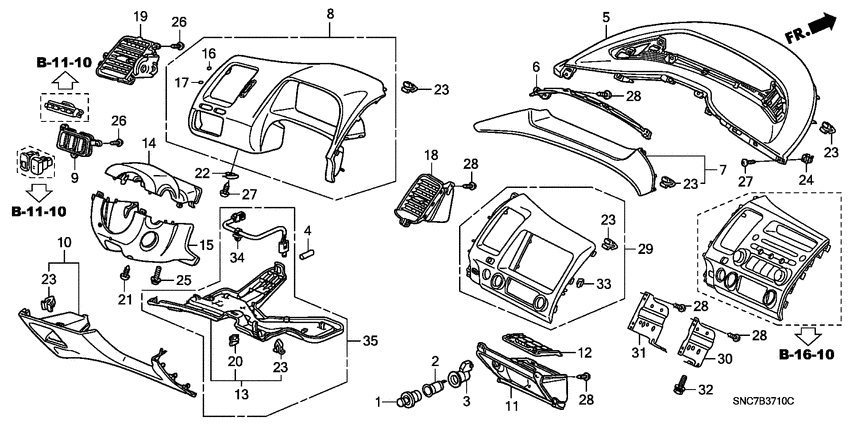

Front bulkhead/dashboard 3 / 5
FD3 Front bulkhead/dashboard
FN3 Front bulkhead/dashboard
# OEM FD3 FN3
40 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
41 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
42 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Front door glass/ door regulator 2 / 10
FD3 Front door glass/ door regulator
FN3 Door windows/regulator
# OEM FD3 FN3
1 39885-S5A-G11 Label - IMMOBILIZER & SECURITY Label - IMMOBILIZER & SECURITY
10 90021-SFA-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10

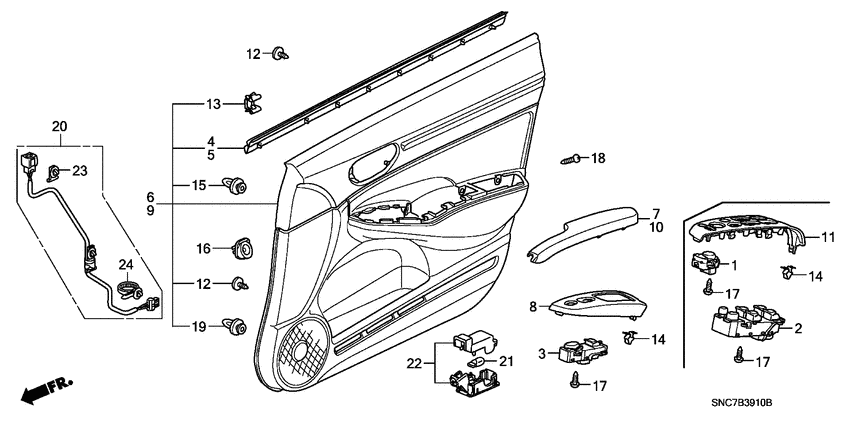

Front door lining (LH) 4 / 16
FD3 Front door lining (LH)
FN3 Console
# OEM FD3 FN3
14 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
15 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
23 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
24 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Front door lock/ outer handle 13 / 31
FD3 Front door lock/ outer handle
FN3 Door locks/outer handle
# OEM FD3 FN3
3 72112-SJK-003 Protector - R. DOOR LATCH Protector - R. DOOR LATCH
5 72118-SJK-003 Screw - TAPPING Screw - TAPPING
12 72134-SHJ-003 Clip s - CABLE END (NATURAL) Clip s - CABLE END (NATURAL)
14 72134-S2X-003 Snap - R. (NATURAL) Snap - R. (NATURAL)
15 72135-SDA-A01 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
24 72152-SJK-003 Protector - L. DOOR LATCH Protector - L. DOOR LATCH
30 72174-SHJ-003 Clip t - CABLE END (BLACK) Clip t - CABLE END (BLACK)
32 72174-S2X-003 Snap - L. (BLACK) Snap - L. (BLACK)
36 90101-SJK-003 Screw - TAPPING (ONE WAY) Screw - TAPPING (ONE WAY)
37 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
38 90141-SDA-000 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
39 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
41 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
Front door panels 5 / 15
FD3 Front door panels
FN3 Door panels
# OEM FD3 FN3
17 75891-SA7-000 Stopper - DOOR Stopper - DOOR
18 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
19 90102-SFA-305 Bolt - FLANGE, 8X18 (SERVICE) Bolt - FLANGE, 8X18 (SERVICE)
19 90102-S3N-003 Bolt - FLANGE, 8X24.5 (10.5MM) Bolt - FLANGE, 8X24.5 (10.5MM)
20 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
Front driveshaft/ half shaft 4 / 27
FD3 Front driveshaft/ half shaft
FN3 Front driveshaft/ half shaft (DIESEL)
# OEM FD3 FN3
10 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
12 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
20 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
21 90165-S5B-003 Bolt - FLANGE, 8X24 Bolt - FLANGE, 8X24
Front fenders 8 / 21
FD3 Front fenders
FN3 Bumpers
# OEM FD3 FN3
18 90144-SA0-020 Bolt - BUMPER SETTING (6X15) (BLACK) Bolt - BUMPER SETTING (6X15) (BLACK)
18 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
19 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
20 90305-SM4-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
24 91505-S9A-003 Clip A - BUMPER Clip A - BUMPER
25 91506-S9A-003 Clip b - BUMPER Clip b - BUMPER
26 91545-SE0-003 Clip assy. - 8MM Clip assy. - 8MM
27 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
Front grille ('09-) 4 / 9
FD3 Front grille ('09-)
FN3 Front grille
# OEM FD3 FN3
7 90301-ST0-003 push nut, 3mm push nut, 3mm
8 91503-SZ3-003 Clip A Clip A
9 91506-S9A-003 Clip b - BUMPER Clip b - BUMPER
10 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front seat (LH; DRIVER SIDE) 5 / 13
FD3 Front seat (LH; DRIVER SIDE)
FN3 Front seat (L.; 1.4L; 1.8L; DIESEL)
# OEM FD3 FN3
2 81123-SNA-A01 Screw - 6X18 Screw - 6X18
16 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
17 90610-S10-003 Clip - GARNISH Clip - GARNISH
19 81291-SNA-A01 Clip Clip
21 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
Front seat (LH; PASSENGER SIDE) 5 / 13
FD3 Front seat (LH; PASSENGER SIDE)
FN3 Front seat (L.; 1.4L; 1.8L; DIESEL)
# OEM FD3 FN3
3 81123-SNA-A01 Screw - 6X18 Screw - 6X18
16 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
17 90610-S10-003 Clip - GARNISH Clip - GARNISH
19 81291-SNA-A01 Clip Clip
21 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)

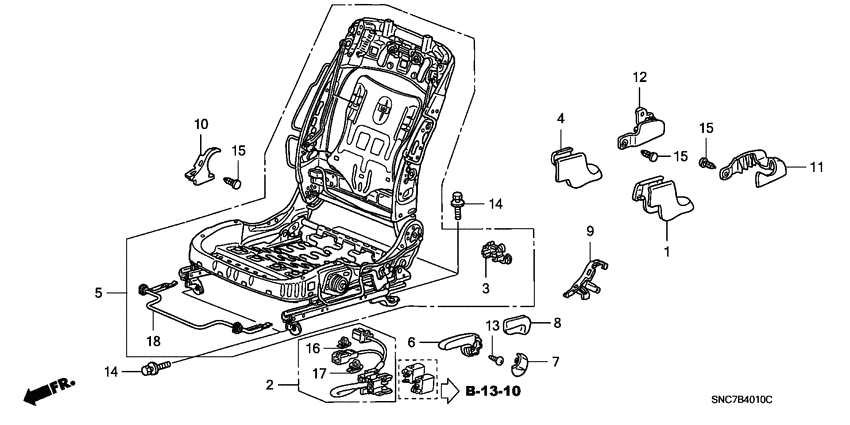

Front seat components (LH; DRIVER SIDE) 6 / 8
FD3 Front seat components (LH; DRIVER SIDE)
FN3 Front seat (L.; 1.4L; 1.8L; DIESEL)
# OEM FD3 FN3
2 81133-SNB-E01 Cord - HEATED SEAT Cord - HEATED SEAT
3 81262-SNA-A01 Cap - SLIDE ADJUSTER UPPER END Cap - SLIDE ADJUSTER UPPER END
13 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
14 90135-S5A-003 Bolt-washer - 10X27 Bolt-washer - 10X27
16 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
17 91565-S0X-003 Clip - COUPLER (DARK GREEN) Clip - COUPLER (DARK GREEN)
Front seat components (LH; PASSENGER SIDE) 5 / 7
FD3 Front seat components (LH; PASSENGER SIDE)
FN3 Front seat (L.; 1.4L; 1.8L; DIESEL)
# OEM FD3 FN3
4 81133-SNB-E01 Cord - HEATED SEAT Cord - HEATED SEAT
8 81262-SNA-A01 Cap - SLIDE ADJUSTER UPPER END Cap - SLIDE ADJUSTER UPPER END
9 90135-S5A-003 Bolt-washer - 10X27 Bolt-washer - 10X27
11 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
12 91565-S0X-003 Clip - COUPLER (DARK GREEN) Clip - COUPLER (DARK GREEN)
Front shock absorber 1 / 19
FD3 Front shock absorber
FN3 Front shock absorber
# OEM FD3 FN3
18 90213-SR3-013 Nut - SELF-LOCK, 14MM Nut - SELF-LOCK, 14MM
Front windshield wiper (LH) 7 / 26
FD3 Front windshield wiper (LH)
FN3 Front windshield wiper (LH)
# OEM FD3 FN3
3 76516-SJK-003 Rubber - MOUNTING Rubber - MOUNTING
6 76517-SE0-003 Collar - BRACKETLESS Collar - BRACKETLESS
7 76517-SJK-003 Collar Collar
8 76517-SM4-003 Collar Collar
10 76524-SL0-A01 Dust seal Dust seal
15 76561-SNA-A01 Cap - PIVOT Cap - PIVOT
29 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe 2 / 19
FD3 Fuel pipe
FN3 Brake lines (VSA; LH)
# OEM FD3 FN3
13 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
17 91407-SDB-000 Clamp - TUBE (D12.5) Clamp - TUBE (D12.5)
Fuel tank 7 / 32
FD3 Fuel tank
FN3 Fuel tank (DIESEL)
# OEM FD3 FN3
11 17525-S0X-A00 Bolt-washer - 10X25 Bolt-washer - 10X25
13 17652-SDA-A31 Clip - FILLER TUBE Clip - FILLER TUBE
14 17652-SEL-003 Clip - FILLER TUBE (39MM) Clip - FILLER TUBE (39MM)
21 17711-S84-004 Retainer - WHITE)(SANOH Retainer - WHITE)(SANOH
25 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
29 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
31 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
Grommet (FRONT) 7 / 12
FD3 Grommet (FRONT)
FN3 Grommet (FRONT)
# OEM FD3 FN3
1 74144-SR3-000 Cushion - HOOD Cushion - HOOD
2 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
3 90615-SR3-000 Cap - WELD HOLE, 51X77 Cap - WELD HOLE, 51X77
7 91608-S5A-003 Boot - FLOOR Boot - FLOOR
8 91615-SH3-000 Cap - FLOOR HOLE, 49MM Cap - FLOOR HOLE, 49MM
9 91613-SN4-003 Plug - FLOOR HOLE, 25MM Plug - FLOOR HOLE, 25MM
12 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Grommet (LOWER) 3 / 4
FD3 Grommet (LOWER)
FN3 Grommet (REAR)
# OEM FD3 FN3
1 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
2 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
5 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
Grommet (REAR) 2 / 5
FD3 Grommet (REAR)
FN3 Grommet (REAR)
# OEM FD3 FN3
2 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
5 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
Grommet (SIDE) 1 / 1
FD3 Grommet (SIDE)
FN3 Grommet (REAR)
# OEM FD3 FN3
1 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
Harness band/bracket (LH) 20 / 37
FD3 Harness band/bracket (LH)
FN3 Harness band/bracket (LH; 1)
# OEM FD3 FN3
3 32118-P72-003 Holder - CORRUGATED(DARK GREEN) (19MM) Holder - CORRUGATED(DARK GREEN) (19MM)
4 32132-S6A-003 Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8 91507-SAA-003 Clip - WIRE HARNESS(NATURAL) (70MM) Clip - WIRE HARNESS(NATURAL) (70MM)
10 91507-SNA-003 Clip - HARNESS BAND(BROWN) (164.5MM) Clip - HARNESS BAND(BROWN) (164.5MM)
11 91510-SA5-003 Clip - OFFSET(10)(BROWN)(50MM) Clip - OFFSET(10)(BROWN)(50MM)
12 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
14 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
16 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
17 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
18 91540-S7S-003 Clip - HARNESS BAND(BLACK) (157.7MM) Clip - HARNESS BAND(BLACK) (157.7MM)
19 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
21 91542-SNA-003 Clip - HARNESS BAND(DARK BLUE) (164.5MM) Clip - HARNESS BAND(DARK BLUE) (164.5MM)
22 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
24 91547-SH3-003 Clip - BAND(NATURAL)(160MM) Clip - BAND(NATURAL)(160MM)
25 91552-SS0-003 Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
29 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
31 91565-SEL-003 Clip - COUPLER(BLACK) Clip - COUPLER(BLACK)
32 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
34 91902-SNA-003 Plaster - WIRE HARNESS(50X50) Plaster - WIRE HARNESS(50X50)
35 91903-SNA-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
Heater blower (LH) 2 / 16
FD3 Heater blower (LH)
FN3 Heater unit (LH)
# OEM FD3 FN3
12 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
13 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (LH) 5 / 34
FD3 Heater unit (LH)
FN3 Heater unit (LH)
# OEM FD3 FN3
27 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
28 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
33 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
35 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
36 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)

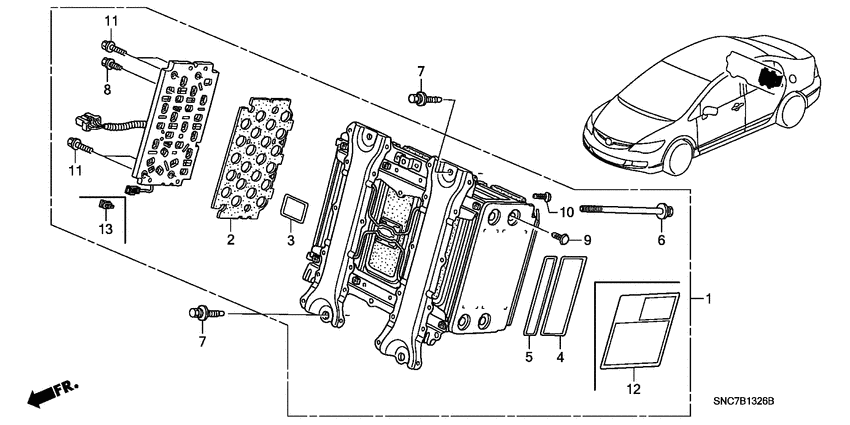

Ima battery 1 / 6
FD3 Ima battery
FN3 Harness band/bracket (LH; 1)
# OEM FD3 FN3
13 91533-S82-003 Clip - COUPLER(BLACK) Clip - COUPLER(BLACK)
Ima main cable/stay 6 / 16
FD3 Ima main cable/stay
FN3 Wire harness (LH; 1)
# OEM FD3 FN3
26 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
27 90323-SE0-000 Nut - CLIP, 6MM Nut - CLIP, 6MM
27 90305-SH3-000 Nut - AIR SPOILER CLIP Nut - AIR SPOILER CLIP
29 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
31 91559-S5A-003 Holder - HARNESS (BLACK) Holder - HARNESS (BLACK)
35 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Ima pdu cooling unit 1 / 8
FD3 Ima pdu cooling unit
FN3 Heater unit (LH)
# OEM FD3 FN3
24 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)

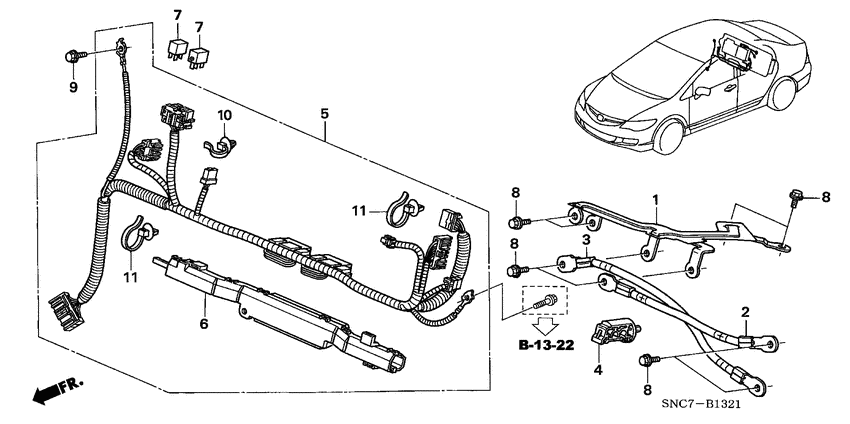

Ima wire harness 4 / 5
FD3 Ima wire harness
FN3 Harness band/bracket (LH; 1)
# OEM FD3 FN3
7 39794-SDA-A05 Relay assy - POWER(MICRO ISO) (MITSUBA) Relay assy - POWER(MICRO ISO) (MITSUBA)
9 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
10 91506-RTA-003 Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
11 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
Instrument panel (LH) 3 / 14
FD3 Instrument panel (LH)
FN3 Instrument panel (LH)
# OEM FD3 FN3
3 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
22 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
23 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
Instrument panel garnish (DRIVER SIDE; LH) 4 / 14
FD3 Instrument panel garnish (DRIVER SIDE; LH)
FN3 Instrument panel (LH)
# OEM FD3 FN3
4 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
22 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
23 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
24 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (PASSENGER SIDE; LH) 2 / 11
FD3 Instrument panel garnish (PASSENGER SIDE; LH)
FN3 Instrument panel (LH)
# OEM FD3 FN3
3 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
10 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
Interior light 5 / 11
FD3 Interior light
FN3 Interior light
# OEM FD3 FN3
1 34251-S5A-003 Lens Lens
3 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
3 04110-SWA-305 BULB T10X318W BULB T10X318W
5 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
10 90148-S6A-013 Bolt - EARTH, 5X14 Bolt - EARTH, 5X14
Knuckle 7 / 28
FD3 Knuckle
FN3 Front knuckle
# OEM FD3 FN3
2 42522-SLJ-003 Clamp - WIRE (BLACK) Clamp - WIRE (BLACK)
3 42522-SNA-003 Clamp - WIRE (BLUE) Clamp - WIRE (BLUE)
4 42524-SNA-003 Clip - COUPLER (BLACK) Clip - COUPLER (BLACK)
20 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
25 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
26 90363-S3V-A01 Nut - CASTLE, 14MM Nut - CASTLE, 14MM
27 90701-SKC-003 Pin - SPLIT(M14) Pin - SPLIT(M14)
Meter components (NS) 1 / 7
FD3 Meter components (NS)
FN3 Instrument panel (LH)
# OEM FD3 FN3
7 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

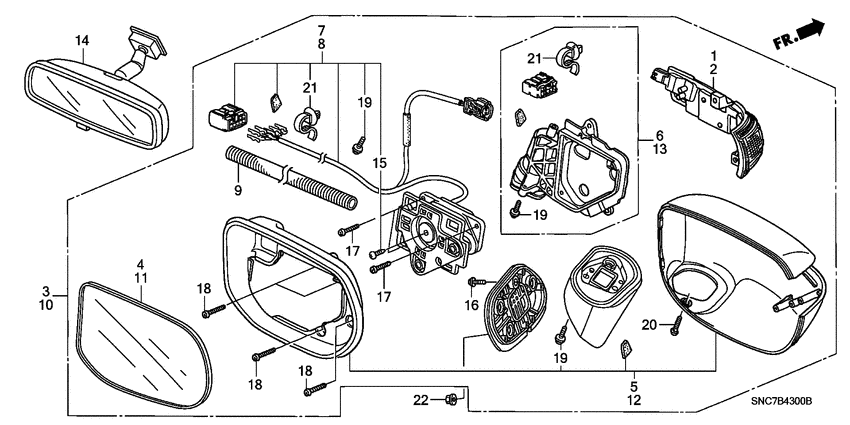

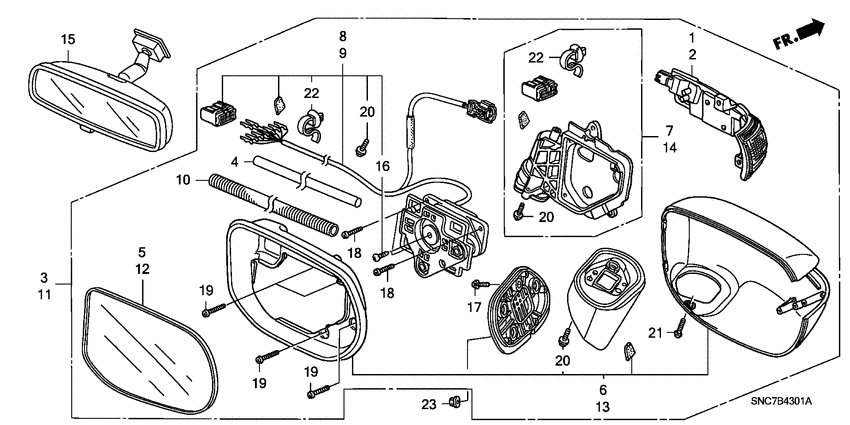

Mirror (AUTO TURN) 1 / 18
FD3 Mirror (AUTO TURN)
FN3 Mirror
# OEM FD3 FN3
15 76400-SEA-024 Mirror assy - RR. VIEW (DAY/NIGHT) Mirror assy - RR. VIEW (DAY/NIGHT)
Mirror (ELECTRIC REMOTE CONTROL) 1 / 17
FD3 Mirror (ELECTRIC REMOTE CONTROL)
FN3 Mirror
# OEM FD3 FN3
14 76400-SEA-024 Mirror assy - RR. VIEW (DAY/NIGHT) Mirror assy - RR. VIEW (DAY/NIGHT)
Navigation system (LH) 12 / 23
FD3 Navigation system (LH)
FN3 Harness band/bracket (LH; 1)
# OEM FD3 FN3
1 32133-SM4-003 Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
10 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
11 91507-SAA-003 Clip - WIRE HARNESS(NATURAL) (70MM) Clip - WIRE HARNESS(NATURAL) (70MM)
12 91507-SNA-003 Clip - HARNESS BAND(BROWN) (164.5MM) Clip - HARNESS BAND(BROWN) (164.5MM)
13 91510-SA5-003 Clip - OFFSET(10)(BROWN)(50MM) Clip - OFFSET(10)(BROWN)(50MM)
14 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
15 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
16 91533-S82-003 Clip - COUPLER(BLACK) Clip - COUPLER(BLACK)
17 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
18 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
20 91559-SE3-003 Clip - WIRE HARNESS (WHITE) (55MM) Clip - WIRE HARNESS (WHITE) (55MM)
25 91903-SNA-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
P.s. gear box (EPS; LH) 12 / 32
FD3 P.s. gear box (EPS; LH)
FN3 P.s. gear box (EPS; LH)
# OEM FD3 FN3
1 52362-S30-003 Boot - TIE ROD END (MUSASHI) Boot - TIE ROD END (MUSASHI)
2 53413-SCC-003 Spring - RACK GUIDE PRESSURE Spring - RACK GUIDE PRESSURE
3 53414-S5A-003 Screw - RACK GUIDE Screw - RACK GUIDE
5 53417-SMG-E01 O-ring - RACK GUIDE O-ring - RACK GUIDE
6 53418-S5A-003 Washer - DISK Washer - DISK
15 53536-SJK-003 Washer - TIE ROD LOCK Washer - TIE ROD LOCK
16 53537-SMG-E01 Rubber - STOPPER Rubber - STOPPER
22 53685-SMG-E01 Bushing - GEAR BOX MOUNTING Bushing - GEAR BOX MOUNTING
27 90102-SFA-J02 Bolt - FLANGE, 8X35 Bolt - FLANGE, 8X35
28 90103-S0A-N01 Screw - PAN, 5X8 Screw - PAN, 5X8
30 90301-SEP-003 Nut - HEX., 14MM Nut - HEX., 14MM
31 90428-S0A-003 Washer - DRAIN Washer - DRAIN

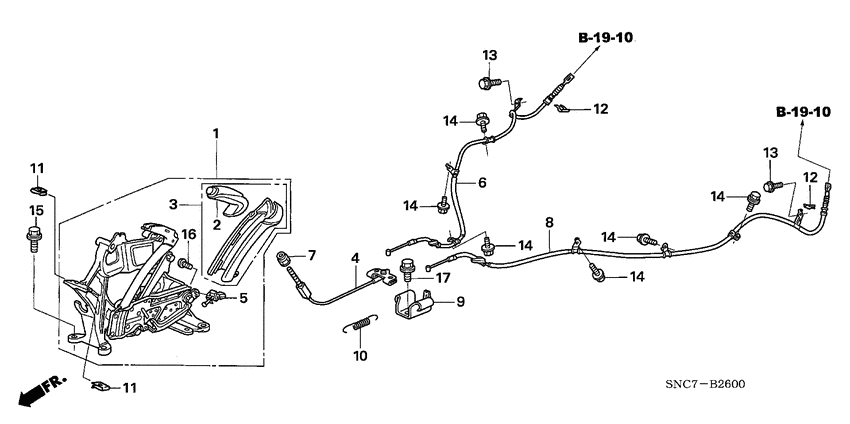

Parking brake (LH) 2 / 9
FD3 Parking brake (LH)
FN3 Instrument panel garnish (LH; PASSENGER SIDE)
# OEM FD3 FN3
11 90306-SA0-000 Nut - FLOATING, 5MM Nut - FLOATING, 5MM
12 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Pedal (LH) 6 / 17
FD3 Pedal (LH)
FN3 Pedal (LH)
# OEM FD3 FN3
3 36750-SMA-003 Switch assy - STOP & CRUISE (PANASONIC) Switch assy - STOP & CRUISE (PANASONIC)
11 90104-SFE-003 Bolt - FLANGE, 8X23 Bolt - FLANGE, 8X23
12 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
13 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
14 90361-S3C-003 Nut - PAINT CUTTING, 8MM Nut - PAINT CUTTING, 8MM
17 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
Pillar garnish 3 / 8
FD3 Pillar garnish
FN3 Pillar garnish
# OEM FD3 FN3
25 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
26 91560-S84-A11 Clip - PILLAR GARNISH(BLACK) Clip - PILLAR GARNISH(BLACK)
27 91561-SJD-003 Clip - PILLAR Clip - PILLAR
Radiator (DENSO) 5 / 22
FD3 Radiator (DENSO)
FN3 Radiator (DIESEL)
# OEM FD3 FN3
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
19 90041-P3G-003 Screw-washer - 5X11 Screw-washer - 5X11
20 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
21 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose/reserve tan k 4 / 31
FD3 Radiator hose/reserve tan k
FN3 Radiator hose/reserve tan k (DIESEL)
# OEM FD3 FN3
13 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
13 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
24 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
26 91503-SZ3-003 Clip A Clip A
Rear brake (DISK) 5 / 44
FD3 Rear brake (DISK)
FN3 Rear brake
# OEM FD3 FN3
35 90103-SV4-013 Bolt - FLANGE, 10X30 Bolt - FLANGE, 10X30
36 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
36 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
36 90113-S5H-005 Bolt - WHEEL (THAI MEIRA) Bolt - WHEEL (THAI MEIRA)
36 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
Rear door glass/ door regulator 2 / 10
FD3 Rear door glass/ door regulator
FN3 Door windows/regulator
# OEM FD3 FN3
9 90021-SFA-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
10 90115-SFE-004 Bolt - FLANGE, 6X12 Bolt - FLANGE, 6X12
Rear door lining 2 / 7
FD3 Rear door lining
FN3 Pillar garnish
# OEM FD3 FN3
11 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
12 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door lock/ outer handle 10 / 27
FD3 Rear door lock/ outer handle
FN3 Door locks/outer handle
# OEM FD3 FN3
1 72112-SJK-003 Protector - R. DOOR LATCH Protector - R. DOOR LATCH
6 72134-SHJ-003 Clip s - CABLE END (NATURAL) Clip s - CABLE END (NATURAL)
7 72134-S2X-003 Snap - R. (NATURAL) Snap - R. (NATURAL)
8 72135-SDA-A01 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
13 72152-SJK-003 Protector - L. DOOR LATCH Protector - L. DOOR LATCH
17 72174-SHJ-003 Clip t - CABLE END (BLACK) Clip t - CABLE END (BLACK)
18 72174-S2X-003 Snap - L. (BLACK) Snap - L. (BLACK)
33 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
34 90141-SDA-000 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
35 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM

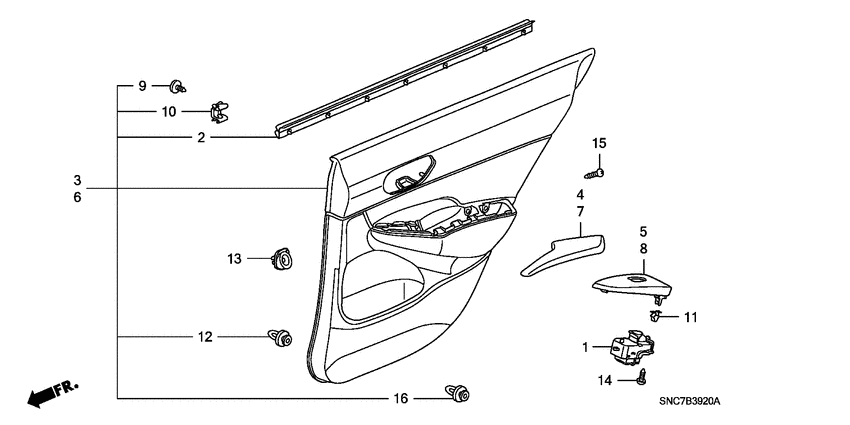

Rear door panels 4 / 18
FD3 Rear door panels
FN3 Door panels
# OEM FD3 FN3
18 75891-SA7-000 Stopper - DOOR Stopper - DOOR
19 90102-SFA-305 Bolt - FLANGE, 8X18 (SERVICE) Bolt - FLANGE, 8X18 (SERVICE)
19 90102-S3N-003 Bolt - FLANGE, 8X24.5 (10.5MM) Bolt - FLANGE, 8X24.5 (10.5MM)
21 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
Rear lower arm 4 / 37
FD3 Rear lower arm
FN3 Front knuckle
# OEM FD3 FN3
1 42522-SLJ-003 Clamp - WIRE (BLACK) Clamp - WIRE (BLACK)
3 42524-SNA-003 Clip - COUPLER (BLACK) Clip - COUPLER (BLACK)
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
29 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)

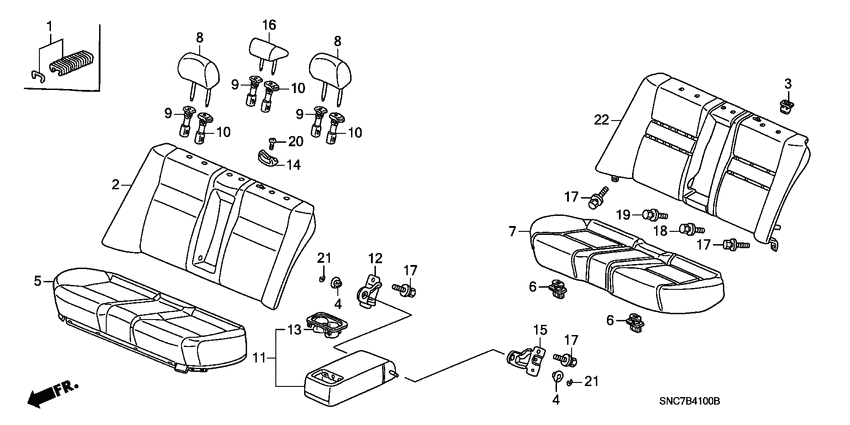

Rear seat 1 / 8
FD3 Rear seat
FN3 Front seat (L.; 1.4L; 1.8L; DIESEL)
# OEM FD3 FN3
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
Rear tray/trunk lining 1 / 9
FD3 Rear tray/trunk lining
FN3 Pillar garnish
# OEM FD3 FN3
20 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear windshield/ quarter glass 2 / 11
FD3 Rear windshield/ quarter glass
FN3 Rear windshield/ quarter glass
# OEM FD3 FN3
8 91501-S70-003 Fastener b - WINDSHIELD Fastener b - WINDSHIELD
9 91536-SS0-J01 Fastener a - WINDSHIELD Fastener a - WINDSHIELD
Resonator chamber 3 / 8
FD3 Resonator chamber
FN3 Intercooler
# OEM FD3 FN3
1 17212-PE2-000 Rubber a - AIR CLEANER CASE MOUNTING Rubber a - AIR CLEANER CASE MOUNTING
3 17216-PE2-003 Collar - AIR CLEANER(TOYO ROKI) Collar - AIR CLEANER(TOYO ROKI)
8 90001-PGM-000 Bolt-washer - SPECIAL, 6X30 Bolt-washer - SPECIAL, 6X30
Roof lining 2 / 7
FD3 Roof lining
FN3 Roof lining
# OEM FD3 FN3
10 83247-SNA-A01 Clip - GRAB RAIL Clip - GRAB RAIL
15 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)

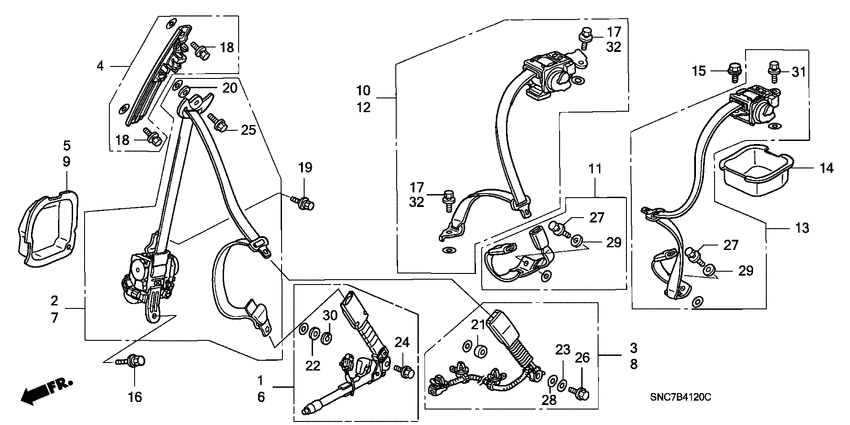

Seatbelts 6 / 20
FD3 Seatbelts
FN3 Seatbelts
# OEM FD3 FN3
16 90135-S1F-003 Bolt - FLANGE, 7/16" Bolt - FLANGE, 7/16"
20 81441-S2G-N51 Collar - 5H Collar - 5H
22 81441-S50-N22 Collar - 2H Collar - 2H
25 90142-SNA-004 Bolt - 7/16"X24 Bolt - 7/16"X24
29 90543-S2G-C21 Washer - PLAIN Washer - PLAIN
30 90543-S50-004 Washer - SPRING Washer - SPRING

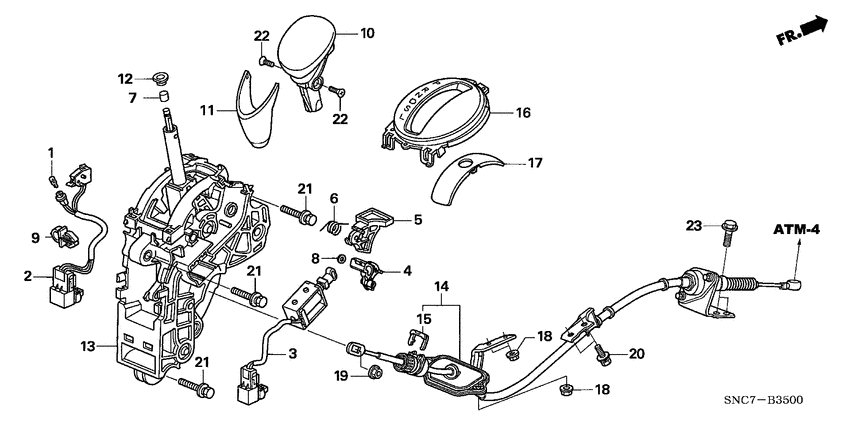

Select lever (LH) 1 / 19
FD3 Select lever (LH)
FN3 Brake lines (VSA; LH)
# OEM FD3 FN3
18 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Srs unit (LH) 7 / 14
FD3 Srs unit (LH)
FN3 Srs unit (LH)
# OEM FD3 FN3
1 77900-SNA-U31 Reel assy - CABLE (FURUKAWA) Reel assy - CABLE (FURUKAWA)
2 77930-SNA-A32 Sensor assy - FR. CRASH(TRW) Sensor assy - FR. CRASH(TRW)
4 77970-SNA-A32 Sensor assy - SIDE IMPACT (TRW) Sensor assy - SIDE IMPACT (TRW)
9 90133-SDC-003 Bolt-washer - 5X16 Bolt-washer - 5X16
10 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
11 90178-SNA-003 Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG) Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
12 91533-SDA-003 Clip - COUPLER (BEIGE) Clip - COUPLER (BEIGE)

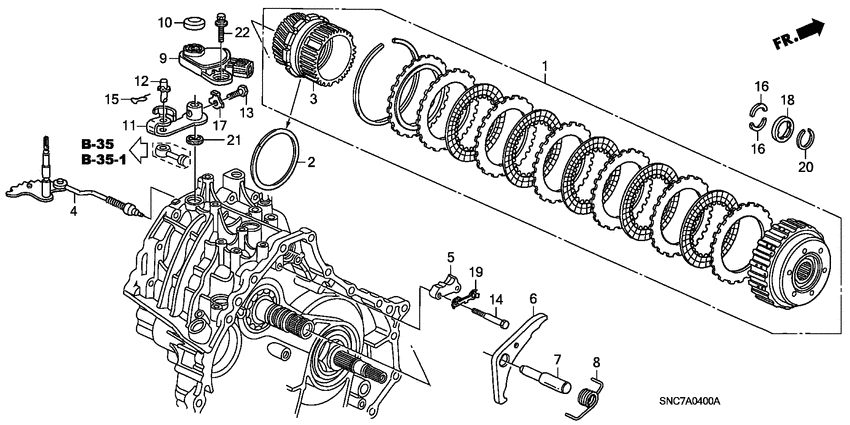

Starting clutch 1 / 24
FD3 Starting clutch
FN3 Shift lever (LH; 1.4L; 1.8L; DIESEL)
# OEM FD3 FN3
15 90175-SEL-T81 Pin - LOCK, 8MM Pin - LOCK, 8MM
Steering column 3 / 5
FD3 Steering column
FN3 Steering column
# OEM FD3 FN3
5 90135-SZT-000 Bolt - STEERING JOINT YOKE Bolt - STEERING JOINT YOKE
6 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
7 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK

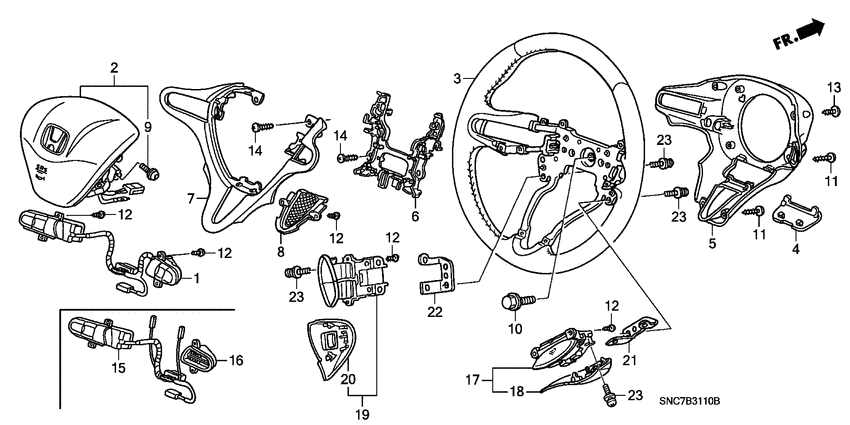

Steering wheel (SRS) 5 / 14
FD3 Steering wheel (SRS)
FN3 Steering wheel (SRS)
# OEM FD3 FN3
9 90134-S6A-A80 Bolt - HEX., 6X23 Bolt - HEX., 6X23
10 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
18 35876-SMG-E01 Case Case
19 35890-SMG-E01 Switch assy - NAVIGATION GUIDE & HFT Switch assy - NAVIGATION GUIDE & HFT
20 35891-SMG-E01 Case Case

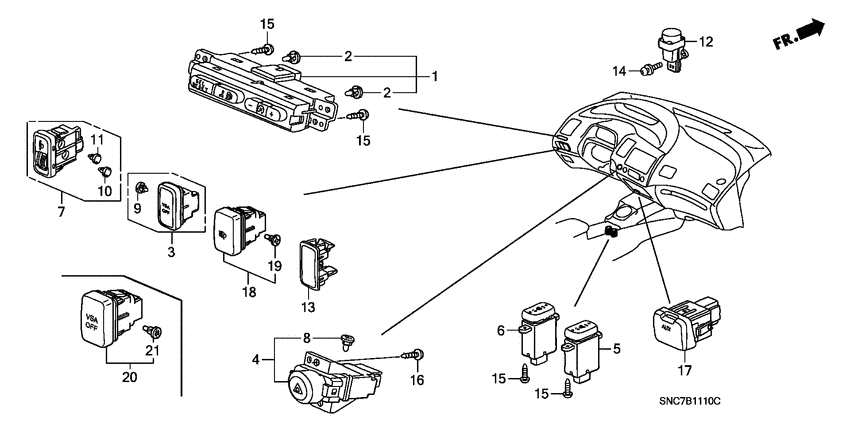

Switch (LH) 1 / 14
FD3 Switch (LH)
FN3 Switch (LH)
# OEM FD3 FN3
12 35910-S04-G01 Switch assy - INERTIA Switch assy - INERTIA
Tire/wheel disks 46 / 56
FD3 Tire/wheel disks
FN3 Tire/wheel disks
# OEM FD3 FN3
5 42753-671-003 Valve - RIM (TAIHEIYO) Valve - RIM (TAIHEIYO)
5 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
7 42767-SH3-E00 Plate - SPARE TIRE CAUTION (T-TYPE) Plate - SPARE TIRE CAUTION (T-TYPE)
8 44729-SEA-J02 Weight - BALANCE (35G) (YAMATE) Weight - BALANCE (35G) (YAMATE)
8 44728-SEA-J01 Weight - BALANCE (25G) (TOHO) Weight - BALANCE (25G) (TOHO)
8 44723-SEA-J02 Weight - BALANCE (30G) (YAMATE) Weight - BALANCE (30G) (YAMATE)
8 44722-SEA-J01 Weight - BALANCE (20G) (TOHO) Weight - BALANCE (20G) (TOHO)
8 44727-SEA-J02 Weight - BALANCE (15G) (YAMATE) Weight - BALANCE (15G) (YAMATE)
8 44726-SEA-J01 Weight - BALANCE (5G) (TOHO) Weight - BALANCE (5G) (TOHO)
8 44721-SEA-J02 Weight - BALANCE (10G) (YAMATE) Weight - BALANCE (10G) (YAMATE)
8 44729-SEA-J01 Weight - BALANCE (35G) (TOHO) Weight - BALANCE (35G) (TOHO)
8 44723-SEA-J01 Weight - BALANCE (30G) (TOHO) Weight - BALANCE (30G) (TOHO)
8 44728-SEA-J02 Weight - BALANCE (25G) (YAMATE) Weight - BALANCE (25G) (YAMATE)
8 44727-SEA-J01 Weight - BALANCE (15G) (TOHO) Weight - BALANCE (15G) (TOHO)
8 44722-SEA-J02 Weight - BALANCE (20G) (YAMATE) Weight - BALANCE (20G) (YAMATE)
8 44721-SEA-J01 Weight - BALANCE (10G) (TOHO) Weight - BALANCE (10G) (TOHO)
8 44726-SEA-J02 Weight - BALANCE (5G) (YAMATE) Weight - BALANCE (5G) (YAMATE)
9 44722-SEA-N02 Weight - BALANCE (20G) (TOHO ZINC) Weight - BALANCE (20G) (TOHO ZINC)
9 44721-SEA-N01 Weight - BALANCE (10G) (TOHO) Weight - BALANCE (10G) (TOHO)
9 44721-S5A-A20 Weight - BALANCE (10G) Weight - BALANCE (10G)
9 44726-SEA-N02 Weight - BALANCE (5G) (TOHO ZINC) Weight - BALANCE (5G) (TOHO ZINC)
9 44725-SEA-N01 Weight - BALANCE (50G) (TOHO) Weight - BALANCE (50G) (TOHO)
9 44729-SEA-N02 Weight - BALANCE (35G) (TOHO ZINC) Weight - BALANCE (35G) (TOHO ZINC)
9 44728-SEA-N01 Weight - BALANCE (25G) (TOHO) Weight - BALANCE (25G) (TOHO)
9 44725-TP6-A01 WEIGHT (25G) WEIGHT (25G)
9 44723-SEA-N02 Weight - BALANCE (30G) (TOHO ZINC) Weight - BALANCE (30G) (TOHO ZINC)
9 44722-SEA-N01 Weight - BALANCE (20G) (TOHO) Weight - BALANCE (20G) (TOHO)
9 44724-TP6-A01 WEIGHT (20G) WEIGHT (20G)
9 44730-SEA-N02 Weight - BALANCE (45G) (TOHO ZINC) Weight - BALANCE (45G) (TOHO ZINC)
9 44727-SEA-N02 Weight - BALANCE (15G) (TOHO ZINC) Weight - BALANCE (15G) (TOHO ZINC)
9 44726-SEA-N01 Weight - BALANCE (5G) (TOHO) Weight - BALANCE (5G) (TOHO)
9 44721-TP6-A01 WEIGHT, BALANCE (5G) WEIGHT, BALANCE (5G)
9 44724-SEA-N02 Weight - BALANCE (40G) (TOHO ZINC) Weight - BALANCE (40G) (TOHO ZINC)
9 44721-SEA-N02 Weight - BALANCE (10G) (TOHO ZINC) Weight - BALANCE (10G) (TOHO ZINC)
9 44729-SEA-N01 Weight - BALANCE (35G) (TOHO) Weight - BALANCE (35G) (TOHO)
9 44727-TP6-A01 WEIGHT (35G) WEIGHT (35G)
9 44725-SEA-N02 Weight - BALANCE (50G) (TOHO ZINC) Weight - BALANCE (50G) (TOHO ZINC)
9 44723-SEA-N01 Weight - BALANCE (30G) (TOHO) Weight - BALANCE (30G) (TOHO)
9 44726-TP6-A01 WEIGHT (30G) WEIGHT (30G)
9 44730-SEA-N01 Weight - BALANCE (45G) (TOHO) Weight - BALANCE (45G) (TOHO)
9 44728-SEA-N02 Weight - BALANCE (25G) (TOHO ZINC) Weight - BALANCE (25G) (TOHO ZINC)
9 44727-SEA-N01 Weight - BALANCE (15G) (TOHO) Weight - BALANCE (15G) (TOHO)
9 44723-TP6-A01 WEIGHT (15G) WEIGHT (15G)
9 44724-SEA-N01 Weight - BALANCE (40G) (TOHO) Weight - BALANCE (40G) (TOHO)
12 74665-SM4-A00 Adapter - ANCHOR BOLT Adapter - ANCHOR BOLT
15 44732-S9A-A00 Cap - ALUMINIUM WHEEL CENTER Cap - ALUMINIUM WHEEL CENTER
Transmission case 1 / 27
FD3 Transmission case
FN3 Transmission case (DIESEL)
# OEM FD3 FN3
27 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)

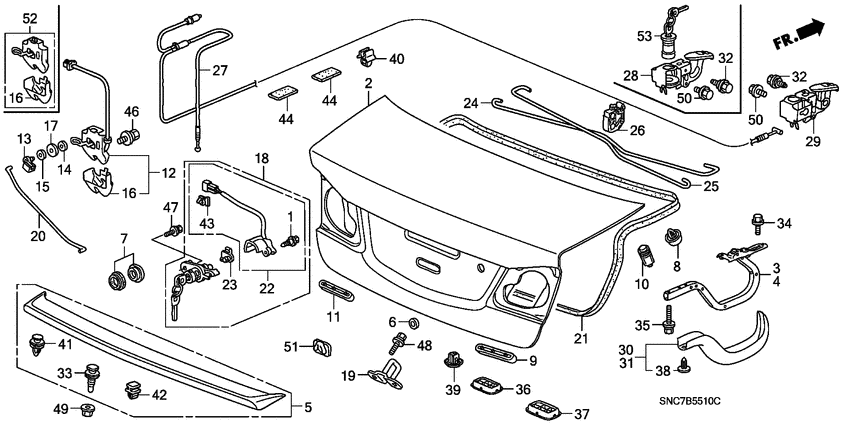

Trunk lid 1 / 26
FD3 Trunk lid
FN3 Engine hood (LH)
# OEM FD3 FN3
34 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
Under cover 4 / 18
FD3 Under cover
FN3 Bumpers
# OEM FD3 FN3
12 90103-SDA-A00 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
14 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
17 91503-SZ3-003 Clip A Clip A
18 91505-S9A-003 Clip A - BUMPER Clip A - BUMPER
Water pump 1 / 14
FD3 Water pump
FN3 Water hose (DIESEL)
# OEM FD3 FN3
10 19516-PC1-000 Bolt - BREATHING WATER Bolt - BREATHING WATER
Water valve (LH) 2 / 11
FD3 Water valve (LH)
FN3 Water hose (LH; DIESEL)
# OEM FD3 FN3
12 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
12 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer/ headlight washer (3) 4 / 33
FD3 Windshield washer/ headlight washer (3)
FN3 Headlight washer
# OEM FD3 FN3
1 38514-692-731 Bush Bush
6 76803-SH2-S10 Clip - WASHER HOSE Clip - WASHER HOSE
12 76828-SH3-S03 Joint l Joint l
31 90132-SEA-003 Screw - PAN, 5X12 Screw - PAN, 5X12
Wire harness (LH; 1) 2 / 7
FD3 Wire harness (LH; 1)
FN3 Harness band/bracket (LH; 2)
# OEM FD3 FN3
4 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
5 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Wire harness (LH; 2) 2 / 4
FD3 Wire harness (LH; 2)
FN3 Wire harness (LH; 4)
# OEM FD3 FN3
2 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
3 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

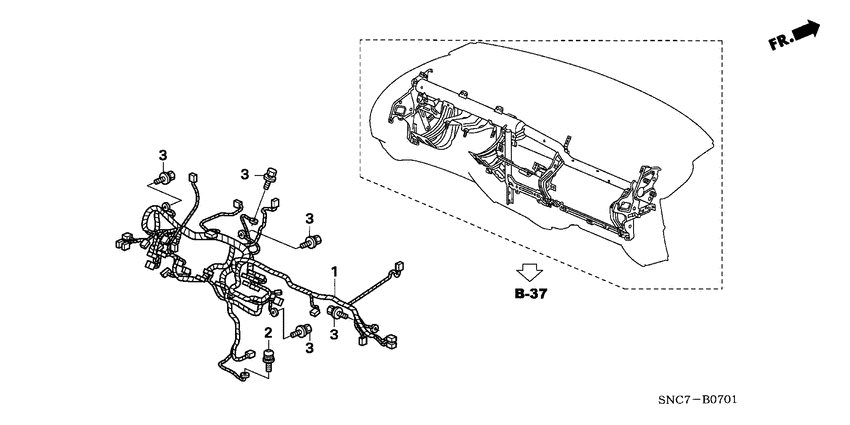

Wire harness (LH; 3) 1 / 4
FD3 Wire harness (LH; 3)
FN3 Harness band/bracket (LH; 2)
# OEM FD3 FN3
3 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
Wire harness (LH; 4) 1 / 11
FD3 Wire harness (LH; 4)
FN3 Harness band/bracket (LH; 2)
# OEM FD3 FN3
8 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
