FD1 × FD4

共通 1,985 / 合計 2,507 · Jaccard 79.2%

FD1 Honda CIVIC — 2,431 中 1,985 共有

FD4 Honda CIVIC — 2,061 中 1,985 共有

1,985 件

Air cleaner 22 / 24

#	OEM	FD1	FD4
1	17136-RNA-A00	Grommet, BREATHER PIPE	Grommet, BREATHER PIPE
2	17202-RNA-A00	Case set, AIR CLEANER	Case set, AIR CLEANER
3	17211-RNA-A00	Cover comp. AIR CLEANER	Cover comp. AIR CLEANER
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
7	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
8	17217-RNA-A00	Clip - AIR CLEANER	Clip - AIR CLEANER
10	17225-RNA-A00	Tube - AIR FLOW	Tube - AIR FLOW
11	17244-RNA-A00	Tube - AIR CLEANER	Tube - AIR CLEANER
13	17261-RNA-A50	Stay comp. a - AIR CLEANER	Stay comp. a - AIR CLEANER
14	17262-RNA-A00	Stay comp. b - AIR CLEANER	Stay comp. b - AIR CLEANER
15	17263-RNA-A00	Stay comp. c - AIR CLEANER	Stay comp. c - AIR CLEANER
16	17315-P5K-000	Clamp - AIR FLOW TUBE (74)	Clamp - AIR FLOW TUBE (74)
17	17316-P1E-000	Clamp - AIR FLOW TUBE (70)	Clamp - AIR FLOW TUBE (70)
18	37980-RNA-A01	Meter assy - AIR FLOW	Meter assy - AIR FLOW
19	37985-RAD-L11	Gasket	Gasket
20	75353-671-000	Lock - SCREW	Lock - SCREW
21	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
22	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
22	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Air conditioner (COMPRESSOR) 12 / 12

#	OEM	FD1	FD4
1	38801-PDF-E02	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
2	38810-RNA-014	Compressor comp.	Compressor comp.
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
4	38900-RNC-Z51	Clutch set - COMPRESSOR	Clutch set - COMPRESSOR
5	38908-RNA-014	Protector set, Thermal	Protector set, Thermal
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
9	38924-RNA-A01	Coil set - FIELD	Coil set - FIELD
10	38930-RNA-A00	Bracket - COMPRESSOR	Bracket - COMPRESSOR
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER; 1) 17 / 17

#	OEM	FD1	FD4
1	32175-RSA-G01	Clip - HARNESS	Clip - HARNESS
2	38609-SA5-000	Collar - DISTANCE	Collar - DISTANCE
3	38611-RNA-A01	Fan - COOLING	Fan - COOLING
4	38615-RNA-A01	Shroud comp. - AIR CONDITIONER	Shroud comp. - AIR CONDITIONER
5	38616-RNA-A01	Motor - COOLING FAN	Motor - COOLING FAN
6	38619-RNA-A01	Protector - FAN MOTOR HEAT	Protector - FAN MOTOR HEAT
7	80106-SDR-A00	Rubber - MOUNT	Rubber - MOUNT
8	80110-SNB-A42	Condenser comp.	Condenser comp.
9	80115-SNA-A00	Bracket - R. CONDENSER UPPER	Bracket - R. CONDENSER UPPER
10	80116-SNA-A00	Bracket - L. CONDENSER UPPER	Bracket - L. CONDENSER UPPER
11	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
12	80351-SDC-A01	Receiver comp	Receiver comp
13	80352-SDA-A01	Clamp	Clamp
14	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
15	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
16	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
17	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11

Air conditioner (HOSES/PIPES; LH) 16 / 19

#	OEM	FD1	FD4
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80316-SNA-A01	Hose comp. - DISCHARGE	Hose comp. - DISCHARGE
5	80321-SNA-A01	Pipe assy. - AIR CONDITIONER	Pipe assy. - AIR CONDITIONER
7	80361-SNA-A00	Clamp - DISCHARGE HOSE	Clamp - DISCHARGE HOSE
8	80362-SNA-A10	Clamp b - SUCTION PIPE	Clamp b - SUCTION PIPE
11	80364-SNA-A00	Stay b - AIR CONDITIONER PIPE	Stay b - AIR CONDITIONER PIPE
12	80381-SNA-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
13	80382-S7A-003	Clip - AIR CONDITIONER PIPE	Clip - AIR CONDITIONER PIPE
14	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
15	80865-SL0-003	Cap - VALVE (H)	Cap - VALVE (H)
16	80866-ST0-003	Cap l - VALVE (NICHIRIN)	Cap l - VALVE (NICHIRIN)
17	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
18	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
19	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
20	90203-SB0-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
21	91548-SR3-003	Clip - 8MM	Clip - 8MM

Air conditioner (SENSOR) 6 / 6

#	OEM	FD1	FD4
1	80510-SDA-A41	Sensor assy - SUN BEAM	Sensor assy - SUN BEAM
2	80521-SNB-A40	Bracket - AMBIENT SENSOR	Bracket - AMBIENT SENSOR
4	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
5	80530-SNB-941	Sensor assy - IN CAR	Sensor assy - IN CAR
6	80541-SNA-A40	Hose a - ASPIRATOR	Hose a - ASPIRATOR
8	80542-SNA-A40	Hose b - ASPIRATOR	Hose b - ASPIRATOR

Alternator (MITSUBISHI) 13 / 13

#	OEM	FD1	FD4
1	31100-RNA-A01	Alternator assy. - AHGA67) (MITSUBISHI	Alternator assy. - AHGA67) (MITSUBISHI
2	31101-RNA-A01	Rotor assy.	Rotor assy.
3	31102-PNA-004	Stator	Stator
4	31111-P08-J02	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
5	31114-P01-014	Bearing - FR. GENERATOR	Bearing - FR. GENERATOR
6	31123-RNA-A01	Terminal set	Terminal set
7	31125-P08-J02	Bolt - FLANGE	Bolt - FLANGE
8	31127-RNA-A01	Rectifier assy.	Rectifier assy.
9	31140-P64-902	Brush set	Brush set
10	31141-RNA-A01	Pulley	Pulley
11	31142-P08-J02	Nut	Nut
12	31146-PE0-004	Screw	Screw
13	31150-RNA-A01	Regulator set	Regulator set

Alternator bracket/ tensioner 9 / 9

#	OEM	FD1	FD4
2	31113-RNA-A00	Bracket - ALTERNATOR	Bracket - ALTERNATOR
3	31114-RNA-A00	Insulator - HEAT	Insulator - HEAT
4	31124-RNA-A00	Stay - COUPLER	Stay - COUPLER
5	31126-RNA-A00	Stay - HARNESS	Stay - HARNESS
6	31170-RWK-025	Tensioner assy, Auto	Tensioner assy, Auto
10	32750-RNA-A00	Stay k - ENGINE HARNESS	Stay k - ENGINE HARNESS
11	90001-RWK-000	Bolt - SPECIAL, 8X85	Bolt - SPECIAL, 8X85
12	90006-P8F-A00	Bolt-washer - 8X32	Bolt-washer - 8X32
13	90030-RNA-A00	Bolt - SPECIAL, 10X40	Bolt - SPECIAL, 10X40

Antenna/speaker (LH) 17 / 17

Atf pipe 19 / 19

#	OEM	FD1	FD4
1	19430-RNA-A51	Warmer comp. - ATF	Warmer comp. - ATF
2	24901-RNA-000	Cover - CONTROL WIRE	Cover - CONTROL WIRE
3	24905-RNA-000	Bracket - CONTROL WIRE	Bracket - CONTROL WIRE
4	25211-RPC-003	Hose - ATF, 150MM	Hose - ATF, 150MM
5	25212-RPC-003	Hose - ATF, 165MM	Hose - ATF, 165MM
6	25213-RPC-003	Hose - ATF, 200MM (TOUKAI)	Hose - ATF, 200MM (TOUKAI)
7	25430-PLR-003	Filter, ATF	Filter, ATF
8	25431-RPC-000	Stay a - ATF FILTER	Stay a - ATF FILTER
9	25432-RPC-000	Stay comp. b - ATF FILTER	Stay comp. b - ATF FILTER
10	25520-RPC-000	Stay comp - ATF WARMER	Stay comp - ATF WARMER
11	25610-PRM-013	Gauge comp. - ATF	Gauge comp. - ATF
12	25910-RPC-000	Pipe comp. a - ATF	Pipe comp. a - ATF
13	25920-RPC-000	Pipe comp. b - ATF	Pipe comp. b - ATF
14	25930-RPC-000	Pipe comp. c - ATF	Pipe comp. c - ATF
15	25950-RAY-000	Bolt comp - JOINT	Bolt comp - JOINT
16	25951-RGR-000	Bolt - JOINT	Bolt - JOINT
17	90471-RGR-000	Washer - DRAIN PLUG, 12MM	Washer - DRAIN PLUG, 12MM
18	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
18	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE

Audio unit (LH) 10 / 10

#	OEM	FD1	FD4
3	39104-SNA-A51	Screw - M5X8	Screw - M5X8
4	39104-SNA-A11	Screw - M4X12	Screw - M4X12
5	39104-SNA-A21	Screw - M2.6X6	Screw - M2.6X6
6	39105-SNA-A01	Bracket - L.	Bracket - L.
7	39105-SNA-A11	Bracket - R.	Bracket - R.
8	39105-SNA-A51	Bracket - CENTER	Bracket - CENTER
10	39171-SNA-P04	Black-box - 1CD) (GENERAL BAND) (ALPINE	Black-box - 1CD) (GENERAL BAND) (ALPINE
11	90151-SM4-003	Bolt-washer - 5X12	Bolt-washer - 5X12
12	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
13	90666-SD4-003	Clip - FITTING	Clip - FITTING

Auto air conditioner control (LH) 3 / 3

#	OEM	FD1	FD4
4	79609-S5A-003	Bulb - NEO WEDGE (14V 100MA)	Bulb - NEO WEDGE (14V 100MA)
7	79612-SNB-Y42	Board assy - PRINTED CIRCUIT	Board assy - PRINTED CIRCUIT
8	79613-SNB-941	Bulb - NEO WEDGE (T4.2)	Bulb - NEO WEDGE (T4.2)

Battery 10 / 10

#	OEM	FD1	FD4
1	31500-SNA-G01	Battery - 46B24L<S>-MF) (FURUKAWA	Battery - 46B24L<S>-MF) (FURUKAWA
2	31512-SA5-000	Plate - BATTERY SETTING	Plate - BATTERY SETTING
3	31513-SL4-000	Bolt - BATTERY SETTING (220MM)	Bolt - BATTERY SETTING (220MM)
5	31531-SNA-000	Cover - BATTERY (46B24)	Cover - BATTERY (46B24)
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)	Plug - VENT (MF) (FURUKAWA)
7	32600-SNA-A00	Cable assy - BATTERY EARTH	Cable assy - BATTERY EARTH
8	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
9	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
10	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
12	31521-SNA-A00	Box - BATTERY (46B24)	Box - BATTERY (46B24)

Brake lines (VSA; LH) 35 / 35

#	OEM	FD1	FD4
1	01464-SNA-A02	Hose set - R. FR. BRAKE	Hose set - R. FR. BRAKE
2	01465-SNA-A02	Hose set - L. FR. BRAKE	Hose set - L. FR. BRAKE
3	01466-SNA-J02	Hose set - R. RR. BRAKE (DISK)	Hose set - R. RR. BRAKE (DISK)
4	01468-SNA-J02	Hose set - L. RR. BRAKE (DISK)	Hose set - L. RR. BRAKE (DISK)
5	46330-SNA-U00	Pipe comp. c - BRAKE	Pipe comp. c - BRAKE
6	46340-SNA-U00	Pipe comp. d - BRAKE	Pipe comp. d - BRAKE
7	46374-SNB-G00	Pipe comp. u - BRAKE	Pipe comp. u - BRAKE
8	46375-SNB-G00	Pipe comp. v - BRAKE	Pipe comp. v - BRAKE
9	46376-SNB-H00	Pipe comp. w - BRAKE	Pipe comp. w - BRAKE
10	46377-SNB-H00	Pipe comp. x - BRAKE	Pipe comp. x - BRAKE
11	46378-SNB-G02	Pipe comp. y - BRAKE	Pipe comp. y - BRAKE
12	46379-SNB-G01	Pipe comp. z - BRAKE	Pipe comp. z - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
14	46390-SNA-A02	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
16	46391-SNB-G01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
18	46392-SAA-901	Clip - BRAKE PIPE	Clip - BRAKE PIPE
19	46392-SNB-G01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
20	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
21	46393-SNB-G01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
22	46394-SDA-003	Clip d - BRAKE PIPE	Clip d - BRAKE PIPE
23	46395-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
24	46396-SNA-A00	Bracket - BRAKE PIPE	Bracket - BRAKE PIPE
25	46397-SNA-A00	Clip - BRAKE PIPE	Clip - BRAKE PIPE
26	46398-SNA-A01	Clip - PIPE & COUPLER	Clip - PIPE & COUPLER
27	46424-SNA-A50	Bracket - R. FR. BRAKE HOSE	Bracket - R. FR. BRAKE HOSE
28	46425-SNA-A50	Bracket - L. FR. BRAKE HOSE	Bracket - L. FR. BRAKE HOSE
29	46437-SNA-A50	Bracket - R. RR. BRAKE HOSE (DISK)	Bracket - R. RR. BRAKE HOSE (DISK)
30	46438-SNA-A50	Bracket - L. RR. BRAKE HOSE (DISK)	Bracket - L. RR. BRAKE HOSE (DISK)
31	46462-SE0-000	Bolt - OIL	Bolt - OIL
32	46470-SNA-A01	Joint - BRAKE FOUR WAY	Joint - BRAKE FOUR WAY
33	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
34	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
35	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 25 / 25

FD1 Brake master cylinder/ master power (LH)

FD4 Brake master cylinder/ master power (LH)

#	OEM	FD1	FD4
1	01462-SNB-J00	Cylinder set - MASTER (19.05MM)	Cylinder set - MASTER (19.05MM)
2	01469-SNB-G00	Power set - MASTER (9")	Power set - MASTER (9")
3	46017-SNA-A00	Hose set - RESERVE TANK	Hose set - RESERVE TANK
4	46100-SNB-G51	CYLINDER ASSY., MASTER	CYLINDER ASSY., MASTER
5	57520-SNB-J01	Piston assy. - PRIMARY	Piston assy. - PRIMARY
6	57540-SNB-J01	Piston assy. - SECONDARY	Piston assy. - SECONDARY
7	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
9	46185-SE0-003	Seal - ROD	Seal - ROD
10	46191-S2K-000	Packing - MASTER POWER	Packing - MASTER POWER
11	46402-SNA-P02	Tube assy - MASTER POWER	Tube assy - MASTER POWER
12	46407-SAA-003	Clamp - TUBE	Clamp - TUBE
13	46512-S70-000	Pin - PEDAL	Pin - PEDAL
14	46661-SNA-A00	Reservoir set	Reservoir set
15	46662-S9A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
16	46665-S04-J01	Grommet	Grommet
17	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
18	46669-S5A-003	Diaphragm	Diaphragm
19	46674-SNA-A01	Bracket comp. - BRAKE RESERVE TANK	Bracket comp. - BRAKE RESERVE TANK
20	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
21	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
22	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
23	57515-S30-003	Pin - STOP	Pin - STOP
24	57562-SF1-003	Circlip	Circlip
30	46680-SNA-A01	Union - RESERVOIR	Union - RESERVOIR

Bumpers 25 / 25

#	OEM	FD1	FD4
4	71107-SNB-900	Grille - FR. BUMPER CENTER LOWER	Grille - FR. BUMPER CENTER LOWER
6	71115-SNB-900	Spoiler - FR. BUMPER CENTER AIR	Spoiler - FR. BUMPER CENTER AIR
7	71116-SNB-900	Spoiler - R. FR. BUMPER AIR	Spoiler - R. FR. BUMPER AIR
8	71118-SNB-900	Spoiler - L. FR. BUMPER AIR	Spoiler - L. FR. BUMPER AIR
10	71140-SNB-000	Beam comp - R. FR. BUMPER UPPER	Beam comp - R. FR. BUMPER UPPER
11	71145-SNB-G50	Base - FR. LICENSE PLATE	Base - FR. LICENSE PLATE
14	71190-SNB-000	Beam comp - L. FR. BUMPER UPPER	Beam comp - L. FR. BUMPER UPPER
15	71193-SNB-003	Spacer - R. FR. BUMPER SIDE	Spacer - R. FR. BUMPER SIDE
16	71198-SNB-003	Spacer - L. FR. BUMPER SIDE	Spacer - L. FR. BUMPER SIDE
17	71504-SNB-000	Cover - RR. BUMPER LOWER	Cover - RR. BUMPER LOWER
18	71530-SNA-A00	Beam, RR. BUMPER	Beam, RR. BUMPER
20	71540-SNA-A00	Beam comp - RR. BUMPER UPPER	Beam comp - RR. BUMPER UPPER
21	71570-SNA-A00	Absorber - RR. BUMPER	Absorber - RR. BUMPER
23	71593-SNA-A01	Spacer - R. RR. BUMPER SIDE	Spacer - R. RR. BUMPER SIDE
24	71598-SNA-A01	Spacer - L. RR. BUMPER SIDE	Spacer - L. RR. BUMPER SIDE
25	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
26	90103-SP0-000	Bolt - CORNER CLIP	Bolt - CORNER CLIP
27	90149-SAA-003	Bolt - BUMPER	Bolt - BUMPER
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
29	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
30	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
31	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
32	91503-SZ3-003	Clip A	Clip A
33	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
34	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Camshaft/cam chain 12 / 13

#	OEM	FD1	FD4
2	14211-RNA-A01	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
3	14221-RNA-A01	Plate - TDC PULSER	Plate - TDC PULSER
4	14222-PWA-004	Bolt - TDC PULSER PLATE	Bolt - TDC PULSER PLATE
5	14401-RNA-A01	Chain - 136L	Chain - 136L
6	14510-RNA-A01	Tensioner comp - CAM CHAIN	Tensioner comp - CAM CHAIN
7	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
8	14520-RNA-A01	Arm comp - CAM CHAIN TENSIONER	Arm comp - CAM CHAIN TENSIONER
9	14530-RNA-A01	Guide - CAM CHAIN	Guide - CAM CHAIN
10	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
11	90004-RNA-A00	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
12	90031-RNA-A01	Bolt-washer - 10X30	Bolt-washer - 10X30
13	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Canister 12 / 12

#	OEM	FD1	FD4
1	17300-SNA-023	Canister assy	Canister assy
2	17358-SNA-000	Bracket - CANISTER	Bracket - CANISTER
3	17371-S7S-003	Valve - TWO WAY	Valve - TWO WAY
4	17372-SNA-000	Tube a - DRAIN	Tube a - DRAIN
5	17518-SNA-G00	Pipe - CANISTER GUARD	Pipe - CANISTER GUARD
6	17721-SNA-000	Tube assy - FUEL PURGE	Tube assy - FUEL PURGE
7	17724-SNA-000	Tube - FUEL VENT	Tube - FUEL VENT
8	17744-SNA-000	Tube comp - CANISTER DRAIN	Tube comp - CANISTER DRAIN
9	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
10	91591-SMA-931	Clamp - TUBE (D11)	Clamp - TUBE (D11)
11	91593-SDE-T01	Clip - DRAIN TUBE	Clip - DRAIN TUBE
15	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)

Clutch (2ND-4TH) 30 / 30

Clutch (3RD-5TH) 20 / 20

#	OEM	FD1	FD4
1	22537-RPC-003	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
2	22542-RPC-003	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
3	22545-RPC-003	Disk - CLUTCH	Disk - CLUTCH
4	22568-RPC-003	Plate - CLUTCH END (8) (2.8MM)	Plate - CLUTCH END (8) (2.8MM)
4	22563-RPC-003	Plate - CLUTCH END (3) (2.3MM)	Plate - CLUTCH END (3) (2.3MM)
4	22565-RPC-003	Plate - CLUTCH END (5) (2.5MM)	Plate - CLUTCH END (5) (2.5MM)
4	22567-RPC-003	Plate - CLUTCH END (7) (2.7MM)	Plate - CLUTCH END (7) (2.7MM)
4	22562-RPC-003	Plate - CLUTCH END (2) (2.2MM)	Plate - CLUTCH END (2) (2.2MM)
4	22569-RPC-003	Plate - CLUTCH END (9) (2.9MM)	Plate - CLUTCH END (9) (2.9MM)
4	22564-RPC-003	Plate - CLUTCH END (4) (2.4MM)	Plate - CLUTCH END (4) (2.4MM)
4	22566-RPC-003	Plate - CLUTCH END (6) (2.6MM)	Plate - CLUTCH END (6) (2.6MM)
4	22561-RPC-003	Plate - CLUTCH END (1) (2.1MM)	Plate - CLUTCH END (1) (2.1MM)
5	22633-RPC-003	Seat - RETURN SPRING	Seat - RETURN SPRING
6	22643-RPC-003	Plate - CLUTCH WAVE (1.6MM)	Plate - CLUTCH WAVE (1.6MM)
7	22651-RPC-003	Guide comp - CLUTCH (3-5)	Guide comp - CLUTCH (3-5)
8	22670-RPC-003	Piston comp - CLUTCH	Piston comp - CLUTCH
9	90603-RPC-003	Circlip - EXTERNAL, 45MM	Circlip - EXTERNAL, 45MM
10	90605-PX4-000	Ring - SNAP, 129MM	Ring - SNAP, 129MM
11	91303-PF4-004	O-ring - 110X2.2 (NOK)	O-ring - 110X2.2 (NOK)
12	91303-P0Z-003	O-ring - 45.1X2.2 (NOK)	O-ring - 45.1X2.2 (NOK)

Clutch (LOW) 20 / 20

#	OEM	FD1	FD4
1	22510-RPC-003	Guide comp - LOW CLUTCH	Guide comp - LOW CLUTCH
2	22521-RPC-003	Piston - CLUTCH	Piston - CLUTCH
3	22533-RPC-003	Retainer comp - RETURN SPRING	Retainer comp - RETURN SPRING
4	22536-RPC-003	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
5	22541-RPC-003	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
6	22543-RPC-003	Plate - CLUTCH WAVE (1.6MM)	Plate - CLUTCH WAVE (1.6MM)
7	22544-RPC-003	Disk - CLUTCH	Disk - CLUTCH
8	22559-RPC-003	Plate - CLUTCH END (9) (2.9MM)	Plate - CLUTCH END (9) (2.9MM)
8	22554-RPC-003	Plate - CLUTCH END (4) (2.4MM)	Plate - CLUTCH END (4) (2.4MM)
8	22556-RPC-003	Plate - CLUTCH END (6) (2.6MM)	Plate - CLUTCH END (6) (2.6MM)
8	22551-RPC-003	Plate - CLUTCH END (1) (2.1MM)	Plate - CLUTCH END (1) (2.1MM)
8	22558-RPC-003	Plate - CLUTCH END (8) (2.8MM)	Plate - CLUTCH END (8) (2.8MM)
8	22553-RPC-003	Plate - CLUTCH END (3) (2.3MM)	Plate - CLUTCH END (3) (2.3MM)
8	22555-RPC-003	Plate - CLUTCH END (5) (2.5MM)	Plate - CLUTCH END (5) (2.5MM)
8	22557-RPC-003	Plate - CLUTCH END (7) (2.7MM)	Plate - CLUTCH END (7) (2.7MM)
8	22552-RPC-003	Plate - CLUTCH END (2) (2.2MM)	Plate - CLUTCH END (2) (2.2MM)
9	90602-RPC-003	Circlip - EXTERNAL, 36MM	Circlip - EXTERNAL, 36MM
10	90605-PA9-000	Ring - SNAP, 114X1.8	Ring - SNAP, 114X1.8
11	91302-RPC-003	O-ring - 31.4X2.2	O-ring - 31.4X2.2
12	91303-PA9-004	O-ring - 100X2.2 (NOK)	O-ring - 100X2.2 (NOK)

Clutch master cylinder (LH) 4 / 36

#	OEM	FD1	FD4
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
6	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
8	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
36	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch release 1 / 8

#	OEM	FD1	FD4
7	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Clutch/torque converter 6 / 12

#	OEM	FD1	FD4
1	21351-RNA-000	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
6	26000-RNA-305	Converter assy - TORQUE	Converter assy - TORQUE
7	26251-RNA-000	Plate - DRIVE	Plate - DRIVE
9	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
11	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2
12	91302-RNA-003	O-ring - 35.5X1.9	O-ring - 35.5X1.9

Combination switch (LH) 21 / 25

#	OEM	FD1	FD4
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
6	35111-SWW-305	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
7	35111-SNB-A01	Key comp. - IMMOBILIZER (MAIN) (BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLACK)
8	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
9	35111-SWW-E01	Key comp. - IMMOBILIZER & TRANSMITTER	Key comp. - IMMOBILIZER & TRANSMITTER
10	35113-SMG-E11	Key comp. - TRANSMITTER TOP CASE	Key comp. - TRANSMITTER TOP CASE
11	35113-SMG-305	Key comp. - TRANSMITTER TOP CASE (BLANK)	Key comp. - TRANSMITTER TOP CASE (BLANK)
12	35114-SWW-E01	Bottom comp. - TRANSMITTER KEY CASE	Bottom comp. - TRANSMITTER KEY CASE
13	35116-SDA-A11	Screw - FLAT	Screw - FLAT
14	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
15	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH	Sensor assy - STEERING & BODY SWITCH
16	35255-TA0-C42	Switch assy - LIGHTING & TURN SIGNAL	Switch assy - LIGHTING & TURN SIGNAL
17	35256-TA0-A12	Switch assy - WIPER	Switch assy - WIPER
18	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)	Switch assy - DOOR (MATSUSHITA)
19	39730-SWA-Y02	Immobilizer & keyless unit	Immobilizer & keyless unit
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
21	72147-SWA-E01	Module assy. - KEYLESS	Module assy. - KEYLESS
22	72148-S0A-000	Battery CR1616	Battery CR1616
23	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18

Console (LH) 24 / 25

#	OEM	FD1	FD4
1	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
19	83406-SNA-A01	Pin - ARMREST	Pin - ARMREST
20	83407-SNA-A01	Screw - TAPPING, 4.2X12 (PO)	Screw - TAPPING, 4.2X12 (PO)
21	83408-SNA-A01	Screw - TAPPING, 2.9X12 (PO)	Screw - TAPPING, 2.9X12 (PO)
22	83417-SNA-A00	Bracket comp. - CENTER CONSOLE (FR.)	Bracket comp. - CENTER CONSOLE (FR.)
23	83418-SNA-A00	Bracket comp. - CENTER CONSOLE (RR.)	Bracket comp. - CENTER CONSOLE (RR.)
27	83452-SNA-A01	Pin - ARMREST LOCK	Pin - ARMREST LOCK
28	83453-SNA-A01	Spring - ARMREST LOCK	Spring - ARMREST LOCK
29	83454-SNA-A01	Screw - TAPPING, 3.5X12	Screw - TAPPING, 3.5X12
30	83455-SNA-A01	Screw - TAPPING, 4.2X10	Screw - TAPPING, 4.2X10
31	83456-SNA-A01	Clip - ARMREST DETENT	Clip - ARMREST DETENT
32	83457-SNA-A01	Plate - DAMPER GEAR	Plate - DAMPER GEAR
33	83458-SNA-A01	Damper - ARMREST	Damper - ARMREST
34	83459-SNA-A01	Clip - DAMPER	Clip - DAMPER
35	83460-SNA-A01	Spring - ARMREST HINGE	Spring - ARMREST HINGE
36	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
37	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
41	39115-SNA-A11	Holder assy. - USB CORD	Holder assy. - USB CORD
42	39115-TK6-003	Clip - USB CONNECTOR HOLDER (A)	Clip - USB CONNECTOR HOLDER (A)
43	39116-SNA-C01	Sub cord assy. - USB	Sub cord assy. - USB
44	39117-SNA-A01	Cord assy - USB (A)	Cord assy - USB (A)
45	39118-SNA-A01	Clip - USB CORD	Clip - USB CORD
46	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
47	91533-S5A-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Control unit (CABIN; 1; LH) 20 / 21

#	OEM	FD1	FD4
1	38200-SNB-Y31	Box assy - FUSE	Box assy - FUSE
2	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
3	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
4	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
5	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
6	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
7	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
9	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
9	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
18	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
25	33136-SNB-003	Sensor assy - HEADLIGHT ADJUSTER FR.	Sensor assy - HEADLIGHT ADJUSTER FR.
26	33137-SNB-901	Control unit - AUTO LEVELING ELECTRONIC	Control unit - AUTO LEVELING ELECTRONIC
27	33143-S1A-G01	Nut - SPECIAL, 6MM	Nut - SPECIAL, 6MM
28	33146-SNB-003	Sensor assy - HEADLIGHT ADJUSTER RR.	Sensor assy - HEADLIGHT ADJUSTER RR.
29	39113-SNA-A03	Adapter assy - USB	Adapter assy - USB
30	39113-TC0-921	Adapter assy - USB	Adapter assy - USB
32	91551-SWA-901	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7
33	39965-SNA-A01	Sensor assy - YAW & G	Sensor assy - YAW & G
34	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
35	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (CABIN; 2) 4 / 4

#	OEM	FD1	FD4
1	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)	RELAY ASSY., FUEL PUMP (DENSO)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1) 28 / 32

#	OEM	FD1	FD4
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
3	37821-RNA-A00	Bracket comp. - ENGINE CONTROL MODULE	Bracket comp. - ENGINE CONTROL MODULE
4	37823-RNA-A00	Cover - ENGINE CONTROL MODULE	Cover - ENGINE CONTROL MODULE
9	38150-SLA-013	Horn assy - HIGH	Horn assy - HIGH
11	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
12	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
13	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
14	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
15	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
16	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
17	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
18	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
19	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
20	38231-SNA-A21	Fuse a - MULTI BLOCK (60A/50A)	Fuse a - MULTI BLOCK (60A/50A)
21	38232-SDA-A01	Fuse b - MULTI BLOCK (40A/50A)	Fuse b - MULTI BLOCK (40A/50A)
22	38232-SNA-A21	Fuse b - MULTI BLOCK (30A/40A)	Fuse b - MULTI BLOCK (30A/40A)
23	38235-TA0-A01	Puller - FUSE	Puller - FUSE
24	38250-SNA-P02	Box assy - RELAY	Box assy - RELAY
25	38251-SNA-000	Bracket - RELAY BOX	Bracket - RELAY BOX
27	38256-SNA-J51	Cover - RELAY BOX(UPPER)	Cover - RELAY BOX(UPPER)
28	38257-SNA-A02	Cover - LOWER	Cover - LOWER
29	90106-SDA-A00	Bolt-washer - 6X25	Bolt-washer - 6X25
31	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
32	90129-SX8-003	Screw-washer - 5X12	Screw-washer - 5X12
33	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
36	38100-SNA-K02	Horn assy - LOW	Horn assy - LOW
37	38101-SNA-010	Bracket - HORN	Bracket - HORN
38	38151-SNA-010	Bracket - HORN	Bracket - HORN

Control unit (ENGINE ROOM; 2) 6 / 6

#	OEM	FD1	FD4
1	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
3	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
3	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
8	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
8	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
11	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Converter 18 / 18

#	OEM	FD1	FD4
1	18115-RNA-004	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
1	18115-RNA-007	Gasket - EX. MANIFOLD (NOK)	Gasket - EX. MANIFOLD (NOK)
2	18120-RNA-A00	Cover comp. - CHAMBER	Cover comp. - CHAMBER
3	18160-RNA-A00	Converter comp.	Converter comp.
4	18181-RNA-A00	Cover, FR. CONVERTER	Cover, FR. CONVERTER
5	18197-RNA-A00	Bracket - CONVERTER STAY	Bracket - CONVERTER STAY
6	18198-RNA-A00	Stay - CONVERTER	Stay - CONVERTER
7	18199-RNA-A00	Stay - CONVERTER SUB	Stay - CONVERTER SUB
8	18716-RNA-A01	Gasket a - EGR PIPE	Gasket a - EGR PIPE
9	18717-RNA-A00	Pipe comp - EGR	Pipe comp - EGR
10	18719-RNA-A01	Gasket b - EGR PIPE	Gasket b - EGR PIPE
11	18720-RNA-A00	Bolt - FLANGE, 8X20	Bolt - FLANGE, 8X20
12	32177-RZP-G00	Insulator - CRANK SENSOR HEAT	Insulator - CRANK SENSOR HEAT
13	36531-RNA-J01	Sensor - AIR FUEL RATIO	Sensor - AIR FUEL RATIO
14	36532-RNA-A01	Sensor - OXYGEN	Sensor - OXYGEN
15	90001-RNA-A00	Bolt - FLANGE, 8X27	Bolt - FLANGE, 8X27
16	90003-RNA-A00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
17	90004-PLC-000	Bolt-washer - 10X25	Bolt-washer - 10X25

Countershaft 20 / 58

#	OEM	FD1	FD4
1	21215-RG5-000	Holder - IDLE SHAFT	Holder - IDLE SHAFT
2	23221-RPC-000	Countershaft	Countershaft
3	23421-RPC-010	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
4	23427-RPC-000	Gear - PARKING	Gear - PARKING
5	23441-RPC-000	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
8	23531-RPC-000	Gear - COUNTERSHAFT REVERSE	Gear - COUNTERSHAFT REVERSE
9	23541-RPC-000	Gear - REVERSE IDLE	Gear - REVERSE IDLE
10	23542-P6H-000	Shaft - REVERSE IDLE GEAR	Shaft - REVERSE IDLE GEAR
11	23565-RPC-000	Selector - REVERSE GEAR	Selector - REVERSE GEAR
12	23566-RPC-000	Hub - SELECTOR	Hub - SELECTOR
13	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)	Nut - FLANGE, 24MM (LEFT HAND THREAD)
14	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
15	90431-RPC-000	Cotter - 29MM	Cotter - 29MM
16	90441-RPC-000	Collar - 33.2X40X26	Collar - 33.2X40X26
17	90445-RPC-000	Collar - 33X45X7.8	Collar - 33X45X7.8
18	90616-RPC-000	Ring - SNAP, 33MM	Ring - SNAP, 33MM
19	91015-RPC-003	Bearing - NEEDLE, 33X39X26.5	Bearing - NEEDLE, 33X39X26.5
20	91017-RPC-004	Bearing - NEEDLE, 36X42X17	Bearing - NEEDLE, 36X42X17
21	91018-RPC-003	Bearing - NEEDLE, 15X20X16	Bearing - NEEDLE, 15X20X16
22	91306-P0X-003	O-ring - 8.1X4 (NOK)	O-ring - 8.1X4 (NOK)

Crankshaft/piston 50 / 54

Cylinder block/oil pan 31 / 31

#	OEM	FD1	FD4
1	11000-RNA-J00	Block assy - CYLINDER	Block assy - CYLINDER
2	11103-RNA-A01	Plate - PARTITION	Plate - PARTITION
3	11105-RNA-A00	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
4	11106-RNA-A00	Washer - SEALING, 20MM	Washer - SEALING, 20MM
5	11107-PWA-300	Washer - SEALING, 24MM	Washer - SEALING, 24MM
6	11107-RNA-A00	Bolt - SEALING, 24MM	Bolt - SEALING, 24MM
7	11200-RNA-A02	Pan assy - OIL	Pan assy - OIL
8	11221-RNA-A00	Plate - BAFFLE	Plate - BAFFLE
9	11850-RNA-A00	Cover comp. - BREATHER	Cover comp. - BREATHER
10	15280-RZP-000	Body comp - OIL JET	Body comp - OIL JET
11	15290-RZP-000	Bolt comp - OIL JET	Bolt comp - OIL JET
12	30530-RNA-A01	Sensor comp - KNOCK	Sensor comp - KNOCK
16	32179-RNA-A02	Insulator - OIL PRESSURE SWITCH HEAT	Insulator - OIL PRESSURE SWITCH HEAT
17	32747-RNA-A00	Stay g - ENGINE HARNESS	Stay g - ENGINE HARNESS
18	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
22	37500-RAA-A01	Sensor assy - CRANK	Sensor assy - CRANK
23	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
24	90002-RNA-A00	Bolt - SEALING, 36MM	Bolt - SEALING, 36MM
25	90007-RNA-A01	Bolt-washer - 10X97	Bolt-washer - 10X97
26	90008-RNA-000	Washer - SEALING, 36MM	Washer - SEALING, 36MM
27	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
28	90016-RNA-A00	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
29	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
31	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
32	90701-PD2-000	Dowel pin - 12X14	Dowel pin - 12X14
33	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
34	90705-RNA-A00	Dowel pin - 20X22	Dowel pin - 20X22
35	91214-PWA-Y01	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)
36	91301-RNA-A01	O-ring - 20X2.3 (NOK)	O-ring - 20X2.3 (NOK)
36	91301-RNA-A02	O-ring - 20X2.3 (ARAI)	O-ring - 20X2.3 (ARAI)
37	91333-PNC-006	O-ring	O-ring

Cylinder head 11 / 11

#	OEM	FD1	FD4
1	12200-R60-U00	Head comp - CYLINDER	Head comp - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	12231-RNA-A00	Holder comp - ROCKER SHAFT (NO.1)	Holder comp - ROCKER SHAFT (NO.1)
5	12232-RNA-A00	Holder comp - ROCKER SHAFT	Holder comp - ROCKER SHAFT
6	12235-RNA-A00	Holder comp - ROCKER SHAFT (NO.5)	Holder comp - ROCKER SHAFT (NO.5)
7	12236-RNA-A00	Holder comp - LOST MOTION	Holder comp - LOST MOTION
8	14631-RNA-A00	Shaft comp. - ROCKER	Shaft comp. - ROCKER
9	15140-P0A-000	Orifice assy - CAM JOURNAL	Orifice assy - CAM JOURNAL
10	15142-PE0-000	O-ring - 4.8X1.9	O-ring - 4.8X1.9
11	90008-PT2-000	Bolt - FLANGE, 6X65	Bolt - FLANGE, 6X65

Cylinder head cover 6 / 6

#	OEM	FD1	FD4
1	12310-RNA-A01	Cover comp. - CYLINDER HEAD	Cover comp. - CYLINDER HEAD
2	12341-RNA-A01	Packing - HEAD COVER	Packing - HEAD COVER
3	15610-PFB-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
4	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
5	15650-RNA-A00	Gauge - OIL LEVEL	Gauge - OIL LEVEL
6	90011-RNA-A00	Bolt - HEAD COVER	Bolt - HEAD COVER

Differential 29 / 50

#	OEM	FD1	FD4
1	41100-RPC-010	Differential comp.	Differential comp.
2	41233-RPC-000	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
3	41381-RPC-000	Spacer - 41X90X1	Spacer - 41X90X1
4	41382-RPC-000	Spacer - 41X90X1	Spacer - 41X90X1
5	41457-RPC-000	Shim q - 90MM (2.10)	Shim q - 90MM (2.10)
5	41452-RPC-000	Shim l - 90MM (1.85)	Shim l - 90MM (1.85)
5	41447-RPC-000	Shim g - 90MM (1.60)	Shim g - 90MM (1.60)
5	41442-RPC-000	Shim b - 90MM (1.35)	Shim b - 90MM (1.35)
5	41459-RPC-000	Shim s - 90MM (2.20)	Shim s - 90MM (2.20)
5	41454-RPC-000	Shim n - 90MM (1.95)	Shim n - 90MM (1.95)
5	41449-RPC-000	Shim i - 90MM (1.70)	Shim i - 90MM (1.70)
5	41444-RPC-000	Shim d - 90MM (1.45)	Shim d - 90MM (1.45)
5	41461-RPC-000	Shim u - 90MM (2.30)	Shim u - 90MM (2.30)
5	41456-RPC-000	Shim p - 90MM (2.05)	Shim p - 90MM (2.05)
5	41451-RPC-000	Shim k - 90MM (1.80)	Shim k - 90MM (1.80)
5	41446-RPC-000	Shim f - 90MM (1.55)	Shim f - 90MM (1.55)
5	41441-RPC-000	Shim a - 90MM (1.30)	Shim a - 90MM (1.30)
5	41463-RPC-000	Shim w - 90MM (2.40)	Shim w - 90MM (2.40)
5	41458-RPC-000	Shim r - 90MM (2.15)	Shim r - 90MM (2.15)
5	41453-RPC-000	Shim m - 90MM (1.90)	Shim m - 90MM (1.90)
5	41448-RPC-000	Shim h - 90MM (1.65)	Shim h - 90MM (1.65)
5	41443-RPC-000	Shim c - 90MM (1.40)	Shim c - 90MM (1.40)
5	41460-RPC-000	Shim t - 90MM (2.25)	Shim t - 90MM (2.25)
5	41455-RPC-000	Shim o - 90MM (2.00)	Shim o - 90MM (2.00)
5	41450-RPC-000	Shim j - 90MM (1.75)	Shim j - 90MM (1.75)
5	41445-RPC-000	Shim e - 90MM (1.50)	Shim e - 90MM (1.50)
5	41462-RPC-000	Shim v - 90MM (2.35)	Shim v - 90MM (2.35)
6	90003-PA9-003	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
7	91121-RPC-003	Bearing - BALL, 40X90X20	Bearing - BALL, 40X90X20

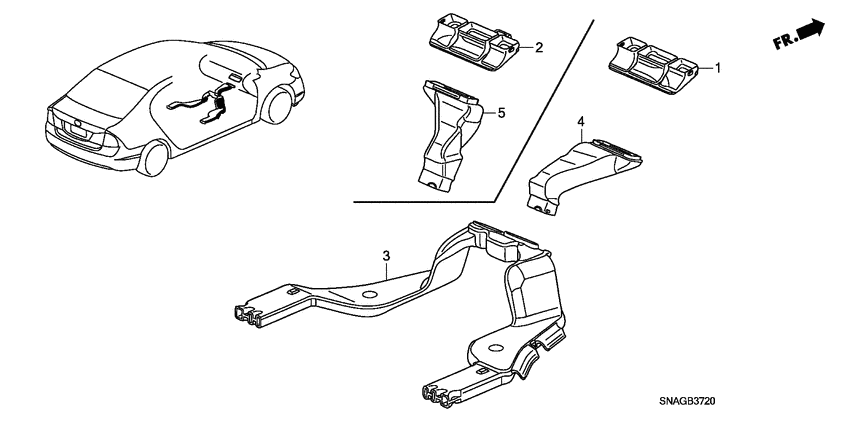

Duct 1 / 1

#	OEM	FD1	FD4
1	77450-SNA-A00	Duct - CENTER JOINT	Duct - CENTER JOINT

Emblems/caution labels 10 / 12

#	OEM	FD1	FD4
1	17669-PVF-A00	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
2	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
3	42760-SNA-T41	Plate - TIRE PRESSURE CAUTION	Plate - TIRE PRESSURE CAUTION
4	75701-SNB-003	Emblem - RR. (H)	Emblem - RR. (H)
6	75722-SNB-J01	Emblem - RR. (CIVIC)	Emblem - RR. (CIVIC)
8	75723-SNA-K11	Emblem - RR. (VTI)	Emblem - RR. (VTI)
11	75725-SNA-K01	Emblem - RR. (I-VTEC)	Emblem - RR. (I-VTEC)
12	75725-SNB-K00	Emblem - SIDE (I-VTEC)	Emblem - SIDE (I-VTEC)
20	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
22	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine hood (LH) 34 / 34

#	OEM	FD1	FD4
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
5	74120-SNB-E11	Lock assy - HOOD (SECURITY SWITCH)	Lock assy - HOOD (SECURITY SWITCH)
7	74121-SNA-A00	Rubber - R. HOOD SEAL	Rubber - R. HOOD SEAL
9	74141-SNB-000	Insulator - HOOD	Insulator - HOOD
10	74142-SNB-000	Rubber - R. HEADLIGHT SEAL	Rubber - R. HEADLIGHT SEAL
11	74143-SNA-A00	Rubber - HOOD RR. SEAL	Rubber - HOOD RR. SEAL
12	74145-SNA-A11	Stay - HOOD OPENER	Stay - HOOD OPENER
13	74192-SNB-000	Rubber - L. HEADLIGHT SEAL	Rubber - L. HEADLIGHT SEAL
14	74200-SNA-A00	Cowl top assy. FR. CENTER	Cowl top assy. FR. CENTER
15	74205-SNA-A00	Lid - FRAME NUMBER	Lid - FRAME NUMBER
16	74210-SNA-A00	Cowl top assy. - FR. DRIVER	Cowl top assy. - FR. DRIVER
17	74211-SNA-A00	Cap - COWL TOP SIDE	Cap - COWL TOP SIDE
18	74212-SNA-A00	Lid - R. COWL TOP SIDE	Lid - R. COWL TOP SIDE
19	74213-SNA-A00	Rubber - R. COWL TOP SIDE	Rubber - R. COWL TOP SIDE
20	74220-SNA-A00	Cowl top assy. FR. PASSENGER	Cowl top assy. FR. PASSENGER
21	74222-SNA-A00	Lid - L. COWL TOP SIDE	Lid - L. COWL TOP SIDE
22	74223-SNA-A00	Rubber - L. COWL TOP SIDE	Rubber - L. COWL TOP SIDE
23	76810-SNA-A01	Nozzle assy. - R.	Nozzle assy. - R.
24	76815-SNA-A01	Nozzle assy. - L.	Nozzle assy. - L.
25	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
26	76832-SNA-003	Tube - 260MM	Tube - 260MM
27	76834-SNA-003	Tube - 140MM	Tube - 140MM
28	76835-SNA-003	Tube - 120MM	Tube - 120MM
29	76842-SNA-003	Tube - 610MM	Tube - 610MM
30	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
31	90301-ST0-003	push nut, 3mm	push nut, 3mm
32	90602-SFA-004	Clip - COWL TOP	Clip - COWL TOP
33	90602-S5A-003	Clip - COWL TOP	Clip - COWL TOP
34	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)	Clip - WIRE HARNESS, 6MM (WHITE)
35	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
36	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
37	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
38	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
39	91565-SEL-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)

Engine mounts (AT) 21 / 21

#	OEM	FD1	FD4
1	50451-SNA-A00	Mass - SIDE MOUNTING	Mass - SIDE MOUNTING
2	50452-SNA-A00	Mass - TRANSMISSION MOUNTING	Mass - TRANSMISSION MOUNTING
3	50625-SVA-A00	Stay - SIDE ENGINE MOUNTING	Stay - SIDE ENGINE MOUNTING
4	50655-SNA-A80	Bracket - TRANSMISSION MOUNTING BASE	Bracket - TRANSMISSION MOUNTING BASE
5	50690-SNA-A80	Bracket - TORQUE ROD LOWER	Bracket - TORQUE ROD LOWER
6	50820-SNB-305	Rubber assy. - ENGINE SIDE MOUNTING	Rubber assy. - ENGINE SIDE MOUNTING
7	50850-SNA-A82	Rubber Assy., Transmission Mounting	Rubber Assy., Transmission Mounting
8	50855-SNA-A00	Stay - TRANSMISSION MOUNTING	Stay - TRANSMISSION MOUNTING
9	50880-SNA-A82	Rod, Torque (Upper)	Rod, Torque (Upper)
10	50890-SNA-A82	Rod, Torque (Lower) - LOWER TORQUE	Rod, Torque (Lower) - LOWER TORQUE
11	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
12	90160-SNA-A00	Bolt - FLANGE, 14X67	Bolt - FLANGE, 14X67
13	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
14	90165-SNA-A00	Bolt - FLANGE, 14X93	Bolt - FLANGE, 14X93
15	90166-SNA-A00	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
16	90168-SZ3-000	Bolt - FLANGE, 12X63	Bolt - FLANGE, 12X63
17	90168-S2A-010	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
18	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
19	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
20	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
21	90380-S10-000	Bolt - STUD, 12X83.8	Bolt - STUD, 12X83.8

Engine mounts (MT) 12 / 20

#	OEM	FD1	FD4
1	50451-SNA-A00	Mass - SIDE MOUNTING	Mass - SIDE MOUNTING
2	50625-SVA-A00	Stay - SIDE ENGINE MOUNTING	Stay - SIDE ENGINE MOUNTING
5	50820-SNB-305	Rubber assy. - ENGINE SIDE MOUNTING	Rubber assy. - ENGINE SIDE MOUNTING
7	50855-SNA-A00	Stay - TRANSMISSION MOUNTING	Stay - TRANSMISSION MOUNTING
10	90160-SNA-A00	Bolt - FLANGE, 14X67	Bolt - FLANGE, 14X67
11	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
13	90165-SNA-A00	Bolt - FLANGE, 14X93	Bolt - FLANGE, 14X93
15	90168-S2A-010	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
16	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
18	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
19	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
20	90380-S10-000	Bolt - STUD, 12X83.8	Bolt - STUD, 12X83.8

Engine wire harness 33 / 35

Engine wire harness stay 4 / 5

#	OEM	FD1	FD4
1	32411-SNA-000	Bracket - STARTER CABLE	Bracket - STARTER CABLE
2	32741-RNA-A00	Stay a - ENGINE HARNESS	Stay a - ENGINE HARNESS
3	32742-RNA-A00	Stay b - ENGINE HARNESS	Stay b - ENGINE HARNESS
5	32745-RNA-A50	Stay e - ENGINE HARNESS	Stay e - ENGINE HARNESS

Exhaust pipe/silencer 18 / 19

#	OEM	FD1	FD4
1	18210-SNA-A01	Pipe a - EX.	Pipe a - EX.
2	18215-SNA-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
3	18215-SNA-A11	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
4	18215-SNA-A31	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
5	18220-SNA-A01	Pipe b - EX.	Pipe b - EX.
6	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
7	18229-S5A-J01	Gasket - EX. FLEXIBLE	Gasket - EX. FLEXIBLE
8	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
9	18231-SNA-A00	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
10	18303-SM4-020	Gasket - SILENCER	Gasket - SILENCER
11	18307-SNB-J01	Silencer comp - EX.	Silencer comp - EX.
12	18310-SNB-J02	FINISHER, EX. PIPE	FINISHER, EX. PIPE
13	74252-SNA-A00	Plate - DASHBOARD LOWER HEAT BAFFLE	Plate - DASHBOARD LOWER HEAT BAFFLE
14	74601-SNW-000	Plate a - FLOOR HEAT BAFFLE	Plate a - FLOOR HEAT BAFFLE
15	74603-SNA-A10	Plate b - FLOOR HEAT BAFFLE	Plate b - FLOOR HEAT BAFFLE
16	74655-SNA-A00	Plate - SILENCER BAFFLE	Plate - SILENCER BAFFLE
17	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
18	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 5 / 5

#	OEM	FD1	FD4
1	74251-SNA-A00	Insulator - DASHBOARD LOWER OUTER	Insulator - DASHBOARD LOWER OUTER
2	74260-SNA-A00	Insulator - DASHBOARD	Insulator - DASHBOARD
10	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
11	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Floor/inner panels 2 / 2

#	OEM	FD1	FD4
36	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
37	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Fog light 6 / 6

#	OEM	FD1	FD4
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO	Bulb - H11) (12V 55W) (KOITO
4	90103-S5A-000	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
5	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
7	33902-SNB-J51	Light unit - R. FOG	Light unit - R. FOG
8	33911-SNB-J51	Screw - TAPPING,	Screw - TAPPING,
10	33952-SNB-J51	Light unit - L. FOG	Light unit - L. FOG

Front brake (2) 25 / 25

#	OEM	FD1	FD4
1	01463-S7A-N00	Caliper set - FR.	Caliper set - FR.
1	01463-S7A-N01	SETCALIPER FR 1	SETCALIPER FR 1
2	06455-S7A-E00	Shim set - FR.	Shim set - FR.
3	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	44300-SNA-952	Bearing assy - FR. HUB (KOYO SEIKO)	Bearing assy - FR. HUB (KOYO SEIKO)
5	44300-SNA-951	Bearing assy - FR. HUB (NTN)	Bearing assy - FR. HUB (NTN)
6	44600-SNA-A00	Hub assy - FR.	Hub assy - FR.
7	45018-SNB-000	Caliper sub assy. - R. FR.	Caliper sub assy. - R. FR.
8	45019-SNB-000	Caliper sub assy. - L. FR.	Caliper sub assy. - L. FR.
9	45022-SNB-000	Pad set - FR.	Pad set - FR.
9	45022-SNB-020	SETPAD FR	SETPAD FR
10	45216-S5A-J01	Piston	Piston
11	45235-S0K-A01	Pin a	Pin a
12	45237-S7A-N02	Retainer	Retainer
13	45240-SM4-003	Bolt - FLANGE, 10X24	Bolt - FLANGE, 10X24
14	45251-SMG-G10	Disk - FR. BRAKE(15")	Disk - FR. BRAKE(15")
15	45255-SNB-000	Guard - FR. SPLASH(15")	Guard - FR. SPLASH(15")
16	45262-S0K-A01	Pin b	Pin b
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
18	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
18	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
18	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
19	90681-SNA-000	Circlip - SPECIAL INTERNAL, 78MM	Circlip - SPECIAL INTERNAL, 78MM

Front bulkhead/dashboard 5 / 5

#	OEM	FD1	FD4
18	60659-SNA-A01	Separator - R. FR. WHEELHOUSE UPPER MEMBER	Separator - R. FR. WHEELHOUSE UPPER MEMBER
37	90101-S6A-000	Bolt-washer - 8MM	Bolt-washer - 8MM
38	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
39	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
40	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Front door glass/ door regulator 10 / 10

#	OEM	FD1	FD4
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
2	72210-SNA-A03	Regulator assy - R. FR. DOOR POWER	Regulator assy - R. FR. DOOR POWER
3	72231-SNA-A01	Sash - R. FR. DOOR CENTER LOWER	Sash - R. FR. DOOR CENTER LOWER
4	72235-SNA-A21	Runchannel - R. FR. DOOR	Runchannel - R. FR. DOOR
5	72250-SNA-A03	Regulator assy - L. FR. DOOR POWER	Regulator assy - L. FR. DOOR POWER
6	72271-SNA-A01	Sash - L. FR. DOOR CENTER LOWER	Sash - L. FR. DOOR CENTER LOWER
7	72275-SNA-A21	Runchannel - L. FR. DOOR	Runchannel - L. FR. DOOR
8	73300-SNA-G12	Glass assy - R. FR. DOOR (GREEN)(AGC)	Glass assy - R. FR. DOOR (GREEN)(AGC)
9	73350-SNA-G12	Glass assy - L. FR. DOOR (GREEN)(AGC)	Glass assy - L. FR. DOOR (GREEN)(AGC)
10	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10

Front door lining (LH) 15 / 15

#	OEM	FD1	FD4
1	32755-SNB-000	Sub cord - COURTESY LIGHT	Sub cord - COURTESY LIGHT
2	34253-SNA-003	Bulb - WEDGE (12V 3.4W)	Bulb - WEDGE (12V 3.4W)
3	34257-SNB-003	Lens comp	Lens comp
4	35190-SNA-A01	Switch assy - REMOTE CONTROL MIRROR	Switch assy - REMOTE CONTROL MIRROR
5	35750-SNB-Y11	Switch assy - POWER WINDOW MASTER	Switch assy - POWER WINDOW MASTER
7	72335-SNA-A01	Weatherstrip - R. FR. DOOR INNER	Weatherstrip - R. FR. DOOR INNER
8	72375-SNA-A01	Weatherstrip - L. FR. DOOR INNER	Weatherstrip - L. FR. DOOR INNER
15	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
16	90146-SDA-A00	Clip - DOOR LINING SKIN	Clip - DOOR LINING SKIN
17	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
18	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
19	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
20	91560-SLA-003	Clip - GARNISH (SEAL)	Clip - GARNISH (SEAL)
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
22	91561-S5P-A01	Screw - GROMMET, 5.23	Screw - GROMMET, 5.23

Front door lock/ outer handle 28 / 28

#	OEM	FD1	FD4
1	72110-SNA-A14	Latch assy - R. FR. DOOR POWER	Latch assy - R. FR. DOOR POWER
3	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
5	72118-SJK-003	Screw - TAPPING	Screw - TAPPING
8	72123-SJA-003	Fastener assy. - DOOR LOCK CABLE	Fastener assy. - DOOR LOCK CABLE
9	72130-SNA-003	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
10	72131-SNA-A01	Cable - FR. INSIDE HANDLE	Cable - FR. INSIDE HANDLE
11	72133-SNA-A01	Cable - R. FR. DOOR LOCK	Cable - R. FR. DOOR LOCK
12	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
13	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
14	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
16	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
17	72143-S04-003	Packing	Packing
18	72144-SJD-003	Retainer	Retainer
20	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
21	72150-SNA-P14	Latch assy - L. FR. DOOR POWER	Latch assy - L. FR. DOOR POWER
23	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
27	72170-SNA-003	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
28	72173-SNA-A01	Cable - L. FR. DOOR LOCK	Cable - L. FR. DOOR LOCK
29	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
30	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
32	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
33	72185-SNA-A01	Cylinder - L. DOOR	Cylinder - L. DOOR
34	90101-SJK-003	Screw - TAPPING (ONE WAY)	Screw - TAPPING (ONE WAY)
35	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
36	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
37	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
38	90691-SJD-003	Clip - LATCH CABLE	Clip - LATCH CABLE
39	91505-SL0-003	Clip - COWL TOP	Clip - COWL TOP

Front door panels 15 / 15

#	OEM	FD1	FD4
5	67324-SNA-A11	Tape set - R. FR. DOOR SASH	Tape set - R. FR. DOOR SASH
6	67364-SNA-A11	Tape set - L. FR. DOOR SASH	Tape set - L. FR. DOOR SASH
11	72310-SNA-A01	Weatherstrip R. FR. DOOR	Weatherstrip R. FR. DOOR
12	72321-SNA-A01	Seal - R. FR. DOOR HOLE	Seal - R. FR. DOOR HOLE
13	72340-SNA-J01	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
14	72350-SNA-A01	Weatherstrip - L. FR. DOOR	Weatherstrip - L. FR. DOOR
15	72361-SNA-A01	Seal - L. FR. DOOR HOLE	Seal - L. FR. DOOR HOLE
16	72380-SNA-J01	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
17	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
18	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
19	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
19	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
20	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
21	90651-S4N-003	Clip	Clip
22	91563-SFA-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET

Front driveshaft (AT) 18 / 18

#	OEM	FD1	FD4
1	44014-SNA-010	Joint set - OUTBOARD	Joint set - OUTBOARD
2	44017-S5A-000	Boot set - INBOARD	Boot set - INBOARD
3	44018-SAB-N21	Boot set - OUTBOARD	Boot set - OUTBOARD
4	44305-SNA-000	Driveshaft assy. - R.	Driveshaft assy. - R.
5	44306-SNA-900	Driveshaft assy. - L.	Driveshaft assy. - L.
6	44310-S5A-J00	Joint comp - INBOARD	Joint comp - INBOARD
7	44310-S5A-300	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-S04-300	Set ring - 26X1.8	Set ring - 26X1.8
8	44319-SR1-003	Set ring - 26X1.8 (GKN)	Set ring - 26X1.8 (GKN)
9	44327-S04-N01	Band b - DRIVESHAFT (NIPPON HATSUJO)	Band b - DRIVESHAFT (NIPPON HATSUJO)
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44329-S04-N01	Band c - DRIVESHAFT (NIPPON HATSUJO)	Band c - DRIVESHAFT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44337-S04-300	Ring b - STOPPER	Ring b - STOPPER
14	44338-S04-300	Circlip - 23MM	Circlip - 23MM
15	44351-SNA-003	Damper - DYNAMIC	Damper - DYNAMIC
16	44351-SNA-901	Damper - DYNAMIC	Damper - DYNAMIC
18	90305-692-010	Nut	Nut

Front driveshaft/ half shaft (MT) 4 / 25

#	OEM	FD1	FD4
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
20	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
21	90305-692-010	Nut	Nut

Front fenders 14 / 14

#	OEM	FD1	FD4
5	74101-SNA-A10	Fender - R. FR. INNER	Fender - R. FR. INNER
6	74105-SNA-A00	Enclosure - R. FR. FENDER	Enclosure - R. FR. FENDER
7	74111-SNA-A00	Shield, FR. SPLASH	Shield, FR. SPLASH
8	74151-SNA-A10	Fender - L. FR. INNER	Fender - L. FR. INNER
9	74155-SNA-A00	Enclosure - L. FR. FENDER	Enclosure - L. FR. FENDER
10	74206-SNA-A01	Garnish - R. FR. FENDER	Garnish - R. FR. FENDER
11	74207-SNA-A01	Garnish - L. FR. FENDER	Garnish - L. FR. FENDER
12	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
13	90682-SEA-003	Clip - TAPPING SCREW, 5MM	Clip - TAPPING SCREW, 5MM
14	91501-SNA-003	Clip - FR. COWL	Clip - FR. COWL
15	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
16	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
17	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
18	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM

Front grille 9 / 9

#	OEM	FD1	FD4
2	71122-SNB-900	Molding - FR. GRILLE	Molding - FR. GRILLE
3	71124-SNB-900	Base - FR. EMBLEM	Base - FR. EMBLEM
4	71125-SNB-000	Cover - FR. GRILLE	Cover - FR. GRILLE
5	74175-SJA-000	Cushion - HOOD	Cushion - HOOD
6	75700-TA0-A00	Emblem - FR. (H)	Emblem - FR. (H)
7	90301-ST0-003	push nut, 3mm	push nut, 3mm
8	91503-SZ3-003	Clip A	Clip A
9	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
10	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front seat (LH; DRIVER SIDE) 11 / 11

#	OEM	FD1	FD4
1	78055-SNB-G81	Module assy. - L. SIDE	Module assy. - L. SIDE
2	81123-SNA-A01	Screw - 6X18	Screw - 6X18
7	81291-SNA-A01	Clip	Clip
10	81527-SNB-E11	Pad comp - L. FR. SEATBACK	Pad comp - L. FR. SEATBACK
14	81537-SNA-A11	Pad comp - L. FR. SEAT CUSHION	Pad comp - L. FR. SEAT CUSHION
16	81560-SNA-A01	Holder - L. MODULE	Holder - L. MODULE
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90610-S10-003	Clip - GARNISH	Clip - GARNISH
23	90656-PB1-003	Band - OIL HOSE	Band - OIL HOSE
24	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)
25	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Front seat (LH; PASSENGER SIDE) 11 / 11

#	OEM	FD1	FD4
1	78050-SNB-G81	Module assy. - R. SIDE	Module assy. - R. SIDE
3	81123-SNA-A01	Screw - 6X18	Screw - 6X18
5	81127-SNB-Y41	Pad comp - R. FR. SEATBACK (WITH OPDS SENSOR)	Pad comp - R. FR. SEATBACK (WITH OPDS SENSOR)
9	81137-SNA-A01	Pad comp - R. FR. SEAT CUSHION	Pad comp - R. FR. SEAT CUSHION
15	81160-SNA-A01	Holder - R. MODULE	Holder - R. MODULE
20	81291-SNA-A01	Clip	Clip
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90610-S10-003	Clip - GARNISH	Clip - GARNISH
23	90656-PB1-003	Band - OIL HOSE	Band - OIL HOSE
24	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)
25	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Front seat components (LH; DRIVER SIDE) 5 / 5

FD1 Front seat components (LH; DRIVER SIDE)

FD4 Front seat components (LH; DRIVER SIDE)

#	OEM	FD1	FD4
3	81139-SNA-A01	Lever comp - FR. SEAT CUSHION SLIDE	Lever comp - FR. SEAT CUSHION SLIDE
4	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
6	81526-SNB-J12	Frame comp - L. FR. SEAT	Frame comp - L. FR. SEAT
14	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
15	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27

Front seat components (LH; PASSENGER SIDE) 9 / 9

FD1 Front seat components (LH; PASSENGER SIDE)

FD4 Front seat components (LH; PASSENGER SIDE)

#	OEM	FD1	FD4
3	81126-SNB-J32	Frame comp - R. FR. SEAT	Frame comp - R. FR. SEAT
5	81139-SNA-A01	Lever comp - FR. SEAT CUSHION SLIDE	Lever comp - FR. SEAT CUSHION SLIDE
6	81161-SNB-J01	Opds unit	Opds unit
7	81162-SNA-X01	Cord - FR. SEAT OPDS	Cord - FR. SEAT OPDS
11	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
12	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
13	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
16	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front shock absorber 18 / 22

#	OEM	FD1	FD4
1	04512-SNA-305	Bolt set - FR. CAMBER ADJUSTMENT (SERVICE)	Bolt set - FR. CAMBER ADJUSTMENT (SERVICE)
2	51401-SNA-902	Spring - R. FR.	Spring - R. FR.
3	51402-SNA-903	Seat - R. FR. SPRING UPPER	Seat - R. FR. SPRING UPPER
4	51403-SNA-903	Seat - L. FR. SPRING UPPER	Seat - L. FR. SPRING UPPER
5	51406-SNA-902	Spring - L. FR.	Spring - L. FR.
6	51601-SNA-908	Absorber assy - R. FR. SHOCK	Absorber assy - R. FR. SHOCK
7	51602-SNA-908	Absorber assy - L. FR. SHOCK	Absorber assy - L. FR. SHOCK
8	51605-SNA-905	Absorber unit - R. FR. SHOCK	Absorber unit - R. FR. SHOCK
9	51606-SNA-905	Absorber unit - L. FR. SHOCK	Absorber unit - L. FR. SHOCK
10	51608-SNA-000	Cap - FR. SHOCK ABSORBER MOUNTING	Cap - FR. SHOCK ABSORBER MOUNTING
11	51684-SNA-903	Rubber - FR. SPRING LOWER	Rubber - FR. SPRING LOWER
12	51722-SNA-905	Rubber - FR. BUMP STOPPER	Rubber - FR. BUMP STOPPER
13	51726-SNA-G01	Bearing comp - FR. SHOCK ABSORBER MOUNTING	Bearing comp - FR. SHOCK ABSORBER MOUNTING
14	51920-SVB-A03	Rubber comp - FR. SHOCK ABSORBER MOUNTING	Rubber comp - FR. SHOCK ABSORBER MOUNTING
15	90190-SNA-000	Bolt - FLANGE, 14X57	Bolt - FLANGE, 14X57
16	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)
17	90213-SR3-013	Nut - SELF-LOCK, 14MM	Nut - SELF-LOCK, 14MM
18	90304-S10-024	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM

Front sub frame 6 / 9

#	OEM	FD1	FD4
1	50200-SNB-G91	Sub frame - FR.	Sub frame - FR.
2	50226-SNA-A81	Cap - SIDE	Cap - SIDE
3	50280-SNA-A00	Bracket - R. BODY MOUNTING	Bracket - R. BODY MOUNTING
4	50285-SNA-A00	Bracket - L. BODY MOUNTING	Bracket - L. BODY MOUNTING
7	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115
8	90182-S2H-000	Bolt - FLANGE, 12X25	Bolt - FLANGE, 12X25

Front windshield 12 / 12

#	OEM	FD1	FD4
1	04731-SNA-A00	Rubber set - FR. WINDSHIELD DAM	Rubber set - FR. WINDSHIELD DAM
2	73111-SNB-Y70	Glass - FR. WINDSHIELD (GREEN) (AGC)	Glass - FR. WINDSHIELD (GREEN) (AGC)
3	73126-SNA-A00	Seal - FR. WINDSHIELD UPPER	Seal - FR. WINDSHIELD UPPER
4	73150-SNA-003	Molding - FR. WINDSHIELD	Molding - FR. WINDSHIELD
5	73331-SNA-A01	Glass - R. FR. CORNER (GREEN) (AGC)	Glass - R. FR. CORNER (GREEN) (AGC)
6	73332-SNA-A00	Rubber a - WINDSHIELD DAM	Rubber a - WINDSHIELD DAM
8	73334-SFA-000	Clip set - FR. CORNER GLASS	Clip set - FR. CORNER GLASS
9	73335-SNA-003	Garnish - R. FR. CORNER	Garnish - R. FR. CORNER
10	73371-SNA-A01	Glass - L. FR. CORNER (GREEN) (AGC)	Glass - L. FR. CORNER (GREEN) (AGC)
11	73375-SNA-003	Garnish - L. FR. CORNER	Garnish - L. FR. CORNER
13	91512-SLA-003	Clip - FR. CORNER GARNISH	Clip - FR. CORNER GARNISH
14	91568-SDA-A01	Clip - WINDSHIELD UPPER	Clip - WINDSHIELD UPPER

Front windshield wiper (LH) 26 / 26

#	OEM	FD1	FD4
1	76505-SNA-A02	Motor comp - FR. WIPER	Motor comp - FR. WIPER
2	76516-SDA-A01	Rubber - MOUNTING	Rubber - MOUNTING
3	76516-SJK-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76516-SM4-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76516-SNA-A01	Rubber - MOUNTING	Rubber - MOUNTING
6	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
7	76517-SJK-003	Collar	Collar
8	76517-SM4-003	Collar	Collar
9	76520-SNA-A01	Link assy. a	Link assy. a
10	76524-SL0-A01	Dust seal	Dust seal
11	76530-SNA-A11	Link comp - FR. WIPER	Link comp - FR. WIPER
12	76540-SNA-A01	Rod unit a	Rod unit a
13	76550-SNA-A01	Rod unit b	Rod unit b
14	76555-SNA-A01	Rod unit c	Rod unit c
15	76561-SNA-A01	Cap - PIVOT	Cap - PIVOT
16	76562-SNA-A02	Cap - PIVOT	Cap - PIVOT
17	76600-SNB-Y11	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
18	76601-SNA-A01	Cover - ARM	Cover - ARM
19	76602-SNA-A01	Cover - ARM	Cover - ARM
20	76610-SNB-Y11	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
21	76620-SNA-A11	Blade - WINDSHIELD WIPER (650MM) (DRIVER SIDE)	Blade - WINDSHIELD WIPER (650MM) (DRIVER SIDE)
22	76622-STK-A01	Rubber - BLADE (650MM)	Rubber - BLADE (650MM)
22	76622-STK-A02	BLADE RUBBER	BLADE RUBBER
23	76623-SNA-A11	Rubber - BLADE (575MM)	Rubber - BLADE (575MM)
24	76630-SNA-A11	Blade - WINDSHIELD WIPER (575MM) (PASSENGER SIDE)	Blade - WINDSHIELD WIPER (575MM) (PASSENGER SIDE)
25	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32

Fuel injector 8 / 8

#	OEM	FD1	FD4
1	16450-RNA-A01	Injector assy - FUEL	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
3	16620-RNA-A51	Pipe comp - FUEL	Pipe comp - FUEL
4	16640-RNA-A00	Cover - FUEL PIPE	Cover - FUEL PIPE
5	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
6	90027-RNA-A00	Bolt - FUEL PIPE	Bolt - FUEL PIPE
7	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
8	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Fuel pipe 17 / 19

#	OEM	FD1	FD4
2	16722-RNA-A02	Hose comp. - FUEL FEED	Hose comp. - FUEL FEED
3	16723-RNA-A00	Bracket - FUEL FEED HOSE	Bracket - FUEL FEED HOSE
4	16725-RNA-A00	Holder a - FUEL CONNECTOR (WHITE)	Holder a - FUEL CONNECTOR (WHITE)
5	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
6	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
7	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
9	17726-SNA-G01	Hose assy - FUEL PURGE	Hose assy - FUEL PURGE
14	17762-SDA-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
15	17762-SNA-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
16	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
18	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
19	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
20	91595-SNA-E01	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
21	91595-S7A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
22	91598-SNA-A01	Clamp f - FUEL PIPE	Clamp f - FUEL PIPE
23	91599-SDC-E00	Rubber e - FUEL PIPE INSULATOR	Rubber e - FUEL PIPE INSULATOR
24	91599-S7A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE

Fuel tank 27 / 28

#	OEM	FD1	FD4
1	17044-SNA-020	Tank set - FUEL	Tank set - FUEL
2	17045-SNA-020	Module assy. FUEL PUMP	Module assy. FUEL PUMP
3	17046-SNA-000	Nut & packing set - FUEL LOCK	Nut & packing set - FUEL LOCK
4	17047-SNA-000	Meter comp	Meter comp
5	17048-SNA-010	Strainer set - FUEL	Strainer set - FUEL
6	17052-SNA-000	Regulator assy - PRESSURE	Regulator assy - PRESSURE
7	17513-S0E-003	Circlip	Circlip
8	17519-SNA-000	Protector - FUEL TANK	Protector - FUEL TANK
9	17520-SNA-000	Band comp - FUEL TANK MOUNTING	Band comp - FUEL TANK MOUNTING
10	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
11	17525-S0X-A00	Bolt-washer - 10X25	Bolt-washer - 10X25
12	17651-SNA-003	Tube - FILLER NECK	Tube - FILLER NECK
13	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
14	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
15	17653-SNA-003	Tube - BREATHER	Tube - BREATHER
17	17668-SNA-000	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
18	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
18	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
19	17722-SNA-003	Tube comp - FUEL VENT	Tube comp - FUEL VENT
20	74660-SNA-A00	Cap assy. - FUEL MAINTENANCE HOLE	Cap assy. - FUEL MAINTENANCE HOLE
21	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
22	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
23	91413-S5A-003	Clamp - FUEL TUBE (D17)	Clamp - FUEL TUBE (D17)
24	91462-SDA-003	Clamp - FUEL TUBE (D18)	Clamp - FUEL TUBE (D18)
25	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
26	91594-SNA-A01	Clip - FILLER CAP	Clip - FILLER CAP
27	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Gasket kit 3 / 3

#	OEM	FD1	FD4
1	06110-RNA-000	Gasket kit - CYLINDER HEAD	Gasket kit - CYLINDER HEAD
2	06112-RPC-000	Gasket kit - AT TRANSMISSION	Gasket kit - AT TRANSMISSION
3	06114-RNA-Y00	Gasket kit - CHAIN CASE	Gasket kit - CHAIN CASE

Grommet (FRONT) 12 / 12

#	OEM	FD1	FD4
2	74144-SR3-000	Cushion - HOOD	Cushion - HOOD
4	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
5	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
6	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
7	90672-SNB-901	Holder - ROD	Holder - ROD
9	91604-SD2-013	Grommet - HOOD STAY	Grommet - HOOD STAY
10	91608-S5A-003	Boot - FLOOR	Boot - FLOOR
11	91613-SN4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
12	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
13	91617-SH3-000	Seal - HOLE	Seal - HOLE
14	91617-SNA-A00	Seal - FR. FENDER	Seal - FR. FENDER
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 4 / 4

#	OEM	FD1	FD4
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90651-S0A-003	Cap - BOLT, 8MM	Cap - BOLT, 8MM
5	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 5 / 5

#	OEM	FD1	FD4
1	74241-SNA-A00	Insulator - DASHBOARD UPPER CENTER	Insulator - DASHBOARD UPPER CENTER
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
4	90857-SNA-A00	Cap - WELD HOLE	Cap - WELD HOLE
5	91603-SK7-000	Grommet - WAX HOLE, 25MM	Grommet - WAX HOLE, 25MM
6	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Grommet (SIDE) 1 / 1

#	OEM	FD1	FD4
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM

Harness band/bracket (LH) 31 / 33

Headlight 18 / 18

#	OEM	FD1	FD4
6	33101-SNB-G61	Headlight unit - R. (HID)	Headlight unit - R. (HID)
7	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
8	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
8	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
10	33126-SNA-A01	Cover - RUBBER	Cover - RUBBER
11	33130-SJK-J01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
12	33151-SNB-G61	Headlight unit - L. (HID)	Headlight unit - L. (HID)
13	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
15	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
16	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
17	33304-S5A-003	Socket comp - T10	Socket comp - T10
21	33108-SEA-J01	Screw - SPECIAL TAPPING (6X14)	Screw - SPECIAL TAPPING (6X14)
22	33109-S6A-J71	Gasket - SEAL	Gasket - SEAL
23	33116-S0A-J11	Bulb - HEADLIGHT (D2R) (HID)	Bulb - HEADLIGHT (D2R) (HID)
24	33119-TA0-003	Control unit	Control unit
25	33121-SFE-901	Seal - GASKET (2)	Seal - GASKET (2)
26	33127-SNB-C11	Cover comp.	Cover comp.
27	33129-TA0-003	Igniter - HID	Igniter - HID

Heater blower (LH) 15 / 15

#	OEM	FD1	FD4
1	79305-SNA-A42	Blower sub assy.	Blower sub assy.
2	79306-SNA-A01	Seal - BLOWER OUTER	Seal - BLOWER OUTER
3	79307-SNA-A01	Packing - IN.	Packing - IN.
4	79310-SNA-A02	Motor assy. - FAN	Motor assy. - FAN
5	79350-SNA-A41	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
9	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
10	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
11	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
12	90155-TA0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
13	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
15	80292-SWA-A01	Element - FILTER	Element - FILTER
15	80292-SWA-A02	FILTER ELEMENT	FILTER ELEMENT
16	80293-SEA-941	Seal - FILTER	Seal - FILTER
17	80297-SEA-941	Frame set	Frame set

Heater unit (LH) 31 / 31

#	OEM	FD1	FD4
1	39248-692-003	Packing - HEATER	Packing - HEATER
2	79021-SNA-A01	Seal a	Seal a
3	79102-SNA-A01	Duct assy - PASSENGER HEATER	Duct assy - PASSENGER HEATER
4	79103-SNA-A01	Packing set	Packing set
5	79104-SNA-A01	Packing	Packing
6	79106-SNB-A51	Heater sub assy.	Heater sub assy.
7	79107-SNA-A01	Cover - HEATER PIPE	Cover - HEATER PIPE
8	79108-SNA-A01	Plate - EVAPORATOR LOWER	Plate - EVAPORATOR LOWER
9	79109-SNA-A01	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
10	79110-SNA-A01	Core sub assy. - HEATER	Core sub assy. - HEATER
11	79140-SNA-A01	Motor assy. - MODE	Motor assy. - MODE
12	79160-SNA-A01	Motor assy. - AIR MIX	Motor assy. - AIR MIX
13	79308-SNA-A01	Joint set - DUCT	Joint set - DUCT
14	79330-SNA-A01	Transistor - POWER	Transistor - POWER
15	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
16	80211-SNA-A01	Evaporator comp.	Evaporator comp.
18	80221-SNA-A01	Valve assy. - EXPANSION	Valve assy. - EXPANSION
19	80271-SNA-A00	Hose - DRAIN	Hose - DRAIN
20	80534-S84-A41	Aspirator	Aspirator
21	80560-SNA-A01	Thermistor - AIR CONDITIONER	Thermistor - AIR CONDITIONER
23	80566-SFA-003	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
24	80650-SNA-A41	Sub harness - AIR CONDITIONER	Sub harness - AIR CONDITIONER
25	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
26	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
27	90121-SNA-A00	Bolt - STUD, 6X49	Bolt - STUD, 6X49
28	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
29	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
30	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
31	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
33	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
34	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Idle shaft 4 / 4

#	OEM	FD1	FD4
1	23515-RPC-020	Gear - IDLE	Gear - IDLE
2	23516-RG5-000	Shaft - IDLE	Shaft - IDLE
3	90431-PRP-000	Cotter - 17MM	Cotter - 17MM
4	90432-PRP-000	Retainer - COTTER	Retainer - COTTER

Instrument panel (LH) 14 / 14

#	OEM	FD1	FD4
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
9	77466-SNA-A00	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
12	77550-SNA-A00	Frame comp - GLOVE BOX	Frame comp - GLOVE BOX
14	77606-SNA-A01	Seal b - CLOSE	Seal b - CLOSE
19	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
20	90111-SAA-003	Bolt-washer - 8X82	Bolt-washer - 8X82
21	90112-SAA-003	Bolt-washer - 8X62	Bolt-washer - 8X62
22	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
23	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
24	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
25	90666-SD4-003	Clip - FITTING	Clip - FITTING
26	90669-SWA-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
27	90671-SHJ-A02	Rivet - VIN PLATE	Rivet - VIN PLATE
28	91540-SNA-003	Holder - COUPLER (YELLOW)	Holder - COUPLER (YELLOW)

Instrument panel garnish (DRIVER SIDE; LH) 9 / 9

FD1 Instrument panel garnish (DRIVER SIDE; LH)

FD4 Instrument panel garnish (DRIVER SIDE; LH)

#	OEM	FD1	FD4
1	39610-S2K-003	Knob assy	Knob assy
2	39620-S0X-003	Socket assy	Socket assy
3	39630-SFE-003	Ring assy - TYPE INCLUDING BULB	Ring assy - TYPE INCLUDING BULB
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
21	77606-SNA-A01	Seal b - CLOSE	Seal b - CLOSE
25	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
27	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
28	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
30	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 10 / 10

FD1 Instrument panel garnish (PASSENGER SIDE; LH)

FD4 Instrument panel garnish (PASSENGER SIDE; LH)

#	OEM	FD1	FD4
1	34253-SNA-003	Bulb - WEDGE (12V 3.4W)	Bulb - WEDGE (12V 3.4W)
2	34254-SNA-003	Light assy - GLOVE BOX	Light assy - GLOVE BOX
3	66417-SB3-670	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
4	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
5	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
8	77515-SZ3-A02	Hinge - GLOVE BOX	Hinge - GLOVE BOX
9	77541-SNA-A00	Striker comp. - GLOVE BOX	Striker comp. - GLOVE BOX
11	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
12	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
13	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Intake manifold 21 / 21

#	OEM	FD1	FD4
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
2	17100-RNA-A00	Manifold comp - INTAKE	Manifold comp - INTAKE
3	17101-RNA-A00	Cover comp. - BYPASS VALVE	Cover comp. - BYPASS VALVE
4	17102-RNA-A01	Packing - BYPASS VALVE COVER	Packing - BYPASS VALVE COVER
5	17103-RNA-A01	Packing b - BYPASS VALVE	Packing b - BYPASS VALVE
6	17104-RNA-A01	Packing a - BYPASS VALVE	Packing a - BYPASS VALVE
7	17105-RNA-A01	Packing a - INTAKE MANIFOLD	Packing a - INTAKE MANIFOLD
8	17106-RNA-A01	Packing b - INTAKE MANIFOLD	Packing b - INTAKE MANIFOLD
9	17107-RNA-A01	Packing, throttle body	Packing, throttle body
10	17108-RNA-A01	O-ring - 31.2X3.5	O-ring - 31.2X3.5
11	17113-RNA-A00	Stiffener - INTAKE MANIFOLD	Stiffener - INTAKE MANIFOLD
12	17116-RNA-A00	Plate - THROTTLE FLANGE	Plate - THROTTLE FLANGE
13	17132-RNA-A00	Stay assy - INTAKE MANIFOLD	Stay assy - INTAKE MANIFOLD
14	17150-RNA-A01	Actuator assy - BYPASS VALVE	Actuator assy - BYPASS VALVE
15	17153-RCA-A01	Packing - BYPASS VALVE ACTUATOR	Packing - BYPASS VALVE ACTUATOR
16	17210-RNA-A01	Valve assy. - BYPASS	Valve assy. - BYPASS
17	17213-RNA-A00	Rubber - INTAKE MANIFOLD MOUNTING	Rubber - INTAKE MANIFOLD MOUNTING
18	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
19	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
20	37835-PGK-A01	O-ring	O-ring
21	90001-PGM-000	Bolt-washer - SPECIAL, 6X30	Bolt-washer - SPECIAL, 6X30

Interior light 9 / 10

#	OEM	FD1	FD4
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
4	34261-S5A-003	Lens comp	Lens comp
5	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
7	34401-SDA-A21	Lens - R.	Lens - R.
9	34402-SDA-A21	Lens - L.	Lens - L.
15	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

Knuckle 27 / 27

#	OEM	FD1	FD4
1	42521-SNA-003	Clamp - FR. WIRE	Clamp - FR. WIRE
2	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42522-SNA-003	Clamp - WIRE (BLUE)	Clamp - WIRE (BLUE)
4	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
5	51211-SNA-010	Knuckle - R. FR.	Knuckle - R. FR.
6	51216-SNA-010	Knuckle - L. FR.	Knuckle - L. FR.
7	51220-SNA-A03	Joint comp - R. FR. LOWER BALL	Joint comp - R. FR. LOWER BALL
8	51225-SNA-A01	Boot - FR. LOWER BALL DUST	Boot - FR. LOWER BALL DUST
9	51230-SNA-A03	Joint comp - L. FR. LOWER BALL	Joint comp - L. FR. LOWER BALL
10	51300-SNA-A02	Spring - FR. STABILIZER	Spring - FR. STABILIZER
11	51306-SNA-A02	Bush - FR. STABILIZER HOLDER	Bush - FR. STABILIZER HOLDER
12	51308-SNA-A01	Holder - FR. STABILIZER	Holder - FR. STABILIZER
13	51320-SNA-A02	Link comp - R. FR. STABILIZER	Link comp - R. FR. STABILIZER
14	51321-SNA-A02	Link comp - L. FR. STABILIZER	Link comp - L. FR. STABILIZER
15	51350-SNA-951	ARM COMP., R. FR. LOWER	ARM COMP., R. FR. LOWER
16	51360-SNA-903	ARM COMP., L. FR. LOWER	ARM COMP., L. FR. LOWER
17	51391-SNA-305	Bush, FR. Compliance	Bush, FR. Compliance
18	57450-SNA-003	Sensor assy - R. FR.	Sensor assy - R. FR.
19	57455-SNA-003	Sensor assy - L. FR.	Sensor assy - L. FR.
20	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
21	90018-SNA-010	Bolt - FLANGE, 12X18	Bolt - FLANGE, 12X18
22	90116-SNA-010	Bolt, FLANGE, 14X94	Bolt, FLANGE, 14X94
23	90118-SNA-000	Bolt - FLANGE, 12X84	Bolt - FLANGE, 12X84
24	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
25	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
26	90363-S3V-A01	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
27	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)

L. side cover 42 / 42

#	OEM	FD1	FD4
1	21240-RPC-000	Cover comp. L. SIDE	Cover comp. L. SIDE
2	21515-RPC-000	Stay c - HARNESS	Stay c - HARNESS
3	21720-RPC-000	Cover comp. - POSITION SENSOR	Cover comp. - POSITION SENSOR
4	21722-RPC-000	Stopper - POSITION SENSOR	Stopper - POSITION SENSOR
5	21724-RCT-000	Rubber - POSITION SENSOR COVER	Rubber - POSITION SENSOR COVER
6	21725-RCT-000	Collar - POSITION SENSOR COVER	Collar - POSITION SENSOR COVER
7	21812-RPC-000	Packing - L. SIDE COVER	Packing - L. SIDE COVER
8	22713-PW4-000	Guide a - FEED PIPE	Guide a - FEED PIPE
9	22713-RPC-000	Guide a - FEED PIPE	Guide a - FEED PIPE
10	22715-PRP-000	Pipe comp. b - FEED	Pipe comp. b - FEED
11	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
12	24532-PX4-000	Lever - PARKING BRAKE	Lever - PARKING BRAKE
13	24535-RPC-000	Spring - PARKING BRAKE	Spring - PARKING BRAKE
14	24539-PA9-003	Stopper - PARKING BRAKE (3)	Stopper - PARKING BRAKE (3)
14	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
14	24537-PA9-003	Stopper - PARKING BRAKE (1)	Stopper - PARKING BRAKE (1)
15	24552-PRP-000	Spring - PARKING PAWL	Spring - PARKING PAWL
16	24553-PN6-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
17	24555-RDK-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
18	24561-RPC-000	Pawl - PARKING BRAKE	Pawl - PARKING BRAKE
19	24562-PRP-000	Shaft - PARKING	Shaft - PARKING
20	27430-RPC-003	Bolt comp - AIR CHECK	Bolt comp - AIR CHECK
21	28900-RPC-013	Sensor assy - POSITION	Sensor assy - POSITION
22	28950-RPC-000	Harness - POSITION SENSOR	Harness - POSITION SENSOR
23	90024-RPC-000	Bolt - SEALING, 10MM	Bolt - SEALING, 10MM
24	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
25	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
26	90471-PW7-A00	PACKING, 10MM	PACKING, 10MM
27	90471-580-000	Packing - 8MM	Packing - 8MM
28	90472-RPC-000	Packing - 10MM	Packing - 10MM
29	90602-PX4-000	Circlip b - INTERNAL, 47MM	Circlip b - INTERNAL, 47MM
30	90702-PL4-000	Dowel pin - 8X44	Dowel pin - 8X44
31	91006-P1B-003	Bearing - BALL, 9X20X6	Bearing - BALL, 9X20X6
32	91102-RPC-003	Bearing - NEEDLE, 30X52X19	Bearing - NEEDLE, 30X52X19
33	91201-PA9-004	Oil seal - 9X18X7 (ARAI)	Oil seal - 9X18X7 (ARAI)
34	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
35	91304-RPC-003	O-ring - 39X1.9	O-ring - 39X1.9
36	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
37	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)
38	91314-PW4-003	O-ring - 11X1.9 (NOK)	O-ring - 11X1.9 (NOK)
39	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
44	90001-RLJ-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18

Main valve body 11 / 11

#	OEM	FD1	FD4
1	22771-RPC-000	Pipe a - JOINT	Pipe a - JOINT
2	22772-RPC-000	Pipe b - JOINT	Pipe b - JOINT
3	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
4	27000-RPC-000	Body assy - MAIN VALVE	Body assy - MAIN VALVE
5	27112-RPC-000	Plate - MAIN SEPARATING	Plate - MAIN SEPARATING
6	27122-RGC-000	Cap - 11MM	Cap - 11MM
7	27132-P6H-000	Cap - 14MM	Cap - 14MM
8	27142-P6H-000	Cap - 15MM	Cap - 15MM
9	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
10	27524-P6H-000	Clip - CAP	Clip - CAP
11	91108-PRP-003	Roller - 4X23.8	Roller - 4X23.8

Mainshaft 25 / 43

#	OEM	FD1	FD4
1	22814-PRP-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
2	23210-RPC-000	Mainshaft comp.	Mainshaft comp.
5	23511-RPC-000	Gear - MAINSHAFT IDLE	Gear - MAINSHAFT IDLE
6	90203-RPC-000	Nut - FLANGE, 22MM	Nut - FLANGE, 22MM
7	90402-RPC-000	Washer - SPRING, 22MM	Washer - SPRING, 22MM
8	90420-RG0-000	Washer - THRUST, 40X63X3.900	Washer - THRUST, 40X63X3.900
8	90415-RG0-000	Washer - THRUST, 40X63X3.775	Washer - THRUST, 40X63X3.775
8	90422-RG0-000	Washer - THRUST, 40X63X3.950	Washer - THRUST, 40X63X3.950
8	90417-RG0-000	Washer - THRUST, 40X63X3.825	Washer - THRUST, 40X63X3.825
8	90424-RG0-000	Washer - THRUST, 40X63X4.000	Washer - THRUST, 40X63X4.000
8	90419-RG0-000	Washer - THRUST, 40X63X3.875	Washer - THRUST, 40X63X3.875
8	90414-RG0-000	Washer - THRUST, 40X63X3.750	Washer - THRUST, 40X63X3.750
8	90421-RG0-000	Washer - THRUST, 40X63X3.925	Washer - THRUST, 40X63X3.925
8	90416-RG0-000	Washer - THRUST, 40X63X3.800	Washer - THRUST, 40X63X3.800
8	90423-RG0-000	Washer - THRUST, 40X63X3.975	Washer - THRUST, 40X63X3.975
8	90418-RG0-000	Washer - THRUST, 40X63X3.850	Washer - THRUST, 40X63X3.850
9	90501-RPC-000	Collar - 27X32X60.5	Collar - 27X32X60.5
10	90603-P0X-000	Set ring - 23MM	Set ring - 23MM
11	91014-RPC-003	Bearing - NEEDLE, 32X37X24	Bearing - NEEDLE, 32X37X24
12	91016-RPC-003	Bearing - NEEDLE, 47X52X15.5	Bearing - NEEDLE, 47X52X15.5
13	91017-PZK-003	Bearing - NEEDLE, 23X29X18	Bearing - NEEDLE, 23X29X18
14	91022-RPC-003	Needle - THRUST, 32X44X2	Needle - THRUST, 32X44X2
15	91023-RPC-003	Needle - THRUST, 32X51.5X2.5	Needle - THRUST, 32X51.5X2.5
16	91024-RPC-003	Needle - THRUST, 52.5X66.5X2	Needle - THRUST, 52.5X66.5X2
17	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)

Meter (NS) 6 / 8

#	OEM	FD1	FD4
1	37115-SA0-601	Packing - NS	Packing - NS
2	78120-SNA-A14	Speedometer assy - NS	Speedometer assy - NS
3	78155-SNA-A02	Visor	Visor
4	78156-SNA-A11	Lens - METER	Lens - METER
5	78159-SNA-A01	Lens comp	Lens comp
7	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Mirror (SIDE TURN; ELECTRIC REMOTE CONTROL) 17 / 17

FD1 Mirror (SIDE TURN; ELECTRIC REMOTE CONTROL)

FD4 Mirror (SIDE TURN; ELECTRIC REMOTE CONTROL)

#	OEM	FD1	FD4
1	34300-SNB-013	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
2	34350-SNB-013	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
4	76203-SNB-N01	Mirror sub assy. - R.(R1400)	Mirror sub assy. - R.(R1400)
6	76207-SNB-G01	Bracket comp. - R.	Bracket comp. - R.
7	76210-SNB-N01	Actuator set - R.	Actuator set - R.
8	76215-SNB-N01	Actuator set - L.	Actuator set - L.
9	76220-SNA-A21	Tube - CORRUGATE	Tube - CORRUGATE
11	76253-SNB-N01	Mirror sub assy. - L.(R1400)	Mirror sub assy. - L.(R1400)
13	76257-SNB-G01	Bracket comp. - L.	Bracket comp. - L.
14	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
15	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)	Screw - TAPPING, 4X12 (TRUSS)
16	90107-SFA-003	Screw - TAPPING, 3X12	Screw - TAPPING, 3X12
17	90109-SDF-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
18	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)	Screw - TAPPING, 4X20 (TRUSS)
19	90109-TA0-003	Screw-washer - 5X12	Screw-washer - 5X12
20	90109-SAG-H01	Screw - TAPPING, 4X14(TRUSS)	Screw - TAPPING, 4X14(TRUSS)
21	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Molding 12 / 12

#	OEM	FD1	FD4
1	72410-SNA-A01	RH Front Door Glass Molding Assy - R. FR. DOOR	RH Front Door Glass Molding Assy - R. FR. DOOR
2	72450-SNA-A01	LH Front Door Molding Assy - L. FR. DOOR	LH Front Door Molding Assy - L. FR. DOOR
3	72910-SNA-A01	RH Rear Door Molding Assy - R. RR. DOOR	RH Rear Door Molding Assy - R. RR. DOOR
4	72950-SNA-A01	LH Rear Door Molding Assy	LH Rear Door Molding Assy
5	73153-SNA-003	Clip A - WINDSHIELD	Clip A - WINDSHIELD
6	73154-SNA-003	Clip b - WINDSHIELD	Clip b - WINDSHIELD
7	73155-SNA-003	Clip c - WINDSHIELD	Clip c - WINDSHIELD
8	73158-SNA-013	Molding, Rh. Drip Side	Molding, Rh. Drip Side
9	73168-SNA-013	Molding, Lh. Drip Side	Molding, Lh. Drip Side
12	75305-S0A-003	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
15	91570-SJD-003	Clip A - FR. WINDSHIELD SIDE	Clip A - FR. WINDSHIELD SIDE
16	91572-SDA-A01	Clip - ROOF MOLDING	Clip - ROOF MOLDING

Mudguard 7 / 7

#	OEM	FD1	FD4
1	74401-SNA-A00	Tape - R. SIDE SILL PROTECTION	Tape - R. SIDE SILL PROTECTION
2	74405-SNA-A00	Tape - L. SIDE SILL PROTECTION	Tape - L. SIDE SILL PROTECTION
3	74551-SNB-000	Cover - R. RR. FENDER	Cover - R. RR. FENDER
4	74591-SNB-000	Cover - L. RR. FENDER	Cover - L. RR. FENDER
9	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
11	90331-679-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
14	90682-SEA-003	Clip - TAPPING SCREW, 5MM	Clip - TAPPING SCREW, 5MM

Oil pump 15 / 15

#	OEM	FD1	FD4
1	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
2	15100-RNC-T01	Pump assy. - OIL	Pump assy. - OIL
2	15100-R1A-A01	Oil Pump	Oil Pump
3	15101-RNA-A00	O-ring set - OIL PUMP	O-ring set - OIL PUMP
4	15112-RNA-A00	Cover - CHAIN CASE	Cover - CHAIN CASE
5	15220-RNA-A01	Strainer comp. - OIL	Strainer comp. - OIL
6	15221-RNA-A01	Gasket	Gasket
7	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
7	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
7	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
8	90009-RNA-A00	Bolt - SPECIAL, 8X65	Bolt - SPECIAL, 8X65
9	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
10	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
11	90041-RNA-A00	Bolt - STUD, 14X90	Bolt - STUD, 14X90
12	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)

Outer panels/rear panel 10 / 10

#	OEM	FD1	FD4
10	63136-SNA-A01	Separator - R. FR. PILLAR INSIDE	Separator - R. FR. PILLAR INSIDE
11	63137-SNA-A01	Separator - FR. PILLAR OUTSIDE	Separator - FR. PILLAR OUTSIDE
14	63226-SNA-A01	Separator - CENTER PILLAR INSIDE	Separator - CENTER PILLAR INSIDE
17	63536-SNA-A01	Separator - L. FR. PILLAR INSIDE	Separator - L. FR. PILLAR INSIDE
26	74480-SNA-A00	Adapter assy - FUEL CAP	Adapter assy - FUEL CAP
27	74481-SNA-A00	Packing - FILLER PIPE	Packing - FILLER PIPE
28	74490-SNA-A00	Grommet assy - FUEL CAP	Grommet assy - FUEL CAP
29	74494-S3M-A00	Spring - FUEL LID OPEN	Spring - FUEL LID OPEN
30	75450-SNA-A01	Outlet assy - RR. AIR	Outlet assy - RR. AIR
31	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

P.s. gear box (HPS; LH) 8 / 16

#	OEM	FD1	FD4
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
3	53434-SNA-A01	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
6	53449-S84-A01	Band - BELLOWS	Band - BELLOWS
8	53534-SNA-A01	Dust seal - TIE ROD	Dust seal - TIE ROD
9	53535-SNA-A01	Dust seal - TIE ROD	Dust seal - TIE ROD
12	53540-SNA-A02	End comp - R. TIE ROD	End comp - R. TIE ROD
13	53560-SNA-A02	End comp - L. TIE ROD	End comp - L. TIE ROD
16	90301-SEP-003	Nut - HEX., 14MM	Nut - HEX., 14MM

P.s. lines (LH) 1 / 27

#	OEM	FD1	FD4
12	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Parking brake (LH) 9 / 9

#	OEM	FD1	FD4
5	47210-SNA-A01	Wire a - PARKING BRAKE	Wire a - PARKING BRAKE
6	47342-SNA-A81	Switch - PARKING BRAKE	Switch - PARKING BRAKE
8	47510-SNA-A54	Wire b - R. PARKING BRAKE	Wire b - R. PARKING BRAKE
9	47538-SNA-003	Nut - ADJUST	Nut - ADJUST
11	47560-SNA-A54	Wire b - L. PARKING BRAKE	Wire b - L. PARKING BRAKE
12	47572-SNA-000	Base - WIRE GUIDE	Base - WIRE GUIDE
13	47574-SNA-000	Spring - RETURN	Spring - RETURN
14	90306-SA0-000	Nut - FLOATING, 5MM	Nut - FLOATING, 5MM
15	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Pcv tube 7 / 7

#	OEM	FD1	FD4
1	17130-PND-A01	Valve assy. - PCV	Valve assy. - PCV
2	17131-RNA-A00	Tube - PCV	Tube - PCV
3	17137-RNA-A00	Pipe comp - BREATHER	Pipe comp - BREATHER
4	17153-RNA-A00	Tube - BREATHER	Tube - BREATHER
5	91405-RGA-003	Clamp - TUBE (D20)	Clamp - TUBE (D20)
6	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
6	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Pedal (LH) 12 / 22

#	OEM	FD1	FD4
1	17800-SNB-G71	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
3	17818-SNB-G71	Stopper - ACCELERATOR STROKE	Stopper - ACCELERATOR STROKE
4	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)	Switch assy - STOP & CRUISE (PANASONIC)
7	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
8	46530-SNA-A01	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
10	46545-S84-A81	Cover - PEDAL	Cover - PEDAL
11	46600-SNA-A82	Pedal assy - BRAKE	Pedal assy - BRAKE
18	46991-SNA-A01	Bracket comp. - FOOTREST	Bracket comp. - FOOTREST
21	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
22	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
24	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM
30	17820-SNA-A72	Clip - ACCELERATOR PEDAL	Clip - ACCELERATOR PEDAL

Pillar garnish 5 / 6

#	OEM	FD1	FD4
1	38205-SNA-J11	Label - FUSE	Label - FUSE
22	91560-SAA-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
23	91560-SED-003	Clip - PILLAR GARNISH (PINK)	Clip - PILLAR GARNISH (PINK)
24	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
26	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Plug hole coil/plug 4 / 4

#	OEM	FD1	FD4
1	30511-RNA-A01	Insulator - COIL HEAT	Insulator - COIL HEAT
2	30520-RNA-A01	Coil comp - PLUG HOLE	Coil comp - PLUG HOLE
3	30522-RNA-A01	Seal - PLUG HOLE	Seal - PLUG HOLE
4	90207-RAA-A00	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM

Radiator (DENSO) 17 / 17

#	OEM	FD1	FD4
1	19010-RNA-J51	Radiator comp - DENSO	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
5	19015-RNA-A01	Shroud comp.	Shroud comp.
6	19020-RCJ-A01	Fan - COOLING	Fan - COOLING
7	19030-RNA-A51	Motor - COOLING FAN	Motor - COOLING FAN
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
12	19050-RNA-A01	Filler assy. - WATER (DENSO)	Filler assy. - WATER (DENSO)
13	19051-RNA-A01	Hose - WATER FILLER	Hose - WATER FILLER
14	19511-PFB-003	Clip - WATER HOSE	Clip - WATER HOSE
15	37870-RTA-005	Sensor assy - WATER TEMP (DENSO)	Sensor assy - WATER TEMP (DENSO)
16	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
17	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
18	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
19	91307-RTA-005	O-ring - DENSO	O-ring - DENSO

Radiator (T.RAD) 5 / 18

#	OEM	FD1	FD4
8	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	19051-RNA-A01	Hose - WATER FILLER	Hose - WATER FILLER
12	19511-PFB-003	Clip - WATER HOSE	Clip - WATER HOSE
13	37870-RTA-005	Sensor assy - WATER TEMP (DENSO)	Sensor assy - WATER TEMP (DENSO)
19	91307-RTA-005	O-ring - DENSO	O-ring - DENSO

Radiator hose/reserve tan k 16 / 16

#	OEM	FD1	FD4
1	19025-RNA-A00	Seal - R. RADIATOR SIDE	Seal - R. RADIATOR SIDE
2	19026-RNA-A00	Seal - L. RADIATOR SIDE	Seal - L. RADIATOR SIDE
3	19101-RNA-A01	Tank - RESERVE	Tank - RESERVE
4	19102-RNA-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
5	19103-RNA-A00	Hose a - RESERVE TANK	Hose a - RESERVE TANK
6	19104-RNA-A00	Hose b - RESERVE TANK	Hose b - RESERVE TANK
7	19106-RNA-A00	Joint - RESERVE TANK	Joint - RESERVE TANK
8	19108-RNA-A01	Clip - RESERVE TANK HOSE	Clip - RESERVE TANK HOSE
9	19501-RNA-A01	Hose - WATER UPPER	Hose - WATER UPPER
10	19502-RNA-A01	Hose - WATER LOWER	Hose - WATER LOWER
11	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
12	74171-SNA-A00	Bracket - RADIATOR MOUNT UPPER	Bracket - RADIATOR MOUNT UPPER
13	74172-S5A-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
14	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
15	91503-SZ3-003	Clip A	Clip A

Rear brake (DISK) 45 / 45

#	OEM	FD1	FD4
1	01473-SV4-000	Caliper set - RR.	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER	SET RR CALIPER
2	06435-S2A-000	Shim set - RR.	Shim set - RR.
3	42200-SNA-A51	Bearing assy - RR. HUB UNIT (NTN)	Bearing assy - RR. HUB UNIT (NTN)
4	42510-SNA-A00	Disk - RR. BRAKE (ASAMA)	Disk - RR. BRAKE (ASAMA)
5	43018-SNA-A10	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
5	43018-SNA-A11	RR CALIPER SUBAS	RR CALIPER SUBAS
6	43019-SNA-A10	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
6	43019-SNA-A11	RR CALIPER SUBAS	RR CALIPER SUBAS
7	43022-S5A-J00	Pad set - RR.	Pad set - RR.
7	43022-S5A-J02	SETPAD RR 9CLP	SETPAD RR 9CLP
8	43215-SM4-951	Piston assy.	Piston assy.
9	43223-SD2-932	BEARING A	BEARING A
10	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
11	43227-SG0-013	Spring - PAD	Spring - PAD
12	43228-SD2-933	Shaft a	Shaft a
13	43229-SD2-931	Rod	Rod
14	43233-S5A-J01	Piston comp - SLEEVE	Piston comp - SLEEVE
14	43233-TR0-A01	Piston, sleeve	Piston, sleeve
15	43235-S84-A51	Pin a	Pin a
16	43236-S04-003	Spacer	Spacer
17	43238-SF1-003	Ring - RETAINING	Ring - RETAINING
18	43241-S5A-003	Guide - SPRING	Guide - SPRING
19	43243-SD2-931	Nut - PARKING	Nut - PARKING
20	43244-SG0-003	Retainer	Retainer
21	43245-SNA-A01	Lever - R.	Lever - R.
22	43246-SD2-931	Spring - R. RETURN	Spring - R. RETURN
23	43247-SNA-A01	Arm - R.	Arm - R.
24	43248-SD2-933	Shaft b	Shaft b
25	43249-S04-003	Bolt - ADJUSTER	Bolt - ADJUSTER
26	43253-SNA-A00	Guard, RR. SPLASH	Guard, RR. SPLASH
27	43262-S84-A51	Pin b	Pin b
28	43265-SNA-A01	Lever - L.	Lever - L.
29	43266-SD2-931	Spring - L. RETURN	Spring - L. RETURN
30	43267-SNA-A01	Arm - L.	Arm - L.
31	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
32	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
33	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
34	90103-SV4-013	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
35	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
35	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
35	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
35	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
36	90163-SNA-000	Bolt - FLANGE, 10X53	Bolt - FLANGE, 10X53
37	91352-SNA-951	O-ring - 63X2.4 (NTN)	O-ring - 63X2.4 (NTN)

Rear door glass/ door regulator 10 / 10

#	OEM	FD1	FD4
1	72710-SNA-A02	Regulator - R. RR. DOOR POWER	Regulator - R. RR. DOOR POWER
2	72731-SNA-A01	Sash - R. RR. DOOR QUARTER	Sash - R. RR. DOOR QUARTER
3	72735-SNA-A11	Runchannel - R. RR. DOOR	Runchannel - R. RR. DOOR
4	72750-SNA-A02	Regulator - L. RR. DOOR POWER	Regulator - L. RR. DOOR POWER
5	72771-SNA-A01	Sash - L. RR. DOOR QUARTER	Sash - L. RR. DOOR QUARTER
6	72775-SNA-A11	Runchannel - L. RR. DOOR	Runchannel - L. RR. DOOR
7	73400-SNA-A00	Glass assy - R. RR. DOOR (GREEN)(NIPPON SAFETY)	Glass assy - R. RR. DOOR (GREEN)(NIPPON SAFETY)
8	73450-SNA-A00	Glass assy - L. RR. DOOR (GREEN)(NIPPON SAFETY)	Glass assy - L. RR. DOOR (GREEN)(NIPPON SAFETY)
9	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
10	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Rear door lining 7 / 7

#	OEM	FD1	FD4
2	72835-SNA-A01	Weatherstrip - RR. DOOR INNER	Weatherstrip - RR. DOOR INNER
9	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
10	90146-SDA-A00	Clip - DOOR LINING SKIN	Clip - DOOR LINING SKIN
11	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
12	91560-SLA-003	Clip - GARNISH (SEAL)	Clip - GARNISH (SEAL)
13	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
14	91561-S5P-A01	Screw - GROMMET, 5.23	Screw - GROMMET, 5.23

Rear door lock/ outer handle 27 / 27

#	OEM	FD1	FD4
1	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
4	72123-SJA-003	Fastener assy. - DOOR LOCK CABLE	Fastener assy. - DOOR LOCK CABLE
5	72130-SNA-003	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
6	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
7	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
8	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
10	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
11	72143-S04-003	Packing	Packing
12	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
13	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
16	72170-SNA-003	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
17	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
18	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
20	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
21	72610-SNA-A14	Latch assy - R. RR. DOOR POWER	Latch assy - R. RR. DOOR POWER
23	72612-SNA-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
24	72613-SNA-003	Seal	Seal
26	72631-SNA-A01	Cable - RR. INSIDE HANDLE	Cable - RR. INSIDE HANDLE
27	72633-SNA-A01	Cable - R. RR. DOOR LOCK	Cable - R. RR. DOOR LOCK
28	72650-SNA-A14	Latch assy - L. RR. DOOR POWER	Latch assy - L. RR. DOOR POWER
30	72652-SNA-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
32	72673-SNA-A01	Cable - L. RR. DOOR LOCK	Cable - L. RR. DOOR LOCK
33	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
34	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
35	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
36	90691-SJD-003	Clip - LATCH CABLE	Clip - LATCH CABLE
37	91505-SL0-003	Clip - COWL TOP	Clip - COWL TOP

Rear door panels 18 / 18

#	OEM	FD1	FD4
5	67824-SNA-A11	Tape set - R. RR. DOOR SASH	Tape set - R. RR. DOOR SASH
6	67864-SNA-A11	Tape set - L. RR. DOOR SASH	Tape set - L. RR. DOOR SASH
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
12	72810-SNA-A01	Weatherstrip - R. RR. DOOR	Weatherstrip - R. RR. DOOR
13	72821-SNA-A00	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
14	72840-SMA-003	Checker comp. - R. RR. DOOR	Checker comp. - R. RR. DOOR
15	72850-SNA-A01	Weatherstrip - L. RR. DOOR	Weatherstrip - L. RR. DOOR
16	72861-SNA-A00	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
17	72880-SMA-003	Checker comp. - L. RR. DOOR	Checker comp. - L. RR. DOOR
18	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
19	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
19	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
20	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)	Bolt - FLANGE, 8X22 (TORX)
21	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
22	90651-S4N-003	Clip	Clip
23	91563-SFA-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET
24	91568-SJA-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
25	91651-S84-A01	Seal - DOOR PANEL HOLE	Seal - DOOR PANEL HOLE

Rear lower arm 36 / 36

#	OEM	FD1	FD4
1	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
2	42523-SNA-003	Clamp - RR. WIRE	Clamp - RR. WIRE
3	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
5	52210-SNA-A50	Knuckle comp - R. RR.	Knuckle comp - R. RR.
6	52212-SNA-A00	Bracket - RR. KNUCKLE UPPER	Bracket - RR. KNUCKLE UPPER
7	52213-SNA-A00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
9	52215-SNA-A50	Knuckle comp - L. RR.	Knuckle comp - L. RR.
10	52300-SNG-J01	Spring - RR. STABILIZER	Spring - RR. STABILIZER
11	52306-SNG-J01	Bush - STABILIZER HOLDER	Bush - STABILIZER HOLDER
12	52308-SR3-000	Holder - RR. STABILIZER	Holder - RR. STABILIZER
13	52317-SNA-A00	Bracket - R. RR. STABILIZER	Bracket - R. RR. STABILIZER
14	52318-SNA-A01	Bracket - L. RR. STABILIZER	Bracket - L. RR. STABILIZER
15	52320-SNA-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
16	52321-SNA-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
17	52352-SNA-A00	Protector - R. RR. LOWER ARM	Protector - R. RR. LOWER ARM
18	52353-SNA-A00	Protector - L. RR. LOWER ARM	Protector - L. RR. LOWER ARM
19	52370-SNA-906	Arm comp - R. RR. TRAILING	Arm comp - R. RR. TRAILING
20	52371-SNA-906	Arm comp - L. RR. TRAILING	Arm comp - L. RR. TRAILING
21	52387-SNA-A00	Bolt - TRAILING ARM ADJUST	Bolt - TRAILING ARM ADJUST
22	52388-SNA-003	Plate - CAM	Plate - CAM
23	52390-SNA-A50	Arm comp - R. RR. UPPER	Arm comp - R. RR. UPPER
24	52400-SNA-900	Arm comp - L. RR. UPPER	Arm comp - L. RR. UPPER
25	57470-SNA-023	Sensor assy - R. RR.	Sensor assy - R. RR.
26	57475-SNA-023	Sensor assy - L. RR.	Sensor assy - L. RR.
27	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
28	90100-SHJ-A00	Bolt - FLANGE, 6X16.5	Bolt - FLANGE, 6X16.5
29	90181-S7A-000	Bolt - FLANGE, 14X77	Bolt - FLANGE, 14X77
30	90183-SNA-J00	Bolt - FLANGE, 12X54	Bolt - FLANGE, 12X54
31	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
32	90395-SNA-003	Nut - LOCK FLANGE	Nut - LOCK FLANGE
33	90396-SNA-000	Bolt - FLANGE, 12X95	Bolt - FLANGE, 12X95
34	90397-SNA-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
35	90398-SNA-010	Bolt - FLANGE, 12X86.5	Bolt - FLANGE, 12X86.5
36	90651-SEA-E10	Clip - RR. KNUCKLE	Clip - RR. KNUCKLE
40	57477-SNA-305	Seal - LIP (BLACK)	Seal - LIP (BLACK)
41	91506-SZH-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS

Rear seat (FALL DOWN) 17 / 17

#	OEM	FD1	FD4
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
2	78182-SA0-000	Clip - RR. SEAT PIN	Clip - RR. SEAT PIN
4	82126-SNB-Y11	Frame comp - RR. SEATBACK	Frame comp - RR. SEATBACK
5	82127-SNB-Y11	Pad comp - RR. SEATBACK	Pad comp - RR. SEATBACK
6	82129-SM4-A00	Collar c	Collar c
8	82138-SNA-003	Clip - RR. SEAT CUSHION	Clip - RR. SEAT CUSHION
9	82137-SNA-A01	Pad & frame comp. - RR. SEAT CUSHION	Pad & frame comp. - RR. SEAT CUSHION
14	82156-SNB-E01	Frame - R. RR. SEATBACK SIDE	Frame - R. RR. SEATBACK SIDE
18	82290-SNA-A01	Bracket assy - R. RR. SEAT PIVOT	Bracket assy - R. RR. SEAT PIVOT
20	82556-SNB-E01	Frame - L. RR. SEATBACK SIDE	Frame - L. RR. SEATBACK SIDE
21	82620-SNA-A03	Lock assy - L. RR. SEAT	Lock assy - L. RR. SEAT
22	82621-SNA-023	Cable - L. RR. SEAT	Cable - L. RR. SEAT
23	82690-SNA-A01	Bracket assy - L. RR. SEAT PIVOT	Bracket assy - L. RR. SEAT PIVOT
26	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
27	90140-SA5-000	Bolt - SPLASH GUARD	Bolt - SPLASH GUARD
32	82182-SNE-A01	Collar a - RR. SEAT	Collar a - RR. SEAT
33	82189-SNE-A01	Clip - ARMREST	Clip - ARMREST

Rear shock absorber 9 / 10

#	OEM	FD1	FD4
2	52610-SNA-903	Absorber assy - RR. SHOCK	Absorber assy - RR. SHOCK
3	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
4	52622-SNA-A01	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
5	52631-SNA-A12	Rubber - RR. SHOCK ABSORBER MOUNTING	Rubber - RR. SHOCK ABSORBER MOUNTING
6	52631-SNA-A22	Rubber - RR. SHOCK ABSORBER MOUNTING	Rubber - RR. SHOCK ABSORBER MOUNTING
7	52691-SNV-P00	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
8	52748-SNA-A02	Rubber - RR. SPRING SEAT LOWER	Rubber - RR. SPRING SEAT LOWER
9	90181-SNA-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
10	90364-SNA-901	Nut - SELF-LOCK, 10MM (FUSE RASHI)	Nut - SELF-LOCK, 10MM (FUSE RASHI)

Rear tray/trunk lining 8 / 8

#	OEM	FD1	FD4
1	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
2	33513-S50-003	Socket - T20W S2	Socket - T20W S2
3	34271-S5A-A01	Lamp unit	Lamp unit
10	84522-SNA-K02	Spacer - R. TRUNK FLOOR	Spacer - R. TRUNK FLOOR
13	84541-SNA-K01	Box - TOOL	Box - TOOL
15	84572-SNA-K02	Spacer - L. TRUNK FLOOR	Spacer - L. TRUNK FLOOR
24	91507-SH3-003	PIN, CLIP, 8MM	PIN, CLIP, 8MM
25	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear windshield/ quarter glass 10 / 10

#	OEM	FD1	FD4
1	04733-SNA-A10	Rubber set - RR. WINDSHIELD DAM	Rubber set - RR. WINDSHIELD DAM
2	73211-SNA-A02	Glass - RR. WINDSHIELD(GREEN) (AGC)	Glass - RR. WINDSHIELD(GREEN) (AGC)
3	73405-SNA-000	Glass - R. RR. DOOR QUARTER (GREEN)(NIPPON SAFETY)	Glass - R. RR. DOOR QUARTER (GREEN)(NIPPON SAFETY)
4	73441-SNA-003	Seal - R. RR. DOOR QUARTER	Seal - R. RR. DOOR QUARTER
5	73455-SNA-000	Glass - L. RR. DOOR QUARTER (GREEN)(NIPPON SAFETY)	Glass - L. RR. DOOR QUARTER (GREEN)(NIPPON SAFETY)
6	73491-SNA-003	Seal - L. RR. DOOR QUARTER	Seal - L. RR. DOOR QUARTER
7	75717-SNB-E01	Sticker - I-VTEC	Sticker - I-VTEC
8	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
9	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
10	91568-SNA-003	Clip - WINDSHIELD UPPER	Clip - WINDSHIELD UPPER

Regulator body 23 / 23

#	OEM	FD1	FD4
1	22743-PG4-000	Pipe - THIRD CLUTCH	Pipe - THIRD CLUTCH
2	22753-RG5-000	Pipe - 6X196.5	Pipe - 6X196.5
3	25155-RPC-000	Shaft assy - STATOR	Shaft assy - STATOR
4	27132-P6H-000	Cap - 14MM	Cap - 14MM
5	27200-RPC-000	Body assy - REGULATOR	Body assy - REGULATOR
6	27212-RPC-000	Plate - REGULATOR SEPARATING	Plate - REGULATOR SEPARATING
7	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
8	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
9	27430-RPC-003	Bolt comp - AIR CHECK	Bolt comp - AIR CHECK
10	27524-P6H-000	Clip - CAP	Clip - CAP
11	27561-PRP-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
12	27562-RPC-000	Spring a - LOW ACCUMULATOR	Spring a - LOW ACCUMULATOR
13	27564-RPC-000	Spring b - LOW ACCUMULATOR	Spring b - LOW ACCUMULATOR
14	27574-PRP-000	Piston - THIRD ACCUMULATOR	Piston - THIRD ACCUMULATOR
15	27583-PRP-000	Spring - THIRD ACCUMULATOR	Spring - THIRD ACCUMULATOR
16	27591-RPC-000	Cover - REGULATOR ACCUMULATOR	Cover - REGULATOR ACCUMULATOR
17	90001-PRP-000	Bolt - FLANGE, 6X30	Bolt - FLANGE, 6X30
18	90089-PK4-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
19	90472-RPC-000	Packing - 10MM	Packing - 10MM
20	90701-PK4-000	Dowel pin - 8X80	Dowel pin - 8X80
21	91316-PF4-003	O-ring - 31X1.7 (ARAI)	O-ring - 31X1.7 (ARAI)
22	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
23	91331-PC9-003	O-ring	O-ring

Resonator chamber 12 / 12

#	OEM	FD1	FD4
1	17115-PWA-000	Rubber - ENGINE COVER MOUNTING	Rubber - ENGINE COVER MOUNTING
2	17116-PWA-000	Collar - ENGINE COVER	Collar - ENGINE COVER
3	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17213-PV0-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
7	17230-RNA-A00	Chamber assy - RESONATOR	Chamber assy - RESONATOR
8	17251-RNA-A00	Tube a - AIR INTAKE	Tube a - AIR INTAKE
9	17252-RNA-A00	Tube assy. b - AIR INTAKE	Tube assy. b - AIR INTAKE
10	17254-RNA-A00	Tube assy. d - AIR INTAKE	Tube assy. d - AIR INTAKE
11	17256-RNA-A00	Ring - SEAL	Ring - SEAL
12	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Roof lining 6 / 6

#	OEM	FD1	FD4
5	83223-S7A-J51	Bulb - 12V 2.0W	Bulb - 12V 2.0W
7	83231-SNB-901	Lens - R.	Lens - R.
15	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
19	83281-SNB-901	Lens - L.	Lens - L.
21	90131-SCV-A00	Screw - PAN, 5X23	Screw - PAN, 5X23
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Seatbelts 18 / 18

#	OEM	FD1	FD4
2	81441-S2G-N51	Collar - 5H	Collar - 5H
3	81441-S50-J22	Collar - 2H	Collar - 2H
7	81460-SNA-A01	Adjuster - SHOULDER SLIDE	Adjuster - SHOULDER SLIDE
8	81491-SNA-A00	Protector - R. FR. SEATBELT	Protector - R. FR. SEATBELT
12	81891-SNA-A00	Protector - L. FR. SEATBELT	Protector - L. FR. SEATBELT
15	82456-SNA-A00	Protector - RR. CENTER SEATBELT	Protector - RR. CENTER SEATBELT
18	90101-S84-A00	Screw - ET, 6X16	Screw - ET, 6X16
18	90133-SZ4-003	Screw - ET, 7X16	Screw - ET, 7X16
19	90123-S04-J30	Washer - WAVE	Washer - WAVE
20	90135-S1F-003	Bolt - FLANGE, 7/16"	Bolt - FLANGE, 7/16"
22	90142-SNA-A21	Bolt - 7/16"X28	Bolt - 7/16"X28
23	90142-SNA-A31	Bolt - 7/16"X28	Bolt - 7/16"X28
24	90142-SNA-J11	Bolt - 7/16"X17.6	Bolt - 7/16"X17.6
25	90142-SNA-004	Bolt - 7/16"X24	Bolt - 7/16"X24
26	90142-S04-J32	Bolt - 7/16"X23.4	Bolt - 7/16"X23.4
27	90543-S2G-C21	Washer - PLAIN	Washer - PLAIN
29	90543-S50-902	Washer - SPRING	Washer - SPRING
30	90142-SNA-A41	Bolt-washer - 8X25	Bolt-washer - 8X25

Secondary shaft 52 / 53

#	OEM	FD1	FD4
1	22814-RGC-003	Seal - RING (21.2MM)	Seal - RING (21.2MM)
2	23230-RG5-000	Shaft comp. - SECONDARY	Shaft comp. - SECONDARY
3	23411-RPC-020	Gear - SECONDARY SHAFT LOW	Gear - SECONDARY SHAFT LOW
4	23431-RPC-000	Gear - SECONDARY SHAFT SECOND	Gear - SECONDARY SHAFT SECOND
6	23521-RPC-010	Gear - SECONDARY SHAFT IDLE	Gear - SECONDARY SHAFT IDLE
7	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)	Nut - FLANGE, 24MM (LEFT HAND THREAD)
8	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
9	90432-RPC-000	Cotter - 39MM	Cotter - 39MM
10	90433-RDK-000	Retainer - COTTER	Retainer - COTTER
11	90443-RPC-000	Collar - 29X35X33	Collar - 29X35X33
12	90510-RPC-000	Washer - THRUST, 43X54.5X3.100	Washer - THRUST, 43X54.5X3.100
12	90505-RPC-000	Washer - THRUST, 43X54.5X2.975	Washer - THRUST, 43X54.5X2.975
12	90512-RPC-000	Washer - THRUST, 43X54.5X3.150	Washer - THRUST, 43X54.5X3.150
12	90507-RPC-000	Washer - THRUST, 43X54.5X3.025	Washer - THRUST, 43X54.5X3.025
12	90502-RPC-000	Washer - THRUST, 43X54.5X2.900	Washer - THRUST, 43X54.5X2.900
12	90514-RPC-000	Washer - THRUST, 43X54.5X3.200	Washer - THRUST, 43X54.5X3.200
12	90509-RPC-000	Washer - THRUST, 43X54.5X3.075	Washer - THRUST, 43X54.5X3.075
12	90504-RPC-000	Washer - THRUST, 43X54.5X2.950	Washer - THRUST, 43X54.5X2.950
12	90511-RPC-000	Washer - THRUST, 43X54.5X3.125	Washer - THRUST, 43X54.5X3.125
12	90506-RPC-000	Washer - THRUST, 43X54.5X3.000	Washer - THRUST, 43X54.5X3.000
12	90513-RPC-000	Washer - THRUST, 43X54.5X3.175	Washer - THRUST, 43X54.5X3.175
12	90508-RPC-000	Washer - THRUST, 43X54.5X3.050	Washer - THRUST, 43X54.5X3.050
12	90503-RPC-000	Washer - THRUST, 43X54.5X2.925	Washer - THRUST, 43X54.5X2.925
13	90533-RG5-000	Washer - THRUST, 31X50X4.225	Washer - THRUST, 31X50X4.225
13	90528-RG5-000	Washer - THRUST, 31X50X4.100	Washer - THRUST, 31X50X4.100
13	90523-RG5-000	Washer - THRUST, 31X50X3.975	Washer - THRUST, 31X50X3.975
13	90535-RG5-000	Washer - THRUST, 31X50X4.275	Washer - THRUST, 31X50X4.275
13	90530-RG5-000	Washer - THRUST, 31X50X4.150	Washer - THRUST, 31X50X4.150
13	90525-RG5-000	Washer - THRUST, 31X50X4.025	Washer - THRUST, 31X50X4.025
13	90537-RG5-000	Washer - THRUST, 31X50X4.325	Washer - THRUST, 31X50X4.325
13	90532-RG5-000	Washer - THRUST, 31X50X4.200	Washer - THRUST, 31X50X4.200
13	90527-RG5-000	Washer - THRUST, 31X50X4.075	Washer - THRUST, 31X50X4.075
13	90522-RG5-000	Washer - THRUST, 31X50X3.950	Washer - THRUST, 31X50X3.950
13	90534-RG5-000	Washer - THRUST, 31X50X4.250	Washer - THRUST, 31X50X4.250
13	90529-RG5-000	Washer - THRUST, 31X50X4.125	Washer - THRUST, 31X50X4.125
13	90524-RG5-000	Washer - THRUST, 31X50X4.000	Washer - THRUST, 31X50X4.000
13	90536-RG5-000	Washer - THRUST, 31X50X4.300	Washer - THRUST, 31X50X4.300
13	90531-RG5-000	Washer - THRUST, 31X50X4.175	Washer - THRUST, 31X50X4.175
13	90526-RG5-000	Washer - THRUST, 31X50X4.050	Washer - THRUST, 31X50X4.050
13	90521-RG5-000	Washer - THRUST, 31X50X3.925	Washer - THRUST, 31X50X3.925
14	90608-RDK-000	Circlip - EXTERNAL, 43MM	Circlip - EXTERNAL, 43MM
15	90621-RPC-000	Circlip - EXTERNAL, 26MM	Circlip - EXTERNAL, 26MM
16	91011-RG5-005	Bearing - NEEDLE, 31X38X18	Bearing - NEEDLE, 31X38X18
17	91012-RPC-005	Bearing - NEEDLE, 43X49X20.5	Bearing - NEEDLE, 43X49X20.5
18	91013-RPC-003	Bearing - NEEDLE, 35X41X24	Bearing - NEEDLE, 35X41X24
19	91021-RPC-003	Needle - THRUST, 35X53X2.5	Needle - THRUST, 35X53X2.5
20	91025-RPC-003	Needle - THRUST, 31X44X2.5	Needle - THRUST, 31X44X2.5
21	91026-RPC-003	Needle - THRUST, 38.5X51.5X2.5	Needle - THRUST, 38.5X51.5X2.5
22	91027-RPC-003	Needle - THRUST, 49.5X64X2.5	Needle - THRUST, 49.5X64X2.5
23	91028-RPC-003	Needle - THRUST, 43X55.5X2.5	Needle - THRUST, 43X55.5X2.5
24	91307-RPC-000	O-ring - 22.5X1.9	O-ring - 22.5X1.9
25	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)

Select lever (LH) 19 / 19

#	OEM	FD1	FD4
1	35505-S30-003	Bulb - T5) (14V 1.4W	Bulb - T5) (14V 1.4W
2	35740-SNA-A81	Switch assy - PARKING PIN & INDICATOR LAMP	Switch assy - PARKING PIN & INDICATOR LAMP
3	39550-SNA-A81	Solenoid assy. - AT SHIFT LOCK	Solenoid assy. - AT SHIFT LOCK
4	54020-SNA-A81	Stopper - SHIFT LOCK	Stopper - SHIFT LOCK
5	54030-SNA-A81	Lever - SHIFT LOCK RELEASE	Lever - SHIFT LOCK RELEASE
6	54031-SNA-A81	Spring - RELEASE LEVER	Spring - RELEASE LEVER
7	54040-SNA-A81	Cap - LOCK PIN	Cap - LOCK PIN
8	54060-SEC-A81	Cushion - SHIFT LOCK STOPPER	Cushion - SHIFT LOCK STOPPER
9	54105-SNA-A81	Tie - WIRE	Tie - WIRE
10	54130-SNA-A81	Knob assy - SELECT LEVER	Knob assy - SELECT LEVER
11	54131-SNA-A81	Shroud - KNOB	Shroud - KNOB
12	54141-SNA-A81	Bush - KNOB SETTING	Bush - KNOB SETTING
13	54200-SNA-A52	Bracket comp. - BASE	Bracket comp. - BASE
14	54315-SNA-A85	Wire - CONTROL	Wire - CONTROL
15	54316-SNA-A81	Stopper	Stopper
16	54710-SNA-G51	Escutcheon comp. - CONSOLE	Escutcheon comp. - CONSOLE
17	54711-SNA-A81	Cover - SELECT LEVER	Cover - SELECT LEVER
18	90351-SB2-003	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
19	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Servo body 29 / 29

#	OEM	FD1	FD4
1	22743-PG4-000	Pipe - THIRD CLUTCH	Pipe - THIRD CLUTCH
2	22743-P4R-000	Pipe - 8X192.5	Pipe - 8X192.5
3	24271-PRP-000	Shaft - SHIFT FORK	Shaft - SHIFT FORK
4	24630-PRP-000	Arm comp - CHANGE DETENT	Arm comp - CHANGE DETENT
5	24635-PRP-000	Collar - CHANGE DETENT ARM	Collar - CHANGE DETENT ARM
6	27142-P6H-000	Cap - 15MM	Cap - 15MM
7	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
8	27400-RPC-000	Body assy - SERVO	Body assy - SERVO
9	27412-RPC-000	Plate - SERVO SEPARATING	Plate - SERVO SEPARATING
10	27524-P6H-000	Clip - CAP	Clip - CAP
11	27572-PRP-000	Piston - SECOND ACCUMULATOR	Piston - SECOND ACCUMULATOR
12	27574-PRP-000	Piston - THIRD ACCUMULATOR	Piston - THIRD ACCUMULATOR
13	27575-RPC-000	Spring b - TOP ACCUMULATOR	Spring b - TOP ACCUMULATOR
14	27577-RPC-000	Spring a - TOP ACCUMULATOR	Spring a - TOP ACCUMULATOR
15	27580-RPC-000	Cover - SERVO ACCUMULATOR	Cover - SERVO ACCUMULATOR
16	27581-RPC-000	Spring a - SECOND ACCUMULATOR	Spring a - SECOND ACCUMULATOR
17	27584-RPC-000	Spring b - SECOND ACCUMULATOR	Spring b - SECOND ACCUMULATOR
18	28400-RPC-003	Solenoid assy. a	Solenoid assy. a
19	28500-RPC-003	Solenoid assy. b	Solenoid assy. b
20	90001-PRP-000	Bolt - FLANGE, 6X30	Bolt - FLANGE, 6X30
21	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
22	90433-PRP-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
23	90471-580-000	Packing - 8MM	Packing - 8MM
24	91301-P6H-003	O-ring - 7.6X1.9 (KEIHIN)	O-ring - 7.6X1.9 (KEIHIN)
25	91302-P6H-003	O-ring - 9.6X1.9 (KEIHIN)	O-ring - 9.6X1.9 (KEIHIN)
25	91302-P7W-A00	O-ring - 9.6X1.9	O-ring - 9.6X1.9
26	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
27	91331-PL5-J00	O-ring - 20.2X2.4 (NOK)	O-ring - 20.2X2.4 (NOK)
28	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Shift fork 10 / 10

#	OEM	FD1	FD4
1	24111-RPC-000	Fork - REVERSE SHIFT	Fork - REVERSE SHIFT
2	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
3	24410-RPC-000	Shaft comp. - CONTROL	Shaft comp. - CONTROL
4	24634-PRP-060	Spring - DETENT LEVER	Spring - DETENT LEVER
5	25420-RPC-003	Strainer assy - ATF	Strainer assy - ATF
6	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
7	90433-PLX-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
8	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
9	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)
10	91308-PW4-003	O-ring - 21.8X1.9	O-ring - 21.8X1.9

Shift lever 1 / 12

#	OEM	FD1	FD4
12	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Sliding roof 1 / 17

#	OEM	FD1	FD4
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Solenoid 16 / 16

#	OEM	FD1	FD4
1	22749-PW4-000	Pipe - 35MM	Pipe - 35MM
2	22760-PPW-000	Pipe comp - JOINT	Pipe comp - JOINT
3	22775-RPC-000	Pipe - 50MM	Pipe - 50MM
4	28250-RPC-003	Solenoid assy. a - LINEAR	Solenoid assy. a - LINEAR
5	28252-RPC-000	Packing a - LINEAR SOLENOID	Packing a - LINEAR SOLENOID
6	28260-RPC-004	Solenoid assy. b - LINEAR	Solenoid assy. b - LINEAR
7	28262-RPC-000	Packing b - LINEAR SOLENOID	Packing b - LINEAR SOLENOID
8	28360-RPC-003	Harness - SOLENOID WIRE	Harness - SOLENOID WIRE
9	28600-RPC-003	Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN)	Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN)
10	28600-RPC-004	Switch assy - AT OIL PRESSURE (SAGINOMIYA)	Switch assy - AT OIL PRESSURE (SAGINOMIYA)
11	28810-RPC-003	Pick up assy.	Pick up assy.
12	28820-RPC-003	Pick up assy.	Pick up assy.
13	90471-PW7-A00	PACKING, 10MM	PACKING, 10MM
14	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
15	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
16	91329-PRP-003	O-ring - 23.3X2.4	O-ring - 23.3X2.4

Spool valve 21 / 21

#	OEM	FD1	FD4
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
3	12215-RNA-A00	Collar - SPARK PLUG COIL	Collar - SPARK PLUG COIL
4	12216-RNA-A00	Bolt - SPARK PLUG COIL	Bolt - SPARK PLUG COIL
5	12240-RNA-A00	Cover comp. - CAMSHAFT THRUST	Cover comp. - CAMSHAFT THRUST
6	12251-RNA-A01	Gasket comp - CYLINDER HEAD (NOK)	Gasket comp - CYLINDER HEAD (NOK)
6	12251-RNA-A02	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
7	15810-RWK-003	Valve assy. Spool	Valve assy. Spool
8	15826-RNA-A01	Filter assy - SPOOL VALVE	Filter assy - SPOOL VALVE
9	17147-RNA-A00	Joint - EGR	Joint - EGR
10	32743-RNA-A01	Stay c - ENGINE HARNESS	Stay c - ENGINE HARNESS
11	32744-RNA-A00	Stay d - ENGINE HARNESS	Stay d - ENGINE HARNESS
13	37510-RNA-A01	Sensor assy - TDC	Sensor assy - TDC
14	90005-RNA-A01	Bolt-washer - 11X176	Bolt-washer - 11X176
15	90026-RNA-A00	Bolt - STUD, 8X25	Bolt - STUD, 8X25
16	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
17	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5
18	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9
26	90001-P70-000	Bolt - FLANGE, 10X10.5	Bolt - FLANGE, 10X10.5

Srs unit (LH) 6 / 14

#	OEM	FD1	FD4
1	77900-SMG-E21	Reel assy - CABLE(FURUKAWA)	Reel assy - CABLE(FURUKAWA)
4	77930-SNA-A32	Sensor assy - FR. CRASH(TRW)	Sensor assy - FR. CRASH(TRW)
6	77970-SNA-A32	Sensor assy - SIDE IMPACT (TRW)	Sensor assy - SIDE IMPACT (TRW)
13	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
16	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)

Starter motor (DENSO) 29 / 31

#	OEM	FD1	FD4
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP	Collar - CLUTCH STOP
3	31200-RNA-003	Motor assy. - STARTER (DSKEG/DSKET) (DENSO)	Motor assy. - STARTER (DSKEG/DSKET) (DENSO)
4	31201-RNA-003	Housing comp - DRIVE SIDE	Housing comp - DRIVE SIDE
5	31202-PM3-J01	Bolt - THROUGH (DENSO)	Bolt - THROUGH (DENSO)
6	31202-RNA-A01	Endframe comp. - COMMUTATOR	Endframe comp. - COMMUTATOR
7	31203-PCA-003	Lever - PINION DRIVE	Lever - PINION DRIVE
8	31204-RNA-003	Switch assy - MAGNET	Switch assy - MAGNET
9	31205-RTA-003	Yoke set	Yoke set
10	31206-RTA-003	Armature comp.	Armature comp.
11	31207-PCA-003	Clutch comp. - OVERRUNNING	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM	Screw - PAN, 4MM
13	31213-PCA-003	Shaft - DRIVE	Shaft - DRIVE
14	31213-RNA-A01	Cover	Cover
15	31214-P3F-003	Gear assy. - INTERNAL	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL	Plate - SEAL
19	31218-P3F-003	Washer a	Washer a
20	31219-P3F-003	Washer b	Washer b
21	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
22	31220-P3F-003	Washer c	Washer c
23	31223-PA0-006	Nut - HEX.	Nut - HEX.
24	31228-PLR-A01	O-ring	O-ring
25	31231-P3F-003	Plate comp - BRUSH HOLDER	Plate comp - BRUSH HOLDER
26	31291-RZP-G01	Stay - ENGINE WIRE HARNESS	Stay - ENGINE WIRE HARNESS
27	31292-PLR-A01	Bolt-washer	Bolt-washer
29	31211-PCX-A01	Brush - +	Brush - +
30	31212-P3F-003	Spring - BRUSH	Spring - BRUSH

Steering column 5 / 5

#	OEM	FD1	FD4
1	53200-SNB-G06	Column assy - STEERING	Column assy - STEERING
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
9	53320-SNA-003	Cover - STEERING JOINT	Cover - STEERING JOINT

Steering wheel (SRS) 7 / 8

#	OEM	FD1	FD4
2	36770-SNB-Q22	Switch assy - CRUISE & AUDIO & PADDLE	Switch assy - CRUISE & AUDIO & PADDLE
8	78525-SNB-N81	Guide - CORD	Guide - CORD
15	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
16	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE
17	90172-SL4-003	Screw-washer - 5X12	Screw-washer - 5X12
18	90178-SNB-A81	Screw - TAPPING, 3X16(PO)	Screw - TAPPING, 3X16(PO)
19	90178-SNB-N61	Screw - TAPPING, 3X8(PO)	Screw - TAPPING, 3X8(PO)

Switch (LH) 6 / 6

#	OEM	FD1	FD4
2	35850-SNA-W71	Bulb comp. - 14V 80MA	Bulb comp. - 14V 80MA
3	35300-SMA-003	Switch assy - VSA OFF	Switch assy - VSA OFF
4	35510-SNA-003	Switch assy - HAZARD	Switch assy - HAZARD
8	35850-SNA-R21	Bulb comp. - 14V 60MA	Bulb comp. - 14V 60MA
9	35855-SMA-003	Bulb comp. - 14V 80MA	Bulb comp. - 14V 80MA
19	39112-SNA-A01	Jack assy - AUX IN.	Jack assy - AUX IN.

Taillight/license light 26 / 26

#	OEM	FD1	FD4
1	33132-SAA-003	Screw - SPECIAL TAPPING, 4X12	Screw - SPECIAL TAPPING, 4X12
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33301-SNA-003	Bulb - 12V 5W) (STANLEY	Bulb - 12V 5W) (STANLEY
5	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
6	33304-SED-003	Socket comp - T10	Socket comp - T10
7	33501-SNB-J51	Lamp unit - R. TAIL	Lamp unit - R. TAIL
8	33502-SNB-003	Gasket - BASE	Gasket - BASE
9	33503-SNB-003	Pin - R.	Pin - R.
10	33506-SNB-J51	Bulb - 12V 16W	Bulb - 12V 16W
11	33513-S84-A01	Socket - T10	Socket - T10
12	33514-S2R-003	Socket - T20W SY	Socket - T20W SY
13	33515-S50-003	Socket - T20W W	Socket - T20W W
14	33551-SNB-J51	Lamp unit - L. TAIL	Lamp unit - L. TAIL
15	33553-SNB-003	Pin - L.	Pin - L.
16	34103-SNB-003	Gasket - BASE	Gasket - BASE
17	34105-SNB-003	Housing comp	Housing comp
18	34106-SNB-013	Lens comp	Lens comp
19	34151-SNB-J51	Lamp unit - R. LID	Lamp unit - R. LID
22	34156-SNB-J51	Lamp unit - L. LID	Lamp unit - L. LID
24	34502-SNB-J51	Gasket - BASE	Gasket - BASE
25	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
27	90321-S06-000	Nut - HEX. CAP, 5MM	Nut - HEX. CAP, 5MM
28	90650-SZ3-003	Grommet - R. RR. COMBINATION LIGHT	Grommet - R. RR. COMBINATION LIGHT
29	90655-SZ3-003	Grommet - L. RR. COMBINATION LIGHT	Grommet - L. RR. COMBINATION LIGHT
30	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH
31	91560-S5H-003	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)

Throttle body 5 / 5

#	OEM	FD1	FD4
1	16400-RNA-A01	Throttle body - ELECTRONIC CONTROL(GMA4B)	Throttle body - ELECTRONIC CONTROL(GMA4B)
2	36162-RNA-A01	Valve assy. - PURGE CONTROL SOLENOID	Valve assy. - PURGE CONTROL SOLENOID
3	37835-PGK-A01	O-ring	O-ring
4	90012-RNA-A00	Bolt-washer - 8X55	Bolt-washer - 8X55
5	90020-RNA-A01	Bolt-washer - 5X20	Bolt-washer - 5X20

Tire/wheel disks 64 / 64

#	OEM	FD1	FD4
1	42700-SNA-A01	Disk - WHEEL(TOPY)(16X6 1/2J) (BLACK)	Disk - WHEEL(TOPY)(16X6 1/2J) (BLACK)
2	42700-SNA-A93	Disk - ALUMINIUM WHEEL(ENKEI) (16X6 1/2J)	Disk - ALUMINIUM WHEEL(ENKEI) (16X6 1/2J)
4	42751-SNB-G41	Tire - 205/55R16 91V) (BRIDGESTONE	Tire - 205/55R16 91V) (BRIDGESTONE
5	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
5	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
6	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
6	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
6	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
6	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
6	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
6	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
6	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
6	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
6	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
6	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
6	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
6	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
6	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
6	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
7	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
7	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
7	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
7	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
7	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
7	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
7	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
7	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
7	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
7	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
7	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
7	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
7	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
7	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
7	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
7	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
7	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
7	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
7	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
7	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
7	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
7	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
7	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
7	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
7	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
7	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
7	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
8	44729-SEA-004	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
8	44726-SEA-004	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
8	44728-SEA-004	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
8	44727-SEA-004	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
8	44723-SEA-004	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
8	44722-SEA-004	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
8	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
8	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
8	44721-SEA-004	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
8	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
8	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
8	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
8	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
8	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
9	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
13	74654-SE0-A00	Bolt - ANCHOR	Bolt - ANCHOR
14	74665-SM4-A00	Adapter - ANCHOR BOLT	Adapter - ANCHOR BOLT
16	90304-SF0-751	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)

Tools/jack 4 / 4

#	OEM	FD1	FD4
1	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
2	89310-S5A-Y02	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
3	89311-S5A-Y02	Plate - JACK CAUTION	Plate - JACK CAUTION
4	89320-S05-003	Bar - JACK	Bar - JACK

Torque converter case 21 / 21

#	OEM	FD1	FD4
1	21101-PRP-000	Plate - BEARING SETTING	Plate - BEARING SETTING
1	21101-RG0-A00	Plate - BEARING SETTING	Plate - BEARING SETTING
2	21111-RPC-000	Case - TORQUE CONVERTER	Case - TORQUE CONVERTER
3	23225-RPC-000	Plate - OIL GUIDE	Plate - OIL GUIDE
4	23235-RPC-000	Collar - OIL GUIDE	Collar - OIL GUIDE
5	25422-PN6-801	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
6	27251-RPC-000	Valve - LUBRICATION CHECK	Valve - LUBRICATION CHECK
7	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
8	90025-RPC-000	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM
9	90081-PX4-003	Bolt - PLUG, 18MM	Bolt - PLUG, 18MM
10	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
11	90471-PX4-000	Washer - DRAIN PLUG, 18MM	Washer - DRAIN PLUG, 18MM
12	90471-RPC-000	Washer - DRAIN PLUG, 16MM	Washer - DRAIN PLUG, 16MM
13	90471-580-000	Packing - 8MM	Packing - 8MM
14	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
15	91003-RPC-003	Bearing - BALL, 26X62X11	Bearing - BALL, 26X62X11
16	91001-PRP-004	Bearing - BALL, 40X68X7.5	Bearing - BALL, 40X68X7.5
17	91101-RPC-003	Bearing - NEEDLE, 33.5X59X19	Bearing - NEEDLE, 33.5X59X19
18	91206-PHR-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
19	91207-P7Z-003	Oil seal - 44X68X8 (NOK)	Oil seal - 44X68X8 (NOK)
20	91326-P4V-003	O-ring - 26.7X1.9(NOK)	O-ring - 26.7X1.9(NOK)

Transmission case 17 / 72

#	OEM	FD1	FD4
1	21210-RPC-000	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
2	21231-RPC-000	Hanger comp. - TRANSMISSION	Hanger comp. - TRANSMISSION
3	21396-PX5-000	Cap - BREATHER	Cap - BREATHER
4	21511-RPC-000	Stay a - HARNESS	Stay a - HARNESS
5	21514-RPC-000	Stay b - HARNESS	Stay b - HARNESS
6	21811-RPC-000	Packing - TORQUE CONVERTER CASE	Packing - TORQUE CONVERTER CASE
7	28450-RPC-000	Cover - SOLENOID	Cover - SOLENOID
8	28451-RPC-000	Packing - SOLENOID COVER	Packing - SOLENOID COVER
9	90603-PB6-000	Ring - SNAP, 62MM	Ring - SNAP, 62MM
10	90609-PC8-000	Ring - SNAP, 68MM	Ring - SNAP, 68MM
11	90612-RPC-000	Ring - SNAP, 78MM	Ring - SNAP, 78MM
12	90615-PF4-000	Ring - SNAP, 75MM	Ring - SNAP, 75MM
13	91001-RPC-006	Bearing - BALL, 27X75X18.5	Bearing - BALL, 27X75X18.5
14	91002-RPC-005	Bearing - BALL, 29X78X19/16	Bearing - BALL, 29X78X19/16
15	91004-RPC-016	Bearing - BALL, 29X68X13	Bearing - BALL, 29X68X13
16	91005-RPC-016	Bearing - BALL, 20X62X16.5	Bearing - BALL, 20X62X16.5
17	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)

Trunk lid 32 / 32

#	OEM	FD1	FD4
1	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	71704-SL3-000	Seal - GASKET	Seal - GASKET
7	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
9	74828-SNA-000	Stopper - R. TRUNK LID LOWER	Stopper - R. TRUNK LID LOWER
10	74829-SDA-A01	Stopper - TRUNK LID	Stopper - TRUNK LID
11	74829-SNA-000	Stopper - L. TRUNK LID LOWER	Stopper - L. TRUNK LID LOWER
12	74851-SNA-G01	Lock - TRUNK(MANUAL+SECURITY)	Lock - TRUNK(MANUAL+SECURITY)
14	74852-SDA-A21	Snap	Snap
15	74853-SDA-A21	Washer	Washer
16	74854-SNA-A01	Washer	Washer
17	74854-SNA-003	Cover	Cover
18	74855-SNA-A01	Silencer	Silencer
19	74861-SNB-A01	Cylinder - TRUNK	Cylinder - TRUNK
21	74862-SE3-003	Striker - TRUNK	Striker - TRUNK
22	74863-SNB-003	Rod - TRUNK	Rod - TRUNK
23	74865-SNA-013	Weatherstrip - TRUNK LID	Weatherstrip - TRUNK LID
24	74866-SNB-G01	Switch - TRUNK CYLINDER GROUND	Switch - TRUNK CYLINDER GROUND
25	74867-SW5-003	Holder - ROD	Holder - ROD
26	74871-SNA-000	Spring - R. TRUNK OPENER	Spring - R. TRUNK OPENER
27	74872-SNA-J00	Spring - L. TRUNK OPENER	Spring - L. TRUNK OPENER
28	74873-S30-013	Clip - TRUNK OPENER SPRING	Clip - TRUNK OPENER SPRING
29	74880-SNA-A11	Cable - TRUNK & FUEL LID OPENER	Cable - TRUNK & FUEL LID OPENER
35	90102-SNA-000	Bolt - SPECIAL, 6MM	Bolt - SPECIAL, 6MM
36	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
37	90109-SNA-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
38	90601-SNB-J01	Plug - HOLE (21X33.6)	Plug - HOLE (21X33.6)
39	90601-SNB-J11	Plug - HOLE (26X45.8)	Plug - HOLE (26X45.8)
41	90669-SA5-003	Cover - MUDGUARD HOLE	Cover - MUDGUARD HOLE
42	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
43	90856-SDA-A01	Plug - TRUNK DRAIN	Plug - TRUNK DRAIN
44	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)
45	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Valve/rocker arm 11 / 11

#	OEM	FD1	FD4
1	14620-RNA-A01	Arm assy. - ROCKER	Arm assy. - ROCKER
2	14711-RNA-A00	Valve - IN.	Valve - IN.
3	14721-P2A-000	Valve - EX.	Valve - EX.
4	14744-PM3-000	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
5	14761-RNA-A02	Spring, IN. VALVE (VIOLET) (CHUO SPRING)	Spring, IN. VALVE (VIOLET) (CHUO SPRING)
6	14762-RNA-A02	Spring - EX. VALVE (GRAY) (CHUO SPRING)	Spring - EX. VALVE (GRAY) (CHUO SPRING)
7	14765-RGA-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
8	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
9	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
10	14820-RNA-A01	Motion comp - LOST	Motion comp - LOST
11	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Vsa modulator 4 / 6

#	OEM	FD1	FD4
1	57101-SLJ-003	Rubber - MOUNT	Rubber - MOUNT
3	57115-SNB-G00	Bracket - VSA MODULATOR	Bracket - VSA MODULATOR
4	57376-SNA-A00	Bolt - MOUNTING	Bolt - MOUNTING
5	90003-SNA-010	Bolt - FLANGE, 6X14	Bolt - FLANGE, 6X14

Water hose 13 / 14

#	OEM	FD1	FD4
1	79721-SNA-A00	Hose - WATER IN.	Hose - WATER IN.
1	19421-RNA-A01	Hose - ATF WARMER IN.	Hose - ATF WARMER IN.
2	79725-SNA-A00	Hose - WATER OUTLET	Hose - WATER OUTLET
2	19422-RNA-A01	Hose - ATF WARMER OUTLET	Hose - ATF WARMER OUTLET
3	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)	Clamp - HEATER HOSE (NATURAL)
3	19423-RNA-A01	Clamp - ATF WARMER HOSE	Clamp - ATF WARMER HOSE
4	19506-RNA-A01	Hose - THERMOBODY IN.	Hose - THERMOBODY IN.
4	79751-SNA-A00	Stay - HEATER HOSE	Stay - HEATER HOSE
5	19507-RNA-A01	Hose - THERMOBODY OUTLET	Hose - THERMOBODY OUTLET
5	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
7	19509-RNA-A01	Hose - DEVICE	Hose - DEVICE
8	19512-PK2-003	Clip - HOSE, 18.7MM	Clip - HOSE, 18.7MM

Water pump 24 / 25

#	OEM	FD1	FD4
1	18011-RNA-A00	EGR Valve set	EGR Valve set
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-RNA-A02	Pump comp - WATER	Pump comp - WATER
4	19222-RNA-A00	Packing - WATER PUMP	Packing - WATER PUMP
5	19224-RNA-A02	Pulley - WATER PUMP	Pulley - WATER PUMP
6	19301-RNA-305	Thermostat assy - FUJI SEIKO	Thermostat assy - FUJI SEIKO
6	19301-RNA-306	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
7	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
8	19311-RNA-A00	Cover - THERMOSTAT	Cover - THERMOSTAT
9	19315-RNA-A01	Cover comp. - WATER OUTLET	Cover comp. - WATER OUTLET
10	19320-RNA-A50	Case comp. - THERMOSTAT	Case comp. - THERMOSTAT
11	19322-RNA-A01	Gasket - THERMOSTAT CASE	Gasket - THERMOSTAT CASE
12	19425-RNA-A00	Cover - HEATER OUTLET	Cover - HEATER OUTLET
13	19426-RNA-A01	Gasket - HEATER OUTLET	Gasket - HEATER OUTLET
14	19505-RNA-A00	Pipe assy. - CONNECTING	Pipe assy. - CONNECTING
15	36536-RNA-A00	Stay - SENSOR HARNESS	Stay - SENSOR HARNESS
16	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)	Sensor assy, WATER TEMP (MATSUSHITA)
17	90010-RNA-A00	Bolt - SPECIAL, 8X87	Bolt - SPECIAL, 8X87
18	90013-PCX-000	Bolt - SPECIAL, 6X12	Bolt - SPECIAL, 6X12
19	90014-RNA-A00	Bolt - SPECIAL, 6X29.5	Bolt - SPECIAL, 6X29.5
20	90015-RNA-A00	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM
21	90401-RNA-A00	Washer - SEALING, 16MM	Washer - SEALING, 16MM
22	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)
23	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)

Windshield washer / headlight washer 12 / 12

FD1 Windshield washer / headlight washer

FD4 Windshield washer / headlight washer

#	OEM	FD1	FD4
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA	Packing - T-TYPE) (MITSUBA
3	38519-SB0-003	Bush - WASHER TANK (MITSUBA)	Bush - WASHER TANK (MITSUBA)
5	76802-SJD-003	Cap unit - MOUTH	Cap unit - MOUTH
8	76805-SNA-003	Hose - WASHER	Hose - WASHER
9	76806-SL0-E01	Motor - WASHER (HIGH) (MITSUBA)	Motor - WASHER (HIGH) (MITSUBA)
9	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)	Motor - WASHER (HIGH) (MITSUBA)
11	76809-S9A-003	Packing	Packing
13	76829-SM4-003	Joint i - WASHER	Joint i - WASHER
14	76869-SNA-003	Tube - 970MM	Tube - 970MM
15	76841-SNA-003	Tank - WASHER (2.5L)	Tank - WASHER (2.5L)
33	90691-SNA-003	Clip - OPENER CABLE & WASHER TUBE	Clip - OPENER CABLE & WASHER TUBE
34	91501-SNA-003	Clip - FR. COWL	Clip - FR. COWL

Wire harness (LH; 1) 5 / 8

#	OEM	FD1	FD4
1	32114-RNA-003	Holder - CORRUGATED (DARK GREEN) (7MM)	Holder - CORRUGATED (DARK GREEN) (7MM)
3	32601-SNA-A00	Cable assy - MISSION EARTH	Cable assy - MISSION EARTH
4	32610-SNA-000	Cable - SUB EARTH	Cable - SUB EARTH
5	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
6	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (LH; 2) 3 / 3

#	OEM	FD1	FD4
1	32117-SNB-Y43	Harness - INSTRUMENT WIRE	Harness - INSTRUMENT WIRE
2	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (LH; 3) 3 / 4

#	OEM	FD1	FD4
2	32202-SNA-A00	Cord - DEFROSTER EARTH	Cord - DEFROSTER EARTH
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
4	39114-SNA-A01	Cord assy - USB	Cord assy - USB

Wire harness (LH; 4) 6 / 7

#	OEM	FD1	FD4
2	32108-SNB-Y12	Harness - RR. WIRE	Harness - RR. WIRE
5	32751-SNB-Y11	Harness - DRIVER DOOR WIRE	Harness - DRIVER DOOR WIRE
6	32752-SNB-Y10	Harness - PASSENGER DOOR WIRE	Harness - PASSENGER DOOR WIRE
7	32753-SNA-A11	Harness - R. RR. DOOR WIRE	Harness - R. RR. DOOR WIRE
8	32754-SNA-A11	Harness - L. RR. DOOR WIRE	Harness - L. RR. DOOR WIRE
9	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

#	OEM	FD1	FD4
1	01462-SNB-J00	Cylinder set - MASTER (19.05MM)	Cylinder set - MASTER (19.05MM)
1	01463-S7A-N00	Caliper set - FR.	Caliper set - FR.
1	01463-S7A-N01	SETCALIPER FR 1	SETCALIPER FR 1
1	01464-SNA-A02	Hose set - R. FR. BRAKE	Hose set - R. FR. BRAKE
2	01465-SNA-A02	Hose set - L. FR. BRAKE	Hose set - L. FR. BRAKE
3	01466-SNA-J02	Hose set - R. RR. BRAKE (DISK)	Hose set - R. RR. BRAKE (DISK)
4	01468-SNA-J02	Hose set - L. RR. BRAKE (DISK)	Hose set - L. RR. BRAKE (DISK)
2	01469-SNB-G00	Power set - MASTER (9")	Power set - MASTER (9")
1	01473-SV4-000	Caliper set - RR.	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER	SET RR CALIPER
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
1	04512-SNA-305	Bolt set - FR. CAMBER ADJUSTMENT (SERVICE)	Bolt set - FR. CAMBER ADJUSTMENT (SERVICE)
1	04731-SNA-A00	Rubber set - FR. WINDSHIELD DAM	Rubber set - FR. WINDSHIELD DAM
1	04733-SNA-A10	Rubber set - RR. WINDSHIELD DAM	Rubber set - RR. WINDSHIELD DAM
25	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
1	06110-RNA-000	Gasket kit - CYLINDER HEAD	Gasket kit - CYLINDER HEAD
2	06112-RPC-000	Gasket kit - AT TRANSMISSION	Gasket kit - AT TRANSMISSION
3	06114-RNA-Y00	Gasket kit - CHAIN CASE	Gasket kit - CHAIN CASE
2	06435-S2A-000	Shim set - RR.	Shim set - RR.
2	06455-S7A-E00	Shim set - FR.	Shim set - FR.
1	11000-RNA-J00	Block assy - CYLINDER	Block assy - CYLINDER
2	11103-RNA-A01	Plate - PARTITION	Plate - PARTITION
3	11105-RNA-A00	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
4	11106-RNA-A00	Washer - SEALING, 20MM	Washer - SEALING, 20MM
5	11107-PWA-300	Washer - SEALING, 24MM	Washer - SEALING, 24MM
6	11107-RNA-A00	Bolt - SEALING, 24MM	Bolt - SEALING, 24MM
7	11200-RNA-A02	Pan assy - OIL	Pan assy - OIL
8	11221-RNA-A00	Plate - BAFFLE	Plate - BAFFLE
9	11850-RNA-A00	Cover comp. - BREATHER	Cover comp. - BREATHER
1	12200-R60-U00	Head comp - CYLINDER	Head comp - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
3	12215-RNA-A00	Collar - SPARK PLUG COIL	Collar - SPARK PLUG COIL
4	12216-RNA-A00	Bolt - SPARK PLUG COIL	Bolt - SPARK PLUG COIL
4	12231-RNA-A00	Holder comp - ROCKER SHAFT (NO.1)	Holder comp - ROCKER SHAFT (NO.1)
5	12232-RNA-A00	Holder comp - ROCKER SHAFT	Holder comp - ROCKER SHAFT
6	12235-RNA-A00	Holder comp - ROCKER SHAFT (NO.5)	Holder comp - ROCKER SHAFT (NO.5)
7	12236-RNA-A00	Holder comp - LOST MOTION	Holder comp - LOST MOTION
5	12240-RNA-A00	Cover comp. - CAMSHAFT THRUST	Cover comp. - CAMSHAFT THRUST
6	12251-RNA-A01	Gasket comp - CYLINDER HEAD (NOK)	Gasket comp - CYLINDER HEAD (NOK)
6	12251-RNA-A02	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
1	12310-RNA-A01	Cover comp. - CYLINDER HEAD	Cover comp. - CYLINDER HEAD
2	12341-RNA-A01	Packing - HEAD COVER	Packing - HEAD COVER
1	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
2	13011-RNA-A01	Ring set - PISTON(STD.) (TEIKOKU)	Ring set - PISTON(STD.) (TEIKOKU)
2	13011-RNA-A02	Ring set - PISTON(STD.)(RIKEN)	Ring set - PISTON(STD.)(RIKEN)
2	13021-RNA-A01	Ring set - PISTON(OS 0.25) (TEIKOKU)	Ring set - PISTON(OS 0.25) (TEIKOKU)
2	13021-RNA-A02	Ring set - PISTON(OS 0.25) (RIKEN)	Ring set - PISTON(OS 0.25) (RIKEN)
3	13111-RNA-A00	Pin - PISTON	Pin - PISTON
4	13115-RNA-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-RNA-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
7	13211-RNA-A01	BEARING A - CONNECTING ROD (BLACK)(DAIDO)	BEARING A - CONNECTING ROD (BLACK)(DAIDO)
7	13211-RNA-A02	BEARING A - CONNECTING ROD (BLACK)(TAIHO)	BEARING A - CONNECTING ROD (BLACK)(TAIHO)
7	13212-RNA-A01	Bearing b - CONNECTING ROD (BROWN)(DAIDO)	Bearing b - CONNECTING ROD (BROWN)(DAIDO)
7	13212-RNA-A02	Bearing b - CONNECTING ROD (BROWN)(TAIHO)	Bearing b - CONNECTING ROD (BROWN)(TAIHO)
7	13213-RNA-A01	Bearing c - CONNECTING ROD (GREEN)(DAIDO)	Bearing c - CONNECTING ROD (GREEN)(DAIDO)
7	13213-RNA-A02	Bearing c - CONNECTING ROD (GREEN)(TAIHO)	Bearing c - CONNECTING ROD (GREEN)(TAIHO)
7	13214-RNA-A01	Bearing d - CONNECTING ROD (YELLOW)(DAIDO)	Bearing d - CONNECTING ROD (YELLOW)(DAIDO)
7	13214-RNA-A02	Bearing d - CONNECTING ROD (YELLOW)(TAIHO)	Bearing d - CONNECTING ROD (YELLOW)(TAIHO)
7	13215-RNA-A01	Bearing e - CONNECTING ROD (PINK)(DAIDO)	Bearing e - CONNECTING ROD (PINK)(DAIDO)
7	13215-RNA-A02	Bearing e - CONNECTING ROD (PINK)(TAIHO)	Bearing e - CONNECTING ROD (PINK)(TAIHO)
7	13216-RNA-A01	Bearing f - CONNECTING ROD(RED) (DAIDO)	Bearing f - CONNECTING ROD(RED) (DAIDO)
7	13216-RNA-A02	Bearing f - CONNECTING ROD(RED) (TAIHO)	Bearing f - CONNECTING ROD(RED) (TAIHO)
9	13321-RNA-A01	BEARING A - MAIN UPPER (BLUE) (DAIDO)	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13321-RNA-A02	BEARING A - MAIN UPPER (BLUE) (TAIHO)	BEARING A - MAIN UPPER (BLUE) (TAIHO)
9	13322-RNA-A01	Bearing b - MAIN UPPER (BLACK) (DAIDO)	Bearing b - MAIN UPPER (BLACK) (DAIDO)
9	13322-RNA-A02	Bearing b - MAIN UPPER (BLACK) (TAIHO)	Bearing b - MAIN UPPER (BLACK) (TAIHO)
9	13323-RNA-A01	Bearing c - MAIN UPPER (BROWN) (DAIDO)	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13323-RNA-A02	Bearing c - MAIN UPPER (BROWN) (TAIHO)	Bearing c - MAIN UPPER (BROWN) (TAIHO)
9	13324-RNA-A01	Bearing d - MAIN UPPER (GREEN) (DAIDO)	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13324-RNA-A02	Bearing d - MAIN UPPER (GREEN) (TAIHO)	Bearing d - MAIN UPPER (GREEN) (TAIHO)
9	13325-RNA-A01	Bearing e - MAIN UPPER (YELLOW) (DAIDO)	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13325-RNA-A02	Bearing e - MAIN UPPER (YELLOW) (TAIHO)	Bearing e - MAIN UPPER (YELLOW) (TAIHO)
9	13326-RNA-A01	Bearing f - MAIN UPPER (PINK) (DAIDO)	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13326-RNA-A02	Bearing f - MAIN UPPER (PINK) (TAIHO)	Bearing f - MAIN UPPER (PINK) (TAIHO)
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
11	13341-RNA-A01	BEARING A - MAIN LOWER (BLUE) (DAIDO)	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13341-RNA-A02	BEARING A - MAIN LOWER (BLUE) (TAIHO)	BEARING A - MAIN LOWER (BLUE) (TAIHO)
11	13342-RNA-A01	Bearing b - MAIN LOWER (BLACK) (DAIDO)	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13342-RNA-A02	Bearing b - MAIN LOWER (BLACK) (TAIHO)	Bearing b - MAIN LOWER (BLACK) (TAIHO)
11	13343-RNA-A01	Bearing c - MAIN LOWER (BROWN) (DAIDO)	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13343-RNA-A02	Bearing c - MAIN LOWER (BROWN) (TAIHO)	Bearing c - MAIN LOWER (BROWN) (TAIHO)
11	13344-RNA-A01	Bearing d - MAIN LOWER (GREEN) (DAIDO)	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13344-RNA-A02	Bearing d - MAIN LOWER (GREEN) (TAIHO)	Bearing d - MAIN LOWER (GREEN) (TAIHO)
11	13345-RNA-A01	Bearing e - MAIN LOWER (YELLOW) (DAIDO)	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
11	13345-RNA-A02	Bearing e - MAIN LOWER (YELLOW) (TAIHO)	Bearing e - MAIN LOWER (YELLOW) (TAIHO)
11	13346-RNA-A01	Bearing f - MAIN LOWER (PINK) (DAIDO)	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13346-RNA-A02	Bearing f - MAIN LOWER(PINK) (TAIHO)	Bearing f - MAIN LOWER(PINK) (TAIHO)
12	13620-RNA-A01	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-RNA-A00	Plate - CRANK PULSER	Plate - CRANK PULSER
14	13810-RNA-A02	Pulley comp - CRANKSHAFT	Pulley comp - CRANKSHAFT
2	14211-RNA-A01	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
3	14221-RNA-A01	Plate - TDC PULSER	Plate - TDC PULSER
4	14222-PWA-004	Bolt - TDC PULSER PLATE	Bolt - TDC PULSER PLATE
5	14401-RNA-A01	Chain - 136L	Chain - 136L
6	14510-RNA-A01	Tensioner comp - CAM CHAIN	Tensioner comp - CAM CHAIN
7	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
8	14520-RNA-A01	Arm comp - CAM CHAIN TENSIONER	Arm comp - CAM CHAIN TENSIONER
9	14530-RNA-A01	Guide - CAM CHAIN	Guide - CAM CHAIN
1	14620-RNA-A01	Arm assy. - ROCKER	Arm assy. - ROCKER
8	14631-RNA-A00	Shaft comp. - ROCKER	Shaft comp. - ROCKER
2	14711-RNA-A00	Valve - IN.	Valve - IN.
3	14721-P2A-000	Valve - EX.	Valve - EX.
4	14744-PM3-000	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
5	14761-RNA-A02	Spring, IN. VALVE (VIOLET) (CHUO SPRING)	Spring, IN. VALVE (VIOLET) (CHUO SPRING)
6	14762-RNA-A02	Spring - EX. VALVE (GRAY) (CHUO SPRING)	Spring - EX. VALVE (GRAY) (CHUO SPRING)
7	14765-RGA-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
8	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
9	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
10	14820-RNA-A01	Motion comp - LOST	Motion comp - LOST
2	15100-R1A-A01	Oil Pump	Oil Pump
2	15100-RNC-T01	Pump assy. - OIL	Pump assy. - OIL
3	15101-RNA-A00	O-ring set - OIL PUMP	O-ring set - OIL PUMP
4	15112-RNA-A00	Cover - CHAIN CASE	Cover - CHAIN CASE
9	15140-P0A-000	Orifice assy - CAM JOURNAL	Orifice assy - CAM JOURNAL
10	15142-PE0-000	O-ring - 4.8X1.9	O-ring - 4.8X1.9
5	15220-RNA-A01	Strainer comp. - OIL	Strainer comp. - OIL
6	15221-RNA-A01	Gasket	Gasket
10	15280-RZP-000	Body comp - OIL JET	Body comp - OIL JET
11	15290-RZP-000	Bolt comp - OIL JET	Bolt comp - OIL JET
7	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
7	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
7	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
3	15610-PFB-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
4	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
5	15650-RNA-A00	Gauge - OIL LEVEL	Gauge - OIL LEVEL
7	15810-RWK-003	Valve assy. Spool	Valve assy. Spool
8	15826-RNA-A01	Filter assy - SPOOL VALVE	Filter assy - SPOOL VALVE
1	16400-RNA-A01	Throttle body - ELECTRONIC CONTROL(GMA4B)	Throttle body - ELECTRONIC CONTROL(GMA4B)
1	16450-RNA-A01	Injector assy - FUEL	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
3	16620-RNA-A51	Pipe comp - FUEL	Pipe comp - FUEL
4	16640-RNA-A00	Cover - FUEL PIPE	Cover - FUEL PIPE
2	16722-RNA-A02	Hose comp. - FUEL FEED	Hose comp. - FUEL FEED
3	16723-RNA-A00	Bracket - FUEL FEED HOSE	Bracket - FUEL FEED HOSE
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
5	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
4	16725-RNA-A00	Holder a - FUEL CONNECTOR (WHITE)	Holder a - FUEL CONNECTOR (WHITE)
1	17044-SNA-020	Tank set - FUEL	Tank set - FUEL
2	17045-SNA-020	Module assy. FUEL PUMP	Module assy. FUEL PUMP
3	17046-SNA-000	Nut & packing set - FUEL LOCK	Nut & packing set - FUEL LOCK
4	17047-SNA-000	Meter comp	Meter comp
5	17048-SNA-010	Strainer set - FUEL	Strainer set - FUEL
6	17052-SNA-000	Regulator assy - PRESSURE	Regulator assy - PRESSURE
2	17100-RNA-A00	Manifold comp - INTAKE	Manifold comp - INTAKE
3	17101-RNA-A00	Cover comp. - BYPASS VALVE	Cover comp. - BYPASS VALVE
4	17102-RNA-A01	Packing - BYPASS VALVE COVER	Packing - BYPASS VALVE COVER
5	17103-RNA-A01	Packing b - BYPASS VALVE	Packing b - BYPASS VALVE
6	17104-RNA-A01	Packing a - BYPASS VALVE	Packing a - BYPASS VALVE
7	17105-RNA-A01	Packing a - INTAKE MANIFOLD	Packing a - INTAKE MANIFOLD
8	17106-RNA-A01	Packing b - INTAKE MANIFOLD	Packing b - INTAKE MANIFOLD
9	17107-RNA-A01	Packing, throttle body	Packing, throttle body
10	17108-RNA-A01	O-ring - 31.2X3.5	O-ring - 31.2X3.5
11	17113-RNA-A00	Stiffener - INTAKE MANIFOLD	Stiffener - INTAKE MANIFOLD
1	17115-PWA-000	Rubber - ENGINE COVER MOUNTING	Rubber - ENGINE COVER MOUNTING
2	17116-PWA-000	Collar - ENGINE COVER	Collar - ENGINE COVER
12	17116-RNA-A00	Plate - THROTTLE FLANGE	Plate - THROTTLE FLANGE
1	17130-PND-A01	Valve assy. - PCV	Valve assy. - PCV
2	17131-RNA-A00	Tube - PCV	Tube - PCV
13	17132-RNA-A00	Stay assy - INTAKE MANIFOLD	Stay assy - INTAKE MANIFOLD
1	17136-RNA-A00	Grommet, BREATHER PIPE	Grommet, BREATHER PIPE
3	17137-RNA-A00	Pipe comp - BREATHER	Pipe comp - BREATHER
9	17147-RNA-A00	Joint - EGR	Joint - EGR
14	17150-RNA-A01	Actuator assy - BYPASS VALVE	Actuator assy - BYPASS VALVE
15	17153-RCA-A01	Packing - BYPASS VALVE ACTUATOR	Packing - BYPASS VALVE ACTUATOR
4	17153-RNA-A00	Tube - BREATHER	Tube - BREATHER
2	17202-RNA-A00	Case set, AIR CLEANER	Case set, AIR CLEANER
16	17210-RNA-A01	Valve assy. - BYPASS	Valve assy. - BYPASS
3	17211-RNA-A00	Cover comp. AIR CLEANER	Cover comp. AIR CLEANER
5	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
5	17213-PV0-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
17	17213-RNA-A00	Rubber - INTAKE MANIFOLD MOUNTING	Rubber - INTAKE MANIFOLD MOUNTING
18	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
7	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
8	17217-RNA-A00	Clip - AIR CLEANER	Clip - AIR CLEANER
10	17225-RNA-A00	Tube - AIR FLOW	Tube - AIR FLOW
7	17230-RNA-A00	Chamber assy - RESONATOR	Chamber assy - RESONATOR
11	17244-RNA-A00	Tube - AIR CLEANER	Tube - AIR CLEANER
8	17251-RNA-A00	Tube a - AIR INTAKE	Tube a - AIR INTAKE
9	17252-RNA-A00	Tube assy. b - AIR INTAKE	Tube assy. b - AIR INTAKE
10	17254-RNA-A00	Tube assy. d - AIR INTAKE	Tube assy. d - AIR INTAKE
11	17256-RNA-A00	Ring - SEAL	Ring - SEAL
13	17261-RNA-A50	Stay comp. a - AIR CLEANER	Stay comp. a - AIR CLEANER
14	17262-RNA-A00	Stay comp. b - AIR CLEANER	Stay comp. b - AIR CLEANER
15	17263-RNA-A00	Stay comp. c - AIR CLEANER	Stay comp. c - AIR CLEANER
1	17300-SNA-023	Canister assy	Canister assy
16	17315-P5K-000	Clamp - AIR FLOW TUBE (74)	Clamp - AIR FLOW TUBE (74)
17	17316-P1E-000	Clamp - AIR FLOW TUBE (70)	Clamp - AIR FLOW TUBE (70)
2	17358-SNA-000	Bracket - CANISTER	Bracket - CANISTER
3	17371-S7S-003	Valve - TWO WAY	Valve - TWO WAY
4	17372-SNA-000	Tube a - DRAIN	Tube a - DRAIN
7	17513-S0E-003	Circlip	Circlip
5	17518-SNA-G00	Pipe - CANISTER GUARD	Pipe - CANISTER GUARD
8	17519-SNA-000	Protector - FUEL TANK	Protector - FUEL TANK
9	17520-SNA-000	Band comp - FUEL TANK MOUNTING	Band comp - FUEL TANK MOUNTING
11	17525-S0X-A00	Bolt-washer - 10X25	Bolt-washer - 10X25
10	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
12	17651-SNA-003	Tube - FILLER NECK	Tube - FILLER NECK
13	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
14	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
15	17653-SNA-003	Tube - BREATHER	Tube - BREATHER
17	17668-SNA-000	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
1	17669-PVF-A00	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
18	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
18	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
6	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
7	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
6	17721-SNA-000	Tube assy - FUEL PURGE	Tube assy - FUEL PURGE
19	17722-SNA-003	Tube comp - FUEL VENT	Tube comp - FUEL VENT
7	17724-SNA-000	Tube - FUEL VENT	Tube - FUEL VENT
9	17726-SNA-G01	Hose assy - FUEL PURGE	Hose assy - FUEL PURGE
8	17744-SNA-000	Tube comp - CANISTER DRAIN	Tube comp - CANISTER DRAIN
14	17762-SDA-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
15	17762-SNA-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
1	17800-SNB-G71	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
3	17818-SNB-G71	Stopper - ACCELERATOR STROKE	Stopper - ACCELERATOR STROKE
30	17820-SNA-A72	Clip - ACCELERATOR PEDAL	Clip - ACCELERATOR PEDAL
1	18011-RNA-A00	EGR Valve set	EGR Valve set
1	18115-RNA-004	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
1	18115-RNA-007	Gasket - EX. MANIFOLD (NOK)	Gasket - EX. MANIFOLD (NOK)
2	18120-RNA-A00	Cover comp. - CHAMBER	Cover comp. - CHAMBER
3	18160-RNA-A00	Converter comp.	Converter comp.
4	18181-RNA-A00	Cover, FR. CONVERTER	Cover, FR. CONVERTER
5	18197-RNA-A00	Bracket - CONVERTER STAY	Bracket - CONVERTER STAY
6	18198-RNA-A00	Stay - CONVERTER	Stay - CONVERTER
7	18199-RNA-A00	Stay - CONVERTER SUB	Stay - CONVERTER SUB
1	18210-SNA-A01	Pipe a - EX.	Pipe a - EX.
2	18215-SNA-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
3	18215-SNA-A11	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
4	18215-SNA-A31	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
5	18220-SNA-A01	Pipe b - EX.	Pipe b - EX.
7	18229-S5A-J01	Gasket - EX. FLEXIBLE	Gasket - EX. FLEXIBLE
6	18229-SNA-A01	Gasket, EX. FLEXIBLE	Gasket, EX. FLEXIBLE
8	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
9	18231-SNA-A00	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
10	18303-SM4-020	Gasket - SILENCER	Gasket - SILENCER
11	18307-SNB-J01	Silencer comp - EX.	Silencer comp - EX.
12	18310-SNB-J02	FINISHER, EX. PIPE	FINISHER, EX. PIPE
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
8	18716-RNA-A01	Gasket a - EGR PIPE	Gasket a - EGR PIPE
9	18717-RNA-A00	Pipe comp - EGR	Pipe comp - EGR
10	18719-RNA-A01	Gasket b - EGR PIPE	Gasket b - EGR PIPE
11	18720-RNA-A00	Bolt - FLANGE, 8X20	Bolt - FLANGE, 8X20
1	19010-RNA-J51	Radiator comp - DENSO	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
5	19015-RNA-A01	Shroud comp.	Shroud comp.
6	19020-RCJ-A01	Fan - COOLING	Fan - COOLING
1	19025-RNA-A00	Seal - R. RADIATOR SIDE	Seal - R. RADIATOR SIDE
2	19026-RNA-A00	Seal - L. RADIATOR SIDE	Seal - L. RADIATOR SIDE
7	19030-RNA-A51	Motor - COOLING FAN	Motor - COOLING FAN
2	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
12	19050-RNA-A01	Filler assy. - WATER (DENSO)	Filler assy. - WATER (DENSO)
13	19051-RNA-A01	Hose - WATER FILLER	Hose - WATER FILLER
3	19101-RNA-A01	Tank - RESERVE	Tank - RESERVE
4	19102-RNA-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
5	19103-RNA-A00	Hose a - RESERVE TANK	Hose a - RESERVE TANK
6	19104-RNA-A00	Hose b - RESERVE TANK	Hose b - RESERVE TANK
7	19106-RNA-A00	Joint - RESERVE TANK	Joint - RESERVE TANK
8	19108-RNA-A01	Clip - RESERVE TANK HOSE	Clip - RESERVE TANK HOSE
3	19200-RNA-A02	Pump comp - WATER	Pump comp - WATER
4	19222-RNA-A00	Packing - WATER PUMP	Packing - WATER PUMP
5	19224-RNA-A02	Pulley - WATER PUMP	Pulley - WATER PUMP
6	19301-RNA-305	Thermostat assy - FUJI SEIKO	Thermostat assy - FUJI SEIKO
6	19301-RNA-306	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
7	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
8	19311-RNA-A00	Cover - THERMOSTAT	Cover - THERMOSTAT
9	19315-RNA-A01	Cover comp. - WATER OUTLET	Cover comp. - WATER OUTLET
10	19320-RNA-A50	Case comp. - THERMOSTAT	Case comp. - THERMOSTAT
11	19322-RNA-A01	Gasket - THERMOSTAT CASE	Gasket - THERMOSTAT CASE
1	19421-RNA-A01	Hose - ATF WARMER IN.	Hose - ATF WARMER IN.
2	19422-RNA-A01	Hose - ATF WARMER OUTLET	Hose - ATF WARMER OUTLET
3	19423-RNA-A01	Clamp - ATF WARMER HOSE	Clamp - ATF WARMER HOSE
12	19425-RNA-A00	Cover - HEATER OUTLET	Cover - HEATER OUTLET
13	19426-RNA-A01	Gasket - HEATER OUTLET	Gasket - HEATER OUTLET
1	19430-RNA-A51	Warmer comp. - ATF	Warmer comp. - ATF
9	19501-RNA-A01	Hose - WATER UPPER	Hose - WATER UPPER
10	19502-RNA-A01	Hose - WATER LOWER	Hose - WATER LOWER
14	19505-RNA-A00	Pipe assy. - CONNECTING	Pipe assy. - CONNECTING
4	19506-RNA-A01	Hose - THERMOBODY IN.	Hose - THERMOBODY IN.
5	19507-RNA-A01	Hose - THERMOBODY OUTLET	Hose - THERMOBODY OUTLET
7	19509-RNA-A01	Hose - DEVICE	Hose - DEVICE
14	19511-PFB-003	Clip - WATER HOSE	Clip - WATER HOSE
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
11	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
8	19512-PK2-003	Clip - HOSE, 18.7MM	Clip - HOSE, 18.7MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
1	21101-PRP-000	Plate - BEARING SETTING	Plate - BEARING SETTING
1	21101-RG0-A00	Plate - BEARING SETTING	Plate - BEARING SETTING
2	21111-RPC-000	Case - TORQUE CONVERTER	Case - TORQUE CONVERTER
1	21210-RPC-000	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
1	21215-RG5-000	Holder - IDLE SHAFT	Holder - IDLE SHAFT
2	21231-RPC-000	Hanger comp. - TRANSMISSION	Hanger comp. - TRANSMISSION
1	21240-RPC-000	Cover comp. L. SIDE	Cover comp. L. SIDE
1	21351-RNA-000	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
3	21396-PX5-000	Cap - BREATHER	Cap - BREATHER
4	21511-RPC-000	Stay a - HARNESS	Stay a - HARNESS
5	21514-RPC-000	Stay b - HARNESS	Stay b - HARNESS
2	21515-RPC-000	Stay c - HARNESS	Stay c - HARNESS
3	21720-RPC-000	Cover comp. - POSITION SENSOR	Cover comp. - POSITION SENSOR
4	21722-RPC-000	Stopper - POSITION SENSOR	Stopper - POSITION SENSOR
5	21724-RCT-000	Rubber - POSITION SENSOR COVER	Rubber - POSITION SENSOR COVER
6	21725-RCT-000	Collar - POSITION SENSOR COVER	Collar - POSITION SENSOR COVER
6	21811-RPC-000	Packing - TORQUE CONVERTER CASE	Packing - TORQUE CONVERTER CASE
7	21812-RPC-000	Packing - L. SIDE COVER	Packing - L. SIDE COVER
1	22510-RPC-003	Guide comp - LOW CLUTCH	Guide comp - LOW CLUTCH
2	22521-RPC-003	Piston - CLUTCH	Piston - CLUTCH
1	22530-RPC-004	Piston comp - CLUTCH	Piston comp - CLUTCH
3	22533-RPC-003	Retainer comp - RETURN SPRING	Retainer comp - RETURN SPRING
2	22536-RCT-014	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
4	22536-RPC-003	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
1	22537-RPC-003	Spring - CLUTCH WAVE	Spring - CLUTCH WAVE
5	22541-RPC-003	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
3	22541-RPC-004	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
2	22542-RPC-003	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
6	22543-RPC-003	Plate - CLUTCH WAVE (1.6MM)	Plate - CLUTCH WAVE (1.6MM)
7	22544-RPC-003	Disk - CLUTCH	Disk - CLUTCH
4	22544-RPC-004	Disk - CLUTCH	Disk - CLUTCH
3	22545-RPC-003	Disk - CLUTCH	Disk - CLUTCH
8	22551-RPC-003	Plate - CLUTCH END (1) (2.1MM)	Plate - CLUTCH END (1) (2.1MM)
5	22551-RPC-004	Plate - CLUTCH END (1) (2.1MM)	Plate - CLUTCH END (1) (2.1MM)
8	22552-RPC-003	Plate - CLUTCH END (2) (2.2MM)	Plate - CLUTCH END (2) (2.2MM)
5	22552-RPC-004	Plate - CLUTCH END (2) (2.2MM)	Plate - CLUTCH END (2) (2.2MM)
8	22553-RPC-003	Plate - CLUTCH END (3) (2.3MM)	Plate - CLUTCH END (3) (2.3MM)
5	22553-RPC-004	Plate - CLUTCH END (3) (2.3MM)	Plate - CLUTCH END (3) (2.3MM)
8	22554-RPC-003	Plate - CLUTCH END (4) (2.4MM)	Plate - CLUTCH END (4) (2.4MM)
5	22554-RPC-004	Plate - CLUTCH END (4) (2.4MM)	Plate - CLUTCH END (4) (2.4MM)
8	22555-RPC-003	Plate - CLUTCH END (5) (2.5MM)	Plate - CLUTCH END (5) (2.5MM)
5	22555-RPC-004	Plate - CLUTCH END (5) (2.5MM)	Plate - CLUTCH END (5) (2.5MM)
8	22556-RPC-003	Plate - CLUTCH END (6) (2.6MM)	Plate - CLUTCH END (6) (2.6MM)
5	22556-RPC-004	Plate - CLUTCH END (6) (2.6MM)	Plate - CLUTCH END (6) (2.6MM)
8	22557-RPC-003	Plate - CLUTCH END (7) (2.7MM)	Plate - CLUTCH END (7) (2.7MM)
5	22557-RPC-004	Plate - CLUTCH END (7) (2.7MM)	Plate - CLUTCH END (7) (2.7MM)
8	22558-RPC-003	Plate - CLUTCH END (8) (2.8MM)	Plate - CLUTCH END (8) (2.8MM)
5	22558-RPC-004	Plate - CLUTCH END (8) (2.8MM)	Plate - CLUTCH END (8) (2.8MM)
8	22559-RPC-003	Plate - CLUTCH END (9) (2.9MM)	Plate - CLUTCH END (9) (2.9MM)
5	22559-RPC-004	Plate - CLUTCH END (9) (2.9MM)	Plate - CLUTCH END (9) (2.9MM)
4	22561-RPC-003	Plate - CLUTCH END (1) (2.1MM)	Plate - CLUTCH END (1) (2.1MM)
5	22561-RPC-004	Plate - CLUTCH END (10) (2.1MM)	Plate - CLUTCH END (10) (2.1MM)
4	22562-RPC-003	Plate - CLUTCH END (2) (2.2MM)	Plate - CLUTCH END (2) (2.2MM)
5	22562-RPC-004	Plate - CLUTCH END (11) (2.2MM)	Plate - CLUTCH END (11) (2.2MM)
4	22563-RPC-003	Plate - CLUTCH END (3) (2.3MM)	Plate - CLUTCH END (3) (2.3MM)
5	22563-RPC-004	Plate - CLUTCH END (12) (2.3MM)	Plate - CLUTCH END (12) (2.3MM)
4	22564-RPC-003	Plate - CLUTCH END (4) (2.4MM)	Plate - CLUTCH END (4) (2.4MM)
5	22564-RPC-004	Plate - CLUTCH END (13) (2.4MM)	Plate - CLUTCH END (13) (2.4MM)
4	22565-RPC-003	Plate - CLUTCH END (5) (2.5MM)	Plate - CLUTCH END (5) (2.5MM)
5	22565-RPC-004	Plate - CLUTCH END (14) (2.5MM)	Plate - CLUTCH END (14) (2.5MM)
4	22566-RPC-003	Plate - CLUTCH END (6) (2.6MM)	Plate - CLUTCH END (6) (2.6MM)
5	22566-RPC-004	Plate - CLUTCH END (15) (2.6MM)	Plate - CLUTCH END (15) (2.6MM)
4	22567-RPC-003	Plate - CLUTCH END (7) (2.7MM)	Plate - CLUTCH END (7) (2.7MM)
5	22567-RPC-004	Plate - CLUTCH END (16) (2.7MM)	Plate - CLUTCH END (16) (2.7MM)
4	22568-RPC-003	Plate - CLUTCH END (8) (2.8MM)	Plate - CLUTCH END (8) (2.8MM)
5	22568-RPC-004	Plate - CLUTCH END (17) (2.8MM)	Plate - CLUTCH END (17) (2.8MM)
4	22569-RPC-003	Plate - CLUTCH END (9) (2.9MM)	Plate - CLUTCH END (9) (2.9MM)
5	22569-RPC-004	Plate - CLUTCH END (18) (2.9MM)	Plate - CLUTCH END (18) (2.9MM)
6	22610-RPC-004	Guide comp - CLUTCH (2-4)	Guide comp - CLUTCH (2-4)
5	22633-RPC-003	Seat - RETURN SPRING	Seat - RETURN SPRING
7	22633-RPC-004	Retainer	Retainer
6	22643-RPC-003	Plate - CLUTCH WAVE (1.6MM)	Plate - CLUTCH WAVE (1.6MM)
8	22643-RPC-004	Plate - CLUTCH (2.0MM)	Plate - CLUTCH (2.0MM)
7	22651-RPC-003	Guide comp - CLUTCH (3-5)	Guide comp - CLUTCH (3-5)
9	22653-RPC-004	Plate - CLUTCH (1.6MM)	Plate - CLUTCH (1.6MM)
8	22670-RPC-003	Piston comp - CLUTCH	Piston comp - CLUTCH
8	22713-PW4-000	Guide a - FEED PIPE	Guide a - FEED PIPE
9	22713-RPC-000	Guide a - FEED PIPE	Guide a - FEED PIPE
10	22715-PRP-000	Pipe comp. b - FEED	Pipe comp. b - FEED
2	22743-P4R-000	Pipe - 8X192.5	Pipe - 8X192.5
1	22743-PG4-000	Pipe - THIRD CLUTCH	Pipe - THIRD CLUTCH
1	22749-PW4-000	Pipe - 35MM	Pipe - 35MM
2	22753-RG5-000	Pipe - 6X196.5	Pipe - 6X196.5
2	22760-PPW-000	Pipe comp - JOINT	Pipe comp - JOINT
1	22771-RPC-000	Pipe a - JOINT	Pipe a - JOINT
2	22772-RPC-000	Pipe b - JOINT	Pipe b - JOINT
3	22775-RPC-000	Pipe - 50MM	Pipe - 50MM
1	22814-PRP-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
1	22814-RGC-003	Seal - RING (21.2MM)	Seal - RING (21.2MM)
2	23210-RPC-000	Mainshaft comp.	Mainshaft comp.
2	23221-RPC-000	Countershaft	Countershaft
3	23225-RPC-000	Plate - OIL GUIDE	Plate - OIL GUIDE
2	23230-RG5-000	Shaft comp. - SECONDARY	Shaft comp. - SECONDARY
4	23235-RPC-000	Collar - OIL GUIDE	Collar - OIL GUIDE
3	23411-RPC-020	Gear - SECONDARY SHAFT LOW	Gear - SECONDARY SHAFT LOW
3	23421-RPC-010	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
4	23427-RPC-000	Gear - PARKING	Gear - PARKING
4	23431-RPC-000	Gear - SECONDARY SHAFT SECOND	Gear - SECONDARY SHAFT SECOND
5	23441-RPC-000	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
5	23511-RPC-000	Gear - MAINSHAFT IDLE	Gear - MAINSHAFT IDLE
1	23515-RPC-020	Gear - IDLE	Gear - IDLE
2	23516-RG5-000	Shaft - IDLE	Shaft - IDLE
6	23521-RPC-010	Gear - SECONDARY SHAFT IDLE	Gear - SECONDARY SHAFT IDLE
8	23531-RPC-000	Gear - COUNTERSHAFT REVERSE	Gear - COUNTERSHAFT REVERSE
9	23541-RPC-000	Gear - REVERSE IDLE	Gear - REVERSE IDLE
10	23542-P6H-000	Shaft - REVERSE IDLE GEAR	Shaft - REVERSE IDLE GEAR
11	23565-RPC-000	Selector - REVERSE GEAR	Selector - REVERSE GEAR
12	23566-RPC-000	Hub - SELECTOR	Hub - SELECTOR
1	24111-RPC-000	Fork - REVERSE SHIFT	Fork - REVERSE SHIFT
3	24271-PRP-000	Shaft - SHIFT FORK	Shaft - SHIFT FORK
11	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
3	24410-RPC-000	Shaft comp. - CONTROL	Shaft comp. - CONTROL
12	24532-PX4-000	Lever - PARKING BRAKE	Lever - PARKING BRAKE
13	24535-RPC-000	Spring - PARKING BRAKE	Spring - PARKING BRAKE
14	24537-PA9-003	Stopper - PARKING BRAKE (1)	Stopper - PARKING BRAKE (1)
14	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
14	24539-PA9-003	Stopper - PARKING BRAKE (3)	Stopper - PARKING BRAKE (3)
15	24552-PRP-000	Spring - PARKING PAWL	Spring - PARKING PAWL
16	24553-PN6-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
17	24555-RDK-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
18	24561-RPC-000	Pawl - PARKING BRAKE	Pawl - PARKING BRAKE
19	24562-PRP-000	Shaft - PARKING	Shaft - PARKING
4	24630-PRP-000	Arm comp - CHANGE DETENT	Arm comp - CHANGE DETENT
4	24634-PRP-060	Spring - DETENT LEVER	Spring - DETENT LEVER
5	24635-PRP-000	Collar - CHANGE DETENT ARM	Collar - CHANGE DETENT ARM
2	24901-RNA-000	Cover - CONTROL WIRE	Cover - CONTROL WIRE
3	24905-RNA-000	Bracket - CONTROL WIRE	Bracket - CONTROL WIRE
3	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
3	25155-RPC-000	Shaft assy - STATOR	Shaft assy - STATOR
4	25211-RPC-003	Hose - ATF, 150MM	Hose - ATF, 150MM
5	25212-RPC-003	Hose - ATF, 165MM	Hose - ATF, 165MM
6	25213-RPC-003	Hose - ATF, 200MM (TOUKAI)	Hose - ATF, 200MM (TOUKAI)
5	25420-RPC-003	Strainer assy - ATF	Strainer assy - ATF
5	25422-PN6-801	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
7	25430-PLR-003	Filter, ATF	Filter, ATF
8	25431-RPC-000	Stay a - ATF FILTER	Stay a - ATF FILTER
9	25432-RPC-000	Stay comp. b - ATF FILTER	Stay comp. b - ATF FILTER
10	25520-RPC-000	Stay comp - ATF WARMER	Stay comp - ATF WARMER
11	25610-PRM-013	Gauge comp. - ATF	Gauge comp. - ATF
12	25910-RPC-000	Pipe comp. a - ATF	Pipe comp. a - ATF
13	25920-RPC-000	Pipe comp. b - ATF	Pipe comp. b - ATF
14	25930-RPC-000	Pipe comp. c - ATF	Pipe comp. c - ATF
15	25950-RAY-000	Bolt comp - JOINT	Bolt comp - JOINT
16	25951-RGR-000	Bolt - JOINT	Bolt - JOINT
6	26000-RNA-305	Converter assy - TORQUE	Converter assy - TORQUE
7	26251-RNA-000	Plate - DRIVE	Plate - DRIVE
4	27000-RPC-000	Body assy - MAIN VALVE	Body assy - MAIN VALVE
5	27112-RPC-000	Plate - MAIN SEPARATING	Plate - MAIN SEPARATING
6	27122-RGC-000	Cap - 11MM	Cap - 11MM
7	27132-P6H-000	Cap - 14MM	Cap - 14MM
8	27142-P6H-000	Cap - 15MM	Cap - 15MM
5	27200-RPC-000	Body assy - REGULATOR	Body assy - REGULATOR
6	27212-RPC-000	Plate - REGULATOR SEPARATING	Plate - REGULATOR SEPARATING
7	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
6	27251-RPC-000	Valve - LUBRICATION CHECK	Valve - LUBRICATION CHECK
9	27263-PX3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
8	27400-RPC-000	Body assy - SERVO	Body assy - SERVO
9	27412-RPC-000	Plate - SERVO SEPARATING	Plate - SERVO SEPARATING
20	27430-RPC-003	Bolt comp - AIR CHECK	Bolt comp - AIR CHECK
10	27524-P6H-000	Clip - CAP	Clip - CAP
11	27561-PRP-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
12	27562-RPC-000	Spring a - LOW ACCUMULATOR	Spring a - LOW ACCUMULATOR
13	27564-RPC-000	Spring b - LOW ACCUMULATOR	Spring b - LOW ACCUMULATOR
11	27572-PRP-000	Piston - SECOND ACCUMULATOR	Piston - SECOND ACCUMULATOR
14	27574-PRP-000	Piston - THIRD ACCUMULATOR	Piston - THIRD ACCUMULATOR
13	27575-RPC-000	Spring b - TOP ACCUMULATOR	Spring b - TOP ACCUMULATOR
14	27577-RPC-000	Spring a - TOP ACCUMULATOR	Spring a - TOP ACCUMULATOR
15	27580-RPC-000	Cover - SERVO ACCUMULATOR	Cover - SERVO ACCUMULATOR
16	27581-RPC-000	Spring a - SECOND ACCUMULATOR	Spring a - SECOND ACCUMULATOR
15	27583-PRP-000	Spring - THIRD ACCUMULATOR	Spring - THIRD ACCUMULATOR
17	27584-RPC-000	Spring b - SECOND ACCUMULATOR	Spring b - SECOND ACCUMULATOR
16	27591-RPC-000	Cover - REGULATOR ACCUMULATOR	Cover - REGULATOR ACCUMULATOR
4	28250-RPC-003	Solenoid assy. a - LINEAR	Solenoid assy. a - LINEAR
5	28252-RPC-000	Packing a - LINEAR SOLENOID	Packing a - LINEAR SOLENOID
6	28260-RPC-004	Solenoid assy. b - LINEAR	Solenoid assy. b - LINEAR
7	28262-RPC-000	Packing b - LINEAR SOLENOID	Packing b - LINEAR SOLENOID
8	28360-RPC-003	Harness - SOLENOID WIRE	Harness - SOLENOID WIRE
18	28400-RPC-003	Solenoid assy. a	Solenoid assy. a
7	28450-RPC-000	Cover - SOLENOID	Cover - SOLENOID
8	28451-RPC-000	Packing - SOLENOID COVER	Packing - SOLENOID COVER
19	28500-RPC-003	Solenoid assy. b	Solenoid assy. b
9	28600-RPC-003	Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN)	Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN)
10	28600-RPC-004	Switch assy - AT OIL PRESSURE (SAGINOMIYA)	Switch assy - AT OIL PRESSURE (SAGINOMIYA)
11	28810-RPC-003	Pick up assy.	Pick up assy.
12	28820-RPC-003	Pick up assy.	Pick up assy.
21	28900-RPC-013	Sensor assy - POSITION	Sensor assy - POSITION
22	28950-RPC-000	Harness - POSITION SENSOR	Harness - POSITION SENSOR
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP	Collar - CLUTCH STOP
1	30511-RNA-A01	Insulator - COIL HEAT	Insulator - COIL HEAT
2	30520-RNA-A01	Coil comp - PLUG HOLE	Coil comp - PLUG HOLE
3	30522-RNA-A01	Seal - PLUG HOLE	Seal - PLUG HOLE
12	30530-RNA-A01	Sensor comp - KNOCK	Sensor comp - KNOCK
1	31100-RNA-A01	Alternator assy. - AHGA67) (MITSUBISHI	Alternator assy. - AHGA67) (MITSUBISHI
2	31101-RNA-A01	Rotor assy.	Rotor assy.
3	31102-PNA-004	Stator	Stator
4	31111-P08-J02	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
2	31113-RNA-A00	Bracket - ALTERNATOR	Bracket - ALTERNATOR
5	31114-P01-014	Bearing - FR. GENERATOR	Bearing - FR. GENERATOR
3	31114-RNA-A00	Insulator - HEAT	Insulator - HEAT
6	31123-RNA-A01	Terminal set	Terminal set
4	31124-RNA-A00	Stay - COUPLER	Stay - COUPLER
7	31125-P08-J02	Bolt - FLANGE	Bolt - FLANGE
5	31126-RNA-A00	Stay - HARNESS	Stay - HARNESS
8	31127-RNA-A01	Rectifier assy.	Rectifier assy.
9	31140-P64-902	Brush set	Brush set
10	31141-RNA-A01	Pulley	Pulley
11	31142-P08-J02	Nut	Nut
12	31146-PE0-004	Screw	Screw
13	31150-RNA-A01	Regulator set	Regulator set
6	31170-RWK-025	Tensioner assy, Auto	Tensioner assy, Auto
3	31200-RNA-003	Motor assy. - STARTER (DSKEG/DSKET) (DENSO)	Motor assy. - STARTER (DSKEG/DSKET) (DENSO)
4	31201-RNA-003	Housing comp - DRIVE SIDE	Housing comp - DRIVE SIDE
5	31202-PM3-J01	Bolt - THROUGH (DENSO)	Bolt - THROUGH (DENSO)
6	31202-RNA-A01	Endframe comp. - COMMUTATOR	Endframe comp. - COMMUTATOR
7	31203-PCA-003	Lever - PINION DRIVE	Lever - PINION DRIVE
8	31204-RNA-003	Switch assy - MAGNET	Switch assy - MAGNET
9	31205-RTA-003	Yoke set	Yoke set
10	31206-RTA-003	Armature comp.	Armature comp.
11	31207-PCA-003	Clutch comp. - OVERRUNNING	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM	Screw - PAN, 4MM
29	31211-PCX-A01	Brush - +	Brush - +
30	31212-P3F-003	Spring - BRUSH	Spring - BRUSH
13	31213-PCA-003	Shaft - DRIVE	Shaft - DRIVE
14	31213-RNA-A01	Cover	Cover
15	31214-P3F-003	Gear assy. - INTERNAL	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL	Plate - SEAL
19	31218-P3F-003	Washer a	Washer a
20	31219-P3F-003	Washer b	Washer b
22	31220-P3F-003	Washer c	Washer c
21	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
23	31223-PA0-006	Nut - HEX.	Nut - HEX.
24	31228-PLR-A01	O-ring	O-ring
25	31231-P3F-003	Plate comp - BRUSH HOLDER	Plate comp - BRUSH HOLDER
26	31291-RZP-G01	Stay - ENGINE WIRE HARNESS	Stay - ENGINE WIRE HARNESS
27	31292-PLR-A01	Bolt-washer	Bolt-washer
1	31500-SNA-G01	Battery - 46B24L<S>-MF) (FURUKAWA	Battery - 46B24L<S>-MF) (FURUKAWA
2	31512-SA5-000	Plate - BATTERY SETTING	Plate - BATTERY SETTING
3	31513-SL4-000	Bolt - BATTERY SETTING (220MM)	Bolt - BATTERY SETTING (220MM)
12	31521-SNA-A00	Box - BATTERY (46B24)	Box - BATTERY (46B24)
5	31531-SNA-000	Cover - BATTERY (46B24)	Cover - BATTERY (46B24)
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)	Plug - VENT (MF) (FURUKAWA)
2	32108-SNB-Y12	Harness - RR. WIRE	Harness - RR. WIRE
1	32110-RNA-U53	Harness - ENGINE WIRE	Harness - ENGINE WIRE
1	32112-SNA-000	Bracket - WIRE HARNESS	Bracket - WIRE HARNESS
3	32114-RNA-003	Holder - CORRUGATED (DARK GREEN) (7MM)	Holder - CORRUGATED (DARK GREEN) (7MM)
4	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
5	32116-RGA-003	Holder - CORRUGATED (DARK GREEN) (13MM)	Holder - CORRUGATED (DARK GREEN) (13MM)
6	32116-RNA-003	Holder - CORRUGATED (DARK GREEN) (13MM)	Holder - CORRUGATED (DARK GREEN) (13MM)
7	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
1	32117-SNB-Y43	Harness - INSTRUMENT WIRE	Harness - INSTRUMENT WIRE
8	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
9	32119-P2E-A01	Holder - CORRUGATED (DARK BLUE) (22MM)	Holder - CORRUGATED (DARK BLUE) (22MM)
10	32120-RNA-000	Cover assy. - ENGINE WIRE HARNESS	Cover assy. - ENGINE WIRE HARNESS
11	32127-RNA-A00	Holder comp. a - ENGINE HARNESS	Holder comp. a - ENGINE HARNESS
12	32128-RNA-A00	Holder comp. b - ENGINE HARNESS	Holder comp. b - ENGINE HARNESS
13	32128-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (A,B)	Cover - ENGINE CONTROL MODULE COUPLER (A,B)
14	32129-RNA-A00	Holder c - ENGINE HARNESS UPPER	Holder c - ENGINE HARNESS UPPER
15	32129-RTA-003	Cover - ENGINE CONTROL MODULE COUPLER (C)	Cover - ENGINE CONTROL MODULE COUPLER (C)
16	32130-RNA-A00	Holder c - ENGINE HARNESS LOWER	Holder c - ENGINE HARNESS LOWER
17	32131-RNA-A00	Holder d - ENGINE HARNESS	Holder d - ENGINE HARNESS
18	32132-RNA-A00	Holder e - ENGINE HARNESS	Holder e - ENGINE HARNESS
6	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
5	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
19	32133-RNA-A00	Holder f - ENGINE HARNESS	Holder f - ENGINE HARNESS
7	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
8	32142-SNA-A00	Bracket - FLOOR WIRE HARNESS	Bracket - FLOOR WIRE HARNESS
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
1	32175-RSA-G01	Clip - HARNESS	Clip - HARNESS
12	32177-RZP-G00	Insulator - CRANK SENSOR HEAT	Insulator - CRANK SENSOR HEAT
16	32179-RNA-A02	Insulator - OIL PRESSURE SWITCH HEAT	Insulator - OIL PRESSURE SWITCH HEAT
2	32202-SNA-A00	Cord - DEFROSTER EARTH	Cord - DEFROSTER EARTH
1	32411-SNA-000	Bracket - STARTER CABLE	Bracket - STARTER CABLE
21	32413-PND-003	Cover - STARTER CABLE TERMINAL	Cover - STARTER CABLE TERMINAL
22	32418-RBG-300	Cover - BATTERY TERMINAL	Cover - BATTERY TERMINAL
7	32600-SNA-A00	Cable assy - BATTERY EARTH	Cable assy - BATTERY EARTH
8	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
3	32601-SNA-A00	Cable assy - MISSION EARTH	Cable assy - MISSION EARTH
9	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
4	32610-SNA-000	Cable - SUB EARTH	Cable - SUB EARTH
2	32741-RNA-A00	Stay a - ENGINE HARNESS	Stay a - ENGINE HARNESS
3	32742-RNA-A00	Stay b - ENGINE HARNESS	Stay b - ENGINE HARNESS
10	32743-RNA-A01	Stay c - ENGINE HARNESS	Stay c - ENGINE HARNESS
11	32744-RNA-A00	Stay d - ENGINE HARNESS	Stay d - ENGINE HARNESS
5	32745-RNA-A50	Stay e - ENGINE HARNESS	Stay e - ENGINE HARNESS
17	32747-RNA-A00	Stay g - ENGINE HARNESS	Stay g - ENGINE HARNESS
10	32750-RNA-A00	Stay k - ENGINE HARNESS	Stay k - ENGINE HARNESS
5	32751-SNB-Y11	Harness - DRIVER DOOR WIRE	Harness - DRIVER DOOR WIRE
6	32752-SNB-Y10	Harness - PASSENGER DOOR WIRE	Harness - PASSENGER DOOR WIRE
7	32753-SNA-A11	Harness - R. RR. DOOR WIRE	Harness - R. RR. DOOR WIRE
8	32754-SNA-A11	Harness - L. RR. DOOR WIRE	Harness - L. RR. DOOR WIRE
1	32755-SNB-000	Sub cord - COURTESY LIGHT	Sub cord - COURTESY LIGHT
6	33101-SNB-G61	Headlight unit - R. (HID)	Headlight unit - R. (HID)
7	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
21	33108-SEA-J01	Screw - SPECIAL TAPPING (6X14)	Screw - SPECIAL TAPPING (6X14)
22	33109-S6A-J71	Gasket - SEAL	Gasket - SEAL
8	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
8	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
23	33116-S0A-J11	Bulb - HEADLIGHT (D2R) (HID)	Bulb - HEADLIGHT (D2R) (HID)
24	33119-TA0-003	Control unit	Control unit
25	33121-SFE-901	Seal - GASKET (2)	Seal - GASKET (2)
10	33126-SNA-A01	Cover - RUBBER	Cover - RUBBER
26	33127-SNB-C11	Cover comp.	Cover comp.
27	33129-TA0-003	Igniter - HID	Igniter - HID
11	33130-SJK-J01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
1	33132-SAA-003	Screw - SPECIAL TAPPING, 4X12	Screw - SPECIAL TAPPING, 4X12
25	33136-SNB-003	Sensor assy - HEADLIGHT ADJUSTER FR.	Sensor assy - HEADLIGHT ADJUSTER FR.
26	33137-SNB-901	Control unit - AUTO LEVELING ELECTRONIC	Control unit - AUTO LEVELING ELECTRONIC
27	33143-S1A-G01	Nut - SPECIAL, 6MM	Nut - SPECIAL, 6MM
28	33146-SNB-003	Sensor assy - HEADLIGHT ADJUSTER RR.	Sensor assy - HEADLIGHT ADJUSTER RR.
12	33151-SNB-G61	Headlight unit - L. (HID)	Headlight unit - L. (HID)
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO	Bulb - H11) (12V 55W) (KOITO
13	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33301-SNA-003	Bulb - 12V 5W) (STANLEY	Bulb - 12V 5W) (STANLEY
16	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
15	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
1	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
17	33304-S5A-003	Socket comp - T10	Socket comp - T10
6	33304-SED-003	Socket comp - T10	Socket comp - T10
7	33501-SNB-J51	Lamp unit - R. TAIL	Lamp unit - R. TAIL
8	33502-SNB-003	Gasket - BASE	Gasket - BASE
9	33503-SNB-003	Pin - R.	Pin - R.
10	33506-SNB-J51	Bulb - 12V 16W	Bulb - 12V 16W
2	33513-S50-003	Socket - T20W S2	Socket - T20W S2
11	33513-S84-A01	Socket - T10	Socket - T10
12	33514-S2R-003	Socket - T20W SY	Socket - T20W SY
13	33515-S50-003	Socket - T20W W	Socket - T20W W
14	33551-SNB-J51	Lamp unit - L. TAIL	Lamp unit - L. TAIL
15	33553-SNB-003	Pin - L.	Pin - L.
7	33902-SNB-J51	Light unit - R. FOG	Light unit - R. FOG
8	33911-SNB-J51	Screw - TAPPING,	Screw - TAPPING,
10	33952-SNB-J51	Light unit - L. FOG	Light unit - L. FOG
16	34103-SNB-003	Gasket - BASE	Gasket - BASE
17	34105-SNB-003	Housing comp	Housing comp
18	34106-SNB-013	Lens comp	Lens comp
19	34151-SNB-J51	Lamp unit - R. LID	Lamp unit - R. LID
22	34156-SNB-J51	Lamp unit - L. LID	Lamp unit - L. LID
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
2	34253-SNA-003	Bulb - WEDGE (12V 3.4W)	Bulb - WEDGE (12V 3.4W)
2	34254-SNA-003	Light assy - GLOVE BOX	Light assy - GLOVE BOX
3	34257-SNB-003	Lens comp	Lens comp
4	34261-S5A-003	Lens comp	Lens comp
3	34271-S5A-A01	Lamp unit	Lamp unit
5	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
1	34300-SNB-013	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
2	34350-SNB-013	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
7	34401-SDA-A21	Lens - R.	Lens - R.
9	34402-SDA-A21	Lens - L.	Lens - L.
24	34502-SNB-J51	Gasket - BASE	Gasket - BASE
25	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
7	35111-SNB-A01	Key comp. - IMMOBILIZER (MAIN) (BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLACK)
6	35111-SWW-305	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
9	35111-SWW-E01	Key comp. - IMMOBILIZER & TRANSMITTER	Key comp. - IMMOBILIZER & TRANSMITTER
11	35113-SMG-305	Key comp. - TRANSMITTER TOP CASE (BLANK)	Key comp. - TRANSMITTER TOP CASE (BLANK)
10	35113-SMG-E11	Key comp. - TRANSMITTER TOP CASE	Key comp. - TRANSMITTER TOP CASE
12	35114-SWW-E01	Bottom comp. - TRANSMITTER KEY CASE	Bottom comp. - TRANSMITTER KEY CASE
13	35116-SDA-A11	Screw - FLAT	Screw - FLAT
8	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
14	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
4	35190-SNA-A01	Switch assy - REMOTE CONTROL MIRROR	Switch assy - REMOTE CONTROL MIRROR
15	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH	Sensor assy - STEERING & BODY SWITCH
16	35255-TA0-C42	Switch assy - LIGHTING & TURN SIGNAL	Switch assy - LIGHTING & TURN SIGNAL
17	35256-TA0-A12	Switch assy - WIPER	Switch assy - WIPER
3	35300-SMA-003	Switch assy - VSA OFF	Switch assy - VSA OFF
18	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)	Switch assy - DOOR (MATSUSHITA)
1	35505-S30-003	Bulb - T5) (14V 1.4W	Bulb - T5) (14V 1.4W
4	35510-SNA-003	Switch assy - HAZARD	Switch assy - HAZARD
2	35740-SNA-A81	Switch assy - PARKING PIN & INDICATOR LAMP	Switch assy - PARKING PIN & INDICATOR LAMP
5	35750-SNB-Y11	Switch assy - POWER WINDOW MASTER	Switch assy - POWER WINDOW MASTER
8	35850-SNA-R21	Bulb comp. - 14V 60MA	Bulb comp. - 14V 60MA
2	35850-SNA-W71	Bulb comp. - 14V 80MA	Bulb comp. - 14V 80MA
9	35855-SMA-003	Bulb comp. - 14V 80MA	Bulb comp. - 14V 80MA
2	36162-RNA-A01	Valve assy. - PURGE CONTROL SOLENOID	Valve assy. - PURGE CONTROL SOLENOID
13	36531-RNA-J01	Sensor - AIR FUEL RATIO	Sensor - AIR FUEL RATIO
14	36532-RNA-A01	Sensor - OXYGEN	Sensor - OXYGEN
15	36536-RNA-A00	Stay - SENSOR HARNESS	Stay - SENSOR HARNESS
4	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)	Switch assy - STOP & CRUISE (PANASONIC)
2	36770-SNB-Q22	Switch assy - CRUISE & AUDIO & PADDLE	Switch assy - CRUISE & AUDIO & PADDLE
1	37115-SA0-601	Packing - NS	Packing - NS
18	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
22	37500-RAA-A01	Sensor assy - CRANK	Sensor assy - CRANK
13	37510-RNA-A01	Sensor assy - TDC	Sensor assy - TDC
3	37821-RNA-A00	Bracket comp. - ENGINE CONTROL MODULE	Bracket comp. - ENGINE CONTROL MODULE
4	37823-RNA-A00	Cover - ENGINE CONTROL MODULE	Cover - ENGINE CONTROL MODULE
19	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
20	37835-PGK-A01	O-ring	O-ring
16	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)	Sensor assy, WATER TEMP (MATSUSHITA)
15	37870-RTA-005	Sensor assy - WATER TEMP (DENSO)	Sensor assy - WATER TEMP (DENSO)
18	37980-RNA-A01	Meter assy - AIR FLOW	Meter assy - AIR FLOW
19	37985-RAD-L11	Gasket	Gasket
36	38100-SNA-K02	Horn assy - LOW	Horn assy - LOW
37	38101-SNA-010	Bracket - HORN	Bracket - HORN
9	38150-SLA-013	Horn assy - HIGH	Horn assy - HIGH
38	38151-SNA-010	Bracket - HORN	Bracket - HORN
1	38200-SNB-Y31	Box assy - FUSE	Box assy - FUSE
1	38205-SNA-J11	Label - FUSE	Label - FUSE
11	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
2	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
13	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
3	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
4	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
5	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
6	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
7	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
19	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
20	38231-SNA-A21	Fuse a - MULTI BLOCK (60A/50A)	Fuse a - MULTI BLOCK (60A/50A)
21	38232-SDA-A01	Fuse b - MULTI BLOCK (40A/50A)	Fuse b - MULTI BLOCK (40A/50A)
22	38232-SNA-A21	Fuse b - MULTI BLOCK (30A/40A)	Fuse b - MULTI BLOCK (30A/40A)
23	38235-TA0-A01	Puller - FUSE	Puller - FUSE
24	38250-SNA-P02	Box assy - RELAY	Box assy - RELAY
25	38251-SNA-000	Bracket - RELAY BOX	Bracket - RELAY BOX
27	38256-SNA-J51	Cover - RELAY BOX(UPPER)	Cover - RELAY BOX(UPPER)
28	38257-SNA-A02	Cover - LOWER	Cover - LOWER
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA	Packing - T-TYPE) (MITSUBA
3	38519-SB0-003	Bush - WASHER TANK (MITSUBA)	Bush - WASHER TANK (MITSUBA)
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
2	38609-SA5-000	Collar - DISTANCE	Collar - DISTANCE
3	38611-RNA-A01	Fan - COOLING	Fan - COOLING
4	38615-RNA-A01	Shroud comp. - AIR CONDITIONER	Shroud comp. - AIR CONDITIONER
5	38616-RNA-A01	Motor - COOLING FAN	Motor - COOLING FAN
6	38619-RNA-A01	Protector - FAN MOTOR HEAT	Protector - FAN MOTOR HEAT
1	38801-PDF-E02	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
2	38810-RNA-014	Compressor comp.	Compressor comp.
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
4	38900-RNC-Z51	Clutch set - COMPRESSOR	Clutch set - COMPRESSOR
5	38908-RNA-014	Protector set, Thermal	Protector set, Thermal
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
9	38924-RNA-A01	Coil set - FIELD	Coil set - FIELD
10	38930-RNA-A00	Bracket - COMPRESSOR	Bracket - COMPRESSOR
4	39104-SNA-A11	Screw - M4X12	Screw - M4X12
5	39104-SNA-A21	Screw - M2.6X6	Screw - M2.6X6
3	39104-SNA-A51	Screw - M5X8	Screw - M5X8
6	39105-SNA-A01	Bracket - L.	Bracket - L.
7	39105-SNA-A11	Bracket - R.	Bracket - R.
8	39105-SNA-A51	Bracket - CENTER	Bracket - CENTER
19	39112-SNA-A01	Jack assy - AUX IN.	Jack assy - AUX IN.
29	39113-SNA-A03	Adapter assy - USB	Adapter assy - USB
30	39113-TC0-921	Adapter assy - USB	Adapter assy - USB
4	39114-SNA-A01	Cord assy - USB	Cord assy - USB
41	39115-SNA-A11	Holder assy. - USB CORD	Holder assy. - USB CORD
42	39115-TK6-003	Clip - USB CONNECTOR HOLDER (A)	Clip - USB CONNECTOR HOLDER (A)
43	39116-SNA-C01	Sub cord assy. - USB	Sub cord assy. - USB
44	39117-SNA-A01	Cord assy - USB (A)	Cord assy - USB (A)
45	39118-SNA-A01	Clip - USB CORD	Clip - USB CORD
2	39120-SLJ-901	Speaker assy - 17CM SINGLE) (FOSTER	Speaker assy - 17CM SINGLE) (FOSTER
1	39120-SLJ-921	Speaker assy - TWEETER (FOSTER)	Speaker assy - TWEETER (FOSTER)
4	39155-SNA-A01	Module unit - ANTENNA	Module unit - ANTENNA
5	39156-SNA-A02	Sub feeder - ANTENNA	Sub feeder - ANTENNA
6	39160-SNL-P00	Feeder assy. - GLASS ANTENNA	Feeder assy. - GLASS ANTENNA
10	39171-SNA-P04	Black-box - 1CD) (GENERAL BAND) (ALPINE	Black-box - 1CD) (GENERAL BAND) (ALPINE
1	39248-692-003	Packing - HEATER	Packing - HEATER
3	39550-SNA-A81	Solenoid assy. - AT SHIFT LOCK	Solenoid assy. - AT SHIFT LOCK
1	39610-S2K-003	Knob assy	Knob assy
2	39620-S0X-003	Socket assy	Socket assy
3	39630-SFE-003	Ring assy - TYPE INCLUDING BULB	Ring assy - TYPE INCLUDING BULB
19	39730-SWA-Y02	Immobilizer & keyless unit	Immobilizer & keyless unit
1	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
11	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)
3	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)	RELAY ASSY., FUEL PUMP (DENSO)
8	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
8	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
9	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
9	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
33	39965-SNA-A01	Sensor assy - YAW & G	Sensor assy - YAW & G
1	41100-RPC-010	Differential comp.	Differential comp.
2	41233-RPC-000	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
3	41381-RPC-000	Spacer - 41X90X1	Spacer - 41X90X1
4	41382-RPC-000	Spacer - 41X90X1	Spacer - 41X90X1
5	41441-RPC-000	Shim a - 90MM (1.30)	Shim a - 90MM (1.30)
5	41442-RPC-000	Shim b - 90MM (1.35)	Shim b - 90MM (1.35)
5	41443-RPC-000	Shim c - 90MM (1.40)	Shim c - 90MM (1.40)
5	41444-RPC-000	Shim d - 90MM (1.45)	Shim d - 90MM (1.45)
5	41445-RPC-000	Shim e - 90MM (1.50)	Shim e - 90MM (1.50)
5	41446-RPC-000	Shim f - 90MM (1.55)	Shim f - 90MM (1.55)
5	41447-RPC-000	Shim g - 90MM (1.60)	Shim g - 90MM (1.60)
5	41448-RPC-000	Shim h - 90MM (1.65)	Shim h - 90MM (1.65)
5	41449-RPC-000	Shim i - 90MM (1.70)	Shim i - 90MM (1.70)
5	41450-RPC-000	Shim j - 90MM (1.75)	Shim j - 90MM (1.75)
5	41451-RPC-000	Shim k - 90MM (1.80)	Shim k - 90MM (1.80)
5	41452-RPC-000	Shim l - 90MM (1.85)	Shim l - 90MM (1.85)
5	41453-RPC-000	Shim m - 90MM (1.90)	Shim m - 90MM (1.90)
5	41454-RPC-000	Shim n - 90MM (1.95)	Shim n - 90MM (1.95)
5	41455-RPC-000	Shim o - 90MM (2.00)	Shim o - 90MM (2.00)
5	41456-RPC-000	Shim p - 90MM (2.05)	Shim p - 90MM (2.05)
5	41457-RPC-000	Shim q - 90MM (2.10)	Shim q - 90MM (2.10)
5	41458-RPC-000	Shim r - 90MM (2.15)	Shim r - 90MM (2.15)
5	41459-RPC-000	Shim s - 90MM (2.20)	Shim s - 90MM (2.20)
5	41460-RPC-000	Shim t - 90MM (2.25)	Shim t - 90MM (2.25)
5	41461-RPC-000	Shim u - 90MM (2.30)	Shim u - 90MM (2.30)
5	41462-RPC-000	Shim v - 90MM (2.35)	Shim v - 90MM (2.35)
5	41463-RPC-000	Shim w - 90MM (2.40)	Shim w - 90MM (2.40)
3	42200-SNA-A51	Bearing assy - RR. HUB UNIT (NTN)	Bearing assy - RR. HUB UNIT (NTN)
4	42510-SNA-A00	Disk - RR. BRAKE (ASAMA)	Disk - RR. BRAKE (ASAMA)
1	42521-SNA-003	Clamp - FR. WIRE	Clamp - FR. WIRE
2	42522-SLJ-003	Clamp - WIRE (BLACK)	Clamp - WIRE (BLACK)
3	42522-SNA-003	Clamp - WIRE (BLUE)	Clamp - WIRE (BLUE)
2	42523-SNA-003	Clamp - RR. WIRE	Clamp - RR. WIRE
4	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
1	42700-SNA-A01	Disk - WHEEL(TOPY)(16X6 1/2J) (BLACK)	Disk - WHEEL(TOPY)(16X6 1/2J) (BLACK)
2	42700-SNA-A93	Disk - ALUMINIUM WHEEL(ENKEI) (16X6 1/2J)	Disk - ALUMINIUM WHEEL(ENKEI) (16X6 1/2J)
4	42751-SNB-G41	Tire - 205/55R16 91V) (BRIDGESTONE	Tire - 205/55R16 91V) (BRIDGESTONE
5	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
5	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
3	42760-SNA-T41	Plate - TIRE PRESSURE CAUTION	Plate - TIRE PRESSURE CAUTION
5	43018-SNA-A10	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
5	43018-SNA-A11	RR CALIPER SUBAS	RR CALIPER SUBAS
6	43019-SNA-A10	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
6	43019-SNA-A11	RR CALIPER SUBAS	RR CALIPER SUBAS
7	43022-S5A-J00	Pad set - RR.	Pad set - RR.
7	43022-S5A-J02	SETPAD RR 9CLP	SETPAD RR 9CLP
8	43215-SM4-951	Piston assy.	Piston assy.
9	43223-SD2-932	BEARING A	BEARING A
10	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
11	43227-SG0-013	Spring - PAD	Spring - PAD
12	43228-SD2-933	Shaft a	Shaft a
13	43229-SD2-931	Rod	Rod
14	43233-S5A-J01	Piston comp - SLEEVE	Piston comp - SLEEVE
14	43233-TR0-A01	Piston, sleeve	Piston, sleeve
15	43235-S84-A51	Pin a	Pin a
16	43236-S04-003	Spacer	Spacer
17	43238-SF1-003	Ring - RETAINING	Ring - RETAINING
18	43241-S5A-003	Guide - SPRING	Guide - SPRING
19	43243-SD2-931	Nut - PARKING	Nut - PARKING
20	43244-SG0-003	Retainer	Retainer
21	43245-SNA-A01	Lever - R.	Lever - R.
22	43246-SD2-931	Spring - R. RETURN	Spring - R. RETURN
23	43247-SNA-A01	Arm - R.	Arm - R.
24	43248-SD2-933	Shaft b	Shaft b
25	43249-S04-003	Bolt - ADJUSTER	Bolt - ADJUSTER
26	43253-SNA-A00	Guard, RR. SPLASH	Guard, RR. SPLASH
27	43262-S84-A51	Pin b	Pin b
28	43265-SNA-A01	Lever - L.	Lever - L.
29	43266-SD2-931	Spring - L. RETURN	Spring - L. RETURN
30	43267-SNA-A01	Arm - L.	Arm - L.
3	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
1	44014-SNA-010	Joint set - OUTBOARD	Joint set - OUTBOARD
2	44017-S5A-000	Boot set - INBOARD	Boot set - INBOARD
3	44018-SAB-N21	Boot set - OUTBOARD	Boot set - OUTBOARD
5	44300-SNA-951	Bearing assy - FR. HUB (NTN)	Bearing assy - FR. HUB (NTN)
5	44300-SNA-952	Bearing assy - FR. HUB (KOYO SEIKO)	Bearing assy - FR. HUB (KOYO SEIKO)
4	44305-SNA-000	Driveshaft assy. - R.	Driveshaft assy. - R.
5	44306-SNA-900	Driveshaft assy. - L.	Driveshaft assy. - L.
7	44310-S5A-300	Joint comp - INBOARD	Joint comp - INBOARD
6	44310-S5A-J00	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-S04-300	Set ring - 26X1.8	Set ring - 26X1.8
8	44319-SR1-003	Set ring - 26X1.8 (GKN)	Set ring - 26X1.8 (GKN)
9	44327-S04-N01	Band b - DRIVESHAFT (NIPPON HATSUJO)	Band b - DRIVESHAFT (NIPPON HATSUJO)
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44329-S04-N01	Band c - DRIVESHAFT (NIPPON HATSUJO)	Band c - DRIVESHAFT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44337-S04-300	Ring b - STOPPER	Ring b - STOPPER
14	44338-S04-300	Circlip - 23MM	Circlip - 23MM
15	44351-SNA-003	Damper - DYNAMIC	Damper - DYNAMIC
16	44351-SNA-901	Damper - DYNAMIC	Damper - DYNAMIC
6	44600-SNA-A00	Hub assy - FR.	Hub assy - FR.
7	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
8	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
8	44721-SEA-004	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
6	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
6	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
7	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
7	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
7	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
8	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
8	44722-SEA-004	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
6	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
6	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
7	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
7	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
8	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
8	44723-SEA-004	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
6	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
6	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
7	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
7	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
7	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
7	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
7	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
7	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
7	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
7	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
7	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
8	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
8	44726-SEA-004	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
6	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
6	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
7	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
7	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
7	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
8	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
8	44727-SEA-004	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
6	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
6	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
7	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
7	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
7	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
8	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
8	44728-SEA-004	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
6	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
6	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
7	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
7	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
8	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
8	44729-SEA-004	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
6	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
6	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
7	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
7	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
7	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
7	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
9	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
7	45018-SNB-000	Caliper sub assy. - R. FR.	Caliper sub assy. - R. FR.
8	45019-SNB-000	Caliper sub assy. - L. FR.	Caliper sub assy. - L. FR.
9	45022-SNB-000	Pad set - FR.	Pad set - FR.
9	45022-SNB-020	SETPAD FR	SETPAD FR
10	45216-S5A-J01	Piston	Piston
11	45235-S0K-A01	Pin a	Pin a
12	45237-S7A-N02	Retainer	Retainer
33	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
13	45240-SM4-003	Bolt - FLANGE, 10X24	Bolt - FLANGE, 10X24
14	45251-SMG-G10	Disk - FR. BRAKE(15")	Disk - FR. BRAKE(15")
15	45255-SNB-000	Guard - FR. SPLASH(15")	Guard - FR. SPLASH(15")
16	45262-S0K-A01	Pin b	Pin b
3	46017-SNA-A00	Hose set - RESERVE TANK	Hose set - RESERVE TANK
4	46100-SNB-G51	CYLINDER ASSY., MASTER	CYLINDER ASSY., MASTER
7	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
9	46185-SE0-003	Seal - ROD	Seal - ROD
10	46191-S2K-000	Packing - MASTER POWER	Packing - MASTER POWER
5	46330-SNA-U00	Pipe comp. c - BRAKE	Pipe comp. c - BRAKE
6	46340-SNA-U00	Pipe comp. d - BRAKE	Pipe comp. d - BRAKE
7	46374-SNB-G00	Pipe comp. u - BRAKE	Pipe comp. u - BRAKE
8	46375-SNB-G00	Pipe comp. v - BRAKE	Pipe comp. v - BRAKE
9	46376-SNB-H00	Pipe comp. w - BRAKE	Pipe comp. w - BRAKE
10	46377-SNB-H00	Pipe comp. x - BRAKE	Pipe comp. x - BRAKE
11	46378-SNB-G02	Pipe comp. y - BRAKE	Pipe comp. y - BRAKE
12	46379-SNB-G01	Pipe comp. z - BRAKE	Pipe comp. z - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
14	46390-SNA-A02	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
16	46391-SNB-G01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
18	46392-SAA-901	Clip - BRAKE PIPE	Clip - BRAKE PIPE
19	46392-SNB-G01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
20	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
21	46393-SNB-G01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
22	46394-SDA-003	Clip d - BRAKE PIPE	Clip d - BRAKE PIPE
23	46395-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
24	46396-SNA-A00	Bracket - BRAKE PIPE	Bracket - BRAKE PIPE
25	46397-SNA-A00	Clip - BRAKE PIPE	Clip - BRAKE PIPE
26	46398-SNA-A01	Clip - PIPE & COUPLER	Clip - PIPE & COUPLER
11	46402-SNA-P02	Tube assy - MASTER POWER	Tube assy - MASTER POWER
12	46407-SAA-003	Clamp - TUBE	Clamp - TUBE
27	46424-SNA-A50	Bracket - R. FR. BRAKE HOSE	Bracket - R. FR. BRAKE HOSE
28	46425-SNA-A50	Bracket - L. FR. BRAKE HOSE	Bracket - L. FR. BRAKE HOSE
29	46437-SNA-A50	Bracket - R. RR. BRAKE HOSE (DISK)	Bracket - R. RR. BRAKE HOSE (DISK)
30	46438-SNA-A50	Bracket - L. RR. BRAKE HOSE (DISK)	Bracket - L. RR. BRAKE HOSE (DISK)
31	46462-SE0-000	Bolt - OIL	Bolt - OIL
32	46470-SNA-A01	Joint - BRAKE FOUR WAY	Joint - BRAKE FOUR WAY
33	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
7	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
13	46512-S70-000	Pin - PEDAL	Pin - PEDAL
8	46530-SNA-A01	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
10	46545-S84-A81	Cover - PEDAL	Cover - PEDAL
11	46600-SNA-A82	Pedal assy - BRAKE	Pedal assy - BRAKE
14	46661-SNA-A00	Reservoir set	Reservoir set
15	46662-S9A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
16	46665-S04-J01	Grommet	Grommet
17	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
18	46669-S5A-003	Diaphragm	Diaphragm
19	46674-SNA-A01	Bracket comp. - BRAKE RESERVE TANK	Bracket comp. - BRAKE RESERVE TANK
30	46680-SNA-A01	Union - RESERVOIR	Union - RESERVOIR
20	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
18	46991-SNA-A01	Bracket comp. - FOOTREST	Bracket comp. - FOOTREST
5	47210-SNA-A01	Wire a - PARKING BRAKE	Wire a - PARKING BRAKE
6	47342-SNA-A81	Switch - PARKING BRAKE	Switch - PARKING BRAKE
8	47510-SNA-A54	Wire b - R. PARKING BRAKE	Wire b - R. PARKING BRAKE
9	47538-SNA-003	Nut - ADJUST	Nut - ADJUST
11	47560-SNA-A54	Wire b - L. PARKING BRAKE	Wire b - L. PARKING BRAKE
12	47572-SNA-000	Base - WIRE GUIDE	Base - WIRE GUIDE
13	47574-SNA-000	Spring - RETURN	Spring - RETURN
1	50200-SNB-G91	Sub frame - FR.	Sub frame - FR.
2	50226-SNA-A81	Cap - SIDE	Cap - SIDE
3	50280-SNA-A00	Bracket - R. BODY MOUNTING	Bracket - R. BODY MOUNTING
4	50285-SNA-A00	Bracket - L. BODY MOUNTING	Bracket - L. BODY MOUNTING
1	50451-SNA-A00	Mass - SIDE MOUNTING	Mass - SIDE MOUNTING
2	50452-SNA-A00	Mass - TRANSMISSION MOUNTING	Mass - TRANSMISSION MOUNTING
3	50625-SVA-A00	Stay - SIDE ENGINE MOUNTING	Stay - SIDE ENGINE MOUNTING
4	50655-SNA-A80	Bracket - TRANSMISSION MOUNTING BASE	Bracket - TRANSMISSION MOUNTING BASE
5	50690-SNA-A80	Bracket - TORQUE ROD LOWER	Bracket - TORQUE ROD LOWER
6	50820-SNB-305	Rubber assy. - ENGINE SIDE MOUNTING	Rubber assy. - ENGINE SIDE MOUNTING
7	50850-SNA-A82	Rubber Assy., Transmission Mounting	Rubber Assy., Transmission Mounting
8	50855-SNA-A00	Stay - TRANSMISSION MOUNTING	Stay - TRANSMISSION MOUNTING
9	50880-SNA-A82	Rod, Torque (Upper)	Rod, Torque (Upper)
10	50890-SNA-A82	Rod, Torque (Lower) - LOWER TORQUE	Rod, Torque (Lower) - LOWER TORQUE
5	51211-SNA-010	Knuckle - R. FR.	Knuckle - R. FR.
6	51216-SNA-010	Knuckle - L. FR.	Knuckle - L. FR.
7	51220-SNA-A03	Joint comp - R. FR. LOWER BALL	Joint comp - R. FR. LOWER BALL
8	51225-SNA-A01	Boot - FR. LOWER BALL DUST	Boot - FR. LOWER BALL DUST
9	51230-SNA-A03	Joint comp - L. FR. LOWER BALL	Joint comp - L. FR. LOWER BALL
10	51300-SNA-A02	Spring - FR. STABILIZER	Spring - FR. STABILIZER
11	51306-SNA-A02	Bush - FR. STABILIZER HOLDER	Bush - FR. STABILIZER HOLDER
12	51308-SNA-A01	Holder - FR. STABILIZER	Holder - FR. STABILIZER
13	51320-SNA-A02	Link comp - R. FR. STABILIZER	Link comp - R. FR. STABILIZER
14	51321-SNA-A02	Link comp - L. FR. STABILIZER	Link comp - L. FR. STABILIZER
15	51350-SNA-951	ARM COMP., R. FR. LOWER	ARM COMP., R. FR. LOWER
16	51360-SNA-903	ARM COMP., L. FR. LOWER	ARM COMP., L. FR. LOWER
17	51391-SNA-305	Bush, FR. Compliance	Bush, FR. Compliance
2	51401-SNA-902	Spring - R. FR.	Spring - R. FR.
3	51402-SNA-903	Seat - R. FR. SPRING UPPER	Seat - R. FR. SPRING UPPER
4	51403-SNA-903	Seat - L. FR. SPRING UPPER	Seat - L. FR. SPRING UPPER
5	51406-SNA-902	Spring - L. FR.	Spring - L. FR.
6	51601-SNA-908	Absorber assy - R. FR. SHOCK	Absorber assy - R. FR. SHOCK
7	51602-SNA-908	Absorber assy - L. FR. SHOCK	Absorber assy - L. FR. SHOCK
8	51605-SNA-905	Absorber unit - R. FR. SHOCK	Absorber unit - R. FR. SHOCK
9	51606-SNA-905	Absorber unit - L. FR. SHOCK	Absorber unit - L. FR. SHOCK
10	51608-SNA-000	Cap - FR. SHOCK ABSORBER MOUNTING	Cap - FR. SHOCK ABSORBER MOUNTING
11	51684-SNA-903	Rubber - FR. SPRING LOWER	Rubber - FR. SPRING LOWER
12	51722-SNA-905	Rubber - FR. BUMP STOPPER	Rubber - FR. BUMP STOPPER
13	51726-SNA-G01	Bearing comp - FR. SHOCK ABSORBER MOUNTING	Bearing comp - FR. SHOCK ABSORBER MOUNTING
14	51920-SVB-A03	Rubber comp - FR. SHOCK ABSORBER MOUNTING	Rubber comp - FR. SHOCK ABSORBER MOUNTING
5	52210-SNA-A50	Knuckle comp - R. RR.	Knuckle comp - R. RR.
6	52212-SNA-A00	Bracket - RR. KNUCKLE UPPER	Bracket - RR. KNUCKLE UPPER
7	52213-SNA-A00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
9	52215-SNA-A50	Knuckle comp - L. RR.	Knuckle comp - L. RR.
10	52300-SNG-J01	Spring - RR. STABILIZER	Spring - RR. STABILIZER
11	52306-SNG-J01	Bush - STABILIZER HOLDER	Bush - STABILIZER HOLDER
12	52308-SR3-000	Holder - RR. STABILIZER	Holder - RR. STABILIZER
13	52317-SNA-A00	Bracket - R. RR. STABILIZER	Bracket - R. RR. STABILIZER
14	52318-SNA-A01	Bracket - L. RR. STABILIZER	Bracket - L. RR. STABILIZER
15	52320-SNA-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
16	52321-SNA-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
17	52352-SNA-A00	Protector - R. RR. LOWER ARM	Protector - R. RR. LOWER ARM
18	52353-SNA-A00	Protector - L. RR. LOWER ARM	Protector - L. RR. LOWER ARM
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
19	52370-SNA-906	Arm comp - R. RR. TRAILING	Arm comp - R. RR. TRAILING
20	52371-SNA-906	Arm comp - L. RR. TRAILING	Arm comp - L. RR. TRAILING
21	52387-SNA-A00	Bolt - TRAILING ARM ADJUST	Bolt - TRAILING ARM ADJUST
22	52388-SNA-003	Plate - CAM	Plate - CAM
23	52390-SNA-A50	Arm comp - R. RR. UPPER	Arm comp - R. RR. UPPER
24	52400-SNA-900	Arm comp - L. RR. UPPER	Arm comp - L. RR. UPPER
2	52610-SNA-903	Absorber assy - RR. SHOCK	Absorber assy - RR. SHOCK
3	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
4	52622-SNA-A01	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
5	52631-SNA-A12	Rubber - RR. SHOCK ABSORBER MOUNTING	Rubber - RR. SHOCK ABSORBER MOUNTING
6	52631-SNA-A22	Rubber - RR. SHOCK ABSORBER MOUNTING	Rubber - RR. SHOCK ABSORBER MOUNTING
7	52691-SNV-P00	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
8	52748-SNA-A02	Rubber - RR. SPRING SEAT LOWER	Rubber - RR. SPRING SEAT LOWER
1	53200-SNB-G06	Column assy - STEERING	Column assy - STEERING
9	53320-SNA-003	Cover - STEERING JOINT	Cover - STEERING JOINT
3	53434-SNA-A01	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
6	53449-S84-A01	Band - BELLOWS	Band - BELLOWS
8	53534-SNA-A01	Dust seal - TIE ROD	Dust seal - TIE ROD
9	53535-SNA-A01	Dust seal - TIE ROD	Dust seal - TIE ROD
12	53540-SNA-A02	End comp - R. TIE ROD	End comp - R. TIE ROD
13	53560-SNA-A02	End comp - L. TIE ROD	End comp - L. TIE ROD
21	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
4	54020-SNA-A81	Stopper - SHIFT LOCK	Stopper - SHIFT LOCK
5	54030-SNA-A81	Lever - SHIFT LOCK RELEASE	Lever - SHIFT LOCK RELEASE
6	54031-SNA-A81	Spring - RELEASE LEVER	Spring - RELEASE LEVER
7	54040-SNA-A81	Cap - LOCK PIN	Cap - LOCK PIN
8	54060-SEC-A81	Cushion - SHIFT LOCK STOPPER	Cushion - SHIFT LOCK STOPPER
9	54105-SNA-A81	Tie - WIRE	Tie - WIRE
10	54130-SNA-A81	Knob assy - SELECT LEVER	Knob assy - SELECT LEVER
11	54131-SNA-A81	Shroud - KNOB	Shroud - KNOB
12	54141-SNA-A81	Bush - KNOB SETTING	Bush - KNOB SETTING
13	54200-SNA-A52	Bracket comp. - BASE	Bracket comp. - BASE
14	54315-SNA-A85	Wire - CONTROL	Wire - CONTROL
15	54316-SNA-A81	Stopper	Stopper
16	54710-SNA-G51	Escutcheon comp. - CONSOLE	Escutcheon comp. - CONSOLE
17	54711-SNA-A81	Cover - SELECT LEVER	Cover - SELECT LEVER
1	57101-SLJ-003	Rubber - MOUNT	Rubber - MOUNT
3	57115-SNB-G00	Bracket - VSA MODULATOR	Bracket - VSA MODULATOR
22	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
4	57376-SNA-A00	Bolt - MOUNTING	Bolt - MOUNTING
18	57450-SNA-003	Sensor assy - R. FR.	Sensor assy - R. FR.
19	57455-SNA-003	Sensor assy - L. FR.	Sensor assy - L. FR.
25	57470-SNA-023	Sensor assy - R. RR.	Sensor assy - R. RR.
26	57475-SNA-023	Sensor assy - L. RR.	Sensor assy - L. RR.
40	57477-SNA-305	Seal - LIP (BLACK)	Seal - LIP (BLACK)
23	57515-S30-003	Pin - STOP	Pin - STOP
5	57520-SNB-J01	Piston assy. - PRIMARY	Piston assy. - PRIMARY
6	57540-SNB-J01	Piston assy. - SECONDARY	Piston assy. - SECONDARY
24	57562-SF1-003	Circlip	Circlip
18	60659-SNA-A01	Separator - R. FR. WHEELHOUSE UPPER MEMBER	Separator - R. FR. WHEELHOUSE UPPER MEMBER
10	63136-SNA-A01	Separator - R. FR. PILLAR INSIDE	Separator - R. FR. PILLAR INSIDE
11	63137-SNA-A01	Separator - FR. PILLAR OUTSIDE	Separator - FR. PILLAR OUTSIDE
14	63226-SNA-A01	Separator - CENTER PILLAR INSIDE	Separator - CENTER PILLAR INSIDE
17	63536-SNA-A01	Separator - L. FR. PILLAR INSIDE	Separator - L. FR. PILLAR INSIDE
3	66417-SB3-670	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
4	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
5	67324-SNA-A11	Tape set - R. FR. DOOR SASH	Tape set - R. FR. DOOR SASH
6	67364-SNA-A11	Tape set - L. FR. DOOR SASH	Tape set - L. FR. DOOR SASH
5	67824-SNA-A11	Tape set - R. RR. DOOR SASH	Tape set - R. RR. DOOR SASH
6	67864-SNA-A11	Tape set - L. RR. DOOR SASH	Tape set - L. RR. DOOR SASH
4	71107-SNB-900	Grille - FR. BUMPER CENTER LOWER	Grille - FR. BUMPER CENTER LOWER
6	71115-SNB-900	Spoiler - FR. BUMPER CENTER AIR	Spoiler - FR. BUMPER CENTER AIR
7	71116-SNB-900	Spoiler - R. FR. BUMPER AIR	Spoiler - R. FR. BUMPER AIR
8	71118-SNB-900	Spoiler - L. FR. BUMPER AIR	Spoiler - L. FR. BUMPER AIR
2	71122-SNB-900	Molding - FR. GRILLE	Molding - FR. GRILLE
3	71124-SNB-900	Base - FR. EMBLEM	Base - FR. EMBLEM
4	71125-SNB-000	Cover - FR. GRILLE	Cover - FR. GRILLE
10	71140-SNB-000	Beam comp - R. FR. BUMPER UPPER	Beam comp - R. FR. BUMPER UPPER
11	71145-SNB-G50	Base - FR. LICENSE PLATE	Base - FR. LICENSE PLATE
14	71190-SNB-000	Beam comp - L. FR. BUMPER UPPER	Beam comp - L. FR. BUMPER UPPER
15	71193-SNB-003	Spacer - R. FR. BUMPER SIDE	Spacer - R. FR. BUMPER SIDE
16	71198-SNB-003	Spacer - L. FR. BUMPER SIDE	Spacer - L. FR. BUMPER SIDE
17	71504-SNB-000	Cover - RR. BUMPER LOWER	Cover - RR. BUMPER LOWER
18	71530-SNA-A00	Beam, RR. BUMPER	Beam, RR. BUMPER
20	71540-SNA-A00	Beam comp - RR. BUMPER UPPER	Beam comp - RR. BUMPER UPPER
21	71570-SNA-A00	Absorber - RR. BUMPER	Absorber - RR. BUMPER
23	71593-SNA-A01	Spacer - R. RR. BUMPER SIDE	Spacer - R. RR. BUMPER SIDE
24	71598-SNA-A01	Spacer - L. RR. BUMPER SIDE	Spacer - L. RR. BUMPER SIDE
5	71704-SL3-000	Seal - GASKET	Seal - GASKET
1	72110-SNA-A14	Latch assy - R. FR. DOOR POWER	Latch assy - R. FR. DOOR POWER
3	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
5	72118-SJK-003	Screw - TAPPING	Screw - TAPPING
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
8	72123-SJA-003	Fastener assy. - DOOR LOCK CABLE	Fastener assy. - DOOR LOCK CABLE
9	72130-SNA-003	Protector - R. OUTER HANDLE	Protector - R. OUTER HANDLE
10	72131-SNA-A01	Cable - FR. INSIDE HANDLE	Cable - FR. INSIDE HANDLE
11	72133-SNA-A01	Cable - R. FR. DOOR LOCK	Cable - R. FR. DOOR LOCK
13	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
12	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
14	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
16	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
11	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
17	72143-S04-003	Packing	Packing
18	72144-SJD-003	Retainer	Retainer
20	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
21	72147-SWA-E01	Module assy. - KEYLESS	Module assy. - KEYLESS
22	72148-S0A-000	Battery CR1616	Battery CR1616
21	72150-SNA-P14	Latch assy - L. FR. DOOR POWER	Latch assy - L. FR. DOOR POWER
23	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
27	72170-SNA-003	Protector - L. OUTER HANDLE	Protector - L. OUTER HANDLE
28	72173-SNA-A01	Cable - L. FR. DOOR LOCK	Cable - L. FR. DOOR LOCK
30	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
29	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
32	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
33	72185-SNA-A01	Cylinder - L. DOOR	Cylinder - L. DOOR
2	72210-SNA-A03	Regulator assy - R. FR. DOOR POWER	Regulator assy - R. FR. DOOR POWER
3	72231-SNA-A01	Sash - R. FR. DOOR CENTER LOWER	Sash - R. FR. DOOR CENTER LOWER
4	72235-SNA-A21	Runchannel - R. FR. DOOR	Runchannel - R. FR. DOOR
5	72250-SNA-A03	Regulator assy - L. FR. DOOR POWER	Regulator assy - L. FR. DOOR POWER
6	72271-SNA-A01	Sash - L. FR. DOOR CENTER LOWER	Sash - L. FR. DOOR CENTER LOWER
7	72275-SNA-A21	Runchannel - L. FR. DOOR	Runchannel - L. FR. DOOR
11	72310-SNA-A01	Weatherstrip R. FR. DOOR	Weatherstrip R. FR. DOOR
12	72321-SNA-A01	Seal - R. FR. DOOR HOLE	Seal - R. FR. DOOR HOLE
7	72335-SNA-A01	Weatherstrip - R. FR. DOOR INNER	Weatherstrip - R. FR. DOOR INNER
13	72340-SNA-J01	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
14	72350-SNA-A01	Weatherstrip - L. FR. DOOR	Weatherstrip - L. FR. DOOR
15	72361-SNA-A01	Seal - L. FR. DOOR HOLE	Seal - L. FR. DOOR HOLE
8	72375-SNA-A01	Weatherstrip - L. FR. DOOR INNER	Weatherstrip - L. FR. DOOR INNER
16	72380-SNA-J01	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
1	72410-SNA-A01	RH Front Door Glass Molding Assy - R. FR. DOOR	RH Front Door Glass Molding Assy - R. FR. DOOR
2	72450-SNA-A01	LH Front Door Molding Assy - L. FR. DOOR	LH Front Door Molding Assy - L. FR. DOOR
21	72610-SNA-A14	Latch assy - R. RR. DOOR POWER	Latch assy - R. RR. DOOR POWER
23	72612-SNA-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
24	72613-SNA-003	Seal	Seal
26	72631-SNA-A01	Cable - RR. INSIDE HANDLE	Cable - RR. INSIDE HANDLE
27	72633-SNA-A01	Cable - R. RR. DOOR LOCK	Cable - R. RR. DOOR LOCK
28	72650-SNA-A14	Latch assy - L. RR. DOOR POWER	Latch assy - L. RR. DOOR POWER
30	72652-SNA-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
32	72673-SNA-A01	Cable - L. RR. DOOR LOCK	Cable - L. RR. DOOR LOCK
1	72710-SNA-A02	Regulator - R. RR. DOOR POWER	Regulator - R. RR. DOOR POWER
2	72731-SNA-A01	Sash - R. RR. DOOR QUARTER	Sash - R. RR. DOOR QUARTER
3	72735-SNA-A11	Runchannel - R. RR. DOOR	Runchannel - R. RR. DOOR
4	72750-SNA-A02	Regulator - L. RR. DOOR POWER	Regulator - L. RR. DOOR POWER
5	72771-SNA-A01	Sash - L. RR. DOOR QUARTER	Sash - L. RR. DOOR QUARTER
6	72775-SNA-A11	Runchannel - L. RR. DOOR	Runchannel - L. RR. DOOR
12	72810-SNA-A01	Weatherstrip - R. RR. DOOR	Weatherstrip - R. RR. DOOR
13	72821-SNA-A00	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
2	72835-SNA-A01	Weatherstrip - RR. DOOR INNER	Weatherstrip - RR. DOOR INNER
14	72840-SMA-003	Checker comp. - R. RR. DOOR	Checker comp. - R. RR. DOOR
15	72850-SNA-A01	Weatherstrip - L. RR. DOOR	Weatherstrip - L. RR. DOOR
16	72861-SNA-A00	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
17	72880-SMA-003	Checker comp. - L. RR. DOOR	Checker comp. - L. RR. DOOR
3	72910-SNA-A01	RH Rear Door Molding Assy - R. RR. DOOR	RH Rear Door Molding Assy - R. RR. DOOR
4	72950-SNA-A01	LH Rear Door Molding Assy	LH Rear Door Molding Assy
2	73111-SNB-Y70	Glass - FR. WINDSHIELD (GREEN) (AGC)	Glass - FR. WINDSHIELD (GREEN) (AGC)
3	73126-SNA-A00	Seal - FR. WINDSHIELD UPPER	Seal - FR. WINDSHIELD UPPER
4	73150-SNA-003	Molding - FR. WINDSHIELD	Molding - FR. WINDSHIELD
5	73153-SNA-003	Clip A - WINDSHIELD	Clip A - WINDSHIELD
6	73154-SNA-003	Clip b - WINDSHIELD	Clip b - WINDSHIELD
7	73155-SNA-003	Clip c - WINDSHIELD	Clip c - WINDSHIELD
8	73158-SNA-013	Molding, Rh. Drip Side	Molding, Rh. Drip Side
9	73168-SNA-013	Molding, Lh. Drip Side	Molding, Lh. Drip Side
2	73211-SNA-A02	Glass - RR. WINDSHIELD(GREEN) (AGC)	Glass - RR. WINDSHIELD(GREEN) (AGC)
8	73300-SNA-G12	Glass assy - R. FR. DOOR (GREEN)(AGC)	Glass assy - R. FR. DOOR (GREEN)(AGC)
5	73331-SNA-A01	Glass - R. FR. CORNER (GREEN) (AGC)	Glass - R. FR. CORNER (GREEN) (AGC)
6	73332-SNA-A00	Rubber a - WINDSHIELD DAM	Rubber a - WINDSHIELD DAM
8	73334-SFA-000	Clip set - FR. CORNER GLASS	Clip set - FR. CORNER GLASS
9	73335-SNA-003	Garnish - R. FR. CORNER	Garnish - R. FR. CORNER
9	73350-SNA-G12	Glass assy - L. FR. DOOR (GREEN)(AGC)	Glass assy - L. FR. DOOR (GREEN)(AGC)
10	73371-SNA-A01	Glass - L. FR. CORNER (GREEN) (AGC)	Glass - L. FR. CORNER (GREEN) (AGC)
11	73375-SNA-003	Garnish - L. FR. CORNER	Garnish - L. FR. CORNER
7	73400-SNA-A00	Glass assy - R. RR. DOOR (GREEN)(NIPPON SAFETY)	Glass assy - R. RR. DOOR (GREEN)(NIPPON SAFETY)
3	73405-SNA-000	Glass - R. RR. DOOR QUARTER (GREEN)(NIPPON SAFETY)	Glass - R. RR. DOOR QUARTER (GREEN)(NIPPON SAFETY)
4	73441-SNA-003	Seal - R. RR. DOOR QUARTER	Seal - R. RR. DOOR QUARTER
8	73450-SNA-A00	Glass assy - L. RR. DOOR (GREEN)(NIPPON SAFETY)	Glass assy - L. RR. DOOR (GREEN)(NIPPON SAFETY)
5	73455-SNA-000	Glass - L. RR. DOOR QUARTER (GREEN)(NIPPON SAFETY)	Glass - L. RR. DOOR QUARTER (GREEN)(NIPPON SAFETY)
6	73491-SNA-003	Seal - L. RR. DOOR QUARTER	Seal - L. RR. DOOR QUARTER
5	74101-SNA-A10	Fender - R. FR. INNER	Fender - R. FR. INNER
6	74105-SNA-A00	Enclosure - R. FR. FENDER	Enclosure - R. FR. FENDER
7	74111-SNA-A00	Shield, FR. SPLASH	Shield, FR. SPLASH
5	74120-SNB-E11	Lock assy - HOOD (SECURITY SWITCH)	Lock assy - HOOD (SECURITY SWITCH)
7	74121-SNA-A00	Rubber - R. HOOD SEAL	Rubber - R. HOOD SEAL
9	74141-SNB-000	Insulator - HOOD	Insulator - HOOD
10	74142-SNB-000	Rubber - R. HEADLIGHT SEAL	Rubber - R. HEADLIGHT SEAL
11	74143-SNA-A00	Rubber - HOOD RR. SEAL	Rubber - HOOD RR. SEAL
2	74144-SR3-000	Cushion - HOOD	Cushion - HOOD
12	74145-SNA-A11	Stay - HOOD OPENER	Stay - HOOD OPENER
8	74151-SNA-A10	Fender - L. FR. INNER	Fender - L. FR. INNER
9	74155-SNA-A00	Enclosure - L. FR. FENDER	Enclosure - L. FR. FENDER
12	74171-SNA-A00	Bracket - RADIATOR MOUNT UPPER	Bracket - RADIATOR MOUNT UPPER
13	74172-S5A-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
14	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
5	74175-SJA-000	Cushion - HOOD	Cushion - HOOD
13	74192-SNB-000	Rubber - L. HEADLIGHT SEAL	Rubber - L. HEADLIGHT SEAL
14	74200-SNA-A00	Cowl top assy. FR. CENTER	Cowl top assy. FR. CENTER
15	74205-SNA-A00	Lid - FRAME NUMBER	Lid - FRAME NUMBER
10	74206-SNA-A01	Garnish - R. FR. FENDER	Garnish - R. FR. FENDER
11	74207-SNA-A01	Garnish - L. FR. FENDER	Garnish - L. FR. FENDER
16	74210-SNA-A00	Cowl top assy. - FR. DRIVER	Cowl top assy. - FR. DRIVER
17	74211-SNA-A00	Cap - COWL TOP SIDE	Cap - COWL TOP SIDE
18	74212-SNA-A00	Lid - R. COWL TOP SIDE	Lid - R. COWL TOP SIDE
19	74213-SNA-A00	Rubber - R. COWL TOP SIDE	Rubber - R. COWL TOP SIDE
20	74220-SNA-A00	Cowl top assy. FR. PASSENGER	Cowl top assy. FR. PASSENGER
21	74222-SNA-A00	Lid - L. COWL TOP SIDE	Lid - L. COWL TOP SIDE
22	74223-SNA-A00	Rubber - L. COWL TOP SIDE	Rubber - L. COWL TOP SIDE
1	74241-SNA-A00	Insulator - DASHBOARD UPPER CENTER	Insulator - DASHBOARD UPPER CENTER
1	74251-SNA-A00	Insulator - DASHBOARD LOWER OUTER	Insulator - DASHBOARD LOWER OUTER
13	74252-SNA-A00	Plate - DASHBOARD LOWER HEAT BAFFLE	Plate - DASHBOARD LOWER HEAT BAFFLE
2	74260-SNA-A00	Insulator - DASHBOARD	Insulator - DASHBOARD
1	74401-SNA-A00	Tape - R. SIDE SILL PROTECTION	Tape - R. SIDE SILL PROTECTION
2	74405-SNA-A00	Tape - L. SIDE SILL PROTECTION	Tape - L. SIDE SILL PROTECTION
26	74480-SNA-A00	Adapter assy - FUEL CAP	Adapter assy - FUEL CAP
27	74481-SNA-A00	Packing - FILLER PIPE	Packing - FILLER PIPE
28	74490-SNA-A00	Grommet assy - FUEL CAP	Grommet assy - FUEL CAP
29	74494-S3M-A00	Spring - FUEL LID OPEN	Spring - FUEL LID OPEN
3	74551-SNB-000	Cover - R. RR. FENDER	Cover - R. RR. FENDER
4	74591-SNB-000	Cover - L. RR. FENDER	Cover - L. RR. FENDER
14	74601-SNW-000	Plate a - FLOOR HEAT BAFFLE	Plate a - FLOOR HEAT BAFFLE
15	74603-SNA-A10	Plate b - FLOOR HEAT BAFFLE	Plate b - FLOOR HEAT BAFFLE
13	74654-SE0-A00	Bolt - ANCHOR	Bolt - ANCHOR
16	74655-SNA-A00	Plate - SILENCER BAFFLE	Plate - SILENCER BAFFLE
20	74660-SNA-A00	Cap assy. - FUEL MAINTENANCE HOLE	Cap assy. - FUEL MAINTENANCE HOLE
14	74665-SM4-A00	Adapter - ANCHOR BOLT	Adapter - ANCHOR BOLT
7	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
9	74828-SNA-000	Stopper - R. TRUNK LID LOWER	Stopper - R. TRUNK LID LOWER
10	74829-SDA-A01	Stopper - TRUNK LID	Stopper - TRUNK LID
11	74829-SNA-000	Stopper - L. TRUNK LID LOWER	Stopper - L. TRUNK LID LOWER
12	74851-SNA-G01	Lock - TRUNK(MANUAL+SECURITY)	Lock - TRUNK(MANUAL+SECURITY)
14	74852-SDA-A21	Snap	Snap
15	74853-SDA-A21	Washer	Washer
17	74854-SNA-003	Cover	Cover
16	74854-SNA-A01	Washer	Washer
18	74855-SNA-A01	Silencer	Silencer
19	74861-SNB-A01	Cylinder - TRUNK	Cylinder - TRUNK
21	74862-SE3-003	Striker - TRUNK	Striker - TRUNK
22	74863-SNB-003	Rod - TRUNK	Rod - TRUNK
23	74865-SNA-013	Weatherstrip - TRUNK LID	Weatherstrip - TRUNK LID
24	74866-SNB-G01	Switch - TRUNK CYLINDER GROUND	Switch - TRUNK CYLINDER GROUND
25	74867-SW5-003	Holder - ROD	Holder - ROD
26	74871-SNA-000	Spring - R. TRUNK OPENER	Spring - R. TRUNK OPENER
27	74872-SNA-J00	Spring - L. TRUNK OPENER	Spring - L. TRUNK OPENER
28	74873-S30-013	Clip - TRUNK OPENER SPRING	Clip - TRUNK OPENER SPRING
29	74880-SNA-A11	Cable - TRUNK & FUEL LID OPENER	Cable - TRUNK & FUEL LID OPENER
12	75305-S0A-003	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
20	75353-671-000	Lock - SCREW	Lock - SCREW
30	75450-SNA-A01	Outlet assy - RR. AIR	Outlet assy - RR. AIR
6	75700-TA0-A00	Emblem - FR. (H)	Emblem - FR. (H)
4	75701-SNB-003	Emblem - RR. (H)	Emblem - RR. (H)
7	75717-SNB-E01	Sticker - I-VTEC	Sticker - I-VTEC
6	75722-SNB-J01	Emblem - RR. (CIVIC)	Emblem - RR. (CIVIC)
8	75723-SNA-K11	Emblem - RR. (VTI)	Emblem - RR. (VTI)
11	75725-SNA-K01	Emblem - RR. (I-VTEC)	Emblem - RR. (I-VTEC)
12	75725-SNB-K00	Emblem - SIDE (I-VTEC)	Emblem - SIDE (I-VTEC)
17	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
4	76203-SNB-N01	Mirror sub assy. - R.(R1400)	Mirror sub assy. - R.(R1400)
6	76207-SNB-G01	Bracket comp. - R.	Bracket comp. - R.
7	76210-SNB-N01	Actuator set - R.	Actuator set - R.
8	76215-SNB-N01	Actuator set - L.	Actuator set - L.
9	76220-SNA-A21	Tube - CORRUGATE	Tube - CORRUGATE
11	76253-SNB-N01	Mirror sub assy. - L.(R1400)	Mirror sub assy. - L.(R1400)
13	76257-SNB-G01	Bracket comp. - L.	Bracket comp. - L.
14	76400-SEA-024	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
1	76505-SNA-A02	Motor comp - FR. WIPER	Motor comp - FR. WIPER
2	76516-SDA-A01	Rubber - MOUNTING	Rubber - MOUNTING
3	76516-SJK-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76516-SM4-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76516-SNA-A01	Rubber - MOUNTING	Rubber - MOUNTING
6	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
7	76517-SJK-003	Collar	Collar
8	76517-SM4-003	Collar	Collar
9	76520-SNA-A01	Link assy. a	Link assy. a
10	76524-SL0-A01	Dust seal	Dust seal
11	76530-SNA-A11	Link comp - FR. WIPER	Link comp - FR. WIPER
12	76540-SNA-A01	Rod unit a	Rod unit a
13	76550-SNA-A01	Rod unit b	Rod unit b
14	76555-SNA-A01	Rod unit c	Rod unit c
15	76561-SNA-A01	Cap - PIVOT	Cap - PIVOT
16	76562-SNA-A02	Cap - PIVOT	Cap - PIVOT
17	76600-SNB-Y11	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
18	76601-SNA-A01	Cover - ARM	Cover - ARM
19	76602-SNA-A01	Cover - ARM	Cover - ARM
20	76610-SNB-Y11	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
21	76620-SNA-A11	Blade - WINDSHIELD WIPER (650MM) (DRIVER SIDE)	Blade - WINDSHIELD WIPER (650MM) (DRIVER SIDE)
22	76622-STK-A01	Rubber - BLADE (650MM)	Rubber - BLADE (650MM)
22	76622-STK-A02	BLADE RUBBER	BLADE RUBBER
23	76623-SNA-A11	Rubber - BLADE (575MM)	Rubber - BLADE (575MM)
24	76630-SNA-A11	Blade - WINDSHIELD WIPER (575MM) (PASSENGER SIDE)	Blade - WINDSHIELD WIPER (575MM) (PASSENGER SIDE)
5	76802-SJD-003	Cap unit - MOUTH	Cap unit - MOUTH
8	76805-SNA-003	Hose - WASHER	Hose - WASHER
9	76806-SL0-E01	Motor - WASHER (HIGH) (MITSUBA)	Motor - WASHER (HIGH) (MITSUBA)
9	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)	Motor - WASHER (HIGH) (MITSUBA)
11	76809-S9A-003	Packing	Packing
23	76810-SNA-A01	Nozzle assy. - R.	Nozzle assy. - R.
24	76815-SNA-A01	Nozzle assy. - L.	Nozzle assy. - L.
13	76829-SM4-003	Joint i - WASHER	Joint i - WASHER
25	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
26	76832-SNA-003	Tube - 260MM	Tube - 260MM
27	76834-SNA-003	Tube - 140MM	Tube - 140MM
28	76835-SNA-003	Tube - 120MM	Tube - 120MM
15	76841-SNA-003	Tank - WASHER (2.5L)	Tank - WASHER (2.5L)
29	76842-SNA-003	Tube - 610MM	Tube - 610MM
14	76869-SNA-003	Tube - 970MM	Tube - 970MM
1	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
1	77450-SNA-A00	Duct - CENTER JOINT	Duct - CENTER JOINT
9	77466-SNA-A00	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
8	77515-SZ3-A02	Hinge - GLOVE BOX	Hinge - GLOVE BOX
9	77541-SNA-A00	Striker comp. - GLOVE BOX	Striker comp. - GLOVE BOX
12	77550-SNA-A00	Frame comp - GLOVE BOX	Frame comp - GLOVE BOX
14	77606-SNA-A01	Seal b - CLOSE	Seal b - CLOSE
1	77900-SMG-E21	Reel assy - CABLE(FURUKAWA)	Reel assy - CABLE(FURUKAWA)
4	77930-SNA-A32	Sensor assy - FR. CRASH(TRW)	Sensor assy - FR. CRASH(TRW)
6	77970-SNA-A32	Sensor assy - SIDE IMPACT (TRW)	Sensor assy - SIDE IMPACT (TRW)
20	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
1	78050-SNB-G81	Module assy. - R. SIDE	Module assy. - R. SIDE
1	78055-SNB-G81	Module assy. - L. SIDE	Module assy. - L. SIDE
2	78120-SNA-A14	Speedometer assy - NS	Speedometer assy - NS
3	78155-SNA-A02	Visor	Visor
4	78156-SNA-A11	Lens - METER	Lens - METER
5	78159-SNA-A01	Lens comp	Lens comp
2	78182-SA0-000	Clip - RR. SEAT PIN	Clip - RR. SEAT PIN
8	78525-SNB-N81	Guide - CORD	Guide - CORD
2	79021-SNA-A01	Seal a	Seal a
3	79102-SNA-A01	Duct assy - PASSENGER HEATER	Duct assy - PASSENGER HEATER
4	79103-SNA-A01	Packing set	Packing set
5	79104-SNA-A01	Packing	Packing
6	79106-SNB-A51	Heater sub assy.	Heater sub assy.
7	79107-SNA-A01	Cover - HEATER PIPE	Cover - HEATER PIPE
8	79108-SNA-A01	Plate - EVAPORATOR LOWER	Plate - EVAPORATOR LOWER
9	79109-SNA-A01	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
10	79110-SNA-A01	Core sub assy. - HEATER	Core sub assy. - HEATER
11	79140-SNA-A01	Motor assy. - MODE	Motor assy. - MODE
12	79160-SNA-A01	Motor assy. - AIR MIX	Motor assy. - AIR MIX
1	79305-SNA-A42	Blower sub assy.	Blower sub assy.
2	79306-SNA-A01	Seal - BLOWER OUTER	Seal - BLOWER OUTER
3	79307-SNA-A01	Packing - IN.	Packing - IN.
13	79308-SNA-A01	Joint set - DUCT	Joint set - DUCT
4	79310-SNA-A02	Motor assy. - FAN	Motor assy. - FAN
14	79330-SNA-A01	Transistor - POWER	Transistor - POWER
5	79350-SNA-A41	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
4	79609-S5A-003	Bulb - NEO WEDGE (14V 100MA)	Bulb - NEO WEDGE (14V 100MA)
7	79612-SNB-Y42	Board assy - PRINTED CIRCUIT	Board assy - PRINTED CIRCUIT
8	79613-SNB-941	Bulb - NEO WEDGE (T4.2)	Bulb - NEO WEDGE (T4.2)
1	79721-SNA-A00	Hose - WATER IN.	Hose - WATER IN.
2	79725-SNA-A00	Hose - WATER OUTLET	Hose - WATER OUTLET
15	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
3	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)	Clamp - HEATER HOSE (NATURAL)
4	79751-SNA-A00	Stay - HEATER HOSE	Stay - HEATER HOSE
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
7	80106-SDR-A00	Rubber - MOUNT	Rubber - MOUNT
8	80110-SNB-A42	Condenser comp.	Condenser comp.
9	80115-SNA-A00	Bracket - R. CONDENSER UPPER	Bracket - R. CONDENSER UPPER
10	80116-SNA-A00	Bracket - L. CONDENSER UPPER	Bracket - L. CONDENSER UPPER
11	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
16	80211-SNA-A01	Evaporator comp.	Evaporator comp.
18	80221-SNA-A01	Valve assy. - EXPANSION	Valve assy. - EXPANSION
19	80271-SNA-A00	Hose - DRAIN	Hose - DRAIN
15	80292-SWA-A01	Element - FILTER	Element - FILTER
15	80292-SWA-A02	FILTER ELEMENT	FILTER ELEMENT
16	80293-SEA-941	Seal - FILTER	Seal - FILTER
17	80297-SEA-941	Frame set	Frame set
4	80316-SNA-A01	Hose comp. - DISCHARGE	Hose comp. - DISCHARGE
5	80321-SNA-A01	Pipe assy. - AIR CONDITIONER	Pipe assy. - AIR CONDITIONER
12	80351-SDC-A01	Receiver comp	Receiver comp
13	80352-SDA-A01	Clamp	Clamp
7	80361-SNA-A00	Clamp - DISCHARGE HOSE	Clamp - DISCHARGE HOSE
8	80362-SNA-A10	Clamp b - SUCTION PIPE	Clamp b - SUCTION PIPE
11	80364-SNA-A00	Stay b - AIR CONDITIONER PIPE	Stay b - AIR CONDITIONER PIPE
12	80381-SNA-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
13	80382-S7A-003	Clip - AIR CONDITIONER PIPE	Clip - AIR CONDITIONER PIPE
14	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
1	80510-SDA-A41	Sensor assy - SUN BEAM	Sensor assy - SUN BEAM
2	80521-SNB-A40	Bracket - AMBIENT SENSOR	Bracket - AMBIENT SENSOR
4	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
5	80530-SNB-941	Sensor assy - IN CAR	Sensor assy - IN CAR
20	80534-S84-A41	Aspirator	Aspirator
6	80541-SNA-A40	Hose a - ASPIRATOR	Hose a - ASPIRATOR
8	80542-SNA-A40	Hose b - ASPIRATOR	Hose b - ASPIRATOR
21	80560-SNA-A01	Thermistor - AIR CONDITIONER	Thermistor - AIR CONDITIONER
23	80566-SFA-003	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
24	80650-SNA-A41	Sub harness - AIR CONDITIONER	Sub harness - AIR CONDITIONER
15	80865-SL0-003	Cap - VALVE (H)	Cap - VALVE (H)
16	80866-ST0-003	Cap l - VALVE (NICHIRIN)	Cap l - VALVE (NICHIRIN)
17	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
18	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
14	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
2	81123-SNA-A01	Screw - 6X18	Screw - 6X18
3	81126-SNB-J32	Frame comp - R. FR. SEAT	Frame comp - R. FR. SEAT
5	81127-SNB-Y41	Pad comp - R. FR. SEATBACK (WITH OPDS SENSOR)	Pad comp - R. FR. SEATBACK (WITH OPDS SENSOR)
9	81137-SNA-A01	Pad comp - R. FR. SEAT CUSHION	Pad comp - R. FR. SEAT CUSHION
3	81139-SNA-A01	Lever comp - FR. SEAT CUSHION SLIDE	Lever comp - FR. SEAT CUSHION SLIDE
15	81160-SNA-A01	Holder - R. MODULE	Holder - R. MODULE
6	81161-SNB-J01	Opds unit	Opds unit
7	81162-SNA-X01	Cord - FR. SEAT OPDS	Cord - FR. SEAT OPDS
4	81262-SNA-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
7	81291-SNA-A01	Clip	Clip
2	81441-S2G-N51	Collar - 5H	Collar - 5H
3	81441-S50-J22	Collar - 2H	Collar - 2H
7	81460-SNA-A01	Adjuster - SHOULDER SLIDE	Adjuster - SHOULDER SLIDE
8	81491-SNA-A00	Protector - R. FR. SEATBELT	Protector - R. FR. SEATBELT
6	81526-SNB-J12	Frame comp - L. FR. SEAT	Frame comp - L. FR. SEAT
10	81527-SNB-E11	Pad comp - L. FR. SEATBACK	Pad comp - L. FR. SEATBACK
14	81537-SNA-A11	Pad comp - L. FR. SEAT CUSHION	Pad comp - L. FR. SEAT CUSHION
16	81560-SNA-A01	Holder - L. MODULE	Holder - L. MODULE
12	81891-SNA-A00	Protector - L. FR. SEATBELT	Protector - L. FR. SEATBELT
4	82126-SNB-Y11	Frame comp - RR. SEATBACK	Frame comp - RR. SEATBACK
5	82127-SNB-Y11	Pad comp - RR. SEATBACK	Pad comp - RR. SEATBACK
6	82129-SM4-A00	Collar c	Collar c
9	82137-SNA-A01	Pad & frame comp. - RR. SEAT CUSHION	Pad & frame comp. - RR. SEAT CUSHION
8	82138-SNA-003	Clip - RR. SEAT CUSHION	Clip - RR. SEAT CUSHION
14	82156-SNB-E01	Frame - R. RR. SEATBACK SIDE	Frame - R. RR. SEATBACK SIDE
32	82182-SNE-A01	Collar a - RR. SEAT	Collar a - RR. SEAT
33	82189-SNE-A01	Clip - ARMREST	Clip - ARMREST
18	82290-SNA-A01	Bracket assy - R. RR. SEAT PIVOT	Bracket assy - R. RR. SEAT PIVOT
15	82456-SNA-A00	Protector - RR. CENTER SEATBELT	Protector - RR. CENTER SEATBELT
20	82556-SNB-E01	Frame - L. RR. SEATBACK SIDE	Frame - L. RR. SEATBACK SIDE
21	82620-SNA-A03	Lock assy - L. RR. SEAT	Lock assy - L. RR. SEAT
22	82621-SNA-023	Cable - L. RR. SEAT	Cable - L. RR. SEAT
23	82690-SNA-A01	Bracket assy - L. RR. SEAT PIVOT	Bracket assy - L. RR. SEAT PIVOT
4	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
5	83223-S7A-J51	Bulb - 12V 2.0W	Bulb - 12V 2.0W
7	83231-SNB-901	Lens - R.	Lens - R.
15	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
19	83281-SNB-901	Lens - L.	Lens - L.
19	83406-SNA-A01	Pin - ARMREST	Pin - ARMREST
20	83407-SNA-A01	Screw - TAPPING, 4.2X12 (PO)	Screw - TAPPING, 4.2X12 (PO)
21	83408-SNA-A01	Screw - TAPPING, 2.9X12 (PO)	Screw - TAPPING, 2.9X12 (PO)
22	83417-SNA-A00	Bracket comp. - CENTER CONSOLE (FR.)	Bracket comp. - CENTER CONSOLE (FR.)
23	83418-SNA-A00	Bracket comp. - CENTER CONSOLE (RR.)	Bracket comp. - CENTER CONSOLE (RR.)
27	83452-SNA-A01	Pin - ARMREST LOCK	Pin - ARMREST LOCK
28	83453-SNA-A01	Spring - ARMREST LOCK	Spring - ARMREST LOCK
29	83454-SNA-A01	Screw - TAPPING, 3.5X12	Screw - TAPPING, 3.5X12
30	83455-SNA-A01	Screw - TAPPING, 4.2X10	Screw - TAPPING, 4.2X10
31	83456-SNA-A01	Clip - ARMREST DETENT	Clip - ARMREST DETENT
32	83457-SNA-A01	Plate - DAMPER GEAR	Plate - DAMPER GEAR
33	83458-SNA-A01	Damper - ARMREST	Damper - ARMREST
34	83459-SNA-A01	Clip - DAMPER	Clip - DAMPER
35	83460-SNA-A01	Spring - ARMREST HINGE	Spring - ARMREST HINGE
10	84522-SNA-K02	Spacer - R. TRUNK FLOOR	Spacer - R. TRUNK FLOOR
13	84541-SNA-K01	Box - TOOL	Box - TOOL
15	84572-SNA-K02	Spacer - L. TRUNK FLOOR	Spacer - L. TRUNK FLOOR
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
1	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
2	89310-S5A-Y02	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
3	89311-S5A-Y02	Plate - JACK CAUTION	Plate - JACK CAUTION
4	89320-S05-003	Bar - JACK	Bar - JACK
21	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
26	90001-P70-000	Bolt - FLANGE, 10X10.5	Bolt - FLANGE, 10X10.5
6	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
21	90001-PGM-000	Bolt-washer - SPECIAL, 6X30	Bolt-washer - SPECIAL, 6X30
23	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
17	90001-PRP-000	Bolt - FLANGE, 6X30	Bolt - FLANGE, 6X30
44	90001-RLJ-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
15	90001-RNA-A00	Bolt - FLANGE, 8X27	Bolt - FLANGE, 8X27
11	90001-RWK-000	Bolt - SPECIAL, 8X85	Bolt - SPECIAL, 8X85
24	90002-RNA-A00	Bolt - SEALING, 36MM	Bolt - SEALING, 36MM
20	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
6	90003-PA9-003	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
10	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
16	90003-RNA-A00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
5	90003-SNA-010	Bolt - FLANGE, 6X14	Bolt - FLANGE, 6X14
17	90004-PLC-000	Bolt-washer - 10X25	Bolt-washer - 10X25
11	90004-RNA-A00	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
14	90005-RNA-A01	Bolt-washer - 11X176	Bolt-washer - 11X176
12	90006-P8F-A00	Bolt-washer - 8X32	Bolt-washer - 8X32
25	90007-RNA-A01	Bolt-washer - 10X97	Bolt-washer - 10X97
11	90008-PT2-000	Bolt - FLANGE, 6X65	Bolt - FLANGE, 6X65
26	90008-RNA-000	Washer - SEALING, 36MM	Washer - SEALING, 36MM
27	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
8	90009-RNA-A00	Bolt - SPECIAL, 8X65	Bolt - SPECIAL, 8X65
17	90010-RNA-A00	Bolt - SPECIAL, 8X87	Bolt - SPECIAL, 8X87
6	90011-RNA-A00	Bolt - HEAD COVER	Bolt - HEAD COVER
15	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
4	90012-RNA-A00	Bolt-washer - 8X55	Bolt-washer - 8X55
18	90013-PCX-000	Bolt - SPECIAL, 6X12	Bolt - SPECIAL, 6X12
15	90013-RNA-A01	Bolt - HEX., 6X9	Bolt - HEX., 6X9
19	90014-RNA-A00	Bolt - SPECIAL, 6X29.5	Bolt - SPECIAL, 6X29.5
9	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
20	90015-RNA-A00	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM
28	90016-RNA-A00	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
16	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
21	90018-SNA-010	Bolt - FLANGE, 12X18	Bolt - FLANGE, 12X18
5	90020-RNA-A01	Bolt-washer - 5X20	Bolt-washer - 5X20
10	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
10	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
9	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
24	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65
23	90024-RPC-000	Bolt - SEALING, 10MM	Bolt - SEALING, 10MM
8	90025-RPC-000	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM
15	90026-RNA-A00	Bolt - STUD, 8X25	Bolt - STUD, 8X25
6	90027-RNA-A00	Bolt - FUEL PIPE	Bolt - FUEL PIPE
29	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
13	90030-RNA-A00	Bolt - SPECIAL, 10X40	Bolt - SPECIAL, 10X40
12	90031-RNA-A01	Bolt-washer - 10X30	Bolt-washer - 10X30
16	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
17	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
11	90041-RNA-A00	Bolt - STUD, 14X90	Bolt - STUD, 14X90
17	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
18	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
25	90051-RGA-003	Bolt - SPECIAL, 6X20.8	Bolt - SPECIAL, 6X20.8
9	90081-PX4-003	Bolt - PLUG, 18MM	Bolt - PLUG, 18MM
18	90089-PK4-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
28	90100-SHJ-A00	Bolt - FLANGE, 6X16.5	Bolt - FLANGE, 6X16.5
25	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
37	90101-S6A-000	Bolt-washer - 8MM	Bolt-washer - 8MM
18	90101-S84-A00	Screw - ET, 6X16	Screw - ET, 6X16
34	90101-SJK-003	Screw - TAPPING (ONE WAY)	Screw - TAPPING (ONE WAY)
36	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
19	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
11	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
19	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
35	90102-SNA-000	Bolt - SPECIAL, 6MM	Bolt - SPECIAL, 6MM
4	90103-S5A-000	Tapping - SPECIAL, 5X18	Tapping - SPECIAL, 5X18
25	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
20	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)	Bolt - FLANGE, 8X22 (TORX)
26	90103-SP0-000	Bolt - CORNER CLIP	Bolt - CORNER CLIP
34	90103-SV4-013	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
21	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
38	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
15	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)	Screw - TAPPING, 4X12 (TRUSS)
29	90106-SDA-A00	Bolt-washer - 6X25	Bolt-washer - 6X25
16	90107-SFA-003	Screw - TAPPING, 3X12	Screw - TAPPING, 3X12
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
30	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
19	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
20	90109-SAG-H01	Screw - TAPPING, 4X14(TRUSS)	Screw - TAPPING, 4X14(TRUSS)
17	90109-SDF-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
18	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)	Screw - TAPPING, 4X20 (TRUSS)
7	90109-SLJ-003	Screw - 5X40	Screw - 5X40
37	90109-SNA-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
19	90109-TA0-003	Screw-washer - 5X12	Screw-washer - 5X12
20	90111-SAA-003	Bolt-washer - 8X82	Bolt-washer - 8X82
21	90112-SAA-003	Bolt-washer - 8X62	Bolt-washer - 8X62
18	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
18	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
18	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
18	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
31	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
10	90115-SFE-004	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
22	90116-SNA-010	Bolt, FLANGE, 14X94	Bolt, FLANGE, 14X94
23	90118-SNA-000	Bolt - FLANGE, 12X84	Bolt - FLANGE, 12X84
35	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
27	90121-SNA-A00	Bolt - STUD, 6X49	Bolt - STUD, 6X49
19	90123-S04-J30	Washer - WAVE	Washer - WAVE
29	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
25	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
9	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
10	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
26	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
32	90129-SX8-003	Screw-washer - 5X12	Screw-washer - 5X12
21	90131-SCV-A00	Screw - PAN, 5X23	Screw - PAN, 5X23
23	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18
11	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
15	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
13	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
18	90133-SZ4-003	Screw - ET, 7X16	Screw - ET, 7X16
15	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
20	90135-S1F-003	Bolt - FLANGE, 7/16"	Bolt - FLANGE, 7/16"
15	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
14	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
18	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
27	90140-SA5-000	Bolt - SPLASH GUARD	Bolt - SPLASH GUARD
36	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
20	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
36	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
26	90142-S04-J32	Bolt - 7/16"X23.4	Bolt - 7/16"X23.4
25	90142-SNA-004	Bolt - 7/16"X24	Bolt - 7/16"X24
22	90142-SNA-A21	Bolt - 7/16"X28	Bolt - 7/16"X28
23	90142-SNA-A31	Bolt - 7/16"X28	Bolt - 7/16"X28
30	90142-SNA-A41	Bolt-washer - 8X25	Bolt-washer - 8X25
24	90142-SNA-J11	Bolt - 7/16"X17.6	Bolt - 7/16"X17.6
16	90146-SDA-A00	Clip - DOOR LINING SKIN	Clip - DOOR LINING SKIN
31	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18
15	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
27	90149-SAA-003	Bolt - BUMPER	Bolt - BUMPER
10	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
21	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
33	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
11	90151-SM4-003	Bolt-washer - 5X12	Bolt-washer - 5X12
12	90155-TA0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
13	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
12	90160-SNA-A00	Bolt - FLANGE, 14X67	Bolt - FLANGE, 14X67
16	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE
36	90163-SNA-000	Bolt - FLANGE, 10X53	Bolt - FLANGE, 10X53
13	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
14	90165-SNA-A00	Bolt - FLANGE, 14X93	Bolt - FLANGE, 14X93
15	90166-SNA-A00	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
17	90168-S2A-010	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
18	90168-S5A-000	Bolt - FLANGE, 12X35	Bolt - FLANGE, 12X35
16	90168-SZ3-000	Bolt - FLANGE, 12X63	Bolt - FLANGE, 12X63
17	90172-SL4-003	Screw-washer - 5X12	Screw-washer - 5X12
7	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115
18	90178-SNB-A81	Screw - TAPPING, 3X16(PO)	Screw - TAPPING, 3X16(PO)
19	90178-SNB-N61	Screw - TAPPING, 3X8(PO)	Screw - TAPPING, 3X8(PO)
29	90181-S7A-000	Bolt - FLANGE, 14X77	Bolt - FLANGE, 14X77
9	90181-SNA-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
8	90182-S2H-000	Bolt - FLANGE, 12X25	Bolt - FLANGE, 12X25
30	90183-SNA-J00	Bolt - FLANGE, 12X54	Bolt - FLANGE, 12X54
15	90190-SNA-000	Bolt - FLANGE, 14X57	Bolt - FLANGE, 14X57
13	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)	Nut - FLANGE, 24MM (LEFT HAND THREAD)
6	90203-RPC-000	Nut - FLANGE, 22MM	Nut - FLANGE, 22MM
20	90203-SB0-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
11	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)
4	90207-RAA-A00	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM
17	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
19	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM
16	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)
17	90213-SR3-013	Nut - SELF-LOCK, 14MM	Nut - SELF-LOCK, 14MM
24	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
16	90301-SEP-003	Nut - HEX., 14MM	Nut - HEX., 14MM
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
31	90301-ST0-003	push nut, 3mm	push nut, 3mm
18	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
23	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
18	90304-S10-024	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
16	90304-SF0-751	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)
18	90305-692-010	Nut	Nut
14	90306-SA0-000	Nut - FLOATING, 5MM	Nut - FLOATING, 5MM
25	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
9	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER
27	90321-S06-000	Nut - HEX. CAP, 5MM	Nut - HEX. CAP, 5MM
13	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
11	90331-679-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
5	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
18	90351-SB2-003	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
24	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM
6	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
34	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
26	90363-S3V-A01	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
10	90364-SNA-901	Nut - SELF-LOCK, 10MM (FUSE RASHI)	Nut - SELF-LOCK, 10MM (FUSE RASHI)
20	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
21	90380-S10-000	Bolt - STUD, 12X83.8	Bolt - STUD, 12X83.8
32	90395-SNA-003	Nut - LOCK FLANGE	Nut - LOCK FLANGE
33	90396-SNA-000	Bolt - FLANGE, 12X95	Bolt - FLANGE, 12X95
34	90397-SNA-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
35	90398-SNA-010	Bolt - FLANGE, 12X86.5	Bolt - FLANGE, 12X86.5
31	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
21	90401-RNA-A00	Washer - SEALING, 16MM	Washer - SEALING, 16MM
14	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
7	90402-RPC-000	Washer - SPRING, 22MM	Washer - SPRING, 22MM
8	90414-RG0-000	Washer - THRUST, 40X63X3.750	Washer - THRUST, 40X63X3.750
8	90415-RG0-000	Washer - THRUST, 40X63X3.775	Washer - THRUST, 40X63X3.775
8	90416-RG0-000	Washer - THRUST, 40X63X3.800	Washer - THRUST, 40X63X3.800
8	90417-RG0-000	Washer - THRUST, 40X63X3.825	Washer - THRUST, 40X63X3.825
8	90418-RG0-000	Washer - THRUST, 40X63X3.850	Washer - THRUST, 40X63X3.850
8	90419-RG0-000	Washer - THRUST, 40X63X3.875	Washer - THRUST, 40X63X3.875
8	90420-RG0-000	Washer - THRUST, 40X63X3.900	Washer - THRUST, 40X63X3.900
8	90421-RG0-000	Washer - THRUST, 40X63X3.925	Washer - THRUST, 40X63X3.925
8	90422-RG0-000	Washer - THRUST, 40X63X3.950	Washer - THRUST, 40X63X3.950
8	90423-RG0-000	Washer - THRUST, 40X63X3.975	Washer - THRUST, 40X63X3.975
8	90424-RG0-000	Washer - THRUST, 40X63X4.000	Washer - THRUST, 40X63X4.000
11	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2
3	90431-PRP-000	Cotter - 17MM	Cotter - 17MM
15	90431-RPC-000	Cotter - 29MM	Cotter - 29MM
4	90432-PRP-000	Retainer - COTTER	Retainer - COTTER
9	90432-RPC-000	Cotter - 39MM	Cotter - 39MM
25	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
7	90433-PLX-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
22	90433-PRP-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
10	90433-RDK-000	Retainer - COTTER	Retainer - COTTER
16	90441-RPC-000	Collar - 33.2X40X26	Collar - 33.2X40X26
11	90443-RPC-000	Collar - 29X35X33	Collar - 29X35X33
17	90445-RPC-000	Collar - 33X45X7.8	Collar - 33X45X7.8
27	90471-580-000	Packing - 8MM	Packing - 8MM
26	90471-PW7-A00	PACKING, 10MM	PACKING, 10MM
11	90471-PX4-000	Washer - DRAIN PLUG, 18MM	Washer - DRAIN PLUG, 18MM
17	90471-RGR-000	Washer - DRAIN PLUG, 12MM	Washer - DRAIN PLUG, 12MM
12	90471-RPC-000	Washer - DRAIN PLUG, 16MM	Washer - DRAIN PLUG, 16MM
28	90472-RPC-000	Packing - 10MM	Packing - 10MM
9	90501-RPC-000	Collar - 27X32X60.5	Collar - 27X32X60.5
26	90501-SS8-A01	Retainer	Retainer
12	90502-RPC-000	Washer - THRUST, 43X54.5X2.900	Washer - THRUST, 43X54.5X2.900
12	90503-RPC-000	Washer - THRUST, 43X54.5X2.925	Washer - THRUST, 43X54.5X2.925
12	90504-RPC-000	Washer - THRUST, 43X54.5X2.950	Washer - THRUST, 43X54.5X2.950
12	90505-RPC-000	Washer - THRUST, 43X54.5X2.975	Washer - THRUST, 43X54.5X2.975
12	90506-RPC-000	Washer - THRUST, 43X54.5X3.000	Washer - THRUST, 43X54.5X3.000
12	90507-RPC-000	Washer - THRUST, 43X54.5X3.025	Washer - THRUST, 43X54.5X3.025
12	90508-RPC-000	Washer - THRUST, 43X54.5X3.050	Washer - THRUST, 43X54.5X3.050
12	90509-RPC-000	Washer - THRUST, 43X54.5X3.075	Washer - THRUST, 43X54.5X3.075
12	90510-RPC-000	Washer - THRUST, 43X54.5X3.100	Washer - THRUST, 43X54.5X3.100
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
12	90511-RPC-000	Washer - THRUST, 43X54.5X3.125	Washer - THRUST, 43X54.5X3.125
12	90512-RPC-000	Washer - THRUST, 43X54.5X3.150	Washer - THRUST, 43X54.5X3.150
12	90513-RPC-000	Washer - THRUST, 43X54.5X3.175	Washer - THRUST, 43X54.5X3.175
12	90514-RPC-000	Washer - THRUST, 43X54.5X3.200	Washer - THRUST, 43X54.5X3.200
13	90521-RG5-000	Washer - THRUST, 31X50X3.925	Washer - THRUST, 31X50X3.925
13	90522-RG5-000	Washer - THRUST, 31X50X3.950	Washer - THRUST, 31X50X3.950
13	90523-RG5-000	Washer - THRUST, 31X50X3.975	Washer - THRUST, 31X50X3.975
13	90524-RG5-000	Washer - THRUST, 31X50X4.000	Washer - THRUST, 31X50X4.000
13	90525-RG5-000	Washer - THRUST, 31X50X4.025	Washer - THRUST, 31X50X4.025
13	90526-RG5-000	Washer - THRUST, 31X50X4.050	Washer - THRUST, 31X50X4.050
13	90527-RG5-000	Washer - THRUST, 31X50X4.075	Washer - THRUST, 31X50X4.075
13	90528-RG5-000	Washer - THRUST, 31X50X4.100	Washer - THRUST, 31X50X4.100
13	90529-RG5-000	Washer - THRUST, 31X50X4.125	Washer - THRUST, 31X50X4.125
13	90530-RG5-000	Washer - THRUST, 31X50X4.150	Washer - THRUST, 31X50X4.150
13	90531-RG5-000	Washer - THRUST, 31X50X4.175	Washer - THRUST, 31X50X4.175
13	90532-RG5-000	Washer - THRUST, 31X50X4.200	Washer - THRUST, 31X50X4.200
13	90533-RG5-000	Washer - THRUST, 31X50X4.225	Washer - THRUST, 31X50X4.225
13	90534-RG5-000	Washer - THRUST, 31X50X4.250	Washer - THRUST, 31X50X4.250
13	90535-RG5-000	Washer - THRUST, 31X50X4.275	Washer - THRUST, 31X50X4.275
13	90536-RG5-000	Washer - THRUST, 31X50X4.300	Washer - THRUST, 31X50X4.300
13	90537-RG5-000	Washer - THRUST, 31X50X4.325	Washer - THRUST, 31X50X4.325
27	90543-S2G-C21	Washer - PLAIN	Washer - PLAIN
29	90543-S50-902	Washer - SPRING	Washer - SPRING
38	90601-SNB-J01	Plug - HOLE (21X33.6)	Plug - HOLE (21X33.6)
39	90601-SNB-J11	Plug - HOLE (26X45.8)	Plug - HOLE (26X45.8)
29	90602-PX4-000	Circlip b - INTERNAL, 47MM	Circlip b - INTERNAL, 47MM
9	90602-RPC-003	Circlip - EXTERNAL, 36MM	Circlip - EXTERNAL, 36MM
33	90602-S5A-003	Clip - COWL TOP	Clip - COWL TOP
32	90602-SFA-004	Clip - COWL TOP	Clip - COWL TOP
10	90603-P0X-000	Set ring - 23MM	Set ring - 23MM
9	90603-PB6-000	Ring - SNAP, 62MM	Ring - SNAP, 62MM
9	90603-RPC-003	Circlip - EXTERNAL, 45MM	Circlip - EXTERNAL, 45MM
10	90603-RPC-004	Circlip - EXTERNAL, 42MM	Circlip - EXTERNAL, 42MM
10	90605-PA9-000	Ring - SNAP, 114X1.8	Ring - SNAP, 114X1.8
10	90605-PX4-000	Ring - SNAP, 129MM	Ring - SNAP, 129MM
11	90605-RCT-004	Ring - SNAP, 133MM	Ring - SNAP, 133MM
14	90608-RDK-000	Circlip - EXTERNAL, 43MM	Circlip - EXTERNAL, 43MM
10	90609-PC8-000	Ring - SNAP, 68MM	Ring - SNAP, 68MM
22	90610-S10-003	Clip - GARNISH	Clip - GARNISH
11	90612-RPC-000	Ring - SNAP, 78MM	Ring - SNAP, 78MM
12	90615-PF4-000	Ring - SNAP, 75MM	Ring - SNAP, 75MM
6	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
5	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
18	90616-RPC-000	Ring - SNAP, 33MM	Ring - SNAP, 33MM
15	90621-RPC-000	Circlip - EXTERNAL, 26MM	Circlip - EXTERNAL, 26MM
18	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
18	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE
28	90650-SZ3-003	Grommet - R. RR. COMBINATION LIGHT	Grommet - R. RR. COMBINATION LIGHT
35	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
3	90651-S0A-003	Cap - BOLT, 8MM	Cap - BOLT, 8MM
21	90651-S4N-003	Clip	Clip
36	90651-SEA-E10	Clip - RR. KNUCKLE	Clip - RR. KNUCKLE
34	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)	Clip - WIRE HARNESS, 6MM (WHITE)
29	90655-SZ3-003	Grommet - L. RR. COMBINATION LIGHT	Grommet - L. RR. COMBINATION LIGHT
23	90656-PB1-003	Band - OIL HOSE	Band - OIL HOSE
37	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
13	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
13	90666-SD4-003	Clip - FITTING	Clip - FITTING
12	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
41	90669-SA5-003	Cover - MUDGUARD HOLE	Cover - MUDGUARD HOLE
26	90669-SWA-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
27	90671-SHJ-A02	Rivet - VIN PLATE	Rivet - VIN PLATE
7	90672-SNB-901	Holder - ROD	Holder - ROD
29	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
19	90681-SNA-000	Circlip - SPECIAL INTERNAL, 78MM	Circlip - SPECIAL INTERNAL, 78MM
30	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
31	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
13	90682-SEA-003	Clip - TAPPING SCREW, 5MM	Clip - TAPPING SCREW, 5MM
35	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
38	90691-SJD-003	Clip - LATCH CABLE	Clip - LATCH CABLE
33	90691-SNA-003	Clip - OPENER CABLE & WASHER TUBE	Clip - OPENER CABLE & WASHER TUBE
32	90701-PD2-000	Dowel pin - 12X14	Dowel pin - 12X14
20	90701-PK4-000	Dowel pin - 8X80	Dowel pin - 8X80
27	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)
30	90702-PL4-000	Dowel pin - 8X44	Dowel pin - 8X44
33	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
13	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3
17	90704-PNA-000	Key - 4.5X21	Key - 4.5X21
14	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
34	90705-RNA-A00	Dowel pin - 20X22	Dowel pin - 20X22
10	90856-P2E-003	Plug - HOLE, 30MM	Plug - HOLE, 30MM
43	90856-SDA-A01	Plug - TRUNK DRAIN	Plug - TRUNK DRAIN
4	90857-SNA-A00	Cap - WELD HOLE	Cap - WELD HOLE
16	91001-PRP-004	Bearing - BALL, 40X68X7.5	Bearing - BALL, 40X68X7.5
13	91001-RPC-006	Bearing - BALL, 27X75X18.5	Bearing - BALL, 27X75X18.5
14	91002-RPC-005	Bearing - BALL, 29X78X19/16	Bearing - BALL, 29X78X19/16
15	91003-RPC-003	Bearing - BALL, 26X62X11	Bearing - BALL, 26X62X11
15	91004-RPC-016	Bearing - BALL, 29X68X13	Bearing - BALL, 29X68X13
16	91005-RPC-016	Bearing - BALL, 20X62X16.5	Bearing - BALL, 20X62X16.5
31	91006-P1B-003	Bearing - BALL, 9X20X6	Bearing - BALL, 9X20X6
16	91011-RG5-005	Bearing - NEEDLE, 31X38X18	Bearing - NEEDLE, 31X38X18
17	91012-RPC-005	Bearing - NEEDLE, 43X49X20.5	Bearing - NEEDLE, 43X49X20.5
18	91013-RPC-003	Bearing - NEEDLE, 35X41X24	Bearing - NEEDLE, 35X41X24
11	91014-RPC-003	Bearing - NEEDLE, 32X37X24	Bearing - NEEDLE, 32X37X24
19	91015-RPC-003	Bearing - NEEDLE, 33X39X26.5	Bearing - NEEDLE, 33X39X26.5
12	91016-RPC-003	Bearing - NEEDLE, 47X52X15.5	Bearing - NEEDLE, 47X52X15.5
13	91017-PZK-003	Bearing - NEEDLE, 23X29X18	Bearing - NEEDLE, 23X29X18
20	91017-RPC-004	Bearing - NEEDLE, 36X42X17	Bearing - NEEDLE, 36X42X17
21	91018-RPC-003	Bearing - NEEDLE, 15X20X16	Bearing - NEEDLE, 15X20X16
19	91021-RPC-003	Needle - THRUST, 35X53X2.5	Needle - THRUST, 35X53X2.5
14	91022-RPC-003	Needle - THRUST, 32X44X2	Needle - THRUST, 32X44X2
15	91023-RPC-003	Needle - THRUST, 32X51.5X2.5	Needle - THRUST, 32X51.5X2.5
16	91024-RPC-003	Needle - THRUST, 52.5X66.5X2	Needle - THRUST, 52.5X66.5X2
20	91025-RPC-003	Needle - THRUST, 31X44X2.5	Needle - THRUST, 31X44X2.5
21	91026-RPC-003	Needle - THRUST, 38.5X51.5X2.5	Needle - THRUST, 38.5X51.5X2.5
22	91027-RPC-003	Needle - THRUST, 49.5X64X2.5	Needle - THRUST, 49.5X64X2.5
23	91028-RPC-003	Needle - THRUST, 43X55.5X2.5	Needle - THRUST, 43X55.5X2.5
17	91101-RPC-003	Bearing - NEEDLE, 33.5X59X19	Bearing - NEEDLE, 33.5X59X19
32	91102-RPC-003	Bearing - NEEDLE, 30X52X19	Bearing - NEEDLE, 30X52X19
11	91108-PRP-003	Roller - 4X23.8	Roller - 4X23.8
7	91121-RPC-003	Bearing - BALL, 40X90X20	Bearing - BALL, 40X90X20
33	91201-PA9-004	Oil seal - 9X18X7 (ARAI)	Oil seal - 9X18X7 (ARAI)
17	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
18	91206-PHR-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
19	91207-P7Z-003	Oil seal - 44X68X8 (NOK)	Oil seal - 44X68X8 (NOK)
9	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)
12	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)
35	91214-PWA-Y01	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)
24	91301-P6H-003	O-ring - 7.6X1.9 (KEIHIN)	O-ring - 7.6X1.9 (KEIHIN)
34	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
7	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
36	91301-RNA-A01	O-ring - 20X2.3 (NOK)	O-ring - 20X2.3 (NOK)
36	91301-RNA-A02	O-ring - 20X2.3 (ARAI)	O-ring - 20X2.3 (ARAI)
25	91302-P6H-003	O-ring - 9.6X1.9 (KEIHIN)	O-ring - 9.6X1.9 (KEIHIN)
25	91302-P7W-A00	O-ring - 9.6X1.9	O-ring - 9.6X1.9
8	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)
16	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
12	91302-RCT-004	O-ring - 40.2X2.2	O-ring - 40.2X2.2
12	91302-RNA-003	O-ring - 35.5X1.9	O-ring - 35.5X1.9
11	91302-RPC-003	O-ring - 31.4X2.2	O-ring - 31.4X2.2
12	91303-P0Z-003	O-ring - 45.1X2.2 (NOK)	O-ring - 45.1X2.2 (NOK)
12	91303-PA9-004	O-ring - 100X2.2 (NOK)	O-ring - 100X2.2 (NOK)
11	91303-PF4-004	O-ring - 110X2.2 (NOK)	O-ring - 110X2.2 (NOK)
13	91303-RCT-004	O-ring - 111.7X2.2	O-ring - 111.7X2.2
35	91304-RPC-003	O-ring - 39X1.9	O-ring - 39X1.9
36	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
22	91306-P0X-003	O-ring - 8.1X4 (NOK)	O-ring - 8.1X4 (NOK)
22	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)
24	91307-RPC-000	O-ring - 22.5X1.9	O-ring - 22.5X1.9
19	91307-RTA-005	O-ring - DENSO	O-ring - DENSO
10	91308-PW4-003	O-ring - 21.8X1.9	O-ring - 21.8X1.9
7	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
37	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)
23	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)
38	91314-PW4-003	O-ring - 11X1.9 (NOK)	O-ring - 11X1.9 (NOK)
21	91316-PF4-003	O-ring - 31X1.7 (ARAI)	O-ring - 31X1.7 (ARAI)
17	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)
17	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5
22	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
20	91326-P4V-003	O-ring - 26.7X1.9(NOK)	O-ring - 26.7X1.9(NOK)
16	91329-PRP-003	O-ring - 23.3X2.4	O-ring - 23.3X2.4
23	91331-PC9-003	O-ring	O-ring
27	91331-PL5-J00	O-ring - 20.2X2.4 (NOK)	O-ring - 20.2X2.4 (NOK)
18	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9
37	91333-PNC-006	O-ring	O-ring
28	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)
37	91352-SNA-951	O-ring - 63X2.4 (NTN)	O-ring - 63X2.4 (NTN)
9	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
15	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
22	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
5	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
22	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
5	91405-RGA-003	Clamp - TUBE (D20)	Clamp - TUBE (D20)
18	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
19	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
23	91413-S5A-003	Clamp - FUEL TUBE (D17)	Clamp - FUEL TUBE (D17)
24	91462-SDA-003	Clamp - FUEL TUBE (D18)	Clamp - FUEL TUBE (D18)
27	91501-P8A-A01	Stud	Stud
15	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
8	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
36	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
14	91501-SNA-003	Clip - FR. COWL	Clip - FR. COWL
37	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
32	91503-SZ3-003	Clip A	Clip A
33	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
39	91505-SL0-003	Clip - COWL TOP	Clip - COWL TOP
28	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
34	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
41	91506-SZH-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS
29	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
10	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
24	91507-SH3-003	PIN, CLIP, 8MM	PIN, CLIP, 8MM
12	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
11	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
30	91512-SJ6-J01	Clip A - GARNISH	Clip A - GARNISH
13	91512-SLA-003	Clip - FR. CORNER GARNISH	Clip - FR. CORNER GARNISH
22	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR
10	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
10	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
38	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
30	91531-S5B-003	Band - HARNESS (BLACK) (120MM)	Band - HARNESS (BLACK) (120MM)
13	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
14	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
47	91533-S5A-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
16	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)
9	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
15	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
16	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
18	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
28	91540-SNA-003	Holder - COUPLER (YELLOW)	Holder - COUPLER (YELLOW)
16	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
31	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
20	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)
21	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
24	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
18	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM
22	91545-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)
23	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
21	91548-SR3-003	Clip - 8MM	Clip - 8MM
32	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)	Band - WIRE HARNESS (BLACK) (172MM)
32	91551-SWA-901	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7
26	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
27	91554-SH3-003	Band - WIRE HARNESS (NATURAL) (100.5MM)	Band - WIRE HARNESS (NATURAL) (100.5MM)
28	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
33	91558-SM4-003	Clip - TUBE(BLACK)(135MM)	Clip - TUBE(BLACK)(135MM)
34	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
29	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
30	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
31	91560-S5H-003	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)
11	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
26	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)
22	91560-SAA-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
23	91560-SED-003	Clip - PILLAR GARNISH (PINK)	Clip - PILLAR GARNISH (PINK)
20	91560-SLA-003	Clip - GARNISH (SEAL)	Clip - GARNISH (SEAL)
22	91561-S5P-A01	Screw - GROMMET, 5.23	Screw - GROMMET, 5.23
17	91563-SF4-003	Band - WIRE HARNESS (WHITE) (100.5MM)	Band - WIRE HARNESS (WHITE) (100.5MM)
22	91563-SFA-003	Clip - DOOR WEATHERSTRIP OFFSET	Clip - DOOR WEATHERSTRIP OFFSET
39	91565-SEL-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
24	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)
14	91568-SDA-A01	Clip - WINDSHIELD UPPER	Clip - WINDSHIELD UPPER
24	91568-SJA-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
10	91568-SNA-003	Clip - WINDSHIELD UPPER	Clip - WINDSHIELD UPPER
15	91570-SJD-003	Clip A - FR. WINDSHIELD SIDE	Clip A - FR. WINDSHIELD SIDE
16	91572-SDA-A01	Clip - ROOF MOLDING	Clip - ROOF MOLDING
44	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)
10	91591-SMA-931	Clamp - TUBE (D11)	Clamp - TUBE (D11)
11	91593-SDE-T01	Clip - DRAIN TUBE	Clip - DRAIN TUBE
26	91594-SNA-A01	Clip - FILLER CAP	Clip - FILLER CAP
21	91595-S7A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
20	91595-SNA-E01	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
22	91598-SNA-A01	Clamp f - FUEL PIPE	Clamp f - FUEL PIPE
24	91599-S7A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE
23	91599-SDC-E00	Rubber e - FUEL PIPE INSULATOR	Rubber e - FUEL PIPE INSULATOR
35	91601-P8A-A01	Receptacle	Receptacle
27	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
5	91603-SK7-000	Grommet - WAX HOLE, 25MM	Grommet - WAX HOLE, 25MM
9	91604-SD2-013	Grommet - HOOD STAY	Grommet - HOOD STAY
5	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
10	91608-S5A-003	Boot - FLOOR	Boot - FLOOR
6	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM
11	91613-SN4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
12	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
13	91617-SH3-000	Seal - HOLE	Seal - HOLE
14	91617-SNA-A00	Seal - FR. FENDER	Seal - FR. FENDER
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
30	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
25	91651-S84-A01	Seal - DOOR PANEL HOLE	Seal - DOOR PANEL HOLE
33	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
45	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
18	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

この比較のURL: https://xparts.kbsr.co.jp/compare/FD1/FD4
