検索 › 比較 › EV1 × FN1
EV1
Honda CIVIC — 2,210 中 344 共有
FN1
Honda CIVIC — 2,082 中 344 共有
17" alloy wheel 1 / 1
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 3 | 42753-SK3-000 | Valve - RIM(A.R.G.) | Valve - RIM(A.R.G.) |
Accelerator sensor (VSA) 1 / 12
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 10 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
Air cleaner (2.0L) 5 / 16
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 5 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 8 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 11 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 13 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |

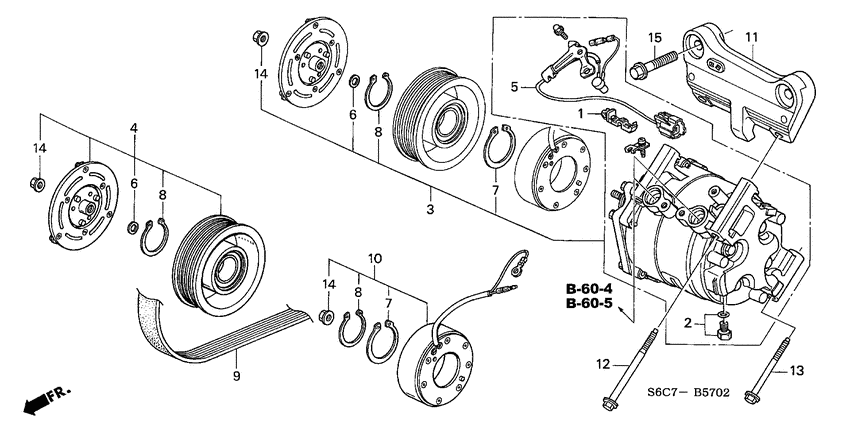

Air conditioner (COMPRESSOR; 2.0L) 2 / 14
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 12 | 90023-PNA-000 | Bolt - FLANGE, 8X80 | Bolt - FLANGE, 8X80 |
| 13 | 90024-PNA-000 | Bolt - FLANGE, 8X65 | Bolt - FLANGE, 8X65 |
Air conditioner (CONDENSER; 2.0L) 1 / 13
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 9 | 80175-S87-A01 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |

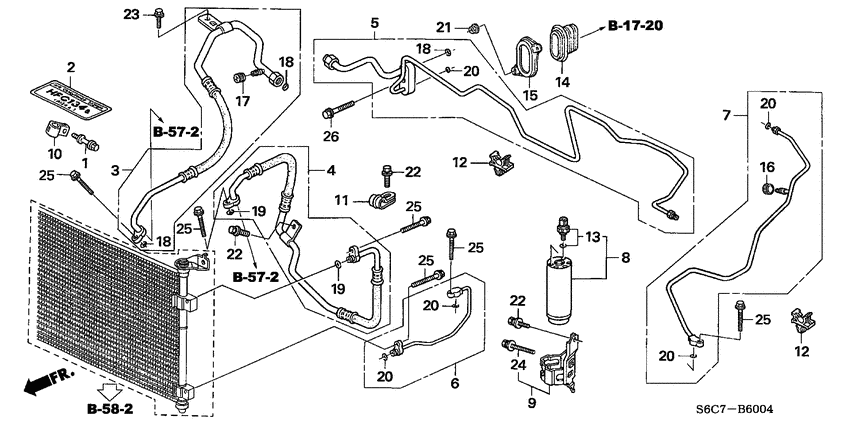

Air conditioner (HOSES/PIPES; LH; 2.0L) 5 / 21
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 2 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 18 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 19 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 20 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 21 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |

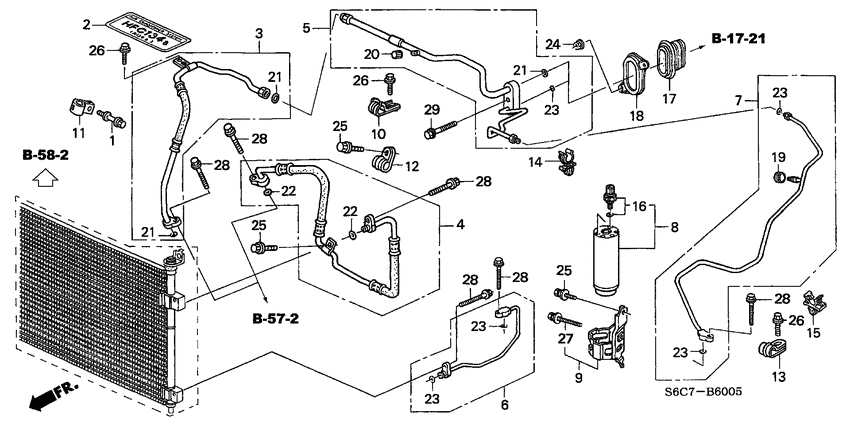

Air conditioner (HOSES/PIPES; RH; 2.0L) 5 / 24
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 2 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 21 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 22 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 23 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 24 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Air conditioner (SENSOR) 1 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
Air flow tube (2.0L) 1 / 16
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 17216-PE2-003 | Collar - AIR CLEANER(TOYO ROKI) | Collar - AIR CLEANER(TOYO ROKI) |
Alloy wheel - 14x5.5jj- 5 spoke 1 / 1
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 3 | 42753-SK3-000 | Valve - RIM(A.R.G.) | Valve - RIM(A.R.G.) |
Antenna/speaker 2 / 15
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 10 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 11 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Auto radio 1 / 1
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 8 | 91551-SE0-003 | Bolt - FLANGE, 5X7 | Bolt - FLANGE, 5X7 |
Battery (2.0L) 5 / 13
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 31531-S5A-000 | Cover - BATTERY | Cover - BATTERY |
| 7 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 9 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 10 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 13 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |

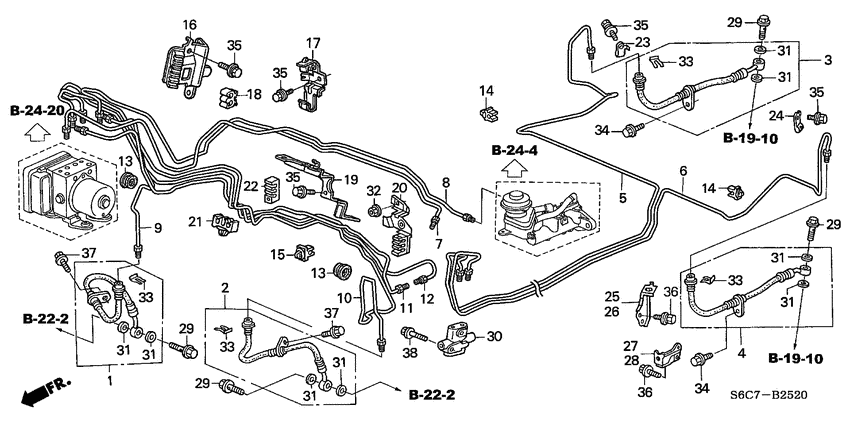

Brake lines (VSA; LH; 2.0L) 5 / 33
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 14 | 46391-S5A-J01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 29 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 31 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 32 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Brake lines (VSA; RH; 2.0L) 5 / 30
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 14 | 46391-S5A-J01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 26 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 28 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 29 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Brake master cylinder/ master power (LH; VSA) 14 / 29
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 46135-SDA-A01 | Guide assy - PISTON | Guide assy - PISTON |
| 6 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 7 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 8 | 46191-S2K-000 | Packing - MASTER POWER | Packing - MASTER POWER |
| 11 | 46407-S84-A01 | Clamp - TUBE | Clamp - TUBE |
| 13 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 16 | 46665-S04-J01 | Grommet | Grommet |
| 17 | 46666-S2K-003 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 18 | 46669-S5A-003 | Diaphragm | Diaphragm |
| 23 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 24 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 25 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 26 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 29 | 57562-SF1-003 | Circlip | Circlip |
Brake master cylinder/ master power (RH; VSA) 14 / 29
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 46135-SDA-A01 | Guide assy - PISTON | Guide assy - PISTON |
| 6 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 7 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 8 | 46191-S2K-000 | Packing - MASTER POWER | Packing - MASTER POWER |
| 12 | 46407-S84-A01 | Clamp - TUBE | Clamp - TUBE |
| 13 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 16 | 46665-S04-J01 | Grommet | Grommet |
| 17 | 46666-S2K-003 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 18 | 46669-S5A-003 | Diaphragm | Diaphragm |
| 23 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 24 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 25 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 26 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 29 | 57562-SF1-003 | Circlip | Circlip |
Bumpers 8 / 21
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 23 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 25 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 26 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 27 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 28 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 31 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 32 | 91503-SZ3-003 | Clip A | Clip A |
| 33 | 91503-SZ5-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
Camshaft/cam chain (2.0L) 3 / 19
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 10 | 14511-PNA-003 | Stopper - TOOL | Stopper - TOOL |
| 14 | 90003-PNA-000 | Bolt - TENSIONER PIVOT | Bolt - TENSIONER PIVOT |
| 17 | 90703-PNA-300 | Dowel pin - 4.2X10.3 | Dowel pin - 4.2X10.3 |

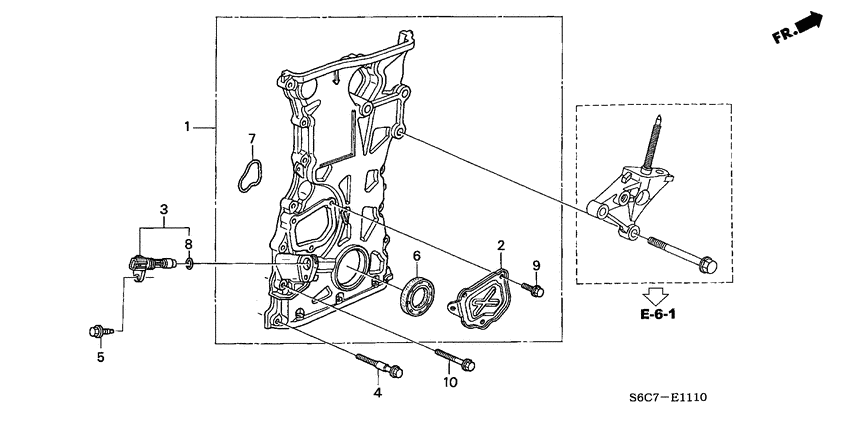

Chain case (2.0L) 3 / 9
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 90021-PNA-000 | Bolt - SPECIAL, 6X31 | Bolt - SPECIAL, 6X31 |
| 5 | 90028-PNB-003 | Bolt - SPECIAL, 6X20.5(GUIDE) | Bolt - SPECIAL, 6X20.5(GUIDE) |
| 8 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |

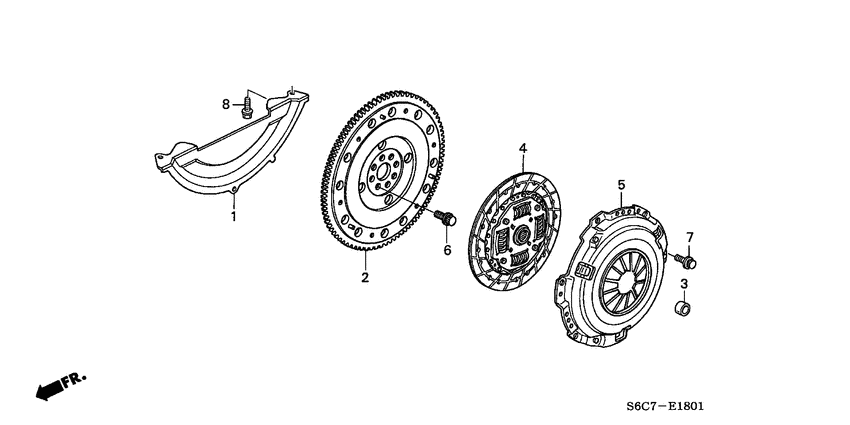

Clutch (2.0L) 2 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 6 | 90011-PNA-B00 | Bolt - 12MM | Bolt - 12MM |
| 7 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |

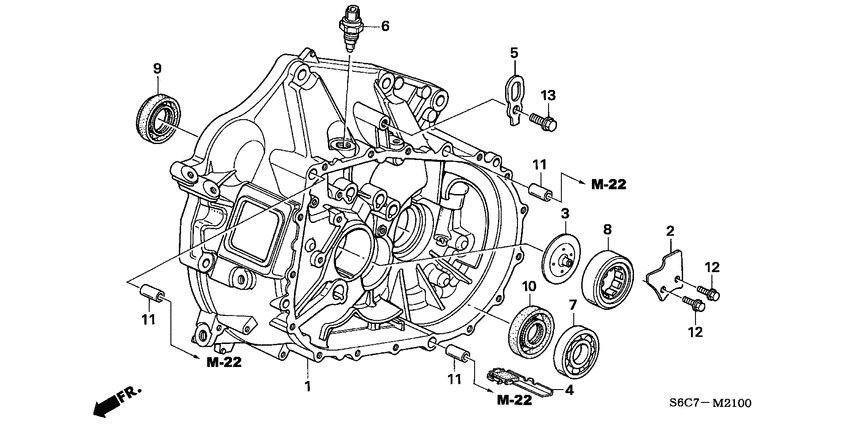

Clutch case (2.0L) 1 / 10
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 21120-PWL-000 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
Clutch master cylinder (LH; 2.0L) 17 / 34
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 4 | 46182-500-013 | Circlip | Circlip |
| 5 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 6 | 46912-S84-A00 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 9 | 46926-S5A-013 | Piston comp - CLUTCH MASTER CYLINDER | Piston comp - CLUTCH MASTER CYLINDER |
| 12 | 46931-S5A-003 | Pin - SPRING | Pin - SPRING |
| 13 | 46932-S5A-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 14 | 46937-SS1-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 15 | 46941-S5A-003 | Connector - CLUTCH MASTER CYLINDER | Connector - CLUTCH MASTER CYLINDER |
| 16 | 46942-S5A-003 | Pin - SNAP | Pin - SNAP |
| 17 | 46943-S5A-003 | Seal - RING | Seal - RING |
| 22 | 46948-S5A-003 | Rod - PUSH | Rod - PUSH |
| 23 | 46949-S5A-003 | Seal - RING | Seal - RING |
| 26 | 46965-S5A-013 | Tank assy. - CLUTCH FLUID | Tank assy. - CLUTCH FLUID |
| 30 | 46972-S6F-E01 | Clamp - TUBE (D12) | Clamp - TUBE (D12) |
| 34 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Clutch master cylinder (RH; 2.0L) 17 / 36
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 4 | 46182-500-013 | Circlip | Circlip |
| 5 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 6 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 9 | 46926-S5A-013 | Piston comp - CLUTCH MASTER CYLINDER | Piston comp - CLUTCH MASTER CYLINDER |
| 12 | 46931-S5A-003 | Pin - SPRING | Pin - SPRING |
| 13 | 46932-S5A-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 14 | 46937-SS1-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 16 | 46941-S5A-003 | Connector - CLUTCH MASTER CYLINDER | Connector - CLUTCH MASTER CYLINDER |
| 17 | 46942-S5A-003 | Pin - SNAP | Pin - SNAP |
| 18 | 46943-S5A-003 | Seal - RING | Seal - RING |
| 23 | 46948-S5A-003 | Rod - PUSH | Rod - PUSH |
| 24 | 46949-S5A-003 | Seal - RING | Seal - RING |
| 31 | 46972-S6F-E01 | Clamp - TUBE (D12) | Clamp - TUBE (D12) |
| 35 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Clutch release (2.0L) 2 / 11
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 3 | 22825-P0S-000 | Bolt - RELEASE FORK | Bolt - RELEASE FORK |
| 4 | 22835-P0S-000 | Spring - RELEASE FORK SETTING | Spring - RELEASE FORK SETTING |
Combination switch 5 / 24
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 15 | 35400-S5A-013 | Switch assy - DOOR (MATSUSHITA) | Switch assy - DOOR (MATSUSHITA) |
| 17 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
Console 1 / 5
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 14 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
Control unit (CABIN; LH) 2 / 30
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 20 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 31 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Control unit (CABIN; RH) 3 / 36
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 32 | 90001-S10-010 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 36 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 37 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Control unit (ENGINE ROOM; 2.0L) 1 / 27
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 21 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |

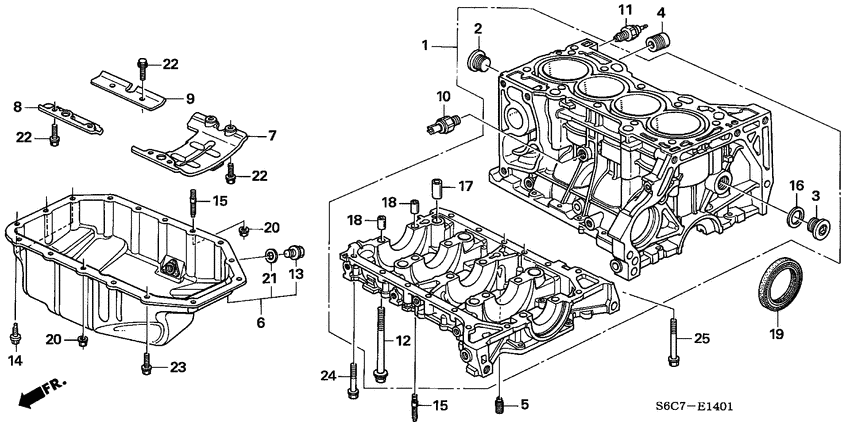

Cylinder block/oil pan (2.0L) 4 / 19
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 14 | 90028-PNB-003 | Bolt - SPECIAL, 6X20.5(GUIDE) | Bolt - SPECIAL, 6X20.5(GUIDE) |
| 16 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 17 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 19 | 91214-PWA-003 | Oil seal - 80X98X10 (NOK) | Oil seal - 80X98X10 (NOK) |

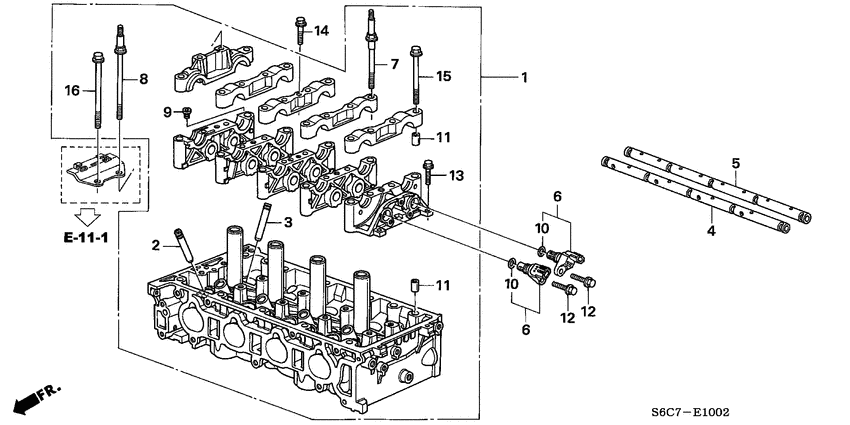

Cylinder head (DOHC; VTE C) 1 / 10
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 10 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |
Cylinder head cover (2.0L) 2 / 18
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 12 | 90207-RAA-A00 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
Differential (2.0L) 19 / 22
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 41453-PL3-B00 | Shim n - 80MM(1.35) | Shim n - 80MM(1.35) |
| 4 | 41448-PL3-B00 | Shim h - 80MM(1.7) | Shim h - 80MM(1.7) |
| 4 | 41443-PL3-B00 | Shim c - 80MM(1.2) | Shim c - 80MM(1.2) |
| 4 | 41455-PL3-B00 | Shim q - 80MM(1.55) | Shim q - 80MM(1.55) |
| 4 | 41450-PL3-B00 | Shim k - 80MM(1.05) | Shim k - 80MM(1.05) |
| 4 | 41445-PL3-B00 | Shim e - 80MM(1.4) | Shim e - 80MM(1.4) |
| 4 | 41457-PL3-B00 | Shim s - 80MM(1.75) | Shim s - 80MM(1.75) |
| 4 | 41452-PL3-B00 | Shim m - 80MM(1.25) | Shim m - 80MM(1.25) |
| 4 | 41447-PL3-B00 | Shim g - 80MM(1.6) | Shim g - 80MM(1.6) |
| 4 | 41442-PL3-B00 | Shim b - 80MM(1.1) | Shim b - 80MM(1.1) |
| 4 | 41454-PL3-B00 | Shim p - 80MM(1.45) | Shim p - 80MM(1.45) |
| 4 | 41449-PL3-B00 | Shim j - 80MM(1.8) | Shim j - 80MM(1.8) |
| 4 | 41444-PL3-B00 | Shim d - 80MM(1.3) | Shim d - 80MM(1.3) |
| 4 | 41456-PL3-B00 | Shim r - 80MM(1.65) | Shim r - 80MM(1.65) |
| 4 | 41451-PL3-B00 | Shim l - 80MM(1.15) | Shim l - 80MM(1.15) |
| 4 | 41446-PL3-B00 | Shim f - 80MM(1.5) | Shim f - 80MM(1.5) |
| 4 | 41441-PL3-B00 | Shim a - 80MM(1.0) | Shim a - 80MM(1.0) |
| 5 | 90017-PPP-000 | Bolt - SPECIAL, 11MM | Bolt - SPECIAL, 11MM |
| 6 | 91005-PPS-003 | Bearing - BALL, 40X80X18(NTN) | Bearing - BALL, 40X80X18(NTN) |
Duct (LH) 1 / 5
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Duct (RH) 1 / 5
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Emblems/caution labels 4 / 11
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 17669-SS0-X30 | Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY) | Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY) |
| 2 | 19043-PLA-E00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 15 | 78527-S04-G80 | Label - SRS CAUTION (CHILD SEAT) | Label - SRS CAUTION (CHILD SEAT) |
| 16 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
Engine mounting bracket (2.0L) 1 / 15
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 12 | 90031-PRA-000 | Bolt - SPECIAL FLANGE, 10X25 | Bolt - SPECIAL FLANGE, 10X25 |
Engine mounts (MT; 2.0L) 1 / 17
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 14 | 90168-S5A-000 | Bolt - FLANGE, 12X35 | Bolt - FLANGE, 12X35 |
Engine wire harness (LH; 2.0L) 4 / 28
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 7 | 32118-P72-003 | Holder - CORRUGATED(DARK GREEN) (19MM) | Holder - CORRUGATED(DARK GREEN) (19MM) |
| 14 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 15 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 24 | 91551-PNA-003 | Band - WIRE HARNESS (BLACK) (172MM) | Band - WIRE HARNESS (BLACK) (172MM) |
Engine wire harness (RH; 2.0L) 4 / 29
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 7 | 32118-P72-003 | Holder - CORRUGATED(DARK GREEN) (19MM) | Holder - CORRUGATED(DARK GREEN) (19MM) |
| 14 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 15 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 25 | 91551-PNA-003 | Band - WIRE HARNESS (BLACK) (172MM) | Band - WIRE HARNESS (BLACK) (172MM) |
Exhaust manifold (2.0L) 1 / 10
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 8 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Exhaust pipe (2.0L) 5 / 32
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 14 | 18230-SV4-000 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 15 | 18231-SR3-A22 | Bolt b - FLEXIBLE JOINT | Bolt b - FLEXIBLE JOINT |
| 28 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 29 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 30 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Floor mat 4 / 12
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 17 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 18 | 90676-S5A-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 19 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 23 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Floor/inner panels 1 / 1
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 37 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
Fog light 1 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 6 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
Fr mesh grille 1 / 2
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 3 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
Front brake (3) 2 / 22
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 18 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
Front bulkhead/dashboard 1 / 2
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 59 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Front door lining (LH) 3 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 17 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 19 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 20 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door lining (RH) 3 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 17 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 19 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 20 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door locks/outer ha ndle 5 / 50
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 9 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 46 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 49 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 50 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 52 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Front door panels 7 / 21
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 14 | 72311-S5S-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 22 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 23 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 24 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 24 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 25 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 26 | 91563-SP0-003 | Clip - DOOR WEATHERSTRIP OFFSET | Clip - DOOR WEATHERSTRIP OFFSET |
Front door windows/regula tor 3 / 16
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 12 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 13 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Front driveshaft 13 / 26
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 6 | 44310-S0A-300 | Joint comp - INBOARD | Joint comp - INBOARD |
| 10 | 44319-SE0-000 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 10 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 11 | 44319-S0A-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 12 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 13 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 14 | 44337-SA2-300 | Ring b - STOPPER | Ring b - STOPPER |
| 15 | 44338-SA2-300 | Circlip - 24MM | Circlip - 24MM |
| 21 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 24 | 90305-S1A-000 | Nut - SPINDLE | Nut - SPINDLE |
| 25 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 26 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 27 | 91260-SDB-A01 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
Front fenders 8 / 21
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 13 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 14 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 15 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 16 | 90308-SB2-013 | Nut - SUSPENSION, 5MM | Nut - SUSPENSION, 5MM |
| 17 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 19 | 91503-SZ3-003 | Clip A | Clip A |
| 22 | 91533-SG0-000 | Clip b - FAIRING | Clip b - FAIRING |
| 24 | 91545-SE0-003 | Clip assy. - 8MM | Clip assy. - 8MM |
Front grille 1 / 3
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 7 | 91503-SZ3-003 | Clip A | Clip A |
Front seat (LH; DRIVER SIDE) 4 / 12
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 20 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 21 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 22 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
Front seat (LH; PASSENGER SIDE) 3 / 10
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 18 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 19 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
Front seat (RH; DRIVER SIDE) 4 / 12
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 20 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 21 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 22 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
Front seat (RH; PASSENGER SIDE) 3 / 10
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 18 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 19 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
Front seat components (L.; 1) 1 / 6
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 11 | 90135-S5A-003 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
Front seat components (L.; 2) 1 / 11
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 12 | 90135-S5A-003 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
Front seat components (R.; 1) 1 / 6
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 11 | 90135-S5A-003 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
Front seat components (R.; 2) 1 / 11
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 12 | 90135-S5A-003 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
Front shock absorber 1 / 15
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 12 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
Front sub frame 1 / 9
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 13 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
Front wiper (LH) 1 / 23
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 21 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
Front wiper (RH; 1) 1 / 23
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 21 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
Fuel pipe 5 / 43
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 8 | 16727-PND-004 | Clamp - FUEL HOSE (BLACK) | Clamp - FUEL HOSE (BLACK) |
| 15 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 17 | 17711-S84-004 | Retainer - WHITE)(SANOH | Retainer - WHITE)(SANOH |
| 34 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 38 | 91405-SDA-000 | Clamp - TUBE(D10.5) | Clamp - TUBE(D10.5) |
Fuel tank 4 / 44
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 21 | 17525-S0X-A00 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 37 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 41 | 91404-SDC-000 | Clamp - TUBE (D10) | Clamp - TUBE (D10) |
| 45 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Grommet (FRONT) 5 / 13
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 82871-S6D-E01 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 5 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 13 | 91608-S5A-003 | Boot - FLOOR | Boot - FLOOR |
| 14 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 15 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Grommet (REAR) 2 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 82871-S6D-E01 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
Grommet (SIDE) 1 / 6
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 8 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Grommet (UNDER) 2 / 3
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 4 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
Harness band/bracket (LH) 17 / 43
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 2 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 6 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 7 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 8 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 25 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 29 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 30 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 32 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 34 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 35 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 38 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 41 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 45 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 48 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 49 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
| 50 | 91571-S10-003 | Clip - WIRE HARNESS (NATURAL) (130MM) | Clip - WIRE HARNESS (NATURAL) (130MM) |
| 52 | 91577-SS0-003 | Clip - WIRE HARNESS (BLUE) (122.5MM) | Clip - WIRE HARNESS (BLUE) (122.5MM) |
Harness band/bracket (RH) 15 / 39
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 2 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 6 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 7 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 24 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 25 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 26 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 28 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 29 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 32 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 35 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 39 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 44 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 45 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
| 46 | 91571-S10-003 | Clip - WIRE HARNESS (NATURAL) (130MM) | Clip - WIRE HARNESS (NATURAL) (130MM) |
| 48 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Headlight (1) 1 / 18
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 19 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Heater blower (LH) 4 / 17
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 16 | 90122-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 17 | 90123-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 18 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 19 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater blower (RH) 4 / 17
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 15 | 90122-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 16 | 90123-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 17 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 18 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater unit (LH) 15 / 34
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 2 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 12 | 79170-S6A-941 | Aspirator | Aspirator |
| 19 | 80215-S6A-003 | Plate | Plate |
| 27 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 28 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 29 | 90122-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 30 | 90123-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 32 | 90125-S6A-003 | Bolt - 5X35 | Bolt - 5X35 |
| 33 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 34 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 35 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 36 | 91548-SV4-003 | Clip - BAND (6MM BOSS)(NATURAL) (127MM) | Clip - BAND (6MM BOSS)(NATURAL) (127MM) |
| 37 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 42 | 79192-S6A-003 | Packing - STUD BOLT | Packing - STUD BOLT |
Heater unit (RH) 15 / 34
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 2 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 11 | 79170-S6A-941 | Aspirator | Aspirator |
| 18 | 80215-S6A-003 | Plate | Plate |
| 25 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 26 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 27 | 90122-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 28 | 90123-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 30 | 90125-S6A-003 | Bolt - 5X35 | Bolt - 5X35 |
| 31 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 32 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 33 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 34 | 91548-SV4-003 | Clip - BAND (6MM BOSS)(NATURAL) (127MM) | Clip - BAND (6MM BOSS)(NATURAL) (127MM) |
| 35 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 38 | 79192-S6A-003 | Packing - STUD BOLT | Packing - STUD BOLT |
Hood (LH) 3 / 21
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 17 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 26 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
Hood (RH) 3 / 21
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 18 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 29 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
Install pipe/tubing (2.0L) 2 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 16725-PNA-003 | Clamp a - FUEL HOSE | Clamp a - FUEL HOSE |
| 7 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Instrument panel (LH) 4 / 15
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 24 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 25 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 26 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel (RH) 4 / 18
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 26 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 27 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 28 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (LH; DRIVER SIDE) 1 / 8
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 20 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Instrument panel garnish (LH; PASSENGER SIDE) 5 / 20
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 39610-S6A-003 | Knob assy | Knob assy |
| 5 | 39620-S6A-003 | Housing assy. | Housing assy. |
| 6 | 39625-S6A-003 | Ring - MOUNTING | Ring - MOUNTING |
| 9 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 46 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (RH; DRIVER SIDE) 1 / 8
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 21 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Instrument panel garnish (RH; PASSENGER SIDE) 5 / 20
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 39610-S6A-003 | Knob assy | Knob assy |
| 5 | 39620-S6A-003 | Housing assy. | Housing assy. |
| 6 | 39625-S6A-003 | Ring - MOUNTING | Ring - MOUNTING |
| 9 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 45 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |

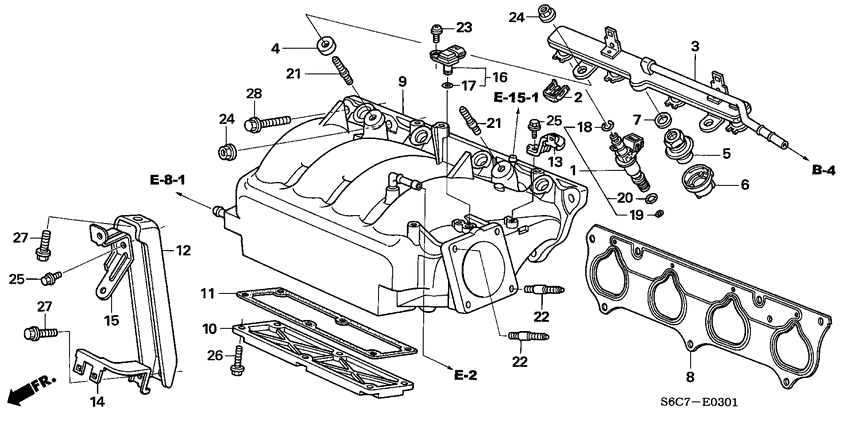

Intake manifold (2.0L) 4 / 20
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 2 | 16451-PLC-000 | Clip - INJECTOR | Clip - INJECTOR |
| 17 | 37835-PGK-A01 | O-ring | O-ring |
| 18 | 91301-PLC-000 | O-ring - 7.47X3.6 | O-ring - 7.47X3.6 |
| 20 | 91302-PNA-003 | O-ring - 7.45X3.61(NOK) | O-ring - 7.45X3.61(NOK) |
Interior light 6 / 12
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 3 | 34251-S5A-003 | Lens | Lens |
| 6 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 6 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 8 | 34261-S6D-E01 | Lens comp | Lens comp |
| 10 | 34262-S6D-E01 | Cover | Cover |
| 12 | 34295-S6D-E01 | Bulb - 12V 5W | Bulb - 12V 5W |
Knuckle 2 / 19
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 15 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 17 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Meter components (NS; 2) 1 / 4
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 6 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Mirror (REMOTE CONTROL; 2) 1 / 18
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 18 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
Molding/side sill garnish 4 / 28
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 23 | 76222-SP1-003 | Clip - DOOR MIRROR COVER | Clip - DOOR MIRROR COVER |
| 26 | 90142-S04-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 29 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 33 | 91503-SZ3-003 | Clip A | Clip A |
Oil pump/oil strainer (2.0L) 3 / 22
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 13 | 15400-PLM-A02 | OIL FILTER (HONEYWELL) | OIL FILTER (HONEYWELL) |
| 14 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 18 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
Outer panels/roof panel 2 / 13
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 27 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 37 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
P.s. gear box components (EPS; LH) 2 / 19
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 2 | 53414-S5A-003 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 4 | 53418-S5A-003 | Washer - DISK | Washer - DISK |
P.s. gear box components (EPS; RH) 2 / 19
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 2 | 53414-S5A-003 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 4 | 53418-S5A-003 | Washer - DISK | Washer - DISK |

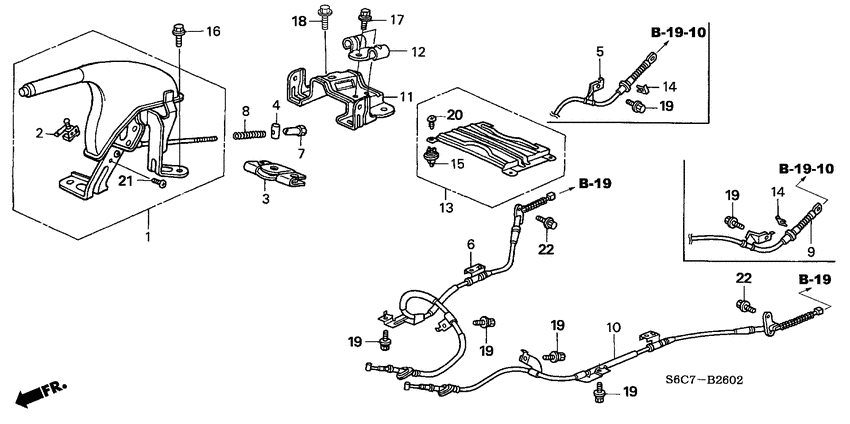

Parking brake (3) 1 / 12
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 15 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Pedal (LH) 3 / 22
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 19 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 26 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 34 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Pedal (RH) 3 / 19
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 16 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 23 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 32 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Pillar garnish 4 / 5
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 22 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 23 | 91560-S6A-003 | Clip - DOOR LINING(ORANGE) | Clip - DOOR LINING(ORANGE) |
| 24 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 25 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |

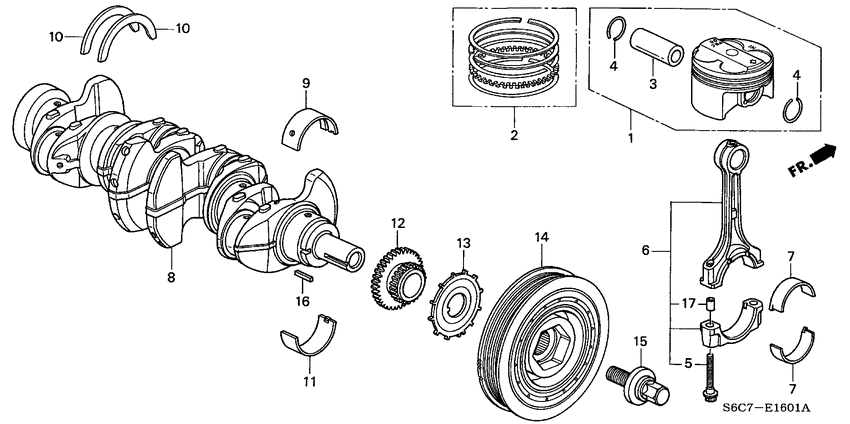

Piston/crankshaft (2.0L) 3 / 37
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 10 | 13331-PNA-004 | Washer - THRUST(TAIHO) | Washer - THRUST(TAIHO) |
| 15 | 90017-PCX-013 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 16 | 90704-PNA-000 | Key - 4.5X21 | Key - 4.5X21 |

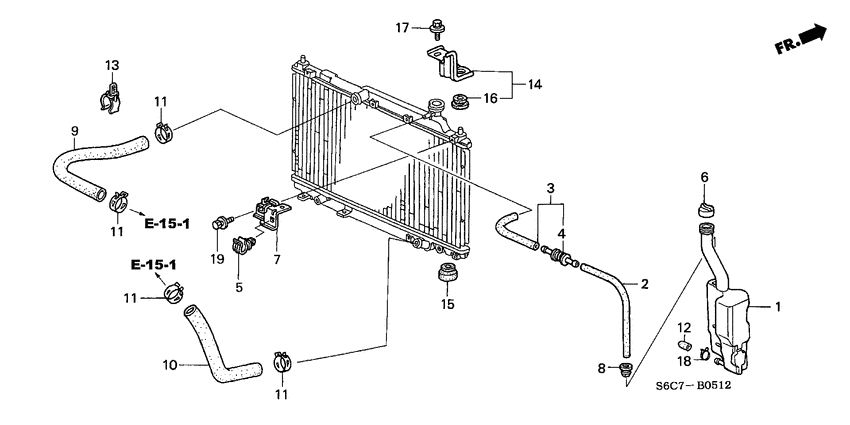

Radiator (DENSO; 2.0L) 7 / 19
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 17213-P8A-A00 | Rubber - INTAKE MANIFOLD COVER MOUNTING | Rubber - INTAKE MANIFOLD COVER MOUNTING |
| 4 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 5 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 13 | 19047-PLC-003 | Cover - RADIATOR CAP (DENSO) | Cover - RADIATOR CAP (DENSO) |
| 15 | 90041-P5A-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 16 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 17 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
Radiator hose (2.0L) 2 / 17
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 11 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 16 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
Rear brake (DISK) 6 / 44
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 42326-SLJ-000 | Cap, Hub unit | Cap, Hub unit |
| 35 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 38 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 38 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 38 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 39 | 90305-S30-003 | Nut - SPINDLE | Nut - SPINDLE |
Rear door lining 2 / 5
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 22 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 23 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door locks/outer han dle 3 / 41
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 36 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 39 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 40 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Rear door panels 6 / 23
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 13 | 72311-S5S-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 25 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 26 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 26 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 27 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 28 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
Rear door windows/regulat or 3 / 11
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 13 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 14 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 15 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Rear lower arm 2 / 29
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 23 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 24 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Rear seat 2 / 25
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 46 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
Rear windshield/ quarter windows 1 / 17
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 14 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
Seatbelts 2 / 9
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 19 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 20 | 90135-S1F-003 | Bolt - FLANGE, 7/16" | Bolt - FLANGE, 7/16" |
Shift arm/shift lever (2.0L) 4 / 17
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 14 | 90029-611-010 | Bolt - HEX., 8X24 | Bolt - HEX., 8X24 |
| 15 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 17 | 91208-PPP-003 | Dust seal - 14X20X4 | Dust seal - 14X20X4 |
Shift fork/shift holder (2.0L) 2 / 8
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 7 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 8 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
Shift lever 1 / 10
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 7 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Side lining 2 / 5
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 14 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 18 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Spool valve (2.0L) 1 / 19
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 16 | 91319-PAA-A01 | O-ring - 13X1.5 | O-ring - 13X1.5 |
Srs unit (LH) 1 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 6 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
Srs unit (RH) 1 / 7
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 6 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
Starter motor (DENSO; 2.0 L) 15 / 26
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 1 | 30201-PH9-004 | Ring - SNAP (DENSO) | Ring - SNAP (DENSO) |
| 2 | 30202-P3F-003 | Collar - CLUTCH STOP | Collar - CLUTCH STOP |
| 6 | 31202-PR4-003 | Bolt - THROUGH (DENSO) | Bolt - THROUGH (DENSO) |
| 12 | 31208-P3F-003 | Screw - PAN, 4MM | Screw - PAN, 4MM |
| 15 | 31214-P3F-003 | Gear assy. - INTERNAL | Gear assy. - INTERNAL |
| 16 | 31215-P3F-003 | Gear comp - PLANETARY | Gear comp - PLANETARY |
| 17 | 31216-RAA-003 | Absorber comp - SHOCK | Absorber comp - SHOCK |
| 18 | 31217-P3F-003 | Plate - SEAL | Plate - SEAL |
| 19 | 31218-P3F-003 | Washer a | Washer a |
| 20 | 31219-P3F-003 | Washer b | Washer b |
| 21 | 31220-PH9-004 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 22 | 31220-P3F-003 | Washer c | Washer c |
| 23 | 31223-PA0-006 | Nut - HEX. | Nut - HEX. |
| 24 | 31231-P3F-003 | Plate comp - BRUSH HOLDER | Plate comp - BRUSH HOLDER |
| 26 | 31292-PLR-A01 | Bolt-washer | Bolt-washer |
Steering column 2 / 6
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 4 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 5 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
Steering wheel (SRS; 2) 1 / 11
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 11 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
Switch (LH) 1 / 8
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 12 | 35910-S04-G01 | Switch assy - INERTIA | Switch assy - INERTIA |
Switch (RH) 1 / 8
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 12 | 35910-S04-G01 | Switch assy - INERTIA | Switch assy - INERTIA |
Tailgate 6 / 23
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 27 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 30 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 34 | 90661-SC7-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 36 | 91512-S50-003 | Clip - LICENSE GARNISH | Clip - LICENSE GARNISH |
| 37 | 91560-S0X-A01 | Clip - DOOR LINING (NATURAL) | Clip - DOOR LINING (NATURAL) |
| 38 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Tailgate lining 5 / 5
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 2 | 84432-SH3-000 | Stopper - CENTER SHELF | Stopper - CENTER SHELF |
| 5 | 84436-S1C-E00 | Pin - SHELF STRAP | Pin - SHELF STRAP |
| 9 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 11 | 91560-SZ3-003 | Clip, DOOR LINING (NATURAL) | Clip, DOOR LINING (NATURAL) |
| 12 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Taillight 2 / 23
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 21 | 91512-S50-003 | Clip - LICENSE GARNISH | Clip - LICENSE GARNISH |
| 22 | 91560-S0X-A01 | Clip - DOOR LINING (NATURAL) | Clip - DOOR LINING (NATURAL) |
Tire/wheel disks 47 / 71
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 7 | 42753-SK3-000 | Valve - RIM(A.R.G.) | Valve - RIM(A.R.G.) |
| 7 | 42753-SN8-E00 | Valve - RIM | Valve - RIM |
| 7 | 42753-SG9-000 | Valve - RIM(A.R.G.) | Valve - RIM(A.R.G.) |
| 8 | 42767-SB0-600 | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
| 9 | 42767-SH3-E00 | Plate - SPARE TIRE CAUTION (T-TYPE) | Plate - SPARE TIRE CAUTION (T-TYPE) |
| 10 | 44729-SEA-J01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 10 | 44723-SEA-J01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 10 | 44728-SEA-J01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 10 | 44722-SEA-J01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 10 | 44729-SEA-J02 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 10 | 44727-SEA-J01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 10 | 44723-SEA-J02 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 10 | 44721-SEA-J01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 10 | 44728-SEA-J02 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 10 | 44726-SEA-J01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 10 | 44722-SEA-J02 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 10 | 44727-SEA-J02 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 10 | 44721-SEA-J02 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 10 | 44726-SEA-J02 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 11 | 44727-SEA-N01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 11 | 44723-TP6-A01 | WEIGHT (15G) | WEIGHT (15G) |
| 11 | 44729-SEA-N02 | Weight - BALANCE (35G) (TOHO ZINC) | Weight - BALANCE (35G) (TOHO ZINC) |
| 11 | 44721-SEA-N01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 11 | 44721-S5A-A20 | Weight - BALANCE (10G) | Weight - BALANCE (10G) |
| 11 | 44723-SEA-N02 | Weight - BALANCE (30G) (TOHO ZINC) | Weight - BALANCE (30G) (TOHO ZINC) |
| 11 | 44728-SEA-N02 | Weight - BALANCE (25G) (TOHO ZINC) | Weight - BALANCE (25G) (TOHO ZINC) |
| 11 | 44726-SEA-N01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 11 | 44721-TP6-A01 | WEIGHT, BALANCE (5G) | WEIGHT, BALANCE (5G) |
| 11 | 44725-SEA-N01 | Weight - BALANCE (50G) (TOHO) | Weight - BALANCE (50G) (TOHO) |
| 11 | 44722-SEA-N02 | Weight - BALANCE (20G) (TOHO ZINC) | Weight - BALANCE (20G) (TOHO ZINC) |
| 11 | 44727-SEA-N02 | Weight - BALANCE (15G) (TOHO ZINC) | Weight - BALANCE (15G) (TOHO ZINC) |
| 11 | 44721-SEA-N02 | Weight - BALANCE (10G) (TOHO ZINC) | Weight - BALANCE (10G) (TOHO ZINC) |
| 11 | 44725-TP6-A01 | WEIGHT (25G) | WEIGHT (25G) |
| 11 | 44726-SEA-N02 | Weight - BALANCE (5G) (TOHO ZINC) | Weight - BALANCE (5G) (TOHO ZINC) |
| 11 | 44724-TP6-A01 | WEIGHT (20G) | WEIGHT (20G) |
| 11 | 44725-SEA-N02 | Weight - BALANCE (50G) (TOHO ZINC) | Weight - BALANCE (50G) (TOHO ZINC) |
| 11 | 44726-TP6-A01 | WEIGHT (30G) | WEIGHT (30G) |
| 11 | 44727-TP6-A01 | WEIGHT (35G) | WEIGHT (35G) |
| 11 | 44724-SEA-N01 | Weight - BALANCE (40G) (TOHO) | Weight - BALANCE (40G) (TOHO) |
| 11 | 44730-SEA-N01 | Weight - BALANCE (45G) (TOHO) | Weight - BALANCE (45G) (TOHO) |
| 11 | 44724-SEA-N02 | Weight - BALANCE (40G) (TOHO ZINC) | Weight - BALANCE (40G) (TOHO ZINC) |
| 11 | 44729-SEA-N01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 11 | 44723-SEA-N01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 11 | 44728-SEA-N01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 11 | 44730-SEA-N02 | Weight - BALANCE (45G) (TOHO ZINC) | Weight - BALANCE (45G) (TOHO ZINC) |
| 11 | 44722-SEA-N01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 20 | 83853-SX0-000 | Bolt - ANCHOR | Bolt - ANCHOR |
Tools/jack (2) 2 / 8
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 5 | 89211-SCA-E00 | Wrench - WHEEL | Wrench - WHEEL |
| 8 | 89320-SCA-E00 | Bar - JACK | Bar - JACK |
Transmission case (2.0L) 3 / 66
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 8 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 10 | 90380-S10-000 | Bolt - STUD, 12X83.8 | Bolt - STUD, 12X83.8 |
| 11 | 91205-PL3-B01 | Oil seal - 40X56X8(ARAI) | Oil seal - 40X56X8(ARAI) |
Valve/rocker arm (DOHC; VTEC) 1 / 16
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 13 | 90206-PM3-004 | Nut - TAPPET ADJUSTING (TOKAI TRW) | Nut - TAPPET ADJUSTING (TOKAI TRW) |

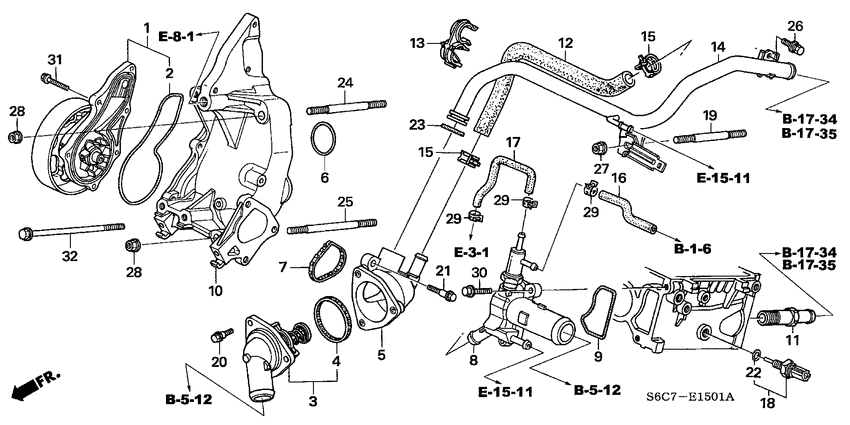

Water pump/sensor (2.0L) 1 / 23
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 15 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Water valve (LH; 2.0L) 3 / 10
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 9 | 91551-SD5-003 | Clamp - HEATER | Clamp - HEATER |
Water valve (RH; 2.0L) 3 / 9
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 7 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 8 | 91551-SD5-003 | Clamp - HEATER | Clamp - HEATER |
Wire harness (LH) 4 / 21
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 20 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 21 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 22 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 23 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
Wire harness (RH) 4 / 21
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 20 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 21 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 22 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 23 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| # | OEM | EV1 | FN1 |
|---|---|---|---|
| 6 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 10 | 13331-PNA-004 | Washer - THRUST(TAIHO) | Washer - THRUST(TAIHO) |
| 10 | 14511-PNA-003 | Stopper - TOOL | Stopper - TOOL |
| 13 | 15400-PLM-A02 | OIL FILTER (HONEYWELL) | OIL FILTER (HONEYWELL) |
| 14 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 2 | 16451-PLC-000 | Clip - INJECTOR | Clip - INJECTOR |
| 1 | 16725-PNA-003 | Clamp a - FUEL HOSE | Clamp a - FUEL HOSE |
| 8 | 16727-PND-004 | Clamp - FUEL HOSE (BLACK) | Clamp - FUEL HOSE (BLACK) |
| 5 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 5 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 1 | 17213-P8A-A00 | Rubber - INTAKE MANIFOLD COVER MOUNTING | Rubber - INTAKE MANIFOLD COVER MOUNTING |
| 4 | 17216-PE2-003 | Collar - AIR CLEANER(TOYO ROKI) | Collar - AIR CLEANER(TOYO ROKI) |
| 8 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 21 | 17525-S0X-A00 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 1 | 17669-SS0-X30 | Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY) | Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY) |
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 15 | 17711-S0X-A31 | Retainer - GREEN)(TOKAI | Retainer - GREEN)(TOKAI |
| 17 | 17711-S84-004 | Retainer - WHITE)(SANOH | Retainer - WHITE)(SANOH |
| 14 | 18230-SV4-000 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 15 | 18231-SR3-A22 | Bolt b - FLEXIBLE JOINT | Bolt b - FLEXIBLE JOINT |
| 4 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 5 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 2 | 19043-PLA-E00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 13 | 19047-PLC-003 | Cover - RADIATOR CAP (DENSO) | Cover - RADIATOR CAP (DENSO) |
| 11 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 15 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 4 | 21120-PWL-000 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 1 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 3 | 22825-P0S-000 | Bolt - RELEASE FORK | Bolt - RELEASE FORK |
| 4 | 22835-P0S-000 | Spring - RELEASE FORK SETTING | Spring - RELEASE FORK SETTING |
| 7 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 1 | 30201-PH9-004 | Ring - SNAP (DENSO) | Ring - SNAP (DENSO) |
| 2 | 30202-P3F-003 | Collar - CLUTCH STOP | Collar - CLUTCH STOP |
| 6 | 31202-PR4-003 | Bolt - THROUGH (DENSO) | Bolt - THROUGH (DENSO) |
| 12 | 31208-P3F-003 | Screw - PAN, 4MM | Screw - PAN, 4MM |
| 15 | 31214-P3F-003 | Gear assy. - INTERNAL | Gear assy. - INTERNAL |
| 16 | 31215-P3F-003 | Gear comp - PLANETARY | Gear comp - PLANETARY |
| 17 | 31216-RAA-003 | Absorber comp - SHOCK | Absorber comp - SHOCK |
| 18 | 31217-P3F-003 | Plate - SEAL | Plate - SEAL |
| 19 | 31218-P3F-003 | Washer a | Washer a |
| 20 | 31219-P3F-003 | Washer b | Washer b |
| 22 | 31220-P3F-003 | Washer c | Washer c |
| 21 | 31220-PH9-004 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 23 | 31223-PA0-006 | Nut - HEX. | Nut - HEX. |
| 24 | 31231-P3F-003 | Plate comp - BRUSH HOLDER | Plate comp - BRUSH HOLDER |
| 26 | 31292-PLR-A01 | Bolt-washer | Bolt-washer |
| 5 | 31531-S5A-000 | Cover - BATTERY | Cover - BATTERY |
| 2 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 7 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 7 | 32118-P72-003 | Holder - CORRUGATED(DARK GREEN) (19MM) | Holder - CORRUGATED(DARK GREEN) (19MM) |
| 7 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 6 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 8 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 9 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 10 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 3 | 34251-S5A-003 | Lens | Lens |
| 6 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 8 | 34261-S6D-E01 | Lens comp | Lens comp |
| 10 | 34262-S6D-E01 | Cover | Cover |
| 12 | 34295-S6D-E01 | Bulb - 12V 5W | Bulb - 12V 5W |
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 15 | 35400-S5A-013 | Switch assy - DOOR (MATSUSHITA) | Switch assy - DOOR (MATSUSHITA) |
| 20 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 12 | 35910-S04-G01 | Switch assy - INERTIA | Switch assy - INERTIA |
| 17 | 37835-PGK-A01 | O-ring | O-ring |
| 4 | 39610-S6A-003 | Knob assy | Knob assy |
| 5 | 39620-S6A-003 | Housing assy. | Housing assy. |
| 6 | 39625-S6A-003 | Ring - MOUNTING | Ring - MOUNTING |
| 20 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 4 | 41441-PL3-B00 | Shim a - 80MM(1.0) | Shim a - 80MM(1.0) |
| 4 | 41442-PL3-B00 | Shim b - 80MM(1.1) | Shim b - 80MM(1.1) |
| 4 | 41443-PL3-B00 | Shim c - 80MM(1.2) | Shim c - 80MM(1.2) |
| 4 | 41444-PL3-B00 | Shim d - 80MM(1.3) | Shim d - 80MM(1.3) |
| 4 | 41445-PL3-B00 | Shim e - 80MM(1.4) | Shim e - 80MM(1.4) |
| 4 | 41446-PL3-B00 | Shim f - 80MM(1.5) | Shim f - 80MM(1.5) |
| 4 | 41447-PL3-B00 | Shim g - 80MM(1.6) | Shim g - 80MM(1.6) |
| 4 | 41448-PL3-B00 | Shim h - 80MM(1.7) | Shim h - 80MM(1.7) |
| 4 | 41449-PL3-B00 | Shim j - 80MM(1.8) | Shim j - 80MM(1.8) |
| 4 | 41450-PL3-B00 | Shim k - 80MM(1.05) | Shim k - 80MM(1.05) |
| 4 | 41451-PL3-B00 | Shim l - 80MM(1.15) | Shim l - 80MM(1.15) |
| 4 | 41452-PL3-B00 | Shim m - 80MM(1.25) | Shim m - 80MM(1.25) |
| 4 | 41453-PL3-B00 | Shim n - 80MM(1.35) | Shim n - 80MM(1.35) |
| 4 | 41454-PL3-B00 | Shim p - 80MM(1.45) | Shim p - 80MM(1.45) |
| 4 | 41455-PL3-B00 | Shim q - 80MM(1.55) | Shim q - 80MM(1.55) |
| 4 | 41456-PL3-B00 | Shim r - 80MM(1.65) | Shim r - 80MM(1.65) |
| 4 | 41457-PL3-B00 | Shim s - 80MM(1.75) | Shim s - 80MM(1.75) |
| 5 | 42326-SLJ-000 | Cap, Hub unit | Cap, Hub unit |
| 7 | 42753-SG9-000 | Valve - RIM(A.R.G.) | Valve - RIM(A.R.G.) |
| 3 | 42753-SK3-000 | Valve - RIM(A.R.G.) | Valve - RIM(A.R.G.) |
| 7 | 42753-SN8-E00 | Valve - RIM | Valve - RIM |
| 8 | 42767-SB0-600 | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
| 9 | 42767-SH3-E00 | Plate - SPARE TIRE CAUTION (T-TYPE) | Plate - SPARE TIRE CAUTION (T-TYPE) |
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 6 | 44310-S0A-300 | Joint comp - INBOARD | Joint comp - INBOARD |
| 11 | 44319-S0A-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 10 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 10 | 44319-SE0-000 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 12 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 13 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 14 | 44337-SA2-300 | Ring b - STOPPER | Ring b - STOPPER |
| 15 | 44338-SA2-300 | Circlip - 24MM | Circlip - 24MM |
| 11 | 44721-S5A-A20 | Weight - BALANCE (10G) | Weight - BALANCE (10G) |
| 10 | 44721-SEA-J01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 10 | 44721-SEA-J02 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 11 | 44721-SEA-N01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 11 | 44721-SEA-N02 | Weight - BALANCE (10G) (TOHO ZINC) | Weight - BALANCE (10G) (TOHO ZINC) |
| 11 | 44721-TP6-A01 | WEIGHT, BALANCE (5G) | WEIGHT, BALANCE (5G) |
| 10 | 44722-SEA-J01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 10 | 44722-SEA-J02 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 11 | 44722-SEA-N01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 11 | 44722-SEA-N02 | Weight - BALANCE (20G) (TOHO ZINC) | Weight - BALANCE (20G) (TOHO ZINC) |
| 10 | 44723-SEA-J01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 10 | 44723-SEA-J02 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 11 | 44723-SEA-N01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 11 | 44723-SEA-N02 | Weight - BALANCE (30G) (TOHO ZINC) | Weight - BALANCE (30G) (TOHO ZINC) |
| 11 | 44723-TP6-A01 | WEIGHT (15G) | WEIGHT (15G) |
| 11 | 44724-SEA-N01 | Weight - BALANCE (40G) (TOHO) | Weight - BALANCE (40G) (TOHO) |
| 11 | 44724-SEA-N02 | Weight - BALANCE (40G) (TOHO ZINC) | Weight - BALANCE (40G) (TOHO ZINC) |
| 11 | 44724-TP6-A01 | WEIGHT (20G) | WEIGHT (20G) |
| 11 | 44725-SEA-N01 | Weight - BALANCE (50G) (TOHO) | Weight - BALANCE (50G) (TOHO) |
| 11 | 44725-SEA-N02 | Weight - BALANCE (50G) (TOHO ZINC) | Weight - BALANCE (50G) (TOHO ZINC) |
| 11 | 44725-TP6-A01 | WEIGHT (25G) | WEIGHT (25G) |
| 10 | 44726-SEA-J01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 10 | 44726-SEA-J02 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 11 | 44726-SEA-N01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 11 | 44726-SEA-N02 | Weight - BALANCE (5G) (TOHO ZINC) | Weight - BALANCE (5G) (TOHO ZINC) |
| 11 | 44726-TP6-A01 | WEIGHT (30G) | WEIGHT (30G) |
| 10 | 44727-SEA-J01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 10 | 44727-SEA-J02 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 11 | 44727-SEA-N01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 11 | 44727-SEA-N02 | Weight - BALANCE (15G) (TOHO ZINC) | Weight - BALANCE (15G) (TOHO ZINC) |
| 11 | 44727-TP6-A01 | WEIGHT (35G) | WEIGHT (35G) |
| 10 | 44728-SEA-J01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 10 | 44728-SEA-J02 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 11 | 44728-SEA-N01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 11 | 44728-SEA-N02 | Weight - BALANCE (25G) (TOHO ZINC) | Weight - BALANCE (25G) (TOHO ZINC) |
| 10 | 44729-SEA-J01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 10 | 44729-SEA-J02 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 11 | 44729-SEA-N01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 11 | 44729-SEA-N02 | Weight - BALANCE (35G) (TOHO ZINC) | Weight - BALANCE (35G) (TOHO ZINC) |
| 11 | 44730-SEA-N01 | Weight - BALANCE (45G) (TOHO) | Weight - BALANCE (45G) (TOHO) |
| 11 | 44730-SEA-N02 | Weight - BALANCE (45G) (TOHO ZINC) | Weight - BALANCE (45G) (TOHO ZINC) |
| 5 | 46135-SDA-A01 | Guide assy - PISTON | Guide assy - PISTON |
| 6 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 4 | 46182-500-013 | Circlip | Circlip |
| 7 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 8 | 46191-S2K-000 | Packing - MASTER POWER | Packing - MASTER POWER |
| 13 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 14 | 46391-S5A-J01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 11 | 46407-S84-A01 | Clamp - TUBE | Clamp - TUBE |
| 29 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 31 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 19 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 13 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 16 | 46665-S04-J01 | Grommet | Grommet |
| 17 | 46666-S2K-003 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 18 | 46669-S5A-003 | Diaphragm | Diaphragm |
| 26 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 23 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 6 | 46912-S84-A00 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 9 | 46926-S5A-013 | Piston comp - CLUTCH MASTER CYLINDER | Piston comp - CLUTCH MASTER CYLINDER |
| 12 | 46931-S5A-003 | Pin - SPRING | Pin - SPRING |
| 13 | 46932-S5A-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 14 | 46937-SS1-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 15 | 46941-S5A-003 | Connector - CLUTCH MASTER CYLINDER | Connector - CLUTCH MASTER CYLINDER |
| 16 | 46942-S5A-003 | Pin - SNAP | Pin - SNAP |
| 17 | 46943-S5A-003 | Seal - RING | Seal - RING |
| 22 | 46948-S5A-003 | Rod - PUSH | Rod - PUSH |
| 23 | 46949-S5A-003 | Seal - RING | Seal - RING |
| 26 | 46965-S5A-013 | Tank assy. - CLUTCH FLUID | Tank assy. - CLUTCH FLUID |
| 30 | 46972-S6F-E01 | Clamp - TUBE (D12) | Clamp - TUBE (D12) |
| 2 | 53414-S5A-003 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 4 | 53418-S5A-003 | Washer - DISK | Washer - DISK |
| 24 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 25 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 26 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 29 | 57562-SF1-003 | Circlip | Circlip |
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 17 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 14 | 72311-S5S-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 27 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 16 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 11 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 22 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 23 | 76222-SP1-003 | Clip - DOOR MIRROR COVER | Clip - DOOR MIRROR COVER |
| 15 | 78527-S04-G80 | Label - SRS CAUTION (CHILD SEAT) | Label - SRS CAUTION (CHILD SEAT) |
| 12 | 79170-S6A-941 | Aspirator | Aspirator |
| 42 | 79192-S6A-003 | Packing - STUD BOLT | Packing - STUD BOLT |
| 2 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 9 | 80175-S87-A01 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 19 | 80215-S6A-003 | Plate | Plate |
| 4 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
| 18 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 19 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 20 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 4 | 82871-S6D-E01 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 20 | 83853-SX0-000 | Bolt - ANCHOR | Bolt - ANCHOR |
| 2 | 84432-SH3-000 | Stopper - CENTER SHELF | Stopper - CENTER SHELF |
| 5 | 84436-S1C-E00 | Pin - SHELF STRAP | Pin - SHELF STRAP |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 5 | 89211-SCA-E00 | Wrench - WHEEL | Wrench - WHEEL |
| 8 | 89320-SCA-E00 | Bar - JACK | Bar - JACK |
| 13 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 32 | 90001-S10-010 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 12 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 14 | 90003-PNA-000 | Bolt - TENSIONER PIVOT | Bolt - TENSIONER PIVOT |
| 6 | 90011-PNA-B00 | Bolt - 12MM | Bolt - 12MM |
| 18 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 15 | 90017-PCX-013 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 5 | 90017-PPP-000 | Bolt - SPECIAL, 11MM | Bolt - SPECIAL, 11MM |
| 4 | 90021-PNA-000 | Bolt - SPECIAL, 6X31 | Bolt - SPECIAL, 6X31 |
| 12 | 90023-PNA-000 | Bolt - FLANGE, 8X80 | Bolt - FLANGE, 8X80 |
| 13 | 90024-PNA-000 | Bolt - FLANGE, 8X65 | Bolt - FLANGE, 8X65 |
| 8 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 5 | 90028-PNB-003 | Bolt - SPECIAL, 6X20.5(GUIDE) | Bolt - SPECIAL, 6X20.5(GUIDE) |
| 14 | 90029-611-010 | Bolt - HEX., 8X24 | Bolt - HEX., 8X24 |
| 12 | 90031-PRA-000 | Bolt - SPECIAL FLANGE, 10X25 | Bolt - SPECIAL FLANGE, 10X25 |
| 7 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 15 | 90041-P5A-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 16 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 17 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 8 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 14 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 23 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 24 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 21 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 24 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 23 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 18 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 37 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 38 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 38 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 38 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 14 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 46 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 16 | 90122-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 17 | 90123-S30-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 32 | 90125-S6A-003 | Bolt - 5X35 | Bolt - 5X35 |
| 21 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 25 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 11 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 20 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 20 | 90135-S1F-003 | Bolt - FLANGE, 7/16" | Bolt - FLANGE, 7/16" |
| 11 | 90135-S5A-003 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
| 6 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 25 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 26 | 90142-S04-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 10 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 26 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 23 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 37 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 27 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 18 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 14 | 90168-S5A-000 | Bolt - FLANGE, 12X35 | Bolt - FLANGE, 12X35 |
| 13 | 90206-PM3-004 | Nut - TAPPET ADJUSTING (TOKAI TRW) | Nut - TAPPET ADJUSTING (TOKAI TRW) |
| 12 | 90207-RAA-A00 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
| 8 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 28 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 16 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 20 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 24 | 90305-S1A-000 | Nut - SPINDLE | Nut - SPINDLE |
| 39 | 90305-S30-003 | Nut - SPINDLE | Nut - SPINDLE |
| 17 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 16 | 90308-SB2-013 | Nut - SUSPENSION, 5MM | Nut - SUSPENSION, 5MM |
| 21 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 19 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 6 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 28 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 21 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 10 | 90380-S10-000 | Bolt - STUD, 12X83.8 | Bolt - STUD, 12X83.8 |
| 16 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 15 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 5 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 19 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 22 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 18 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 5 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 34 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 34 | 90661-SC7-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 37 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 18 | 90676-S5A-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 17 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 25 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 31 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 17 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 17 | 90703-PNA-300 | Dowel pin - 4.2X10.3 | Dowel pin - 4.2X10.3 |
| 16 | 90704-PNA-000 | Key - 4.5X21 | Key - 4.5X21 |
| 6 | 91005-PPS-003 | Bearing - BALL, 40X80X18(NTN) | Bearing - BALL, 40X80X18(NTN) |
| 26 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 11 | 91205-PL3-B01 | Oil seal - 40X56X8(ARAI) | Oil seal - 40X56X8(ARAI) |
| 17 | 91208-PPP-003 | Dust seal - 14X20X4 | Dust seal - 14X20X4 |
| 19 | 91214-PWA-003 | Oil seal - 80X98X10 (NOK) | Oil seal - 80X98X10 (NOK) |
| 27 | 91260-SDB-A01 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
| 18 | 91301-PLC-000 | O-ring - 7.47X3.6 | O-ring - 7.47X3.6 |
| 20 | 91302-PNA-003 | O-ring - 7.45X3.61(NOK) | O-ring - 7.45X3.61(NOK) |
| 16 | 91319-PAA-A01 | O-ring - 13X1.5 | O-ring - 13X1.5 |
| 8 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |
| 41 | 91404-SDC-000 | Clamp - TUBE (D10) | Clamp - TUBE (D10) |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 38 | 91405-SDA-000 | Clamp - TUBE(D10.5) | Clamp - TUBE(D10.5) |
| 32 | 91503-SZ3-003 | Clip A | Clip A |
| 33 | 91503-SZ5-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
| 29 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 30 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 36 | 91512-S50-003 | Clip - LICENSE GARNISH | Clip - LICENSE GARNISH |
| 19 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 10 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 34 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 22 | 91533-SG0-000 | Clip b - FAIRING | Clip b - FAIRING |
| 14 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
| 11 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 50 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 13 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 24 | 91545-SE0-003 | Clip assy. - 8MM | Clip assy. - 8MM |
| 41 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 36 | 91548-SV4-003 | Clip - BAND (6MM BOSS)(NATURAL) (127MM) | Clip - BAND (6MM BOSS)(NATURAL) (127MM) |
| 24 | 91551-PNA-003 | Band - WIRE HARNESS (BLACK) (172MM) | Band - WIRE HARNESS (BLACK) (172MM) |
| 9 | 91551-SD5-003 | Clamp - HEATER | Clamp - HEATER |
| 8 | 91551-SE0-003 | Bolt - FLANGE, 5X7 | Bolt - FLANGE, 5X7 |
| 45 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 48 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 37 | 91560-S0X-A01 | Clip - DOOR LINING (NATURAL) | Clip - DOOR LINING (NATURAL) |
| 23 | 91560-S6A-003 | Clip - DOOR LINING(ORANGE) | Clip - DOOR LINING(ORANGE) |
| 5 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 25 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
| 11 | 91560-SZ3-003 | Clip, DOOR LINING (NATURAL) | Clip, DOOR LINING (NATURAL) |
| 26 | 91563-SP0-003 | Clip - DOOR WEATHERSTRIP OFFSET | Clip - DOOR WEATHERSTRIP OFFSET |
| 49 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
| 50 | 91571-S10-003 | Clip - WIRE HARNESS (NATURAL) (130MM) | Clip - WIRE HARNESS (NATURAL) (130MM) |
| 52 | 91577-SS0-003 | Clip - WIRE HARNESS (BLUE) (122.5MM) | Clip - WIRE HARNESS (BLUE) (122.5MM) |
| 52 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 45 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 4 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 13 | 91608-S5A-003 | Boot - FLOOR | Boot - FLOOR |
| 14 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 15 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 25 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 26 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
