EU7 × S04

共通 134 / 合計 3,453 · Jaccard 3.9%
EU7 Honda CIVIC — 1,815 中 134 共有
S04 Honda CIVIC — 1,772 中 134 共有
134 件
Air conditioner (COMPRESS OR; 1.4L/1.5L/1.6L/1.7L) 1 / 14
EU7 Air conditioner (COMPRESS OR; 1.4L/1.5L/1.6L/1.7L)
S04 Air conditioner (COMPRESSOR; SANDEN; 1)
# OEM EU7 S04
12 90023-P2A-000 Bolt - FLANGE, 8X100 Bolt - FLANGE, 8X100
Air conditioner (COMPRESSOR; 1.4L/1.6L) 1 / 13
EU7 Air conditioner (COMPRESSOR; 1.4L/1.6L)
S04 Air conditioner (COMPRESSOR; SANDEN; 1)
# OEM EU7 S04
11 90023-P2A-000 Bolt - FLANGE, 8X100 Bolt - FLANGE, 8X100
Air conditioner (CONDENSE R; 1.4L/1.5L/1.6L/1.7L) 2 / 15
EU7 Air conditioner (CONDENSE R; 1.4L/1.5L/1.6L/1.7L)
S04 Air conditioner (CONDENSER)
# OEM EU7 S04
10 90041-PAA-A01 Nut - TOOTHED, 5MM Nut - TOOTHED, 5MM
11 90430-PAA-A01 Washer - PLAIN, 8MM Washer - PLAIN, 8MM
Air conditioner (CONDENSER; 1.4L/1.6L) 2 / 15
EU7 Air conditioner (CONDENSER; 1.4L/1.6L)
S04 Air conditioner (CONDENSER)
# OEM EU7 S04
10 90041-PAA-A01 Nut - TOOTHED, 5MM Nut - TOOTHED, 5MM
11 90430-PAA-A01 Washer - PLAIN, 8MM Washer - PLAIN, 8MM
Air conditioner (COOLING UNIT; LH) 4 / 16
EU7 Air conditioner (COOLING UNIT; LH)
S04 Air conditioner (HOSES/PIPES; LH)
# OEM EU7 S04
1 39794-S04-003 Relay assy - POWER (4P) (MICRO ISO) (MITSUBA) Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
13 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
14 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
18 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Air conditioner (HOSES/PI PES; LH) 4 / 27
EU7 Air conditioner (HOSES/PI PES; LH)
S04 Air conditioner (HOSES/PIPES; LH)
# OEM EU7 S04
22 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
23 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
24 80873-ST7-000 O-ring - 8MM O-ring - 8MM
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Air conditioner (HOSES/PI PES; LH; 1.4L/1.6L) 4 / 27
EU7 Air conditioner (HOSES/PI PES; LH; 1.4L/1.6L)
S04 Air conditioner (HOSES/PIPES; LH)
# OEM EU7 S04
22 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
23 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
24 80873-ST7-000 O-ring - 8MM O-ring - 8MM
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Alloy wheel - 15x6.0jj 2 / 2
EU7 Alloy wheel - 15x6.0jj
S04 Tire/wheel disks
# OEM EU7 S04
3 42753-SH3-003 Valve - RIM (US PACIFIC) Valve - RIM (US PACIFIC)
3 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Alloy wheel 15x6j / es-r6 6-spoke 2 / 2
EU7 Alloy wheel 15x6j / es-r6 6-spoke
S04 Tire/wheel disks
# OEM EU7 S04
3 42753-SH3-003 Valve - RIM (US PACIFIC) Valve - RIM (US PACIFIC)
3 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Alternator (MITSUBISHI; 1.4L/1.5L/1.6L/1.7L) 1 / 14
EU7 Alternator (MITSUBISHI; 1.4L/1.5L/1.6L/1.7L)
S04 Alternator (MITSUBISHI)
# OEM EU7 S04
9 31140-P64-902 Brush set Brush set
Antenna/speaker 2 / 14
EU7 Antenna/speaker
S04 Harness band/bracket (LH)
# OEM EU7 S04
10 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
12 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Auto radio 1 / 1
EU7 Auto radio
S04 Auto radio
# OEM EU7 S04
8 91551-SE0-003 Bolt - FLANGE, 5X7 Bolt - FLANGE, 5X7
Battery (1.4L/1.5L/1.6L/1 .7L) 1 / 11
EU7 Battery (1.4L/1.5L/1.6L/1 .7L)
S04 Battery (LH)
# OEM EU7 S04
6 31542-ST3-E01 Plug - VENT (MF) (YUASA) Plug - VENT (MF) (YUASA)
Brake lines (ABS; LH; 1 .4L/1.6L) 3 / 27
EU7 Brake lines (ABS; LH; 1 .4L/1.6L)
S04 Brake lines (LH)
# OEM EU7 S04
28 46462-SE0-000 Bolt - OIL Bolt - OIL
29 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
30 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Brake master cylinder/ master power (LH) 4 / 29
EU7 Brake master cylinder/ master power (LH)
S04 Brake master cylinder/ master power
# OEM EU7 S04
3 46070-SL0-G01 Plate - SYMBOL MARK Plate - SYMBOL MARK
16 46512-S70-000 Pin - PEDAL Pin - PEDAL
26 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
29 57515-S30-003 Pin - STOP Pin - STOP
Bumpers 6 / 21
EU7 Bumpers
S04 Front grille (1)
# OEM EU7 S04
24 90109-SS0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
25 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
27 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
28 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
31 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
32 91503-SZ3-003 Clip A Clip A
Camshaft/timing belt (1.4 L/1.5L/1.6L/1.7L) 2 / 19
EU7 Camshaft/timing belt (1.4 L/1.5L/1.6L/1.7L)
S04 Camshaft/timing belt (1)
# OEM EU7 S04
5 11832-P08-000 Rubber - R. BACK SEAL Rubber - R. BACK SEAL
18 91213-PE1-722 Oil seal - 29X45X8 (NOK) Oil seal - 29X45X8 (NOK)

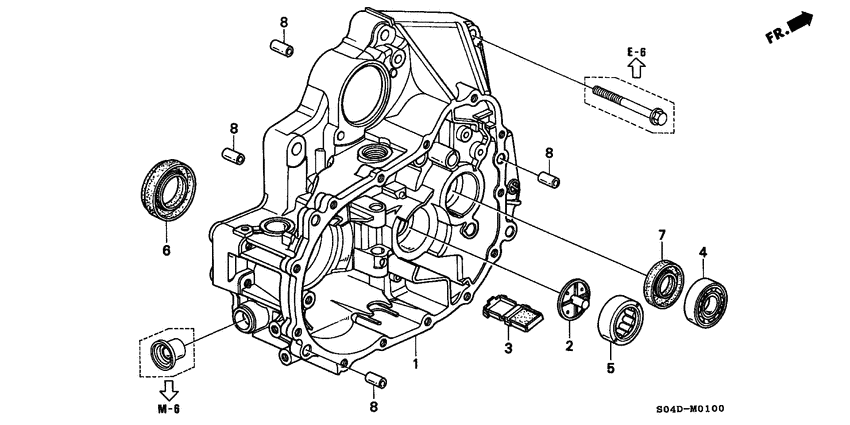

Clutch case (1.4L/1.5L/1.6L/1.7L) 1 / 9
EU7 Clutch case (1.4L/1.5L/1.6L/1.7L)
S04 Clutch housing (1)
# OEM EU7 S04
7 91205-PL3-A01 Oil seal - 35X56X8 (ARAI) Oil seal - 35X56X8 (ARAI)
Clutch master cylinder (LH; 1.4L/1.6L) 5 / 34
EU7 Clutch master cylinder (LH; 1.4L/1.6L)
S04 Clutch master cylinder (LH)
# OEM EU7 S04
1 43352-567-000 Screw - BLEEDER Screw - BLEEDER
2 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
4 46182-500-013 Circlip Circlip
5 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
33 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Clutch release (1.4L/1.5L/1.6L/1.7L) 1 / 11
EU7 Clutch release (1.4L/1.5L/1.6L/1.7L)
S04 Clutch release (1)
# OEM EU7 S04
4 22835-P7N-000 Spring - RELEASE FORK SETTING Spring - RELEASE FORK SETTING
Clutch/torque converter (1.4L/1.5L/1.6L/1.7L) 5 / 7
EU7 Clutch/torque converter (1.4L/1.5L/1.6L/1.7L)
S04 Clutch/torque converter
# OEM EU7 S04
3 22100-P2Y-005 Flywheel comp. Flywheel comp.
5 22300-P2Y-005 Disk comp - PRESSURE Disk comp - PRESSURE
8 90011-PM0-000 Bolt - 12MM Bolt - 12MM
11 90034-689-000 Bolt - TWELVE POINT, 8MM (TOKAI TRW) Bolt - TWELVE POINT, 8MM (TOKAI TRW)
13 91006-634-008 Bearing - CLUTCH PILOT (NTN) Bearing - CLUTCH PILOT (NTN)
Control unit (CABIN; LH) 2 / 22
EU7 Control unit (CABIN; LH)
S04 Control unit (CABIN; LH)
# OEM EU7 S04
19 39794-S04-003 Relay assy - POWER (4P) (MICRO ISO) (MITSUBA) Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
31 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Control unit (ENGINE ROOM; 1.4L/1.5L/1.6L/1.7L) 5 / 23
EU7 Control unit (ENGINE ROOM; 1.4L/1.5L/1.6L/1.7L)
S04 Control unit (ENGINE ROOM; LH)
# OEM EU7 S04
4 38100-S04-A01 Horn assy - LOW (MITSUBA) Horn assy - LOW (MITSUBA)
17 39794-SL0-004 Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
17 39794-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7250) Relay assy - POWER(4P)(DENSO) (056700-7250)
18 39794-S04-003 Relay assy - POWER (4P) (MICRO ISO) (MITSUBA) Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
20 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
Cylinder block/oil pan (1.4L/1.5L/1.6L/1.7L) 3 / 19
EU7 Cylinder block/oil pan (1.4L/1.5L/1.6L/1.7L)
S04 Cylinder block/oil pan (1)
# OEM EU7 S04
14 90008-PM0-003 Bolt-washer - 10X112 Bolt-washer - 10X112
16 90009-PH1-000 Bolt - DRAIN PLUG, 14MM Bolt - DRAIN PLUG, 14MM
20 90702-PE0-000 Dowel pin - 12X18 Dowel pin - 12X18
Cylinder head cover (1.4L /1.5L/1.6L/1.7L) 2 / 15
EU7 Cylinder head cover (1.4L /1.5L/1.6L/1.7L)
S04 Cylinder head cover (1)
# OEM EU7 S04
6 12342-P08-004 Seal Seal
6 12342-RYE-004 Seal,spark plug t Seal,spark plug t
Differential (1.4L) 19 / 22
EU7 Differential (1.4L)
S04 Differential gear (1)
# OEM EU7 S04
3 41312-PL3-A00 Gear - SPEEDOMETER DRIVE Gear - SPEEDOMETER DRIVE
4 41453-PL3-A00 Shim n - 72MM(1.35) Shim n - 72MM(1.35)
4 41448-PL3-A00 Shim h - 72MM(1.7) Shim h - 72MM(1.7)
4 41443-PL3-A00 Shim c - 72MM(1.2) Shim c - 72MM(1.2)
4 41455-PL3-A00 Shim q - 72MM(1.55) Shim q - 72MM(1.55)
4 41450-PL3-A00 Shim k - 72MM(1.05) Shim k - 72MM(1.05)
4 41445-PL3-A00 Shim e - 72MM(1.4) Shim e - 72MM(1.4)
4 41457-PL3-A00 Shim s - 72MM(1.75) Shim s - 72MM(1.75)
4 41452-PL3-A00 Shim m - 72MM(1.25) Shim m - 72MM(1.25)
4 41447-PL3-A00 Shim g - 72MM(1.6) Shim g - 72MM(1.6)
4 41442-PL3-A00 Shim b - 72MM(1.1) Shim b - 72MM(1.1)
4 41454-PL3-A00 Shim p - 72MM(1.45) Shim p - 72MM(1.45)
4 41449-PL3-A00 Shim j - 72MM(1.8) Shim j - 72MM(1.8)
4 41444-PL3-A00 Shim d - 72MM(1.3) Shim d - 72MM(1.3)
4 41456-PL3-A00 Shim r - 72MM(1.65) Shim r - 72MM(1.65)
4 41451-PL3-A00 Shim l - 72MM(1.15) Shim l - 72MM(1.15)
4 41446-PL3-A00 Shim f - 72MM(1.5) Shim f - 72MM(1.5)
4 41441-PL3-A00 Shim a - 72MM(1.0) Shim a - 72MM(1.0)
5 90015-634-010 Bolt - FLANGE, 10MM Bolt - FLANGE, 10MM
Emblems/caution labels 1 / 10
EU7 Emblems/caution labels
S04 Front grille (1)
# OEM EU7 S04
16 90301-ST0-003 push nut, 3mm push nut, 3mm
Engine mounting bracket (1.4L/1.5L/1.6L/1.7L) 2 / 13
EU7 Engine mounting bracket (1.4L/1.5L/1.6L/1.7L)
S04 Alternator bracket/ engine stiffener
# OEM EU7 S04
2 11950-P2C-000 Stiffener - ENGINE Stiffener - ENGINE
11 90050-PG7-000 Bolt - FLANGE, 12X65 Bolt - FLANGE, 12X65
Engine wire harness (LH; 1.4L/1.5L/1.6L/1.7L) 3 / 33
EU7 Engine wire harness (LH; 1.4L/1.5L/1.6L/1.7L)
S04 Engine wire harness (LH)
# OEM EU7 S04
30 91506-P01-003 Clip A - HARNESS BAND (DARK GRAY) (129.4MM) Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
32 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
33 91558-ST5-003 Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
Exhaust pipe (1.4L/1.5L/1 .6L/1.7L) 6 / 30
EU7 Exhaust pipe (1.4L/1.5L/1 .6L/1.7L)
S04 Exhaust pipe
# OEM EU7 S04
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
17 18393-SH3-S00 Gasket - PRE-CHAMBER (52.5MM-53.5MM) Gasket - PRE-CHAMBER (52.5MM-53.5MM)
29 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
29 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
30 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
31 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fr mesh grille 1 / 2
EU7 Fr mesh grille
S04 Front grille (1)
# OEM EU7 S04
3 90301-ST0-003 push nut, 3mm push nut, 3mm
Front brake (2) 2 / 17
EU7 Front brake (2)
S04 Front brake
# OEM EU7 S04
13 45255-SR3-V01 Guard - FR. BRAKE SPLASH Guard - FR. BRAKE SPLASH
17 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Front door lining (LH) 1 / 7
EU7 Front door lining (LH)
S04 Protector
# OEM EU7 S04
19 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Front door locks/outer ha ndle 3 / 40
EU7 Front door locks/outer ha ndle
S04 Harness band/bracket (LH)
# OEM EU7 S04
18 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
49 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
51 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front door windows/regula tor 2 / 13
EU7 Front door windows/regula tor
S04 Front door locks
# OEM EU7 S04
12 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
13 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Front driveshaft 2 / 17
EU7 Front driveshaft
S04 Driveshaft/half shaft
# OEM EU7 S04
12 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
13 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
Front fenders 5 / 16
EU7 Front fenders
S04 Front fenders
# OEM EU7 S04
14 90114-SE0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
15 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
16 90308-SB2-013 Nut - SUSPENSION, 5MM Nut - SUSPENSION, 5MM
17 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
19 91503-SZ3-003 Clip A Clip A
Front grille 1 / 3
EU7 Front grille
S04 Front grille (1)
# OEM EU7 S04
7 91503-SZ3-003 Clip A Clip A
Front seat (LH; DRIVER SIDE) 2 / 13
EU7 Front seat (LH; DRIVER SIDE)
S04 Front seat
# OEM EU7 S04
10 81223-S04-000 Clip - SHAFT, 8MM Clip - SHAFT, 8MM
21 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
Front seat (LH; PASSENGER SIDE) 1 / 11
EU7 Front seat (LH; PASSENGER SIDE)
S04 Instrument panel (LH)
# OEM EU7 S04
18 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
Front seat components (L.; 2) 1 / 13
EU7 Front seat components (L.; 2)
S04 Front seat components (L.; 1)
# OEM EU7 S04
13 90143-SR3-000 Bolt-washer - 10X22 Bolt-washer - 10X22
Front seat components (R.; 1) 1 / 8
EU7 Front seat components (R.; 1)
S04 Front seat components (L.; 1)
# OEM EU7 S04
12 90143-SR3-000 Bolt-washer - 10X22 Bolt-washer - 10X22
Front shock absorber 1 / 15
EU7 Front shock absorber
S04 Front stabilizer/ front lower arm
# OEM EU7 S04
12 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
Fuel pipe 1 / 37
EU7 Fuel pipe
S04 Clutch master cylinder (LH)
# OEM EU7 S04
34 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank 1 / 43
EU7 Fuel tank
S04 Fuel tank
# OEM EU7 S04
37 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Grommet (FRONT) 1 / 12
EU7 Grommet (FRONT)
S04 Grommet
# OEM EU7 S04
1 72207-SB2-000 Cap - FLOOR HOLE, 24MM Cap - FLOOR HOLE, 24MM
Grommet (REAR) 1 / 9
EU7 Grommet (REAR)
S04 Grommet
# OEM EU7 S04
2 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
Grommet (UNDER) 1 / 3
EU7 Grommet (UNDER)
S04 Grommet
# OEM EU7 S04
1 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
Harness band/bracket (LH) 9 / 38
EU7 Harness band/bracket (LH)
S04 Harness band/bracket (LH)
# OEM EU7 S04
9 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
10 32134-S04-000 Cap - WPC 4P Cap - WPC 4P
25 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
32 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
34 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
41 91547-SH3-003 Clip - BAND(NATURAL)(160MM) Clip - BAND(NATURAL)(160MM)
44 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
45 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
50 91571-S10-003 Clip - WIRE HARNESS (NATURAL) (130MM) Clip - WIRE HARNESS (NATURAL) (130MM)
Headlight (1) 2 / 20
EU7 Headlight (1)
S04 Headlight
# OEM EU7 S04
10 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
19 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Heater blower (LH) 1 / 19
EU7 Heater blower (LH)
S04 Fuel pipe
# OEM EU7 S04
18 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
Heater unit (LH) 5 / 37
EU7 Heater unit (LH)
S04 Air conditioner (HOSES/PIPES; LH)
# OEM EU7 S04
27 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
28 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
33 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
34 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
37 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Hood (LH) 1 / 18
EU7 Hood (LH)
S04 Trunk lid (RH)
# OEM EU7 S04
1 17706-SC3-003 Clip - FUEL PIPE Clip - FUEL PIPE
Instrument panel (LH) 3 / 16
EU7 Instrument panel (LH)
S04 Instrument panel (LH)
# OEM EU7 S04
19 77982-S04-N81 Holder - COUPLER (2P) Holder - COUPLER (2P)
24 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
26 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Knuckle 2 / 21
EU7 Knuckle
S04 Front stabilizer/ front lower arm
# OEM EU7 S04
15 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
17 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Mirror (REMOTE CONTROL; 1) 1 / 14
EU7 Mirror (REMOTE CONTROL; 1)
S04 Battery (LH)
# OEM EU7 S04
19 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Molding/side sill garnish 1 / 21
EU7 Molding/side sill garnish
S04 Front grille (1)
# OEM EU7 S04
33 91503-SZ3-003 Clip A Clip A
Oil pump/oil strainer (1.4L/1.5L/1.6L/1.7L) 3 / 24
EU7 Oil pump/oil strainer (1.4L/1.5L/1.6L/1.7L)
S04 Oil pump/oil strainer (1)
# OEM EU7 S04
12 15400-PR3-014 OIL FILTER (TOYO ROKI) OIL FILTER (TOYO ROKI)
12 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
13 15400-PR3-315 Cartridge set - OIL FILTER (TOYO ROKI) Cartridge set - OIL FILTER (TOYO ROKI)
P.s. gear box (EPS; LH) 1 / 18
EU7 P.s. gear box (EPS; LH)
S04 P.s. gear box (LH)
# OEM EU7 S04
14 53546-S84-003 Boot - TIE ROD END (NOK) Boot - TIE ROD END (NOK)
Parking brake (1) 1 / 17
EU7 Parking brake (1)
S04 Switch (LH)
# OEM EU7 S04
2 35851-SM4-003 Bulb - NEO WEDGE (14V 60MA) (TEC) Bulb - NEO WEDGE (14V 60MA) (TEC)
Pedal (LH) 4 / 26
EU7 Pedal (LH)
S04 Pedal (LH)
# OEM EU7 S04
19 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
26 46905-SK7-000 Stopper - CLUTCH PEDAL Stopper - CLUTCH PEDAL
28 46911-SD4-930 Bush - PEDAL PIN Bush - PEDAL PIN
34 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Pillar garnish 1 / 5
EU7 Pillar garnish
S04 Protector
# OEM EU7 S04
22 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Piston/crankshaft (1.4L/1 .5L/1.6L/1.7L) 3 / 31
EU7 Piston/crankshaft (1.4L/1 .5L/1.6L/1.7L)
S04 Piston/crankshaft
# OEM EU7 S04
3 13112-PE0-000 Pin - PISTON Pin - PISTON
4 13204-PE1-003 Bolt Bolt
5 13205-634-010 Nut Nut
Radiator hose (1.4L/1.5L/ 1.6L/1.7L) 1 / 13
EU7 Radiator hose (1.4L/1.5L/ 1.6L/1.7L)
S04 Radiator hose
# OEM EU7 S04
9 19511-PA6-003 Clip - WATER HOSE(CHUO SPRING) Clip - WATER HOSE(CHUO SPRING)
Rear brake (DRUM) 4 / 40
EU7 Rear brake (DRUM)
S04 Rear brake (DRUM)
# OEM EU7 S04
19 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
32 43379-SA5-003 Washer - WAVE Washer - WAVE
33 45172-S04-003 Spring - SHOE CLAMP Spring - SHOE CLAMP
36 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Rear door locks/outer han dle 1 / 31
EU7 Rear door locks/outer han dle
S04 Rear door locks
# OEM EU7 S04
6 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
Rear seat 2 / 19
EU7 Rear seat
S04 Rear seat (3)
# OEM EU7 S04
30 82291-S04-000 Cover - RR. CENTER PIVOT Cover - RR. CENTER PIVOT
31 82292-S04-000 Collar - RR. CENTER SEAT PIVOT Collar - RR. CENTER SEAT PIVOT
Rear shock absorber 1 / 20
EU7 Rear shock absorber
S04 Front shock absorber
# OEM EU7 S04
2 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
Shift lever 1 / 10
EU7 Shift lever
S04 Clutch master cylinder (LH)
# OEM EU7 S04
7 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Srs unit (LH) 1 / 8
EU7 Srs unit (LH)
S04 Srs unit (LH)
# OEM EU7 S04
6 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
Switch (LH) 1 / 4
EU7 Switch (LH)
S04 Switch (LH)
# OEM EU7 S04
12 35910-S04-G01 Switch assy - INERTIA Switch assy - INERTIA
Tailgate 1 / 26
EU7 Tailgate
S04 Front door locks
# OEM EU7 S04
38 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Taillight 1 / 21
EU7 Taillight
S04 Headlight
# OEM EU7 S04
2 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Tire/wheel disks 2 / 38
EU7 Tire/wheel disks
S04 Tire/wheel disks
# OEM EU7 S04
8 42767-SB0-600 Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
19 83850-SH3-000 Plate - ANCHOR BOLT Plate - ANCHOR BOLT
Valve/rocker arm (SOHC) 1 / 16
EU7 Valve/rocker arm (SOHC)
S04 Valve/rocker arm (1)
# OEM EU7 S04
11 14761-P2A-003 Spring - VALVE (SKY BLUE) (NIPPON HATSUJO) Spring - VALVE (SKY BLUE) (NIPPON HATSUJO)
Water pump/sensor (1.4L/1 .5L/1.6L/1.7L) 4 / 26
EU7 Water pump/sensor (1.4L/1 .5L/1.6L/1.7L)
S04 Radiator hose
# OEM EU7 S04
13 19511-P08-003 Clip - WATER HOSE (CHUO SPRING) Clip - WATER HOSE (CHUO SPRING)
13 19511-PA6-003 Clip - WATER HOSE(CHUO SPRING) Clip - WATER HOSE(CHUO SPRING)
16 37760-P00-004 Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
16 37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
Water valve (LH; 1.4L/1.6L) 2 / 10
EU7 Water valve (LH; 1.4L/1.6L)
S04 Water valve
# OEM EU7 S04
8 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
8 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Wheel disk al 15x 2 / 2
EU7 Wheel disk al 15x
S04 Tire/wheel disks
# OEM EU7 S04
3 42753-SH3-003 Valve - RIM (US PACIFIC) Valve - RIM (US PACIFIC)
3 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Wheel disk al 16x 2 / 2
EU7 Wheel disk al 16x
S04 Tire/wheel disks
# OEM EU7 S04
3 42753-SH3-003 Valve - RIM (US PACIFIC) Valve - RIM (US PACIFIC)
3 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Wire harness (LH) 2 / 20
EU7 Wire harness (LH)
S04 Instrument panel garnish (LH)
# OEM EU7 S04
20 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
21 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
