検索 › 比較 › EU5 × FA5
EU5
Honda CIVIC — 2,221 中 40 共有
FA5
Honda CIVIC — 708 中 40 共有
Air conditioner (HOSES/PI PES; RH; 1) 5 / 21
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 18 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 19 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 20 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 21 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Antenna/speaker 3 / 12
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 11 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 12 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 13 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
Brake lines (ABS; RH; 1 .4L/1.5L/1.6L/1.7L) 1 / 28
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 31 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Bumpers (1.4L/1.5L/1.6L/1 .7L; DIESEL; -'03) 2 / 23
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 24 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 30 | 91503-SZ3-003 | Clip A | Clip A |
Combination switch 1 / 24
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 5 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
Control unit (CABIN; RH) 2 / 27
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 13 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 19 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Control unit (ENGINE ROOM; 1.4L/1.5L/1.6L/1.7L) 1 / 22
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 19 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
Duct (RH) 1 / 5
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 5 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Floor mat 1 / 10
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 22 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Floor/inner panels 1 / 1
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 37 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
Front bulkhead/dashboard 1 / 3
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 42 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
Front door lining (RH) 1 / 6
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 20 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door locks/outer ha ndle 1 / 39
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 51 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |

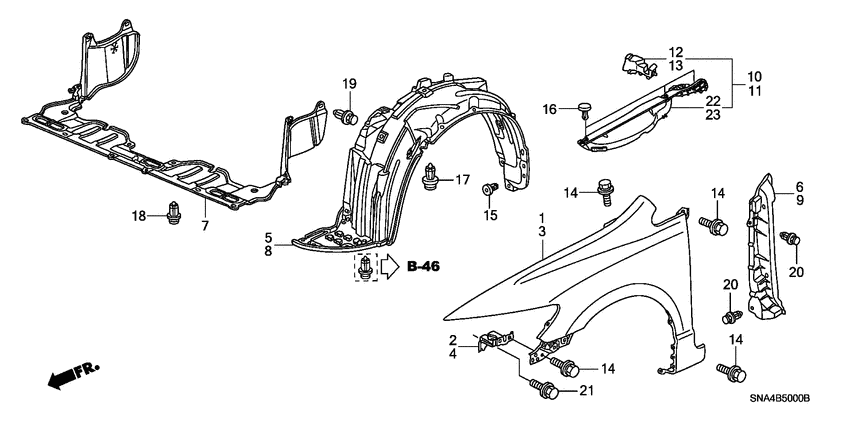

Front fenders 2 / 18
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 9 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 15 | 91503-SZ3-003 | Clip A | Clip A |
Front shock absorber 1 / 18
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 14 | 90213-SJ6-004 | Nut - SELF-LOCK, 12MM(NYLON) | Nut - SELF-LOCK, 12MM(NYLON) |
Front sub frame 1 / 7
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 6 | 90175-S5A-000 | Bolt - FLANGE, 14X115 | Bolt - FLANGE, 14X115 |
Fuel pipe (1) 1 / 35
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 26 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Grommet 4 / 17
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 1 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 2 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 12 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 16 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Harness band/bracket (RH) 6 / 32
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 5 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 11 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 14 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 16 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 20 | 91550-ST0-003 | Clip - WIRE HARNESS (NATURAL) (110MM) | Clip - WIRE HARNESS (NATURAL) (110MM) |
| 25 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
Heater blower (RH) 1 / 15
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 13 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |

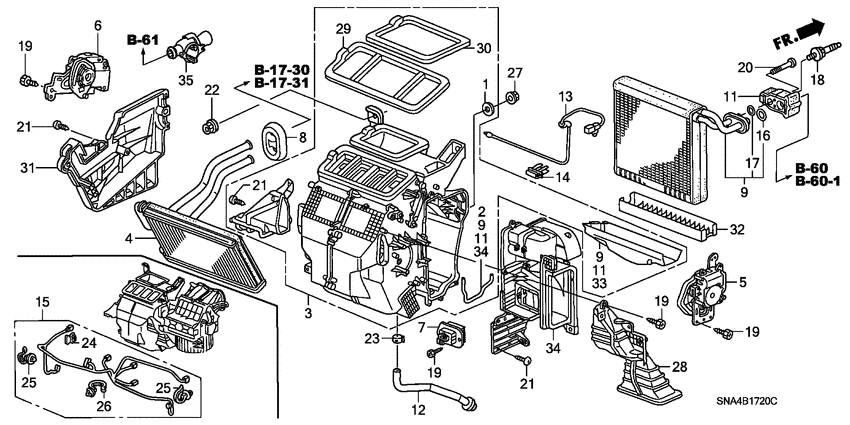

Heater unit (RH) 4 / 36
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 21 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 22 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 28 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 30 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Hood (RH) 3 / 28
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 19 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 25 | 90654-SA4-003 | Clip - WIRE HARNESS, 6MM (WHITE) | Clip - WIRE HARNESS, 6MM (WHITE) |
| 30 | 91518-SM4-003 | Clip - TRUNK MOLDING | Clip - TRUNK MOLDING |
Instrument panel (RH) 2 / 15
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 19 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
Instrument panel garnish (RH; PASSENGER SIDE) 2 / 21
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 9 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 34 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |

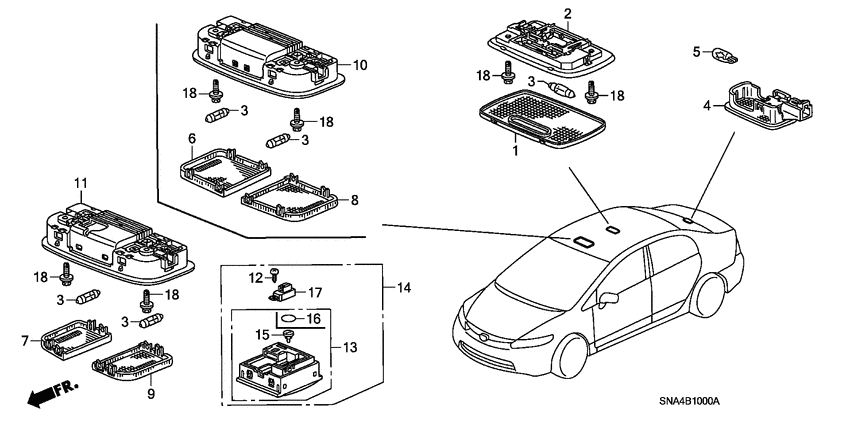

Interior light 3 / 9
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 3 | 34251-S5A-003 | Lens | Lens |
| 6 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 6 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
Mirror (REMOTE CONTROL; 1) 1 / 10
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 15 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |

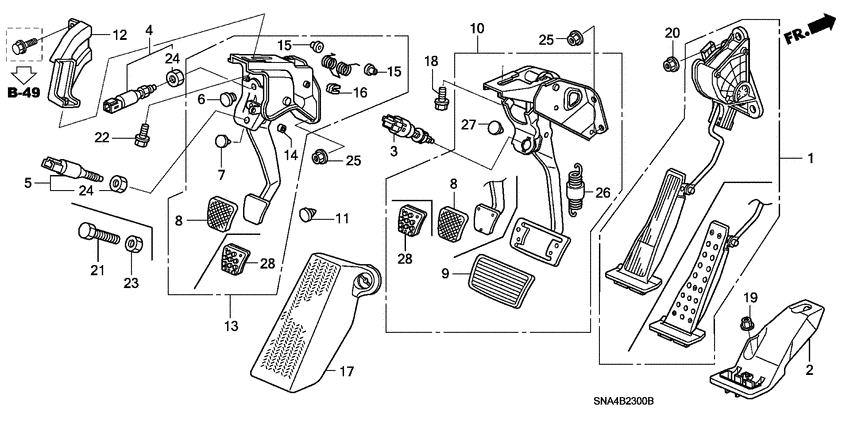

Pedal (RH) 1 / 24
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 14 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
Pillar garnish 2 / 5
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 24 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 25 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
Rear door lining 1 / 5
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 23 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear shock absorber 1 / 18
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 7 | 52622-S5A-004 | Bush - RR. SHOCK ABSORBER LOWER | Bush - RR. SHOCK ABSORBER LOWER |
Rear windshield/ quarter windows 1 / 13
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 11 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
Select lever (RH) 1 / 20
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 18 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Shift lever 1 / 10
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 7 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Side lining 1 / 8
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 20 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Sliding roof 1 / 17
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 18 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
Srs unit (RH) 1 / 8
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 6 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
Tailgate 1 / 22
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 2 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
Tailgate lining 1 / 6
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 11 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Wire harness (RH) 2 / 19
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 15 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 24 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| # | OEM | EU5 | FA5 |
|---|---|---|---|
| 6 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 5 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 3 | 34251-S5A-003 | Lens | Lens |
| 6 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 5 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 13 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 14 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 7 | 52622-S5A-004 | Bush - RR. SHOCK ABSORBER LOWER | Bush - RR. SHOCK ABSORBER LOWER |
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 1 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 18 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 19 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 20 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 2 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 37 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 6 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 19 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 15 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 24 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 19 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 13 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 6 | 90175-S5A-000 | Bolt - FLANGE, 14X115 | Bolt - FLANGE, 14X115 |
| 14 | 90213-SJ6-004 | Nut - SELF-LOCK, 12MM(NYLON) | Nut - SELF-LOCK, 12MM(NYLON) |
| 21 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 25 | 90654-SA4-003 | Clip - WIRE HARNESS, 6MM (WHITE) | Clip - WIRE HARNESS, 6MM (WHITE) |
| 30 | 91503-SZ3-003 | Clip A | Clip A |
| 11 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 30 | 91518-SM4-003 | Clip - TRUNK MOLDING | Clip - TRUNK MOLDING |
| 14 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 11 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
| 11 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 12 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 20 | 91550-ST0-003 | Clip - WIRE HARNESS (NATURAL) (110MM) | Clip - WIRE HARNESS (NATURAL) (110MM) |
| 25 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 13 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 5 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 25 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
| 12 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 16 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
