Air cleaner (1.4L/1.5L/1. 6L/1.7L) 4 / 19

#	OEM	EU1	FA1
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Air conditioner (COMPRESS OR; 1.4L/1.5L/1.6L/1.7L) 5 / 13

#	OEM	EU1	FA1
1	38801-PDF-E02	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP

Air conditioner (CONDENSE R; 1.4L/1.5L/1.6L/1.7L) 1 / 15

#	OEM	EU1	FA1
10	90041-PAA-A01	Nut - TOOTHED, 5MM	Nut - TOOTHED, 5MM

Air conditioner (HOSES/PI PES; RH) 5 / 21

#	OEM	EU1	FA1
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
18	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
19	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
20	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Air conditioner (HOSES/PI PES; RH; 1) 5 / 21

#	OEM	EU1	FA1
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
18	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
19	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
20	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Alternator (MITSUBISHI) 5 / 14

#	OEM	EU1	FA1
4	31111-P08-J02	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
7	31125-P08-J02	Bolt - FLANGE	Bolt - FLANGE
9	31140-P64-902	Brush set	Brush set
11	31142-P08-J02	Nut	Nut
12	31146-PE0-004	Screw	Screw

Alternator (MITSUBISHI; 1.4L/1.5L/1.6L/1.7L) 5 / 14

#	OEM	EU1	FA1
4	31111-P08-J02	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
7	31125-P08-J02	Bolt - FLANGE	Bolt - FLANGE
9	31140-P64-902	Brush set	Brush set
11	31142-P08-J02	Nut	Nut
12	31146-PE0-004	Screw	Screw

Antenna/speaker 3 / 13

#	OEM	EU1	FA1
10	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
11	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
12	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Battery (1.4L/1.5L/1.6L/1 .7L) 2 / 13

#	OEM	EU1	FA1
8	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
9	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL

Brake lines (ABS; RH; 1 .4L/1.5L/1.6L/1.7L) 6 / 26

#	OEM	EU1	FA1
14	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
16	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
29	46462-SE0-000	Bolt - OIL	Bolt - OIL
30	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
31	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
32	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (RH) 10 / 29

#	OEM	EU1	FA1
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
9	46185-SE0-003	Seal - ROD	Seal - ROD
10	46191-S2K-000	Packing - MASTER POWER	Packing - MASTER POWER
15	46512-S70-000	Pin - PEDAL	Pin - PEDAL
17	46662-S9A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
19	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
20	46669-S5A-003	Diaphragm	Diaphragm
26	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
27	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
38	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Bumpers 5 / 21

#	OEM	EU1	FA1
26	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
30	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
31	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
32	91503-SZ3-003	Clip A	Clip A

Bumpers ('04) 5 / 21

#	OEM	EU1	FA1
26	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
30	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
31	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
32	91503-SZ3-003	Clip A	Clip A

Clutch master cylinder (R H; 1.4L/1.5L/1.6L/1.7L) 12 / 32

#	OEM	EU1	FA1
1	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
3	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
5	46512-S70-000	Pin - PEDAL	Pin - PEDAL
6	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
12	46931-S5A-003	Pin - SPRING	Pin - SPRING
15	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
16	46942-S5A-003	Pin - SNAP	Pin - SNAP
17	46943-S5A-003	Seal - RING	Seal - RING
23	46949-S5A-003	Seal - RING	Seal - RING
30	46972-S6F-E01	Clamp - TUBE (D12)	Clamp - TUBE (D12)
32	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch release (1.4L/1.5L/1.6L/1.7L) 1 / 12

#	OEM	EU1	FA1
1	22810-PLW-005	Bearing, CLUTCH RELEASE (NSK)	Bearing, CLUTCH RELEASE (NSK)

Combination switch 4 / 23

#	OEM	EU1	FA1
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
17	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5

Control unit (CABIN; RH) 2 / 23

#	OEM	EU1	FA1
33	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
36	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; 1.4L/1.5L/1.6L/1.7L) 1 / 24

#	OEM	EU1	FA1
20	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Cylinder block/oil pan (1.4L/1.5L/1.6L/1.7L) 3 / 19

#	OEM	EU1	FA1
13	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
19	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
21	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22

Cylinder head (SOHC) 4 / 21

#	OEM	EU1	FA1
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
4	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
6	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD

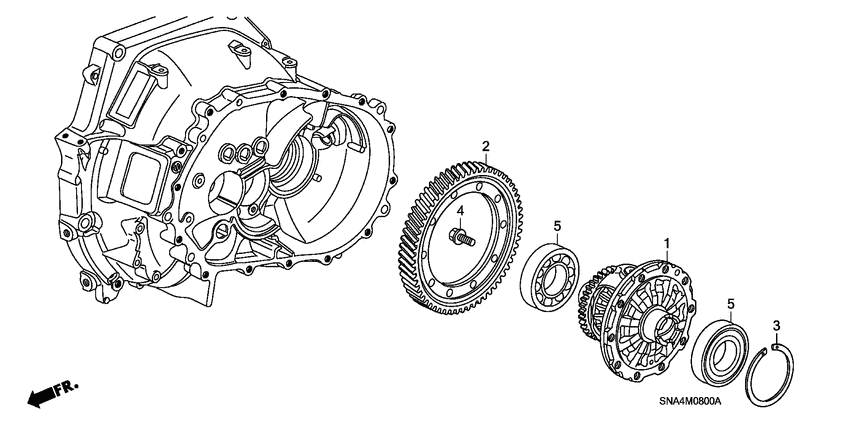

Differential (1.5L/1.6L/1.7L) 17 / 21

#	OEM	EU1	FA1
3	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
3	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
3	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
3	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
3	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
3	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
3	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
3	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
3	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
3	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
3	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
3	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
3	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
3	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
3	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
3	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
3	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)

Duct (RH) 1 / 5

#	OEM	EU1	FA1
5	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Emblems/caution labels 1 / 8

#	OEM	EU1	FA1
17	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine mounting bracket (1.4L/1.5L/1.6L/1.7L) 1 / 11

#	OEM	EU1	FA1
16	90380-S10-000	Bolt - STUD, 12X83.8	Bolt - STUD, 12X83.8

Engine wire harness (RH; 1.4L/1.5L/1.6L/1.7L) 8 / 34

#	OEM	EU1	FA1
5	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
16	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
19	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
20	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
28	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
30	90501-SS8-A01	Retainer	Retainer
31	91501-P8A-A01	Stud	Stud
37	91601-P8A-A01	Receptacle	Receptacle

Exhaust manifold (2) 1 / 10

#	OEM	EU1	FA1
9	90004-PLC-000	Bolt-washer - 10X25	Bolt-washer - 10X25

Exhaust manifold (3) 1 / 10

#	OEM	EU1	FA1
9	90004-PLC-000	Bolt-washer - 10X25	Bolt-washer - 10X25

Exhaust pipe (1.4L/1.5L/1 .6L/1.7L) 3 / 17

#	OEM	EU1	FA1
15	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
30	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
31	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 3 / 10

#	OEM	EU1	FA1
19	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
22	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Floor/inner panels 1 / 1

#	OEM	EU1	FA1
37	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Front brake (1) 7 / 24

#	OEM	EU1	FA1
4	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
5	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
14	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Front bulkhead/dashboard 3 / 4

#	OEM	EU1	FA1
58	90101-S6A-000	Bolt-washer - 8MM	Bolt-washer - 8MM
59	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
60	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Front door lining (RH) 4 / 7

#	OEM	EU1	FA1
17	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
18	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
19	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Front door locks/outer ha ndle 4 / 40

#	OEM	EU1	FA1
9	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
46	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
49	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
51	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front door panels 5 / 20

#	OEM	EU1	FA1
22	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
23	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
24	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
24	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
25	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Front door windows/regula tor 1 / 15

#	OEM	EU1	FA1
12	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Front driveshaft 3 / 17

#	OEM	EU1	FA1
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
24	90305-692-010	Nut	Nut

Front fenders 4 / 16

#	OEM	EU1	FA1
13	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
17	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
19	91503-SZ3-003	Clip A	Clip A
24	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM

Front grille 2 / 4

#	OEM	EU1	FA1
6	90301-ST0-003	push nut, 3mm	push nut, 3mm
7	91503-SZ3-003	Clip A	Clip A

Front seat (RH; DRIVER SIDE) 4 / 10

#	OEM	EU1	FA1
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
20	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front seat (RH; PASSENGER SIDE) 3 / 7

#	OEM	EU1	FA1
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
19	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front shock absorber 2 / 21

#	OEM	EU1	FA1
12	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
15	90213-S5A-003	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM

Front sub frame 1 / 5

#	OEM	EU1	FA1
15	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115

Front wiper (RH; 2) 2 / 19

#	OEM	EU1	FA1
4	76517-SM4-003	Collar	Collar
18	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32

Fuel pipe 3 / 37

#	OEM	EU1	FA1
15	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
17	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
34	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Fuel pipe (1) 3 / 37

#	OEM	EU1	FA1
10	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
11	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Fuel tank 4 / 41

#	OEM	EU1	FA1
20	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
21	17525-S0X-A00	Bolt-washer - 10X25	Bolt-washer - 10X25
37	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
45	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet 8 / 17

#	OEM	EU1	FA1
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM	Cap - FLOOR HOLE, 24MM
2	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
4	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
5	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
10	91608-S5A-003	Boot - FLOOR	Boot - FLOOR
12	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
16	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (FRONT) 7 / 12

#	OEM	EU1	FA1
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM	Cap - FLOOR HOLE, 24MM
4	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
5	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
6	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
13	91608-S5A-003	Boot - FLOOR	Boot - FLOOR
14	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (REAR) 3 / 6

#	OEM	EU1	FA1
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56

Grommet (SIDE) 1 / 6

#	OEM	EU1	FA1
8	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Harness band/bracket (RH) 13 / 34

#	OEM	EU1	FA1
2	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
8	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
15	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
25	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
26	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
28	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
29	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
32	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
34	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
44	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
48	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Headlight (2) 6 / 18

#	OEM	EU1	FA1
4	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
5	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
5	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6	33116-S84-A01	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)
6	33116-S84-A11	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)
19	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Headlight (3) 6 / 18

#	OEM	EU1	FA1
4	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
5	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
5	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6	33116-S84-A01	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)
6	33116-S84-A11	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)
19	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Heater blower (RH) 2 / 13

#	OEM	EU1	FA1
17	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
18	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (RH) 8 / 35

#	OEM	EU1	FA1
1	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
25	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
26	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
29	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
31	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
32	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
33	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
36	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Hood (RH) 4 / 30

#	OEM	EU1	FA1
1	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)	Clip - WIRE HARNESS, 6MM (WHITE)
18	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
25	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
28	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING

Instrument panel (RH) 5 / 14

#	OEM	EU1	FA1
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
22	90101-S6A-000	Bolt-washer - 8MM	Bolt-washer - 8MM
24	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
26	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
27	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (RH; DRIVER SIDE) 2 / 7

#	OEM	EU1	FA1
21	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
23	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Instrument panel garnish (RH; PASSENGER SIDE) 6 / 19

#	OEM	EU1	FA1
8	66417-SB3-670	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
9	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
38	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
39	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
41	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
43	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Intake manifold (1.4L/1.5 L/1.6L/1.7L) 3 / 22

#	OEM	EU1	FA1
3	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
17	37835-PGK-A01	O-ring	O-ring
20	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6

Interior light 3 / 10

#	OEM	EU1	FA1
3	34251-S5A-003	Lens	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W	BULB T10X318W

Knuckle 2 / 19

#	OEM	EU1	FA1
15	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
17	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Mainshaft (1.4L/1.5L/1.6L/1.7L) 2 / 16

#	OEM	EU1	FA1
12	23927-PL3-000	Washer - SPRING, 36MM	Washer - SPRING, 36MM
13	23928-PL3-000	Washer - 26MM	Washer - 26MM

Meter components (NS; 1) 2 / 4

#	OEM	EU1	FA1
2	37115-SA0-601	Packing - NS	Packing - NS
7	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Mirror (REMOTE CONTROL; 1) 2 / 11

#	OEM	EU1	FA1
16	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)	Screw - TAPPING, 4X16 (TRUSS)
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Molding/side sill garnish 1 / 16

#	OEM	EU1	FA1
33	91503-SZ3-003	Clip A	Clip A

Oil pump/oil strainer (1.4L/1.5L/1.6L/1.7L) 3 / 29

#	OEM	EU1	FA1
11	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
11	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
16	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER

Outer panels/roof panel 1 / 9

#	OEM	EU1	FA1
35	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

Parking brake (2) 2 / 13

#	OEM	EU1	FA1
16	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
18	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Pedal (RH) 4 / 23

#	OEM	EU1	FA1
16	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
19	46545-SA5-000	Cover, Pedal	Cover, Pedal
23	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
32	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Pillar garnish 5 / 5

#	OEM	EU1	FA1
20	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
22	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
23	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
24	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
25	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Radiator (DENSO; 1.4L/1. 5L/1.6L/1.7L) 1 / 14

#	OEM	EU1	FA1
11	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11

Radiator (DENSO; 1.5L/1. 7L) 2 / 17

#	OEM	EU1	FA1
9	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11

Radiator hose (1.4L/1.5L/ 1.6L/1.7L) 2 / 14

#	OEM	EU1	FA1
16	74172-S5A-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
17	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Rear brake (DRUM) 4 / 42

#	OEM	EU1	FA1
19	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
36	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
36	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
36	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Rear door lining 2 / 5

#	OEM	EU1	FA1
22	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear door locks/outer han dle 1 / 30

#	OEM	EU1	FA1
36	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

Rear door panels 5 / 22

#	OEM	EU1	FA1
25	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
26	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
26	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
27	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
28	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM

Rear door windows/regulat or 2 / 11

#	OEM	EU1	FA1
13	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
14	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Rear seat 4 / 19

#	OEM	EU1	FA1
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
30	82291-S04-000	Cover - RR. CENTER PIVOT	Cover - RR. CENTER PIVOT
31	82292-S04-000	Collar - RR. CENTER SEAT PIVOT	Collar - RR. CENTER SEAT PIVOT

Rear windshield/ quarter windows 1 / 16

#	OEM	EU1	FA1
14	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD

Resonator chamber (1.4L/1 .5L/1.6L/1.7L) 5 / 18

#	OEM	EU1	FA1
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
17	75353-671-000	Lock - SCREW	Lock - SCREW
18	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Seatbelts 3 / 8

#	OEM	EU1	FA1
18	90101-S84-A00	Screw - ET, 6X16	Screw - ET, 6X16
18	90133-SZ4-003	Screw - ET, 7X16	Screw - ET, 7X16
19	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Shift arm/shift lever (1.4L/1.5L/1.6L/1.7L) 3 / 16

#	OEM	EU1	FA1
1	21396-P20-000	Cap - BREATHER	Cap - BREATHER
12	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
13	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Shift fork/fork shaft (1.4L/1.5L/1.6L/1.7L) 3 / 9

#	OEM	EU1	FA1
7	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
8	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
9	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Shift fork/shift holder (1.4L/1.5L/1.6L/1.7L) 3 / 9

#	OEM	EU1	FA1
7	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
8	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
9	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Shift lever 2 / 10

#	OEM	EU1	FA1
6	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
7	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Shift rod/shift holder (1.4L/1.5L/1.6L/1.7L) 3 / 16

#	OEM	EU1	FA1
1	21396-P20-000	Cap - BREATHER	Cap - BREATHER
13	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
14	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Side lining 1 / 6

#	OEM	EU1	FA1
18	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Srs unit (RH) 1 / 5

#	OEM	EU1	FA1
6	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20

Starter motor (DENSO; 2) 3 / 19

#	OEM	EU1	FA1
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
14	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
15	31223-PA0-006	Nut - HEX.	Nut - HEX.

Steering column 2 / 5

#	OEM	EU1	FA1
4	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

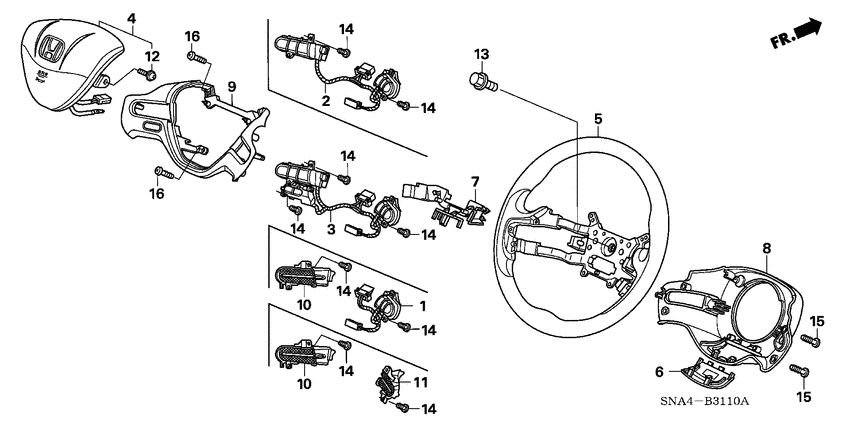

Steering wheel (SRS; 1) 2 / 8

#	OEM	EU1	FA1
11	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
12	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Steering wheel (SRS; 3) 2 / 8

#	OEM	EU1	FA1
11	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
12	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Tailgate 2 / 23

#	OEM	EU1	FA1
30	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
36	91512-S50-003	Clip - LICENSE GARNISH	Clip - LICENSE GARNISH

Tailgate lining 2 / 5

#	OEM	EU1	FA1
9	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Taillight 4 / 21

#	OEM	EU1	FA1
12	34101-S5A-A01	Lens comp	Lens comp
13	34102-S60-003	Housing comp	Housing comp
14	34103-S5A-A01	Gasket	Gasket
21	91512-S50-003	Clip - LICENSE GARNISH	Clip - LICENSE GARNISH

Taillight (2) 4 / 21

#	OEM	EU1	FA1
12	34101-S5A-A01	Lens comp	Lens comp
13	34102-S60-003	Housing comp	Housing comp
14	34103-S5A-A01	Gasket	Gasket
21	91512-S50-003	Clip - LICENSE GARNISH	Clip - LICENSE GARNISH

Tire/wheel disks 1 / 33

#	OEM	EU1	FA1
7	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)

Transmission case (1.4L/1.5L/1.6L/1.7L) 3 / 53

#	OEM	EU1	FA1
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
9	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
12	90401-P8A-A00	Washer - DRAIN, 18MM	Washer - DRAIN, 18MM

Valve/rocker arm (SOHC) 3 / 17

#	OEM	EU1	FA1
10	14744-PM3-000	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
13	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
16	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water pump/sensor (1.4L/1 .5L/1.6L/1.7L) 3 / 25

#	OEM	EU1	FA1
6	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
17	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)	Sensor assy, WATER TEMP (MATSUSHITA)
19	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)

Water valve (RH; 1.4L/1.5 L/1.6L/1.7L) 4 / 9

#	OEM	EU1	FA1
5	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
6	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)	Clamp - HEATER HOSE (NATURAL)
7	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Wire harness (RH) 3 / 19

#	OEM	EU1	FA1
21	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
22	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
23	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
