検索 › 比較 › ES9 × EV1

ES9 × EV1

共通 662 / 合計 3,432 · Jaccard 19.3%
ES9 Honda CIVIC — 1,884 中 662 共有
EV1 Honda CIVIC — 2,210 中 662 共有
662 件

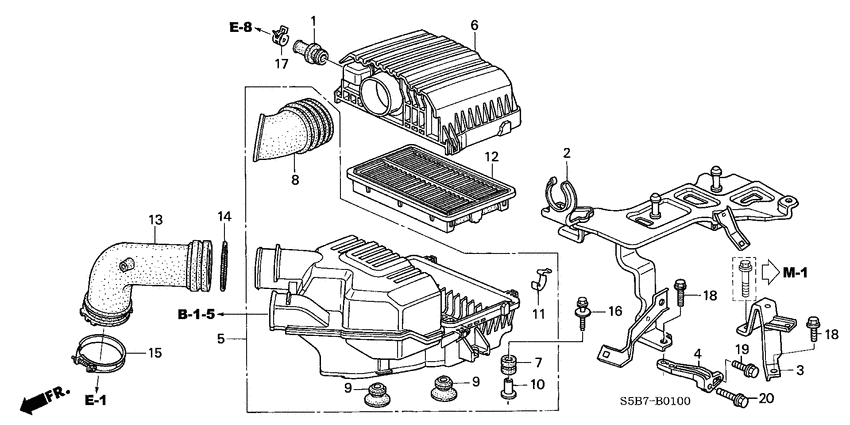

Air cleaner 4 / 18
ES9 Air cleaner
EV1 Air cleaner (2.0L)
# OEM ES9 EV1
7 17212-PN3-000 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
7 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
10 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
16 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Air conditioner (CONDENSER) 3 / 10
ES9 Air conditioner (CONDENSER)
EV1 Air conditioner (CONDENSER; 2.0L)
# OEM ES9 EV1
1 38611-PRA-005 Fan comp - COOLING Fan comp - COOLING
10 90041-PRA-005 Nut - FLANGE, 5MM Nut - FLANGE, 5MM
11 90430-PRA-005 Washer - PLAIN, 8MM Washer - PLAIN, 8MM
Air conditioner (HOSES/PIPES; LH) 6 / 20
ES9 Air conditioner (HOSES/PIPES; LH)
EV1 Air conditioner (HOSES/PIPES; LH; 2.0L)
# OEM ES9 EV1
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
11 80464-S5A-000 Grommet - AIR CONDITIONER PIPE Grommet - AIR CONDITIONER PIPE
15 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
16 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
17 80873-ST7-000 O-ring - 8MM O-ring - 8MM
18 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Air conditioner (SENSOR; LH) 3 / 8
ES9 Air conditioner (SENSOR; LH)
EV1 Air conditioner (SENSOR)
# OEM ES9 EV1
1 80510-S0A-941 Sensor - SUN BEAM Sensor - SUN BEAM
3 80525-S30-941 Sensor assy - AMBIENT Sensor assy - AMBIENT
8 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
Antenna/speaker 5 / 12
ES9 Antenna/speaker
EV1 Harness band/bracket (RH)
# OEM ES9 EV1
10 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
11 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
12 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
13 91559-ST5-003 Clip - HARNESS BAND OFFSET(30) (NATURAL) Clip - HARNESS BAND OFFSET(30) (NATURAL)
14 91902-SJ8-003 Cushion - WIRE HARNESS (50X50) Cushion - WIRE HARNESS (50X50)
Auto air conditioner control (LH) 2 / 3
ES9 Auto air conditioner control (LH)
EV1 Heater control (LH; 2)
# OEM ES9 EV1
1 39397-SA5-003 Bulb - NEO WEDGE (14V 100MA) Bulb - NEO WEDGE (14V 100MA)
10 79609-S5A-003 Bulb - NEO WEDGE (14V 100MA) Bulb - NEO WEDGE (14V 100MA)
Battery 9 / 20
ES9 Battery
EV1 Battery (2.0L)
# OEM ES9 EV1
2 31512-S5A-000 Plate - BATTERY SETTING Plate - BATTERY SETTING
7 32115-P64-003 Holder - CORRUGATED (DARK BLUE) (10MM) Holder - CORRUGATED (DARK BLUE) (10MM)
8 32124-PNA-010 Holder d - ENGINE HARNESS Holder d - ENGINE HARNESS
10 32418-PNN-300 Cover - BATTERY TERMINAL Cover - BATTERY TERMINAL
11 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
12 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
14 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
15 90182-SB6-000 Bolt-washer - 6X16 Bolt-washer - 6X16
21 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
Brake lines (ABS; LH) 8 / 28
ES9 Brake lines (ABS; LH)
EV1 Brake lines (VSA; LH; 2.0L)
# OEM ES9 EV1
13 46380-SH3-000 Grommet a - BRAKE PIPE Grommet a - BRAKE PIPE
15 46391-S5A-J01 Clip - BRAKE PIPE Clip - BRAKE PIPE
19 46396-S7A-003 Clip - BRAKE PIPE Clip - BRAKE PIPE
24 46462-SE0-000 Bolt - OIL Bolt - OIL
25 46470-S5T-E01 Joint - FOUR WAY Joint - FOUR WAY
26 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
27 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
28 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake master cylinder/ master power (LH) 15 / 24
ES9 Brake master cylinder/ master power (LH)
EV1 Brake master cylinder/ master power (LH; VSA)
# OEM ES9 EV1
2 46070-SL0-G01 Plate - SYMBOL MARK Plate - SYMBOL MARK
7 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
8 46185-SE0-003 Seal - ROD Seal - ROD
9 46191-S2K-000 Packing - MASTER POWER Packing - MASTER POWER
13 46407-S84-A01 Clamp - TUBE Clamp - TUBE
14 46512-S70-000 Pin - PEDAL Pin - PEDAL
16 46662-S5A-003 Cap comp. - RESERVE TANK Cap comp. - RESERVE TANK
17 46665-S04-J01 Grommet Grommet
18 46666-S2K-003 Filter - BRAKE RESERVOIR Filter - BRAKE RESERVOIR
19 46669-S5A-003 Diaphragm Diaphragm
20 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
21 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
22 57173-SB0-801 O-ring - CONNECTOR O-ring - CONNECTOR
23 57515-S30-003 Pin - STOP Pin - STOP
24 57562-SF1-003 Circlip Circlip
Bumpers ('04-) 8 / 28
ES9 Bumpers ('04-)
EV1 Bumpers
# OEM ES9 EV1
12 71505-S5A-J00 Bracket - R. RR. BUMPER SIDE Bracket - R. RR. BUMPER SIDE
15 71555-S5A-J00 Bracket - L. RR. BUMPER SIDE Bracket - L. RR. BUMPER SIDE
23 90109-SS0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
24 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
26 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
28 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
30 91503-SZ3-003 Clip A Clip A
31 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE

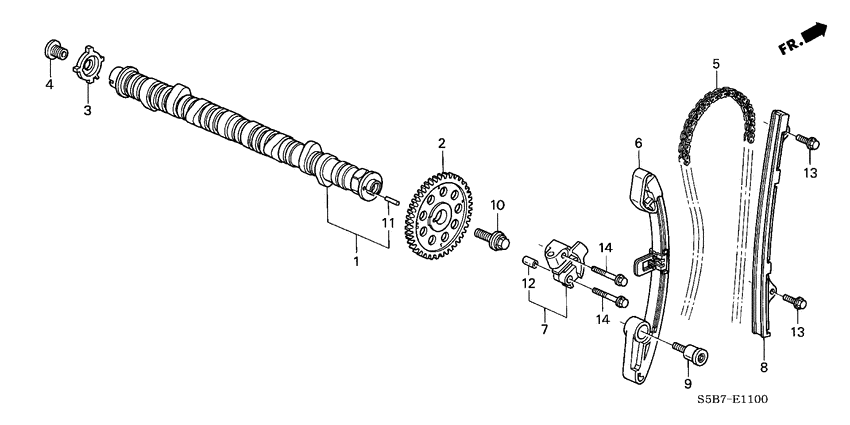

Camshaft/cam chain 1 / 12
ES9 Camshaft/cam chain
EV1 Camshaft/cam chain (2.0L)
# OEM ES9 EV1
9 90003-PNA-000 Bolt - TENSIONER PIVOT Bolt - TENSIONER PIVOT
Chain case 2 / 12
ES9 Chain case
EV1 Chain case (2.0L)
# OEM ES9 EV1
4 37500-PNB-003 Sensor assy - CRANK Sensor assy - CRANK
12 91333-PNA-003 O-ring - 15X1.9 O-ring - 15X1.9

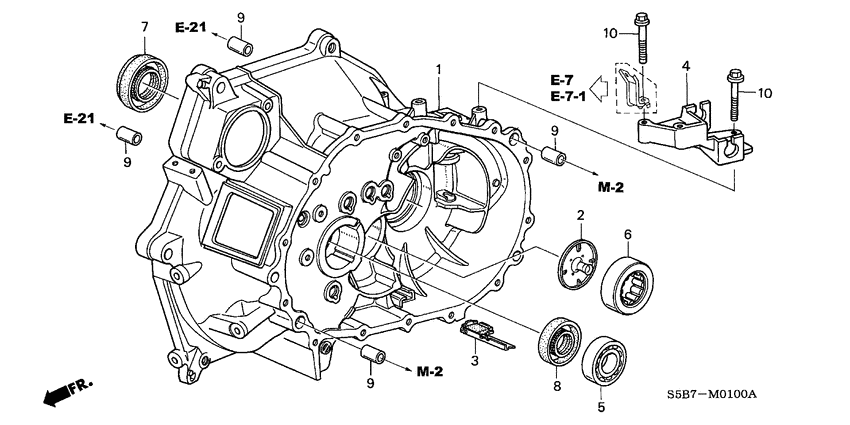

Clutch case 2 / 8
ES9 Clutch case
EV1 Clutch case (2.0L)
# OEM ES9 EV1
3 21120-PWL-000 Magnet comp. - TRANSMISSION Magnet comp. - TRANSMISSION
7 91206-PHR-003 Oil seal - 35X58X8 (NOK) Oil seal - 35X58X8 (NOK)
Clutch master cylinder (LH) 23 / 34
ES9 Clutch master cylinder (LH)
EV1 Clutch master cylinder (LH; 2.0L)
# OEM ES9 EV1
3 46151-S5A-A01 Yoke Yoke
4 46182-500-013 Circlip Circlip
5 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
6 46912-S84-A00 Pin - CLUTCH PEDAL Pin - CLUTCH PEDAL
8 46921-S5A-003 Plate - STOPPER Plate - STOPPER
9 46926-S5A-013 Piston comp - CLUTCH MASTER CYLINDER Piston comp - CLUTCH MASTER CYLINDER
10 46928-S5A-A01 Seal - MASTER CYLINDER Seal - MASTER CYLINDER
12 46931-S5A-003 Pin - SPRING Pin - SPRING
13 46932-S5A-003 Piston - SLAVE CYLINDER Piston - SLAVE CYLINDER
14 46937-SS1-003 Boot - SLAVE CYLINDER Boot - SLAVE CYLINDER
15 46941-S5A-003 Connector - CLUTCH MASTER CYLINDER Connector - CLUTCH MASTER CYLINDER
16 46942-S5A-003 Pin - SNAP Pin - SNAP
17 46943-S5A-003 Seal - RING Seal - RING
18 46944-S5A-J01 Connector Connector
19 46945-S5A-003 O-ring O-ring
20 46946-S5A-003 Screw-washer - 4X12 Screw-washer - 4X12
21 46947-S5A-003 Rod - PUSH Rod - PUSH
22 46948-S5A-003 Rod - PUSH Rod - PUSH
23 46949-S5A-003 Seal - RING Seal - RING
26 46965-S5A-013 Tank assy. - CLUTCH FLUID Tank assy. - CLUTCH FLUID
30 46972-S6F-E01 Clamp - TUBE (D12) Clamp - TUBE (D12)
31 46977-S2H-G01 Clip - CLUTCH PIPE Clip - CLUTCH PIPE
34 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Clutch release 4 / 12
ES9 Clutch release
EV1 Clutch release (2.0L)
# OEM ES9 EV1
8 78416-S2R-003 Washer Washer
9 78417-S2R-003 Ring - STOP (C-TYPE) Ring - STOP (C-TYPE)
10 78418-S2R-003 Spring Spring
11 78419-S2R-003 Seal - RING Seal - RING
Combination switch 15 / 22
ES9 Combination switch
EV1 Combination switch
# OEM ES9 EV1
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
6 35113-S0X-Y01 Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER) Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER)
6 35113-S9A-G01 Key - BLANK (MAIN) (BLACK) (IMMOBILIZER) Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
12 35257-S5A-J01 Bracket Bracket
13 35400-S5A-013 Switch assy - DOOR (MATSUSHITA) Switch assy - DOOR (MATSUSHITA)
14 39730-SEA-E01 Immobilizer unit Immobilizer unit
15 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
16 72146-S5A-G01 Cover - BATTERY Cover - BATTERY
18 72148-S10-003 Battery - CR2025 Battery - CR2025
18 72148-S84-A10 Battery - CR2025 Battery - CR2025
19 72149-S10-003 O-ring O-ring
20 90132-S2H-G11 Screw - ET, 5.5X18 Screw - ET, 5.5X18
20 90132-S2H-G01 Screw - ET, 5X18 Screw - ET, 5X18
Console 4 / 7
ES9 Console
EV1 Instrument panel garnish (LH; PASSENGER SIDE)
# OEM ES9 EV1
13 90665-S04-003 Clip - SNAP FITTING Clip - SNAP FITTING
14 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
16 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
17 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Control unit (CABIN; LH) 8 / 22
ES9 Control unit (CABIN; LH)
EV1 Control unit (CABIN; LH)
# OEM ES9 EV1
1 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
7 38300-S5T-003 Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA) Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
7 38300-S5T-004 Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO) Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
10 39794-S04-014 Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
10 39794-S04-003 Relay assy - POWER (4P) (MICRO ISO) (MITSUBA) Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
11 39794-S5A-901 Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA) Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
17 90137-SF1-000 Bolt-washer - 6X25 Bolt-washer - 6X25
18 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Control unit (ENGINE ROOM) 15 / 29
ES9 Control unit (ENGINE ROOM)
EV1 Control unit (ENGINE ROOM; 2.0L)
# OEM ES9 EV1
3 38100-S04-A01 Horn assy - LOW (MITSUBA) Horn assy - LOW (MITSUBA)
7 38213-SM4-003 Fuse - BLOCK (50A) Fuse - BLOCK (50A)
8 38214-SS1-003 Fuse - BLOCK (60A) Fuse - BLOCK (60A)
9 38216-SM4-003 Fuse - BLOCK (80A) Fuse - BLOCK (80A)
10 38231-S04-003 Fuse - BLOCK (30A) Fuse - BLOCK (30A)
11 38231-S04-961 Fuse - BLOCK (40A) Fuse - BLOCK (40A)
13 38235-S04-003 Puller - MINI FUSE (SUMITOMO) Puller - MINI FUSE (SUMITOMO)
20 39792-SE0-004 Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22) Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
21 39794-SL0-004 Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
21 39794-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7250) Relay assy - POWER(4P)(DENSO) (056700-7250)
22 39794-S04-014 Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
22 39794-S04-003 Relay assy - POWER (4P) (MICRO ISO) (MITSUBA) Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
23 39794-S5A-003 Relay assy - FUEL PUMP(5P) (MITSUBA) Relay assy - FUEL PUMP(5P) (MITSUBA)
24 90129-SP0-000 Screw-washer - 5X12 Screw-washer - 5X12
25 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
Cylinder block/oil pan 2 / 20
ES9 Cylinder block/oil pan
EV1 Cylinder block/oil pan (2.0L)
# OEM ES9 EV1
16 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
19 91214-PWA-003 Oil seal - 80X98X10 (NOK) Oil seal - 80X98X10 (NOK)
Cylinder head 4 / 22
ES9 Cylinder head
EV1 Cylinder head (DOHC; VTE C)
# OEM ES9 EV1
14 37510-PNB-003 Sensor assy - TDC Sensor assy - TDC
18 90026-PNA-003 Bolt - STUD, 10X39.5 Bolt - STUD, 10X39.5
19 91319-PAA-A01 O-ring - 13X1.5 O-ring - 13X1.5
20 91333-PNA-003 O-ring - 15X1.9 O-ring - 15X1.9
Differential 17 / 22
ES9 Differential
EV1 Differential (2.0L)
# OEM ES9 EV1
4 41453-PL3-B00 Shim n - 80MM(1.35) Shim n - 80MM(1.35)
4 41448-PL3-B00 Shim h - 80MM(1.7) Shim h - 80MM(1.7)
4 41443-PL3-B00 Shim c - 80MM(1.2) Shim c - 80MM(1.2)
4 41455-PL3-B00 Shim q - 80MM(1.55) Shim q - 80MM(1.55)
4 41450-PL3-B00 Shim k - 80MM(1.05) Shim k - 80MM(1.05)
4 41445-PL3-B00 Shim e - 80MM(1.4) Shim e - 80MM(1.4)
4 41457-PL3-B00 Shim s - 80MM(1.75) Shim s - 80MM(1.75)
4 41452-PL3-B00 Shim m - 80MM(1.25) Shim m - 80MM(1.25)
4 41447-PL3-B00 Shim g - 80MM(1.6) Shim g - 80MM(1.6)
4 41442-PL3-B00 Shim b - 80MM(1.1) Shim b - 80MM(1.1)
4 41454-PL3-B00 Shim p - 80MM(1.45) Shim p - 80MM(1.45)
4 41449-PL3-B00 Shim j - 80MM(1.8) Shim j - 80MM(1.8)
4 41444-PL3-B00 Shim d - 80MM(1.3) Shim d - 80MM(1.3)
4 41456-PL3-B00 Shim r - 80MM(1.65) Shim r - 80MM(1.65)
4 41451-PL3-B00 Shim l - 80MM(1.15) Shim l - 80MM(1.15)
4 41446-PL3-B00 Shim f - 80MM(1.5) Shim f - 80MM(1.5)
4 41441-PL3-B00 Shim a - 80MM(1.0) Shim a - 80MM(1.0)
Emblems/caution labels 6 / 13
ES9 Emblems/caution labels
EV1 Emblems/caution labels
# OEM ES9 EV1
3 17669-SS0-X30 Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY) Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
7 75722-S5A-000 Emblem - RR. (CIVIC) Emblem - RR. (CIVIC)
9 77875-S84-G80 Label - SRS CAUTION Label - SRS CAUTION
10 78031-S1A-E80 Label - SIDE AIRBAG CAUTION Label - SIDE AIRBAG CAUTION
12 90301-ST0-003 push nut, 3mm push nut, 3mm
17 78527-S04-G80 Label - SRS CAUTION (CHILD SEAT) Label - SRS CAUTION (CHILD SEAT)
Engine hood (LH) 6 / 23
ES9 Engine hood (LH)
EV1 Hood (LH)
# OEM ES9 EV1
15 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
16 90602-SX0-003 Clip - COWL TOP Clip - COWL TOP
17 90602-S2A-003 Clip - COWL TOP Clip - COWL TOP
20 90603-S2A-003 Grommet - COWL TOP Grommet - COWL TOP
22 91501-SL4-003 Clip - FR. COWL Clip - FR. COWL
25 91518-SM4-003 Clip - TRUNK MOLDING Clip - TRUNK MOLDING

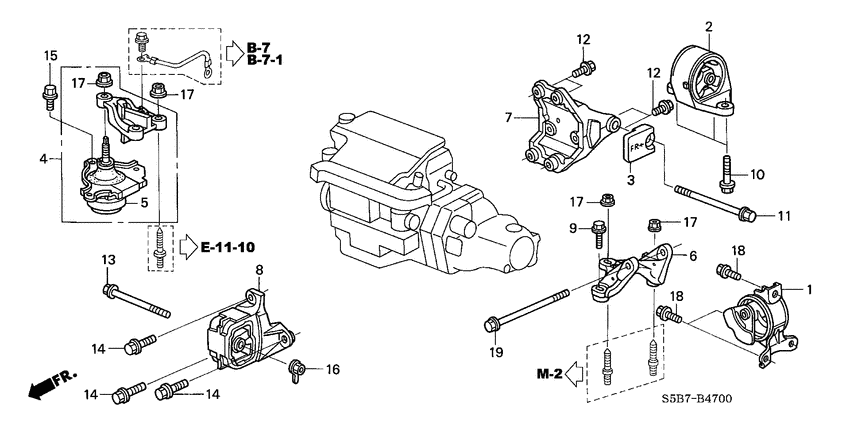

Engine mounts 2 / 16
ES9 Engine mounts
EV1 Engine mounts (MT; 2.0L)
# OEM ES9 EV1
14 90168-S5A-000 Bolt - FLANGE, 12X35 Bolt - FLANGE, 12X35
16 90371-S5A-000 Nut - YOKE, 12MM Nut - YOKE, 12MM
Engine wire harness (LH) 4 / 23
ES9 Engine wire harness (LH)
EV1 Engine wire harness (LH; 2.0L)
# OEM ES9 EV1
3 32113-PLD-003 Collar - HARNESS GROMMET Collar - HARNESS GROMMET
20 91507-P01-003 Clip b - HARNESS BAND (DARK BROWN) (129.4MM) Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
21 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
23 91558-P8C-A01 Clip - HARNESS BAND (VIOLET) (150MM) Clip - HARNESS BAND (VIOLET) (150MM)

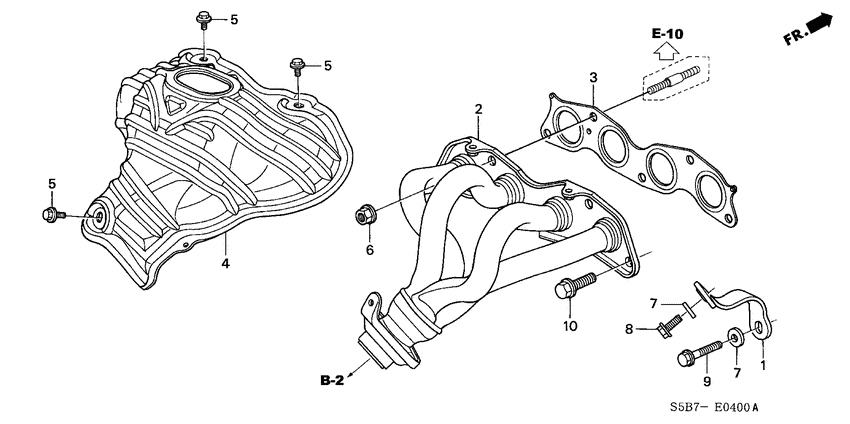

Exhaust manifold 1 / 8
ES9 Exhaust manifold
EV1 Exhaust manifold (2.0L)
# OEM ES9 EV1
6 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM

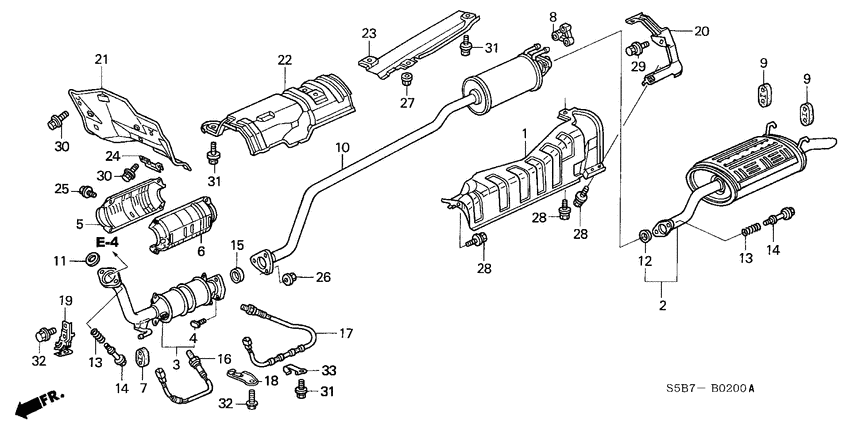

Exhaust pipe/silencer 10 / 29
ES9 Exhaust pipe/silencer
EV1 Exhaust pipe (2.0L)
# OEM ES9 EV1
4 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
7 18215-SL5-A00 Rubber - EX. MOUNTING Rubber - EX. MOUNTING
8 18215-S5A-A11 Rubber - EX. MOUNTING Rubber - EX. MOUNTING
13 18230-SV4-000 Spring - FLEXIBLE JOINT Spring - FLEXIBLE JOINT
14 18231-SR3-A22 Bolt b - FLEXIBLE JOINT Bolt b - FLEXIBLE JOINT
15 18393-SH3-S00 Gasket - PRE-CHAMBER (52.5MM-53.5MM) Gasket - PRE-CHAMBER (52.5MM-53.5MM)
24 80275-S6M-000 Cover - DRAIN Cover - DRAIN
25 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
25 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
26 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 5 / 7
ES9 Floor mat
EV1 Floor mat
# OEM ES9 EV1
9 90667-ST8-003 Clip - SIDE LINING Clip - SIDE LINING
11 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
12 90676-S5A-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
13 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
14 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
Floor/inner panels 1 / 1
ES9 Floor/inner panels
EV1 Floor/inner panels
# OEM ES9 EV1
32 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15

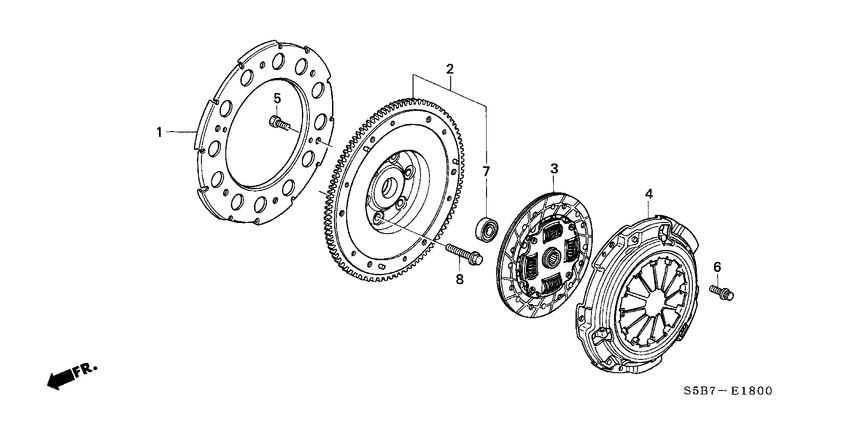

Flywheel 1 / 6
ES9 Flywheel
EV1 Clutch (2.0L)
# OEM ES9 EV1
6 90034-689-000 Bolt - TWELVE POINT, 8MM (TOKAI TRW) Bolt - TWELVE POINT, 8MM (TOKAI TRW)
Front brake 8 / 24
ES9 Front brake
EV1 Rear brake (DISK)
# OEM ES9 EV1
4 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
5 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
11 45216-S5A-J01 Piston Piston
14 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
18 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
19 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
19 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
19 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
Front bulkhead/dashboard 2 / 2
ES9 Front bulkhead/dashboard
EV1 Front bulkhead/dashboard
# OEM ES9 EV1
36 74232-S5A-000 Rod - BRAKE PEDAL SUPPORT Rod - BRAKE PEDAL SUPPORT
37 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
Front door glass/ door regulator 3 / 14
ES9 Front door glass/ door regulator
EV1 Harness band/bracket (LH)
# OEM ES9 EV1
1 39885-S5A-G11 Label - IMMOBILIZER & SECURITY Label - IMMOBILIZER & SECURITY
13 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
14 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front door lining (LH) 2 / 5
ES9 Front door lining (LH)
EV1 Front door lining (LH)
# OEM ES9 EV1
16 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks/ outer handle 24 / 39
ES9 Front door locks/ outer handle
EV1 Front door locks/outer ha ndle
# OEM ES9 EV1
2 72112-SR4-004 Snap - BROWN Snap - BROWN
3 72113-SR4-004 Snap - BLACK Snap - BLACK
5 72116-S04-003 Holder - ROD(SKY BLUE) Holder - ROD(SKY BLUE)
6 72117-S04-003 Holder - ROD (YELLOW) Holder - ROD (YELLOW)
8 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
9 72119-S04-003 Stopper a - OUTSIDE HANDLE Stopper a - OUTSIDE HANDLE
12 72123-SR0-003 Ring - OUTSIDE HANDLE Ring - OUTSIDE HANDLE
16 72135-S5A-003 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
18 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
20 72141-SD4-004 Bush - R. JOINT Bush - R. JOINT
24 72149-SR4-000 Snap - R. Snap - R.
32 72175-SH3-003 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
34 72181-SD4-004 Bush - L. JOINT Bush - L. JOINT
37 72189-SR4-000 Snap - L. Snap - L.
38 72616-SM4-003 Snap - NATURAL Snap - NATURAL
39 90120-SM4-000 Screw - TAPPING Screw - TAPPING
40 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
41 90141-S84-003 Screw - 3X10 Screw - 3X10
43 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
44 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
46 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
53 72115-S5A-A01 Actuator assy - DOOR LOCK Actuator assy - DOOR LOCK
56 72155-S5A-A01 Actuator assy - DOOR LOCK Actuator assy - DOOR LOCK
59 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
Front door panels 4 / 20
ES9 Front door panels
EV1 Front door panels
# OEM ES9 EV1
21 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
22 90102-SFA-305 Bolt - FLANGE, 8X18 (SERVICE) Bolt - FLANGE, 8X18 (SERVICE)
22 90102-S3N-003 Bolt - FLANGE, 8X24.5 (10.5MM) Bolt - FLANGE, 8X24.5 (10.5MM)
23 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
Front driveshaft/ half shaft 9 / 33
ES9 Front driveshaft/ half shaft
EV1 Front driveshaft
# OEM ES9 EV1
8 44319-SE0-000 Set ring - 28X2.0 Set ring - 28X2.0
8 44319-S84-300 Set ring - 28X2.0 Set ring - 28X2.0
10 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
12 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
21 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
22 90165-S5B-003 Bolt - FLANGE, 8X24 Bolt - FLANGE, 8X24
25 90681-SR3-000 Circlip - EXTERNAL, 33MM Circlip - EXTERNAL, 33MM
26 91057-SR3-008 Bearing - HALF SHAFT(NTN) Bearing - HALF SHAFT(NTN)
27 91260-SDB-A01 Seal - HALF SHAFT OUTER(NOK) Seal - HALF SHAFT OUTER(NOK)
Front fenders 8 / 15
ES9 Front fenders
EV1 Front fenders
# OEM ES9 EV1
9 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
10 90114-SE0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
11 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
12 90308-SB2-013 Nut - SUSPENSION, 5MM Nut - SUSPENSION, 5MM
13 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
14 91503-SZ3-003 Clip A Clip A
15 91533-SG0-000 Clip b - FAIRING Clip b - FAIRING
16 91545-SE0-003 Clip assy. - 8MM Clip assy. - 8MM
Front grille ('04-) 1 / 2
ES9 Front grille ('04-)
EV1 Bumpers
# OEM ES9 EV1
3 91503-SZ3-003 Clip A Clip A
Front seat (LH; DRIVER SIDE) 10 / 15
ES9 Front seat (LH; DRIVER SIDE)
EV1 Front seat (LH; DRIVER SIDE)
# OEM ES9 EV1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
10 81223-S04-000 Clip - SHAFT, 8MM Clip - SHAFT, 8MM
15 81528-S5A-J01 Holder - L. MODULE Holder - L. MODULE
20 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
21 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
22 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
23 90656-PB1-003 Band - OIL HOSE Band - OIL HOSE
24 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
25 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Front seat (LH; PASSENGER SIDE) 9 / 14
ES9 Front seat (LH; PASSENGER SIDE)
EV1 Front seat (LH; PASSENGER SIDE)
# OEM ES9 EV1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
7 81128-S5A-J01 Holder - R. MODULE Holder - R. MODULE
18 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
19 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
20 90610-S10-003 Clip - GARNISH Clip - GARNISH
21 90656-PB1-003 Band - OIL HOSE Band - OIL HOSE
22 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
23 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Front seat components (LH; DRIVER SIDE) 11 / 13
ES9 Front seat components (LH; DRIVER SIDE)
EV1 Front seat components (L.; 2)
# OEM ES9 EV1
2 81139-S3N-003 Link - FR. Link - FR.
4 81262-S5A-J01 Cap - SLIDE ADJUSTER UPPER END Cap - SLIDE ADJUSTER UPPER END
5 81271-S5A-J01 Lever Lever
6 81272-S5A-J01 Cap - SLIDE ADJUSTER UPPER END Cap - SLIDE ADJUSTER UPPER END
9 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
10 90135-S5A-003 Bolt-washer - 10X27 Bolt-washer - 10X27
11 90143-SR3-000 Bolt-washer - 10X22 Bolt-washer - 10X22
12 90303-S3N-003 Nut - FLANGE Nut - FLANGE
13 90501-S3N-003 Washer a Washer a
14 90502-S3N-013 Bush a Bush a
15 90503-S3N-003 Spacer Spacer
Front seat components (LH; PASSENGER SIDE) 6 / 8
ES9 Front seat components (LH; PASSENGER SIDE)
EV1 Front seat components (L.; 1)
# OEM ES9 EV1
5 81262-S5A-J01 Cap - SLIDE ADJUSTER UPPER END Cap - SLIDE ADJUSTER UPPER END
6 81271-S5A-J01 Lever Lever
7 81272-S5A-J01 Cap - SLIDE ADJUSTER UPPER END Cap - SLIDE ADJUSTER UPPER END
8 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
9 90135-S5A-003 Bolt-washer - 10X27 Bolt-washer - 10X27
10 90143-SR3-000 Bolt-washer - 10X22 Bolt-washer - 10X22

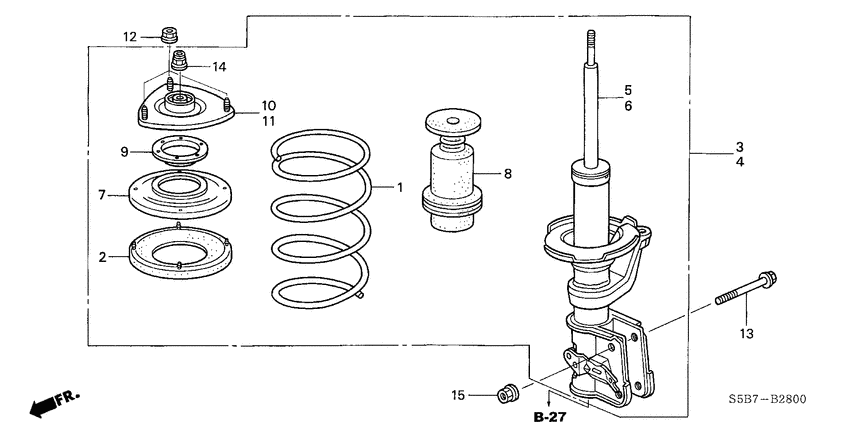

Front shock absorber 4 / 16
ES9 Front shock absorber
EV1 Front shock absorber
# OEM ES9 EV1
12 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
13 90119-S6M-Z01 Bolt - FLANGE, 16X62 Bolt - FLANGE, 16X62
14 90213-SJ6-004 Nut - SELF-LOCK, 12MM(NYLON) Nut - SELF-LOCK, 12MM(NYLON)
15 90382-S6M-Z01 Nut - FLANGE, 16MM Nut - FLANGE, 16MM
Front stabilizer/ front lower arm 10 / 19
ES9 Front stabilizer/ front lower arm
EV1 Knuckle
# OEM ES9 EV1
3 51225-S5A-003 Boot - LOWER BALL DUST Boot - LOWER BALL DUST
6 51308-S5A-000 Holder - FR. STABILIZER Holder - FR. STABILIZER
7 51320-S5A-003 RH FR. STABILIZER LINK RH FR. STABILIZER LINK
8 51321-S5A-003 LH FR. STABILIZER LINK LH FR. STABILIZER LINK
12 51392-S5A-004 Bush - FR. LOWER ARM (YAMASHITA) Bush - FR. LOWER ARM (YAMASHITA)
15 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
16 90118-S5A-000 Bolt - FLANGE, 14X91 Bolt - FLANGE, 14X91
17 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
18 90363-S47-000 Nut - LOWER ARM, 12MM Nut - LOWER ARM, 12MM
19 90701-SX0-003 Clip - UPPER ARM Clip - UPPER ARM

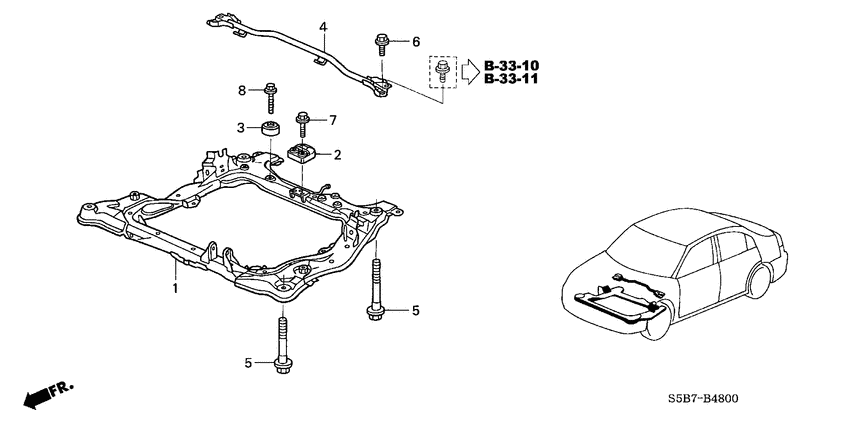

Front sub frame 2 / 6
ES9 Front sub frame
EV1 Front sub frame
# OEM ES9 EV1
5 90175-S5A-000 Bolt - FLANGE, 14X115 Bolt - FLANGE, 14X115
6 90801-S5A-000 BOLT, FLANGE, 8X25 BOLT, FLANGE, 8X25
Front windshield 3 / 15
ES9 Front windshield
EV1 Front windshield
# OEM ES9 EV1
6 78527-S04-E80 Label - SRS CAUTION (CHILD SEAT) Label - SRS CAUTION (CHILD SEAT)
14 91568-SX0-003 Fastener a - WINDSHIELD Fastener a - WINDSHIELD
15 91577-S84-A01 Fastener - WINDSHIELD Fastener - WINDSHIELD
Front wiper (LH) 2 / 21
ES9 Front wiper (LH)
EV1 Front wiper (LH)
# OEM ES9 EV1
20 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
21 91611-S5A-000 Cap - FR. WIPER Cap - FR. WIPER

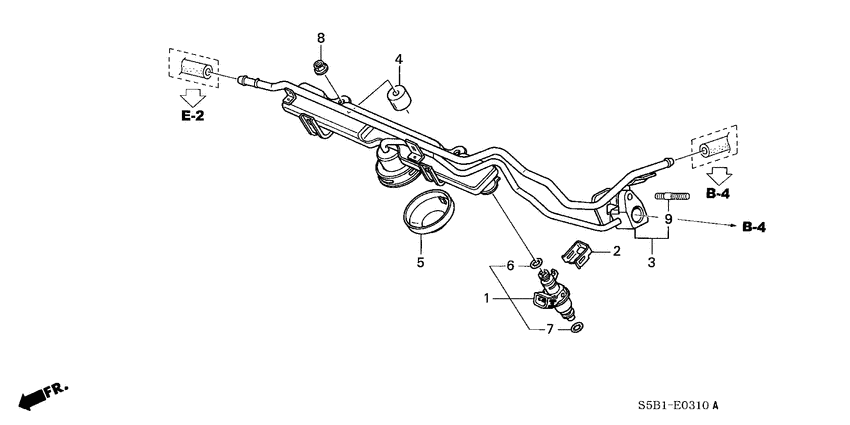

Fuel injector 3 / 7
ES9 Fuel injector
EV1 Intake manifold (2.0L)
# OEM ES9 EV1
2 16451-PLC-000 Clip - INJECTOR Clip - INJECTOR
6 91301-PLC-000 O-ring - 7.47X3.6 O-ring - 7.47X3.6
7 91302-PNA-003 O-ring - 7.45X3.61(NOK) O-ring - 7.45X3.61(NOK)
Fuel pipe 15 / 38
ES9 Fuel pipe
EV1 Fuel pipe
# OEM ES9 EV1
3 16725-PNA-003 Clamp a - FUEL HOSE Clamp a - FUEL HOSE
6 17315-S5A-932 Filter - CANISTER Filter - CANISTER
10 17711-S84-004 Retainer - WHITE)(SANOH Retainer - WHITE)(SANOH
18 17745-S5A-932 Tube b - CANISTER DRAIN Tube b - CANISTER DRAIN
20 17759-S5A-931 Clip b - FUEL PIPE Clip b - FUEL PIPE
25 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
26 90671-S5A-003 Bolt - FR. FENDER Bolt - FR. FENDER
28 91401-SDC-000 Clip - TUBE(B10) Clip - TUBE(B10)
29 91402-SDC-000 Clip - TUBE(B12) Clip - TUBE(B12)
31 91592-S5A-931 Clip - FUEL PIPE Clip - FUEL PIPE
32 91594-S5A-931 Clip - DRAIN TUBE (B) Clip - DRAIN TUBE (B)
33 91595-S5A-931 Clamp a - FUEL PIPE Clamp a - FUEL PIPE
34 91596-S5A-931 Joint - DRAIN TUBE Joint - DRAIN TUBE
36 91598-S5A-930 Rubber - FUEL PIPE INSULATOR Rubber - FUEL PIPE INSULATOR
38 91599-S5A-931 Clamp b - FUEL PIPE Clamp b - FUEL PIPE
Fuel tank 32 / 44
ES9 Fuel tank
EV1 Fuel tank
# OEM ES9 EV1
1 16010-S5A-932 Strainer set - FUEL Strainer set - FUEL
3 16016-S5A-930 Wire comp - LEAD Wire comp - LEAD
5 17041-S5A-930 O-ring O-ring
6 17042-S5A-930 Housing - FUEL PUMP Housing - FUEL PUMP
7 17043-S5A-941 Reservoir - DENSO Reservoir - DENSO
8 17044-S5A-930 Cap - RESERVOIR Cap - RESERVOIR
9 17045-S5A-931 Spring Spring
10 17046-S5A-931 Linkage Linkage
11 17047-S5A-930 O-ring O-ring
12 17048-S5A-930 O-ring O-ring
13 17049-S5A-930 Holder - FUEL PUMP Holder - FUEL PUMP
15 17051-S5A-930 Collar Collar
16 17052-S5A-930 Stopper a Stopper a
17 17053-S5A-930 Stopper b Stopper b
20 17516-S5A-930 Filter set - FUEL PUMP Filter set - FUEL PUMP
21 17521-S5A-931 Band - FUEL TANK MOUNTING Band - FUEL TANK MOUNTING
22 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
23 17525-S0X-A00 Bolt-washer - 10X25 Bolt-washer - 10X25
26 17651-S5A-930 Tube - FILLER NECK Tube - FILLER NECK
27 17652-S6M-J01 Clip - FILLER TUBE Clip - FILLER TUBE
28 17652-S6M-J51 Clip - FILLER TUBE Clip - FILLER TUBE
29 17653-S5A-930 Tube - BREATHER Tube - BREATHER
33 17670-S5A-E33 Cap comp. - FUEL FILLER (TOYODA) Cap comp. - FUEL FILLER (TOYODA)
36 74660-S5A-000 Cap assy. - FLOOR MAINTENANCE HOLE Cap assy. - FLOOR MAINTENANCE HOLE
37 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
38 90657-SA5-003 Clip - SIDE APRON MOLDING Clip - SIDE APRON MOLDING
39 91401-SDC-000 Clip - TUBE(B10) Clip - TUBE(B10)
40 91404-SDC-000 Clamp - TUBE (D10) Clamp - TUBE (D10)
41 91413-S5A-003 Clamp - FUEL TUBE (D17) Clamp - FUEL TUBE (D17)
42 91462-SDA-003 Clamp - FUEL TUBE (D18) Clamp - FUEL TUBE (D18)
43 91594-S1A-E01 Clip - FUEL FILLER CAP Clip - FUEL FILLER CAP
44 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
Grommet (FRONT) 9 / 12
ES9 Grommet (FRONT)
EV1 Grommet (FRONT)
# OEM ES9 EV1
1 72207-SB2-000 Cap - FLOOR HOLE, 24MM Cap - FLOOR HOLE, 24MM
3 74177-SD4-000 Cushion a - HOOD Cushion a - HOOD
6 90615-SR3-000 Cap - WELD HOLE, 51X77 Cap - WELD HOLE, 51X77
7 90615-S5A-003 Plug - HOLE, 27X56 Plug - HOLE, 27X56
8 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
9 91608-S5A-003 Boot - FLOOR Boot - FLOOR
10 91615-SH3-000 Cap - FLOOR HOLE, 49MM Cap - FLOOR HOLE, 49MM
11 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
16 90852-671-003 Plug - HOLE Plug - HOLE
Grommet (LOWER) 2 / 2
ES9 Grommet (LOWER)
EV1 Grommet (UNDER)
# OEM ES9 EV1
1 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
2 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
Grommet (REAR) 3 / 5
ES9 Grommet (REAR)
EV1 Grommet (REAR)
# OEM ES9 EV1
2 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
3 90857-SD4-000 Cap - WELD HOLE Cap - WELD HOLE
4 91611-SS0-003 Plug - HOLE, 25MM Plug - HOLE, 25MM
Grommet (SIDE) 3 / 5
ES9 Grommet (SIDE)
EV1 Grommet (SIDE)
# OEM ES9 EV1
3 91618-S5A-000 Seal - HOLE, 30X90 Seal - HOLE, 30X90
4 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
5 91902-SJ8-003 Cushion - WIRE HARNESS (50X50) Cushion - WIRE HARNESS (50X50)
Harness band/bracket 25 / 41
ES9 Harness band/bracket
EV1 Harness band/bracket (LH)
# OEM ES9 EV1
1 32103-679-000 Grommet - WIRE HARNESS(BLACK) Grommet - WIRE HARNESS(BLACK)
3 32112-S2K-003 Band - CABLE (90MM) Band - CABLE (90MM)
4 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
5 32132-S6A-003 Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
6 32133-SM4-003 Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
7 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
10 38617-S5A-J01 Filter comp - NOISE Filter comp - NOISE
12 90677-692-003 Clip - WIRE HARNESS (HARNESS TAPING) Clip - WIRE HARNESS (HARNESS TAPING)
14 91507-SL9-003 Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
15 91510-SA5-003 Clip - OFFSET(10)(BROWN)(50MM) Clip - OFFSET(10)(BROWN)(50MM)
16 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
17 91531-S84-003 Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
18 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
19 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
20 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
21 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
23 91545-S2A-003 Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL) Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
24 91547-SH3-003 Clip - BAND(NATURAL)(160MM) Clip - BAND(NATURAL)(160MM)
25 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
34 91565-S0X-003 Clip - COUPLER (DARK GREEN) Clip - COUPLER (DARK GREEN)
35 91571-S10-003 Clip - WIRE HARNESS (NATURAL) (130MM) Clip - WIRE HARNESS (NATURAL) (130MM)
39 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
40 91902-S2X-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
41 91902-S3N-003 Plaster - WIRE HARNESS (50X50) Plaster - WIRE HARNESS (50X50)
46 91577-SM4-003 Holder - BRACKET(NATURAL) Holder - BRACKET(NATURAL)
Headlight ('04-) 8 / 18
ES9 Headlight ('04-)
EV1 Headlight (1)
# OEM ES9 EV1
3 33105-S5N-C01 Nut - SPECIAL Nut - SPECIAL
4 33115-S84-A11 Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
4 33115-S84-A01 Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA) Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
7 33130-S5A-G01 Adjuster unit - HEADLIGHT Adjuster unit - HEADLIGHT
9 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
11 33303-SAA-003 Socket comp - T20 S) (AMBER Socket comp - T20 S) (AMBER
12 33303-S2R-003 Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
14 33305-S5A-003 Socket comp - T10 Socket comp - T10
Heater blower (LH) 2 / 22
ES9 Heater blower (LH)
EV1 Heater blower (LH)
# OEM ES9 EV1
19 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
20 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (LH) 6 / 37
ES9 Heater unit (LH)
EV1 Heater unit (LH)
# OEM ES9 EV1
2 53747-SA5-003 Clip - POWER STEERING HOSE Clip - POWER STEERING HOSE
18 79770-SE0-000 Grommet - WATER VALVE CABLE Grommet - WATER VALVE CABLE
27 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
28 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
35 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
37 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Ima battery 1 / 1
ES9 Ima battery
EV1 Harness band/bracket (LH)
# OEM ES9 EV1
8 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
Ima control unit 2 / 2
ES9 Ima control unit
EV1 Battery (2.0L)
# OEM ES9 EV1
3 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
4 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Ima main cable/stay 3 / 6
ES9 Ima main cable/stay
EV1 Brake lines (VSA; LH; 2.0L)
# OEM ES9 EV1
20 46391-S5A-Z01 Clip - BRAKE PIPE Clip - BRAKE PIPE
21 46394-S5A-003 Clip - BRAKE PIPE Clip - BRAKE PIPE
24 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
Ima main switch/junction board 2 / 2
ES9 Ima main switch/junction board
EV1 Harness band/bracket (LH)
# OEM ES9 EV1
34 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
35 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Ima pdu cooling unit 5 / 10
ES9 Ima pdu cooling unit
EV1 Air cleaner (2.0L)
# OEM ES9 EV1
14 17212-PN3-000 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
14 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
15 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
17 75353-671-000 Lock - SCREW Lock - SCREW
22 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Ima unit case 1 / 5
ES9 Ima unit case
EV1 Instrument panel (LH)
# OEM ES9 EV1
28 90101-S6A-000 Bolt-washer - 8MM Bolt-washer - 8MM
Ima wire harness 8 / 11
ES9 Ima wire harness
EV1 Harness band/bracket (LH)
# OEM ES9 EV1
4 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
5 39794-S04-014 Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
5 39794-S04-003 Relay assy - POWER (4P) (MICRO ISO) (MITSUBA) Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
8 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
9 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
10 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
11 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
13 91551-PNA-003 Band - WIRE HARNESS (BLACK) (172MM) Band - WIRE HARNESS (BLACK) (172MM)
Install pipe 1 / 10
ES9 Install pipe
EV1 Brake master cylinder/ master power (LH; VSA)
# OEM ES9 EV1
9 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Instrument panel (LH) 8 / 13
ES9 Instrument panel (LH)
EV1 Instrument panel (LH)
# OEM ES9 EV1
3 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
11 77982-S04-N81 Holder - COUPLER (2P) Holder - COUPLER (2P)
12 90101-S6A-000 Bolt-washer - 8MM Bolt-washer - 8MM
13 90106-S5H-000 Bolt-washer - 8X40 Bolt-washer - 8X40
16 90140-SH3-003 Bolt-washer - 5X18 Bolt-washer - 5X18
17 90157-SA0-000 Bolt-washer - 8X25 Bolt-washer - 8X25
18 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
19 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
Instrument panel garnish (DRIVER SIDE; LH) 3 / 9
ES9 Instrument panel garnish (DRIVER SIDE; LH)
EV1 Instrument panel garnish (LH; DRIVER SIDE)
# OEM ES9 EV1
15 77873-S04-G80 Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
19 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
Instrument panel garnish (PASSENGER SIDE; LH) 7 / 21
ES9 Instrument panel garnish (PASSENGER SIDE; LH)
EV1 Instrument panel garnish (LH; PASSENGER SIDE)
# OEM ES9 EV1
4 66405-S04-010 Stay - GLOVE BOX HINGE Stay - GLOVE BOX HINGE
7 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
28 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
29 90140-SH3-003 Bolt-washer - 5X18 Bolt-washer - 5X18
30 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
31 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
32 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

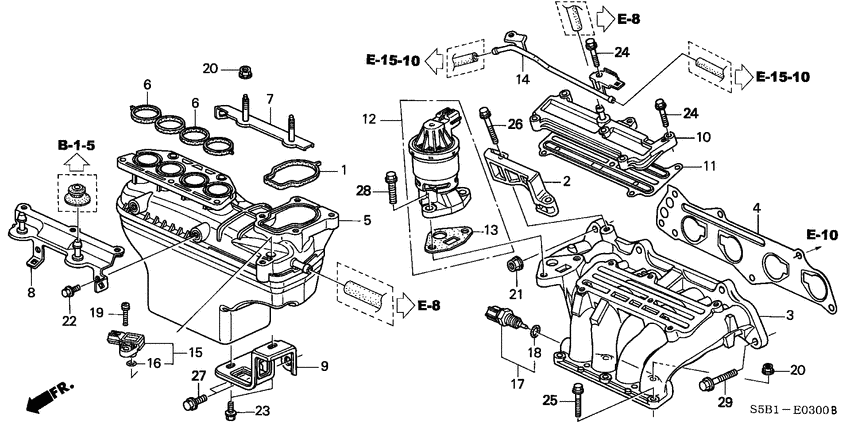

Intake manifold 1 / 19
ES9 Intake manifold
EV1 Intake manifold (2.0L)
# OEM ES9 EV1
16 37835-PGK-A01 O-ring O-ring
Interior light 6 / 9
ES9 Interior light
EV1 Interior light
# OEM ES9 EV1
1 34251-S5A-003 Lens Lens
3 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
3 04110-SWA-305 BULB T10X318W BULB T10X318W
6 34401-S5A-003 Lens Lens
7 34402-S5A-003 Lens Lens
9 90131-S47-003 Screw - ET, 5X16 Screw - ET, 5X16
Meter components (NS) 2 / 7
ES9 Meter components (NS)
EV1 Meter components (NS; 2)
# OEM ES9 EV1
1 37115-SA0-601 Packing - NS Packing - NS
7 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
Mirror 2 / 11
ES9 Mirror
EV1 Mirror (REMOTE CONTROL; 2)
# OEM ES9 EV1
13 90109-S70-003 Screw - TAPPING, 4X16 (TRUSS) Screw - TAPPING, 4X16 (TRUSS)
16 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
Molding/protector 5 / 22
ES9 Molding/protector
EV1 Molding/side sill garnish
# OEM ES9 EV1
16 90126-SR4-000 Screw-washer - 5X16 Screw-washer - 5X16
17 90142-S04-000 Screw - TAPPING, 4X10 Screw - TAPPING, 4X10
21 91501-S5A-003 Clip - DOOR MOLDING Clip - DOOR MOLDING
22 91502-S5A-003 Clip - DOOR MOLDING END Clip - DOOR MOLDING END
23 91503-SZ3-003 Clip A Clip A
Oil pump/oil strainer 7 / 17
ES9 Oil pump/oil strainer
EV1 Oil pump/oil strainer (2.0L)
# OEM ES9 EV1
8 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
8 15400-PLM-A02 OIL FILTER (HONEYWELL) OIL FILTER (HONEYWELL)
8 15400-PLC-004 Cartridge, OIL FILTER (TOYO ROKI) Cartridge, OIL FILTER (TOYO ROKI)
8 15400-PLM-A01 OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI) OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
8 15400-PLC-003 Cartridge - OIL FILTER (TENNEX) Cartridge - OIL FILTER (TENNEX)
10 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
11 90041-PA5-000 Bolt - STUD, 6X28 Bolt - STUD, 6X28
P.s. gear box (EPS; LH) 15 / 19
ES9 P.s. gear box (EPS; LH)
EV1 P.s. gear box (EPS; LH)
# OEM ES9 EV1
1 53010-S5S-000 Bush set - STEERING GEAR BOX MOUNTING Bush set - STEERING GEAR BOX MOUNTING
2 53434-S5D-A01 Bracket b - STEERING GEAR BOX Bracket b - STEERING GEAR BOX
3 53435-S5A-A00 Stiffener a - STEERING GEAR BOX Stiffener a - STEERING GEAR BOX
6 53501-S5A-000 Grommet - STEERING Grommet - STEERING
7 53521-S5A-003 Rod sub assy. - TIE (###) Rod sub assy. - TIE (###)
8 53536-S5A-900 Washer - TIE ROD LOCK Washer - TIE ROD LOCK
9 53541-S5A-000 Rod assy - TIE Rod assy - TIE
10 53541-S5A-003 End comp - TIE ROD End comp - TIE ROD
11 53546-S84-003 Boot - TIE ROD END (NOK) Boot - TIE ROD END (NOK)
13 53685-S6M-000 Bush - STEERING GEAR BOX MOUNTING Bush - STEERING GEAR BOX MOUNTING
14 53686-S5A-010 Collar - STEERING GEAR BOX MOUNTING (A) Collar - STEERING GEAR BOX MOUNTING (A)
15 90108-S5A-000 Bolt - GEAR BOX MOUNTING Bolt - GEAR BOX MOUNTING
16 90301-S5A-003 Nut - HEX. Nut - HEX.
17 90450-S5A-020 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
18 90801-S5A-000 BOLT, FLANGE, 8X25 BOLT, FLANGE, 8X25
P.s. gear box components (EPS; LH) 15 / 19
ES9 P.s. gear box components (EPS; LH)
EV1 P.s. gear box components (EPS; LH)
# OEM ES9 EV1
2 53414-S5A-003 Screw - RACK GUIDE Screw - RACK GUIDE
4 53418-S5A-003 Washer - DISK Washer - DISK
5 53448-S5A-J01 Band b - BELLOWS Band b - BELLOWS
6 53449-S5A-J01 Band a - BELLOWS Band a - BELLOWS
7 53455-S5A-003 Ring b - STOPPER Ring b - STOPPER
8 53457-S5A-003 Lock - SCREW Lock - SCREW
9 53458-SM4-J60 Nut - RACK SCREW LOCK Nut - RACK SCREW LOCK
10 53535-S5A-003 Washer - LOCK Washer - LOCK
12 53603-S5A-J01 Boot set Boot set
13 53604-S5A-003 Bracket Bracket
14 53605-S5A-003 Slider Slider
16 53662-S5A-003 O-ring - 11.5X1.5 O-ring - 11.5X1.5
17 90105-S0A-003 Bolt - FLANGE, 8X25 Bolt - FLANGE, 8X25
18 90455-S5A-003 Bolt - FLANGE, 12X40 Bolt - FLANGE, 12X40
19 91351-S5A-003 O-ring - MOTOR O-ring - MOTOR

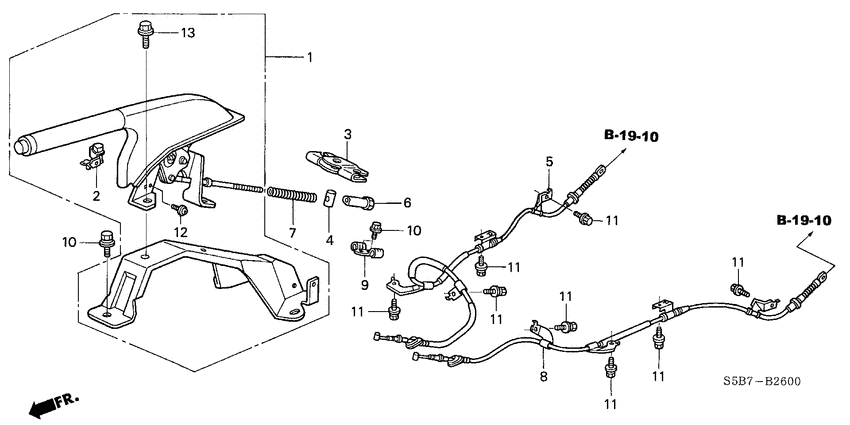

Parking brake 1 / 9
ES9 Parking brake
EV1 Parking brake (3)
# OEM ES9 EV1
9 47572-ST0-000 Base - WIRE GUIDE Base - WIRE GUIDE
Pedal (LH) 17 / 23
ES9 Pedal (LH)
EV1 Pedal (LH)
# OEM ES9 EV1
1 17800-S6M-A03 Pedal assy - ACCELERATOR Pedal assy - ACCELERATOR
2 17818-S5A-A01 Stopper - ACCELERATOR STROKE Stopper - ACCELERATOR STROKE
4 17921-SA4-730 Seal - THROTTLE CABLE Seal - THROTTLE CABLE
9 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
10 46505-SA7-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
11 46530-S5A-003 Spring assy - PEDAL RETURN Spring assy - PEDAL RETURN
12 46545-SA5-000 Cover, Pedal Cover, Pedal
13 46600-S5A-G01 Pedal assy - BRAKE Pedal assy - BRAKE
14 46905-SK7-000 Stopper - CLUTCH PEDAL Stopper - CLUTCH PEDAL
15 46907-S5A-A01 Spring - CLUTCH RETURN Spring - CLUTCH RETURN
17 46911-SD4-930 Bush - PEDAL PIN Bush - PEDAL PIN
18 46981-S2A-003 Bush a - CLUTCH ASSISTANT Bush a - CLUTCH ASSISTANT
19 46982-S2A-003 Bush b - ASSISTANT Bush b - ASSISTANT
20 46991-S5A-A01 Bracket comp. - FOOTREST Bracket comp. - FOOTREST
21 46992-SV4-003 Clip - FOOTREST Clip - FOOTREST
22 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
23 90301-S5A-000 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Pillar garnish 2 / 4
ES9 Pillar garnish
EV1 Pillar garnish
# OEM ES9 EV1
16 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
17 91560-S84-A11 Clip - PILLAR GARNISH(BLACK) Clip - PILLAR GARNISH(BLACK)
Purge control 1 / 7
ES9 Purge control
EV1 Install pipe/tubing (2.0L)
# OEM ES9 EV1
4 36166-PAA-A01 Joint - PURGE Joint - PURGE

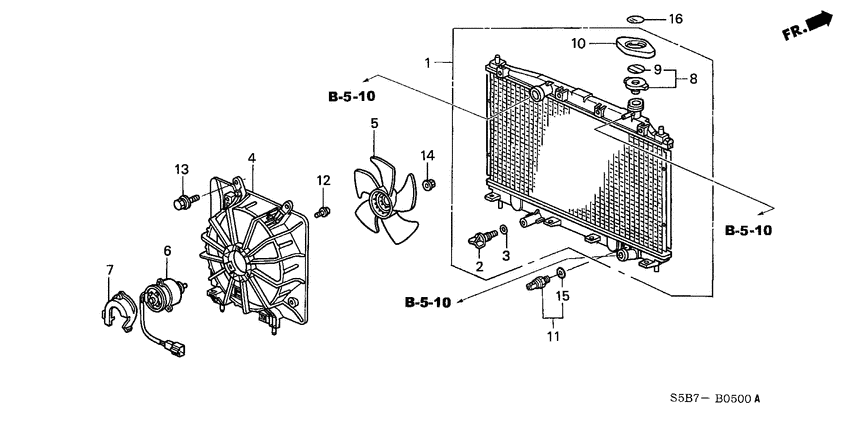

Radiator (DENSO) 11 / 16
ES9 Radiator (DENSO)
EV1 Radiator (DENSO; 2.0L)
# OEM ES9 EV1
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
5 19020-PND-003 Fan - COOLING Fan - COOLING
8 19045-PAA-A01 Cap comp. - RADIATOR (DENSO) Cap comp. - RADIATOR (DENSO)
9 19046-PAA-A00 Label - RADIATOR CAP Label - RADIATOR CAP
10 19047-PLC-003 Cover - RADIATOR CAP (DENSO) Cover - RADIATOR CAP (DENSO)
12 90041-P5A-003 Screw-washer - 4X11 Screw-washer - 4X11
13 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
14 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
15 91307-PN4-000 O-ring - 17.5X1.4 O-ring - 17.5X1.4
15 91307-PN3-000 O-ring,17.8x1.4 O-ring,17.8x1.4
Radiator hose/reserve tan k 4 / 18
ES9 Radiator hose/reserve tan k
EV1 Radiator hose (2.0L)
# OEM ES9 EV1
5 19105-PLC-000 Joint Joint
6 19109-PH1-620 Cap - FILLER Cap - FILLER
16 74172-SS0-000 Cushion - RADIATOR MOUNTING LOWER Cushion - RADIATOR MOUNTING LOWER
17 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Rear brake 36 / 44
ES9 Rear brake
EV1 Rear brake (DISK)
# OEM ES9 EV1
1 01473-SV4-000 Caliper set - RR. Caliper set - RR.
1 01473-SV4-010 SET RR CALIPER SET RR CALIPER
3 06435-S2A-000 Shim set - RR. Shim set - RR.
7 43018-S5A-J02 Caliper sub assy. R. RR. Caliper sub assy. R. RR.
8 43019-S5A-J02 Caliper sub assy. L. RR. Caliper sub assy. L. RR.
10 43215-SM4-951 Piston assy. Piston assy.
11 43223-SD2-932 BEARING A BEARING A
12 43224-SD2-931 Spring b - ADJUSTING Spring b - ADJUSTING
13 43227-SG0-013 Spring - PAD Spring - PAD
14 43228-SD2-933 Shaft a Shaft a
15 43229-SD2-931 Rod Rod
16 43233-S5A-J01 Piston comp - SLEEVE Piston comp - SLEEVE
16 43233-TR0-A01 Piston, sleeve Piston, sleeve
17 43235-S84-A51 Pin a Pin a
18 43236-S04-003 Spacer Spacer
19 43238-SF1-003 Ring - RETAINING Ring - RETAINING
20 43241-S5A-003 Guide - SPRING Guide - SPRING
21 43243-SD2-931 Nut - PARKING Nut - PARKING
22 43244-SG0-003 Retainer Retainer
23 43245-S5A-J01 Lever - R. Lever - R.
24 43246-SD2-931 Spring - R. RETURN Spring - R. RETURN
25 43247-S5A-J01 Arm - R. Arm - R.
26 43248-SD2-933 Shaft b Shaft b
27 43249-S04-003 Bolt - ADJUSTER Bolt - ADJUSTER
30 43262-S84-A51 Pin b Pin b
31 43265-S5A-J01 Lever - L. Lever - L.
32 43266-SD2-931 Spring - L. RETURN Spring - L. RETURN
33 43267-S5A-J01 Arm - L. Arm - L.
34 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
35 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
36 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
37 90103-SN7-003 Bolt - FLANGE, 10X25 Bolt - FLANGE, 10X25
38 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
38 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
38 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
39 90305-S30-003 Nut - SPINDLE Nut - SPINDLE

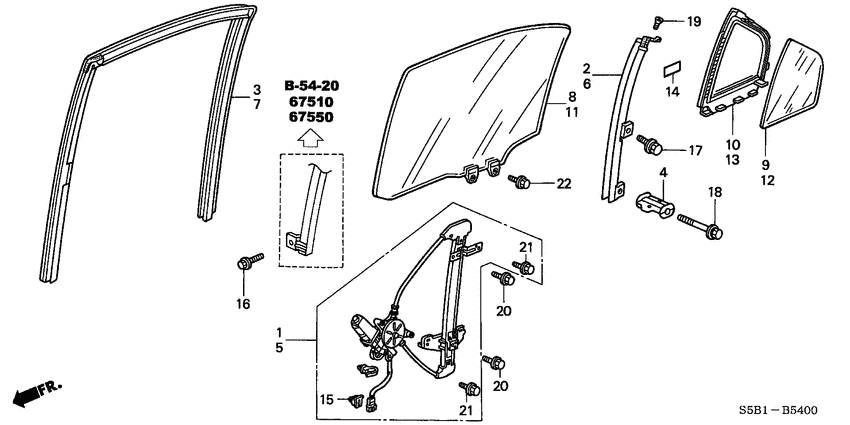

Rear door glass/ door regulator 1 / 15
ES9 Rear door glass/ door regulator
EV1 Harness band/bracket (LH)
# OEM ES9 EV1
15 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
Rear door lining 2 / 4
ES9 Rear door lining
EV1 Front door lining (LH)
# OEM ES9 EV1
15 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
16 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks/ outer handle 14 / 32
ES9 Rear door locks/ outer handle
EV1 Rear door locks/outer han dle
# OEM ES9 EV1
1 72119-S04-003 Stopper a - OUTSIDE HANDLE Stopper a - OUTSIDE HANDLE
3 72135-S5A-003 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
5 72139-S0A-003 Snap - PINK Snap - PINK
5 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
8 72149-SR4-000 Snap - R. Snap - R.
9 72175-SH3-901 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
10 72189-SR4-000 Snap - L. Snap - L.
12 72612-S84-A00 Cap - R. CHILD LOCK Cap - R. CHILD LOCK
24 72652-S84-A00 Cap - L. CHILD LOCK Cap - L. CHILD LOCK
32 90120-SM4-000 Screw - TAPPING Screw - TAPPING
33 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
35 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
48 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
49 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
Rear door panels 5 / 19
ES9 Rear door panels
EV1 Rear door panels
# OEM ES9 EV1
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
20 90102-SFA-305 Bolt - FLANGE, 8X18 (SERVICE) Bolt - FLANGE, 8X18 (SERVICE)
20 90102-S3N-003 Bolt - FLANGE, 8X24.5 (10.5MM) Bolt - FLANGE, 8X24.5 (10.5MM)
21 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
22 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM

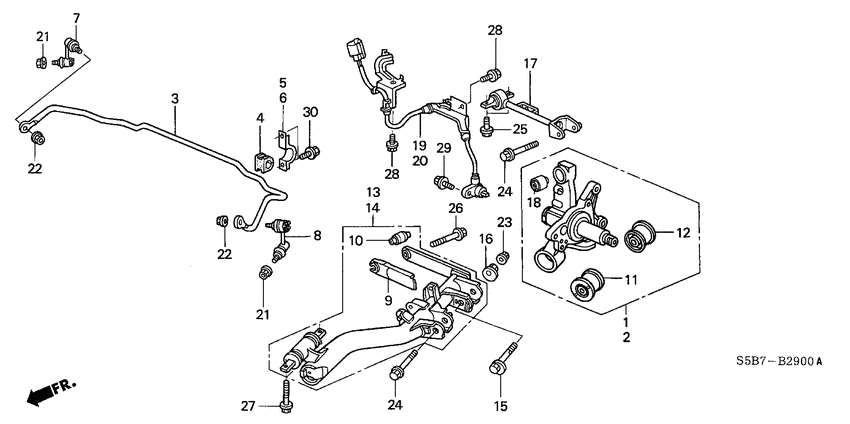

Rear lower arm 12 / 28
ES9 Rear lower arm
EV1 Rear lower arm
# OEM ES9 EV1
9 52352-S5A-A01 Protector - RR. LOWER ARM Protector - RR. LOWER ARM
10 52364-S6M-004 BUSH, REAR LOWER ARM INNER BUSH, REAR LOWER ARM INNER
11 52365-S5A-802 Bush a - RR. LOWER ARM OUTER Bush a - RR. LOWER ARM OUTER
18 52395-S5A-004 Bush - RR. UPPER ARM Bush - RR. UPPER ARM
21 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
22 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
23 90395-S5A-003 Nut - LOCK FLANGE(CLINCH) Nut - LOCK FLANGE(CLINCH)
24 90396-S5A-000 Bolt - FLANGE, 12X75 Bolt - FLANGE, 12X75
25 90397-S5A-000 Bolt - FLANGE, 12X48 Bolt - FLANGE, 12X48
25 90186-SR3-000 Bolt - FLANGE, 12X48 Bolt - FLANGE, 12X48
26 90398-S5A-000 Bolt - FLANGE, 12X81.5 Bolt - FLANGE, 12X81.5
27 90399-S5A-000 Bolt - FLANGE, 12X73 Bolt - FLANGE, 12X73
Rear seat (LH) 2 / 7
ES9 Rear seat (LH)
EV1 Front seat (LH; DRIVER SIDE)
# OEM ES9 EV1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
Rear shock absorber 13 / 18
ES9 Rear shock absorber
EV1 Rear shock absorber
# OEM ES9 EV1
1 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
2 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
7 52622-S5A-004 Bush - RR. SHOCK ABSORBER LOWER Bush - RR. SHOCK ABSORBER LOWER
8 52631-S5A-004 Rubber - SHOCK ABSORBER MOUNTING Rubber - SHOCK ABSORBER MOUNTING
10 52676-S5A-004 Seal - SHOCK ABSORBER MOUNTING Seal - SHOCK ABSORBER MOUNTING
11 52685-S5A-004 Plate - SHOCK ABSORBER MOUNT Plate - SHOCK ABSORBER MOUNT
12 52686-S5A-004 Rubber - RR. SPRING MOUNTING Rubber - RR. SPRING MOUNTING
13 52687-S5A-014 Cover - RR. DUST Cover - RR. DUST
14 52689-S5A-004 Cover - RR. BUMP STOP Cover - RR. BUMP STOP
15 52690-S5A-004 Plate - BUMP STOP Plate - BUMP STOP
16 52722-S5A-004 Rubber - BUMP STOPPER Rubber - BUMP STOPPER
17 90181-S84-A00 Bolt - TRAILING ARM, 12X68 Bolt - TRAILING ARM, 12X68
18 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear tray/trunk garnish 3 / 7
ES9 Rear tray/trunk garnish
EV1 Side lining
# OEM ES9 EV1
16 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
17 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear windshield 2 / 9
ES9 Rear windshield
EV1 Rear windshield/ quarter windows
# OEM ES9 EV1
8 91568-SX0-003 Fastener a - WINDSHIELD Fastener a - WINDSHIELD
9 91569-SZ3-013 Fastener b - WINDSHIELD Fastener b - WINDSHIELD
Roof lining 4 / 7
ES9 Roof lining
EV1 Roof lining
# OEM ES9 EV1
6 83241-S5A-000 Bracket - GRAB RAIL Bracket - GRAB RAIL
12 90137-S0A-003 Screw - ET, 6X28 Screw - ET, 6X28
13 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
18 91902-S3N-003 Plaster - WIRE HARNESS (50X50) Plaster - WIRE HARNESS (50X50)
Seatbelts 5 / 8
ES9 Seatbelts
EV1 Seatbelts
# OEM ES9 EV1
14 90101-S84-A00 Screw - ET, 6X16 Screw - ET, 6X16
14 90133-SZ4-003 Screw - ET, 7X16 Screw - ET, 7X16
15 90135-S1F-003 Bolt - FLANGE, 7/16" Bolt - FLANGE, 7/16"
16 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
17 91541-S0A-003 Clip - HARNESS BAND(BLACK) (145MM) Clip - HARNESS BAND(BLACK) (145MM)
Shift arm 3 / 18
ES9 Shift arm
EV1 Shift arm/shift lever (2.0L)
# OEM ES9 EV1
1 21396-P20-000 Cap - BREATHER Cap - BREATHER
12 90029-611-010 Bolt - HEX., 8X24 Bolt - HEX., 8X24
13 90412-679-000 Washer - CONICAL SPRING, 8MM Washer - CONICAL SPRING, 8MM
Shift fork 3 / 12
ES9 Shift fork
EV1 Shift arm/shift lever (2.0L)
# OEM ES9 EV1
7 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
8 90029-611-010 Bolt - HEX., 8X24 Bolt - HEX., 8X24
9 90412-679-000 Washer - CONICAL SPRING, 8MM Washer - CONICAL SPRING, 8MM
Shift lever 6 / 12
ES9 Shift lever
EV1 Shift lever
# OEM ES9 EV1
6 54119-S30-003 Collar - FLOATING Collar - FLOATING
9 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
10 90555-SF1-000 Washer a - SHIFT WIRE(1.6MM) Washer a - SHIFT WIRE(1.6MM)
11 90556-SF1-000 Washer b - SHIFT WIRE (0.5MM) Washer b - SHIFT WIRE (0.5MM)
12 90557-SF1-000 Washer a - SELECT WIRE (1.6MM) Washer a - SELECT WIRE (1.6MM)
13 90558-SF1-000 Washer b - SELECT WIRE (0.5MM) Washer b - SELECT WIRE (0.5MM)
Srs unit (LH) 1 / 6
ES9 Srs unit (LH)
EV1 Srs unit (LH)
# OEM ES9 EV1
6 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
Steering column 4 / 5
ES9 Steering column
EV1 Steering column
# OEM ES9 EV1
2 53323-S5A-003 Joint comp. b - STEERING Joint comp. b - STEERING
3 90135-SF1-000 Bolt - CENTER SHAFT YOKE Bolt - CENTER SHAFT YOKE
4 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
5 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Switch (LH) 2 / 8
ES9 Switch (LH)
EV1 Switch (LH)
# OEM ES9 EV1
6 35850-S5A-G01 Bulb comp. - 14V 60MA Bulb comp. - 14V 60MA
11 35910-S04-G01 Switch assy - INERTIA Switch assy - INERTIA
Taillight/license light 6 / 27
ES9 Taillight/license light
EV1 Taillight
# OEM ES9 EV1
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
12 34101-S5A-A01 Lens comp Lens comp
13 34102-S60-003 Housing comp Housing comp
14 34103-S5A-A01 Gasket Gasket
26 90650-S5A-003 Grommet - RR. COMBINATION LIGHT Grommet - RR. COMBINATION LIGHT
27 91512-S50-003 Clip - LICENSE GARNISH Clip - LICENSE GARNISH
Throttle body 1 / 14
ES9 Throttle body
EV1 Air flow tube (2.0L)
# OEM ES9 EV1
9 17216-PE2-003 Collar - AIR CLEANER(TOYO ROKI) Collar - AIR CLEANER(TOYO ROKI)
Tire/wheel disks 46 / 58
ES9 Tire/wheel disks
EV1 Tire/wheel disks
# OEM ES9 EV1
6 42767-SS0-G20 Plate - SPARE TIRE CAUTION (T-TYPE) (GERMANY) Plate - SPARE TIRE CAUTION (T-TYPE) (GERMANY)
6 42767-SB0-600 Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
7 42767-SH3-E00 Plate - SPARE TIRE CAUTION (T-TYPE) Plate - SPARE TIRE CAUTION (T-TYPE)
8 44727-SEA-J01 Weight - BALANCE (15G) (TOHO) Weight - BALANCE (15G) (TOHO)
8 44726-SEA-J02 Weight - BALANCE (5G) (YAMATE) Weight - BALANCE (5G) (YAMATE)
8 44729-SEA-J01 Weight - BALANCE (35G) (TOHO) Weight - BALANCE (35G) (TOHO)
8 44728-SEA-J02 Weight - BALANCE (25G) (YAMATE) Weight - BALANCE (25G) (YAMATE)
8 44722-SEA-J01 Weight - BALANCE (20G) (TOHO) Weight - BALANCE (20G) (TOHO)
8 44721-SEA-J02 Weight - BALANCE (10G) (YAMATE) Weight - BALANCE (10G) (YAMATE)
8 44726-SEA-J01 Weight - BALANCE (5G) (TOHO) Weight - BALANCE (5G) (TOHO)
8 44723-SEA-J02 Weight - BALANCE (30G) (YAMATE) Weight - BALANCE (30G) (YAMATE)
8 44728-SEA-J01 Weight - BALANCE (25G) (TOHO) Weight - BALANCE (25G) (TOHO)
8 44727-SEA-J02 Weight - BALANCE (15G) (YAMATE) Weight - BALANCE (15G) (YAMATE)
8 44729-SEA-J02 Weight - BALANCE (35G) (YAMATE) Weight - BALANCE (35G) (YAMATE)
8 44721-SEA-J01 Weight - BALANCE (10G) (TOHO) Weight - BALANCE (10G) (TOHO)
8 44723-SEA-J01 Weight - BALANCE (30G) (TOHO) Weight - BALANCE (30G) (TOHO)
8 44722-SEA-J02 Weight - BALANCE (20G) (YAMATE) Weight - BALANCE (20G) (YAMATE)
9 44721-SEA-N01 Weight - BALANCE (10G) (TOHO) Weight - BALANCE (10G) (TOHO)
9 44721-S5A-A20 Weight - BALANCE (10G) Weight - BALANCE (10G)
9 44724-SEA-N02 Weight - BALANCE (40G) (TOHO ZINC) Weight - BALANCE (40G) (TOHO ZINC)
9 44723-SEA-N01 Weight - BALANCE (30G) (TOHO) Weight - BALANCE (30G) (TOHO)
9 44726-TP6-A01 WEIGHT (30G) WEIGHT (30G)
9 44722-SEA-N02 Weight - BALANCE (20G) (TOHO ZINC) Weight - BALANCE (20G) (TOHO ZINC)
9 44727-SEA-N01 Weight - BALANCE (15G) (TOHO) Weight - BALANCE (15G) (TOHO)
9 44723-TP6-A01 WEIGHT (15G) WEIGHT (15G)
9 44726-SEA-N02 Weight - BALANCE (5G) (TOHO ZINC) Weight - BALANCE (5G) (TOHO ZINC)
9 44725-SEA-N01 Weight - BALANCE (50G) (TOHO) Weight - BALANCE (50G) (TOHO)
9 44730-SEA-N02 Weight - BALANCE (45G) (TOHO ZINC) Weight - BALANCE (45G) (TOHO ZINC)
9 44729-SEA-N01 Weight - BALANCE (35G) (TOHO) Weight - BALANCE (35G) (TOHO)
9 44727-TP6-A01 WEIGHT (35G) WEIGHT (35G)
9 44728-SEA-N02 Weight - BALANCE (25G) (TOHO ZINC) Weight - BALANCE (25G) (TOHO ZINC)
9 44724-SEA-N01 Weight - BALANCE (40G) (TOHO) Weight - BALANCE (40G) (TOHO)
9 44722-SEA-N01 Weight - BALANCE (20G) (TOHO) Weight - BALANCE (20G) (TOHO)
9 44724-TP6-A01 WEIGHT (20G) WEIGHT (20G)
9 44721-SEA-N02 Weight - BALANCE (10G) (TOHO ZINC) Weight - BALANCE (10G) (TOHO ZINC)
9 44726-SEA-N01 Weight - BALANCE (5G) (TOHO) Weight - BALANCE (5G) (TOHO)
9 44721-TP6-A01 WEIGHT, BALANCE (5G) WEIGHT, BALANCE (5G)
9 44730-SEA-N01 Weight - BALANCE (45G) (TOHO) Weight - BALANCE (45G) (TOHO)
9 44723-SEA-N02 Weight - BALANCE (30G) (TOHO ZINC) Weight - BALANCE (30G) (TOHO ZINC)
9 44728-SEA-N01 Weight - BALANCE (25G) (TOHO) Weight - BALANCE (25G) (TOHO)
9 44725-TP6-A01 WEIGHT (25G) WEIGHT (25G)
9 44727-SEA-N02 Weight - BALANCE (15G) (TOHO ZINC) Weight - BALANCE (15G) (TOHO ZINC)
9 44725-SEA-N02 Weight - BALANCE (50G) (TOHO ZINC) Weight - BALANCE (50G) (TOHO ZINC)
9 44729-SEA-N02 Weight - BALANCE (35G) (TOHO ZINC) Weight - BALANCE (35G) (TOHO ZINC)
11 83850-SH3-000 Plate - ANCHOR BOLT Plate - ANCHOR BOLT
12 83853-SX0-000 Bolt - ANCHOR Bolt - ANCHOR
Transmission case 44 / 54
ES9 Transmission case
EV1 Transmission case (2.0L)
# OEM ES9 EV1
5 23947-P21-000 Shim q - 72MM(1.08) Shim q - 72MM(1.08)
5 23942-P21-000 Shim l - 72MM(0.93) Shim l - 72MM(0.93)
5 23969-P21-000 Shim am - 72MM(1.74) Shim am - 72MM(1.74)
5 23937-P21-000 Shim g - 72MM(0.78) Shim g - 72MM(0.78)
5 23932-P21-000 Shim b - 72MM(0.63) Shim b - 72MM(0.63)
5 23964-P21-000 Shim ah - 72MM(1.59) Shim ah - 72MM(1.59)
5 23959-P21-000 Shim ac - 72MM(1.44) Shim ac - 72MM(1.44)
5 23954-P21-000 Shim x - 72MM(1.29) Shim x - 72MM(1.29)
5 23949-P21-000 Shim s - 72MM(1.14) Shim s - 72MM(1.14)
5 23944-P21-000 Shim n - 72MM(0.99) Shim n - 72MM(0.99)
5 23971-P21-000 Shim ao - 72MM(1.80) Shim ao - 72MM(1.80)
5 23939-P21-000 Shim i - 72MM(0.84) Shim i - 72MM(0.84)
5 23934-P21-000 Shim d - 72MM(0.69) Shim d - 72MM(0.69)
5 23966-P21-000 Shim aj - 72MM(1.65) Shim aj - 72MM(1.65)
5 23961-P21-000 Shim ae - 72MM(1.50) Shim ae - 72MM(1.50)
5 23956-P21-000 Shim z - 72MM(1.35) Shim z - 72MM(1.35)
5 23951-P21-000 Shim u - 72MM(1.20) Shim u - 72MM(1.20)
5 23946-P21-000 Shim p - 72MM(1.05) Shim p - 72MM(1.05)
5 23941-P21-000 Shim k - 72MM(0.90) Shim k - 72MM(0.90)
5 23968-P21-000 Shim al - 72MM(1.71) Shim al - 72MM(1.71)
5 23936-P21-000 Shim f - 72MM(0.75) Shim f - 72MM(0.75)
5 23931-P21-000 Shim a - 72MM(0.60) Shim a - 72MM(0.60)
5 23963-P21-000 Shim ag - 72MM(1.56) Shim ag - 72MM(1.56)
5 23958-P21-000 Shim ab - 72MM(1.41) Shim ab - 72MM(1.41)
5 23953-P21-000 Shim w - 72MM(1.26) Shim w - 72MM(1.26)
5 23948-P21-000 Shim r - 72MM(1.11) Shim r - 72MM(1.11)
5 23943-P21-000 Shim m - 72MM(0.96) Shim m - 72MM(0.96)
5 23970-P21-000 Shim an - 72MM(1.77) Shim an - 72MM(1.77)
5 23938-P21-000 Shim h - 72MM(0.81) Shim h - 72MM(0.81)
5 23933-P21-000 Shim c - 72MM(0.66) Shim c - 72MM(0.66)
5 23965-P21-000 Shim ai - 72MM(1.62) Shim ai - 72MM(1.62)
5 23960-P21-000 Shim ad - 72MM(1.47) Shim ad - 72MM(1.47)
5 23955-P21-000 Shim y - 72MM(1.32) Shim y - 72MM(1.32)
5 23950-P21-000 Shim t - 72MM(1.17) Shim t - 72MM(1.17)
5 23945-P21-000 Shim o - 72MM(1.02) Shim o - 72MM(1.02)
5 23940-P21-000 Shim j - 72MM(0.87) Shim j - 72MM(0.87)
5 23935-P21-000 Shim e - 72MM(0.72) Shim e - 72MM(0.72)
5 23967-P21-000 Shim ak - 72MM(1.68) Shim ak - 72MM(1.68)
5 23962-P21-000 Shim af - 72MM(1.53) Shim af - 72MM(1.53)
5 23957-P21-000 Shim aa - 72MM(1.38) Shim aa - 72MM(1.38)
5 23952-P21-000 Shim v - 72MM(1.23) Shim v - 72MM(1.23)
6 24455-PHR-000 Spring - BALL SETTING Spring - BALL SETTING
7 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
9 90081-PB6-000 Bolt - PLUG, 14MM Bolt - PLUG, 14MM
Trunk lid 10 / 32
ES9 Trunk lid
EV1 Outer panels/roof panel
# OEM ES9 EV1
1 35103-S04-003 Screw - RECESSED Screw - RECESSED
8 73219-693-951 Seal - FUEL LID OPENER (GREEN) Seal - FUEL LID OPENER (GREEN)
27 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
31 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
32 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
33 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
34 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
35 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
41 91512-S50-003 Clip - LICENSE GARNISH Clip - LICENSE GARNISH
42 90684-SD4-003 Clip - FUEL LID OPENER Clip - FUEL LID OPENER
Valve/rocker arm 3 / 18
ES9 Valve/rocker arm
EV1 Valve/rocker arm (DOHC; VTEC)
# OEM ES9 EV1
13 14781-PRB-A02 Cotter - VALVE (SERVICE) Cotter - VALVE (SERVICE)
14 90206-PM3-004 Nut - TAPPET ADJUSTING (TOKAI TRW) Nut - TAPPET ADJUSTING (TOKAI TRW)
15 90206-PT0-004 Nut - TAPPET ADJUSTING Nut - TAPPET ADJUSTING
Water pump 1 / 17
ES9 Water pump
EV1 Water pump/sensor (2.0L)
# OEM ES9 EV1
8 19500-PNA-000 Joint - TUBE Joint - TUBE
Water valve (LH) 5 / 10
ES9 Water valve (LH)
EV1 Water valve (LH; 2.0L)
# OEM ES9 EV1
5 79731-S5A-000 Grommet - HEATER PIPE Grommet - HEATER PIPE
6 79746-SL4-003 Clamp - HEATER HOSE Clamp - HEATER HOSE
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
7 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8 91551-SD5-003 Clamp - HEATER Clamp - HEATER
Windshield washer (1) 1 / 20
ES9 Windshield washer (1)
EV1 Windshield washer (4)
# OEM ES9 EV1
16 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
Windshield washer (2) 1 / 36
ES9 Windshield washer (2)
EV1 Windshield washer (4)
# OEM ES9 EV1
37 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
Wire harness (LH) 5 / 23
ES9 Wire harness (LH)
EV1 Wire harness (LH)
# OEM ES9 EV1
16 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
20 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
21 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
22 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
23 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
