Abs modulator 3 / 4

#	OEM	ES1	S5A
1	57101-S2A-003	Rubber - ABS MOUNTING	Rubber - ABS MOUNTING
3	57102-S2A-003	Bolt - ABS MOUNTING	Bolt - ABS MOUNTING
8	57115-S5A-J00	Bracket - MODULATOR	Bracket - MODULATOR

Air cleaner 18 / 20

#	OEM	ES1	S5A
1	17153-PLC-000	Tube - BREATHER	Tube - BREATHER
2	17205-PLC-000	Case set - AIR CLEANER	Case set - AIR CLEANER
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17213-P13-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
7	17220-PLC-Y00	Element - AIR CLEANER	Element - AIR CLEANER
8	17228-PLC-000	Rubber - THROTTLE JOINT	Rubber - THROTTLE JOINT
9	17247-PLC-000	Grommet - INTAKE	Grommet - INTAKE
10	17315-PLC-000	Band - THROTTLE CABLE	Band - THROTTLE CABLE
11	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
12	37881-P2A-000	Grommet - TA SENSOR	Grommet - TA SENSOR
13	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
14	90002-PLC-000	Bolt-washer - 5X35	Bolt-washer - 5X35
15	90091-PLC-000	Bolt-washer - 5X40	Bolt-washer - 5X40
16	90091-P36-000	Bolt-washer - 5X28	Bolt-washer - 5X28
17	91405-PLC-000	Clamp - TUBE (D24)	Clamp - TUBE (D24)
18	91406-PLC-003	Clip - TUBE (D21.5)	Clip - TUBE (D21.5)

Air conditioner (COMPRESSOR) 15 / 15

#	OEM	ES1	S5A
1	38801-PDF-E02	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
2	38810-PLA-E01	Compressor comp. - SANDEN	Compressor comp. - SANDEN
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
4	38900-PLM-A01	Clutch set - COMPRESSOR	Clutch set - COMPRESSOR
5	38908-PLA-E01	Protector set - THERMAL	Protector set - THERMAL
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
9	38920-PLR-004	Belt - COMPRESSOR (MITSUBOSHI)	Belt - COMPRESSOR (MITSUBOSHI)
9	38920-PLR-003	Belt - COMPRESSOR (BANDO)	Belt - COMPRESSOR (BANDO)
9	38920-PME-T01	Belt - COMPRESSOR (DENSO)	Belt - COMPRESSOR (DENSO)
10	38924-PLM-A01	Coil set - FIELD	Coil set - FIELD
11	38930-PLC-000	Bracket - COMPRESSOR	Bracket - COMPRESSOR
12	38935-PLM-A00	Insulator - COMPRESSOR BRACKET HEAT	Insulator - COMPRESSOR BRACKET HEAT
13	90023-P2A-000	Bolt - FLANGE, 8X100	Bolt - FLANGE, 8X100

Air conditioner (CONDENSER) 14 / 19

#	OEM	ES1	S5A
1	38611-PLC-J01	Fan comp - COOLING (KEIHIN)	Fan comp - COOLING (KEIHIN)
1	38611-PMM-A01	Fan comp - COOLING (MITSUBA/CME)	Fan comp - COOLING (MITSUBA/CME)
2	38615-PLC-N01	Shroud comp. - AIR CONDITIONER (KEIHIN)	Shroud comp. - AIR CONDITIONER (KEIHIN)
2	38615-PMM-C00	Shroud comp. - AIR CONDITIONER	Shroud comp. - AIR CONDITIONER
3	38616-PLC-J01	Motor - COOLING FAN (KEIHIN)	Motor - COOLING FAN (KEIHIN)
3	38616-PMM-A01	Motor - COOLING FAN (MITSUBA/CME)	Motor - COOLING FAN (MITSUBA/CME)
4	38619-PLC-J01	Protector - FAN MOTOR (KEIHIN)	Protector - FAN MOTOR (KEIHIN)
4	38619-PMM-A00	Protector - FAN MOTOR	Protector - FAN MOTOR
5	80107-SS0-000	Mount - CONDENSER UPPER	Mount - CONDENSER UPPER
6	80107-S5A-000	Bracket - R. CONDENSER UPPER	Bracket - R. CONDENSER UPPER
7	80108-S5A-000	Bracket - L. CONDENSER UPPER	Bracket - L. CONDENSER UPPER
9	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
10	90041-PAA-A01	Nut - TOOTHED, 5MM	Nut - TOOTHED, 5MM
11	90430-PAA-A01	Washer - PLAIN, 8MM	Washer - PLAIN, 8MM

Air conditioner (HOSES/PIPES; RH) 18 / 26

#	OEM	ES1	S5A
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-S5A-003	Hose comp. - SUCTION	Hose comp. - SUCTION
3	80315-S5K-K01	Hose comp. - DISCHARGE	Hose comp. - DISCHARGE
4	80325-S5K-K01	Pipe assy. - AIR CONDITIONER	Pipe assy. - AIR CONDITIONER
5	80331-S5K-K01	Pipe - CONDENSER	Pipe - CONDENSER
7	80351-S0D-003	Receiver comp	Receiver comp
8	80352-S5A-000	Bracket - LIQUID TANK	Bracket - LIQUID TANK
9	80361-S5A-000	Stay - SUCTION HOSE	Stay - SUCTION HOSE
10	80440-SW5-A01	Switch - DUAL PRESSURE(KEIHIN)	Switch - DUAL PRESSURE(KEIHIN)
10	80440-SW5-003	Switch - DUAL PRESSURE (HADSYS)	Switch - DUAL PRESSURE (HADSYS)
11	80464-S5A-000	Grommet - AIR CONDITIONER PIPE	Grommet - AIR CONDITIONER PIPE
12	80465-S5H-K01	Cover - AIR CONDITIONER PIPE	Cover - AIR CONDITIONER PIPE
13	80865-SW5-003	Cap comp. - VALVE (H)	Cap comp. - VALVE (H)
14	80866-SW5-003	Cap comp. - VALVE(L)	Cap comp. - VALVE(L)
15	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
17	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
18	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Alternator (MITSUBISHI) 13 / 14

#	OEM	ES1	S5A
1	31100-PLM-A02	Alternator assy - AHGA50) (MITSUBISHI	Alternator assy - AHGA50) (MITSUBISHI
2	31101-PLC-004	Rotor assy.	Rotor assy.
3	31102-PLC-004	Stator	Stator
4	31111-P08-J02	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
5	31114-PLC-004	Bearing - FR.	Bearing - FR.
7	31125-P08-J02	Bolt - FLANGE	Bolt - FLANGE
8	31127-PLC-004	Rectifier assy.	Rectifier assy.
9	31140-P64-902	Brush set	Brush set
10	31141-PLM-A01	Pulley	Pulley
10	31141-PLC-004	Pulley	Pulley
11	31142-P08-J02	Nut	Nut
12	31146-PE0-004	Screw	Screw
13	31150-PLM-A01	Regulator set	Regulator set

Antenna/speaker 11 / 15

#	OEM	ES1	S5A
4	39155-S5A-003	Coil assy - GLASS ANTENNA	Coil assy - GLASS ANTENNA
5	39156-S5A-000	Sub feeder	Sub feeder
6	39160-S5A-J00	Feeder assy. - GLASS ANTENNA	Feeder assy. - GLASS ANTENNA
7	90131-S30-003	Screw-washer - ET, 6X16	Screw-washer - ET, 6X16
8	90133-SZ4-003	Screw - ET, 7X16	Screw - ET, 7X16
10	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
11	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
12	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
13	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
14	91572-SP1-300	Clip - WIRE HARNESS (BLACK)	Clip - WIRE HARNESS (BLACK)
15	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Battery 11 / 14

#	OEM	ES1	S5A
1	31500-S5A-G01	Battery - 46B24R-MF) (PANASONIC	Battery - 46B24R-MF) (PANASONIC
2	31512-S5A-000	Plate - BATTERY SETTING	Plate - BATTERY SETTING
3	31513-SM4-000	Bolt - BATTERY SETTING(195MM)	Bolt - BATTERY SETTING(195MM)
4	31521-S5A-000	Box - BATTERY	Box - BATTERY
5	31531-S5A-000	Cover - BATTERY	Cover - BATTERY
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
7	32418-PLA-300	Cover - BATTERY TERMINAL	Cover - BATTERY TERMINAL
8	32600-S5A-910	Cable assy, BATTERY EARTH	Cable assy, BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
11	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12

Brake lines (ABS; RH) 18 / 28

#	OEM	ES1	S5A
1	01464-S5A-J02	Hose set - R. FR. BRAKE	Hose set - R. FR. BRAKE
2	01465-S5A-J02	Hose set - L. FR. BRAKE	Hose set - L. FR. BRAKE
7	46374-S5A-J01	Pipe comp. u - BRAKE	Pipe comp. u - BRAKE
8	46375-S5A-J00	Pipe comp. v - BRAKE	Pipe comp. v - BRAKE
9	46376-S5A-J02	Pipe comp. w - BRAKE	Pipe comp. w - BRAKE
10	46377-S5A-J02	Pipe comp. x - BRAKE	Pipe comp. x - BRAKE
11	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
12	46391-S5A-J01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
13	46391-S5A-Z01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
14	46391-S5A-000	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46393-SZ3-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-S5A-N00	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46394-S5A-J00	Clip - BRAKE PIPE	Clip - BRAKE PIPE
18	46406-S5A-J01	Stay - BRAKE PIPE	Stay - BRAKE PIPE
23	46462-SE0-000	Bolt - OIL	Bolt - OIL
24	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
25	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
26	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (RH) 24 / 26

#	OEM	ES1	S5A
1	01469-S5A-J00	Power set - MASTER (7"+8")	Power set - MASTER (7"+8")
2	46100-S5A-J41	Cylinder assy. - MASTER	Cylinder assy. - MASTER
3	46120-S04-J71	Piston assy. - PRIMARY	Piston assy. - PRIMARY
4	46122-S5A-K01	Piston assy. - SECONDARY	Piston assy. - SECONDARY
5	46135-S5A-J41	Guide assy - PISTON	Guide assy - PISTON
6	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
7	46185-SE0-003	Seal - ROD	Seal - ROD
8	46191-S2K-000	Packing - MASTER POWER	Packing - MASTER POWER
9	46355-S5A-J00	Pipe comp - MASTER POWER	Pipe comp - MASTER POWER
10	46402-S5A-J01	Tube assy - MASTER POWER	Tube assy - MASTER POWER
11	46404-S5A-N01	Tube assy	Tube assy
12	46408-SH3-912	Clip - MASTER POWER TUBE	Clip - MASTER POWER TUBE
13	46409-S5A-J01	Clamp - MASTER POWER TUBE	Clamp - MASTER POWER TUBE
14	46512-S70-000	Pin - PEDAL	Pin - PEDAL
15	46661-S5A-J40	Reservoir set	Reservoir set
16	46662-S5A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
17	46665-S04-J01	Grommet	Grommet
18	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
19	46669-S5A-003	Diaphragm	Diaphragm
20	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
21	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
22	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
23	57515-S30-003	Pin - STOP	Pin - STOP
24	57562-SF1-003	Circlip	Circlip

Breather cover 4 / 4

#	OEM	ES1	S5A
1	11850-PLA-000	Cover comp. - BREATHER	Cover comp. - BREATHER
2	11855-P72-000	Grommet, PCV Valve	Grommet, PCV Valve
3	17130-PH1-003	Valve assy. - PCV	Valve assy. - PCV
4	17131-PLC-000	Tube - PCV	Tube - PCV

Bumpers 12 / 25

#	OEM	ES1	S5A
12	71503-S5A-000	Cap - RR. BUMPER	Cap - RR. BUMPER
13	71505-S5A-000	Bracket - R. RR. BUMPER SIDE	Bracket - R. RR. BUMPER SIDE
16	71555-S5A-000	Bracket - L. RR. BUMPER SIDE	Bracket - L. RR. BUMPER SIDE
17	71591-S5A-000	Grommet & seal set	Grommet & seal set
19	71593-S5A-000	Spacer - R. RR. BUMPER SIDE	Spacer - R. RR. BUMPER SIDE
21	71598-S5A-000	Spacer - L. RR. BUMPER SIDE	Spacer - L. RR. BUMPER SIDE
24	90109-SS0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
25	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
26	90149-SA0-000	Bolt - BUMPER	Bolt - BUMPER
27	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
31	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
33	91503-SZ3-003	Clip A	Clip A

Camshaft/timing belt 18 / 19

#	OEM	ES1	S5A
1	11811-PLC-000	TIMING BELT LOWER COVER	TIMING BELT LOWER COVER
2	11812-PLC-000	LOWER TIMING BELT COVER GROMMET	LOWER TIMING BELT COVER GROMMET
3	11821-PLM-000	TIMING BELT UPPER COVER	TIMING BELT UPPER COVER
4	11831-PLC-000	LOWER COVER RUBBER SEAL	LOWER COVER RUBBER SEAL
5	11832-PLM-000	Rubber - R. BACK SEAL	Rubber - R. BACK SEAL
6	11833-PLM-000	Rubber - L. BACK SEAL	Rubber - L. BACK SEAL
7	11840-PLM-000	Cover comp. - TIMING BELT BACK	Cover comp. - TIMING BELT BACK
8	14111-PLR-000	Camshaft	Camshaft
9	14210-PLM-003	Pulley comp - TIMING BELT DRIVEN	Pulley comp - TIMING BELT DRIVEN
10	14400-PLM-014	Belt - TIMING (104RU22 B-333)	Belt - TIMING (104RU22 B-333)
11	14516-PLC-000	Spring comp - TIMING BELT ADJUSTER	Spring comp - TIMING BELT ADJUSTER
12	14517-PLC-013	Bolt a - TENSIONER	Bolt a - TENSIONER
14	90007-PLC-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
15	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
16	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING	Bolt - TIMING BELT ADJUSTER SPRING
17	90031-PT0-003	Bolt-washer - 8X22	Bolt-washer - 8X22
17	90032-ZW5-003	Bolt-washer, 8x22	Bolt-washer, 8x22
18	91213-PE1-722	Oil seal - 29X45X8 (NOK)	Oil seal - 29X45X8 (NOK)

Clutch case 9 / 9

#	OEM	ES1	S5A
1	21000-PLW-B00	Case comp. - CLUTCH	Case comp. - CLUTCH
2	21103-PLW-000	Plate c - OIL GUIDE	Plate c - OIL GUIDE
3	21120-PLW-000	Magnet - TRANSMISSION	Magnet - TRANSMISSION
4	24601-PLW-000	Stay - CHANGE WIRE	Stay - CHANGE WIRE
5	91002-PS0-003	Bearing - BALL, 26X58X15 (NTN)	Bearing - BALL, 26X58X15 (NTN)
6	91101-PHR-003	Bearing - NEEDLE, 34X59X20	Bearing - NEEDLE, 34X59X20
7	91205-PL3-A02	Oil seal - 35X56X8(NOK)	Oil seal - 35X56X8(NOK)
7	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
8	91216-PL3-005	Oil seal - 26X42X7 (NOK)	Oil seal - 26X42X7 (NOK)

Clutch master cylinder (RH) 29 / 33

#	OEM	ES1	S5A
1	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
3	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
4	46182-500-013	Circlip	Circlip
5	46512-S70-000	Pin - PEDAL	Pin - PEDAL
6	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
8	46921-S5A-003	Plate - STOPPER	Plate - STOPPER
10	46928-S5A-003	Seal - MASTER CYLINDER	Seal - MASTER CYLINDER
11	46930-S5A-013	Cylinder assy. - CLUTCH SLAVE	Cylinder assy. - CLUTCH SLAVE
12	46931-S5A-003	Pin - SPRING	Pin - SPRING
13	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
14	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
15	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
16	46942-S5A-003	Pin - SNAP	Pin - SNAP
17	46943-S5A-003	Seal - RING	Seal - RING
18	46944-S5A-J01	Connector	Connector
19	46945-S5A-003	O-ring	O-ring
20	46946-S5A-003	Screw-washer - 4X12	Screw-washer - 4X12
21	46947-S5A-003	Rod - PUSH	Rod - PUSH
22	46948-S5A-003	Rod - PUSH	Rod - PUSH
23	46949-S5A-003	Seal - RING	Seal - RING
24	46960-S5A-013	Pipe comp. a - CLUTCH	Pipe comp. a - CLUTCH
25	46961-S5A-J01	Hose - CLUTCH	Hose - CLUTCH
26	46965-S5A-013	Tank assy. - CLUTCH FLUID	Tank assy. - CLUTCH FLUID
27	46968-S5A-000	Bracket a - CLUTCH PIPE	Bracket a - CLUTCH PIPE
28	46970-S5A-013	Pipe comp. b - CLUTCH	Pipe comp. b - CLUTCH
29	46971-S5A-023	Tube - CLUTCH FLUID	Tube - CLUTCH FLUID
32	50933-S3X-003	Clamp - TUBE	Clamp - TUBE
33	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch release 5 / 11

#	OEM	ES1	S5A
1	22810-PLW-005	Bearing, CLUTCH RELEASE (NSK)	Bearing, CLUTCH RELEASE (NSK)
2	22821-P20-010	Fork - CLUTCH RELEASE	Fork - CLUTCH RELEASE
3	22825-PX5-A00	Bolt - RELEASE FORK	Bolt - RELEASE FORK
4	22835-P7N-000	Spring - RELEASE FORK SETTING	Spring - RELEASE FORK SETTING
5	22841-P20-000	Boot - RELEASE FORK	Boot - RELEASE FORK

Clutch/torque converter 6 / 15

#	OEM	ES1	S5A
1	21350-PLA-010	Cover - CLUTCH CASE	Cover - CLUTCH CASE
3	22100-PLR-003	Flywheel comp.	Flywheel comp.
5	22300-PLR-003	Disk comp - PRESSURE	Disk comp - PRESSURE
8	90011-PM0-000	Bolt - 12MM	Bolt - 12MM
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
13	91006-P10-000	Bearing - CLUTCH PILOT	Bearing - CLUTCH PILOT

Combination switch (RH) 14 / 26

#	OEM	ES1	S5A
4	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
5	35103-S04-003	Screw - RECESSED	Screw - RECESSED
6	35108-S30-003	Holder - COLUMN	Holder - COLUMN
9	35130-S5A-J51	Switch comp - STEERING	Switch comp - STEERING
10	35251-S5A-Y03	Body comp - SWITCH	Body comp - SWITCH
12	35255-S5A-J02	Switch assy - LIGHTING & TURN SIGNAL	Switch assy - LIGHTING & TURN SIGNAL
14	35257-S5A-J01	Bracket	Bracket
17	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
18	72146-S10-003	Cover - BATTERY	Cover - BATTERY
20	72148-S10-003	Battery - CR2025	Battery - CR2025
20	72148-S84-A10	Battery - CR2025	Battery - CR2025
21	72149-S10-003	O-ring	O-ring
22	90132-S2H-G11	Screw - ET, 5.5X18	Screw - ET, 5.5X18
22	90132-S2H-G01	Screw - ET, 5X18	Screw - ET, 5X18

Console (2) 10 / 11

#	OEM	ES1	S5A
1	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
2	77235-S84-A01	Latch - G-SENSOR	Latch - G-SENSOR
7	83402-S5H-T00	Bracket - CENTER CONSOLE	Bracket - CENTER CONSOLE
12	83410-S5H-T00	Cover - CUP HOLDER	Cover - CUP HOLDER
13	83411-S5A-A00	Insulator - FR. CONSOLE	Insulator - FR. CONSOLE
14	83412-S5A-A00	Insulator - CONSOLE SIDE	Insulator - CONSOLE SIDE
18	88324-SB3-950	Cover - RR. ASHTRAY	Cover - RR. ASHTRAY
20	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
22	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
23	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (CABIN; RH) 8 / 16

#	OEM	ES1	S5A
1	32752-PLC-000	Stay m - ENGINE WIRE HARNESS	Stay m - ENGINE WIRE HARNESS
7	38201-S5A-010	Bracket - FUSE BOX	Bracket - FUSE BOX
8	38203-S5A-003	Cover - FUSE BOX	Cover - FUSE BOX
9	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
11	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
18	79101-S5A-003	Bracket - HEATER	Bracket - HEATER
19	79820-S5A-J00	Bracket - ENGINE CONTROL MODULE	Bracket - ENGINE CONTROL MODULE
20	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25

Control unit (ENGINE ROOM) 17 / 23

#	OEM	ES1	S5A
3	38100-S04-K11	Horn assy - LOW (MITSUBA)	Horn assy - LOW (MITSUBA)
7	38150-SX0-K02	Horn assy - HIGH (MITSUBA)	Horn assy - HIGH (MITSUBA)
8	38212-SM4-003	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
11	38216-SM4-003	Fuse - BLOCK (80A)	Fuse - BLOCK (80A)
12	38231-S04-003	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
13	38231-S04-961	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
14	38235-S04-003	Puller - MINI FUSE (SUMITOMO)	Puller - MINI FUSE (SUMITOMO)
17	38251-S5A-000	Bracket a - RELAY BOX	Bracket a - RELAY BOX
18	38252-S5A-000	Bracket b - RELAY BOX	Bracket b - RELAY BOX
19	38252-S5A-003	Cover - LOWER	Cover - LOWER
20	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
20	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)	Relay assy - POWER(4P)(DENSO) (056700-7410)
21	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)
21	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
22	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
23	90129-SP0-000	Screw-washer - 5X12	Screw-washer - 5X12
24	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Countershaft 18 / 50

#	OEM	ES1	S5A
1	23221-PLW-B50	Countershaft	Countershaft
2	23421-PLW-A00	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
3	23431-PLW-A10	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
4	23461-PLW-A00	Gear - COUNTERSHAFT FIFTH	Gear - COUNTERSHAFT FIFTH
5	23471-PLW-A00	Gear - COUNTERSHAFT THIRD	Gear - COUNTERSHAFT THIRD
6	23481-PLW-A00	Gear - COUNTERSHAFT FOURTH	Gear - COUNTERSHAFT FOURTH
8	23521-PLW-316	Sleeve set - SYNCHRONIZER (1-2)	Sleeve set - SYNCHRONIZER (1-2)
9	23912-PHR-000	Collar - DISTANCE, 34X40X27.5	Collar - DISTANCE, 34X40X27.5
10	23926-PB6-010	Washer - SPRING, 22MM	Washer - SPRING, 22MM
11	90202-PB6-010	Nut - FLANGE, 22MM	Nut - FLANGE, 22MM
12	90603-PL3-000	Ring - SNAP, 52MM	Ring - SNAP, 52MM
13	91003-P21-003	Bearing - BALL, 25X52X14/15 (NTN)	Bearing - BALL, 25X52X14/15 (NTN)
14	91102-PLW-003	Bearing - NEEDLE, 25X52.2X15	Bearing - NEEDLE, 25X52.2X15
15	91103-PHR-003	Bearing - NEEDLE, 38X43X22	Bearing - NEEDLE, 38X43X22
16	91104-PHR-003	Bearing - NEEDLE, 40X45X22.5	Bearing - NEEDLE, 40X45X22.5
17	91211-PHR-003	Damper - FRICTION (LOW)	Damper - FRICTION (LOW)
18	91212-PHR-003	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)
18	91212-PHR-013	Damper	Damper

Cylinder block/oil pan 19 / 23

#	OEM	ES1	S5A
1	11000-PLM-000	Block assy - CYLINDER	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
3	11126-PK1-003	Bolt - SEALING, 22MM	Bolt - SEALING, 22MM
8	11300-PLC-020	Cover assy. - R. SIDE	Cover assy. - R. SIDE
9	11311-PLC-000	Cover - BREATHING PORT	Cover - BREATHING PORT
10	30530-PLE-004	Sensor - KNOCK	Sensor - KNOCK
11	32745-PLC-000	Stay e - ENGINE HARNESS	Stay e - ENGINE HARNESS
12	37240-PT0-023	Switch - OIL PRESSURE(DENSO)	Switch - OIL PRESSURE(DENSO)
12	37240-PT0-014	Switch - OIL PRESSURE (TEC)	Switch - OIL PRESSURE (TEC)
13	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
14	90007-PM6-003	Bolt-washer - 11X116	Bolt-washer - 11X116
15	90008-PM6-003	Bolt-washer - 11X131	Bolt-washer - 11X131
18	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
19	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
20	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
21	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
22	91214-PLE-003	Oil seal	Oil seal
22	91214-P2F-A01	Oil seal - 80X100X10 (ARAI)	Oil seal - 80X100X10 (ARAI)
22	91214-PH1-004	Oil seal - 80X100X10 (ARAI)	Oil seal - 80X100X10 (ARAI)

Cylinder head (SOHC; VTE C) 25 / 26

#	OEM	ES1	S5A
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
3	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
4	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
4	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
6	12251-PLC-004	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)
6	12251-PLC-003	Gasket - CYLINDER HEAD (ISHINO GASKET)	Gasket - CYLINDER HEAD (ISHINO GASKET)
7	12513-P72-003	Plug - CYLINDER HEAD	Plug - CYLINDER HEAD
8	14631-PLE-000	Shaft - IN. ROCKER ARM	Shaft - IN. ROCKER ARM
9	14633-P2A-000	Shaft - EX. ROCKER ARM	Shaft - EX. ROCKER ARM
11	15810-PLE-005	Valve assy. - SPOOL	Valve assy. - SPOOL
14	15825-P2M-005	Filter assy - SPOOL VALVE	Filter assy - SPOOL VALVE
15	17233-PLD-000	Stay comp - RESONATOR	Stay comp - RESONATOR
17	37840-RJH-006	TDC CYLINDER SENSOR ASSY	TDC CYLINDER SENSOR ASSY
18	90001-P70-000	Bolt - FLANGE, 10X10.5	Bolt - FLANGE, 10X10.5
19	90004-PT0-000	Bolt - FLANGE, 6X50	Bolt - FLANGE, 6X50
20	90004-PT2-000	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
20	90003-PT2-000	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
21	90004-P2J-000	Bolt - SEALING, 10MM	Bolt - SEALING, 10MM
22	90005-PM3-003	Bolt-washer - 10X140 (SAGA)	Bolt-washer - 10X140 (SAGA)
23	90007-P08-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
24	90026-PE0-000	Bolt - STUD, 8X37	Bolt - STUD, 8X37
24	90026-PT0-000	Bolt - STUD, 8X38	Bolt - STUD, 8X38
26	91319-PR3-000	O-ring - 13X1.5	O-ring - 13X1.5
26	91319-PR3-003	O-ring - 13X1.5 (ARAI)	O-ring - 13X1.5 (ARAI)

Cylinder head cover 16 / 16

#	OEM	ES1	S5A
1	12030-PLC-010	Packing set - HEAD COVER	Packing set - HEAD COVER
2	12310-PLC-000	Cover comp. - CYLINDER HEAD	Cover comp. - CYLINDER HEAD
3	12315-PLC-000	Bolt - STUD	Bolt - STUD
4	12316-PLC-000	Washer	Washer
5	12341-PLC-000	Packing - CYLINDER HEAD COVER	Packing - CYLINDER HEAD COVER
6	12342-P08-004	Seal	Seal
6	12342-RYE-004	Seal,spark plug t	Seal,spark plug t
7	15610-P5G-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
8	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
9	15650-PLM-004	Gauge comp. - OIL LEVEL	Gauge comp. - OIL LEVEL
10	90011-PLC-000	Bolt comp. a - HEAD COVER	Bolt comp. a - HEAD COVER
11	90012-PLC-000	Bolt comp. b - HEAD COVER	Bolt comp. b - HEAD COVER
12	90013-PLC-000	Bolt a - HEAD COVER	Bolt a - HEAD COVER
13	90014-PLC-000	Bolt b - HEAD COVER	Bolt b - HEAD COVER
14	90442-PLC-000	Washer - HEAD COVER	Washer - HEAD COVER

Differential 21 / 33

#	OEM	ES1	S5A
2	41100-PLW-E00	Differential comp.	Differential comp.
3	41233-PLW-B50	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
5	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
5	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
5	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
5	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
5	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
5	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
5	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
5	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
5	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
5	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
5	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
5	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
5	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
5	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
5	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
5	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
5	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
6	90015-634-010	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
7	91005-PS1-003	Bearing - SEALED BALL, 6208C (NTN)	Bearing - SEALED BALL, 6208C (NTN)

Duct (RH) 4 / 5

#	OEM	ES1	S5A
2	77404-S5A-A01	Seal a	Seal a
3	77407-S5A-A01	Seal b	Seal b
4	77409-S5A-A01	Seal c	Seal c
5	77411-S5A-A01	Fabric - NON WOVEN	Fabric - NON WOVEN

Emblems/caution labels 8 / 15

#	OEM	ES1	S5A
3	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
4	42760-S5A-T60	Plate - TIRE PRESSURE CAUTION	Plate - TIRE PRESSURE CAUTION
5	75701-S5A-000	Emblem - RR. (H)	Emblem - RR. (H)
6	75722-S5A-000	Emblem - RR. (CIVIC)	Emblem - RR. (CIVIC)
9	75723-S5A-Y01	Emblem - RR. (VTI)	Emblem - RR. (VTI)
13	75725-S04-T00	Emblem - RR. (VTEC)	Emblem - RR. (VTEC)
17	77875-S84-G80	Label - SRS CAUTION	Label - SRS CAUTION
20	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine mounting bracket 9 / 13

#	OEM	ES1	S5A
1	11910-PLC-010	Bracket - ENGINE MOUNTING	Bracket - ENGINE MOUNTING
7	31113-PLC-000	Stay - ALTERNATOR	Stay - ALTERNATOR
8	31118-PLC-000	Stay - ALTERNATOR ADJUSTER	Stay - ALTERNATOR ADJUSTER
11	90050-PG7-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
12	90051-PE0-000	Bolt - FLANGE, 12X70	Bolt - FLANGE, 12X70
13	90311-PLC-000	Bolt - ADJUSTER	Bolt - ADJUSTER
14	90312-PLC-000	Bolt - ALTERNATOR	Bolt - ALTERNATOR
15	90313-PLC-010	Bolt - SPECIAL, 10X98	Bolt - SPECIAL, 10X98
16	90380-S10-000	Bolt - STUD, 12X83.8	Bolt - STUD, 12X83.8

Engine mounts (AT) 11 / 16

#	OEM	ES1	S5A
1	50805-S5A-033	Rubber assy. - TRANSMISSION MOUNTING	Rubber assy. - TRANSMISSION MOUNTING
3	50815-S5A-000	Damper - RR. ENGINE MOUNTING BRACKET	Damper - RR. ENGINE MOUNTING BRACKET
4	50820-S5A-013	Rubber assy. - ENGINE SIDE MOUNTING (TOUKAI)	Rubber assy. - ENGINE SIDE MOUNTING (TOUKAI)
5	50827-S5A-003	Rubber comp - ENGINE SIDE MOUNTING (TOUKAI)	Rubber comp - ENGINE SIDE MOUNTING (TOUKAI)
7	50827-S5A-000	Bracket - ENGINE RR. MOUNTING	Bracket - ENGINE RR. MOUNTING
9	90161-S5A-000	Bolt - FLANGE, 10X110	Bolt - FLANGE, 10X110
10	90162-S5A-000	Bolt - FLANGE, 10X80	Bolt - FLANGE, 10X80
11	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
12	90167-S5A-010	Bolt - FLANGE, 12X88	Bolt - FLANGE, 12X88
14	90170-S5A-000	Bolt - FLANGE, 12X60	Bolt - FLANGE, 12X60
16	90371-S5A-000	Nut - YOKE, 12MM	Nut - YOKE, 12MM

Engine mounts (MT) 14 / 16

#	OEM	ES1	S5A
1	50805-S5A-033	Rubber assy. - TRANSMISSION MOUNTING	Rubber assy. - TRANSMISSION MOUNTING
2	50810-S5A-013	Rubber - ENGINE RR. MOUNTING	Rubber - ENGINE RR. MOUNTING
3	50815-S5A-000	Damper - RR. ENGINE MOUNTING BRACKET	Damper - RR. ENGINE MOUNTING BRACKET
6	50825-S5A-000	Bracket - TRANSMISSION MOUNTING	Bracket - TRANSMISSION MOUNTING
7	50827-S5A-000	Bracket - ENGINE RR. MOUNTING	Bracket - ENGINE RR. MOUNTING
8	50840-S5A-010	Stopper, FR. ENGINE	Stopper, FR. ENGINE
9	90161-S5A-000	Bolt - FLANGE, 10X110	Bolt - FLANGE, 10X110
10	90162-S5A-000	Bolt - FLANGE, 10X80	Bolt - FLANGE, 10X80
11	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
12	90164-S5A-000	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
13	90165-S5A-000	Bolt - FLANGE, 10X70	Bolt - FLANGE, 10X70
14	90167-S5A-010	Bolt - FLANGE, 12X88	Bolt - FLANGE, 12X88
15	90170-S5A-000	Bolt - FLANGE, 12X60	Bolt - FLANGE, 12X60
17	90371-S5A-000	Nut - YOKE, 12MM	Nut - YOKE, 12MM

Engine wire harness (RH) 26 / 33

#	OEM	ES1	S5A
3	32117-PLC-000	Harness - SUB SENSOR WIRE	Harness - SUB SENSOR WIRE
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
7	32120-PMV-T00	Cover assy. - ENGINE WIRE HARNESS	Cover assy. - ENGINE WIRE HARNESS
10	32127-PLC-000	Holder comp. a - HARNESS	Holder comp. a - HARNESS
11	32128-PLC-000	Holder assy. b - ENGINE HARNESS	Holder assy. b - ENGINE HARNESS
12	32129-PLC-000	Holder c - HARNESS	Holder c - HARNESS
13	32131-PLC-000	Holder d - HARNESS	Holder d - HARNESS
14	32132-PLC-000	Holder - UPPER HARNESS	Holder - UPPER HARNESS
15	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
16	32133-PLC-000	Holder - LOWER HARNESS	Holder - LOWER HARNESS
17	32610-S5A-000	Cable - SUB EARTH	Cable - SUB EARTH
18	32741-PLC-000	Stay a - ENGINE WIRE HARNESS	Stay a - ENGINE WIRE HARNESS
19	32742-PLC-000	Stay b - ENGINE WIRE HARNESS	Stay b - ENGINE WIRE HARNESS
20	32743-PLC-000	Stay c - ENGINE WIRE HARNESS	Stay c - ENGINE WIRE HARNESS
21	32748-PLC-000	Stay h - ENGINE HARNESS	Stay h - ENGINE HARNESS
22	32750-PLC-003	Clamp k - ENGINE WIRE HARNESS	Clamp k - ENGINE WIRE HARNESS
25	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
26	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
27	90501-SS8-A01	Retainer	Retainer
28	91501-P8A-A01	Stud	Stud
29	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
30	91507-PLC-003	Clip - WIRE HARNESS(DARK BLUE) (132.3MM)	Clip - WIRE HARNESS(DARK BLUE) (132.3MM)
31	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
32	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
33	91571-SP0-003	Clip - WIRE HARNESS (BLACK) (64MM)	Clip - WIRE HARNESS (BLACK) (64MM)
34	91601-P8A-A01	Receptacle	Receptacle

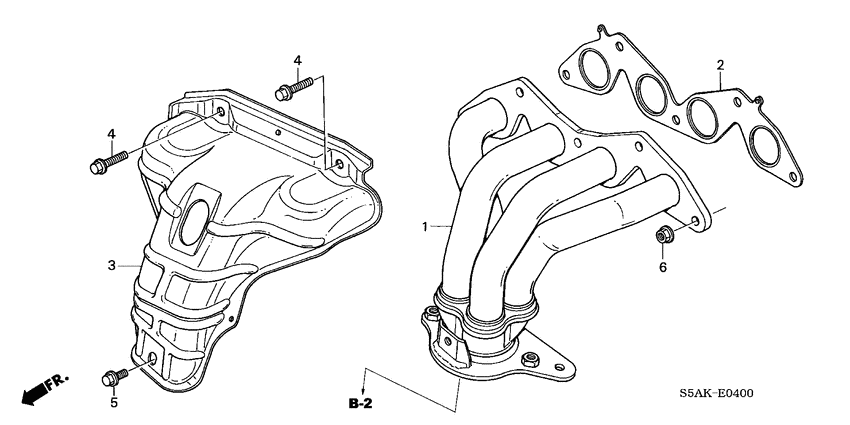

Exhaust manifold (1) 6 / 6

#	OEM	ES1	S5A
1	18100-PLR-000	Manifold assy - EX.	Manifold assy - EX.
2	18115-PLC-J02	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
2	18115-PLC-J01	Gasket - EX. MANIFOLD (ISHINO GASKET)	Gasket - EX. MANIFOLD (ISHINO GASKET)
3	18120-PLD-000	Cover - EX. MANIFOLD	Cover - EX. MANIFOLD
4	90003-PLC-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
5	90015-PAA-L20	Bolt - FLANGE, 8X12	Bolt - FLANGE, 8X12

Exhaust pipe/silencer 13 / 32

#	OEM	ES1	S5A
2	17520-S5A-931	Stay - FUEL TANK PROTECTOR	Stay - FUEL TANK PROTECTOR
3	18030-S5A-J00	Silencer set - EX.	Silencer set - EX.
5	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
10	18215-S5A-A11	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
11	18215-S5D-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
12	18220-S5A-J03	Pipe b - EX.	Pipe b - EX.
15	18229-S5A-J01	Gasket - EX. FLEXIBLE	Gasket - EX. FLEXIBLE
17	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
18	18231-SR3-A22	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
19	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
28	74605-S5A-000	Plate - FLOOR HEAT BAFFLE (B)	Plate - FLOOR HEAT BAFFLE (B)
30	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
31	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 8 / 8

#	OEM	ES1	S5A
1	74251-S5A-000	Insulator - DASHBOARD LOWER OUTER	Insulator - DASHBOARD LOWER OUTER
2	74260-S5H-T00	Insulator - DASHBOARD	Insulator - DASHBOARD
9	90667-ST8-003	Clip - SIDE LINING	Clip - SIDE LINING
11	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
12	90676-S5A-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
13	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
14	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
15	91560-S5H-003	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)

Front brake (1) 24 / 40

#	OEM	ES1	S5A
1	01463-S04-V00	Caliper set - FR.	Caliper set - FR.
1	01463-S04-V01	SET, FR CALIPER	SET, FR CALIPER
2	06450-S5A-G00	Pad set - FR. (WITHOUT SHIM) (###)	Pad set - FR. (WITHOUT SHIM) (###)
3	06455-S5A-J00	Shim set - FR.	Shim set - FR.
4	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
5	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
6	44300-S5A-008	FR HUB Bearing assy (NTN)	FR HUB Bearing assy (NTN)
7	44600-S5H-T00	Hub assy - FR. (14")	Hub assy - FR. (14")
8	45018-S5A-J02	Caliper sub assy. - R. FR.	Caliper sub assy. - R. FR.
9	45019-S5A-J02	Caliper sub assy. - L. FR.	Caliper sub assy. - L. FR.
10	45022-S5A-G01	Pad set - FR.	Pad set - FR.
11	45216-S5A-J01	Piston	Piston
13	45235-S0A-003	Pin a	Pin a
14	45237-SR3-003	Retainer a	Retainer a
15	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
16	45251-S5H-T10	Disk - FR. BRAKE	Disk - FR. BRAKE
17	45255-SR3-V01	Guard - FR. BRAKE SPLASH	Guard - FR. BRAKE SPLASH
18	45262-S0A-003	Pin b	Pin b
19	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
20	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
20	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
20	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
20	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
21	90681-SR3-A00	Circlip, SPECIAL INTERNAL, 79MM	Circlip, SPECIAL INTERNAL, 79MM

Front bulkhead 2 / 3

#	OEM	ES1	S5A
45	74232-S5A-000	Rod - BRAKE PEDAL SUPPORT	Rod - BRAKE PEDAL SUPPORT
47	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Front door lining (RH) 5 / 5

#	OEM	ES1	S5A
3	72335-S5A-003	Weatherstrip - R. FR. DOOR INNER	Weatherstrip - R. FR. DOOR INNER
4	72375-S5A-003	Weatherstrip - L. FR. DOOR INNER	Weatherstrip - L. FR. DOOR INNER
17	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
18	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Front door locks 32 / 38

#	OEM	ES1	S5A
2	72110-S5A-J11	Lock assy - R. FR. DOOR POWER (###)	Lock assy - R. FR. DOOR POWER (###)
3	72112-SR4-004	Snap - BROWN	Snap - BROWN
4	72113-SR4-004	Snap - BLACK	Snap - BLACK
5	72115-S5A-A01	Actuator assy - DOOR LOCK	Actuator assy - DOOR LOCK
6	72116-S04-003	Holder - ROD(SKY BLUE)	Holder - ROD(SKY BLUE)
7	72117-S04-003	Holder - ROD (YELLOW)	Holder - ROD (YELLOW)
8	72117-S5A-A01	Protector - R. FR. DOOR LOCK	Protector - R. FR. DOOR LOCK
10	72119-SM1-003	Stopper a - OUTSIDE HANDLE	Stopper a - OUTSIDE HANDLE
13	72123-SR0-003	Ring - OUTSIDE HANDLE	Ring - OUTSIDE HANDLE
14	72130-S5A-A00	Protector - R. FR. DOOR OUTER HANDLE	Protector - R. FR. DOOR OUTER HANDLE
15	72131-S5A-003	Rod - R. FR. INSIDE HANDLE	Rod - R. FR. INSIDE HANDLE
16	72135-S5A-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
18	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
19	72139-S5A-A00	Protector - R. FR. DOOR KNOB ROD	Protector - R. FR. DOOR KNOB ROD
21	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
22	72141-S5A-003	Packing	Packing
27	72149-SR4-000	Snap - R.	Snap - R.
30	72157-S5A-A01	Protector - L. FR. DOOR LOCK	Protector - L. FR. DOOR LOCK
33	72170-S5A-A00	Protector - L. FR. DOOR OUTER HANDLE	Protector - L. FR. DOOR OUTER HANDLE
34	72171-S5A-003	Rod - L. FR. INSIDE HANDLE	Rod - L. FR. INSIDE HANDLE
35	72175-SH3-003	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
36	72179-S5A-A00	Protector - L. FR. DOOR KNOB ROD	Protector - L. FR. DOOR KNOB ROD
38	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
41	72189-SR4-000	Snap - L.	Snap - L.
42	72616-SM4-003	Snap - NATURAL	Snap - NATURAL
43	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
44	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
45	90141-S84-003	Screw - 3X10	Screw - 3X10
46	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
47	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
48	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
49	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front door panels 13 / 21

#	OEM	ES1	S5A
11	72142-S10-000	Stopper - DOOR	Stopper - DOOR
13	72321-S5H-T00	Seal - FR. DOOR HOLE	Seal - FR. DOOR HOLE
14	72325-S5A-003	F/DOOR W/STRIP RH - R. FR. DOOR	F/DOOR W/STRIP RH - R. FR. DOOR
15	72340-S5H-T01	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
18	72365-S5A-003	Sub seal - L. FR. DOOR	Sub seal - L. FR. DOOR
19	72380-S5H-T01	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
20	72435-S5A-003	Seal - FR. DOOR LOWER SILL	Seal - FR. DOOR LOWER SILL
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
23	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
24	90651-S4N-003	Clip	Clip
25	91504-S5A-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
26	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Front door windows 8 / 15

#	OEM	ES1	S5A
3	72230-S5A-003	Sash - R. FR. DOOR FR. LOWER	Sash - R. FR. DOOR FR. LOWER
4	72231-S5A-003	Sash - R. FR. DOOR CENTER LOWER	Sash - R. FR. DOOR CENTER LOWER
5	72235-S5H-T01	Runchannel - R. FR. DOOR	Runchannel - R. FR. DOOR
8	72270-S5A-003	Sash - L. FR. DOOR FR. LOWER	Sash - L. FR. DOOR FR. LOWER
9	72271-S5A-003	Sash - L. FR. DOOR CENTER LOWER	Sash - L. FR. DOOR CENTER LOWER
10	72275-S5H-T01	Runchannel - L. FR. DOOR	Runchannel - L. FR. DOOR
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
16	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front driveshaft/ half shaft 18 / 22

#	OEM	ES1	S5A
1	44014-S5D-A51	Joint set - OUTBOARD (GKN)	Joint set - OUTBOARD (GKN)
2	44017-S5D-A11	Boot set - INBOARD (GKN)	Boot set - INBOARD (GKN)
2	44017-S5D-A01	Boot set - INBOARD (GKN)	Boot set - INBOARD (GKN)
3	44018-S5D-A01	Boot set - OUTBOARD (GKN)	Boot set - OUTBOARD (GKN)
4	44305-S5D-A51	Driveshaft assy. - R.	Driveshaft assy. - R.
5	44306-S5D-A51	Driveshaft assy. - L.	Driveshaft assy. - L.
6	44310-S5D-A31	Joint comp - INBOARD	Joint comp - INBOARD
7	44310-S5D-A01	Joint comp - INBOARD	Joint comp - INBOARD
8	44317-S5D-A01	Band - OUTBOARD BOOT (OETIKER LIMITED)	Band - OUTBOARD BOOT (OETIKER LIMITED)
9	44318-S01-A21	Band - SHAFT BOOT	Band - SHAFT BOOT
11	44319-SR1-003	Set ring - 26X1.8 (GKN)	Set ring - 26X1.8 (GKN)
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-SR1-003	Ring b - STOPPER	Ring b - STOPPER
15	44338-S5D-A01	Circlip	Circlip
16	44351-S10-901	Damper - DYNAMIC (TOUKAI)	Damper - DYNAMIC (TOUKAI)
17	44351-S5A-J01	Damper - DYNAMIC (TOUKAI)	Damper - DYNAMIC (TOUKAI)
23	90305-692-010	Nut	Nut

Front fenders 14 / 20

#	OEM	ES1	S5A
4	74105-S5H-000	Fairing - R. FR. FENDER	Fairing - R. FR. FENDER
5	74111-S5A-900	Shield - FR. SPLASH	Shield - FR. SPLASH
7	74155-S5H-000	Fairing - L. FR. FENDER	Fairing - L. FR. FENDER
8	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
9	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
10	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
11	90308-SB2-000	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
11	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
12	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
13	90851-S5H-003	Rivet - 5MM	Rivet - 5MM
14	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
15	91503-SZ3-003	Clip A	Clip A
17	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING
18	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM

Front grille (1) 2 / 7

#	OEM	ES1	S5A
7	90301-ST0-003	push nut, 3mm	push nut, 3mm
8	91503-SZ3-003	Clip A	Clip A

Front seat (RH; DRIVER SIDE) 14 / 20

#	OEM	ES1	S5A
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
5	81122-S5H-T31	Pad assy - R. FR. SEATBACK	Pad assy - R. FR. SEATBACK
6	81126-S5A-U01	Frame comp - R. FR. SEATBACK	Frame comp - R. FR. SEATBACK
9	81132-S5H-T31	Pad assy - R. FR. SEAT CUSHION	Pad assy - R. FR. SEAT CUSHION
10	81138-S5A-G21	Clip - H	Clip - H
16	81182-S5A-003	Pin comp. - ARMREST	Pin comp. - ARMREST
17	81184-SX0-000	Bush - ARMREST	Bush - ARMREST
21	81223-S04-000	Clip - SHAFT, 8MM	Clip - SHAFT, 8MM
25	90123-SX0-000	Washer - WAVE, 10MM	Washer - WAVE, 10MM
26	90124-S47-000	Nut - U, 10MM	Nut - U, 10MM
27	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
28	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
29	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)

Front seat (RH; PASSENGER SIDE) 11 / 20

#	OEM	ES1	S5A
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
3	81138-S5A-G21	Clip - H	Clip - H
13	81522-S5H-T31	Pad assy - L. FR. SEATBACK	Pad assy - L. FR. SEATBACK
14	81526-S5A-J01	Frame comp - L. FR. SEATBACK	Frame comp - L. FR. SEATBACK
18	81532-S5H-T31	Pad assy - L. FR. SEAT CUSHION	Pad assy - L. FR. SEAT CUSHION
22	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
23	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
24	90610-S10-003	Clip - GARNISH	Clip - GARNISH
26	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
27	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front seat components (L.) 6 / 6

#	OEM	ES1	S5A
2	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
3	81271-S5A-J01	Lever	Lever
4	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
5	81536-S5H-T01	Frame comp - L. FR. SEAT CUSHION	Frame comp - L. FR. SEAT CUSHION
7	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
8	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22

Front seat components (R.; MANUAL HEIGHT) 9 / 9

#	OEM	ES1	S5A
1	81136-S5A-J12	Frame comp - R. FR. SEAT CUSHION	Frame comp - R. FR. SEAT CUSHION
5	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
6	81271-S5A-J01	Lever	Lever
7	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
8	90135-S5A-003	Bolt-washer - 10X27	Bolt-washer - 10X27
9	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
10	90303-S3N-003	Nut - FLANGE	Nut - FLANGE
11	90501-S3N-003	Washer a	Washer a
12	90502-S3N-013	Bush a	Bush a

Front shock absorber 5 / 19

#	OEM	ES1	S5A
2	51402-S5A-701	Rubber - FR. SPRING MOUNTING	Rubber - FR. SPRING MOUNTING
7	51688-S5H-T03	Seat - FR. SPRING UPPER	Seat - FR. SPRING UPPER
9	51726-S5A-701	Bearing - FR. SHOCK ABSORBER MOUNT	Bearing - FR. SHOCK ABSORBER MOUNT
12	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)	Nut - SELF-LOCK, 12MM(NYLON)

Front sub frame 4 / 6

#	OEM	ES1	S5A
1	50200-S5A-033	Sub frame comp. - FR.	Sub frame comp. - FR.
2	50205-S6A-E00	Damper - RR.	Damper - RR.
6	90174-S5A-003	Bolt-washer - 10X32	Bolt-washer - 10X32
7	90175-S5A-000	Bolt - FLANGE, 14X115	Bolt - FLANGE, 14X115

Front windshield 14 / 16

#	OEM	ES1	S5A
1	04731-S5H-T00	Rubber set - FR. WINDSHIELD DAM	Rubber set - FR. WINDSHIELD DAM
3	73111-S5K-K00	Glass - FR. WINDSHIELD (GREEN) (ASAHI)	Glass - FR. WINDSHIELD (GREEN) (ASAHI)
4	73150-S5H-T01	Molding - FR. WINDSHIELD	Molding - FR. WINDSHIELD
5	73152-S5A-003	Garnish assy - R. FR. WINDSHIELD SIDE	Garnish assy - R. FR. WINDSHIELD SIDE
6	73162-S5A-003	Garnish assy - L. FR. WINDSHIELD SIDE	Garnish assy - L. FR. WINDSHIELD SIDE
8	91519-S5A-003	Clip e - FR. SIDE GARNISH	Clip e - FR. SIDE GARNISH
9	91520-S5A-003	Clip f - FR. SIDE GARNISH	Clip f - FR. SIDE GARNISH
10	91521-S5A-003	Clip A - FR. SIDE GARNISH	Clip A - FR. SIDE GARNISH
11	91522-S5A-003	Clip b - FR. SIDE GARNISH	Clip b - FR. SIDE GARNISH
12	91523-S5A-003	Clip c - FR. SIDE GARNISH	Clip c - FR. SIDE GARNISH
13	91524-S5A-003	Clip d - R. FR. SIDE GARNISH	Clip d - R. FR. SIDE GARNISH
14	91534-S5A-003	Clip d - L. FR. SIDE GARNISH	Clip d - L. FR. SIDE GARNISH
15	91568-SX0-003	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
16	91577-S84-A01	Fastener - WINDSHIELD	Fastener - WINDSHIELD

Front windshield wiper (R H) 17 / 28

#	OEM	ES1	S5A
1	76505-S5A-003	Motor comp - FR. WIPER	Motor comp - FR. WIPER
2	76516-SE0-003	Rubber - BRACKETLESS MOUNTING	Rubber - BRACKETLESS MOUNTING
3	76516-SR3-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
5	76517-SM4-003	Collar	Collar
6	76520-S5A-003	Link assy. a	Link assy. a
7	76524-SD4-003	Dust seal	Dust seal
8	76524-SE0-013	Dust seal	Dust seal
9	76530-S5A-003	Link comp, FR. WIPER	Link comp, FR. WIPER
10	76540-S5A-003	Rod unit a	Rod unit a
11	76550-S5A-003	Rod unit b	Rod unit b
12	76561-S5A-A01	Cap b - PIVOT	Cap b - PIVOT
13	76561-S5A-003	Cap a - PIVOT	Cap a - PIVOT
14	76600-S5A-003	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-S5A-003	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
21	91611-S5A-000	Cap - FR. WIPER	Cap - FR. WIPER

Fuel pipe (2) 33 / 37

#	OEM	ES1	S5A
1	16040-S5H-T30	Feed set - FUEL	Feed set - FUEL
3	16722-PLC-003	Hose comp. - FUEL FEED	Hose comp. - FUEL FEED
7	16725-PLC-003	Clamp a - FUEL HOSE (BLACK)	Clamp a - FUEL HOSE (BLACK)
9	16726-PLC-003	Clamp b - FUEL HOSE	Clamp b - FUEL HOSE
11	16727-PLC-000	Stay - FUEL PIPE	Stay - FUEL PIPE
14	16728-PLC-000	Stay - FUEL HOSE CLAMP	Stay - FUEL HOSE CLAMP
15	16729-PLC-003	Clamp c - FUEL HOSE	Clamp c - FUEL HOSE
16	17300-S5C-931	Canister assy	Canister assy
17	17315-S5A-932	Filter - CANISTER	Filter - CANISTER
18	17358-S5H-T30	Bracket - CANISTER	Bracket - CANISTER
20	17701-S5A-930	Rubber - FUEL PIPE INSULATOR	Rubber - FUEL PIPE INSULATOR
21	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
23	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
24	17717-S5H-T31	Tube a - FUEL PURGE	Tube a - FUEL PURGE
25	17720-S5A-A30	Pipe - FUEL PURGE	Pipe - FUEL PURGE
27	17724-S5H-T31	Tube c - FUEL VENT	Tube c - FUEL VENT
30	17742-S5H-T30	Tube a - CANISTER DRAIN	Tube a - CANISTER DRAIN
31	17743-S5A-930	Tube - CANISTER FILTER	Tube - CANISTER FILTER
32	17758-S5A-931	Clip - FUEL PIPE	Clip - FUEL PIPE
33	17759-S5A-931	Clip b - FUEL PIPE	Clip b - FUEL PIPE
34	17762-S5A-930	Stay b - FUEL PIPE	Stay b - FUEL PIPE
35	17763-S5A-930	Stay c - FUEL PIPE	Stay c - FUEL PIPE
37	17764-S5A-930	Stay d - FUEL PIPE	Stay d - FUEL PIPE
38	17765-S5A-930	Stay e - FUEL PIPE	Stay e - FUEL PIPE
39	19108-PHM-003	Clamp - RESERVE TANK TUBE (GRAY)	Clamp - RESERVE TANK TUBE (GRAY)
40	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
41	90671-S5A-003	Bolt - FR. FENDER	Bolt - FR. FENDER
45	91592-S5A-931	Clip - FUEL PIPE	Clip - FUEL PIPE
46	91595-S5A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
47	91596-S5A-931	Joint - DRAIN TUBE	Joint - DRAIN TUBE
48	91597-S5H-T31	Clip - DRAIN TUBE	Clip - DRAIN TUBE
49	91598-S5A-930	Rubber - FUEL PIPE INSULATOR	Rubber - FUEL PIPE INSULATOR
51	91599-S5A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE

Fuel tank (2) 38 / 49

#	OEM	ES1	S5A
1	16015-S5H-T30	Regulator assy	Regulator assy
2	16016-S5H-T31	Wire comp - LEAD	Wire comp - LEAD
3	16711-S5H-T31	Rubber - FUEL PUMP INSULATOR	Rubber - FUEL PUMP INSULATOR
4	16900-S84-G01	Strainer comp. - FUEL	Strainer comp. - FUEL
5	16922-S84-G01	Rubber - MOUNTING	Rubber - MOUNTING
6	16923-S84-G01	Collar	Collar
8	17041-S5H-T31	Plate	Plate
9	17043-S5H-T30	O-ring	O-ring
10	17044-S5H-T30	Bracket c	Bracket c
11	17045-S5H-T31	Wire comp - LEAD	Wire comp - LEAD
12	17371-SM4-013	Valve - TWO WAY (TEC)	Valve - TWO WAY (TEC)
14	17509-S3N-000	Holder - VENT TUBE	Holder - VENT TUBE
15	17516-S5H-T30	Filter set - FUEL PUMP	Filter set - FUEL PUMP
16	17521-S5H-T31	Band - R. FUEL TANK MOUNTING	Band - R. FUEL TANK MOUNTING
17	17522-S5H-T31	Band - L. FUEL TANK MOUNTING	Band - L. FUEL TANK MOUNTING
18	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
19	17525-S0X-A00	Bolt-washer - 10X25	Bolt-washer - 10X25
20	17574-S0A-931	Packing - BASE	Packing - BASE
21	17579-S0A-932	Plate - SETTING	Plate - SETTING
22	17630-S5H-T31	Meter comp - FUEL	Meter comp - FUEL
23	17651-S5H-T30	Tube - FILLER NECK	Tube - FILLER NECK
24	17652-S6M-J01	Clip - FILLER TUBE	Clip - FILLER TUBE
25	17653-S5H-T30	Tube - BREATHER	Tube - BREATHER
26	17660-S5H-K31	Pipe comp - FUEL FILLER	Pipe comp - FUEL FILLER
27	17662-S0A-003	Packing - FUEL FILLER	Packing - FUEL FILLER
29	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)	Cap comp. - FUEL FILLER (TOYODA)
30	17707-S5H-T32	Tube comp. a - FUEL FEED	Tube comp. a - FUEL FEED
31	17710-S5H-T31	Tube comp. b - FUEL FEED	Tube comp. b - FUEL FEED
32	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
33	17711-S84-005	Retainer - NATURAL	Retainer - NATURAL
34	17722-S5H-T31	Tube b - FUEL VENT	Tube b - FUEL VENT
35	17727-S5H-T30	Stay - TWO WAY VALVE	Stay - TWO WAY VALVE
36	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)	Clamp - RESERVE TANK TUBE (BLACK)
37	74660-S5A-000	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
38	90101-S84-G00	Bolt-washer - 6X25	Bolt-washer - 6X25
39	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
40	90301-SE0-J00	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
45	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Gasket kit 1 / 4

#	OEM	ES1	S5A
1	06110-PLL-Y01	Gasket kit - CYLINDER HEAD	Gasket kit - CYLINDER HEAD

Grommet (FRONT) 12 / 13

#	OEM	ES1	S5A
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM	Cap - FLOOR HOLE, 24MM
2	74144-SR3-000	Cushion - HOOD	Cushion - HOOD
3	74177-SD4-000	Cushion a - HOOD	Cushion a - HOOD
5	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM
6	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
7	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
8	90615-S5H-000	Cap - WELD HOLE	Cap - WELD HOLE
9	91503-SS0-003	Holder - ROD	Holder - ROD
10	91604-SD2-013	Grommet - HOOD STAY	Grommet - HOOD STAY
11	91608-S5A-003	Boot - FLOOR	Boot - FLOOR
12	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
13	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 1 / 1

#	OEM	ES1	S5A
2	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 4 / 5

#	OEM	ES1	S5A
1	91603-SK7-000	Grommet - WAX HOLE, 25MM	Grommet - WAX HOLE, 25MM
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
4	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
5	91616-S04-000	Block - FR. PILLAR INNER LOWER	Block - FR. PILLAR INNER LOWER

Grommet (SIDE) 5 / 6

#	OEM	ES1	S5A
1	91601-S3C-000	Seal - HOLE (60X93)	Seal - HOLE (60X93)
2	91616-S5A-000	Block - FR. PILLAR INNER LOWER	Block - FR. PILLAR INNER LOWER
4	91618-S5A-000	Seal - HOLE, 30X90	Seal - HOLE, 30X90
5	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
7	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)	Cushion - WIRE HARNESS (50X50)

Harness band/bracket (RH) 23 / 31

#	OEM	ES1	S5A
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)	Grommet - WIRE HARNESS(BLACK)
2	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
6	32203-S5A-000	Bracket - WIRE HARNESS	Bracket - WIRE HARNESS
9	38617-S5A-J01	Filter comp - NOISE	Filter comp - NOISE
14	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
15	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
16	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
17	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
18	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
19	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
20	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
22	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
23	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
24	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
25	91547-SH3-003	Clip - BAND(NATURAL)(160MM)	Clip - BAND(NATURAL)(160MM)
27	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
28	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
30	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
32	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
34	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
35	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
36	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)	Cushion - WIRE HARNESS (50X50)
38	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Headlight 6 / 17

#	OEM	ES1	S5A
1	32118-S5A-900	Cord - SIDE TURN	Cord - SIDE TURN
4	33105-S0A-J21	Nut - SPECIAL	Nut - SPECIAL
11	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)
15	33304-S5A-003	Socket comp - T10	Socket comp - T10
17	34301-S5H-T02	Lamp unit	Lamp unit

Heater blower (RH) 18 / 21

#	OEM	ES1	S5A
1	79102-S5A-000	Bracket - UNDER COVER	Bracket - UNDER COVER
2	79191-SZ3-A01	Nut - HOLDER	Nut - HOLDER
3	79303-S5A-003	Lid - BLOWER	Lid - BLOWER
4	79305-S5H-T01	Blower sub assy.	Blower sub assy.
5	79308-S5A-003	Seal - BLOWER OUTER (B)	Seal - BLOWER OUTER (B)
6	79309-S5A-003	Seal - BLOWER OUTER (A)	Seal - BLOWER OUTER (A)
7	79310-S5A-003	Motor assy. - FAN	Motor assy. - FAN
8	79330-S5A-941	Transistor - POWER	Transistor - POWER
10	80291-S5A-J01	Plate assy. - BLOWER (A)	Plate assy. - BLOWER (A)
11	80296-S5A-J01	Plate assy. - BLOWER (B)	Plate assy. - BLOWER (B)
12	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
13	90121-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
14	90121-S5A-003	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
15	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
16	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
17	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
18	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
19	90659-692-000	Clamp - CASE	Clamp - CASE

Heater control (RH) 2 / 4

#	OEM	ES1	S5A
1	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)	Bulb - NEO WEDGE (14V 100MA)
11	79609-S5A-003	Bulb - NEO WEDGE (14V 100MA)	Bulb - NEO WEDGE (14V 100MA)

Heater unit (RH) 33 / 44

#	OEM	ES1	S5A
1	39248-692-003	Packing - HEATER	Packing - HEATER
2	53747-SA5-003	Clip - POWER STEERING HOSE	Clip - POWER STEERING HOSE
4	79027-S5A-003	Case - EXPANSION VALVE COVER	Case - EXPANSION VALVE COVER
5	79028-S5A-003	Cover - FLANGE	Cover - FLANGE
6	79029-S5A-003	Cover - FOOT DUCT	Cover - FOOT DUCT
7	79101-S5A-000	Bracket - UNDER COVER	Bracket - UNDER COVER
8	79103-S5A-003	Seal - DRAIN	Seal - DRAIN
9	79104-S5A-003	Seal a	Seal a
10	79105-S5A-003	Seal b	Seal b
12	79107-S5A-003	Seal c	Seal c
13	79110-S5A-023	Core sub assy. - HEATER	Core sub assy. - HEATER
14	79140-S5A-013	Motor assy. - MODE	Motor assy. - MODE
16	79191-SZ3-A01	Nut - HOLDER	Nut - HOLDER
17	79544-S5A-000	Cable - WATER VALVE CONTROL	Cable - WATER VALVE CONTROL
18	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE
19	80215-S5K-003	Evaporator comp.	Evaporator comp.
20	80219-S5A-003	Seal - EXPANSION VALVE	Seal - EXPANSION VALVE
21	80220-S5A-003	Valve assy. - EXPANSION	Valve assy. - EXPANSION
22	80271-S5A-000	Hose - DRAIN	Hose - DRAIN
24	80560-S5A-941	Sensor assy - EVAPORATOR	Sensor assy - EVAPORATOR
25	80650-S5A-010	Sub harness - AIR CONDITIONER	Sub harness - AIR CONDITIONER
26	80871-S5A-003	O-ring - 5/8"	O-ring - 5/8"
26	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
27	80872-S5A-003	O-ring - 1/2"	O-ring - 1/2"
27	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
28	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
29	90121-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
30	90121-S5A-003	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
32	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
33	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
34	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
35	90659-692-000	Clamp - CASE	Clamp - CASE
37	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Hood (RH) 23 / 29

#	OEM	ES1	S5A
1	17706-SC3-003	Clip - FUEL PIPE	Clip - FUEL PIPE
8	74134-SH3-003	Grommet - HOOD WIRE	Grommet - HOOD WIRE
10	74143-S5A-000	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
11	74144-S5A-000	Sub seal - HOOD	Sub seal - HOOD
12	74145-S5H-T00	Stay - HOOD OPENER	Stay - HOOD OPENER
14	74210-S5H-T00	Cowl top assy. - R. FR. SIDE	Cowl top assy. - R. FR. SIDE
15	74212-S5A-000	Cover - R. HOOD HINGE	Cover - R. HOOD HINGE
16	74220-S5H-T00	Cowl top assy. - L. FR. SIDE	Cowl top assy. - L. FR. SIDE
17	74222-S5A-000	Cover - L. HOOD HINGE	Cover - L. HOOD HINGE
18	74231-S5A-000	Valve - DRAIN	Valve - DRAIN
20	75126-S5A-003	Bolt - SPECIAL	Bolt - SPECIAL
21	75307-SN7-000	Nut - SIDE PROTECTOR	Nut - SIDE PROTECTOR
22	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
23	90157-S3N-003	Clip - HOOD MOLDING	Clip - HOOD MOLDING
24	90602-SX0-003	Clip - COWL TOP	Clip - COWL TOP
25	90602-S2A-003	Clip - COWL TOP	Clip - COWL TOP
26	90602-S5A-003	Clip - COWL TOP	Clip - COWL TOP
27	90603-SX0-003	Grommet - COWL TOP	Grommet - COWL TOP
28	90603-S2A-003	Grommet - COWL TOP	Grommet - COWL TOP
29	91501-SL4-003	Clip - FR. COWL	Clip - FR. COWL
30	91502-S84-A11	Clip - SEAL RUBBER (BLACK)	Clip - SEAL RUBBER (BLACK)
31	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
32	91530-ST5-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Ignition coil/plug 4 / 4

#	OEM	ES1	S5A
1	30520-PGK-A01	Coil comp - PLUG HOLE	Coil comp - PLUG HOLE
1	30520-PVJ-A01	Coil comp - PLUG HOLE	Coil comp - PLUG HOLE
2	30522-PFB-007	SEAL, PLUG HOLE	SEAL, PLUG HOLE
3	90207-PG6-010	Nut - CAP, 6MM (BLACK)	Nut - CAP, 6MM (BLACK)

Inner panels/floor panel 1 / 1

#	OEM	ES1	S5A
36	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Instrument panel (RH) 12 / 13

#	OEM	ES1	S5A
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
7	77169-S5A-000	Bracket comp. - FLOOR INSTRUMENT CENTER	Bracket comp. - FLOOR INSTRUMENT CENTER
12	77466-S5A-000	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
13	77550-S5A-300	Frame comp - GLOVE BOX	Frame comp - GLOVE BOX
14	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
16	90106-S5H-000	Bolt-washer - 8X40	Bolt-washer - 8X40
17	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
18	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
19	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
20	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
21	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
22	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; RH) 6 / 8

#	OEM	ES1	S5A
7	77631-S5A-A01	Bush - OUTLET	Bush - OUTLET
10	77637-S9A-003	Seal a - CLOSE	Seal a - CLOSE
11	77638-S9A-003	Seal b - OPEN	Seal b - OPEN
14	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
19	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Instrument panel garnish (PASSENGER SIDE; RH) 20 / 23

#	OEM	ES1	S5A
4	39610-S2H-G01	Knob assy	Knob assy
5	39620-S0X-003	Socket assy	Socket assy
6	39630-S0X-003	Ring assy - TYPE INCLUDING BULB	Ring assy - TYPE INCLUDING BULB
7	66405-S04-010	Stay - GLOVE BOX HINGE	Stay - GLOVE BOX HINGE
8	66417-SB3-670	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
9	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
10	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
14	77255-S5A-000	Bracket comp. - CENTER PANEL	Bracket comp. - CENTER PANEL
18	77541-S5A-000	Striker comp. - GLOVE BOX	Striker comp. - GLOVE BOX
19	77631-S5A-A01	Bush - OUTLET	Bush - OUTLET
21	77637-S9A-003	Seal a - CLOSE	Seal a - CLOSE
22	77638-S9A-003	Seal b - OPEN	Seal b - OPEN
25	77730-S5H-T00	Holder comp - FR. ASHTRAY	Holder comp - FR. ASHTRAY
26	88315-SA5-000	Spring - R.	Spring - R.
27	88325-SA5-000	Spring - L.	Spring - L.
28	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
29	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
30	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
31	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
32	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold 20 / 22

#	OEM	ES1	S5A
1	16176-PLC-003	Packing - THROTTLE BODY (NOK)	Packing - THROTTLE BODY (NOK)
2	16450-PLD-003	Injector assy - FUEL (KEIHIN)	Injector assy - FUEL (KEIHIN)
3	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
5	16625-PLC-000	Stiffener - INJECTOR BASE	Stiffener - INJECTOR BASE
6	16638-PH3-S00	Insulator - FUEL PIPE	Insulator - FUEL PIPE
7	17050-PLC-000	Base, FR. INJECTOR	Base, FR. INJECTOR
8	17055-PLC-004	Gasket - FR. INJECTOR BASE (NIPPON LEAKLESS)	Gasket - FR. INJECTOR BASE (NIPPON LEAKLESS)
9	17100-PLD-000	Manifold comp - INTAKE	Manifold comp - INTAKE
10	17105-PLC-003	Packing - INTAKE MANIFOLD (NOK)	Packing - INTAKE MANIFOLD (NOK)
11	17132-PLC-000	Stay comp - R. INTAKE MANIFOLD	Stay comp - R. INTAKE MANIFOLD
12	17133-PLC-000	Stay comp - L. INTAKE MANIFOLD	Stay comp - L. INTAKE MANIFOLD
13	17134-PLC-000	Plate - INTAKE MANIFOLD STAY	Plate - INTAKE MANIFOLD STAY
14	17201-PLC-000	Stay a - AIR CLEANER	Stay a - AIR CLEANER
15	17202-PLC-000	Stay b - AIR CLEANER	Stay b - AIR CLEANER
16	37830-PGK-A01	Sensor assy, MAP	Sensor assy, MAP
17	37835-PGK-A01	O-ring	O-ring
18	90201-PLC-003	Nut - SPECIAL, 8MM	Nut - SPECIAL, 8MM
20	90634-PLC-000	Cap - SEALING	Cap - SEALING
21	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
22	91302-PLC-000	O-ring - 7.85X3.53	O-ring - 7.85X3.53

Interior light 10 / 12

#	OEM	ES1	S5A
3	34251-S5A-003	Lens	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W	BULB T10X318W
8	34261-S5A-003	Lens comp	Lens comp
9	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
9	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
10	34401-S5A-003	Lens	Lens
11	34402-S5A-003	Lens	Lens
13	90131-S30-003	Screw-washer - ET, 6X16	Screw-washer - ET, 6X16
13	90131-S47-003	Screw - ET, 5X16	Screw - ET, 5X16

Knuckle 9 / 24

#	OEM	ES1	S5A
4	51225-S5A-003	Boot - LOWER BALL DUST	Boot - LOWER BALL DUST
7	51308-S5A-000	Holder - FR. STABILIZER	Holder - FR. STABILIZER
8	51320-S5A-003	RH FR. STABILIZER LINK	RH FR. STABILIZER LINK
9	51321-S5A-003	LH FR. STABILIZER LINK	LH FR. STABILIZER LINK
16	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
17	90118-S5A-000	Bolt - FLANGE, 14X91	Bolt - FLANGE, 14X91
18	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
19	90363-S47-000	Nut - LOWER ARM, 12MM	Nut - LOWER ARM, 12MM
20	90701-SX0-003	Clip - UPPER ARM	Clip - UPPER ARM

Mainshaft 16 / 51

#	OEM	ES1	S5A
1	23211-PLW-A00	Mainshaft	Mainshaft
2	23261-PL3-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
3	23440-PLW-A00	Gear comp - MAINSHAFT THIRD	Gear comp - MAINSHAFT THIRD
4	23450-PLW-A00	Gear comp - MAINSHAFT FOURTH	Gear comp - MAINSHAFT FOURTH
5	23540-PLW-000	Gear - REVERSE IDLE	Gear - REVERSE IDLE
6	23581-PLW-A00	Gear - MAINSHAFT FIFTH	Gear - MAINSHAFT FIFTH
7	23623-PLW-305	Sleeve set - SYNCHRONIZER (3-4)	Sleeve set - SYNCHRONIZER (3-4)
7	23623-PLW-315	Sleeve set	Sleeve set
8	23626-PLW-305	Sleeve set - SYNCHRONIZER (5)	Sleeve set - SYNCHRONIZER (5)
9	23647-PLW-000	Ring - TAPER CONE	Ring - TAPER CONE
10	23915-PHR-010	Collar - DISTANCE, 29X35X52	Collar - DISTANCE, 29X35X52
11	23916-PLW-000	Collar - DISTANCE, 26X35X12	Collar - DISTANCE, 26X35X12
12	23927-PL3-000	Washer - SPRING, 36MM	Washer - SPRING, 36MM
13	23928-PL3-000	Washer - 26MM	Washer - 26MM
14	91004-PLW-B01	Bearing - ANGULAR BALL	Bearing - ANGULAR BALL
15	91105-PHR-003	Bearing - NEEDLE, 35X39X24	Bearing - NEEDLE, 35X39X24

Meter components (NS; 1) 3 / 6

#	OEM	ES1	S5A
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37115-SA0-601	Packing - NS	Packing - NS
7	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Meter components (NS; 2) 2 / 5

#	OEM	ES1	S5A
1	37115-SA0-601	Packing - NS	Packing - NS
5	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Mirror (AUTO TURN) 9 / 11

#	OEM	ES1	S5A
2	76203-S5A-J11	Mirror sub assy. - R. (1400R)	Mirror sub assy. - R. (1400R)
6	76253-S5A-J11	Mirror sub assy. - L. (1400R)	Mirror sub assy. - L. (1400R)
9	76401-S5H-003	Base	Base
10	76409-SX8-T01	Catch	Catch
11	76410-SX8-T01	Screw - PAN, 6X8	Screw - PAN, 6X8
15	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)	Screw - TAPPING, 4X16 (TRUSS)
16	90144-S04-006	Screw - TAPPING PAN, 3X14	Screw - TAPPING PAN, 3X14
17	90145-S04-006	Screw - 3X16	Screw - 3X16
18	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH

Mirror (BREAK AWAY; ELECTRIC REMOTE CONTROL) 10 / 11

#	OEM	ES1	S5A
3	76210-S5A-J11	Actuator comp. - R.	Actuator comp. - R.
6	76253-S5A-J11	Mirror sub assy. - L. (1400R)	Mirror sub assy. - L. (1400R)
7	76260-S5A-J11	Actuator comp. - L.	Actuator comp. - L.
9	76401-S5H-003	Base	Base
10	76409-SX8-T01	Catch	Catch
11	76410-SX8-T01	Screw - PAN, 6X8	Screw - PAN, 6X8
15	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)	Screw - TAPPING, 4X16 (TRUSS)
16	90144-S04-006	Screw - TAPPING PAN, 3X14	Screw - TAPPING PAN, 3X14
17	90145-S04-006	Screw - 3X16	Screw - 3X16
18	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH

Molding 14 / 14

#	OEM	ES1	S5A
1	72410-S5A-A01	Molding assy. - R. FR. DOOR	Molding assy. - R. FR. DOOR
2	72420-S5A-A01	Molding assy. - R. DRIP ROOF	Molding assy. - R. DRIP ROOF
4	72450-S5A-A01	Molding assy. - L. FR. DOOR	Molding assy. - L. FR. DOOR
5	72460-S5A-A01	Molding assy. - L. DRIP ROOF	Molding assy. - L. DRIP ROOF
7	72910-S5A-A01	Molding assy. - R. RR. DOOR	Molding assy. - R. RR. DOOR
9	72950-S5A-A01	Molding assy. - L. RR. DOOR	Molding assy. - L. RR. DOOR
11	73821-S84-A01	Clip A	Clip A
12	74306-S5A-J01	Molding assy. - R. ROOF	Molding assy. - R. ROOF
13	74316-S5A-J01	Molding assy. - L. ROOF	Molding assy. - L. ROOF
14	90142-S04-000	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
15	91501-S5A-003	Clip - DOOR MOLDING	Clip - DOOR MOLDING
16	91502-S5A-003	Clip - DOOR MOLDING END	Clip - DOOR MOLDING END
17	91503-S5A-003	Clip - RR. DOOR MOLDING END	Clip - RR. DOOR MOLDING END
18	91528-SR4-003	Clip - DRIP MOLDING	Clip - DRIP MOLDING

Oil pump/oil strainer 21 / 23

#	OEM	ES1	S5A
1	15100-PLC-003	Pump assy. - OIL (YAMADA)	Pump assy. - OIL (YAMADA)
1	15100-PLE-005	Pump assy. - OIL (AISIN)	Pump assy. - OIL (AISIN)
2	15220-PLC-000	Strainer comp. - OIL	Strainer comp. - OIL
3	15221-PZ1-000	Packing - OIL STRAINER	Packing - OIL STRAINER
4	15231-PM3-000	Valve - RELIEF	Valve - RELIEF
5	15232-PM3-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
6	15233-P2A-003	Bolt - SEALING, 14MM (YAMADA)	Bolt - SEALING, 14MM (YAMADA)
7	15302-PE0-300	Washer - SEALING, 14MM	Washer - SEALING, 14MM
8	15400-PLC-003	Cartridge - OIL FILTER (TENNEX)	Cartridge - OIL FILTER (TENNEX)
8	15400-PLM-A01	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
8	15400-PLC-004	Cartridge, OIL FILTER (TOYO ROKI)	Cartridge, OIL FILTER (TOYO ROKI)
8	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
9	37500-PLC-015	CRANK SENSOR ASSY	CRANK SENSOR ASSY
10	37509-PLC-015	Grommet - CRANK SENSOR	Grommet - CRANK SENSOR
11	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
12	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
13	91212-PLC-004	Oil seal - 38X50X7 (ARAI)	Oil seal - 38X50X7 (ARAI)
13	91212-PLC-003	Oil seal - 38X50X7 (NOK)	Oil seal - 38X50X7 (NOK)
13	91212-PLM-A01	Oil seal - 38X50X7 (ARAI)	Oil seal - 38X50X7 (ARAI)
14	91308-PK1-003	O-ring - 26.2X2.4 (NOK)	O-ring - 26.2X2.4 (NOK)
14	91308-P3R-T01	O-ring - 26.2X2.4 (YAMADA SOMBOON)	O-ring - 26.2X2.4 (YAMADA SOMBOON)

Outer panels 4 / 4

#	OEM	ES1	S5A
17	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
18	74494-S84-A01	Spring - FUEL LID OPEN	Spring - FUEL LID OPEN
19	75450-S04-000	Outlet assy - RR. AIR	Outlet assy - RR. AIR
20	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

P.s. gear box (HPS; RH) 12 / 26

#	OEM	ES1	S5A
1	53434-S5A-Q01	Bracket b - STEERING GEAR BOX	Bracket b - STEERING GEAR BOX
3	53438-S5H-T00	Bracket - L. GEAR BOX	Bracket - L. GEAR BOX
4	53501-S5D-A00	Grommet - STEERING	Grommet - STEERING
5	53521-S5A-003	Rod sub assy. - TIE (###)	Rod sub assy. - TIE (###)
6	53536-S5A-900	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
7	53541-S5A-000	Rod assy - TIE	Rod assy - TIE
8	53541-S5A-003	End comp - TIE ROD	End comp - TIE ROD
9	53546-S84-003	Boot - TIE ROD END (NOK)	Boot - TIE ROD END (NOK)
13	53685-S5A-000	Bush - STEERING GEAR BOX MOUNTING (A)	Bush - STEERING GEAR BOX MOUNTING (A)
15	53686-S5A-901	Collar - STEERING GEAR BOX MOUNTING (B)	Collar - STEERING GEAR BOX MOUNTING (B)
19	90301-S5A-003	Nut - HEX.	Nut - HEX.
24	90801-S5A-000	BOLT, FLANGE, 8X25	BOLT, FLANGE, 8X25

P.s. gear box components (HPS; RH) 29 / 41

#	OEM	ES1	S5A
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	06536-S5A-H01	Boot set	Boot set
6	06537-S5A-H01	Boot set b	Boot set b
7	06538-S5A-H01	Slider	Slider
8	53413-S04-G51	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
9	53414-S04-003	Screw - RACK GUIDE	Screw - RACK GUIDE
10	53416-S5A-003	Guide - STEERING RACK	Guide - STEERING RACK
11	53434-S5A-003	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
13	53447-S5A-003	Band c - BELLOWS	Band c - BELLOWS
14	53448-S5A-003	Band b - BELLOWS	Band b - BELLOWS
15	53449-S5A-003	Band - BELLOWS	Band - BELLOWS
16	53455-S5A-003	Ring b - STOPPER	Ring b - STOPPER
17	53456-S5H-003	Plug - RACK END	Plug - RACK END
18	53457-S5A-003	Lock - SCREW	Lock - SCREW
19	53458-S50-003	Nut - LOCK	Nut - LOCK
20	53535-S5A-003	Washer - LOCK	Washer - LOCK
21	53604-S5A-003	Bracket	Bracket
27	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)	Oil seal - 27X38X5.5 (SHOWA)
28	53661-S50-003	Washer - WAVE (SHOWA)	Washer - WAVE (SHOWA)
29	53662-S5A-003	O-ring - 11.5X1.5	O-ring - 11.5X1.5
30	53663-S5A-003	Ring - BACK UP	Ring - BACK UP
31	53664-S5A-003	Circlip - INTERNAL (42)	Circlip - INTERNAL (42)
32	53666-S50-003	O-ring - 41.5X2 (SHOWA)	O-ring - 41.5X2 (SHOWA)
33	53670-S5A-H01	Pipe comp. a - CYLINDER	Pipe comp. a - CYLINDER
34	53671-S5A-H01	Pipe comp. b - CYLINDER	Pipe comp. b - CYLINDER
35	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28
36	90455-S5A-003	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
38	90601-S50-003	Circlip - EXTERNAL, 20MM	Circlip - EXTERNAL, 20MM

P.s. lines (RH) 19 / 23

#	OEM	ES1	S5A
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
2	53701-S5D-A02	Tank comp. - POWER STEERING OIL	Tank comp. - POWER STEERING OIL
3	53711-S5D-A02	Bracket - POWER STEERING OIL TANK	Bracket - POWER STEERING OIL TANK
5	53720-S5A-Q00	Pipe comp - RETURN	Pipe comp - RETURN
6	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
8	53731-S5D-A01	Tube - POWER STEERING SUCTION	Tube - POWER STEERING SUCTION
9	53732-S5A-Q02	Hose comp. - POWER STEERING RETURN	Hose comp. - POWER STEERING RETURN
11	53745-S5A-Q01	Stay - FEED HOSE	Stay - FEED HOSE
12	53746-S5D-A00	Stay assy - RETURN HOSE	Stay assy - RETURN HOSE
13	53747-S5D-A00	Clamp - RETURN HOSE	Clamp - RETURN HOSE
14	53774-S5D-A01	Clamp - FEED HOSE	Clamp - FEED HOSE
16	79746-SL4-003	Clamp - HEATER HOSE	Clamp - HEATER HOSE
17	90106-S5D-A00	Bolt - FEED HOSE CLAMP	Bolt - FEED HOSE CLAMP
18	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
18	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
19	91304-PA6-003	O-ring - 7.8X1.9	O-ring - 7.8X1.9
20	91370-SV4-000	O-ring - 14.4X1.9	O-ring - 14.4X1.9
21	91405-PE0-003	Clamp - TUBE (D20)	Clamp - TUBE (D20)
21	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

Parking brake (1) 10 / 10

#	OEM	ES1	S5A
2	47342-SV4-003	Switch - HAND BRAKE	Switch - HAND BRAKE
3	47360-SX8-T00	Equalizer	Equalizer
4	47365-SX8-T00	Pin - PARKING BRAKE EQUALIZER	Pin - PARKING BRAKE EQUALIZER
5	47510-S5A-J04	Wire b - R. PARKING BRAKE	Wire b - R. PARKING BRAKE
7	47522-SX8-T00	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
8	47537-SX8-T01	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
9	47560-S5A-J04	Wire b - L. PARKING BRAKE	Wire b - L. PARKING BRAKE
11	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE
12	90105-S5A-000	Bolt - FLANGE, 8MM	Bolt - FLANGE, 8MM
13	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Pedal (RH) 20 / 26

#	OEM	ES1	S5A
1	17800-S5A-003	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
2	17818-S5A-003	Stopper - ACCELERATOR STROKE	Stopper - ACCELERATOR STROKE
4	17882-PLM-A00	Stay b - ACTUATOR WIRE	Stay b - ACTUATOR WIRE
6	17910-S5H-T01	Wire - THROTTLE	Wire - THROTTLE
7	17930-S5A-000	Clamp - THROTTLE WIRE	Clamp - THROTTLE WIRE
11	35350-S5A-J01	Switch assy - STOP (MATSUSHITA)	Switch assy - STOP (MATSUSHITA)
12	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
13	46505-SA7-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
14	46530-S5A-003	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
15	46545-SA5-000	Cover, Pedal	Cover, Pedal
18	46900-S5A-T01	Pedal assy - CLUTCH	Pedal assy - CLUTCH
19	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
20	46907-S5A-003	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
21	46911-S5A-003	Bush - PEDAL PIN	Bush - PEDAL PIN
22	46981-SD4-930	Bush a - CLUTCH ASSISTANT	Bush a - CLUTCH ASSISTANT
23	46982-SD4-930	Bush b - CLUTCH ASSISTANT	Bush b - CLUTCH ASSISTANT
24	46991-S5A-000	Bracket comp. - FOOTREST	Bracket comp. - FOOTREST
25	46992-SV4-003	Clip - FOOTREST	Clip - FOOTREST
26	46992-S5H-000	Plate - FOOTREST BRACKET	Plate - FOOTREST BRACKET
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Pillar garnish 4 / 4

#	OEM	ES1	S5A
10	84122-S5A-000	Protector - R. CENTER PILLAR LOWER	Protector - R. CENTER PILLAR LOWER
15	84172-S5A-000	Protector - L. CENTER PILLAR LOWER	Protector - L. CENTER PILLAR LOWER
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
20	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Piston/crankshaft 18 / 36

#	OEM	ES1	S5A
3	13112-PE0-000	Pin - PISTON	Pin - PISTON
4	13204-PE1-003	Bolt	Bolt
5	13205-634-010	Nut	Nut
6	13210-PLM-A00	Rod comp - CONNECTING	Rod comp - CONNECTING
8	13310-PLM-A00	Crankshaft	Crankshaft
9	13325-P2E-003	Bearing e - MAIN (YELLOW) (DAIDO)	Bearing e - MAIN (YELLOW) (DAIDO)
9	13323-P2E-003	Bearing c - MAIN (BROWN) (DAIDO)	Bearing c - MAIN (BROWN) (DAIDO)
9	13326-P2E-003	Bearing f - MAIN (PINK) (DAIDO)	Bearing f - MAIN (PINK) (DAIDO)
9	13321-P2E-003	BEARING A - MAIN (BLUE) (DAIDO)	BEARING A - MAIN (BLUE) (DAIDO)
9	13324-P2E-003	Bearing d - MAIN (GREEN) (DAIDO)	Bearing d - MAIN (GREEN) (DAIDO)
9	13327-P2E-003	Bearing g - MAIN (RED) (DAIDO)	Bearing g - MAIN (RED) (DAIDO)
9	13322-P2E-003	Bearing b - MAIN (BLACK) (DAIDO)	Bearing b - MAIN (BLACK) (DAIDO)
10	13331-PLM-003	Washer - THRUST (DAIDO)	Washer - THRUST (DAIDO)
11	13621-PLD-013	Pulley - TIMING BELT DRIVE	Pulley - TIMING BELT DRIVE
12	13622-PLC-000	Plate - TIMING BELT GUIDE	Plate - TIMING BELT GUIDE
13	13810-PLM-A01	Pulley - CRANKSHAFT	Pulley - CRANKSHAFT
14	90017-PLC-003	Bolt-washer - 14X36	Bolt-washer - 14X36
15	90704-634-000	Key - 4.5X11.0	Key - 4.5X11.0

Power steering pump /bracket 28 / 31

#	OEM	ES1	S5A
1	32746-PLM-A00	Clamp f - ENGINE HARNESS	Clamp f - ENGINE HARNESS
3	56123-PLA-003	Joint - IN.	Joint - IN.
4	56141-PLA-003	Shaft - POWER STEERING PUMP DRIVE	Shaft - POWER STEERING PUMP DRIVE
5	56483-PLA-003	Pulley comp - POWER STEERING PUMP	Pulley comp - POWER STEERING PUMP
5	56483-PLA-A01	Pulley - POWER STEERING PUMP	Pulley - POWER STEERING PUMP
6	56992-PLM-004	Belt - POWER STEERING PUMP (MITSUBOSHI)	Belt - POWER STEERING PUMP (MITSUBOSHI)
7	56995-P0A-000	Bolt - POWER STEERING PUMP ADJUSTING	Bolt - POWER STEERING PUMP ADJUSTING
8	56996-PLR-A00	Bolt - SPECIAL, 8X50	Bolt - SPECIAL, 8X50
9	56996-P01-000	Bolt - POWER STEERING PUMP ADJUSTING WING	Bolt - POWER STEERING PUMP ADJUSTING WING
10	56997-PLR-A00	Bracket - POWER STEERING PUMP	Bracket - POWER STEERING PUMP
11	56998-P0A-000	Stay - POWER STEERING PUMP ADJUSTER	Stay - POWER STEERING PUMP ADJUSTER
12	56999-PLR-A00	Insulator - POWER STEERING PUMP BRACKET	Insulator - POWER STEERING PUMP BRACKET
13	90202-P0A-A01	Nut-washer - 8MM	Nut-washer - 8MM
14	90305-PAA-A01	Nut - POWER STEERING PULLEY	Nut - POWER STEERING PULLEY
15	90693-P2A-003	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
15	90693-PAA-A01	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
16	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12	Bearing - RADIAL BALL, 17X40X12
17	91249-PLA-003	Seal - POWER STEERING PUMP	Seal - POWER STEERING PUMP
18	91343-PLA-003	Seal - RUBBER	Seal - RUBBER
19	91344-PLA-003	Seal	Seal
20	91345-PAA-A01	O-ring - 13.0X1.9	O-ring - 13.0X1.9
20	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9
21	91346-PLA-003	O-ring - 23.8X2.4	O-ring - 23.8X2.4
22	91347-PAA-A01	O-ring - 16.7X1.8	O-ring - 16.7X1.8
23	91347-PLA-003	O-ring - 12.7X1.8	O-ring - 12.7X1.8
24	91348-P2A-003	O-ring - 51.0X2.4	O-ring - 51.0X2.4
26	91350-PLA-003	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
27	91350-P8C-A01	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20

Protector 1 / 3

#	OEM	ES1	S5A
15	91503-SZ3-003	Clip A	Clip A

R. side cover 1 / 40

#	OEM	ES1	S5A
37	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)

Radiator (DENSO) 12 / 13

#	OEM	ES1	S5A
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
4	19015-PMM-A01	Shroud comp - DENSO	Shroud comp - DENSO
5	19020-PLC-003	Fan - COOLING (DENSO)	Fan - COOLING (DENSO)
6	19030-PLC-003	Motor - COOLING FAN (DENSO)	Motor - COOLING FAN (DENSO)
6	19030-PAA-A01	Motor - COOLING FAN (DENSO)	Motor - COOLING FAN (DENSO)
8	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
9	19046-PAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	19047-PLC-003	Cover - RADIATOR CAP (DENSO)	Cover - RADIATOR CAP (DENSO)
12	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator (RADICON) 1 / 14

#	OEM	ES1	S5A
9	19046-PAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP

Radiator hose/reserve tan k 11 / 22

#	OEM	ES1	S5A
1	17163-PH7-300	Collar - MANIFOLD COVER MOUNTING	Collar - MANIFOLD COVER MOUNTING
2	19101-PLC-000	Tank - RESERVE	Tank - RESERVE
3	19103-PLC-000	Hose a - RESERVE TANK	Hose a - RESERVE TANK
4	19104-PLC-000	Hose comp. - RESERVE TANK	Hose comp. - RESERVE TANK
5	19105-PLC-000	Joint	Joint
7	19109-PH1-620	Cap - FILLER	Cap - FILLER
10	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)	Clip - WATER HOSE (CHUO SPRING)
10	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)	Clip - WATER HOSE(CHUO SPRING)
16	74171-S5A-000	Bracket - RADIATOR MOUNT UPPER	Bracket - RADIATOR MOUNT UPPER
17	74172-S5A-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
18	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Rear brake (DISK) 45 / 46

#	OEM	ES1	S5A
1	01473-SV4-000	Caliper set - RR.	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER	SET RR CALIPER
2	06430-S5A-J00	Pad set - RR. (WITHOUT SHIM) (###)	Pad set - RR. (WITHOUT SHIM) (###)
3	06435-S2A-000	Shim set - RR.	Shim set - RR.
4	42200-S5A-J01	Bearing assy - RR. HUB UNIT	Bearing assy - RR. HUB UNIT
5	42326-S5A-000	Cap - HUB UNIT	Cap - HUB UNIT
5	42326-SLA-000	Cap - HUB UNIT	Cap - HUB UNIT
6	42510-S5A-000	Disk - RR. BRAKE	Disk - RR. BRAKE
7	43018-S5A-J02	Caliper sub assy. R. RR.	Caliper sub assy. R. RR.
8	43019-S5A-J02	Caliper sub assy. L. RR.	Caliper sub assy. L. RR.
9	43022-S5A-J00	Pad set - RR.	Pad set - RR.
9	43022-S5A-J02	SETPAD RR 9CLP	SETPAD RR 9CLP
10	43215-SM4-951	Piston assy.	Piston assy.
11	43223-SD2-932	BEARING A	BEARING A
12	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
13	43227-SG0-013	Spring - PAD	Spring - PAD
14	43228-SD2-933	Shaft a	Shaft a
15	43229-SD2-931	Rod	Rod
16	43233-S5A-J01	Piston comp - SLEEVE	Piston comp - SLEEVE
16	43233-TR0-A01	Piston, sleeve	Piston, sleeve
17	43235-S84-A51	Pin a	Pin a
18	43236-S04-003	Spacer	Spacer
19	43238-SF1-003	Ring - RETAINING	Ring - RETAINING
20	43241-S5A-003	Guide - SPRING	Guide - SPRING
21	43243-SD2-931	Nut - PARKING	Nut - PARKING
22	43244-SG0-003	Retainer	Retainer
23	43245-S5A-J01	Lever - R.	Lever - R.
24	43246-SD2-931	Spring - R. RETURN	Spring - R. RETURN
25	43247-S5A-J01	Arm - R.	Arm - R.
26	43248-SD2-933	Shaft b	Shaft b
27	43249-S04-003	Bolt - ADJUSTER	Bolt - ADJUSTER
28	43253-S5A-950	Guard - R. RR. SPLASH	Guard - R. RR. SPLASH
29	43254-S5A-950	Guard - L. RR. SPLASH	Guard - L. RR. SPLASH
30	43262-S84-A51	Pin b	Pin b
31	43265-S5A-J01	Lever - L.	Lever - L.
32	43266-SD2-931	Spring - L. RETURN	Spring - L. RETURN
33	43267-S5A-J01	Arm - L.	Arm - L.
34	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
35	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
36	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
37	90103-SN7-003	Bolt - FLANGE, 10X25	Bolt - FLANGE, 10X25
38	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
38	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
38	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
39	90305-S30-003	Nut - SPINDLE	Nut - SPINDLE

Rear door lining 4 / 4

#	OEM	ES1	S5A
3	72835-S5A-003	Weatherstrip - RR. DOOR INNER	Weatherstrip - RR. DOOR INNER
14	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
15	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
16	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear door locks 24 / 32

#	OEM	ES1	S5A
1	72119-SM1-003	Stopper a - OUTSIDE HANDLE	Stopper a - OUTSIDE HANDLE
3	72135-S5A-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
5	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
5	72139-S0A-003	Snap - PINK	Snap - PINK
7	72141-S5A-003	Packing	Packing
8	72149-SR4-000	Snap - R.	Snap - R.
9	72175-SH3-901	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
10	72189-SR4-000	Snap - L.	Snap - L.
11	72610-S5A-A11	Lock assy - R. RR. DOOR (POWER)	Lock assy - R. RR. DOOR (POWER)
12	72612-S84-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
16	72630-S0A-003	Crank assy - LOCK ROD	Crank assy - LOCK ROD
17	72631-S5A-003	Rod - R. RR. INSIDE HANDLE	Rod - R. RR. INSIDE HANDLE
18	72632-S5A-003	Rod - R. RR. INSIDE LOCK	Rod - R. RR. INSIDE LOCK
19	72633-S5A-003	Rod - RR. DOOR LOCK KNOB	Rod - RR. DOOR LOCK KNOB
20	72634-S5A-003	Rod - RR. DOOR ACTUATOR	Rod - RR. DOOR ACTUATOR
24	72650-S5A-A11	Lock assy - L. RR. DOOR (POWER)	Lock assy - L. RR. DOOR (POWER)
25	72652-S84-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
29	72671-S5A-003	Rod - L. RR. INSIDE HANDLE	Rod - L. RR. INSIDE HANDLE
30	72672-S5A-003	Rod - L. RR. INSIDE LOCK	Rod - L. RR. INSIDE LOCK
34	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
35	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
36	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
37	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
38	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER

Rear door panels 16 / 18

#	OEM	ES1	S5A
11	72810-S5A-003	Weatherstrip - R. RR. DOOR	Weatherstrip - R. RR. DOOR
12	72821-S5H-T00	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
13	72825-S5A-003	Sub seal - R. RR. DOOR	Sub seal - R. RR. DOOR
14	72840-S5H-T01	Checker comp. - R. RR. DOOR	Checker comp. - R. RR. DOOR
15	72850-S5A-003	Weatherstrip - L. RR. DOOR	Weatherstrip - L. RR. DOOR
16	72861-S5H-T00	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
17	72865-S5A-003	Sub seal - L. RR. DOOR	Sub seal - L. RR. DOOR
18	72880-S5H-T01	Checker comp. - L. RR. DOOR	Checker comp. - L. RR. DOOR
19	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
21	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
22	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
23	90651-S4N-003	Clip	Clip
24	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL
25	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
25	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Rear door windows 14 / 18

#	OEM	ES1	S5A
1	72710-S5A-J03	Regulator assy - R. RR. DOOR POWER	Regulator assy - R. RR. DOOR POWER
2	72731-S5A-003	Sash - R. RR. DOOR CENTER	Sash - R. RR. DOOR CENTER
3	72735-S5H-T01	Runchannel - R. RR. DOOR	Runchannel - R. RR. DOOR
4	72737-SR4-000	Collar a - RR. DOOR PANEL LOWER	Collar a - RR. DOOR PANEL LOWER
5	72750-S5A-J03	Regulator assy - L. RR. DOOR POWER	Regulator assy - L. RR. DOOR POWER
6	72771-S5A-003	Sash - L. RR. DOOR CENTER	Sash - L. RR. DOOR CENTER
7	72775-S5H-T01	Runchannel - L. RR. DOOR	Runchannel - L. RR. DOOR
8	73400-S5H-T00	Glass assy - R. RR. DOOR (GREEN) (ASAHI)	Glass assy - R. RR. DOOR (GREEN) (ASAHI)
9	73405-S5H-T00	Glass - R. RR. DOOR QUARTER (GREEN) (ASAHI)	Glass - R. RR. DOOR QUARTER (GREEN) (ASAHI)
10	73441-S5A-003	Seal - R. RR. DOOR QUARTER	Seal - R. RR. DOOR QUARTER
11	73450-S5H-T00	Glass assy - L. RR. DOOR (GREEN) (ASAHI)	Glass assy - L. RR. DOOR (GREEN) (ASAHI)
12	73455-S5H-T00	Glass - L. RR. DOOR QUARTER (GREEN) (ASAHI)	Glass - L. RR. DOOR QUARTER (GREEN) (ASAHI)
13	73491-S5A-003	Seal - L. RR. DOOR QUARTER	Seal - L. RR. DOOR QUARTER
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Rear lower arm 18 / 30

#	OEM	ES1	S5A
4	52300-S5A-013	Spring - RR. STABILIZER	Spring - RR. STABILIZER
6	52308-S5A-000	Holder - R. RR. STABILIZER BUSH	Holder - R. RR. STABILIZER BUSH
7	52309-S5A-000	Holder - L. RR. STABILIZER BUSH	Holder - L. RR. STABILIZER BUSH
8	52320-S5A-013	RH. RR. STABILIZER Link comp	RH. RR. STABILIZER Link comp
9	52321-S5A-013	LH RR. STABILIZER Link comp	LH RR. STABILIZER Link comp
10	52352-S5A-A01	Protector - RR. LOWER ARM	Protector - RR. LOWER ARM
11	52364-S6M-004	BUSH, REAR LOWER ARM INNER	BUSH, REAR LOWER ARM INNER
16	52387-S5A-000	Bolt - TRAILING ARM ADJUST	Bolt - TRAILING ARM ADJUST
17	52388-S5A-003	Plate - CAM	Plate - CAM
19	52395-S5A-004	Bush - RR. UPPER ARM	Bush - RR. UPPER ARM
22	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
23	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
24	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)	Nut - LOCK FLANGE(CLINCH)
25	90396-S5A-000	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
26	90397-S5A-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
26	90186-SR3-000	Bolt - FLANGE, 12X48	Bolt - FLANGE, 12X48
27	90398-S5A-000	Bolt - FLANGE, 12X81.5	Bolt - FLANGE, 12X81.5
28	90399-S5A-000	Bolt - FLANGE, 12X73	Bolt - FLANGE, 12X73

Rear seat (1) 6 / 7

#	OEM	ES1	S5A
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
6	82127-SM4-J01	Collar - RR. SEATBACK SETTING (A) (TS TECH)	Collar - RR. SEATBACK SETTING (A) (TS TECH)
8	82132-S5H-T31	Pad & frame comp. - RR. SEAT CUSHION	Pad & frame comp. - RR. SEAT CUSHION
9	82137-S5A-003	Clip - RR. SEAT CUSHION	Clip - RR. SEAT CUSHION
14	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25

Rear seat (2) 5 / 21

#	OEM	ES1	S5A
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
10	82132-S5H-T31	Pad & frame comp. - RR. SEAT CUSHION	Pad & frame comp. - RR. SEAT CUSHION
11	82137-S5A-003	Clip - RR. SEAT CUSHION	Clip - RR. SEAT CUSHION
28	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25

Rear shock absorber 14 / 22

#	OEM	ES1	S5A
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
2	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
7	52622-S5A-004	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
8	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING	Rubber - SHOCK ABSORBER MOUNTING
9	52675-S5H-T01	Base - RR. SHOCK ABSORBER MOUNTING	Base - RR. SHOCK ABSORBER MOUNTING
9	52675-S9E-T01	Base - RR. SHOCK ABSORBER MOUNTING	Base - RR. SHOCK ABSORBER MOUNTING
11	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT	Plate - SHOCK ABSORBER MOUNT
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
13	52687-S5A-014	Cover - RR. DUST	Cover - RR. DUST
14	52689-S5H-T01	Cover - RR. BUMP STOP	Cover - RR. BUMP STOP
15	52690-S5A-004	Plate - BUMP STOP	Plate - BUMP STOP
16	52722-S5A-004	Rubber - BUMP STOPPER	Rubber - BUMP STOPPER
17	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/trunk lining 10 / 10

#	OEM	ES1	S5A
1	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
2	33513-S50-003	Socket - T20W S2	Socket - T20W S2
3	34271-S5A-A01	Lamp unit	Lamp unit
8	84521-S5H-T00	Lid comp - SPARE TIRE (NORMAL TIRE)	Lid comp - SPARE TIRE (NORMAL TIRE)
9	84522-S5H-T00	Spacer - R. TRUNK FLOOR	Spacer - R. TRUNK FLOOR
10	84523-S5H-T00	Spacer - CENTER TRUNK FLOOR	Spacer - CENTER TRUNK FLOOR
12	84572-S5H-T00	Spacer - L. TRUNK FLOOR	Spacer - L. TRUNK FLOOR
17	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
18	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear windshield 10 / 14

#	OEM	ES1	S5A
2	73211-S5H-T10	Glass set - RR. WINDSHIELD (GREEN)	Glass set - RR. WINDSHIELD (GREEN)
4	73223-S5A-900	Cover - TERMINAL	Cover - TERMINAL
5	73224-S5A-900	Base - TERMINAL COVER	Base - TERMINAL COVER
6	73251-S5H-T00	Molding - RR. WINDSHIELD UPPER	Molding - RR. WINDSHIELD UPPER
7	73252-S5H-T00	Molding - RR. WINDSHIELD SIDE	Molding - RR. WINDSHIELD SIDE
8	73253-S5H-T00	Molding - RR. WINDSHIELD LOWER	Molding - RR. WINDSHIELD LOWER
11	91563-SV4-003	Fastener a - RR. WINDSHIELD	Fastener a - RR. WINDSHIELD
12	91568-SV4-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD
13	91568-SX0-003	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
14	91569-SZ3-013	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD

Resonator chamber 14 / 18

#	OEM	ES1	S5A
1	17212-PLC-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
5	17230-PLC-000	Chamber assy - RESONATOR	Chamber assy - RESONATOR
7	17232-PLC-000	Stay b - AIR INTAKE TUBE	Stay b - AIR INTAKE TUBE
8	17234-PLC-300	Cover comp. - RESONATOR STAY	Cover comp. - RESONATOR STAY
10	17243-PLC-000	Tube assy. b - AIR INTAKE	Tube assy. b - AIR INTAKE
11	17244-PLC-000	Tube - AIR INTAKE CONNECTING	Tube - AIR INTAKE CONNECTING
13	17256-PD6-000	Rubber - RESONATOR MOUNTING	Rubber - RESONATOR MOUNTING
15	32744-PLC-000	Stay d - ENGINE HARNESS	Stay d - ENGINE HARNESS
17	75353-671-000	Lock - SCREW	Lock - SCREW
18	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
19	90006-PN4-000	Bolt-washer - SPECIAL, 6X25	Bolt-washer - SPECIAL, 6X25

Roof lining 6 / 6

#	OEM	ES1	S5A
10	83241-S5A-000	Bracket - GRAB RAIL	Bracket - GRAB RAIL
16	90137-S30-003	Screw - ET, 6X18	Screw - ET, 6X18
16	90136-S30-003	Screw - ET, 5X18	Screw - ET, 5X18
17	90137-S0A-003	Screw - ET, 6X28	Screw - ET, 6X28
17	90136-S7A-003	Screw - ET, 5X20	Screw - ET, 5X20
18	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Seatbelts 5 / 6

#	OEM	ES1	S5A
6	81491-S5A-000	Protector - R. FR. SEATBELT	Protector - R. FR. SEATBELT
10	81891-S5A-000	Protector - L. FR. SEATBELT	Protector - L. FR. SEATBELT
17	90101-S84-A00	Screw - ET, 6X16	Screw - ET, 6X16
17	90133-SZ4-003	Screw - ET, 7X16	Screw - ET, 7X16
18	90135-S1F-003	Bolt - FLANGE, 7/16"	Bolt - FLANGE, 7/16"

Select lever 2 / 14

#	OEM	ES1	S5A
1	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
16	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Shift arm/shift lever 11 / 16

#	OEM	ES1	S5A
1	21396-P20-000	Cap - BREATHER	Cap - BREATHER
3	24411-PLW-000	Arm - SHIFT	Arm - SHIFT
4	24430-PLW-000	Interlock comp.	Interlock comp.
6	24464-PLW-000	Spring - SELECT	Spring - SELECT
7	24466-PHR-000	Collar - SELECT SPRING	Collar - SELECT SPRING
8	24467-PLW-000	Plate - SELECT SPRING	Plate - SELECT SPRING
12	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
13	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
14	91209-PE9-005	Dust seal - 16X23X5(NOK)	Dust seal - 16X23X5(NOK)
14	91209-PE9-003	Dust seal - 16X23X5(ARAI)	Dust seal - 16X23X5(ARAI)
15	91215-PHR-003	Oil seal - 18X30X7(NOK)	Oil seal - 18X30X7(NOK)

Shift fork/shift holder 9 / 9

#	OEM	ES1	S5A
1	24201-PLW-000	Fork comp - FIFTH SHIFT	Fork comp - FIFTH SHIFT
2	24210-PLW-000	Fork comp - GEARSHIFT (3-4)	Fork comp - GEARSHIFT (3-4)
3	24220-PLW-000	Fork comp - GEARSHIFT (1-2)	Fork comp - GEARSHIFT (1-2)
4	24230-PLW-010	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
5	24243-PLW-000	Piece - FIFTH & REVERSE SHIFT	Piece - FIFTH & REVERSE SHIFT
6	24440-PLW-000	Cam comp - REVERSE LOCK	Cam comp - REVERSE LOCK
7	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
8	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
9	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Shift lever 12 / 12

#	OEM	ES1	S5A
1	54100-S5A-003	Lever sub assy. - CHANGE	Lever sub assy. - CHANGE
3	54116-SV4-000	Pin - LINKAGE	Pin - LINKAGE
4	54117-S30-003	Rubber - FLOATING	Rubber - FLOATING
5	54118-SC2-000	Washer assy. - WIRE	Washer assy. - WIRE
6	54119-S30-003	Collar - FLOATING	Collar - FLOATING
7	54310-S5A-033	Wire comp - CHANGE	Wire comp - CHANGE
8	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
10	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)	Washer a - SHIFT WIRE(1.6MM)
11	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)	Washer b - SHIFT WIRE (0.5MM)
12	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)	Washer a - SELECT WIRE (1.6MM)
13	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)	Washer b - SELECT WIRE (0.5MM)

Srs unit (RH) 1 / 7

#	OEM	ES1	S5A
6	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20

Starter motor (MITSUBISHI) 12 / 16

#	OEM	ES1	S5A
2	31201-P00-K01	Rotor comp	Rotor comp
4	31203-P00-K01	Holder comp - BRUSH	Holder comp - BRUSH
5	31204-P00-K01	Spring - BRUSH	Spring - BRUSH
6	31205-P00-K01	Screw set - FLANGE	Screw set - FLANGE
7	31211-P00-K01	Clutch - OVERRUNNING	Clutch - OVERRUNNING
8	31215-P00-K01	Brush - +	Brush - +
9	31216-P00-K01	Brush - -	Brush - -
10	31217-P00-K01	Stopper set	Stopper set
12	31231-P00-K01	Lever set	Lever set
13	31243-P00-K01	Bolt a - THROUGH	Bolt a - THROUGH
14	31244-P00-K01	Bolt b - THROUGH	Bolt b - THROUGH
15	31271-P00-K01	Washer set	Washer set

Steering column 5 / 5

#	OEM	ES1	S5A
1	53200-S5A-023	Column assy - STEERING	Column assy - STEERING
2	53323-S5A-003	Joint comp. b - STEERING	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 9 / 9

#	OEM	ES1	S5A
3	78502-S5A-N61	Plate comp - HORN	Plate comp - HORN
7	78521-S5A-E61	Cover - HORN PLATE	Cover - HORN PLATE
8	78522-SZ3-A51	Spacer	Spacer
9	78522-S3A-N81	Washer	Washer
10	78523-SZ3-A51	Spring - COIL	Spring - COIL
11	78523-SZ3-003	Spring - COIL	Spring - COIL
12	78524-S3Y-N81	Screw - SLIDE	Screw - SLIDE
13	90134-S04-A81	Bolt - HEX., 6X12	Bolt - HEX., 6X12
14	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch (RH) 1 / 1

#	OEM	ES1	S5A
5	35871-S3N-901	Bulb - NEO WEDGE (14V 60MA) (TOYO)	Bulb - NEO WEDGE (14V 60MA) (TOYO)

Taillight/license light 16 / 23

#	OEM	ES1	S5A
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
7	33502-S5A-A01	Gasket - BASE	Gasket - BASE
9	33513-S84-A01	Socket - T10	Socket - T10
10	33514-S50-003	Socket - T20W S3	Socket - T20W S3
11	33515-S50-003	Socket - T20W W	Socket - T20W W
13	34101-S5A-A01	Lens comp	Lens comp
14	34102-S60-003	Housing comp	Housing comp
15	34103-S5A-A01	Gasket	Gasket
21	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
23	74890-S5H-T00	Garnish assy - RR. LICENSE	Garnish assy - RR. LICENSE
24	74895-S5A-000	Bolt - SPECIAL, 5MM	Bolt - SPECIAL, 5MM
25	75523-SS0-000	Packing - SEAL	Packing - SEAL
26	90321-S06-000	Nut - HEX. CAP, 5MM	Nut - HEX. CAP, 5MM
27	90650-S5A-003	Grommet - RR. COMBINATION LIGHT	Grommet - RR. COMBINATION LIGHT
28	91512-S50-003	Clip - LICENSE GARNISH	Clip - LICENSE GARNISH

Throttle body 9 / 12

#	OEM	ES1	S5A
1	16022-PLC-003	Valve set - ROTARY AIR CONTROL	Valve set - ROTARY AIR CONTROL
3	16411-PLC-000	Stay - THROTTLE WIRE	Stay - THROTTLE WIRE
4	16412-PLC-000	Stay comp - PURGE CONTROL SOLENOID	Stay comp - PURGE CONTROL SOLENOID
5	16456-PLE-J01	Seal - ROTARY AIR CONTROL RING	Seal - ROTARY AIR CONTROL RING
6	36162-PLC-003	Valve - PURGE CONTROL SOLENOID	Valve - PURGE CONTROL SOLENOID
7	36166-PAA-A01	Joint - PURGE	Joint - PURGE
8	36167-PLC-010	Tube a - PURGE	Tube a - PURGE
9	36168-PLC-000	Tube b - PURGE	Tube b - PURGE
10	36169-PLC-000	Tube c - PURGE	Tube c - PURGE

Tire/wheel disks 6 / 70

#	OEM	ES1	S5A
9	42753-SE0-A02	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
9	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
9	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
9	42753-SH3-003	Valve - RIM (US PACIFIC)	Valve - RIM (US PACIFIC)
17	83850-SH3-000	Plate - ANCHOR BOLT	Plate - ANCHOR BOLT
18	83853-SX0-000	Bolt - ANCHOR	Bolt - ANCHOR

Tools/jack 5 / 9

#	OEM	ES1	S5A
2	89000-SE3-A01	Tool set	Tool set
7	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
8	89310-S5A-013	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
9	89311-S5A-003	Plate - JACK CAUTION	Plate - JACK CAUTION
10	89320-S05-003	Bar - JACK	Bar - JACK

Torque converter case 2 / 19

#	OEM	ES1	S5A
10	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
10	91205-PL3-A02	Oil seal - 35X56X8(NOK)	Oil seal - 35X56X8(NOK)

Transmission assy. 1 / 2

#	OEM	ES1	S5A
1	20011-PLW-D50	Transmission assy - MT	Transmission assy - MT

Transmission case 55 / 80

#	OEM	ES1	S5A
1	21104-PHR-000	Plate m - OIL GUIDE	Plate m - OIL GUIDE
2	21210-PLW-B00	Case - TRANSMISSION	Case - TRANSMISSION
3	21396-P20-000	Cap - BREATHER	Cap - BREATHER
3	21211-PLW-000	Plate - OIL GUTTER	Plate - OIL GUTTER
4	21222-PLW-000	Stay - RESONATOR	Stay - RESONATOR
5	23946-P21-000	Shim p - 72MM(1.05)	Shim p - 72MM(1.05)
5	23941-P21-000	Shim k - 72MM(0.90)	Shim k - 72MM(0.90)
5	23968-P21-000	Shim al - 72MM(1.71)	Shim al - 72MM(1.71)
5	23936-P21-000	Shim f - 72MM(0.75)	Shim f - 72MM(0.75)
5	23931-P21-000	Shim a - 72MM(0.60)	Shim a - 72MM(0.60)
5	23963-P21-000	Shim ag - 72MM(1.56)	Shim ag - 72MM(1.56)
5	23958-P21-000	Shim ab - 72MM(1.41)	Shim ab - 72MM(1.41)
5	23953-P21-000	Shim w - 72MM(1.26)	Shim w - 72MM(1.26)
5	23948-P21-000	Shim r - 72MM(1.11)	Shim r - 72MM(1.11)
5	23943-P21-000	Shim m - 72MM(0.96)	Shim m - 72MM(0.96)
5	23970-P21-000	Shim an - 72MM(1.77)	Shim an - 72MM(1.77)
5	23938-P21-000	Shim h - 72MM(0.81)	Shim h - 72MM(0.81)
5	23933-P21-000	Shim c - 72MM(0.66)	Shim c - 72MM(0.66)
5	23965-P21-000	Shim ai - 72MM(1.62)	Shim ai - 72MM(1.62)
5	23960-P21-000	Shim ad - 72MM(1.47)	Shim ad - 72MM(1.47)
5	23955-P21-000	Shim y - 72MM(1.32)	Shim y - 72MM(1.32)
5	23950-P21-000	Shim t - 72MM(1.17)	Shim t - 72MM(1.17)
5	23945-P21-000	Shim o - 72MM(1.02)	Shim o - 72MM(1.02)
5	23940-P21-000	Shim j - 72MM(0.87)	Shim j - 72MM(0.87)
5	23967-P21-000	Shim ak - 72MM(1.68)	Shim ak - 72MM(1.68)
5	23935-P21-000	Shim e - 72MM(0.72)	Shim e - 72MM(0.72)
5	23962-P21-000	Shim af - 72MM(1.53)	Shim af - 72MM(1.53)
5	23957-P21-000	Shim aa - 72MM(1.38)	Shim aa - 72MM(1.38)
5	23952-P21-000	Shim v - 72MM(1.23)	Shim v - 72MM(1.23)
5	23947-P21-000	Shim q - 72MM(1.08)	Shim q - 72MM(1.08)
5	23942-P21-000	Shim l - 72MM(0.93)	Shim l - 72MM(0.93)
5	23969-P21-000	Shim am - 72MM(1.74)	Shim am - 72MM(1.74)
5	23937-P21-000	Shim g - 72MM(0.78)	Shim g - 72MM(0.78)
5	23932-P21-000	Shim b - 72MM(0.63)	Shim b - 72MM(0.63)
5	23964-P21-000	Shim ah - 72MM(1.59)	Shim ah - 72MM(1.59)
5	23959-P21-000	Shim ac - 72MM(1.44)	Shim ac - 72MM(1.44)
5	23954-P21-000	Shim x - 72MM(1.29)	Shim x - 72MM(1.29)
5	23949-P21-000	Shim s - 72MM(1.14)	Shim s - 72MM(1.14)
5	23944-P21-000	Shim n - 72MM(0.99)	Shim n - 72MM(0.99)
5	23971-P21-000	Shim ao - 72MM(1.80)	Shim ao - 72MM(1.80)
5	23939-P21-000	Shim i - 72MM(0.84)	Shim i - 72MM(0.84)
5	23934-P21-000	Shim d - 72MM(0.69)	Shim d - 72MM(0.69)
5	23966-P21-000	Shim aj - 72MM(1.65)	Shim aj - 72MM(1.65)
5	23961-P21-000	Shim ae - 72MM(1.50)	Shim ae - 72MM(1.50)
5	23956-P21-000	Shim z - 72MM(1.35)	Shim z - 72MM(1.35)
5	23951-P21-000	Shim u - 72MM(1.20)	Shim u - 72MM(1.20)
6	24455-PHR-000	Spring - BALL SETTING	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	28700-PWL-003	Switch assy - BACK LIGHT (U-SHIN)(BLACK)	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
9	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
10	90081-PX5-000	Screw - SEALING, 32MM	Screw - SEALING, 32MM
11	90380-S04-000	Bolt - STUD, 12X73	Bolt - STUD, 12X73
12	90401-P8A-A00	Washer - DRAIN, 18MM	Washer - DRAIN, 18MM
13	91206-PHR-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
29	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Trunk lid 22 / 27

#	OEM	ES1	S5A
3	68529-S86-K10	Reinforce - TRUNK SKIN	Reinforce - TRUNK SKIN
7	72134-SM4-003	Snap - R. (VIOLET)	Snap - R. (VIOLET)
8	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
9	74815-SK8-000	Grommet - KEY CYLINDER(BLACK)	Grommet - KEY CYLINDER(BLACK)
10	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
12	74828-SX0-000	Stopper - TAILGATE	Stopper - TAILGATE
13	74829-S5A-000	Stopper - TRUNK LID LOWER	Stopper - TRUNK LID LOWER
18	74862-S5H-T01	Striker - TRUNK	Striker - TRUNK
19	74863-S5A-003	Rod - TRUNK LOCK	Rod - TRUNK LOCK
20	74864-S30-003	Cover	Cover
21	74865-S5A-003	Weatherstrip - TRUNK LID	Weatherstrip - TRUNK LID
23	74867-SW5-003	Holder - ROD	Holder - ROD
24	74871-S5A-000	Spring - R. TRUNK OPENER	Spring - R. TRUNK OPENER
25	74872-S5A-000	Spring - L. TRUNK OPENER	Spring - L. TRUNK OPENER
26	74873-SM4-003	Clip - TRUNK OPENER SPRING	Clip - TRUNK OPENER SPRING
27	74880-S5A-306	Cable - TRUNK & FUEL LID OPENER	Cable - TRUNK & FUEL LID OPENER
31	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
32	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
33	90306-S04-003	Nut - LICENSE PLATE (HEX.) (SATO RASHI)	Nut - LICENSE PLATE (HEX.) (SATO RASHI)
35	91507-S5A-003	Clip - TRUNK OPENER CABLE	Clip - TRUNK OPENER CABLE
38	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
39	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Valve/rocker arm (SOHC; VTEC; 1) 14 / 18

#	OEM	ES1	S5A
1	14620-PMR-A00	Arm assy. - INTAKE ROCKER	Arm assy. - INTAKE ROCKER
4	14645-P08-000	Spring - ROCKER ARM	Spring - ROCKER ARM
5	14651-P2P-000	Collar a - INTAKE ROCKER	Collar a - INTAKE ROCKER
8	14744-PT0-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
9	14761-P2A-003	Spring - VALVE (SKY BLUE) (NIPPON HATSUJO)	Spring - VALVE (SKY BLUE) (NIPPON HATSUJO)
10	14761-P2M-013	Spring - IN. VALVE (WHITE) (NIPPON HATSUJO)	Spring - IN. VALVE (WHITE) (NIPPON HATSUJO)
11	14765-P08-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
12	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
13	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
14	15140-PM3-000	Orifice assy - OIL PATH	Orifice assy - OIL PATH
15	90206-590-000	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING
15	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING
17	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)	O-ring - 7.2X1.7 (ARAI)
17	91312-107-000	O-ring (7x1.7)	O-ring (7x1.7)

Water hose 2 / 2

#	OEM	ES1	S5A
1	19506-PLC-901	Hose - ROTARY AIR CONTROL VALVE IN.	Hose - ROTARY AIR CONTROL VALVE IN.
2	19507-PLC-901	Hose - ROTARY AIR CONTROL VALVE OUTLET	Hose - ROTARY AIR CONTROL VALVE OUTLET

Water pump/sensor 18 / 28

#	OEM	ES1	S5A
3	19200-PLM-A01	Pump comp - WATER	Pump comp - WATER
4	19222-P08-004	O-ring - WATER PUMP (YAMADA)	O-ring - WATER PUMP (YAMADA)
4	19222-PDF-E00	O-ring - WATER PUMP	O-ring - WATER PUMP
6	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
9	19411-PLC-004	Gasket - FR. WATER PASSAGE (NIPPON LEAKLESS)	Gasket - FR. WATER PASSAGE (NIPPON LEAKLESS)
9	19411-PLC-003	Gasket - FR. WATER PASSAGE (ISHINO GASKET)	Gasket - FR. WATER PASSAGE (ISHINO GASKET)
10	19503-PLC-000	Hose - CONNECTING PIPE	Hose - CONNECTING PIPE
11	19504-PLC-000	Pipe b - CONNECTING	Pipe b - CONNECTING
12	19505-PLC-000	Pipe a - CONNECTING	Pipe a - CONNECTING
14	32747-PLC-000	Stay g - ENGINE HARNESS	Stay g - ENGINE HARNESS
16	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
16	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
17	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)	Sensor assy, WATER TEMP (MATSUSHITA)
18	90204-PH7-000	Nut - SPECIAL	Nut - SPECIAL
19	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)
20	91307-PN4-000	O-ring - 17.5X1.4	O-ring - 17.5X1.4
20	91307-PN3-000	O-ring,17.8x1.4	O-ring,17.8x1.4
21	91314-634-000	O-ring	O-ring

Water valve (RH) 9 / 10

#	OEM	ES1	S5A
1	79710-S5A-003	Valve assy. - WATER	Valve assy. - WATER
2	79721-S5A-000	Hose a - WATER IN.	Hose a - WATER IN.
3	79722-S5A-000	Hose b - WATER IN.	Hose b - WATER IN.
4	79725-S5A-000	Hose - WATER OUTLET	Hose - WATER OUTLET
6	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
7	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)	Clamp - HEATER HOSE (NATURAL)
8	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	91551-SD5-003	Clamp - HEATER	Clamp - HEATER

Windshield washer (1) 7 / 19

#	OEM	ES1	S5A
1	38516-SA5-671	Packing - T-TYPE) (MITSUBA	Packing - T-TYPE) (MITSUBA
2	38519-SB0-003	Bush - WASHER TANK (MITSUBA)	Bush - WASHER TANK (MITSUBA)
3	76802-SX0-003	Cap unit - MOUTH	Cap unit - MOUTH
8	76810-S5A-003	Nozzle assy. - WINDSHIELD WASHER (BLACK)	Nozzle assy. - WINDSHIELD WASHER (BLACK)
11	76830-SM4-003	Joint y - WASHER	Joint y - WASHER
17	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
19	91523-SM4-003	Clip - WASHER TUBE	Clip - WASHER TUBE

Wire harness (RH) 5 / 21

#	OEM	ES1	S5A
9	32202-S5A-000	Cord - RR. DEFROSTER	Cord - RR. DEFROSTER
15	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
16	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
17	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
18	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
