Air conditioner (COMPRESSOR) 9 / 12

#	OEM	EM2	ES7
1	38801-PDF-E02	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
2	38810-PLA-E01	Compressor comp. - SANDEN	Compressor comp. - SANDEN
3	38829-PDF-E02	Nut - 9MM	Nut - 9MM
5	38908-PLA-E01	Protector set - THERMAL	Protector set - THERMAL
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
10	38924-PLM-A01	Coil set - FIELD	Coil set - FIELD
13	90023-P2A-000	Bolt - FLANGE, 8X100	Bolt - FLANGE, 8X100

Air conditioner (CONDENSER) 10 / 11

#	OEM	EM2	ES7
1	38611-PMM-A01	Fan comp - COOLING (MITSUBA/CME)	Fan comp - COOLING (MITSUBA/CME)
3	38616-PMM-A01	Motor - COOLING FAN (MITSUBA/CME)	Motor - COOLING FAN (MITSUBA/CME)
4	38619-PMM-A00	Protector - FAN MOTOR	Protector - FAN MOTOR
5	80107-SS0-000	Mount - CONDENSER UPPER	Mount - CONDENSER UPPER
6	80107-S5A-000	Bracket - R. CONDENSER UPPER	Bracket - R. CONDENSER UPPER
7	80108-S5A-000	Bracket - L. CONDENSER UPPER	Bracket - L. CONDENSER UPPER
8	80110-S5A-T01	Condenser comp.	Condenser comp.
9	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
10	90041-PAA-A01	Nut - TOOTHED, 5MM	Nut - TOOTHED, 5MM
11	90430-PAA-A01	Washer - PLAIN, 8MM	Washer - PLAIN, 8MM

Air conditioner (HOSES/PIPES) 20 / 29

#	OEM	EM2	ES7
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80285-S5A-A00	Holder	Holder
4	80315-S5A-013	Hose comp. - DISCHARGE	Hose comp. - DISCHARGE
10	80360-S5A-A00	Clamp a - SUCTION HOSE	Clamp a - SUCTION HOSE
11	80361-S5A-A00	Stay - SUCTION HOSE	Stay - SUCTION HOSE
12	80362-S5A-A00	Clamp - AIR CONDITIONER PIPE	Clamp - AIR CONDITIONER PIPE
14	80381-S5A-A01	Clamp - RECEIVER PIPE	Clamp - RECEIVER PIPE
15	80387-SM4-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
16	80440-SW5-A01	Switch - DUAL PRESSURE(KEIHIN)	Switch - DUAL PRESSURE(KEIHIN)
18	80464-S5A-000	Grommet - AIR CONDITIONER PIPE	Grommet - AIR CONDITIONER PIPE
19	80465-S5A-A00	Cover - AIR CONDITIONER PIPE	Cover - AIR CONDITIONER PIPE
20	80466-S5A-A00	Rubber - AIR CONDITIONER HOSE	Rubber - AIR CONDITIONER HOSE
22	80866-SW5-003	Cap comp. - VALVE(L)	Cap comp. - VALVE(L)
23	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
24	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
25	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
26	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
27	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
28	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
29	91548-S5A-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE

Antenna/speaker 1 / 1

#	OEM	EM2	ES7
12	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)	Cushion - WIRE HARNESS (50X50)

Clutch/torque converter 9 / 15

#	OEM	EM2	ES7
1	21350-PLA-010	Cover - CLUTCH CASE	Cover - CLUTCH CASE
2	21351-PLM-000	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
6	26000-PLM-307	Converter assy - TORQUE	Converter assy - TORQUE
6	26000-PLM-309	Converter assy - TORQUE	Converter assy - TORQUE
8	90011-PM0-000	Bolt - 12MM	Bolt - 12MM
9	90014-P24-N00	Bolt - FLANGE, 6X14	Bolt - FLANGE, 6X14
10	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
12	90429-PLM-000	Washer - 40X85X2	Washer - 40X85X2
14	91302-P7A-003	O-ring - 32X1.9	O-ring - 32X1.9

Combination switch 3 / 4

#	OEM	EM2	ES7
2	35100-S5A-E72	Lock assy - STEERING	Lock assy - STEERING
2	35100-S5A-E22	Lock assy - STEERING	Lock assy - STEERING
16	72147-S5A-G02	Transmitter assy - KEYLESS	Transmitter assy - KEYLESS

Console 1 / 2

#	OEM	EM2	ES7
18	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (CABIN) 1 / 11

#	OEM	EM2	ES7
9	38385-S5A-G01	Receiver unit - KEYLESS ENTRY	Receiver unit - KEYLESS ENTRY

Control unit (ENGINE ROOM) 2 / 6

#	OEM	EM2	ES7
1	25218-PMP-000	Stay comp - ATF HOSE CLAMP	Stay comp - ATF HOSE CLAMP
20	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Door windows 1 / 6

#	OEM	EM2	ES7
1	39885-S5A-G01	Label - IMMOBILIZER	Label - IMMOBILIZER

Emblems/caution labels 1 / 2

#	OEM	EM2	ES7
5	75725-S04-T00	Emblem - RR. (VTEC)	Emblem - RR. (VTEC)

Engine mounting bracket 5 / 6

#	OEM	EM2	ES7
3	11960-PLE-000	Stiffener - RR. ENGINE	Stiffener - RR. ENGINE
4	11960-PLE-900	Stiffener - RR. ENGINE	Stiffener - RR. ENGINE
8	32755-PLC-900	Stay - OXYGEN SENSOR COUPLER	Stay - OXYGEN SENSOR COUPLER
10	90051-PE0-000	Bolt - FLANGE, 12X70	Bolt - FLANGE, 12X70
10	90050-PG7-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65

Engine wire harness 8 / 9

#	OEM	EM2	ES7
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
5	32118-PLM-A01	Holder - CORRUGATED TUBE (DARK GREEN) (19MM)	Holder - CORRUGATED TUBE (DARK GREEN) (19MM)
6	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
7	32120-PLR-000	Cover assy. - ENGINE WIRE HARNESS	Cover assy. - ENGINE WIRE HARNESS
18	32748-PLC-000	Stay h - ENGINE HARNESS	Stay h - ENGINE HARNESS
20	32755-PLC-000	Stay - OXYGEN SENSOR COUPLER	Stay - OXYGEN SENSOR COUPLER
25	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
28	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Exhaust pipe/silencer 2 / 3

#	OEM	EM2	ES7
19	36533-PLD-900	Clamp - OXYGEN SENSOR	Clamp - OXYGEN SENSOR
19	36533-PLD-000	Clamp - OXYGEN SENSOR	Clamp - OXYGEN SENSOR

Front fenders 3 / 3

#	OEM	EM2	ES7
5	74111-S5A-900	Shield - FR. SPLASH	Shield - FR. SPLASH
5	74111-S5A-A00	Shield - FR. SPLASH	Shield - FR. SPLASH
13	91503-SZ3-003	Clip A	Clip A

Front seat (L.) 1 / 1

#	OEM	EM2	ES7
4	81138-S5A-G21	Clip - H	Clip - H

Front seat (R.) 1 / 2

#	OEM	EM2	ES7
11	81138-S5A-G21	Clip - H	Clip - H

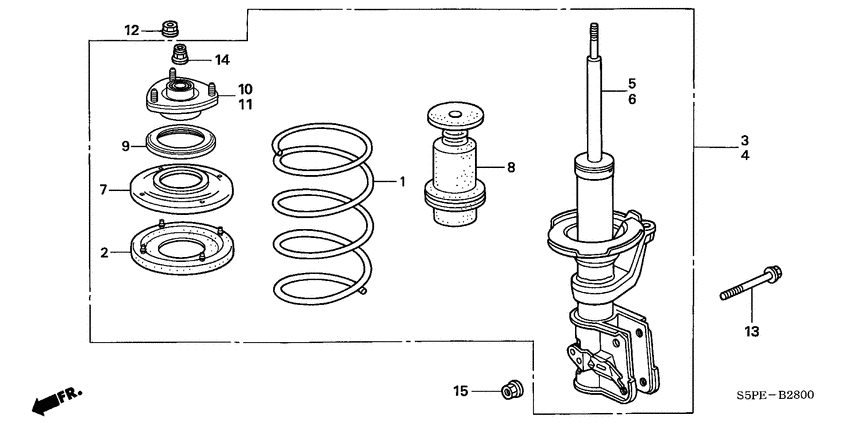

Front shock absorber 1 / 6

#	OEM	EM2	ES7
1	51401-S5A-A22	Spring - FR. (SHOWA)	Spring - FR. (SHOWA)

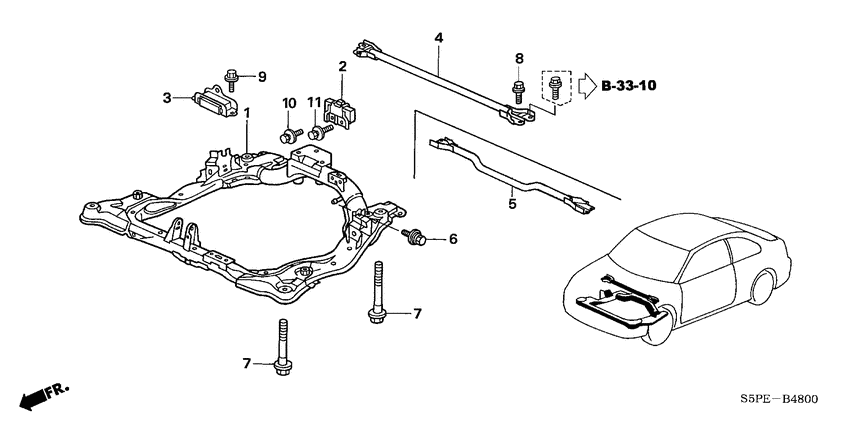

Front sub frame 2 / 2

#	OEM	EM2	ES7
1	50200-S5A-A04	Sub frame comp. - FR.	Sub frame comp. - FR.
1	50200-S5A-A84	Sub frame comp. - FR.	Sub frame comp. - FR.

Grommet (FRONT) 1 / 1

#	OEM	EM2	ES7
4	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM

Grommet (SIDE) 2 / 3

#	OEM	EM2	ES7
11	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
12	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Harness band/bracket 2 / 3

#	OEM	EM2	ES7
6	32204-S5A-900	Bracket - ENGINE WIRE HARNESS (A)	Bracket - ENGINE WIRE HARNESS (A)
31	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Heater blower 3 / 7

#	OEM	EM2	ES7
11	80291-S5A-003	Frame - FILTER (A)	Frame - FILTER (A)
14	80296-S5A-003	Frame - FILTER (B)	Frame - FILTER (B)
15	80297-S5A-003	Seal - BLOWER PLATE	Seal - BLOWER PLATE

Heater control 1 / 2

#	OEM	EM2	ES7
2	80600-S5A-G02	Control assy. - AUTO AIR CONDITIONER	Control assy. - AUTO AIR CONDITIONER

Heater unit 8 / 17

#	OEM	EM2	ES7
2	53747-SA5-003	Clip - POWER STEERING HOSE	Clip - POWER STEERING HOSE
3	79026-S5D-A01	Bracket - ASPIRATOR	Bracket - ASPIRATOR
23	80271-S5A-000	Hose - DRAIN	Hose - DRAIN
24	80534-S84-A41	Aspirator	Aspirator
25	80560-S5A-941	Sensor assy - EVAPORATOR	Sensor assy - EVAPORATOR
26	80650-S5A-A01	Sub harness - AIR CONDITIONER	Sub harness - AIR CONDITIONER
31	90122-S5A-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
32	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40

Hood 1 / 4

#	OEM	EM2	ES7
5	74120-S5A-A21	Lock assy - HOOD	Lock assy - HOOD

Intake manifold 2 / 4

#	OEM	EM2	ES7
2	16450-PLD-003	Injector assy - FUEL (KEIHIN)	Injector assy - FUEL (KEIHIN)
8	17055-PLD-004	Gasket - FR. INJECTOR BASE (NIPPON LEAKLESS)	Gasket - FR. INJECTOR BASE (NIPPON LEAKLESS)

Interior light 6 / 6

#	OEM	EM2	ES7
6	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W	BULB T10X318W
10	34401-S5A-003	Lens	Lens
11	34402-S5A-003	Lens	Lens
13	90131-S47-003	Screw - ET, 5X16	Screw - ET, 5X16
13	90131-S30-003	Screw-washer - ET, 6X16	Screw-washer - ET, 6X16

Pedal 11 / 11

#	OEM	EM2	ES7
10	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
13	46545-SA5-000	Cover, Pedal	Cover, Pedal
14	46545-S84-A81	Cover - PEDAL	Cover - PEDAL
15	46600-S5A-G01	Pedal assy - BRAKE	Pedal assy - BRAKE
15	46600-S5A-G81	Pedal assy - BRAKE	Pedal assy - BRAKE
16	46900-S5A-G01	Pedal assy - CLUTCH	Pedal assy - CLUTCH
17	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
18	46907-S5A-A01	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
19	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN
20	46981-S2A-003	Bush a - CLUTCH ASSISTANT	Bush a - CLUTCH ASSISTANT
21	46982-S2A-003	Bush b - ASSISTANT	Bush b - ASSISTANT

Radiator hose/reserve tan k 6 / 8

#	OEM	EM2	ES7
8	19502-PLC-000	Hose - WATER LOWER	Hose - WATER LOWER
8	19502-PLD-000	Hose - WATER LOWER	Hose - WATER LOWER
12	25216-P72-003	Clip - ATF HOSE (BLACK)	Clip - ATF HOSE (BLACK)
13	25218-PLM-900	Stay - HOSE CLAMP	Stay - HOSE CLAMP
17	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
17	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE

Starter motor (DENSO) 12 / 12

#	OEM	EM2	ES7
3	31200-PLR-A02	Motor assy. - STARTER (DSDEU) (DENSO)	Motor assy. - STARTER (DSDEU) (DENSO)
3	31200-PLR-A52	Motor assy. - STARTER (DSDEU) (DENSO)	Motor assy. - STARTER (DSDEU) (DENSO)
4	31201-PLR-A01	Housing comp - DRIVE SIDE	Housing comp - DRIVE SIDE
5	31201-PLR-A51	Housing comp - DRIVE SIDE	Housing comp - DRIVE SIDE
6	31202-PLR-A52	Endframe comp. - COMMUTATOR	Endframe comp. - COMMUTATOR
6	31202-PLR-A02	Endframe comp. - COMMUTATOR	Endframe comp. - COMMUTATOR
8	31203-P3F-003	Lever - PINION DRIVE	Lever - PINION DRIVE
8	31203-PCA-003	Lever - PINION DRIVE	Lever - PINION DRIVE
9	31204-P2A-901	Switch assy - MAGNETIC	Switch assy - MAGNETIC
9	31204-PLR-A01	Switch comp - MAGNETIC	Switch comp - MAGNETIC
27	31291-PLR-A01	Stay - ENGINE HARNESS	Stay - ENGINE HARNESS
28	31291-PLR-A52	Stay - ENGINE HARNESS	Stay - ENGINE HARNESS

Throttle body 2 / 4

#	OEM	EM2	ES7
1	16022-PLC-J01	Valve set - ROTARY AIR CONTROL	Valve set - ROTARY AIR CONTROL
1	16022-PLC-003	Valve set - ROTARY AIR CONTROL	Valve set - ROTARY AIR CONTROL

Tire/wheel disks 2 / 33

#	OEM	EM2	ES7
14	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)	Washer - WHEEL NUT (FUSE RASHI)
17	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)	Nut comp. - WHEEL (FUSE RASHI)

Trunk lid 2 / 6

#	OEM	EM2	ES7
12	74851-S5A-013	Lock - TRUNK LID	Lock - TRUNK LID
13	74861-S5A-G01	Cylinder - TRUNK	Cylinder - TRUNK

Water pump/sensor 3 / 4

#	OEM	EM2	ES7
1	18011-PLM-A01	Valve set - EGR	Valve set - EGR
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
8	19410-PLC-000	Passage comp. - WATER	Passage comp. - WATER
