Air cleaner (1) 4 / 18

#	OEM	EJ6	EJ8
3	17212-P2J-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
5	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
9	17231-P2A-000	Stay comp - RESONATOR	Stay comp - RESONATOR
17	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Air conditioner (COMPRESSOR; 1) 19 / 22

#	OEM	EJ6	EJ8
1	38801-P06-A01	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
2	38810-P2F-A01	Compressor comp. - SANDEN	Compressor comp. - SANDEN
3	38829-P07-004	Nut	Nut
5	38908-P2R-A01	Protector set - THERMAL	Protector set - THERMAL
6	38912-PE1-702	Shim set	Shim set
7	38913-PP4-E02	Ring - SNAP	Ring - SNAP
8	38914-P07-004	Ring f - SNAP	Ring f - SNAP
9	38920-P2A-003	Belt - COMPRESSOR (BANDO)	Belt - COMPRESSOR (BANDO)
9	38920-P2A-013	BELTCOMPRESSOR	BELTCOMPRESSOR
12	38942-P2K-T01	Pulley comp - IDLE	Pulley comp - IDLE
13	38944-P3R-T00	Collar - IDLE PULLEY	Collar - IDLE PULLEY
14	38945-P3R-T01	Washer	Washer
15	38946-P01-000	Bolt - IDLE PULLEY	Bolt - IDLE PULLEY
16	90021-P01-000	Bolt - FLANGE, 8X85	Bolt - FLANGE, 8X85
17	90023-P2A-000	Bolt - FLANGE, 8X100	Bolt - FLANGE, 8X100
20	38773-PJ7-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS
21	38950-P2K-305	Pulley assy	Pulley assy
22	38951-P3R-T00	Cover - BEARING OUTER	Cover - BEARING OUTER
23	38952-P3R-T00	Cover - BEARING INNER	Cover - BEARING INNER

Air conditioner (CONDENSER) 13 / 16

#	OEM	EJ6	EJ8
3	80115-S04-000	Seal - UPPER CONDENSER	Seal - UPPER CONDENSER
4	80116-S04-000	Seal - R. CONDENSER	Seal - R. CONDENSER
5	80117-S04-000	Seal - L. CONDENSER	Seal - L. CONDENSER
6	80151-S04-003	Motor - COOLING FAN	Motor - COOLING FAN
7	38611-P8C-A01	Fan, COOLING (MITSUBA)	Fan, COOLING (MITSUBA)
8	80161-S04-000	Shroud comp. - CONDENSER FAN	Shroud comp. - CONDENSER FAN
9	80162-SR3-000	Protector - FAN MOTOR	Protector - FAN MOTOR
10	80176-SR3-000	Rubber - CONDENSER MOUNTING	Rubber - CONDENSER MOUNTING
11	80177-SR3-003	Mount - CONDENSER LOWER	Mount - CONDENSER LOWER
12	90041-PAA-A01	Nut - TOOTHED, 5MM	Nut - TOOTHED, 5MM
13	90078-PR3-000	Screw - PAN, 4X8	Screw - PAN, 4X8
14	90430-PAA-A01	Washer - PLAIN, 8MM	Washer - PLAIN, 8MM
15	90659-PG6-000	Clip - WIRE HARNESS	Clip - WIRE HARNESS

Air conditioner (COOLING UNIT; RH) 29 / 31

#	OEM	EJ6	EJ8
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
2	39794-S01-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
4	80201-SR3-000	Case - EVAPORATOR UPPER	Case - EVAPORATOR UPPER
5	80202-SR3-000	Case - EVAPORATOR LOWER	Case - EVAPORATOR LOWER
6	80205-SR3-000	Insulator - EVAPORATOR UPPER	Insulator - EVAPORATOR UPPER
7	80206-SR3-000	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
8	80214-SL5-A01	Insulator - EXPANSION	Insulator - EXPANSION
10	80220-ST7-A03	Valve assy. - EXPANSION (10N) (FUJI KOKI)	Valve assy. - EXPANSION (10N) (FUJI KOKI)
11	80223-ST7-A01	O-ring - FUJI KOKI	O-ring - FUJI KOKI
12	80225-SR3-010	Clamp	Clamp
13	80266-SR3-000	Plate - EVAPORATOR HARNESS	Plate - EVAPORATOR HARNESS
15	80272-SF4-000	Grommet - DRAIN HOSE	Grommet - DRAIN HOSE
16	80286-SR3-000	Seal - EVAPORATOR INNER	Seal - EVAPORATOR INNER
17	80287-SR3-000	Seal - EVAPORATOR OUTER	Seal - EVAPORATOR OUTER
18	80288-SR3-000	Seal - EVAPORATOR JOINT	Seal - EVAPORATOR JOINT
19	80291-SR3-000	Grommet - EVAPORATOR SENSOR	Grommet - EVAPORATOR SENSOR
20	80430-SR3-003	Thermostat - AIR CONDITIONER	Thermostat - AIR CONDITIONER
21	80460-S04-000	Harness - AIR CONDITIONER WIRE	Harness - AIR CONDITIONER WIRE
22	80464-S04-000	Grommet - AIR CONDITIONER PIPE	Grommet - AIR CONDITIONER PIPE
23	80566-SR3-003	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
24	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
25	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
26	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
27	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
28	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
29	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
30	90659-692-000	Clamp - CASE	Clamp - CASE
31	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
32	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Air conditioner (HOSES/PIPES; RH) 11 / 15

#	OEM	EJ6	EJ8
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-S01-A11	Hose comp. - SUCTION (PARKER)	Hose comp. - SUCTION (PARKER)
3	80315-S01-A01	Hose comp. - DISCHARGE (PARKER)	Hose comp. - DISCHARGE (PARKER)
4	80331-S01-A01	Pipe - CONDENSER (FAYETTE)	Pipe - CONDENSER (FAYETTE)
5	80341-S01-A11	Pipe - RECEIVER (FAYETTE)	Pipe - RECEIVER (FAYETTE)
8	80362-SR3-000	Clamp - SUCTION HOSE	Clamp - SUCTION HOSE
9	80440-SS0-901	Switch - DUAL PRESSURE (FUJI)	Switch - DUAL PRESSURE (FUJI)
12	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
13	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
14	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
15	91548-SR3-003	Clip - 8MM	Clip - 8MM

Alternator bracket/ engine stiffener 8 / 10

#	OEM	EJ6	EJ8
1	11950-P2E-900	Stiffener - ENGINE	Stiffener - ENGINE
5	31112-P2A-000	Bracket comp. - ALTERNATOR	Bracket comp. - ALTERNATOR
6	31113-P08-000	Stay - ALTERNATOR	Stay - ALTERNATOR
7	32741-P2A-000	Stay a - ENGINE WIRE HARNESS	Stay a - ENGINE WIRE HARNESS
10	32752-P01-000	Stay b - ENGINE WIRE HARNESS	Stay b - ENGINE WIRE HARNESS
11	90050-PG7-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
12	90057-PG7-003	Bolt - ALTERNATOR	Bolt - ALTERNATOR
13	90430-657-000	Washer - 23X8.3X3.2	Washer - 23X8.3X3.2

Atf pipe/speed sensor (2) 17 / 17

#	OEM	EJ6	EJ8
1	23820-P04-000	Gear comp - SPEEDOMETER	Gear comp - SPEEDOMETER
2	24901-P24-J00	Holder - CONTROL WIRE	Holder - CONTROL WIRE
3	25210-P4R-000	Pipe comp. a - ATF	Pipe comp. a - ATF
4	25220-P4R-000	Pipe comp. b - ATF	Pipe comp. b - ATF
5	25610-P4P-003	Gauge comp. - ATF (ARAI)	Gauge comp. - ATF (ARAI)
6	25950-PL5-000	Bolt comp - JOINT	Bolt comp - JOINT
7	25951-639-000	Bolt - JOINT	Bolt - JOINT
8	78410-S04-951	Sensor assy - SPEED (DENSO)	Sensor assy - SPEED (DENSO)
9	78410-S04-952	Sensor assy - SPEED (MATSUSHITA)	Sensor assy - SPEED (MATSUSHITA)
10	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)	Joint - SPEED SENSOR (MATSUSHITA)
11	78420-S04-951	Holder - SPEED SENSOR (DENSO)	Holder - SPEED SENSOR (DENSO)
12	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
13	90433-PT0-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
14	90638-S04-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
15	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
16	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2
20	91313-S04-003	O-ring	O-ring

Battery (RH) 10 / 12

#	OEM	EJ6	EJ8
2	31512-SR3-000	Plate - BATTERY SETTING	Plate - BATTERY SETTING
3	31513-SR3-000	Bolt - BATTERY SETTING	Bolt - BATTERY SETTING
4	31521-SR3-000	Box assy - BATTERY	Box assy - BATTERY
5	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
8	32600-S04-E02	Cable assy - BATTERY EARTH	Cable assy - BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
11	90130-SR3-003	Bolt - 5X13	Bolt - 5X13
12	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
15	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Brake lines (RH) 13 / 22

#	OEM	EJ6	EJ8
8	46330-S04-000	Pipe comp. c - BRAKE	Pipe comp. c - BRAKE
10	46340-S04-000	Pipe comp. d - BRAKE	Pipe comp. d - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
14	46391-SR3-J00	Clamp - BRAKE PIPE	Clamp - BRAKE PIPE
15	46391-SR3-J10	Clamp - BRAKE PIPE	Clamp - BRAKE PIPE
16	46392-SR3-000	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46392-S04-000	Clip - BRAKE PIPE	Clip - BRAKE PIPE
19	46394-S04-003	Clip A	Clip A
20	46462-SE0-000	Bolt - OIL	Bolt - OIL
21	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
22	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
27	01466-S04-900	Hose set - R. RR. BRAKE	Hose set - R. RR. BRAKE
28	01468-S04-900	Hose set - L. RR. BRAKE	Hose set - L. RR. BRAKE

Brake master cylinder/ master power 12 / 19

#	OEM	EJ6	EJ8
5	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
8	46185-S04-J01	Seal - ROD	Seal - ROD
9	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
13	46406-S04-000	Stay b - MASTER POWER TUBE	Stay b - MASTER POWER TUBE
15	46512-S70-000	Pin - PEDAL	Pin - PEDAL
16	46660-S04-J01	Reservoir comp.	Reservoir comp.
17	46662-S04-J01	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
18	46665-S04-J01	Grommet	Grommet
19	46666-S04-J01	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
20	46669-692-003	Seal - RESERVE TANK	Seal - RESERVE TANK
21	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
32	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)

Breather chamber (SOHC) 4 / 9

#	OEM	EJ6	EJ8
1	11851-P2A-000	Chamber set - BREATHER	Chamber set - BREATHER
2	11855-P72-000	Grommet, PCV Valve	Grommet, PCV Valve
8	91324-PC6-000	O-ring - 20.6X2.6	O-ring - 20.6X2.6
9	91405-PH7-003	Clamp - TUBE (D15)	Clamp - TUBE (D15)

Bumpers 10 / 18

#	OEM	EJ6	EJ8
3	71113-SH2-000	Nut - LICENSE PLATE	Nut - LICENSE PLATE
8	71144-SR3-013	Grommet - BUMPER SIDE	Grommet - BUMPER SIDE
19	71598-SL4-013	Spacer - BUMPER SIDE	Spacer - BUMPER SIDE
21	90101-SE0-010	Bolt assy. b - BUMPER	Bolt assy. b - BUMPER
22	90109-SE0-003	Bolt b - BUMPER	Bolt b - BUMPER
24	90109-SS0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
25	90540-SA7-000	Washer - BUMPER	Washer - BUMPER
28	91503-SZ3-003	Clip A	Clip A
38	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
39	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Camshaft/timing belt (SOHC) 17 / 23

#	OEM	EJ6	EJ8
3	11813-P2A-000	Clip - TIMING BELT COVER	Clip - TIMING BELT COVER
4	11821-P2E-000	Cover - TIMING BELT UPPER	Cover - TIMING BELT UPPER
5	11831-P2A-000	Rubber - LOWER SEAL	Rubber - LOWER SEAL
6	11832-P28-A00	Rubber - R. BACK SEAL	Rubber - R. BACK SEAL
7	11833-P08-000	Rubber - L. BACK SEAL	Rubber - L. BACK SEAL
8	11840-P08-010	Cover comp. - TIMING BELT BACK	Cover comp. - TIMING BELT BACK
12	14211-P2E-003	Pulley - TIMING BELT DRIVEN	Pulley - TIMING BELT DRIVEN
15	14513-PE0-015	Bolt - TENSIONER (M6)	Bolt - TENSIONER (M6)
16	14516-P2A-J00	Spring comp - TIMING BELT ADJUSTER	Spring comp - TIMING BELT ADJUSTER
17	14517-PG6-000	Bolt a - TENSIONER	Bolt a - TENSIONER
18	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
19	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING	Bolt - TIMING BELT ADJUSTER SPRING
20	90031-PT0-003	Bolt-washer - 8X22	Bolt-washer - 8X22
20	90032-ZW5-003	Bolt-washer, 8x22	Bolt-washer, 8x22
21	91213-PE1-722	Oil seal - 29X45X8 (NOK)	Oil seal - 29X45X8 (NOK)
22	14520-P2A-305	Tensioner set - TIMING BELT (KOYO SEIKO)	Tensioner set - TIMING BELT (KOYO SEIKO)
22	14520-P2A-306	Tensioner set - TIMING BELT (NIPPON SEIKO)	Tensioner set - TIMING BELT (NIPPON SEIKO)

Clutch (2) 39 / 39

#	OEM	EJ6	EJ8
1	22510-P4P-000	Guide comp - LOW CLUTCH	Guide comp - LOW CLUTCH
2	22520-P24-J00	Piston comp - LOW CLUTCH	Piston comp - LOW CLUTCH
3	22530-P4P-000	Piston comp - CLUTCH (PRESS PISTON)	Piston comp - CLUTCH (PRESS PISTON)
4	22530-P4R-000	Piston comp - CLUTCH	Piston comp - CLUTCH
5	22537-PZ5-003	Spring - CLUTCH DISK	Spring - CLUTCH DISK
6	22537-P24-J01	Spring - LOW CLUTCH DISK	Spring - LOW CLUTCH DISK
7	22541-PC9-000	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
8	22542-PA9-000	Seat - CLUTCH SPRING	Seat - CLUTCH SPRING
9	22542-PF4-013	Spring - CLUTCH RETURN (SANKO)	Spring - CLUTCH RETURN (SANKO)
10	22542-PL4-000	Seat - SECOND RETURN SPRING	Seat - SECOND RETURN SPRING
11	22543-PC9-000	Plate - CLUTCH (110MM)	Plate - CLUTCH (110MM)
12	22543-PH0-850	Plate - CLUTCH (110MM)	Plate - CLUTCH (110MM)
13	22544-P24-A01	Disk - CLUTCH (B.W.A.)	Disk - CLUTCH (B.W.A.)
14	22553-PC9-000	Plate - CLUTCH END (3) (2.6MM)	Plate - CLUTCH END (3) (2.6MM)
14	22563-PC9-000	Plate - CLUTCH END (13) (2.3MM)	Plate - CLUTCH END (13) (2.3MM)
14	22557-PC9-000	Plate - CLUTCH END (7) (3.0MM)	Plate - CLUTCH END (7) (3.0MM)
14	22555-PC9-000	Plate - CLUTCH END (5) (2.8MM)	Plate - CLUTCH END (5) (2.8MM)
14	22562-PC9-000	Plate - CLUTCH END (12) (2.2MM)	Plate - CLUTCH END (12) (2.2MM)
14	22556-PC9-000	Plate - CLUTCH END (6) (2.9MM)	Plate - CLUTCH END (6) (2.9MM)
14	22552-PC9-000	Plate - CLUTCH END (2) (2.5MM)	Plate - CLUTCH END (2) (2.5MM)
14	22561-PC9-000	Plate - CLUTCH END (11) (2.1MM)	Plate - CLUTCH END (11) (2.1MM)
14	22554-PC9-000	Plate - CLUTCH END (4) (2.7MM)	Plate - CLUTCH END (4) (2.7MM)
14	22551-PC9-000	Plate - CLUTCH END (1) (2.4MM)	Plate - CLUTCH END (1) (2.4MM)
15	22561-P4V-003	Plate - CLUTCH END (15) (3.5MM)	Plate - CLUTCH END (15) (3.5MM)
15	22559-PC9-000	Plate - CLUTCH END (9) (3.2MM)	Plate - CLUTCH END (9) (3.2MM)
15	22560-PC9-000	Plate - CLUTCH END (10) (3.3MM)	Plate - CLUTCH END (10) (3.3MM)
15	22574-P4V-003	Plate - CLUTCH END (14) (3.4MM)	Plate - CLUTCH END (14) (3.4MM)
15	22562-P4V-003	Plate - CLUTCH END (16) (3.6MM)	Plate - CLUTCH END (16) (3.6MM)
15	22558-PC9-000	Plate - CLUTCH END (8) (3.1MM)	Plate - CLUTCH END (8) (3.1MM)
16	22564-P4V-003	Plate - CLUTCH END (18) (3.8MM)	Plate - CLUTCH END (18) (3.8MM)
16	22563-P4V-003	Plate - CLUTCH END (17) (3.7MM)	Plate - CLUTCH END (17) (3.7MM)
17	22610-P4P-000	Guide comp - SECOND & FOURTH CLUTCH	Guide comp - SECOND & FOURTH CLUTCH
18	22661-P4P-000	Guide - THIRD CLUTCH	Guide - THIRD CLUTCH
19	90603-PA9-000	Circlip - EXTERNAL, 40MM	Circlip - EXTERNAL, 40MM
20	90603-PL4-000	Circlip - EXTERNAL, 42MM	Circlip - EXTERNAL, 42MM
21	90605-PC9-000	Ring - SNAP, 119MM	Ring - SNAP, 119MM
22	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)
23	91302-PL4-003	O-ring - 41.8X2.2 (NOK)	O-ring - 41.8X2.2 (NOK)
24	91303-PC9-004	O-ring - 104X2.2 (NOK)	O-ring - 104X2.2 (NOK)

Clutch master cylinder (RH) 2 / 2

#	OEM	EJ6	EJ8
32	90851-SH4-K00	Plug - HOLE, 9MM	Plug - HOLE, 9MM
33	90851-SR3-981	Plug - HOLE, 38MM	Plug - HOLE, 38MM

Clutch/torque converter 6 / 7

#	OEM	EJ6	EJ8
2	21351-P24-J00	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
6	26000-P2E-305	Converter assy - TORQUE	Converter assy - TORQUE
6	26000-P2F-305	Converter assy - TORQUE	Converter assy - TORQUE
9	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
11	90429-PJ7-900	Washer - 40X85X2	Washer - 40X85X2
13	91302-639-000	O-ring - 32X1.9	O-ring - 32X1.9

Combination meter components 2 / 24

#	OEM	EJ6	EJ8
25	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
26	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Combination switch (RH) 9 / 18

#	OEM	EJ6	EJ8
4	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
5	35103-S04-003	Screw - RECESSED	Screw - RECESSED
11	35255-SR3-E02	Switch assy - LIGHTING (B)	Switch assy - LIGHTING (B)
12	35256-SR3-E21	Switch assy - WIPER (G)	Switch assy - WIPER (G)
14	35400-SL4-013	Switch assy - DOOR	Switch assy - DOOR
15	35401-SL4-003	Cover - DOOR SWITCH	Cover - DOOR SWITCH
16	35409-692-013	Screw - FLANGE, 4X12	Screw - FLANGE, 4X12
25	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)	Clip - HARNESS BAND (BROWN) (151MM)
26	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Console (2) 12 / 12

#	OEM	EJ6	EJ8
1	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
13	83404-S04-003	Cover - HAND BRAKE	Cover - HAND BRAKE
14	83406-SR4-J00	Hinge comp - ARMREST	Hinge comp - ARMREST
15	83407-ST0-003	Lock	Lock
23	88324-SB3-950	Cover - RR. ASHTRAY	Cover - RR. ASHTRAY
24	90137-SH3-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
25	90144-SP0-000	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
26	90146-SP0-000	Screw - TAPPING, 4X12 (PO)	Screw - TAPPING, 4X12 (PO)
27	90651-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
28	90666-SD4-003	Clip - FITTING	Clip - FITTING
29	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
30	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (CABIN; RH) 6 / 14

#	OEM	EJ6	EJ8
3	37826-P2A-000	Rubber - CUSHION	Rubber - CUSHION
6	38235-S04-003	Puller - MINI FUSE (SUMITOMO)	Puller - MINI FUSE (SUMITOMO)
8	38380-S04-013	Control unit - AUTO DOOR LOCK	Control unit - AUTO DOOR LOCK
10	39400-S10-003	Relay assy - MAIN (MITSUBA)	Relay assy - MAIN (MITSUBA)
14	39794-S01-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
18	90670-SG0-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (ENGINE ROOM; RH) 12 / 13

#	OEM	EJ6	EJ8
1	38100-S04-A01	Horn assy - LOW (MITSUBA)	Horn assy - LOW (MITSUBA)
2	38212-SM4-003	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
3	38216-SM4-003	Fuse - BLOCK (80A)	Fuse - BLOCK (80A)
4	38231-S04-003	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
5	38231-S04-961	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
6	38250-S01-E01	Box assy - MAIN FUSE	Box assy - MAIN FUSE
7	38252-S01-003	Cover - LOWER	Cover - LOWER
8	38254-S01-E01	Cover - UPPER	Cover - UPPER
10	39794-S01-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
11	90129-SP0-000	Screw-washer - 5X12	Screw-washer - 5X12
12	90130-SR3-003	Bolt - 5X13	Bolt - 5X13
13	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Countershaft (2) 29 / 32

#	OEM	EJ6	EJ8
1	23220-P4P-000	Countershaft comp.	Countershaft comp.
2	23421-P4P-J00	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
3	23423-P24-J01	Clutch assy. - ONE WAY (NIPPON SEIKO)	Clutch assy. - ONE WAY (NIPPON SEIKO)
4	23427-P4P-J00	Gear - PARKING	Gear - PARKING
8	23531-P24-J00	Gear - COUNTERSHAFT REVERSE	Gear - COUNTERSHAFT REVERSE
9	23540-P24-J01	Holder comp - REVERSE IDLE	Holder comp - REVERSE IDLE
10	23541-PA9-010	Gear - REVERSE IDLE	Gear - REVERSE IDLE
11	23565-PF4-L03	Selector - REVERSE GEAR	Selector - REVERSE GEAR
12	23566-PF4-000	Hub - REVERSE SELECTOR	Hub - REVERSE SELECTOR
13	23928-P56-010	Washer - SPRING, 23MM	Washer - SPRING, 23MM
14	90202-P56-000	Nut - FLANGE, 23MM	Nut - FLANGE, 23MM
15	90411-PDM-000	Washer - SPLINE, 35X53.5X5.0	Washer - SPLINE, 35X53.5X5.0
16	90498-PDM-000	Collar - 31X36X20.6	Collar - 31X36X20.6
17	90504-PC9-000	Collar - DISTANCE, 28X38X39.10	Collar - DISTANCE, 28X38X39.10
17	90511-PC9-000	Collar - DISTANCE, 28X38X38.90	Collar - DISTANCE, 28X38X38.90
17	90507-PC9-000	Collar - DISTANCE, 28X38X39.30	Collar - DISTANCE, 28X38X39.30
17	90509-PC9-000	Collar - DISTANCE, 28X38X39.15	Collar - DISTANCE, 28X38X39.15
17	90503-PC9-000	Collar - DISTANCE, 28X38X39.00	Collar - DISTANCE, 28X38X39.00
17	90510-PC9-000	Collar - DISTANCE, 28X38X39.25	Collar - DISTANCE, 28X38X39.25
17	90505-PC9-000	Collar - DISTANCE, 28X38X39.20	Collar - DISTANCE, 28X38X39.20
17	90512-PC9-000	Collar - DISTANCE, 28X38X38.95	Collar - DISTANCE, 28X38X38.95
17	90508-PC9-000	Collar - DISTANCE, 28X38X39.05	Collar - DISTANCE, 28X38X39.05
18	90509-P4P-000	Collar - COUNTERSHAFT LOW GEAR	Collar - COUNTERSHAFT LOW GEAR
19	91016-P56-013	Bearing - NEEDLE, 28X33X21	Bearing - NEEDLE, 28X33X21
20	91024-PF4-003	Bearing - NEEDLE, 32X38X14 (NTN)	Bearing - NEEDLE, 32X38X14 (NTN)
21	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)	Bearing - NEEDLE, 14X18X15 (NTN)
22	91028-P56-023	Bearing - NEEDLE, 36X41X20.3	Bearing - NEEDLE, 36X41X20.3
23	91031-P4P-013	Bearing - THRUST NEEDLE, 41.5X54.7X2 (NTN)	Bearing - THRUST NEEDLE, 41.5X54.7X2 (NTN)
24	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)

Cylinder block/oil pan (SOHC) 15 / 22

#	OEM	EJ6	EJ8
2	11106-PE0-300	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
3	11126-PK1-003	Bolt - SEALING, 22MM	Bolt - SEALING, 22MM
10	11311-PM3-000	Cover - BREATHING PORT	Cover - BREATHING PORT
11	11910-P2A-000	Bracket - ENGINE MOUNTING	Bracket - ENGINE MOUNTING
14	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
15	90007-PM6-003	Bolt-washer - 11X116	Bolt-washer - 11X116
16	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5	Bolt - MOUNTING BRACKET, 10X32.5
17	90008-PM6-003	Bolt-washer - 11X131	Bolt-washer - 11X131
18	90008-PR3-000	Bolt A, ENGINE MOUNT BRACKET (10X60)	Bolt A, ENGINE MOUNT BRACKET (10X60)
22	90041-P01-000	Bolt - STUD, 12X40	Bolt - STUD, 12X40
23	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
24	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
25	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
26	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
27	91214-PAA-A01	Oil seal - 80X100X10 (NOK)	Oil seal - 80X100X10 (NOK)

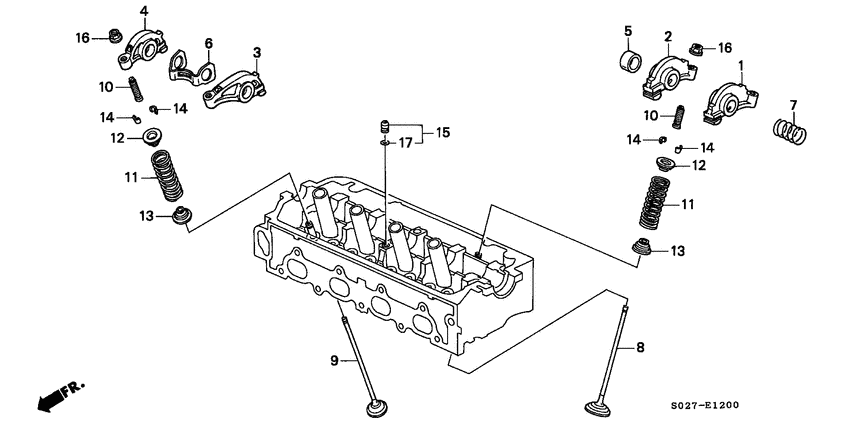

Cylinder head (SOHC) 13 / 15

#	OEM	EJ6	EJ8
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
3	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
4	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
4	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
5	12251-P2J-004	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)
7	14633-P2A-000	Shaft - EX. ROCKER ARM	Shaft - EX. ROCKER ARM
8	90004-PT0-000	Bolt - FLANGE, 6X50	Bolt - FLANGE, 6X50
9	90004-PT2-000	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
9	90003-PT2-000	Bolt - FLANGE, 6X35	Bolt - FLANGE, 6X35
10	90007-P08-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
11	90008-PZ1-003	Bolt-washer - 10X120.5 (SAGA)	Bolt-washer - 10X120.5 (SAGA)
12	90026-PT0-000	Bolt - STUD, 8X38	Bolt - STUD, 8X38

Cylinder head cover 13 / 15

#	OEM	EJ6	EJ8
1	12030-P2A-000	Packing set - HEAD COVER	Packing set - HEAD COVER
3	12341-P2A-000	CYLINDER HEAD COVER GASKET	CYLINDER HEAD COVER GASKET
3	12341-P2F-A00	PKGHEAD COVER	PKGHEAD COVER
4	12342-P08-004	Seal	Seal
4	12342-RYE-004	Seal,spark plug t	Seal,spark plug t
5	15610-P2A-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
6	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
9	90011-P2A-000	Bolt comp. a - HEAD COVER	Bolt comp. a - HEAD COVER
10	90012-P2A-000	Bolt comp. b - HEAD COVER	Bolt comp. b - HEAD COVER
11	90013-P2A-000	Bolt a - HEAD COVER	Bolt a - HEAD COVER
12	90014-P2A-000	Bolt b - HEAD COVER	Bolt b - HEAD COVER
13	90442-P2A-000	Washer	Washer
15	32761-P1H-E00	Stay a - HIGH TENSION CORD CLAMP	Stay a - HIGH TENSION CORD CLAMP

Differential gear (2) 11 / 11

#	OEM	EJ6	EJ8
1	41010-PL4-316	Case comp. - DIFFERENTIAL	Case comp. - DIFFERENTIAL
2	41233-P4P-000	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
3	41312-PA9-020	Gear - SPEEDOMETER DRIVE	Gear - SPEEDOMETER DRIVE
4	90003-PA9-003	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
5	90415-689-000	Ring 2 - SNAP, 80X2.6	Ring 2 - SNAP, 80X2.6
5	90417-689-000	Ring 4 - SNAP, 80X2.8	Ring 4 - SNAP, 80X2.8
5	90419-PH8-000	Ring 6 - SNAP, 80X3.0	Ring 6 - SNAP, 80X3.0
5	90414-689-000	Ring 1 - SNAP, 80X2.5	Ring 1 - SNAP, 80X2.5
5	90416-689-000	Ring 3 - SNAP, 80X2.7	Ring 3 - SNAP, 80X2.7
5	90418-689-000	Ring 5 - SNAP, 80X2.9	Ring 5 - SNAP, 80X2.9
6	90608-PA9-000	Circlip - EXTERNAL, 90MM	Circlip - EXTERNAL, 90MM

Distributor (TEC) 10 / 10

#	OEM	EJ6	EJ8
1	30100-P2E-A12	Distributor assy - TD-73U) (TEC	Distributor assy - TD-73U) (TEC
2	30102-P54-006	Cap assy.	Cap assy.
3	30103-P08-003	Distributor Rotor Head Assembly	Distributor Rotor Head Assembly
5	30107-P08-006	Cover - LEAK	Cover - LEAK
6	30110-PA1-732	O-ring - 26.4X3.1 (TEC)	O-ring - 26.4X3.1 (TEC)
8	30132-PT2-006	Packing - CAP	Packing - CAP
9	30135-P08-006	Screw-washer - 5X12	Screw-washer - 5X12
9	30135-P73-004	Screw-washer - 5X12	Screw-washer - 5X12
10	30510-PT2-006	Ignition Coil	Ignition Coil
11	30105-P2E-A12	Housing comp - DISTRIBUTOR	Housing comp - DISTRIBUTOR

Door lining (RH) 5 / 10

#	OEM	EJ6	EJ8
17	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
18	90670-SG0-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
19	90678-SK7-003	Clip - SPEAKER	Clip - SPEAKER
20	91560-SP0-003	Clip - DOOR LINING (GRAY)	Clip - DOOR LINING (GRAY)
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Door locks 18 / 38

#	OEM	EJ6	EJ8
2	72112-SR4-004	Snap - BROWN	Snap - BROWN
3	72113-SR4-004	Snap - BLACK	Snap - BLACK
8	72116-S04-003	Holder - ROD(SKY BLUE)	Holder - ROD(SKY BLUE)
10	72117-S04-003	Holder - ROD (YELLOW)	Holder - ROD (YELLOW)
13	72123-SR0-003	Ring - OUTSIDE HANDLE	Ring - OUTSIDE HANDLE
19	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
20	72135-SR3-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
21	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
24	72145-S04-003	Cylinder - R. DOOR	Cylinder - R. DOOR
25	72146-S04-003	Cylinder - L. DOOR	Cylinder - L. DOOR
41	72616-SM4-003	Snap - NATURAL	Snap - NATURAL
42	75411-634-000	Joint	Joint
43	90101-SR4-003	Screw - 3X10	Screw - 3X10
44	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
45	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
46	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
47	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
48	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Door panels 6 / 18

#	OEM	EJ6	EJ8
14	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
16	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
17	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
18	90755-SB2-000	E-ring - 6MM	E-ring - 6MM
19	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
20	91530-ST5-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Door windows 4 / 18

#	OEM	EJ6	EJ8
19	90011-896-000	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8
20	90126-SS0-000	Bolt-washer - 6X16	Bolt-washer - 6X16
21	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
22	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Duct (RH) 4 / 8

#	OEM	EJ6	EJ8
1	77411-S04-003	Duct - CENTER AIR CONDITIONER	Duct - CENTER AIR CONDITIONER
2	77430-S04-000	Duct - DRIVER SIDE AIR CONDITIONER	Duct - DRIVER SIDE AIR CONDITIONER
3	77440-S04-000	Duct assy - AIR CONDITIONER PASSENGER SIDE	Duct assy - AIR CONDITIONER PASSENGER SIDE
13	90666-SD4-003	Clip - FITTING	Clip - FITTING

Emblems 3 / 6

#	OEM	EJ6	EJ8
1	17669-SA0-670	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
11	75765-S04-000	Emblem - RR. (CIVIC)	Emblem - RR. (CIVIC)
12	77871-SM4-A70	Label - SRS CAUTION	Label - SRS CAUTION

Engine mounts (AT) 22 / 24

#	OEM	EJ6	EJ8
3	50810-SR3-983	Insulator, RR. ENGINE MOUNTING RUBBER (AT)	Insulator, RR. ENGINE MOUNTING RUBBER (AT)
4	50820-S04-013	Rubber assy. - ENGINE SIDE MOUNTING	Rubber assy. - ENGINE SIDE MOUNTING
5	50824-S04-013	Rubber assy. - MOUNT	Rubber assy. - MOUNT
6	50825-S04-980	Bracket - TRANSMISSION MOUNTING	Bracket - TRANSMISSION MOUNTING
7	50827-S04-000	Bracket - ENGINE RR. MOUNTING	Bracket - ENGINE RR. MOUNTING
8	50841-SR3-984	Rubber - R. FR. STOPPER INSULATOR (AT)	Rubber - R. FR. STOPPER INSULATOR (AT)
9	50842-SR3-984	Rubber - L. FR. STOPPER INSULATOR (AT)	Rubber - L. FR. STOPPER INSULATOR (AT)
10	50843-S04-980	Bracket - R. FR. STOPPER (AT)	Bracket - R. FR. STOPPER (AT)
11	90131-ST7-000	Bolt - L. FR. STOPPER	Bolt - L. FR. STOPPER
12	90133-S04-000	Bolt - R. FR. STOPPER	Bolt - R. FR. STOPPER
13	90161-SR3-000	Bolt - FLANGE, 14X107	Bolt - FLANGE, 14X107
14	90165-S04-000	Bolt - FLANGE, 12X97	Bolt - FLANGE, 12X97
15	90166-SR3-000	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
16	90176-S04-000	Bolt-washer - 10X32.5	Bolt-washer - 10X32.5
17	90183-SR3-000	Bolt - FLANGE, 12X100	Bolt - FLANGE, 12X100
18	90188-SR3-010	Bolt - FLANGE, 14X67	Bolt - FLANGE, 14X67
19	90190-S04-000	Bolt - FLANGE, 12X38	Bolt - FLANGE, 12X38
20	90371-SR3-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
21	90372-SR3-003	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
23	90504-SR3-010	Washer - FR. STOPPER	Washer - FR. STOPPER
24	90505-SB2-000	Washer - SIDE MOUNTING	Washer - SIDE MOUNTING
25	90505-SR3-000	Washer - RR. BRACKET, 14MM	Washer - RR. BRACKET, 14MM

Engine wire harness (RH) 18 / 20

#	OEM	EJ6	EJ8
2	32111-P2A-003	Plate - WIRE HARNESS GROMMET (BLACK)	Plate - WIRE HARNESS GROMMET (BLACK)
3	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
5	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
7	32128-P2A-000	Holder comp - ENGINE HARNESS	Holder comp - ENGINE HARNESS
8	32129-P2A-000	Stay - JOINT CONNECTING	Stay - JOINT CONNECTING
10	32610-SR3-960	Cable, SUB EARTH (260MM)	Cable, SUB EARTH (260MM)
11	32742-P2A-000	Stay n - ENGINE WIRE HARNESS	Stay n - ENGINE WIRE HARNESS
12	32748-P2A-000	Stay j - ENGINE WIRE HARNESS	Stay j - ENGINE WIRE HARNESS
13	32749-P2A-000	Stay k - ENGINE WIRE HARNESS	Stay k - ENGINE WIRE HARNESS
15	90130-SR3-003	Bolt - 5X13	Bolt - 5X13
16	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
17	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
18	91505-P2A-003	Clip - BAND (BLACK) (130MM) (6MM HOLE)	Clip - BAND (BLACK) (130MM) (6MM HOLE)
19	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
20	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
21	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
22	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
27	32119-P2E-A01	Holder - CORRUGATED (DARK BLUE) (22MM)	Holder - CORRUGATED (DARK BLUE) (22MM)

Exhaust manifold (SOHC; 1) 4 / 12

#	OEM	EJ6	EJ8
2	18115-P2A-004	Gasket - EX. MANIFOLD (ISHINO GASKET)	Gasket - EX. MANIFOLD (ISHINO GASKET)
2	18115-P2A-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
9	90015-PH7-000	Bolt-washer - 8X14	Bolt-washer - 8X14
9	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14

Exhaust pipe 6 / 18

#	OEM	EJ6	EJ8
21	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
22	18231-SR3-A22	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
23	18231-SR3-J01	Bolt a - FLEXIBLE JOINT	Bolt a - FLEXIBLE JOINT
31	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
32	90117-SB2-000	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
33	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 3 / 5

#	OEM	EJ6	EJ8
6	90685-SA5-003	Clip - UNDER COVER	Clip - UNDER COVER
7	91533-SR3-003	Clip - INSULATOR (NATURAL)	Clip - INSULATOR (NATURAL)
9	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)

Front brake (1) 17 / 24

#	OEM	EJ6	EJ8
1	01463-S04-V00	Caliper set - FR.	Caliper set - FR.
1	01463-S04-V01	SET, FR CALIPER	SET, FR CALIPER
2	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
6	45018-S04-V01	Caliper sub assy. - R. FR.	Caliper sub assy. - R. FR.
7	45019-S04-V01	Caliper sub assy. - L. FR.	Caliper sub assy. - L. FR.
9	45216-SR3-V01	Piston - 54MM	Piston - 54MM
9	45216-S5A-J01	Piston	Piston
10	45235-SR3-003	Pin a	Pin a
11	45237-SR3-003	Retainer a	Retainer a
12	45238-SR3-003	Retainer b	Retainer b
13	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
16	45262-SR3-003	Pin b	Pin b
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
18	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
18	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
19	90681-SR3-A00	Circlip, SPECIAL INTERNAL, 79MM	Circlip, SPECIAL INTERNAL, 79MM

Front bulkhead 1 / 2

#	OEM	EJ6	EJ8
34	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Front driveshaft (2) 4 / 18

#	OEM	EJ6	EJ8
10	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
11	44319-SR1-003	Set ring - 26X1.8 (GKN)	Set ring - 26X1.8 (GKN)
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
17	90305-692-010	Nut	Nut

Front fenders 8 / 11

#	OEM	EJ6	EJ8
5	74101-S04-J10	Fender - R. FR. INNER	Fender - R. FR. INNER
9	74151-S04-J10	Fender - L. FR. INNER	Fender - L. FR. INNER
10	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
12	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
13	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
15	91516-SK7-013	Clip - UNDER COVER	Clip - UNDER COVER
19	90308-SB2-000	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
19	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM

Front grille ('97-) 5 / 6

#	OEM	EJ6	EJ8
5	75700-S04-J00	Emblem - FR. CENTER (H)	Emblem - FR. CENTER (H)
6	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
7	90301-ST0-003	push nut, 3mm	push nut, 3mm
8	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
11	91503-SZ3-003	Clip A	Clip A

Front lower arm (1) 10 / 20

#	OEM	EJ6	EJ8
2	51306-S04-003	Bush - STABILIZER HOLDER	Bush - STABILIZER HOLDER
3	51308-SR3-000	Holder - R. FR. STABILIZER	Holder - R. FR. STABILIZER
8	51393-S04-000	Bracket - R. COMPLIANCE BUSH	Bracket - R. COMPLIANCE BUSH
9	51394-S04-000	Bracket - L. COMPLIANCE BUSH	Bracket - L. COMPLIANCE BUSH
10	51398-S04-000	Washer b - FR. RADIUS ARM	Washer b - FR. RADIUS ARM
14	90118-S04-000	Bolt - FLANGE, 14X83	Bolt - FLANGE, 14X83
15	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42	Bolt - SHOCK ABSORBER LOCK, 10X42
16	90164-SR3-013	Bolt - SELF-LOCK, 14X34	Bolt - SELF-LOCK, 14X34
18	90213-SR3-013	Nut - SELF-LOCK, 14MM	Nut - SELF-LOCK, 14MM
19	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)

Front seat (RH) 5 / 10

#	OEM	EJ6	EJ8
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
12	81227-S04-003	Spring - R. TORSION BAR	Spring - R. TORSION BAR
23	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
24	90161-SB4-003	Screw - FLAT, 4X16	Screw - FLAT, 4X16

Front seat components (L.; RH) 10 / 18

#	OEM	EJ6	EJ8
1	77208-SA5-003	Bush - NYLON (TS TECH)	Bush - NYLON (TS TECH)
2	77209-SB0-003	Washer - NYLON	Washer - NYLON
3	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER
11	90128-SR4-003	Bolt-washer - 8X19	Bolt-washer - 8X19
12	90135-SK7-A01	Bolt-washer - 10X27	Bolt-washer - 10X27
13	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
15	90143-S04-000	Bolt - FLANGE, 10X18	Bolt - FLANGE, 10X18
16	90155-SH3-000	Bolt-washer - 8X25	Bolt-washer - 8X25
21	81271-S0A-J02	Cap - SLIDE ADJUSTER END	Cap - SLIDE ADJUSTER END
22	81272-S84-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END

Front seat components (R.; RH) 9 / 15

#	OEM	EJ6	EJ8
1	77208-SA5-003	Bush - NYLON (TS TECH)	Bush - NYLON (TS TECH)
2	77209-SB0-003	Washer - NYLON	Washer - NYLON
3	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER
9	90128-SR4-003	Bolt-washer - 8X19	Bolt-washer - 8X19
10	90135-SK7-A01	Bolt-washer - 10X27	Bolt-washer - 10X27
14	90155-SH3-000	Bolt-washer - 8X25	Bolt-washer - 8X25
18	81271-S0A-J02	Cap - SLIDE ADJUSTER END	Cap - SLIDE ADJUSTER END
19	81272-S84-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
20	81225-S04-000	Washer - HEIGHT PIN	Washer - HEIGHT PIN

Front shock absorber 4 / 18

#	OEM	EJ6	EJ8
1	51401-S04-911	Spring - FR. (SHOWA)	Spring - FR. (SHOWA)
12	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
13	52722-SM4-961	Rubber - BUMP STOPPER (POLYURETHAN KASEI)	Rubber - BUMP STOPPER (POLYURETHAN KASEI)
14	90304-SR3-014	Nut - FLANGE, 10MM (OHASHI)	Nut - FLANGE, 10MM (OHASHI)

Front windshield 6 / 9

#	OEM	EJ6	EJ8
2	73125-SR3-000	Rubber a - FR. WINDSHIELD DAM	Rubber a - FR. WINDSHIELD DAM
3	73128-S47-000	Rubber b - FR. WINDSHIELD DAM	Rubber b - FR. WINDSHIELD DAM
5	73127-S04-000	Seal - FR. WINDSHIELD MOLDING SIDE	Seal - FR. WINDSHIELD MOLDING SIDE
7	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
8	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
10	73122-S04-000	Seal a - FR. WINDSHIELD MOLDING	Seal a - FR. WINDSHIELD MOLDING

Front windshield wiper (RH) 19 / 25

#	OEM	EJ6	EJ8
1	38472-SB2-003	Rubber - BLADE (450MM)	Rubber - BLADE (450MM)
1	76632-S5H-T01	Rubber - BLADE (450MM)	Rubber - BLADE (450MM)
2	76505-S04-Q01	Motor comp - FR. WIPER	Motor comp - FR. WIPER
3	76516-SE0-003	Rubber - BRACKETLESS MOUNTING	Rubber - BRACKETLESS MOUNTING
4	76516-SR3-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
6	76517-SM4-003	Collar	Collar
7	76520-S04-003	Link unit a	Link unit a
7	76520-SCC-003	Link unit a	Link unit a
8	76524-SD4-003	Dust seal	Dust seal
9	76524-SE0-013	Dust seal	Dust seal
10	76530-S04-003	Link comp - FR. WIPER	Link comp - FR. WIPER
11	76540-SR3-003	Rod unit a	Rod unit a
12	76550-SM4-003	Rod unit b	Rod unit b
13	76561-S04-003	Cap - PIVOT (PASSENGER SIDE)	Cap - PIVOT (PASSENGER SIDE)
17	76622-SF4-003	Rubber - BLADE (500MM)	Rubber - BLADE (500MM)
17	76632-S6M-003	Rubber - BLADE (500MM)	Rubber - BLADE (500MM)
19	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
20	90201-SK7-000	Nut - HEX. CAP, 10MM	Nut - HEX. CAP, 10MM

Fuel pipe (1) 40 / 45

#	OEM	EJ6	EJ8
1	16010-ST5-933	Strainer set - FUEL (TOYO ROKI)	Strainer set - FUEL (TOYO ROKI)
1	16010-ST5-E02	SETFUEL STRN COM	SETFUEL STRN COM
3	16913-S04-003	Cover - FR. FUEL PIPE	Cover - FR. FUEL PIPE
4	16914-S04-003	Cover - RR. FUEL PIPE	Cover - RR. FUEL PIPE
5	16918-S04-930	Stay - FUEL STRAINER	Stay - FUEL STRAINER
6	16919-S04-930	Band - FUEL STRAINER	Band - FUEL STRAINER
7	16922-SH3-930	Rubber - MOUNTING	Rubber - MOUNTING
8	16922-SR3-931	Rubber - MOUNTING	Rubber - MOUNTING
9	16923-SP0-930	Collar - DISTANCE	Collar - DISTANCE
10	16923-SR3-930	Collar - DISTANCE	Collar - DISTANCE
11	17300-S04-G31	Canister assy	Canister assy
12	17306-ST7-003	Joint - CANISTER	Joint - CANISTER
13	17700-S04-930	Pipe comp, FUEL FEED	Pipe comp, FUEL FEED
14	17720-S04-930	Pipe comp - FUEL VENT	Pipe comp - FUEL VENT
18	17742-ST0-003	Pipe - CANISTER DRAIN JOINT	Pipe - CANISTER DRAIN JOINT
19	17743-SR3-E01	Tube - CANISTER DRAIN	Tube - CANISTER DRAIN
20	17744-S04-000	Tube - DRAIN (SUB)	Tube - DRAIN (SUB)
21	17745-ST0-003	Joint - CANISTER DRAIN	Joint - CANISTER DRAIN
22	17761-S04-000	Stay a - FUEL PIPE	Stay a - FUEL PIPE
23	17762-SR3-J00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
24	17763-SR3-000	Stay c - FUEL PIPE	Stay c - FUEL PIPE
25	17764-SR3-J00	Stay d - FUEL PIPE	Stay d - FUEL PIPE
26	17767-S04-000	Stay g - FUEL PIPE	Stay g - FUEL PIPE
29	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
30	90164-S04-000	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
31	90201-PD1-000	Nut a - SEALING, 12MM	Nut a - SEALING, 12MM
32	90222-S04-003	Nut - SPECIAL, 6MM	Nut - SPECIAL, 6MM
33	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
34	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
36	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)
37	91590-SR3-J31	CLAMP J, FUEL PIPE	CLAMP J, FUEL PIPE
39	91594-SR3-J32	Clamp f - FUEL PIPE (SANOU)	Clamp f - FUEL PIPE (SANOU)
39	91594-SR3-J31	Clamp f - FUEL PIPE (NIFCO)	Clamp f - FUEL PIPE (NIFCO)
40	91595-S04-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
41	91596-SR3-J31	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE
43	91597-SR3-003	Clamp c - FUEL PIPE	Clamp c - FUEL PIPE
44	91598-SR3-J31	Clamp d - FUEL PIPE (NIFCO)	Clamp d - FUEL PIPE (NIFCO)
44	91598-SR3-J32	Clamp d - FUEL PIPE (SANOU)	Clamp d - FUEL PIPE (SANOU)
45	91598-S04-023	Clamp d - FUEL PIPE	Clamp d - FUEL PIPE
52	90021-P0A-003	Bolt - SEALING, 12MM	Bolt - SEALING, 12MM

Fuel tank 21 / 42

#	OEM	EJ6	EJ8
3	17371-SR3-A01	Valve - TWO WAY	Valve - TWO WAY
4	17372-SR3-010	Cover - TWO WAY VALVE	Cover - TWO WAY VALVE
7	17522-SR3-000	Band assy. - L. FUEL TANK MOUNTING	Band assy. - L. FUEL TANK MOUNTING
8	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
11	17574-SE0-000	Packing - BASE	Packing - BASE
13	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
16	17662-S04-003	Packing - FUEL FILLER (WITH CLIP)	Packing - FUEL FILLER (WITH CLIP)
17	17670-SM1-A03	Cap comp. - FUEL FILLER (STANT)	Cap comp. - FUEL FILLER (STANT)
17	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)	Cap comp. - FUEL FILLER (TOYODA)
19	17710-SR3-A31	Tube comp - FUEL JOINT (TOKAI)	Tube comp - FUEL JOINT (TOKAI)
20	17711-ST0-003	Retainer - YELLOW) (TOKAI	Retainer - YELLOW) (TOKAI
24	74559-SR3-010	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
25	74661-SR3-000	Cap - FLOOR MAINTENANCE HOLE	Cap - FLOOR MAINTENANCE HOLE
26	74662-SR3-000	Rubber - SEAL	Rubber - SEAL
28	90657-SA5-003	Clip - SIDE APRON MOLDING	Clip - SIDE APRON MOLDING
29	90657-SH3-013	Clip - TWO WAY VALVE COVER	Clip - TWO WAY VALVE COVER
30	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE
31	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)
32	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
38	90301-SE0-J00	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
53	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Gasket kit 1 / 3

#	OEM	EJ6	EJ8
3	06112-P4R-000	Gasket kit - AT TRANSMISSION (###)	Gasket kit - AT TRANSMISSION (###)

Grommet 16 / 20

#	OEM	EJ6	EJ8
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM	Cap - FLOOR HOLE, 24MM
3	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
4	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
5	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
6	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
7	90852-671-003	Plug - HOLE	Plug - HOLE
11	90860-SA5-003	Plug - HOLE, 16MM	Plug - HOLE, 16MM
12	91504-SD5-901	Clip - WASHER MOUTH	Clip - WASHER MOUTH
13	91603-S04-003	Plug - HOLE, 20MM	Plug - HOLE, 20MM
15	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
16	91606-S04-000	Plug - BLIND, 17.5MM	Plug - BLIND, 17.5MM
17	91610-SB2-003	Plug - HOLE, 16.7MM (BLACK)	Plug - HOLE, 16.7MM (BLACK)
18	91613-SR3-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
19	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
20	91616-S04-000	Block - FR. PILLAR INNER LOWER	Block - FR. PILLAR INNER LOWER
21	91617-SB6-000	Grommet - WASHER HOSE, 32MM	Grommet - WASHER HOSE, 32MM

Harness band/bracket (RH) 21 / 25

#	OEM	EJ6	EJ8
1	32113-S04-000	Bracket - COUPLER HOLDER	Bracket - COUPLER HOLDER
2	32114-S04-000	Stay - COUPLER	Stay - COUPLER
3	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
4	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
5	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
7	32416-S04-000	Bracket - STARTER CABLE CLAMP	Bracket - STARTER CABLE CLAMP
11	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)	Seal b - FR. DOOR HOLE (30X50)
13	91534-S03-003	Clip - COUPLER (NATURAL) (SEAL)	Clip - COUPLER (NATURAL) (SEAL)
14	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
15	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
16	91547-SH3-003	Clip - BAND(NATURAL)(160MM)	Clip - BAND(NATURAL)(160MM)
19	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
20	91557-SR3-003	Clip - WIRE HARNESS PROTECTOR (RED)	Clip - WIRE HARNESS PROTECTOR (RED)
21	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
23	91637-SF1-003	Cap - 090 2P	Cap - 090 2P
26	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
31	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
32	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
34	91751-S30-003	Cover - POWER RELAY	Cover - POWER RELAY
35	91755-SX0-010	Bracket - RELAY BLOCK (ISO)	Bracket - RELAY BLOCK (ISO)
39	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)

Headlight 18 / 18

#	OEM	EJ6	EJ8
1	33101-S04-Q03	Headlight unit	Headlight unit
2	33115-SV4-003	Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM)	Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM)
2	33115-SM3-003	Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY)	Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY)
2	33115-SV4-G01	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)
2	33115-SM4-003	Bulb	Bulb
3	33126-SV4-003	Cover - RUBBER	Cover - RUBBER
4	33151-S04-Q03	Headlight unit	Headlight unit
5	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
6	33301-S04-003	Bulb	Bulb
6	33301-S04-004	Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)	Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)
7	33303-S04-003	Socket comp. - GRAY	Socket comp. - GRAY
8	34300-SL4-003	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
9	34301-SL4-003	Lamp unit - R. SIDE TURN	Lamp unit - R. SIDE TURN
10	34303-SS1-003	Socket comp - 2P	Socket comp - 2P
11	34304-SH3-A01	Socket comp.	Socket comp.
12	34350-SL4-003	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
13	34351-SL4-003	Lamp unit - L. SIDE TURN	Lamp unit - L. SIDE TURN
14	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)

Heater blower (RH; 2) 14 / 15

#	OEM	EJ6	EJ8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
2	79192-SR3-003	Bush - LINK	Bush - LINK
3	79305-S04-003	Blower sub assy.	Blower sub assy.
3	79305-S3Y-003	Blower sub assy.	Blower sub assy.
4	79310-SR3-003	Motor assy. - BLOWER (DENSO)	Motor assy. - BLOWER (DENSO)
5	79330-SR3-003	Resistor - BLOWER	Resistor - BLOWER
6	79350-S04-003	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
8	90121-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
9	90121-S04-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
10	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
11	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
12	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
13	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater control (RH) 10 / 13

#	OEM	EJ6	EJ8
1	32157-S04-000	Sub cord - HEATER (A)	Sub cord - HEATER (A)
2	32257-S04-000	Sub cord - HEATER (B)	Sub cord - HEATER (B)
4	79512-S04-003	Lever	Lever
5	79514-S04-003	Slider	Slider
6	79542-S04-000	Cable - TEMPERATURE CONTROL	Cable - TEMPERATURE CONTROL
7	79550-S04-003	Garnish	Garnish
9	79570-SR3-003	Switch assy - HEATER FAN	Switch assy - HEATER FAN
10	79601-S04-003	Knob a	Knob a
11	79602-S04-003	Knob b	Knob b
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Heater unit (RH) 9 / 10

#	OEM	EJ6	EJ8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
2	79100-S04-E01	Heater unit	Heater unit
3	79110-S04-J21	Core comp - HEATER	Core comp - HEATER
4	79140-S04-003	Motor assy. - MODE	Motor assy. - MODE
5	79192-SR3-003	Bush - LINK	Bush - LINK
6	79195-SF1-003	Holder - ROD	Holder - ROD
8	90122-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
9	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
10	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

High tension cord/ plug 1 / 9

#	OEM	EJ6	EJ8
10	90003-P01-000	Bolt-washer - 8X28	Bolt-washer - 8X28

Hood (RH) 13 / 19

#	OEM	EJ6	EJ8
9	74142-S04-G10	Rubber, HOOD SEAL	Rubber, HOOD SEAL
10	74143-S04-000	Rubber - HOOD RR. SEAL	Rubber - HOOD RR. SEAL
13	74177-SD4-000	Cushion a - HOOD	Cushion a - HOOD
14	74200-S04-000	Cowl top assy.	Cowl top assy.
15	74214-S04-000	Cover - R. HOOD HINGE	Cover - R. HOOD HINGE
16	74264-S04-000	Cover - L. HOOD HINGE	Cover - L. HOOD HINGE
17	90127-SA0-000	Bolt-washer - 6X16	Bolt-washer - 6X16
18	90672-SJ4-013	Holder - ROD	Holder - ROD
20	91508-SR3-000	Clip - COWL TOP (BLACK)	Clip - COWL TOP (BLACK)
20	91508-SX8-003	Clip - COWL TOP	Clip - COWL TOP
21	91515-SR3-000	Clip - RR. HOOD	Clip - RR. HOOD
22	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
23	91604-SD2-013	Grommet - HOOD STAY	Grommet - HOOD STAY

Instrument panel (RH) 12 / 14

#	OEM	EJ6	EJ8
2	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
14	77466-S04-000	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
17	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
18	90101-S03-900	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
19	90128-S04-000	Bolt - SPECIAL, 6X25	Bolt - SPECIAL, 6X25
20	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
21	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
22	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
23	90666-SD4-003	Clip - FITTING	Clip - FITTING
24	91508-SA4-003	Clip - WIRE HARNESS (BLACK)	Clip - WIRE HARNESS (BLACK)
26	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
29	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18

Instrument panel garnish (RH) 22 / 23

#	OEM	EJ6	EJ8
1	35505-S04-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
1	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
4	66405-S04-010	Stay - GLOVE BOX HINGE	Stay - GLOVE BOX HINGE
5	66417-SB3-670	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
6	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
7	66418-S04-000	Stopper	Stopper
9	77202-S04-G00	Blind - COLUMN	Blind - COLUMN
17	77429-S04-G00	Knob - UPPER VENT	Knob - UPPER VENT
20	77541-S04-E00	Striker assy - GROVE BOX	Striker assy - GROVE BOX
21	77551-S04-010	Frame - GLOVE BOX	Frame - GLOVE BOX
22	77710-S04-003	Case comp. - INNER	Case comp. - INNER
26	77752-SF4-000	Spring - COIN POCKET	Spring - COIN POCKET
27	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
28	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
29	90609-SG0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
30	90609-SL9-900	Clip - INSTRUMENT LOWER	Clip - INSTRUMENT LOWER
32	90666-SD4-003	Clip - FITTING	Clip - FITTING
33	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
34	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
43	39600-SW3-305	Lighter unit - CIGARETTE	Lighter unit - CIGARETTE
43	39600-SW3-505	LIGHTER ASSYCIGA	LIGHTER ASSYCIGA
44	39628-S04-305	Cord assy	Cord assy

Intake manifold (SOHC) 14 / 24

#	OEM	EJ6	EJ8
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)	Seal ring - INJECTOR (NOK)
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)	Seal ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
5	16613-P2A-000	Hose - FUEL RETURN	Hose - FUEL RETURN
7	16620-P2A-000	Pipe assy. - FUEL	Pipe assy. - FUEL
9	16741-PG7-005	O-ring - PRESSURE REGULATOR	O-ring - PRESSURE REGULATOR
15	90027-P0A-003	Bolt a - FUEL PIPE	Bolt a - FUEL PIPE
15	90027-P0A-305	Bolt a	Bolt a
16	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
16	16074-ZY3-000	O-ring	O-ring
16	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)	O-ring - 7.3X2.2 (ARAI)
17	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)
18	91593-ST7-931	Clip - FUEL HOSE	Clip - FUEL HOSE

Interior light 4 / 6

#	OEM	EJ6	EJ8
3	34252-SB2-003	Lens - DAIICHI	Lens - DAIICHI
9	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
9	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
12	35409-SD2-003	Screw - EARTH, 4X12 (ZN)	Screw - EARTH, 4X12 (ZN)

Knuckle 8 / 12

#	OEM	EJ6	EJ8
3	51220-S04-003	Joint comp - LOWER BALL (MUSASHI)	Joint comp - LOWER BALL (MUSASHI)
5	51450-S04-023	Arm assy. - R. FR. UPPER	Arm assy. - R. FR. UPPER
6	51460-S04-023	Arm assy. L. FR. UPPER	Arm assy. L. FR. UPPER
7	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
8	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
11	90172-S04-003	Bolt - FLANGE, 10X68	Bolt - FLANGE, 10X68
12	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
13	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM

Main valve body (2) 11 / 12

#	OEM	EJ6	EJ8
1	22741-PN1-000	Pipe - LOW CLUTCH	Pipe - LOW CLUTCH
2	24630-P24-J00	Arm comp - CHANGE DETENT	Arm comp - CHANGE DETENT
3	24635-P24-J00	Shaft - CHANGE DETENT ARM	Shaft - CHANGE DETENT ARM
4	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
5	27000-P4R-010	Body assy - MAIN VALVE	Body assy - MAIN VALVE
7	27122-P4R-000	Cap - 12MM	Cap - 12MM
8	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
9	27628-PK4-000	Cap - LOCK UP TIMING	Cap - LOCK UP TIMING
10	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY
11	90638-P56-000	Clip - VALVE CAP	Clip - VALVE CAP
12	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8

Mainshaft (2) 31 / 35

#	OEM	EJ6	EJ8
1	22814-P4P-003	Ring - SEALING, 35MM	Ring - SEALING, 35MM
2	22815-P4P-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
4	23411-P4P-J00	Gear - MAINSHAFT LOW	Gear - MAINSHAFT LOW
7	23926-P4P-000	Washer - SPRING, 21MM	Washer - SPRING, 21MM
8	90201-P4P-000	Nut - FLANGE, 21MM	Nut - FLANGE, 21MM
9	90417-PC9-000	Washer - 26X45X3	Washer - 26X45X3
10	90422-P4P-000	Washer - THRUST, 26MM	Washer - THRUST, 26MM
11	90446-P4P-000	Washer - THRUST, 36.5X55X4.25	Washer - THRUST, 36.5X55X4.25
11	90441-P4P-000	Washer - THRUST, 36.5X55X4.00	Washer - THRUST, 36.5X55X4.00
11	90448-P4P-000	Washer - THRUST, 36.5X55X4.35	Washer - THRUST, 36.5X55X4.35
11	90443-P4P-000	Washer - THRUST, 36.5X55X4.10	Washer - THRUST, 36.5X55X4.10
11	90450-P4P-000	Washer - THRUST, 36.5X55X4.45	Washer - THRUST, 36.5X55X4.45
11	90445-P4P-000	Washer - THRUST, 36.5X55X4.20	Washer - THRUST, 36.5X55X4.20
11	90447-P4P-000	Washer - THRUST, 36.5X55X4.30	Washer - THRUST, 36.5X55X4.30
11	90442-P4P-000	Washer - THRUST, 36.5X55X4.05	Washer - THRUST, 36.5X55X4.05
11	90449-P4P-000	Washer - THRUST, 36.5X55X4.40	Washer - THRUST, 36.5X55X4.40
11	90444-P4P-000	Washer - THRUST, 36.5X55X4.15	Washer - THRUST, 36.5X55X4.15
12	90502-P4P-000	Collar - 26X32X49.5	Collar - 26X32X49.5
13	90508-P4P-000	Collar - 26X31X27	Collar - 26X31X27
14	90603-P4R-000	Set ring - 23MM	Set ring - 23MM
15	90613-PA9-000	Ring - SNAP, 26MM	Ring - SNAP, 26MM
16	91011-P56-003	Bearing - NEEDLE, 32X38X20 (NTN)	Bearing - NEEDLE, 32X38X20 (NTN)
17	91012-PR0-003	Bearing - NEEDLE, 32X35X18.5	Bearing - NEEDLE, 32X35X18.5
18	91017-P4R-006	Bearing - NEEDLE, 23X29X16	Bearing - NEEDLE, 23X29X16
19	91018-P56-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
20	91019-PG4-003	Bearing - THRUST NEEDLE, 31X47X2	Bearing - THRUST NEEDLE, 31X47X2
21	91023-P56-013	Bearing - THRUST NEEDLE, 36X56X2.5 (NTN)	Bearing - THRUST NEEDLE, 36X56X2.5 (NTN)
22	91026-PS5-003	Bearing - THRUST NEEDLE, 42X58X2 (TOYO)	Bearing - THRUST NEEDLE, 42X58X2 (TOYO)
24	91031-P24-J01	Bearing - THRUST NEEDLE, 39X54X2.5	Bearing - THRUST NEEDLE, 39X54X2.5
25	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)
26	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)

Mirror (REMOTE CONTROL; 1) 1 / 9

#	OEM	EJ6	EJ8
18	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH

Molding 3 / 9

#	OEM	EJ6	EJ8
6	74308-ST0-003	Bracket - ROOF MOLDING	Bracket - ROOF MOLDING
8	90142-S04-000	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
9	91531-ST0-003	Clip - DOOR MOLDING (YELLOW)	Clip - DOOR MOLDING (YELLOW)

Oil pump/oil strainer (SOHC) 16 / 21

#	OEM	EJ6	EJ8
4	15200-P2A-000	Pipe - OIL LEVEL	Pipe - OIL LEVEL
5	15220-P2A-000	Strainer comp. - OIL	Strainer comp. - OIL
6	15221-PZ1-000	Packing - OIL STRAINER	Packing - OIL STRAINER
7	15231-PM3-000	Valve - RELIEF	Valve - RELIEF
8	15232-PM3-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
9	15233-P2A-003	Bolt - SEALING, 14MM (YAMADA)	Bolt - SEALING, 14MM (YAMADA)
10	15302-PE0-300	Washer - SEALING, 14MM	Washer - SEALING, 14MM
12	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)	Cartridge - OIL FILTER (TSUCHIYA)
12	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
12	15400-PR3-014	OIL FILTER (TOYO ROKI)	OIL FILTER (TOYO ROKI)
13	15400-PR3-315	Cartridge set - OIL FILTER (TOYO ROKI)	Cartridge set - OIL FILTER (TOYO ROKI)
16	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
17	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
19	91308-PH9-000	O-ring - 8.8X1.9	O-ring - 8.8X1.9
19	91302-GE0-000	O-ring (8.8x1.9)	O-ring (8.8x1.9)
20	91308-PK1-003	O-ring - 26.2X2.4 (NOK)	O-ring - 26.2X2.4 (NOK)

Outer panels 4 / 5

#	OEM	EJ6	EJ8
22	70494-SE0-000	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER
23	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
24	75450-S04-000	Outlet assy - RR. AIR	Outlet assy - RR. AIR
26	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

P.s. pump 18 / 19

#	OEM	EJ6	EJ8
1	56110-P2A-023	Pump sub assy - POWER STEERING (INDENT MARK O)	Pump sub assy - POWER STEERING (INDENT MARK O)
1	56110-P2A-963	Pump sub assy - POWER STEERING (INDENT MARK P)	Pump sub assy - POWER STEERING (INDENT MARK P)
2	56167-P2A-003	Spacer - PUMP SEAL	Spacer - PUMP SEAL
3	56483-P2A-003	Pulley comp - POWER STEERING PUMP	Pulley comp - POWER STEERING PUMP
7	90305-PAA-A01	Nut - POWER STEERING PULLEY	Nut - POWER STEERING PULLEY
8	90693-P2A-003	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
8	90693-PAA-A01	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
9	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12	Bearing - RADIAL BALL, 17X40X12
10	91249-P2A-003	Seal - POWER STEERING PUMP	Seal - POWER STEERING PUMP
11	91345-PAA-A01	O-ring - 13.0X1.9	O-ring - 13.0X1.9
11	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9
12	91347-P2A-003	O-ring - 15.2X2.4	O-ring - 15.2X2.4
13	91348-P2A-003	O-ring - 51.0X2.4	O-ring - 51.0X2.4
14	91349-P2A-003	Seal - POWER STEERING PUMP COVER	Seal - POWER STEERING PUMP COVER
16	91350-P8C-A01	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20
17	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28
20	56123-P2A-003	Joint - IN.	Joint - IN.
21	91347-PAA-A01	O-ring - 16.7X1.8	O-ring - 16.7X1.8

P.s. pump bracket 3 / 3

#	OEM	EJ6	EJ8
1	56992-P2A-003	Belt - POWER STEERING PUMP (BANDO)	Belt - POWER STEERING PUMP (BANDO)
5	56997-P2E-000	Bracket - POWER STEERING PUMP	Bracket - POWER STEERING PUMP
8	90004-P30-000	Bolt - SPECIAL, 8MM	Bolt - SPECIAL, 8MM

Parking brake 10 / 11

#	OEM	EJ6	EJ8
2	47342-S04-003	Switch - PARKING BRAKE	Switch - PARKING BRAKE
3	47360-SB2-000	Equalizer	Equalizer
4	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
7	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
15	43471-SD2-930	Pin - BRAKE WIRE END	Pin - BRAKE WIRE END
16	47510-S04-932	Wire a - R. PARKING BRAKE	Wire a - R. PARKING BRAKE
17	47560-S04-932	Wire a - L. PARKING BRAKE	Wire a - L. PARKING BRAKE
18	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE
20	90705-SD2-931	Pin - SNAP, 6MM	Pin - SNAP, 6MM

Pedal (RH) 15 / 16

#	OEM	EJ6	EJ8
2	17800-S04-000	Pedal comp - ACCELERATOR	Pedal comp - ACCELERATOR
3	17812-SA7-010	Washer - ACCELERATOR PEDAL	Washer - ACCELERATOR PEDAL
4	17814-SD4-670	Spring - ACCELERATOR PEDAL	Spring - ACCELERATOR PEDAL
5	17816-SK7-000	Cover - ACCELERATOR PEDAL	Cover - ACCELERATOR PEDAL
7	17921-SA4-730	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE
8	35350-S04-003	Switch assy - STOP	Switch assy - STOP
10	46500-S04-950	Pedal comp - BRAKE	Pedal comp - BRAKE
11	46504-ST5-300	Bush - PEDAL	Bush - PEDAL
12	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
13	46505-SA7-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
14	46530-SR3-000	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
15	46535-SM4-000	Collar - PEDAL	Collar - PEDAL
16	46545-SA5-980	Cover - BRAKE PEDAL	Cover - BRAKE PEDAL
18	46590-S04-000	Bracket - PEDAL	Bracket - PEDAL
25	46991-SR3-010	Bracket - FOOTREST	Bracket - FOOTREST

Pillar garnish (RH) 4 / 5

#	OEM	EJ6	EJ8
8	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
9	90666-S04-003	Clip - LINING PILLAR	Clip - LINING PILLAR
10	90667-S04-003	Clip - ROOF SIDE GARNISH	Clip - ROOF SIDE GARNISH
11	91532-SR3-003	Clip - DASHBOARD INSULATOR (BLACK)	Clip - DASHBOARD INSULATOR (BLACK)

Piston/crankshaft 15 / 34

#	OEM	EJ6	EJ8
2	13021-P08-003	Ring set - PISTON (OS 0.25) (TEIKOKU)	Ring set - PISTON (OS 0.25) (TEIKOKU)
2	13031-P08-003	Ring set - PISTON (OS 0.50) (TEIKOKU)	Ring set - PISTON (OS 0.50) (TEIKOKU)
2	13021-P08-004	Ring set - PISTON (OS 0.25) (RIKEN)	Ring set - PISTON (OS 0.25) (RIKEN)
2	13031-P08-004	Ring set - PISTON (OS 0.50) (RIKEN)	Ring set - PISTON (OS 0.50) (RIKEN)
3	13014-PG6-S20	Washer set - THRUST (TAIHO)	Washer set - THRUST (TAIHO)
3	13014-PG6-S10	Washer set - THRUST (DAIDO)	Washer set - THRUST (DAIDO)
6	13112-PE0-000	Pin - PISTON	Pin - PISTON
7	13204-PE1-003	Bolt	Bolt
8	13205-634-010	Nut	Nut
9	13210-PM6-000	Rod comp	Rod comp
13	13622-PM3-020	Plate - TIMING BELT GUIDE	Plate - TIMING BELT GUIDE
14	13810-P2K-003	Pulley comp - CRANKSHAFT	Pulley comp - CRANKSHAFT
15	90017-P01-003	Bolt-washer - 14X29	Bolt-washer - 14X29
16	90704-634-000	Key - 4.5X11.0	Key - 4.5X11.0
20	13310-P2E-010	Crankshaft	Crankshaft

Power steering gear box (RH) 21 / 21

#	OEM	EJ6	EJ8
1	53010-S04-000	End set - RACK	End set - RACK
2	53411-SH3-950	Tube - AIR TRANSFER	Tube - AIR TRANSFER
3	53434-SD9-000	Clip - TIE ROD	Clip - TIE ROD
3	53434-S04-J51	CLIP, TIE ROD	CLIP, TIE ROD
4	53435-S04-J50	Bracket - STEERING GEAR BOX UPPER	Bracket - STEERING GEAR BOX UPPER
5	53436-S04-J51	Cushion b - POWER STEERING GEAR BOX	Cushion b - POWER STEERING GEAR BOX
6	53438-S04-J50	Bracket - STEERING GEAR BOX	Bracket - STEERING GEAR BOX
7	53447-ST0-003	Clip - TRANSFER TUBE (NIFCO)	Clip - TRANSFER TUBE (NIFCO)
8	53449-S04-J62	Band b - BELLOWS	Band b - BELLOWS
9	53501-SR3-000	Grommet a - STEERING	Grommet a - STEERING
10	53502-S04-000	Grommet b - STEERING	Grommet b - STEERING
11	53534-SR3-N52	Dust seal comp. - TIE ROD	Dust seal comp. - TIE ROD
12	53534-ST0-013	Dust seal comp. - TIE ROD	Dust seal comp. - TIE ROD
13	53536-SR3-000	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
14	53540-S04-013	End comp - R. TIE ROD	End comp - R. TIE ROD
15	53546-S84-003	Boot - TIE ROD END (NOK)	Boot - TIE ROD END (NOK)
17	53560-S04-013	End comp - L. TIE ROD	End comp - L. TIE ROD
18	53601-S04-E82	Box comp - POWER STEERING GEAR	Box comp - POWER STEERING GEAR
19	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING	Bush - STEERING GEAR BOX MOUNTING
20	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING	Collar - STEERING GEAR BOX MOUNTING
21	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)	Bolt - GEAR BOX MOUNTING (10X55)

Power steering gear box components (RH) 26 / 26

#	OEM	EJ6	EJ8
1	06531-S04-000	Seal kit a - POWER STEERING (ROTARY VALVE)	Seal kit a - POWER STEERING (ROTARY VALVE)
2	06532-S04-000	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-SR3-J60	Seal set - POWER STEERING VALVE (ROTARY VALVE)	Seal set - POWER STEERING VALVE (ROTARY VALVE)
4	06535-S04-000	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	53413-S04-J62	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
6	53414-SH3-003	Plug - ADJUSTER (JIDOSHA KIKI)	Plug - ADJUSTER (JIDOSHA KIKI)
7	53415-SD5-961	Plate - PRESSURE (JIDOSHA KIKI)	Plate - PRESSURE (JIDOSHA KIKI)
8	53416-SD5-961	Guide - STEERING RACK (JIDOSHA KIKI)	Guide - STEERING RACK (JIDOSHA KIKI)
9	53449-S04-J62	Band b - BELLOWS	Band b - BELLOWS
10	53458-SH3-003	Nut - LOCK (JIDOSHA KIKI)	Nut - LOCK (JIDOSHA KIKI)
11	53536-SR3-000	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
12	53608-S04-J62	Housing sub assy. - STEERING GEAR BOX	Housing sub assy. - STEERING GEAR BOX
13	53626-S04-J72	Rack comp - STEERING	Rack comp - STEERING
14	53630-S04-J62	End comp - CYLINDER	End comp - CYLINDER
15	53641-S04-E82	Valve sub assy. - STEERING	Valve sub assy. - STEERING
16	53645-S04-J62	Housing comp - VALVE	Housing comp - VALVE
17	53651-SR3-J62	Bearing - RADIAL BALL, 22X39X9	Bearing - RADIAL BALL, 22X39X9
18	53652-SR3-J62	Bearing - VALVE OIL, 20X32X7	Bearing - VALVE OIL, 20X32X7
19	53654-SR3-J62	Spacer	Spacer
20	53656-SR3-J62	Circlip - EXTERNAL, 20MM	Circlip - EXTERNAL, 20MM
21	53660-S04-J62	Oil seal - VALVE, 26X35.5X6	Oil seal - VALVE, 26X35.5X6
22	53667-SR3-J62	Shim	Shim
23	53668-SR3-J62	Bolt - SOCKET (M8)	Bolt - SOCKET (M8)
24	53670-S04-J62	Pipe a - CYLINDER	Pipe a - CYLINDER
25	53671-S04-J62	Pipe comp. b - CYLINDER	Pipe comp. b - CYLINDER
26	53653-SR3-J62	Circlip - EXTERNAL, 22MM	Circlip - EXTERNAL, 22MM

Power steering lines (RH) 19 / 20

#	OEM	EJ6	EJ8
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
3	53711-S04-J51	Bracket - POWER STEERING OIL TANK	Bracket - POWER STEERING OIL TANK
4	53713-S04-E51	Hose comp. - POWER STEERING FEED	Hose comp. - POWER STEERING FEED
5	53720-SP0-010	Pipe comp	Pipe comp
6	53721-SM4-013	Clamp d - 15.5MM	Clamp d - 15.5MM
7	53728-S04-003	Clip - RETURN PIPE	Clip - RETURN PIPE
8	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
9	53730-S04-J50	Pipe comp - POWER STEERING COMBINATION	Pipe comp - POWER STEERING COMBINATION
10	53731-S04-J50	Tube - POWER STEERING SUCTION	Tube - POWER STEERING SUCTION
11	53732-S04-950	Hose comp.	Hose comp.
12	53733-S04-J50	Hose - POWER STEERING OIL TANK	Hose - POWER STEERING OIL TANK
13	53736-SR3-950	Holder - POWER STEERING PIPE	Holder - POWER STEERING PIPE
14	53737-S04-950	Pipe comp - POWER STEERING JOINT RETURN	Pipe comp - POWER STEERING JOINT RETURN
15	53739-S04-950	Hose - POWER STEERING JOINT RETURN	Hose - POWER STEERING JOINT RETURN
16	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
16	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
17	91370-SV4-000	O-ring - 14.4X1.9	O-ring - 14.4X1.9
18	91405-PE0-003	Clamp - TUBE (D20)	Clamp - TUBE (D20)
18	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

Protector 7 / 17

#	OEM	EJ6	EJ8
4	75301-S04-003	Protector comp	Protector comp
7	75305-S04-003	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
10	75321-S04-003	Protector comp	Protector comp
16	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
17	90688-SB0-013	Clip b	Clip b
17	90668-SC5-003	Clip A - AIRSCOOP GRILLE	Clip A - AIRSCOOP GRILLE
18	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

R. side cover (2) 30 / 32

#	OEM	EJ6	EJ8
2	21812-P24-J01	Packing - R. SIDE COVER	Packing - R. SIDE COVER
3	22710-PH0-010	Pipe a - FEED	Pipe a - FEED
4	22713-PC9-010	Guide a - FEED PIPE	Guide a - FEED PIPE
5	22721-PA9-003	Flange - FEED PIPE	Flange - FEED PIPE
6	22722-P24-J00	Pipe c - FEED	Pipe c - FEED
8	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
9	24532-PN6-003	Lever - PARKING BRAKE	Lever - PARKING BRAKE
10	24535-P4T-000	Spring - PARKING BRAKE	Spring - PARKING BRAKE
11	24537-PA9-003	Stopper - PARKING BRAKE (1)	Stopper - PARKING BRAKE (1)
11	24539-PA9-003	Stopper - PARKING BRAKE (3)	Stopper - PARKING BRAKE (3)
11	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
12	24552-PS5-000	Spring - PARKING PAWL	Spring - PARKING PAWL
13	24553-PN6-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
14	24555-PN6-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
15	24561-P24-J00	Pawl - PARKING BRAKE	Pawl - PARKING BRAKE
16	24562-PA9-000	Shaft - PARKING BRAKE	Shaft - PARKING BRAKE
17	28810-P4V-004	Pick up assy. - MAIN (KEIHIN)	Pick up assy. - MAIN (KEIHIN)
17	28810-P4V-003	Pick up assy. - MAIN (TEC)	Pick up assy. - MAIN (TEC)
18	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
19	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
20	90471-580-000	Packing - 8MM	Packing - 8MM
21	90507-PA9-000	Collar - 8X11	Collar - 8X11
22	90701-639-000	Dowel pin - 8X55	Dowel pin - 8X55
23	90703-PA9-003	Roller - 2X19.8	Roller - 2X19.8
24	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
25	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
26	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)
27	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
28	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)
29	91314-PC9-004	O-ring - 8.5X1.9 (NOK)	O-ring - 8.5X1.9 (NOK)

Radiator hose 15 / 20

#	OEM	EJ6	EJ8
1	19101-P2A-000	Tank - RESERVE	Tank - RESERVE
2	19102-P2A-000	Cap assy. - RESERVE TANK	Cap assy. - RESERVE TANK
3	19104-PZ3-010	Tube a - RESERVE TANK (220MM)	Tube a - RESERVE TANK (220MM)
4	19104-P08-000	Tube - RESERVE TANK	Tube - RESERVE TANK
5	19105-P2A-000	Seat - RESERVE TANK	Seat - RESERVE TANK
7	19501-P08-000	Hose	Hose
8	19502-P2A-000	Hose	Hose
11	19519-P2A-901	Clamp - WATER HOSE	Clamp - WATER HOSE
13	25212-P24-J01	Hose - ATF, 210MM(BRIDGESTONE)	Hose - ATF, 210MM(BRIDGESTONE)
14	25213-P24-J01	Hose - ATF, 250MM (BRIDGESTONE)	Hose - ATF, 250MM (BRIDGESTONE)
14	25213-P24-007	HOSE ATF 250MM	HOSE ATF 250MM
16	74172-SR3-000	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
17	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
18	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
18	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE

Radio antenna/speaker 5 / 12

#	OEM	EJ6	EJ8
10	90670-SG0-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
11	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
12	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)	Clip - HARNESS BAND (BROWN) (151MM)
13	91647-S04-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
14	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Rear beam 4 / 4

#	OEM	EJ6	EJ8
1	50200-S04-020	Beam - RR.	Beam - RR.
2	50210-S04-000	Stiffener - RR. BEAM	Stiffener - RR. BEAM
3	90161-S04-000	Bolt - FLANGE, 14X100	Bolt - FLANGE, 14X100
4	90162-S04-000	Bolt - FLANGE, 14X83	Bolt - FLANGE, 14X83

Rear brake (DISK) 40 / 46

#	OEM	EJ6	EJ8
1	01473-S04-000	Caliper set - RR.	Caliper set - RR.
3	42324-SB2-020	Washer - HUB UNIT	Washer - HUB UNIT
4	42326-SB2-000	Cap - HUB UNIT	Cap - HUB UNIT
4	42326-SFA-000	Cap - HUB UNIT	Cap - HUB UNIT
6	43018-S04-003	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
6	43018-S04-013	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
7	43019-S04-003	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
7	43019-S04-013	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
9	43215-SH3-931	Piston assy.	Piston assy.
10	43223-SD2-932	BEARING A	BEARING A
11	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
12	43227-SD2-305	Shim - OUTER PAD	Shim - OUTER PAD
13	43227-SF1-003	Spring - PAD	Spring - PAD
14	43228-SD2-933	Shaft a	Shaft a
15	43229-SD2-931	Rod	Rod
16	43233-S04-003	Piston comp - SLEEVE	Piston comp - SLEEVE
17	43235-SD2-931	Pin a	Pin a
18	43236-S04-003	Spacer	Spacer
19	43238-SD2-931	Ring - RETAINING	Ring - RETAINING
20	43241-SD2-931	Guide - SPRING	Guide - SPRING
21	43243-SD2-931	Nut - PARKING	Nut - PARKING
22	43244-SD2-931	Retainer	Retainer
23	43245-SH3-931	Lever - R.	Lever - R.
24	43246-SD2-931	Spring - R. RETURN	Spring - R. RETURN
25	43247-SH3-931	Arm - R.	Arm - R.
26	43248-SD2-933	Shaft b	Shaft b
27	43249-S04-003	Bolt - ADJUSTER	Bolt - ADJUSTER
30	43255-SR3-932	Protector - R. RR. CALIPER	Protector - R. RR. CALIPER
31	43256-SR3-932	Protector - L. RR. CALIPER	Protector - L. RR. CALIPER
32	43262-S04-003	Pin b	Pin b
33	43265-SH3-931	Lever - L.	Lever - L.
34	43266-SD2-931	Spring - L. RETURN	Spring - L. RETURN
35	43267-SH3-931	Arm - L.	Arm - L.
36	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
37	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
38	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
39	90103-SN7-003	Bolt - FLANGE, 10X25	Bolt - FLANGE, 10X25
40	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
40	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
41	90305-692-010	Nut	Nut

Rear lower arm 15 / 21

#	OEM	EJ6	EJ8
1	46438-SR3-010	Bracket - R. RR. BRAKE HOSE (DISK)	Bracket - R. RR. BRAKE HOSE (DISK)
2	46439-SR3-010	Bracket - L. RR. BRAKE HOSE (DISK)	Bracket - L. RR. BRAKE HOSE (DISK)
3	52341-S04-000	Arm comp - RR. COMPENSATOR	Arm comp - RR. COMPENSATOR
3	52341-S04-A00	Compensator arm c	Compensator arm c
4	52350-S04-000	Arm comp - RR. LOWER	Arm comp - RR. LOWER
5	52354-SR3-000	Protector - R. RR. LOWER ARM	Protector - R. RR. LOWER ARM
6	52364-SR3-000	Protector - L. RR. LOWER ARM	Protector - L. RR. LOWER ARM
13	52622-SH3-013	Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN)	Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN)
16	90117-SH3-004	Bolt - UPPER ARM, 10X30	Bolt - UPPER ARM, 10X30
17	90171-SR3-003	Bolt - TORQUE COMPENSATOR, 10X59	Bolt - TORQUE COMPENSATOR, 10X59
18	90172-SK7-003	Bolt - UPPER ARM, 10X68	Bolt - UPPER ARM, 10X68
18	90172-S04-003	Bolt - FLANGE, 10X68	Bolt - FLANGE, 10X68
19	90173-SR3-003	Bolt - LOWER ARM, 10X80	Bolt - LOWER ARM, 10X80
20	90174-SJ4-003	Bolt - TRAILING ARM BUSH, 12X60	Bolt - TRAILING ARM BUSH, 12X60
21	90551-SH3-000	Washer - 24X10X2.3	Washer - 24X10X2.3

Rear seat 7 / 15

#	OEM	EJ6	EJ8
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
6	82220-S04-003	Lock assy - R. RR. SEAT	Lock assy - R. RR. SEAT
9	82290-SR4-000	Bracket comp. - SEAT PIVOT	Bracket comp. - SEAT PIVOT
16	82620-S04-003	Lock assy - L. RR. SEAT	Lock assy - L. RR. SEAT
21	91513-SR3-003	Snap	Snap
22	91647-S04-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Rear shock absorber 3 / 16

#	OEM	EJ6	EJ8
10	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
13	90173-SR3-003	Bolt - LOWER ARM, 10X80	Bolt - LOWER ARM, 10X80
15	90304-SR3-014	Nut - FLANGE, 10MM (OHASHI)	Nut - FLANGE, 10MM (OHASHI)

Rear windshield 4 / 15

#	OEM	EJ6	EJ8
3	73221-SR4-000	Spacer - RR. WINDSHIELD	Spacer - RR. WINDSHIELD
4	73226-ST8-000	Spacer - RR. WINDSHIELD	Spacer - RR. WINDSHIELD
14	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
15	91561-S04-J01	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD

Regulator (2) 13 / 13

#	OEM	EJ6	EJ8
1	25155-P4P-000	Shaft assy - STATOR	Shaft assy - STATOR
2	27200-P4R-000	Body assy - REGULATOR	Body assy - REGULATOR
3	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
4	27600-P4R-020	Body assy - LOCK UP VALVE	Body assy - LOCK UP VALVE
5	27612-P4R-000	Plate - LOCK UP SEPARATING	Plate - LOCK UP SEPARATING
6	27628-P4R-000	Cap - 13MM	Cap - 13MM
7	27645-PL1-000	Cap - LOCK UP CONTROL	Cap - LOCK UP CONTROL
8	27728-PF4-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
9	90089-PK4-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
10	90638-P56-000	Clip - VALVE CAP	Clip - VALVE CAP
11	90703-PL4-000	Dowel pin - 8X68	Dowel pin - 8X68
12	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8
13	91316-PF4-003	O-ring - 31X1.7 (ARAI)	O-ring - 31X1.7 (ARAI)

Roof lining (RH) 2 / 3

#	OEM	EJ6	EJ8
15	90131-SH3-A12	Screw - PAN, 5X16	Screw - PAN, 5X16
16	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)

Secondary body (2) 12 / 13

#	OEM	EJ6	EJ8
1	22740-PDM-000	Pipe comp - 8X105.8	Pipe comp - 8X105.8
2	22741-PN1-000	Pipe - LOW CLUTCH	Pipe - LOW CLUTCH
3	22743-P4R-000	Pipe - 8X192.5	Pipe - 8X192.5
4	27132-P4R-000	Cap - 12.4MM	Cap - 12.4MM
5	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
6	27412-P4R-000	Plate - SERVO SEPARATING	Plate - SERVO SEPARATING
7	27413-P24-J00	Stay - STOPPER SHAFT	Stay - STOPPER SHAFT
8	27700-P4R-020	Body assy - SECONDARY	Body assy - SECONDARY
10	27724-PF4-010	Cap - KICK DOWN VALVE	Cap - KICK DOWN VALVE
11	90638-P56-000	Clip - VALVE CAP	Clip - VALVE CAP
12	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8
13	91704-PF4-000	Dowel pin - 8X40	Dowel pin - 8X40

Select lever (RH) 26 / 31

#	OEM	EJ6	EJ8
1	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
2	35700-S04-003	Switch assy - INHIBITOR	Switch assy - INHIBITOR
3	37700-S04-003	Lamp assy. - INDICATOR	Lamp assy. - INDICATOR
5	54020-S04-982	Plate comp - POSITION	Plate comp - POSITION
9	54100-S04-981	Lever comp - SELECT	Lever comp - SELECT
10	54110-S04-981	Spring comp - DETENT	Spring comp - DETENT
11	54117-692-980	Spring - LOCK PIN	Spring - LOCK PIN
12	54123-SL4-980	Collar - SELECT LEVER	Collar - SELECT LEVER
14	54132-S04-981	Knob - PUSH	Knob - PUSH
15	54133-SH9-980	Spring - PUSH KNOB	Spring - PUSH KNOB
16	54141-SV4-980	Bush - KNOB SETTING	Bush - KNOB SETTING
17	54200-S04-981	Bracket comp. - SELECT LEVER	Bracket comp. - SELECT LEVER
18	54222-S04-981	Cover - SELECT LEVER	Cover - SELECT LEVER
19	54315-S04-A81	Wire - CONTROL	Wire - CONTROL
20	54318-S04-981	Seal - BRACKET	Seal - BRACKET
21	54322-S04-981	Holder - WIRE END CONTROL	Holder - WIRE END CONTROL
22	54341-S04-981	Boot - CONTROL WIRE	Boot - CONTROL WIRE
23	54361-SV4-980	Pipe - CONTROL WIRE ADJUSTING	Pipe - CONTROL WIRE ADJUSTING
24	54363-689-981	Pin - CONTROL WIRE ADJUSTER	Pin - CONTROL WIRE ADJUSTER
26	90130-SV4-980	Screw - TAPPING, 5X11	Screw - TAPPING, 5X11
27	90301-SD5-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
28	90308-SA0-981	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
29	90438-671-000	Washer - SPECIAL, 6MM	Washer - SPECIAL, 6MM
30	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
31	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
40	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Servo body (2) 29 / 29

#	OEM	EJ6	EJ8
1	22743-PF0-000	Pipe - THIRD CLUTCH	Pipe - THIRD CLUTCH
2	22748-PW4-000	Pipe - 8X62	Pipe - 8X62
3	24271-PX4-000	Shaft - SHIFT FORK	Shaft - SHIFT FORK
4	27410-P4R-010	Body comp - SERVO	Body comp - SERVO
5	27561-P4R-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
6	27562-P4R-000	Spring - LOW ACCUMULATOR	Spring - LOW ACCUMULATOR
7	27572-P4R-000	Piston - SECOND ACCUMULATOR	Piston - SECOND ACCUMULATOR
8	27574-P4R-010	Piston - THIRD ACCUMULATOR	Piston - THIRD ACCUMULATOR
9	27575-P4R-000	Spring b - TOP ACCUMULATOR	Spring b - TOP ACCUMULATOR
10	27576-P4R-000	Piston - TOP ACCUMULATOR	Piston - TOP ACCUMULATOR
11	27577-P4R-000	Spring a - TOP ACCUMULATOR	Spring a - TOP ACCUMULATOR
12	27579-P4R-000	Piston - SECOND SHORT	Piston - SECOND SHORT
13	27581-P4R-000	Spring a - SECOND ACCUMULATOR	Spring a - SECOND ACCUMULATOR
14	27583-P4R-000	Spring a - THIRD ACCUMULATOR	Spring a - THIRD ACCUMULATOR
15	27584-P4R-000	Spring b - SECOND ACCUMULATOR	Spring b - SECOND ACCUMULATOR
16	27585-P4R-010	Spring b - THIRD ACCUMULATOR	Spring b - THIRD ACCUMULATOR
17	27588-P4R-000	Spring c - SECOND ACCUMULATOR	Spring c - SECOND ACCUMULATOR
18	90604-PX4-000	Circlip - INTERNAL, 31MM	Circlip - INTERNAL, 31MM
19	90606-PX4-000	Circlip - INTERNAL, 36MM	Circlip - INTERNAL, 36MM
20	90608-P0Z-000	Circlip - INTERNAL, 16	Circlip - INTERNAL, 16
21	91302-PF0-003	O-ring - 26.9X2.4 (NOK)	O-ring - 26.9X2.4 (NOK)
22	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
23	91324-PF4-004	O-ring - 28.3X2.4 (NOK)	O-ring - 28.3X2.4 (NOK)
24	91326-PF4-004	O-ring - 24.4X2.4 (NOK)	O-ring - 24.4X2.4 (NOK)
25	91331-PC9-003	O-ring	O-ring
26	91331-PL5-J00	O-ring - 20.2X2.4 (NOK)	O-ring - 20.2X2.4 (NOK)
27	91344-PC9-004	O-ring - 29X2.4 (NOK)	O-ring - 29X2.4 (NOK)
28	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)
29	91704-PF4-000	Dowel pin - 8X40	Dowel pin - 8X40

Shift shaft (2) 9 / 9

#	OEM	EJ6	EJ8
1	21113-P56-003	Collar comp - SUCTION PIPE	Collar comp - SUCTION PIPE
2	24111-P24-J00	Fork - REVERSE SHIFT	Fork - REVERSE SHIFT
3	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
4	24410-P24-J01	Shaft comp. - CONTROL	Shaft comp. - CONTROL
5	24634-P24-J00	Spring - DETENT ARM	Spring - DETENT ARM
6	25420-P4R-003	Strainer comp. - TRANSMISSION (ATF)	Strainer comp. - TRANSMISSION (ATF)
7	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
8	91209-612-000	Oil seal - 12X22X7	Oil seal - 12X22X7
8	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

Side lining 3 / 5

#	OEM	EJ6	EJ8
9	91560-SP0-003	Clip - DOOR LINING (GRAY)	Clip - DOOR LINING (GRAY)
9	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
10	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)

Srs unit (RH) 5 / 8

#	OEM	EJ6	EJ8
2	77907-S04-003	Holder - CONNECTOR (2P)	Holder - CONNECTOR (2P)
4	77961-S04-J80	Harness - SRS MAIN	Harness - SRS MAIN
5	77963-SR3-L80	Cover - R. SRS UNIT	Cover - R. SRS UNIT
7	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
9	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Steering column 10 / 12

#	OEM	EJ6	EJ8
3	53216-SR3-000	Holder b - STEERING COLUMN	Holder b - STEERING COLUMN
4	53320-S04-E80	Cover - STEERING JOINT	Cover - STEERING JOINT
6	53325-SH3-000	Clip A - JOINT COVER	Clip A - JOINT COVER
7	53326-SB0-000	Clip b - JOINT COVER	Clip b - JOINT COVER
8	53363-S04-000	Pivot comp - COLUMN	Pivot comp - COLUMN
9	77873-SP0-A80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH)
10	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
11	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
12	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
13	90654-SR3-003	Clip - STEERING JOINT COVER	Clip - STEERING JOINT COVER

Steering wheel (SRS) 6 / 7

#	OEM	EJ6	EJ8
5	78508-S04-N61	Tab	Tab
6	78509-S04-N61	Cover - BOSS PLATE	Cover - BOSS PLATE
13	90106-SA7-000	Screw-washer - 4X12	Screw-washer - 4X12
13	90133-SJ6-020	Screw-washer - 4X12 (PO)	Screw-washer - 4X12 (PO)
14	90134-S04-A81	Bolt - HEX., 6X12	Bolt - HEX., 6X12
16	90124-SR4-003	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10

Switch (RH) 4 / 7

#	OEM	EJ6	EJ8
6	35510-S04-003	Switch assy - HAZARD	Switch assy - HAZARD
9	35850-S04-G01	Bulb comp. - 14V 60MA	Bulb comp. - 14V 60MA
11	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)	Bulb - NEO WEDGE (14V 60MA) (TEC)
15	90666-SD4-003	Clip - FITTING	Clip - FITTING

Taillight 13 / 33

#	OEM	EJ6	EJ8
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33304-S04-G01	Socket comp.	Socket comp.
24	34304-SH3-A01	Socket comp.	Socket comp.
25	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
27	71712-S03-000	Packing - TAILGATE SPOILER	Packing - TAILGATE SPOILER
29	75523-SS0-000	Packing - SEAL	Packing - SEAL
30	75524-SS0-000	Bolt - SPECIAL, 5MM	Bolt - SPECIAL, 5MM
31	90321-S06-000	Nut - HEX. CAP, 5MM	Nut - HEX. CAP, 5MM
32	90501-SL9-003	Clip - LICENSE GARNISH	Clip - LICENSE GARNISH
34	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)	Grommet - R. RR. COMBINATION (WHITE)
35	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)	Grommet - L. RR. COMBINATION (GRAY)
41	33301-S04-004	Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)	Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)
41	33301-S04-003	Bulb	Bulb

Throttle body (SOHC) 8 / 14

#	OEM	EJ6	EJ8
1	16016-P2A-003	Screw set	Screw set
2	16022-P2E-A51	Valve set - ROTARY AIR CONTROL	Valve set - ROTARY AIR CONTROL
3	16075-P07-000	O-ring	O-ring
4	16080-P07-000	Screw-washer - 4X16	Screw-washer - 4X16
5	16097-P2A-003	Cap - SEALING	Cap - SEALING
6	16176-P2A-004	Gasket	Gasket
9	16456-P2A-003	Seal	Seal
14	37830-PAA-S00	Sensor set - MAP	Sensor set - MAP

Tire/wheel disk 3 / 22

#	OEM	EJ6	EJ8
6	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
7	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
16	83853-SA7-980	Bolt - ANCHOR (79MM)	Bolt - ANCHOR (79MM)

Torque converter housing (2) 14 / 16

#	OEM	EJ6	EJ8
2	23225-PH0-000	Plate - OIL GUIDE	Plate - OIL GUIDE
3	25422-PN6-801	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
4	28261-P24-J00	Stay - SOLENOID COUPLER	Stay - SOLENOID COUPLER
5	28300-P24-J01	Solenoid assy. - LOCK UP (KEIHIN)	Solenoid assy. - LOCK UP (KEIHIN)
6	28320-P24-J01	Filter assy - LOCK UP SOLENOID (KEIHIN)	Filter assy - LOCK UP SOLENOID (KEIHIN)
7	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
8	90471-580-000	Packing - 8MM	Packing - 8MM
9	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
10	91001-591-004	Bearing - BALL, 16008 (KOYO)	Bearing - BALL, 16008 (KOYO)
10	91001-PX4-004	Bearing - BALL, 40X68X9 (KOYO)	Bearing - BALL, 40X68X9 (KOYO)
11	91101-P56-003	Bearing - NEEDLE, 36X62X18 (NTN)	Bearing - NEEDLE, 36X62X18 (NTN)
12	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
12	91205-PL3-A02	Oil seal - 35X56X8(NOK)	Oil seal - 35X56X8(NOK)
13	91207-P0X-003	Oil seal - 44X68X8 (NOK)	Oil seal - 44X68X8 (NOK)

Transmission housing (2) 24 / 25

#	OEM	EJ6	EJ8
1	21210-P4R-J00	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
2	21232-P56-000	Hanger - TRANSMISSION	Hanger - TRANSMISSION
3	21396-PX5-000	Cap - BREATHER	Cap - BREATHER
4	21811-P56-000	Packing - TORQUE CONVERTER CASE	Packing - TORQUE CONVERTER CASE
5	28200-P4R-003	Solenoid assy. - SHIFT (KEIHIN)	Solenoid assy. - SHIFT (KEIHIN)
6	28220-P56-003	Filter assy - SHIFT SOLENOID (KEIHIN)	Filter assy - SHIFT SOLENOID (KEIHIN)
8	28251-P4R-013	Packing - LINEAR SOLENOID	Packing - LINEAR SOLENOID
9	28296-P56-000	Stay b - SOLENOID HARNESS	Stay b - SOLENOID HARNESS
10	28810-P4R-003	Pick up assy. - MAIN (DENSO)	Pick up assy. - MAIN (DENSO)
11	28811-P4R-000	Washer - PICK UP	Washer - PICK UP
12	28812-P4R-000	Stay - SOLENOID HARNESS	Stay - SOLENOID HARNESS
13	90001-P56-000	Bolt - SPECIAL, 10X50	Bolt - SPECIAL, 10X50
14	90002-P56-000	Bolt - FLANGE, 10X170	Bolt - FLANGE, 10X170
15	90003-P56-000	Bolt - FLANGE, 10X180	Bolt - FLANGE, 10X180
16	90081-PX4-003	Bolt - PLUG, 18MM	Bolt - PLUG, 18MM
17	90380-S04-000	Bolt - STUD, 12X73	Bolt - STUD, 12X73
18	90471-PX4-000	Washer - DRAIN PLUG, 18MM	Washer - DRAIN PLUG, 18MM
19	90609-PC8-000	Ring - SNAP, 68MM	Ring - SNAP, 68MM
20	90615-PF4-000	Ring - SNAP, 75MM	Ring - SNAP, 75MM
21	91002-PK4-003	Bearing - BALL (63/26N)	Bearing - BALL (63/26N)
22	91006-PK4-003	Bearing - BALL (63/32-26)	Bearing - BALL (63/32-26)
23	91206-689-005	Oil seal - 35X76X9 (NOK)	Oil seal - 35X76X9 (NOK)
24	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
25	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Trunk lid (RH) 13 / 22

#	OEM	EJ6	EJ8
6	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
7	74827-SH2-003	Stopper - TAILGATE	Stopper - TAILGATE
8	74827-SK7-000	Stopper a - TAILGATE	Stopper a - TAILGATE
11	74862-SE3-003	Striker - TRUNK	Striker - TRUNK
12	74863-S04-003	Rod - TRUNK LOCK	Rod - TRUNK LOCK
17	74873-SM4-003	Clip - TRUNK OPENER SPRING	Clip - TRUNK OPENER SPRING
22	90106-SH4-000	Bolt-washer - 6X15	Bolt-washer - 6X15
23	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
24	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
25	90856-SA5-003	Plug - TAILGATE HOLE	Plug - TAILGATE HOLE
26	90856-SK8-003	Snap - TRUNK LOCK	Snap - TRUNK LOCK
28	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
34	90306-S04-003	Nut - LICENSE PLATE (HEX.) (SATO RASHI)	Nut - LICENSE PLATE (HEX.) (SATO RASHI)

Trunk side garnish 1 / 1

#	OEM	EJ6	EJ8
4	91550-SS0-003	Clip - SRS COVER	Clip - SRS COVER

Valve/rocker arm (SOHC) 7 / 16

#	OEM	EJ6	EJ8
6	14645-P08-000	Spring - ROCKER ARM	Spring - ROCKER ARM
8	14711-P2A-000	Valve - IN.	Valve - IN.
9	14721-P2A-000	Valve - EX.	Valve - EX.
11	14761-P2A-003	Spring - VALVE (SKY BLUE) (NIPPON HATSUJO)	Spring - VALVE (SKY BLUE) (NIPPON HATSUJO)
12	14765-P08-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
13	14775-P08-000	Seat - VALVE SPRING	Seat - VALVE SPRING
14	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)

Water pump/sensor (SOHC) 17 / 21

#	OEM	EJ6	EJ8
2	19222-P08-004	O-ring - WATER PUMP (YAMADA)	O-ring - WATER PUMP (YAMADA)
3	19301-P08-315	Thermostat assy - FUJI THOMSON	Thermostat assy - FUJI THOMSON
3	19301-P08-316	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
3	19301-PAA-306	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
4	19305-PT0-000	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
4	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
5	19311-P2A-000	Cover, Outlet	Cover, Outlet
6	19315-P08-010	Cover, Outlet	Cover, Outlet
9	19505-P2A-000	Pipe - CONNECTING	Pipe - CONNECTING
11	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
12	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
13	37870-PJ7-003	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)
14	91307-PJ7-003	O-ring - 9.5X1.5 (MATSUSHITA)	O-ring - 9.5X1.5 (MATSUSHITA)
14	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)	O-ring - 9.5X1.5(HONDA KIKAKI)
15	91307-PN4-000	O-ring - 17.5X1.4	O-ring - 17.5X1.4
15	91307-PN3-000	O-ring,17.8x1.4	O-ring,17.8x1.4
16	91314-634-000	O-ring	O-ring

Water valve 8 / 10

#	OEM	EJ6	EJ8
2	79721-S04-000	Hose a - WATER IN.	Hose a - WATER IN.
3	79722-SR3-000	Hose b, WATER IN.	Hose b, WATER IN.
5	79731-SR3-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
6	90661-S04-003	Clip - WATER HOSE	Clip - WATER HOSE
7	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8	91549-SR3-003	Clamp - 24MM-35MM	Clamp - 24MM-35MM
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Windshield washer (2) 4 / 13

#	OEM	EJ6	EJ8
11	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
12	91504-SR3-003	Clip - WASHER TUBE	Clip - WASHER TUBE
13	91506-SR3-003	Clip - TUBE WASHER (NATURAL)	Clip - TUBE WASHER (NATURAL)
14	91570-S04-003	Clip - WASHER TUBE	Clip - WASHER TUBE

Wire harness (RH) 3 / 11

#	OEM	EJ6	EJ8
6	32200-S04-N03	Harness - ENGINE ROOM WIRE	Harness - ENGINE ROOM WIRE
9	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
10	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
