検索 › 比較 › EJ1 × MA8
EJ1
Honda CIVIC — 1,994 中 523 共有
MA8
Honda CIVIC — 1,826 中 523 共有
Air cleaner 10 / 24
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 8 | 17232-P04-G00 | Seal - RESONATOR RUBBER | Seal - RESONATOR RUBBER |
| 16 | 17284-PT2-003 | Clamp - TUBE, 44MM | Clamp - TUBE, 44MM |
| 17 | 17316-PH3-003 | Clamp - AIR FLOW TUBE (70) | Clamp - AIR FLOW TUBE (70) |
| 18 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 19 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 20 | 90091-P07-A01 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
| 20 | 90091-PE2-000 | Bolt-washer - 5X25 | Bolt-washer - 5X25 |
| 20 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
Air conditioner (COMPRESSOR; HADSYS) 16 / 19
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 38801-P06-006 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 2 | 38810-P76-016 | Compressor comp. - HADSYS | Compressor comp. - HADSYS |
| 3 | 38829-P06-006 | Nut | Nut |
| 4 | 38900-P06-006 | Clutch set - COMPRESSOR | Clutch set - COMPRESSOR |
| 5 | 38908-P06-016 | Protector set - THERMAL | Protector set - THERMAL |
| 6 | 38912-P06-006 | Shim set | Shim set |
| 7 | 38913-P06-006 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 8 | 38914-P06-006 | Circlip - EXTERNAL, 35MM | Circlip - EXTERNAL, 35MM |
| 10 | 38924-P06-006 | Coil set - SOLENOID | Coil set - SOLENOID |
| 11 | 38926-PM3-000 | Stay - IDLE PULLEY | Stay - IDLE PULLEY |
| 12 | 38942-P01-003 | Pulley comp - IDLE | Pulley comp - IDLE |
| 13 | 38944-P02-000 | Collar - IDLE PULLEY | Collar - IDLE PULLEY |
| 14 | 38945-P01-000 | Cover - BEARING | Cover - BEARING |
| 15 | 38946-P01-000 | Bolt - IDLE PULLEY | Bolt - IDLE PULLEY |
| 17 | 90021-P01-000 | Bolt - FLANGE, 8X85 | Bolt - FLANGE, 8X85 |
| 18 | 90023-P01-000 | Bolt - FLANGE, 8X105 | Bolt - FLANGE, 8X105 |
Air conditioner (CONDENSER) 18 / 24
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 5 | 80116-SR3-000 | Seal - R. CONDENSER | Seal - R. CONDENSER |
| 6 | 80117-SR3-000 | Seal - L. CONDENSER | Seal - L. CONDENSER |
| 7 | 80151-SR3-013 | Motor - COOLING FAN | Motor - COOLING FAN |
| 8 | 80152-SR3-013 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 9 | 80161-SR3-000 | Shroud comp. - CONDENSER FAN | Shroud comp. - CONDENSER FAN |
| 10 | 80162-SR3-000 | Protector - FAN MOTOR | Protector - FAN MOTOR |
| 11 | 80174-SR3-000 | Mount - R. CONDENSER | Mount - R. CONDENSER |
| 12 | 80175-SR3-000 | Mount - L. CONDENSER | Mount - L. CONDENSER |
| 13 | 80176-SR3-000 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 14 | 80177-SR3-003 | Mount - CONDENSER LOWER | Mount - CONDENSER LOWER |
| 15 | 80373-SR3-000 | Bracket - DISCHARGE HOSE | Bracket - DISCHARGE HOSE |
| 16 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 18 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 19 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 19 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 20 | 90078-PR3-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
| 21 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 22 | 90659-PG6-000 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
Air conditioner (HOSES/PIPES; LH) 17 / 30
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 38608-SA5-000 | Rubber - MOUNTING | Rubber - MOUNTING |
| 2 | 38609-SA5-000 | Collar - DISTANCE | Collar - DISTANCE |
| 3 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 13 | 80352-SR3-000 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 14 | 80362-SR3-A00 | Clamp - SUCTION HOSE | Clamp - SUCTION HOSE |
| 15 | 80363-SR3-A00 | Stay - SUCTION HOSE | Stay - SUCTION HOSE |
| 16 | 80364-SR3-A00 | Stay - SUCTION PIPE | Stay - SUCTION PIPE |
| 17 | 80367-SR3-A00 | Clamp b - SUCTION PIPE | Clamp b - SUCTION PIPE |
| 18 | 80387-SM4-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 19 | 80865-ST0-003 | Cap h - VALVE (NICHIRIN) | Cap h - VALVE (NICHIRIN) |
| 21 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 22 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 23 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 24 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 25 | 90126-SM4-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 26 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
| 27 | 91536-SR3-003 | Clip - SUCTION PIPE (BLACK) | Clip - SUCTION PIPE (BLACK) |
Air conditioner (UNIT; LH) 23 / 41
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 32147-SF1-003 | Connector - DIODE(3P) | Connector - DIODE(3P) |
| 2 | 32148-SF1-003 | Rubber - SEAL | Rubber - SEAL |
| 3 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 11 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 15 | 80271-SR3-A00 | Hose - DRAIN | Hose - DRAIN |
| 16 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 19 | 80286-SR3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 20 | 80287-SR3-000 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 21 | 80288-SR3-000 | Seal - EVAPORATOR JOINT | Seal - EVAPORATOR JOINT |
| 25 | 80463-SR3-A00 | Bracket - AIR CONDITIONER WIRE HARNESS | Bracket - AIR CONDITIONER WIRE HARNESS |
| 26 | 80464-SR3-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 28 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 29 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 30 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 31 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 32 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 33 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 34 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 36 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 37 | 91546-SR3-003 | Clamp - 16.5 | Clamp - 16.5 |
| 38 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 39 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 40 | 91619-SA5-000 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
Battery (LH) 9 / 14
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 31512-SR3-000 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 3 | 31513-SR3-000 | Bolt - BATTERY SETTING | Bolt - BATTERY SETTING |
| 5 | 32115-P01-000 | Stay - ENGINE WIRE HARNESS CLAMP | Stay - ENGINE WIRE HARNESS CLAMP |
| 7 | 32414-SR3-000 | Clamp a - STARTER CABLE | Clamp a - STARTER CABLE |
| 8 | 32416-SR3-A00 | Clamp c - STARTER CABLE | Clamp c - STARTER CABLE |
| 10 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 11 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 12 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 13 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
Body structure components (FRONT BULKHEAD) 1 / 2
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 39 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Body structure components (OUTER PANEL) 5 / 6
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 26 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 27 | 75450-SM4-000 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 28 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 29 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 30 | 90664-SB3-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Brake line (LH) 2 / 28
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 25 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 26 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |

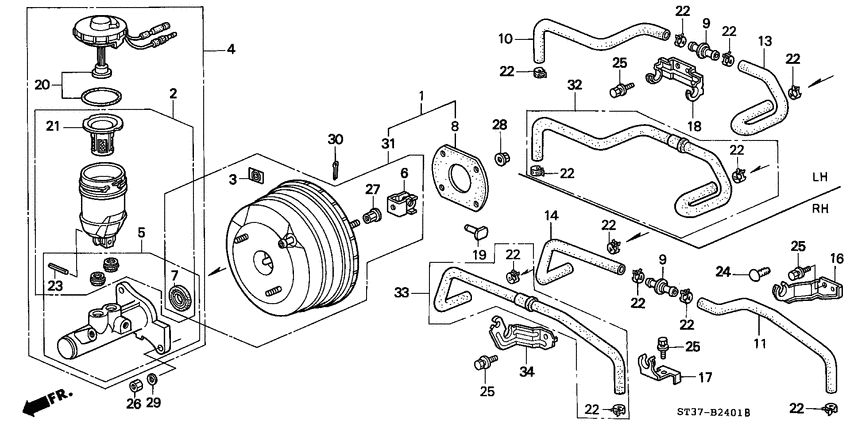

Brake master cylinder/ master power 5 / 26
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 46070-SL0-G01 | Plate - SYMBOL MARK | Plate - SYMBOL MARK |
| 9 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 13 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 21 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 27 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |

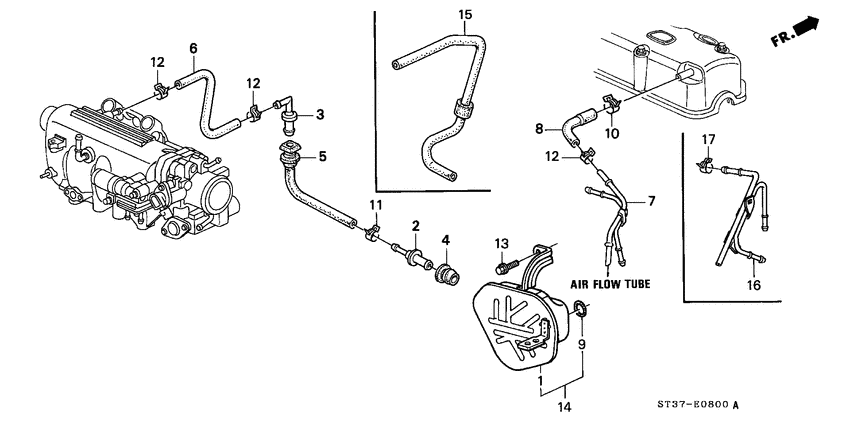

Breather chamber 3 / 13
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 5 | 11856-P06-A00 | Tube b - PCV | Tube b - PCV |
| 8 | 17153-P05-A00 | Tube - BREATHER | Tube - BREATHER |
| 9 | 91324-PC6-000 | O-ring - 20.6X2.6 | O-ring - 20.6X2.6 |
Bumper 6 / 15
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 9 | 90101-SE0-010 | Bolt assy. b - BUMPER | Bolt assy. b - BUMPER |
| 10 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 12 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 15 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 17 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
Camshaft/timing belt 8 / 22
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 11812-PE0-300 | Grommet - TIMING BELT COVER HOLE | Grommet - TIMING BELT COVER HOLE |
| 11 | 14210-PM3-000 | Pulley comp - TIMING BELT DRIVEN | Pulley comp - TIMING BELT DRIVEN |
| 14 | 14513-PE0-015 | Bolt - TENSIONER (M6) | Bolt - TENSIONER (M6) |
| 16 | 14517-PG6-000 | Bolt a - TENSIONER | Bolt a - TENSIONER |
| 18 | 90011-PG6-004 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 19 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 19 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 20 | 91213-PE1-722 | Oil seal - 29X45X8 (NOK) | Oil seal - 29X45X8 (NOK) |
Clutch housing 6 / 32
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 8 | 90015-634-010 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 12 | 91205-PL3-A01 | Oil seal - 35X56X8 (ARAI) | Oil seal - 35X56X8 (ARAI) |
| 12 | 91205-PL3-A02 | Oil seal - 35X56X8(NOK) | Oil seal - 35X56X8(NOK) |
| 13 | 91215-PL3-005 | Oil seal - 14X25X15 (NOK) | Oil seal - 14X25X15 (NOK) |
| 14 | 91216-PL3-005 | Oil seal - 26X42X7 (NOK) | Oil seal - 26X42X7 (NOK) |
Clutch master cylinder (LH) 23 / 36
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 7 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 10 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 11 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 12 | 46930-SR3-013 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 13 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 14 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 15 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 16 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 17 | 46937-SR3-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 18 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 20 | 46950-SL4-003 | Rod assy - PUSH | Rod assy - PUSH |
| 21 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 22 | 46953-SD4-003 | Packing | Packing |
| 25 | 46966-SR3-A00 | Holder - TANK | Holder - TANK |
| 27 | 46971-SR3-A00 | Tube - CLUTCH FLUID | Tube - CLUTCH FLUID |
| 28 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 29 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 30 | 46975-SD4-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
Clutch release 10 / 14
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 22810-P20-005 | Bearing - CLUTCH RELEASE (NSK) | Bearing - CLUTCH RELEASE (NSK) |
| 5 | 22825-PX5-A00 | Bolt - RELEASE FORK | Bolt - RELEASE FORK |
| 6 | 22835-P20-010 | Spring - RELEASE FORK SETTING | Spring - RELEASE FORK SETTING |
| 7 | 22841-P20-000 | Boot - RELEASE FORK | Boot - RELEASE FORK |
| 8 | 23811-P36-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 9 | 23820-P00-000 | Gear comp - SPEEDOMETER | Gear comp - SPEEDOMETER |
| 10 | 90003-P03-000 | Bolt-washer - 6X26 | Bolt-washer - 6X26 |
| 11 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 12 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 13 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
Clutch/torque converter 3 / 8
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 8 | 90011-PM0-000 | Bolt - 12MM | Bolt - 12MM |
| 10 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 12 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
Combination meter (COMPONENTS) 6 / 17
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 3 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 14 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 15 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 17 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Combination switch (LH) 2 / 21
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 5 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 17 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Control unit (CABIN; LH) 8 / 23
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 32502-SM4-003 | Fuse - F7.5) (LITTEL | Fuse - F7.5) (LITTEL |
| 2 | 32503-SM4-003 | Fuse - F10) (LITTEL | Fuse - F10) (LITTEL |
| 3 | 32504-SM4-003 | Fuse - F15)(LITTEL | Fuse - F15)(LITTEL |
| 4 | 32505-SM4-003 | Fuse - F20) (LITTEL | Fuse - F20) (LITTEL |
| 5 | 32507-SM4-003 | Fuse - F30) (LITTEL | Fuse - F30) (LITTEL |
| 13 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 21 | 39797-SE0-004 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 24 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Control unit (ENGINE ROOM; LH) 6 / 17
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 32502-SM4-003 | Fuse - F7.5) (LITTEL | Fuse - F7.5) (LITTEL |
| 2 | 32503-SM4-003 | Fuse - F10) (LITTEL | Fuse - F10) (LITTEL |
| 3 | 32504-SM4-003 | Fuse - F15)(LITTEL | Fuse - F15)(LITTEL |
| 4 | 32505-SM4-003 | Fuse - F20) (LITTEL | Fuse - F20) (LITTEL |
| 5 | 32507-SM4-003 | Fuse - F30) (LITTEL | Fuse - F30) (LITTEL |
| 16 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
Countershaft 10 / 17
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 23421-P20-A00 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 7 | 23521-P20-315 | Sleeve set - SYNCHRONIZER (1-2) | Sleeve set - SYNCHRONIZER (1-2) |
| 8 | 23912-P20-010 | Collar - DISTANCE, 33X39X32 | Collar - DISTANCE, 33X39X32 |
| 9 | 23926-PB6-010 | Washer - SPRING, 22MM | Washer - SPRING, 22MM |
| 10 | 90202-PB6-010 | Nut - FLANGE, 22MM | Nut - FLANGE, 22MM |
| 11 | 90603-PL3-000 | Ring - SNAP, 52MM | Ring - SNAP, 52MM |
| 14 | 91104-P20-008 | Bearing - NEEDLE, 36X41X25.5 | Bearing - NEEDLE, 36X41X25.5 |
| 15 | 91105-P20-008 | Bearing - NEEDLE, 39X44X27 | Bearing - NEEDLE, 39X44X27 |
| 16 | 91211-PL3-T01 | Damper - FRICTION (LOW) | Damper - FRICTION (LOW) |
| 17 | 91212-P20-008 | Damper - FRICTION (SECOND) | Damper - FRICTION (SECOND) |
Cylinder block/oil pan 15 / 27
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 11106-PE0-300 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 3 | 11111-PM3-300 | Pipe - OIL LEVEL | Pipe - OIL LEVEL |
| 4 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 7 | 11301-P00-T00 | Cover - R. SIDE | Cover - R. SIDE |
| 8 | 11311-PM3-000 | Cover - BREATHING PORT | Cover - BREATHING PORT |
| 15 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 17 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 23 | 90041-P07-000 | Bolt - STUD, 10X81 | Bolt - STUD, 10X81 |
| 24 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 25 | 90042-P72-000 | Bolt - STUD, 10X81 | Bolt - STUD, 10X81 |
| 26 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 28 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 29 | 91214-PE1-721 | Oil seal - 80X100X10 (NOK) | Oil seal - 80X100X10 (NOK) |
| 29 | 91214-PLE-003 | Oil seal | Oil seal |
Cylinder head (VTEC) 3 / 30
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 20 | 90005-PM3-003 | Bolt-washer - 10X140 (SAGA) | Bolt-washer - 10X140 (SAGA) |
| 22 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
Cylinder head cover 1 / 11
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 10 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
Door locks 5 / 24
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 11 | 75411-634-000 | Joint | Joint |
| 21 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 27 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 29 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 30 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |

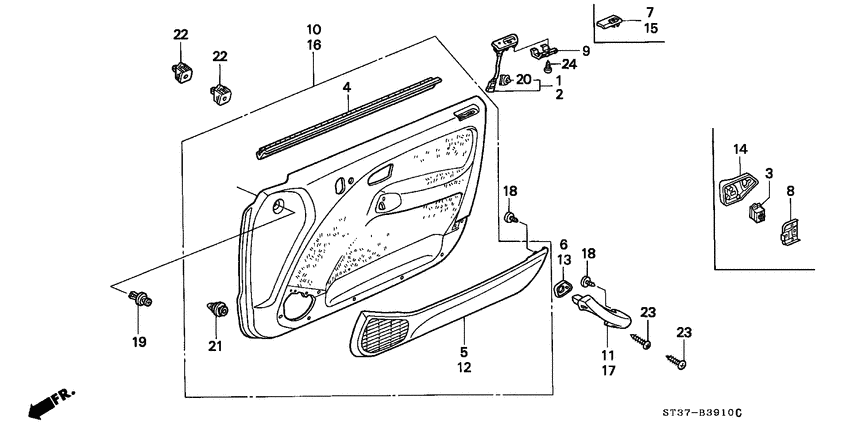

Door panels 4 / 15
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 15 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 16 | 90101-SE3-003 | Bolt-washer - 8X23.5 | Bolt-washer - 8X23.5 |
| 17 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 19 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
Door window 3 / 17
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 18 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 21 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 22 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Driveshaft 3 / 24
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 5 | 44310-SH3-960 | Joint comp - INBOARD | Joint comp - INBOARD |
| 6 | 44310-SH3-970 | Joint comp - INBOARD | Joint comp - INBOARD |
| 17 | 90305-692-010 | Nut | Nut |
Emblem 1 / 7
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 13 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine mounts (MT) 21 / 32
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 38930-P06-A00 | Bracket - COMPRESSOR | Bracket - COMPRESSOR |
| 8 | 50820-SR3-003 | Rubber assy. ENGINE SIDE MOUNTING | Rubber assy. ENGINE SIDE MOUNTING |
| 13 | 90131-ST7-000 | Bolt - L. FR. STOPPER | Bolt - L. FR. STOPPER |
| 14 | 90133-SR3-010 | Bolt - R. FR. STOPPER | Bolt - R. FR. STOPPER |
| 15 | 90161-SR3-000 | Bolt - FLANGE, 14X107 | Bolt - FLANGE, 14X107 |
| 17 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 18 | 90166-SR3-000 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 20 | 90167-ST7-000 | Bolt - FLANGE, 10X60 | Bolt - FLANGE, 10X60 |
| 21 | 90176-SK7-013 | Bolt - FLANGE, 10X31 | Bolt - FLANGE, 10X31 |
| 22 | 90182-SR3-000 | Bolt - FLANGE, 12X112 | Bolt - FLANGE, 12X112 |
| 23 | 90183-SR3-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 24 | 90188-SR3-010 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 25 | 90190-SR3-000 | Bolt - FLANGE, 12X64 | Bolt - FLANGE, 12X64 |
| 26 | 90365-ST7-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 27 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 28 | 90372-SR3-003 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 29 | 90380-SR3-000 | Bolt - STUD, 12X57.6 | Bolt - STUD, 12X57.6 |
| 30 | 90504-SR3-010 | Washer - FR. STOPPER | Washer - FR. STOPPER |
| 31 | 90505-SB2-000 | Washer - SIDE MOUNTING | Washer - SIDE MOUNTING |
| 32 | 90505-SR3-000 | Washer - RR. BRACKET, 14MM | Washer - RR. BRACKET, 14MM |
| 33 | 91771-SH3-000 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
Engine wire harness/clamp 18 / 27
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 6 | 32113-P01-000 | Stay comp - R. COUPLER | Stay comp - R. COUPLER |
| 7 | 32115-P01-000 | Stay - ENGINE WIRE HARNESS CLAMP | Stay - ENGINE WIRE HARNESS CLAMP |
| 8 | 32127-P05-A00 | Holder comp - HARNESS | Holder comp - HARNESS |
| 11 | 32744-P05-A01 | Clamp d - ENGINE HARNESS (BLACK) | Clamp d - ENGINE HARNESS (BLACK) |
| 12 | 32746-P05-A00 | Clamp f - ENGINE HARNESS (GRAY) | Clamp f - ENGINE HARNESS (GRAY) |
| 13 | 32752-P01-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 14 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 15 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 16 | 78410-SV4-003 | Sensor assy - SPEED (MATSUSHITA) | Sensor assy - SPEED (MATSUSHITA) |
| 17 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 18 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 19 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 20 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 21 | 90430-657-000 | Washer - 23X8.3X3.2 | Washer - 23X8.3X3.2 |
| 22 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 23 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 24 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 25 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Exhaust manifold (VTEC) 8 / 15
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 18115-P00-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 3 | 18115-P00-004 | Gasket - EX. MANIFOLD (ISHINO GASKET) | Gasket - EX. MANIFOLD (ISHINO GASKET) |
| 8 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 9 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 11 | 90065-PG6-000 | Bolt, STUD, 10X24 | Bolt, STUD, 10X24 |
| 12 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 12 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 13 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
Exhaust pipe 7 / 32
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 24 | 18231-SR3-J01 | Bolt a - FLEXIBLE JOINT | Bolt a - FLEXIBLE JOINT |
| 26 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 30 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 30 | 90023-PK1-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 31 | 90110-679-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 35 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Floor mat 2 / 10
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 14 | 91533-SR3-003 | Clip - INSULATOR (NATURAL) | Clip - INSULATOR (NATURAL) |
| 17 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
Front brake 2 / 23
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 20 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
Front door lining 2 / 6
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 19 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 19 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front fenders 5 / 10
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 10 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 11 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 12 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 13 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 14 | 91516-SK7-013 | Clip - UNDER COVER | Clip - UNDER COVER |

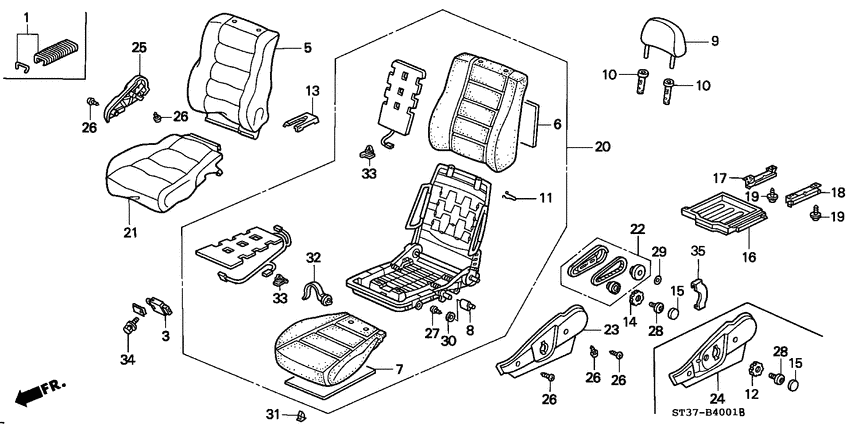

Front seat 2 / 7
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
Front stabilizer/ front lower arm 9 / 25
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 13 | 51811-SR3-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 14 | 51821-SR3-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 15 | 90112-SE0-000 | Bolt - FR. STABILIZER | Bolt - FR. STABILIZER |
| 16 | 90118-SR3-003 | Bolt - SELF-LOCK, 12X76 | Bolt - SELF-LOCK, 12X76 |
| 17 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 21 | 90175-SH3-005 | Bolt - SHOCK ABSORBER FORK | Bolt - SHOCK ABSORBER FORK |
| 22 | 90213-SR3-013 | Nut - SELF-LOCK, 14MM | Nut - SELF-LOCK, 14MM |
| 23 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 24 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
Front windshield 1 / 13
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 4 | 73127-SR3-003 | Holder - FR. WINDSHIELD GLASS | Holder - FR. WINDSHIELD GLASS |
Front windshield wiper (LH) 2 / 15
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 11 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 12 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
Fuel pipe ('95) 7 / 42
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 16680-PE7-661 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 2 | 16680-PCX-003 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 3 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 29 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 32 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 35 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 41 | 91597-SH3-Y01 | Clamp - VENT TUBE (BLACK) | Clamp - VENT TUBE (BLACK) |
Fuel tank 6 / 36
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 9 | 17574-SE0-000 | Packing - BASE | Packing - BASE |
| 11 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 16 | 17670-SM1-A03 | Cap comp. - FUEL FILLER (STANT) | Cap comp. - FUEL FILLER (STANT) |
| 16 | 17670-S3N-003 | Cap comp. - FUEL FILLER (TOYODA) | Cap comp. - FUEL FILLER (TOYODA) |
| 29 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 31 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
Grommet 5 / 15
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 3 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 6 | 90852-671-003 | Plug - HOLE | Plug - HOLE |
| 15 | 91617-SB6-000 | Grommet - WASHER HOSE, 32MM | Grommet - WASHER HOSE, 32MM |
| 17 | 91631-SR3-000 | Plug - AIR CONDITIONER HOLE | Plug - AIR CONDITIONER HOLE |
Headlight 3 / 26
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 22 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 23 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 25 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Heater blower (LH) 2 / 14
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 12 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 13 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
Heater control 5 / 21
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 19 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 20 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 21 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 22 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
High tension cord/ spark plug 3 / 11
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 6 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 10 | 32766-P07-000 | Clamp b - HIGH TENSION CORD | Clamp b - HIGH TENSION CORD |
| 13 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
Hood 9 / 28
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 17 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 20 | 83431-SA4-000 | Cushion - FR. TRUNK | Cushion - FR. TRUNK |
| 21 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 23 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 24 | 90672-SJ4-013 | Holder - ROD | Holder - ROD |
| 27 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 28 | 91515-SR3-000 | Clip - RR. HOOD | Clip - RR. HOOD |
| 29 | 91520-SM4-C01 | Clip - HOOD SEAL RUBBER | Clip - HOOD SEAL RUBBER |
| 30 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
Instrument panel (LH) 2 / 18
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 31 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 37 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (LH) 7 / 24
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 7 | 66405-SD4-000 | Stay - GLOVE BOX HINGE | Stay - GLOVE BOX HINGE |
| 8 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 26 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 30 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 31 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 34 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 35 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (SRS; LH) 6 / 33
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 9 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 37 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 40 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 41 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 44 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 45 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Intake manifold 12 / 16
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 4 | 16620-P28-A01 | Pipe assy. - FUEL | Pipe assy. - FUEL |
| 5 | 16638-PH3-S00 | Insulator - FUEL PIPE | Insulator - FUEL PIPE |
| 6 | 16740-P05-A01 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 7 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 9 | 17105-P08-004 | Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS) | Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS) |
| 11 | 37880-P05-A00 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 12 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 12 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 12 | 16074-ZY3-000 | O-ring | O-ring |
| 13 | 91303-PK2-005 | O-ring (7.5X1.5) | O-ring (7.5X1.5) |
Knuckle 5 / 14
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 44348-SR3-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 9 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 10 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 11 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 12 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
Mainshaft 10 / 15
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 23261-PL3-000 | Shaft - REVERSE GEAR | Shaft - REVERSE GEAR |
| 5 | 23540-P20-000 | Gear comp - REVERSE IDLE | Gear comp - REVERSE IDLE |
| 7 | 23623-P20-315 | Sleeve set - SYNCHRONIZER (3-4) | Sleeve set - SYNCHRONIZER (3-4) |
| 8 | 23626-PL3-325 | Sleeve set - SYNCHRONIZER (5) | Sleeve set - SYNCHRONIZER (5) |
| 9 | 23915-P20-000 | Collar - DISTANCE, 27X34X32X50.4 | Collar - DISTANCE, 27X34X32X50.4 |
| 10 | 23927-PL3-000 | Washer - SPRING, 36MM | Washer - SPRING, 36MM |
| 11 | 23928-PL3-000 | Washer - 26MM | Washer - 26MM |
| 13 | 91106-PL3-008 | Bearing - NEEDLE, 34X39X23 | Bearing - NEEDLE, 34X39X23 |
| 14 | 91107-PL3-018 | Bearing - NEEDLE, 34X39X27.5 | Bearing - NEEDLE, 34X39X27.5 |
| 15 | 91108-PL3-008 | Bearing - NEEDLE, 32X37X23.5 (NTN) | Bearing - NEEDLE, 32X37X23.5 (NTN) |
Oil pump/oil strainer 15 / 20
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 15100-P01-013 | Pump assy. - OIL | Pump assy. - OIL |
| 4 | 15221-PM3-S00 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 5 | 15231-PM3-000 | Valve - RELIEF | Valve - RELIEF |
| 6 | 15232-PM3-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 7 | 15233-P01-000 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 9 | 15302-PE0-300 | Washer - SEALING, 14MM | Washer - SEALING, 14MM |
| 10 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 10 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 10 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 11 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 12 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 13 | 90020-PE0-000 | Bolt - STUD, 8X28 | Bolt - STUD, 8X28 |
| 14 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 15 | 91212-P01-003 | Oil seal - 31X46X7 (NOK) | Oil seal - 31X46X7 (NOK) |
| 16 | 91308-PK1-003 | O-ring - 26.2X2.4 (NOK) | O-ring - 26.2X2.4 (NOK) |
P.s. gear box (PORTUGAL) 3 / 24
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 19 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 20 | 90108-SR3-951 | Bolt - GEAR BOX MOUNTING (10X65) | Bolt - GEAR BOX MOUNTING (10X65) |
| 21 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
P.s. line (PORTUGAL) 11 / 21
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 5 | 53720-SP0-010 | Pipe comp | Pipe comp |
| 6 | 53721-SM4-013 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 7 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 9 | 53731-SR3-950 | Tube - POWER STEERING SUCTION | Tube - POWER STEERING SUCTION |
| 11 | 53733-SR3-951 | Tube - POWER STEERING OIL TANK | Tube - POWER STEERING OIL TANK |
| 16 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 16 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 17 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 17 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 18 | 91405-PE0-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 18 | 91417-SZ3-003 | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) |
P.s. pump 17 / 20
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 56110-P02-020 | Pump sub assy - POWER STEERING | Pump sub assy - POWER STEERING |
| 2 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 3 | 56483-P0A-003 | Pulley comp - POWER STEERING PUMP | Pulley comp - POWER STEERING PUMP |
| 6 | 56996-P01-000 | Bolt - POWER STEERING PUMP ADJUSTING WING | Bolt - POWER STEERING PUMP ADJUSTING WING |
| 8 | 90004-P30-000 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 9 | 90305-P0A-003 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 10 | 90601-P01-003 | Clip - ADJUST BOLT | Clip - ADJUST BOLT |
| 11 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 12 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 13 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 14 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 15 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 16 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 17 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 18 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 19 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 20 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
Pedal (LH) 5 / 25
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 4 | 17814-SR3-000 | Spring - ACCELERATOR RETURN | Spring - ACCELERATOR RETURN |
| 10 | 17934-SH3-000 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 16 | 46530-SR3-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 22 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 23 | 46907-SR3-000 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
Piston/crankshaft 5 / 54
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 6 | 13112-PE0-000 | Pin - PISTON | Pin - PISTON |
| 7 | 13204-PE1-003 | Bolt | Bolt |
| 8 | 13205-634-010 | Nut | Nut |
| 15 | 90017-P01-003 | Bolt-washer - 14X29 | Bolt-washer - 14X29 |
| 16 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
Radiator hose 5 / 17
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 11 | 19510-P01-003 | Clamp - STARTER CABLE | Clamp - STARTER CABLE |
| 13 | 19511-PA6-003 | Clip - WATER HOSE(CHUO SPRING) | Clip - WATER HOSE(CHUO SPRING) |
| 14 | 19519-P08-013 | Clamp - WATER HOSE | Clamp - WATER HOSE |
| 18 | 74172-SR3-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 21 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Rear brake 3 / 40
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 15 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 32 | 90001-SH3-000 | Bolt - FLANGE, 10X13 | Bolt - FLANGE, 10X13 |
| 34 | 90305-692-010 | Nut | Nut |
Rear seat 3 / 7
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 11 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
Rear stabilizer/ rear lower arm 2 / 32
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 26 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 31 | 90551-SH3-000 | Washer - 24X10X2.3 | Washer - 24X10X2.3 |
Rear windshield 1 / 16
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 15 | 91533-SR4-000 | Fastener d - WINDSHIELD GLASS | Fastener d - WINDSHIELD GLASS |
Roof lining 2 / 7
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 5 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 28 | 90683-693-000 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Shift fork 10 / 10
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 24200-PL3-010 | Fork - FIFTH GEARSHIFT | Fork - FIFTH GEARSHIFT |
| 2 | 24210-P20-A00 | Fork comp - GEARSHIFT (3-4) | Fork comp - GEARSHIFT (3-4) |
| 3 | 24220-P20-010 | Fork comp - SHIFT (1-2) | Fork comp - SHIFT (1-2) |
| 4 | 24230-P20-000 | Holder comp - REVERSE SHIFT | Holder comp - REVERSE SHIFT |
| 5 | 24243-P20-000 | Piece - FIFTH & REVERSE SHIFT | Piece - FIFTH & REVERSE SHIFT |
| 6 | 24261-P20-000 | Shaft - SHIFT FORK (1-2) | Shaft - SHIFT FORK (1-2) |
| 7 | 24271-P20-000 | Shaft - FIFTH & REVERSE SHIFT FORK | Shaft - FIFTH & REVERSE SHIFT FORK |
| 8 | 24455-PG1-300 | Spring - SHIFT FORK SETTING | Spring - SHIFT FORK SETTING |
| 9 | 24455-PG2-A10 | Spring - FORK SET BALL | Spring - FORK SET BALL |
| 10 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
Shift lever 11 / 25
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 24313-PF5-000 | Clip - CHANGE JOINT PIN | Clip - CHANGE JOINT PIN |
| 1 | 54113-611-505 | CLIP, SHIFT JOINT | CLIP, SHIFT JOINT |
| 4 | 54105-692-010 | Washer - THRUST | Washer - THRUST |
| 5 | 54107-SA0-010 | Bush, RR. JOINT | Bush, RR. JOINT |
| 9 | 54114-SB2-000 | Collar - PIPE MOUNTING | Collar - PIPE MOUNTING |
| 11 | 54117-SH3-000 | Collar - RR. JOINT | Collar - RR. JOINT |
| 14 | 54303-SF4-000 | Rubber - EXTENSION END | Rubber - EXTENSION END |
| 19 | 54309-SH3-000 | Collar - EXTENSION END | Collar - EXTENSION END |
| 21 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 23 | 91301-671-671 | O-ring - 1.9X11 | O-ring - 1.9X11 |
| 23 | 91303-HA0-004 | O-ring, 11x1.9 (nok) | O-ring, 11x1.9 (nok) |
Shift rod/shift holder 20 / 20
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 24311-PL3-020 | Rod - SHIFT | Rod - SHIFT |
| 2 | 24316-P20-000 | Boot - SHIFT ROD | Boot - SHIFT ROD |
| 3 | 24351-P20-010 | Shaft - SHIFT ARM B | Shaft - SHIFT ARM B |
| 4 | 24411-P20-000 | Arm a - SHIFT | Arm a - SHIFT |
| 5 | 24421-PL3-000 | Arm b - SHIFT | Arm b - SHIFT |
| 6 | 24422-PL3-000 | Arm c - SHIFT | Arm c - SHIFT |
| 7 | 24430-PL3-010 | Interlock comp. | Interlock comp. |
| 8 | 24432-PL3-010 | Retainer - REVERSE SELECT | Retainer - REVERSE SELECT |
| 9 | 24433-P20-000 | Bolt - INTERLOCK | Bolt - INTERLOCK |
| 10 | 24440-PL3-000 | Cam comp - REVERSE LOCK | Cam comp - REVERSE LOCK |
| 11 | 24452-P20-000 | Spring - BALL SETTING | Spring - BALL SETTING |
| 12 | 24456-P20-000 | Spring - SELECT SET BALL | Spring - SELECT SET BALL |
| 13 | 24461-PB6-000 | Collar - SPRING | Collar - SPRING |
| 14 | 24464-PL3-010 | Spring - FIRST-SECOND SELECT | Spring - FIRST-SECOND SELECT |
| 15 | 24465-P20-000 | Spring - REVERSE SELECT | Spring - REVERSE SELECT |
| 16 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 17 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 18 | 90029-PL3-010 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 19 | 90082-PL3-000 | Plug - 28MM | Plug - 28MM |
| 20 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
Side protector 7 / 35
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 27 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 27 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 29 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 30 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 31 | 90688-SB0-013 | Clip b | Clip b |
| 31 | 90668-SC5-003 | Clip A - AIRSCOOP GRILLE | Clip A - AIRSCOOP GRILLE |
| 34 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
Sliding roof (MOTOR) 1 / 29
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 29 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Srs unit 2 / 11
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 11 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 12 | 91567-SE0-003 | Band - WIRE HARNESS(WHITE) (93.5MM) | Band - WIRE HARNESS(WHITE) (93.5MM) |
Starter motor (MITSUBA; MT) 3 / 14
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 31204-PJ7-903 | Gear assy. - PINION (MITSUBA) | Gear assy. - PINION (MITSUBA) |
| 13 | 31251-PJ7-904 | Tube - LABYRINTH (###) | Tube - LABYRINTH (###) |
| 14 | 31252-PD2-006 | Rubber - BUSH (MITSUBA) | Rubber - BUSH (MITSUBA) |
Steering column 3 / 18
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 15 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 16 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 17 | 90654-SR3-003 | Clip - STEERING JOINT COVER | Clip - STEERING JOINT COVER |
Steering wheel 1 / 13
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 14 | 90380-SB2-003 | Nut - SELF-LOCK (OHASHI) | Nut - SELF-LOCK (OHASHI) |
Steering wheel (SRS) 1 / 9
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 17 | 90380-SB2-003 | Nut - SELF-LOCK (OHASHI) | Nut - SELF-LOCK (OHASHI) |
Switch (LH) 1 / 6
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 13 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
Taillight 2 / 28
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 28 | 75525-SD4-013 | Clip - RR. PANEL GARNISH | Clip - RR. PANEL GARNISH |
| 30 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |

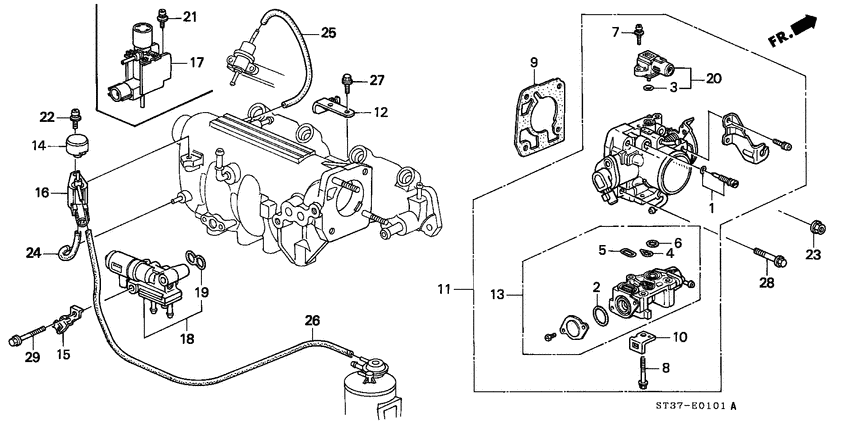

Throttle body 9 / 20
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 3 | 16075-P07-000 | O-ring | O-ring |
| 4 | 16076-P64-000 | O-ring | O-ring |
| 5 | 16077-P06-A00 | O-ring | O-ring |
| 6 | 16078-P06-A00 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 12 | 16411-P06-A00 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 15 | 36151-P05-A00 | Stay - PURGE CONTROL TUBE | Stay - PURGE CONTROL TUBE |
| 18 | 36455-PT3-A01 | Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) | Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
Transmission housing 9 / 52
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 21211-P20-020 | Plate - OIL GUTTER | Plate - OIL GUTTER |
| 4 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 6 | 35600-P20-003 | Switch assy - BACK UP LIGHT | Switch assy - BACK UP LIGHT |
| 7 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 8 | 90081-PL3-000 | Screw - SEALING, 32MM | Screw - SEALING, 32MM |
| 9 | 90083-P20-000 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 10 | 91206-PL3-A02 | Oil seal - 35X62X8 (NOK) | Oil seal - 35X62X8 (NOK) |
| 10 | 91206-PL3-A01 | Oil seal - 35X62X8 (ARAI) | Oil seal - 35X62X8 (ARAI) |
| 11 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
Trunk lid 1 / 21
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 27 | 90692-SK8-003 | Clip - TRUNK OPENER CABLE | Clip - TRUNK OPENER CABLE |
Valve/rocker arm (VTEC) 4 / 26
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 14 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 15 | 15140-PM3-000 | Orifice assy - OIL PATH | Orifice assy - OIL PATH |
| 17 | 91303-KE7-003 | O-ring - 7.2X1.7 (ARAI) | O-ring - 7.2X1.7 (ARAI) |
| 17 | 91312-107-000 | O-ring (7x1.7) | O-ring (7x1.7) |
Water pump 10 / 24
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 4 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 4 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 11 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 12 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 13 | 37870-PJ7-003 | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) |
| 14 | 91307-PJ7-003 | O-ring - 9.5X1.5 (MATSUSHITA) | O-ring - 9.5X1.5 (MATSUSHITA) |
| 14 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 15 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 15 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 16 | 91314-634-000 | O-ring | O-ring |
Water valve 4 / 9
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 2 | 79710-SR3-A01 | Valve assy. Water | Valve assy. Water |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 9 | 91549-SR3-003 | Clamp - 24MM-35MM | Clamp - 24MM-35MM |
Windshield washer 1 / 16
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 13 | 91506-SR3-003 | Clip - TUBE WASHER (NATURAL) | Clip - TUBE WASHER (NATURAL) |
Wire harness (LH) 20 / 37
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 3 | 32113-SR3-A00 | Stay - L. COUPLER | Stay - L. COUPLER |
| 4 | 32114-SR3-000 | Bracket - RADIO EARTH | Bracket - RADIO EARTH |
| 6 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 7 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 8 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 16 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 17 | 90154-SD4-003 | Bolt - EARTH, 6X20 | Bolt - EARTH, 6X20 |
| 18 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 19 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 22 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 24 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 25 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 26 | 91557-SR3-003 | Clip - WIRE HARNESS PROTECTOR (RED) | Clip - WIRE HARNESS PROTECTOR (RED) |
| 28 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 30 | 91572-SR3-003 | Clip - PROTECTOR | Clip - PROTECTOR |
| 31 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 34 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 35 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 36 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| 37 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| # | OEM | EJ1 | MA8 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 2 | 11106-PE0-300 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 3 | 11111-PM3-300 | Pipe - OIL LEVEL | Pipe - OIL LEVEL |
| 4 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 7 | 11301-P00-T00 | Cover - R. SIDE | Cover - R. SIDE |
| 8 | 11311-PM3-000 | Cover - BREATHING PORT | Cover - BREATHING PORT |
| 2 | 11812-PE0-300 | Grommet - TIMING BELT COVER HOLE | Grommet - TIMING BELT COVER HOLE |
| 5 | 11856-P06-A00 | Tube b - PCV | Tube b - PCV |
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 6 | 13112-PE0-000 | Pin - PISTON | Pin - PISTON |
| 7 | 13204-PE1-003 | Bolt | Bolt |
| 8 | 13205-634-010 | Nut | Nut |
| 11 | 14210-PM3-000 | Pulley comp - TIMING BELT DRIVEN | Pulley comp - TIMING BELT DRIVEN |
| 14 | 14513-PE0-015 | Bolt - TENSIONER (M6) | Bolt - TENSIONER (M6) |
| 16 | 14517-PG6-000 | Bolt a - TENSIONER | Bolt a - TENSIONER |
| 14 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 2 | 15100-P01-013 | Pump assy. - OIL | Pump assy. - OIL |
| 15 | 15140-PM3-000 | Orifice assy - OIL PATH | Orifice assy - OIL PATH |
| 4 | 15221-PM3-S00 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 5 | 15231-PM3-000 | Valve - RELIEF | Valve - RELIEF |
| 6 | 15232-PM3-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 7 | 15233-P01-000 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 9 | 15302-PE0-300 | Washer - SEALING, 14MM | Washer - SEALING, 14MM |
| 10 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 10 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 11 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 10 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 10 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 12 | 16074-ZY3-000 | O-ring | O-ring |
| 3 | 16075-P07-000 | O-ring | O-ring |
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 4 | 16076-P64-000 | O-ring | O-ring |
| 5 | 16077-P06-A00 | O-ring | O-ring |
| 6 | 16078-P06-A00 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 12 | 16411-P06-A00 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 4 | 16620-P28-A01 | Pipe assy. - FUEL | Pipe assy. - FUEL |
| 5 | 16638-PH3-S00 | Insulator - FUEL PIPE | Insulator - FUEL PIPE |
| 2 | 16680-PCX-003 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 2 | 16680-PE7-661 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 3 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 6 | 16740-P05-A01 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 7 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 9 | 17105-P08-004 | Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS) | Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS) |
| 8 | 17153-P05-A00 | Tube - BREATHER | Tube - BREATHER |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 8 | 17232-P04-G00 | Seal - RESONATOR RUBBER | Seal - RESONATOR RUBBER |
| 16 | 17284-PT2-003 | Clamp - TUBE, 44MM | Clamp - TUBE, 44MM |
| 17 | 17316-PH3-003 | Clamp - AIR FLOW TUBE (70) | Clamp - AIR FLOW TUBE (70) |
| 9 | 17574-SE0-000 | Packing - BASE | Packing - BASE |
| 11 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 16 | 17670-S3N-003 | Cap comp. - FUEL FILLER (TOYODA) | Cap comp. - FUEL FILLER (TOYODA) |
| 16 | 17670-SM1-A03 | Cap comp. - FUEL FILLER (STANT) | Cap comp. - FUEL FILLER (STANT) |
| 29 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 4 | 17814-SR3-000 | Spring - ACCELERATOR RETURN | Spring - ACCELERATOR RETURN |
| 10 | 17934-SH3-000 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 3 | 18115-P00-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 3 | 18115-P00-004 | Gasket - EX. MANIFOLD (ISHINO GASKET) | Gasket - EX. MANIFOLD (ISHINO GASKET) |
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 24 | 18231-SR3-J01 | Bolt a - FLEXIBLE JOINT | Bolt a - FLEXIBLE JOINT |
| 26 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 4 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 4 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 11 | 19510-P01-003 | Clamp - STARTER CABLE | Clamp - STARTER CABLE |
| 13 | 19511-PA6-003 | Clip - WATER HOSE(CHUO SPRING) | Clip - WATER HOSE(CHUO SPRING) |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 14 | 19519-P08-013 | Clamp - WATER HOSE | Clamp - WATER HOSE |
| 3 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 3 | 21211-P20-020 | Plate - OIL GUTTER | Plate - OIL GUTTER |
| 4 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 3 | 22810-P20-005 | Bearing - CLUTCH RELEASE (NSK) | Bearing - CLUTCH RELEASE (NSK) |
| 5 | 22825-PX5-A00 | Bolt - RELEASE FORK | Bolt - RELEASE FORK |
| 6 | 22835-P20-010 | Spring - RELEASE FORK SETTING | Spring - RELEASE FORK SETTING |
| 7 | 22841-P20-000 | Boot - RELEASE FORK | Boot - RELEASE FORK |
| 2 | 23261-PL3-000 | Shaft - REVERSE GEAR | Shaft - REVERSE GEAR |
| 2 | 23421-P20-A00 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 7 | 23521-P20-315 | Sleeve set - SYNCHRONIZER (1-2) | Sleeve set - SYNCHRONIZER (1-2) |
| 5 | 23540-P20-000 | Gear comp - REVERSE IDLE | Gear comp - REVERSE IDLE |
| 7 | 23623-P20-315 | Sleeve set - SYNCHRONIZER (3-4) | Sleeve set - SYNCHRONIZER (3-4) |
| 8 | 23626-PL3-325 | Sleeve set - SYNCHRONIZER (5) | Sleeve set - SYNCHRONIZER (5) |
| 8 | 23811-P36-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 9 | 23820-P00-000 | Gear comp - SPEEDOMETER | Gear comp - SPEEDOMETER |
| 8 | 23912-P20-010 | Collar - DISTANCE, 33X39X32 | Collar - DISTANCE, 33X39X32 |
| 9 | 23915-P20-000 | Collar - DISTANCE, 27X34X32X50.4 | Collar - DISTANCE, 27X34X32X50.4 |
| 9 | 23926-PB6-010 | Washer - SPRING, 22MM | Washer - SPRING, 22MM |
| 10 | 23927-PL3-000 | Washer - SPRING, 36MM | Washer - SPRING, 36MM |
| 11 | 23928-PL3-000 | Washer - 26MM | Washer - 26MM |
| 1 | 24200-PL3-010 | Fork - FIFTH GEARSHIFT | Fork - FIFTH GEARSHIFT |
| 2 | 24210-P20-A00 | Fork comp - GEARSHIFT (3-4) | Fork comp - GEARSHIFT (3-4) |
| 3 | 24220-P20-010 | Fork comp - SHIFT (1-2) | Fork comp - SHIFT (1-2) |
| 4 | 24230-P20-000 | Holder comp - REVERSE SHIFT | Holder comp - REVERSE SHIFT |
| 5 | 24243-P20-000 | Piece - FIFTH & REVERSE SHIFT | Piece - FIFTH & REVERSE SHIFT |
| 6 | 24261-P20-000 | Shaft - SHIFT FORK (1-2) | Shaft - SHIFT FORK (1-2) |
| 7 | 24271-P20-000 | Shaft - FIFTH & REVERSE SHIFT FORK | Shaft - FIFTH & REVERSE SHIFT FORK |
| 1 | 24311-PL3-020 | Rod - SHIFT | Rod - SHIFT |
| 1 | 24313-PF5-000 | Clip - CHANGE JOINT PIN | Clip - CHANGE JOINT PIN |
| 2 | 24316-P20-000 | Boot - SHIFT ROD | Boot - SHIFT ROD |
| 3 | 24351-P20-010 | Shaft - SHIFT ARM B | Shaft - SHIFT ARM B |
| 4 | 24411-P20-000 | Arm a - SHIFT | Arm a - SHIFT |
| 5 | 24421-PL3-000 | Arm b - SHIFT | Arm b - SHIFT |
| 6 | 24422-PL3-000 | Arm c - SHIFT | Arm c - SHIFT |
| 7 | 24430-PL3-010 | Interlock comp. | Interlock comp. |
| 8 | 24432-PL3-010 | Retainer - REVERSE SELECT | Retainer - REVERSE SELECT |
| 9 | 24433-P20-000 | Bolt - INTERLOCK | Bolt - INTERLOCK |
| 10 | 24440-PL3-000 | Cam comp - REVERSE LOCK | Cam comp - REVERSE LOCK |
| 11 | 24452-P20-000 | Spring - BALL SETTING | Spring - BALL SETTING |
| 8 | 24455-PG1-300 | Spring - SHIFT FORK SETTING | Spring - SHIFT FORK SETTING |
| 9 | 24455-PG2-A10 | Spring - FORK SET BALL | Spring - FORK SET BALL |
| 12 | 24456-P20-000 | Spring - SELECT SET BALL | Spring - SELECT SET BALL |
| 13 | 24461-PB6-000 | Collar - SPRING | Collar - SPRING |
| 14 | 24464-PL3-010 | Spring - FIRST-SECOND SELECT | Spring - FIRST-SECOND SELECT |
| 15 | 24465-P20-000 | Spring - REVERSE SELECT | Spring - REVERSE SELECT |
| 16 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 3 | 31204-PJ7-903 | Gear assy. - PINION (MITSUBA) | Gear assy. - PINION (MITSUBA) |
| 13 | 31251-PJ7-904 | Tube - LABYRINTH (###) | Tube - LABYRINTH (###) |
| 14 | 31252-PD2-006 | Rubber - BUSH (MITSUBA) | Rubber - BUSH (MITSUBA) |
| 2 | 31512-SR3-000 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 3 | 31513-SR3-000 | Bolt - BATTERY SETTING | Bolt - BATTERY SETTING |
| 6 | 32113-P01-000 | Stay comp - R. COUPLER | Stay comp - R. COUPLER |
| 3 | 32113-SR3-A00 | Stay - L. COUPLER | Stay - L. COUPLER |
| 4 | 32114-SR3-000 | Bracket - RADIO EARTH | Bracket - RADIO EARTH |
| 5 | 32115-P01-000 | Stay - ENGINE WIRE HARNESS CLAMP | Stay - ENGINE WIRE HARNESS CLAMP |
| 8 | 32127-P05-A00 | Holder comp - HARNESS | Holder comp - HARNESS |
| 6 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 8 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 1 | 32147-SF1-003 | Connector - DIODE(3P) | Connector - DIODE(3P) |
| 2 | 32148-SF1-003 | Rubber - SEAL | Rubber - SEAL |
| 7 | 32414-SR3-000 | Clamp a - STARTER CABLE | Clamp a - STARTER CABLE |
| 8 | 32416-SR3-A00 | Clamp c - STARTER CABLE | Clamp c - STARTER CABLE |
| 1 | 32502-SM4-003 | Fuse - F7.5) (LITTEL | Fuse - F7.5) (LITTEL |
| 2 | 32503-SM4-003 | Fuse - F10) (LITTEL | Fuse - F10) (LITTEL |
| 3 | 32504-SM4-003 | Fuse - F15)(LITTEL | Fuse - F15)(LITTEL |
| 4 | 32505-SM4-003 | Fuse - F20) (LITTEL | Fuse - F20) (LITTEL |
| 5 | 32507-SM4-003 | Fuse - F30) (LITTEL | Fuse - F30) (LITTEL |
| 10 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 11 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 11 | 32744-P05-A01 | Clamp d - ENGINE HARNESS (BLACK) | Clamp d - ENGINE HARNESS (BLACK) |
| 12 | 32746-P05-A00 | Clamp f - ENGINE HARNESS (GRAY) | Clamp f - ENGINE HARNESS (GRAY) |
| 13 | 32752-P01-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 6 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 10 | 32766-P07-000 | Clamp b - HIGH TENSION CORD | Clamp b - HIGH TENSION CORD |
| 22 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 23 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 5 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 6 | 35600-P20-003 | Switch assy - BACK UP LIGHT | Switch assy - BACK UP LIGHT |
| 13 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
| 15 | 36151-P05-A00 | Stay - PURGE CONTROL TUBE | Stay - PURGE CONTROL TUBE |
| 18 | 36455-PT3-A01 | Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) | Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
| 3 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 14 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 11 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 12 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 13 | 37870-PJ7-003 | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) | Sensor assy, WATER TEMP (TW5) (MATSUSHITA) |
| 11 | 37880-P05-A00 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 13 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 1 | 38608-SA5-000 | Rubber - MOUNTING | Rubber - MOUNTING |
| 2 | 38609-SA5-000 | Collar - DISTANCE | Collar - DISTANCE |
| 1 | 38801-P06-006 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 2 | 38810-P76-016 | Compressor comp. - HADSYS | Compressor comp. - HADSYS |
| 3 | 38829-P06-006 | Nut | Nut |
| 4 | 38900-P06-006 | Clutch set - COMPRESSOR | Clutch set - COMPRESSOR |
| 5 | 38908-P06-016 | Protector set - THERMAL | Protector set - THERMAL |
| 6 | 38912-P06-006 | Shim set | Shim set |
| 7 | 38913-P06-006 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 8 | 38914-P06-006 | Circlip - EXTERNAL, 35MM | Circlip - EXTERNAL, 35MM |
| 10 | 38924-P06-006 | Coil set - SOLENOID | Coil set - SOLENOID |
| 11 | 38926-PM3-000 | Stay - IDLE PULLEY | Stay - IDLE PULLEY |
| 1 | 38930-P06-A00 | Bracket - COMPRESSOR | Bracket - COMPRESSOR |
| 12 | 38942-P01-003 | Pulley comp - IDLE | Pulley comp - IDLE |
| 13 | 38944-P02-000 | Collar - IDLE PULLEY | Collar - IDLE PULLEY |
| 14 | 38945-P01-000 | Cover - BEARING | Cover - BEARING |
| 15 | 38946-P01-000 | Bolt - IDLE PULLEY | Bolt - IDLE PULLEY |
| 3 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 21 | 39797-SE0-004 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 5 | 44310-SH3-960 | Joint comp - INBOARD | Joint comp - INBOARD |
| 6 | 44310-SH3-970 | Joint comp - INBOARD | Joint comp - INBOARD |
| 1 | 44348-SR3-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 2 | 46070-SL0-G01 | Plate - SYMBOL MARK | Plate - SYMBOL MARK |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 9 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 13 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 25 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 26 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 21 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 16 | 46530-SR3-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 22 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 23 | 46907-SR3-000 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 7 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 10 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 11 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 12 | 46930-SR3-013 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 13 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 14 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 15 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 16 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 17 | 46937-SR3-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 18 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 20 | 46950-SL4-003 | Rod assy - PUSH | Rod assy - PUSH |
| 21 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 22 | 46953-SD4-003 | Packing | Packing |
| 25 | 46966-SR3-A00 | Holder - TANK | Holder - TANK |
| 27 | 46971-SR3-A00 | Tube - CLUTCH FLUID | Tube - CLUTCH FLUID |
| 28 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 29 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 30 | 46975-SD4-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 8 | 50820-SR3-003 | Rubber assy. ENGINE SIDE MOUNTING | Rubber assy. ENGINE SIDE MOUNTING |
| 13 | 51811-SR3-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 14 | 51821-SR3-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 9 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 19 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 5 | 53720-SP0-010 | Pipe comp | Pipe comp |
| 6 | 53721-SM4-013 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 27 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 9 | 53731-SR3-950 | Tube - POWER STEERING SUCTION | Tube - POWER STEERING SUCTION |
| 11 | 53733-SR3-951 | Tube - POWER STEERING OIL TANK | Tube - POWER STEERING OIL TANK |
| 4 | 54105-692-010 | Washer - THRUST | Washer - THRUST |
| 5 | 54107-SA0-010 | Bush, RR. JOINT | Bush, RR. JOINT |
| 1 | 54113-611-505 | CLIP, SHIFT JOINT | CLIP, SHIFT JOINT |
| 9 | 54114-SB2-000 | Collar - PIPE MOUNTING | Collar - PIPE MOUNTING |
| 11 | 54117-SH3-000 | Collar - RR. JOINT | Collar - RR. JOINT |
| 14 | 54303-SF4-000 | Rubber - EXTENSION END | Rubber - EXTENSION END |
| 19 | 54309-SH3-000 | Collar - EXTENSION END | Collar - EXTENSION END |
| 1 | 56110-P02-020 | Pump sub assy - POWER STEERING | Pump sub assy - POWER STEERING |
| 2 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 3 | 56483-P0A-003 | Pulley comp - POWER STEERING PUMP | Pulley comp - POWER STEERING PUMP |
| 6 | 56996-P01-000 | Bolt - POWER STEERING PUMP ADJUSTING WING | Bolt - POWER STEERING PUMP ADJUSTING WING |
| 7 | 66405-SD4-000 | Stay - GLOVE BOX HINGE | Stay - GLOVE BOX HINGE |
| 8 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 3 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 21 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 4 | 73127-SR3-003 | Holder - FR. WINDSHIELD GLASS | Holder - FR. WINDSHIELD GLASS |
| 18 | 74172-SR3-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 17 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 26 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 18 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 11 | 75411-634-000 | Joint | Joint |
| 27 | 75450-SM4-000 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 28 | 75525-SD4-013 | Clip - RR. PANEL GARNISH | Clip - RR. PANEL GARNISH |
| 15 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 16 | 78410-SV4-003 | Sensor assy - SPEED (MATSUSHITA) | Sensor assy - SPEED (MATSUSHITA) |
| 17 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 2 | 79710-SR3-A01 | Valve assy. Water | Valve assy. Water |
| 3 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 5 | 80116-SR3-000 | Seal - R. CONDENSER | Seal - R. CONDENSER |
| 6 | 80117-SR3-000 | Seal - L. CONDENSER | Seal - L. CONDENSER |
| 7 | 80151-SR3-013 | Motor - COOLING FAN | Motor - COOLING FAN |
| 8 | 80152-SR3-013 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 9 | 80161-SR3-000 | Shroud comp. - CONDENSER FAN | Shroud comp. - CONDENSER FAN |
| 10 | 80162-SR3-000 | Protector - FAN MOTOR | Protector - FAN MOTOR |
| 11 | 80174-SR3-000 | Mount - R. CONDENSER | Mount - R. CONDENSER |
| 12 | 80175-SR3-000 | Mount - L. CONDENSER | Mount - L. CONDENSER |
| 13 | 80176-SR3-000 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 14 | 80177-SR3-003 | Mount - CONDENSER LOWER | Mount - CONDENSER LOWER |
| 11 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 15 | 80271-SR3-A00 | Hose - DRAIN | Hose - DRAIN |
| 16 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 19 | 80286-SR3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 20 | 80287-SR3-000 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 21 | 80288-SR3-000 | Seal - EVAPORATOR JOINT | Seal - EVAPORATOR JOINT |
| 13 | 80352-SR3-000 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 14 | 80362-SR3-A00 | Clamp - SUCTION HOSE | Clamp - SUCTION HOSE |
| 15 | 80363-SR3-A00 | Stay - SUCTION HOSE | Stay - SUCTION HOSE |
| 16 | 80364-SR3-A00 | Stay - SUCTION PIPE | Stay - SUCTION PIPE |
| 17 | 80367-SR3-A00 | Clamp b - SUCTION PIPE | Clamp b - SUCTION PIPE |
| 15 | 80373-SR3-000 | Bracket - DISCHARGE HOSE | Bracket - DISCHARGE HOSE |
| 18 | 80387-SM4-A01 | Clip - RECEIVER PIPE | Clip - RECEIVER PIPE |
| 16 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 25 | 80463-SR3-A00 | Bracket - AIR CONDITIONER WIRE HARNESS | Bracket - AIR CONDITIONER WIRE HARNESS |
| 26 | 80464-SR3-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 28 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 19 | 80865-ST0-003 | Cap h - VALVE (NICHIRIN) | Cap h - VALVE (NICHIRIN) |
| 21 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 22 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 23 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 2 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 20 | 83431-SA4-000 | Cushion - FR. TRUNK | Cushion - FR. TRUNK |
| 3 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 19 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 15 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 32 | 90001-SH3-000 | Bolt - FLANGE, 10X13 | Bolt - FLANGE, 10X13 |
| 13 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 10 | 90003-P03-000 | Bolt-washer - 6X26 | Bolt-washer - 6X26 |
| 8 | 90004-P30-000 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 20 | 90005-PM3-003 | Bolt-washer - 10X140 (SAGA) | Bolt-washer - 10X140 (SAGA) |
| 17 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 8 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 18 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 18 | 90011-PG6-004 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 8 | 90011-PM0-000 | Bolt - 12MM | Bolt - 12MM |
| 18 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 8 | 90015-634-010 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 12 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 9 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 15 | 90017-P01-003 | Bolt-washer - 14X29 | Bolt-washer - 14X29 |
| 13 | 90020-PE0-000 | Bolt - STUD, 8X28 | Bolt - STUD, 8X28 |
| 17 | 90021-P01-000 | Bolt - FLANGE, 8X85 | Bolt - FLANGE, 8X85 |
| 18 | 90023-P01-000 | Bolt - FLANGE, 8X105 | Bolt - FLANGE, 8X105 |
| 30 | 90023-PK1-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 30 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 22 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 10 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 18 | 90029-PL3-010 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 19 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 19 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 10 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 23 | 90041-P07-000 | Bolt - STUD, 10X81 | Bolt - STUD, 10X81 |
| 19 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 25 | 90042-P72-000 | Bolt - STUD, 10X81 | Bolt - STUD, 10X81 |
| 24 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 18 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 19 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 11 | 90065-PG6-000 | Bolt, STUD, 10X24 | Bolt, STUD, 10X24 |
| 20 | 90078-PR3-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
| 7 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 8 | 90081-PL3-000 | Screw - SEALING, 32MM | Screw - SEALING, 32MM |
| 19 | 90082-PL3-000 | Plug - 28MM | Plug - 28MM |
| 9 | 90083-P20-000 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 20 | 90091-P07-A01 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
| 20 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
| 20 | 90091-PE2-000 | Bolt-washer - 5X25 | Bolt-washer - 5X25 |
| 9 | 90101-SE0-010 | Bolt assy. b - BUMPER | Bolt assy. b - BUMPER |
| 16 | 90101-SE3-003 | Bolt-washer - 8X23.5 | Bolt-washer - 8X23.5 |
| 28 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 39 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 21 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 20 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 20 | 90108-SR3-951 | Bolt - GEAR BOX MOUNTING (10X65) | Bolt - GEAR BOX MOUNTING (10X65) |
| 10 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 31 | 90110-679-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 15 | 90112-SE0-000 | Bolt - FR. STABILIZER | Bolt - FR. STABILIZER |
| 12 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 27 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 21 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 16 | 90118-SR3-003 | Bolt - SELF-LOCK, 12X76 | Bolt - SELF-LOCK, 12X76 |
| 17 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 27 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 27 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 25 | 90126-SM4-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 11 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 10 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 31 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 15 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 12 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 14 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 13 | 90131-ST7-000 | Bolt - L. FR. STOPPER | Bolt - L. FR. STOPPER |
| 15 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 14 | 90133-SR3-010 | Bolt - R. FR. STOPPER | Bolt - R. FR. STOPPER |
| 26 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 11 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 32 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 17 | 90154-SD4-003 | Bolt - EARTH, 6X20 | Bolt - EARTH, 6X20 |
| 33 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 34 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 15 | 90161-SR3-000 | Bolt - FLANGE, 14X107 | Bolt - FLANGE, 14X107 |
| 17 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 18 | 90166-SR3-000 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 20 | 90167-ST7-000 | Bolt - FLANGE, 10X60 | Bolt - FLANGE, 10X60 |
| 21 | 90175-SH3-005 | Bolt - SHOCK ABSORBER FORK | Bolt - SHOCK ABSORBER FORK |
| 21 | 90176-SK7-013 | Bolt - FLANGE, 10X31 | Bolt - FLANGE, 10X31 |
| 22 | 90182-SR3-000 | Bolt - FLANGE, 12X112 | Bolt - FLANGE, 12X112 |
| 23 | 90183-SR3-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 24 | 90188-SR3-010 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 25 | 90190-SR3-000 | Bolt - FLANGE, 12X64 | Bolt - FLANGE, 12X64 |
| 12 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 10 | 90202-PB6-010 | Nut - FLANGE, 22MM | Nut - FLANGE, 22MM |
| 12 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 12 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 35 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 22 | 90213-SR3-013 | Nut - SELF-LOCK, 14MM | Nut - SELF-LOCK, 14MM |
| 23 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 29 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 17 | 90305-692-010 | Nut | Nut |
| 9 | 90305-P0A-003 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 30 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 26 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
| 19 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 21 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 11 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 29 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 15 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 24 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 12 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 26 | 90365-ST7-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 27 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 28 | 90372-SR3-003 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 14 | 90380-SB2-003 | Nut - SELF-LOCK (OHASHI) | Nut - SELF-LOCK (OHASHI) |
| 29 | 90380-SR3-000 | Bolt - STUD, 12X57.6 | Bolt - STUD, 12X57.6 |
| 26 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 21 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 20 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 35 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 21 | 90430-657-000 | Washer - 23X8.3X3.2 | Washer - 23X8.3X3.2 |
| 13 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 30 | 90504-SR3-010 | Washer - FR. STOPPER | Washer - FR. STOPPER |
| 31 | 90505-SB2-000 | Washer - SIDE MOUNTING | Washer - SIDE MOUNTING |
| 32 | 90505-SR3-000 | Washer - RR. BRACKET, 14MM | Washer - RR. BRACKET, 14MM |
| 16 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 17 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
| 31 | 90551-SH3-000 | Washer - 24X10X2.3 | Washer - 24X10X2.3 |
| 10 | 90601-P01-003 | Clip - ADJUST BOLT | Clip - ADJUST BOLT |
| 11 | 90603-PL3-000 | Ring - SNAP, 52MM | Ring - SNAP, 52MM |
| 16 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 16 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 11 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 17 | 90654-SR3-003 | Clip - STEERING JOINT COVER | Clip - STEERING JOINT COVER |
| 31 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 36 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 22 | 90659-PG6-000 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 30 | 90664-SB3-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 31 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 31 | 90668-SC5-003 | Clip A - AIRSCOOP GRILLE | Clip A - AIRSCOOP GRILLE |
| 24 | 90672-SJ4-013 | Holder - ROD | Holder - ROD |
| 12 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 28 | 90683-693-000 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 17 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 31 | 90688-SB0-013 | Clip b | Clip b |
| 27 | 90692-SK8-003 | Clip - TRUNK OPENER CABLE | Clip - TRUNK OPENER CABLE |
| 28 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 16 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
| 6 | 90852-671-003 | Plug - HOLE | Plug - HOLE |
| 12 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
| 11 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 14 | 91104-P20-008 | Bearing - NEEDLE, 36X41X25.5 | Bearing - NEEDLE, 36X41X25.5 |
| 15 | 91105-P20-008 | Bearing - NEEDLE, 39X44X27 | Bearing - NEEDLE, 39X44X27 |
| 13 | 91106-PL3-008 | Bearing - NEEDLE, 34X39X23 | Bearing - NEEDLE, 34X39X23 |
| 14 | 91107-PL3-018 | Bearing - NEEDLE, 34X39X27.5 | Bearing - NEEDLE, 34X39X27.5 |
| 15 | 91108-PL3-008 | Bearing - NEEDLE, 32X37X23.5 (NTN) | Bearing - NEEDLE, 32X37X23.5 (NTN) |
| 12 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 13 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 12 | 91205-PL3-A01 | Oil seal - 35X56X8 (ARAI) | Oil seal - 35X56X8 (ARAI) |
| 12 | 91205-PL3-A02 | Oil seal - 35X56X8(NOK) | Oil seal - 35X56X8(NOK) |
| 10 | 91206-PL3-A01 | Oil seal - 35X62X8 (ARAI) | Oil seal - 35X62X8 (ARAI) |
| 10 | 91206-PL3-A02 | Oil seal - 35X62X8 (NOK) | Oil seal - 35X62X8 (NOK) |
| 16 | 91211-PL3-T01 | Damper - FRICTION (LOW) | Damper - FRICTION (LOW) |
| 15 | 91212-P01-003 | Oil seal - 31X46X7 (NOK) | Oil seal - 31X46X7 (NOK) |
| 17 | 91212-P20-008 | Damper - FRICTION (SECOND) | Damper - FRICTION (SECOND) |
| 20 | 91213-PE1-722 | Oil seal - 29X45X8 (NOK) | Oil seal - 29X45X8 (NOK) |
| 29 | 91214-PE1-721 | Oil seal - 80X100X10 (NOK) | Oil seal - 80X100X10 (NOK) |
| 29 | 91214-PLE-003 | Oil seal | Oil seal |
| 13 | 91215-PL3-005 | Oil seal - 14X25X15 (NOK) | Oil seal - 14X25X15 (NOK) |
| 14 | 91216-PL3-005 | Oil seal - 26X42X7 (NOK) | Oil seal - 26X42X7 (NOK) |
| 14 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 23 | 91301-671-671 | O-ring - 1.9X11 | O-ring - 1.9X11 |
| 12 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 12 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 23 | 91303-HA0-004 | O-ring, 11x1.9 (nok) | O-ring, 11x1.9 (nok) |
| 17 | 91303-KE7-003 | O-ring - 7.2X1.7 (ARAI) | O-ring - 7.2X1.7 (ARAI) |
| 13 | 91303-PK2-005 | O-ring (7.5X1.5) | O-ring (7.5X1.5) |
| 12 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 14 | 91307-PJ7-003 | O-ring - 9.5X1.5 (MATSUSHITA) | O-ring - 9.5X1.5 (MATSUSHITA) |
| 14 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 15 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 15 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 16 | 91308-PK1-003 | O-ring - 26.2X2.4 (NOK) | O-ring - 26.2X2.4 (NOK) |
| 17 | 91312-107-000 | O-ring (7x1.7) | O-ring (7x1.7) |
| 13 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
| 16 | 91314-634-000 | O-ring | O-ring |
| 15 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 9 | 91324-PC6-000 | O-ring - 20.6X2.6 | O-ring - 20.6X2.6 |
| 16 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 17 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 18 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 19 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 20 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
| 17 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 17 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 18 | 91405-PE0-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 18 | 91417-SZ3-003 | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) |
| 22 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 13 | 91506-SR3-003 | Clip - TUBE WASHER (NATURAL) | Clip - TUBE WASHER (NATURAL) |
| 23 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 13 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 13 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 34 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 28 | 91515-SR3-000 | Clip - RR. HOOD | Clip - RR. HOOD |
| 14 | 91516-SK7-013 | Clip - UNDER COVER | Clip - UNDER COVER |
| 29 | 91520-SM4-C01 | Clip - HOOD SEAL RUBBER | Clip - HOOD SEAL RUBBER |
| 19 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 14 | 91533-SR3-003 | Clip - INSULATOR (NATURAL) | Clip - INSULATOR (NATURAL) |
| 15 | 91533-SR4-000 | Fastener d - WINDSHIELD GLASS | Fastener d - WINDSHIELD GLASS |
| 27 | 91536-SR3-003 | Clip - SUCTION PIPE (BLACK) | Clip - SUCTION PIPE (BLACK) |
| 29 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 37 | 91546-SR3-003 | Clamp - 16.5 | Clamp - 16.5 |
| 38 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 19 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 9 | 91549-SR3-003 | Clamp - 24MM-35MM | Clamp - 24MM-35MM |
| 20 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 24 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 22 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 26 | 91557-SR3-003 | Clip - WIRE HARNESS PROTECTOR (RED) | Clip - WIRE HARNESS PROTECTOR (RED) |
| 39 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 19 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 19 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 12 | 91567-SE0-003 | Band - WIRE HARNESS(WHITE) (93.5MM) | Band - WIRE HARNESS(WHITE) (93.5MM) |
| 28 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 30 | 91572-SR3-003 | Clip - PROTECTOR | Clip - PROTECTOR |
| 30 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 41 | 91597-SH3-Y01 | Clamp - VENT TUBE (BLACK) | Clamp - VENT TUBE (BLACK) |
| 30 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 15 | 91617-SB6-000 | Grommet - WASHER HOSE, 32MM | Grommet - WASHER HOSE, 32MM |
| 40 | 91619-SA5-000 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
| 17 | 91631-SR3-000 | Plug - AIR CONDITIONER HOLE | Plug - AIR CONDITIONER HOLE |
| 34 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 35 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 17 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
| 17 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 35 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 33 | 91771-SH3-000 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
| 36 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| 24 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
