Air cleaner (1) 1 / 26

#	OEM	EH8	S04
25	91405-PH7-003	Clamp - TUBE (D15)	Clamp - TUBE (D15)

Air conditioner (COMPRESSOR; 6) 6 / 22

#	OEM	EH8	S04
12	38930-P06-A00	Bracket - COMPRESSOR	Bracket - COMPRESSOR
13	38942-P01-003	Pulley comp - IDLE	Pulley comp - IDLE
14	38944-P02-000	Collar - IDLE PULLEY	Collar - IDLE PULLEY
15	38945-P01-000	Cover - BEARING	Cover - BEARING
16	38946-P01-000	Bolt - IDLE PULLEY	Bolt - IDLE PULLEY
18	90021-P01-000	Bolt - FLANGE, 8X85	Bolt - FLANGE, 8X85

Air conditioner (CONDENSER) 5 / 22

#	OEM	EH8	S04
10	80162-SR3-000	Protector - FAN MOTOR	Protector - FAN MOTOR
13	80176-SR3-000	Rubber - CONDENSER MOUNTING	Rubber - CONDENSER MOUNTING
14	80177-SR3-003	Mount - CONDENSER LOWER	Mount - CONDENSER LOWER
19	90078-PR3-000	Screw - PAN, 4X8	Screw - PAN, 4X8
21	90659-PG6-000	Clip - WIRE HARNESS	Clip - WIRE HARNESS

Air conditioner (COOLING UNIT; 4) 4 / 37

#	OEM	EH8	S04
27	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
28	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
31	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
32	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24

Air conditioner (HOSES/PIPES; 2) 4 / 19

#	OEM	EH8	S04
2	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
14	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
15	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
18	80865-ST0-003	Cap h - VALVE (NICHIRIN)	Cap h - VALVE (NICHIRIN)

Auto radio 1 / 6

#	OEM	EH8	S04
18	91551-SE0-003	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7

Battery (2) 5 / 18

#	OEM	EH8	S04
4	31521-SR3-000	Box assy - BATTERY	Box assy - BATTERY
5	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
5	31542-SA5-664	Plug - VENT (MF) (YUASA)	Plug - VENT (MF) (YUASA)
13	90130-SR3-003	Bolt - 5X13	Bolt - 5X13
16	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Brake lines (2) 4 / 24

#	OEM	EH8	S04
30	46462-SE0-000	Bolt - OIL	Bolt - OIL
31	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
34	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
37	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Bumpers (1) 1 / 12

#	OEM	EH8	S04
4	71113-SH2-000	Nut - LICENSE PLATE	Nut - LICENSE PLATE

Camshaft/timing belt (1) 2 / 21

#	OEM	EH8	S04
11	14210-PM3-000	Pulley comp - TIMING BELT DRIVEN	Pulley comp - TIMING BELT DRIVEN
20	91213-PE1-722	Oil seal - 29X45X8 (NOK)	Oil seal - 29X45X8 (NOK)

Clutch housing 28 / 32

#	OEM	EH8	S04
2	21103-PL3-A00	Plate c - OIL GUIDE	Plate c - OIL GUIDE
4	41100-P20-A01	Case comp. - DIFFERENTIAL	Case comp. - DIFFERENTIAL
5	41233-PL3-A00	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
6	41312-PL3-A00	Gear - SPEEDOMETER DRIVE	Gear - SPEEDOMETER DRIVE
7	41456-PL3-A00	Shim r - 72MM(1.65)	Shim r - 72MM(1.65)
7	41451-PL3-A00	Shim l - 72MM(1.15)	Shim l - 72MM(1.15)
7	41446-PL3-A00	Shim f - 72MM(1.5)	Shim f - 72MM(1.5)
7	41457-PL3-A00	Shim s - 72MM(1.75)	Shim s - 72MM(1.75)
7	41441-PL3-A00	Shim a - 72MM(1.0)	Shim a - 72MM(1.0)
7	41452-PL3-A00	Shim m - 72MM(1.25)	Shim m - 72MM(1.25)
7	41447-PL3-A00	Shim g - 72MM(1.6)	Shim g - 72MM(1.6)
7	41442-PL3-A00	Shim b - 72MM(1.1)	Shim b - 72MM(1.1)
7	41453-PL3-A00	Shim n - 72MM(1.35)	Shim n - 72MM(1.35)
7	41448-PL3-A00	Shim h - 72MM(1.7)	Shim h - 72MM(1.7)
7	41443-PL3-A00	Shim c - 72MM(1.2)	Shim c - 72MM(1.2)
7	41454-PL3-A00	Shim p - 72MM(1.45)	Shim p - 72MM(1.45)
7	41449-PL3-A00	Shim j - 72MM(1.8)	Shim j - 72MM(1.8)
7	41444-PL3-A00	Shim d - 72MM(1.3)	Shim d - 72MM(1.3)
7	41455-PL3-A00	Shim q - 72MM(1.55)	Shim q - 72MM(1.55)
7	41450-PL3-A00	Shim k - 72MM(1.05)	Shim k - 72MM(1.05)
7	41445-PL3-A00	Shim e - 72MM(1.4)	Shim e - 72MM(1.4)
8	90015-634-010	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
9	91002-PL3-A04	Bearing - BALL, 6205UC/26 (NTN)	Bearing - BALL, 6205UC/26 (NTN)
10	91005-PL0-008	Bearing - SEALED BALL, 6207 (NTN)	Bearing - SEALED BALL, 6207 (NTN)
11	91101-PL3-A02	Bearing - NEEDLE, 30X47X21 (NTN)	Bearing - NEEDLE, 30X47X21 (NTN)
12	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
13	91215-PL3-005	Oil seal - 14X25X15 (NOK)	Oil seal - 14X25X15 (NOK)
13	91215-PL3-003	Oil seal - 14X25X15 (ARAI)	Oil seal - 14X25X15 (ARAI)

Clutch master cylinder (2) 22 / 35

#	OEM	EH8	S04
1	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
3	46151-SA5-003	Yoke comp. - NISSIN	Yoke comp. - NISSIN
5	46182-500-013	Circlip	Circlip
7	46912-SD4-000	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
11	46926-SF1-003	Piston assy.	Piston assy.
12	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER	Seal - CLUTCH MASTER CYLINDER
13	46930-SR3-013	Cylinder assy. - SLAVE	Cylinder assy. - SLAVE
14	46932-SD4-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
15	46933-SD4-013	Cup a - PISTON	Cup a - PISTON
16	46934-SD4-003	Cup b - PISTON	Cup b - PISTON
17	46935-SP0-000	Spring - SLAVE CYLINDER	Spring - SLAVE CYLINDER
18	46937-SR3-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
19	46938-SD4-003	Rod - PUSH	Rod - PUSH
20	46950-SL4-003	Rod assy - PUSH	Rod assy - PUSH
21	46952-SD4-003	Joint - TUBE	Joint - TUBE
22	46953-SD4-003	Packing	Packing
28	46972-SD4-003	Tank - CLUTCH FLUID	Tank - CLUTCH FLUID
29	46973-SD4-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
35	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
36	90851-SH4-K00	Plug - HOLE, 9MM	Plug - HOLE, 9MM
37	90851-SR3-981	Plug - HOLE, 38MM	Plug - HOLE, 38MM

Clutch release 3 / 14

#	OEM	EH8	S04
3	22810-P20-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)	Bearing - CLUTCH RELEASE (FUJIKOSHI)
11	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
13	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Clutch/torque converter 6 / 13

#	OEM	EH8	S04
9	90011-PM0-000	Bolt - 12MM	Bolt - 12MM
10	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
12	90429-PJ7-900	Washer - 40X85X2	Washer - 40X85X2
13	91006-634-008	Bearing - CLUTCH PILOT (NTN)	Bearing - CLUTCH PILOT (NTN)
14	91302-639-000	O-ring - 32X1.9	O-ring - 32X1.9

Console 6 / 16

#	OEM	EH8	S04
1	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
5	83406-SR4-J00	Hinge comp - ARMREST	Hinge comp - ARMREST
23	90137-SH3-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
24	90144-SP0-000	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
26	90651-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
27	90666-SD4-003	Clip - FITTING	Clip - FITTING

Control lever (1) 2 / 21

#	OEM	EH8	S04
20	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
22	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Control unit (CABIN; 2) 2 / 12

#	OEM	EH8	S04
20	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)
23	90670-SG0-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (ENGINE ROOM; 2) 2 / 11

#	OEM	EH8	S04
9	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
12	90130-SR3-003	Bolt - 5X13	Bolt - 5X13

Countershaft 3 / 17

#	OEM	EH8	S04
1	23221-P20-A41	Countershaft	Countershaft
5	23471-P20-A00	Gear - COUNTERSHAFT THIRD	Gear - COUNTERSHAFT THIRD
13	91006-PL3-A03	Bearing - BALL, 25X52X15 (6205UC/25) (NTN)	Bearing - BALL, 25X52X15 (6205UC/25) (NTN)

Crankshaft/piston 28 / 48

#	OEM	EH8	S04
3	13014-PD1-S20	Washer set - THRUST (TAIHO)	Washer set - THRUST (TAIHO)
3	13014-PD1-S10	Washer set - THRUST (DAIDO)	Washer set - THRUST (DAIDO)
6	13112-PE0-000	Pin - PISTON	Pin - PISTON
7	13204-PE1-003	Bolt	Bolt
8	13205-634-010	Nut	Nut
11	13621-PM3-013	Pulley - TIMING BELT DRIVE (HITACHI)	Pulley - TIMING BELT DRIVE (HITACHI)
16	90017-P01-003	Bolt-washer - 14X29	Bolt-washer - 14X29
19	13217-PE0-004	Bearing g - CONNECTING ROD (RED) (TAIHO)	Bearing g - CONNECTING ROD (RED) (TAIHO)
19	13213-PE0-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
19	13215-PE0-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
19	13211-PE0-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
19	13216-PE0-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)	Bearing f - CONNECTING ROD (PINK) (DAIDO)
19	13212-PE0-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
19	13214-PE0-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
19	13217-PE0-003	Bearing g - CONNECTING ROD (RED) (DAIDO)	Bearing g - CONNECTING ROD (RED) (DAIDO)
19	13215-PE0-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
19	13211-PE0-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
19	13213-PE0-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
19	13214-PE0-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
19	13216-PE0-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)	Bearing f - CONNECTING ROD (PINK) (TAIHO)
19	13212-PE0-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
20	13323-PE0-662	Bearing c - MAIN (BROWN) (DAIDO)	Bearing c - MAIN (BROWN) (DAIDO)
20	13326-PE0-662	Bearing f - MAIN (PINK) (DAIDO)	Bearing f - MAIN (PINK) (DAIDO)
20	13327-PE0-662	Bearing g - MAIN (RED) (DAIDO)	Bearing g - MAIN (RED) (DAIDO)
20	13321-PE0-662	BEARING A - MAIN (BLUE) (DAIDO)	BEARING A - MAIN (BLUE) (DAIDO)
20	13324-PE0-662	Bearing d - MAIN (GREEN) (DAIDO)	Bearing d - MAIN (GREEN) (DAIDO)
20	13322-PE0-662	Bearing b - MAIN (BLACK) (DAIDO)	Bearing b - MAIN (BLACK) (DAIDO)
20	13325-PE0-662	Bearing e - MAIN (YELLOW) (DAIDO)	Bearing e - MAIN (YELLOW) (DAIDO)

Cylinder block/oil pan 3 / 26

#	OEM	EH8	S04
18	90008-PM0-003	Bolt-washer - 10X112	Bolt-washer - 10X112
22	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
30	90702-PE0-000	Dowel pin - 12X18	Dowel pin - 12X18

Emblems 1 / 7

#	OEM	EH8	S04
8	75700-SR3-000	Emblem - CENTER (H)	Emblem - CENTER (H)

Engine wire harness/clamp (1) 8 / 30

#	OEM	EH8	S04
18	32752-P01-000	Stay b - ENGINE WIRE HARNESS	Stay b - ENGINE WIRE HARNESS
21	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
21	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
24	90050-PG7-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
26	90130-SR3-003	Bolt - 5X13	Bolt - 5X13
27	90430-657-000	Washer - 23X8.3X3.2	Washer - 23X8.3X3.2
30	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
32	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Exhaust pipe (1) 7 / 17

#	OEM	EH8	S04
14	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
17	18213-SR3-A21	Stay - EX. MOUNTING	Stay - EX. MOUNTING
20	18215-SH3-J01	Rubber - EX. MOUNTING (70X55X30)	Rubber - EX. MOUNTING (70X55X30)
21	18215-SR3-000	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
22	18215-671-000	Rubber - SILENCER MOUNTING (74X53X22)	Rubber - SILENCER MOUNTING (74X53X22)
45	90117-SB2-000	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
46	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Front brake (1) 7 / 29

#	OEM	EH8	S04
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
4	44300-S04-004	Bearing assy - FR. HUB (KOYO SEIKO)	Bearing assy - FR. HUB (KOYO SEIKO)
11	45216-SR3-003	Piston	Piston
11	45216-S5A-003	Piston	Piston
20	45251-SR3-A10	Disk - FR. BRAKE	Disk - FR. BRAKE
25	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
26	90681-SR3-A10	Circlip - SPECIAL INTERNAL, 73MM	Circlip - SPECIAL INTERNAL, 73MM

Front bulkhead 1 / 3

#	OEM	EH8	S04
41	90852-671-003	Plug - HOLE	Plug - HOLE

Front door locks 5 / 28

#	OEM	EH8	S04
6	72116-SR4-J02	Switch assy	Switch assy
14	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
33	90101-SR4-003	Screw - 3X10	Screw - 3X10
37	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
38	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Front door windows 4 / 16

#	OEM	EH8	S04
9	72246-SR3-003	Stopper - DOOR GLASS	Stopper - DOOR GLASS
21	90120-SE3-003	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
22	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
23	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Front driveshaft/ half shaft 4 / 22

#	OEM	EH8	S04
9	44319-S04-300	Set ring - 26X1.8	Set ring - 26X1.8
9	44319-SR1-003	Set ring - 26X1.8 (GKN)	Set ring - 26X1.8 (GKN)
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
28	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)

Front fenders 4 / 11

#	OEM	EH8	S04
14	90126-SR4-000	Screw-washer - 5X16	Screw-washer - 5X16
16	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
17	91512-SM4-003	Clip - INNER FENDER	Clip - INNER FENDER
18	91516-SK7-013	Clip - UNDER COVER	Clip - UNDER COVER

Front seat components 5 / 13

#	OEM	EH8	S04
1	77208-SA5-003	Bush - NYLON (TS TECH)	Bush - NYLON (TS TECH)
6	81261-SH4-A21	Cap - END	Cap - END
11	90128-SR4-003	Bolt-washer - 8X19	Bolt-washer - 8X19
13	90143-SR3-000	Bolt-washer - 10X22	Bolt-washer - 10X22
15	90143-SR3-900	Bolt-washer - 10X22	Bolt-washer - 10X22

Front shock absorber 11 / 24

#	OEM	EH8	S04
6	51621-SB0-004	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)
6	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
7	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
7	51631-S7S-J01	RUBBER DAMPER M	RUBBER DAMPER M
7	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
8	51675-SH3-024	Base - SHOCK ABSORBER MOUNTING (SHOWA)	Base - SHOCK ABSORBER MOUNTING (SHOWA)
9	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
10	51686-SR3-003	Rubber - SPRING MOUNTING (SHOWA)	Rubber - SPRING MOUNTING (SHOWA)
11	51687-SR3-003	Cover - FR. SLEEVE DUST (SHOWA)	Cover - FR. SLEEVE DUST (SHOWA)
12	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
13	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP

Front stabilizer/ front lower arm 1 / 26

#	OEM	EH8	S04
3	51308-SR3-000	Holder - R. FR. STABILIZER	Holder - R. FR. STABILIZER

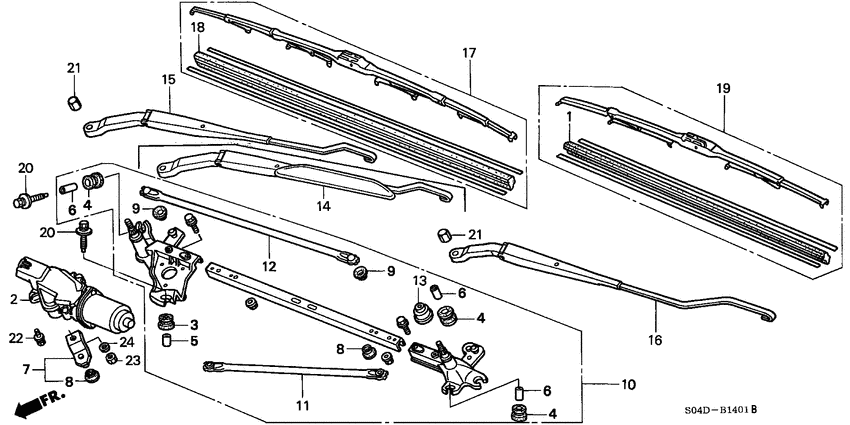

Front windshield wiper (2) 2 / 24

#	OEM	EH8	S04
19	76630-SH3-E11	Blade	Blade
19	76630-SF4-315	New Genuine Part	New Genuine Part

Fuel pipe (1) 1 / 20

#	OEM	EH8	S04
47	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Fuel tank (1) 6 / 33

#	OEM	EH8	S04
7	17521-SR3-000	Band assy. - R. FUEL TANK MOUNTING	Band assy. - R. FUEL TANK MOUNTING
8	17522-SR3-000	Band assy. - L. FUEL TANK MOUNTING	Band assy. - L. FUEL TANK MOUNTING
10	17525-SR3-000	Bolt - FUEL TANK MOUNTING	Bolt - FUEL TANK MOUNTING
10	17525-SR3-305	Bolt	Bolt
13	17653-SH7-000	Tube - BREATHER	Tube - BREATHER
19	17728-SM4-G00	Chamber - FUEL VENT AIR (BLACK)	Chamber - FUEL VENT AIR (BLACK)

Grommet 7 / 20

#	OEM	EH8	S04
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM	Cap - FLOOR HOLE, 24MM
2	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
5	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
7	90850-SH4-K00	Cap - OUTSIDE HOLE	Cap - OUTSIDE HOLE
9	90852-671-003	Plug - HOLE	Plug - HOLE
15	91605-SE3-003	Plug - ID PLATE HOLE, 4.4MM	Plug - ID PLATE HOLE, 4.4MM
21	91631-SR3-000	Plug - AIR CONDITIONER HOLE	Plug - AIR CONDITIONER HOLE

Headlight (1) 7 / 26

#	OEM	EH8	S04
7	33115-SM4-003	Bulb	Bulb
7	33115-SV4-G01	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)
7	33115-SM3-003	Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY)	Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY)
13	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
22	34303-SS1-003	Socket comp - 2P	Socket comp - 2P
23	34304-SH3-A01	Socket comp.	Socket comp.
24	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY

Heater blower 4 / 14

#	OEM	EH8	S04
2	79192-SR3-003	Bush - LINK	Bush - LINK
13	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
14	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
15	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24

Heater control 4 / 24

#	OEM	EH8	S04
20	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
21	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
22	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)
23	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Heater unit 3 / 11

#	OEM	EH8	S04
5	79192-SR3-003	Bush - LINK	Bush - LINK
8	90122-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
10	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16

High tension cord/plug 2 / 6

#	OEM	EH8	S04
15	32777-695-000	Clamp - HIGH TENSION CORD	Clamp - HIGH TENSION CORD
16	90003-P01-000	Bolt-washer - 8X28	Bolt-washer - 8X28

Hood 3 / 24

#	OEM	EH8	S04
1	17706-SC3-003	Clip - FUEL PIPE	Clip - FUEL PIPE
15	74149-SR3-000	Cover - CONDENSER	Cover - CONDENSER
25	91512-SM4-003	Clip - INNER FENDER	Clip - INNER FENDER

Instrument panel (RH) 2 / 12

#	OEM	EH8	S04
27	90666-SD4-003	Clip - FITTING	Clip - FITTING
28	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (RH) 5 / 23

#	OEM	EH8	S04
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
23	90137-SH3-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
25	90144-SP0-000	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
30	90666-SD4-003	Clip - FITTING	Clip - FITTING
31	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Intake manifold (1CARB.) 1 / 20

#	OEM	EH8	S04
16	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Interior light 4 / 9

#	OEM	EH8	S04
3	34252-SB2-003	Lens - DAIICHI	Lens - DAIICHI
12	34295-538-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
12	34295-SD4-003	Bulb - 12V 5W.K	Bulb - 12V 5W.K
13	35409-SD2-003	Screw - EARTH, 4X12 (ZN)	Screw - EARTH, 4X12 (ZN)

Knuckle 1 / 16

#	OEM	EH8	S04
13	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Mainshaft 2 / 15

#	OEM	EH8	S04
3	23441-P20-A00	Gear - MAINSHAFT THIRD	Gear - MAINSHAFT THIRD
12	91004-PL3-A03	Bearing - RADIAL BALL, 22X65X17/18 (NTN)	Bearing - RADIAL BALL, 22X65X17/18 (NTN)

Meter components (NS) 1 / 17

#	OEM	EH8	S04
22	78181-SF1-610	Bulb & socket assy. - 14V 80MA	Bulb & socket assy. - 14V 80MA

Molding 1 / 44

#	OEM	EH8	S04
32	75807-671-010	Nut - SIDE PROTECTOR (BLACK)	Nut - SIDE PROTECTOR (BLACK)

Oil pump/oil strainer 2 / 19

#	OEM	EH8	S04
11	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
11	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)

Parking brake 1 / 10

#	OEM	EH8	S04
14	47572-SR3-010	Base - WIRE GUIDE	Base - WIRE GUIDE

Pedal (2) 11 / 30

#	OEM	EH8	S04
22	46504-ST5-300	Bush - PEDAL	Bush - PEDAL
23	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
25	46535-SM4-000	Collar - PEDAL	Collar - PEDAL
26	46545-SA5-980	Cover - BRAKE PEDAL	Cover - BRAKE PEDAL
27	46545-SH3-000	Cover - PEDAL	Cover - PEDAL
30	46905-SK7-000	Stopper - CLUTCH PEDAL	Stopper - CLUTCH PEDAL
33	46910-SR3-J00	Pedal comp - CLUTCH	Pedal comp - CLUTCH
34	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN
35	46981-SR3-930	Bush a - CLUTCH ASSISTANT	Bush a - CLUTCH ASSISTANT
36	46982-SR3-930	Bush b - CLUTCH ASSISTANT	Bush b - CLUTCH ASSISTANT
37	46990-SR3-000	Bracket - CLUTCH PEDAL	Bracket - CLUTCH PEDAL

Power steering gear box (2) 2 / 25

#	OEM	EH8	S04
3	53434-S04-J51	CLIP, TIE ROD	CLIP, TIE ROD
10	53449-S04-J51	Band b - BELLOWS	Band b - BELLOWS

Power steering gear box components (2) 1 / 33

#	OEM	EH8	S04
9	53449-S04-J51	Band b - BELLOWS	Band b - BELLOWS

Power steering pump 1 / 18

#	OEM	EH8	S04
14	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9

R. side cover (1) 8 / 38

#	OEM	EH8	S04
6	22721-PA9-003	Flange - FEED PIPE	Flange - FEED PIPE
22	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
24	90471-580-000	Packing - 8MM	Packing - 8MM
25	90507-PA9-000	Collar - 8X11	Collar - 8X11
28	90703-PA9-003	Roller - 2X19.8	Roller - 2X19.8
29	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
31	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)
32	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)

Radiator (DENSO) 11 / 16

#	OEM	EH8	S04
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
4	19014-PK1-003	Clip - HARNESS	Clip - HARNESS
5	19015-P08-013	Shroud comp - DENSO	Shroud comp - DENSO
7	19020-P08-003	Fan, COOLING (DENSO)	Fan, COOLING (DENSO)
9	19033-P08-003	Stay - COUPLER (DENSO)	Stay - COUPLER (DENSO)
10	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
11	19046-PV1-000	Seal - CAP	Seal - CAP
13	90042-PH2-003	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator (TOYO) 2 / 17

#	OEM	EH8	S04
11	19045-P08-014	Cap comp. - RADIATOR (T.RAD)	Cap comp. - RADIATOR (T.RAD)
12	19046-PV1-000	Seal - CAP	Seal - CAP

Radiator hose 6 / 23

#	OEM	EH8	S04
9	19501-P08-000	Hose	Hose
12	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)	Clip - WATER HOSE(CHUO SPRING)
13	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)	Clip - WATER HOSE (CHUO SPRING)
14	19519-P08-013	Clamp - WATER HOSE	Clamp - WATER HOSE
23	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
23	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE

Radio antenna/speaker 4 / 11

#	OEM	EH8	S04
12	39154-SR3-003	Packing - ANTENNA BASE (MATSUSHITA)	Packing - ANTENNA BASE (MATSUSHITA)
14	90105-SB6-003	Screw - PAN, 4X12	Screw - PAN, 4X12
15	90502-SA0-003	Washer - WATER PROOF	Washer - WATER PROOF
16	90670-SG0-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Rear brake (DRUM) 13 / 47

#	OEM	EH8	S04
2	42200-S04-008	Bearing assy - RR. HUB UNIT (NTN)	Bearing assy - RR. HUB UNIT (NTN)
6	42610-SB2-010	Drum - RR. BRAKE	Drum - RR. BRAKE
21	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
22	43361-SH3-003	Lever - R. PARKING BRAKE	Lever - R. PARKING BRAKE
23	43362-SC2-003	Rod a - R. CONNECTING	Rod a - R. CONNECTING
27	43366-SC2-013	Lever comp - R. ADJUSTER	Lever comp - R. ADJUSTER
29	43371-SH3-003	Lever - L. PARKING BRAKE	Lever - L. PARKING BRAKE
30	43372-SC2-003	Rod a - L. CONNECTING	Rod a - L. CONNECTING
33	43376-SC2-013	Lever comp - L. ADJUSTER	Lever comp - L. ADJUSTER
35	43379-SC2-013	Washer - WAVE	Washer - WAVE
36	45172-SA0-003	Spring - SHOE CLAMP	Spring - SHOE CLAMP
36	45172-S04-003	Spring - SHOE CLAMP	Spring - SHOE CLAMP
39	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)

Rear door locks 3 / 27

#	OEM	EH8	S04
8	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
33	90101-SR4-003	Screw - 3X10	Screw - 3X10
36	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Rear door windows 1 / 11

#	OEM	EH8	S04
16	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Rear shock absorber 6 / 18

#	OEM	EH8	S04
1	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
2	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
3	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
9	52675-SH3-024	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)
11	52687-SR3-003	Cover - RR. DUST (SHOWA)	Cover - RR. DUST (SHOWA)
13	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP

Rear stabilizer/ rear lower arm 2 / 21

#	OEM	EH8	S04
1	46438-SH3-A03	Bracket - R. RR. BRAKE HOSE (DRUM)	Bracket - R. RR. BRAKE HOSE (DRUM)
2	46439-SH3-A03	Bracket - L. RR. BRAKE HOSE (DRUM)	Bracket - L. RR. BRAKE HOSE (DRUM)

Select lever (2) 5 / 40

#	OEM	EH8	S04
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
43	90301-SD5-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
48	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
49	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
50	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Shift lever 4 / 24

#	OEM	EH8	S04
14	54201-SR3-A01	Rod comp - CHANGE	Rod comp - CHANGE
16	54303-SF4-000	Rubber - EXTENSION END	Rubber - EXTENSION END
17	54304-SH3-020	Bracket - EXTENSION	Bracket - EXTENSION
21	54309-SH3-000	Collar - EXTENSION END	Collar - EXTENSION END

Speed sensor 1 / 4

#	OEM	EH8	S04
2	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)	Joint - SPEED SENSOR (MATSUSHITA)

Switch (2) 2 / 7

#	OEM	EH8	S04
11	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)	Bulb - NEO WEDGE (14V 60MA) (TEC)
16	90666-SD4-003	Clip - FITTING	Clip - FITTING

Taillight 4 / 32

#	OEM	EH8	S04
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
37	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
38	34911-634-611	Bulb - 12V 21/5W) (ECE) (STANLEY	Bulb - 12V 21/5W) (ECE) (STANLEY
42	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Tire/wheel disks 14 / 21

#	OEM	EH8	S04
6	42753-SH3-003	Valve - RIM (US PACIFIC)	Valve - RIM (US PACIFIC)
6	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
9	44724-SF1-A01	Weight - BALANCE (40G) (YAMATE)	Weight - BALANCE (40G) (YAMATE)
9	44722-SF1-A01	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
9	44728-SF1-A01	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
9	44723-SF1-A01	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
9	44726-SF1-A01	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
9	44729-SF1-A01	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
9	44721-SF1-A01	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
9	44727-SF1-A01	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
9	44730-SF1-A01	Weight - BALANCE (45G) (YAMATE)	Weight - BALANCE (45G) (YAMATE)
21	44738-SB6-801	Retainer - ALUMINIUM CENTER CAP	Retainer - ALUMINIUM CENTER CAP
23	83850-SH3-000	Plate - ANCHOR BOLT	Plate - ANCHOR BOLT
27	90381-SL5-901	Nut - WHEEL(FUSE RASHI)	Nut - WHEEL(FUSE RASHI)

Tools/jack 1 / 10

#	OEM	EH8	S04
5	89216-SF4-000	Wrench - PLUG	Wrench - PLUG

Torque converter housing (1) 3 / 26

#	OEM	EH8	S04
11	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
13	90471-580-000	Packing - 8MM	Packing - 8MM
17	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)

Transmission housing 42 / 53

#	OEM	EH8	S04
5	23967-PL3-A10	Shim ak - 65MM (1.68)	Shim ak - 65MM (1.68)
5	23952-PL3-A10	Shim v - 65MM (1.23)	Shim v - 65MM (1.23)
5	23936-PL3-A10	Shim f - 65MM (0.75)	Shim f - 65MM (0.75)
5	23947-PL3-A10	Shim q - 65MM (1.08)	Shim q - 65MM (1.08)
5	23931-PL3-A10	Shim a - 65MM (0.60)	Shim a - 65MM (0.60)
5	23963-PL3-A10	Shim ag - 65MM (1.56)	Shim ag - 65MM (1.56)
5	23958-PL3-A10	Shim ab - 65MM (1.41)	Shim ab - 65MM (1.41)
5	23942-PL3-A10	Shim l - 65MM (0.93)	Shim l - 65MM (0.93)
5	23968-PL3-A10	Shim al - 65MM (1.71)	Shim al - 65MM (1.71)
5	23953-PL3-A10	Shim w - 65MM (1.26)	Shim w - 65MM (1.26)
5	23937-PL3-A10	Shim g - 65MM (0.78)	Shim g - 65MM (0.78)
5	23948-PL3-A10	Shim r - 65MM (1.11)	Shim r - 65MM (1.11)
5	23932-PL3-A10	Shim b - 65MM (0.63)	Shim b - 65MM (0.63)
5	23959-PL3-A10	Shim ac - 65MM (1.44)	Shim ac - 65MM (1.44)
5	23943-PL3-A10	Shim m - 65MM (0.96)	Shim m - 65MM (0.96)
5	23969-PL3-A10	Shim am - 65MM (1.74)	Shim am - 65MM (1.74)
5	23954-PL3-A10	Shim x - 65MM (1.29)	Shim x - 65MM (1.29)
5	23938-PL3-A10	Shim h - 65MM (0.81)	Shim h - 65MM (0.81)
5	23964-PL3-A10	Shim ah - 65MM (1.59)	Shim ah - 65MM (1.59)
5	23949-PL3-A10	Shim s - 65MM (1.14)	Shim s - 65MM (1.14)
5	23933-PL3-A10	Shim c - 65MM (0.66)	Shim c - 65MM (0.66)
5	23960-PL3-A10	Shim ad - 65MM (1.47)	Shim ad - 65MM (1.47)
5	23944-PL3-A10	Shim n - 65MM (0.99)	Shim n - 65MM (0.99)
5	23970-PL3-A10	Shim an - 65MM (1.77)	Shim an - 65MM (1.77)
5	23955-PL3-A10	Shim y - 65MM (1.32)	Shim y - 65MM (1.32)
5	23939-PL3-A10	Shim i - 65MM (0.84)	Shim i - 65MM (0.84)
5	23965-PL3-A10	Shim ai - 65MM (1.62)	Shim ai - 65MM (1.62)
5	23950-PL3-A10	Shim t - 65MM (1.17)	Shim t - 65MM (1.17)
5	23934-PL3-A10	Shim d - 65MM (0.69)	Shim d - 65MM (0.69)
5	23961-PL3-A10	Shim ae - 65MM (1.50)	Shim ae - 65MM (1.50)
5	23945-PL3-A10	Shim o - 65MM (1.02)	Shim o - 65MM (1.02)
5	23971-PL3-A10	Shim ao - 65MM (1.80)	Shim ao - 65MM (1.80)
5	23956-PL3-A10	Shim z - 65MM (1.35)	Shim z - 65MM (1.35)
5	23940-PL3-A10	Shim j - 65MM (0.87)	Shim j - 65MM (0.87)
5	23966-PL3-A10	Shim aj - 65MM (1.65)	Shim aj - 65MM (1.65)
5	23951-PL3-A10	Shim u - 65MM (1.20)	Shim u - 65MM (1.20)
5	23935-PL3-A10	Shim e - 65MM (0.72)	Shim e - 65MM (0.72)
5	23962-PL3-A10	Shim af - 65MM (1.53)	Shim af - 65MM (1.53)
5	23946-PL3-A10	Shim p - 65MM (1.05)	Shim p - 65MM (1.05)
5	23957-PL3-A10	Shim aa - 65MM (1.38)	Shim aa - 65MM (1.38)
5	23941-PL3-A10	Shim k - 65MM (0.90)	Shim k - 65MM (0.90)
10	91206-PL3-A01	Oil seal - 35X62X8 (ARAI)	Oil seal - 35X62X8 (ARAI)

Tubing (1) 1 / 9

#	OEM	EH8	S04
8	36027-P01-G01	Clamp - TUBE (7.5MM-11.5MM)	Clamp - TUBE (7.5MM-11.5MM)

Water pump/thermostat 2 / 16

#	OEM	EH8	S04
7	19315-P08-010	Cover, Outlet	Cover, Outlet
9	19500-PE0-000	Joint, Tube	Joint, Tube

Water valve 6 / 9

#	OEM	EH8	S04
4	79722-SR3-000	Hose b, WATER IN.	Hose b, WATER IN.
6	79731-SR3-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
7	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8	91549-SR3-003	Clamp - 24MM-35MM	Clamp - 24MM-35MM
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Wire harness (2) 7 / 39

#	OEM	EH8	S04
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
18	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)	Seal b - FR. DOOR HOLE (30X50)
24	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
26	91547-SH3-003	Clip - BAND(NATURAL)(160MM)	Clip - BAND(NATURAL)(160MM)
30	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
33	91557-SR3-003	Clip - WIRE HARNESS PROTECTOR (RED)	Clip - WIRE HARNESS PROTECTOR (RED)
42	91786-SR3-003	Bar - JOINT (10P)	Bar - JOINT (10P)
